Graphic and Product Design Portfolio

2024

PORTFOLIO GRAPHIC AND PRODUCT DESIGN

WHAT’S INSIDE?

01 EXPERIENCE

02

03

04

05

06

Experience Product and Graphic Designer (Full time) The Gift Scholars.

I worked for all premier league football clubs and others worldwide, major UK theme parks and zoos. My main taks included creating techpacks and artwork (product mockups and graphics)

My Experience as Product and Graphic Designer - The Gift Scholars

The Process

Artwork

Techpacks

Sales Create Design Brief Brand Guidelines

No

Check with Management

Brief Start No

Check with management.

(Can we manufacture this product?)

Yes - But no mockps/ templates available

Product Range Mockups

Recheck brief and contact sales

Complete PDF artwork and submit.

The client chooses products to order from the artwork

None available (find the closest resemblance online and work from that)

Techpack brief is created by production team.

Recheck Brand Guidelines

Review and send to production team

Find Techpack Templates Create new product mockup template and target to the requested brand.

Start Techpack

Create product ortographic, check and confirm materials, application processes, packaging, labels, barcodes, prices, country of manufacture etc.

Teckpack Development • Ensured graphics and typography complied with brand guidelines.

• Created orthographics for products, detailing materials, measurements, manufacturing methods, packaging, labels, and barcodes etc • Coordinated with the Production Team for material specifications, barcodes, and pricing.

• Developed techpack templates for consistent branding across different products.

• Designed sewn-in labels and packaging (ex: swing tags) according to brand specifications.

• Prepared support files for factory reference in addition to the techpacks already produced.

Mockup

Packaging (ex: swing tags)

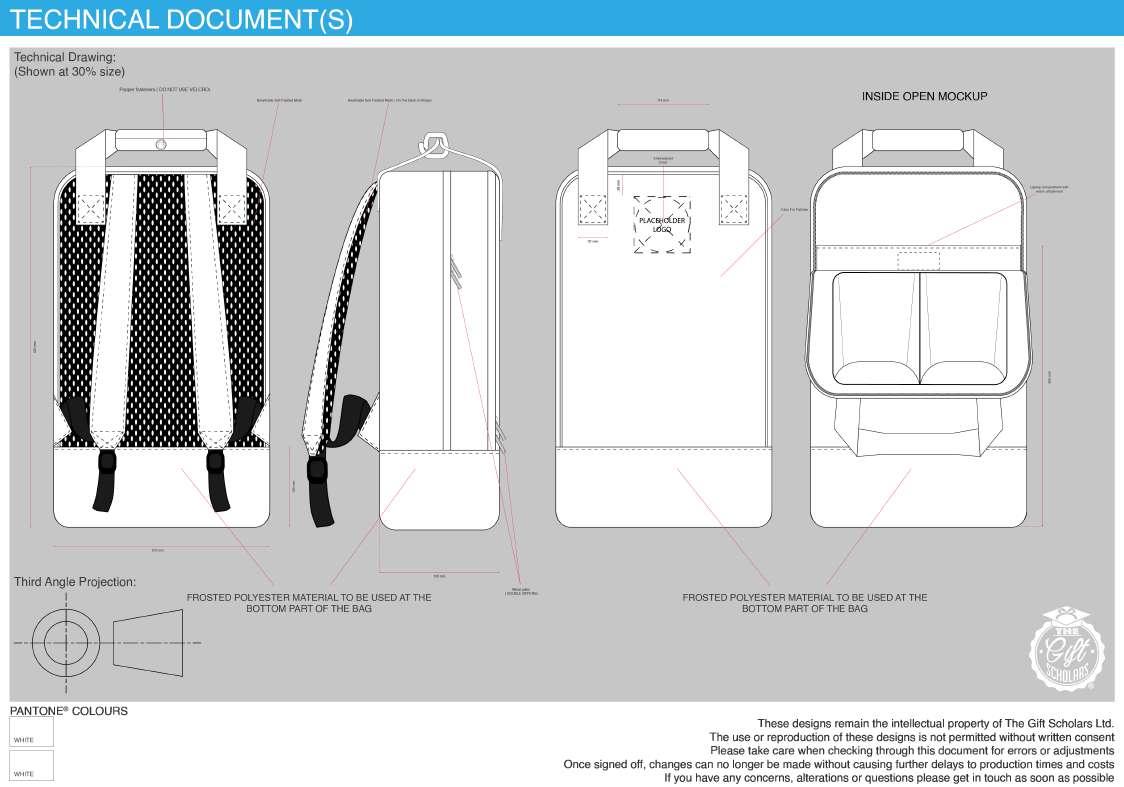

Techpack Template Example for a Backpack

Product Ortographic

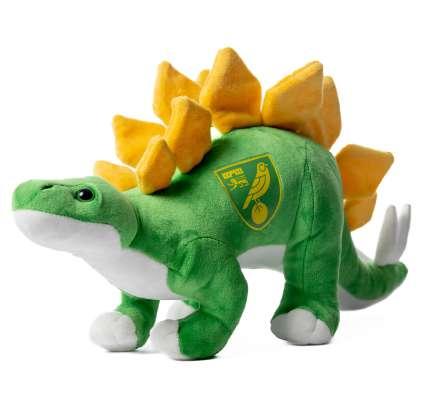

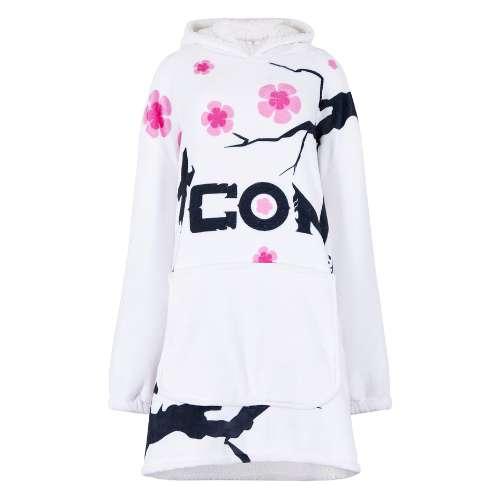

The Products Product examples for: • Bedding • Luggage • Plush • Toys (Remote Cars) Online Calogue shows the various products that were available to order:

Leeds United Football Club

https://www.thegiftscholars.com/catalogues

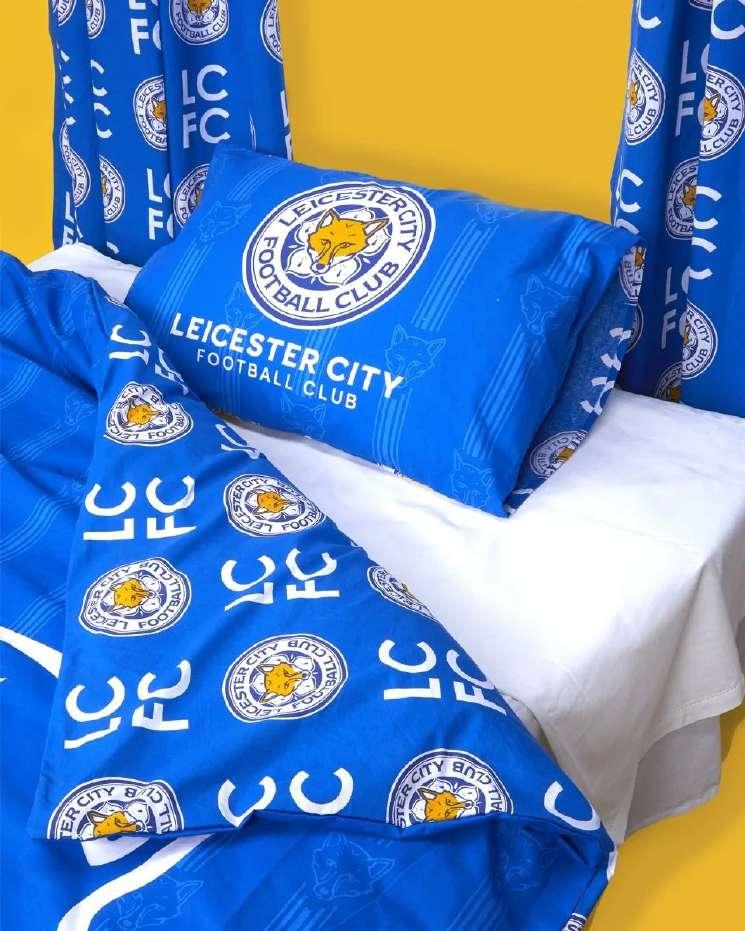

Leicester City Football Club Norwich City Football Club

Tottenham Hotspurs Football Club

West Ham United Football Club

Blackpool Pleasure Beach

Graphics Development • Created new sports graphics based on current trends for annual catalog updates.

• Applied brand concepts and graphics to products.

• Created unique and additional graphics suitable for available products.

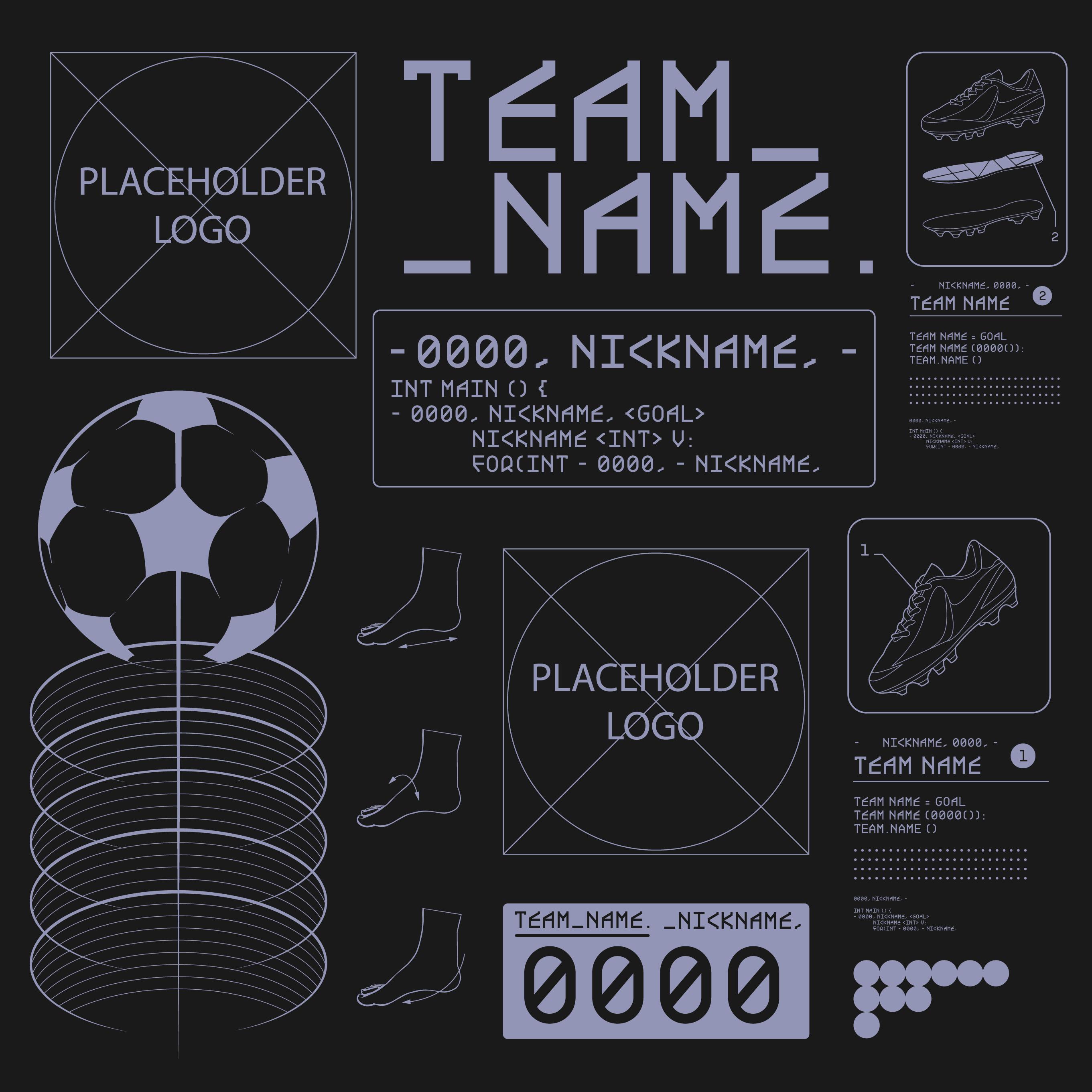

Graphic template example

Lorem ipsum

Patterns Development Developed detailed patterns for bedding and luggage.

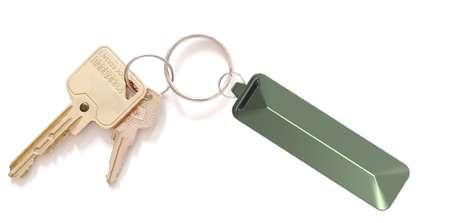

Aura is a jewellery piece that can contact your loved ones or any other emergency contacts in an abusive/ emergency situation.

Designed not to be recognised as a distress panic button and not conforming to the homogeneous and obvious design of panic alarm/buttons available in the market.

Following jewellery and accessory trends.

Motivations “45% to 55% of women have experienced sexual harassment in the European Union” (UN Women 2021) “Whether at home, or the streets, violence against women and girls is a human rights violation of pandemic proportions that takes place in public and private spaces”(UN Women 2021) “Female college students reported having experienced sexual assault or misconduct, but harm targeting women and girls knows no bounds.”(UN News 2019)

Design Brief “To design a portable wearable security accessory for women, (18-30) from abuse (sexual violence ) to contact help as well as make women feel more ”

“Women who identify with the LGBTI community are particularly vulnerable to gender-based harm.”(UN News 2019) “In 2018 66% of girls aged told us they had experienced unwanted sexual attention or harassment in a public place.” (Plan International 2021)

Contact form

Sexual Violence

Sexual Harassment Non contact from Focus Point

• • • •

Rubbing Sexual grabbing and (UN Women 2021) touching Pinching Slapping

•

Rape

• • • • •

Sexual Comments Stalking (UN Women 2021) Path Blocking Suggestive Staring Sexual favours demand

Trends

Why jewellery?

Unique properties of jewellery like the materials, style, fashion can encourage innovative directions for the design of wearable technology and interactive accessories.

(Tsaknaki, V. Fernaeus, Y. Jonsson, M. 2015)

Abstract Notions Geometric Shapes.

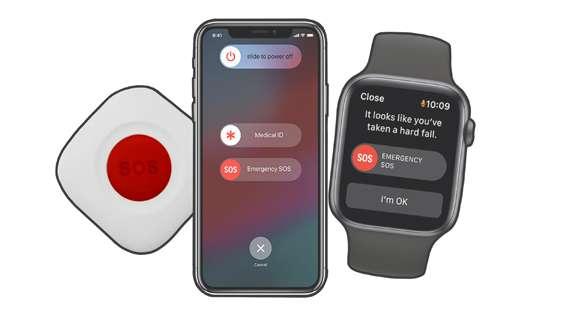

Current day solutions are NOT DISCREET ENOUGH The design language conveys “alert” “emergency”.

Wearable Tech Innovative, healing and modular.

Modular Design Practical and functional design.

Chains Continue to be key hardware direction, continuing to dominate luxury and jewellery. Open loop chains.

Jade green Will be a key colour for jewellery, accessories and fashion (particularly womenswear).

R-127 G-147 B-117 (WGSN 2021) (Condé Nast 2021)

CMF

Contrast Contrast between smooth and angular edges - conveying feelings of being approachable but also purposeful and simple.

Balance forms, but at the same time being discreet and not recognised as a security product.

Metal Finish essence of quality, premium feel.

Clean Interaction Unobstructed and undistracted design.

1

Connect app to Aura

Connect the app to Aura through Bluetooth, insert personal details, medical information, select emergency contacts that are desired to receive an SOS text message alert.

4

Light Alert

White LED light appears and alerts the user that an SOS text emergency has been sent if the user at the time is not able to reach the phone.

2

Make Test Alert

information is sent, and right emergency contacts are contacted.

5

continuous press (4 seconds) in the button.

3

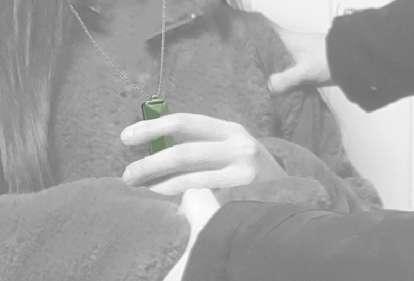

Quick Double Press Distress Button

In in an abuse situation, a quick double press into the distress button will send SOS text emergency alert with a link with user location, personal details and medical information to selected emergency contacts.

6

Emergency Arrives

Emergency arrives and action is taken from there.

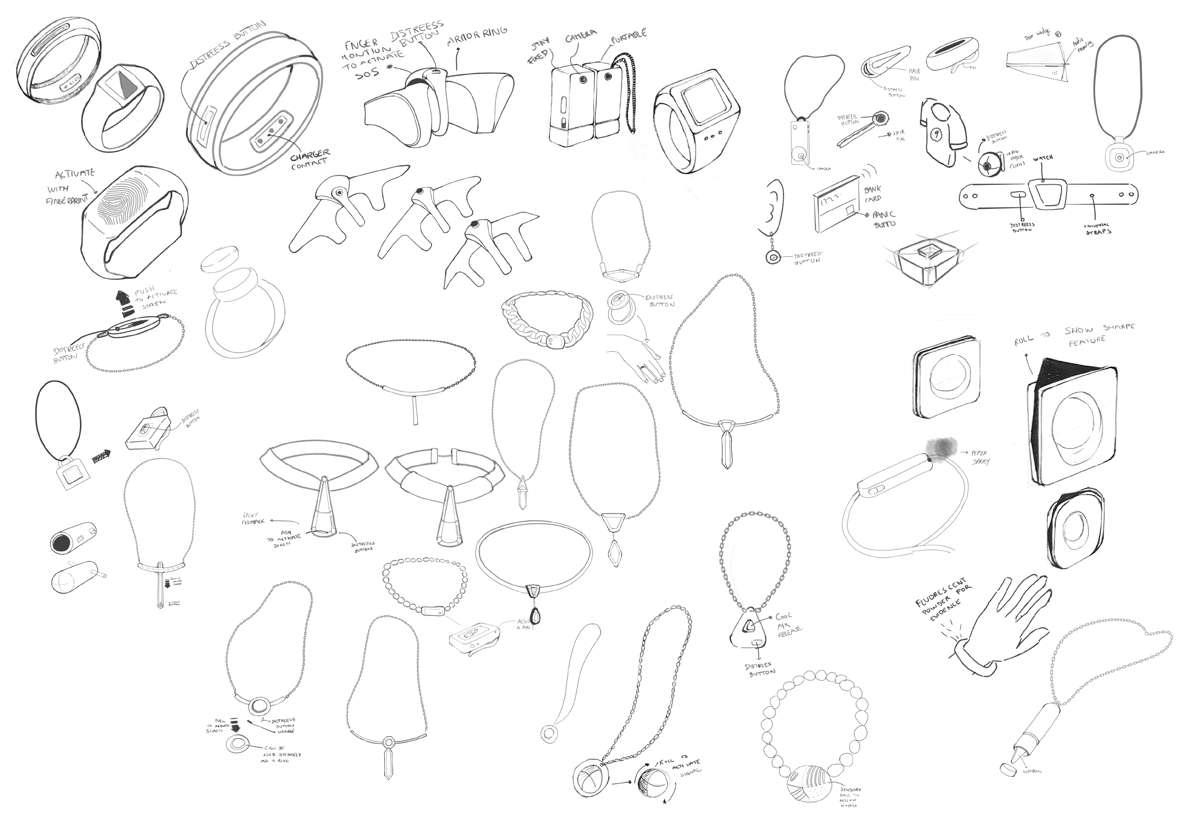

Ideation Working in groups comments were created in regards to which features could be developed further and what other aspects should be considered.

“Can be accidently activated” “Contact multiple people” Can take to long to get out and use” “Technology close to ears might be dangerous” small products.”

“Discreet packaging and charging” “With the camera will product be tradable” “Think costs, materials and “Subjectivity, maybe a range for style” “Keep in sync with jewellery trends” “Fidgeting to calm down” “Smells, sounds, textures” “Keep designs less bulky”

“Concealed weapons legally (what is legal)” “Can be too dangerous to use” “Self- help application” “Can help fear and anxiety also”

Rapid Prototyping

95th%

190mm

85mm

Easier to press and The “Matinee” size discreet with button (508 mm) would press at the middle. be the ideal size. It is the medium size.

In terms of user experience, it would be easier to reach than for say the “Princess” size or “Opera” size.

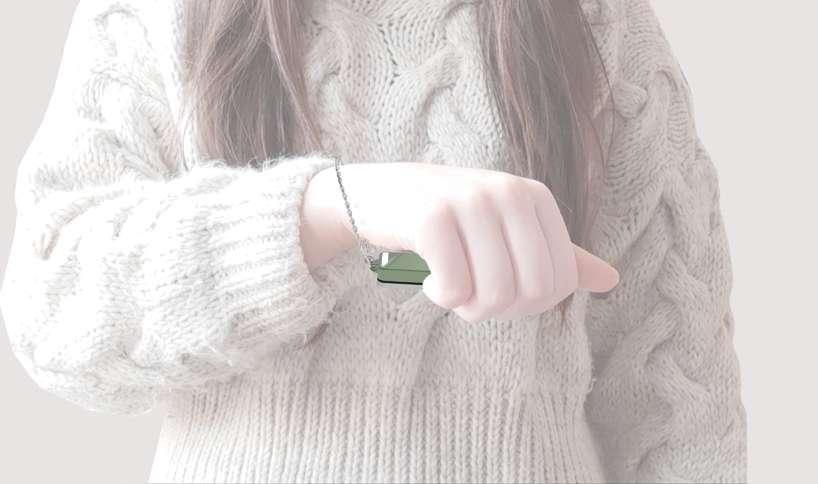

Used as a pendant in bracelet. Can be used single handed if arm is being blocked.

Button at the back

Light Placement

Easier to press and discreet with a button press at the middle with 15 mm

Light placed from above from a detail on top of the product provided enough visibility to notify the user without being too overpowering (still discreet).

5th% and 95th%.

(Thumb breadth).

5th% 70mm 20mm 70mm

Necklace Size

160mm

Button at the back

Spiga Chain Spiga chain that provides a strong chain link to secure the product made with stainless steel, being able to endure a lot of wear and tear for it’s strength properties and corrosion resistance.

2mm thick and length of 508 mm. (“Matinee” sizeMedium).

Light LED light to alert the user that an alert has been sent. PMMA (acrylic) transparent for the light to pass through easily.

Distress Button Cylinder Box Clasp Box Clasp provides a secure mechanism.

More accessible for users with less dexterity.

Also made with stainless steel able to endure wear, tear, friction and corrosion resistance (can resist sweat).

Distress Button has a to allow for a quick double press and clean interaction.

Distress button with indentation so that is not in direct contact with surface, providing a safe area for the button to not be pressed in inadvertence.

USB Port

Rubber Gasket

USB port with type C connector that can be placed from both sides following the poke-yoke rule.

Split lines - Rubber gasket in between the top cover and back cover to protect the components inside from water and dust with an IP55.

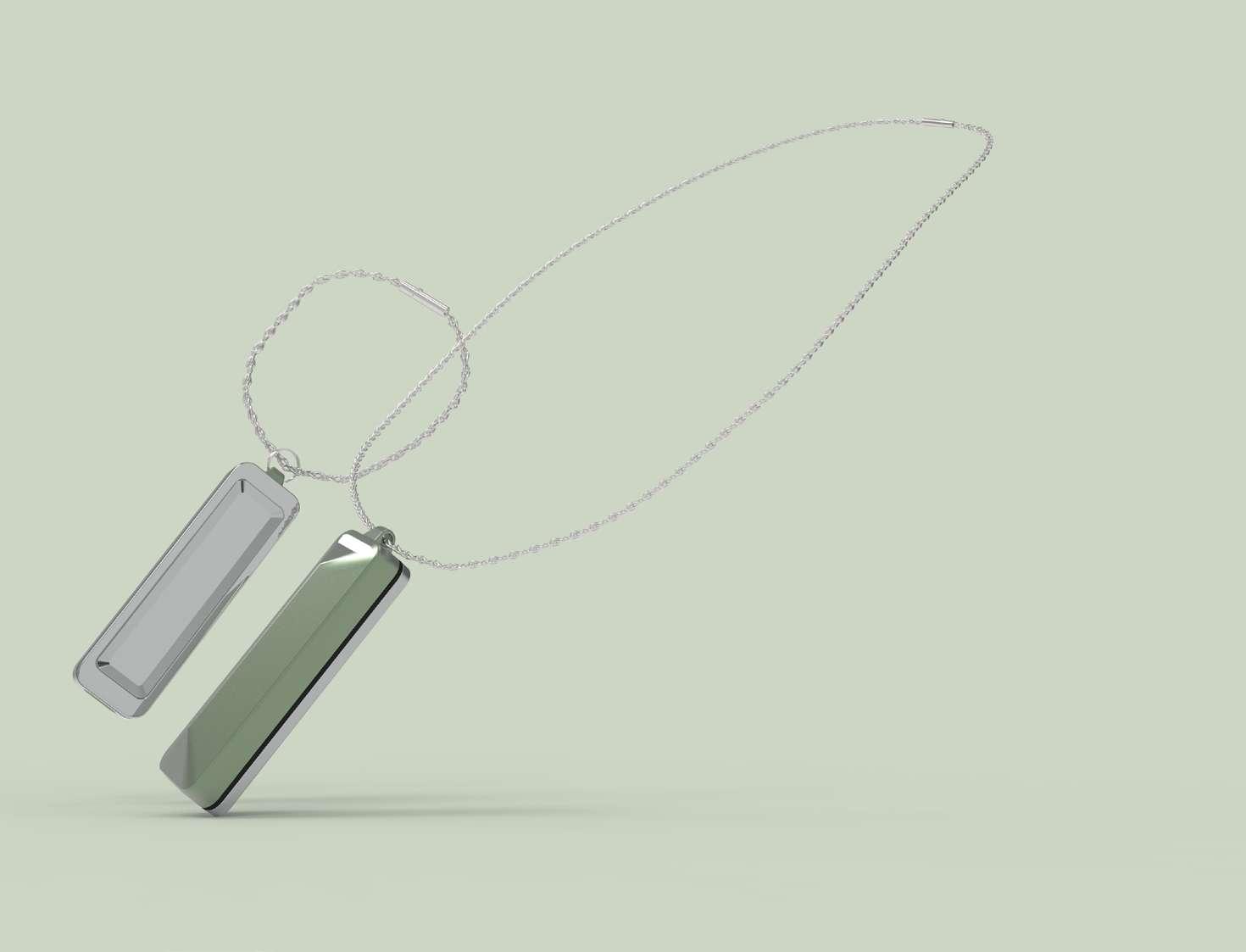

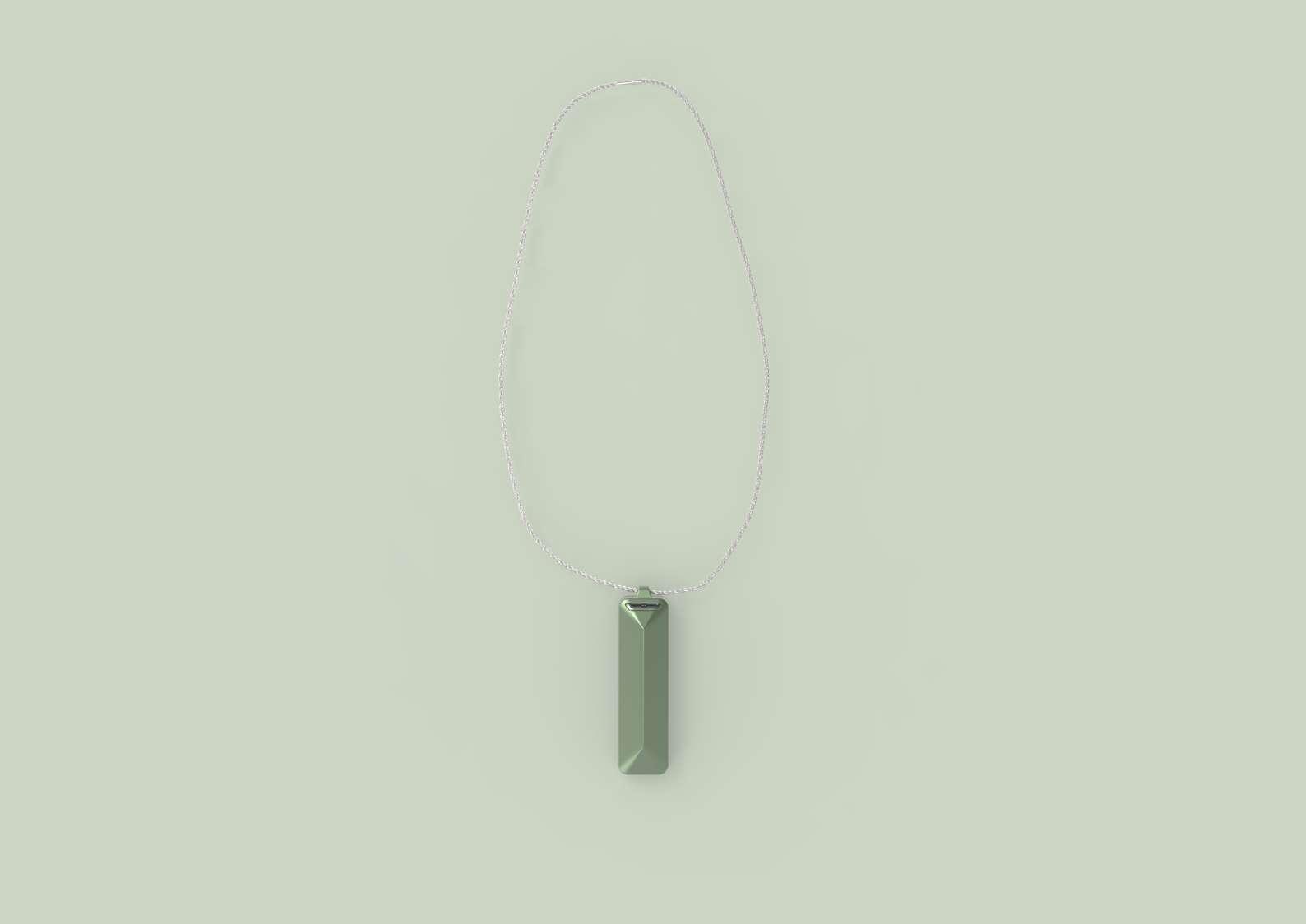

Aura Range Following Trends Following Abstract Notions - Geometric shapes.

Contrast between smooth (surface radii at the side) and angular (at the top) giving a sense of elegance but at the same a feeling of being approachable and a feeling of purpose and utility.

Colour and material range Available in other monochromatic colours such as gold and silver like other pieces of jewellery. Electroplated with precious metals as well as chrome plating This gives a sense of customization to the user giving the possibility to choose the design that is most desired.

Available in Jade Green colour R-127 G-147 B-117- key colour for jewellery and fashion (particularly womenwear) having a

Design for manufacture 1

2 1

4

3

5

6

PMMA light cover - transparent letting 92% of light to pass through - UV stability - resistant to light exposure. Manufactured through injection moulding, this manufacturing method provides an excellent surface parts with tight tolerances.

2

Top Cover made with Aluminium Die Casting Alloy - 390 - B390.0 being very lightweight and anodized to create Jade Green colour and given a bright dip treatment (electro-brightening treatment) after to have a semiCasting using multi-slide die casting. Electroplated with a Zinc-Copper previously to then add the silver or gold

7

3

PCB with a Bluetooth module, GPS module, rechargeable lithium-ion battery, switch, and USB port.

4

Distress Button made with ABS visible surfaces Manufactured with injection moulding providing an be electroplated.

5

Rubber Gasket made with TPE to seal the product to protect internal components from water and dust reaching an IP55.

6

Bottom Cover made with ABS visible surfaces Manufactured through injection moulding.

7

M1xScrews - screw the PCB to the top cover after being aligned to the ribs and extrusions.

50 mm

Orthographic

R4

3rd angle projection All dimensions in mm Scale: Date: Name: Sheet No. Title: Page:

2:1 01/04/2021 Joana Lopes 1 Aura - Security accessory A3

Designed for Use Chains Length/Size 508mm length necklace medium -ideal size for the product to be reached intuitively and fast.

Bracelet available from X-Small (127-140) to 3X-Large (203-215).

Quick double press and Continuous press Quick double press to send alert message at the back of the product to prevent false activations. Continuous

Light Alert LED light will notify the user that help has been reached. This way the user doesn’t have to check the phone since in an abusive situation is not always possible to reach for the phone.

Customizable Aura is customizable and not completely attached to the necklace this gives the user the opportunity to place the product in other items if desired.

Single hand use If arm is being blocked user can still reach product because of the rectangular elongated shape.

White light (colour associated with feeling of calm and peace)appears when text alert has been sent to desired emergency contacts to alert the user that help has been sent if the user cannot reach the phone or doesn’t feel comfortable checking the phone in an abusive situation.

Bracelet Size

5th%

127mm-140mm

95th%

140mm152mm

152mm-165mm

165mm-178mm

178mm-190mm

190mm-203mm

The same as the necklace, the bracelet follows the spiga chain link (with 2mm thickness) made up of multiple links that won’t easily kink or break, making it durable to be worn every day. Also made with stainless steel with a polish

203mm-216mm

With the app is possible for the user to choose the desired emergency contacts (family contacts, friends, police, emergency number 999...) and choose to put or not medical information and personal details that are automatically sent to the emergency contacts when the distress button is pressed.

Having it’s own website also means the customers can learn more about the product, brand philosophy and history behind it. Website provides a minimal design in which home

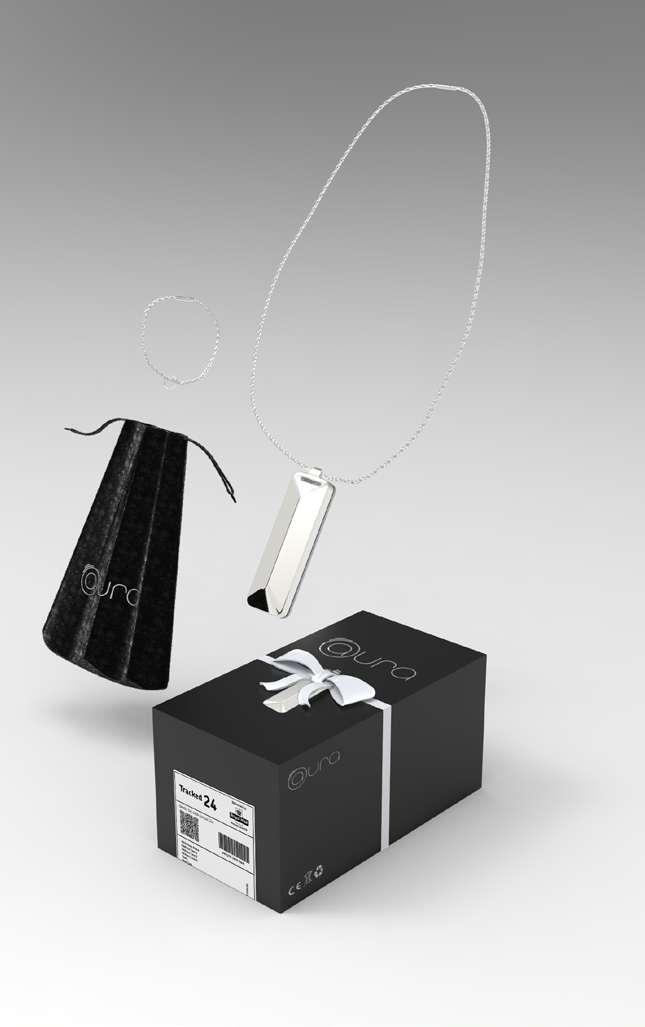

Packaging is designed to provide a pleasant unpacking experience.

The product is placed inside a jewellery velvet pouch alongside the bracelet and necklace. Together with the product comes a plug and wire cable for charging.

will biodegrade.

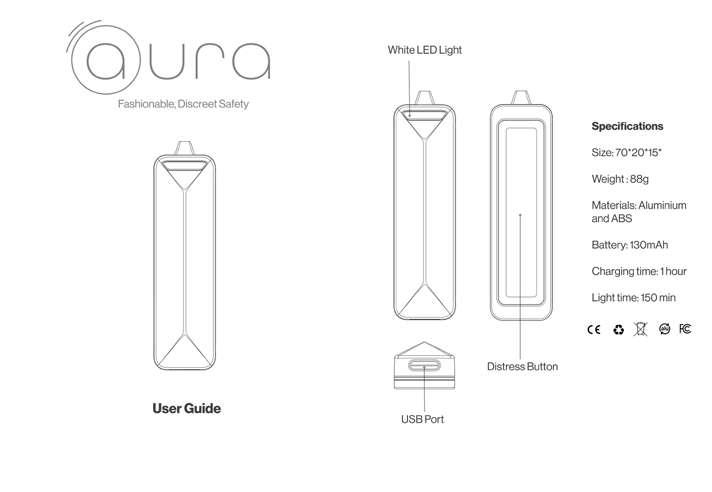

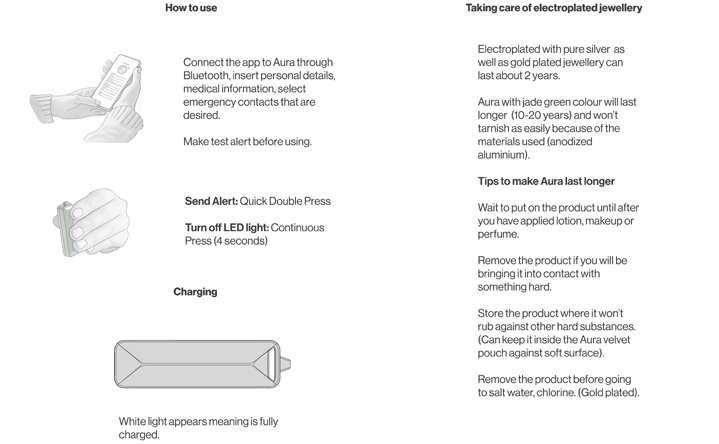

How to use - User Guide

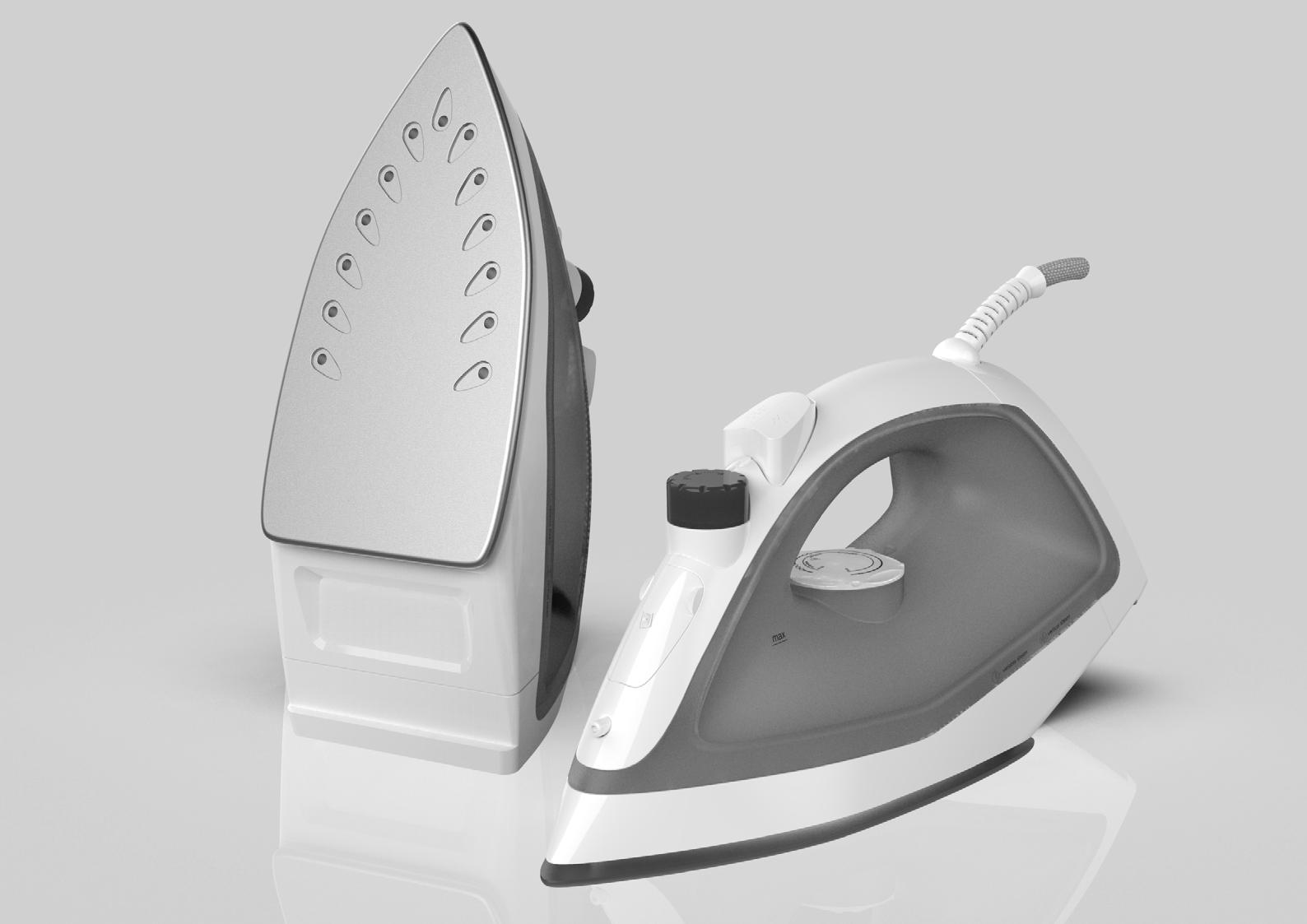

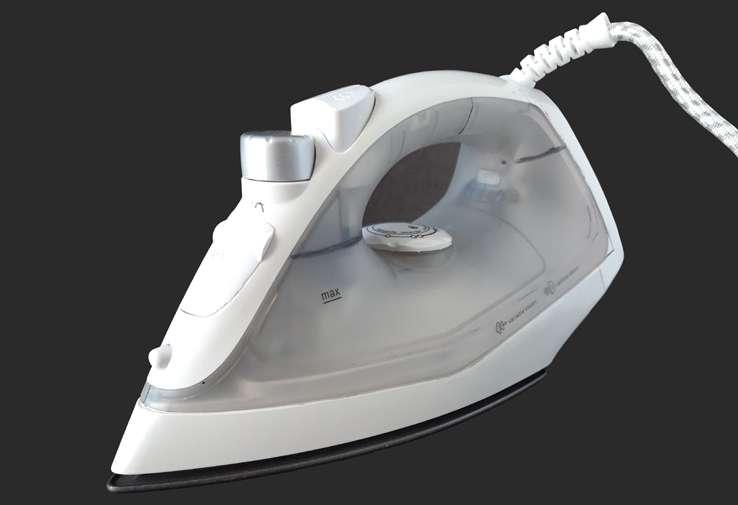

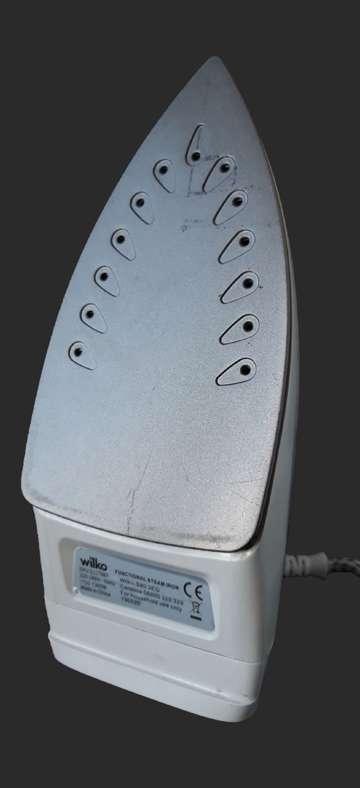

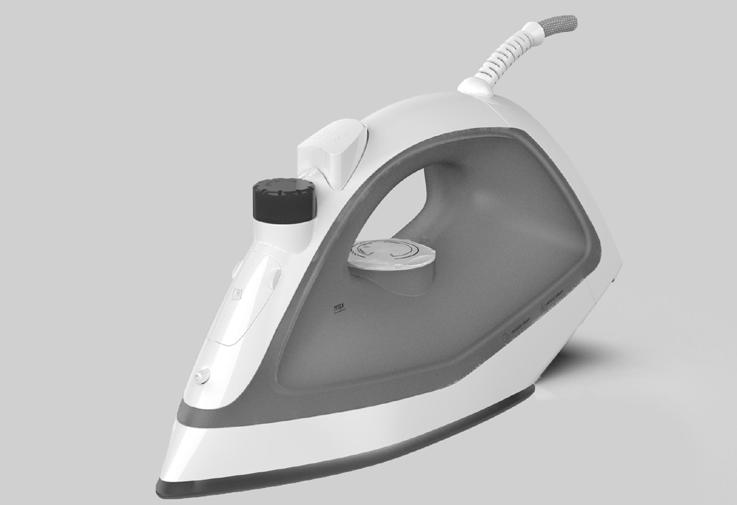

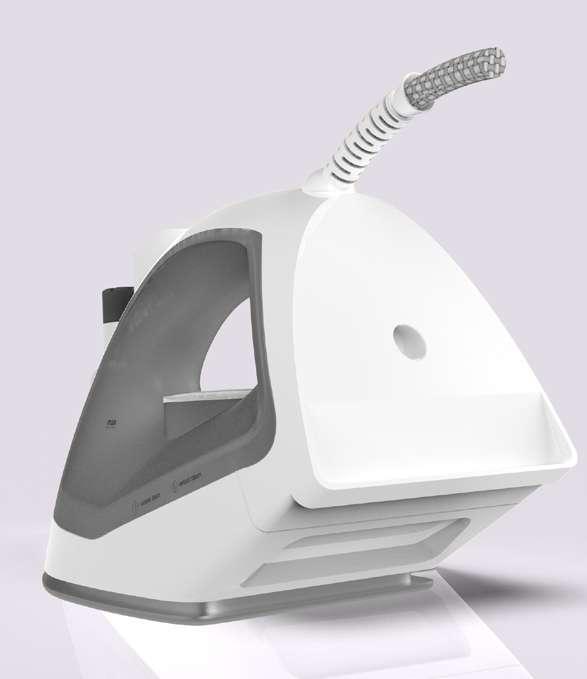

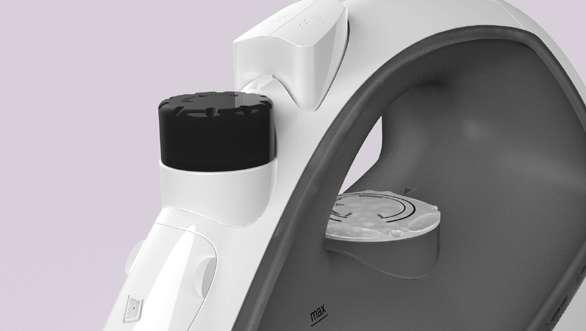

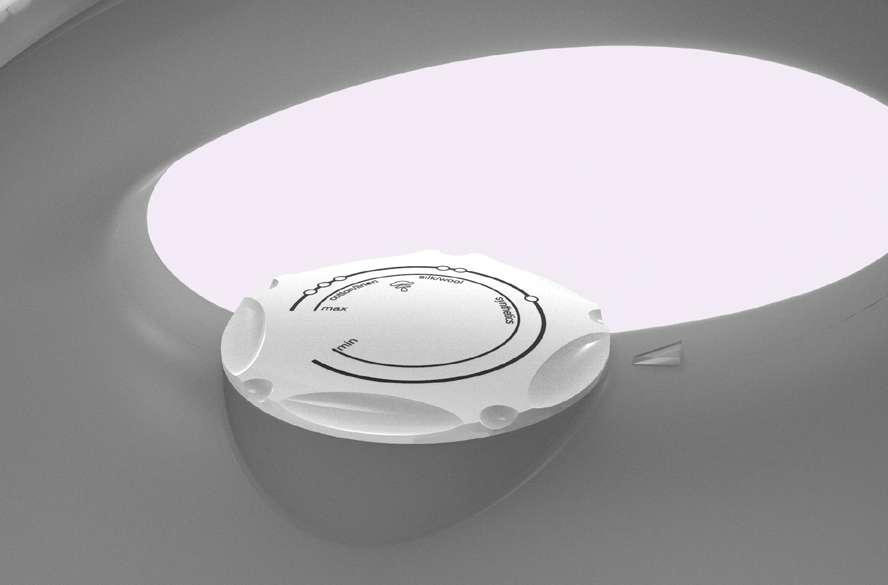

Iron Replica product design and recreate the 3D form accurately in 3D CAD.

Hand Orthographic initial base to create the Iron in Rhino 3D.

145

225

50

Scale: 1:1 Date: 29/09/2019 Name: Joana Lopes Sheet: 1 All dimension in mm 3rd Angle

Final Model surfacing techniques and further develop my existing CAD skills, the iron is great product for this because of it’s complex surface. The goal was to create the best accurate model possible.

Digital Orthographic Doing a digital orthographic from Rhino3D was a great opportunity to spot any imperfections and measurements to be considered or solve in the future. It was also a good opportunity to understand the complex surfacing better.

Comparison

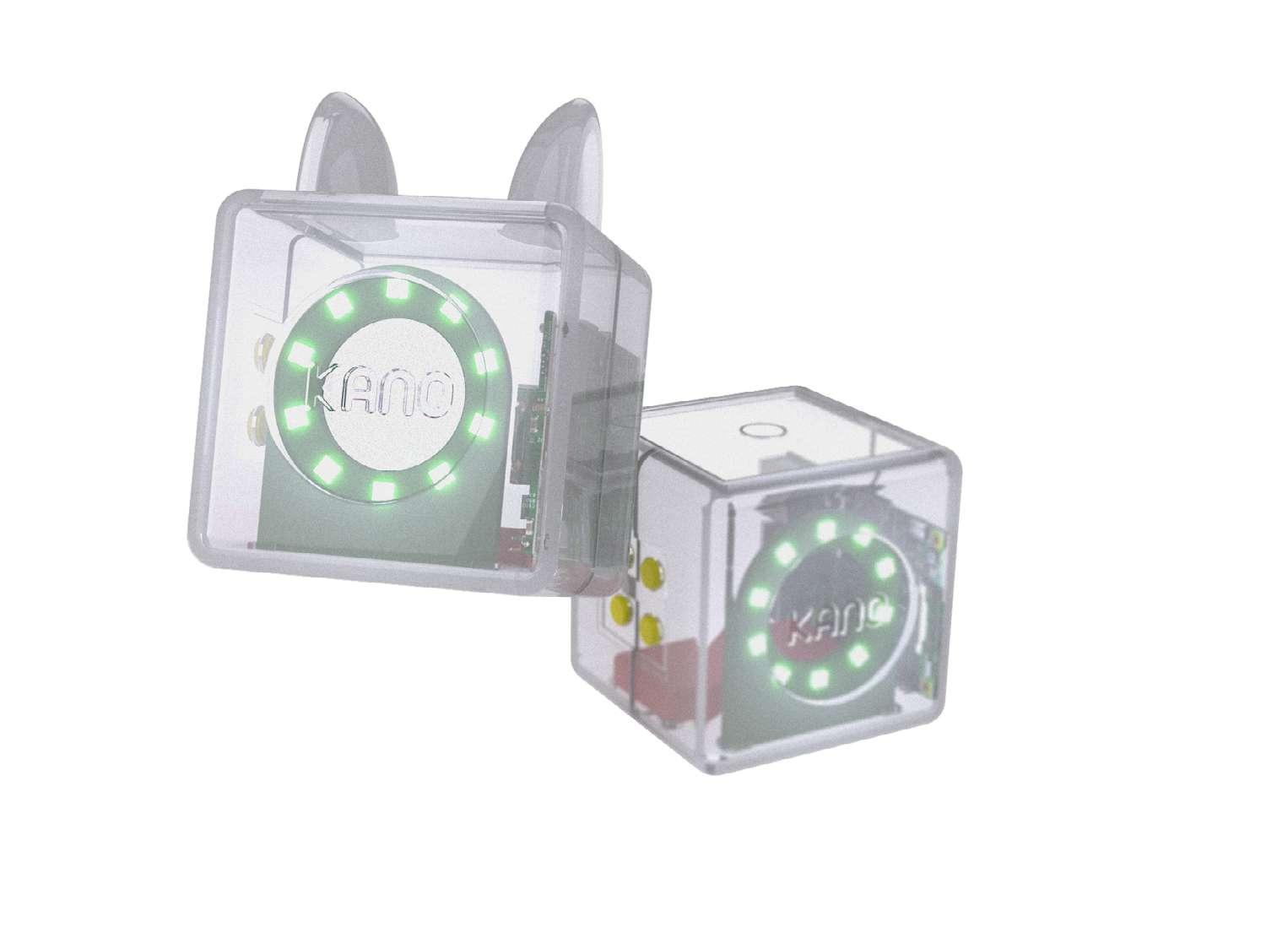

BRAILLE KIT An interactive toy for visually impaired children to encourage them to learn Braille and associate shapes with their words.

Brand - KANO

mOTIVATIONS

“Learning to read and write in Braille is important for developing the child’s literacy. And introducing Braille early might help to support the child’s learning.” (Raising Children Network 2021).

“Despite the link between braille literacy and employment, braille literacy rates for school-aged blind children have declined from greater than 50 percent (40 year ago) to only 12 percent today.” (National Braille Press 2021).

“Many people believed that talking computers would replace the need to learn braille. However, listening alone is not enough. Research shows that braille provides a critical advantage for students to learn grammar, language, math, and science.” (National Braille Press 2021).

Design Brief “To Design a Brand Extension Product for Play”.

“To design an interactive toy for visual impaired children to encourage them to learn Braille".

Kano Brand Language Brand Language

Key Words

• Geometric • Friendly • Lightweight • Approachable • Small • Challenging • Technicall • Fun • Colorfull (orange, • Kind yellow,blue,red) • Simple

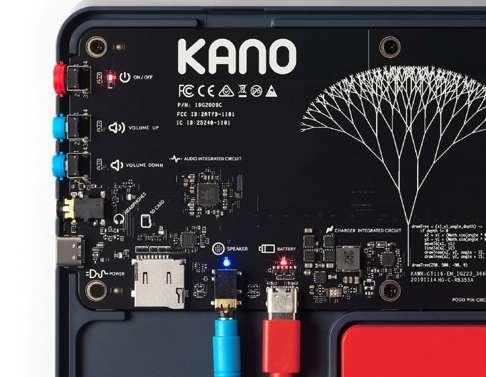

ABout KANO Kano is the make-your-own technology company.

It teaches children how to code.

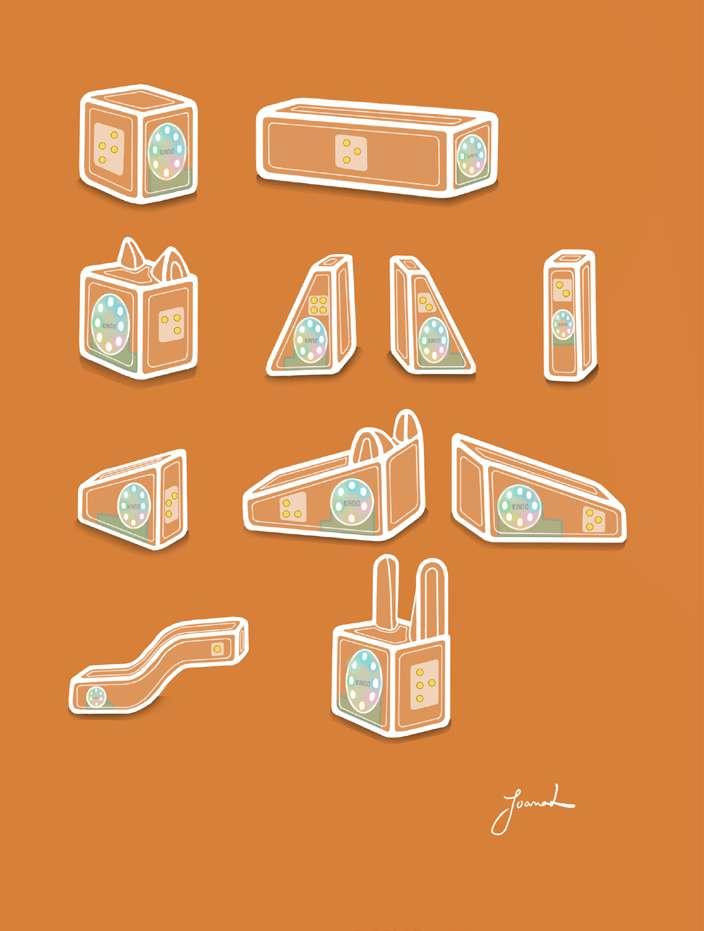

After doing some sketches models and thumbnails, the chosen concept was an interactive toy for visually impaired children that teaches braille through objects and animals.

• • Correct shapes with the correct Braille letter are put together (with magnets) to make a word.

• other objects.

•

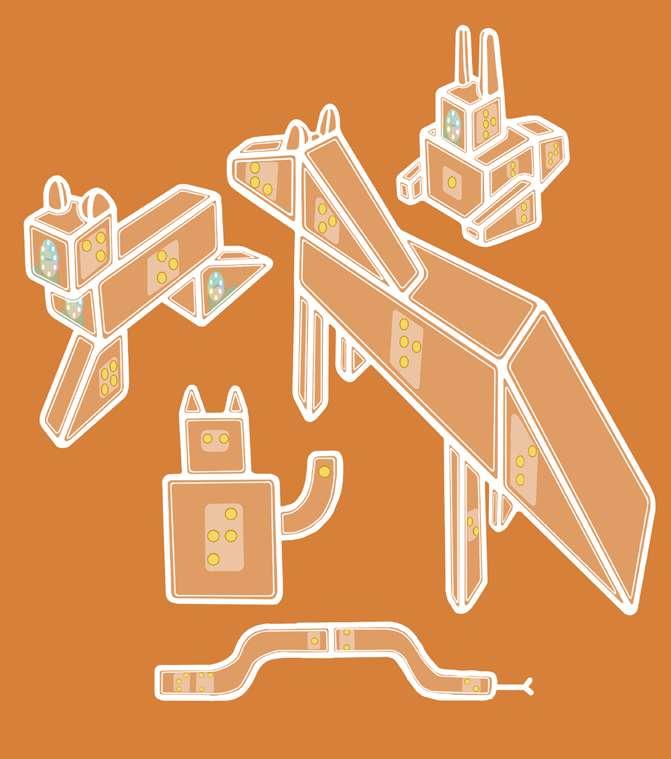

• Examples of some of the shapes that can be created.

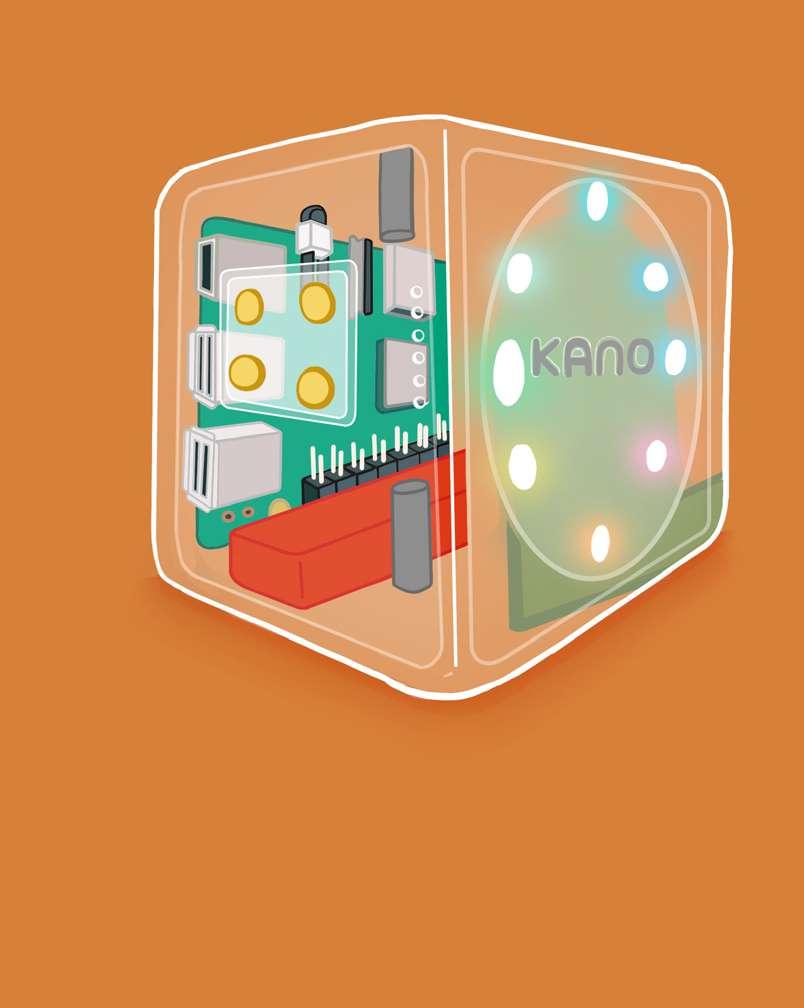

Design Language Very much like kano products, the braille kit it’s transparent which allows for the children to see the inner components and to teach children about technology.

Inner components are colourful which makes learning easier and makes the product look more fun.

The Design is also simple and easy to understand.

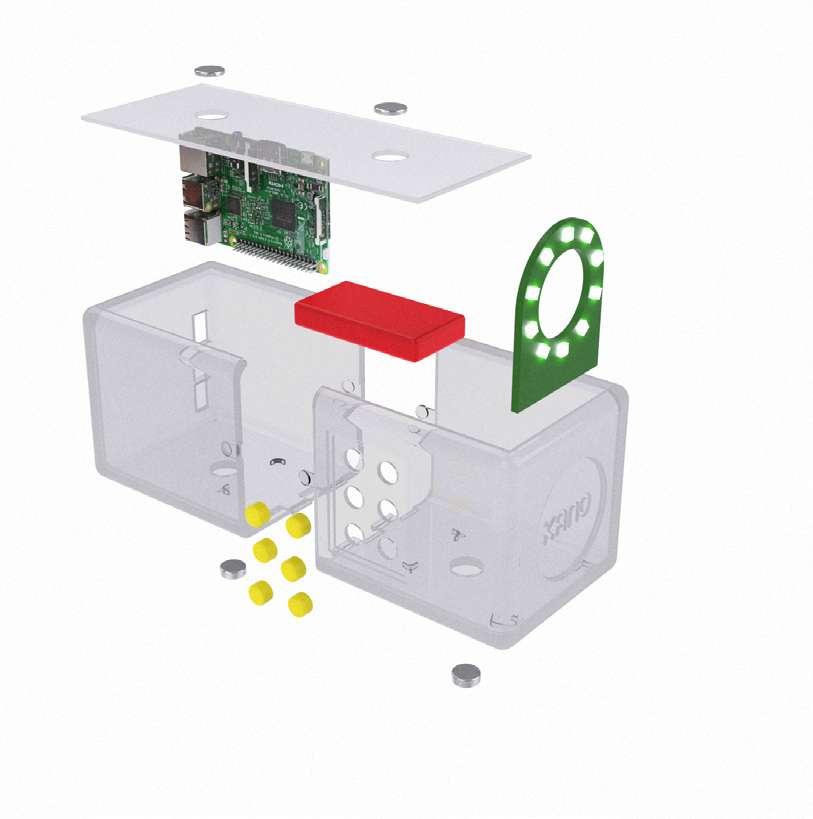

1 1

2 4 3

5

5

1 6 1 1

Magnets to attach to the other pieces.

2

Top Cover - Acrylic

3

Battery

4

Light Ring

5

Acrylic side cases with kano branding

6

Braille dots (can be programed to and symbolize the correct letter to make word)

Build with

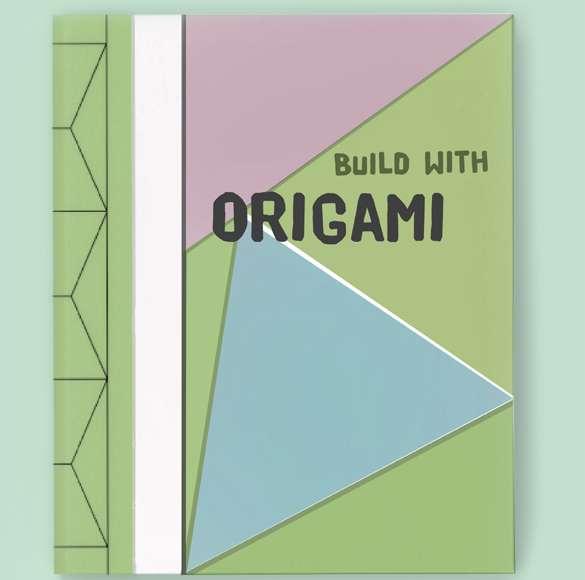

ORIGAMI An interactive book that encourages children (3 - 6 years old) to practise nondigital activities and reduce problems with technology addiction.

Build with

ORIGAMI Follow Use the book that explains the steps to create your origami pieces, or use the app to follow the stpes with videos.

Why Origami?

Origami builds patience and encourages self-esteem, building accomplishment when a piece is completed.

It can also encourage social learning. There is no age barrier in parents to participate as well.

Build

Create

The book begins with less complicated folds and advances

When the origami pieces are completely folded, it’s now possible

learning experience.

forest, city, village and many others or create your own!

Entertaining It’s essential that the product is playful. At the this stage, starting at 3 the child’s self-play/play skills are now more developed (e.g. can cut along a line, build simple puzzle) providing possibilities for a learning playful experience.

Approachable

Stimulating

the child feels at ease with the product without feeling intimidated.

Children are intrinsically curious. Because of this it’s essential that the product helps to develop this aspect encouraging curiosity and imagination, conveying some type of challenge.

Manufacturing and Components

Sketch work and Form Development

Child is interested in the tablet but the parent wants to show

Parent starts to explain what the book is about.

this new book.

Parent starts to create origami folds.

Child starts to participate.

The parent and child have a wide range of origami forms that are included in the book. They can start following and building an environment.

Thank You Let’s get in Touch! joanatml@outlook.com joanatmlopes 07514645928 (+351)917620288
