Expanding The Chowk
Troy
Garcia, Vincent Mak, Jan
Paolo Masangkay l Shannon Bassett l ARCH 5515 l December 2023
When examining the scope of the Chandni Chowk, a stretch of historic land in Old Delhi, India that is filled with a large amount of markets, side streets and people, we begin to see that the parks and flood plains behind the Red Fort has been largely neglected as the terrain of the area, the traffic system and the surrounding economic differences has created a space which is very segregated and does not encourage the same amount of social interaction as the greater context of Shahjahanabad. By curating the experience within the Delhi Chalo Park, the Vijay Ghat and the Flood Plains, we can begin to create a harmonious linkage between these three vegetative divisions which can help to connect and extend the Chandni Chowk.
To the east of the Red fort, and on the floodplain of the Yamuna River, are clusters of informal settlements. The communities living in this area have been subjects to the seasonal water changes that the Yamuna has during the monsoon season. This leads the people to constantly migrate from the floodplain, to the side of the roads and highway, which provide a poor living condition and qualitiy of life. This intervention looks to help mitigate this problem of flooding and housing in this area, as it creates connected spaces that can be used during any season, even when the monsoon is at its highest point.
4
5
6
7
Locals used the land behind the Red Fort as a place of settlement during the dry seasons
Through research of the changing water levels over the years and seasonally with the monsoon season, the locals living in that area would have their settlements destroyed and would have to move upwards and even settle beside the highway.

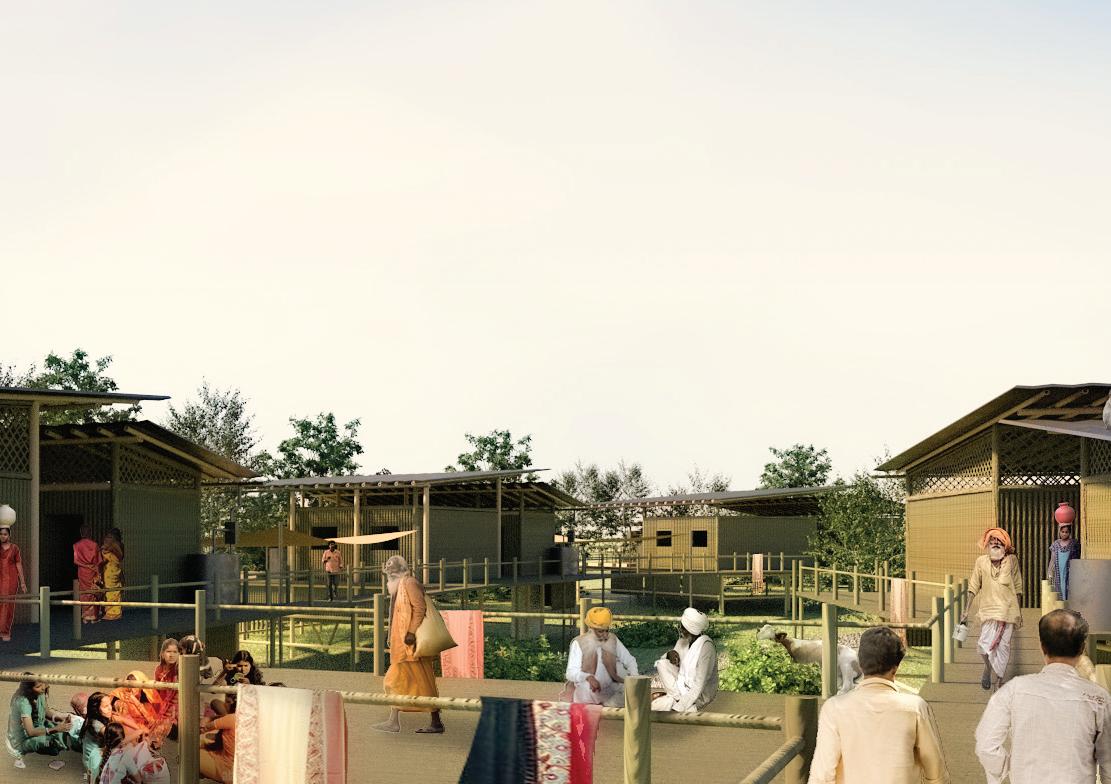

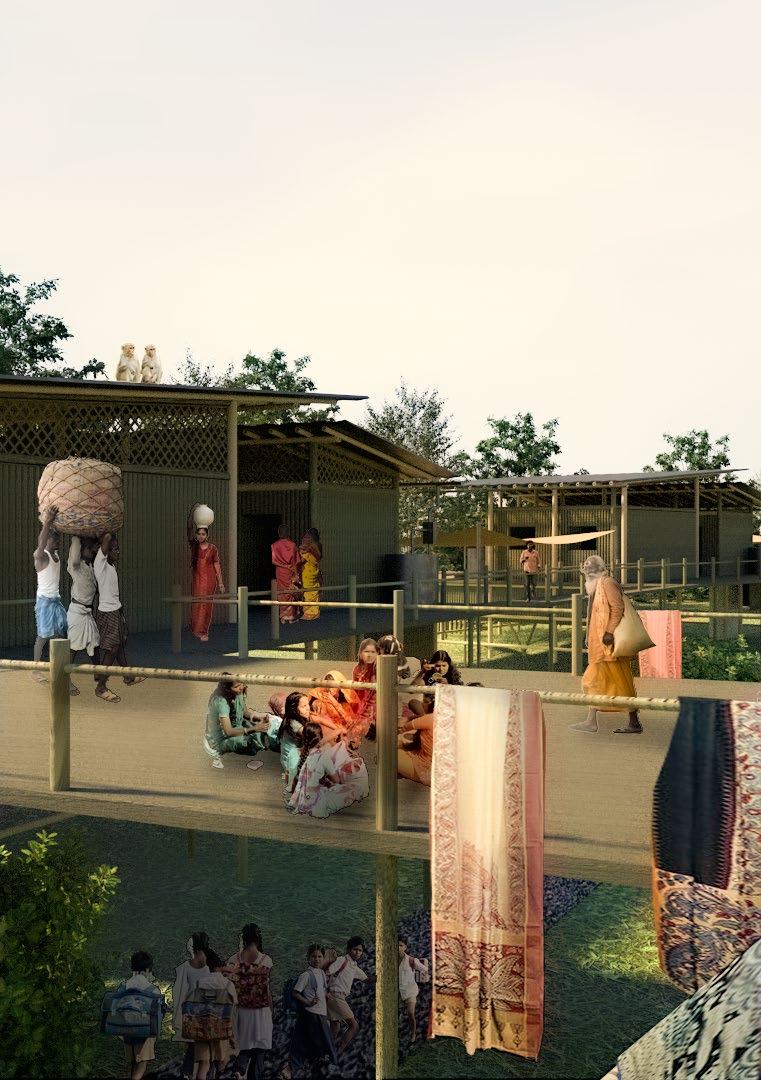

Utilizing the space with lifted housing that would be useable during both the dry and monsoon seasons
8 Axonometric
Collection System
Intervention 3: Detailed Installation
9
Septic Tank
Rainwater Rainwater Pre-Tank Filter In-Tank Drain Pipe Calmed Inlet Debris & Extra water directed to drains to the water treatment plant Over ow Syphon
Squat Toilet
Squat Toilet Diagram
Water
Exploded Assembly Diagram
10
11
12
Dry Season Elevation Diagram
13
High-Tide Elevation Diagram
Longitudinal Elevation
Low-Tide Elevation Diagram
14
15

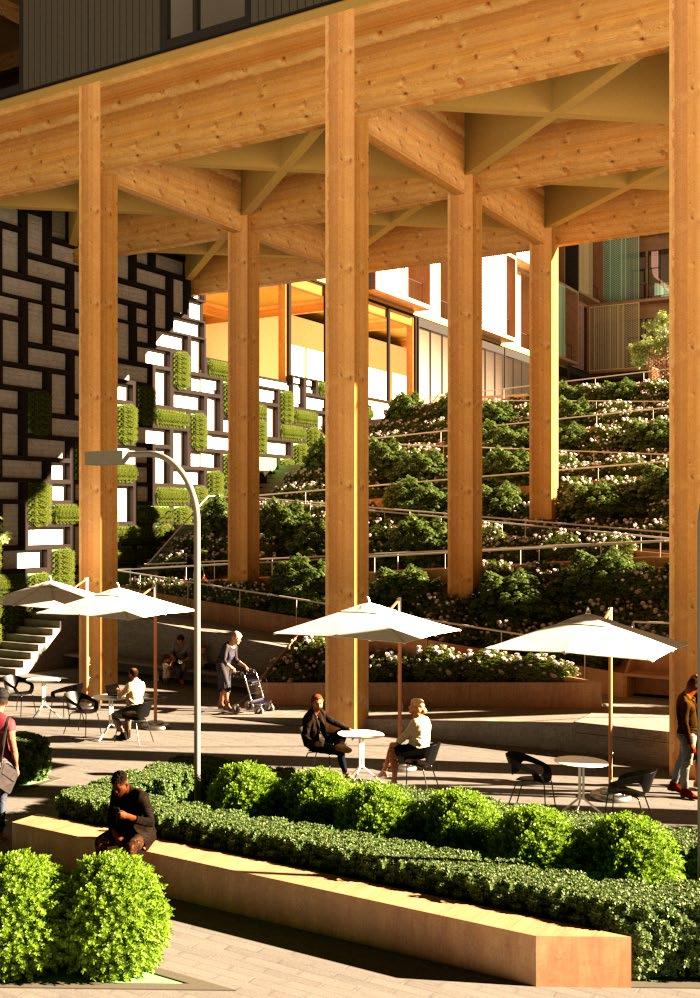

RE Building Blocks
Jan Paolo Masangkay and Jakob Rowsell l Kristin Beites l ARCH 4515 l APRIL 2022
Through the analysis of the immediate site and it’s context within downtown Sudbury, it was apparent that there was a substantial population that was struggling with a lack of housing and addictions. By using the 6 domains of Social Determinates of Health (SDH) as building blocks the project aims to help rebuild oneself from un-homed and dependent to independence and stability. Programs, like art therapy, counseling, resource centers, cafeteria, and multipurpose rooms integrated within the project directly pertain to the 6 domains. In addition to providing the domains of the SDH the project has also used trauma informed design to ensure comfortability of residences.
Trauma informed design can be defined as a design practice that uses the core principles of trauma informed care; empathy and understanding. When design for residence who have experienced or experiencing traumatic events, like homelessness and additions, it is important to be mindful in the design of the spaces they will inhabit. Avoiding design cues to traumatic events is an integral part of creating a space that allows it’s users to feel safe, relax and comfortable.
16
17
SDOH INFRASTRUCTURE OF ELM EAST
Access to Natural Light
Residents to Personalize Privacy
Extra Wide Corridor and With Access to Natural Light
Extra Wide Corridor and With Access to Natural Light
Direct and Easy to Access Greenery through Movable walls along the courtyard
Direct and Easy to Access Greenery through Movable walls along the courtyard
Extra Wide Corridor and With Access to Natural Light
Movable screens to Allow Residents to Personalize
Movable screens to Allow Residents to Personalize
Direct and Easy to Access Greenery through Movable walls along the courtyard
Extra Wide Corridor and With Access to Natural Light
Extra Wide Corridor and With Access to Natural Light
Calming Colours covering Used to Relax Residences and
Direct and Easy to Access Greenery through Movable walls along the courtyard
Direct and Easy to Access Greenery through Movable walls along the courtyard
Movable screens to Allow Residents to Personalize Their Amount of Privacy
Calming Colours covering Used to Relax Residences and Distinguish Units
Calming Colours covering Used to Relax Distinguish Units
Large, Easy to Read Signs for Way Finding
Encourage Conversation
Movable screens to Allow Residents to Personalize Their Amount of Privacy
Movable screens to Allow Residents to Personalize Their Amount of Privacy
Open Corridors with Seating to Encourage Conversation
Open Corridors with Seating to Encourage Conversation
Large, Easy to Read Signs for Way Finding
Large, Easy to Read Signs for Way
18
MAPPING OF ELM
13% 25% 62% 13% $45,000 $89,999 10
HOMELESSNESS
EAST INCOME DEMOGRAPHICS
Economic Infrastructure Healthcare Infrastructure Community Building Infrastructure Positive Elements of Built Environment City Hall Shelter Fire Station Train Station Transit Terminal Police Headquarters Community Centre Religious Centre Bank Hearing Centre Medical Clinic Dentist Pharmacy Physical Activity Services Grocery Store
2m +
2m
2m +
19 3D
Axonometric
20

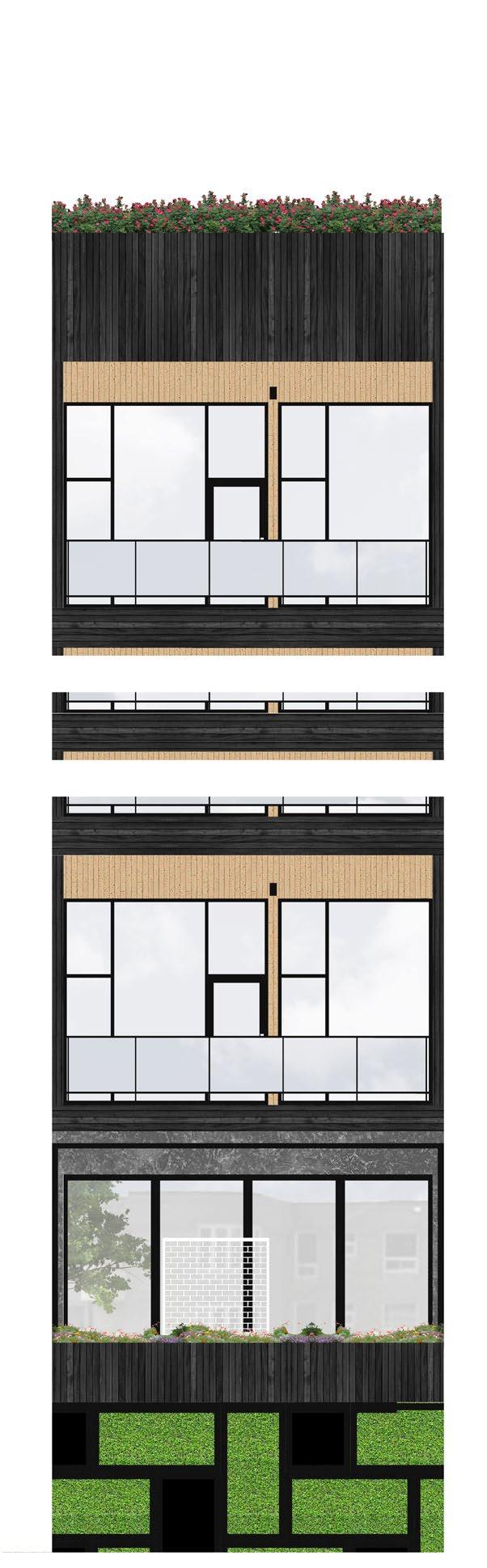

West Elevation
21
South Elevation
North Elevation
22
23
Paved Surface
Finished Wood
Stramp
Concrete
Grass
24
The third-floor plan holds many of the wellness public programs within the project The building provides a resource center, for users to have access to personal improvement information and materials by their own means. a 24-hour staff room to provide support to tenants and users of the space along with a sense of security. Art Studio rooms are also located along the north, providing spaces for painting, pottery making, and a large group studio.
25 Counseling Services Staff Room Exhibition Space Large Group Studio Painting Room Pottery Studio Staff Room Resource Centre 3rd Floorplan
26
The fourth floor is the start of the transitional and affordable housing units. What you will notice on all housing plans, the units are all south and west facing, which was a design decision made early to allow proper daylighting and heating to all units. What you will also notice is the breakout spaces within the hallways, the extra wide corridors allow for spaces of unit interactions as well as balcony spaces looking towards the north. The individual condition for the fourth floor is the multipurpose space, double heighted cafeteria, and kitchen on the west side.
27 Multi-Purpose Storage Cafeteria Kitchen Laundry Room Open Multi-Purpose Space 4th Floorplan
28
29
GREEN ROOF AND PARAPET ASSEMBLY - ACCESSIBLE ROOFTOPS
Green Roof Assembly
1. Grass
2. 1.5m Growing Medium
3. 2” Protection Layer
4. 2” Root barrier
5. Drainage Filter
7 1” Separation Layer
8. 4 Rigid Insulation
9 3/4 Plywood Sheating
10 8” Batt Insulation
11 5 ply CLT
12. 4 Rigid Insulation
14. 1” Strapping + Air Gap
15. 1” Pine Cladding Or 12. 5 ply CLT
13. Vapor Barr er
14. Drop Ceiling
15. 1/2” Gypsum
Unit Balcony (As Shown) Interior
Water Barrier
SOUTH EXTERIOR WALL ASSEMBLY - MODULAR UNITS
Exterior
1. 1” Thermal Treated Pine (Dark Grey)
2. 1” Strapping with Air Gap
3. 4 Rigid Insulation
4. Weatherproof Wrapping
5. 1/2” Plywood sheeting
6. 6” Batt Insulation (R19)
7 Vapour Barr er
8. Gypsum Board Interior
INTERIOR EXTERIOR
30 3rd Floor - Art Studios 4th FloorTransitional Housing 5th Floor - Transitional Housing 6th Floor - A ordable Housing 7th FloorA ordable Housing 2nd Floor - Parking Garage
Water Barrier Vapour Barr er
