Portfolio Jin Zhicheng

Page 1


01 Reborn from the shambles Content

Individual | Academic Location: Guangzhou, Guangdong, China

Supervisor: Ziyu Zhou

E-mail: m18861248622@163.com

Date: 04/2022

p2-6

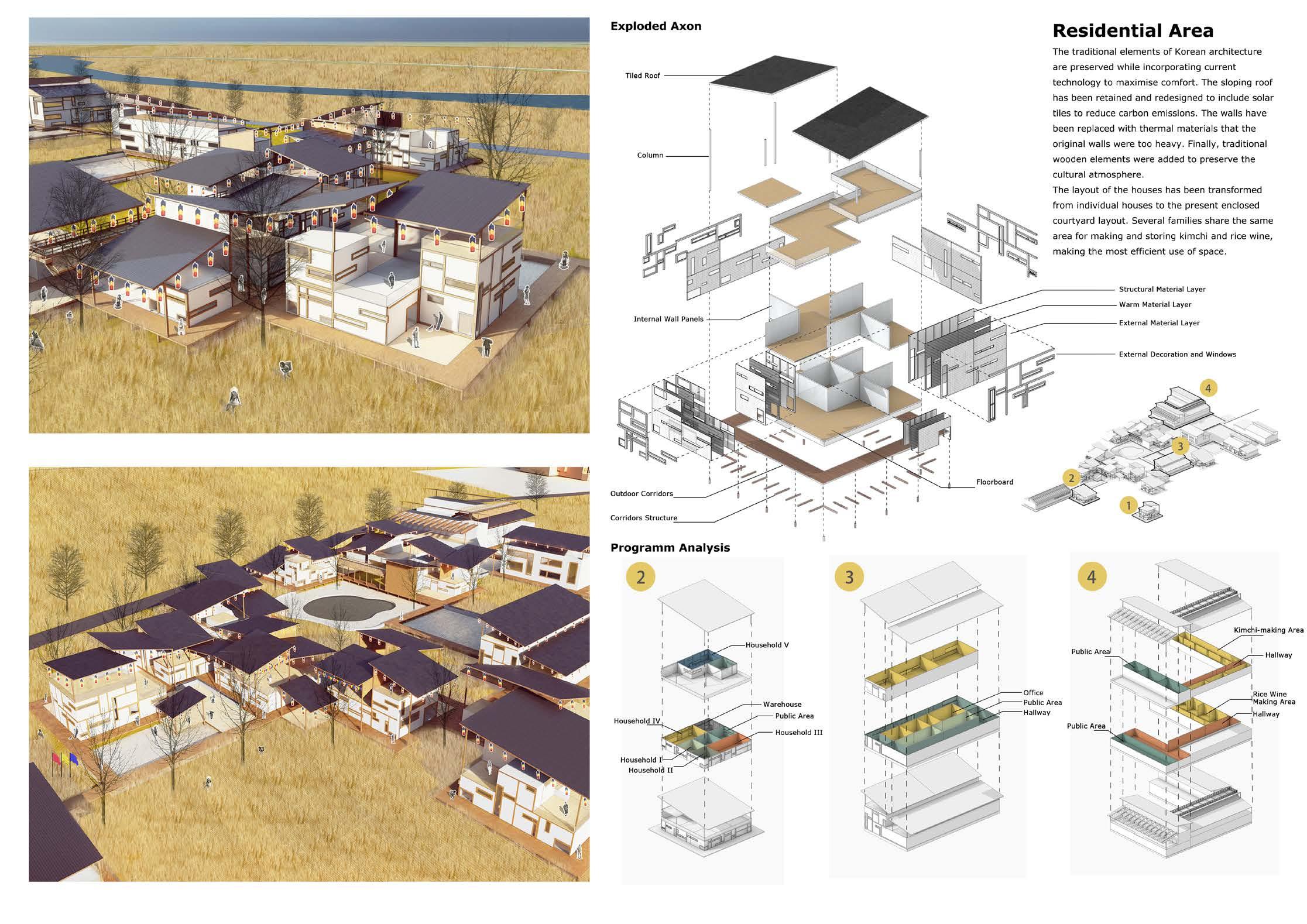

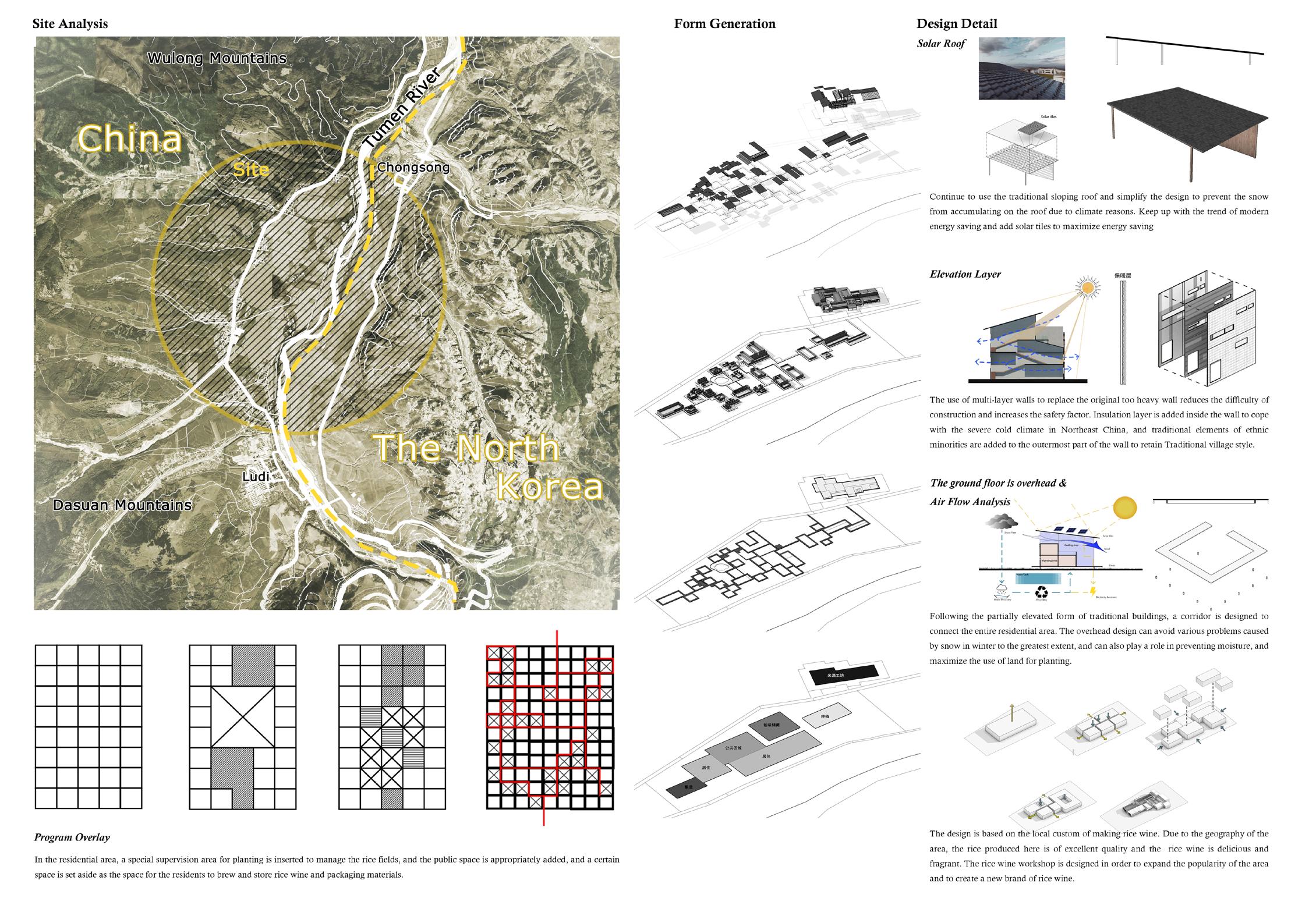

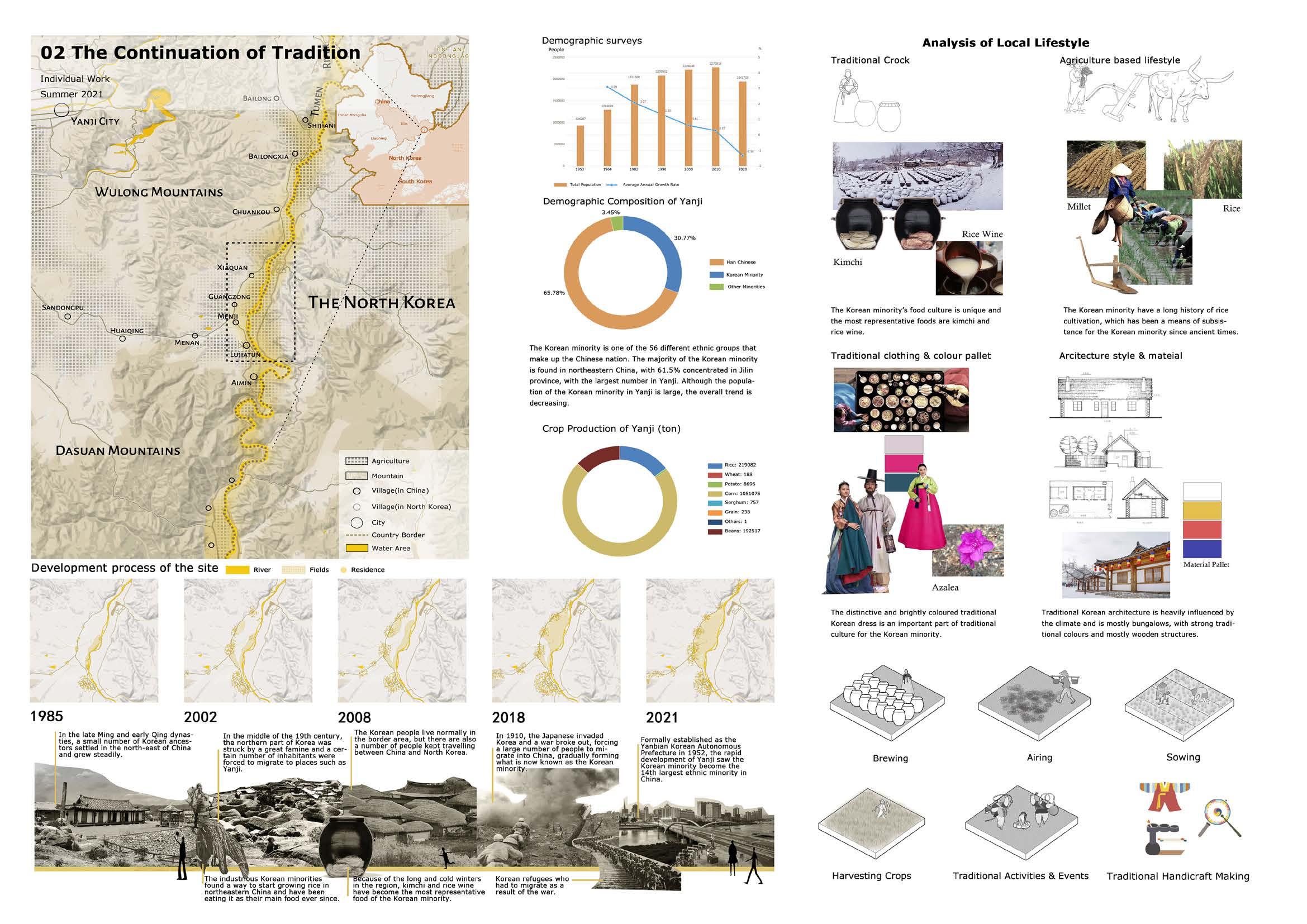

02 The Continuation of Tradition

Individual | Academic Location: Yanji, Jilin, China

Supervisor: Juliang, Zhang

E-mail: zhangjunliang@xdf.cn

Date: 06/2021

p7-11

03 Urbanisation of urban villages

Individual | Academic

Location: Shenzhen, Guangdong, China

Supervisor: Lina Wang

E-mail: 624558656@qq.com

Date: 10/2022

p12-15

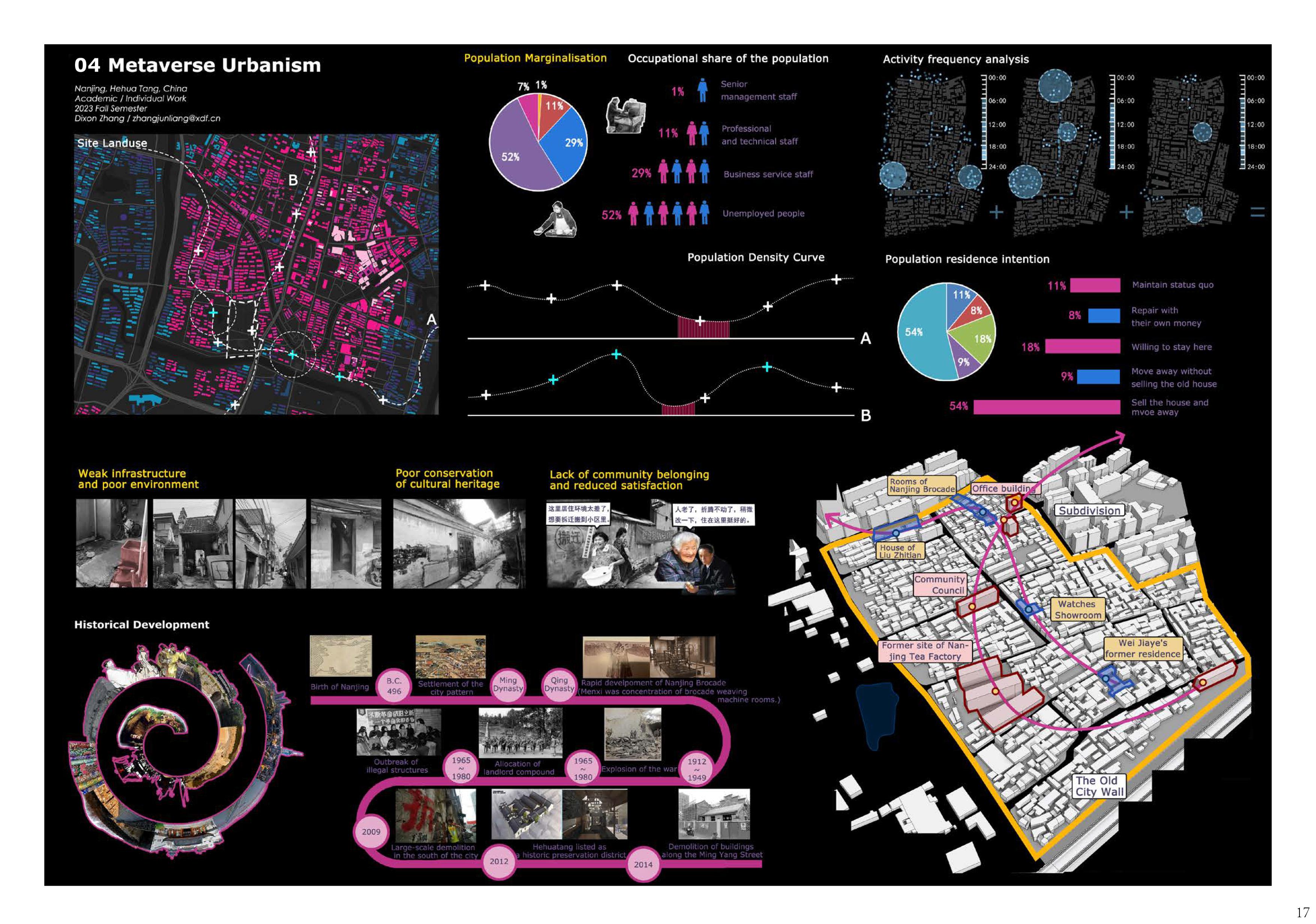

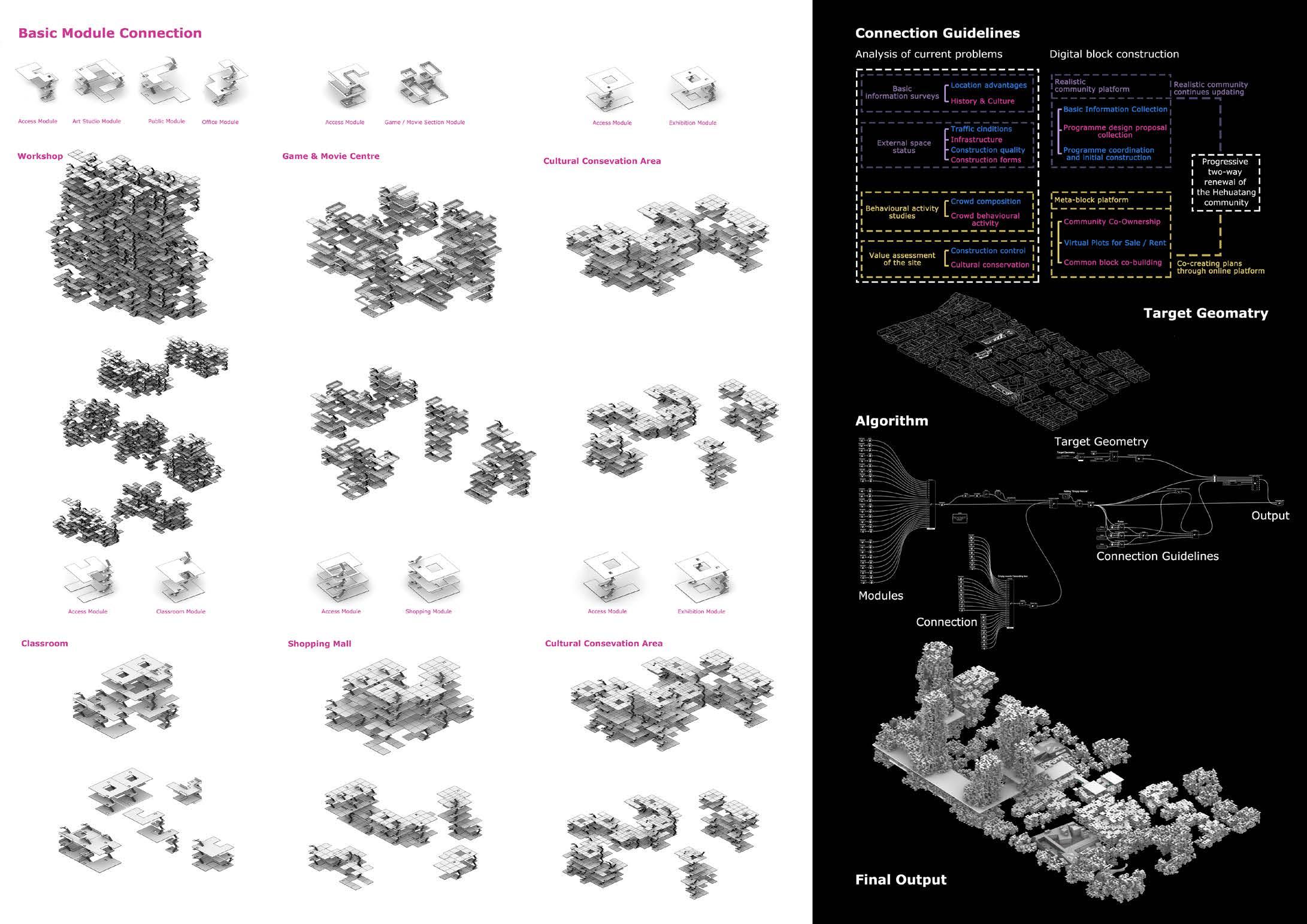

04 Metaverse Urbanism

Individual | Academic Location: Metaverse

Supervisor: Junliang Zhang

E-mail: zhangjunliang@xdf.cn

Date: 07/2022

p17-22

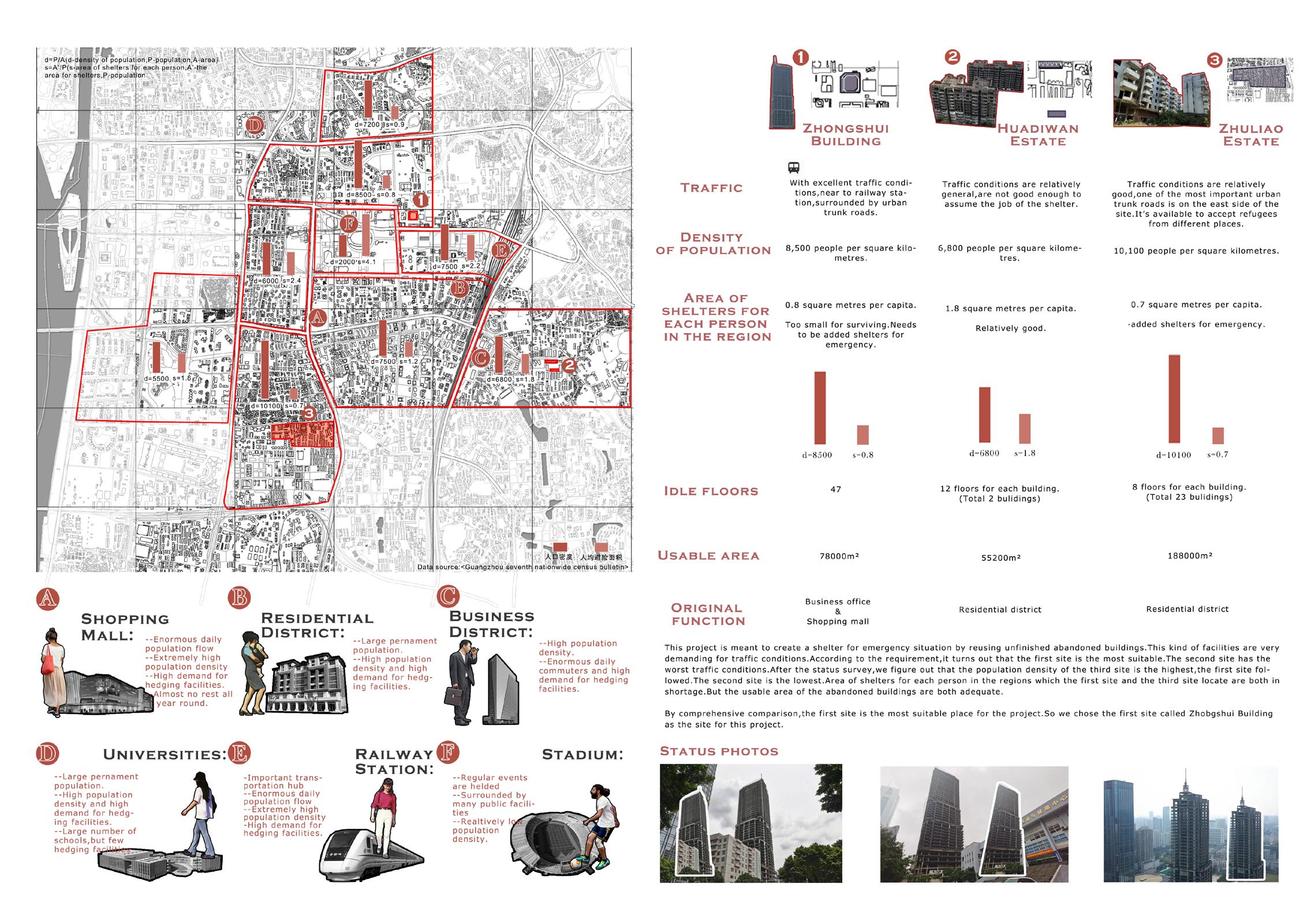

Distribution of medical resources in Tianhe District, Guangzhou

The selection of rotten buildings in Tianhe District, Guangzhou

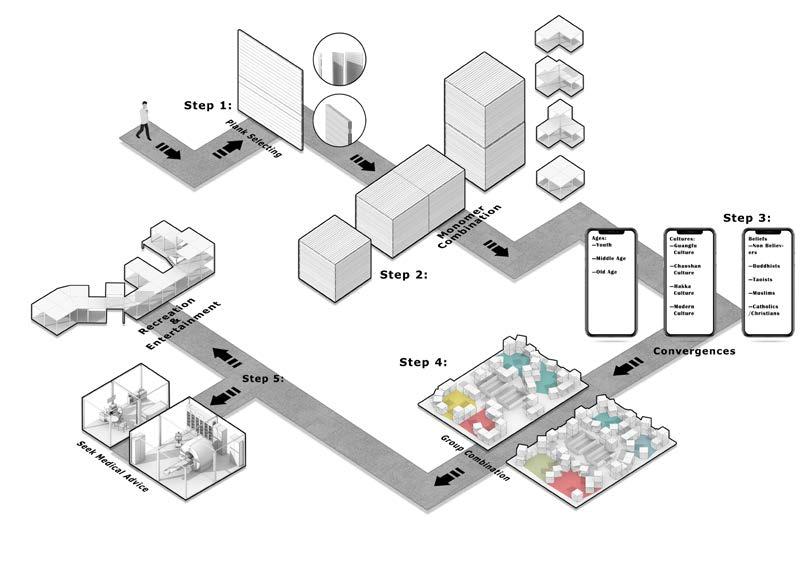

Units can be assembled and moved by free according to different needs.Different groups of people can create diverse blocks spontaneously,just

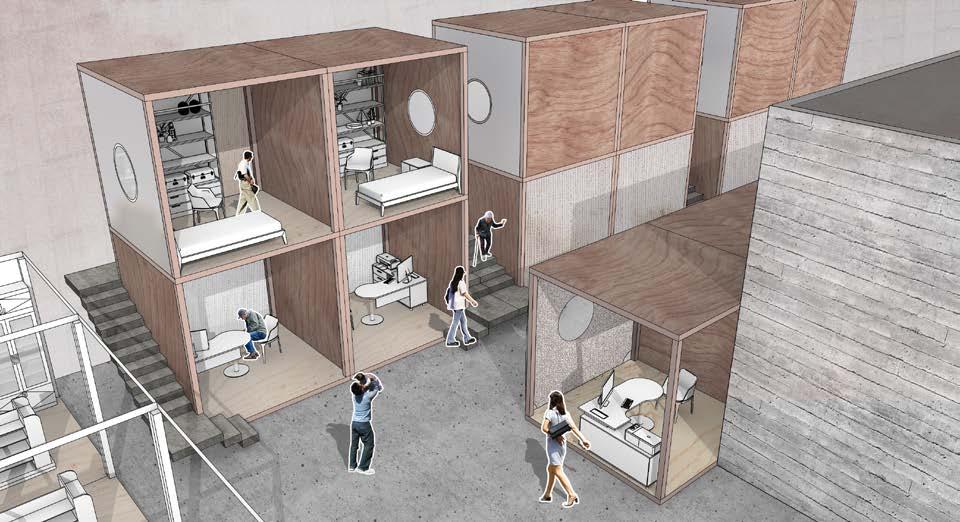

Living space in isolated areas

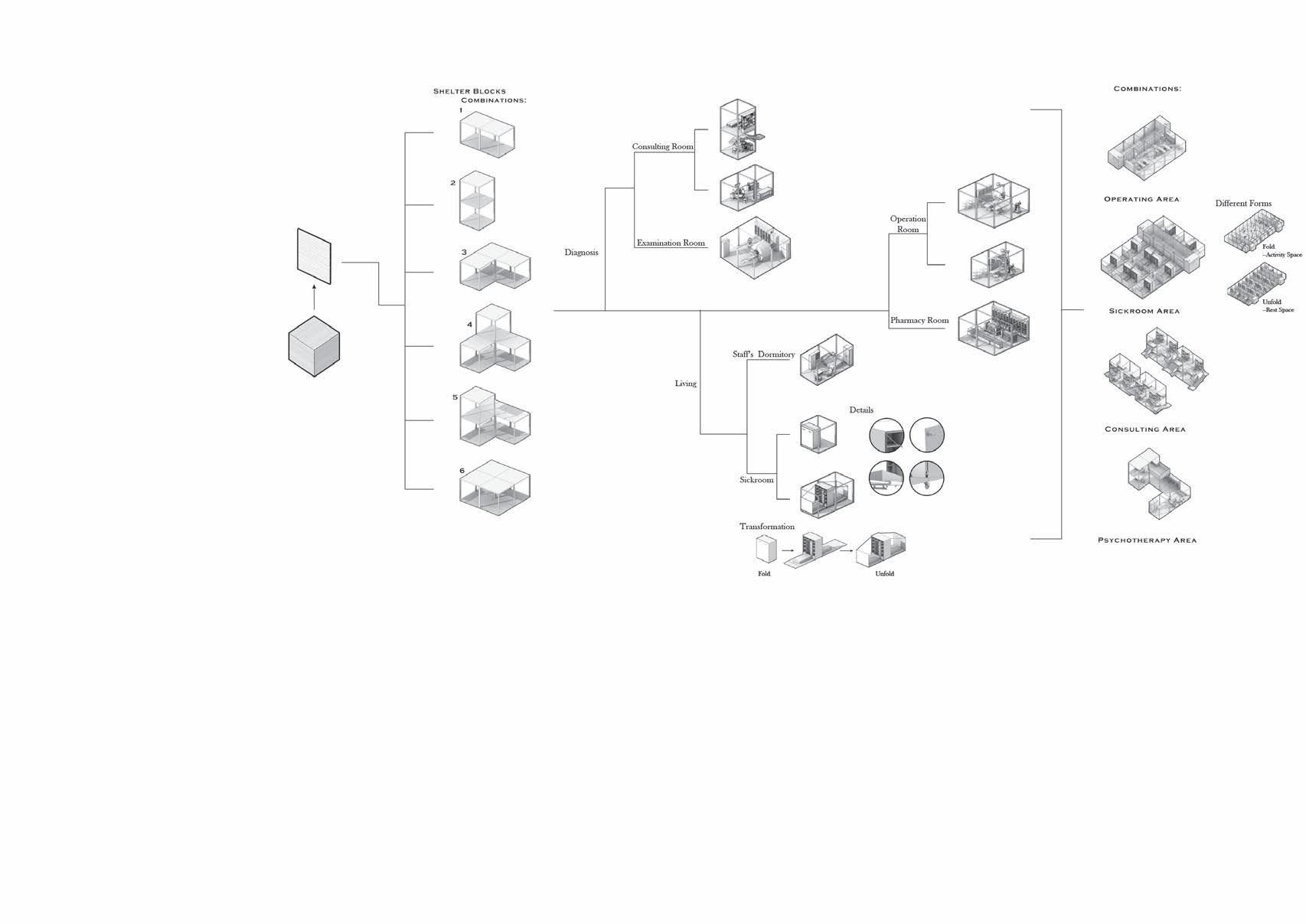

By changing the forms of sickroom units, we can have different spaces with different functions accroding to the different

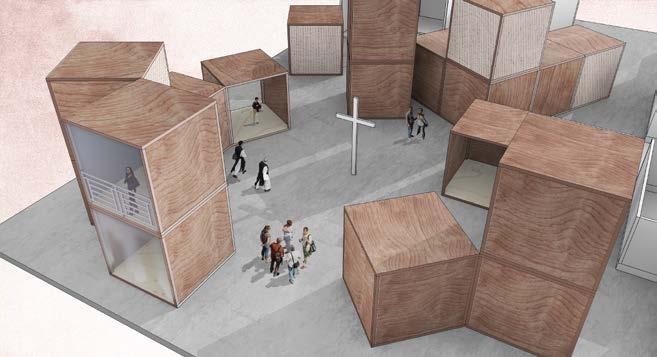

There are many different religion beliefs in Guangzhou, such as Christianity, Taosim, Buddhism. People can choose their neighbours accroding to their same belief.

Volunteer Area

The emergency medical centre provides rest space for volunteers who work here. Volunteers can have their own rooms in order to increase the effiency and avoid the phenomenon of overwork.

Youth Area

The people in the emergency medical centre include youth, middle-aged people and the elderly.The youth who love to do activities in groups prefer to live together.

Comprehensive Area

In addition to differentiate areas to live, there are still many people want to live in diverse areas instead of specific space to make more friends. The emergency medical centre provides many comprehensive areas like this.

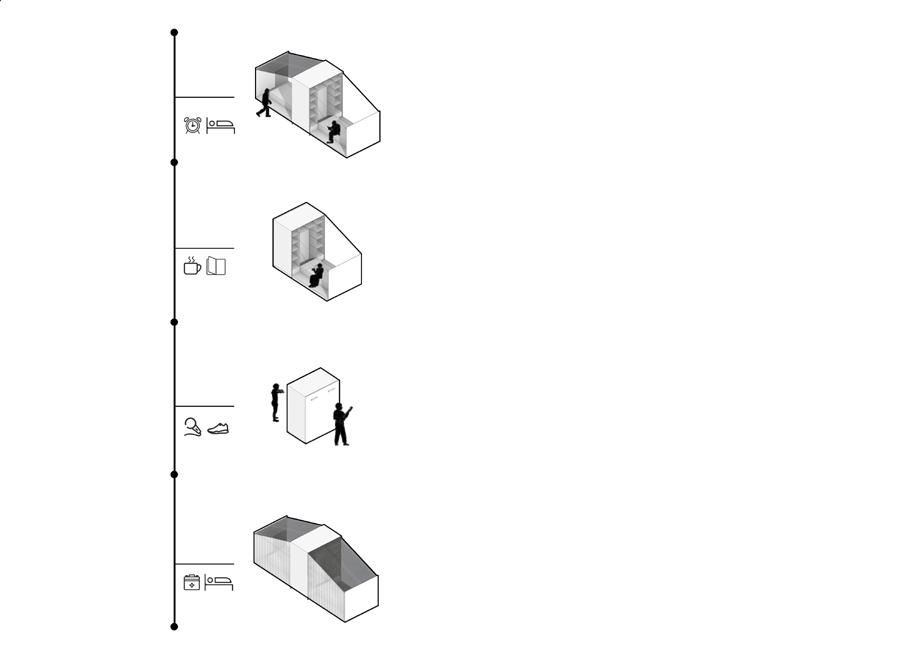

The sickroom is unfolded when everyone is getting up. Patients can choose to continue to rest or open the curtain and do some activities. At this time, patients can choose to fold the sickroom unit or not according to their needs.

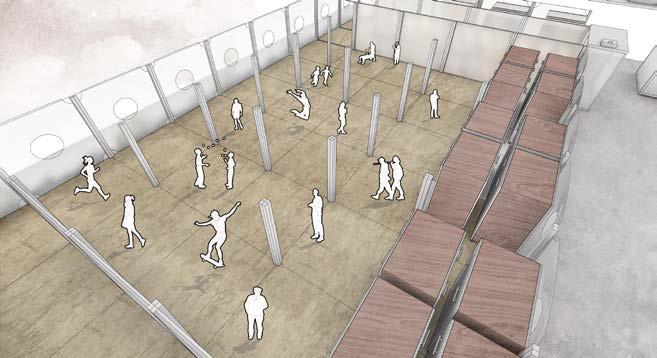

When it comes to afternoon, patients can do some sports and entertainment appropriately under the guidance of doctors. All the units can be folded at this situation.

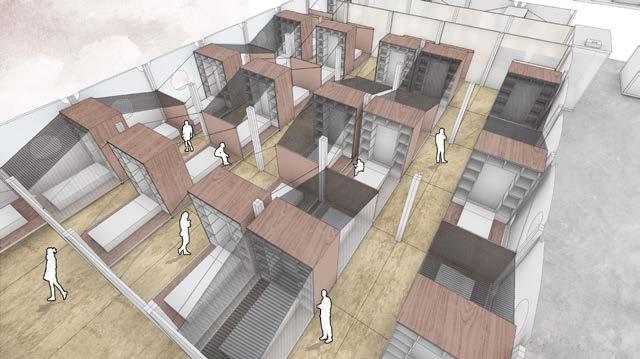

All the sickroom units are unfolded and the curtains are also pulled up to create a private space in order to guarantee patients can have a good rest. And treatments such as infusion can be done quietly.

Street view of the emergency isolation hospital
Off ice and residential areas for doctors

03 Urbanisation of urban villages

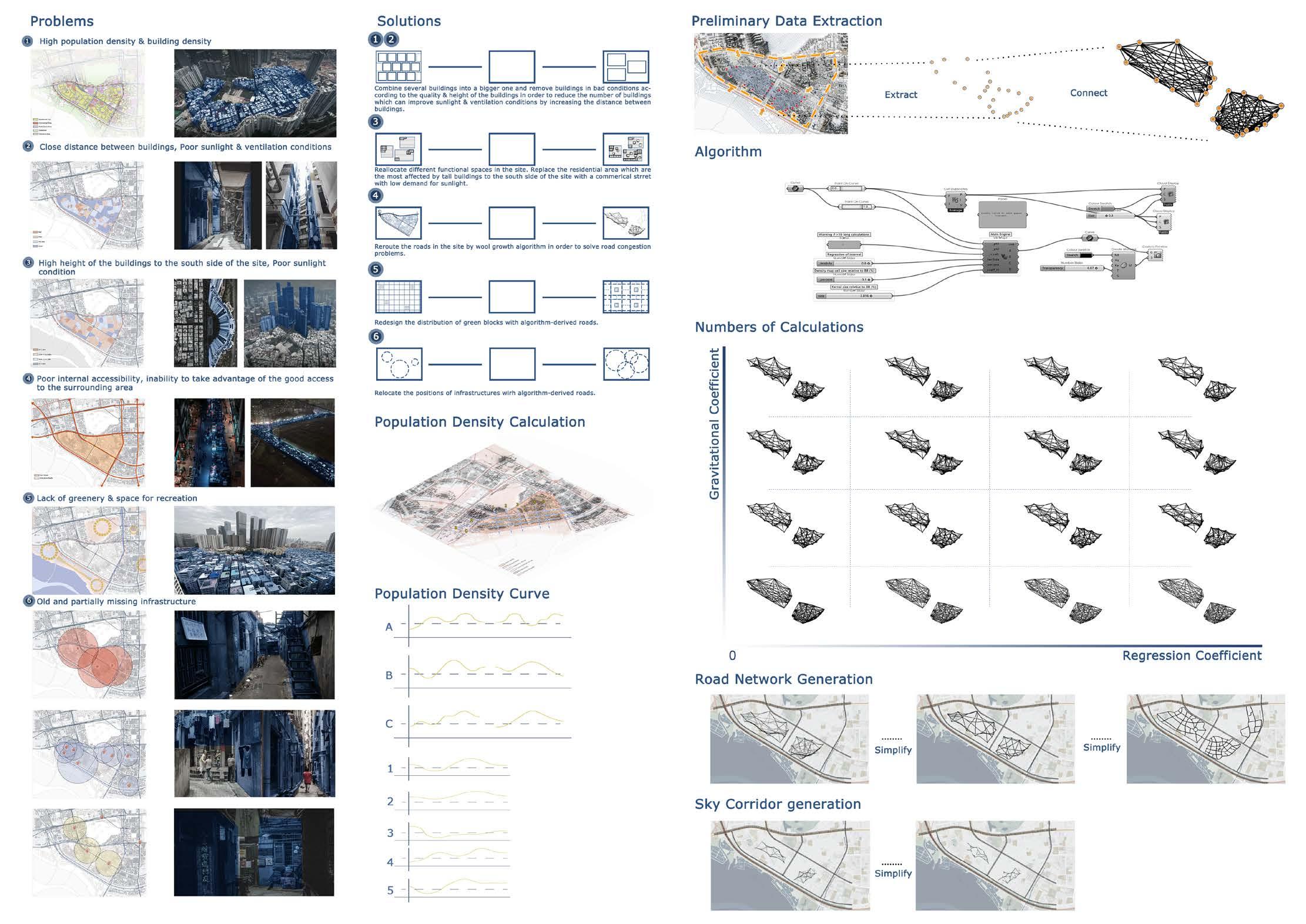

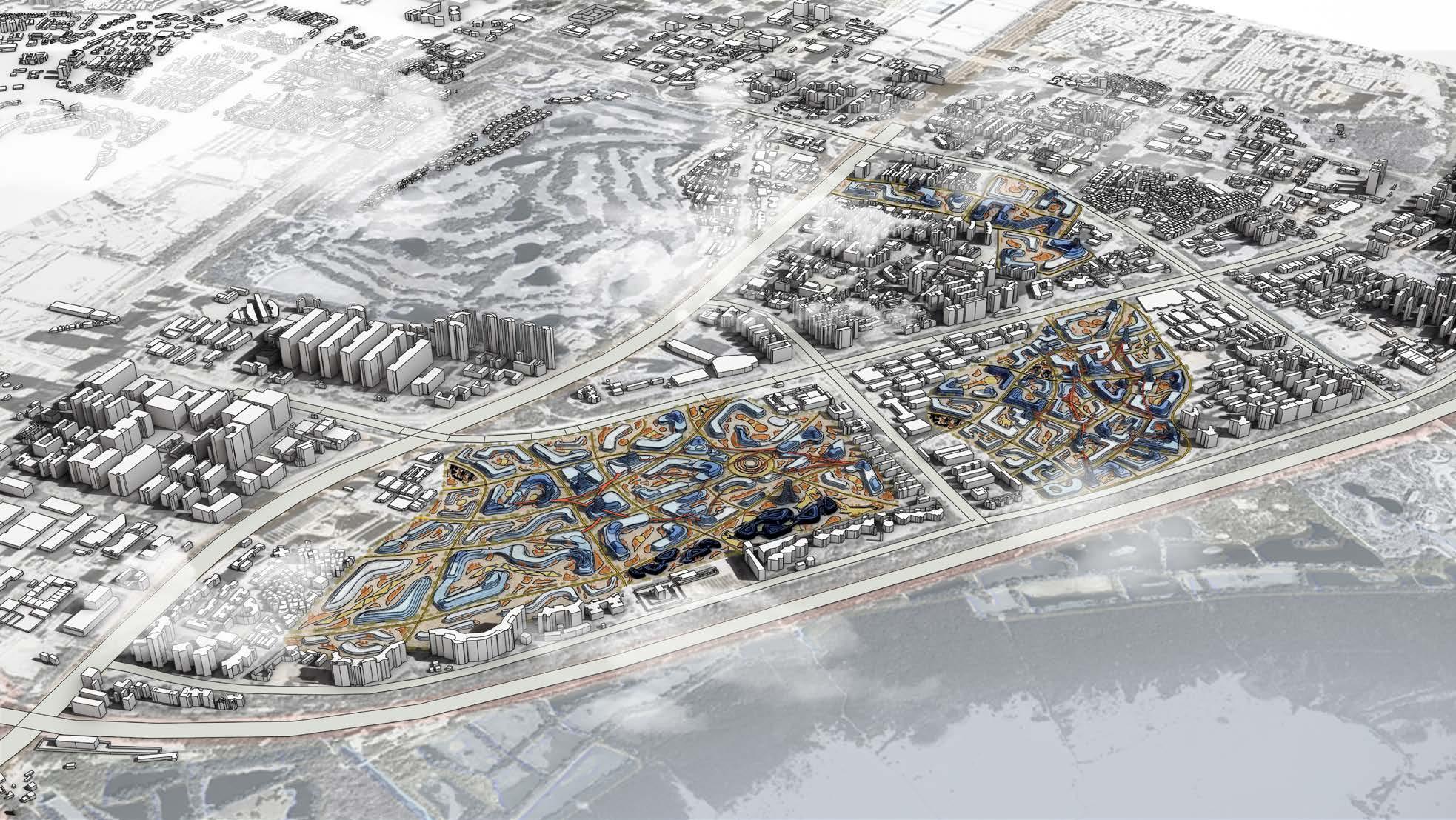

Based on continuous trials and modifications, the most suitable road curves were finally selected after dozens of unsuitable results were dispatched, and the results were continuously simplified by combining practicality and legal regulations to arrive at the final road network system.

Urban villages are gradually becoming a common phenomenon in China, especially in economically developed areas. The design process of this project is based on several core issues of urban villages. One of the most pressing issues to be addressed is that of excessive building density. I have used the wool experiment mentioned by Frei Otto to re-plan the traffic and space and then continue the design based on the resulting road network to bring vitality to the village. While designing I also needed to reflect on the causes of urban villages and continue to think about alternative solutions for different situations, and finally explore further preventive measures to avoid similar situations in the future.

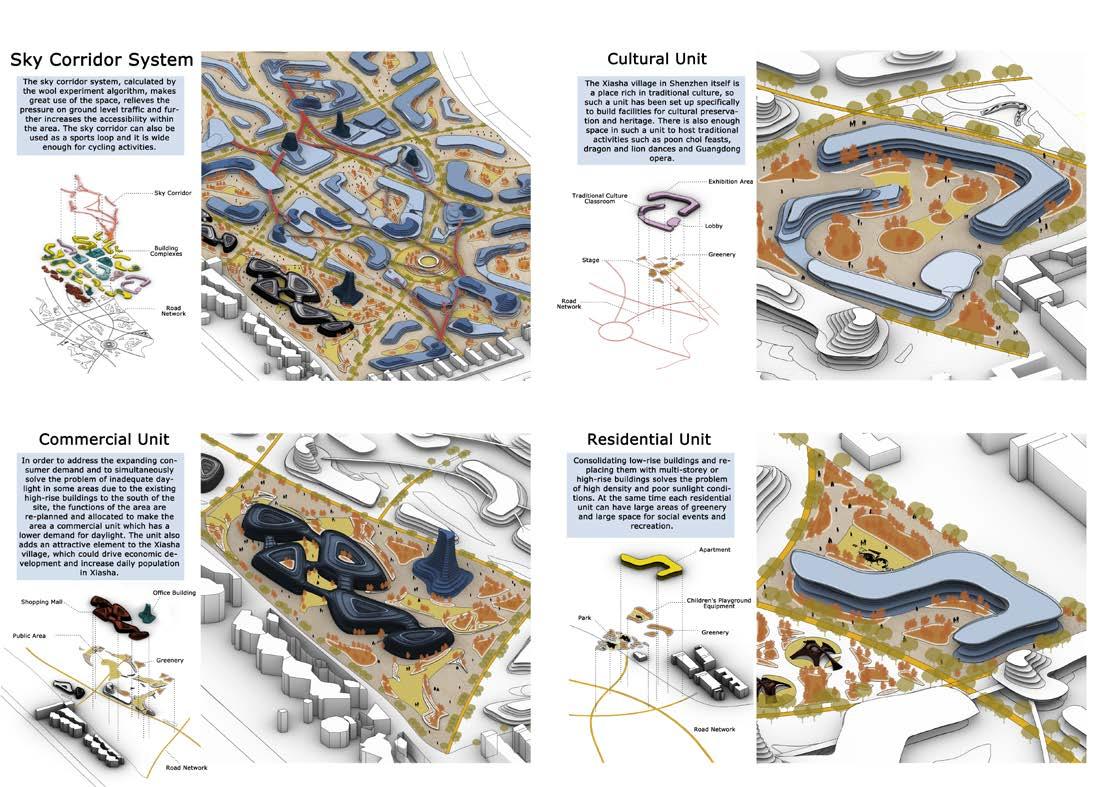

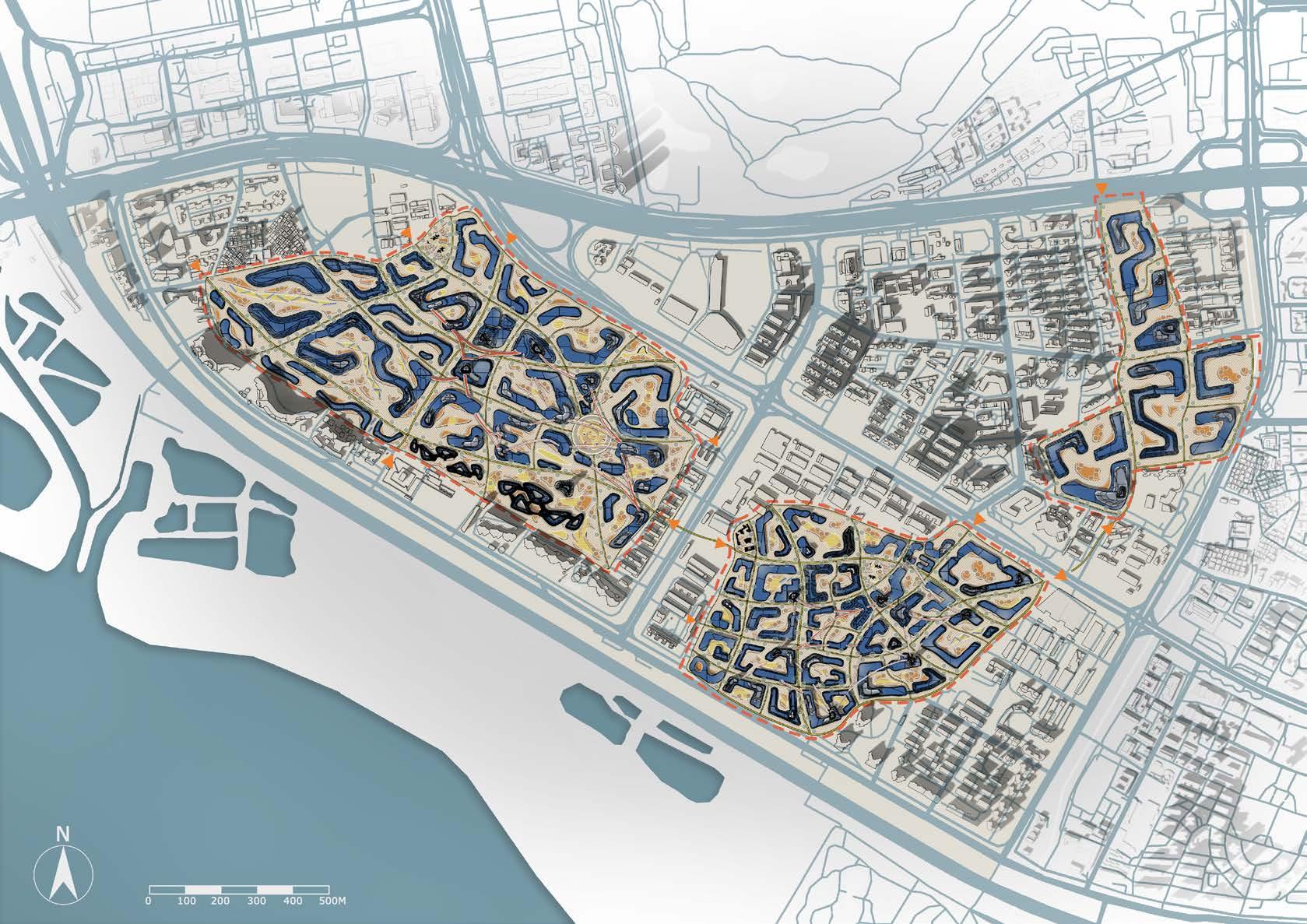

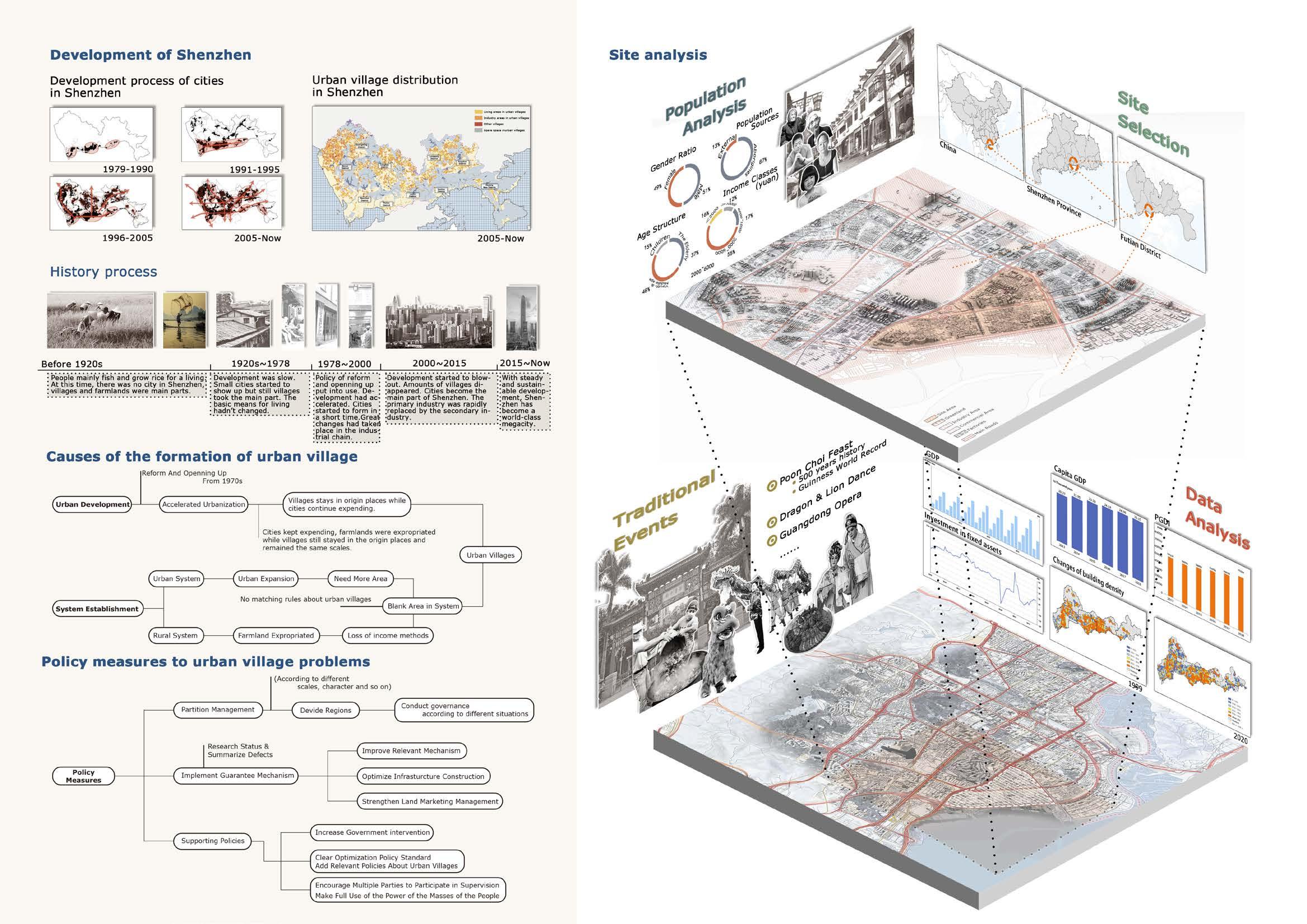

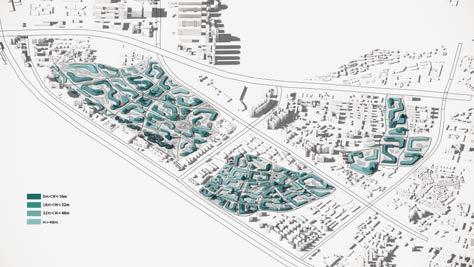

Xiasha Village in Shenzhen is an urban village. The rapid urbanisation process has led to the inability of Xiasha Village to keep pace, causing it to develop at a rapid pace in a deformed direction, resulting in an urban village that now has many problems. In order to address the high density problems faced by the urban village, this design introduced the concept of the wool experiment algorithm to re-plan the roads in the areas where the problems are most prominent. This has reduced the spatial pressure caused by the high density and at the same time greatly increased the accessibility of the area, which also reduces the traffic congeston. The design also combines low-rise buildings and replaces them with high-rise buildings, redistributing the extra ground space to meet the needs of local residents for greenery and social and recreational space.

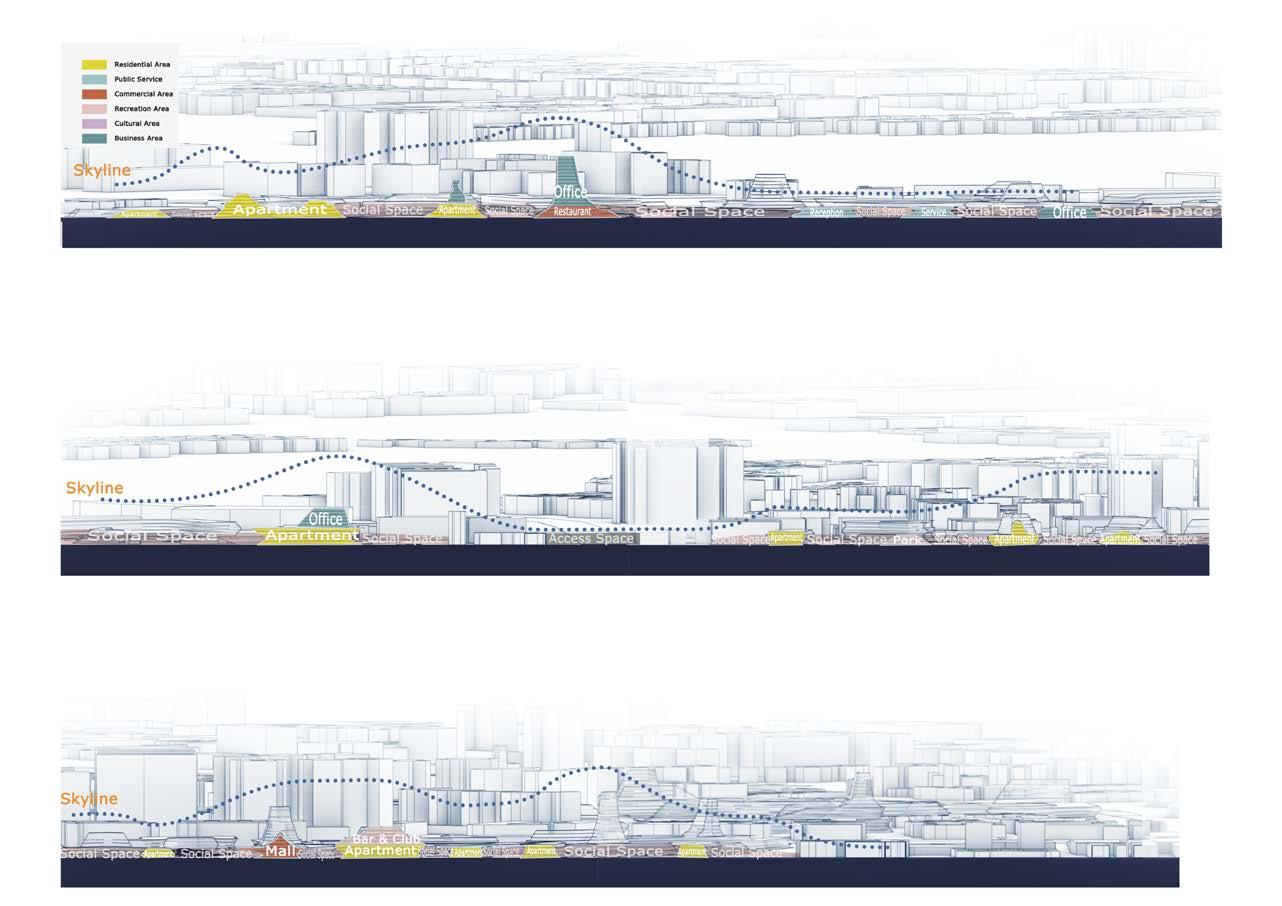

Section & function

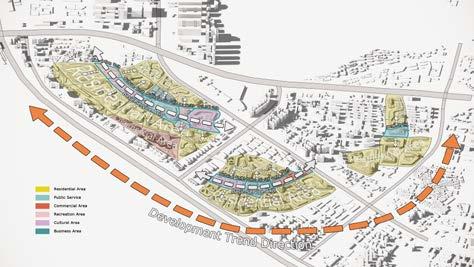

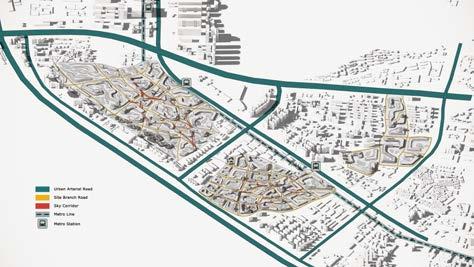

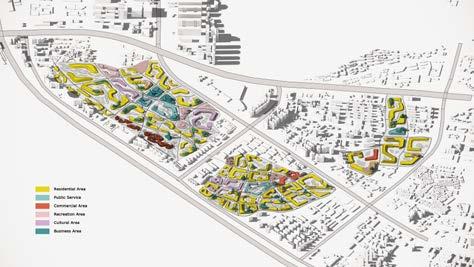

Structure and trend analysis

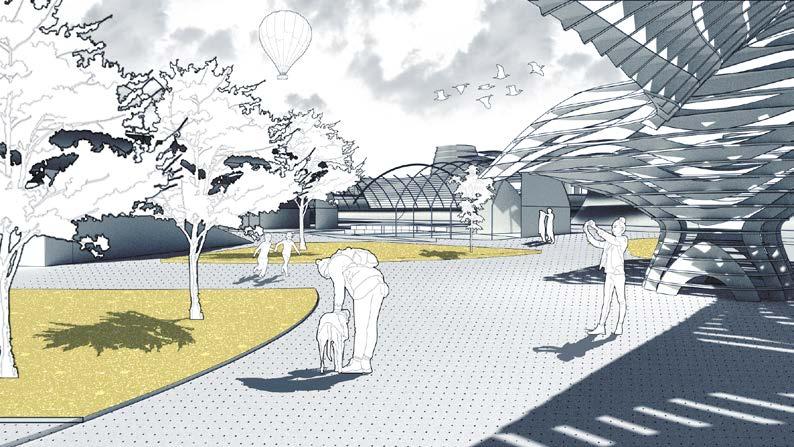

Exterior 01

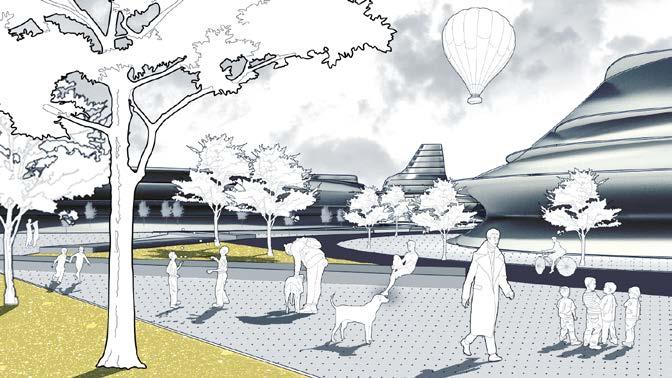

Exterior 02
