Concept DFMA

The development concept will be community-centered, with intelligently designed public places and amenities to fulfill the requirements of both the local community and the general public.

The development will combine new urban solutions and design aspects with the goal of becoming a model sustainable and low-carbon residential precinct.

Rochor Lea

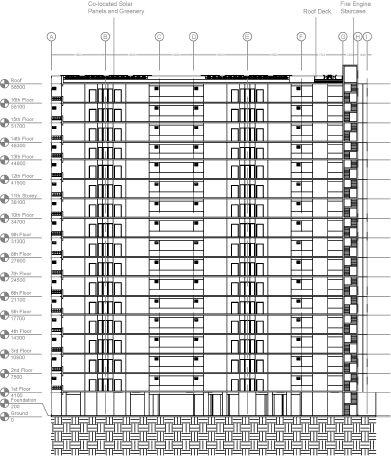

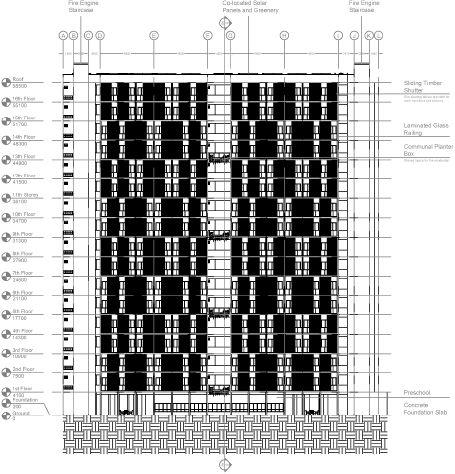

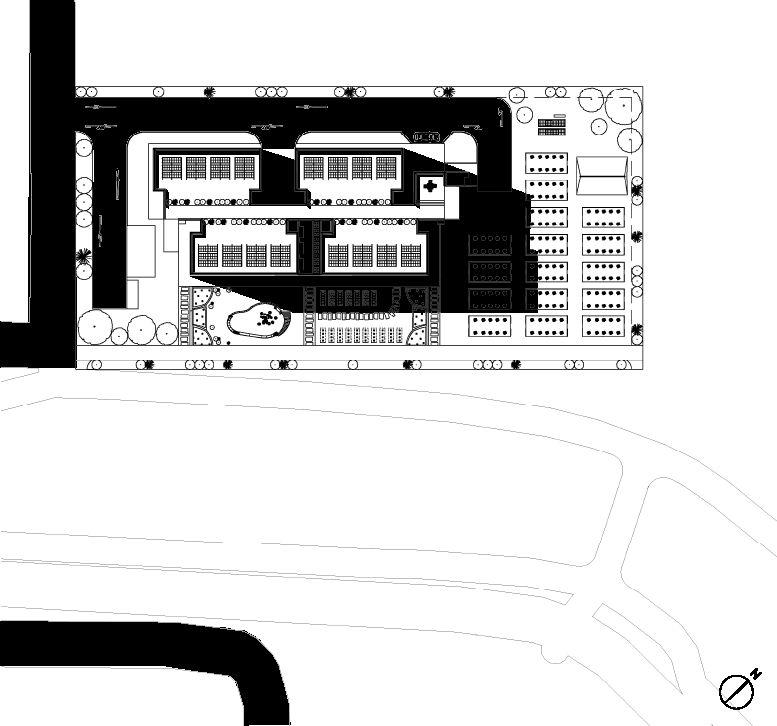

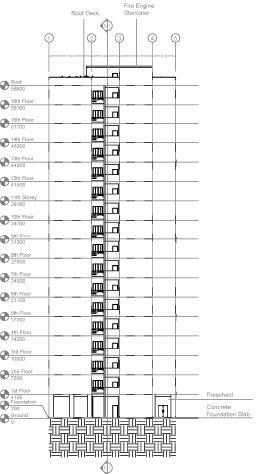

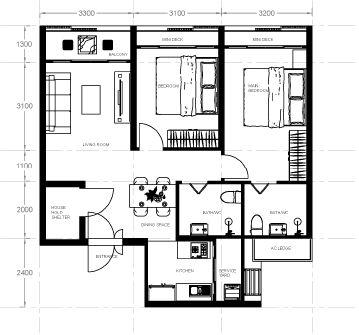

Site plan, Front, and Side Elevations

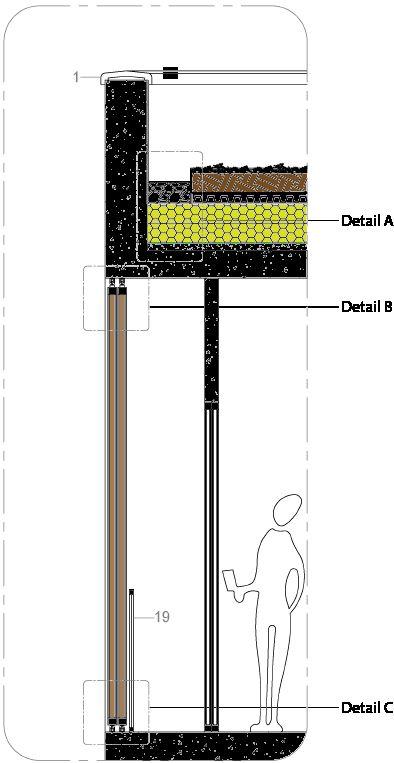

Leges:

1. Parapet Wall

2. Parapet Coping

3. Light Vegetation

4. Retention trim

5. Growing Medium

6. Smooth Gravel Edge Channel

7. Filter Fleece

8. Drainage Element, Water Reservoir, and Root Barrier

9. Waterproof Membrane

10. Rigid Insulation 140mm each

11. Vapour Control Layer

12. Screed to Falls 50mm

13. Concrete Slab

14. Screw

15. Rail Carriage

16. Sliding Wheel

17. Wooden Frame

18. Wooden Panel
