architecture selected works 2022

“The difference between good and bad architecture is the time you spend on it”

- David Chipperfield

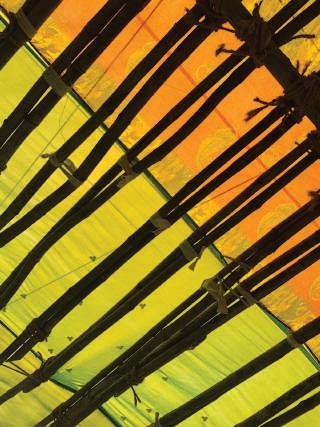

I’m Jigyassa an undergraduate student of SMMCA Nagpur. To me architecture is changing the destiny of a building which might become a rigid piece of construction, and converting it into a beautifully designed comfortable archi tecture; while enjoying the process Time Management Problem Solving Organization Leadership Emotional Intelligence Responsible Teamwork Creative Hindi (mother-tongue) English (Fluent) Korean (Basic) 2008 Delhi Public School, Durg (Studied till Grade3) 2018 Delhi Public School, Raipur (Studied till Grade 12) 2019 Smt. Manoramabai Mundle Collage of Architecture, Nagpur AUTOCAD SKETCHUP PHOTOSHOP ILLUSTRATOR VRAY LUMION PREMIERE PRO AFTER EFFECTS HELLO, CONTACT 16.04.01 21 YEARS OLD EDUCATION SKILLS 2022 62ND ANNUAL NASA CONVENTION (Bengaluru, Karnataka) 2022 Writing Architecture Trophy (NASA) 2022 S A DESHPANDE (IIA Nagpur) 2021 STUDIO LAYOUT (Software workshop) 2021 Learn Korean for Beginners: The Ultimate 100-Lesson Course (Udemy) 2021 VICE-PRESIDENT (Student Council SMMCA, Nagpur) 2020 Filipe Boni (Sustainable Materials Live Workshop) WORKSHOPS / EXPERIENCE SOFT SKILLS LANGUAGE 9926048196 jjigyassa@gmail.com jigyassajha16 p e i

CONTENT 01 02 03 “Elemental” Preschool Design “Exeu Mall” Shopping Center Design “Big Mouse”

IIA Project

“Design in Detail” Working Drawing “Jigyassa” Miscellaneous Interests

CONTENT 03 04 05

01.

PRE

SCHOOL

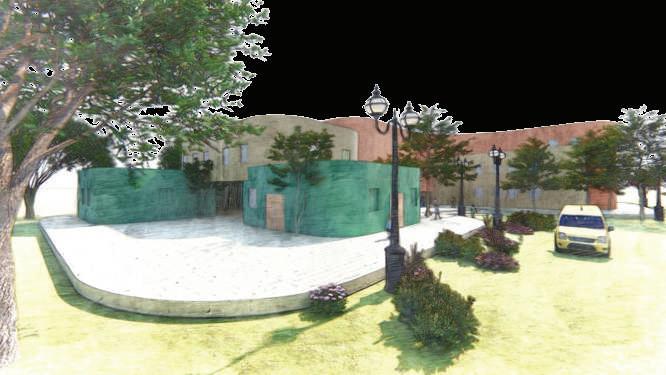

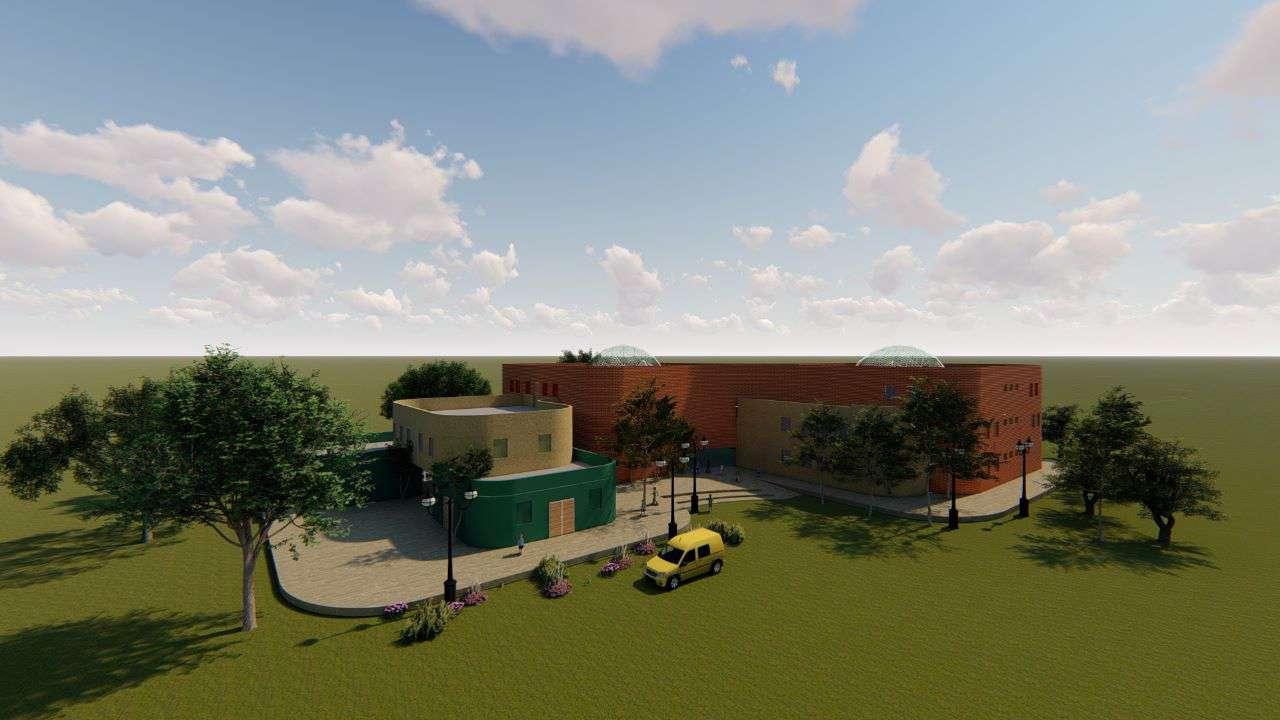

01 PRE SCHOOL

4th semester Design 2020-2021

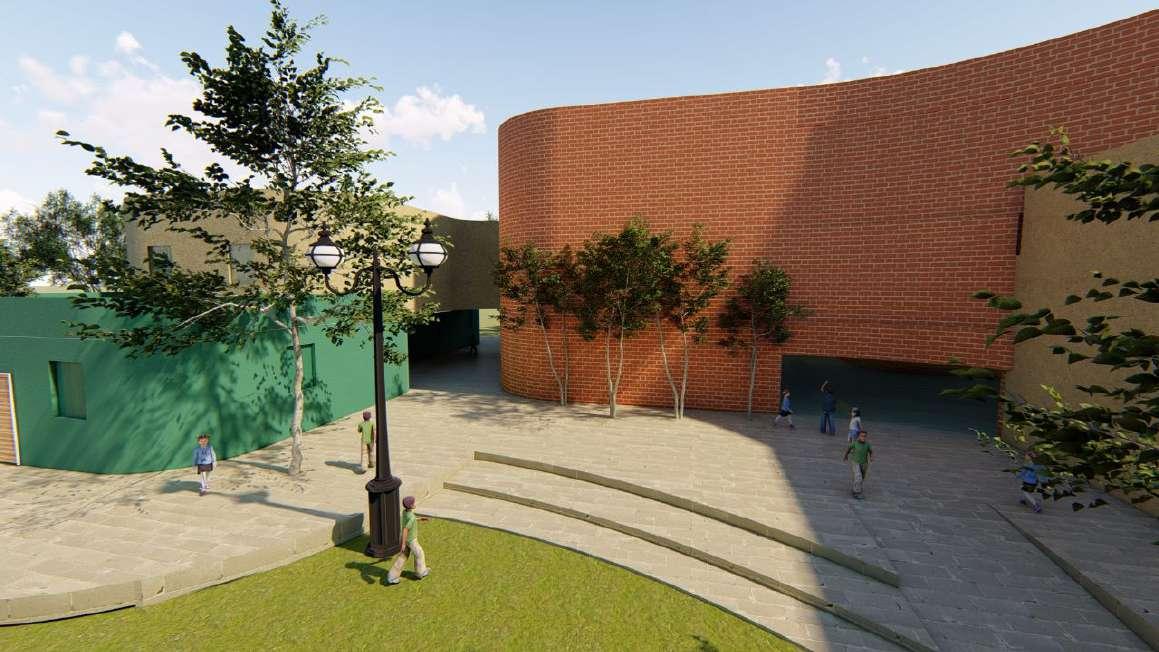

In the intent of blurring the boundaries of learn and play, and learn and home this is a proposal in order to create an environment that allows us to move away from the monotony and provide a more collaborative and easy environment where these children have the liberty to absorb and enjoy.

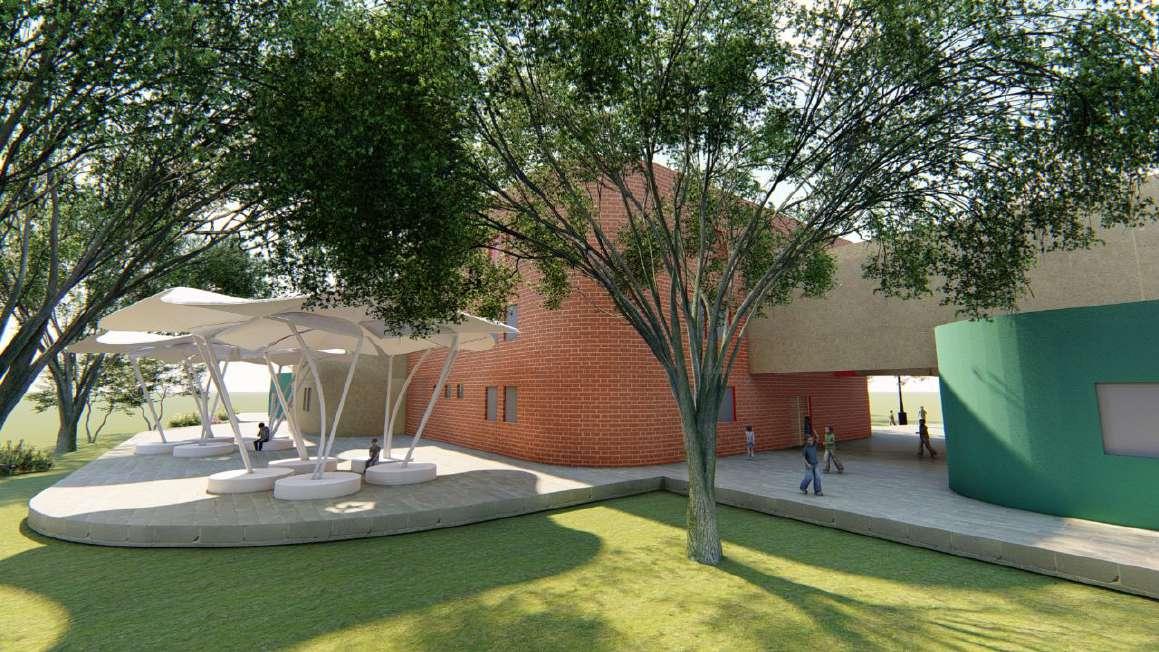

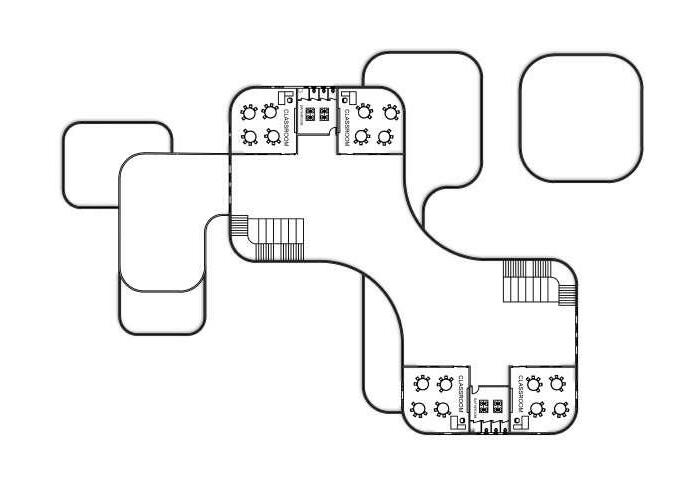

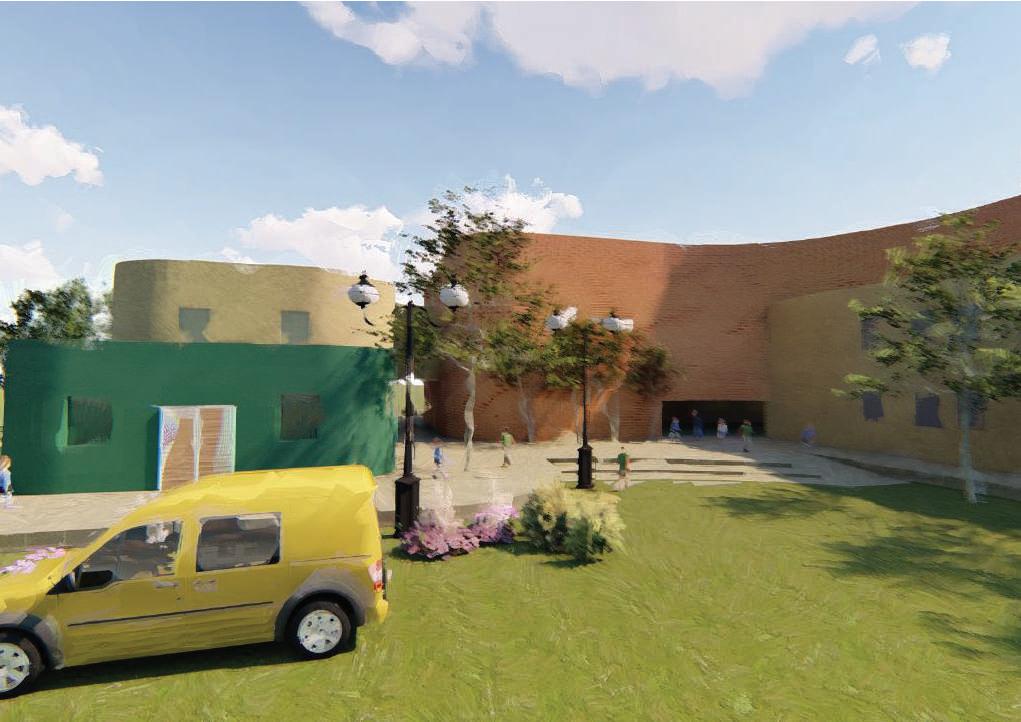

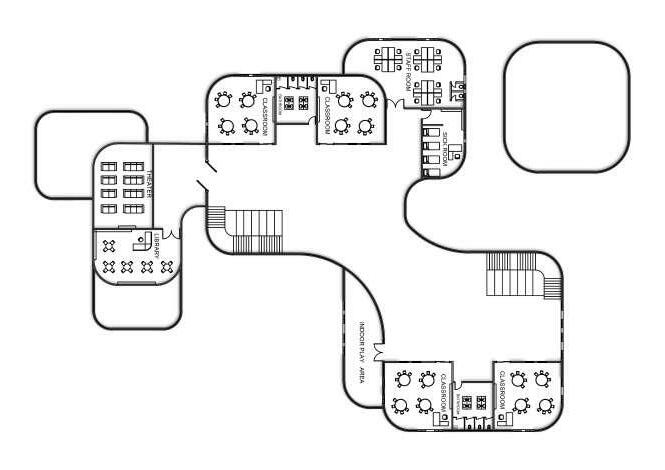

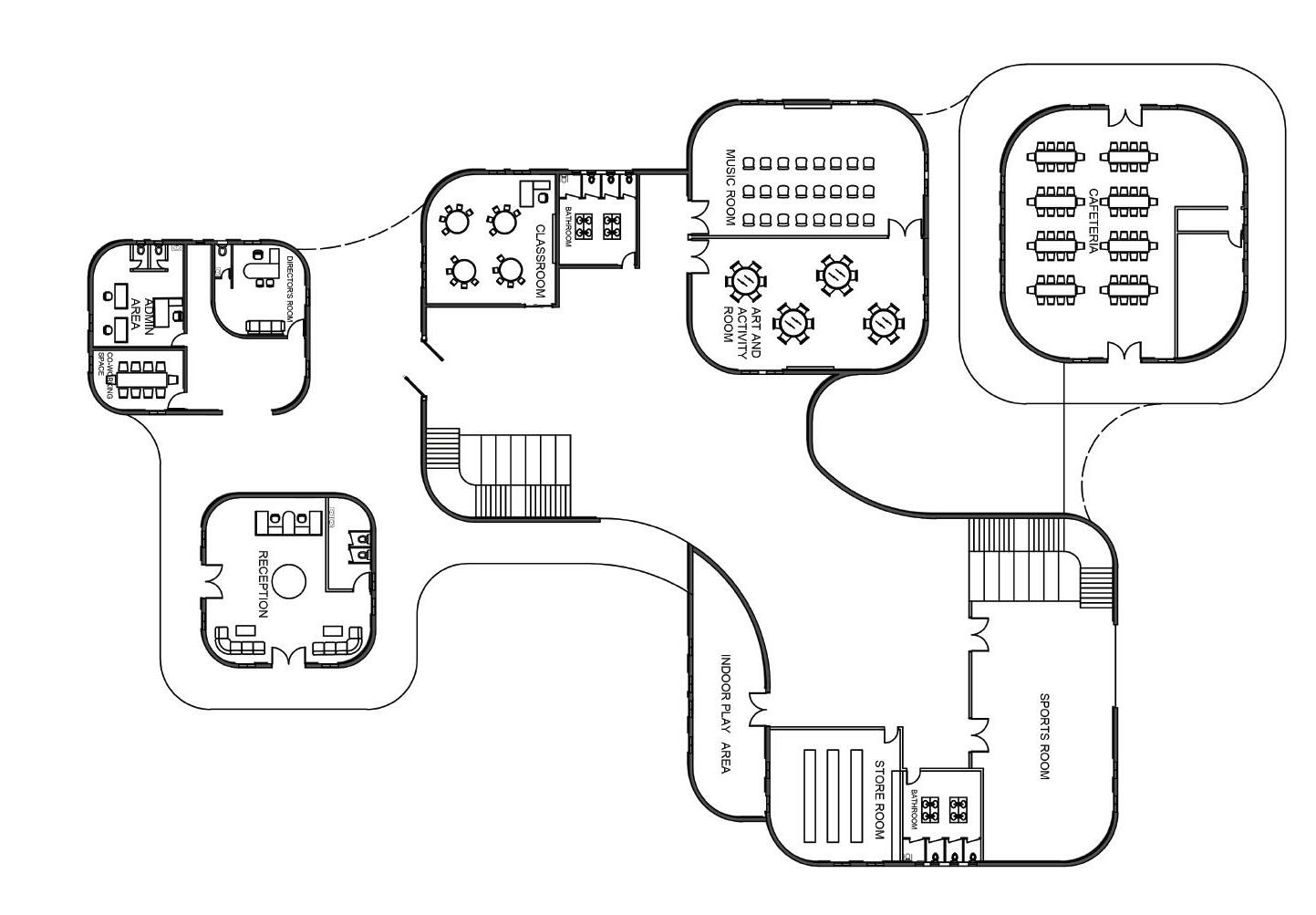

01 FLOOR PLANS 02 03 04 05 01. RECEPTION 02. ADMIN AREA 03. OFFICE ENTRANCE 04. MAIN ENTRANCE (FOR STUDENTS AND STAFF) 05. STAIRCASE AND WIDE STAIRCASE (FOR SITTING) 06. CLASSROOM WASHROOM 08. MUSIC ROOM 09. ART AND ACTIVITY ROOM 10. INDOOR PLAY AREA 11. STORE SPOILSPORTS UTILITY ROOM 13. CAFETERIA 06 07 08 09 11 10 12 13 07

CONCEPT DEVELOPMENT

FIVE ELEMENT AND THREE COLOR

Attending kindergarten means having more structure in a child’s young life, and they are ready for it after going to preschool. They have learned to socialize, follow simple rules, and stay on a task longer and longer.

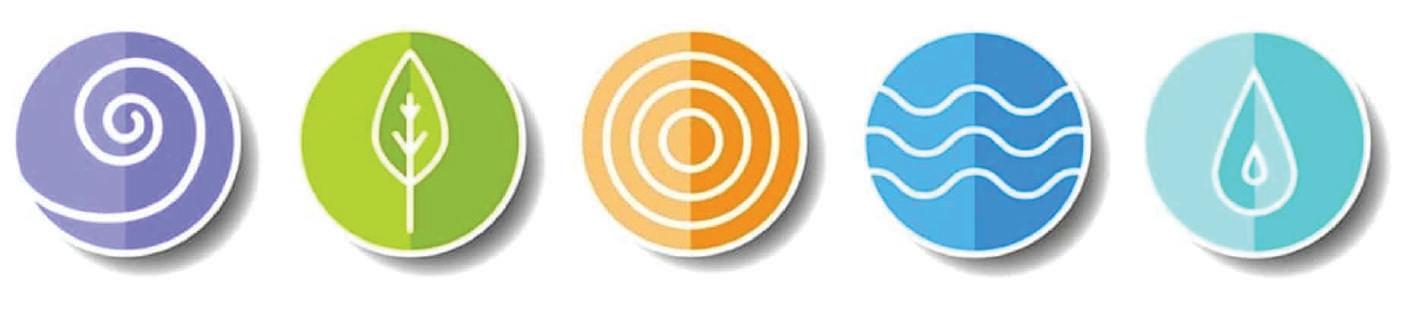

FIVE ELEMENT

World’s complex yet simple philosophy, पंचतत्व Five elements of nature, Earth, Water, Fire, Air and Ether (Space) is now going to be entangled with their life so the proposal is divided in such manner to make them more aware of basic elements

THREE COLORS

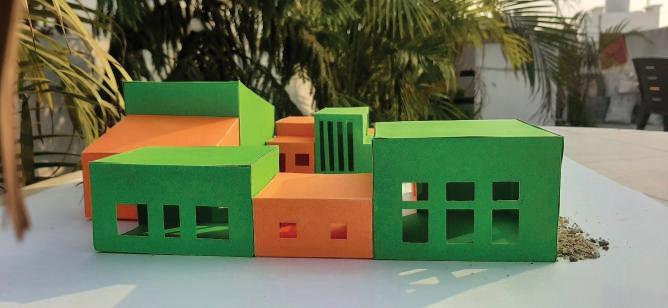

Hence the form was divided into three different area and five different building. Having incorporated primary and secondary colors to make it look more like a kindergarten.

02.

SHOPPING

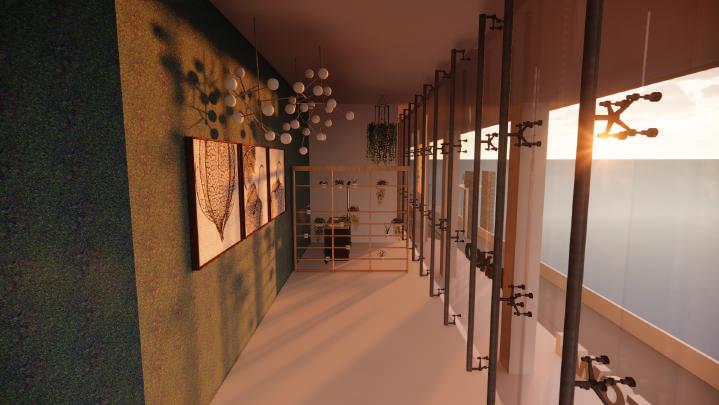

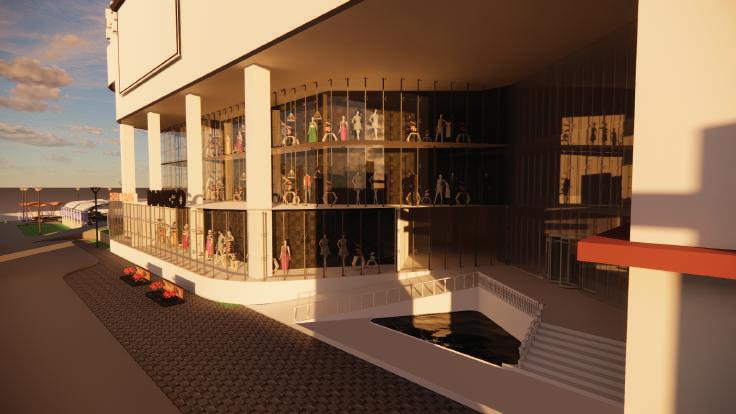

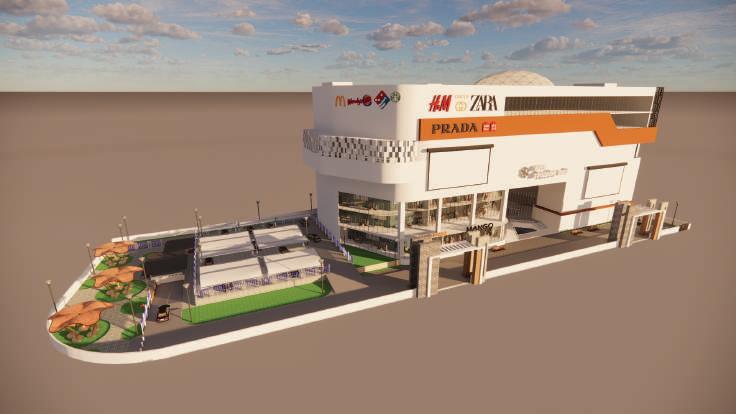

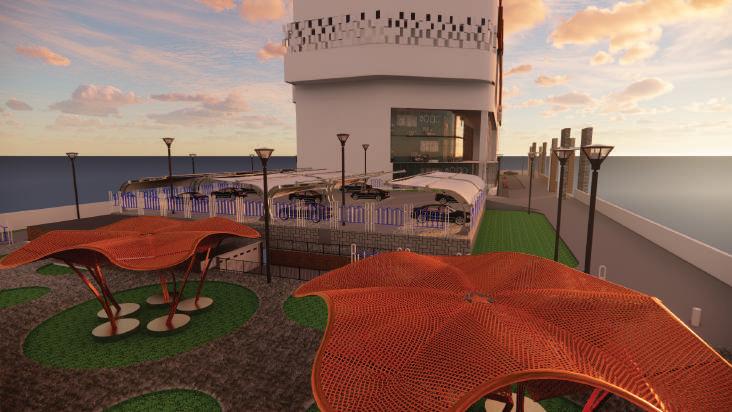

02 “EXEU” SHOPPING MALL

6TH SEMESTER DESIGN PROJECT 2022

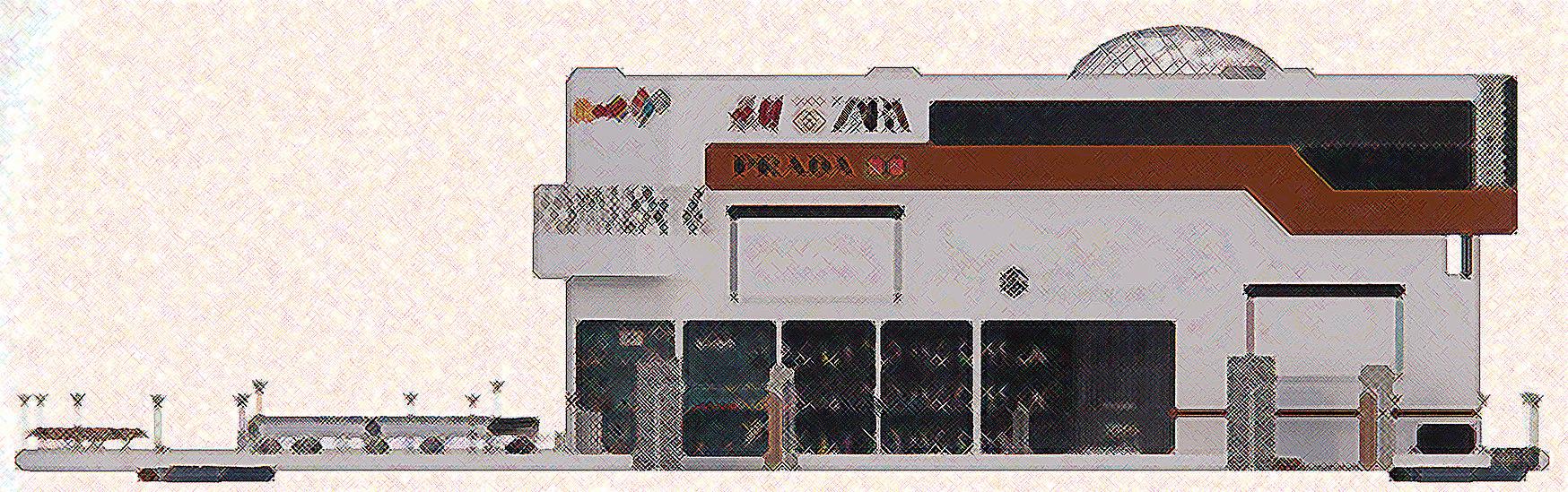

An interesting task of designing a shopping mall in context with every age group and requirements was an interesting job we were able to do. Justification of the existing area was done by de-marking it by a unique looking structure making public to attract and make them come more often!

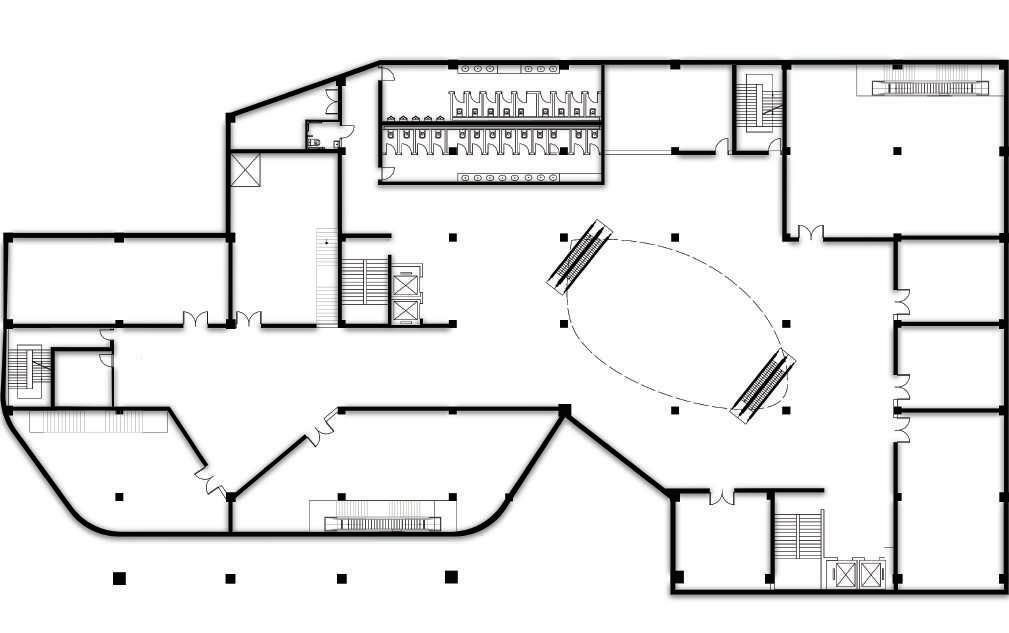

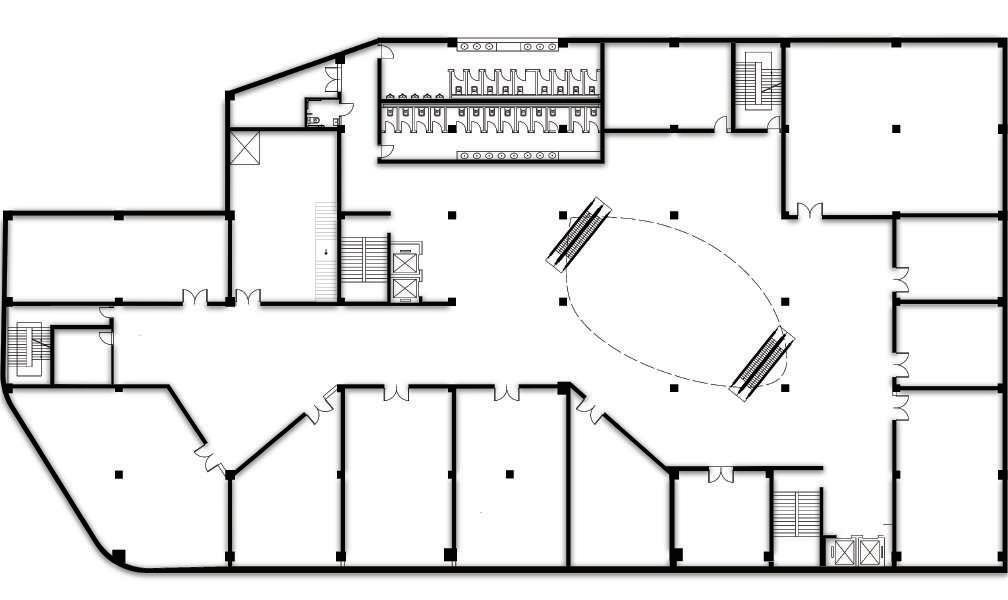

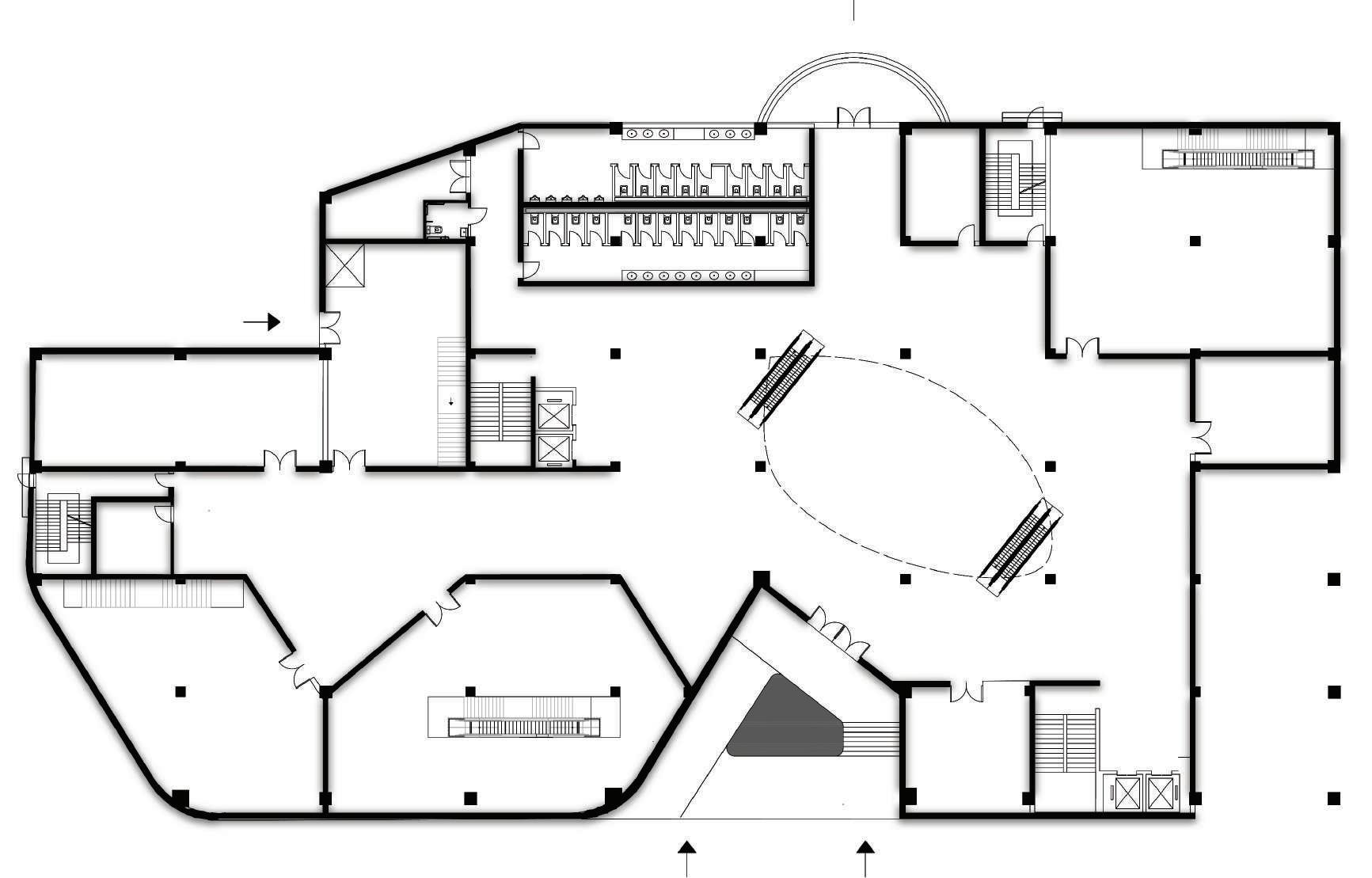

01. ENTRANCE 02. ANCHOR SHOPS 03. MEDIUM SHOPS 04. SMALL SHOPS 05. STORE 06. FIRE EXIT STAIRCASE 07. LIFT AND STAIRCASE 08. ESCALATORS 01 02 02 03 03 05 01 01 04 06 02 04 04 07 08 08 07 05 06 A’ PARKING

CONSECUTIVE FLOOR PLANS UPTO 8 FLOORS SECTION AA’ -6.00 Basement II -1.80 Basement I 0.00 Ground Level +1.20 Ground Floor +5.20 First Floor +9.20 Second Floor +13.20 Third Floor +17.20 Fourth Floor +21.20 Fifth Floor +25.20 Sixth Floor +29.20 Seventh Floor +33.20 Parapet PARKING PARKING RETAIL SHOP RETAIL SHOP RETAIL SHOP RETAIL SHOP RETAIL SHOP RETAIL SHOP RETAIL SHOP

03.

BIG MOUSE

03 UNDERGROUND LIVING

IIA PROJECT (SA DESHPANDE) 2022

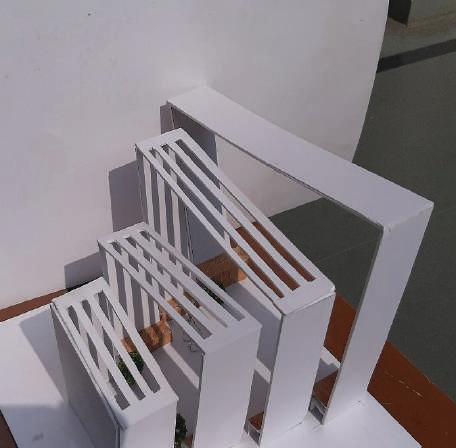

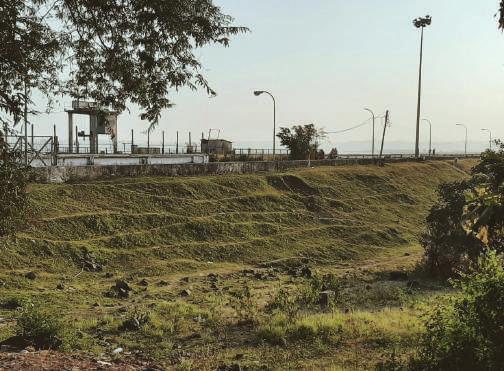

Theme of this competition was Meta, a building which portrays its autobiography. The competition requires to conjure up and architectural project of any size, anywhere but it should have a story with itself and a purpose.

CONCEPT DEVELOPMENT

ALTERNATE HISTORY

Had history taken any different turn in any junction, someone else's dream such as Hitler of concurring the world might have become true.

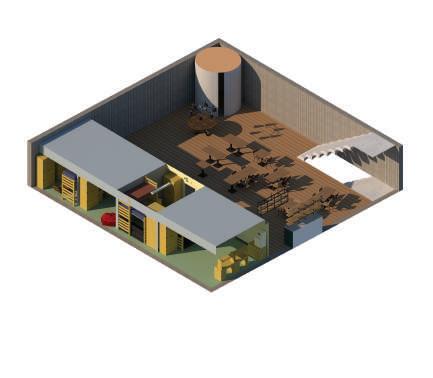

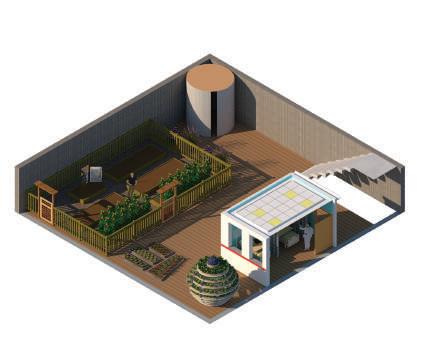

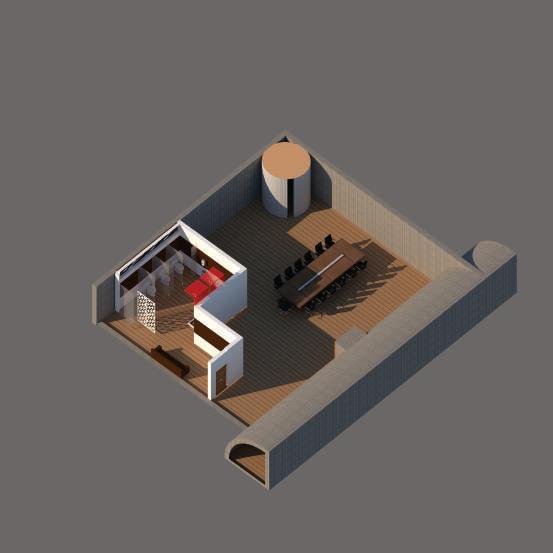

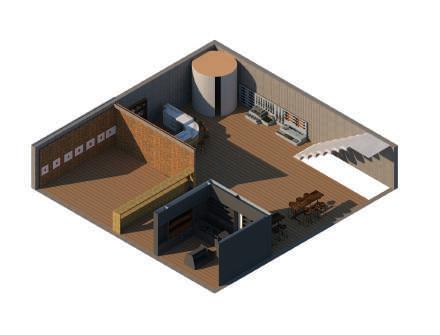

This house is the representation how Jews might have to live under Nazi rule if in some world they get a chance to survive.

Not having the luxury to live like others, now they have become human rats who have closes to equal luxury life.

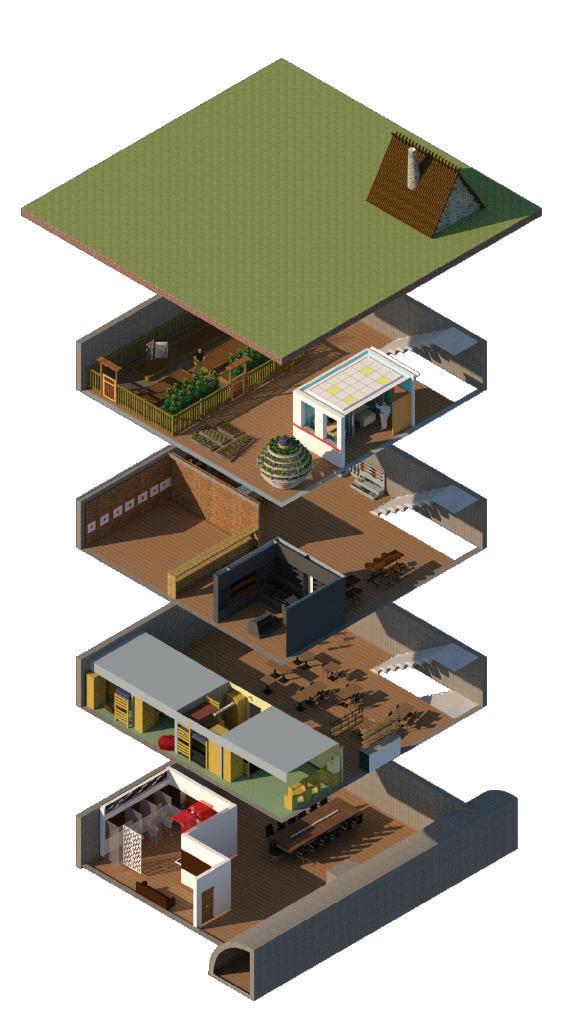

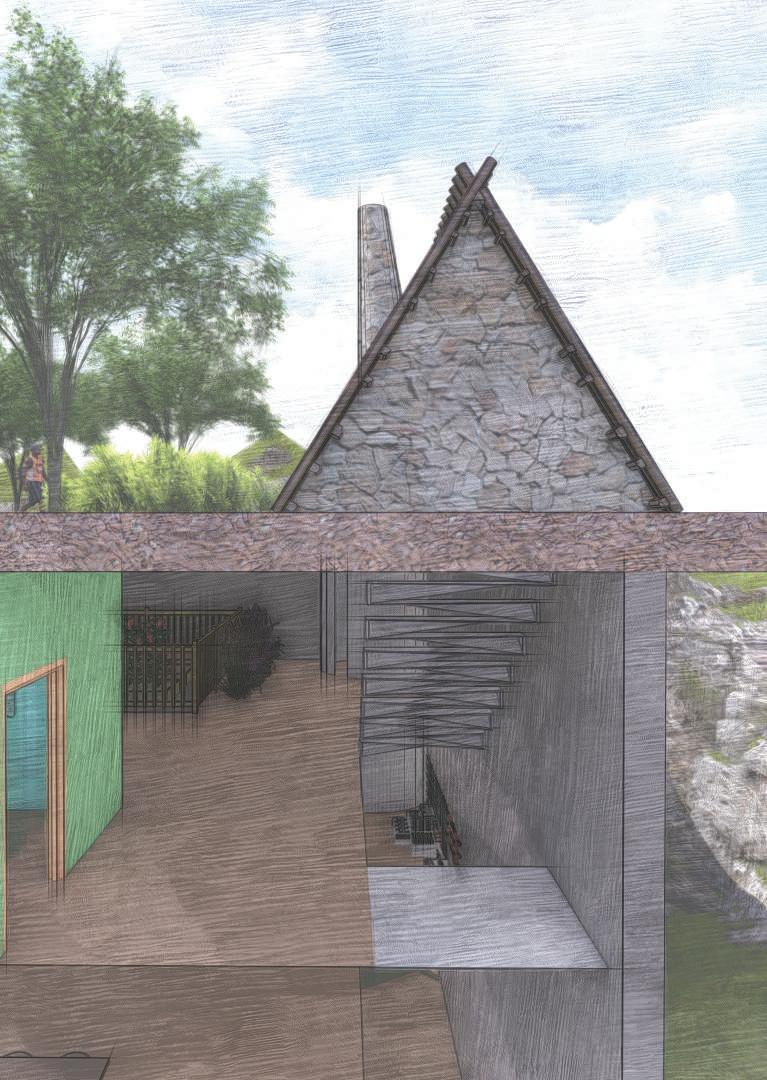

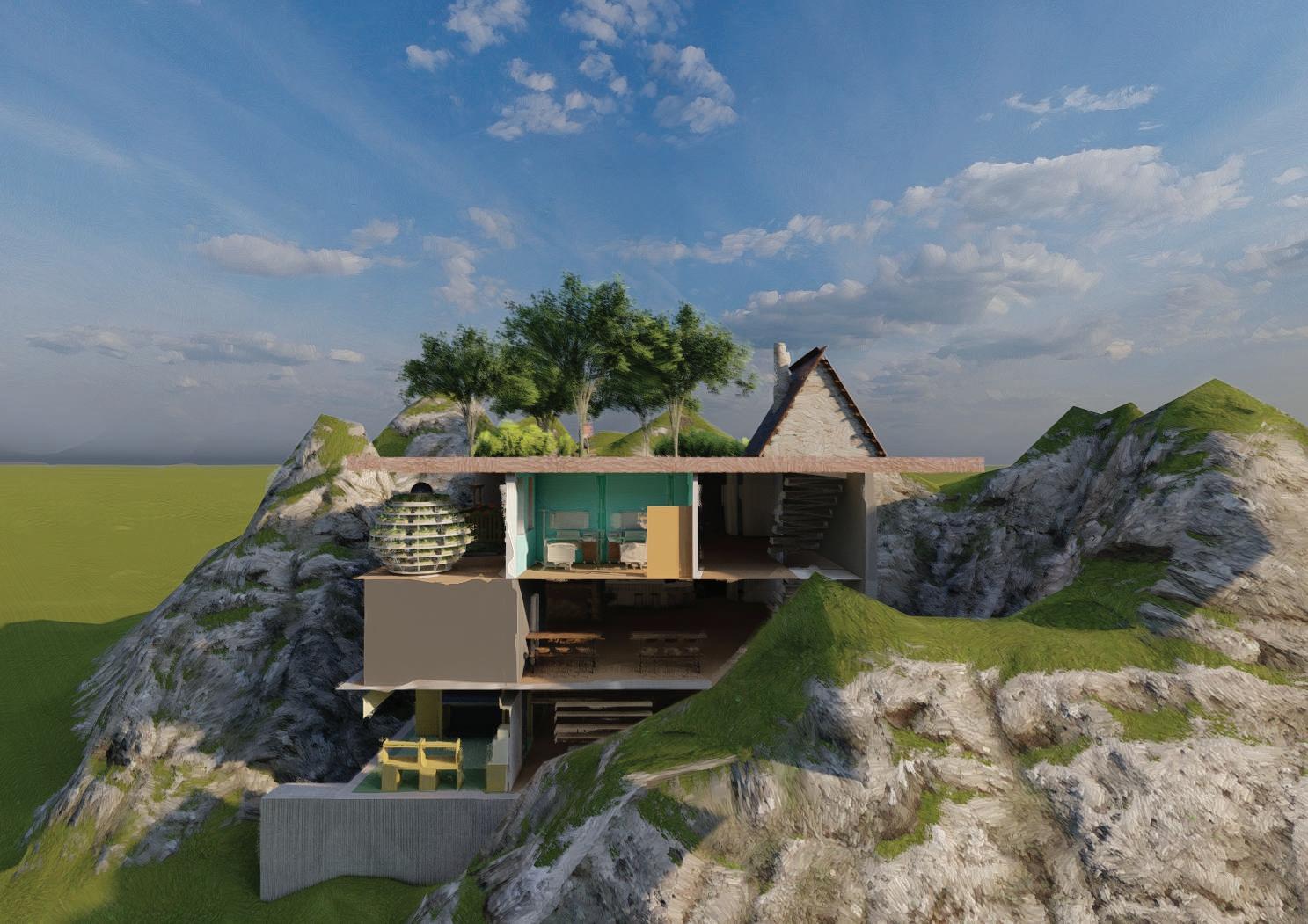

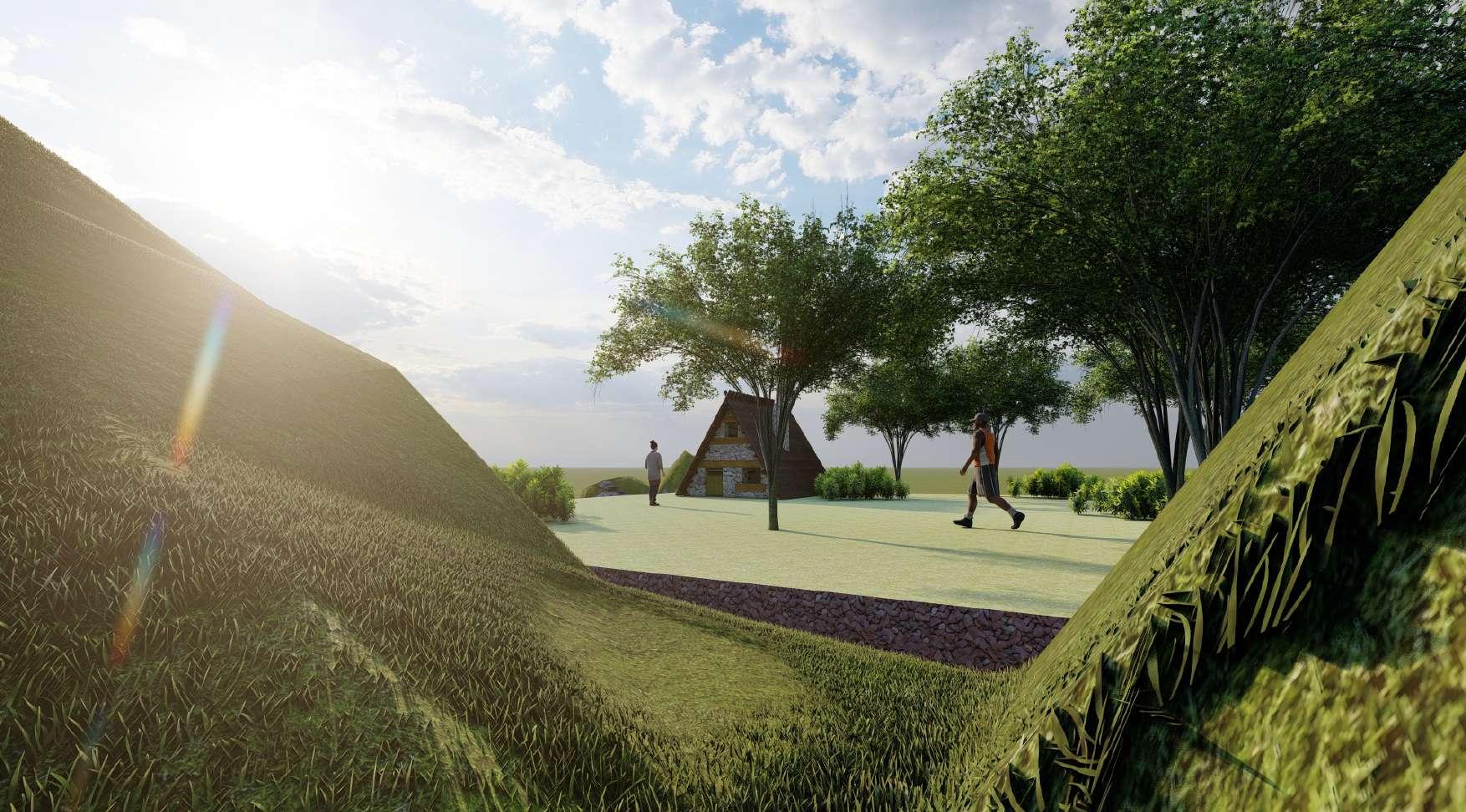

Above the earth they have a shelter which can not even be called a house with primary elements. Having tunnels beneath in order to run away or even go to neighboring houses with liberation. Hence rationally they might build a house alike with the passage of time.
