UTOPIA URBANISM PORTFOLIO OF JIAXI ZHANG 10/2022 DISPELL LONELINESS IN THE CITY
3
Portfolio Of Jiaxi Zhang
2 UTOPIA URBANISM CONTENTS ANGLING ARCADIA AWAY FROM WORLD | HomeStay Facility Nov.2018 - Jan.2019 URBAN FABRIC REGENERATION IN OLD TOWNS | Urban Design Mar. 2017/Jun.2020 AMUSEMENT PARK | City Complex Mar.2019 - Jun.2019 LATEST WORK | See the world like a child. 04 02 03 05 INTERIOR DESIGN APR. 2022- SEP. 2022 When we see the world through the eyes of children, we will see different scenery, interact with people in different ways, and have a richer and purer inner world. Away from the city, close to nature, listen to the sound of the water and experience the enjoyment of fishing Keep the texture of the old town, change the form of basic units, and create space for people to communicate and nodes for activities The urban complex full of children's interest and imagination fades the heavy commercial atmosphere and is filled with more fun and freedom CONFENRENCE CENTER/MEDICAL BUILDING/HOUSEHOLD DESIGN HIGHRISE ALLOTMENT GARDEN | Housing Project Sep.2020 - Sep.202101 A community of interest in gardening for remote workers after Covid-19 Pandemic promoting physical and mental health OTHER WORKS |06 Hand drawing/Handmaking/Photography ARTWORK 2016-2019
Housing Project 2020/21 Group Work
HIGHRISE ALLOTMENT GARDEN
FOR REMOTE WORKERS
Torre Annunziata,Naples, Italy
Today, work is radically influenced by the growing digitization. Technology has revolutionized work allowing a person to perform his or her task anywhere around the globe remotely. The virus that hits the world in early 2020 accelerated this evolution, forcing millions of workers to isolate and restructure their homes as their new office sanctuary. While the unique setting benefited many people, some suffered mental and physical exhaustion. The question of combining work and leisure becomes cogent. This approach is evident in contemporary office design, which seems to be increasingly built around leisure spaces rather than strictly around desks.Inspired by these contexts, we developed our design project that seeks methodology in combining green space and living space in a non-rhetorical way and where integration of work area is essential. Our core vision is to create a distinctive type of architecture that leverages the power of machine learning and automation while taking into consideration the natural and built-in environment, human interaction, and food production (allotment gardens). This housing will cater to remote workers and their families who seek solace in nature while focusing on their productive and creative pursuits. The overall building program will promote coworking and social gathering spaces for the community.The author mainly focused on b-core structures and module aggregation and helped in machine learning part.
5
Portfolio Of Jiaxi Zhang
4 UTOPIA URBANISM
Project Objective
The housing project aims to combine green space and living space in a non-rhetorical way.

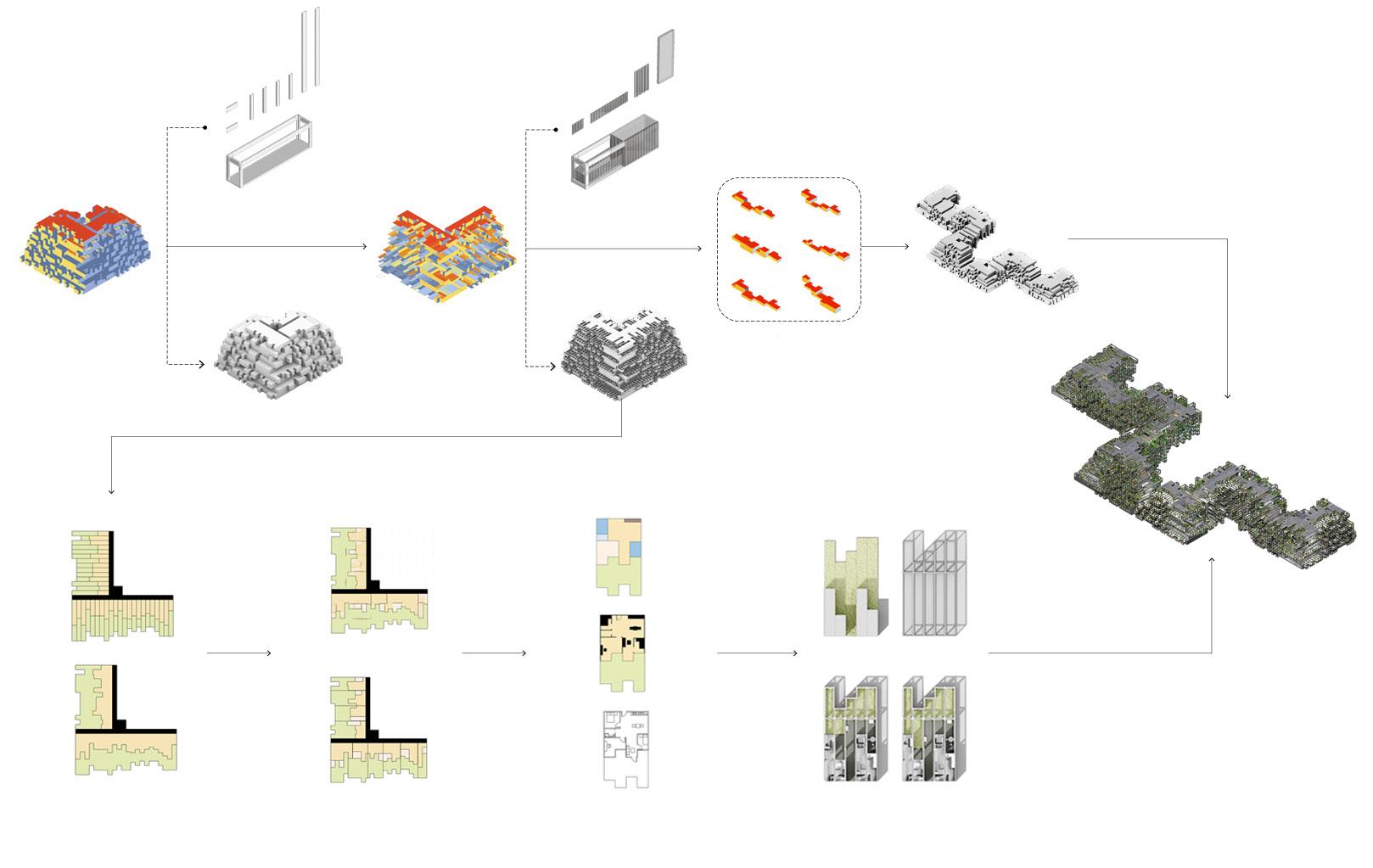

Project Workflow
ML1 Footprint
Location of private work space from outdoor space

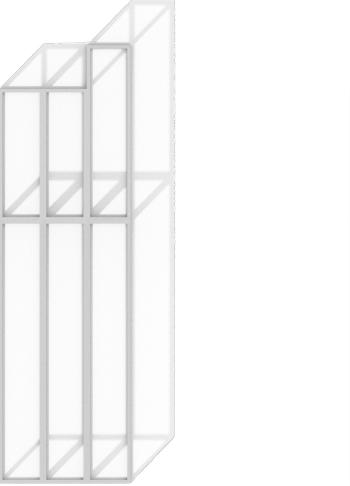

STEP1 Module
The prefab construction in b-core slab material
Step2 Cluster
The space division from radiation models

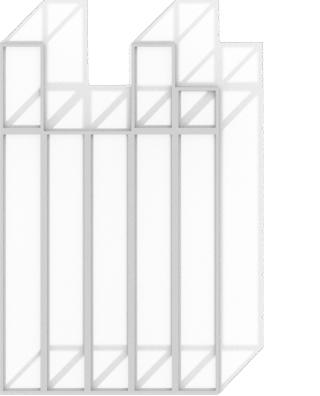

Step3 Envelope
The final envelope from radiation models
ML2 Family Units
The distribution and combination of modules.
ML3 Interior Design
The furniture sets allotments

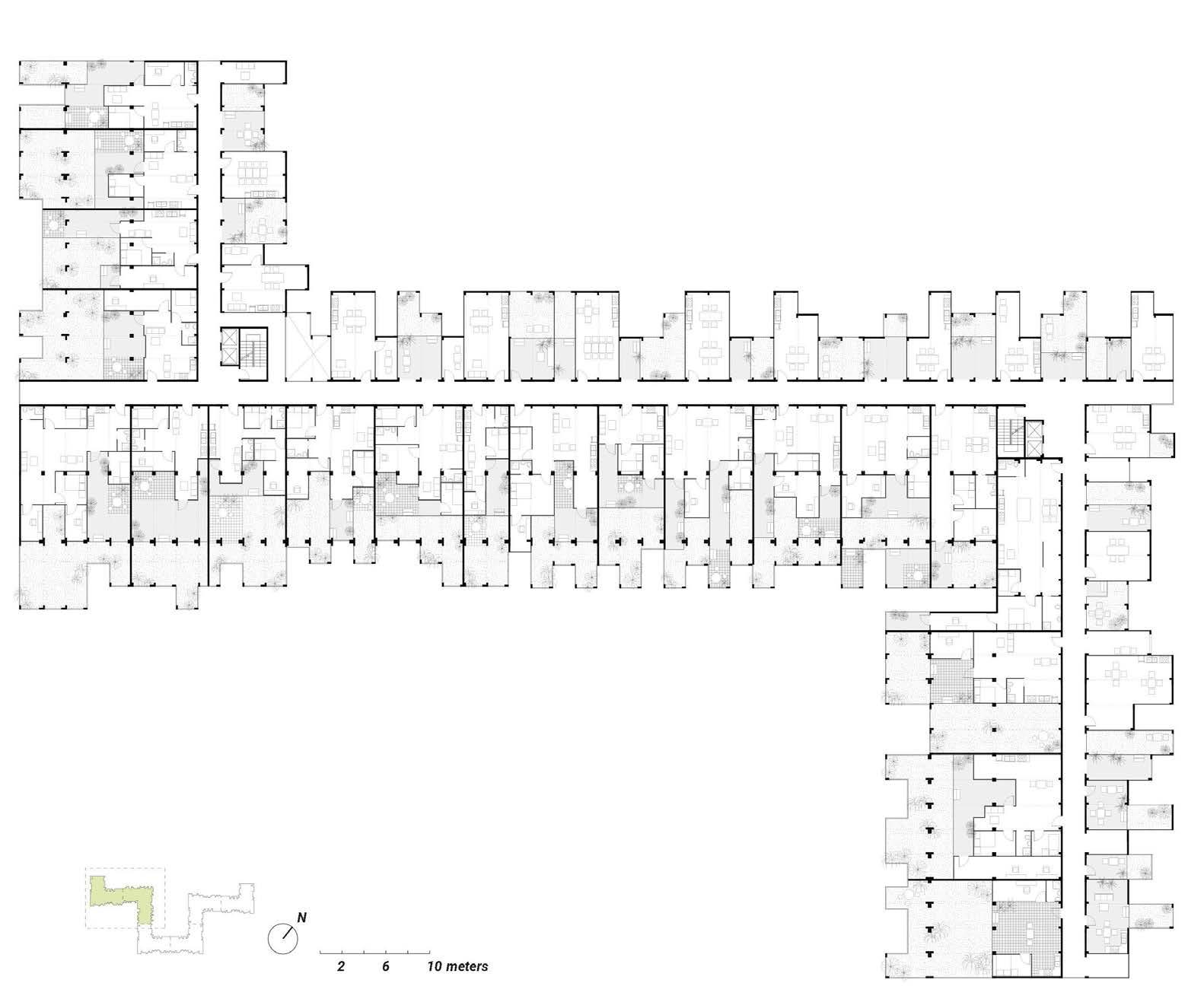

ML4 Floor Plan
The family units and shared space units.
7
Portfolio Of Jiaxi Zhang
6 UTOPIA URBANISM
01 High-rise Allotment Garden

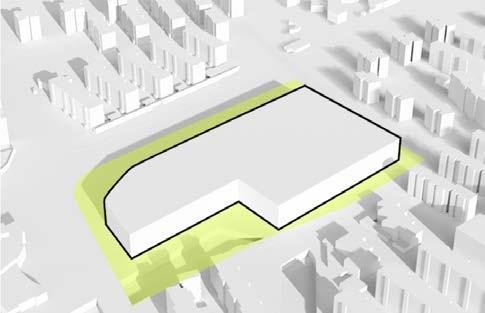

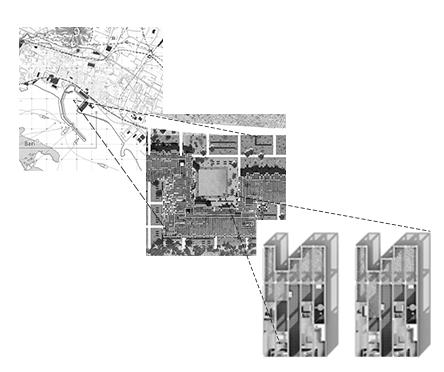

SITE ANALYSIS

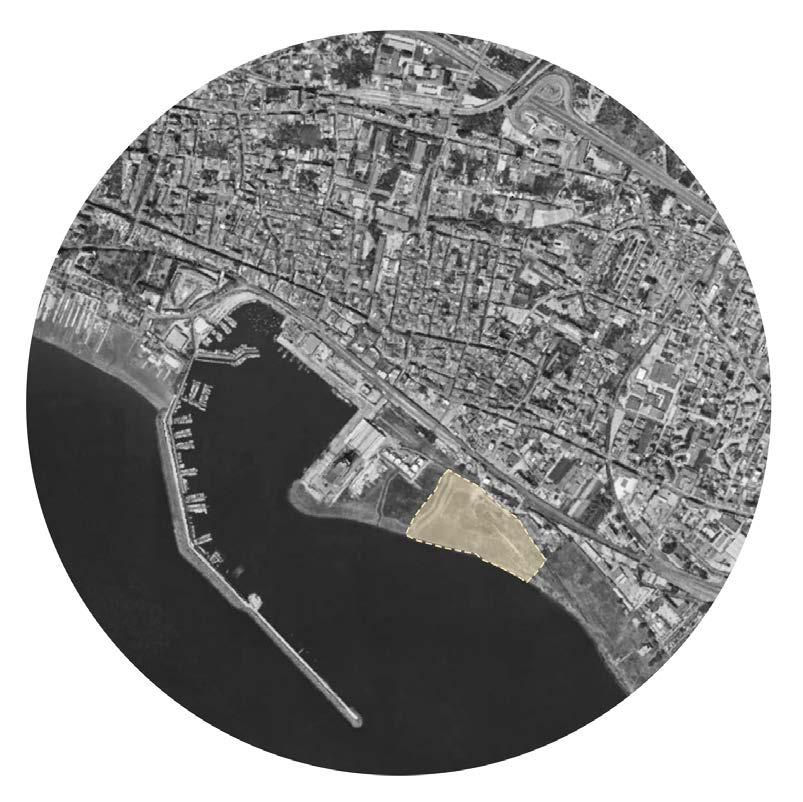

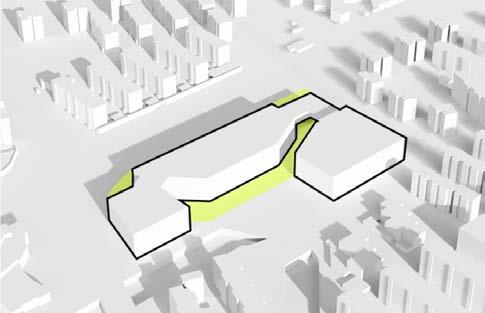

The site is in Torre Annunziata, the southeastern city of Naples. It is sitting beside two main wharfs - Molo di Ponante and Molo di Levante, and across to Napoli Centrale Railway station. The sea port served as hub for importing wheat from Russia and exporting dry pasta. Aside from Pompei, it is also within the proximity to Herculaneum and Oplontis villa. The climate in Naples is warm and temperate with rainfall during winter. The average amount of sunshine is at 111 hours per month and the average rainfall is 42 inch.
8 UTOPIA URBANISM
01 High-rise Allotment Garden
MODULAR SYSTEM

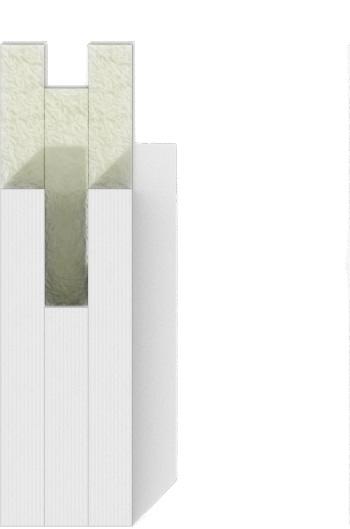

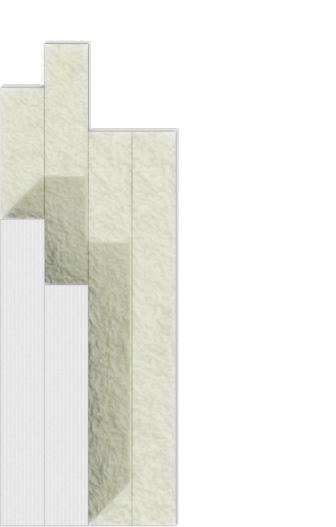

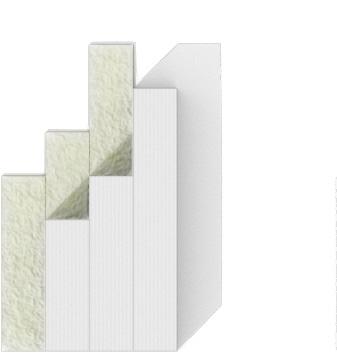

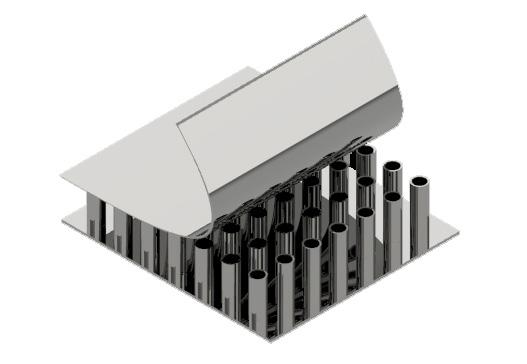

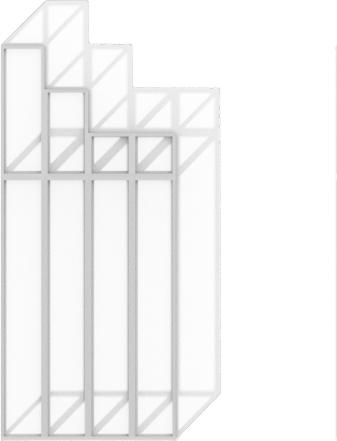

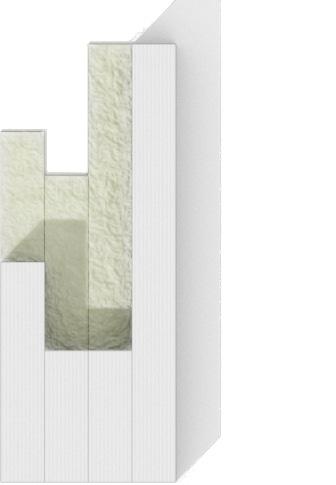

BCORE SLAB PANEL

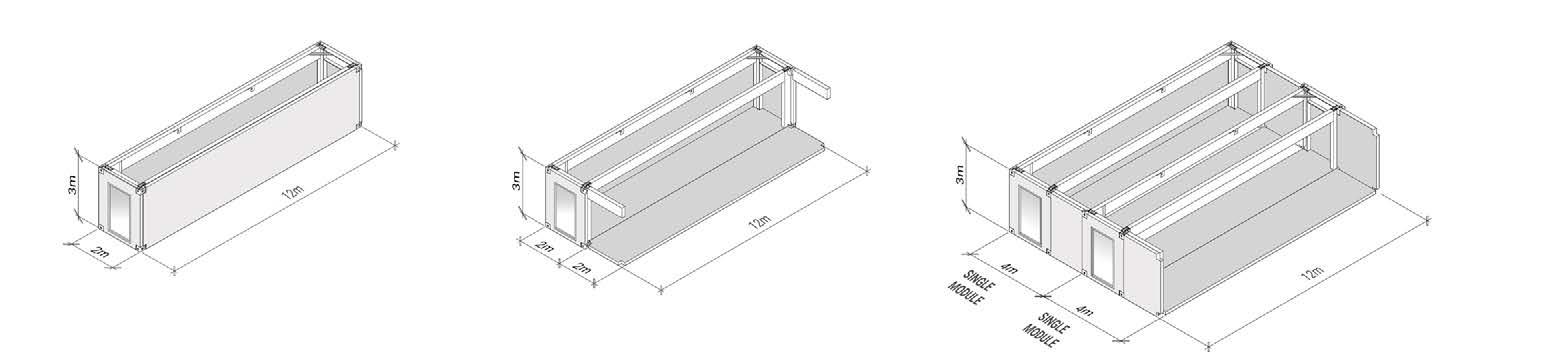

MODULAR UNIT DIMENSIONS

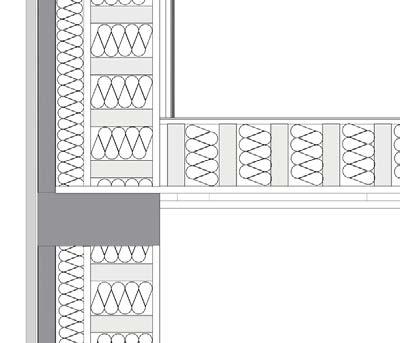

EXTERIOR WALL-TO-FLOOR CONNECTION
INTERIOR WALL-TO-FLOOR/ CEILING

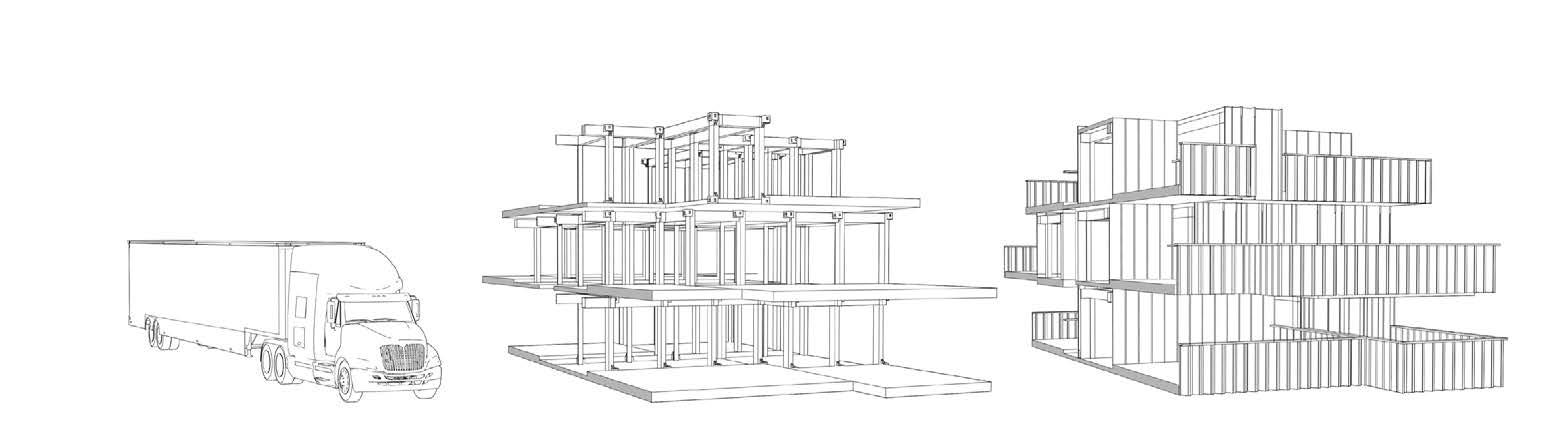

TRANSPORTATION DIMENSION PRE-INSTALLATION DIMENSION ON SITE CONSTRUCTION PHASING
POST-INSTALLATION DIMENSION

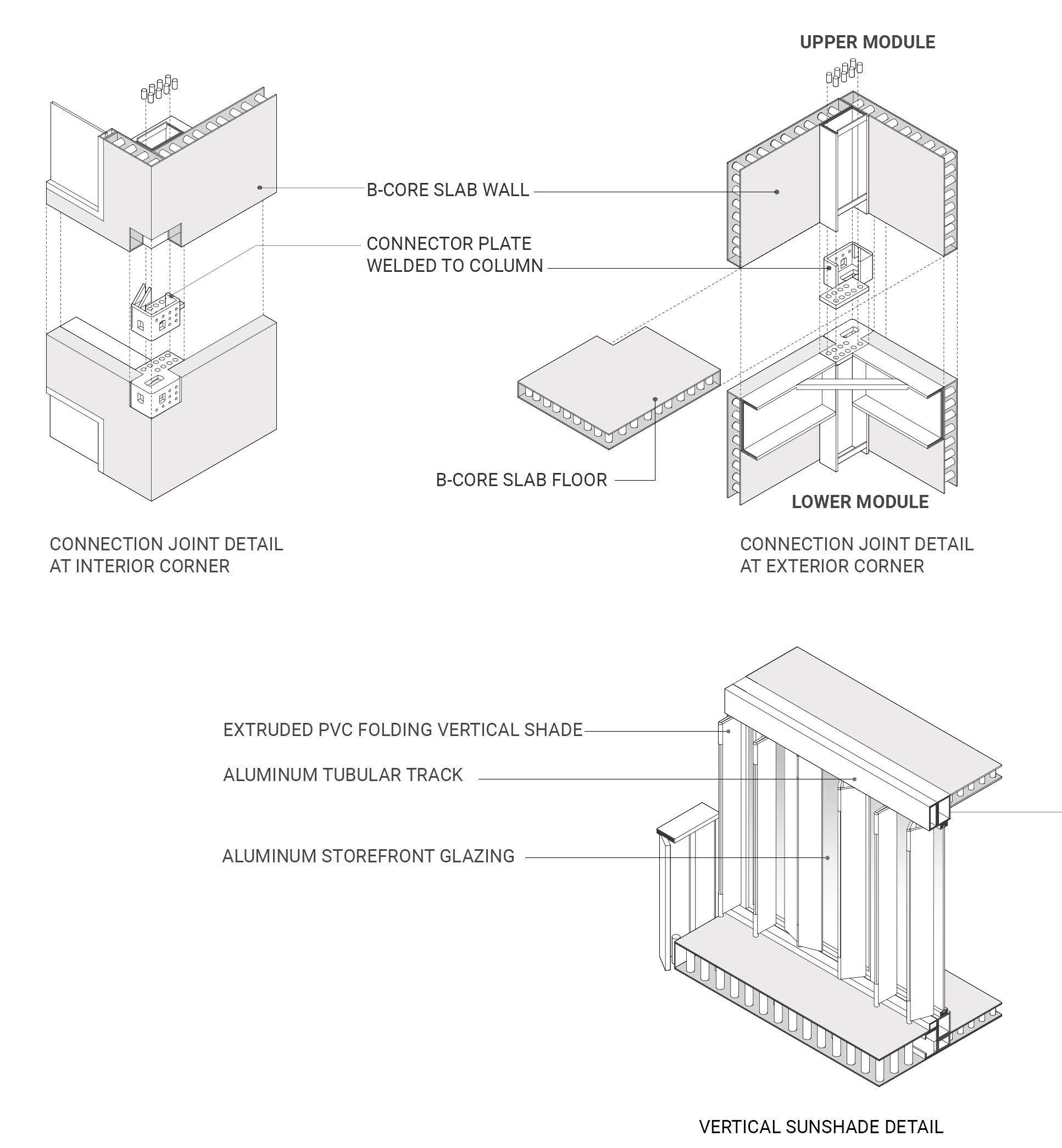

JOINT COMPONENTS
Since modular construction does not rely on typical structural framing, vertical stacking plays an important role in providing overall building integrity. Each module is stacked through a connector plate directly welded into corner and intermediate columns where it can provide direct path of load. Facades are pre-cladded with corrugated aluminum panels.
13
Portfolio Of Jiaxi Zhang
12 UTOPIA URBANISM
01 High-rise Allotment Garden

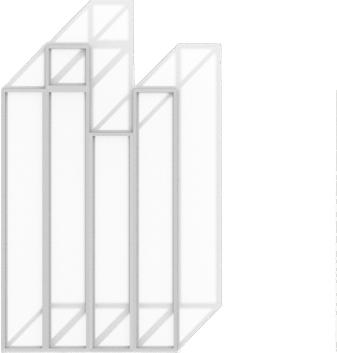

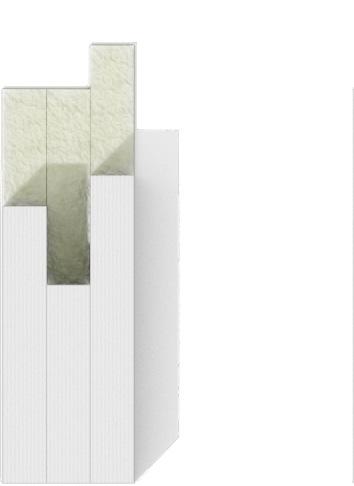

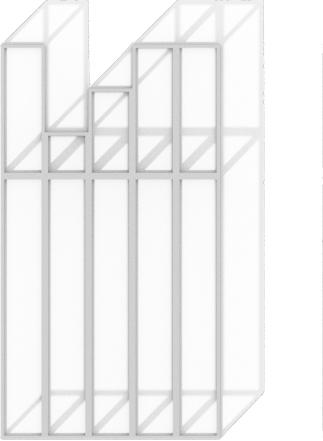

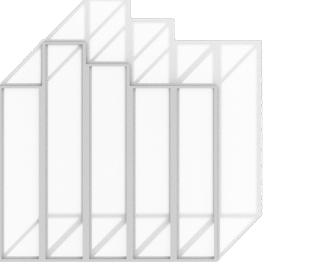

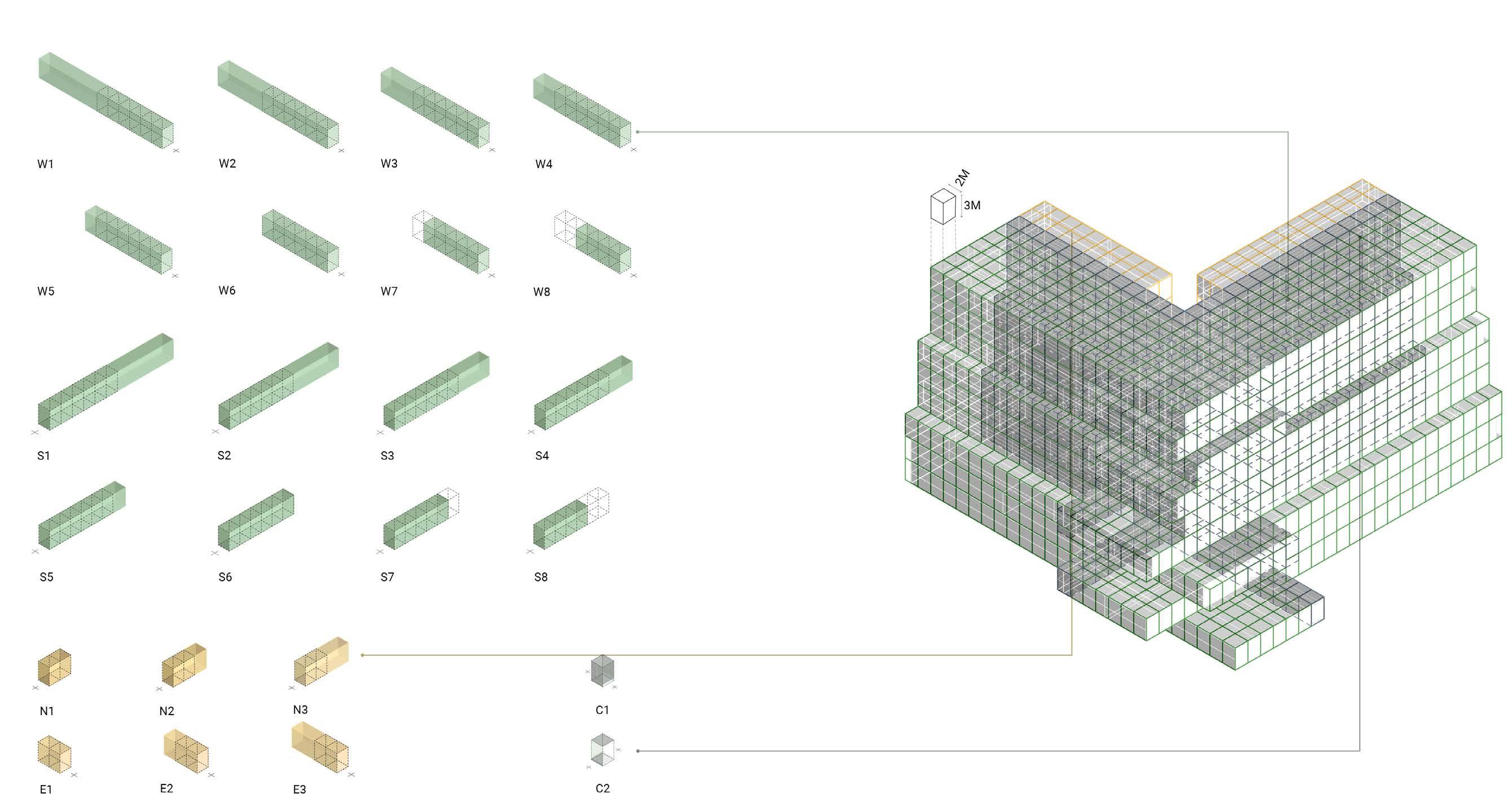

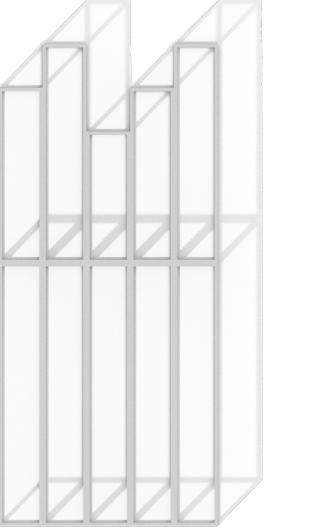

Modules Construction in Slots

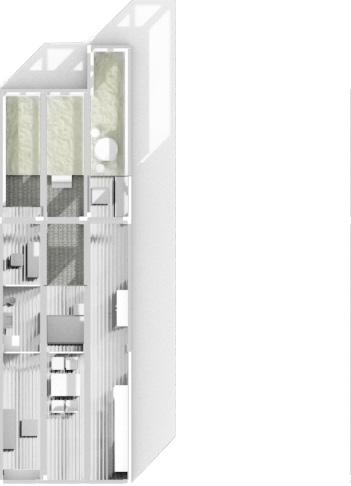

Modules for Dwellings
Front Modules for Dwellings
Modules Distribution in Slots Boundary
Modules for Shared Sapce
Back Modules for Shared Space
Middle Modules for Corridors

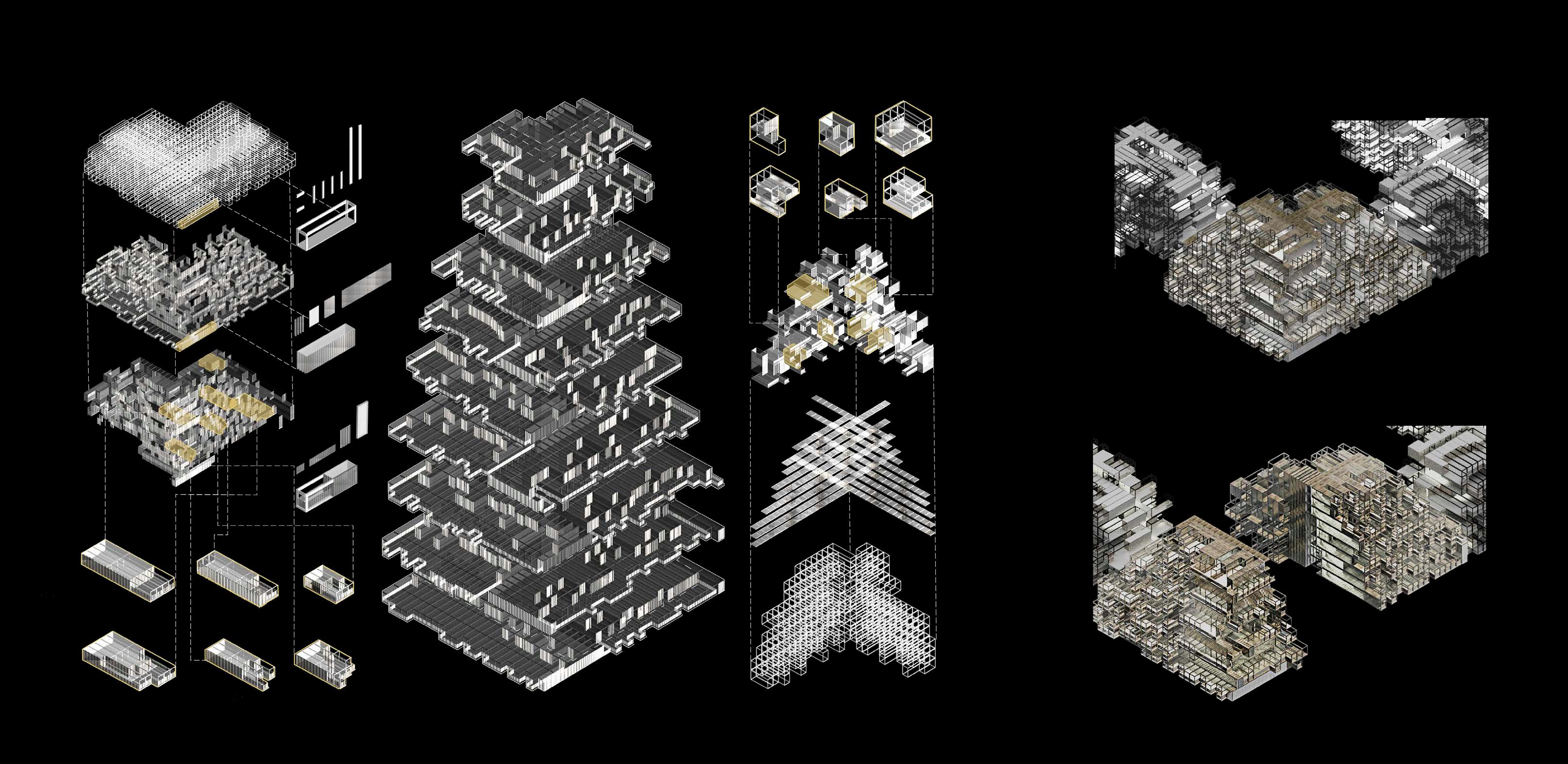

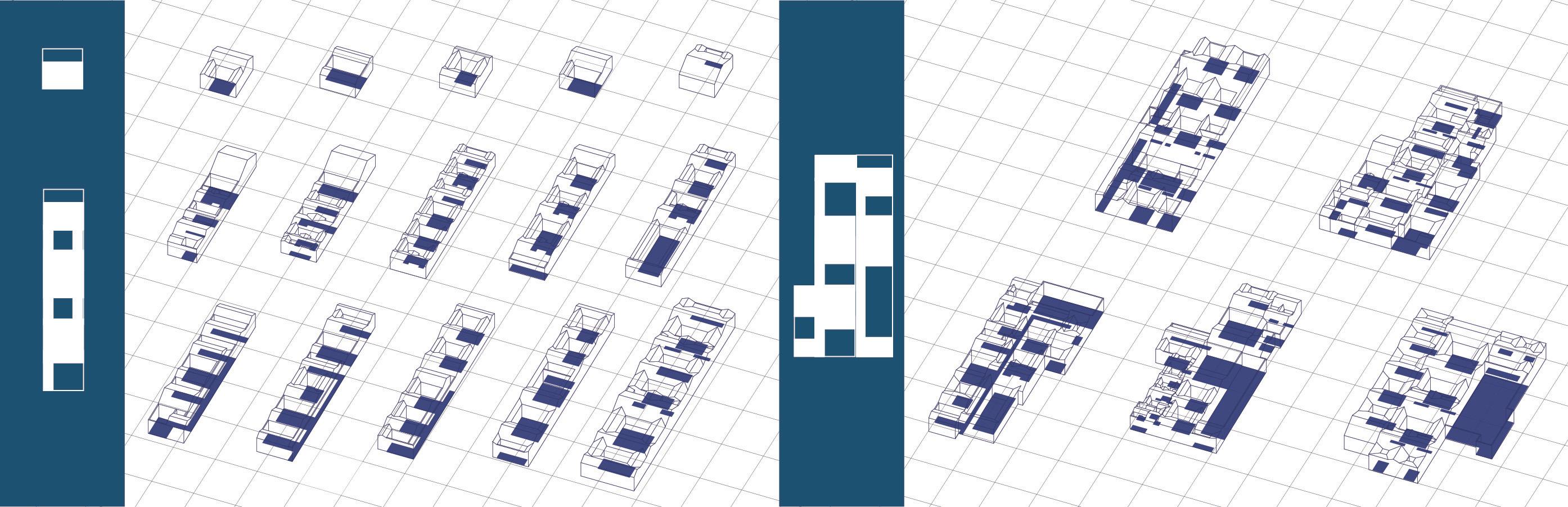

Aggregation Method
The a computational method is to stack the floors within a building envelope.The slots organize the circulation by locating certain modules.Their shapes can be adjusted at each floor to fit the different sizes of modules.The housing modules and shared space modules are assigned to the two sides of the corridors with connectors.
15
Portfolio Of Jiaxi Zhang
14 UTOPIA URBANISM
01 High-rise Allotment Garden

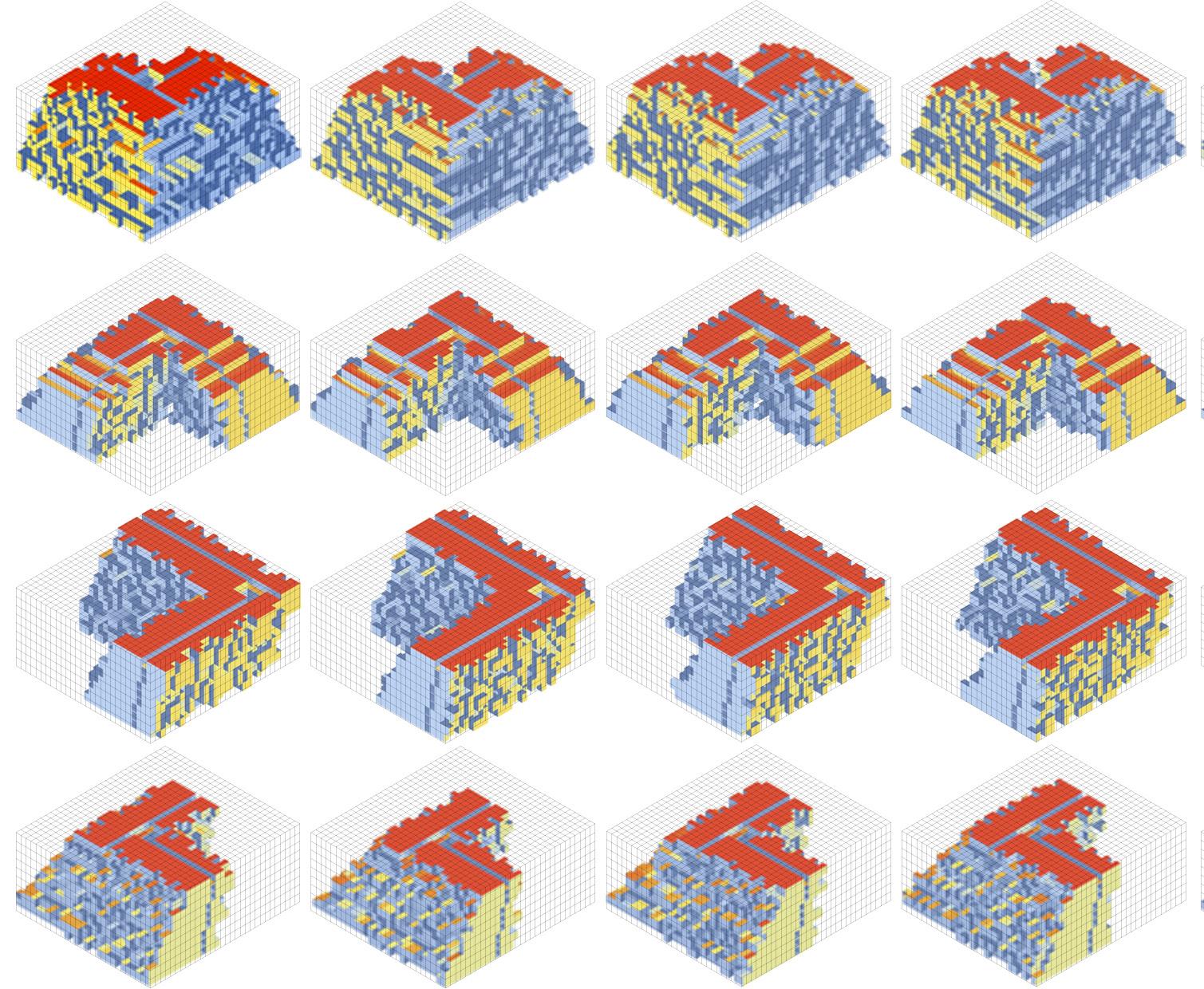

Random Seeds
South-East Direction
South-West Direction
North-East Direction
North-West Direction

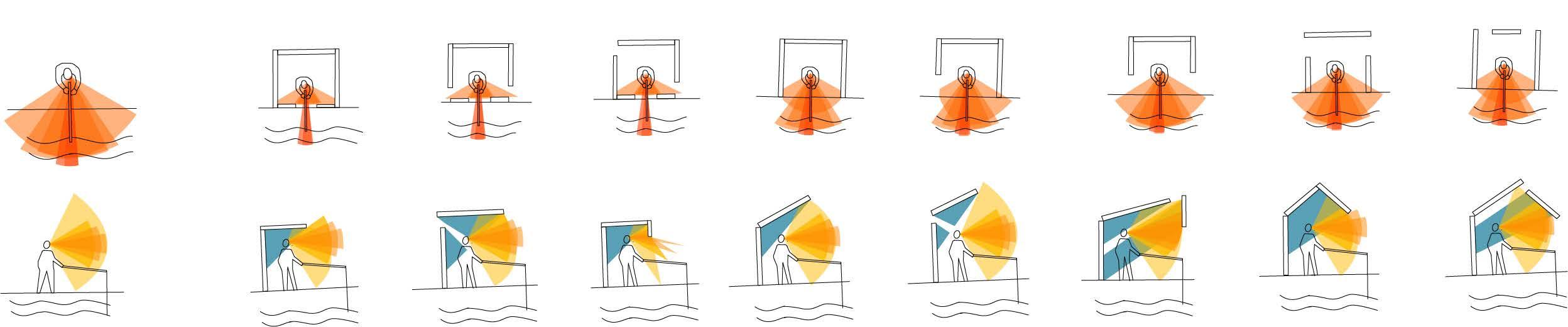

Radiation Seeds
South-East Direction
South-West Direction
North-East Direction
North-West Direction
17
Portfolio Of Jiaxi Zhang
16 UTOPIA URBANISM
01 High-rise Allotment Garden

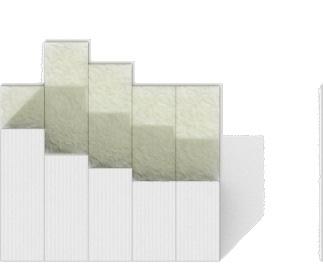

GARDEN AREA
Half Indoor
Half Outdoor
The outdoor space for gardens and indoor space for living is divided in each housing module by solar analysis to optimize the sunlight exposure in private gardens. On the basis of maintenance of the garden ratio as roughly 0.5, the results are selected by the standards of fitness objectives. They are respectively minimizing the degree of structural exposure; minimizing garden fragmentation and maximizing radiation in the garden.
18 19 UTOPIA URBANISM 01 High-rise Allotment Garden
，

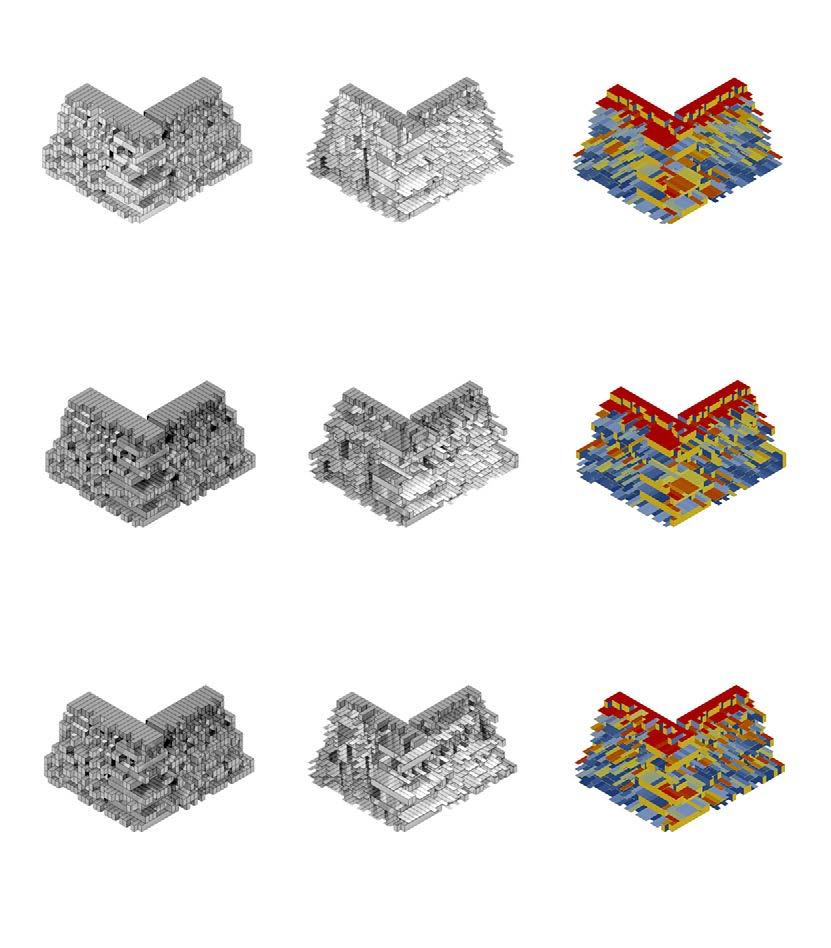

L-shape Cluster

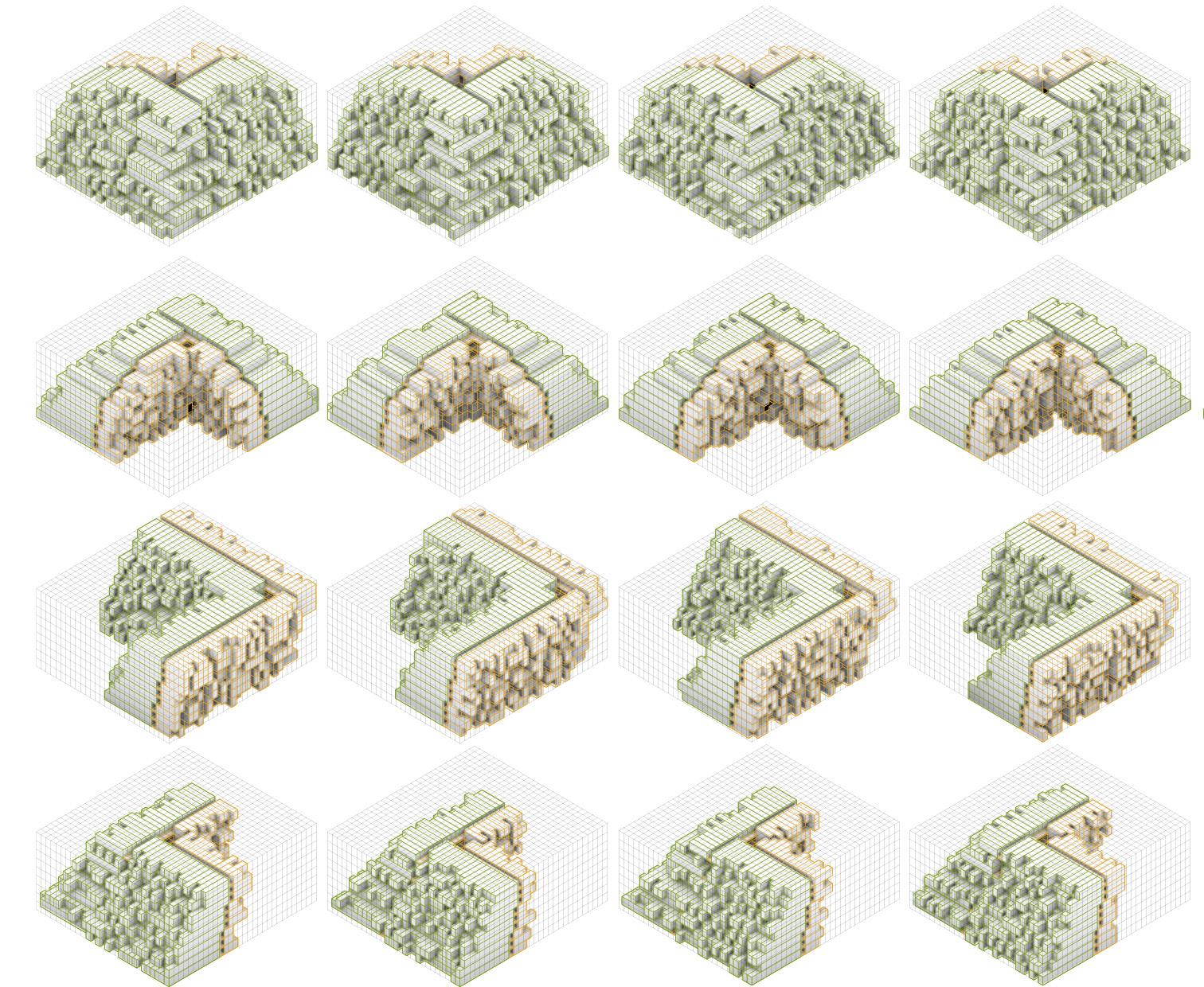

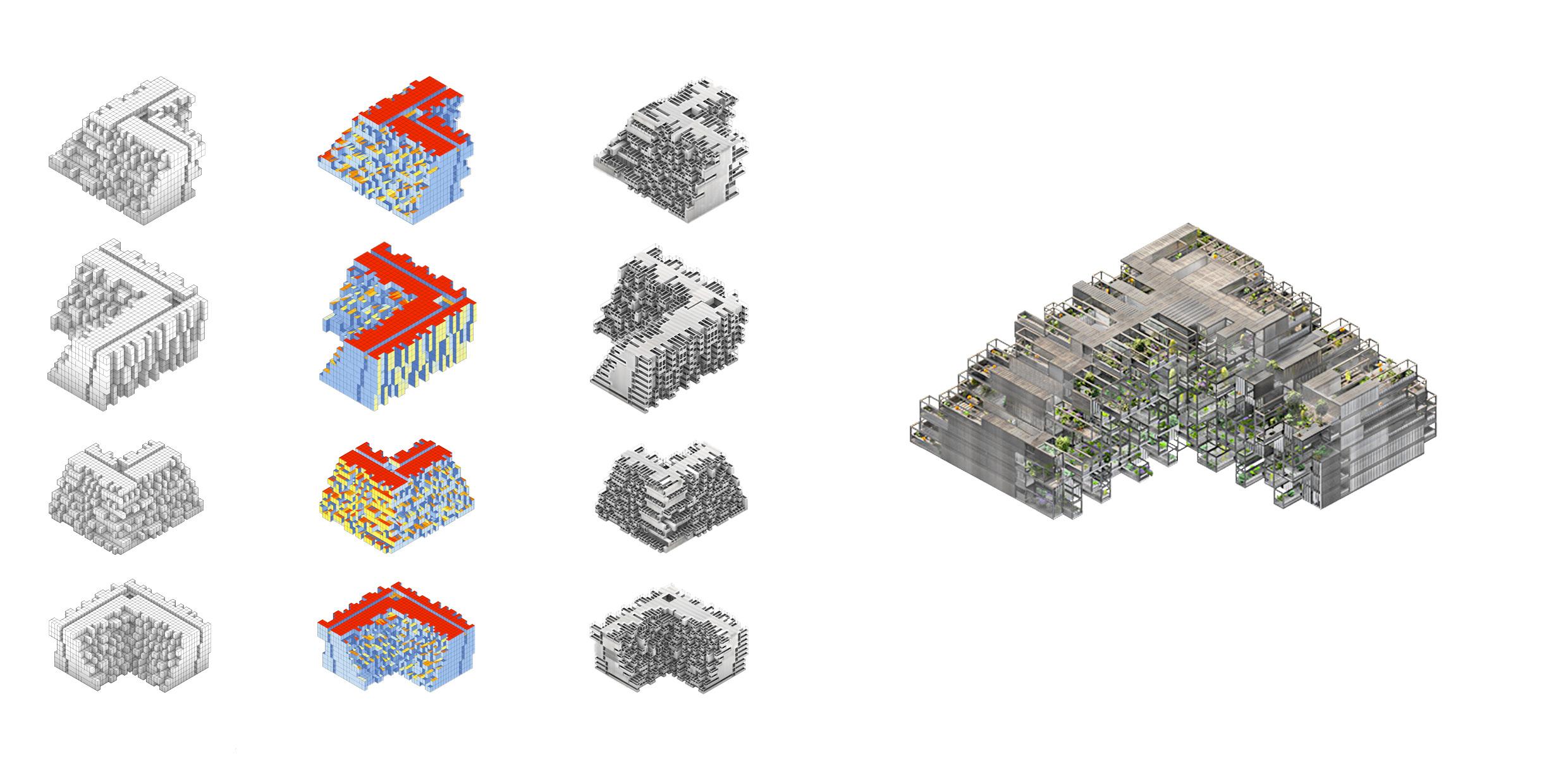

Four L-shaped clusters in four directions are designed and filled in a building envelope. The back side is the shared green space for remote working and socializing.The front side is the housing units alloted with gardens.
One L-shape cluster has three parts.The front is the housing units,the middle is the corridor and the back is the shared space units.The units are combined with several modules in different sizes.
21
Portfolio Of Jiaxi Zhang
20 UTOPIA URBANISM 01 High-rise Allotment Garden
Module Seeds Radiation Seeds Garden Seeds TYPE 1 South-west TYPE 2 North-east TYPE 3 South-east TYPE 4 North-west South-east Radiation North-east Radiation South-east Radiation North-west Radiation
South-west Frame
North-east Frame
South-east Frame
North-west Frame

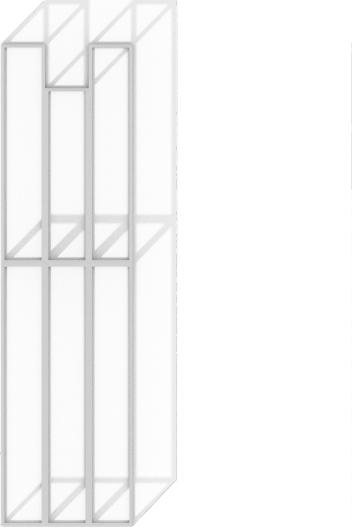

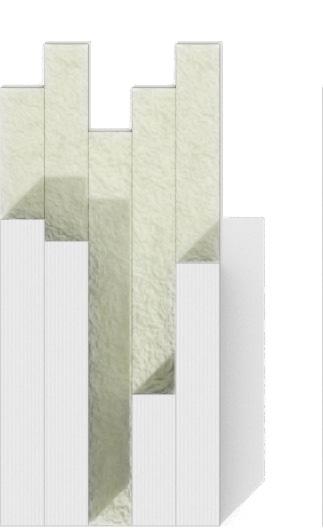

Portfolio Of Jiaxi Zhang UTOPIA URBANISM Unit 2 Unit 5 Unit 3 Unit 6 Shared Space Units Unit Layer Corridor Layer Structure Layer L-shape Cluster View from South L-shape Cluster Perspective L-shape Cluster Section Housing Units Structure Layer Outdoor Layer Indoor Layer L-shape Cluster Compostion Unit 1 Unit 4 Unit 2 Unit 5 Unit 3 Unit 6 Unit 1 Unit 4

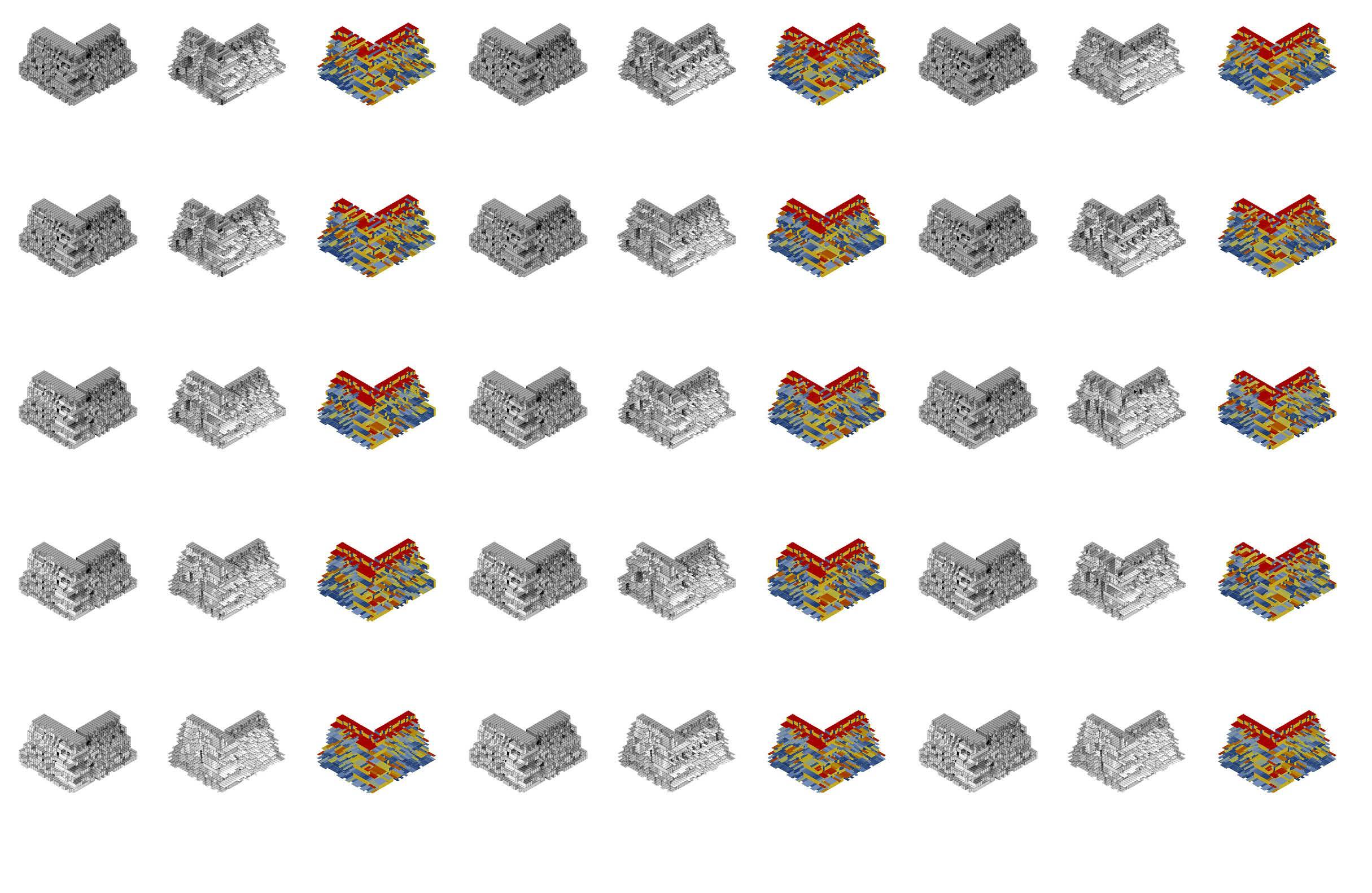

Fitness Values In Pareto Front Solutions
FOR
ENVELOPE
Gen
49 Ind:13
FV1: 12632 FV2 0.1428 FV3 8.3 FV4 4276.8 FV5 0.05 FV6 0.23
Gen
49 | Ind:63
Gen
49 Ind:28
FV1: 52632 FV2 0.1428 FV3 8.3 FV4 4276.8 FV5 0.05 FV6 0.23
Gen
49 | Ind:96
Gen
49
Ind:25
FV1: 13478 FV2 0.16 FV3 8.3 FV4 5106.7 FV5 0.03 FV6 0.25
Gen
49 Ind:39
FV1: 13478 FV2 0.16 FV3 8.3 FV4 5106.7 FV5 0.03 FV6 0.25 FV1: 17241 FV2 0.1213 FV3 8.3 FV4 4081.7 FV5 0.04 FV6 0.085 FV1: 19412 FV2 0.1005 FV3 8.3 FV4 6062.3 FV5 0.04 FV6 0.34
Gen
49 | Ind:99
FV1: 14658 FV2 0.1428 FV3 8.3 FV4 4276.8 FV5 0.05 FV6 0.14
Gen
49 | Ind:57
FV1: 13457 FV2 0.1376 FV3 5.9 FV4 5106.7 FV5 0.13 FV6 0.39
Gen
49
Ind:37
FV1: 19412 FV2 : 0.1005 FV3 : 8.3 FV4 : 6062.3 FV5 : 0.04 FV6 : 0.34
Gen
49 Ind:42
FV1: 17241 FV2 0.1213 FV3 8.3 FV4 4081.7 FV5 0.04 FV6 0.085
FV1: 15768 FV2 : 0.1428
FV3 : 12.5 FV4 : 5283.4 FV5 : 0.04 FV6 : 0.13
49 Ind:0
FV1: 17857 FV2 0.2381 FV3 10 FV4 4297.3 FV5 0.47 FV6 0.03
27
Portfolio Of Jiaxi Zhang
26 UTOPIA URBANISM
：
：
：
：
：
|
：
：
：
：
|
：
Gen：49 Ind:43 Gen：

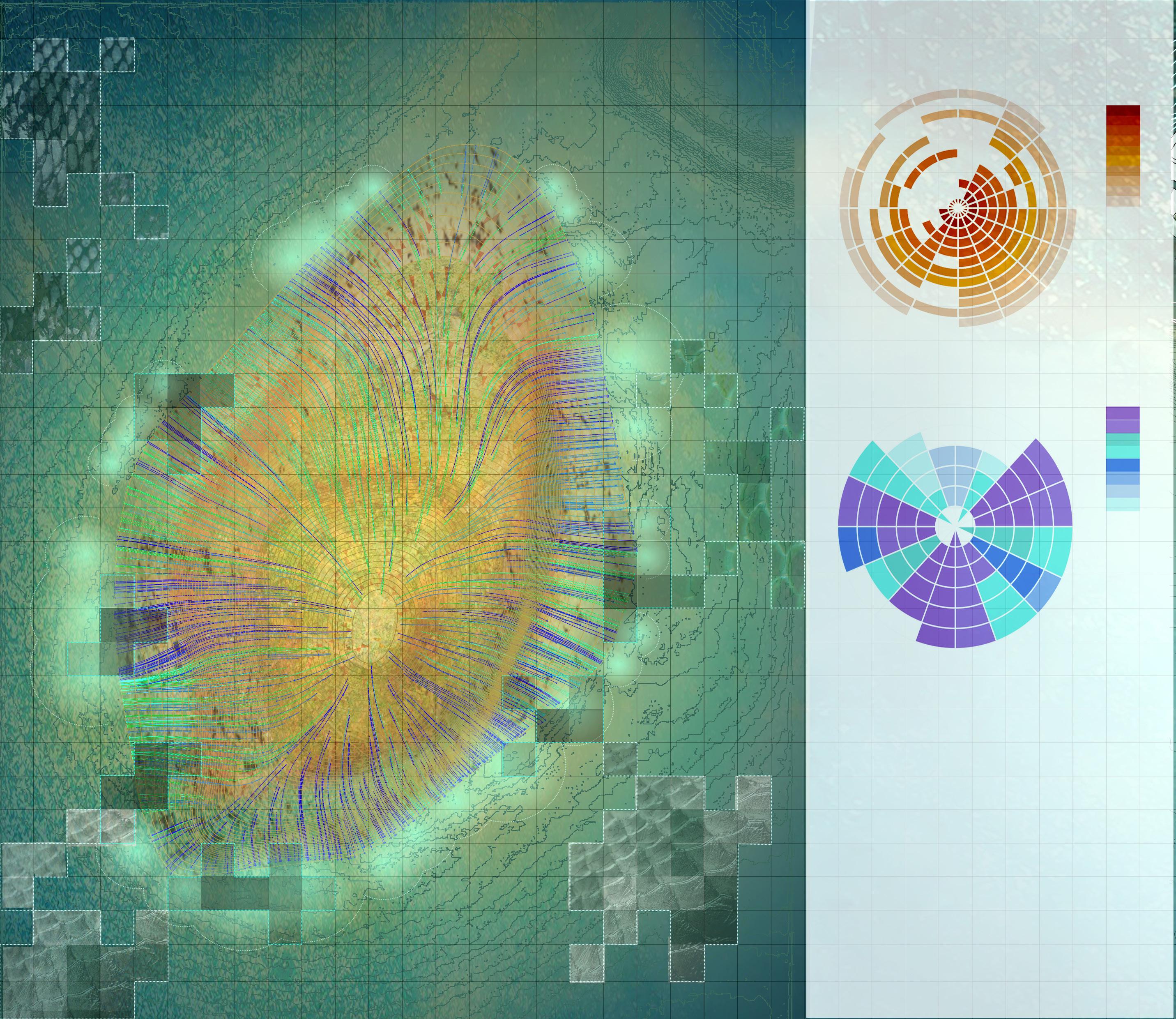

RADITION MODEL
BUILDING

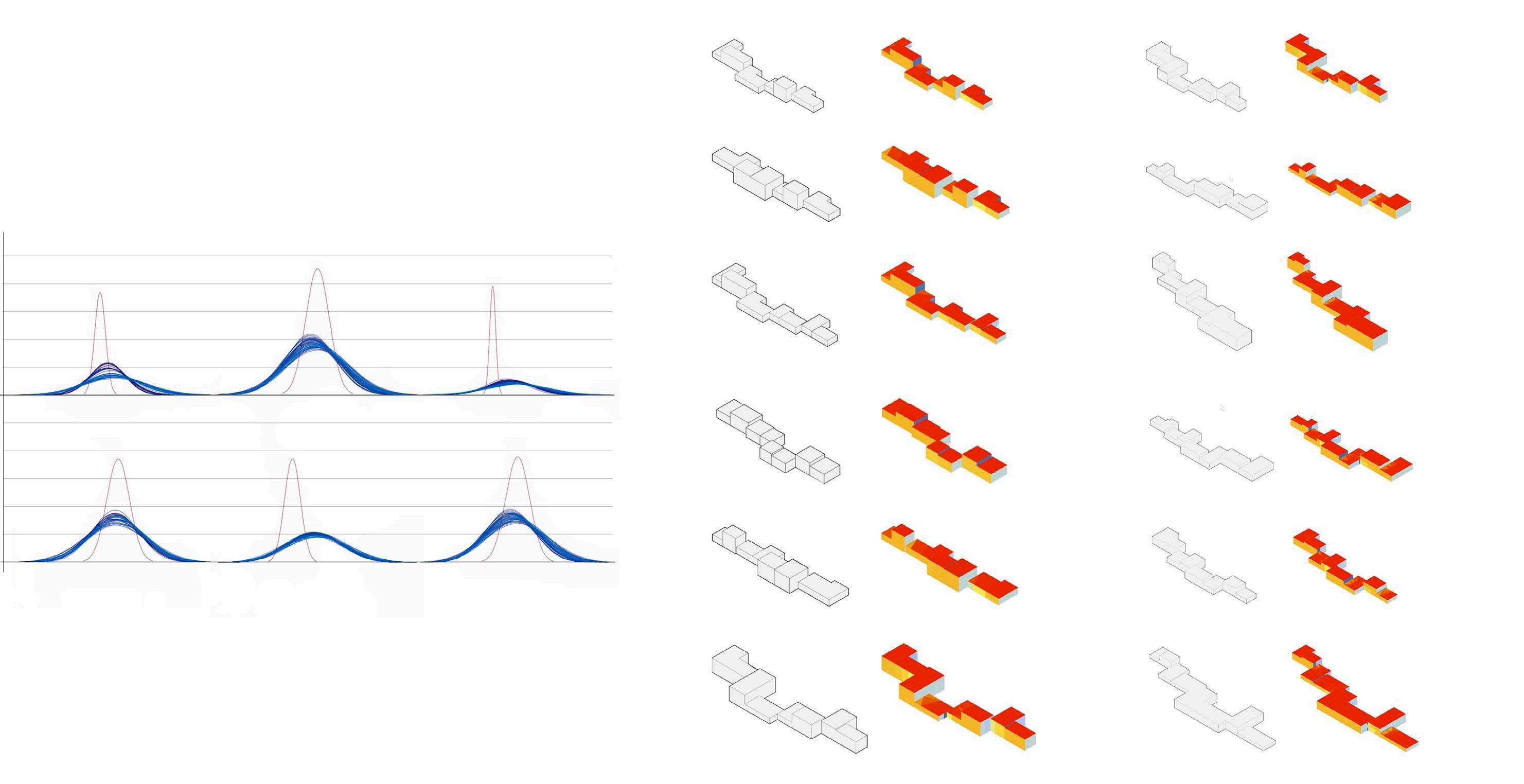

Standard Deviation Graph Of Fiteness Objectives FO1 Maximum Total Radiation FO2 Maximum Height Difference FO3 Maximum Volume Scale FO4 Maximum Floor Area FO5 Mimimum Volume Difference FO6 Mimimum Area Difference Population Generation Size: 50 Generation Count:100 Number of Nulls:0 Simulation Run 01 High-rise Allotment Garden
LAYOUT DESIGN PROCESS

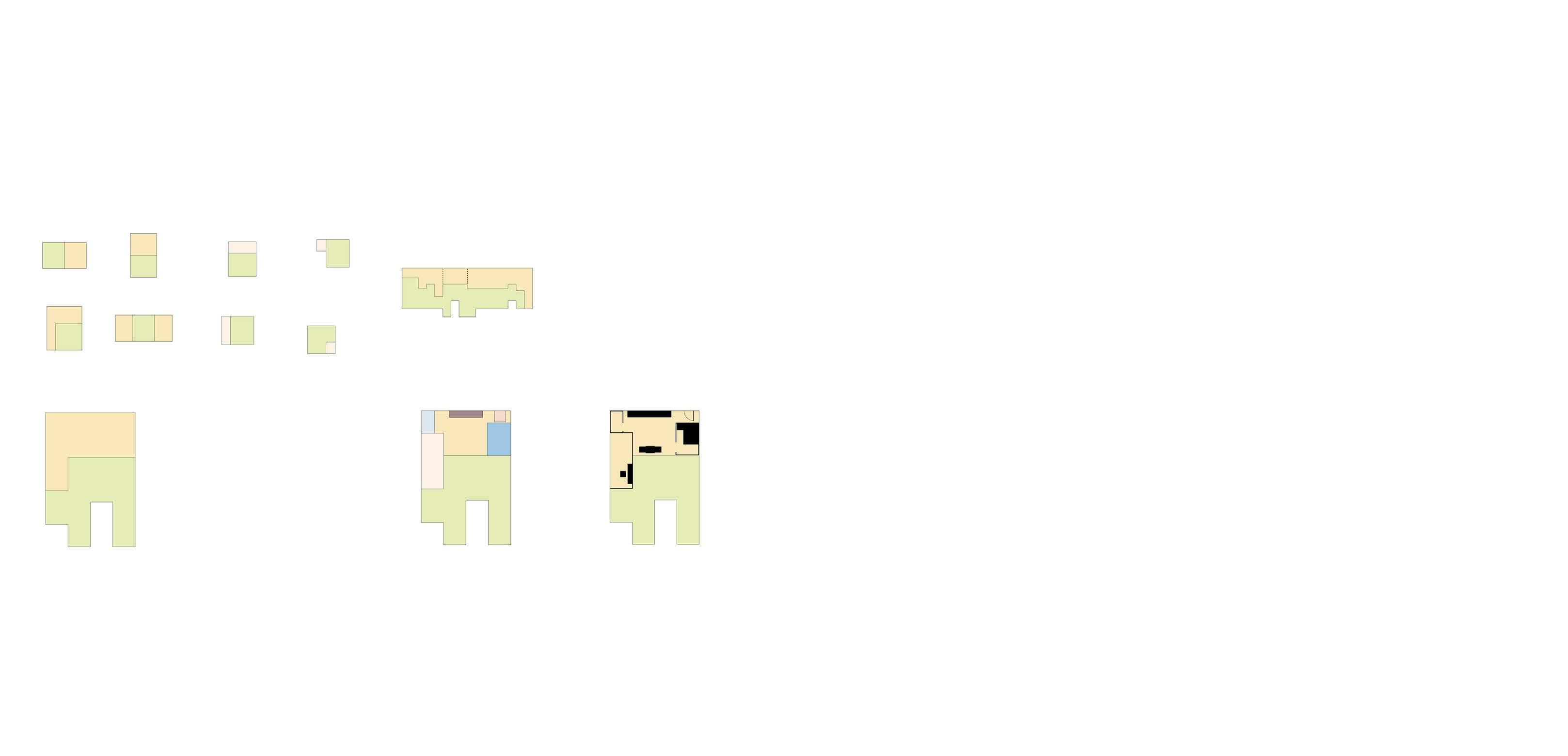

working space and garden relationship four mainly house type
divide lines
The design of each family layout will consider the influence of features of the four basic types, the location of the work space and the division so that the ML process has a certain principles.

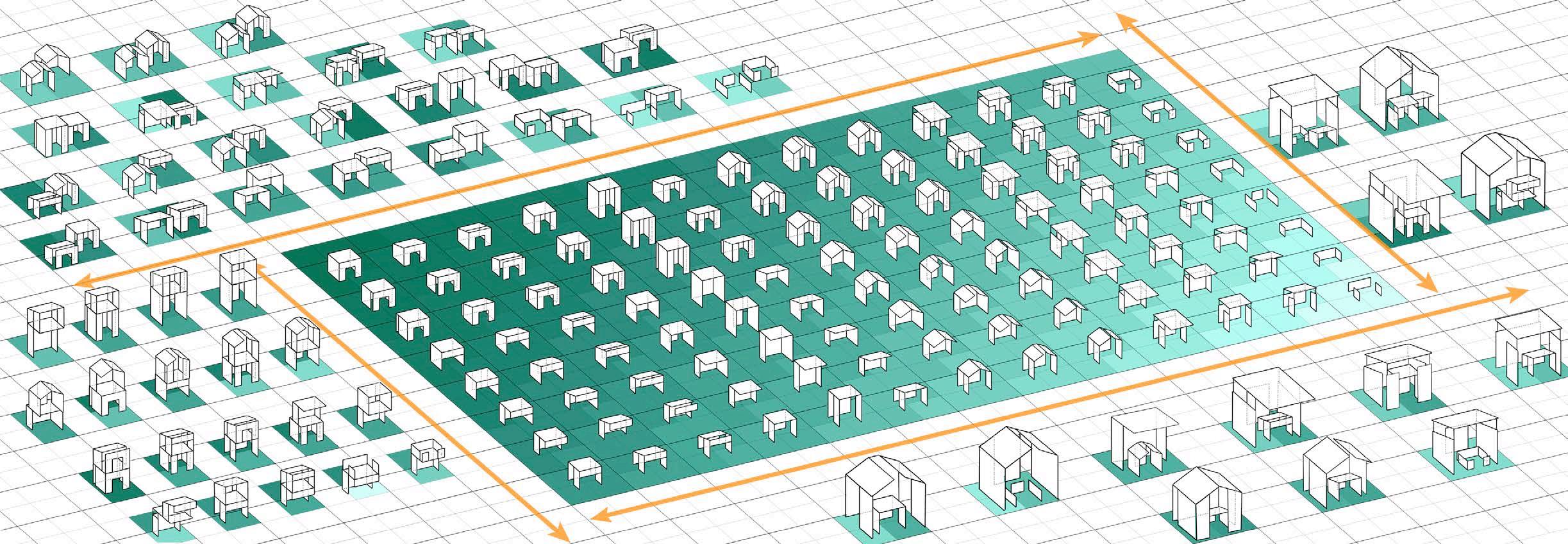

FURNITURE DATA DESIGN
L shape Kitchen
Kitchen
bed
tabel
1 2 3 output
layout design elements
bed
desk
29
Portfolio Of Jiaxi Zhang
28 UTOPIA URBANISM
input
Big
Bathroom Dining
Samll
Sofa Working
01 High-rise Allotment Garden

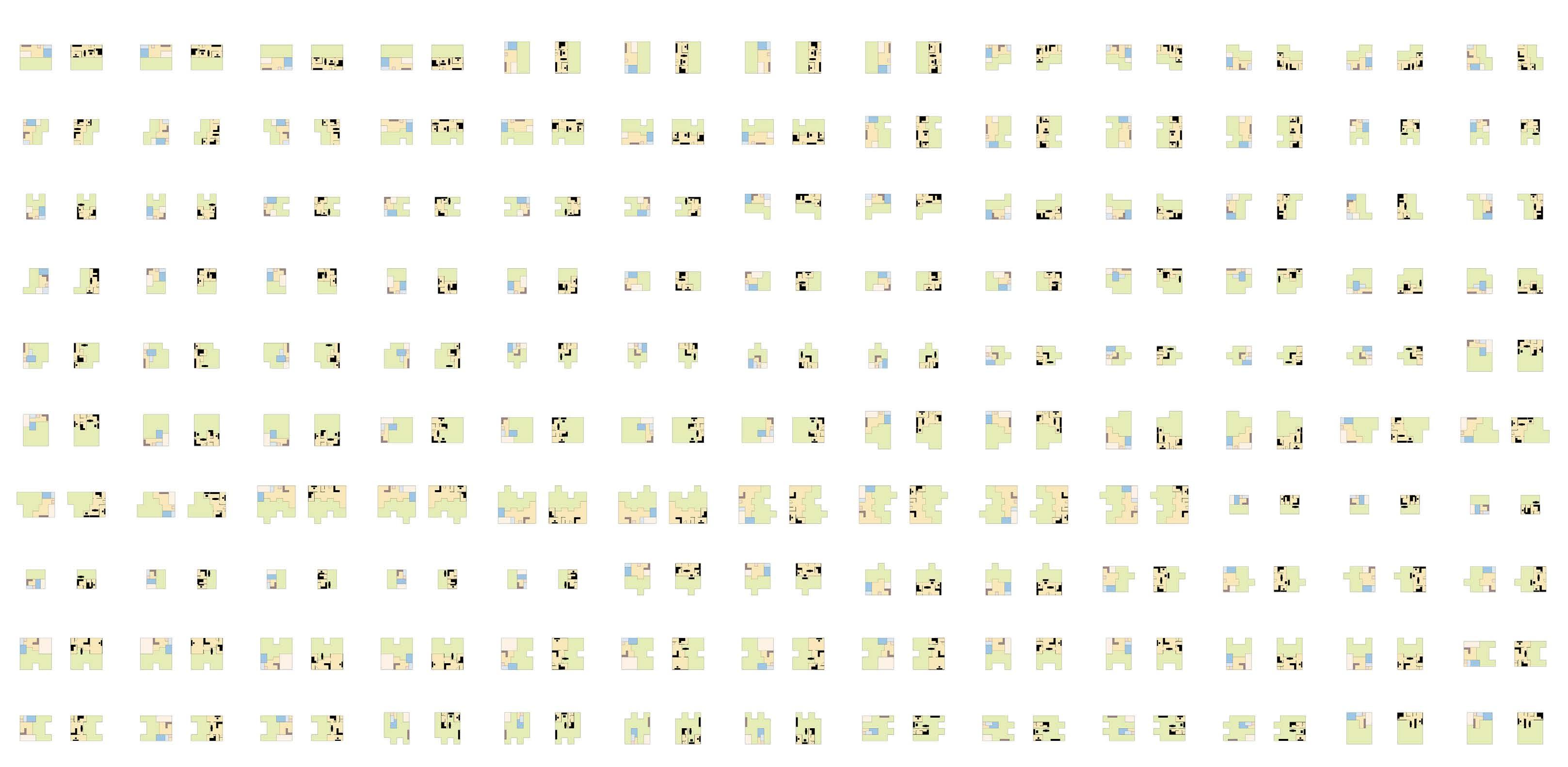

PAIR
31
Portfolio Of Jiaxi Zhang
30 UTOPIA URBANISM TRAING PAIR 01 High-rise Allotment Garden TRAING
FOUR GARDEN TYPES
33
Portfolio Of Jiaxi Zhang
32 UTOPIA URBANISM 01 High-rise Allotment Garden

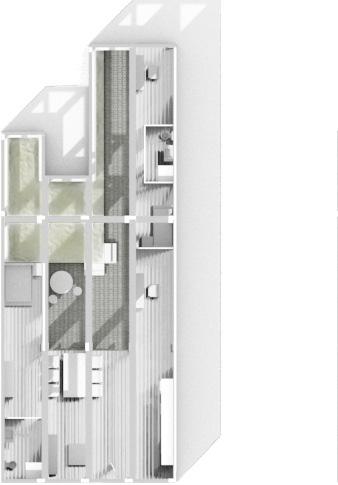

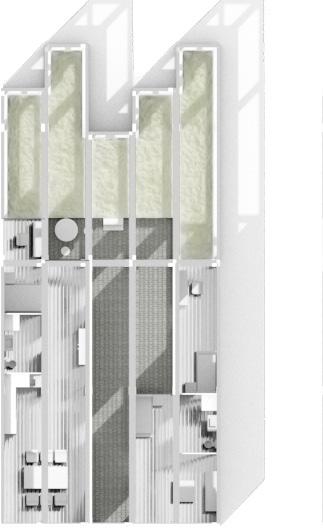

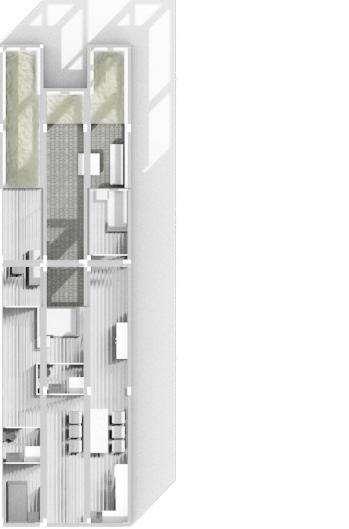

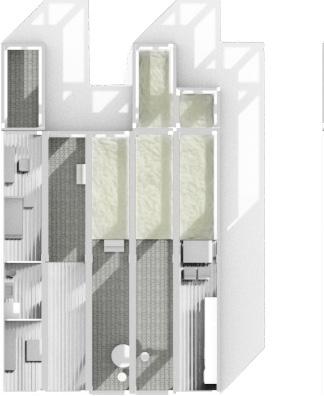

B-core Structure Interior Plan

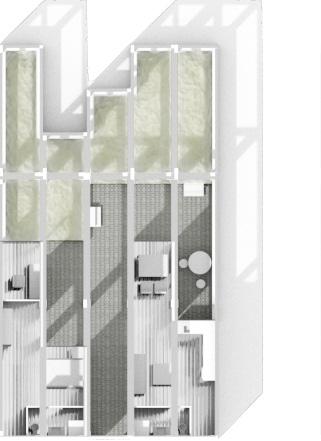

B-core Structure Interior Plan
B-core Structure Interior Plan

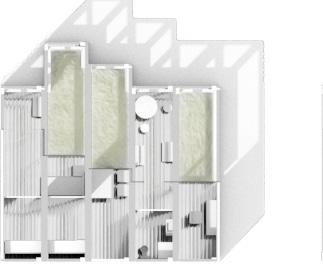

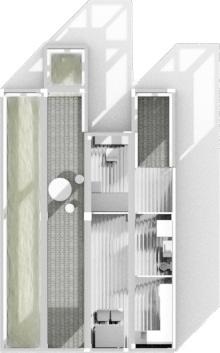

B-core Structure Interior PlanTop Garden Side Garden Middle Garden Corridor Garden

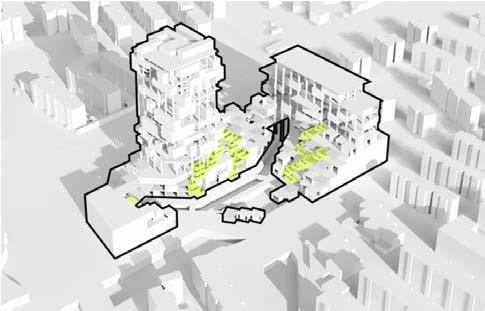

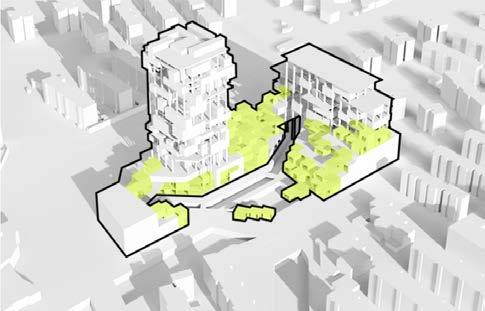

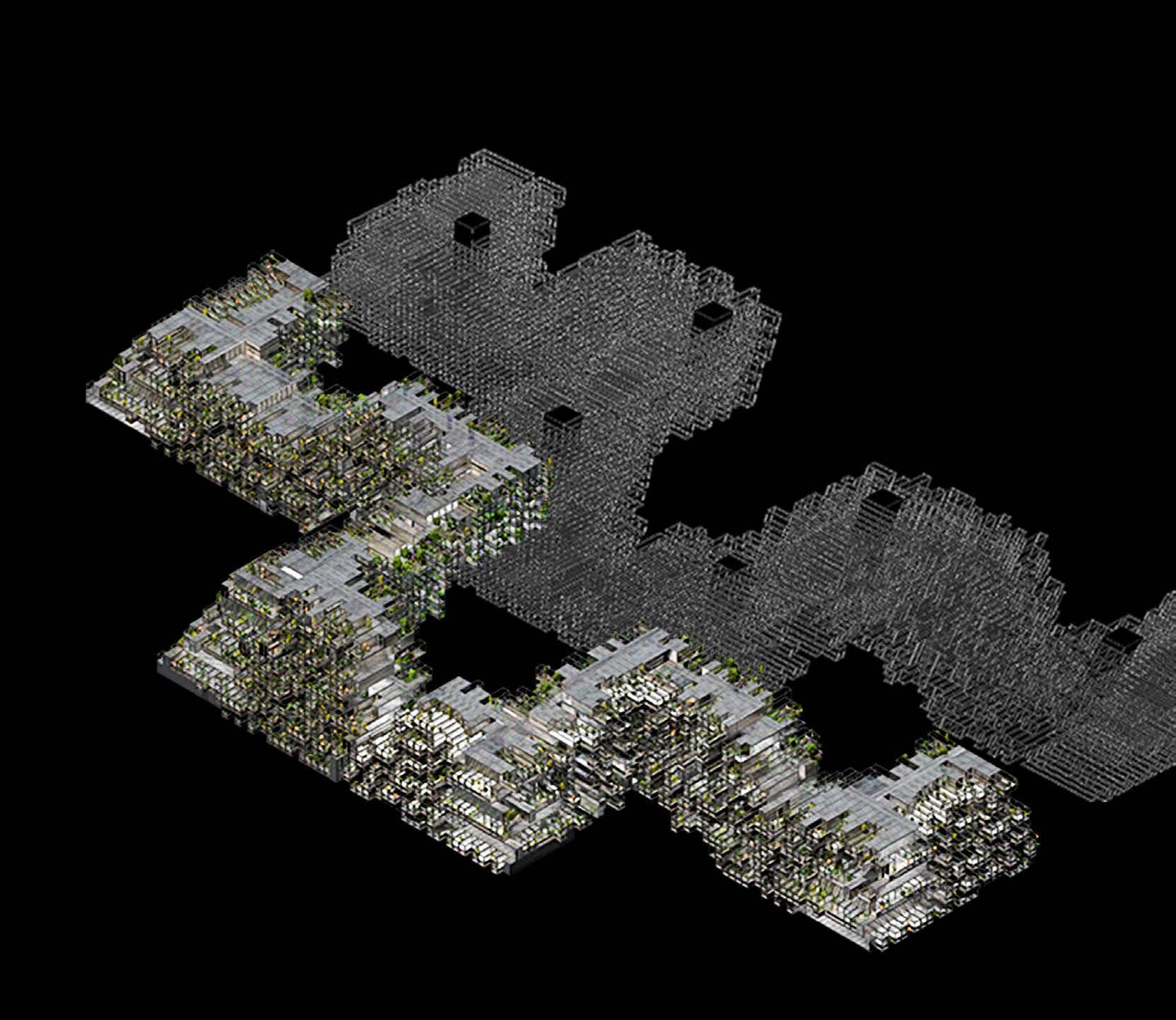

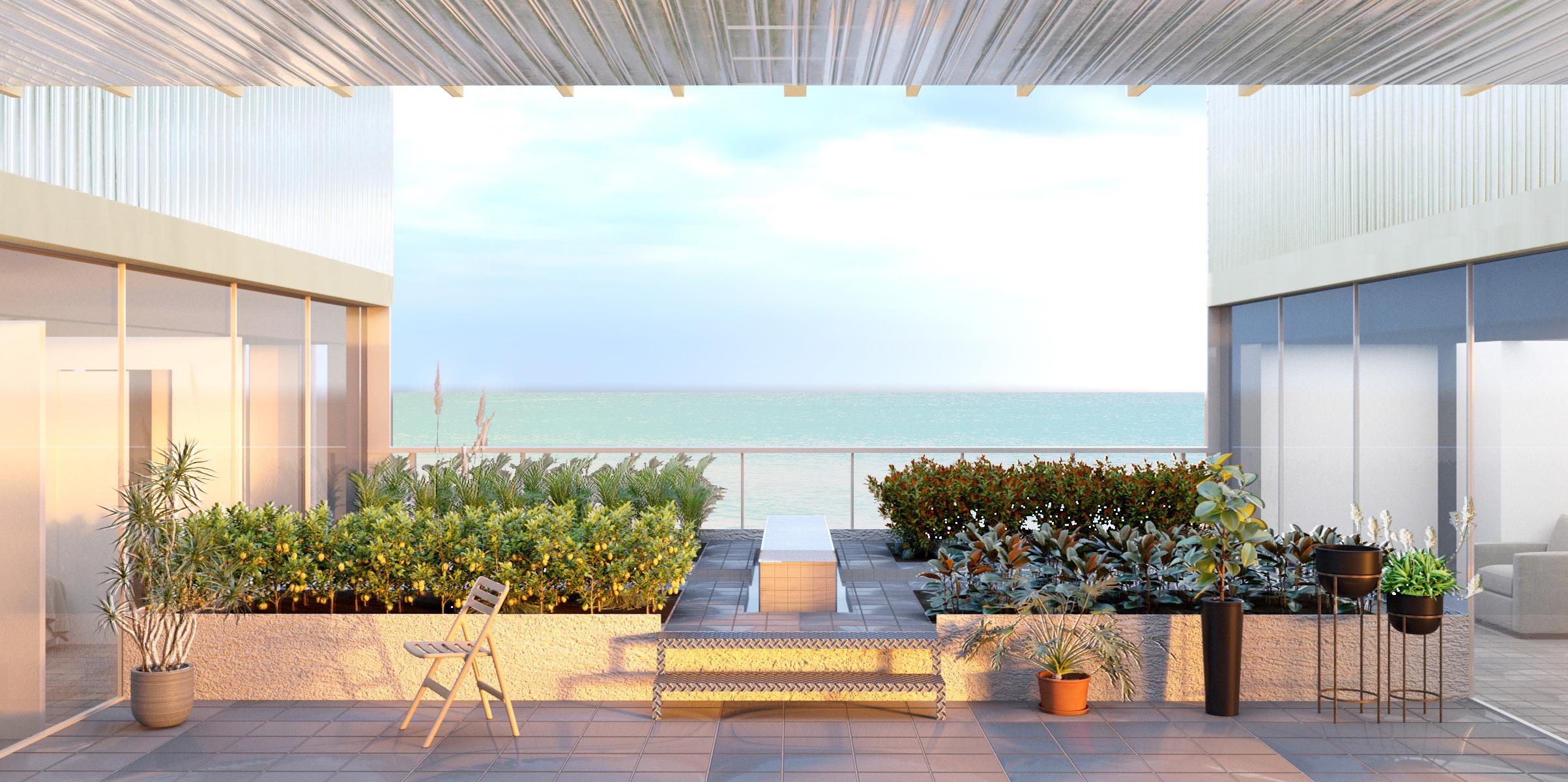

The clusters are filled into the building envelope connecting the corridors between vertical cores.The residents can enjoy the seaview in their private gardens at front while share work space at back yards.
35
Portfolio Of Jiaxi Zhang
34

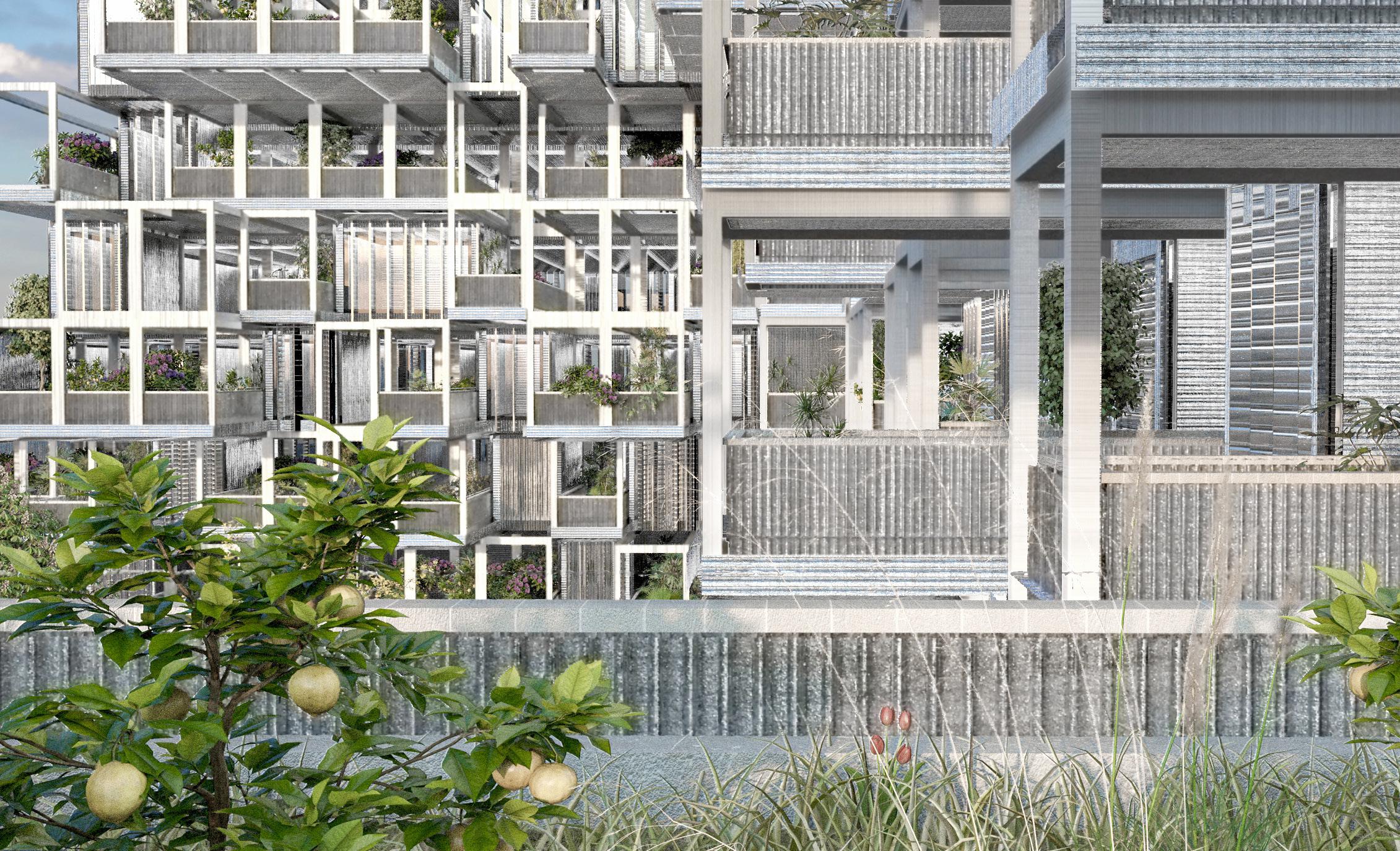

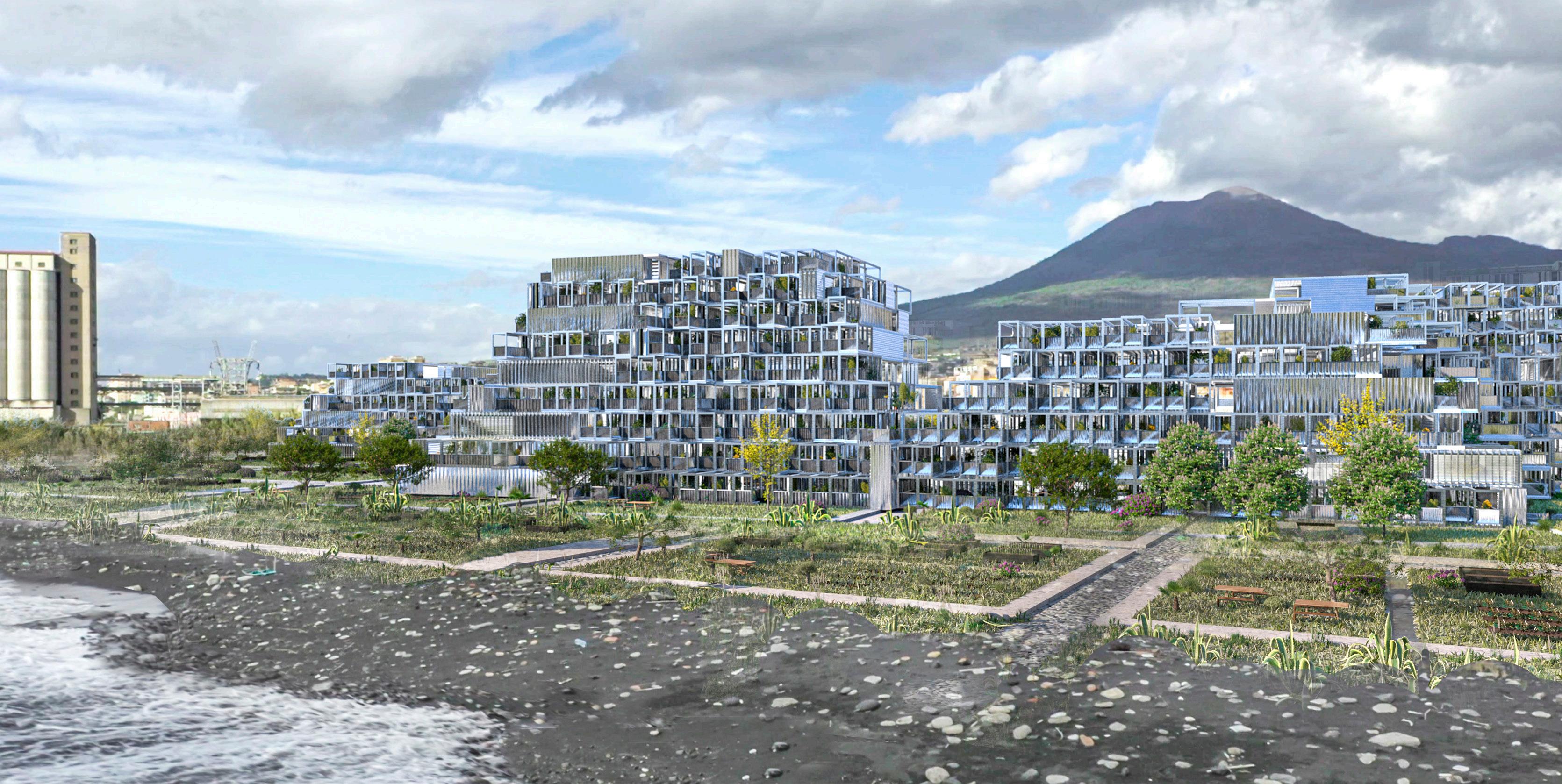

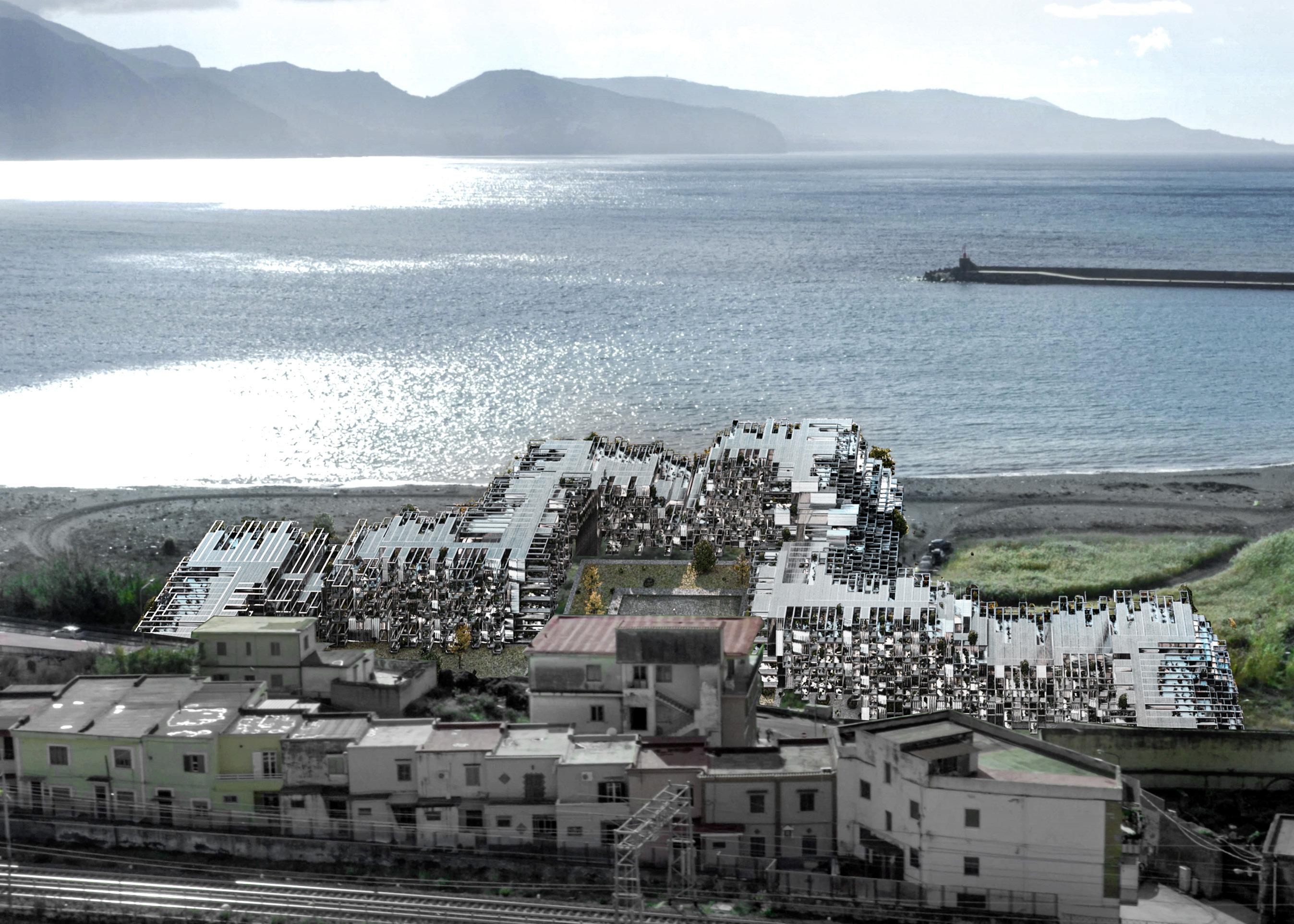

The Final Model
URBAN DESIGN 2017 Spring / 2020 Summer
URBAN FABRIC REGENERATION IN OLD TOWNS
Shanghai / Suzhou，China
As the urban development, traditional houses are gradually disappearing, along with which childhood memories of the native are also gone, so this regeneration attempts to revive the old towns' reminiscence. At old times, the shops along the street are full of life or serve as a part of people’s life. There are various stores providing delicate but practical daily necessities, boutiques selling fashion clothes and between them maybe small cafés with bourgeoisie taste. People can wander leisurely from street to street, chatting with their neighbors and vendors after dinner. The design will pick up the feelings of a warm, kind and elegant community by combining tradition and modernity.
Portfolio Of Jiaxi Zhang
42 UTOPIA URBANISM
INITIAL PHASE
Set up concession in Shanghai
DECLINING
a record factory on Hengshan Road
Built Hengshan Road
Permission to build houses
Concession ended 1950 Bikes and buses on Hengshan Road
Built Lilong 1980 Roads were widened
In order to build more commercial facilities and high-rise housing, the area is being squeezed in recent years.
French Concession British Concession
Huaihai Road in 1900s.
Flag of International Settlement
The bakery on Huashan Road
DECREASE OF LILONG AREA

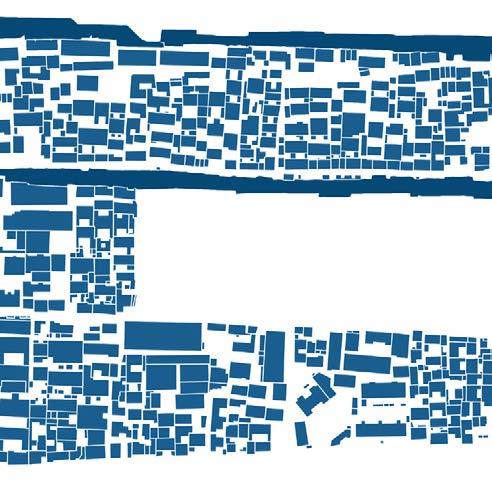

The area of Lilong is declining rapindly in recent years.They are replaced by office buildings,city complex and apartment buildings.But Lilong sybolizes the culture and history in Shanghai.It is necassary to preserve the unique residence.
Hengshan Road in 1990s.
The French bureau in concession issued permission to build houses.
Hengshan Road
1923
Bikes and buses on Hengshan Road .
The park on Hengshan Road in 1900s.
Hengshan Road in 1980s.
Record factory
Road
45
Portfolio Of Jiaxi Zhang
44 UTOPIA URBANISM 02.1 Regeneration of Shanghai Lane House
PHASE 1840 1845
1917 Built
on Hengshan
1922
in
1935
1943
1970
2000 2000 2004 2009 2014 2018

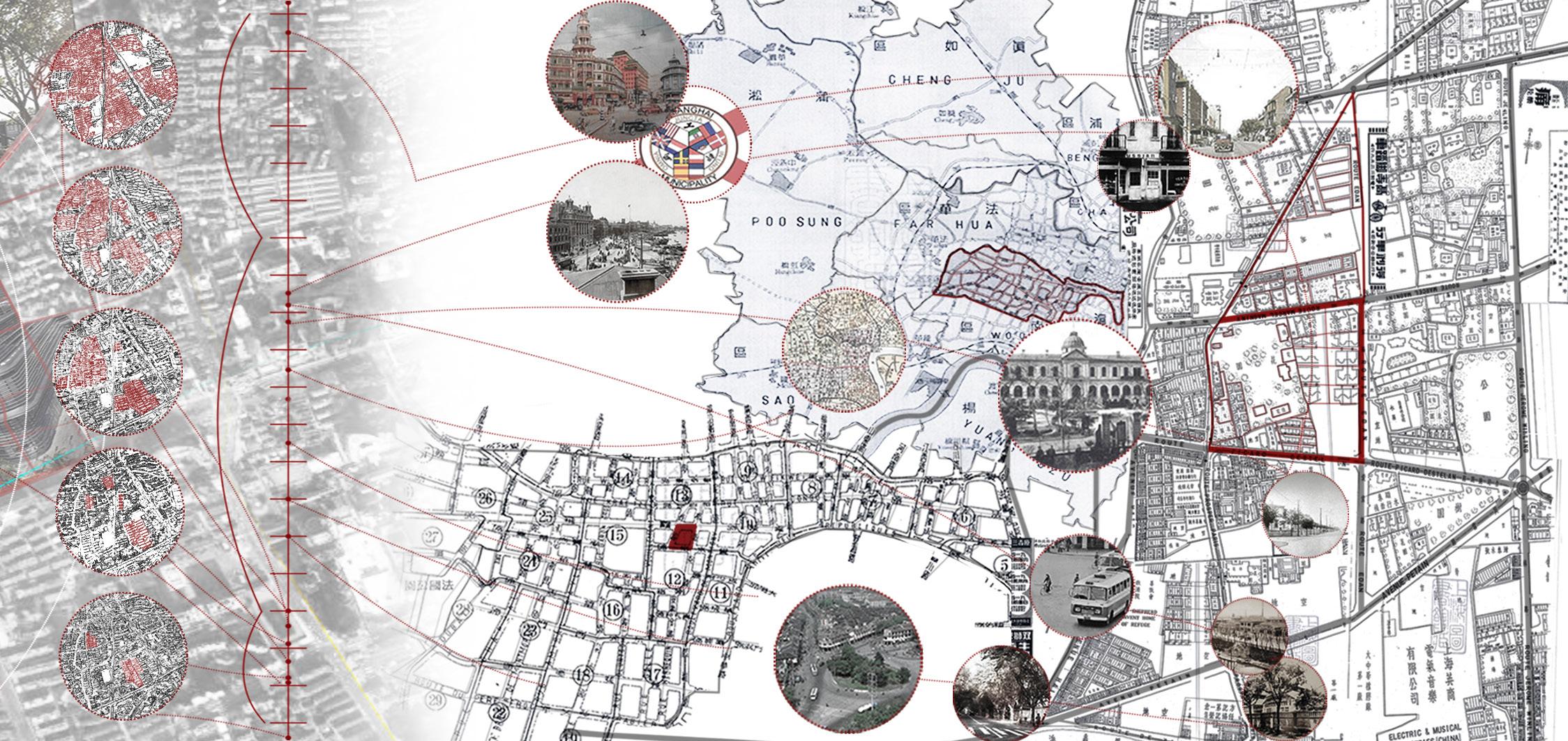

MAP OF SANGHAI
IN 1940
LILONG
HISTORY IN SHANGHAI
Light in the patio
Drying clothes on the roof roof
Rambling water pipes in the patio
Waiting outside the public toilet

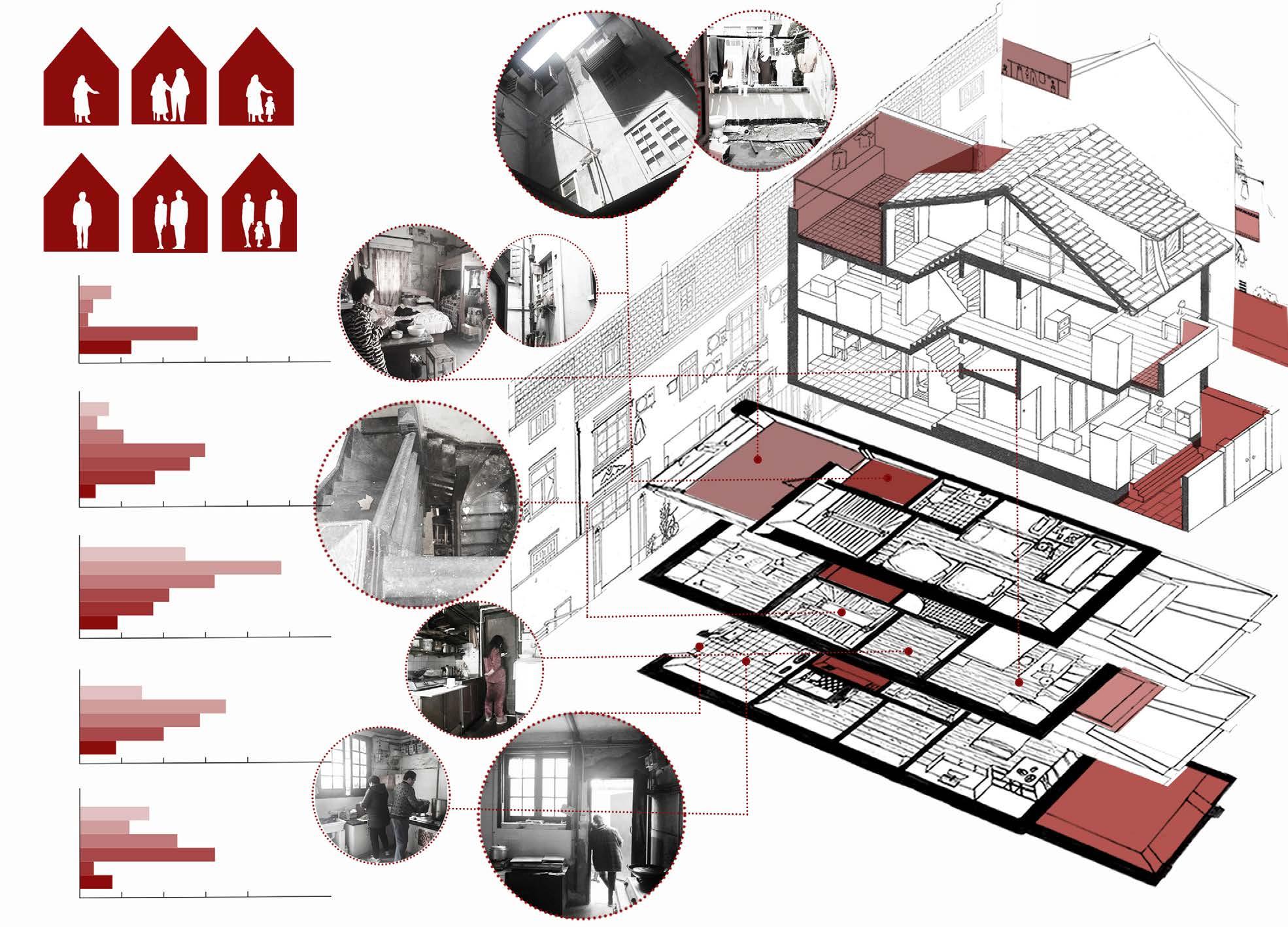

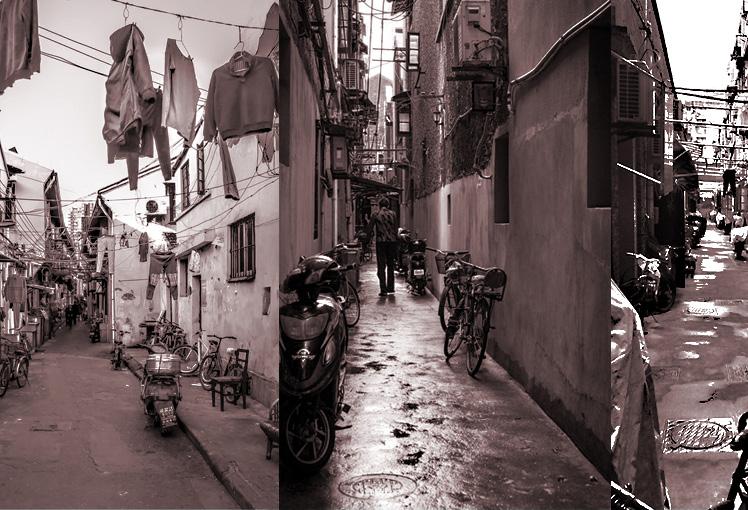

SURVEY OF LILONG
Each
Public kitchen for a whole building
has some
d elements,including patios,
and rooftops,as the feature of lilong.Most of those public space is messy and discarded.
The population is large but the living condition is poor,especially sanitation.
The area has no space for residents to chat with each other or have activities.
47
Portfolio Of Jiaxi Zhang
46 UTOPIA URBANISM 02.1 Regeneration of Shanghai Lane House Most residents are old.We usually walk or ride bikes instead of driving cars. We have no space to play or have some activities. Even chatting on the streets is dangerous. The public toilets and kitchens are inconvenient and dirty. AGE(y) RESIDENCE TIME（y) PER CAPITA LIVING SPACE（㎡） KITCHEN & BATHROOM PER PERSON(㎡） TRANSPORT <10 RESIDENCE TYPE 18% 10-30 30-50 50-70 >70 30 40 50 60 (%)0 <5 5-10 10-20 20-30 30-40 5 10 15 20 (%)0 40-50 >50 <5 5-10 10-15 15-20 20-25 5 10 15 20 (%)0 25-30 <2 3 4 5 6 10 20 30 40 (%)0 WALK BUS BIKE MOTOR 5 10 15 20 (%)0 TAXI CAR
building
fixe
balconies, dooryards
28% 22% 6% 9% 17% OLD OLD COUPLES OLD & KID ADULT ADULT COULES PARENTS & KID
Room for a famile of three.
Wooden stair

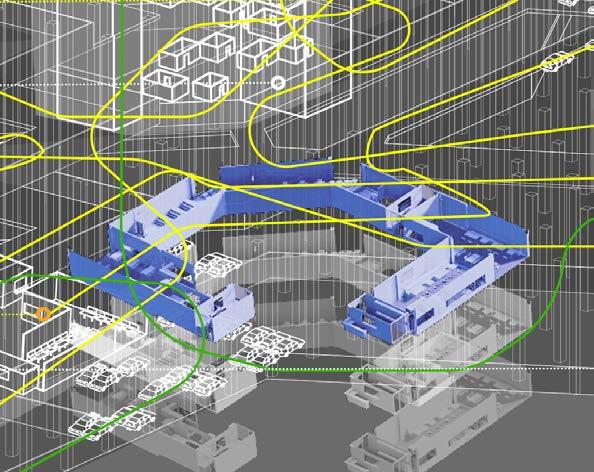

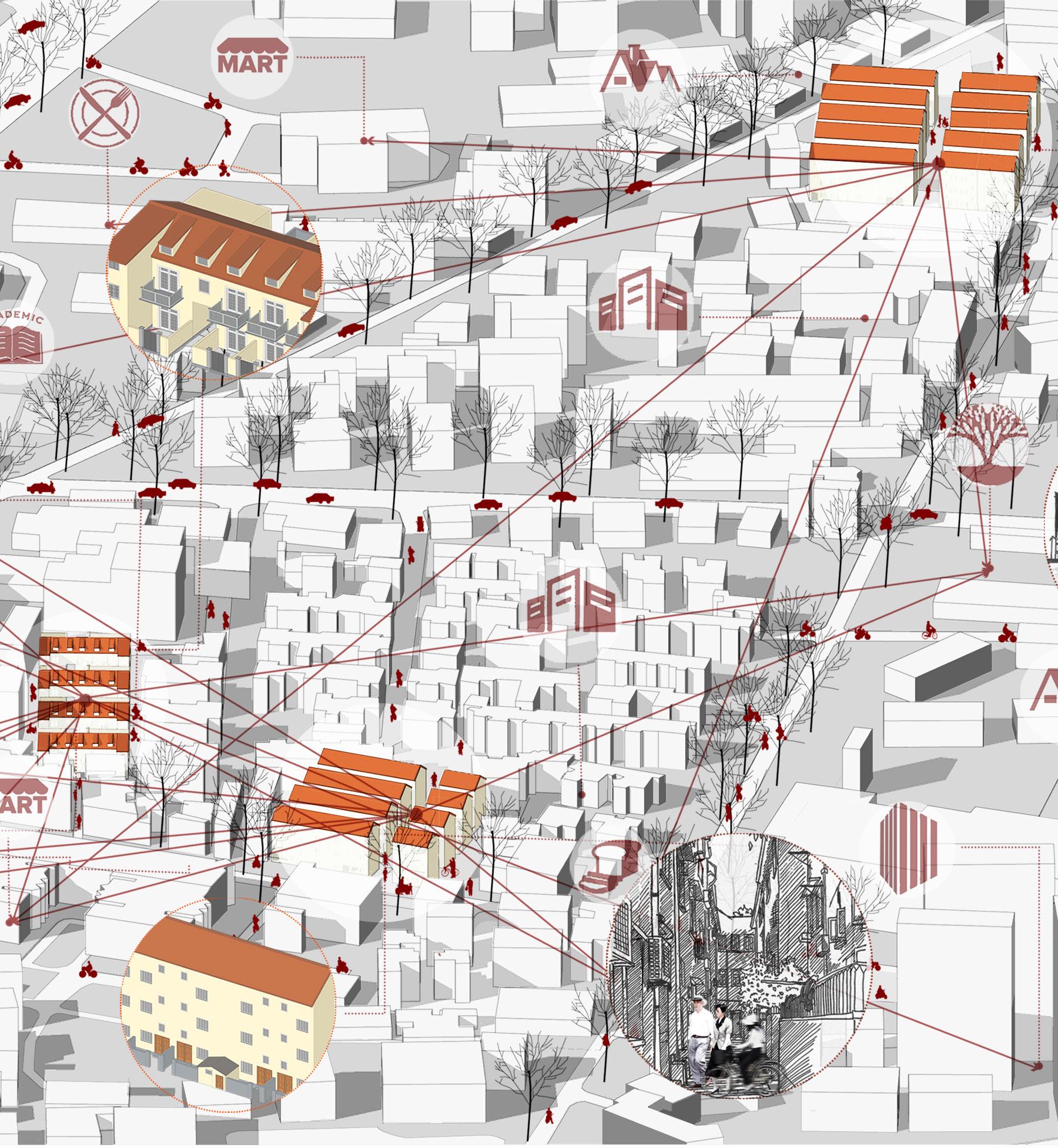

SITE SURROUNDINGS
COMMERCE CENTER
CHILD-CARE CENTER

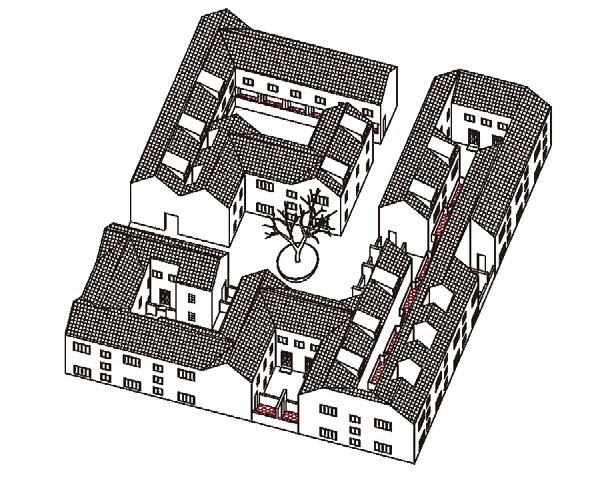

The block is purely a residential community without other function.A large central courtyard space is surrounded by small courtyard at four corners.
The block has community business, surrounded by the residence. The small squares on both sides form an open entrance space.
MAHJONG AND CARDS ROOM MEDIA ROOM
COMMUNITY CANTEEN
The left is residence and right is multifunctional room.The bridge connects them. Three small squares are formed at the boundary.

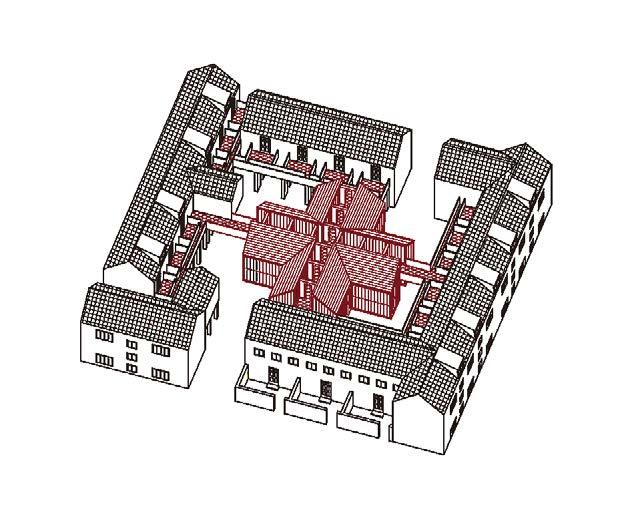

Public facility is integrated with residence.Two bridges connect space throughout. Pavilions face active public space.
02.1 Regeneration of Shanghai Lane House
Portfolio Of Jiaxi Zhang
50 UTOPIA URBANISM PLARTFORM PUBLIC RESIDENCE
The roof terrace is transformed into vitreous body to form more beautiful and applicable space
The Bridges around the preserved historic buildings form a dialogue with history.It is also a good place for residents to chat and children to play together.
I'm going to the community canteen for lunch.
Scattered pavilions and large platforms on the roof provide the activity space.
This is a commercial center, connected to the residential area by corridors to facilitate residents' access.
A staircase in the main square allows residents to go directly up to the second floor, which is accessible in all directions.
Vegetable is very fresh today in the market.
Thanks for telling me.
High and low balconies connect the residents.Balconies also open onto a common roof terrace.
Where are you going?
A film is shown in the media room.
02.1 Regeneration of Shanghai Lane House 52 53 UTOPIA URBANISM
UTOPIA
URBANISM
Scope Range

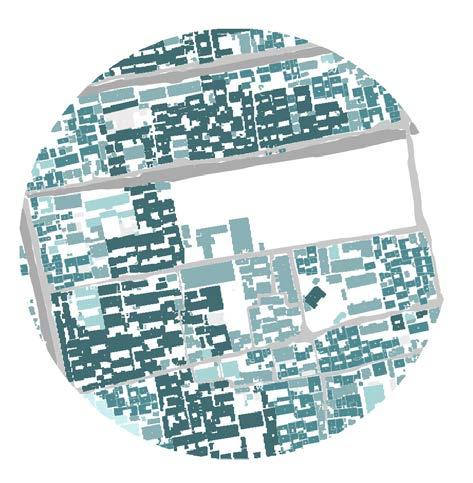

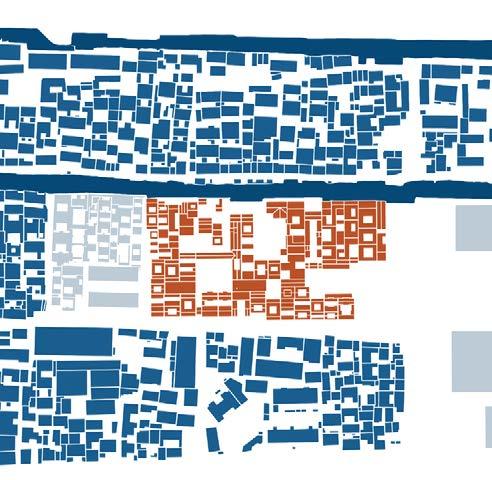

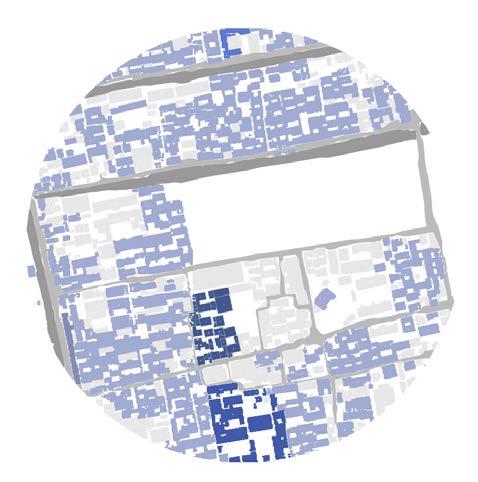

As an important cultural heritage, pingjiang Road historical and cultural street has completely retained the style of the ancient town of Jiangnan water town. However, the old city needs to further adapt to the development of modern society, and under the principle of protection, it also faces the needs of partial transformation and renewal. The site of this project is located in the old city, which is an empty space used as a parking lot. It needs further planning and design to make this "scar" be integrated into the overall texture.
Surrounding Buildings Assessment
Building Ages
Although the fabric of traditional Suzhou dwellings in Pingjiang Road historical and cultural Street of Suzhou is relatively intact as a whole, there are still many cases of fabric destruction, and there is the possibility and trend of further destruction. Based on this, the subsequent design is carried out to further clarify the functional positioning of the design.
Ming-Qing Dynasty Republic
China
Functions
Sacrifice
Shops
Public Residence
Heights
55
of
Religion One Floor
Building
Building
1940S-1980S 1980S-2000S
2000 til now
1890-1936 1940-2009 2012 til now
Waterway Site Construction Roads XinqiaoLane HuntangLane 150M Cang Street 80M Two Floors Three Floors Four Floors Five Floors 02.2 Regeneration of Suzhou Garden Residence
Portfolio Of Jiaxi Zhang
54 UTOPIA URBANISM Pingjiang History

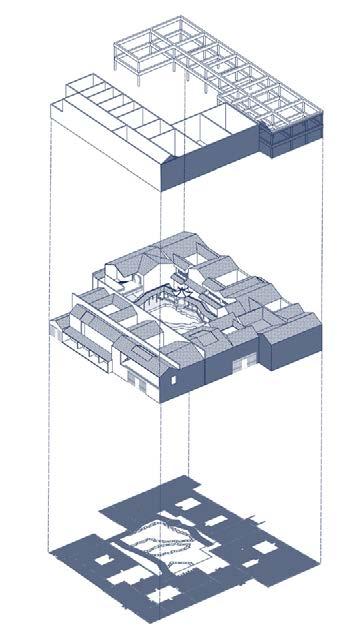

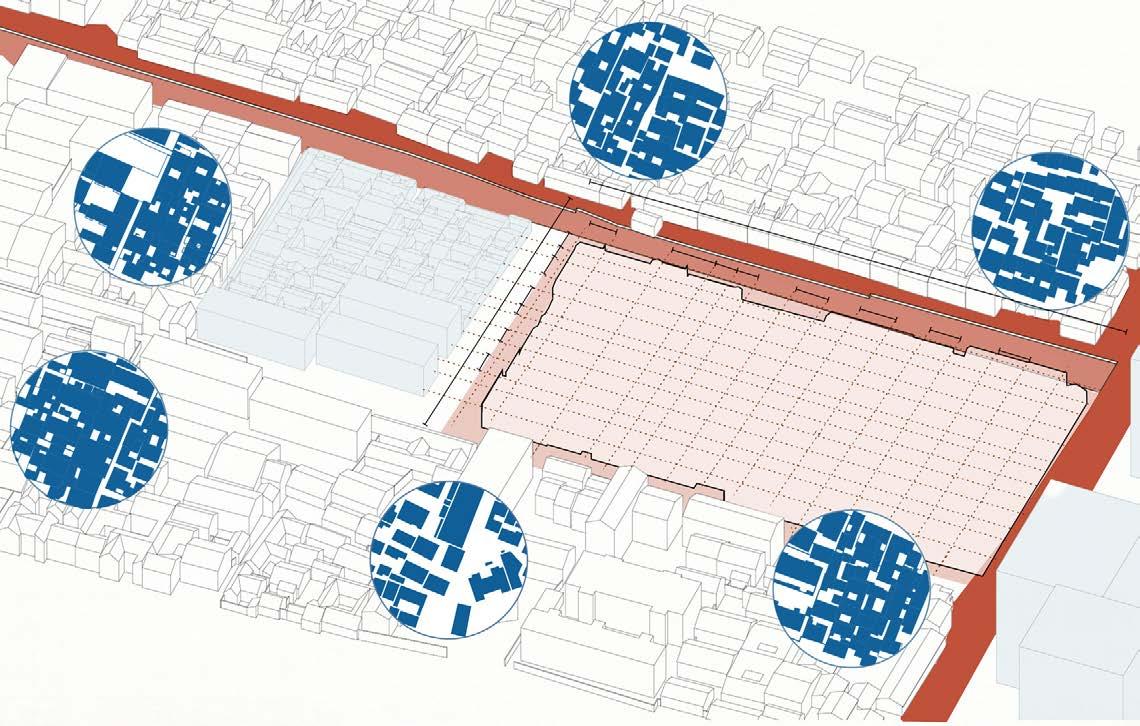

On-Site Urban FabricProtection Scope Birdview

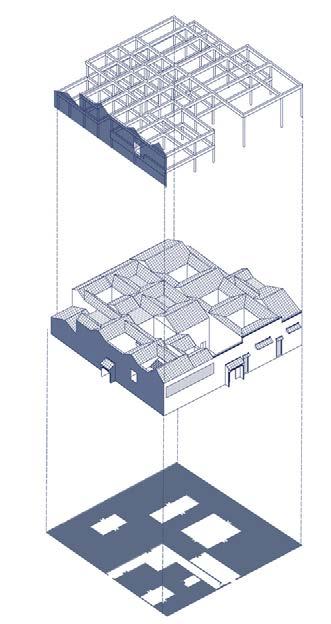

57 02.2 Regeneration of Suzhou Garden Residence Basic Unit Half Lane Complete House Eaves Gallery Combo 1 Indoor Path Break Walls Roof Platform Combo 2 Combo 3
Portfolio Of Jiaxi Zhang
56 UTOPIA URBANISM

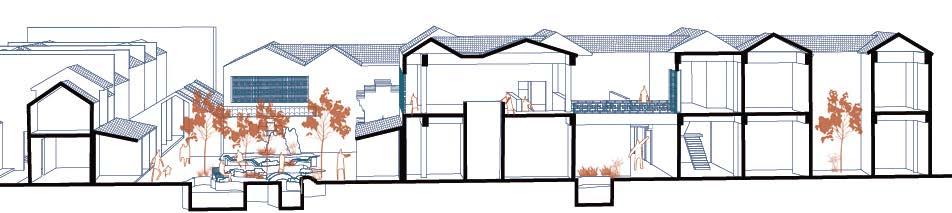

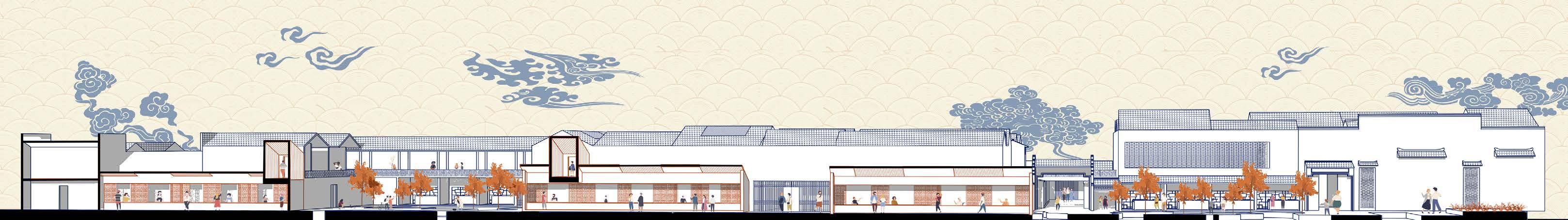

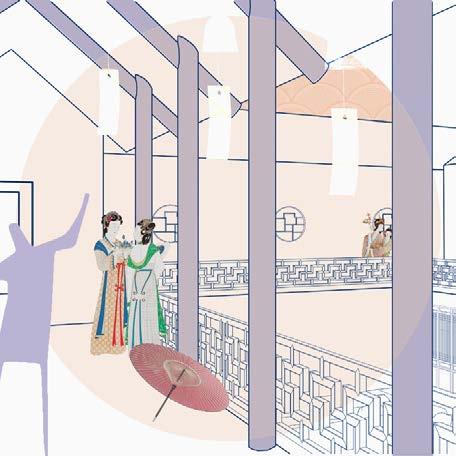

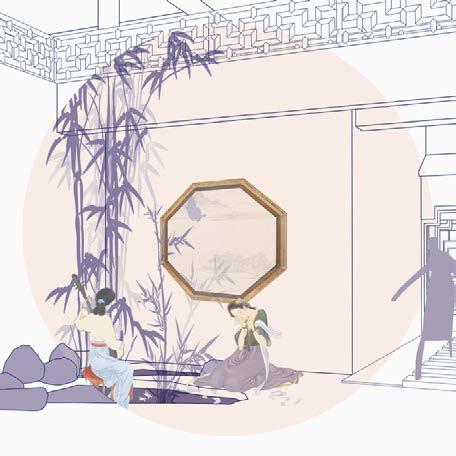

The teahouse The colonnadeThe museum

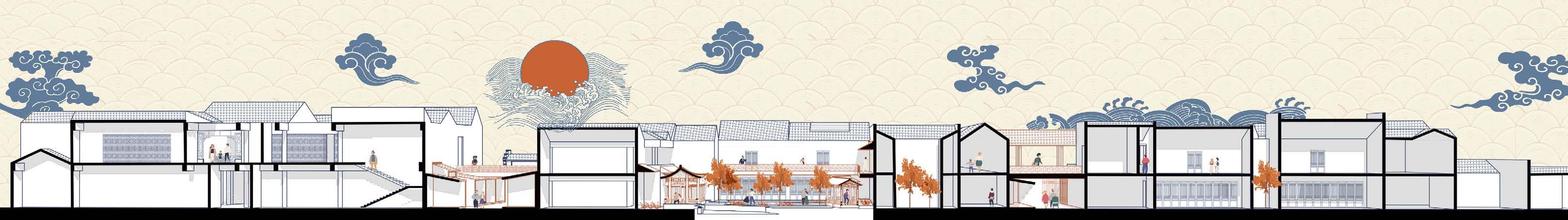

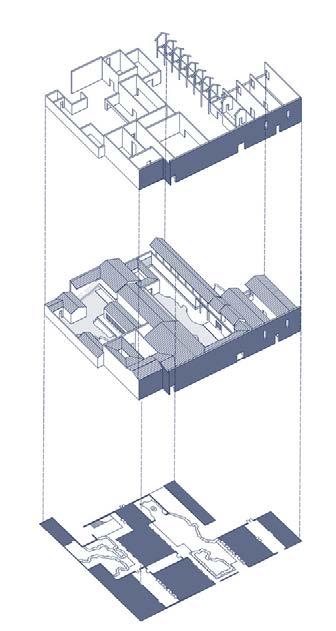

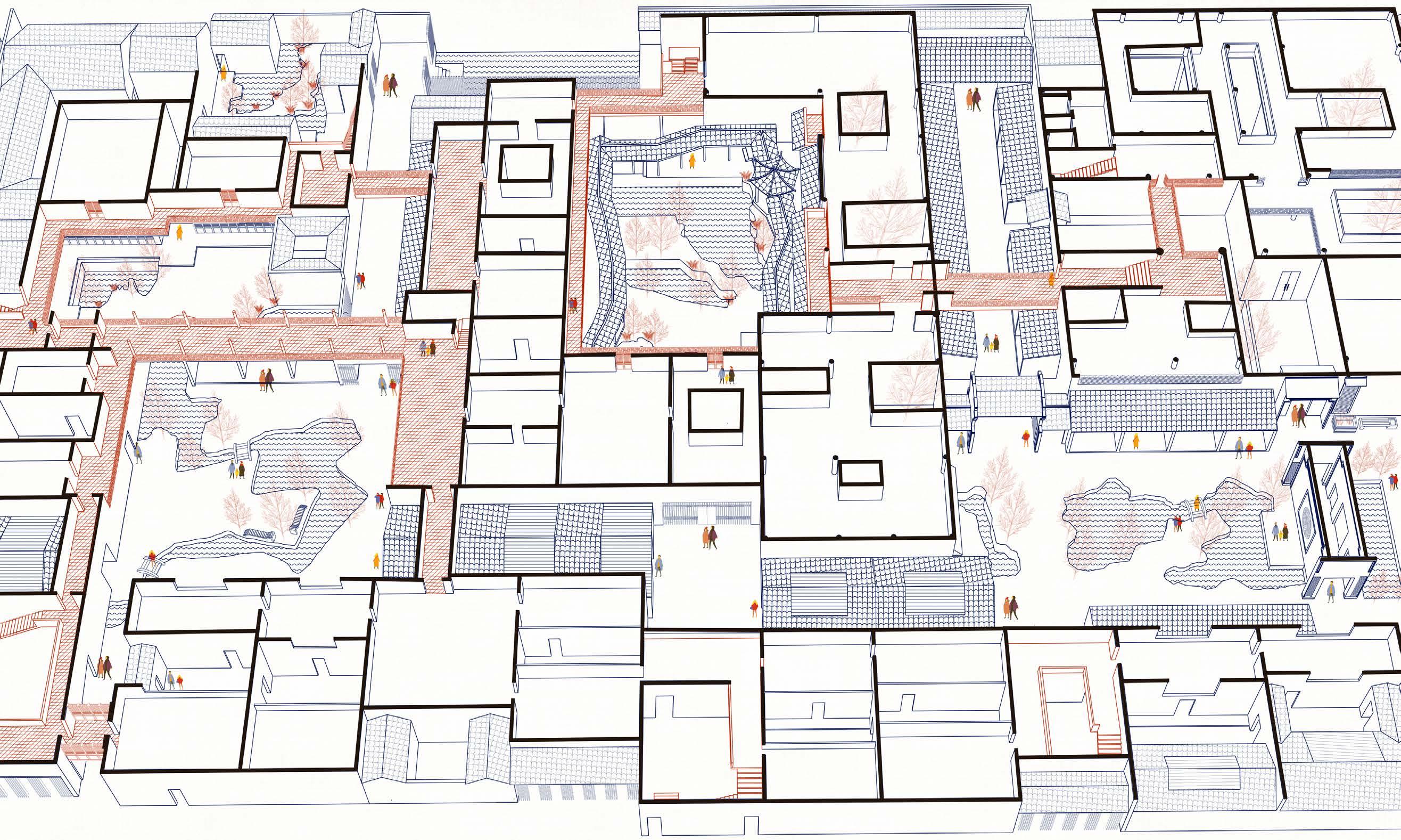

Suzhou Garden Residence Types Commercial Space From Suzhou Garden Residence New Public Architecture Types Sections
59 02.2 Regeneration of Suzhou Garden Residence
Portfolio Of Jiaxi Zhang
58 UTOPIA URBANISM

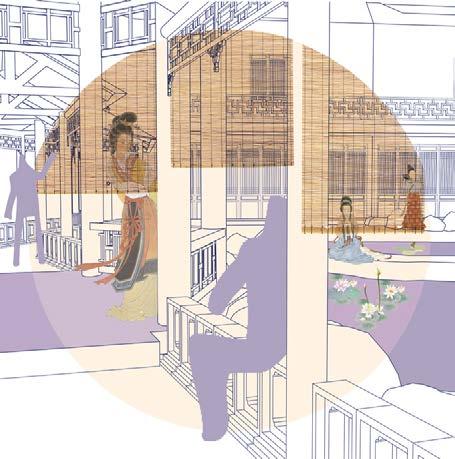

Entrance in a Rest RoomIndoor Path on Second Floor
South Main StreetEaves Gallery Yard in Museum
North
Main Street
Fabric Changes(Before)
Fabric Changes(After)
61 New Old Built
02.2 Regeneration of Suzhou Garden Residence
Portfolio Of Jiaxi Zhang
60 UTOPIA URBANISM
FISHING CLUB 2018 Autumn
ANGLING ARCADIA AWAY FROM WORLD
Dongqian Lake ,Ningbo
Zhejiang Province
China
Set in the woods of the countryside, the open-ended building provides a shelter for city people to relieve themselves from reality and recall their childhood memories. The building is semi-open, directly connected to paths and trees, the sky and a pond, in which the mountains far away will leap to the eyes. Surrounded by dense groves and misty waters, adults can go fishing in a comfortable way while children will play with flowing water safely. People no longer have to rush through the hustle and bustle of the city, but can enjoy the tranquility of the utopia. The building makes us return to what we thought is like as a kid before.
Portfolio Of Jiaxi Zhang
62 UTOPIA URBANISM
，
，
ABOUT FISHING
Fishing is a kind of self-cultivation activities, removing the impetuous heart and returning to calmness.Fishing is also a fun activity for children, with schools of fish circling around our feet.Fishing ways are varied by fish species and amount,space enclosure and view range.The indoor room has artificial pond and focuses on cetain landscape. The open field is more close to the nature and enjoy wide view.
VIEW RANGE & ROOM SPACE
HORIZENTAL SIGHT
ENCLOSED ROOM DOORS ON BOTH SIDES DIAGONAL DOORS THREE-SIDED
VERTICAL SIGHT
SPACE IN SERIES
Different orders change streamline and affect pople's communication.
PRIVATE
STACK UP AND DOWN
Vertical overlays affect the light of the space and people's sight.
FINAL RESULTS
Combine the three ways to form fishing units with different spatial experience.
NESTED SPACE IN TWO SIZES
This way enhances the sense of limitation and privacy of the space.
65 04 Angling Arcadia
Portfolio Of Jiaxi Zhang
64 UTOPIA URBANISM
THREE-SIDED HALFLY ENCLOSED WALKABLE ROOOM DOORS ON BACK SIDE
COVERED ROOM SKY WINDOWS BLIND VIEW PITCHED ROOF SKY WINDOWS BLIND VIEW GABLE ROOF SKY WINDOWS
OPEN
3M
3M

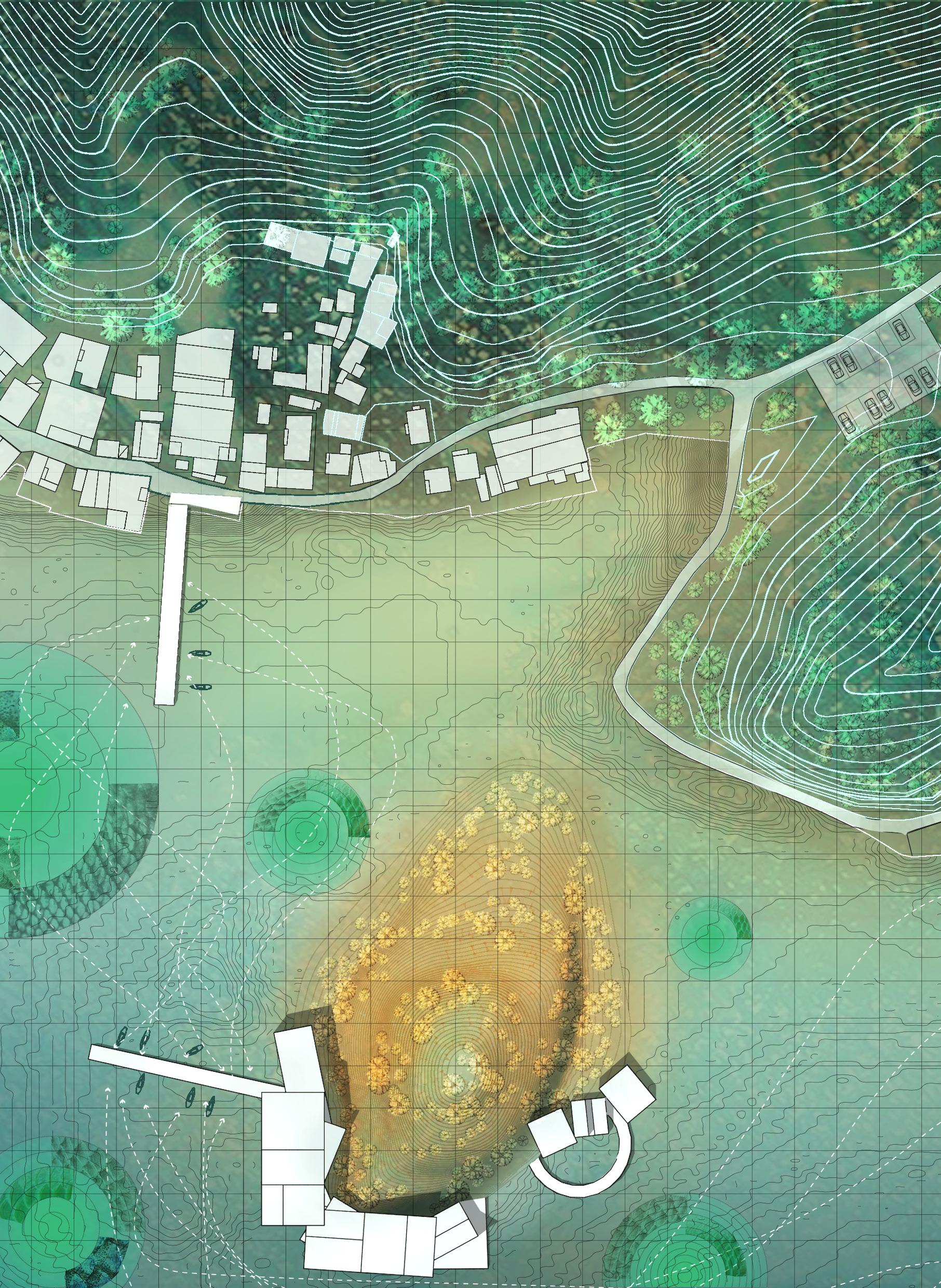

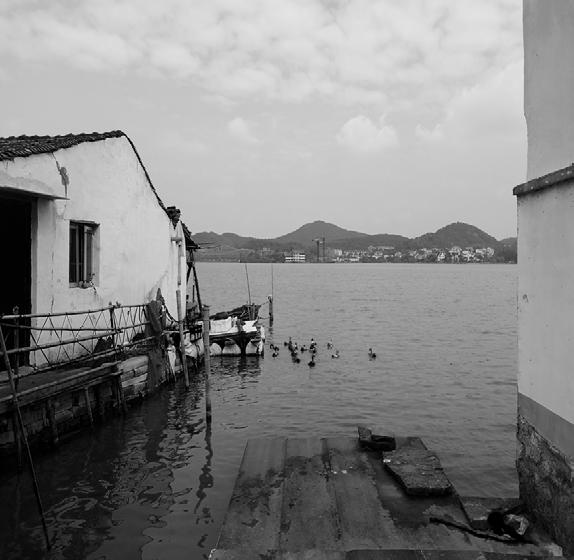

SITE MAPPING
66 UTOPIA URBANISM 10M SLOPE LEVEL RAIN AMOUNT 3.8 13.9 9.5 7.4 5.8 4.7 M MM 200 1000 800 600 400 BIG FISH SMALL FISH MEDIUM FISH N S EW N S EW 16.1 13.8 7.6 3.8 4.5 4.7 7.5 12.3 4.5 9.3 5.9 8.6 9.6 3.9 9.5
The lake itself is more secluded and few people lived in the village. There's only one way to get there. The island was deserted ,small in size and low in height and close to the shore.The island slopes gently to the west and steeply to the east.A vast natural landscape is provided at the south. 20M 30M 40M 50M 60M 70M 80M 90M 100M 110M 10M 20M 30M 40M 50M 60M 70M 80M 90M 100M 110M 120M 130M 140M BUILDING LOCATION The building's location was chosen where the slope of the island is more gentle, the landscape more open, and where fish are abundant. 16.1 13.8 7.6 3.8 4.5 4.7 9.5 7.5 9.3 5.4 12.4 15.5 6.3 3.6 5.8 10.2 14.3 16.8 40.1 26.8 6.8 9.6 15.1 30.2 20.7 35.1 23.2 13.8 MEDIUM RANGE AND SOME FISH FISH DISTRIBUTION Concentric circles represent the species and distribution of a shoal. SMALL RANGE AND SOME FISH MEDIUM RANGE AND MUCH FISH

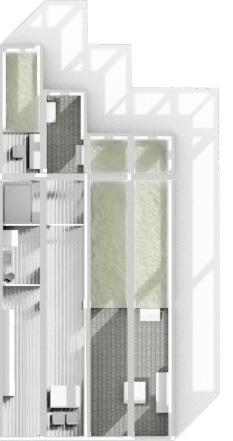

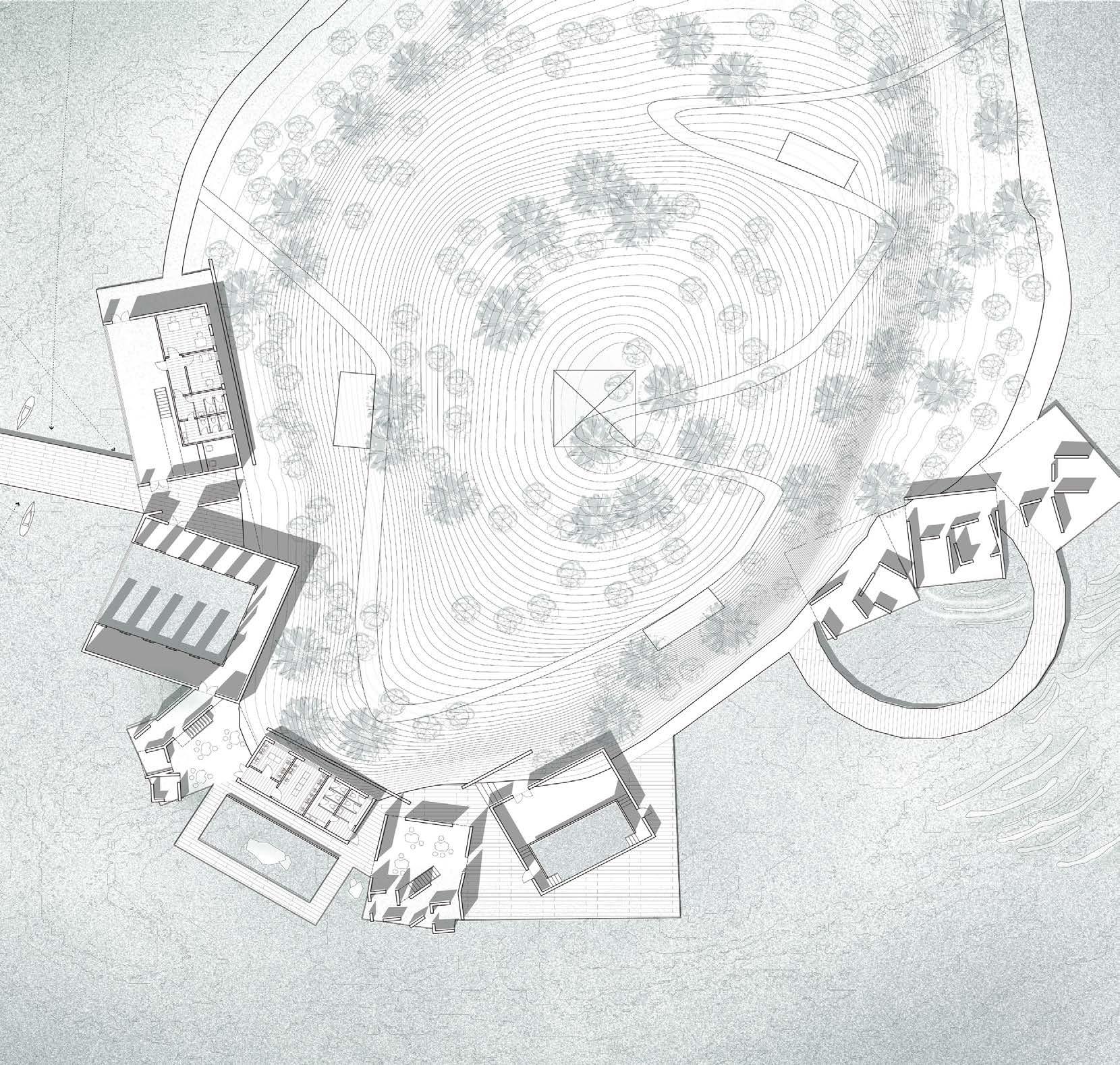

FLOOR PLAN

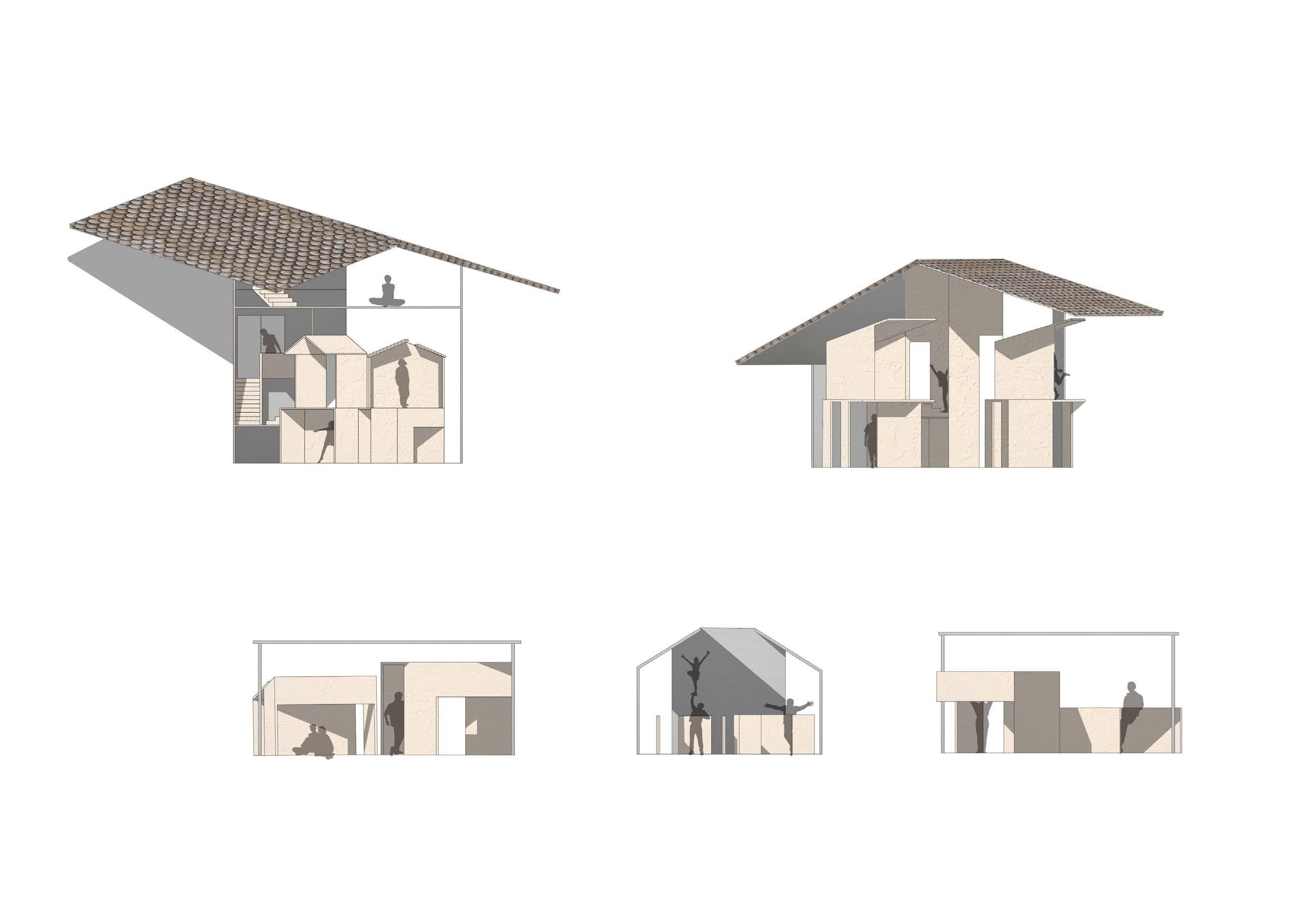

Different volumes offer different fishing experience and spatial sensation.Tourists can also go fishing by boat at the dock.The building caters to the changes of the mountain, and the rocks are exposed in the crevices of the building.There are also mountain roads around the island and viewing platforms.

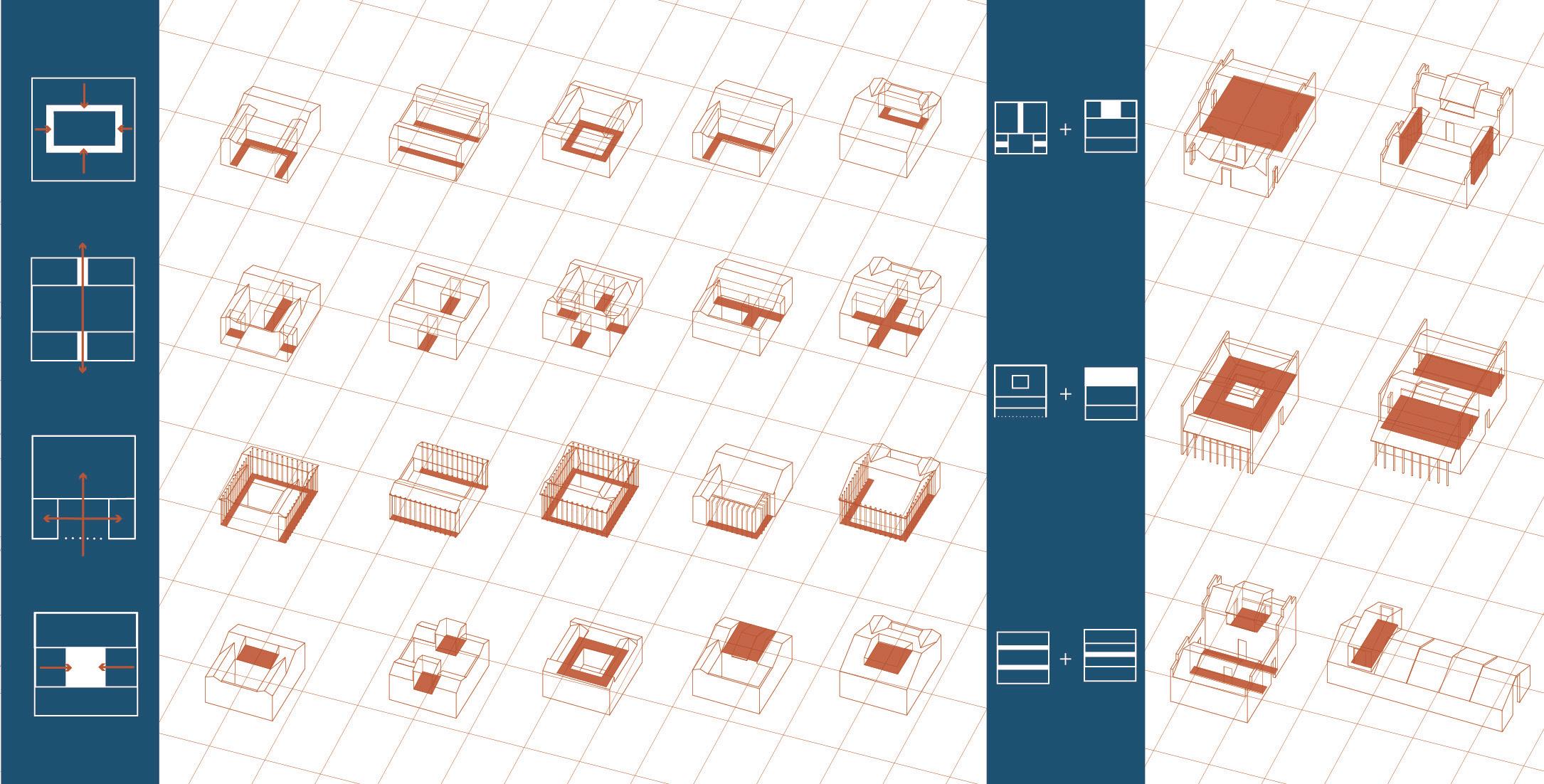

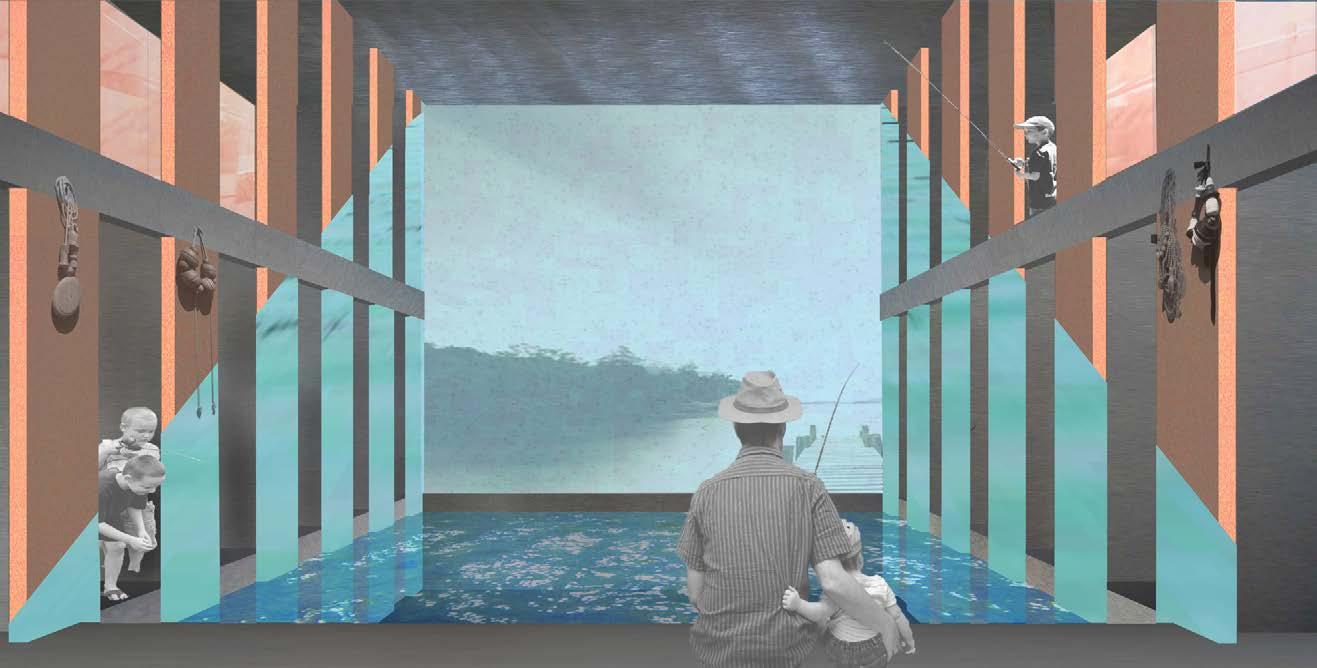

UNIT TYPE

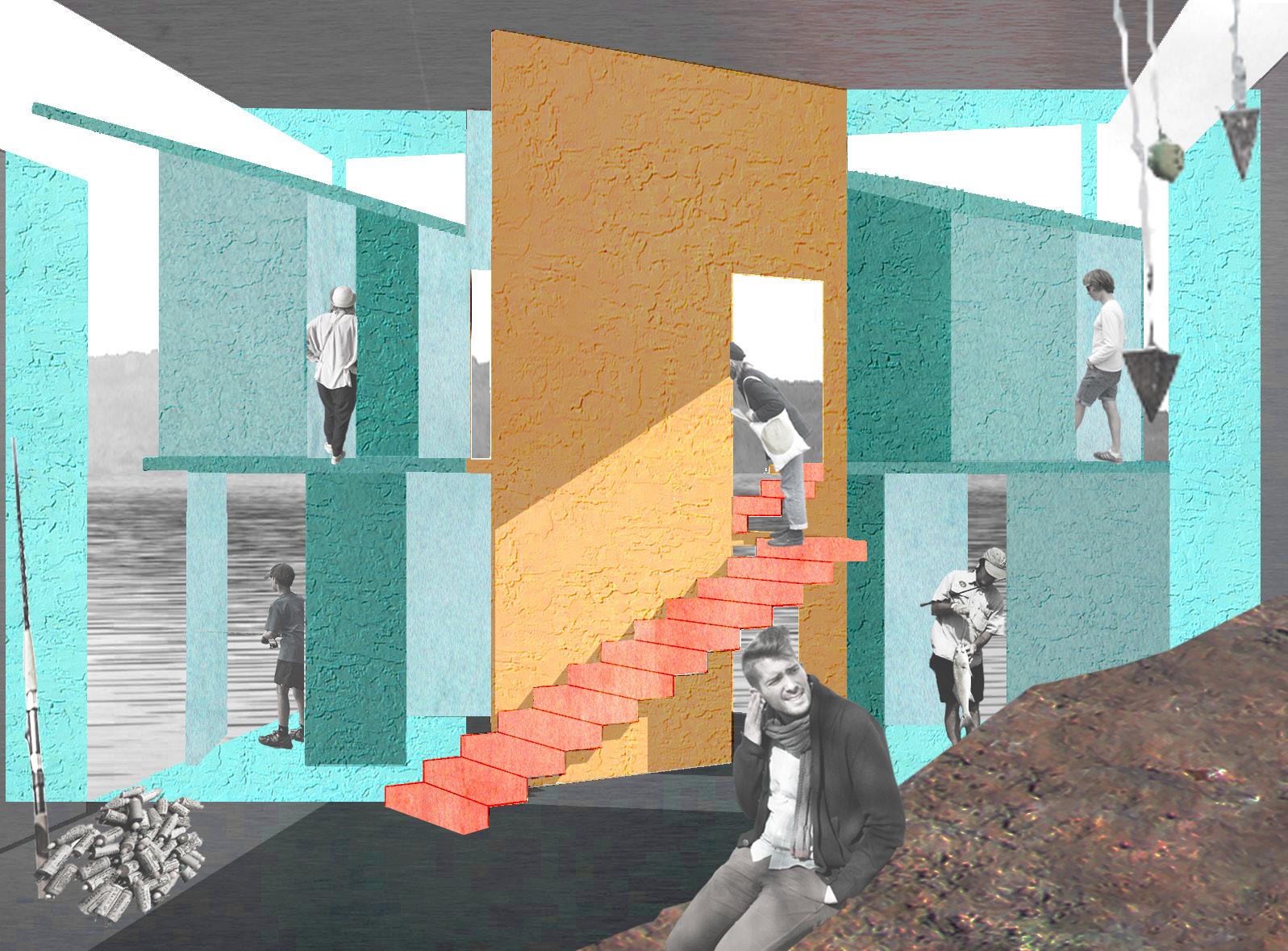

UNIT ONE
Connect the space of different height with stairs and the adjustment space.
UNIT TWO Separate fishing Spaces under one roof with more privacy.
SECOND FLOOR PLAN
UNIT THREE
Adjacent units make human communication more frequent.
UNIT FOUR
The higher space allows more light and shadow.
UNIT FIVE
There is a big contrast between privacy and openness.
04 Angling Arcadia 68 UTOPIA URBANISM
9 3 8 2 1 4 6 7 5 5 5 8 8
1.OFFICE 2.RECEPTION 3.WHARF 4.ARTIFICIAL FISH POND 5.FISHING UNIT 6.RESTROOM 7.KIDS' FISH POND 8.PLATFORM 9.PAVILION
SECOND HOUSE An artificial fish pond for kids is in a double-height space providing a certain landscape view.The space is divided by columns vertically in rhyme.The lateral windows on the second floor let more light in.
THIRD HOUSE Four different types are connected by a stair in the middle.The rock of the moutain is exposed and extended on the platform.

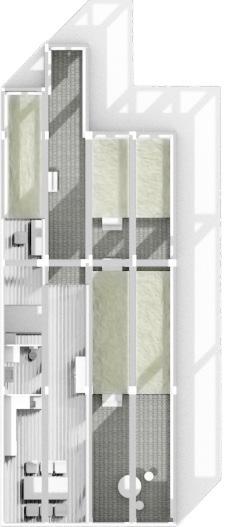

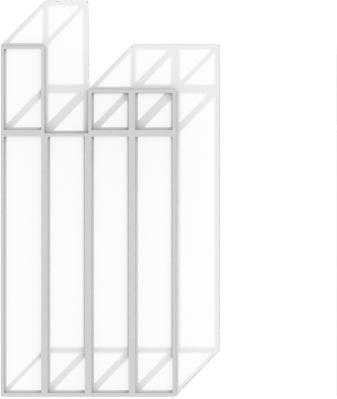

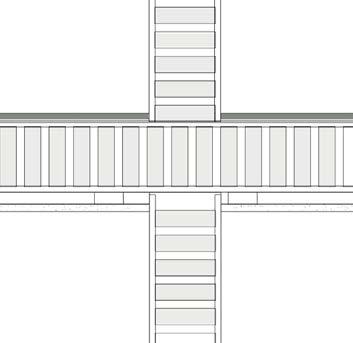

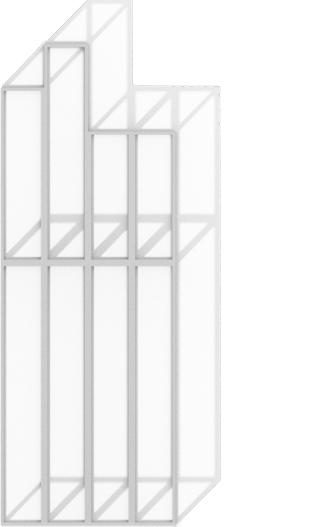

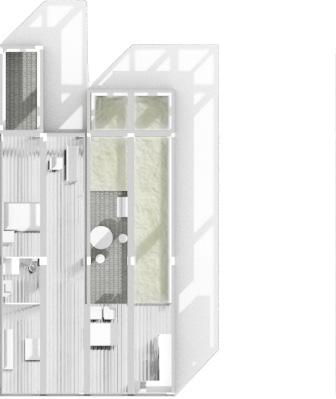

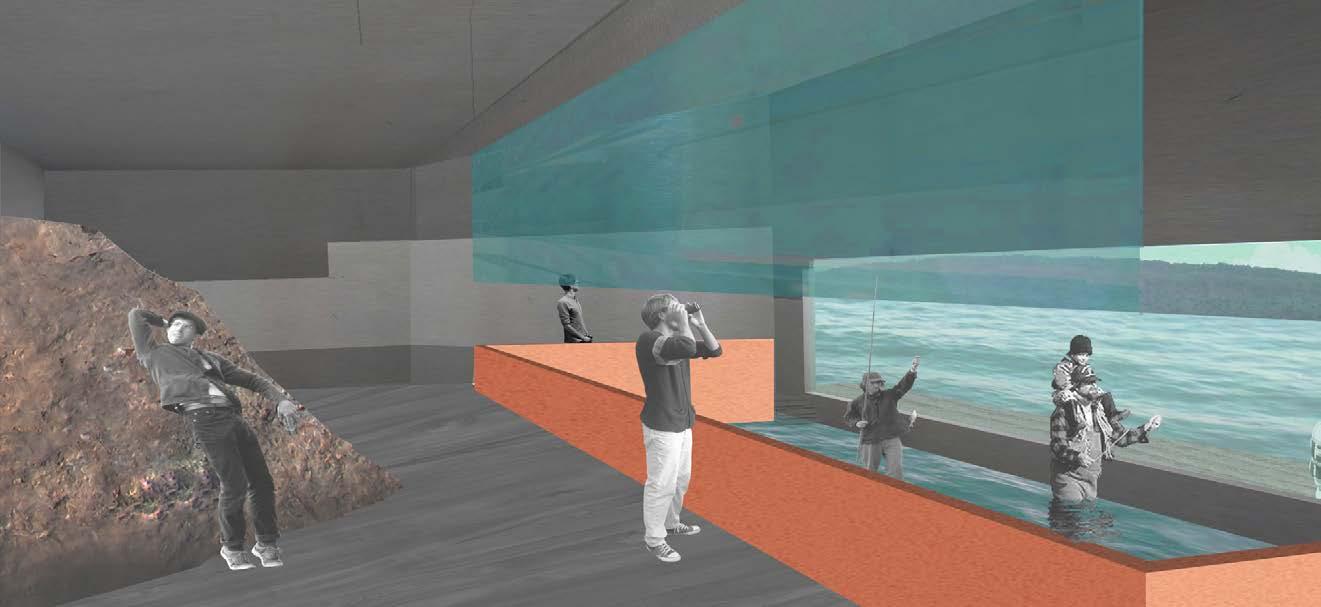

FOUTH HOUSE A shallow pond allows visitors to catch fish in the water ,which is more playful.The suspended glass and handdrail board seperate the other space.The platform outside make people fish on the bank.Also the rock is extended in the house.
71 04 Angling Arcadia
Portfolio Of Jiaxi Zhang
70 UTOPIA URBANISM
AMUSEMENT PARK
Road
District
What is it like to live in an amusement park? People in the city are tired of living in crowded, cookie-cutter and uncaring neighborhoods, but this design paints a picture of a game life, combining work, leisure and adventure together. The business circle is located near the community, including a well-functioned underground mall and an office building above the ground. The white collar can have a pleasant and interesting working place while old people and children can enjoy recreation and entertainment at any time. People and the environment keep a balance of harmony and life is a carnival.
Portfolio Of Jiaxi Zhang
72 UTOPIA URBANISM
Jinyang
,Pudong
，Shanghai，China CITY COMPLEX 2019 Spring

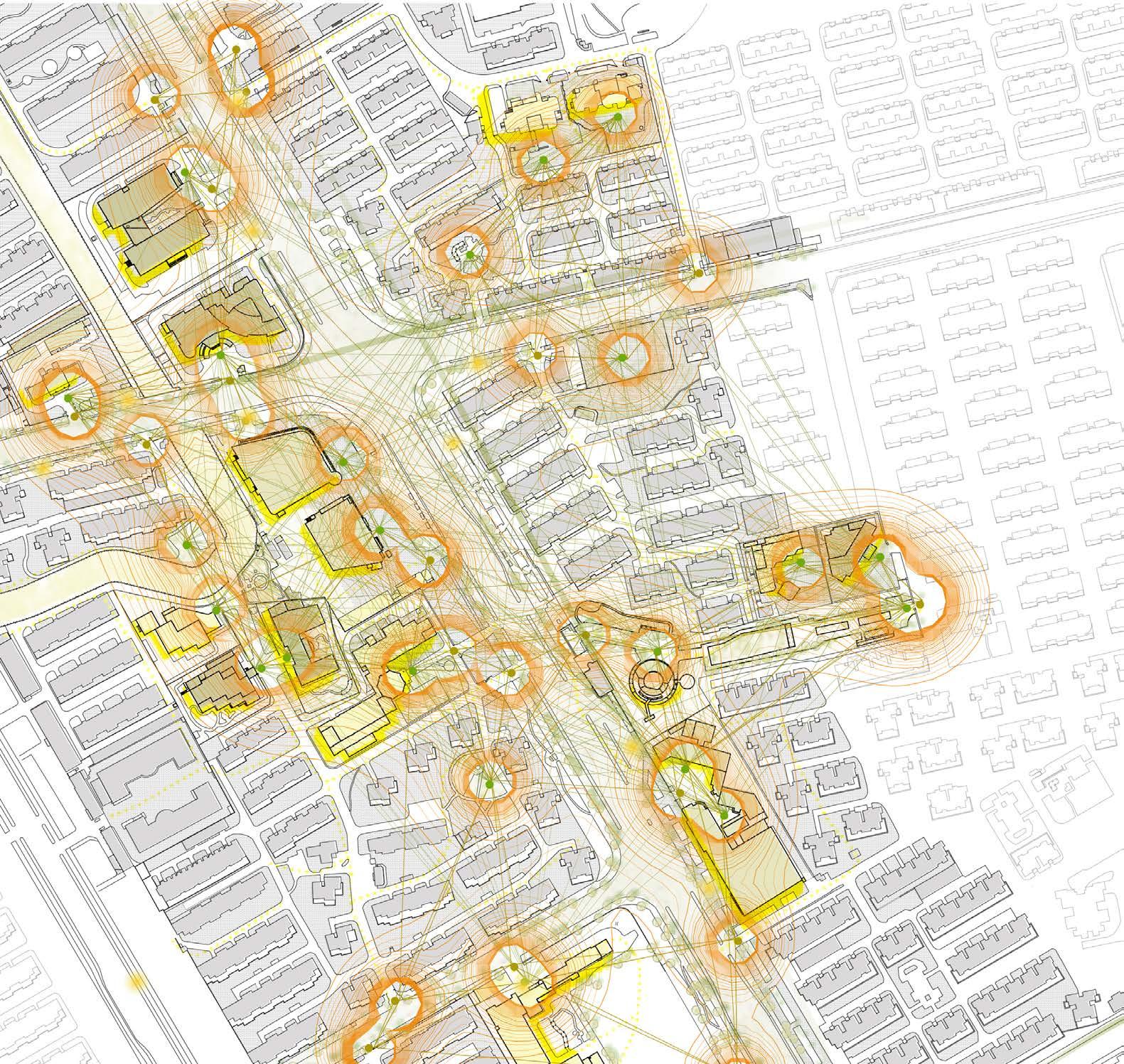

SITE ANALYSIS
The place is located in a development zone in Pudong,Shanghai.The surrondings are mostly six-storey apartment buildings.The residents are the elderly and children.The zone has no large commercial facility.
The site has one budget hotel,one market and two nursing homes.A river runs through the site.
ZHUTANG RIVER LINGSHAN ROAD
The transportation is convenient including three metro lines and several bus stations.
JINYANG ROAD YUNSHAN ROAD
KINDERGARTEN
KINDERGARTEN
KINDERGARTEN
METRO LINE

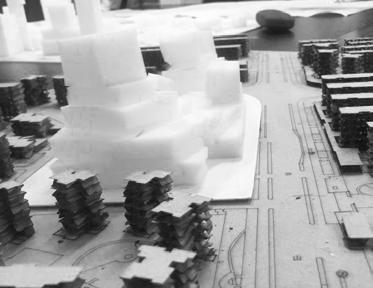

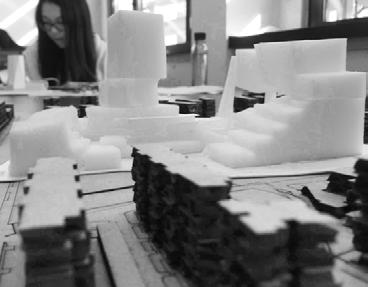

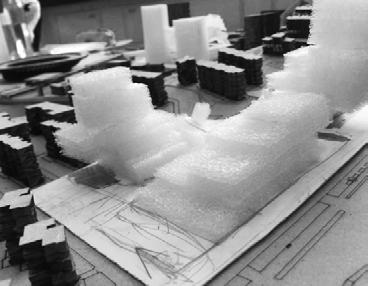

MODELS IN THE PROCESS
PUBLIC LAWN HOSPITAL RESTAURANT

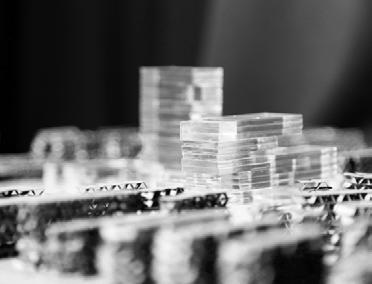

MODELS IN THE PROCESS
COMMUNITY CENTER KINDERGARTEN HOTEL
FOOD MALL
KINDERGARTEN
NURSING HOME
PARK NURSING HOME
KINDERGARTEN
POLICE OFFICE

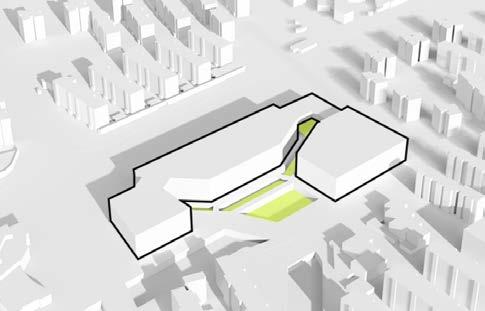

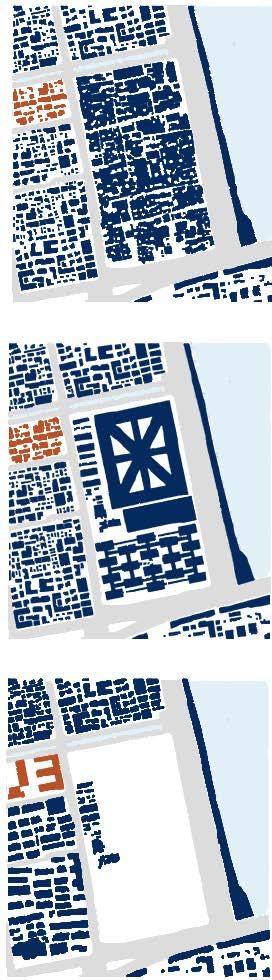

Avoid the river and set the building lines. Form the central square and two entrances. Dig three water channels and sunken plaza.
PUBLIC LAWN

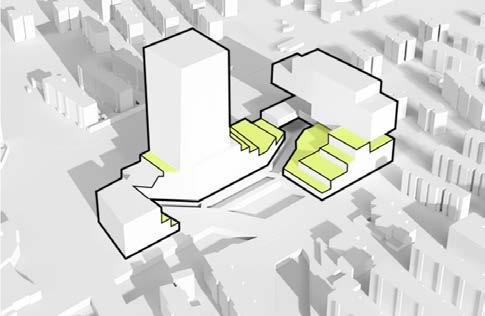

Place one office building and one apartment Retreat of architecture forms outdoor space. Finish architecture volume.
SUPERMARKET
BUS STOP
SENIOR HIGH SCHOOL

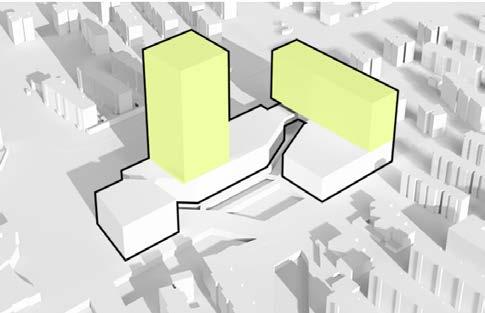

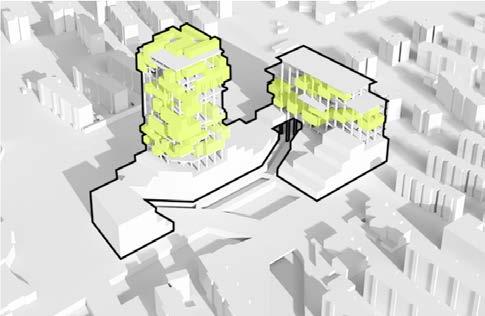

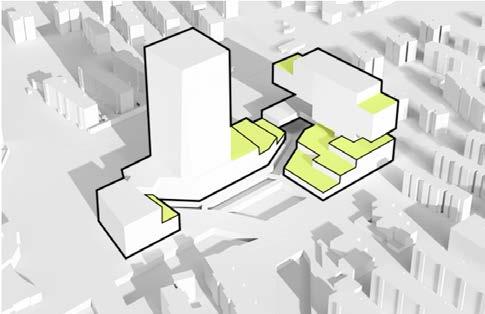

Form public space in two tower builidngs. Place various cubes for commercial use. Introduce waterfall landscape.
75 03 Amusement Park
Portfolio Of Jiaxi Zhang
74 UTOPIA URBANISM

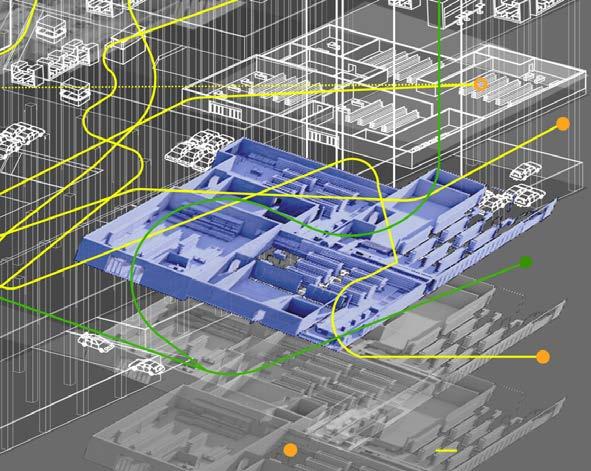

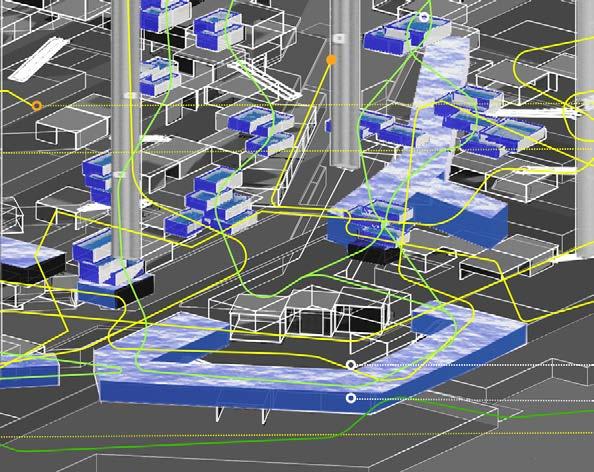

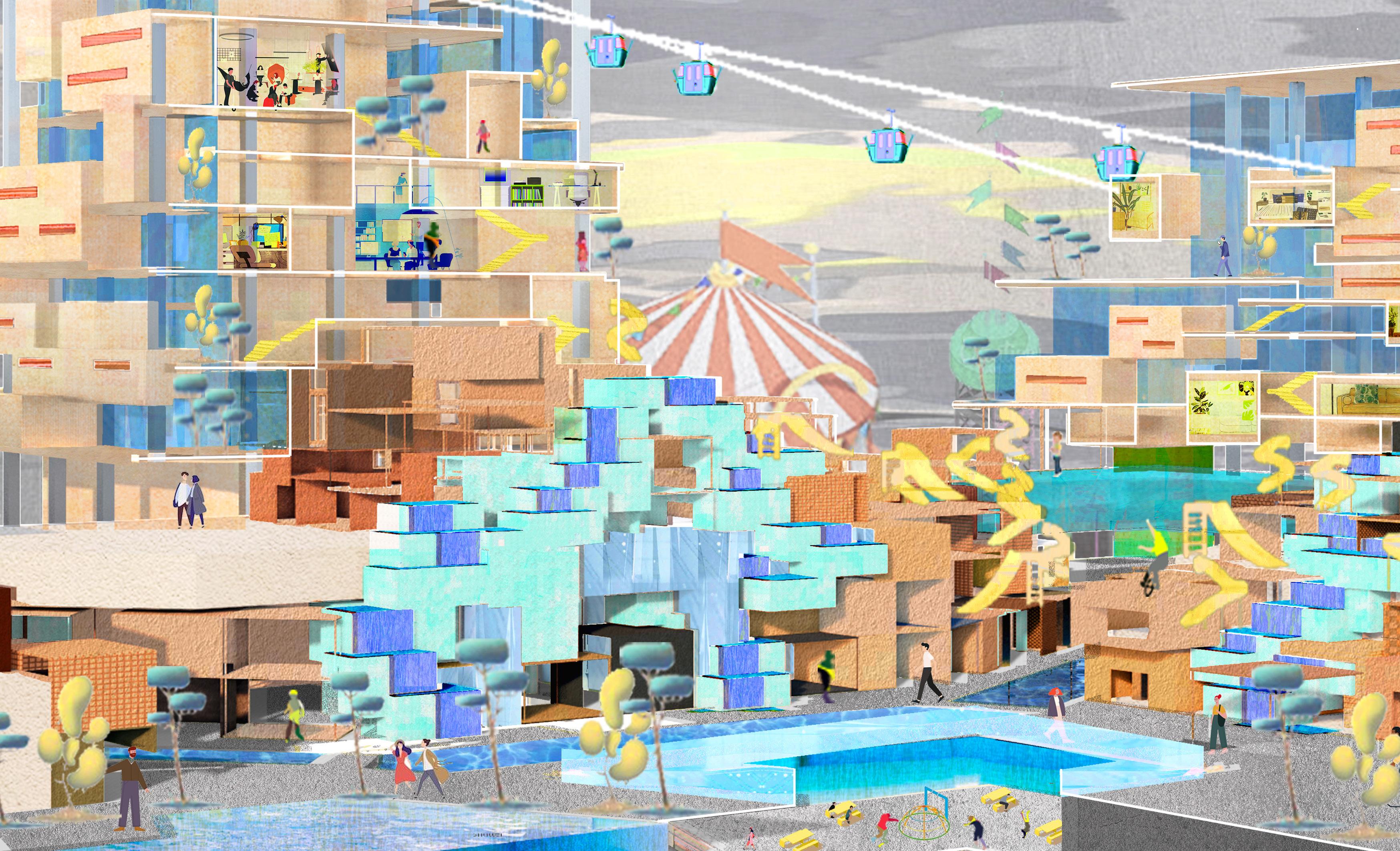

The building is enclosed a central underground square on three sides.The design considers the lighting of the surrounding dwellings.The building is dominated by the back platform and the stack of small volumes, forming more ambiguous gray spaces, making the complex as full of fun and vitality as an amusement park.The outdoor terrace is surrounded by green plants and has a pleasant environment.
The sunken plaza guides customers into the B1 floor.
The central plaza faces the community interior and the river.
The entrance in the middle has a prominent vitreous exposure.
There is a large open square in front of this entrance.
Portfolio Of Jiaxi Zhang

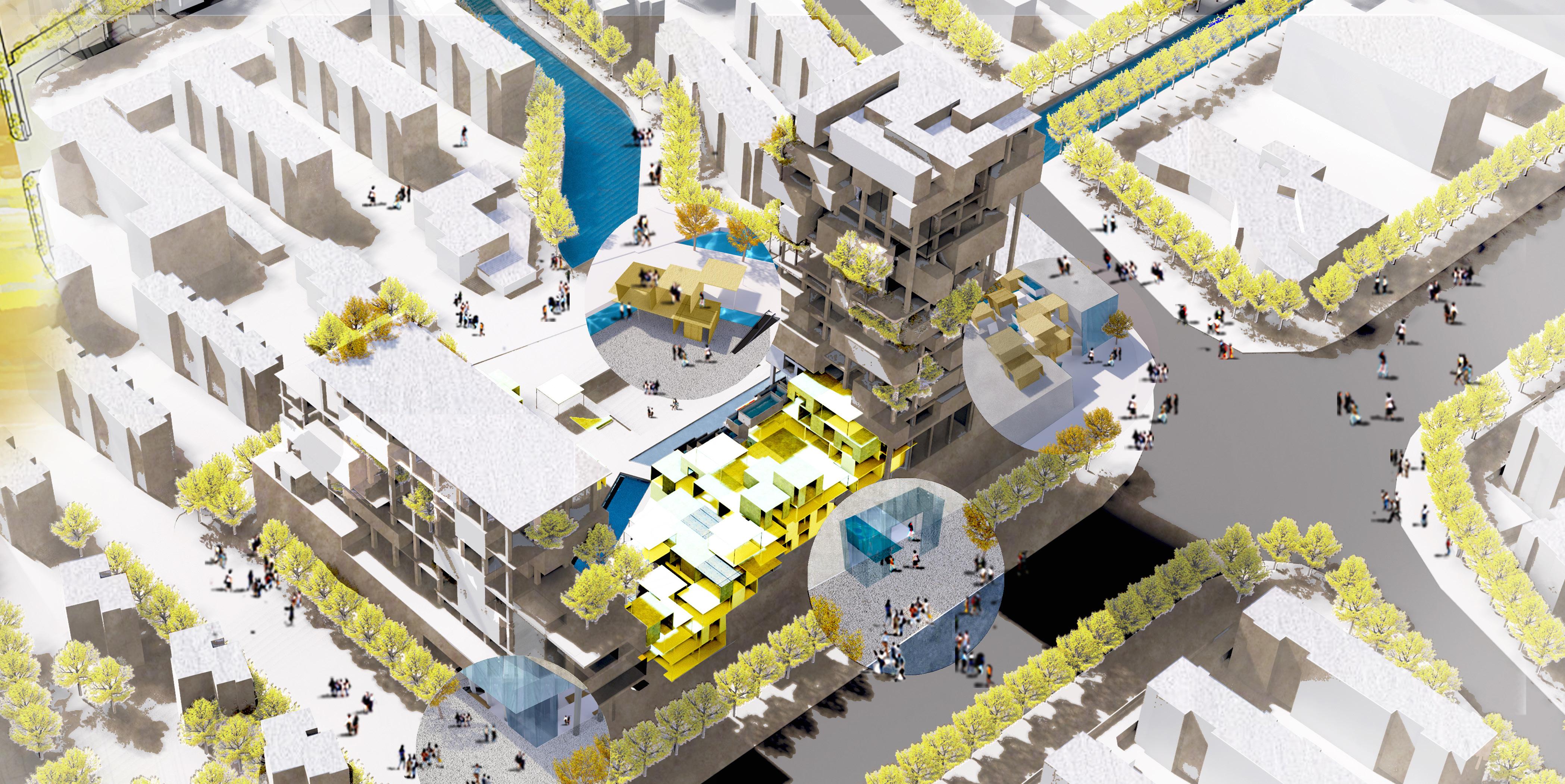

76 UTOPIA URBANISM THE BIRD'S EYE VIEW
79 03 Amusement Park
Portfolio Of Jiaxi Zhang
78 UTOPIA URBANISM
Waterfall In Square
Retail Level Supermarket
INTERIOR DESIGN
01
Enshi General Hospital in Hubei Province
81
Portfolio Of Jiaxi Zhang
80 UTOPIA URBANISM
PROJECT

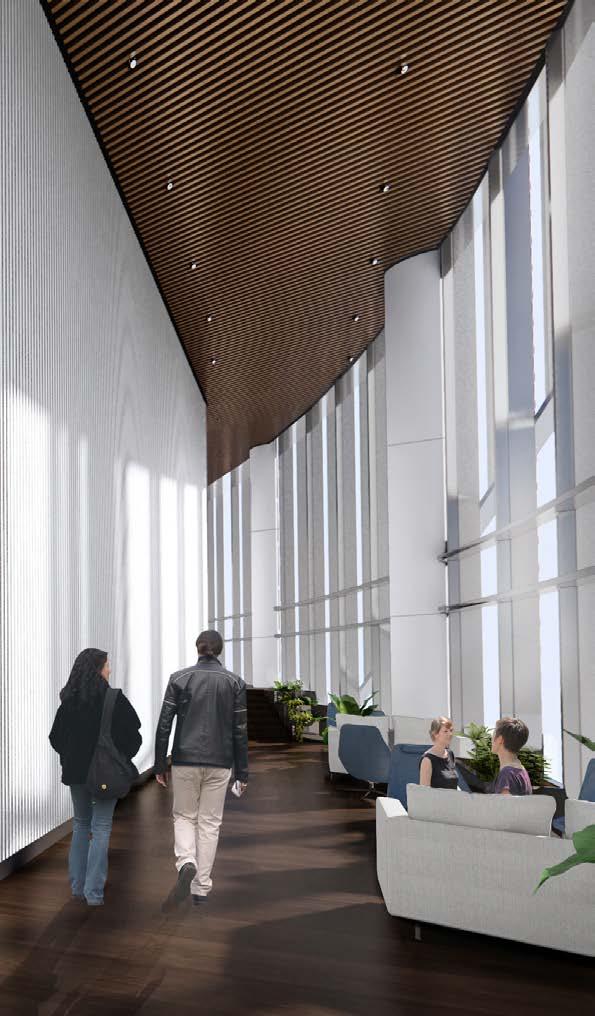

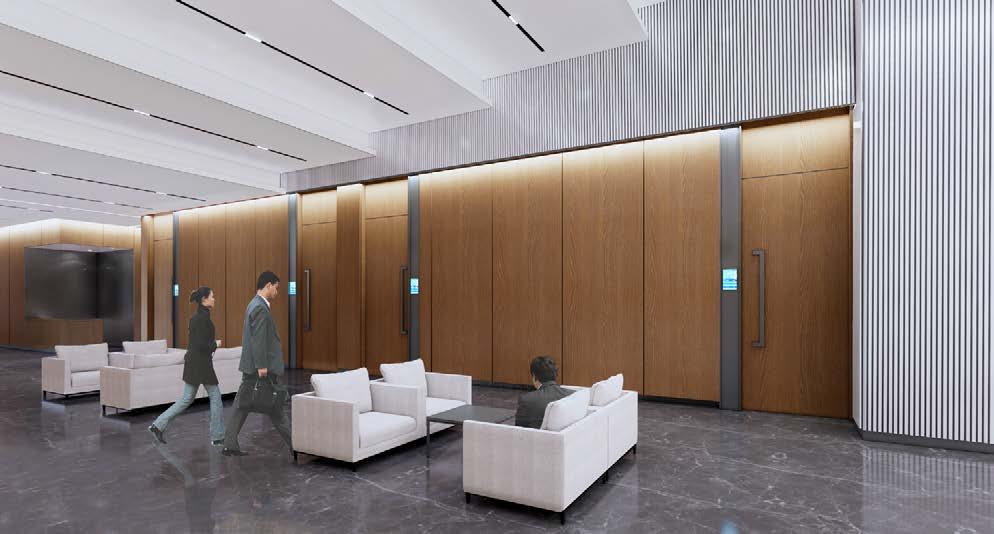

My part focused on the conference center including a small theater and other meeting rooms. DESIGN PROCEDURE 1. Interior Layout 2. Design Concept 3. Rendering RENDERING 1. Small Theater 2. Walkway 3. Reception 4. Exit Lobby 5. Lift Lobby 6. Waiting Area
INTERIOR DESIGN

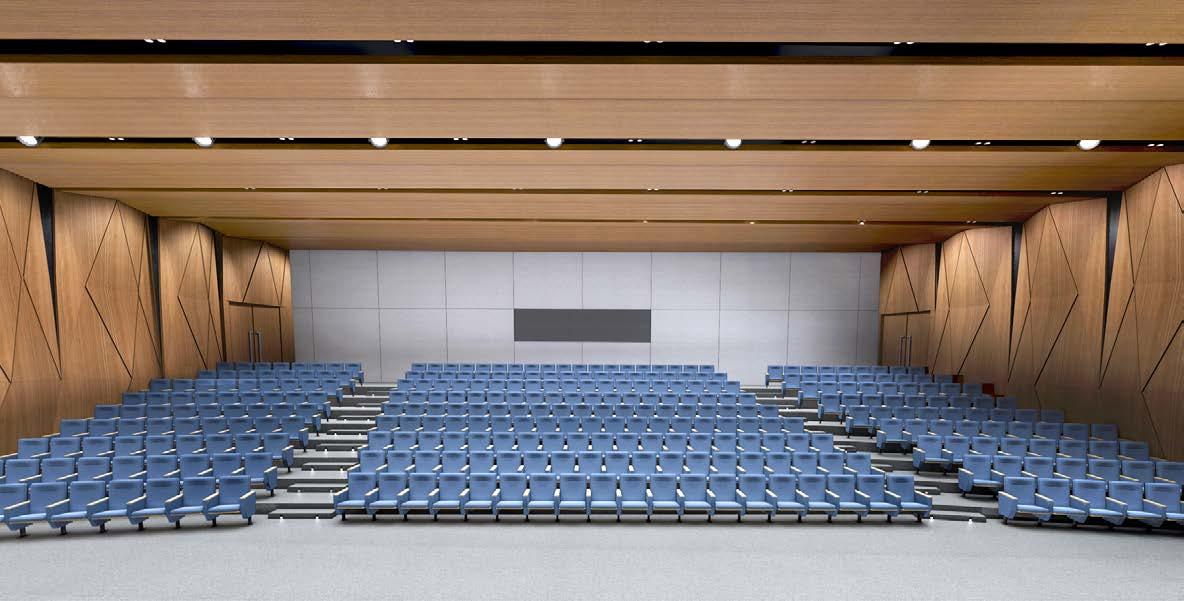

RENDERING
83
Portfolio Of Jiaxi Zhang
82 UTOPIA URBANISM

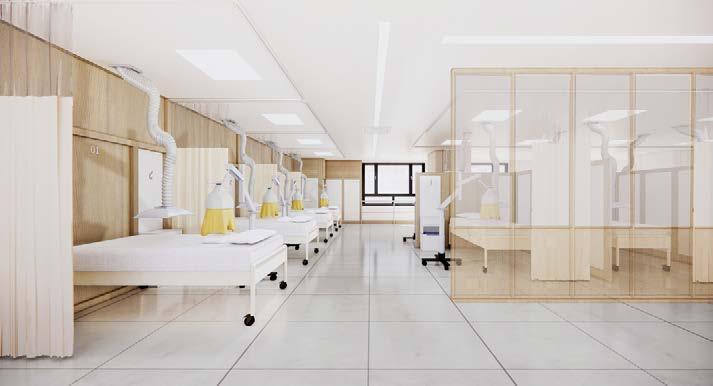

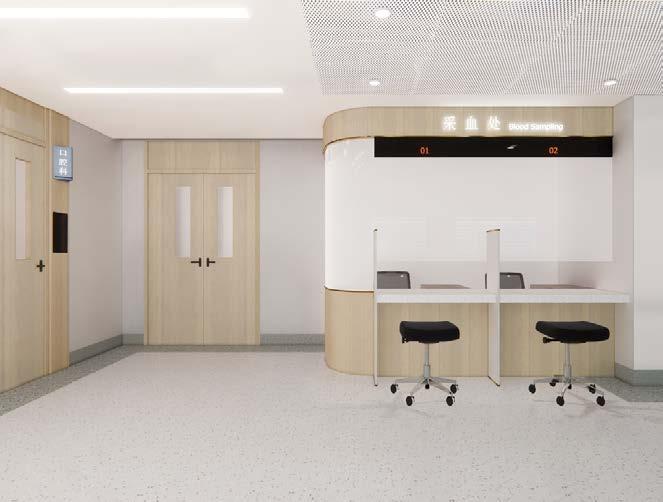

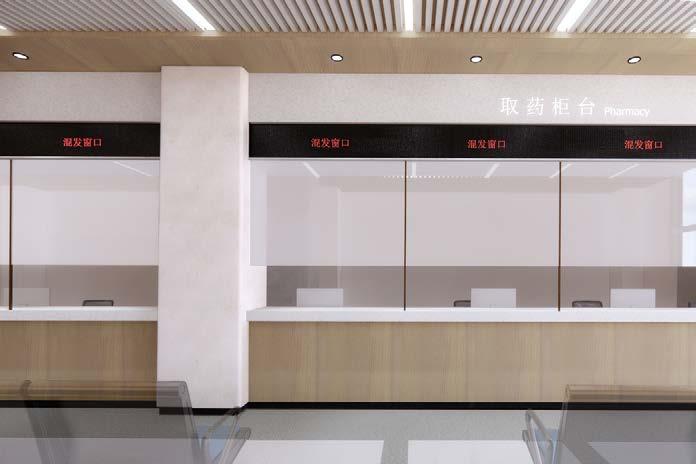

PROJECT 02 Changhai Hospital in Shanghai My part focused on the standardized medical space.

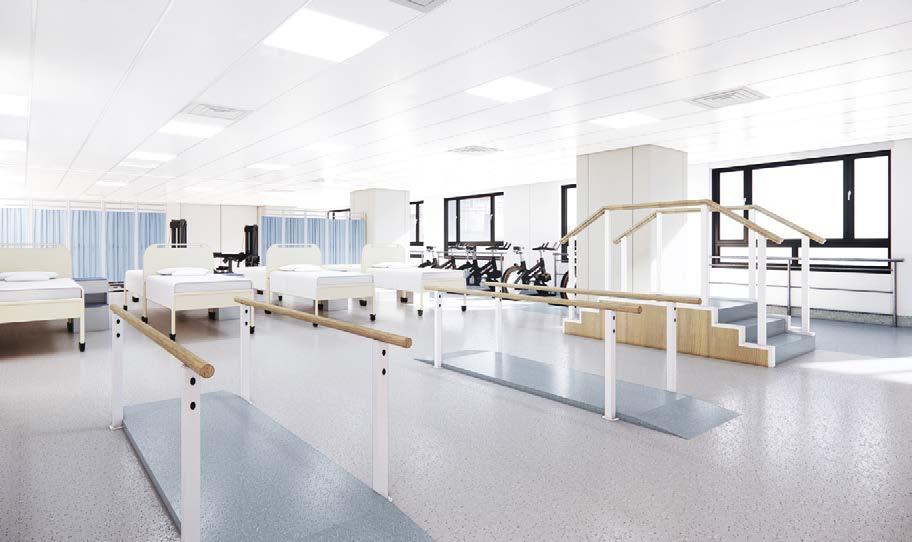

1. Corridor 2. Dispatch Lobby 3. TCM Treatment 4. Rehabitation Training 5. Ward 6. Blood Sampling
OTHER WORKS
HAND DRAWING
HANDMAKING
85 1 2 3 4 5 6 7 8
Portfolio Of Jiaxi Zhang
84 UTOPIA URBANISM

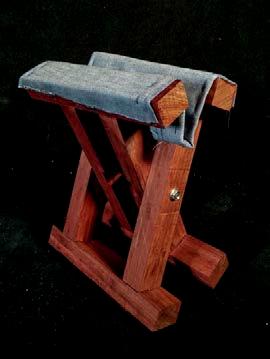

PHOTOGRAPHY 1.CHARCOAL DRAWING <FOOTPRINT> 2.WOODCUT ART <SINS> 3.COLOR PANITING <GROCERY STORE> 4.CARPENTRY <WOODEN CHAIR> 5.<MIRROR> 6.<PRADA RONG ZHAI> 7.<FORBIDDEN CITY> 8.<GOLDEN RIVER>
BUILD THE UTOPIA IN MY EYES PORTFOLIO OF JIAXI ZHANG SELECTED WORKS FROM 2016-2022
