ARCHITECTURE

PORTFOLIO

Selected works 2021-2024

JUAN FELIPE MANRIQUE

Selected works

2021 - 2024

Work experience

Bosco della Musica

Milan, Italy

Castel Volturno school

Castel Volturno, Italy

Re-Start Scampia

Naples, Italy

Villa glicini

Turin, Italy

Overlapped

Orbassano, Italy

Sweet contrast

Turin, Italy

Bosco della Musica

Milan, Italy

The project consists in the creation of the new Milan Music Conservatory, inspired by the surrounding forest and its organic forms, particularly the diverse shapes of leaves and natural sounds. The design reflects nature’s influence on the arts, echoing music’s origins as an emulation of natural sounds used in ceremonies. It aims to sustainably revitalize an inaccessible area, transforming it into an open, inclusive space that catalyzes regeneration. This includes refurbishing the “Ex Chimici” building and constructing three new structures, two for educational activities and one for student housing, enhancing both functionality and environmental renewal.

Project contribution

BIM Coordination (entire project), spatial coordination, technical design of Building B

Project team

Arch. Alessandra Novara, Arch. Juan Felipe Manrique, Arch. Lorenzo Avigo, Arch. Marika Ritoli

Revit + Rhino + Navisworks + Dynamo + Speckle

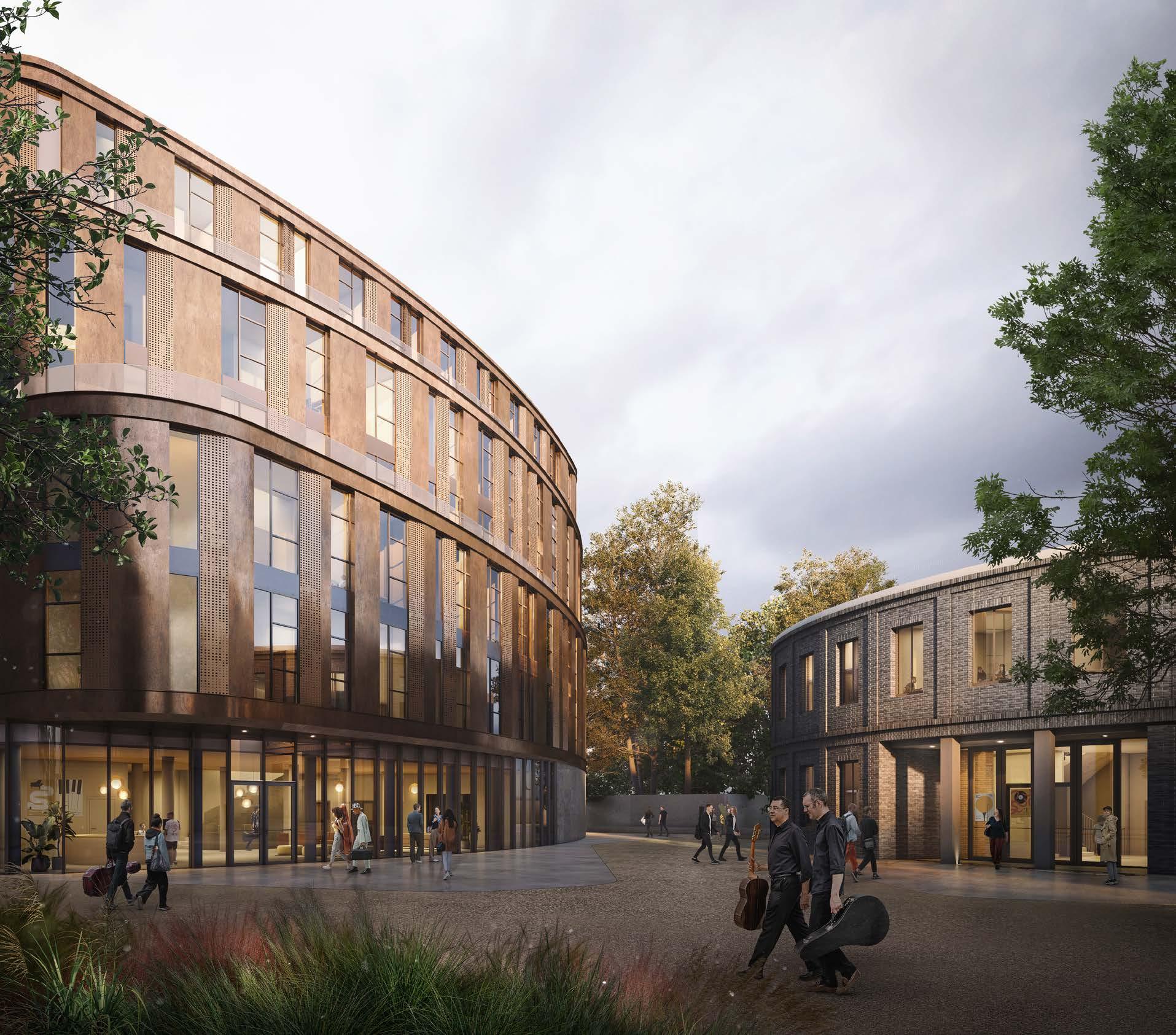

Building D University residences

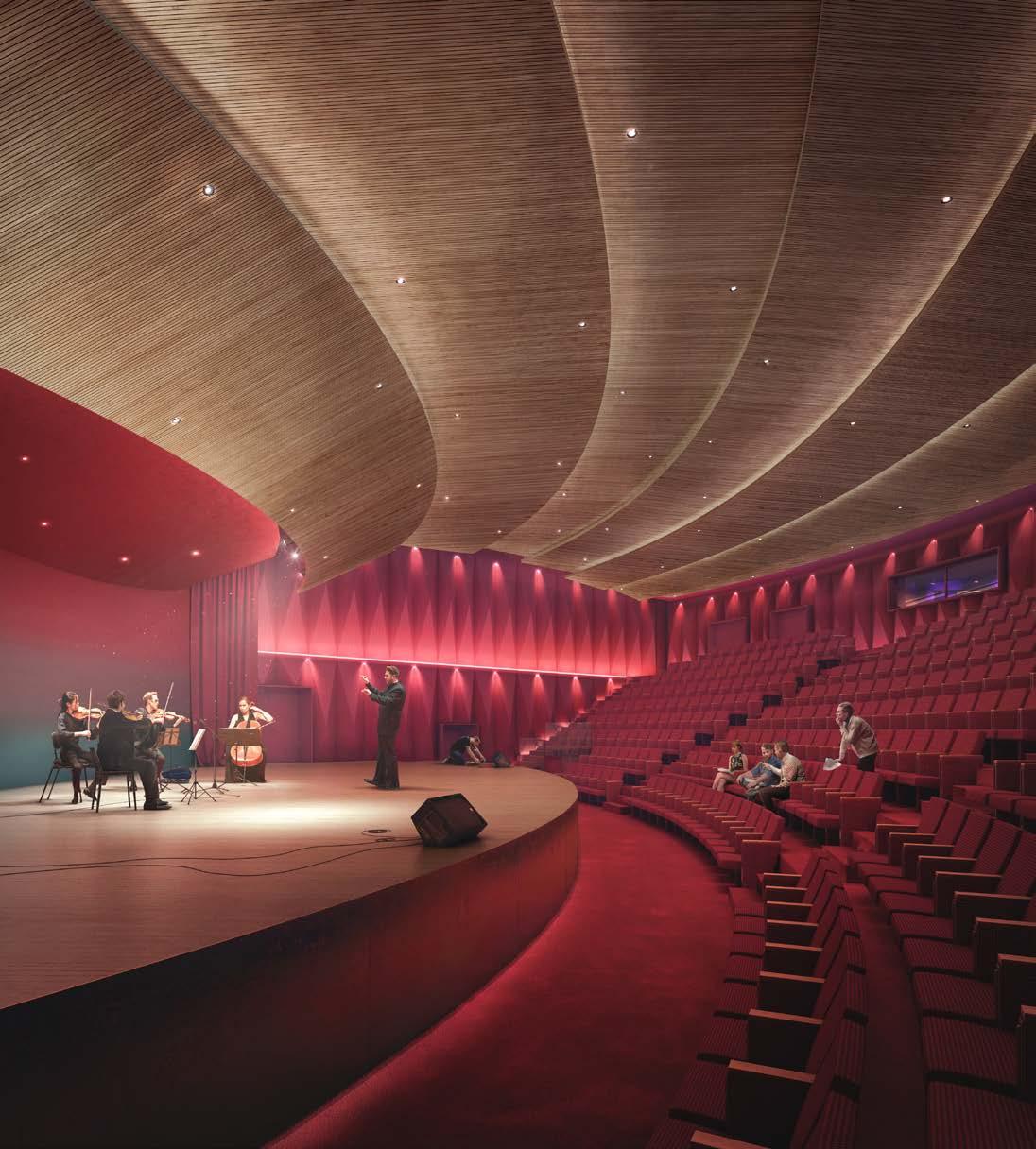

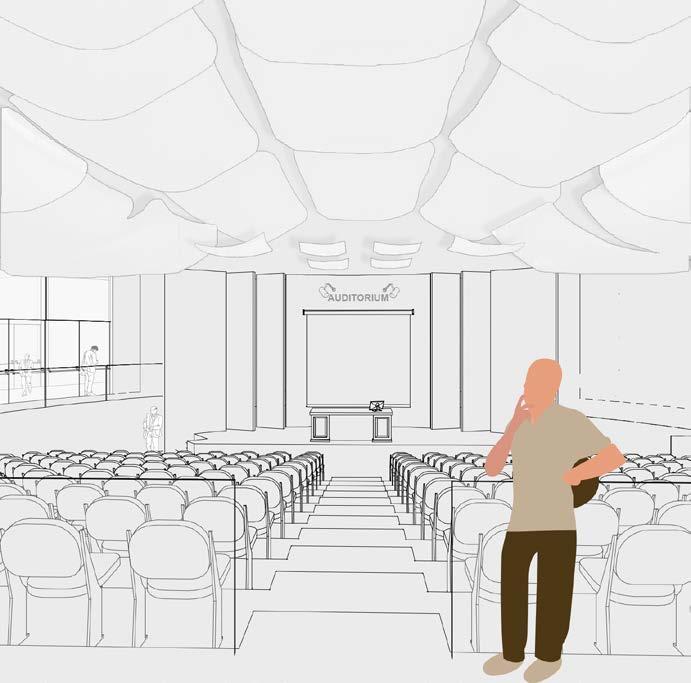

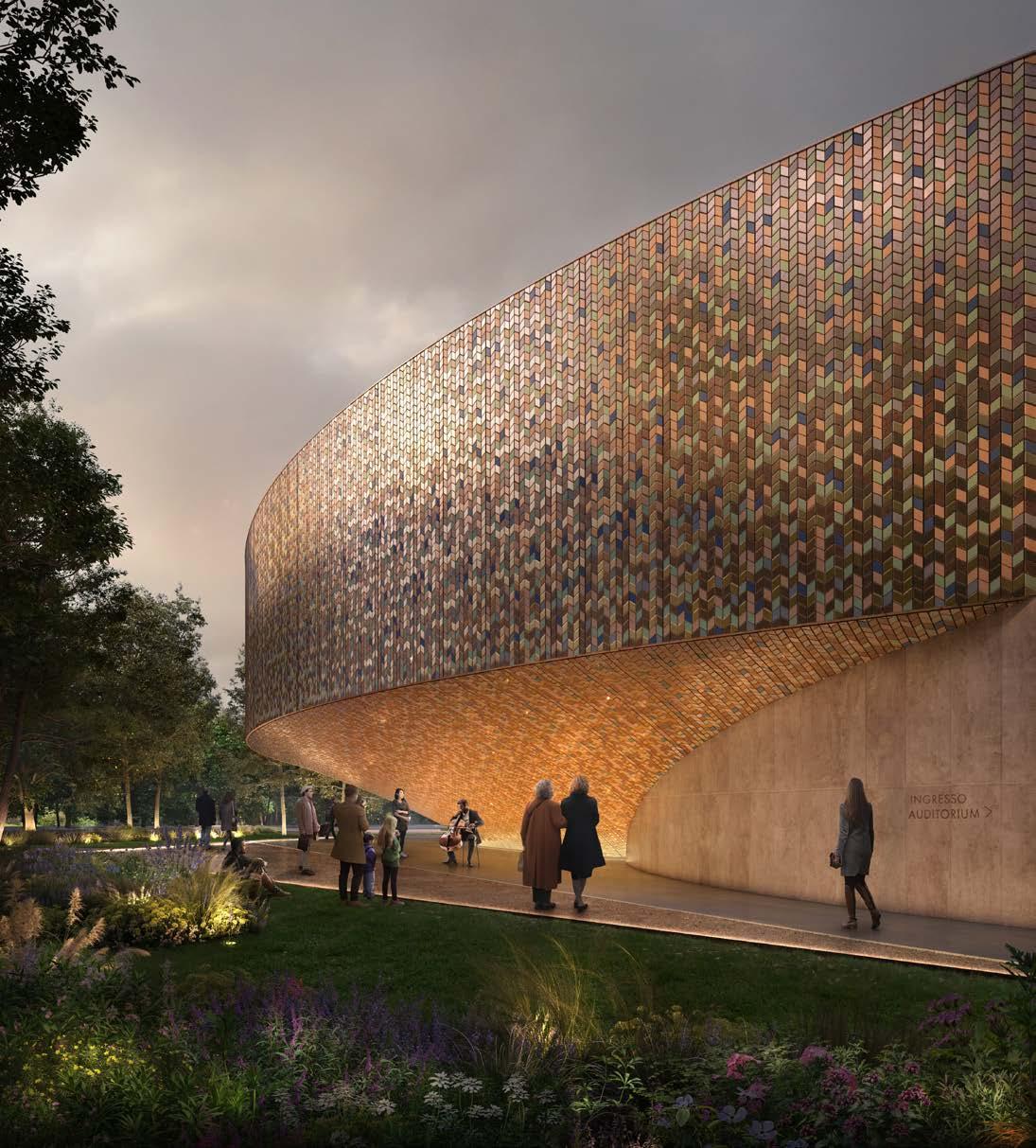

Building A Auditorium

Building C - “Ex Chimici” Music school

Building B Multifunctional

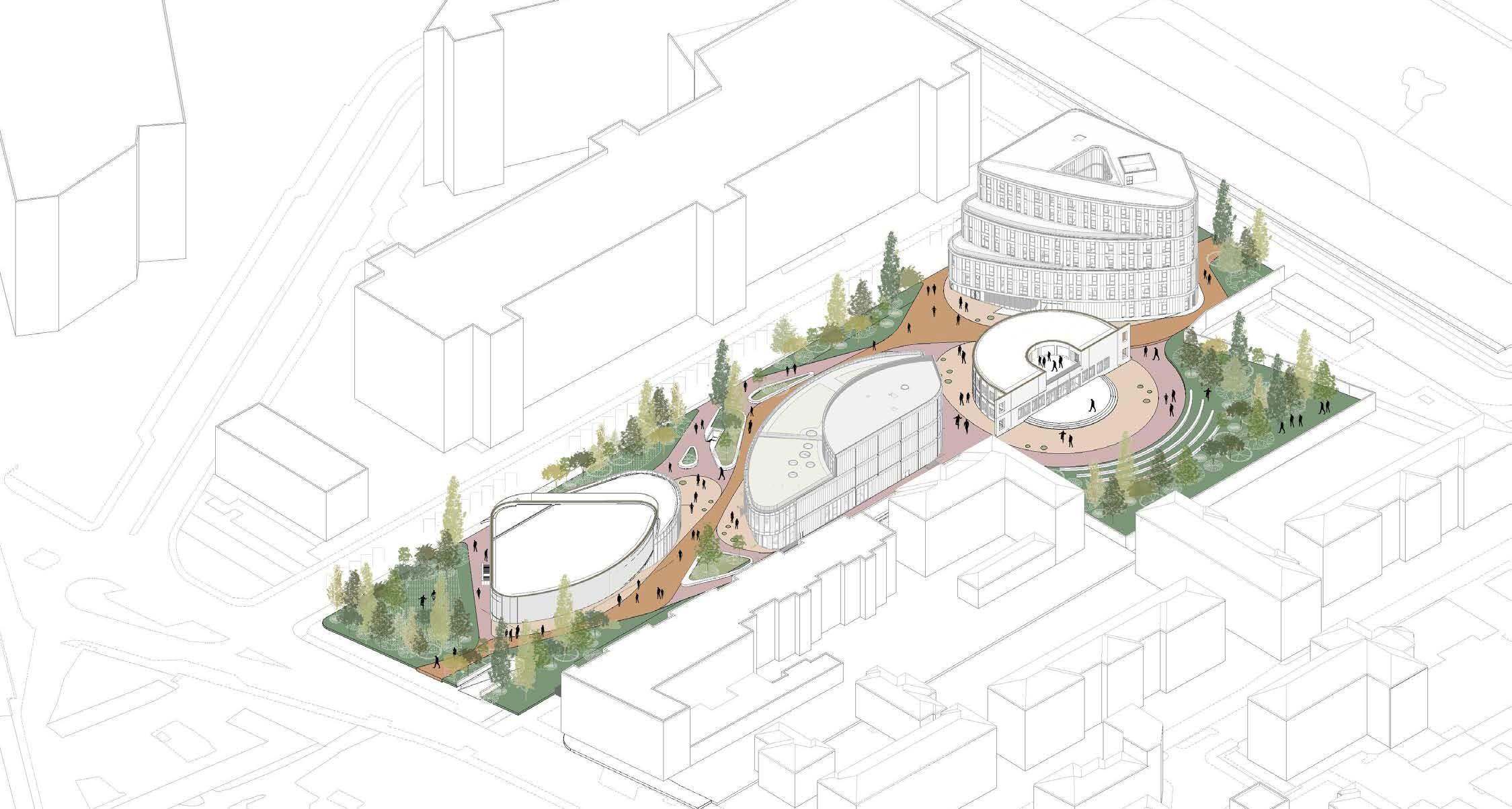

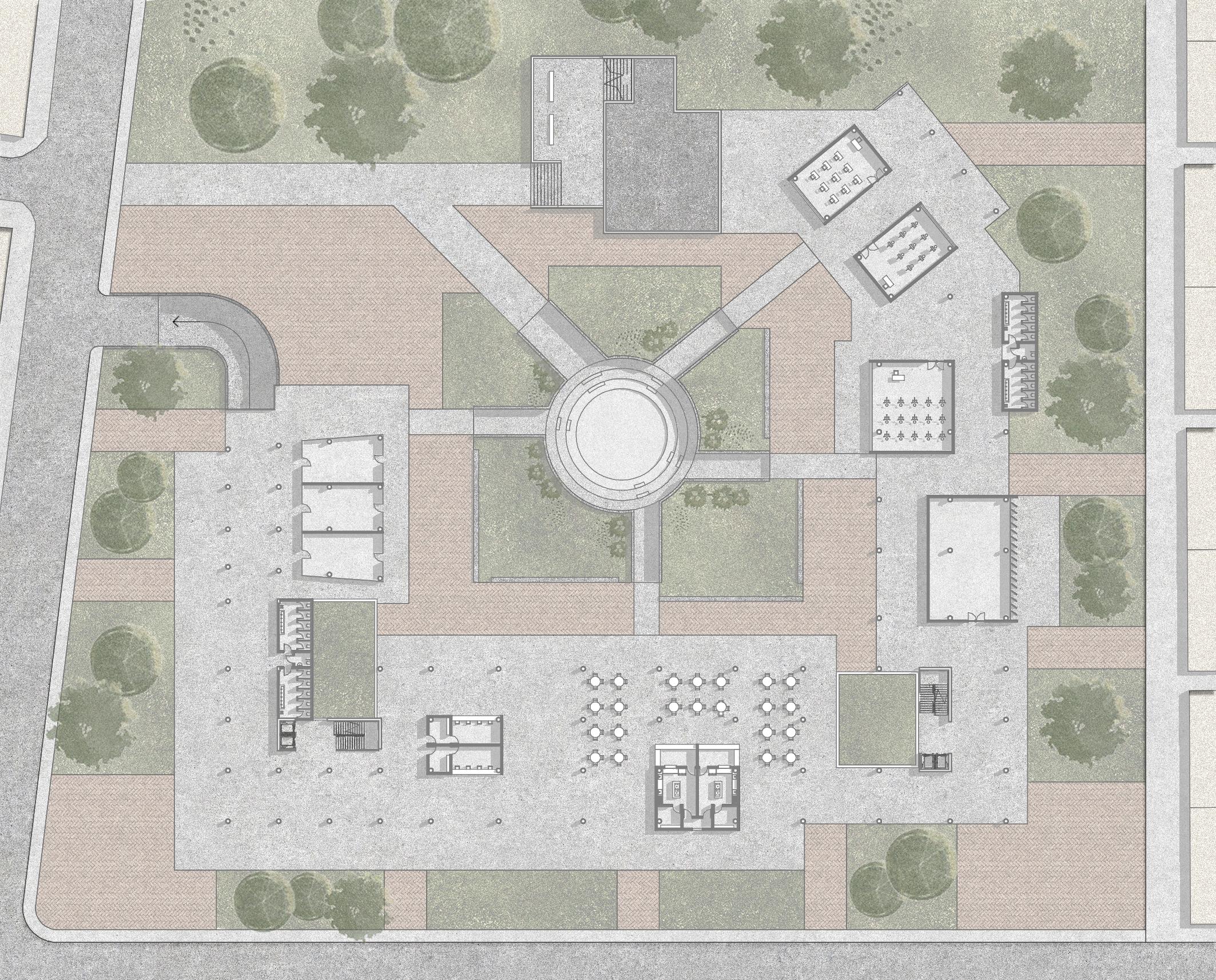

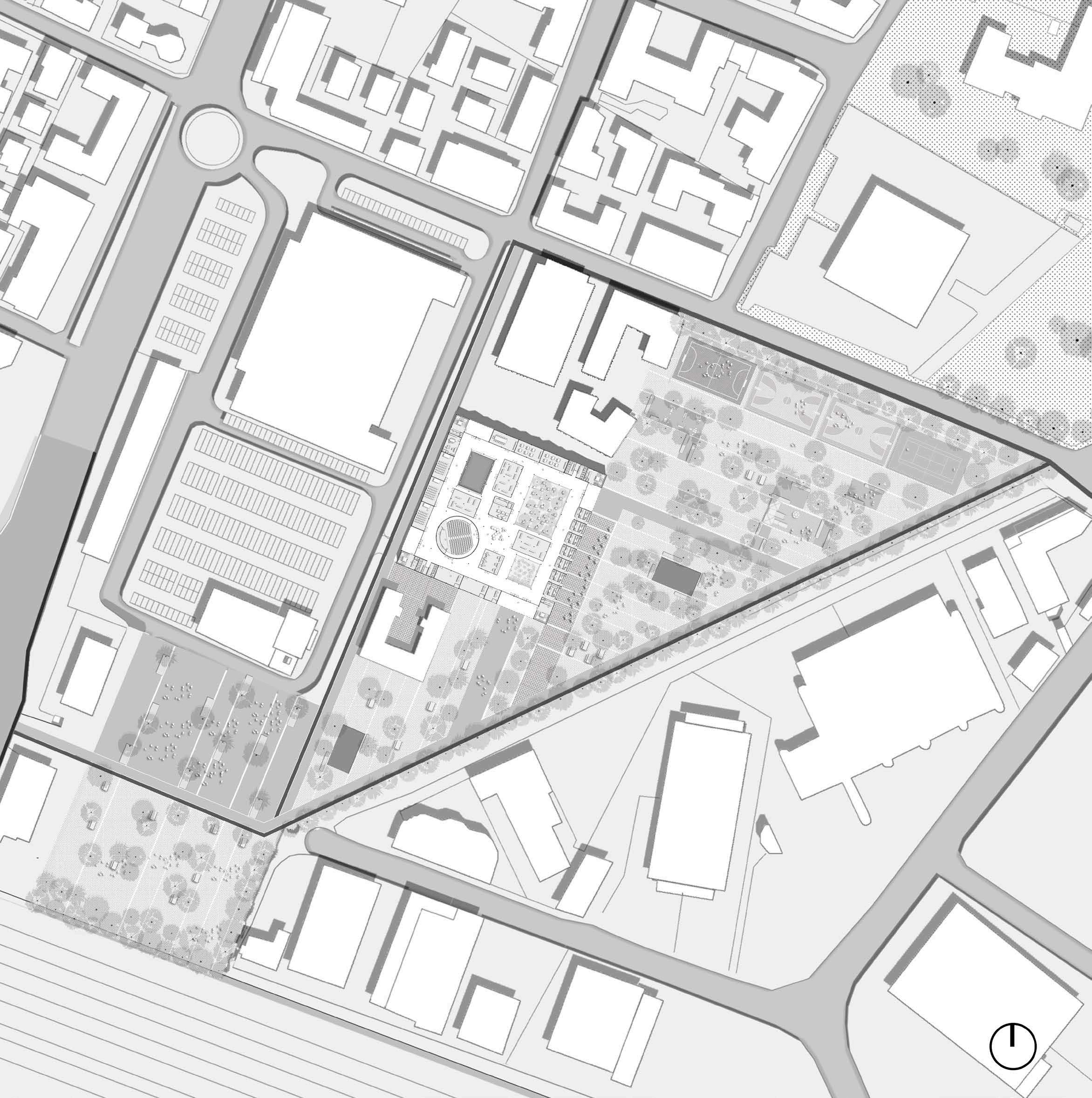

Masterplan

New Milan Conservatory campus

Classroom

Multipurpose room

Canteen

Entrance hall

Connective

Restrooms

Bureaus Music room

Green terraces

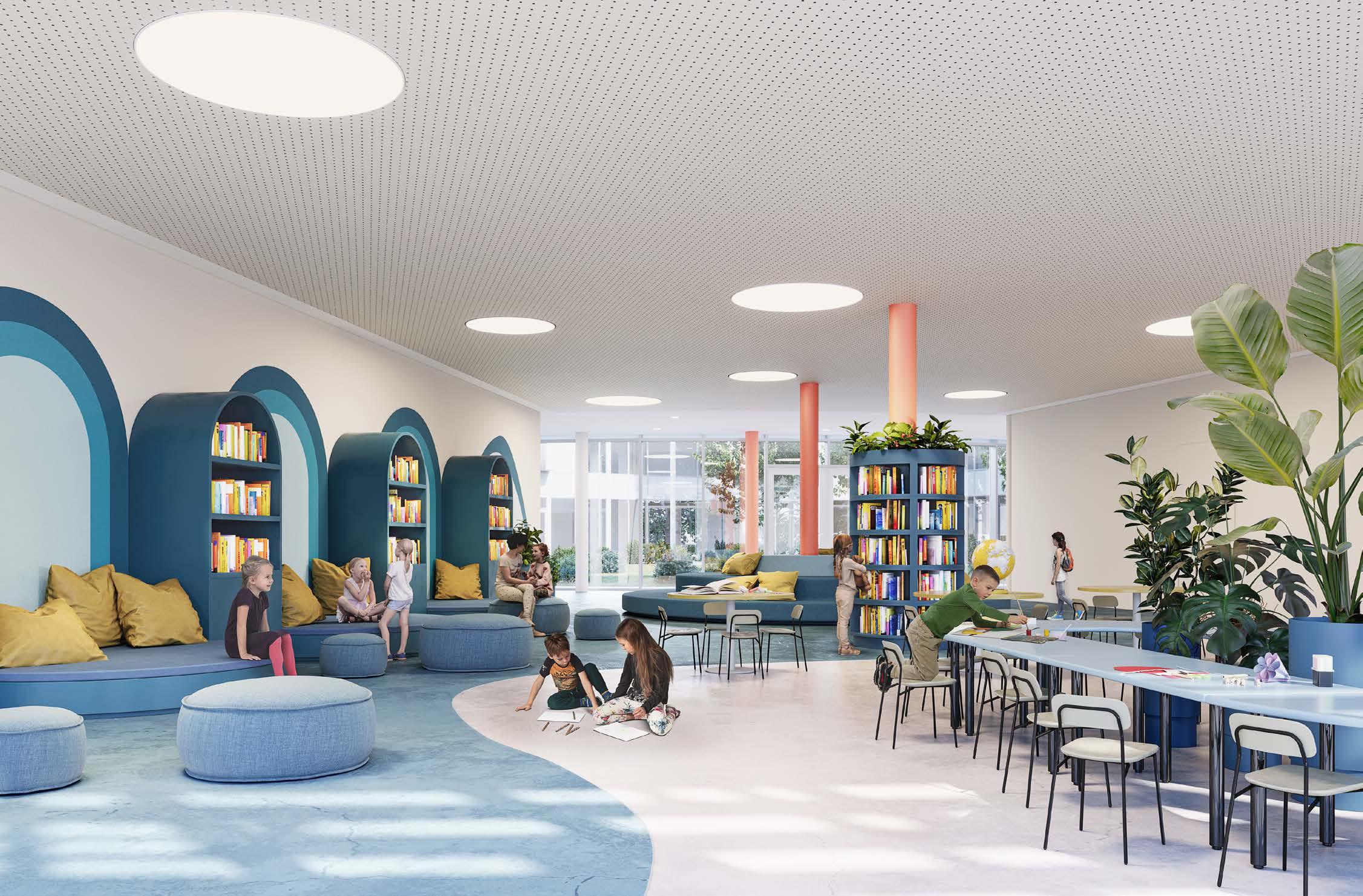

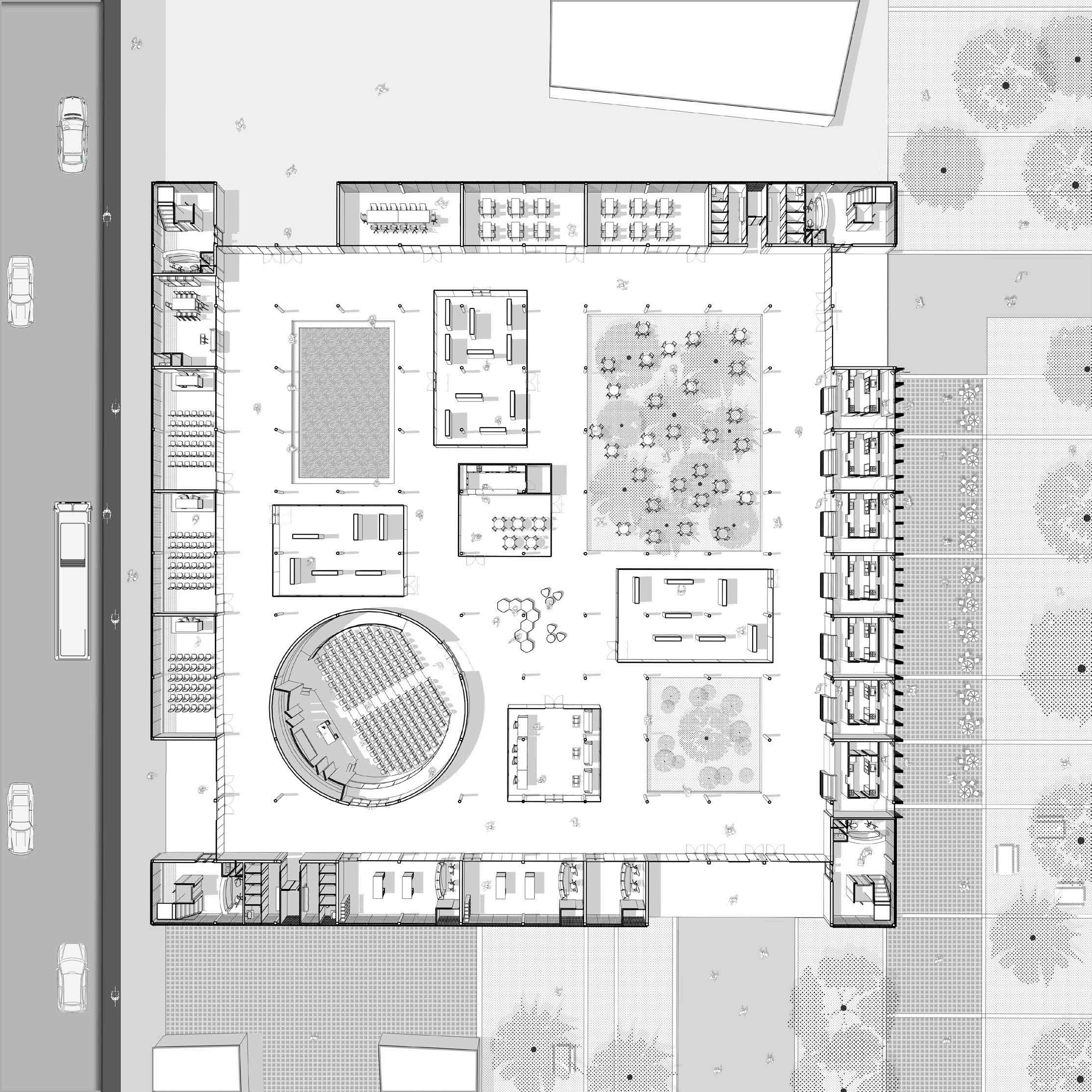

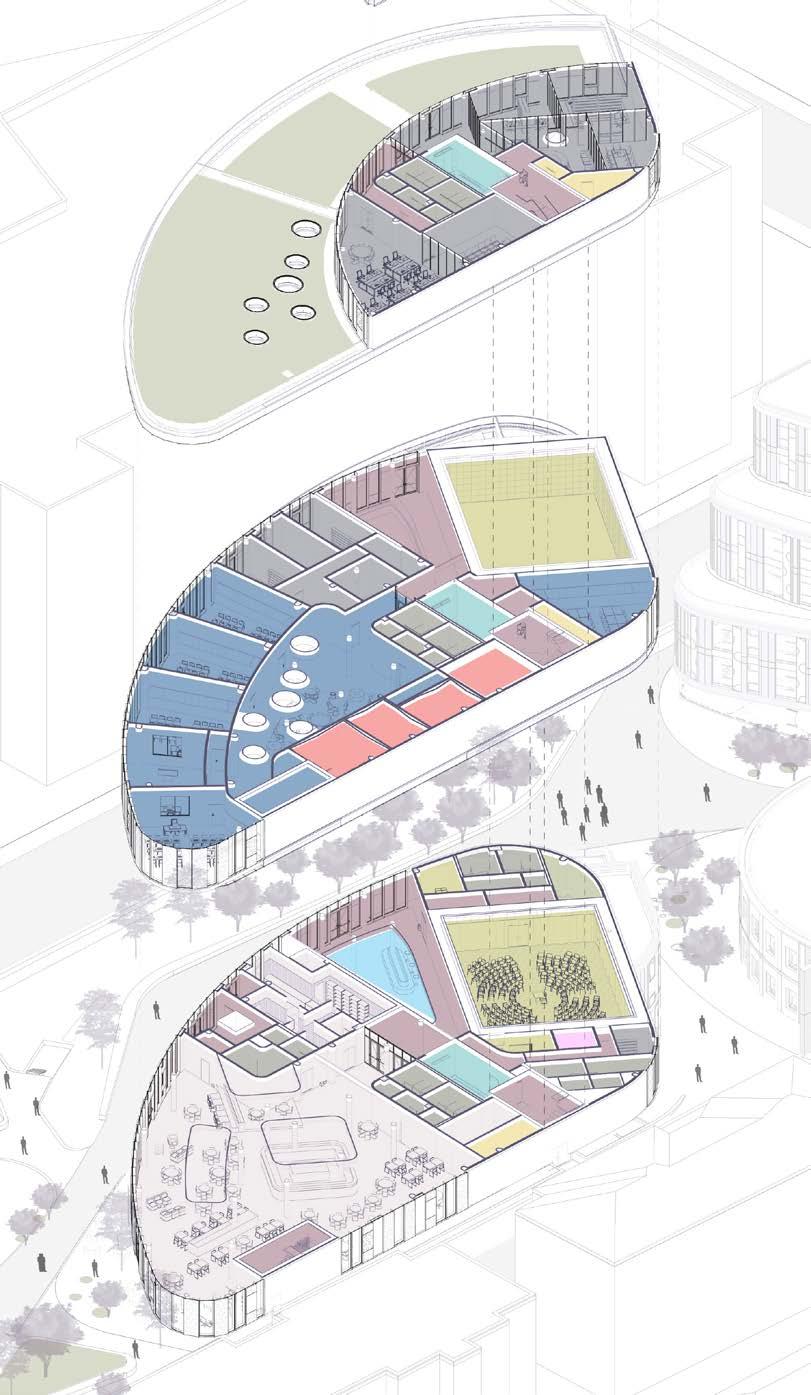

Building B Multifunctional building

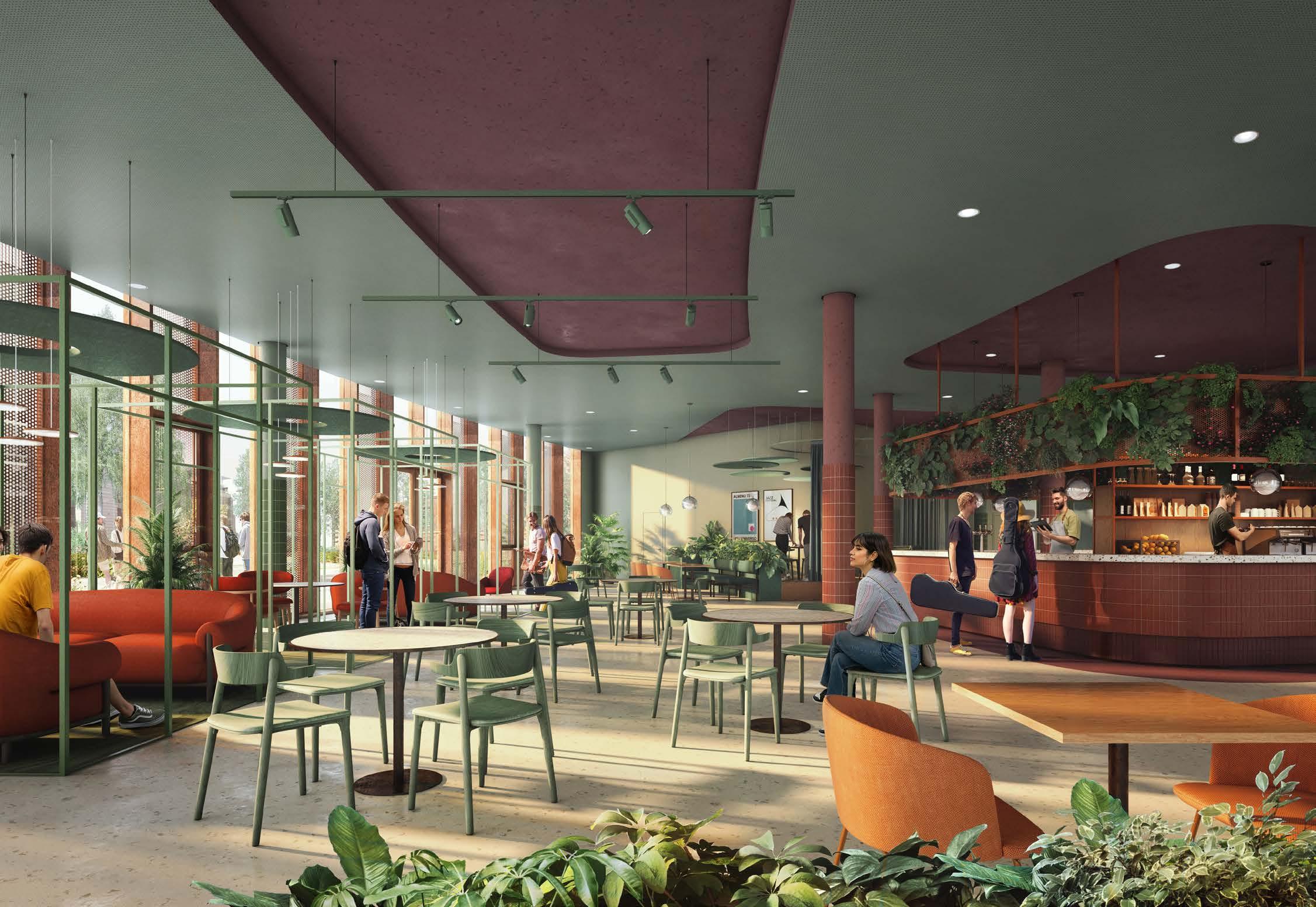

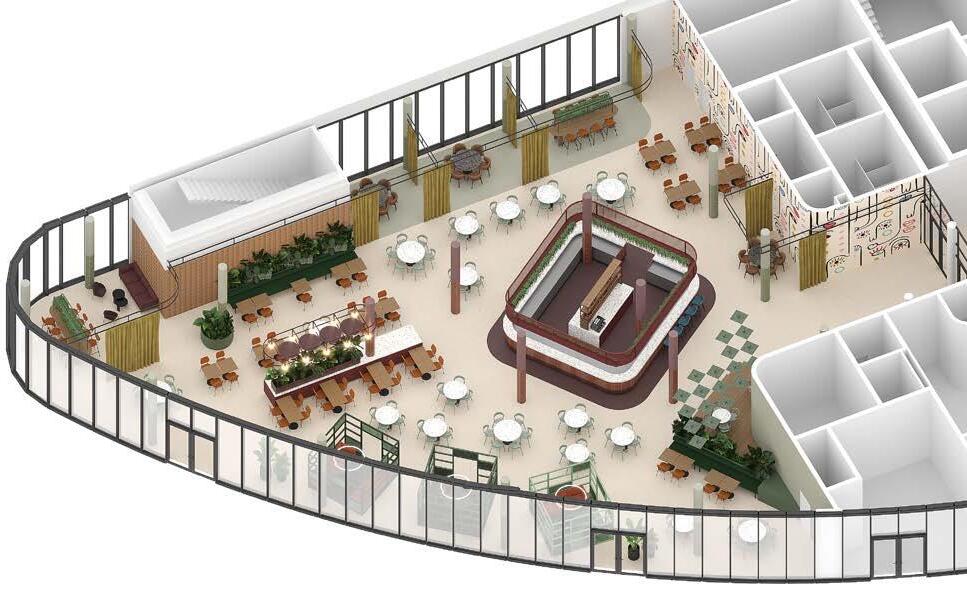

Canteen

Entrance Hall

Images by SECCHI SMITH

Curtain wall mullion system

Vinyl fabric flooring

Castel Volturno school

Castel Volturno, Italy

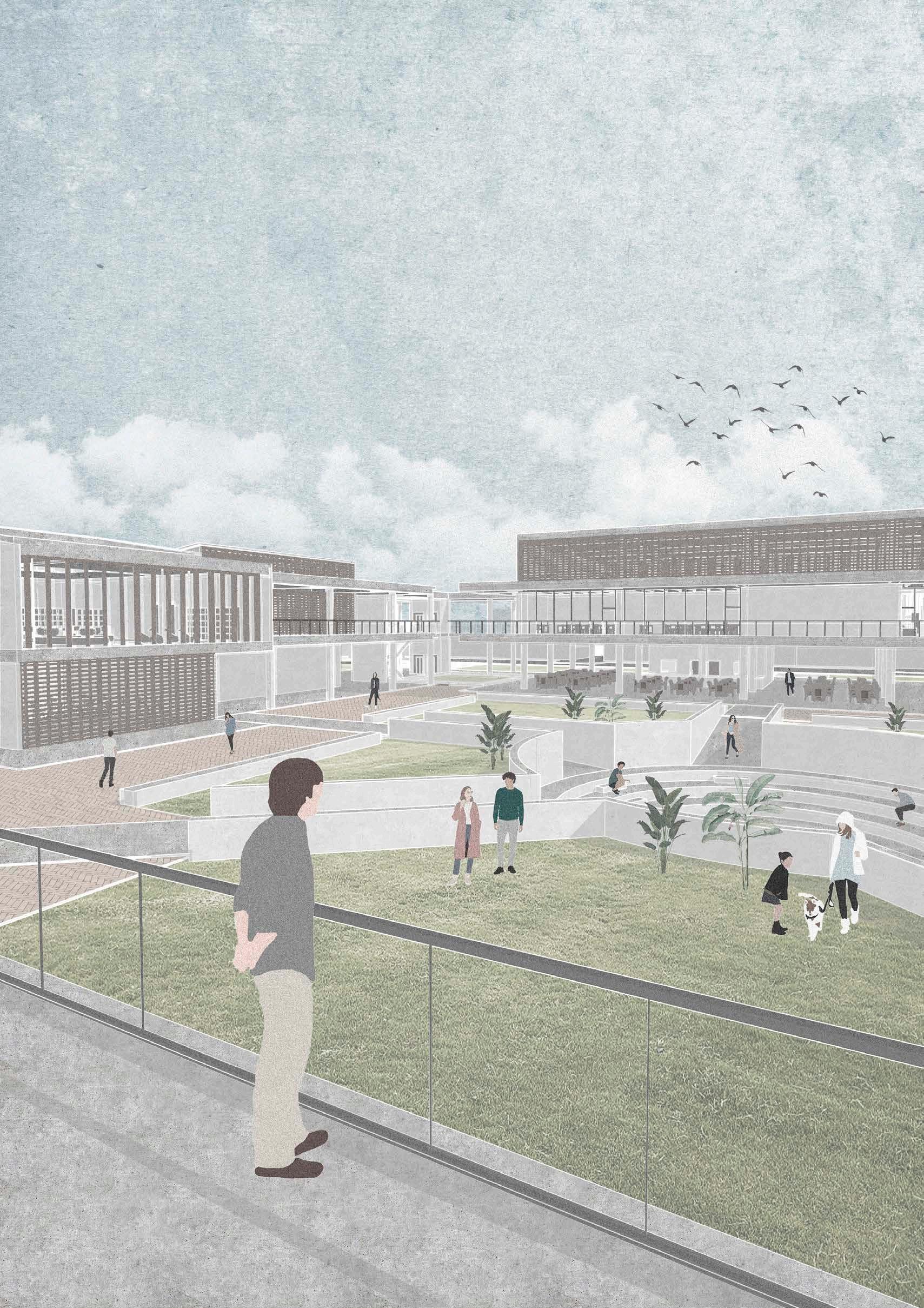

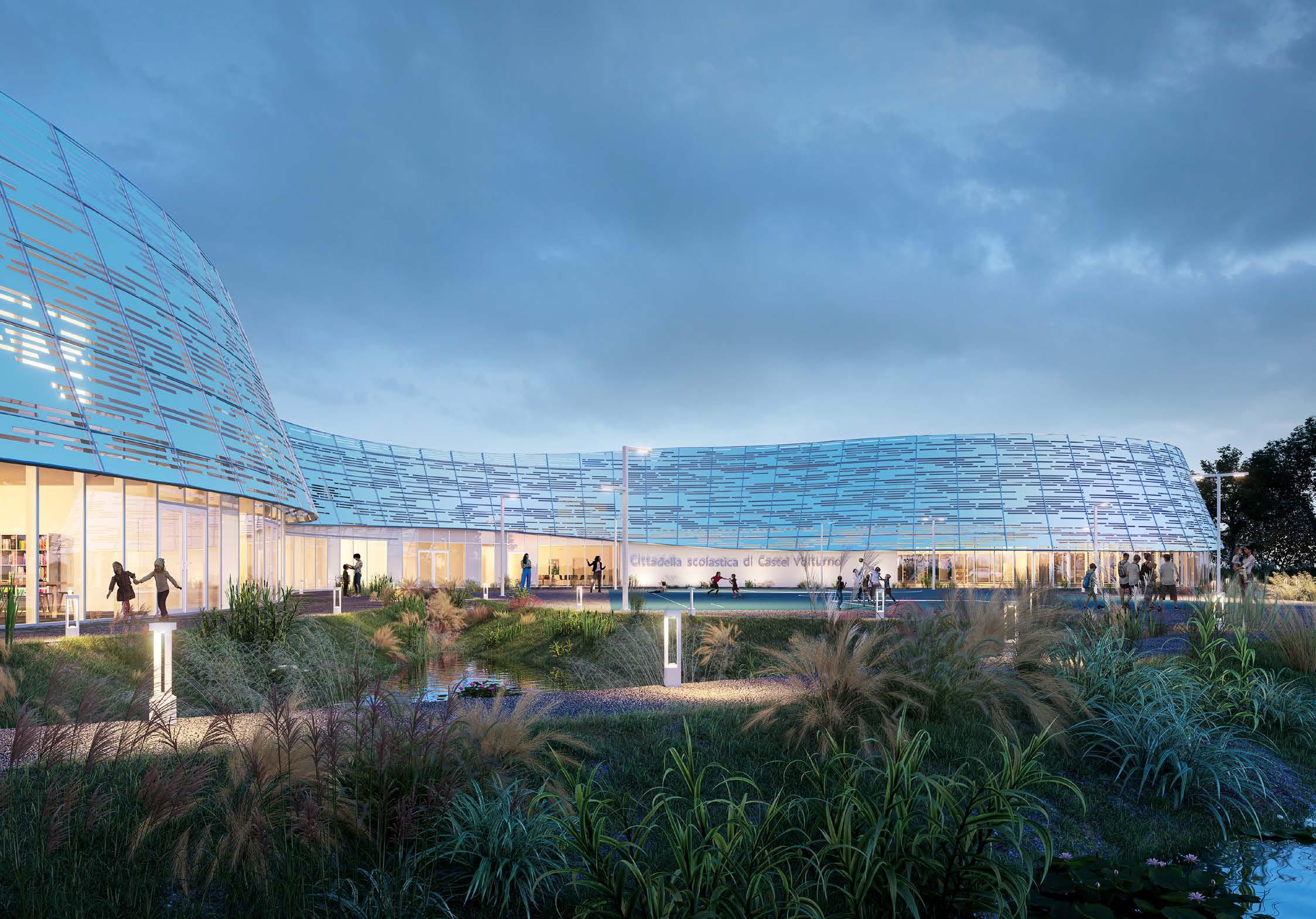

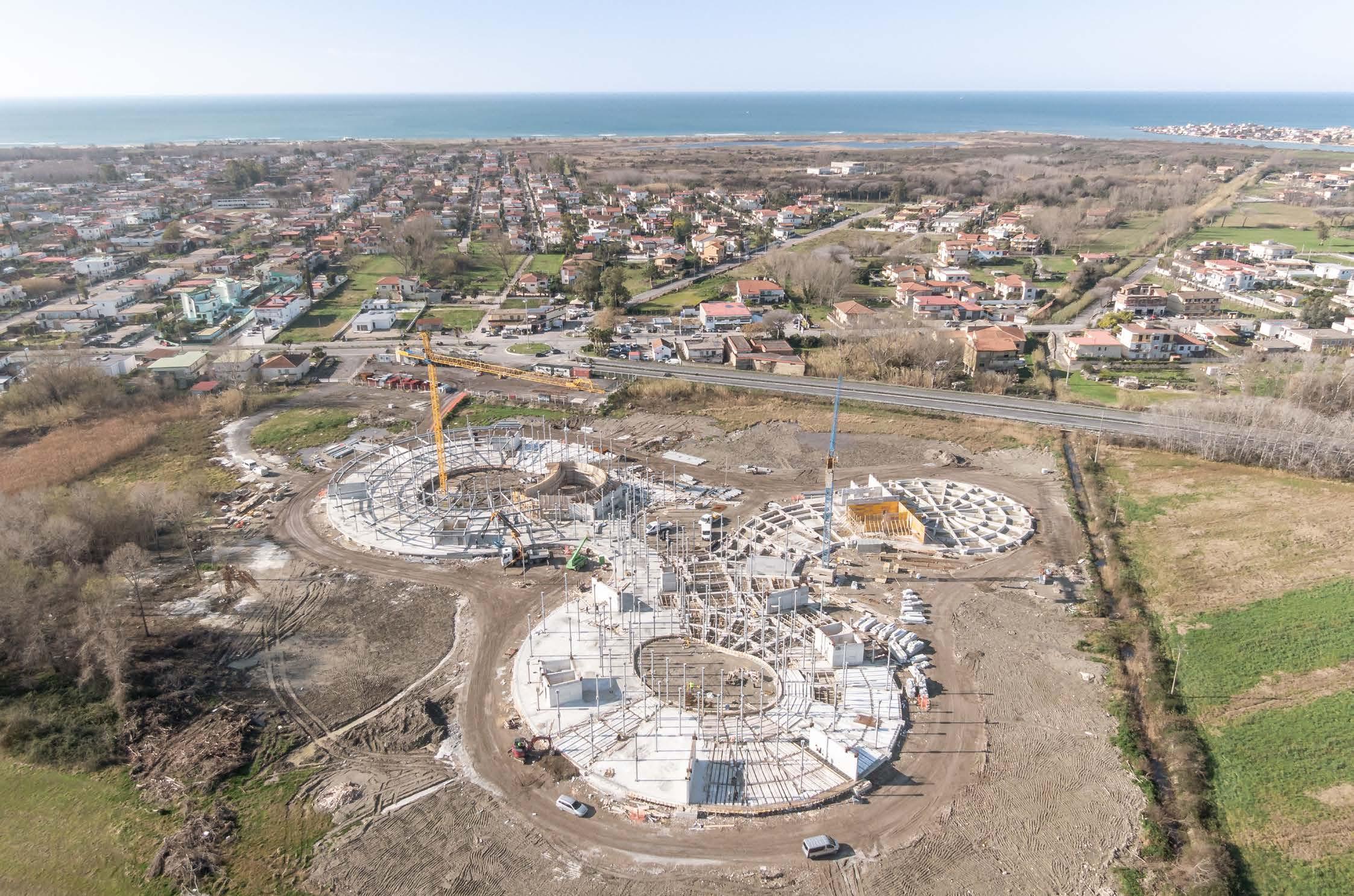

The project consists of the creation of the largest school complex in Italy, with nearly 15,000 m², on land reclaimed from the mafia, and covering approximately 69,894 m². It will have capacity for 1,800 students from Kindergarten to Secondary levels. The design, inspired by a drop of water on earth, integrates the Garibaldi Institute, the Castel Volturno Centro Institute and a gym. The design features continuous and fluid spatial elements, reminiscent of the incessant flow of the Volturno River.

Project contribution

BIM Coordination, spatial coordination, technical design and facade parametric design.

Project team

Arch. Alessandra Novara, Arch. Juan Felipe Manrique

+ GPA +

2023

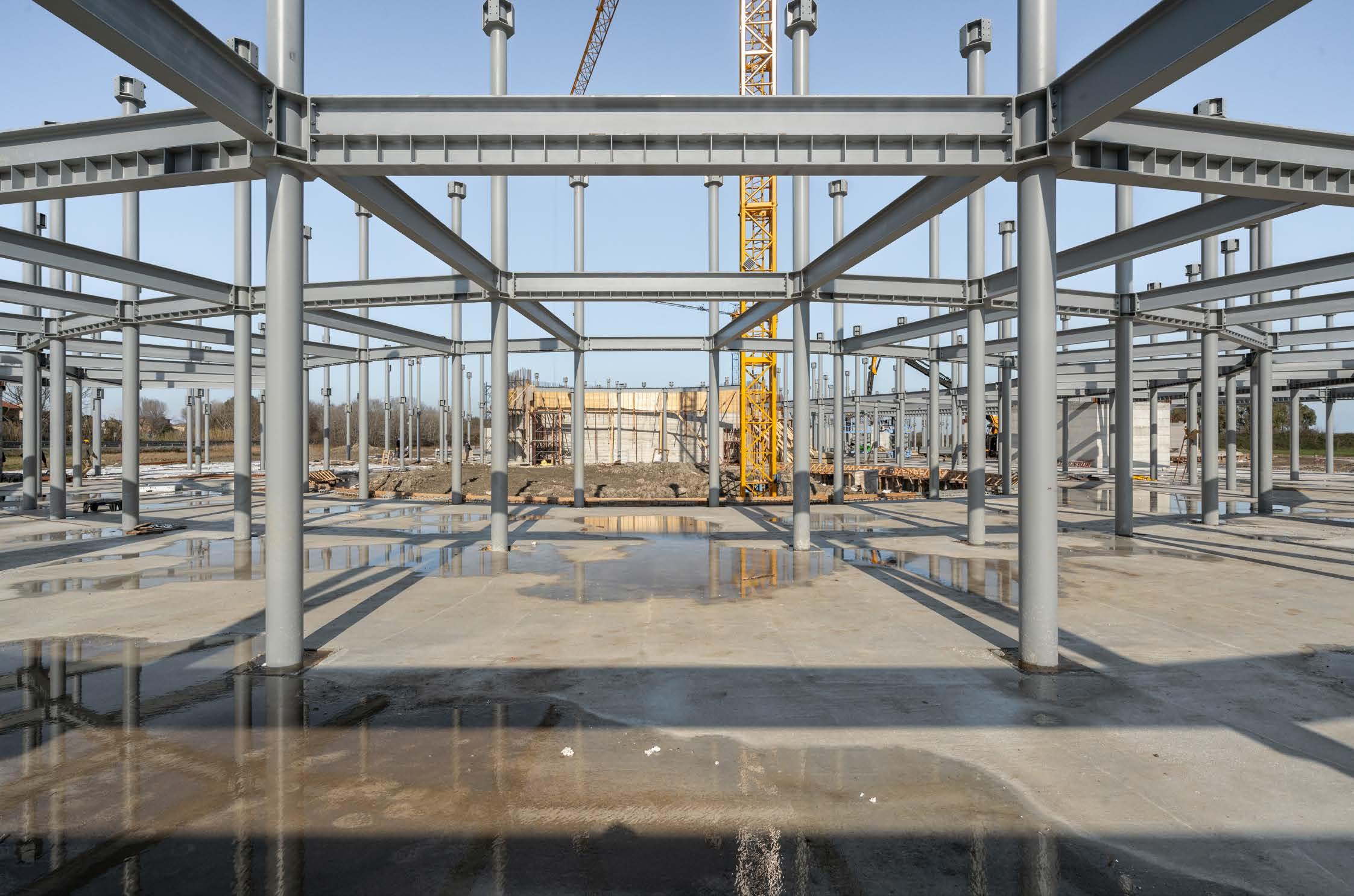

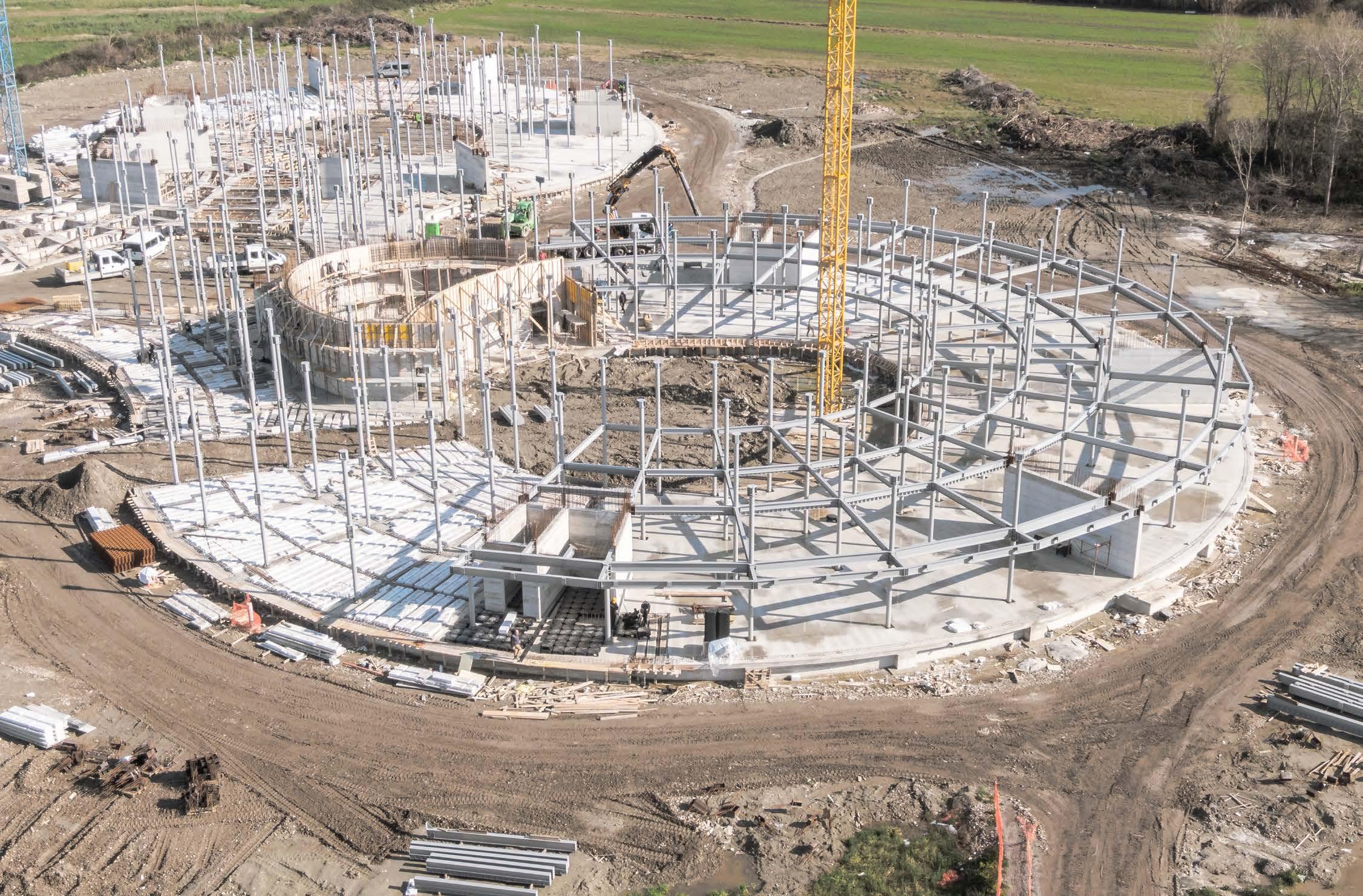

+ Rhino + Grasshopper + Navisworks Building Cost - 28.000.000 € Ongoing construction - 15.000 sqm

Project of the Year OICE awards

Revit

Images by WOLF

Main Entrance Castel Volturno Institute

Main Entrance Giuseppe Garibaldi Institute

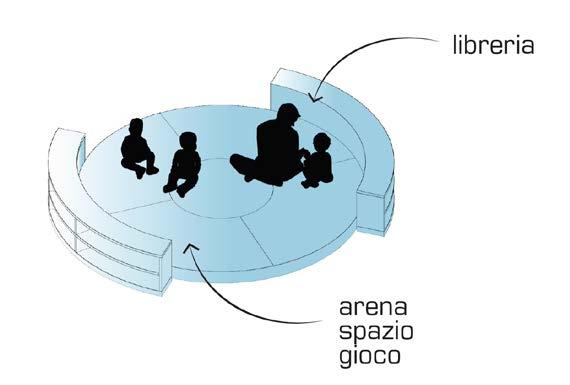

Kindergarten

Primary School

Auditorium Offices

Canteen Gymnasium

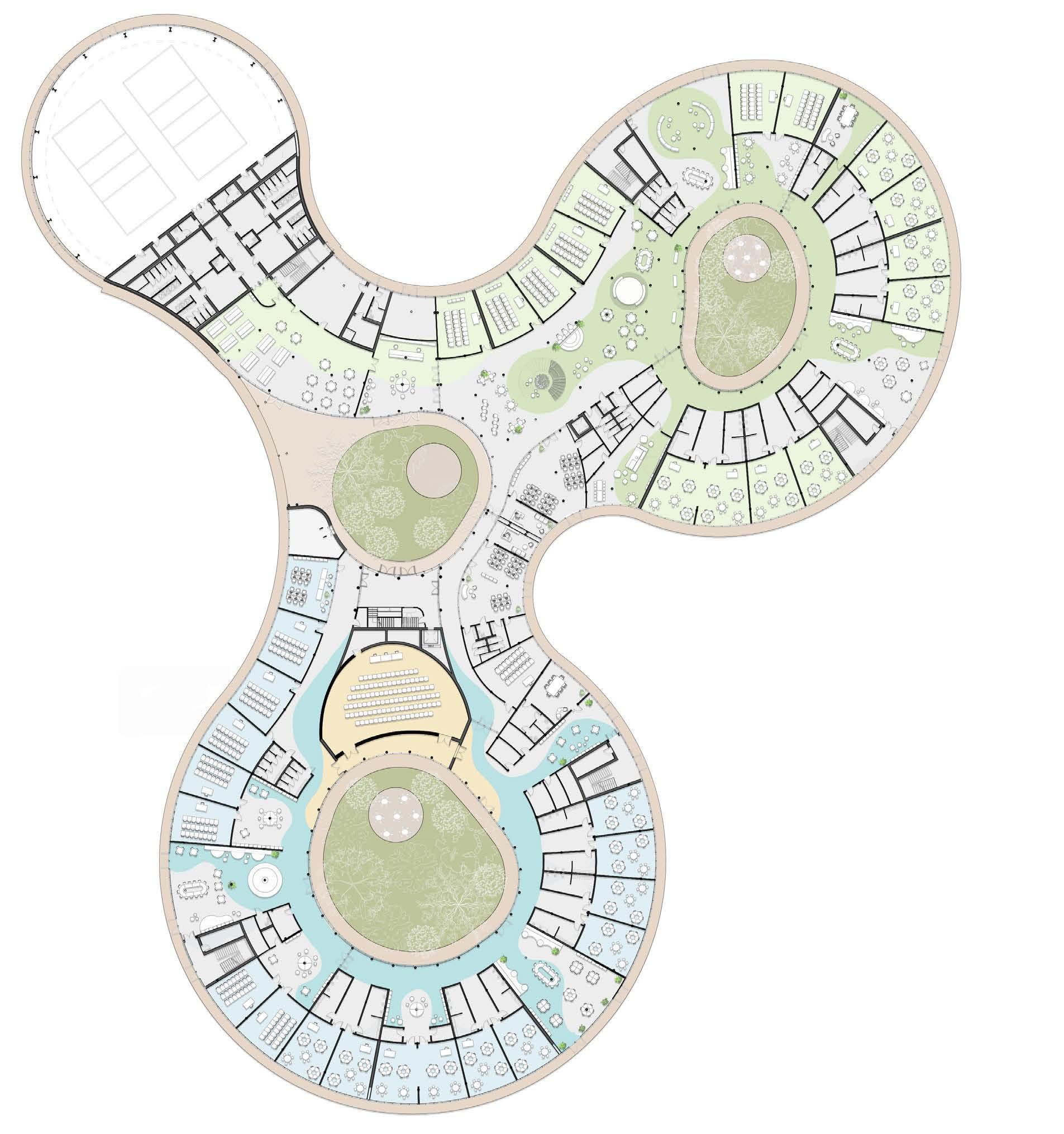

Ground Floor

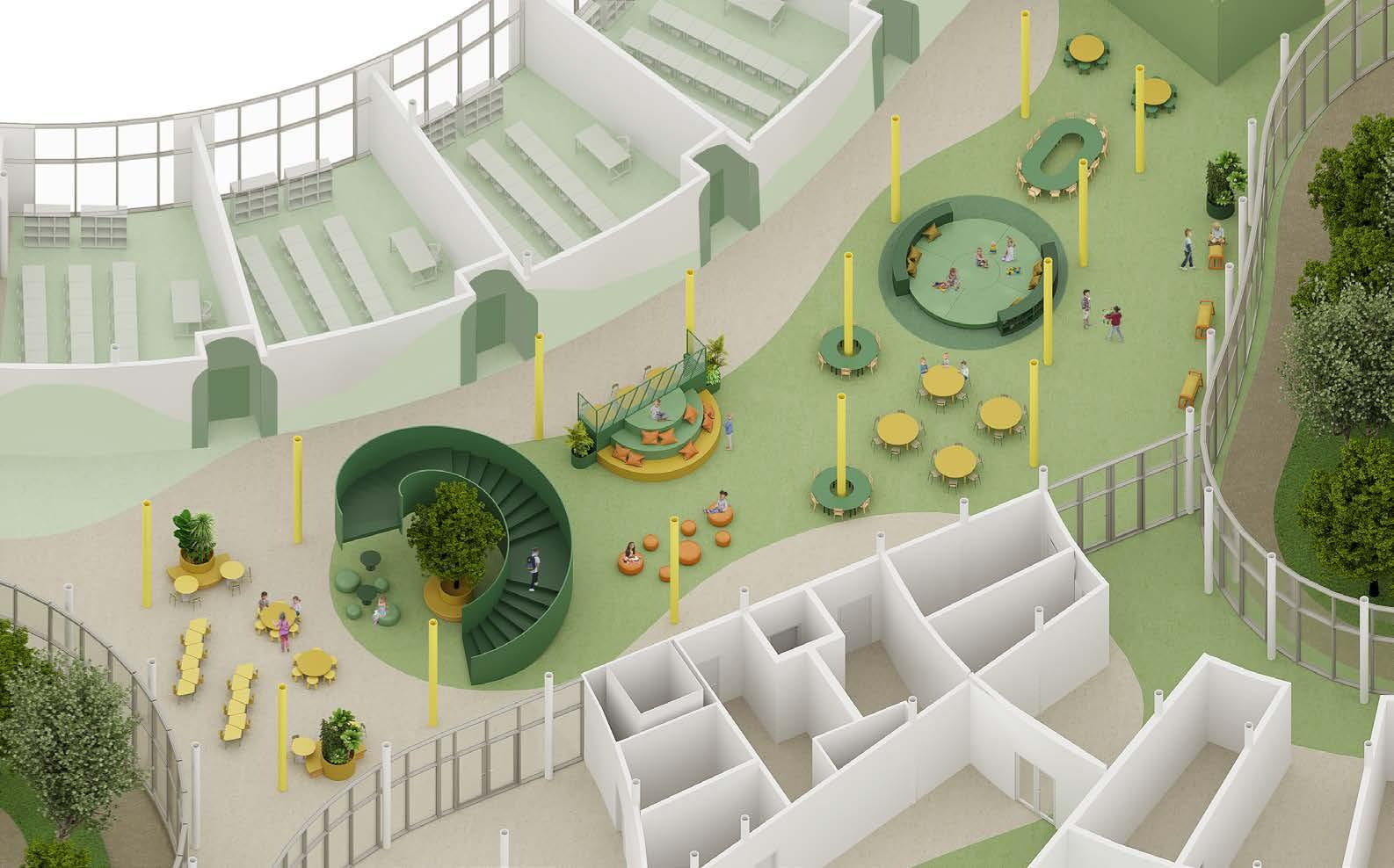

Kindergarten + Primary School

composition

Open percentage per panel - 20%

Perforated aluminum composite panel - 5 mm thick

DET. B

DET. C

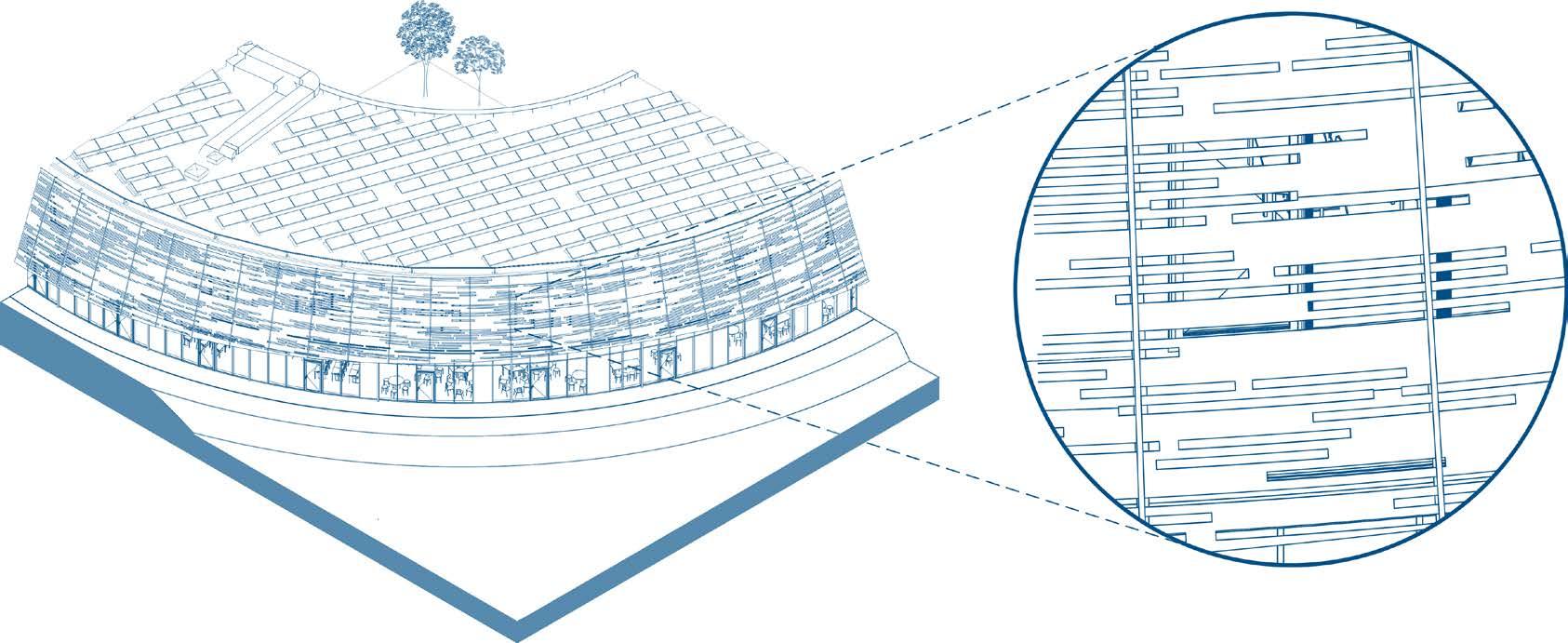

Facade

Facade detail section

DET. A

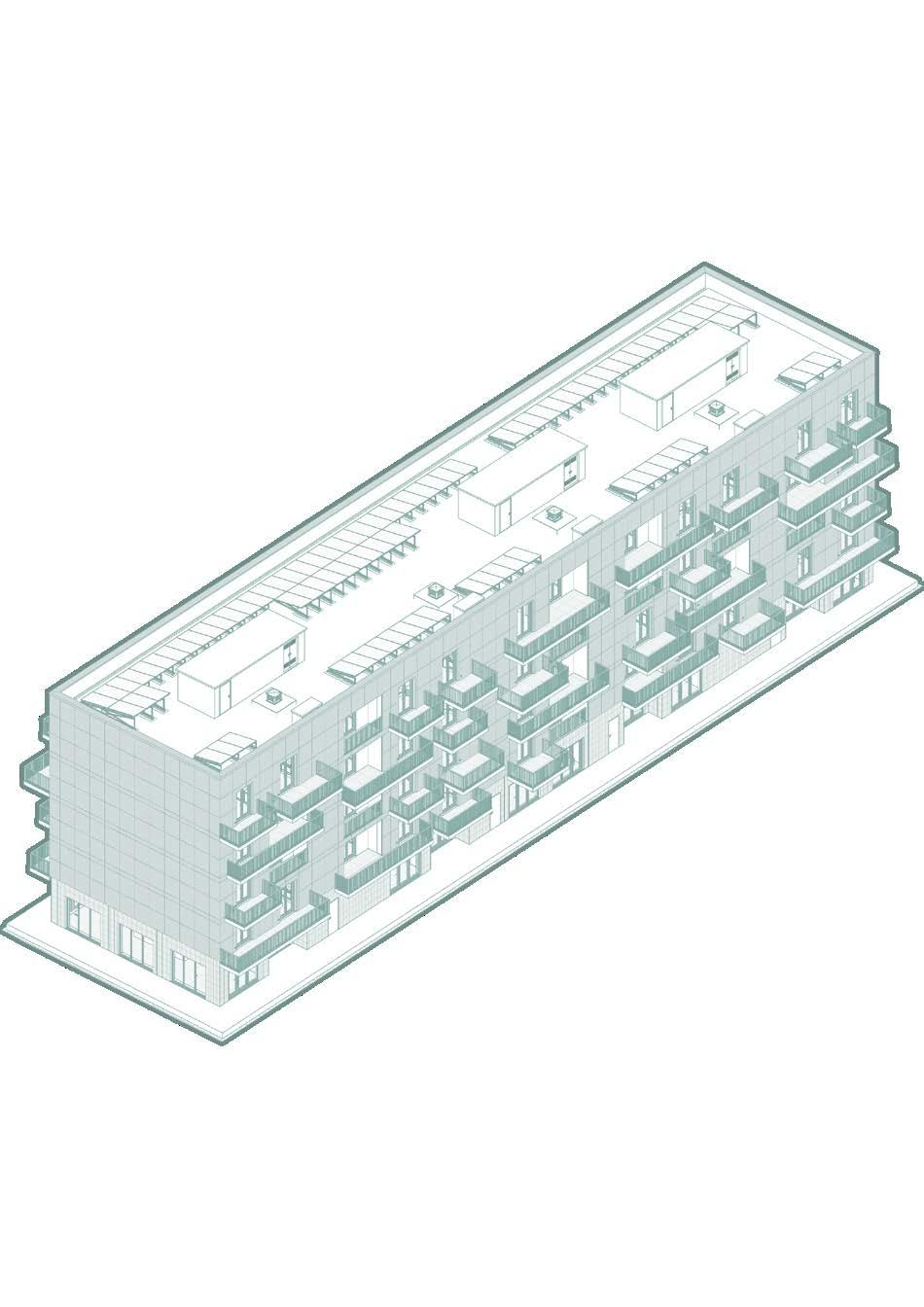

Re-Start Scampia

Naples, Italy

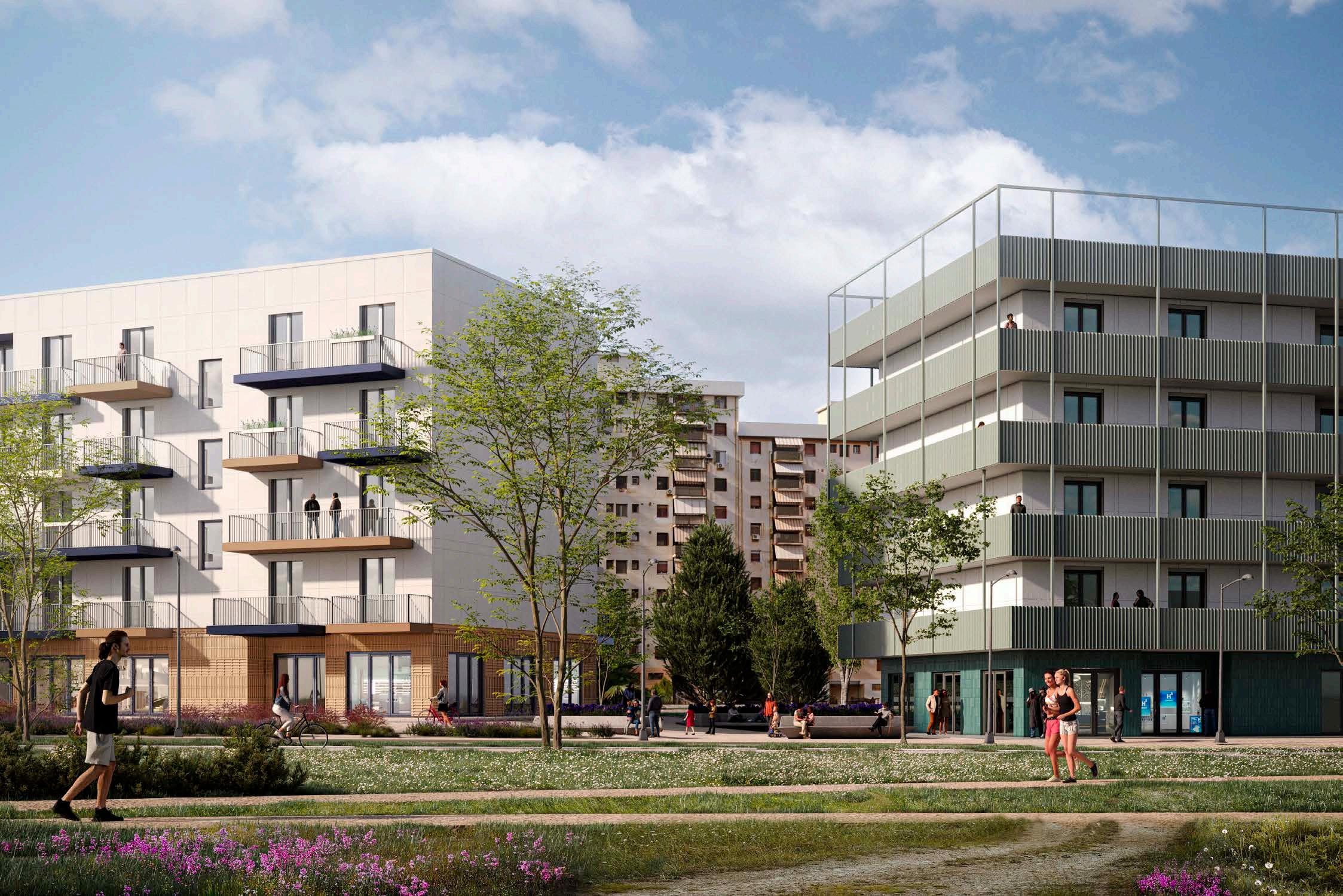

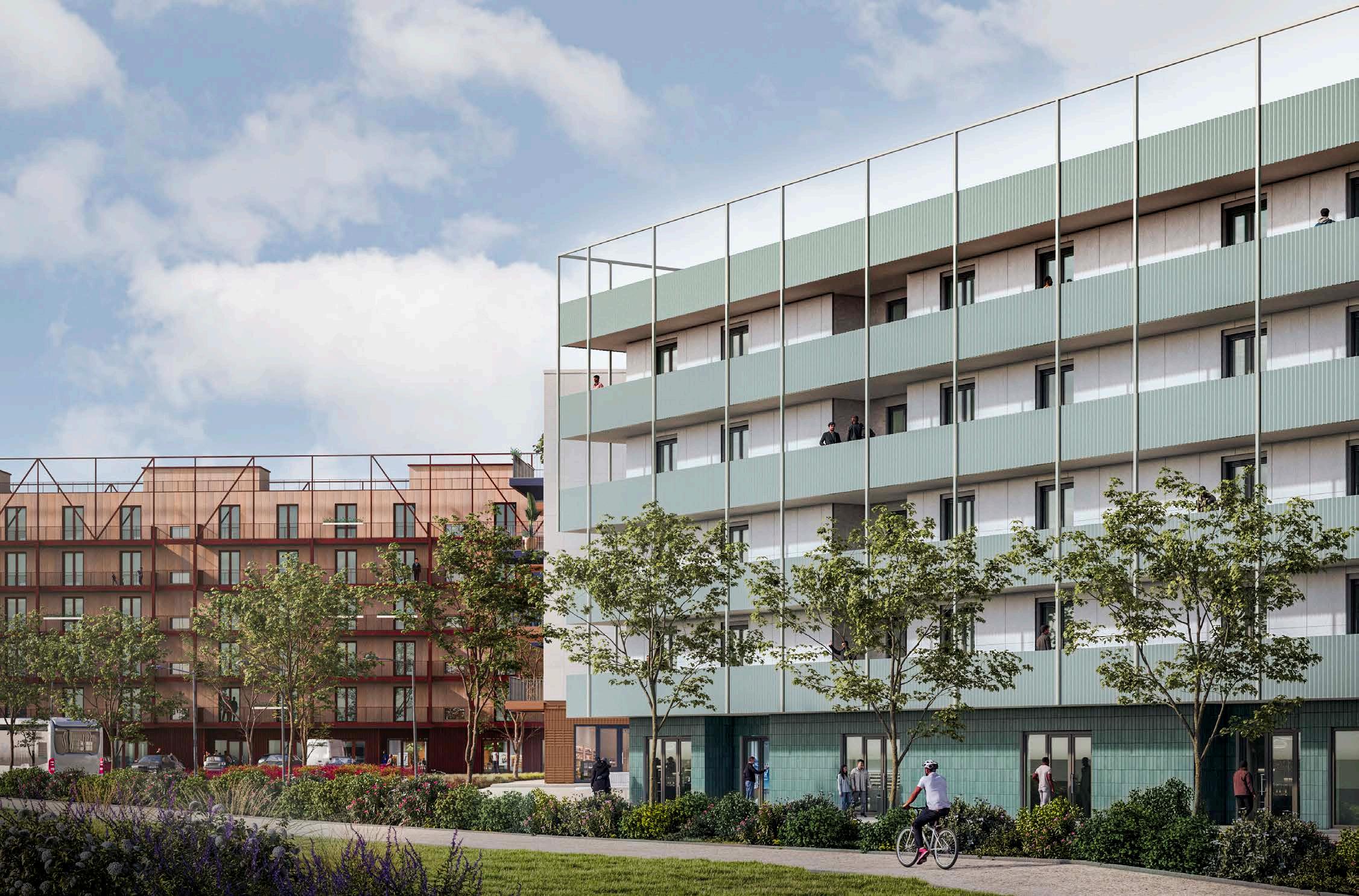

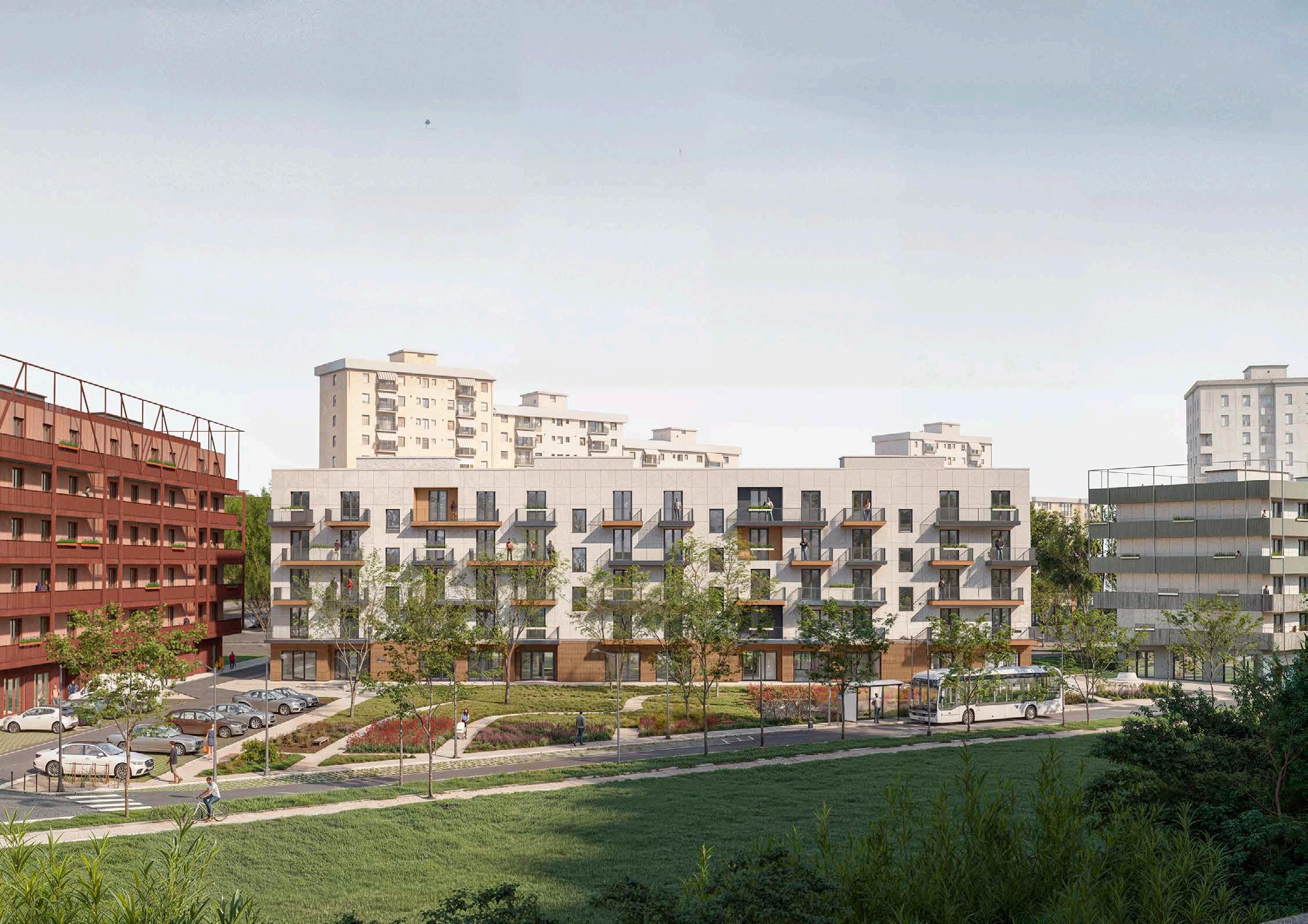

The ReStart Scampia project transforms the 69,000 m² former Lotto M into a sustainable eco-district with three residential buildings. Part of a broader urban regeneration plan, it replaces the deteriorated Vele di Scampia with modern, energy-efficient housing. The design integrates green spaces, pedestrian paths, and public areas, fostering social interaction. The project aims to be a symbol of rebirth for the neighborhood, turning an area historically marked by urban decay into a model of a smart, resilient, and inclusive city.

Project contribution

BIM Coordination (entire project), spatial coordination, technical design of Building A3

Project team

Arch. Alessandra Novara, Arch. Juan Felipe Manrique, Arch. Lorenzo Avigo

Revit + Navisworks + Speckle

PVC window with thermal break frame

Natural stone plain threshold

Rigid foam insulation

Brushed concrete exterior paving

Solid reinforced concrete slab

Ceramic floor over concrete screed

Plastic formwork for aerated space

Insulated false ceiling 16. Roller blind with straight fiber slats

Prefabricated EPS shutter box

Villa Glicini

Turin, Italy

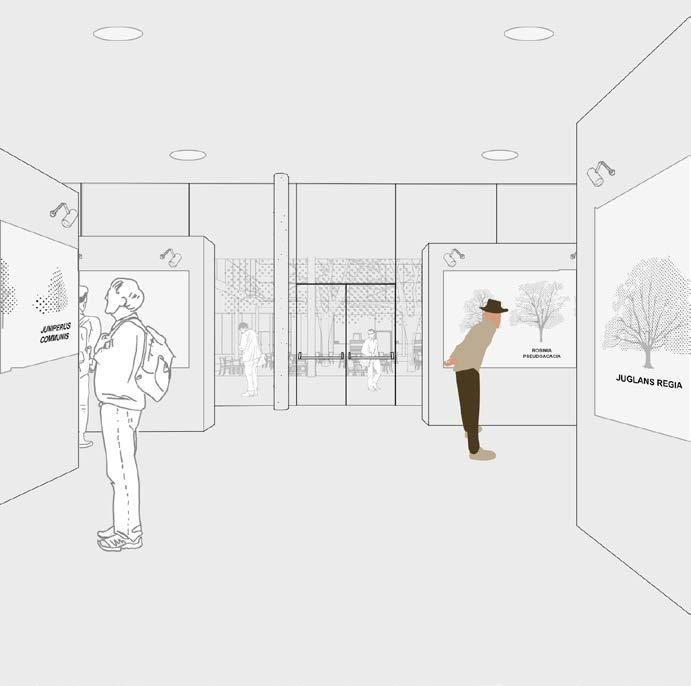

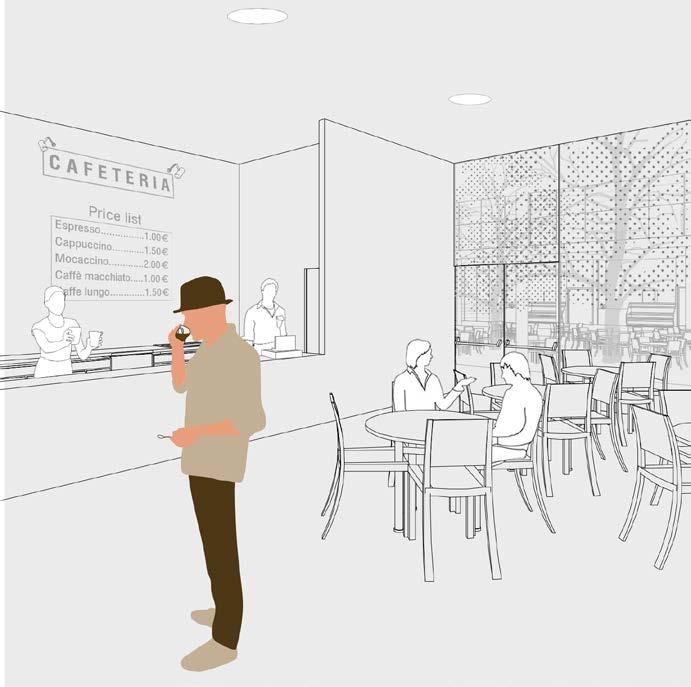

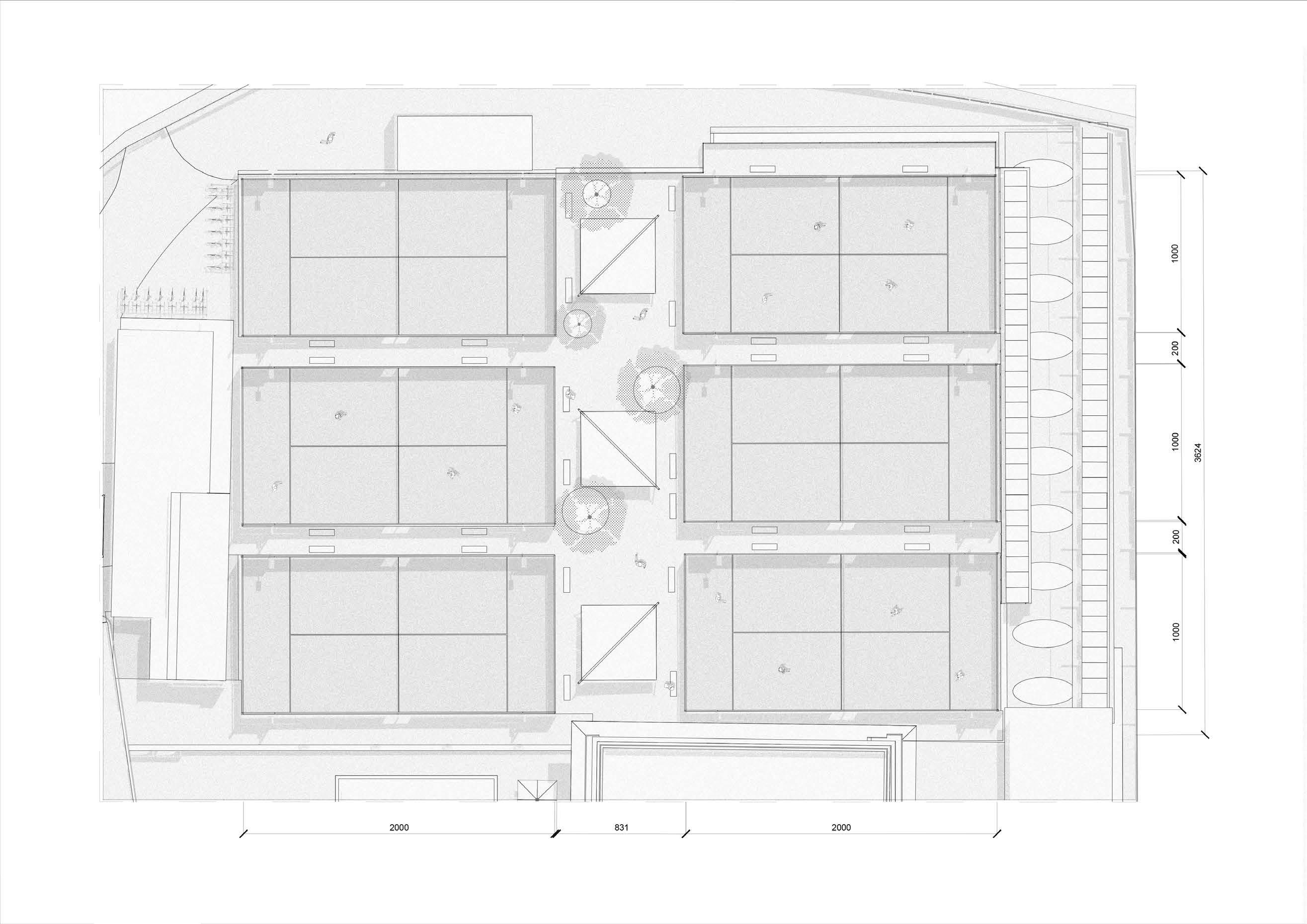

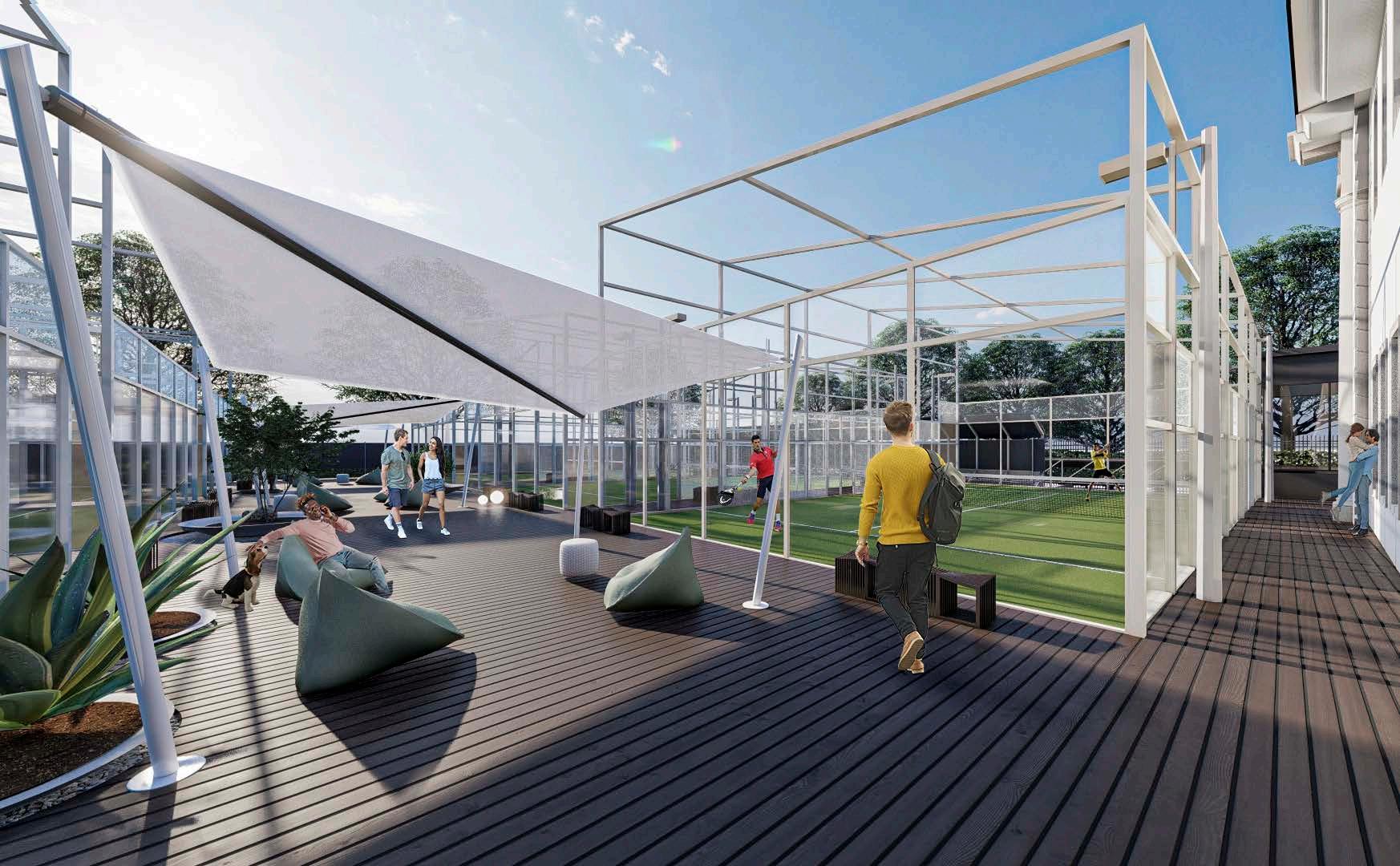

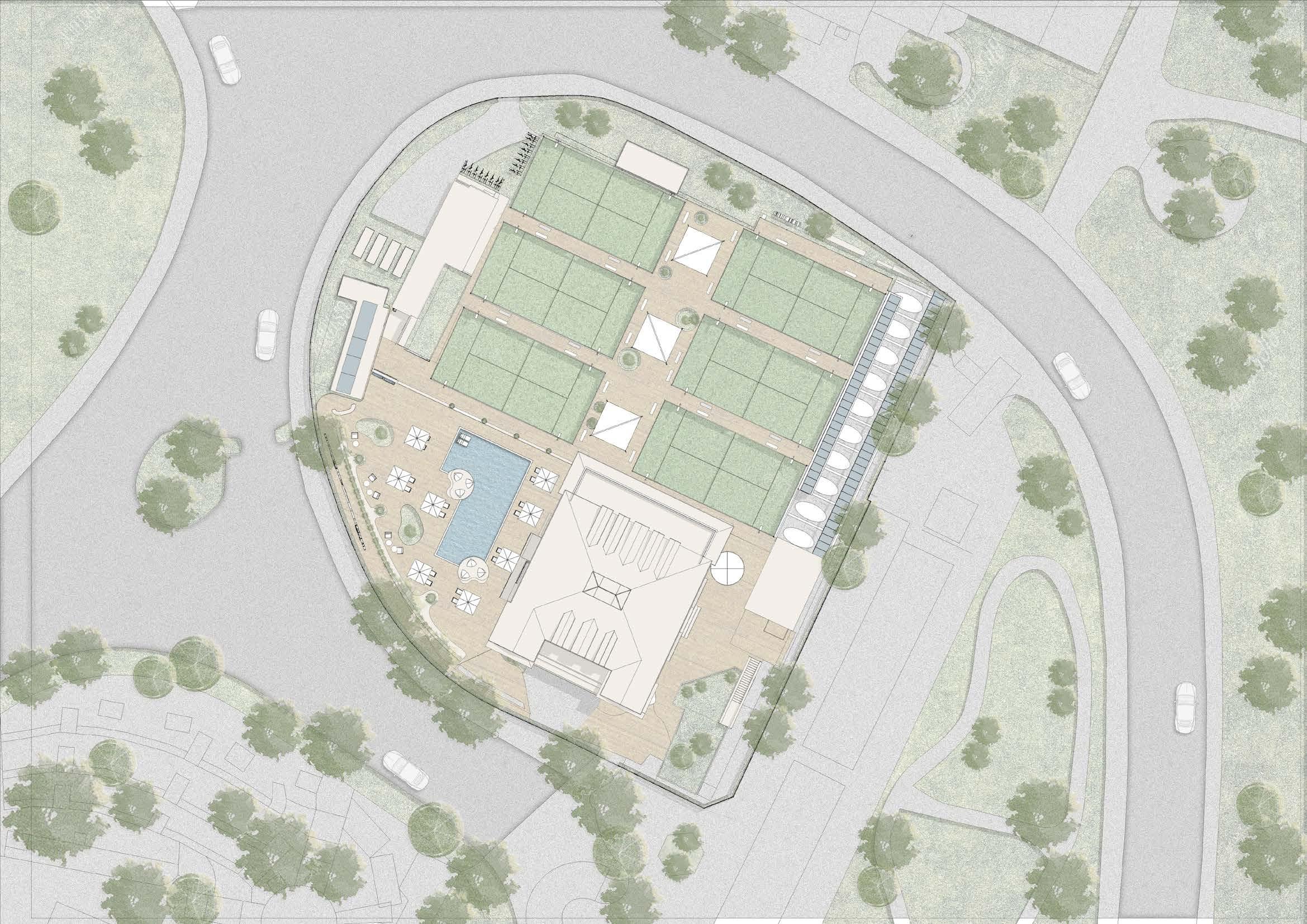

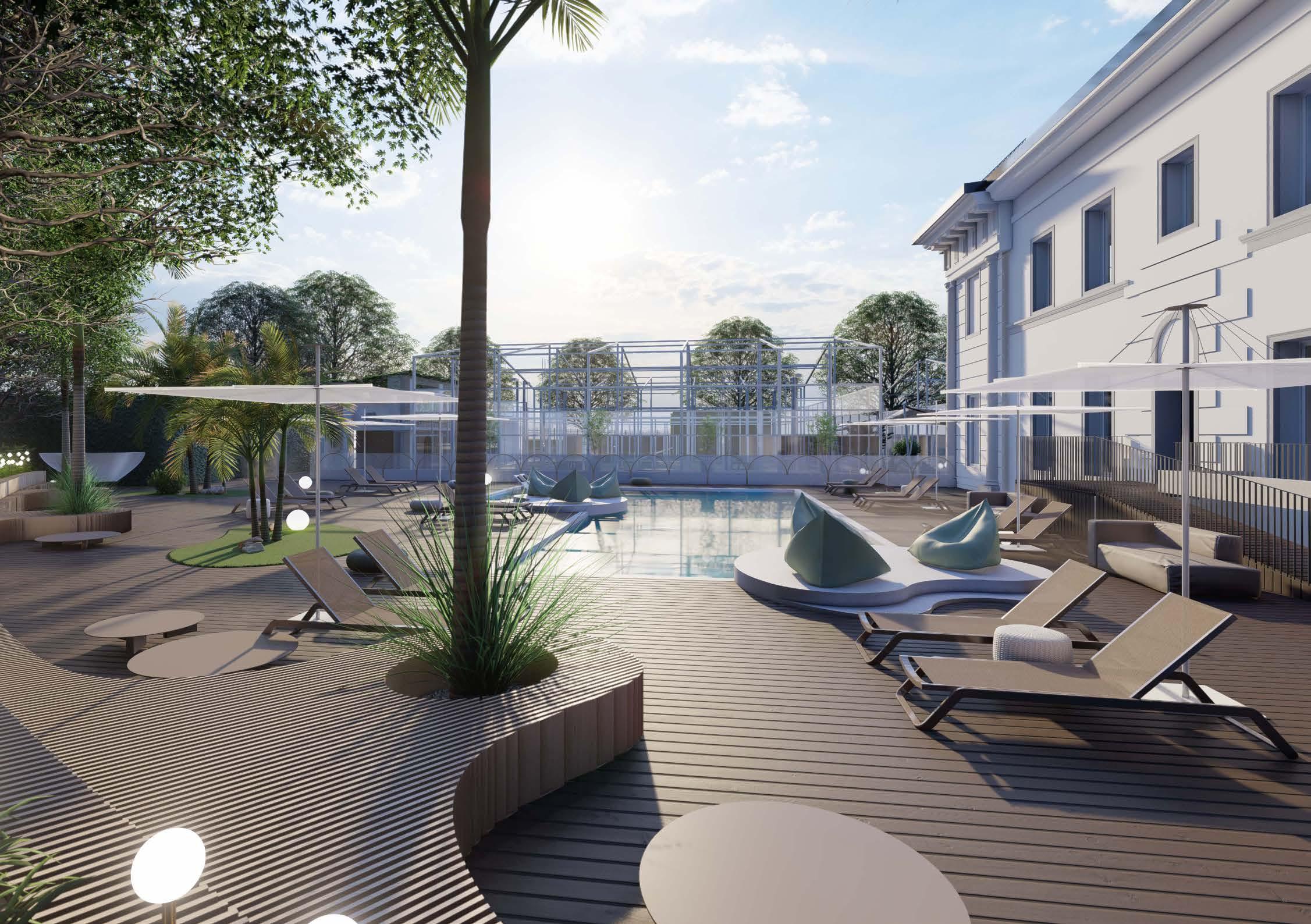

The project is proposed as an alternative for the renovation of the “Villa Glicini” sports complex located near the city center of Turin. This renovation surges from the municipality’s need, through a public architecture competition, to reactivate the entire area that was in disuse and deterioration for some years. The project contemplates the creation of new padel fields as well as the creation of a new fencing gym for the local community. In addition to that, is proposed the total renovation of the complex’s main building, including a new restaurant and exhibition room, as well as the entire outdoor areas.

Project contribution

Concept design, 3D modeling, architectural illustrations.

Project team

Arch. Davide Franchina, Arch. Juan Felipe Manrique

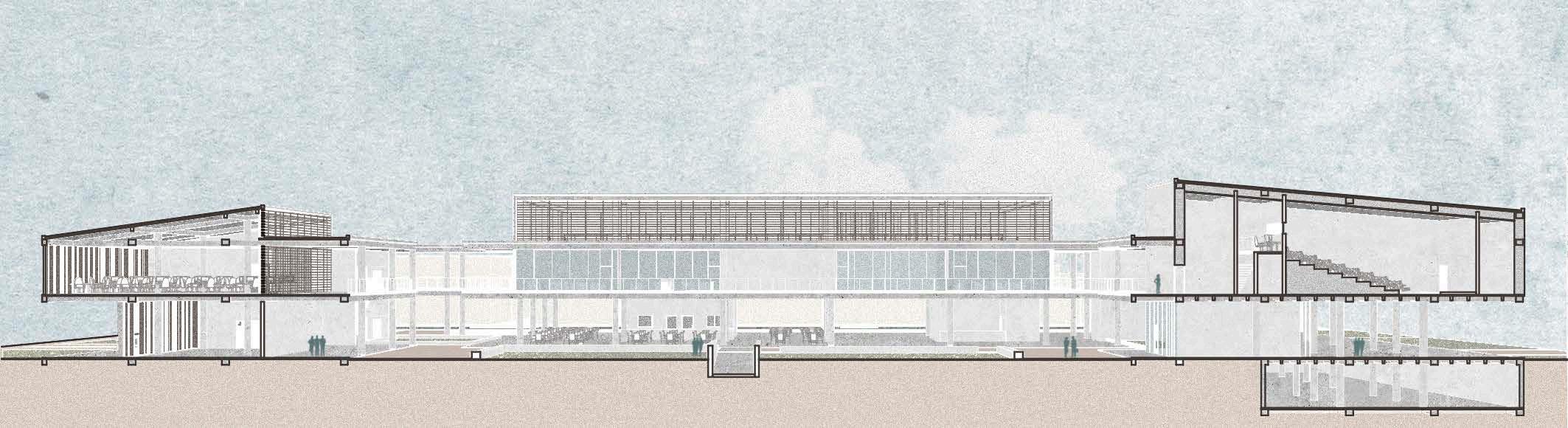

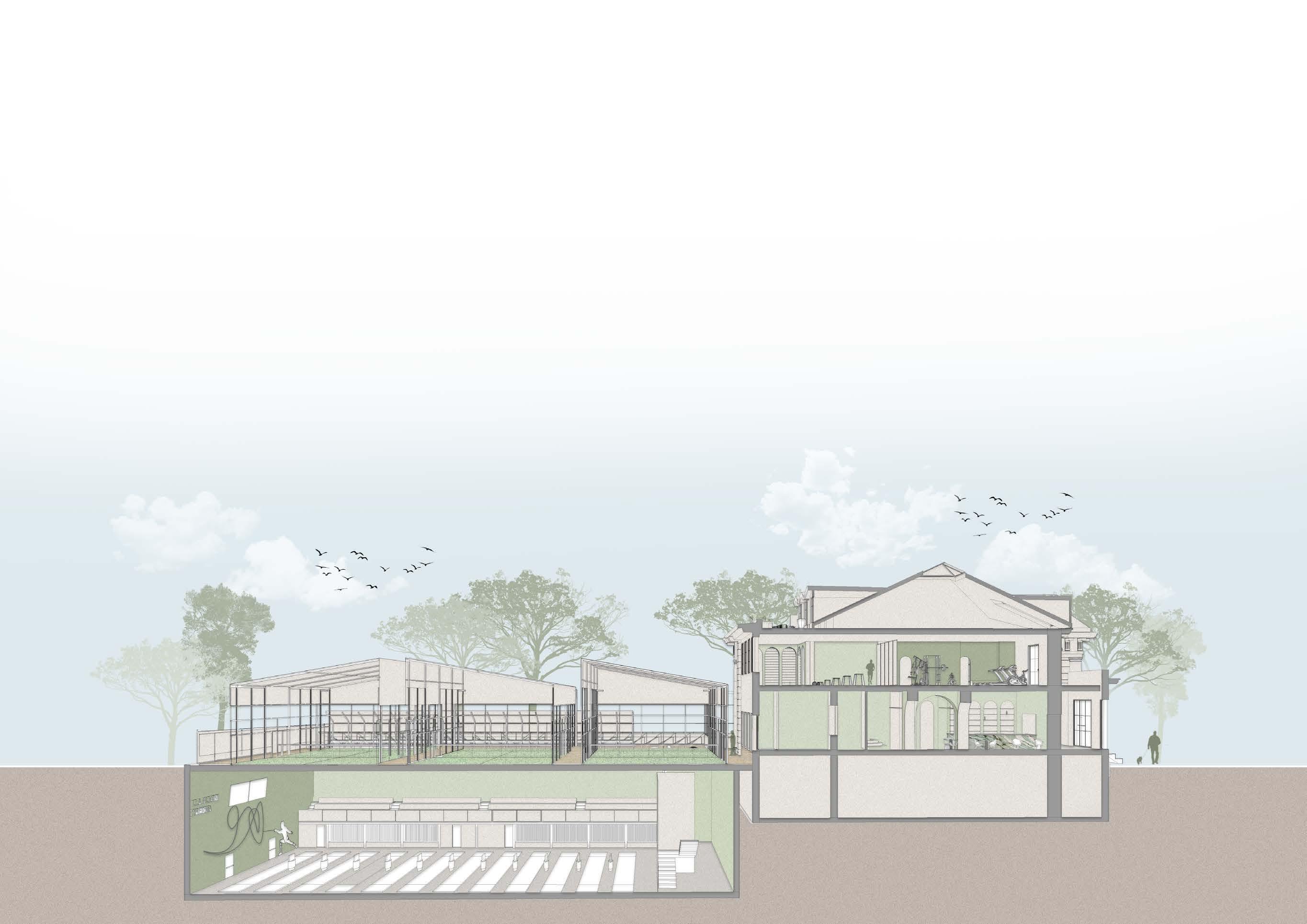

Section A-A

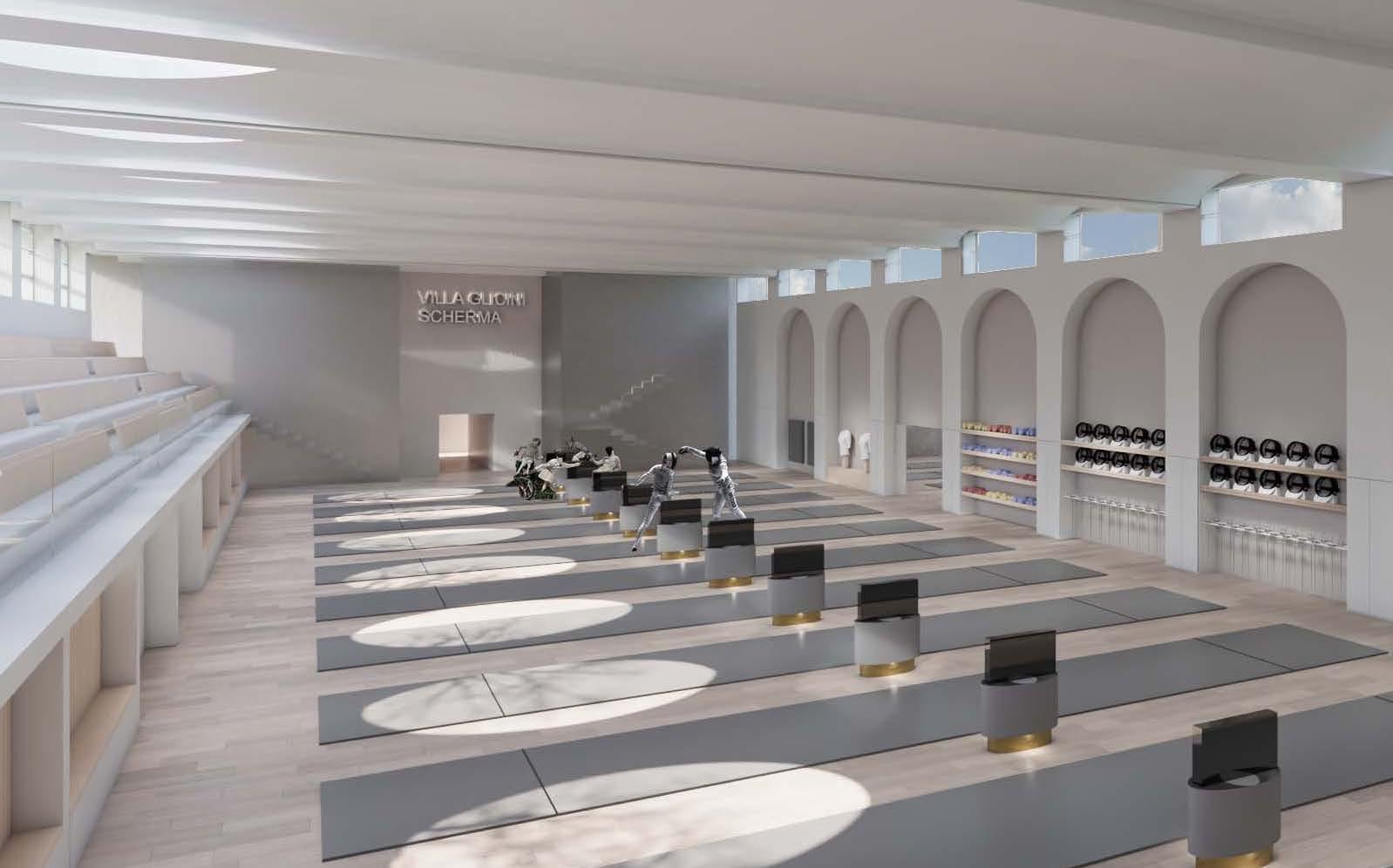

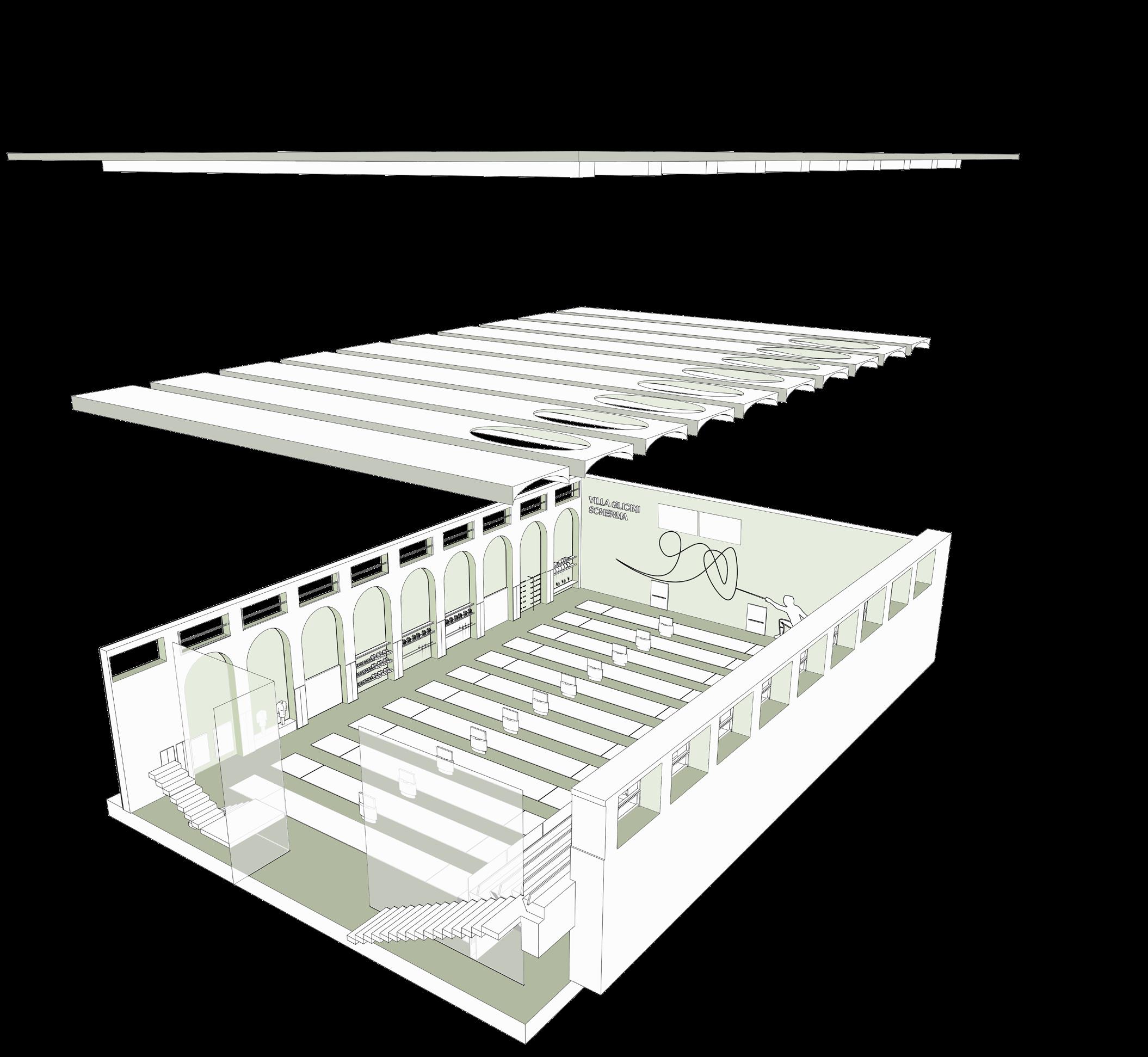

Fencing gym axonometry

1. Soundproofing panels

2. Equipped walls

3. Luminous panels 4. Lockers

5. Scoreboard totem

6. Footboards

7. Bleachers

8. Glazed partition wall

9. Concrete staircase

Overlapped

Orbassano,

Italy

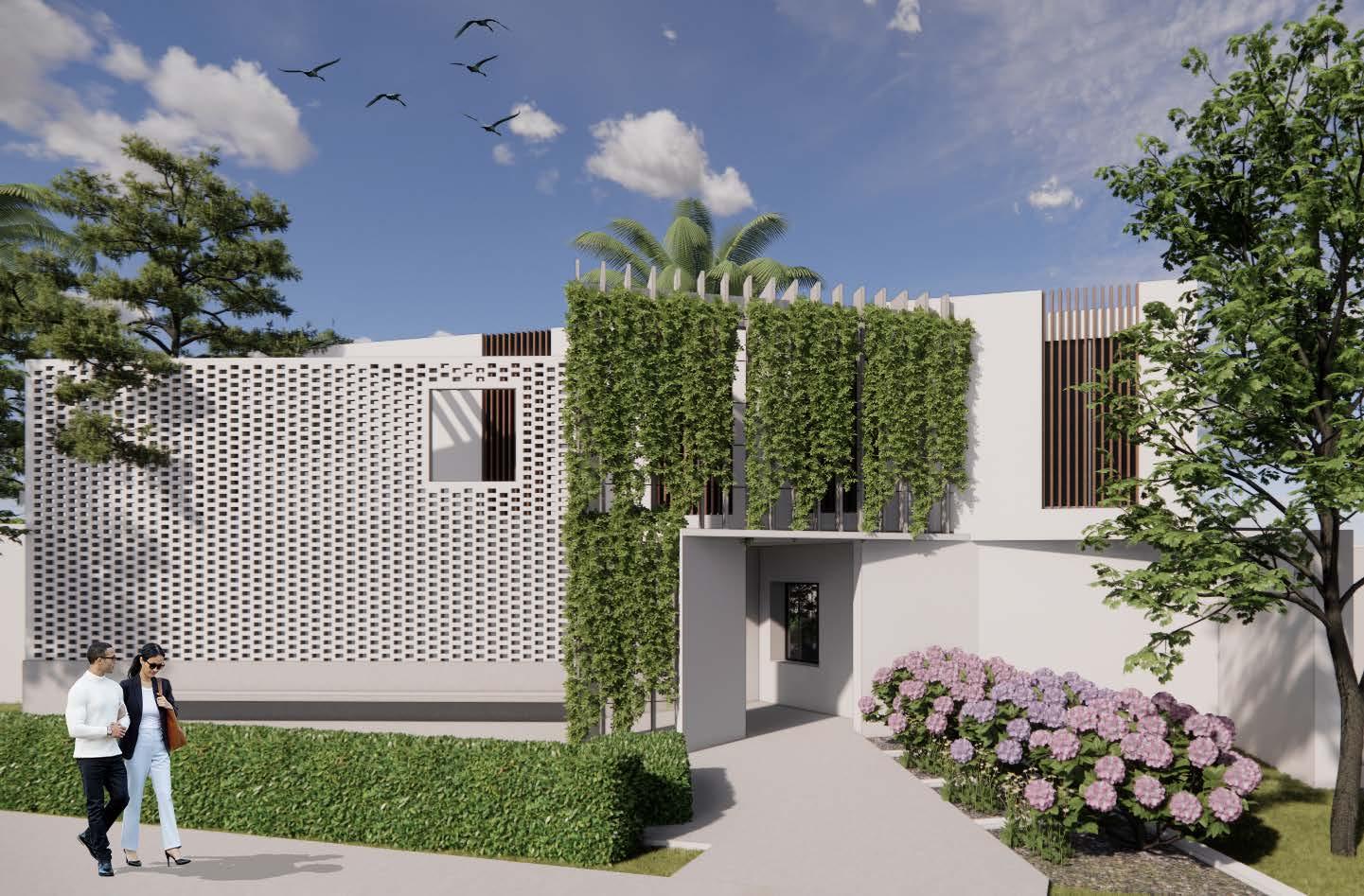

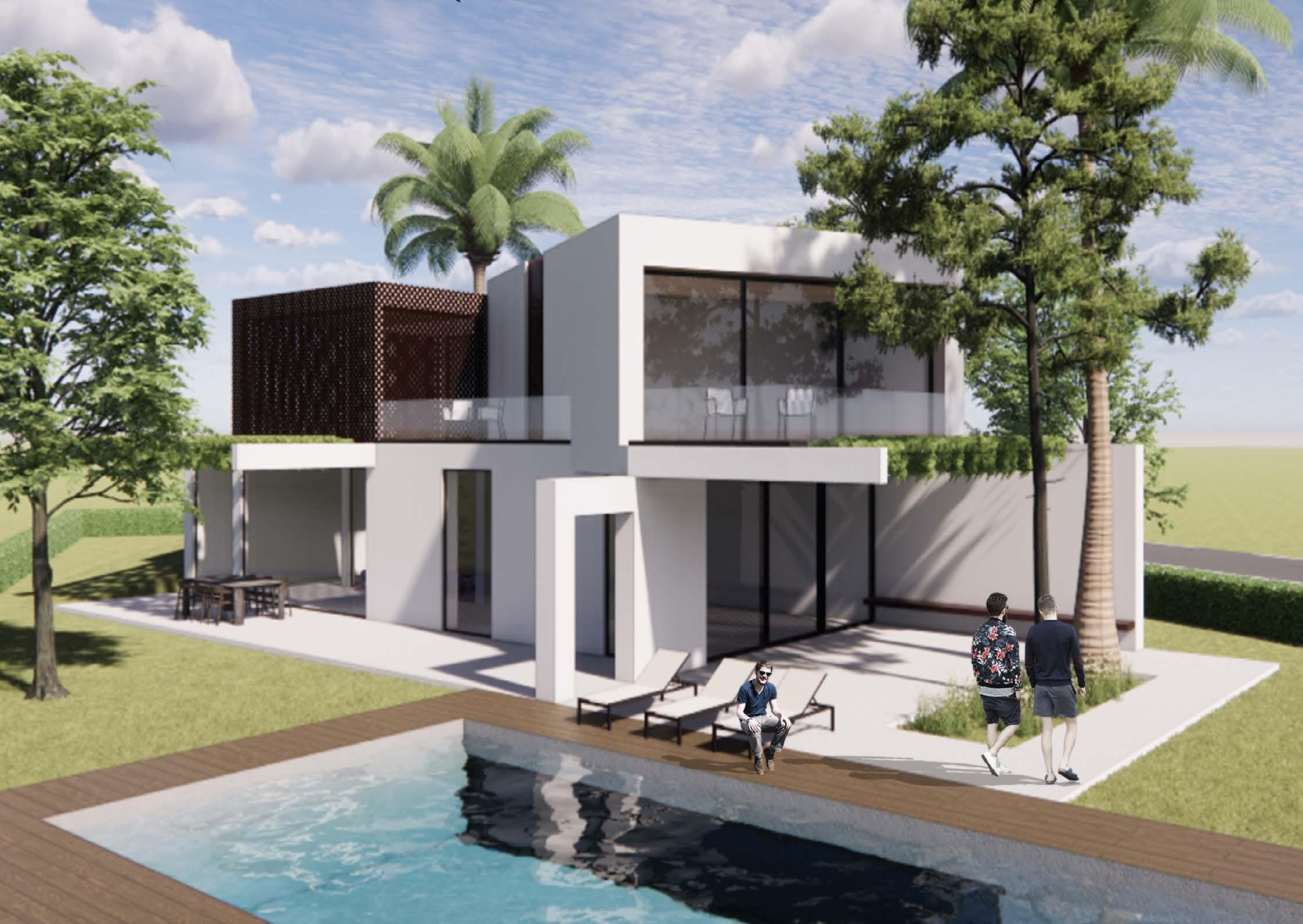

A new construction project for a single-family home in the city of Orbasano. It was projected based on two general principles; the first, to protect the privacy of the interior of the building from the access street in which there is also a parking lot; and the second, to generate a contrast of volumes between the levels of the house that, when overlapped, generate new and unexpected spaces that make the house feel much larger than it really is.

Project contribution

Concept design, spatial coordination, technical design (RIBA stages), BIM modeling, rendering.

Revit + Enscape

Ground floor plan

3. Drainage channel

Washed gravel sp. 3 cm

Concrete screed for slope sp. 5 cm 6. Plasterboard false ceiling sp. 1,3 cm

7. Window shutters in corten bars

8. Wood window frame + double glass

9. Cladding in perforated corten sheet

10. Double glass parapet + metal support

23. Cellular glass insulating panel sp. 12 cm

Technical systems screed sp. 10 cm

XPS insulation panel sp. 15 cm

Reinforced concrete foundation slab

Load-bearing panel in XLam sp. 14 cm

Insulating panel sp. 10 cm 11. Helicopter concrete floor sp. 3 cm 12. Insulating panel sp. 5 cm 13. Load-bearing panel in XLam sp. 14 cm

16. Double sheet of plasterboard sp. 2,6 cm

17. internal insulation with rock wool

18. Bearing structure in XLam sp. 12 cm 19. External thermal insulation sp. 15 cm

20. External plaster coating sp. 2 cm

21. Walls decorated with water-based paint 14. Acoustic insulating panel 15. Plasterboard false ceiling sp. 1,3 cm

Sweet contrast

Turin, Italy

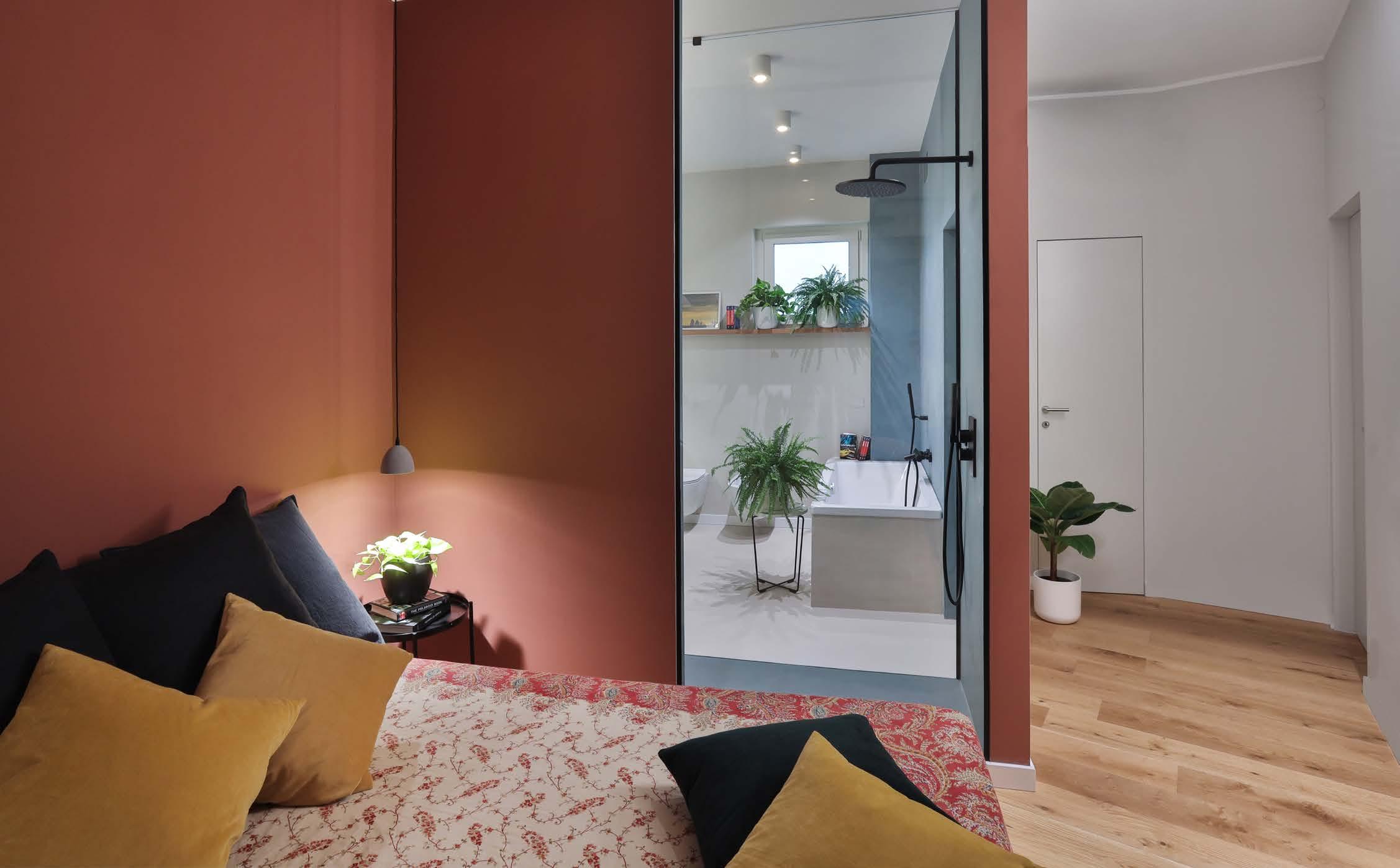

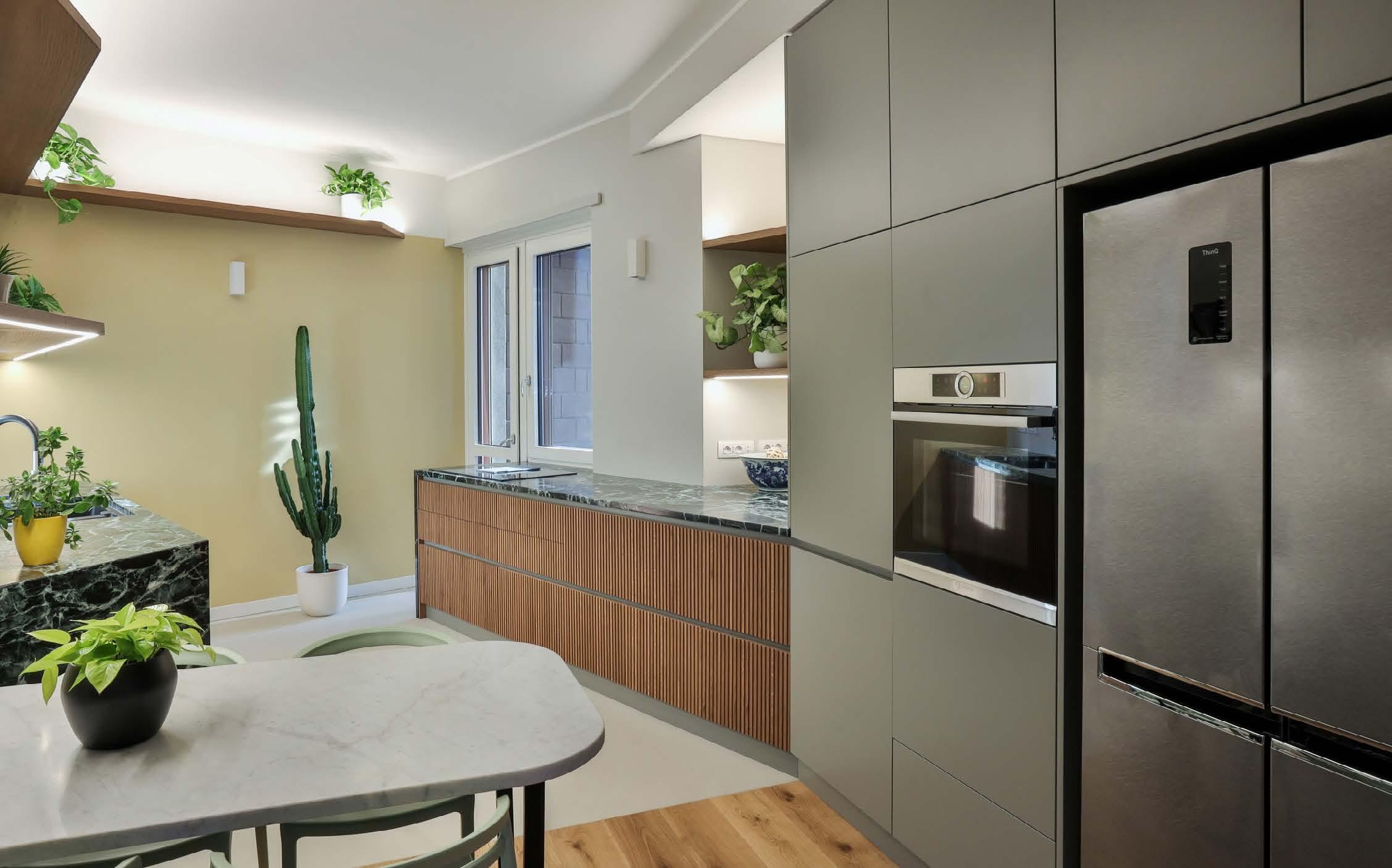

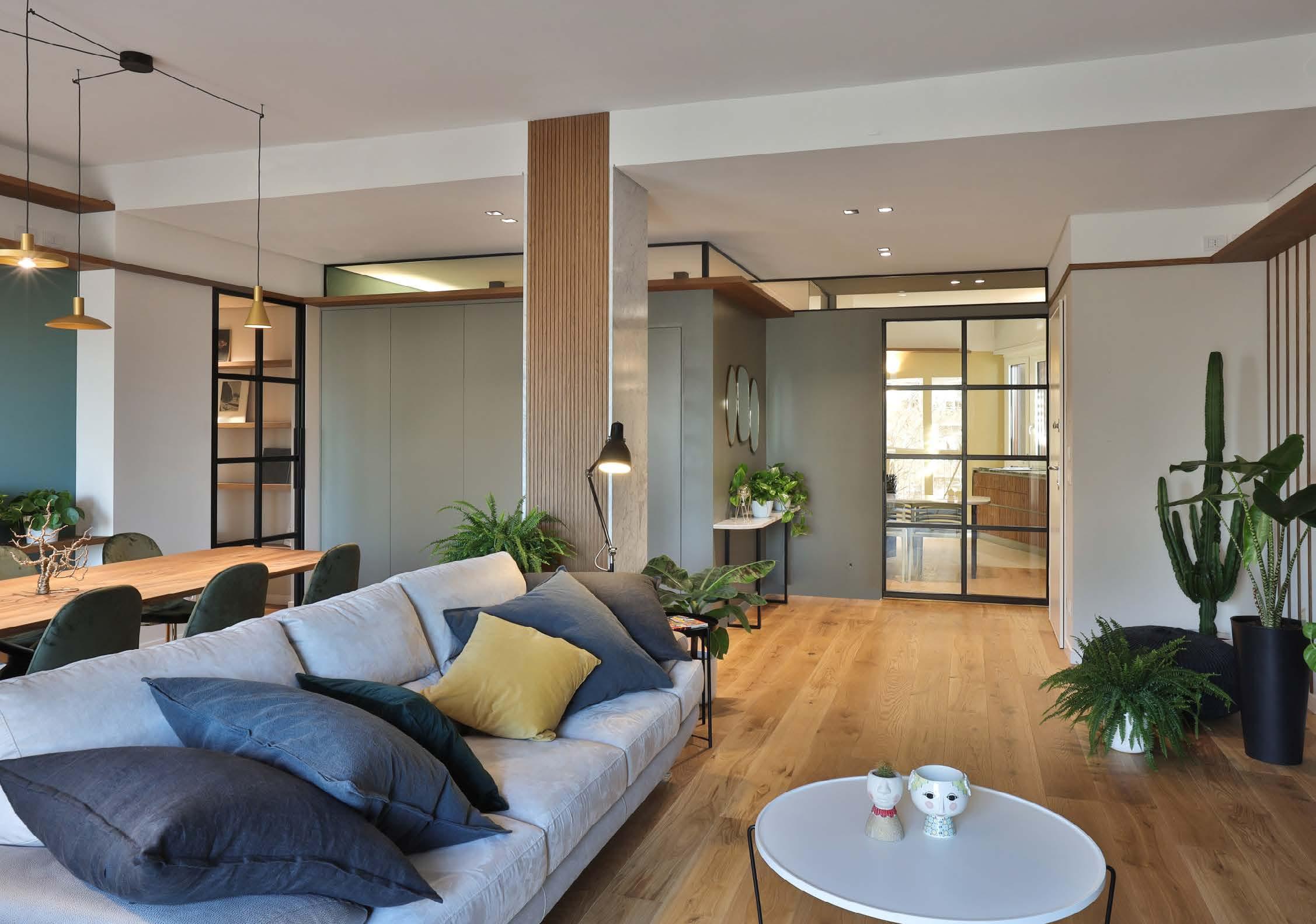

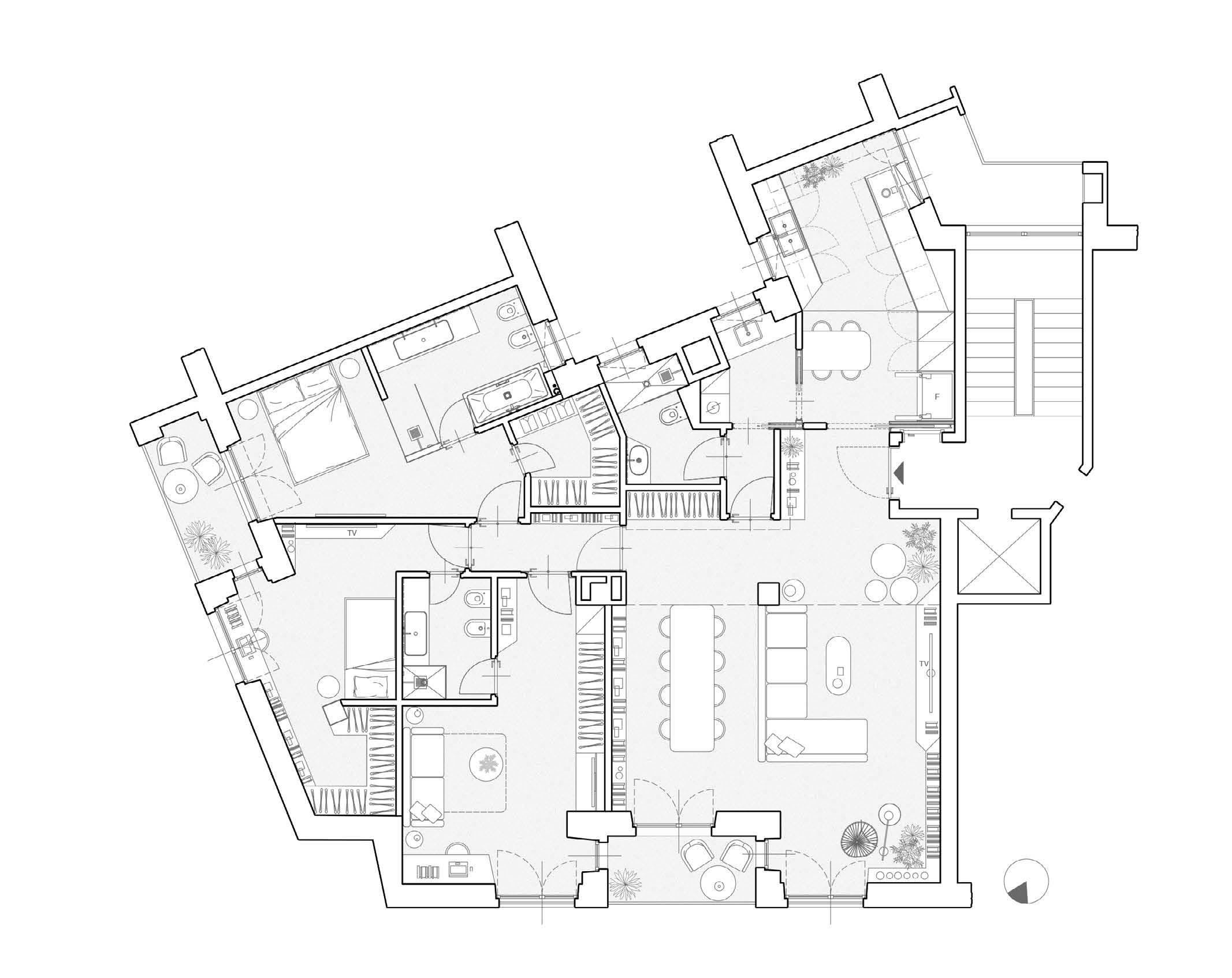

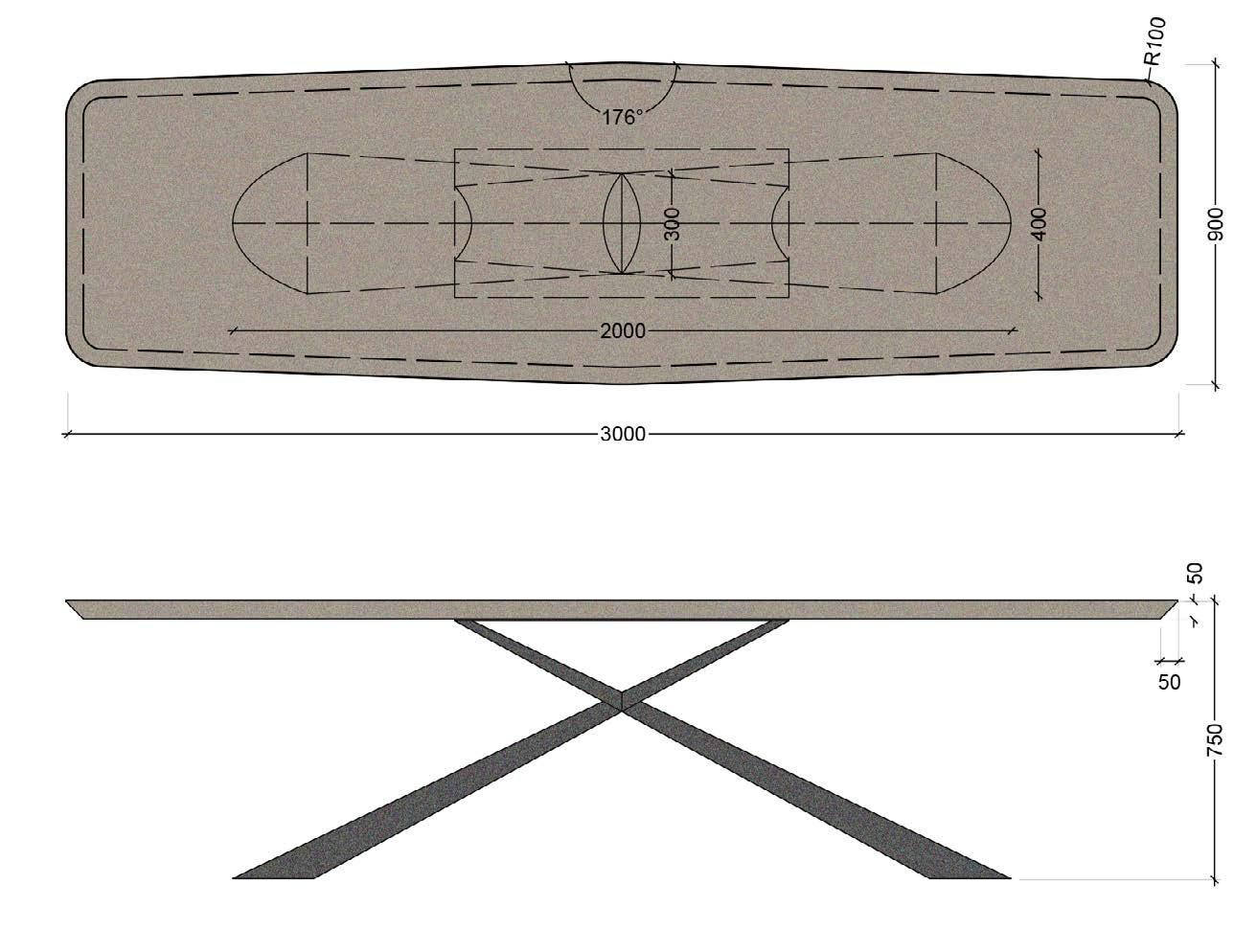

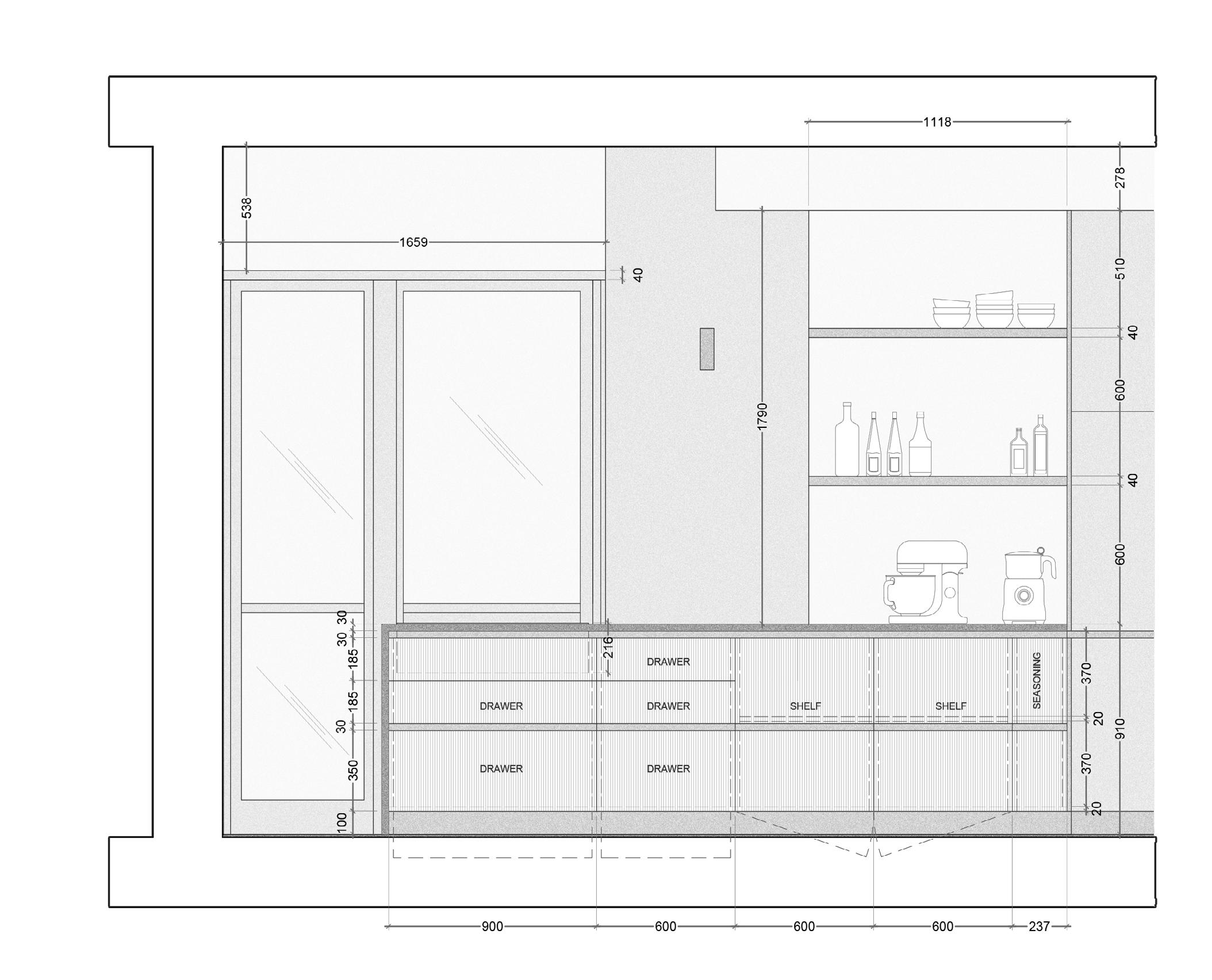

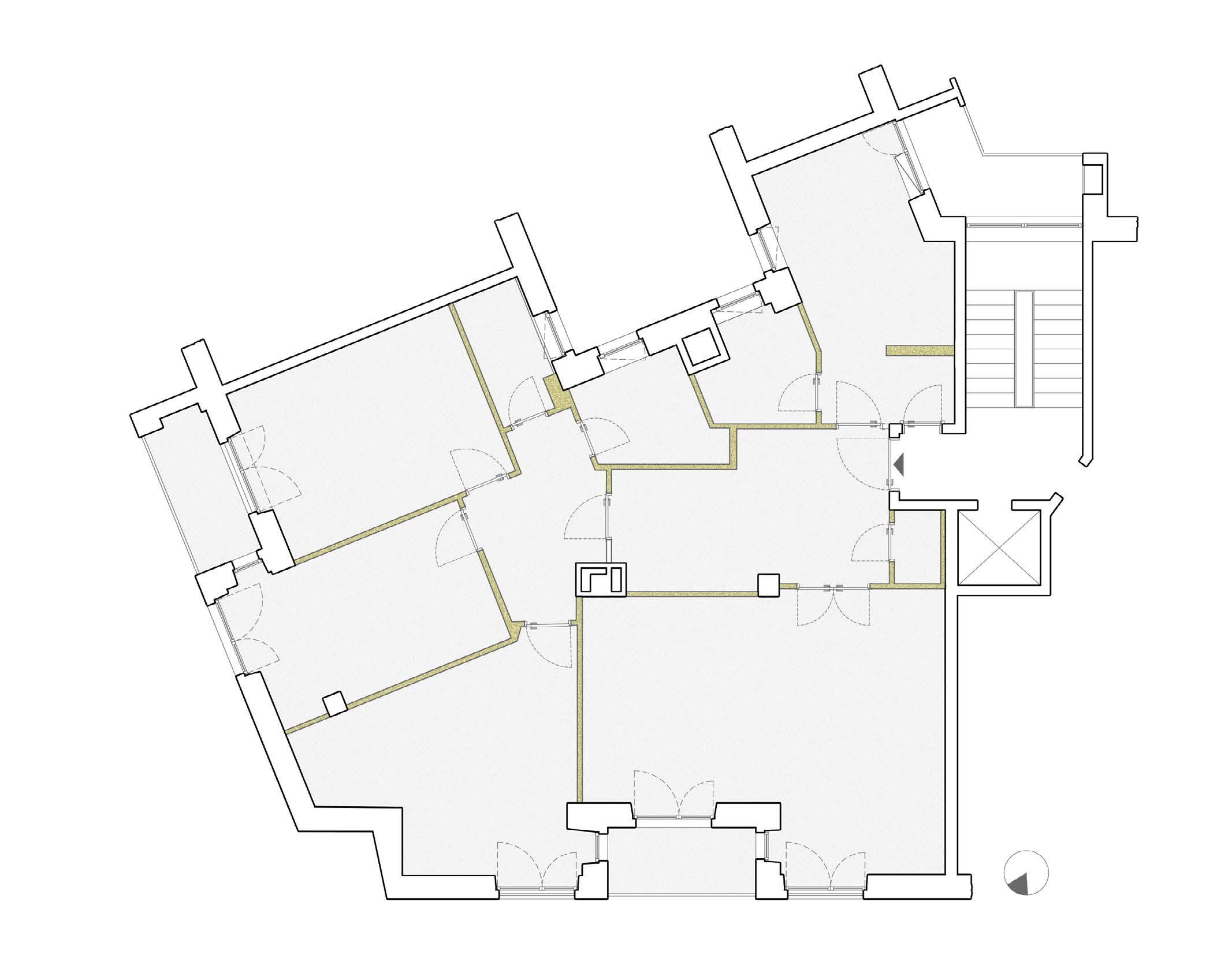

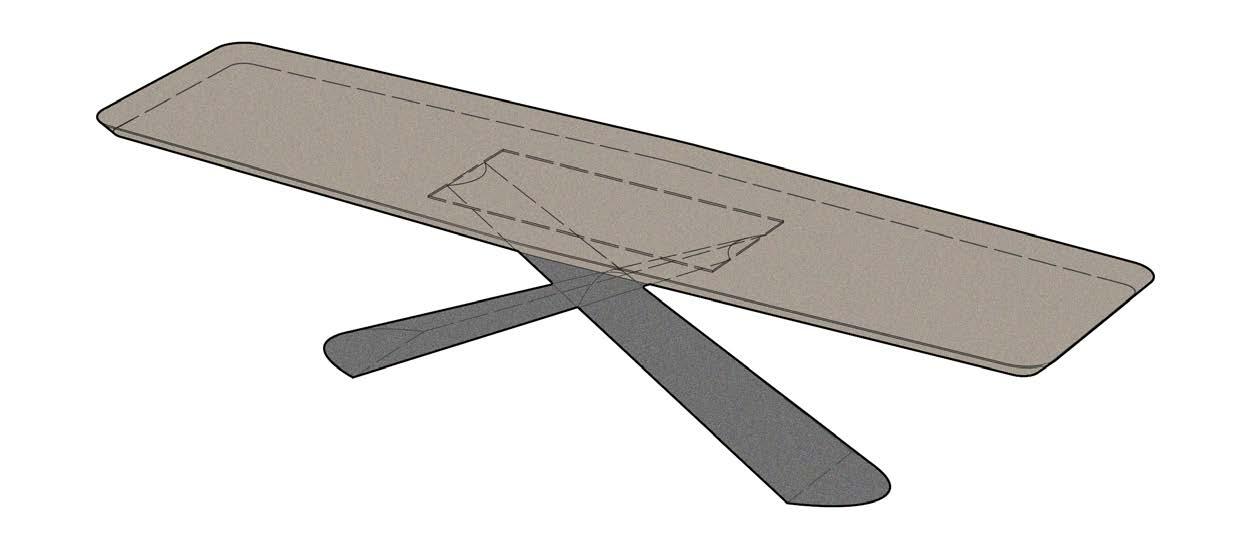

The apartment’s renovation project aimed to create a unique ambient through experimentation with different shapes, materials and colors that, despite being very different from each other, together generate a balance and a particular contrast that make this a cozy space.

Project contribution

Concept design, spatial coordination, technical design (RIBA stages), rendering, technical systems drawings, costs estimation, building permits and construction supervision.
