L E N T E R A
Designed by:
J E
S S I
C A C H U S I A O Y I N
2023 Jan- April
Design Studio III
jessicachusy@gmail com
Lecturer:
M r M u n z i r A r . N a j m i
1/ Centre Culturel Jean-Marie Tjibaou
C A S E S T U D Y
2/ Missing piece- myth of the boat making
N A R R A T E D P S Y C H O G E O G R A P H Y
3/ S I T E A N A L Y S I S
i p l o m a i n A r c h i t e c t u r a l S t u d i e s
D
4/ D E S I G N I N T E N T I O N
5/ S I T E R E S P O N S E
6/ L E N T E R A
the community building for boat making
"“You have to start from somewhere. Architecture is about building, about understanding, about using your hands,”
In this semester, I've learnt to appreciate the quality of space more and try to adapt to my building. Looking forward for more explorations in future.
-Renzo Piano
C A S E S T U D Y

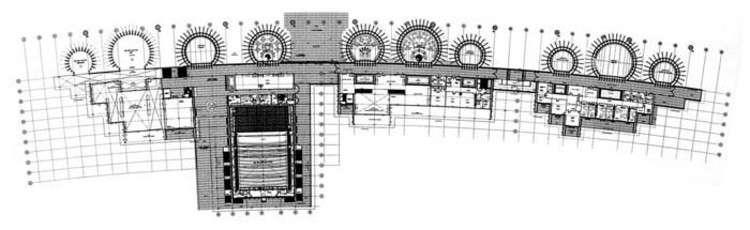

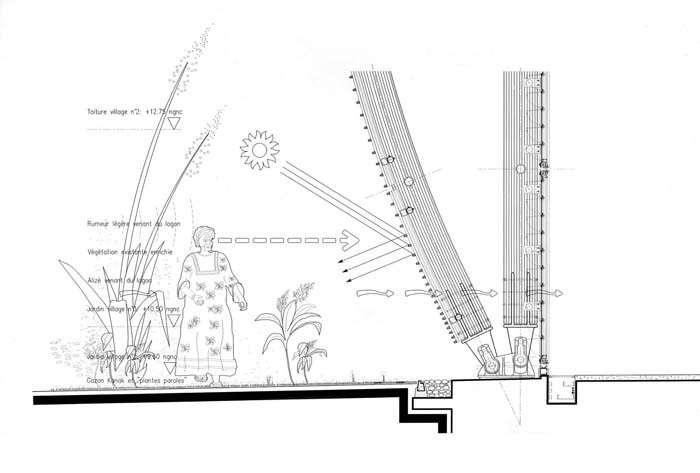

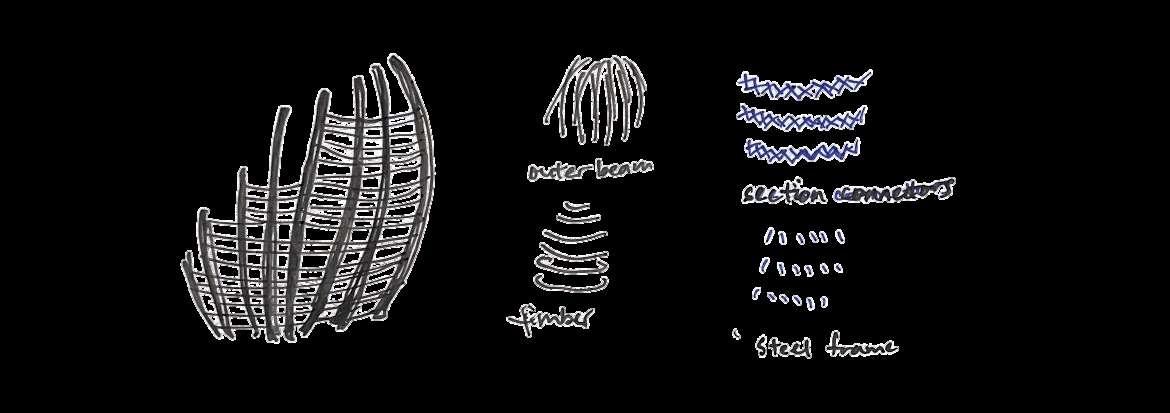

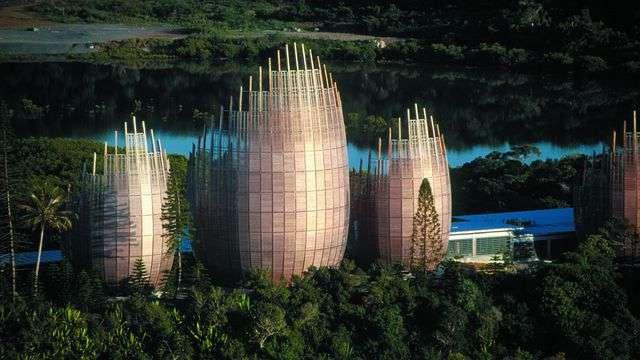

The outer shell of the building results in a beautiful facade with ventilation and shading uses. The structure uses timber and is joint by steel frames. It uses double system, hence the outer shell is connected to the building wall with steel frames. The steel structure provides the framework for the buildings, while the wood is used for the walls and roofs. This combination of materials provides strength and durability while also reflecting the Kanak culture.
Centre Culturel Jean-Marie Tjibaou
Linear organisation
N A R R A T E D P S Y C H O G E O G R A P H Y

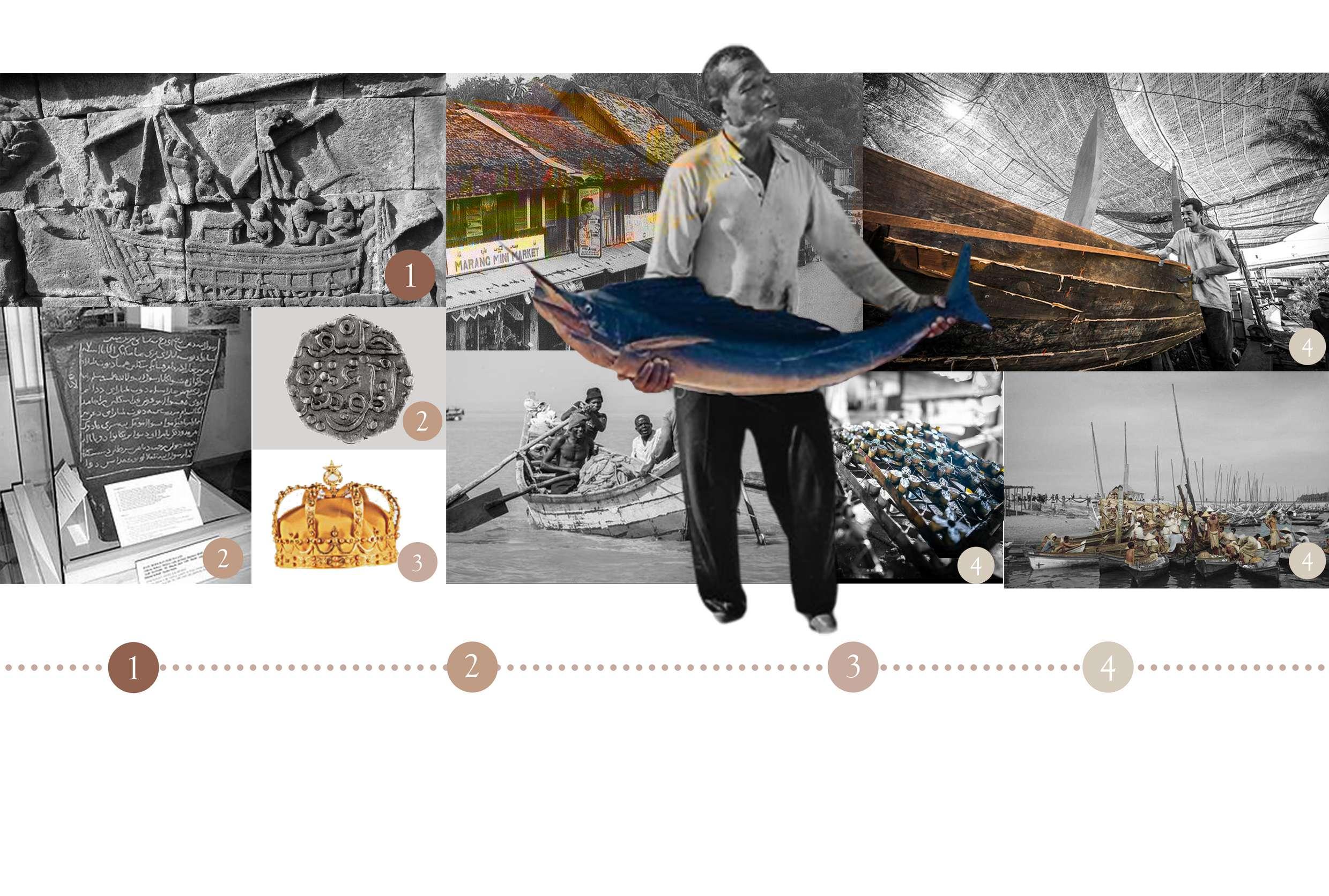

-mentioned in ancient chinese history books as “Teng-ngan-gu”
-a trading port
-Sri Wijaya Empire (since 2nd century)
-Islamic introduced -earliest recipients of Islam
-ruled under Johor
-Tun Zainal Abidin I began present Terengganu Sultanate
-fishing village
-150 years ago, named as “Marang”
-rich with cultural influences, traditional crafts industries, boat building, wood carving, brass making, production of songket
-bustling trading port
-“Cradle of Malay Civilization”

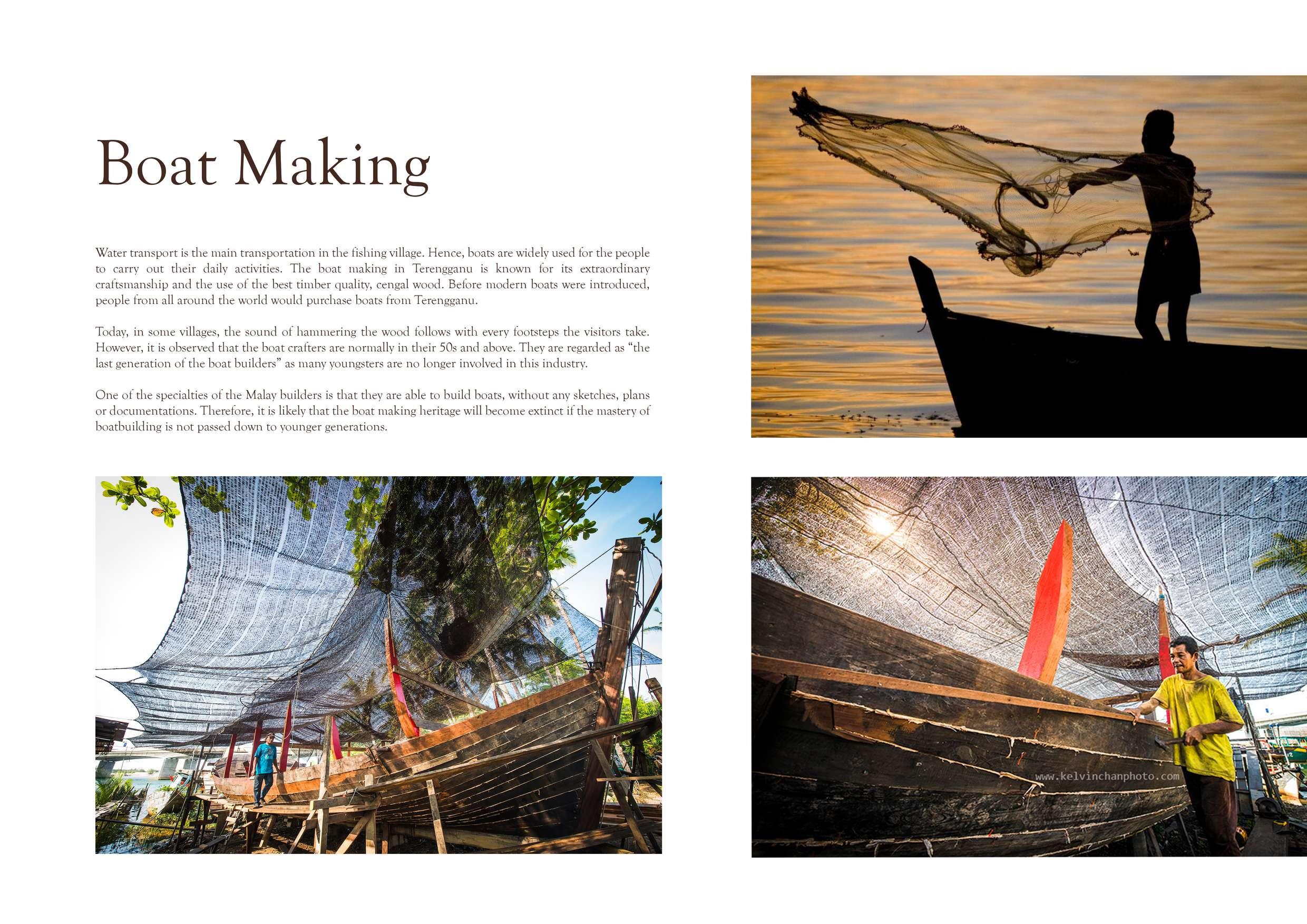

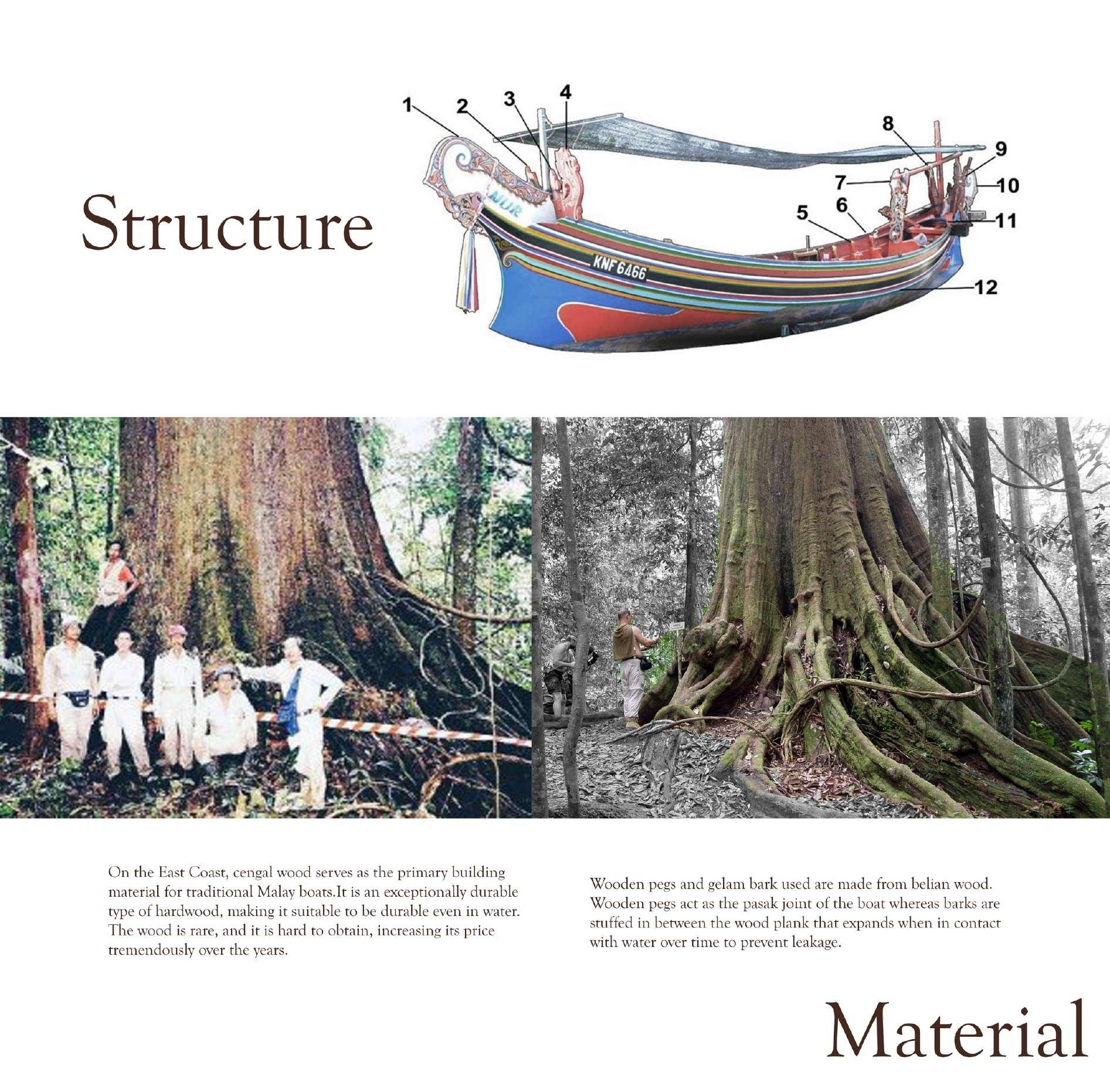

Missing pieceMyth of the Boat Making
Missing pieceMyth of the Boat Making

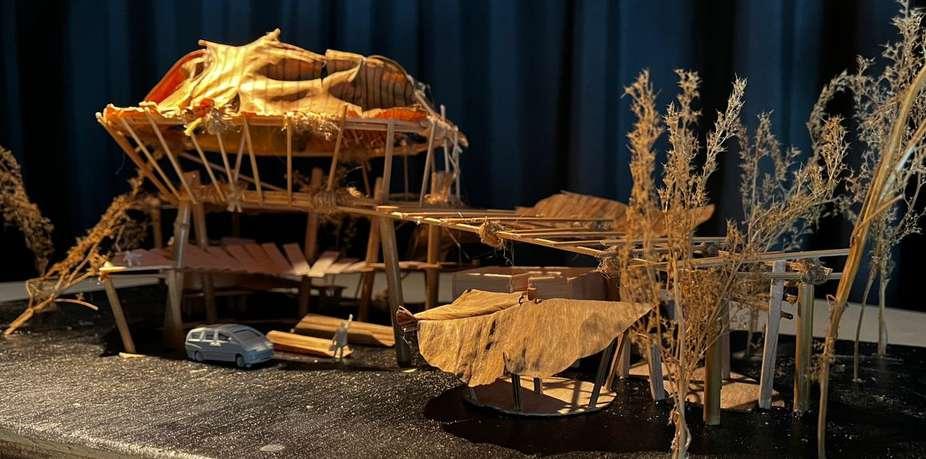

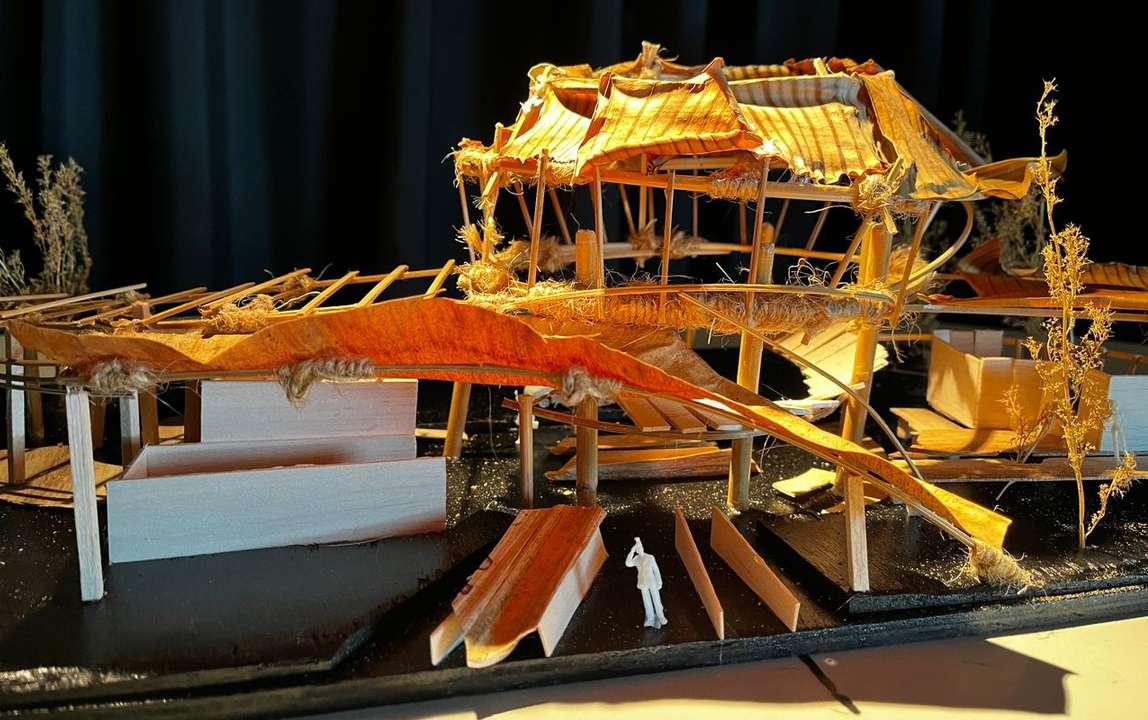

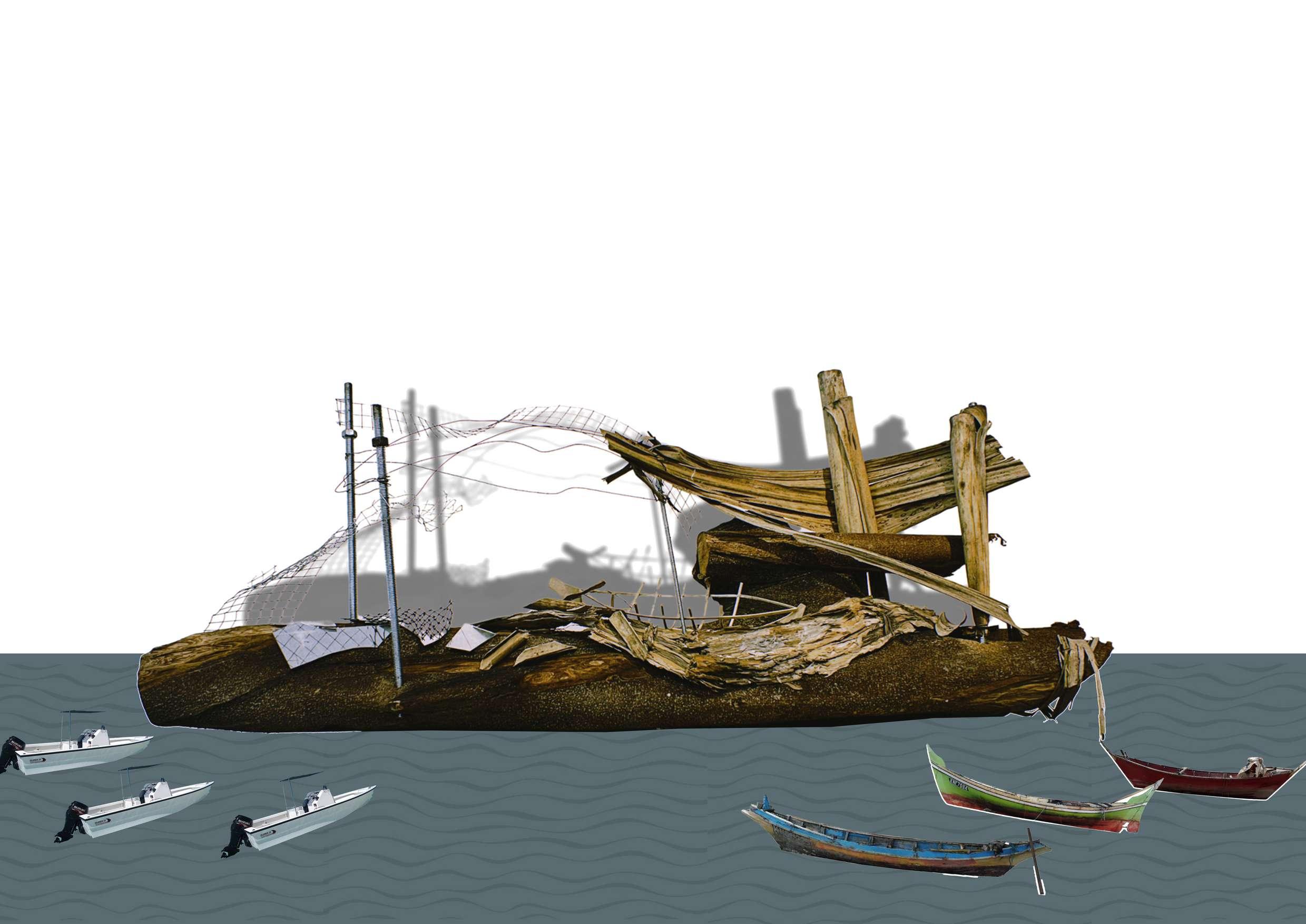

This project is a creation that pays homage to the rich heritage of boat building. It is a perfect blend of old-world craftsmanship and modern adaptations.

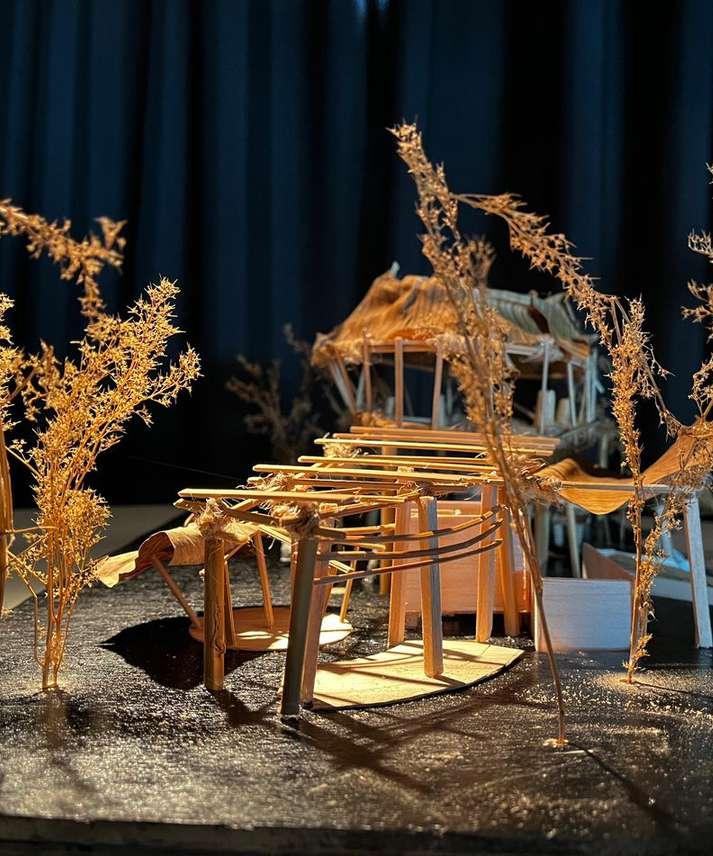

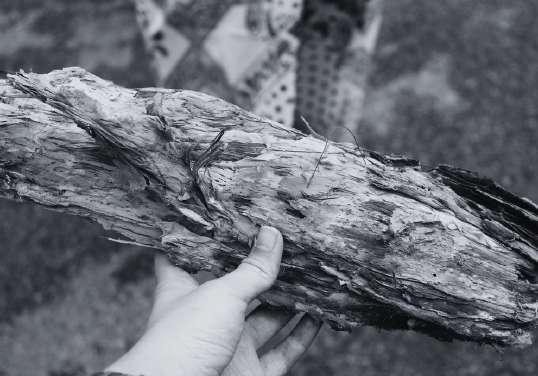

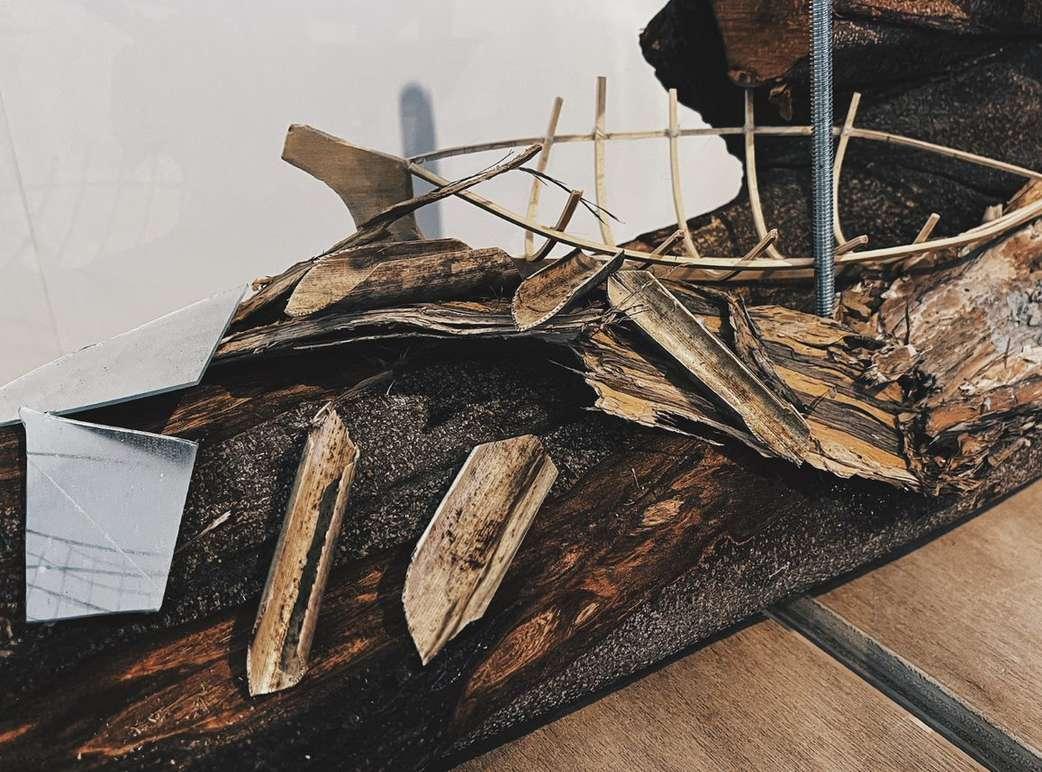

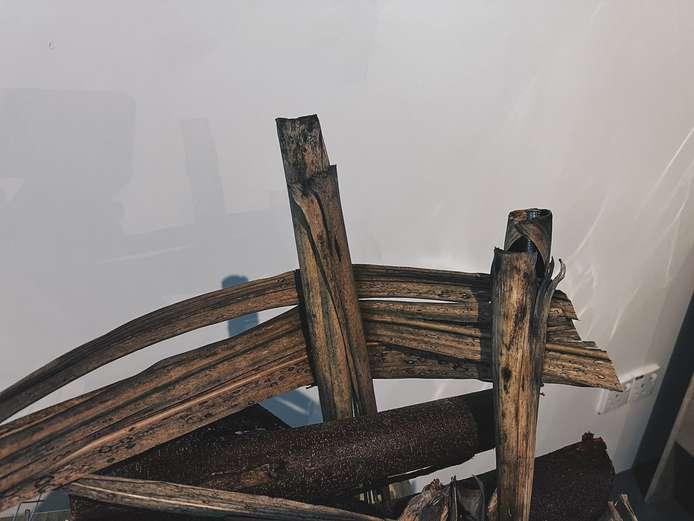

The traditional boat making elements that is incorporated into the model add a sense of authenticity and history to the piece. The log symbolises the traditional boat making that is far long in history. The use of natural materials such as wood and tree bark not only represents rustic, but also reflects the traditional and natural way of boat making process.
sugarcane leaves to bring out the rustic charm
sugarcane leaves cut out to represent traditional boat

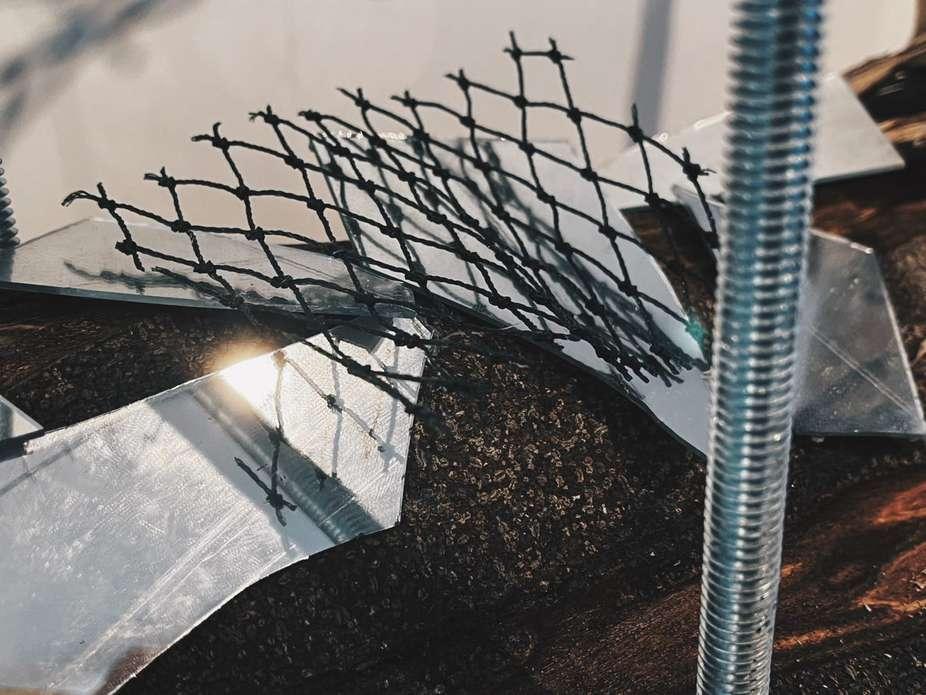

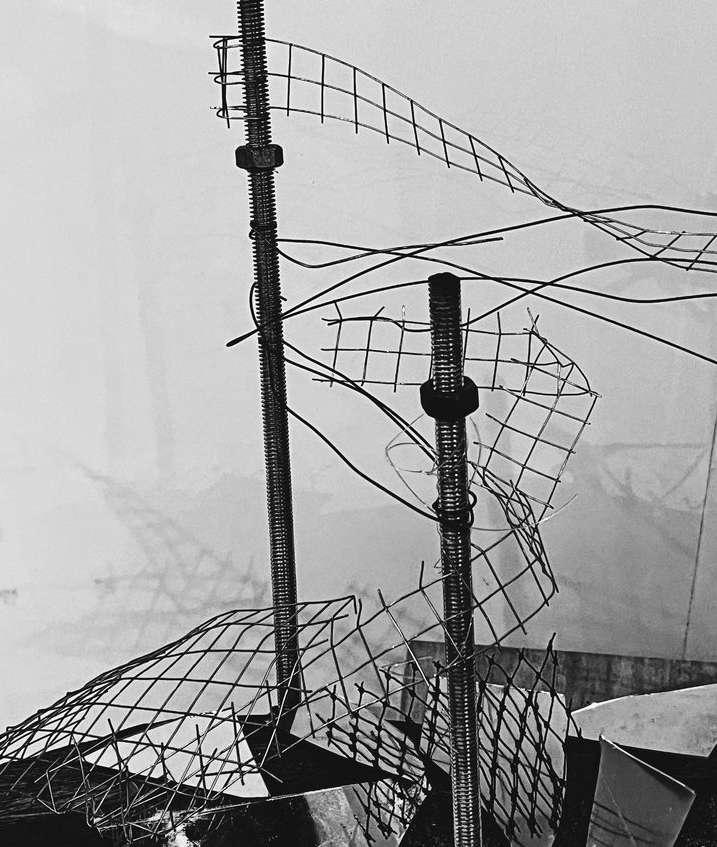

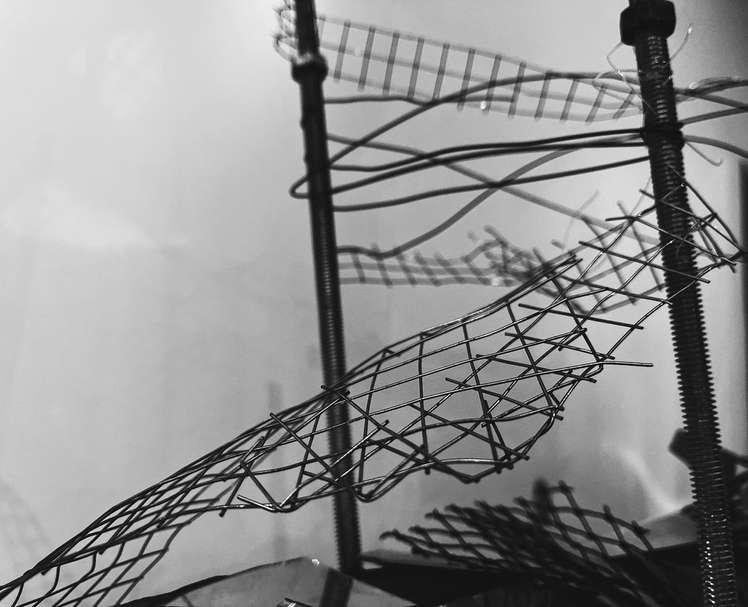

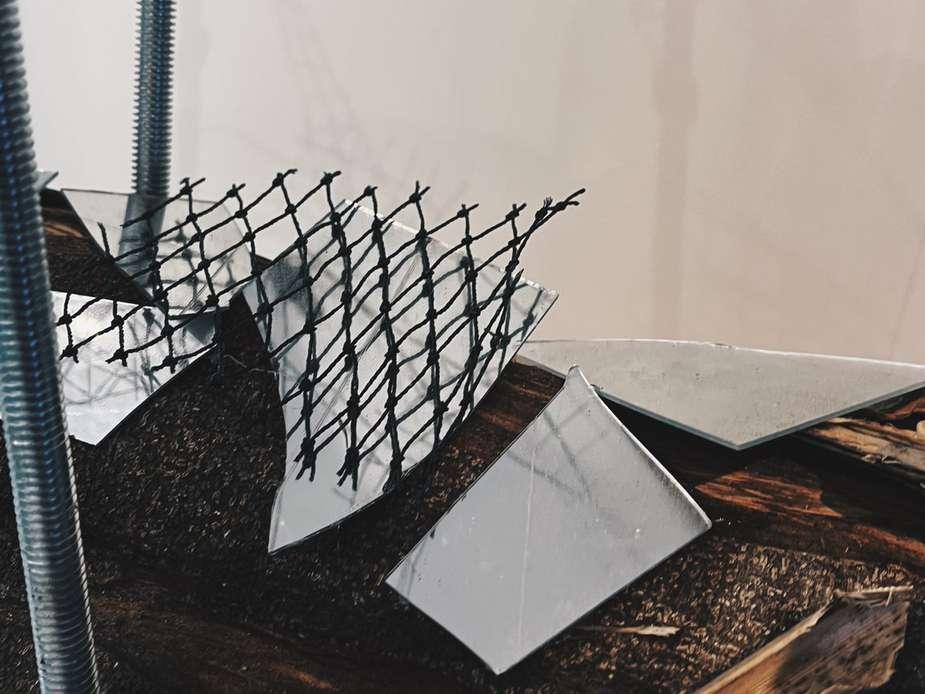

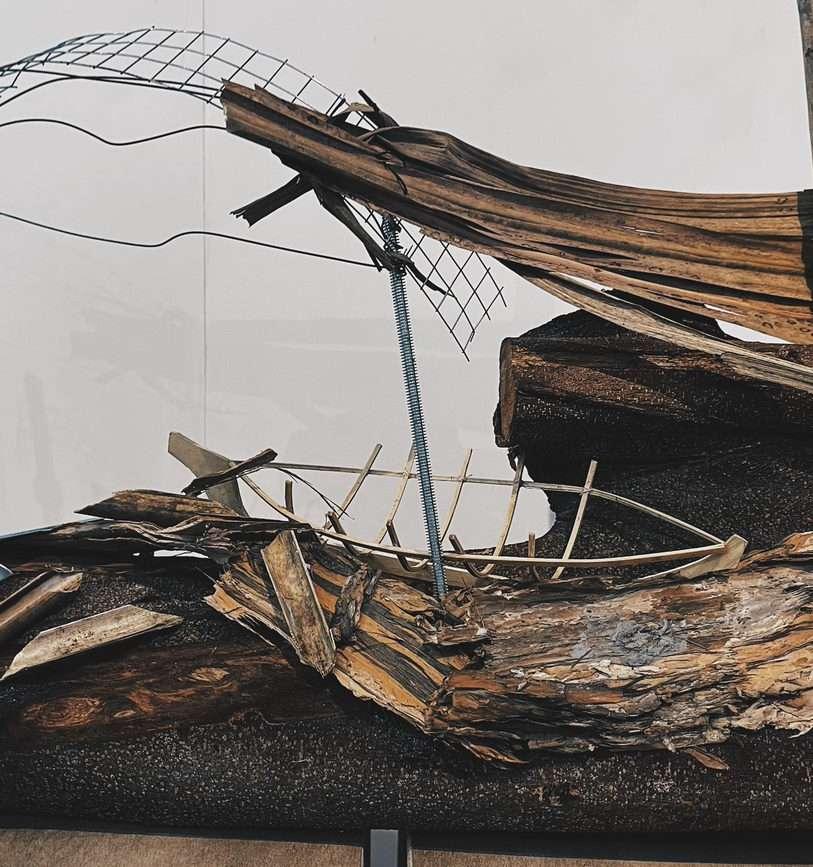

The rebar and wire mesh represents the industrialisation that engulf the precious heritage. Modernisation has shifted the boat making industry making it a sunset business today.
In summary, the idea of this piece is to pay tribute to the art of traditional boat making.

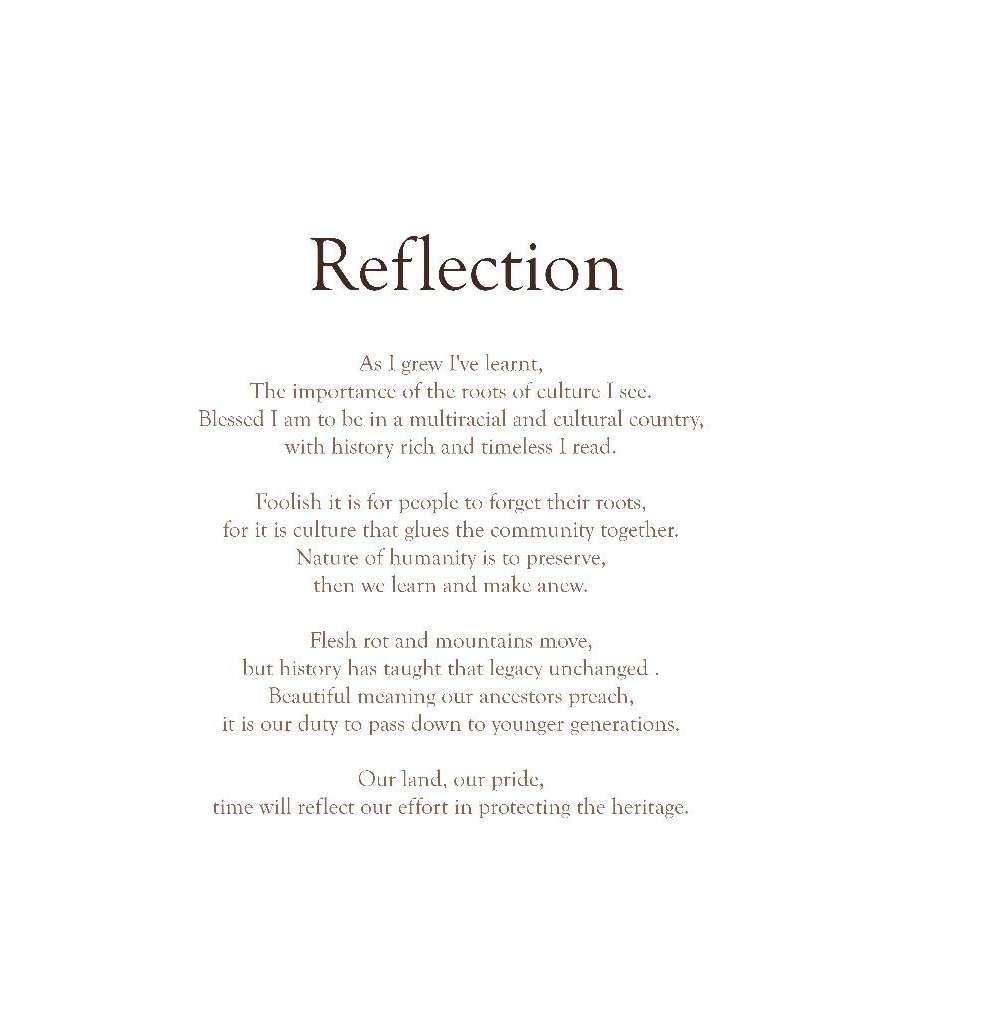

After all a reflection is needed to see through the importance of boat making especially in Marang history.
S I T E A N A L Y S I S

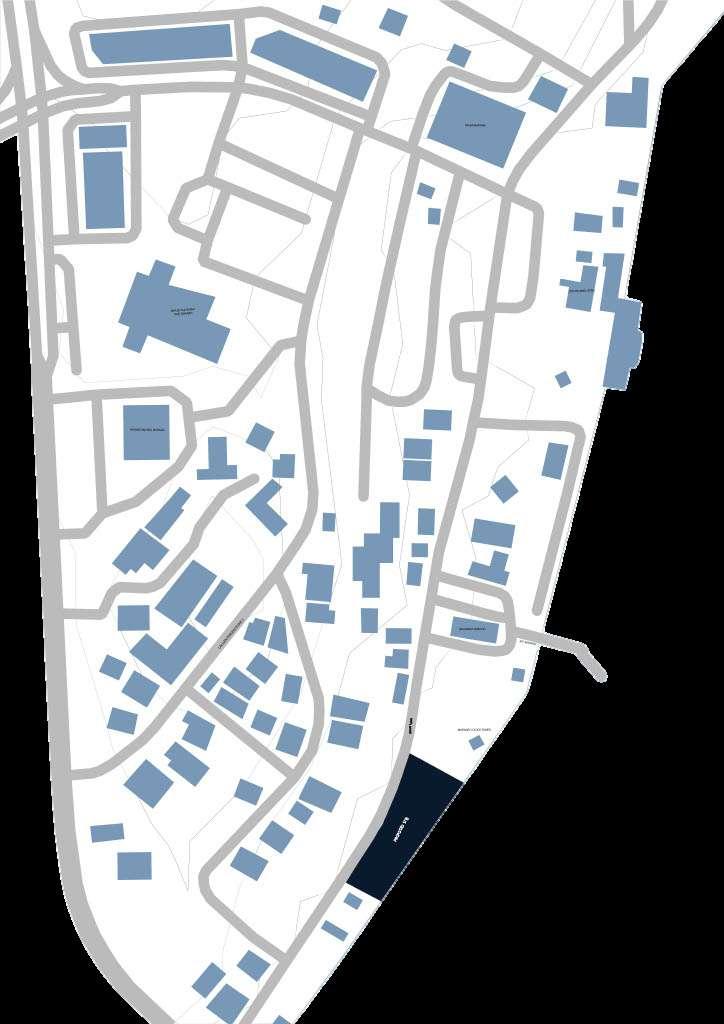

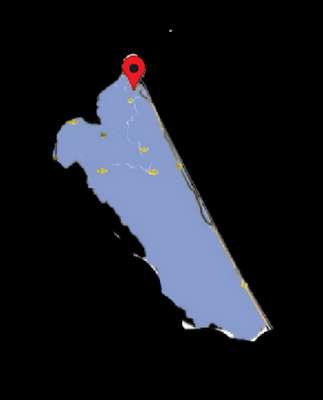

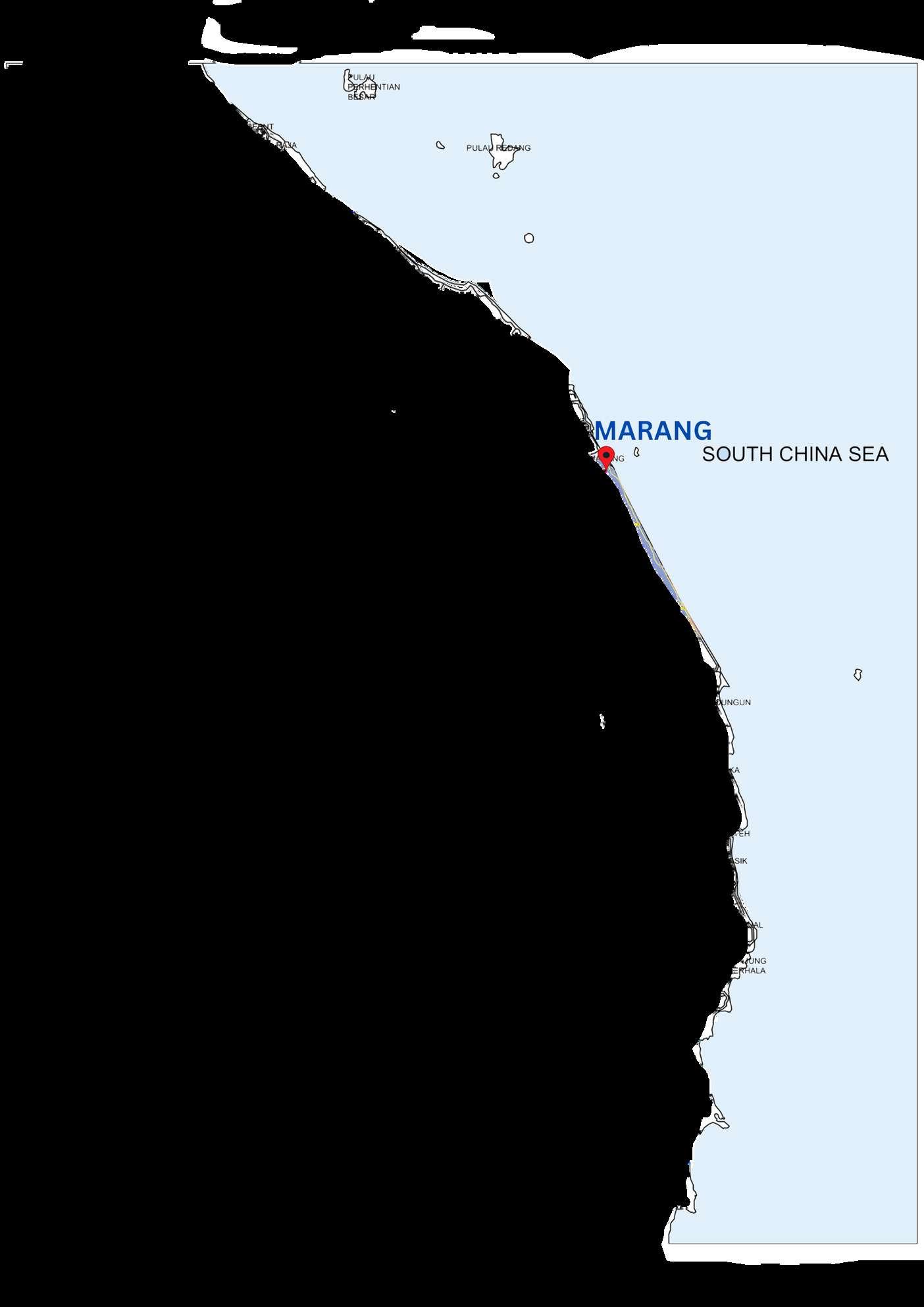

KEY PLAN NTS LOCATION PLAN 1:1000
DISTANCES FROM PROPOSED SITE TO OTHER PLACES

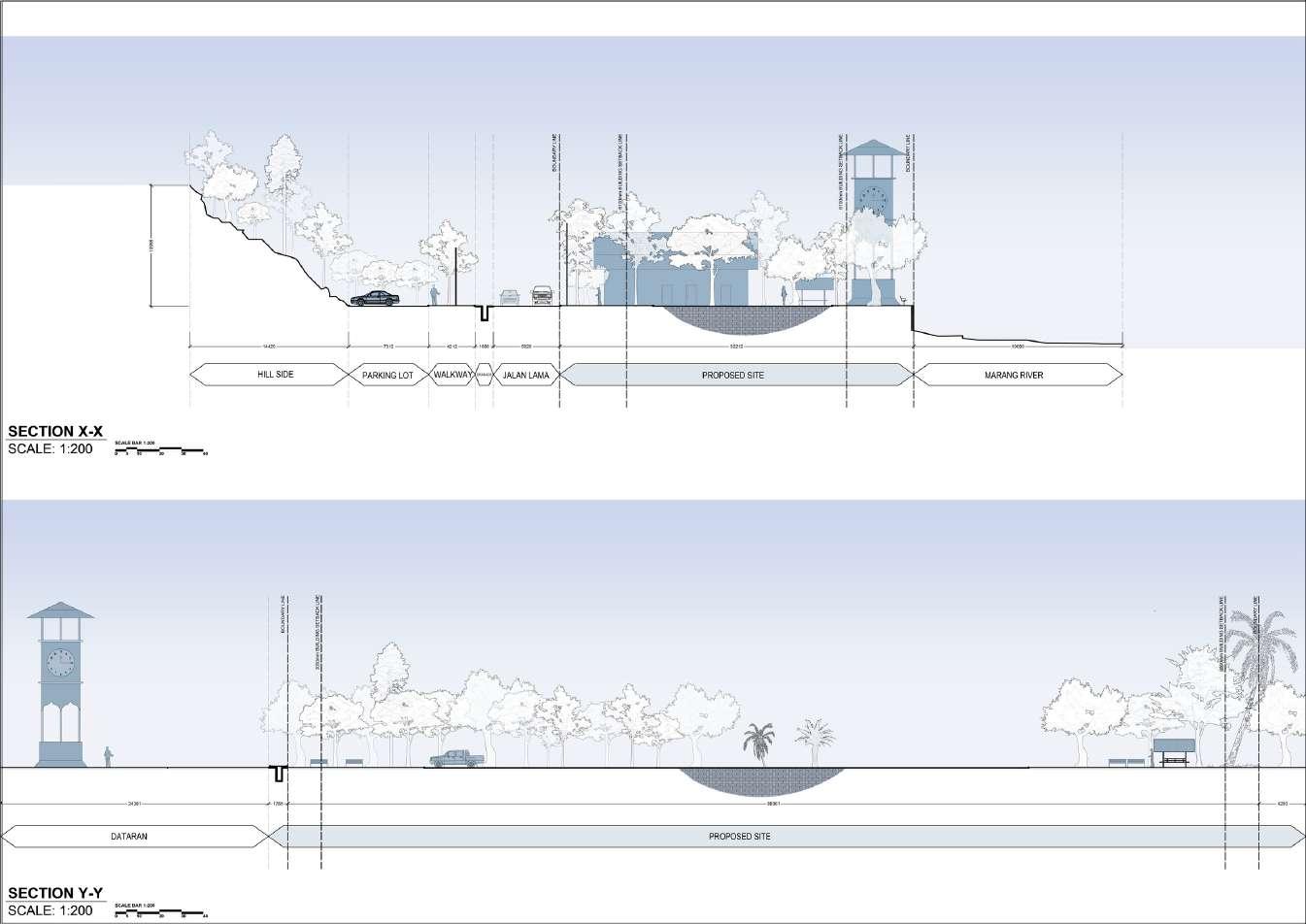

SECTIONX-X

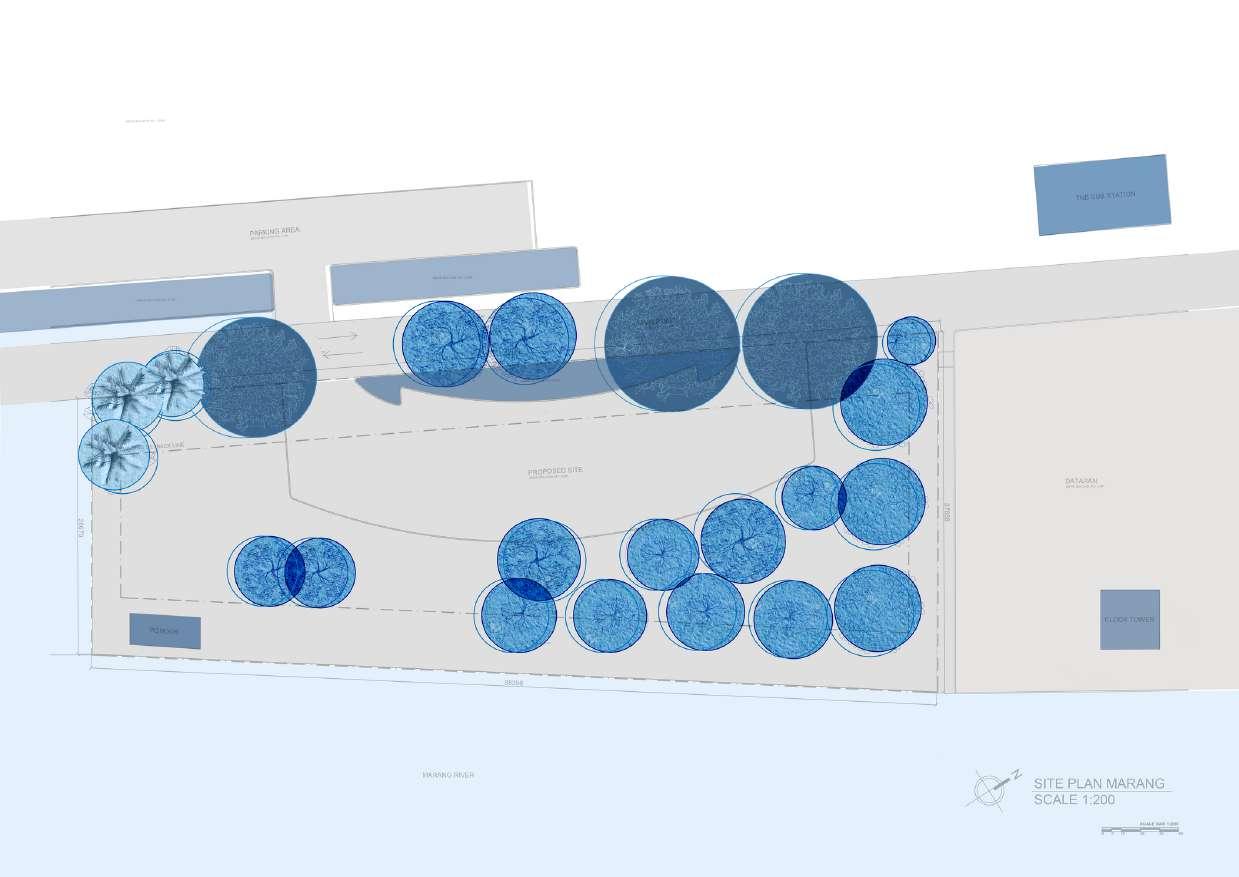

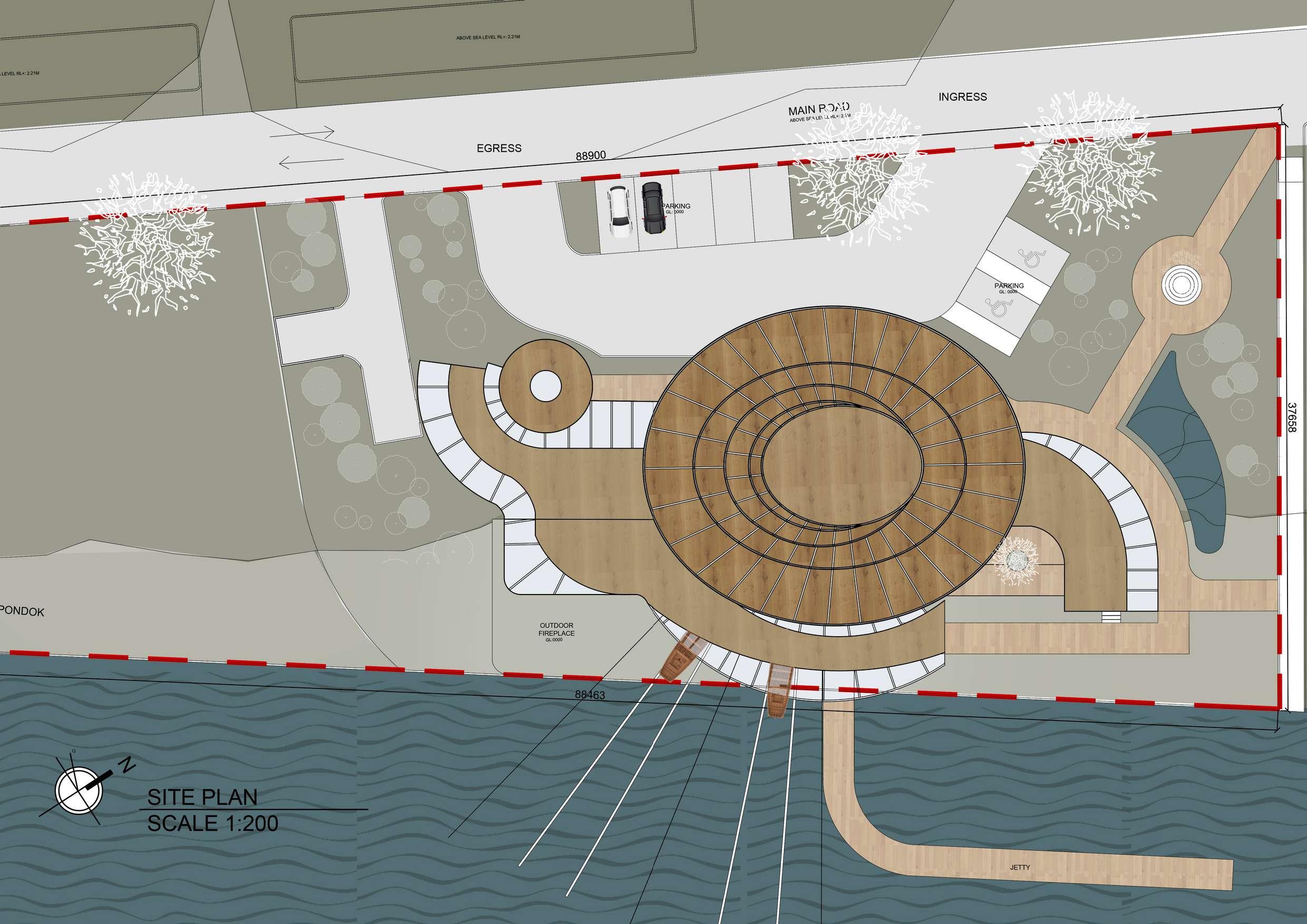

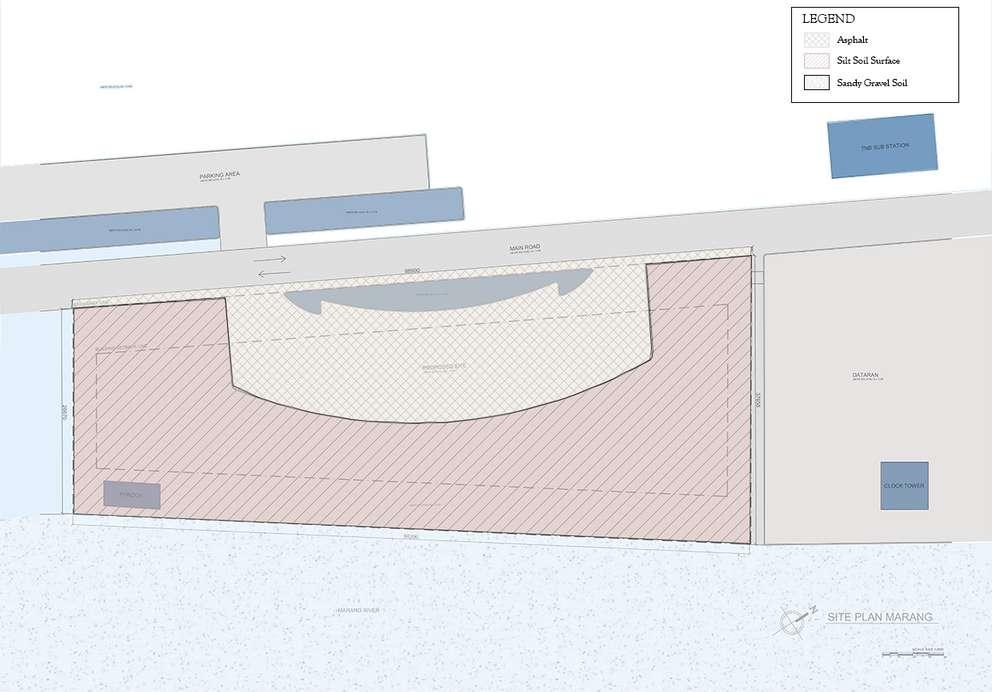

SITEPLAN 200 1 2 3 ROAD SOCIALIZE TRANSPORTING STROLL Therearecitizenstalking aroundandobservingthe environment Carsandmotorbikesgoing hereandtherearoundthe neighbourhood Peoplewalkingmostly passesthroughdataranto
gosomewhereelse

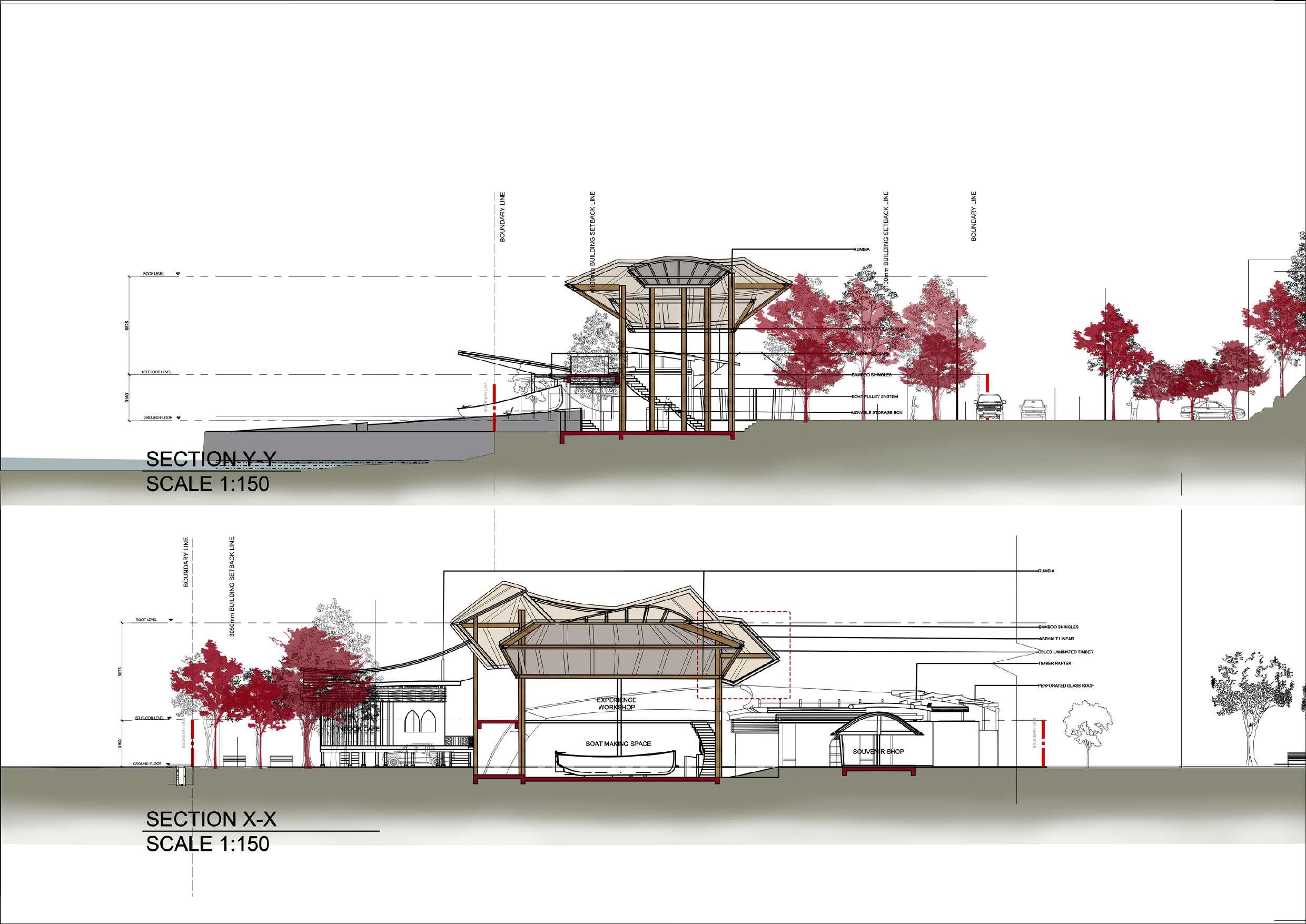

SECTIONY-Y 1:200

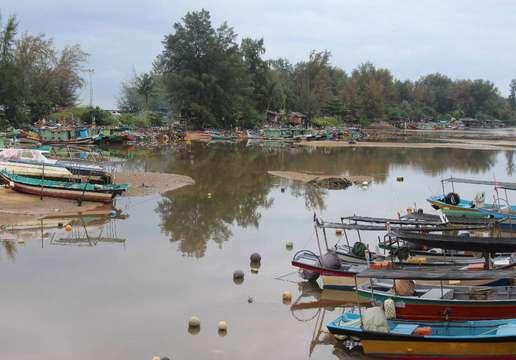

PROPOSED SITE

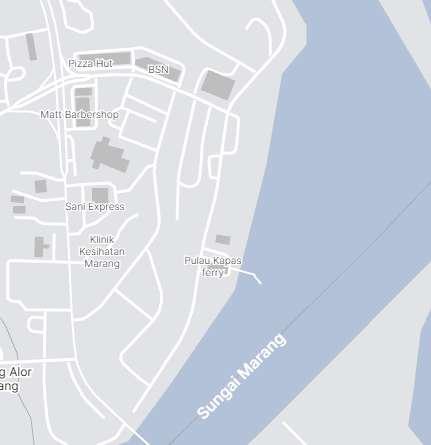

LOCATION PLAN N.T.S.
OYOPelangiHotel Pelangi Hotel (231 93m)
BoatService Surau Marang Clock Tower (62 06m)
Perhentian Bas (271.48m)
Masjid Sultanah Nur Zahirah (320 77m)
Jeti Marang Pulau Kapas (120 88m)
Kompleks LKIM Marang (133 62m)
Pasar Marang (369 79m)
KFC (458.53m)

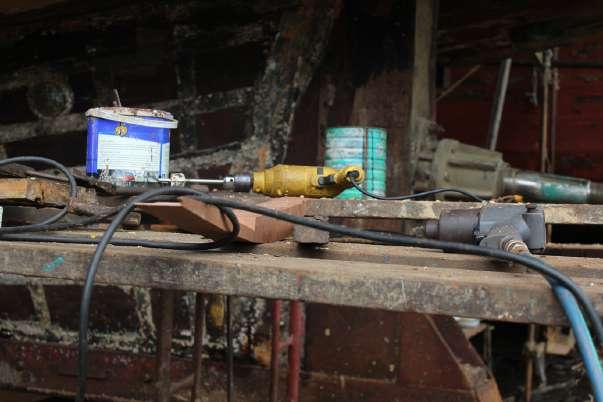

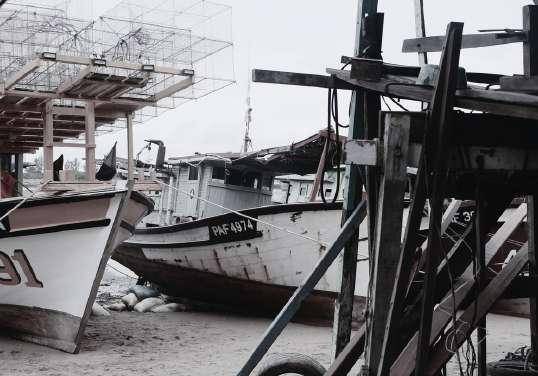

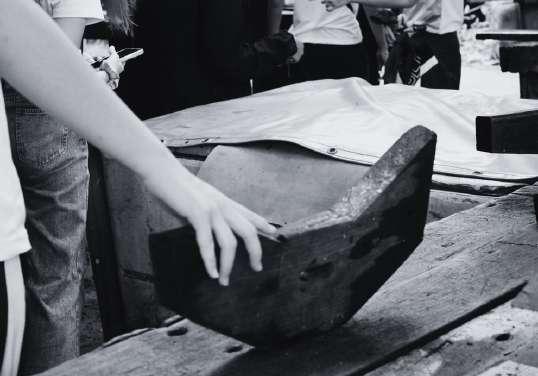

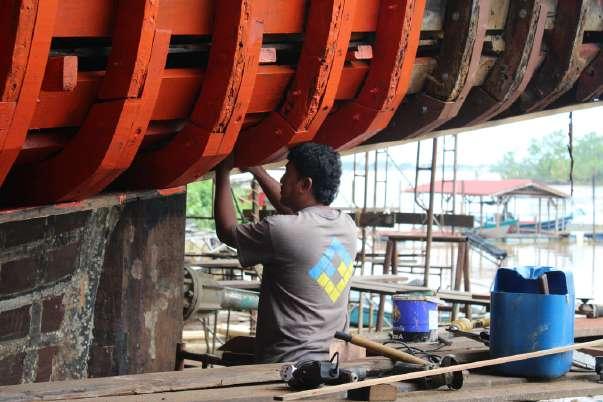

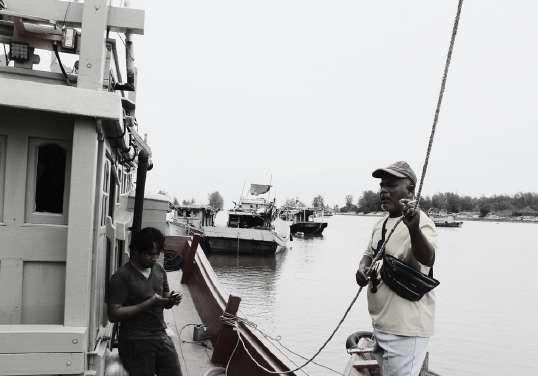

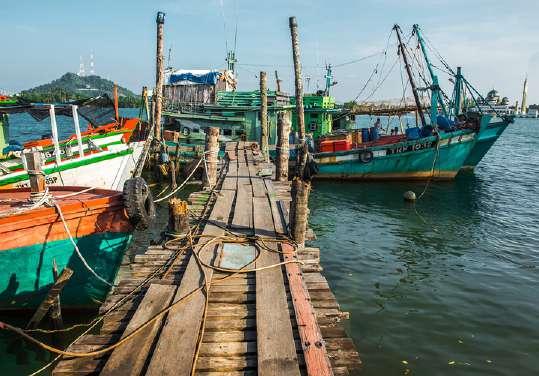

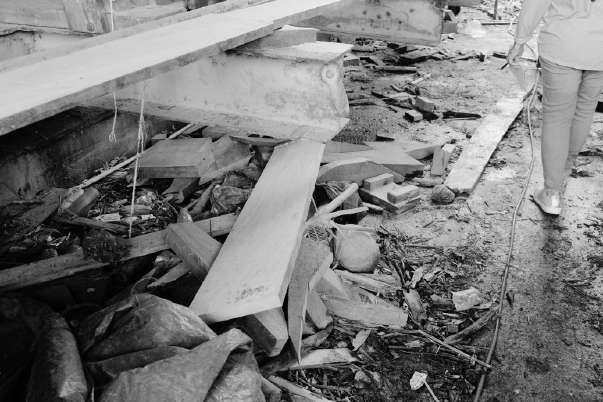

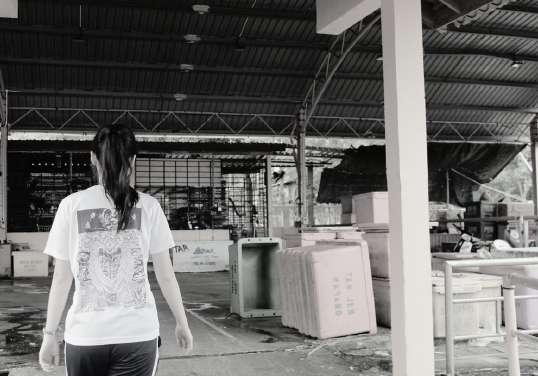

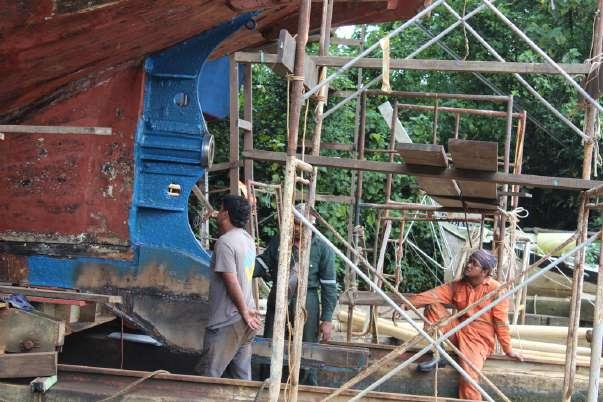

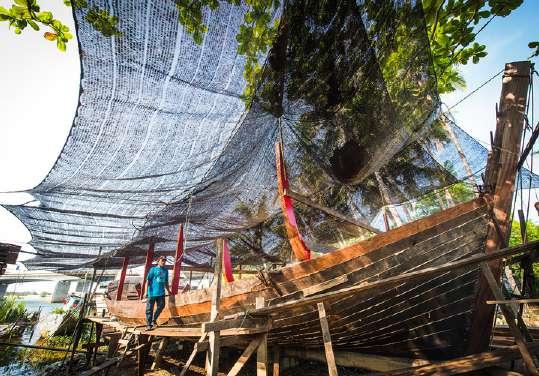

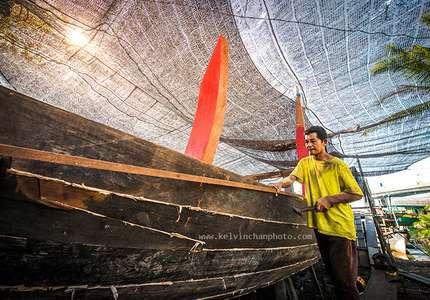

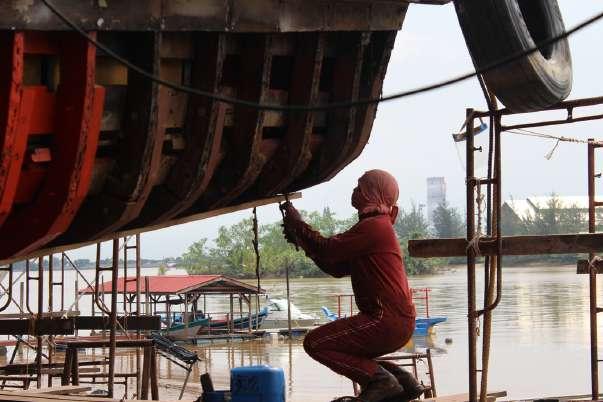

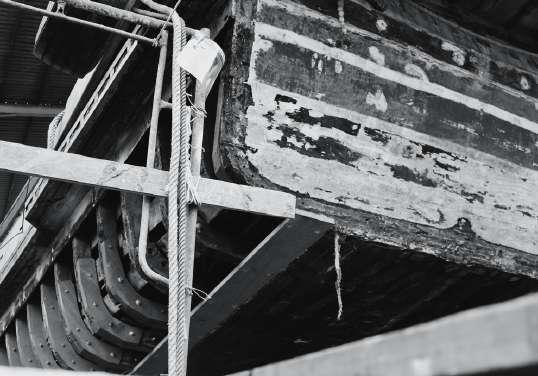

Site visit analysis: at boat making place in Kuala Terengganu
Activities:

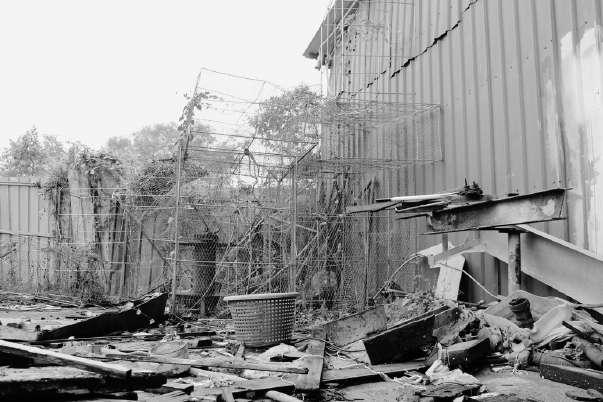

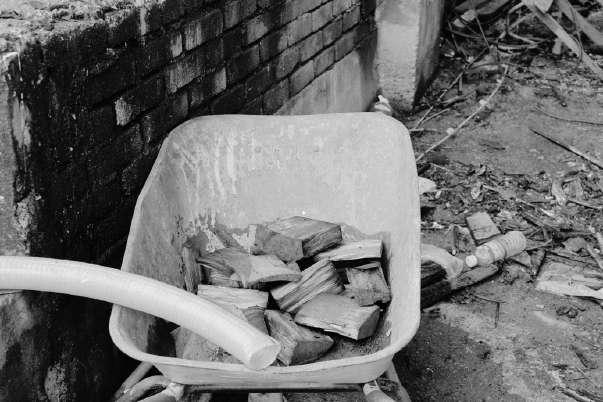

Condition: (messy, dirty, dusty)

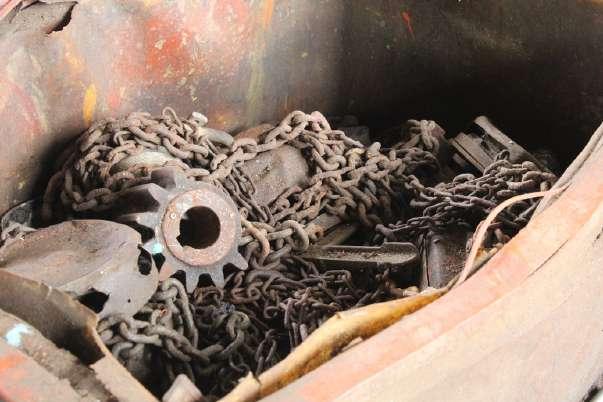

Object: (parts of boat, equipment)
E S I G N I N T E N T I O N
D
S I T E R E S P O N S E
L
E N T E R A
Lentera, just like its name, represents the new light of the boat making culture in Marang.
The project is a public building designed for the community of Marang. It functions and serves as a boat making education hub which aims to prosper and glorify the traditional heritage of boat making.
The malay boat making skill is hands-on and they normally do not have drawings of the boats hence the skillset is passed down to generation which makes this heritage even more precious.
The site visit to Marang has renewed my perspective. The people there has welcomed us with open arms which broke the barrier between one and another. Hence in return, I’d like my project to return the positivity and energy that the Marang community truly deserve.

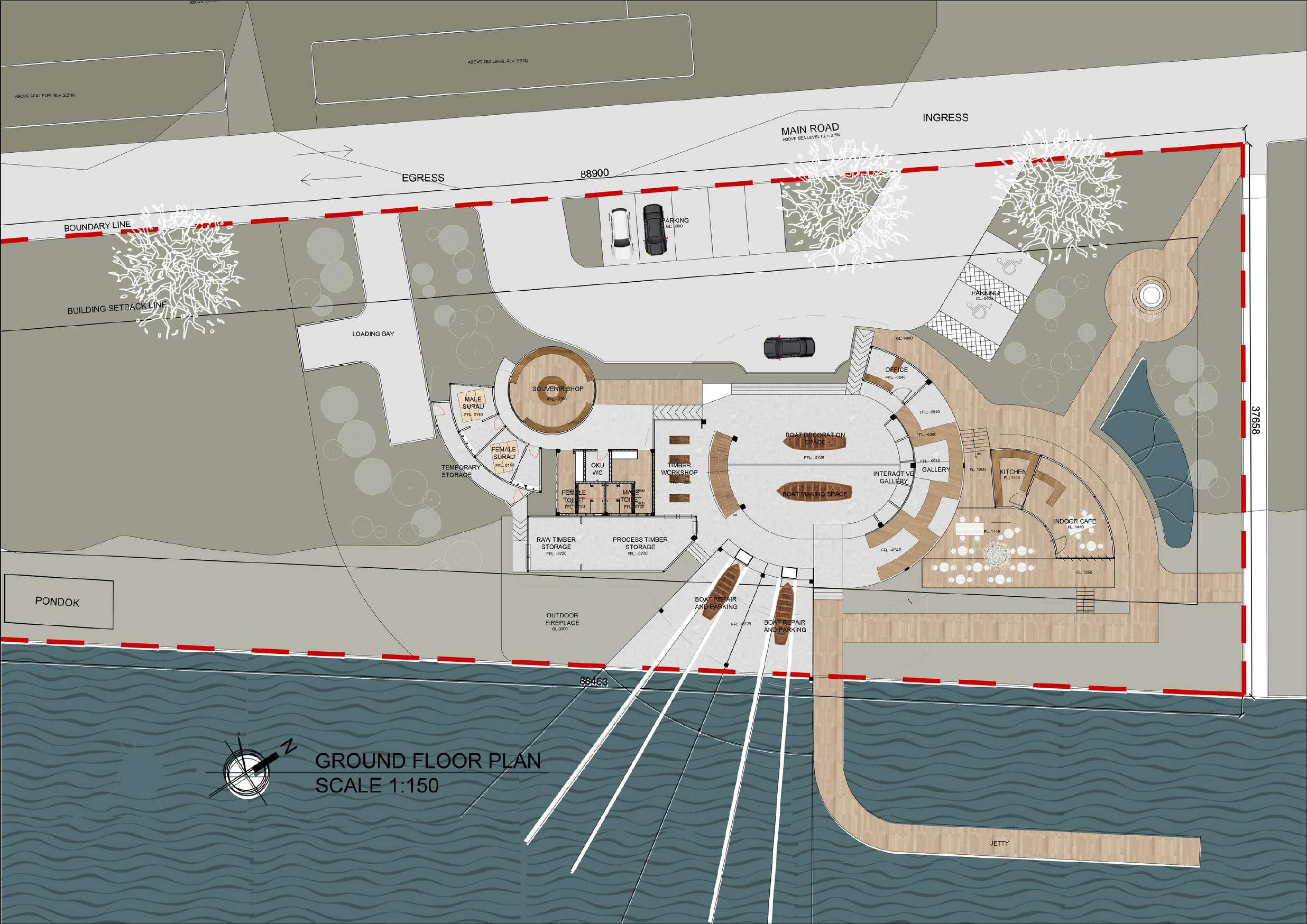

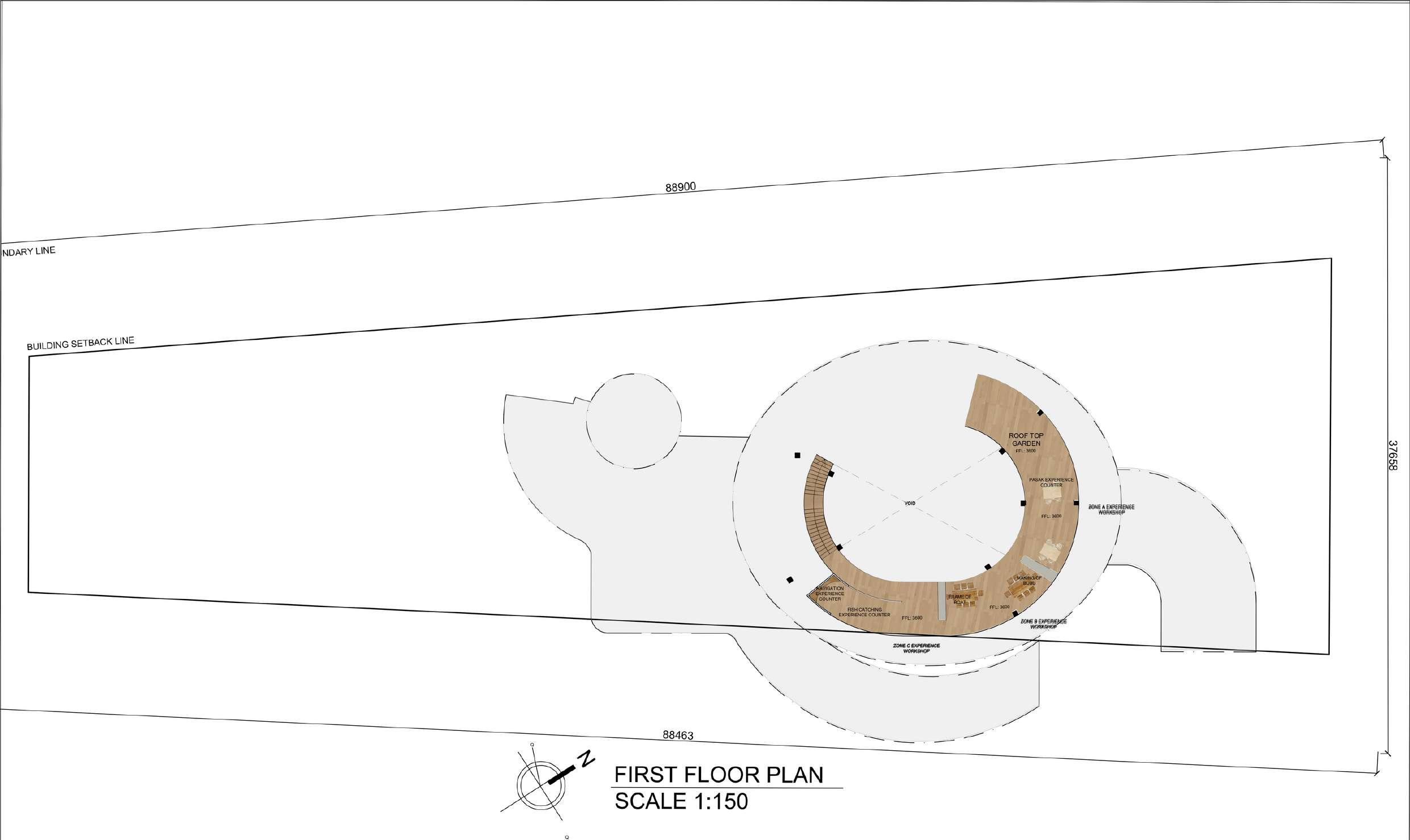

Design development

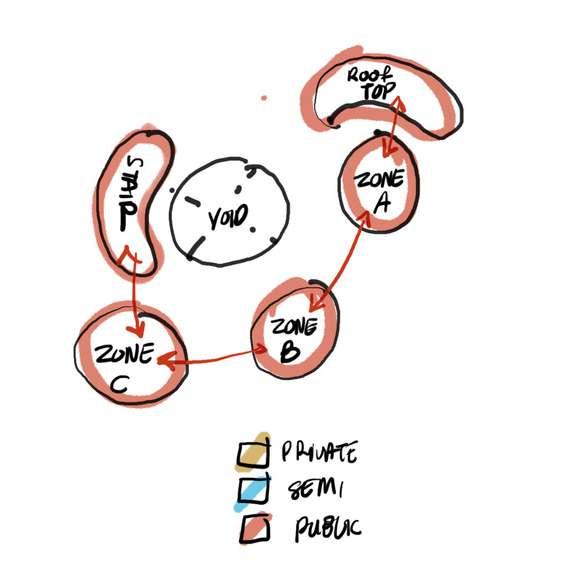

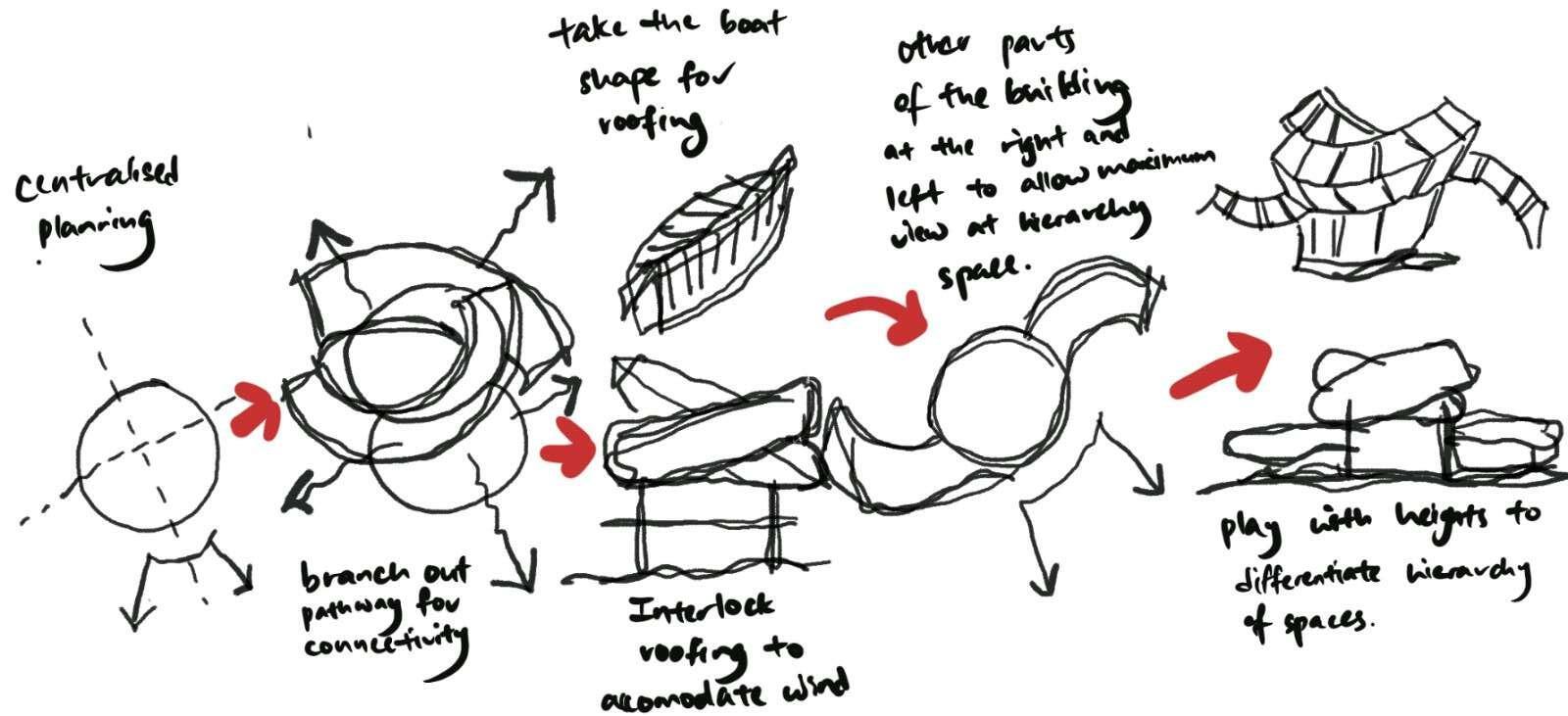

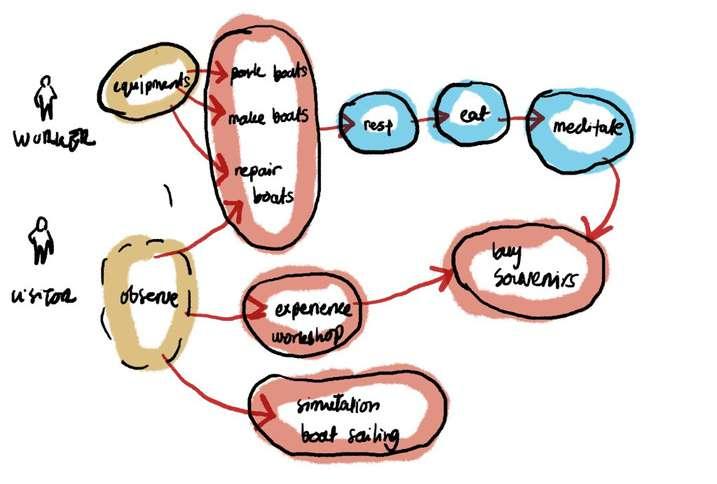

Bubble diagram direct indirect
User flow diagram

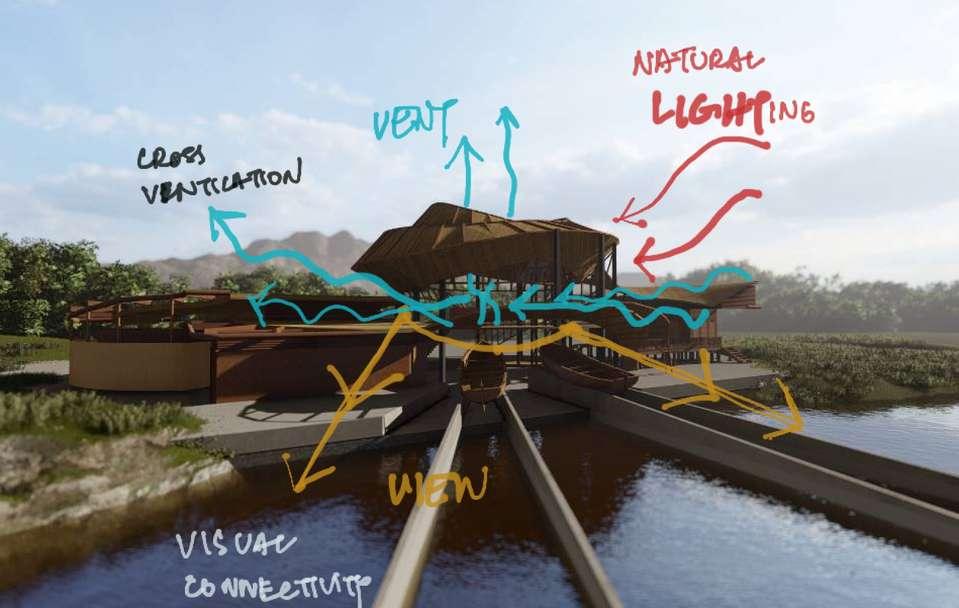

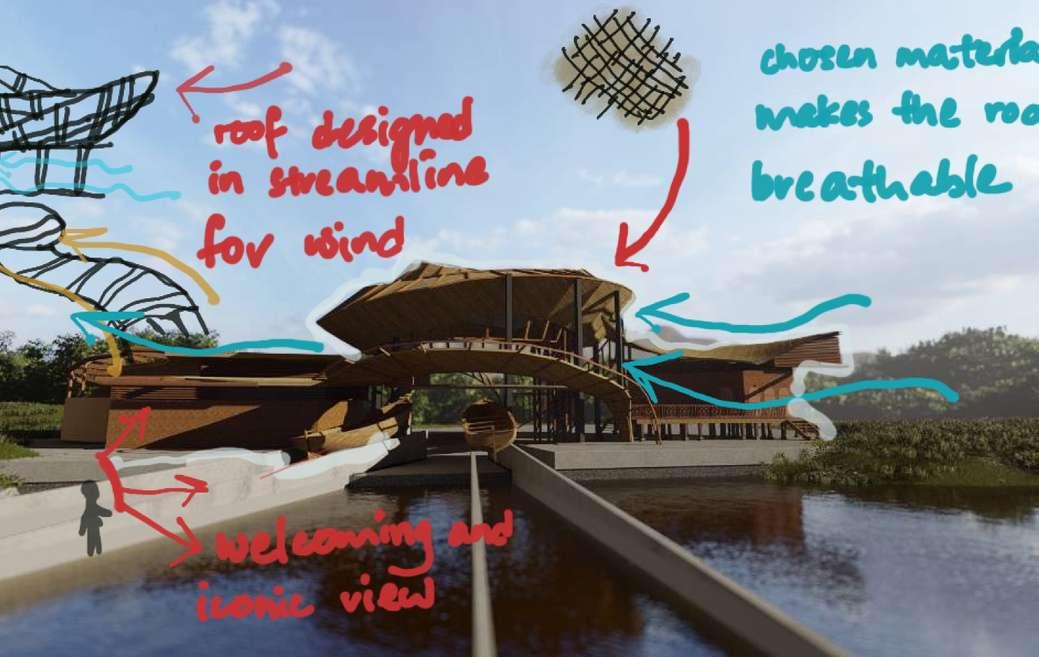

Quality space

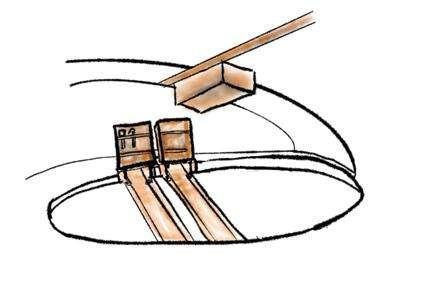

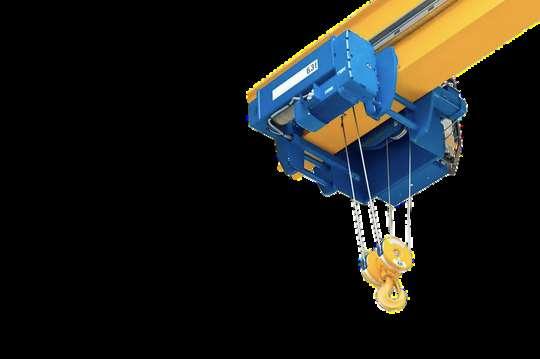

Overhead crane
Mechanical used to carry heavy object
Movable storage box
Mechanical used to help boat makers organise their tools
Wood carving portray Malay traditional
Dust collection point

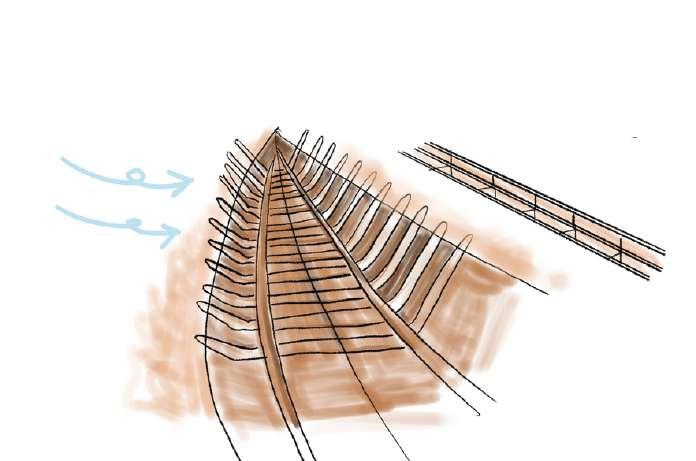

Withtheunderstandingofwind direction,properchannellingof thewindpushthedusttothe containerthatmakesthe collectionofwooddusteasier

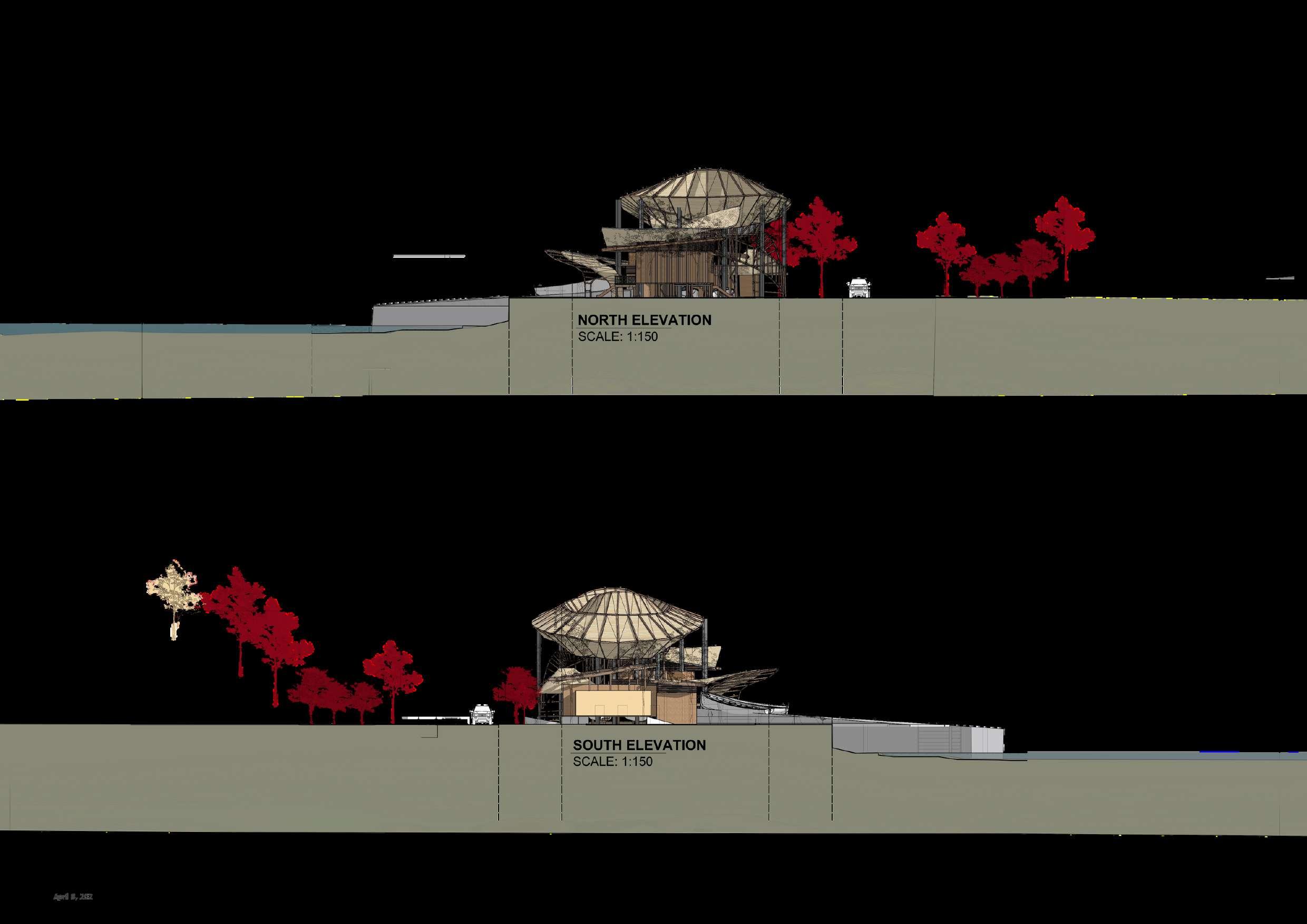

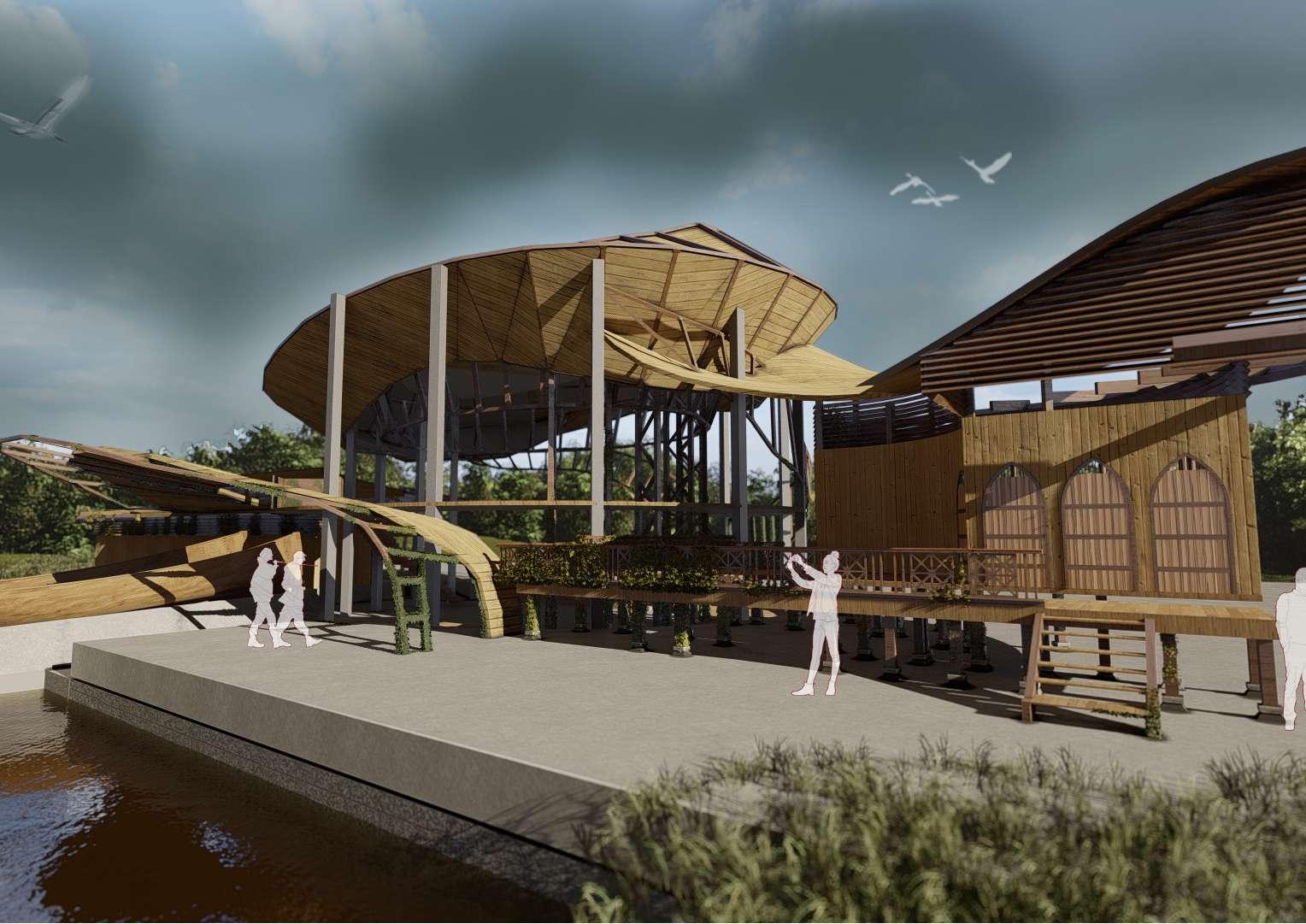

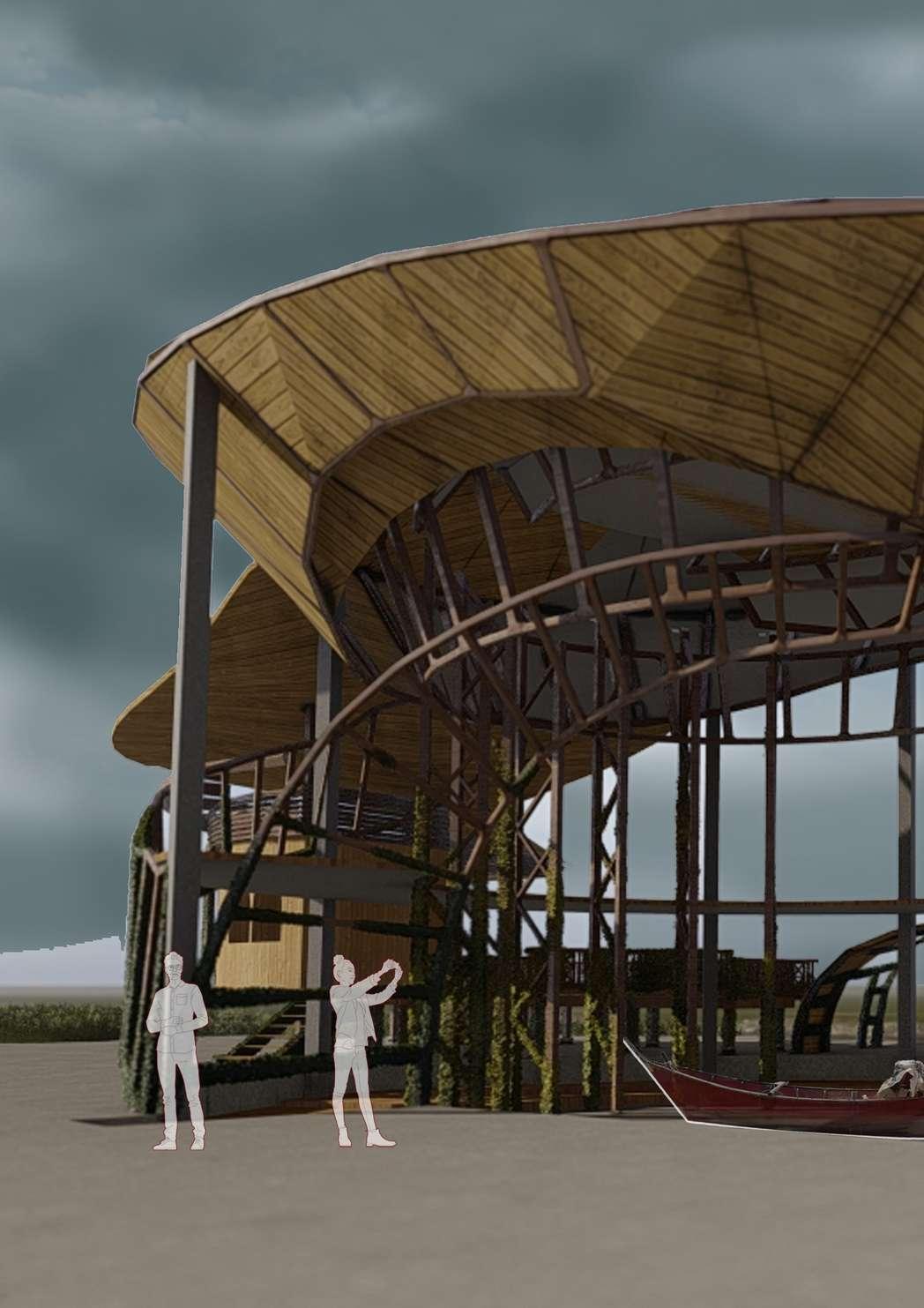

View from back, from boat repair

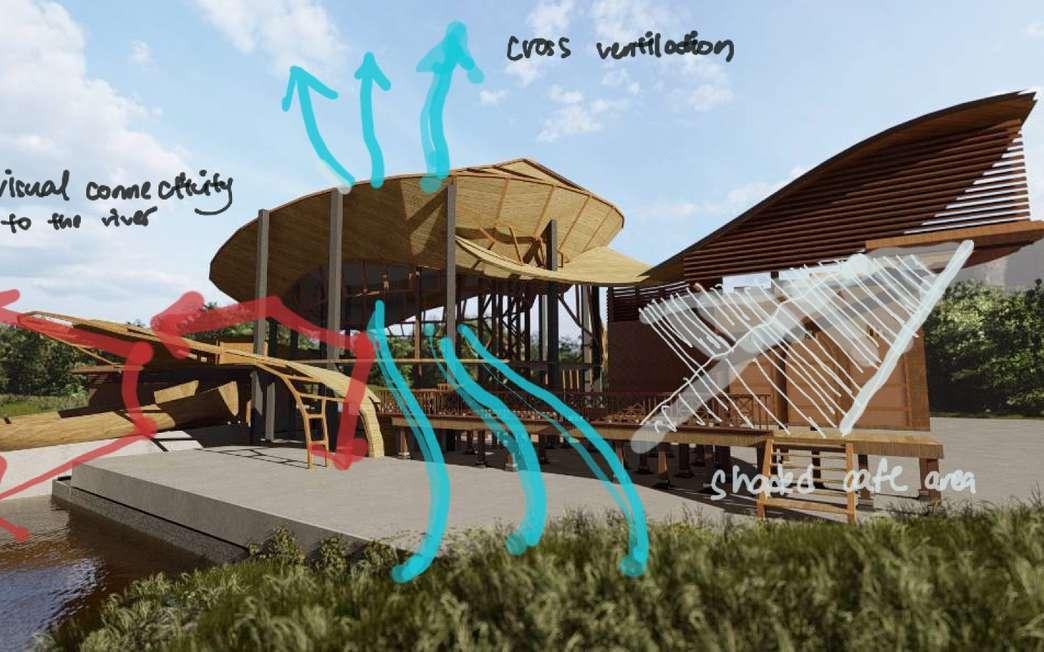

View from back, from indoor cafe

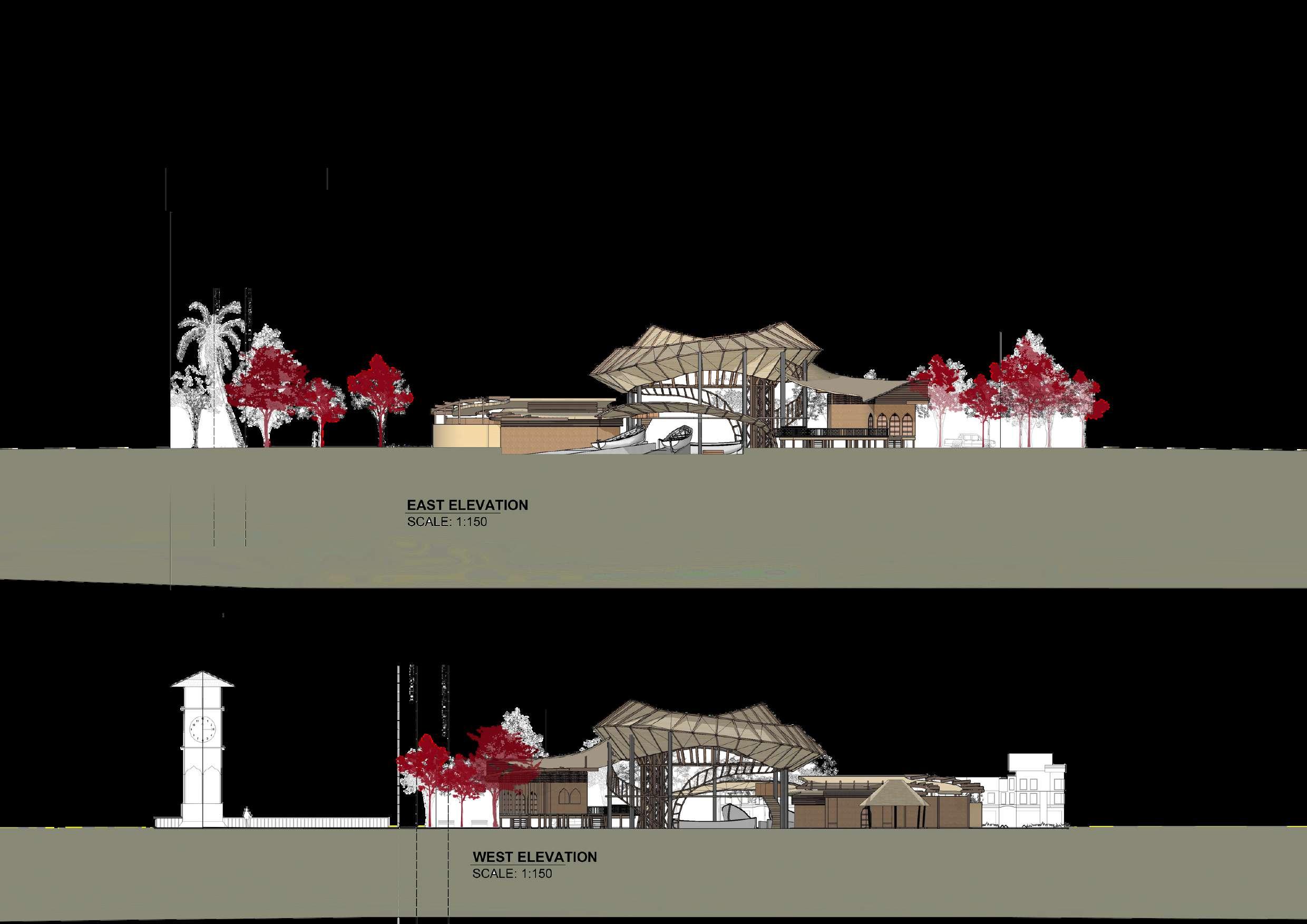

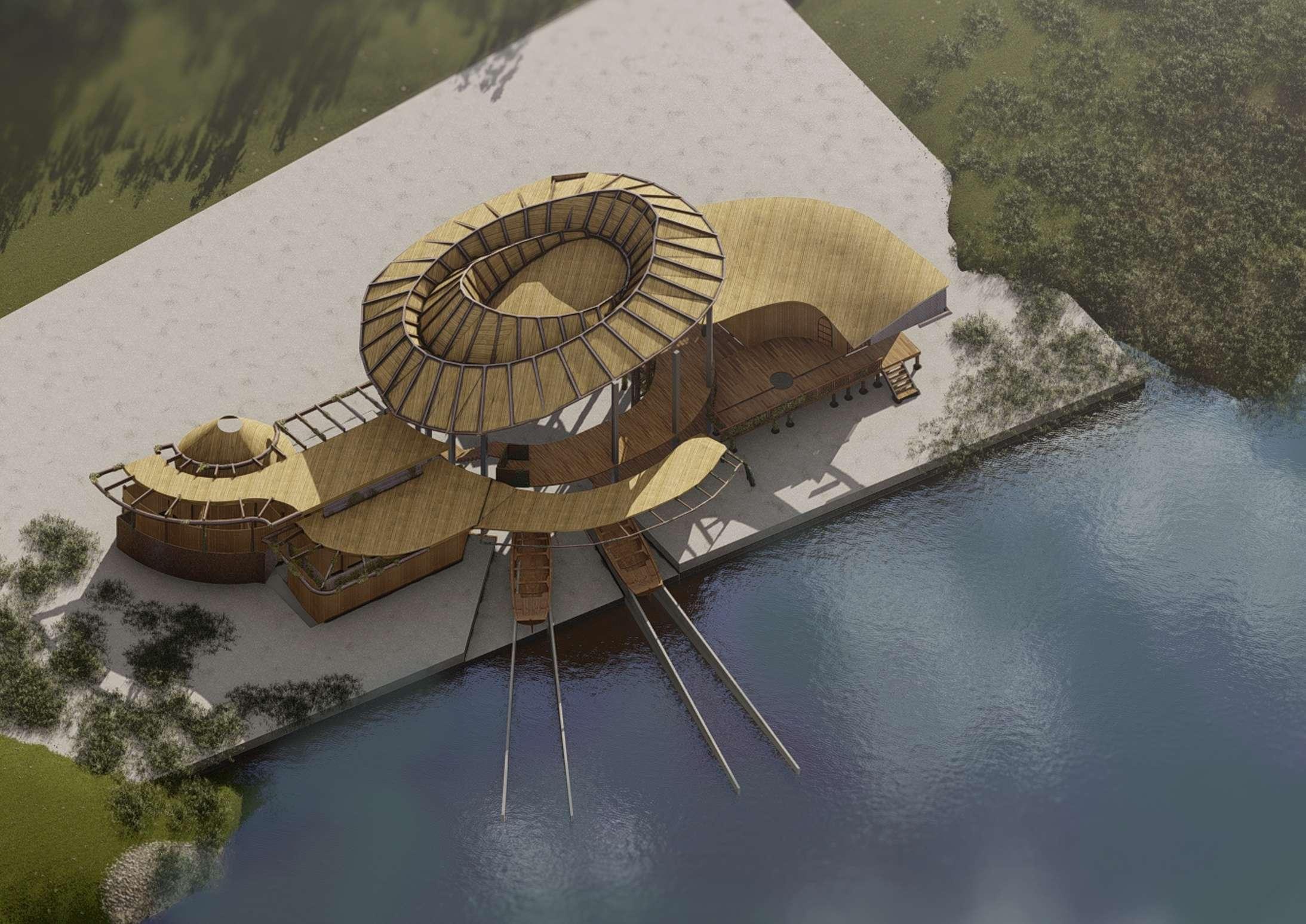

Isometric top view

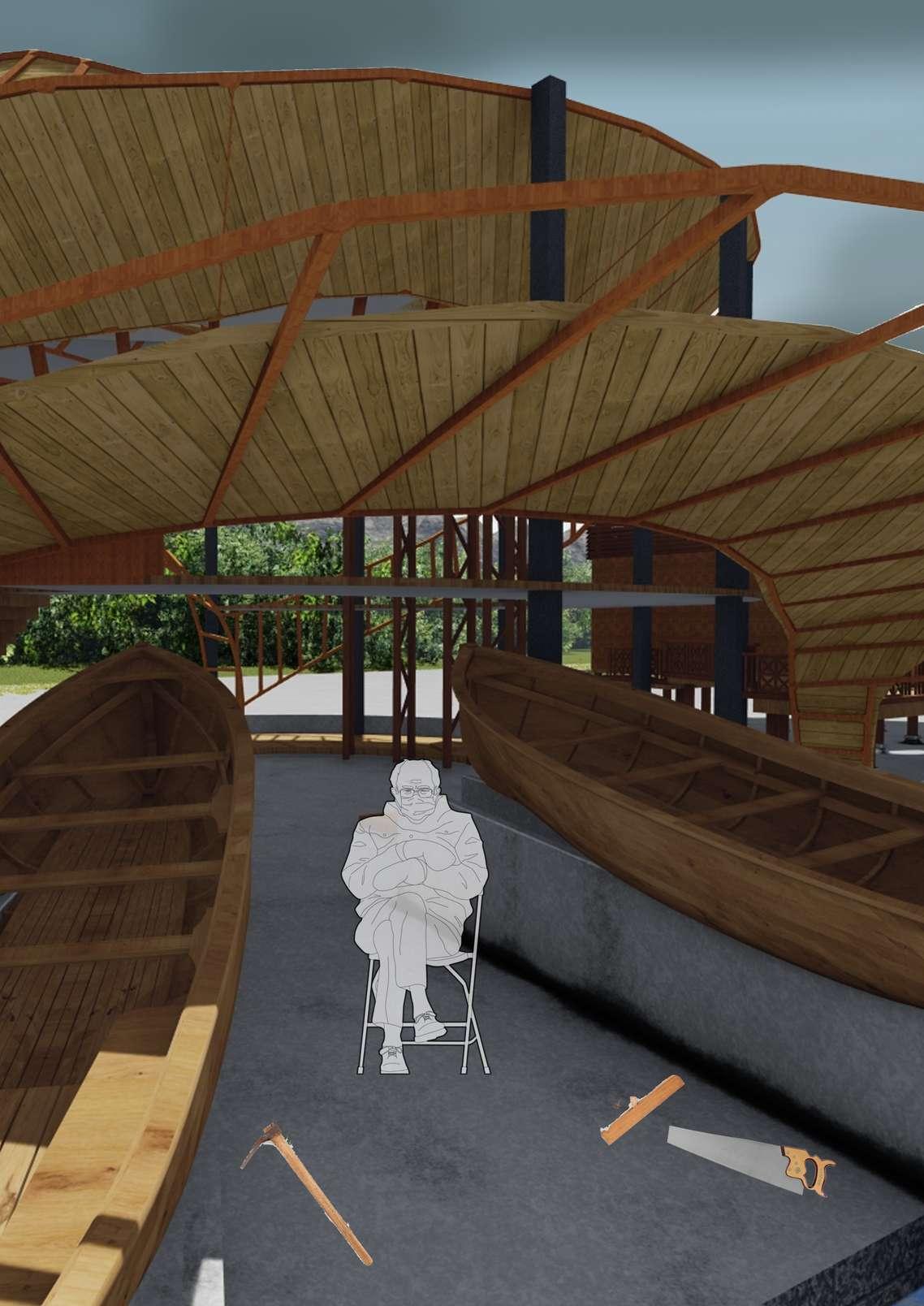

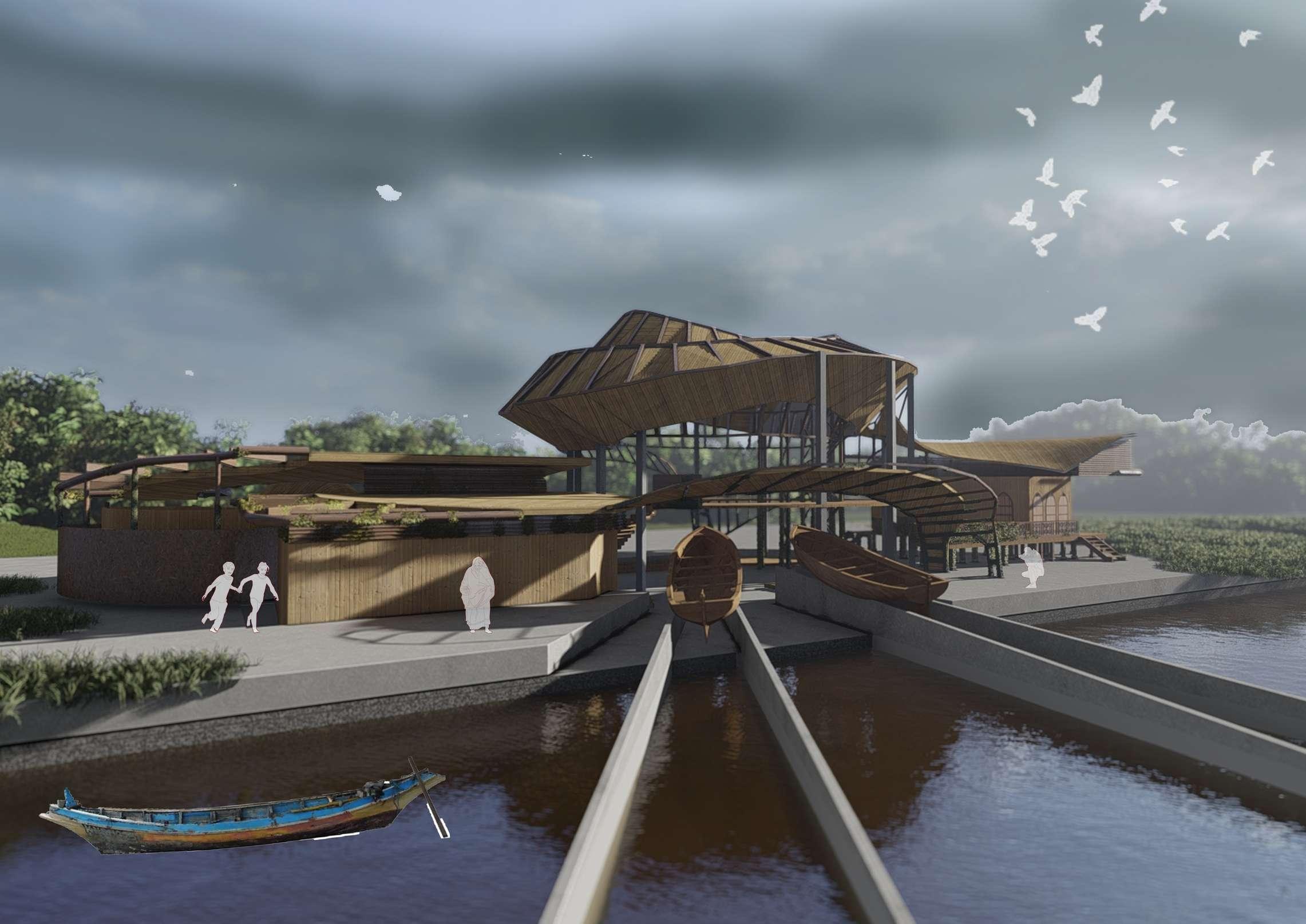

View from Boat repair
View from drop off

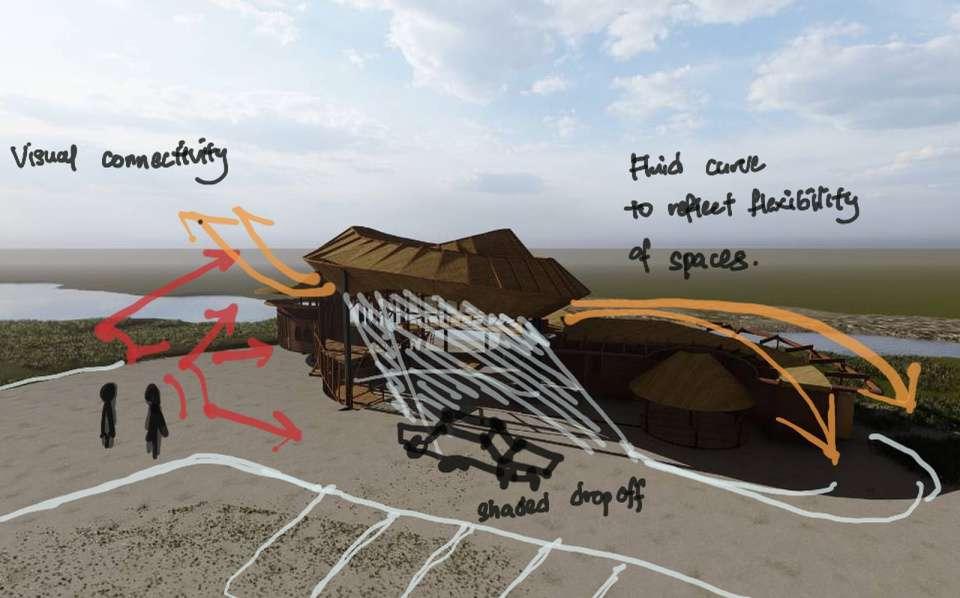

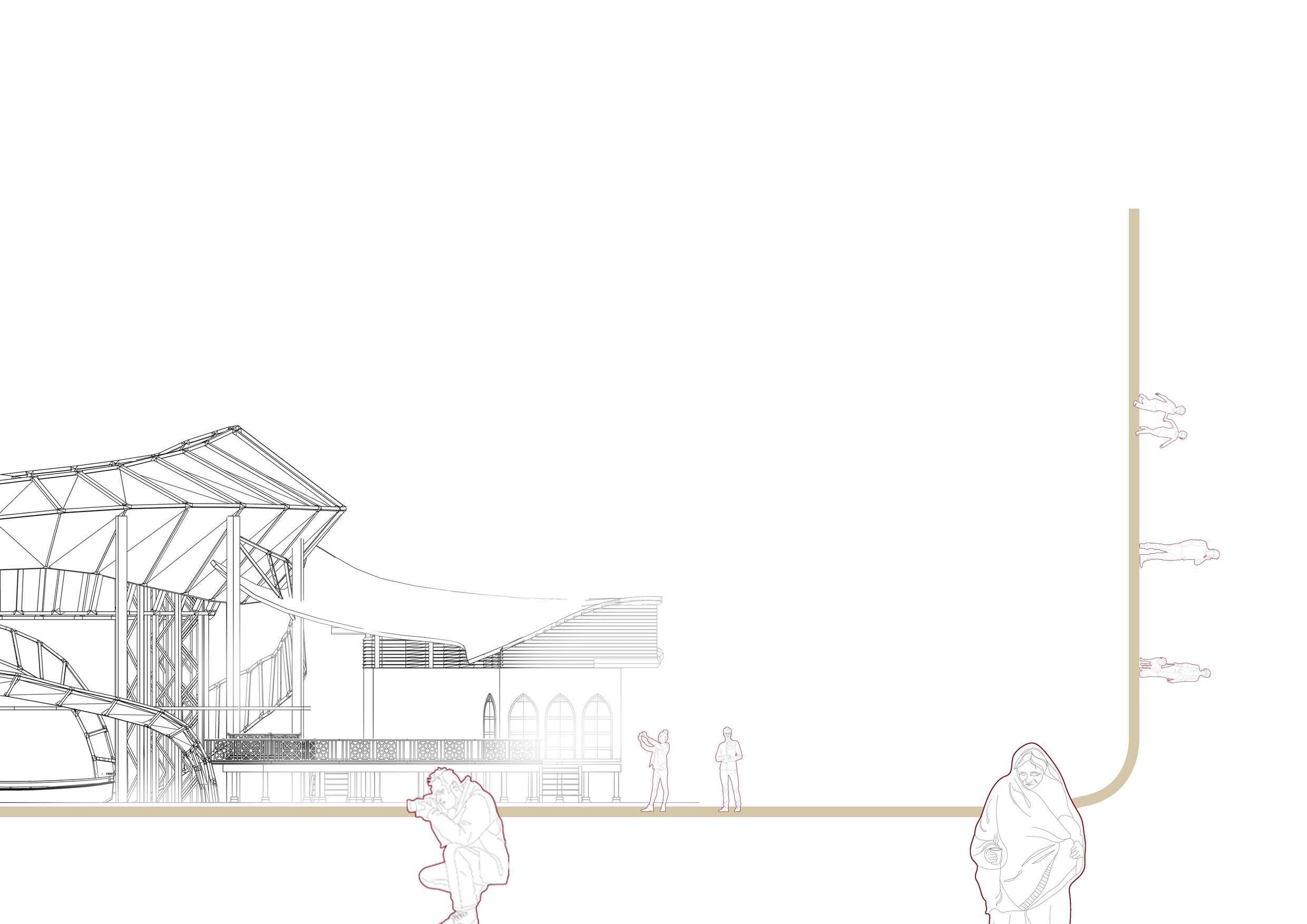

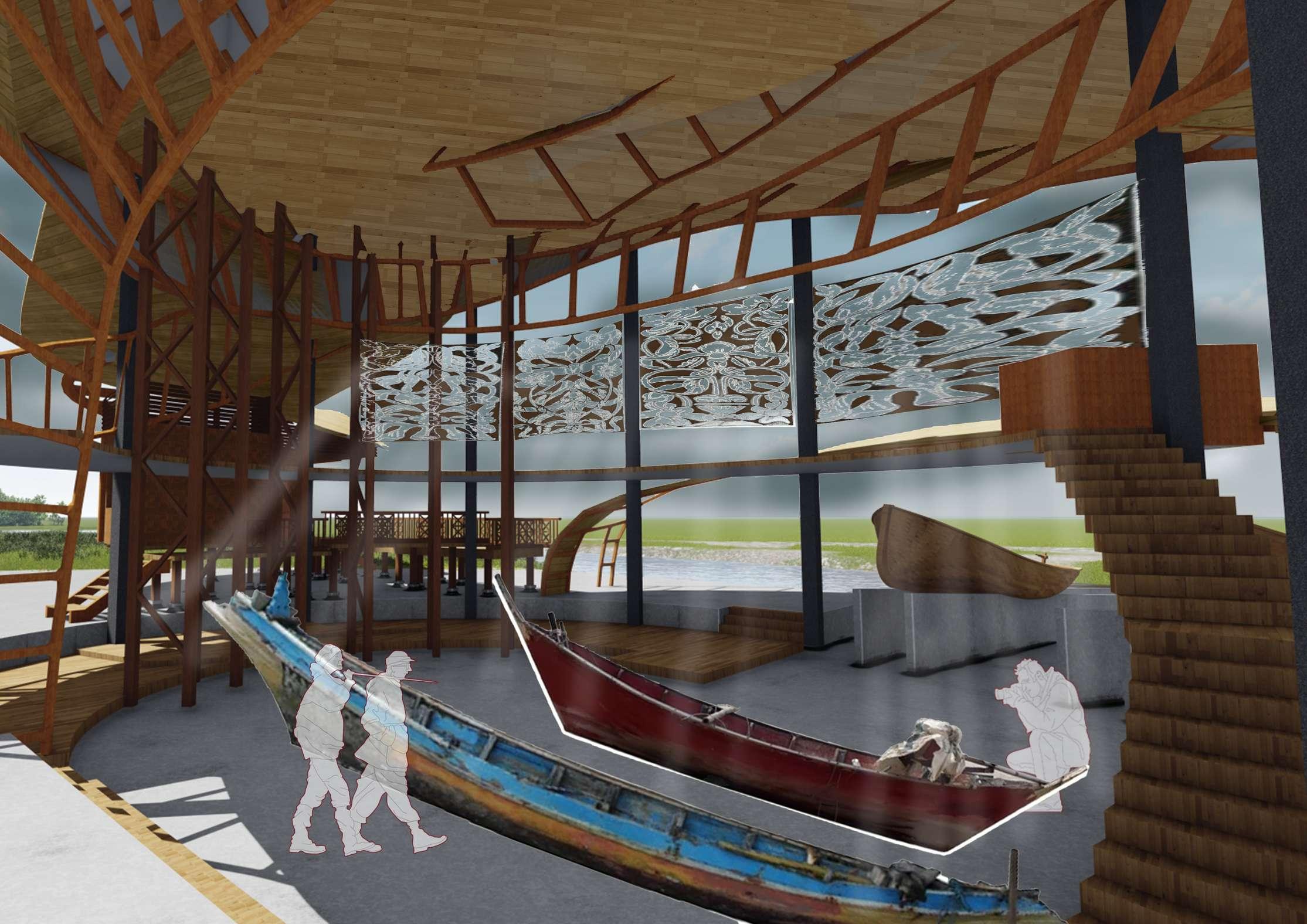

View from boat decoration and boat making; use of wood carving panels to play with shadow and light

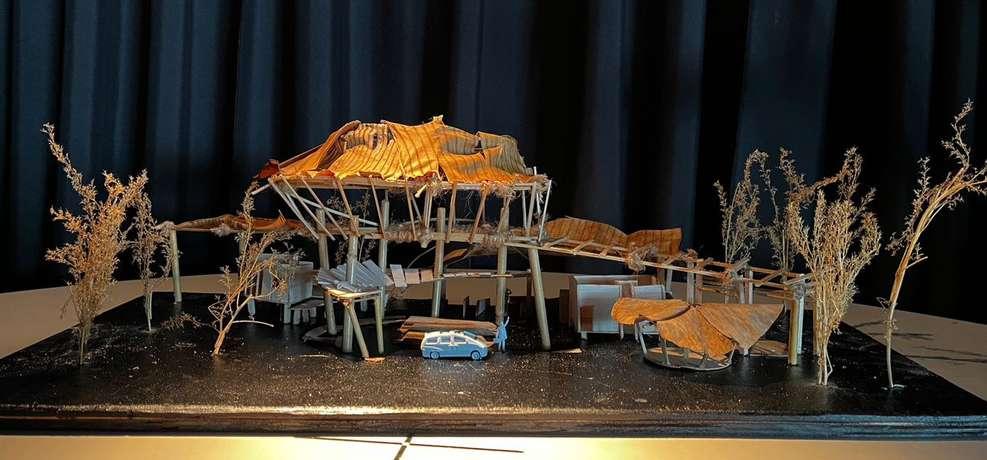

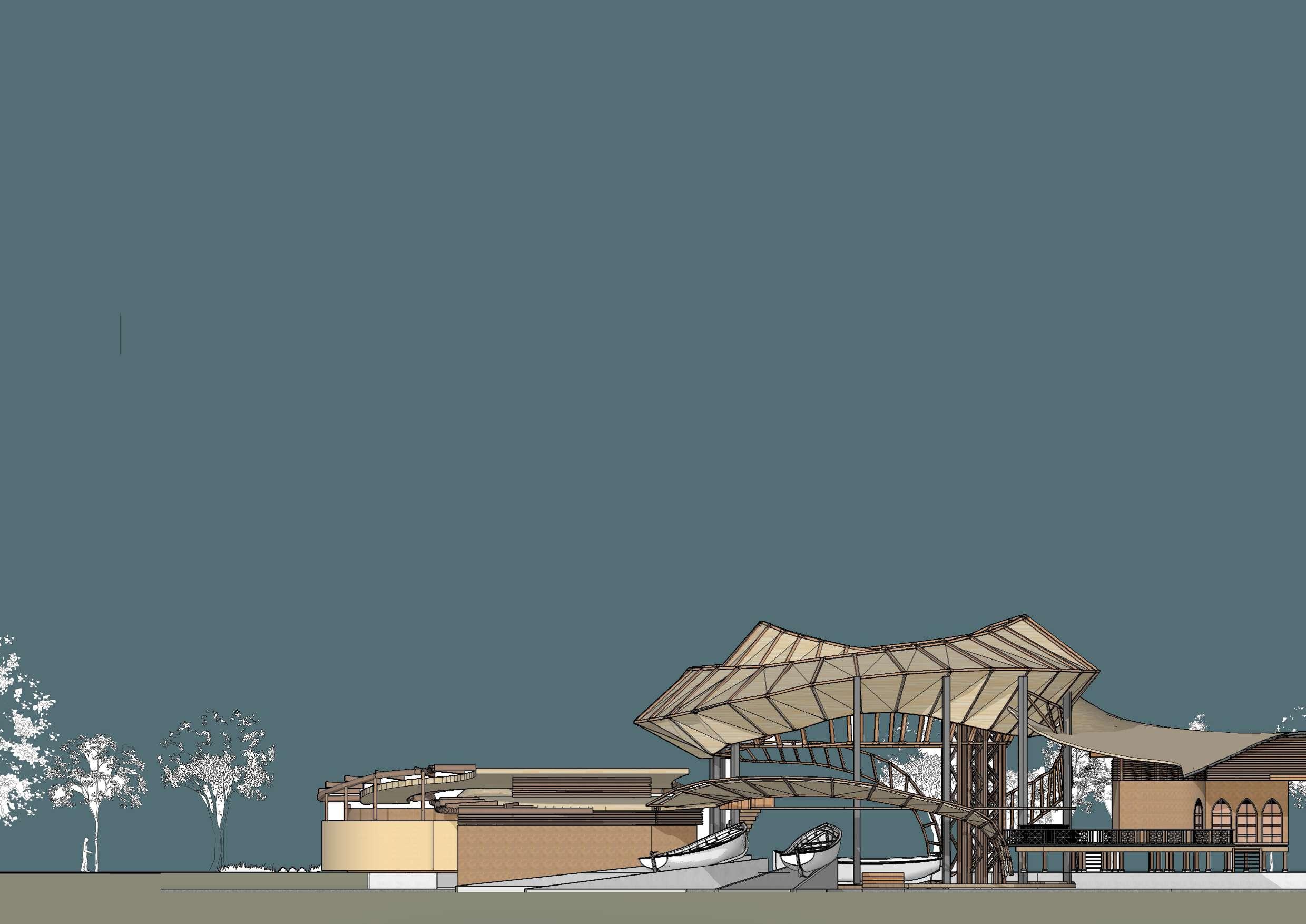

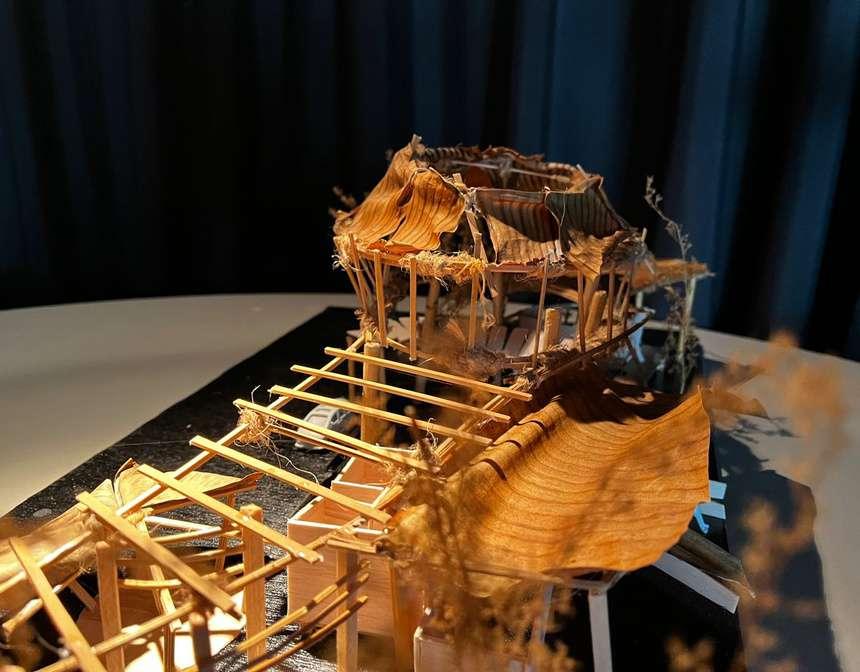

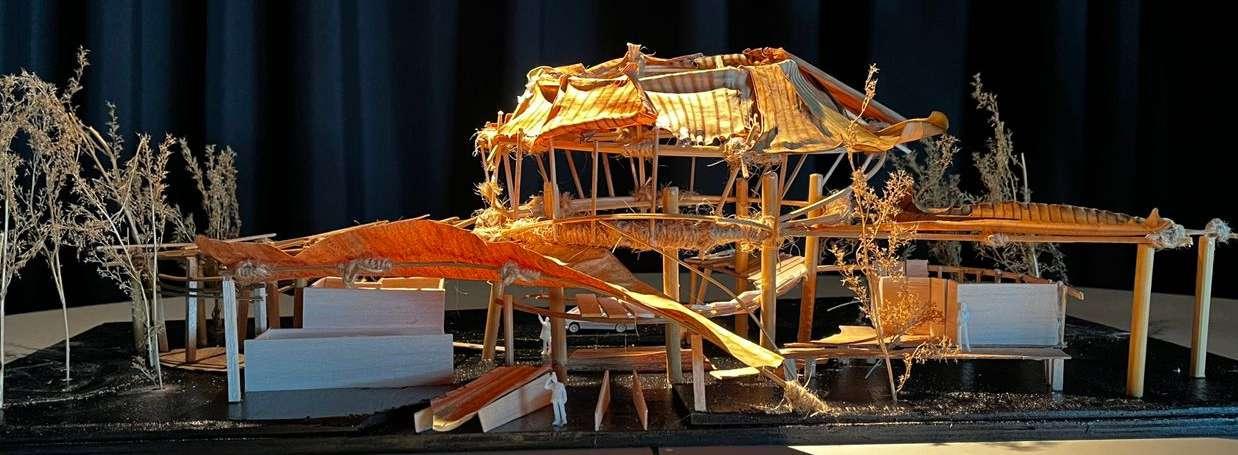

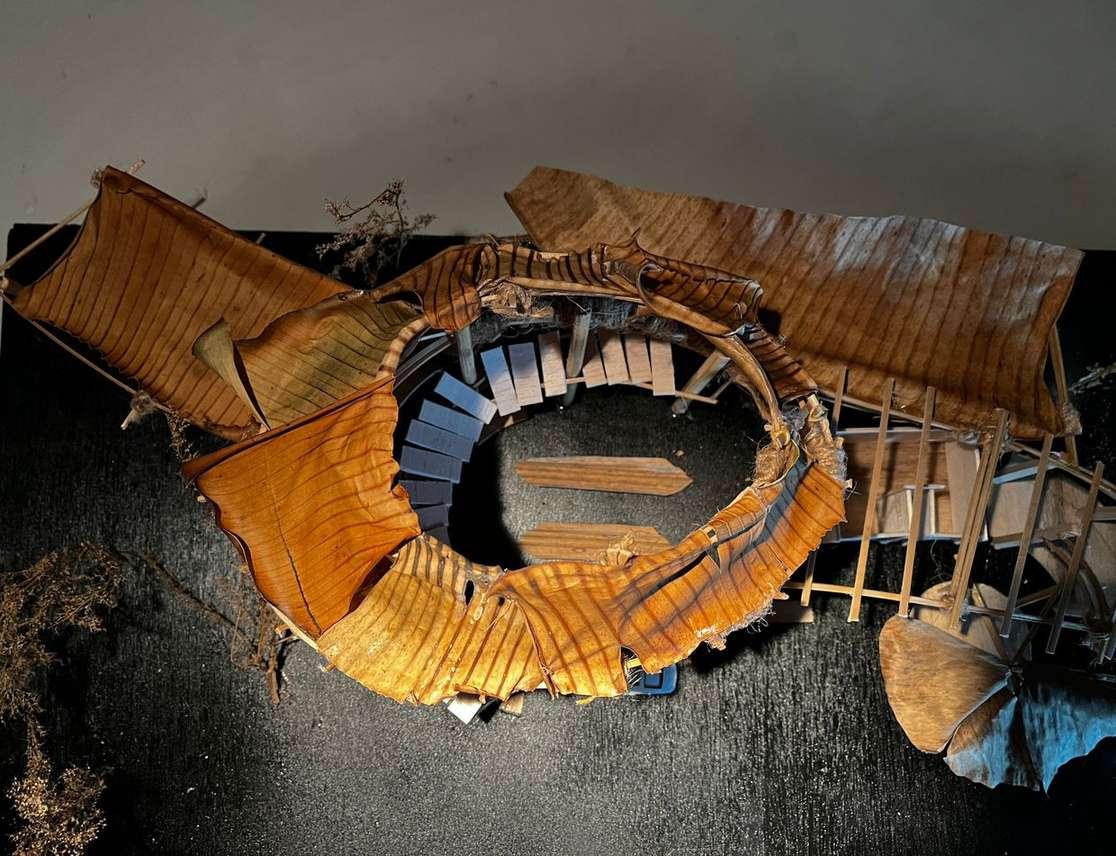

Final model
Final model
materials
Rumbia
Sustainable
Glulam
Asphalt linear
Bamboo shingles
Main column

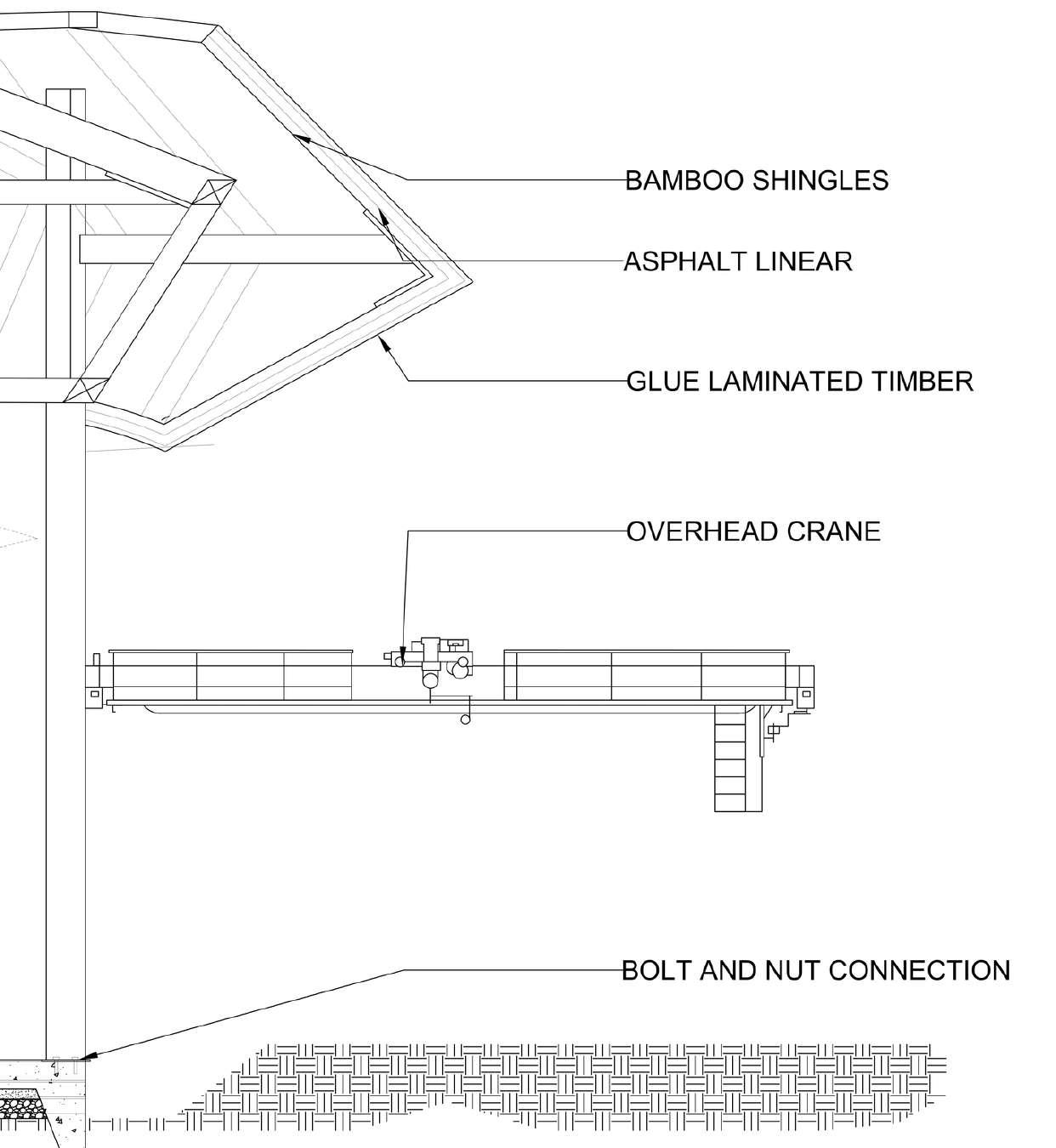

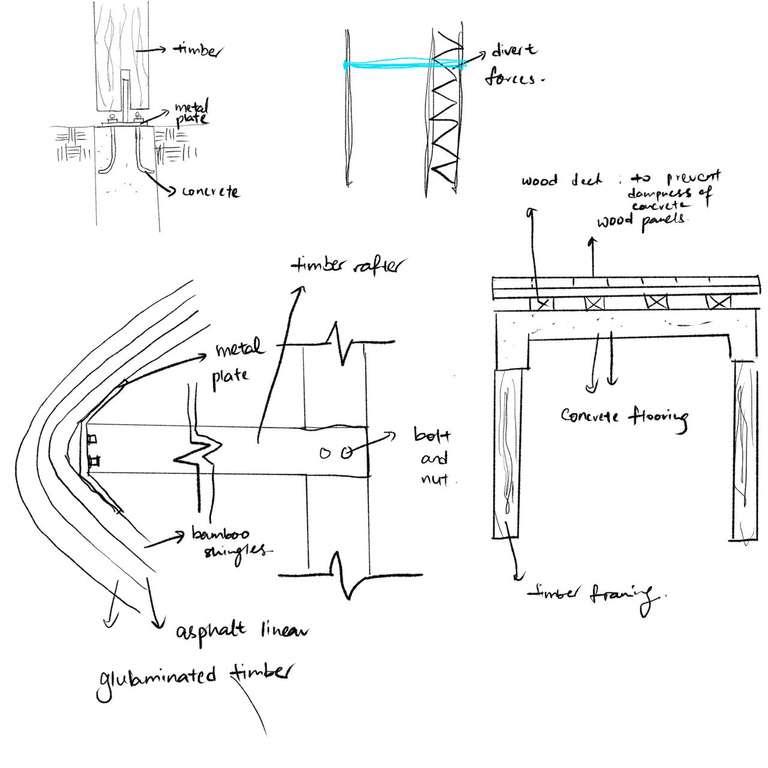

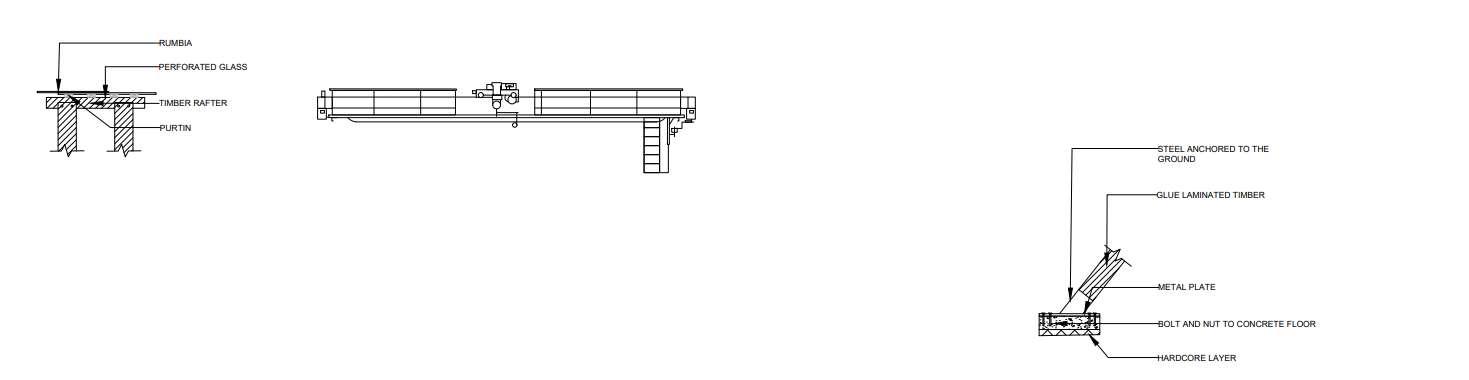

This column is the main column that supports the roof to the floor. It is formed by two separate timber columns tied with timber planks so that it achieves efficient spread of load. Trusses in between is able to divert and distribute load exerted to the timber planks before reaching to the ground.
Structure
