Misson Zero Flyer

Page 1

In this study, a number of carbon abatement cost curves (CACC) have been developed for existing and new residential and office buildings CACC illustrates cost-effectiveness of different carbon mitigation strategies. An example is shown here:

Policy Insights

Some policy implications can be drawn from this study findings:

• Provide subsidies / loans for high-cost strategies

• Incentive for residents to adapt energy efficient appliances

• Mandatory adaption of carbon offset mechanism through developing a more robust carbon market

• Promote education to teach knowledge and information for strategy that require public involvement

• Revise current energy performance code for future Net Zero Building

Mission Zero:

Cost Effective Pathway towards Carbon Neutral Buildings

Forego any strategies that have a higher initial cost per tonne CO2e than current carbon credit market price Operational Carbon Neutral

• Focus more on E&M systems over building envelope

• Pursue cost-effective digitalization strategies

• Target carbon neutrality in operational carbon emission

• Consider buying carbon credits to offset embodied carbon

C. K. Chau PhD

M. L. Fung PhD

Cynthia Hou PhD

T. M. Leung PhD

A project (Project Number: 2022.A6.211.22D) funded by the Public Policy Research

Funding Schemes of the Government of the Hong Kong Special Administrative Region

Recommendations for property owners and operators
HVAC Setpoint increase from 23C to 25C Upgrade lighting fixture to LED Increasing Cost Initial Cost (HK$/tCO2e)
HVAC occupancy sensors
new solar film Abatement potential (tonne CO 2 e)
lighting occupancy sensors
task lighting
cost CACC for
Colour Technical Difficulty Cyan Very easy Green Easy Grey Moderate Yellow Difficult Technical difficulty of individual strategies derived from mean ranking by focus
New
Install
New
Provide supplementary
Initial
existing office building
group members

Background

The push for carbon neutrality highlights the urgent need to address building emissions, especially in Hong Kong, where buildings account for 60% of carbon emissions. Current strategies focus on energy conservation, generation, and digitalization, but fall short of ambitious targets. Challenges include adapting strategies for existing buildings and navigating financial constraints. This study aims to identify cost-effective strategies to achieve building carbon neutrality by 2050, considering changing energy landscapes. This study supports Hong Kong's sustainability goals, including the Climate Action Plan 2050's carbon neutrality target by 2050; "Hong Kong 2030+" for a green and resilient city; HK3030 initiative targeting a 30% energy reduction by 2030; Energy Saving Plan aiming for a 40% energy-use reduction by 2025.

EnergyPlus Simulation Baseline Methodology

Specification

Existing building: HKBEAM 1996

New

Specification

Existing building: HKBEAM 1999

New

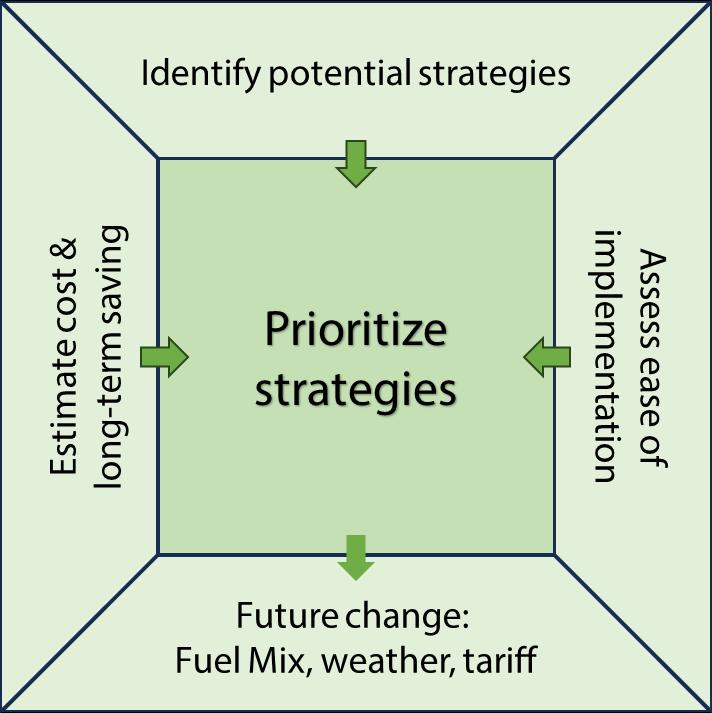

Project AIMs

1. Formulation of Baseline Buildings:

Model baseline buildings for both new and existing structures using industry standards.

2. Identification of Carbon Neutral Building Strategies:

Identify potential energy conservation and generation strategies from sustainable building labels, research, and expert interviews.

3. Estimation of Carbon Emission Reduction:

Consider both embodied and operational energy. Use simulation software EnergyPlus for predictions, validated by real-world data.

4. Cost Estimation:

Estimate initial and operational costs using BQs, price books, and utility tariffs. Consider potential income from feeding surplus electricity back to the grid.

5. Cost-effectiveness Analysis:

Evaluate strategies based on initial and lifecycle costs.

Determine cost-effectiveness in terms of CO2 reduction.

6. Expert Focus Group Meeting:

Organize focus group meetings to invite stakeholders from various sectors to discuss implementation ease and cost implications.

7. Predicting the Effects of Fuel Mix Switch, Tariff Change, etc.:

Analyze the impact of future fuel mix and tariff changes on strategy cost-effectiveness, and perform scenario analyses to understand uncertainties.

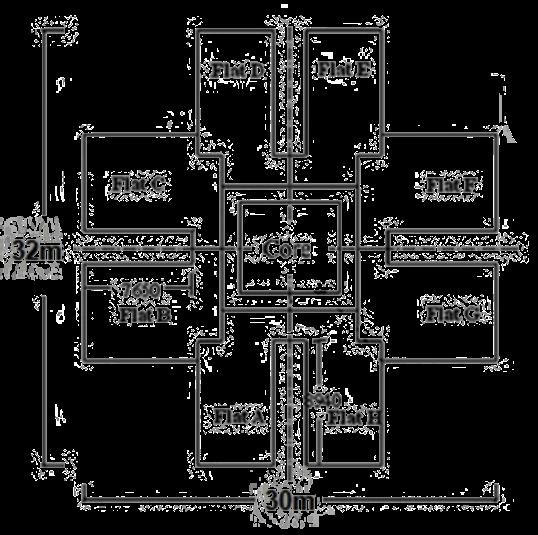

Floor layout of office building Floor layout of residential building
building: BEAM+ NB v2.0 / BEC2021
building: BEAM+ NB v2.0 / BEC2021
Residential building 21% Office Building 41% Transport 19% Industry 6% Waste 7% Others 6%
in
Carbon emission by sector
HK
