1 PROJECT DATE PLACE

SHELTER - LIFE NECESSITY 2016.

NOT SPECIFIED

2 PROJECT DATE PLACE

HOTEL ROOM INTERIOR - REINTERPRETATION 2011.

HOTEL, NOT SPECIFIED

3 PROJECT DATE PLACE

RECONSTRUCTION OF 17TH CENTURY HOUSE PROCLANO 2016.

RASLINA VILLAGE, CROATIA

4 PROJECT DATE PLACE

RETIREMENT HOME VODICE 2016.

VODICE, CROATIA

5 PROJECT DATE PLACE

TEF - FACTORY - IDENTIFICATION WITH EXISITING URBAN CONTEXT AND REPURPOSE 2012. Å IBENIK, EX TEF COMPLEX, CROATIA

6 PROJECT DATE PLACE

MULTIMEDIA CENTER - DEFINING PUBLIC SPACE (MMC) 2010.

ZADAR, CROATIA

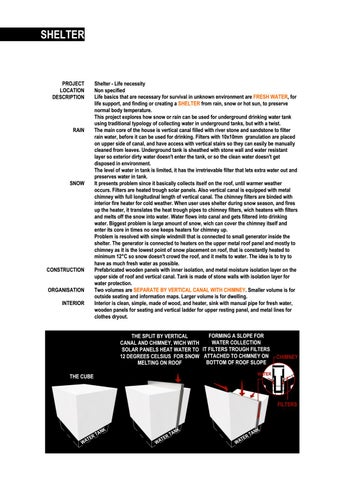

SHELTER

Shelter - Life necessity Non specified Life basics that are necessary for survival in unknown environment are FRESH WATER, for life support, and finding or creating a SHELTER from rain, snow or hot sun, to preserve normal body temperature.

This project explores how snow or rain can be used for underground drinking water tank using traditional typology of collecting water in underground tanks, but with a twist.

The main core of the house is vertical canal filled with river stone and sandstone to filter rain water, before it can be used for drinking. Filters with 10x10mm granulation are placed on upper side of canal, and have access with vertical stairs so they can easily be manually cleaned from leaves. Underground tank is sheathed with stone wall and water resistant layer so exterior dirty water doesn't enter the tank, or so the clean water doesn't get disposed in environment.

The level of water in tank is limited, it has the irretrievable filter that lets extra water out and preserves water in tank.

It presents problem since it basically collects itself on the roof, until warmer weather occurs. Filters are heated trough solar panels. Also vertical canal is equipped with metal chimney with full longitudinal length of vertical canal. The chimney filters are binded with interior fire heater for cold weather. When user uses shelter during snow season, and fires up the heater, it translates the heat trough pipes to chimney filters, wich heatens with filters and melts off the snow into water. Water flows into canal and gets filtered into drinking water. Biggest problem is large amount of snow, wich can cover the chimney itself and enter its core in times no one keeps heaters for chimney up.

Problem is resolved with simple windmill that is connected to small generator inside the shelter. The generator is connected to heaters on the upper metal roof panel and mostly to chimney as it is the lowest point of snow placement on roof, that is constantly heated to minimum 12°C so snow doesn't crowd the roof, and it melts to water. The idea is to try to have as much fresh water as possible.

Prefabricated wooden panels with inner isolation, and metal moisture isolation layer on the upper side of roof and vertical canal. Tank is made of stone walls with isolation layer for water protection.

Two volumes are SEPARATE BY VERTICAL CANAL WITH CHIMNEY. Smaller volume is for outside seating and information maps. Larger volume is for dwelling.

Interior is clean, simple, made of wood, and heater, sink with manual pipe for fresh water, wooden panels for seating and vertical ladder for upper resting panel, and metal lines for clothes dryout.

PROJECT LOCATION DESCRIPTION

RAIN

SNOW

CONSTRUCTION ORGANISATION INTERIOR

FORMING A SLOPE FOR THE SPLIT BY VERTICAL WATER COLLECTION CANAL AND CHIMNEY, WICH WITH SOLAR PANELS HEAT WATER TO IT FILTERS TROUGH FILTERS 12 DEGREES CELSIUS FOR SNOW ATTACHED TO CHIMNEY ON BOTTOM OF ROOF SLOPE MELTING ON ROOF

CHIMNEY

WATER

THE CUBE

chimney pipe

FILTERS

WA

R TE

TA

NK WA

R TE

TA

NK WA

R TE

TA

NK

C D

235 35 20

75 20

20

440

A B 20

C D

A B

TERRACE

LIVING SPACE

VERTICAL CANAL

SHELTER

GROUND FLOOR M 1:100

heated water solar panels filter chimney

river rock filter

batery

sand filter

overflow filter

15

sink

245

chimney pipe

15 90

15 90

15

365

cords for el. battery

water

SECTION A-A M 1:100

heated water solar panels filter chimney

15

15 90

15 90

overflow filter

245

river rock filter sand filter

heater

15

365

chimney pipe

water

SECTION B-B M 1:100

overflow water

SECTION C-C M 1:100

service ladders

solar panels

heater manual pump storage for batery water pipe water

SECTION D-D M 1:100

HOTEL ROOM INTERIOR

MATERIALS

service part of the room circular flow sleeping part of the room 8

0

220

1

35

350

5

10

105

10

305

10

190

BATHROOM

B

B bar&snacks

pop up TV

430

BEDROOM

C

ORGANISATION

Reinterpretation of hotel room interior Non specified The average hotel room is based on four parts of the room. Entrance with wardrobe, bathroom, bedroom, and terrace. Motion in average hotel room is mostly linear, from entrance to terrace. Bathrooms mostly don't have window. Furniture in the bedroom is detached to wall faced to contrary wall.

Project questions THE MOTION OF USER, THE WALL DETACHMENT and PLACEMENT OF BATHROOM. Room is divided into two stripes. One, entrance stripe with WC, and bathroom is narrow and allows flow from one room to another, and another with bedroom/livingroom and terrace. Margin wall which divides two stripes also allows divided entrances from bedroom/living room into them.

The furniture inside bedroom/living room is placed into centre of every furniture group, so user can walk around every piece of furniture for comfortable flow. TV is set beneath feet inside station, and can be drawn out by small electrical elevator inside station, and it can also be hidden.

Motion of user is refined, in a way that the user constantly has a circulative motion around all rooms, and has a visual connection with rooms from bedroom, and visual connection from desk and bed with terrace.

Bathroom is usually hidden, without window. Project places bathroom forward, practically on facade of hotel room. It contains shower and bathtub, placed on window, which is hanged, and can be opened during bathtub usage. The small garden in front of bathroom contains local aromatic plants like rosemary or lavender.

Materials are ceramic white tiles for entrance, and WC/bathroom, white walls freed of extra furniture, and parquet for bedroom/living room/terrace. Accent is on furniture grouping, with simple and clean lines. Lighting is placed above furniture groups, except in WC and entrance where they are in centre of ceiling.

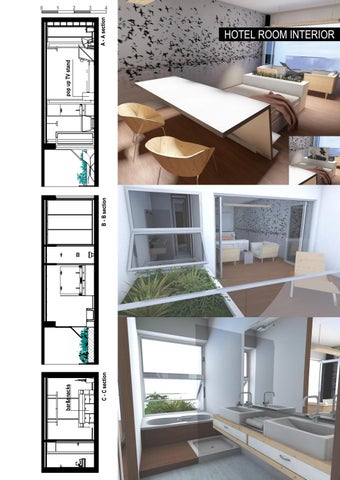

A

A C

PROJECT LOCATION DESCRIPTION

B - B section

pop up TV stand

A - A section

1 2 3

C - C section

bar&snacks

0 4

HOTEL ROOM INTERIOR

HOUSE PROCLANO

PROJECT LOCATION DESCRIPTION

ORGANISATION

CONSTRUCTION INTERIOR

House Proclano Village of Raslina Reconstruction of old stone cottage from 17th century into two story house, with PRESERVATION OF ALL FOUR STONE WALLS, except gable part of upper walls, with added TRADITIONAL WHITE FORM onto them.

The idea came from environmental reconstructions of old houses in which only one or two walls would be preserved, in a form of part of only ground floor. The excuse of owners are that they want to preserve part of their history, but the reconstructions would ''eat up'' that history.

Lower level was used for living space for 7 residents, and was divided into sleeping and eating space. New purpose is small studio apartment for guest with bathroom, kitchen and sleeping space. Upper level is a prefabricated white traditional form apartment, with one bedroom, and terrace with view. The stairs are hanged from metal frame. The lead to small entrance terrace, and into kitchen, and dining room and living room. The terrace can be entered from dining room or bedroom. The bathroom and bedroom are separated from daily part of apartment.

Old walls are stripped of old binding material, and filled with concrete, to toughen the 70cm wide walls. Then onto upper side of walls, the coronal steel beam is added, and onto beam, the steel frame filled with prefabricated isolation panels.

Wall windows in living room, kitchen and bedroom are overlapped with roof windows. In front of living room and bedroom in garden is 50 years old tree, that makes a good shadow onto house, especially during summer days, so users have impression they are in tree crown. The window in kitchen is for view onto lake Prukljan. Materials are simple white walls, and parquet, wooden and steel stairs, and aluminium black windows.

CONCEPT:

existing condition

surrounded reconstructed houses

new part of the house remains of old house

sliding roof off preservation of old wals

steel mesh structure

new concept

31

31

31 505

673

70

DW

5

2

3

711

4

5

2

3

31

1

70

31

DETAIL M 1:50

FIRST FLOOR M 1:100

101

101 18

12

13

9

10

11

6

7

8

1

N

14

110

GROUND FLOOR M 1:100

steel beam 10/25cm

reinforced concrete beam 25x50cm

new concrete injection between stones

stones of 70 cm existing wall ±0,00

+0,31

+3,05

+5,24

10

363

9

+6,32

70 +6,75

14 x 20 = 274

350

70

70

115

70

parquette 2 cm sound ispolation 4cm OSB panels 2x1cm layer of termo isolation, steel construction and instalations 25cm

120

8

15 cm termo isoolation sandwich panel steel mesh construction and space for instalations 15 cm plaster panel 1 cm

31

31 70 4

663

31 95 520

14 x 20 = 274

662

70

HOUSE PROCLANO

11

12

13

7

SECTION M 1:100

6

HOUSE PROCLANO

HOUSE PROCLANO

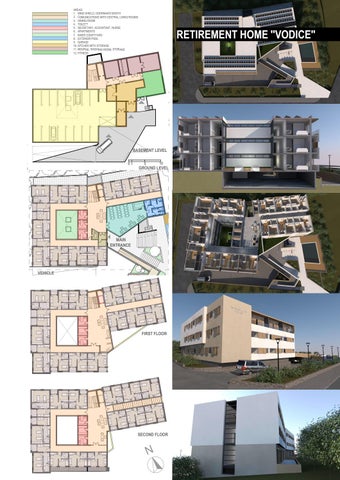

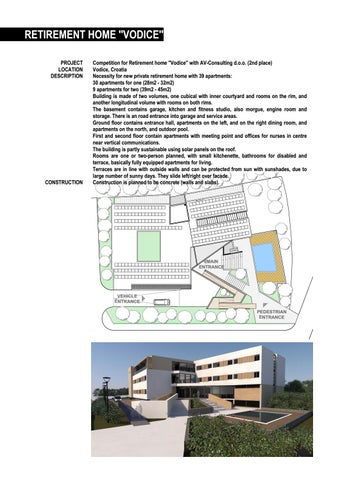

RETIREMENT HOME ''VODICE'' PROJECT LOCATION DESCRIPTION

CONSTRUCTION

Competition for Retirement home ''Vodice'' with AV-Consulting d.o.o. (2nd place) Vodice, Croatia Necessity for new private retirement home with 39 apartments: 30 apartments for one (28m2 - 32m2) 9 apartments for two (39m2 - 45m2) Building is made of two volumes, one cubical with inner courtyard and rooms on the rim, and another longitudinal volume with rooms on both rims.

The basement contains garage, kitchen and fitness studio, also morgue, engine room and storage. There is an road entrance into garage and service areas.

Ground floor contains entrance hall, apartments on the left, and on the right dining room, and apartments on the north, and outdoor pool.

First and second floor contain apartments with meeting point and offices for nurses in centre near vertical communications.

The building is partly sustainable using solar panels on the roof.

Rooms are one or two-person planned, with small kitchenette, bathrooms for disabled and terrace, basically fully equipped apartments for living.

Terraces are in line with outside walls and can be protected from sun with sunshades, due to large number of sunny days. They slide left/right over facade.

Construction is planned to be concrete (walls and slabs).

1

2

3

4

5

6

7

8 x 15

= 120

MAIN ENTRANCE

VEHICLE ENTRANCE PEDESTRIAN ENTRANCE

AREAS: 1. WIND SHIELD, DOORMAN'S BOOTH 2. COMUNICATIONS WITH CENTRAL LIVING ROOMS 3. DINING ROOM 4. TOILETT 5. SECRETARY, ACOUNTANT, NURSE 6. APARTMENTS 7. INNER COURTYARD 8. EXTERIOR POOL 9. GARAGE 10. KITCHEN WITH STORAGE 11. MOURGE, WASHING ROOM, STORAGE 12. FITNESS

1

10

2

9 8

3

7

11 x 14 = 155

4

6

5

5

6

4 11 x 14

7

3

8

1

10

2

3

4

5

6

= 150

2

9

1

RETIREMENT HOME ''VODICE''

7 1

2

3

4

5

6

7

4

3

5

2

6

= 120

8

BASEMENT LEVEL 01

1

10

2

9

7

4 11 x 14 = 155

10

5

GROUND LEVEL

8

3

6

5

5

6

4 11 x 14

7

3

8

= 150

2

9

1

10

1

2

3

4

5

6

7

8 x 15

= 120

MAIN ENTRANCE

VEHICLE ENTRANCE

1

1010

2

99

3

88 7

11 x 14 = 155

4

7

6

5

6

5 6

5

4

4

3 3

8

2 2

9

1 1

10

= 150 11 x 14= 150 11 x 14

7

FIRST FLOOR

1 2 3 4 11 x 14 = 155

1

7

8 x 15

5

10 9 8 7 6 5

6

4 11 x 14

7

3 2 9

= 150

8

1 10

1

2

3

4

5

6

8 x 15

7

SECOND FLOOR = 120

N

TEF - HOUSING

PROJECT LOCATION DESCRIPTION

TEF - housing Old factory space of TEF (Factory of electrodes and ferolegures), Šibenik, Croatia Project explores REINTEGRATION OF OLD FACTORY SPACE INTO CITY TISSUE. Factory space is settled on NE coast of Šibenik, old remaining subcoastal industrialization from beginning of 20th century, defined by old factory roads, small family homes on NE side, open and closed public pool on west side, and lungo mare (1,2km) on SW side. Houses that surround the plato of old factory are mainly workers houses, that were built due of increasement of city's population, after industrial expansion of TEF. Factory's plato has area of 27,4 ha, with existing beach project and future small harbour project for 400 boats, with reserved 13 ha. There is a lack of city's expansion space becouse of rough terrain and lack of necessary contents. Area is located only 15 minutes from city's center by foot, has an magnificent overview of old city and good road network, by city's necessity for expansion the location is more than desirable.

Analysis leads to USER IDENTIFICATION with surrounding space, and URBAN IDENTIFICATION with surrounding space using OLD ŠIBENIK'S CITY CODE. Basic project function is HOUSING combined with business, social and touristic content.

LOCATION SITE

BEFORE / NOW

INTEGRATION WITH SURROUNDING

FACADE

THE VIEW (IDENTIFICATION)

STREET

OLD WINDOWS > CODE FOR FACADE PENETRATION EMPHASASING GARDENS - LOGGIAS INSIDE APARTMENTS HOUSE > BUILDING

PUBLIC GARDEN

FACADE

STREET PRIVATE / PUBLIC GARDEN HOUSE

THE VIEW (IDENTIFICATION)

STREET OLD URBAN CODE

THE VIEW - FORTRESSES (IDENTIFICATION)

GARDENS DRAW PUBLIC WITH DIFFERENT CONTENTS

TEF - HOUSING CONCEPT TEF

TRAFIC

TEF

TRAFIC

IDENTITY?

IDENTITY?

PROMENADE

TANAJA

PROMENADE

ST.IVAN ST. MICHAEL

TRAFIC

TEF

TEF

LINK TO BUSINESS ZONE

PEDESTRIAN LINK TO SEA

VISUAL LINK

TANAJA

PROMENADE

VISUAL LINK

TANAJA

PROMENADE

ST.IVAN ST. MICHAEL

TEF

TEF

SEGMENT FORMING WITH CENTRAL PROMENADE TOWARDS FORTRESSES

LARGE GREEN ZONES FORMED BY SURROUNDING BUILDINGS

SEGMENT FORMING WITH CENTRAL PROMENADE TOWARDS FORTRESSES

TANAJA

PROMENADE PROMENADE

URBAN ZONING

MIXED ZONE - MOSTLY HOUSES PUBLIC / SOCIAL ZONE SPORT AND RECREATION ZONE SPORT HARBOUR TOURISM ZONE - HOTEL

TANAJA

ST.IVAN ST. MICHAEL

FORREST ZONE

ST.IVAN ST. MICHAEL

PROMENADE

ST.IVAN ST. MICHAEL

TEF - HOUSING PART OF URBANISM S

10

SEGMENT

SEGMENT CONCEPT COMMUNICATION

PEDESTRIAN COMMUNICATION ALONGSIDE ROAD SEGMENT CONCEPT

PEDESTRIAN COMMUNICATION

VOLUME SLIDING FOR BETTER VIEW ''GARDENS'' PUBLIC SPACE

BUILDING

ENTRANCE TROUGH LOGGIA

ACTIVATING WALKING AREA WITH BUILDING ENTRANCES OF HOUSING AND BUSSINNES CONTENTS ENTRANCE TROUGH LOGGIA

COMMUNICATION

''GARDENS'' PUBLIC SPACE PEDESTRIAN COMMUNICATION

ENTRANCE TROUGH LOGGIA

LOGGIA VOLUME SLIDING FOR BETTER VIEW

''GARDENS'' PUBLIC SPACE PEDESTRIAN COMMUNICATION

''GARDENS'' PUBLIC LOGGIA SPACE LOGGIA

LOGGIA

LOGGIA

PEDESTRIAN COMMUNICATION ALONGSIDE ROAD

PEDESTRIAN COMMUNICATION ALONGSIDE ROAD

01

5

10

COMMUNICATION

COMMUNICATION

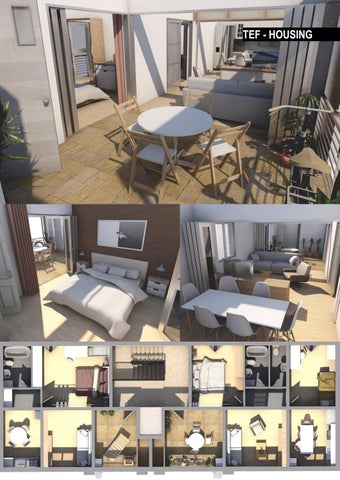

SEGMENT CONCEPT - Å IBENIK'S URBAN CODE - INNER COURTYARDS BECOME THE CODE FOR NEW URBANISM MAIN APARTMENT CONCEPT - LOGGIA BECOMES ENTRANCE/GARDEN/INNER COURTYARD FOR GAME/HANGOUTS/CLOTHES DRYING PLACE/STORAGE, A BEST VIEW PLACE IN LIVING KITCHEN APARTMENT. ROOMS AND LIVING SPACE ARE ROOM CONNECTED WITH LOGGIA - THE APARTMENT LOGGIA - INNER BECOMES COMPLETELY OPEN SPACE.

BEDROOM

BEDROOM

BATH

COURTYARD BEDROOM BATHROOM

STUDIO APARTMENT

UPPER STREET SIDE LOWER STREET SIDE

BUILDING LOGGIA COMMUNICATION

LIVING ROOM

BUILDING LOGGIA COMMUNICATION

LIVING ROOM

STUDIO APARTMENT

1SOBAN STAN 51.00m2 (+13.00m2) LOGGIA

LOGGIA BUILDING COMMUNICATION

LIVING ROOM

LOGGIA BUILDING COMMUNICATION

LIVING ROOM

LOGGIA BUILDING COMMUNICATION

LIVING ROOM

5

ENTRANCE TROUGH LOGGIA

PEDESTRIAN COMMUNICATION BUILDING

PEDESTRIAN COMMUNICATION ALONGSIDE ROAD

COMMUNICATION

LOGGIA BUILDING COMMUNICATION

0 1

BUILDING

''GARDENS'' PUBLIC SPACE

LIVING ROOM

KONCEPT I KATALOG STANOVA 1:200

''GARDENS'' PUBLIC SPACE

TEF - HOUSING

LAYOUTS -1. GARAGE 01

5

10 S

GROUND FLOOR

FLOOR PLANS

+1.35 +4.05

+2.70

+4.05

+2.70

+4.05

+2.70

+2.70

+0.00 2SOBAN STAN 61.00m2 (+14.20m2)

PAZARIĆ

1SOBAN STAN 46.30m2 (+10.60m2)

2SOBAN STAN 61.00m2 (+14.20m2)

1SOBAN STAN 46.30m2 (+10.60m2)

RESTORAN

1SOBAN STAN 46.30m2 (+10.60m2)

2SOBAN STAN 62.00m2 (+14.20m2)

HLAD

-2.70 IGRALIŠTE 1SOBAN STAN 51.00m2 (+13.00m2)

+2.70

+4.05

1SOBAN STAN 49.00m2 (+13.00m2)

1SOBAN STAN 49.00m2 (+13.00m2)

+2.70

+4.05

1SOBAN STAN 76.00m2 (+13.00m2) 15%

+0.00

-1.35

+0.00

-1.35

+0.00

-1.35

+0.00

+0.00

-1.35

-1.35

+0.00

-1.35

+0.00

-1.35

+0.00

-1.35

-1.35

PRIZEMLJE 1:200

SECTIONS

TEF - HOUSING

LAYOUTS SECTIONS 01

5

10 S

SW FACADES

NE FACADES

TEF - HOUSING

MMC

Multimedia center Zadar, Croatia Redefining public space This project explores the way how ''PUBLIC'' can be intersected trough ''PRIVATE'' and trough more levels than floor level. Inner street pours from public open spaces and reverse.

Basic idea is derived from floor lever.

1. Pedestrians flow downright from north narrow street filled with cafe shops, to lungo mare.

2. The tipology of center is derived from nearby houses, narrow long clean form, with open public space where pedestrian flow intersects in traditional roman 90 degree corner.

3. The INNER STREET connects public space with more intimate private spaces, and VERTICAL COMMUNICATIONS. 4. Same pattern iz used on upper levels, with OPEN spaces that can be used solo, or combined during summer, and CLOSED during winter, but public, with different content.

5. PENETRATING RED HOLES are emphasised in blueprints and on the facade with red frames that penetrate trough building volume.

6. Front and back facade where HOLES are not is covered in ALUMINIUM MESH creating an insulation protection on windows and coats the facade into monovolume.

Reinforced concrete boxes 15x15 meters with cassette slabs.

Detailed interior solutions weren't the theme of this project. Given renders are only for informational purposes.

GROUND FLOOR - from open public square users can go to inner street from which they can enter offices, IT support shops, and banks.

FIRST FLOOR - small congress room, art galleries with public gallery space and library.

SECOND FLOOR - fitness center with open public workout square, and restaurants with open terrace.

THIRD FLOOR - small local theatre, and cinema, with open public space for plays.

ORGANISATION

CONSTRUCTION INTERIOR CONTENT

square letting pedestrians to the sea

site

sea

SITE DIAGRAM

square

square

keeping longitudinal

site sea

parameters defined by two firm buildings on sides and longitudilan coastal and road line

building sea 0 15

60

N

PROJECT LOCATION DESCRIPTION

REINFORCED CONCRETE BOX STACK RED = OPEN / CLOSED MULTI SPACES RED PENETRATING EMPTY VOLUMES

MMC MAIN CITY SIDE ENTRANCE

SECONDARY ENTRANCE

SERVICE ENTRANCE

windshield

bank

communication

main entrance

tourist agency

store

internet

bar

windshield

STORE ENTRANCE

MAIN SEA SIDE ENTRANCE

communication

hall

hall/exibition

CAFFE ENTRANCE

GROUND FLOOR

communication

exibition on open

biblioteque

exibition

FIRST FLOOR

fitness on open

communication

wellness

restaurants on open

restaurants

SECOND FLOOR

polyvalent hall

communication

movie workshop

communication

theatre local cinema movie projections on open

THIRD FLOOR SECTION 3-3 movies on open restaurants

fitness exibitions

service room

01

5

10

N

entrance

MMC
