BASIS OF DESIGN BROWARD COUNTY TRANSIT April, 2015

http://www.broward.org/bct

>> table of contents

introduction 1 project location 2 site character 3 site plan 4 ground level floor plan 5 roof plan 6 building elevation: south 7 building elevation: east 7 building elevation: north 8 building elevation: west 8 perspectives 9 sustainable nature of the LTC facility 10 wind impact 10.1 rainwater collection 10.2 solar power harvesting 10.3 shading and solar radiation 10.4 surface color selection 10.5

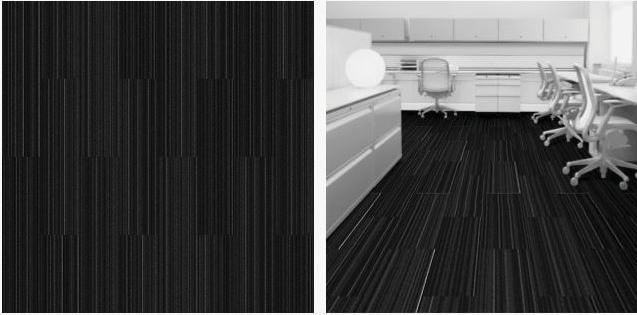

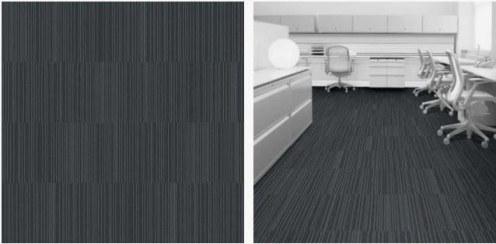

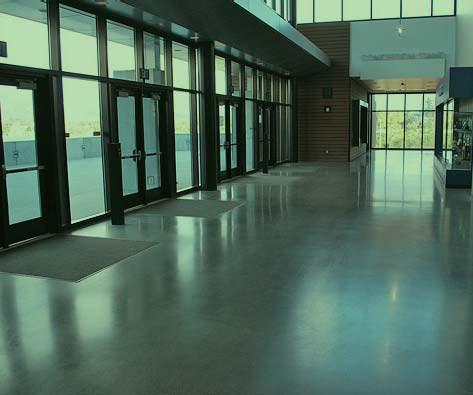

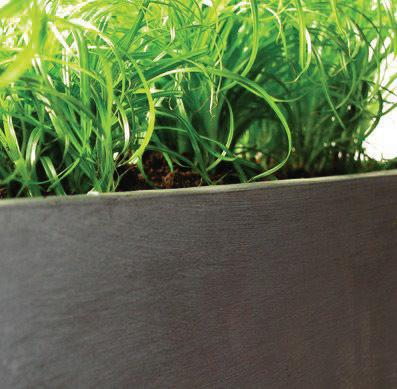

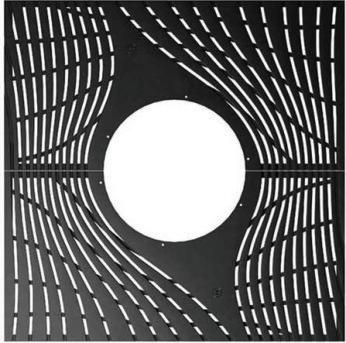

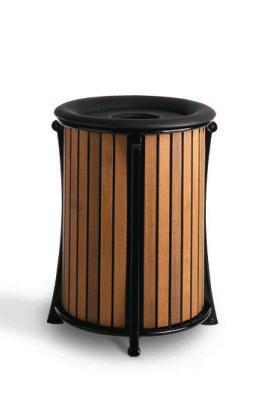

materials, finishes and furnishings 11 roofing 11.1 tensile fabric canopies 11.1.1 interior ceiling 11.1.2 flooring 11.2 exterior flooring 11.2.1 interior flooring 11.2.2 landscaping 11.3 planters 11.3.1 buffer zones, plant types 11.3.2 site furnishings 11.4 bench alternatives 11.4.1 bicycle racks 11.4.2 B-cycle rental stations 11.4.3 bollards 11.4.4 waste containers 11.4.5 planter alternatives 11.4.6 tree grates 11.4.7 signage 11.4.8 public well-being 11.5 misting (evaporative cooling) 11.5.1 public identity: surfaceapplied graphics 11.5.2 public identity: art in public places 11.5.3

1 >> introduction >> team Chris Walton. Director , Broward County Transit Tim Garling. Director, Broward County Transit Barney Mccoy. Manager, Broward County Transit Service and Capital Planning Kurt Petgrave, RA, NCARB. Architect, Broward County Transit Service and Capital Planning Jose Daniel Bernal, LEED AP. Design, graphics Noemi Hew. Planning, Broward County Transit Service and Capital Planning

>> introduction The Lauderhill Transit Facility was conceived from the need to serve more than seven thousand Broward County Transit bus passengers per day, while serving as a facility for BCT drivers.

As additional urban design feature, the LTC acts as a sheltered, inviting pedestrian, cyclist and public transit connection between the mall and the street.

>> design intent The LTC’s architectural design mission is to highlight the role of Broward County Transit in the sustainable and efficient development and growth of the county, while efficiently serving its main function for the community and BCT staff alike. The framework of this mission should be a signature, statement facility concieved through contemporary, accessible, inviting and sustainable design. This basis of design document for the Lauderhill Transit Center seeks to establish a consistent visual and tactile language to be carried out in pursuit of a consistent, sustainable, safe, functional, contemporary and aesthetically pleasing sustainable final product.

All materials, techniques and finishes in the project should seek compliance with guidelines of sustainability equal or substantially similar to those of the US Green Building Council LEED system regardless of whether official LEED certification is pursued, as well as being compliant with all pertinent codes and regulations.

The architecture of the LTC calls for utilizing standardized building elements for its main architectural feature which, in addition to basics sheltering from natural elements, will maximize daylight, collect rainwater (Lauderhill was rated #9 on the list of Top 101 cities with the highest average yearly precipitation according to city-data.com) and harvest the abundant Florida sunlight for electricity generation. In accordance to the main aim of the City of Lauderhill’s architectural codes, the facility creates an individual, recognizable architectural identity for the city.

>> project schedule 03.2015 07.2015 08.2015 09.2015 10.2015

NTP for design End of Design Development Construction contract advertised Construction contract awarded Constructions commences

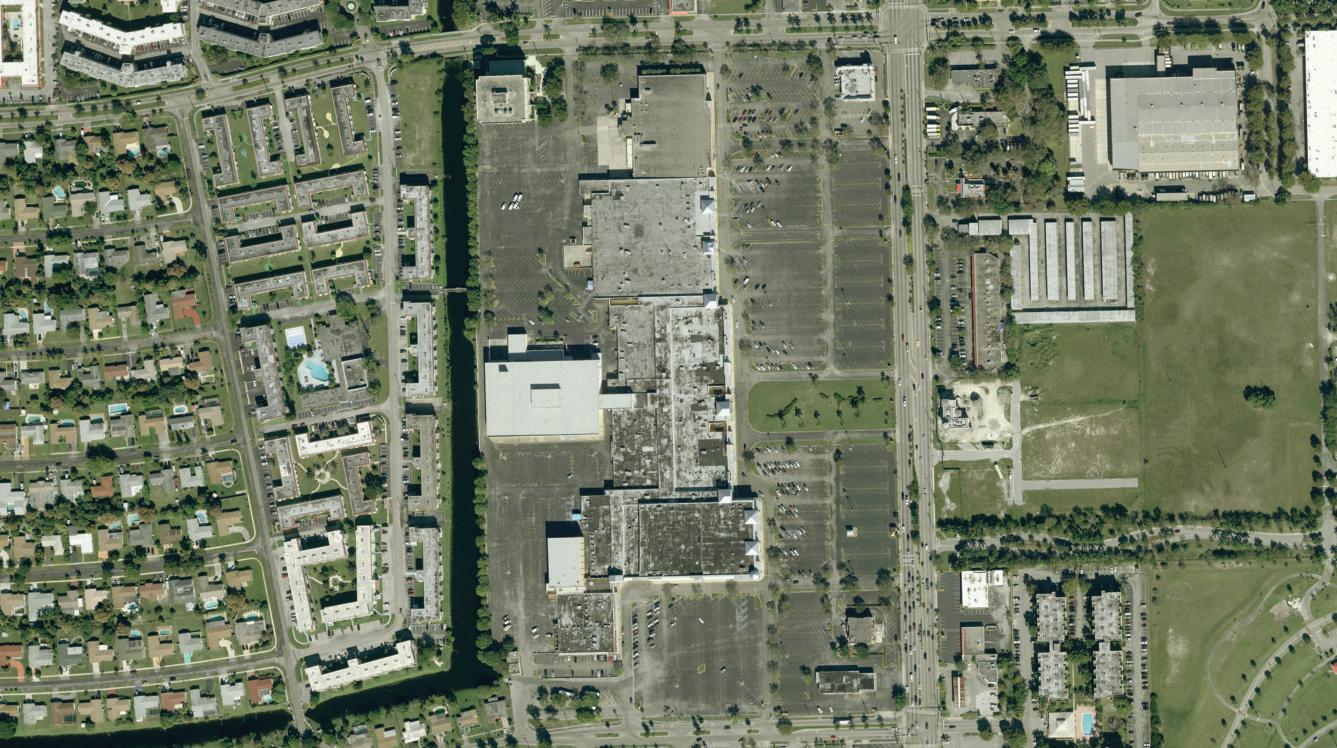

2 >> project location,

STATE ROAD 7 (US441) 1 NW 12 STREET 2

4

NW 16 STREET 3

BROWARD COUNTY, FL LAUDERHILL MALL 4

3 1

PROJECT

2

The main architectural feature of the Lauderhill Transit Facility addresses its context by enhancing upon the predominantly Afro-caribbean cultural setting, avoiding imperatively the mimicking of surrounding architectural features.

3 >> site character

On of the most expressive and recognized features of the afrocaribbean heritage is One the car carnival dance and attires. The design of the facility’s passenger platform canopy an and columns interprets the beauty of the attire and of the motion of dance expressively as a graceful architectural gesture. This allows the design to enhance its context and encou encourage an interpretative, rather than a literal architecture.

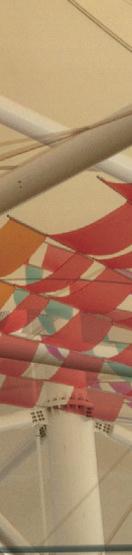

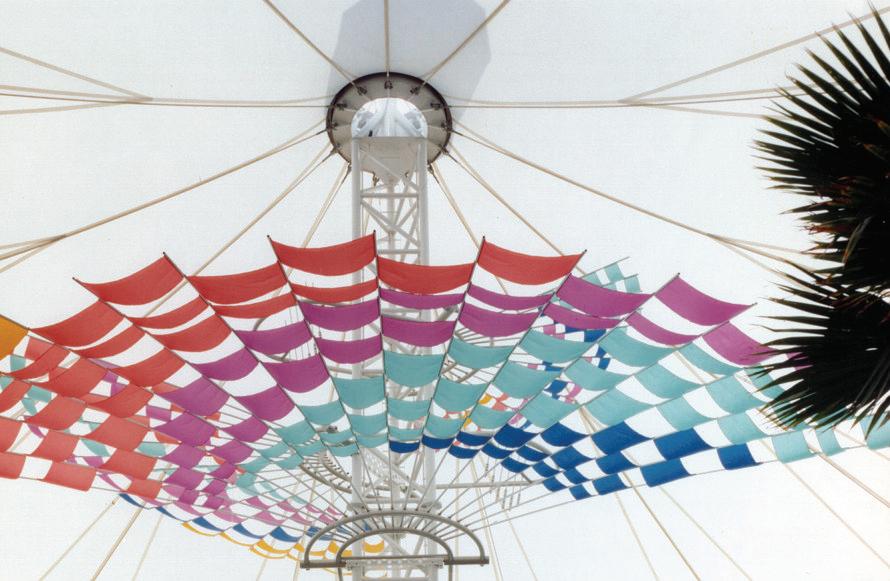

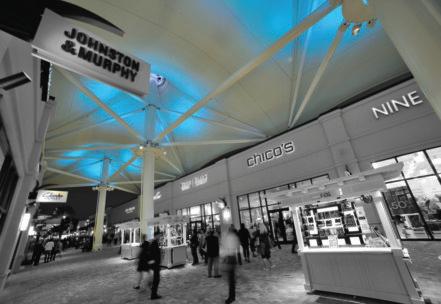

example: installation at Crystal River Mall, FL

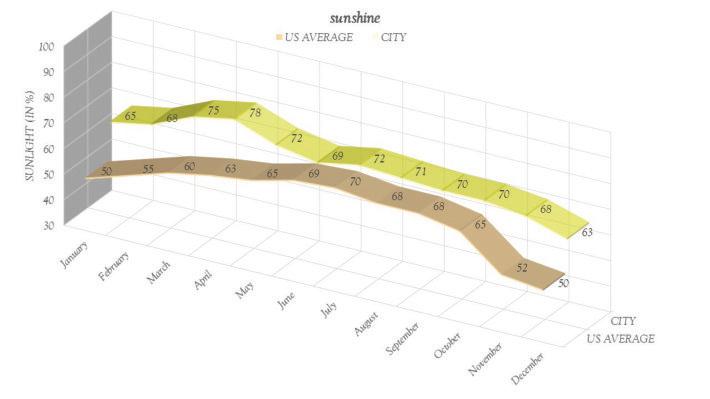

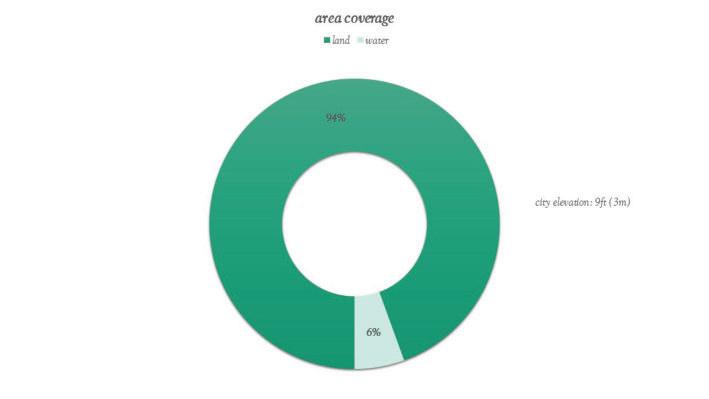

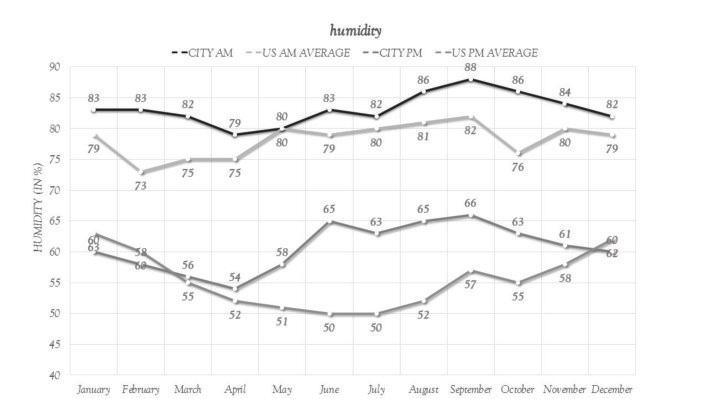

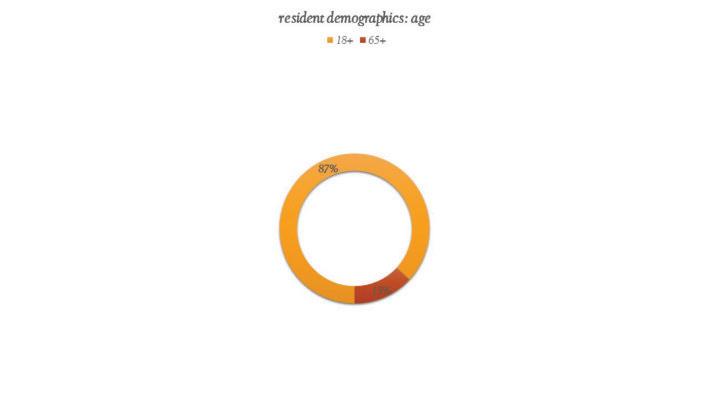

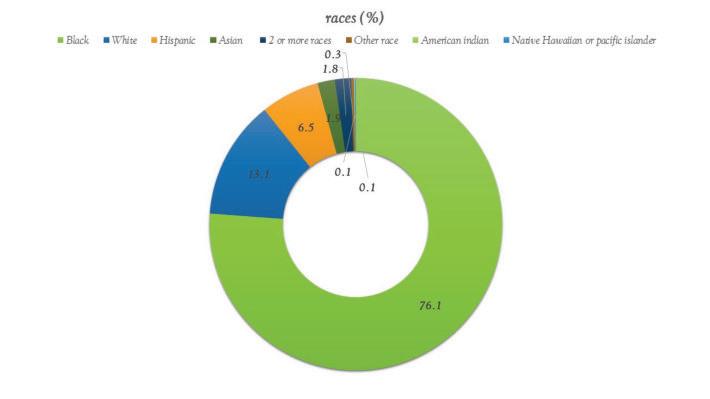

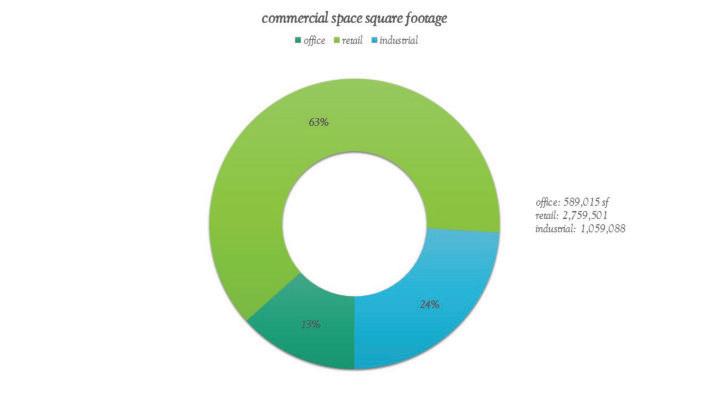

The following statistical data about the city of Lauderhill has been elemental in driving decisions regarding the design and assessing population’s needs.

SOURCE: http://lauderhill-fl.gov http://en.wikipedia.org/wiki/Lauderhill,_Florida http://www.city-data.com/city/Lauderhill-Florida.html

3 >> site character

3 >> site character

SOU SOURCE: http://lauderhill-fl.gov http://en.wikipedia.org/wiki/Lauderhill,_Florida http http://www.city-data.com/city/Lauderhill-Florida.html http

3 >> site character The city of Lauderhill’s General Design Standards are prescriptive in architectural design and detailing. However, the design of the Lauderhil Transit Center is to ensure a distinct architectural identity, proposing a firm and unequivocal statement that architectural features can be defined by pressing issues of sustainability (rainwater and runoff, in our case), with the purpose of clearly displaying them to the public given the public service nature of the facility.

The following are some elemental points from the guidelines: - “(...) all design shall aim toward fulfilling the following basic goals: • Encourage appropriate building massing where scale, function and light requirements are well respected. • Provide appropriate transitions between pedestrian and vehicular zones in order to ensure safety and mobility. • Minimize negative environmental impacts such as air, light and noise pollution, excessive surface drainage, etc. through appropriate and effective landscape design. • Provide efficient systems of circulation which are compliant with existing development codes and parking standards. • Create a strong and viable community environment where outdoor activities and positive interaction between neighborhoods is enhanced through effective design.”

-”Any new development, redevelopment, substantial improvements or service station re-branding shall contribute positively to existing neighborhoods and communities.”

-”When considering connectivity to adjacent areas, it is required that existing street patterns and sidewalks extend to connect to existing circulation patterns. This measure is to ensure a continuous and cohesive circulation system throughout the City. It is also important to link new development to established, existing areas in order to encourage internal circulation by pedestrians, bicycles and motorized vehicles. Such measures guarantee that proposed development does not occur against the grain of the existing fabric, but is instead conducive to it.”

-”Site design shall aim toward conforming to Leadership in Energy and Environmental Design (LEED) Standards as much as possible.(...) The following are the primary mandates of the LEED System:• Reducing urban sprawl • Encouraging healthy living • Protecting threatened species • Increasing transportation choices and decreasing automobile dependence • Creating sustainable sites • Enhancing water efficiency • Optimizing energy performance • Recycling materials • Creating innovative design solutions (...) These objectives are accompanied by a detailed checklist that includes parameters such as bicycle networks, restoration of habitat, diversity of uses, walkable streets, percentage water-use reduction, storm water design, construction waste management, daylight and views, etc. All design shall be assessed against such criteria and attempts shall be made to adhere closely to the list and to avoid shortfalls.”

-” Buildings should relate to the streets in a manner that enhances and strengthens pedestrian activity. Street-level architectural development should be scaled to the pedestrian and should be attractive and inviting.”

-”All building elevations are required to have at least three (3) different material applications for visual interest.”

-” Innovative, energy saving, high quality building materials are encouraged. Materials should vary in texture and type to accent windows, entrances and corners. Contrasting materials are encouraged and should create interest...”

-”Canopies should in no way interfere with street light fixtures or with the growth and maintenance of street trees, signature trees and landscape materials.”

-”Canopies should be unobtrusive and should maintain architectural integrity.”

-”Continuous architectural arcades and canopies should reflect the design integrity of the structure.”

-”Roof overhangs must provide continuous cover from sun and rain and be pedestrian friendly. A covered walkway eight (8) foot deep is ideal for the pedestrian circulation. Deeper overhangs are within the tropical vernacular; in most cases thirty (30) inches minimum roof overhang is required.”

-”Corner structures play an important role in creating identity within a block and may become significant landmarks. These structures should be emphasized by prominent entrances or small plazas and gathering spaces along their frontages. Creating clearly delineated street corners will add to the overall unique character of Lauderhill.”

-”Walls for screening should not be obtrusive and their heights and proximity to the use area should not be imposing.”

-”Plazas are integral to the success of a retail, office or residential development due to their ability to provide opportunities for public congregation, interaction and recreation. They also allow for integration between architecture and landscape by incorporating hardscape, structural and decorative elements. Large expanses of building blocks and parking lots should be interrupted by open space plazas for pedestrian comfort and refuge. (...) • Any new development intended to support pedestrian activity should include plaza space.• Plazas should abut public areas and be physically and visually accessible from the public sidewalks. Security fences, walls, and entry gates should not block the sidewalk edge of the plaza or views into the plaza.• Plazas should be accessible to the public during business hours.• Entries to the plaza, business and storefronts within the plaza shall be designed and lighted so they are safe and visible to plaza guest, avoiding hiding places.• Plazas shall provide at least one (1) sitting place for each one hundred (100) square feet of plaza in addition to any permitted outdoor dining provided.• Plazas should have adequate mix of sun versus shaded area. No more than forty (40) percent of the plaza shall be covered with a roof.• At least twenty (20) percent of the plaza's surface shall be landscaped to provide heat relief.

-”Public art reflects the attitude and character of the community towards culture. Establishing public art throughout the City of Lauderhill will help to create space and identity, as well as, to celebrate the eclectic community of residents(...) All art pieces (...) should be durable and free of sharp or obtrusive objects.”

-” Paving materials at streetscape intersections and sidewalks should reflect the intensity of pedestrian traffic and create identifiable ground plane links throughout the City(...) The use of open grid pavement systems, such as unit pavers, is strongly encouraged for any pedestrian hardscape area in order to decrease storm water runoff.”

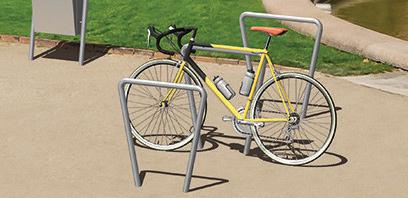

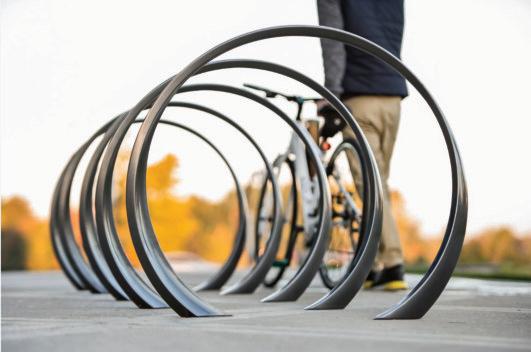

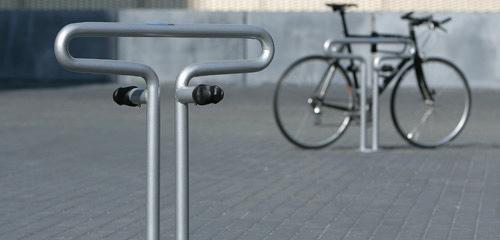

-“Proposed development must provide a minimum of two (2) bike racks (four (4) feet to six (6) feet length) (...) Bike racks should be located at various locations throughout the City to provide safe and convenient temporary storage. Bike racks should be covered to protect bicycles and riders from inclement weather.”

-Bus stop standards: "The strongest single characteristic is the roof, its pitch, material and color. Utilization of a deep overhang and generous roof slope assists in protecting the user and representing the desired image (...) The finishes shall be coatings that remain cool to the touch (...) The stop's side enclosure panels shall be translucent in character and attached in such detail as to allow air circulation within the sheltered area (...) Efforts should be made to retain storm water on site as far as possible to reduce run off. Rainwater harvesting should also be

encouraged through the collection of water from roofs with large cisterns or rain barrels which can be subsequently used for irrigation. Wastewater shall be reused as much as possible for landscape irrigation."

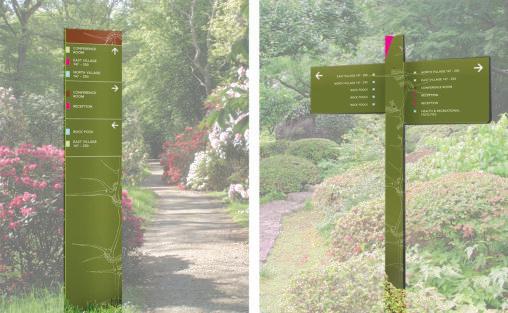

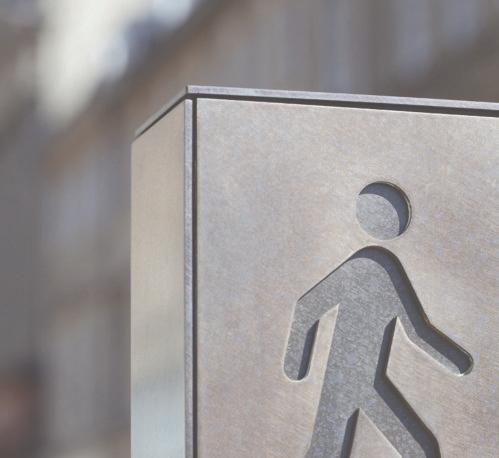

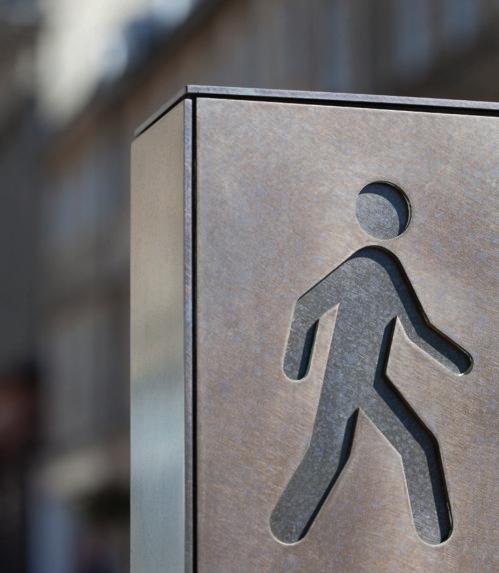

-"The signage and graphics system should be simple and coordinated and contribute towards enhancing the identity of Lauderhill."

-”Due to the strength and intensity of the South Florida sun, all banners fabrics should be made from marine canvas or vinyl fabrics or both. These types of fabrics can withstand prolonged exposure to the sun and allow air movement through the banner."

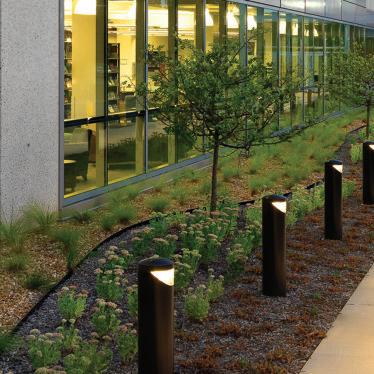

-"Pedestrian lighting within the City of Lauderhill must serve a variety of functions. Not only must the lighting establish a safe and secure atmosphere for nighttime use, it must also provide a distinct ambience, differentiating pedestrian facilities from adjacent vehicular zones."

SOURCE: http://lauderhill-fl.gov https://www.municode.com

The Lauderhill Transit Center’s south passenger platform is aligned with the mall’s main entrance, serving as connection and node from State Road 7 (US441) Main pedestrian access to the facility will take place at the East, along SR7, and via a speed bump-type elevated crossing at the West side, (to curb height) aligned with the mall’s main entrance. A secondary pedestrian connection takes place between passenger platforms.

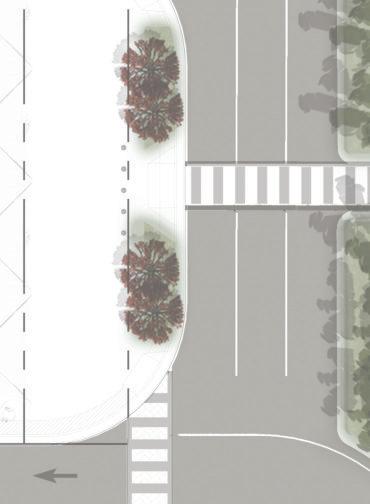

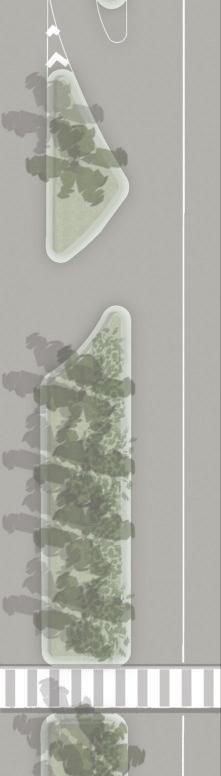

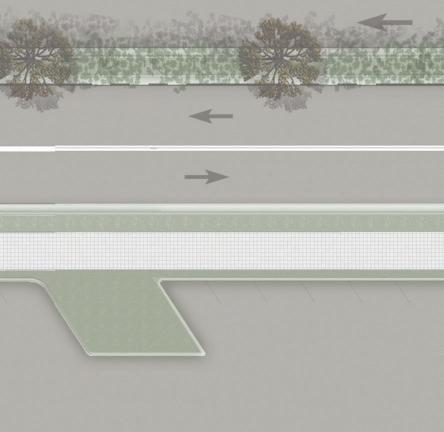

>> 4 site plan

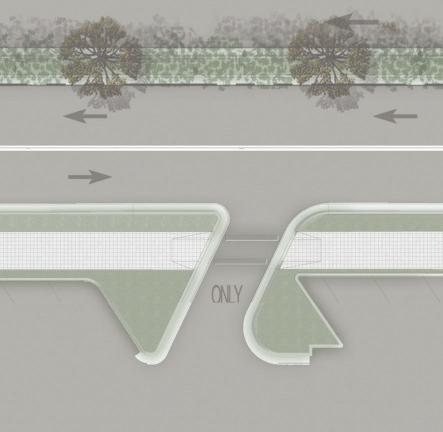

“speed bump” elevated crossing 1 main east entrance 2 connection canopy (shading and rain protection)3 photovoltaic and landmark canopy 4 bus-only lanes 5

9

north passenger platform 6

9

south passenger platform 7

5

State Road 7 (US 441) 8 landscape buffer 9

9

6

3

5

5

8 4

1

2

7

5

9

9

8

The Lauderhill Transit Center's center building block houses ticketing, driver lounge and public bathrooms, and the administrative office. Further west, at the south passenger platform, the public bathroom and storage spaces building block is flanked by bicycle racks and planters. The security office is in the middle of these two volumes, with transparency as main envelope, for visibility maximization purposes. The south platform contains 7 bus bays. The north passenger platform contains the bus bays at the north side, so that ease of circulation is maintained at the south side of this platform.

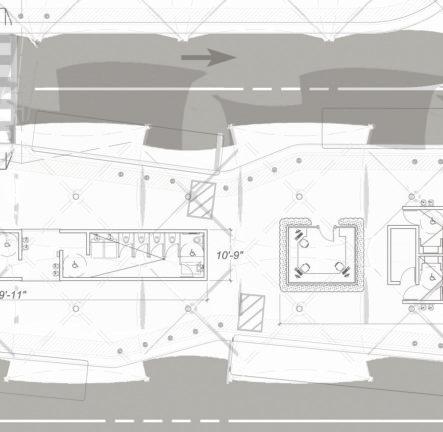

>> 5 ground level f loor plan titticketing ckk et etiting ar aarea eeaa 1 vestibule vest ve stib ibul ule 2 ul staff sttaaff f restrooms resttro r om ms 3 ssttaf af f lounge looun unge ge 4 staff administrative a m ad miinniissttraatiive office off ffic icce 5 publ pu public blicc restrooms reesstrroo ooms m 6

12

12

12

m me ecchhaannic icaall/l/stoora rage ge 7 mechanical/storage

10

secu se curriittyy office cur off fficce 8 security publ ppu ubbllic ic restrooms res estroo ooms m 9 public

13

13

12

9

BB -cycl cyycclle station stat atioon 10 B-cycle

13

bbi icy cycclllee racks rack ra ckss 11 bicycle

8

11 7

6

5

4

2

3

1

bbus bu us bay: bbaay: y: articulated art rtic rti icul ulat ated ed + comm co mmun munit unity un itity bus buus 122 community bbus bu us bay: bbaay: ay: y: regular reeggul gular arr 13 13

12

12

12

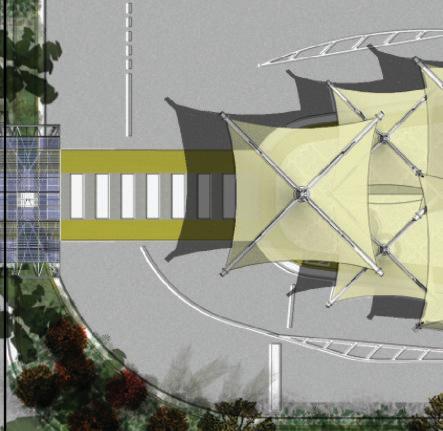

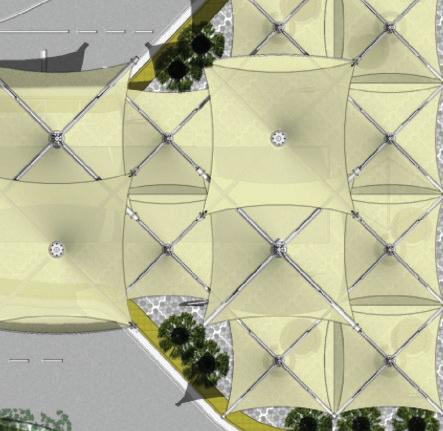

>> 6 roof plan

The roof, a functional and bold architectural feature, allows ample area for purposes of solar harvesting via photovoltaic panels, as well as rainwater harvesting for reutilization on the facility’s restrooms and landscape irrigation, both essential sustainable methods to the county’s commitment to sustainability and self-sustenance. These are the precepts for a much-needed facility which will serve as pedestrian connection between the street and the mall, and more widely as a nodal urban connection integrating a more connected and sustainable urban fabric. rainwater collecting “inverted umbrella” type tensile fabric canopies 1 rainwater diverting “umbrella” type tensile fabric canopies 2 tensile fabric canopy extension for pedestrian crossing 3 photovoltaic landmark canopy for sheltering between mall and facility 4

1 3 2 4

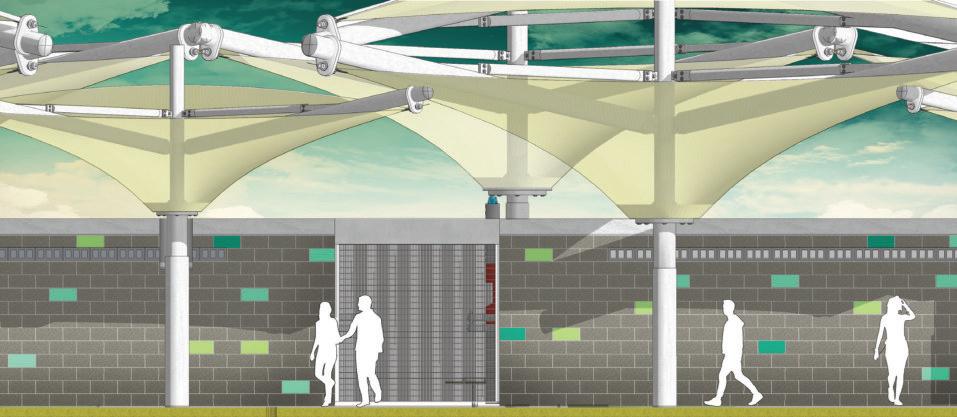

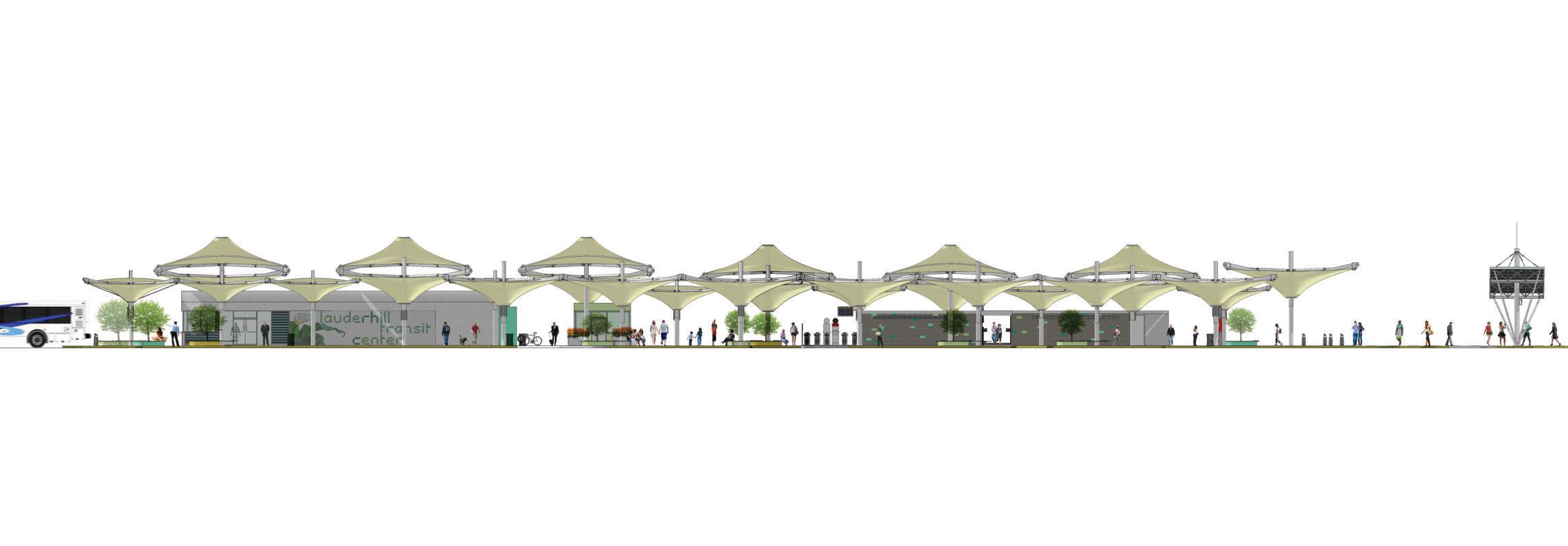

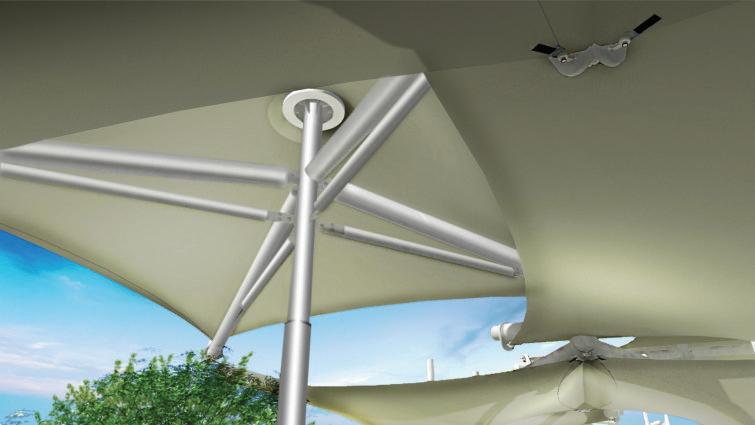

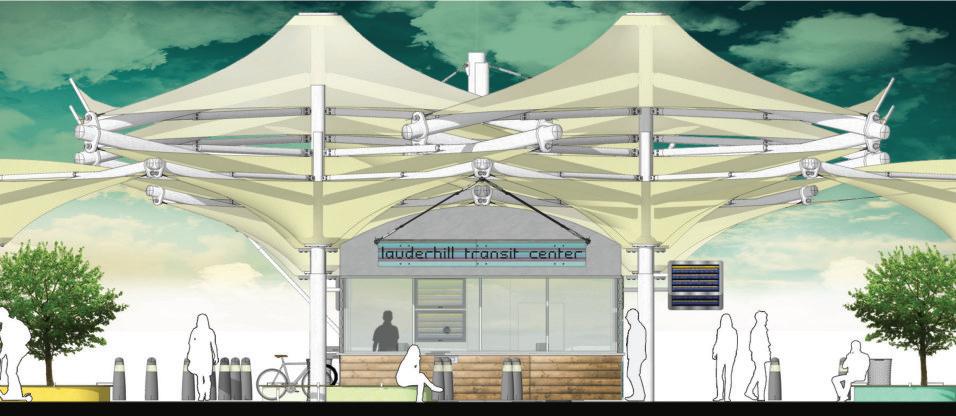

>> 7 south elevation tensile fabric rain collecting canopies 1 exposed concrete masonry unit with color accents 2 glass/concrete-applied graphic 3 security glass with anodized aluminum mullions 4 colorized corrugated galvanized steel cladding/signage 5 photovoltaic panel canopy structure 6 painted stucco finish 7

2

6

1

4

7

3

4 5

4

7 >> east elevation

1

7 7

7

5

7 4

7

>> 8 north elevation tensile fabric rain collecting canopies 1 exposed concrete masonry unit with color accents 2 glass/concrete-applied graphic 3 security glass with anodized aluminum mullions 4 colorized corrugated galvanized steel cladding/signage 5 photovoltaic panel canopy structure 6 painted stucco finish 7

1 4

3

2

7

2

4

1

8 >> west elevation

1 2

5 6

7

7

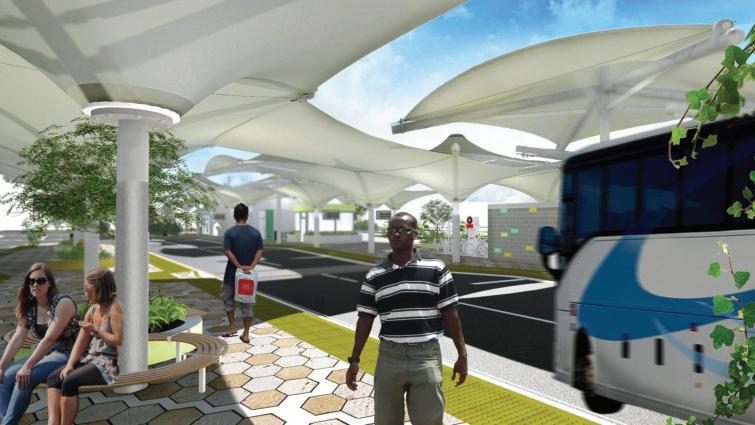

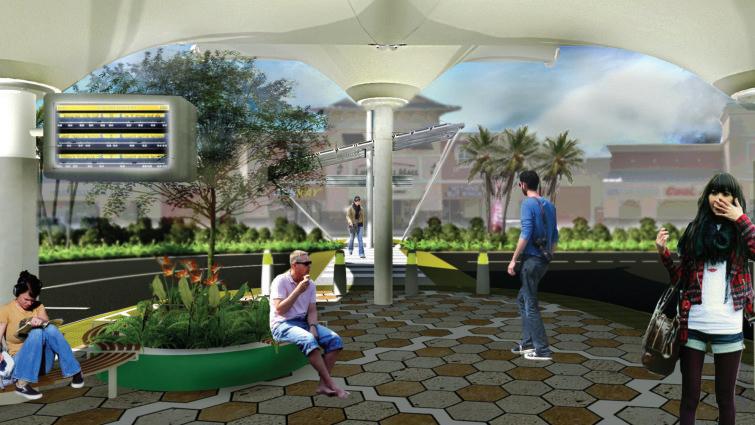

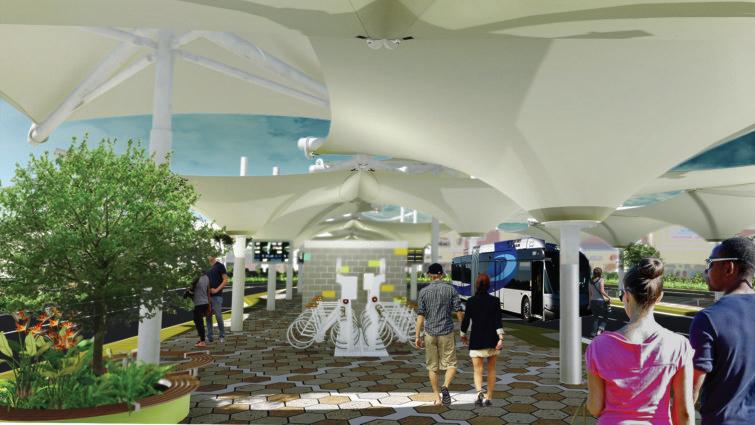

>> 9 perspectives

>> 9 perspectives

>> 9 perspectives

>> 9 perspectives

>> 10 sustainable nature of the LTC facility 10.1 wind impact

The building was modeled in building environment and context analysis software, allowing the design process to be informed by the particular climatic conditions of its site. Main environmental factors of precipitation and regional solar impact guided the design of the roof, the main architectural feature of the facility. Sustainability and aesthetic principles guided the selection of photovoltaic panels, surface colors, plumbing fixtures, etc.

This section will cover : -Wind impact: IInforming of design by prevalent breeze charts and software modeling during the two main climatic seasons.

-Rainwater collection: R i ll i Information yielded by annual precipitation indexes informed the amount of rainwater harvested -Solar power harvesting: Information yielded by online resources informed the he amount of energy savings with the use of photovoltaic panels -Shading: building environment and context analysis software demonstrates the amount mount of shade achieved to provide shelter for users.

-Solar impact: Building environment and context analysis software portrays the levels of solar radiation gained by exposed building surfaces, informing the design process -Surface color selection: Selected colors based on the principle of solar energy absorption and reflection -Photovoltaic panels: Design intent of PV panel selection, desired aesthetics

Prevalent wind chart showing frequency and speed of wind during months of comfortable air temperature and humidity November 1 - April 30

Prevalent wind chart showing frequency and speed of wind during months of uncomfortable air temperature and humidity May 1 - October 31

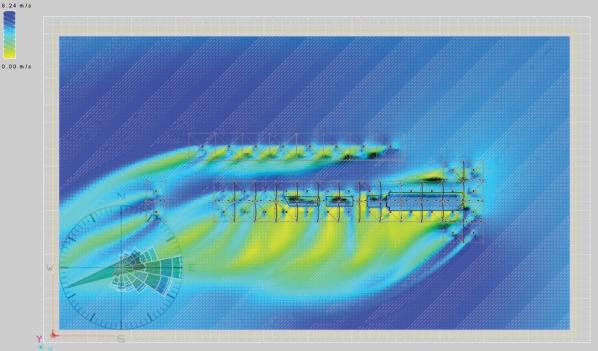

plan views showing breeze movement facilitation around building masses during hours of operation in months of comfortable air temperature and humidity November 1 - April 30

plan views showing breeze movement facilitation around building masses during hours of operation in months of uncomfortable air temperature and humidity May 1 - October 31 Note: These results are experimental and have not been fully validated by qualified engineer

The LTC’s distinctive main architectural feature stems from the intent to recover the abundant South Florida rainwater for irrigation and other allowed uses, reducing demand from typical sources and reducing run-off which carries pollutants onto drainage systems. Each prefabricated tensile translucent canvas roof unit conducts the water into a rainwater leader inside the structural column of each unit.

>> 10 sustainable nature of the LTC facility 10.2 rainwater collection and reutilization Square feet of the collection area (A) is the area from which rainwater will be collected.* Multiply that number by the average rainfall in inches per year for the specific geographic location (B).

A x B = C. Divide the multiplied numbers (C) by 12, which represents inches per foot. This will determine the cubic feet of water per year which can be collected (D).

Preferred location for cisterns, tanks and plumbing systems is underground. If ground systems are selected, these should be placed at the north-east landscaped area of the project, and should be protected and concealed from sight and public access.

Convert the cubic feet of water (D) to gallons. Multiply total by 7.43 to convert to gallons per year (gpy).

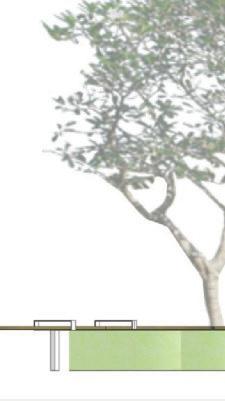

The perimeter vegetation buffer, discussed further in this document, should call for trees lower than the canopies’ top height, to minimize natural debris falling on the canopies, and the specifications and detailing should call for high-quality drainage and debris-filtering ng systems.

*Area in this case refers only to the two-dimensional area length x width of the fabric contributing to the rainwater collection function, not the total area of fabric in the structure." or volume of collection area

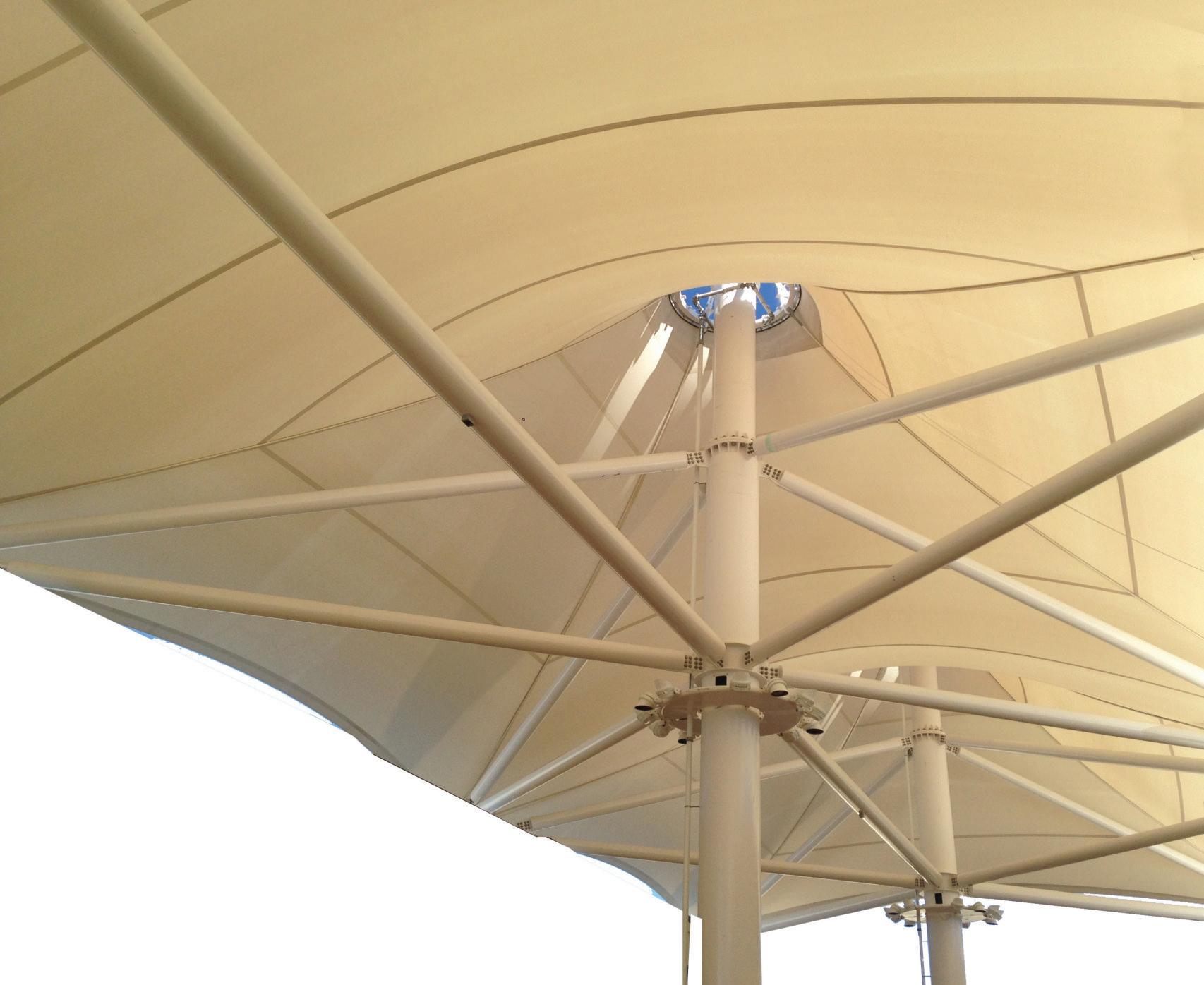

Each Birdair ST70 23'7" x 23'7" canopy would collect approximately: A=552f B=66.5" C=36,708 D=36,708/12 = 3,059 x 7.43 = 22,728 gpy (19,319 AT 85% EFFICIENCY) 18 Birdair ST70 canopies = 347,742 TO 409,104 gpy Each Birdair ST90 30'6" x 30'6 canopy would collect approximately: A=794sf B=66.5 C=52801 D=52801/12 = 4400 x7.43 = 32,692 gpy (AT 100% EFFICIENCY, 27,826 AT 85% EFFICIENCY) 7 Birdair ST90 canopies = 194,782 TO 228,844 gpy total system yield 542,524 TO 637,948 gpy

SOURCE: http://fabricarchitecturemag.com/articles/0912_f2_rain_harvesting.html Note: These calculations are for schematic purposes and have not been fully validated by qualified engineer

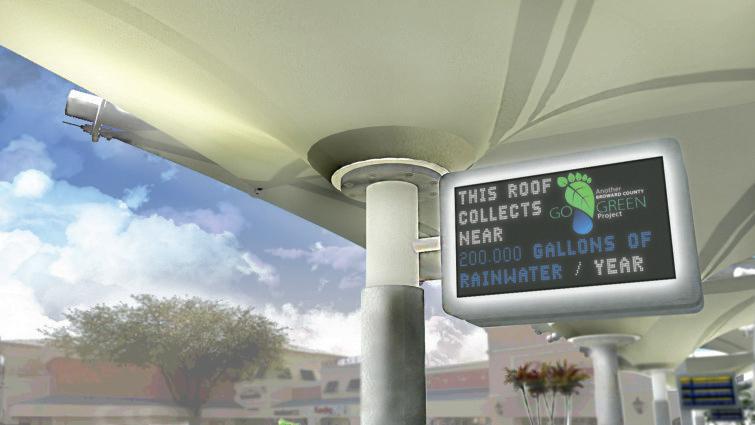

Aerial perspective highlighting the LTC’s roof rainwater collection areas

While “inverted umbrella” style canopies collect rainwater, the upside up, typical canopies should be designed with an edge which avoids a “waterfall” effect of free-falling water during times of rain

>> 10 sustainable nature of the LTC facility 10.3 solar power harvesting Photovoltaic panels to be utilized for harvesting the abundant South Florida ecWU WULLF FD DOO Sp pe eci ciÀ ÀF FD DWWLRQ LLR RQ QVV sun should be translucent, as this feature enables each panel’s bottom EOOec Mod Model: Mo de el:l HIP-19 90 0 0D DA3 A3 surface to obtain energy from light reflected from surfaces under the panels. Mod Rat R atted at ed P ed Po Pow ow o wer er ((P (Pm Pm P max) ax) ax x) In addition, surfaces underneath and around the panels should be of light Ra Maximum Max Ma M a imu im mum Power Pow ower Volt owe Volt olt lta age ag ge g e ((V Vp pm) pm m) m) colors, to maximize light reflection towards the panels.

1

1

67& 67 6 7& 7&

5% 5 %

10 0% %

15%

20%

25% 5% %

30% 3 %

190 19 1 90 9 0W

199 99 W

208 W 20

216 W 2 21

225 W

234 W

243 3W

55.3 55.

55 5 5...3 5 3V

55.30 55 55.

5 5 5..3 30 0V

55.36 55 5 5..36 .3 36 3 6V

55.42 55 5.4 5. .42 V .4

55.50 55.50 V

55.52 55.52 52 V

55.56 55.5 5.56 6V

Dependence on Temperature 4.50

Maximum Ma Max M ax axim iimu m mP Power ow owe ow wer C Cu Current urrrrent urr ur re ent nt ((I nt (Ipm) Ip pm pm) m) m)

3.

3.4 3 3.44 .44 A .4

3.

3.6 3 3.60 .60 A .6

3...7 3.7 3 3.75 75 A

3.

3.9 3 3.91 .9 .91 A

4 4.06 .06 A

4.22 A

4.37 4.3 7A

Open Ope n Ciirc rc cuit itt V Vo olt ltta age ge (Vo (Voc) c)

68.

68 6 8..1 V 8

68.

6 68 8.3 V 8

68.

68 6 8 8..4 V

68.

6 68 8..5 V 8

68.

6 68 8.6 V 8

68.6 68.

6V

68.8 8V

4.00

S Short Sho Cirrccui Ci uit Currrrrent nt (I (Isc) sc)

3.7 3.

3 .7 7A

3.8 ..89 8 89 9A

4..07 .0 07 A 07

4.2 ..26 26 2 6A

4 4..44 .44 .4 44 A

4.63 6 A

4.81 A

3.50

M . Syst Max. Max Syste em V Vol Vo oltag age (Vsys)

60 6 600 00 0 0V

—

—

—

—

—

—

S ies Series Se es sF Fu use se Ra Rat R attin a ng

15 5A

—

—

—

—

—

—

T T

)) )

-0.3 0.34% 34% % / °C

—

—

—

—

—

—

T T T

Voc) Vo Voc V oc oc)

-0.191 -0 0.191 191 V / °C

—

—

—

—

—

—

T T T

1 1.68 .68 68 8 mA mA / °C C

—

—

—

—

—

—

+10/-0 +10/ +10 / 0%

—

—

—

—

—

—

18 8% 18 18. %

—

—

—

—

—

—

15.7% 15.

15 7% %

16 6.4 .4 .4%

17.1% 17 .1 1% 1 %

17 17 17.

7..8 8% %

18 8..6 8.6 .6%

19 19..3 .3% 3% 3 %

20.

20 2 0..0 0 0% %

14.

14 1 46W

15.

15.

15 5.2 W

15 15.

15 5..9 W

16 1 16.

6..6 W 6

17.

17 1 7..2 7 .2 W

17.

1 17 7..9 W 7

18 1 18.

8..6 W 8

War Wa War Warran a ran ranted ted d To Toler oler ler e ance an a anc nce n

2

Power per Sq Power Squar a e Foot

Current (A)

The panel array should form a canopy between the south and north passenger platforms, therefore doubling as rain protection for users.

To Maximize Power 1. Elevate panels above a surface as much as possible.

2. Place panels over light-colored surfaces.

3. Do not allow support rails to shade the panel’s back face.

6SH 6 6S SHFL SH FLÀ FLÀ ÀFDWLRQV ,QFOXGL GLQJ %DFNVLGH ,UUDGL DGLDWL GLDWL DWLRQ &R &R RQ QWWULEXW EXWLRQ LRQ LQ Q ,6 ,6& & DV D & D V D 3H 3HUFH UFHQW UFH QW RI 67& I &

4 By ypa pa p as ss s Diodes Diio Dio D i de des d e es s

Mod Mo M od o dule ulle ul e Area Are Ar ea a

13 13 3..0 06 6F Ftt2 ((1 1.21 21 2 1 m2 )

Mod M Mo o ule Wei od We W eig iigh gh g ht

50 5 0.7 .7 Lbs Lb b . (23 bs 23 k kg kg) g)) g

Mo Mod M od o odul du ulle ule le D Diiime me men m e en ensio nsio sio ion ns s LxW Lx L xW x WxH xH

53 3.2 .2 2 x 35 35.

3 5..35 5 35 x 2..36 .3 36 36 in in. (1 135 13 35 3 51 x 8 51 89 98 x 60 60 mm mm)

Ca Cab Ca ab b ble le Le le Le Len en ng gttth gth hs

39.4 39 .4 in iin. n.. ea n eac ch h ((10 (1 1000 10 00 m mm) mm m)) m

Cab C Ca ab a b ble le Size le Siiz S Siz ize / C Co onn nne n nec ne cttto cto or Type ype pe

No. N o. 12 AW o WG / MC MC3™ 3™ Con Connec nec ne ectto ec o orrs ors

Static S Sta tta atic ttii Load Load Lo ad d

50 50 P PSF SF (2400 SF (2 (2 (24 24 400 0 Pa) Pa) a)

Pallet Pal let ett Di e Dime men en e ns sio ions io ns LxW LxW WxH xH

54 54.3 4.3 4. .3 3 x 36 6 x 70.1 0.1 1 in n. (137 13 1 37 79 x 9 91 12 x 17 1781 81 m mm) mm m m))

50°C 0 2 25°C

3.00

0°C

2.50 2.00

1.50

The following calculations were carried out utilizing U.S. Department of Energy, Office of Energy Efficiency and 0.50 Renewable Energy NREL lab’s PVWatts® Calculator, a user-friendly platform which “Estimates the energy 0.00 0 10 20 30 40 70 80 production and 50 cost of60energy of grid-connected Voltage (V) photovoltaic (PV) energy systems throughout the world Dependence Irradiance small building owners, installers [and] allows on homeowners, 4.50 and manufacturers to easily develop estimates of the 4.00 performance of potential PV installations.”

1000 W W/m 1.00

MH M HF FK KDQ DQiF iFDO DO Sp pe eciÀF ciÀF ci ÀFD DWWLR LRQ QVV Int IIn ntte n errn rna all By Byp Byp ypass ss sD Diiiode ode od o des de

75°C

2

Photo by Golden Energy, Santa Monic

Ful Full ull Pal allet all et Qua Quanti uanti nti t ty ty & W Wei eig ei eight ght

20 pcs cs. s /1 101 10 01 14 L 14 Lbs. bs. ((4 bs bs.

46 60 0 kg) kg) kg g)

Qua Qua uanti anti nttity ty p per pe err 2 e 20 0’/4 0’/4 /40 /4 0’’/ 0’/ ’/5 53’ 53 3 3’’ Co Conta nttta n ainer iine in ner ne

20 00 p pcs. cs. c cs s , 420 0 pcs pcs. pc cs., cs ., 540 54 5 40 pc 40 pcs s..

Current (A)

3.50

600 W/m m2

Example panel: Panasonic Sanyo Bifacial Photovoltaic Module (adding a 5% backside irradiation contribution 400 W/m m -see specifications-)

2.00

2

1.00 200 W/m m2

Fir F Fi iirre Safe a ty yC Clla Cla lass as ssi ss s fica atio ttiiio on

Cllass Cla C lass la ss A

0.50

Hai H Ha aiil Sa a afe fe fety ty IIm Imp mp m pa act ac ctt Velo c Veloc Ve lo lo oc city ity ty

1”” ha 1 hai h aiils a lsto lst stto s one on ne n e ((2 2 5 mm m)) at at 5 52 2 mp mph h (23 m/s m/s /s))

0.00

NOC N NO OC O CT ((°°C) C)

11 113 11 13 3°F °F (4 ((45 45 4 5°C) °C) °C C)

Saf Sa S afety af ety et ty & R Rat Ra atin at in ng gC Ce ert rti rti tifi fica fic ca c atio ati ttiio ion ns s

UL U L 17 170 1 70 7 03, 03, 3, c cU cUL UL, CE UL EC C

Liim L Lim imiit ite ted Warr te arrr a rran an ant nttiie ies e es s

2 Years ear ea ear ars Work orrrk o km ma man ans an shi sh hip / 20 hi 20 Ye Yea arrs ars rs P Po ow wer er Ou e Outpu tpu p t

1

Note: These calculations are for schematic purposes and have not been fully validated by qualified engineer

2.50

1.50

6DIIe eWWy y 5D DWWLLQ QJ QJV JVV & /LP LPLLWWH HG G :DU DUUUD DQWy QWWy

SOURCE: http://pvwatts.nrel.gov

30 pv panels at 13.06 sq ft each = 392 sq ft harvesting area

800 W/m m2

3.00

Sta St S ta tan nd nda da dar ard rd Te Te Tes esst st Co on ond nd n dit iiti titio on ons ns n s : Ce ellllll Te el Temp mpe mpe perature ra rrat atu at urrre ure e 25 25°C C,, A Aiir Mass ass as ss 1 1..5 .5, 5, 100 10 000 W//m 00 m2 2 Eq E Equ qu q uiva iv valle va len e en n t mo odu od dule du le effi effi ef ffic ciiie ency nc nc cyy, iincl ncl n ncludi nc clludi c ud ud udin diing ng pow po po ow we err ffro frro rom tth he h eb bac ba ac a ck f a ace ce. ce No Not N ot ote te e:: Sp Spe pec ec ciiifica fica fic fi catio ca attio tiio ion ns sa an and nd n d iin nffo for orrmat o ormat ma ma attion on o n ab above above ove ov em ma ay chan an ange nge wi wiitth wit hou o out n out noti otitiice o ot ce. c e e.

Each panel yields 15.2W per square foot

Since each panel = 13.06sf, each panel yields 198.5W 0

10

20

30

40

50

60

70

80

Voltage (V)

30 panels x 198.5W = 5,955w = 5.95kW total yield IMPORTANT: The rated power of HIT® Double bifacial solar panels is measured under Standard Test Conditions (STC). STC does not = 9575 kW / YEAR account for power produced from the back face of panels. Therefore, HIT Double panels will produce more power than their STC ti t 30% d di th t d i d

Perspective, top and axonometric views of the photovoltaic panel passenger canopy at the LTC

>> 10 sustainable nature of the ltc facility

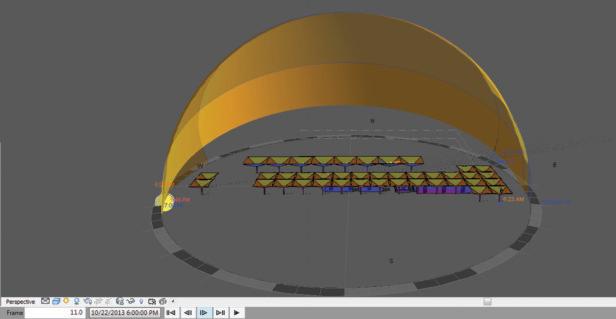

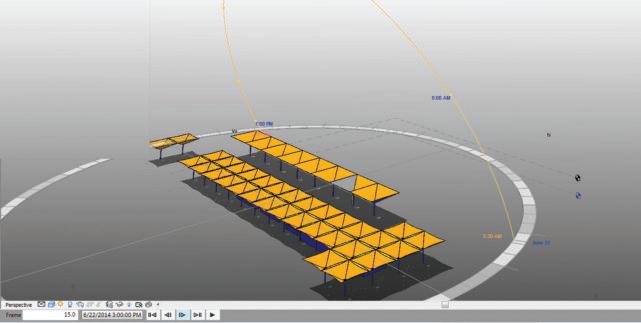

3D modeling the architectural design on analytical software and locating it on its exact coordinates allowed a study of the shading achieved by the design of the canopies, as well as a graphic representation of the amount of solar radiation received on the building’s facades at different times of the year.

N

E

W

E

S

W

E

W

E

S

S

S 10/22/13 9:00am

N

N

N

W

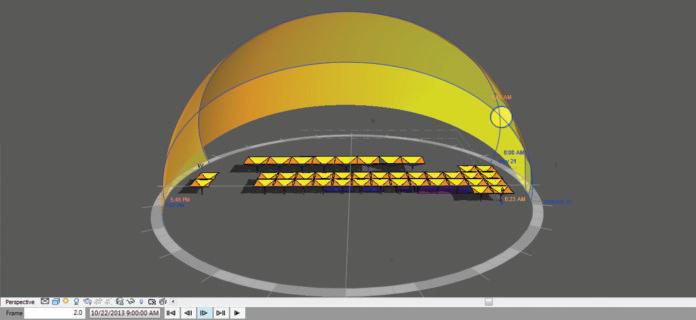

10.4 shading and solar radiation

10/22/13 12:00pm

10/22/13 3:00pm

10/22/13 6:00pm

During non-summer months (November - May), when the sun angle is lower on the horizon, the south facade -which is most vulnerable to solar impact- is favorably shaded by the canopies, as is illustrated by Du the blue-purple colors depicting the amount of solar radiation on the building, measured in BTUs per square feet.

W

W N

N S

W

S E 6/22/14 9:00am

W N

S

N S

E

E

6/22/14 11:00am

6/22/14 3:00pm

E 10/22/14 6:00pm

During summer months (June illustrated here), when the sun angle is higher on the horizon, the south facade -which is most vulnerable to solar impact- is also favorably shaded by the canopies, as is illustrated by the blue-purple colors depicting the amount of solar radiation on the building, measured in BTUs per square feet.

>> 10 sustainable nature of the ltc facility

To comply with to the city of Lauderhill architectural guidelines, which call for seeking a distinct architectural identity, pastel colors typical of buildings in the region shall be avoided in this project, and lively color accents should be carefully and harmoniously selected, to contrast with the white stucco and light grays to be used on the majority of the facade surfaces. Light colors follow the principle of reflective ssurfaces, helping to keep the building’s interior areas cooler, mitigating the heat island effect, reducing the greenhouse effect, and yielding other benefits. High-quality washable paints are preferred.

10.5 surface color selection

corrugated galvanized metal (color coated) with signage graphics

Exposed CMU darker color

Exposed CMU lighter color

optional: exterior-graded wood cladding PANTONE 7487C PANTONE 3375C

white stucco Accents: PANTONE 603 M

PANTONE 339C PANTONE 7487C PANTONE 3375C

corrugated galvanized metal (high-performance color coated) siding

exposed CMU (concrete masonry units) should be carefully finished and joint edges should be clean

Se e the Floida Department of Transportation A ccessing Transit: Design Handbo ok for Florida Bus Passenger Facilities publication for more guidelines on site furnishings.

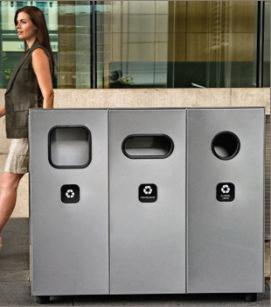

A ll site funishings, shall comply with all applicable A DA, egress/fire design and construction codes.

To achieve harmony with the design intent, the selected products shall be minimalistic and contemporary, as well as vandal-resistant and easy to maintain.

No commercial advertising whatsoever shall be placed on any surface.

Products should me et the following sustainability criteria: -M aterials shall be a minimum 10% post-consumer content-post-consumer material -Include a Gre enguard Indo or Air Certification or equivalent documentation -Have a certification of compliance for low VO C emission -Have a certification stating that the components, materials and products are manufatured and extracted regionally -Composite wo od and agrifiber, laminate adhesives and shop-applied assemblies used must contain no urea-formaldehyde resins -Utilize rapidly renewable materials -Components made from plants typically harvested should be certified as having a 10-year or shorter harvest cycle -Wo od components should have a Forest Stewarship Council certification.

Vending machines shall be avoided, but if necessary, shall be located in locations visible to the security of fice but concealed within the building itself so as to be visibly discre et.

>> 11 materials, finishes and furnishings

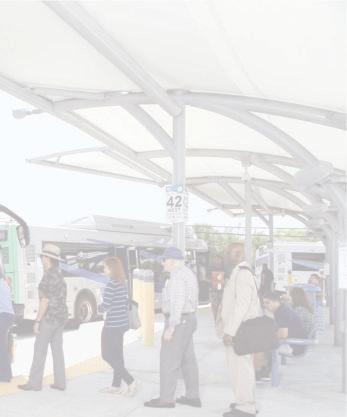

Teensile fabric canopies were selected because of their translucency and >> 11 materials, finishes and furnishings

low embodied energy (the sum of all energy required to produce the material). They we were selected because of their aesthetic quality of lightness and openness, and BCT’s fa favorable experience with this material at another recent, well-received bus facility, as well as with the tensile fabric roof at the county’s West government center, where na natural light levels achieved generate visual comfort and occupant well-being.

PT PTFE is the recommended canvas material, as PTFE has a longer time expectancy, longer warranty, and more natural light transmission than PVC.

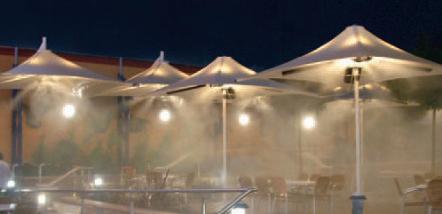

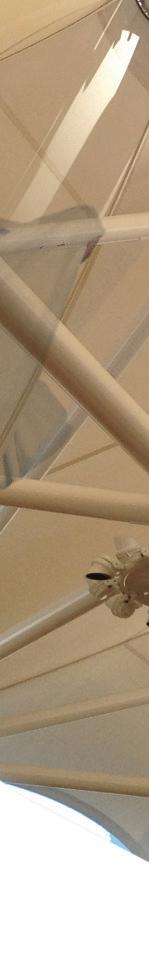

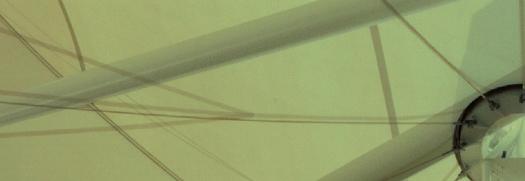

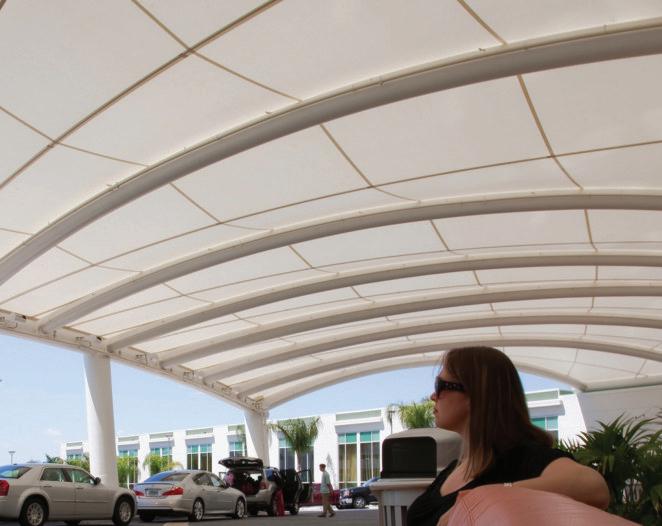

11.1 roofing 11.1.1 Tensile fabric canopies

W With cost saving standardization in mind, pre-fabricated units from Birdair were us used as design reference. The Birdair Saint Tropez® ST70 is called for at the south pa passenger platform, both with standard and inverted canopy. The larger Birdair m model Saint Tropez® ST90 is called for at the north platform, both platform canopy sy systems being joined by the photovoltaic panel-based structure mentioned in this do document. The Birdair Quasar® QS120 is recommended at the median between th the LTC south platform and the mall’s entrance, serving as a threshold marking an ax axial entry point to the facility and the mall. Birdair is the design reference thr throughout and the preliminary choice as vendor as they have ample experience with projects in the region and nationwide.

St Structural connections should be visually celebrated and cleanly finished. Loads fro from the canopy joining both platform canopy systems should be taken into account in the design and calculations, and its framing should be designed to tolerate the dis displacement of the overall structure. Field welding is to be avoided, bolting is pr preferred. Structure steel finishes are to be specified with corrosion and low m maintenance in mind. Piping and water collection components internal to the str structure shall be galvanized or treated against corrosion. All flammability sp specifications, structural, fire,wind and all applicable codes should be observed. For ca canopies which need to be joined in-between, joints shall be done through the use of th the same canvas material, and exterior “upside-up umbrella” type canopies should ha have an extra edge as shown on the Rainwater Harvesting section on this document, to avoid a “water wall” cascading effect during rain. The addition of department log logos on the canvas has not been accounted for, and is optional, but not recommended.

Color-changing LED lights are strongly recommended to be specified as feature uplighting, allowing varying between departmental color themes, special events, message display, or times of the year.

Consult and coordinate with the manufacturer to specify connections and structural support for uplighting early in the process. Locate light fixtures out of the reach of users

Colors: In lieu of colored canvas fabric, which would prove more costly, less favorable to the transmission of natural light, and less flexible than f colored canvas canopies, it is hereby recommended that White Pearl 81880 be selected for all steel members of the canopies, while“White (bleached)” be used for the canvas, or “Natural -not bleached-” as second choice.

White Pearl 81880 steel structure examples: Color-changing LED canopy uplighting

Natural -not bleached- canvas

>> 11 materials, finishes and furnishings

Selected ed interior ceilings should: ld:

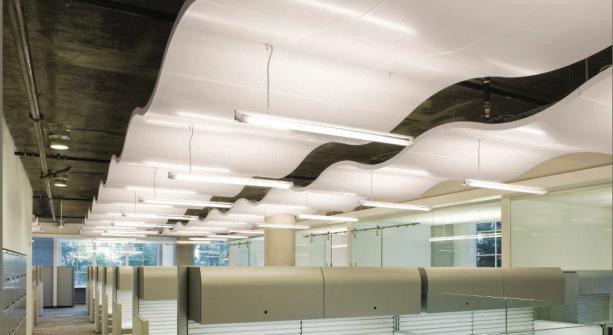

11.1 roofing 11.1.2 Interior ceilings

Prioritize acoustic comfort, due to the facility requirement of adjacency cy between bus and passenger traffic, ic, lounge/eating, office, restroom, and nd ticketing spaces through: gh: -high STC (sound transmission class) ss) acoustical ratings ngs -high NRC (noise reduction on coefficient) acoustical ratings ngs -high CAC (ceiling attenuation class) ss) -optional: acoustic panels with high gh Sabin ratings i.e. Armstrong ng SoundScapes ®

-Suspended ACT (Acoustical Ceiling Tile) will preferably have flush (frameless) joints concealing the suspension framing, instead of traditional revealed suspension system framing. Reflected ceiling plans should illustrate a design where ceiling elements (lights, smoke detectors, cameras, speakers, exit signs, etc.) are arranged in an organized, visually balanced manner, avoiding a “cluttered” look.

Ensure selection of products and nd vendors which guarantee certified ed sustainability and indoor environmental tal quality characteristics such as: -being composed of highly recyclable ble materials such as mineral fibers ers -fabrication through certified ed closed-loop recycling processes (offering ng high levels of post-consumer recycled ed content) nt) -certifying low or zero levels of VOC OC (volatile organic compounds) emissions ns -being composed of high levels (80% or more) of recycled content, i.e. .e. aluminum, galvanized steel eel -offering high ability for reclamation on -achieving long life cycles les -being composed of certified FSC, C, CARB wood (if selected) d) -being composed rapidly renewable ble products whenever possible ble -having high indexes of light reflectance, ce, reducing the amount of energy required red for lighting a space ace Comply with all requirements, codes, es, etc. including but not limited to flammability ity

-Exposing structure roof structures is not encouraged, but if this is done, noise attenuation ceiling elements should be provided, such as “clouds” or canopies (suspended mineral fiber ceiling surfaces), and their colors should be chosen to match the accent surface colors shown in the “surface color selection” section of his document. These surfaces may be provided in addition to a primary finished ceiling. None of these should obstruct views for CCTV cameras, security staff’s vigilance view angles, or fire sprinkler systems

Other systems may include additional sound attenuation surfaces, continuous from wall to ceiling, serving as aesthetic statement, possibly supporting a department logo if located a public location such as the ticketing area.

Public restroom areas should have hard ceilings, not tiled ceilings, for security reasons

photo credits: Armstrong, Inc.

>> 11 materials, finishes and furnishings 11.2 flooring 11.2.1 Exterior flooring

Raised pedestrian p i crossing: i g Mall M ll to facility f ili y connection i

High contrast tactile pavers

The department logo can be stamped on the exterior concrete at select locations.

transitional concrete flooring

interlocking pavers

scored concrete flooring

transitional concrete flooring

transition stripe flooring: concrete Exterior floors should ideally have light colors, avoiding the retention of heat, therefore reducing the heat island effect.

However, it is important to select finishes that avoid glare for floor surfaces more exposed to Axonometric A Ax onom mettri ric view view w showing sho howi howi wing n exterior ng ext xterio errio ior floors flf oo oors rs (tensile (te tens n ille canopiess removed rem emoved forr clarity) claariity t ) sunlight.

scored concrete flooring

concrete hexagonal pavers

>> 11 materials, finishes and furnishings 11.2 flooring 11.2.2. Interior flooring

Concrete staining is encouraged.

It shall be minimal and used as accent in contrasting, contemporary colors.

All flooring f should be slip resistant, and require low maintenance.

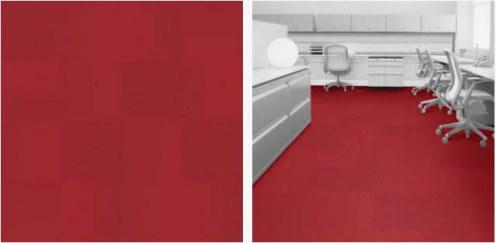

Carpet selection should actively seek compliance with the following parameters: -Should be modular (carpet tile) for easy replacement of damaged or stained units.

-Meet the Carpet and Rug Institute’s Green Label Plus program.

-Pad should meet the CRI’s Green Label program.

-All materials shall contribute to indoor air quality, they shall have low or no VOC emissions certification from he manufacturer, and shall offer protection from mold and bacteria, -Adhesives should have VOCs (volatile organic compounds) with a 50 g/l maximum.

-Should have Cradle to Cradle certification, and manufacturer should supply life cycle assessment data and information on environmental impacts from manufacture to end of life.

-Manufacturer should demonstrate practices of reclamation, and significant contents of recycled content.

-Allow a sustainable approach to cleaning which requires minimal or no water

Selected carpet shall have contemporary, clear geometric patterns, and its aesthetic shall avoid overloaded, baroque-like graphics such as those found on casino carpets.

Chosen patterns may make reference to the aesthetics of the exterior canopies, which in turn make reference to an element in nature as mentioned on this document.

Strong colors are encouraged as accents, used sparingly. Lighter solids should be used as field colors

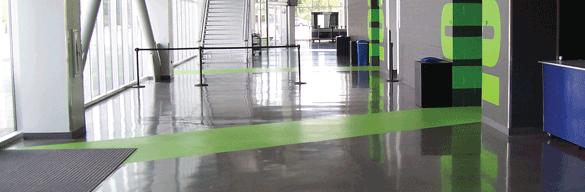

Finished concrete interior flooring

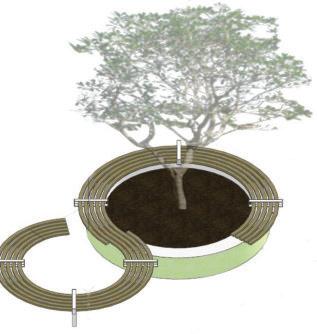

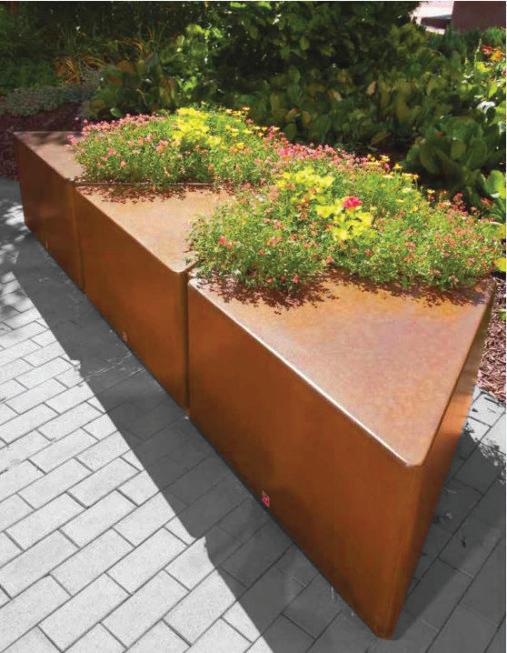

The design of the planter-benches responds BCT’s

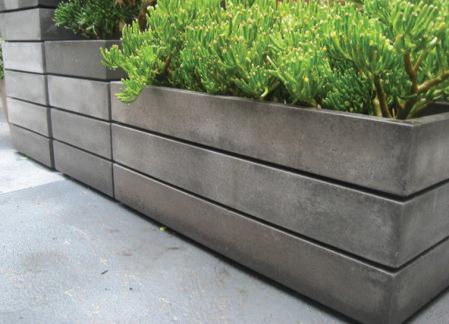

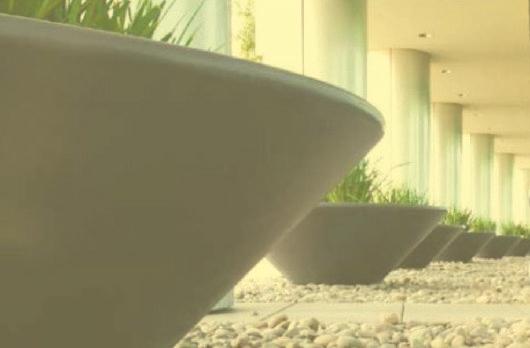

>> 11 materials, finishes and furnishings 11.3 landscaping 11.3.1 planters

intent to provide passengers with a

needed place of respite before or in between n commutes, as well as to being a durable, yet remarkable and integral part of the overall design.

The seating surface shall provide minimal obstacles required to discourage loiters from laying down.

These shall be minimal in profile

All selected materials shall be durable,

sustainable, recyclable and harmonious s w the material palette called for in this document. with

top view

and color.

Seating surfaces shall be slip-resistant and shall not S accumulate water. The seating area’s center point is a the th center point of the canopy’s column. The area of th planter not covered by the seating surface serves the as a maintenance access point. Selected plants should require low maintenance and

minimal irrigation. Planter should be detailed m for appropriate and durable drainage and waterproofing.

Vertical surface colors of each of the planter’s shall be Ve alternated, choosing one of the accent colors defined al on the surface color selection section of this document. The seating area shall be of dark color, close to a wood tone

perspective view

l Any acceptable alternatives shall have a clean, contemporary aesthetic. See the site furnishing section of this document for examples.

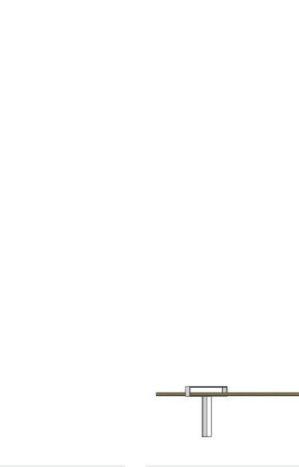

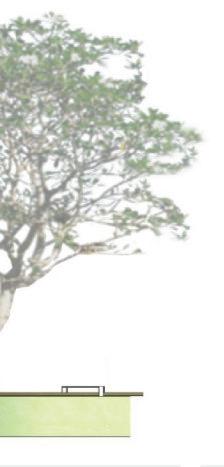

side view

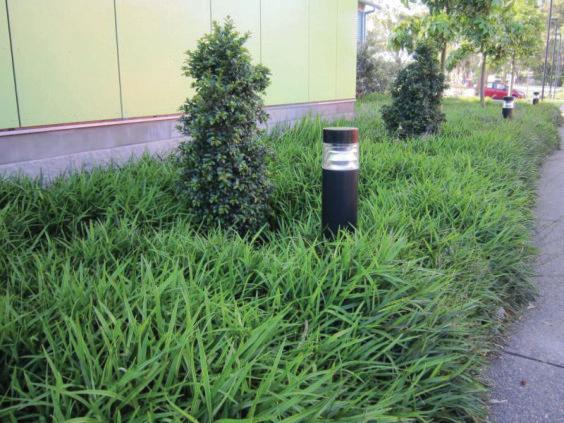

Landscape element selection shall follow Florida-Friendly Landscaping® guidelines, some of which are: -Efficient irrigation (obtained from the water collection canopies in the case of the LTC, which also reduces stormwater runoff) -Selecting drough tolerant turf and plants which require less or no pesticides -Zoning (grouping plants according to their water requirements) -Specifying sustainably harvested mulch to reduce evaporation and reduce weed growth (avoid cypress mulch) -Reduce irrigation and mintenance needs in tight areas such as the perimeter buffers by choosing slow-growing plants with compact growth habits which do not attract biting or stinging insects

necessary, specify -If nec a plant bed which will thrive in shady conditions will ns where turfgrass t not, choose plants with shallow roots. -When landscaping is used to cover unsightly elements such as utility boxes and meters, use low and medium height shrubs and plants with simple growth habits, soft foliage and no thorns. (requires consultation with utility company.) -Avoid overwatering and overplanting -Raised edges can be used to help keep mulch and debris off the road and sidewalks. Rainwater and SMS (soil moiusture sensors) should be considered as a water saving measure, as well as irigation schedulers such as FAWN. A landscaping professional should be consulted.

>> 11 materials, finishes and furnishings 11.3 landscaping

l types 11.3.2 bbuffer ff zzones, plant typ s

Plants selected for the bench-planters should not require direct sunlight, as they will receive only indirect, filtered lighing. Palm trees are only recommended to be sparsely placed at key vantage points such as the NE and SE corners of the site, as they yield little or no shade. However, trees at the perimeter should not be taller than 15’, to avoid natural debris from falling onto the passenger platform canopies.

The perimeter planting shall serve as a buffer zone , helping reduce noise and directing pedestrian traffic.

The following are examples of plants which will help attain the design intent of the project. scientific name

common name

florida regions of growth

Florida growth drought native? rate resistance

light range

1. Senna Polyphylla

Desert Cassia

S

No

Fast

Medium

Sunny, no partially shaded

Yellow summer flowers

2. Tecoma Stans Yellow Elder

C, S

No

Fast

Medium

Sunny

Yellow summer winter flowers, fragrant FNGLA 2005 plant of the year

3.Cordia Boissieri

C, S

No

Slow

High

Sunny, no partially shaded

White year-round flowers

4. Citharexylum Fiddlewood Spinosum

S

Yes

Average High

Sunny, hummingbirds partially shaded butterflies

White,fragrant year-round flowers, provides food for wildlife, useful as tall hedge

5. Capparis Jamaica Caper Cynophallophora Tree, Mustard Tree

S

Yes

Slow

Partially shaded Butterflies

Purple/white, spring flowers

6. Ardisia Escallonioides

Marlberyy, Marbleberry

C, S

Yes

Average High

Sunny Birds Partially shaded shaded

Fragrant, white, year-round flowers, attractive foliage provides food for wildlife Good for screens and hedges

7. Thunbergia Erecta

King’s Mantle C, S Bush Clock Vine

No

Fast

Medium

Sunny Butterflies Partially shaded

Purple year-round flowers, Good as hedge

8.Jasminum Mesnyi

Primrose Jasmine N, C, S

No

Fast

Medium

Sunny

no

Evergreen, will climb if provided support. Fragrant yellow flowers

9.Jasminum Nitidum

Star Jasmine C, S Shining Jasimne

No

Fast

Medium

Sunny

no

Evergreen/semi-evergreen vine or shrub, white, fragrant sprimg-summer flowers

10. Forestiera Segregata

Florida Privet

N, C, S

Yes

Average High

Sunny hummingbirds Partially shaded

Yellow, early spring flowers Attracts insects, great hedge provides food for wildlife

11. Erythina Herbacea

Coral Bean

N, C, S

Yes

Average High

Sunny hummingbirds Partially shaded

Spring flowers, friut

12. Cacculus Laurifolius

Laurelleaf

C, S

No

Average High

Sunny no Partially shaded

Spreading growth, yellow flowers

White Geiger

Snailseed, Carolina Coralbead

High

wildlife support

hummingbirds

>> 11 materials, finishes and furnishings 11.3 landscaping

characteristics

11.3.2 buffer zones, plant types

1 small trees

2 small trees

3 small trees

4 small trees

5 small trees

6 large shrubs

7 large shrubs

8 large shrubs

9 large shrubs

10 large shrubs

11 large shrubs

12 large shrubs

source: Florida Friendly Landscaping™ Guide to Plant Selection & Landscape Design, UF Dept of Environmental Horticulture

scientific name

common name

13. Brunfelsia Grandiflora

Florida regions of growth

florid a growth drought native? rate resistance

light range

Yesterday-today N, C, S -and-tomorrow

No

Fast

Sunny, no partially shaded Shaded

White spring-fall flowers

14. Chrysobalanus Icaco

Cocoplum

S

Yes

Average Medium

Sunny, butterflies partially shaded birds

White year-round flowers good hedge or screen plant, provides food for wildlife, high wind resistance

15. Barleria Micans

Yellow Shrimp Plant

S

No

Fast

Sunny no partially shaded

Evergreen shrub. Upright growth. Yellow flowers. provides food for wildlife

Medium

wildlife support

no

>> 11 materials, finishes and furnishings 11.3 landscaping

characteristics

11.3.2 buffer zones, plant types

13 large shrubs

14 large shrubs

15 large shrubs

16 vines

17 vines

18 groundcovers

19 palm family

20 small shrubs

21 small shrubs

22 grouncovers

23 grouncovers

24 grouncovers

16. Hedera Canariensis

Algerian Ivy

N, C, S

No

Fast

Medium

Shaded

Red leaf stems, thick leathery foliage, aggressive spread. Rich groundcover in the shade.

17. Quisqualis Indica

Rangoon Creeper

S

No

Fast

Medium

Sunny no partially shaded

Srping-fall White-pink-red flowers. Good for small buildings. Susceptible to pests

18. Ipomoea spp. (natives)

Morning Glory

N C, S

Yes

Fast

High

Sunny no partially shaded

Flower, varying colors. Easy spread,provides food for wildlife

19. Sabal Etonia

Scrub Palmetto

C, S

Yes

Slow

High

Sunny butterflies partially shaded birds

Spring-summer flowers, provides food for wildlife long lifespan. Hard to transplant.

20. Russelia Sarmentosa

Firecracker

N, C, S

No

Fast

Medium

Sunny butterflies partially shaded hummingbirds

Summer red flowers, provides food for wildlife.

21. Ixora Coccinea

Ixora

C, S

No

Average Medium

Sunny

no

Year-round colorful flowers glossy dark green leaves

22. Ruhmora Adiantiformis

Leatherleaf Fern C, S 7 Weeks Fern

No

Average Medium

Sunny

no

Evergreen fern. Dark glossy green leaflets

23.Ophiopogon Mondo Grass Japonicus Dwarf Lilyturf

N, C, S

No

Slow

Medium

partially shaded no

Sumer white flowers, green grass-like mounds

24. Aspidistra Eliator

N, C, S

No

Slow

Medium

partially shaded no shaded

Dark green, glossy foliage Brown flowers, deep shade ok

Cast Iron Barroom

source: Florida Friendly Landscaping™ Guide to Plant Selection & Landscape Design, UF Dept of Environmental Horticulture

The following are other recommended landscaping elements. Refer to the Florida-Friendly Guide to Plant Selection and L andscape Design for more information.

canna spp

belamcanda chinensis

eremochloa ophiuroides

>> 11 materials, finishes and furnishings 11.3 landscaping

11.3.2 buffer zones, plant types

evolvulus glomeratus

curcuma spp

paspalum notatum

thysanolaena maxima

hippeastrum spp

anthericum sanderii

distichlis spicata

impatiens spp

dianella spp

eragrostis spectabilis

hymenocallis speciosa

flaveria linearis

A ll benches to be located on shaded locations. Obstacle bars shall be minimal in profile and color. B enches may provide for fo back support or shall be af fixed to a wall. No commercial advertising whatsoever shall be placed on any surface. The following fo are examples of aesthetically acceptable alternatives to the custom planter-bench design described in this document, or to be used as additional benches. do

>> 11 materials, finishes and furnishings

11.4 site furnishings

11.4.1 bench alternatives

Topsit by Erlau

Topsit by Erlau

Intersit by Erlau

Mix by Landscape Forms

Plexus by Landscape Forms

Alpha by Erlau

35 Stay by Landscape Forms

Presidio by Landscape Forms

Parc Vue by Landscape Forms

Smart Code, incorporated by the City of L auderhill, encourages the use of the bicycle as an alternative method of transportatio n. The ran following are examples of aesthetically acceptable bicycle racks. No literalist designs shall be used (i.e. words or shapes hap suc h as of an animal or flower) Bicycle racks shall be located within an area visible from the security of fice.

>> 11 materials, finishes and furnishings 11.4 site furnishings

11.4.2 bicycle racks

Velofox by Erlau

Flo by Landscape Forms

Ring by Landscape Forms

35 Loop by Landscape Forms

Key by Santa & Cole

Bella Via by Erlau

Berliner by Erlau

Ride by Landscape Forms

Bicilinea by Santa & Cole

B-cycle bicycle rental stations may be placed in the passenger platforms. Its location should not impede pedestrian traf fic, and preferrably will be located within an area visible from the security of fice.

>> 11 materials, finishes and furnishings gs g 11.4 site furnishings ngs

ons 11.4.3 B-cycle rental stations o s 11.4.4 Bollards ards d

Arcus by Erlau

Notch by Selux

Goliath by Bel Lighting

Sentinel by Landscape Forms

Stop by Landscape Forms

LoGlo by Landscape Forms

Sentinel by Landscape Forms

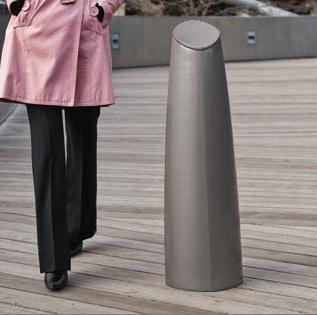

Selected bollards should be located so as to protect people and property, located ed especially at points where people congregate, such as at bus egress and ingress areas, as, and should be reinforced and crash-rated to have the ability to stop heavy moving ng vehicles.Their location should not impede access for emergency vehicles, however. No commercial advertising whatsoever shall be placed on any surface. Portayed here are examples of aesthetically acceptable bollards. It is preferred that bollards have ve corrosion and vandalism resistant properties instead of recurring to plastic sle eves, es, while having contrasting colors for visibility. Bollards with LED lights help improve ve their visibility on low-visibility conditions, and to direct pedestrian traf fic flows. ws.

Smart Code, called for by The City of L auderhill, cites recycling as a component of sustainable urbanism. Recyclable waste cont ainers shall be used, as well as cigarrete safe disposal systems. A ll trash receptacles to be placed in shaded locations, except for those r equiring no external electrical service, which should also be considered. “For one agency, the installation of only thre e solar trash compactor s reduced the number of miles driven to collect trash each we ek by approximately 150 miles, thus reducing labor costs, fuel costs, vehicle de preciation, and carbon fo otprint and helping with a cleaner environment, not only with CO2 emissions but with litter” states FD OT’s A ccessing Transit: Design Handbo ok for Florida Bus Passenger Facilities.

>> 11 materials, finishes and furnishings 11.4 site furnishings

11.4.5 waste containers

Literalist designs and advertising shall be avoided.

Bigbelly solar-powered trash compactor

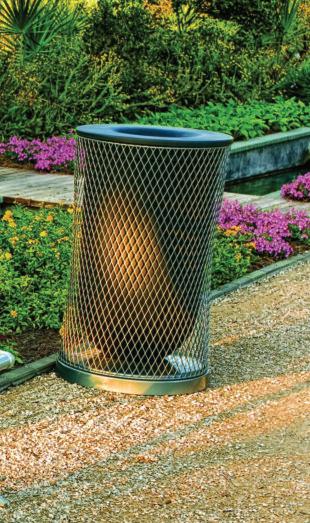

Collect by L andscape Forms

Select by L andscape Forms

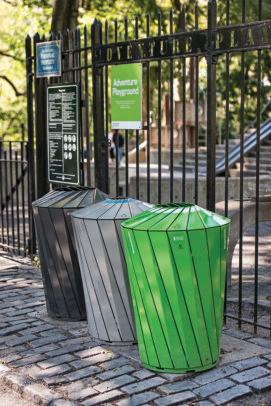

Central Park Conservancy by L andscape Forms

Central Park Conservancy byy L andscape Forms ms

Parc Vue by L andscape Forms

Gretchen by L andscape Forms

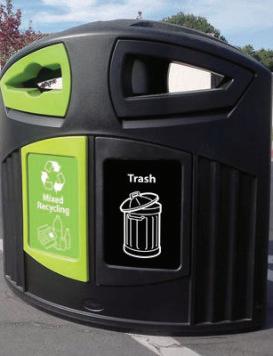

Nexus by Glasdon

Collect by L andscape Forms

Integrocity by Glasdon

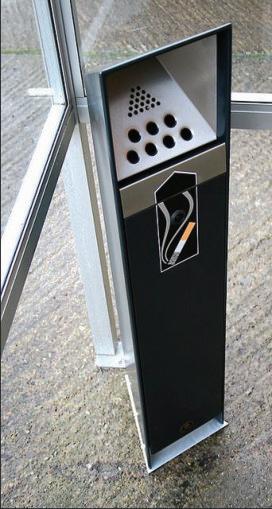

A shguard by Glasdon

ape Humo by L andscape Forms

Austin by L andscape Forms

Plainwell by L andscape Forms

Literalist designs shall be avoided. The following are acceptable alternatives to the bench-planter custom design proposed in t his document.

>> 11 materials, finishes and furnishings 11.4 site furnishings

11.4.6 planter alternatives 11.4.7 tree grates

M arino by HessA merica

WS 1106 by Wausau Select

WS 122 by Wausau Select

WS 114 and 115 by Wausau Select

WS 116 and 117 by Wausau Select

Variations by Urban A ccessories

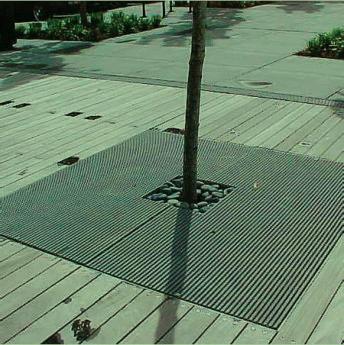

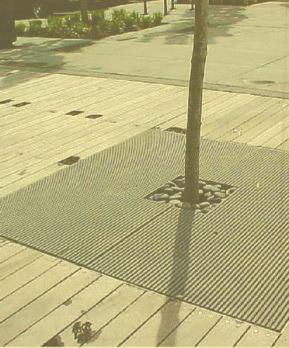

Selected tre e grates shall facilitate maintenance, be vandalism-pro of, be minimalistic, of contemporary design, and complement the overall aesthetics of the project.

Coho by Urban A ccessories

Calix by Metalco

Gretchen by L andscape Forms

Jamison by Urban A ccessories

>> 11 materials, finishes and furnishings 11.4 site furnishings

11.4.8 signage and wayfinding

Se e the FD OT 2013 Design Handbo ok for Florida Bus Passenger Facilities and the B roward County Transit Design Standards and Guidelines M anual for guidelines on signage regarding: -A DA requirements -Placement -Typical dimensions -Font requirements -Crashworthiness -Emergency signage -Route map location -Energy-ef ficient features -Usage of colors and contrast -Type of information to display -Visibility in relation to circulation and traf ficc -Clearances and relationship to landscape and site elements Etc.

Selected signage and wayfinding shall be of contemporary design, with clear edges and low ornamentation, usign the main department-designated colors.

Signage should be positioned so as to avoid interfering with sight lines from the security of fice and view andles from all CCTV security cameras.

A pedestrian crossing traf fic control should be considered for the elevated crossing at the point connecting the mall entrance and the facility.

The suggested custom L auderhill Transit Center signs depicted earlier on this document uses Bazaronite font, which graphically relates to the theme of transportation.

Smart bus real time information systems should LAUDERHILL TRANSIT CENTER be incorporated , indicating to the public times of arrival and departure, and other route, event, emergency, or delay information

SOURCE: FD OT 2013 Design Handbo ok for Florida Bus Passenger Facilities Version III. B roward County Transit Design Standards and Guidelines M anual

B

WARD COU RO N TY , B , CT

ESE CANOPI TH ES L F

UTILIZATION RE

Signage is an opportunity for the department to educate the public as to the sustainability methods utilized in the building. Messages indicating amounts of rainwater reclaimed, amounts of runof f avoided, usage of rainwater and soil moisture sensors for irrigation, amounts of electricity generated by solar panels, fossil fuels saved via the usage of electric buses,etc should be celebrated in signage visible to the public, expressing the department’s commitment to sustainability. Consider displaying any sustainable design and/or operations certifications which the building may achieve (B roward Go Gre en Seal of Sustainability, i.e.) as well as certificates from materials‘ manufacturers and vendors. A lso, transmitting the principle of sustainability via announcements regarding users’ carbon fo otprints may contribute to generate public consciousness of resource usage.

OR

T RAINWAT EC ER L L O F C

consistent use of font across the project.Text celebrates the department’s adoption of the particular sustainability menthod. icon: maximum 2 colors, in similar hues. Clean edges, fre e of ornamentation for clearer message and relation to the architecture.

>> 11 materials, finishes and furnishings 11.5 public well-being 11.5.1 misting (evaporative cooling)

Up to four of the canopies at the east entry of the south platform may be factory-fitted with misting water nozzles, an additio nal amenity for passengers during our region’s uncomfortable summer seasons, especially for those who walk to the station.

11.5.2 public identity: surface-applied graphics 11.5.3 public identity: art in public places

The surface-applied graphic of the Cala Lily flower, as mentioned at the beginning of this document, proposes a graphic symbol that easily occupies a place in the mind of the community.

VIEW FROM SOUTHEAST

The graphics portrayed here can be further abstracted by an artist, while k e eping the main symbolic connection betwe en the water- funneling flower and the main rainwater collecting architectural feature of the building, using the thre e main accent colors mentioned on this document.

VIEW FROM NORTH

VIEW FROM SOUTH

The LTC embodies the cultural and artistic influence of its demographic context through its main architectural feature. A ny art should complement this feature in a non-literalistic maner, and preferrably engage this feature physically in the form of thre e-dimensional installations, avoiding literalism and inviting critical thought and appreciation through abstraction.

EXA M PLE OF A WEATHERPRO OF TH REEDI M ENSIONA L INSTA LLATION ENGAGING CA NOPY COLUM NS. NOTE: A ny such art instalaltion should not obstruct CCTV or security cameras
