Dovetail Drawer Boxes

Dovetail Drawer Boxes 2022

To Our Valued Customer,

Cal Door & Drawer takes pride in delivering a quality product on time. In order to ensure this, we have automated all of our notifications.

ORDER CONFIRMATIONS:

Order confirmations will be emailed to you. Once your order has been placed order confirmations will be emailed the next business day. We have the ability to store as many email addresses as you need.

You have until 12:00PM of that business day to advise us of any errors on our part due to data entry. Cal Door & Drawer Policy states that it is your responsibility to review ALL INFORMATION on your order confirmations. Cal Door & Drawer will not be held responsible for any incorrect information.

Once order(s) are in production, any cancellation or changes on your part will be subject to charges based on materials already cut.

ANY MISC or rush order shipping in 5 days or less; no changes can be made unless there was an entry error!

SHIPPING NOTIFICATIONS:

Shipping notifications will be emailed the day your order ships. Information included on this is your job #, job name, truck route or tracking information along with carrier

Due to the short lead times, all order(s) placed are processed for manufacturing the same day. The following day all orders processed are in production. There are hundreds of orders which leads to thousands of line items entered daily.

Please be sure to review your order confirmations when you receive them. By doing this, it will save time and cost for any potential errors.

Thank you

Edward J. Rossi

Credit Terms:

A complete and current credit application must be submitted before any terms of payment will be authorized. Without a current signed credit application, sales terms will be CIA (Cash In Advance). Account terms and credit limit will be established based on credit history, bank information and sales volume. Open account terms can take up to two weeks to process. All orders for new customers and inactive accounts will require pre-payment until credit terms have been established. If orders exceed the established credit limit, a deposit may be required. A current, signed resale card must be on file or sales tax will be charged.

Cal Door & Drawer will only accept check payments by fax or email (not regular mail).

CHECKWRITER is a program that allows you to fax or email your check for payment, rather than mailing it. For more information please contact our credit department.

Credit Card Transactions:

We currently accept Visa, Master Card, American Express and Discover. Credit card transactions require a completed credit card authorization form. This form requires copies of your drivers license and the front and back of your credit card for verification. This is required for your protection as well as ours. We do not share credit card information with anyone.

Third Party Credit Card Transactions:

All required information for standard credit card transactions apply. An additional authorization form will be required verifying total cost of job prior to production CHECKWRITER and Credit Card payments must be received prior to doors being shipped.

Delivery Policy:

Handling:

Handling charge $1.00 per piece. This charge applies to all orders, whether it is will-call, delivery by our truck, Common Carrier, Fed Ex, On Trac or UPS. Will-Call:

Will-call orders are to be picked up at our manufacturing facility @ 105 Cochrane Circle, Morgan Hill, CA 95037. Will-call orders are to be picked up at our manufacturing facility @ 1800 Abbott Street, Salinas, CA 93901. Will-call orders are to be picked up from 6:30 am – 2:30 pm, Monday thru Friday Orders that were originally scheduled for will-call cannot be changed to delivery on our truck without authorization.

Our Truck:

All shipments delivered on our truck in California will be charged a $100.00 delivery fee. Arizona and Nevada shipments delivered on our truck will be charge a $150.00 delivery fee. Our trucks deliver to major metropolitan areas. Shipments are determined by volume of orders in each area.

Re-Delivery Fee – Our Truck:

Re-deliveries will be charged a second delivery fee. This fee will only be charged if the original delivery was unsuccessful between the hours of 7:00 am – 5:00 pm on your delivery date.

Fed Ex, On Trac & UPS:

Orders of 12 pieces or less, or $300.00 or less, are subject to shipment via Fed Ex, On Trac or UPS. Customer is responsible for all packaging materials and Fed Ex, On Trac or UPS charges.

Common Carrier:

Orders exceeding 12 pieces are subject to being shipped via Common Carrier and assessed a pallet fee. Customer is responsible for all packaging materials and freight charges.

Fed Ex, On Trac, UPS & Common Carrier Claims:

Any damage to outer packaging must be noted on the bill of lading and brought to the attention of the carrier Take pictures of all damaged exterior packages and keep all packaging material. Photos of damaged product and packaging are required to file a claim.

Contact your customer service representative immediately and submit all information in order to file a claim. Do not throw away packaging until claim has been resolved. Sending us a photo only of a damaged door is insufficient information. We cannot file a claim unless you have followed the guidelines listed above.

Ordering Procedures:

Orders must be submitted as FINISHED SIZE for standard 15mil thickness. For Cabinet Software programs utilizing a deduction for 1/2” material, we will adjust your drawer box by adding 1/8” to your width. This will accommodate our 15mil standard thickness. You must check the appropriate box on our order form

An order confirmation will be emailed to you the next business day. Orders may be faxed, emailed, or can be placed online 24 hours a day

We request all orders to be placed on a Cal Door & Drawer Order Form.

We can accept your computer generated cut lists as long as you complete all the details of the order form except for sizes.

When sending in computer cut lists, it is the customers responsibility to highlight and separate all different materials, drawer styles, and details.

Special instructions should be clearly communicated in writing at the time the order is placed. Standard lead time is 5-12 working days.

No changes can be made once an order has been placed and confirmed. You will always receive an order confirmation and delivery date.

If you do not receive an order confirmation within 24 hours, please notify your Customer Service Representative.

Do not resend your order without speaking to your Customer Service Representative first, as this can and will lead to duplicate orders.

If you are requested by your Customer Service Representative to resend an order, please indicate on the top of the order or in special instructions that this is a RESENT ORDER – DO NOT DUPLICATE.

Faxed in Orders:

Please fax orders in only once to avoid duplicate orders. If you receive a fax transmission error, contact your Customer Service Representative to verify if order was received.

If you are requested by your Customer Service Representative to resent an order, please indicate on the top of the order or in special instructions that this is a RESENT ORDER – DO NOT DUPLICATE.

Phone in Orders:

We take and read back all sizes “width x depth x height” (WxDxH). When your order is read back, you are responsible for verifying that the sizes and specifications are correct. Any mistake will be the customers responsibility. We strongly suggest orders be placed by Fax, Email or Online to avoid read back mistakes.

Quotes:

Please indicate on top of order form or in special instructions “QUOTE ONLY” Generally, most quotes are done the same day as received. If it is a special or large request it may take longer. Quotes are valid for 30 days from receipt.

General Pricing:

All prices are per square foot, figured to the nearest 1/100th of an inch. Minimum invoice charge is $25.00. Prices are subject to change without notice.

Perimeter x Linear Inch Price + Per Box Price

Perimeter = Width + Width + Depth + Depth

50 Linear Inch Minimum Per Box

Add $12.00 per Solid Box for Finishing

Calculating Box Price

Example:

Maple Dovetail Box 15 1/4 x 21 x 4 1/4 (finished)

1.) Calculator Perimeter 15 1/4 + 15 1/4 + 21 + 21 = 72 1/2

2.) Multiply by Linear Inch Cost 72 1/2 x $0.48 = $34.80

3.) Add Per Box Charge $34.80 + $13.75 = $48.55

4.) For Solid Box add Finishing Charge $48.55 + $12.00= $60.55

Solid Box Total: $60.55 (finished)

Calculating Box Price

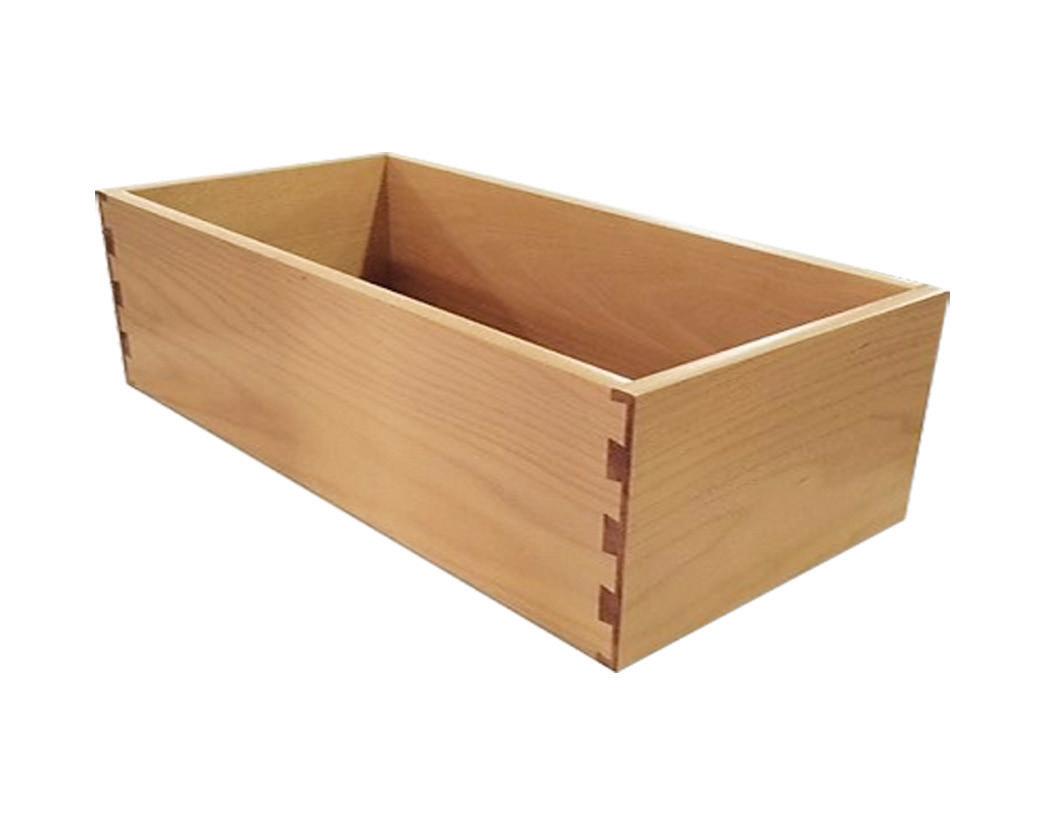

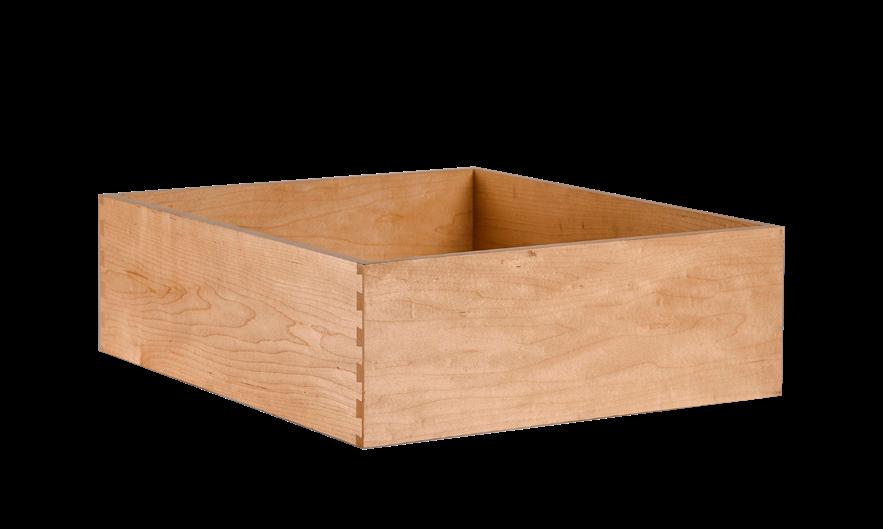

• Standard Dovetail Boxes come assembled at

• Taller and custom heights are available in 1/4”, 1/2", 3/4" and 1" increments, allow two additional manufacturing days.

• Please note on custom heights we cut down from existing stock, bottom edge will not be finished.

• If drawer box height is not listed refer to next larger size (Example: 3 3/4" height will be priced at 4 1/4" height).

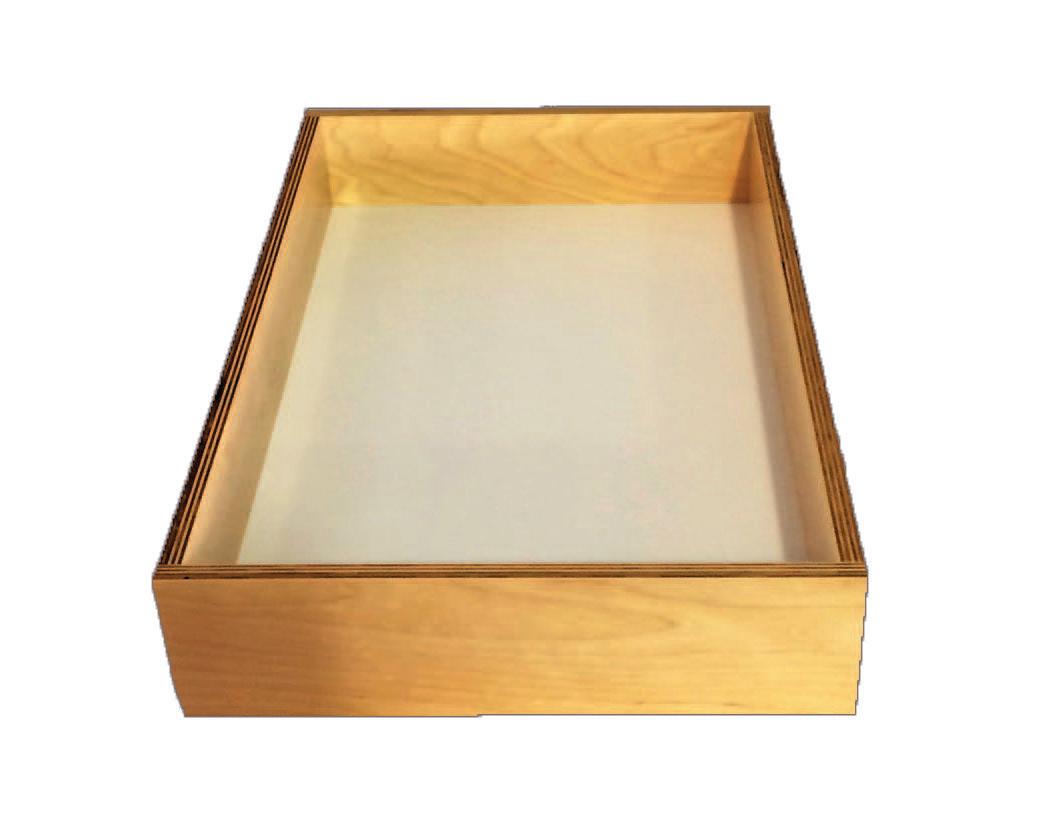

• 9-Ply and 11-Ply Birch drawer boxes come standard prefinished, no additional finishing charges will apply.

• All solid boxes come standard 15mil (0.590") thick and prefinished: add $12.00 per solid drawer box for finishing.

• For Cabinet Software programs utilizing a deduction for 1/2" material, we will adjust your drawer box by adding 1/8" to your width. This will accommodate our 15mil standard thickness. Your must check the appropriate box on our order form.

• Recommended 3/8" thick bottom on all boxes over 30" in width: add $10.00 per drawer box.

• Bottoms are placed 1/2" up from bottom of sides to allow for undermount guides.

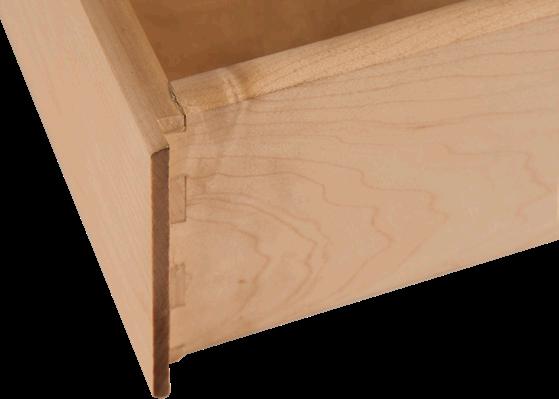

• Drawer boxes come standard with eased top edges.

Finishing: All material used in our drawer boxes come with a water-based UV finish.

•All solid boxes: add $12.00 per solid drawer box for finishing.

•9-Ply and 11-Ply Birch drawer boxes come standard prefinished, no additional finishing charges will apply.

Logo Engraving

Add $3.00 option charge per drawer box.

2" from the front and 1/2" from the top on the inside left corner of drawer box.

Approximate logo size 3 1/4" x 2".

Logo must be submitted by one of the following formats:

Adobe Illustrator

PDF (High Resolution)

All solid drawer boxes come standard finished: add $12.00 per solid box for finishing.

• MAXIUM HEIGHT FOR ALL DRAWER BOXES IS 28”

• Taller and custom heights are available in 1/4”, 1/2", 3/4" and 1" increments, allow two additional manufacturing days.

• Please note on custom heights we cut down from existing stock, bottom edge will not be finished.

• If drawer box height is not listed refer to next larger size (Example: 3 3/4" height will be priced at 4 1/4" height).

Recommended 3/8" thick bottom on all boxes over 30" in width.

• Special materials available: (Example Walnut, African Mahogany, Rift White Oak, Beech, Alder etc.) call for pricing.

Drawer Boxes with 1/4” bottom: standard no extra charge

Drawer Boxes with 3/8” bottom: add $10.00 per drawer box

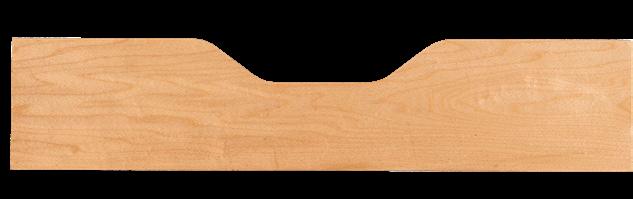

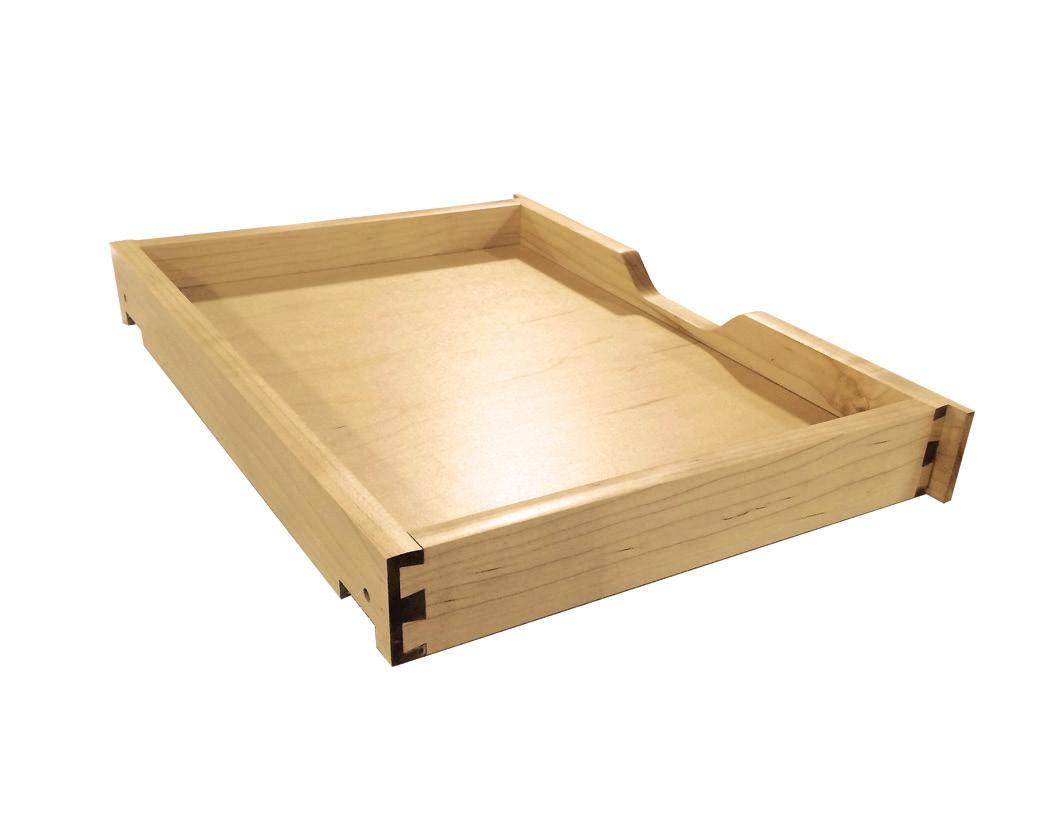

Scoop Option: 6 1/2” x 1 1/2”

Dovetail Drawer Box Options:

Square Scoop Option: 4” x 1”

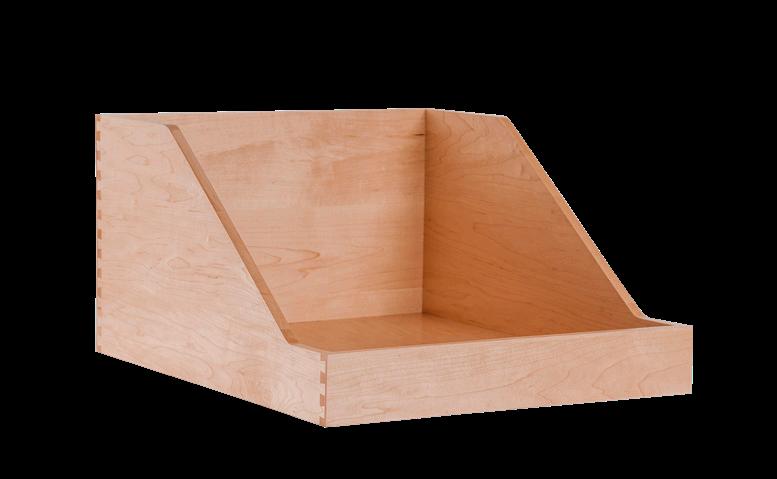

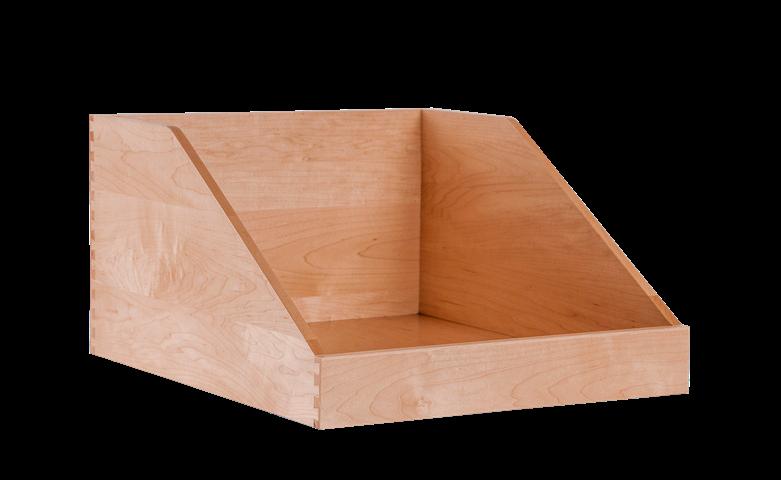

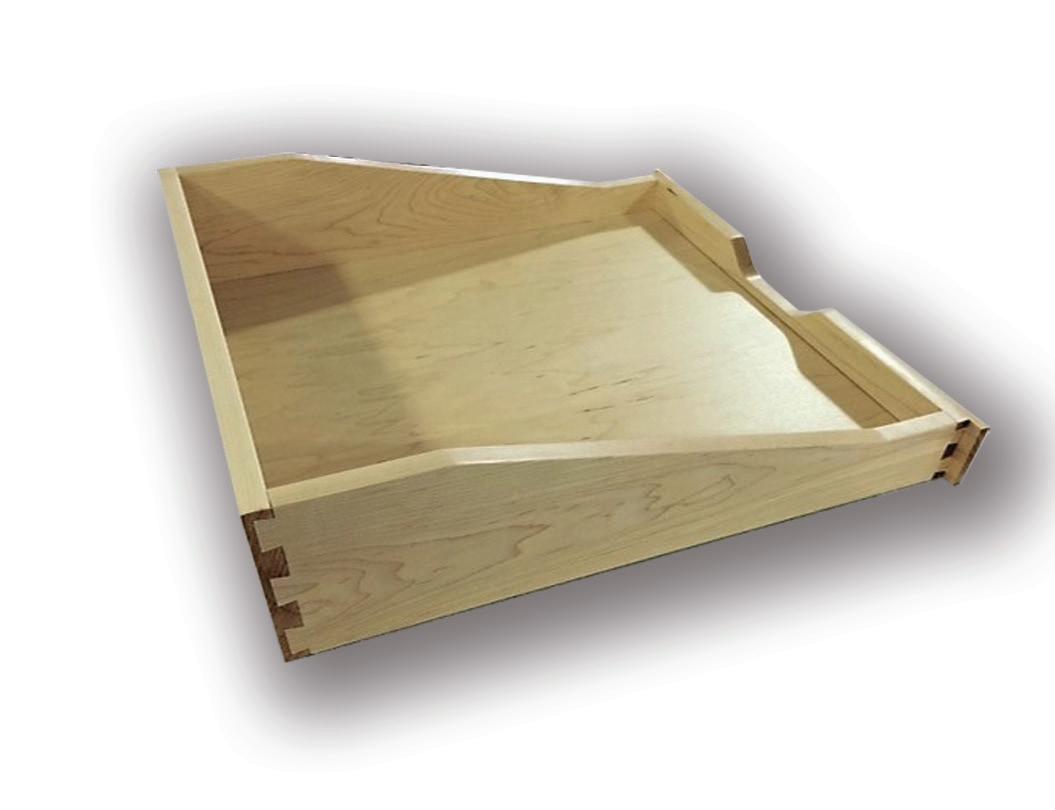

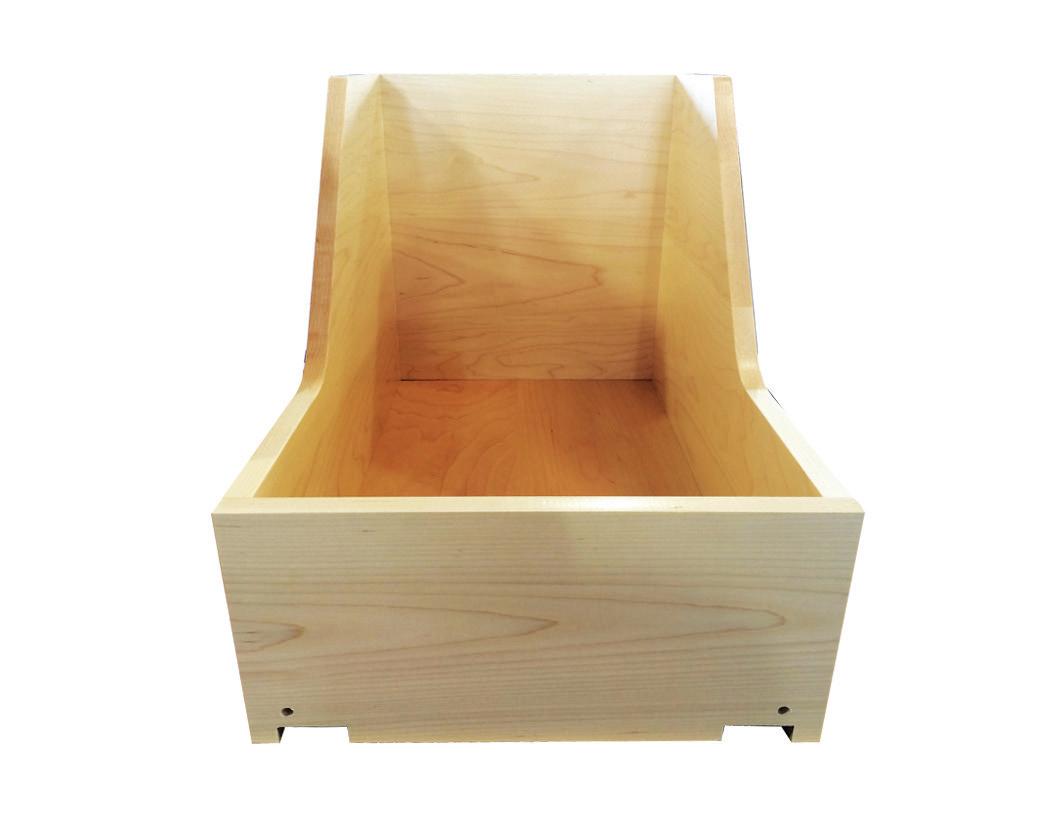

Angled

Minimum Width 7”

● Scoop is centered on front of drawer box

Add $8.50 per drawer box

● Minimum height applies to back

● Front height is standard at 2 1/4"

● Available with scoop: add $8.50 per drawer box

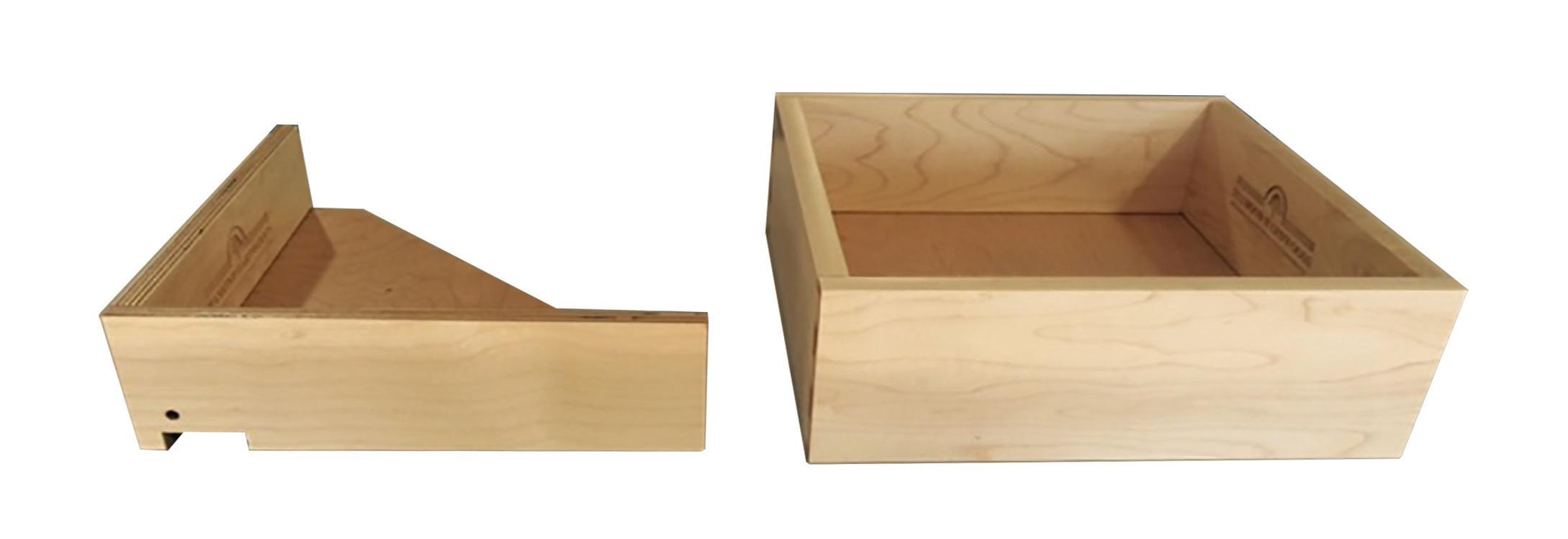

Half Angled

● Minimum height applies to back

● Front height is standard at 2 1/4"

● Drop will start approximately center of drawer box

● Available with scoop: add $8.50 per drawer box

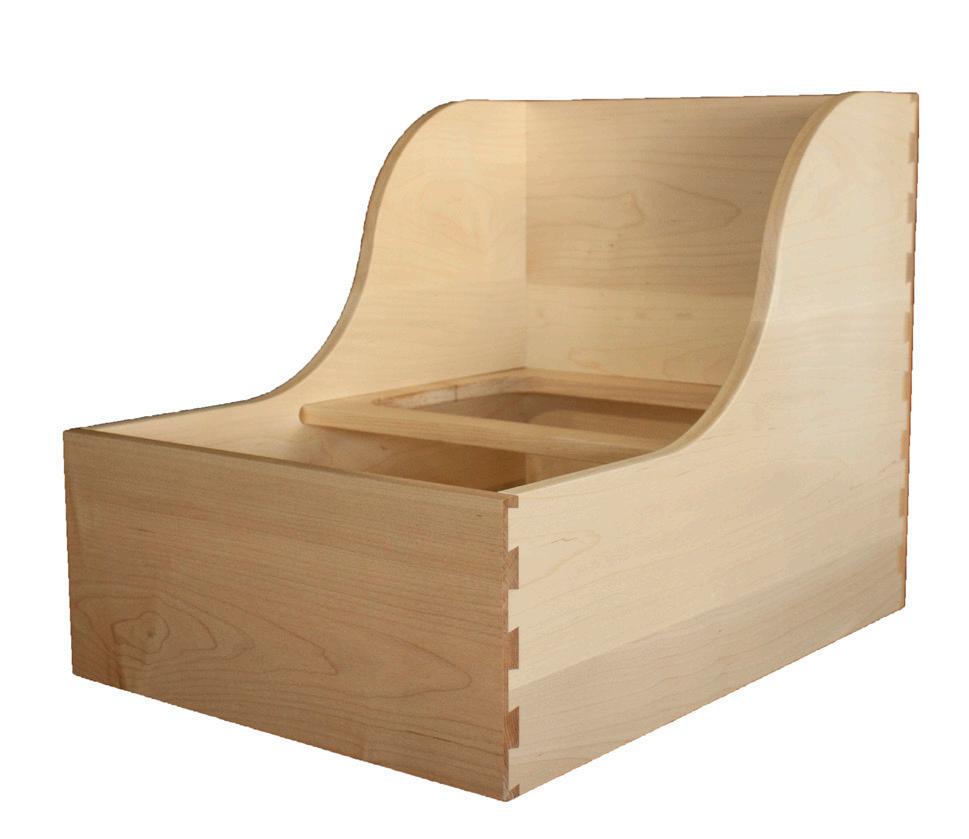

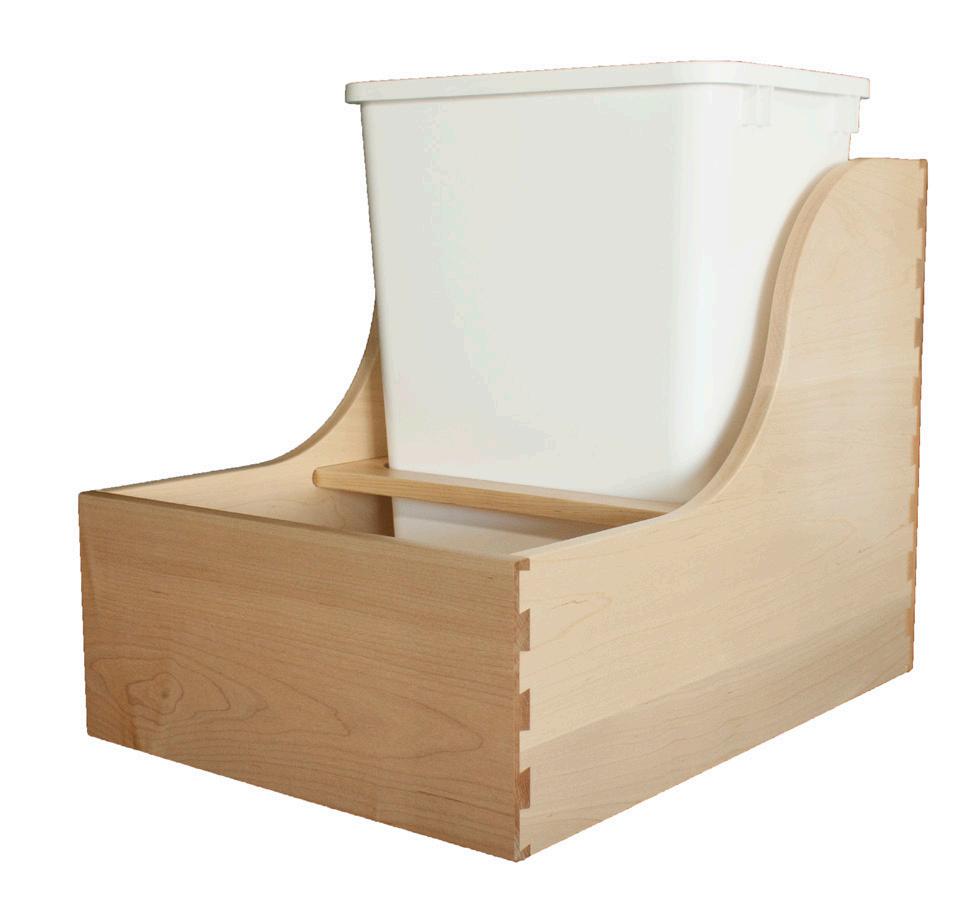

Scalloped Angled

● Minimum height applies to back

● Front height is standard at 2 1/4"

● Radius will start and drop 1/3rd from back of drawer box

● Available with scoop: add $8.50 per drawer box

Lipped front

Add $30.00 per drawer box

● Available with 0.590" thick face only

● Available with scoop: add $8.50 per drawer box

● Available on solid wood boxes only

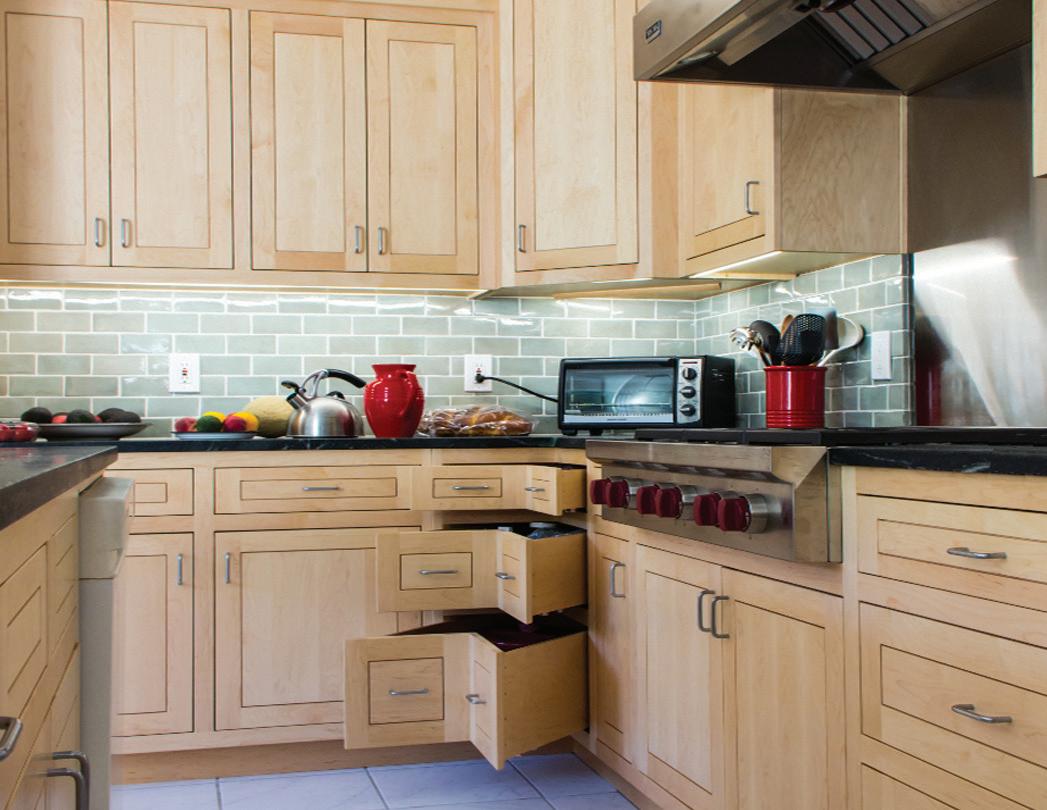

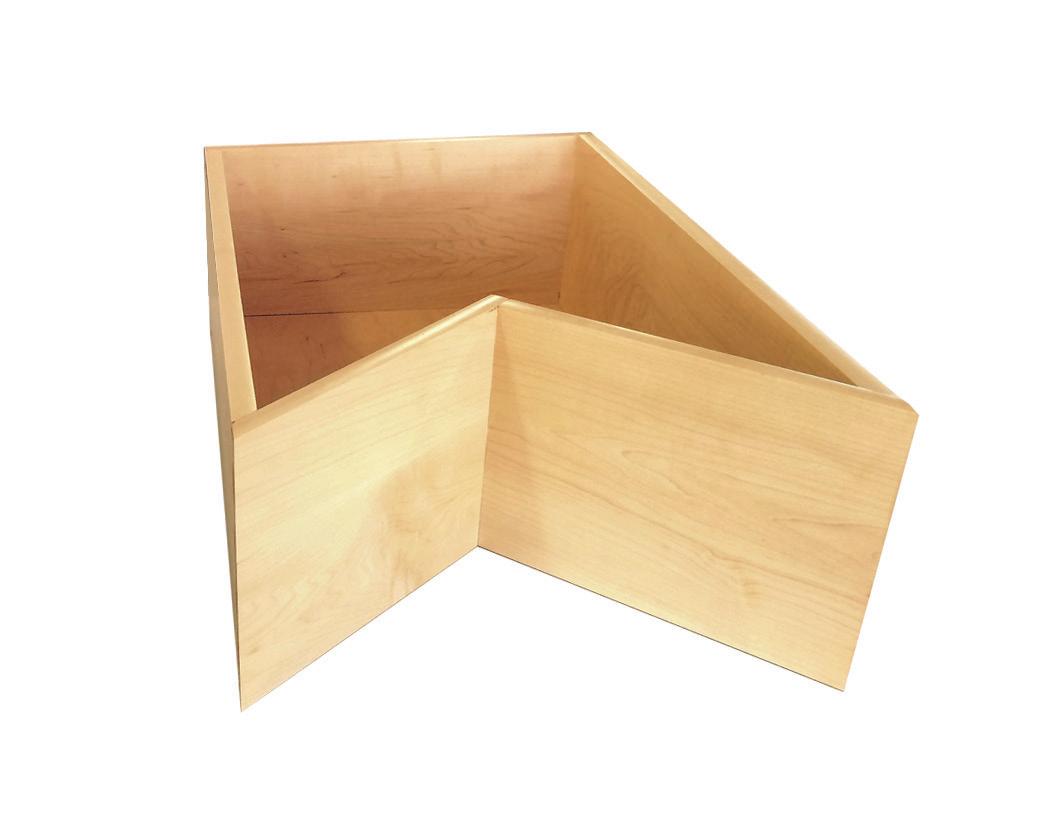

Corner

Add $125.00 per drawer box

● Recommended in place of Lazy Susan

Not available in 9-Ply

3 1/8”x3 1/8”x1/2” ply fillers added for installing clips

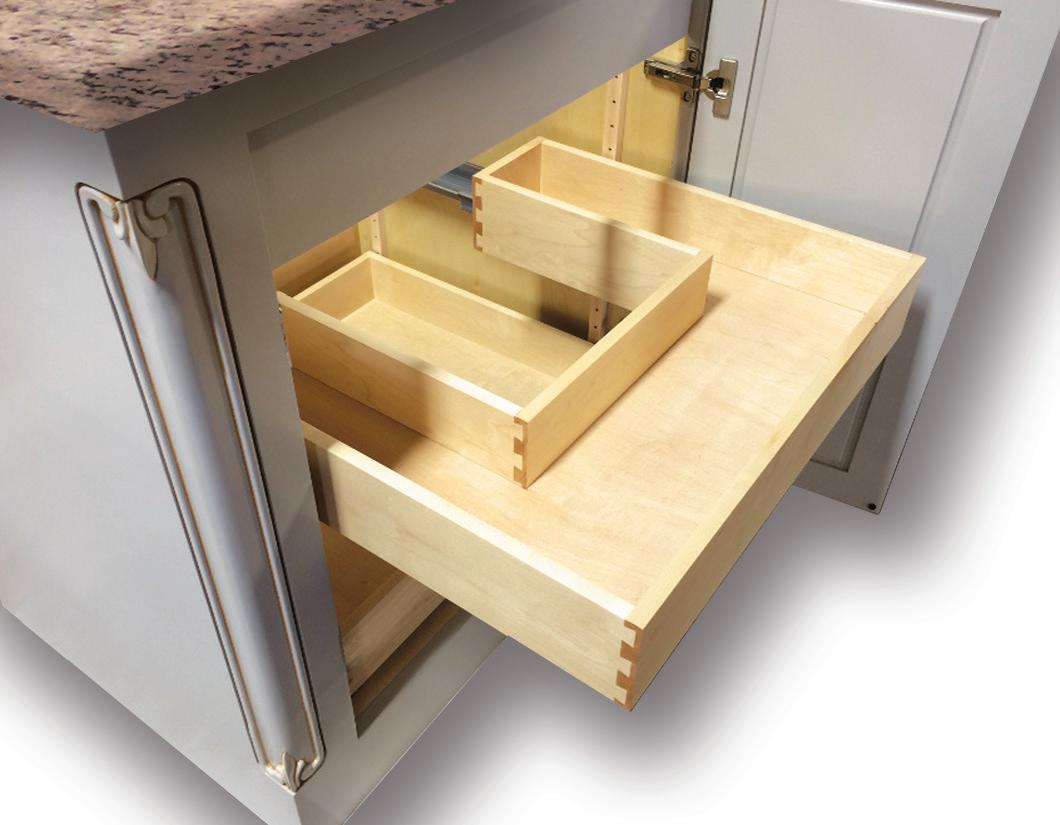

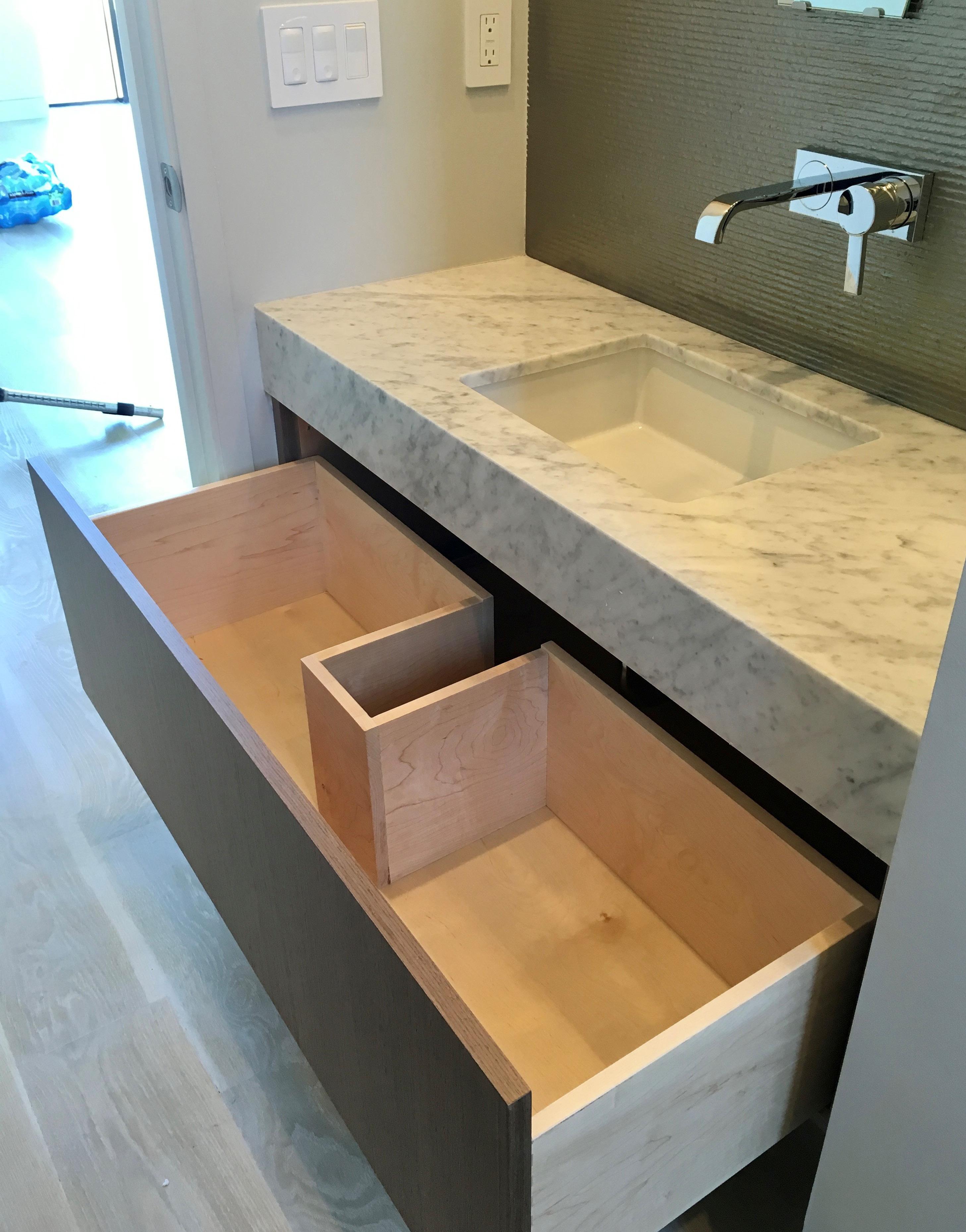

U-Shape

Add $125.00 per drawer box

● Recommended for under sink plumbing

Dovetail

L-Shape (left)

Add $75.00 per drawer box

● Recommended for under sink plumbing

L-Shape (right)

Add $75.00 per drawer box

● Recommended for under sink plumbing

For additional opening: add $15.00 each

● Single divider is centered

● Double dividers are equally spaced within inside drawer dimension

● Dividers are same thickness as the sides of drawer box

● Dividers are available both removable or fixed (must specify)

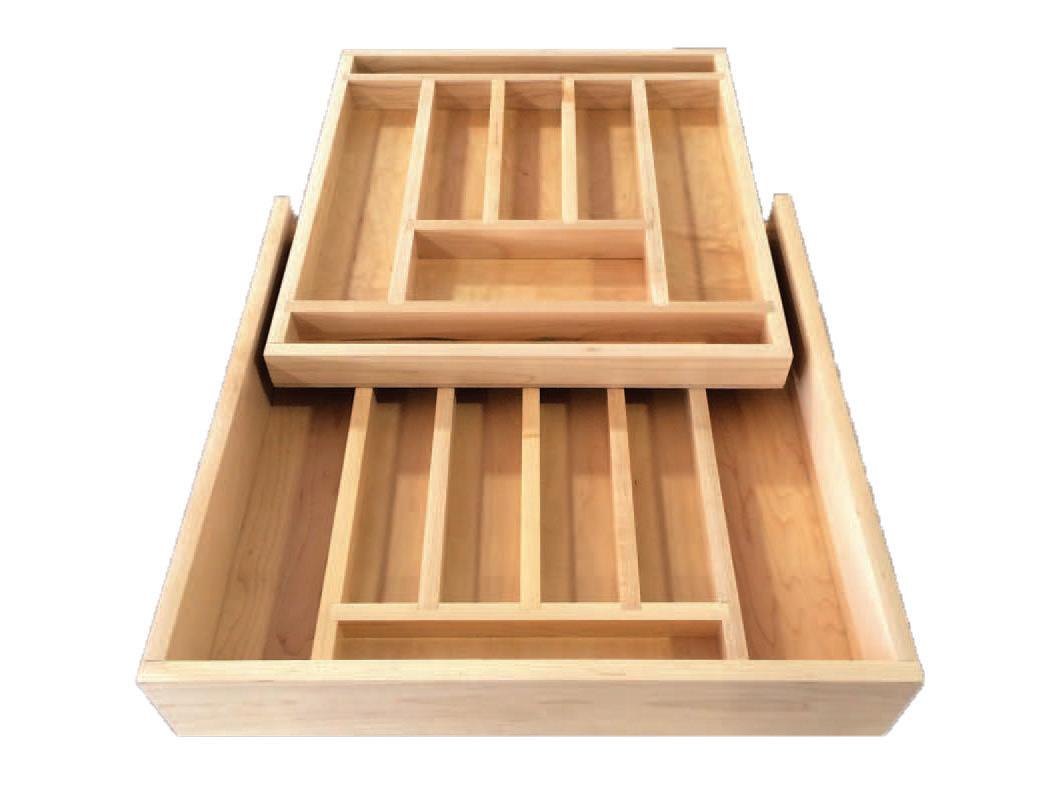

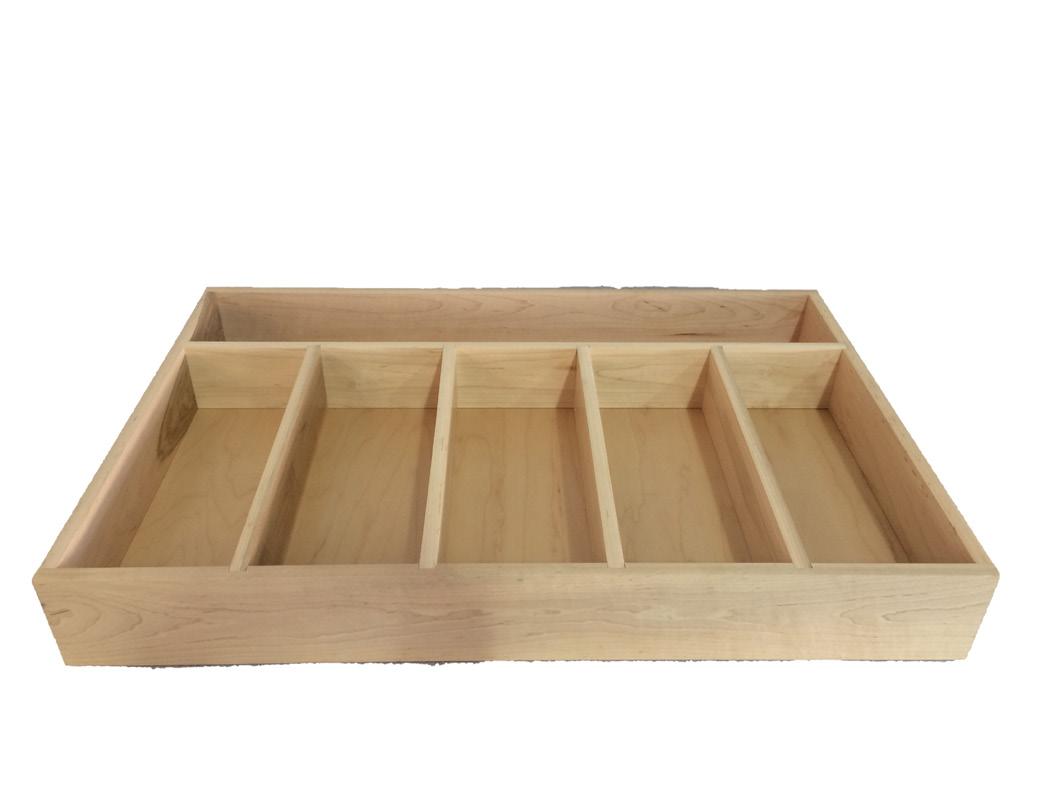

Single Vertical Divider

Double Vertical Divider

Single Lateral Divider

Double Lateral Divider

File Notching Options

Single Letter: add $20.00 per drawer box

Single Letter & Legal: add $30.00 per drawer box

Double Letter & Legal: add $50.00 per drawer box

● 1" wide anodized file bars included

● Extra 1” wide anodized file bars available: $15.00 each

● Notching location starts 1/2" from front or side

● Special notching available, drawing required

Front

Front

Letter & Legal Notching side to side (2 bars)

Single Letter & Legal Notching front to back (2 bars)

Double Letter or Legal Notching front to back only (4 bars)

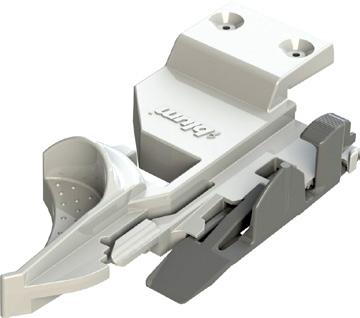

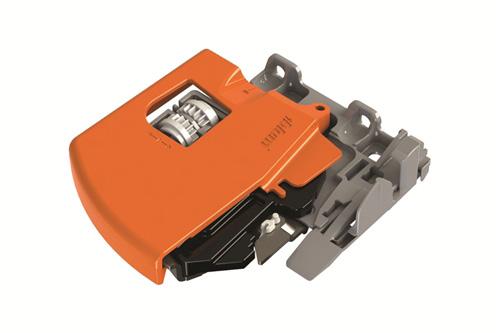

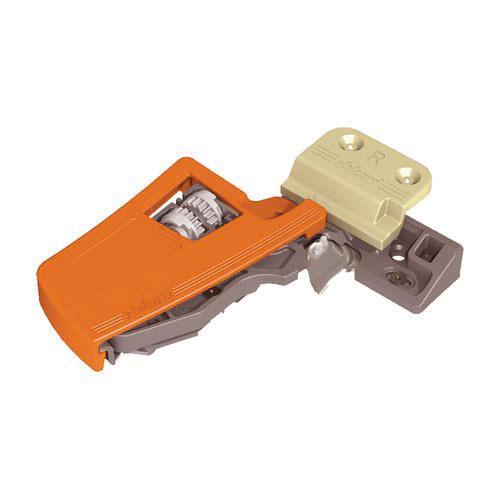

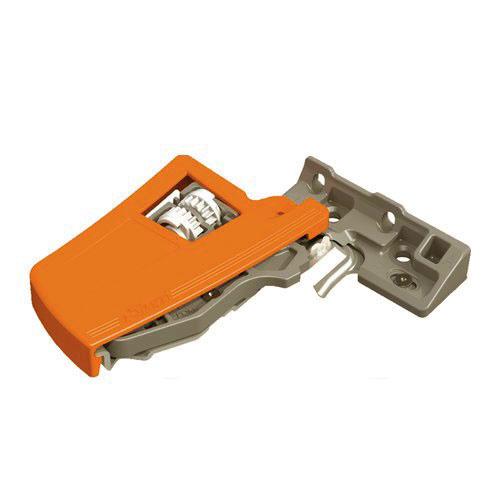

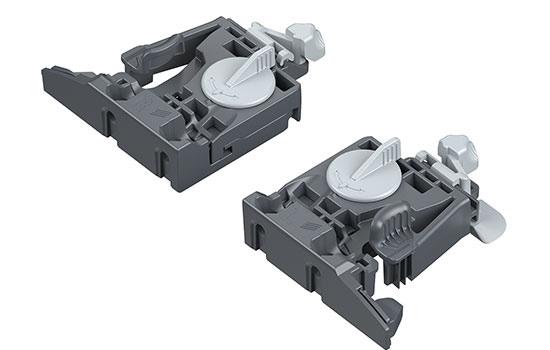

T51.1801 L for Blum Tandem 563

T51.1801 R for Blum Tandem 563

● for use with standard application

● self adjusting drawer length tolerance

● minimum inside drawer width 4 7/8”

T51.1901 L for Blum Tandem 563

T51.1901 R for Blum Tandem 563

● side adjustment +/- 1/16”

● height adjustment + 1/8”

● minimum inside drawer width 6 11/16”

T51.0801.20 L for Blum Tandem 563

T51.0801.20 R for Blum Tandem 563

● narrow drawer without side adjustment

● maximum dynamic load capacity 25lb

● minimum inside drawer width 3 3/4”

● designed for 1/2” drawer bottom recess

● not available for 9-Ply, 12mil (0.470”)

BT51.1901.PS

● self-adjusting drawer length tolerance

● minimum inside drawer width 6-11/16”

● height adjustment +1/8” (3mm)

● side adjustment +/-1/16” (1.5mm)

● depth adjustment +3/32” preset at 0

● minimum sub front thickness 1/2”

● integrated 1/8” distance bumper for SERVO-DRIVE

Blum Narrow Box

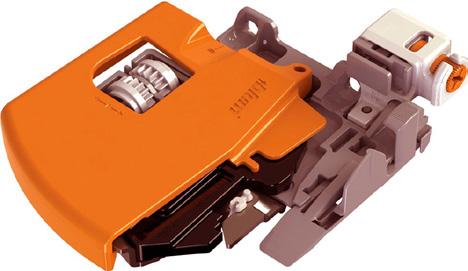

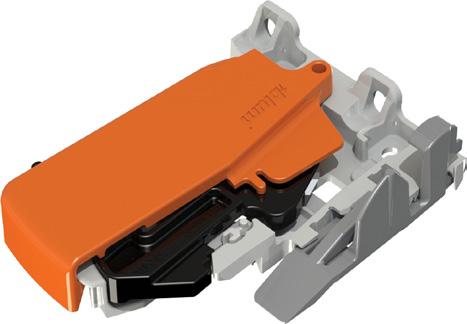

Locking devices

BT51.7601

● self-adjusting drawer length tolerance

● Minimum inside drawer width 6-11/16”

● side adjustment +/- 1/16”

● designed for 1/2” drawer bottom recess

BT51.7601.20

● self-adjusting drawer length tolerance

● minimum inside drawer width 6-11/16”

● side adjustment +/- 1/16”

● minimum sub-front thickness 5/8”

● designed for 1/2” drawer bottom recess

● not available for 9-Ply, 12mil (0.470”)

BT51.0501.20

● maximum dynamic load capacity 25 lb

● self-adjusting drawer length tolerance

● minimum inside drawer width 3-3/4” without TIP-ON BLUMOTION

● Minimum sub-front thickness 5/8”

Standard Notch for Blum Movento Series

Standard Notch for Blum Movento Series when using Blum Tip-On

drawer slides not provided

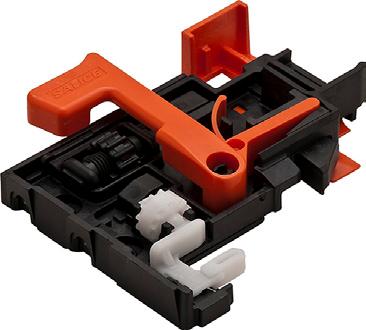

Salice

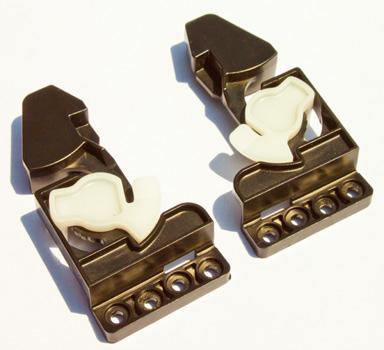

A 710.011 R for Salice Futura 7555

A 710.013 L for Salice Futura 7555

● for use with standard application

● minimum inside drawer width 7 3/16”

$5.00

1/2”

A 750.013 L for Salice Futura 7555

● minimum inside drawer width 6 7/8”

● height adjustment + 3/32”

● side-to-side adjustment +/- 1/16”

A 720.611 R for Salice Futura 7555

A 720.613 L for Salice Futura 7555

● narrow drawer without side adjustment

$6.00 1 1/2”

$5.00 1 1/2” TextSalice Notching Options Price per Drawer 1 1/2” Standard Notching (back only) $3.50 Salice Standard Clip Salice Narrow Box Clip

Hardware provided

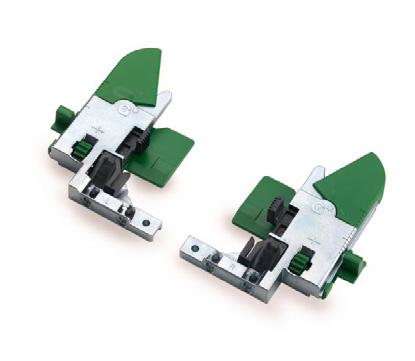

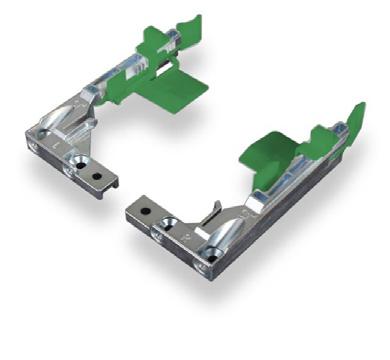

F 134 125 000 633 L for Grass Dynapro

F 134 125 001 633 R for Grass Dynapro

● for use with standard application

● minimum inside drawer width 7 3/32”

● height adjustment + 1/8”

● side adjustment +/- 1/16”

F 134 100 699 233 L for Grass Dynapro

F 134 100 700 233 R for Grass Dynapro

● narrow drawer without side adjustment

● minimum inside drawer width 3 3/4” ● height adjustment + 1/8”

Standard Notch fits: Blum, Grass and Salice

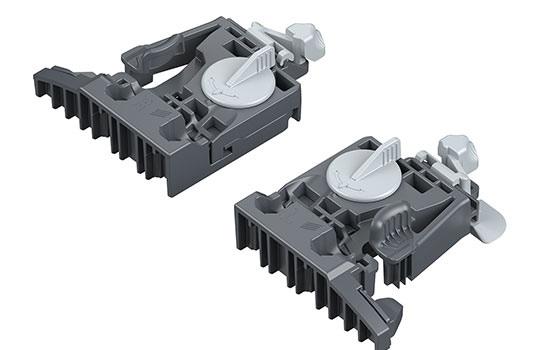

Hettich Quadro IW21-LOCK12

● for use with 1/2” Drawer Box Sides

● minimum inside drawer width 5 1/8”

● height adjustment + 3/32”

● side adjustment +/- 1/16”

Hettich Quadro IW21-LOCK58

● for use with 5/8” Drawer Box Sides

● minimum inside drawer width 5 1/8”

● height adjustment + 3/32”

● side adjustment +/- 1/16”

Standard Notch fits: Hettich Quadro IW21 Hardware provided

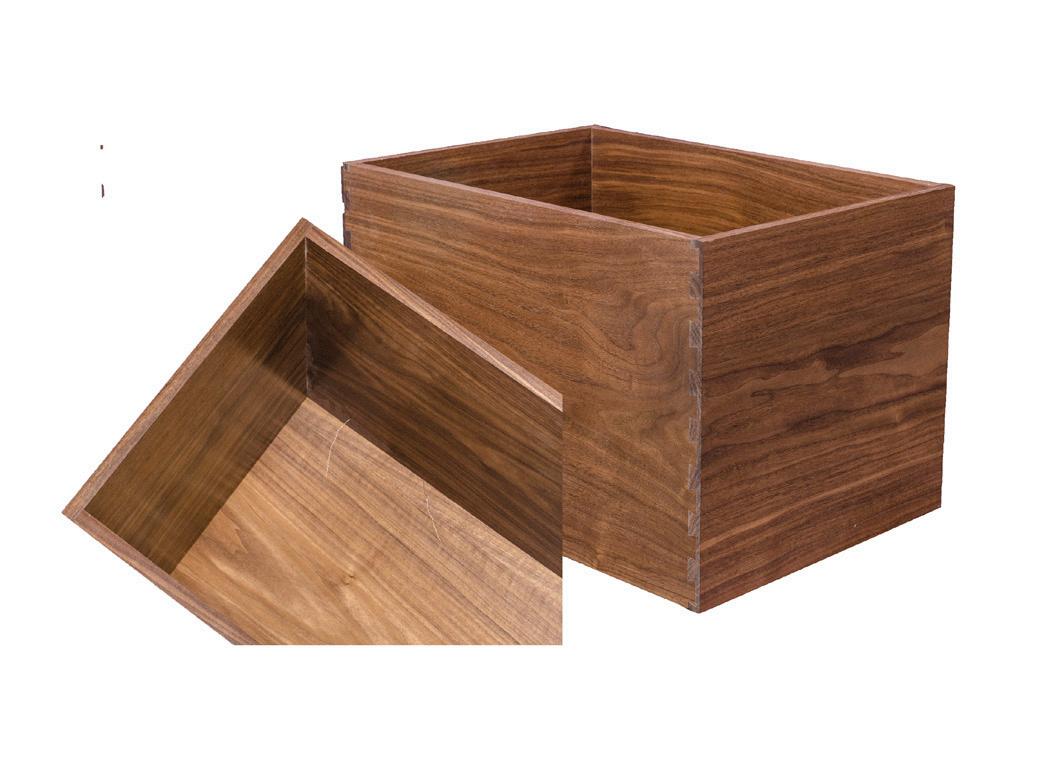

Walnut with matching bottom Sapele

White or Black Melamine Bottom Add $5.00 per drawer box.

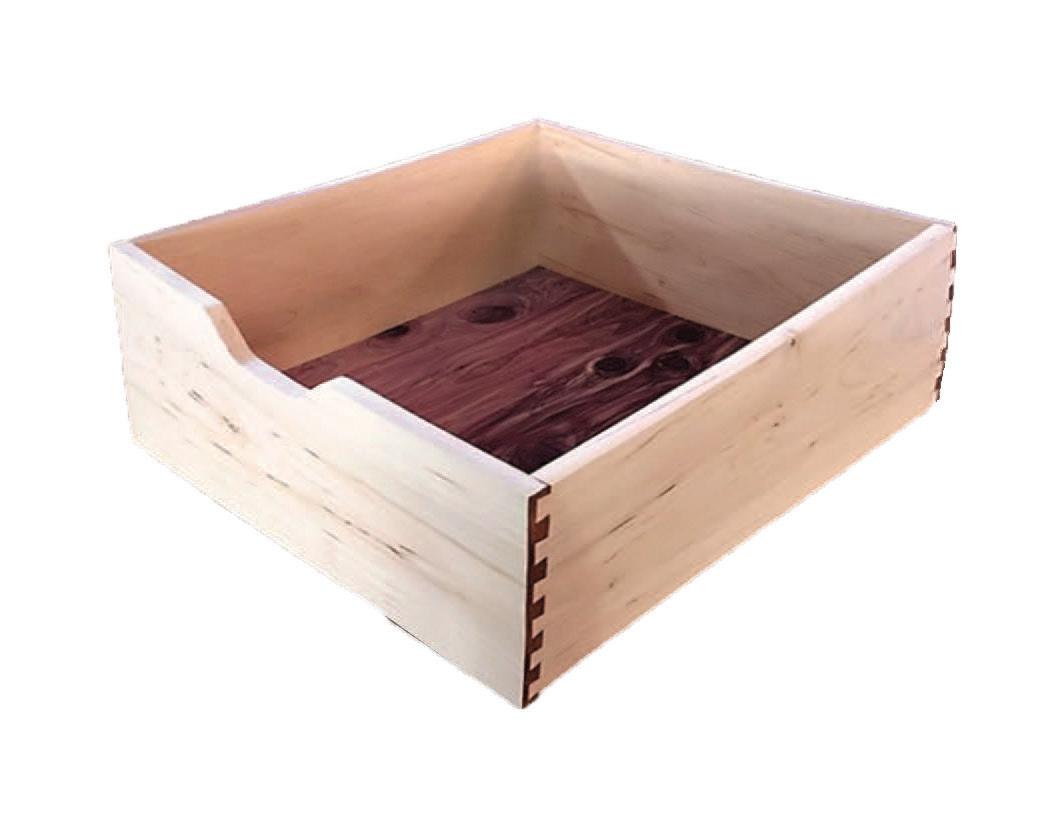

Cedar Bottom Add $8.00 per drawer box for 1/4” bottom only.

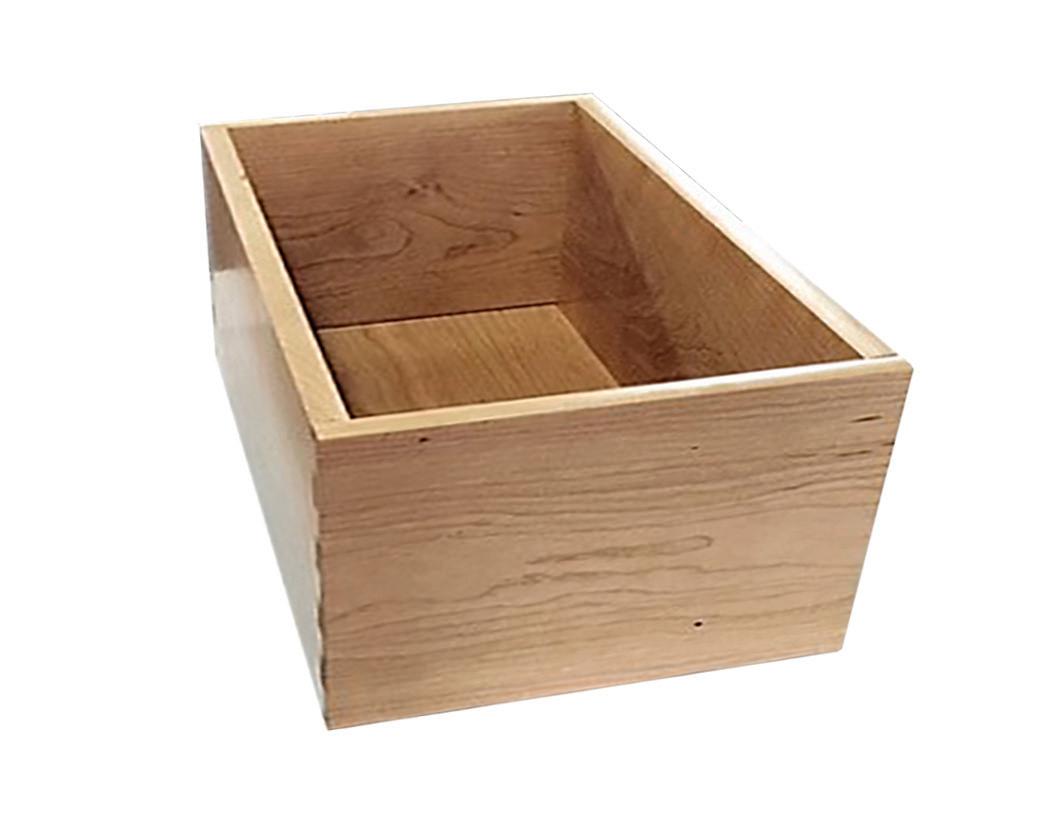

Cherry Beech

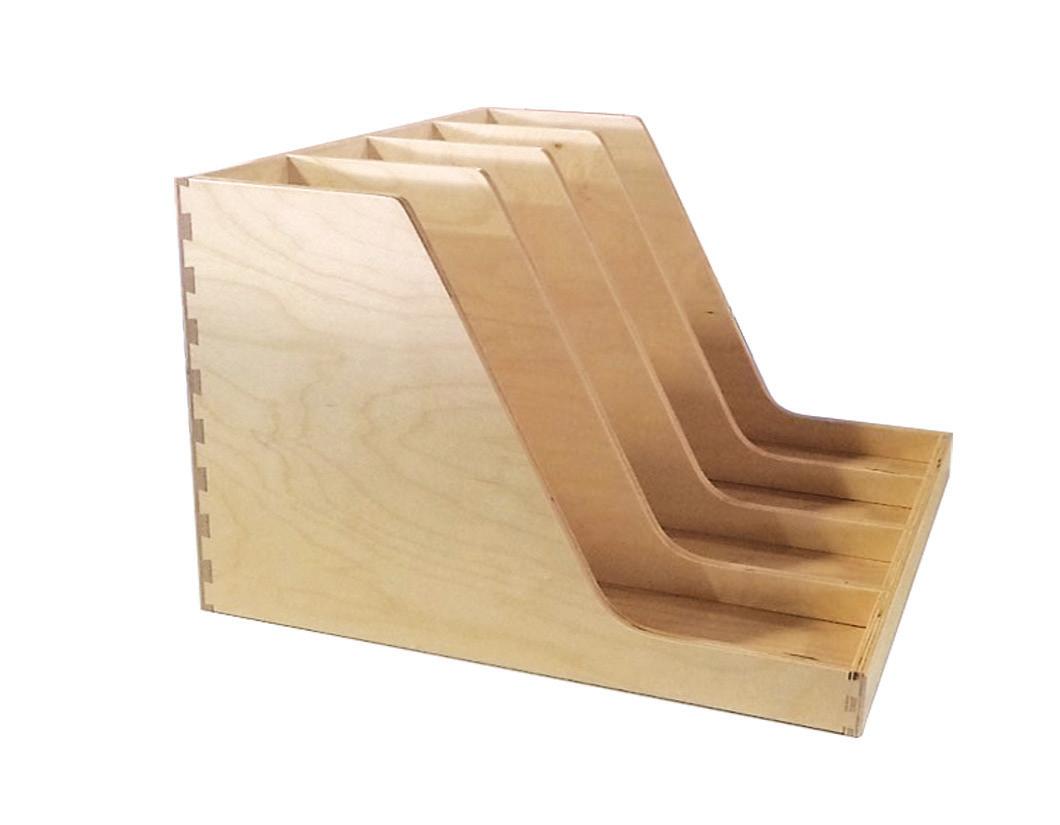

Custom Scalloped Angle with Divider

Drawing required for price quote.

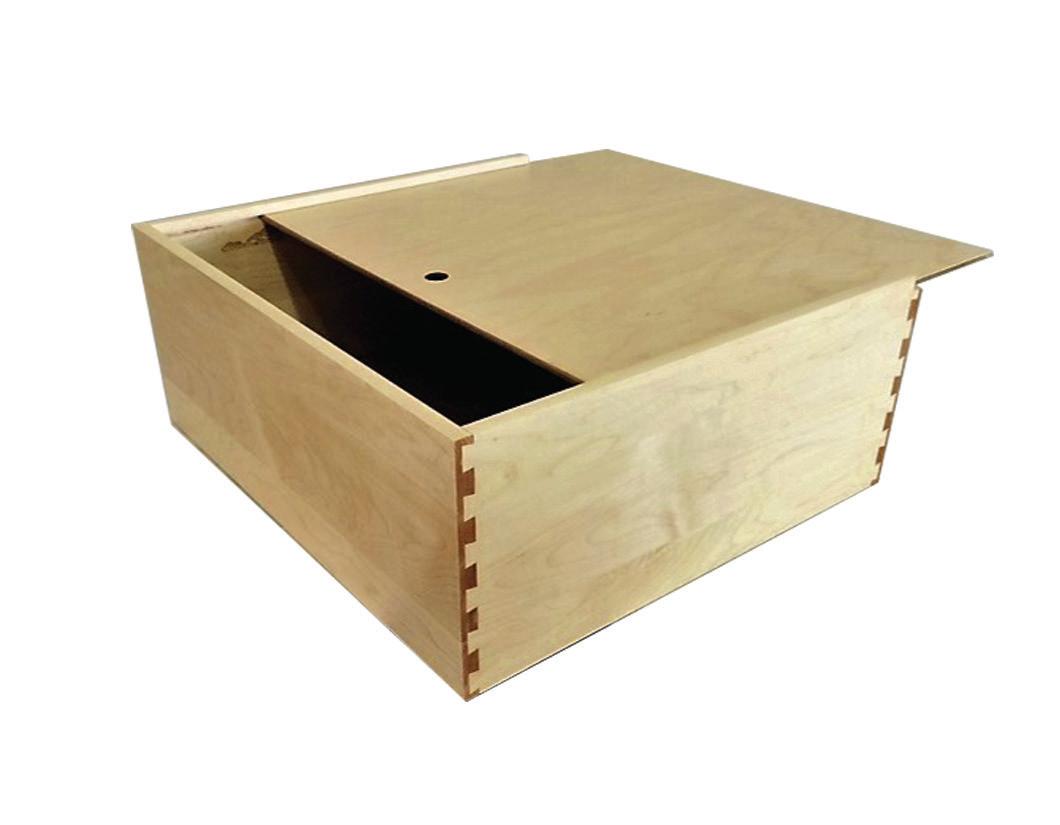

Bread Box

Add $35.00 per drawer box.

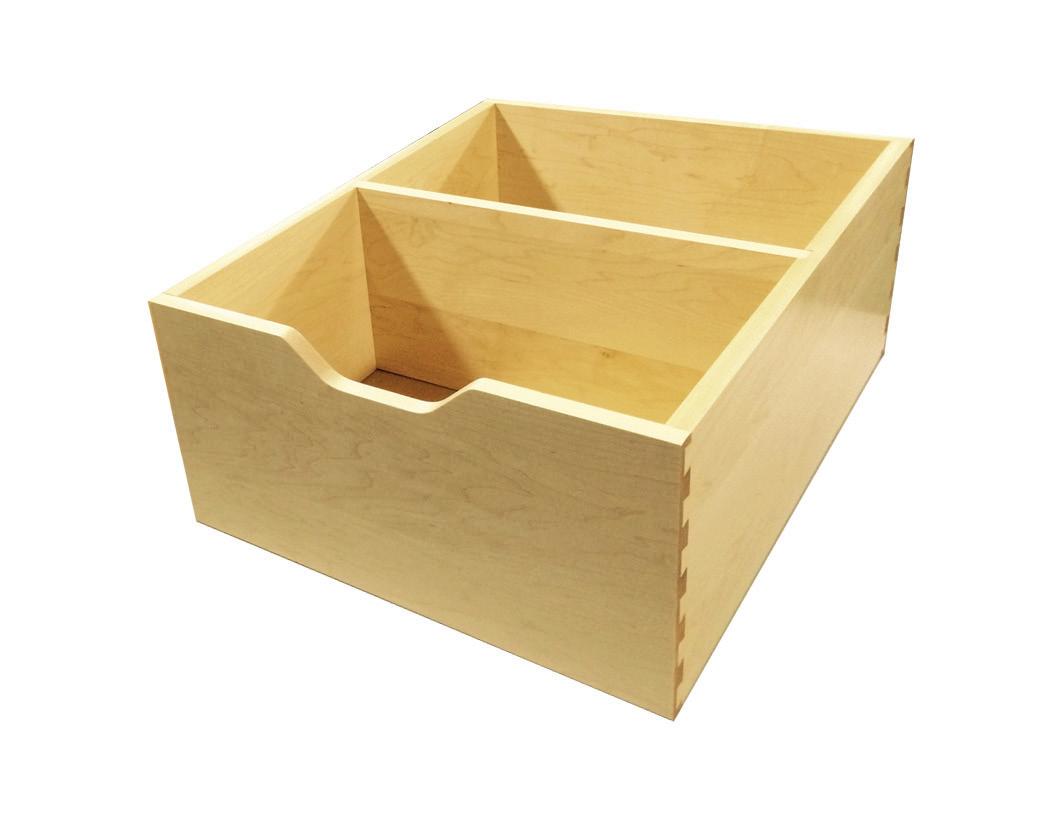

Divider with Scoop

Add $15.00 per opening. Add $8.50 per drawer box per scoop.

Lipped Front & Scoop

Add $25.00 per drawer box for Lipped Front. Add $8.50 per drawer box per scoop.

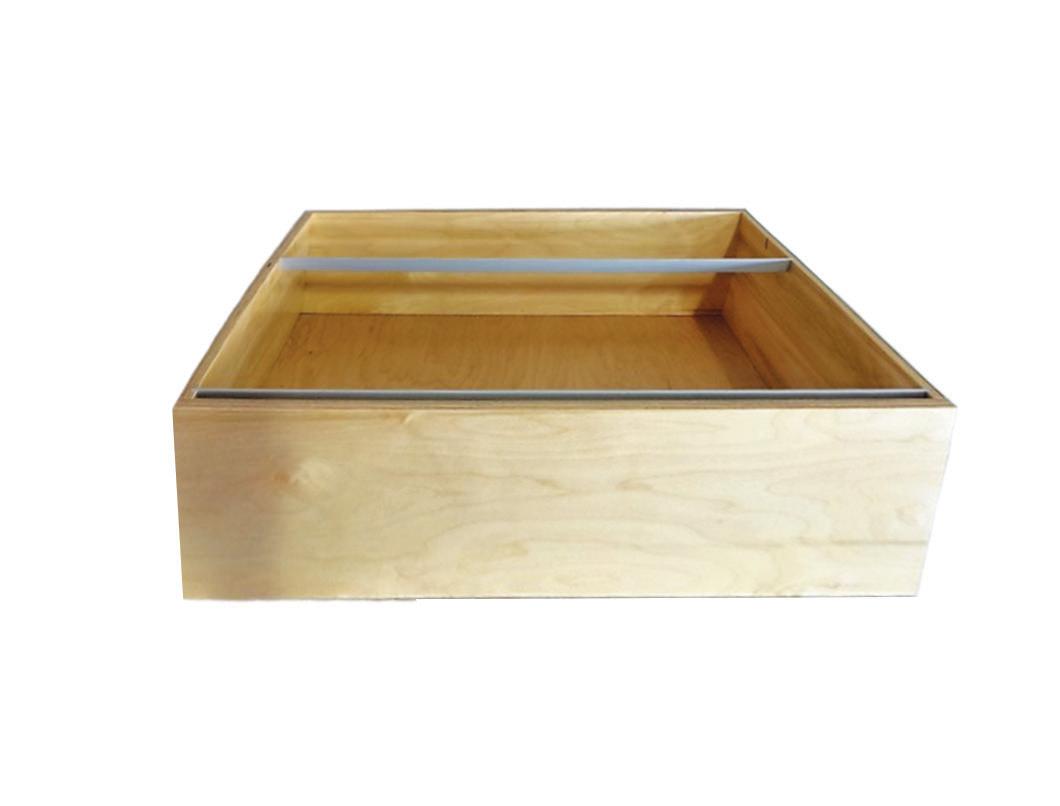

File Drawer

1” wide anodized file bars included.

Single Vertical & Lateral: Add $30.00 per drawer box.

Double Vertical & Lateral: Add $50.00 per drawer box. Add $15.00 per additional bar.

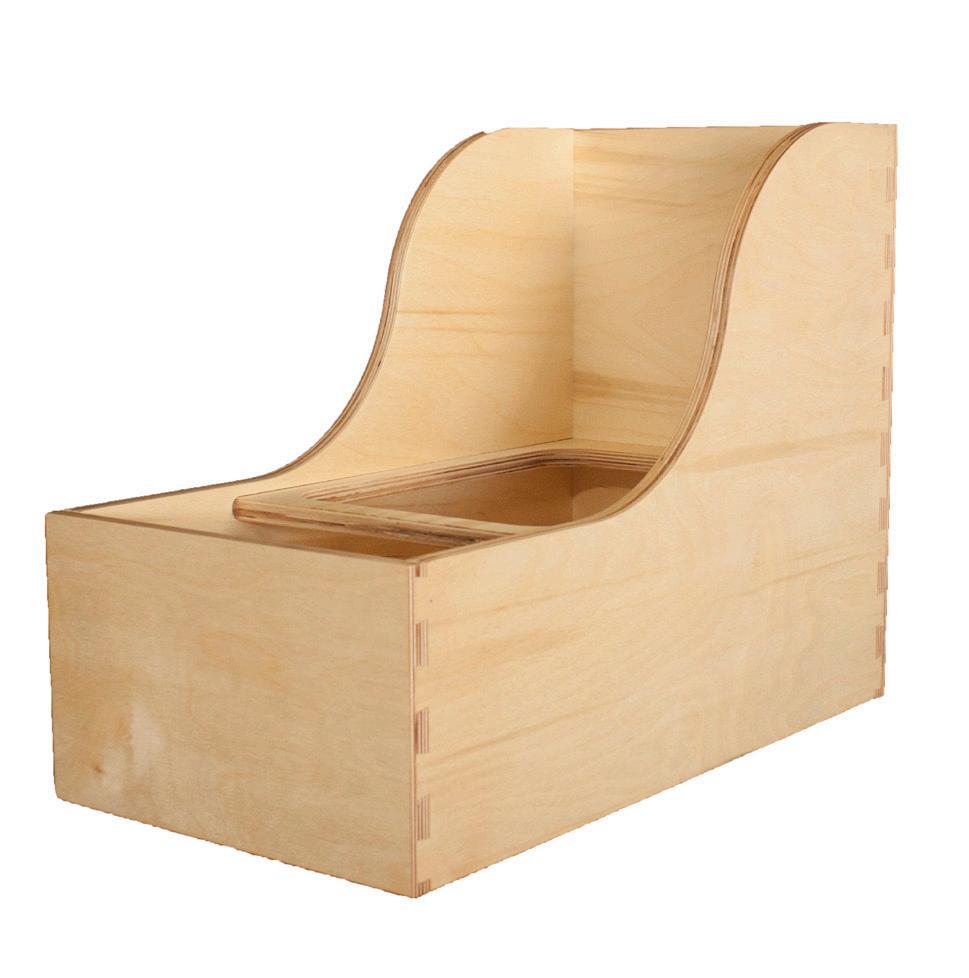

Scalloped Angle with Lipped Front & Scoop

Add $25.00 per drawer box for Angle. Add $25.00 per drawer box for Lipped Front. Add $8.50 per drawer per scoop.

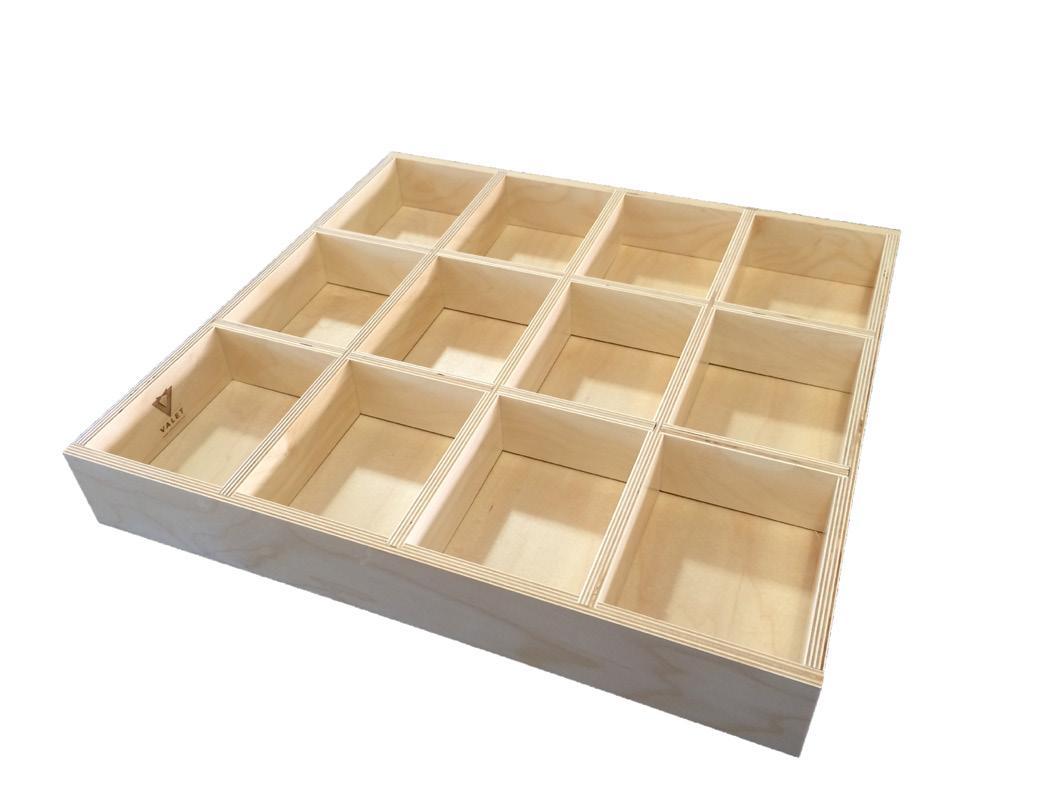

Specialty Divider with

Specialty dividers are build to your specifications. Please provide a detailed drawing. Cost are per box price + $12.00 per divider. If scoops are requested: add an additional $8.50 per scoop.

Add $15.00 per opening.

Add $15.00 per opening.

Add $15.00 per opening.

Add $15.00 per opening. Add $8.50 per scoop.

Kit includes one solid Maple 15mil full size drawer box. One 9-Ply Birch cut out as shown in photo. $35.00 charge for kit, Logo Engraving included. Logo must be submitted in the following formats: Adobe Illustrator, PDF (High Resolution), JPG, TIF, DWG or DXF.

Jewelry Tray

Specialty Divider-Box in a Box

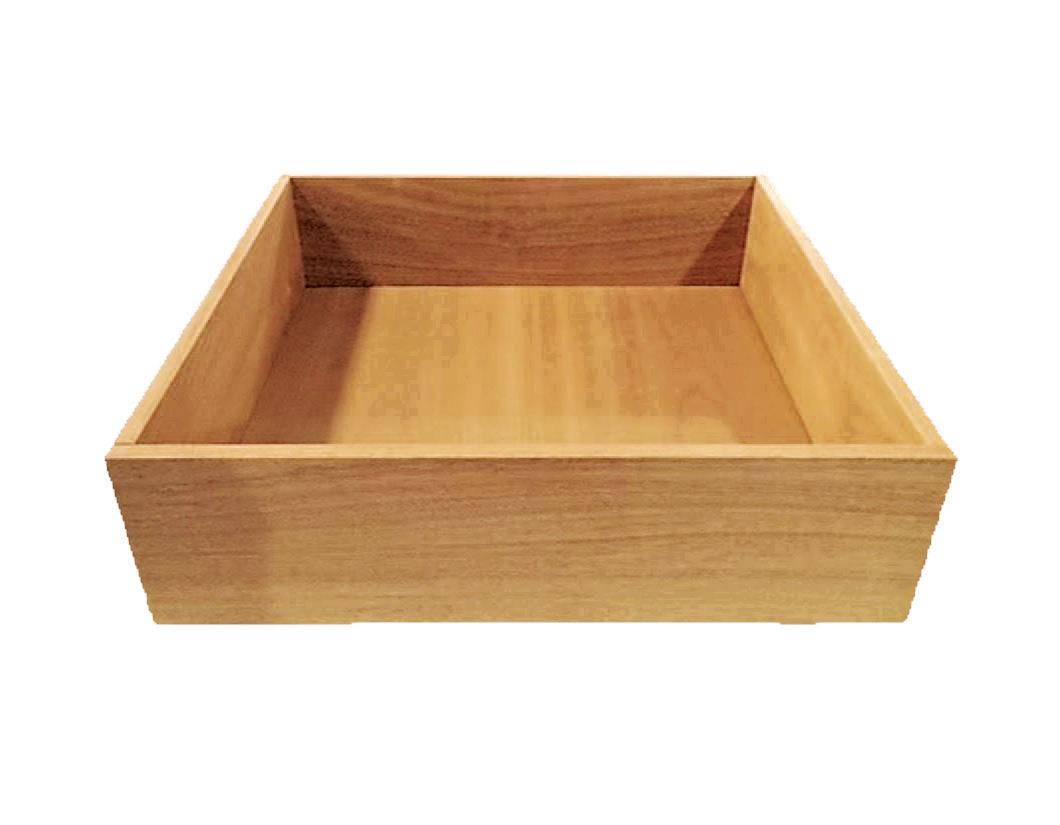

Sample Drawer Box Kit

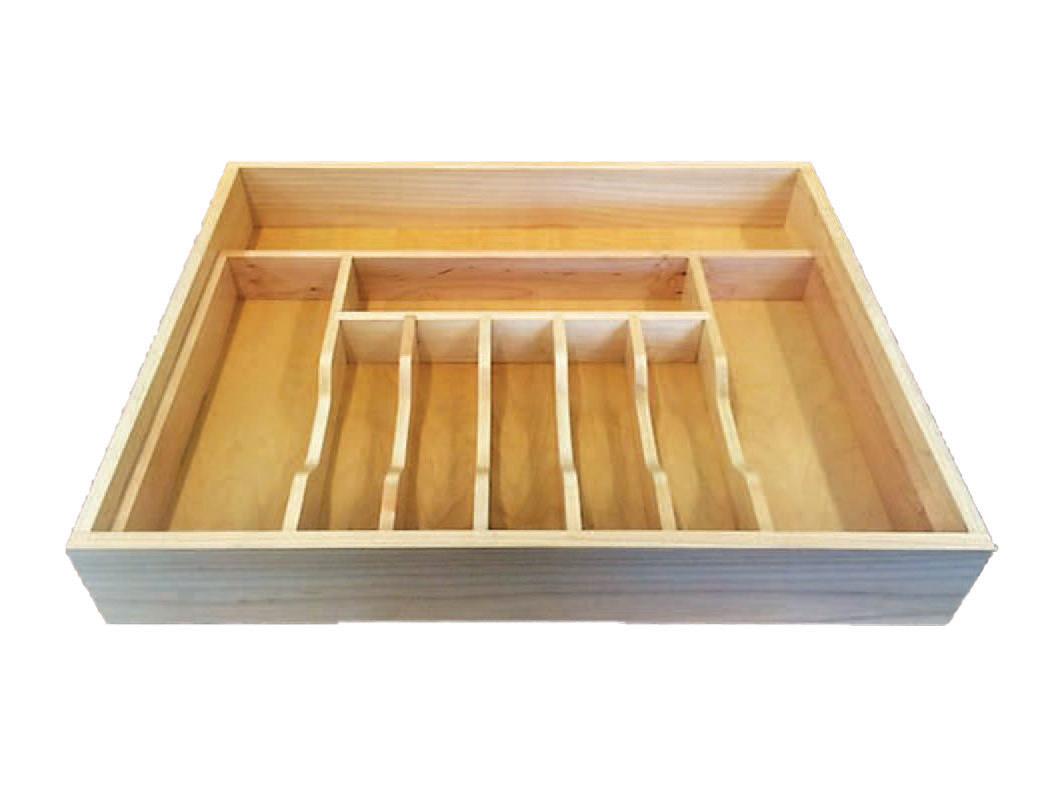

Cutlery Tray

Specialty Divider with Scoops

Options

Waste Management Drawer Box Options see page 22 & 23

Kitchen with Corner Drawers.

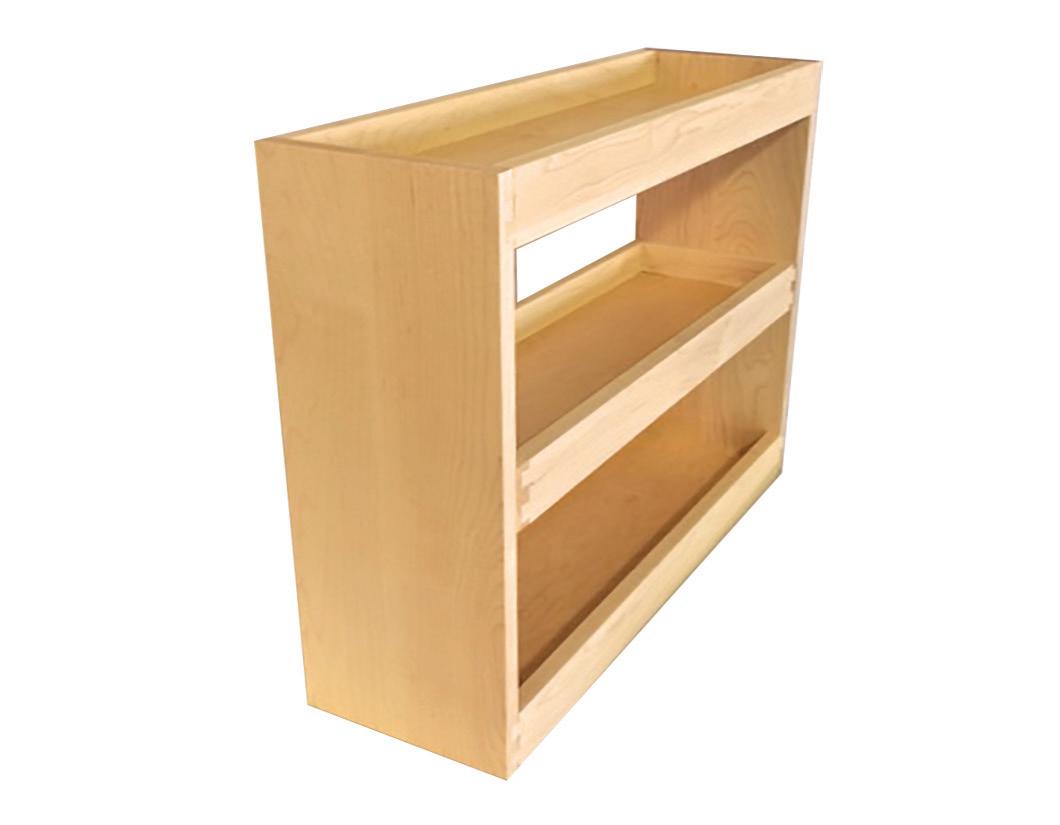

Spice Rack Add $125.00 per drawer box.

Under Sink Pull-Out Add $125.00 per drawer box.

U-Shape Add $125.00 per drawer box.

Waste Management Drawer Boxes

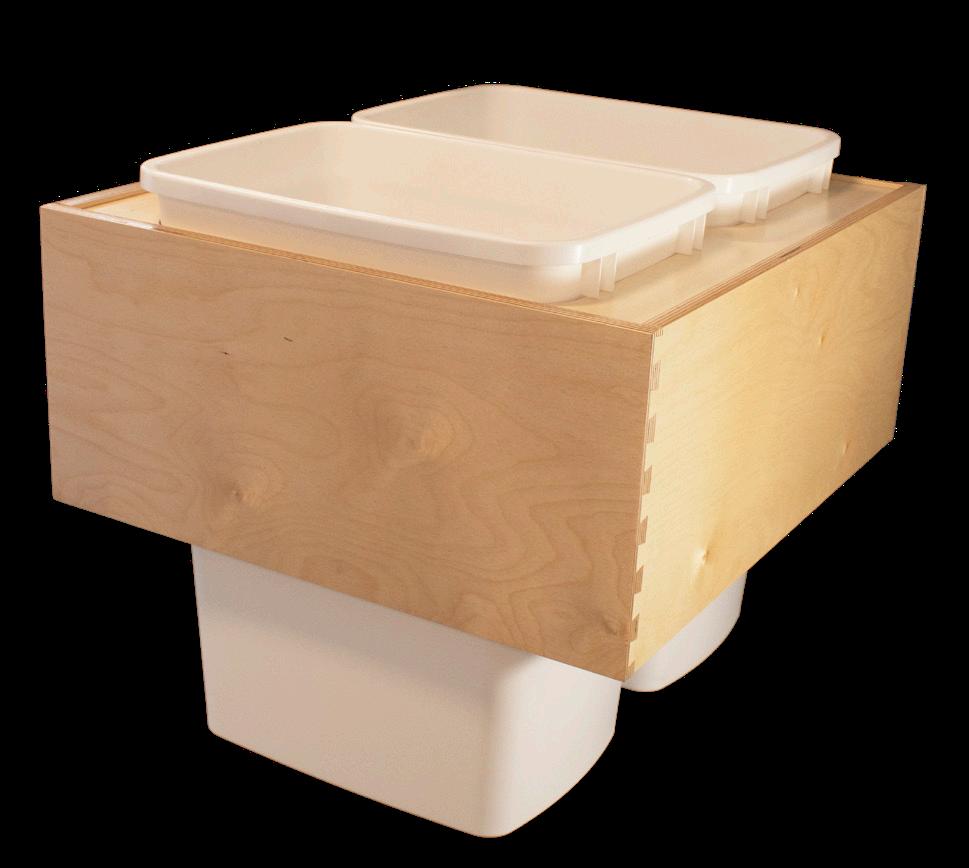

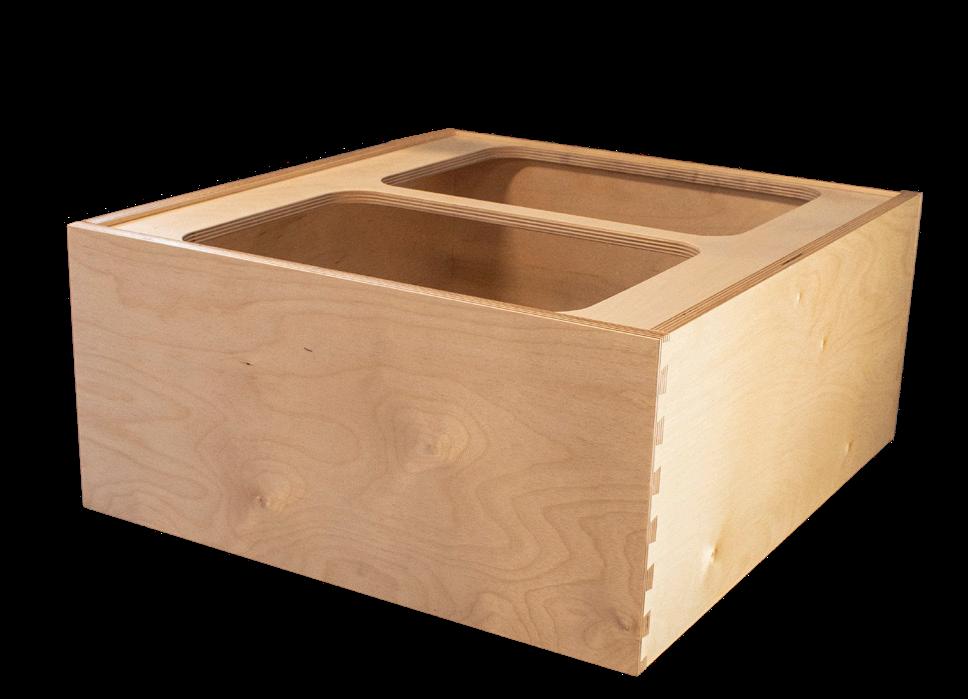

Double Lateral Square Suspended Bins

9 or 11 Ply: $150.00 Solid Maple: add $75.00

Two 35 quart Waste Bins Included

Waste Management Drawer Boxes also available as shown below:

Waste Management Drawer Boxes

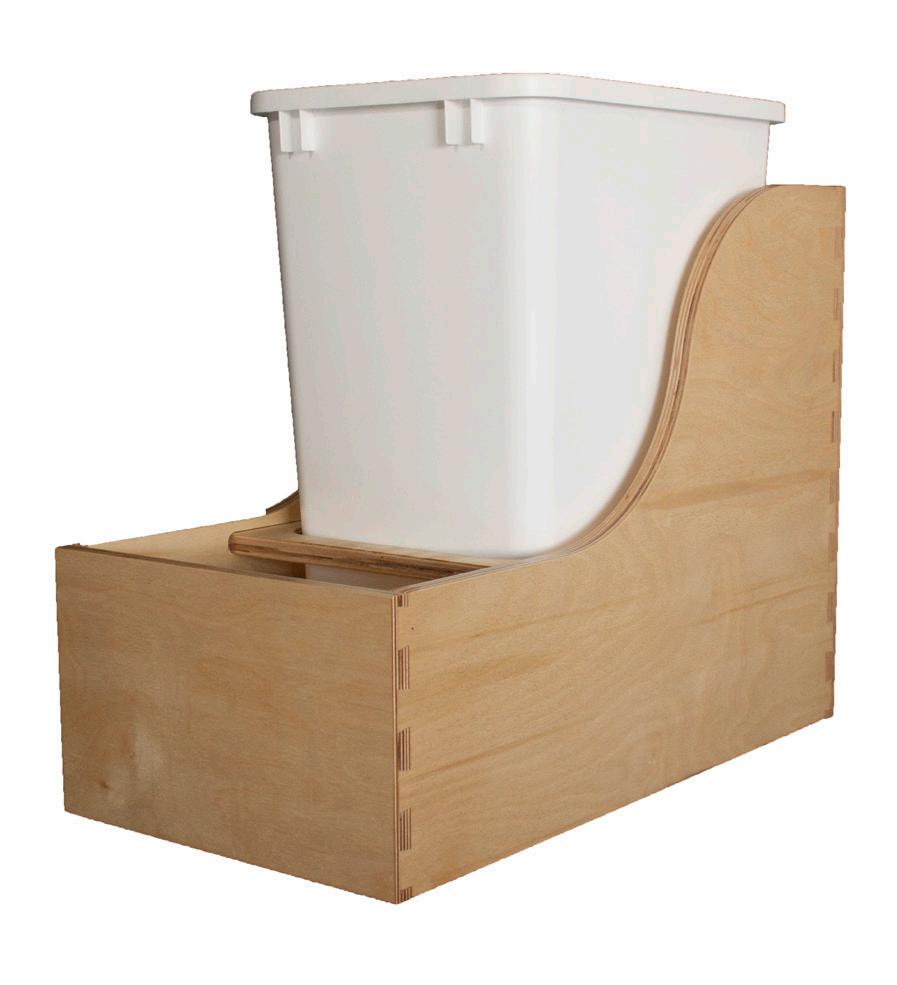

Scalloped with Single Vertical Bin

9 or 11 Ply: $200.00

Solid Maple: add $75.00

35 quart Waste Bin Included

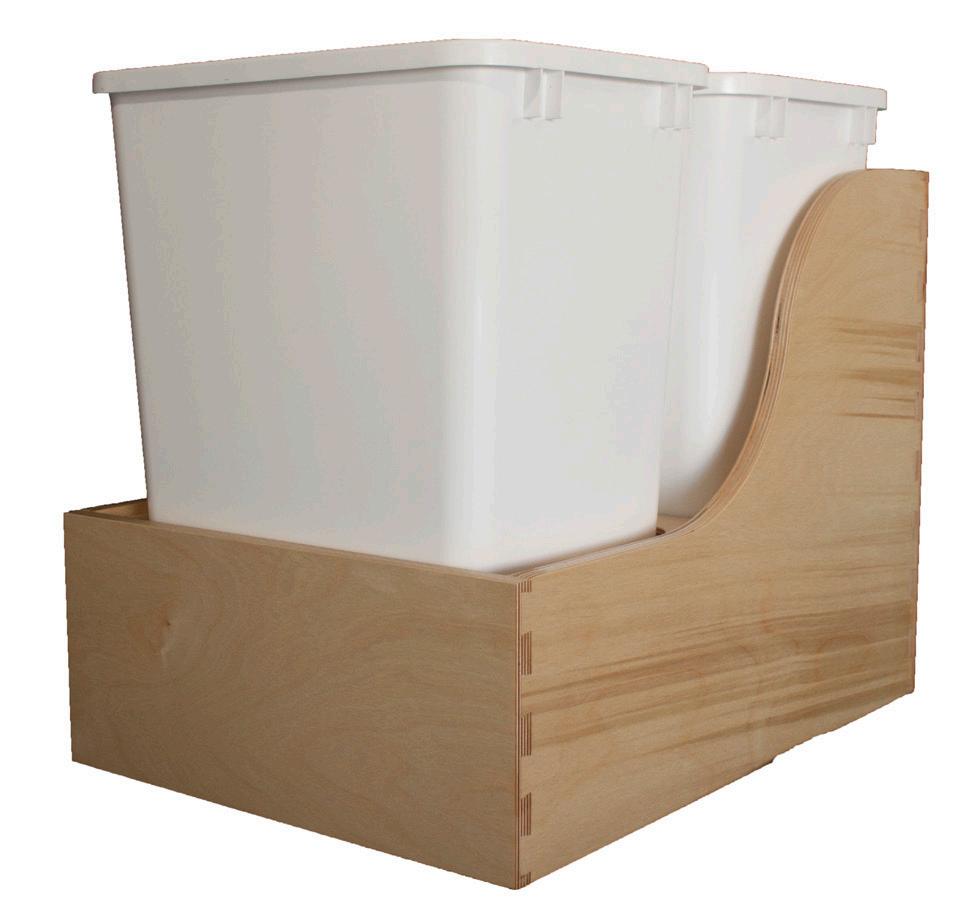

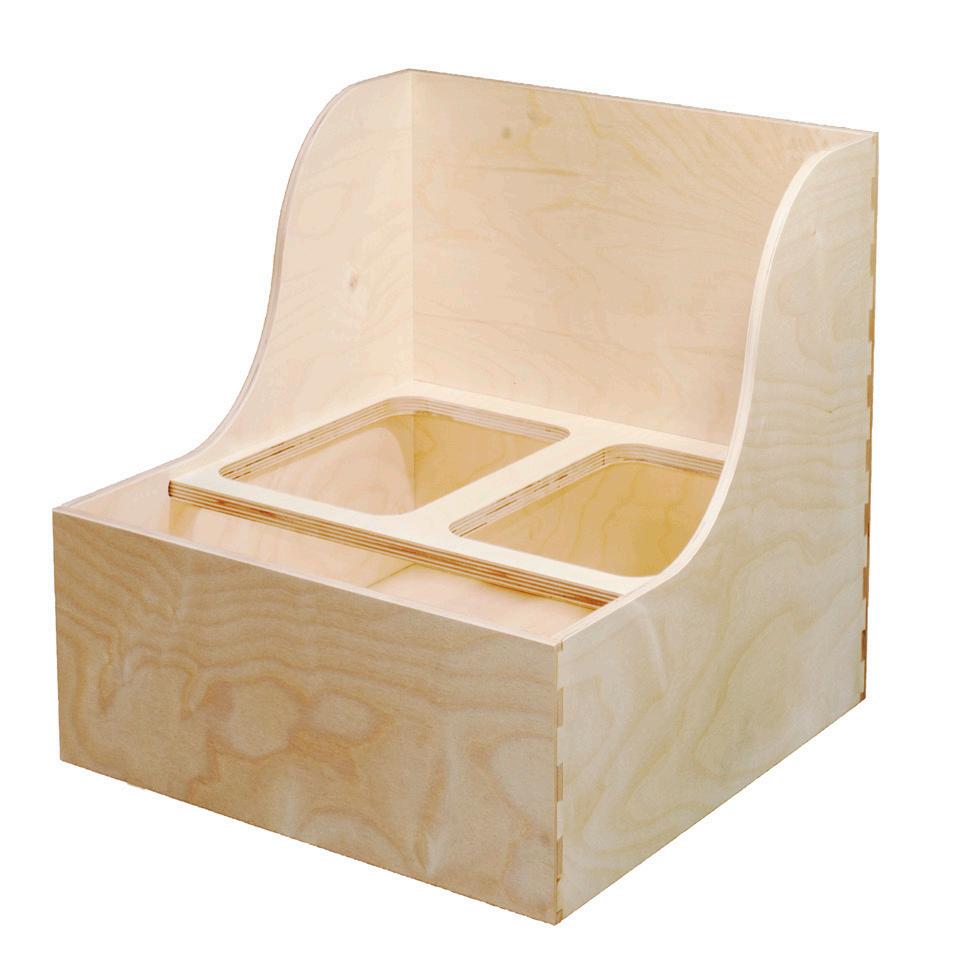

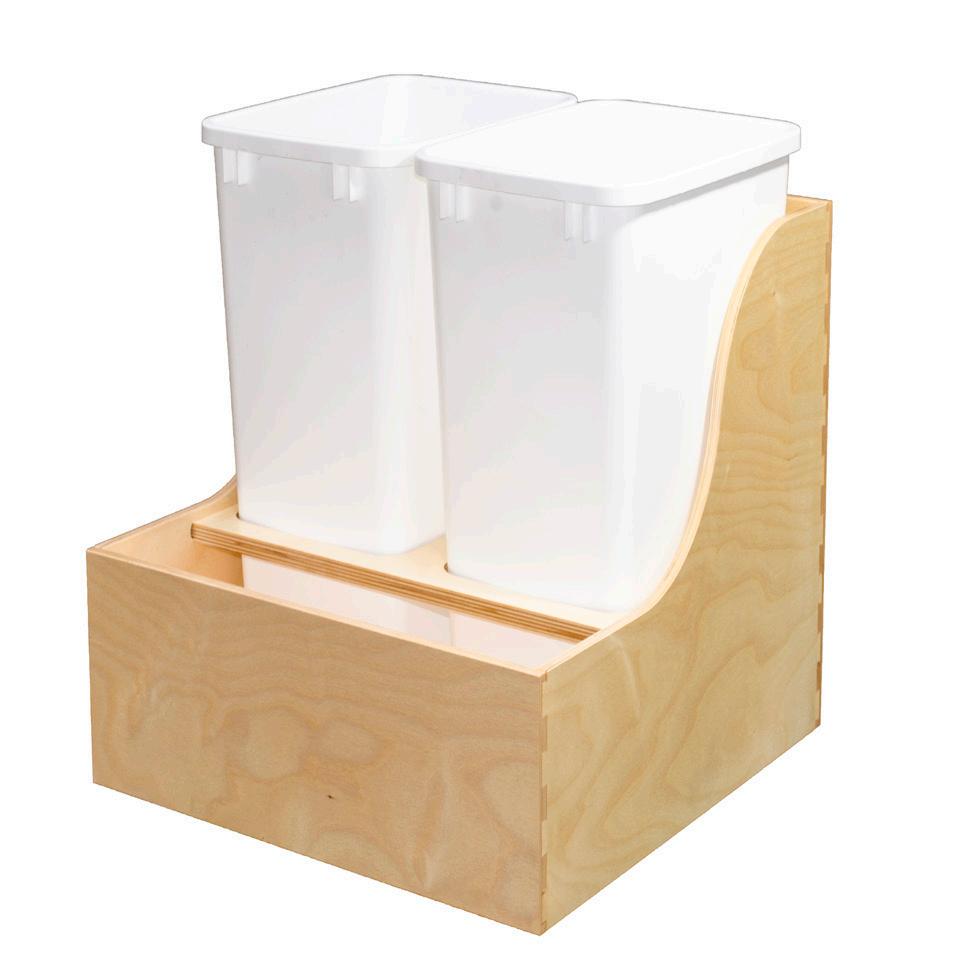

Scalloped with Double Vertical Bins

9 or 11 Ply: $250.00

Solid Maple: add $75.00

Two 35 quart Waste Bins Included

Waste Management Drawer Boxes

Scalloped with Single Lateral Bin

9 or 11 Ply: $200.00

Solid Maple: add $75.00 35 quart Waste Bin Included

Scalloped with Double Lateral Bins

9 or 11 Ply: $250.00

Solid Maple: add $75.00

Two 35 quart Waste Bins Included

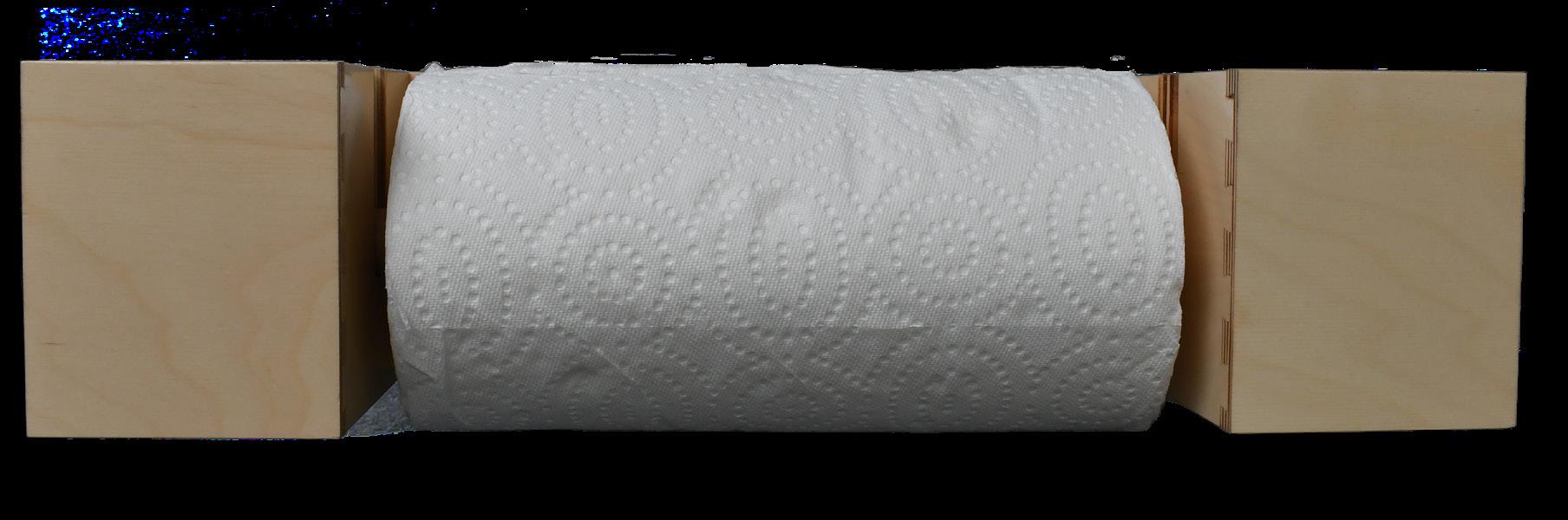

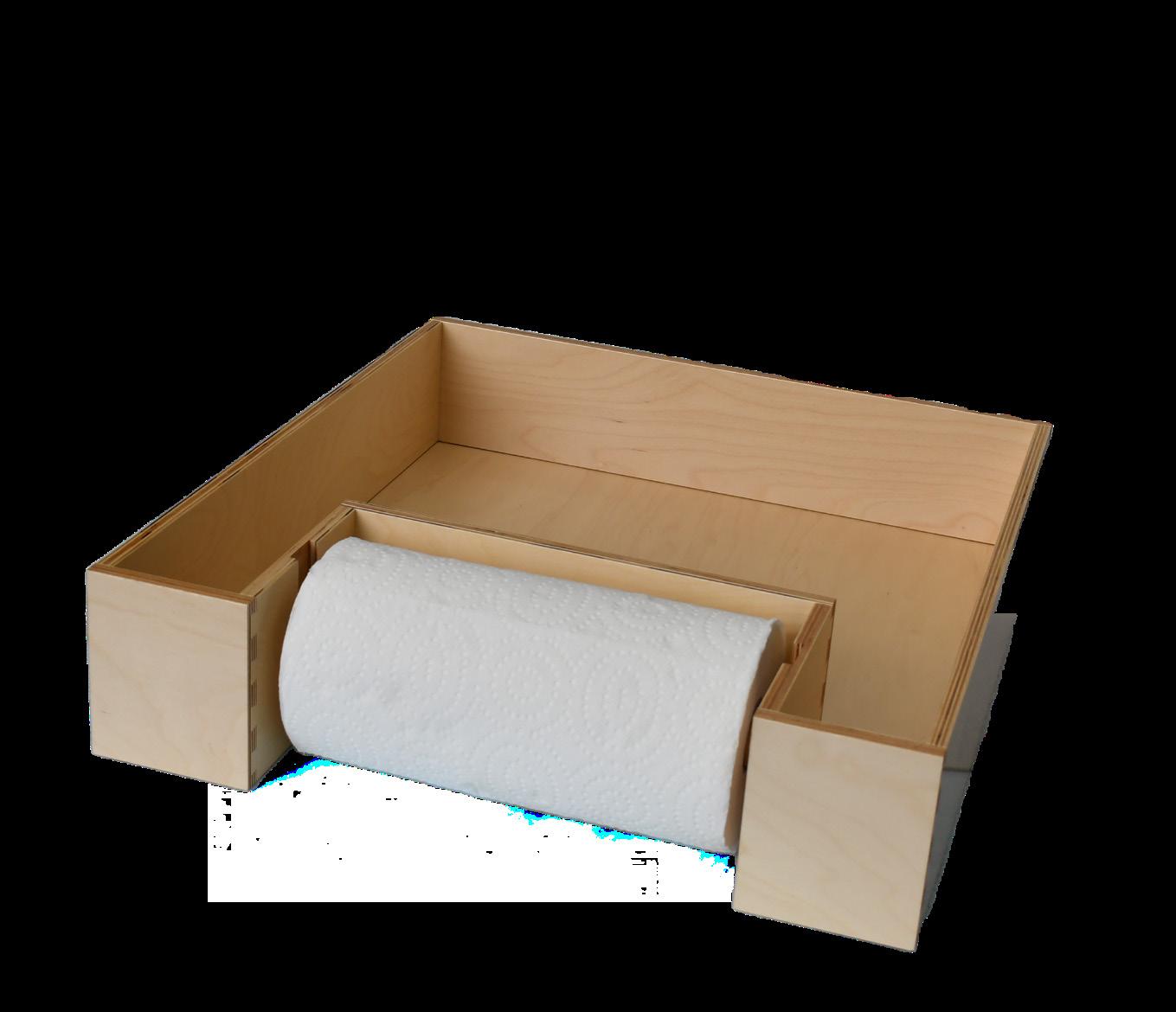

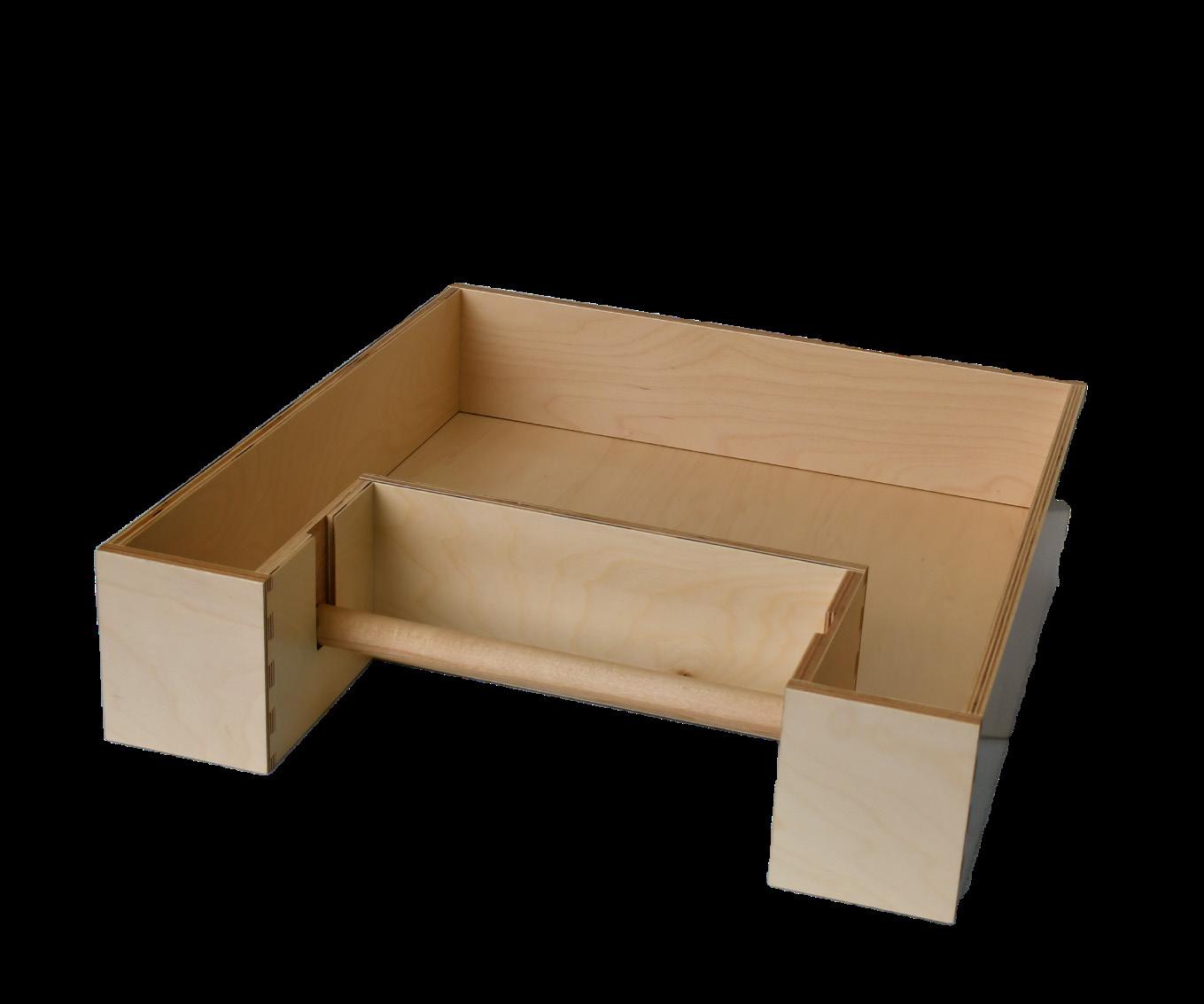

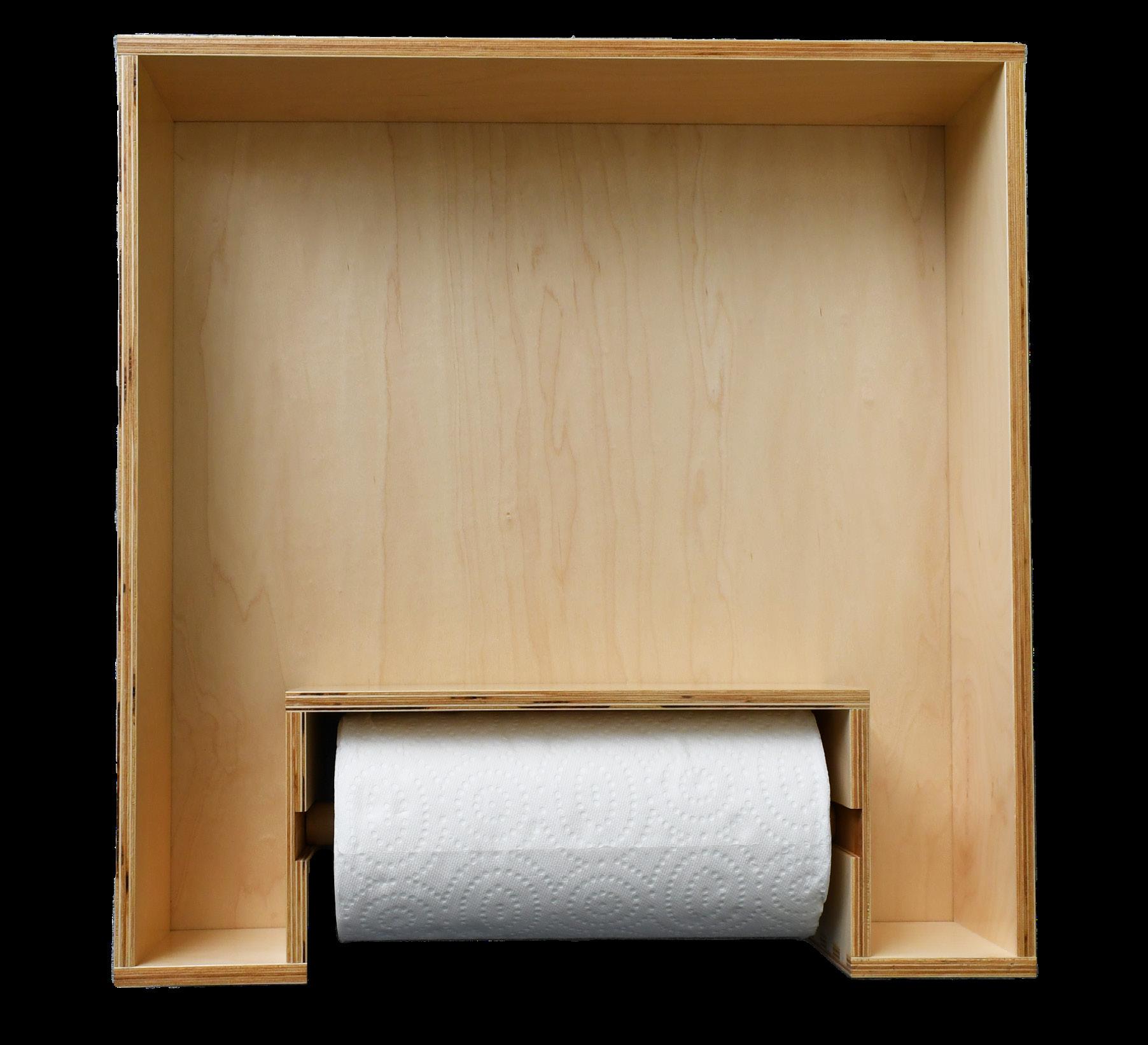

Paper Towel Drawer Box Add $150.00 per drawer box.

Dovetail Drawer Box Order Form

Customer

Job Name / P.O. Order Date

Ply Drawer Options: comes standard prefinished

9-Ply Birch 12mil Thick

Solid Drawer Options: comes standard prefinished

Standard Thickness: 15mil (0.590")

If using calculation for 1 2" side thickness, check here (by checking this box we will add 1 8" to your width to accommodate our standard 15mil thickness)

Material Options:

11-Ply Birch 15mil Thick Drawer Bottom:

Special Options: indicate in "Notes" field Square Scoop

Notching Only (no clips installed):

(standard notching fits Blum, Grass, Salice and Accuride undermount runners)

3/8 Notch

Notching and Clips Installed: check one

Blum Standard Clip

Blum 2D Clip

Blum Narrow Box Clip

· For Laser Logo Engraving specifications refer to page 4. (indicate boxes to be engraved above in "Laser Logo" field)

Paper Towel Drawer Box Order Form

Ply Drawer Options: comes standard prefinished

9-Ply Birch 12mil Thick

11-Ply Birch 15mil Thick

· Standard Roll width is 11 1/4"

· Standard allowance for Roll diameter is 6"

· Standard inside Roll Diameter 1"

· For custom sizes and prizing state dimensions below

Notching Only (no clips installed): (standard notching fits Blum, Grass, Salice and Accuride undermount runners)

Thickness: 15mil (0.590")

If using calculation for 1 2" side thickness, check here (by checking this box we will add 1 8" to your width to accommodate our standard 15mil thickness) Material Options:

Solid Drawer Options: comes standard prefinished Select Maple

1 1/2" Notch

3 3/8" Notch

No Notch (for details see pages 12-16)

2 3/8 Notch

4 15/16" Notch

Notching and Clips Installed: check one

Blum Standard Clip Blum 2D Clip

Blum Narrow Box Clip

Blum Inset

Blum Movento Standard

Standard Clip

3D Clip

Salice Narrow Box Clip

2D Clip

Grass Narrow Box Clip

Options: indicate in "Notes" field

Blum Movento Vertical Hettich Quadro IW21-LOCK12

Blum Movento Narrow

Hettich Quadro IW21-LOCK58

File Notching Drawer Box Order Form

Ply Drawer Options: comes standard prefinished

9-Ply Birch 12mil Thick

11-Ply Birch 15mil Thick

Solid Drawer Options: comes standard prefinished

If using calculation for 1 2" side thickness, check here (by checking this box we will add 1 8" to your width to accommodate our standard 15mil thickness)

Standard Thickness: 15mil (0.590") Drawer Bottom: Other

Special Options: indicate in "Notes" field

WIDTHDEPTHHEIGHT Ply

QTY 1/4" 3/8" 1/4" 3/8"

3

3/8" Notch

Square Scoop Scoop Option Lipped Front 1 1/2" Notch

No Notch (for details see pages 12-16) 15/16"

Blum 2D Clip

Blum Narrow Box Clip

Blum Inset

Blum Movento Standard

Blum Movento Vertical

Blum Movento Narrow

Extra Bars available $15.00 each

EXTRA

4

Salice Narrow Box Clip

Grass 2D Clip

Grass Narrow Box Clip

Hettich Quadro IW21-LOCK12

BARS Single Letter frontto back(2bars) Single Letter side to side(2bars) Single Letter &Legal frontto back(2bars) Double Letter frontto back(4bars) Double Legal frontto back(4bars) Single Letter &Legal side to side(2bars)

Hettich Quadro IW21-LOCK58 Double Legal frontto back(4bars)

Angled & Half-Angled Drawer Box Order Form

Ply Drawer Options: comes standard prefinished

9-Ply Birch 12mil Thick

11-Ply Birch 15mil Thick

Thickness: 15mil (0.590")

If using calculation for 1 2" side thickness, check here (by checking this box we will add 1 8" to your width to accommodate our standard 15mil thickness)

Solid Drawer Options: comes standard prefinished Select Maple

Options:

Special Options: indicate in "Notes" field

Notching Only (no clips installed): (standard notching fits Blum, Grass, Salice and Accuride undermount runners)

Notching and Clips Installed: check one

Ply Drawer Options: comes standard prefinished

9-Ply Birch 12mil Thick

11-Ply Birch 15mil Thick

Solid Drawer Options: comes standard prefinished

Standard Thickness: 15mil (0.590")

If using calculation for 1 2" side thickness, check here (by checking this box we will add 1 8" to your width to accommodate our standard 15mil thickness)

1

1/2" Notch

3/8" Notch

2 3/8 Notch

Options: indicate in "Notes"

Square Scoop Scoop Option Lipped Front

Blum Standard Clip Blum 2D Clip Blum Narrow Box Clip Salice Standard Clip Salice 3D Clip Salice Narrow Box Clip Grass 2D Clip Grass Narrow Box Clip Blum Inset

Blum

Corner Drawer Box Order Form

Ply Drawer Options: comes standard prefinished

Birch 15mil Thick

Solid Drawer Options: comes standard prefinished

Standard Thickness: 15mil (0.590")

If using calculation for 1 2" side thickness, check here (by checking this box we will add 1 8" to your width to accommodate our standard 15mil thickness)

Standard inside angle: 90 degree Special Instructions:

Options: indicate in "Notes" field

Notching Only (no clips installed): (standard notching fits Blum, Grass, Salice and Accuride undermount runners)

Notching and Clips Installed: check one

Vertical Hettich Quadro IW21-LOCK12

Ply Drawer Options: comes standard prefinished

9-Ply Birch 12mil Thick

11-Ply Birch 15mil Thick

Solid Drawer Options: comes standard prefinished

Thickness: 15mil (0.590")

If using calculation for 1 2" side thickness, check here (by checking this box we will add 1 8" to your width to accommodate our standard 15mil thickness)

Material Options:

Options: indicate in "Notes" field

Notching Only (no clips installed): (standard notching fits Blum, Grass, Salice and Accuride undermount runners)

2

Notching and Clips Installed: check one

4 15/16" Notch Blum

Ply Drawer Options: comes standard prefinished

11-Ply Birch 15mil Thick

Solid Drawer Options: comes standard prefinished

Thickness: 15mil (0.590")

If using calculation for 1 2" side thickness, check here (by checking this box we will add 1 8" to your width to accommodate our standard 15mil thickness) Material Options:

Notching Only (no clips installed): (standard notching fits Blum, Grass, Salice and Accuride undermount runners)

Special Options: indicate in "Notes" field

1 1/2" Notch

3 3/8" Notch

Notching and Clips Installed: check one

3/8 Notch 4 15/16" Notch Blum

2

Ply Drawer Options: comes standard prefinished

9-Ply Birch 12mil Thick

11-Ply Birch 15mil Thick

Notching Only (no clips installed): (standard notching fits Blum, Grass, Salice and Accuride undermount runners)

Notch

Standard Thickness: 15mil (0.590")

If using calculation for 1 2" side thickness, check here (by checking this box we will add 1 8" to your width to accommodate our standard 15mil thickness) Material Options:

Solid Drawer Options: comes standard prefinished Select Maple

Special Options: indicate in "Notes" field

Notching and Clips Installed: check one

Notch 4 15/16" Notch Blum

2

Lateral Divider Drawer Box Order Form

Ply Drawer Options: comes standard prefinished 11-Ply Birch 15mil Thick

Solid Drawer Options: comes standard prefinished

15mil (0.590")

If using calculation for 1 2" side thickness, check here (by checking this box we will add 1 8" to your width to accommodate our standard 15mil thickness)

Single Divider

Double Divider

Notching Only (no clips installed): (standard notching fits Blum, Grass, Salice and Accuride undermount runners)

1 1/2" Notch

3 3/8" Notch

No Notch (for details see pages 12-16)

2 3/8 Notch

4 15/16" Notch

Notching and Clips Installed: check one

Blum Standard Clip

Blum 2D Clip

Blum Narrow Box Clip

Blum Inset

Blum Movento Standard

Salice Standard Clip

Salice 3D Clip

Salice Narrow Box Clip

Grass 2D Clip

Grass Narrow Box Clip

Special Options: indicate in "Notes" field

Square Scoop Scoop Option Lipped Front

Blum Movento Vertical Hettich Quadro IW21-LOCK12

Blum Movento Narrow

Hettich Quadro IW21-LOCK58

Check "Equal Size" field above for equal spacing, no measurements required Indicate lateral custom spacing "S1, S2 etc..." in field above from front to back Spacing of dividers does not have to be equal: no additional charge for special placement

Vertical Drawer Box Order Form

Divider Options:

Ply Drawer Options: comes standard prefinished

9-Ply Birch 12mil Thick

11-Ply Birch 15mil Thick

Standard Thickness: 15mil (0.590")

If using calculation for 1 2" side thickness, check here (by checking this box we will add 1 8" to your width to accommodate our standard 15mil thickness)

Material Options:

Solid Drawer Options: comes standard prefinished Select Maple

Other

Special Options: indicate in "Notes"

Square Scoop Scoop Option Lipped Front

Notching Only (no clips installed): (standard notching fits Blum, Grass, Salice and Accuride undermount runners)

1 1/2" Notch

3 3/8" Notch

No Notch (for details see pages 12-16)

2 3/8 Notch

4 15/16" Notch

Notching and Clips Installed: check one

Blum Standard Clip

Blum 2D Clip

Blum Narrow Box Clip

Blum Inset

Blum Movento Standard

Salice Standard Clip

Salice 3D Clip Salice Narrow Box Clip Grass 2D Clip

Grass Narrow Box Clip

Blum Movento Vertical Hettich Quadro IW21-LOCK12

Blum Movento Narrow

Hettich Quadro IW21-LOCK58

Check "Equal Size" field above for equal spacing, no measurements required Indicate lateral custom spacing "S1, S2 etc..." in field above from left to right Spacing of dividers does not have to be equal: no additional charge for special placement

Special Instructions:

Specialty Divider Drawer Box Order Form

$15.00 PER OPENING

Ply Drawer Options: comes standard prefinished

9-Ply Birch 12mil Thick

11-Ply Birch 15mil Thick

Solid Drawer Options: comes standard prefinished

Standard Thickness: 15mil (0.590")

If using calculation for 1 2" side thickness, check here (by checking this box we will add 1 8" to your width to accommodate our standard 15mil thickness)

Material Options:

Other

Select Maple

Soft Maple

Divider Options:

Special Options: indicate in "Notes" field

Square Scoop Scoop Option Lipped Front

Indicate the lateral and/or vertical spacing dimensions

Special Instructions:

Fixed Divider(s) Removable Divider(s)

Notching Only (no clips installed): (standard notching fits Blum, Grass, Salice and Accuride undermount runners)

1 1/2" Notch

3 3/8" Notch

No Notch (for details see pages 12-16)

Blum Standard Clip

Blum 2D Clip

Blum Narrow Box Clip

Blum Movento Standard

2 3/8 Notch

4 15/16" Notch

Notching and Clips Installed: check one

Salice Standard Clip Salice 3D Clip Salice Narrow Box Clip

2D Clip

Grass Narrow Box Clip

Blum Movento Vertical Hettich Quadro IW21-LOCK12

Blum Movento Narrow

Detailed drawing required for Specialty Dividers LASER

Hettich Quadro IW21-LOCK58

/

Ply Drawer Options: comes standard prefinished

9-Ply Birch 12mil Thick

11-Ply Birch 15mil Thick

Double: Two 35 quart Waste Bins Included - fits 20 1/2" high cabinet openings or 50 quart Waste bins available add $50 per bin - fits 24 1/2" high cabinet openings

Standard Thickness: 15mil (0.590")

If using calculation for 1 2" side thickness, check here (by checking this box we will add 1 8" to your width to accommodate our standard 15mil thickness)

Solid Drawer Options: comes standard prefinished Select Maple

Other

Notching and Clips Installed: check one

Blum 2D Clip

Blum Narrow Box Clip

Blum Inset

Blum Movento Standard

Salice Standard Clip

Salice 3D Clip

Salice Narrow Box Clip

Grass 2D Clip

Grass Narrow Box Clip

Blum Movento Vertical Hettich Quadro IW21-LOCK12

Blum Movento Narrow

Hettich Quadro IW21-LOCK58

W

BIN BIN BIN Single Lateral Double Lateral Single Vertical Double Vertical BIN BINBIN W 11 1/4" D 21" W 21" D 21" W 15 1/4" D 21"

Standard 35 quart

50

1 1/2" Notch 3 3/8" Notch No Notch (for details see pages 12-16) 2 3/8 Notch 4 15/16" Notch

QTY WIDTHDEPTHHEIGHT NOTES 1 2 3 LASER LOGO H=9" D W 9" standard 9" standard 9" standard

Scalloped Waste Management Drawer Box Order Form

Ply Drawer Options: comes standard prefinished 11-Ply Birch 15mil Thick

Solid

If using calculation for 1 2" side thickness, check here (by checking this box we will add 1 8" to your width to accommodate our standard 15mil thickness)

Notching Only (no clips installed):

3 3/8" Notch

2

Notch 4

Double: Two 35 quart Waste Bins Included - fits 20 1/2" high cabinet openings or 50 quart Waste bins available add $50 per bin - fits 24 1/2" high cabinet openings

BIN BIN BIN Single Lateral Double Lateral Single

Vertical

Waste Bin Options: check one

Standard 35 quart 50 quart (add $50 per bin)

Salice Standard Clip

Blum 2D Clip

Blum Narrow Box Clip

Blum Inset

Blum Movento Standard

Blum Movento Vertical

Blum Movento Narrow

Salice 3D Clip

Salice Narrow Box Clip

Grass 2D Clip

Grass Narrow Box Clip

Hettich Quadro IW21-LOCK12

standard standard D W Back H H Front

Job Name / P.O.

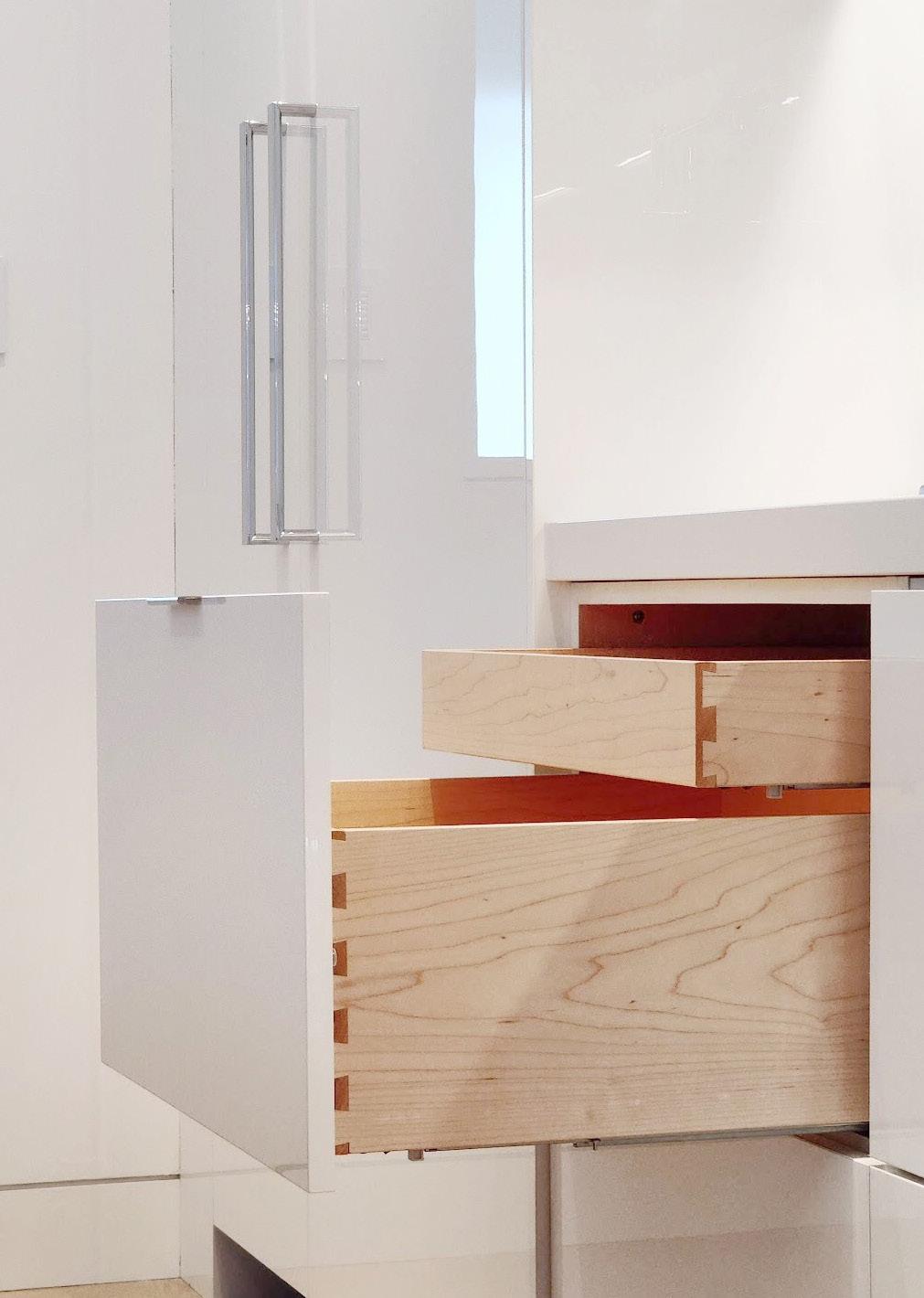

Dovetail Drawer Box in Box Order Form

Fixed

Ply Drawer Options: comes standard prefinished

9-Ply Birch 12mil Thick

11-Ply Birch 15mil Thick

Drawer Box 2

Drawer Box 1

Standard Thickness: 15mil (0.590")

If using calculation for 1 2" side thickness, check here (by checking this box we will add 1 8" to your width to accommodate our standard 15mil thickness)

Material Options:

Solid Drawer Options: comes standard prefinished Select Maple

Drawer Bottom 1&2:

Drawer Bottom 2: Standard Flush

Special Options: indicate in "Notes" field

1 1/2" Notch

3 3/8" Notch

No Notch (for details see pages 12-16)

2 3/8 Notch

4 15/16" Notch

Notching and Clips Installed (check one): for Drawer Box 1

Blum Standard Clip

Blum 2D Clip

Blum Narrow Box Clip

Blum Inset

Blum Movento Standard

Blum Movento Vertical

Blum Movento Narrow

Salice Standard Clip

Salice 3D Clip

Salice Narrow Box Clip

Grass 2D Clip

Grass Narrow Box Clip

Notching Only (no clips installed): for Drawer Box 1 (standard notching fits Blum, Grass, Salice and Accuride undermount runners) Square

Hettich Quadro IW21-LOCK12

Hettich Quadro IW21-LOCK58

Please use a seperate order form for each Box in Box size. For multilple Box in Box sets of the same size use only one form.
