ALJAZI ALSHURAYM Master of Architecture ‘24

GRADUATE SCHOOL PROJECTS MUSEO NOVECENTO

FALL 2023

2

CALIBRATING LATENCIES

SPRING 2023

10

MATSUMOTO MODERN

FALL 2022

20

INTERNATIONAL HOUSING STUDIO

FALL 2022

24

Alula female resort and educational facility

Fall 2018

32

alula cultural center

SPRING 2017

42

UNDERGRADUATE SCHOOL PROJECTS

MUSEO NOVECENTO ART EXHIBIT - FLORENCE Fall 2023 Faculty: Stephen Leet This project was half a semester long. the premise was to design a temporary exhibit that tells a story from design to curation in the courtyard of Museo Novecento building in Florence, Italy. The site is a historic building that was formally the hospital of São Paulo, located a short distance from the central station that overlooks piazza Santa Maria Novella. The building houses temporary exhibits in the courtyard that change periodically.

Starting with circulation studies, and experimenting how people could possibly travel throughout courtyard exhibit, informed the grid of the plan, in which I put a centralized space that sways visitors to circulate around it.

The project has one opening that acts as an entrance and an exit. The floor to ceiling high openings on the different corners of exhibit create a visual continuity that allows the visitors a peak at what is presented on the other side, as a preview prior to ticket purchasing.

The exhibit benefits from the interior lighting of the historic building’s corridors, creating diffused lighting throughout, with the centralized space having a skylight that acts as a spotlight highlighting the cluster of sculptures in the middle.

The project intends to be referential to the historic building; a modest approach was taken with the distribution of walls and the roof the slanted roof to not impose on the building but harmonize with it. Curating the artworks displayed from a list of a collection of sculptures, paintings, images and movie stills, organized around the centralized walls which divide the project into themed areas: monochrome and colored, old and new, light and dark, and top and front. The structure is an exploration out of CLT wood.

Right: roof site plan of Museo Novecento

SITE PLAN

3

Exisiting Building Museum Floor Plan Glass

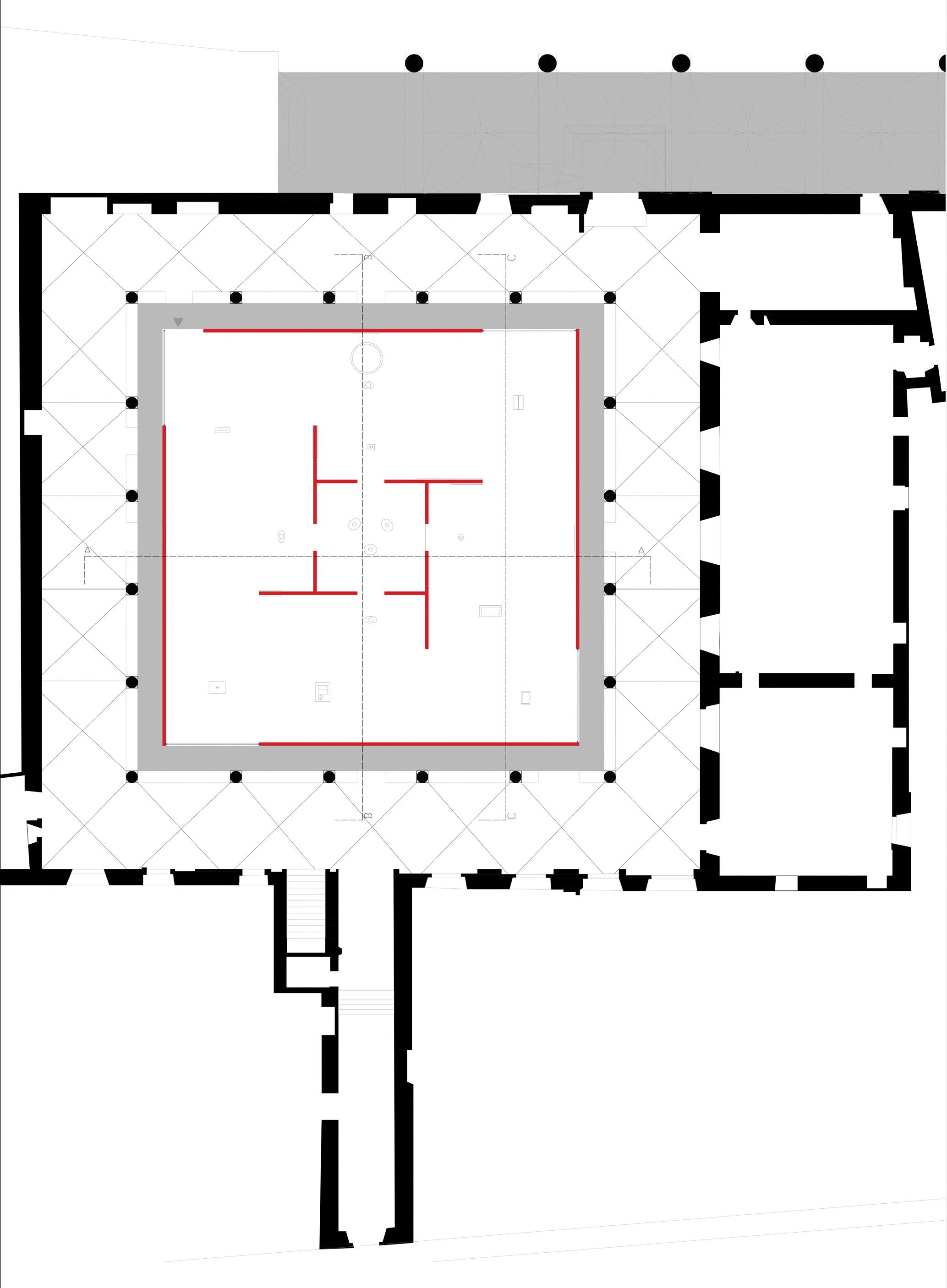

Contextual floor plan: museum plan in the existing building courtyard

The floor plan and cross section offer a comprehensive perspective on the seamless integration of the new courtyard exhibition with the existing structure. They vividly illustrate how the two elements harmoniously coexist and mutually enhance each other, with a circulation flow that consistently guides visitors back to the central focal point.

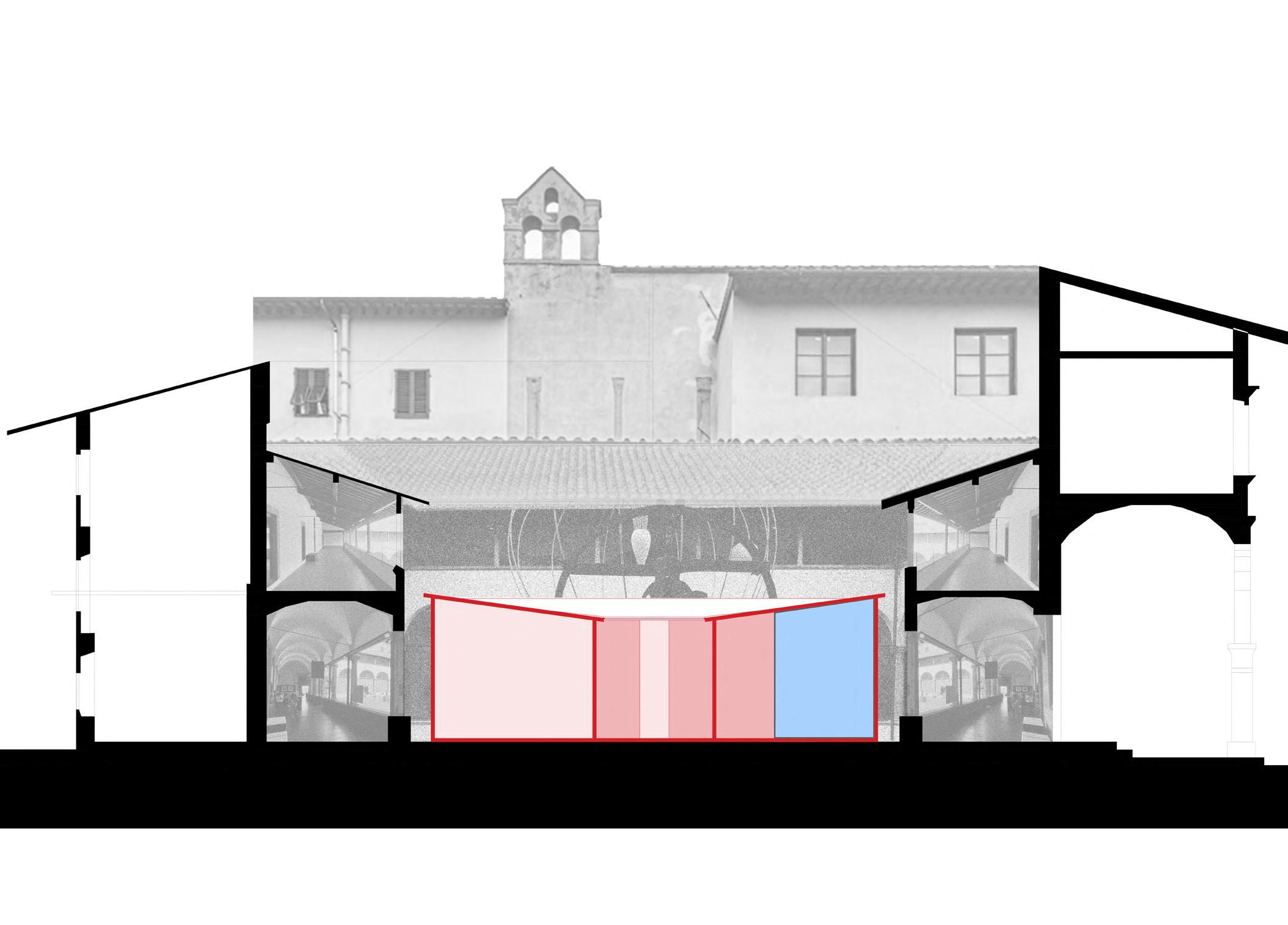

Contextual cross section: Museum section in the existing building courtyard

5

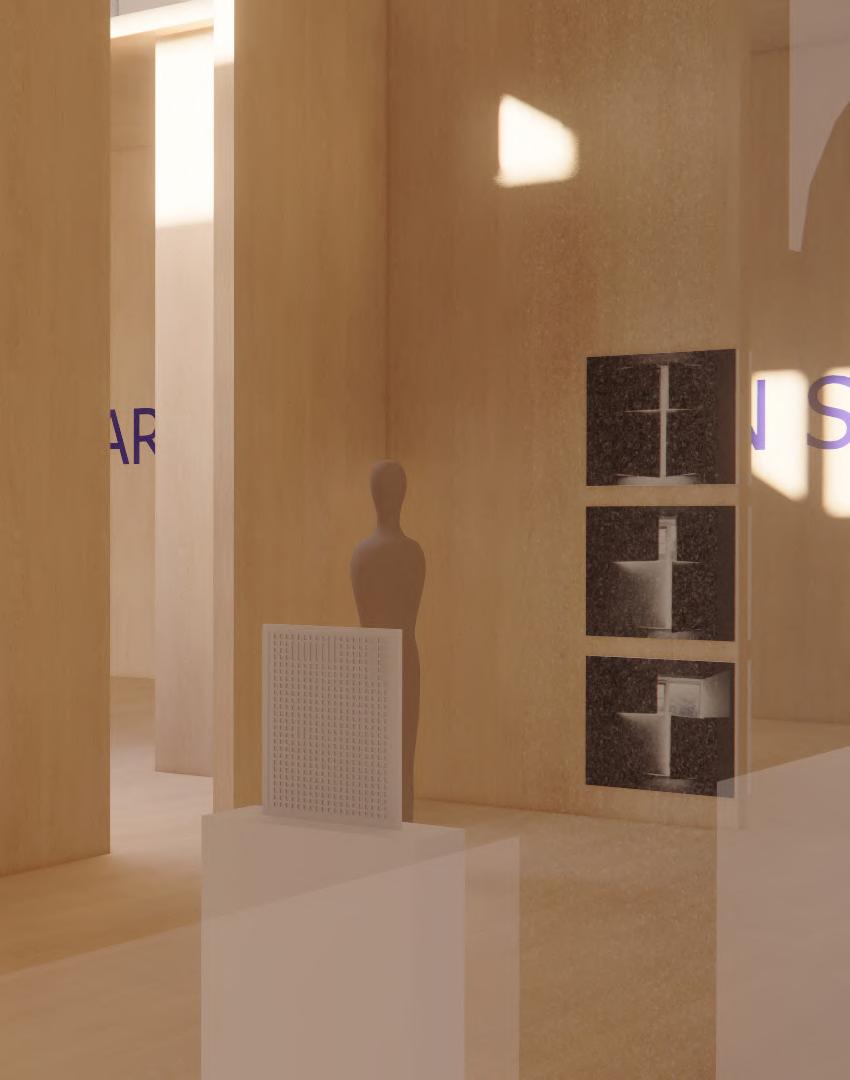

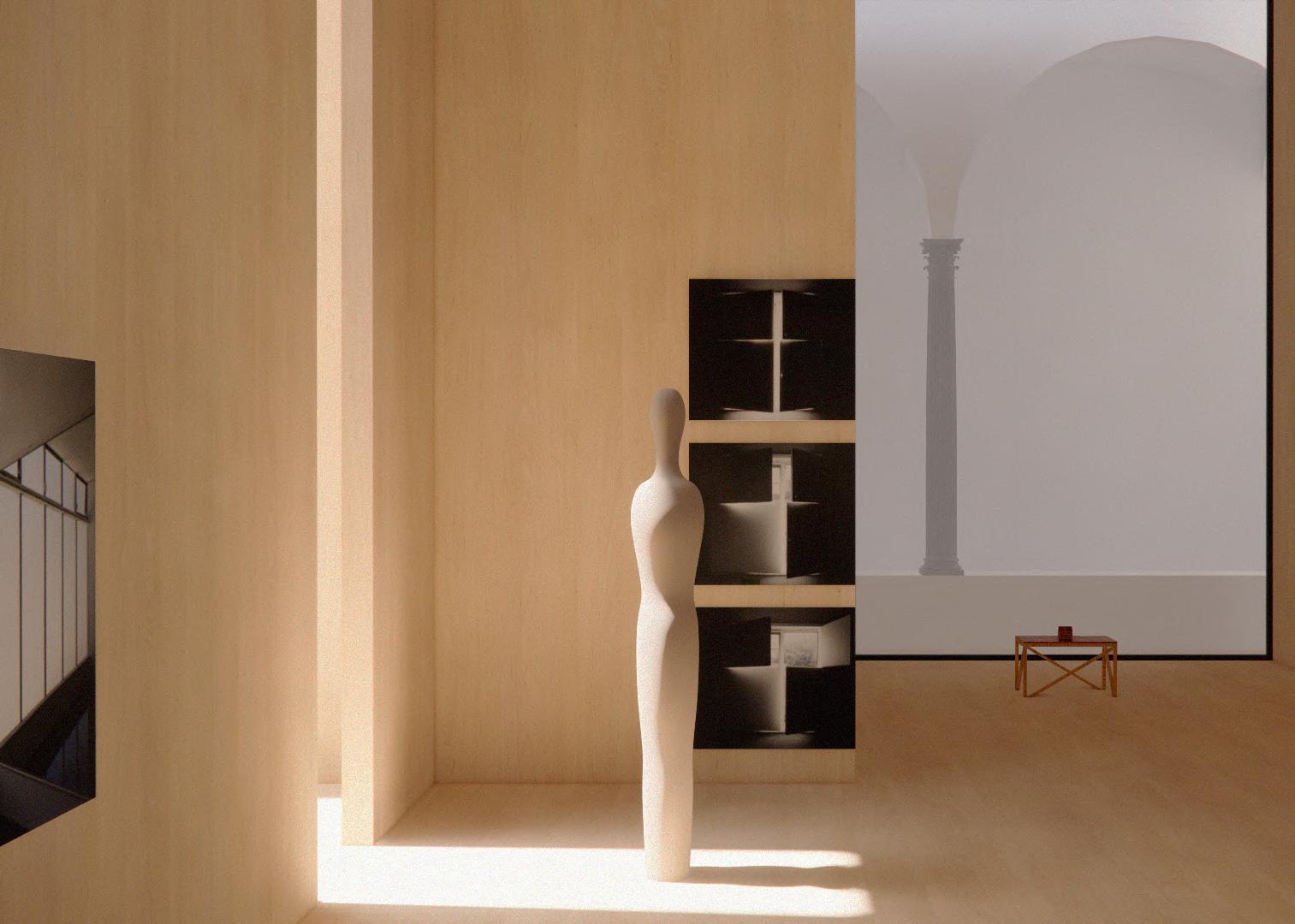

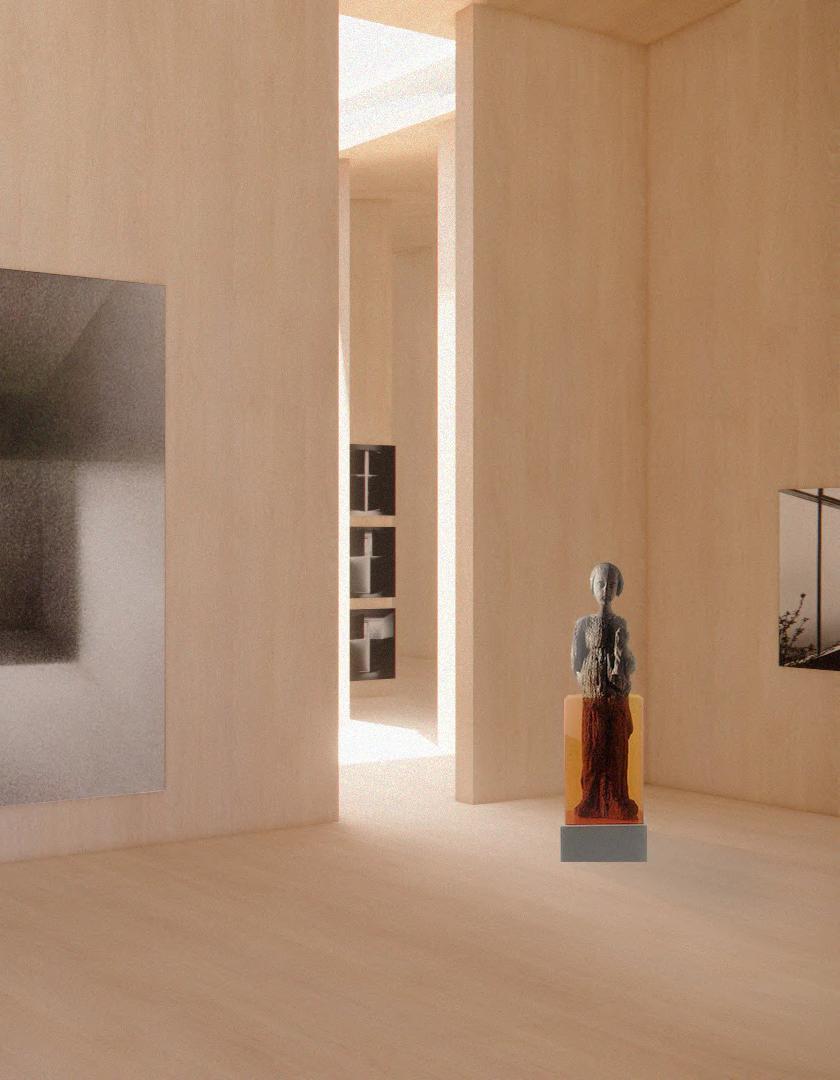

Internal view of the exhibition showing the integration between light and shadow

The exhibition is enhanced by the ambient lighting in the corridors of the historic building, which creates a gentle and diffused illumination throughout the space. At the center of the exhibit, there is a skylight that acts as a spotlight, casting its rays specifically on the cluster of sculptures, emphasizing their presence.

The internal perspective of the exhibition reveals a harmonious interplay of light and shadow, alongside the seamless integration of an existing historic well located within the courtyard of the exhibit.

7

O LD & N EW

3

4

D A R K &

2

L I G H T

M O N O C H R O M E & C O L O R

1

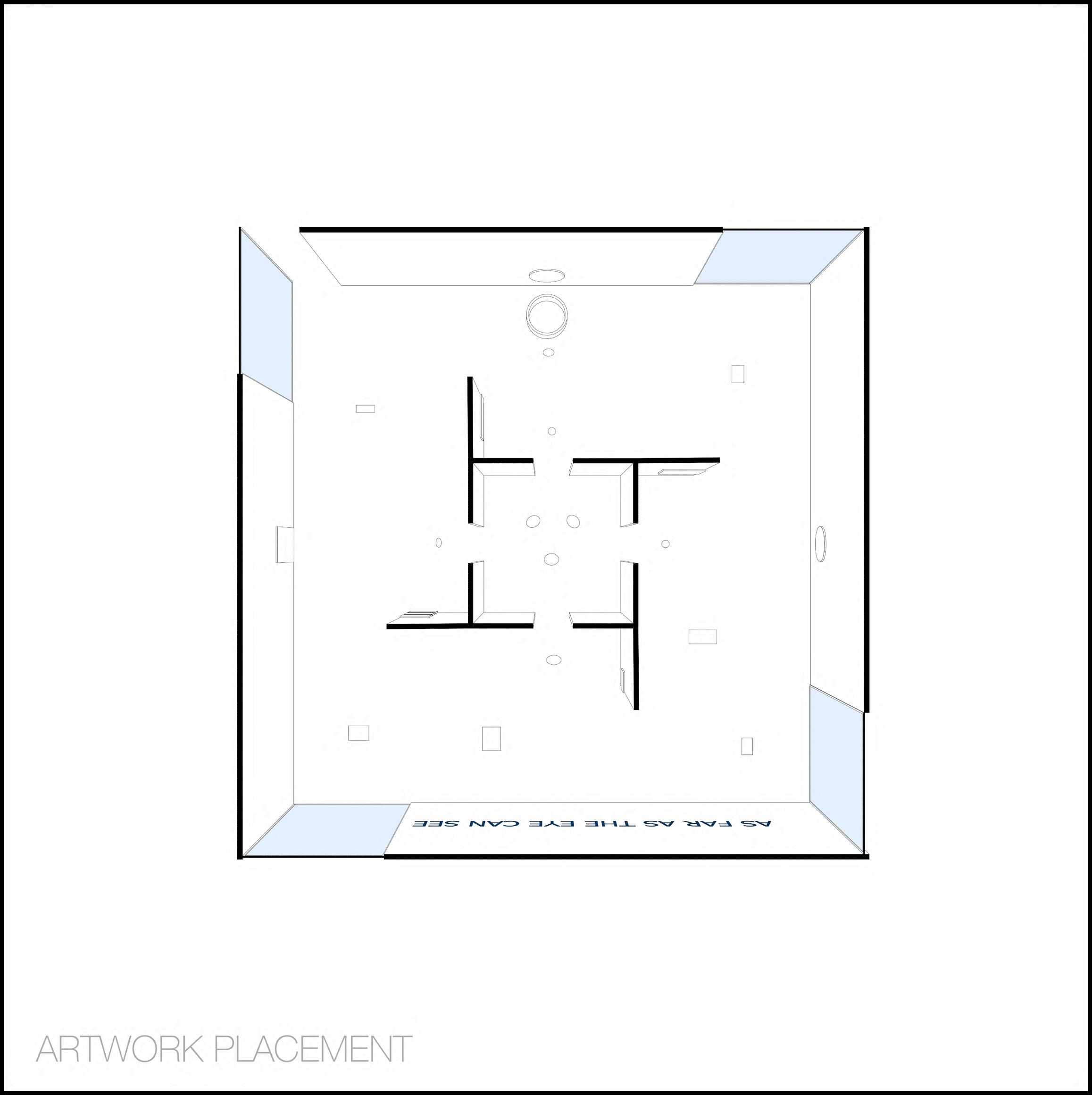

TO P & F RO N T The exhibition diagram portrays the harmonious relationship between the four distinct areas and the central space, demonstrating their interconnectedness. Furthermore, the diagram visually presents the strategic placement of the selected artwork within the exhibition, offering insights into its arrangement.

Right: figures corrispodnding to the views above numbered in red.

Figure (1): Internal perspective showing the themed area (Top &Front)

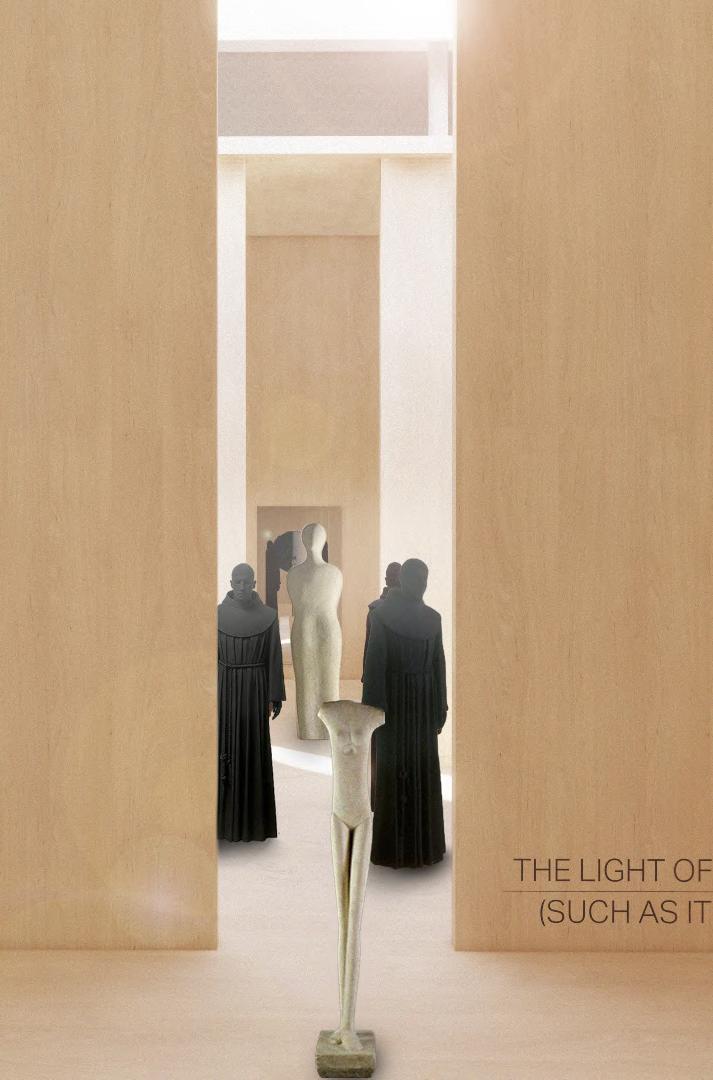

Figure (2): Internal perspective overlook the exhibition central area

Figure (3): External perspective view from the corridor to the exhibition

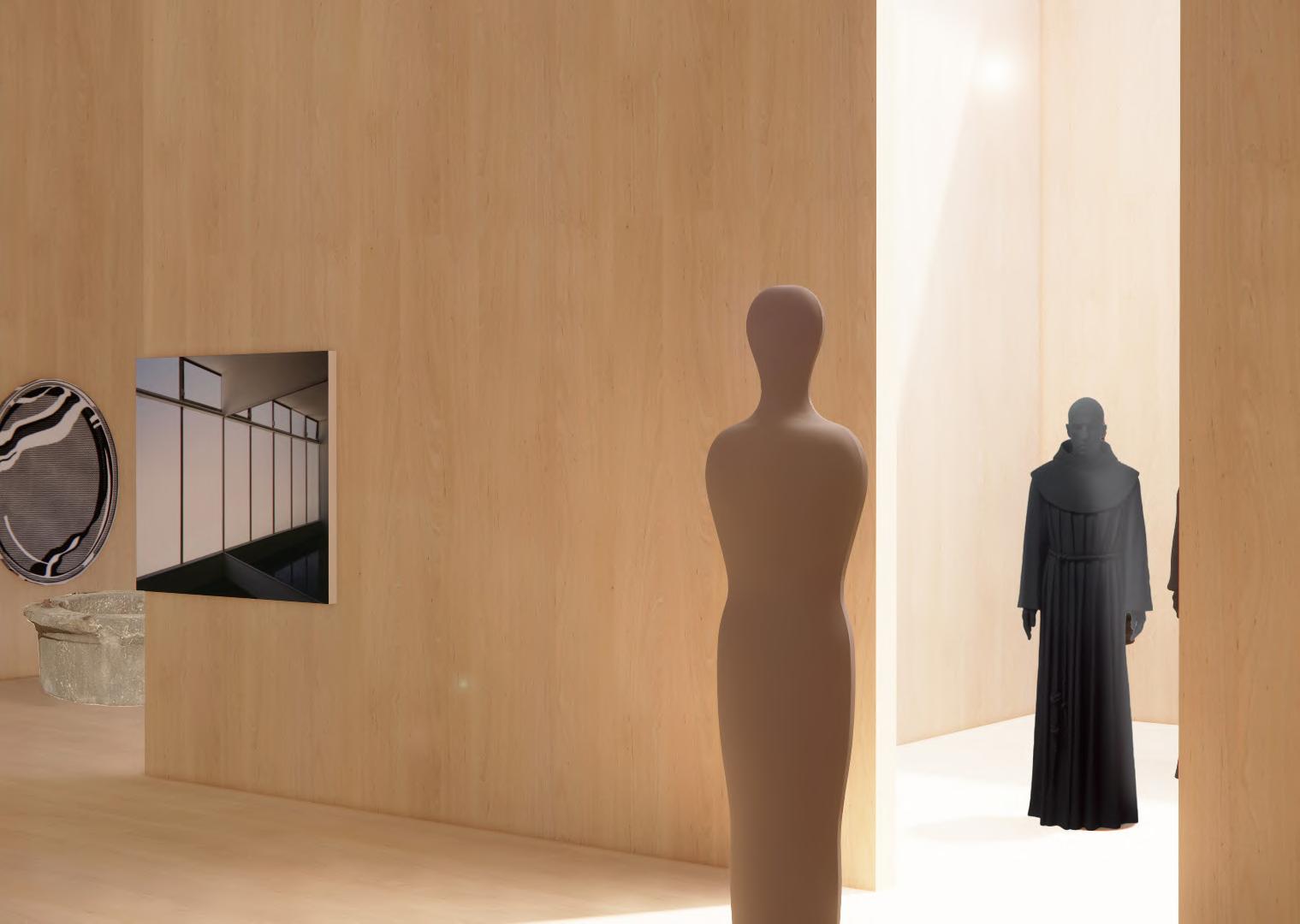

Figure (4): Internal perspective of (monochrome &color ) & (old and new) & (dark and light) areas

9

CALEBRATING LATENCIES STUDIO - SAN JUAN Spring 2023 Faculty: Monica Rivera The project is an exploration that revolved around investigating latencies, and the possibilities of usage growth in a block, while creating an energy conscious design. The project started off by critiquing Levittown Puerto Rico house’s materials and climatic inadequacies and their lack of sense of uniqueness and individuality. Working with a fictitious plot with a north-south orientation somewhere in San Juan, the first design step is to understand the climate conditions and restrictions of san juan, especially considering the climate conscious strategies.

Starting with a single floor plan, I produced iterations of cost-effective and minimally destructive approaches that resolve environmental, spatial, tectonic and social aspects of the original plan. With the iteration that worked best, I started growing the project with an addition that could function as multi-family house or a bigger single-family house. This plan is the basis for the 14-plot neighborhood block, with each floor plan furnished differently to accommodate different programs and show the plan’s flexibility to grow and shrink depending on the usage and occupancy.

This project encompassed multiple scales, from openings -for climate, energy, views, and safety- to urban organizations.

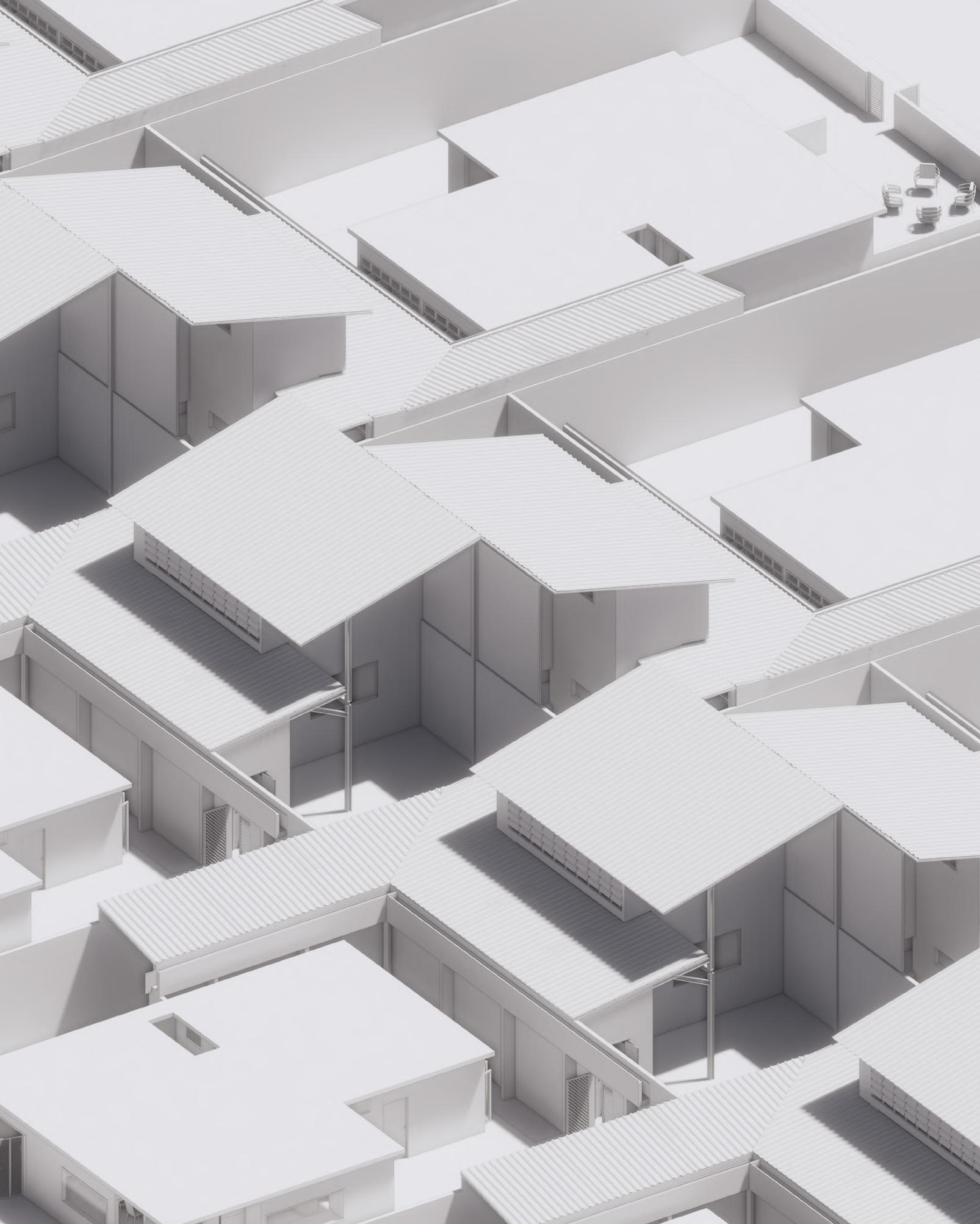

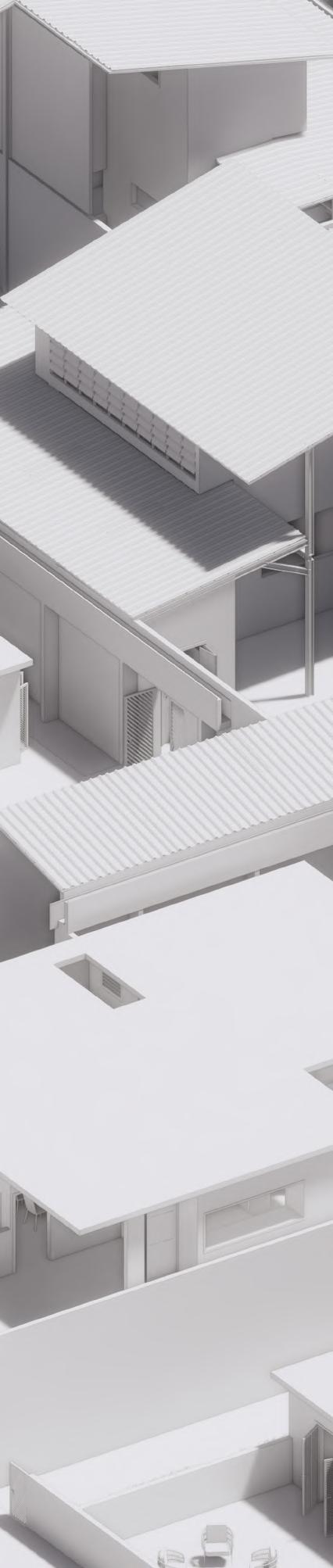

Right: block axon

11

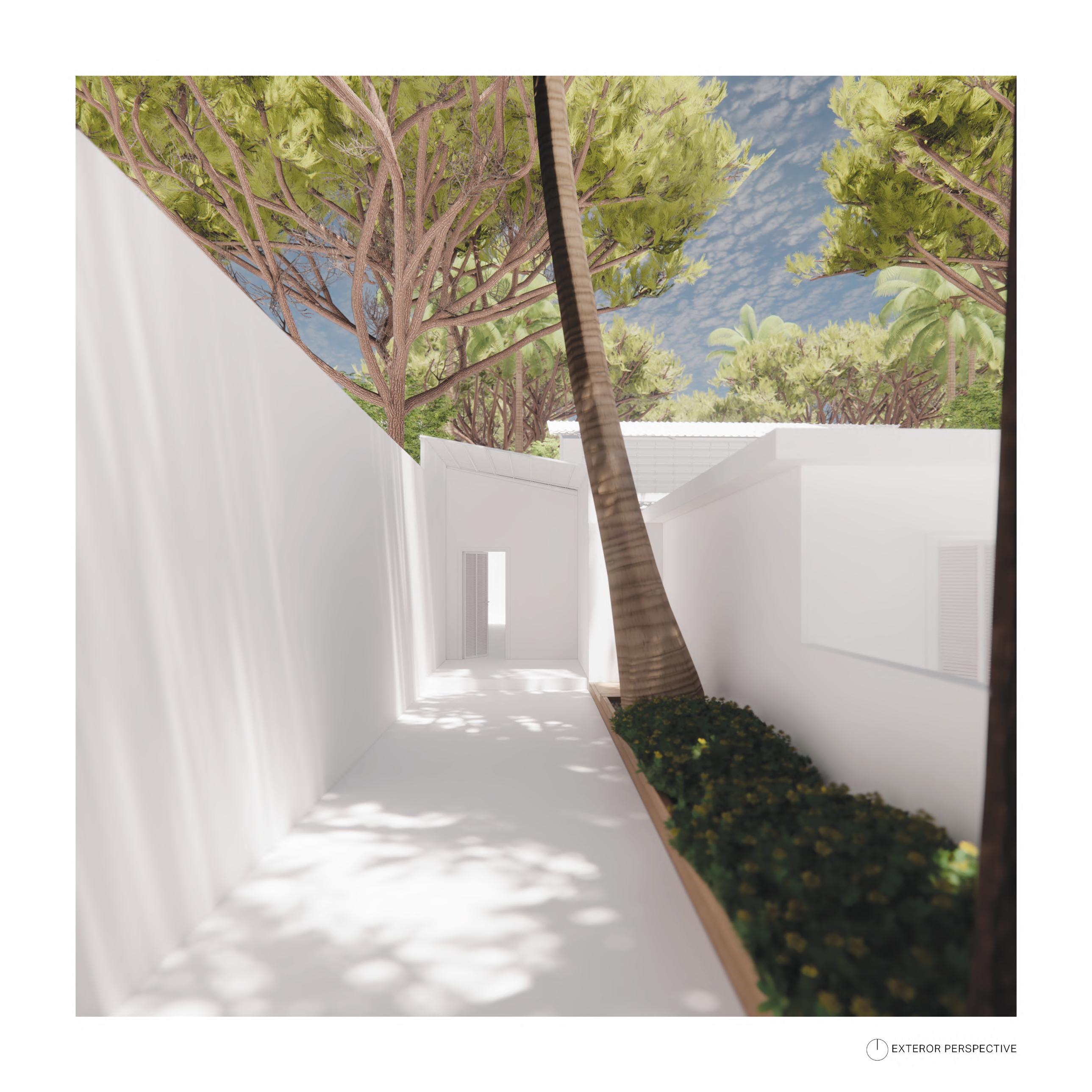

Exterior render - showing connectivity between the two units

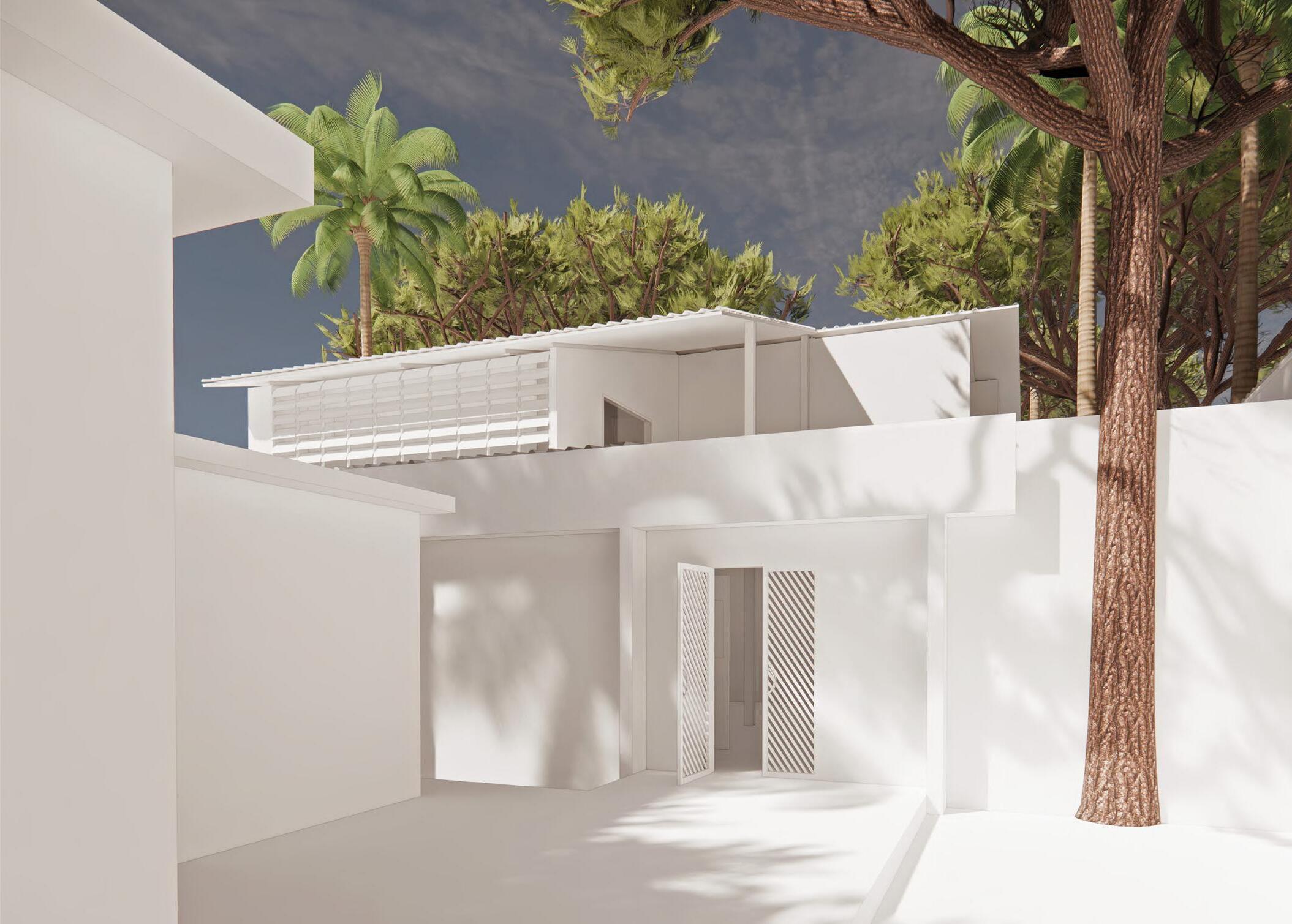

Exterior render - showing main entrance to the back unit

13

LEARNING FROM LEVITTOWN I developed cost-effective and environmentally conscious iterations of a single floor plan, addressing environmental, spatial, tectonic, and social aspects. The most successful iteration served as the foundation for expanding the project with an addition that can function as either a multi-family house or a larger single-family house.

Modification Existing

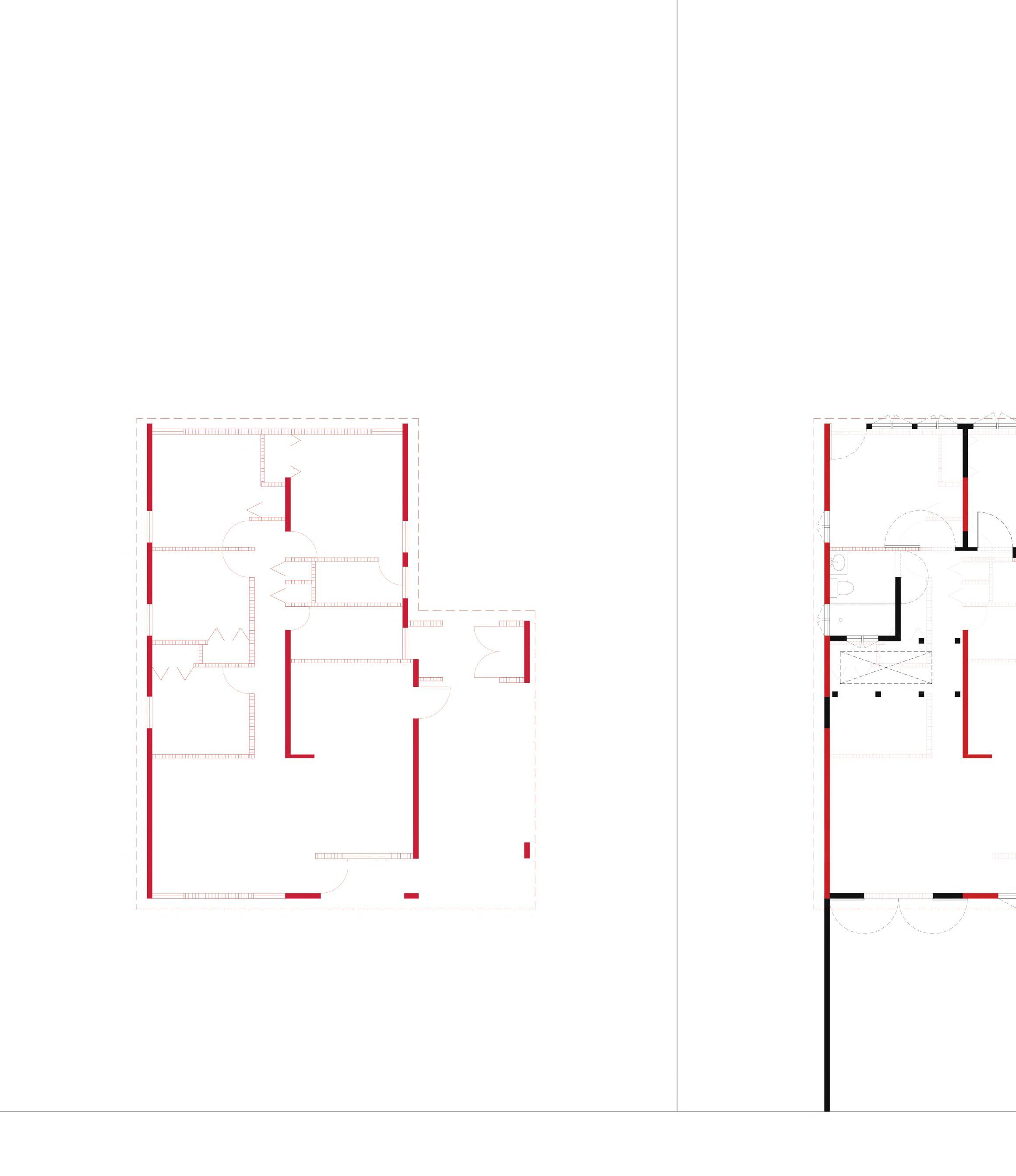

Original Levittown plan in plot context

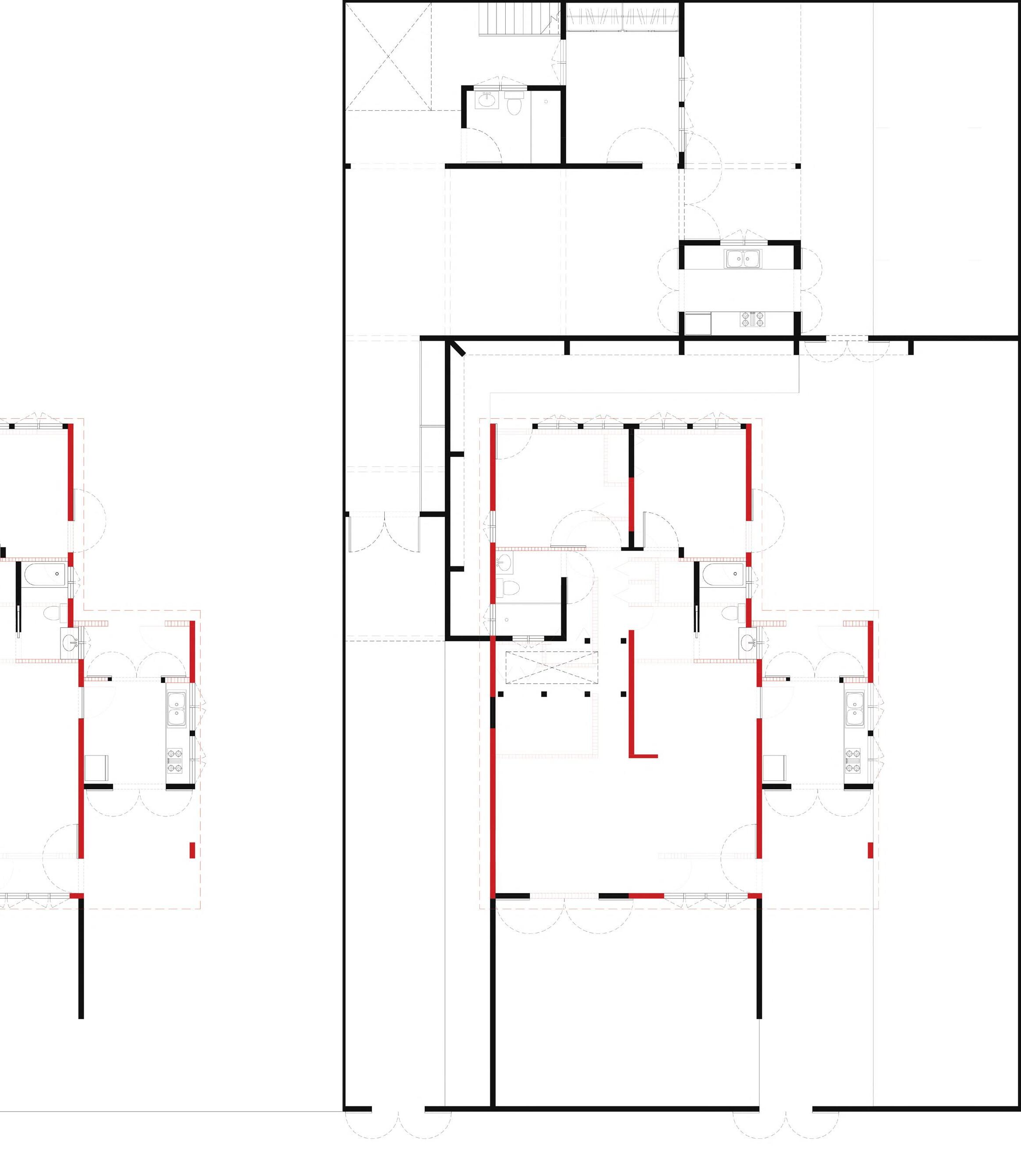

Phase 1: Small adjustments and modifications were done to achiv and focusing on cross ventilation, natural lighting and minimizi

ve a single unit while keeping the essence of the existing structure ng heat-gain

Phase 2: Further modifications were done to achive multiple units for small or large occupancy, shown in a single plot context

15

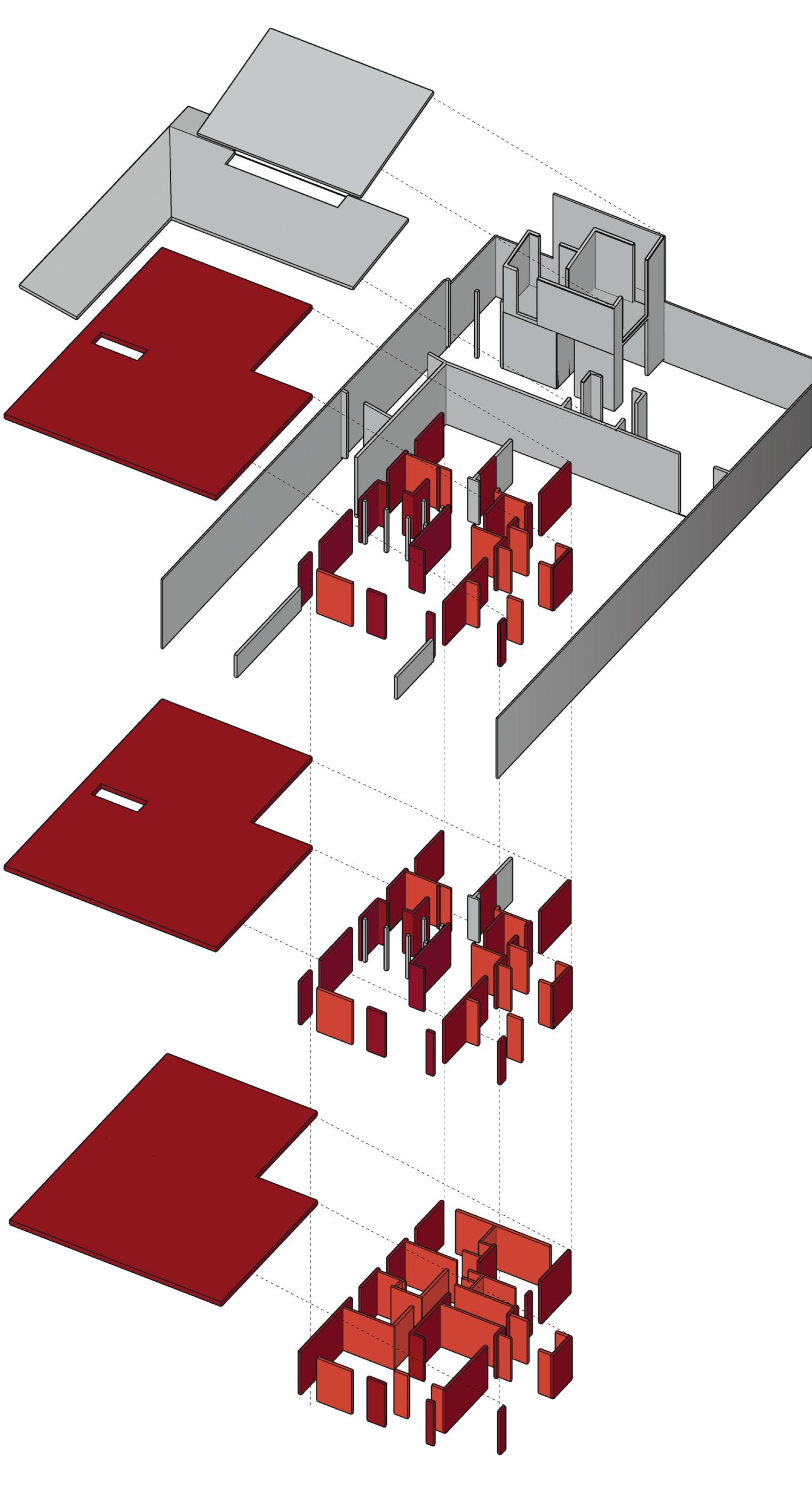

Transition axon showing the original walls and roof in red, the modifications in grey, and the additions on top.

Transverse section looking west

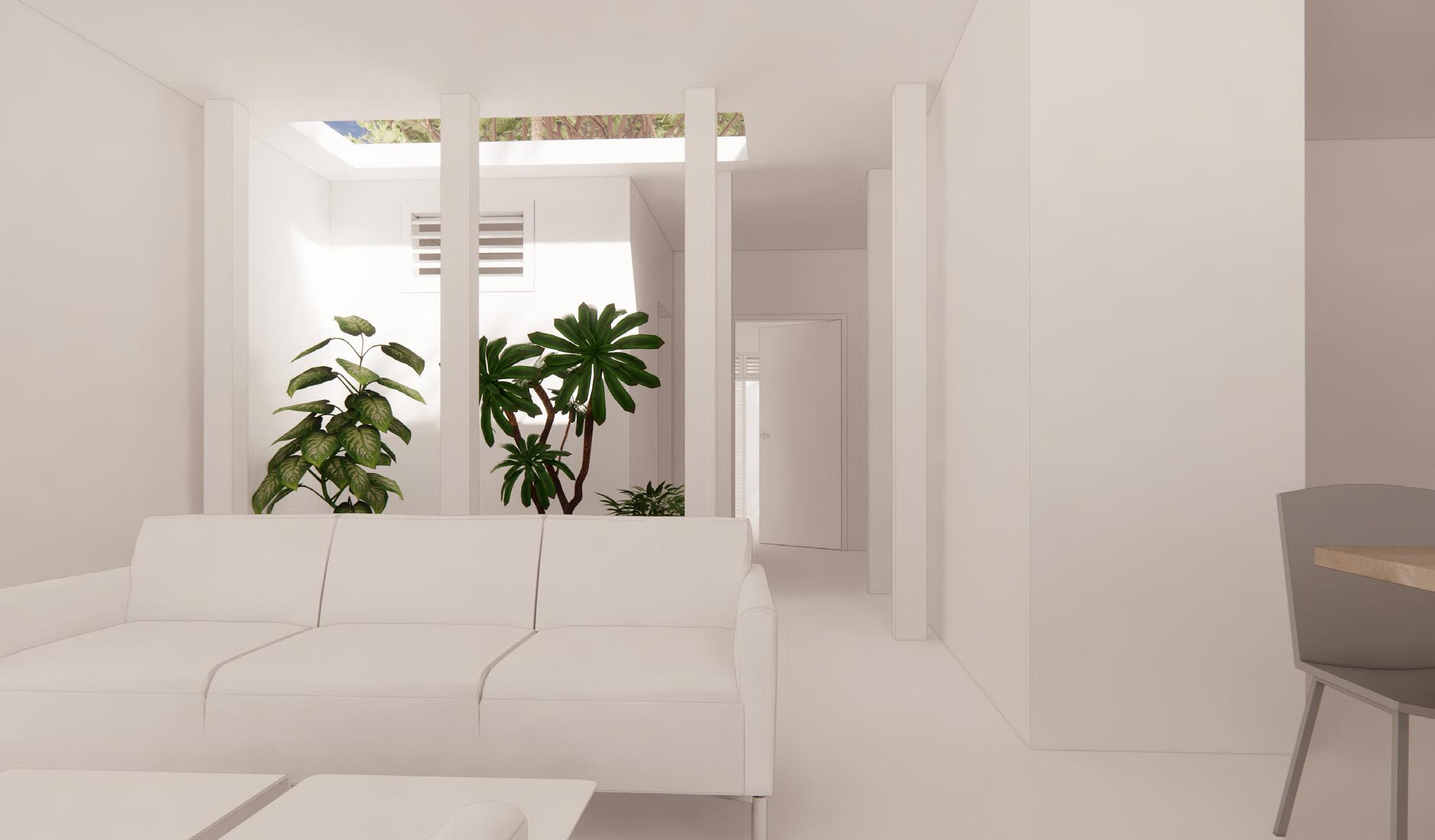

Interior render from living to centralised courtyard

17

Modification Existing

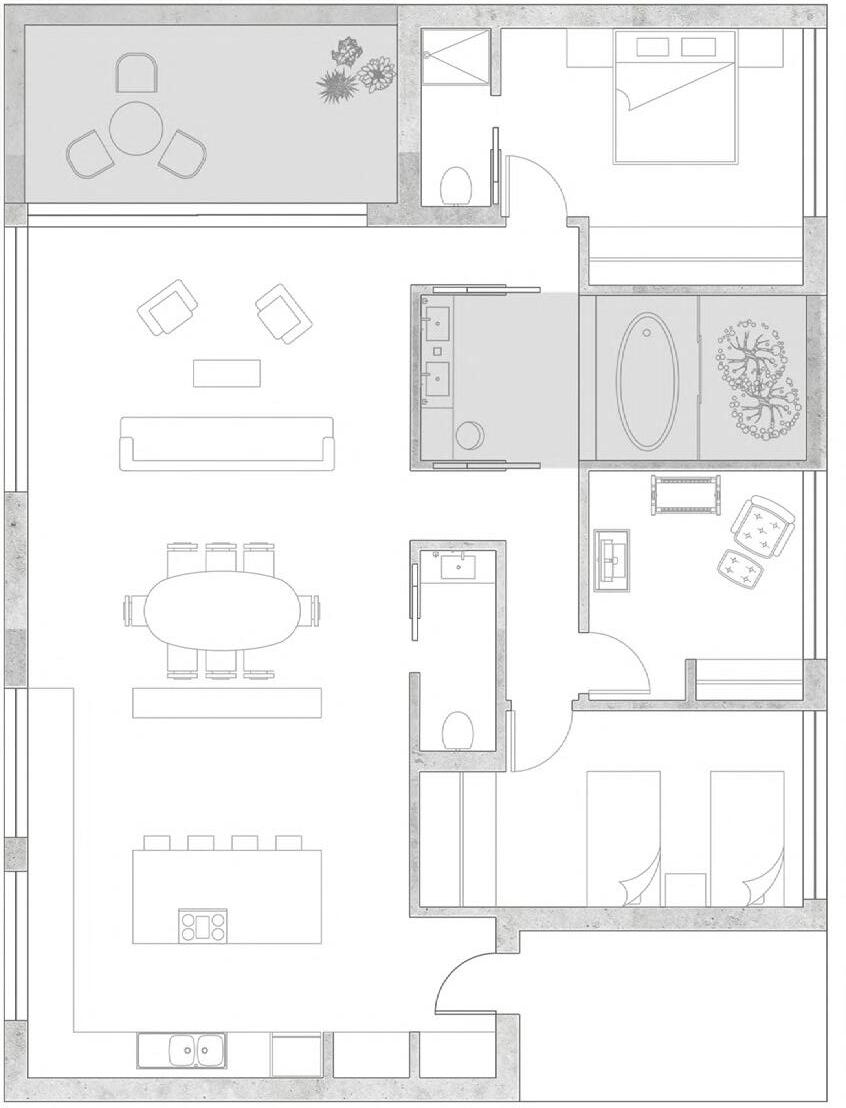

Each floor plan is furnished differently to accommodate different programs and show the plan’s flexibility to grow and shrink depending on the usage and occupance. the blue and green highlight colors show ownership, as the plots are flexible in ownership depending on the program needs.

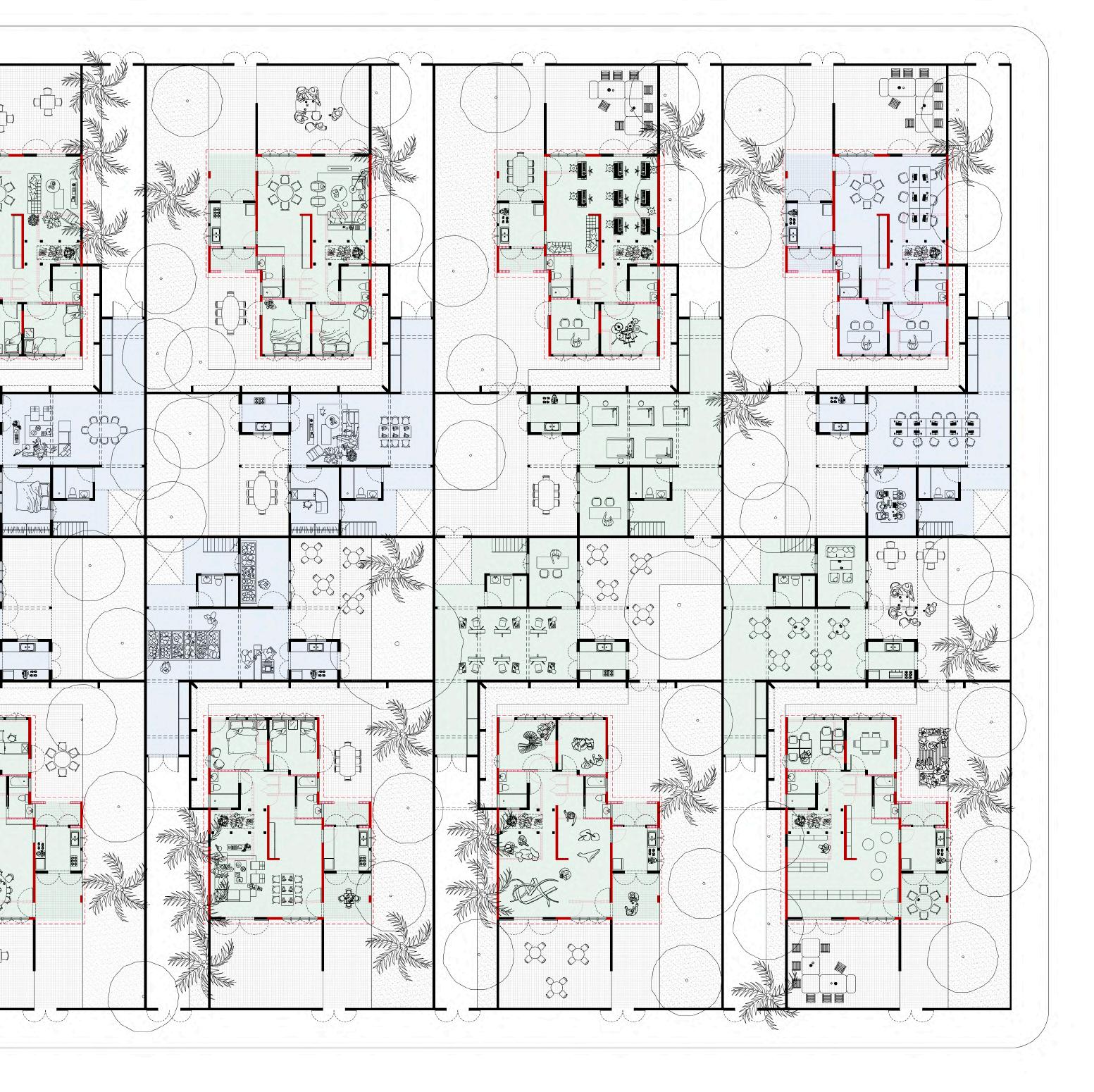

Furnished block plan

19

MATSUMOTO MODERN - JACKSON, MISSISSIPPI Fall 2022 Faculty: Kelly Murphy Research Seminar.

This course focuses on the architectural work of George Matsumoto, a Japanese American architect who designed numerous award-winning residences in North Carolina between 1948 and 1961. Matsumoto’s houses served as prototypes for domestic living influenced by postwar mass production ideals. Similar to the Case Study House Program on the west coast, Matsumoto’s designs aimed to be functional, beautiful, and affordable, while also setting a model for modern American domesticity.

Focusing on his design for one of the Westinghouse Total Electric Houses campaign; exploring the innovative use of materials, construction systems, and formal capabilities. This work includes experimental analytical drawings, archival research and writing, creation of museum-level physical model, and other representations of Matsumoto’s work. The objective is to contribute to a future publication and exhibition, as part of the larger research project “Beauty in Enormous Bleakness: The Interned Generation of Japanese American Designers,” highlighting the significant contributions of Japanese Americans to post-war culture and architectural history.

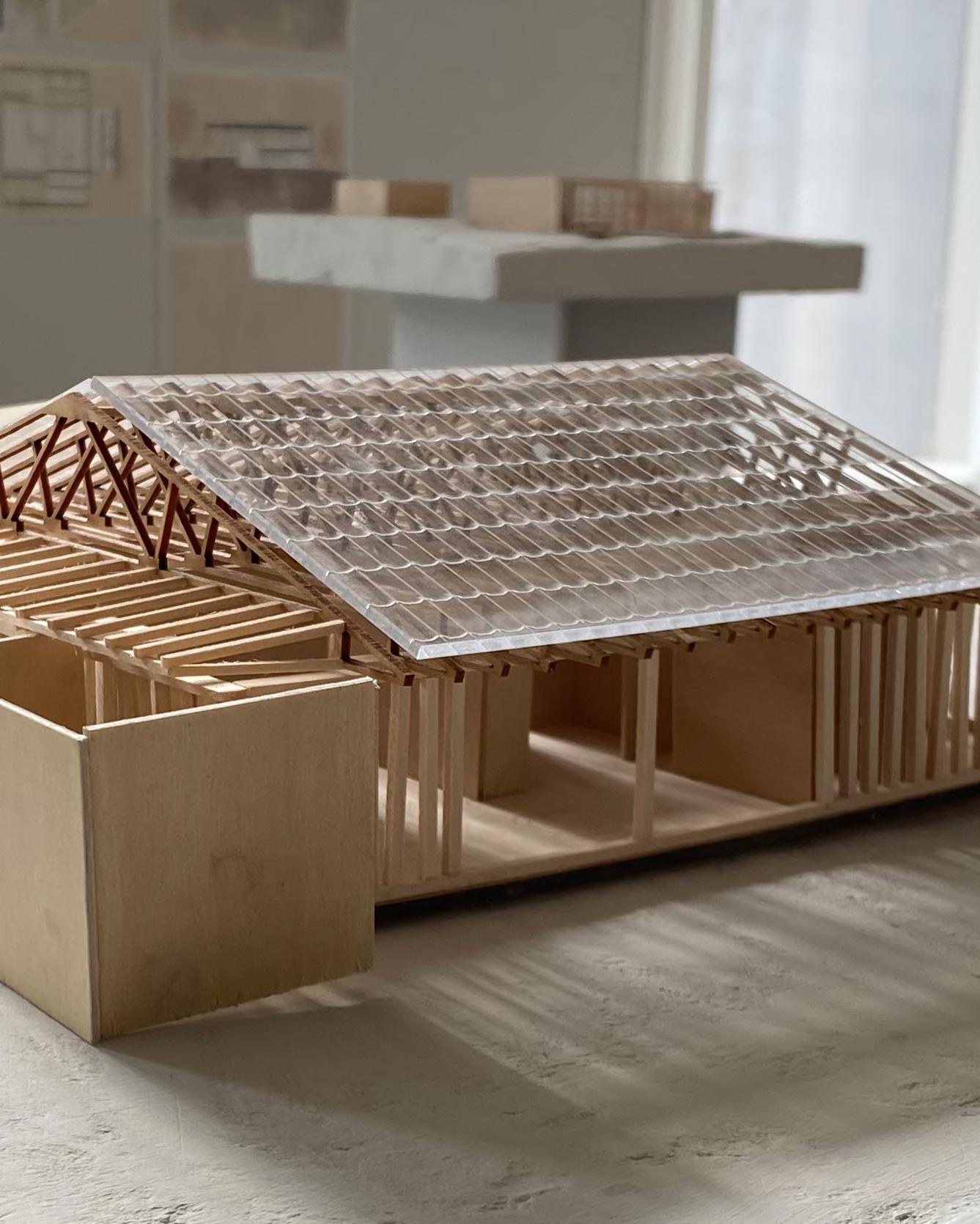

Right: physical model of Westinghouse Total Electric House in Jackson, Mississippi

21

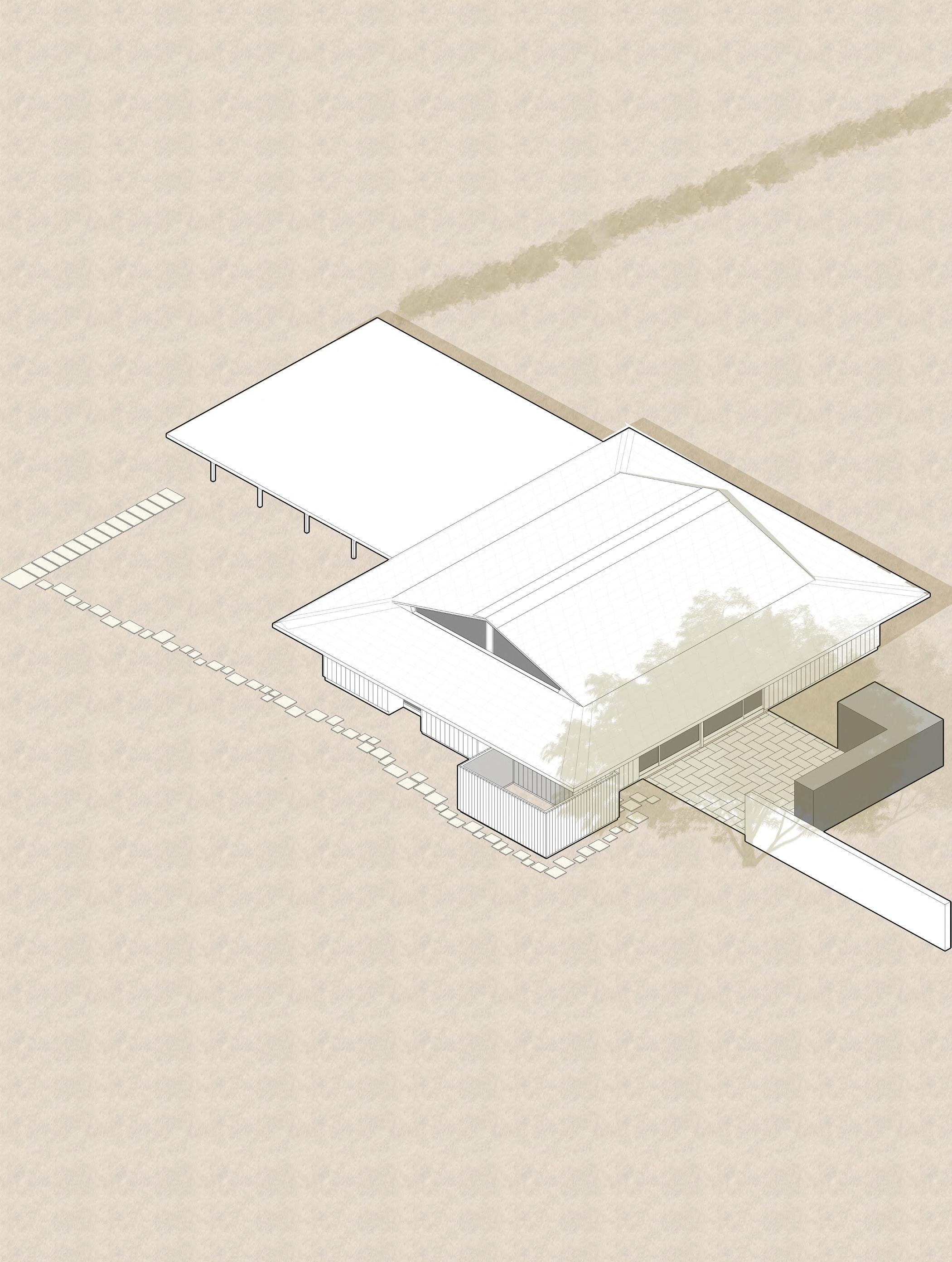

Site axon

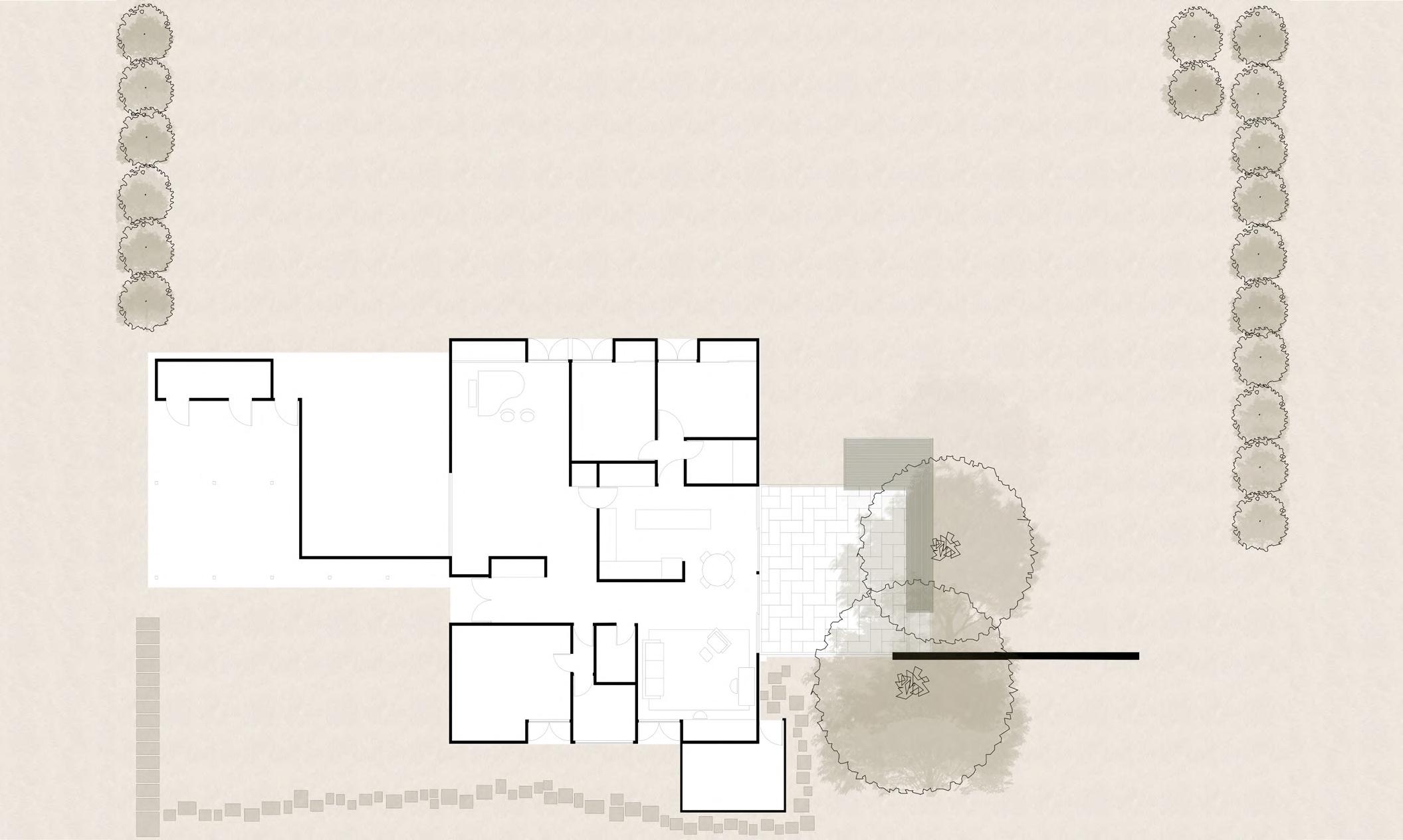

Floor plan

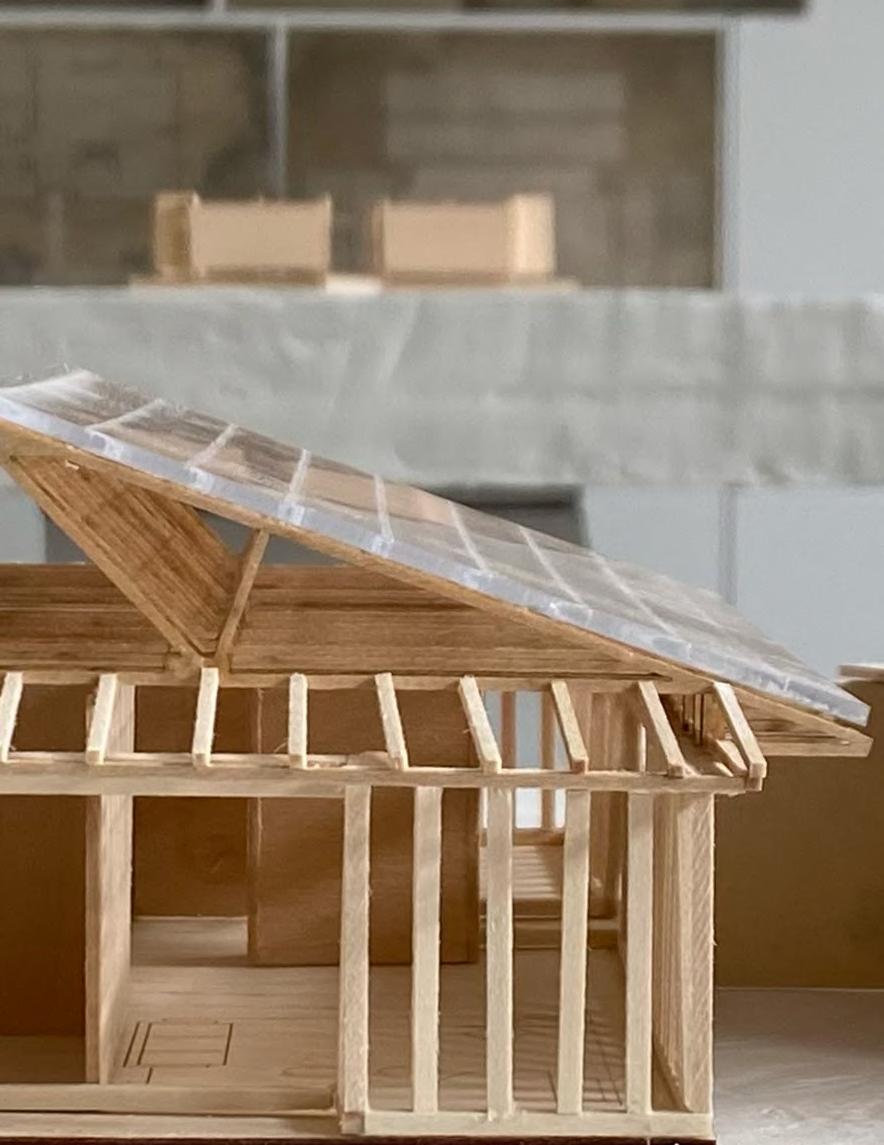

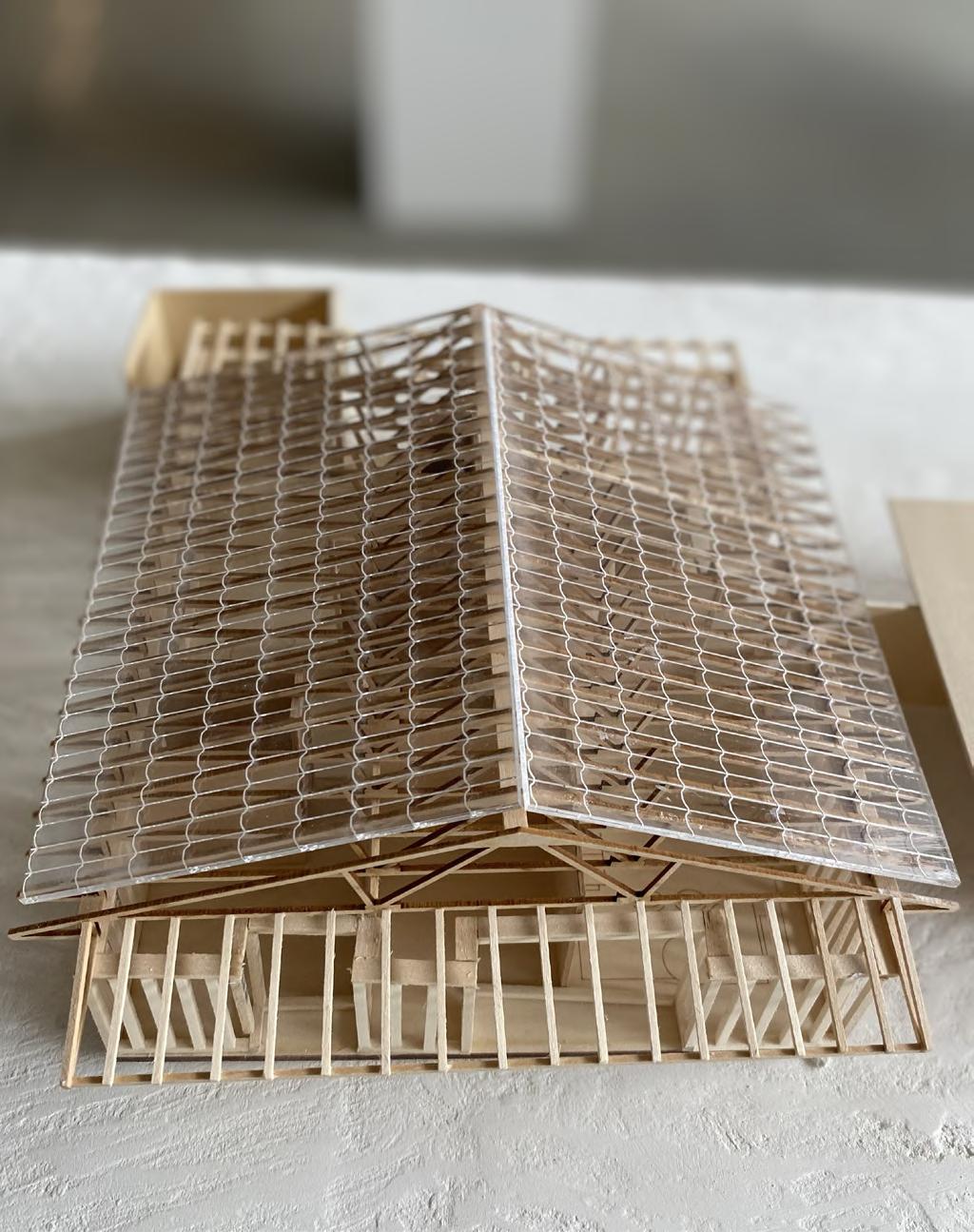

Model image showing roof structure

Model image zoomed in detail

23

INTERNATIONAL HOUSING STUDIO - BERLIN Fall 2022 Faculty: Julie Bauer The design concept revolves around an apartment building featuring three different-sized units: one-bedroom, two-bedroom, and three-bedroom apartments. Inspired by the German lifestyle, which values courtyards and open spaces, each apartment incorporates a shower garden, bringing the outdoors inside and celebrating the significant history or Karl-Marx-Alee.

The arrangement of the apartments ensures optimal ventilation and sunlight on all three sides of each unit.

The core of the building is centralized providing easy access to storage spaces and bike racks -which are a vital form of transportation in Germany- and connecting the building floors and serving as a communal spine for socialization and circulation. The design prioritizes functionality, natural light, and indoor-outdoor connectivity while catering to the needs of residents.

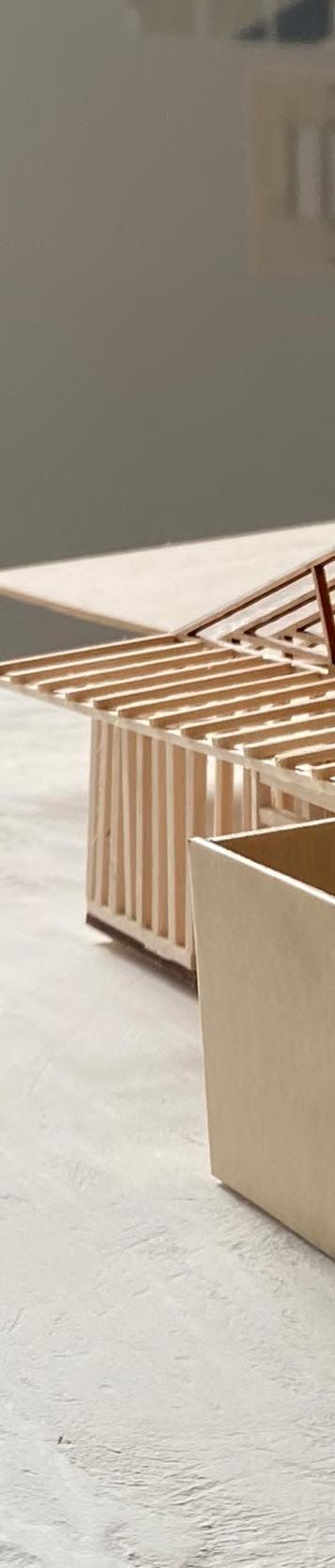

Right: threshold physical model photo

25

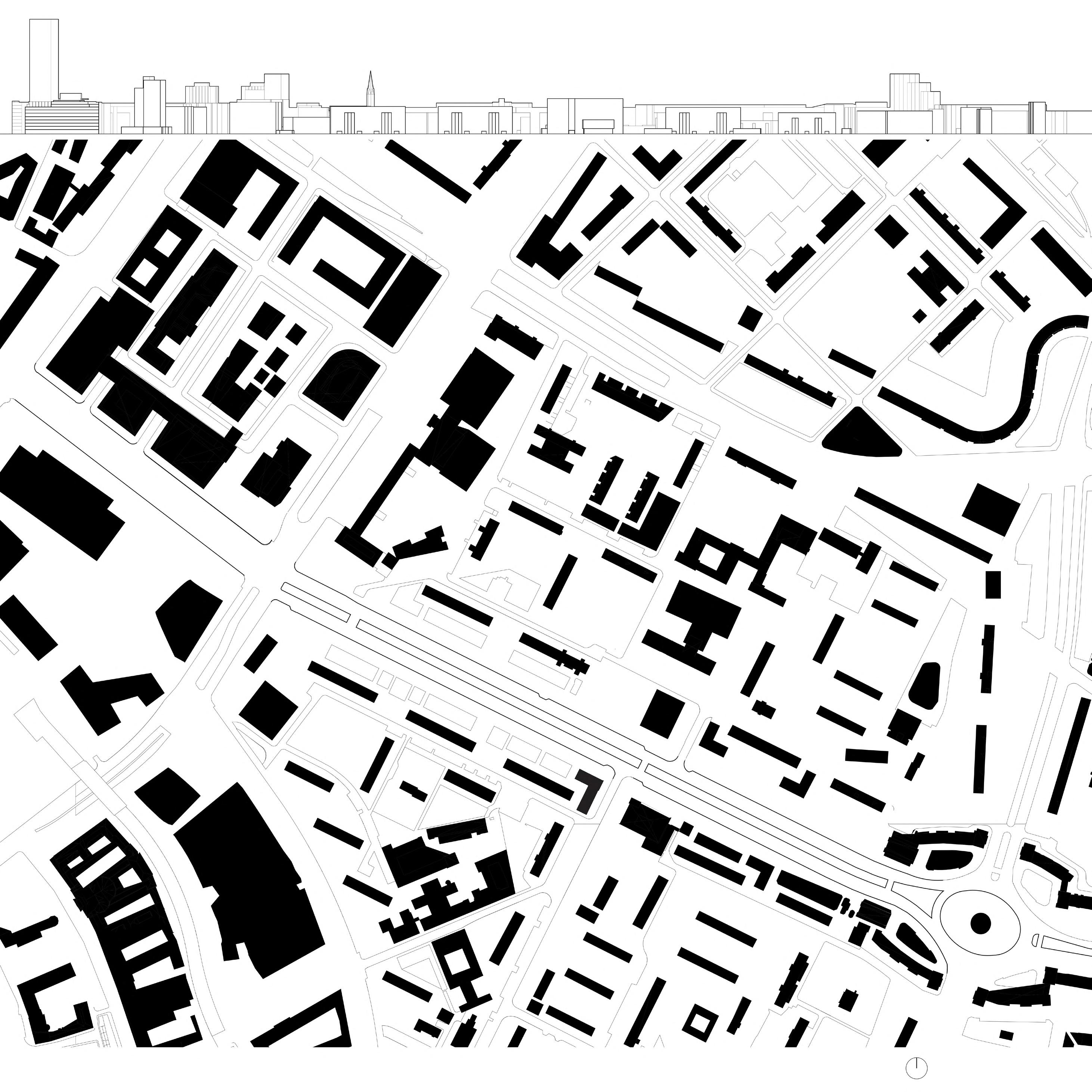

Figure ground map with project in red, in relation to peers’ project locations in grey.

The Karl-Marx-Allee is a prominent boulevard in Berlin, Germany, named after the influential philosopher and economist Karl Marx. It was originally constructed in the 1950s in the former East Berlin as a showcase of socialist architecture and urban planning, reflecting the ideals of the German Democratic Republic.

The boulevard stretches for approximately 2 kilometers (1.2 miles) and features grand, monumental buildings characterized by the socialist realist architectural style, with imposing facades and wide avenues. These buildings served various functions, including residential apartments, government offices, and cultural institutions.

During the Cold War, the Karl-Marx-Allee was a symbol of East German pride and socialist achievements. However, after the reunification of Germany in 1990, the boulevard underwent significant changes. Many of the buildings were renovated or repurposed, and the area experienced urban renewal efforts to adapt to the new socio-economic and political landscape of a unified Berlin.

Today, the Karl-Marx-Allee remains an important historical and cultural landmark in Berlin, attracting visitors interested in its architectural heritage and the history of East Germany.

Right: first floor plan with site context and vertical cirulation, containing programs like a restaurant, corner store, and a post office.

27

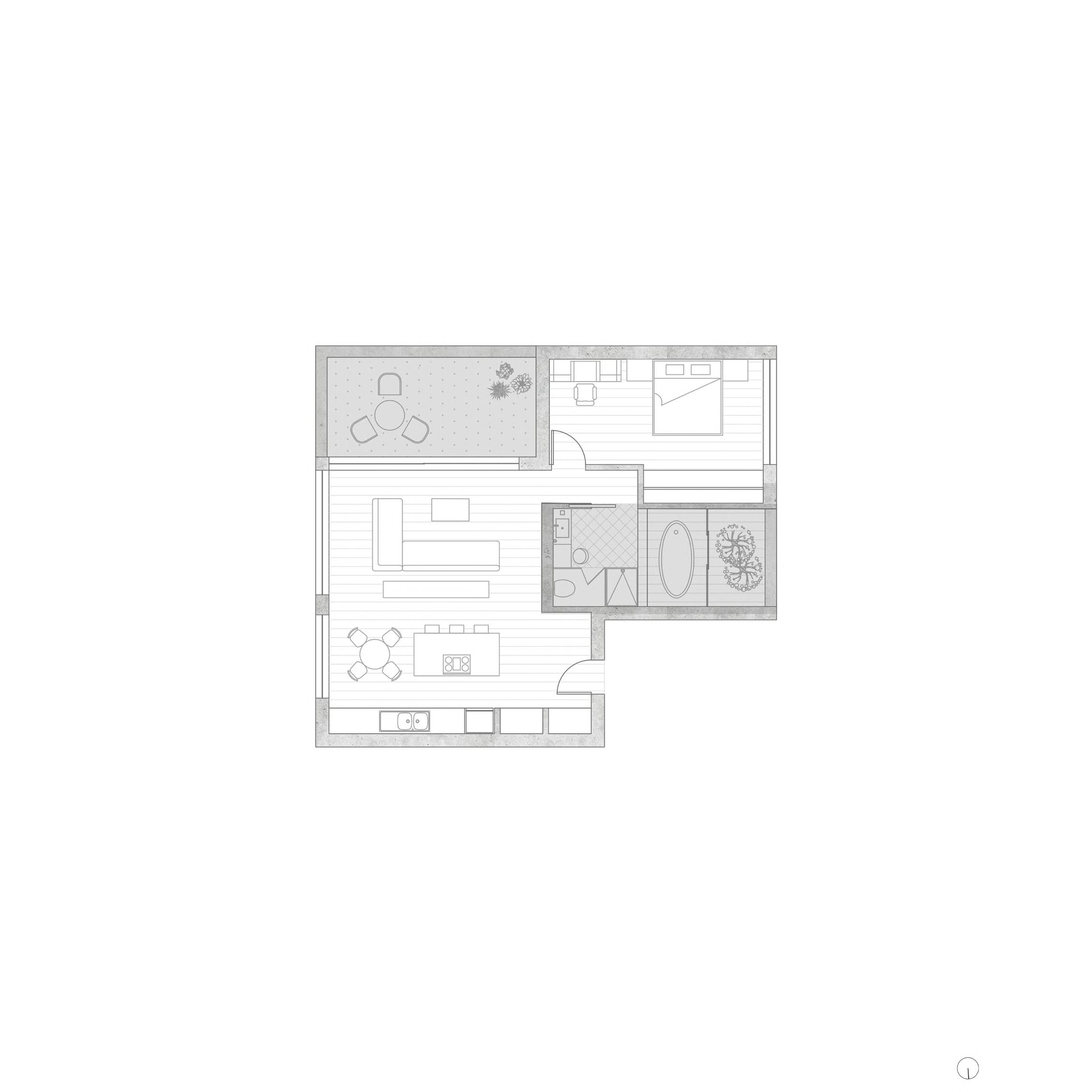

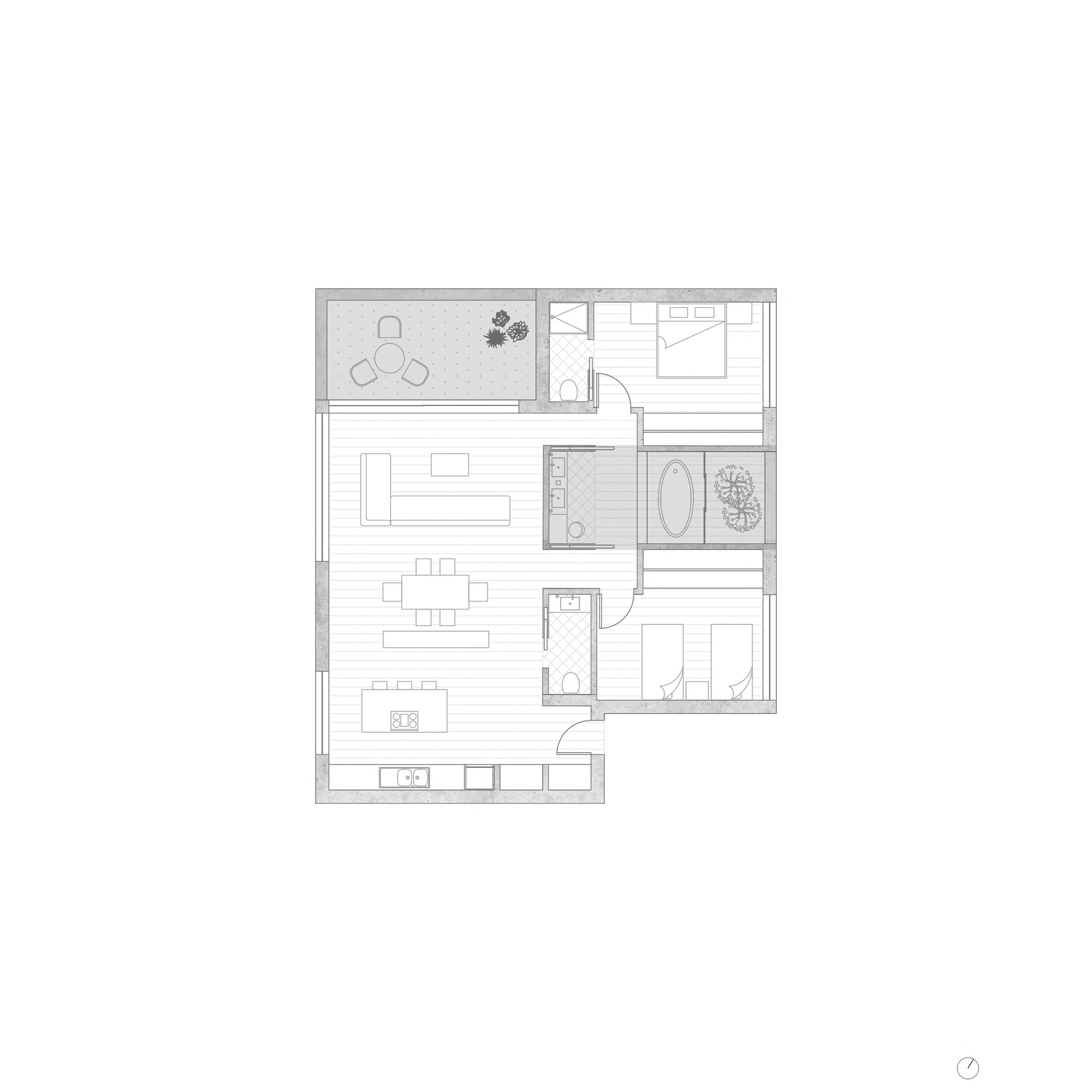

One bedroom unit

1 BEDROOM UNIT 1/4”

Two bedroom unit

Three bedroom unit

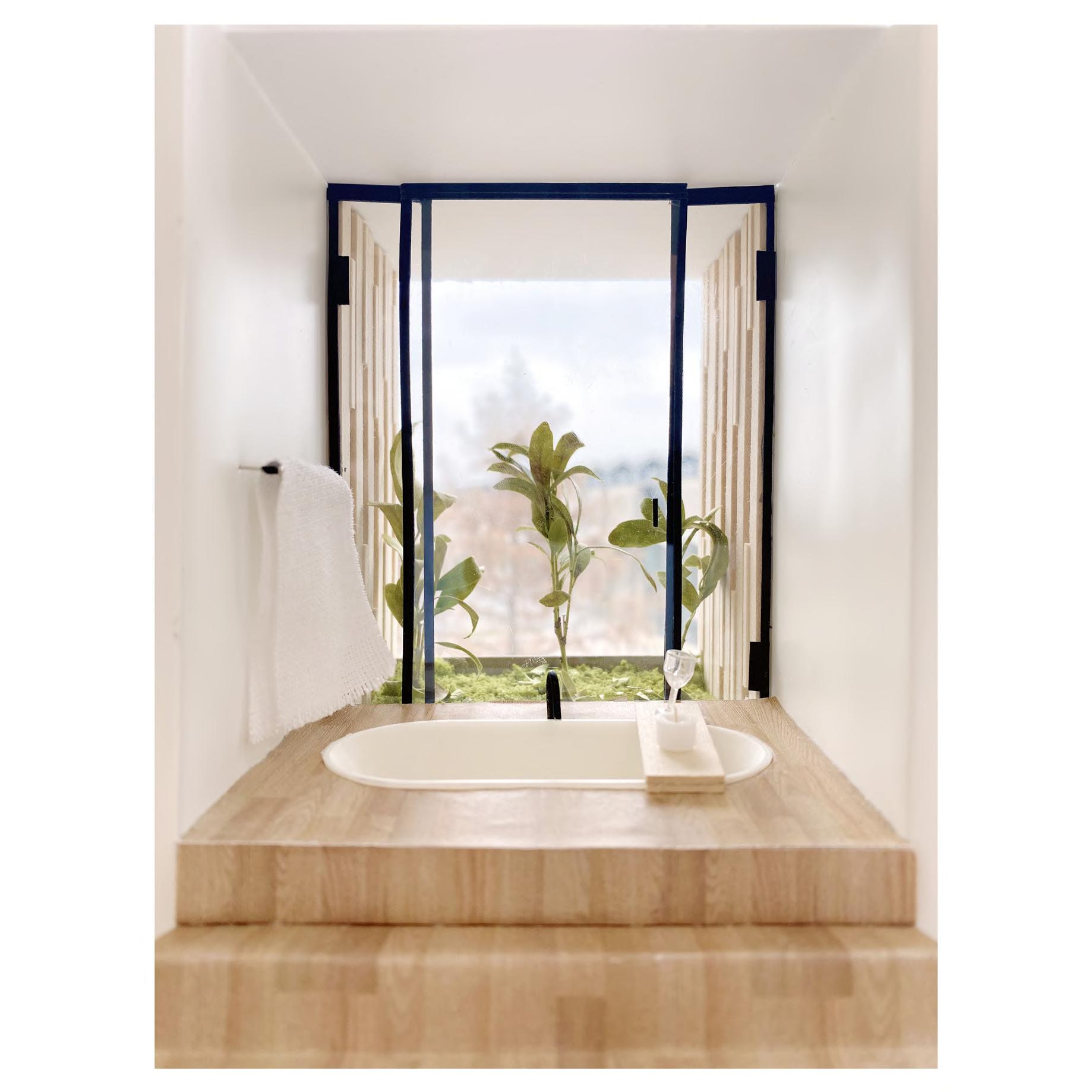

Threshold physical model photo

THRESHOLD IMAGE

29

144F T

132F T

120F T

108F T

96F T

84F T

72F T

60F T

48F T

36F T

24F T

12F T

0F T

Section A-A

GROUND FLOOR 1/8”

STREET ELEVATION 1/8”

Street elevation

31

ALULA FEMALE RESORT & EDUCATIONAL FACILITY ALULA, SAUDI ARABIA Fall 2018 Faculty: Buthayna Eilouti

This project aims to establish a serene retreat for women to unwind from their hectic lives while simultaneously offering opportunities for learning. Combining spa amenities with educational facilities, it strives to create a sanctuary where visitors can rejuvenate their minds and expand their knowledge. Emphasizing inclusivity, particularly for Muslim women, ensuring they can fully enjoy the spa and natural surroundings without feeling the need to cover up. By making this project exclusive to women, it aims to create a comfortable environment where all women can relax, swim, and connect with nature freely and confidently.

The primary objectives of the project include designing an aesthetically pleasing building amidst scenic surroundings, equipping a comprehensive learning center with necessary amenities, and integrating water features such as pools, fountains, and waterways to contrast with the rugged mountain environment. Additionally, the project aims to provide diverse activities for occupants to participate in, fostering continuous learning and personal enrichment.

Conceptually, the project seeks to achieve a harmonious balance between humanity, nature, and architecture. This is articulated through the use of contrasting design elements—curved and straight lines—to evoke a sense of unity with the natural environment, emphasizing a connection where humans belong to the Earth, rather than vice versa.

The project features a diverse range of living quarters designed to cater to various needs and preferences. These include a spacious 4-bedroom villa, providing ample room for larger groups or extended stays. Additionally, there is a medium-sized two-floor unit offering a generous one bedroom big enough to host 4 people along with a roof terrace. Lastly, a compact one-bedroom unit is available, designed for efficiency and suited for individuals or smaller groups.

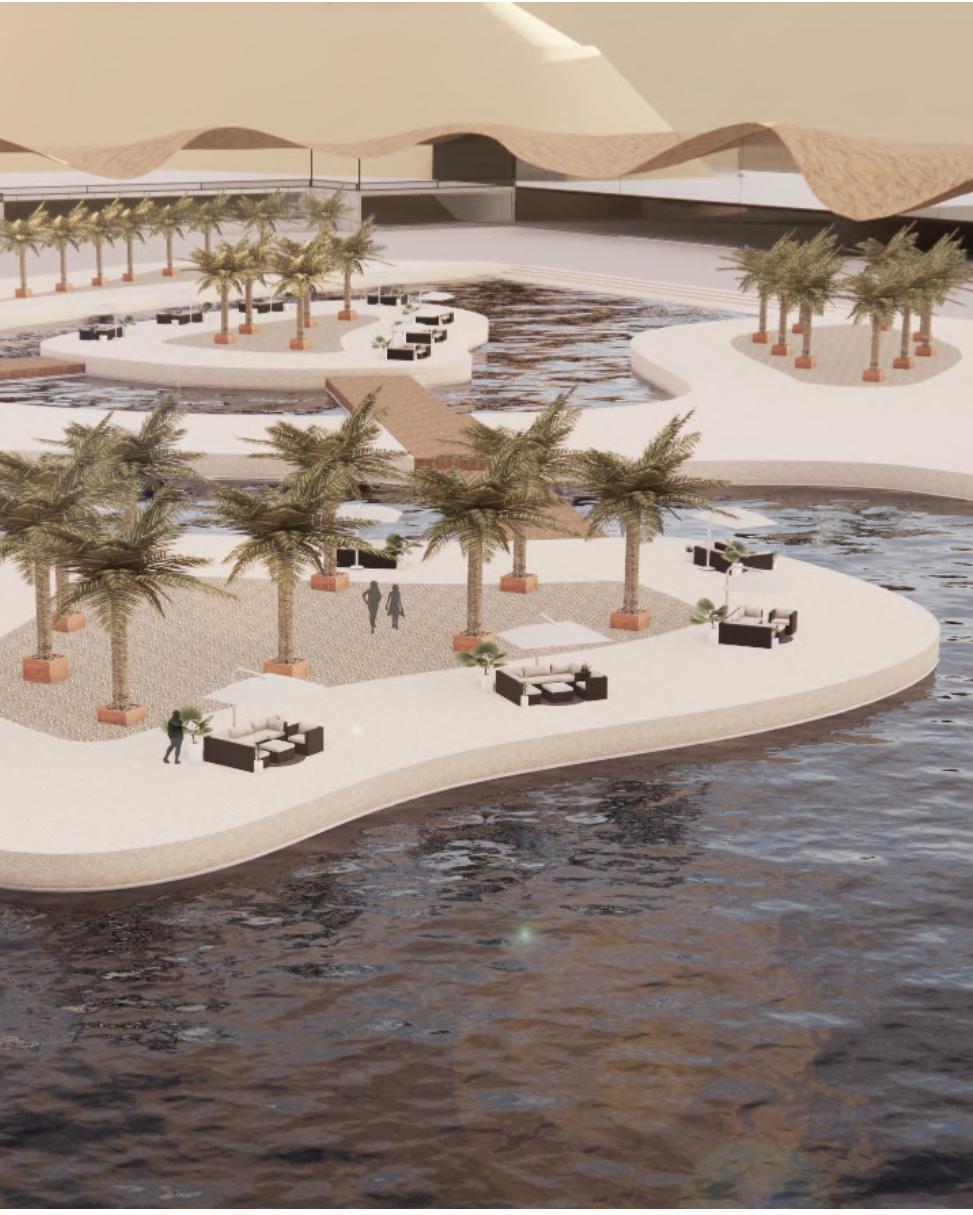

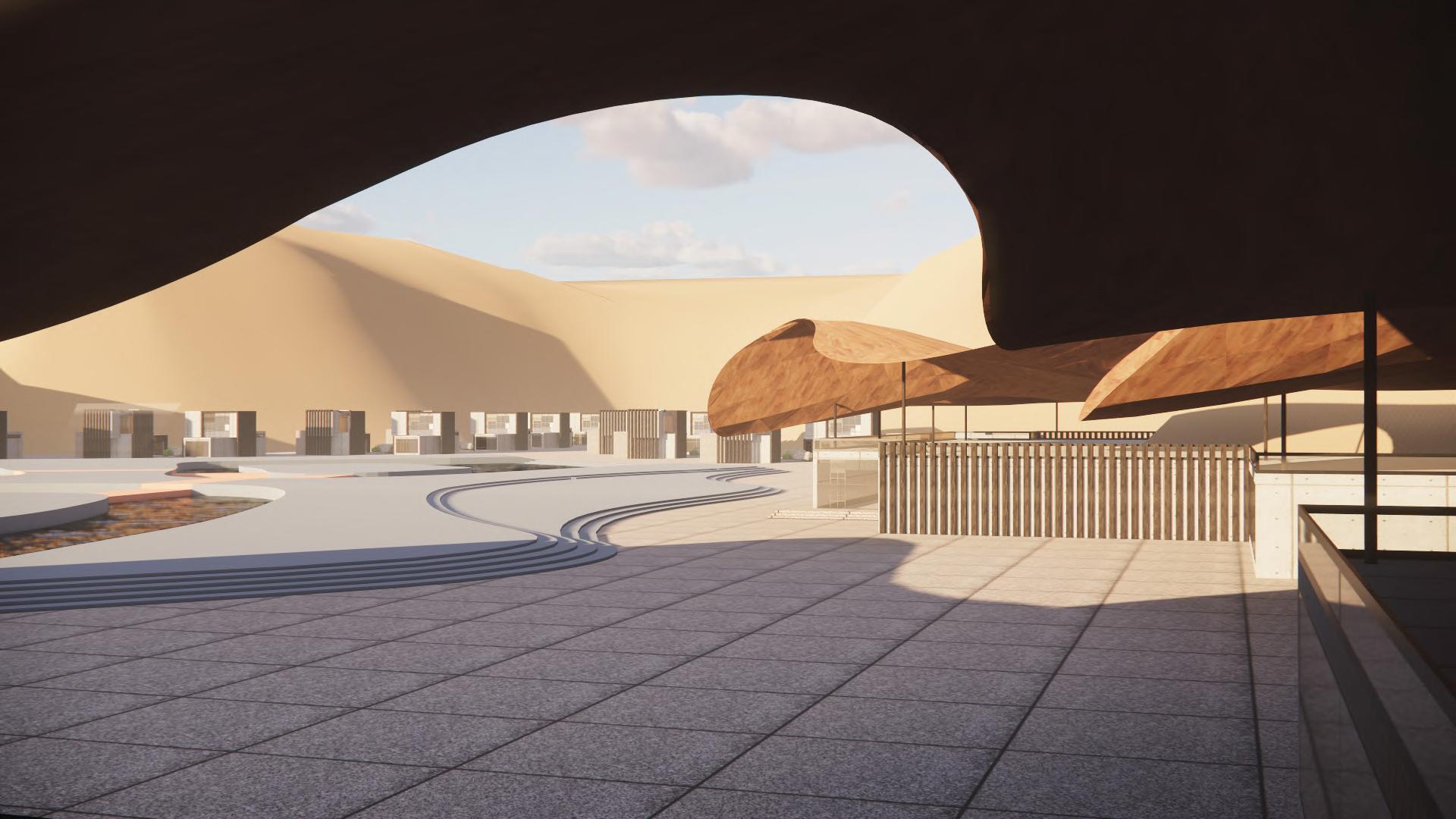

Right: courtyard image showing outdoor swimming pools and seating areas

33

G

IN

EP

KE

SE

U

O

H

Site plan showing facilities and program distribution

Strategically distributing the facilities in harmony with the natural landscape, adhering to the contours and openings afforded by the region’s mountainous rock formations. Nestled between the mountains, the design naturally enhances privacy and seclusion, providing an added sense of comfort and security for women utilizing the facilities.

This approach not only ensures that all needs are met effectively but also enhances the overall connection between the retreat and its scenic setting, fostering a serene and rejuvenating atmosphere.

Exterior render showing restaurant with the roof terrace and cover, water features, and unit aggregations

35

a

B

Four bedroom villa floor plan with aggregation adjacencies

B

Small and medium one floor units’ first floor plan and aggregation

a

a

a

Medium one bedroom unit second floor plan with green roof terrace

37

G

N

PI

E KE

SE

U

O

H

First floor plan showing the following programs: e admin, g ym with cardio and wight-lifting machines, spa with massage sauna rooms, restaurant with industrial sized kitchen, classrooms, workshop and meeting rooms, and housekeeping facilities.

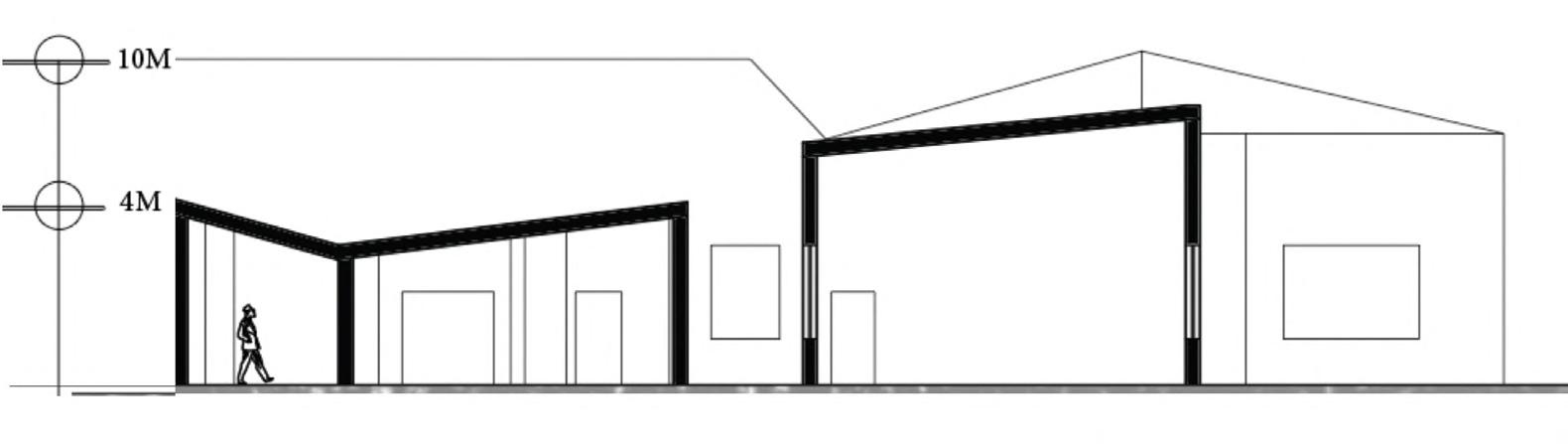

Section A-A

Section B-B

This project embodies a commitment to sustainability through a series of strategic design elements. Covering 60% of its footprint with landscaped areas promotes biodiversity and enhances the natural environment. The use of double glazing featuring nano cooling structured silica technology reduces energy consumption by optimizing thermal insulation. Shading devices are incorporated throughout the design to mitigate solar heat gain and promote passive cooling. Green roofs not only aid in natural insulation but also improve air quality and reduce the urban heat island effect. Water elements are integrated thoughtfully, contributing to both aesthetic appeal and sustainable water management practices. Importantly, the project harmonizes with its existing environment, ensuring minimal disruption while maximizing the benefits of natural surroundings. Together, these sustainable strategies not only enhance the project’s ecological footprint but also create a healthier and more resilient built environment.

39

Perspective elevation of small and medium one bedroom units

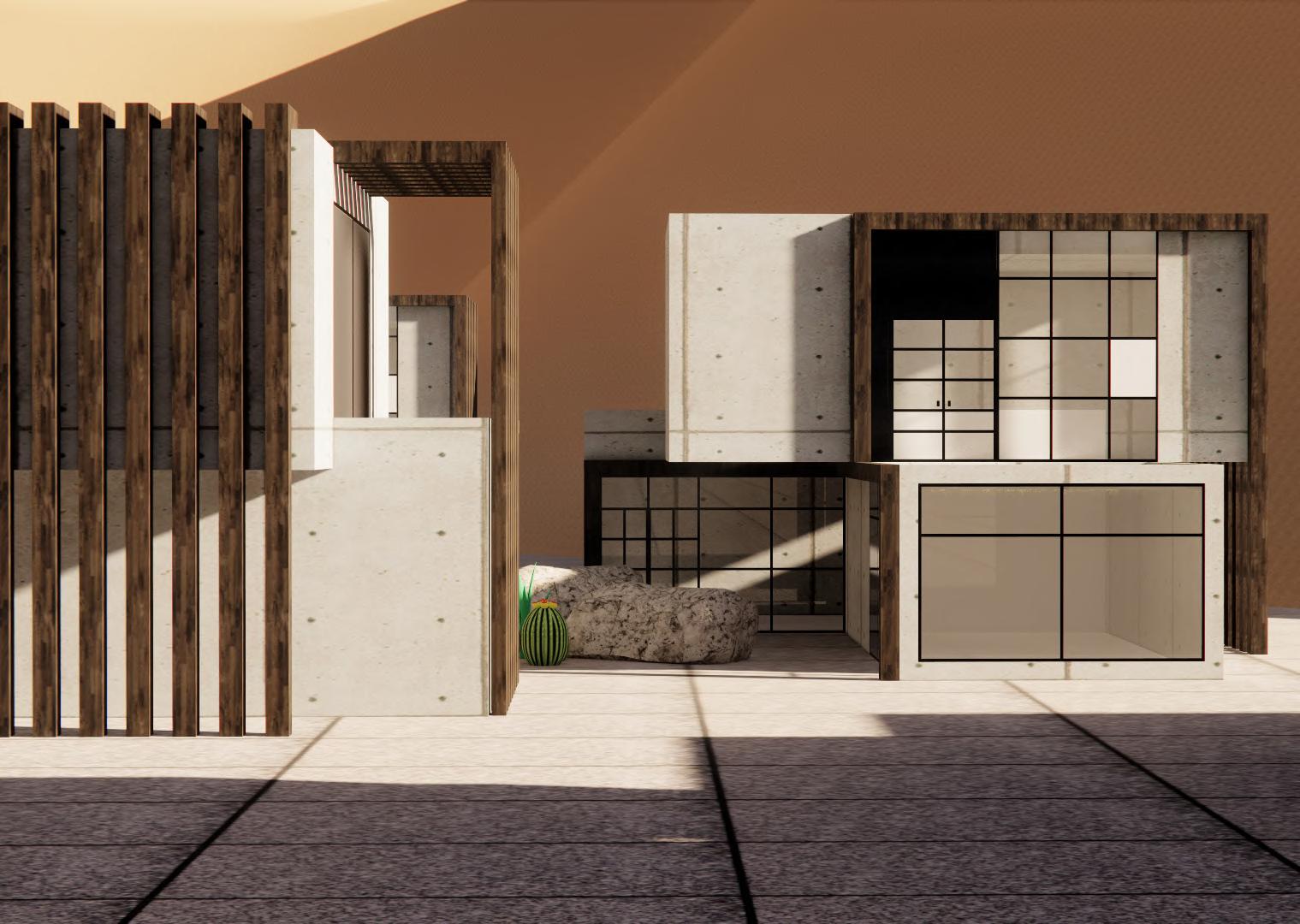

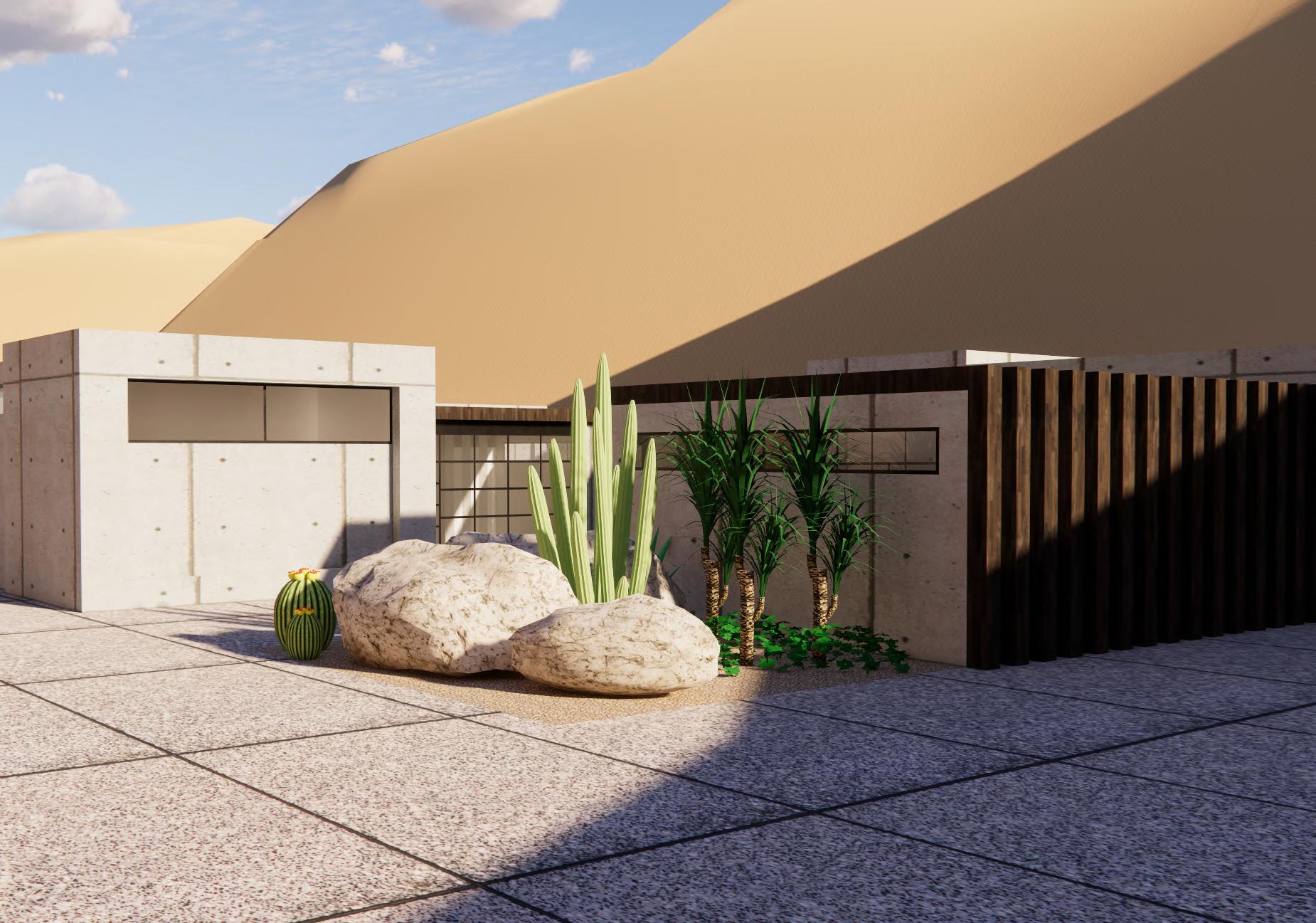

Exterior render of villa units

41

ALULA CULTURAL CENTER - ALULA, SAUDI ARABIA Spring 2017 Faculty: Azza Elmedani The Alula Cultural Center is a visionary project situated in the historic heart of Alula, designed to capture the essence and theme of the site without damaging its invaluable remains. The old town of Alula, a once-thriving 12th-century settlement, played a crucial role on ancient incense trading routes and served as a key stop on the pilgrimage path from Damascus to Makkah. This project aims to respect and preserve the integrity of this historical site, including its 14 gates and the 45-meter-high fort that has stood as a defensive lookout since the 10th century.

Drawing inspiration from Alula’s breathtaking and unique landscape monuments, characterized by their sharp and irregular rock formations, the design of the cultural center aims to reflect these natural features, seamlessly integrating into the surrounding environment, blending modern design with the ancient landscape. The center is strategically positioned between the high fort and the historic maze of alleys and mud-brick houses, creating a harmonious blend of natural beauty and ancient architecture.

The vision for the Alula Cultural Center is to create a space that not only honors the past but also enhances the visitor experience by offering a dynamic cultural hub. This hub will include an exhibit hall, café, administrative offices, educational facilities, and a library, all designed to provide deeper insights into Alula’s rich historical and cultural heritage, fostering an appreciation for the site’s significance.

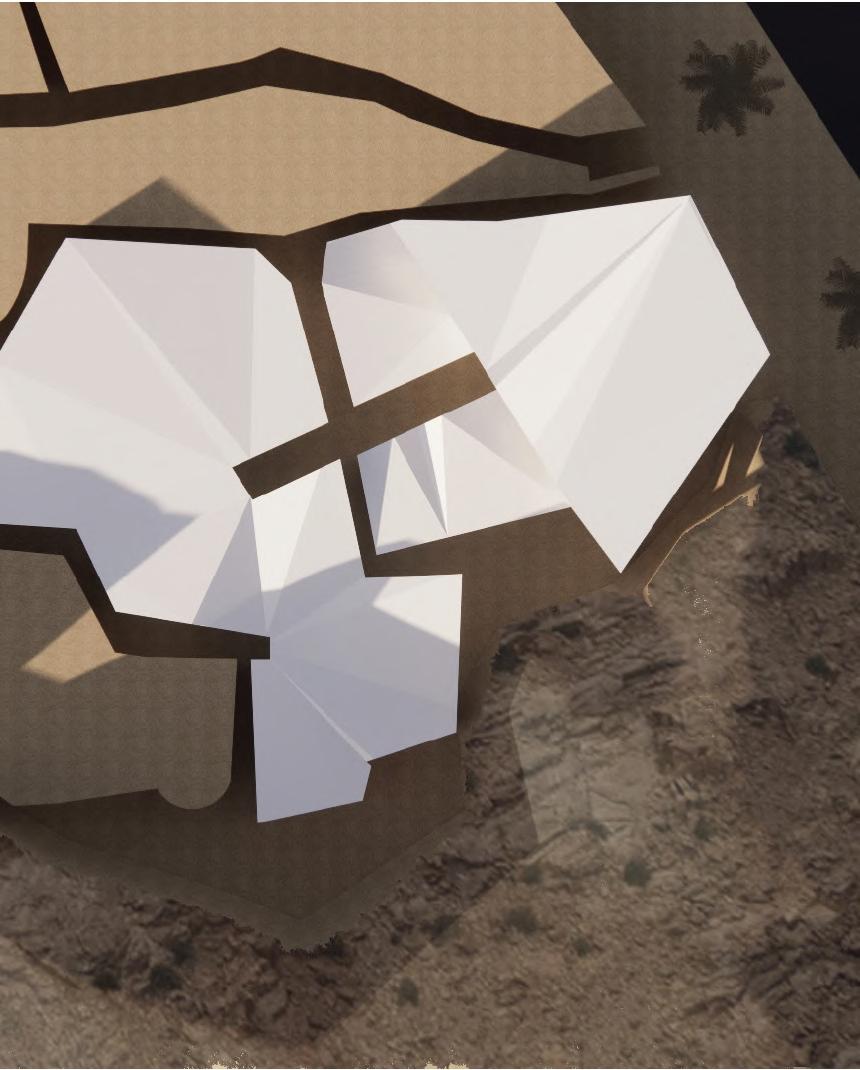

Right: site render showing the project in contrast with the historic old city mud ruins

43

2

1

1 - Alula Fort 2- Historic Alsakhra Mosque built around 1378

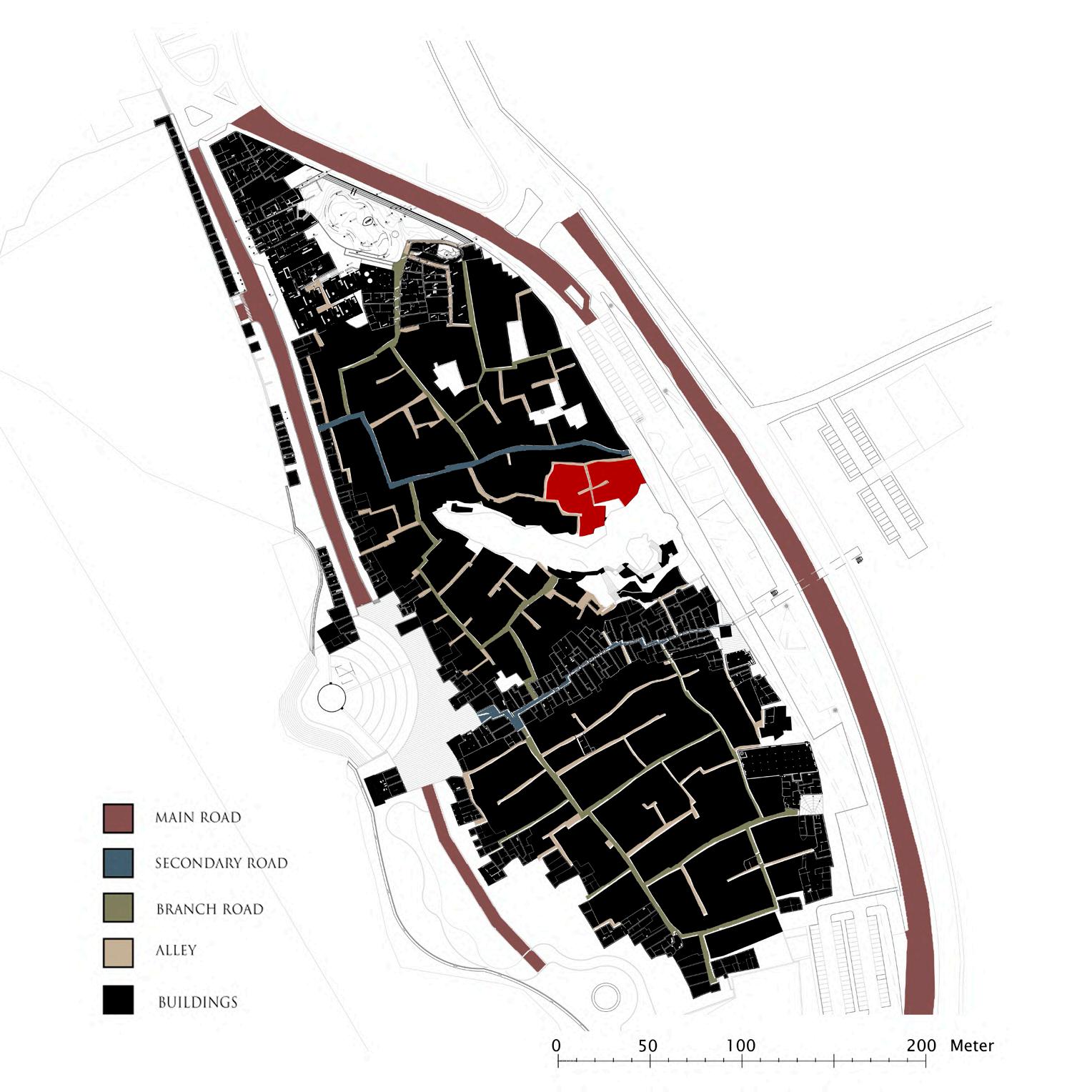

Figure ground map with street and alleyway analysis

Nestling beneath the valley’s towering red sandstone cliffs, the desiccated remains of AlUla Old Town appear to have grown organically out of the desert landscape. The Alula fort, built on a 150-foot outcrop, commands panoramic views across the valley and was likely used as a lookout since the area was first settled. Enclosing a sizeable area complete with its own well and dominating the town that emerged around it, it remains the oldest building found in Old Town.

Inspired by the old town fabric, the project is divided by a narrow alleyway, creating two distinct buildings, each serving its own function. The design integrates the buildings seamlessly into the landscape, making them appear as natural extensions of the ground. Located on the edge of the old town by the main and secondary streets, the strikingly different architectural style ensures that the buildings draw interest and remain accessible from multiple directions.

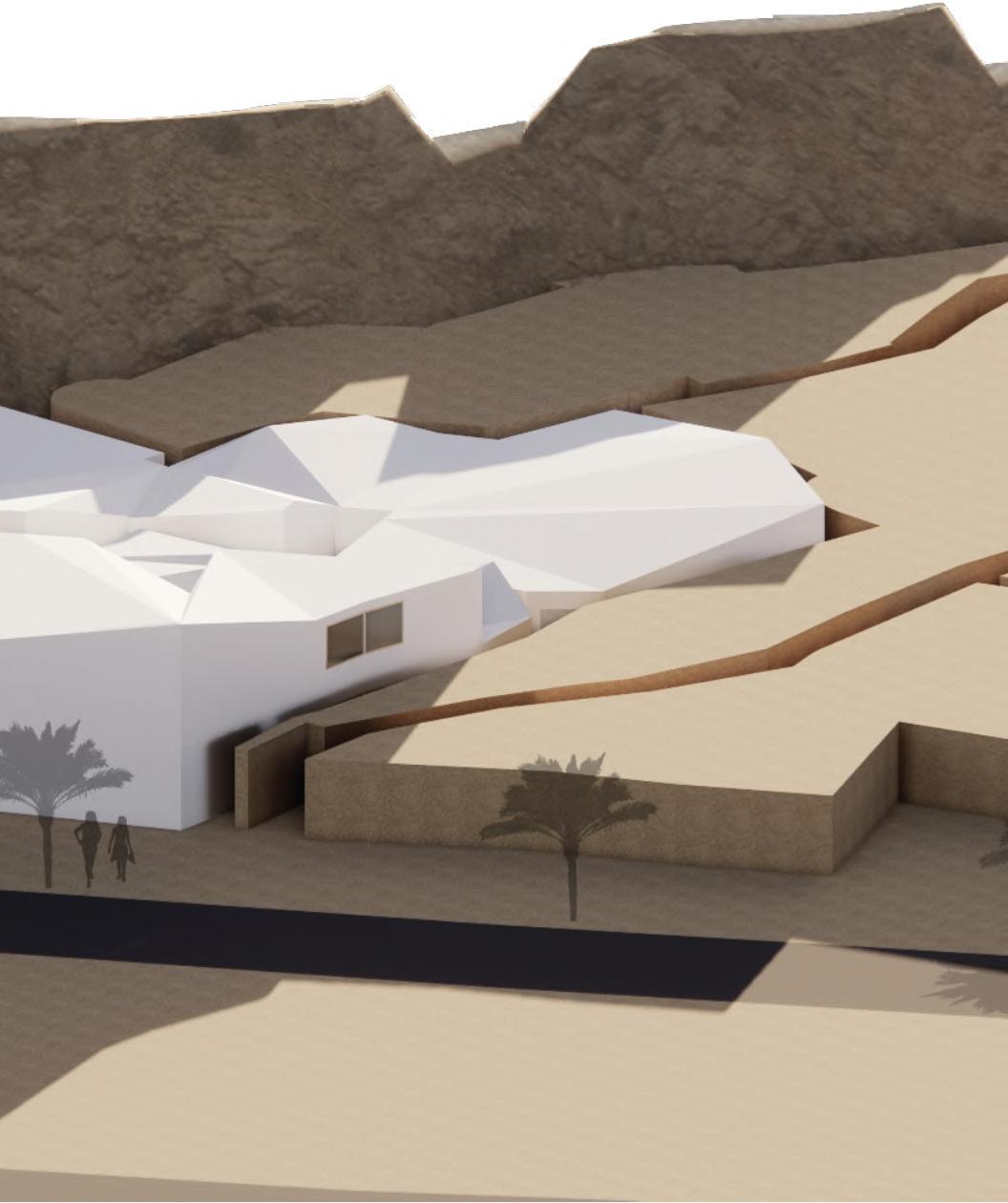

Right: exterior render of the cultural center in context with the mountain and the old town

45

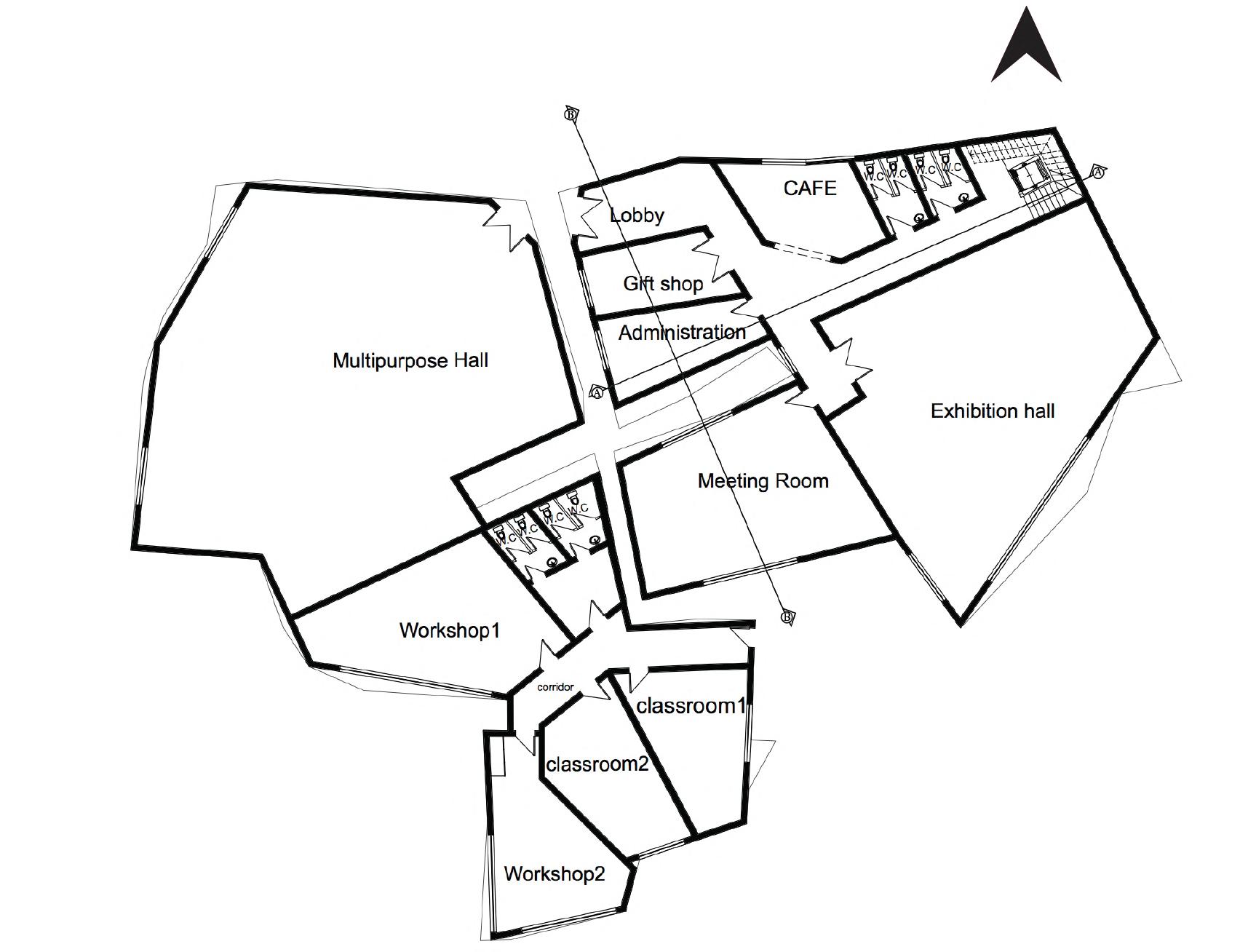

First floor plan with programs such as exhibition hall, multipurpose hall, cafe, gift shop, educational facilities and admin

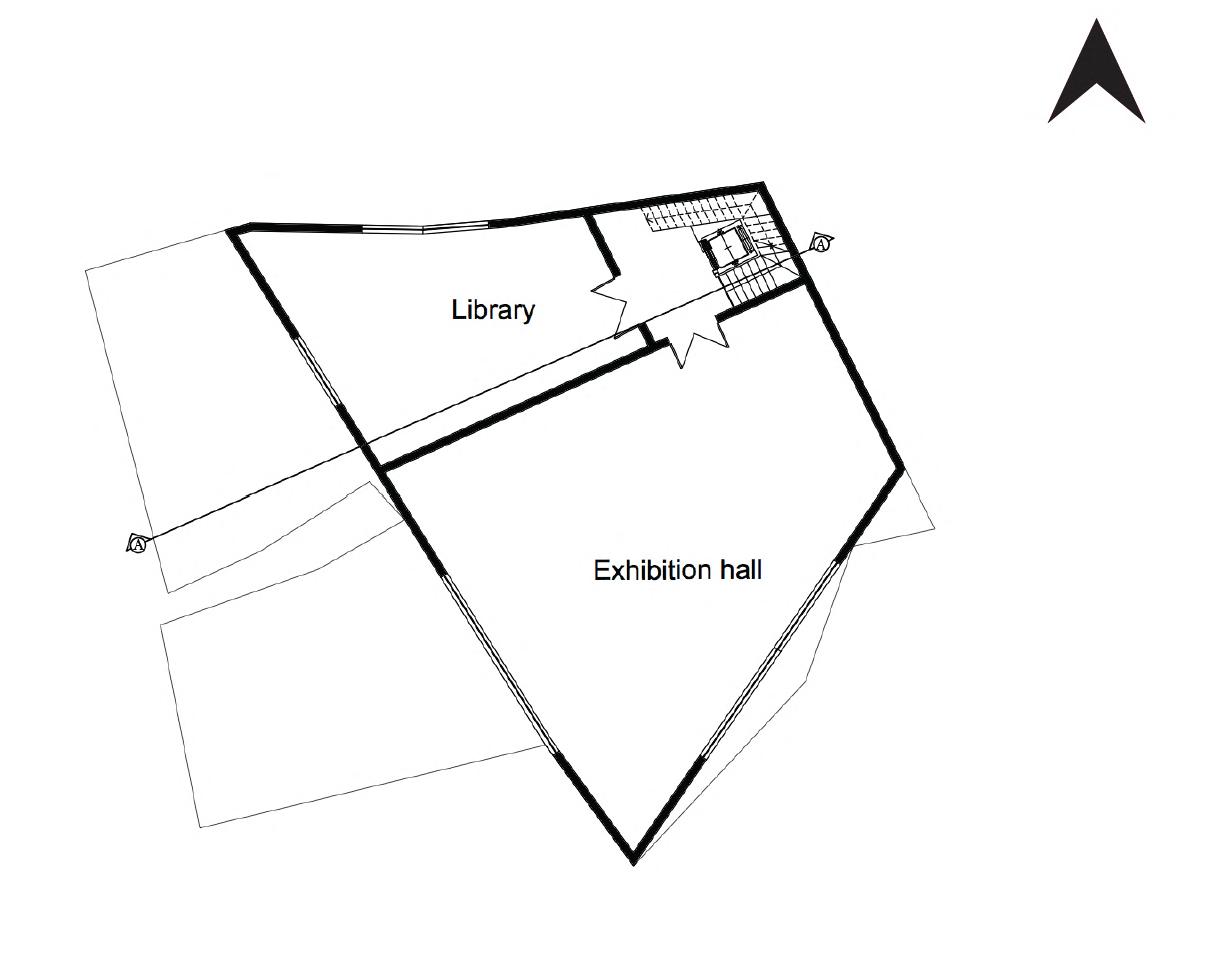

Second floor plan with a library and a double-height exhibition hall spaces

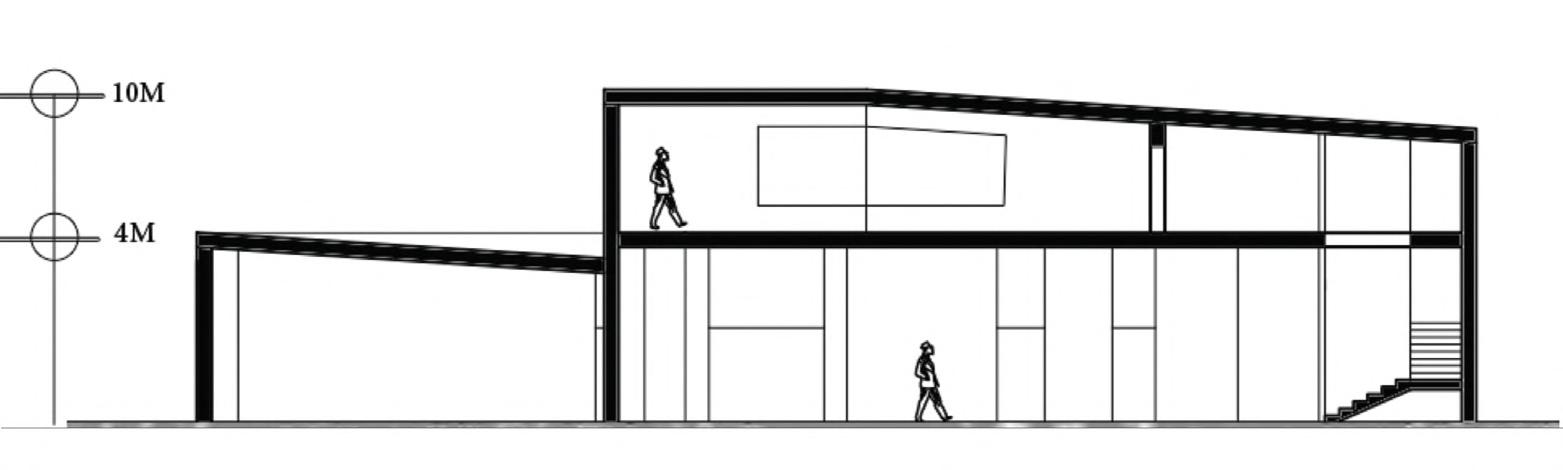

Sections A-A (top) and B-B (bottom)

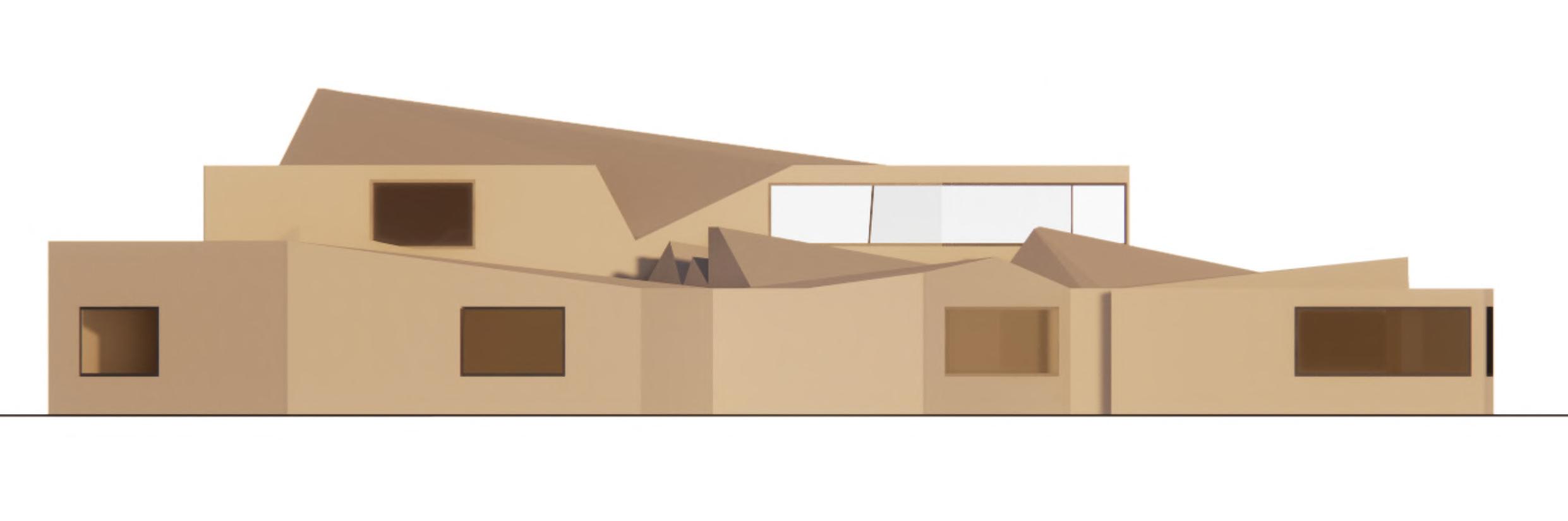

Perspective back elevation

47
