Welcome to a world where vision becomes reality - delve into our daily assignments and explore a collection of our proudest achievements. From innovative office renovations to groundbreaking warehouse transformations, each project embodies our dedication to excellence and passion for exceeding expectations. Discover how our expertise and commitment to quality have made a difference for clients across various industries.
https://jayworksusa.com/
Navigate through these pages to discover who we are and learn about the products we install. Gain insight into the technical skills behind each project that have earned us recognition in the industry.
Welcome to Jay Works
Spacesaver - High-Density
Mobile Systems
Modula - Vertical Lift Modules
NxtWall - Modular Wall Systems
Contact Us
“At Jay Works, Superior Service isn't just a promise; it's our standard. We achieve this by instilling a culture of ownership in all that we do. We expect each team member to fully embrace this principle, taking responsibility for their performance across every facet of our business.”
Safety: We prioritize the safety of our team and our customers above all else
Unity: We work together as one cohesive unit, supporting each other to achieve our shared goals.
Preparation: We believe in thorough preparation to ensure smooth and successful outcomes
Efficiency: We strive for maximum efficiency in everything we do, minimizing waste and maximizing productivity.
Reputation: We understand the importance of our reputation and work tirelessly to uphold and enhance it
Innovation: We foster a culture of innovation, constantly seeking new and better ways to serve our customers.
Overachievement: We set high standards for ourselves and consistently strive to exceed them
Results: Ultimately, we judge our success by the results we deliver, holding ourselves accountable for achieving excellence in every endeavor
Our mantra? OWN IT. We expect each team member to embody these principles, taking full accountability for their performance in every aspect of our operation.

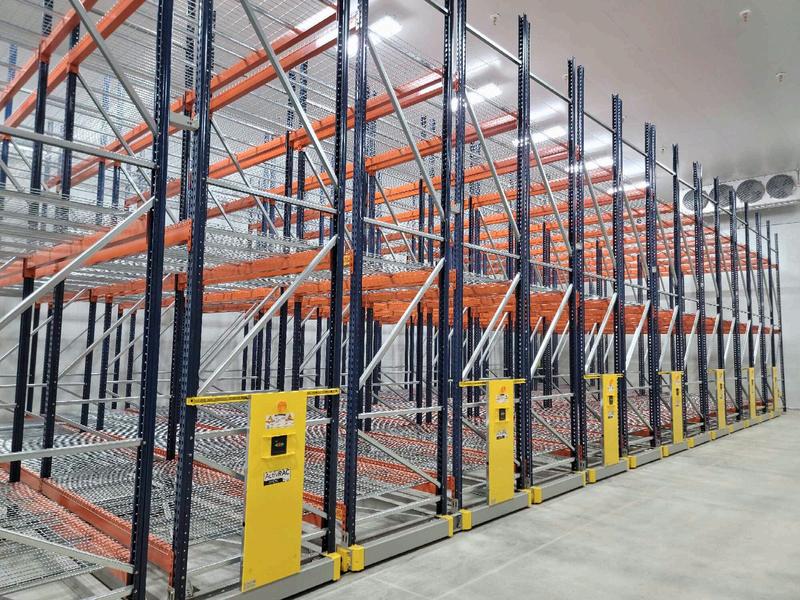

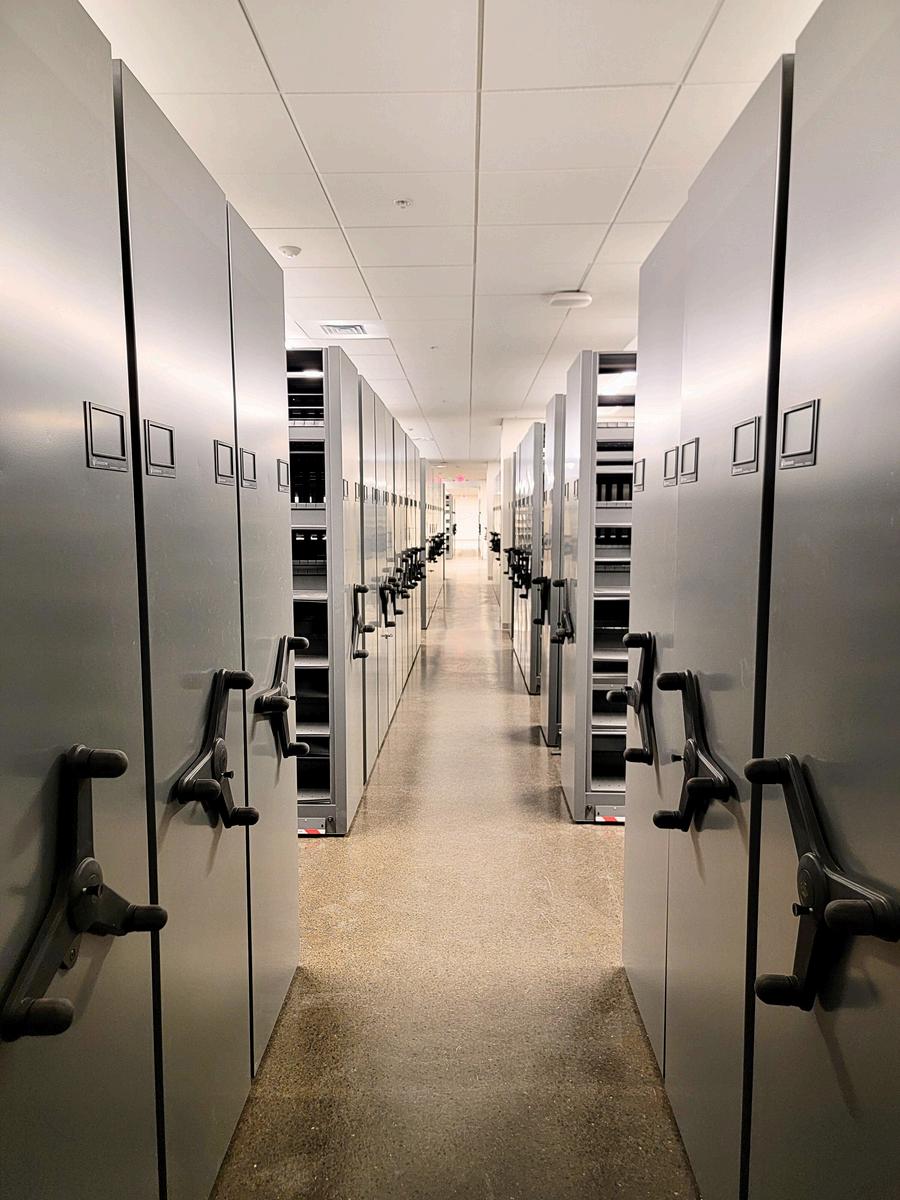

Versatility: Mount virtually any type of storage housing on mobile carriages, including existing shelving and cabinets.
Customization: Wide range of storage accessories and system configurations to suit various needs.

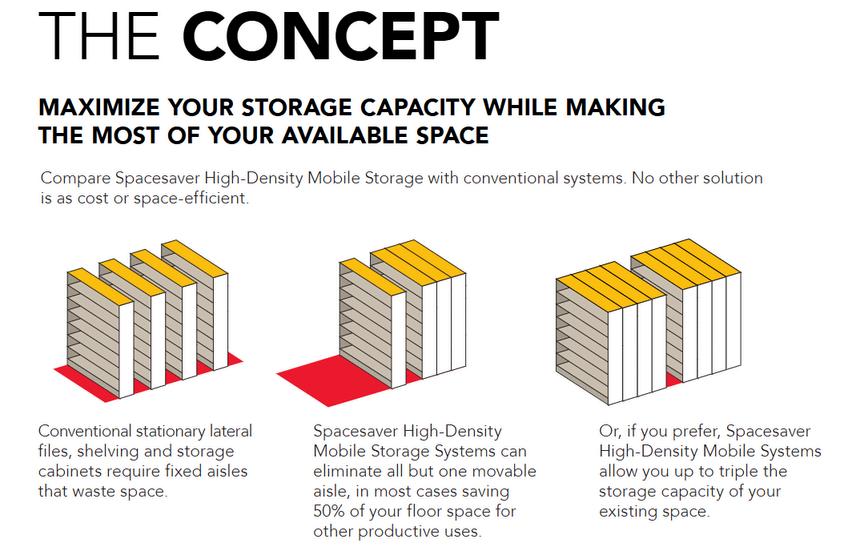

Purpose: Eliminate non-productive space created by fixed aisles.
Components: Shelving and cabinets mounted on wheeled carriages.
Operation Modes:
Manual: Physically pushing carriages.
Mechanical Assist: Chain-driven gear reduction method.

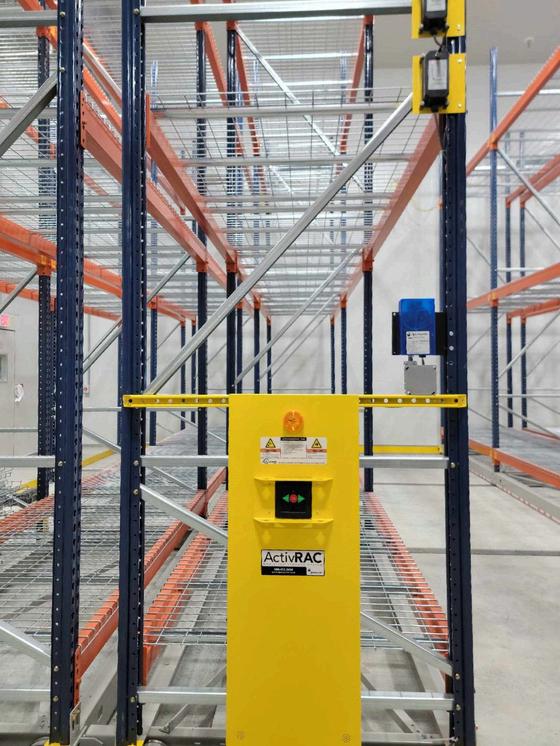

Powered: Integrated safety circuits and proprietary app for system programming
Customization: Work with your local Spacesaver Area Contractor to determine the best

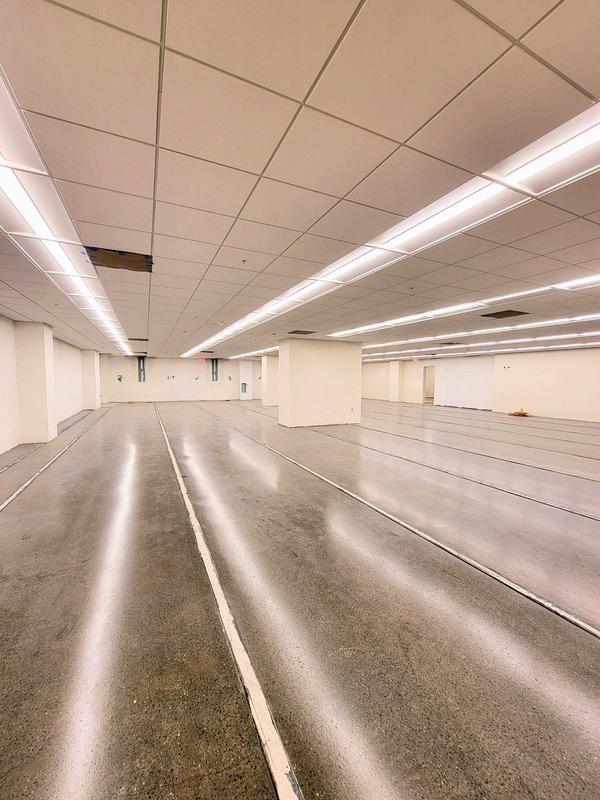

1. Rail Installation
Preparation:
Measure the floor using laser tools to identify high and low points.
Mark the installation area with chalk lines to ensure straight, non-binding rails
Track Layout and Leveling:
Lay out the track and install leveling hardware and anchors.
Adjust rails using levelers and anchors for level, pitch, and roll.
Hydraulic Grout Application:
Mix and apply hydraulic grout under the rails, ensuring no air gaps. Allow grout to cure before proceeding.
2. Floor or Concrete
Installation
Flooring Options:
Install flooring over the rails or arrange for concrete to be poured, based on customer preferences.

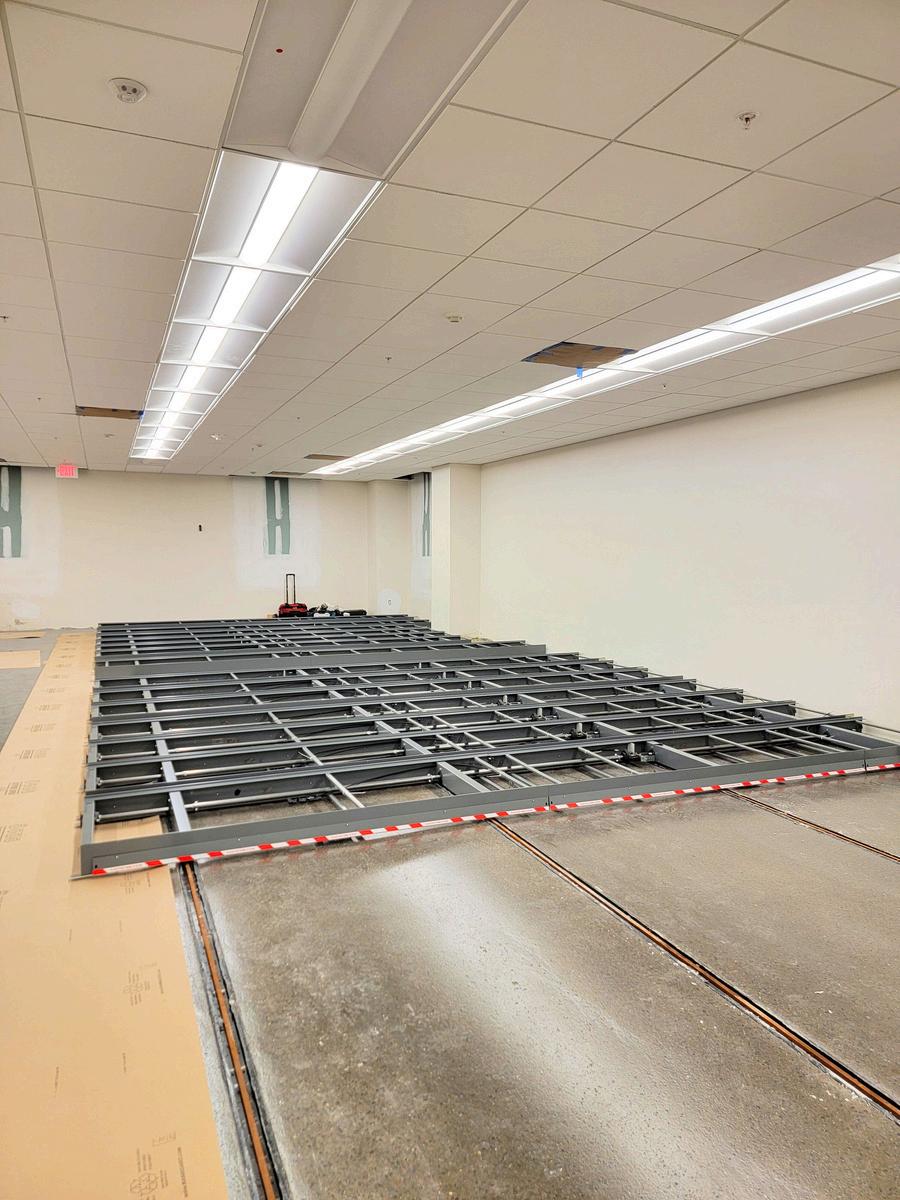

Layout and Connection:
Lay out carriages and connect them to each other.
Run brake cables and wiring if required, ensuring carriages are square and straight securely.

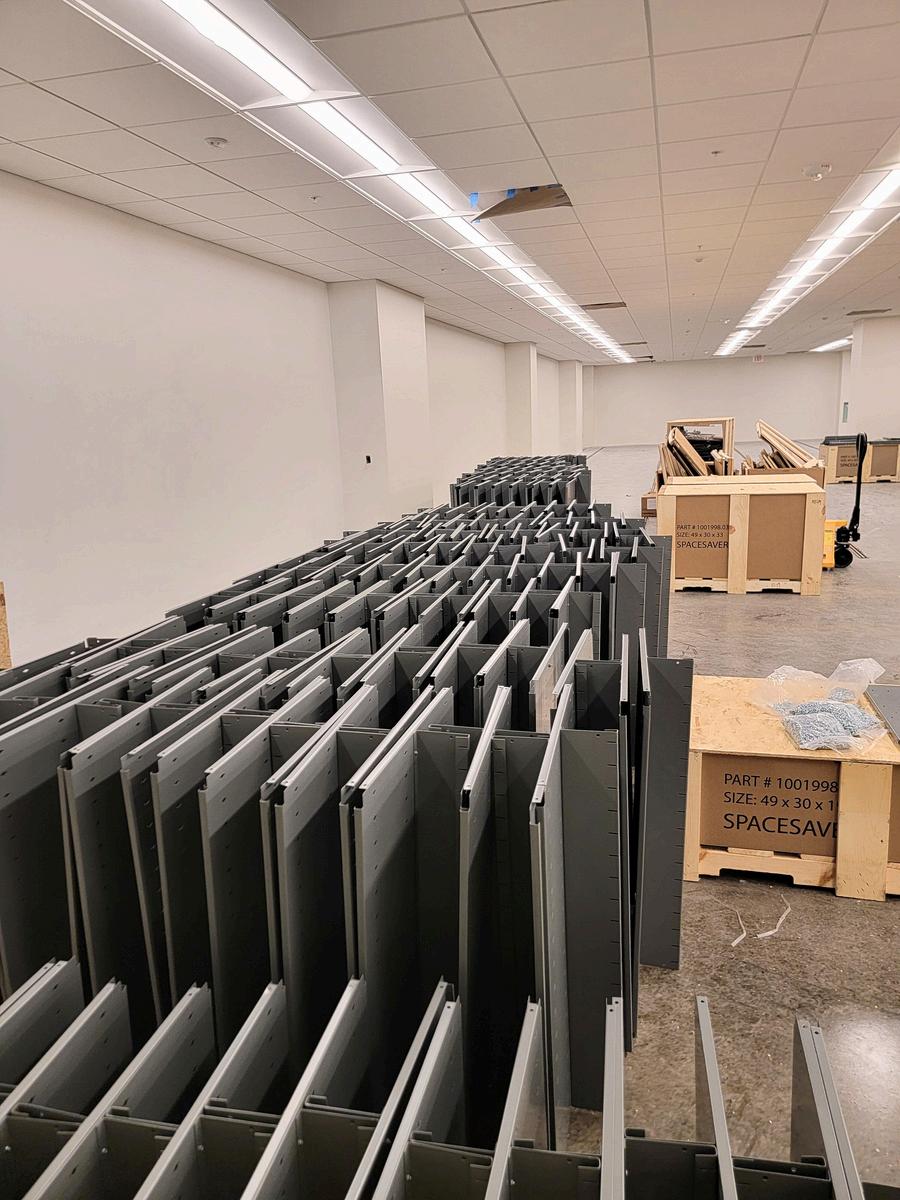

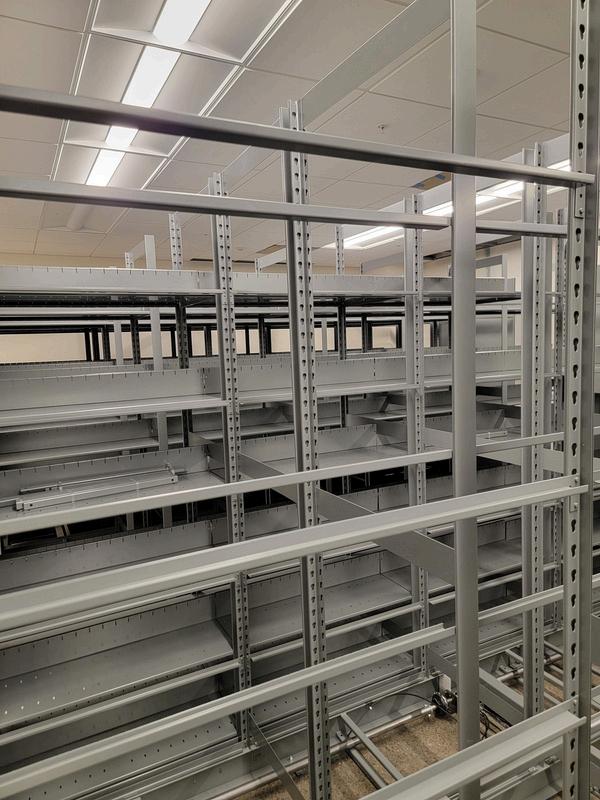

4. Shelving Installation
Assembly:
Install shelving according to drawings, ensuring all self-tapping screws are properly installed at each upright.
Complete assembly with elevations and face panels as specified.
Options:
Electric: Integrates safety circuits and uses a proprietary app for programming
Mechanical Assist: Utilizes a chain-driven gear reduction method.
Manual: Requires physically pushing the carriages.

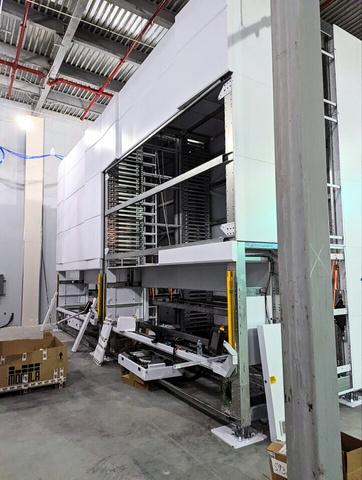

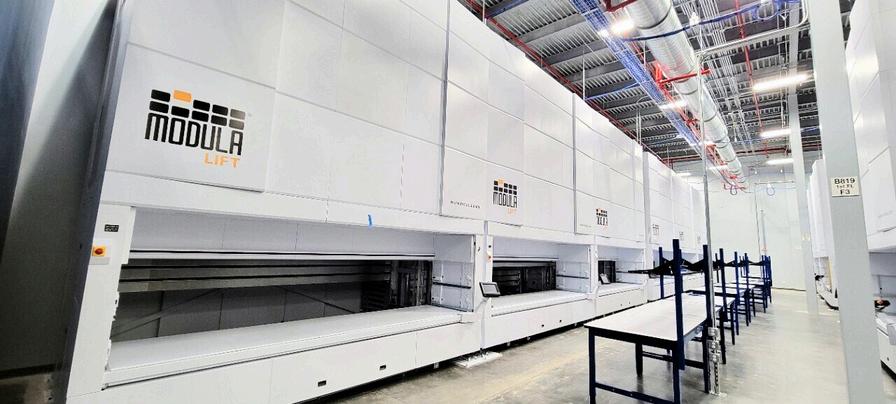

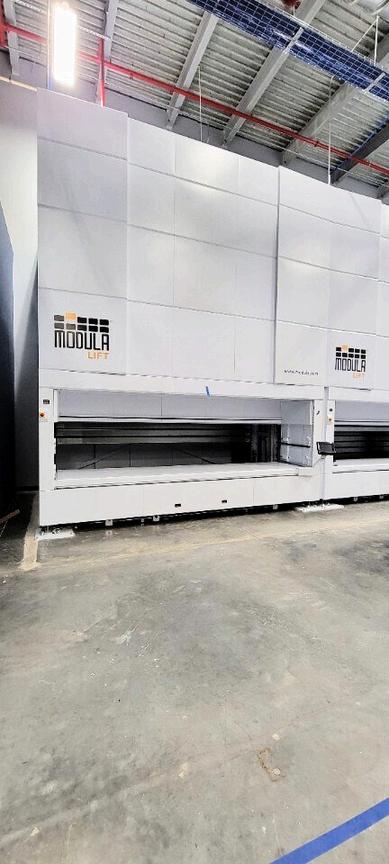

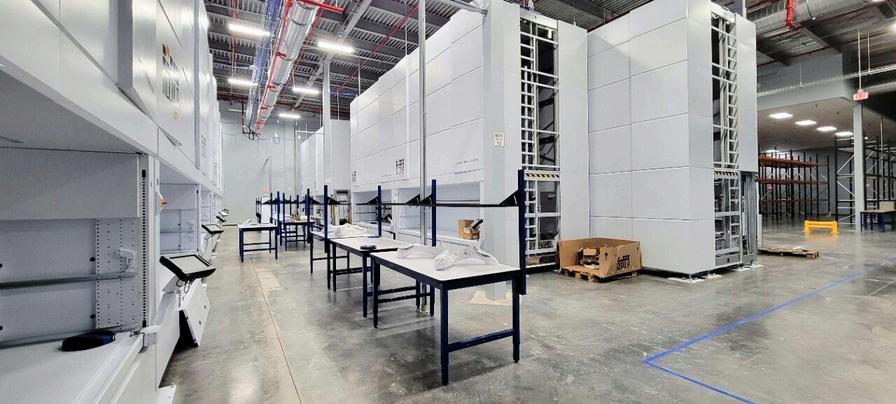

Vertical Lift Modulesmaximize vertical space and improve efficiency in various work environments.
are advanced storage solutions designed to
1. Space Measurement and Preparation
Initial Measurement:
Confirm the machine will fit in the specified area using a laser range finder for quick ceiling height measurements.

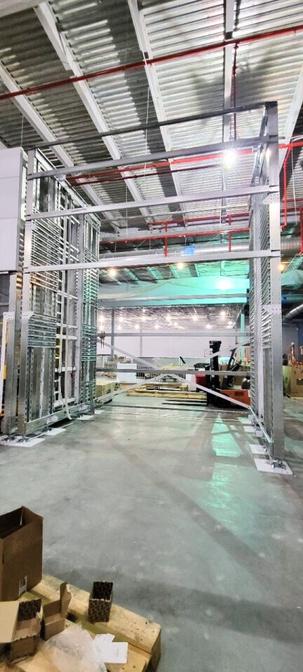

2. Base and Initial Column Installation
Base Setup:
Set the base in place, attach beams, and install the first level of columns.
Positioning:
Install beams, cross bracing, rails, and ladders. Move the machine to its final position and ensure it is level and square.
Anchoring:
Anchor the base in place once positioning is confirmed.
3. Intermediate and Top Section Installation

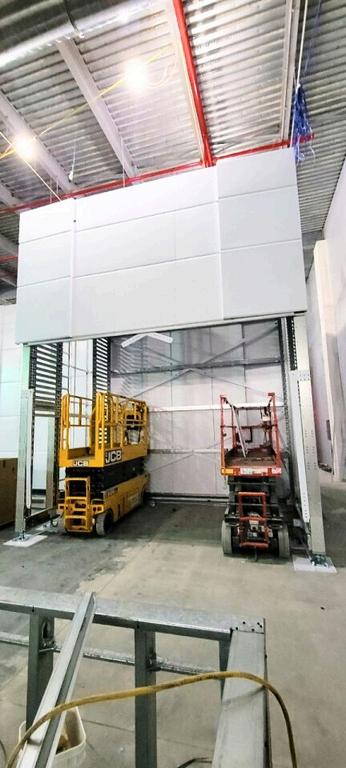

Scissor Lift Use:
Remove appropriate beams to drive a scissor lift into the machine.
Install intermediate and top sections similar to the base design.
Final Adjustment:
Check the top for square and tighten the entire structure.
Panel Installation:
Install machine skins/panels from the bottom up.
Mechanical Components:
Install belts, transmission, and elevator, then pre-level them.
5 Bay Configuration and Wiring
Bay Configuration:
Reference the manual for the specific bay configuration for the machine and install accordingly.
Wiring:
Run the appropriate wiring for the machine.
6. Power Connection and Commissioning
Electrical Connection:
Connect the machine to the building power by a certified electrician.
Commissioning Procedures:
Begin commissioning procedures to ensure proper operation.
Loading and Final Adjustments:
Load trays and install finish panels.
Unit Heights: 10’10”–52’10” (3,300–16,100 mm)
Unit Height Increment: 7.87” (200 mm)
Tray Storage Pitch: 1” (25 mm)
Tray Widths: 59, 75, 98, 122, or 161” (1,500, 1,900, 2,500, 3,100, 4,100 mm)
Tray Depths: 25.75” & 33.74” (654 mm & 857 mm)
Net Tray Payload Capacity: 551, 1,102, 1,653, and 2,182 lbs (250, 500, 750, and 990 kg)
Gross Total Payload: 77,000–200,000 lbs (35,000–90,000 kg)

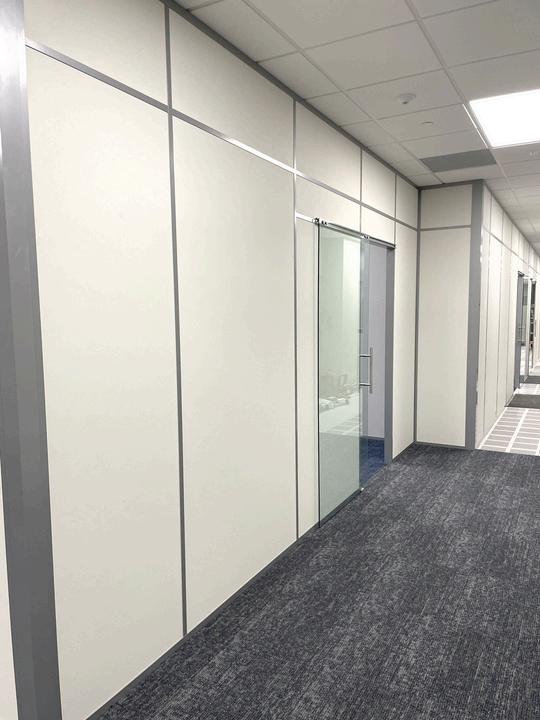

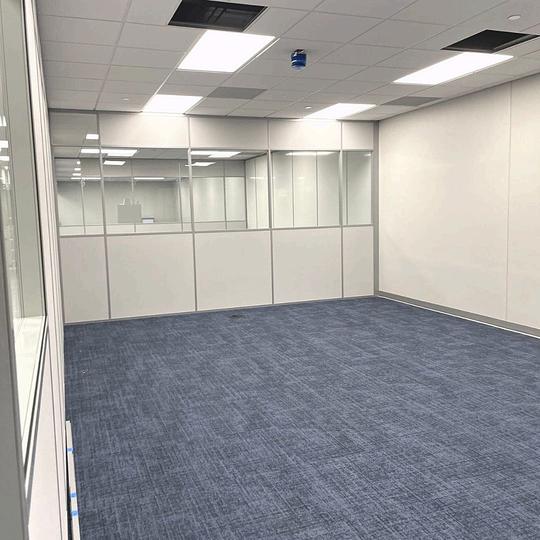

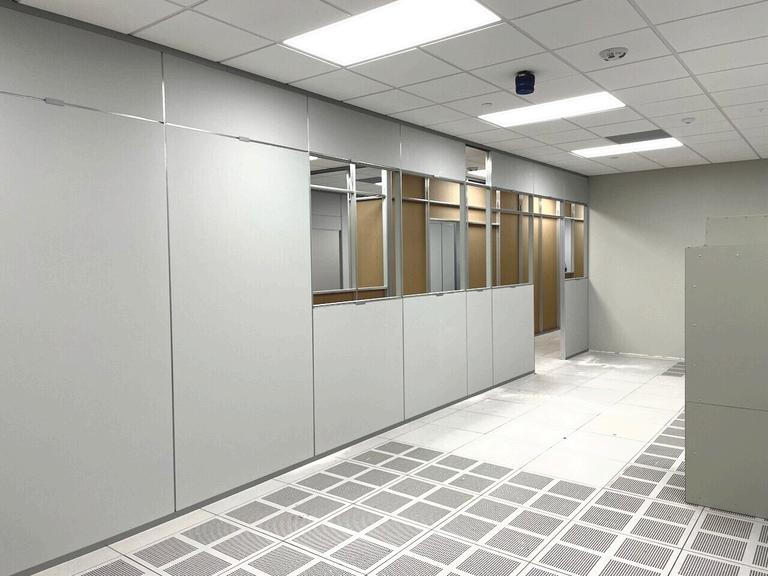

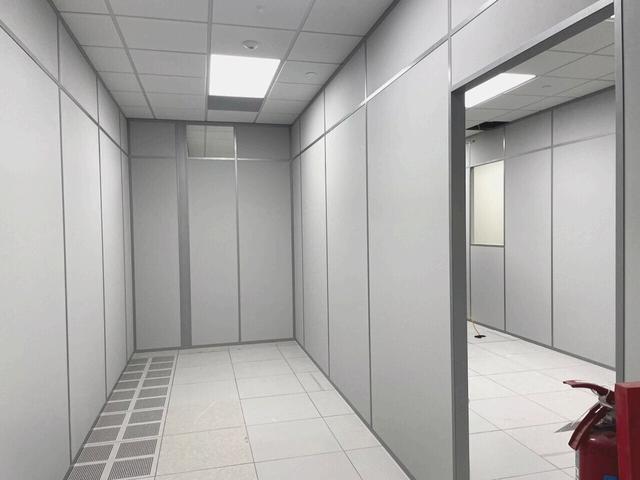

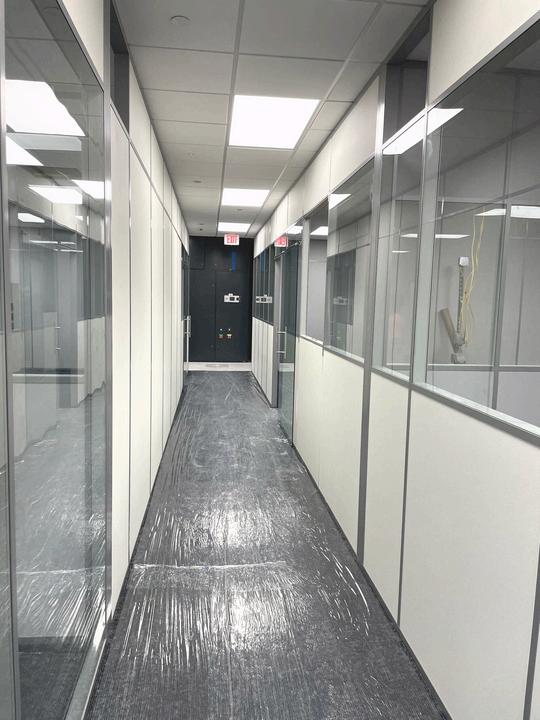

Modular Wall Systems - are designed to customize any space into a functional and aesthetic workspace, common room, facilities area, showroom, etc.
Top Track and Bottom Track: Serve as the foundation for wall and panel installation.
Wall and Glass Panels: A variety of options to suit different aesthetic and functional needs.
Trim: Provides a polished finish and covers gaps.
1. Space Measurement and Preparation
Initial Measurement:
Measure the space to confirm that the product will fit the desired area
Use a laser to snap lines for accurate placement of top and bottom tracks.
2 Track Installation
Top and Bottom Tracks:
Install the tracks along the snapped lines to ensure a straight and level foundation for the wall system.

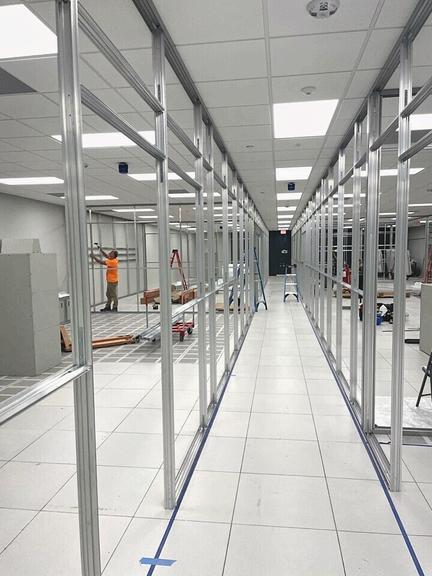

3 Stud and Bracing Installation
Proprietary Studs:
Cut and install proprietary studs according to the specific configuration.
Horizontal Bracing:
Install horizontal bracing for doors, windows, and multi-panel walls as needed.
4. Panel Installation
Drywall or Vinyl Boards:

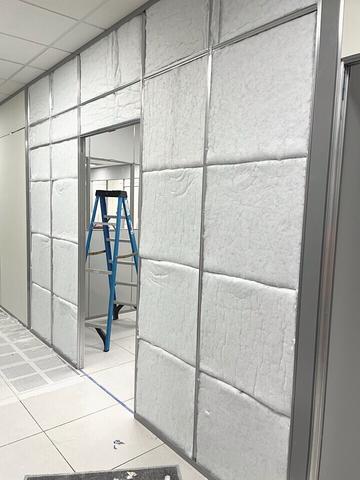

Cut boards to size and install using "tags" to hold them in place. If using full board installations, insert sound dampening insulation between the boards during this stage.
Glass Panels:
Measure all glass openings accurately using a special method. Order glass panels based on measurements and install once they arrive.
Trim Installation:
Cut trim to size and install to cover gaps and provide a polished finish.
Caulking:
Caulk any gaps to the customer’s satisfaction, ensuring a seamless appearance.
