LPG soleniod valve mQF-15

ADD:No.97XushuiRoad,Hi-techDevelopmentZone,Zhengzhou,Henan,China

LPGSolenoidValvemQF-15|КлапансоленоидныйmQF-15

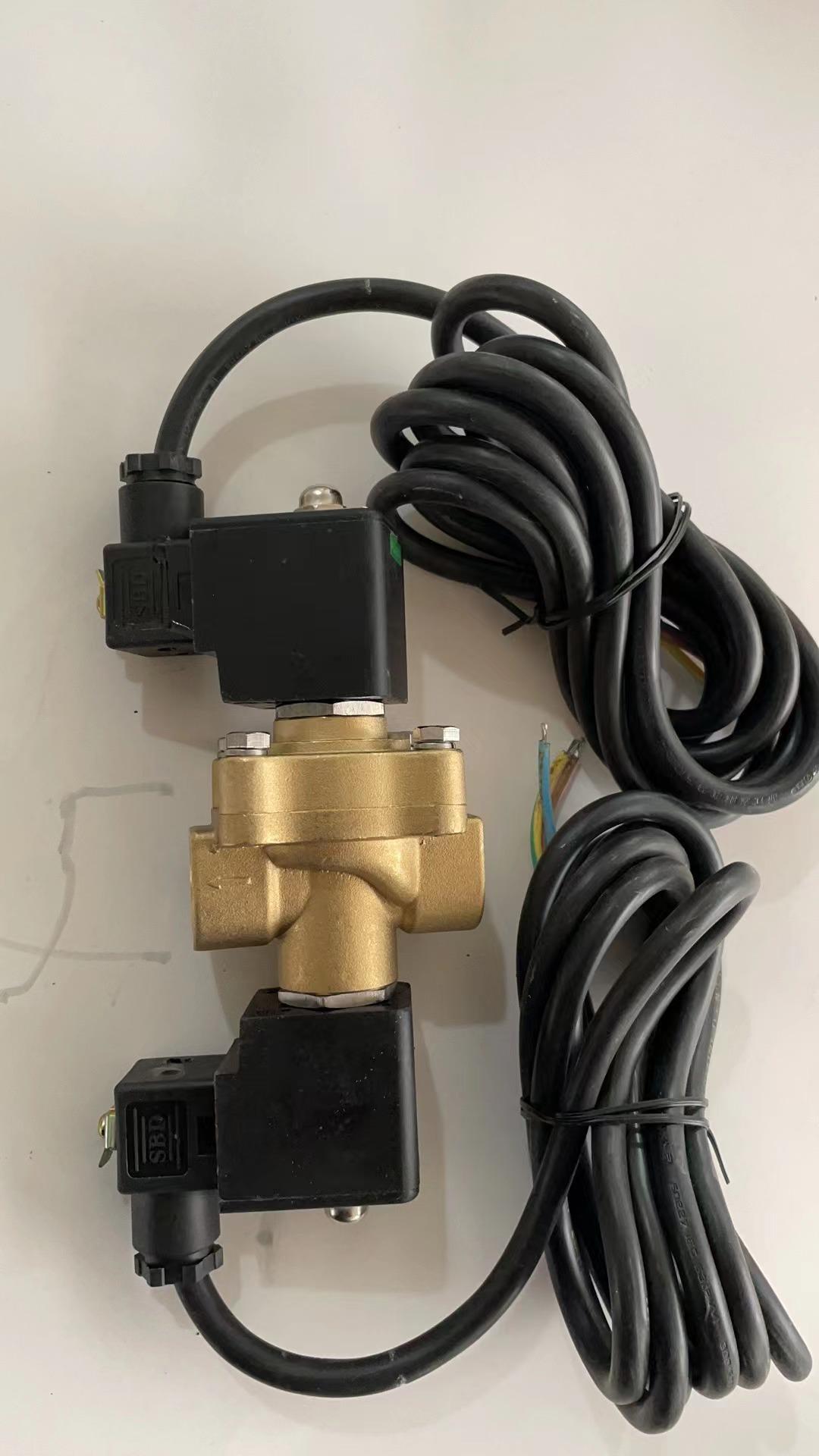

ThissolenoidvalvemQF-15issuitableforLPGdispenser.Ithaslargeflowcapacity,adoptingpotting typeexplosion-proof,compactstructure,smallsizeandsuperior performanceItisareliableandidealexplosion-proofsolenoidvalve forLPGdispensercontrol.Thisproductisanormallyclosed electromagneticcontrolvalve.Thebuilt-incontainer(2A)ofits electricalcomponentspreventsthecoilfromoverheatingand burning,ensuringthesafetyofuseinexplosivegasenvironments.

WorkingPrinciple:

Mainapplication:UsedinLPGdispensertoimprovetheaccuracyof gasdelivery TypeMeaningofSolenoidValvemQF-15

MQF-15

Whenthecoilisenergized,themovingironcoregeneratesamagneticforcetolifttheironcoreup,and themediumpressureintheuppercavityofthepistonisguidedtotheoutletportofthevalvethrough thecentralvalveseat.Themediumpressureattheinletendisgreaterthanthepressureattheoutlet end,sothatthepistonofthemainvalveisliftedup,andthevalveopenssafely.Whenthecoilis de-energized,themovableironcoreisassistedbytheironcorespringtomaketheironcoredescend Closesthecenterseatofthemainvalvepiston.Thepressureattheinletendgeneratespistonback pressurethroughthepistonguidehole,andthemainvalveisclosed.

=================ZHENGZHOUJAYOPETROLEUMMACHINERYCO,LTD=================

===================================================================================

https://wwwjayopetromachinerycomE-mail:info@jayopetrocom Tel:86-371-67507290 Fax:86-371-67507294

ServiceCondition Atmosphericpressure:80~110㎪ Environmenttemperature:-40~+50℃ LPGSolenoidValve Exm Nominaldiameter(mm)

ADD:No.97XushuiRoad,Hi-techDevelopmentZone,Zhengzhou,Henan,China

https://wwwjayopetromachinerycomE-mail:info@jayopetrocom

Tel:86-371-67507290

Fax:86-371-67507294

Normalpressure:160㎫ Operatingpressuredifferential:160㎫

Usingoccasion:Areas1and2containingexplosivegasmixturesofIIA,IIB,IIC,andT1~T3groups

Workingposition:horizontalplacement

Workingenvironment:Noviolentvibration,nodripping,splashing,splashing,noseverecorrosion andgas(steam)orliquidthatdamagesinsulation

Workingmedium:LPG(LiquefiedPetroleumGas)

Features:

Electromagneticpilotvalvecontrol,advancedtechnology,reliableaction

Themainvalvediaphragmismadeofimportedspecialrubber,whichishighlycorrosion-resistant andresistanttolowtemperature-40°C.

Magneticcircuitcomponentsaremadeofspecialstainlesssteelmagneticmaterial,whichwillnever rustorproduceresidualmagnetism

ThecoilpartsadoptimportedFgradeenameledwire,whichmakesthecoiltemperaturelowerand theinsulationperformanceisexcellent

=================ZHENGZHOUJAYOPETROLEUMMACHINERYCO,LTD=================

===================================================================================

TechnicalParameterofSolenoidValvemQF-15 Model mQF-15 Nominaldiameter 15mm Normalpressure 160㎫ Flowrate 35L/min Minworkingerror 0035㎫ Nominalvoltage AC220V50/60Hz Fluctuationofvoltage 85%~110% Insulationgrade B Typeofconnection internalthreadG1/2 Environmenttemperature -40~+50℃ Relativehumidityofambientair 5%~95%±25℃

=================ZHENGZHOUJAYOPETROLEUMMACHINERYCO,LTD================= ADD:No.97XushuiRoad,Hi-techDevelopmentZone,Zhengzhou,Henan,China https://wwwjayopetromachinerycomE-mail:info@jayopetrocom Tel:86-371-67507290 Fax:86-371-67507294 ===================================================================================
