“Hi, My name is Jay, an architect from India. I graduated in 2021 from Sarvajanik College of Engineering and Technology in Surat. Currently, I am a BIM Consultant for an Architectural firm and previously worked as a Junior architect. Technology-led design and construction workflow are always on my watchlist. I enjoy watching tech documentaries and eager about being optimistic in organizing workflow, methods, and processes. My research and learning are more focused on tech-enabled processes to participate, innovate and pioneer the future of the AEC Industry.”

Contents

Studio X | Design Thesis

JAY KAPADIA

Architect | CA/2021/135672

jaykapadia18.jk@gmail.com

+91 87 5866 2915

33,Pratiksha Society, Opp. Vidyakunj School, Navsari, India. (396445)

English, Gujarati, Hindi.

Participatory Housing Approach for Conservation Induced Displacement

BIM Professional Course

Autodesk certified 6 months course

Patelwadi Community Center

Working Drawing | Interior Drawings

Ganga Prem Hospice

3D Visualizations| Smruti Mandir

Studio VI | Urban

Empericism: Redifining the essence

Participatory Housing Approach for Conservation Induced Displacement

Case of Siddi Community of Uttar Kannada, Karnataka

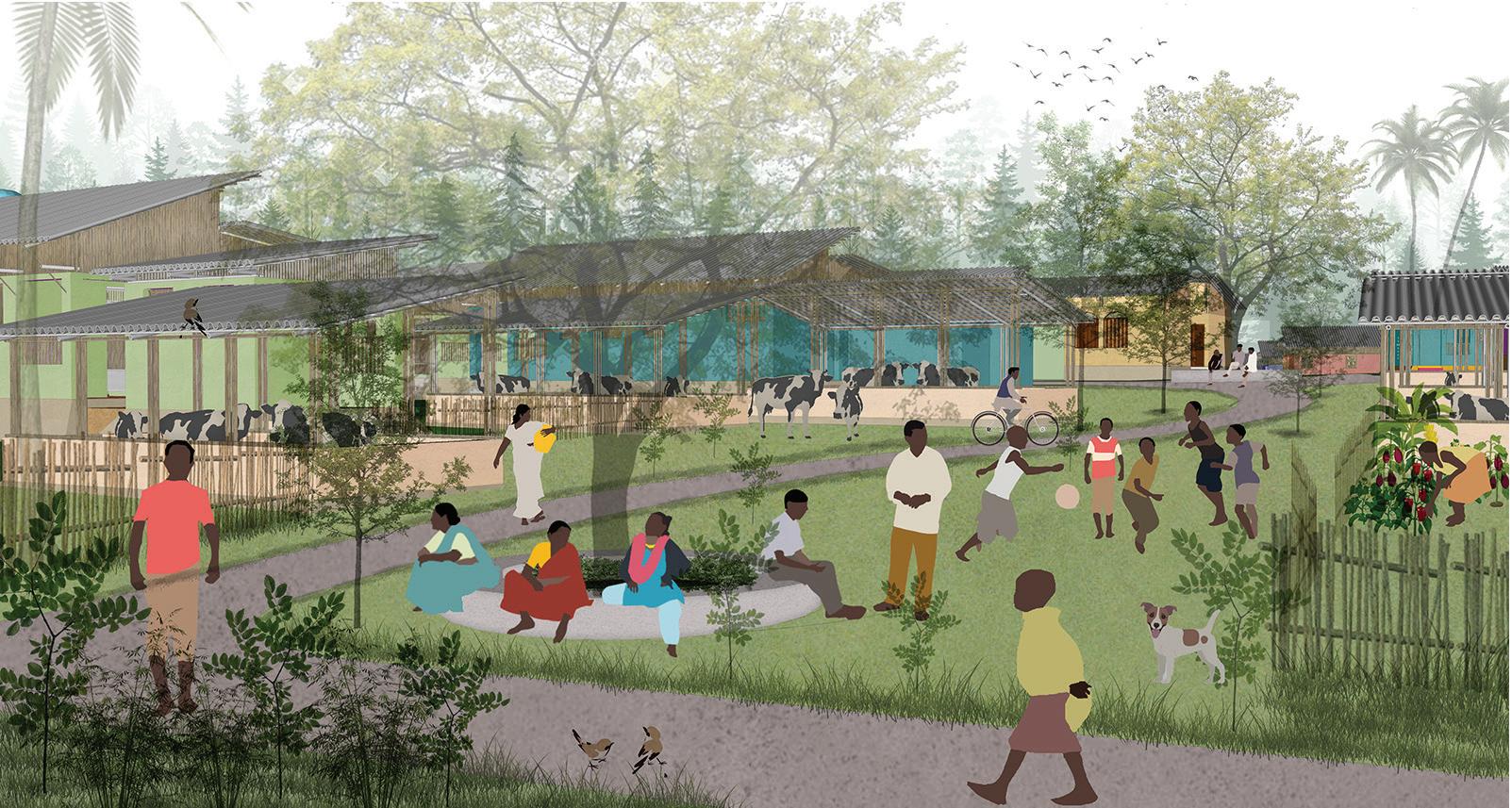

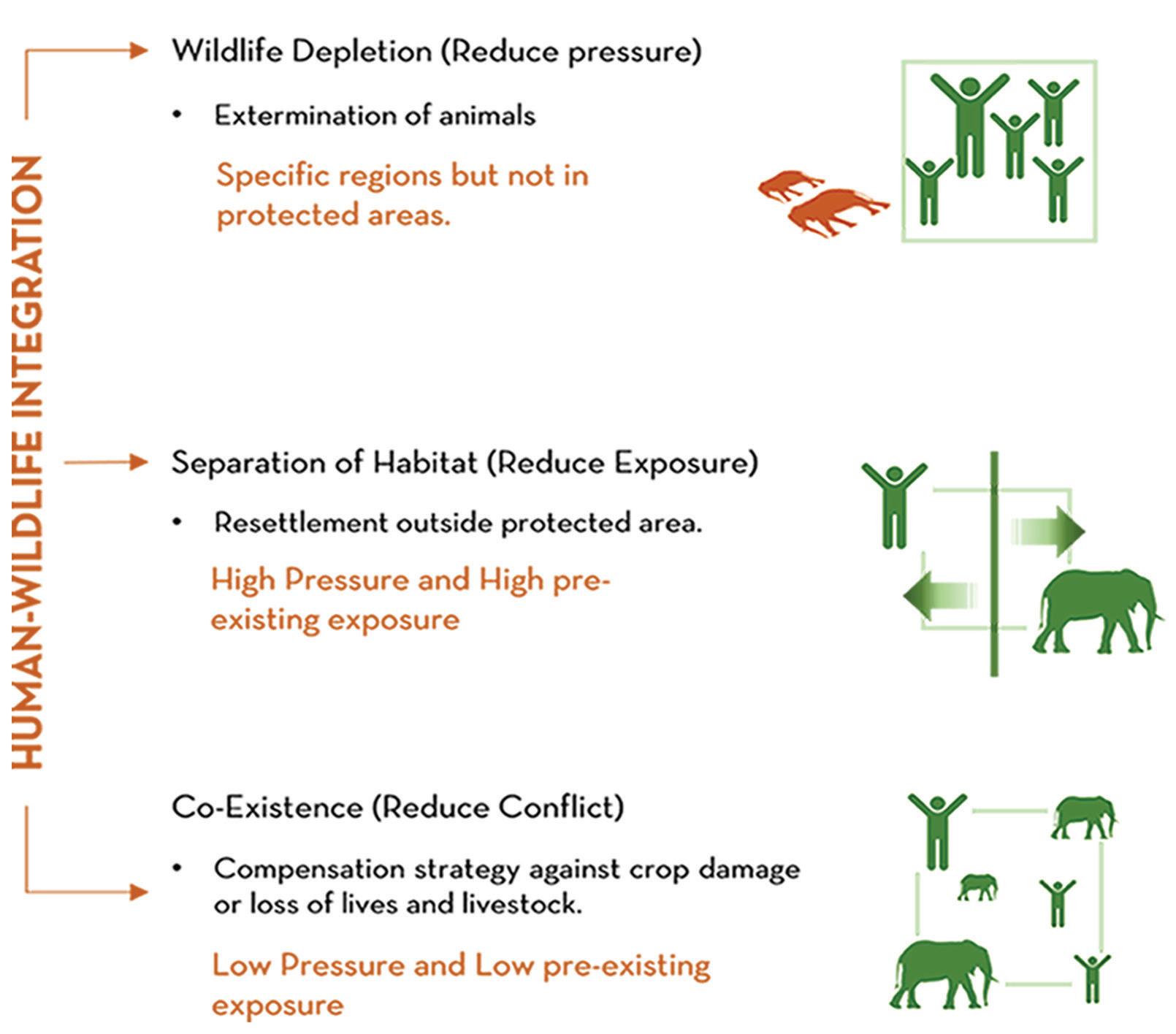

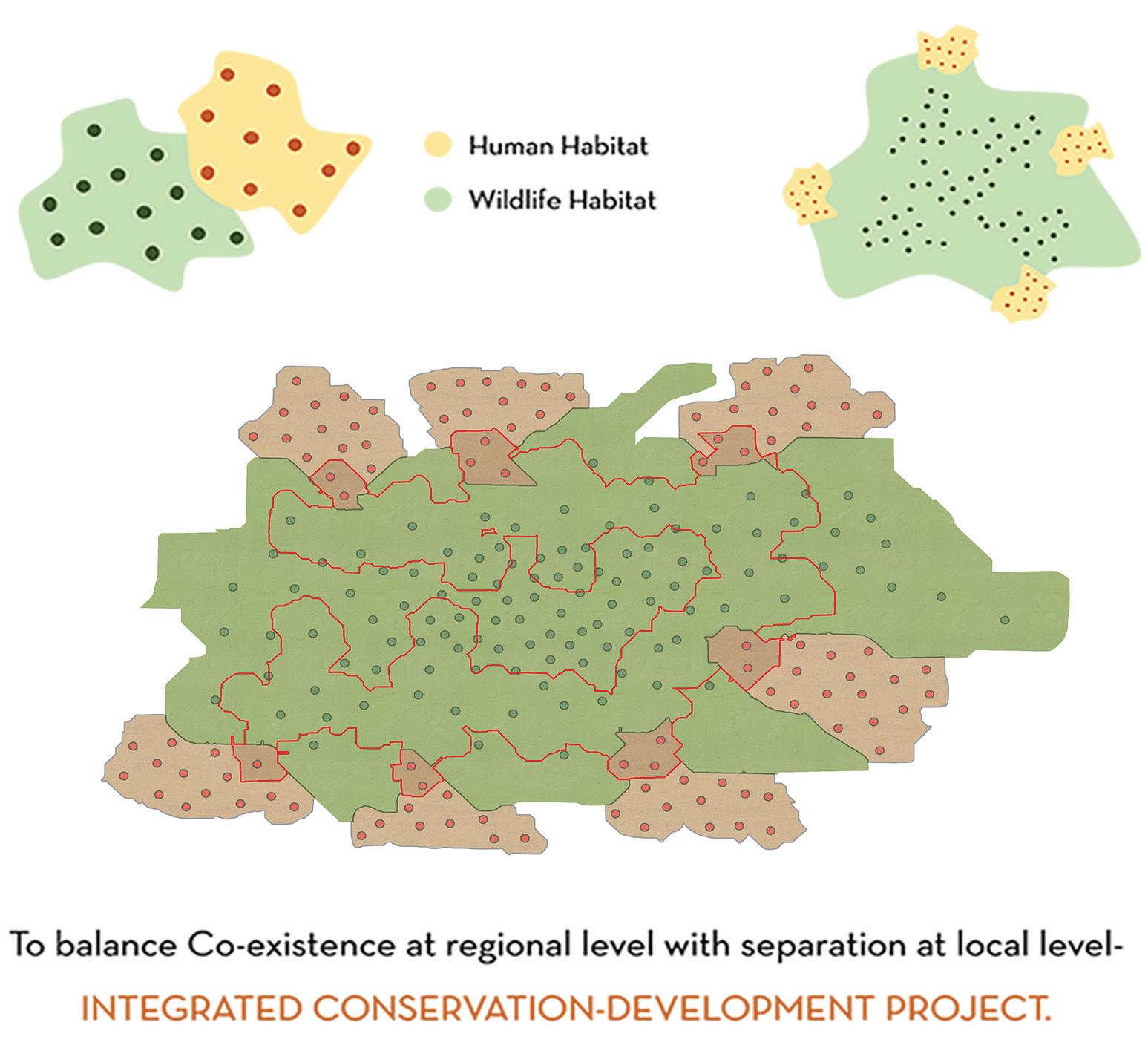

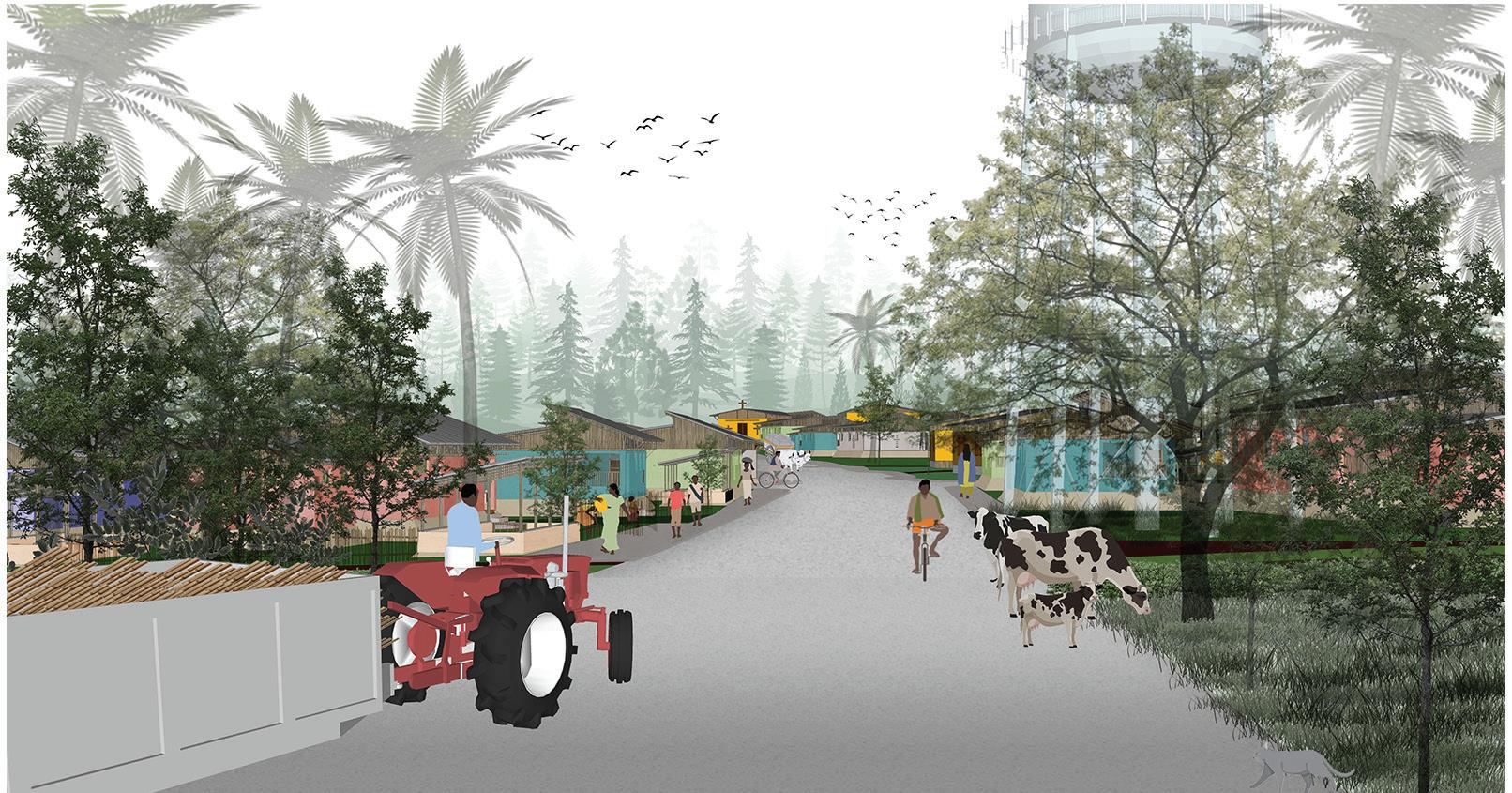

Human-wildlife interdependence is key to the existence of human life. India has a rich biodiversity. But unfortunately, each day, a human death is witnessed due to human-wildlife conflicts in the country. The project aims to rebalance the human-wildlife interaction through co-existence at the regional level and separation at the local level to prevent conflict and reduce pressure. The bottom-up approach allows community participation and authorizes design decisions favorable to their growing necessities and changing aspirations.

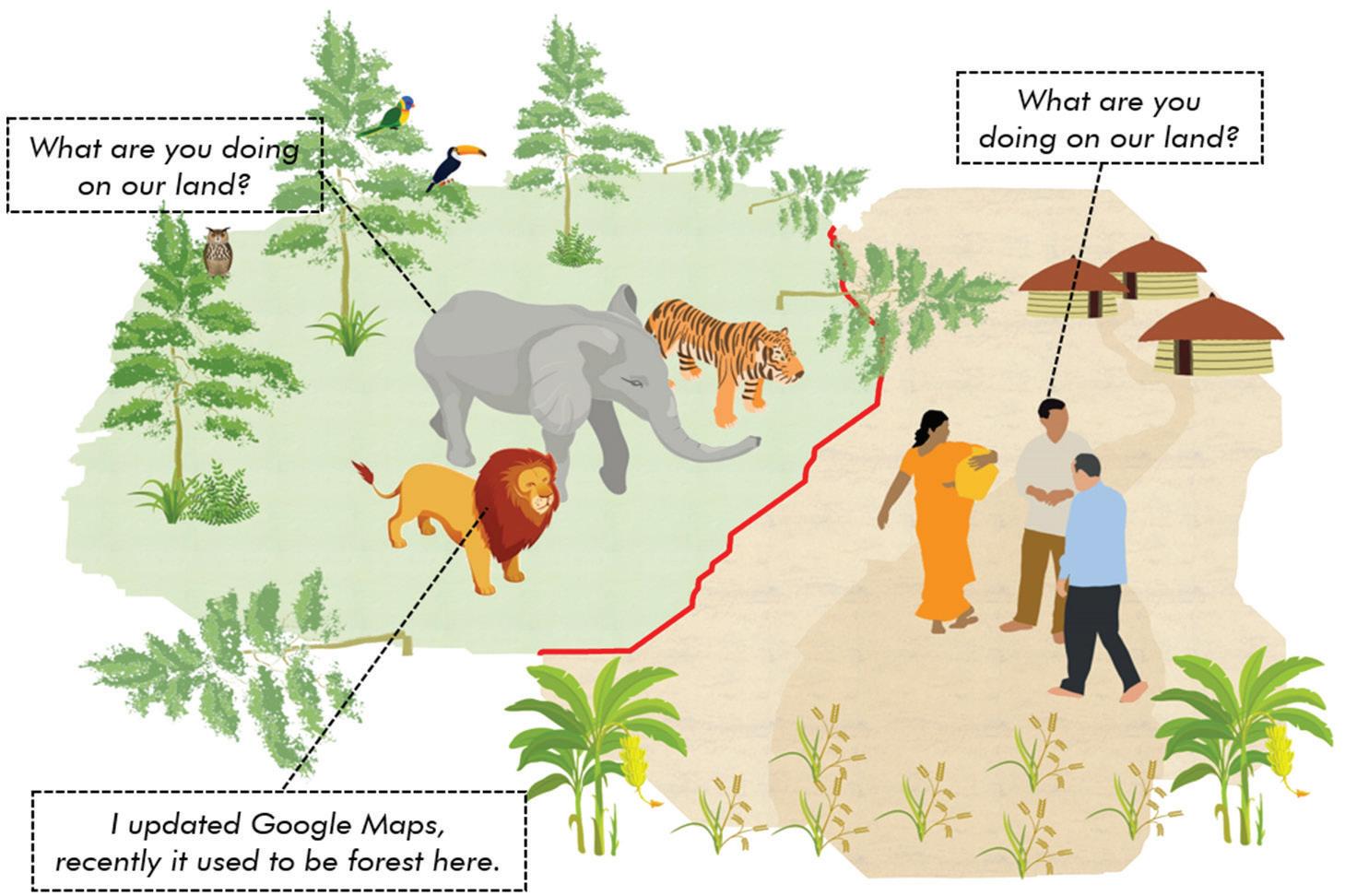

How owns the Land?

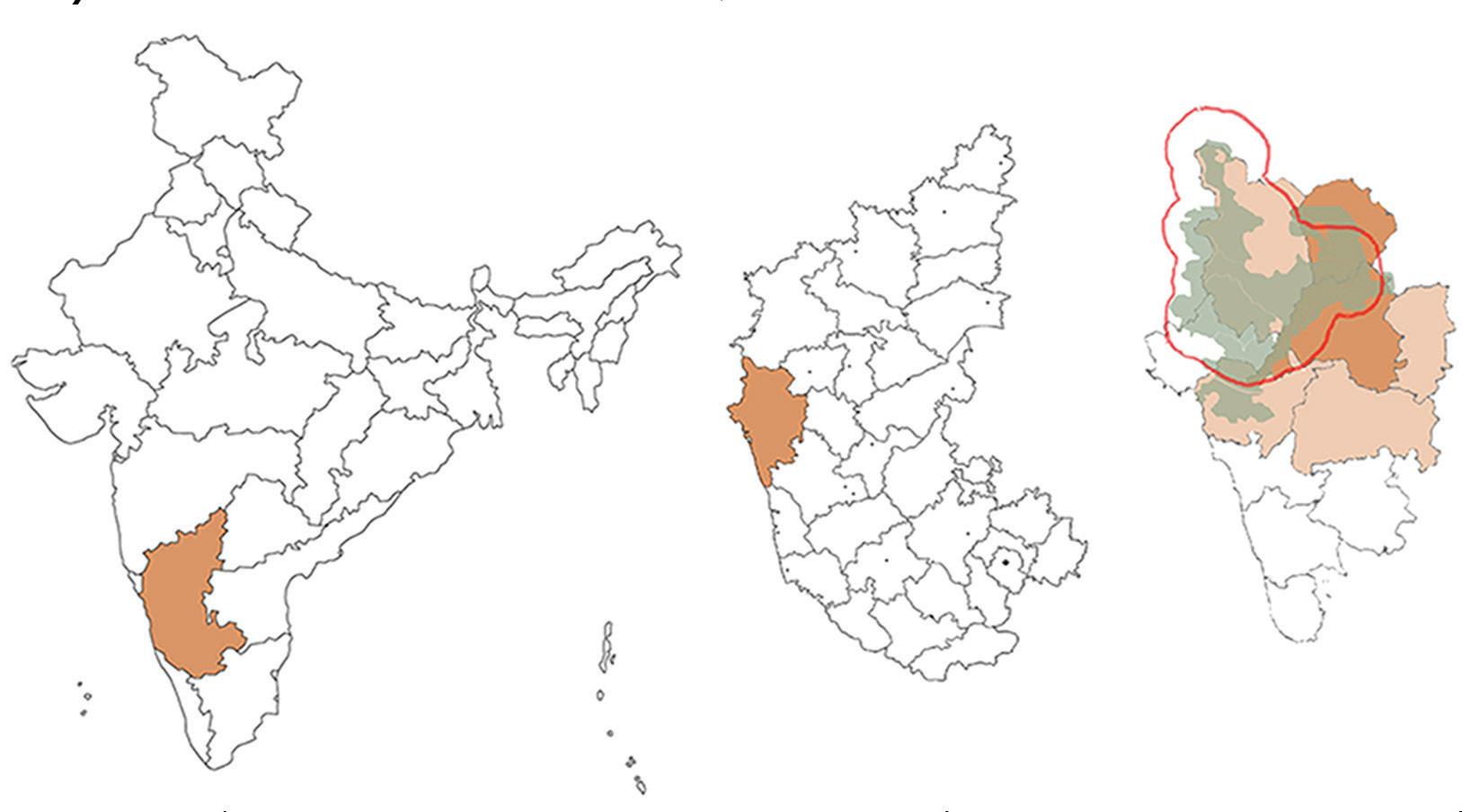

Study Premise: Uttar Kannada

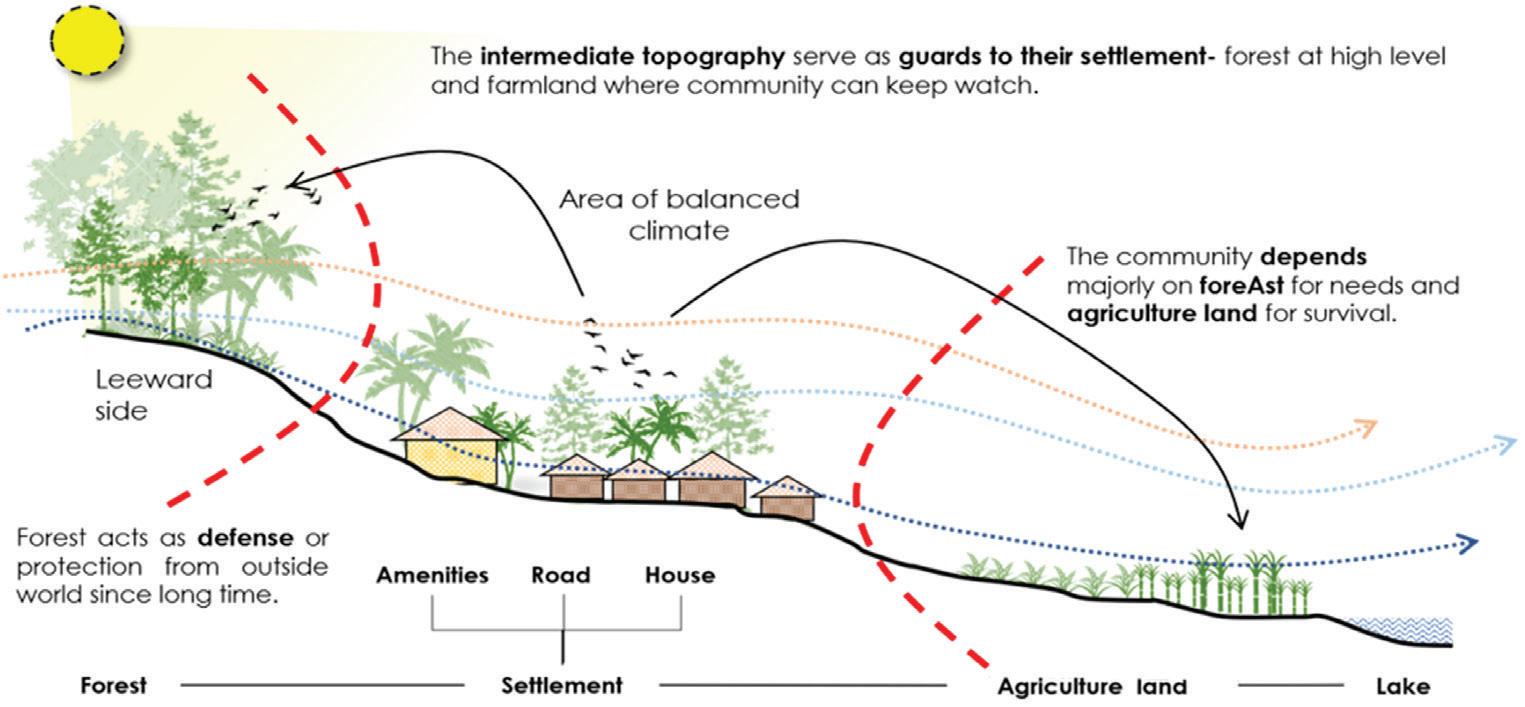

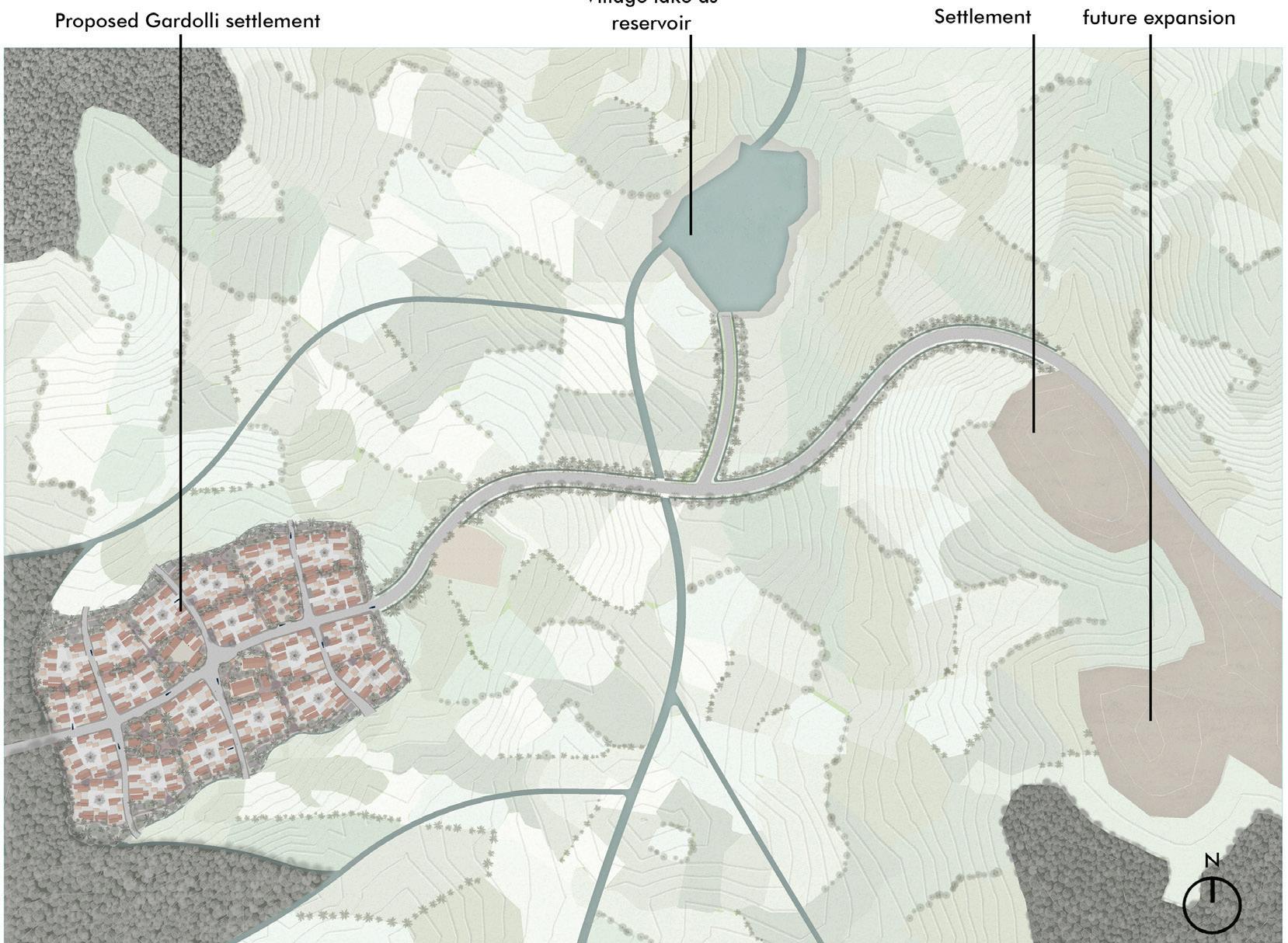

Site | Haliyal, Karnataka

India Karnataka Uttar Kannada

Tutors | Niraj Naik, Mahesh Nagecha, Hardik Gandhi

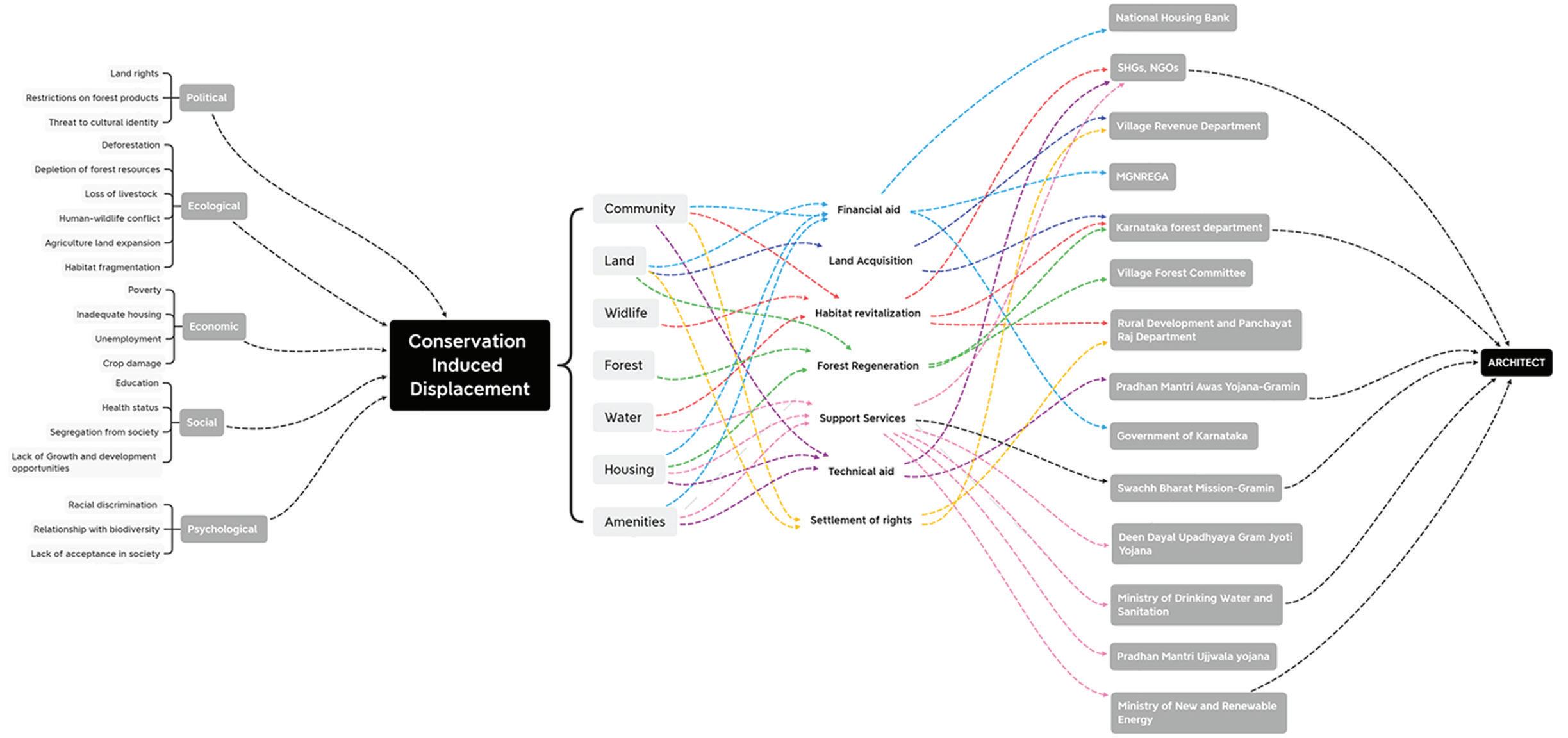

Process and Interdependencies

It is a complex web of many processes and involves so many agencies, but an architect is rarely a part of this web. An architect can play a crucial role at various stages like site selection and planning, house design, support services, and many more by collaborating with different stakeholders for development.

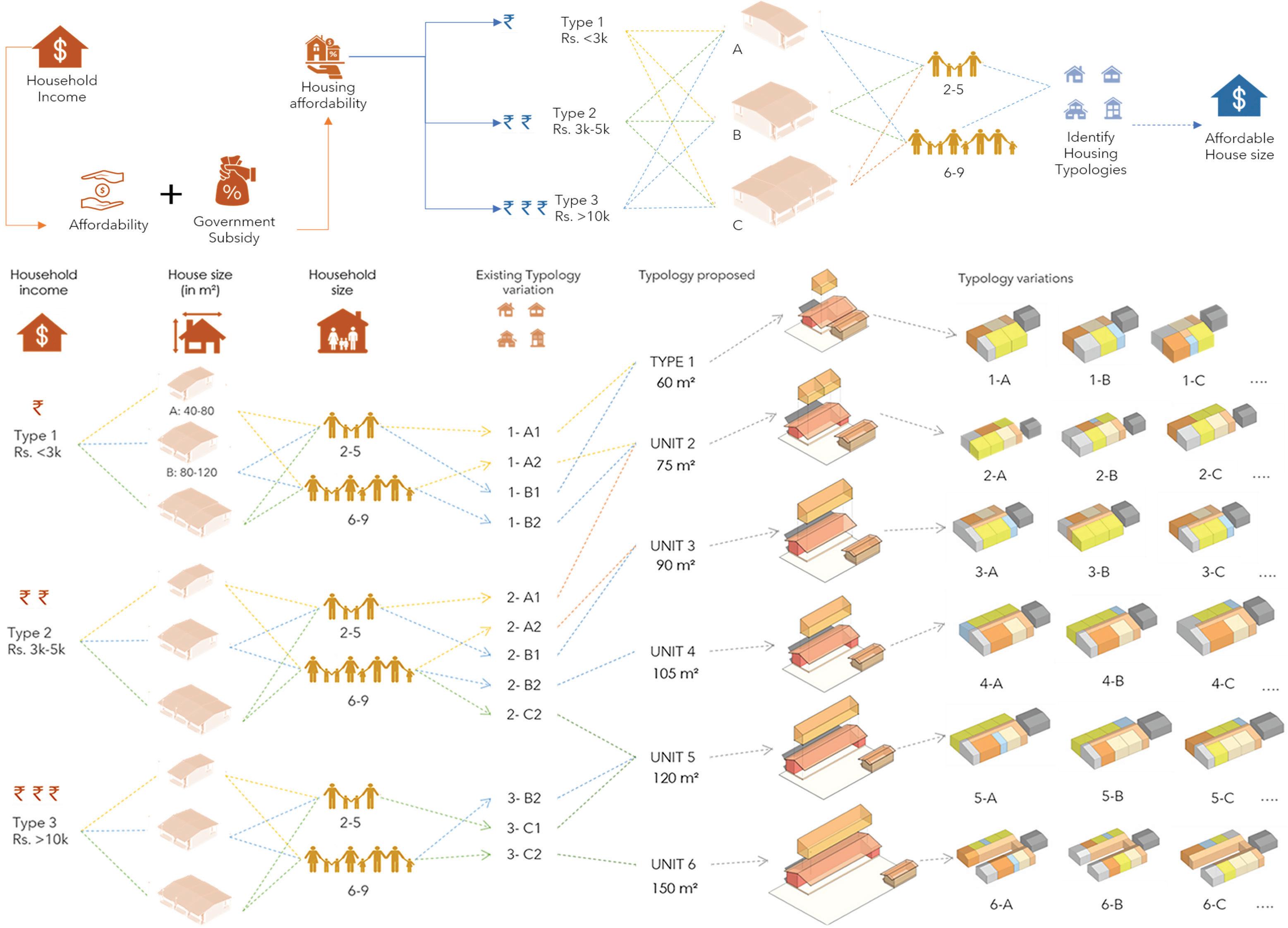

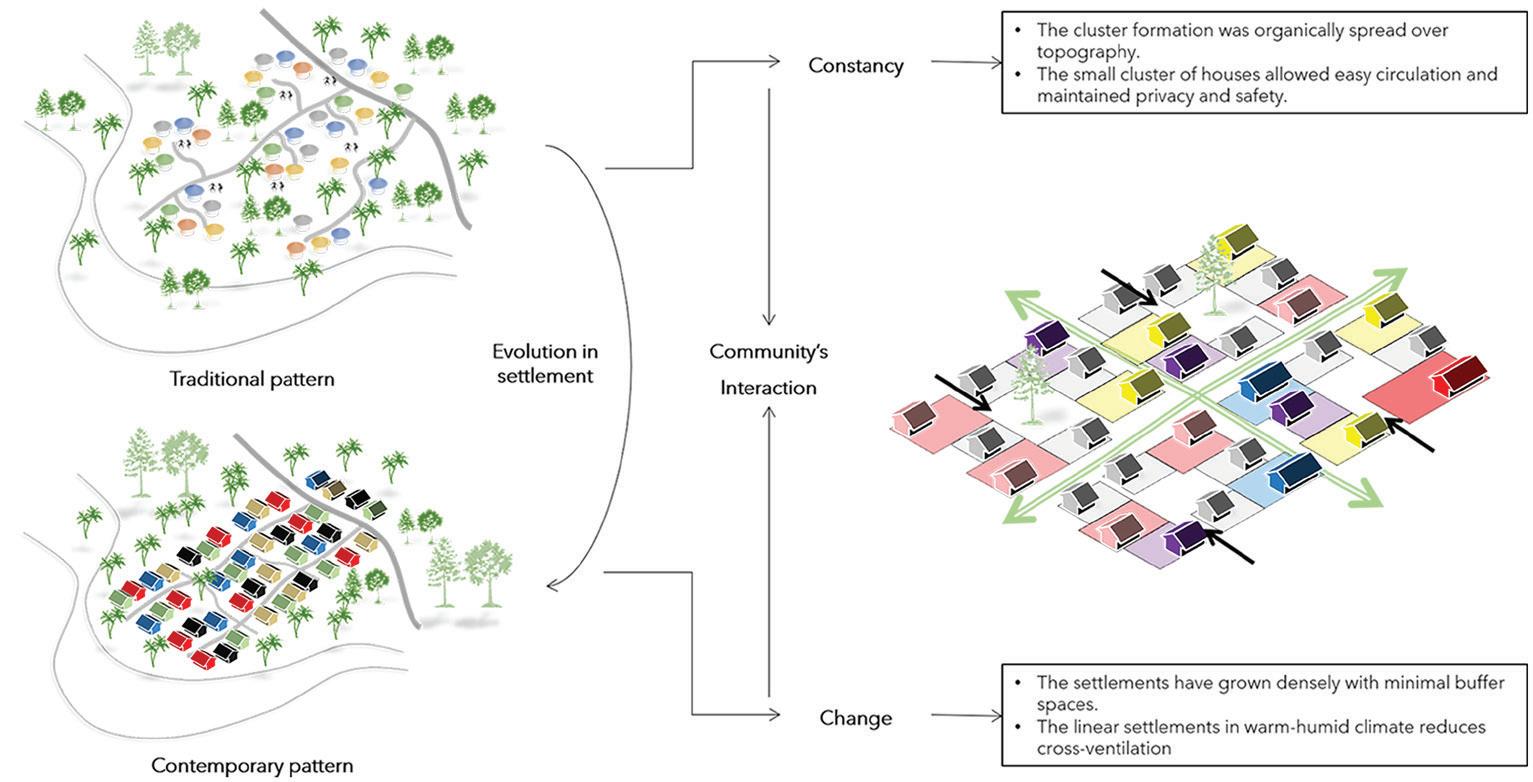

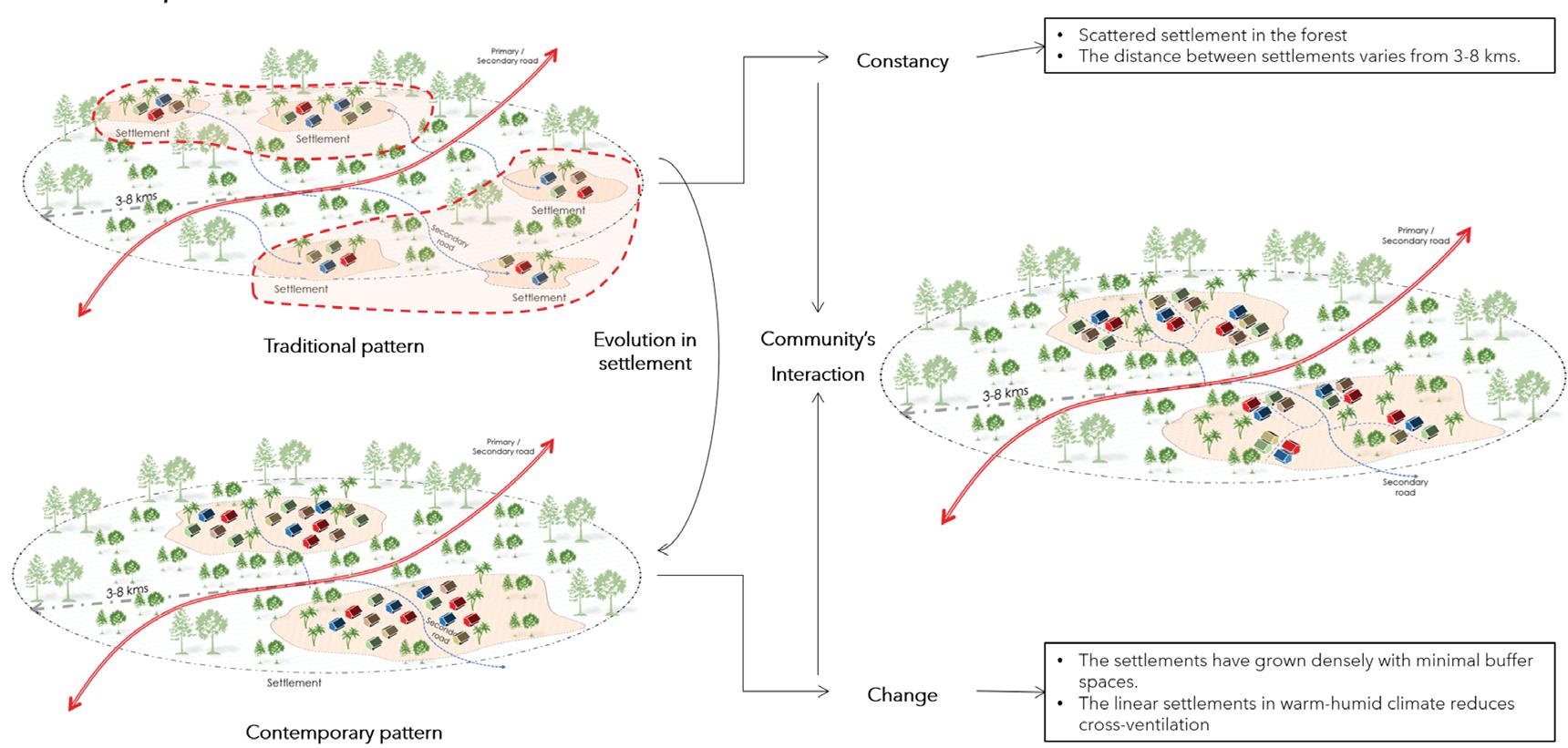

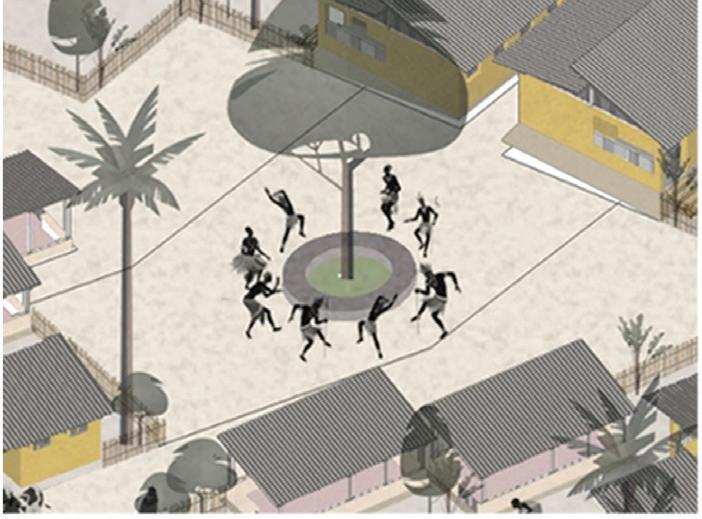

Housing Typology Evolution

1. Built Desnity

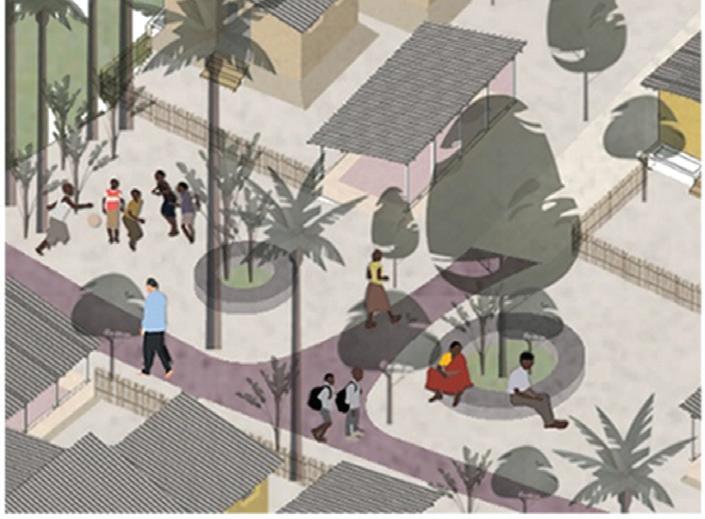

2. Activity nodes

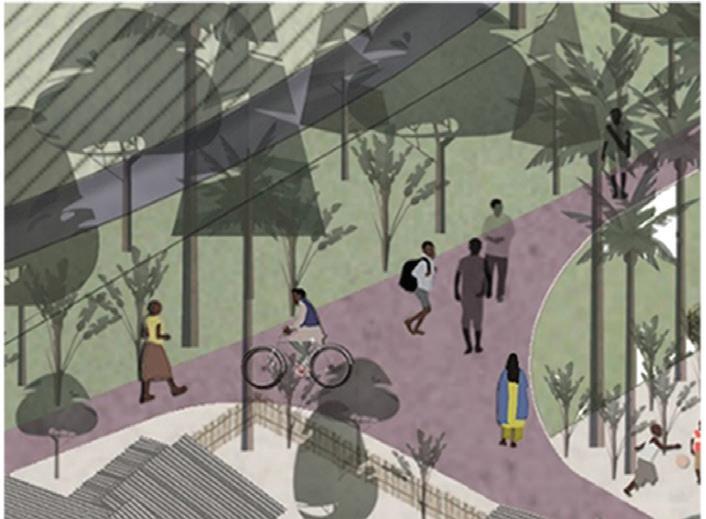

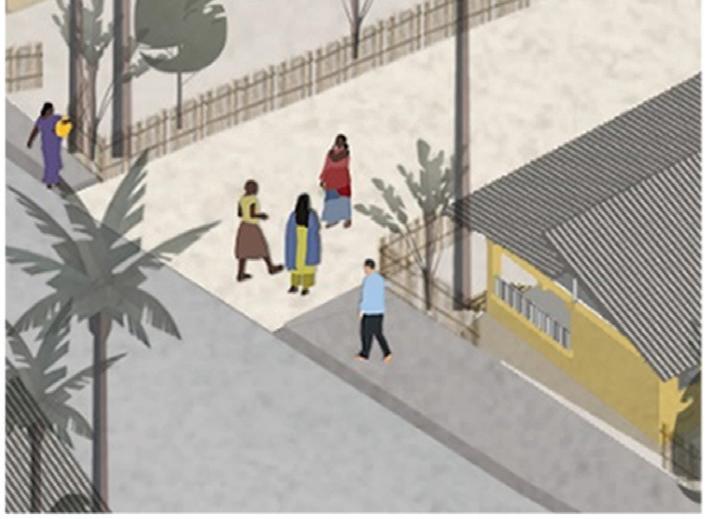

3. Buffer zones and Biofencing

Scale of Incrementation

Personalisation in Incrementation

Flexibility of Incrementation

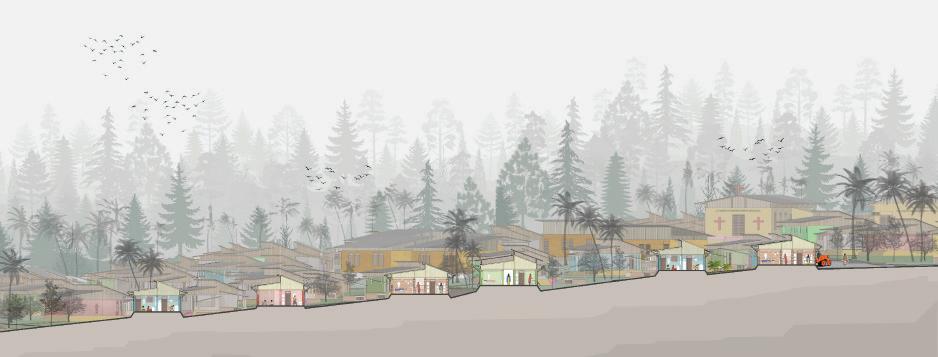

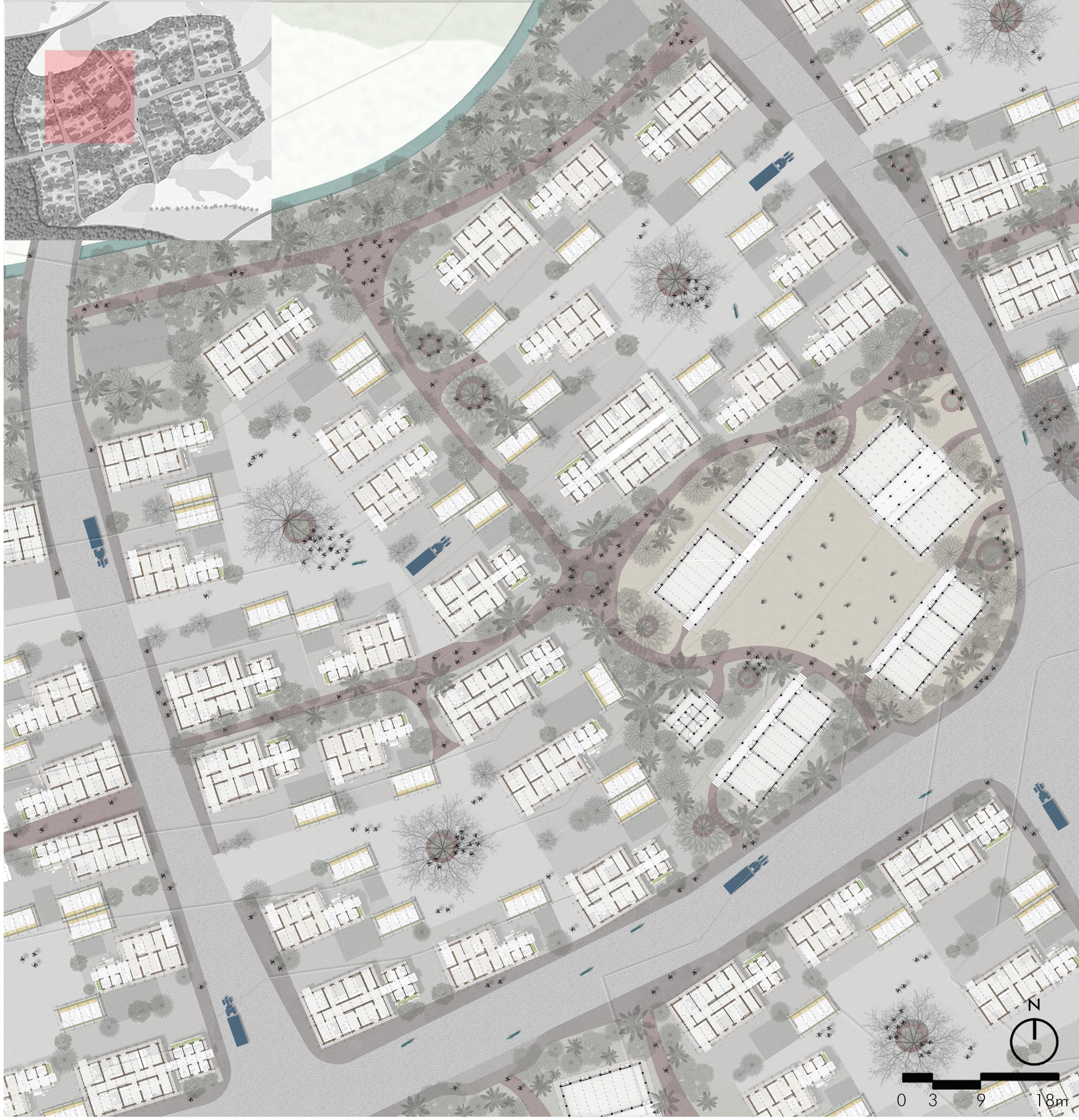

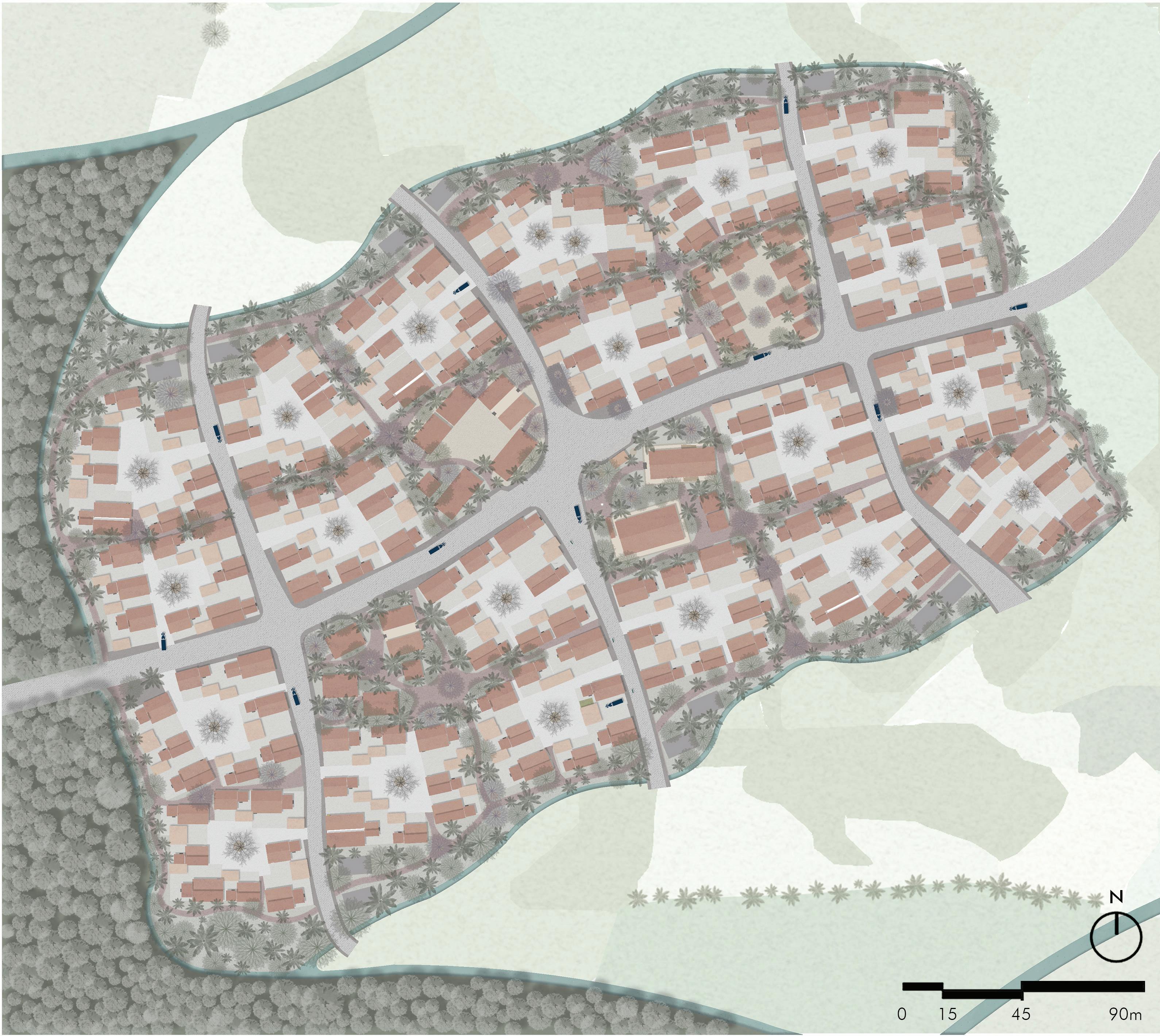

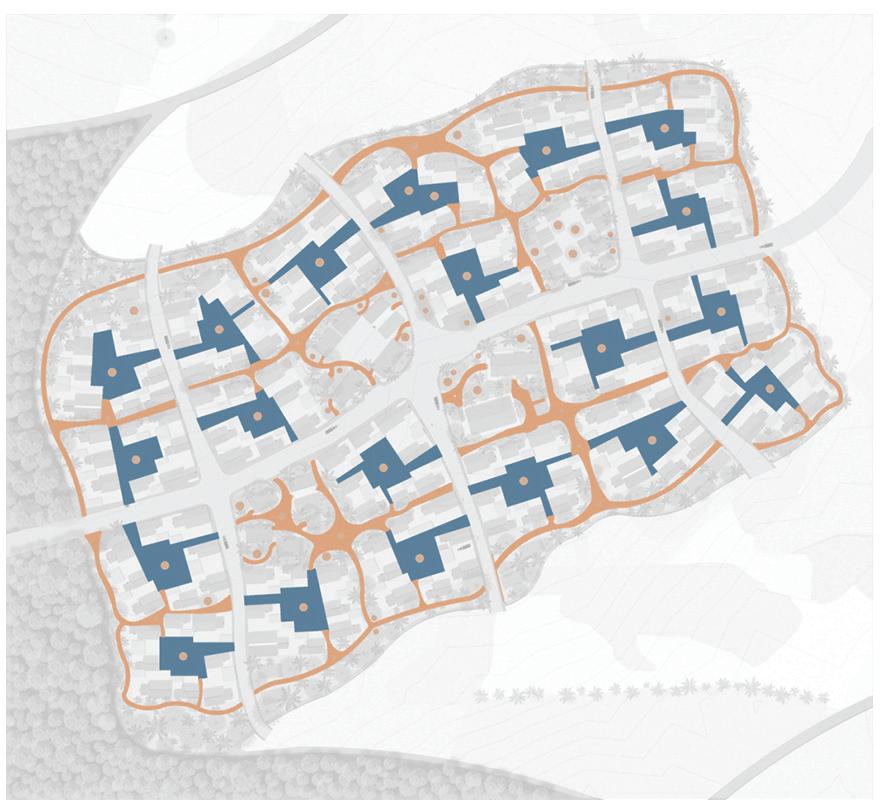

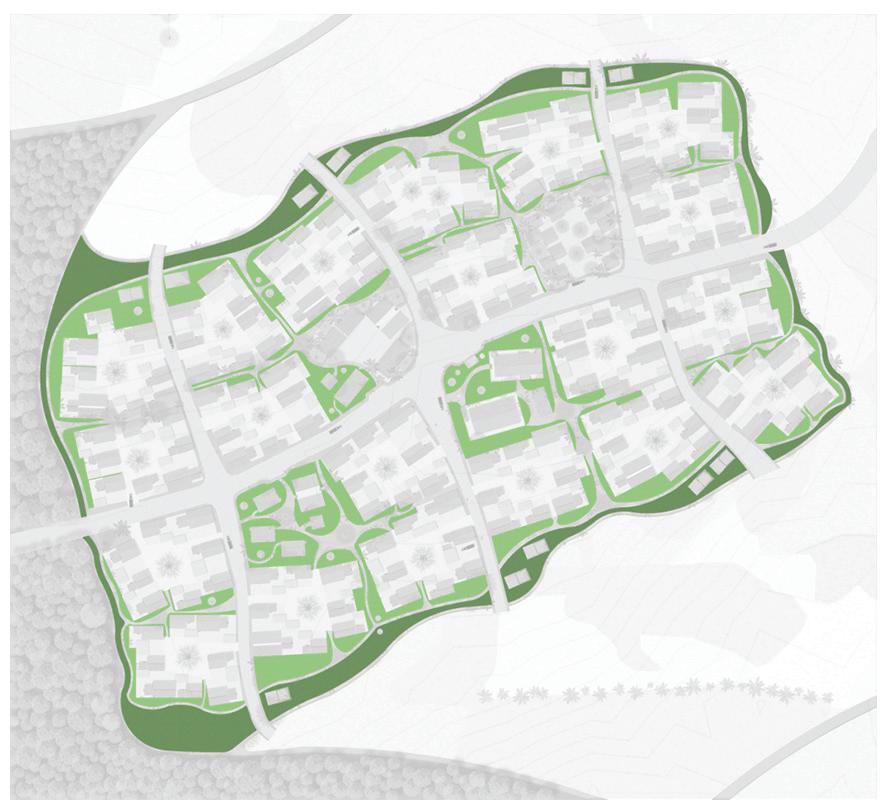

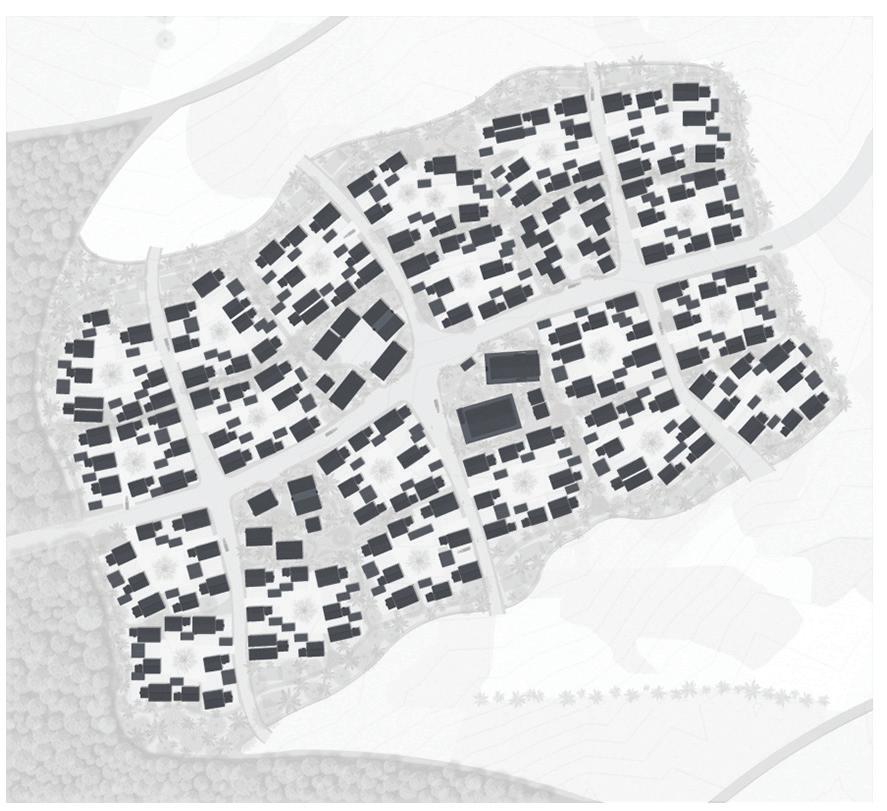

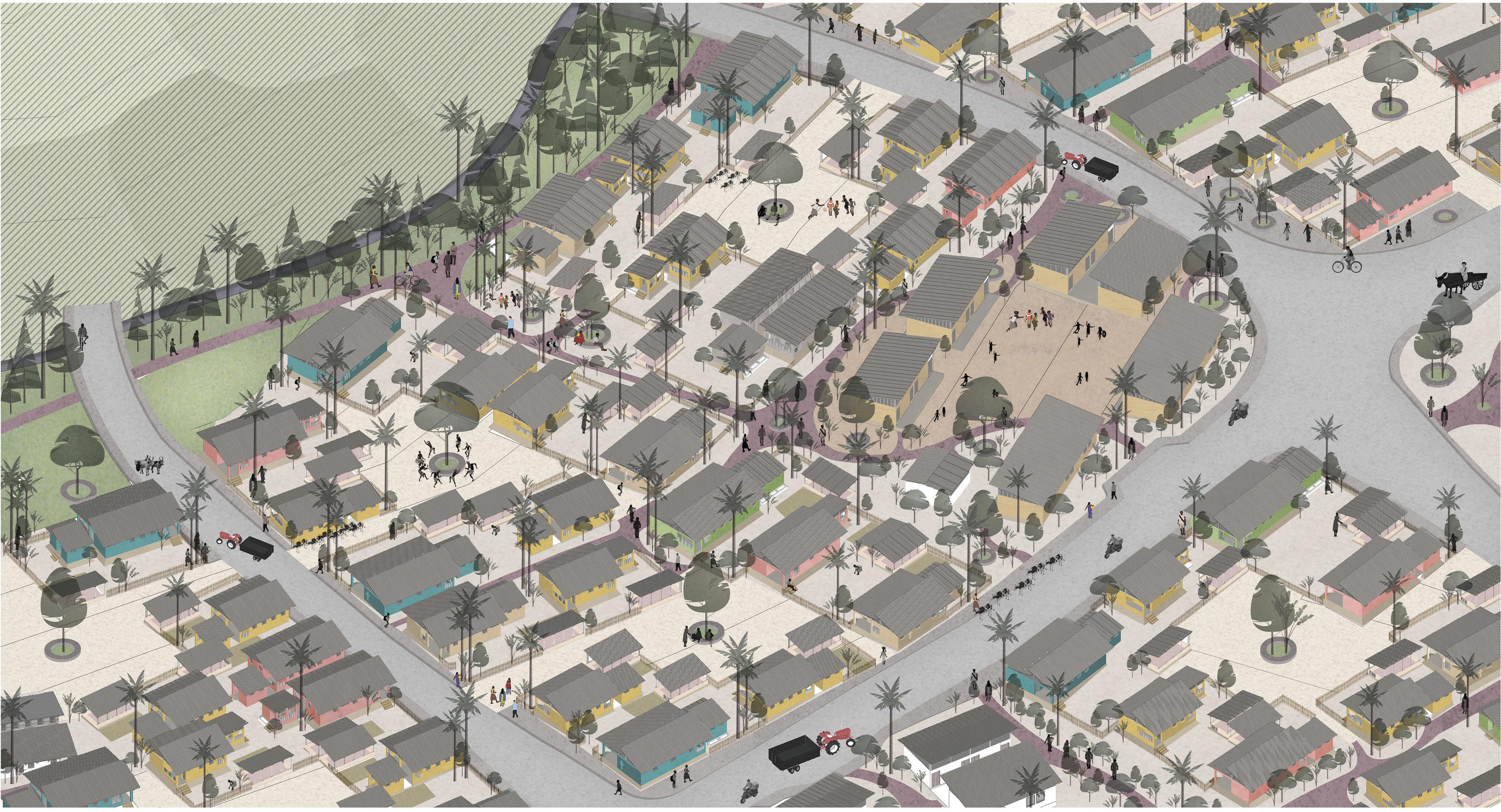

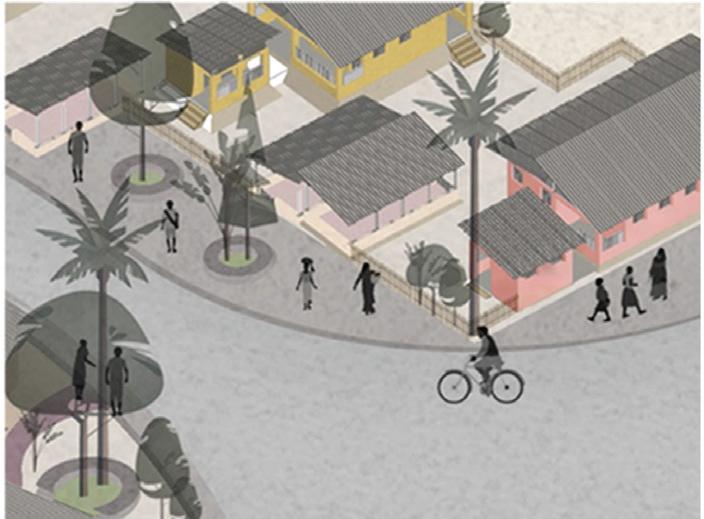

Cluster plan

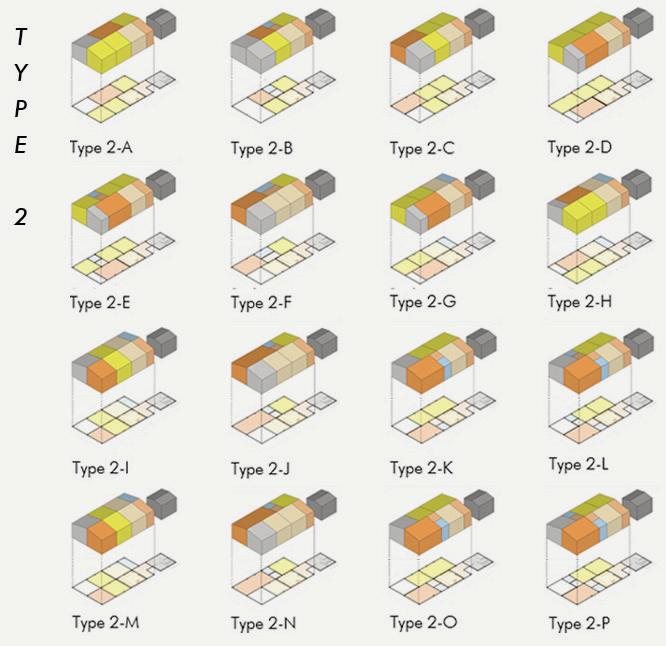

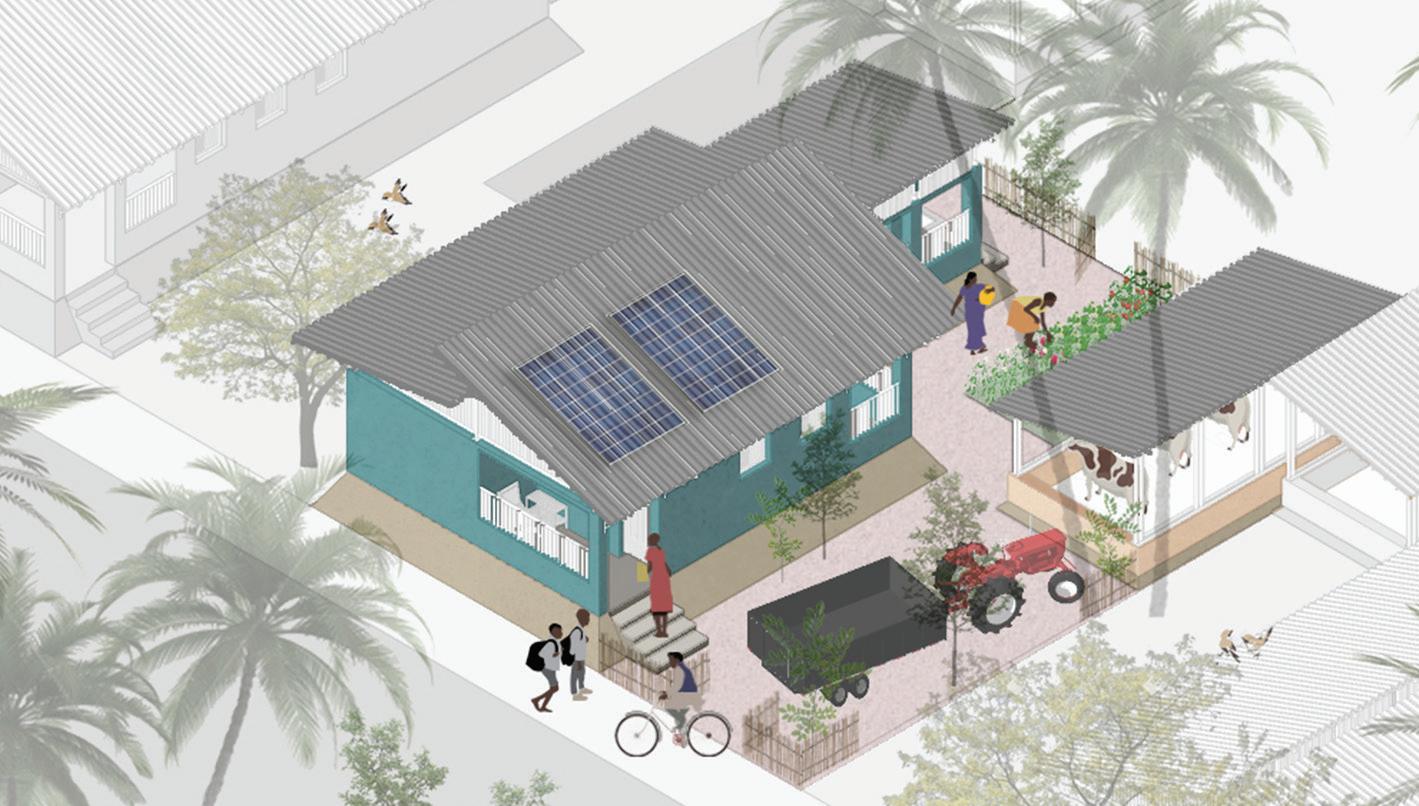

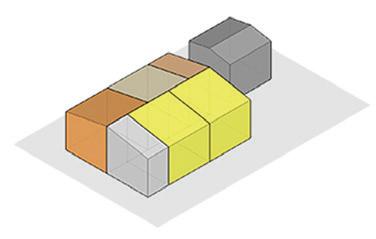

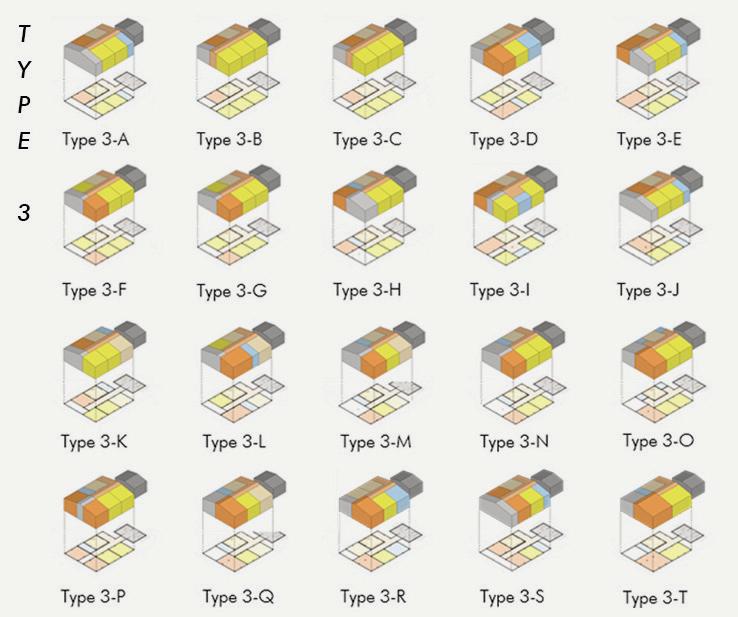

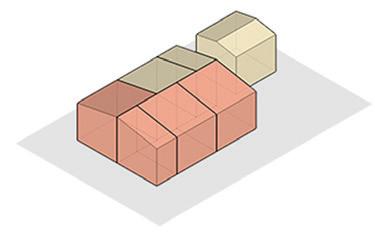

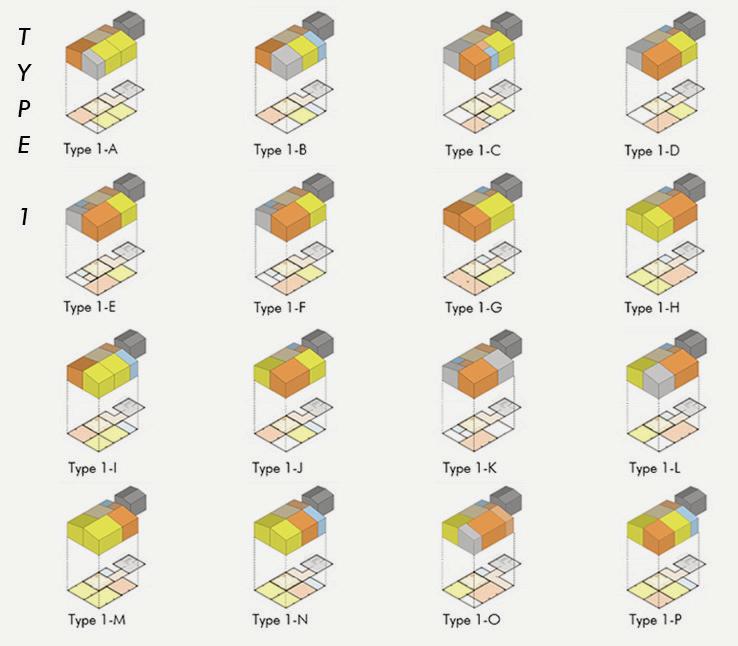

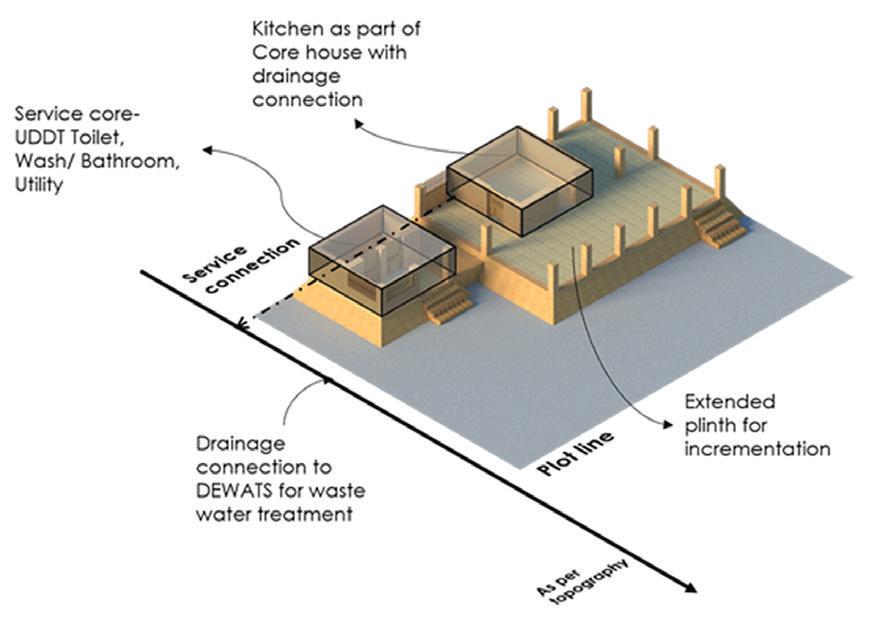

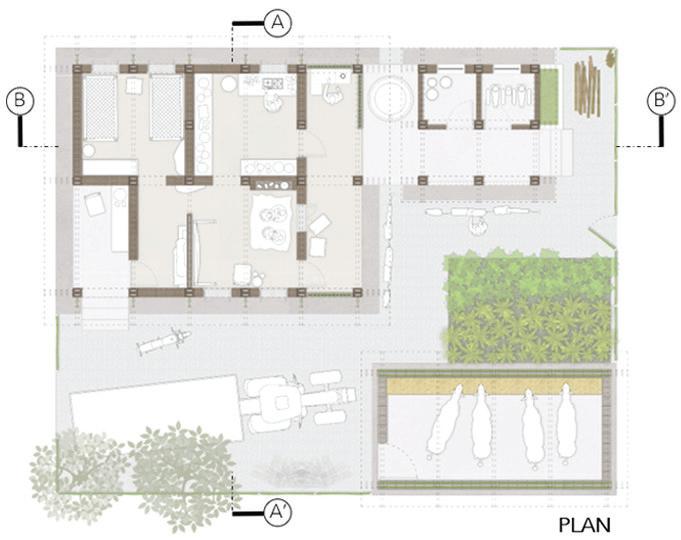

Corehouse design

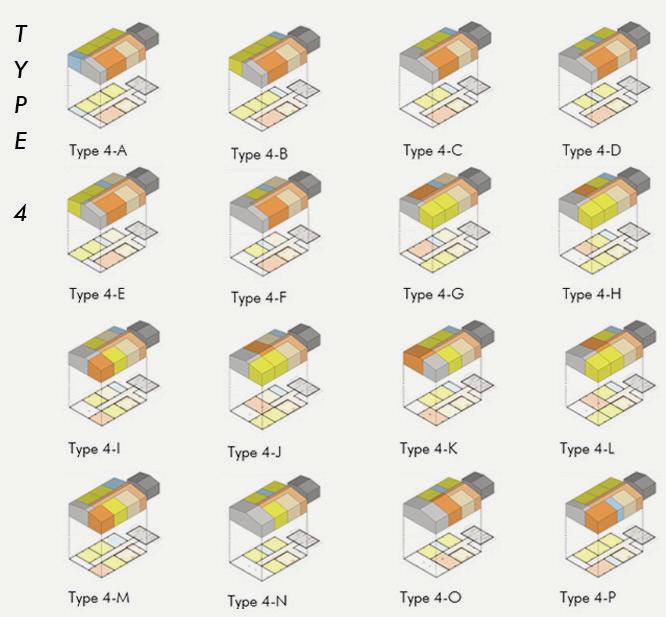

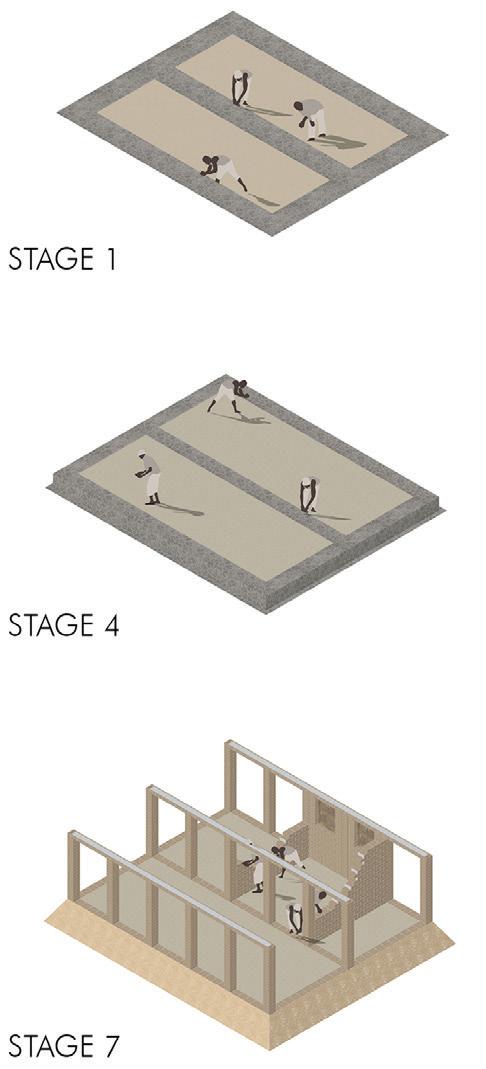

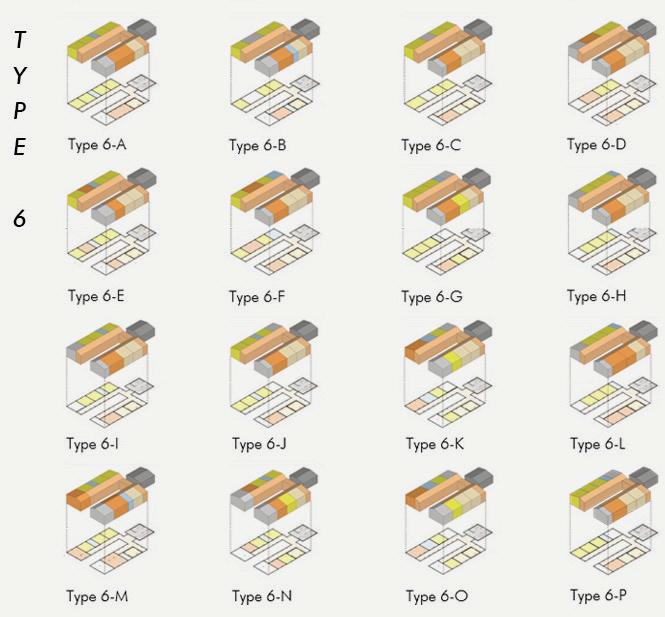

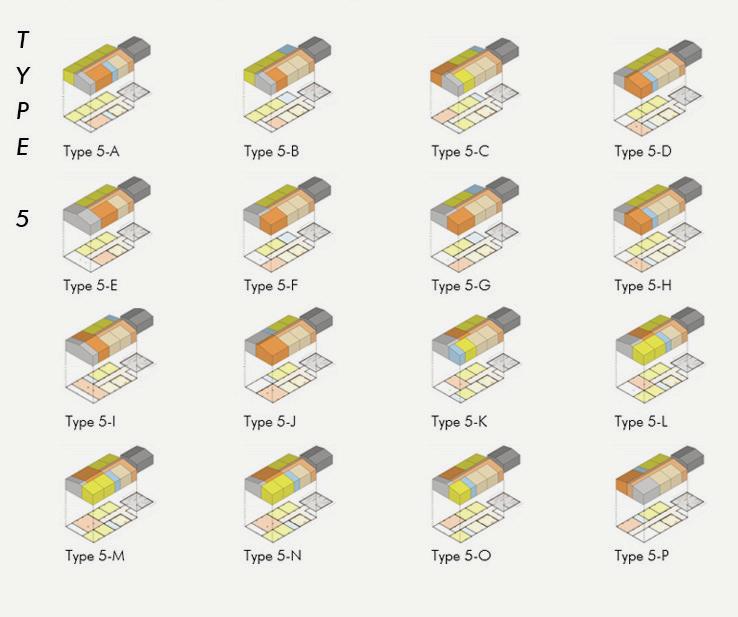

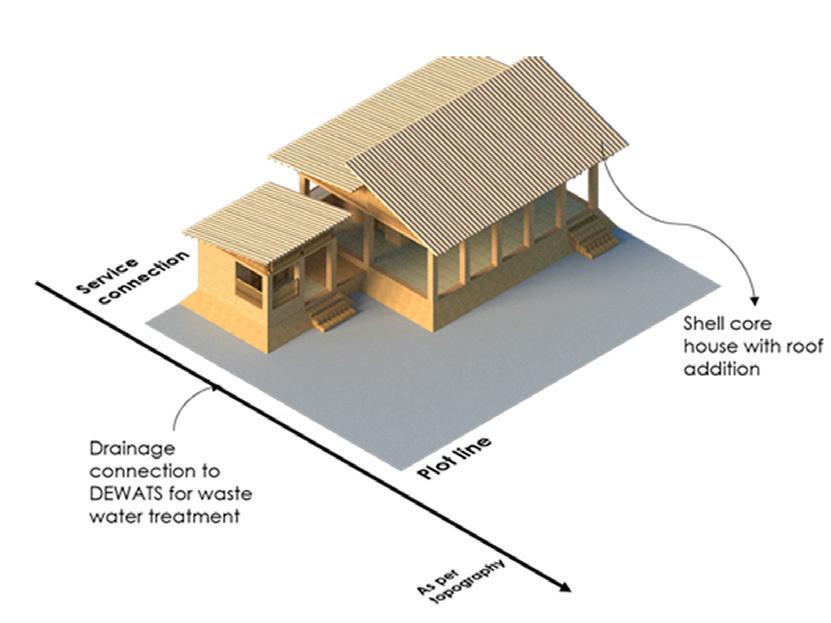

Incremental possibbilities

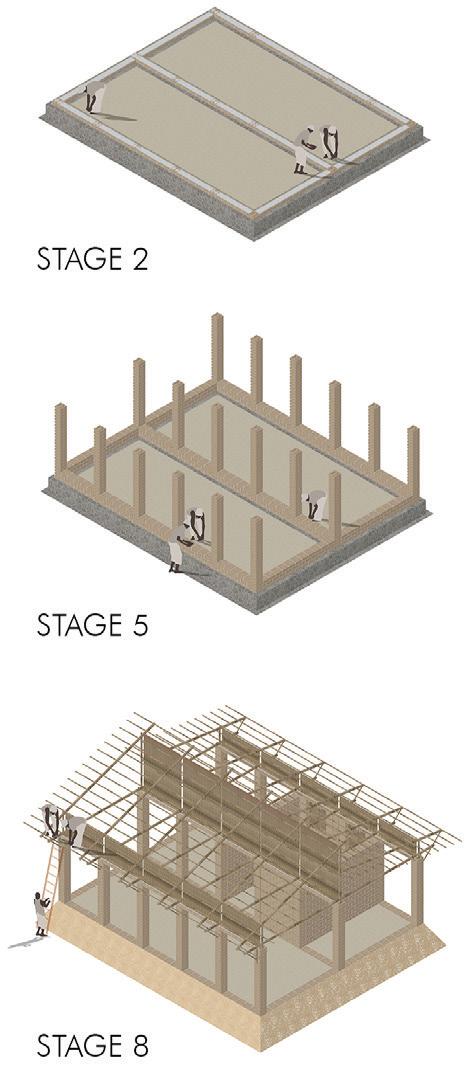

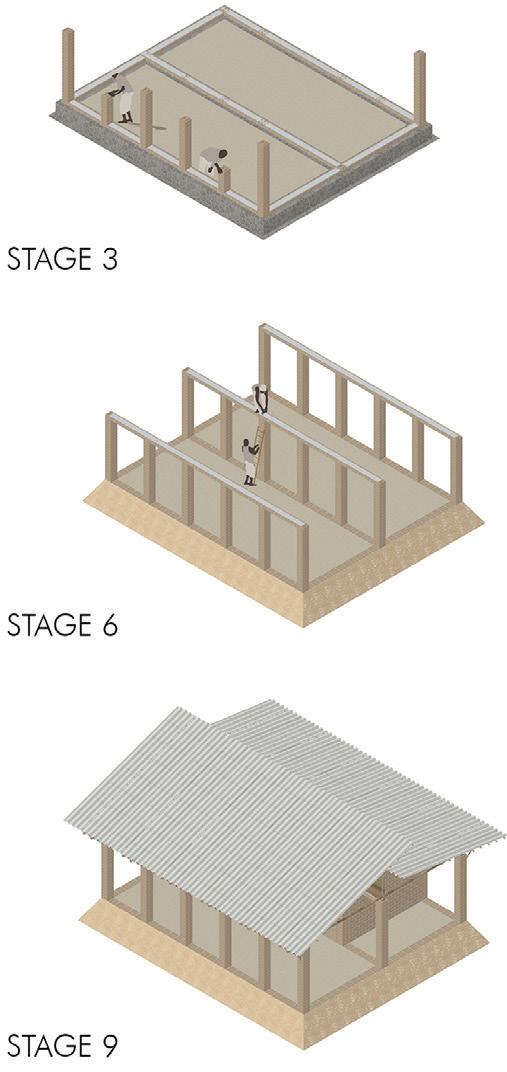

Construction

BIM And Revit Professional Course

BIM Computational Skill Development

6 months course + Capstone project (in progress)

• 3D Modelling and Rendering

• Data Management and Optimization

• Cloud Collaboration

• Presentation in Virtual Reality

• Clash Detection

• Visual Programming

• Sustainable Design

• BIM Fundamentals and Processes

• RIBA 0-7 stages

• Common Data Environment

Tutors | Andre Malheiro, Ami Nigam, Harsha Vinjam, Neha Sadruddin, Saniye Oktem, Sheik Uduman

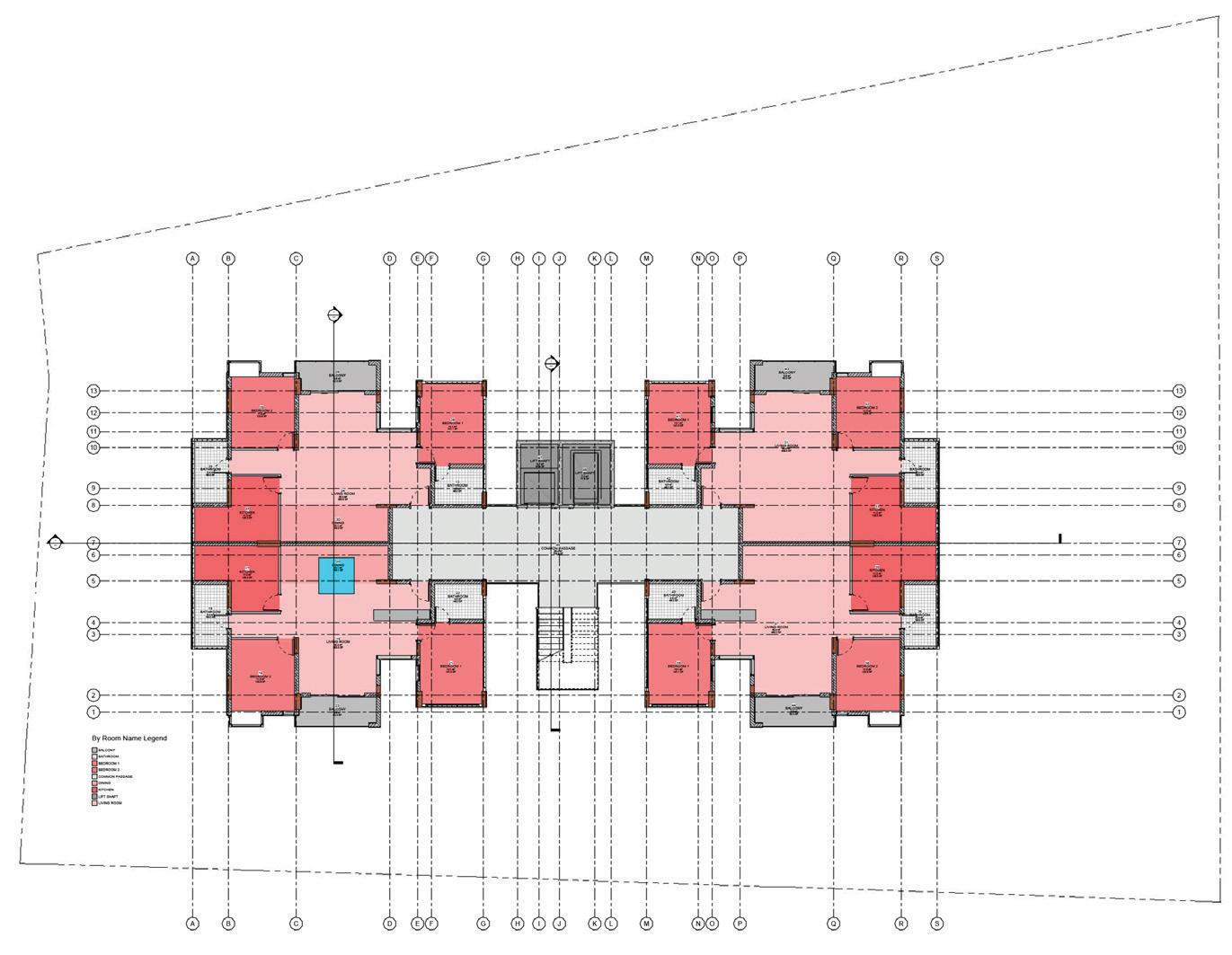

Floor Plan

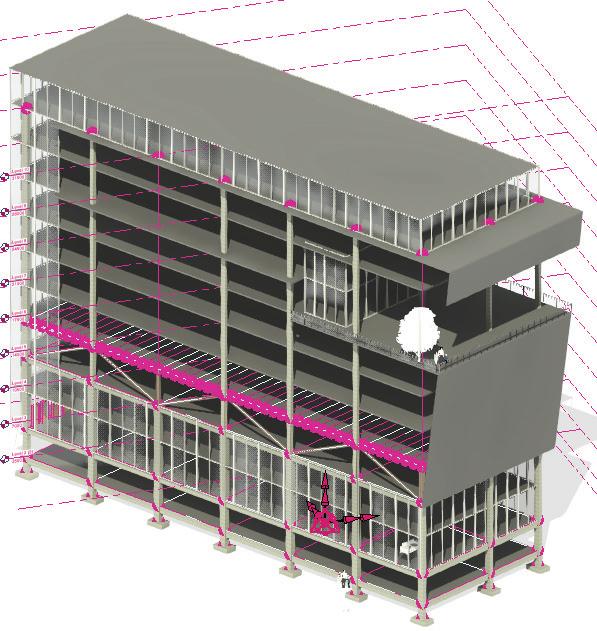

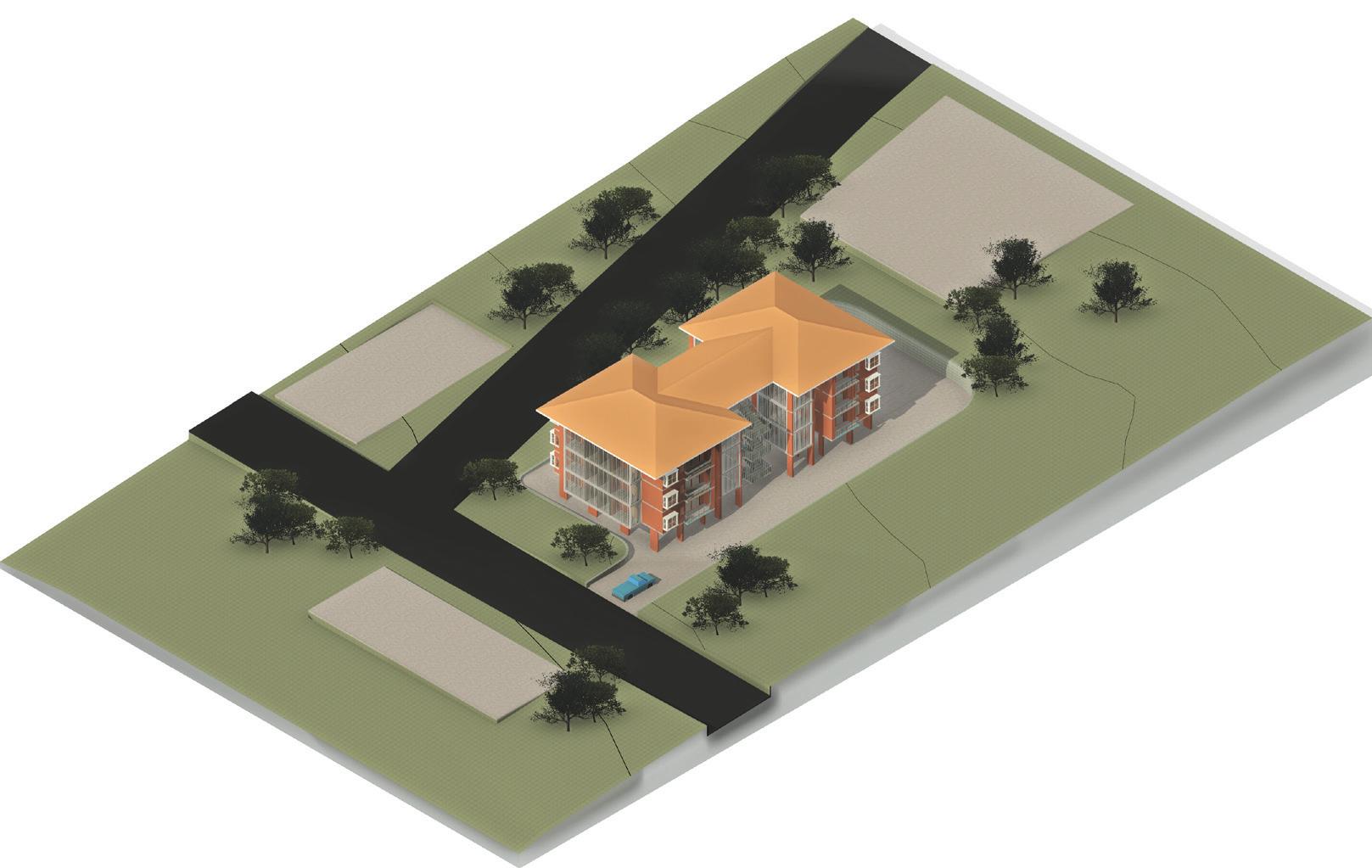

3D Model- Revit

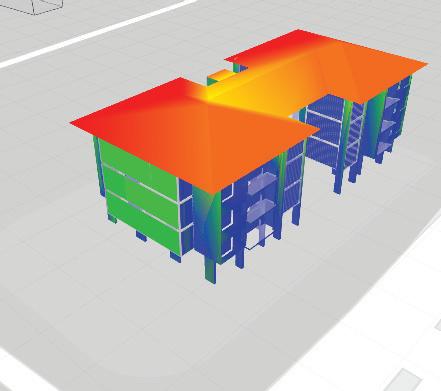

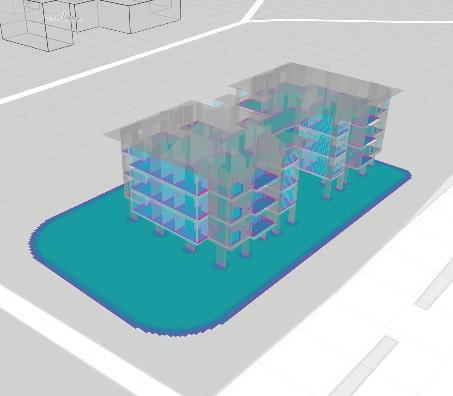

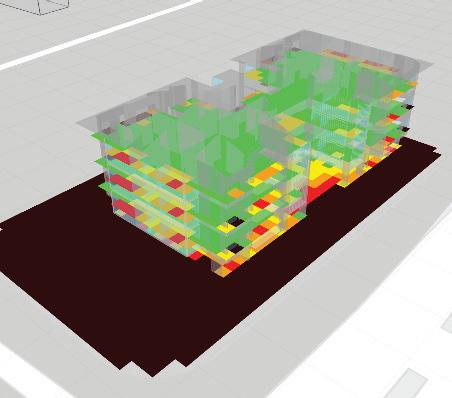

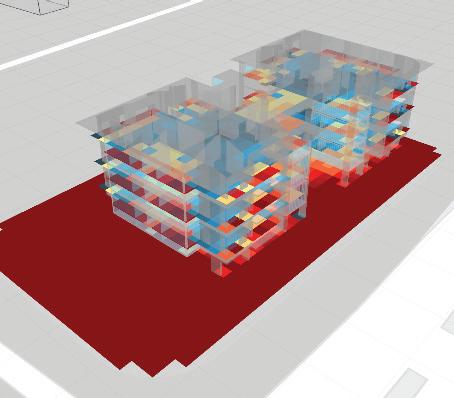

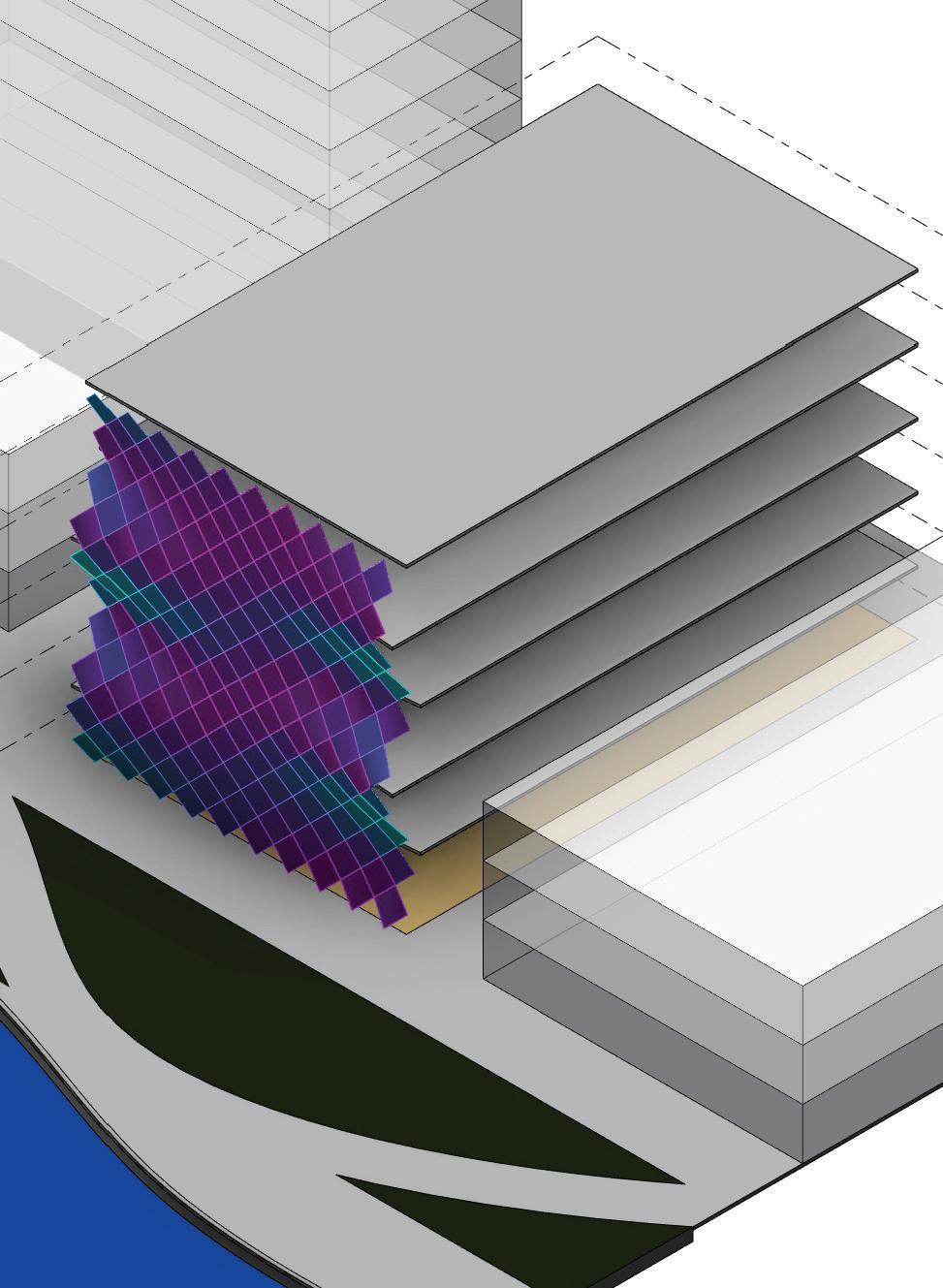

Cove tool analysis

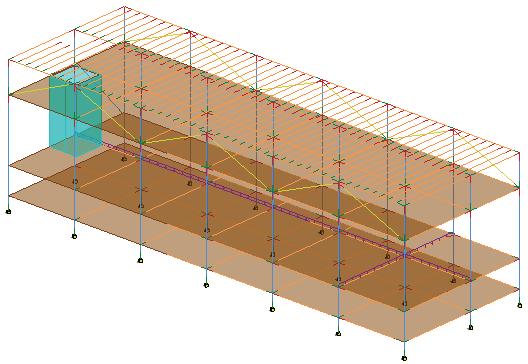

Structural/Analytical Modeling and analysis in Revit

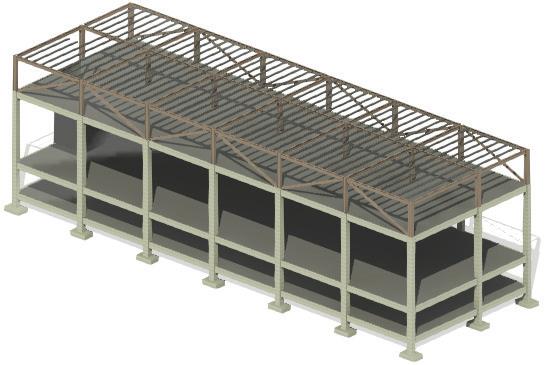

Structural Model

Analytical Model

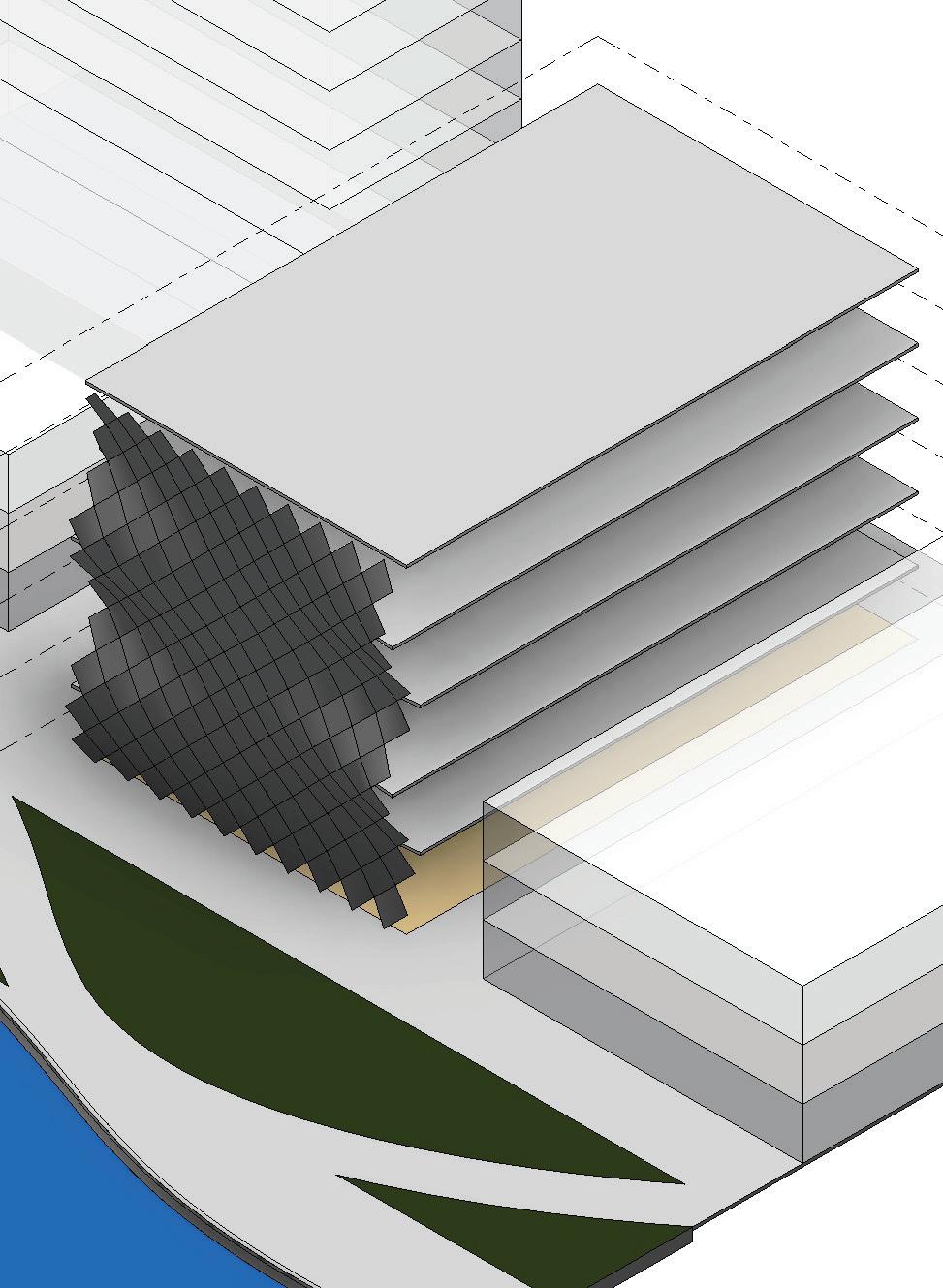

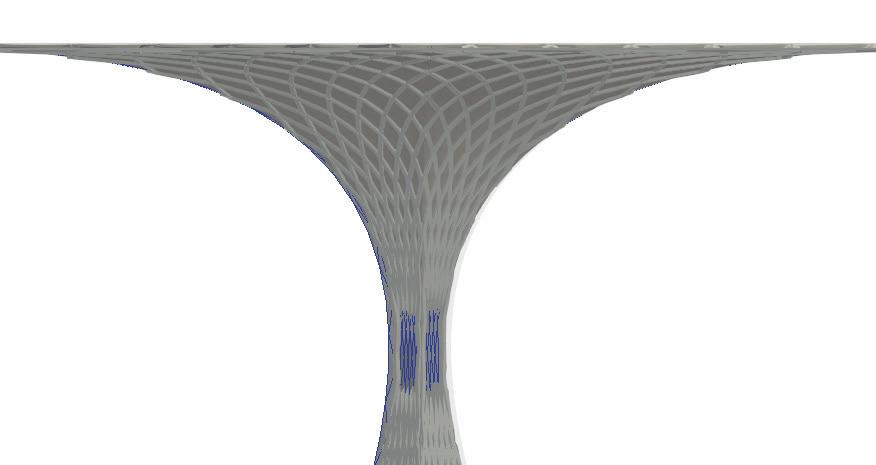

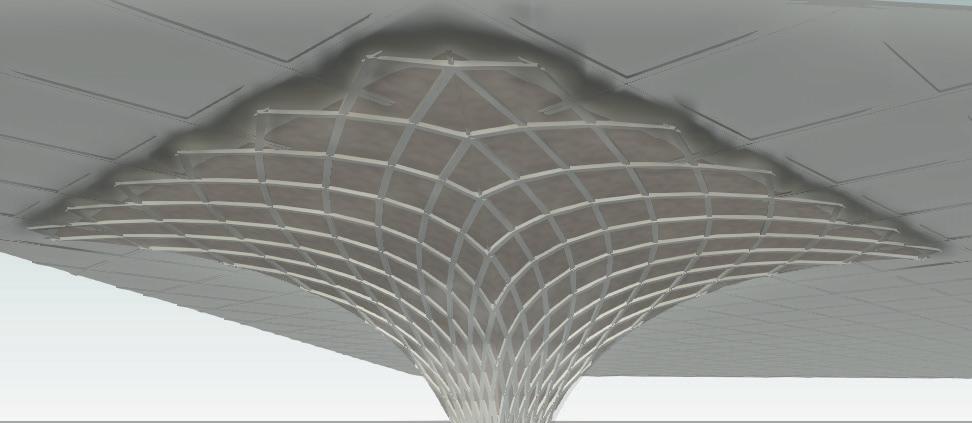

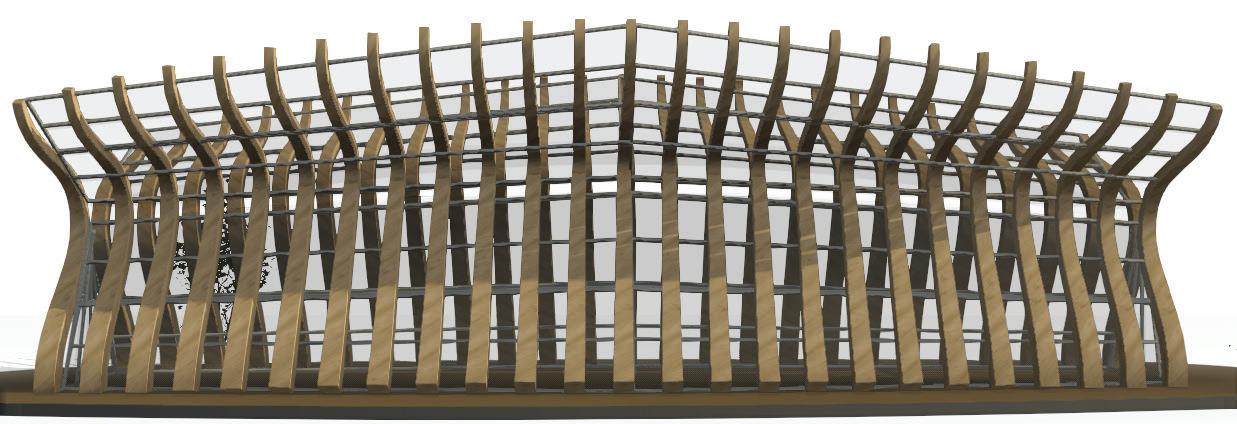

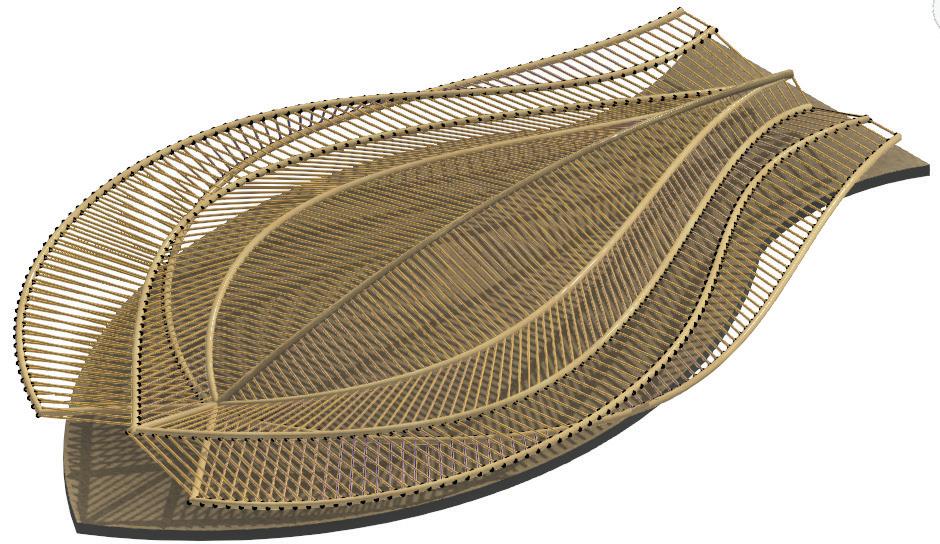

Adaptive/ Parametric Modeling in Revit

Dynamo + Revit Modeling

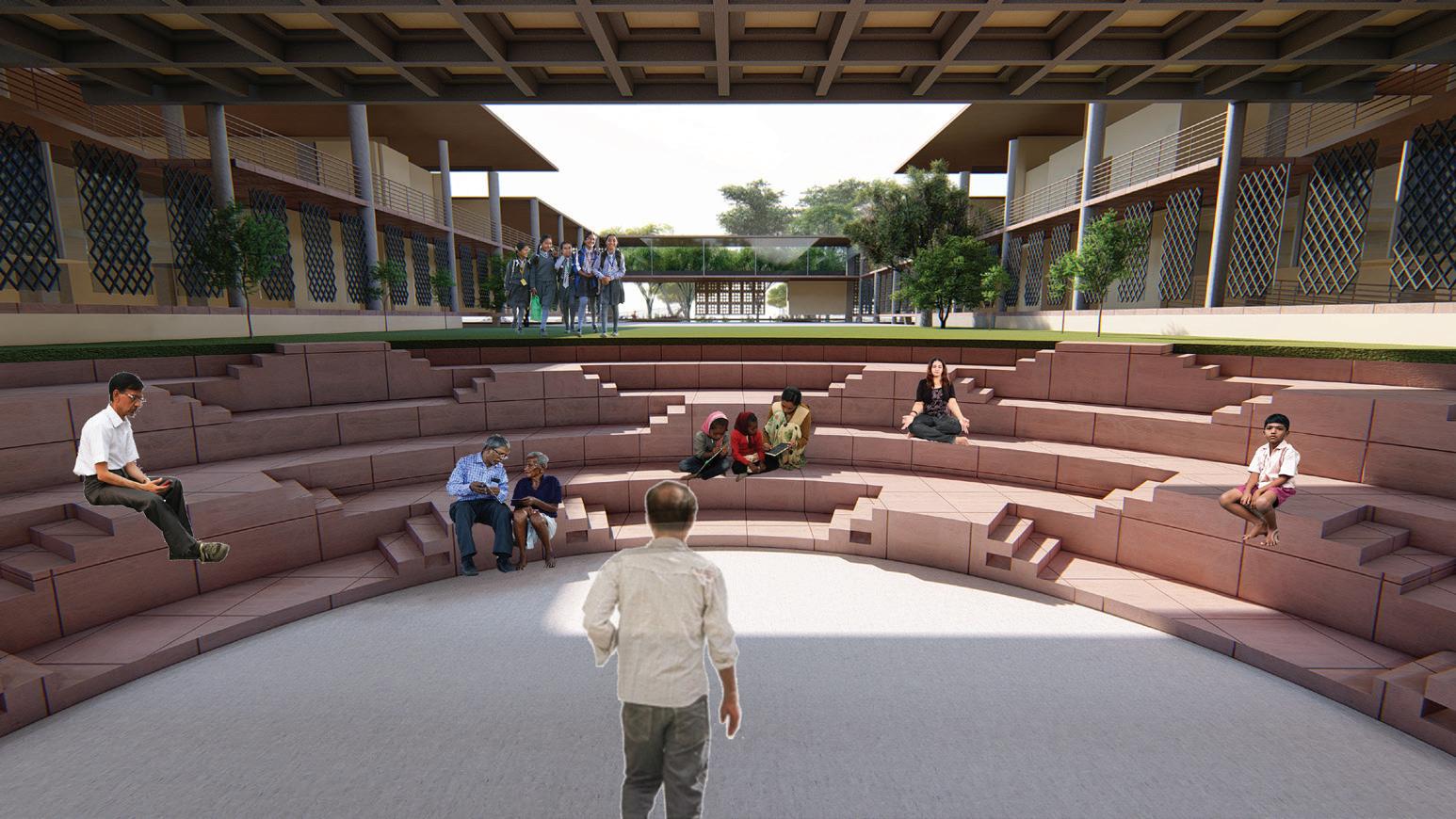

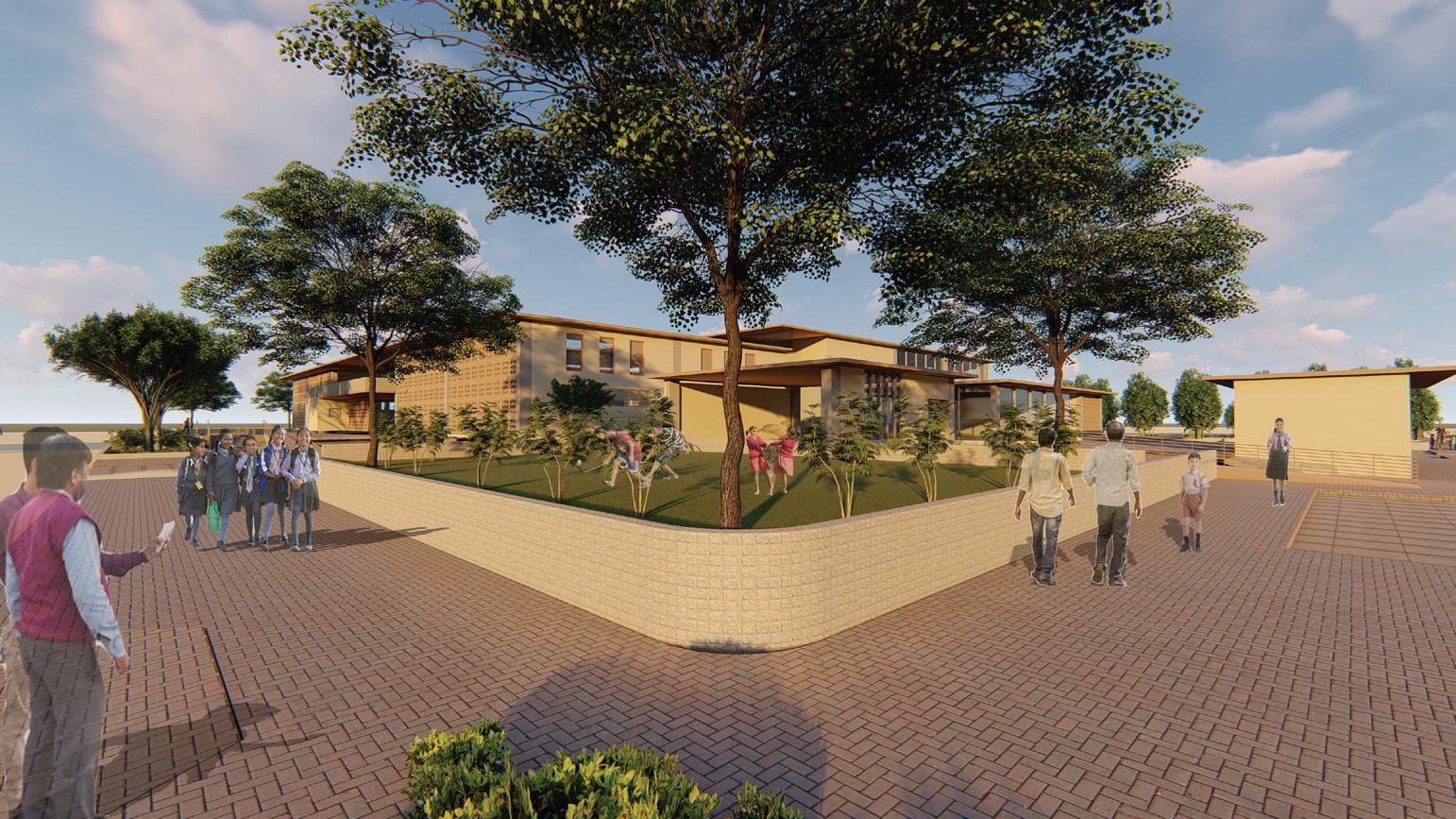

Patel Community Center

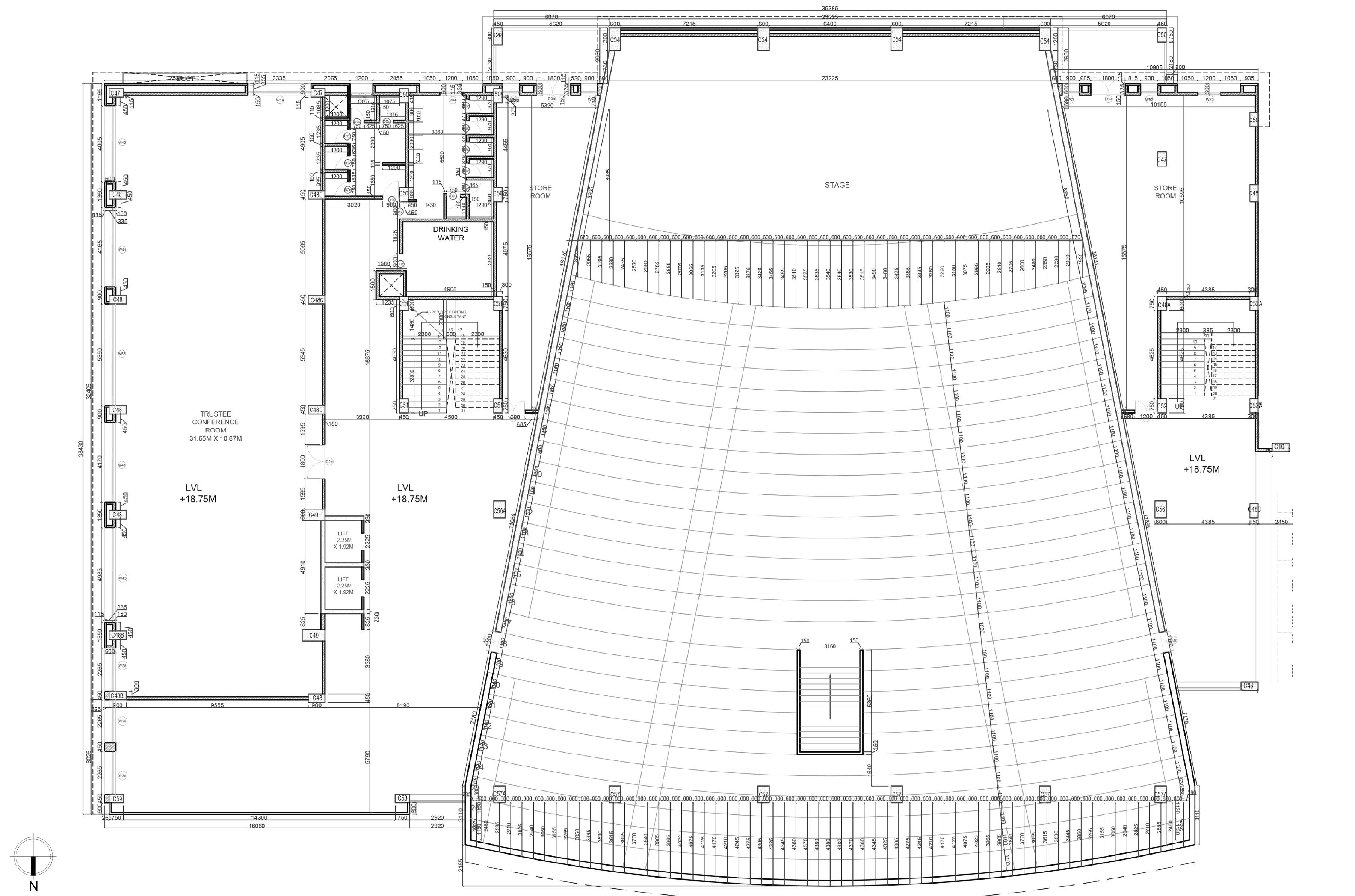

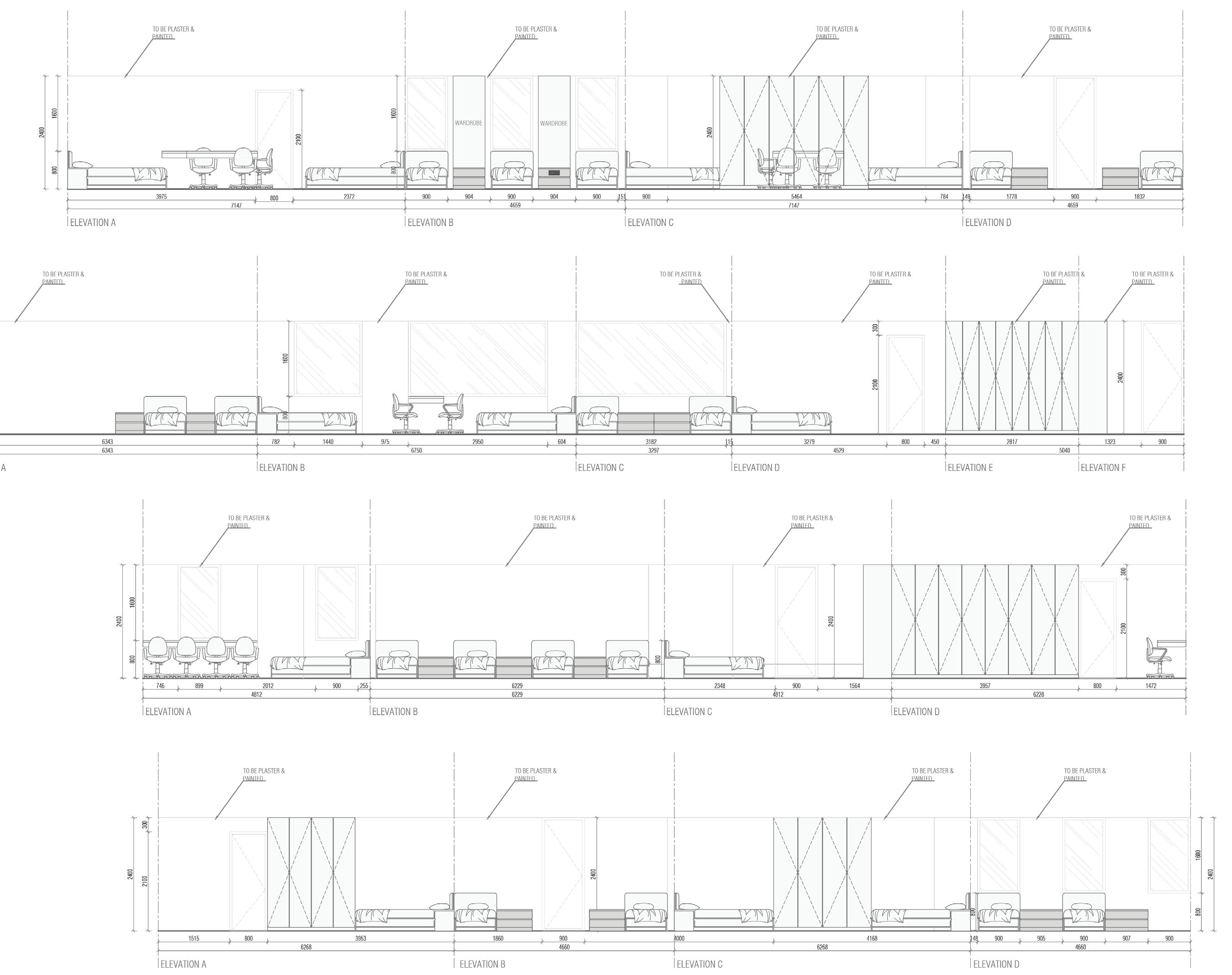

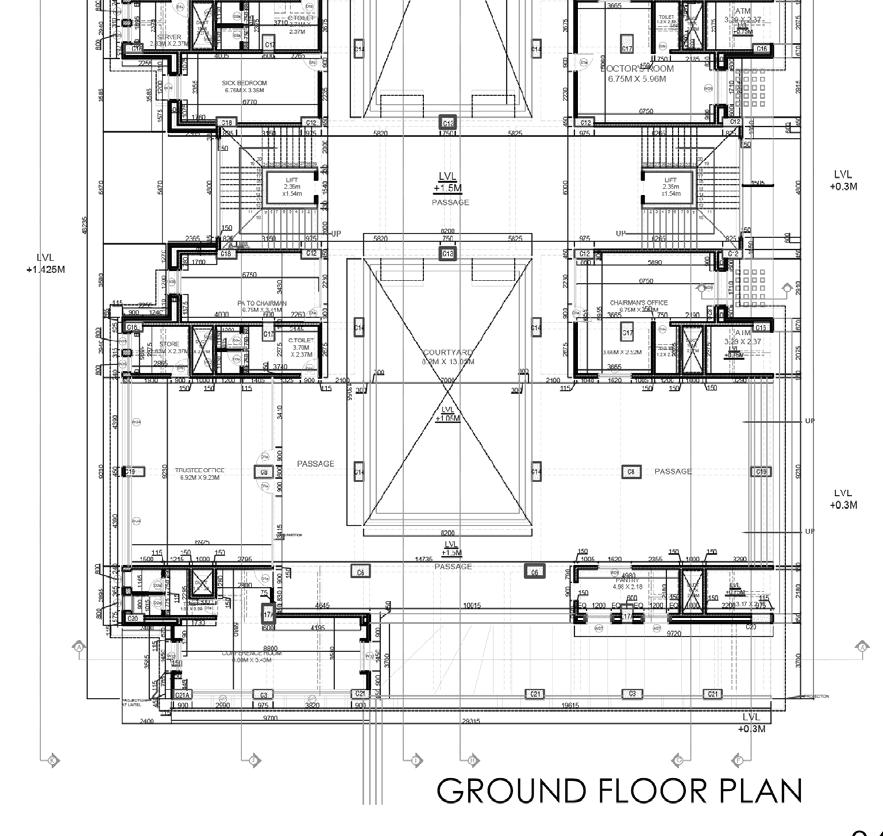

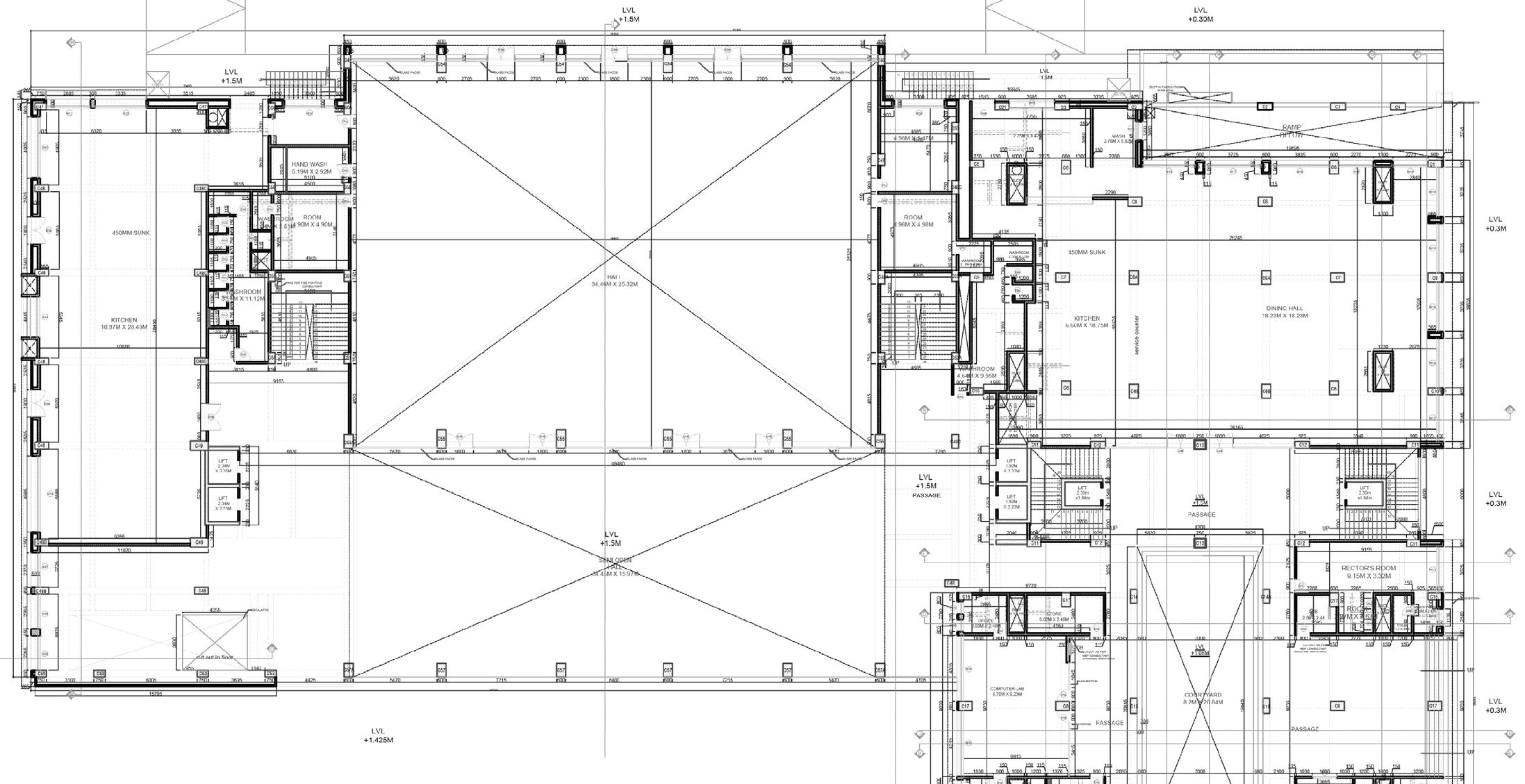

Contribution: Working Drawing | Interior Drawing

Type of Project: Institution

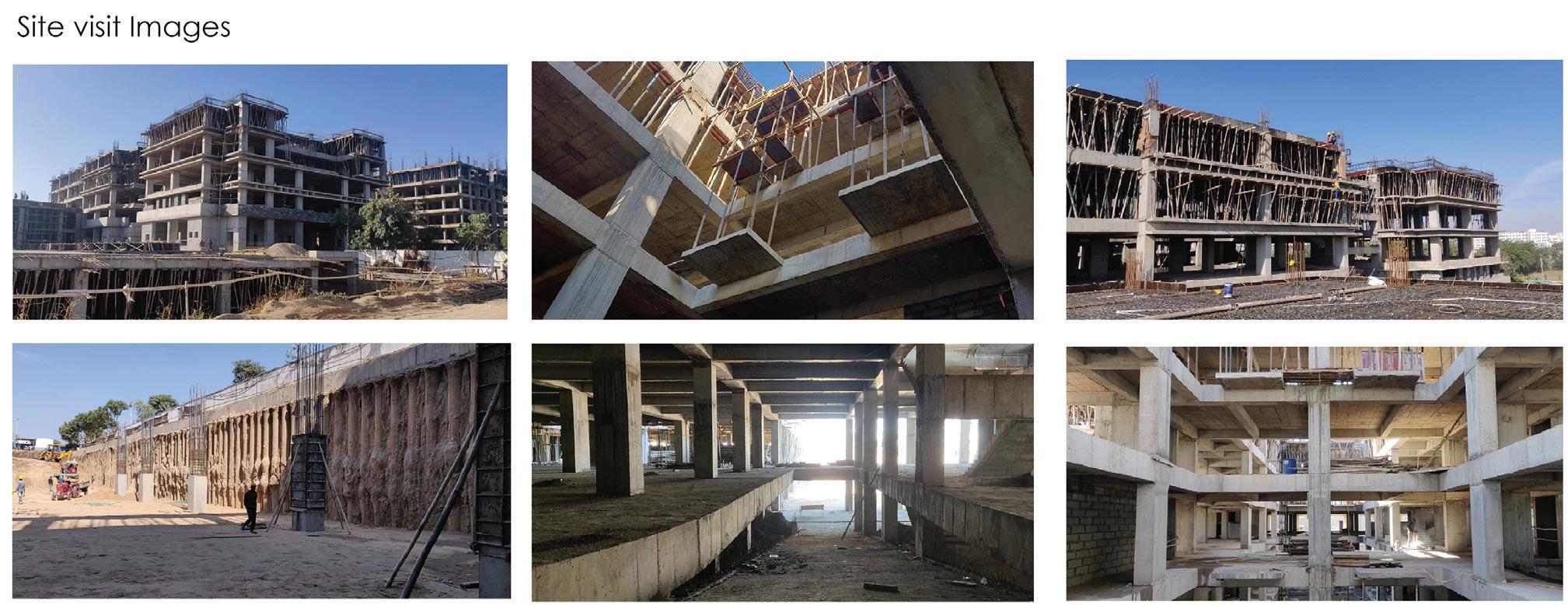

Internship | Footprints E.A.R.T.H. Site | Nikol, Ahmedabad

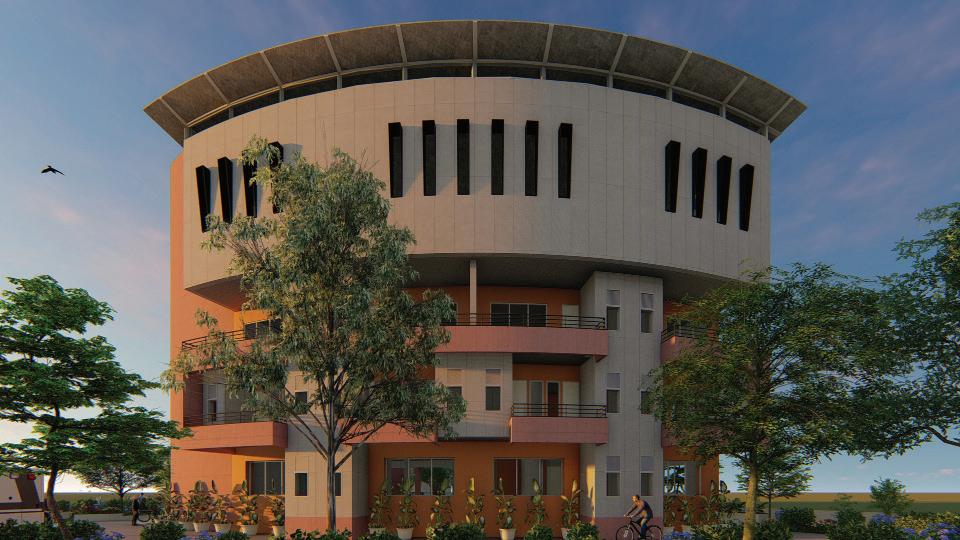

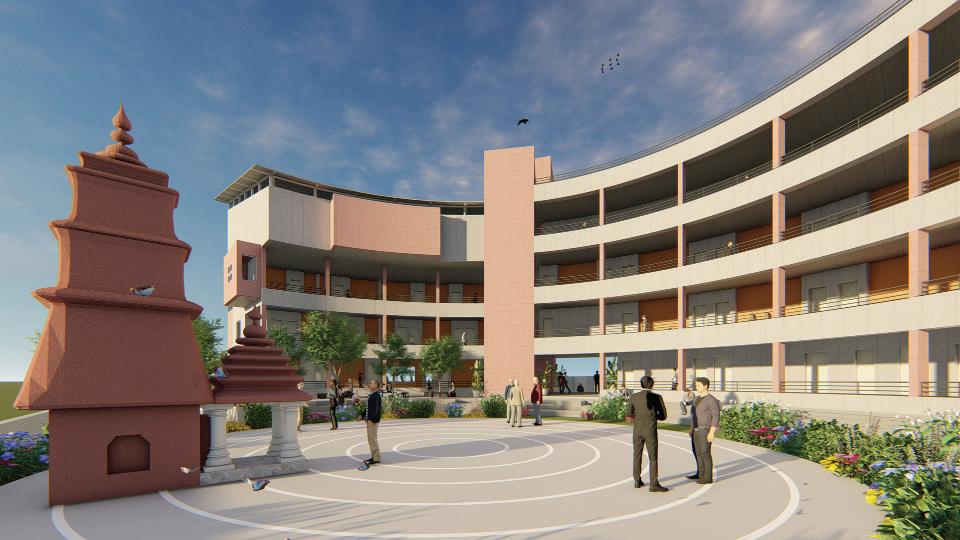

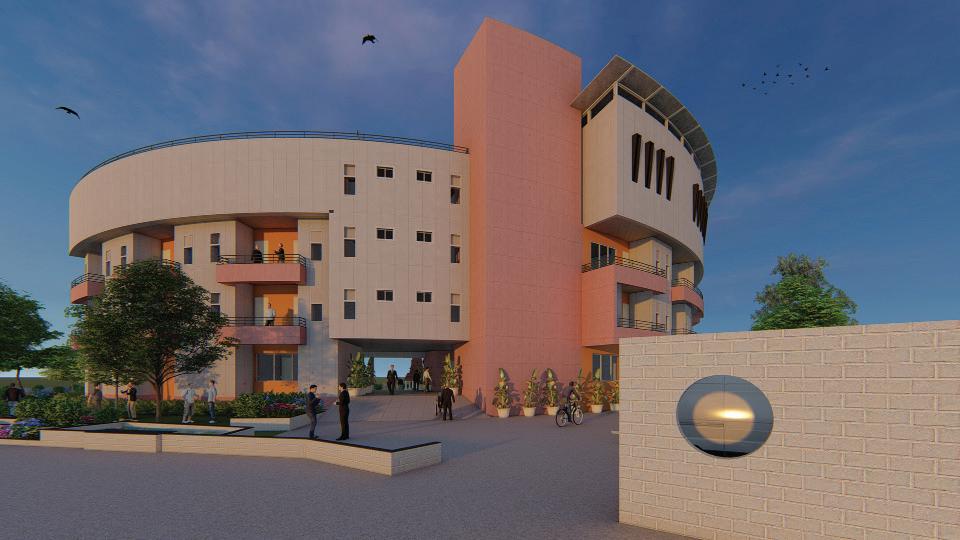

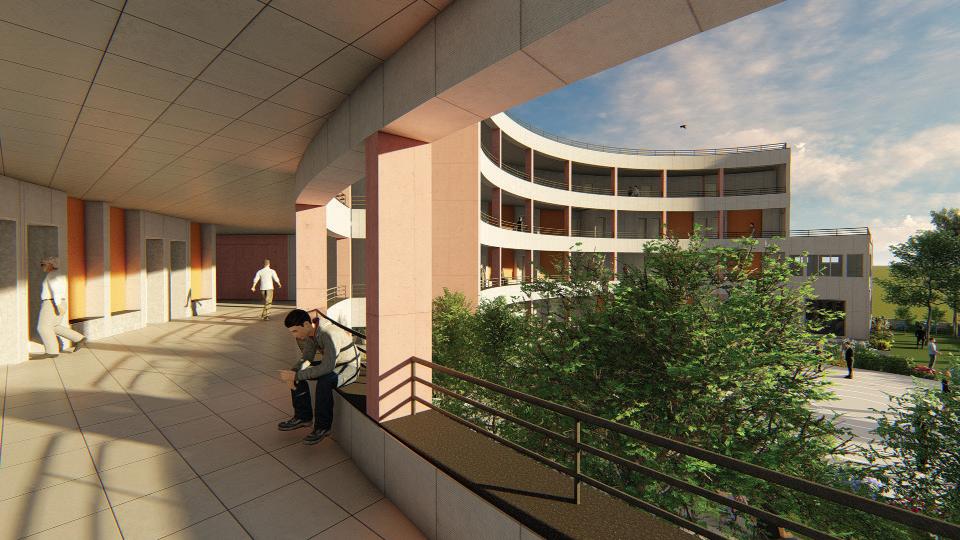

Ganga Prem Hospice

Contribution: 3D Modeling and Visualizations

Type of Project: Hospital (Healthcare)

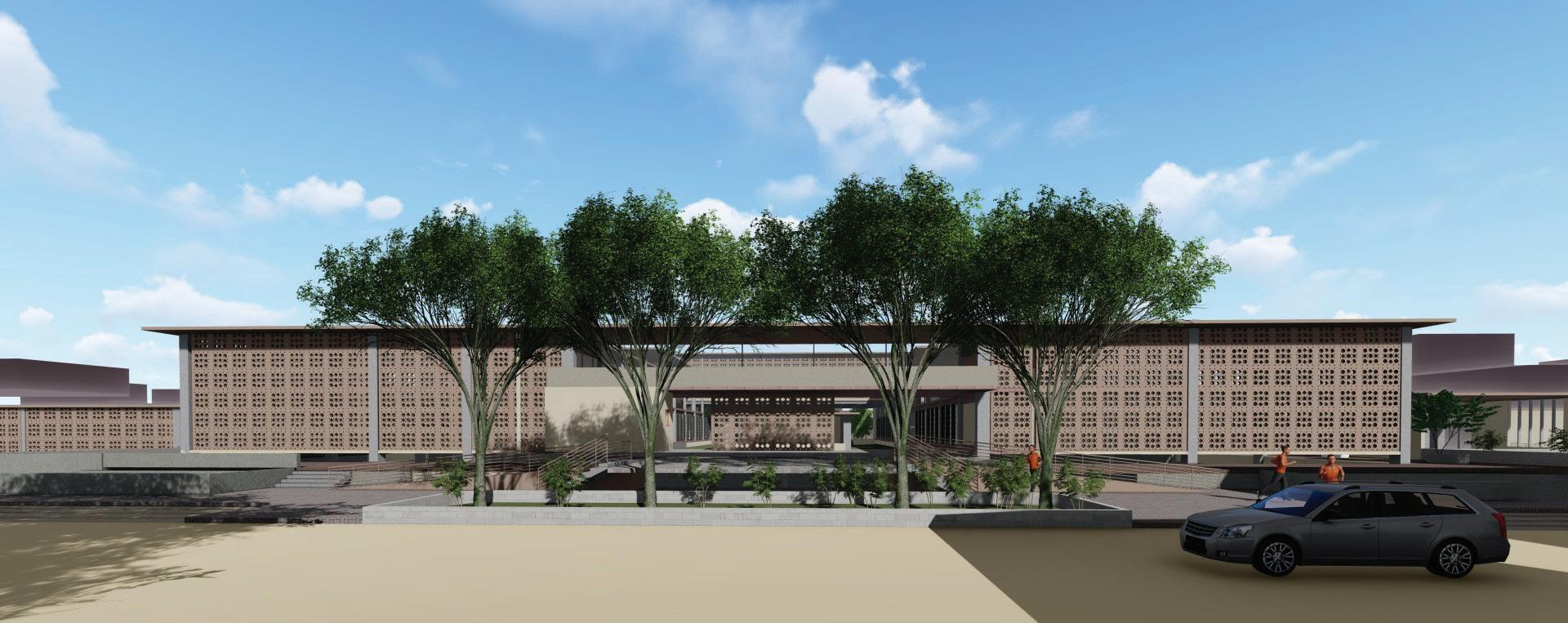

3D Visualization in Lumion 8

Internship | Footprints E.A.R.T.H. Site | Rishikesh, Uttarakhand

Studio VI | Urban

Empericism: Redifining the essence

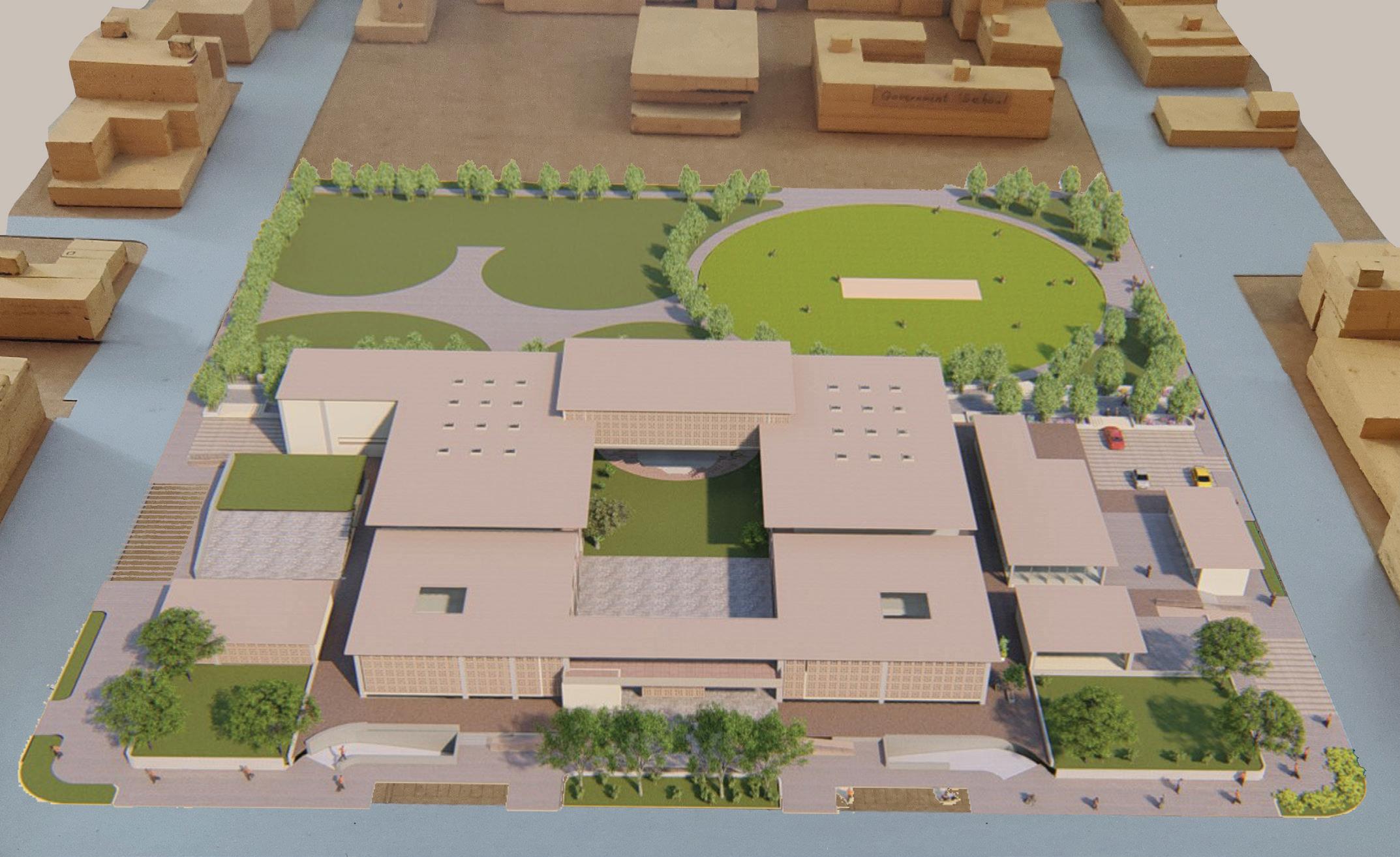

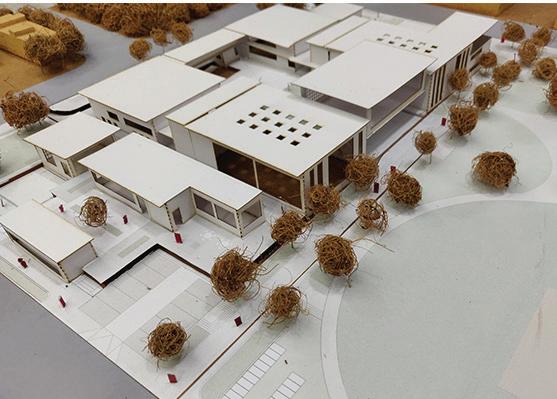

City Library as a Community center

The Urban Vertical Studio emphasizes micro and macro issues from a broader perspective and prepares not to think in isolation from the surrounding context. The local community is Sindhi migrants residing for many years but lacks public realm to experience healthy and better cities. The design evolved from Indusvalley civilization and consideration of contextual challenges in spatial planning of spaces keeping in mind 21-century library requirements.

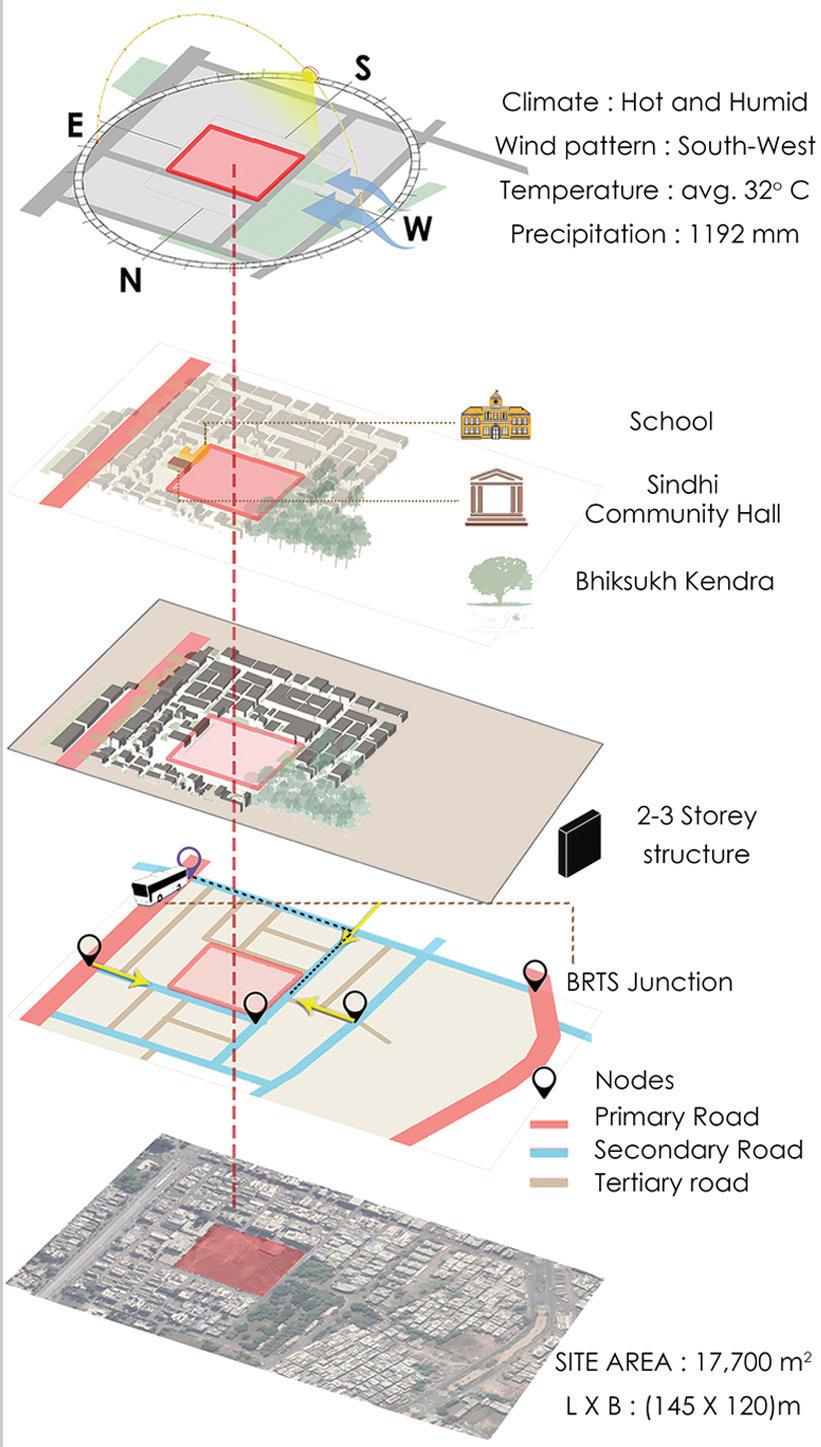

Site Analysis

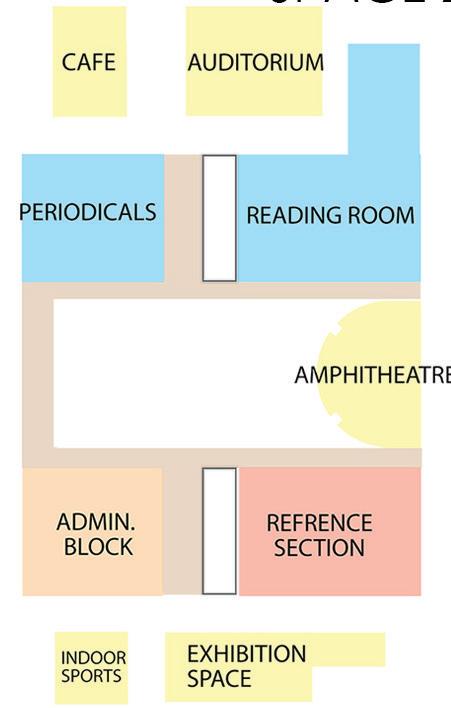

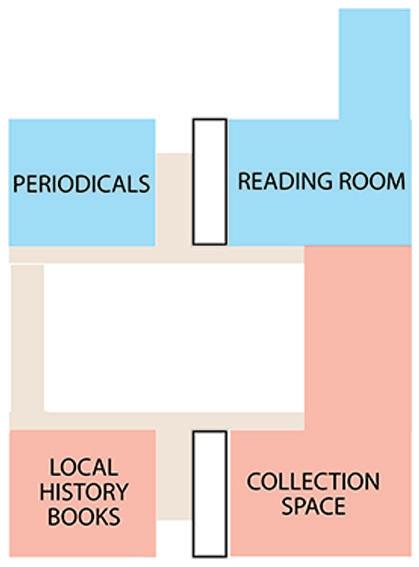

What kind of Spaces 21st century libraries need?

Tutors | Vishal Shah, Vishwanath, Saloni Shah Site | Surat, Gujarat

Concerns

Concept

Absence of identity for Sindhi migrants

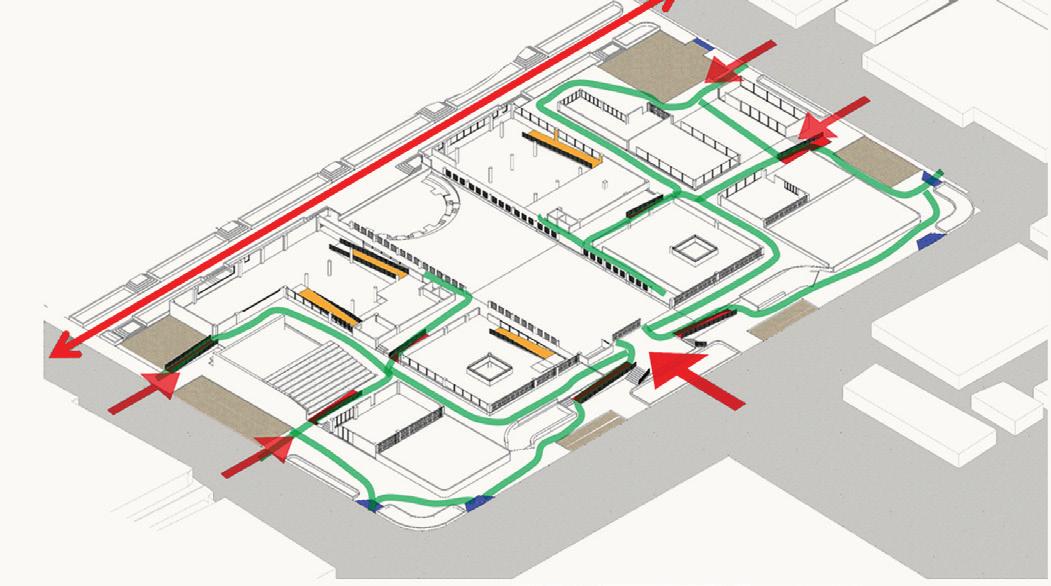

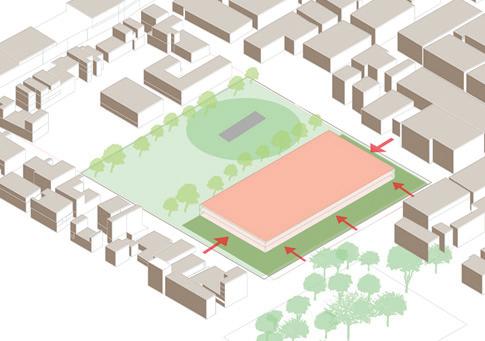

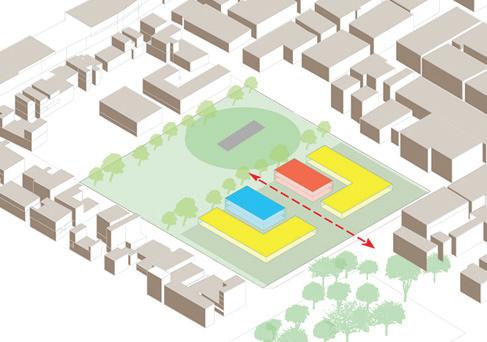

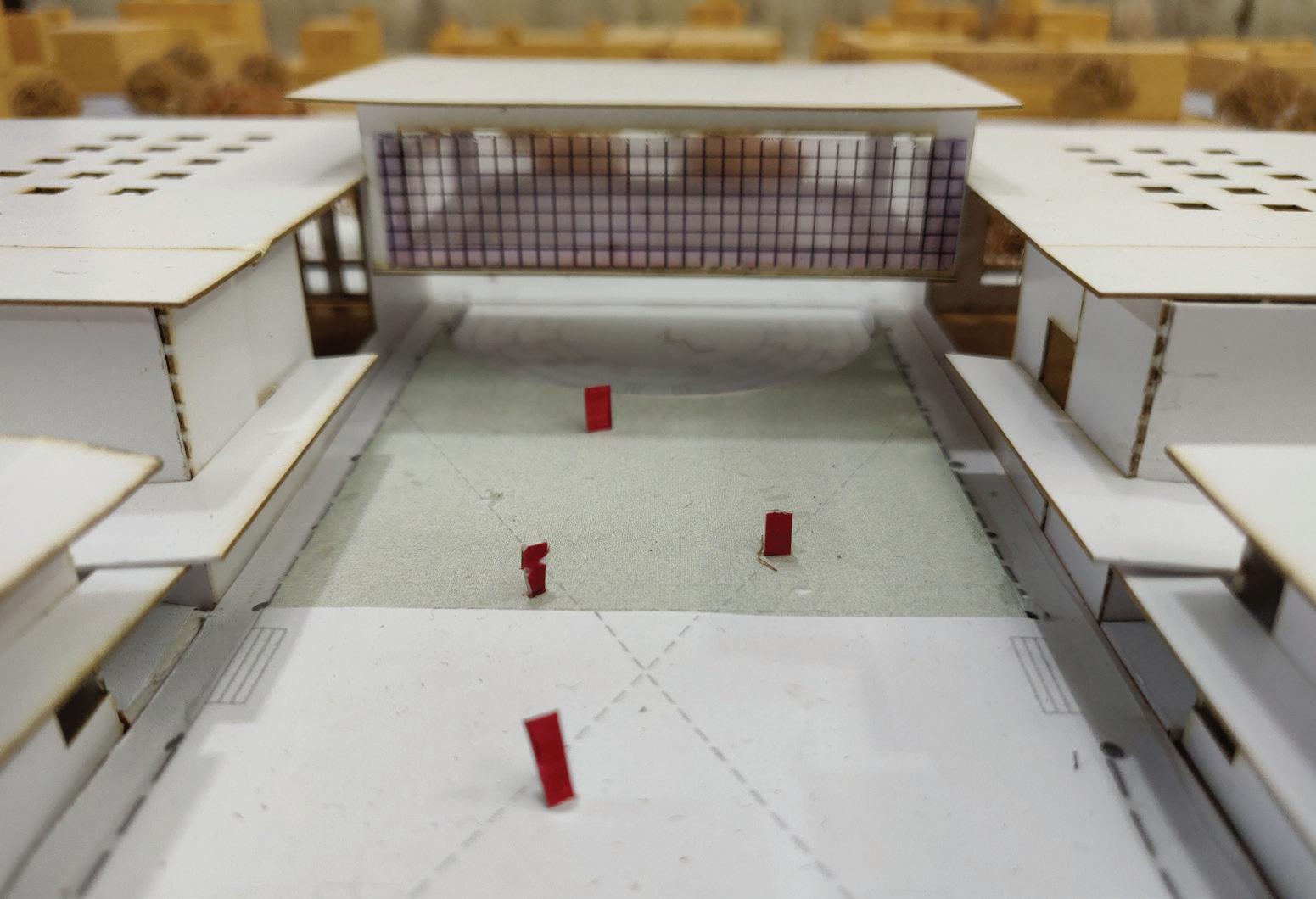

Design Evolution

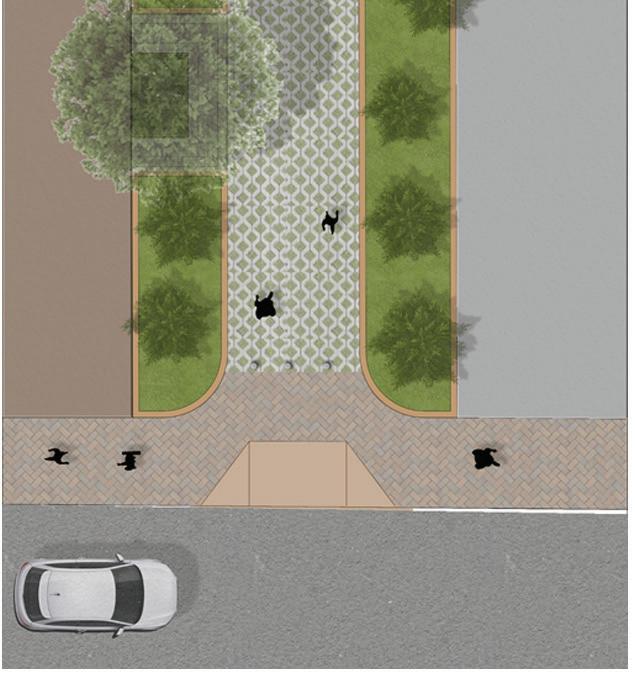

Compound wall as barrier Filthy street edges Lack of usable open space

Narrow alleys like Indus

Transition space Integration of street in

design Sunken and lifted spaces

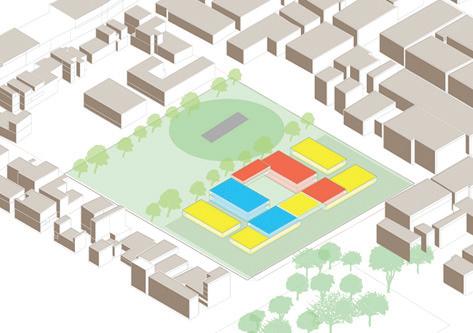

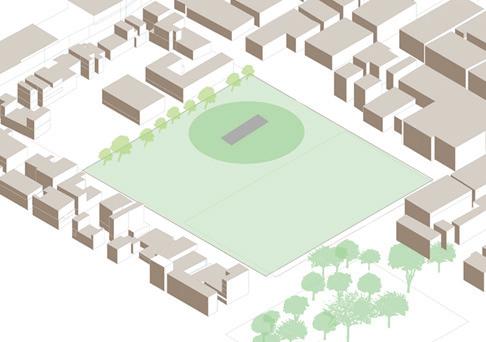

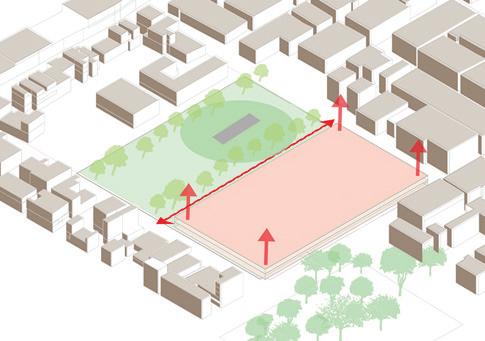

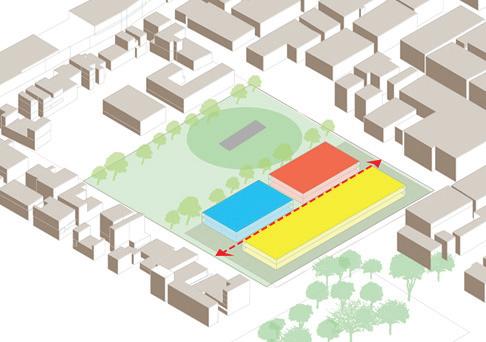

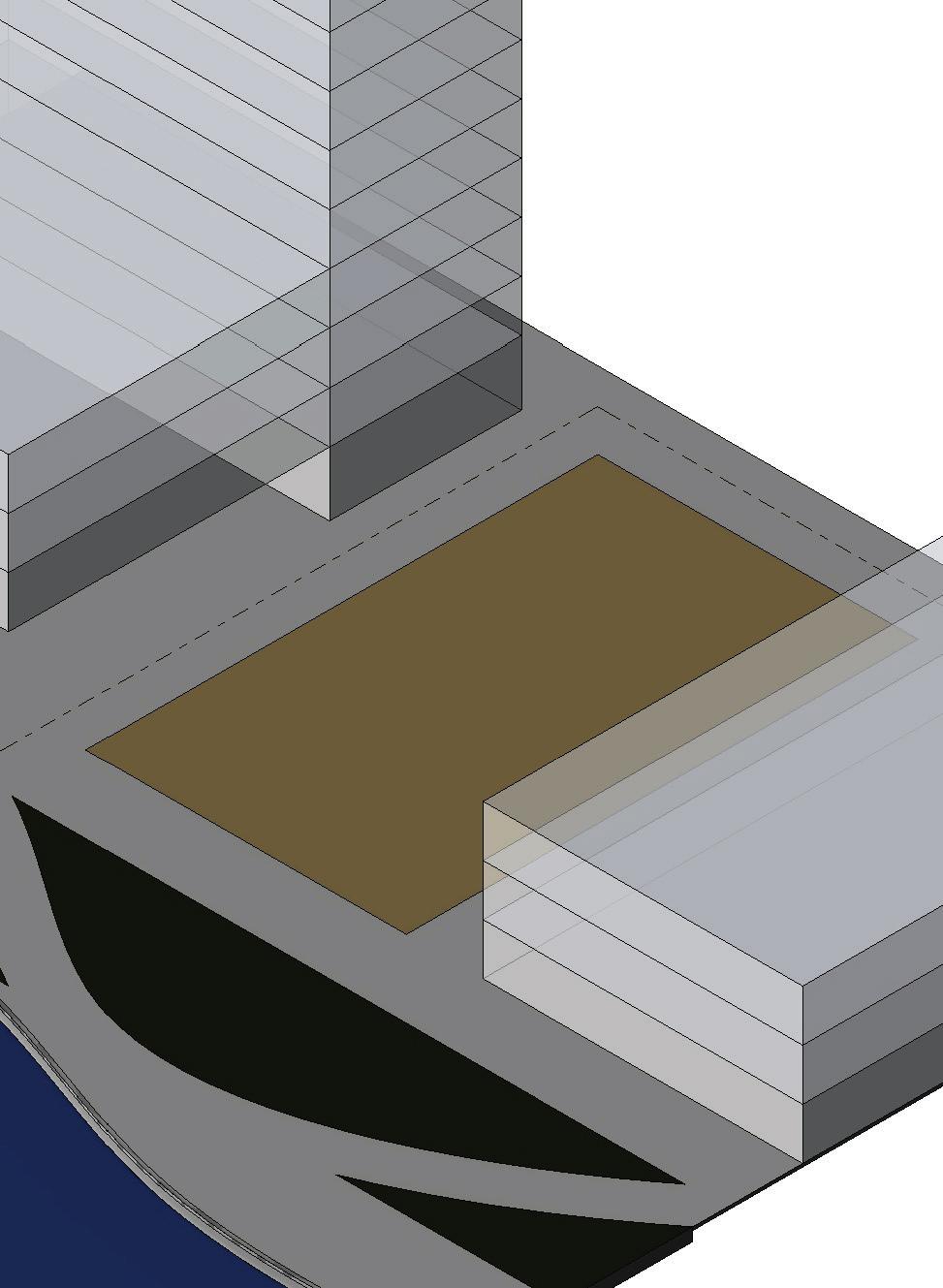

1. Site act as focal point

4. Spine connecting neighbourhoods

2. 50% space back to community

5. Vista and connection with playground

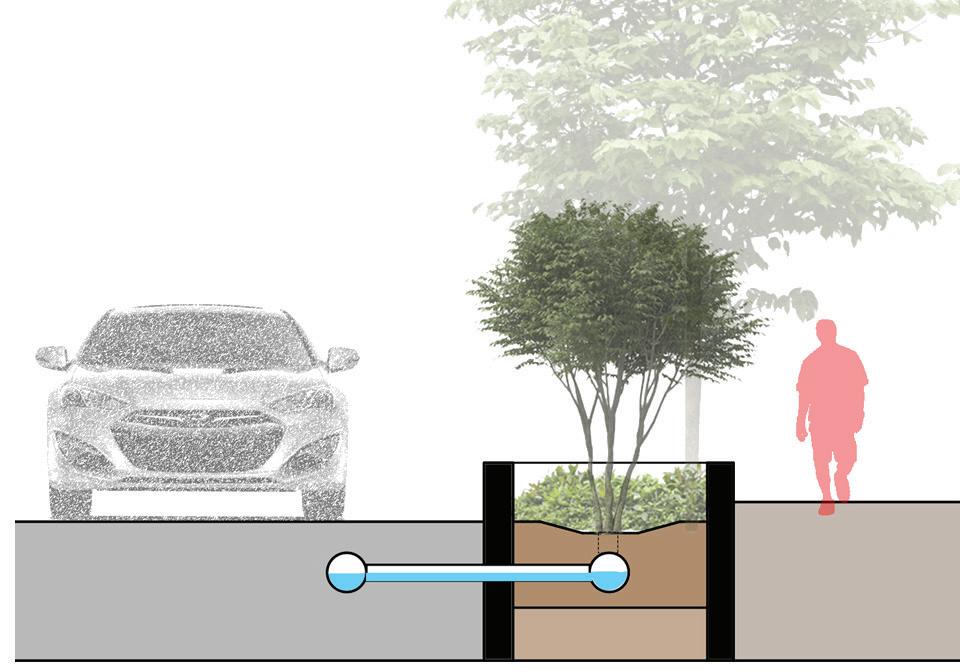

3. Buffer zones from road edges

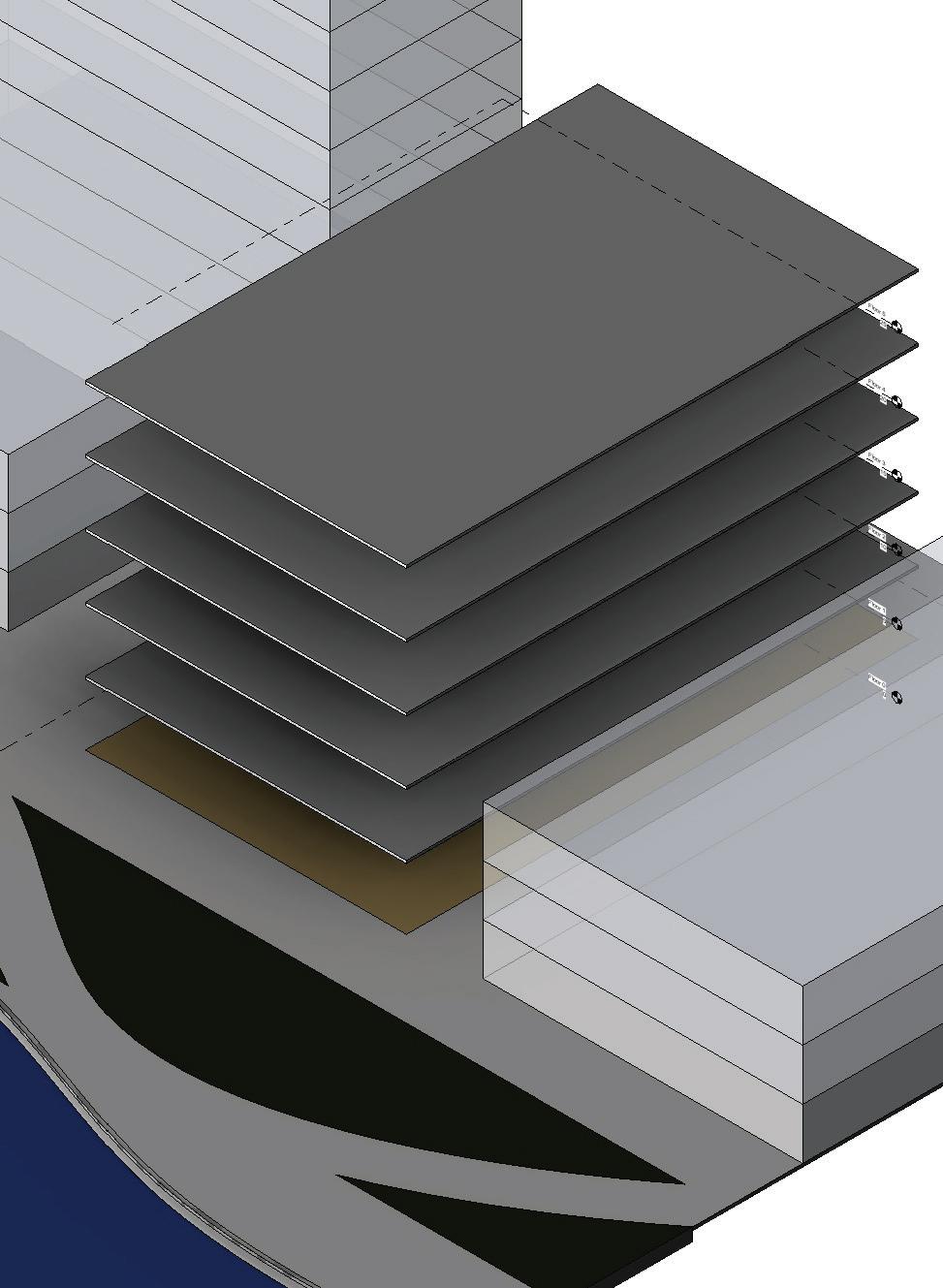

6. Elevated block to act as one complex

valley plan

the

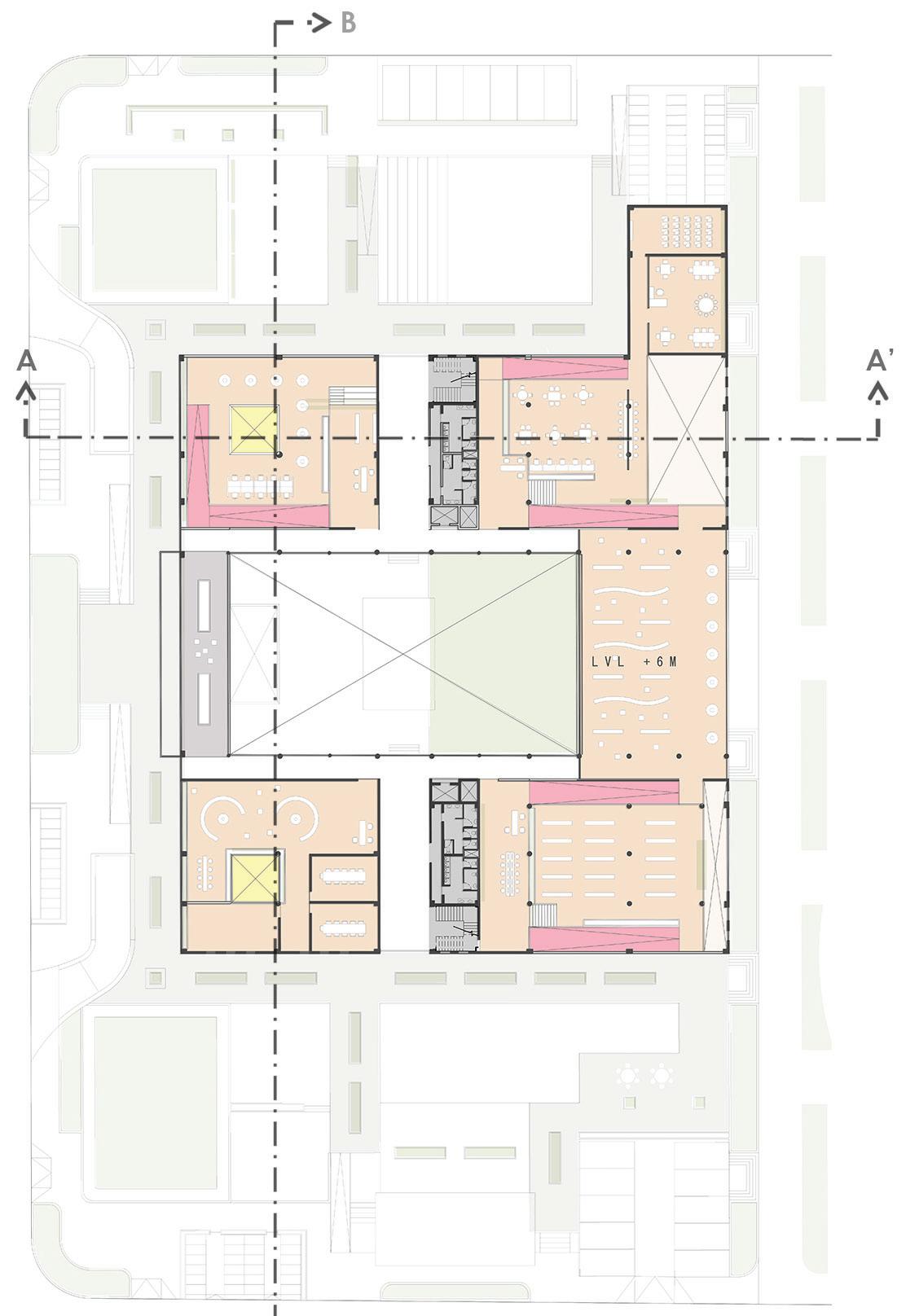

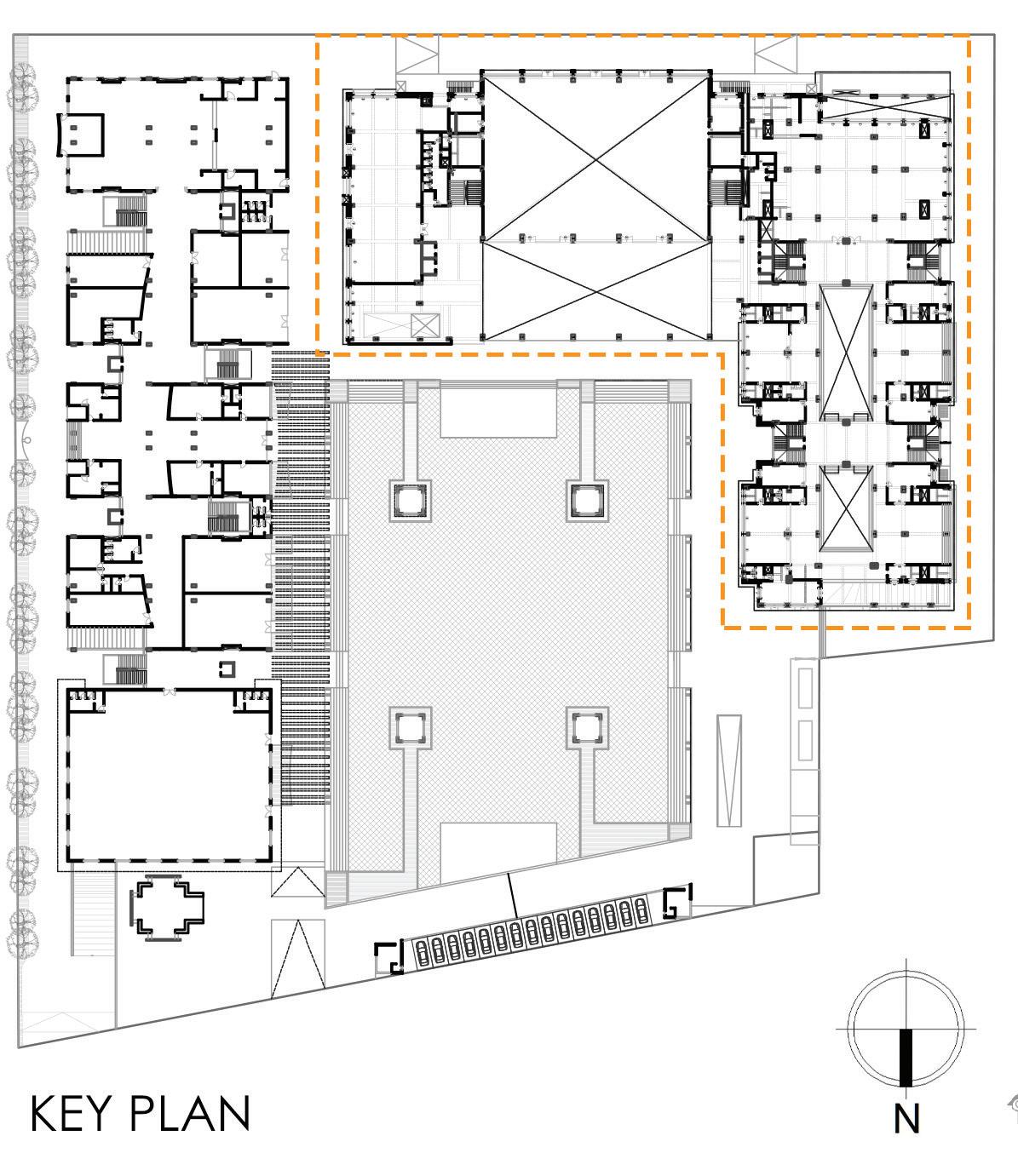

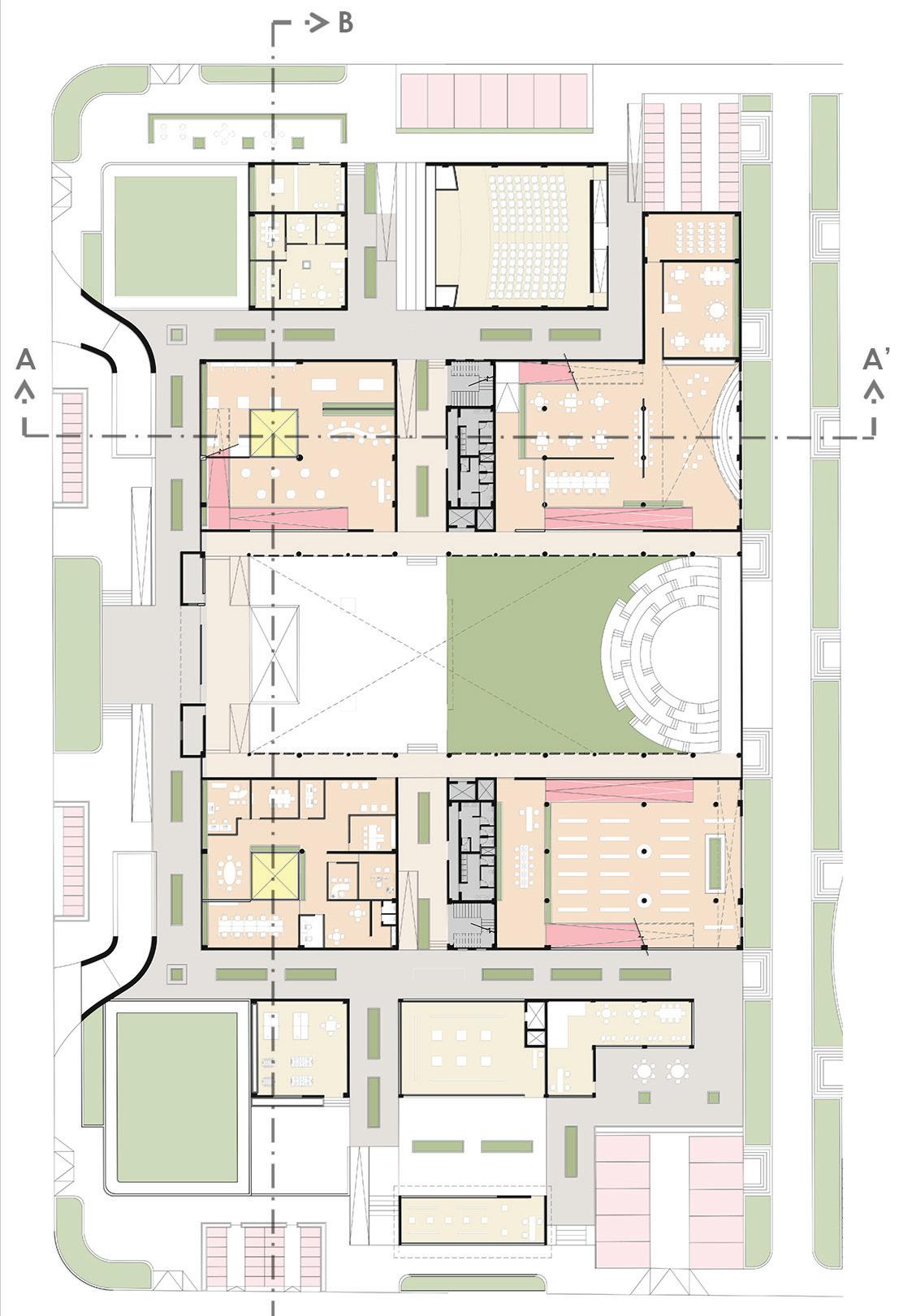

Ground floor

First floor

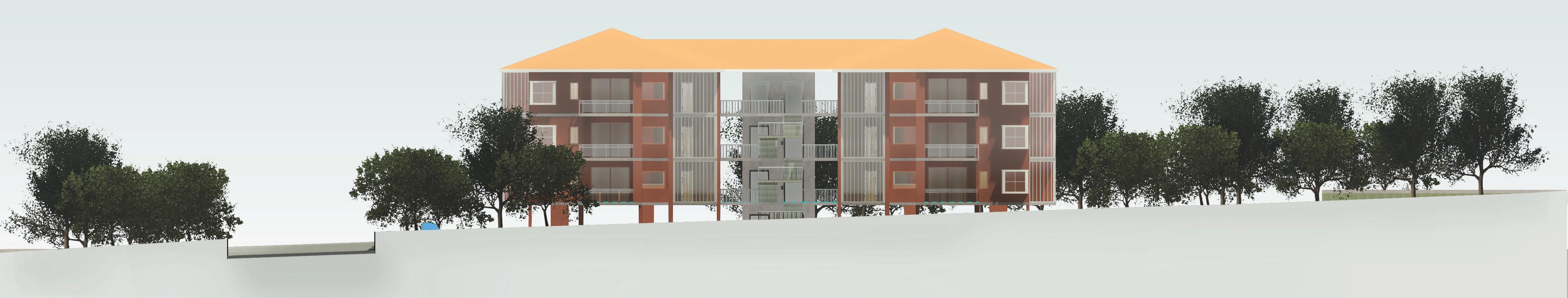

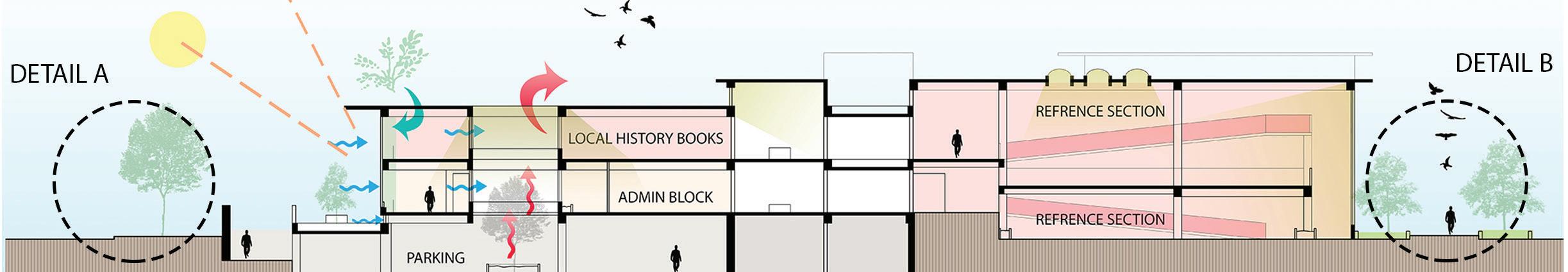

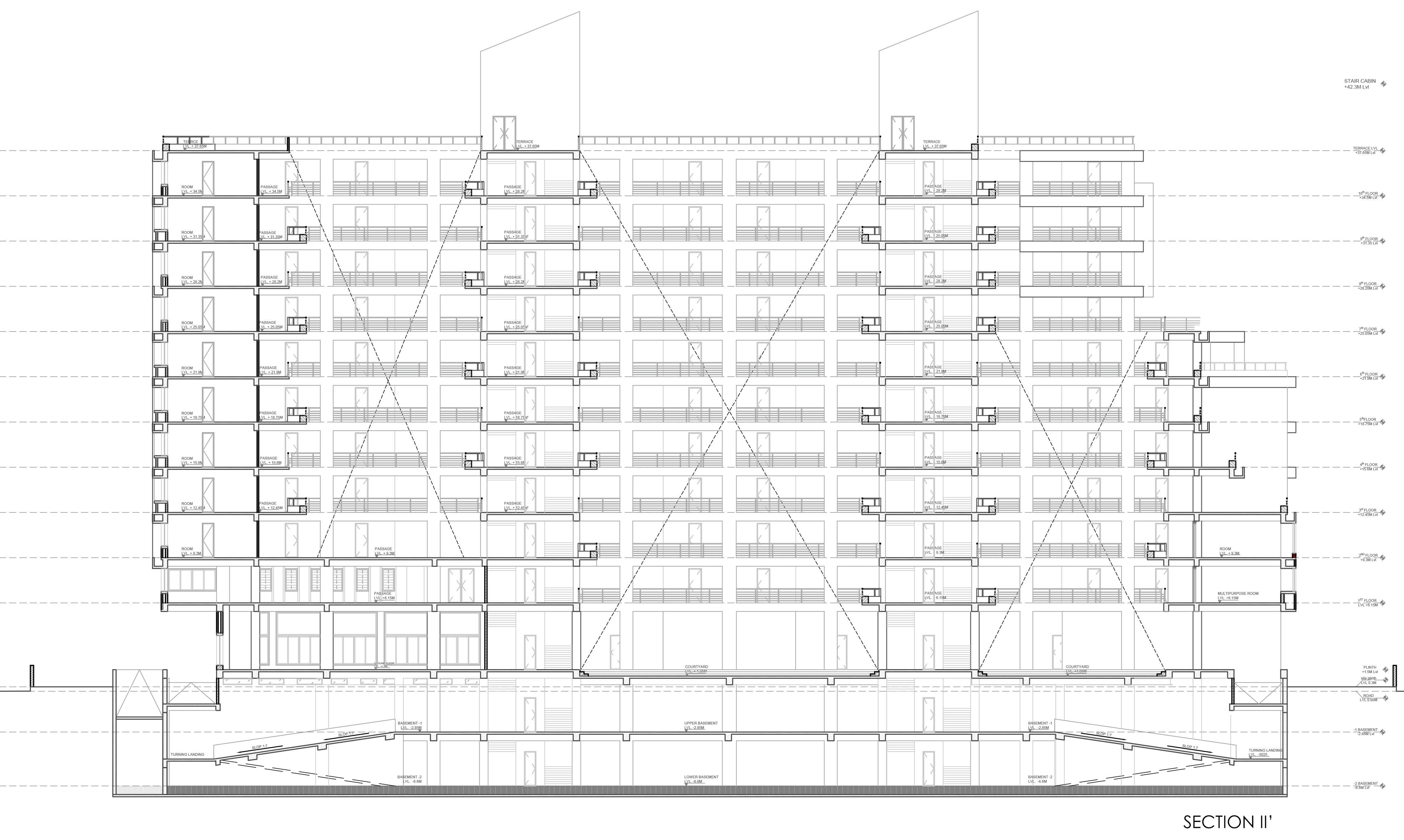

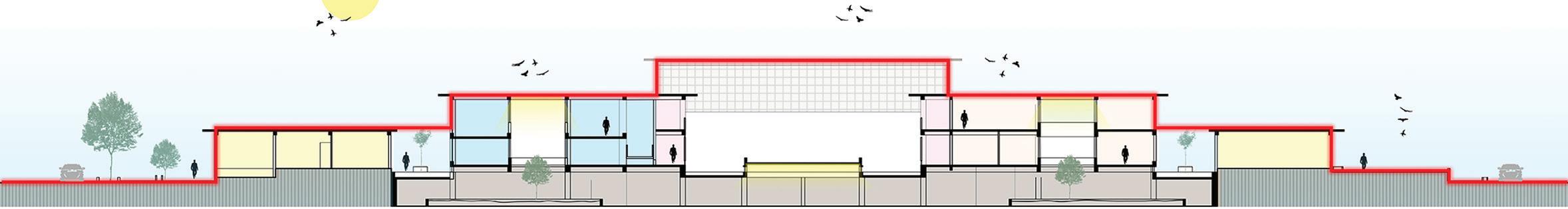

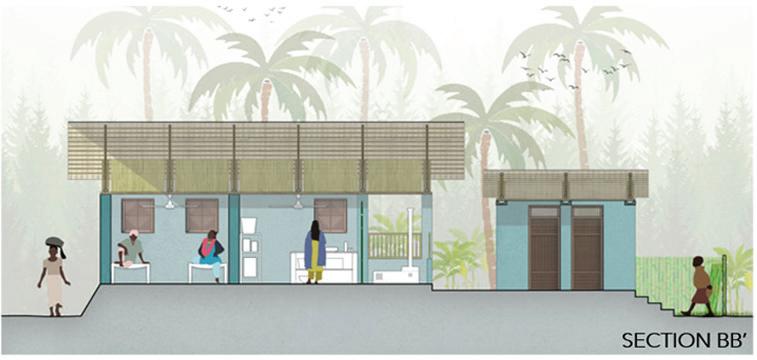

Section BB’

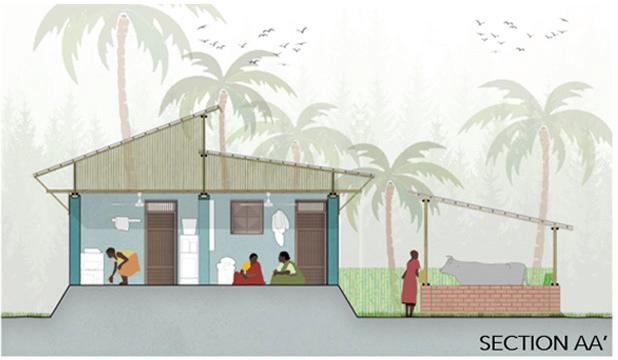

Section AA’
