UNDERGRADUATE ARCHITECTURE PORTFOLIO- JAYA VERMA

Page 1

2019-2023
PORTFOLIO
JAYA VERMA
SELECTED WORK ARCHITECTURE

CURRICULUM VITAE

PERSONAL INFORMATION

Name- Jaya Verma

Date of Birth- 10-02-2002

Address- Ludhiana ,Punjab, India-141007

Contact- +91-6283200162

Email- jayaverma.jv18@gmail.com

EDUCATION

A hard working and passionate student of architecture with strong organizational and learning skills.

Sustains academic brilliance while augmenting personal and professional skills.

With valuable internship experience at Design Forum International, New Delhi, I have managed diverse large-scale residential and commercial projects.

Seeking opportunities to infuse innovative ideas and solutions to architectural projects while pursuing further education.

SOFTWARE SKILLS

Autodesk AutoCad

GNDEC School of Architecture, Ludhiana

2019- HSC (Grade 12)- 87%

GMT International Public School, Ludhiana

2017- SSC (Grade 10)- 10 CGPA

GMT International Public School, Ludhiana

ACHIEVEMENTS & PARTICIPATION

2024

2023

2019- Bachelor in Architecture (Persuing) 2022

National Design Competition- Transparence 18.0 Author- “Proposed 430 Bedded Hospital in New Chandigarh”, Journal of Indian Institute of Architects, Issue-February 2024

Student of the Year- Academics(2022-23)

Recognition for Academic Excellence, GNDEC Committee Head, INT-EXT EXPO-2023, Sahnewal, Ludhiana

Student of the Year- Academics(2021-22)

Autodesk Revit

Autodesk 3ds Max

Sketchup

Enscape

Lumion

Adobe Photoshop

Adobe Indesign

Adobe Illustrator

MS Powerpoint

MS Word

MS Excel

ACADEMICS-WORK EXPERIENCE

2023

Commercial Complex in Sub-city Centre

Inter-State Bus Terminal Architecture Institute

2021

Organiser, Creative Mind Competition, INT-EXT EXPO-2022,PAU, Ludhiana

Contributing Author in Research Paper for International Conference on Sustainability- An Era of Transformation in Human Habitat International Symposium on Sikh Architecture by Sarkaar Foundation, Chandigarh

Webinar on BIM using Revit by Lomos Archilabs Housing Competition, Designaddvance, Livable Spaces for the NowHere People

2022

2021

2020

International Congress on Sustainable Development through Engineering Innovations

2019

KEY QUALITIES

Graffiti Art Competition, NASA ArtNet Workshop, NASA Critical Thinking

2020

Internship at Design Forum International, New Delhi

Group Housing Auditorium Hospital

Museum

Boutique Hotel

Village Documentation

Rural Community Centre

Primary School

Residence

Cafeteria

Bus Stop

B.ARCH (2019-2024)
Management Communication Dedication Work Efficiency Quick Learner
LANGUAGES
English Hindi Punjabi
PORTFOLIO 2019-2023 CONTENTS HOSPITAL CONSTRUCTION DETAILS ART WORK MODEL MAKING WORKING DRAWING ARCHITECTURE INSTITUTE RURAL COMMUNITY CENTRE INTER-STATE BUS TERMINAL VILLAGE DOCUMENTATION GROUP HOUSING SEMESTER-8 01 02 03 04 05 06 07 08 09 10 SEMESTER-9 SEMESTER-4 SEMESTER-6 SEMESTER-8 SEMESTER-4 12MM FRAME AS/SPEC. PLASTER AS/SPEC. STONE FINISHING AS/STR. CEMENT MORTAR AS/STR. GNDEC SCHOOL OF ARCHITECTURE DRAWING SUBJECT -BACH-902 LEVEL PLAN NAME- JAYA VERMA SEMESTER 29/09/2023 STAIRCASE CONSTRUCTION DETAILS SKIRTING DETAIL BALCONY RAILING CONSTRUCTION DETAILS ACADEMIC PROJECTS CONSTRUCTION DRAWINGS MISCELLANEOUS

HOSPITAL

PROJECT BRIEF

A 400+30 (emergency) bedded in Medicity Phase 1&2, New

The site is surrounded by reserved public area.

A medical college and residential of the project for which 14 designed for hospital.

IDEOLOGY

The concept of hospital design well-being. To provide such

Multi-courtyard planning allows air for different purposes such

Climate ResponsivenessOrientation- Orienting the south direction to achieve

PORTFOLIO 2019-2023 01
HOSPITAL

bedded hospital (which falls under Category D) is proposed on a 28.15 acre site New Chandigarh.

reserved land parcels for medical college cum hospital, commercial area and residential accommodation i.e. hostels are also required to fulfill the functionality 14 acre site land parcel has been spared and remaining 14 acre site has been

SPATIAL DISTRIBUTION

Understanding the interdepartmental relationships is crucial in hospital design.

This involves creating a ‘stack diagram’ to illustrate the distribution of facilities across different floors and ensure seamless connectivity between departments i.e. Administrative, Emergency, OPD (OutPatient Department), Diagnostics & IPD (In-Patient Department).

SITE PLANNING

design revolves around creating a healing environment that promotes patient such environment, low-rise multi courtyard typology have been chosen.

allows for the creation of separate spaces with access to natural light and fresh such as recreation or rehabilitation.

block along the east-west axis making the longer facades facing north and achieve glare-free daylight.

Site is accessible from two adjacent 45 m wide roads. Major entry/exit has been provided for OPD and IPD departments with segregated entries for VIPs, staff and public.

Moreover, separate entry/exit has been planned for emergency department for conflict free circulation of ambulance and public vehicles.

Parking has been planned on surface as well as in two basements. Segregated parcels of surface parking has been provided for various user groups.

PORTFOLIO 2019-2023
HOSPITAL

It involves emergency block accessible from a separate entry towards north. All the administrative spaces planned near to the OPD block & pharmacy. Moreover, diagnostics department and blood bank are positioned mid-way between emergency and OPD departments.

Spaces and ramp have been planned around the central courtyards.

It involves OT complex, Gynaecology/Obstetrics

Intensive care services which are planned of space, keeping in mind the circulation and others.

Separate entry/exit has been provided presence of service & utility areas dietary & stores.

PORTFOLIO 2019-2023 HOSPITAL

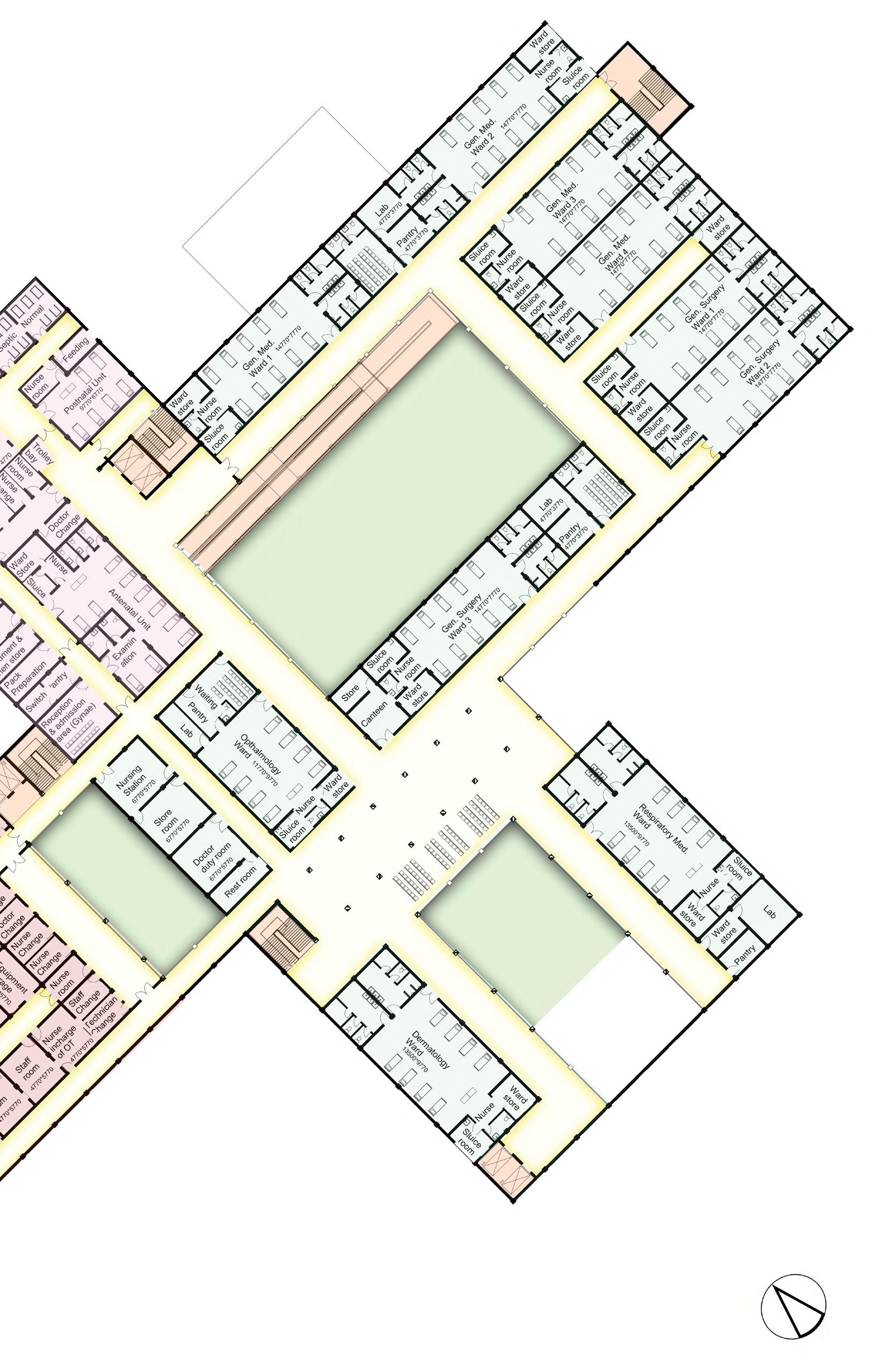

GROUND FLOOR PLAN- FIRST FLOOR PLAN-

Gynaecology/Obstetrics department & planned according to the functionality circulation of patients, doctors, staff provided for service vehicles due to such as CSSD, mortuary, laundry,

SECOND FLOOR PLAN-

Intermediate Care areas consist of single- and double-bedded rooms positioned within reach of nurse stations and is planned according to the functionality of space, keeping in mind the comfort of patients.

Moreover, green terrace is also planned to cure patients by nature’s healing.

PORTFOLIO 2019-2023 HOSPITAL

INTER-STATE BUS TERMINAL

PORTFOLIO 2019-2023 02

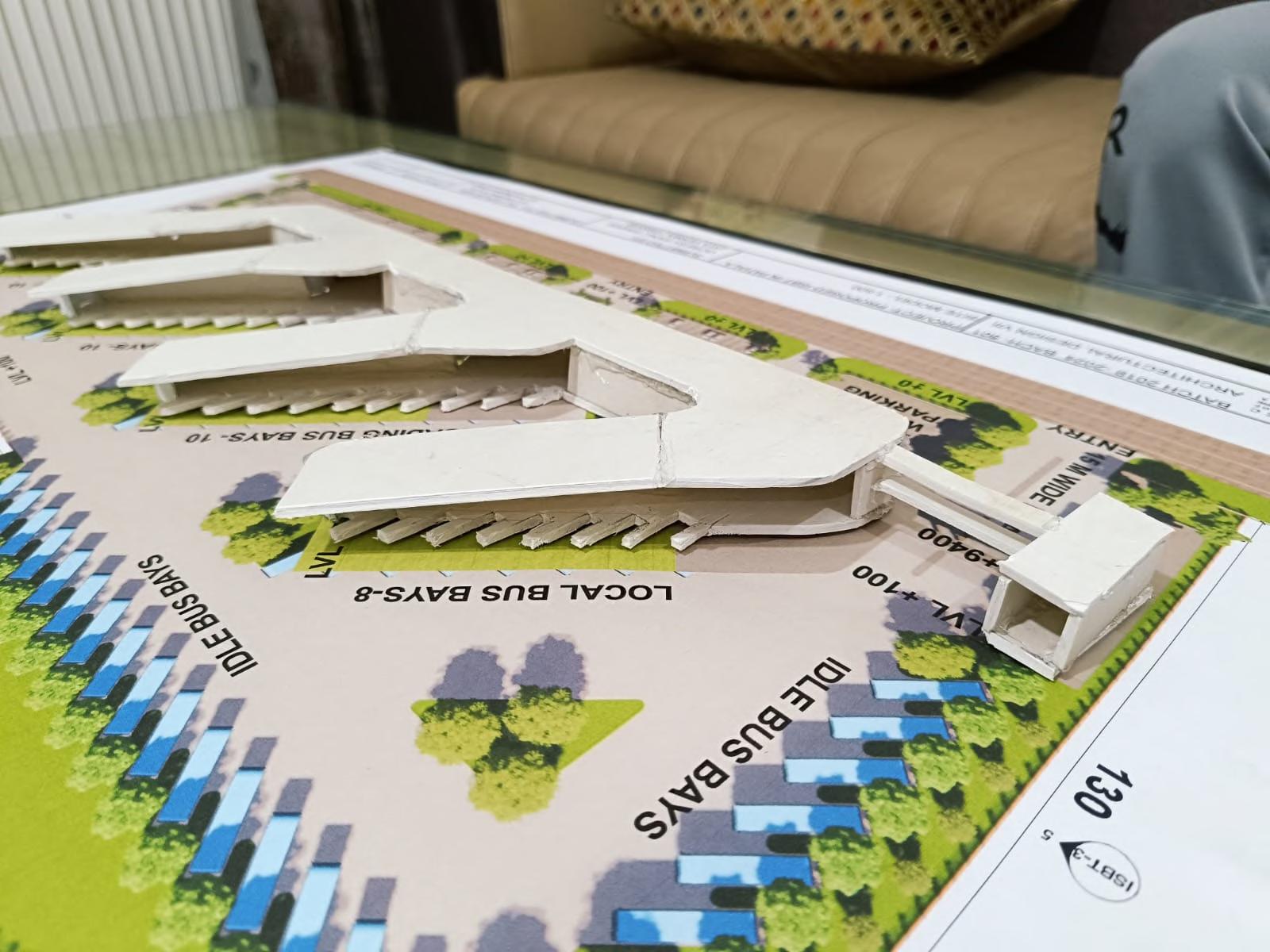

INTER-STATE BUS TERMINAL MASSING

DESIGN DEVELOPMENT-

• Zoning of site has been done in order to achieve conflict-free circulation of vehicular as well as pedestrian movement. Form of terminal building evolved from the bus movement and along the bus bays.

• Form developed by providing turning radius of the bus on site keeping the circulation of interstate buses and local buses separate.

• Green areas have been provided around the terminal building creating buffer space between the roads and building.

• Final form evolved by creating stepped green terraces over the bus bays and landscaping on all over the site.

PERMISSIBLE GROUND COVERAGE

PROPOSED GROUND COVERAGE AREA

PERMISSIBLE FAR

PERMISSIBLE BUILTUP AREA

PROPOSED BUILTUP AREA

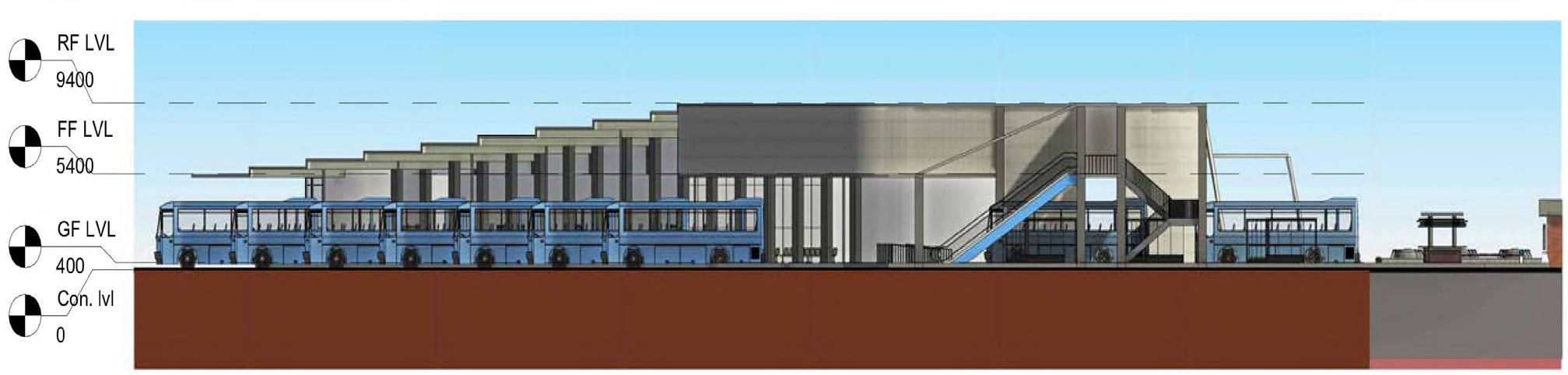

PORTFOLIO 2019-2023 INTER-STATE BUS TERMINAL
AREA STATEMENT
SITE AREA
10.27 ACRE/41581
40% 1.5 2.18
15.41
SQM
ACRE/8842 SQM (21%)
ACRE/62372 SQM 2.76 ACRE/11177 SQM

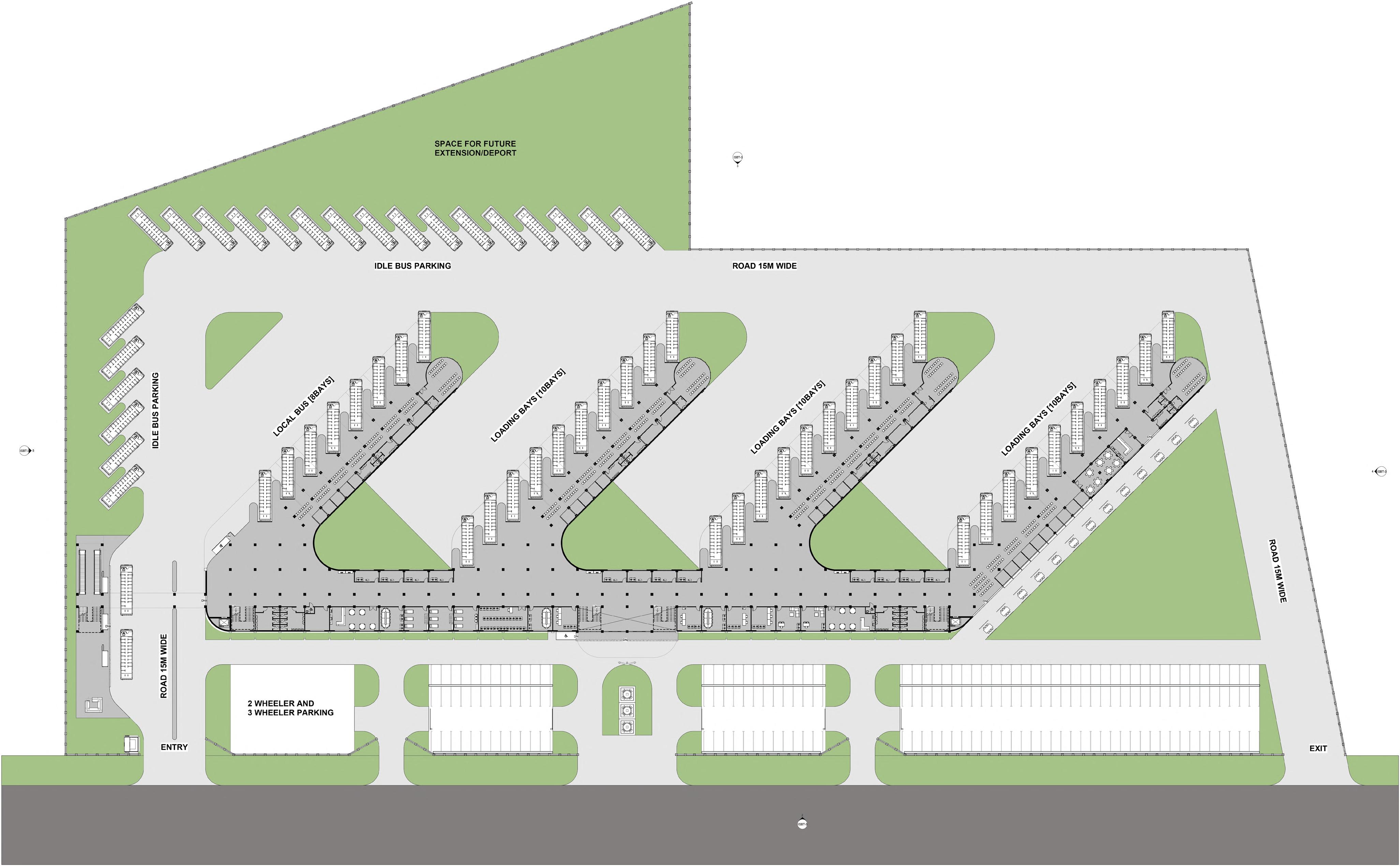

SITE PLAN MASSING STRATEGY

CIRCULATION

INTERSTATE BUS

LOCAL BUS

VEHICLE MOVEMENT

PEDESTRIAN MOVEMENT

PORTFOLIO 2019-2023
LEGEND INTER-STATE BUS TERMINAL
PORTFOLIO 2019-2023 INTER-STATE BUS TERMINAL

ARCHITECTURE INSTITUTE

PROPOSAL-

The comprehensive proposal for the Nanak Dev Engineering College is At its core, this architectural marvel educational institution; rather, it is poised those passionate about the art and This proposed edifice, born from the one day walk its halls, embodies a testament to the potential of young world of design and innovation, the

PORTFOLIO 2019-2023 03
ARCHITECTURE INSTITUTE
IDEOLOGY

the architecture college situated within the sprawling campus of Guru a visionary endeavor that encompasses a multitude of vital roles. marvel is designed to transcend the conventional definition of a mere poised to become a sacred enclave of inspiration and learning for all and science of architecture.

collective imagination and dedication of the very students who will profound synergy between education and creativity. It stands as a architectural minds and also as a testament to the belief that in the the students themselves can shape their own learning environments.

ENTRANCE

ADMIN OFFICES

LEGEND

OPEN SPACE

UNDERGRADUATE STUDIOS COMMON SPACESWORKSHOPS & LECTURE HALLS

DEAD END

PORTFOLIO 2019-2023 ARCHITECTURE INSTITUTE
TOWARDS
GATE II EXIT ENTRY
DEAD END
GNE
TOWARDS GNE TOWARDS STAFF QUARTERS 0 25 9525 5525 13525 17525 21525 5525 9525 13525 17525 21525 21525 ESS UNIT CONSTRUCTION YARD
6M WIDE ROAD 6M WIDE ROAD
WIDE ROAD RAMP 1:12
3M
UP 10M WIDE ROAD
AREAS 89M
AREAS 90.8M BUILDING
6M WIDE ROAD
GREEN
GREEN
NGL 0 GF LVL 1500 1ST FLOOR 5500 2ND FLOOR 9500 3RD FLOOR 13500 TERRACE 17500 MUMTY 21500 1 200 NORTH ELEVATION 1 NGL 0 GF LVL 1500 1ST FLOOR 5500 2ND FLOOR 9500 3RD FLOOR 13500 TERRACE 17500 MUMTY 21500 NGL 0 GF LVL 1500 1ST FLOOR 5500 2ND FLOOR 9500 3RD FLOOR 13500 TERRACE 17500 MUMTY 21500 1 : 200 NORTH ELEVATION 1 ARCHITECTURE INSTITUTE GROUND FLOOR PLAN FIRST FLOOR PLAN

VILLAGE DOCUMENTATION

TO UNDERSTAND THE TRANSITIONS IN RURAL INDIAN BUILDING TYPOLOGY.

INTRODUCTION

LOCALITY NAME- Qila Raipur

TEHSIL NAME- Dehlon

DISTRICT- Ludhiana

STATE- Punjab

COORDINATES- 30.7624 ,75.8229

ELEVATION/ ALTITUDE- 262 Meters

CLIMATE TYPE- Composite

Qila Raipur is one of the most celebrated villages of India. Popularly known as India’s Rural Olympics, the village has been taking pride in organizing, hosting and showcasing Rural Sports Festival every year since 1933. But the village has lost its charm ever since The Supreme Court of India banned Bullock-Cart races in India. Further, mob mentality to migrate to western countries have depleted the cultural aspect of the settlement.

BUILDING AGE

BUILDING OCCUPANCY & SOCIAL INFRASTRUCTURE

After documenting the entire village of Qila Raipur, there are various merits and demerits found. The vernacular architecture of Punjab has been prominently seen in the village. But people of the village have now shifted to abroad due to inchoate infrastructure which have depleted the cultural aspect of settlement. Despite of that there are ample opportunities to enhance heritage cultural values.

BUILDING HEIGHT

Nearly 50% buildings built after 2000. single storey building is 4.26m.

65%, 7% and 3% land occupied by residential, commercial and public/semi-public sector resp.

Qila Raipur has some of the basic amenities available which account for the village’s social infrastructure some of which are Sikh & Hindu Temples, Satth, Community hall, Children Park, Primary School and Bank.

PORTFOLIO 2019-2023 VILLAGE DOCUMENTATION 04
PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION
Qila Raipur Sports Festival Grewal Sports Stadium Initial Settlement 1- RANGA PATTI GURUDWARA 2- TIYAN WALA BAROTA 3- BANA WALA GURUDWARA 4-KHARAKHUH BAROTA 5-PARK 6- LANGAR HALL 7- SEMA PATTI GURUDWARA 8- MOSQUE 9- PRIMARY SCHOOL 10- COOPERATIVE BANK 11- KRISHNA MANDIR 12- SATSANG SABHA

RURAL COMMUNITY CENTRE

TO TACKLE THE VARIOUS ISSUES DECIPHERED BY DOCUMENTING THE VILLAGE THROUGH THE PROPOSAL OF COMMUNITY CENTRE.

CONTEXT

The context of the proposal has been taken from the current scenario in the village i.e.

• Lost glory of rural context

• Reducing interaction among villagers and the rural environment

IDEOLOGY

• Need of interactive spaces having rural elements to maintain the vernacular context of the village.

• Zoning of the spaces as per utility and desire of the users.

INTERACTION

VERNACULAR CONTEXT

Linear form having spatial & adjacent relationship among the elements to enhance interaction Inspiration has been taken from the village’s common architectural elements.

Arches taken into vault construction and in the pergola walkway.

Niches as recessed surface taken into the OAT design.

PORTFOLIO 2019-2023
05
RURAL COMMUNITY CENTRE
SITE PLAN & SITE SECTION View of Hall, Senior Citizen Centre & Panchayat Ghar Front view of Hall and Panchayat Ghar with pergola walkway South-eastern facade of Panchayat Ghar & Public Toilets View of OAT including green spaces 6
M WIDE ROAD
LVL +- 0MM
RESIDENTIAL AREA LVL +0MM LVL +100 MM LVL +100MM
LVL
LVL +5600MM
LVL +5600MM LVL +5100MM
+5100MM LVL +5100MM LVL +5100MM LVL +5600MM LVL +5600MM
LVL +5600MM SENIOR CITIZEN CENTRE
OAT
PANCHAYAT GHAR VOCATIONAL
TRAINING CENTRE LVL - 1800MM

GROUP HOUSING

PROJECT BRIEF

Multi-storey housing scheme – ATAL APARTMENTS is going to develop under Ludhiana Improvement Trust (LIT) which needs to have flats i.e. HIG-1(4BHK), HIG-2 (3BHK), MIG(2-BHK) & EWS(1BHK) along with some other amenities including community club, pre-primary school & convenience shopping.

MASSING STRATEGY

IDEOLOGY

- The initial idea is to promote social interaction within a habitat considering building typology by efficiently organising the spaces.

- Also to create maximum HIERARCHY OF GREEN SPACES by organising the blocks accordingly on site to enhance SUSTAINABILITY.

4 BHK DU’s

2 BHK DU’s

Planning and organisation of DWELLING UNITS results in creating PRIVATE TERRACE AREAS for each unit maximizing the green spaces enhacing SUSTAINABILITY.

HIG DU’s have been placed above rhe MIG DU’s by supporting over them structurally keeping the core area same.

Dwelling Units have been arranged as per the economy class i.e. MIG & HIG on several levels and EWS in a separate tower.

Form evolved by observing TRIANGLE as a division of spaces/ blocks creating hierarchy of open spaces.

PORTFOLIO 2019-2022 GROUP HOUSING 06
3 BHK DU’s GREEN AREA GREEN AREA

ENTRY/ EXIT TOWER-B (EWS)

TOWER-A (HIG & MIG) COMMUNITY PARK

COMMUNITY CLUB CONVENIENCE SHOPS

PRE-PRIMARY SCHOOL

REQUIREMENTS

TOTAL DU’s

AREA PER DU NO. OF DU’s PER FLOOR NO. OF TOWERS

GREEN AREA

PORTFOLIO 2019-2023 GROUP HOUSING SITE PLAN
A
& HIG
LEVEL
TOWER A
& HIG DWELLING
LEVEL
TOWER B
BHK & 3 BHK CLUSTER PLAN LEGEND 1 BHK CLUSTER PLAN 4 BHK CLUSTER PLAN 1 1 1 5 2 6 3 7 4 8 2 2 2 3 3 4 5 6 7 8
CLUSTER PLANS TOWER
(MIG
DWELLING UNITS)- ODD
PLAN
(MIG
UNITS)- EVEN
PLAN
(EWS DWELLING UNITS) 2
54
216 108 180 9
110
170
1 BHK
1 3 3 3
6 6 6 30 SQM 90 SQM
SQM
SQM 2 BHK 3 BHK 4 BHK
SUA ROAD (10M WIDE)

SCAFFOLDING & UNDERPINNING

STEEL DOOR & WINDOWS

PORTFOLIO 2019-2023 07

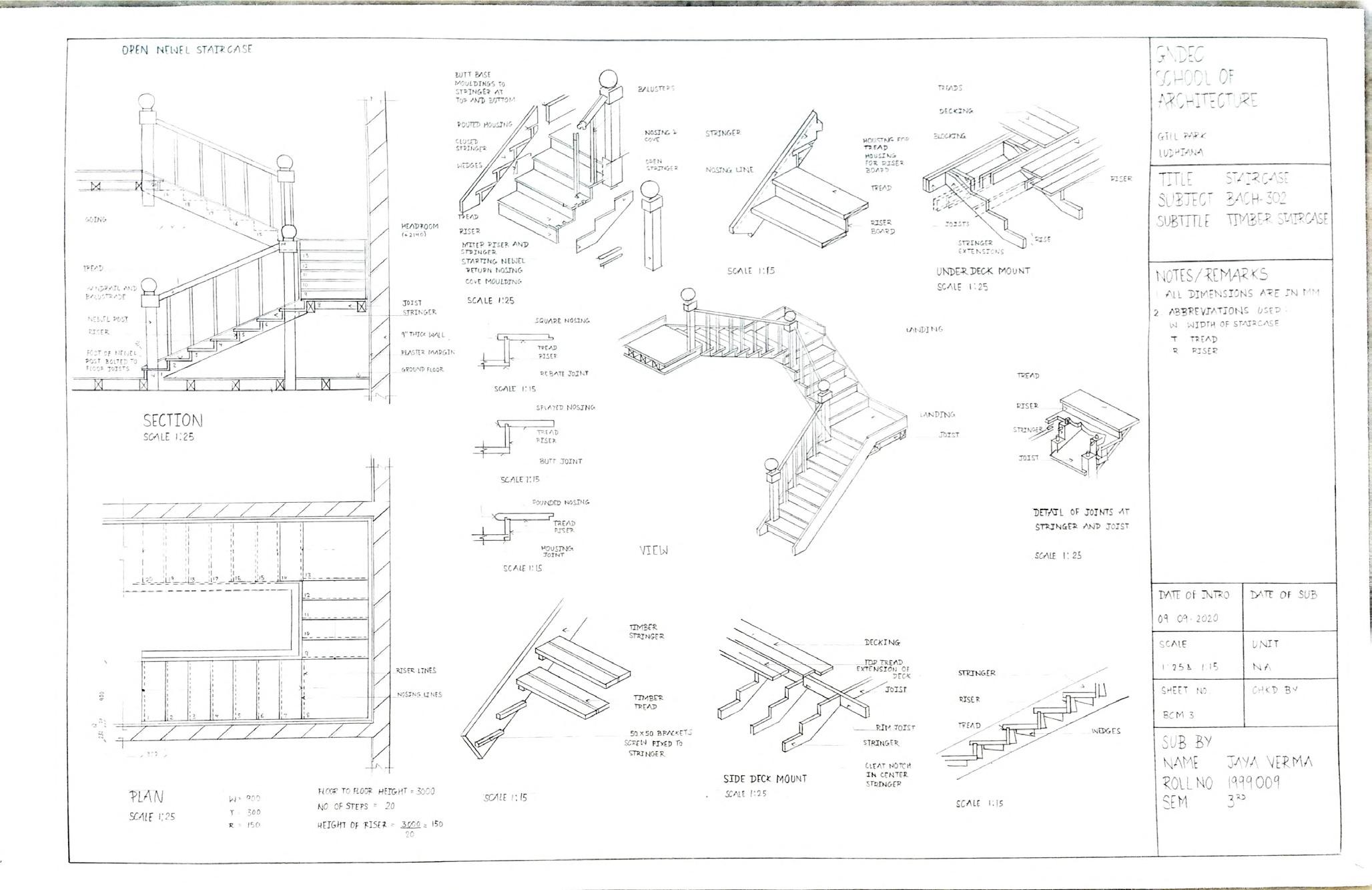

CONSTRUCTION DRAWING
CONSTRUCTION DETAILS
SLIDING & FOLDING DOOR
PORTFOLIO 2019-2023 08 WORKING DRAWING CONSTRUCTION DRAWING NGL ±0MM PLINTH LEVEL +900MM ROOF LEVEL +4900MM FALSE CEILING NGL ±0MM PLINTH LEVEL +900MM ROOF LEVEL +4900MM DISH WASH& ±0MM PLINTH LEVEL +900MM BEVERAGE AREA STAFF ROOM X' X Y Y' P P Q Q Z Z' NGL ±0MM PLINTH LEVEL +900MM ROOF LEVEL +4900MM TITLE-COMMERCIAL KITCHEN SUBJECT -BACH-902 SUBTITLE LAYOUT PLANS, SECTIONS & DETAILS NOTES REMARKS 1. ALL DIMENSIONS ARE IN MM. DATE OF SUBMISSION SCALE NORTH SHEET NO. CHECKED BY SUBMITTED BY:NAME- JAYA VERMA ROLL NO.- 1999009 SEMESTER - TH AS MENTIONED 12/09/2023 05 GROUND FLOOR PLAN AT LEVEL +1500MM (1:100) GROUND FLOOR PLAN AT LEVEL +750MM (PLAN BELOW COUNTER) (1:100) SECTION-XX' (1:100) SECTIONAL ELEVATION-Q (1:50) SECTIONAL ELEVATION-P (1:50) SECTION -ZZ' (1:50) DETAIL AT P (1:20) A 50MM FLOOR FINISH 230MM BRICK WALL SECTION-YY' (1:100) C B E D DETAIL AT B (1:10) DETAIL AT C (1:10) DETAIL AT D (1:5) DETAIL AT E (1:5) GNDEC SCHOOL OF ARCHITECTURE GILL PARK LUDHIANA 12MM PLASTER 20MM THICK SS 12MM PLASTER MEMBER 20MM THICK SHEET DPC (1:2:4) 4230 2850 3550 3630 2000 14260 21590 3550 WALKWAY 1530 5550 LVL +3900MM LVL +3900MM LVL +3900 MM 7000 TERRACE TERRACE TERRACE LVL +3900MM TERRACE LVL ±0 ROAD MUMTY LVL+9400MM LVL +6900 MM TERRACE 7000 2000 LVL +150MM RAMP DN LVL +150MM 900 300 16060 900 2000 300 300 DRIVEWAY 3.630 WIDE RAMP LVL +150MM LVL +150MM LVL +150MM LVL +150MM D D 3845 4305 2230 1140 1200 3815 690 7345 3310 2240 1565 3515 3400 C1 C1 C1 C1 C2 C2 C2 C2 PB1 PB1 PB1 PB1 PB1 PB1 PB1 7345 3310 2240 1565 3515 3400 21590 1400 1000 1200 1000 750 1200 1400 750 750 1200 1400 750 750 1200 750 1200 1200 1400 1400 1400 1400 1400 1400 1400 1400 1400 1400 1400 750 750 750 750 750 750 750 1000 1000 7230 14260 2230 14260 5550 1530 3550 3630 2230 23720 21590 23720 4235 90° (0,0) 90° 90° 90° (16490,4940) (10940,4870) (9410,4870) (9410,4250) (5860,4250) (2230,3600) (2230,3730) (7230,3730) 150 335 50 230 50 335 150 1000 150 325 50 450 50 325 150 1200 1400 150 235 50 230 50 235 150 800 1000 1200 150 300 50 300 50 300 150 HATCH LEGEND BUILT-UP AT LEVEL+3.9M BUILT-UP AT LEVEL+6.9M BUILT-UP AT LEVEL+9.4M GRASS STONE WALKWAY DRIVEWAY BRICK WALL 300 P.C.C. (1:4:8) 2100 525 5-20Ø 5-16Ø C1 Strp. 4L 8Ø@5"c/c 10Ø@175c/c PB1 Basement F.L. 300150 10Ø@6"c/c 8Ø@6"c/c 10Ø@6"c/c 8Ø@6"c/c 12Ø@6"c/c bothways 300 P.C.C.-1:4:8 1500 2400 230 300 230 300 150 150 150 150 150 300 230 345 460 575 690 920 1050 NGL 230MM THICK BRICK WALL PCC (1:4:8) GNDEC SCHOOL OF ARCHITECTURE GILL PARK LUDHIANA TITLE - WORKING DRAWING SUBJECT -BACH-902 SUBTITLE - SITE PLAN ,DEMARCATION PLAN, TRENCH PLAN, FOUNDATION PLAN NOTES / REMARK 1. ALL DIMENSIONS ARE IN MM. DATE OF SUBMISSION SCALE NORTH SHEET NO. CHECKED BY SUBMITTED BY:NAME- JAYA VERMA ROLL NO.- 1999009 SEMESTER - 9TH 1:100 29/09/2023 01 SITE PLAN TRENCH PLAN FOUNDATION PLAN DEMARCATION PLAN DETAIL AT C1 (1:20) SECTIONAL DETAIL (COLUMN-FOUNDATION DETAIL) DETAIL AT C2 (1:20) COMBINED FOUNDATION SECTIONAL DETAIL (1:20) BRICK FOUNDATION SECTIONAL DETAIL 150MM THICK RCC SLAB 50MM FLOORING 12MM TEMPERED GLASS 12MM SS FRAME SS ROD 200 140 70 800 150 40 BATHROOM LIVING ROOM 4850X4340 PANTRY 2 5 6 7 B C 3 B C TERRACE 3545X2400 14260 3310 2240 1565 3515 3400 230 4190 115 2000 115 1025 5015 230 14260 3310 2245 1565 3515 3400 690 3815 1200 1140 2230 4305 230 3590 230 6130 115 2400 230 BEDROOM 5440X4190 600 2000 2840 900 2085 2565 995 2085 3080 BALCONY 3080X8155 1380 1000 720 3170 4170 BEDROOM 4170X3010 1370 BATHROOM 1370X3785 1200 60 3345 TERRACE 3345X4240 POWDER ROOM 5440X4190 1285 115 950 2595 60 1010 1790 230 1285 6950 D2 STAIRCASE WIDTH- 970MM TREAD- 250MM RISER- 200MM 230 19 12 12MM NOSING 19MM THICK MARBLE CEMENT MORTAR AS/SPEC. R.C.C. WORK 12MM THK. FINE SAND PLASTER AS/SPEC. STONE FINISHING AS/STR. CEMENT MORTAR AS/STR. 19 MM THICK MARBLE TREAD R.C.C. SLAB AS/STR. 19 MM THICK MARBLE RISER 12 MM NOSING SKIRTING 50MM FLOORING AS/DETAIL 150MM THICK R.C.C. SLAB AS/STR. JOINERY SCHEDULE S.No. ITEM SIZE W X H) SILL LINTEL DOORS D1 D2 D3 800X2100 WINDOWS W1 450 W2 1700X1650 450 W3 TOTAL NO. 1000X2100 900X2100 VENTILATOR V1 600X250 2350 1220X1650 2100X1650 2100 D4 750X2100 2700X1650 2100 2100 2100 2100 2100 2100 2100 2800 450 450 W4 1840X2100X1650 2100 0/450 DW1 GROUND FLOOR TOTAL NO. 2 1 2 FIRST FLOOR DRAWING ROOM 3210X4275 BEDROOM 3985X4785 INTERIOR GARDEN INDOOR GARDEN GARAGE 3170X11185 KITCHEN 2880X4190 BEDROOM 4585X4190 BATHROOM 1335X3035 ROOM BATHROOM 1685X1600 DINING ROOM 4850X4455 14260 3310 2240 1565 3515 6615 115 3900 230 3170 230 5985 600 4385 2760 530 3400 4300 2230 1140 1200 3815 690 115 5920 2000 5000 3300 2240 1565 3500 3400 14260 230 2500 115 11185 230 4300 2230 1140 1200 3815 690 14260 4190 1915 465 790 1000 1000 985 3060 1000 4785 1450 1635 910 2565 2880 1020 3900 250 370 2150 800 3780 1000 610 2225 220 2600 350 185 2700 300 3185 170 2700 300 1970 1090 1300 A A 985 945 UP A D A D E 115 115 230 230 230 230 40 80 55 70 40 125 65 SS ROD TEMPERED GLASS SS FRAME 15 55 60 40 315 20 SS FRAME FINISHING RCC PCC GOLA RCC SLAB BRICK WALL (230MM) PLASTER 150 150 GNDEC SCHOOL OF ARCHITECTURE GILL PARK LUDHIANA TITLE - WORKING DRAWING SUBJECT -BACH-902 SUBTITLE - SILL LEVEL PLAN NOTES / REMARK 1. ALL DIMENSIONS ARE IN MM. DATE OF SUBMISSION SCALE NORTH SHEET NO. CHECKED BY SUBMITTED BY:NAME- JAYA VERMA ROLL NO.- 1999009 SEMESTER - 9TH 1:75 29/09/2023 02 SILL LEVEL PLAN FIRST FLOOR PLAN (1:100) SILL LEVEL PLAN GROUND FLOOR PLAN (1:100) STAIRCASE CONSTRUCTION DETAILS SKIRTING DETAIL TREAD-RISER DETAIL NOSING DETAIL SECTION ELEVATION BALCONY RAILING CONSTRUCTION DETAILS DETAIL AT A DETAIL AT B A B TERRACE CONSTRUCTION DETAIL PLINTH LEVEL +900 GF SILL LEVEL +1350 GF LINTEL LEVEL +3000 GF SLAB LEVEL +3900 FF SILL LEVEL +4800 TERRACE LEVEL +6900 FF LINTEL LEVEL +6000 PARAPET LEVEL +7900 LVL 650MM LVL ±0MM LVL 1720MM LVL 5155MM LVL 1340MM LVL 650MM LVL 1340MM LVL 1340MM LVL 1340MM LVL 1340MM LVL 440MM PLINTH LEVEL +900 GF SILL LEVEL +1350 GF LINTEL LEVEL +3000 GF SLAB LEVEL +3900 SILL LEVEL +4800 TERRACE LEVEL +6900 LINTEL LEVEL +6000 PARAPET LEVEL +7900 LVLMM LVL MM LVL 0MM LVL 3210MM LVL 1265MM LVL 75MM -7155 MM LVL 0MM LVL 0MM LVL +600MM LVL 0MM GROUND LEVEL ±0 PLINTH LEVEL +900 GF SILL LEVEL +1350 FF SILL LEVEL +4800 TERRACE LEVEL +6900 FF LINTEL LEVEL +6000 PARAPET LEVEL +7900 LVL 0MMLVL 75MM LVL 0MM LVL 2630MM LVL 4190MM LVL +50MM GROUND LEVEL ±0 PLINTH LEVEL +900 GF SILL LEVEL +1350 FF SILL LEVEL +4800 TERRACE LEVEL +6900 FF LINTEL LEVEL +6000 PARAPET LEVEL +7900 LVL 75MM LVL 75MM LVL +- 0MM LVL 3680MM LVL +- 0MM LVL 5080MM GROUND LEVEL ±0 PLINTH LEVEL +900 GF SILL LEVEL +1350 GF LINTEL LEVEL +3000 GF SLAB LEVEL +3900 SILL LEVEL +4800 TERRACE LEVEL +6900 LINTEL LEVEL +6000 600 300 450 1650 600 300 900 1950 150 1000 600 300 2850 150 900 1200 600 300 1000 750 1650 450 750 2100 2985 2850 2100 750 2085 1150 935 3900 3190 TREAD- 250MM RISER- 200MM 2100 735 750 1200 900 MUMTY LEVEL +9400 GROUND LEVEL ±0 PLINTH LEVEL +900 GF SILL LEVEL +1350 GF LINTEL LEVEL +3000 GF SLAB LEVEL +3900 SILL LEVEL +4800 TERRACE LEVEL +6900 LINTEL LEVEL +6000 300 150 2900 150 1000 900 3000 600 300 300 300 900 3000 900 2100 1000 BATHROOM BEDROOM BATHROOM LIVING ROOM 425 425 3000 665 675 3205 GNDEC SCHOOL OF ARCHITECTURE GILL PARK LUDHIANA TITLE WORKING DRAWING SUBJECT -BACH-902 SUBTITLE ELEVATIONS & SECTIONS NOTES REMARK 1. ALL DIMENSIONS ARE IN MM. 2. REFER THE KEY PLANS. DATE OF SUBMISSION SCALE NORTH SHEET NO. CHECKED BY SUBMITTED BY:NAME- JAYA VERMA ROLL NO.- 1999009 SEMESTER 9TH 1:75 17/08/2023 03 A A' B B' A A' B B' GROUND FLOOR PLAN FIRST FLOOR PLAN SOUTH ELEVATION WEST ELEVATION NORTH ELEVATION EAST ELEVATION SECTION- AA' SECTION- BB'

ART WORK

PORTFOLIO 2019-2023 09
MISCELLANEOUS

10 MODEL MAKING

PORTFOLIO 2019-2023
MISCELLANEOUS

CONTACT

Address- Ludhiana, Punjab, India-141007

Mobile- +91-6283200162

Email- jayaverma.jv18@gmail.com
