01 MIXED USE OFFICE 6-17 (Semester VI) 02 KINDER-GARTEN 6-17 (Semester VI) 05 IN-HABIT-IN-RIG 6-17 (Semester VI) 06 ENCLAVE 6-17 (Semester VI)
ACADEMICS
03 Expoone 6-17 (Semester VI) 04 ART CAFE 6-17 (Semester VI) 07 AVALON 6-17 (Semester VI) 08 MAX FISCHER 6-17 (Semester VI)
EXTRA-CURRICULARS

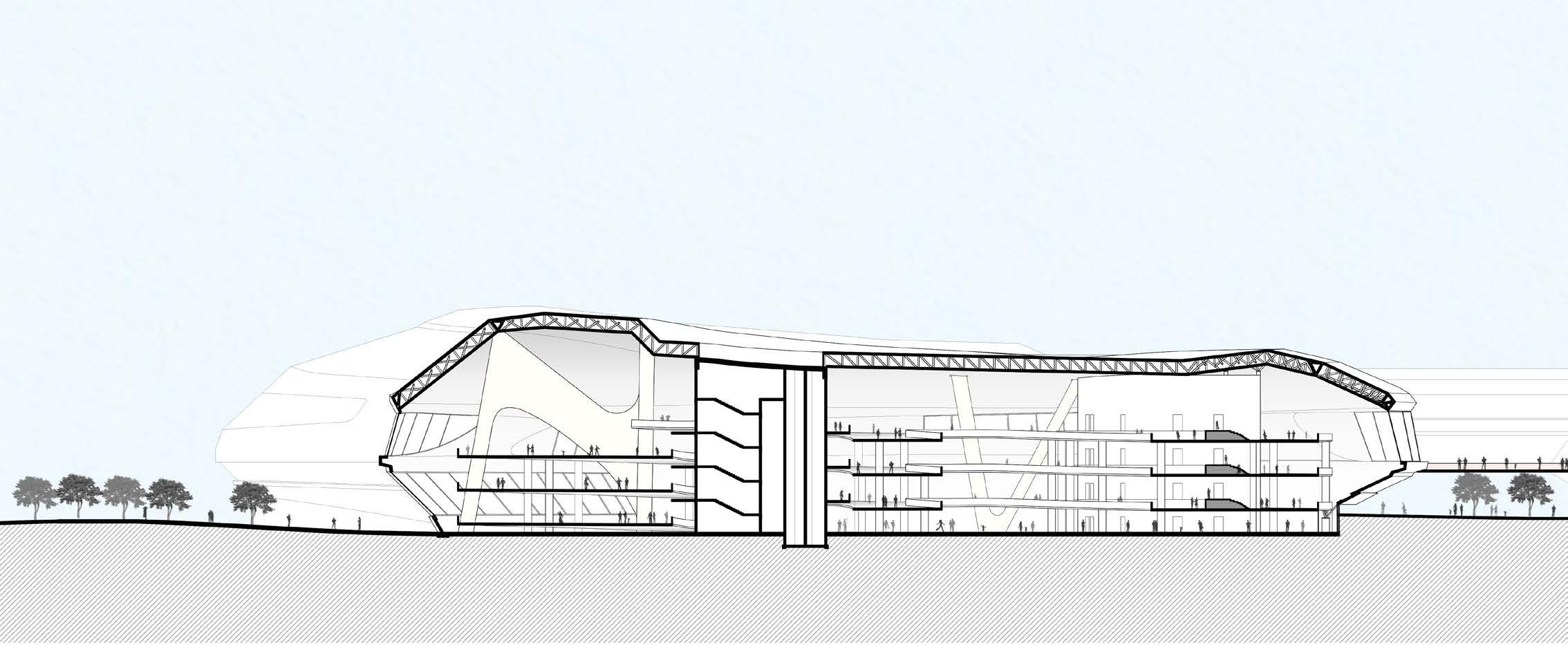

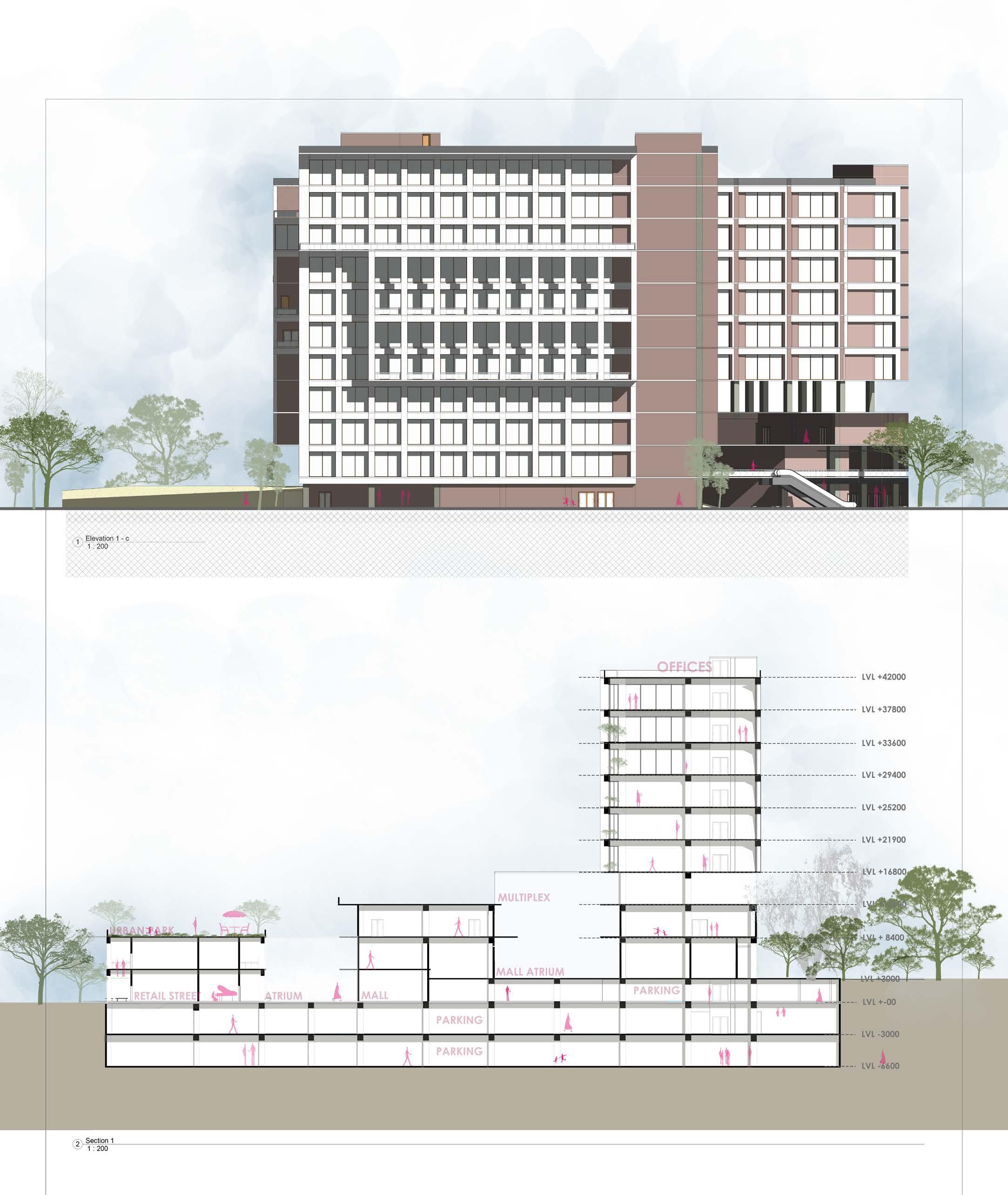

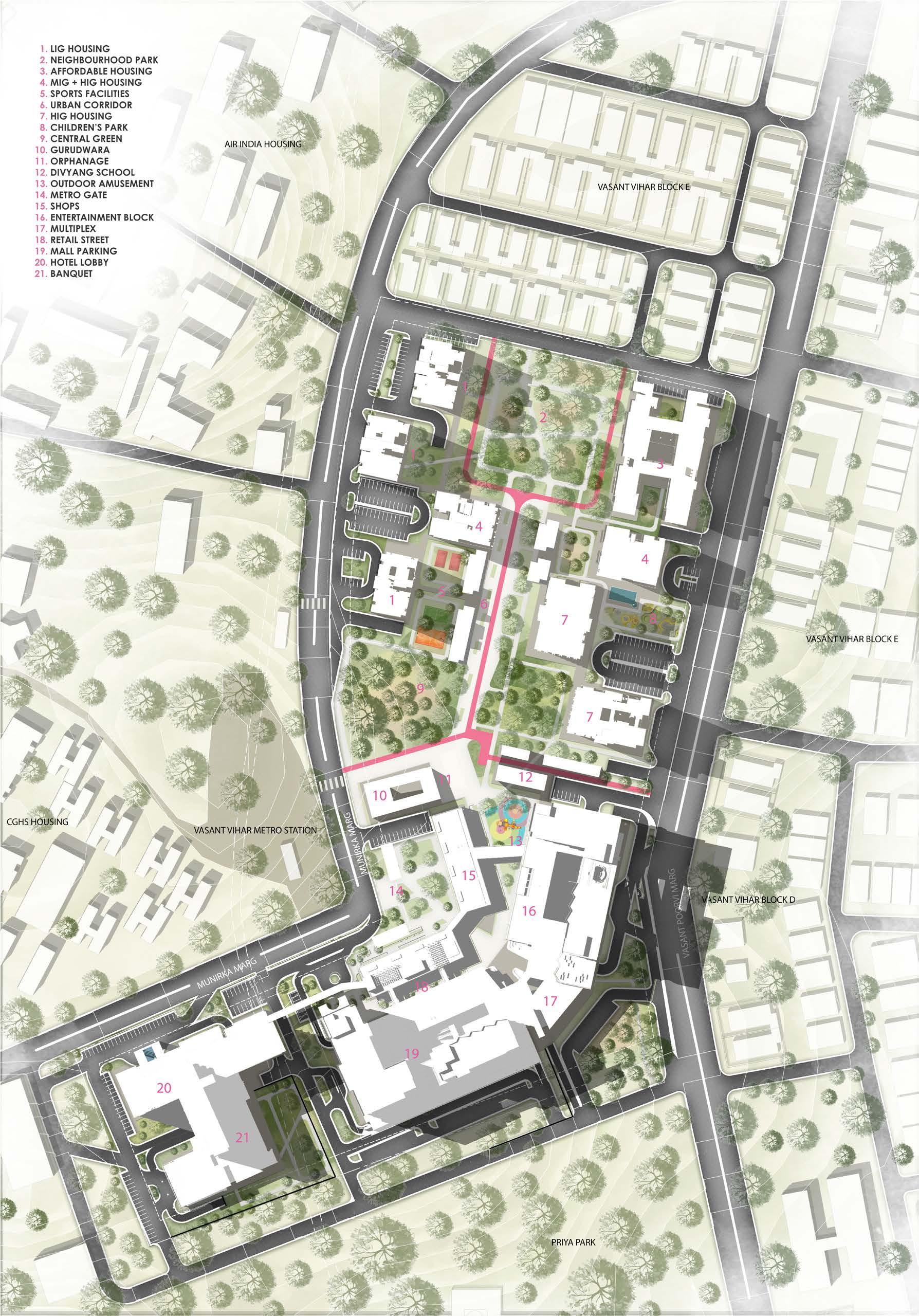

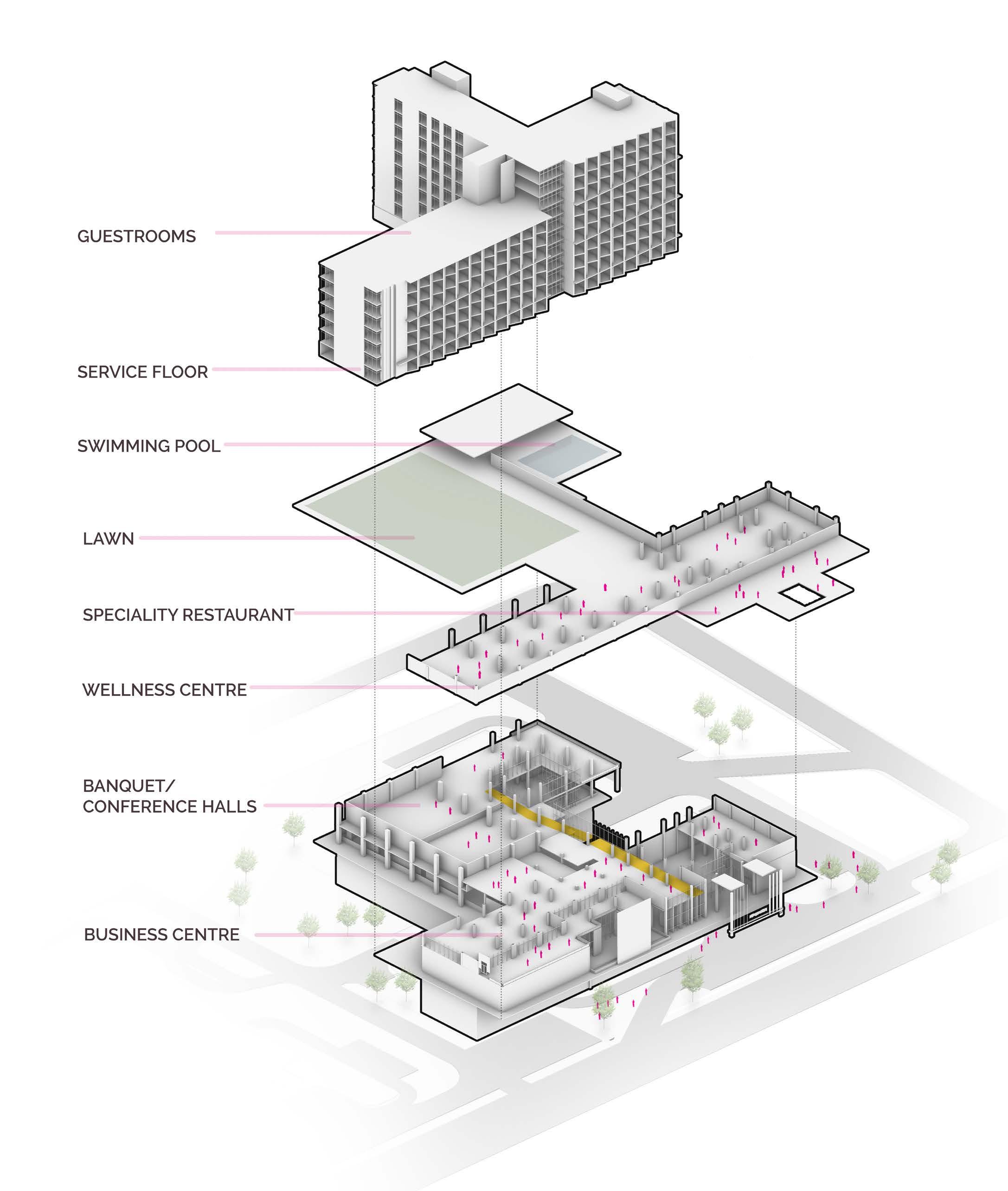

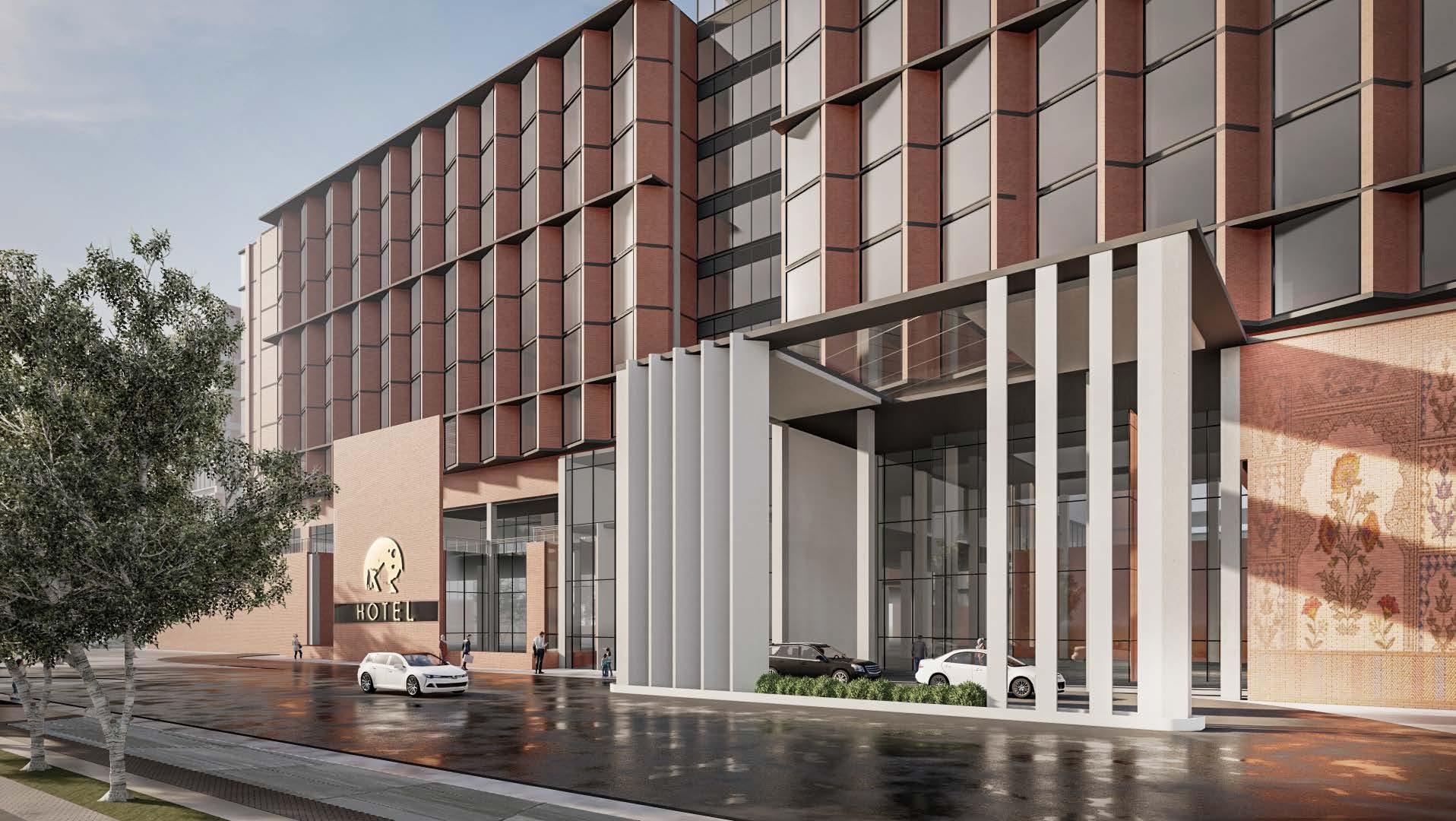

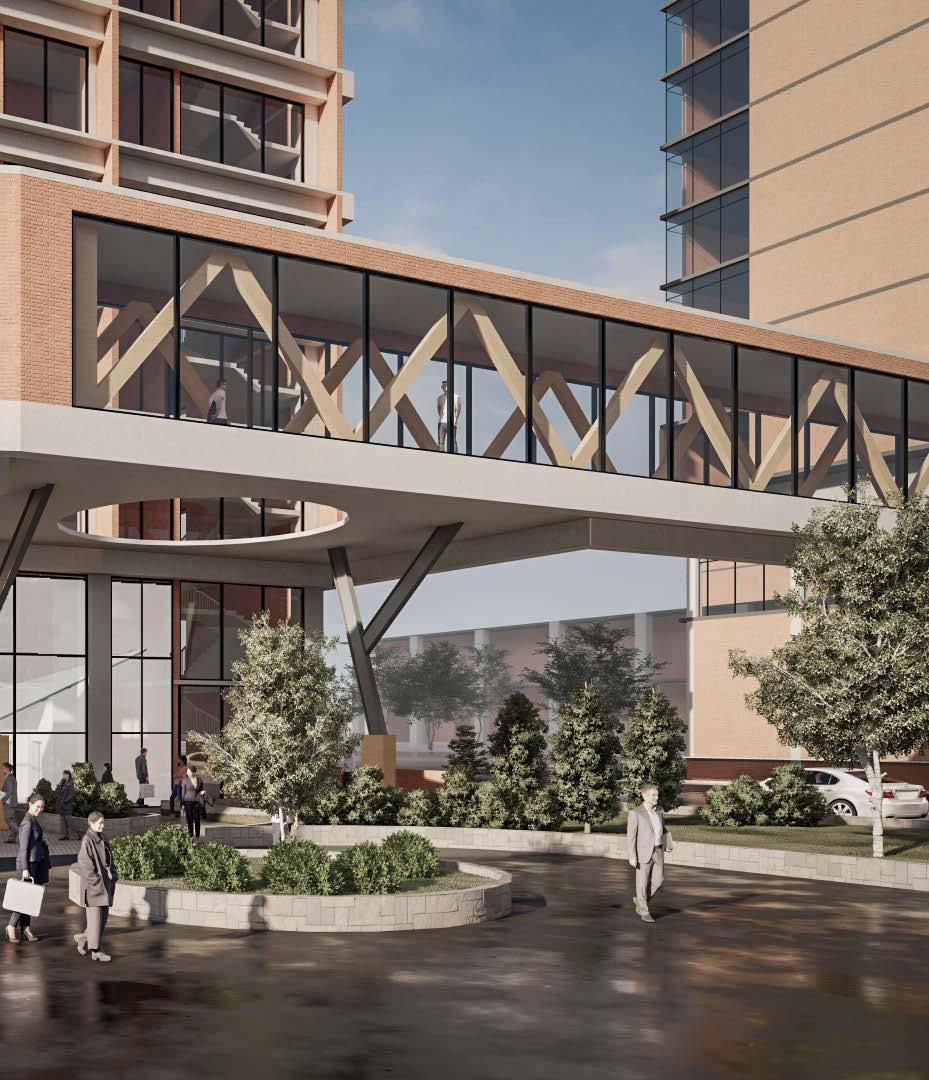

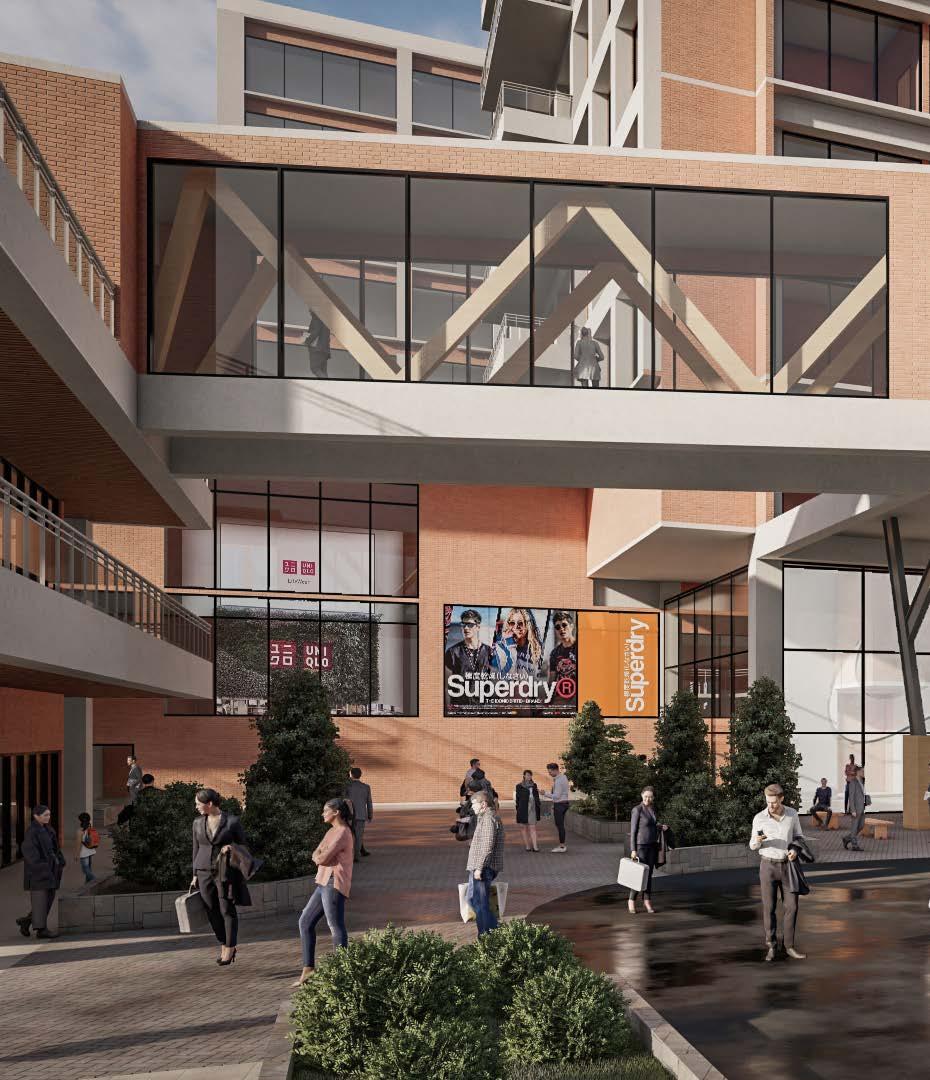

MIXED - USE OFFICE
TYPE : ACADEMIC ( SEMESTER IX )

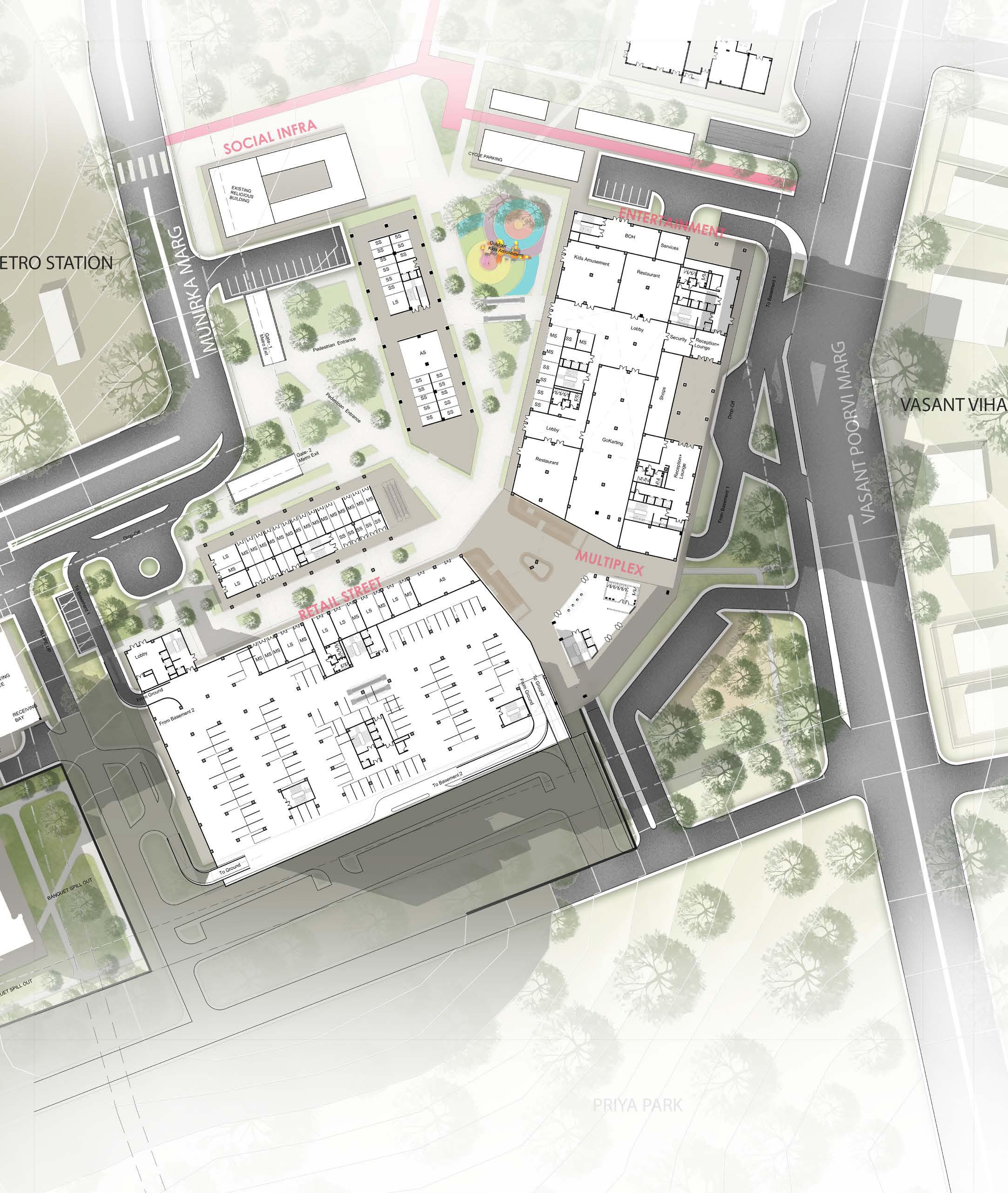

DREAM CITY NXT, AMRITSAR, INDIA SITE AREA: 15,500M 2
THE VISION TRIES TO RESPOND TO THE CONTEXTUAL HERITAGE OF THE CITY OF AMRITSAR BY CREATING AN ECOSYSTEM THAT WOULD SUPPORT AND PRESERVE THE LOCAL IDENTITY OF THE REGION. THE IDEA OF AN INTEGRATED TOWNSHIP HELPS IN REINFORCING THIS SYSTEM BY FORMING A CLOSED LOOP OF RESOURCES WHICH EVERYONE ENGAGES WITH, AND THUS HELPS IN FORMING A SUSTAINABLE COMMUNITY.
IN HIS BOOK “REFLECTIONS ON THE SCOPE OF THE TECTONICS”, KENNETH FRAMPTON REVEALS THE TERMS – “TYPOS, TOPOS AND TECTONICS” - THAT SHAPE THE BUILT ENVIRONMENT.
ASSOCIATING THE METHODS OF CONSTRUCTION WITH THE BUILDING REQUIREMENTS & THE BUILDING SERVICES; EXPLORING THE MATERIAL PALETTE AND ITS INFLUENCE ON THE BUILDING ENVELOPE GUIDED THE DESIGN DEVELOPMENT & GLIDED IT TOWARDS A MORE PRACTICAL REALIZATION”.
01
‘22 ‘21 ‘20 ‘19 ‘18
‘22 ‘21 ‘20 ‘19 ‘18
Mixed Used Art Cafe Kindergarten Expo1 In-Habit-In-Rig Enclave Avalon Maldives Max. Fischer
‘22 ‘21 ‘20 ‘19 ‘18
PHYSICAL MODEL @1:1000
Mixed Used Art Cafe Kindergarten Expo1 In-Habit-In-Rig Enclave Avalon Maldives Max. Fischer
PHYSICAL MODEL @1:1000

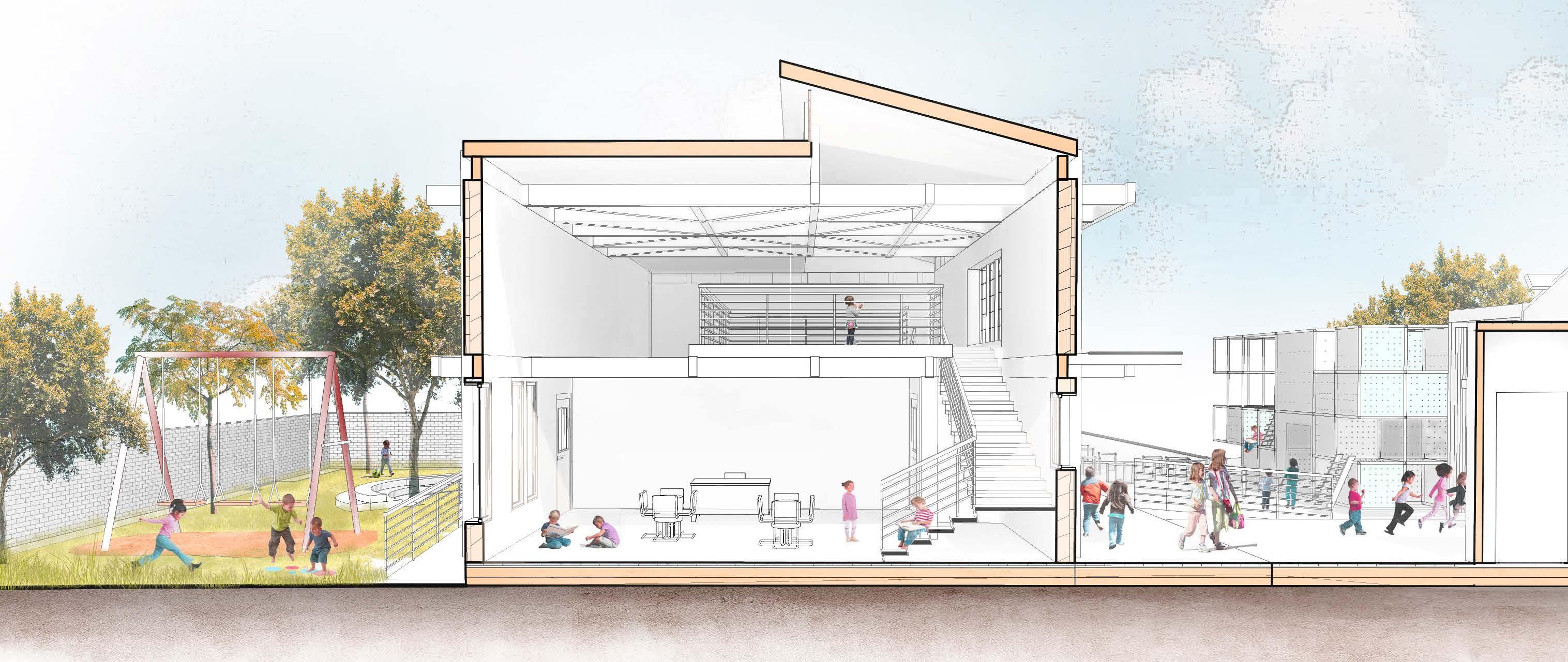

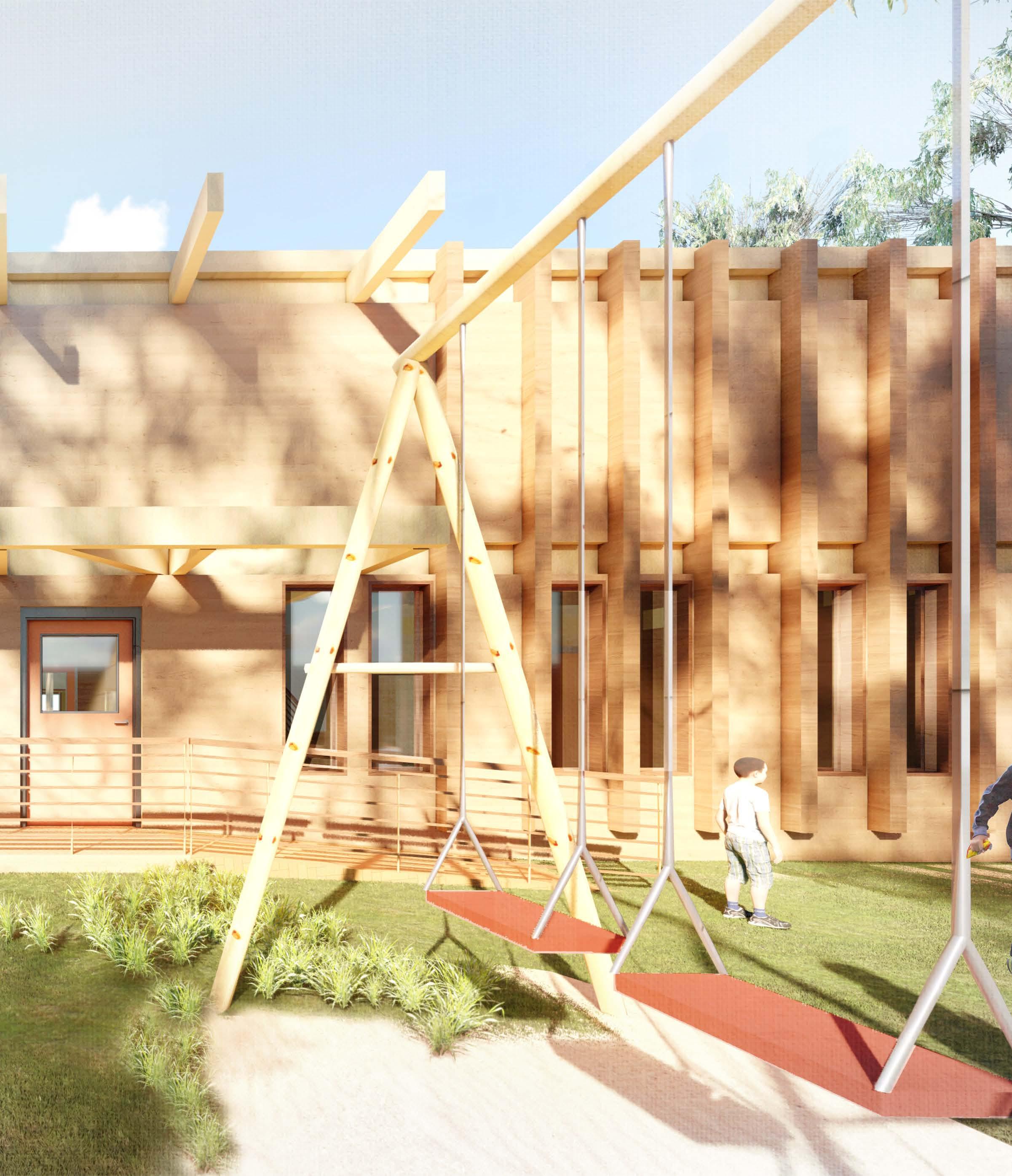

KINDER-GARTEN
TYPE : ACADEMIC ( SEMESTER IV )
LADY IRWIN COLLEGE, NEW DELHI, INDIA SITE AREA: 1400M2
THE PROJECT AIMS TO CREATE A LEARNING SPACE FOR THE CHILDREN OF AGE GROUP 3-5YRS THAT WOULD ALSO SERVE AS AN EXTENSION TO THE ALREADY EXISTING ‘RAK NURSERY SCHOOL’.
THE DESIGN OF THE KINDERGARTEN SHOULD EMPLOY WOOD AS THE MAJOR CONSTRUCTION MATERIAL BRINGING OUT ITS ESSENCE AND PROPERTIES.
“THE IDEA OF THE KINDERGARTEN REVOLVES AROUND CREATING SPONTANEOUS ACTVITIES WITHIN ITS BUILT ENVIRONMENT. THE ORGANISATION OF THE CLASSROOMS ALLOWS FOR BOTH THE AGE GROUPS TO PLAY AND ENGAGE IN A COMMON SPACE.
MOREOVER, THE USE OF TIMBER AS A STRUCTURAL ELEMENT CREATES A WARM LEARNING EXPERIENCE WITHHOLDING THE IDEA OF A SUSTAINABLE AND MODULAR DESIGN”.
02
‘22 ‘21 ‘20 ‘19 ‘18

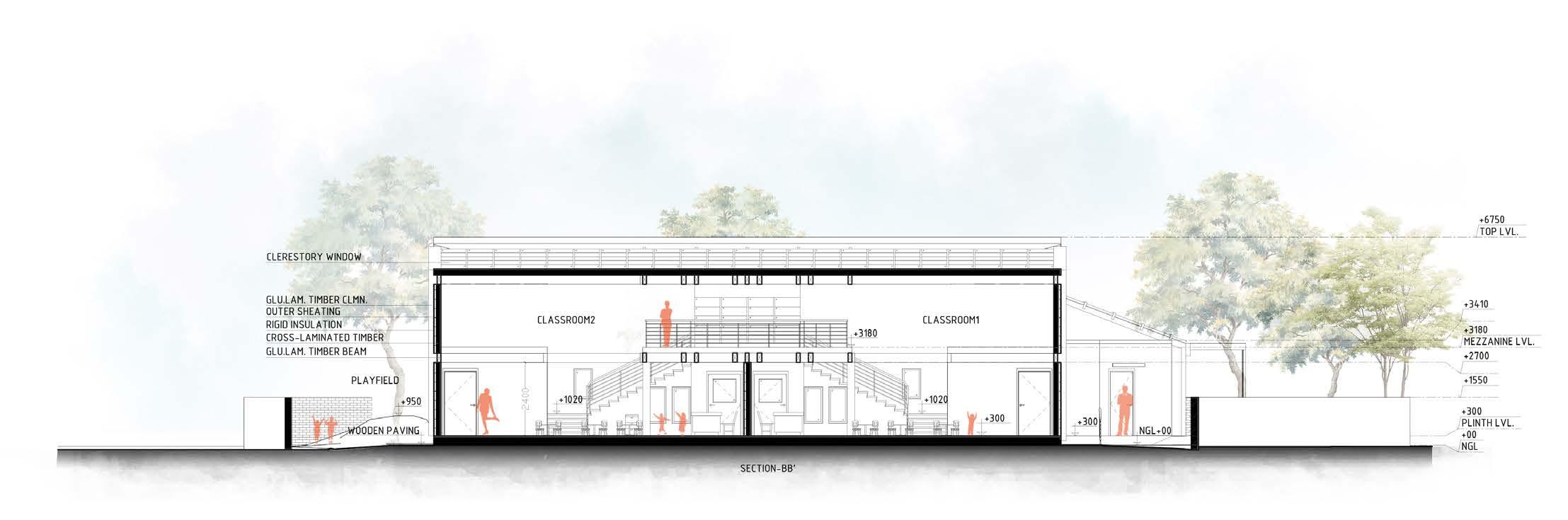

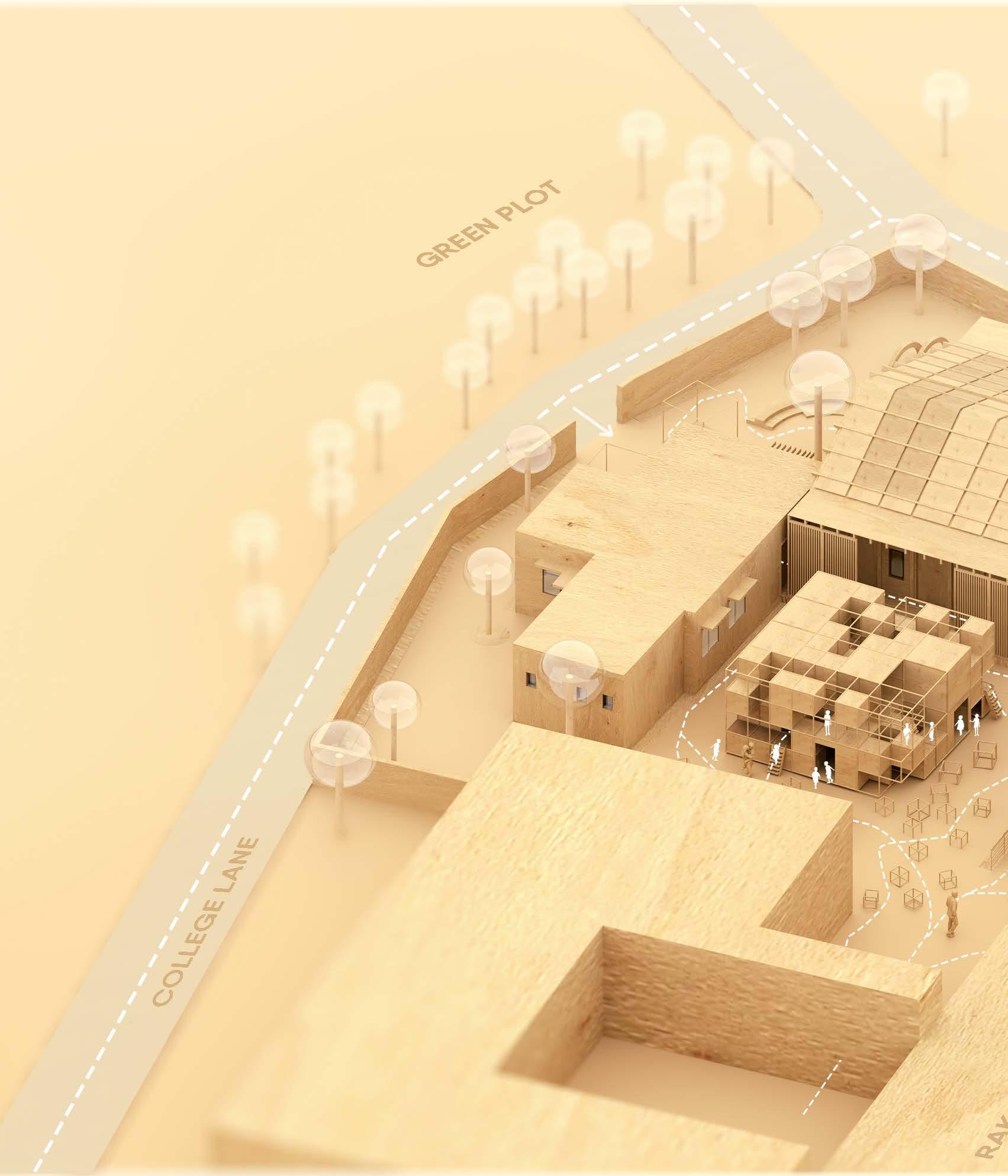

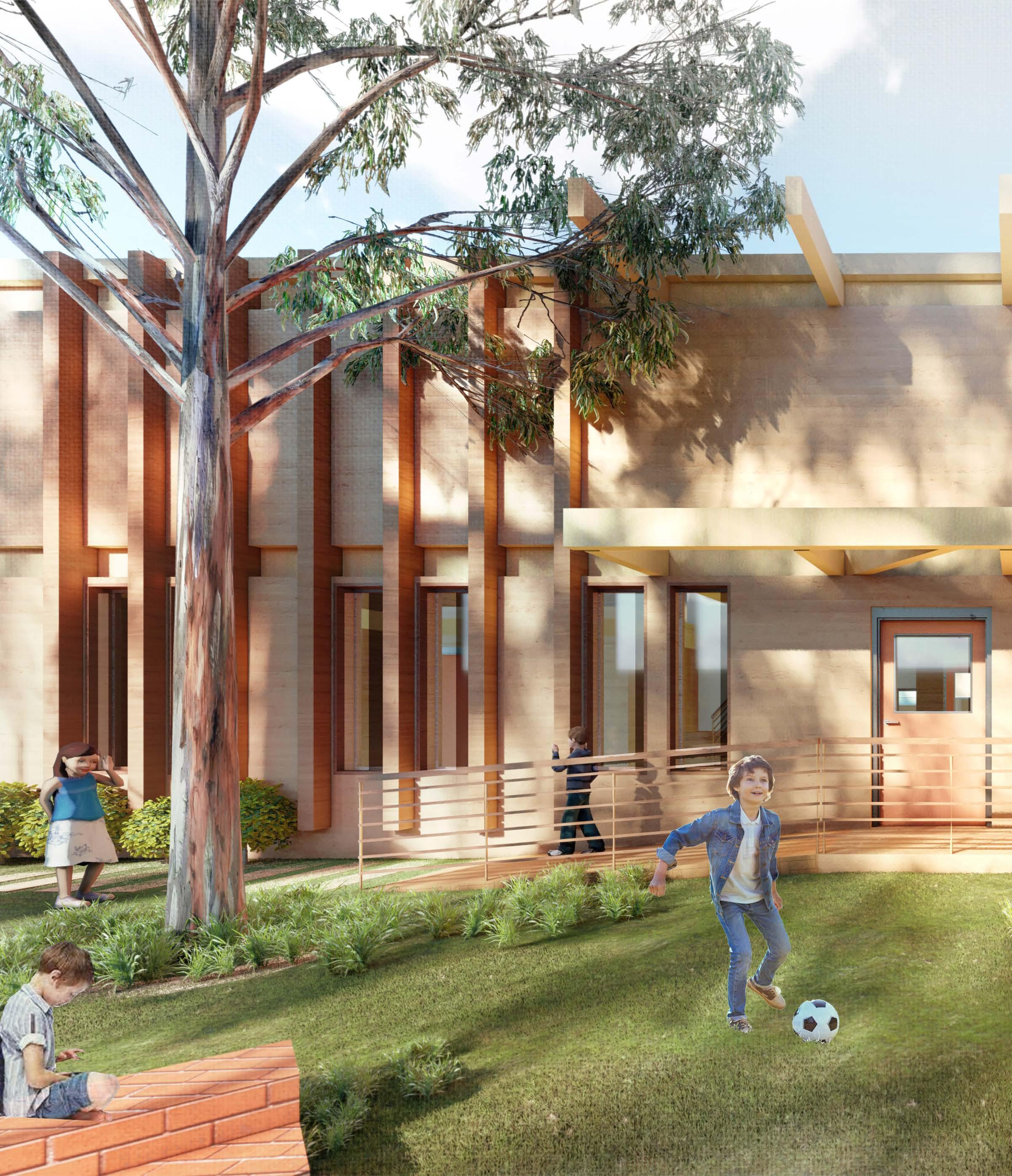

REATE A WARM LEARNING EXPERIENCE BY USING THE WOODEN STRUCTURE TO SHAPE THE IDENTITY OF THE SCHOOL PREMISES AND ESTABLISH AN ARCHITECTURE THAT PROVIDES BARRIER-FREE LEARNING. THE WHOLE SITE IS DIVIDED INTO A NUMBER OF PATHWAYS ENCOURAGING MULTI-DIRECTIONAL INTERACTION AND PROVIDING A FLEXIBLE ENVIRONMENT THAT TRIGGERS SPONTANEOUS ACTIVITIES.
IDEA : C
OPEN - PLAN CLASSROOM PROVIDES FREE CIRCULATION AND VISIBILITY.
PLAY AREA IN WINTERS
AREA PROGRAM 1. CLASSROOMS 2 CLASSROOMS - 60M2 EACH 2. SICK BAY 5M2 3. COORDINATOR’S ROOM 12M2 4. MULTIPURPOSE HALL 100M2 5. KITCHEN 6M2 6.ADMIN. OFFICE 14M2 7. RECEPTION+LOBBY 28M2

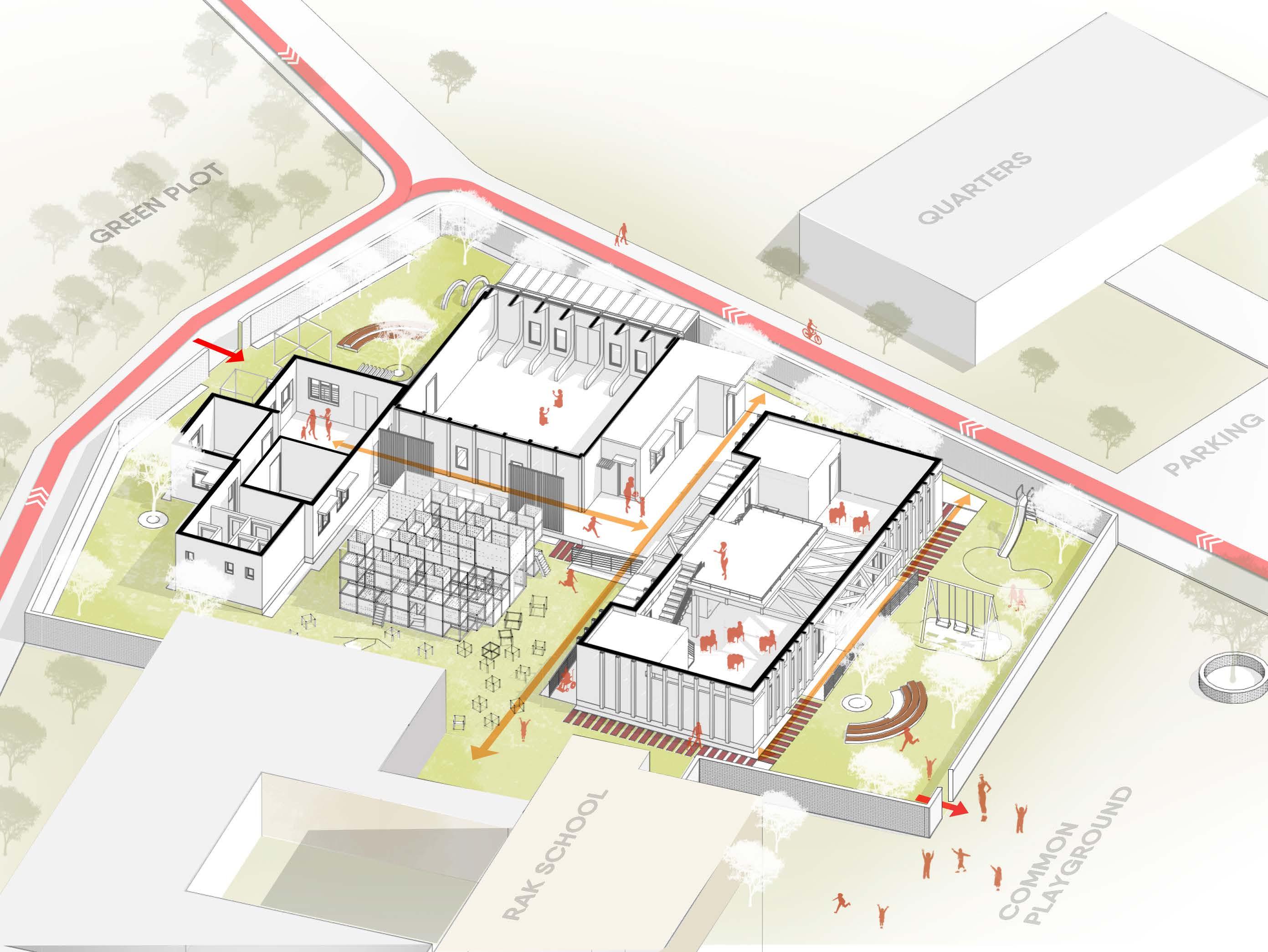

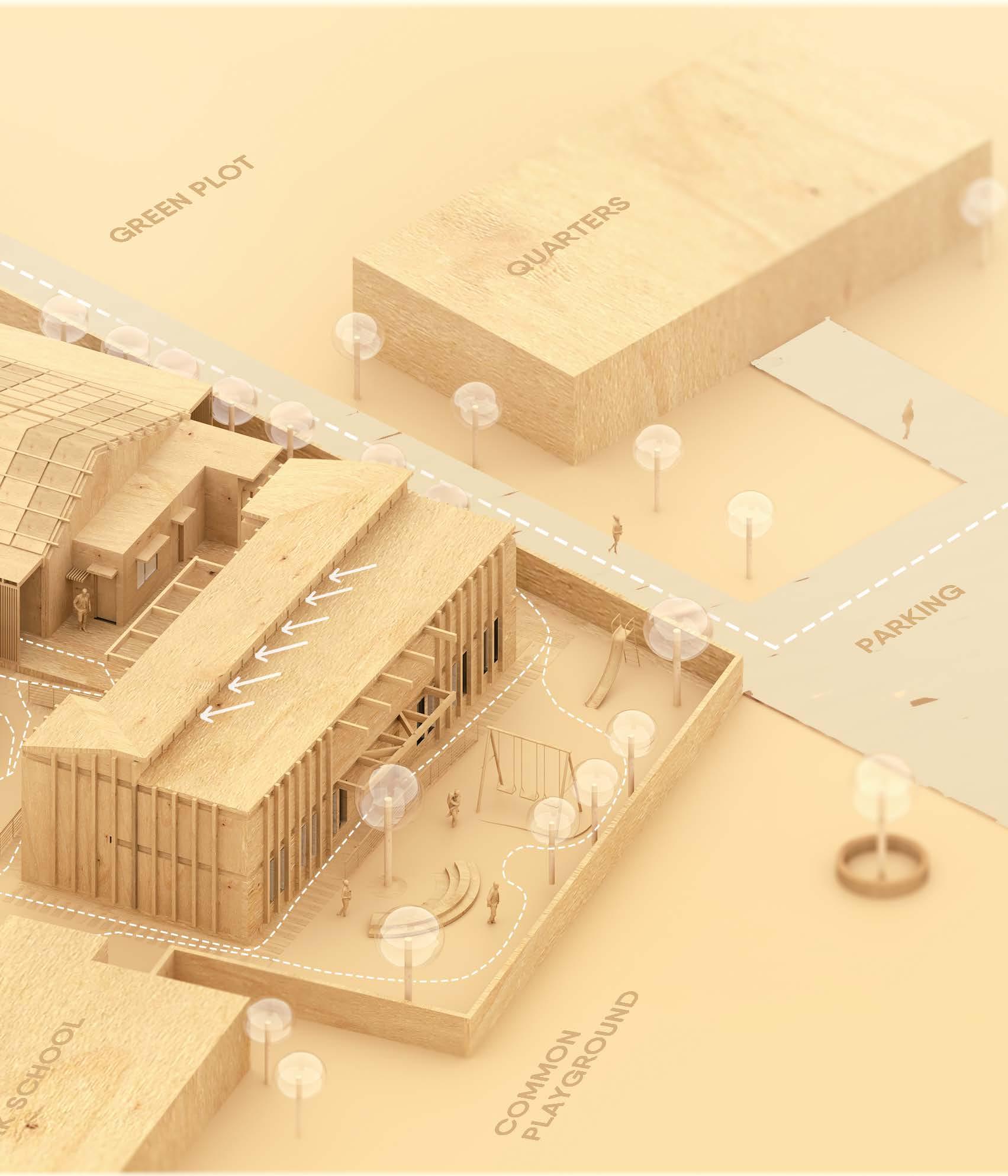

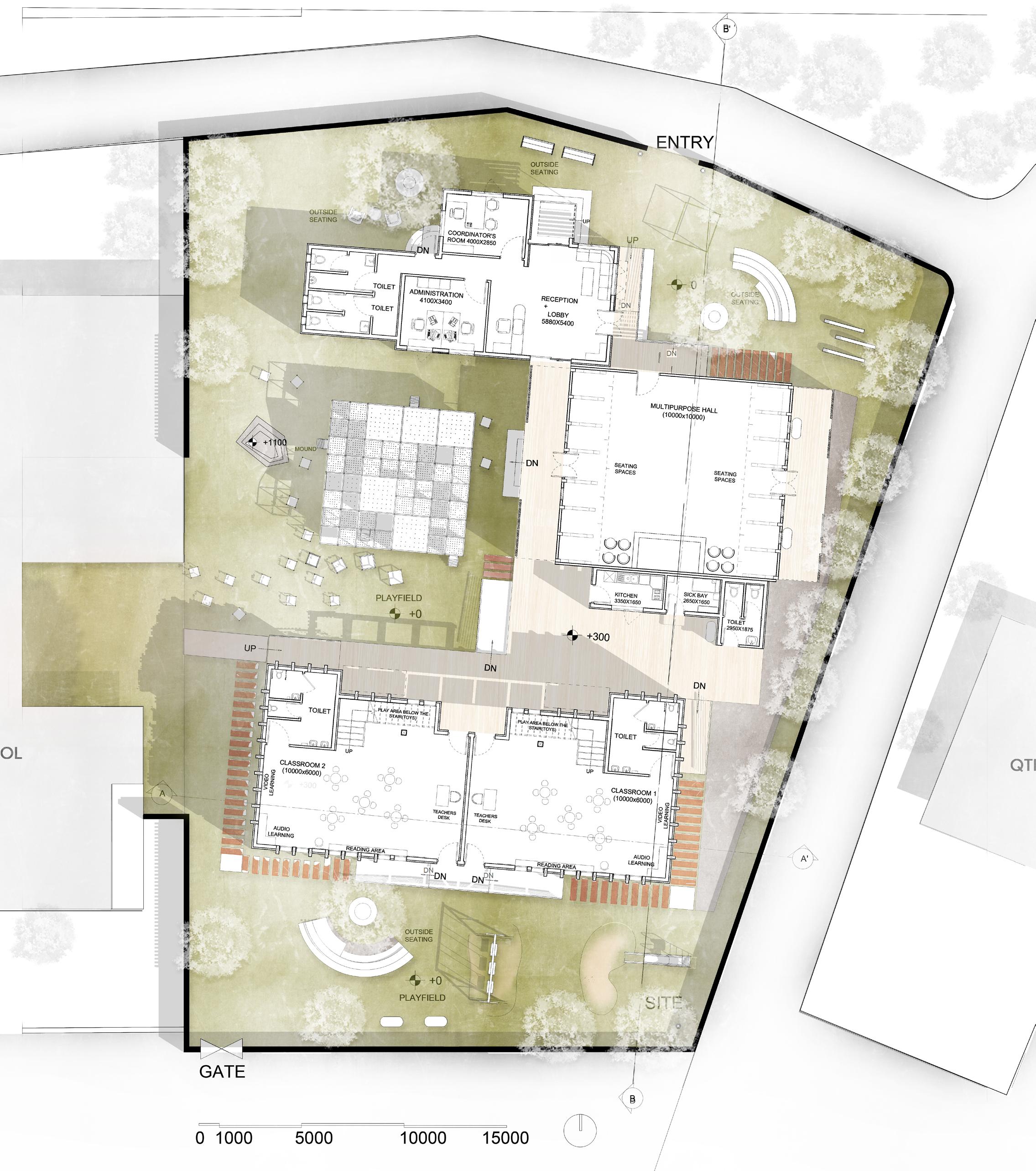

SITE PLAN
NON-VISUAL SENSES - CONTRASTING TEXTURE ON THE GROUND BELOW HELPS THE CHILDREN WITH VISUAL DIFFICULTIES BY ALLOWING THEM TO FEEL THE SURFACE BELOW
TOUCH THROUGH CHANGE IN SOFT AND HARDSCAPE BALANCE THROUGH TANSITIONING SPACES VERTICALITY THROUGH LINEAR COLUMNS OF TIMBER

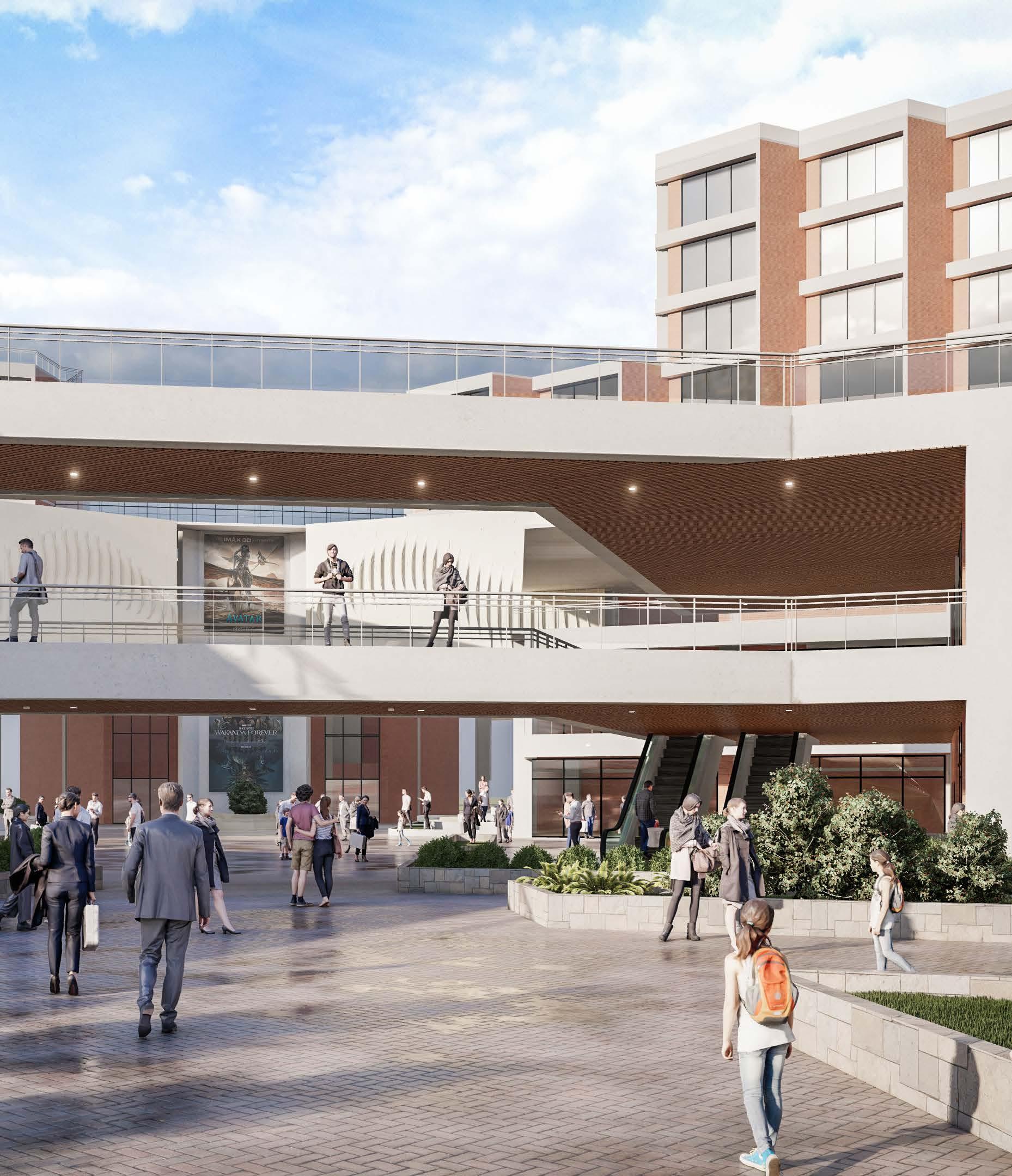

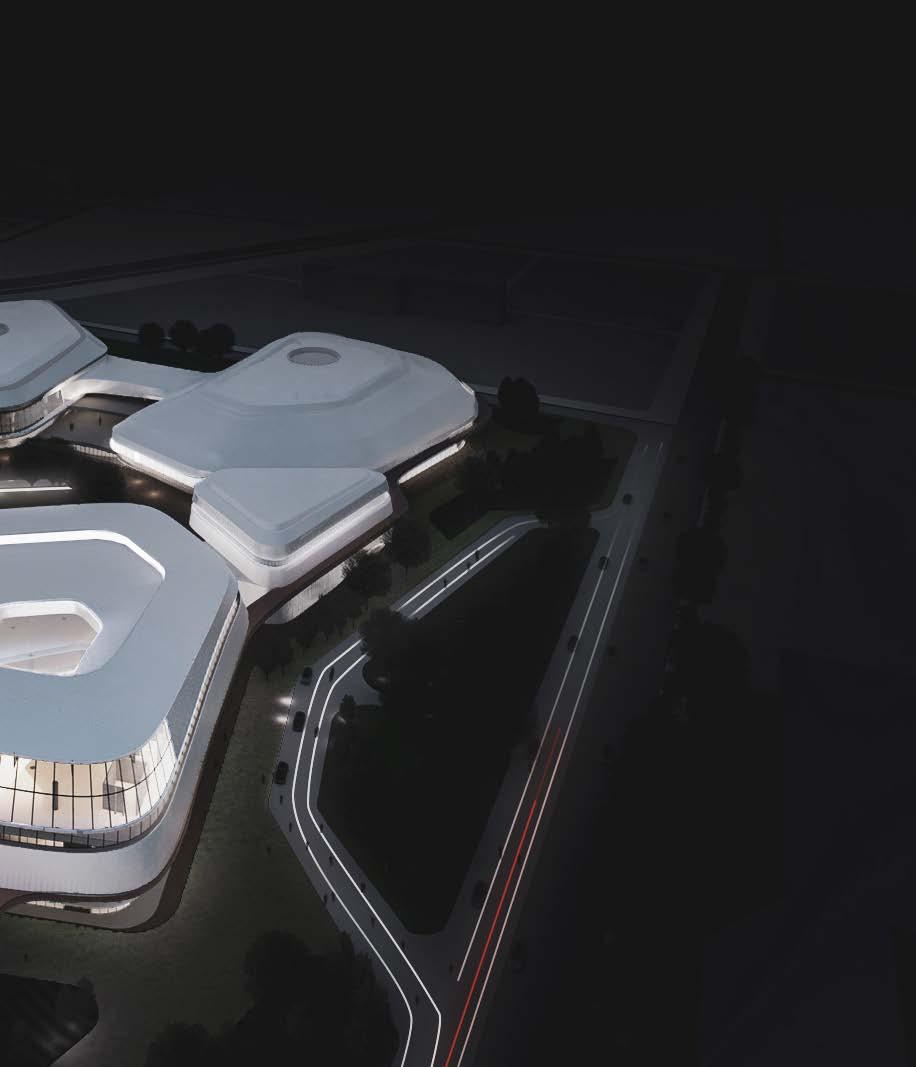

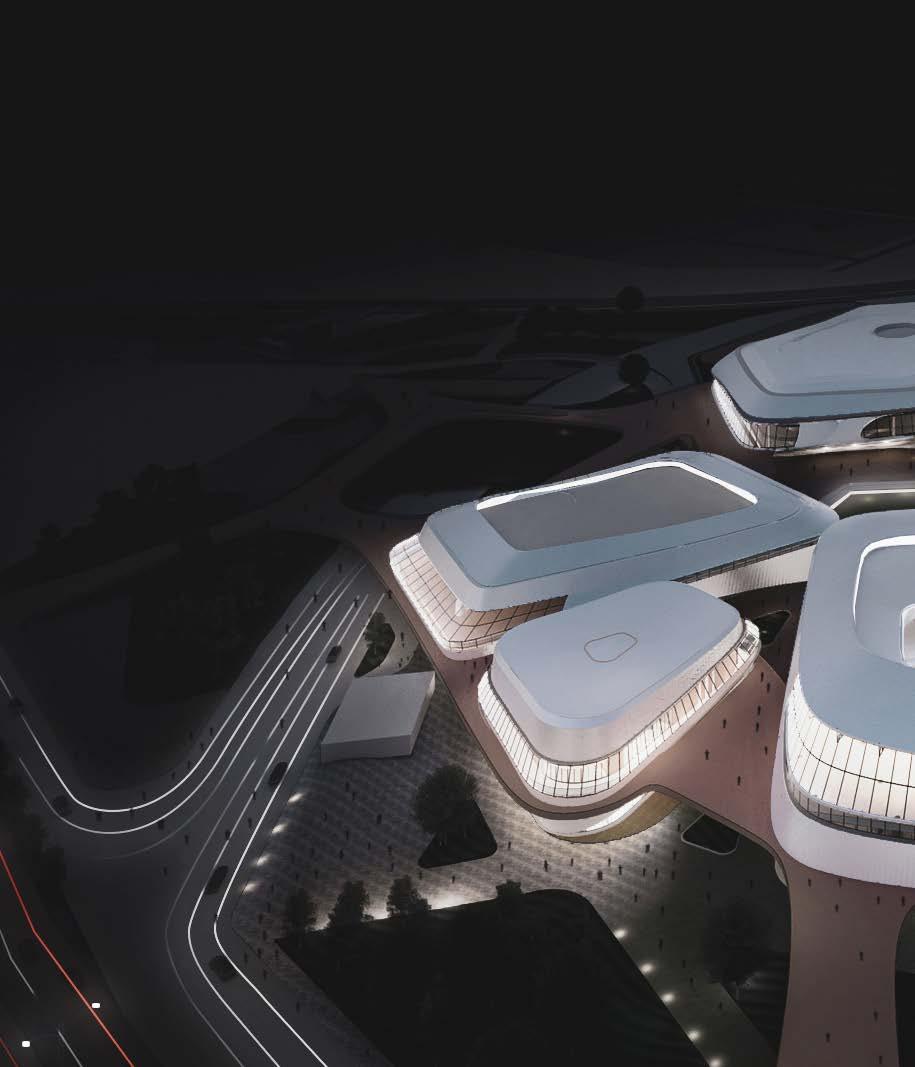

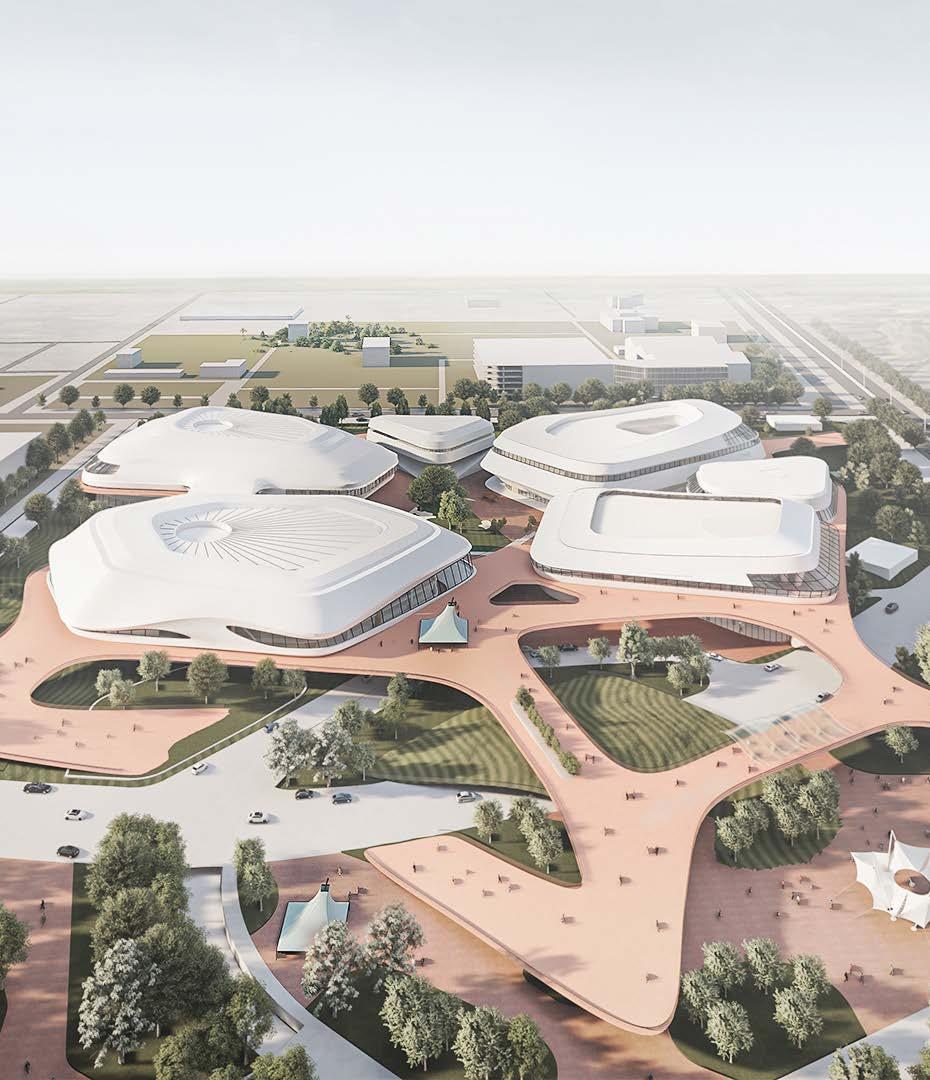

XPO ONE
TYPE : ACADEMIC (TEAM OF 3)
( SEMESTER VII )
NATIONAL HIGHWAY 48, NEW DELHI, INDIA SITE AREA: 1,82,730M2
THE PROJECT BRIEF AIMS TO CRAFT A LAYER OF FUNCTIONS CONSIDERING THE IMMENSE CULTURAL DIVERSITY OF DELHI AND INDIA THAT CAN BE SEEN IN ITS LIFESTYLE, DEMOGRAPHY, MUSIC, ARTS AND CRAFTS.
“THE VISION OF THE PROJECT THROUGH ITS STRONG EDGE CONDITIONS IS TO BRING UP THIS IMMERSIVE CULTURAL EXPERIENCE WHILE INTEGRATING ART, TECHNOLOGY AND PUBLIC INTERACTION. THE EXPO WILL THUS PROVIDE LOCAL AND GLOBAL ARTISTS FROM DIFFERENT DOMAINS TO SHARE AND INTERACT THROUGH A COMMON PLATFORM”.
IN ORDER TO MAXIMISE THE INTERACTION, THE SPACES AND CIRCULATION ARE CONCEPTUALISED TO BE CONTINUOUS, ATTAINING A “FLOW”. THIS WILL ENABLE THE USERS TO PERCEIVE THE BUILDING AS A JOURNEY WITH A SEQUENCE OF SPACES GIVING THEM A UNIQUE EXPERIENCE.
03
1. RESPECTING THE SITE TOPOGRAPHY
4. SITE FEATURES: GREENS & LANDSCAPE
2. RETAINING THE EXISTING TREES
5. SITE CIRCULATION: VEHICULAR MOVEMENTS
3. POROSITY IN THE BUILT MASS
6. INTEGRATION WITH LANDSCAPE

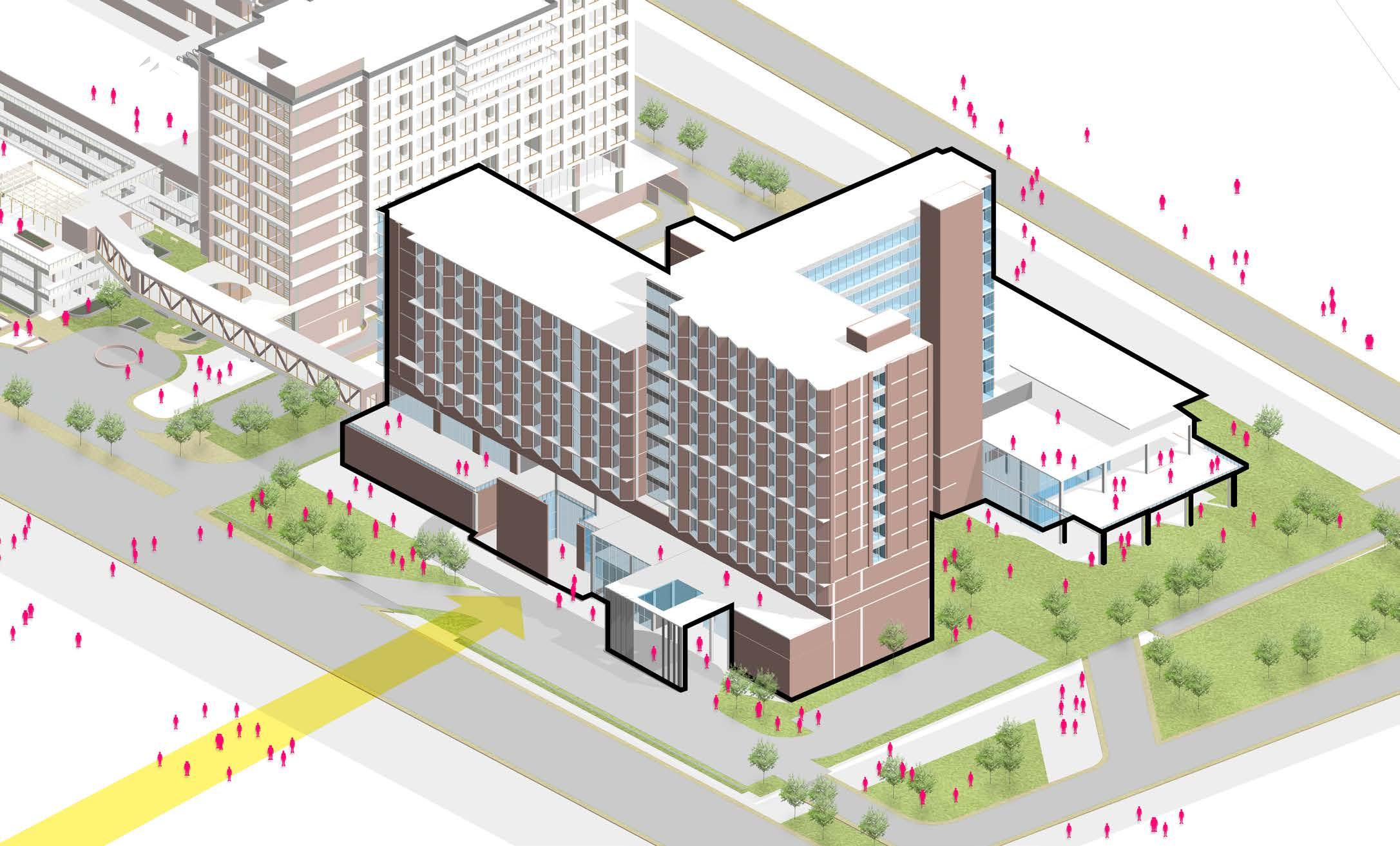

CONVENTIONAL FLOOR PLATE
NODES/POINTS
USABLE SPACES ALONG FLOW LINES
CONTINUOUS FLOW SURFACE
— IN ORDER TO MAXIMISE THE INTERACTION, THE SPACES AND CIRCULATION ARE CONCEPTUALISED TO BE CONTINUOUS ATTAINING A “FLOW”. THIS WILL ENABLE THE USERS TO PERCEIVE THE BUILDING AS A JOURNEY WITH A SEQUENCE OF SPACES GIVING THEM A UNIQUE EXPERIENCE

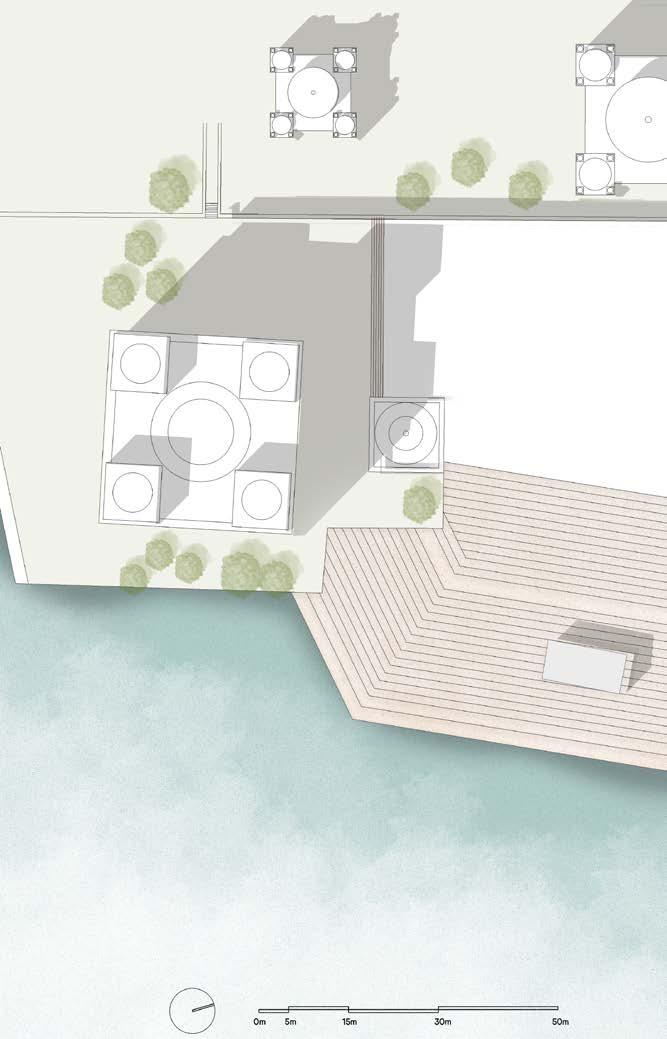

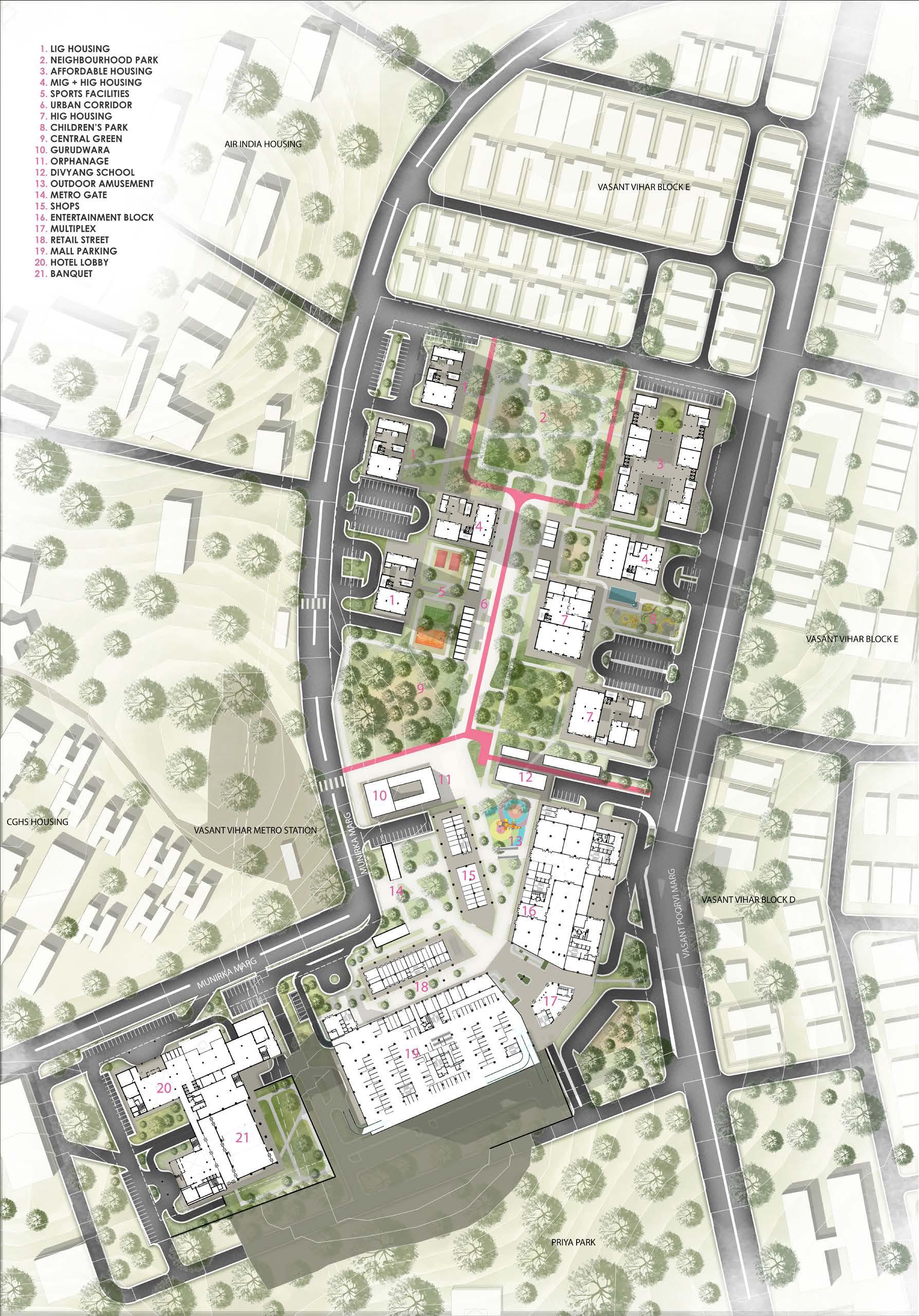

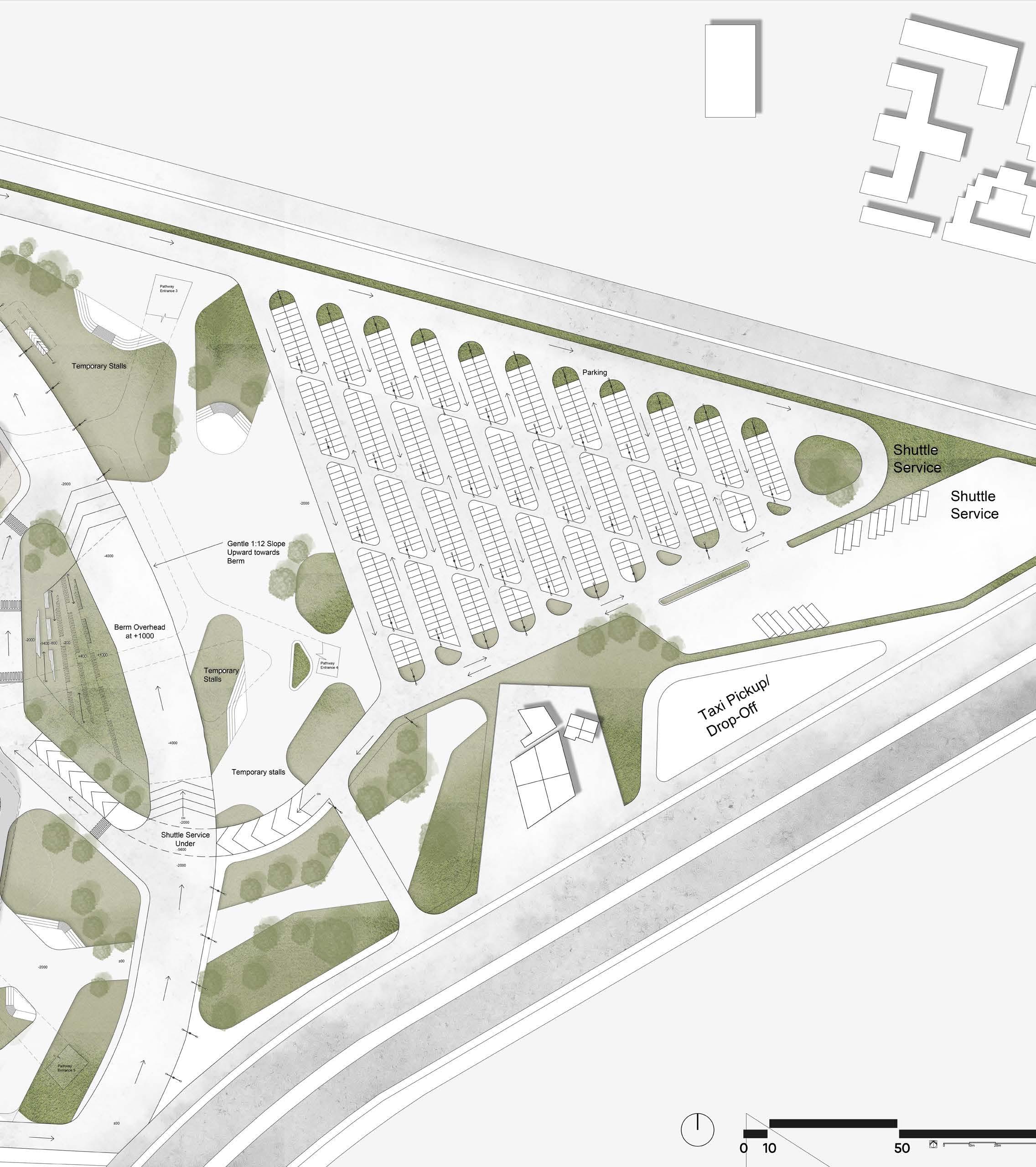

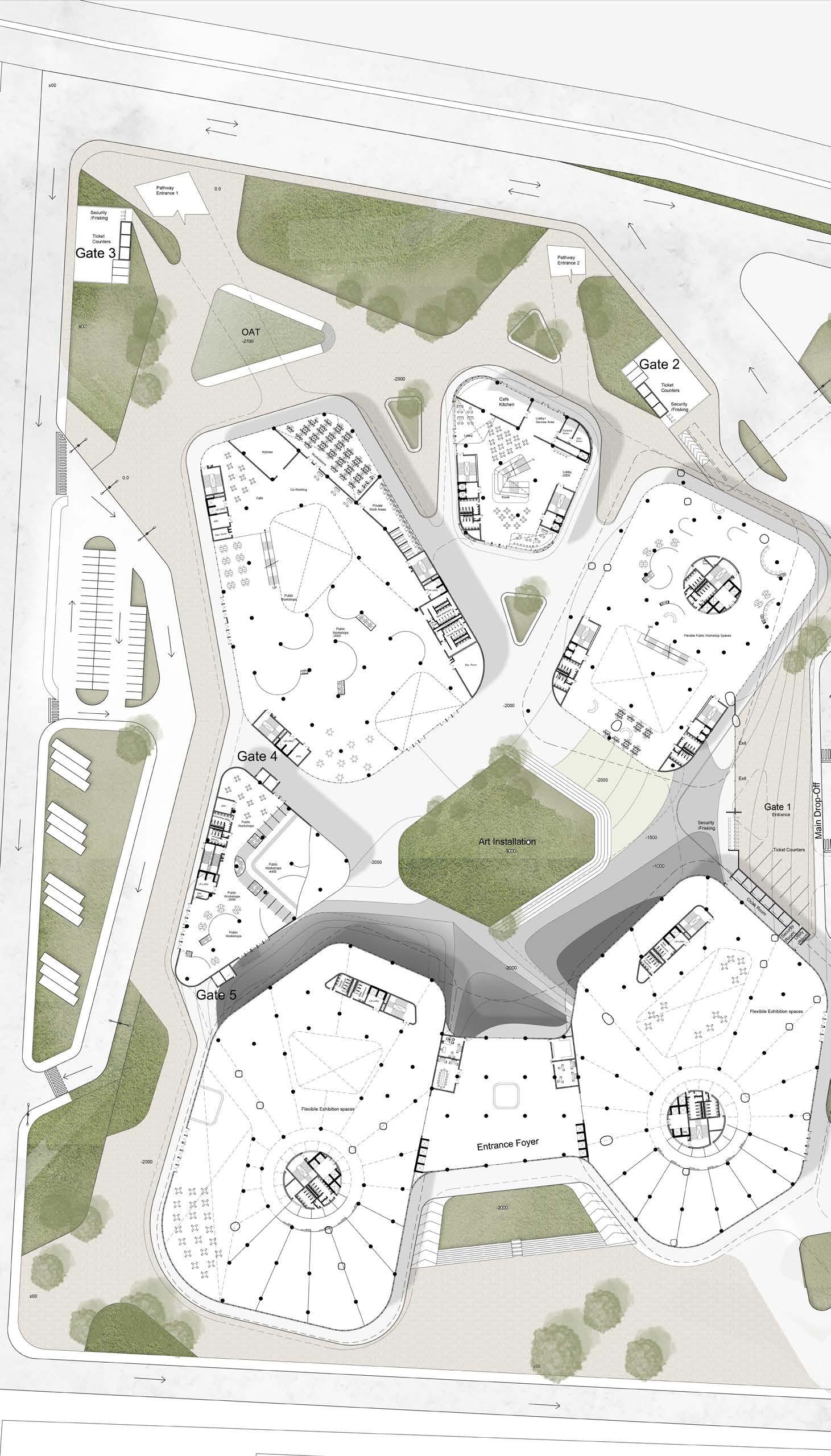

SITE PLAN
0 10 50 100

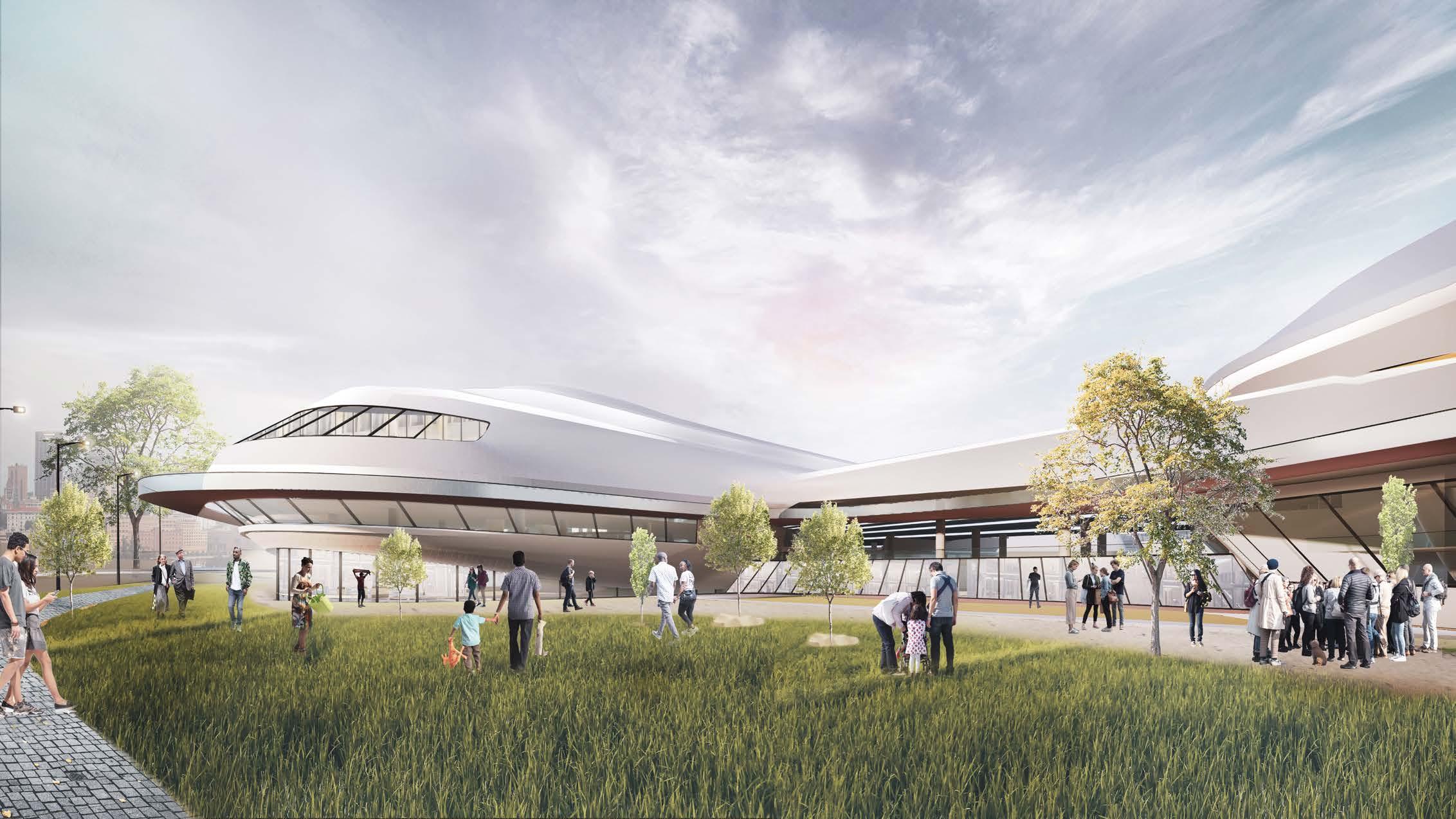

THE NARRATIVE AND THE VISION OF THE PROJECT REVOLVES AROUND THE IDEA OF DISPLAYING AND INTERACTING WITH NEW FORMS OF INTERACTIVE EXPERIENCE BETWEEN ART AND TECHNOLOGY, FOSTERING BOTH PHYSICAL AND DIGITAL EXPERIENCES IN BUILT AND UNBUILT SPACES.
F&B BUILDING

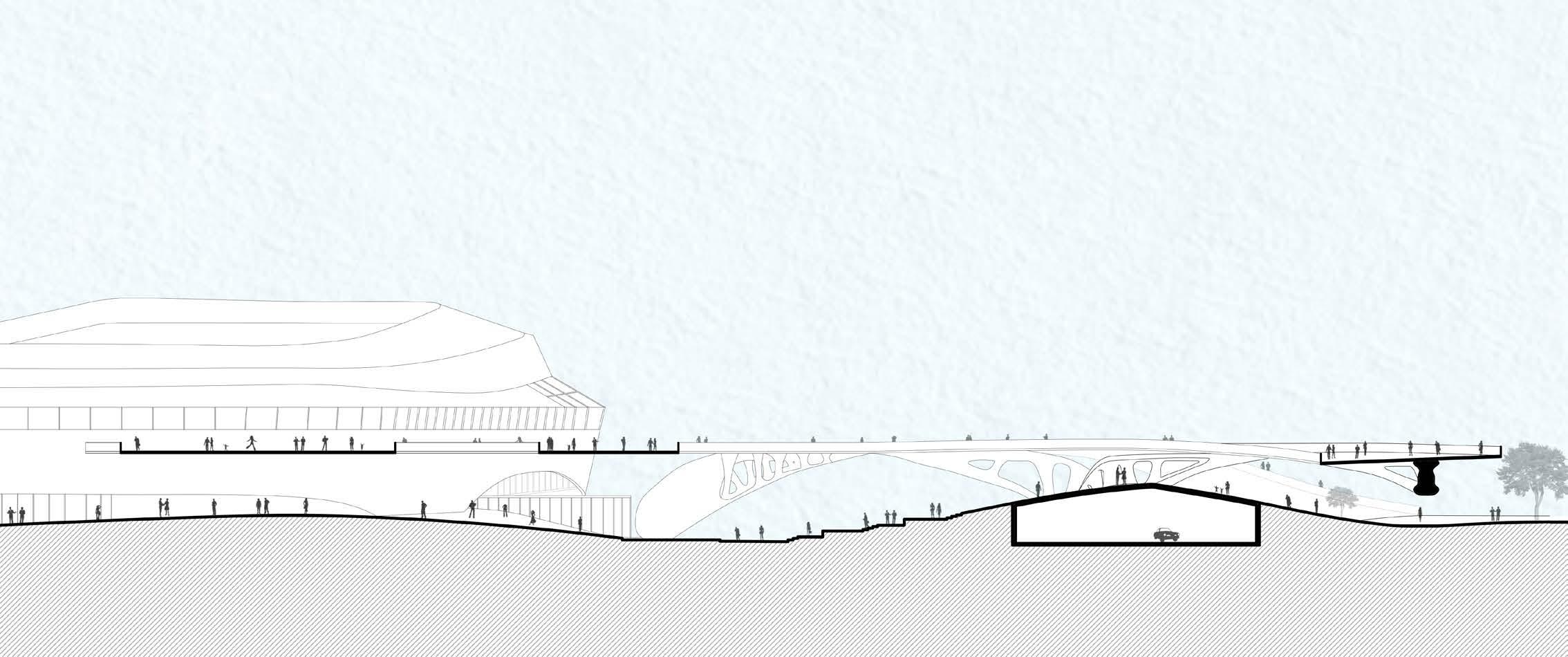

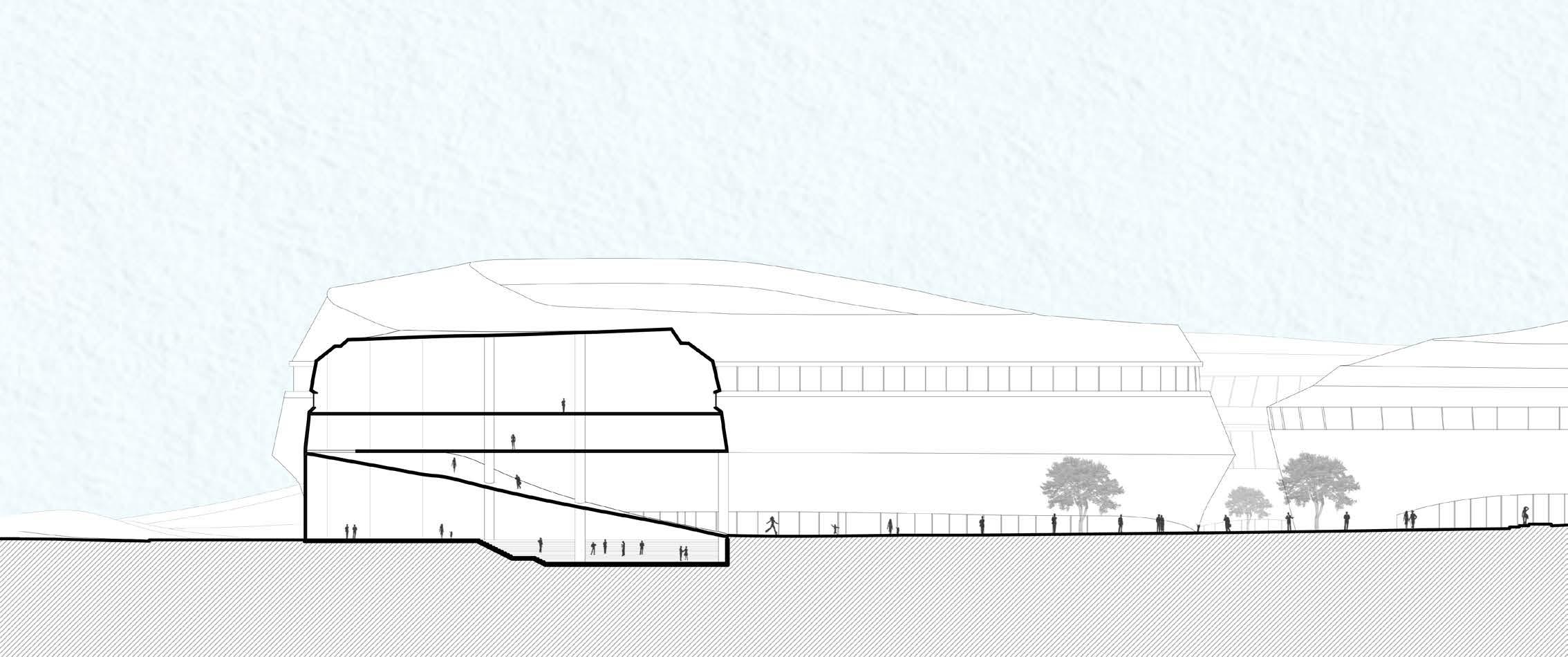

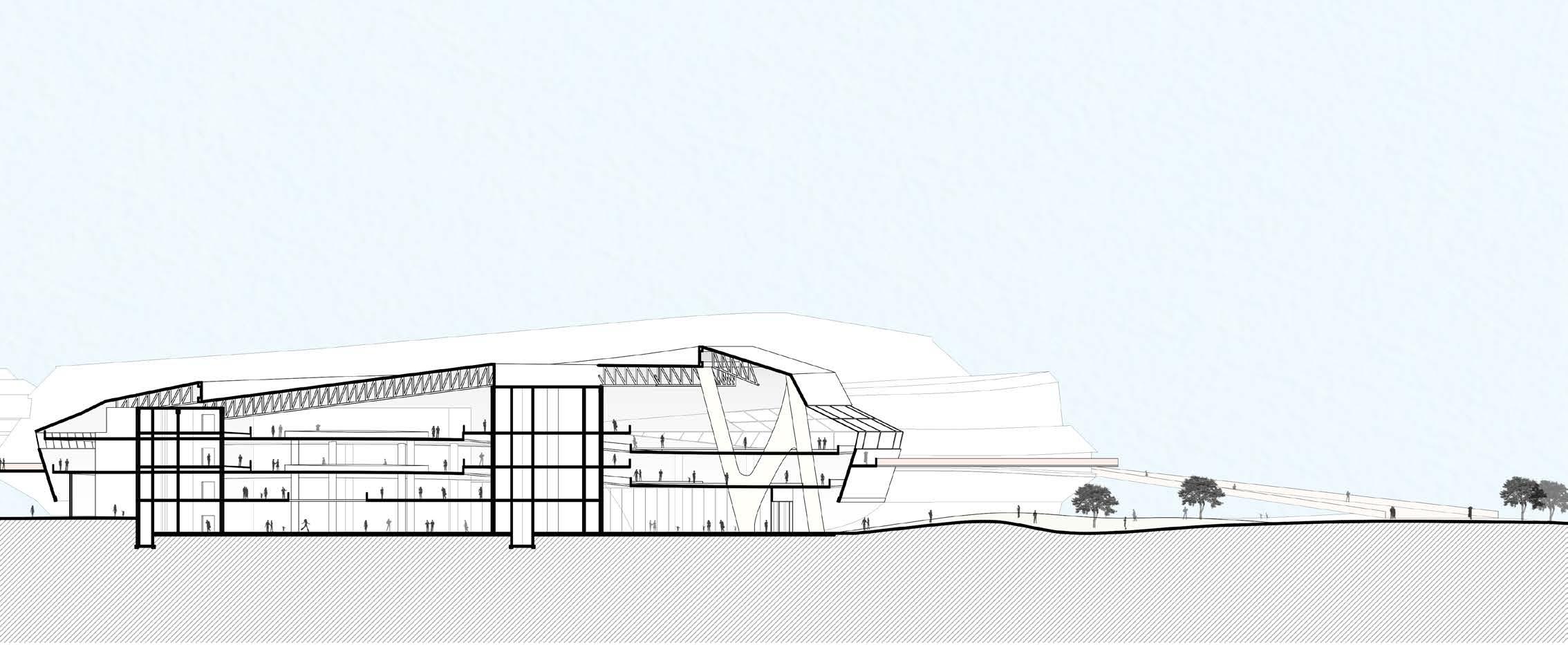

SECTION- BB’

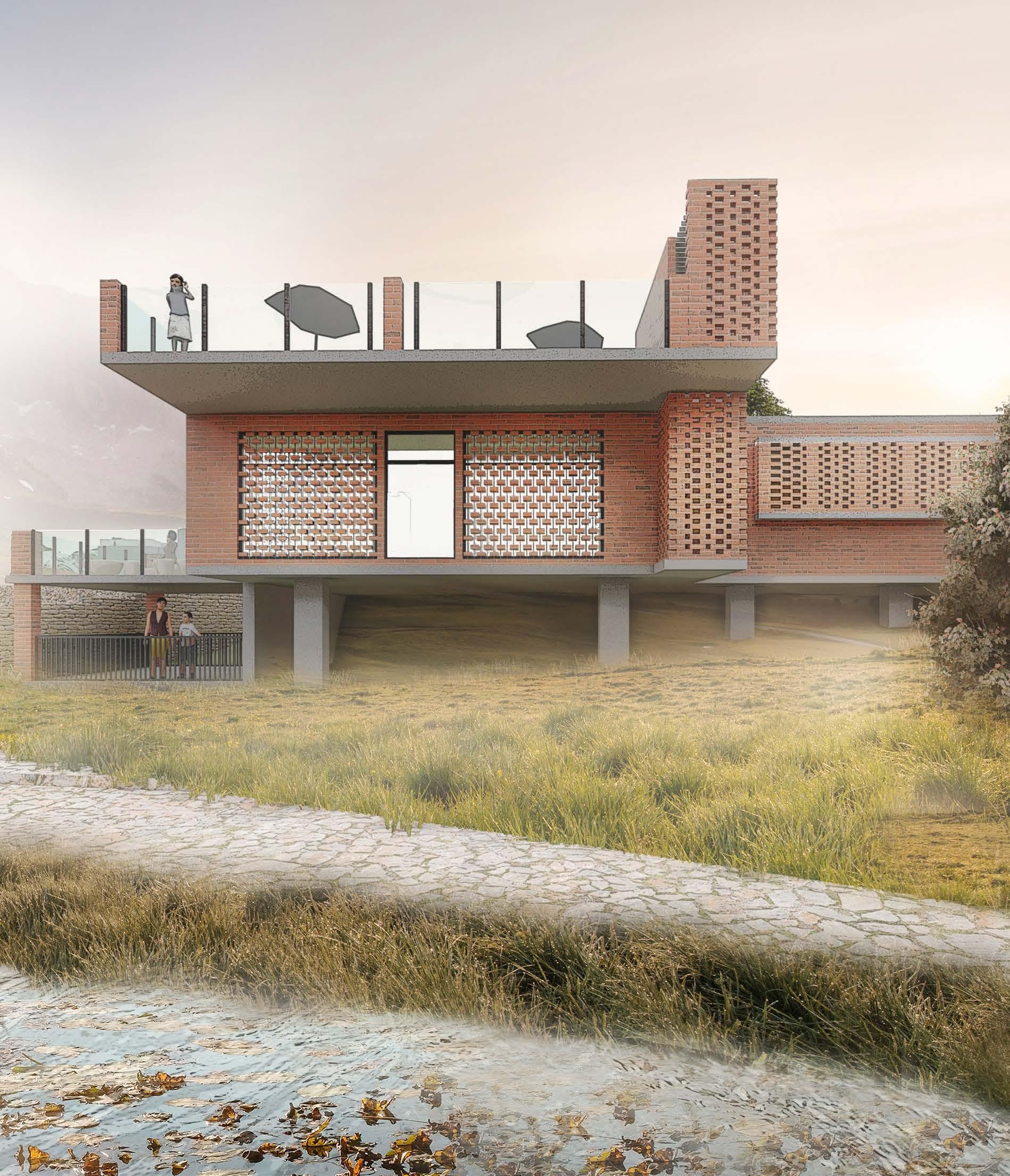

ART+CAFE
TYPE : ACADEMIC
( SEMESTER II )
ORCHHA, MADHYA PRADESH, INDIA SITE AREA: 1560M2
THE PROJECT AIMS TO CREATE AN ART CAFE AMIDST A HERITAGE LANDSCAPE OF THE CITY OF ORCHHA. THE PROGRAM REQUIRES A CAFE ALONG WITH AN ART/SOUVENIR SHOP WITH DISPLAY AND EXHIBITION AREAS.
“THE DESIGN BRINGS THE ESSENCE AND THE CULTURE OF THE CITY INTO THE ART CAFE THAT DICTATES THE SAME THROUGH ITS SPACES AND ITS ELEMENTS. PASSIVE MEASURES GUIDE THE THERMAL COMFORT WITHIN THE BUILT SPACES.
A CONTEMPORY DINING EXPERIENCE, DECORATED WITH TRADITIONAL ELEMENTS, FORMS AND DELIVERS AN ART-CAFE THAT IS IN HARMONY WITH ITS SURROUNDINGS ”.
04
‘22 ‘21 ‘20 ‘19 ‘18

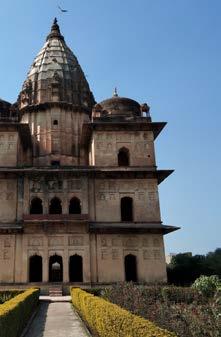

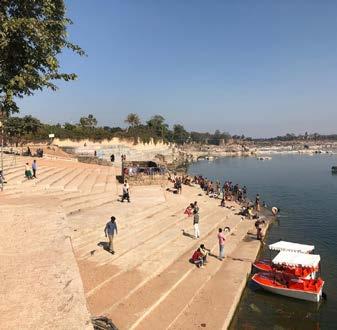

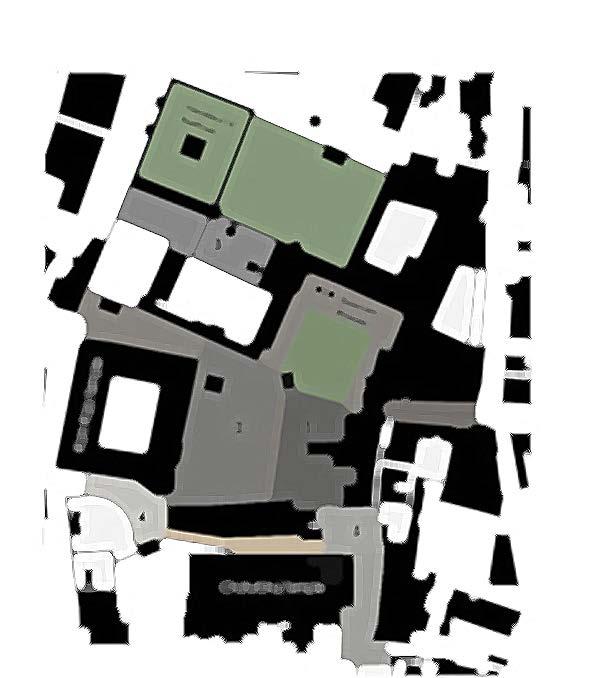

ORCHHA- PLAZAS SHOWING HEIRARCHY OF SPACES

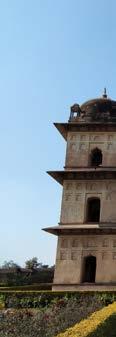

HISTORICAL INFERENCE
NAV-CHOWK IS THE SACRED CENTER BUILT AROUND A SERIES OF COURTYARDS, RAM RAJA TEMPLE IS THE FOCAL CROWDED. DURING FESTIVE SEASONS, OF THE SACRED AREA AS THE PROCESSION
THE DESIGN THROUGH ITS TRANSLATORY GATHERING SPOTS REMINISCING
USING THE CONTOURS TO WHERE ‘EACH LEVEL
‘22 ‘21 ‘20 ‘19 ‘18
=

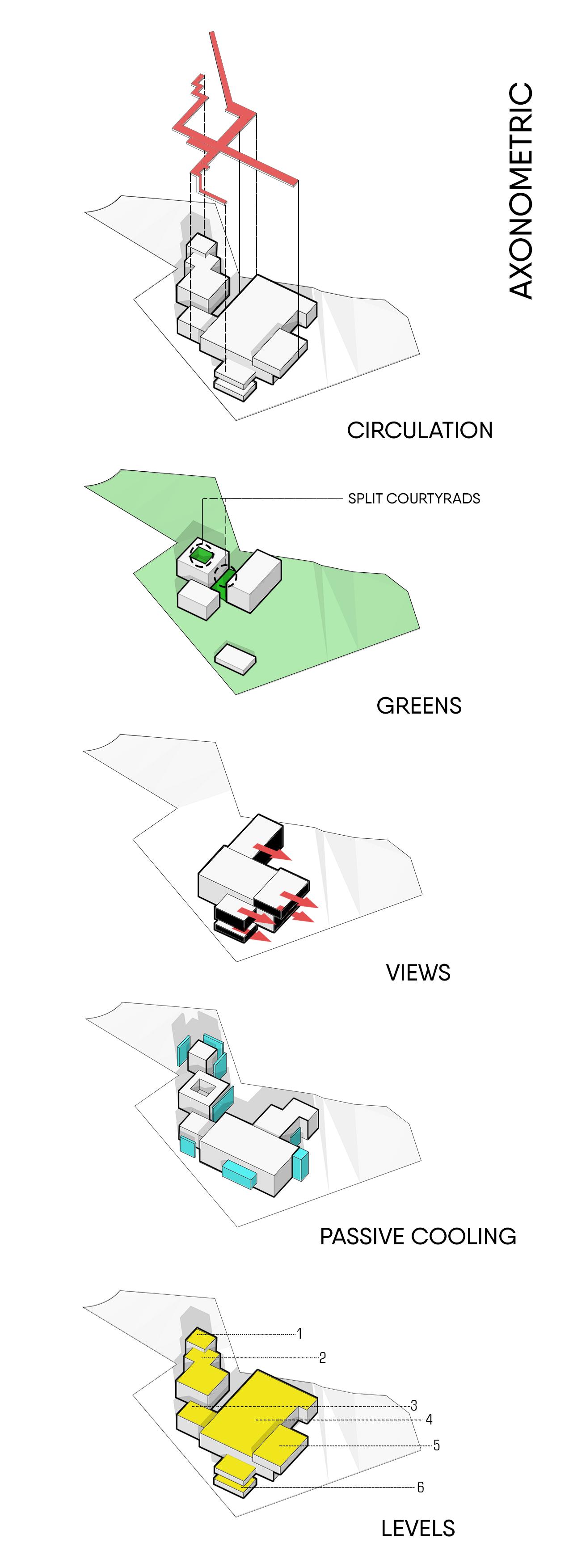

AXONOMETRIC
STONE
OF ORCHHA WITH TEMPLES AND PALACES COURTYARDS, GARDENS, AND PUBLIC PLAZAS. POINT AND ITS PLAZAS ARE THE MOST SEASONS, THE WHOLE TOWN BECOMES A PART PROCESSION PRAISES THROUGH ENTIRE TOWN.
TRANSLATORY SPACES CREATES SIMILAR REMINISCING THE HISTORY OF THE PLACE.
SET UP DIFFERENT LEVELS OPENS TO THE OUTDOORS’.
SITE ZONING
BRICK STONE
LEVELS CREATE DIFFERENT USER EXPERIENCE
FRAMING THE RIVER
JAALI AND ARCHES
UTILISING SITE CONTOURS
Mixed Used Art Cafe Kindergarten Expo1 In-Habit-In-Rig Enclave Avalon Maldives Max. Fischer
SITE Orchha Resort
+
CONCEPT AND STRATEGIES
A SERIES OF CUBOID VOLUMES LAID ON A CONTOURED SITE SEPARATED INTO DIFFERENT ZONES.
THESE VOLUMES CREATE A SERIES OF OPEN AND CLOSED SPACES SUCH AS A COURTYARD THAT REFLECT THE CONTEXTUAL PRESENCE OF THE SITE.
CREATING A HEIRARCHY IN LEVELS AND HEIGHTS, THUS PROVIDING VARYING USER EXPERIENCE.
THE CHANGE IN HEIGHT ALSO HELPS IN MAINTAINIG CROSSVENTILATION DURING HOT SUMMERS.
THE SERIES OF CUBOID VOLUMES ARE ALIGNED TO GIVE VIEWS TO THE RIVER EVEN AFTER CHANGE IN LEVEL.

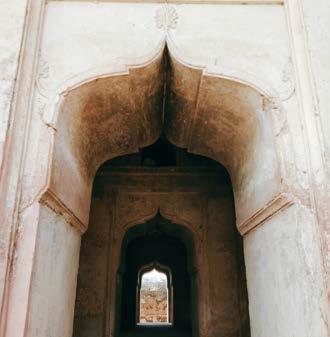

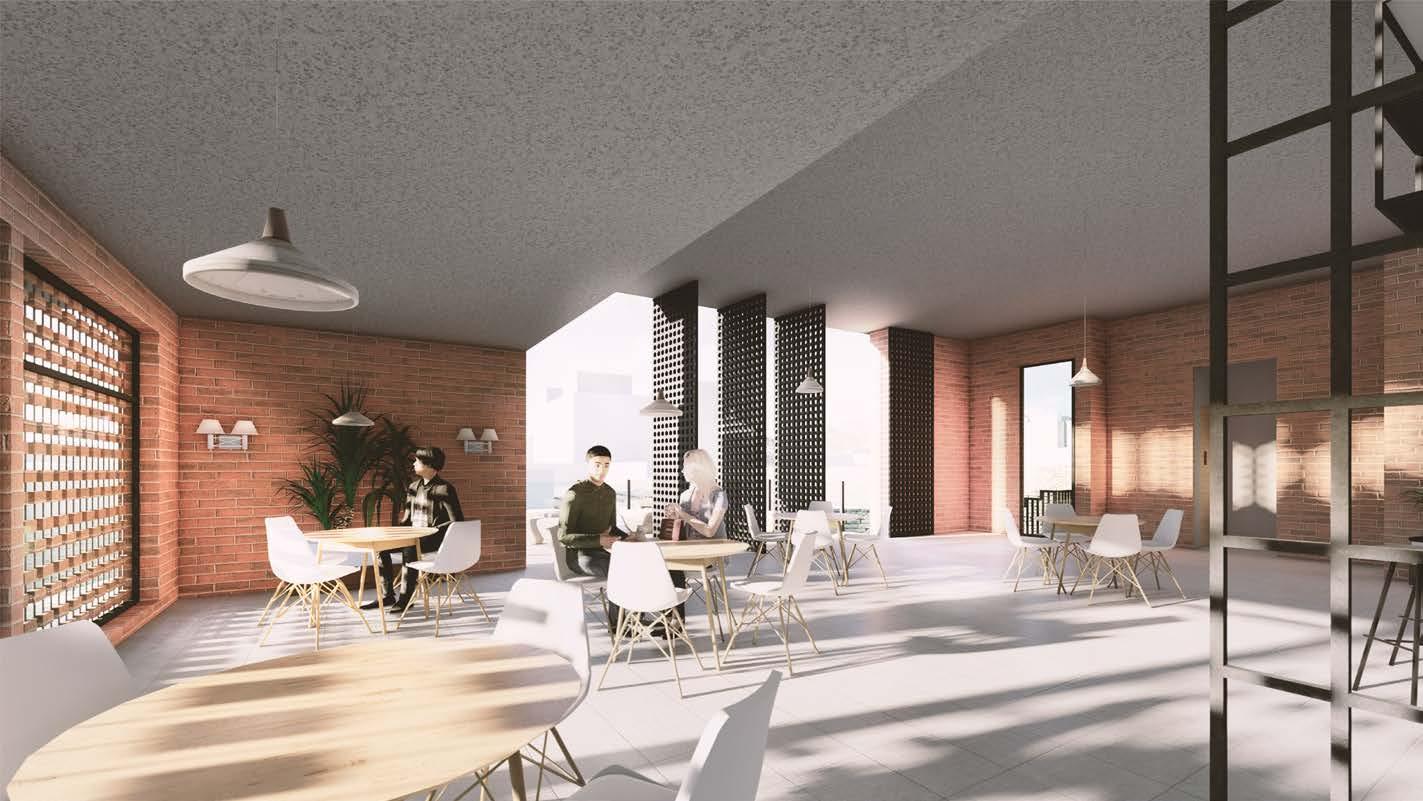

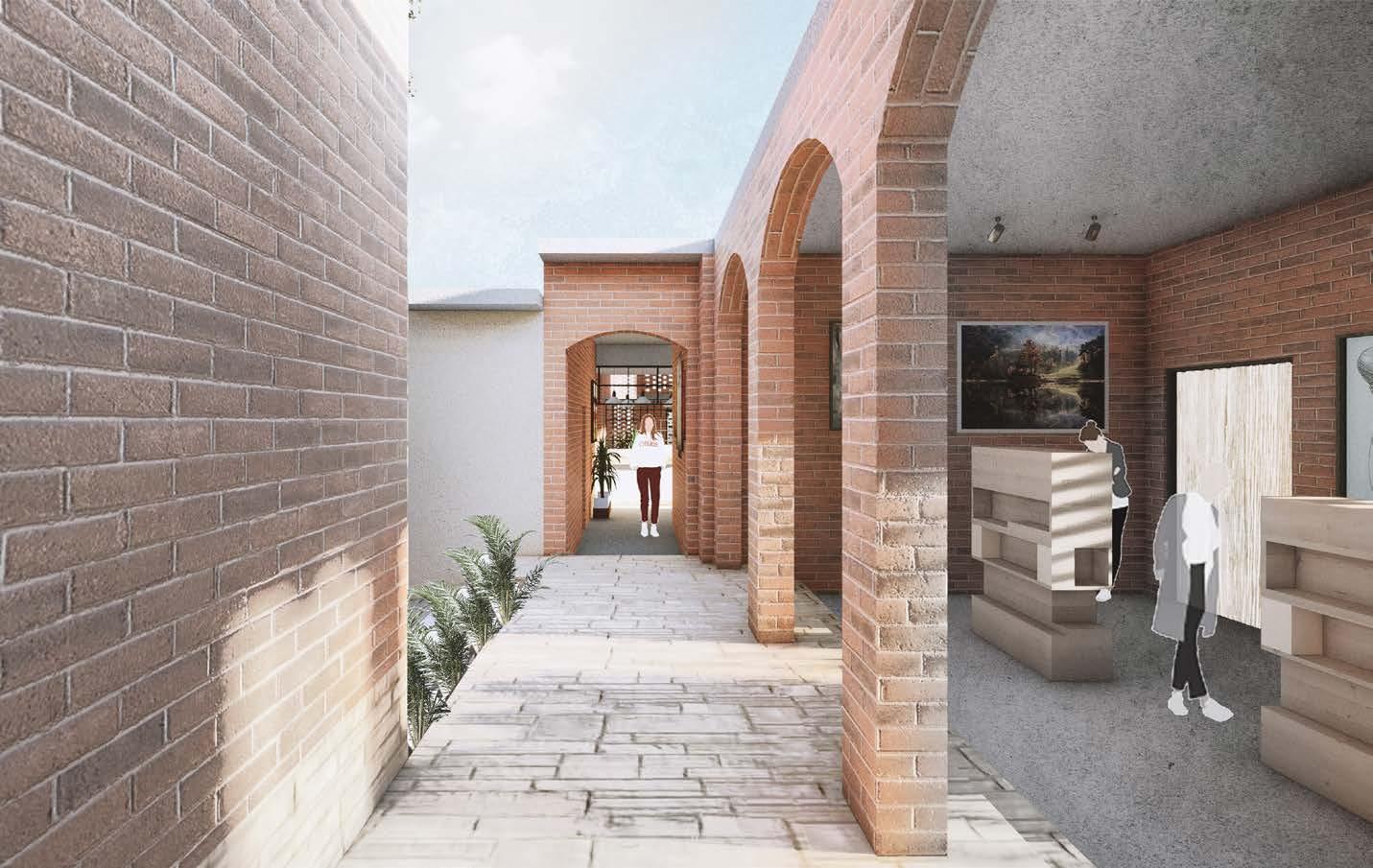

TRADITIONAL ARCHITECTURE LIKE JALI (IN BRICK) AND ARCHES REFLECT IN THE CAFE AND USED TO OBTAIN COOLING.
THE TRANSITIONAL SPACES ARE FORMED AND FRAMED BY THE USE OF SCREENS AND JALIS.

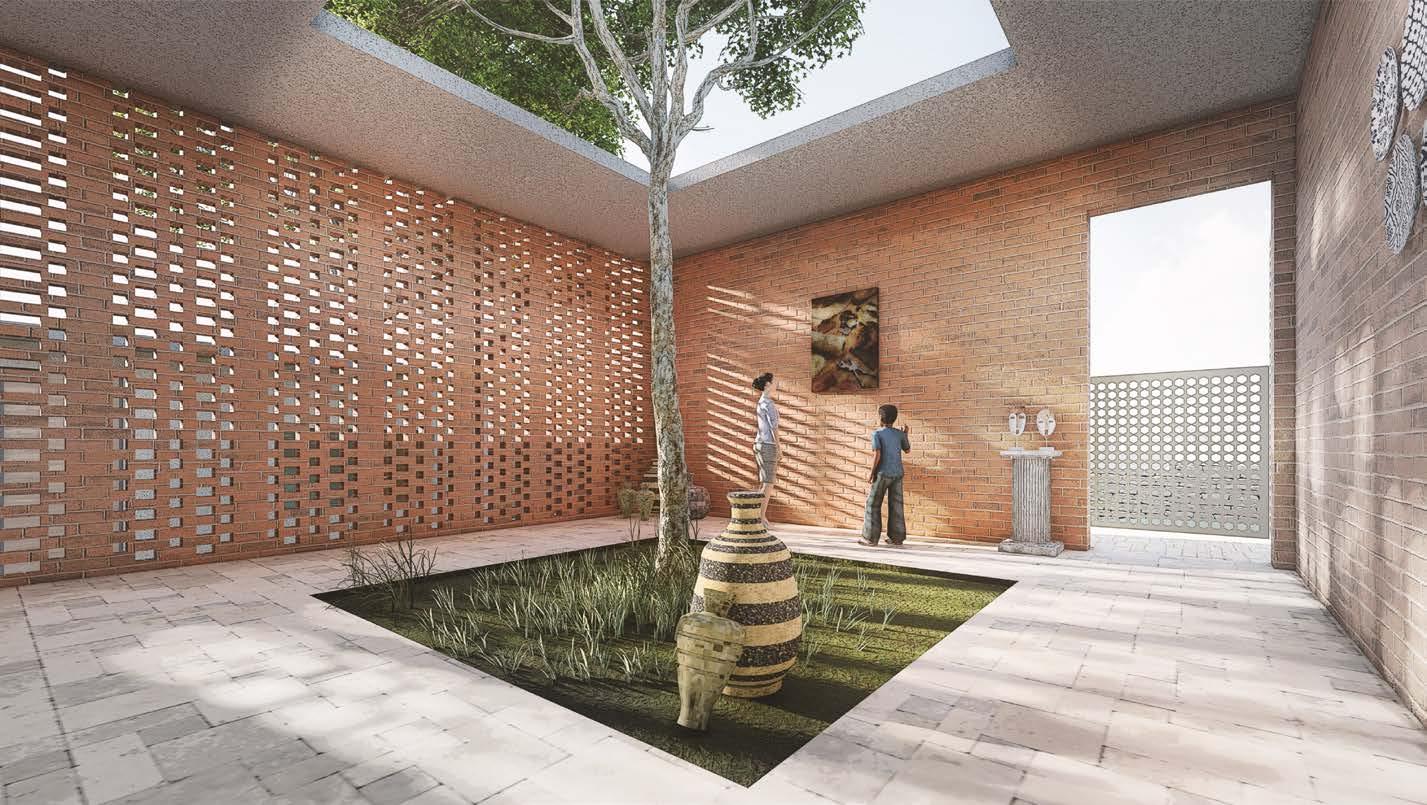

ADOPTING COURTYARD TYPOLOGY. SPLIT COURTYARDS HAVE BEEN USED AS AN OUTDOOR SEATING SPACE AND AS THE CENTER OF THE ART DISPLAY AREA. IT ALSO ACTS AS THE ENTRY LOBBY.

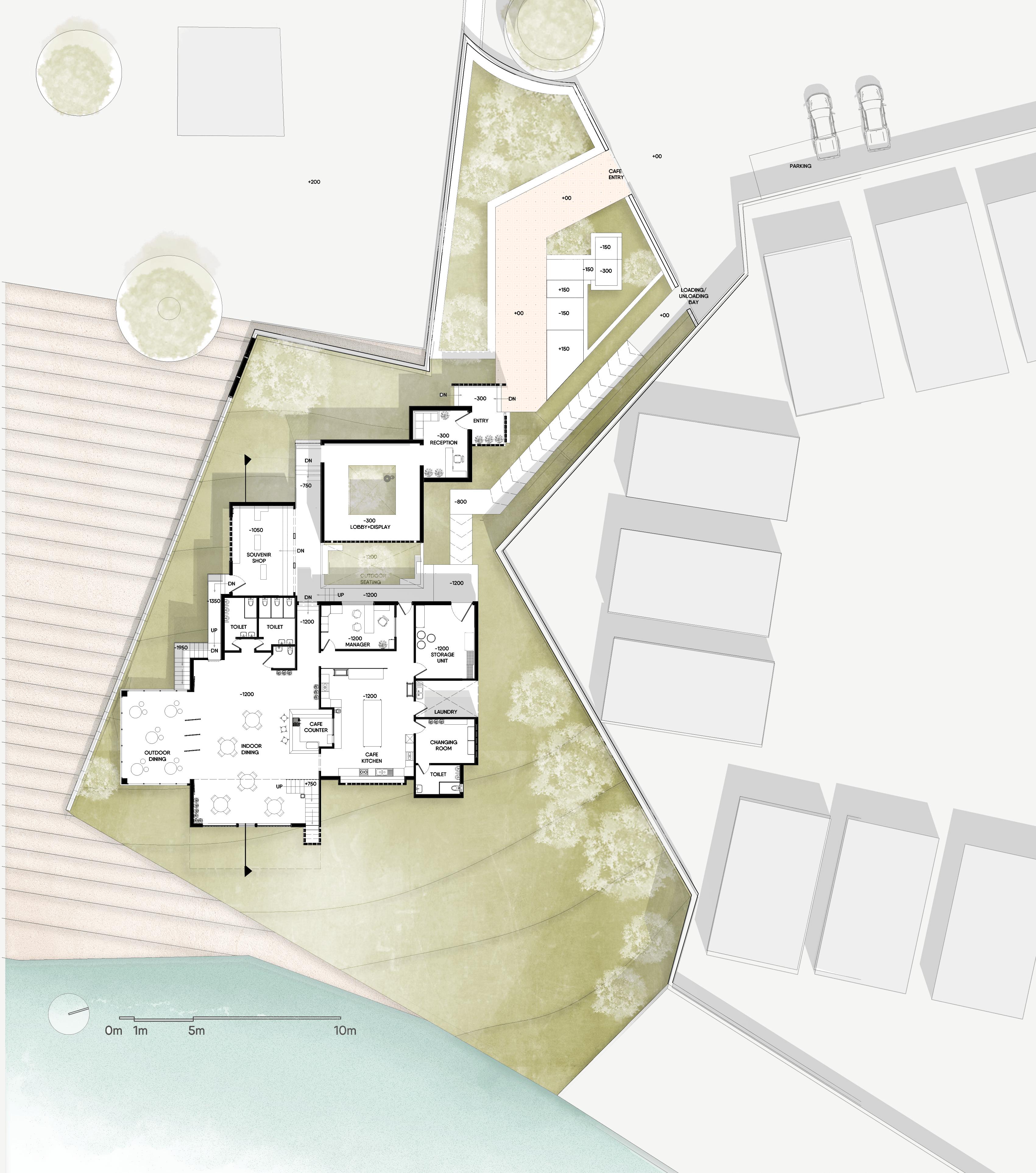

AREA PROGRAM
Total Site Area: 1560m2 1.
‘22 ‘21 ‘20 ‘19 ‘18
15m2
43m2
26m2
15m2
43m2
ROOM 12m2
TOILETS 25m2
LAUNDRY 10m2
DINING 108m2 10. STORAGE 20m2
RECEPTION
2. DISPLAY LOBBY
3. SOUVERNIR SHOP
4. MANAGERS ROOM
5. CAFE KITCHEN
6.CHANGING
7.
8.
9.
Mixed Used Art Cafe Kindergarten Expo1 In-Habit-In-Rig Enclave Avalon Maldives Max. Fischer SITE PLAN Orchha Resort Betwa River A -5000mm -4500mm +00mm Water Level A’

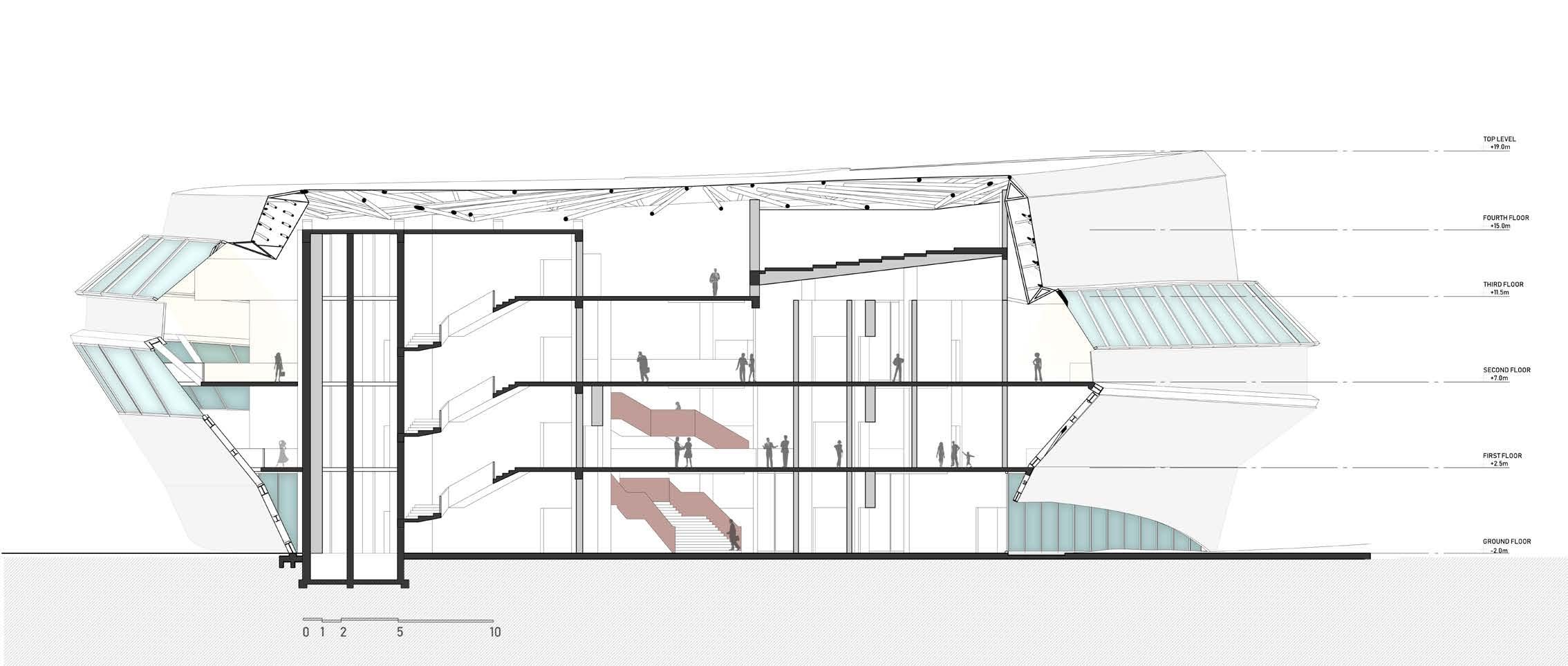

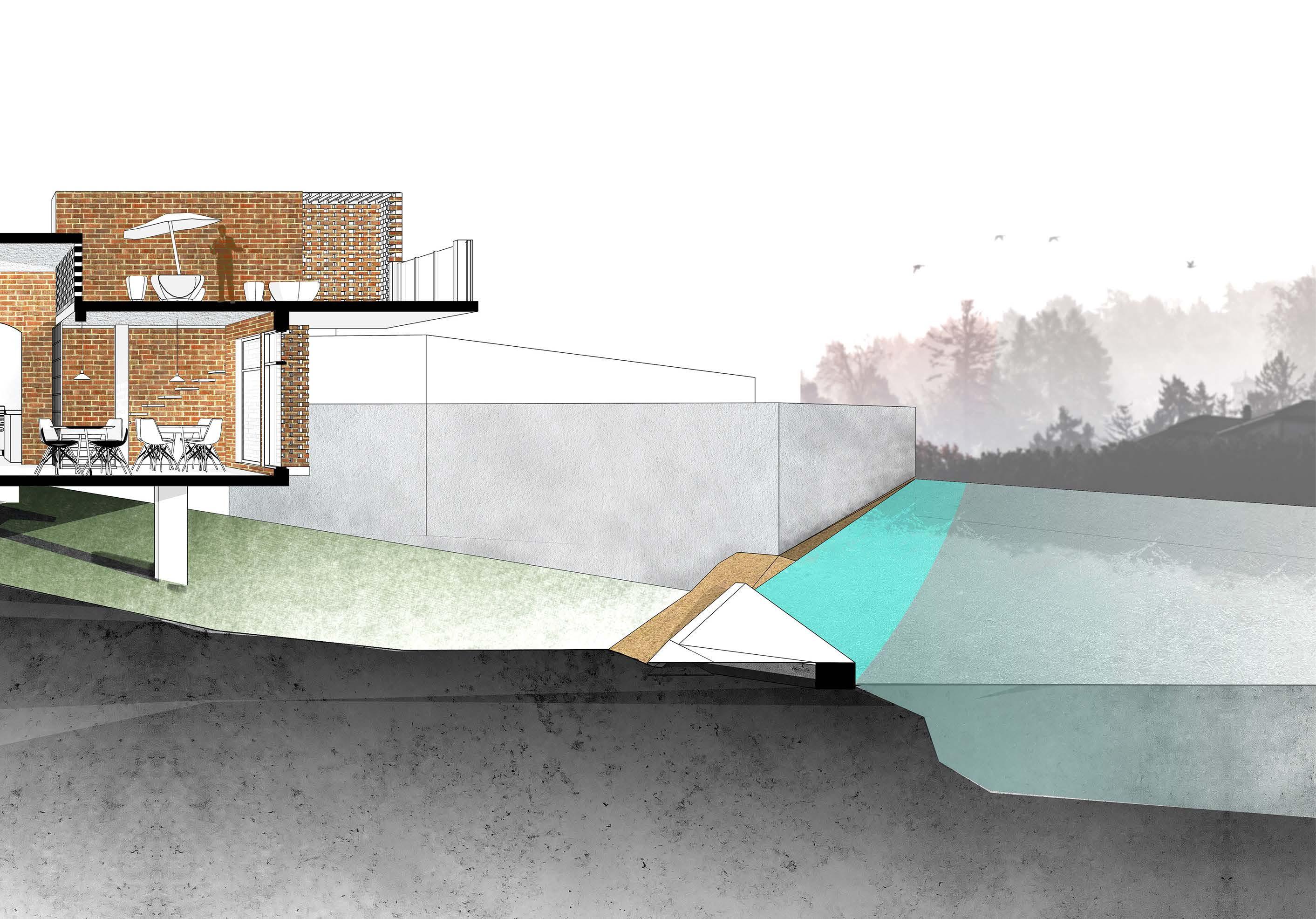

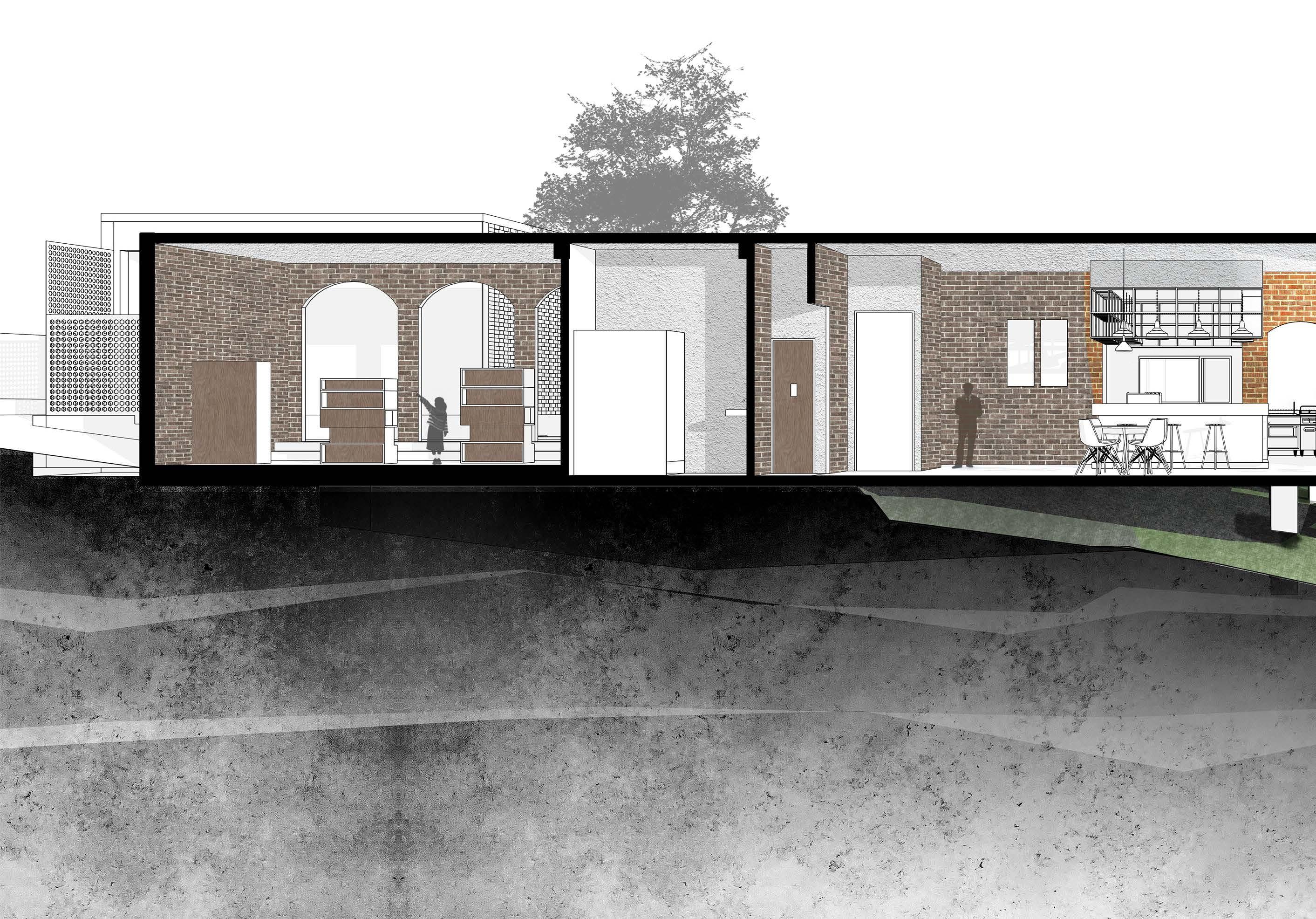

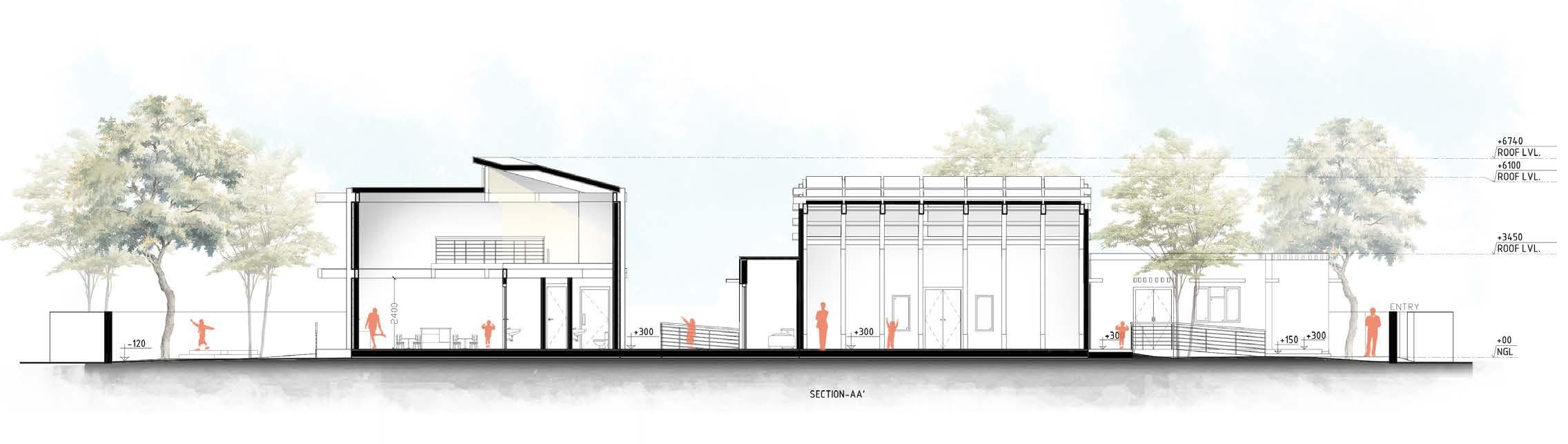

PERSPECTIVE SECTION- AA’
‘22 ‘21 ‘20 ‘19 ‘18
Mixed Used Art Cafe Kindergarten Expo1 In-Habit-In-Rig Enclave Avalon Maldives Max. Fischer

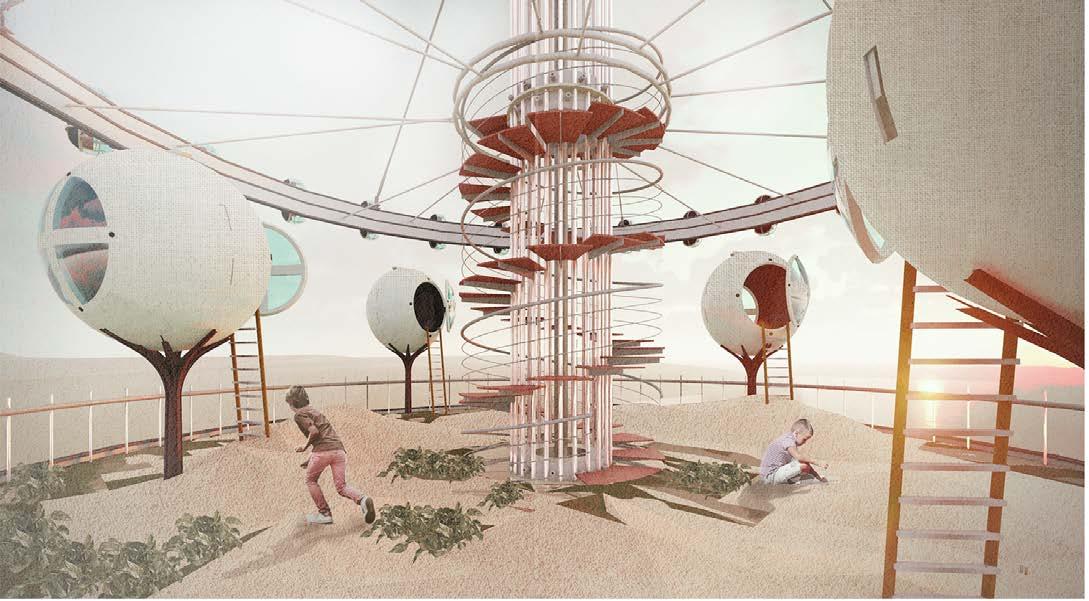

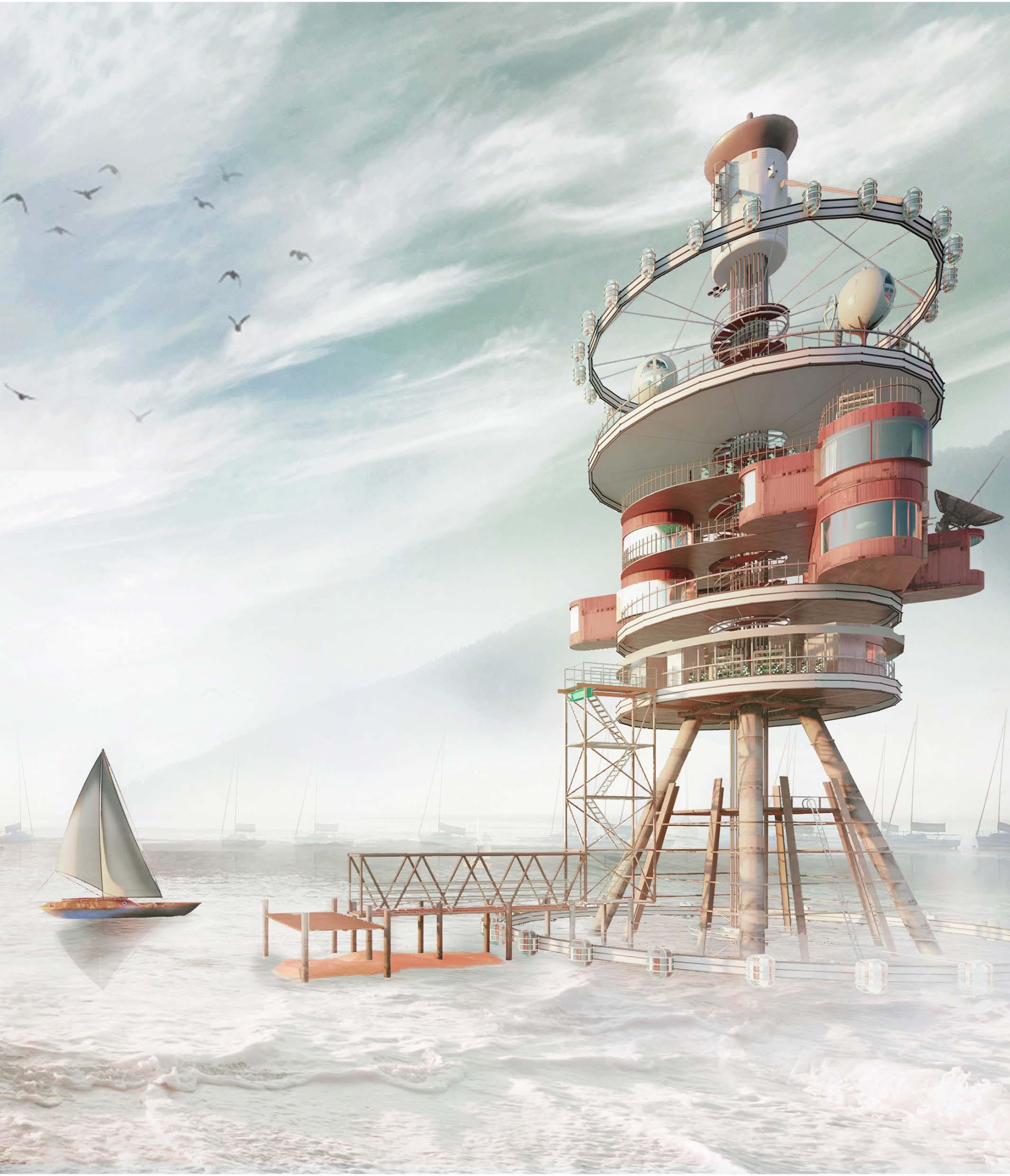

IN-HABIT-IN-RIG
TYPE : COMPETITION
(ARCHITECTURE OF THE ABONDONED BY THE BIG THING)
THE COMPETITION FOCUSES ON IDENTIFYING METAL OBJECTS THAT HAVE LONG BEEN FORGOTTEN, ARE IN A STATE OF RUINS AND REPURPOSE THESE OBJECTS INTO A FUNCTIONAL TYPOLOGY OF A RESIDENCE.
“LEFT IN PLACE, THE STRUCTURES OF ABANDONMENT ARE STRANGELY REASSURING, HAUNTING OUR MEMORIES AND REMINDING US OF A BYGONE ERA. THEY FORCE US TO CONFRONT NOT MERELY THE LOSS OF THEIR ORIGINAL FUNCTION BUT ALSO EVOKE A WIDE RANGE OF IDEAS FOR THEIR POSSIBLE FUTURE USE”.
RECOGNITION: HONORABLE MENTIONS, TOP 30 INTERNATIONAL- 8 TH POSITION
MENTIONED BY:
SIR HYO MAN KIM (IROJE KHM ARCHITECTS)
SIR NGUYEN HAI LONG (TROPICAL SPACE ARCHITECTURE)
05
NUATAMBU, SOLOMON ISLANDS
‘22 ‘21 ‘20 ‘19 ‘18

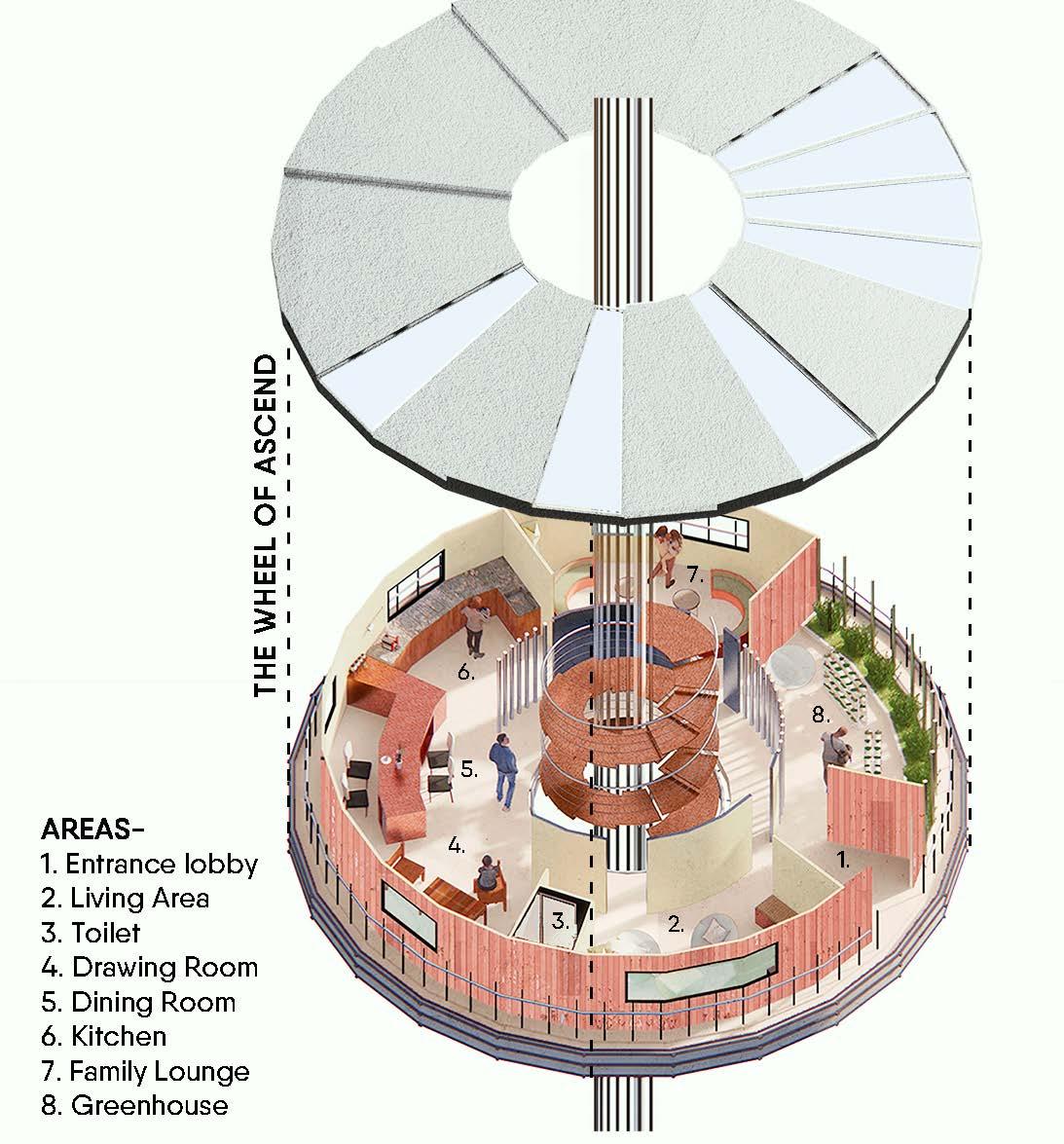

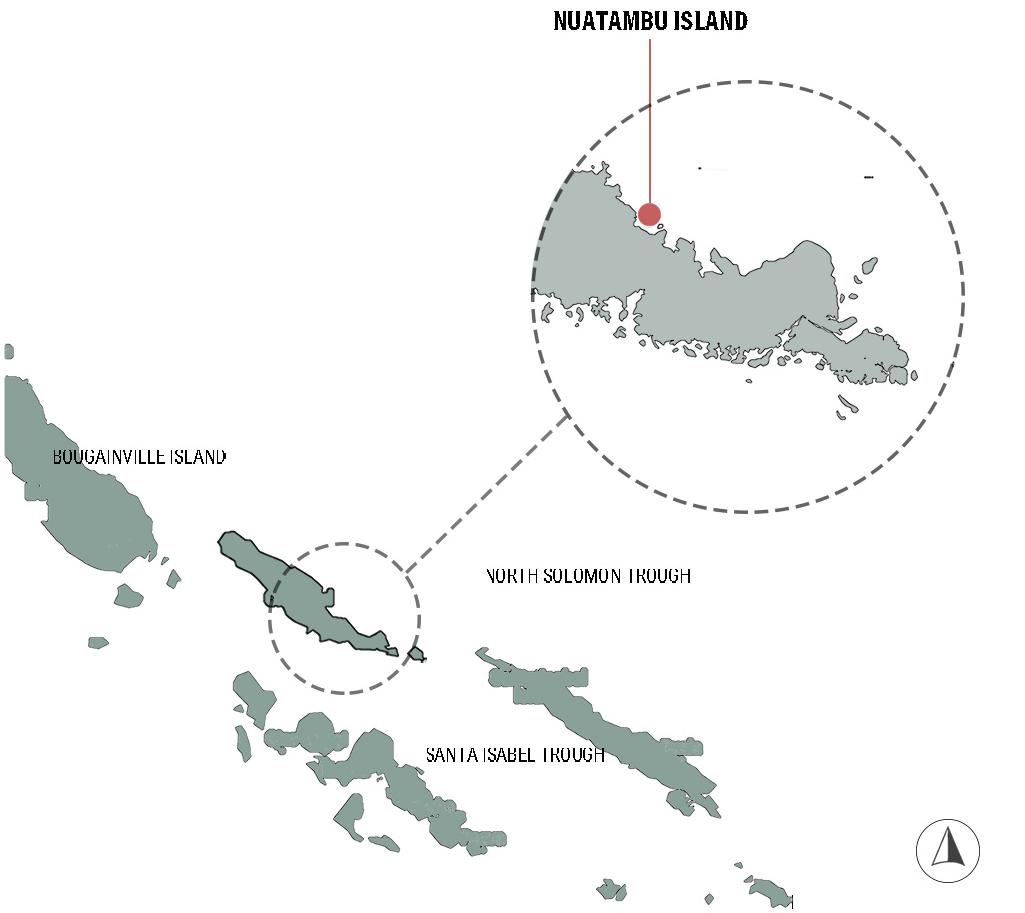

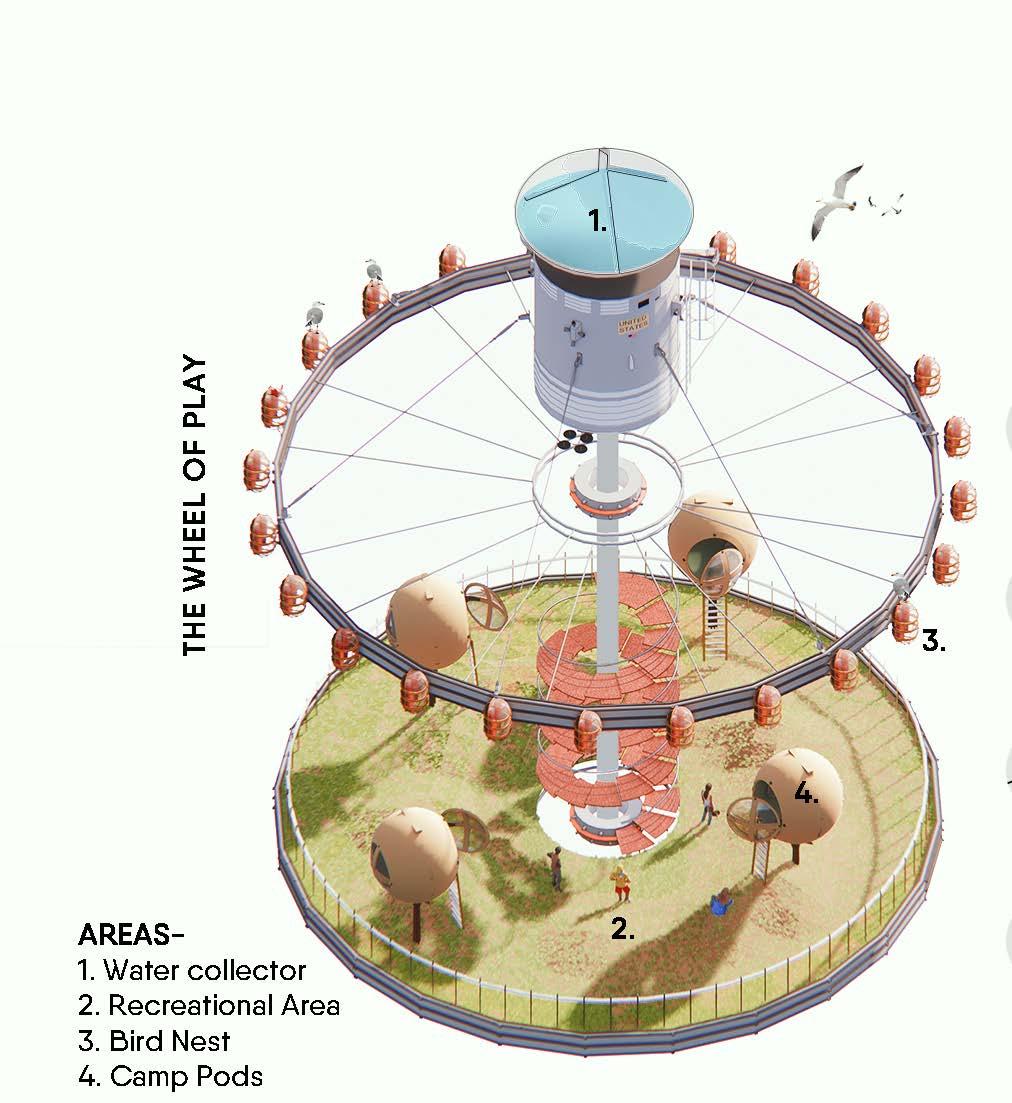

“NUATAMBU IS AN ISLAND IN THE SOLOMON ISLANDS, WHICH IS ONE OF THE LEAST DENSELY POPULATED PACIFIC ISLAND NATIONS. DESPITE THE LOW POPULATION DENSITY, FINDING A SAFE PLACE TO CALL HOME HAS BECOME A CHALLENGE FOR SOME SOLOMON ISLANDERS. THE RISE IN SEA LEVELS DUE TO GLOBAL CLIMATE CHANGE HAVE LED THE PEOPLE TO ABANDON THEIR SHELTERS IN SEARCH FOR THE BETTER.
THE DESIGN INTENDS TO PROVIDE AN ALTERNATE MODE OF LIVING THAT ALSO ACTS AS A SYMBOL OF CHANGE, OF SUSTENANCE AND OF A CONSTANT REMINDER OF THE PAST. IT INTENDS TO PROVIDE A RESILIENT LIVING ALONG THE COASTS THAT ALSO HAS THE POTENTIAL TO ADAPT AND TO EXPAND TO PROVIDE THE LOCAL COMMUNITY BY RETHINKING THE TYPOLOGIES OF THE SPACES AND RE-UTILISING WHAT IS LEFT”.

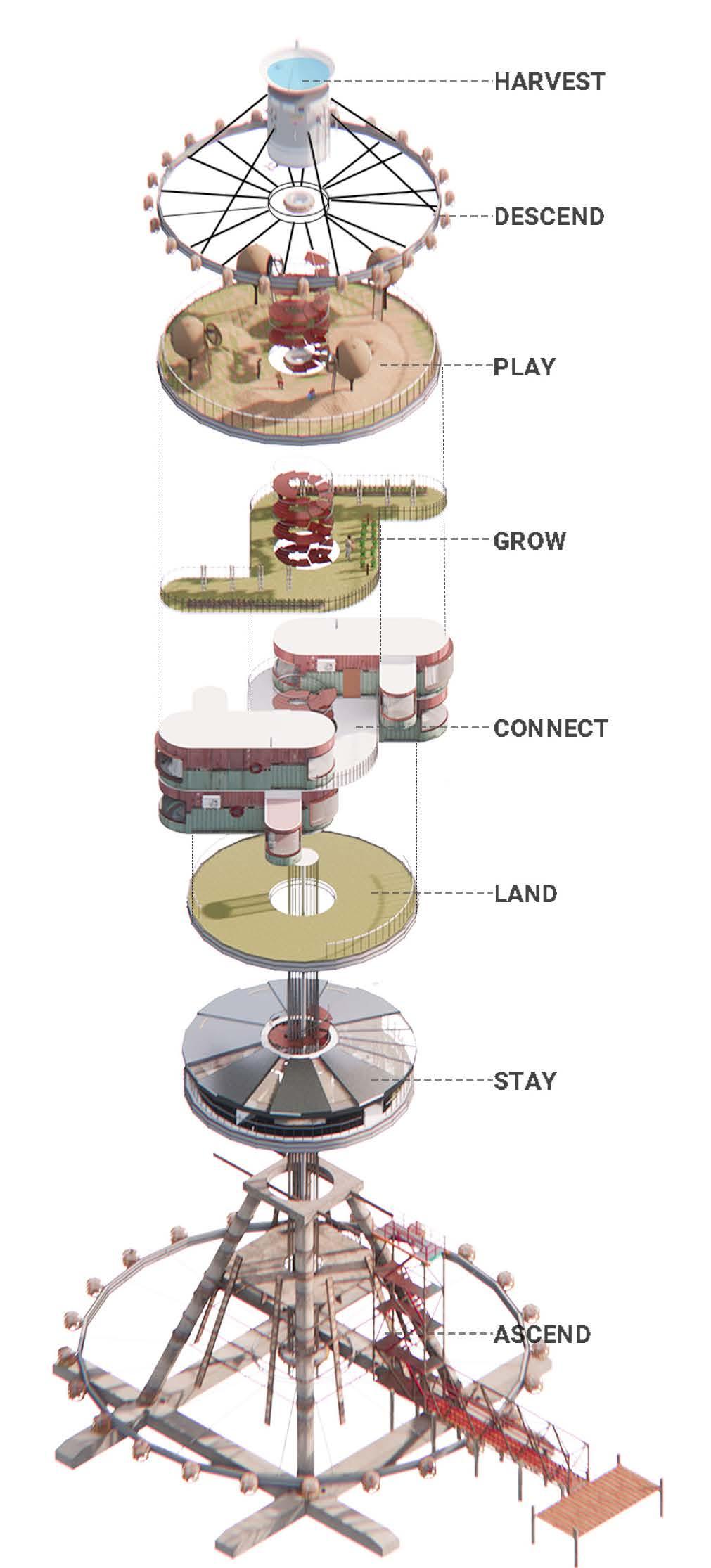

EXPLODED3D

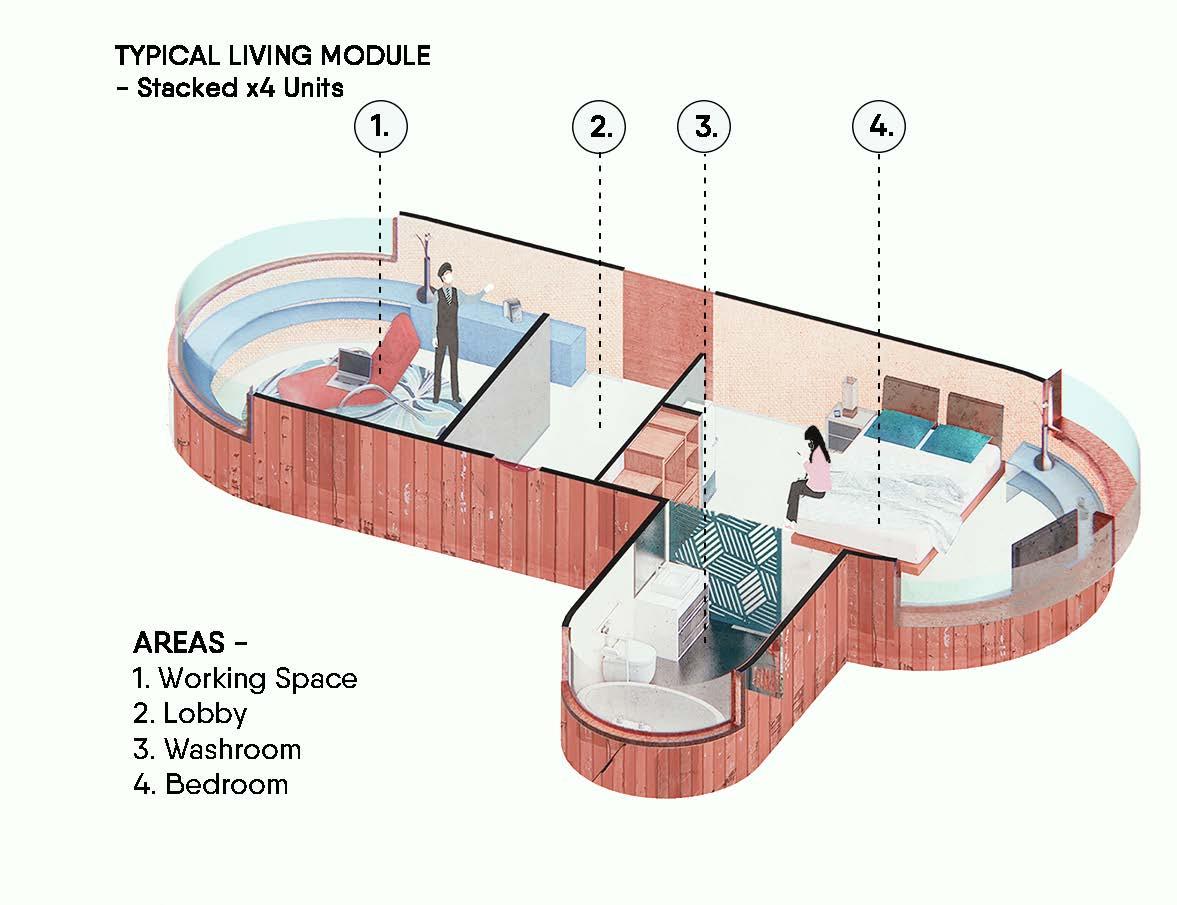

AN ALTERNATE LIVING
Workspace Bedroom Play Area

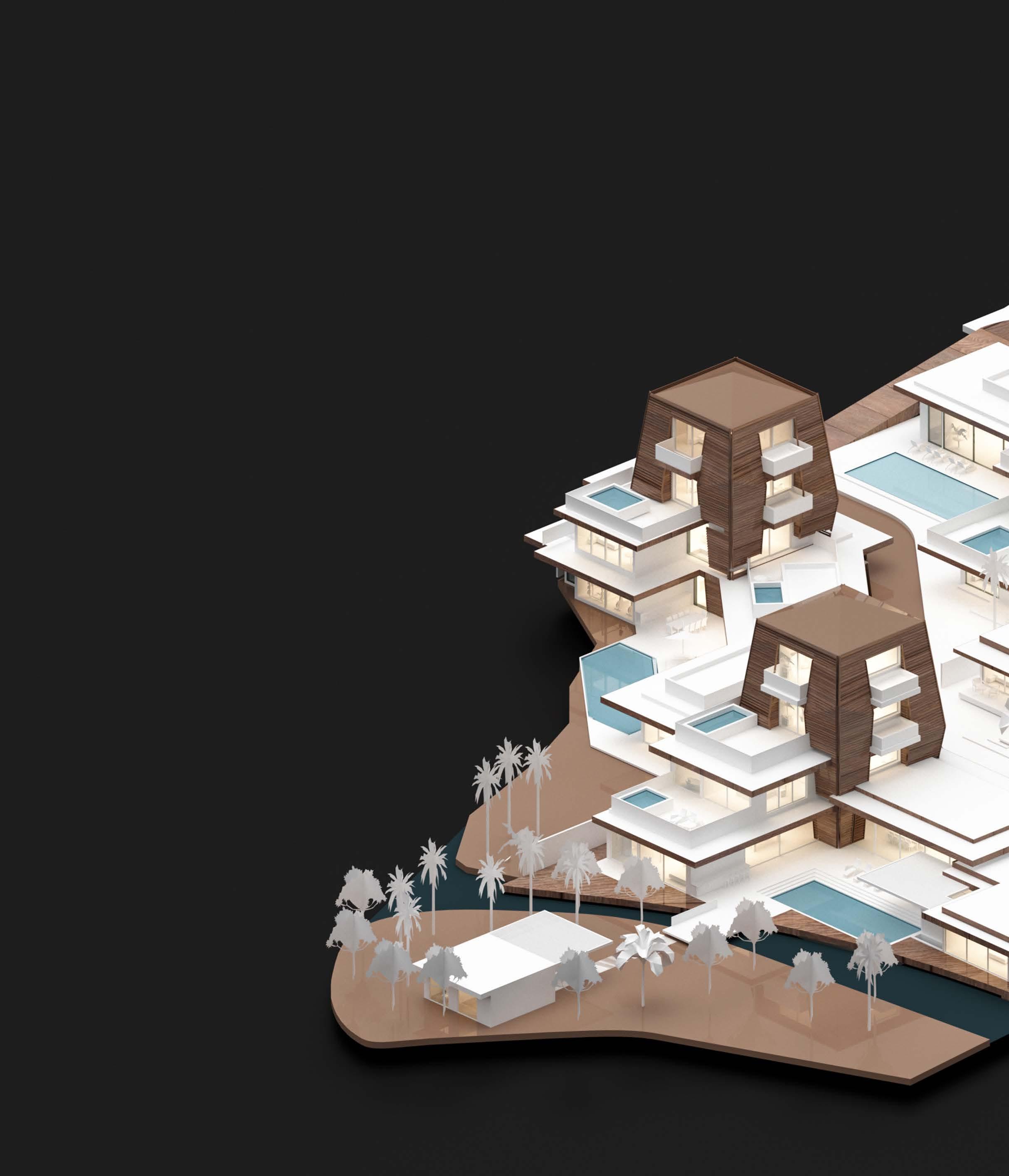

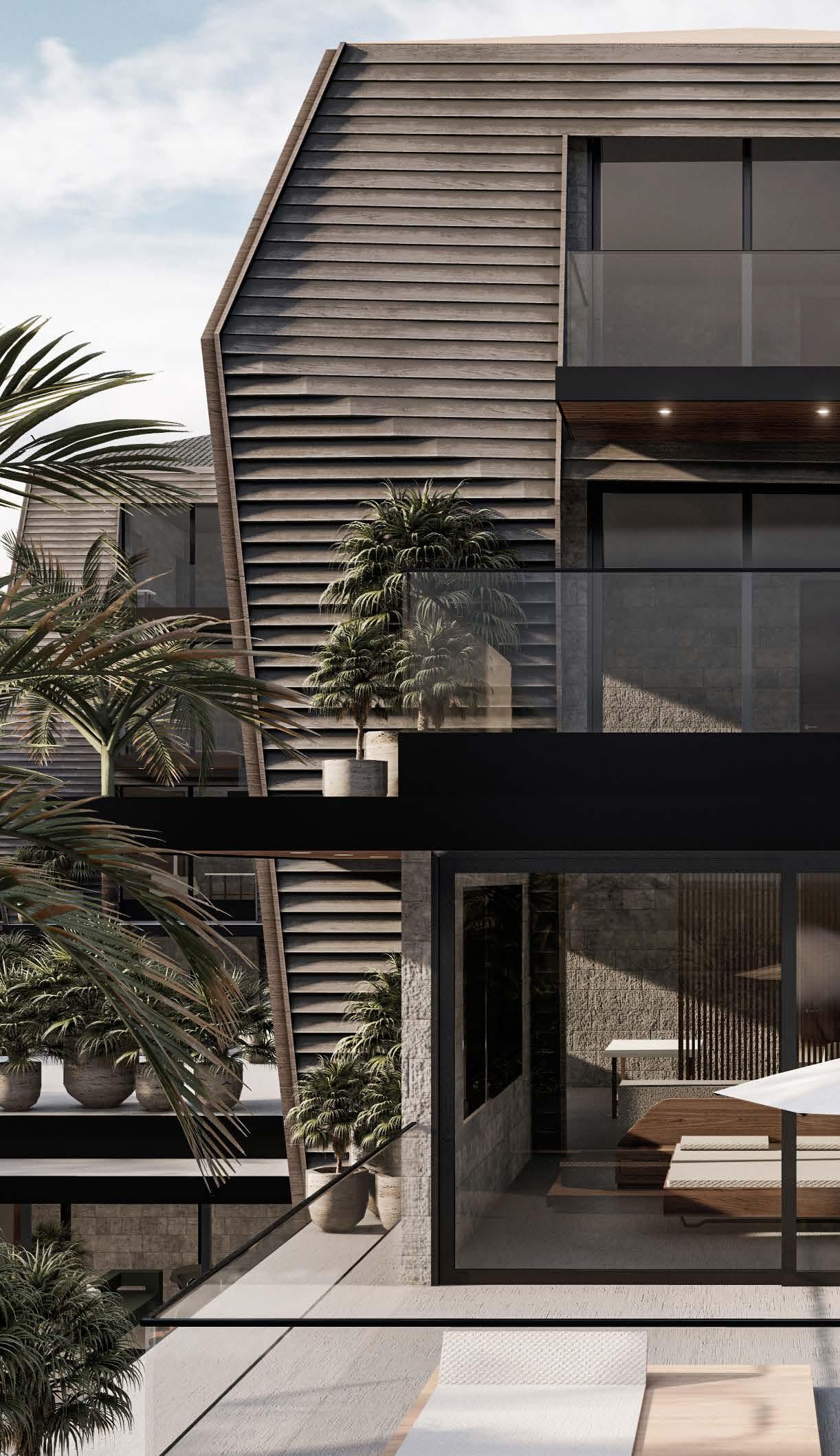

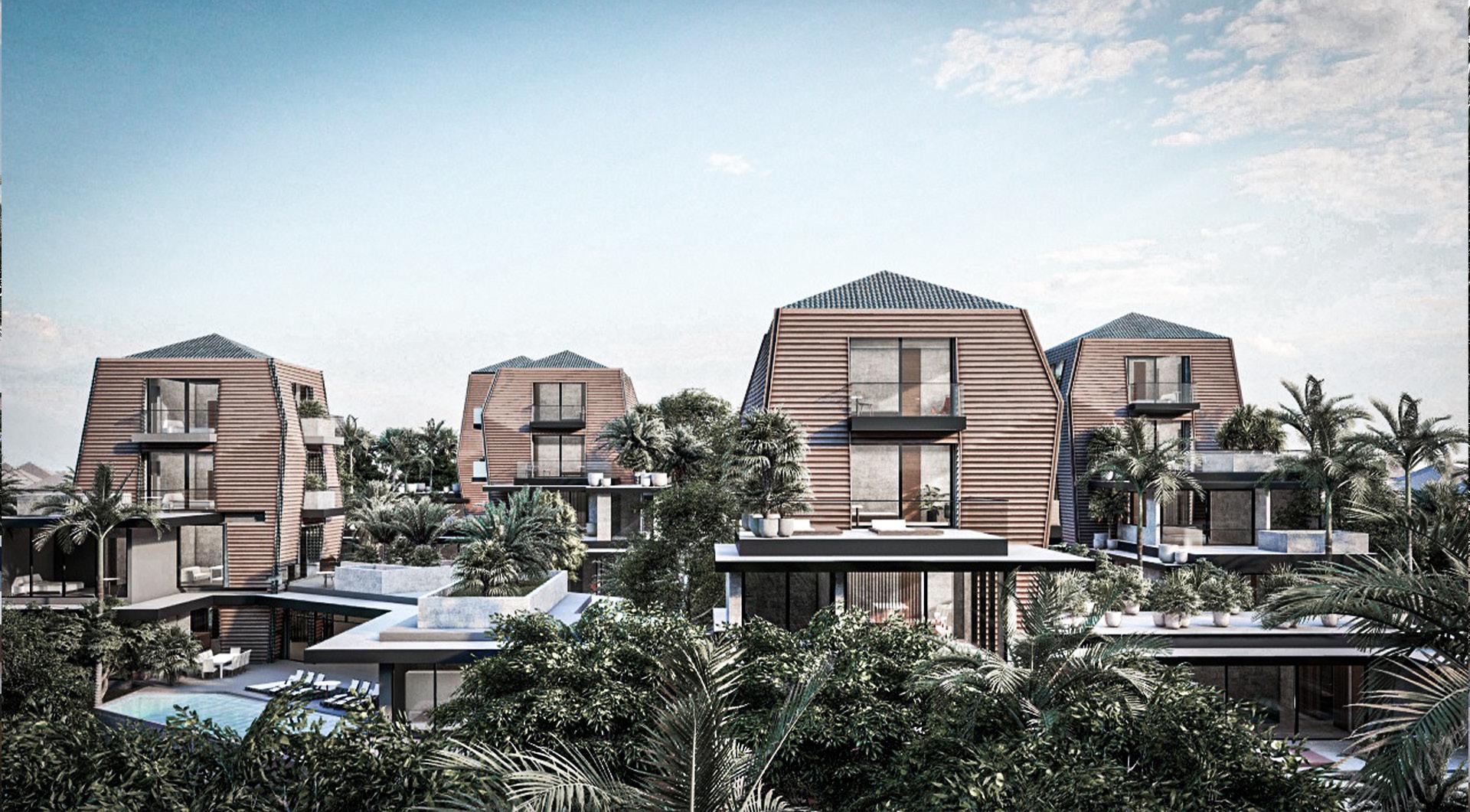

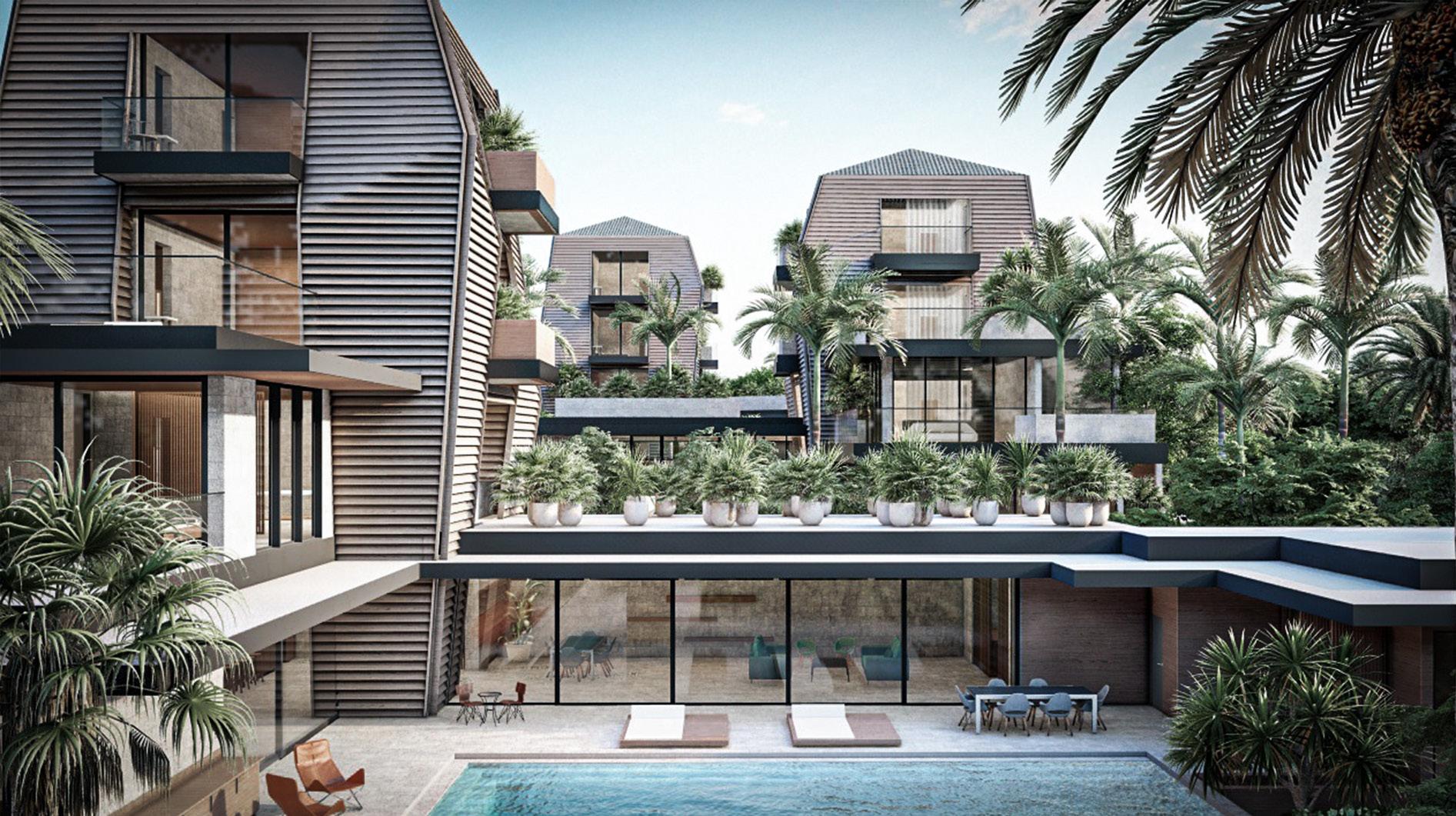

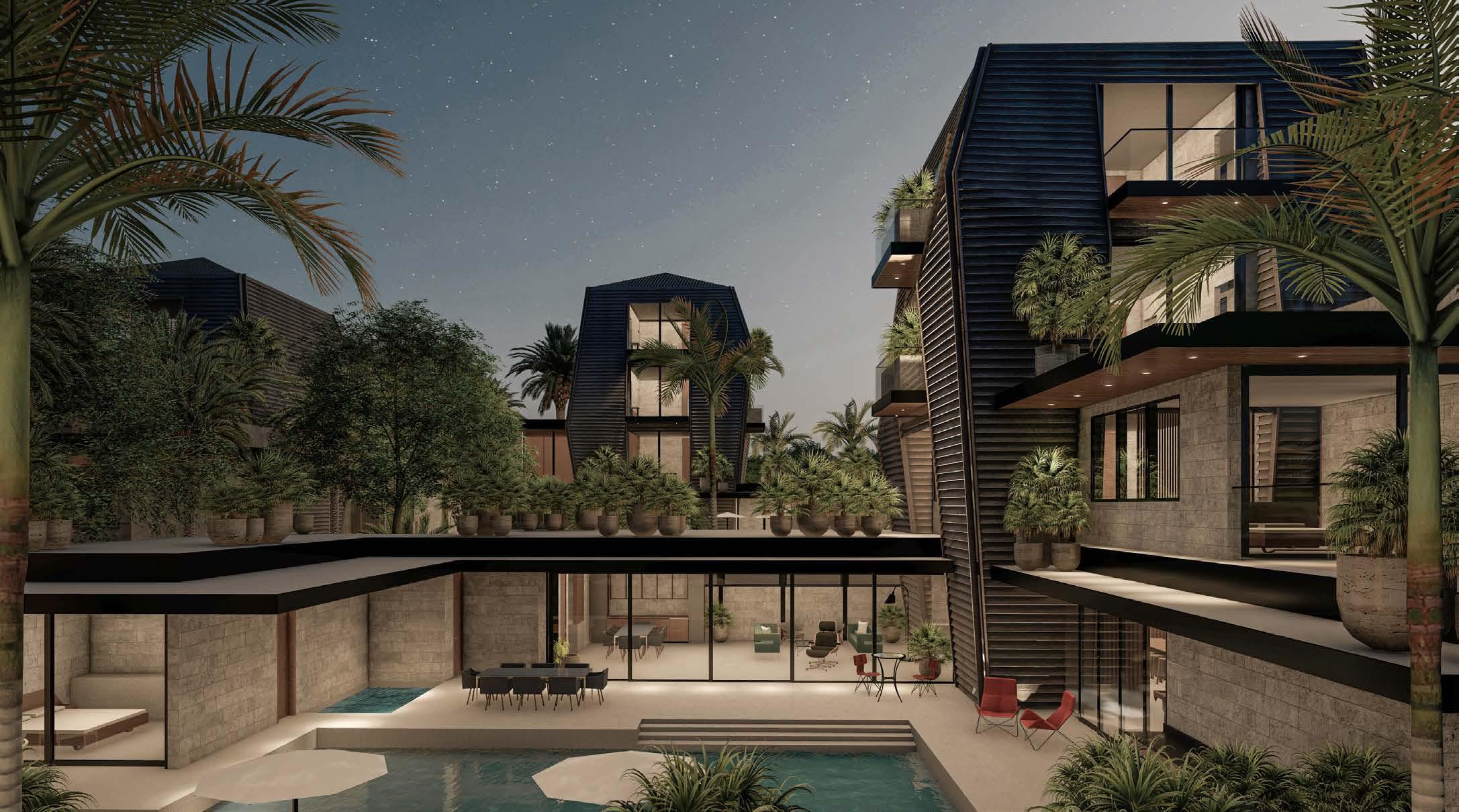

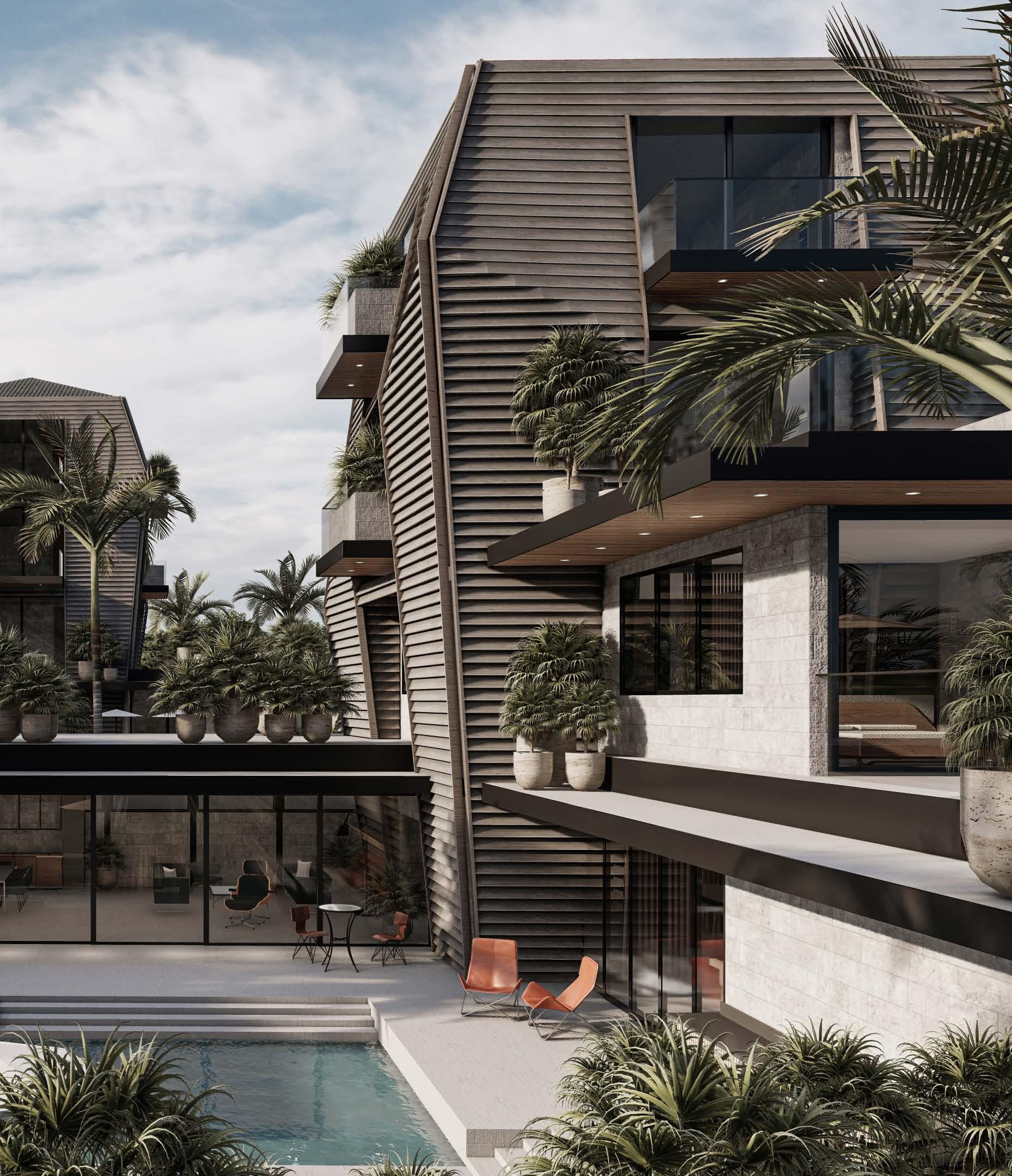

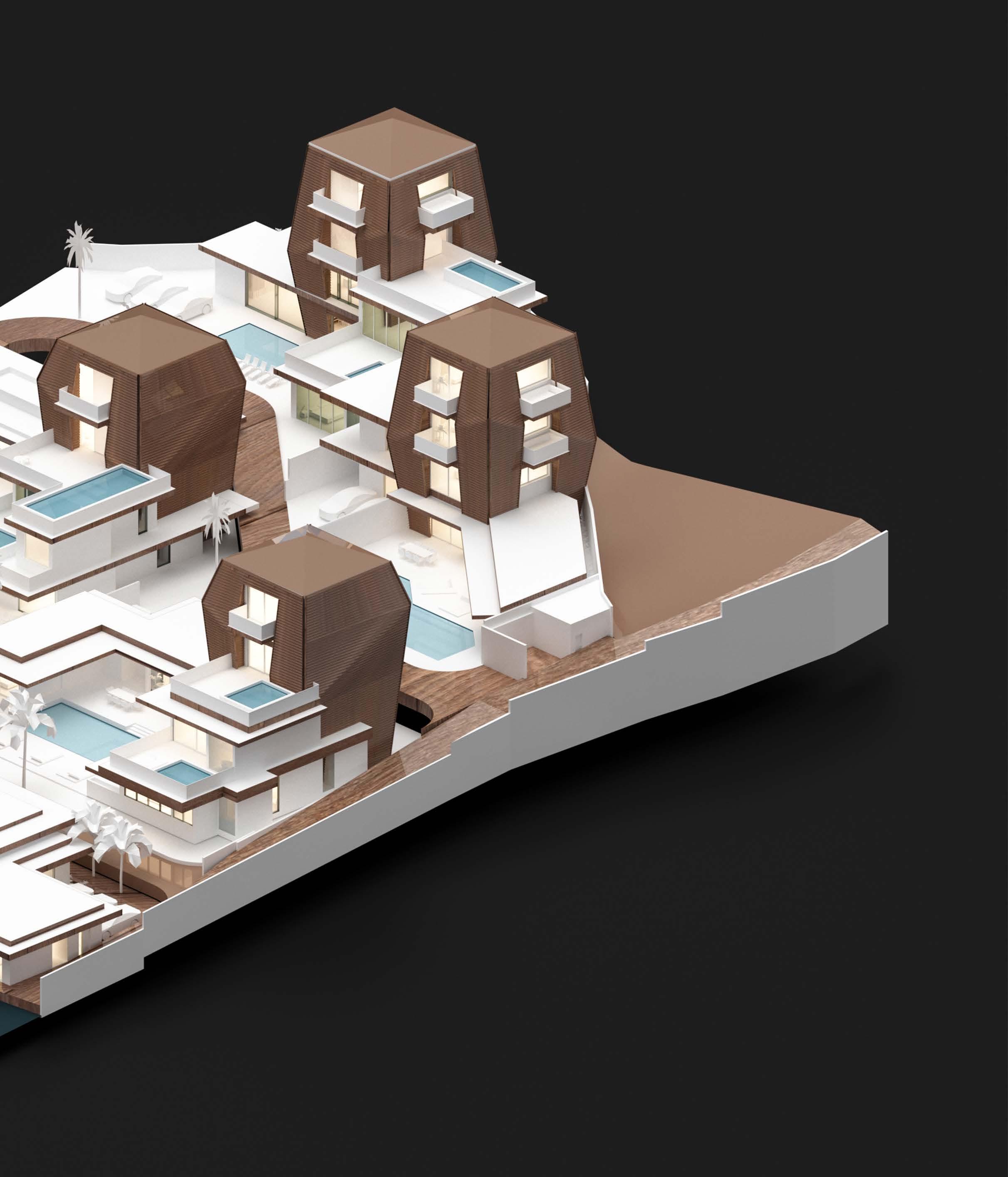

ENCLAVE
TYPE : INTERNSHIP ( DESIGN DEVELOPMENT )
PERERENAN, BALI, INDONESIA SITE AREA: 6023M2
THE PROJECT AIMS TO CREATE A NATURAL BLEND OF SIX VILLAS INTO THE EXISTING TOPOLOGY OF THE SITE.
“THE DESIGN BRINGS A UNIQUE ESSENCE AND THE MATERIAL PALETTE ON DISPLAY IN THE FORM OF FACADE ELEMENTS THAT WEAVE INTO THE BUILDING”.
RESPONSIBILITY
EXPLORING DESIGN AND MASSING ITERATIONS WORKING ON THE DESIGN LAYOUTS UPDATING THE CHANGES AS PER CLIENT WORKING ON THE OVERALL 3D FOR THE PLOTS PREPARING BLOW-UP AND FINISHES DRAWINGS
PREPARING SCHEDULE OF DRAWINGS
CREATING 3D RENDERS
06
‘22 ‘21 ‘20 ‘19 ‘18
Existing Site Plan
Road River River Rive Area 2 475m (4.75 are) Area 3548m (35.48 are) Area 7 1394m (13.94 are) Area 6 1351m (13.51 are) Area 1328m (13.28 are) Area 4 986m2 Area 3 964m (9.64 are) Area 340m2 (3.4 are) +3.000m +0.000m -2.000m 1 2 h d 4 a e p 5 Date p b H A L S T U D O G o e b d Scale A x s D o n s N m bD N 500 Paloma Residences 2021_08 Approver Plot Boundaries XXA05Our Site Total Area: 6023m2 Island has potential for commercial use (Coffee Shop / Yoga Area etc.) Others Land Others Land N EXISTING SITE PLAN PLOT DIAGRAMS Road River River Rive Area 2 475m (4.75 are) Area 1 3548m2 Area 7 1394m (13.94 are) Area 6 1351m (13.51 are) Area 5 1328m (13.28 are) Area 4 986m Area 3 964m (9.64 are) Area 8 340m2 (3.4 are) +3.000m +0.000m -2.000m 1 2 b 4 5 Date p H A G b Scale As Paloma 2021_08 Approver Plot Our Site Total Area: 6023m2 Island has potential for commercial use (Coffee Shop / Yoga Area etc.) Others Land Others Land N
Sheet: 3 Road River River River Area 475m Area 1 3548m +3.000m +0.000m -2.000m d d h Date H A L S T U D O S o Scale m e D o n e e be D N 500 Paloma Residences 2021_08 Approver Plot Boundaries 02 XXA05106 Road River River River Area 475m Area 1 3548m +3.000m +0.000m -2.000m d d h Date H A L S T U D O S Scale m e D o n e N bN 500 Paloma Residences 2021_08 Approver Plot Boundaries 02 XXA05106 N Option A - 6 Plots Approx 1000m2 per plot Option B - 9 Plots Approx 670m2 per plot Road River River Rive Area 2 475m (4.75 are) Area 3548m (35.48 are) 1. Do not scale 2. Dimensions thickness (If otherwise 3. All dimensions before proceeding 4. Architect shall any discrepancies. 5. Any areas and indicative Approved by HAL STUDIOS General Notes Architect Sheet Title Project Name Project Number: Scale Sheet Number: Alexis Dornier Issue Number - Structural Engineer Issue Date: Jln. Raya Penestanan 80571 Ubud, Bali Indonesia N 13/09/2021 12:05:51 Paloma 2021_08 Approver Plot Boundaries XXA05 Access Option A - Road Diagram N Diagram Key Road Route Property Access Enclave Alexis Dornier d Area 3548m (35.48 Key Plan Date 1. Do not scale drawings. 2. Dimensions do not include finishes thickness (If otherwise mentioned). 3. All dimensions shall be verified on site before proceeding with the work. 4. Architect shall be notified in writing of any discrepancies. 5. Any areas in the sheet are approximate and indicative only. Revision Checked General Notes N
- Road Diagram Diagram Key Road Route Property Access OPTION A 6 PLOTS (app. 1000sqm. per plot) OPTION A ACCESS ROAD DIAGRAM
Access Option A

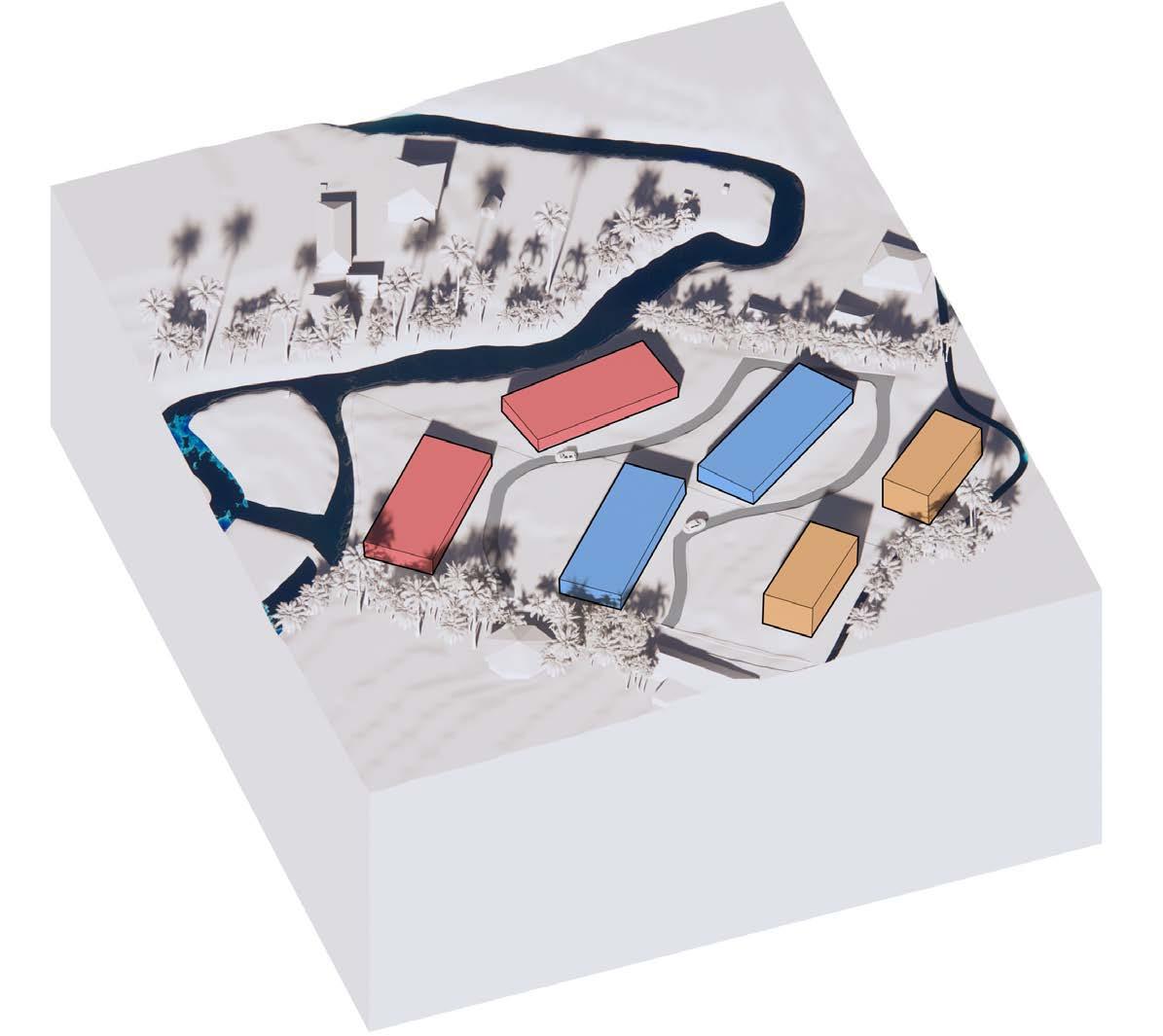

Programme Layout - 6 Plots
Programme Layout - 6 Plots
Sheet: 9
Programme Key 4 Bed Single Storey- 350m² 4 Bed Single Storey - 350m² 4 Bed Double Storey - 350m2 Road River River Rive Area 2 475m Area 1 3548m 1. Do not scale drawings. 2. Dimensions do not include finishes thickness otherwise mentioned). 4. Architect shall be notified in writing of any discrepancies. 5. Any areas in the sheet are approximate and indicative only. Approved by HAL STUDIOS General Notes Architect Sheet Title Submitted To Project Number: Alexis Dornier Issue Number - Structural Engineer Issue Date: Jln. Raya Penestanan Kelod 80571 Ubud, Bali N Paloma Residences 2021_08 Approver Masterplan 05 XXA05105 Single Storey at bottom of hill 2/3 storeys at top of hill 350m2 350m2 350m2 175m2 175m2 350m2 OPTION A PROGRAM LAYOUTS
Programme Key 4 Bed Single Storey- 350m² 4 Bed Single Storey - 350m² 4 Bed Double Storey - 350m2 Road River River Area 2 475m2 (4.75 are) Area 1 3548m2 (35.48 are) Date Do not scale drawings. Dimensions do not include finishes thickness (If otherwise mentioned). All dimensions shall be verified on site before proceeding with the work. Architect shall be notified writing of any discrepancies. Any areas the sheet are approximate and indicative only. Approved by HAL STUDIOS Revision Reason Issue Checked General Notes Architect Sheet Title Project Name Submitted To Project Number: Scale Sheet Number: Alexis Dornier Issue Number - Structural Engineer Issue Date: Jln. Raya Penestanan Kelod 80571 Ubud, Bali Indonesia N 13/09/2021 16:11:06 Paloma Residences 2021_08 Approver Masterplan 05 XXA05105 Single Storey at bottom of hill 2/3 350m2 350m2 350m2 175m2 350m2
Masterplan Option C
Tower Locations / Views
Masterplan Option C
Ground Floor Building Areas
Road River River River Area 1 3548m2 (35.48 are) K y n Date 1 D o n o 2 D m e n t h c k n e s 3 A d m b e o r e p 4 A c h t a n y d c 5 A n y a a n d n d Date A p p r o v e d H A L S R e n G e n e r a A h t e c h e e T t P o e N a S u b m t e d P o e c t N u Scale S h e e t N u A l e x i s D s s u e N - S r u c t u r a s s u e D n R a y a P 8 0 5 7 1 U b n d o n e s a N 0 8 1 0 2 0 2 Paloma 2021_08 Approver Unnamed XXEnclave Existing Site Plan Island has commercial Shop / N Enclave Alexis Dornier Design
N Road River River River Area 1 3548m2 (35.48 are) K y P a Date D o n o D m e n h k n e A d m e e o r e p A r h e n y d c r e A n y r n d n d c a Date A p p o v e d b H A L S T R G e n e a N A r h e c P r o e c N a m u b m t e d P o e c N u m A e x s D - S r u c u r a E n R a a P 8 0 5 7 1 U b u d n d o n e a N 0 8 0 2 0 1 Paloma 2021_08 Approver Ground Floor Building Areas Plot 01 Option A: 530m2 Option B: 530m2 Option C: 400m2 Plot 02 Option A: 465m2 Option B: 465m2 Option C: 400m2 Plot 03 Option A: 300m2 Option B: 300m2 Option C: 300m2 Plot 04 Option A: 260m2 Option B: 260m2 Option C: 300m2 Plot 05 Option A: 270m2 Option B: 270m2 Option C: 290m2 Plot 06 Option A: 155m2 Option B: 205m2 Option C: 290m2 Plot 07 Option A: 155m2 Option B: 220m2 Option C: NA Plot 08 Option A: 155m2 Option B: 155m2 Option C: NA
Tower Locations / Views River River Area 1 3548m2 (35.48 are) Date 1 D o n t e d a w n g 2 D m e s o n d o n o t n c d e n h e h c n e s s o t h r w s m e n o n e d 3 A d m e n o n s h b e v e e d o n s t b e o e p o e e d n g w h h e w o k 4 A c t e c h a b n o e d n w n g o a n d c e p a n c e 5 A n a e a n h e s h t e a p p o m a e a n d n d v e n y Date A p p o v d b y H A L S T U D I O S R R e u k G e n e a N o e s A c h t c P o e N m e S u b m t e T o r o c N u m b e A e x s D o n i e rt u t u a E n g n e e r n R a y P e n e a n a n K e o d 1 0 5 7 1 U b u d B a n d o n e a N 8 1 0 0 2 1 1 0 2 5 8 Paloma Residences 2021_08 Approver
Plot 01 Option A: 530m2 Option B: 530m2 Option C: 400m2 Plot 02 Option A: 465m2 Option B: 465m2 Option C: 400m2 Plot 03 Option A: 300m2 Option B: 300m2 Option C: 300m2 Plot 04 Option A: 260m2 Option B: 260m2 Option C: 300m2 Plot 05 Option A: 270m2 Option B: 270m2 Option C: 290m2 Plot 06 Option A: 155m2 Option B: 205m2 Option C: 290m2 Plot 07 Option A: 155m2 Option B: 220m2 Option C: NA Plot 08 Option A: 155m2
Rock Pool Bar 3005 22450 Bench Futon Kitchen Smells & Noise Buffer Zone Shoes Coats Umbrellas etc. Whiskey Drinks Cabinet Bike Parking Bar Pool Timber slats to act as room divider privacy to bedroom Center Line Roof Canopy Above 26.34 m² Bedroom 02 11.92 m² Entrance 2.84 m² WC 01 85.17 m² Living Dining 63.71 m² Kitchen 66.29 m² Games Area / Bar 23.25 m² Bedroom 01 5.93 m² Ensuite 02 5.14 m² Staff WC 10.80 m² Staff Quarters 2.00 m² MEP 12.80 m² Wet Kitchen TV can be retracting screen 1 SEC 1 SEC 1 SEC 12605 5680 05 06 07 08 09 04 03 02 01 10 1900 2000 2000 2000 2000 3965 3965 2100 2920 22845 A A B B C C D D E E F F G G H H I I J J K K L L 2000 2000 2000 2650 2500 2500 2500 2530 2825 2105 7300 36720 D01 SD10 SD09 W03 W02 SD09 W09 D01 D02 SD09 W10 D01 W02 D02 D02 D02 SD09 W12 1600 6480 4850 W08 W08 W08 W08 W08 2425 2500 2500 2500 2465 2000 2000 2000 2650 2500 2500 2500 2530 2825 2105 7300 36720 3000 W11 W01 W07 SD03 H:2950 SD02 H:2950 SD01 H:3000 0 8m 1:200 246 Enclave Alexis Dornier Design Project: Existing Site Plan Road River River Rver Area 2 475m (4.75 are) Area 3548m Area 7 1394m (13.94 are) Area 6 1351m Area 1328m (13.28 are) Area 4 986m (9.86 are) Area 3 964m Area 8 340m (3.4 are) +3.000m +0.000m -2.000m h n m n A n e p o e d A d A d Date H A L S T U D O S Scale A e D u u m eB d N 0 500 Paloma Residences 2021_08 Approver Plot Boundaries 02 XXA05106 Our Site Total Area: 6023m Island has potential for commercial use (Coffee Shop / Yoga Area etc.) Others Land Others Land N
Games Storage Books 20880 5.28 m² Storage 5.87 m² WC 02 7.65 m² Ensuite 01 Staff Parking 1 SEC N N O O P P 2055 1750 2000 SD09 W05 W06 SD09 SD09 SD09 2800 W04 2055 1750 2000 1700 1700 W06 Scale 1 200 N
SECTION-1 85.17 Living / 11.92 m² Entrance 145 400 B C D E F 2950
85.17 m² Dining 63.71 m² Kitchen 5.28 m² Storage 33.69 m² Master Lounge 32.85 m² Bedroom 04 10.36 m² Walk-in Wardrobe 02 32.83 m² Bedroom 05 10.36 m² Walk-in Wardrobe 03 250 400 145 G H I J K L N O 2955 1 2121/D/P1/502 Key Plan before 4. Architect any discrepancies. 5. Any and indicative Date Approved Biro Revision Architect Sheet Title Project Project Sheet Number: Jln. Raya 80571 Ubud, Indonesia 31/12/2022 ENCLAVE Pererenan 2021_21_ENCLAVE Approver PLOT

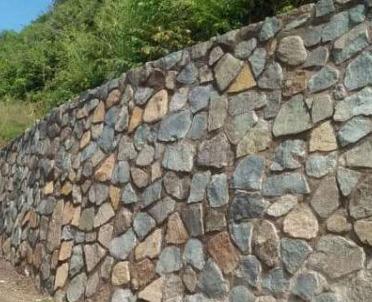

RETAINING STRUCTURE
RETAINING STRUCTURE
RETAINING STRUCTURE
RETAINING STRUCTURE
Tools Used: Revit, Rhino, Vray
RETAINING STRUCTURE
RETAINING STRUCTURE
RETAINING STRUCTURE
RETAINING STRUCTURE

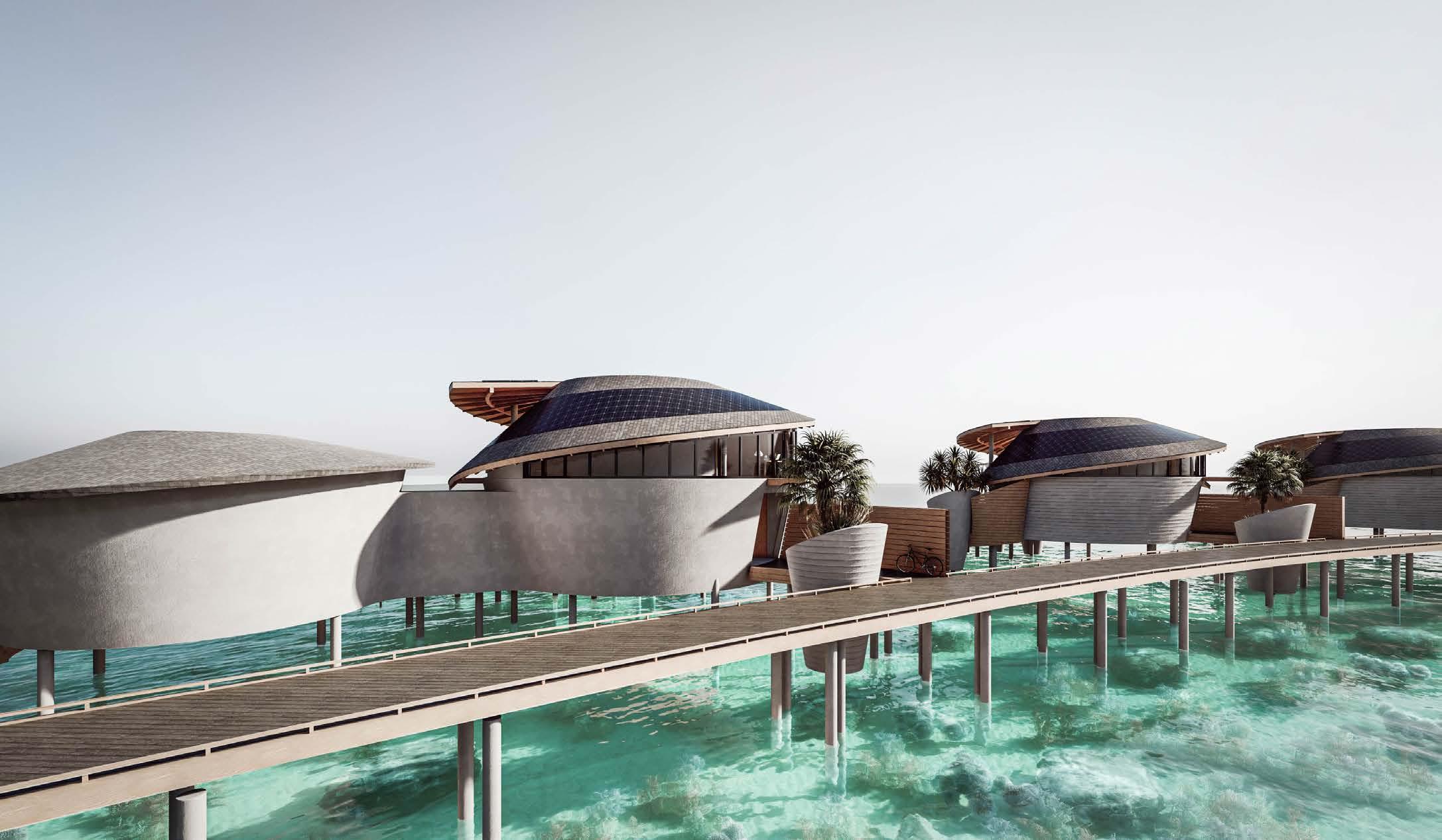

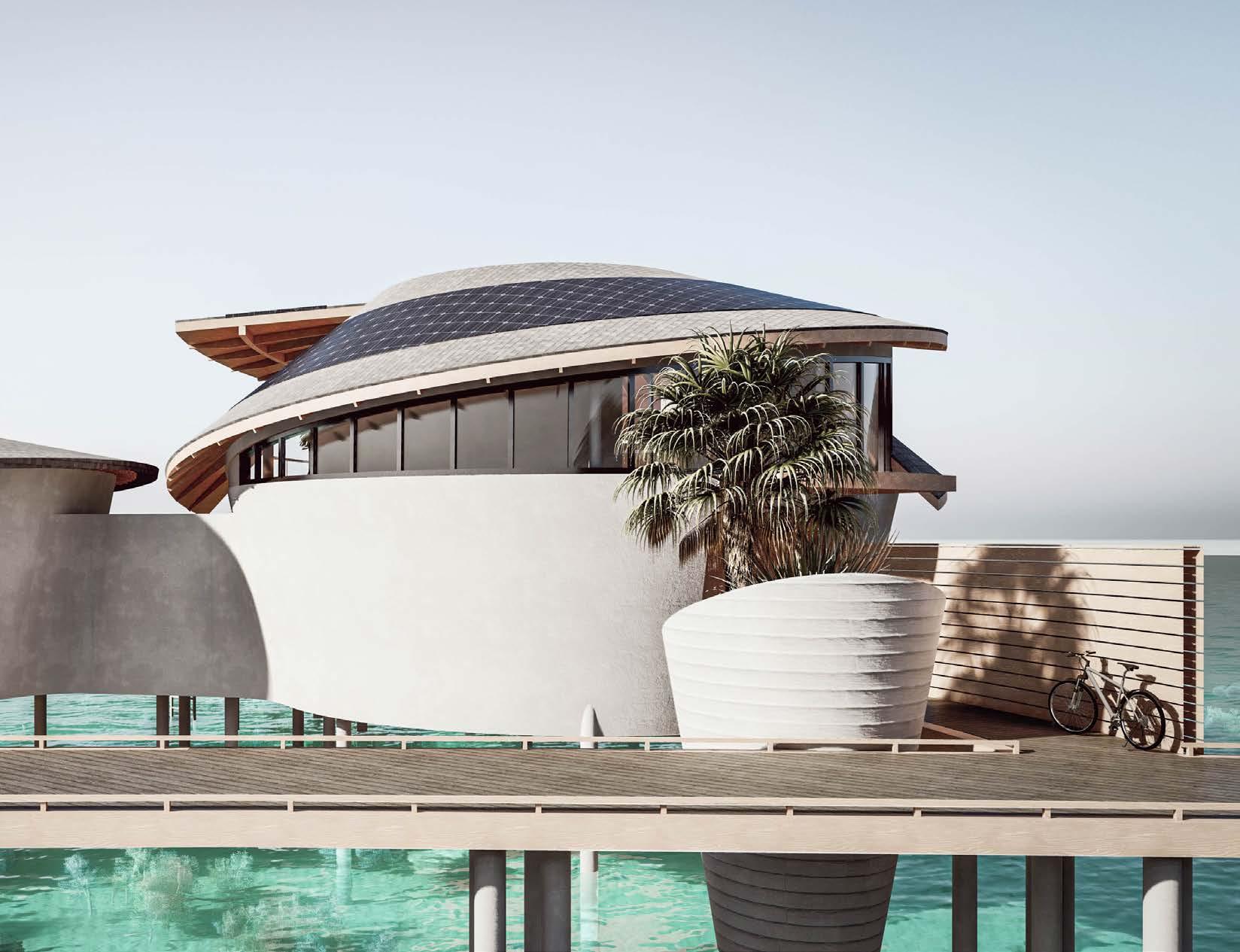

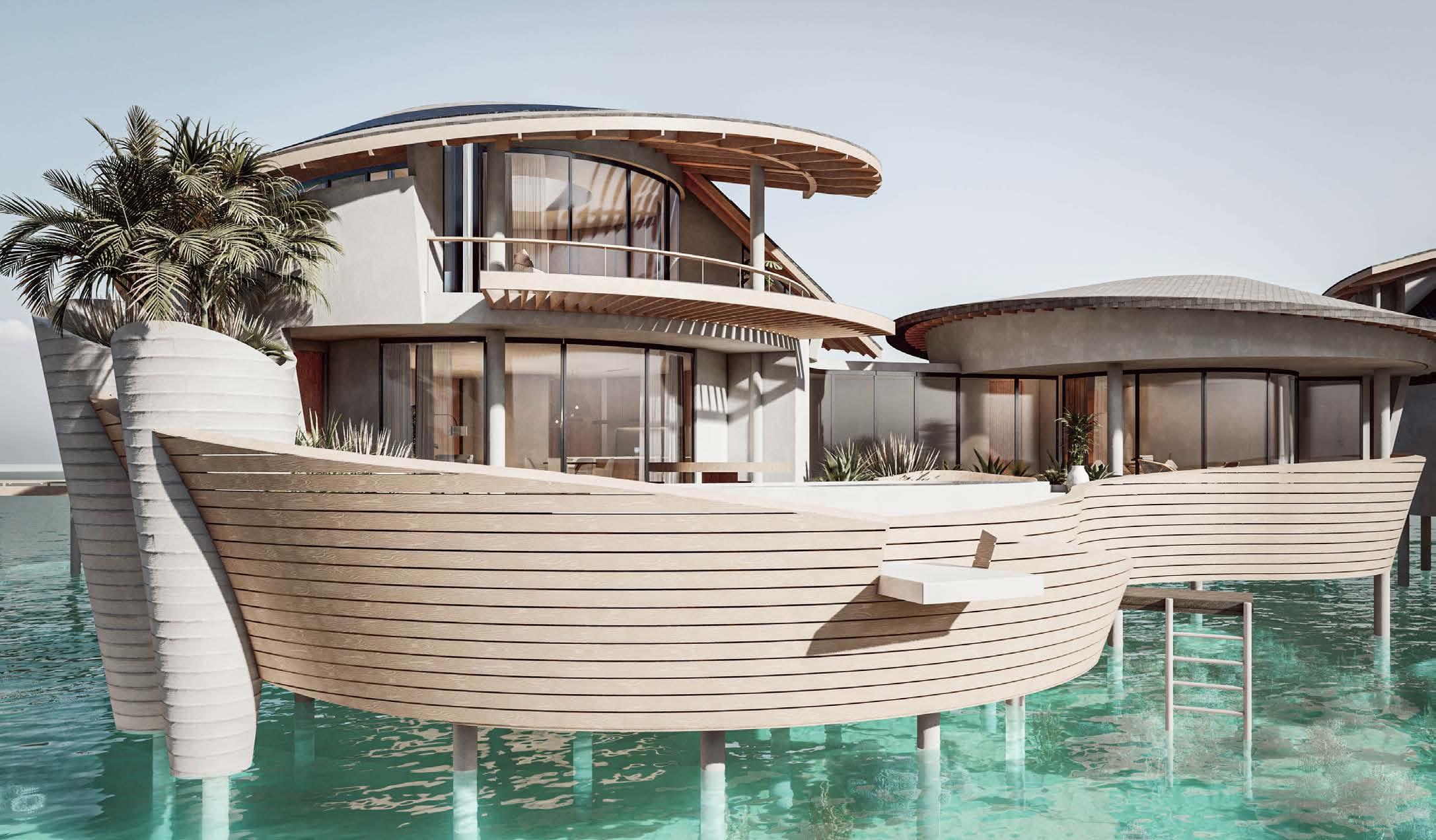

TYPE : INTERNSHIP
( DESIGN SCHEMATIC )
DHAALU’ ATOLL, MALDIVES
SITE AREA: 1560M2
THE AVALON IS A RESORT PROPOSED TO HAVE A TOTAL OF 49 BEACH AND SEA VILLAS. THEY ARE SPREAD ACROSS THE ISLAND ALONG WITH RESTAURANTS, SPA’ S , FITNESS AND DIVING CENTRES. THE DESIGN INTENT FOCUSES ON CREATING A SCULPTURAL SENSE WHILE MAINTAINING USER PRIVACY.
THE PROJECT IS PROPOSED TO TAKE PART IN TWO PHASES OF CONSTRUCTION.
RESPONSIBILITY
WORKING ON THE SCHEMATIC STAGES OF THE DESIGN
INTERNAL LAYOUTS FOR THE SEA VILLAS AND THE SPA BUILDING
PREPARING ARCHITECTURAL DRAWINGS: SECTIONS, ELEVATIONS
WORKING ON THE COMPLEX 3D WITH TIMELY CHANGE LOGS
CREATING 3D RENDERS FOR THE SAME

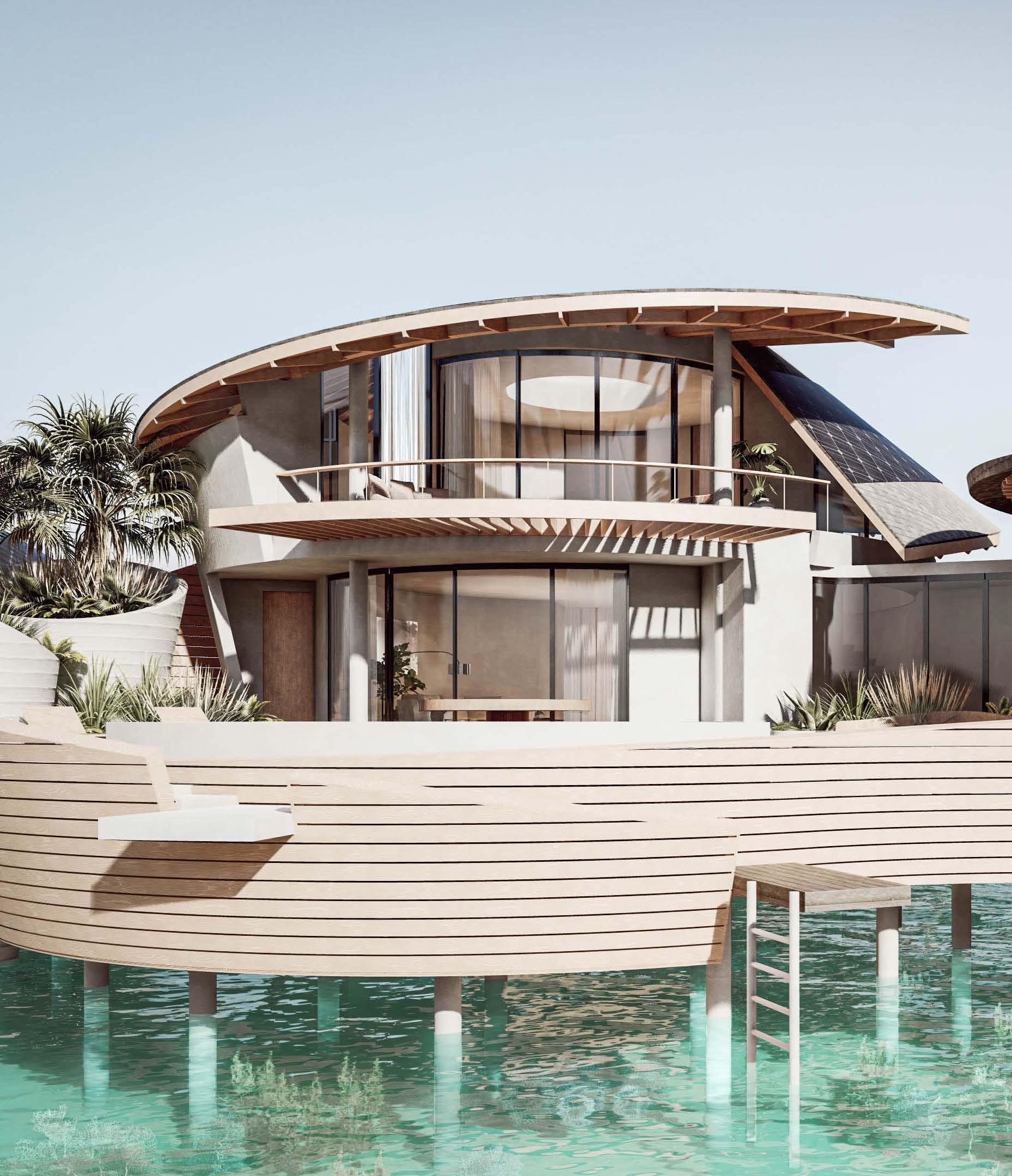

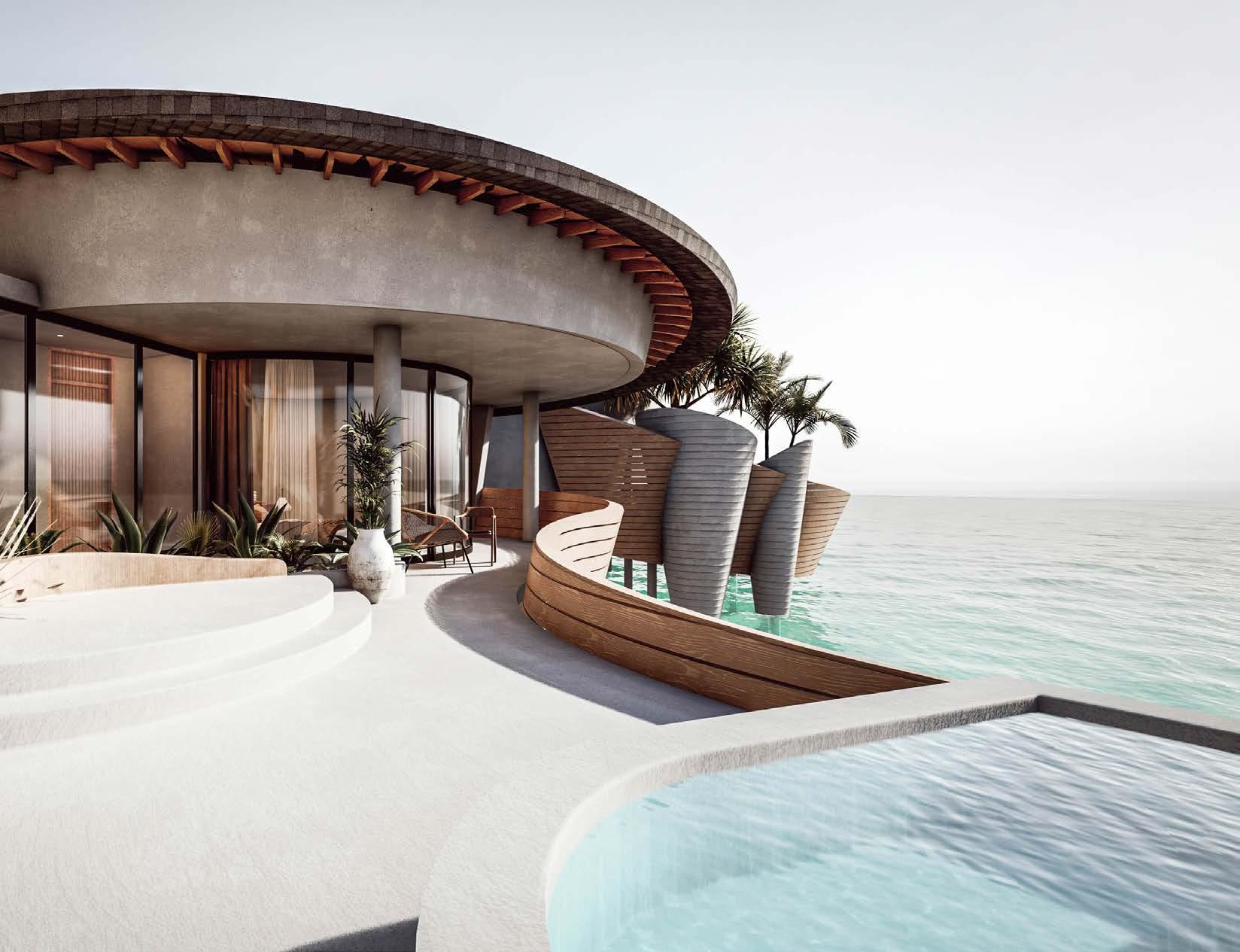

07 AVALON
‘22 ‘21 ‘20 ‘19 ‘18

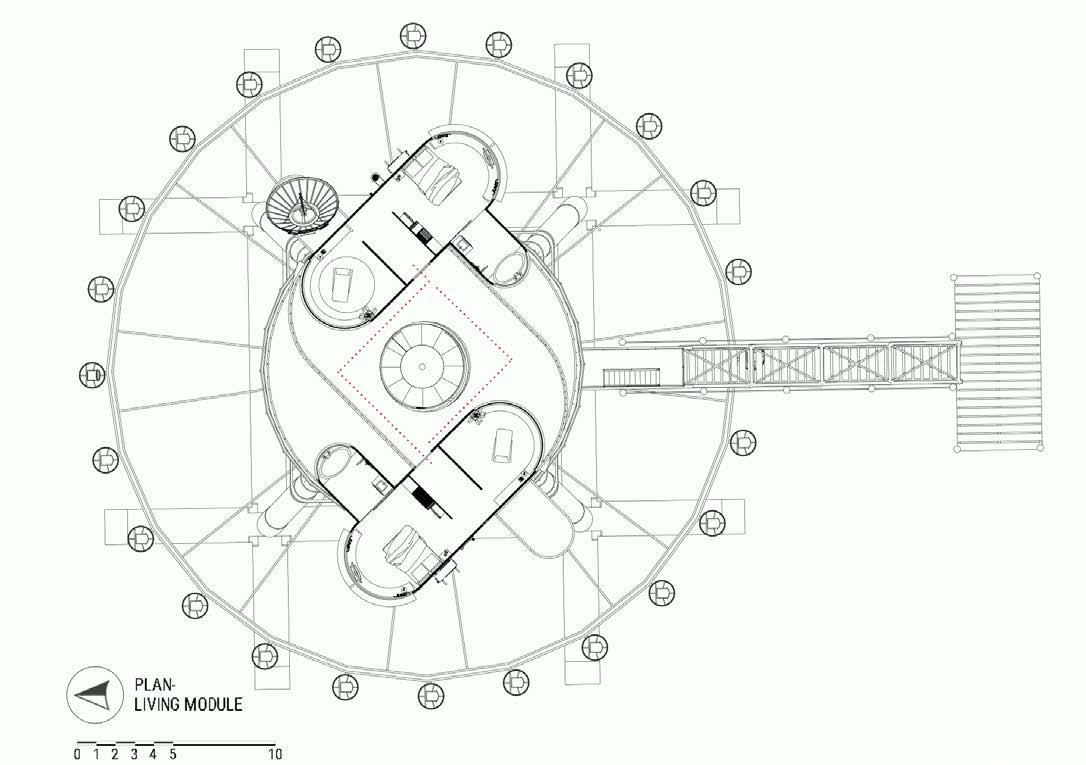

20 19 18 17 16 15 14 13 12 11 10 9 8 7 65 4 3 2 1 ELEV N rth ELEV West ELEV South A A B 1 A107 A106 A106 A107 C C DECK LIVING & DINING STORAGE ROOM 5 m² POWDER ROOM D E DESK SUNBED FFL FFL WARDROBE FFL +0.00 FFL +0.00 10 m² TOILET 33 BEDROOM 18 m² ELECTRICAL ROOM FFL +0.00 13 m² GARDEN 60.4 m2 16.8 m2 3.2 m2 62 m2 2.2 m2 1 : 50 Level 1 1 LEVEL- 0 PLAN
PROGRAM 2BHK SEA VILLA 1. LIVING & DINING 62M2 2.BEDROOM 33M2 3. TOILET 10M2 4. OUTDOOR SHOWER 2.8M2 5. DECK 11.1M2 6.GARDEN 13M2 7. LOBBY 16.8M2 8. POOL 16M2 9. DECK 2 60.4M2 10. ELECTRICAL ROOM 18M2 11. POWDER ROOM 5M2 12. STORAGE 2.2M2
AREA
ELEV East B LOWER DECK 16 m² POOL FFL -0.90 D E DECK FFL -1.20 FWL +0.40 9000 ° DIVE PLATFORM +0.00 FFL -0.02 FFL +0.00 m² BEDROOM OUTDOOR SHOWER 11.1 m2 2.8 m2
AREA PROGRAM 2BHK SEA VILLA
1. MASTER BEDROOM
38M2
2.ENSUITE BATHROOM
14.5M2
3. OUTDOOR TERRACE
10M2
4. STUDY 15M2
5. STORAGE 3M2
DN 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 1 ELEV West A A B 1 A106 A106 2 A107 C C FFL +3.50 FFL +3.50 FFL +3.50 MASTER BEDROOMSUNBED FFL +3.50 15 m2 38 m2 25 m2 ENSUITE BATHROOM 14.5 m2 STUDY LEVEL- 1 PLAN

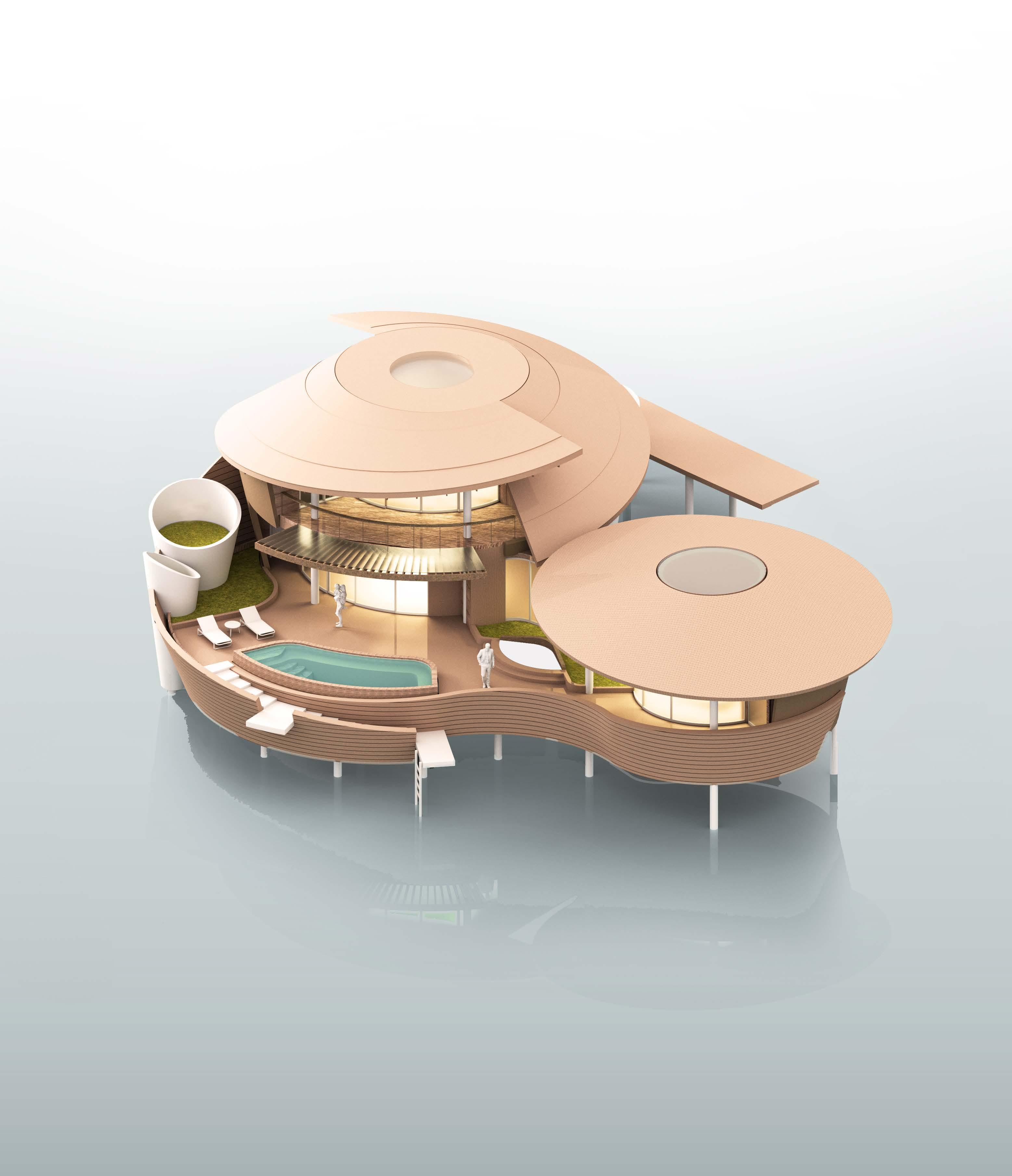

ROOF: The roof form is circular juxtaposition of two shapes forming a fluidic form.
STRUCTURE : The roof structure is a radial arrangement of wooden beams with skylight at the center.
PLANTERS/ SCREENS BEDROOM
Tools Used= Rhino + Vray
OUTDOOR DECK
ELEV East B FFL -0.90 FWL +0.40 LOWER DECK DIVE PLATFORM
VIEW —

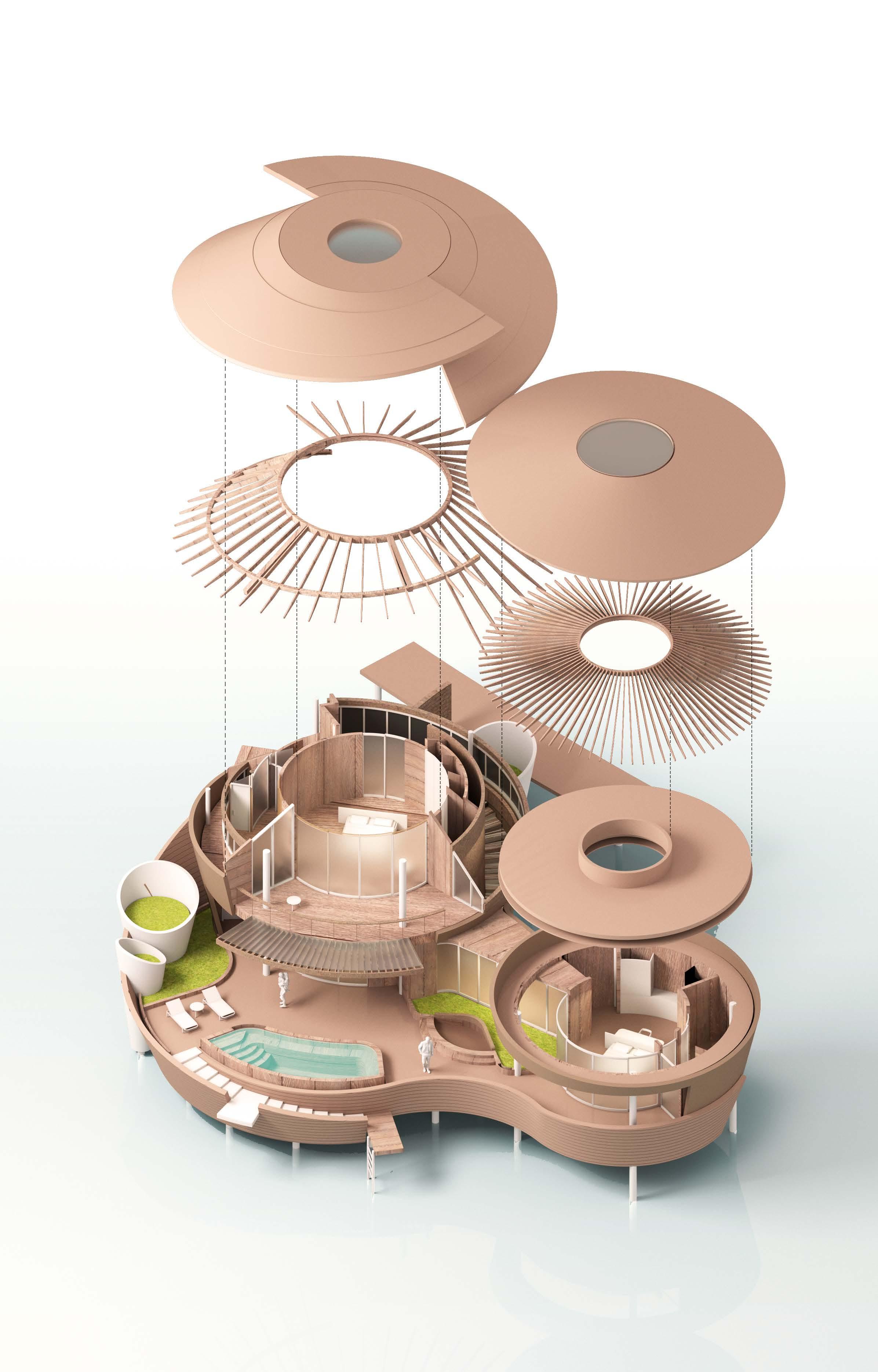

EXPLODED
2
3800 3500 2000 CFL +3.05 FFL +3.50 FFL +0.00 CFL +6.80 3800 3500 2000 3350 150 3800 FFL +0.00 900 CFL +3.00 400 2800 FFL +3.50 1 : 50 Section XX' 1 Section YY' 3800 3500 2000 CFL +3.05 FFL +3.50 FFL +0.00 CFL +6.80 3800 3500 2000 3350 150 3800 FFL +0.00 900 CFL +3.00 400 2800 FFL +3.50 1 : 50 Section XX' 1 1 : 50 Section YY' 2
Level 1 0 Level 2 3500 Level -1 -2000 Level 3 7300 3800 3500 2000 Level 1 0 Level 2 3500 Level -1 -2000 Level 3 7300 3800 3500 2000 CFL +2.80 FFL +0.00 Level 1 0 Level 2 3500 Level -1 -2000 Level 3 7300 3800 3500 2000 Level 1 0 Level 2 3500 Level -1 -2000 Level 3 7300 3800 3500 2000 CFL +2.80 FFL +0.00
‘22 ‘21 ‘20 ‘19 ‘18 2BHK SEA VILLA
Mixed Used Art Cafe Kindergarten Expo1 In-Habit-In-Rig Enclave Avalon Maldives Max. Fischer

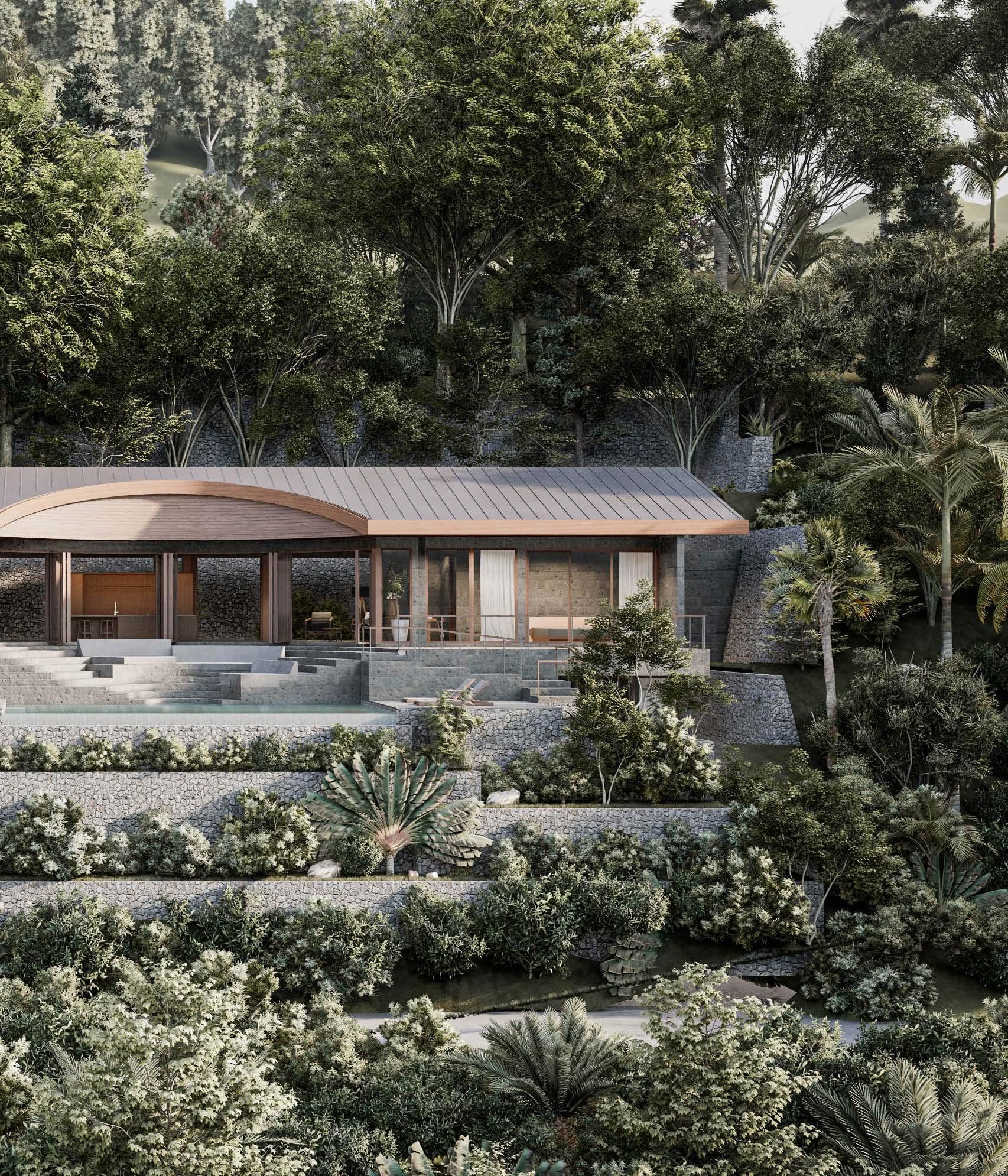

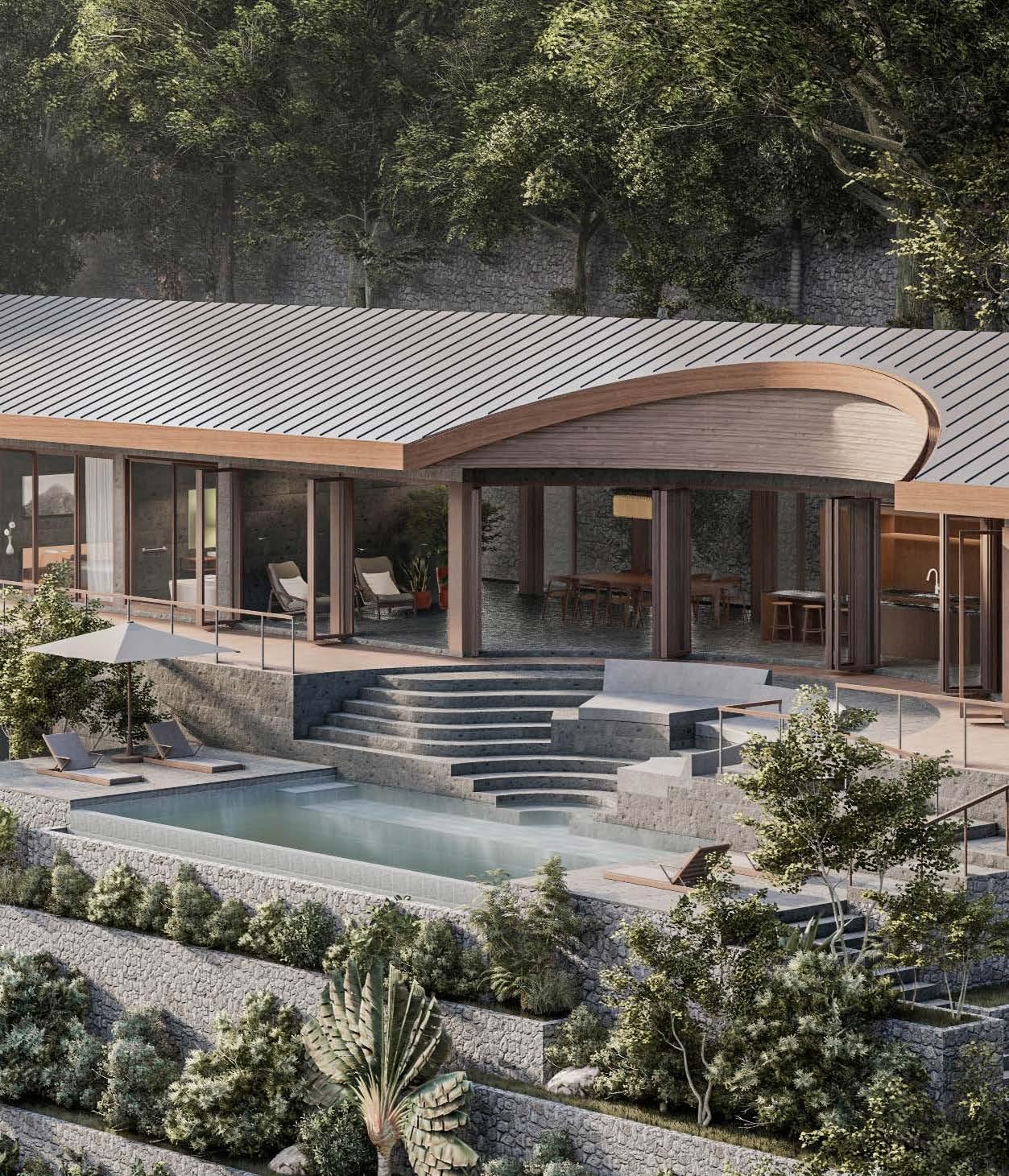

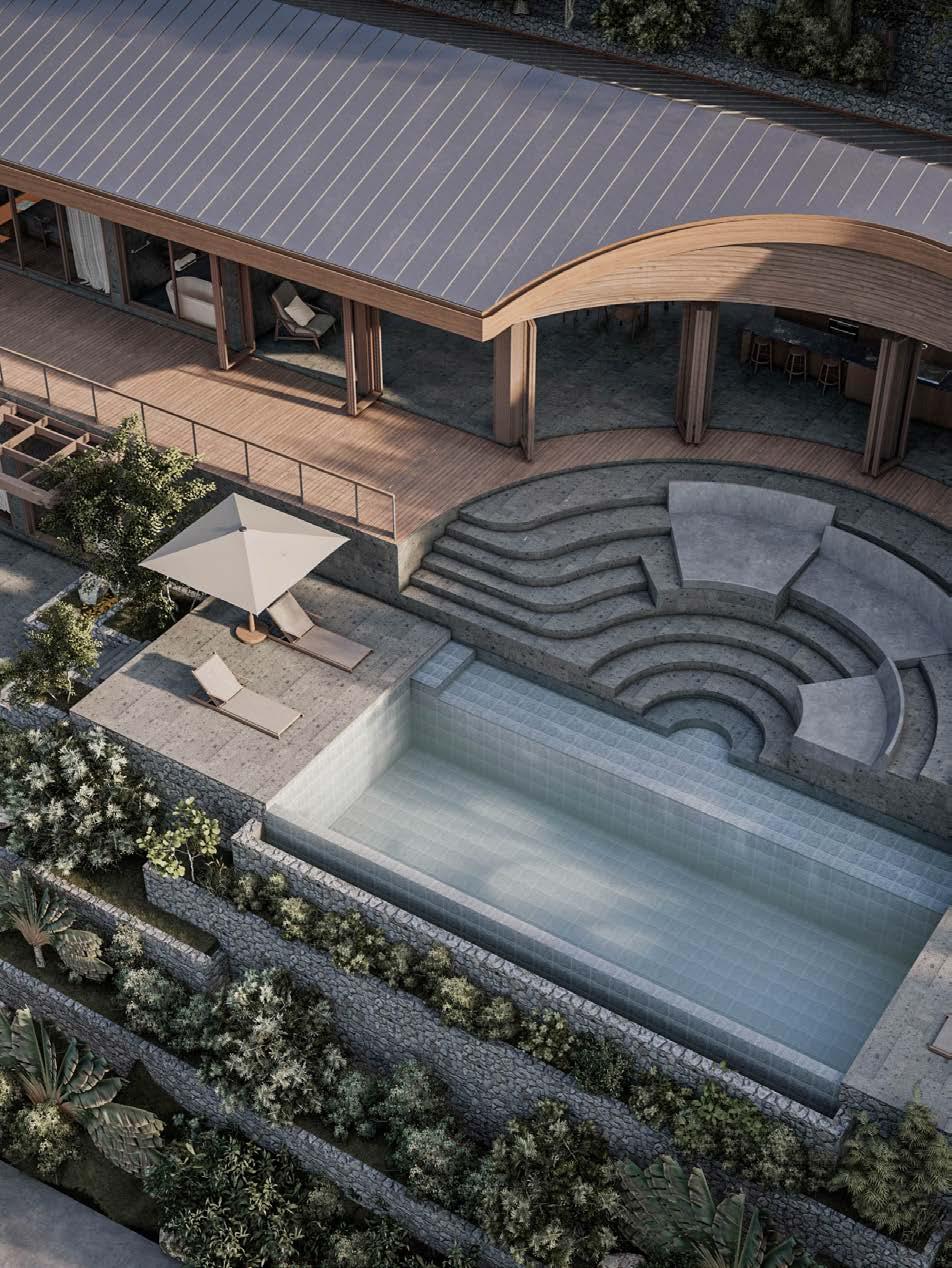

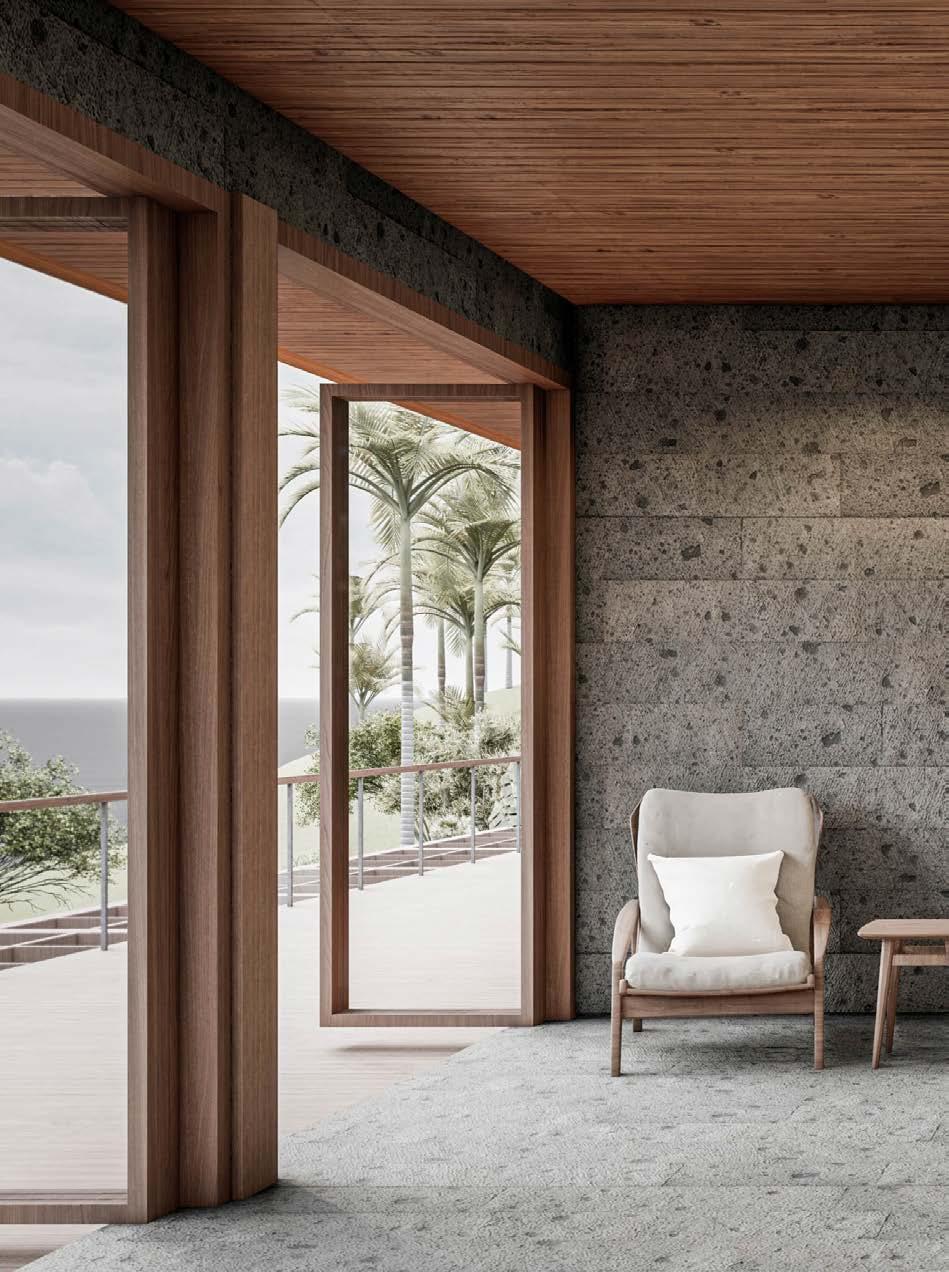

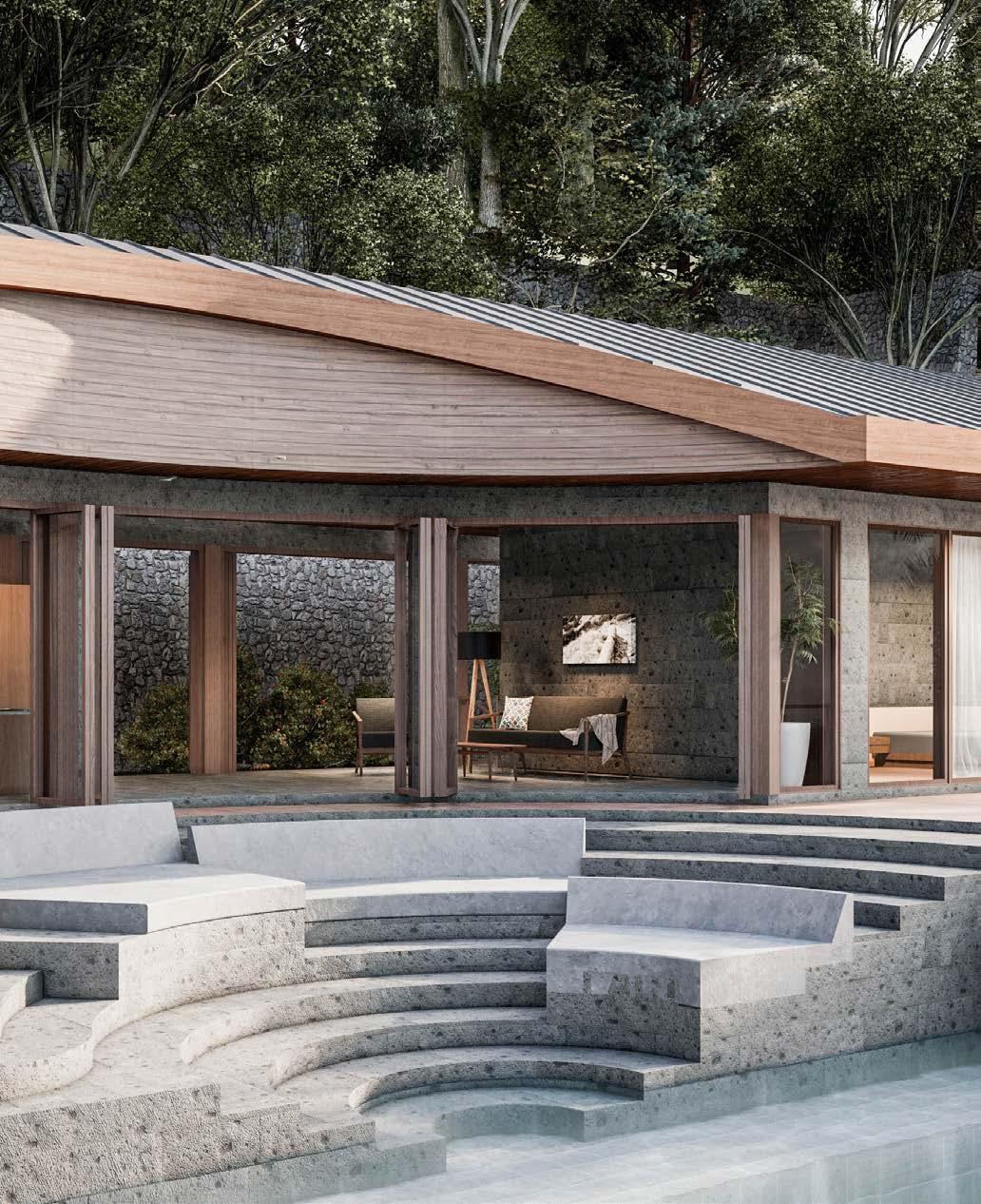

MAX.FISCHER
TYPE : INTERNSHIP

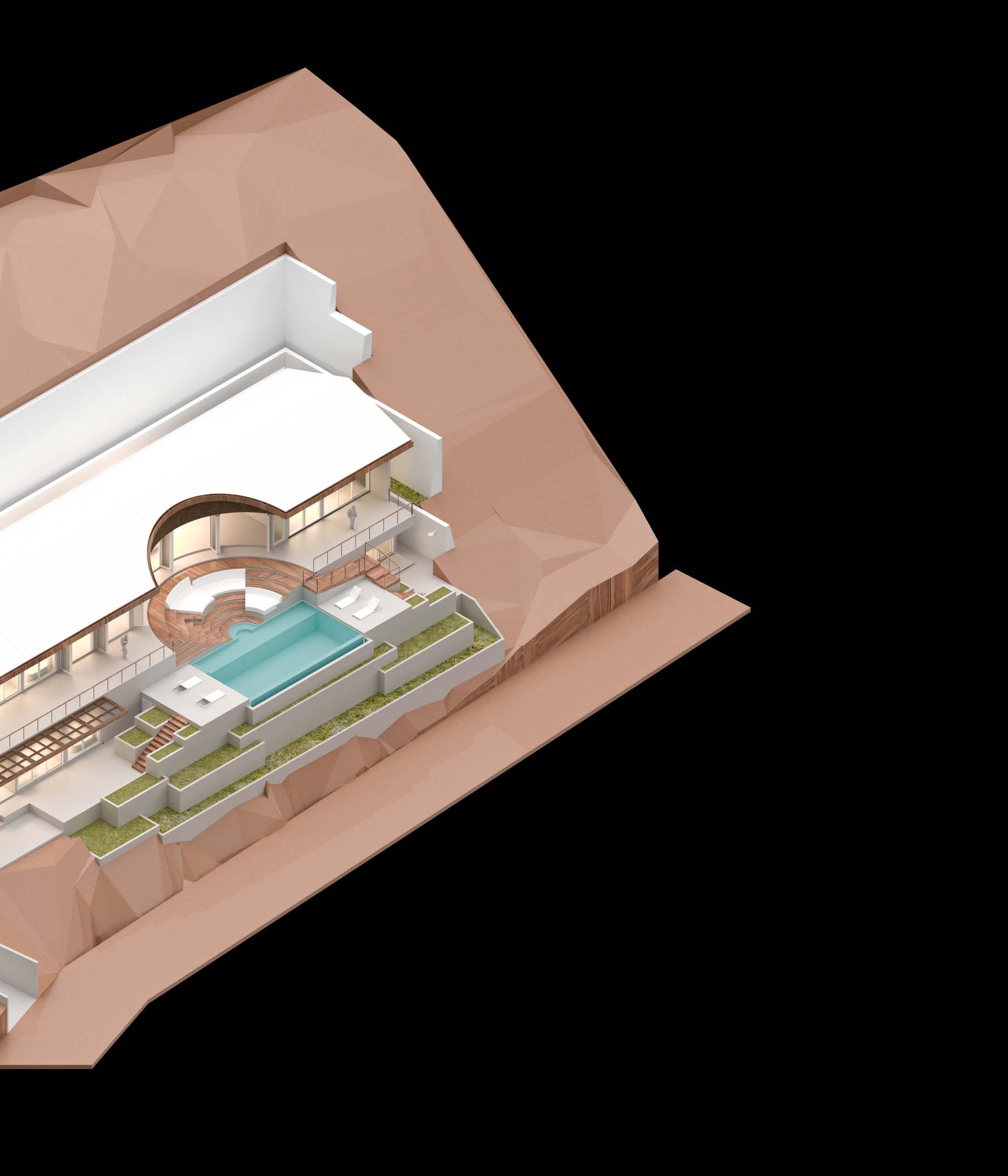

TH. MAX. FISCHER IS A PRIVATE RESIDENTIAL PROJECT WITH THE SITE SET ON A SLOPED TERRAIN. THE DESIGN HIGHLIGHTS THE USE OF THE TERRAIN WITH THE INFINITY POOL AND INTERNAL VOLUMES OVERLOOKING THE GREEN FRONT. THE CLIENTS REQUIREMENTS FOCUSED ON OPEN CEILING, INFINITY POOL, USE OF NATURAL COLOURS, AND FLOATING BORDERS BETWEEN INSIDE AND OUTSIDE.
RESPONSIBILITY
WORKING ON THE DESIGN LAYOUTS UPDATING THE CHANGES AS PER CLIENT WORKING ON THE 3D STRUCTURAL INTEGRATION INTO 3D EXPLORING MATERIAL PALETTE PREPARING BLOW-UP AND DETAIL DRAWINGS
‘22 ‘21 ‘20 ‘19 ‘18 08
( DESIGN DEVELOPMENT )
TAMPAH HILLS, LOMBOK, INDONESIA SITE AREA: 1740M2
AREA PROGRAM
TOTAL SITE AREA: 1560M2 1. BEDROOM 1 28M2 2. BATHROOM 1 14M2 3. FOYER 20M2 4. BEDROOM 4 27M2 5. STORAGE 8M2 6.BEDROOM 2 20M2 7. LIVING,DINING,KITCHEN 114M2 8. BEDROOM 3 25M2 9. POOL 48M2 10. DECKING 20M2
Vray
Tools Used: Revit, Rhino,

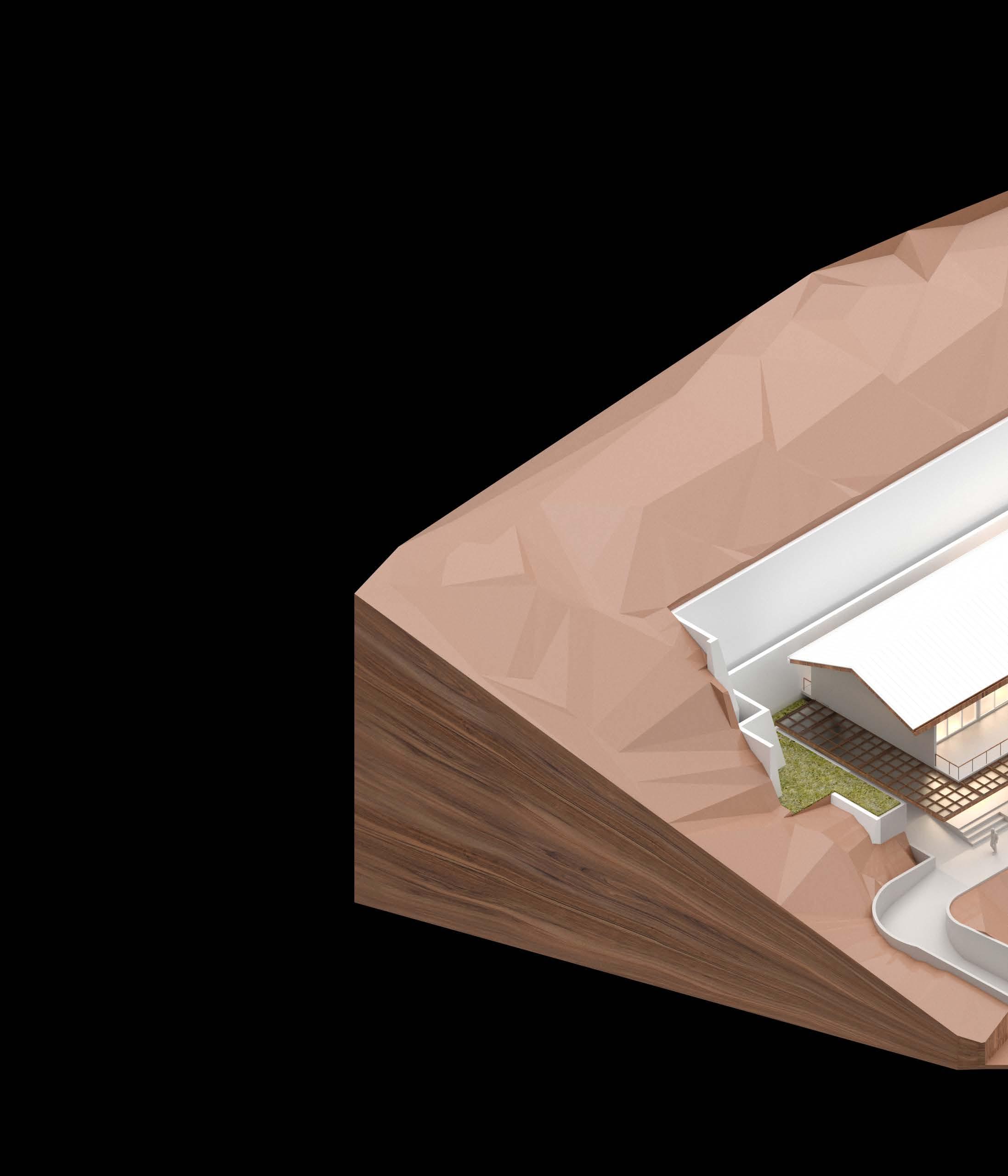

RETAINING STRUCTURE
METAL SHEETING
AMPHITHEATRE
POOL
STEPPED GARDEN
OUTDOOR LIVING
ENTRY
Level of Foyer = FFL +0.00 = Site Contour +57.60
Level of Road = FFL -4.60 = Site Contour +53.00
STREET LEVEL AT 53.0 OR -4.6M BELOW GROUND LEVEL
‘22 ‘21 ‘20 ‘19 ‘18 13 12 11 10 9 8 7 6 5 4 3 2 1 DN DN 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 ELEV 2 ELEV 1 1 2 3 4 5 6 7 8 A B C D E F G 1 SEC 2 SEC
2500 1000 2000 2000 2900 2500 3300 5030 4000 3000 2950 2950 5900 FFL +3.38 FFL +3.38 FFL +3.40 FFL +3.30 FFL +3.35 9 m² GUEST TOILET 20 m² BEDROOM 2 14 m² BATHROOM 2 114 m² LIVING, DINING & KITCHEN 103 m² OUTDOOR LIVING 89 RAISED FFL +3.30 50 AMPHITHEATER FGL +3.25 FGL +2.75 FFL FFL +2.84 FFL +2.67 FFL +2.49 FFL +2.31 FFL +3.02 FFL +1.95 FFL FFL FFL FFL 48 POOL 20 m² DECKING FFL +2.00 FGL +1.50 FGL +0.95 FGL +1.20 FGL -0.25 FGL +0.05 FGL -1.35 FGL FGL FFL -0.20 FFL -0.80 FFL -0.80 4 SEC FFL +3.40 FFL0.03 FFL + 0.14 FFL + 0.31 FFL + 0.48 FFL + 0.65 FFL + 0.82 FFL + 0.98 FFL + 1.15 FFL + 1.49 FFL + 1.32 FFL + 1.66 FFL + 1.63 FFL +3.22 FFL +2.86 FFL +2.68 FFL +2.51 FFL +2.33 FFL +2.15 FFL +1.97 FFL +1.79 FFL +1.61 FFL +1.43 FFL +1.25 FFL +1.07 FFL +0.89 FFL +0.72 FFL +0.54 FFL +0.36 ROOF OUTLINE VOID 55.00 55.50 57.50 58.00 58.50 60.00 60.50 61.50 56.00 56.50 53.50 54.50 54.00 55.50 55.00 56.50 56.00 57.50 57.00 58.00 SHOWER SIDE TABLE (S.B.O.) SIDE TABLE (S.B.O.) WC BATHTUB WC FRIDGE 200 1800 3030 200 3800 200 8960 11380 18140 7510 1500 200 3200 200 1810 200 3490 2830 1170 950 200 3550 1200 5700 1000 3900 1510 11900 2000 TOW +2.65 TOW +1.55 530 500 500 500 500 500 1670 1000 1000 STAIR A DETAIL (REFER TO MF-A-01-1103) STAIR B DETAIL (REFER TO MF-A-01-1104) FGL +1.65 200 4830 200 3800 200 2700 300 18600 FGL +2.75 FFL +3.04 FFL +0.18 FFL +1.78 FFL +1.78 7 SEC
LEVEL 1 PLAN 1
Mixed Used Art Cafe Kindergarten Expo1 In-Habit-In-Rig Enclave Avalon Maldives Max. Fischer 13121110987654321 DN 19181716151413121110987654321 ELEV 3 ELEV 1 8 9 10 11 12 1 SEC 7000 2800 4000 2000 FFL +3.38 FFL +3.35 25 m² BEDROOM 3 10 m² BATHROOM 3 m² GARDEN +3.30 m² AMPHITHEATER +3.25 FGL +2.75 FGL +2.75 +3.20 +1.95 +2.13 +2.31 FFL +2.49 +1.58 +0.35 m² POOL 24 m² DECKING 8 m² OUTDOOR SHOWER -1.82 +0.50 FGL -0.25 FFL -0.20 3 SEC FFL +3.40 FFL +2.50 FFL +2.33 FFL +2.17 FFL +3.00 FFL +2.67 FFL +2.83 FFL0.03 FFL + 0.14 FFL + 0.31 FFL + 0.48 FFL + 0.65 FFL + 0.82 FFL + 0.98 FFL + 1.15 FFL + 1.49 FFL + 1.32 FFL + 1.66 FFL + 1.63 FGL +0.90 ROOF OUTLINE VOID VOID 55.00 55.50 57.00 57.50 58.00 58.50 59.00 59.50 60.00 60.50 61.00 61.50 62.00 56.00 56.50 SIDE TABLE (S.B.O.) SIDE TABLE (S.B.O.) WC BATHTUB SHOWER 11380 1260 200 1600 200 19700 14560 2350 3500 200 3200 200 3500 2830 1170 3500 TOW +3.00 R6700 UP FFL +2.00 STAIR A DETAIL (REFER TO MF-A-01-1103) STAIR C DETAIL (REFER TO MF-A-01-1105) FGL +1.15 FGL +1.65 200 1600 200 4750 250 FFL +3.22 FFL +2.86 FFL +2.68 FFL +2.51 FFL +2.33 FFL +2.15 FFL +1.97 FFL +1.79 FFL +1.61 FFL +1.43 FFL +1.25 FFL +1.07 FFL +0.89 FFL +0.72 FFL +0.54 FFL +0.36 FFL +3.04 FFL +0.18 +1.78 H KEYPLAN DENAH KUNCI Biro Benda N
EXTERIOR MATERIALS
DURABLE, WEATHER-RESISTANT, NON-SLIPPERY FOR THE FLOORING, LUXURIOUS FINISH
1 1
‘22 ‘21 ‘20 ‘19 ‘18

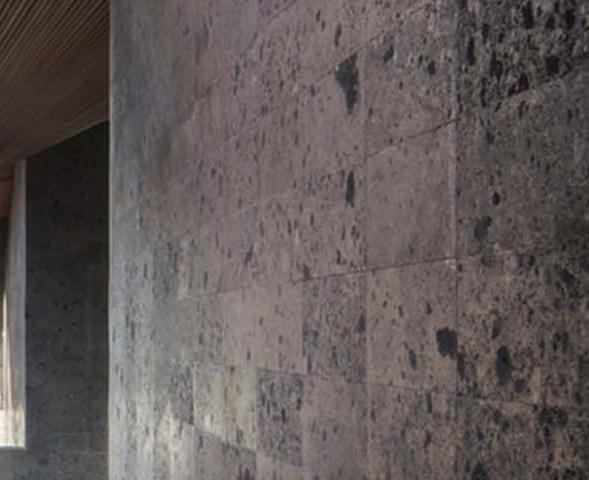

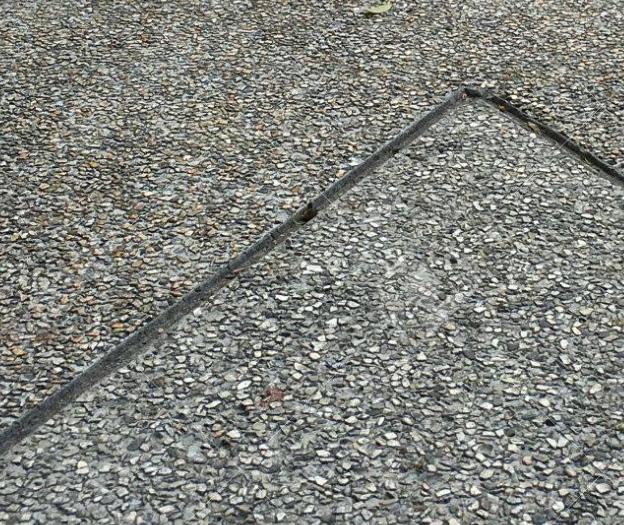

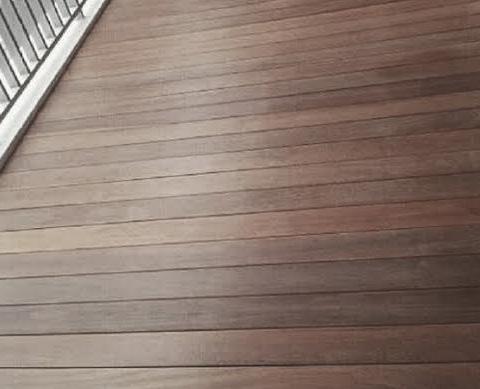

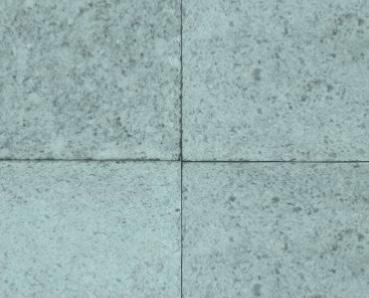

S6 BALI GREEN STONE S8 PEBBLE WASH STONE R1 COLORBOND ROOF W4 IRON WOOD G2 TEMPERED GLASS NON-SLIPPERY, EASY TO MAKE GROUT IF NEEDED FOR DRAINAGE, NOT EXPENSIVE COMMON USE FOR POOL FINISH AND TOPPING MOST RESISTANT TO WEATHER, APPROPRIATE FOR AREAS THAT WILL COME IN CONTACT TO WATER. HOWEVER, NOT SUITABLE FOR DOOR & WINDOW FRAMING AS THE WOOD IS TOO RIGID AND STRONG TO BE SHAPED INTO FRAMES EXTRA STRENGTH FOR THE GLASSES W2 BENGKIRAI WOOD WEATHER RESISTANT, THOUGH NOT AS MUCH AS IRON WOOD. SUITABLE FOR DOOR AND WINDOW FRAMING. LESS COSTLY THAN IRON WOOD VERY DURABLE
S3 ANDESITE STONE WEATHER & WATER RESISTANT, NON SLIPPERY, LUXURIOUS FINISH S7 EXPOSED LOCAL STONE COST-EFFECTIVE, ACTS AS RETAINING WALL 1 2 3 4 5 6 7 8 9 3300 5030 4000 3000 2950 2950 5900 7000 2800 36% COLORBOND ROOF (SHADE: BASALT) BENGKIRAI WOOD LISPLANK BENGKIRAI WOOD FASCIA BENGKIRAI WOOD COLUMN FINISH 20x40cm ANDESITE WALL FINISH 20x40cm ANDESITE STONE WALL FINISH 20x40cm ANDESITE STONE WALL FINISH 20x40cm ANDESITE STONE WALL FINISH BENGKIRAI WOOD PERGOLA BENGKIRAI WOOD RAILING H:900MM ANDESITE STONE STAIRS FINISH EXPOSED LOCAL STONE PLANTER BOX EXPOSED LOCAL STONE PLANTER BOX EXPOSED LOCAL STONE PLANTER BOX EXPOSED LOCAL STONE POOL OVERFLOW BALI GREEN STONE POOL WALL FINISH ANDESITE STONE STAIRS FINISH EXPOSED LOCAL STONE RETAINING WALL EXPOSED LOCAL STONE RETAINING WALL EXPOSED LOCAL STONE RETAINING WALL BAMBOO ROLLER BLIND 5340 700 3400 3800 BUILT-IN SEATINGS PEBBLE WASH RAMP FLOOR FINISH 5330 1 : 150 ELEVATION 1 1 EXTERIOR MATERIAL PALETTE 1 2 3 4 5 6 7 3300 5030 4000 3000 2950 2950 36% 20x40cm ANDESITE STONE WALL FINISH 20x40cm ANDESITE STONE WALL FINISH 20x40cm ANDESITE STONE WALL FINISH BENGKIRAI WOOD PERGOLA BENGKIRAI WOOD RAILING H:900MM ANDESITE STONE STAIRS FINISH EXPOSED LOCAL STONE PLANTER BOX EXPOSED LOCAL STONE PLANTER BOX EXPOSED LOCAL STONE RETAINING WALL EXPOSED LOCAL STONE RETAINING WALL EXPOSED LOCAL STONE RETAINING WALL BAMBOO BLIND 5340 700 3400 3800 PEBBLE WASH RAMP FLOOR FINISH 5330
1 : 150 ELEVATION
Mixed Used Art Cafe Kindergarten Expo1 In-Habit-In-Rig Enclave Avalon Maldives Max. Fischer
S6 BALI GREEN STONE R1 COLORBOND ROOF COMMON USE FOR POOL FINISH AND TOPPING VERY DURABLE DURABLE, WEATHER-RESISTANT, NON-SLIPPERY FOR THE FLOORING, LUXURIOUS FINISH S3 ANDESITE STONE WEATHER & WATER RESISTANT, NON SLIPPERY, LUXURIOUS FINISH S7 EXPOSED LOCAL STONE COST-EFFECTIVE, ACTS AS RETAINING WALL ROAD LEVEL (+53.00) GROUND LEVEL (+57.60) LEVEL 1 (+61.00) ROOF LEVEL (+64.50) 8 9 10 11 12 5900 7000 2800 4000 2000 3500 3400 4600 FFL -4.60 FFL +0.00 FFL +3.40 FFL +6.90 36% COLORBOND ROOF (SHADE: BASALT) BENGKIRAI WOOD LISPLANK BENGKIRAI WOOD FASCIA BENGKIRAI WOOD COLUMN FINISH 20x40cm ANDESITE STONE WALL FINISH 20x40cm ANDESITE STONE WALL FINISH EXPOSED LOCAL STONE PLANTER BOX EXPOSED LOCAL STONE PLANTER BOX EXPOSED LOCAL STONE POOL OVERFLOW BALI GREEN STONE POOL WALL FINISH ANDESITE STONE STAIRS FINISH EXPOSED LOCAL STONE RETAINING WALL EXPOSED LOCAL STONE RETAINING WALL EXPOSED LOCAL STONE RETAINING WALL EXPOSED LOCAL STONE RETAINING WALL BAMBOO ROLLER BENGKIRAI WOOD RAILING H:900MM BUILT-IN SEATINGS project project discipline project drawing scale on drawn otherwise REVISION NO DEVELOPER: ARCHITECT MEP WAN SESETAN TELEPHONE JL. BATAS email STRUCTURE CV. RENON TELEPHONE JL. TUKAD email NAUTYLUS 111, Sunset Badung (0361) contact@nautylusdesign.com NAUTYLUS 111, Sunset Badung (0361) contact@nautylusdesign.com Jl. Raya 80571 Indonesia Architecture TH15 FISCHER Tampah 2020_09 Design Author ELEVATION Biro
EXTERIOR MATERIALS
‘22 ‘21 ‘20 ‘19 ‘18 G 2500 FFL +1.58 FFL +1.78 FFL +1.95 POOL 47 m2 FFL +0.35 FFL +2.00 DECKING WOODEN/BAMBOO ROLLER BENGKIRAI COLUMN CLADDING 200X400MM ANDESITE STONE WALL BENGKIRAI WOOD PERGOLA (REFER TO DETAILS) 200X400MM ANDESITE STONE FLOOR FINISH 400X400MM GREEN STONE POOL FINISH BENGKIRAI WOOD PERGOLA (REFER TO DETAILS) 100MM BENGKIRAI FLOOR FINISH 200X400MM ANDESITE STONE WALL FINISH 2220 3000 1400 1650 550 4950 1 : 75
1 1
SECTION
Mixed Used Art Cafe Kindergarten Expo1 In-Habit-In-Rig Enclave Avalon Maldives Max. Fischer GROUND LEVEL (+57.60) LEVEL 1 (+61.00) A B C D E F ROOF LEVEL (+64.30) 3300 3400 2500 1000 2000 2000 2900 2500 +1.95 FFL +2.13 FFL +2.31 FFL +3.20 FFL +3.30 FFL +3.40 FFL +3.30 AMPHITHEATER 50 m² OUTDOOR LIVING 103 m² LIVING, DINING & KITCHEN 114 m² RAISED GARDEN 89 m² 36% 36% CALLOUTPRINCIPAL 2 COLORBOND ROOF (SHADE: BASALT) WOODEN/BAMBOO ROLLER BLIND 200x400MM ANDESITE STONE WALL FINISH COLUMN CLADDING EXPOSED LOCAL STONE RETAINING WALL LIGHT STEEL ROOF STRUCTURE ACCORDING TO SPECIALIST'S DETAILS 100MM BENGKIRAI FACADE BENGKIRAI LISPLANK MULTIPLEX WITH TEAK VENEER STRUCTURE COVER/CEILING ANDESITE WALL FINISH 200X400MM ANDESITE STONE FLOOR FINISH 100MM BENGKIRAI FLOOR FINISH 200X400MM ANDESITE STONE FLOOR FINISH 200X400MM ANDESITE STONE FLOOR FINISH BUILT-IN SUNBED (REFER TO DETAILS) ROOF GUTTER (REFER TO DETAILS) CFL +3.00 5700 1000 240 3680 2340 RAIN WATER TANK 29 m² project project discipline project drawing scale on drawn NOTE: These the without a violation Do dimensions. otherwise KEYPLAN REVISION NO DEVELOPER: ARCHITECT MEP WAN SESETAN TELEPHONE JL. email STRUCTURE CV. RENON TELEPHONE JL. email NAUTYLUS 111, Badung (0361) contact@nautylusdesign.com NAUTYLUS 111, Badung (0361) contact@nautylusdesign.com Jl. Raya 80571 Indonesia Architecture TH15 FISCHER Tampah 2020_09 Design Author SECTION Biro
JAYANT NEGI j.negi1999@gmail.com +91- 8979373456 https://www.behance.net/jayantnegi https://www.instagram.com/negijayant10/ https://www.linkedin.com/in/jayant-negi-4070501b6/
