PORTFOLIO

Javier de León

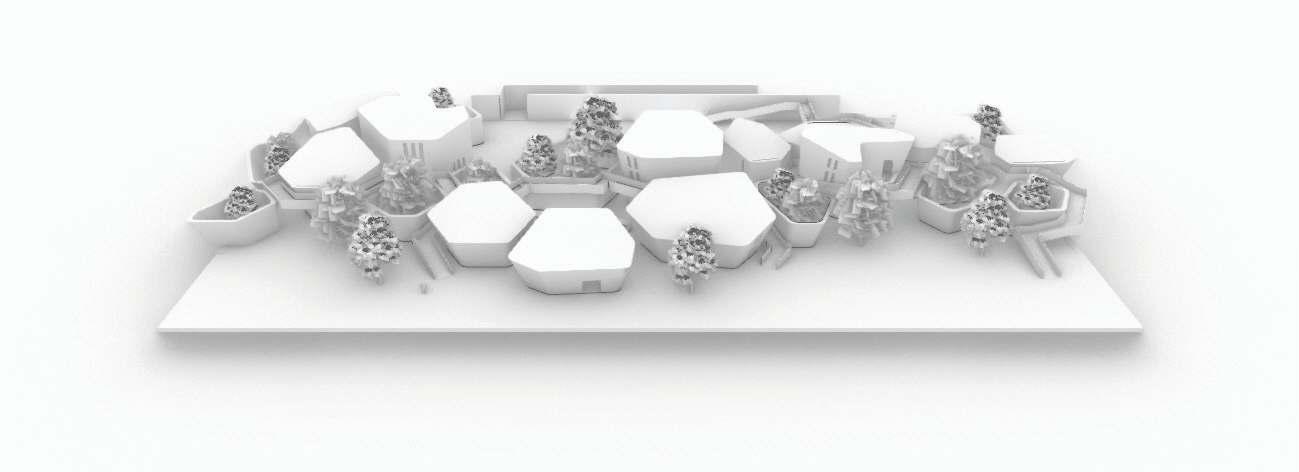

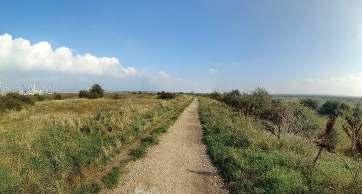

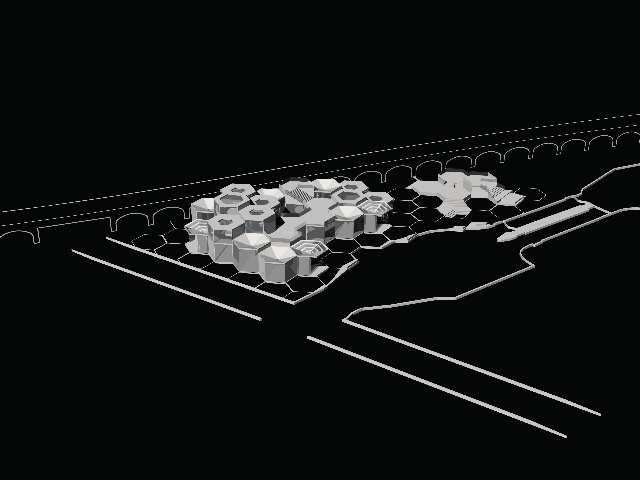

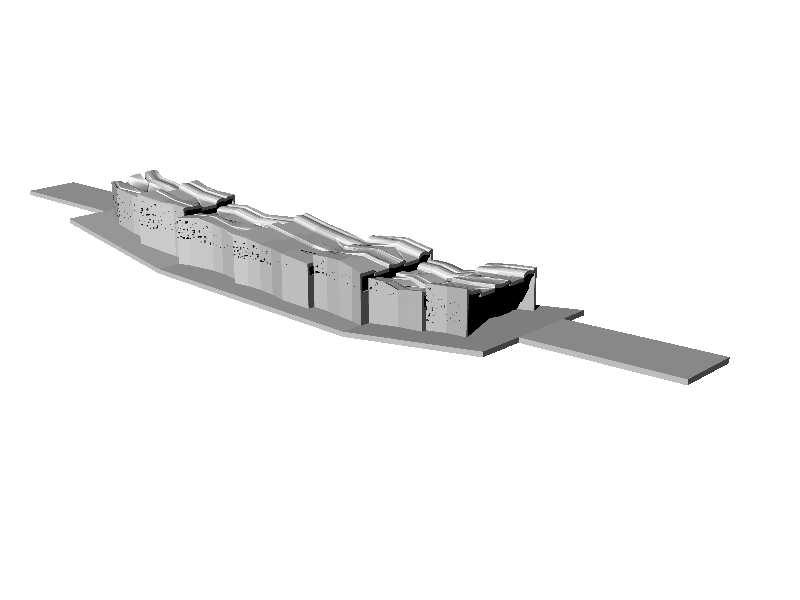

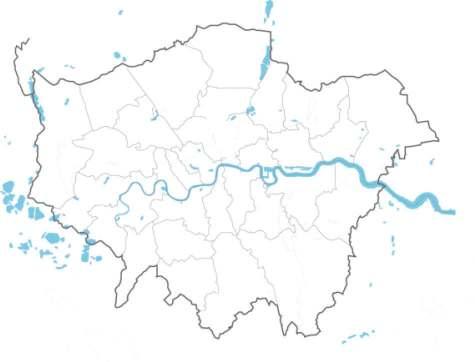

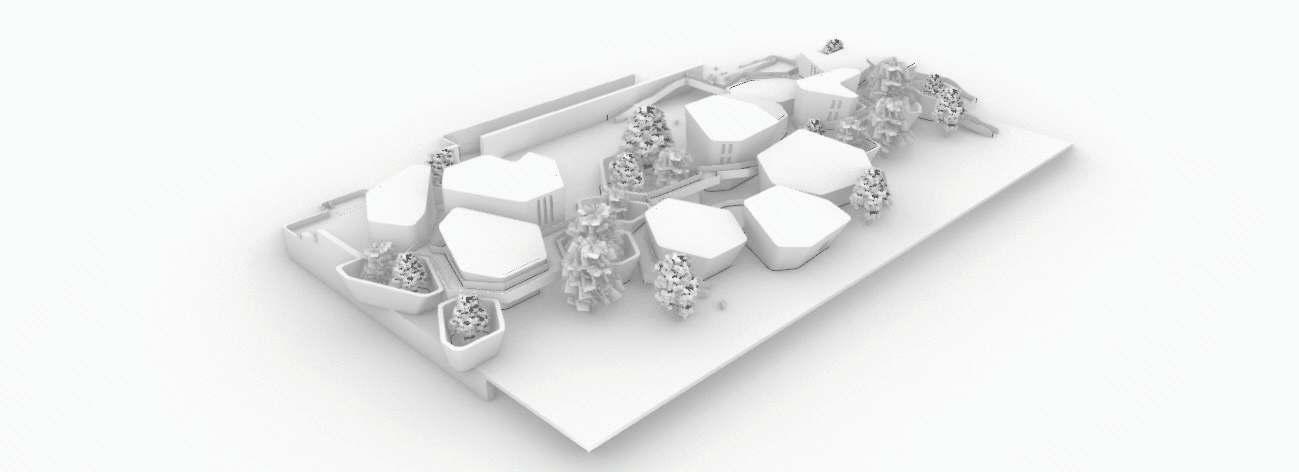

CULTURAL CENTRE - Dartford Marshes

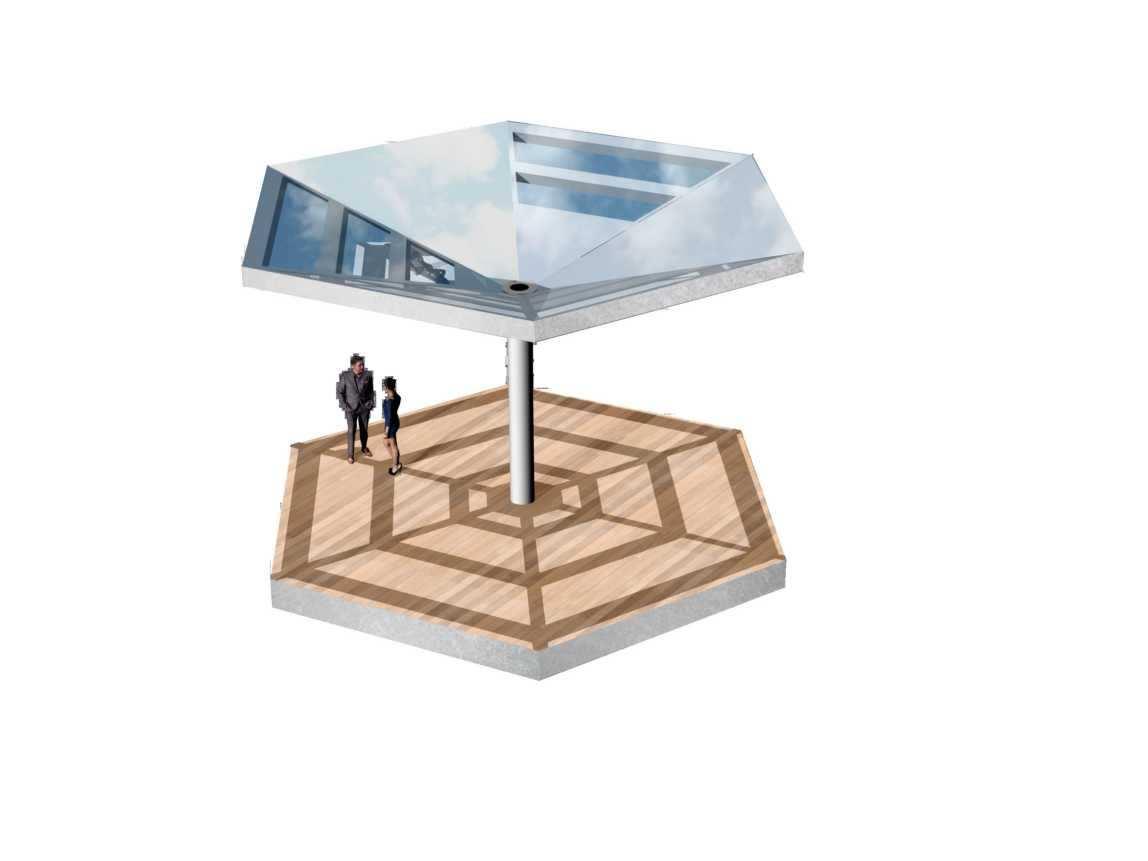

PERSPECTIVE FROM THE EAST

PERSPECTIVE

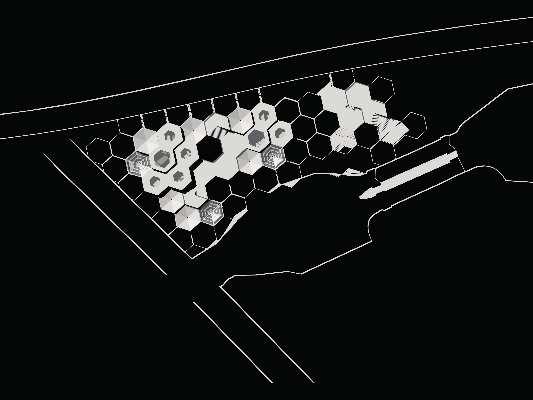

Micro-Climate

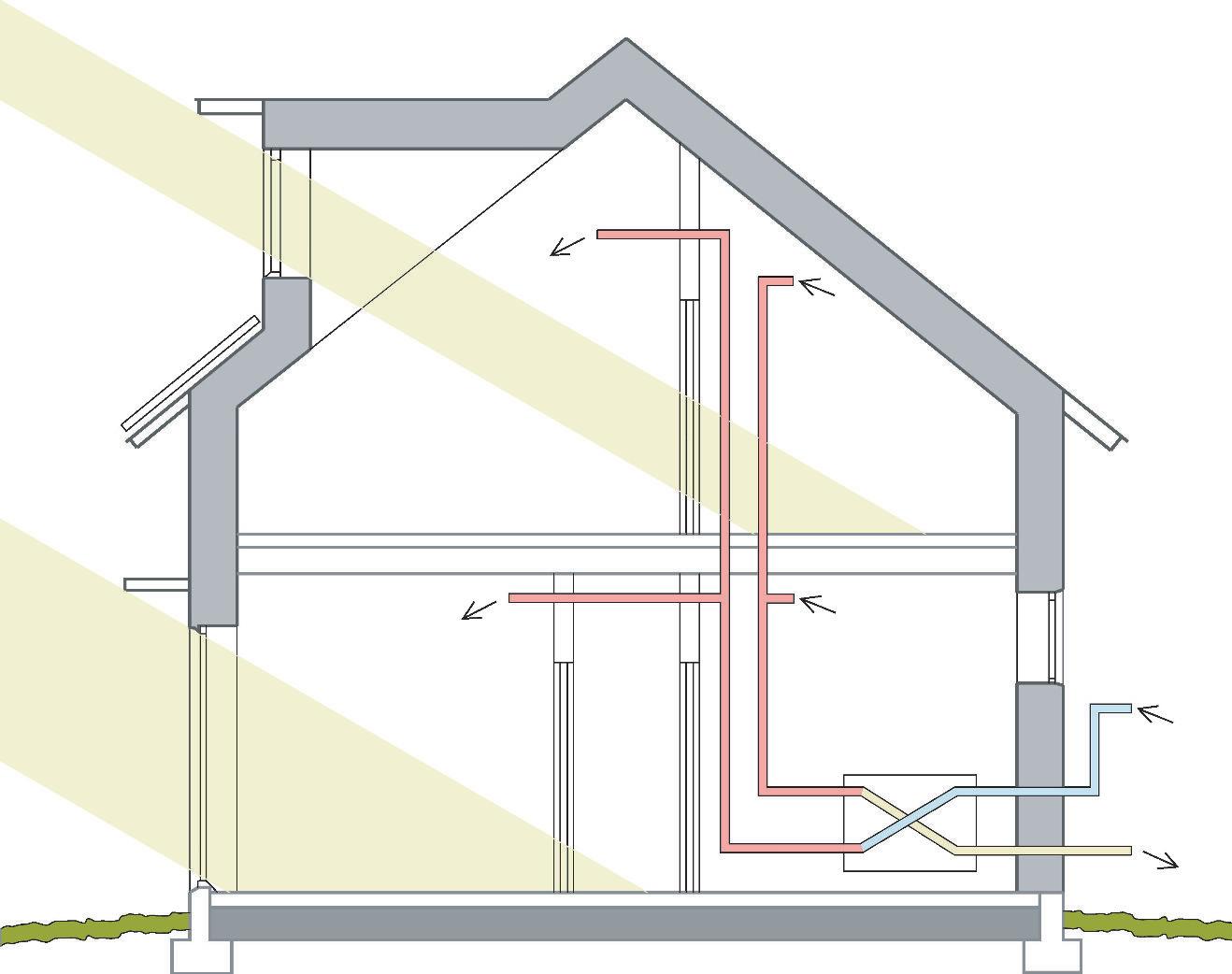

Cross-Ventilation
Cross-Ventilation
Cross-Ventilation

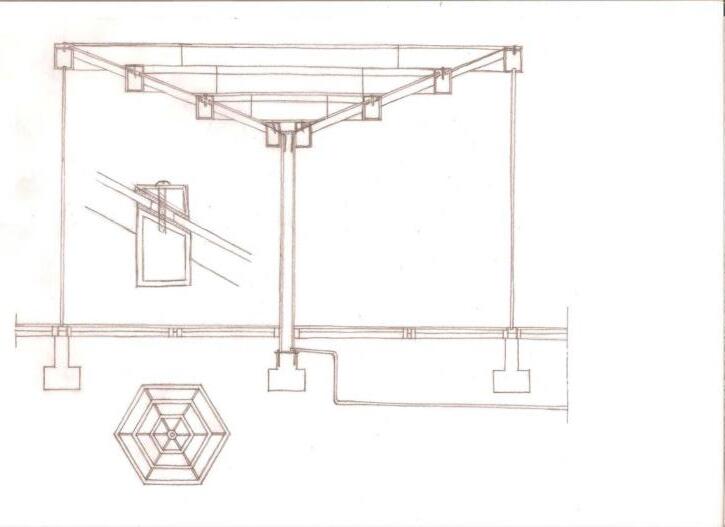

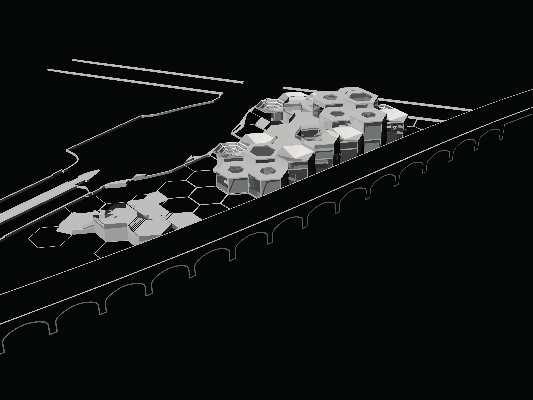

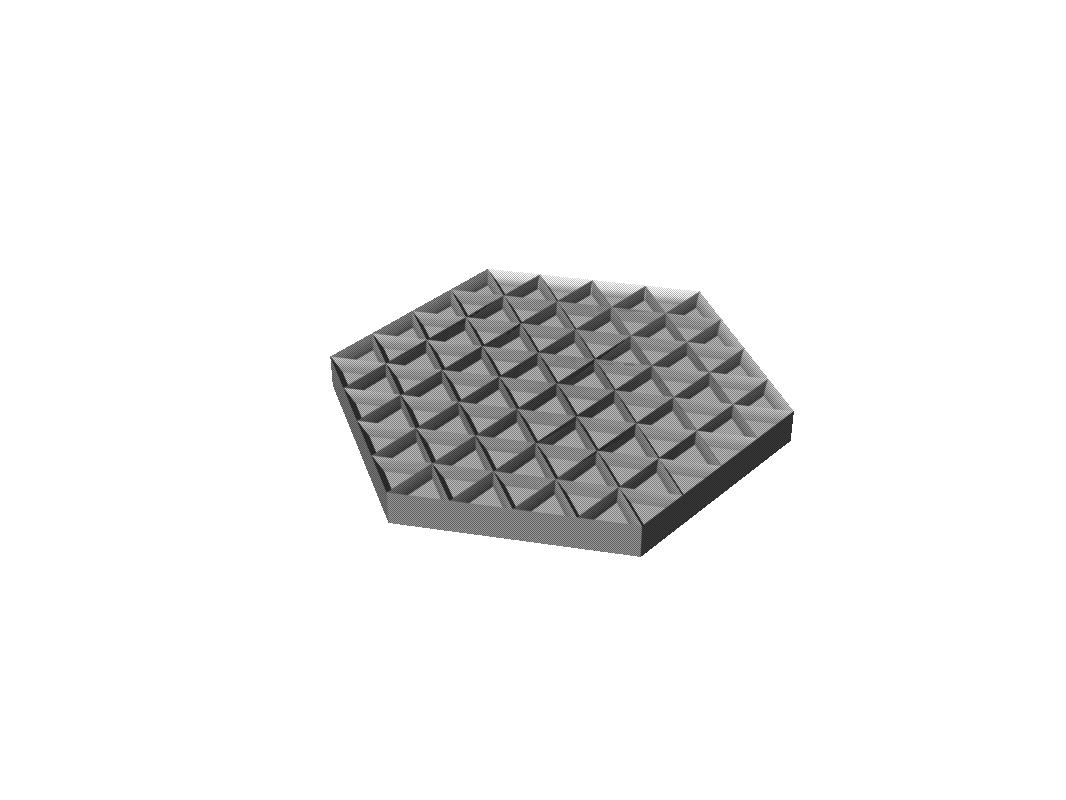

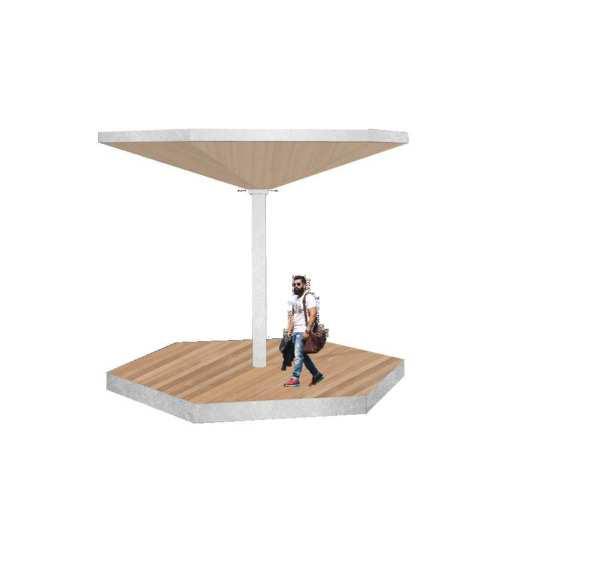

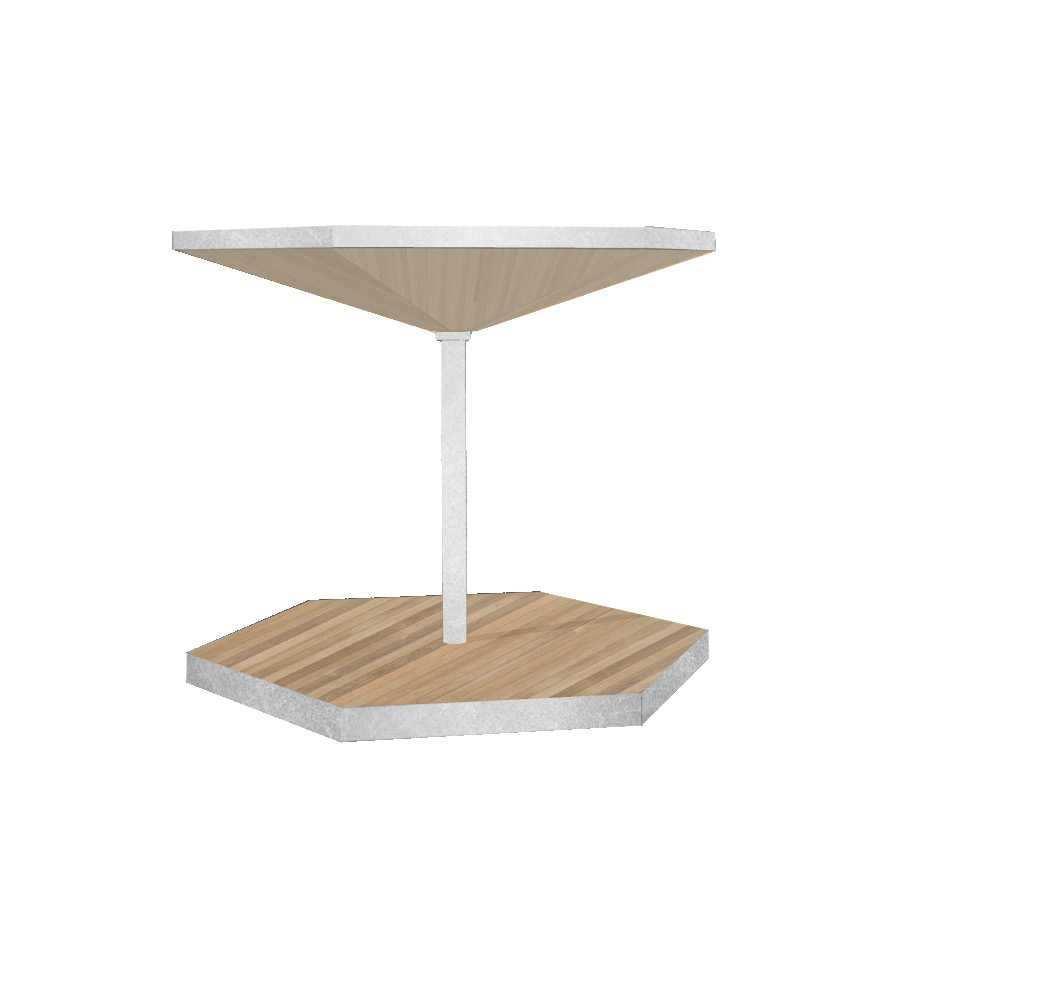

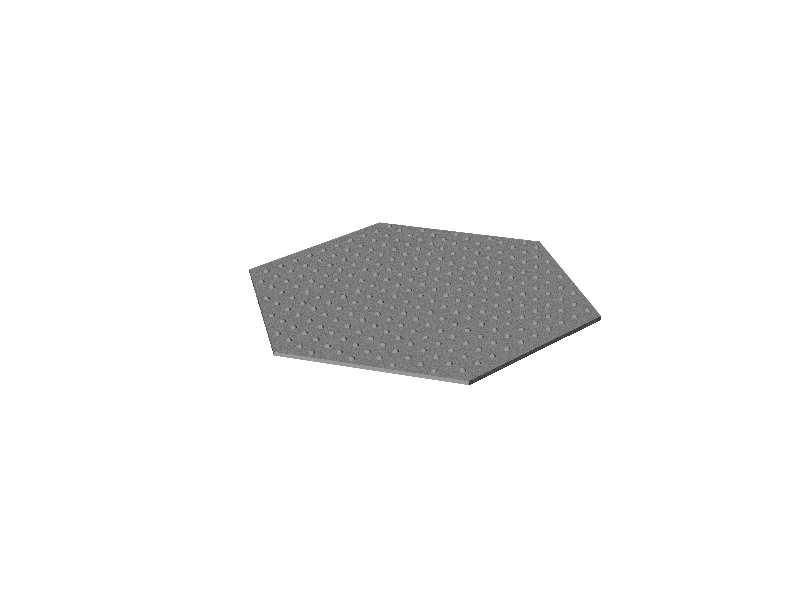

STRUCTURAL SYSTEM

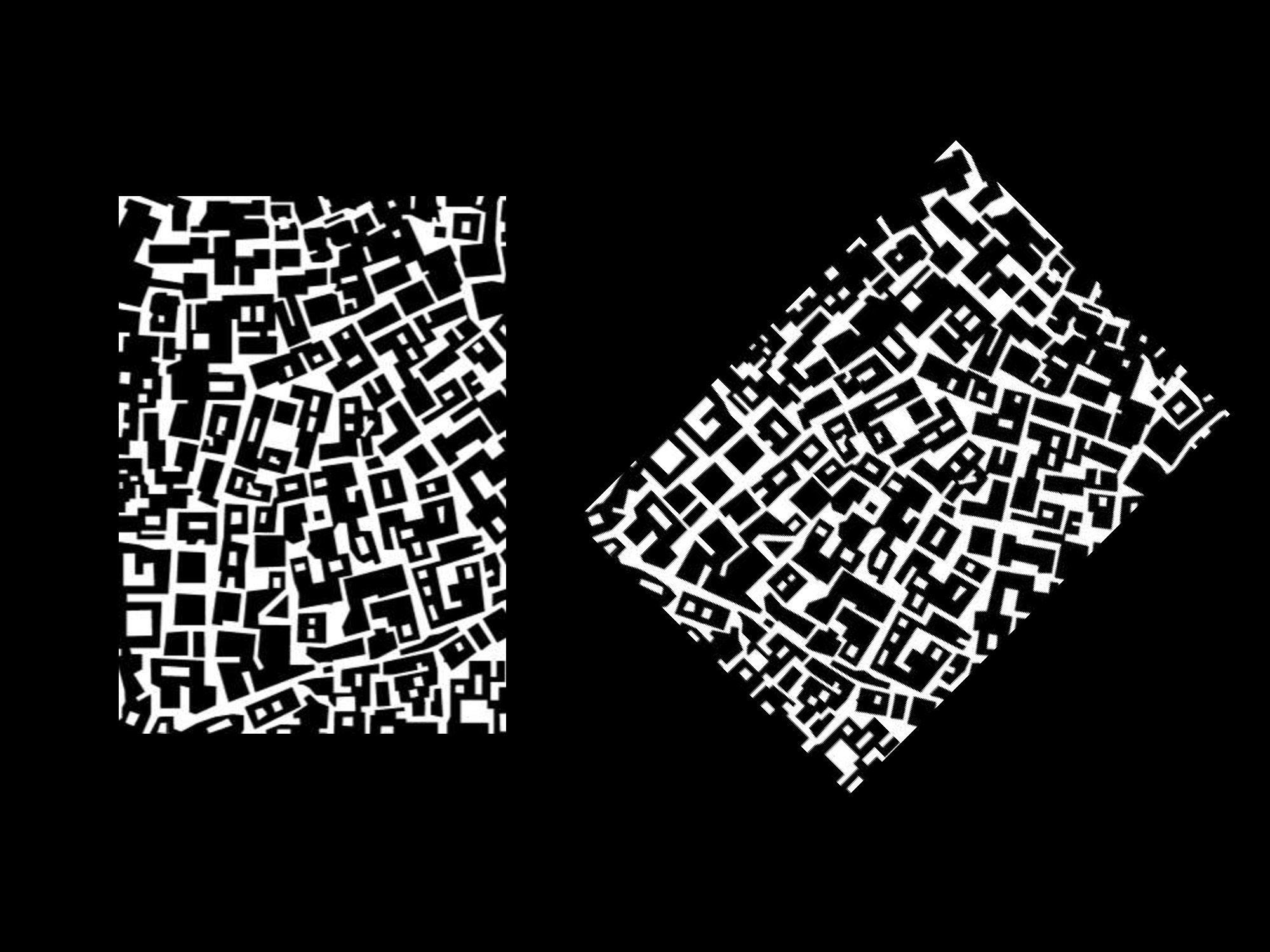

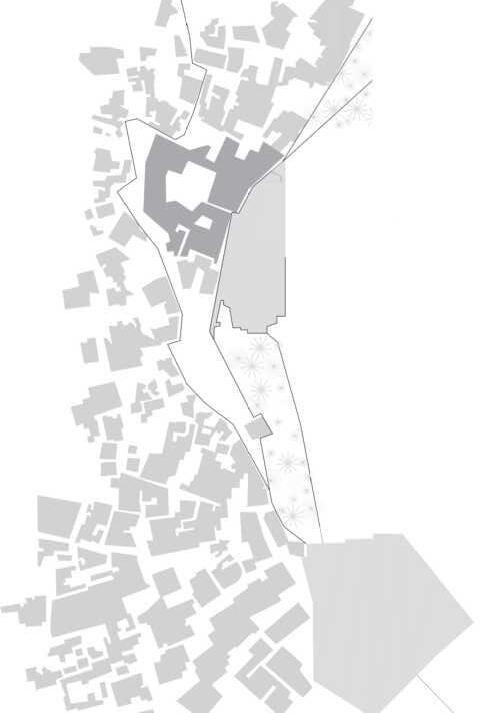

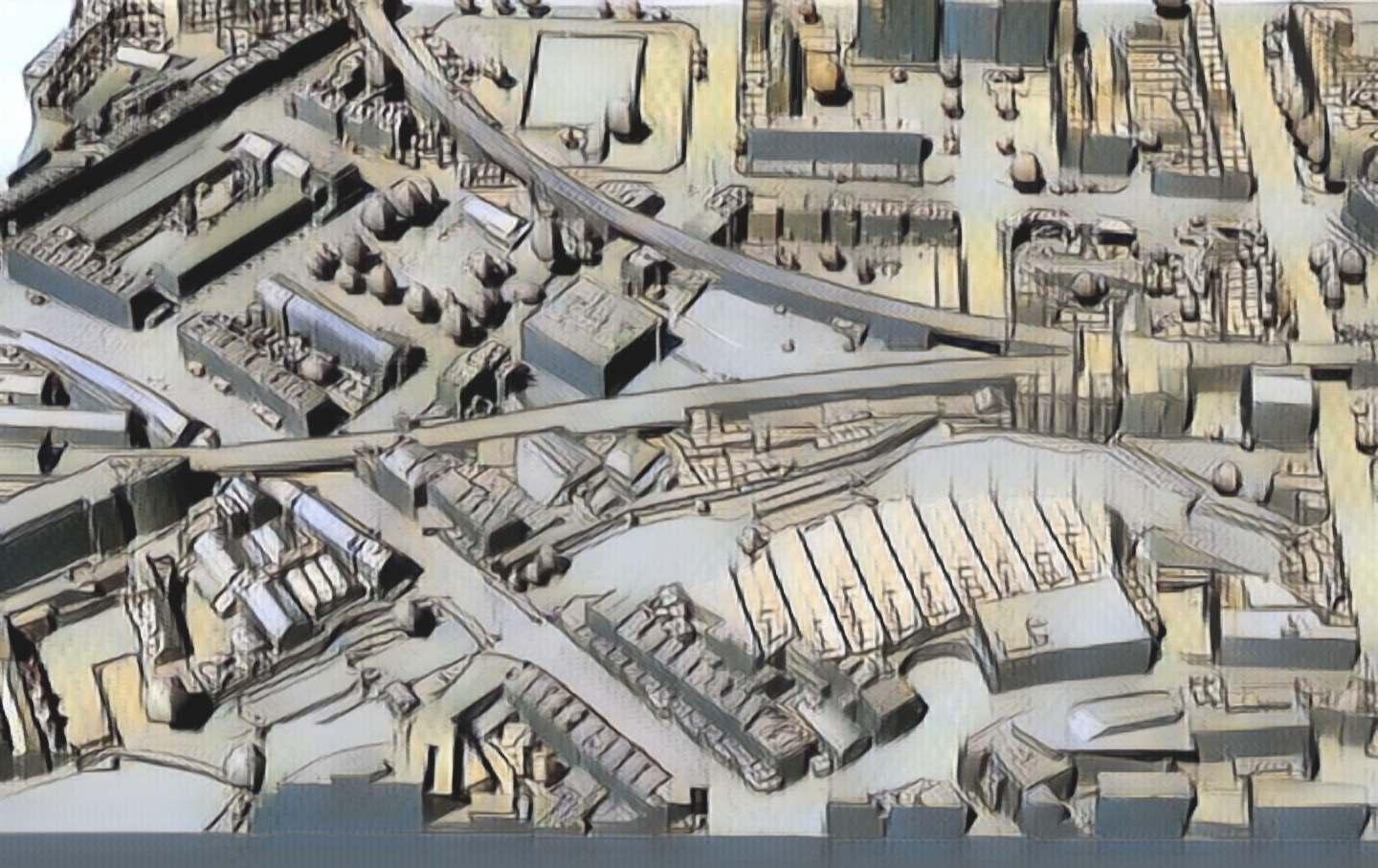

URBAN DEVELOPMENT

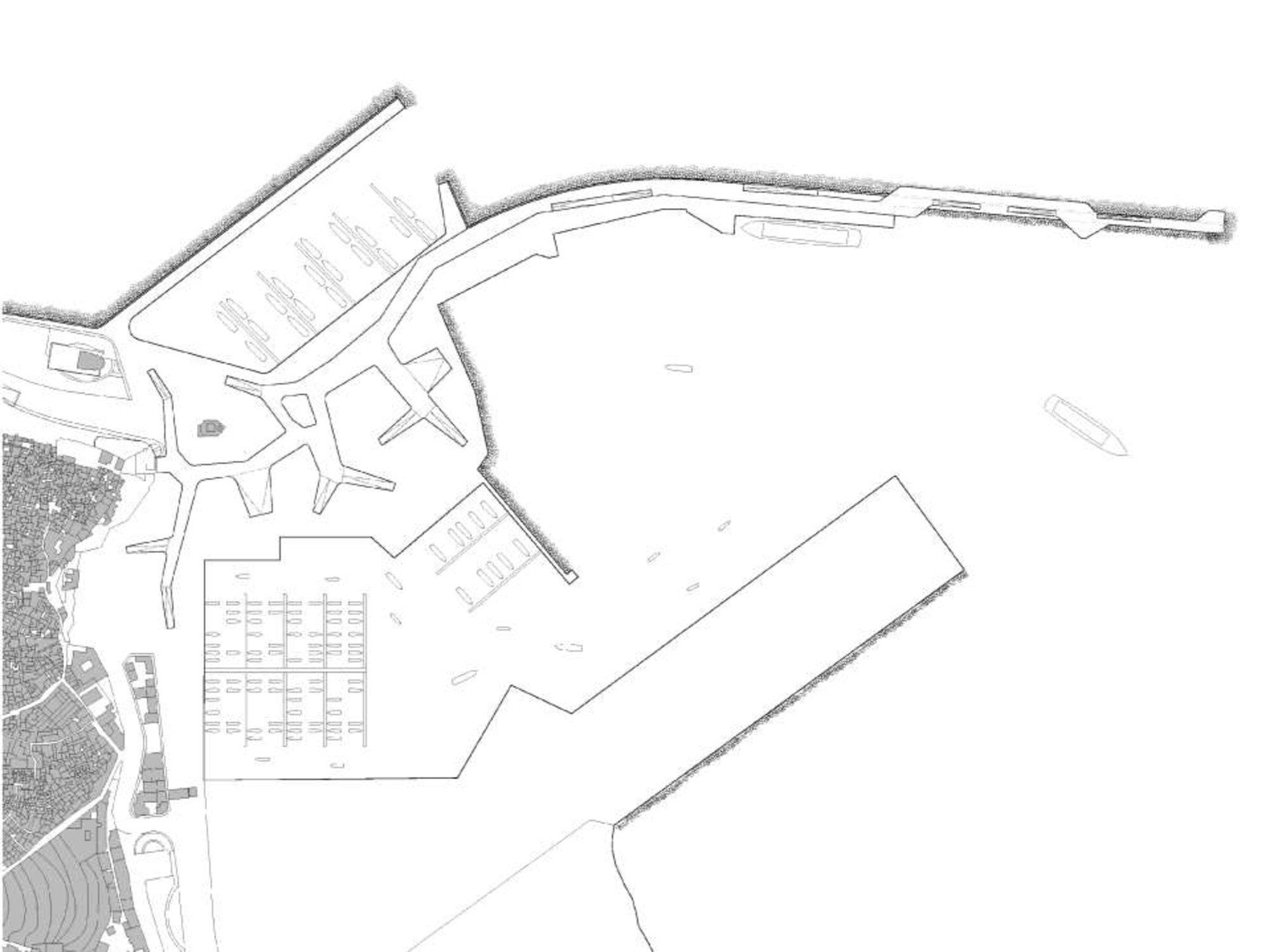

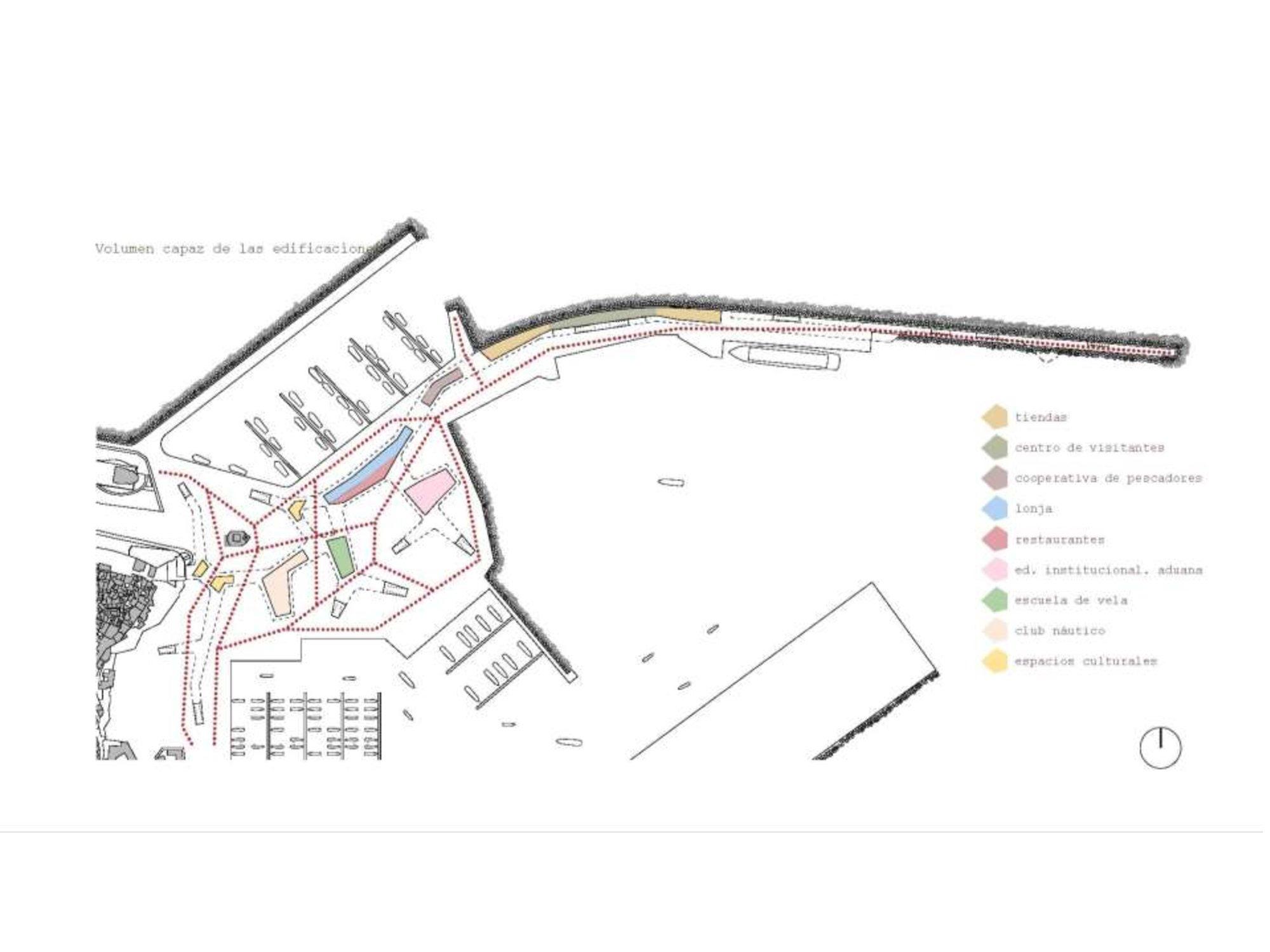

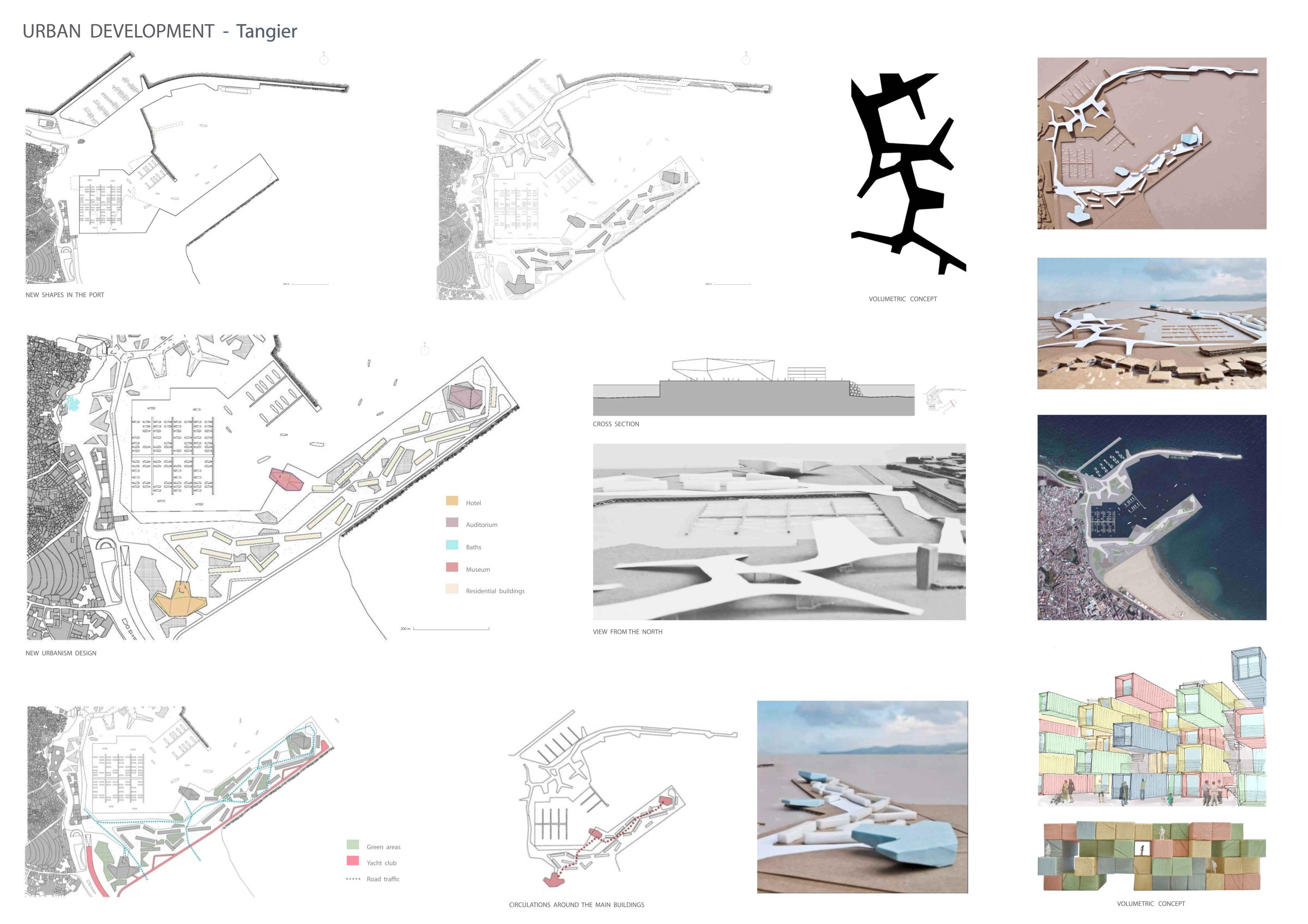

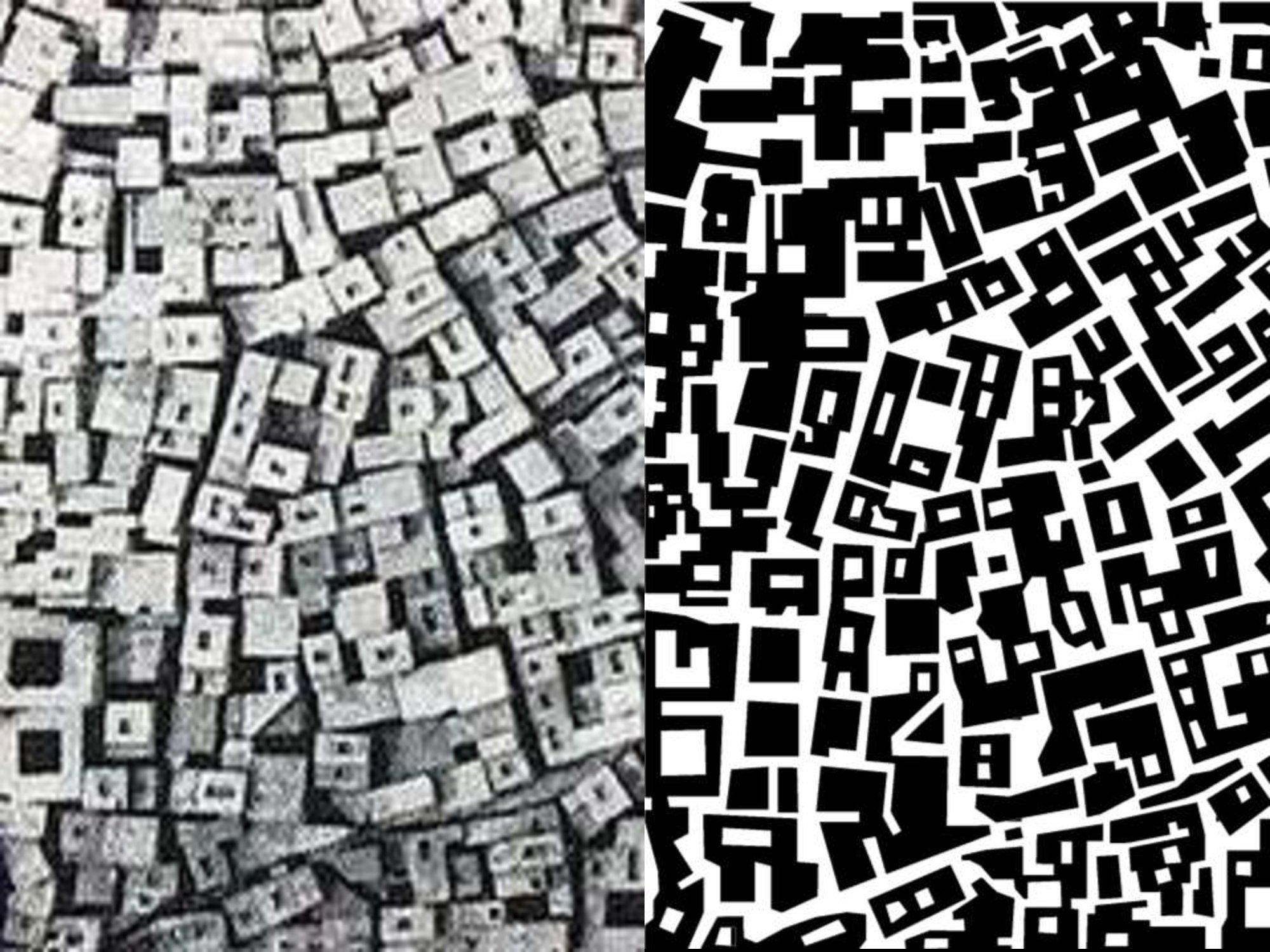

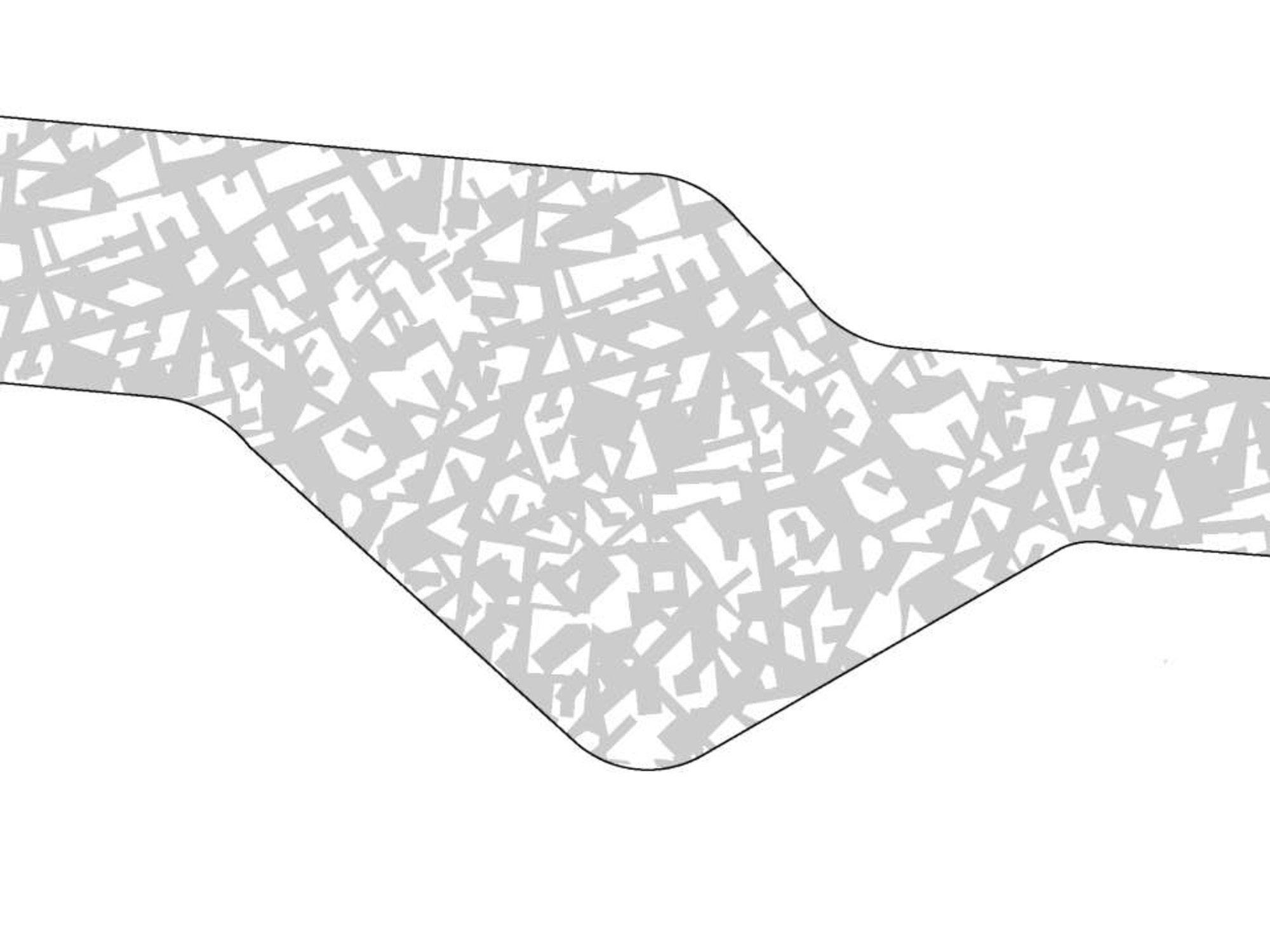

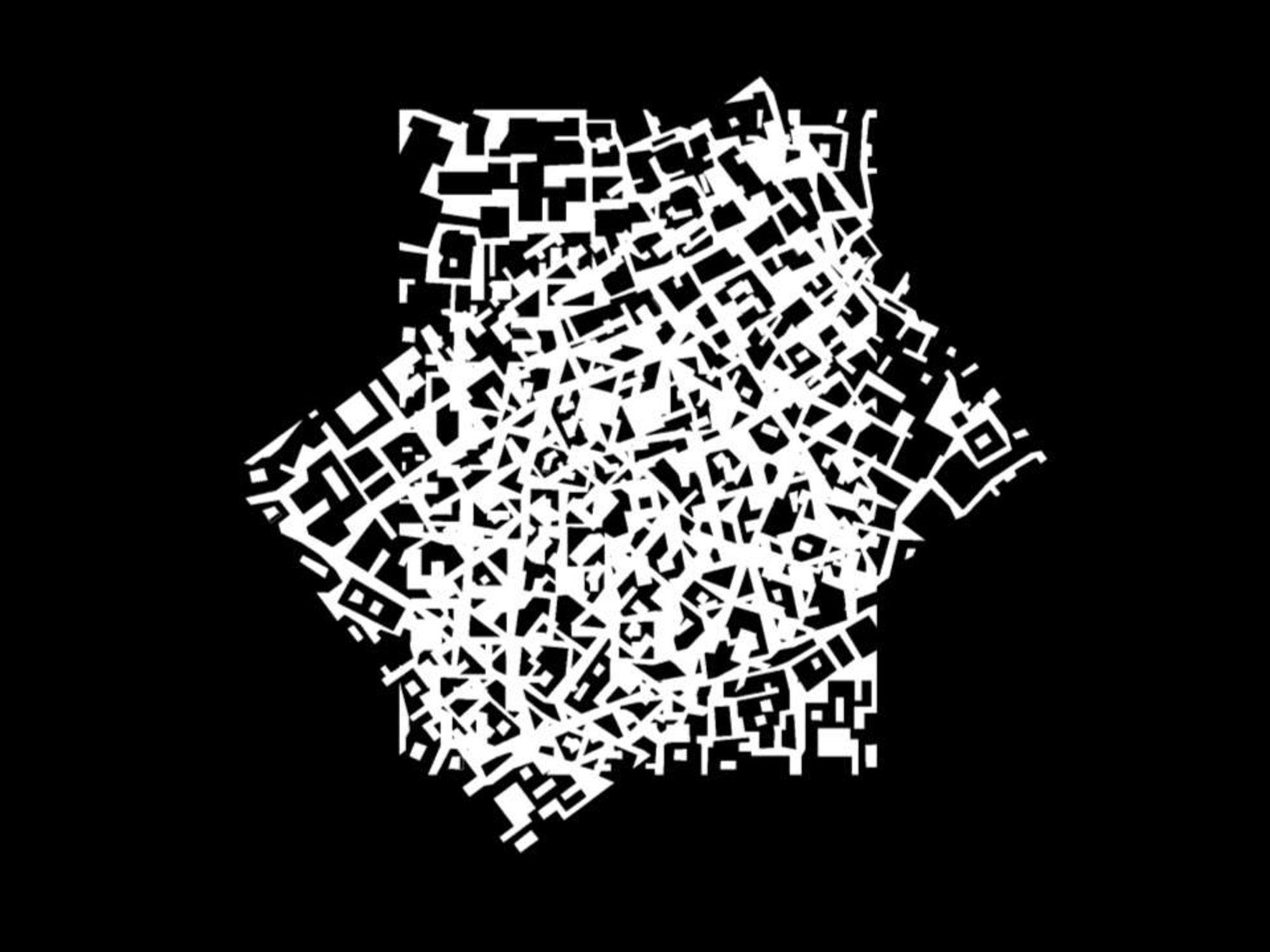

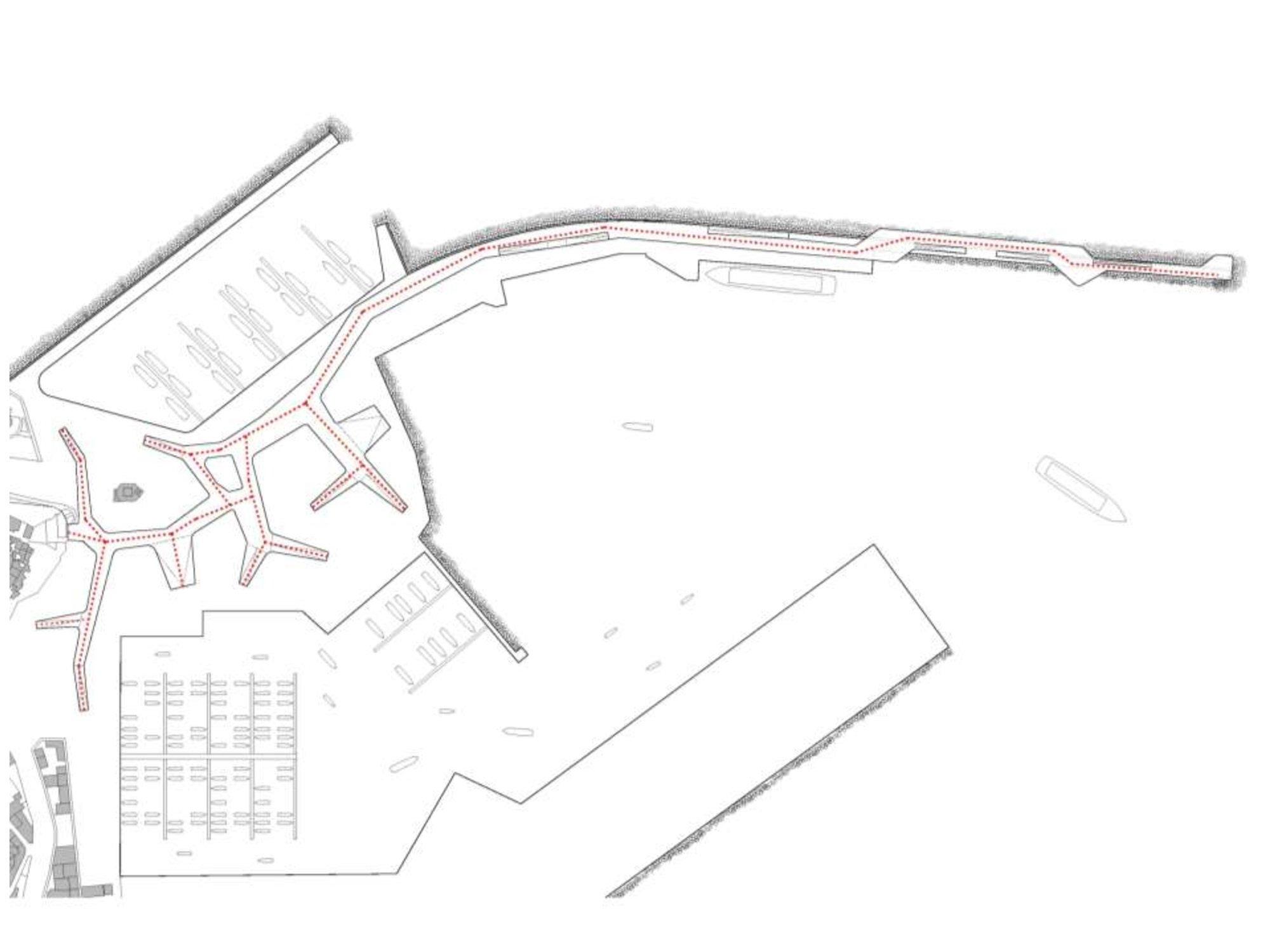

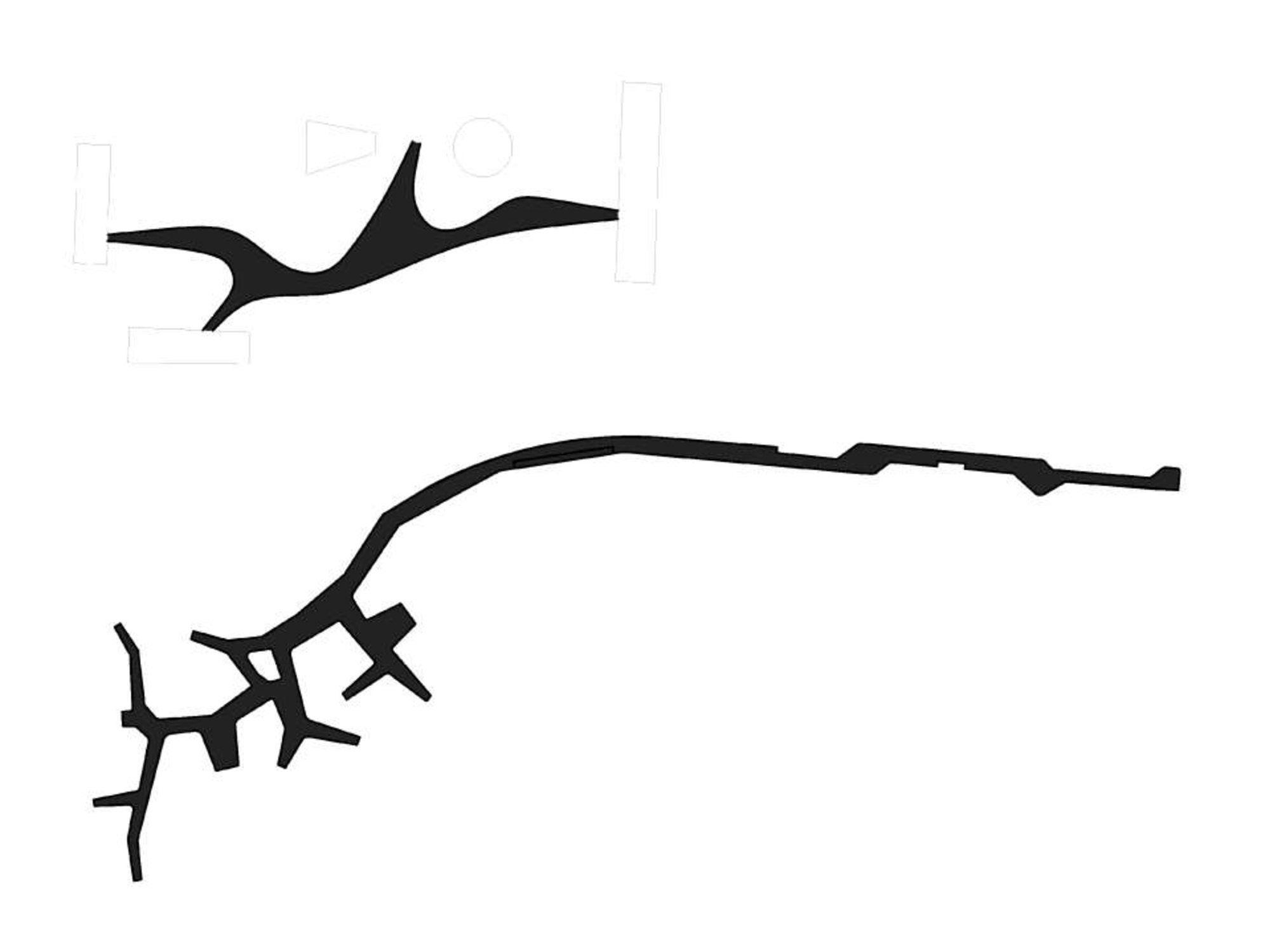

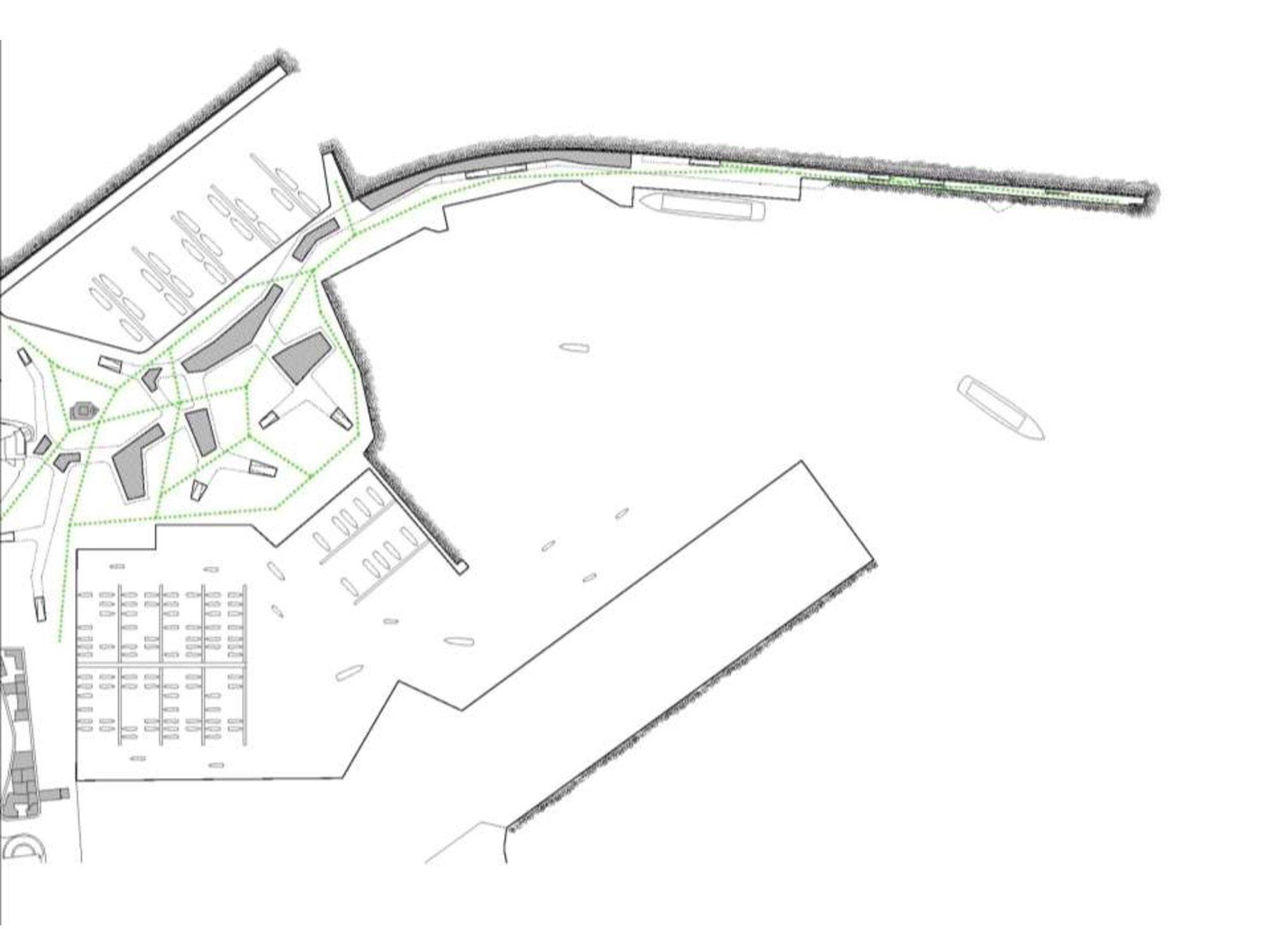

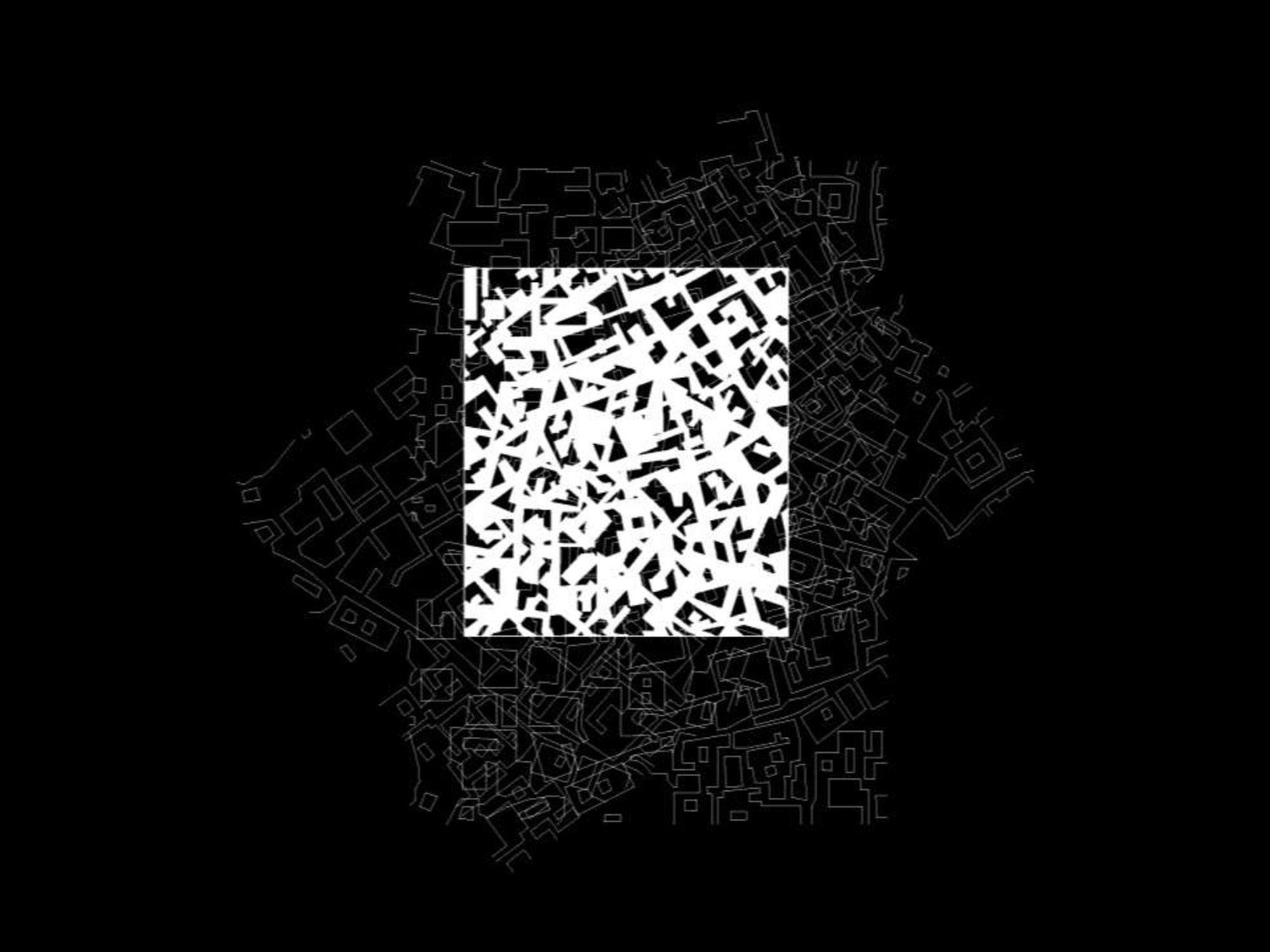

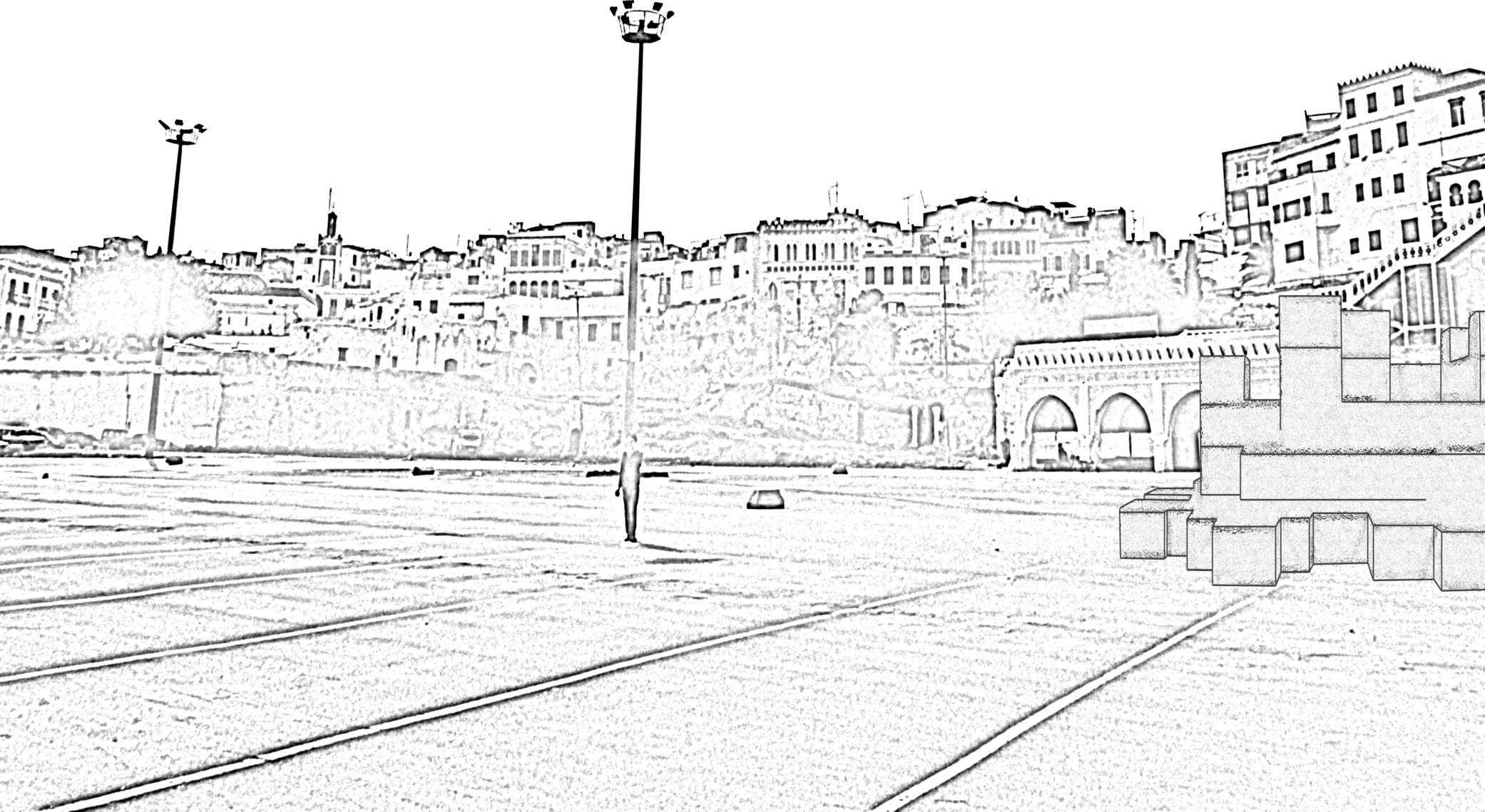

URBAN DEVELOPMENT - TANGIER

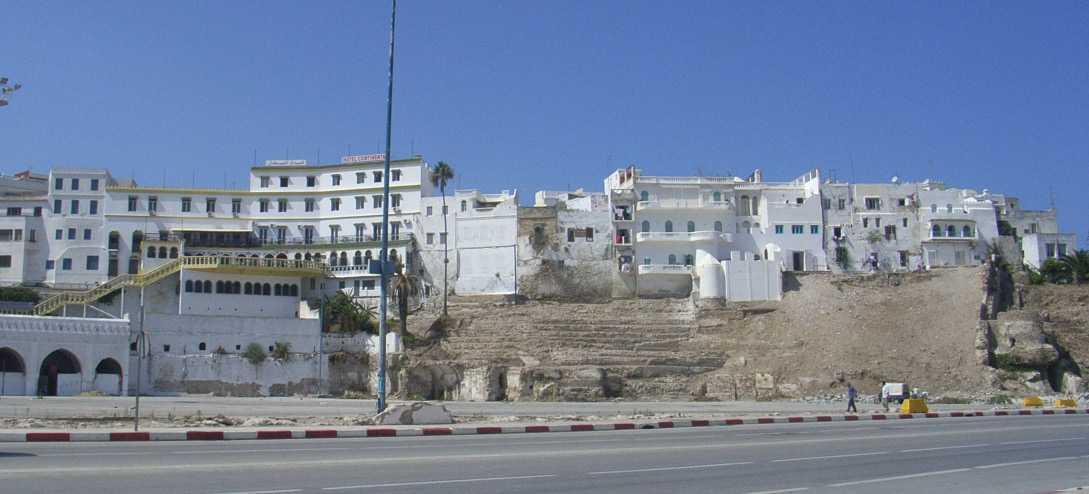

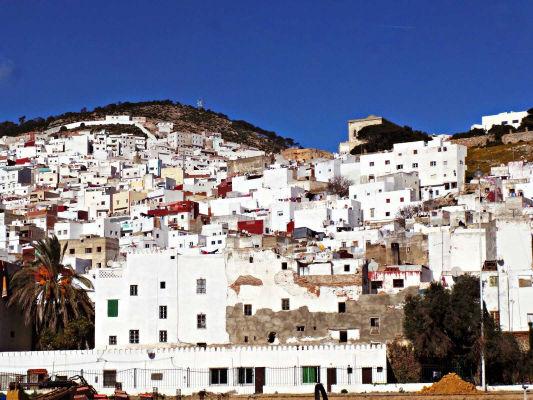

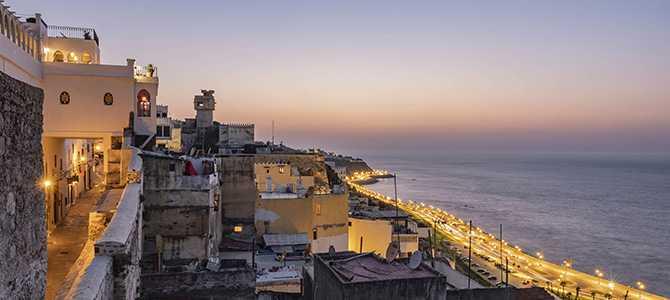

VIEW FROM THE MEDINA
VIEW FROM OLD WALL OF TANGIER

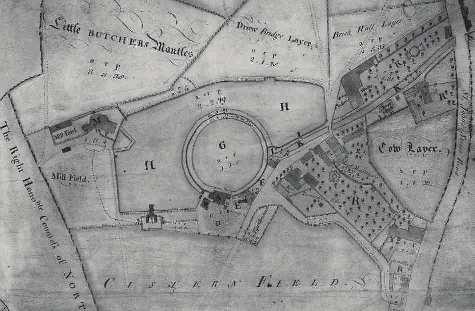

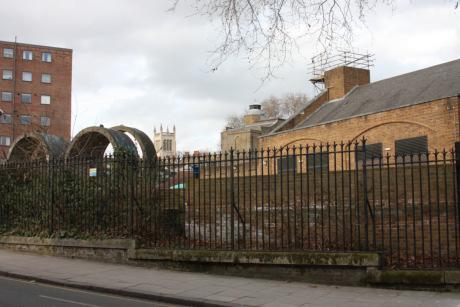

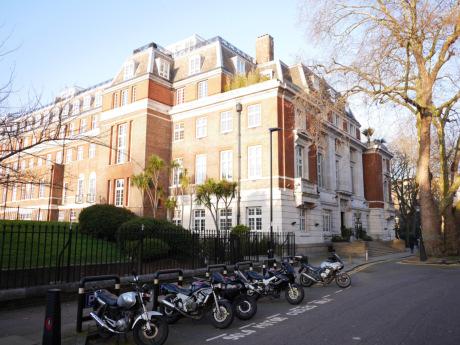

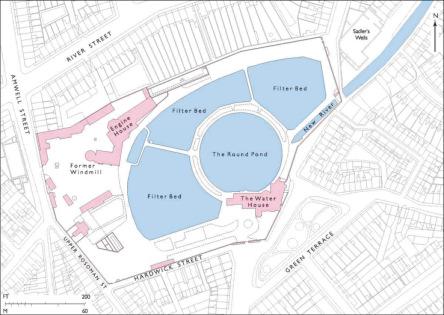

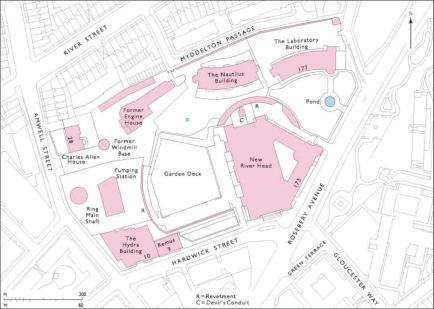

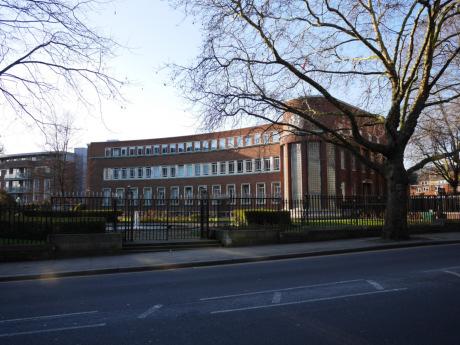

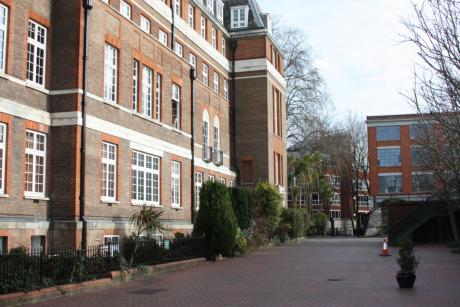

Islington Hill, by Thomas Bowles, c. 1740. New River Head.
New River Head, c. 1874

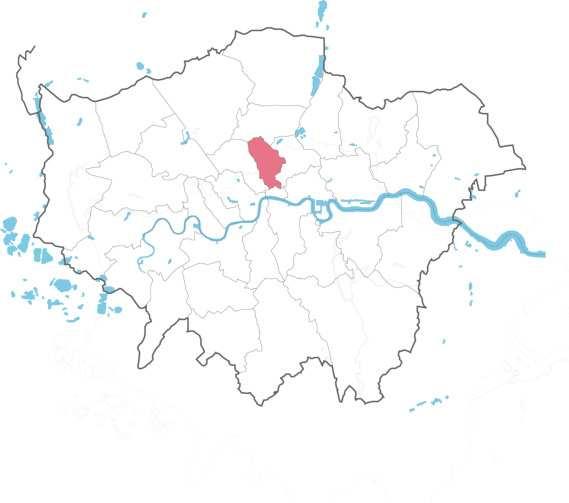

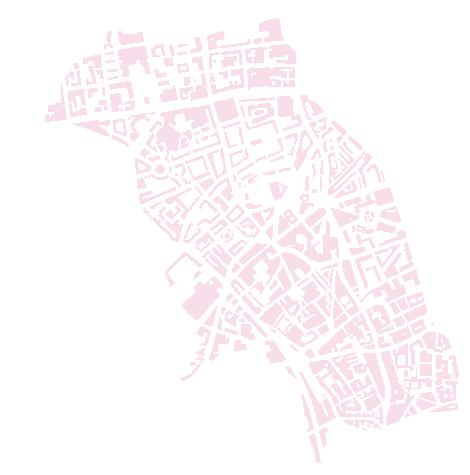

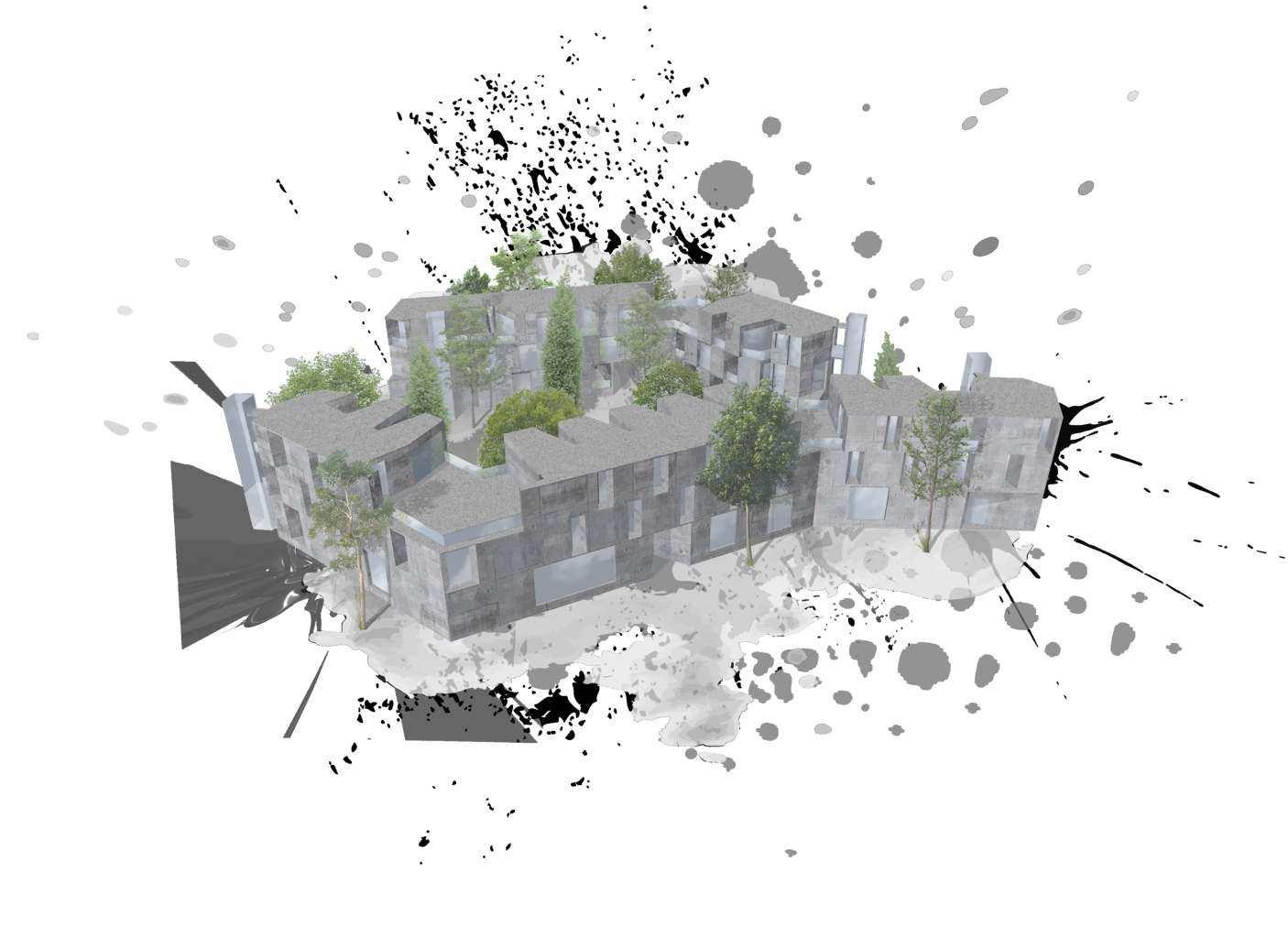

RESIDENTIAL BUILDINGS, STUDENT ACCOMMODATION & LEISURE CENTRE

Scale: 1/800

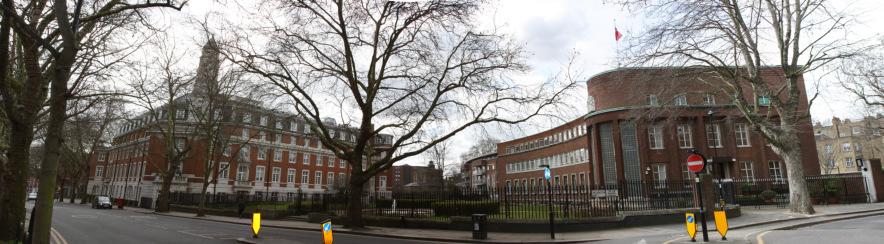

The Leisure Centre, residential buildings and student accommodation are going to support the needs of an historical area in London, Clerkenwell (Islington) With di ff erent universities around the area like City University of London, UAL, Colleges like City and Islington College. O ffi ces, Sadler's Wells Theatre, St Marks Church, the old pump house, The New River Head...

It is going to develope Clerkenwell, in one of the most interesting place to live in Islington, with many oportunities for conferences, exhibitions, leisure. And the main point to develope the project "creating community"

"I do not like ducts; I do not like pipes. I hate them really thoroughly, but because I hate them so thoroughly, I feel they have to be given their place. If I just hate them and took no care, I think they would invade the buildingandcompletelydestroy it" _ Louis Kahn

"Served and servant": Servant spaces are supporting the main areas of the building. Served spaces are the primary areas, are meant for habitation and are meant for primary occupants of the space or visitors.

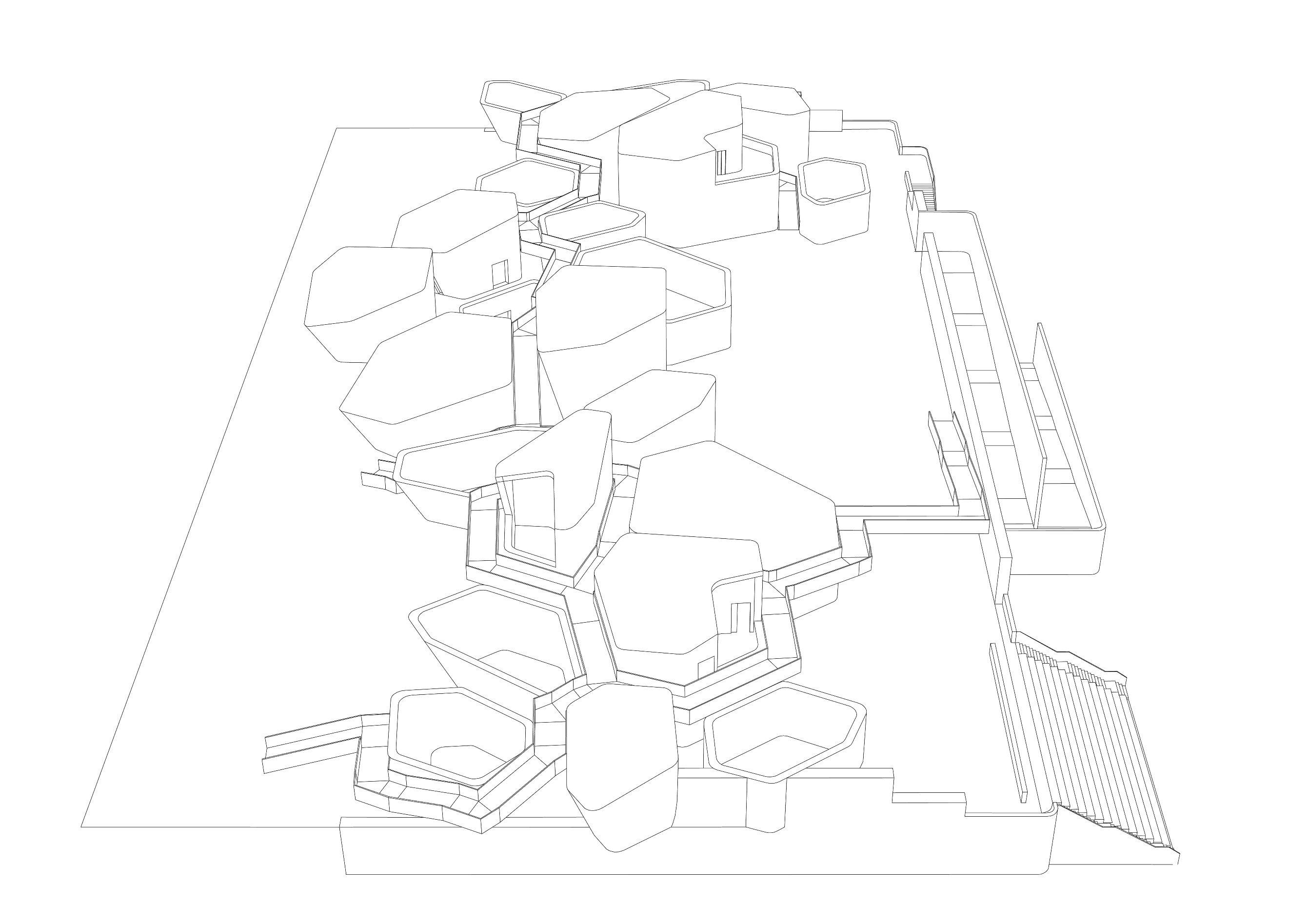

MICRO DESIGN DEVELOPING

Abstractrecreationofthelandscape,withsectionsofthesite

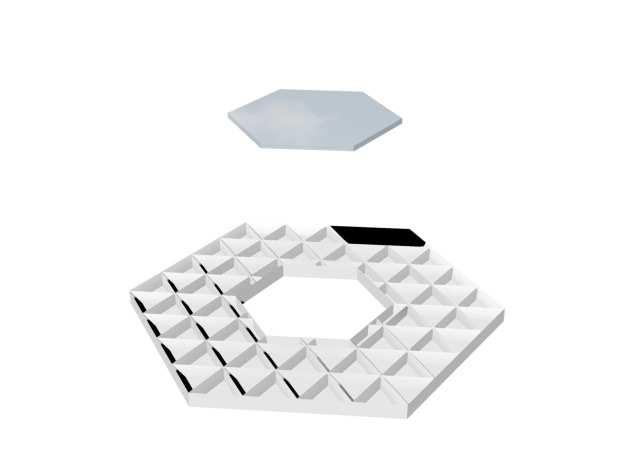

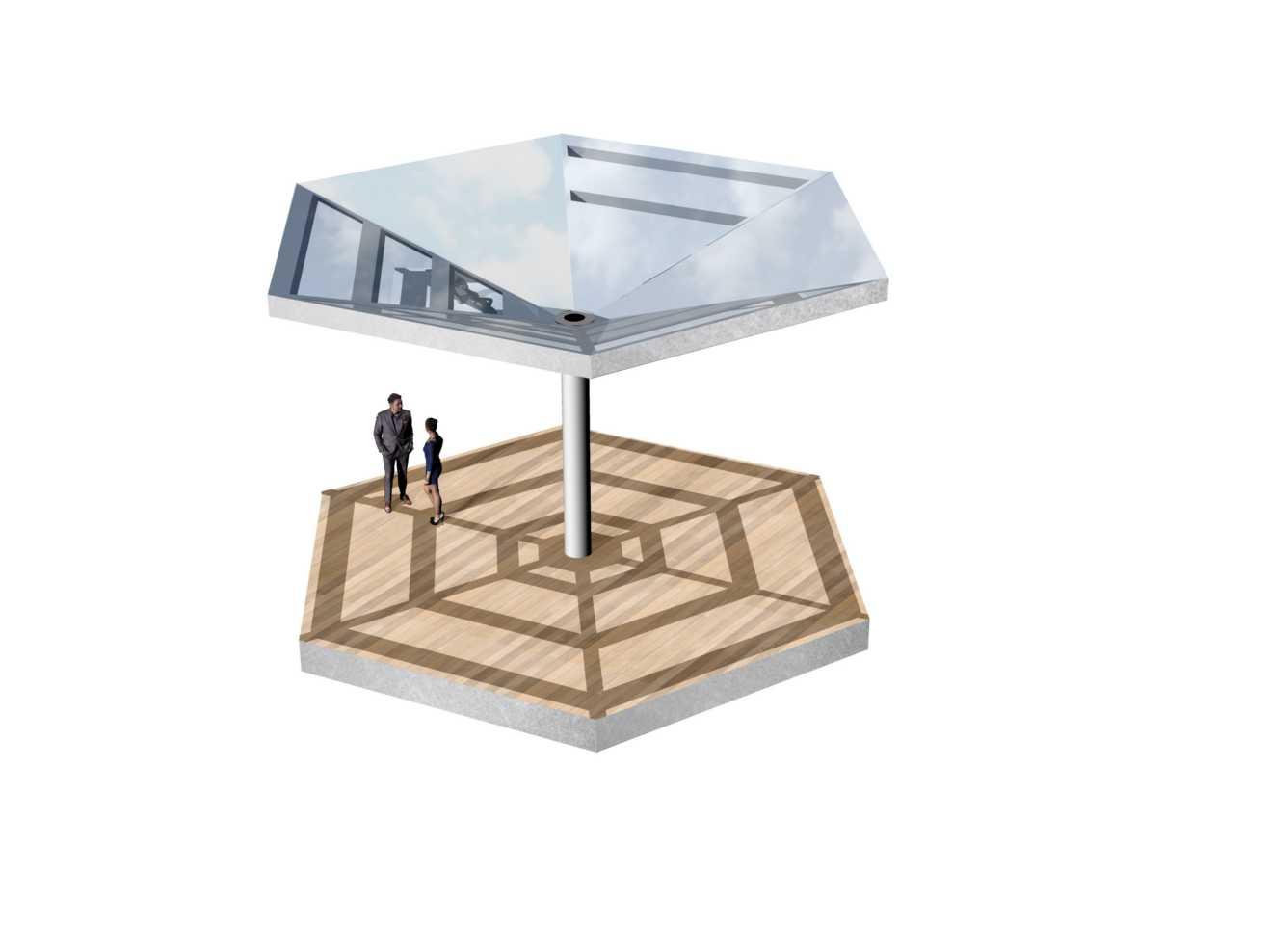

STRUCTURAL SYSTEM

Breaking the continuity of the design.

Risingsomeofthenewmodules tosearchthenaturallight. Making the design longer, and creating a composition that allows to integrate it naturally around the river side,andkeepingthedi ff erentheightforthemodules.

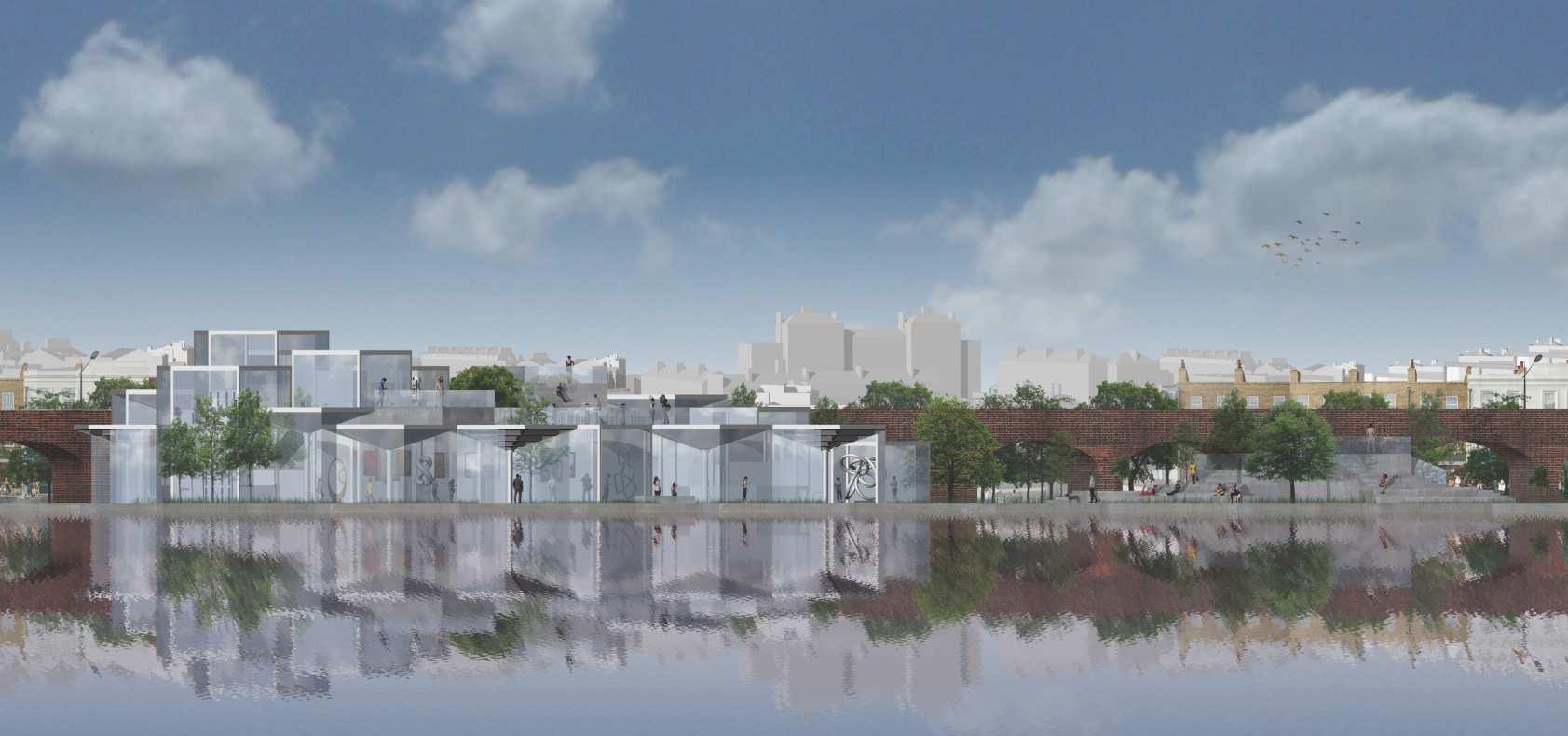

ART GALLERY -

STRATEGY

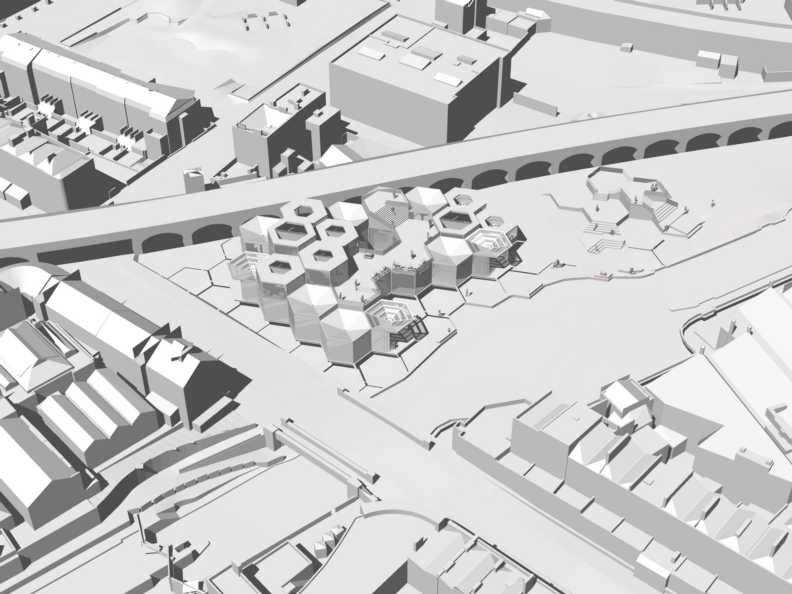

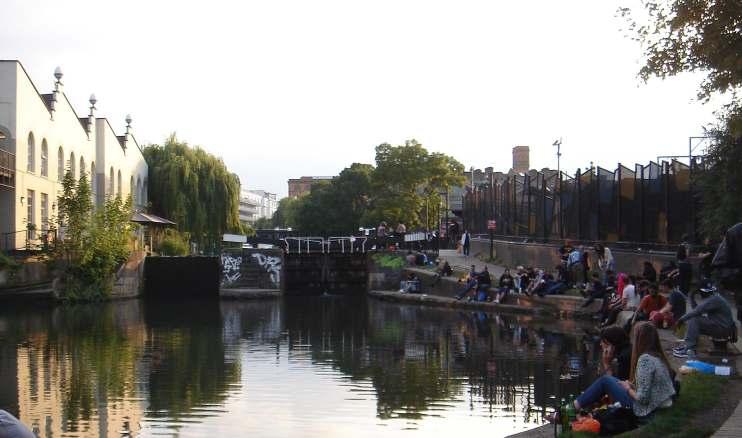

The building is situated exactly in front of Regent’s Canal, which is a highly sensitive area, not just for what it represents, nevertheless for its market, history, and so on. Also, we are in a protected area of London. That is one of the main reasons why the building cannot exceed 13m in height, as the surrounding buildings arethreeorfourstoragebuildingsasmaximum.

Inaddition,astheartgalleryislocateddirectlyinfrontofthecanal,therewasaclearneedtodesignan environmentallyfriendlyarchitecturethatwouldintegrateintothesurroundingenvironment.Thismotivated theneedtodesignabuildingthatwouldmakethemostuseoftheavailablespace.

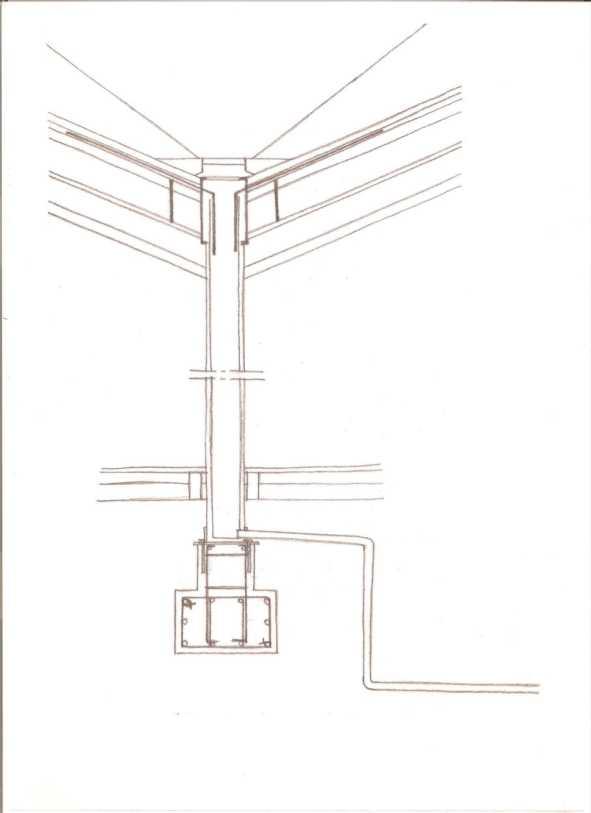

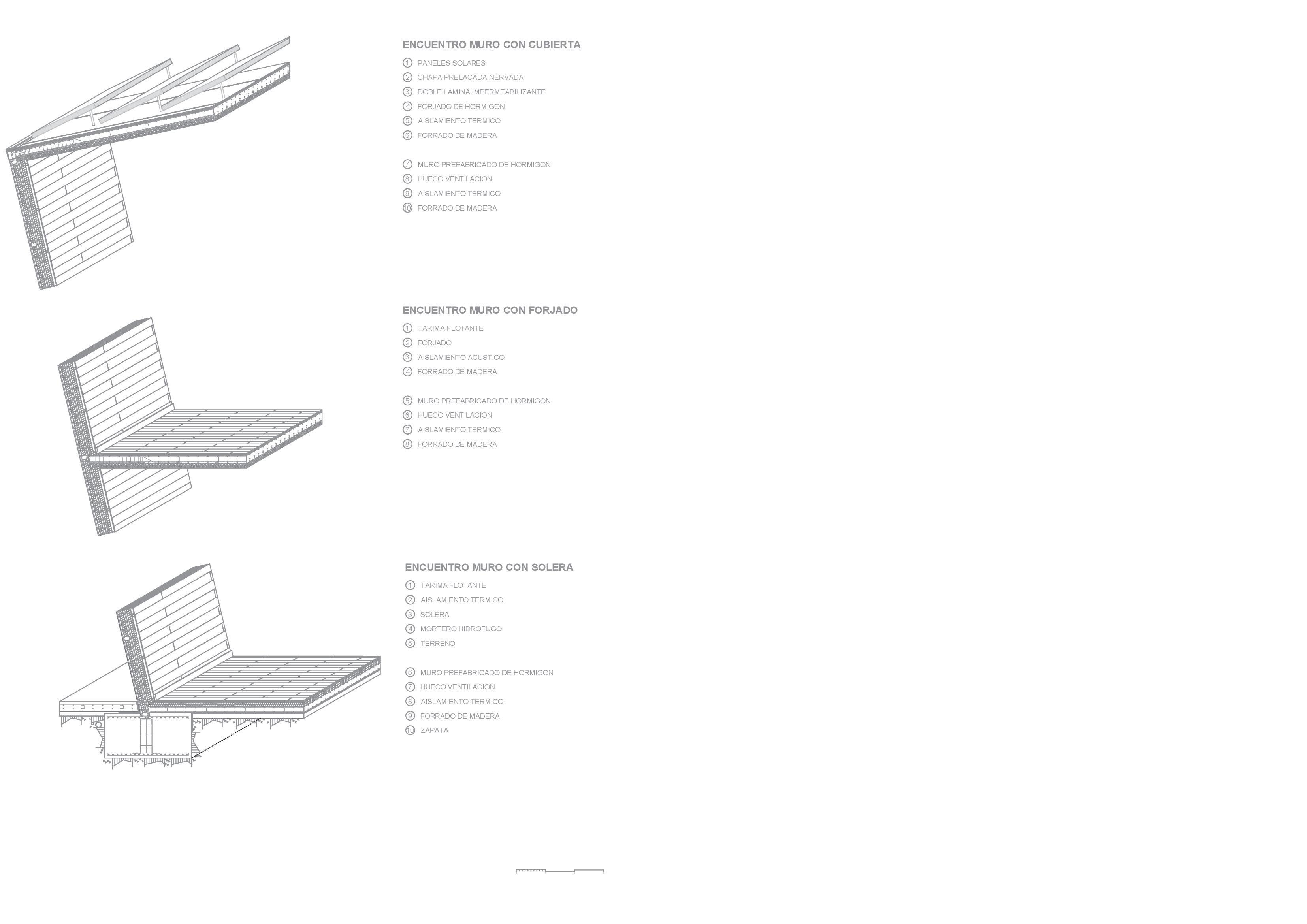

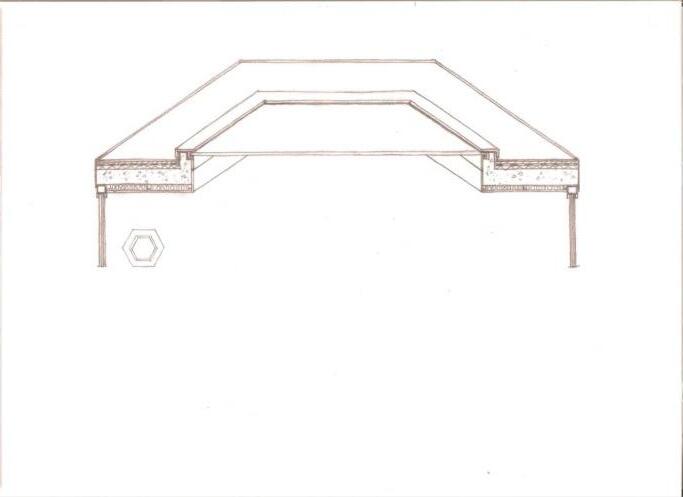

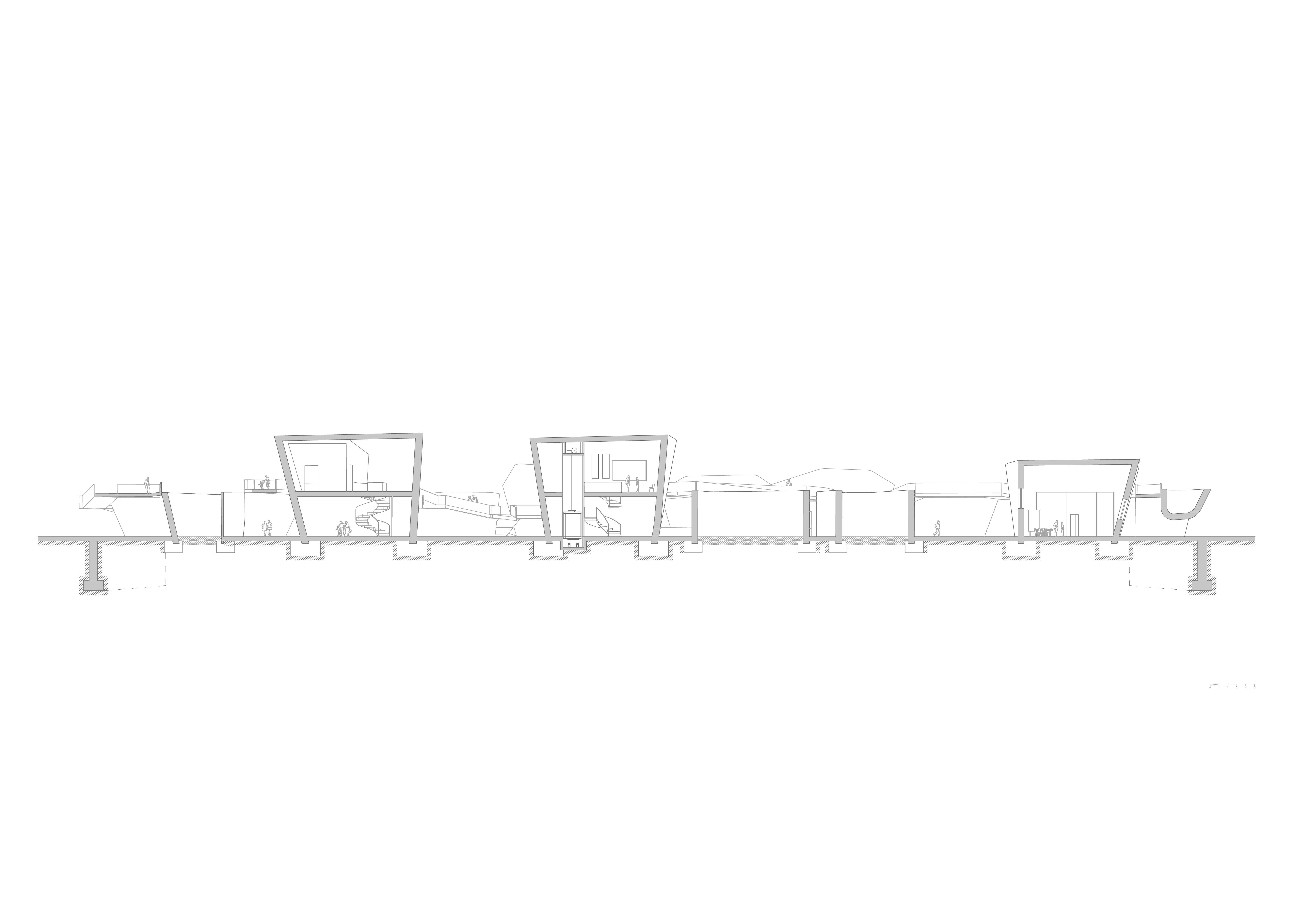

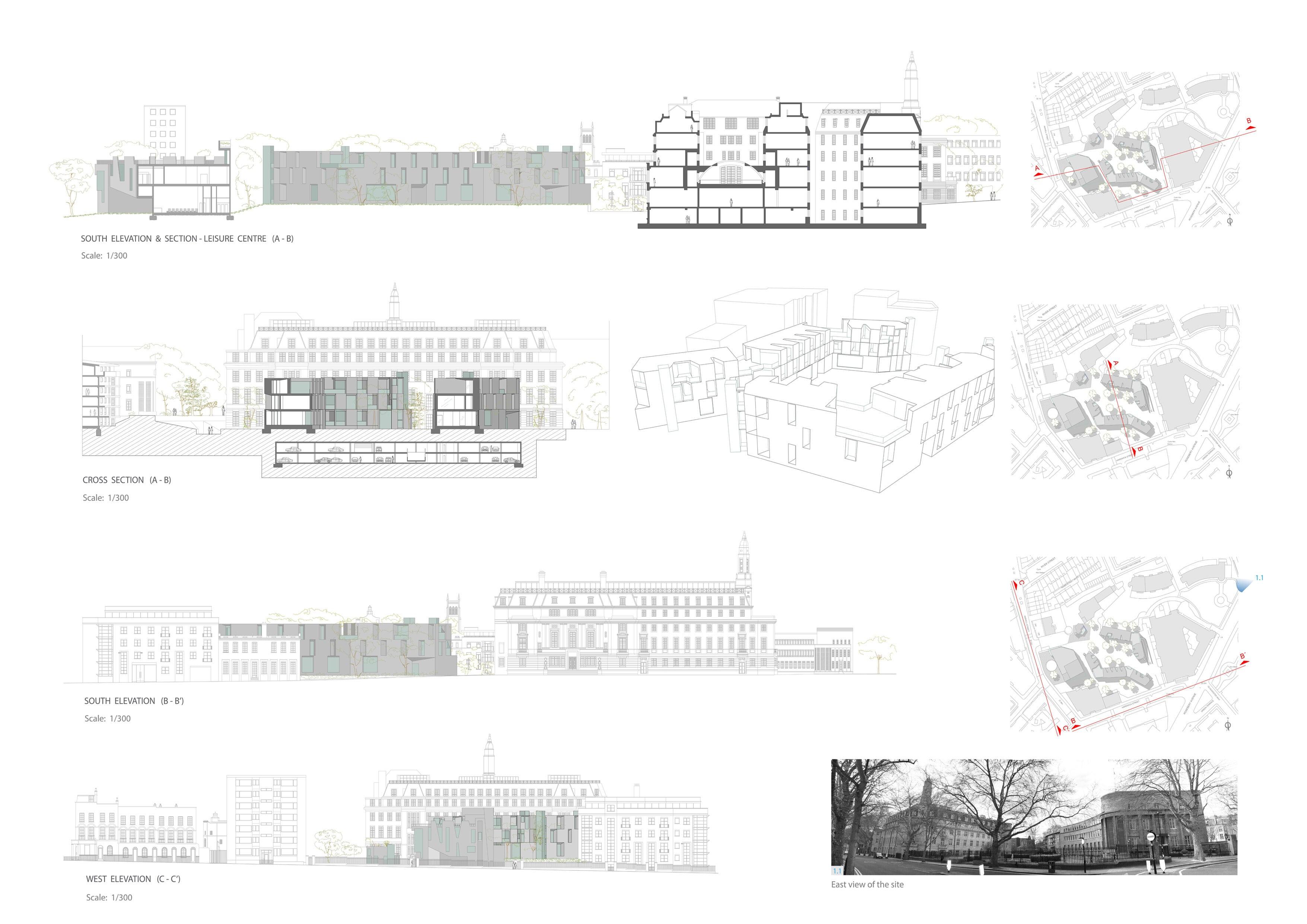

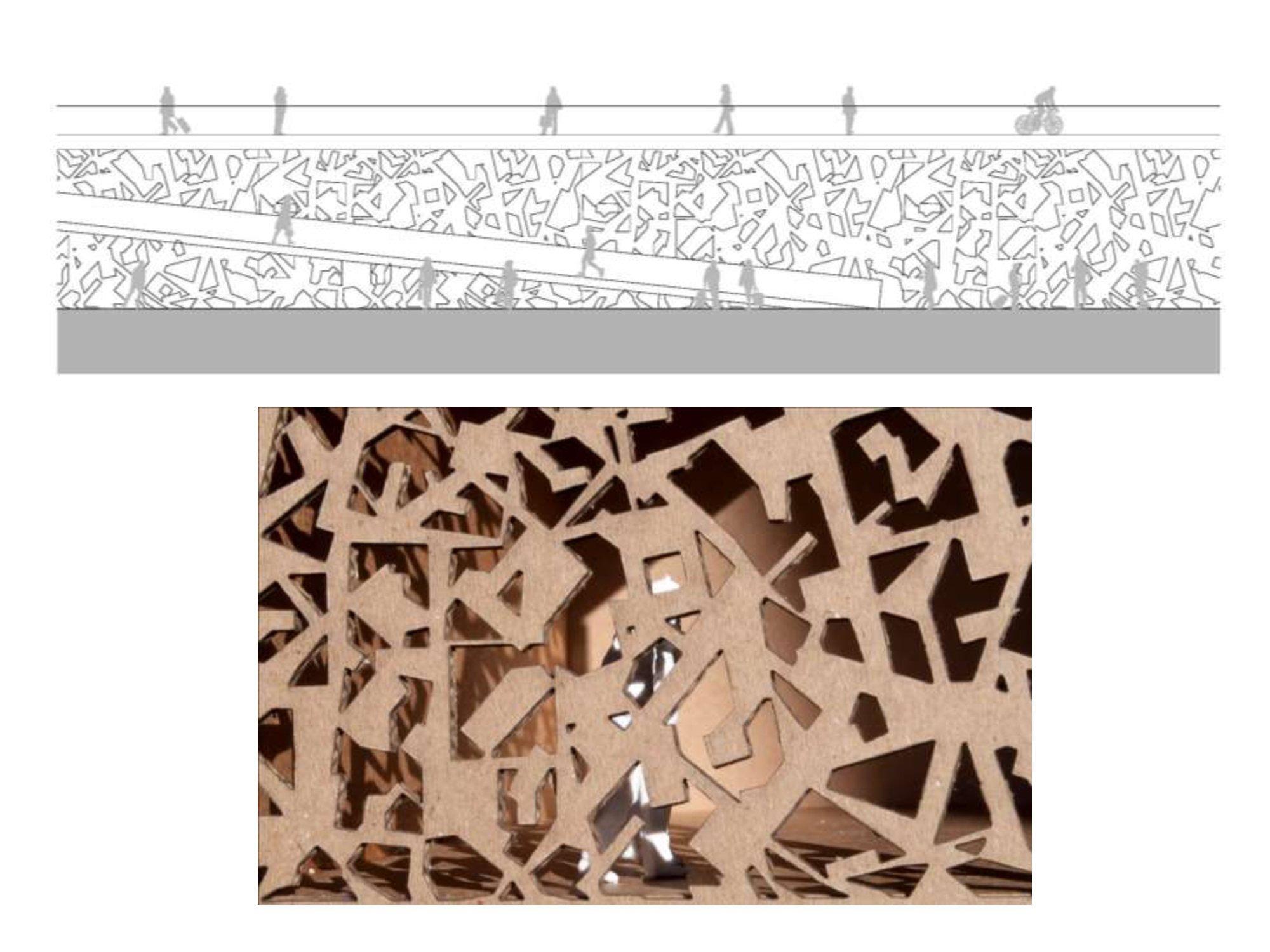

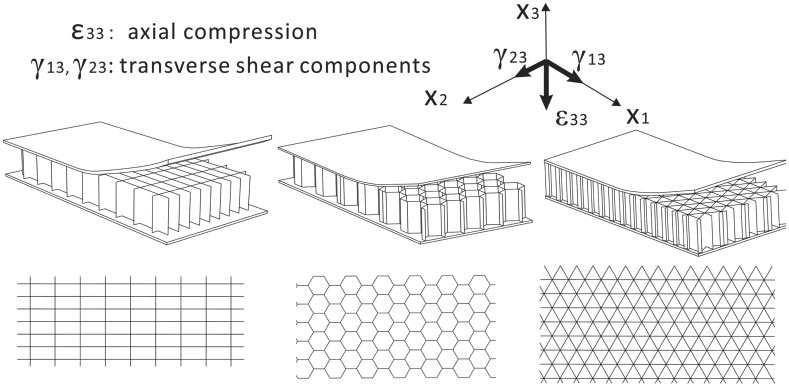

SECTION - Facade & Structure

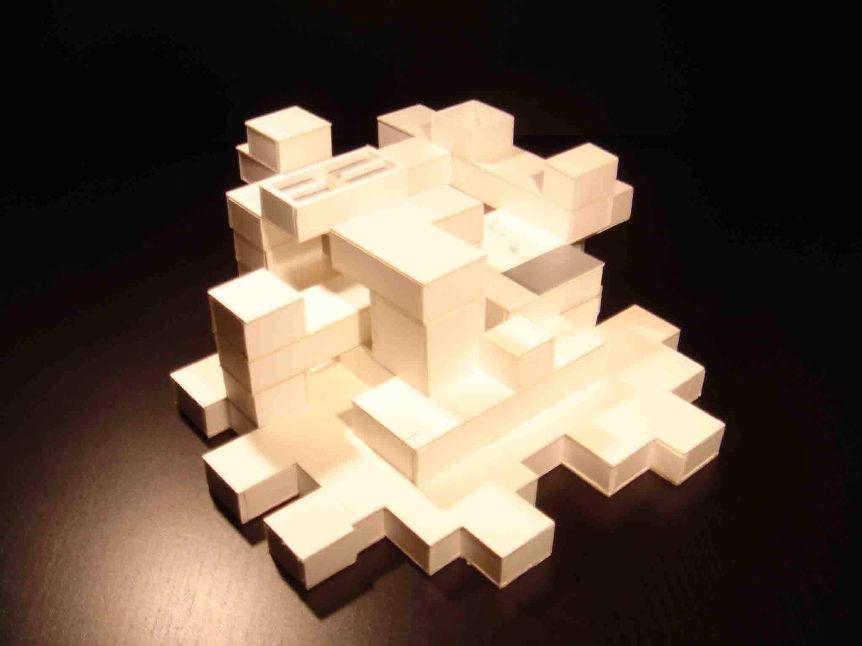

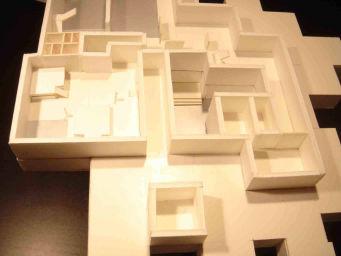

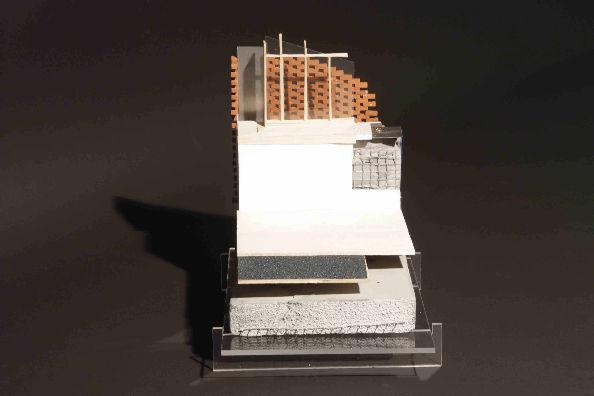

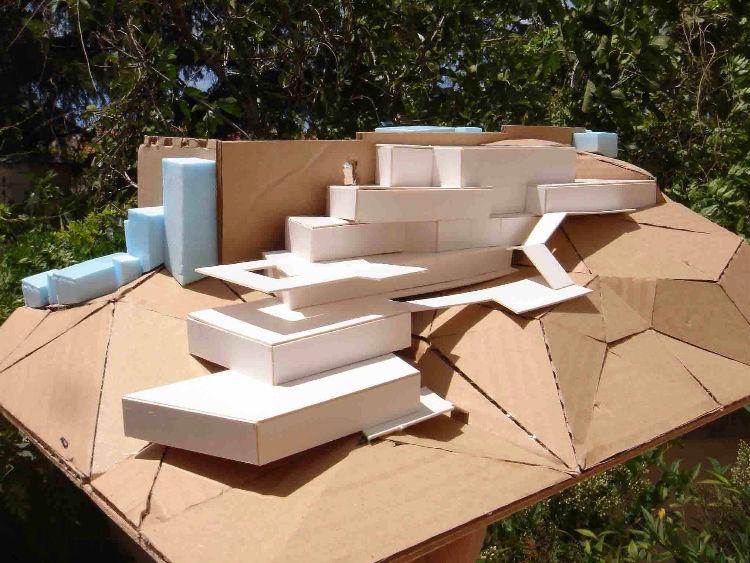

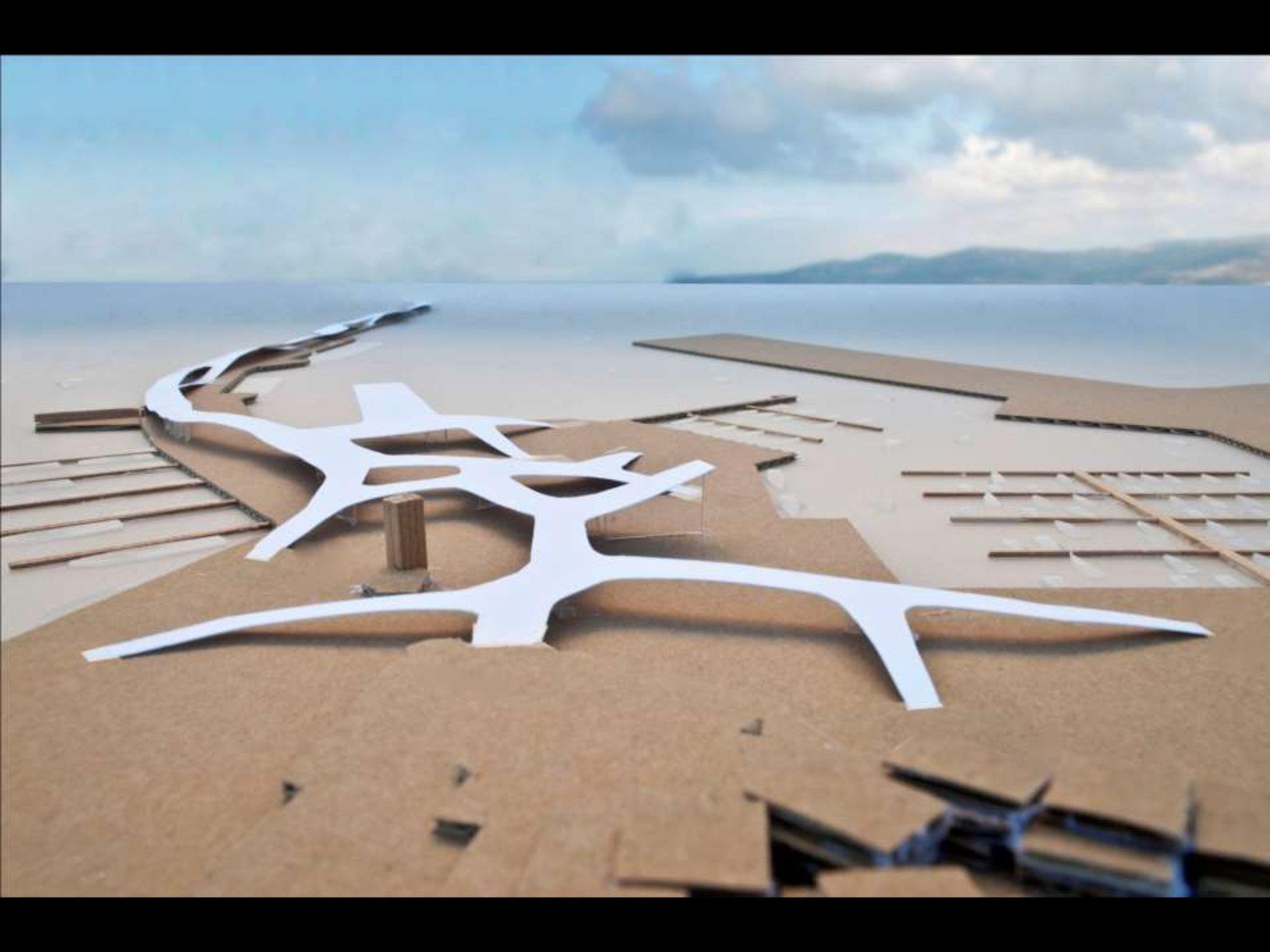

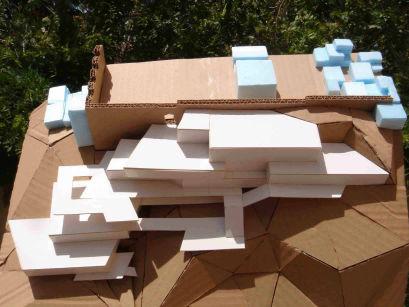

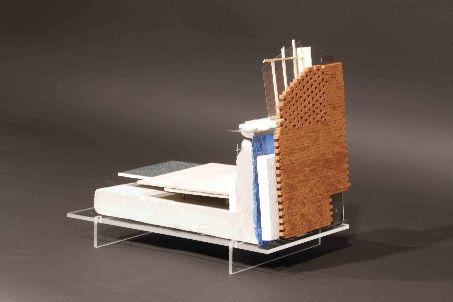

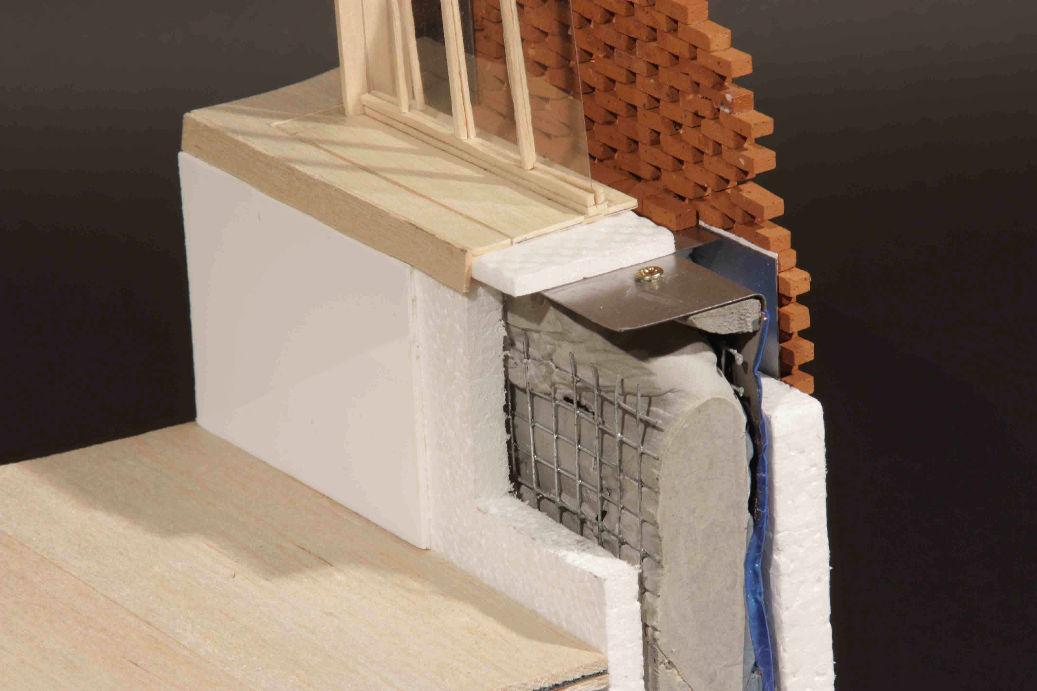

EXAMPLES - PHYSICAL MODELS

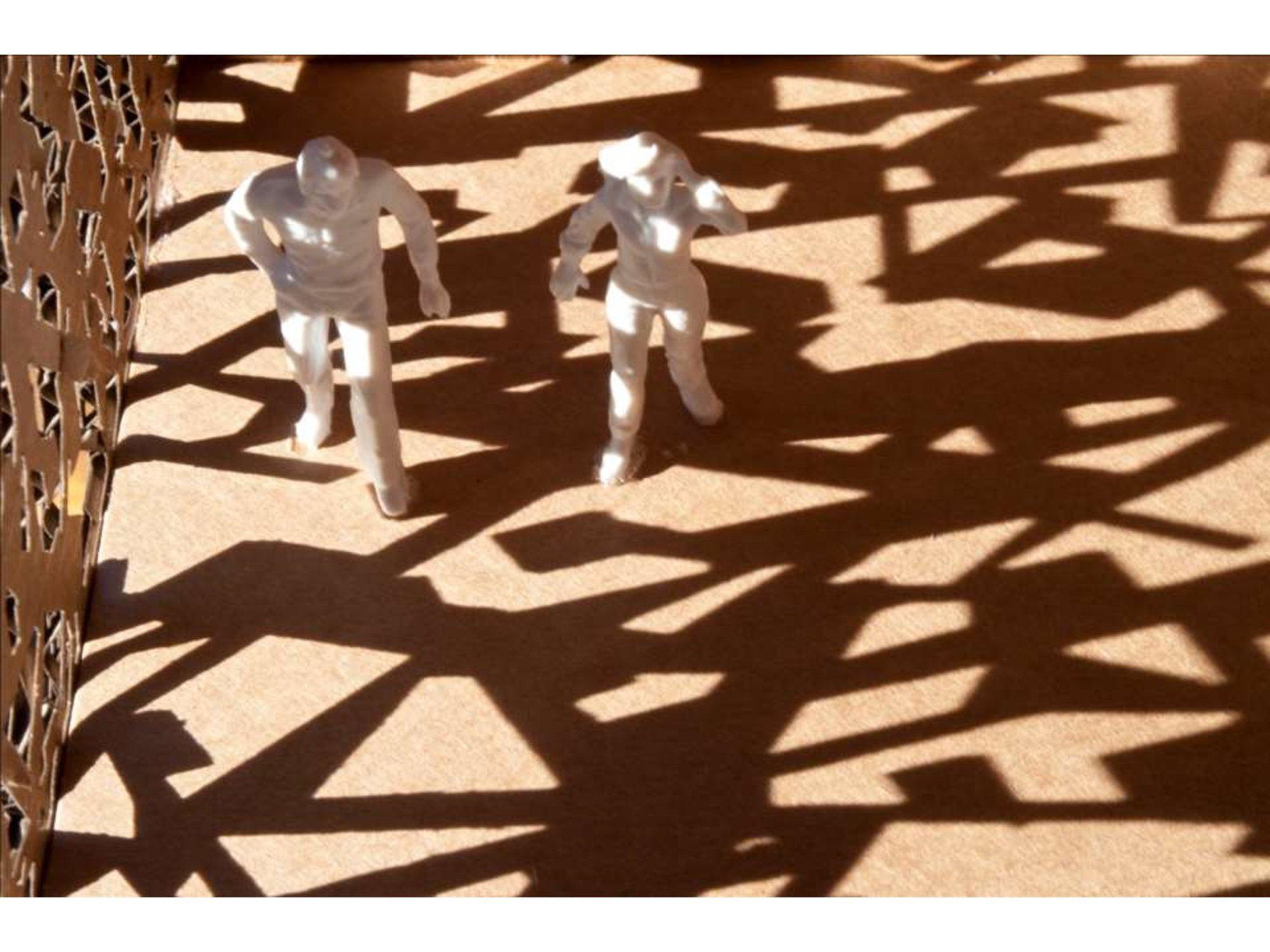

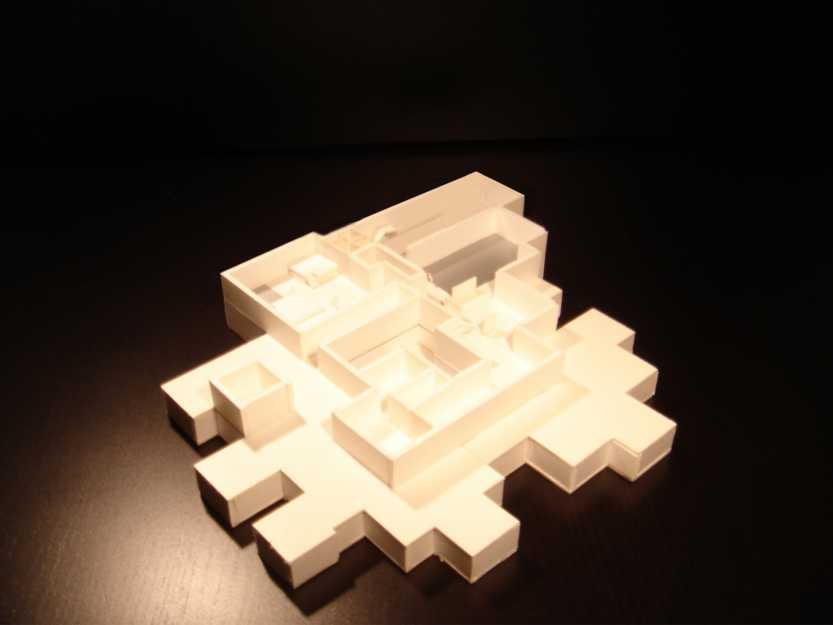

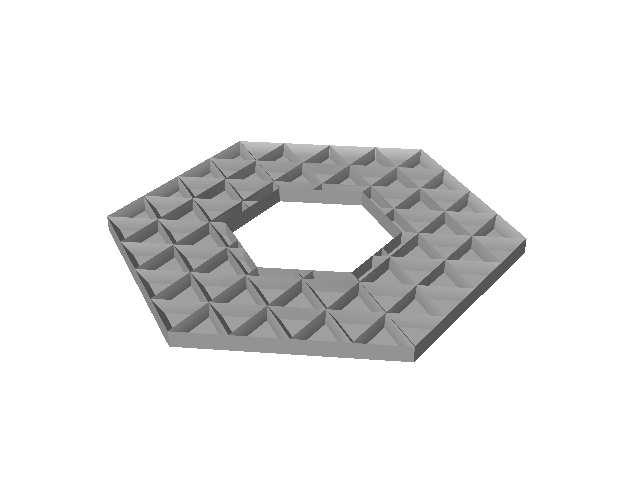

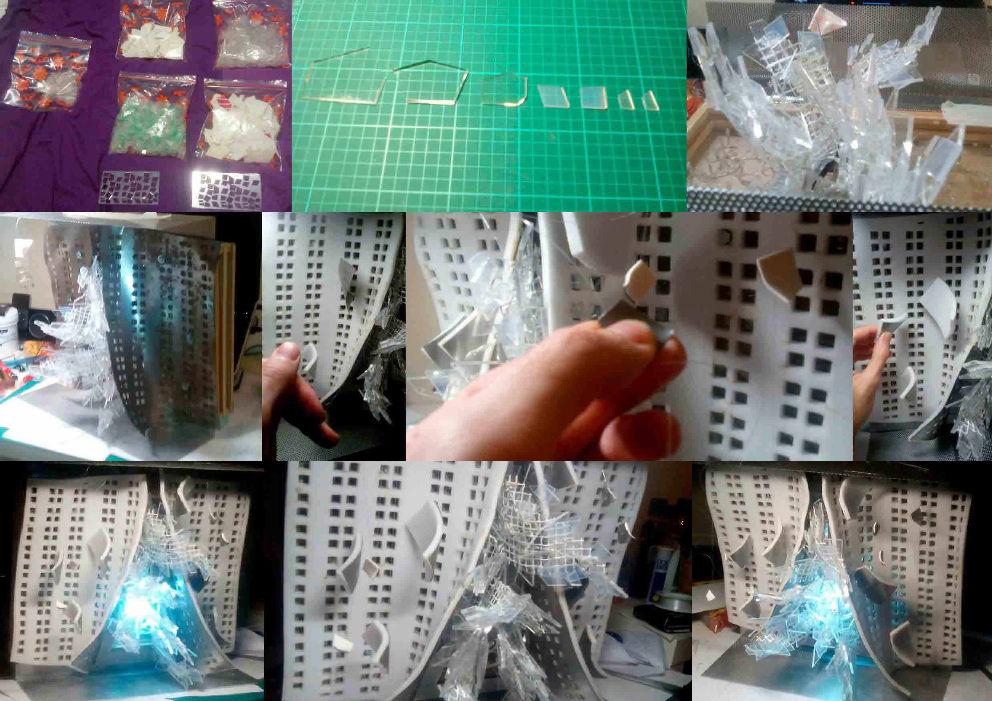

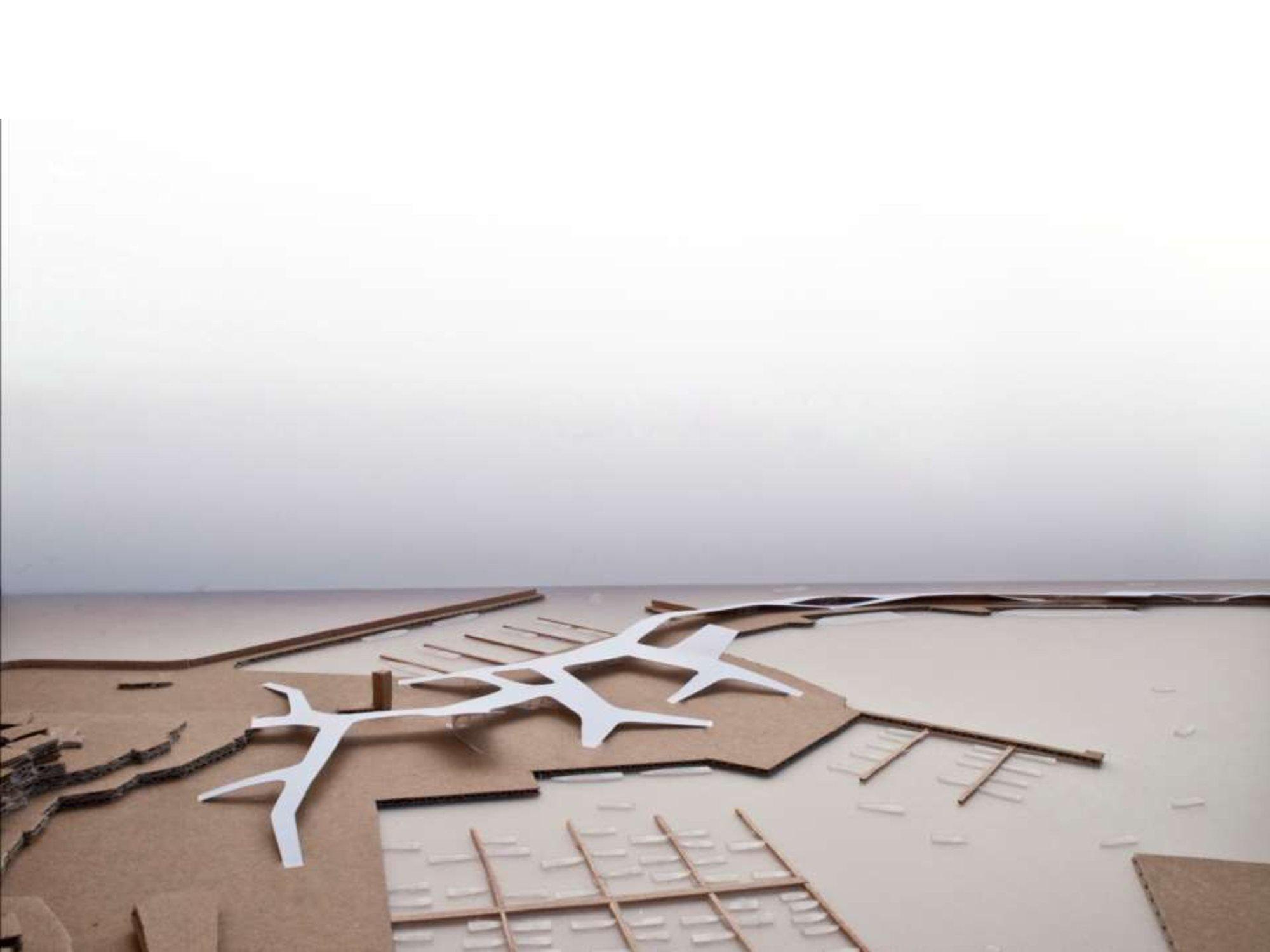

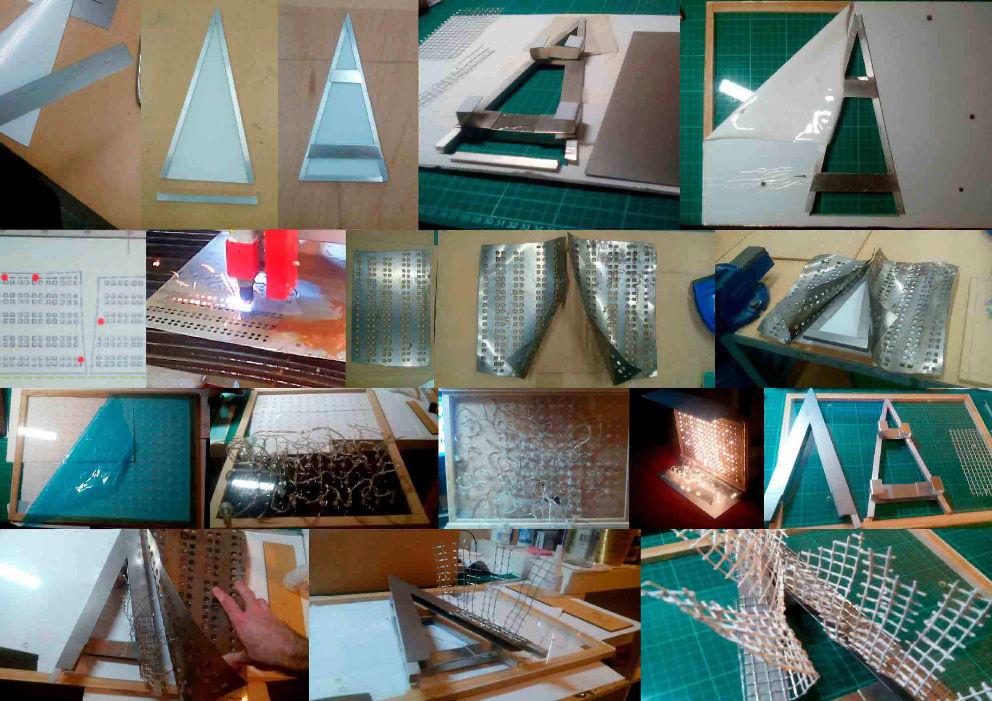

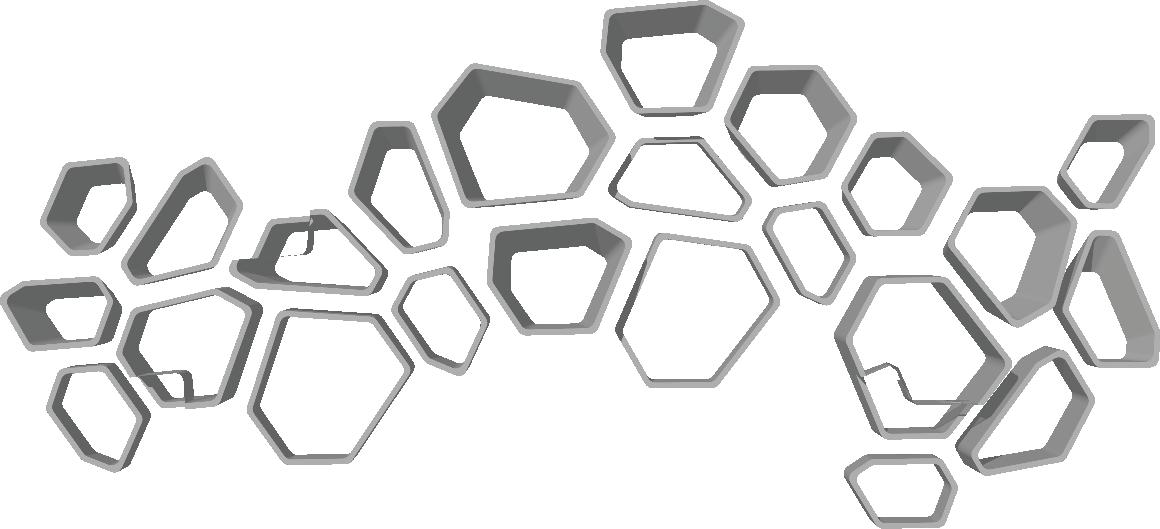

ABSTRACT MODEL - Permeability of Light and Shades

STUDENT CENTRE - Tangier

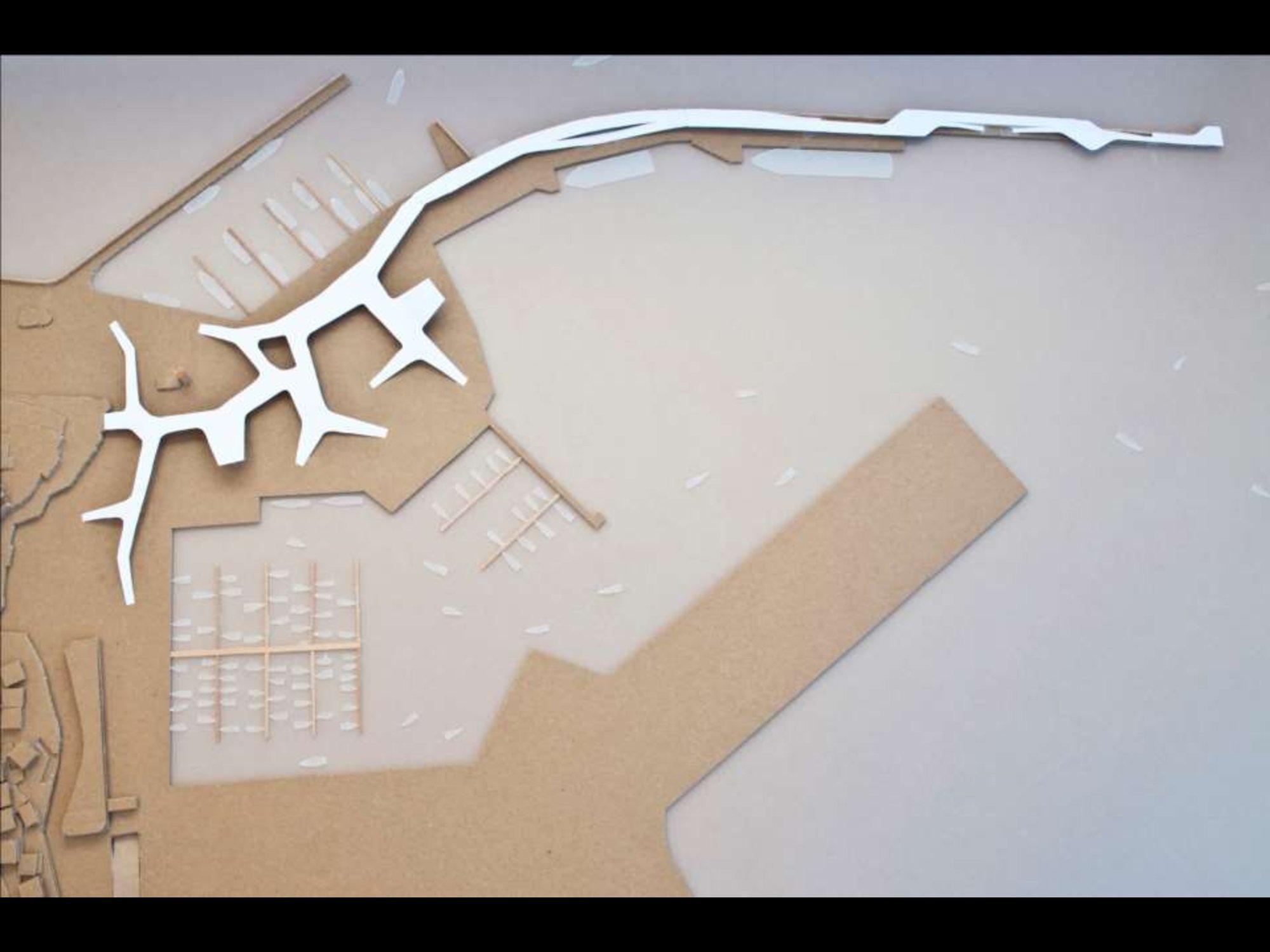

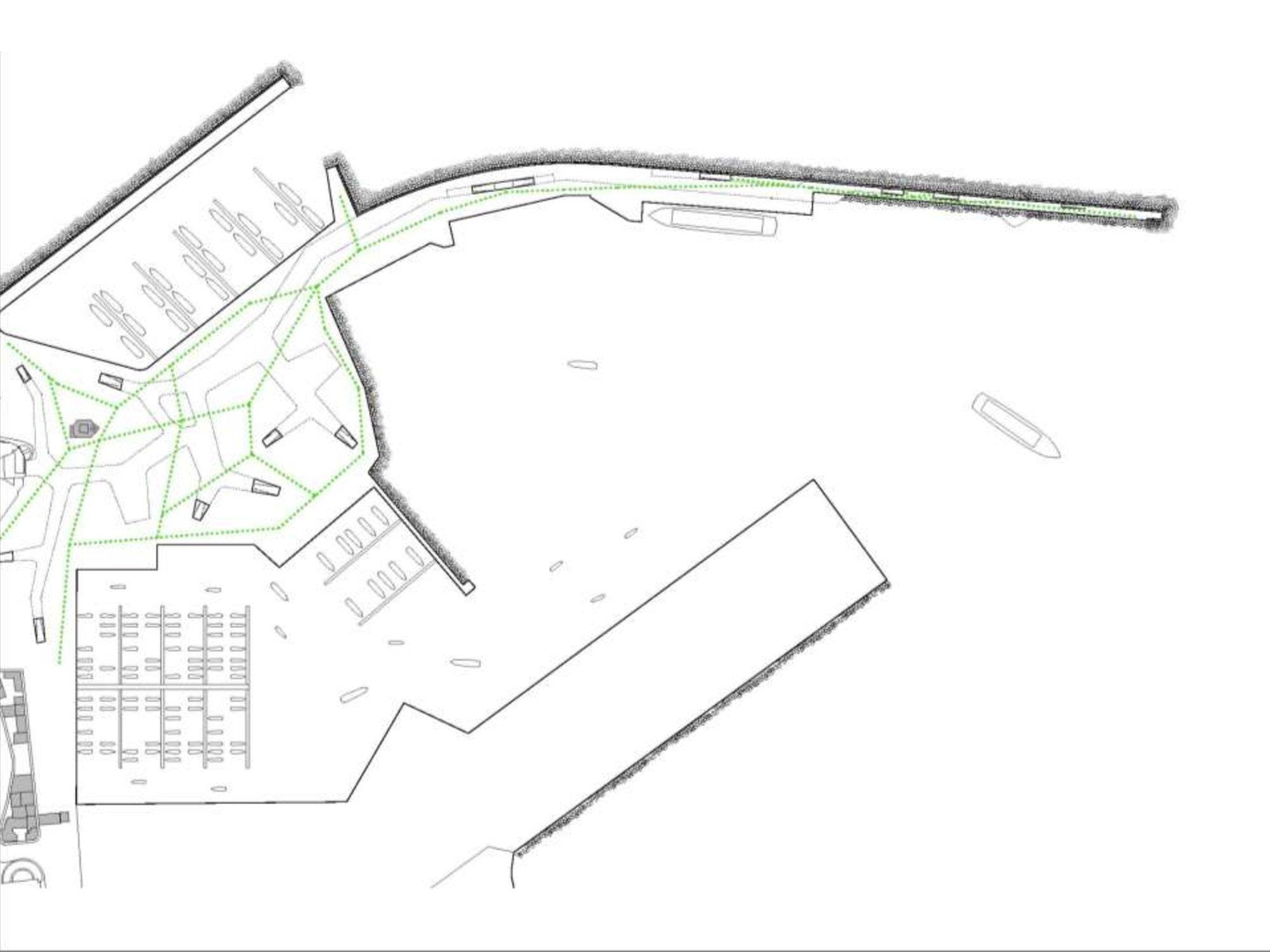

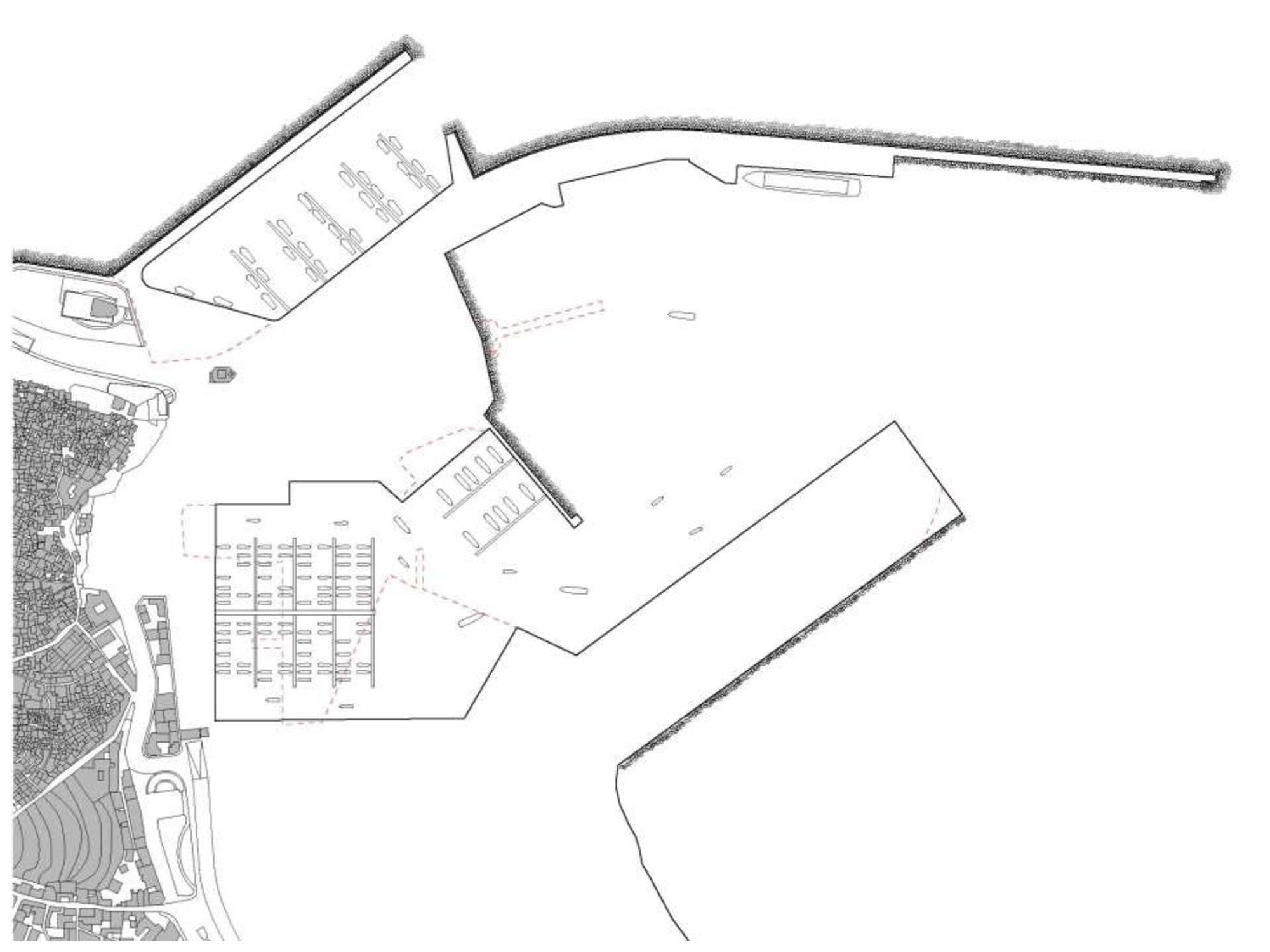

URBAN DEVELOPMENT - Tangier

BATH - Tangier

PROFESSIONAL PORTFOLIO

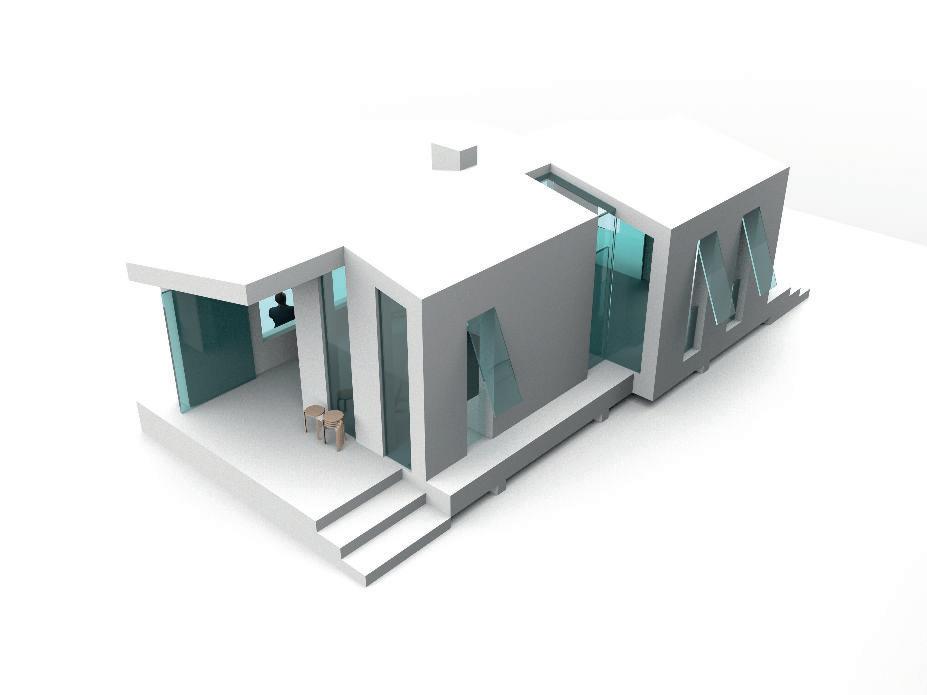

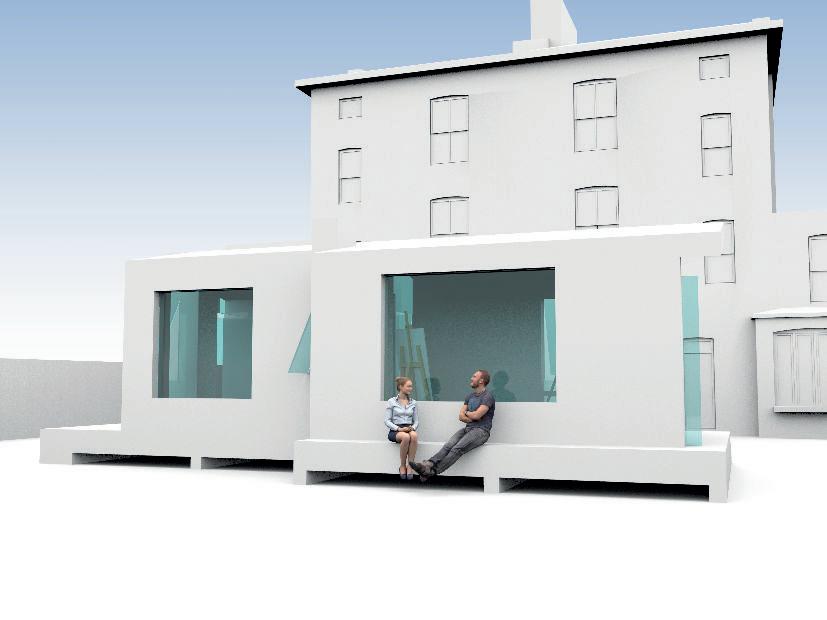

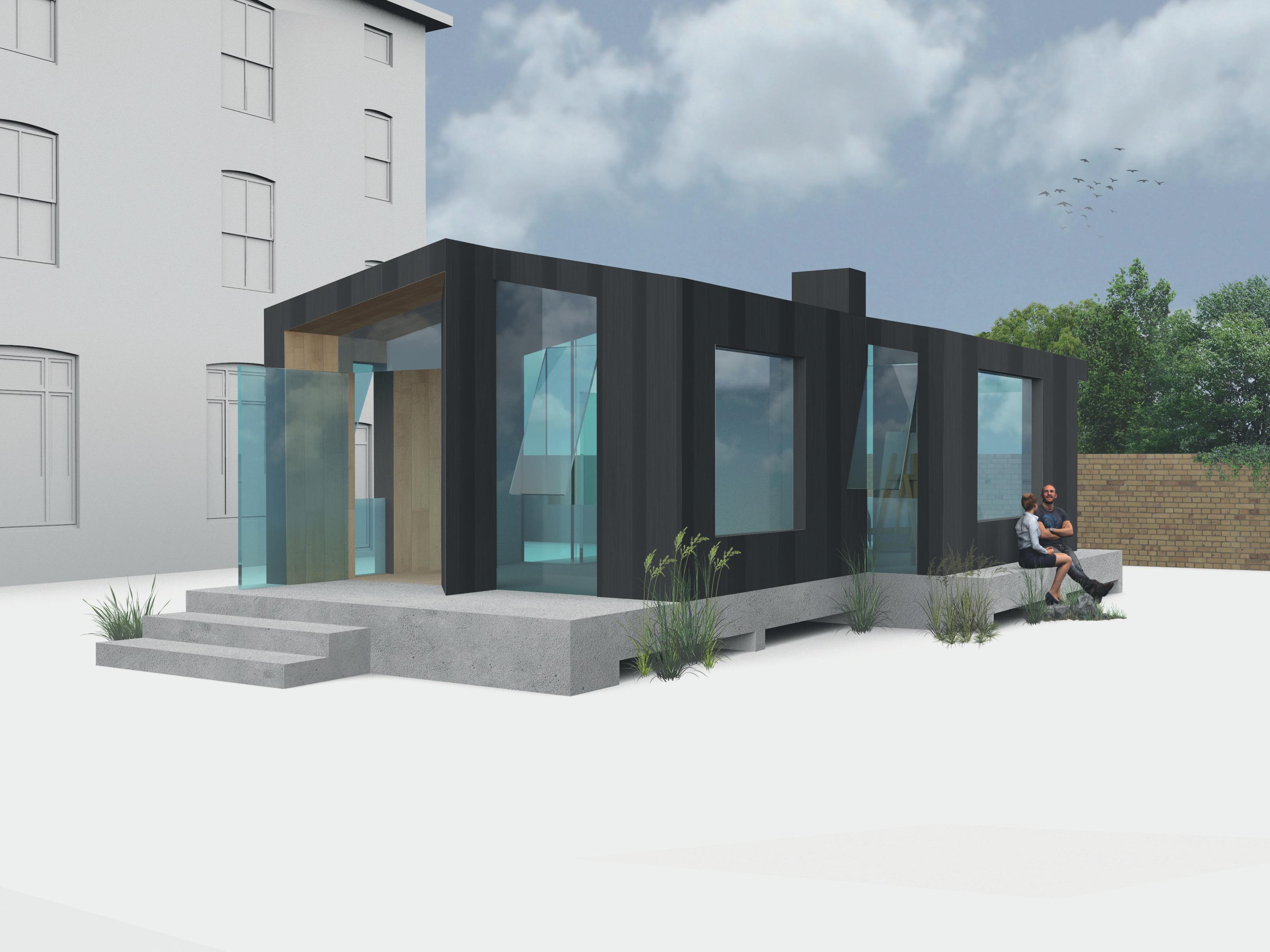

Studio - Proposal (8 Tufnell Park Road)

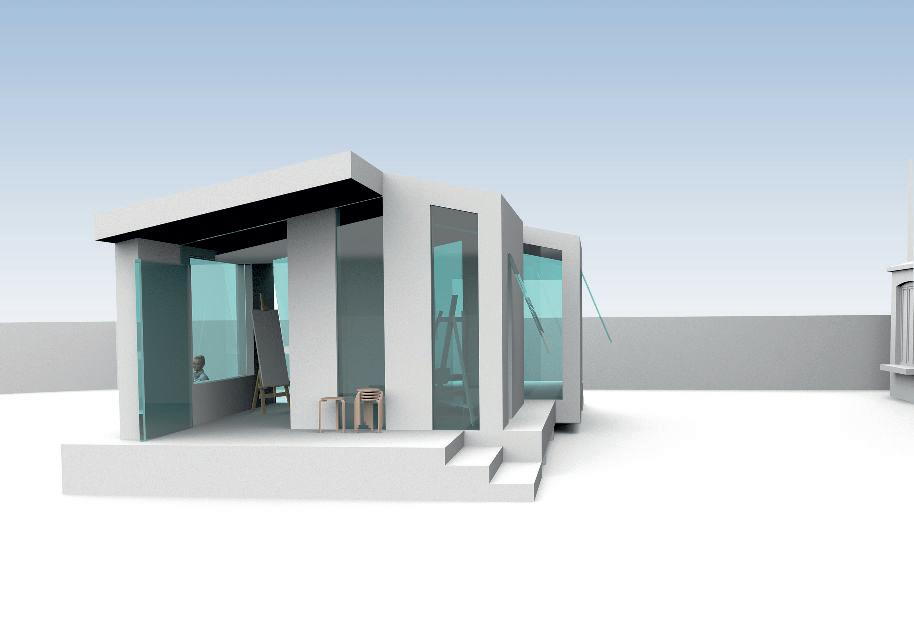

Studio,viewfromNortheast

Integrating natural light first whereas consideringthecompactbuilding'sseparationofthe two studios and an effective cross-ventilation scheme.

The house's garden is visible from the large windows facing north. Building materials which includeconcrete,metalcladdingandwoodeninteriordesign

Focussing an emphasis on natural light to create a comfortable studio space and areas designedtoappreciatethearchitectureitself

Studio - Proposal (8 Tufnell Park Road)

Studio - Proposal (8

Tufnell Park Road)

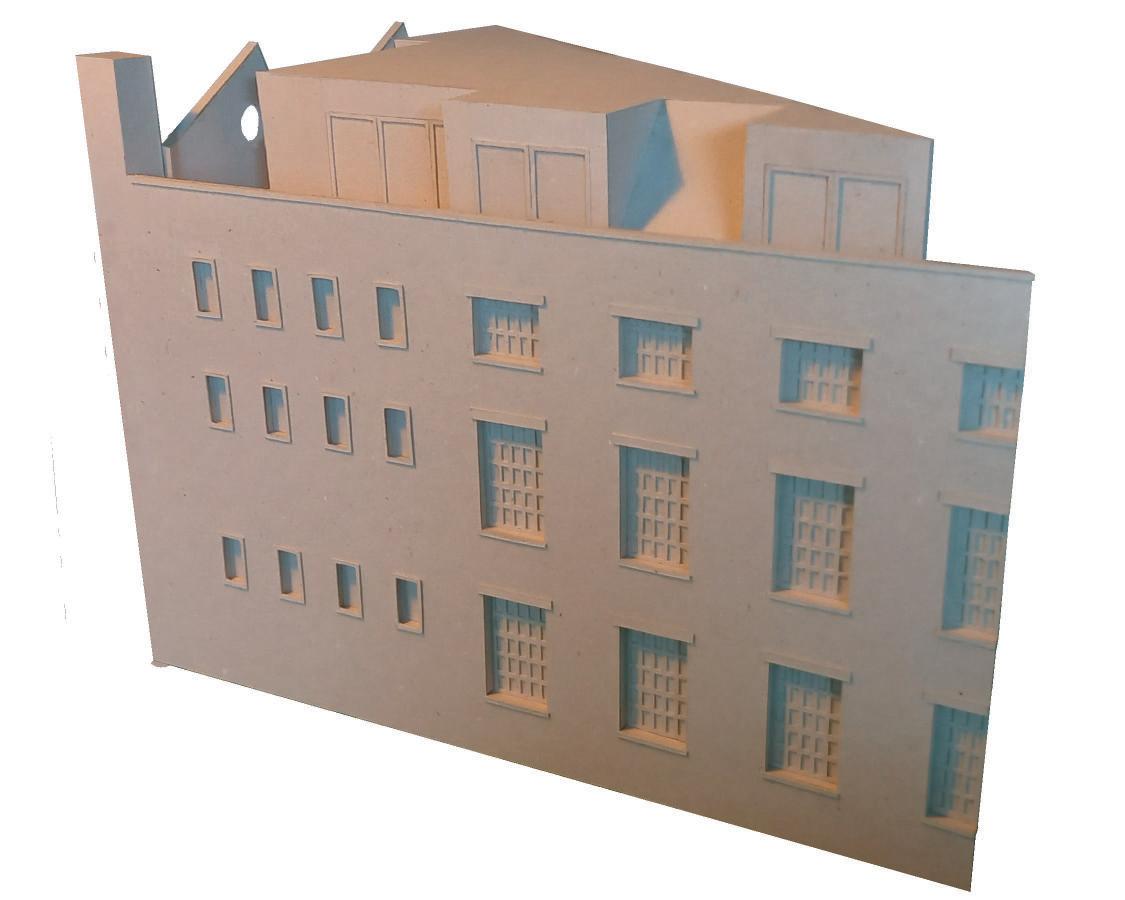

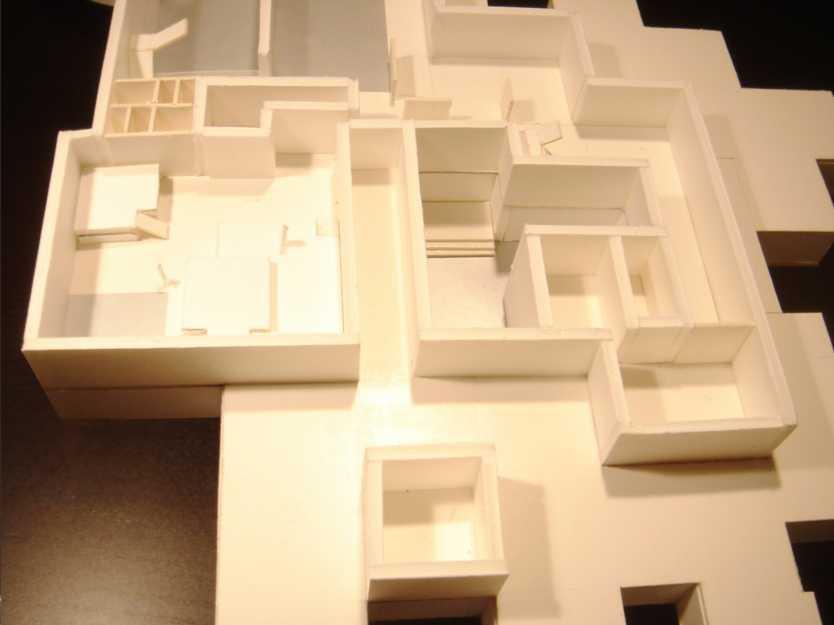

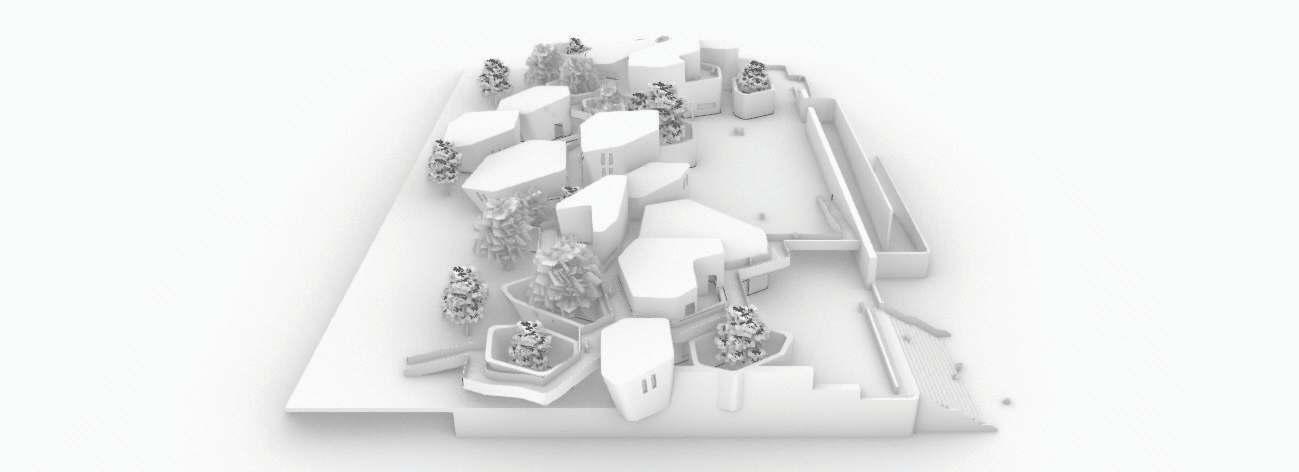

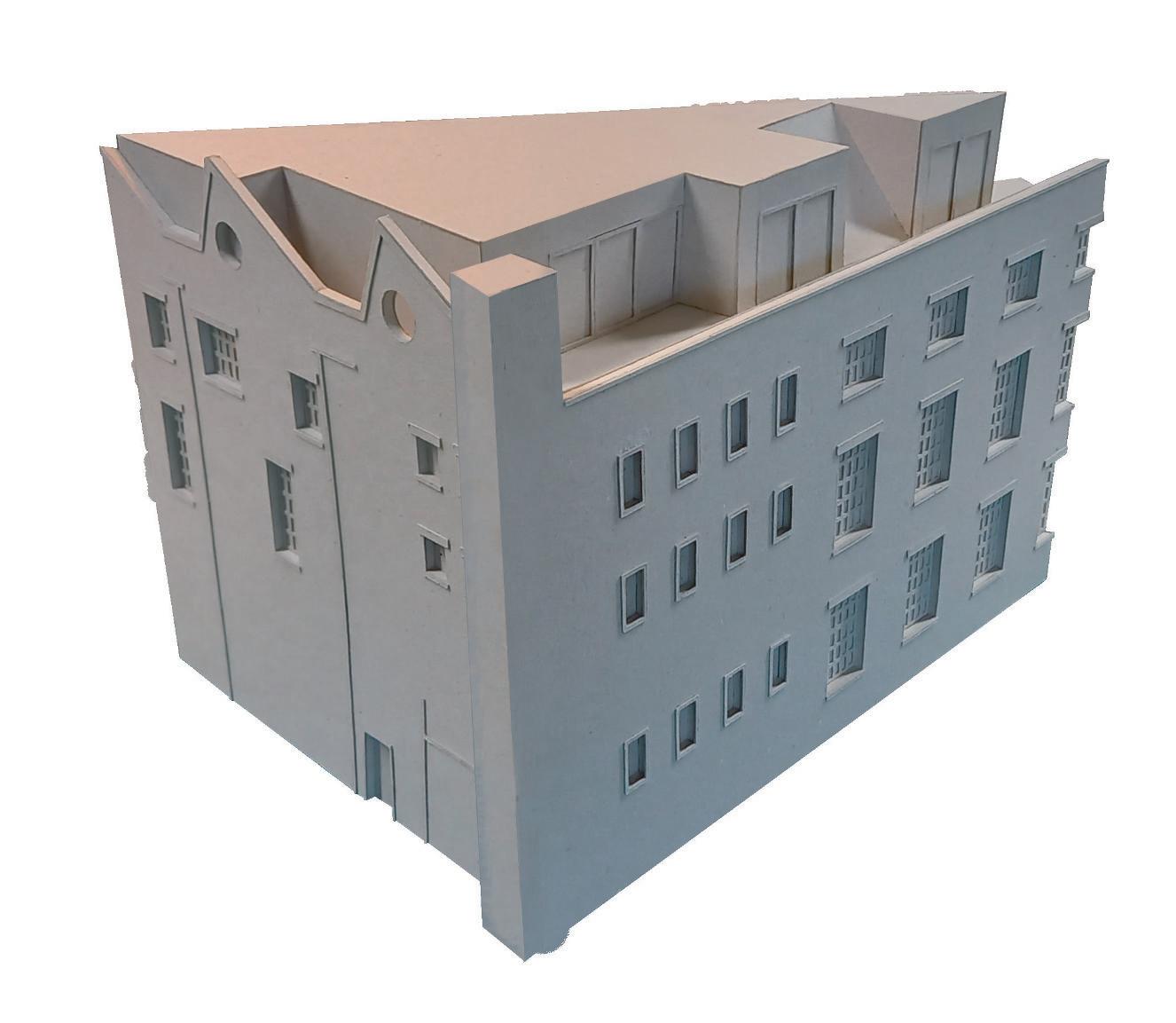

Physical Model (Steeple View Apartments)

Scale

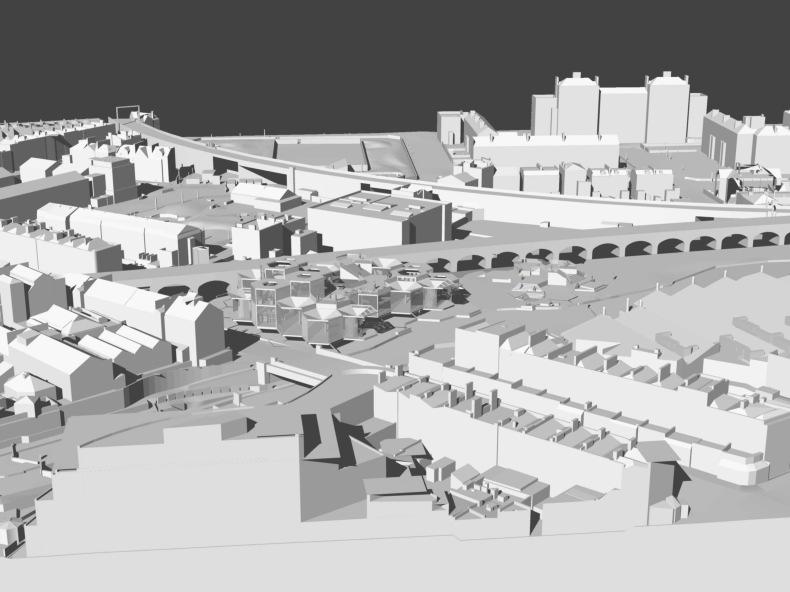

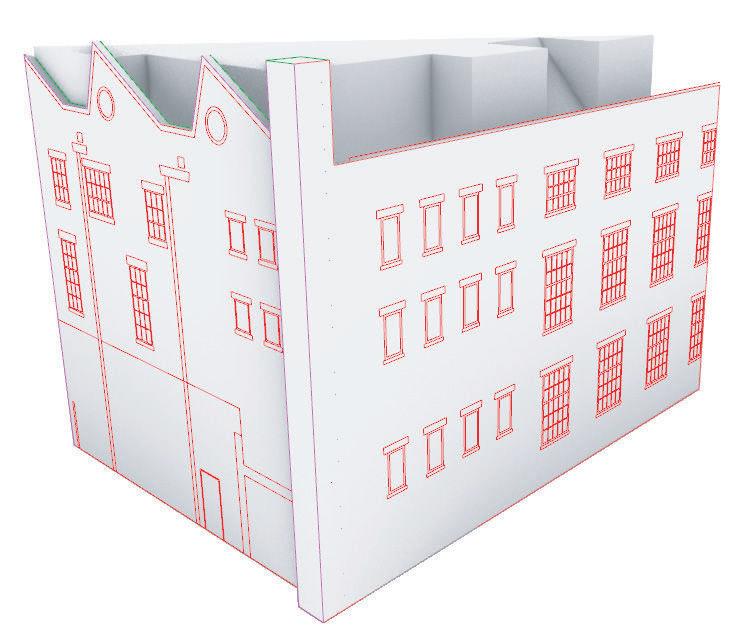

3D - Model

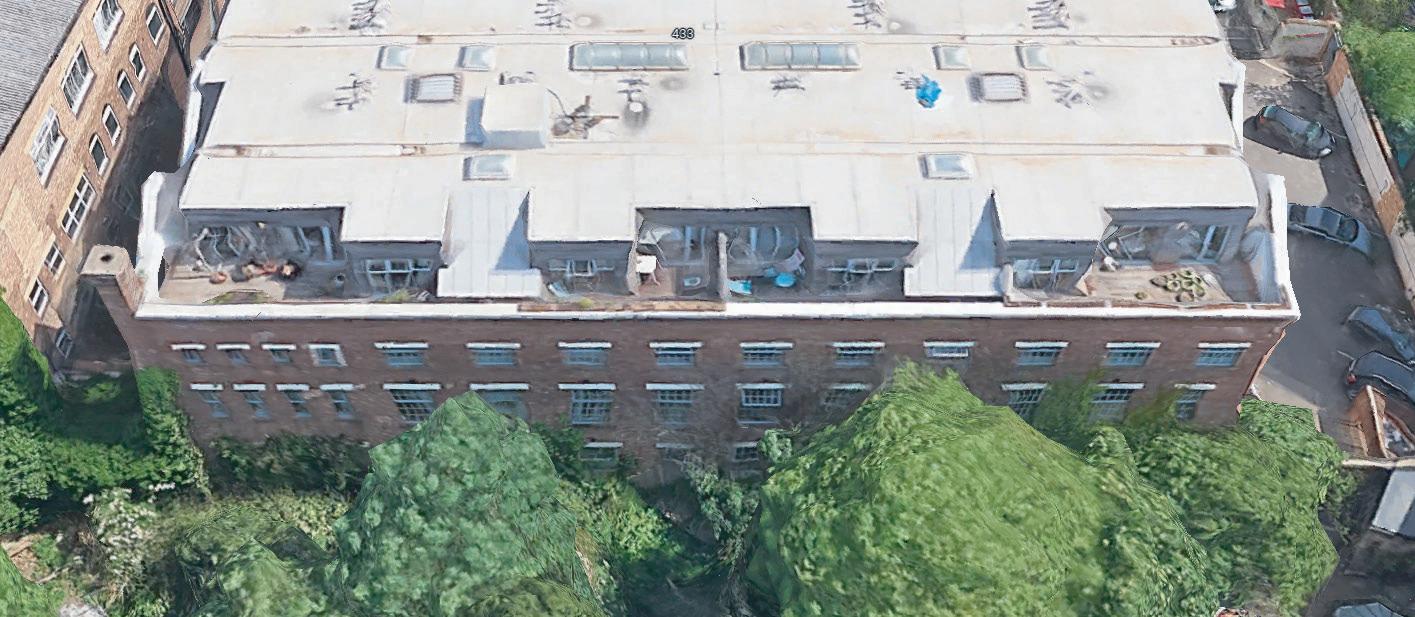

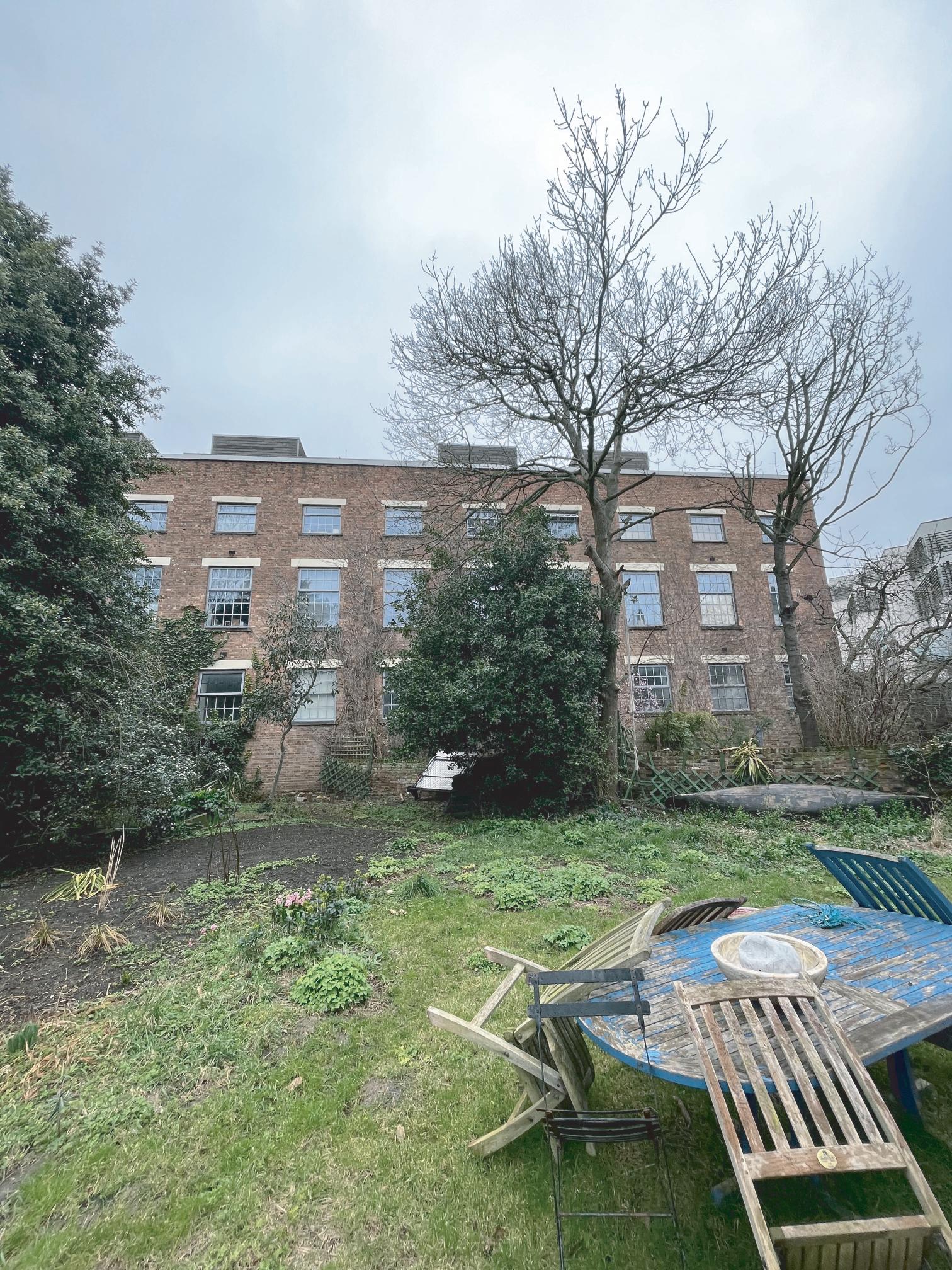

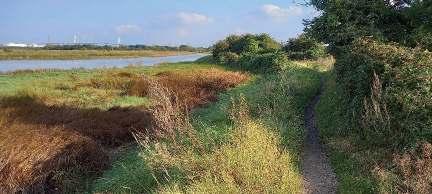

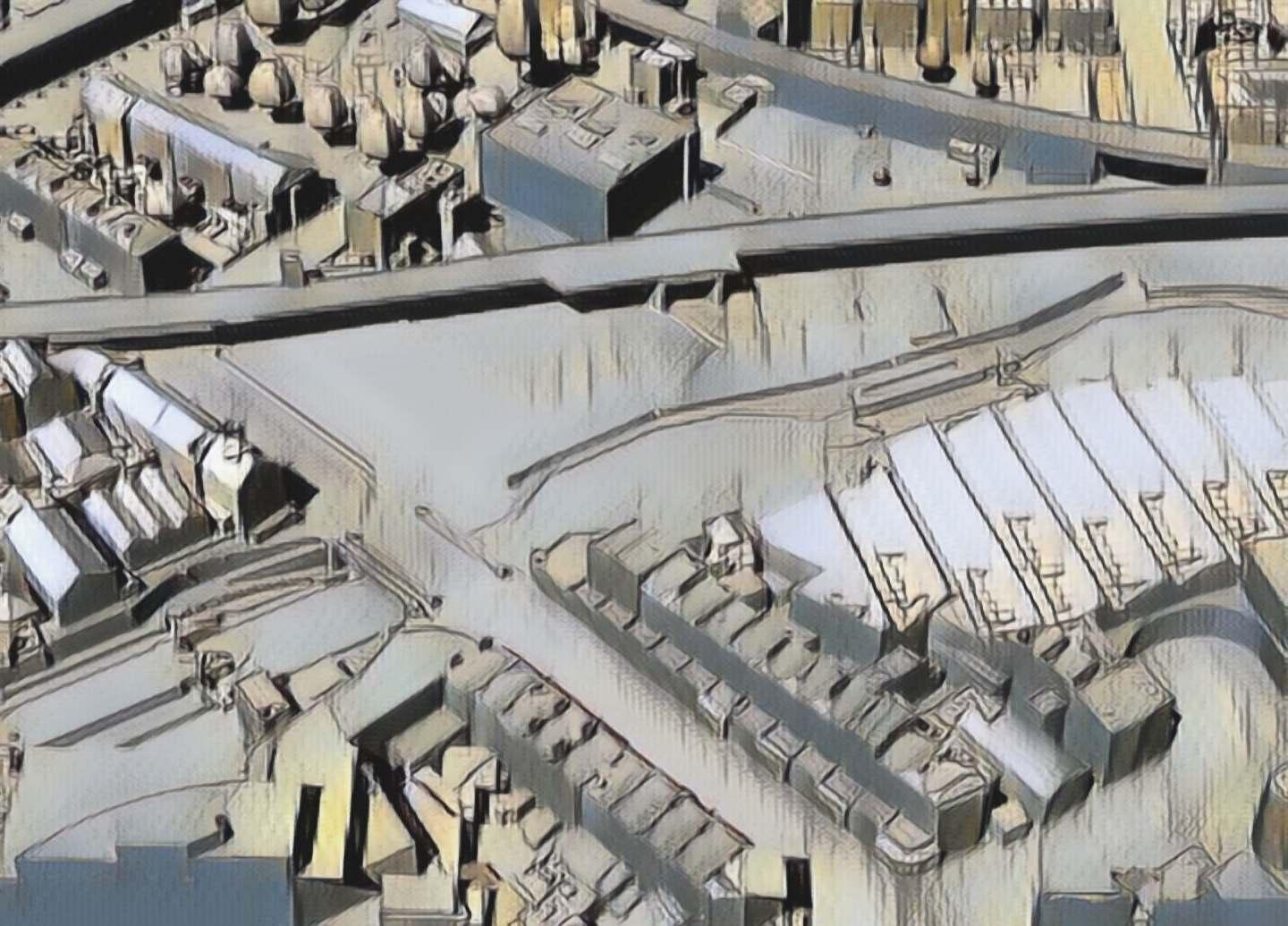

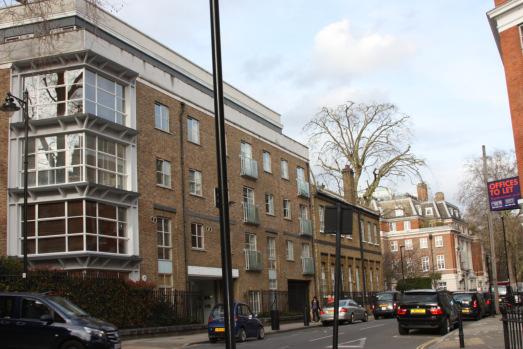

Source: Google maps Site picture
