SITE PROGRAMING AND LAYOUT
CULTIVATION
Site Circulation and Programing
Innitial Parcel Massing
UNIT DESIGN PROGRESSION
PERENNIAL CULTIVATION
Compact and Efficent Compact and Open Fluid and Efficent Fluid and Open
Unit Blocks are tightly packed, allowing for more to fill the footprint.
Unit Blocks are shifted to form openings to interior common halls.
Articulation Deleopment
This option offers a higher unit density alongside creating many outdoor balcony conditions.
A 75 Degree corner contitition was chosen to optimize daylighting on the ground level and solar panel allignment.
Building Systems and Enclosure
A skylight adresses the lack of hallway lighting in the chosen option. Flat roof provides easy maintence of solar panels. Solid corner conditions allow for vertical egress and building systems.
Further
Development
Communal Balconies for growing produce. Green roof for reduing ambient roof temperature for a solar panel array.
Unit Blocks are tightly packed but shift in and out to create ledges and overhangs.
Unit Blocks are loosely packed and have a large varence on the facade, forming large openings.
STAGE 2
FINAL RESULT OF A FENESTRATION AND PROGRAM ALIGNMENT ITERATIVE STUDY
STAGE 3
STRUCTURE AND BUILDING SYSTEMS TO BE DESIGNED IN PARALLEL WITH THE ARCHITECTURE
STAGE 4
FURTHERING OF COMMUNAL PROJECT GOALS AND BUILDING FUNCTIONALITY
INCORPORATING BUILDING SYSTEMS TONY
3
3
DESIGN DECISIONS
Bookshelf 1.1
• Tall flat-pack bookshelf - easy to cut and assemble.
• Slididing boxes act as bookends and shelf structure.
Bookshelf 3
• Long angled bookshelf - easy assembly and shipping.
• Flat shelf added for versatility and additional stability.
• The angle of the shelf is showcased where the lower corner meets the ground.
Bookshelf 3.1
• Further design ideration of bookshelf 3 to refine and simplify joints for easy assembly.
• shelf size incresed 15% to fit larger books.
• Scale model of assembled shelf- test of interlocking joints
Bookshelf 2.1
• Short angled bookshelf - ntended for K-3 classrooms
• angles were tested in increments of 0.5 degrees.
• 8 degrees was the best to keep resting books stable.
Bookshelf 2.2
• Short angled bookshelf - incresed child safety.
• Bookshelf is a closed solid for a safer design.
• More complex to cut then other previous iterations.
• Soft corners could be milled to increse safety.
Bookshelf | Final (3.2)
• Design langurage of ground angle is introduced into other shelf corners.
• Protruding edged were shortened or eliminated.
• Holes are milled into the lower shelfs to reduce weight.
• Books stay up and in position when one is removed.

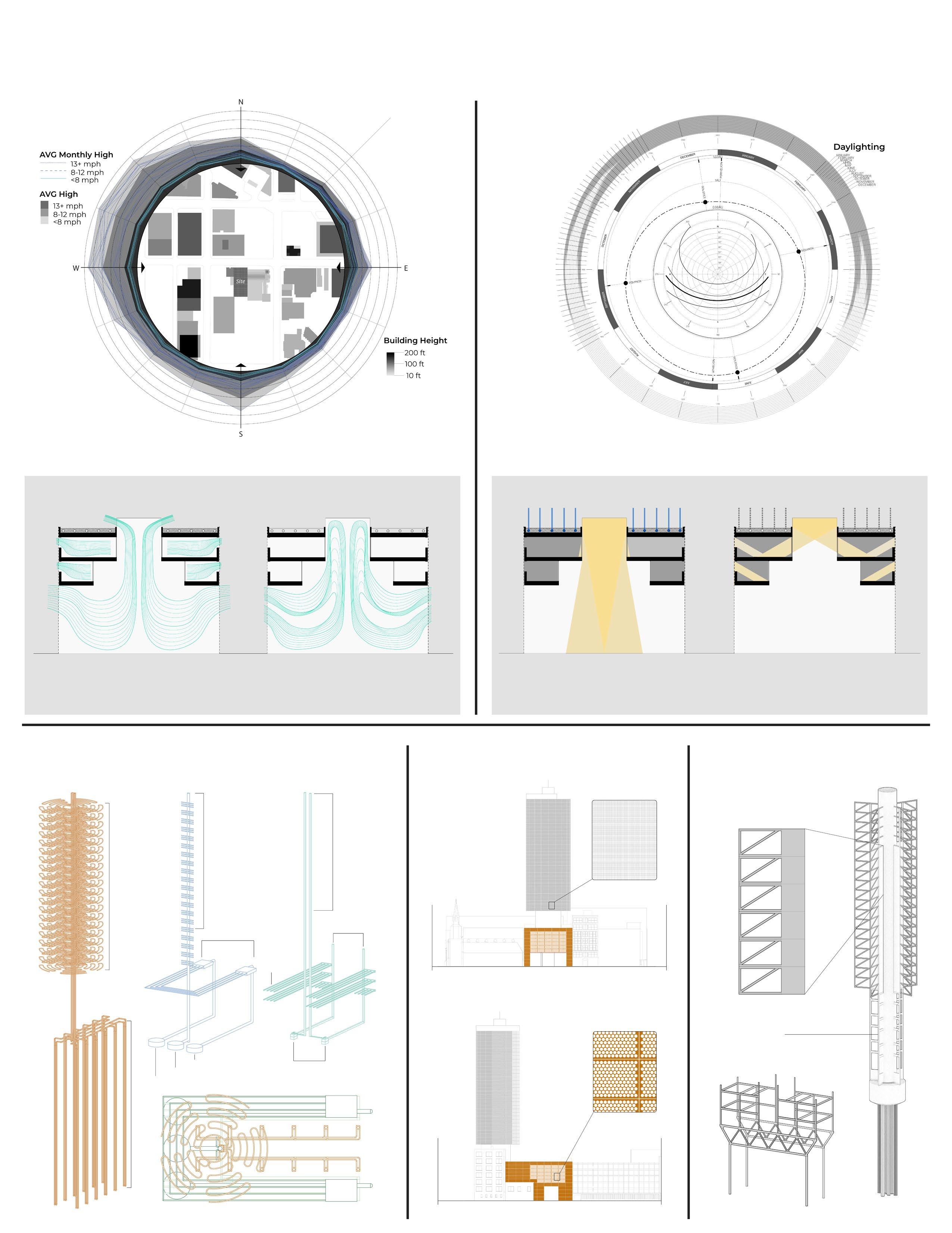

SYSTEMS ANALYSIS
Annual Wind Dynamics
Annual Daylight Dynamics
Passive Ventilation Daylight and Percipitation
Systems
Facade Systems
Structural Concepts
SYSTEMS ANALYSIS
Section
Section
DESERT SHELTER
A B C D E
Further design iderations led to a larger brick that takes from the interlocking property of brick C and has a slight angled surface to add another interlocking condition, potentially removing the need for mortar.
Water used in constructing a single bedroom apartment. (See source on following page)
Facade design study (top)
(Bottom)
ASSEMBLIES THESIS
Calculations
by Material
VAULTED CONCEPT MODELS
parabolic vault initial conception
DESICCATED ASSEMBLIES THESIS
vault abutment perimeter
vault voussoir assembled vault carved out skylights
peirced the shell site and materiality low incline forms
cave-like interior perferations carved enclosure
VAULTED PAVILION MOCKUP MODEL PROCESS
parametric design
assembly prep
innitial assembly
vault connections
assembly
