Hello, I’m Jason! I am a Toronto-based designer with 5+ years of experience designing products and architecture. I am passionate about designing for people and creating meaningful relationships between them.

I find joy and satisfaction solving challenges in different industries and developing solutions to enhance the connection of products to people.

When I’m out of office, you’ll likely find me in different museums!

Languages

/ English - fluent Mandarin - fluent Shanghainese - fluent French - intermediate Spanish - intermediate

Principles

/

Project Management - MS Office, Google Suite, Asana, Slack, Jira UX/UI - Miro, Figma, Zeplin, Sketch Languages - Java, Python, SQL, CSS, HTML Design - Adobe Illustrator, Photoshop, InDesign, Rhino3D, AutoCAD

/ Prototyping, Forward Thinking, User Interface Design, Visual Design, Product Design, Web Design, Wire Framing, Illustration, Architecture

Revit, BIM, QGIS

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design

Finance

JotDown Organizing your ideas.

JotDown’s first concept came about early this year with the main goal of organizing and storing important information digitally, but also to create a collaborative and interactive platform for family and friends to share, add items, and commmunicate about any tasks at hand directly in the application.

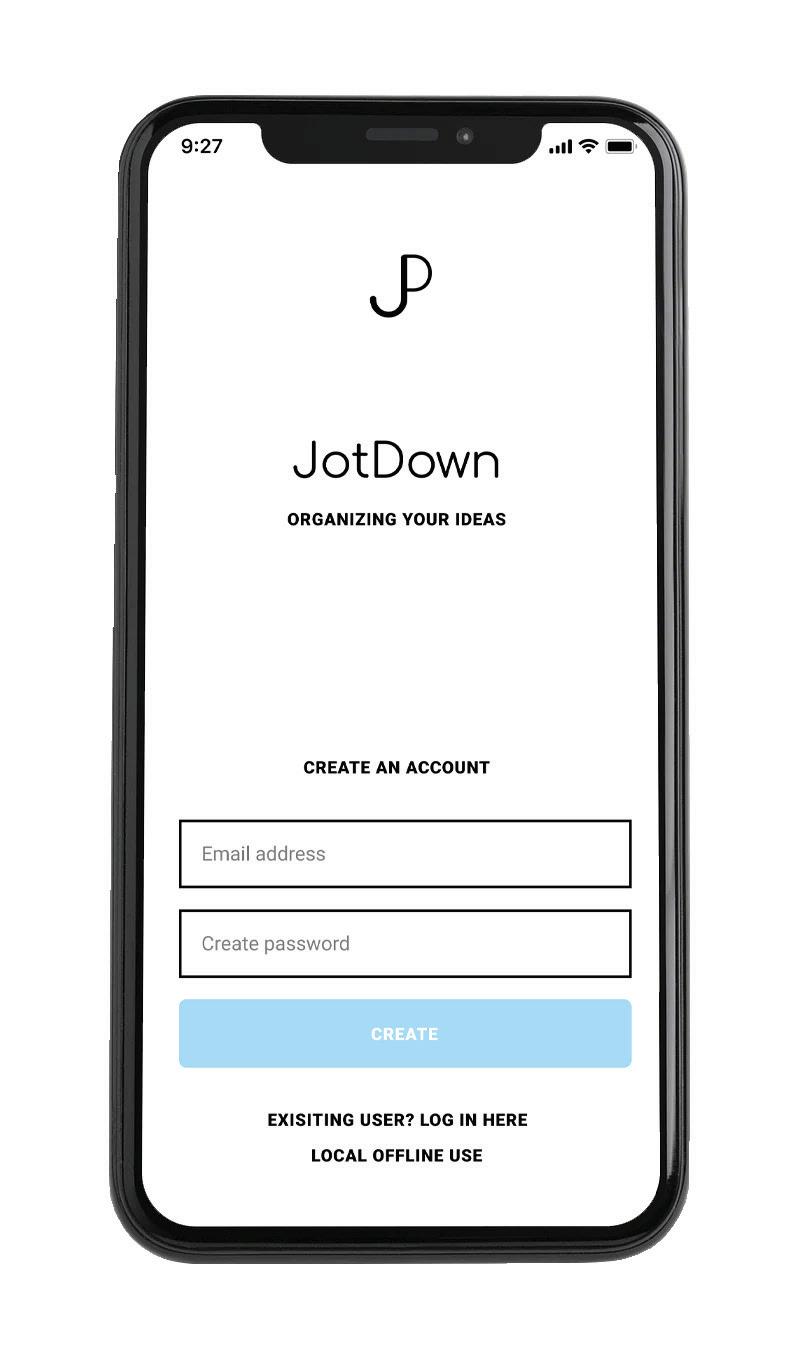

Users are encouraged to create an account so that their notes can be synchronized onto different devices to create a seamless transision between systems.

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design

Finance

CONCEPT Have you ever had an idea that pops into your mind?

And you struggle to find anywhere to write it down?

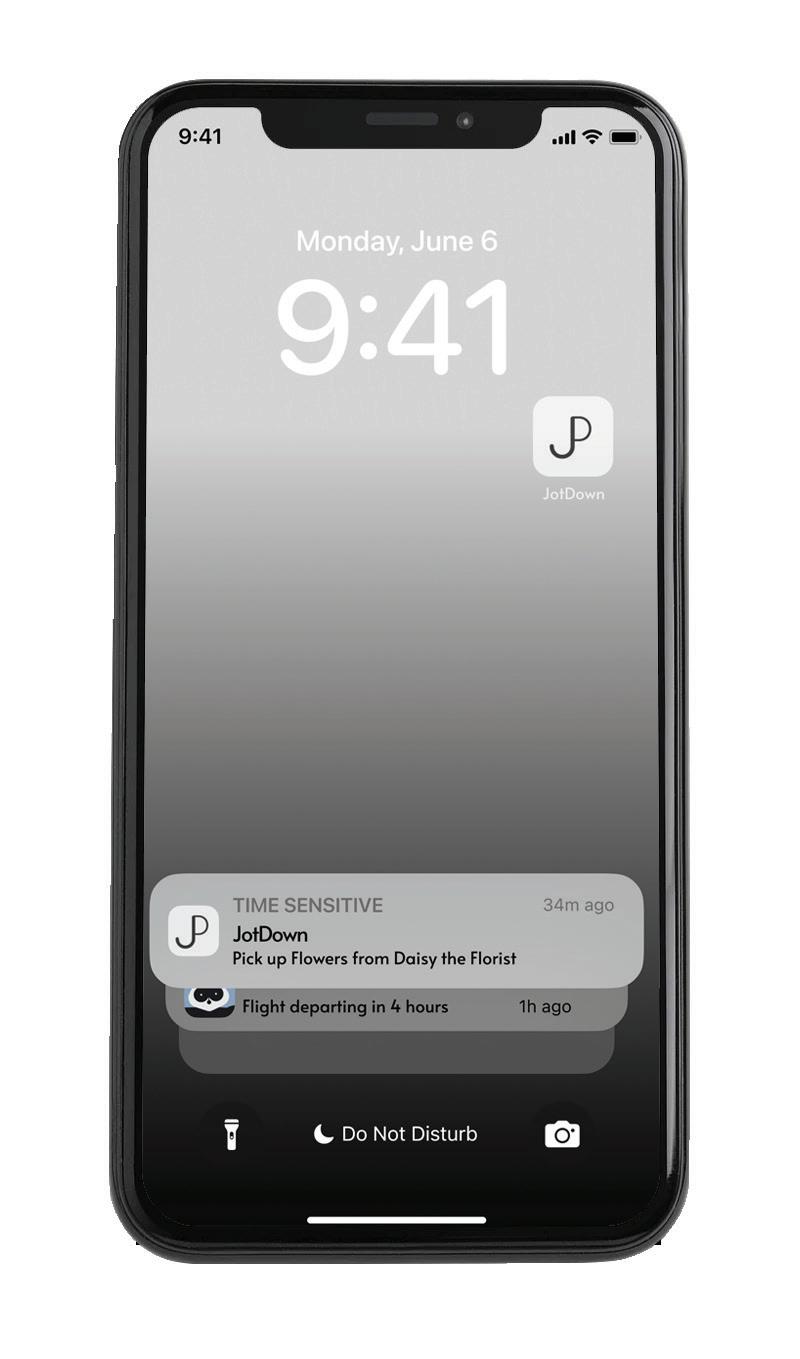

This is the main idea behind the design, to allow users to quickly open the app via a widget on their home screen, saving previous time of unlocking the phone and scrolling to the app on the home screen. .

ACCESSIBILITY

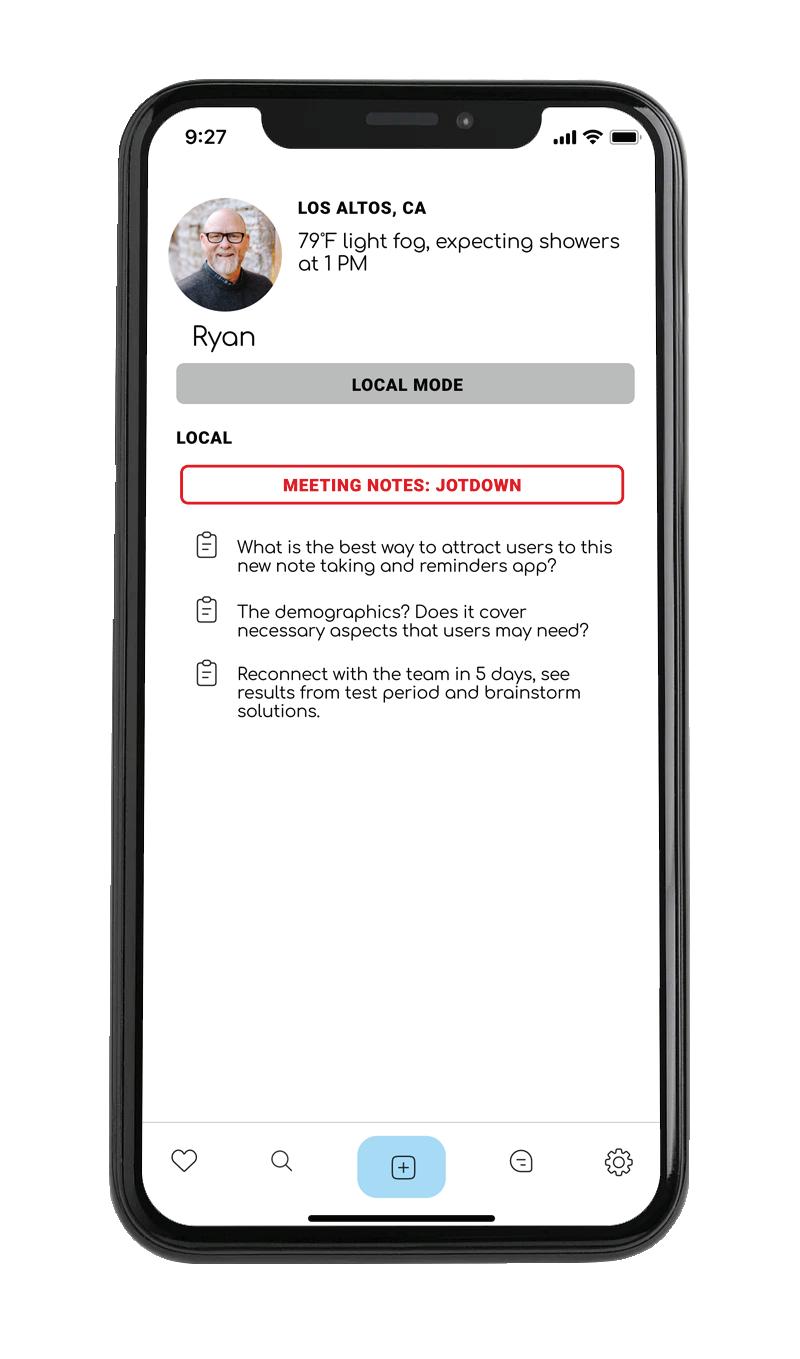

Inside the app, a large button in the middle of the app is chosen as it provides accessibility for anyone to open a new note pad during a rush.

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design

Finance

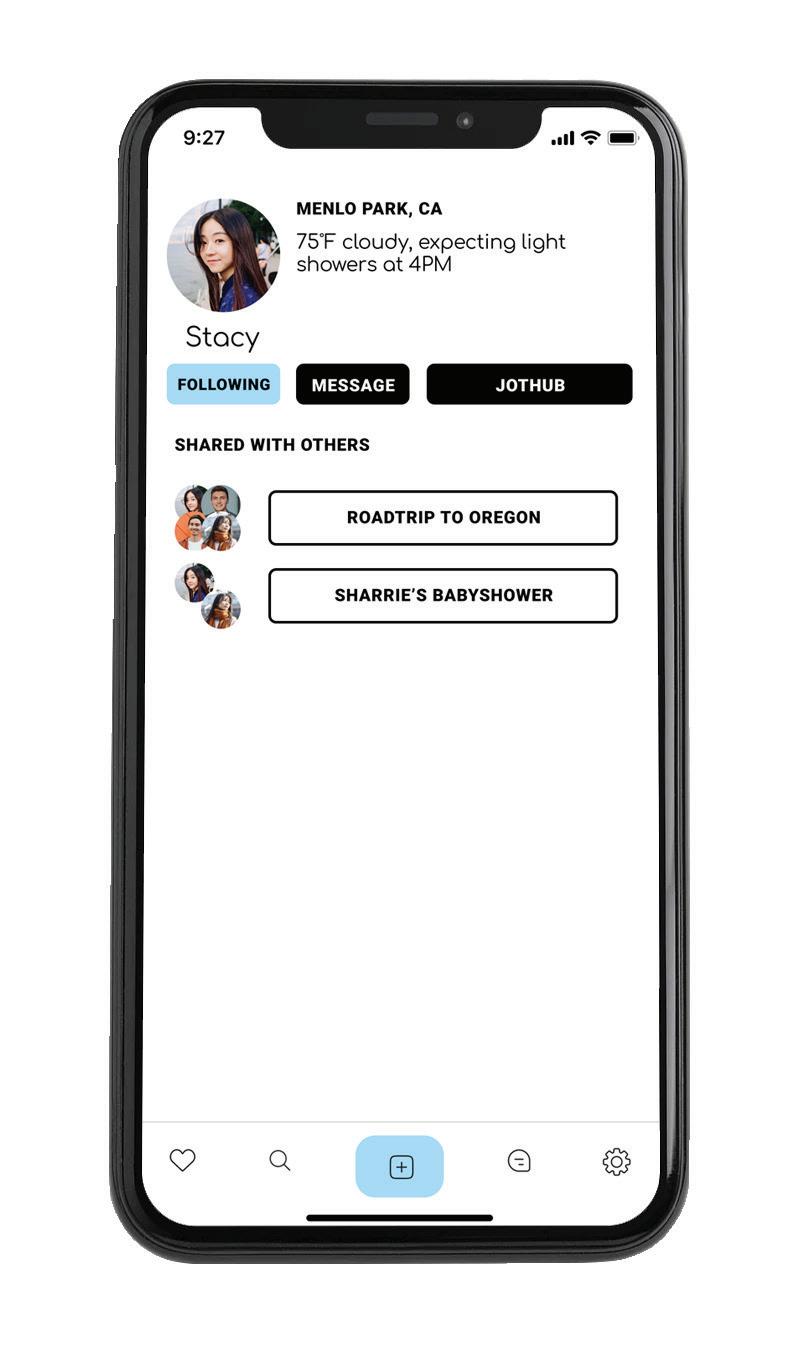

PRIVACY MATTERS

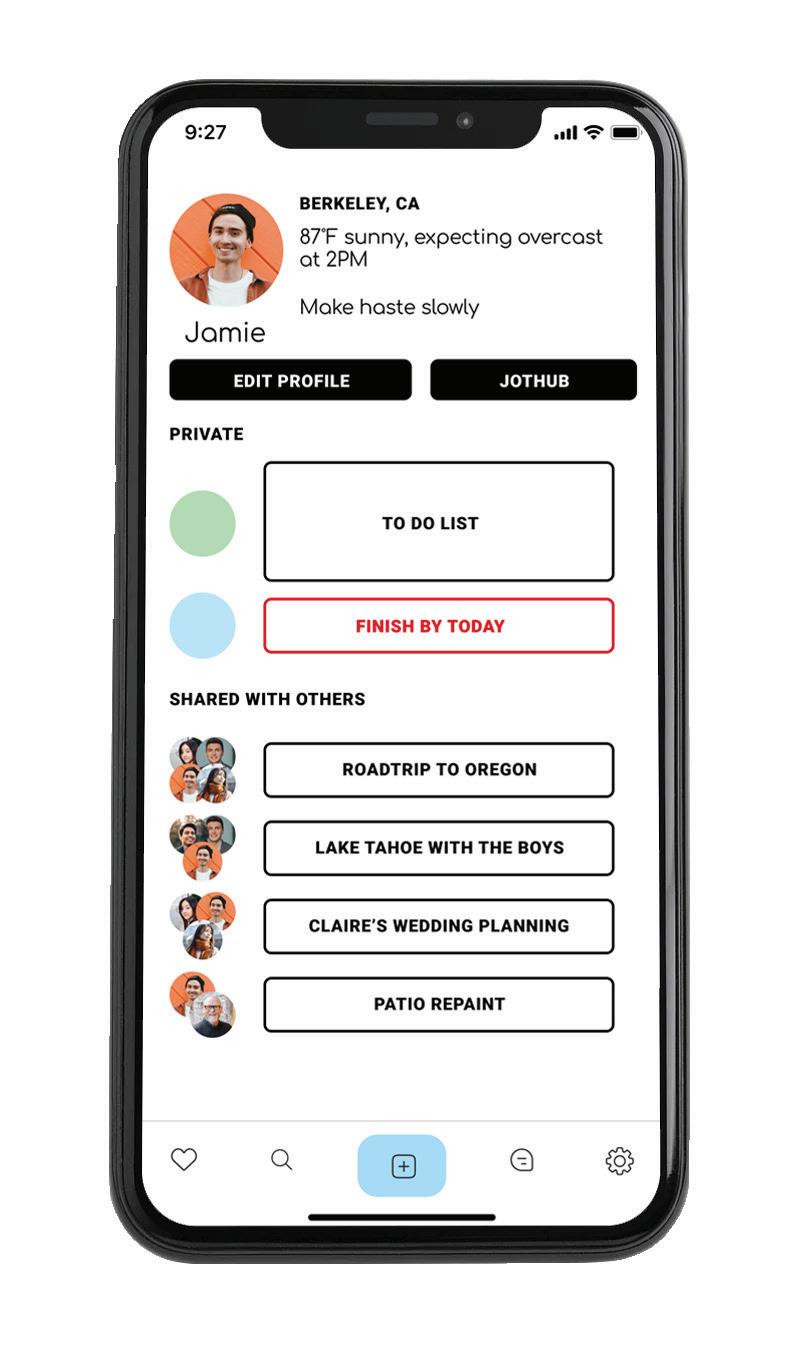

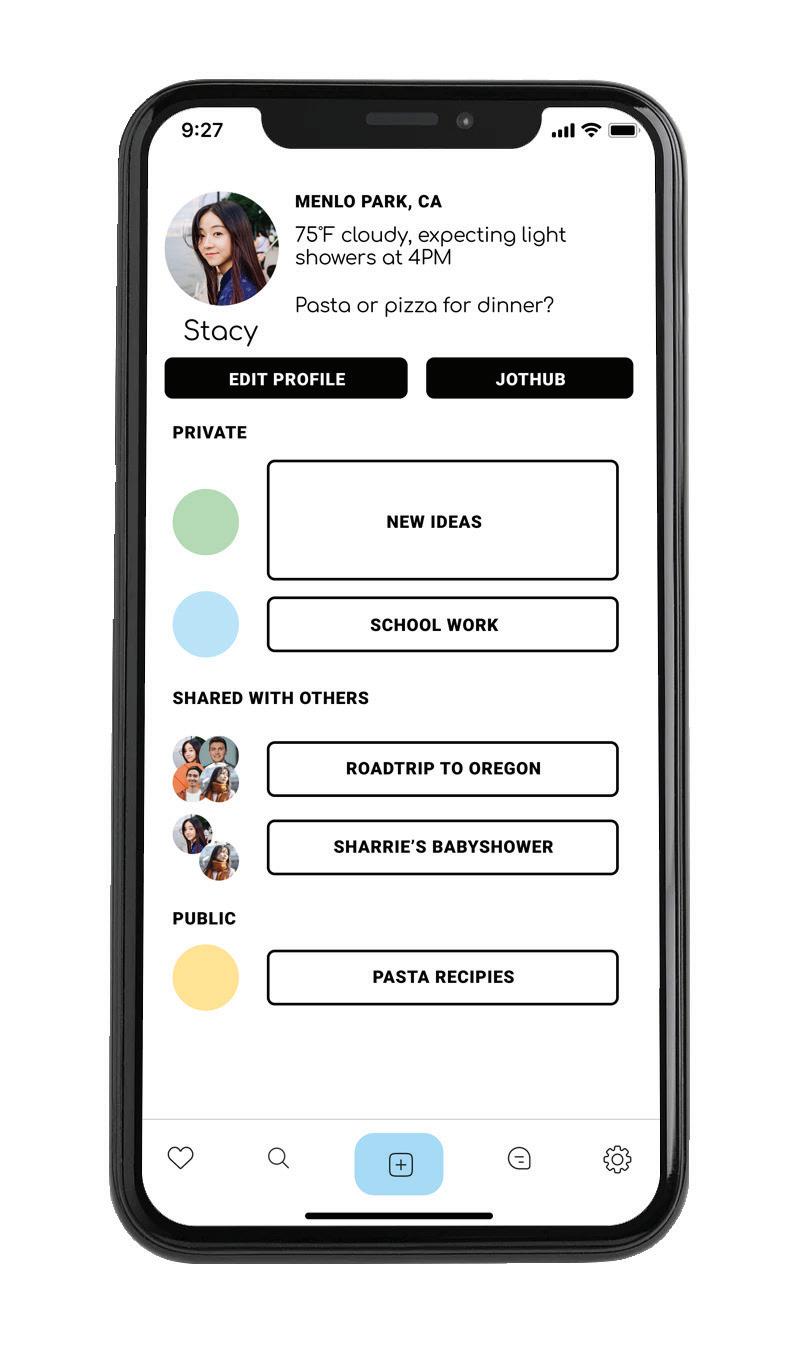

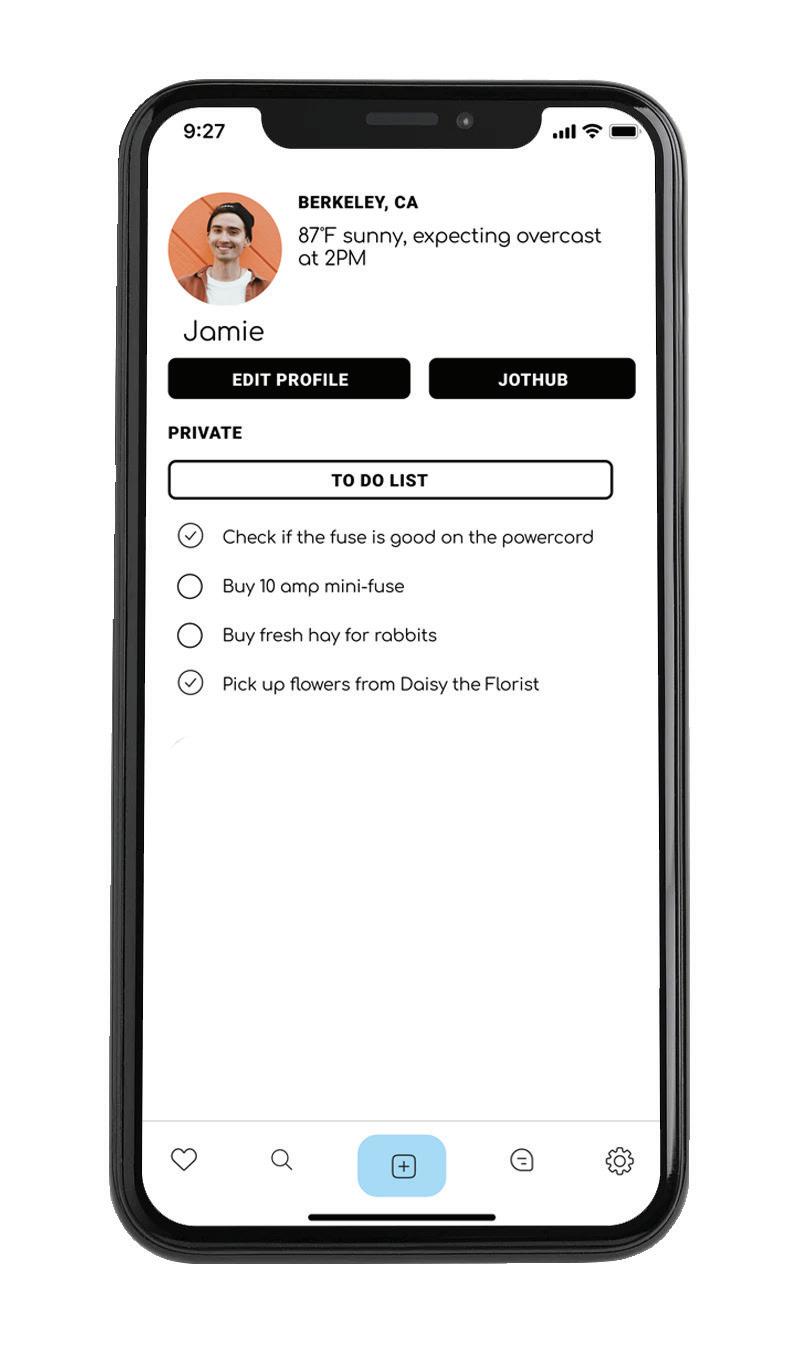

user’s view There are things we share, and things we don’t share.

JotDown allows you to customize privacy settings.

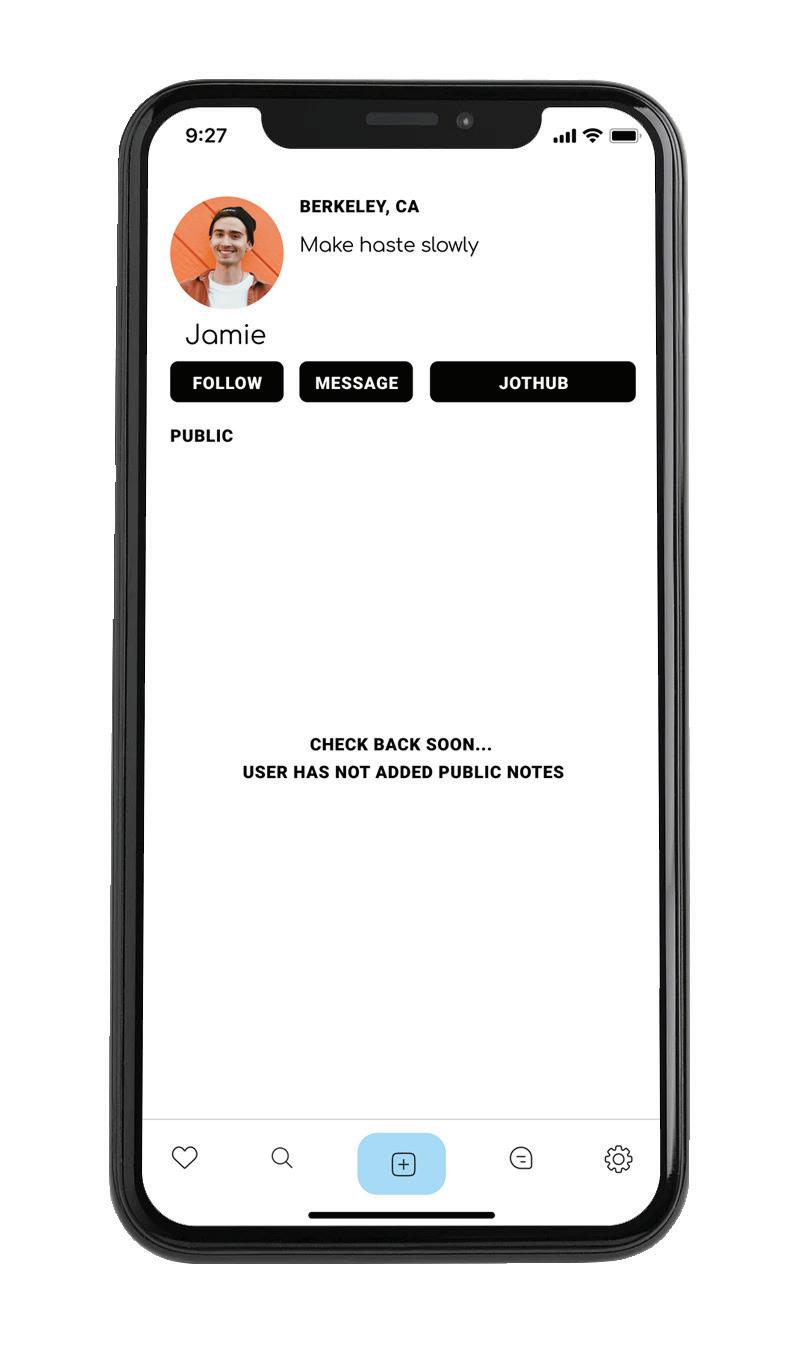

public view Viewable contents are limited to personal or public. Here, users can see any publically shared content such as Stacy grandma’s chicken soup.

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design

Finance

SHARING

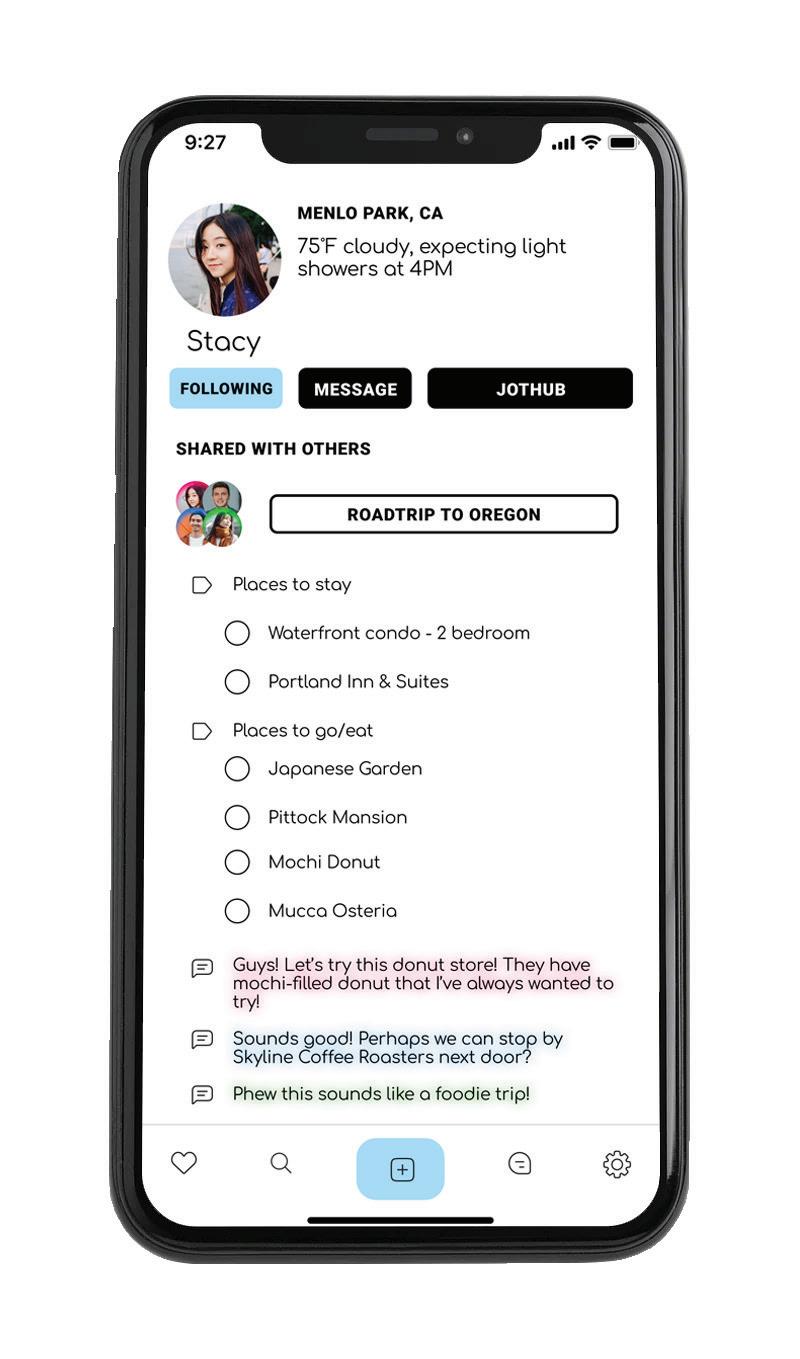

Planning is crucial to make the most out of a trip. This is why JotDown allow users to share their notes with others on the same trip. Each user will have a unique color for them to identify who generated the message.

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design

Finance

SHARING

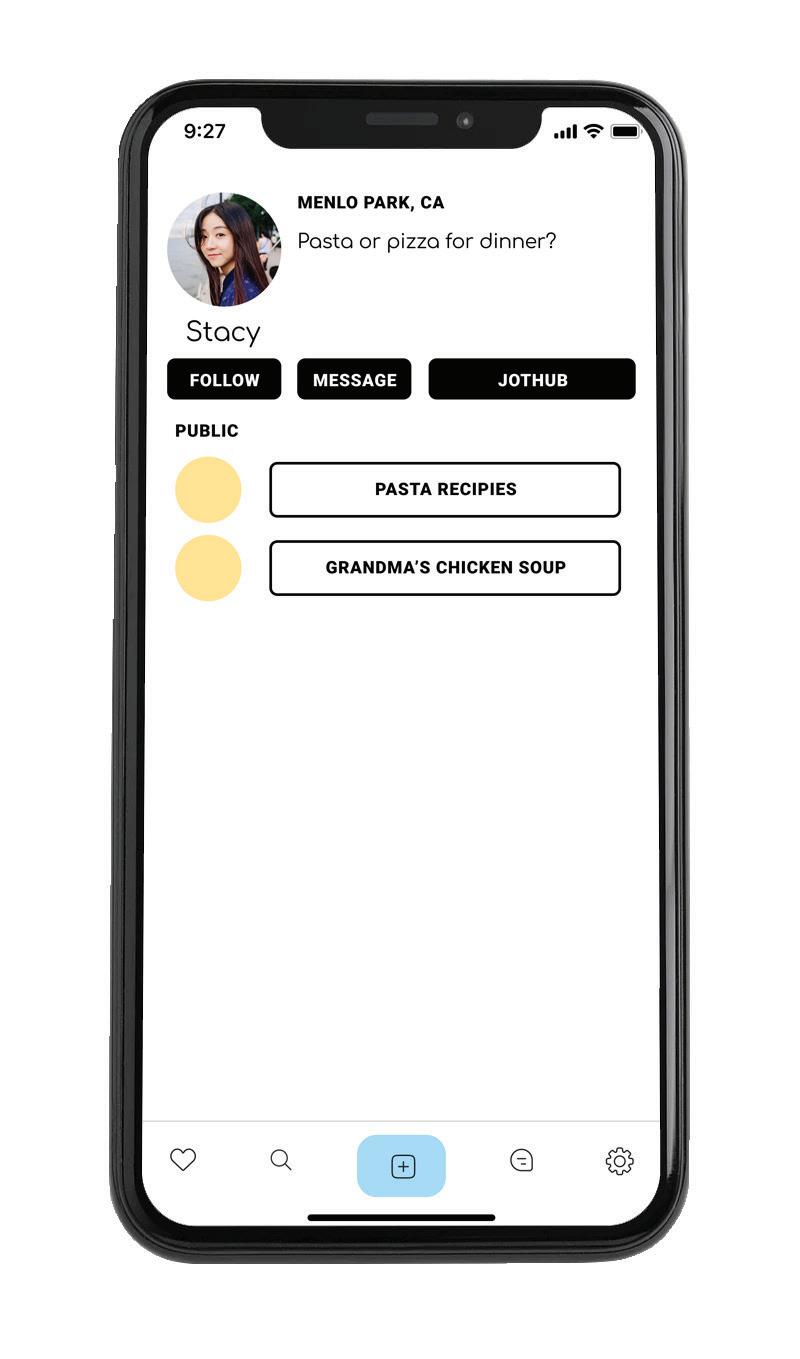

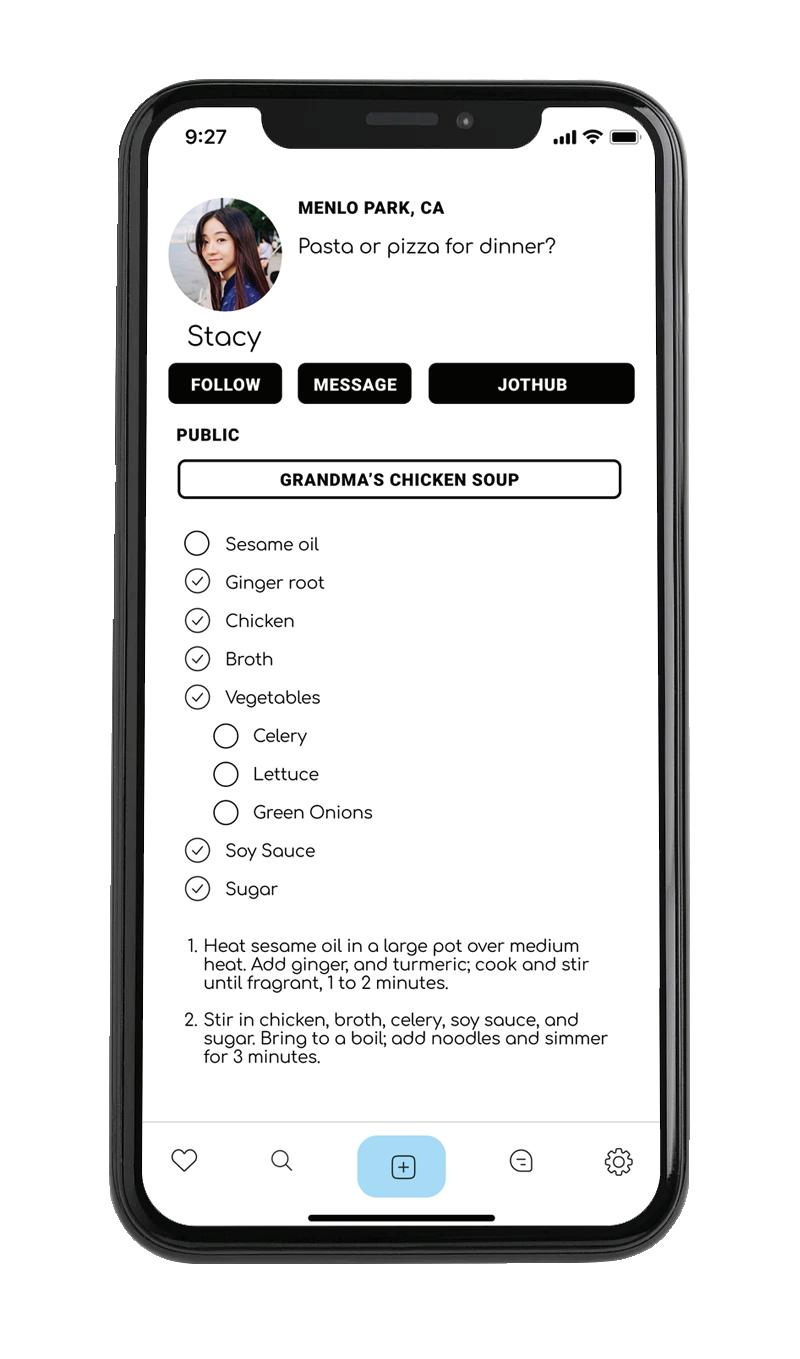

Stacy Grandma’s chicken has been in the family for generations and everyone loves it.

With public notes, Stacy can share the legendary soup recipe with anyone while keeping her other notes private.

Check boxes are provided and can be used as a shopping list for ingredients, with cooking instructions below.

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design

Finance

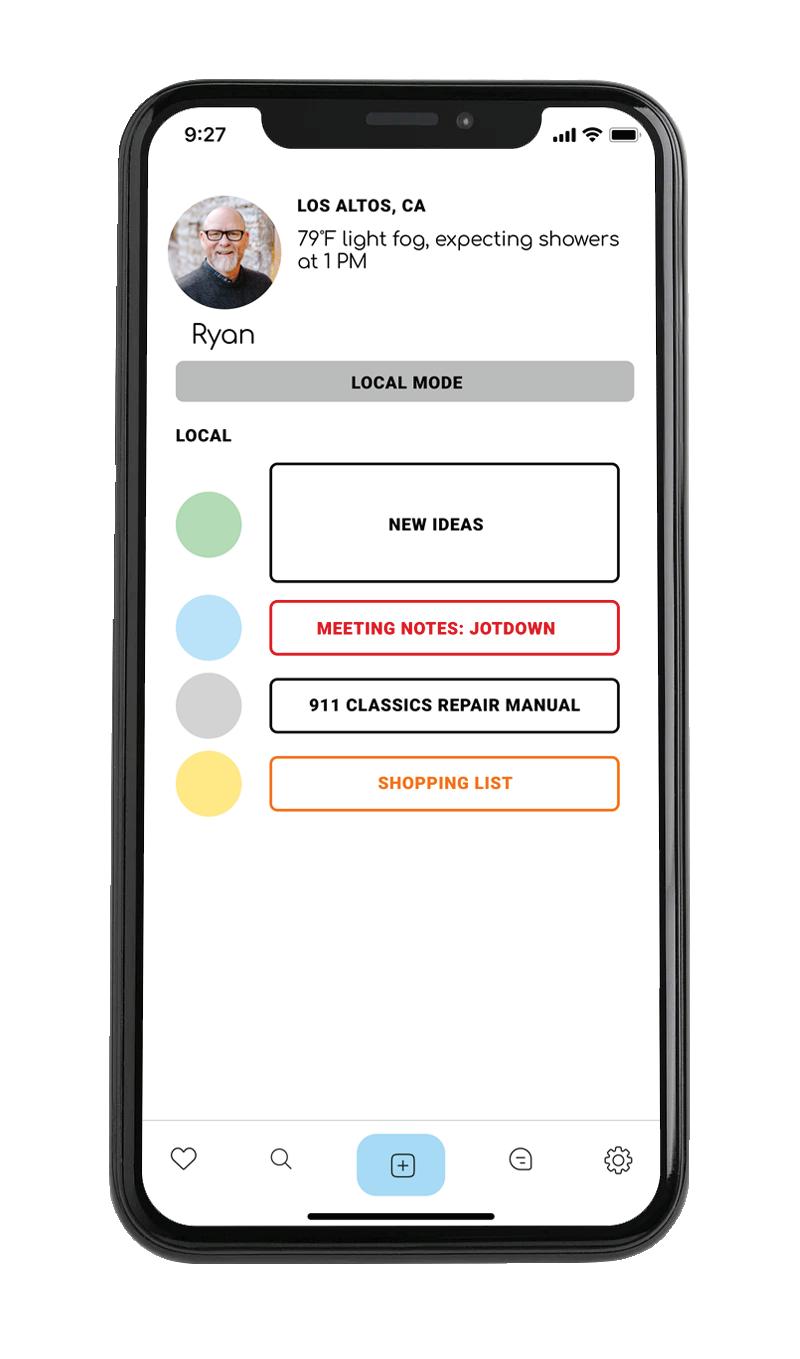

LOCAL MODE

Local mode will not require any login or registation information.

This mode keeps all content to the sole device and was created for the safekeeping of sensitive information.

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design

Finance

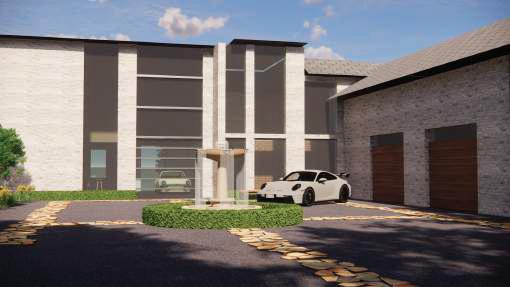

Hollywood South Private residence for an automotive enthusiast.

Stouffville House

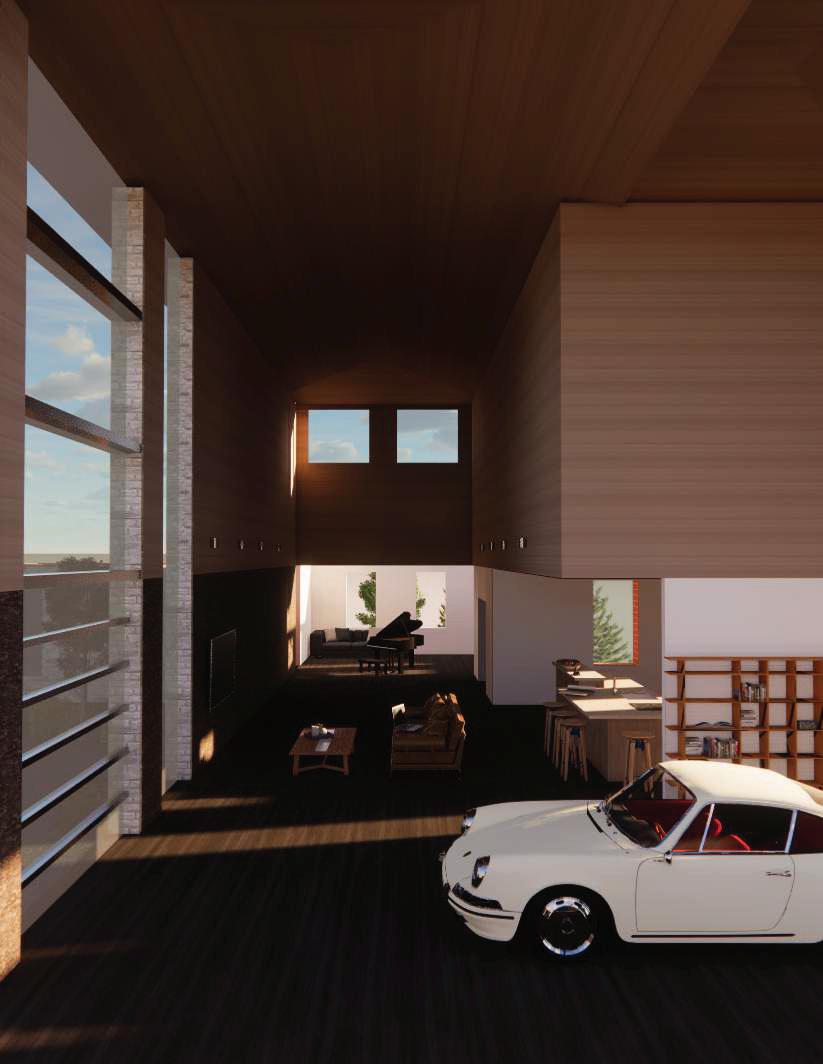

Render 1

Render 2

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design

Finance

CONCEPT Located 30 miles north of Toronto in Stouffville, a country close to the city, lies Hollywood South. This project was commissioned by a family of automotive enthusiasts that was in search of the perfect balance family and hobby needs. e+

ours

terc

Wa

-1 M7

FO

30m

The project began with obtaining a land survey from the surveyer showing elevation, water and environmental features of the propety and mapping out zoning requirement as set out in the town guidelines.

Setback 15m SETBACK

9m Setback 9m Setback

22.5m SETBACK Setback

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design PROJECT NAME

LEGEND

9m Setback

HATCHES NOT IN CONTRACT

PLYWOOD SHEATHING

MILLWORK

GYPSUM DRYWALL

BATT INSULATION

POURED IN PLACE CONCRETE

F C

A

D

E

E

G

Finance

G

16 WILDERNESS TRAIL PROJECT NUMBER

SPACE RIGID INSULATION

WOOD

TAGS

8888.X

DOOR TAG

WINDOW TAG

8888.8

X

1" 31'-22

1" 42'-02

1" 39'-22

+8'-8" XXXX

EQUIPMENT TAG

88

1" 112'-52

001

DESIGNER:

SOFTSCAPE

FINISH FLOOR ELEV.

FIXTURE TAG

CHANGE IN ELEV.

X8

FINISH TAG

MATCHLINE

X8

FINISH FLOOR TAG

TRANSITION

CONSULTANTS ANTHONY MATTACCHIONE

1

PARTITIONS A2

1" 16'-22

NEW PARTITION (WITH TYPE TAG)

The house is divided into different zones for different uses.

Whether it’s for family, friends, work or hobby, there is an appropriate space for every activity.

EXISTING TO REMAIN

CONSULTANTS

TO BE DEMOLISHED

DIMENSIONS

BEACON ENVIRONMENTAL

FACE OF FINISH FACE OF FRAMING

2

1" 29'-42 1" 12'-52

15m Setback

1" 16'-52

33'-5"

26'-2"

20'-4"

CONSTRUCTION NOTES MASTER BEDROOM

GARAGE BELOW 4

POOL

KEYNOTES BI FOLD DOORS

02

DRIVEWAY

03

SKYLIGHT

85'-3"

48'-1" 12'-7"

1" 6'-02

04

1" 8'-72

LAUNDRY

5'-11"

05 5

06

30'-2" MASTER BATH

KEY PLAN

ENSUITE LAUNDRY 1" 12'-42

BATHROOM 12'-5"

1" 12'-42

HALLWAY

SMALL SITTING AREA

KITCHEN - SUITE

08 1" 12'-12

1" 4'-52

1" 12'-22

BEDROOM 3

07

1" 7'-72

CLOSET

BATHROOM

1" 16'-52

1" 11'-102

1" 17'-42

09

HALLWAY

HALLWAY

10

6 14'-9"

6'-0"

1" 15'-112 HALLWAY

11

BATHROOM

HALLWAY

BEDROOM 6 (MASTER 2)

1" 12'-112

5'-0"

16'-5" 1" 13'-72

BATHROOM

BEDROOM 2

14'-11"

NOTE "S" INDICATES SHEAR WALL LOCATION PER PARTITION TYPE

PARTITION TYPES

TYPICAL INTERIOR PARTITION 2 SIDES 5 8" GWB ON 312" STUD

P1

FOYER

MELVINS ROOM

1" 5'-02

9

01

BEDROOM 5

ELEVATOR

27'-10"

1" 11'-72

BATHROOM

12'-1"

12'-1"

BEDROOM 2

18'-7"

20'-6"

4'-0"

1" 20'-112

8

SUBMITTAL RECORD

12

63'-10" 7

On the upper floor, it is seperated into two sections with two entry points. This allows the two sections to be isolated from one another, creating a private space for guests and family .

01

11'-9"

MASTER CLOSET

CONSULTANTS

1. SEE DRAWING SET FOR PARTITION DETAILS 2. SEE SCHEDULES FOR ALL DOOR, WINDOW, AND EQUIPMENT DETAILS AND SPECIFICATIONS 3. VERIFY ALL DIMENSIONS ON SITE 4. NOTIFY ARCHITECT FOR AND DISCREPANCIES BETWEEN SITE AND PLA 5. ALL DIMENSIONS FROM FACE OF FINISH TO FACE OF FINISH

010

ENV

20210928

02

VNRN

20220312

03

VNRN FOR ENV

20220630

04

VNRN FOR ENV

20221111

05

VNRN

20230109

9 9

9m Setback

SCALE 1 1 4" @ 24x36 | 8" @ 12x18

DRAWING TITLE UPPER FLOOR PLAN PROJECT NAME SHEET NUMBER

LEGEND

9m Setback

HATCHES

MAIN FLOOR

F A

SQ. FT

C

D

E

E

1/4" = 1'-0" G

G

NOT IN CONTRACT

PLYWOOD SHEATHING

MILLWORK

GYPSUM DRYWALL

BATT INSULATION

POURED IN PLACE CONCRETE

01

TAGS 8888.X

DOOR TAG

8888.8

WINDOW TAG

WOOD

X

001

DESIGNER:

SOFTSCAPE

EQUIPMENT TAG

88

1" 112'-52

A102

PROJECT NUMBER

Space division is more prominent on the lower floors, where family, guest, and hobby area have clear boundaries.

RIGID INSULATION

1" 31'-22

16 WILDERNESS TRAIL

+8'-8" XXXX

FINISH FLOOR ELEV.

FIXTURE TAG

CHANGE IN ELEV.

X8

FINISH TAG

MATCHLINE

X8

FINISH FLOOR TAG

TRANSITION

CONSULTANTS ANTHONY MATTACCHIONE

1

PARTITIONS

39'-2"

A2

Light, air, and space was a requirement from the client, therefore open and flexible space became a focal point.

NEW PARTITION (WITH TYPE TAG)

1" 16'-22

OUTDOOR PATIO

EXISTING TO REMAIN TO BE DEMOLISHED

DIMENSIONS WASHBAY

CONSULTANTS

BEACON ENVIRONMENTAL

FACE OF FINISH FACE OF FRAMING

2

PIANO

1" 35'-112

1" 44'-42

9'-0"

GARAGE

COURTYARD

1" 35'-82

9'-2"

POWDER

LIFT TO BASEMENT CAR STORAGE AREA/ HYDRALIC TO BE SPEC'D BY ENGINEER

47'-6"

5'-2"

POOL FAMILY ROOM

15m Setback

1" 29'-42

4

9'-0"

85'-9"

PREFAB CONCRETE SURFACE WITH ON BEAMS LOADED FOR 12KPA TO ACCOMODATE CARS ABOVE BASEMENT. [E] 3 CAR GARAGE N.I.C.

KEYNOTES 01

BI FOLD DOORS

02

DRIVEWAY

03

SKYLIGHT

1" 7'-32

1" 67'-12

05

DINING

1" 28'-02

1" 7'-12

20'-11"

MUDROOM

1" 8'-102 HALLWAY

6

06 KEY PLAN 07 08

1" 19'-112 1" 8'-102

[G] INTERIOR DISPLAY AREA

KITCHEN

CONSULTANTS

1. SEE DRAWING SET FOR PARTITION DETAILS 2. SEE SCHEDULES FOR ALL DOOR, WINDOW, AND EQUIPMENT DETAILS AND SPECIFICATIONS 3. VERIFY ALL DIMENSIONS ON SITE 4. NOTIFY ARCHITECT FOR AND DISCREPANCIES BETWEEN SITE AND PLA 5. ALL DIMENSIONS FROM FACE OF FINISH TO FACE OF FINISH

04

STAIRS BELOW TO MATCH GRADE

5

To achieve this, insulated concrete forms and steel beams were chosen to shield the interior from drastic temperatures. Geographical studies were also conducted to ensure ideal orientation of the residence.

CONSTRUCTION NOTES

42'-0"

LIVING ROOM

CLOSET

1" 48'-92

18'-7"

09 10

HALLWAY

POWDER

1" 5'-72

1" 12'-22

11 1" 8'-62

1" 19'-32

BROOM CLOSET

MAN CAVE

7

OFFICE

01

PARTITION TYPES

NOTE "S" INDICATES SHEAR WALL LOCATION PER PARTITION TYPE

P1

TYPICAL INTERIOR PARTITION 2 SIDES 5 8" GWB ON 312" STUD

ENV

20210928

02

VNRN

20220312

03

VNRN FOR ENV

20220630

04

VNRN FOR ENV

20221111

05

VNRN

20230109

11'-6"

010

SUBMITTAL RECORD

OFFICE

ELEVATOR

ENTRANCE FOYER

9'-10"

WET KITCHEN

8'-1"

9

1" 19'-32

1" 9'-102

32'-8"

1" 13'-102

1" 13'-102

12

1" 23'-72

FIREPLACE

8

9 9

9m Setback

SCALE 1 1 4" @ 24x36 | 8" @ 12x18

DRAWING TITLE UPPER FLOOR PLAN

SHEET NUMBER

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design

Finance

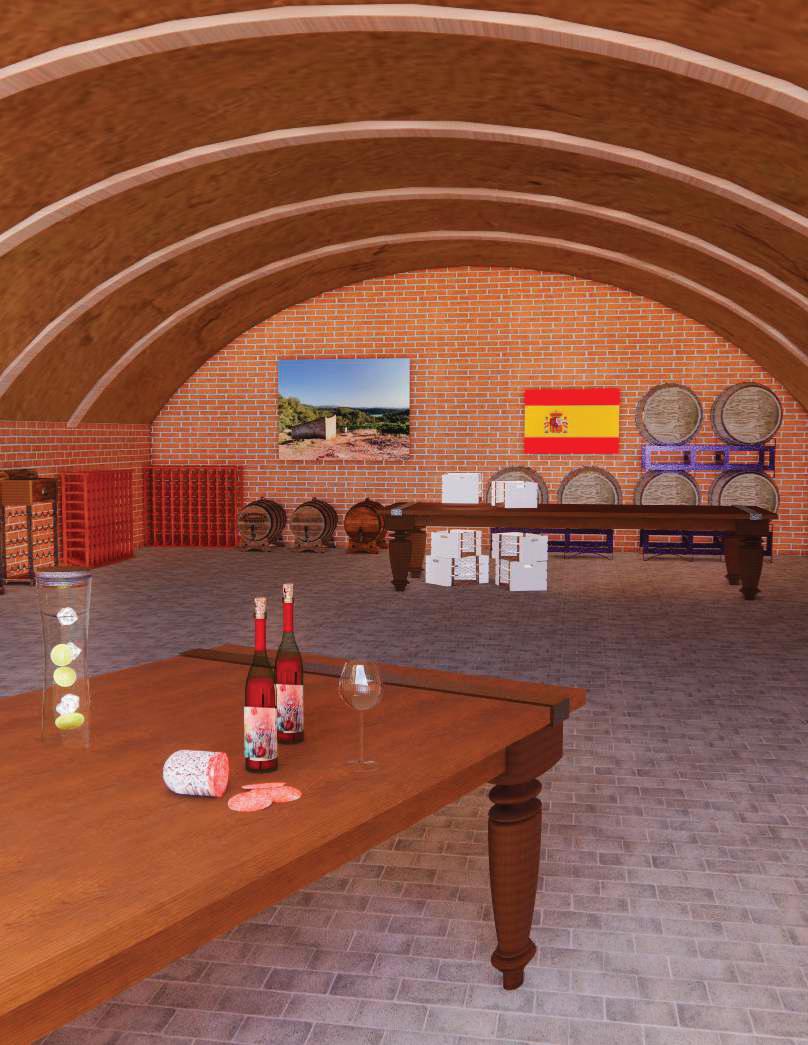

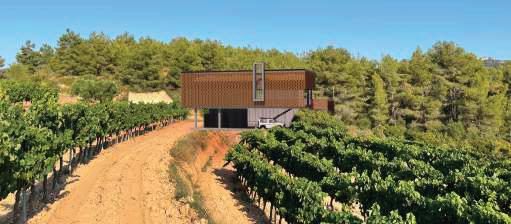

Finca Ebbrezza

Wine tasting room, designed with culture in mind.

Inspired by local cultural characteristics and design, this structure on a vineyard, located within a protected heritage zone in Priorat, Spain inherits many venacular features.

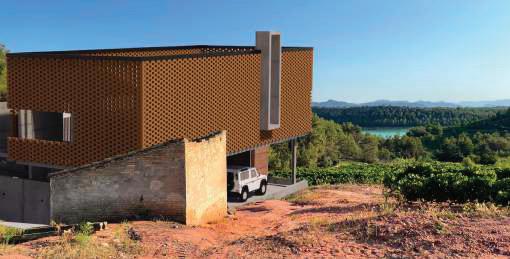

To support local businesses and reinforce its cultural identiy, bricks and corten steel is used as the main building material, which also provides passive shading for the main tasting room on the upper floor.

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design

Finance

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design

Finance

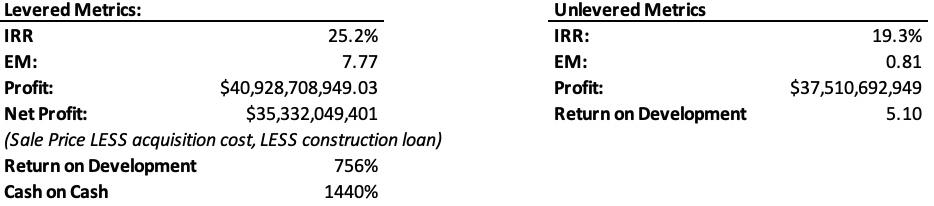

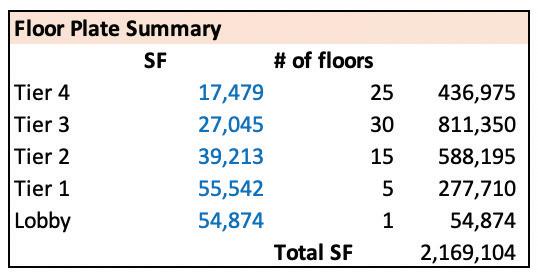

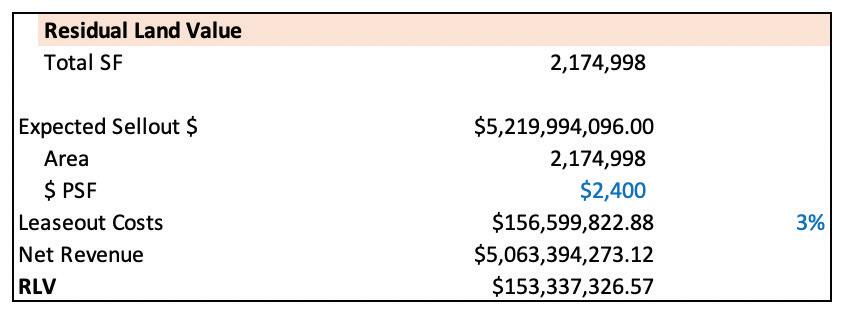

Executive Summary 175 PARK AVENUE

Location: 175 Park Avenue, New York, NY, 10017 Size: 2,169,104 square feet Office: 2,134,164 square feet Market: 20,000 square feet Retail: 15,000 square feet Total developmental cost: $7,359,494,217

A DEVELOPMENTAL PROPOSAL FOR A NEW CLASS A OFFICE BUILDING IN MIDTOWN MANHATTAN, NEW YORK

Estimated completion date: May 2027 Estimated exit date: May 2037

“175 Park Avenue” is my Capstone project during my Masters of Science in Real Estate Development degree that highlights my understanding of real estate development concepts, valuation and financial structures.

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design

Finance

ad

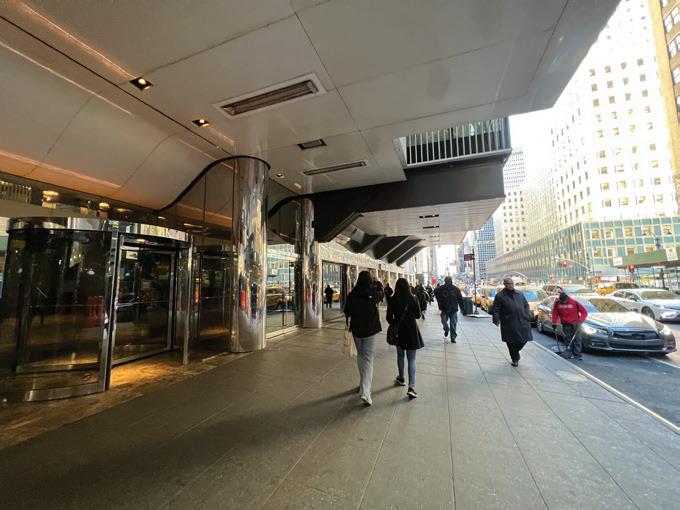

Location & Site Analysis

6-t

Me

rai n

tro

-N

ort

hR

ail

Ro

L

Lo

ng

7-t

Isl

an

dR

ail

Ro

ad

rai

6-Train 7-Train Metro-North Rail Road Long Island Rail Road

n

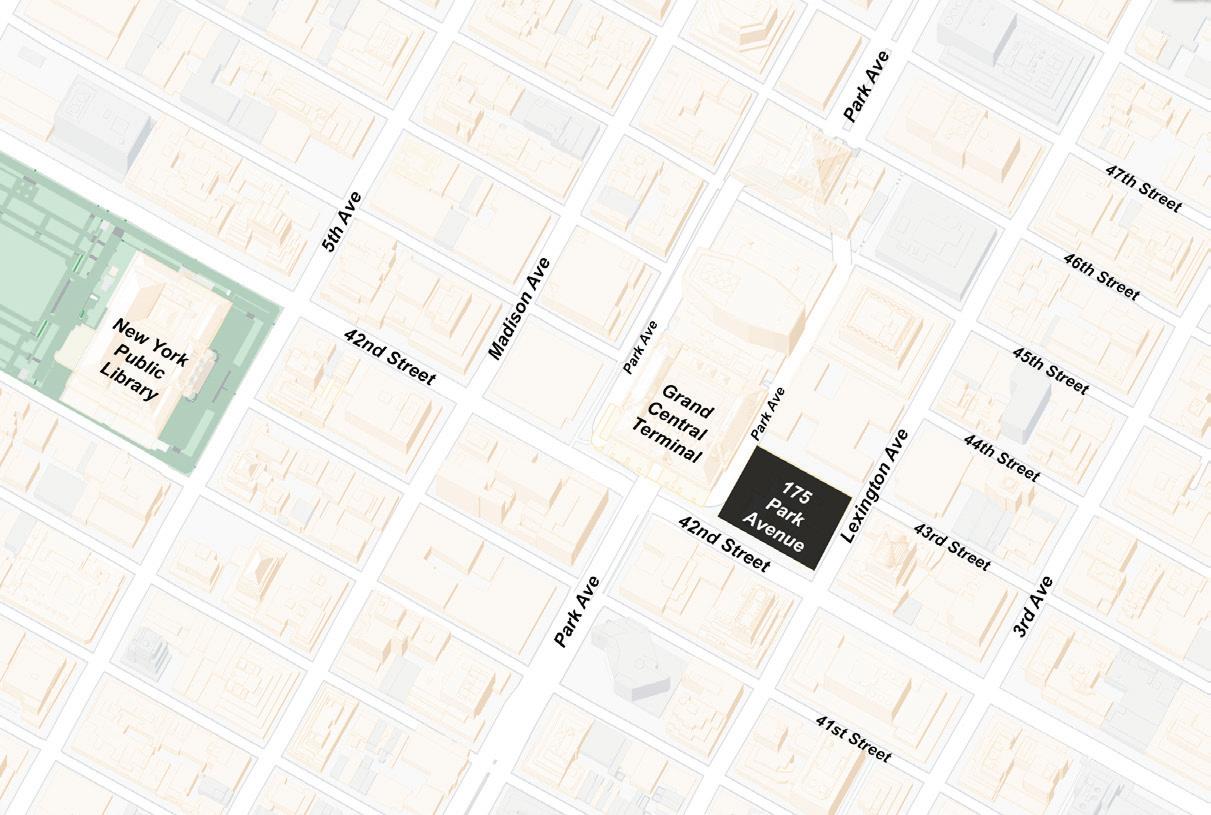

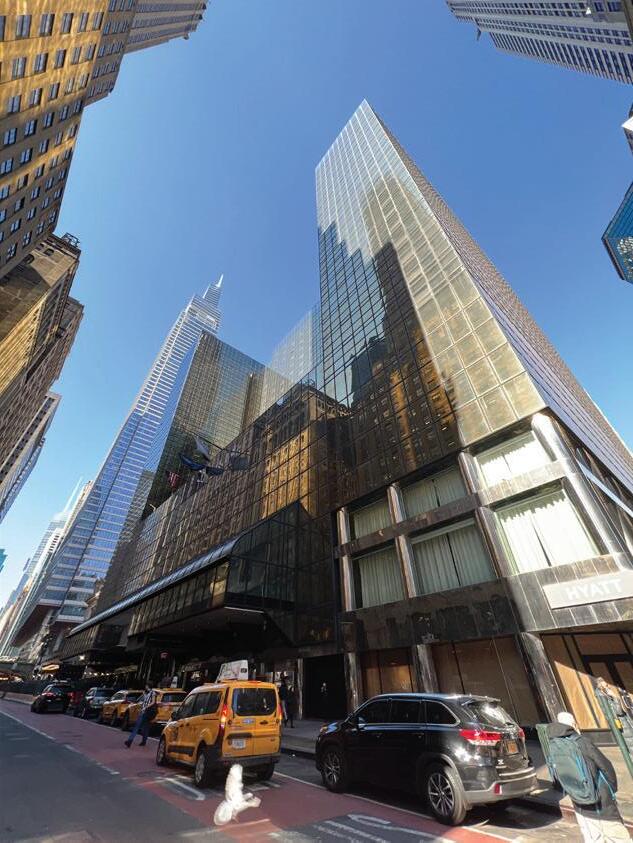

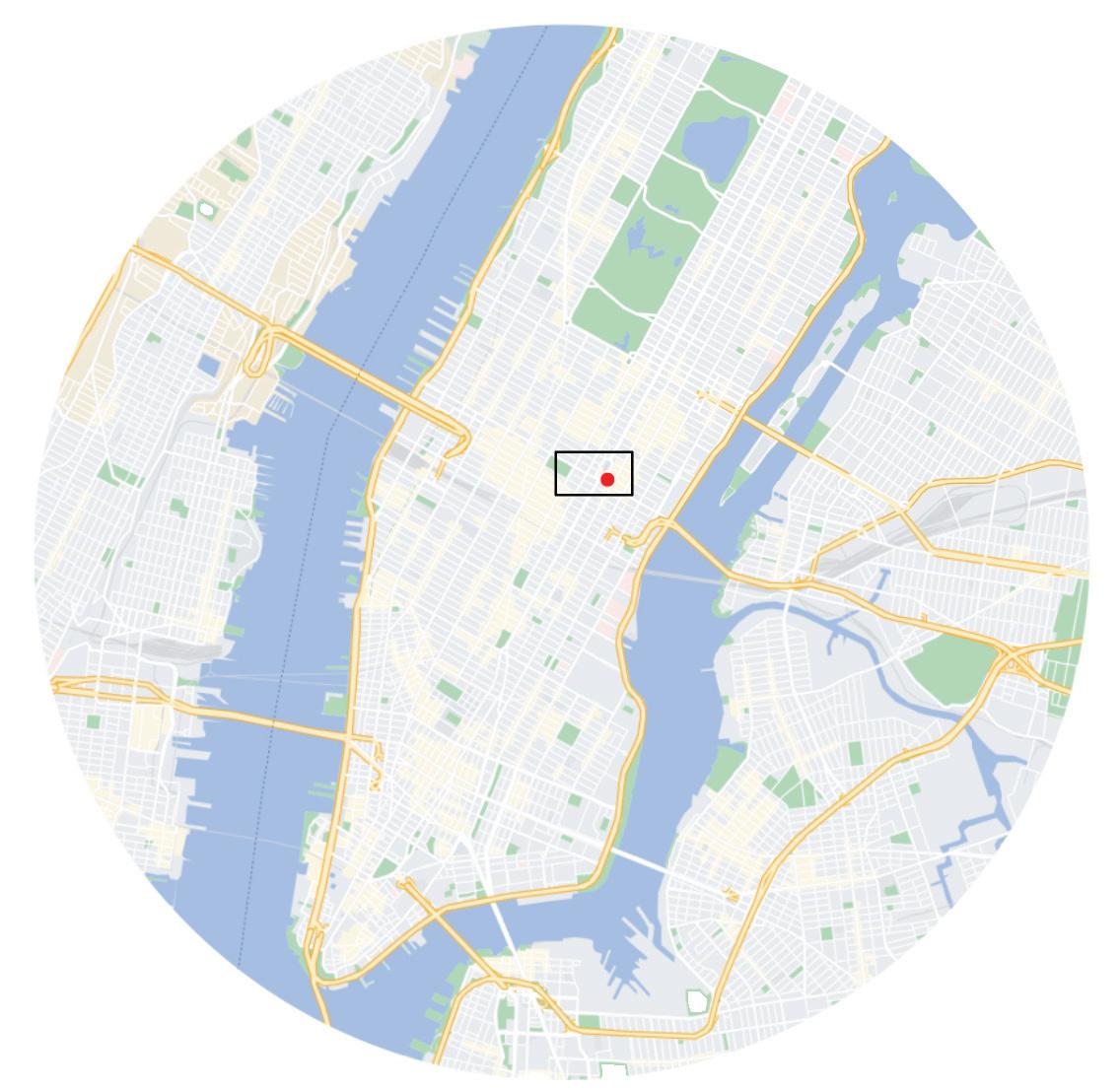

Located in the heart of midtown Manhattan, this site is a crucial transit hub for to enter and exit New York City, with trains connecting Long Island and the greater Tri-State region (New Jersey, Connecticut, and Long Island) to the New York City Metro network.

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design

Finance

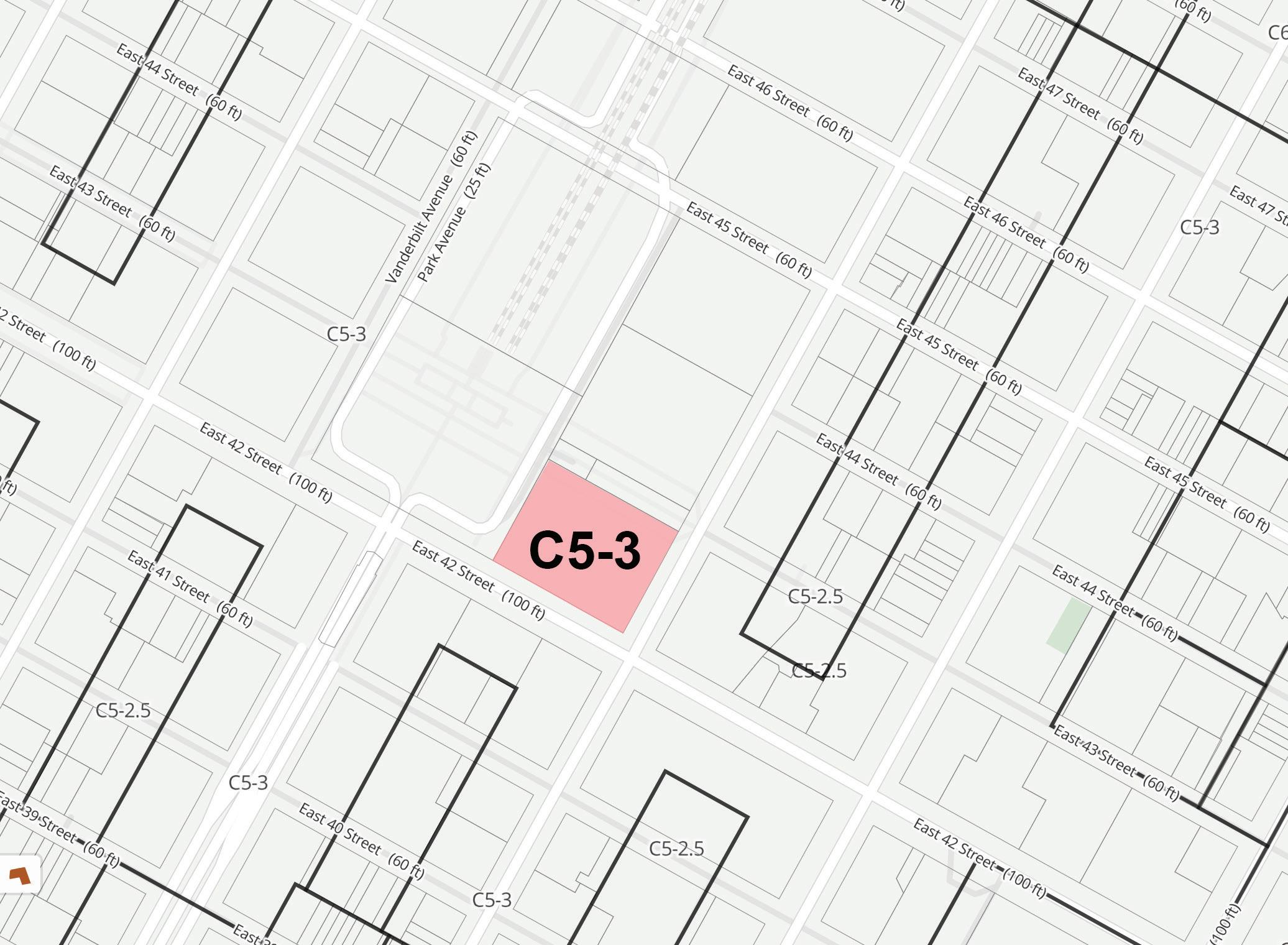

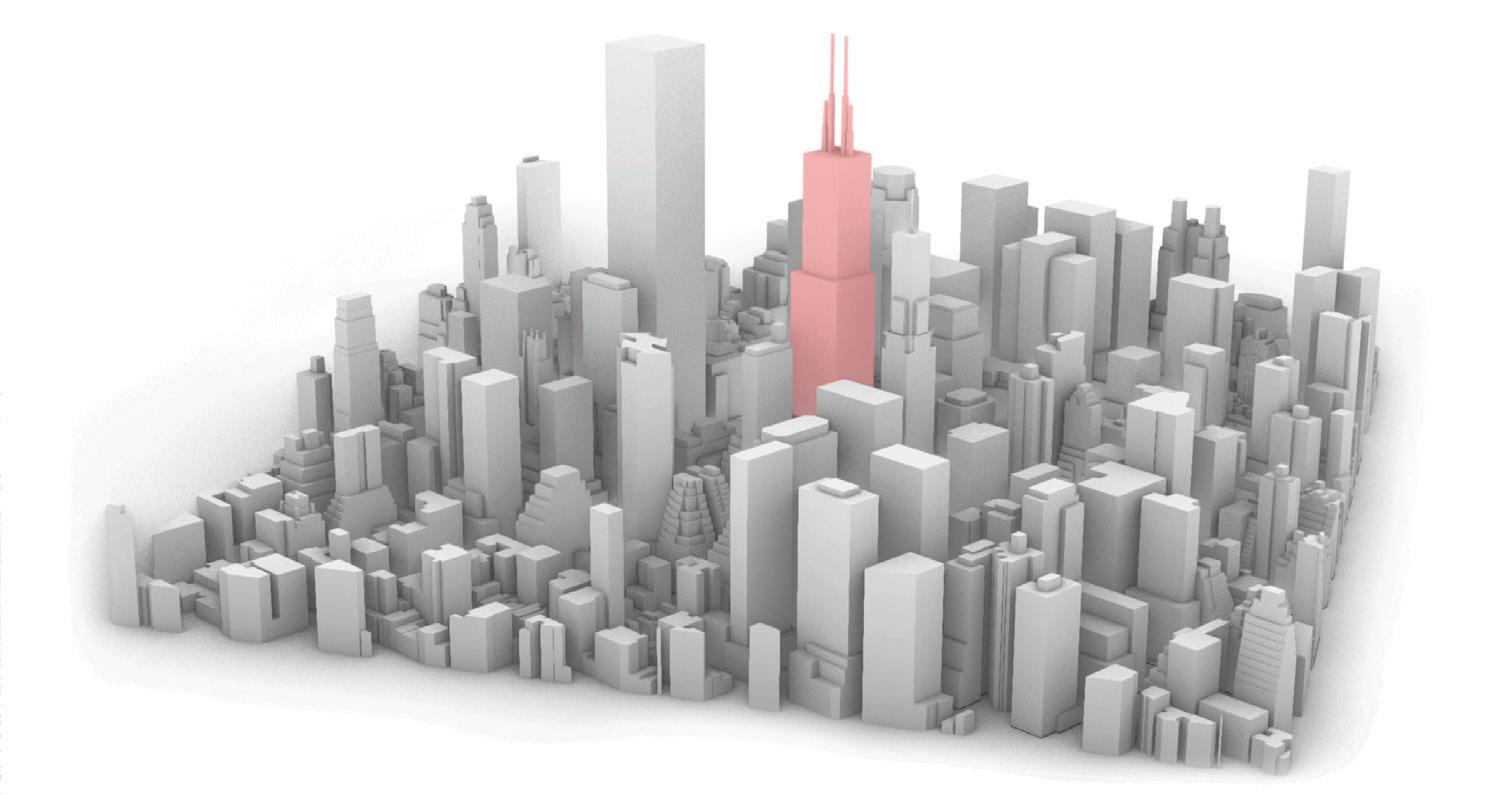

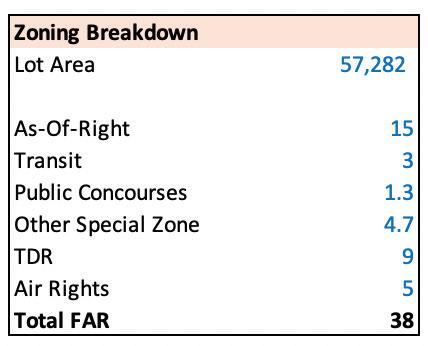

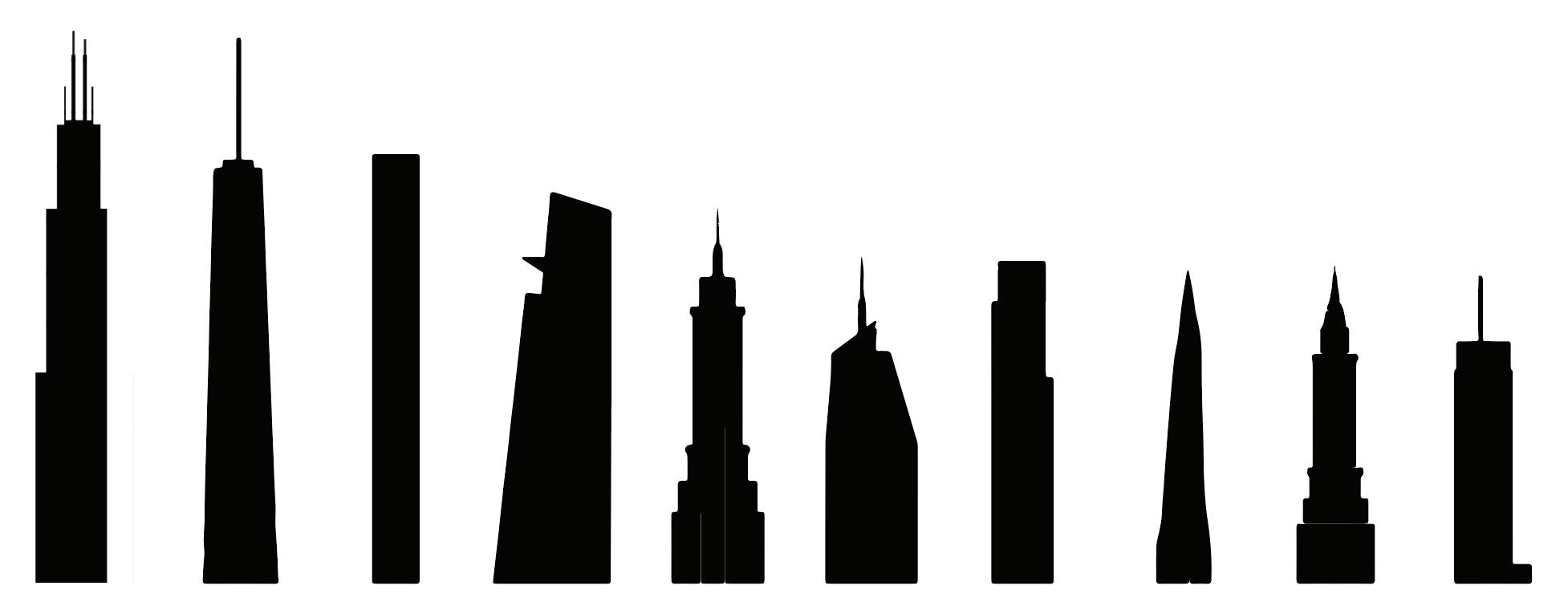

Zoning Site Address: 175 Park Avenue, New York, NY, 10017 - Manhattan (Borough 1), Block 1280, Lot 30 - Zoning district: C5-3, in Manhattan Midtown Special District - Commercial FAR 15, residential equivalent FAR 18 - Land Use: Commercial & Office Buildings - Lot area: 57,272 square feet - Lot type: Corner - Lot frontage: 275 ft (on 42nd St) - Lot depth: 208.33 ft (on Park Ave & Lexington) - Building class: Hotels – Luxury (current designation) - Community District 5, Council District 4 - School District 02, Police Precinct 14 - FRESH Zone: Yes - Transit Zone: Yes - Street type: Wide (East 42nd St: 100’, Lexington Ave: 75’)

175 Park Ave

1 World Trade Center

432 Park Ave

30 Hudson Yards

Empire State Building

1888 ft

1776 ft

1396 ft

1268 ft

1250 ft

Empire State 3 World Building Trade Center 1250 ft

1079 ft

53 West 53rd

Chrysler Building

35 Hudson Yards

1050 ft

1046 ft

1009 ft

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design

Finance

Proposed Design Ea

st 4

Ea

st 4

4th

Str

5th

N Str

N

Tier 4

17,479 sq ft

ee

t

ee

t

Tier 3

27,045 sq ft

Ea

st 4

Ea

st 4

Ea

st 4

1st

Str

3rd

Str

ee

t

Tier 4

2n

Tier 2 dS

39,213 sq ft

tre

et

ee

t

Tier 3

Tier 1

55,542 sq ft

Tier 2

Tier 1 ue

en

East

Ground Floor Plan

42nd

Stree

t

n

to

ng

xi Le

Av

54,874 sq ft

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design

Finance

Proposed Design

Right.

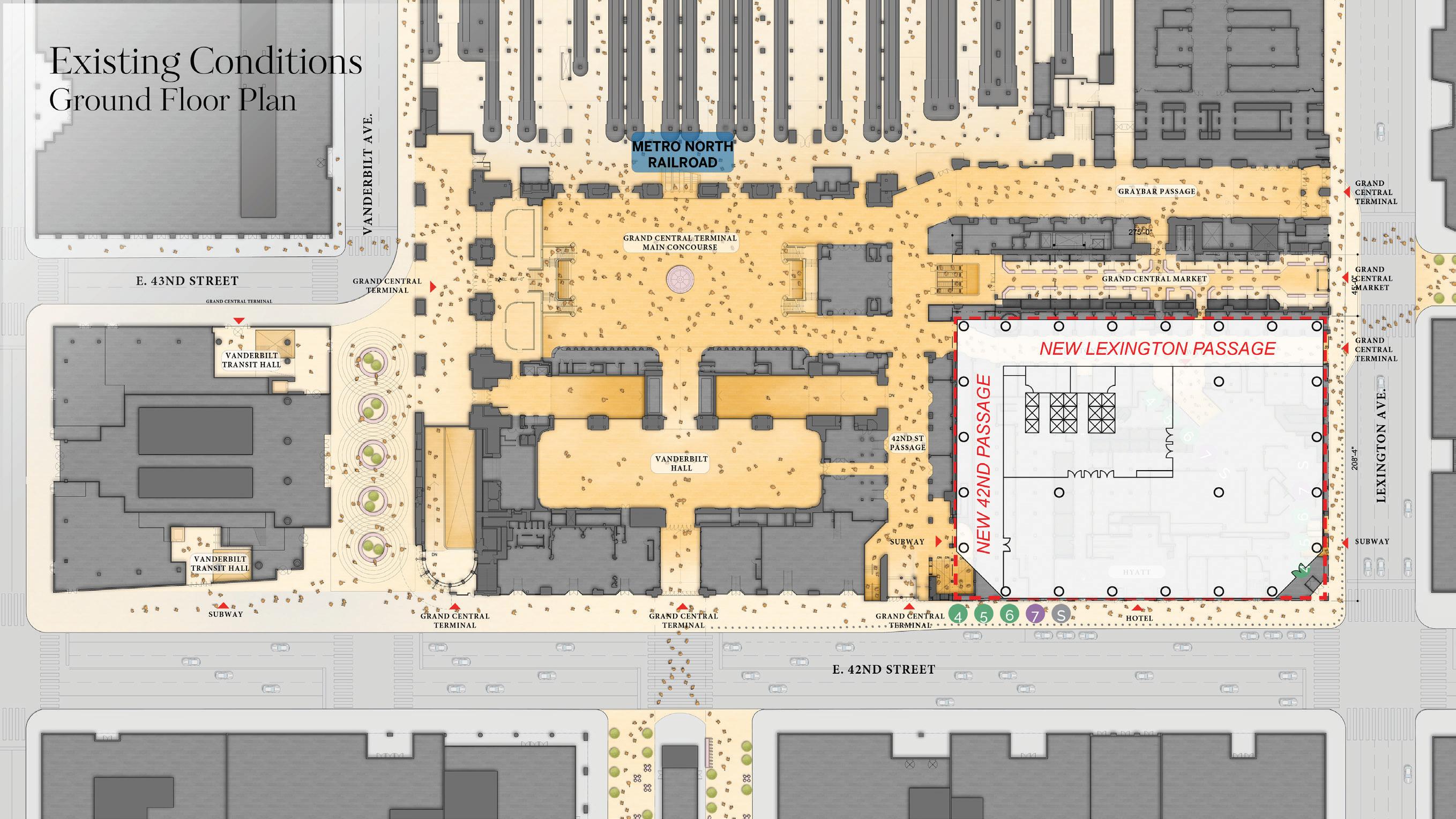

New floor plan 175 Park Avenue within Grand Central Terminal floor plan, showing expanded and additional passageways. The new buidling and floor plan that intergrates with the Terminal,

Left.

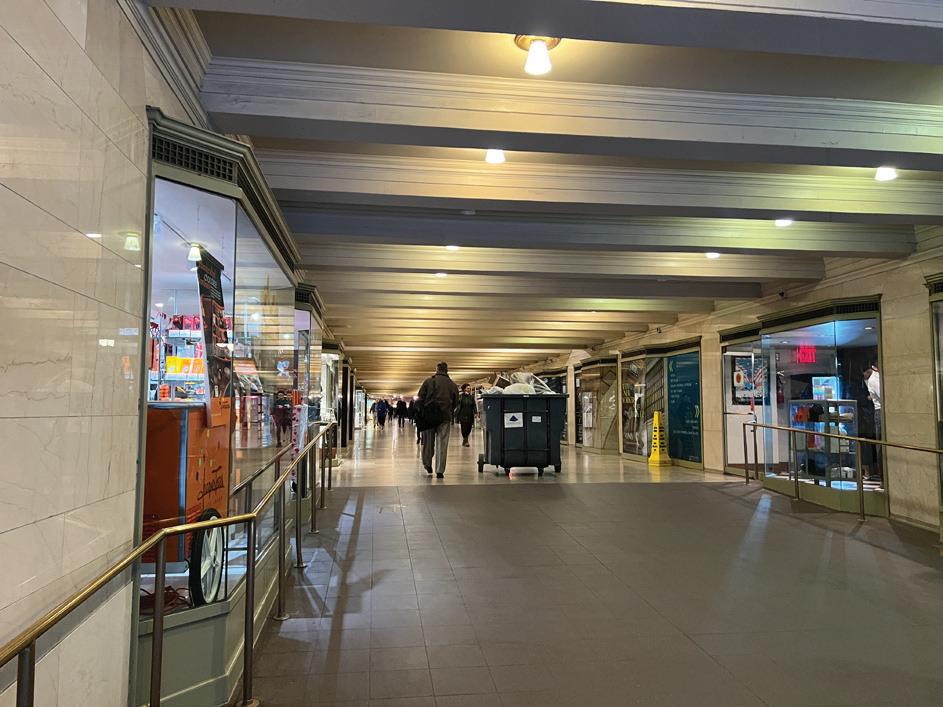

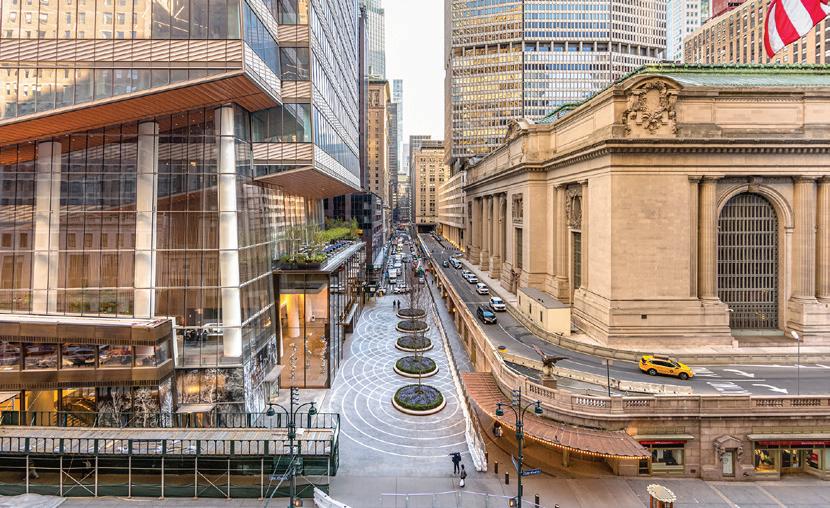

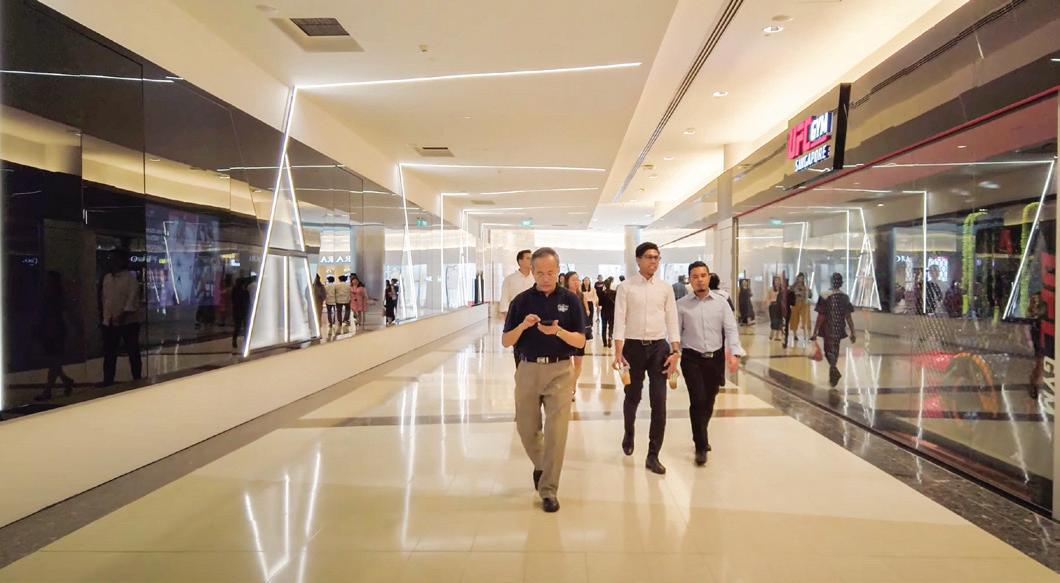

Existing passageway and proposed new Lexington Ave passageway with updated lighting to create a bright and welcoming atmosphere to the commuters.

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design

Finance

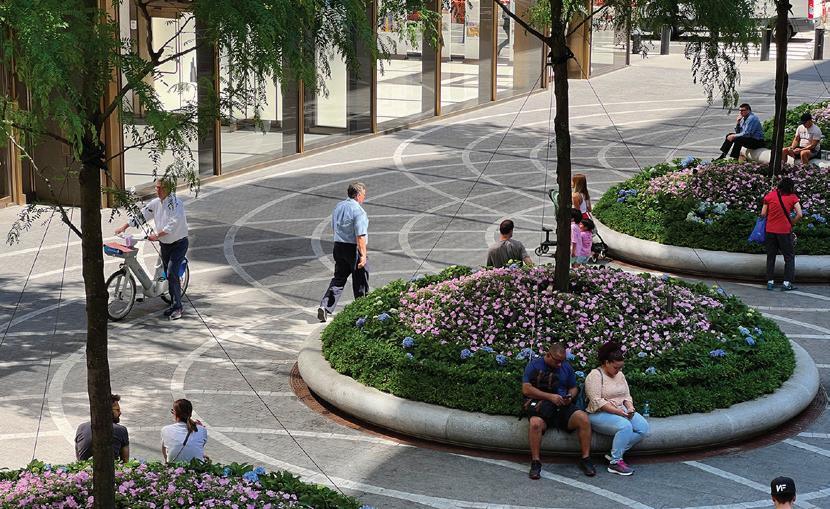

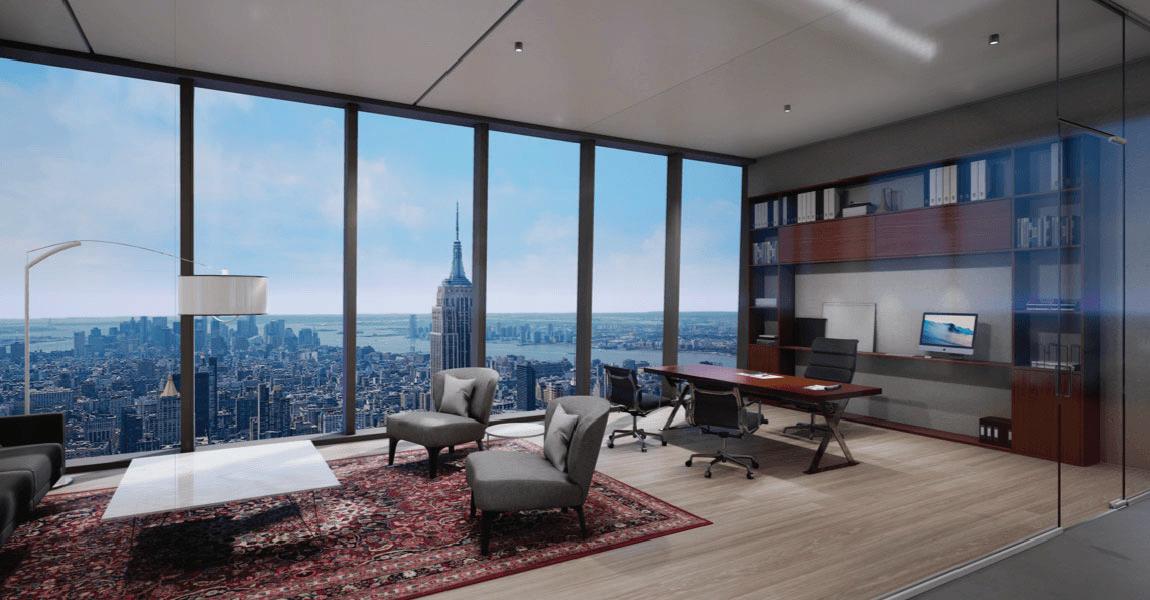

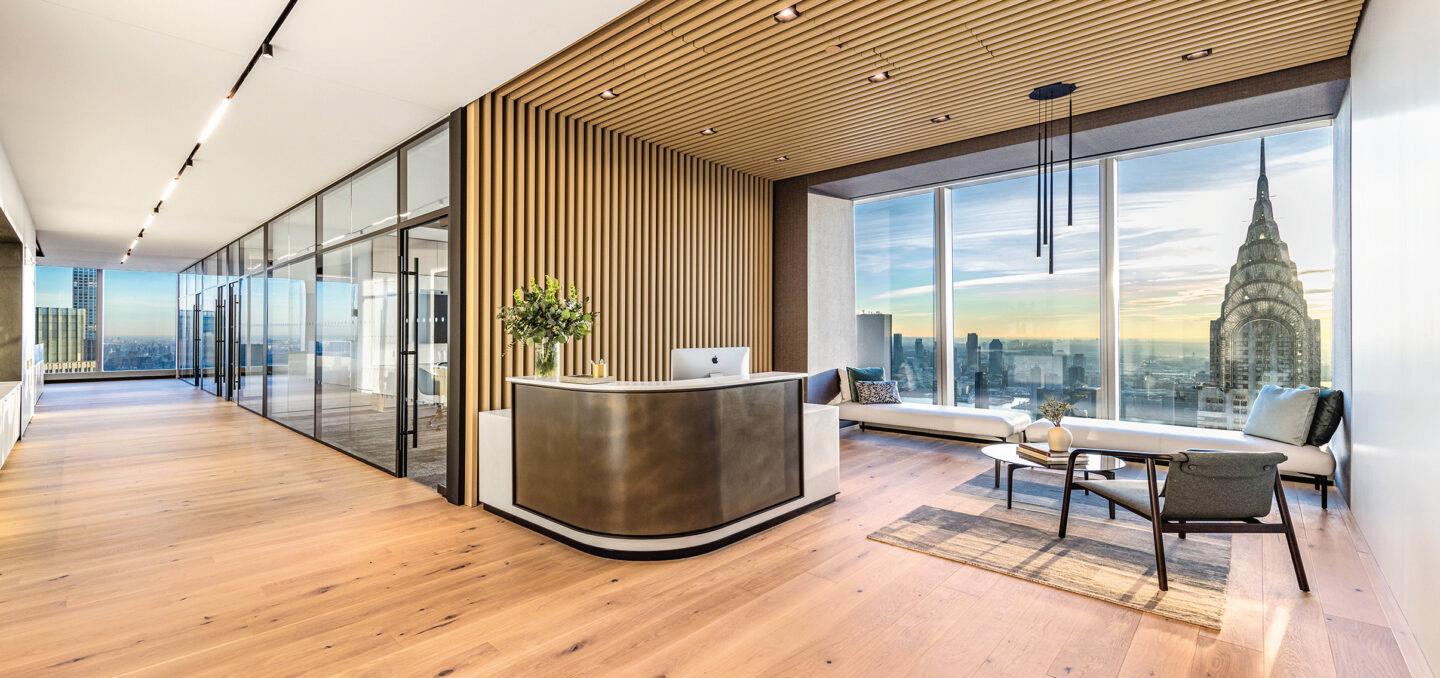

ESG Assessment Public Realm:

Light: Privately owned public space is an emerging trend in New York City that provides the general public access to a public space that is theraputic for the soul and adds beauty in to the city.

Triple-glazed large windows ensures adequate natural light for the office space but also reduces electricity consumption and reduce carbon emission.

It is important for the office building to intergrate itself with the public realm by providing a green space for the city.

Green space attracts people and animals, and acts as a gathering space during lunch break and weekends.

Neutral colors create a welcoming mood for employees and visitors.

This increases productivity and generates more positive energy.

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design

Finance

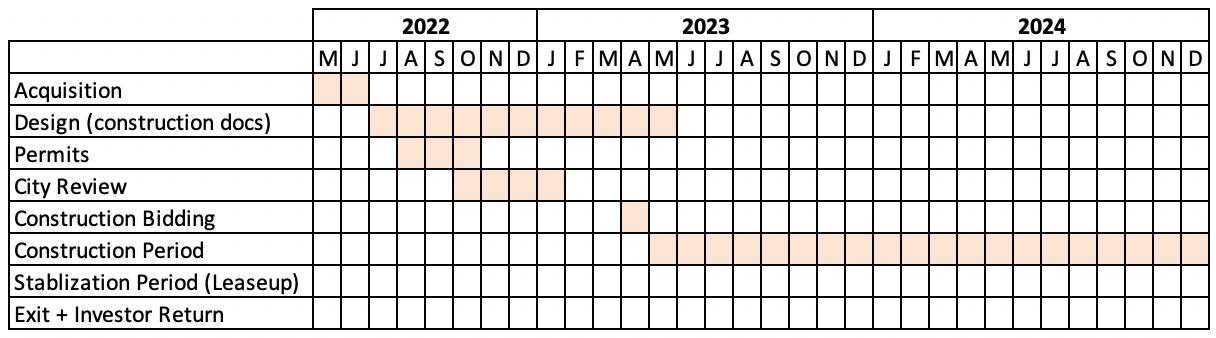

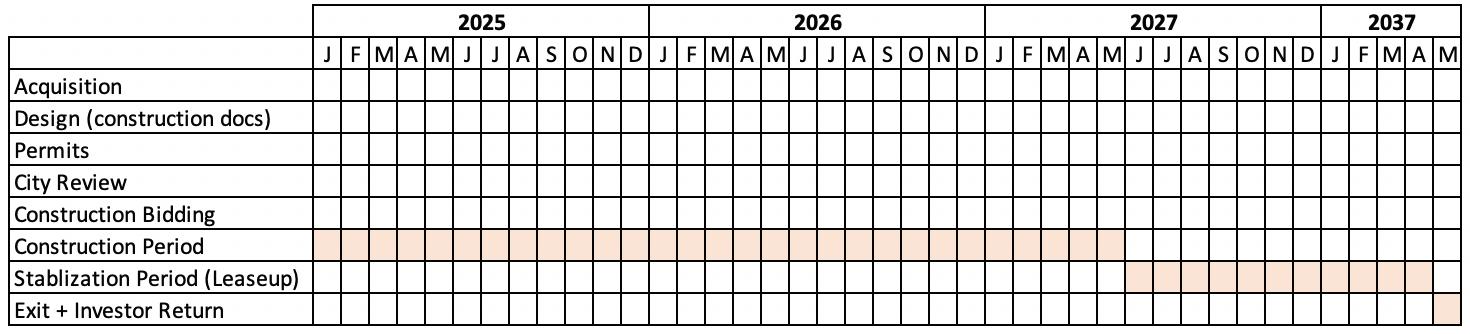

Project Schedule Year 0: Acquisition, permits, design, and paperwork Year 1-4: Construction & Lease Up Year 5-10: Stabilize Year 10: Exit

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design

Finance

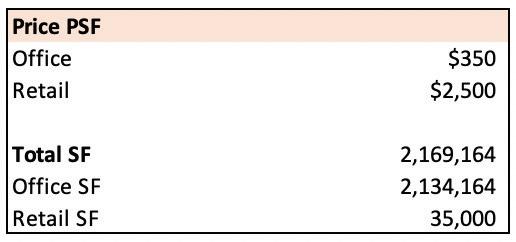

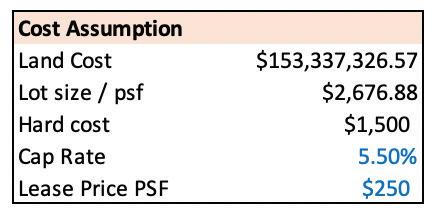

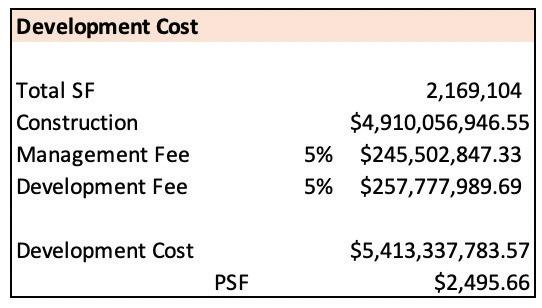

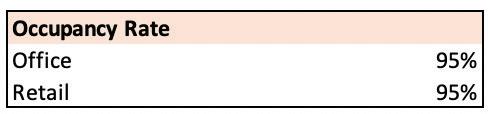

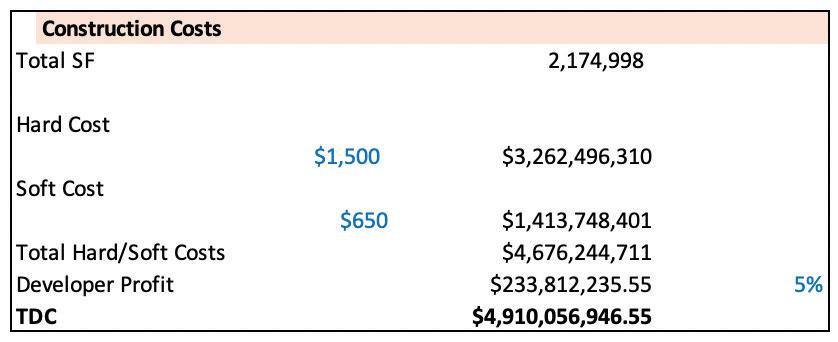

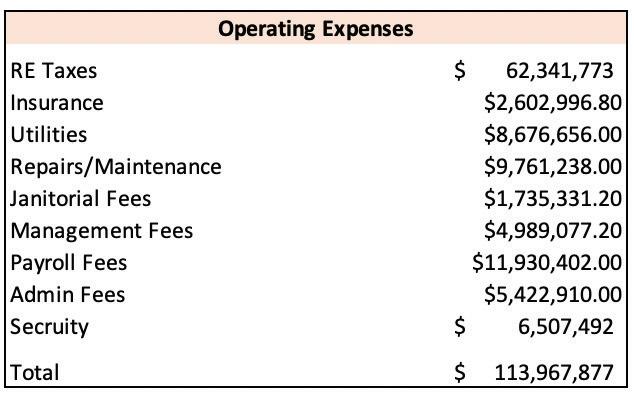

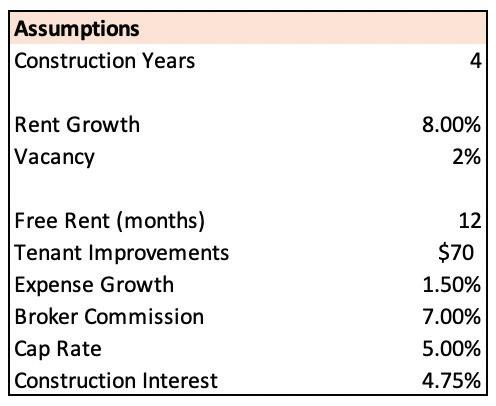

Financials Assumptions:

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design

Finance

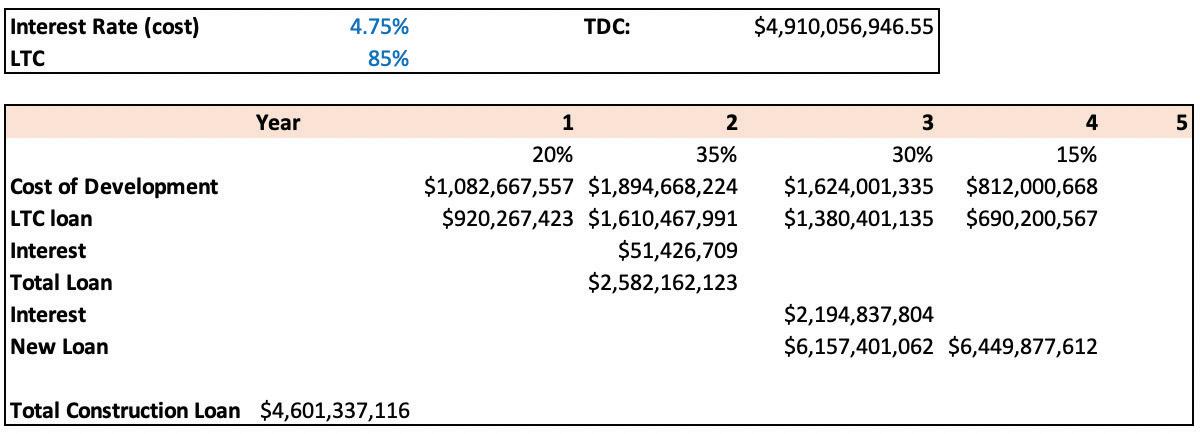

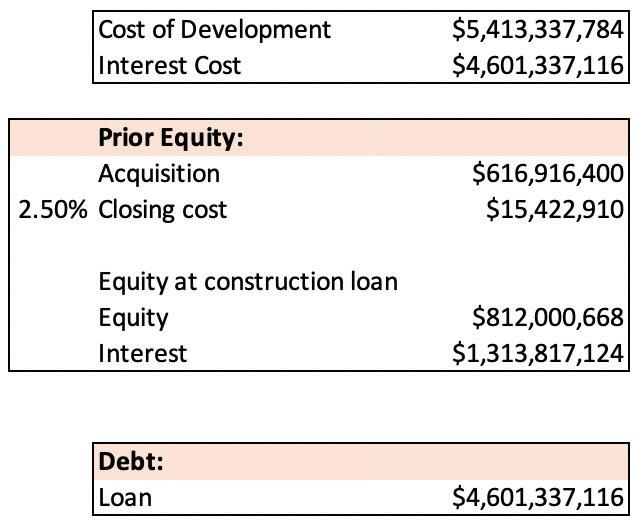

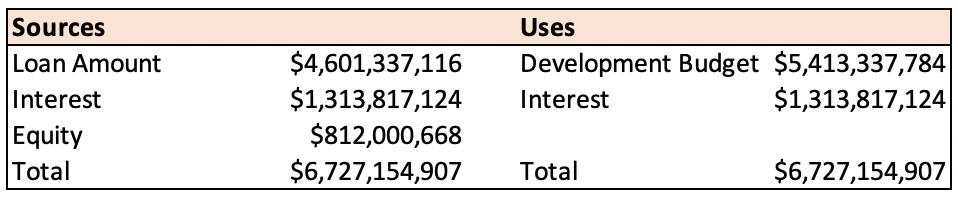

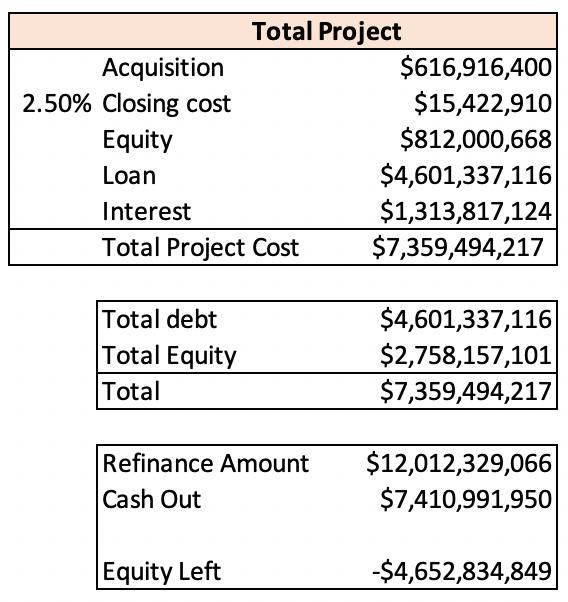

Financials Capital Structure:

Debt:

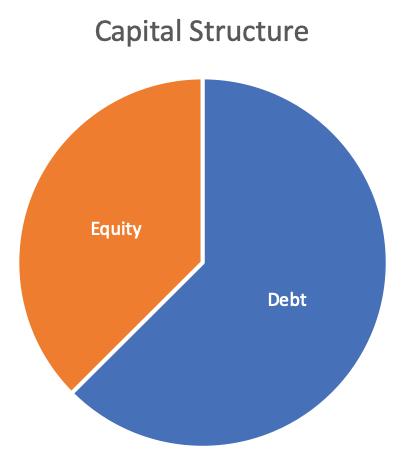

Equity: 37.5%, $2,758,157,101 Debt: 62.5%, $4,601,337,116

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design

Finance

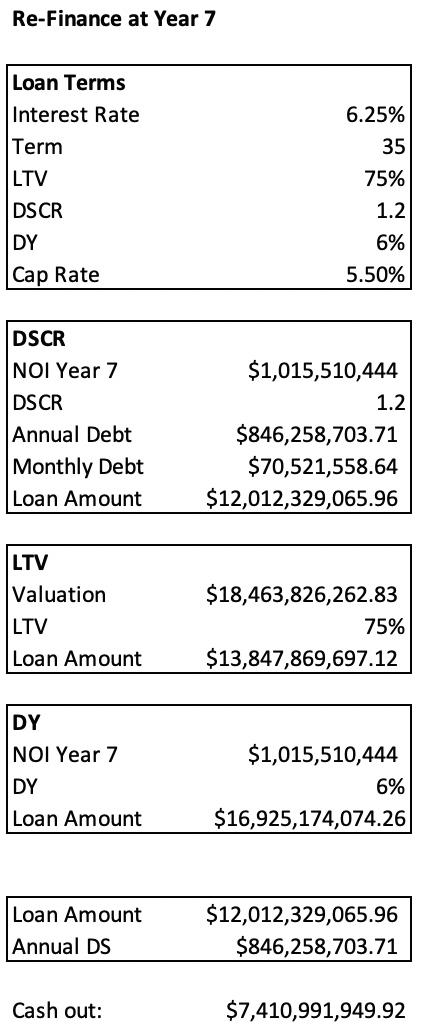

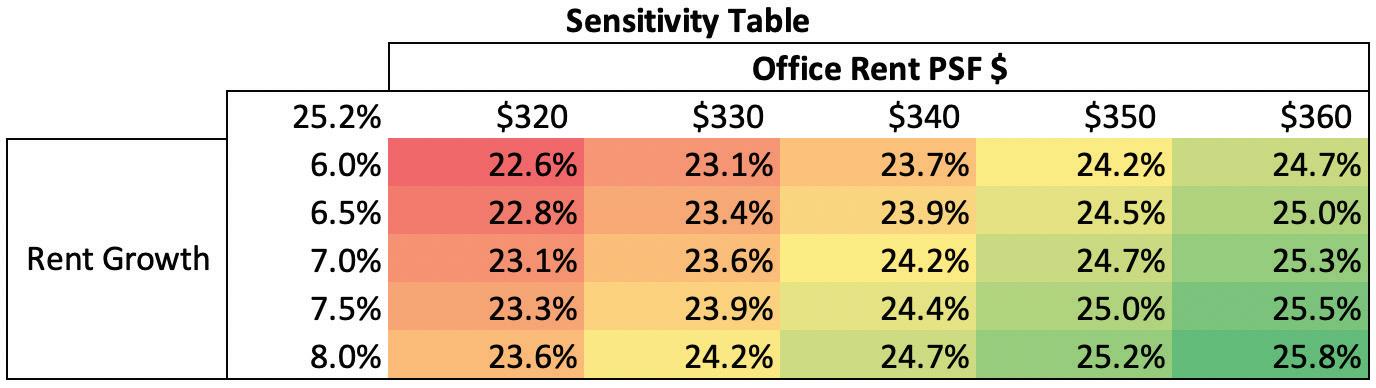

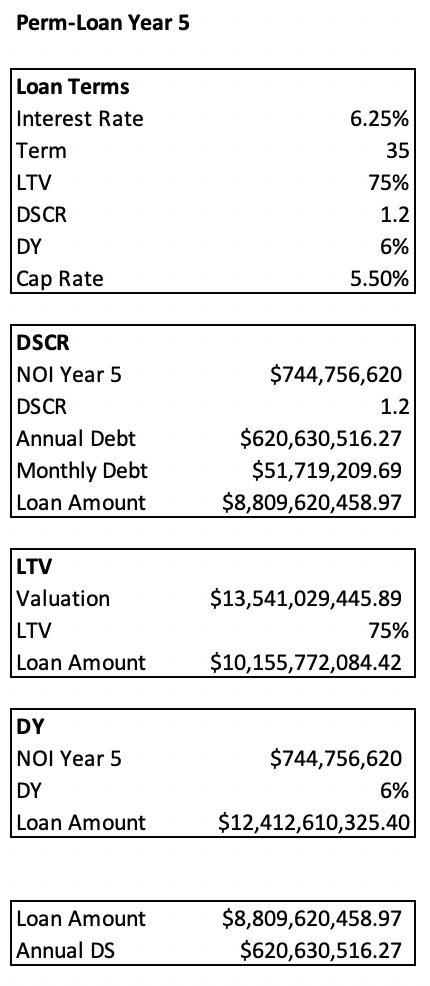

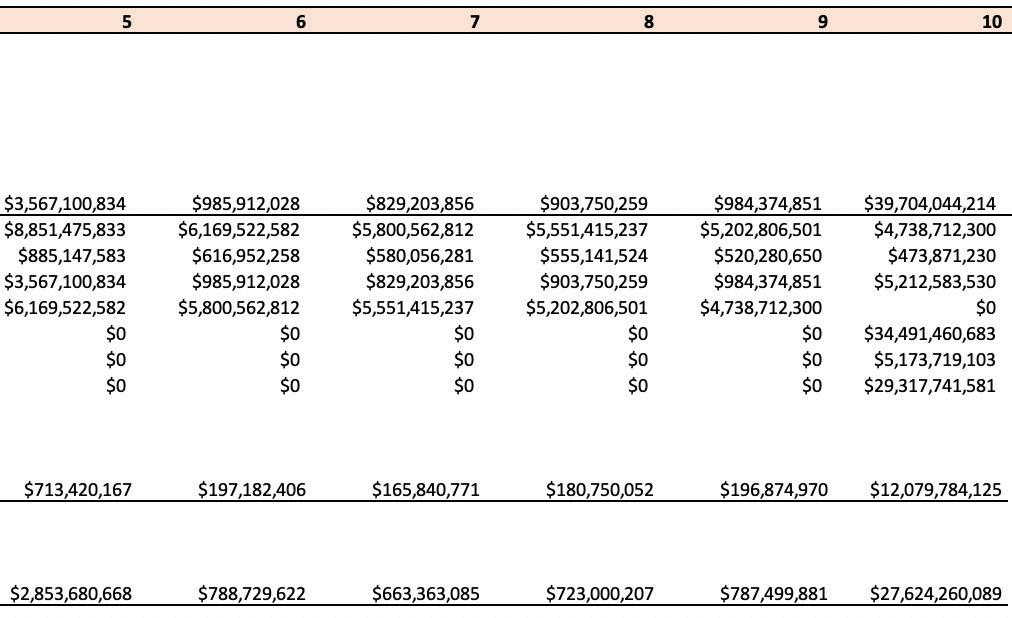

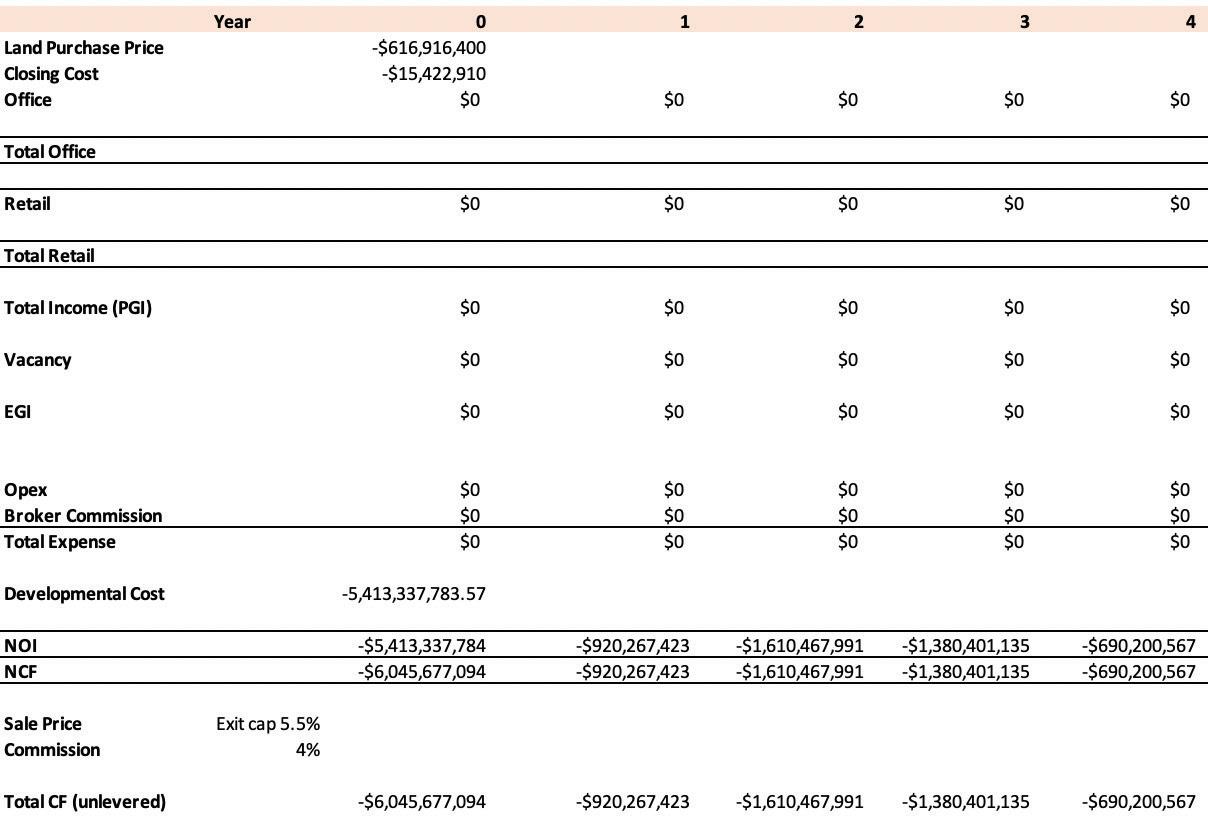

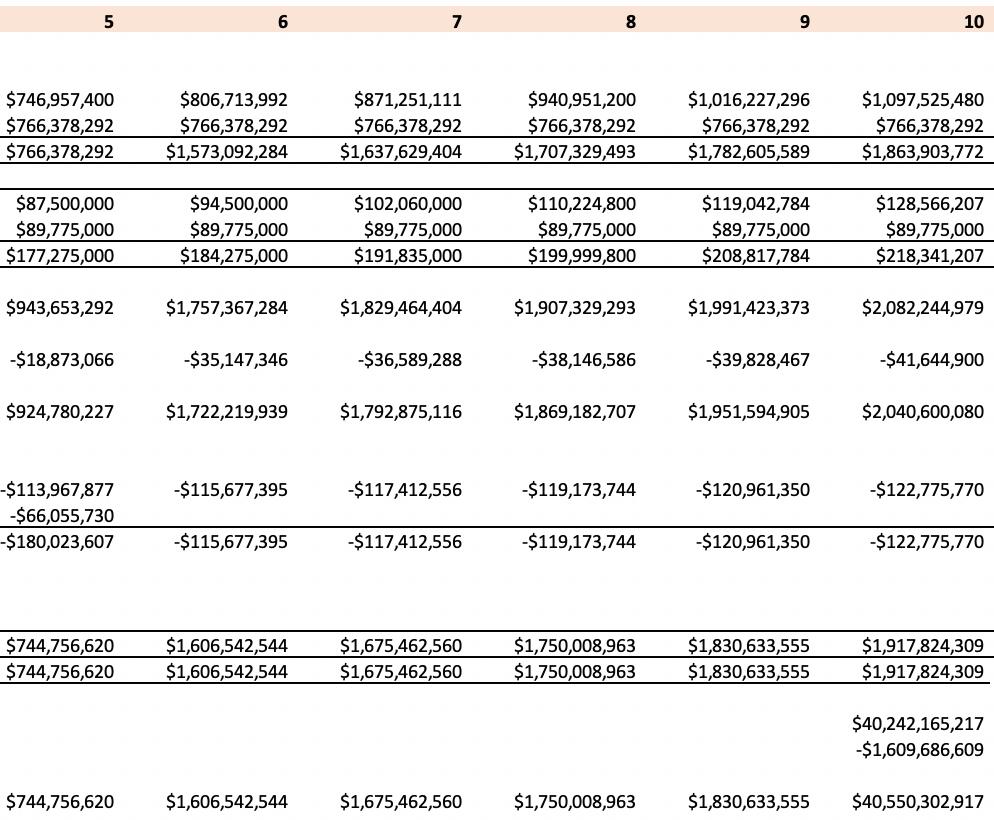

Financials DCF Proforma:

Jason S. Low 2023 Portfolio

UX/UI Design

Architectural Design

Finance

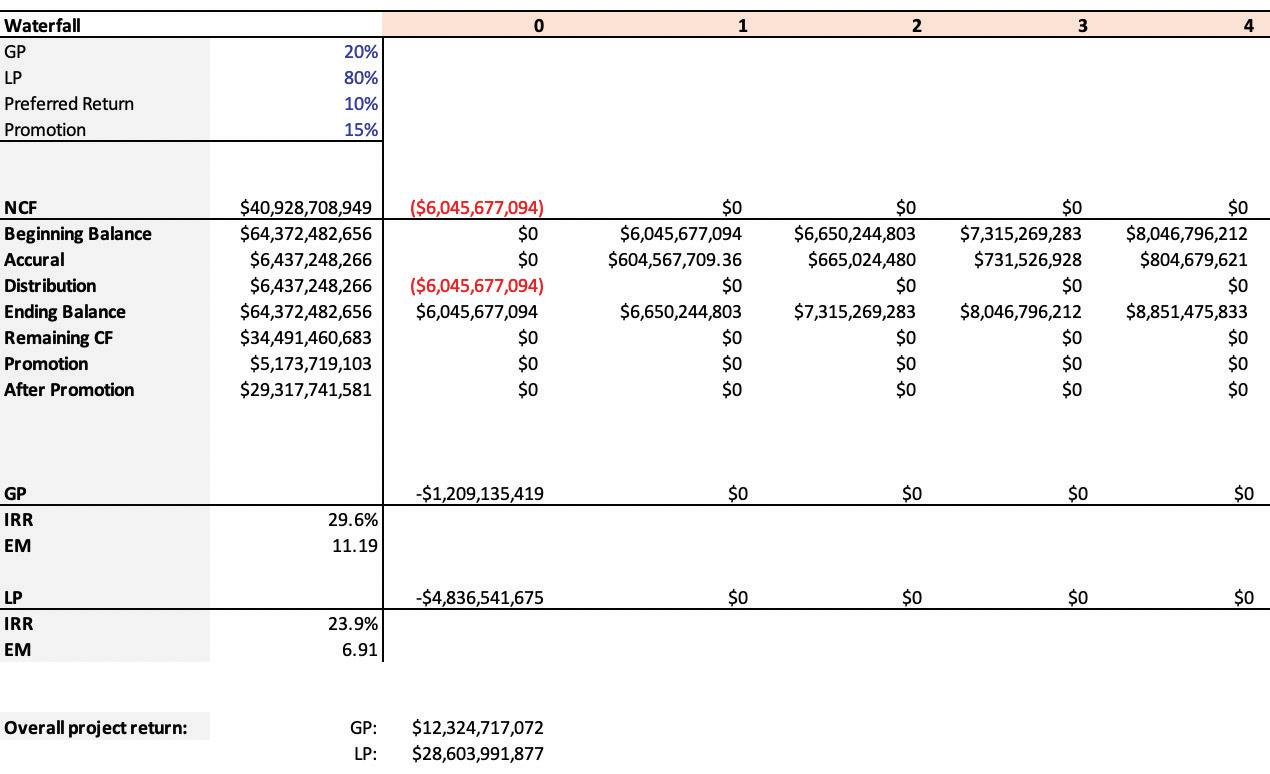

Financials Waterfall:

Jason S. Low 2023 Portfolio
