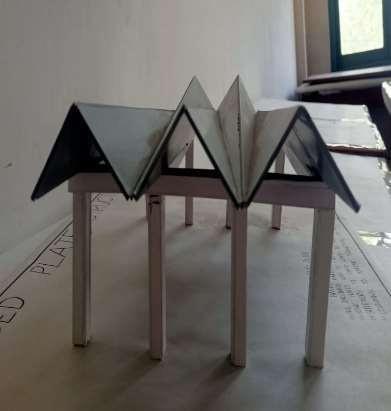

A highly enthusiastic and dedicated architectural student. I aim to create functional, aesthetic, sustainable and comfortable spaces for peoplewhich would eventually improve the quality of their life.
This means that the form of the building should be the primary
Consideration in the design.
Main aim is to make the structure
• Aesthatic
• Classical response
• Climate response
• Sensory delight

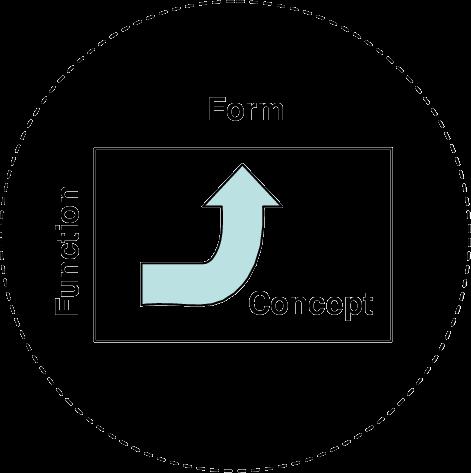

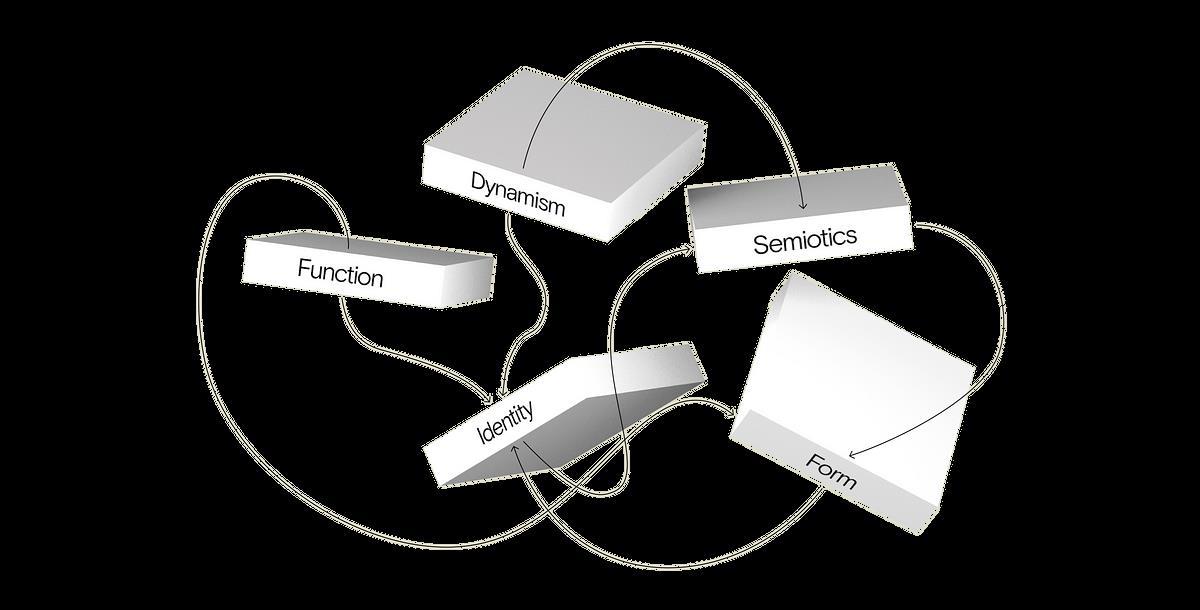

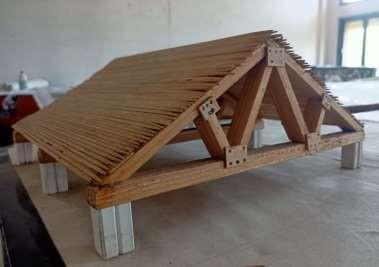

Form follows function is a PRINCIPLE of design associated with late 19th- and early 20th-century architecture and INDUSTRIAL DESIGN in general, which states that the appearance and structure of a building or object (architectural forms) should primarily relate to its intended function or purpose.

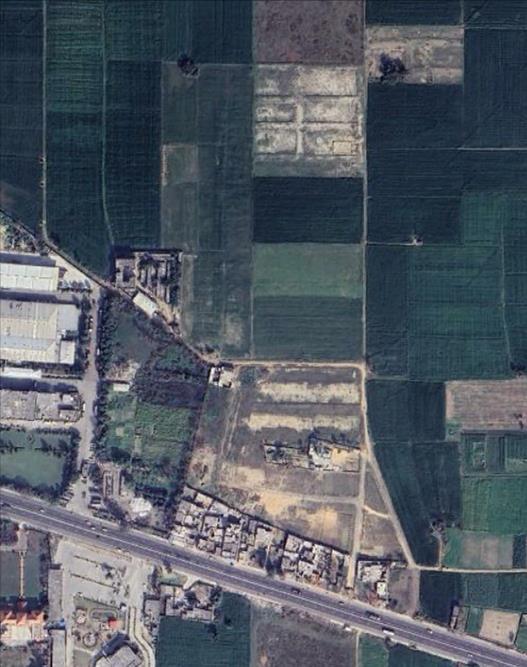

ABOUT THE SITE :-
TOTAL AREA - 13 ACRES (52609.1 SQM)
MAX. GROUND COVERAGE - 65% OF SITE AREA
(8.45 ACRES (34195.94))
FAR - UNLIMITED
SET BACK - 6M ALL SIDES
HEIGHT - NO RESTRICTION
GROUND COVERAGE - 34% OF SITE AREA
4.40 ACRES (17806.2 SQM)
BUILT UP AREA - 6.20 ACRES (25090.5 SQM)
MAX. HEIGHT - 18M

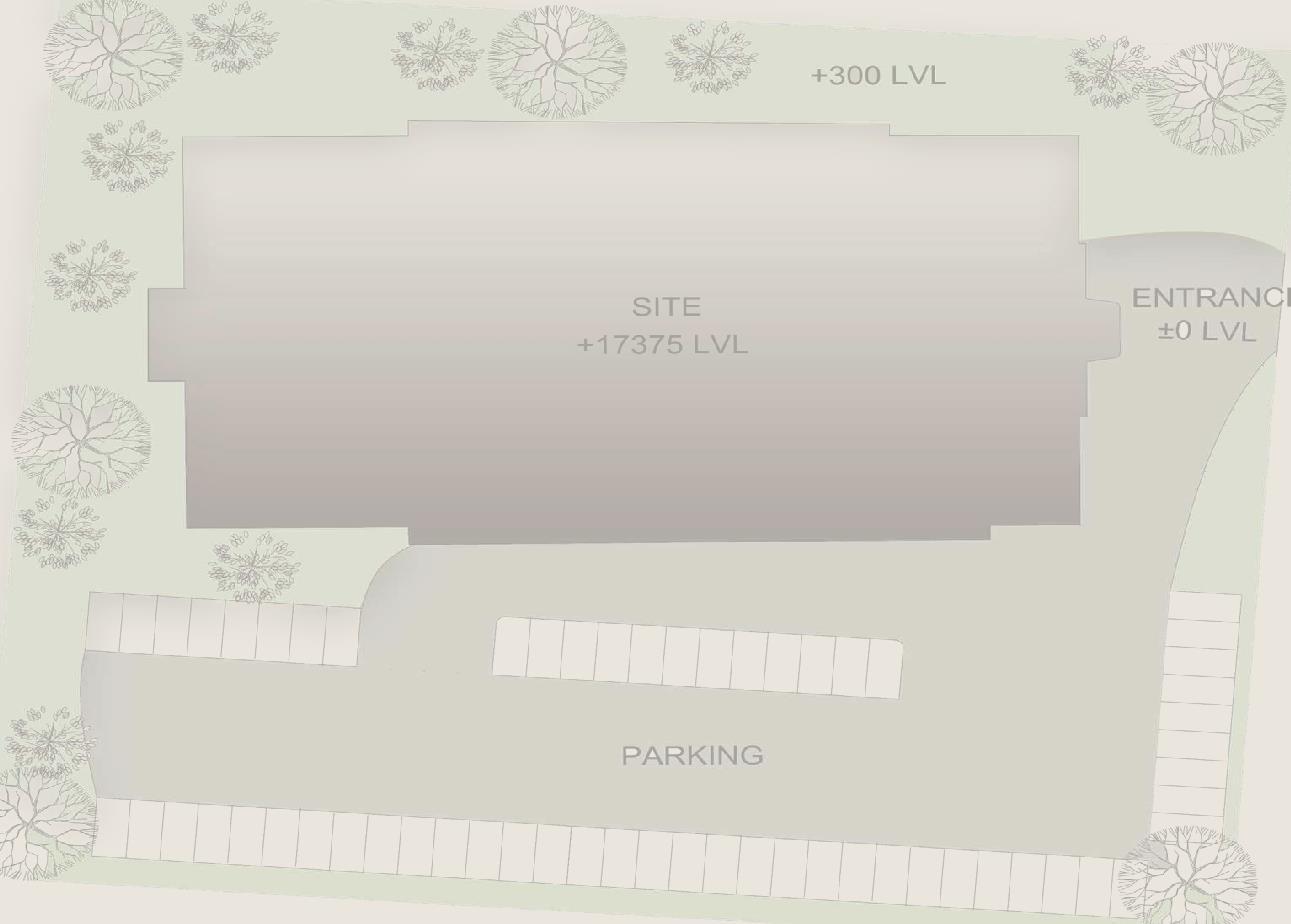

SURFACE PARKING
TWO WHEELERS - 56
FOUR WHEELERS - 26
TRUCK PARKING - 6

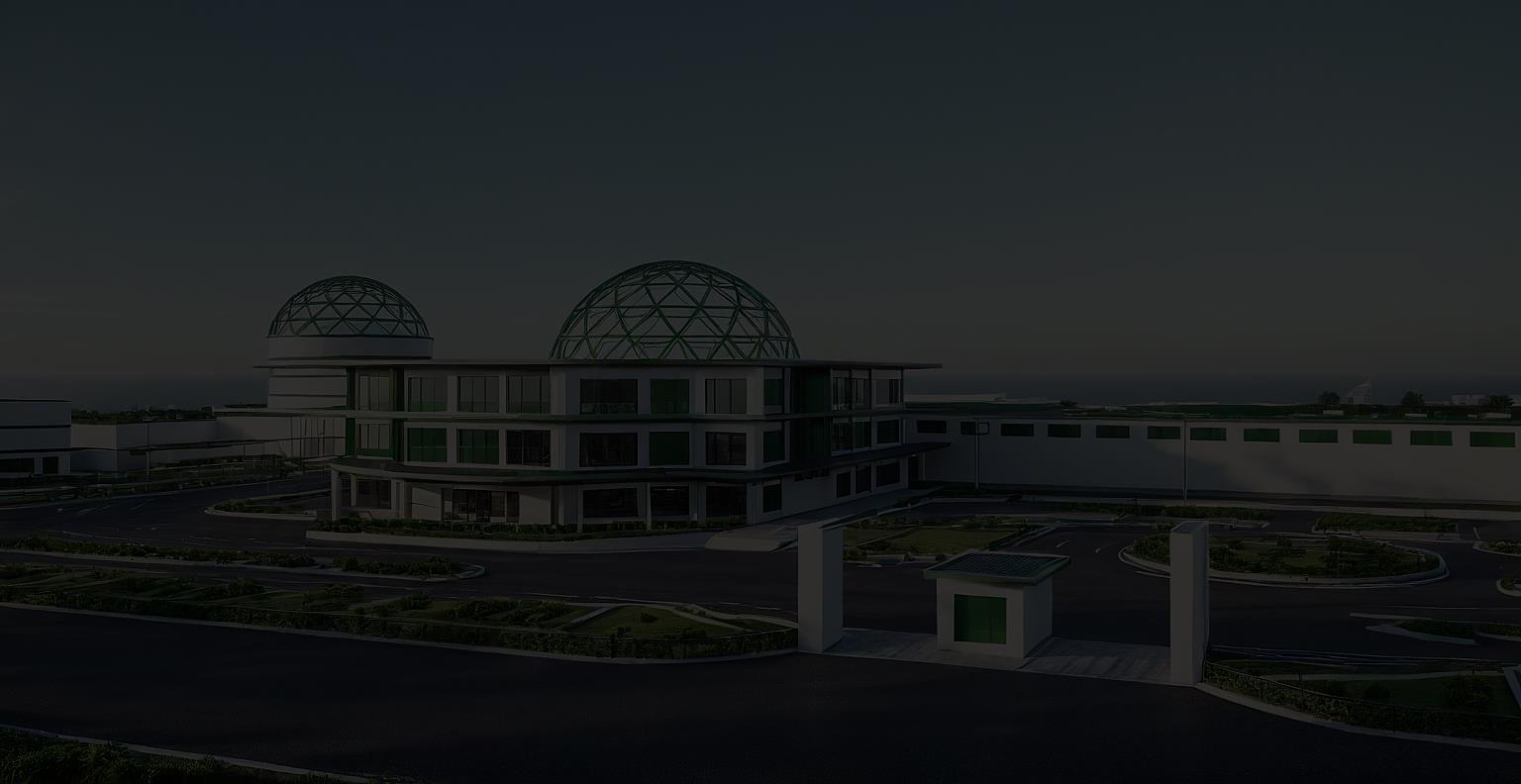

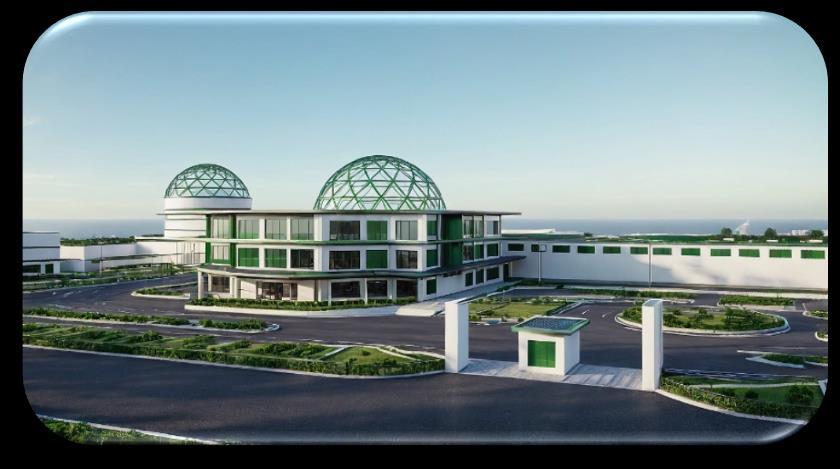

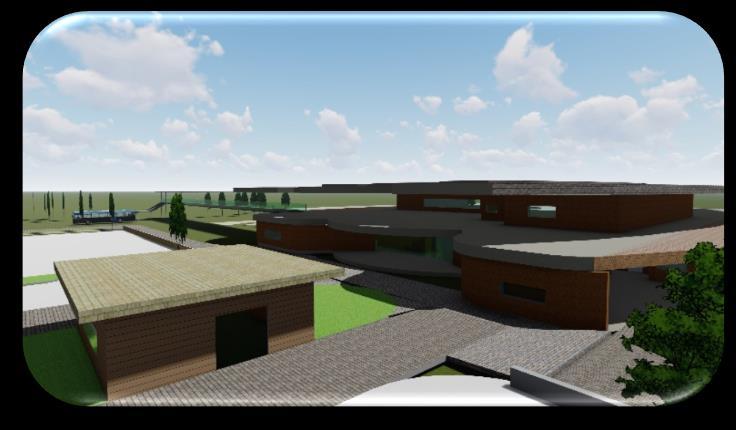

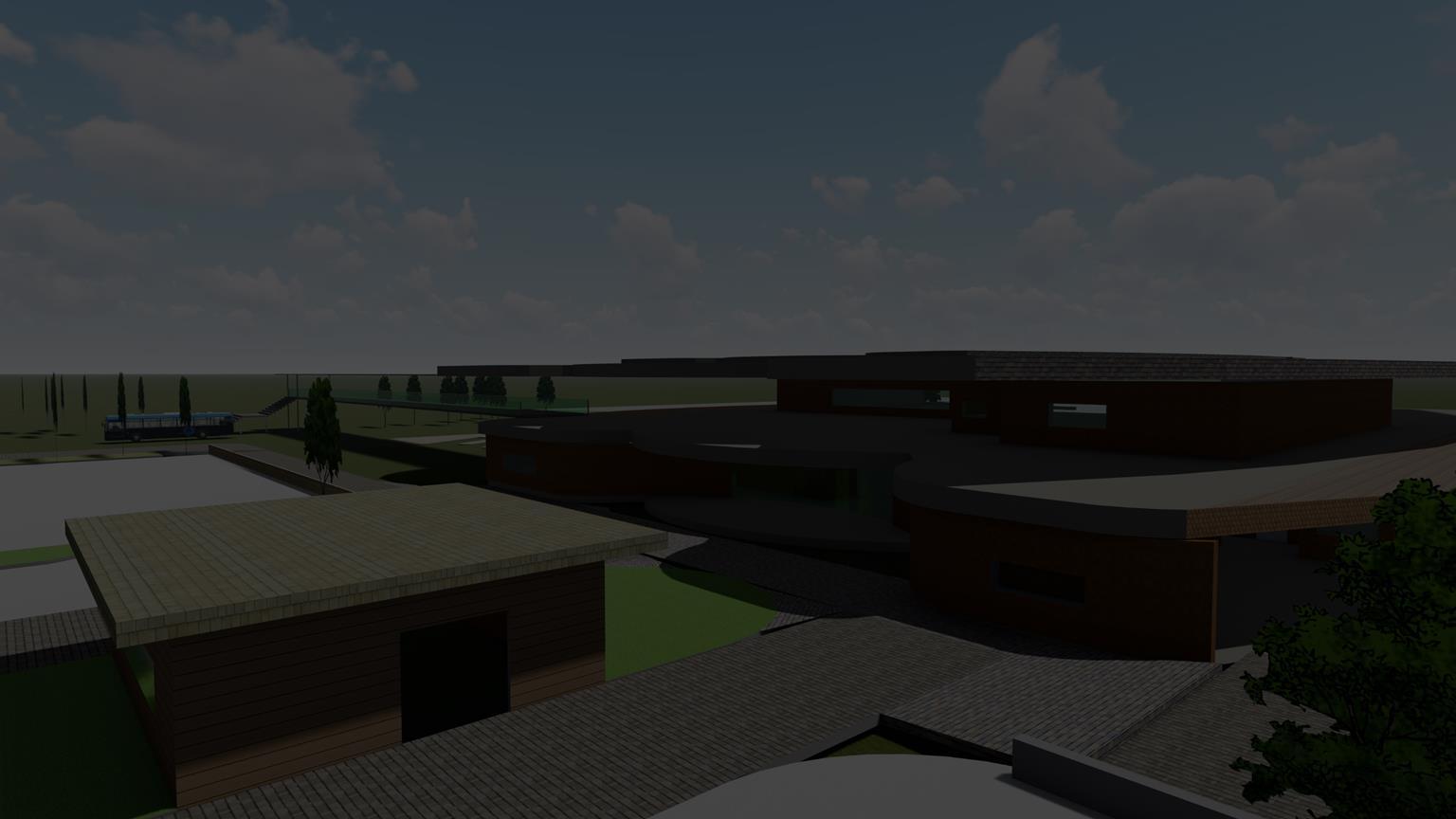

FMCG – FAST MOVING CONSUMER GOODS ➢ A PROCESSING UNIT
DESIGN FEATURES :-
• PROCESSING UNIT
• CLUB HOUSE
• YOGA HALL
• DORMITORIES
(LABOUR, EMPLOYEES)
• FUEL STATION
• WASTE MANAGEMENT
NORTH
• LABS
• OFFICES

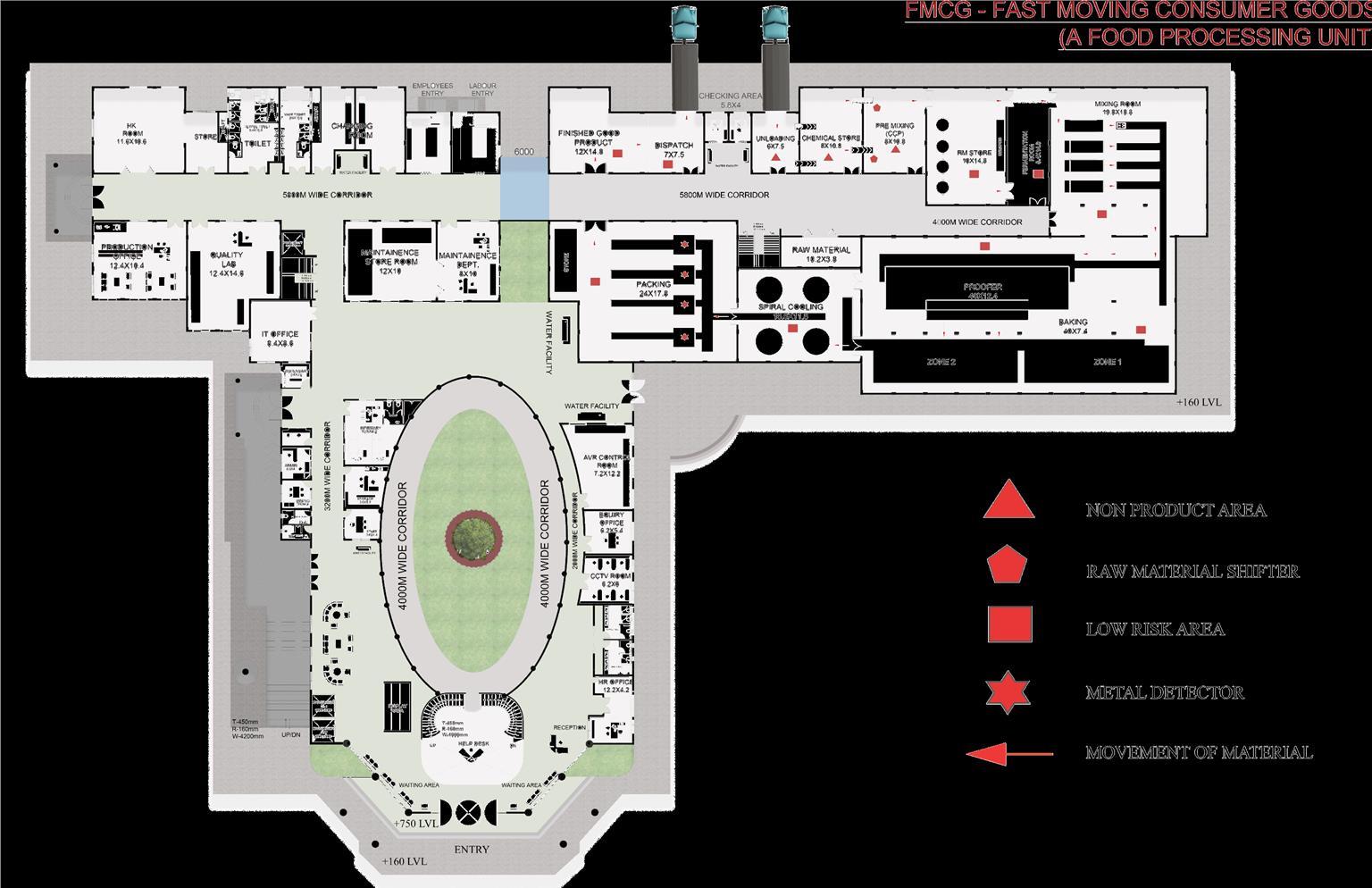

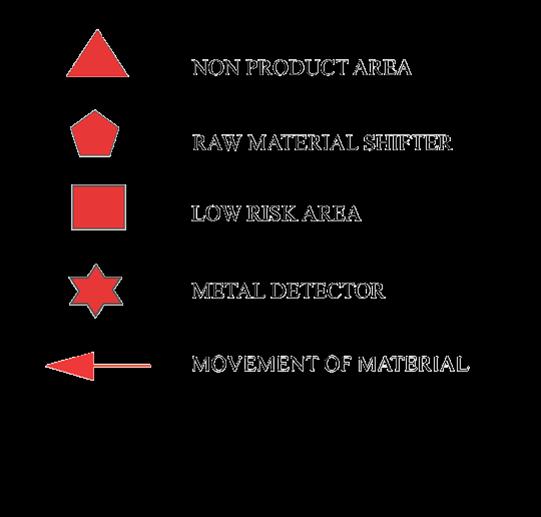

FLOOR PLAN
• HR
• INFIRMARY
PROCESSING UNIT

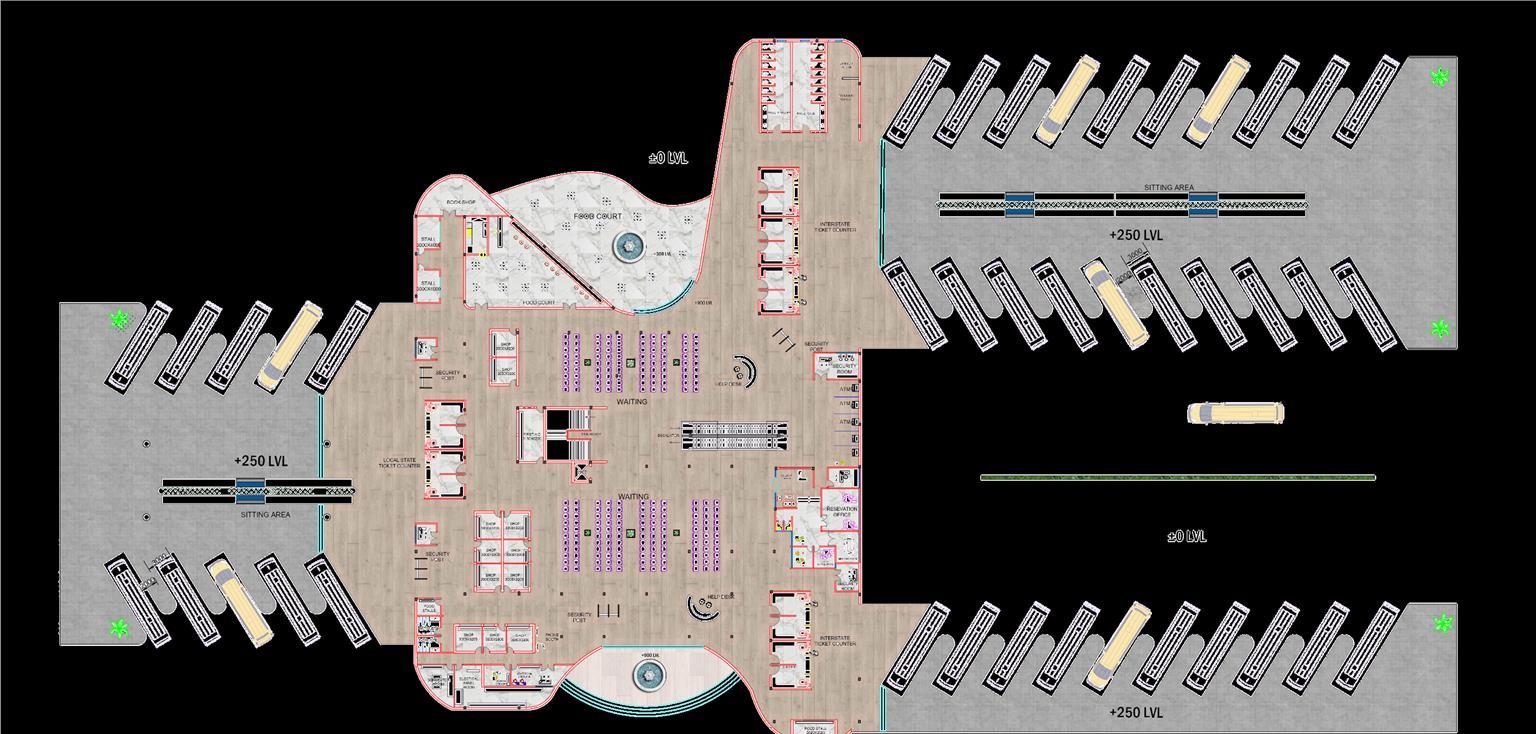

ISBT
INTER STATE BUS TERMINAL
ISBT is a bus terminus that provides bus service to destinations located in other states. An ISBT may also provide bus services to destinations in the same state.
• 40 bays with a segregation for Long distance and short distance/local buses.
• Bus Circulation Area
• Two stories height.
• To make a congestion free space; bus bays for local and interstate buses are segregated.

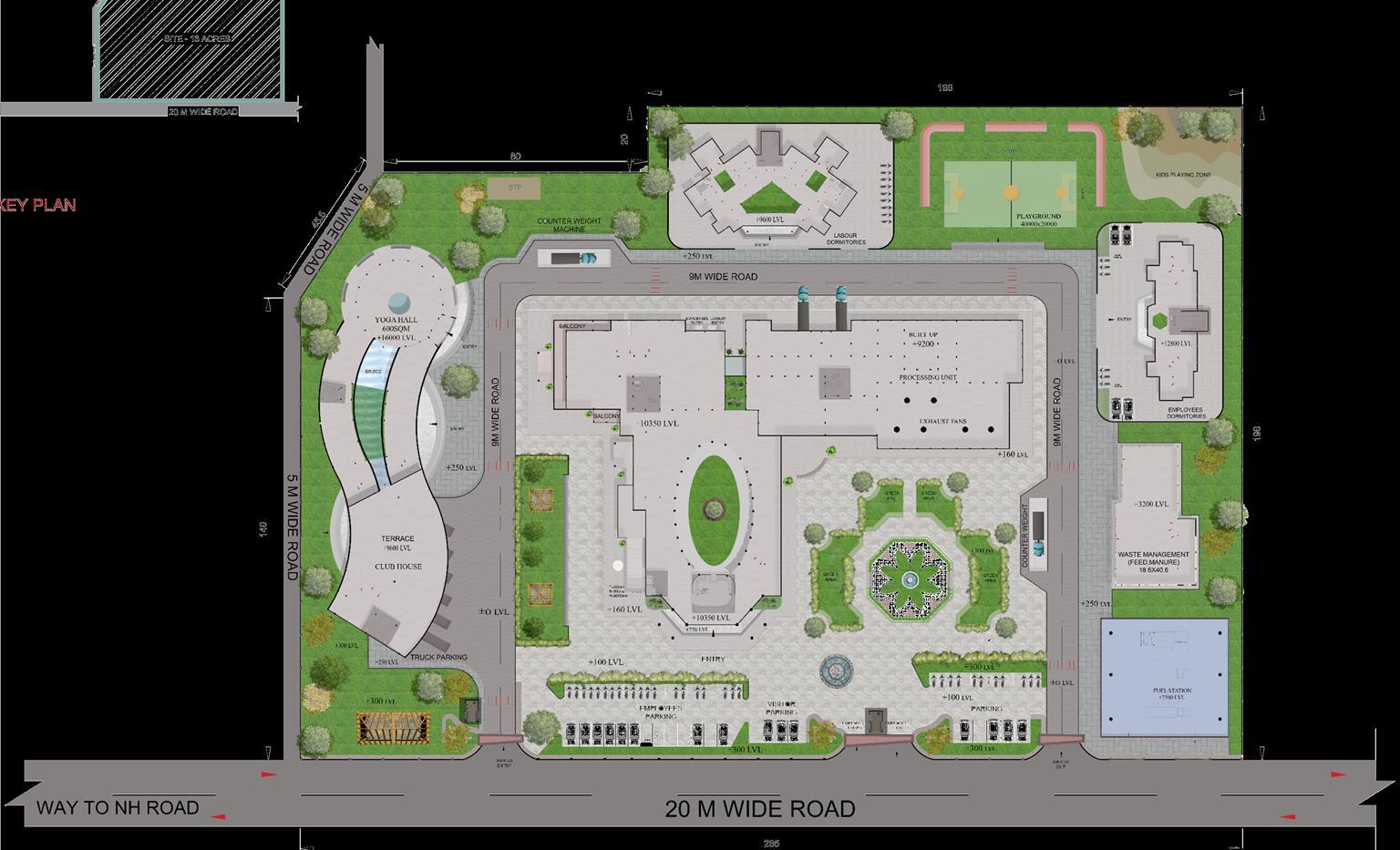

SITE PLAN
SITE SECTION

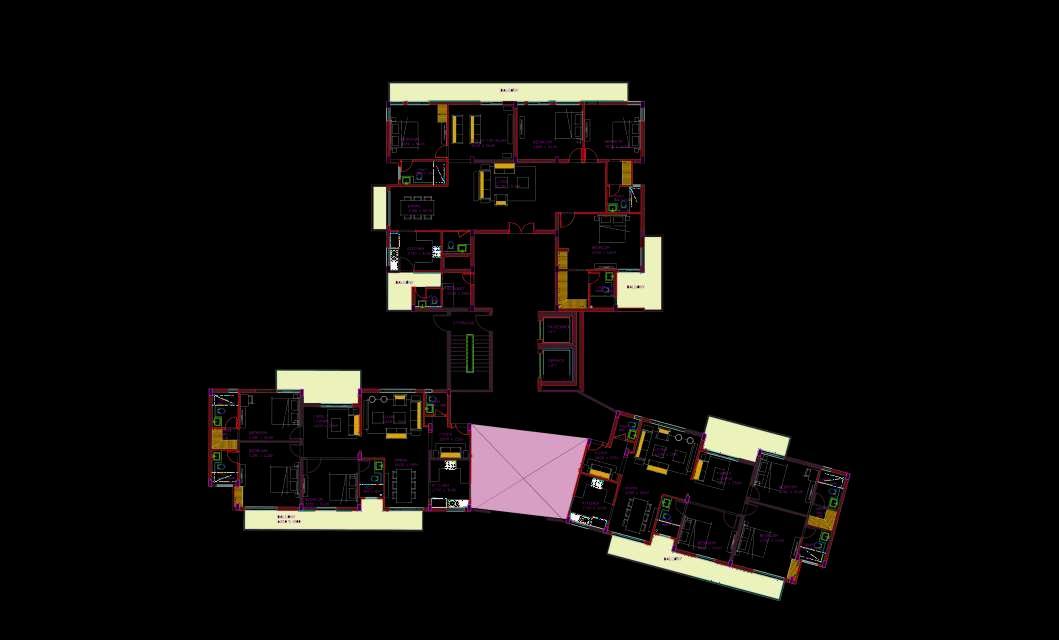

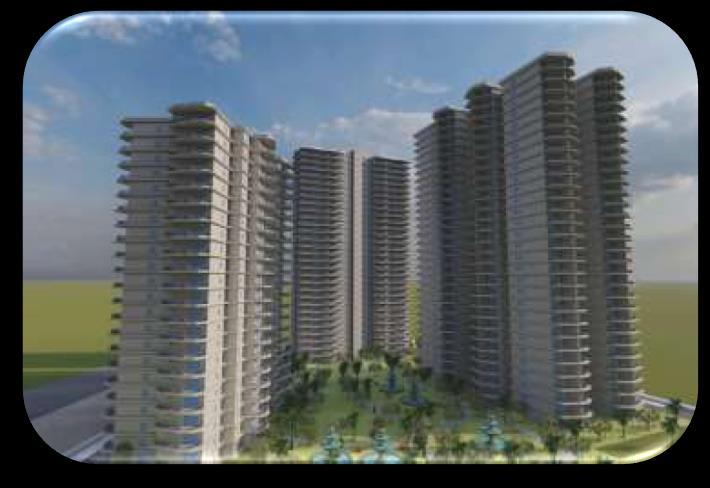

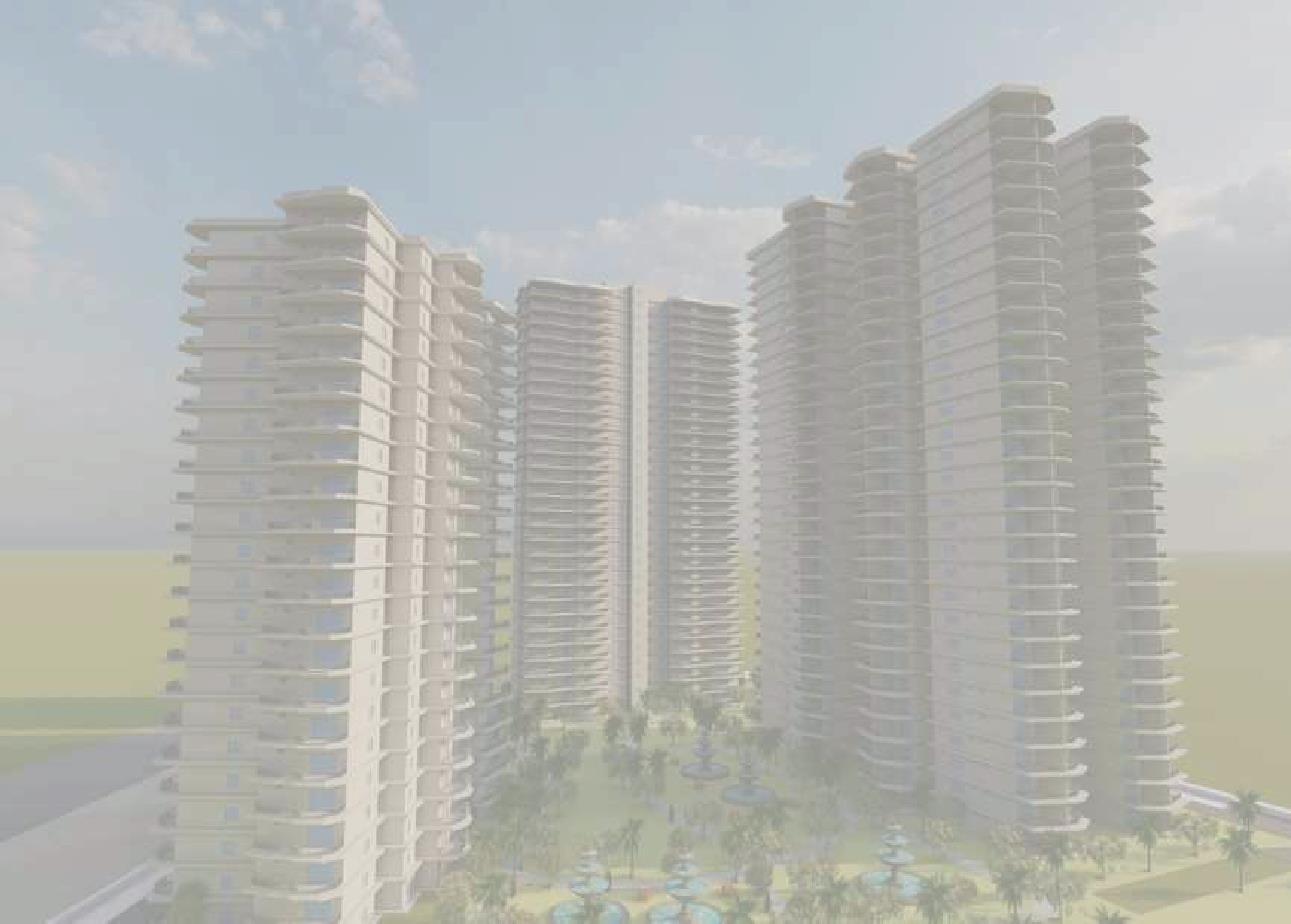

GROUP HOUSING
Group Housing means the development of building having 5 or more multiple dwelling units and common services on a given site or plot in a single or multiple blocks without customary subdivision of land by way of individual plots.
HOUSING MEANS MORE THAN TWO BUILDINGS ON A PLOT WITH ONE OR MORE FLOORS AND WITH ONE OR MORE DWELLING UNITS IN EACH FLOOR BUILDINGS , SUPPORTING THE PHYSICAL AND SOCILAL DIFFERENCES OF ITS INHABITANTS. EACH TYPES OF BUILDING REFLECTS THE PHYSICAL CONDITIONS OF ITS OCCUPTANTS , LOW INCOME HOUSING UNITS , MIDDLE INCOME HOUSING UNITS , HIGH INCOME HOUSING UNITS.
• BY TAKING IN MIND THESE UNITS , 3 BLOCKS ARE USED WHILE PLANNING .
• THESE BLOCKS ARE INTERCONNECTED TO EACH OTHER.
• THERE IS HEIGHT DIFFERENCE THAT IS DEPICTING THE THREE GENRATIONS – CHILD , YOUTH , SENIOR.
• THE BUILDING IS PLACED ON HIGH PODIUM.

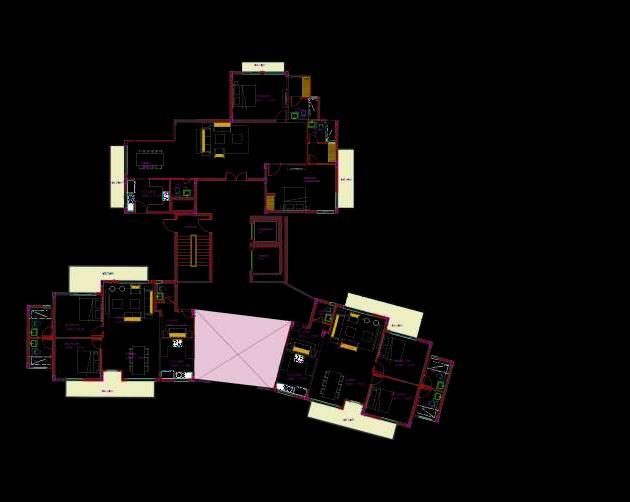

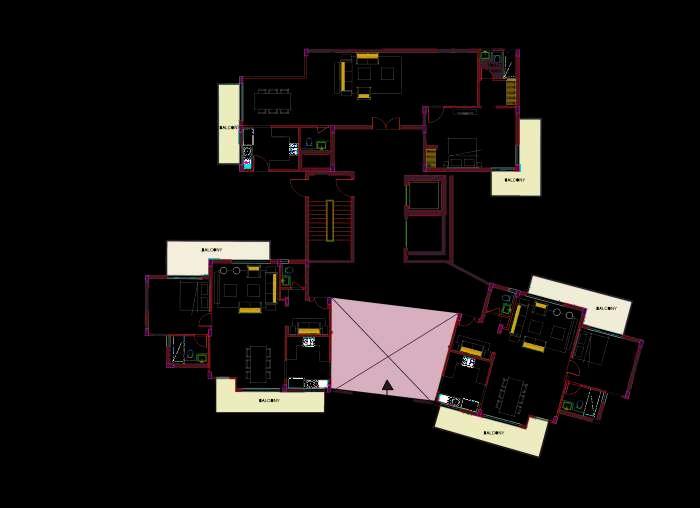

2 BHK

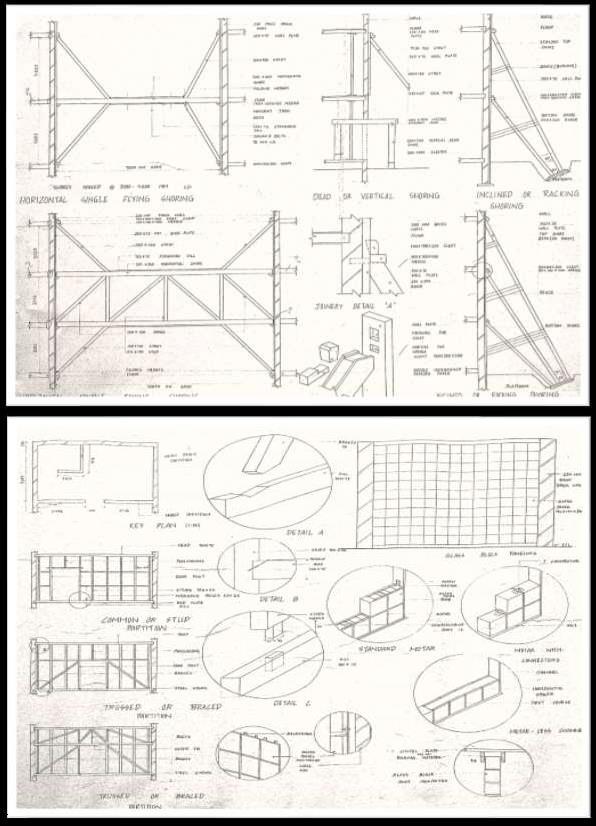

DOCUMENTATION

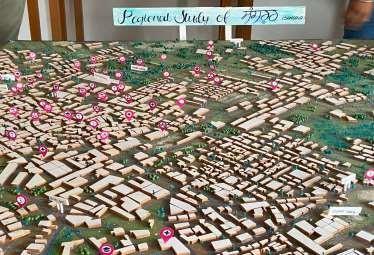

STUDY OF SANGRUR VILLAGE, PUNJAB

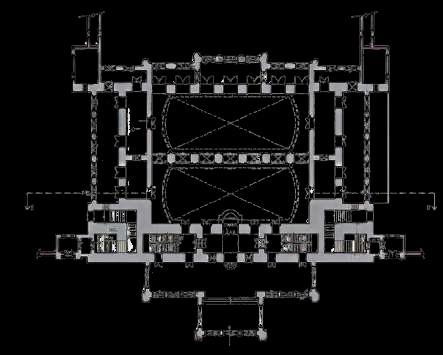

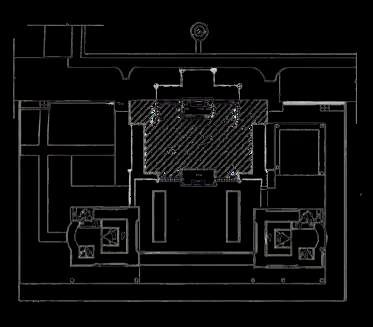

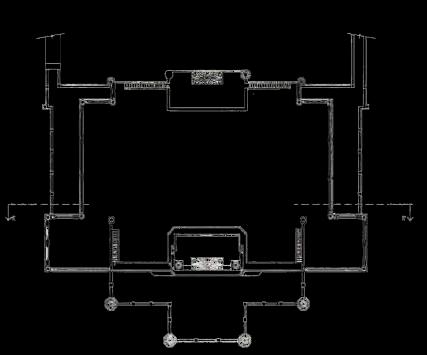

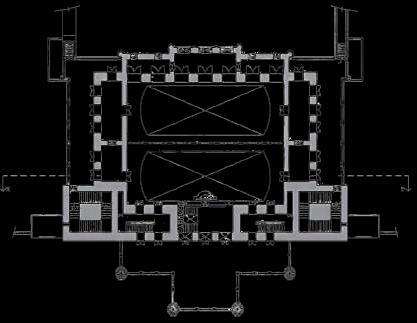

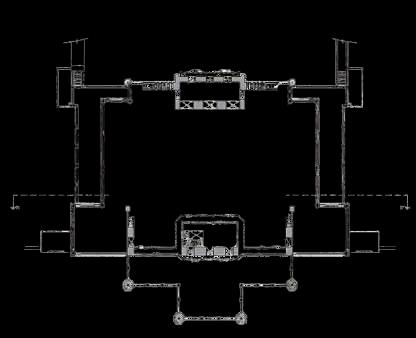

PLANS

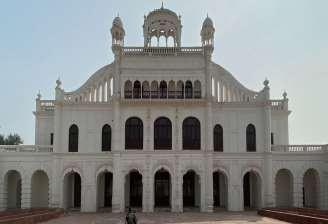

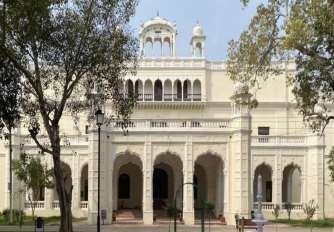

Diwan-e-Khaas IS LOCATED IN SANGRUR WITHIN BARADARI GARDEN. IT IS IN THE MIDDLE OF THE PALACES AND IS SURROUNDED BY THE LAL BAGH AND BANASAR BAGH.
FUNCTIONS
• DIWAN KHA RAJA OF JIND TO HOLD
• PR OFF SEN E ICIAL TL AN THE , Y D PER UILDIN B SONAL G MEETI B S HA N EEN GS. TURNED INTO A MUSEUM THAT DISPLAYS WEAPONS AND SEVERAL OTHER ARTICLES OF PRINCELY TIMES LIKE, ARTWORKS, MANUSCRIPTS AND IVORY WAS USED BY IDOLS.
• IN THE CENTRE OF DIWAN KHANA, THERE IS A LARGE SPACIOUS HALL CONTAINING A MASNAD, A SEAT RAISED 6 FEET ABOVE THE FLOOR.
• THE ROOF OF THIS BUILDING IS DECORATED IN GOLD COLOUR.
• THE MOST ATTRACTIVE FEATURE OF THIS BUILDING IS ITS CARVED MARBLE SLABS.
ELEVATIONS

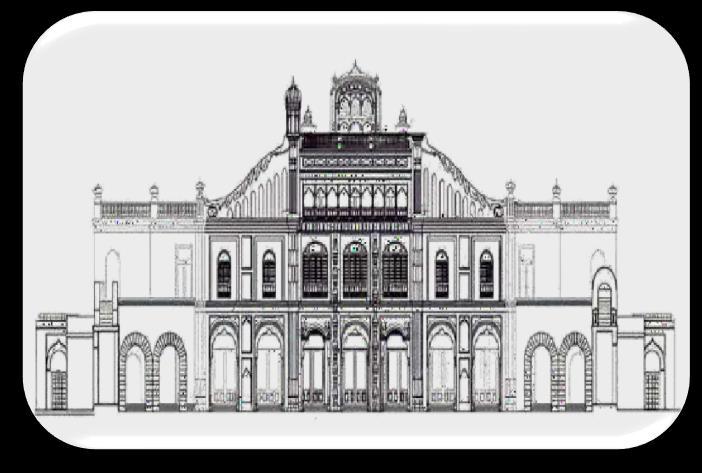

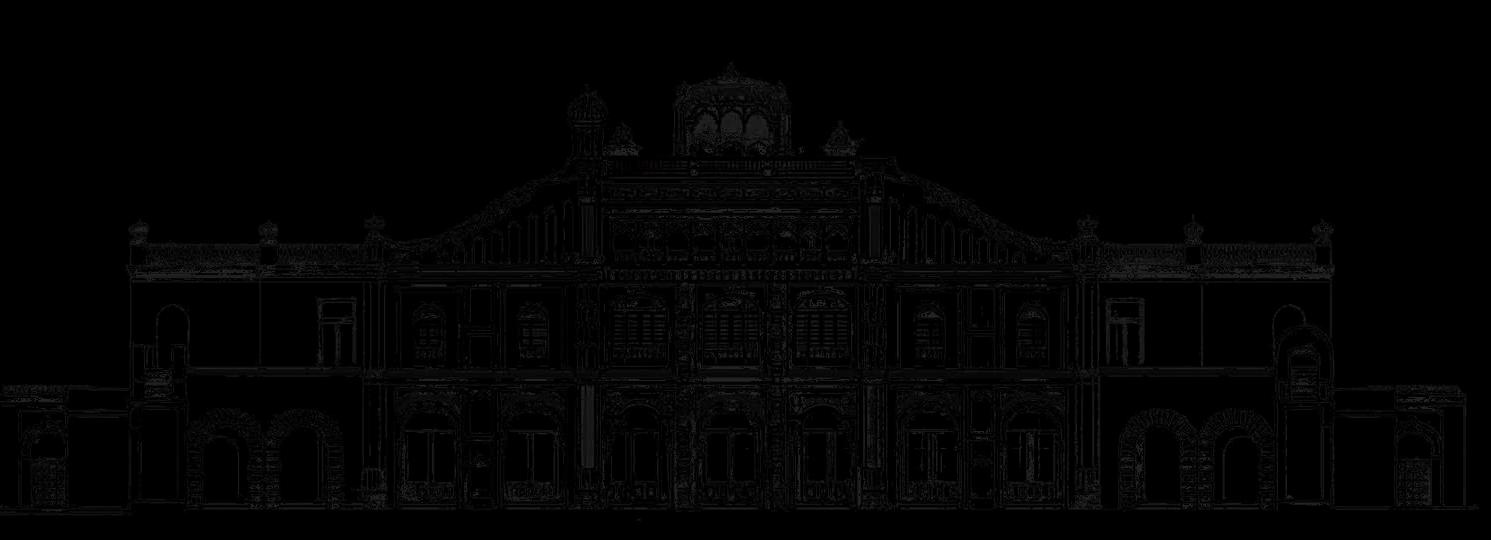

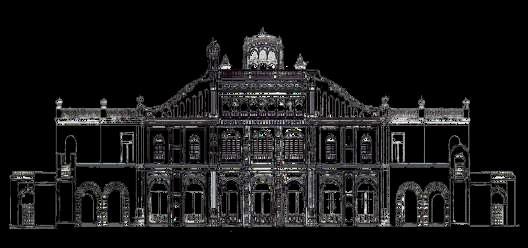

FRONT ELEVATION

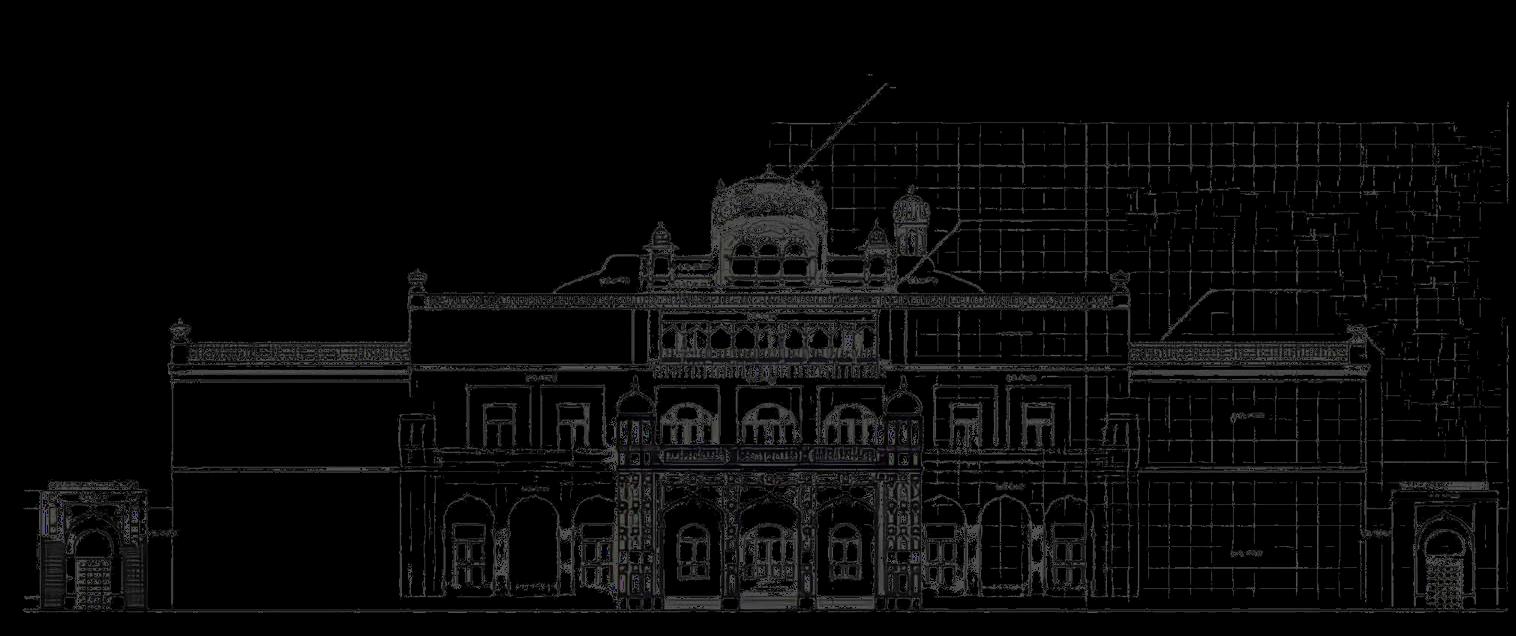

REAR ELEVATION
FRONT ELEVATION

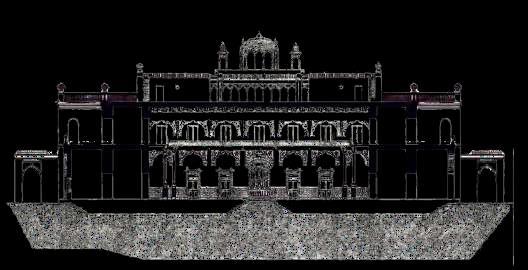

REAR ELEVATION
FORM
• THE ARCHITECTURE STYLE OF DIWAN KHANA IS A COMBINATION OF JAIPUR (RAJPUT STYLE) AND BRITISH COLONIAL STYLE ARCHITECTURE.
• A LOT OF KIOSKS AND ARCHES OF DIFFERENT STYLE COULD BE SEEN, HENCE MAKING THEM A CHARACTERISTIC FEATURE OF THE BUILDING.
ARCHITECTURAL EXPRESSIONS
1.Pattern
A REGULAR ARRANGEMENT OF PATTERNS IS SEEN ON THE PARAPETS LOCATED ON DIFFERENT LEVELS. REPETITIVE MOTIFS AND PATTERNS ARE NOTICED ON THE PLASTERED WALL.
2.BALANCE
THE ELEMENTS OF DESIGN ARE ARRANGED IN A SYMMETRICAL MANNER TO CREATE THE IMPRESSION OF EQUALITY IN WEIGHT AND IMPORTANCE.
3.HARMONY
ARRANGEMENT OF DESIGN ELEMENTS IN THE PREVAILING STRUCTURE GIVE THE VIEWER THE FEELING THAT ALL THE PARTS OF THE PIECE FORM A COHERENT WHOLE.
4.RHYTHM
SO AS TO DIRECT THE EYE TO FOCAL AREA.RECURRING ELEMENTS ARE NOTICED THAT ARE ORGANIZED IN A CERTAIN MANNER.

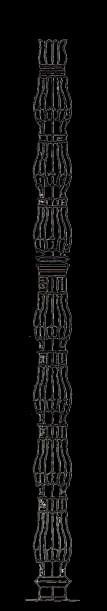

DETAILS
CEILING DESIGN
DETAIL OF INTERIOR DECORATION ABOVE OPENING

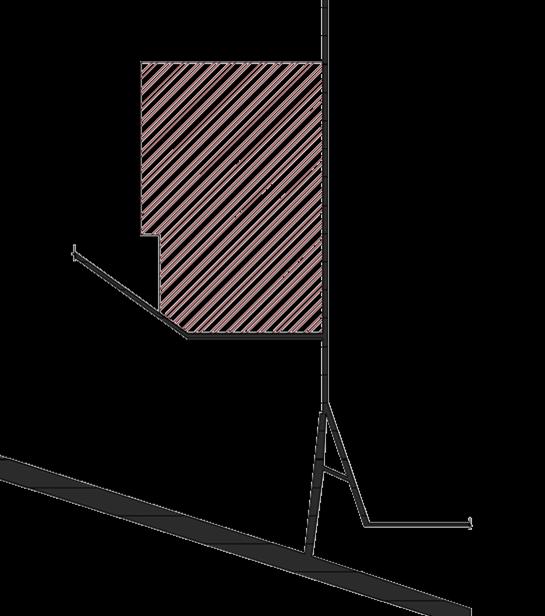

AT PARAPET
KIOK AT ROOF LEVEL

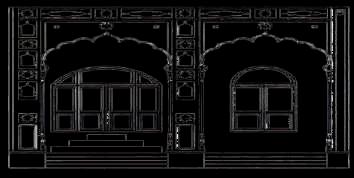

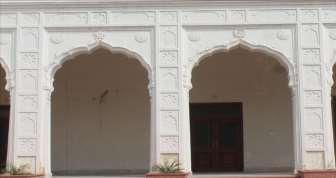

SEGMENTAL ARCH OPENING ARCHED OPENING

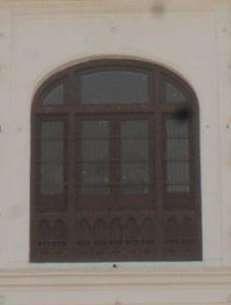

DETAIL OF DOOR
FOLIATED ARCH OPENING
PROJECTING BALCONY

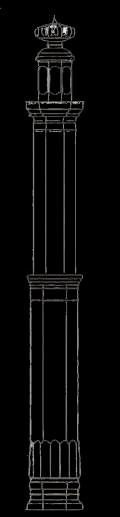

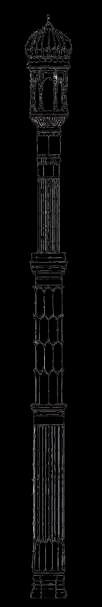

DIFFERENT TYPES OF MINARETS.
CUPOLA

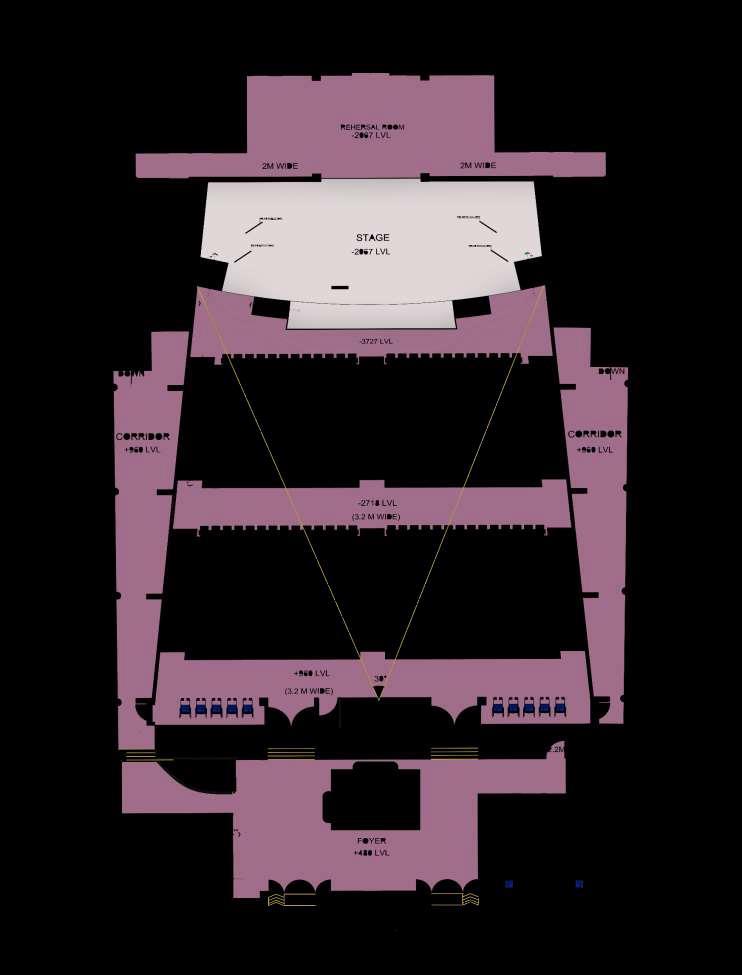

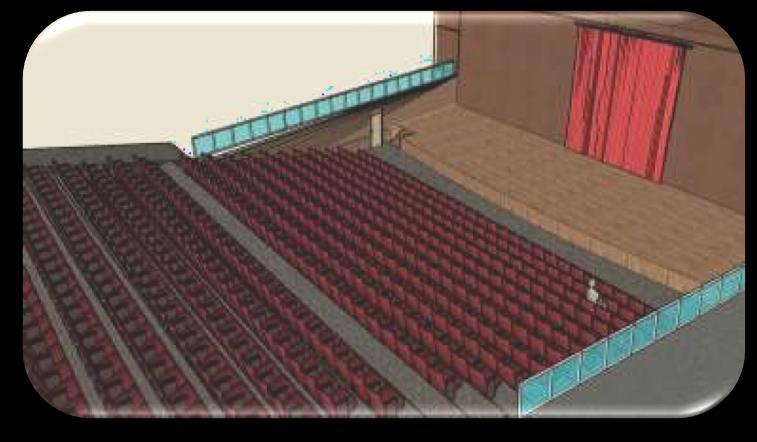

AUDITORIUM
• AN AUDITORIUM IS A ROOM BUILT TO ENABLE AN AUDIENCE TO HEAR AND WATCH PERFORMANCES, USED FOR PUBLIC GATHERINGS, TYPICALLY SPEECHES OR STAGE PERFORMANCES.
• THIS AUDITORIUM IS FOR 1000 PEOPLE
ORGANISATION
SEMINARS ADVERTISEMENT
PATTERN FOLLOWED THROUGHTOUT THE ORIENTATION OF THE BUILDING CREATES A COMMOM INTERACTION
SPACE IN THE CENTRE WHICH CAN BE ACCESSED AND SEEN FROM ALL SIDES.
BRINGS TO KNOW EACH OTHER. BRINGS TO KNOW CULTURE AND TRADITION.
PEOPLE CLUSTER TOGETHER TO FORM A SINGLE FORM AS A RESULT OF INTERACTION.
