Bloordale High

Type: Academic (Winter 2023) | Partner: Emily Guan Program: Institutional Location: Toronto, Ontario

Software: Revit, Adobe Suite, Twinmotion

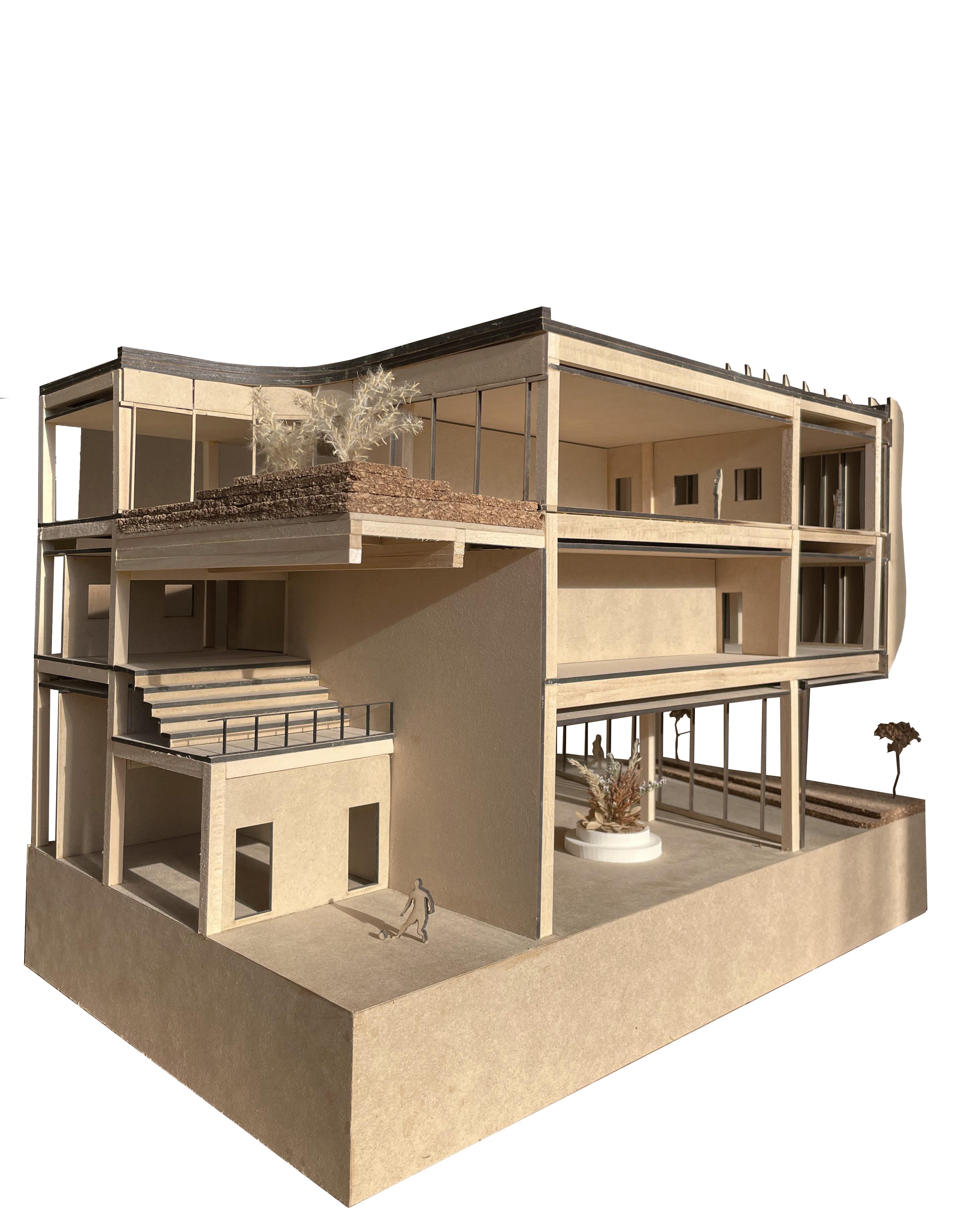

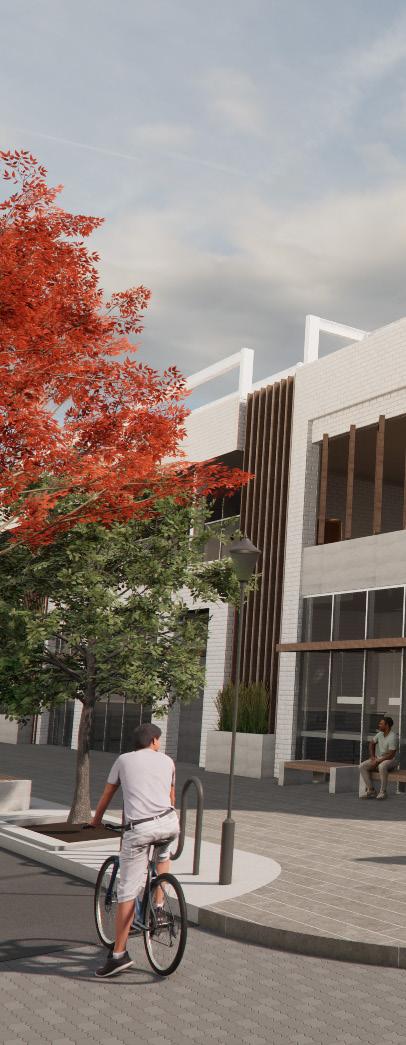

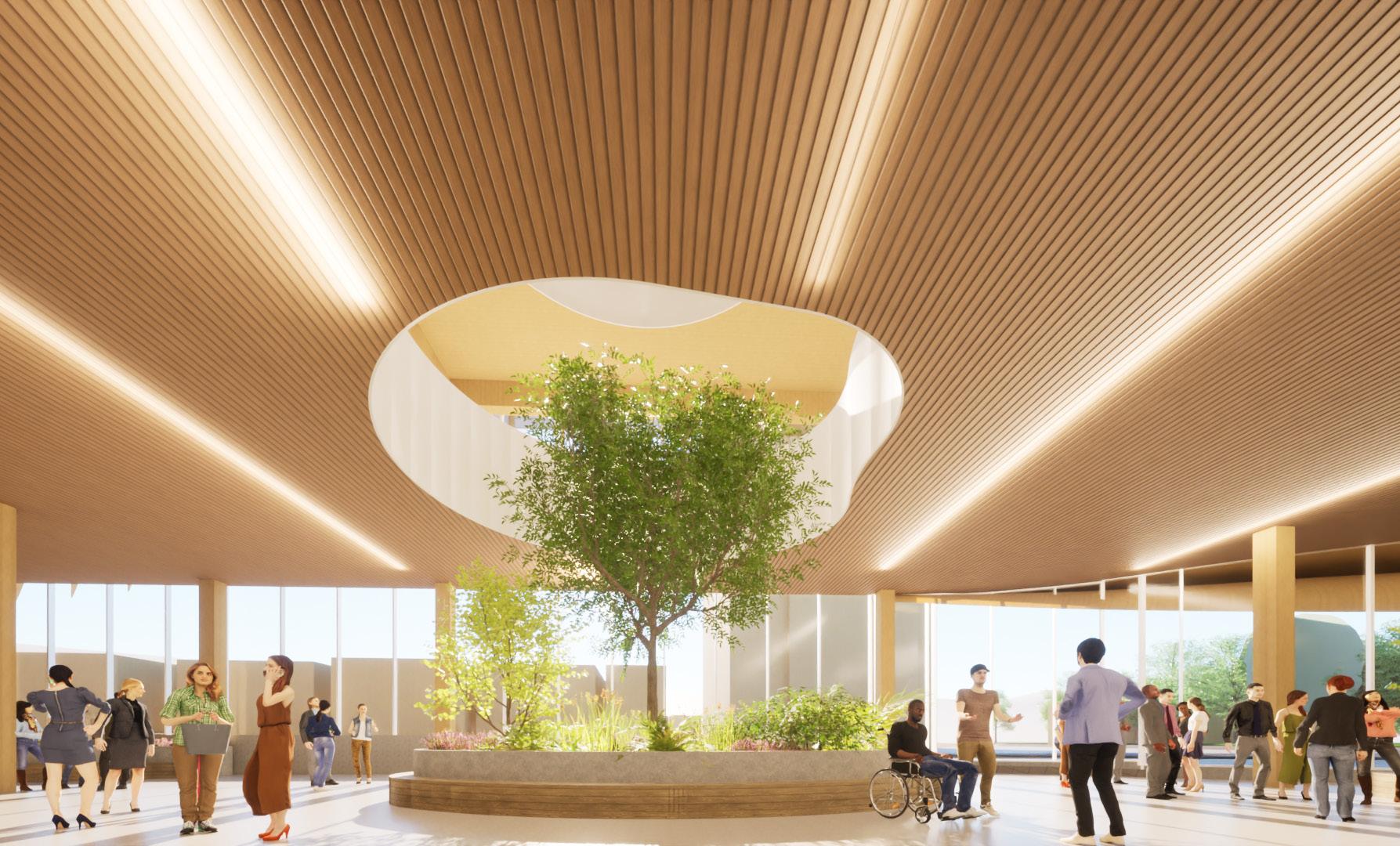

In recognizing the extents at which natural environments enhance students’ mental and physical well being, Bloordale High prioritizes the creation of learning spaces which foster a relationship between the built and natural environment. Through the utilization of biophilic design principles including natural materials achieved through a mass timber structure, maximized daylighting, nature oriented views, roof terraces providing outdoor learning spaces, and overall close proximity to the park, the high school provides students and the surrounding community a healthy and sustainable learning environment.

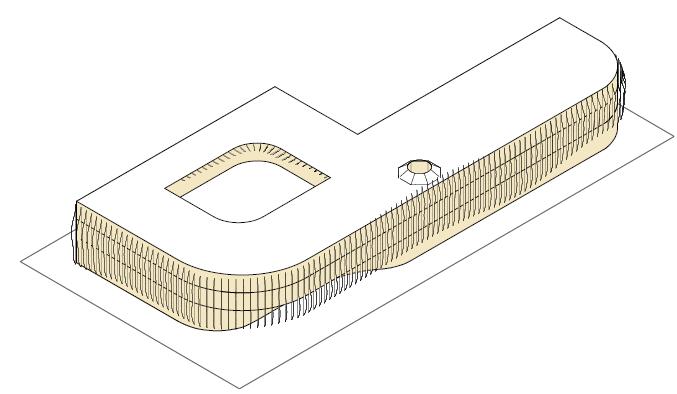

Identify

Recognizing the site constraints and establishing adequate setbacks to derive the building footprint

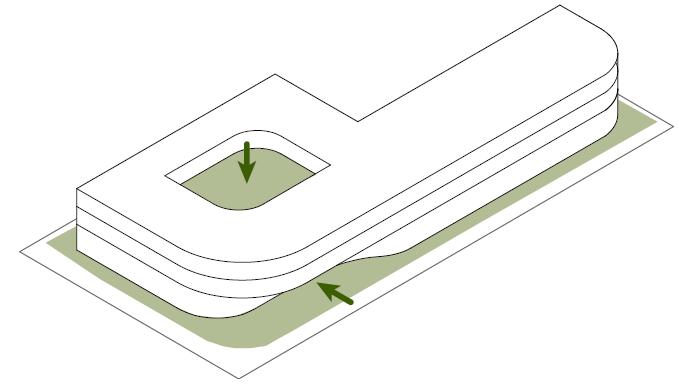

Greenspace

Manipulating the form to provide a green space on the ground floor and a courtyard on L3

Optimized Views

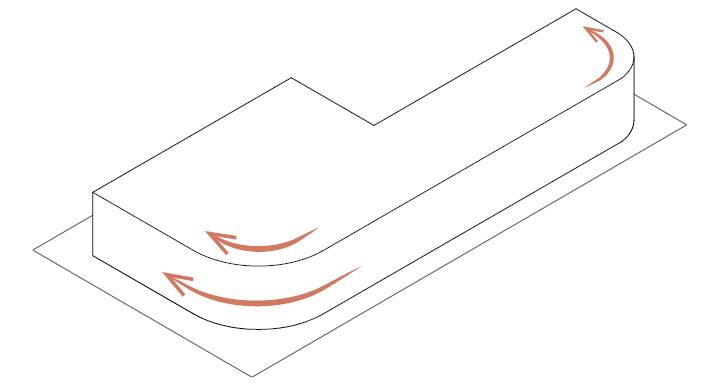

Introducing curves to the NE and NW corners of the building, directing views towards the adjacent park

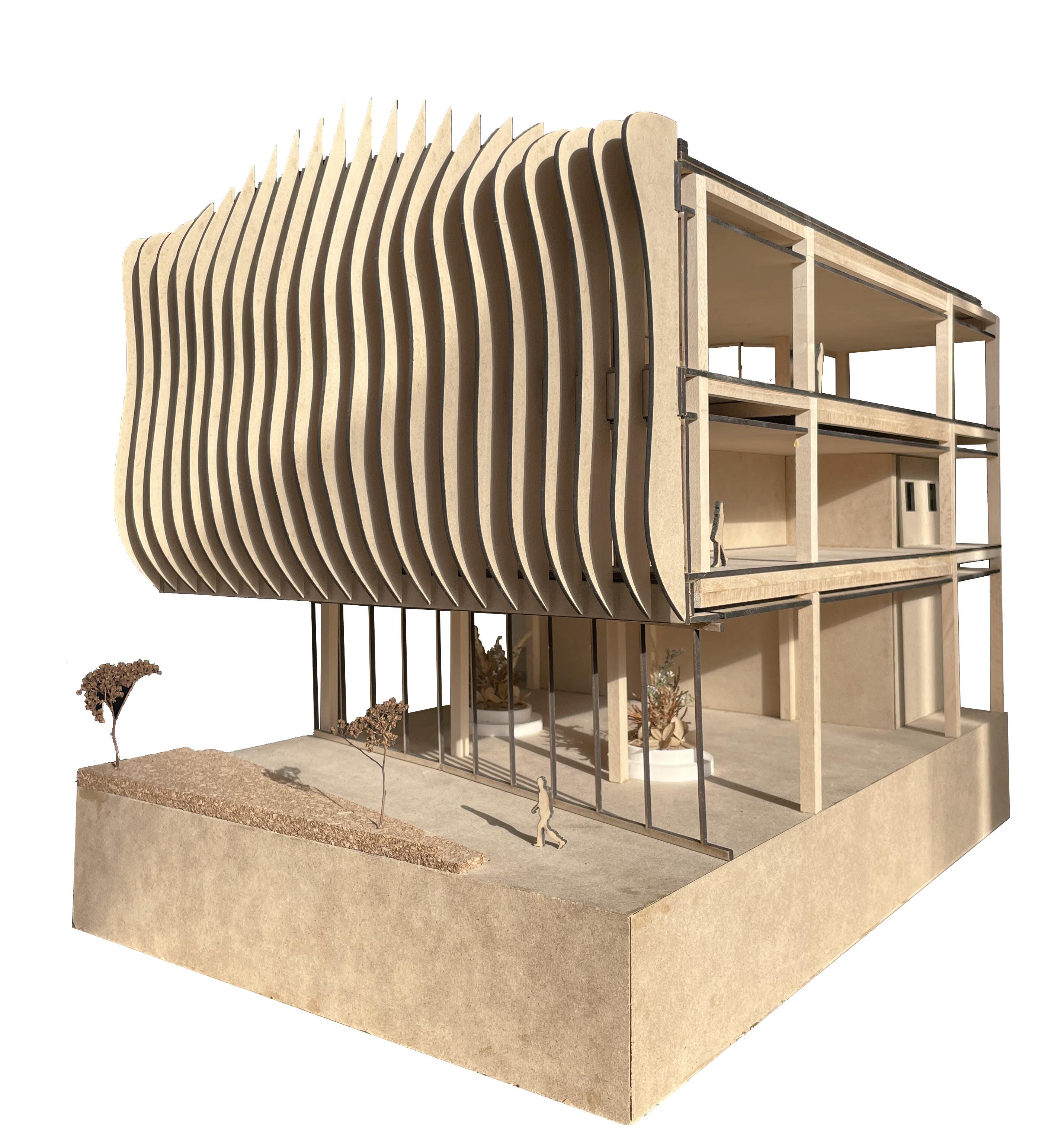

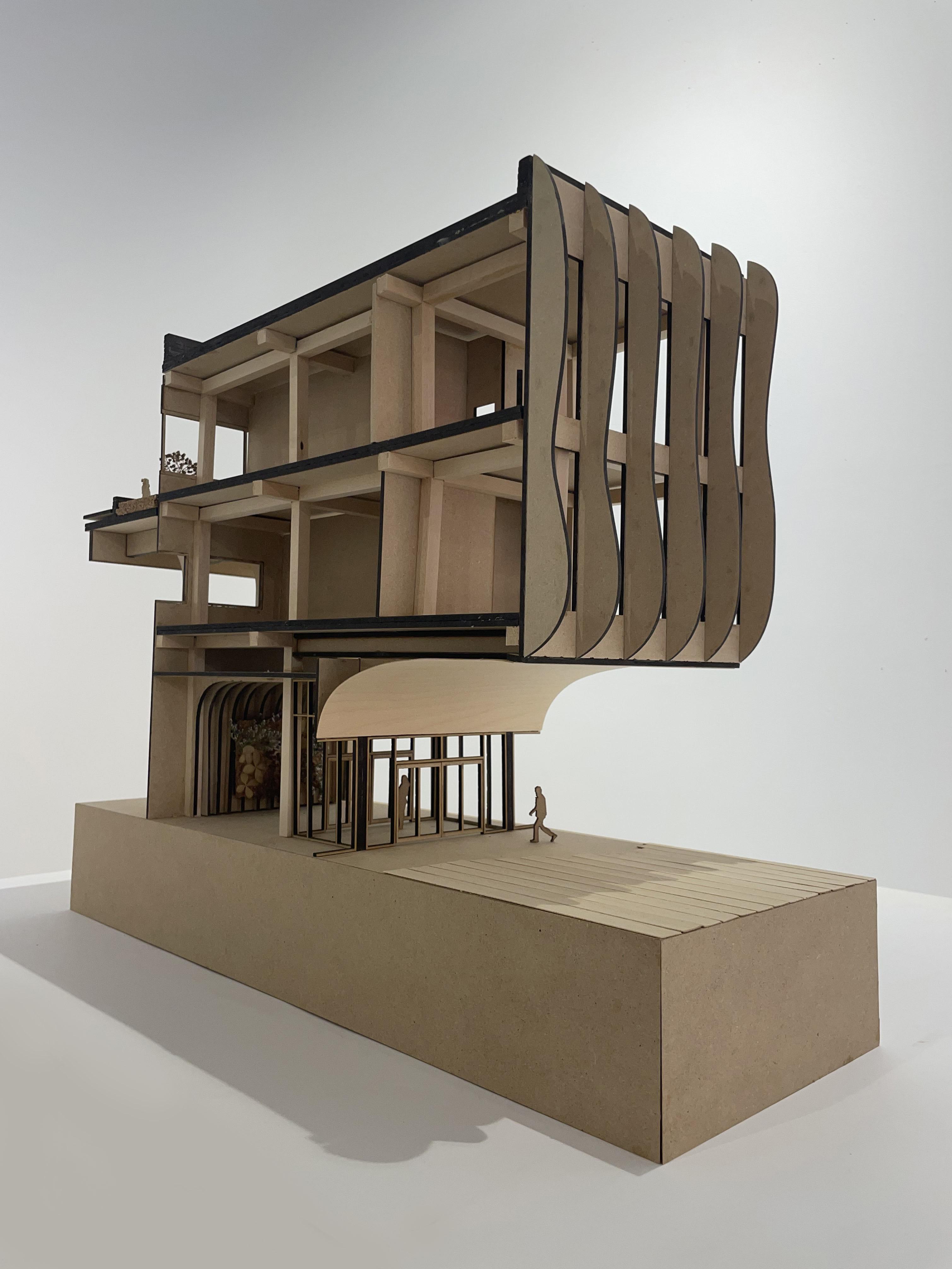

Solar Control

Louvre system to provide a passive shading function and controlling visual comfort by minimizing glare

Private/Public

Distinction

Defining programmatic sepatation through a glazed, inviting public ground floor and two private floors above

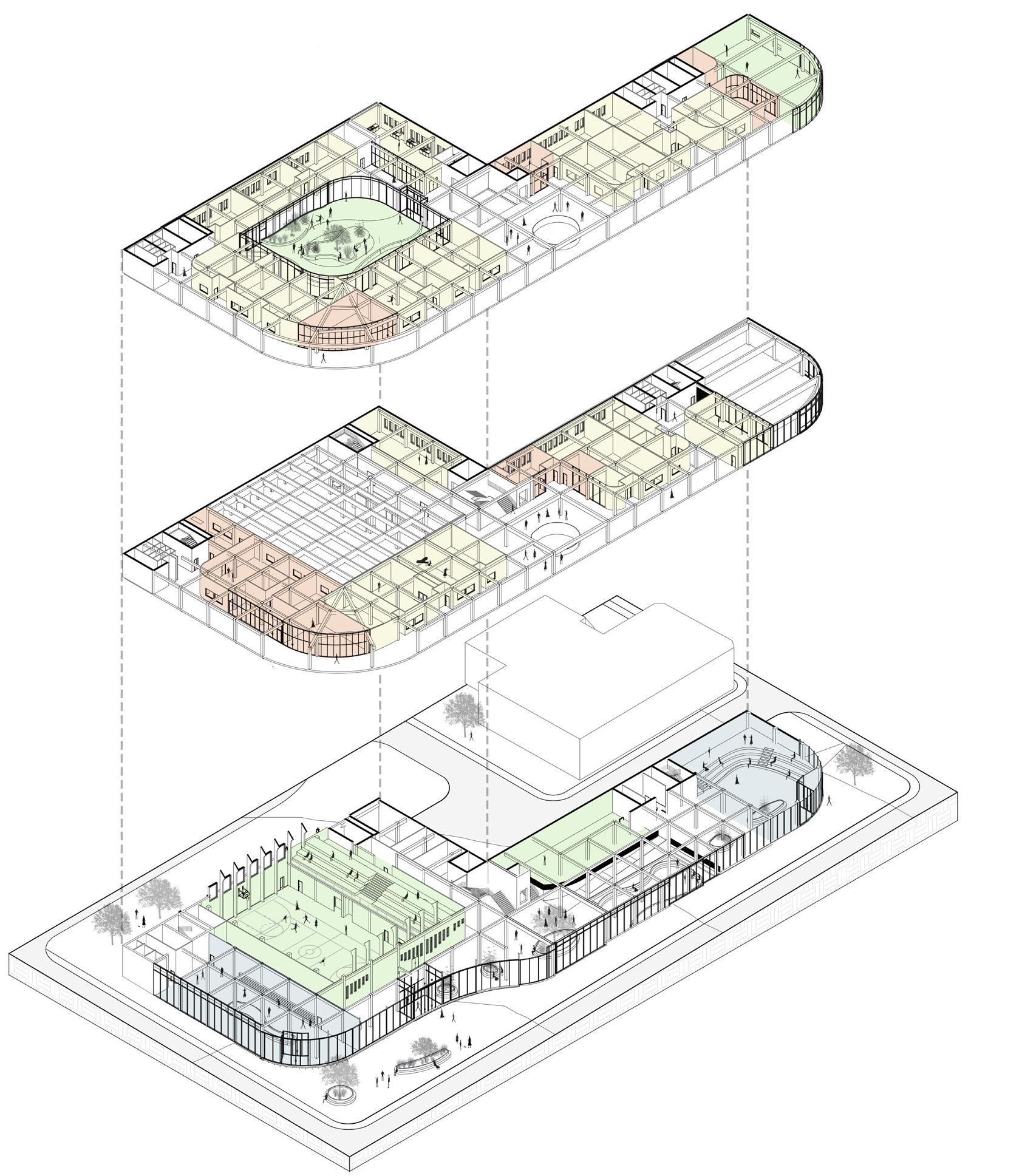

LEVEL 3

Visual Arts

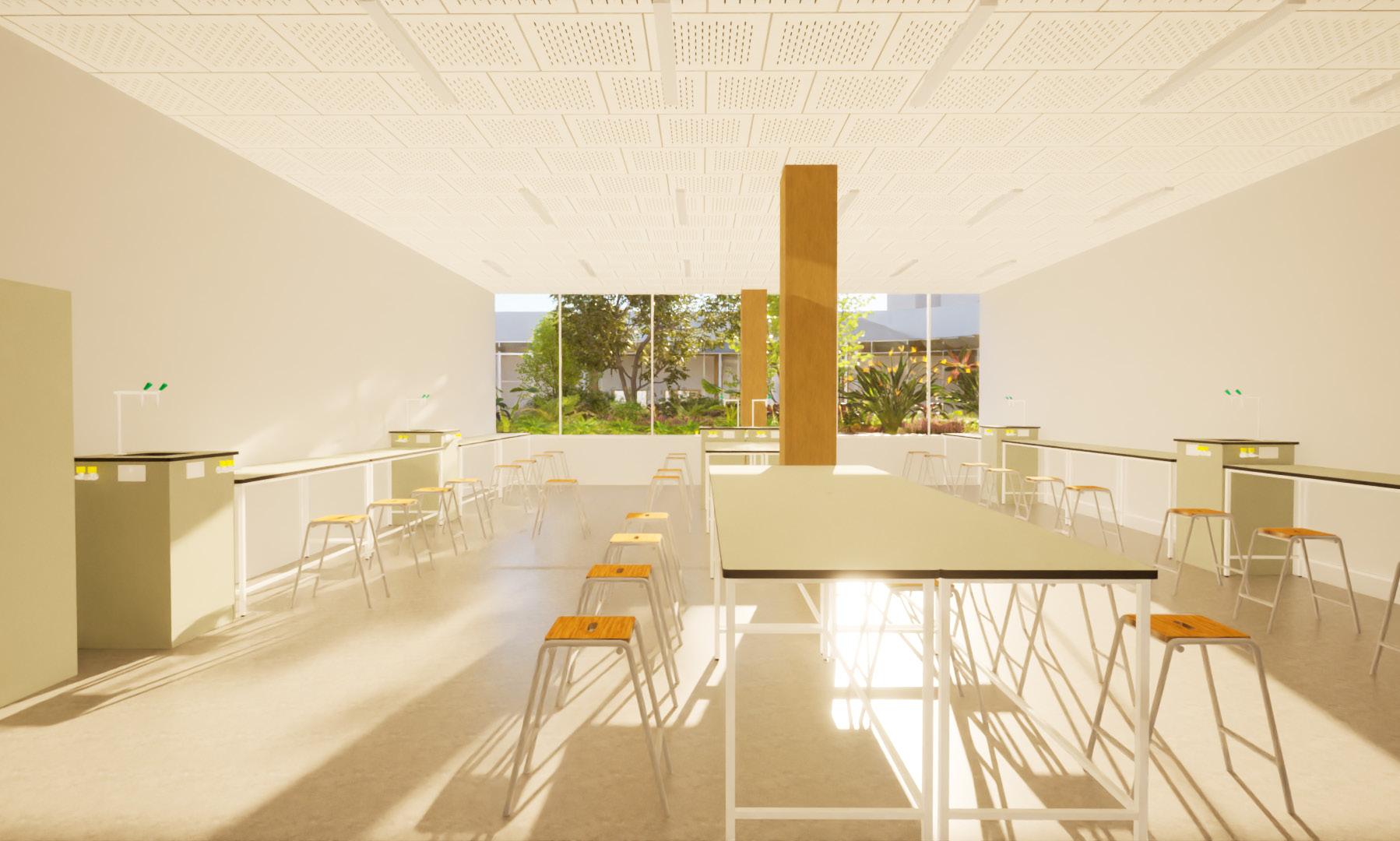

Science Labs

Maker Space

Foods Room

Computer & Tech Labs

Learning Commons

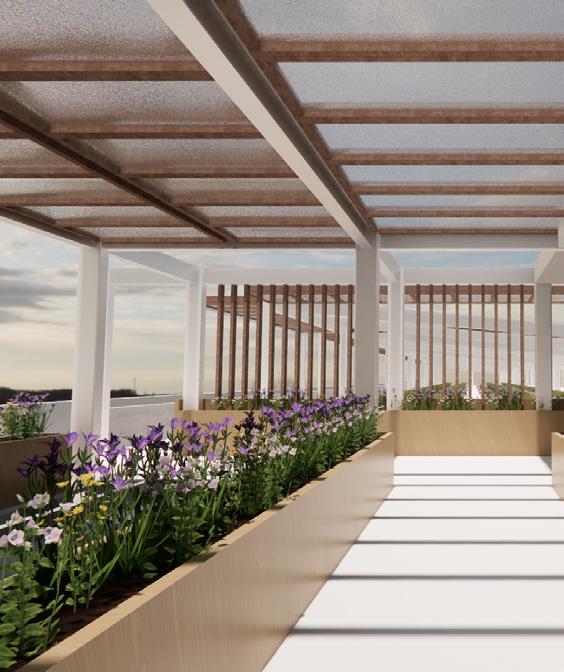

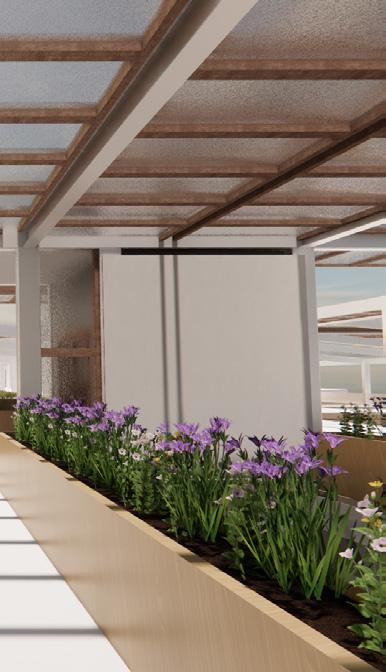

Roof Terrace

LEVEL 2

Administration Office

Communications

Computer Engineering

Construction

Family Studies

Performance Arts

Staff Room

Work/Prep/Resource

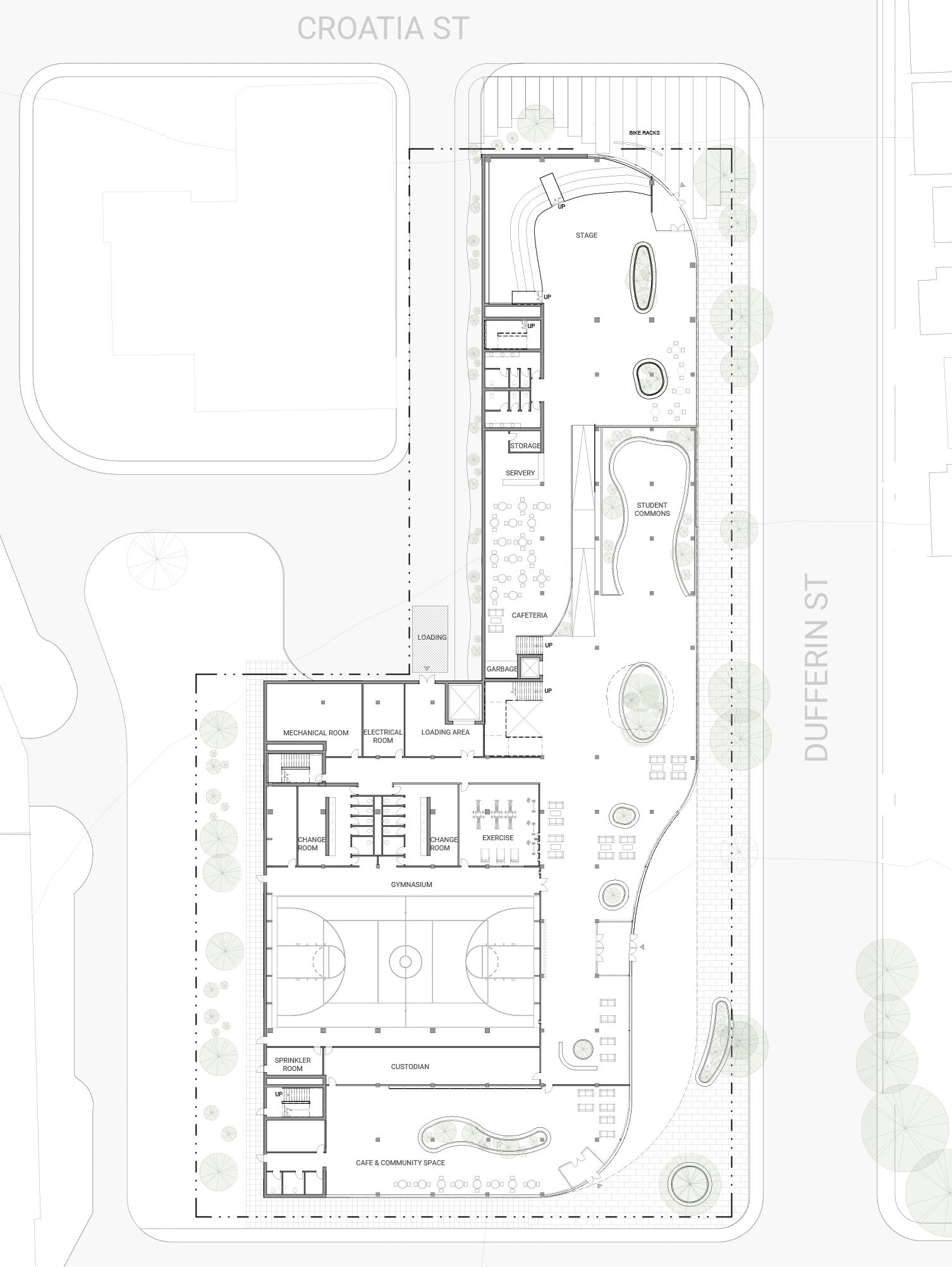

LEVEL 1

Gymnasium

Cafe Stage

Student Commons

Cafeteria

Gymnasium

Community Space

Classrooms

Gathering

Staff & Support

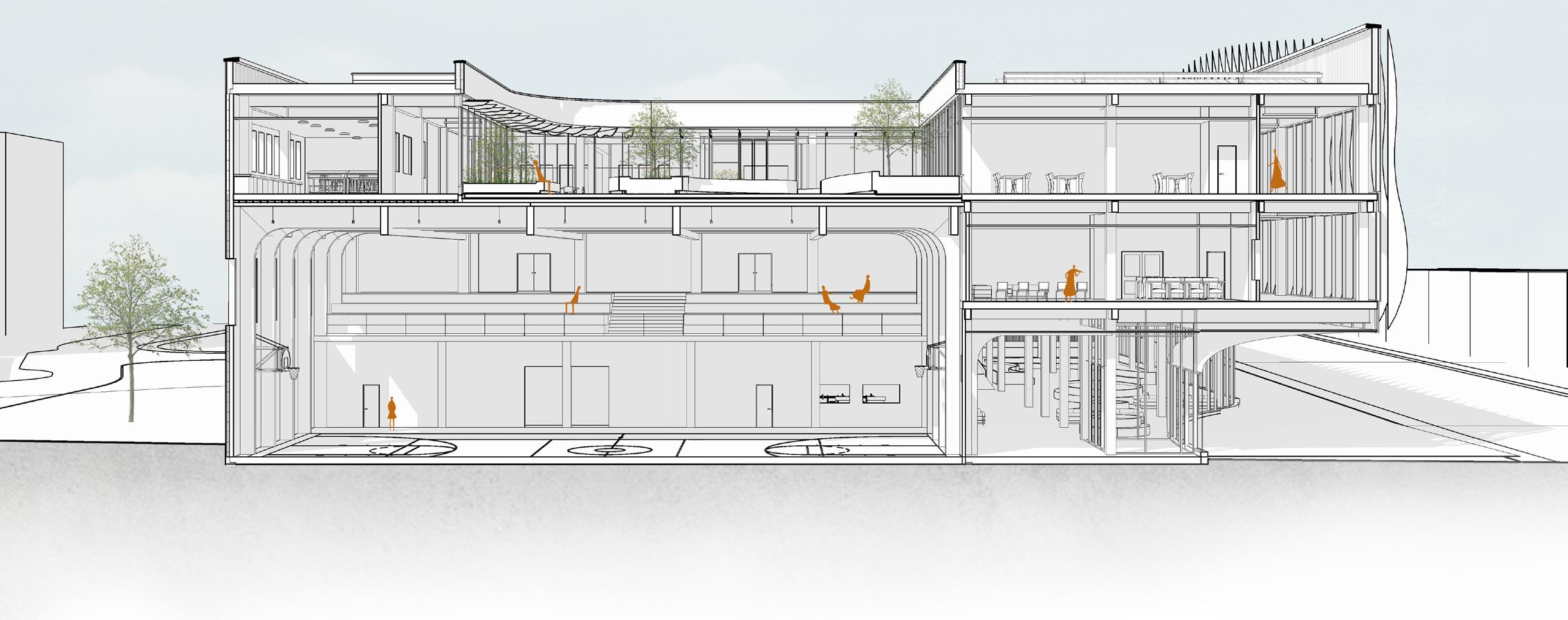

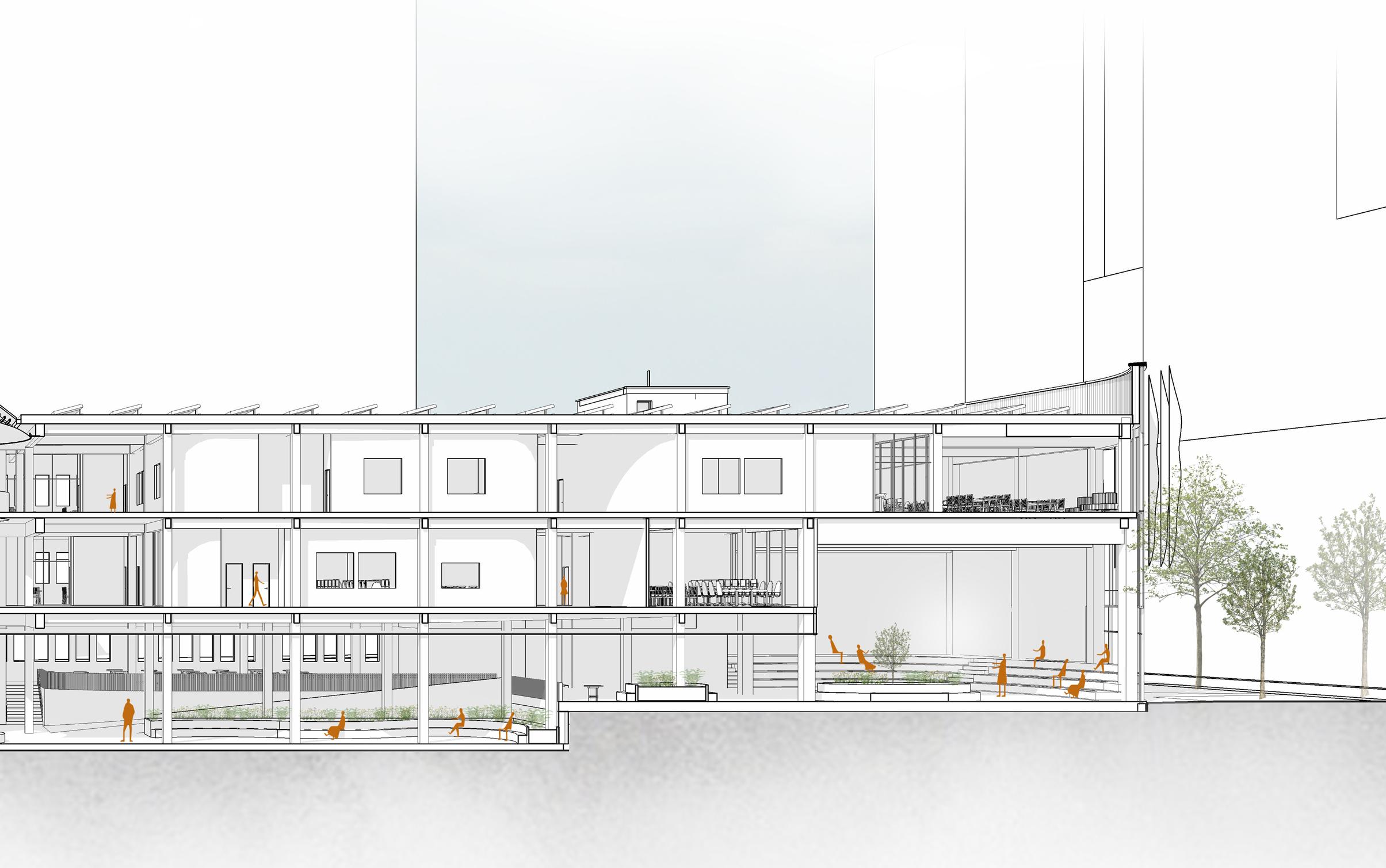

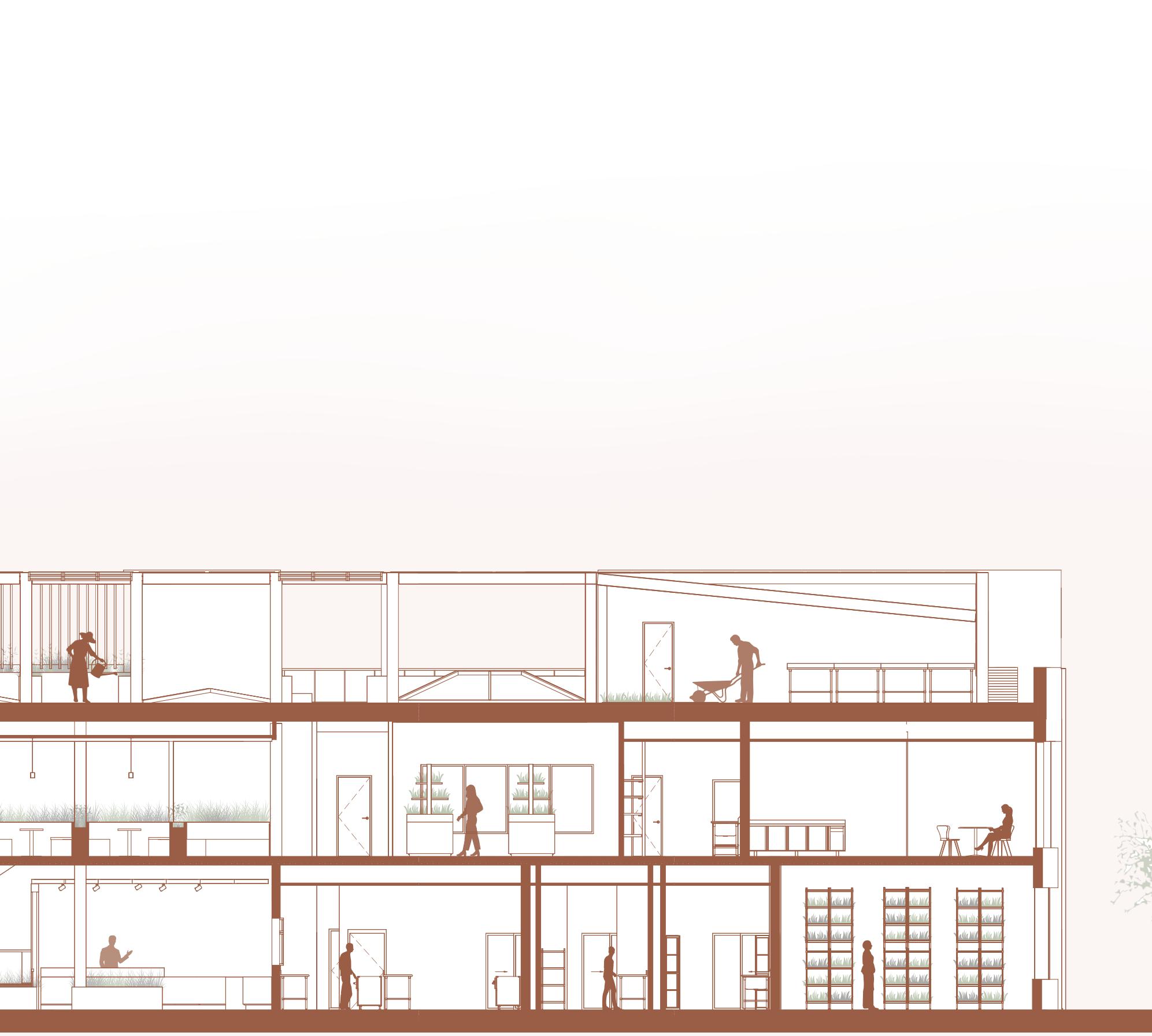

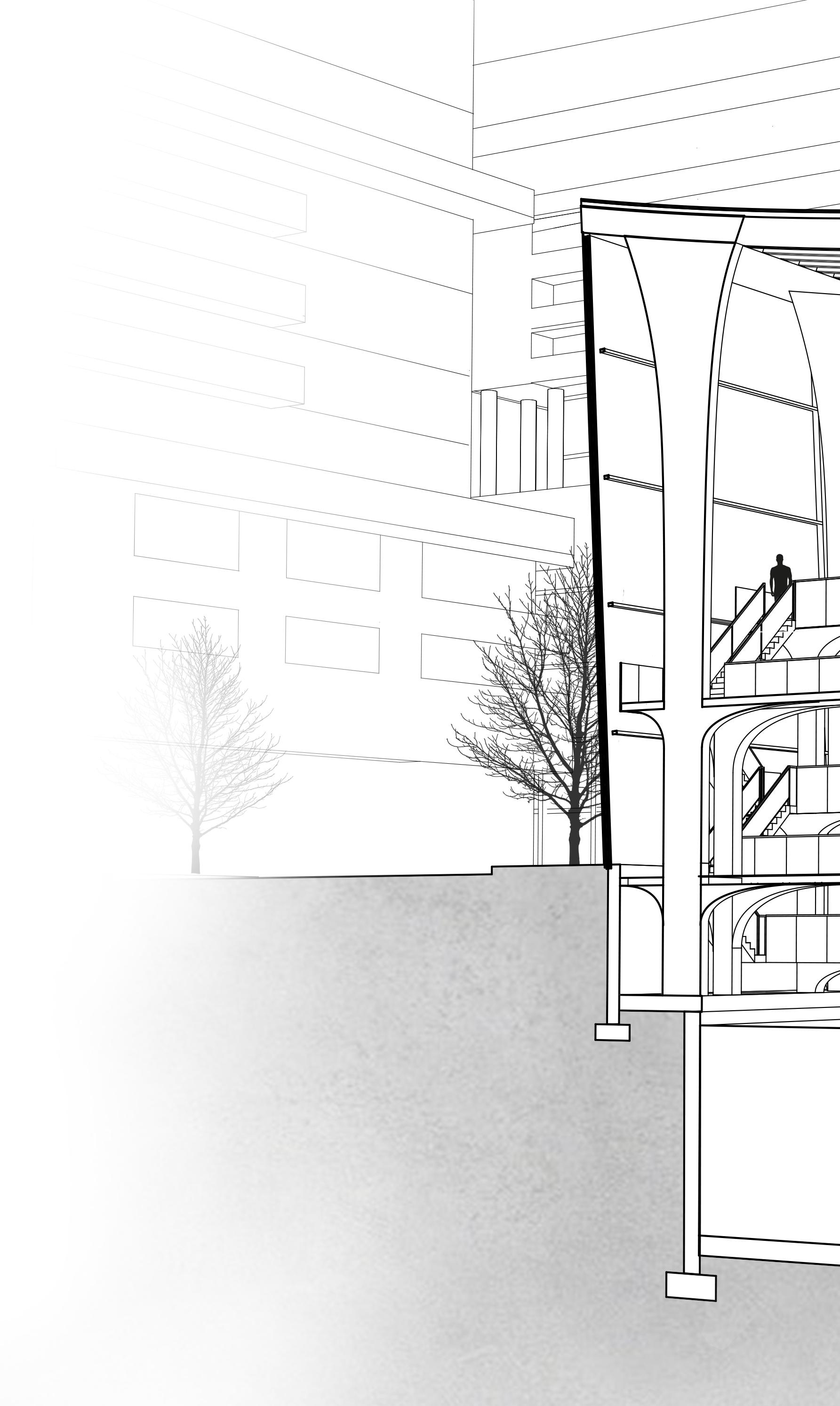

LONGITUDINAL PERSPECTIVE SECTION

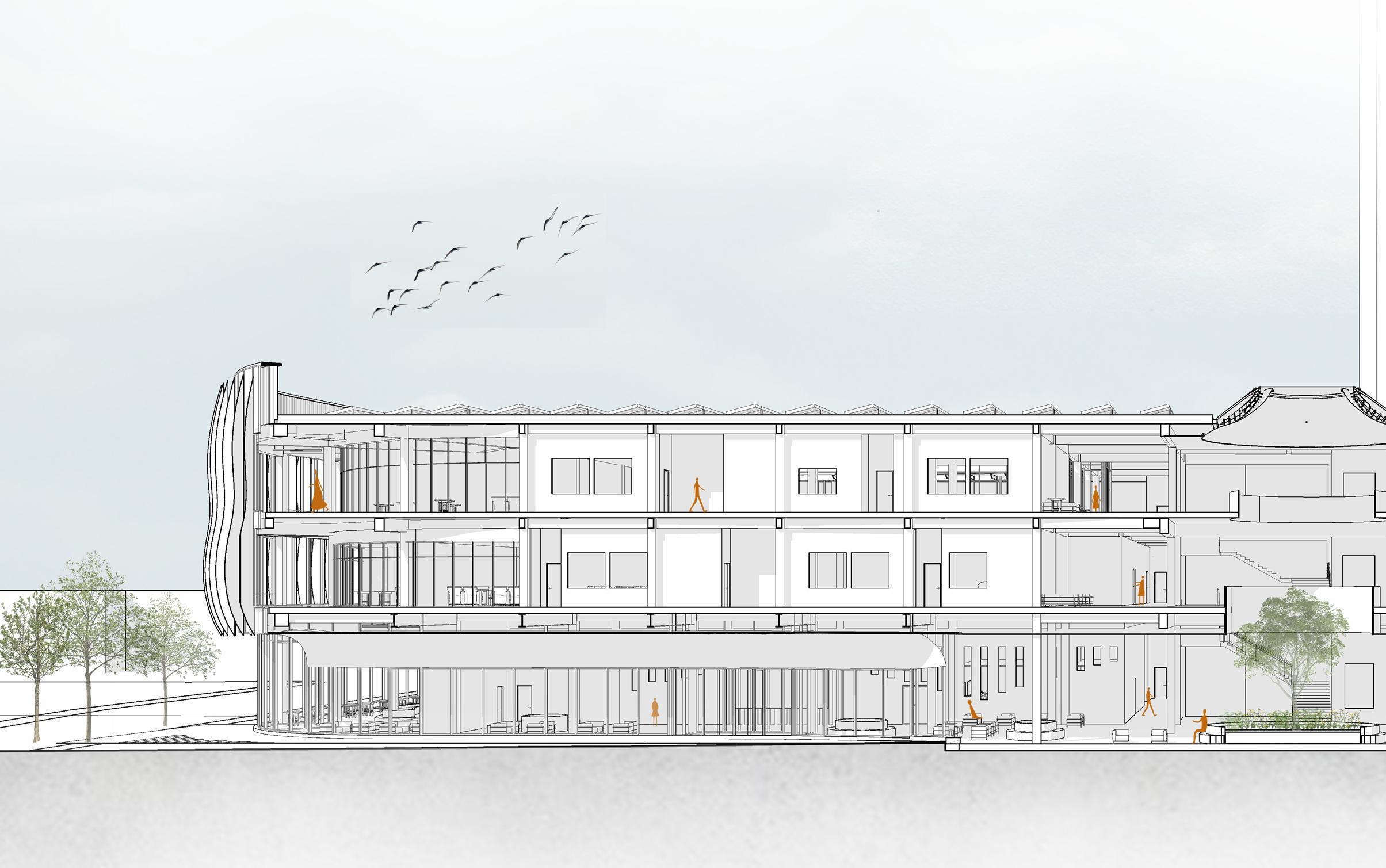

TRANSVERSE PERSPECTIVE SECTION

TYPICAL ASSEMBLIES

A - FOUNDATION ASSEMBLY

• CONCRETE FOOTING

• 400MM CONCRETE FOUNDATION WALL

• 20 MIL VAPOUR BARRIER

• 50MM XPS INSULATION

B - GYMNASIUM RADIANT FLOOR ASSEMBLY

• 20MM MAPLE PLANK FINISH FLOORING

• 25MM PLYWOOD SUBFLOOR

• 30MM GYPCRETE ENCASING RADIANT FLOOR TUBING

• 150MM CONCRETE SLAB

• 50MM XPS INSULATION

• 16 MIL POLYETHYLENE VAPOR BARRIER

• 100MM GRAVEL

• COMPACTED SOIL

C - FIBRE CEMENT CLADDING ASSEMBLY

• 12MM FIBRE CEMENT PANEL

• 38MM HAT CHANNEL

• 100MM STONE WOOL INSULATION

• 16 MIL POLYETHYLENE BARRIER

• 15.9MM GYPSUM SHEATING

• 150MM METAL STUDS @ 400MM SPACING WITH 38MM SPRAY FOAM INFILL

• 15.9MM GYPSUM WALL BOARD

D - CLT RADIANT FLOOR - GYM CEILING ASSEMBLY

• 60MM CONCRETE FINISH FLOORING

• 30MM GYPCRETE ENCASING RADIANT FLOOR TUBING

• 150MM CLT FLOORING

• 38X89MM FRAMING @ 300MM SPACING O.C.

• 150MM CLT CEILING PANEL

E - CLASSROOM SUSPENDED CEILING ASSEMBLY

• WIRE HANGER

• STEEL SUSPENSION SYSTEM

• 10MM ACOUSTIC BACKING

• 20MM PERFORATED ALUMINUM CEILING

F - PARAPET ASSEMBLY

• 12MM FIBER CEMENT PANEL

• 38MM HAT CHANNEL

• 100MM STONE WOOL INSULATION

• 16MIL POLYETHYLENE VAPOUR BARRIER

• 150MM CLT PANEL

• 15.9MM GYPSUM COVERBOARD

• METAL COUNTER FLASHING

G - TYPICAL ROOF ASSEMBLY

• 90MM EPDM ROOFING MEMBRANE

• 1MM AIR BARRIER

• 200MM RIGID INSULATION

• 20 MIL VAPOUR BARRIER

• 200MM CLT PANEL

Church St. Diving Center

Type: Academic (Fall 2021) | Individual Program: Recreational Facility

Location: Toronto, Ontario

Software: AutoCAD, Rhino 7, Adobe Suite, Enscape

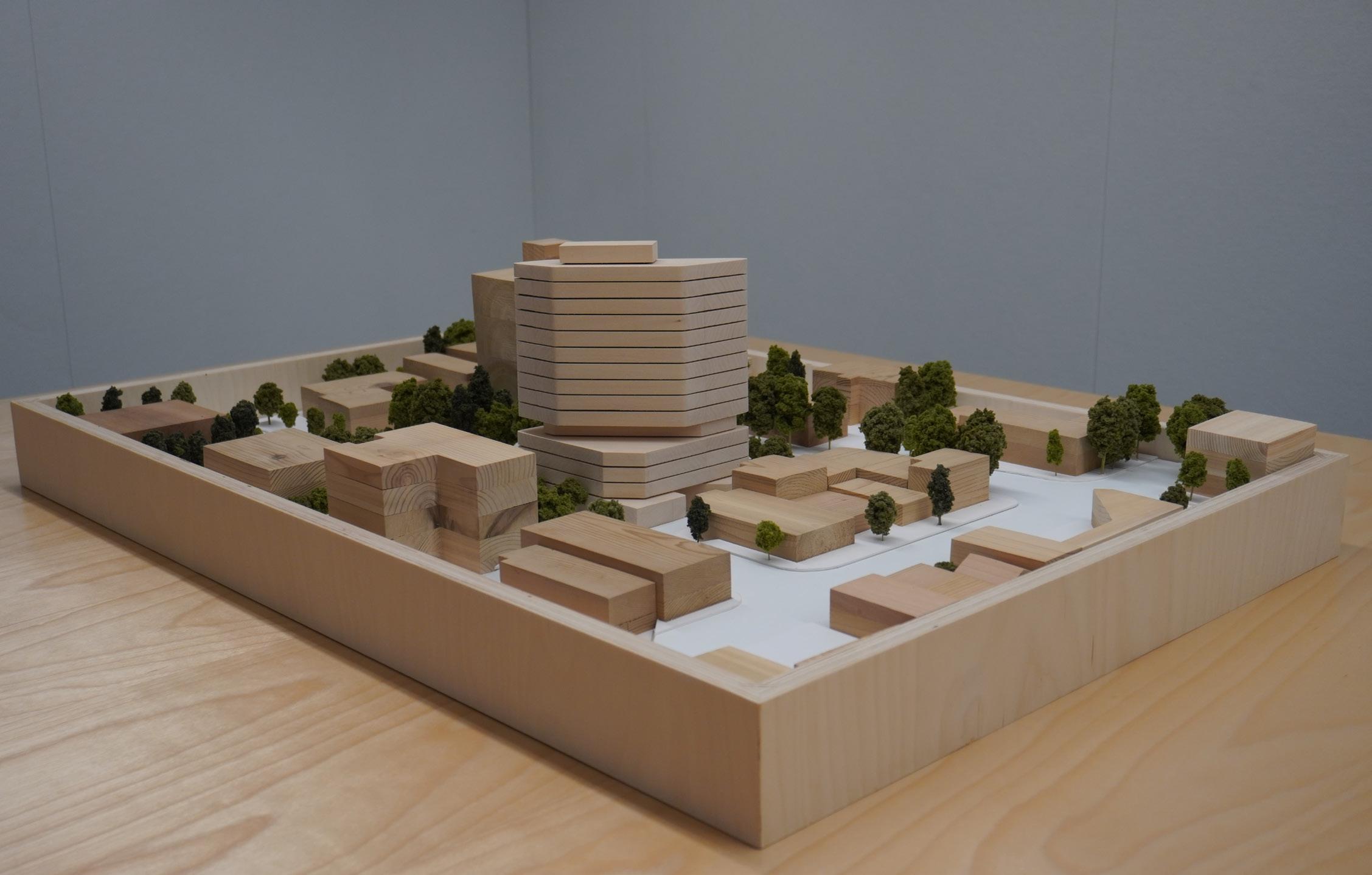

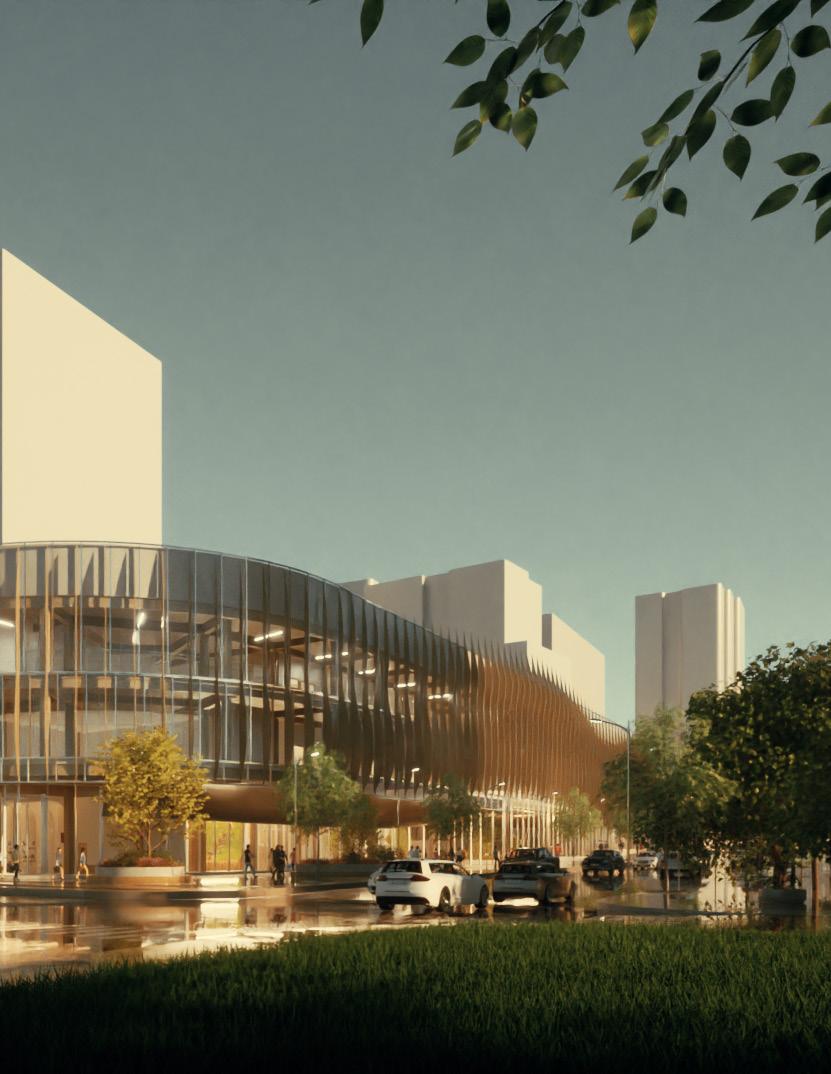

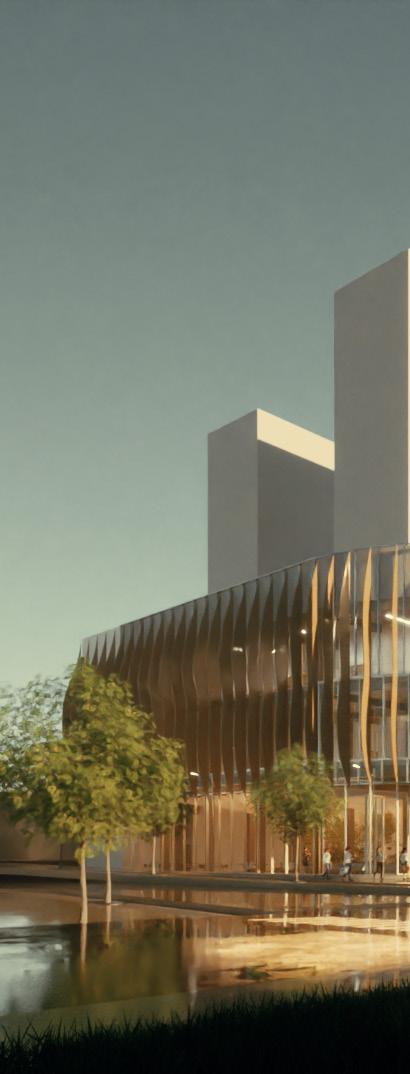

Located on the corner of Church St. and McGill St. in Downtown Toronto, the Church St. Diving Center serves to provide the diving community a training complex at the heart of city, catered to meet the needs of competitive athletes such that all their training needs can be met in one integrated facility. The project aims to both enhance the training experience for current athletes, as well as bring a newfound attention to the sport through an inclusive and accessible design that becomes an inviting space for not only the athlete, but the general public.

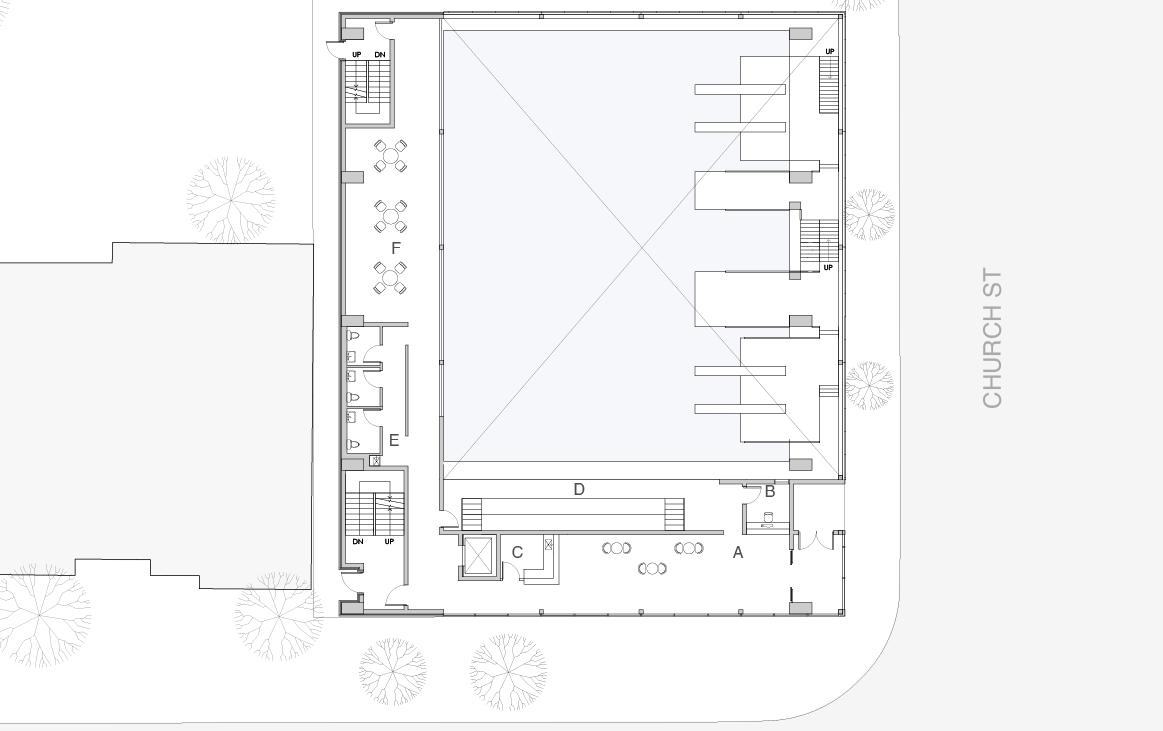

GROUND FLOOR PLAN

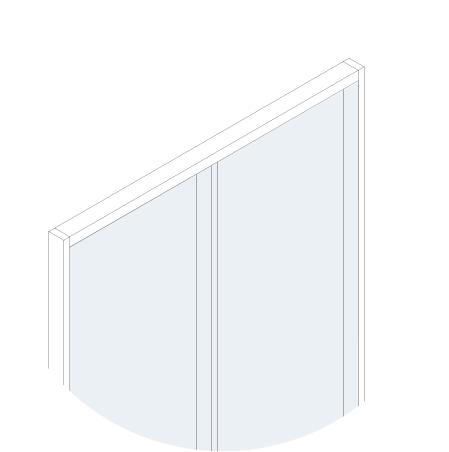

Curtain Wall Glazing

Cement Panels

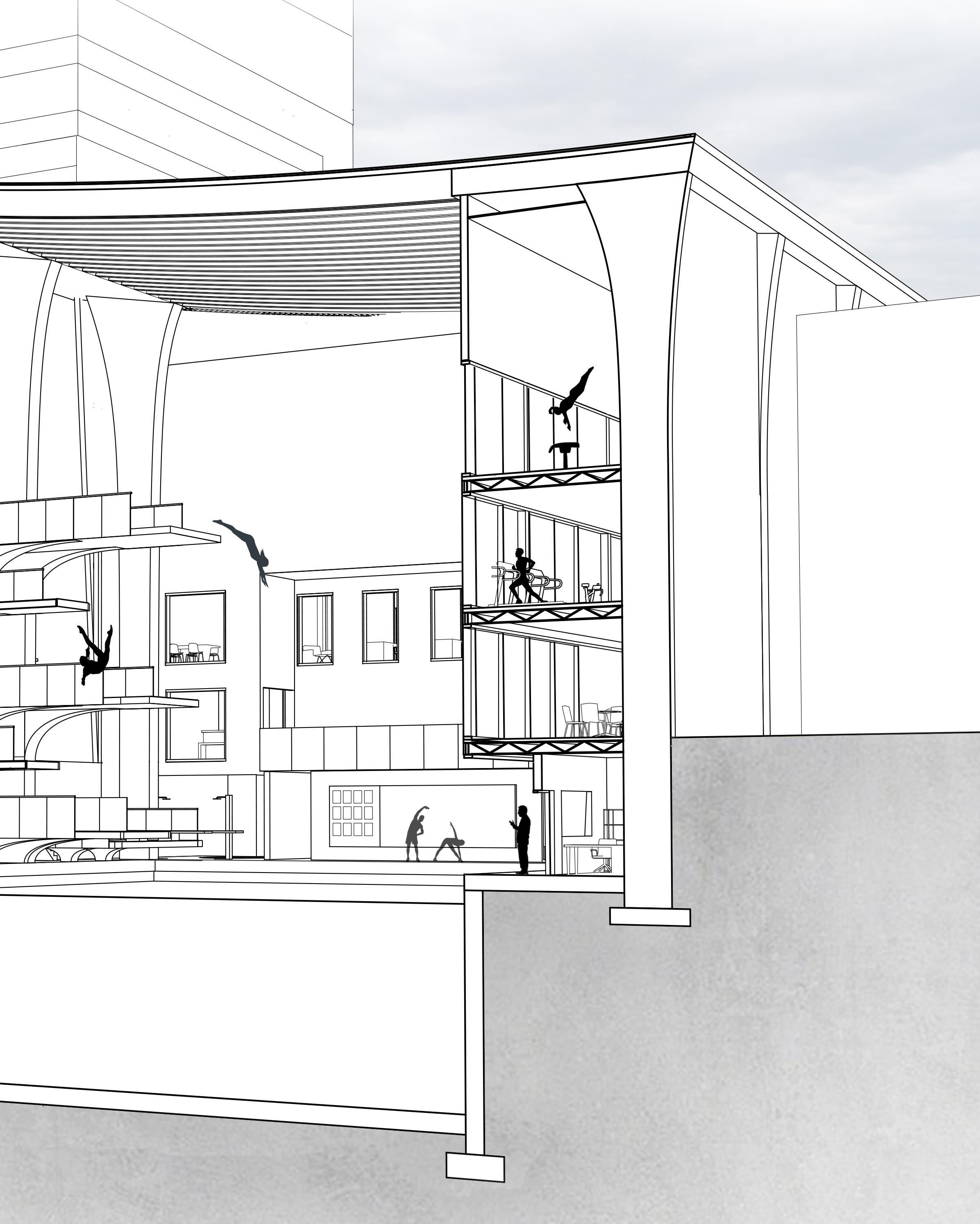

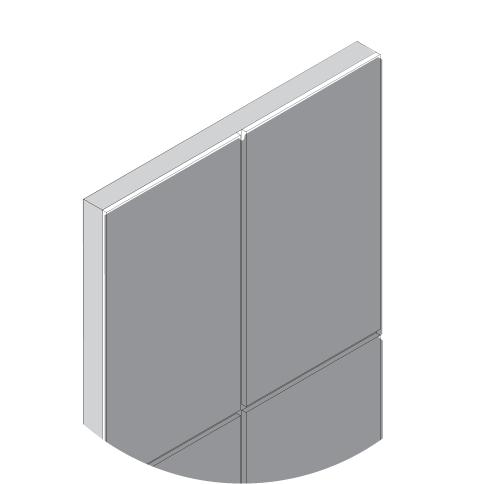

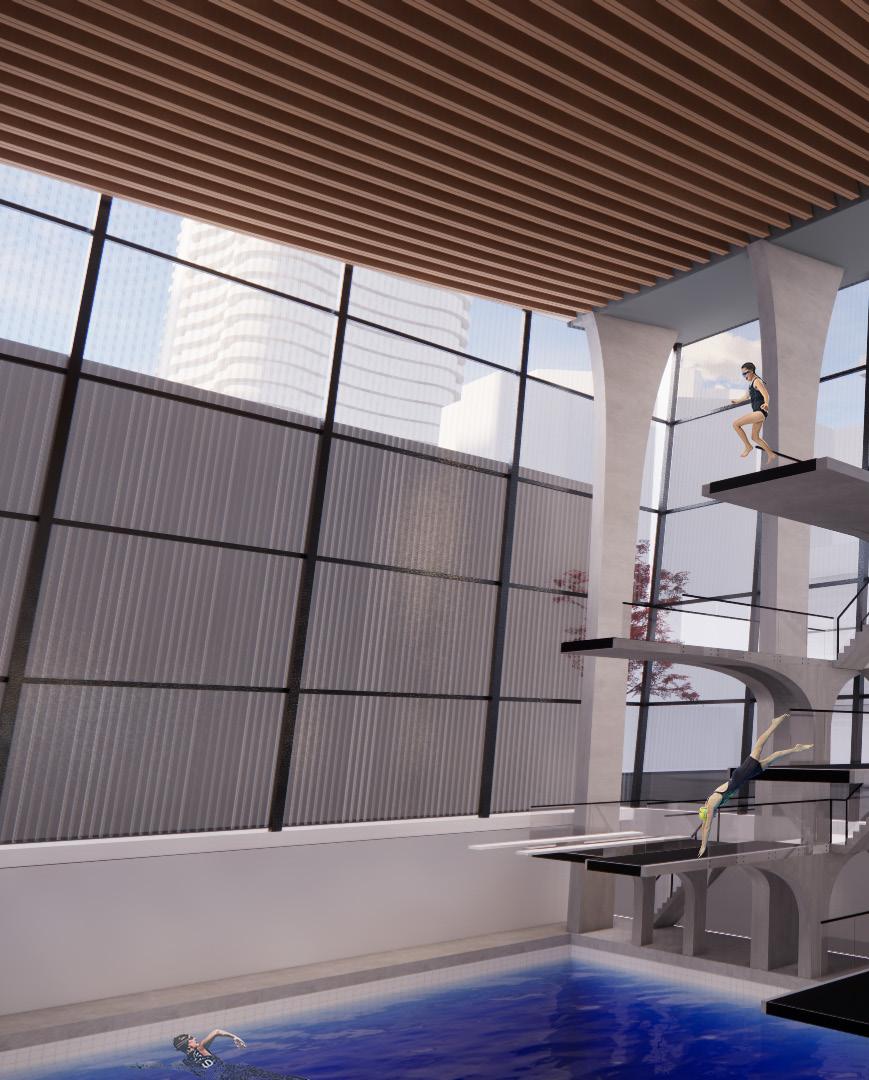

A separation between the experience of the athlete and the public is achieved through interplay between varying opacities and view restricting angles, providing athletes a controlled and predictable environment free of distracting views as is favoured for the high tension sport of diving, while providing the public ample views, daylighting, and oppertuinities to easily flow into and out of the building.

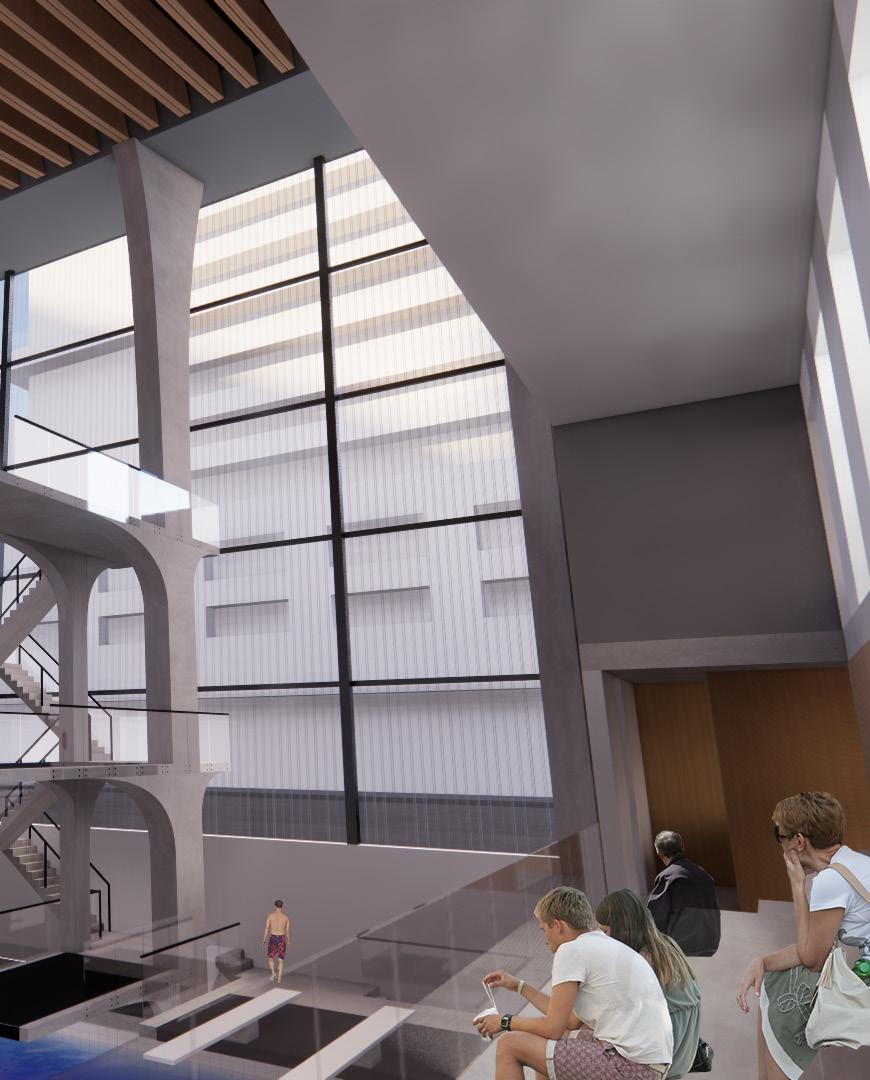

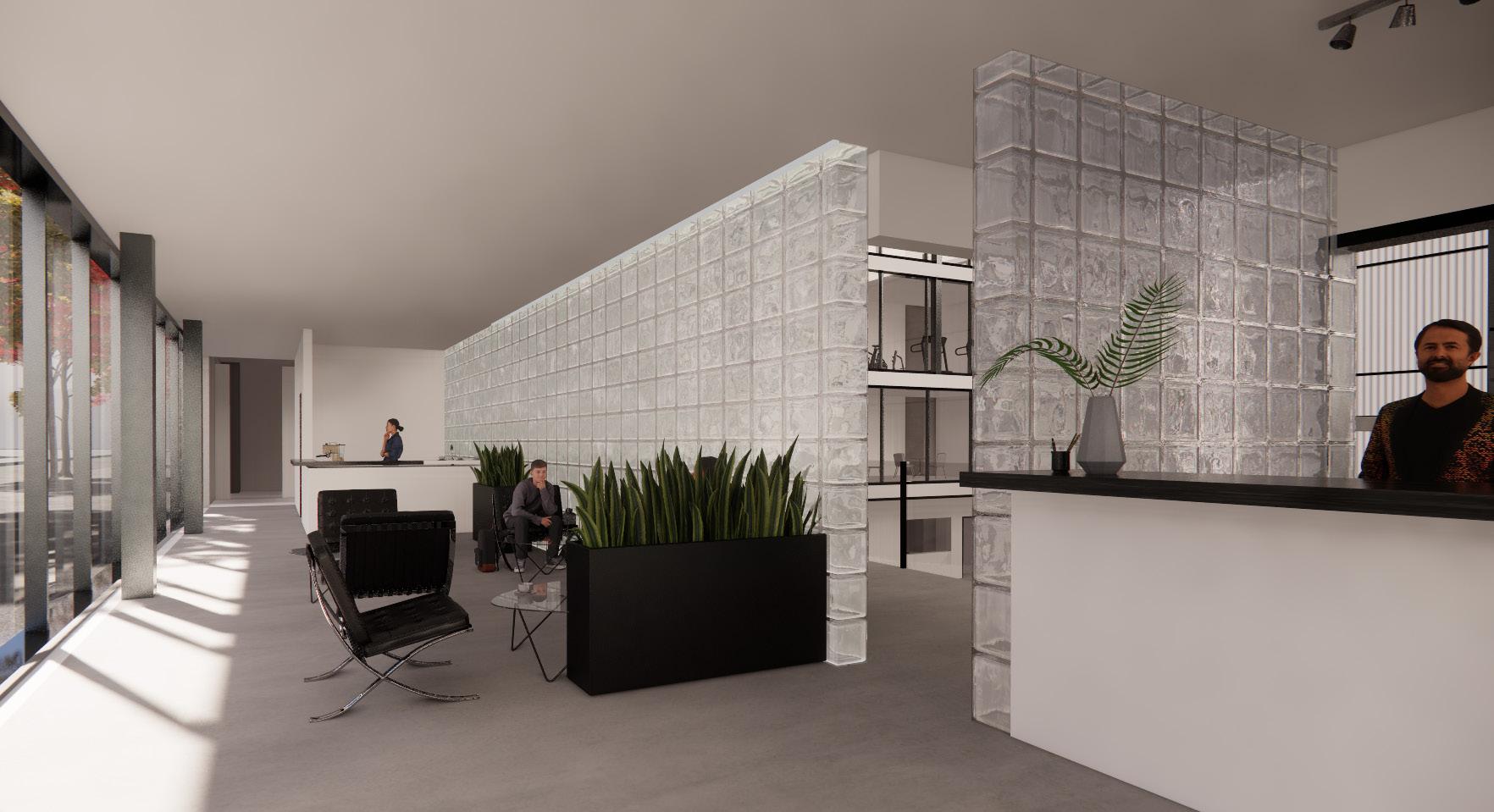

LOBBY RENDER

(1) Identifying the Site

At the boundary between residential McGill St. and highly commercial Church St, the intersection of these two streets was identified as the clear primary entrance.

(2) Building Footprint

Working within the constraints of a small site, the maximum footprint accepted within local zoning requirements was used to accomodate for the complex program.

ChurchSt.

(3) Context Integration

To soften the transition between the low-rise residential and the highrise commercial adjacent to the site, a catenary roof was introduced, sloping to match the trajectory of a dive.

ChurchSt.

McGillSt.

Harvest Haven

Type: Academic (Fall 2023) | Individual Program: Commercial

Location: Toronto, Ontario

Software: Revit, Adobe Suite, Enscape

As populations continue to rise and subsequent urbanization sees the depletion of natural ground cover, there is an increasing need to capitalize on the potential that urban agriculture practices offer in alleviating the pressures of food insecurity within cities. Harvest Haven is a new development proposed for Toronto’s Leaside neighborhood, aiming to supply community members healthy ready made meals made from produce grown directly on site via a rooftop farm and indoor vertical farming technologies.

Production Preparation Service

Seating Sales

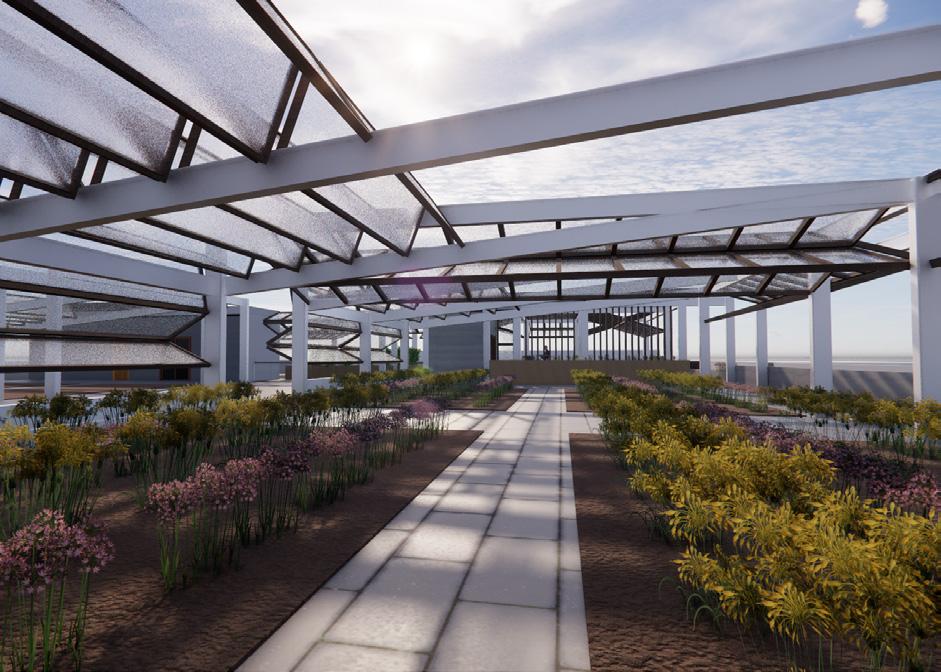

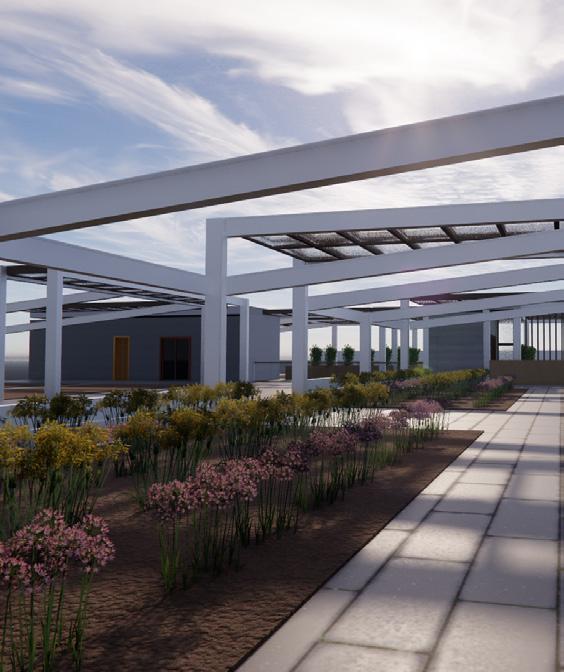

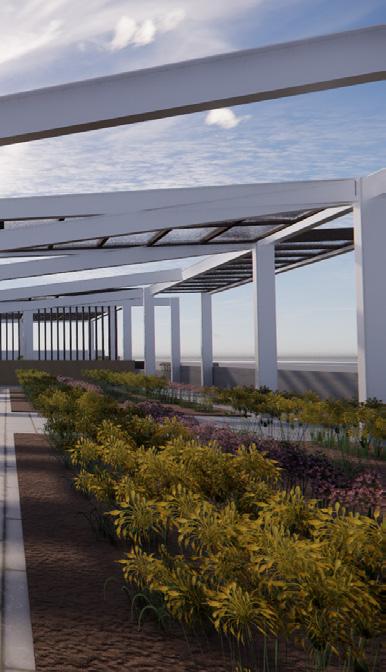

(1) OPEN

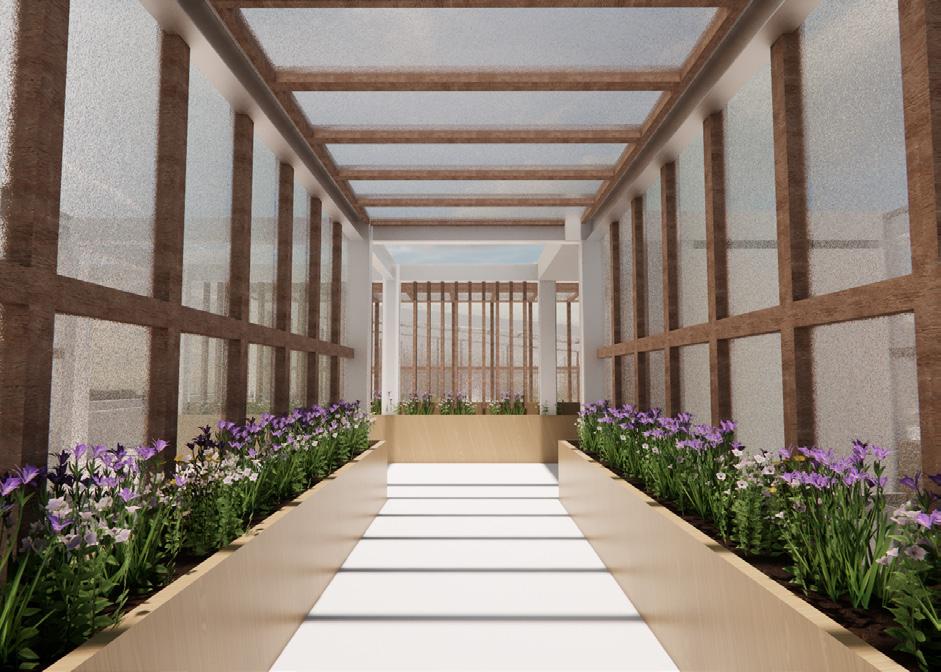

Polycarbonate greenhouse walls fold up open, ventilated spaces for plants to grow, solar screen above skylights, diffusing harsh

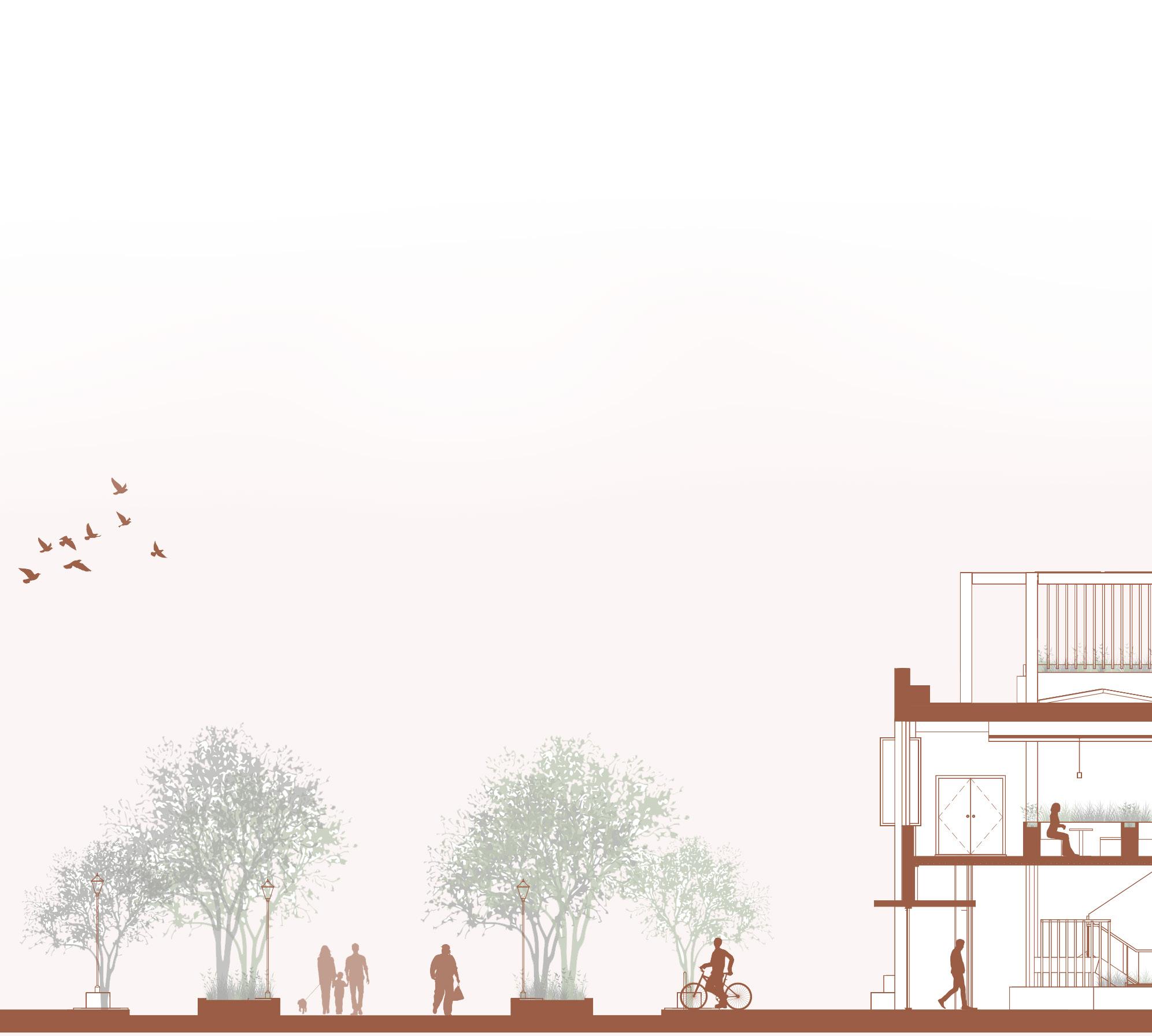

PEDESTRIAN LANE

BIKE LANE

BIKE LANE 4m SIDEWALK

up during summer, creating grow, while serving as a harsh summer rays.

(2) TRANSFORMABILITY

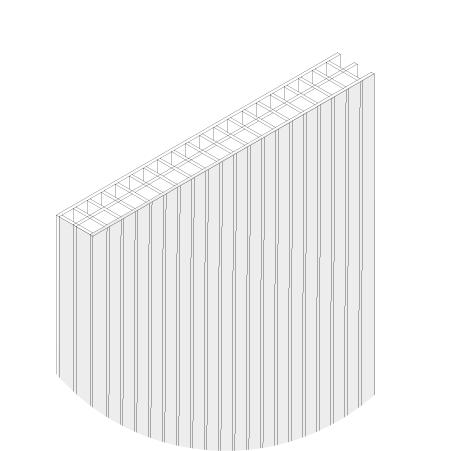

Transformations between open and closed states are enabled by sliding tracks that guide the lightweight polycarbonate folding walls into their two set positions.

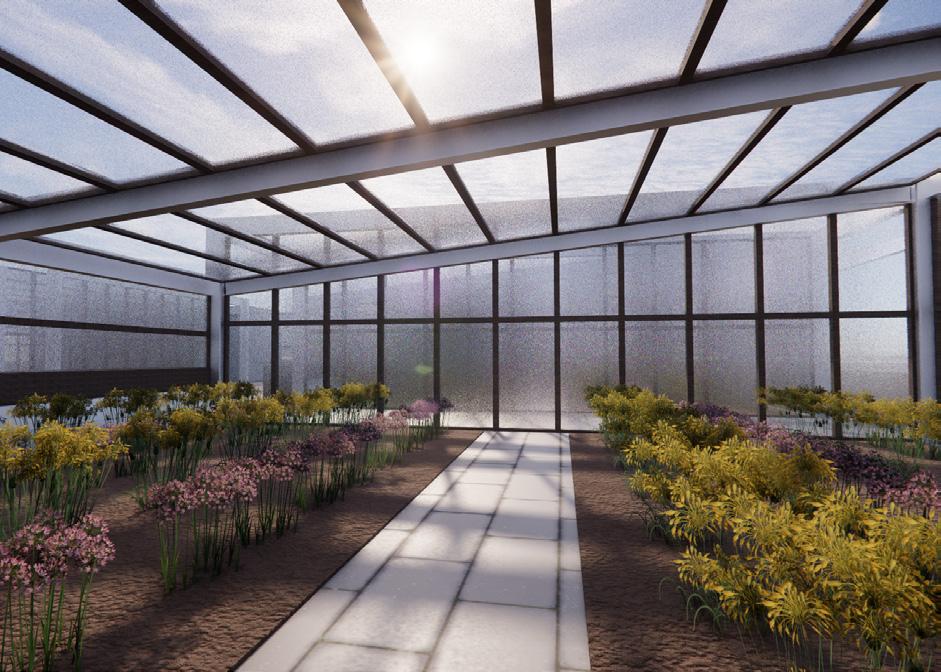

(3) CLOSED

Polycarbonate greenhouse walls fold down during winter, creating an enclosed space to isolate heat and ensure plants can grow through the colder seasons.

Gardeners’ Complex

Type: Academic (Fall 2021) | Individual Program: Residential

Location: Bancroft, Ontario

Software: Revit, Adobe Suite

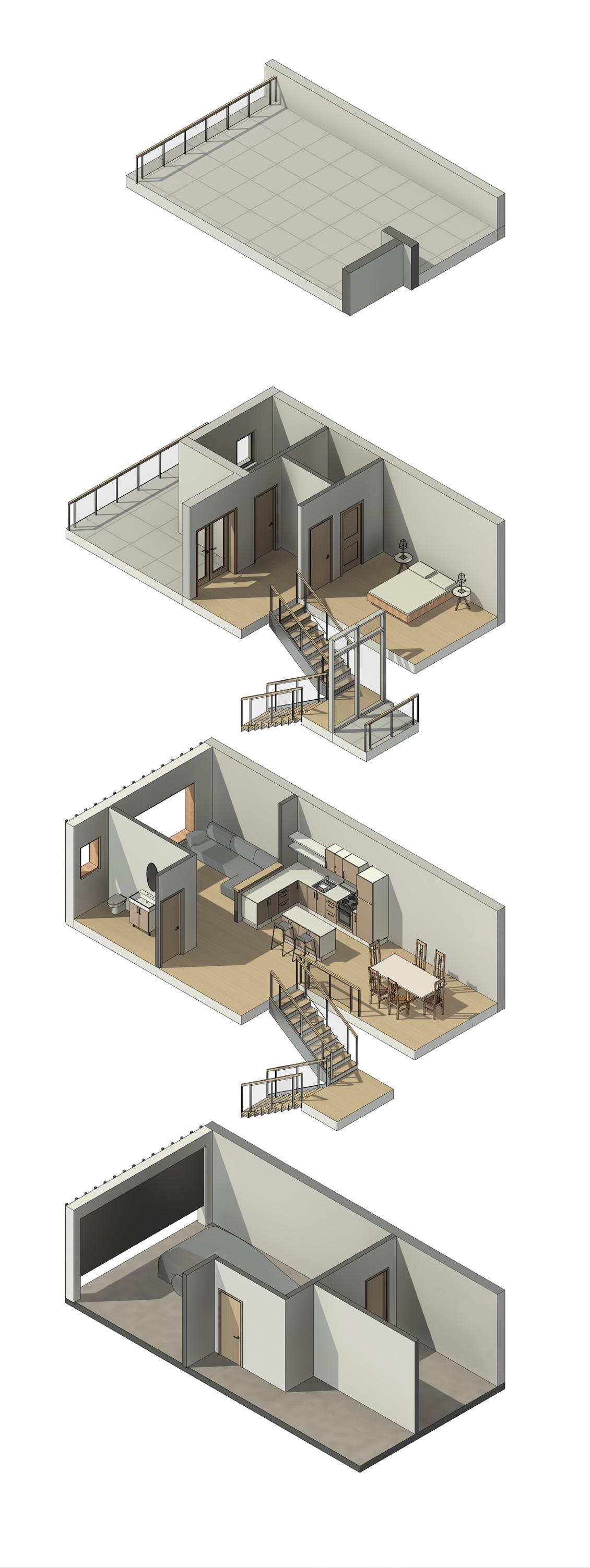

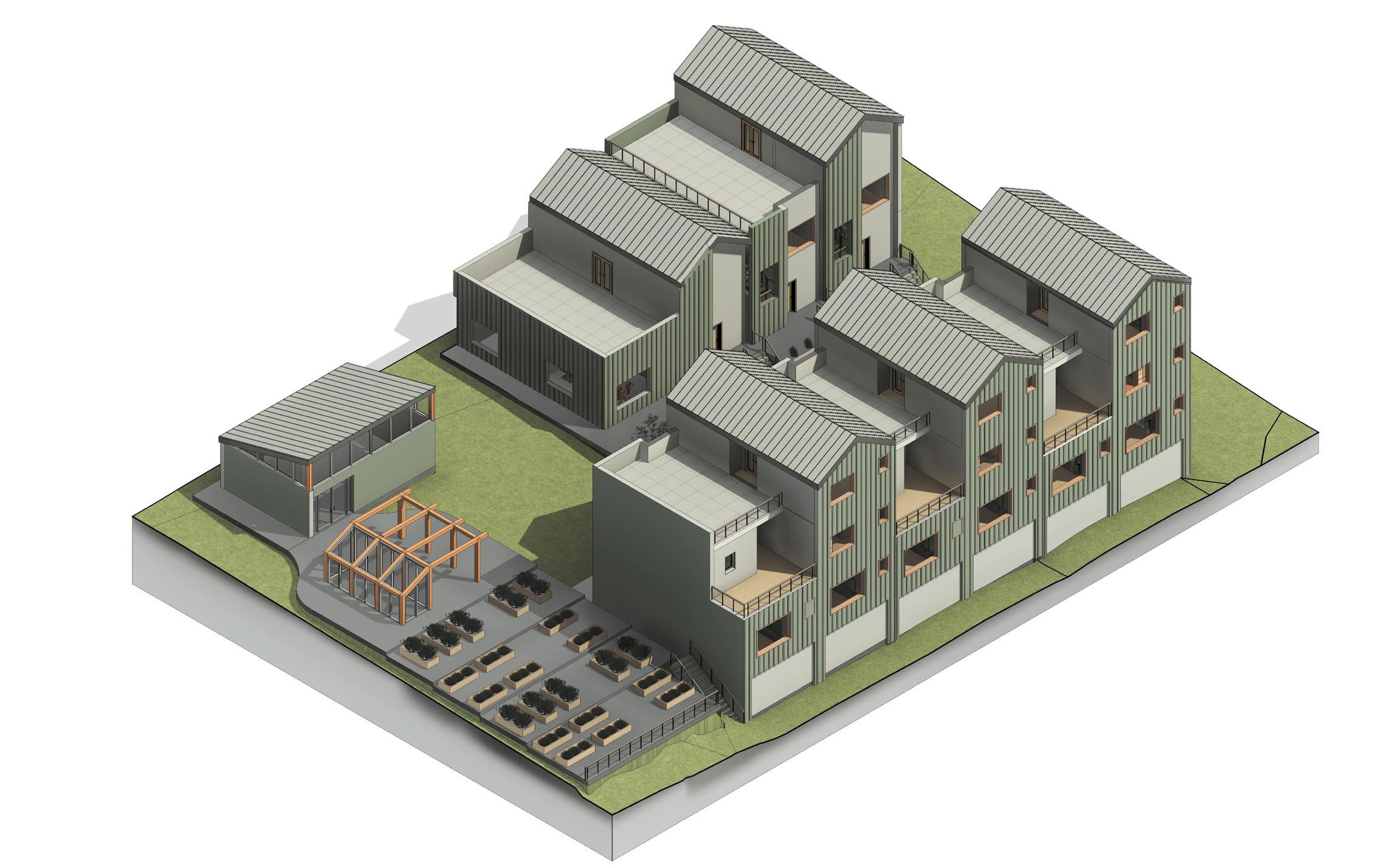

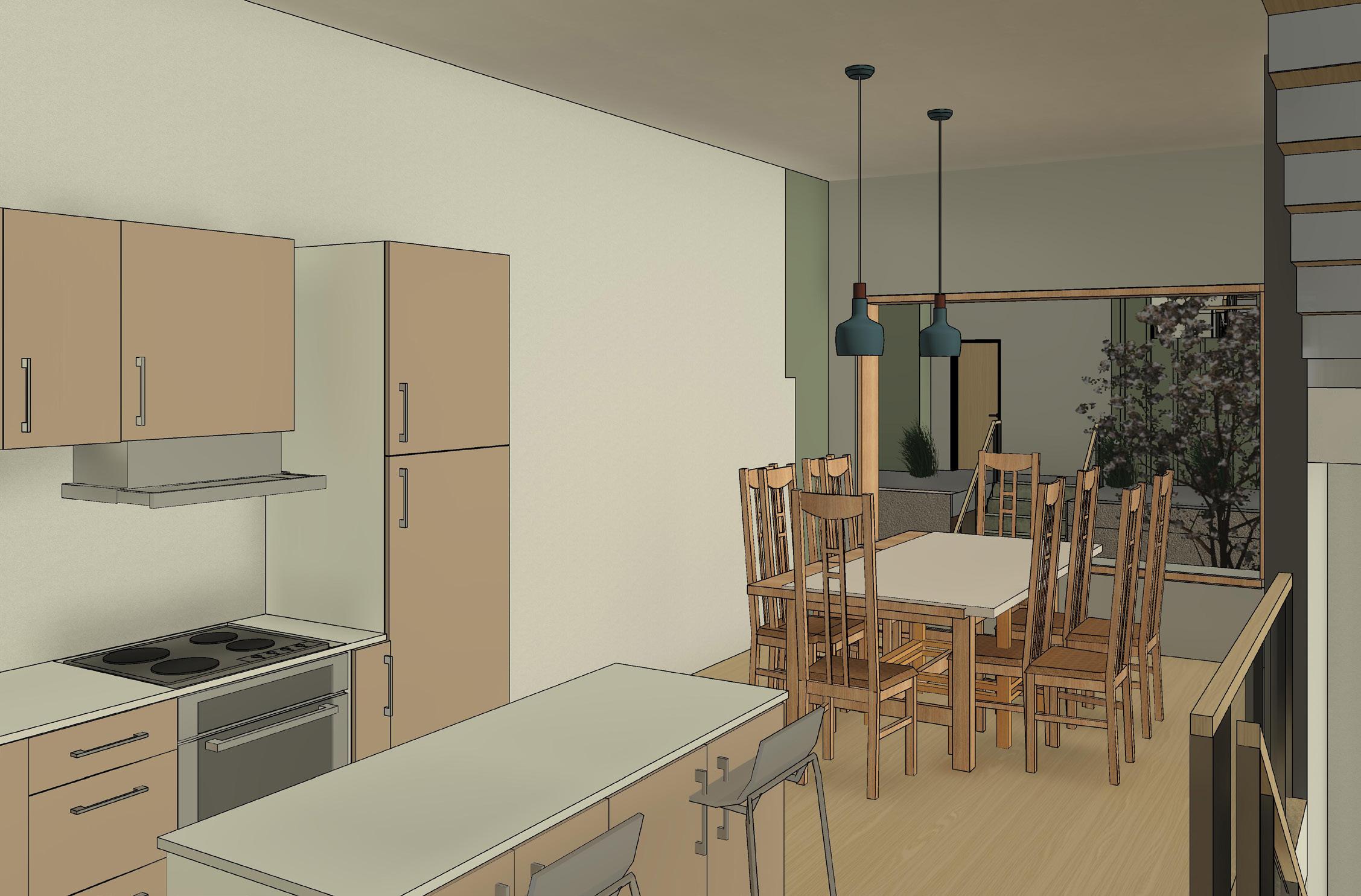

Gardners’ Complex is a residental housing proposal which aims to provide residents of Bancroft numerous opportunities to enjoy outdoor space, both privately through various balconies and roof terraces among the housing units, as well as publicly, with green space embedded throughout the site. The site includes a total of 9 dwelling units, assembled into two rows facing one another, with a central circulation and green space at the core, fostering spaces for interaaction and promoting a sense of community.

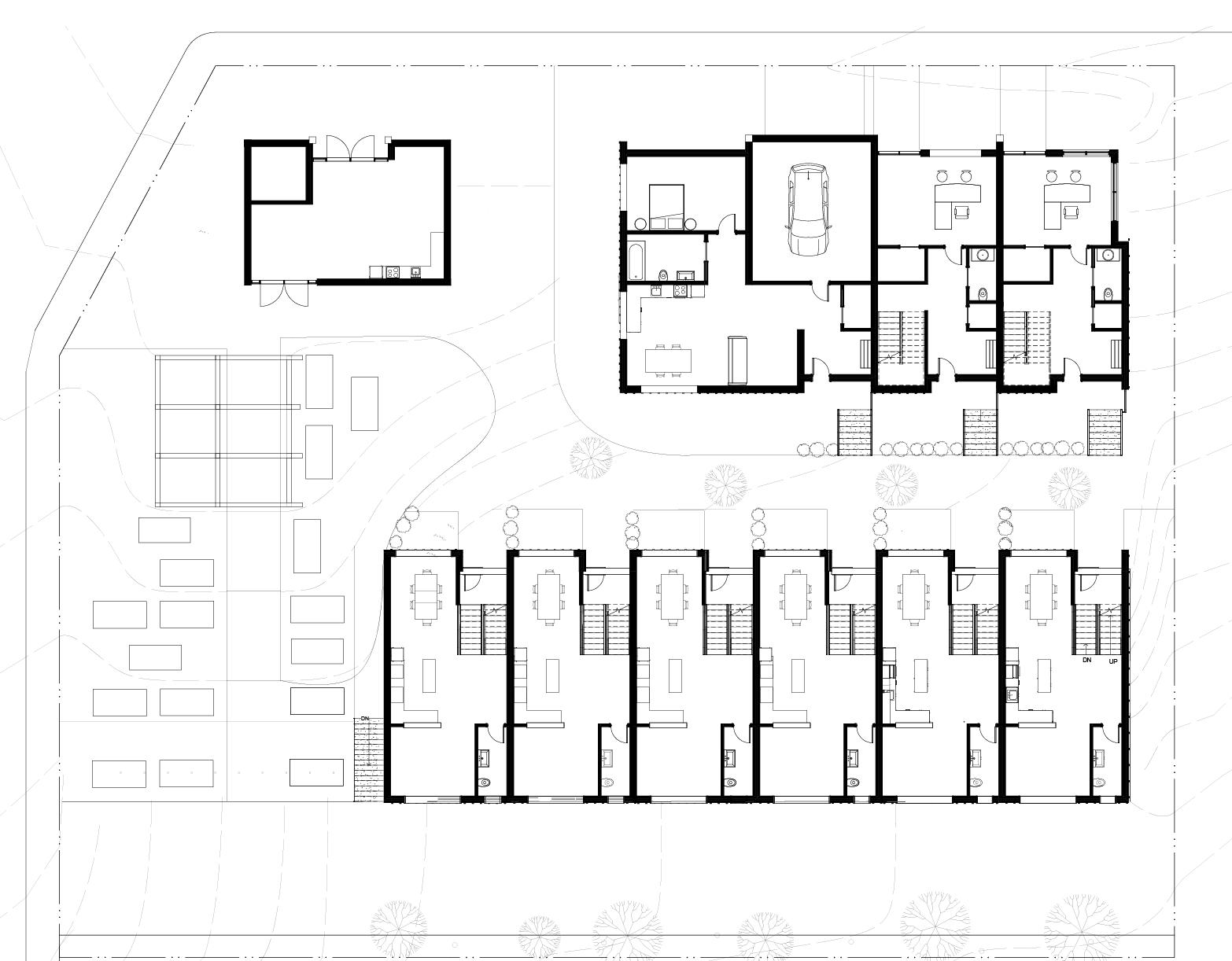

GROUND FLOOR PLAN

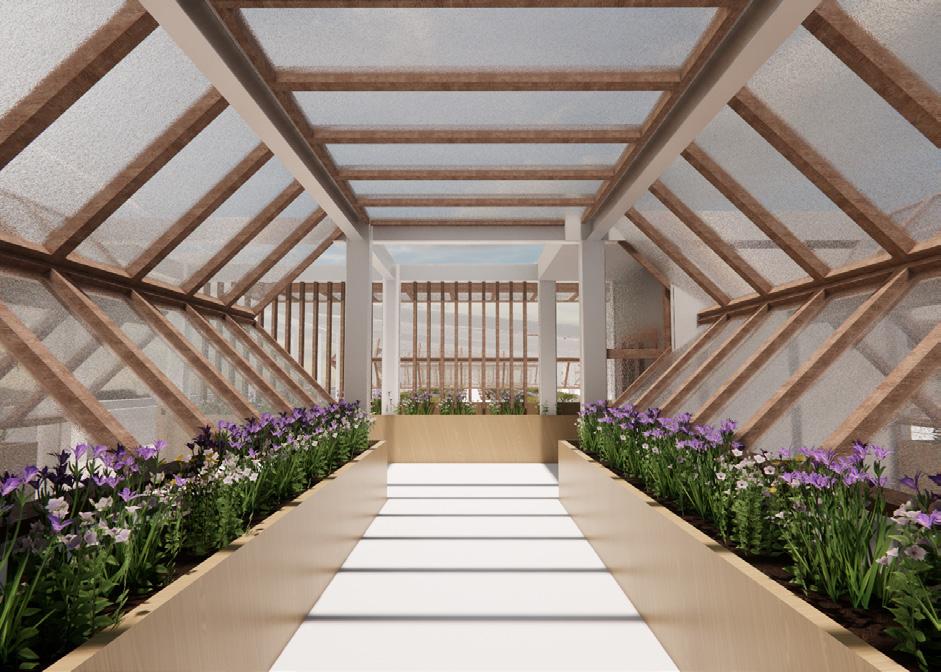

Community Programming

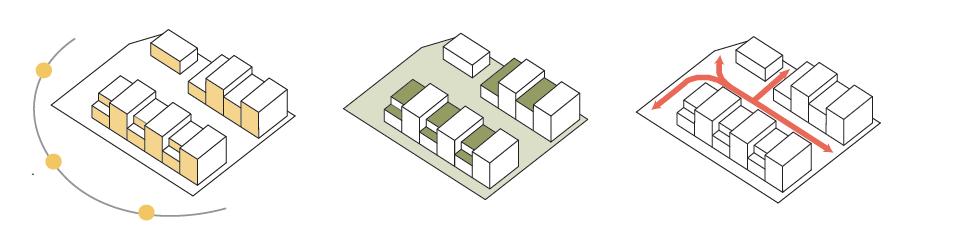

A community garden is proposed to accompany the housing complex at 1 Madawaska St, providing residents a sustainable and economical way to grow their own food while promoting a healthy lifestyle, fostering a collaberative community, and supporting the Bancroft Soup Kitchen located adjacent to the site.

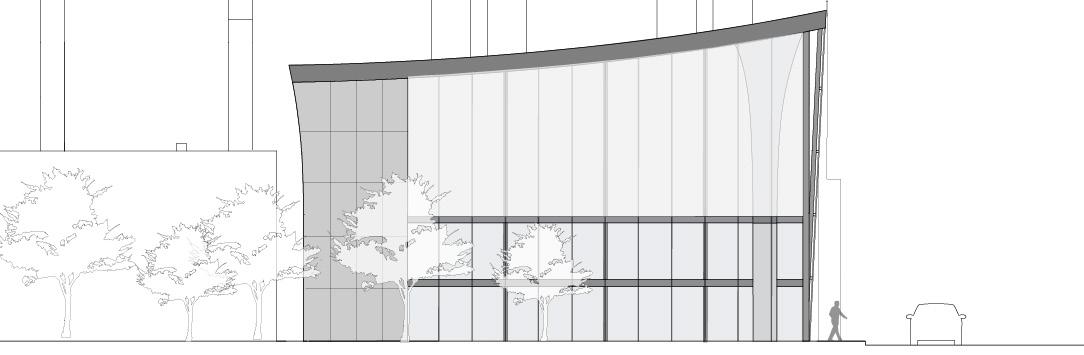

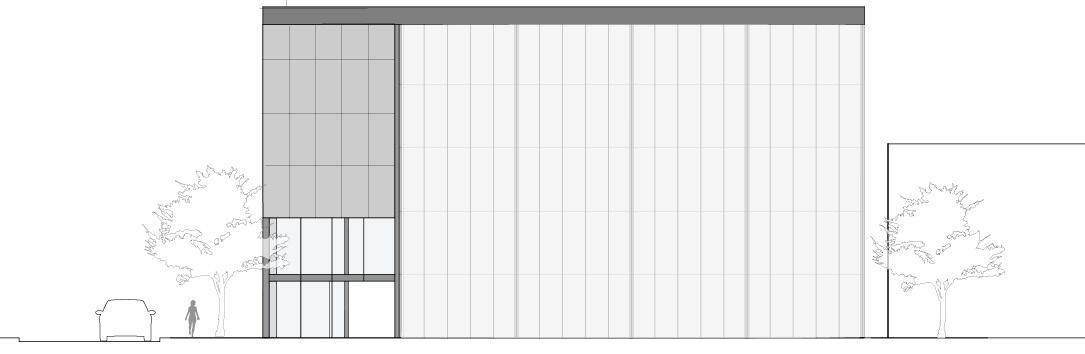

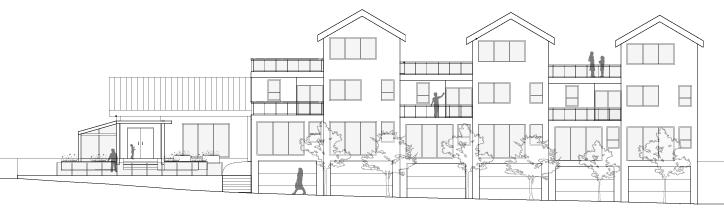

SOUTH ELEVATION

Pepper Planter Pavillion

Type: Design-Build | Timber Fever 2022

Location: Toronto, Ontario

Software: Rhino 7, Adobe Suite

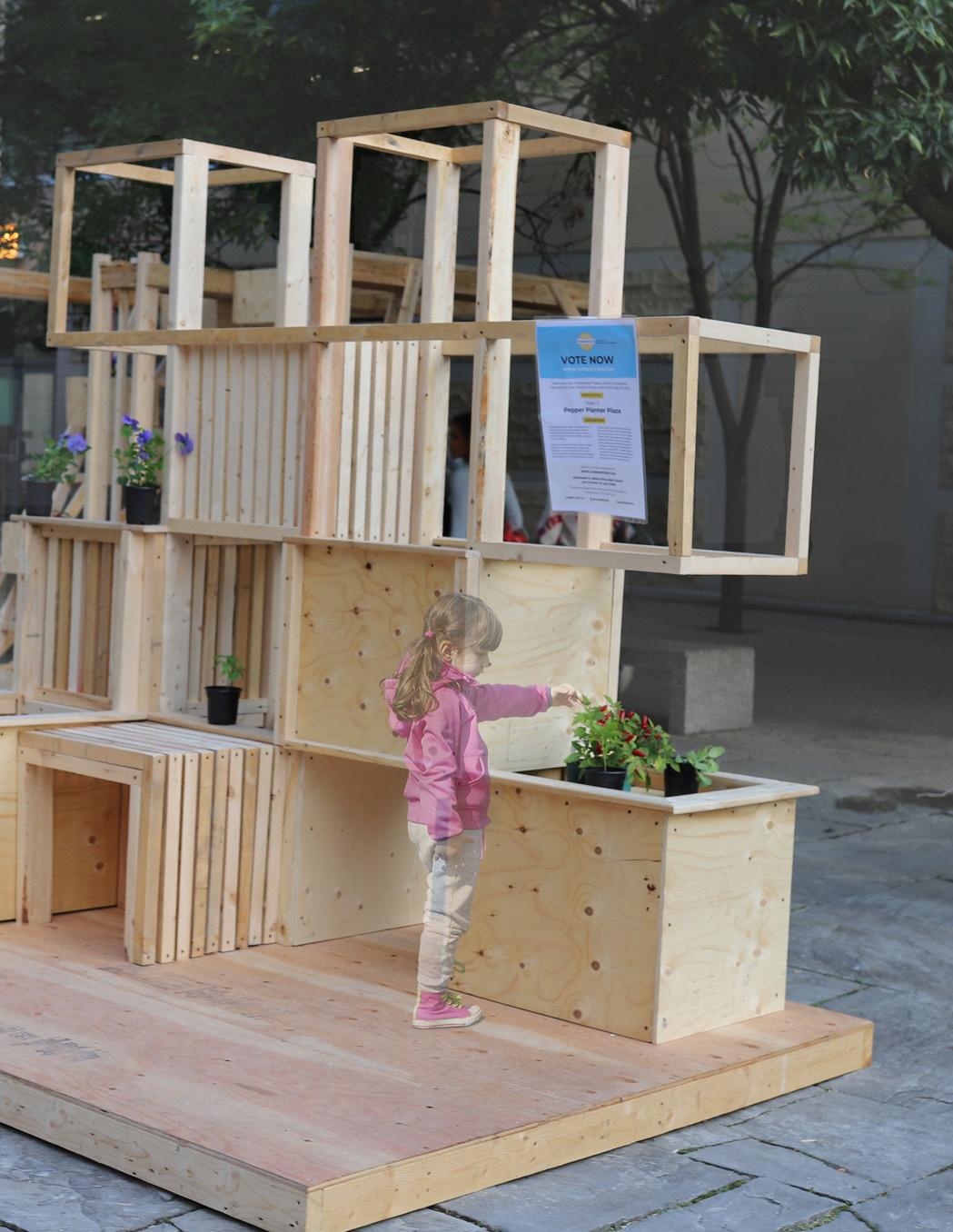

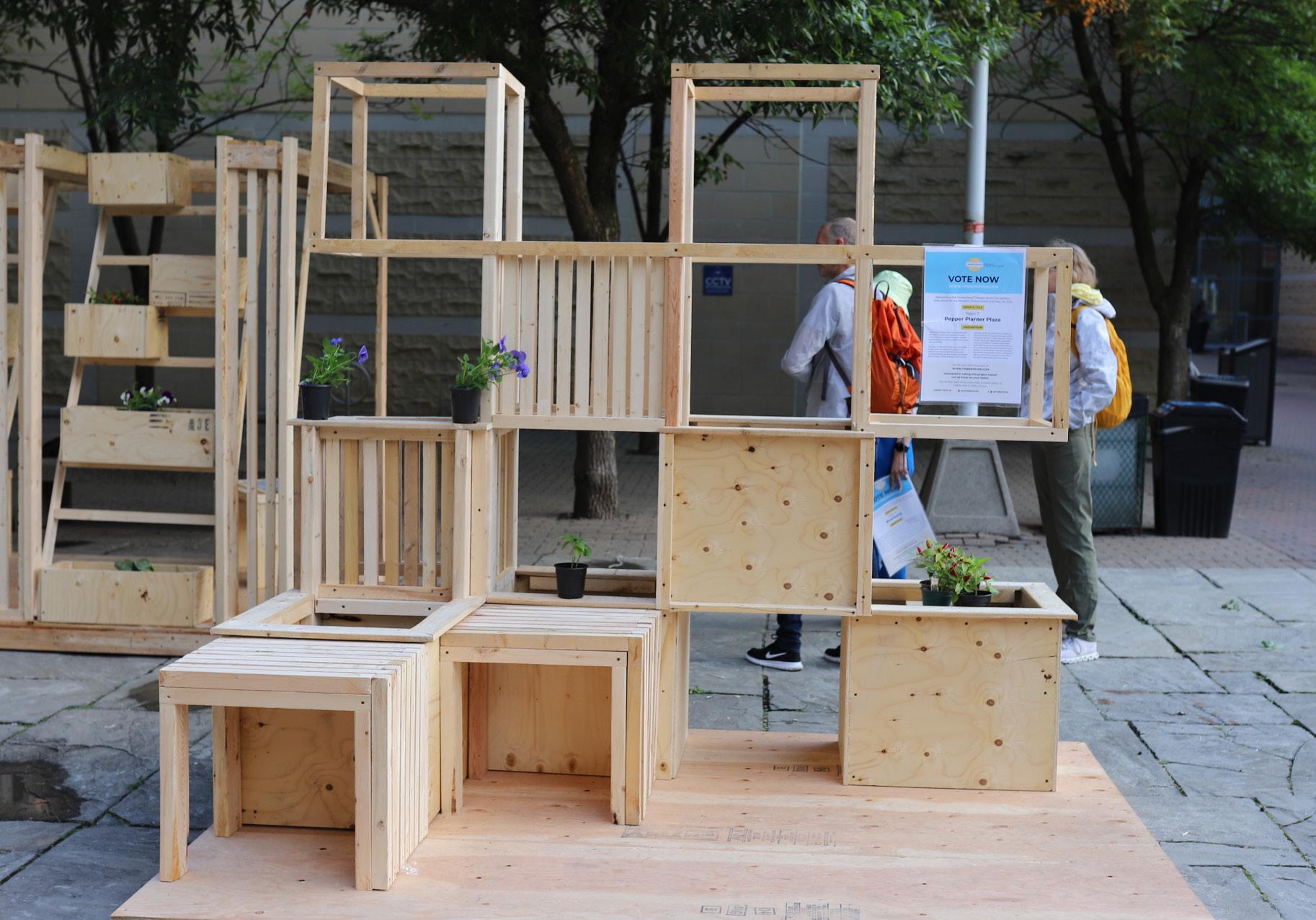

Deriving a variety of functions from one single shape, cubes are repeated throughout the design in various arrangements to provide structural stability, seating, storage space, and pepper planter boxes. Additionally, through stacking these various modular components, the overall building footprint is minimized such that the pavillion remains accessible to all members of the community.

1 2 3 Structure

A modular frame was built using 2”x 4” and 2”x 2” lumber

Joinery used to enhance stability and continuity

Planter Boxes

4 planter boxes were built onto the frame using 1/2” plywood

Planters concentrated towards the bottom of the structure to reduce loads and strengthen stability

Seating & Storage

2 benches were built from frames of 2”x 2” lumber, covered by 1”x 2” lumber to create both a seat and an enclosure for storage

SITE STRATEGY

The orientation ensures plants recieve maximum sunlight, while allowing the structure itself to act as a shading device for the seating areas, protecting users from harsh sun rays.
