જાનવી ભટટ JANAVI BHATT

selected works 2021-2024 1

JANAVI BHATT

I am a soon-to-be graduate from The Ohio State University, where I will complete my Bachelor’s degree in Architecture in Spring 2025. Over the past four years, I have gained valuable hands-on experience through three summer internships, deepening my understanding of the architectural profession.

Throughout my undergraduate studies, I have focused on mastering the fundamentals of architecture, which has cultivated a deep appreciation for attention to detail in how things are made. This focus has heightened my fascination with the intricate processes and craftsmanship behind design. As I prepare to pursue a Master of Architecture, I am excited to delve deeper into the field and explore specialized areas that truly ignite my curiosity.

My interests span architectural theory, materiality, and drawing techniques, as well as the intersections of architecture with creative disciplines like cinema, graphic design, video gaming, and set production. I am particularly drawn to observing and analyzing objects in fine detail, an approach that informs my understanding of design and composition.

R

E

S

U

experience: Gensler CESO inc.

PCI Design Uni-Print involvement: ohio state AIAS chapter banvard gallery volunteer director search committee nominee boost mentor osu raas dance team production lead software: rhino adobe photoshop adobe illustrator

2

M

E

contents:

01 02 03 04 05 06

adu vocational school elementary school

scattered sites

little haiti bayway commons

3

ADU HOUSE DESIGN STUDIO III / INSTRUCTOR: SAMIHA MEEM / SP 2024 ADU’s are part of the ‘missing middle’ housing options between single-family houses. Missing middle housing responds to changes in the modern american family, including single parent families, single person households, and families without children.

Such housing can meet the needs of these growing populations while also creating more livable and sustainable cities in terms of access to mixed uses and walkability. Architecturally, missing middle buildings focus on scale and form rather than abstract metrics like density that do not ensure predictable apartment results.

Grandfamily housing – This ADU will allow for multigenerational housing on the same site and is intended for older parents or relatives to live adjacent to a younger generation of the family.

This specific ADU is built with the intention to foster a space where the granparents and grandchildren can live in harmony.

4

5

Program: Children

Program: Grandparents

Program: Children

Program: Children

GRANDCHILDREN

Core

Core Program: Grandparents Program: Grandparents

Program: Children

GRANDPARENTS

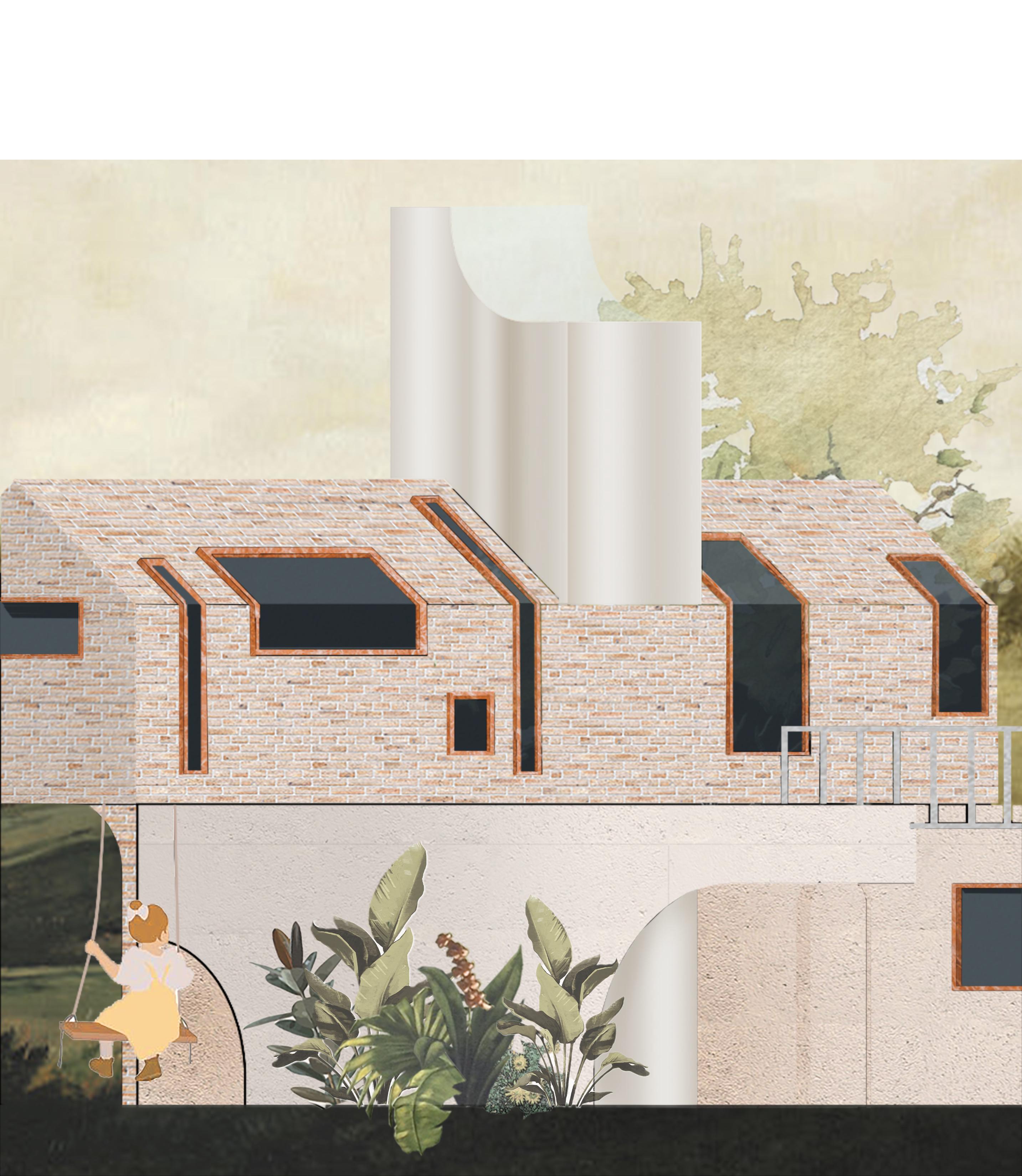

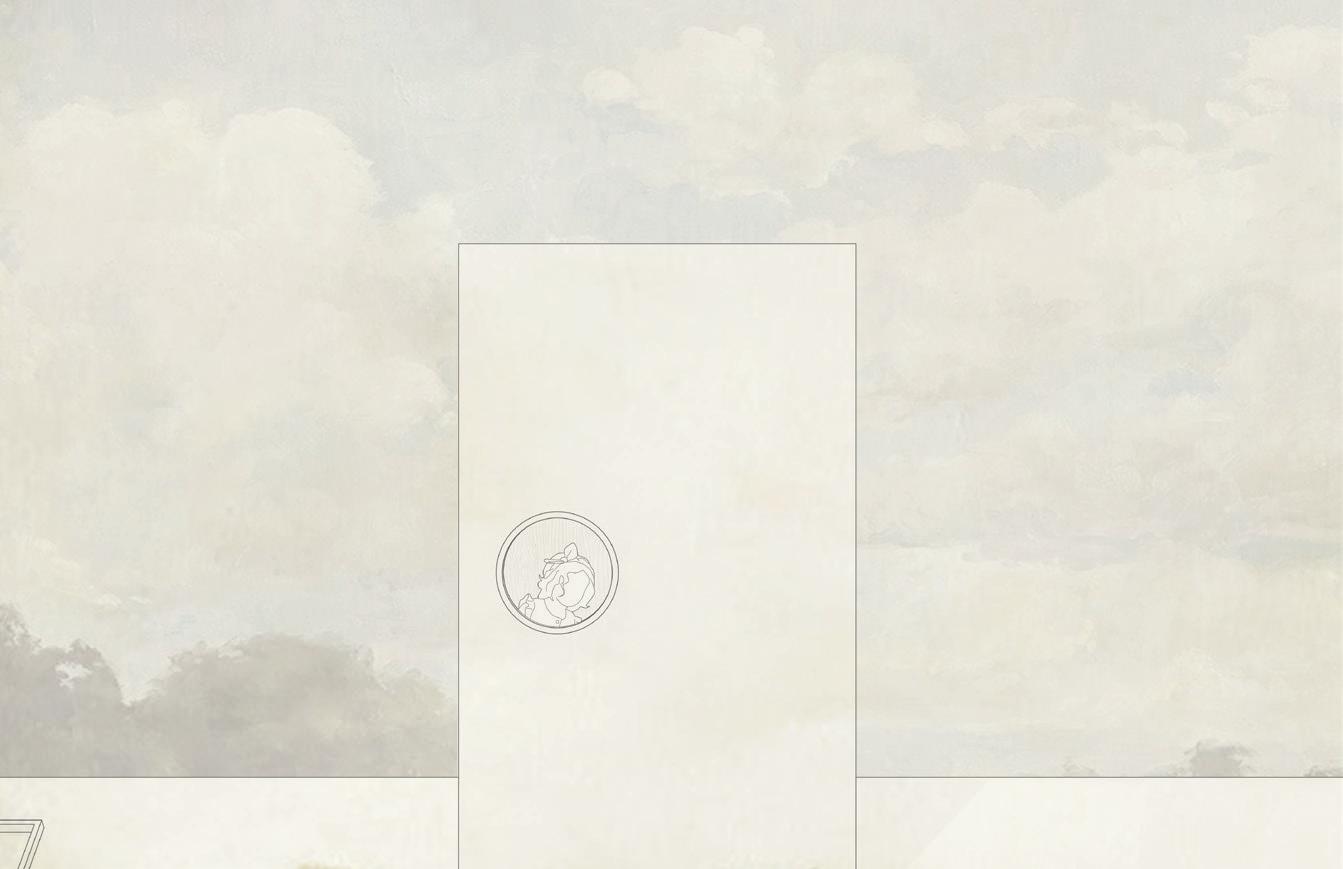

front elevation 1 Front Elevation Scale: 1/4” = 1’

6

2

Grand-family Housing

Core

CORE

Grand-family Housing Grand-family Housing

Core

Program: Grandparents

Grand-family Ho

GRANDFAMILY HOUSING

Right

section 1

Sections Scale: 1/4” = 1’

Left

section 2

7

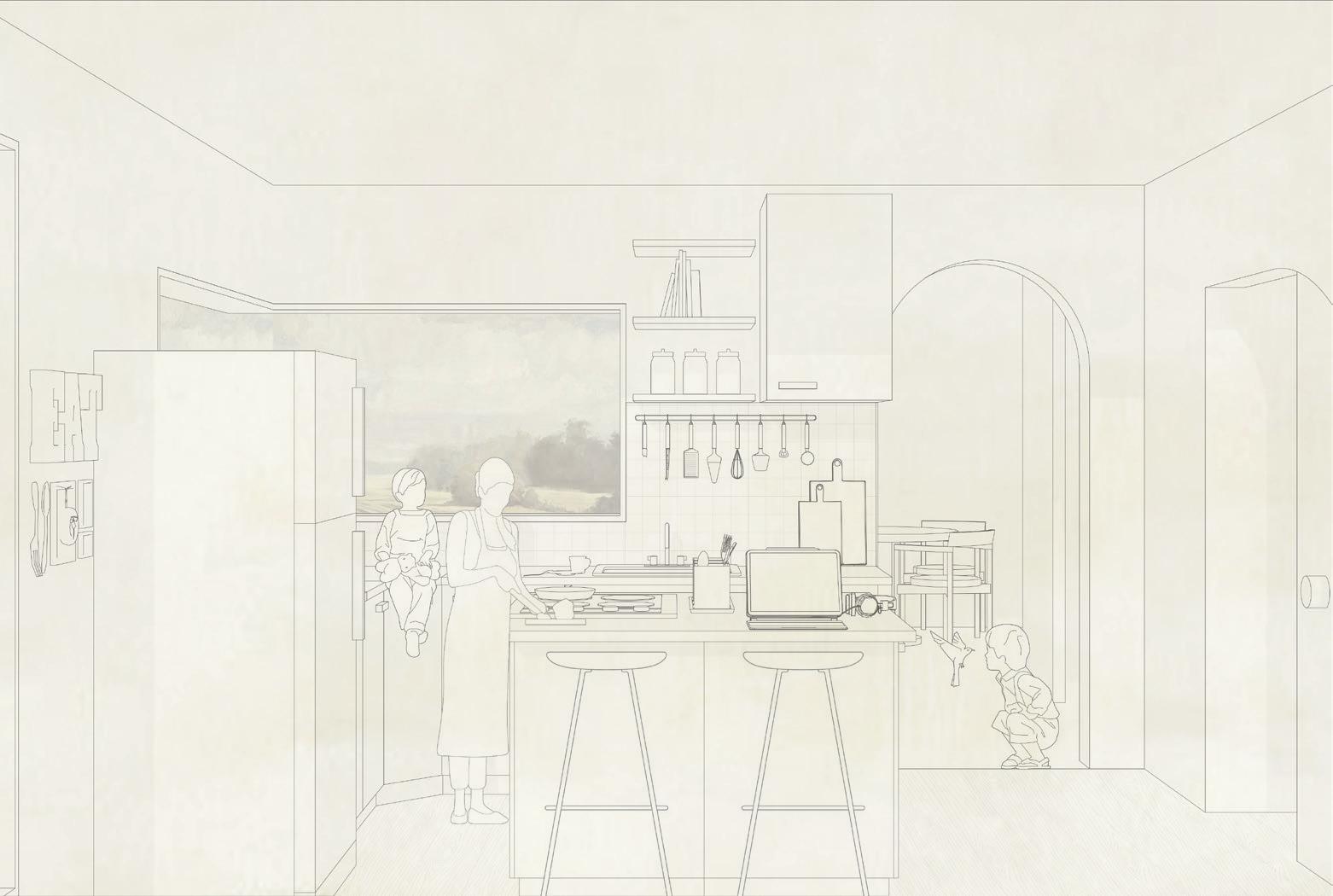

1. grandparent space - view looking at kitchen and front door open to the dinet

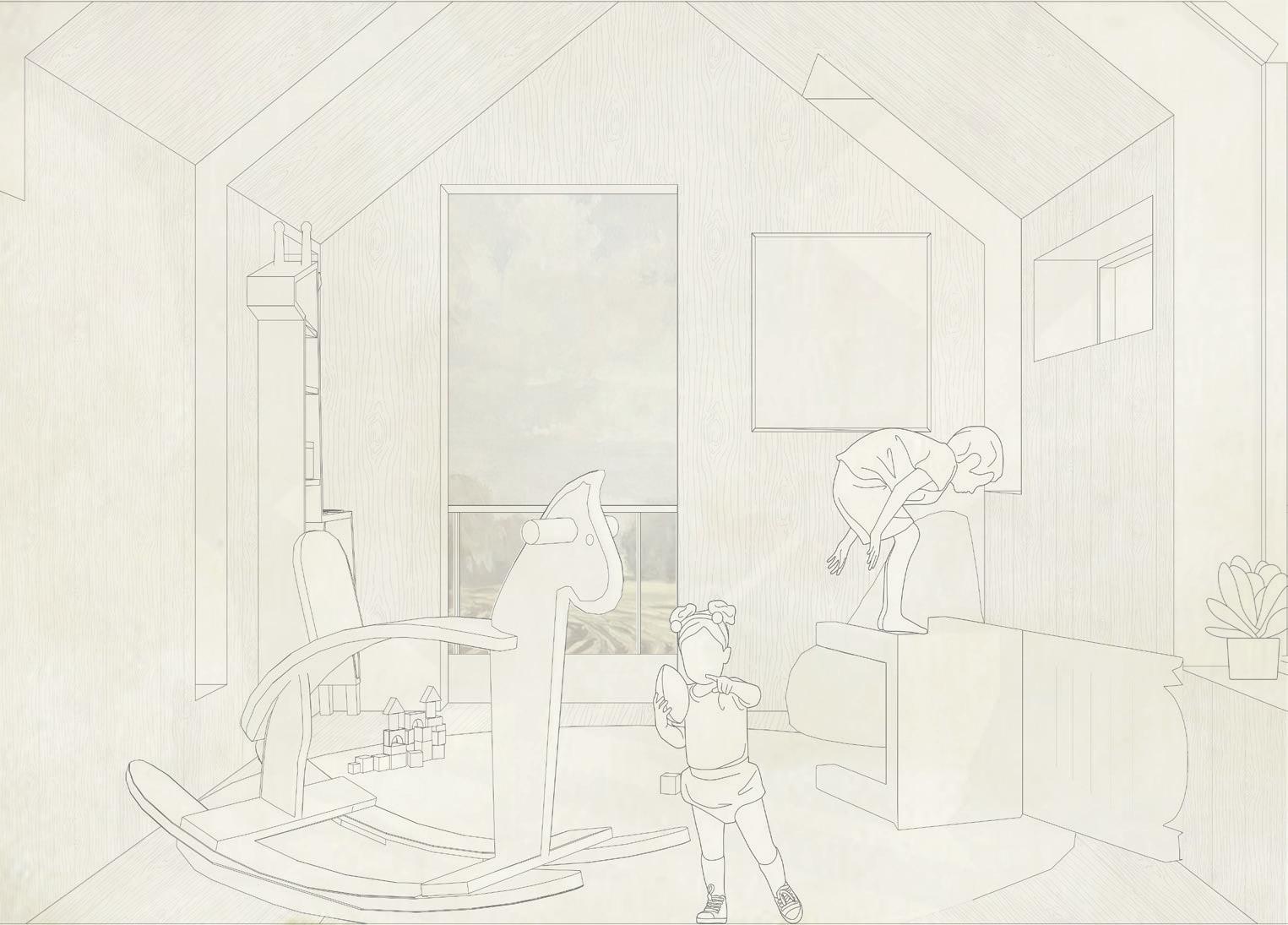

2. grandchildren room - playarea leading to outdoor balcony

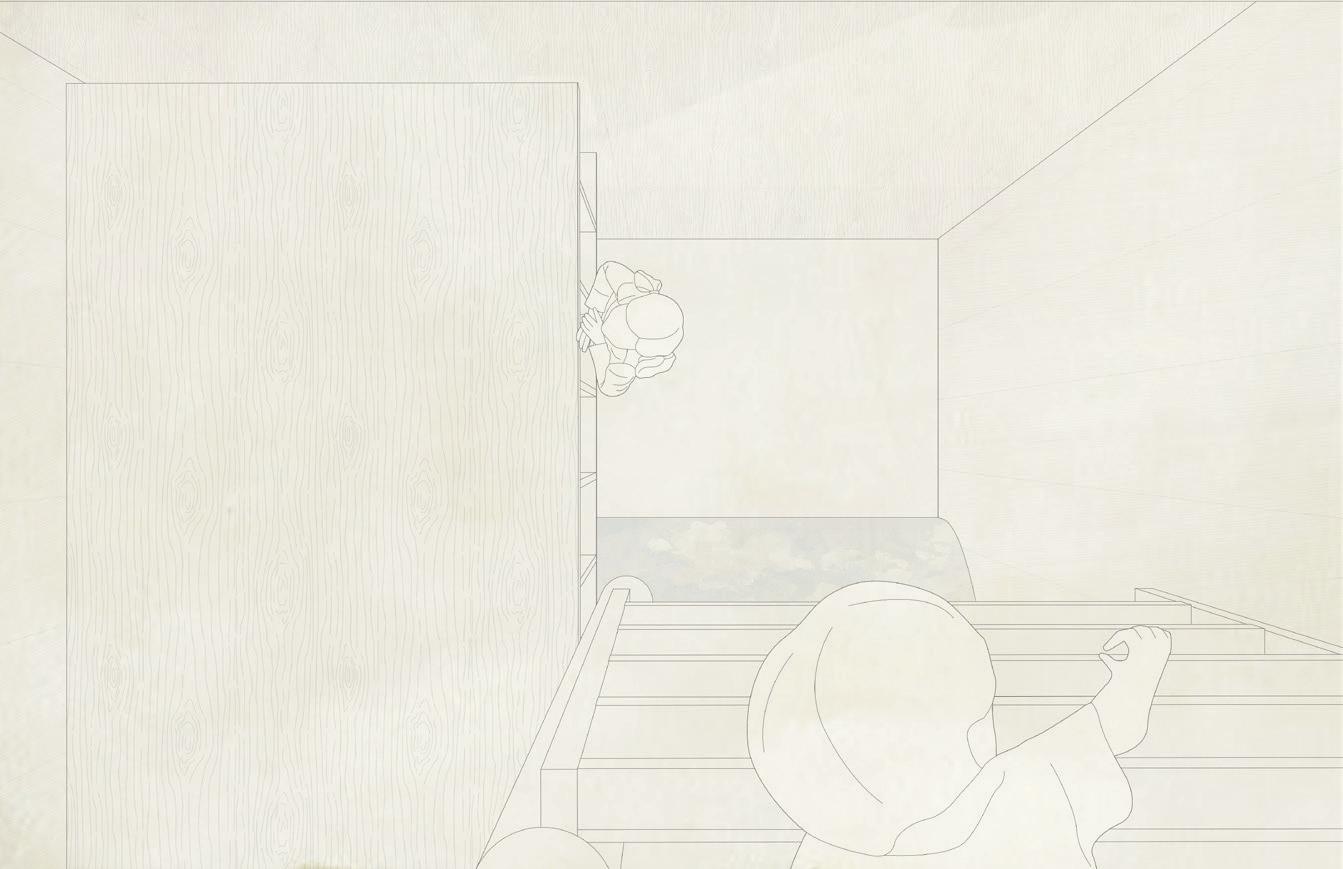

3. tree house - view climbing up to the tree house

8

4. ADU - exterior back view looking at the tree house window

ground floor

1 first floor

tree house

2

Second Floor Plan Scale: 1/4” = 1’

Third Floor Plan Scale: 1/4” = 1’

9

METAL SHOP METAL SHOP WOOD SHOP WOOD SHOP COMMERCIAL KITCHEN DIGITAL WORKSHOP CAFE STAFF AREA REPAIR CAFE/ TOOL LIBRARY

VOCATIONAL SCHOOL

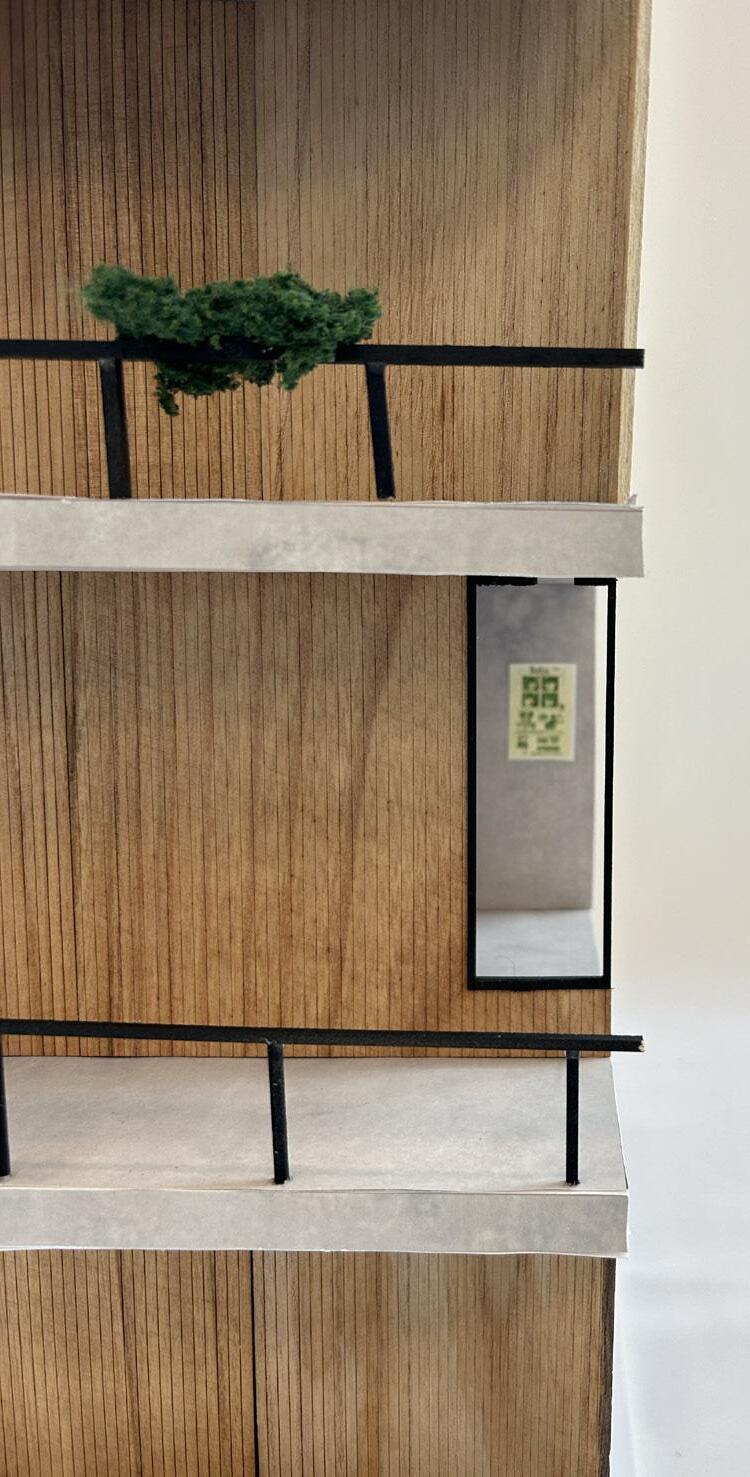

DESIGN STUDIO III / INSTRUCTOR CURTIS ROTH / FALL 2023 The first community shed/ vocational school was developed in Australia in the 1990s and this project offers us the opporunity to re-consider the questions of what an “educational spcae” may look like. Apart from merely providing space for the infrastructure of schooling, it’s the subtle capacities of architecture to shape the character of learning that was investigated. This project stands as a testimony for a space that welcomes diverse temporalities of engagement for the entire community while encouraging learning.

This project incorporates private and public programs, using the interior carve as private studios and the larger exterior carve for larger scale exhibitions and public gatherings. The staggered floors allows for visibilty across other floors and also gives a view down into the large exhibit area.

10

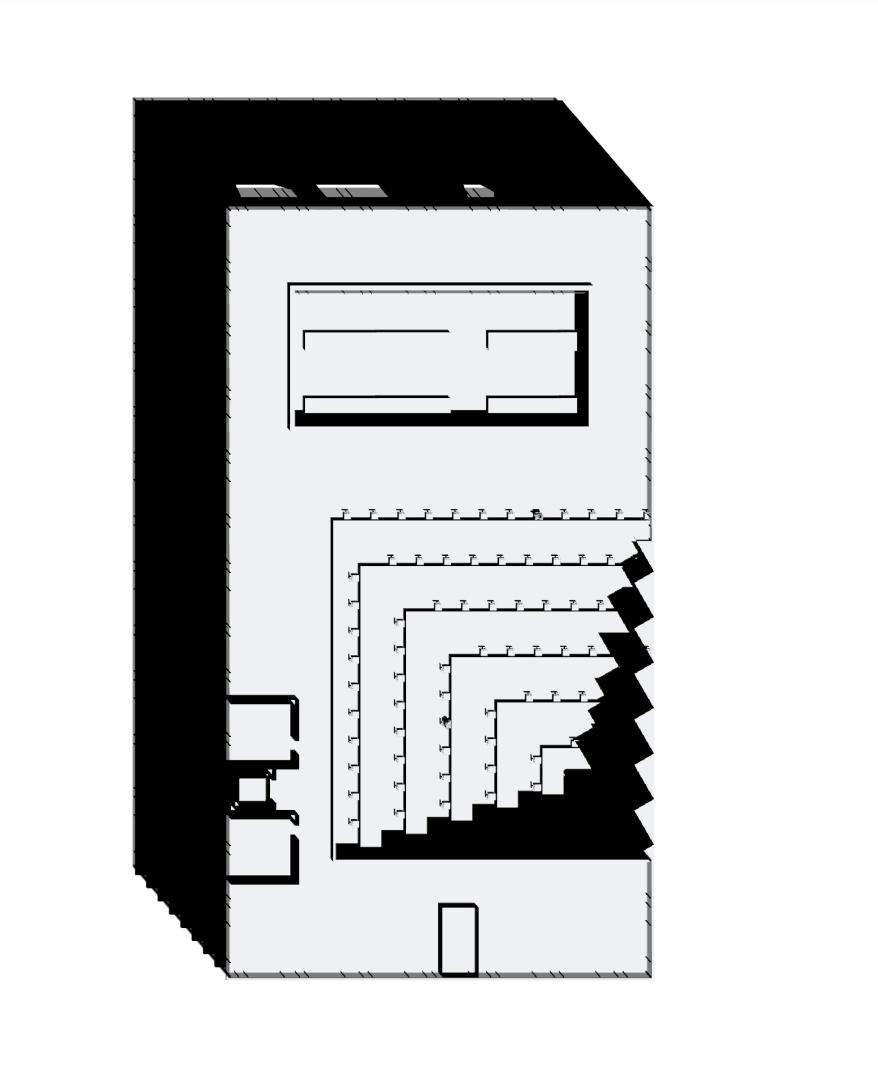

c Drawing

11

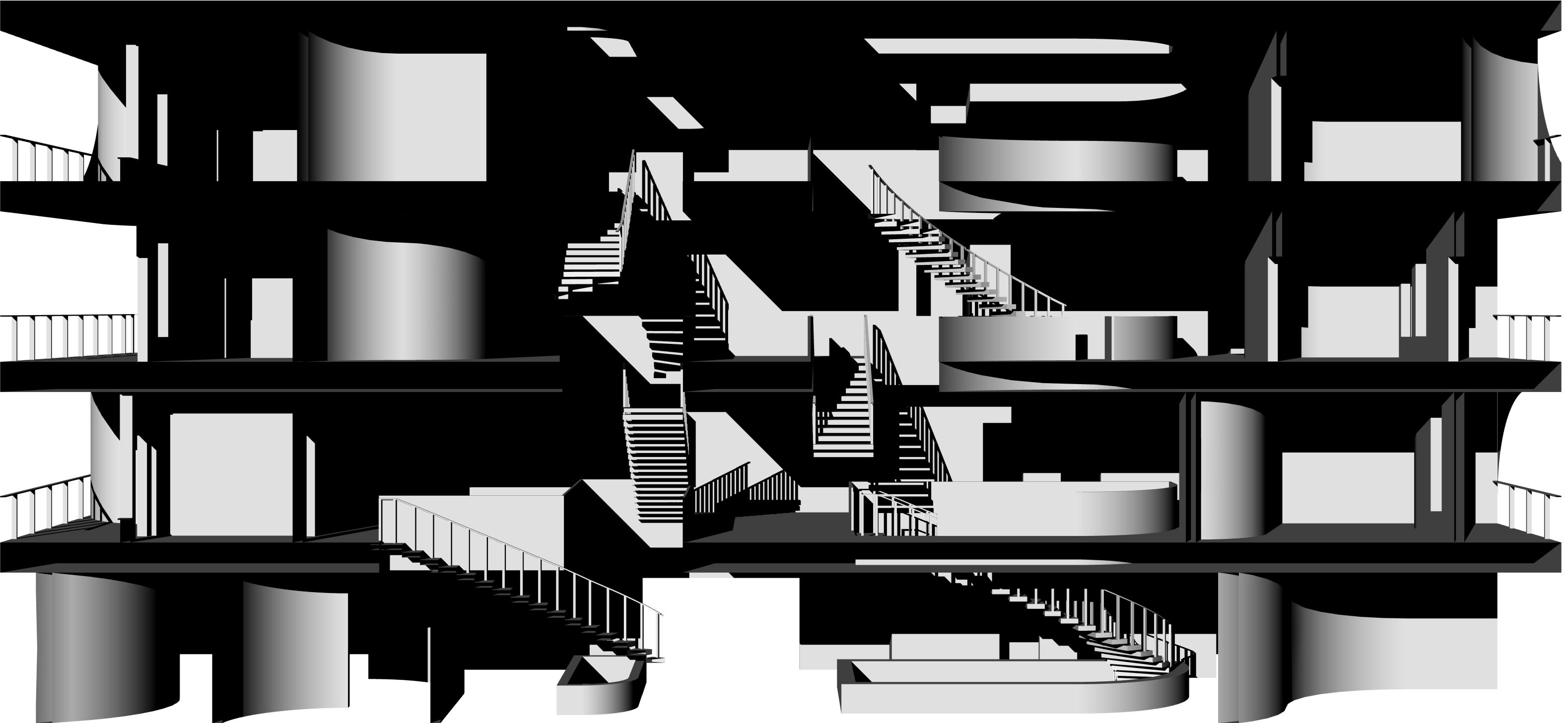

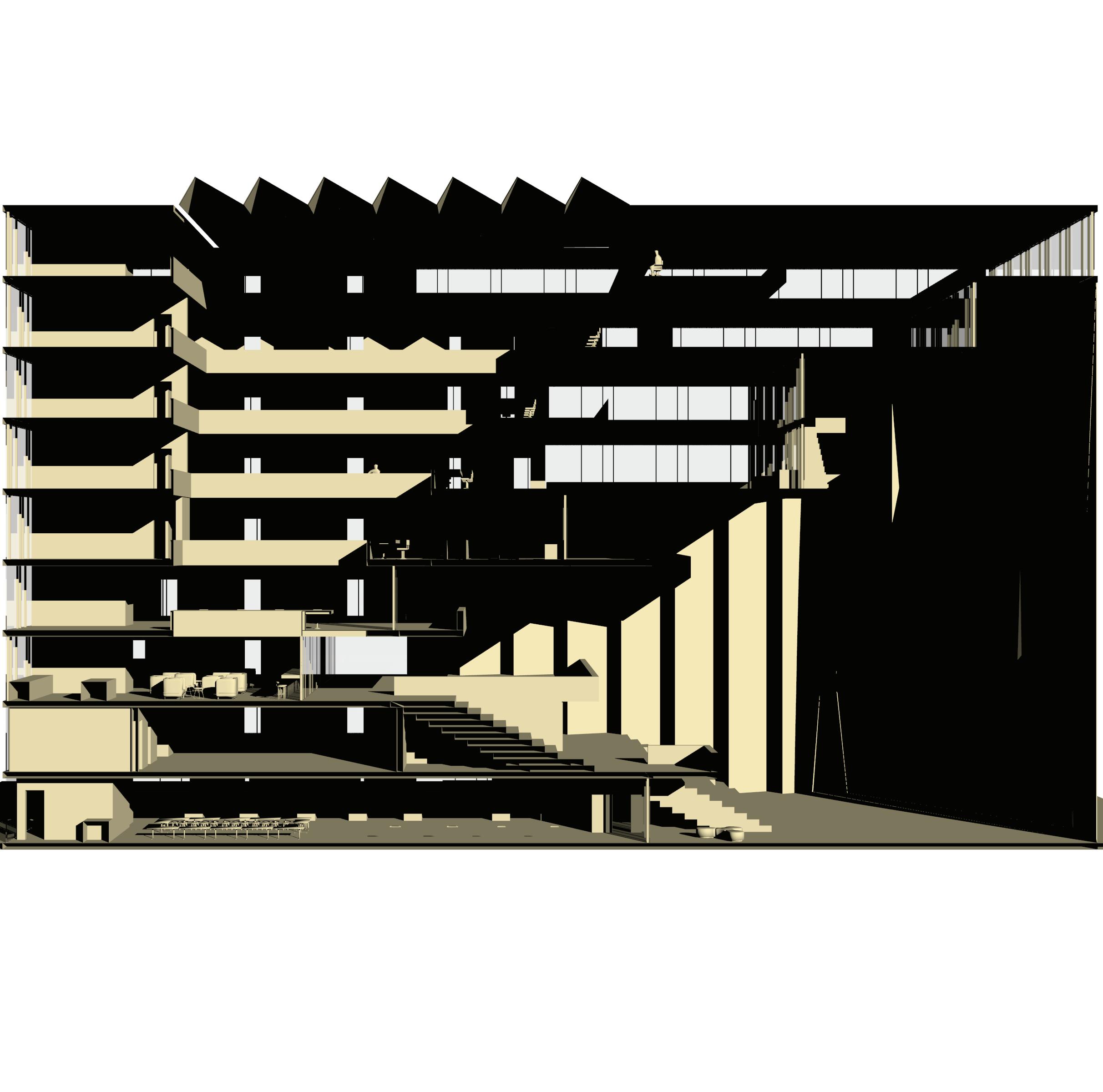

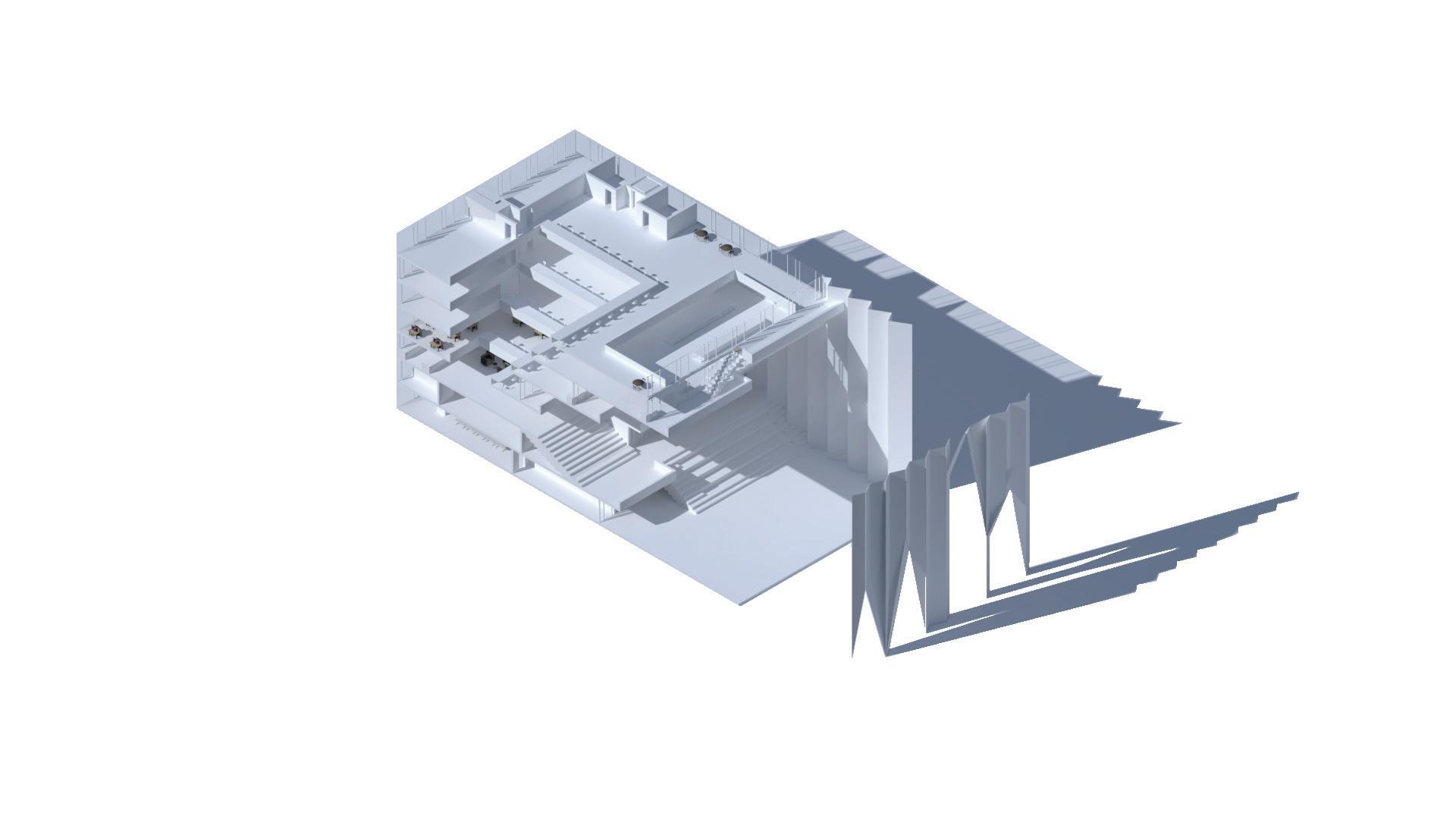

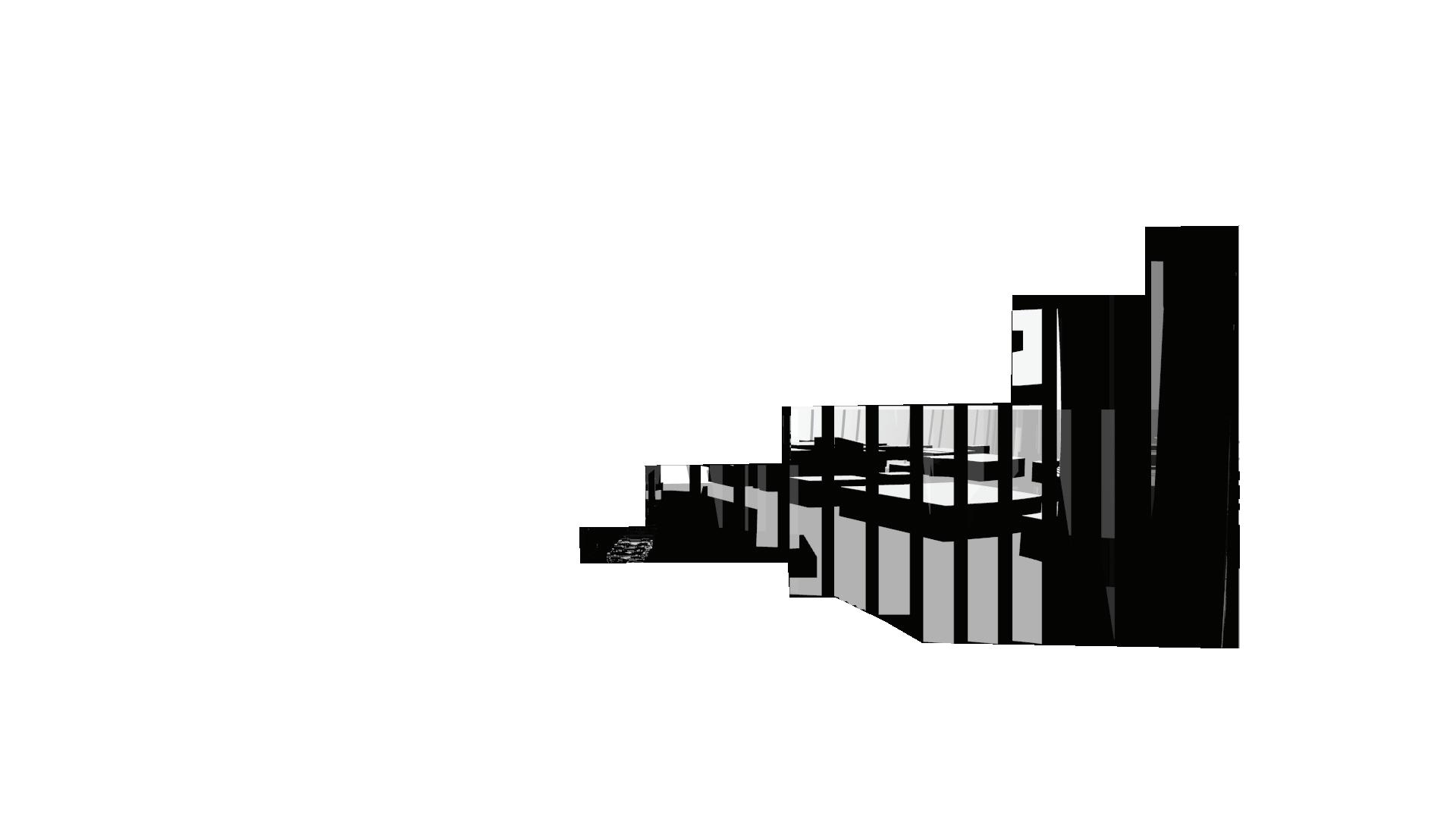

SECTION PERSPECTIVE

12

13

Broad St.

01

02

PR

IVA

MA

LIC

SS

C

B PU

MS

03

OO

SR

LAS

TE

04

S

OP

SH

K OR

W

02

PR

IVA

TE

01

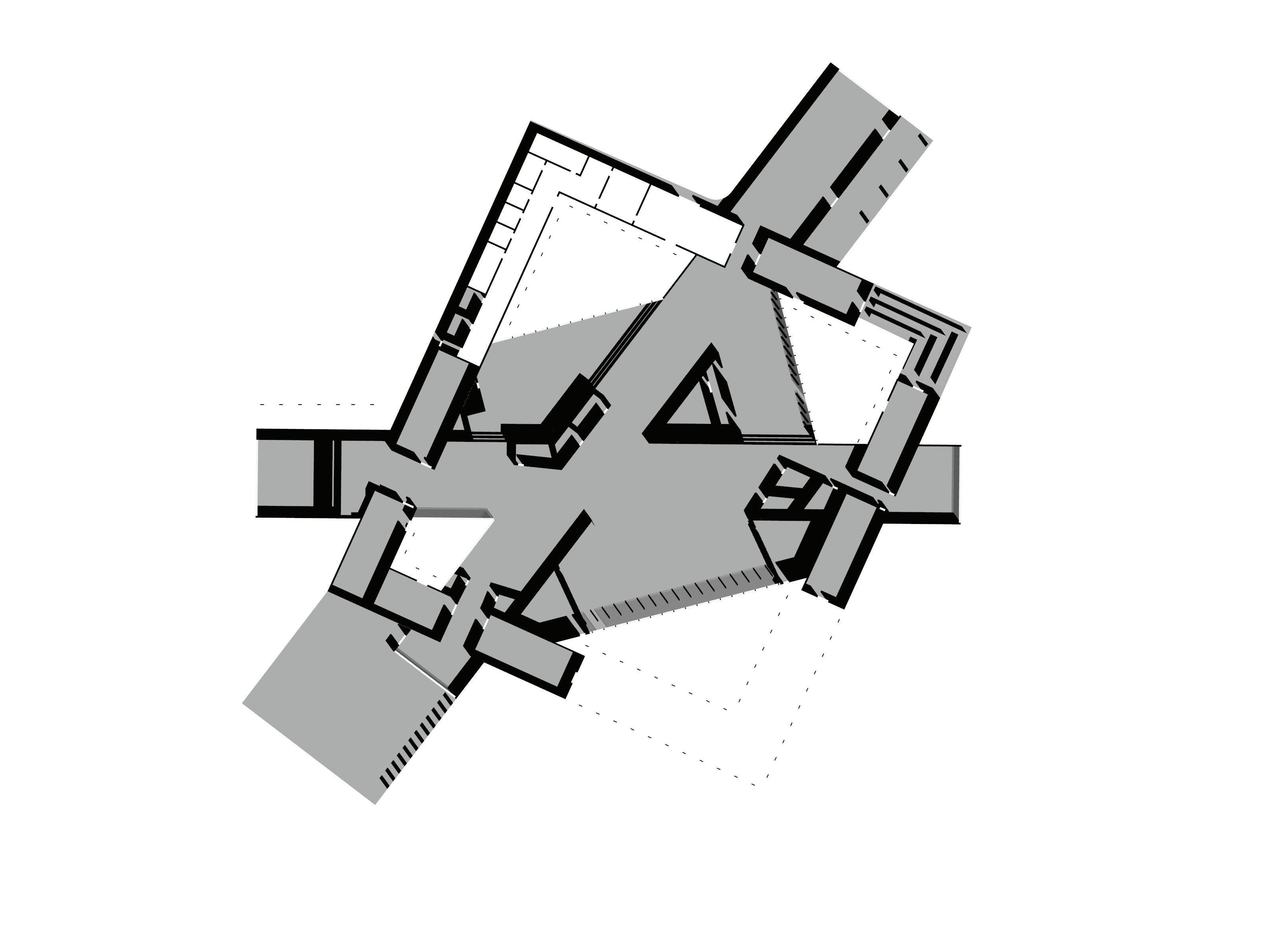

GROUND FLOOR

Ground Floor Plan Scale: 1/8”=1’-0”

02 PR

IVA

TE

C

LI UB

P

MA

LIC

SS

B PU

04 A

CL

MS

03

OO

SSR

S

OP

SH

K OR

04

W

SIXTH FLOOR

14

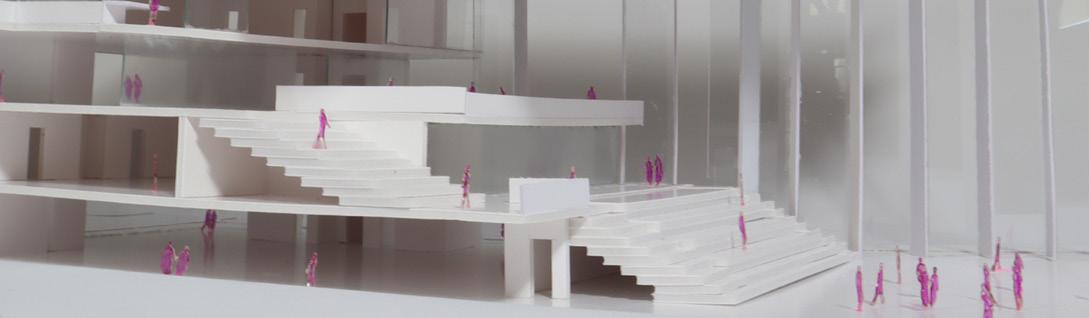

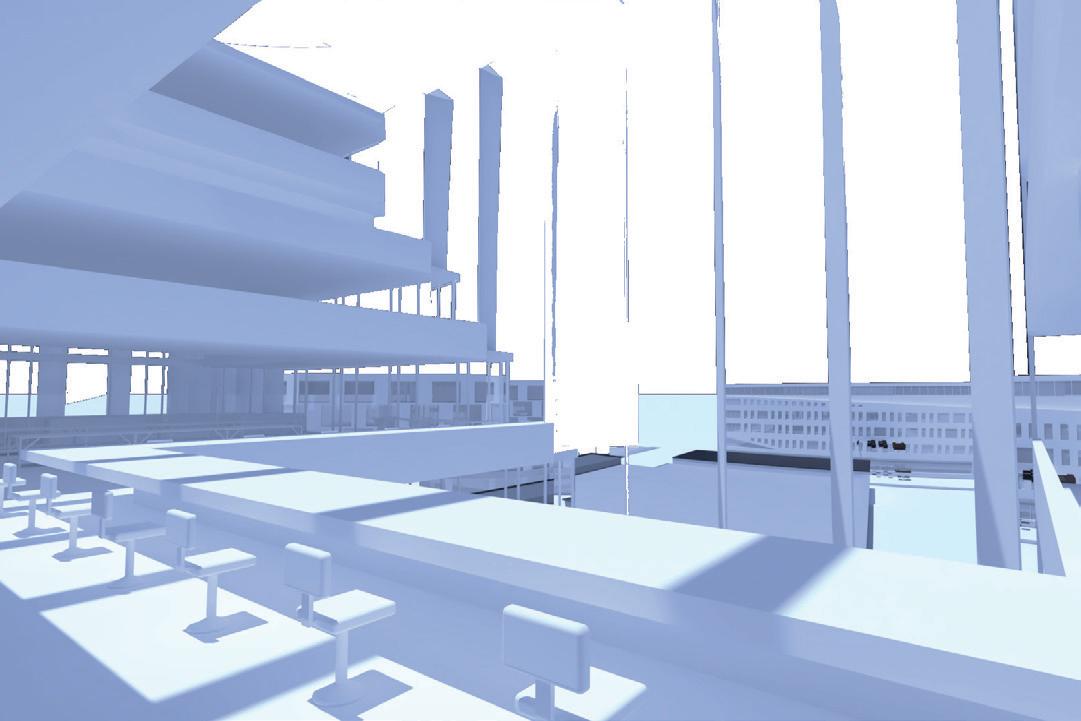

1. view looking at studio spaces and balcony over looking exhibition space

2. exterior perspective

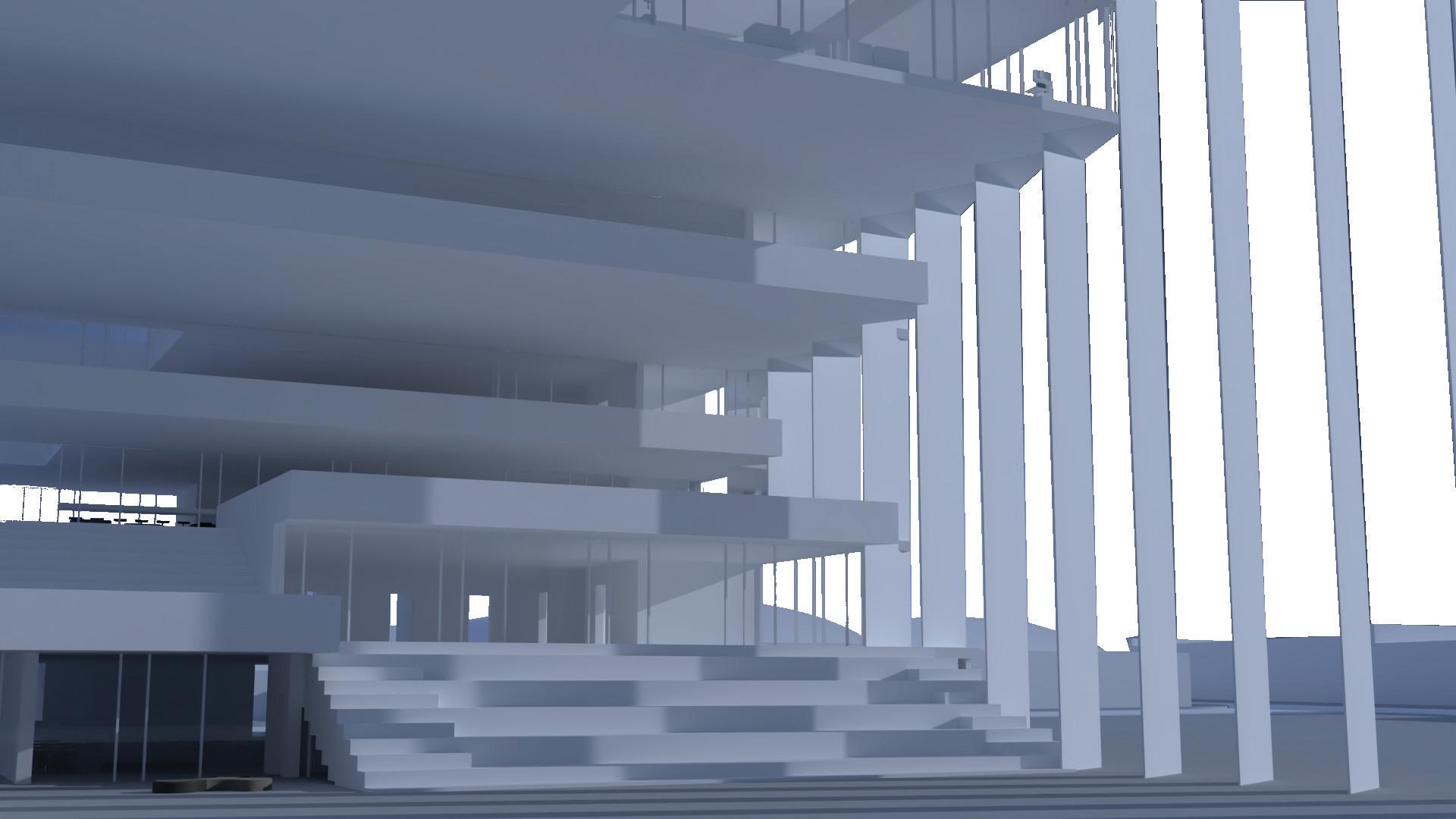

3. exterior perspective capturing big stairs leading on to other floors

THIRD FLOOR

oor 3 Plan cale: 1/16”=1’-0”

4. interior perspective capturing the effect of the staggered floors

5. interior perspective capturing studio spaces looking out into the city - The ground floor includes the main entrance which leads straight into the exhibition space and the repair cafe where the community can come in to fix their broken machines from home and collaborate.

- Each floor after that has a cut out lining the independent studio spaces, and a larger open area for a specific shop. The far back end of each floor also has classrooms and any classes that the community may want to host.

- The floor plan layout is meant to offer collaborative and independent spaces in different disciplines for all ages of the community to gather and continue their educational journey.

NINTH FLOOR

15

EAKIN ELEMENTARY

DESIGN STUDIO III / INSTRUCTOR CURTIS ROTH / FALL 2023 Architecture shapes how we learn and it does this in the most literal sense by providing desks, computers, and the various infrastructure of education and learning. However, apart from merely providing space it has the capability to shape character.

As societies develop new methods, we also develop new ways for architecture to support those endeavors. This project designs a school for one of the newest pedagogical models, known as project based learning.

The project’s program is designed around the diverse ways students learn: messy, quiet, collaborative, and technology-driven. It fosters intersections between these learning styles while encouraging outdoor learning and connections.

The shifting floor plates play a crucial role in creating these intersections, seamlessly blending different learning environments and allowing natural sunlight to permeate the building.

16

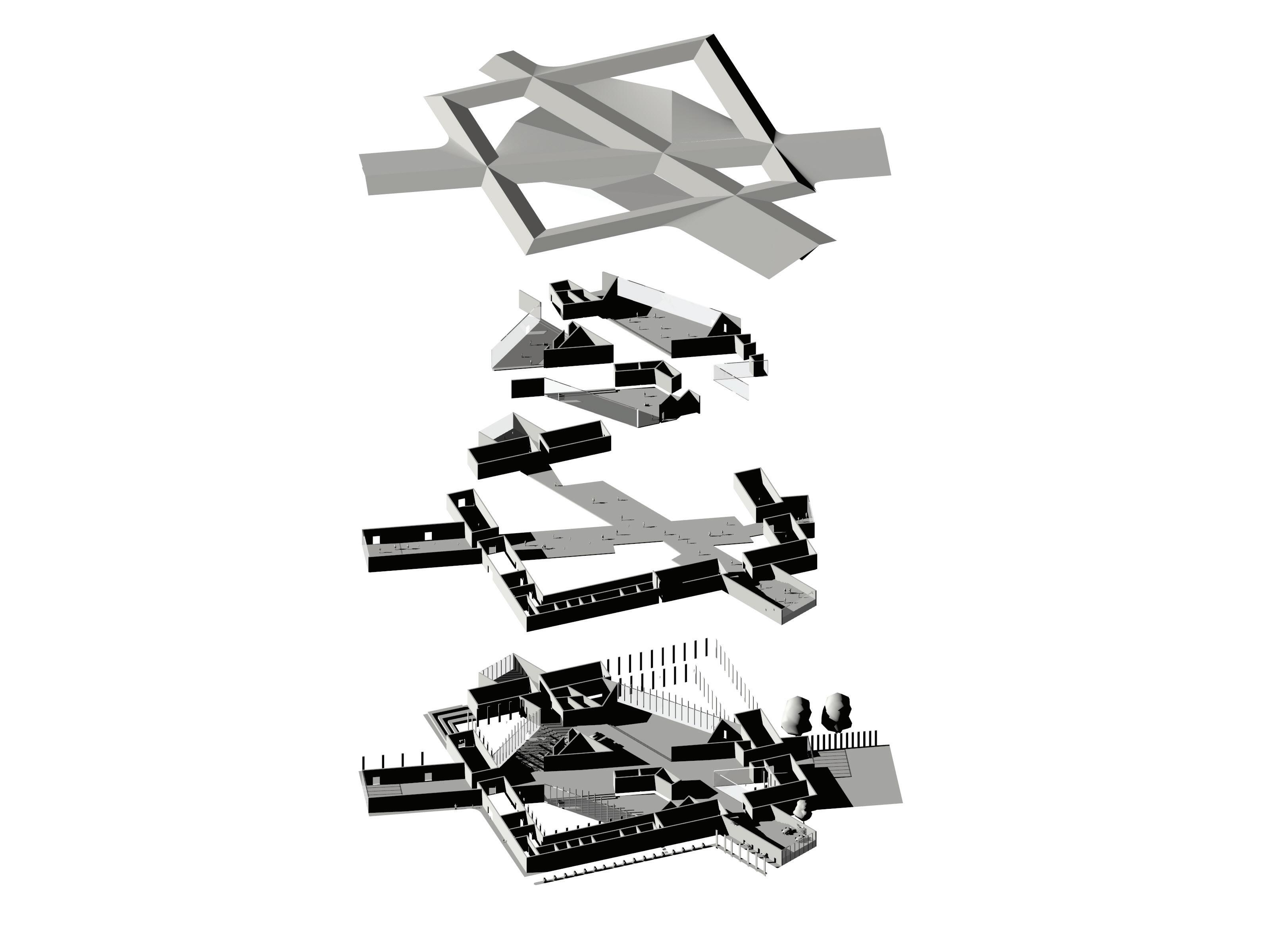

EXPLODED AXONOMETRIC SCALE: NTS

17

Key 1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

Collab Learning Area Technology Learning Area Quiet Learning Area Messy Learning Area Library Librarian’s Office Gym Locker Rooms Cafeteria Kitchen Homerooms Recep�on Admin Break Room Storage Mailroom Copyroom Conference Room Assistant Principal’s Office Principal’s Office Couselor’s Office Restrooms Outdoor Learning Area

LEARNING AREAS COMMUNAL AREA HOMEROOMS LEARNING AREAS SECTIONS SCALE: 1/132”=1’

COMMUNAL AREA HOMEROOMS

SECTIONS SCALE: 1/132”=1’

1

LEARNING AREAS COMMUNAL AREA HOMEROOMS

23 LEARNING AREAS COMMUNAL AREA HOMEROOMS LEARNING AREAS COMMUNAL AREA HOMEROOMS

18

4

14 15

12

22 16

13

17

18

11

19

20

5

9

6 10

22

21

3

8 7

8

2

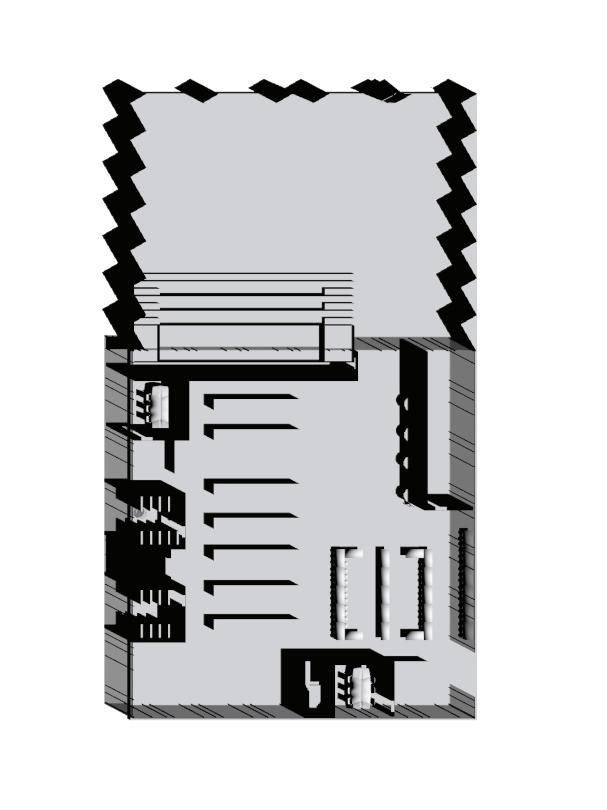

FLOOR PLAN

19

AXONOMETRIC PERSPECTIVE

ITE AXONOMETRIC CALE: NTS

20

21

SCATTERED SITES

DESIGN STUDIO III / INSTRUCTOR SAMIHA MEEM/ SPRING 2024

The Ohio State University has a history of building housing for underserved populations, from Oxley Hall (1908)—the first woman’s dorm—to Buckeye Village (1948)—built for GI’s returning to campus with families. Today the university struggles to provide housing for its underserved populations, including student parents, Veterans, non-traditional students, and visiting scholars.

This project creates a space for students training to be in the military. A 15-20 unit residential building that includes private and collective spaces on one of a series of several sites around the Columbus campus. The goal of the space is to allow the students to figurtivlely step outside of their diciplined lifestyle by incorporating curves in plan and private balconies for all of the students.

22

23 DOUBLE PERSON UNIT PLAN SCALE: 1/4” = 1’-0”

SINGLE PERSON UNIT PLAN SCALE: 1/4” = 1’-0”

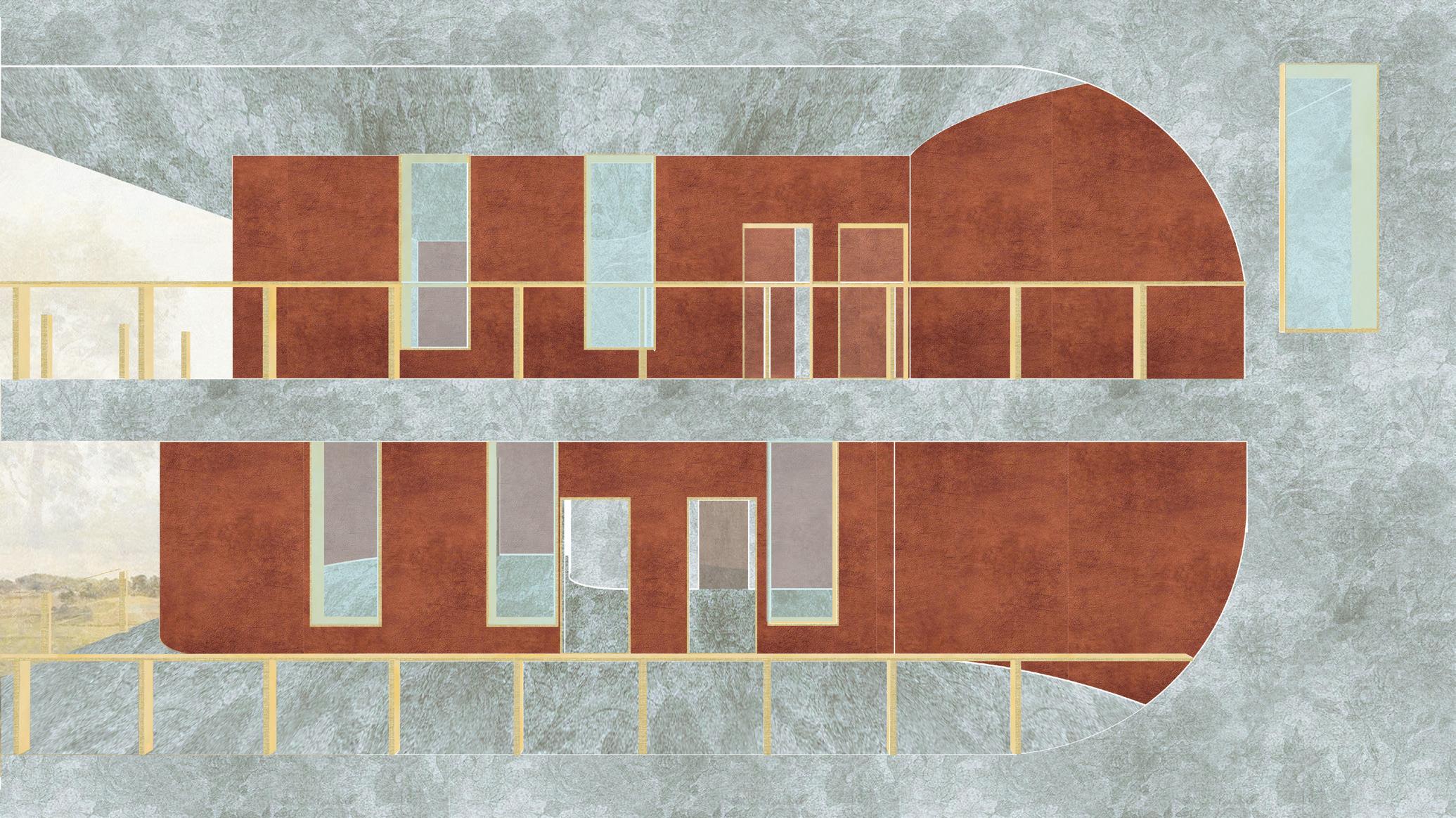

SECTION PERSPECTIVE

24

25

COMMUNAL SPCAES

Dorm 1

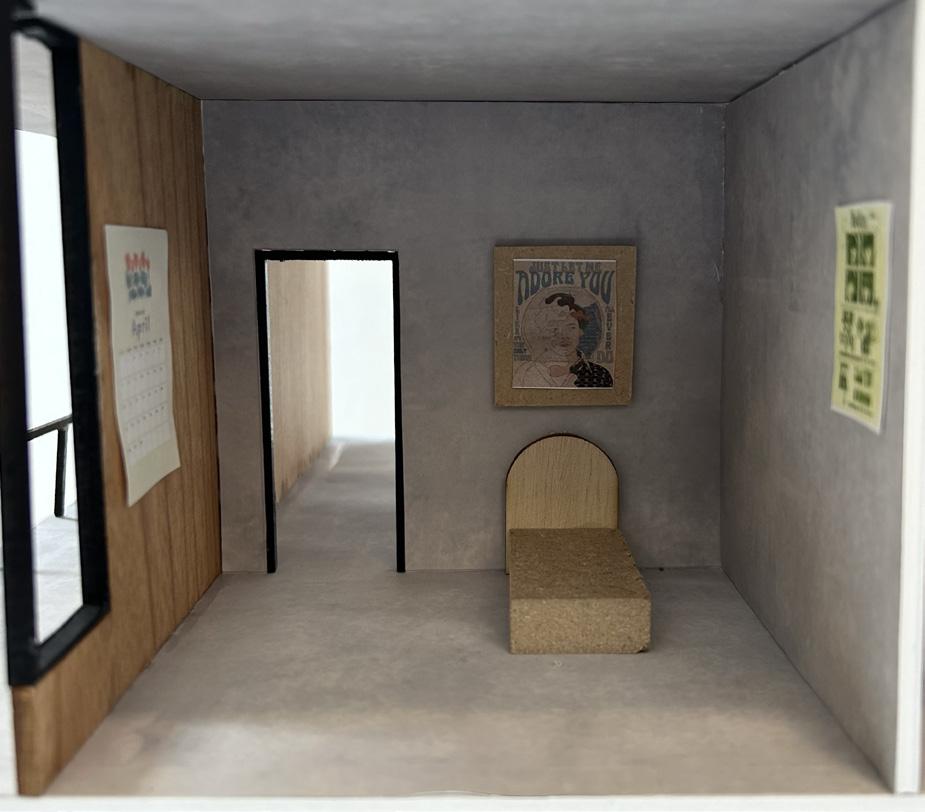

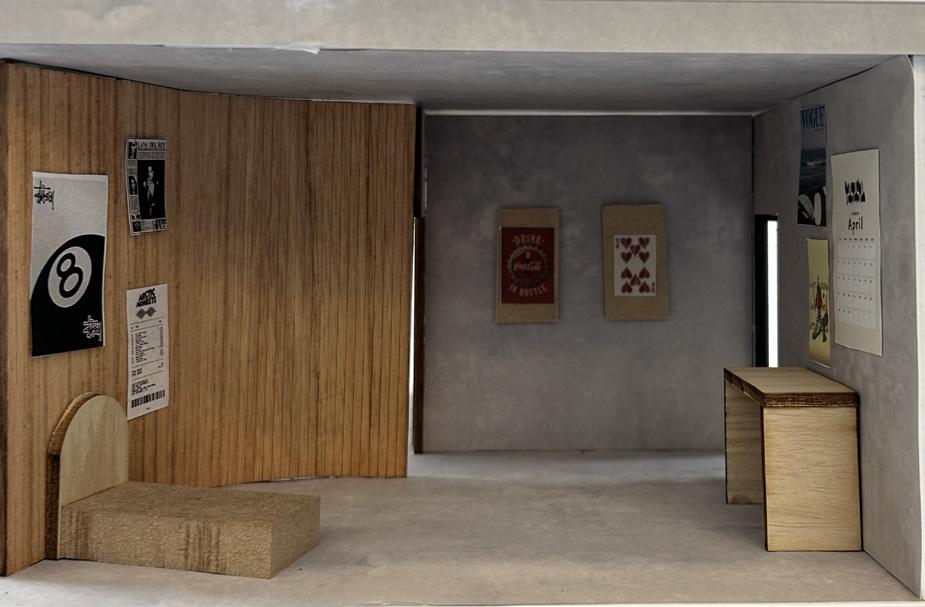

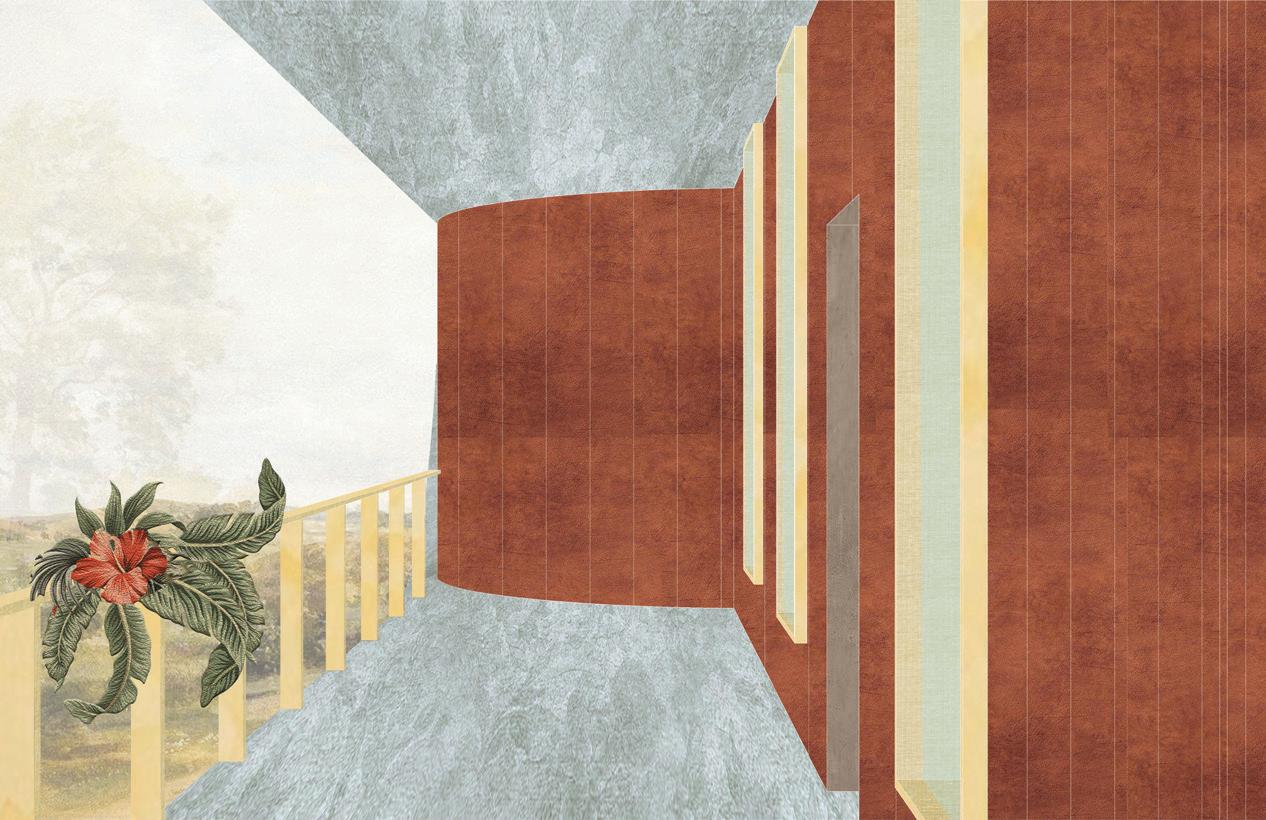

View looking in from dorm 2 balcony window

26

Dorm 2

D O R M S

OUTDOOR SPACE

OUTDOOR SPACE

D O R M S

COURTYARD

COURTYARD

EXTERIOR PERSPECTIVE

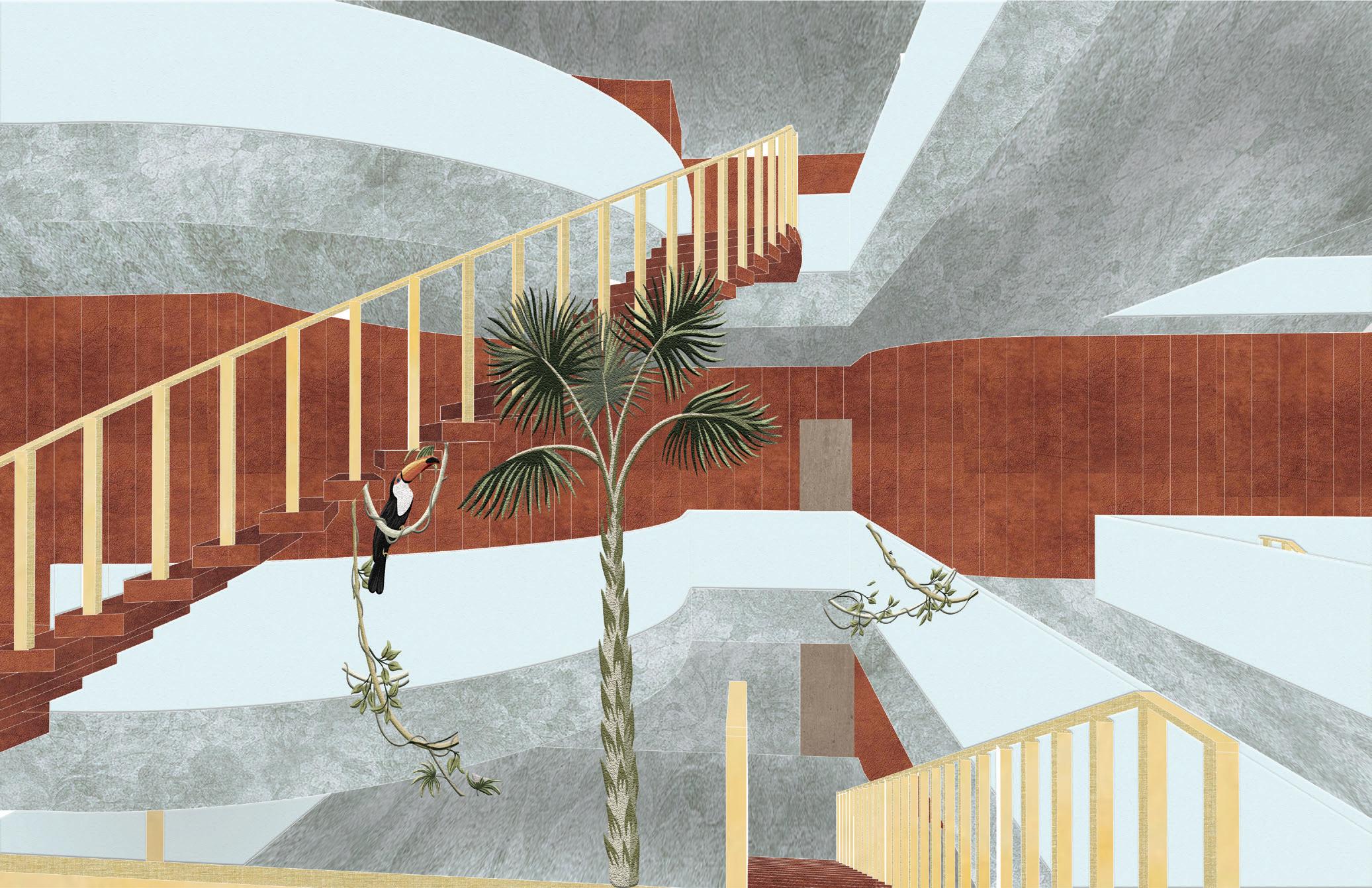

INTERIOR PERSPECTIVE

27

LITTLE HAITI

DESIGN STUDIO IIIl / INSTRUCTOR JUSTIN DILES/ FALL 2024

Investigating the lastest twist in the marriage of materials, this project explores innovative hybrid construction methods that combine advanced 3D concrete printing with two modes of wood framing: light wood framing and mass timber construction. Leveraging the capabilities of the COBOD BOD3 printer designed for large-scale applications the project investigates extruded masonry surfaces integrated with timber elements for floors, roofs, and hybrid spanning systems.

The design focuses on a low-rise, high-density mixed-use development for Miami’s Little Haiti neighborhood, addressing the need for affordable housing and small commercial spaces to support local artists and businesses. A key component of the proposal is a cultural building, the Little Haiti Dance Center, which celebrates the neighborhood’s vibrant heritage while enabling experimentation with varied printed surfaces and long-span timber structures.

Throughout the process, material efficiencies, environmental benefits, and structural innovations were assessed using hands-on experimentation with a ceramic 3D printer and collaboration with COBOD engineers. Technical resources, including COBOD’s library of details and current literature on wood construction, informed the design approach.

LOW RISE HIGH DENSITY NEIGHBORHOOD

DANCE CENTER

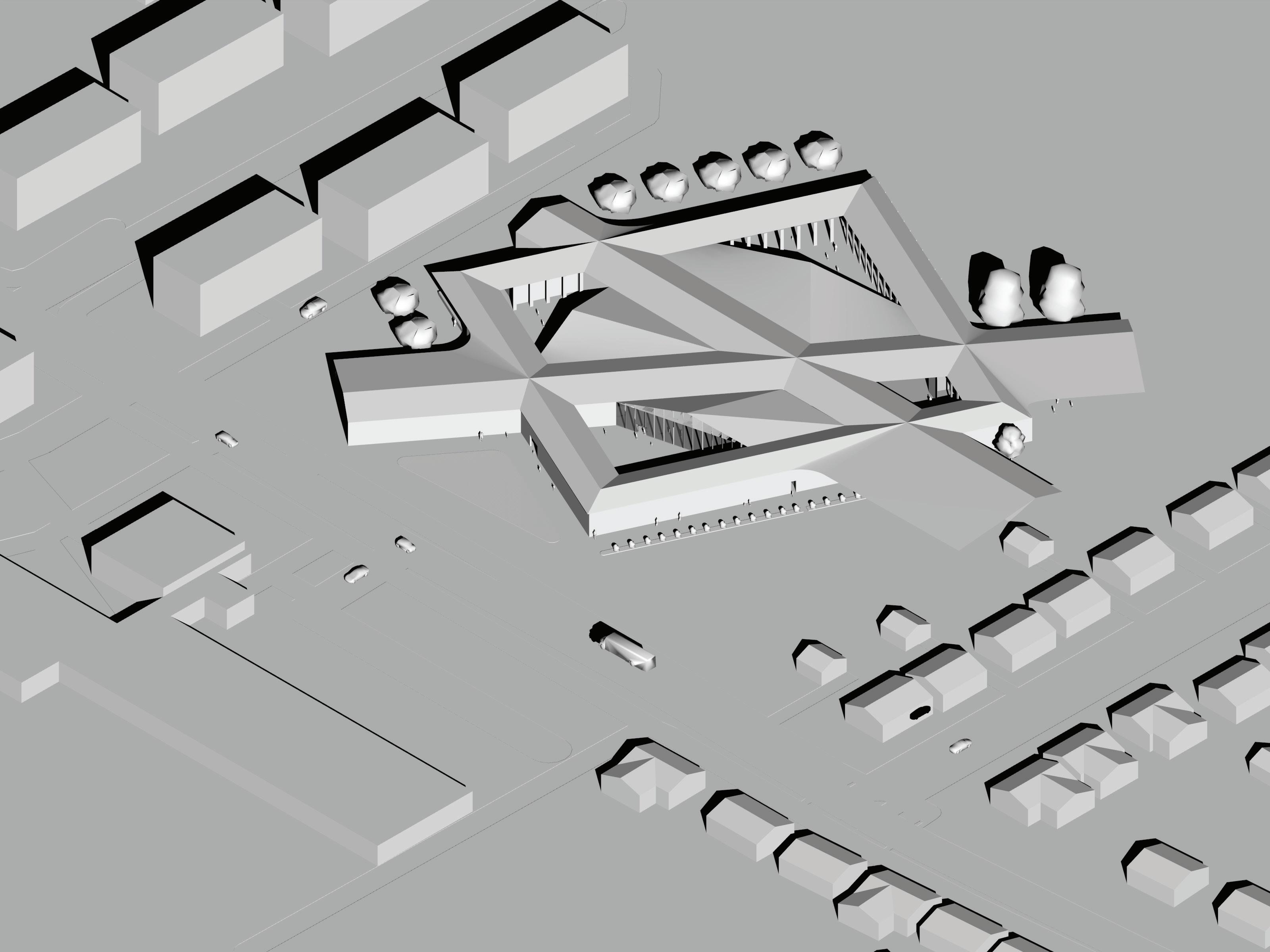

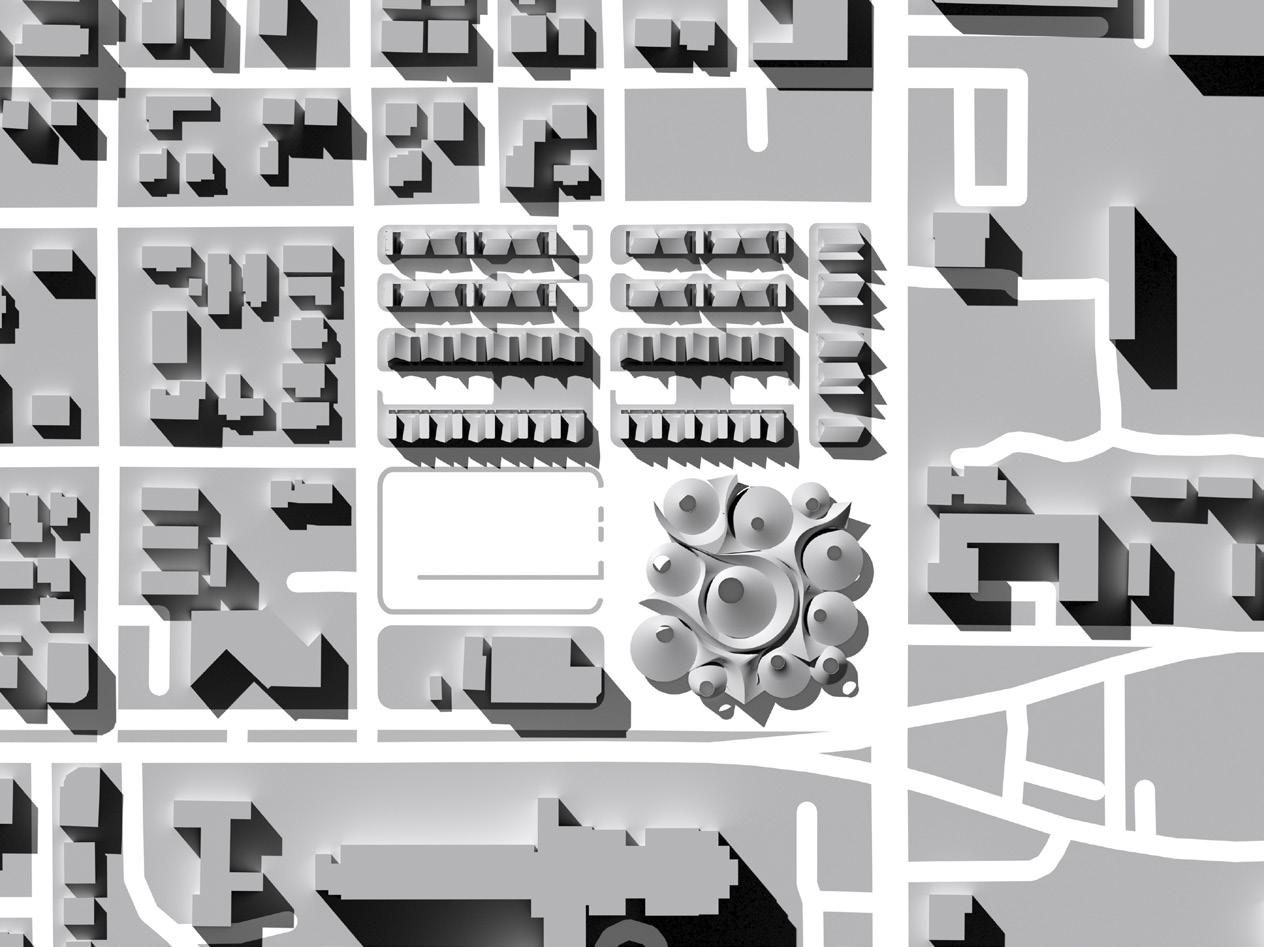

SITE PLAN SCALE: 3/32” = 1’-0”

LITTLE HAITI, MIAMI, FLORIDA

28

STUDIO

DANCE STUDIO DANCE STUDIO

RESTROOMS

1.PROGRAM LOCKERS

2. PEOPLE CIRCULATION MECHANICAL

3. WALLS AROUND CIRCULATION

CLASSROOMS

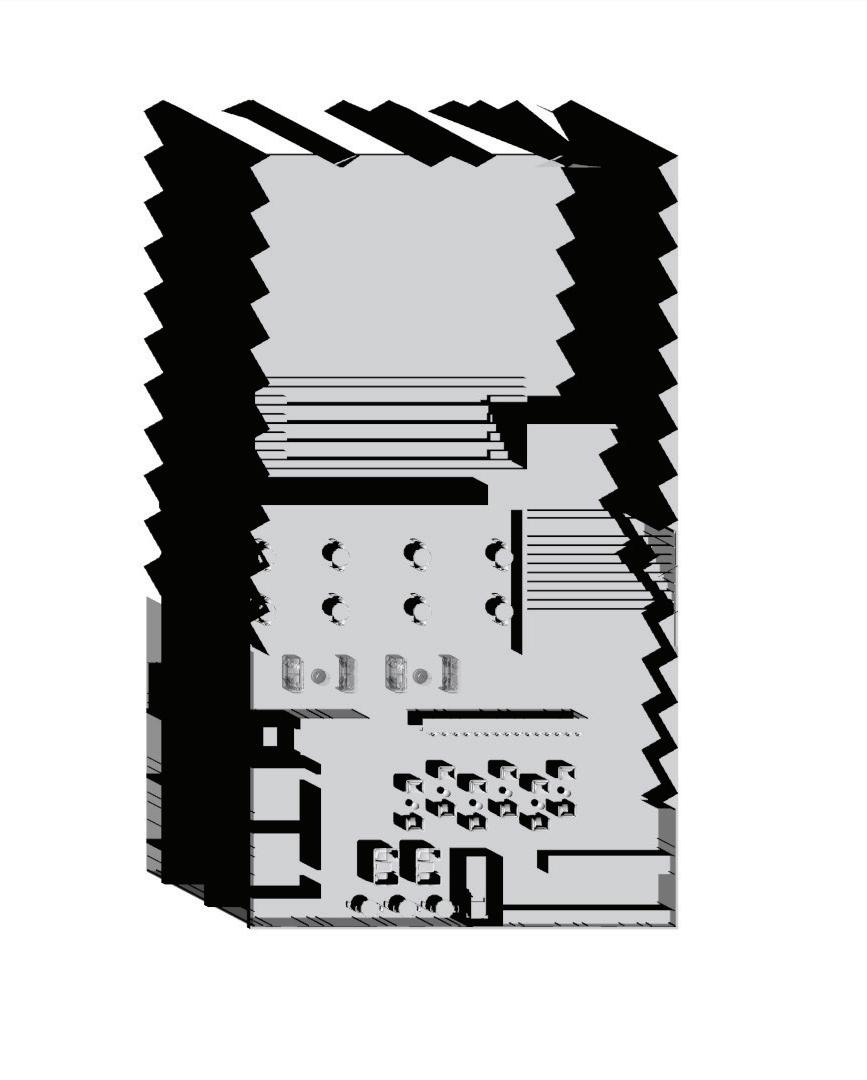

WORMS-EYE VIEW AXONOMETRIC

WORMS-EYE AXONOMETRIC OF DANCE CENTER

29

SECTION 2 SCALE: 1/16” = 1’-0”

J

J K L M N Q O

J

Q

P D

L C A

A

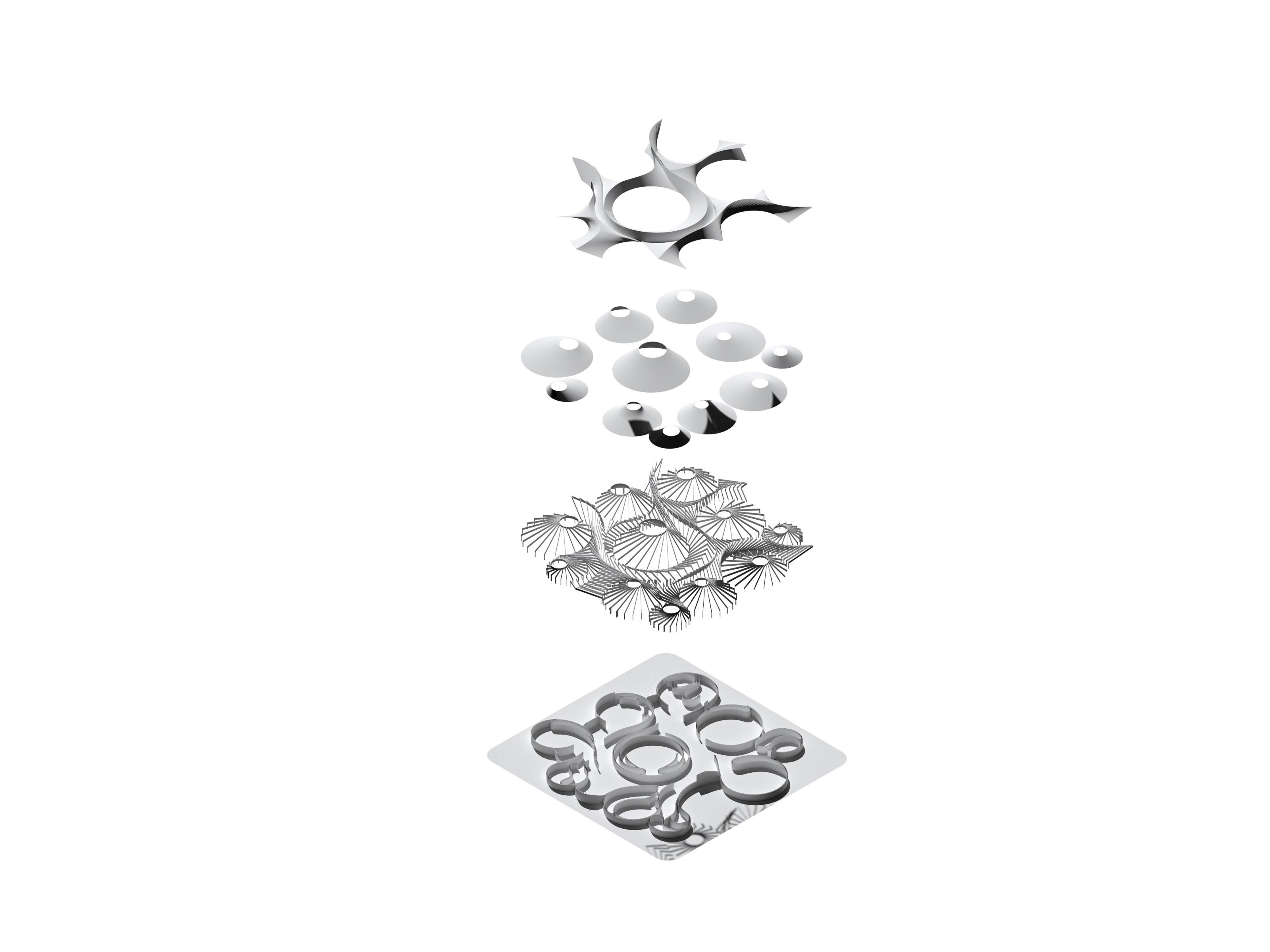

EXPLODED AXON

EXPLODED DANCE CETNER AXONOMETRIC

30

CLASSROOMS OFFICES

CAFE

DANCE STUDIO DANCE STUDIO

LOBBY PERFORMANCE STUDIO

DANCE STUDIO DANCE STUDIO

RESTROOMS

1.PROGRAM LOCKERS

MECHANICAL

CLASSROOMS

J K L M 2. PEOPLE CIRCULATION N Q O

3. WALLS AROUND CIRCULATION

CLASSROOMS

FFICES

FE

RESTROOMS

RESTROOMS

A B C D E

DANCE STUDIO DANCE STUDIO

DANCE STUDIO

M LOCKERS

2. PEOPLE CIRCULATION

3. WALLS AROUND CIRCULATION

MECHANICAL

B

LASSROOMS

CIRCULATION

3. WALLS AROUND CIRCULATION

DETAILED SECTION: A- 3-D PRINTED CONCRETE B- INSULATION FOR AVOIDING A THERMAL BRIDGE C- CONCRETE D- HARD INSULATION E- WALL BINDERS H- DRAINAGE PIPE I- GRAVEL J- EXTERIOR CLADDING K- TIMBER BOARDING L- INSULATION M- DAMP CONTROL COURSE N- SHEATHING O- CONNECTION JOINT L P- WOODEN FLOOR Q- WOODEN RAFTER

P D D

H

C

I

A WORMS-EYE VIEW AXONOMETRIC

A- 3-D PRINT

31

SI

RE

L

TIA

N DE

RETIA

L

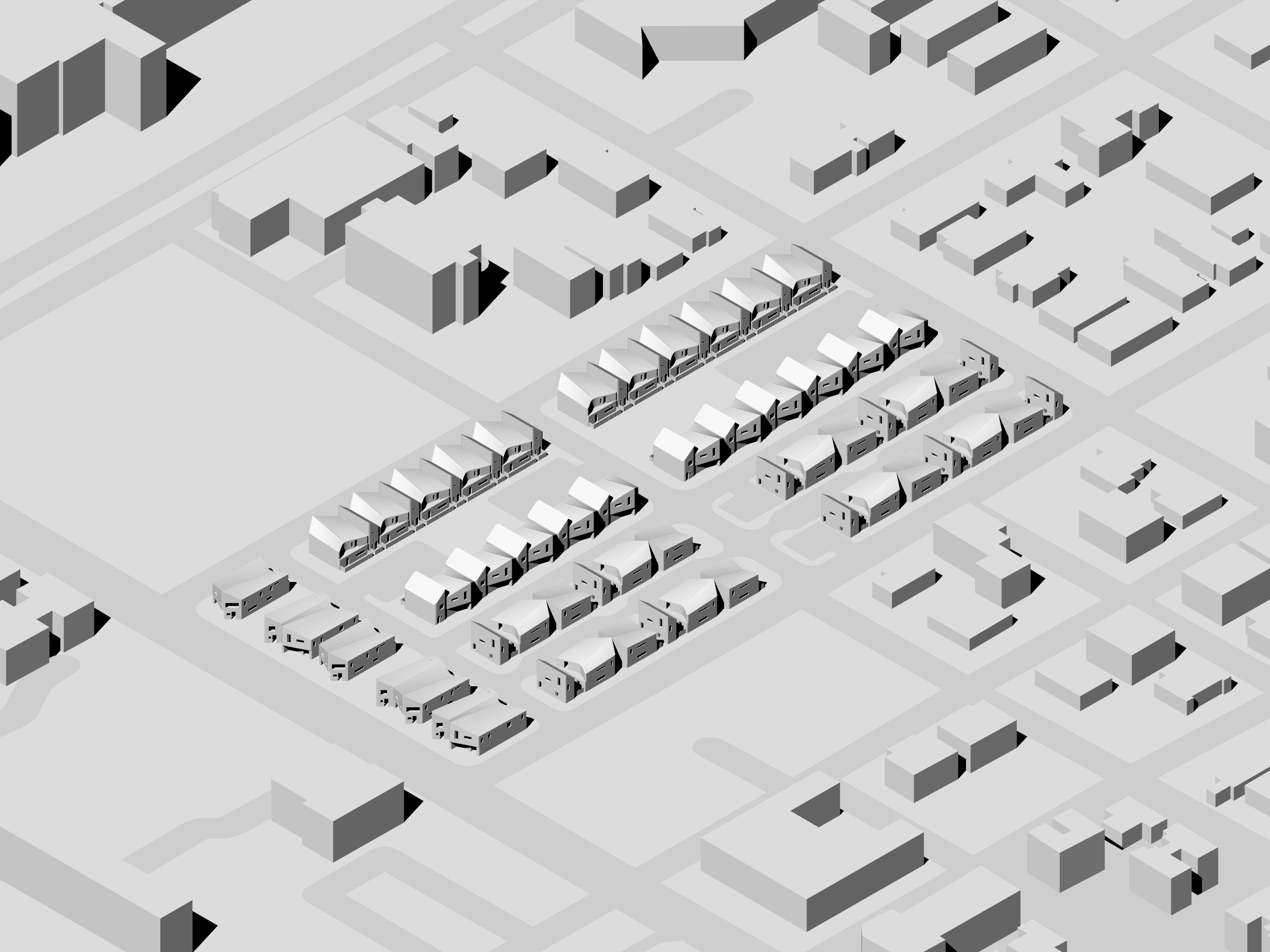

NEIGHBORHOOD SITE AXONOMETRIC

AXONOMETRIC SCALE: 1/128” = 1’-0”

40’

40’

COBOD PRINTING DIAGRAM

32

FLOOR 1RETAIL KITCHEN+BATH

UNIT 1 - RETAIL + RESIDENTIAL

FLOOR 2LIVING 2 BED 1 BATH

FLOOR 1RETAIL KITCHEN + 1 BATH

FLOOR 2LIVING 2 BED 1 BATH

SCALE: 1/16” = 1’-0”

UNIT 1- RETAIL + RESIDENTIAL SCALE: 1/8” = 1’-0”

SCALE: 1/16” = 1’-0”

FLOOR 1KITCHEN LIVING 1 BATH PRIVATE COURTYARD

FLOOR 22 BED 1 BATH

FLOOR 1KITCHEN LVING 1BATH PRIVATE COURTYARD

UNIT 2 - RESIDENTIAL

FLOOR 22 BED 1 BATH

UNIT 2 - RESIDENTIAL SCALE: 1/8” = 1’-0”

FLOOR 1KITCHEN 1 BATH

FLOOR 2LIVING 1 BED 1 BATH

UNIT 3 - RESIDENTIAL FLOOR 1KITCHEN 1BATH

FLOOR 2LIVING 1 BED 1BATH

SCALE: 1/16” = 1’-0”

UNIT 3 - RESIDENTIAL SCALE: 1/8” = 1’-0”

SCALE: 1/16” = 1’-0”

FLOOR 1LIVING 1 BATH PRIVATE COURTYARD

FLOOR 2KITCHEN 1 BED 1 BATH

UNIT 3A - RESIDENTIAL

FLOOR 1LIVING 1 BATH PRIVATE COURTYARD

FLOOR 2KITCHEN 1 BED 1 BATH

33

BAYWAY COMMONS

GENSLER INTERN PROJECT, SUMMER 2024, SAN FRANCISCO With the my intern group, I worked on a project reimagining San Francisco’s Union Square, conducting extensive research on its history and demographics to propose adaptive solutions for post-pandemic retail. Presenting our findings to city officials and industry professionals was a highlight, as we challenged the meaning of “luxury” to propose a destination space that could cater to everyone.

Since 1850, Union Square has been the center of a fashionable retail district. However, on-site case studies and research conducted by the Gensler Research Institute reveal that an overconcentration of single-use buildings, a lack of engagement, and outdated appeal have contributed to the area’s decline.

MASS

CARVE

CONNECT

DEFIINE

UTILIZE THE BUILDING MASS AS A BASEPOINT TO SOLVE THE CURRENT ISSUES

TO BREAK UP THE OVERSIZED FLOOR PLATES AND TO ALLOW FOR A INDOOR “LIVING ROOM”

TO CREATE PATHWAYS CONNECTING UNION SQUARE, TRANSIT, AND ACTIVITY ZONES

A SOARING INTERIOR OPEN SPACE, DEFINING A CLEAR GATHERING CENTERPOINT

This project proposes a revitalized space that caters to residents, visitors, and workers by transforming Union Square into a vibrant, mixed-use destination. The section highlights strategies to activate the ground floor and foster a dynamic, engaging environment.

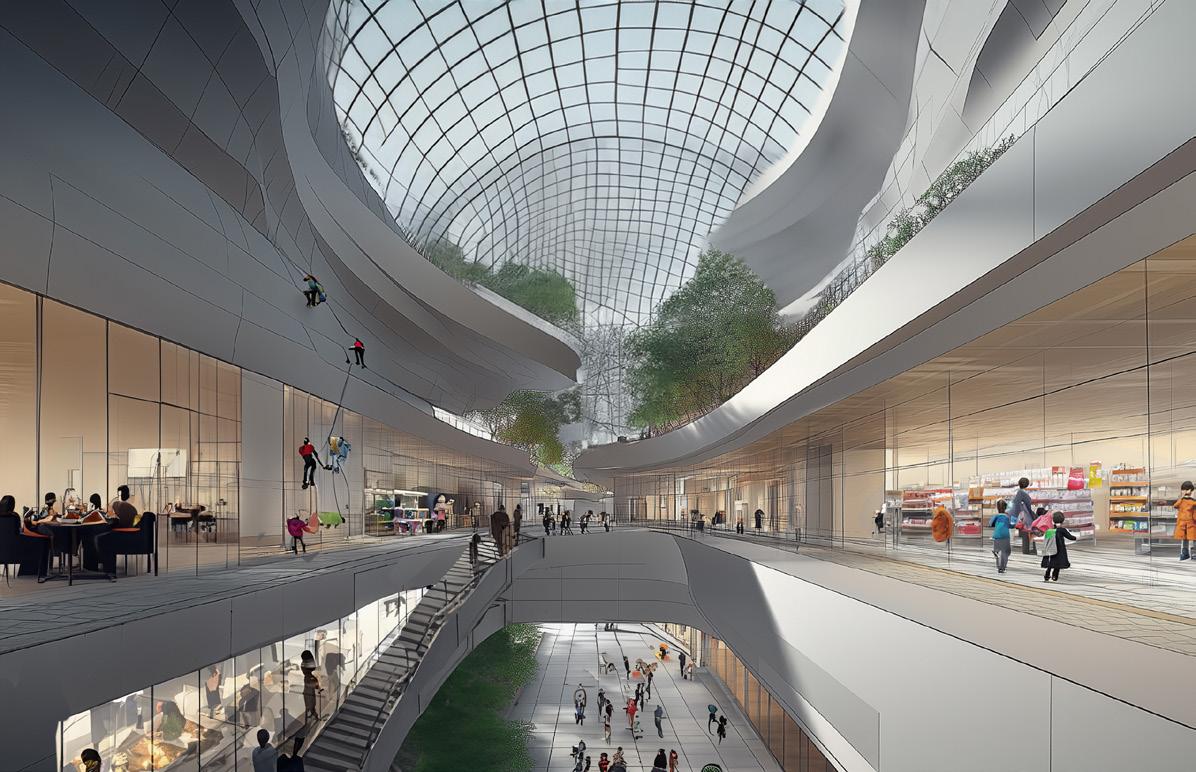

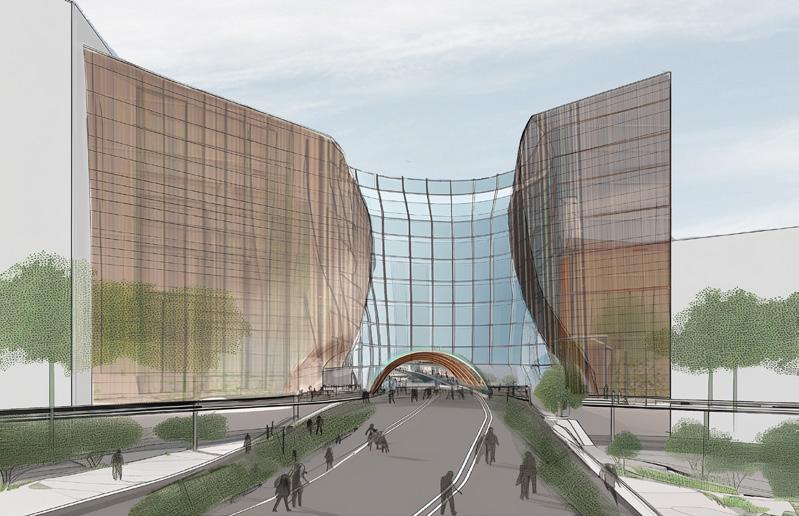

Key design interventions include extending the bridge from Union Square to create a roaming platform, offering visitors a unique spatial experience. The building is enveloped in a glass canopy, providing a conditioned indoor environment that efficiently connects large floor plates while enhancing visibility into different parts of the structure.

Additionally, the design prioritizes transit integration, ensuring easy access for visitors and reinforcing the site’s connectivity within the city.

34

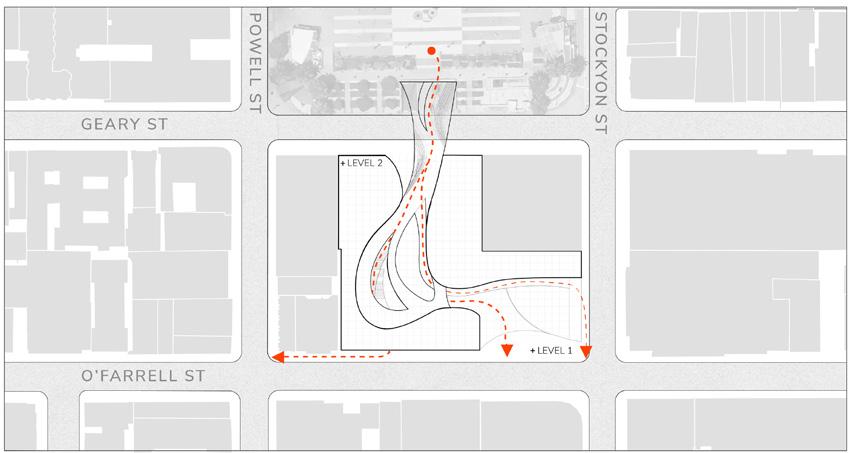

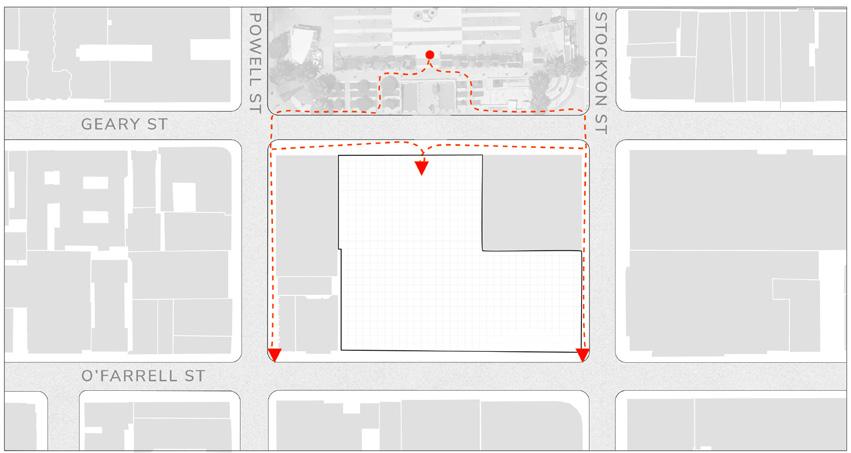

CURRENT CIRCULATION

PROPOSED CIRCULATION

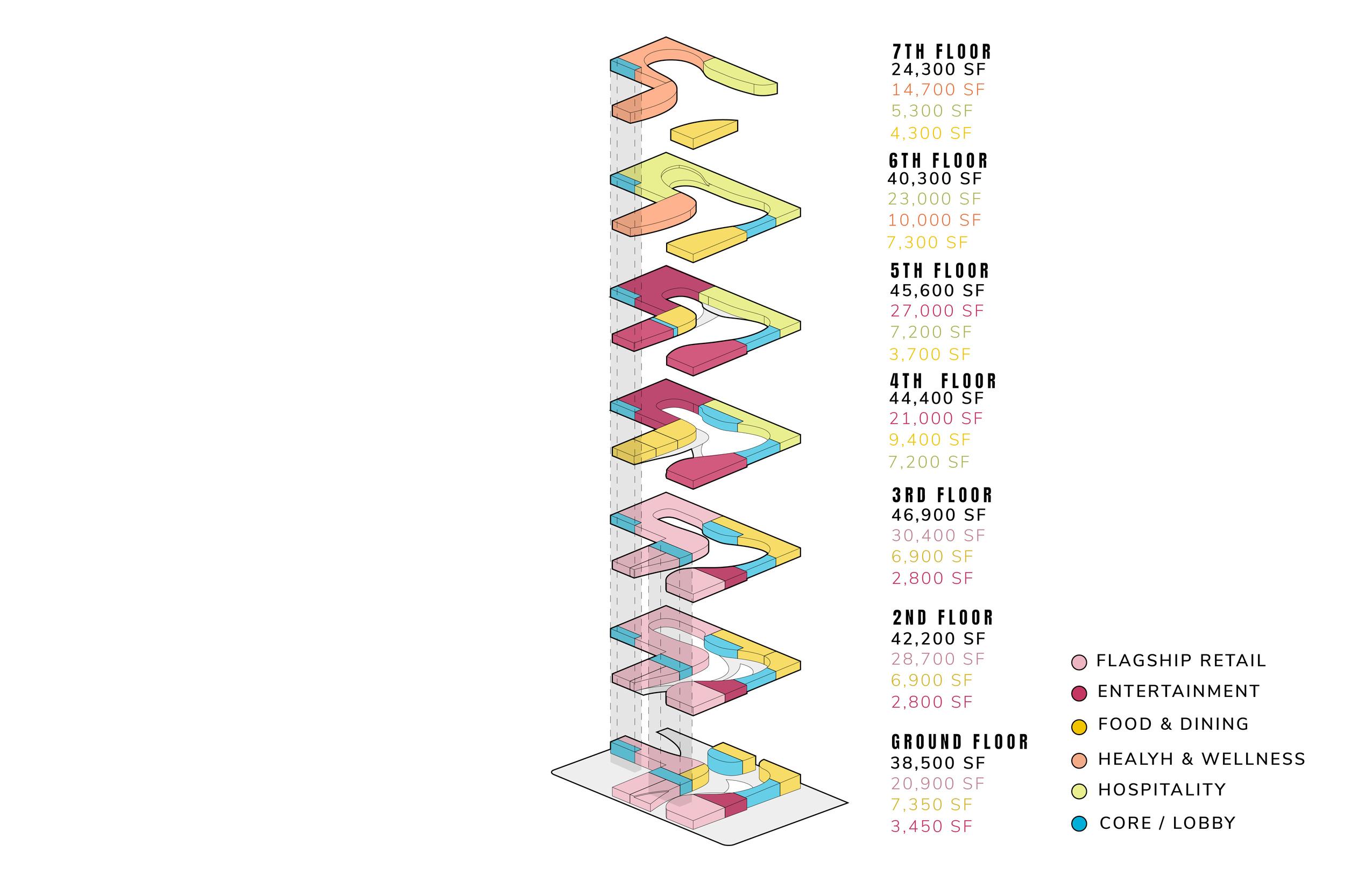

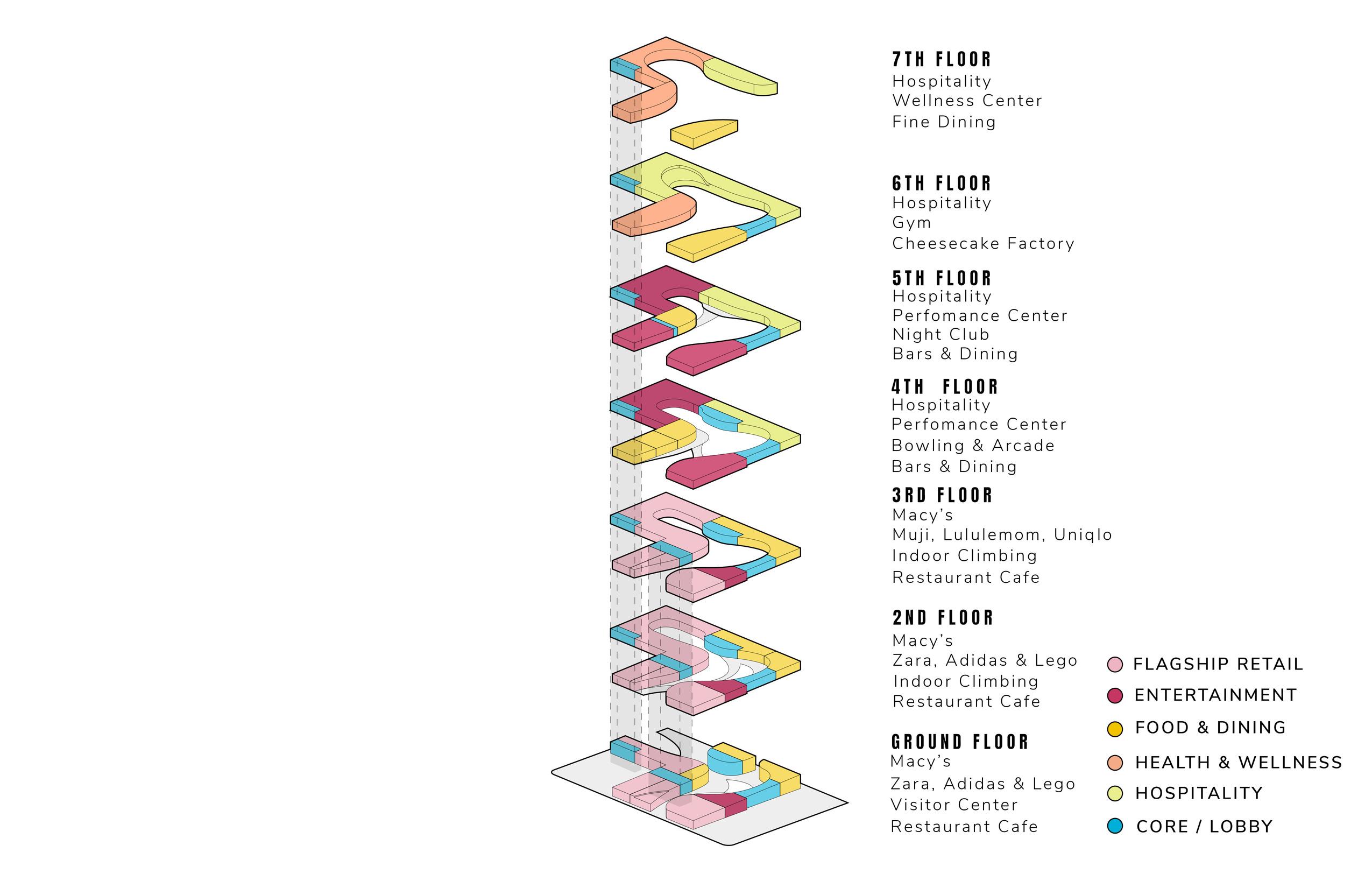

PROPOSED PROGRAM GROUND FLOOR

SECOND FLOOR

35

THANK YOU.

JANAVI BHATT

janavibhatt111@gmail.com 36
