ARCHITECTURE PORTFOLIO

EDUCATION

HSC I 2017

John dewey matric higher secondary school, Villupuram.

DCA I 2017

Diploma in Computer Application, CSC, Villupuram.

B.ARCH I 2022 RVS Padmavathy school of Architecture, Chennai.

PRECENTAGE

CGPA I 8.93

Classification I First class with distinction

EXPERIENCE

STUDENT INTERN I 2021 Kham designs, Bangalore. LANGUAGE Tamil I English I Kannada

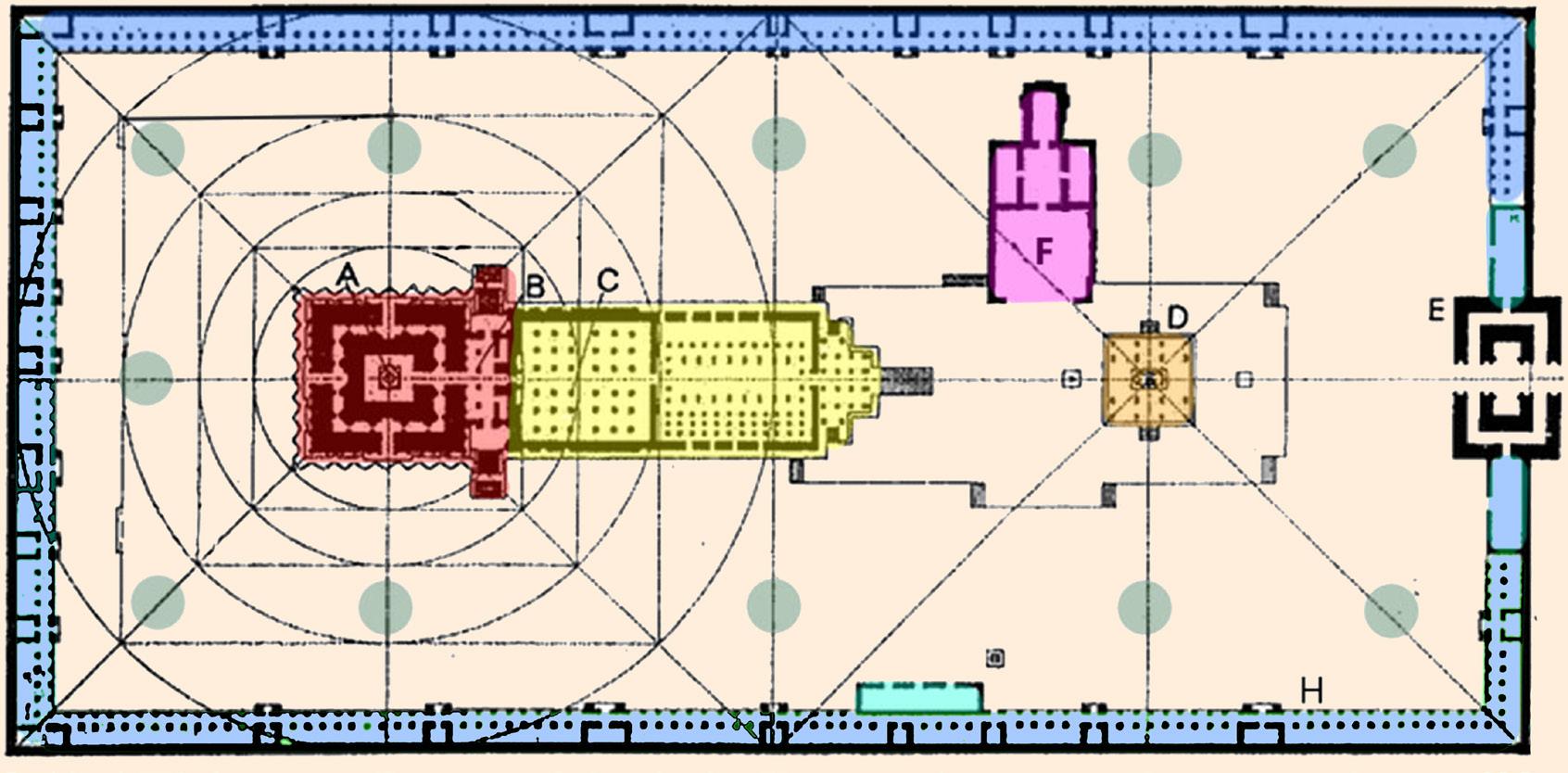

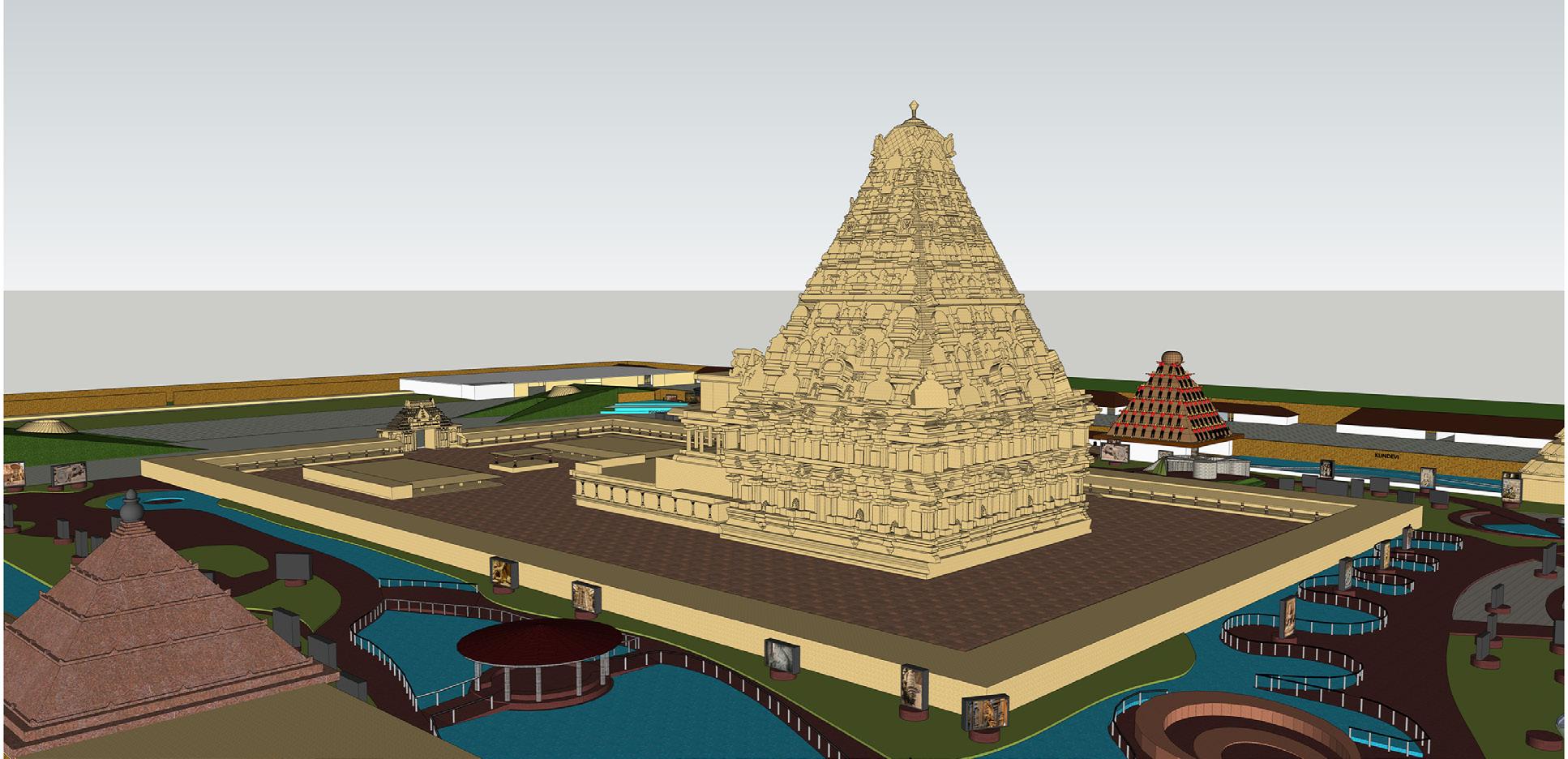

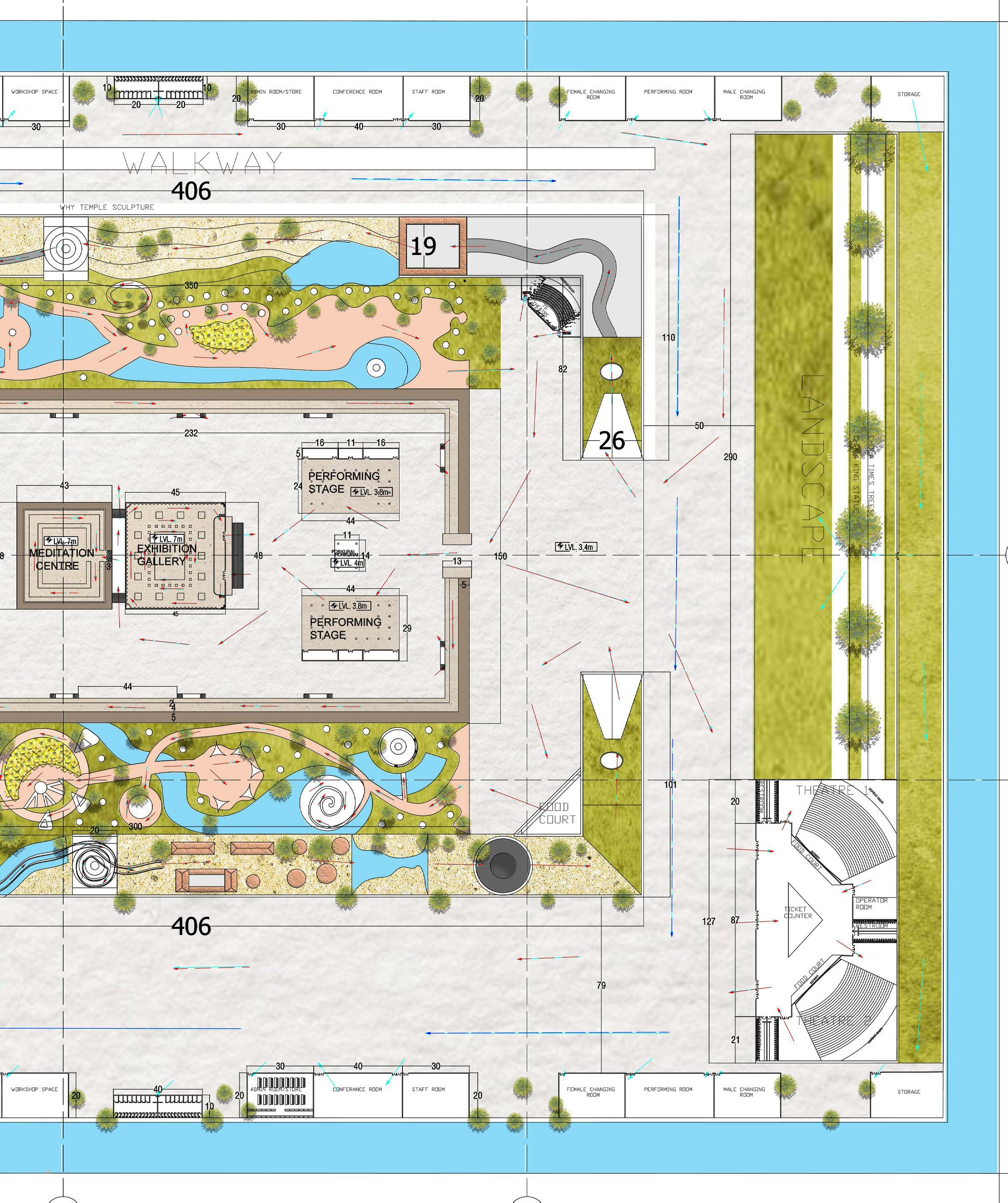

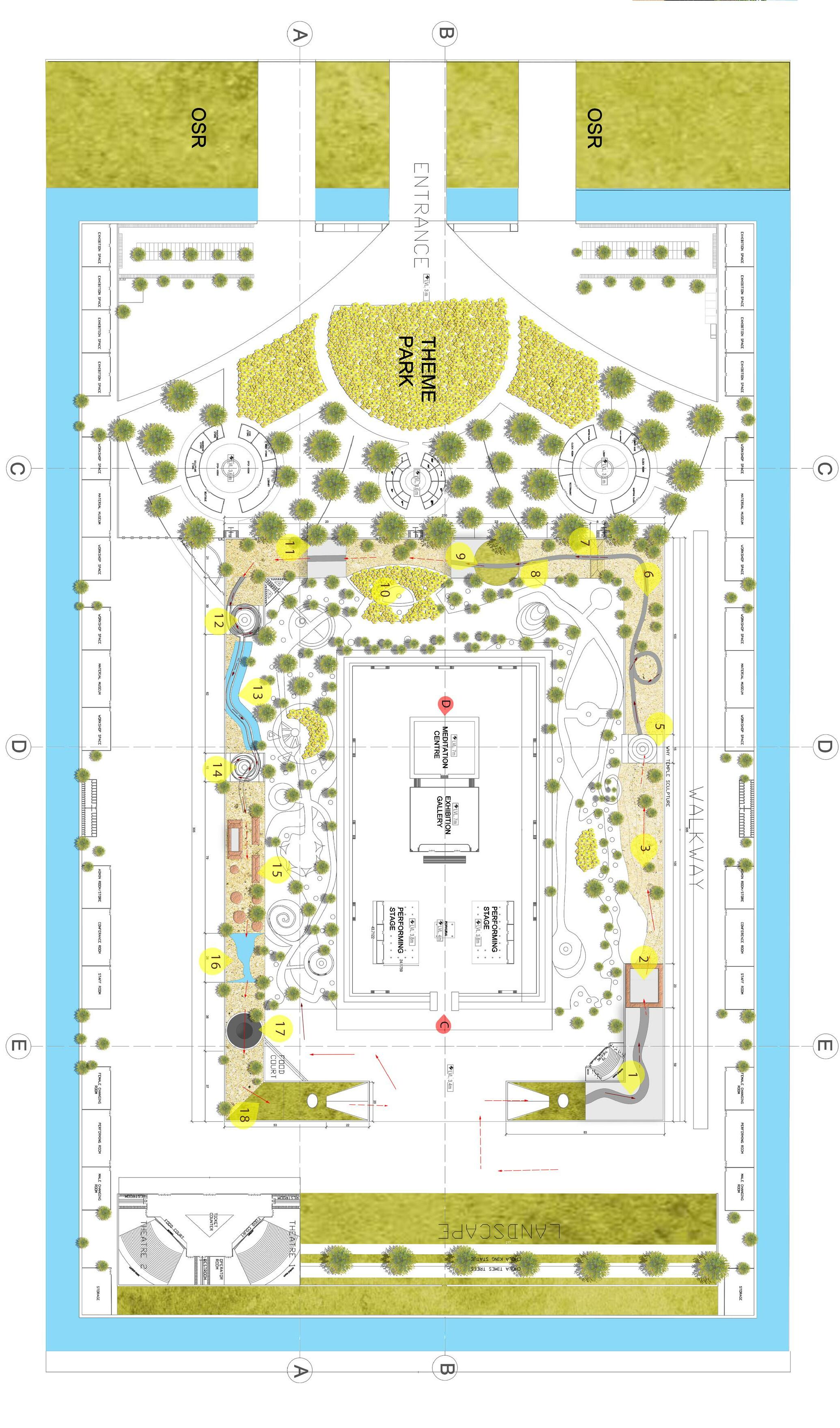

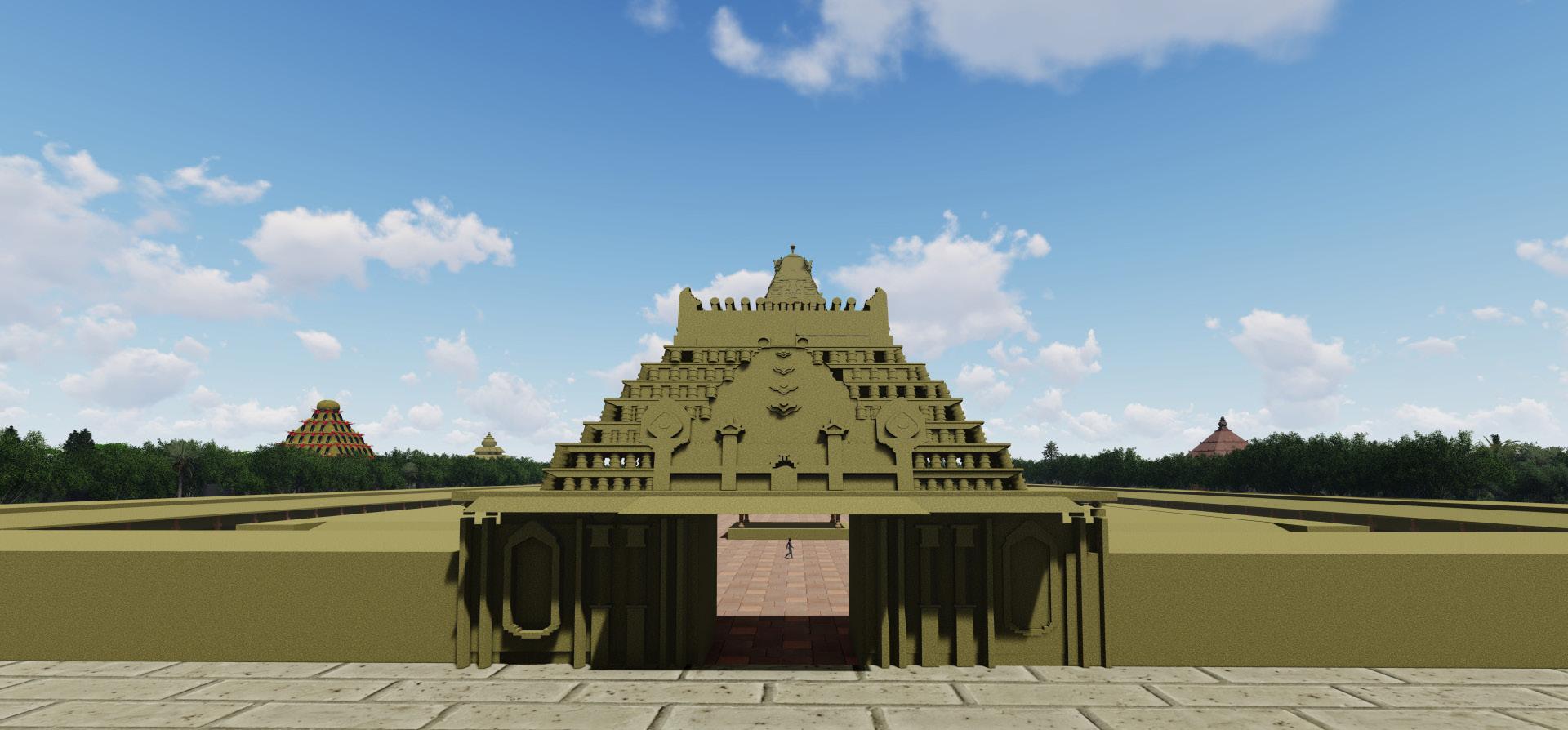

A-Meditation space C-Heritage gallery D-Golden roof E-Natya Karna F-Natya sabha G-Entry gopuram

It is believed to bring in harmony and aimed towards drawing positive cosmic energy into people’s lives.The science behind this is that vastu calculates rain fall,sunrise and sunsets to figure out the ideal way to construct the Temple.

Planning-designed according to the plans of the cholas dynasty which is linear, symmetric and has lot of open space.

Gharbhagriha-Meditation space

Mahamandapa-Exhibition space

Nadhi mandapa-Focus point

Murugan and Amman shine-Performance center

Open space-The whole site is naturally ventilated with trees and wind direction.Also the site is ventilated by the both the river in the site Kolidam and Kaveri river.

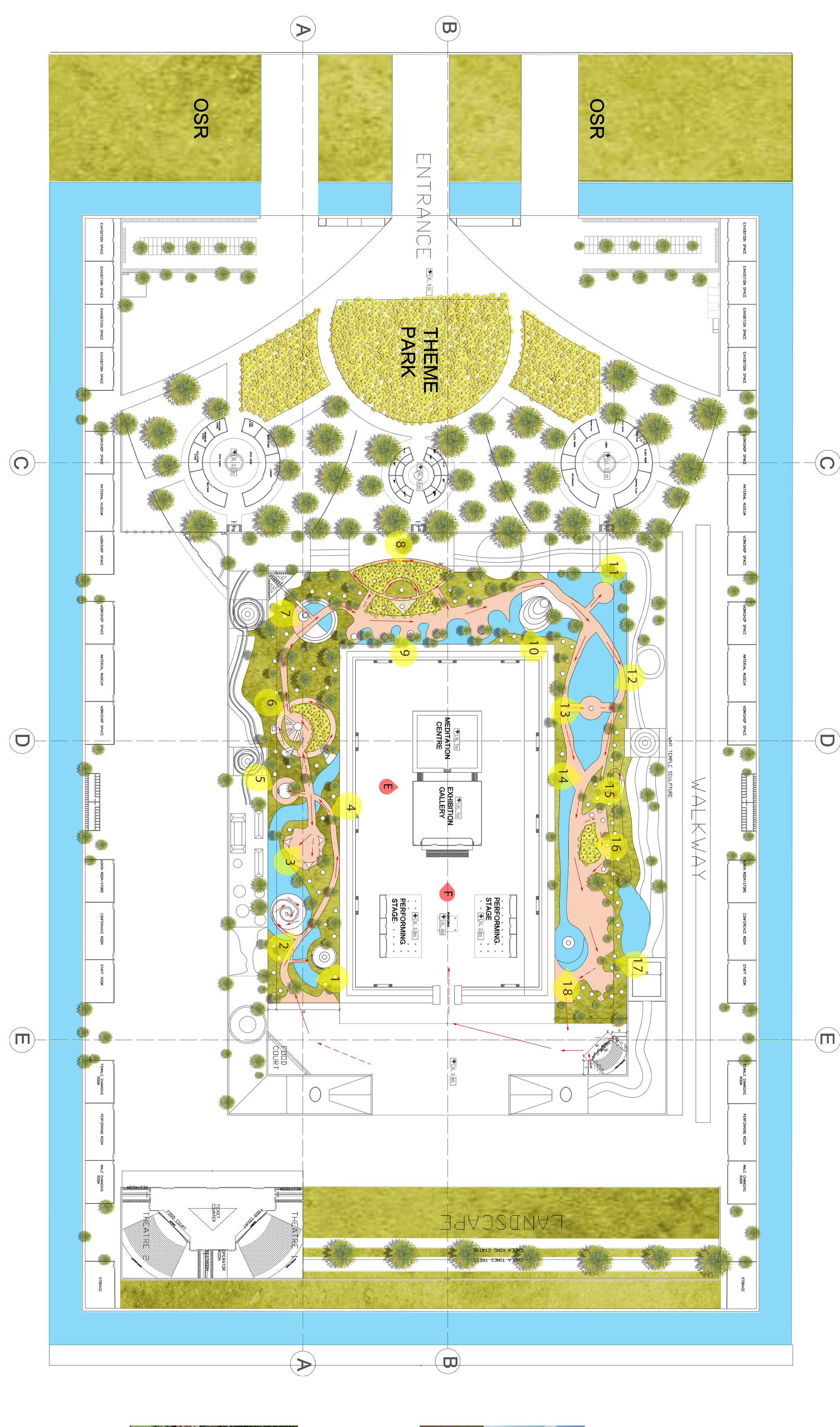

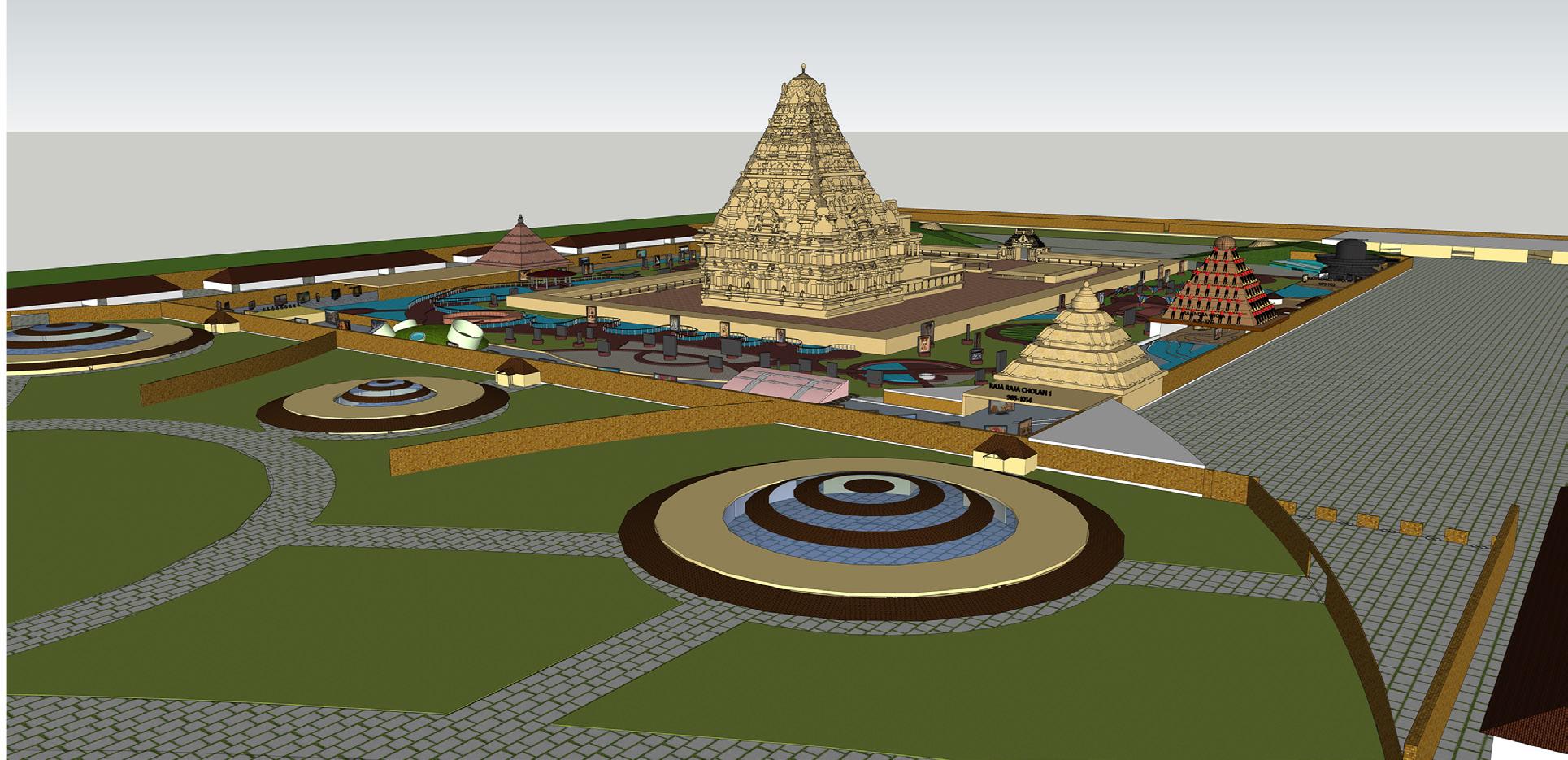

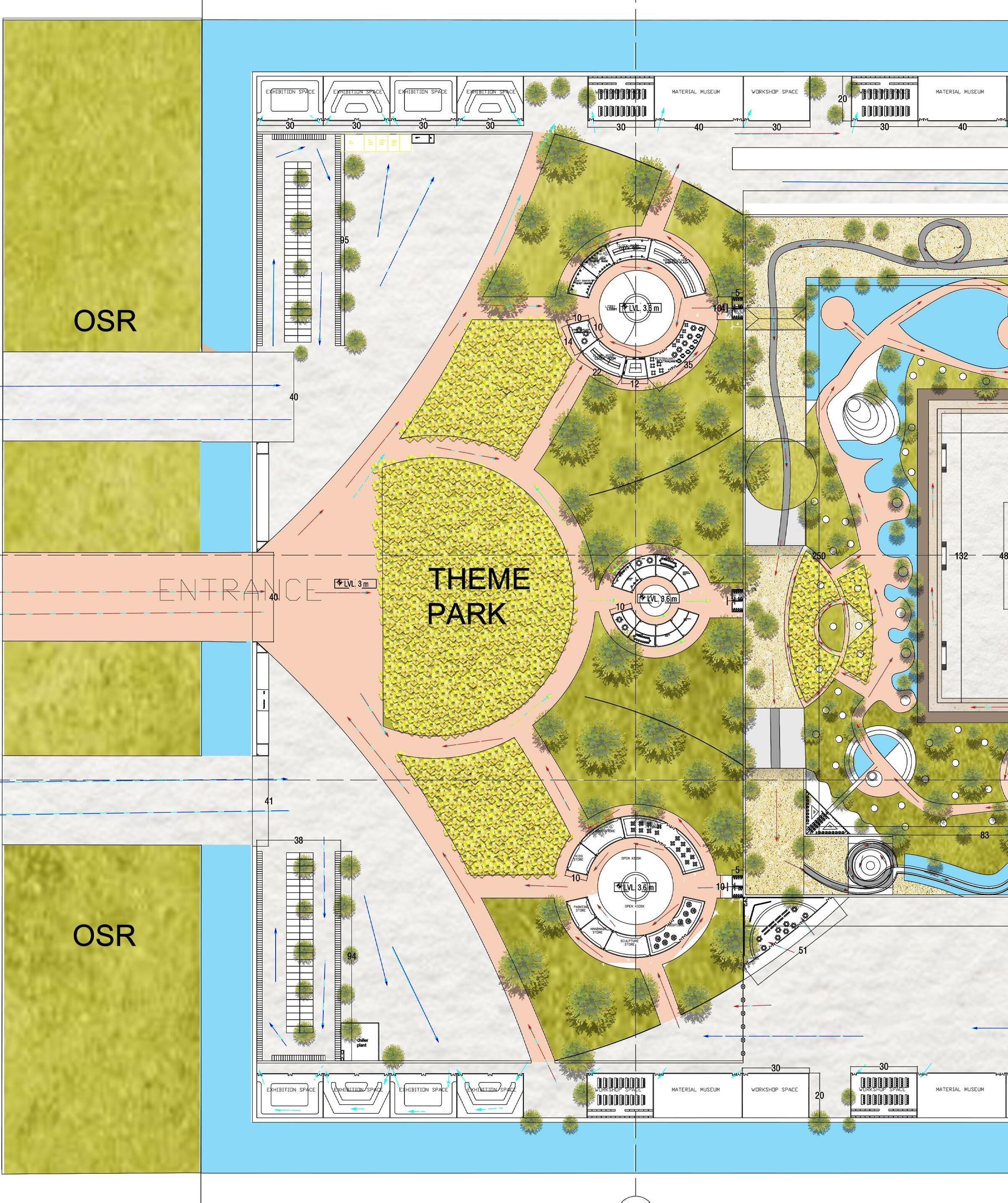

OUTER SPACE

This space is mainly admin and entrance area which has ticket counter, clock room, admin block, restaurant, park, focus point, shopping zone.

This will act as a waiting area and lob by space surrounded by trees and plants.

CHOLA KINGS HISTORY

This lanes shows the history of king in the timeline order and development of cho la era, twist and turns, up and downs, mar vel, victory and mistry, character of kings.

Every king space is designed uniquely to characterize the king.

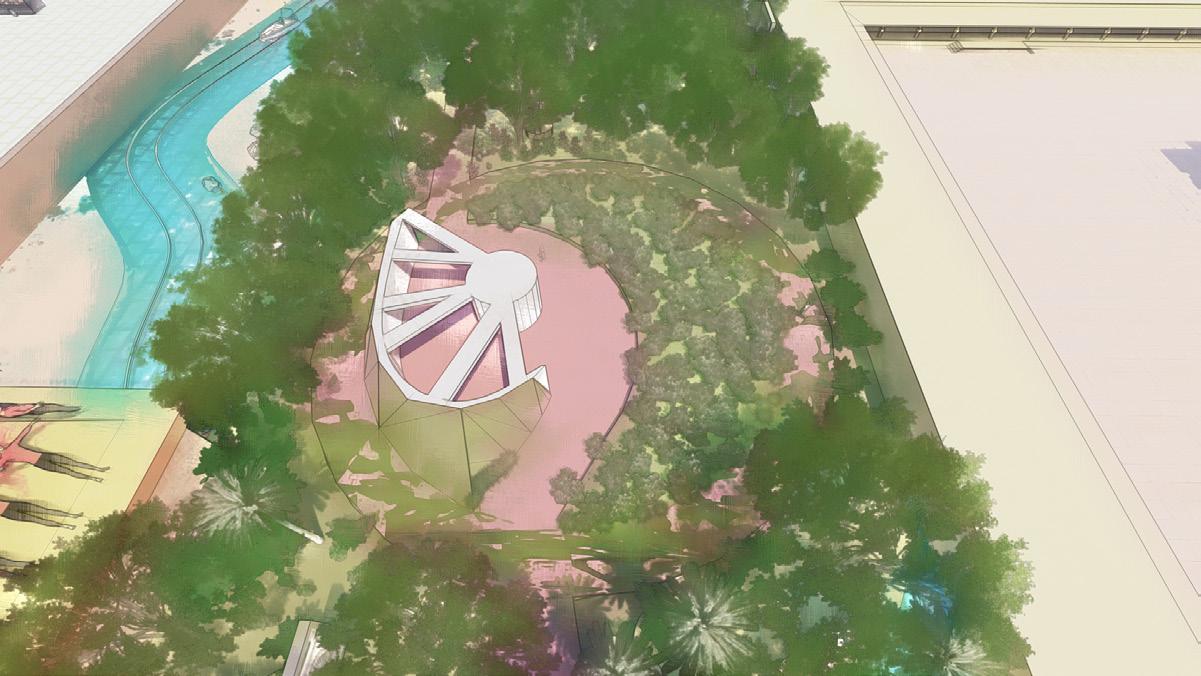

SCULPTURE GARDEN

This shows the decodation of sculpture in Chola temple.

Myth and science followed by ancestors. Importance of temple, dynasty war, Chola kings victory are shown in 3D cinemas.

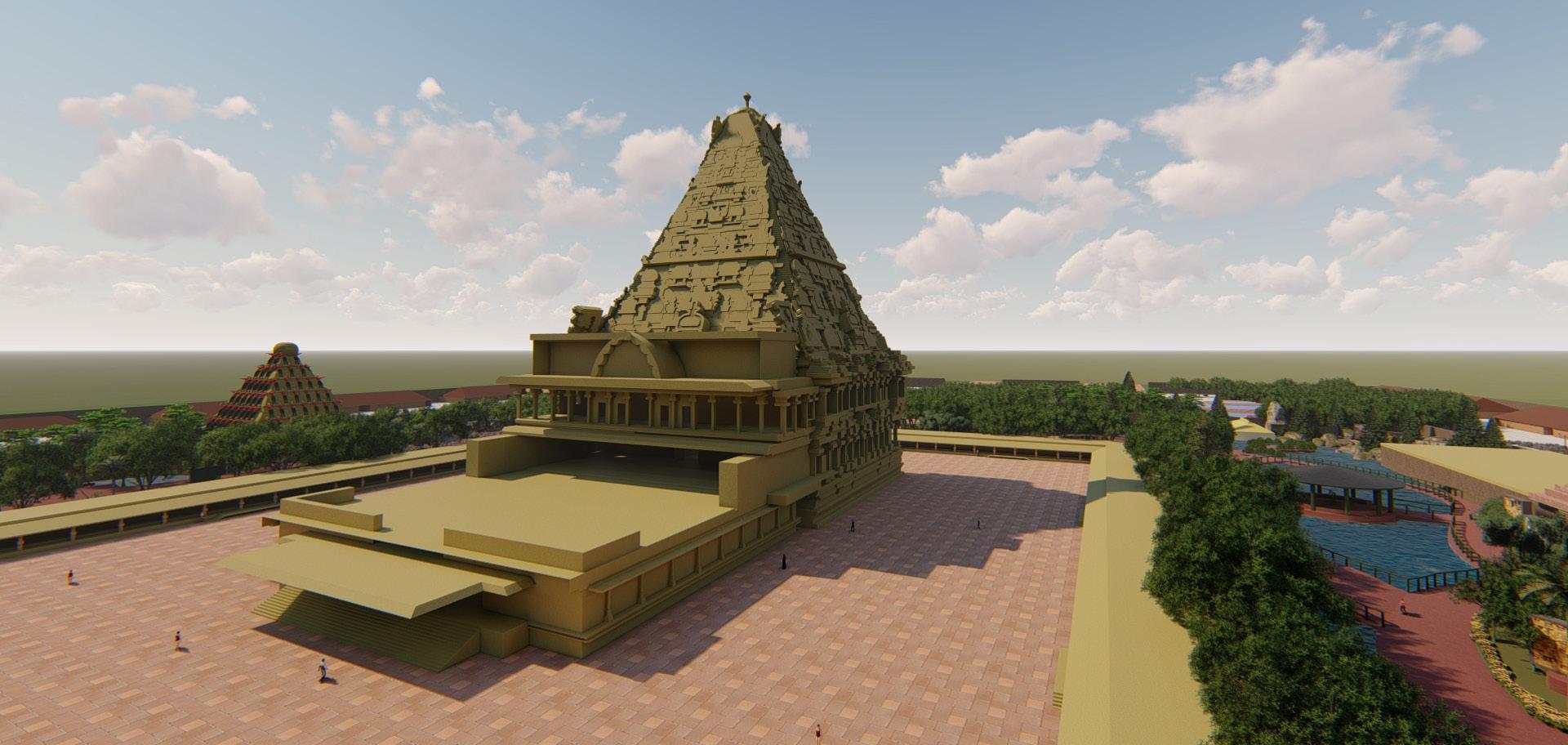

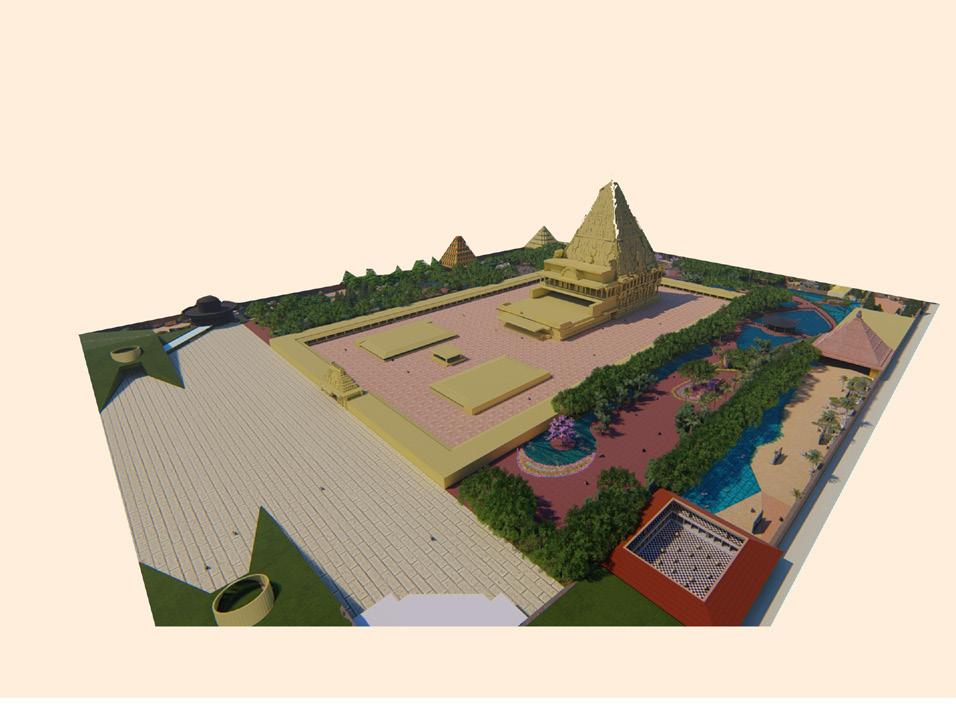

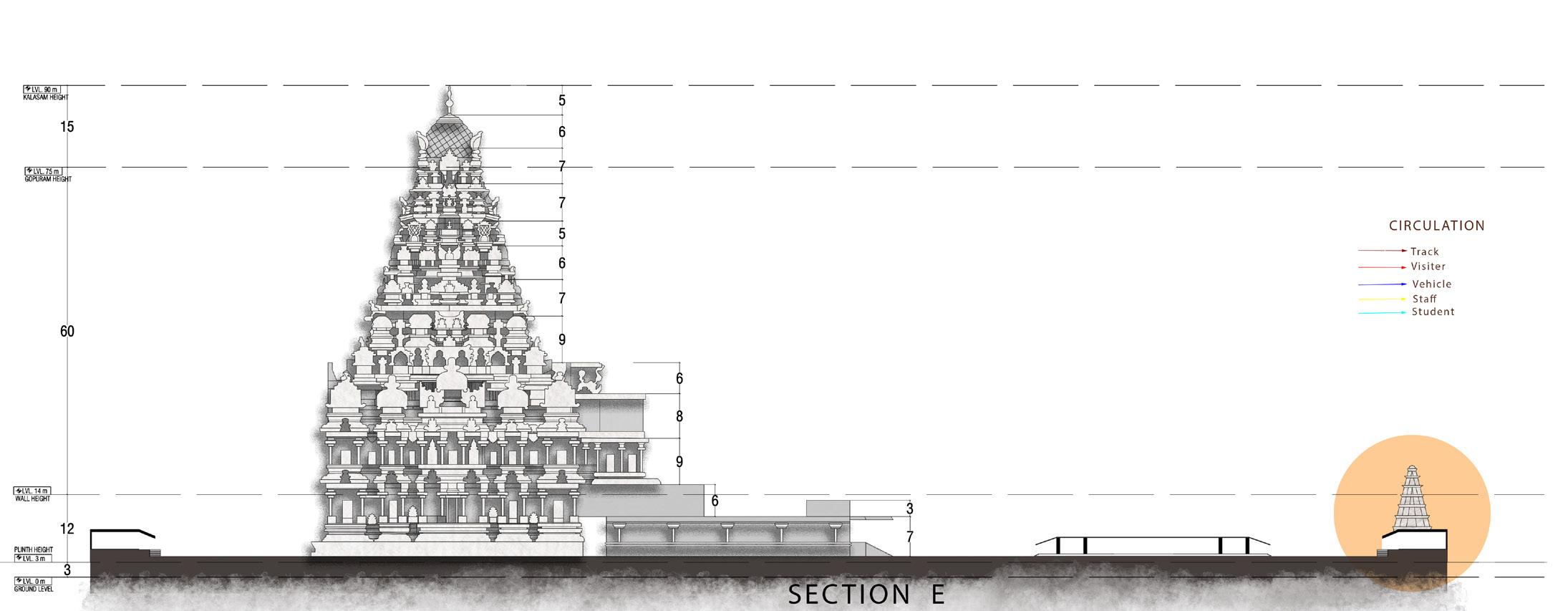

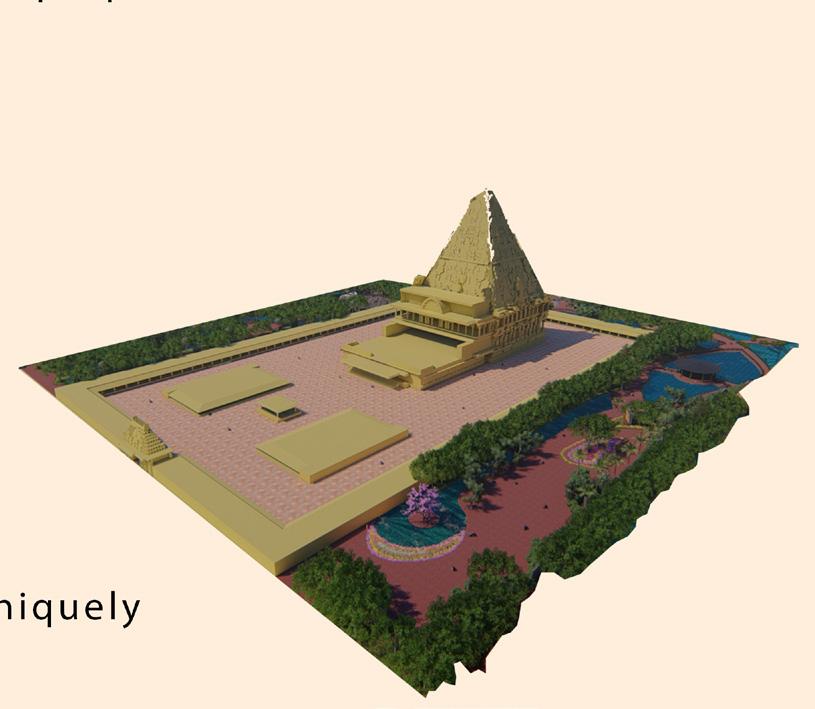

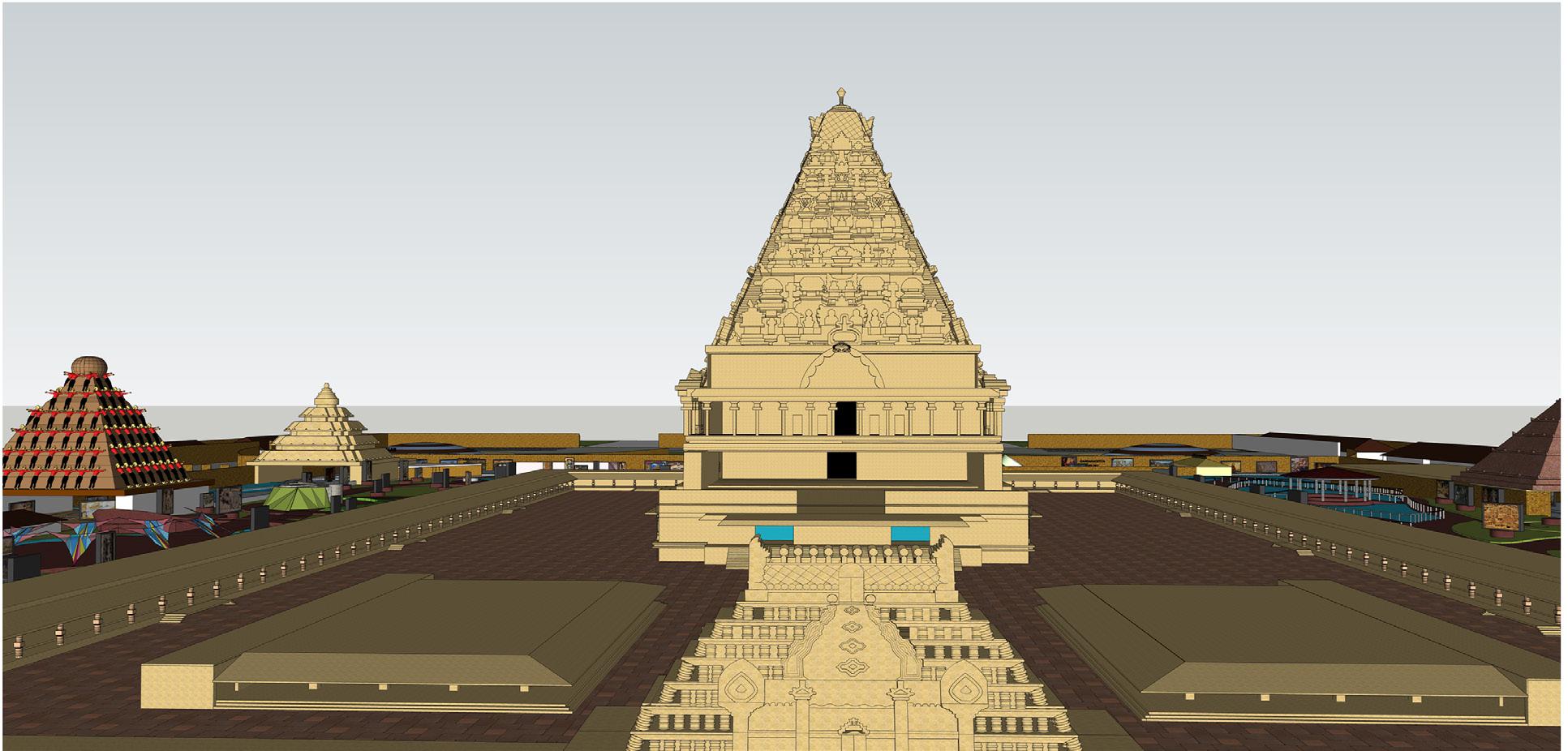

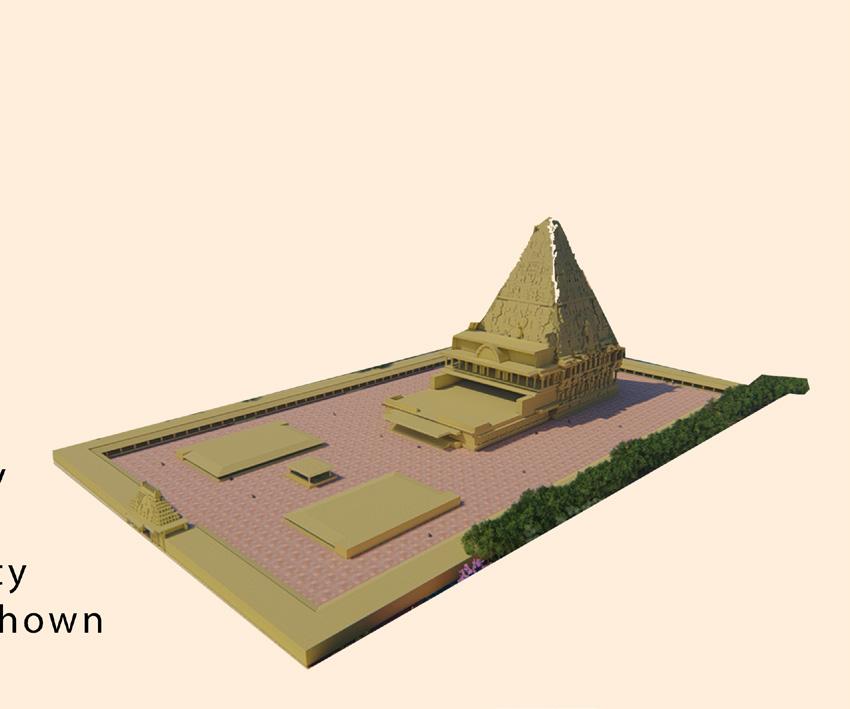

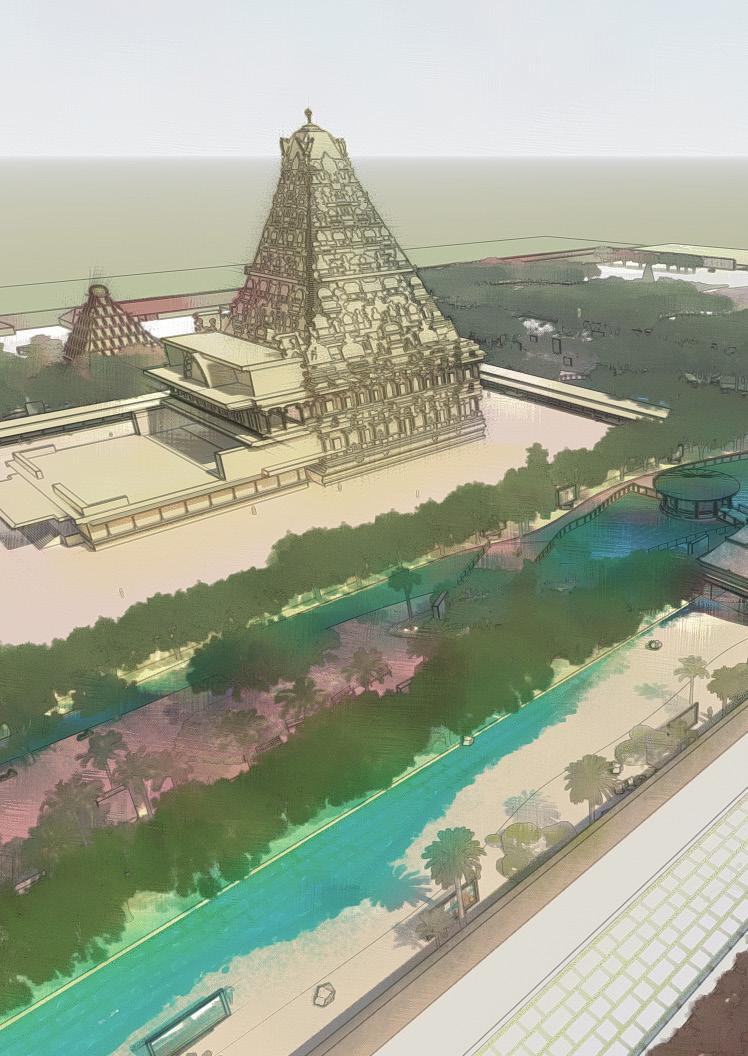

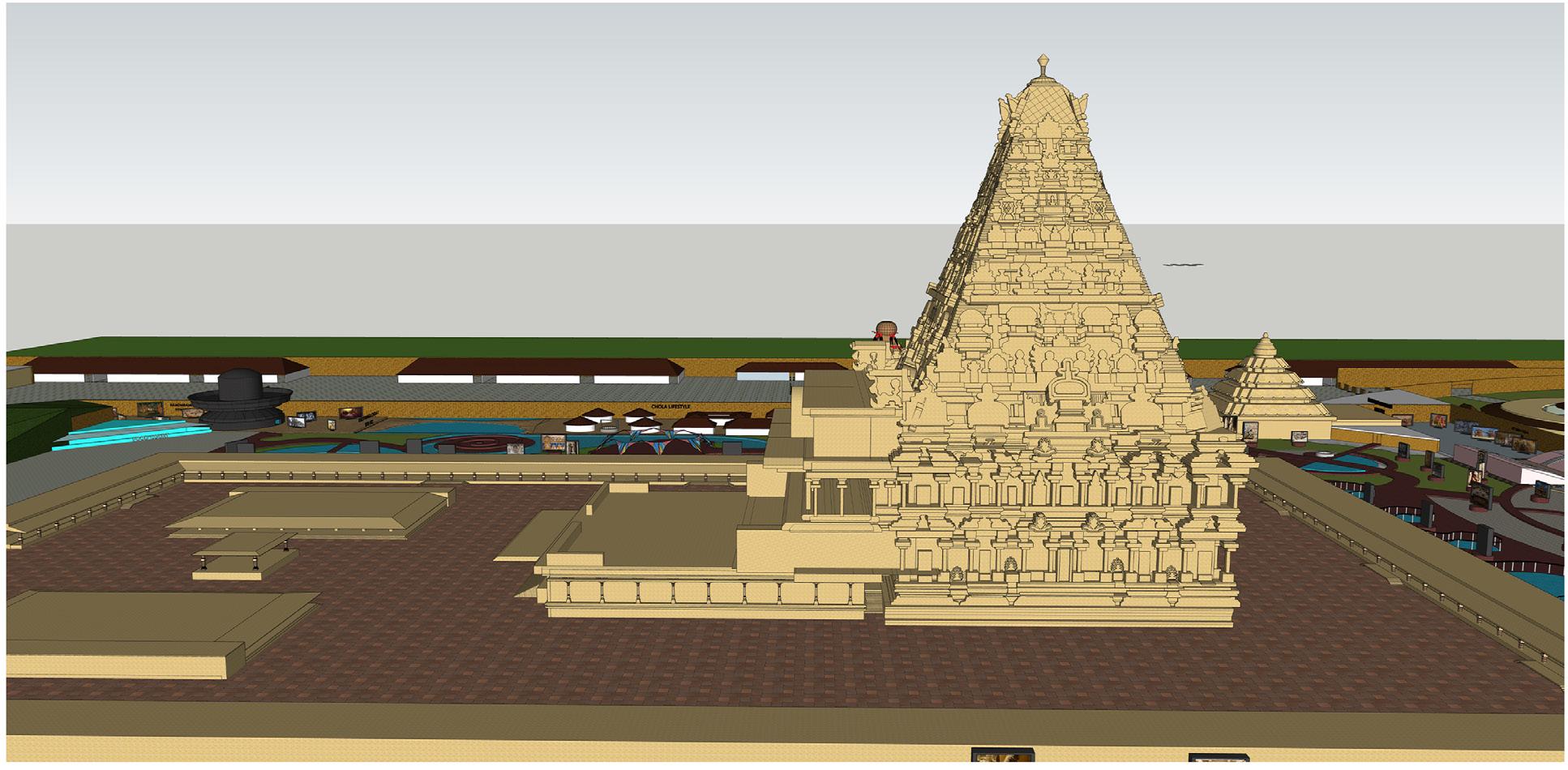

TEMPLE PROTOTYPE COMPLEX

Consists of meditation space, exhibition space, performance centre, tradition al commercial area and library.

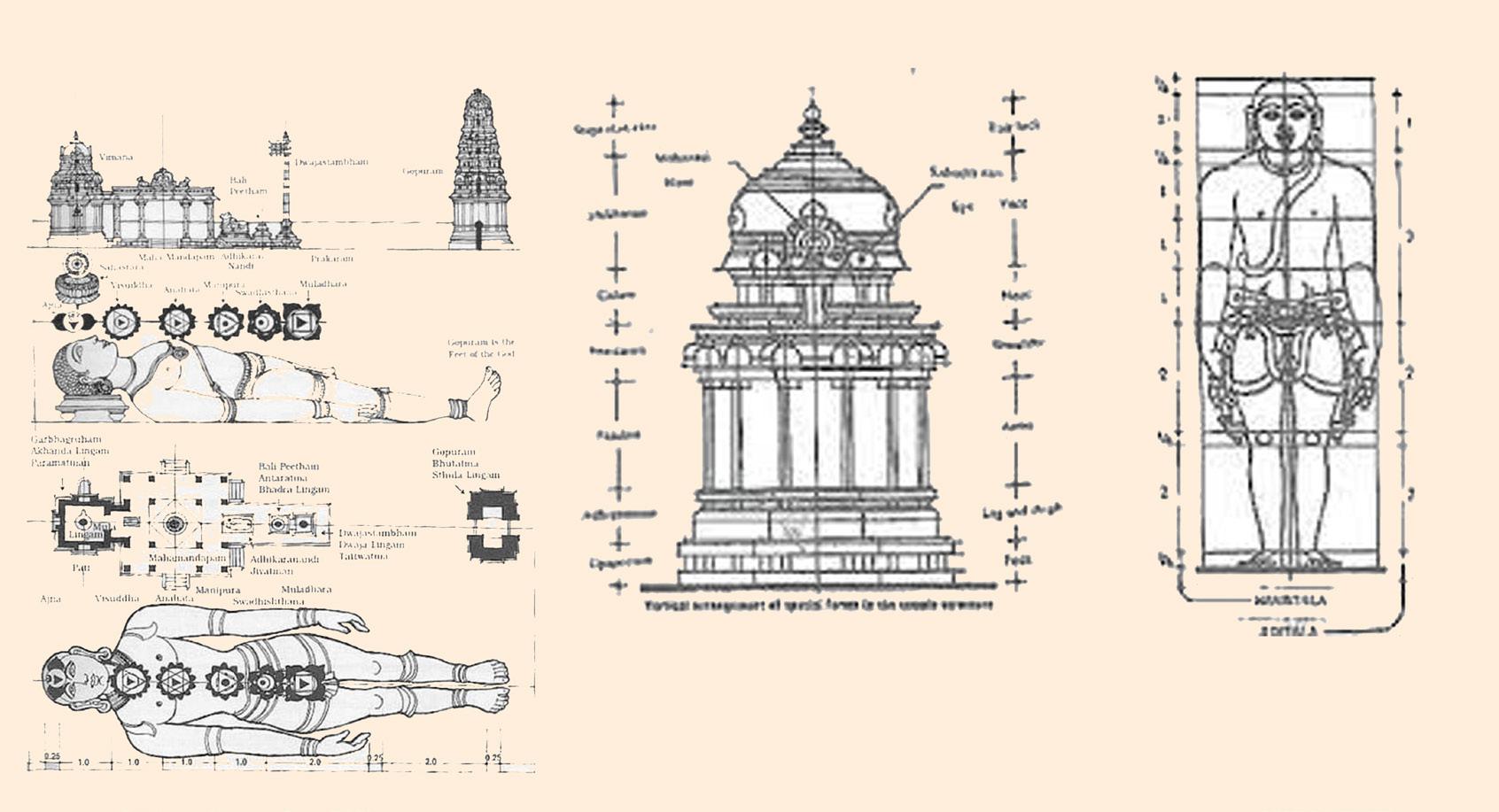

Which is planned with vastu and same proportion of brihadeeshwar temple.

CHOLA KINGS HISTORY

This lanes shows the history of king in the timeline order and development of cho la era,twist and turns,up and downs, marvel,victory and mistry,character of kings.

Every king space is designed uniquely to characterize the king.

This makes people to travel to the Cho la dynasty and experience the CUl ture and marvel during that period.

This is divided into 4 phases- Intro phases which the shows the introduction of Cho la dynasty, Early kings- this phases shows the character and history of the early kings, Medivel kings-this phases shows about the medival kings and thier achievements. This phases also has Ponniyan selvan book narration.Later kings- end of Chola kings.

Example:Ponniyan sel van is designed as like Book.

SCULPTURE

GARDEN

This shows the decodation of sculpture in Chola temple.

Myth and science followed by ancestors. Importance of temple,dynasty war, Chola kings victory are shown in 3D cinemas.

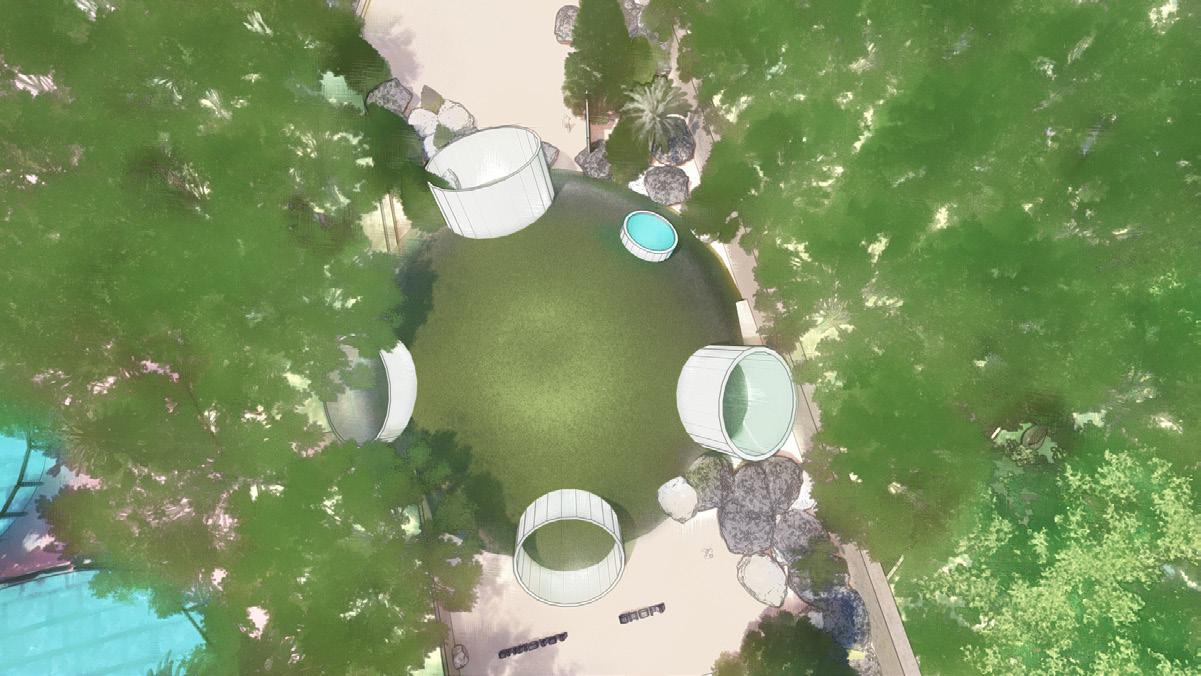

Each place is designed for students interaction, all space is designed with well shaded trees and beautifull traditional plants like banyan tree,ook tree,peppal trees.

the audio track is given in the entrance for each people to understabd the con cept and decording behind the sculpture.

Example: In the third entrance of temple. the sculpture decordes that sculpture leg there is huge shake is powerfull and huge enough to swallow the elephant which is under his feet, his is powerfull then a snake and the shiva linga inside is more powerfull

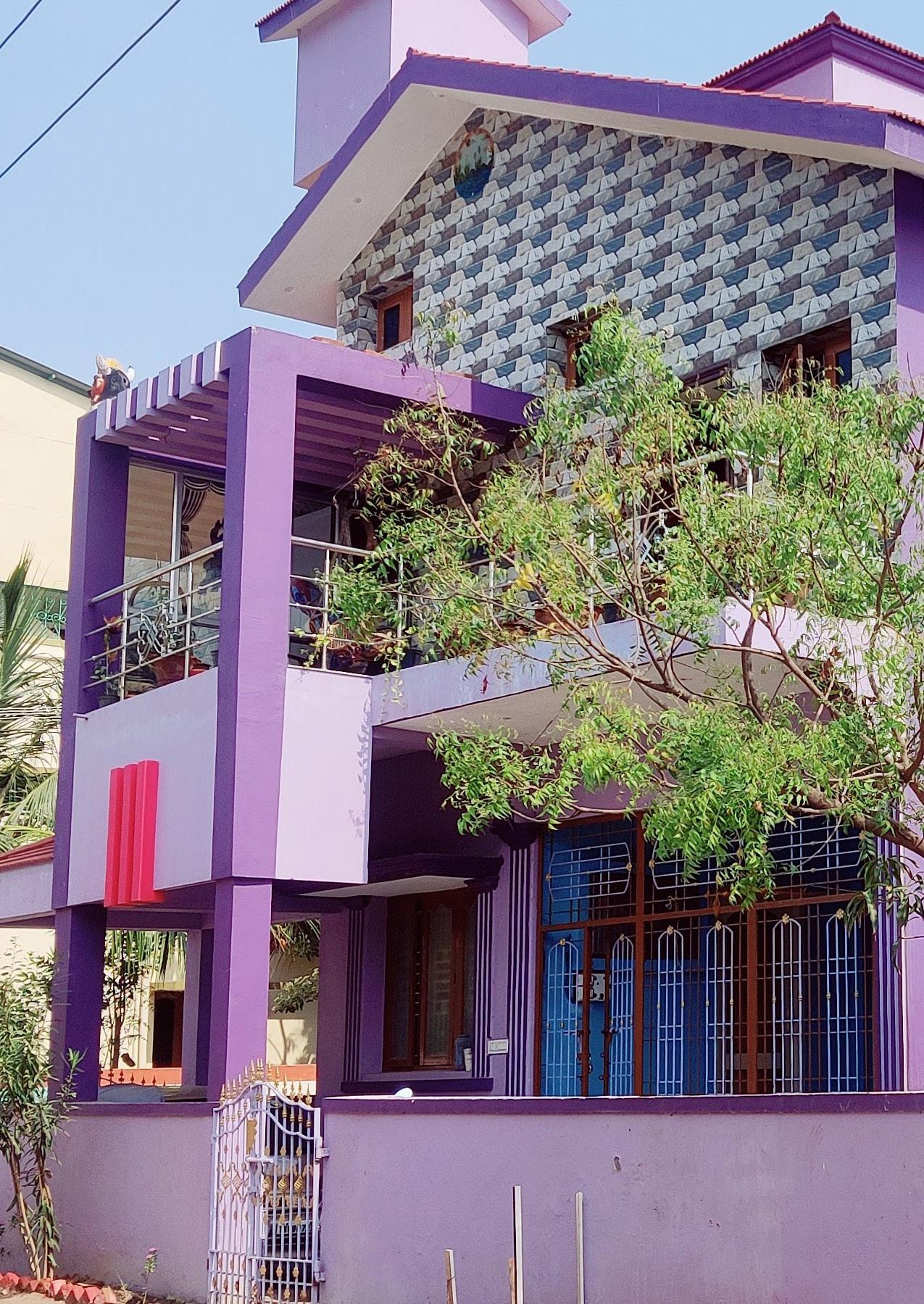

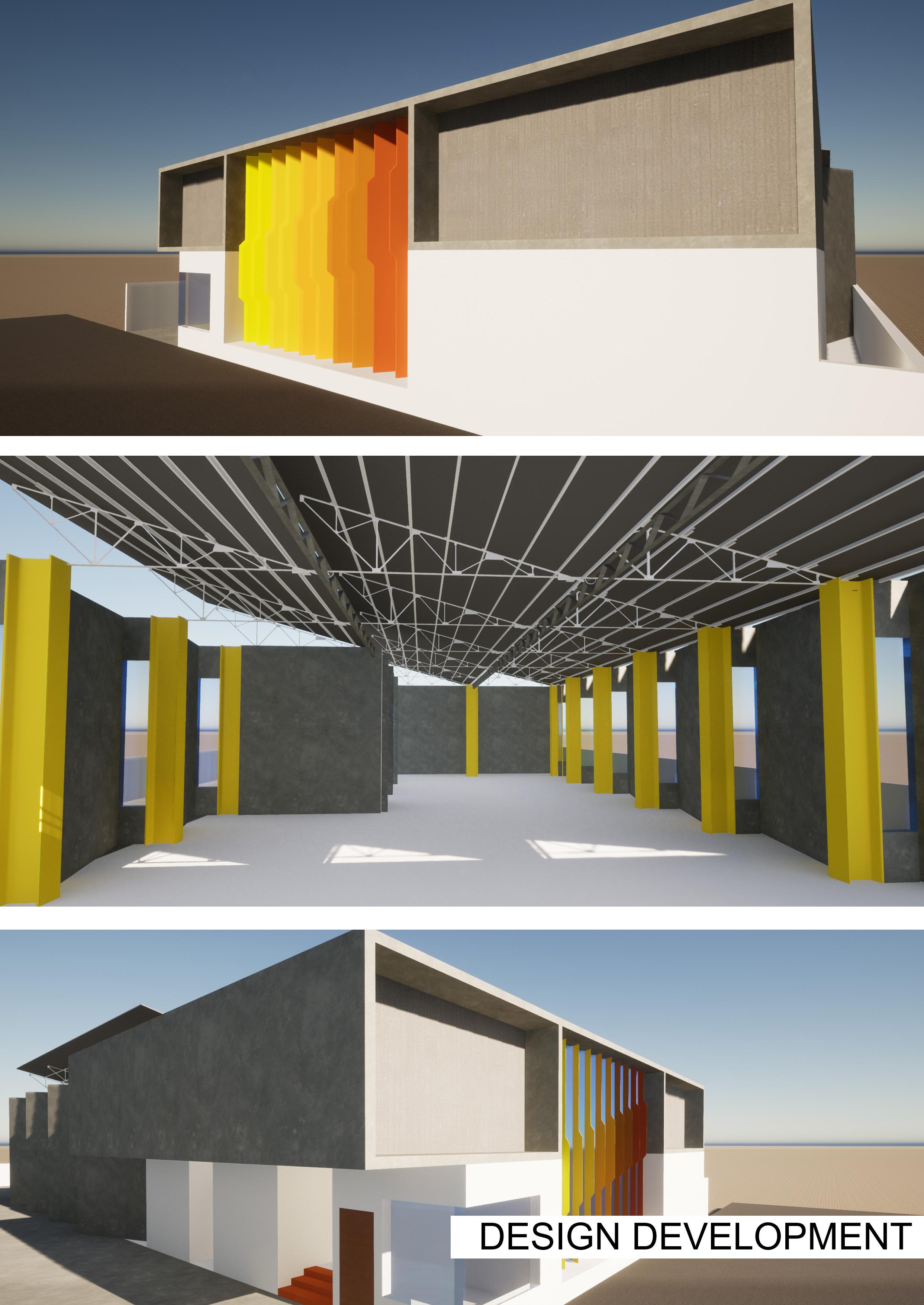

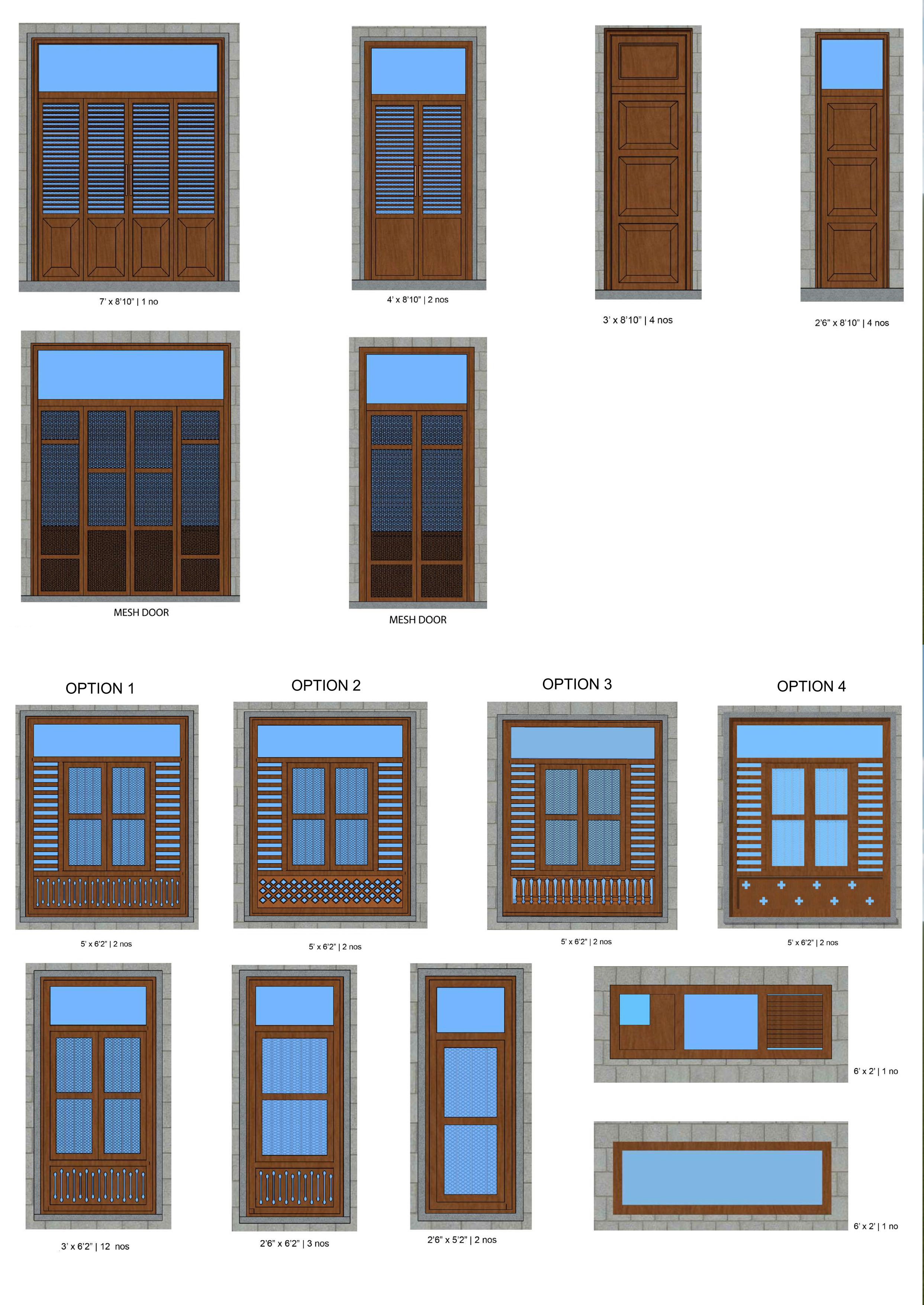

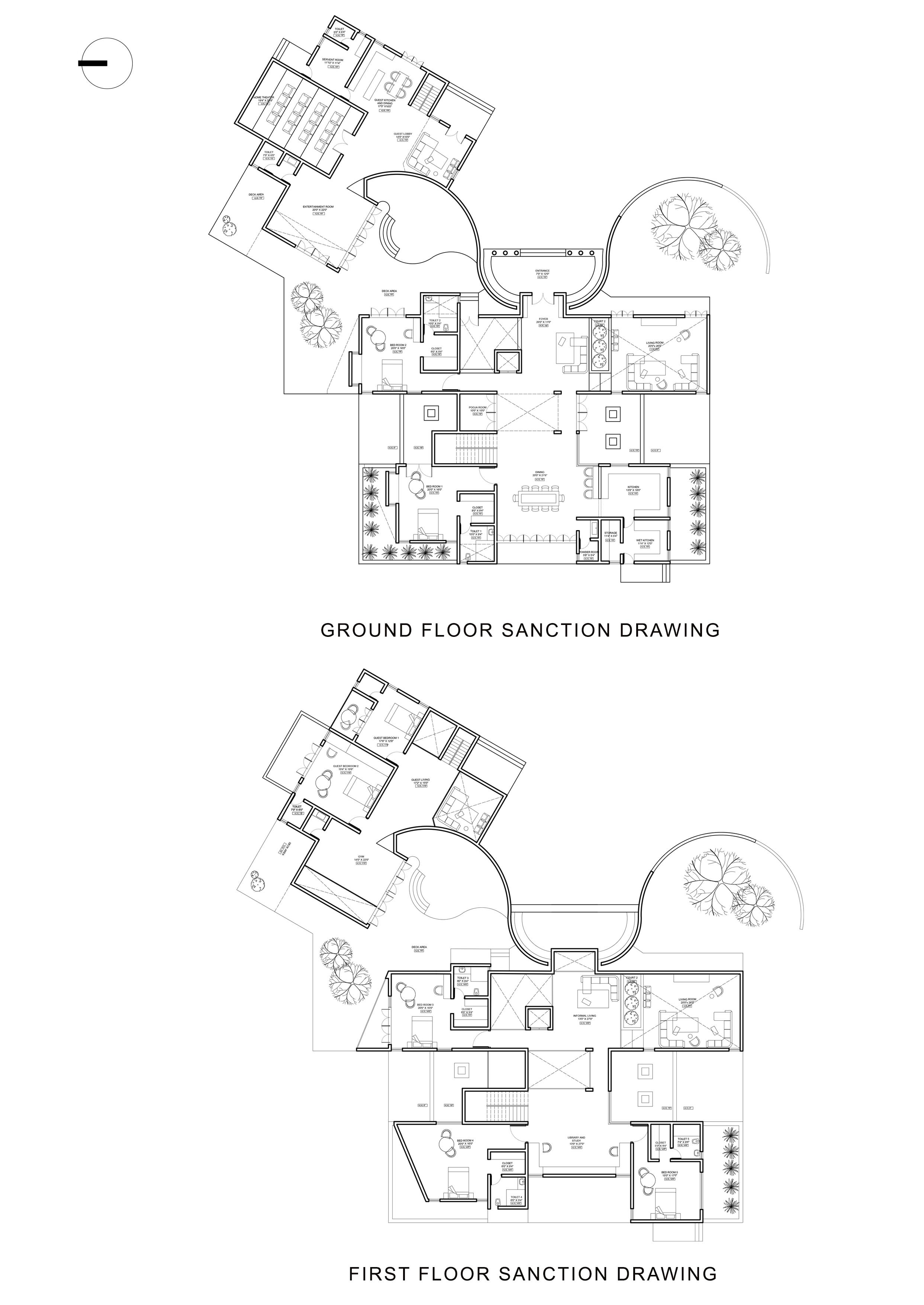

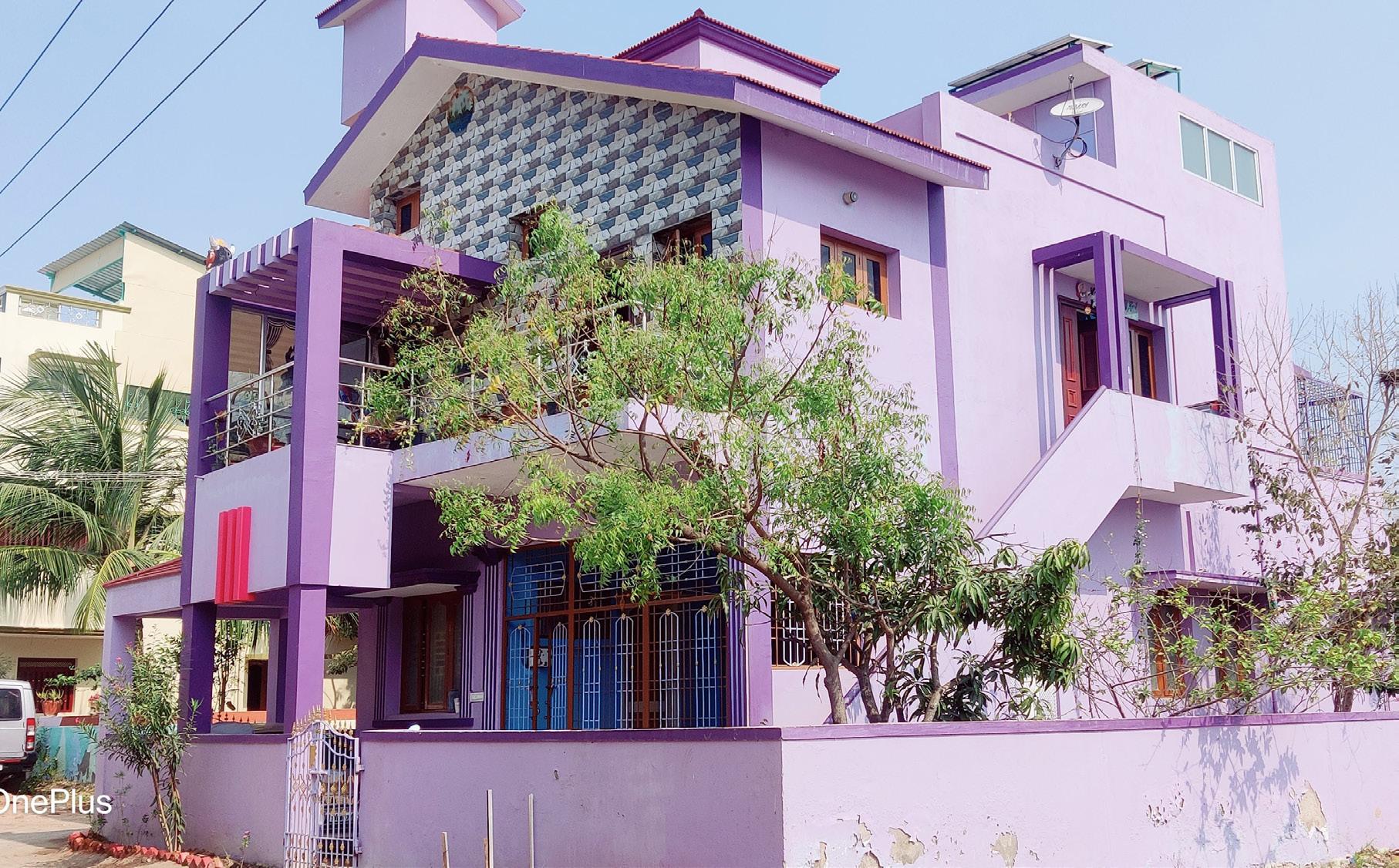

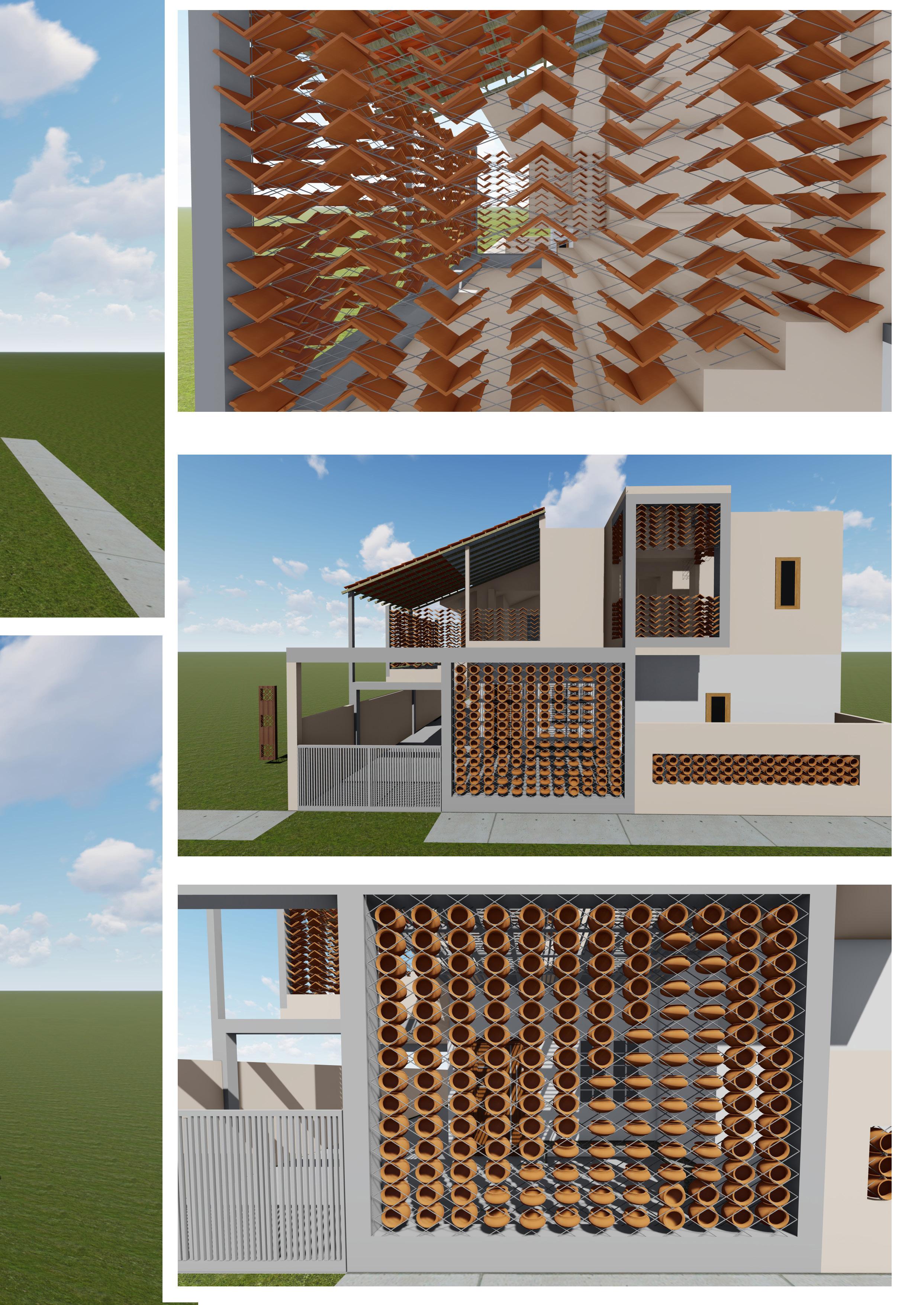

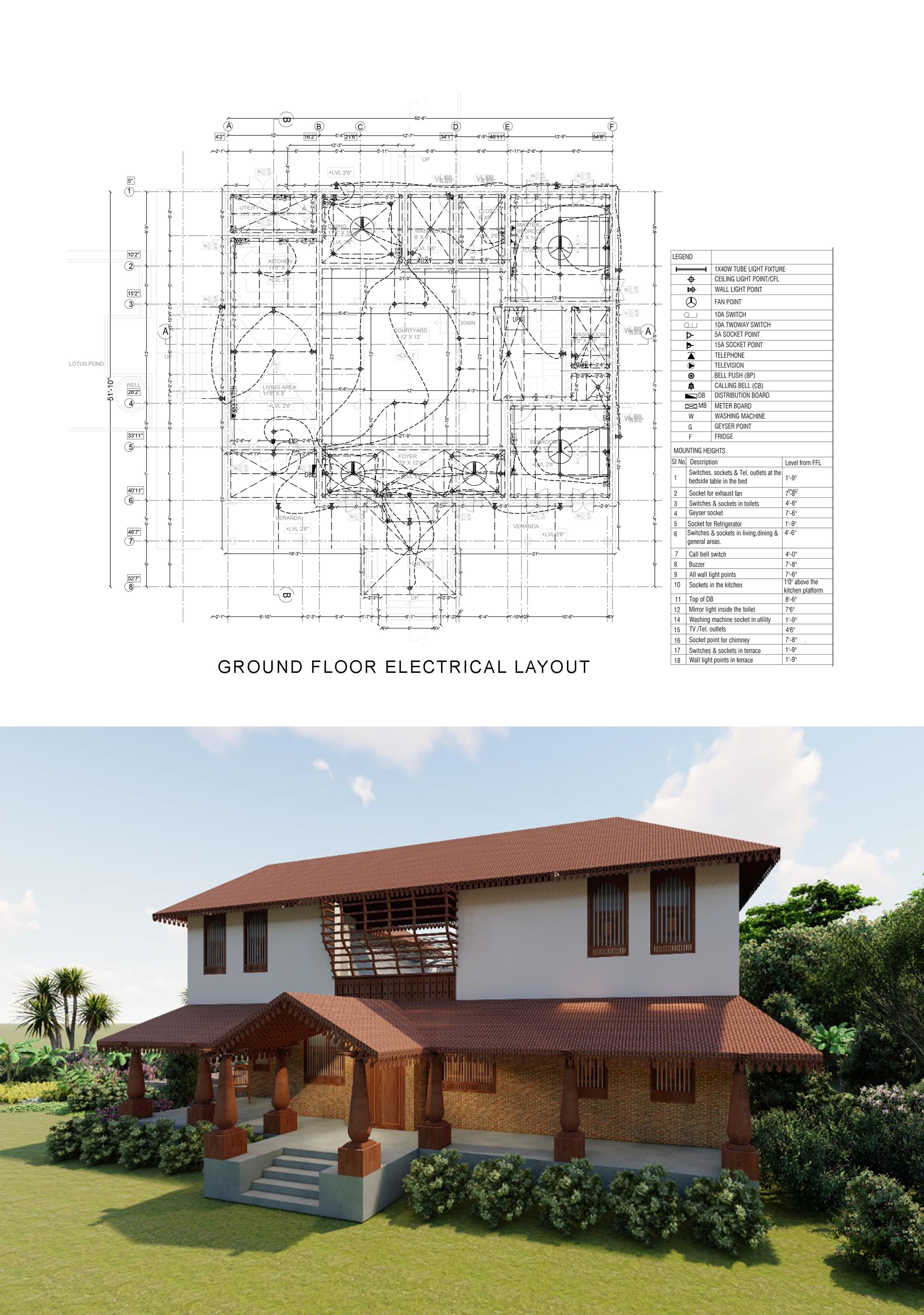

FREELANCE

3 1 3 2 1 1 FRONT

2 7 2

11

(+35'-0")lvl

(+28'-0")lvl top of parapet wall

top of second floor lvl (+8'-0")lvl compound wall lvl

top of ground floor roof slab (+4'-0")lvl ground floor unfinished lvl

(+0'-0")lvl level of road crown

4 1 2"thk roof slab

parapet wall slab as per structural DWG

RCC lintel beam as per structural DWG 12mm thk. cement plasterting(1:4) 9"thk.brick wall apvd.marble flooring 4 1 2"thk.roof slab as per structural DWG RCC .roof beam as per structural DWG RCC.lintel beam as per structural DWG sand filling earth filling

flooring

B-B'

apvd.weathering tile parapet wall 4 1 2"thk roof slab as per structural DWG

RCC lintel beam as per structural DWG 12mm thk. cement plasterting(1:4) 9"thk.brick wall apvd.marble flooring 4 1 2"thk.roof slab as per structural DWG

RCC .roof beam as per structural DWG

RCC.lintel beam as per structural DWG

apvd.tile flooring PCC sand filling earth filling

SECTION C-C'

SECTION B-B

1

3

3 2 2

top of second floor lvl (+35'-0")lvl

12

top of parapet wall (+28'-0")lvl

top of first floor roof slab (+24'-0")lvl

top of ground floor roof slab (+15'-0")lvl

compound wall lvl (+8'-0")lvl

ground floor unfinished lvl (+4'-0")lvl

level of road crown (+0'-0")lvl

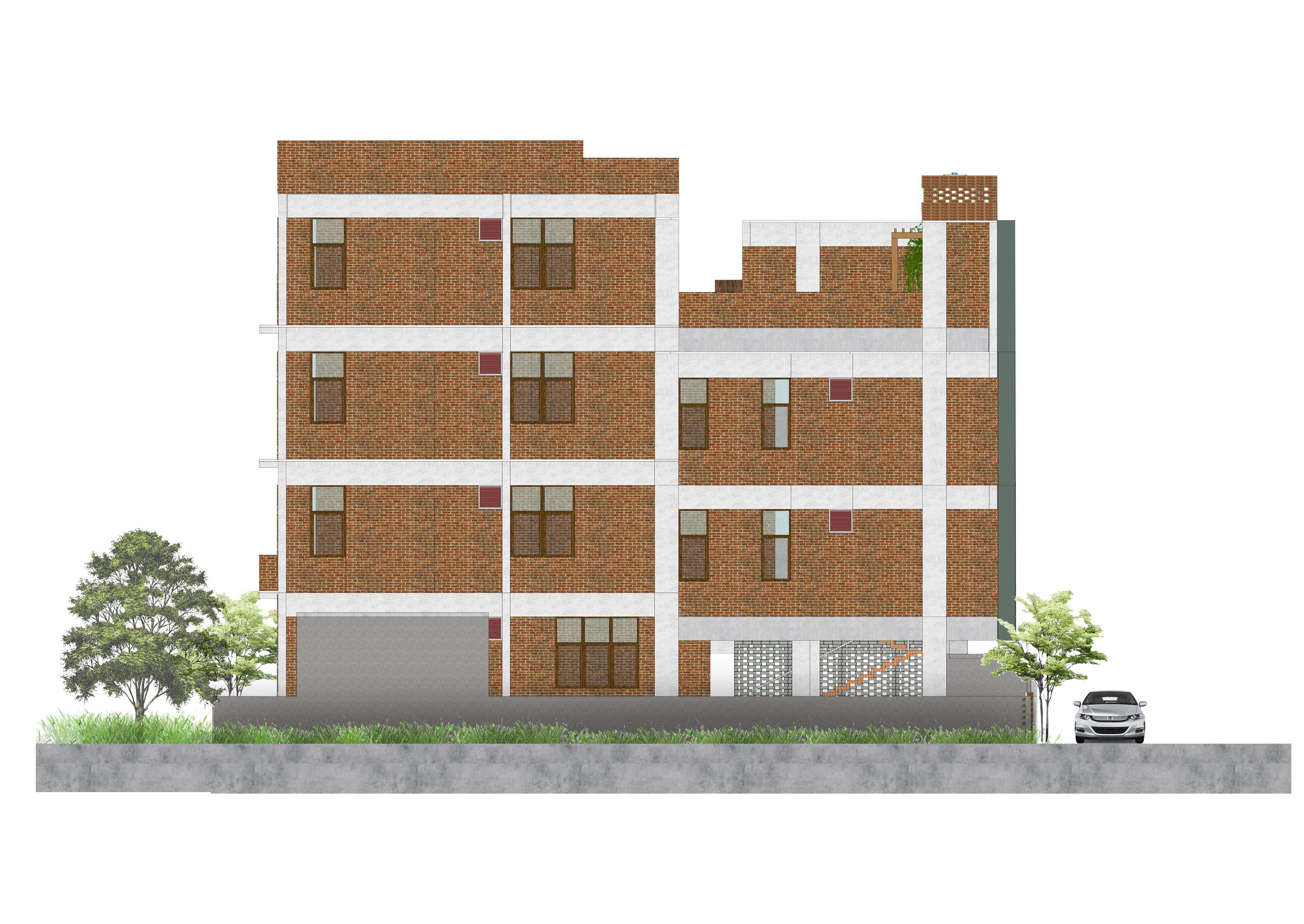

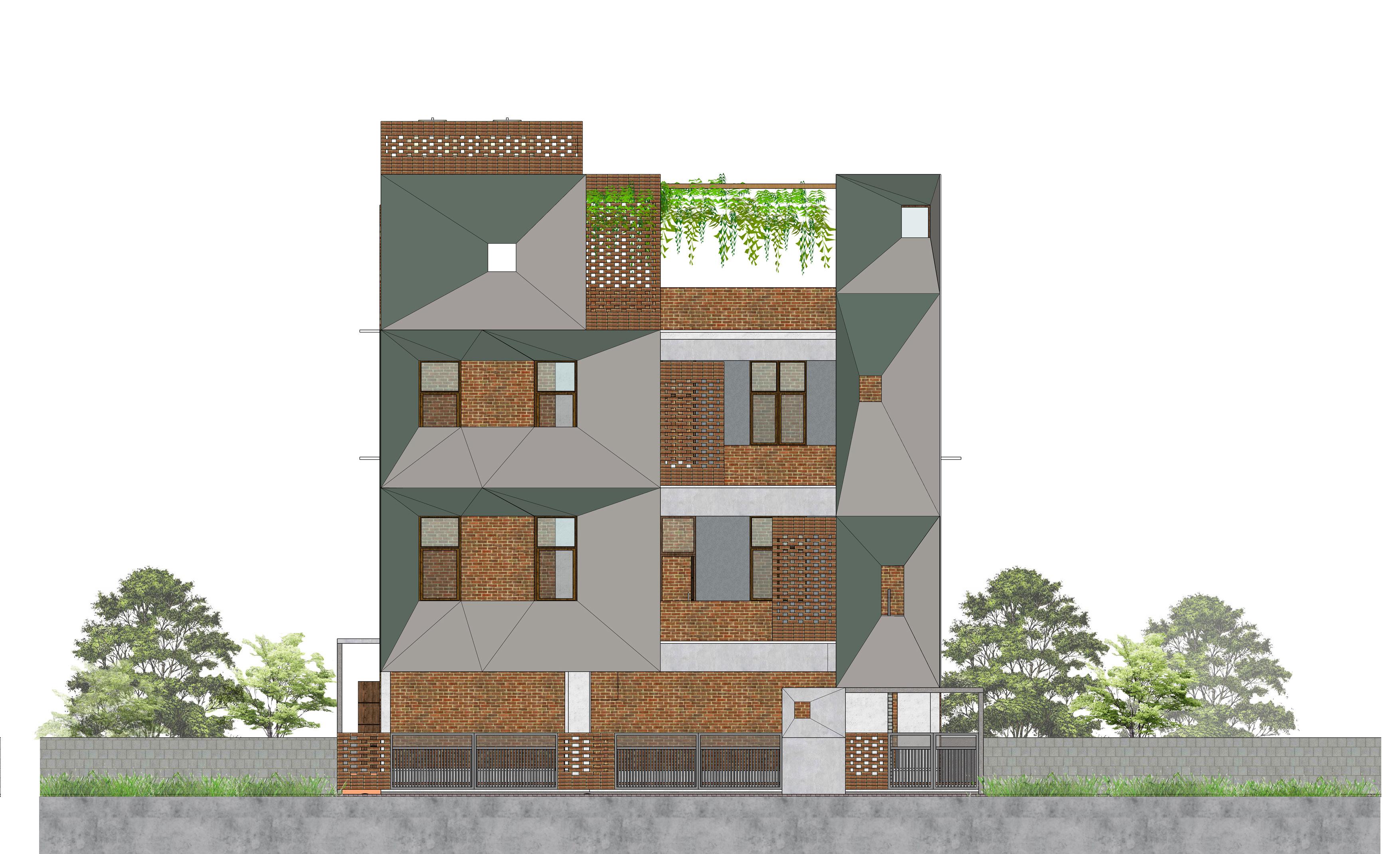

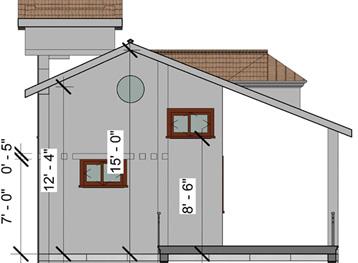

EAST SIDE ELEVATION

EAST ELEVATION

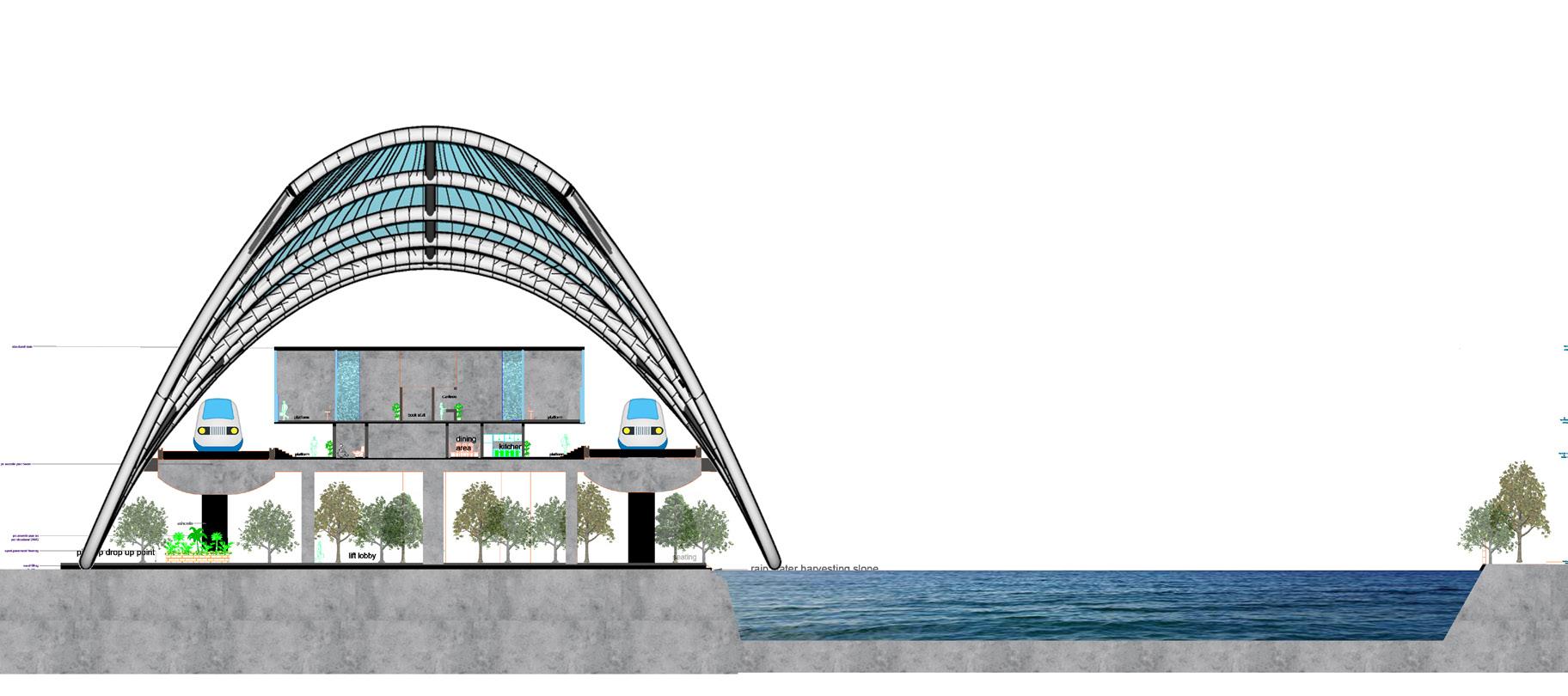

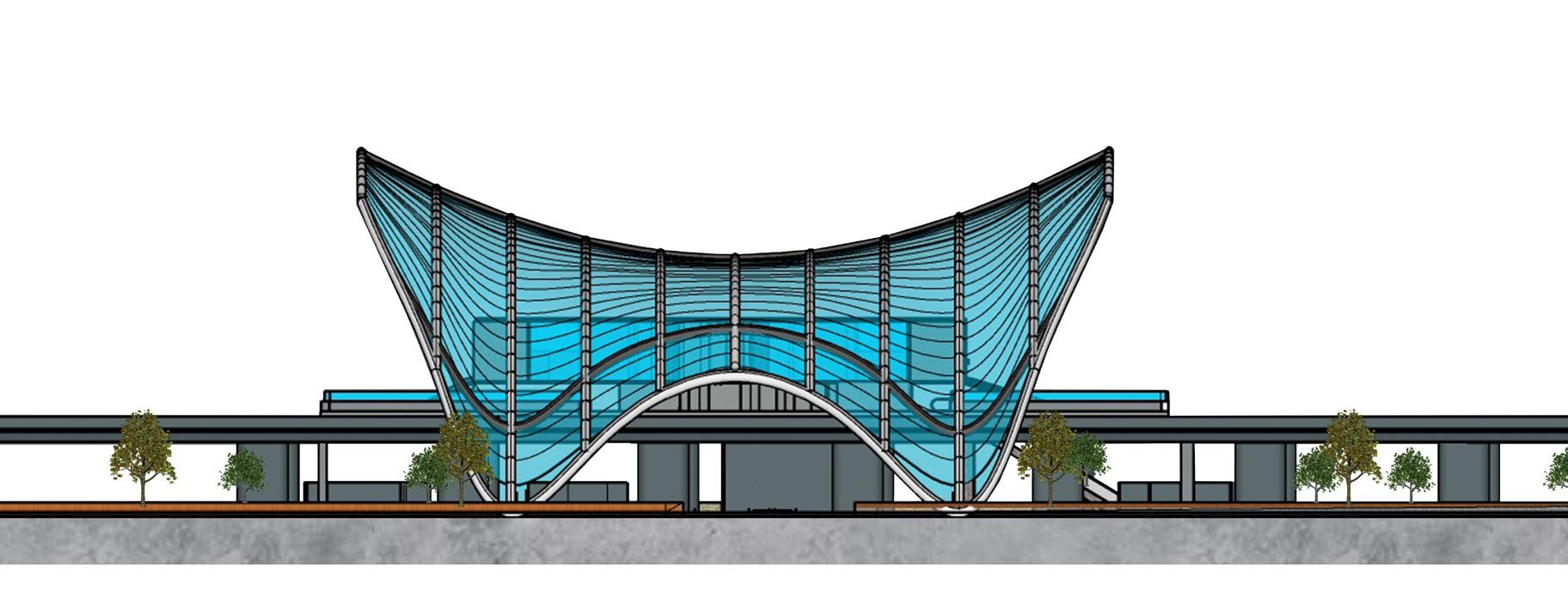

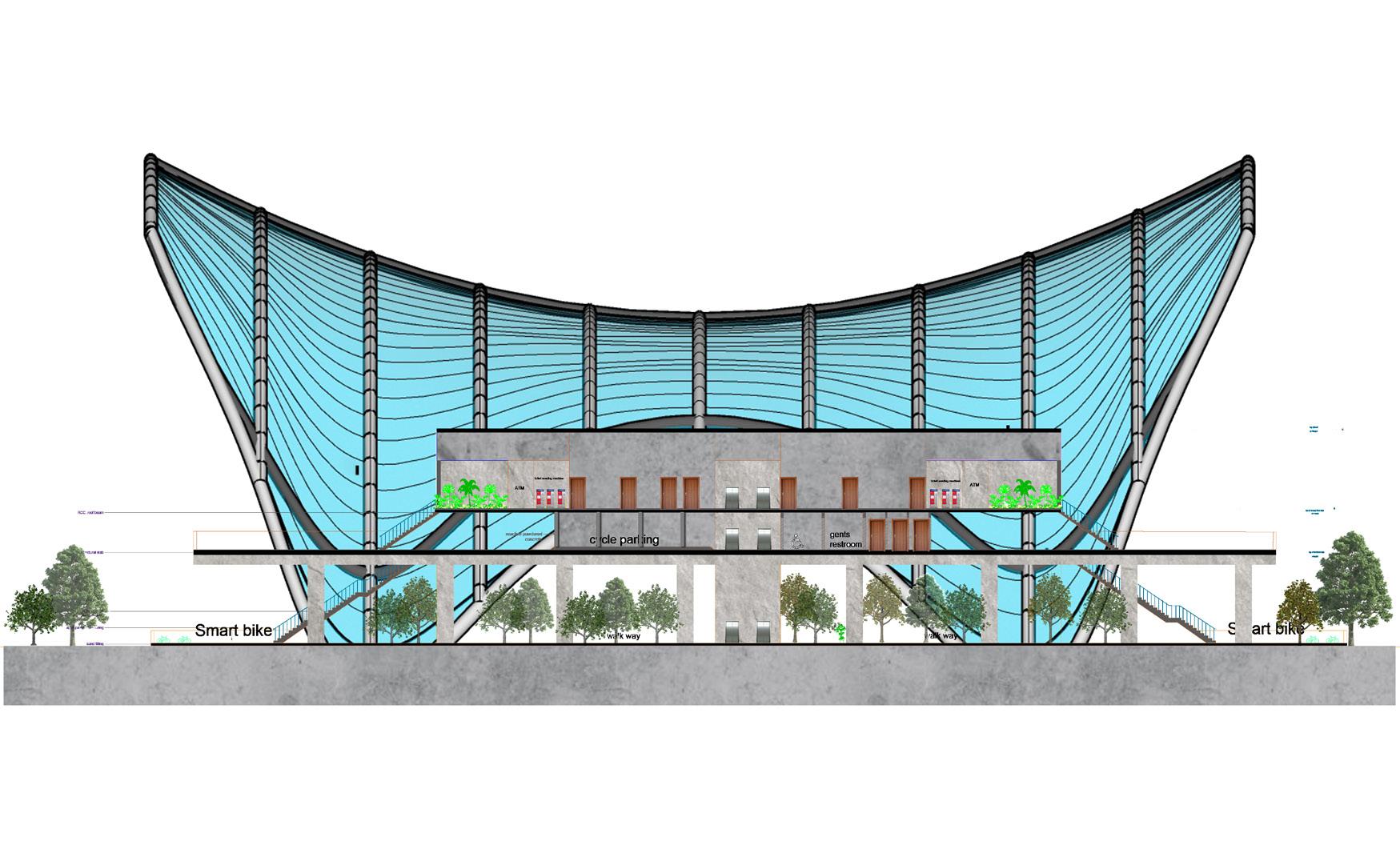

The Transit Elevated was a proposed new bus concept where a guided bus strad dles above road traffic, giving it the alternative names such as straddling bus, straddle bus, land airbus, or tunnel bus by international media. straddles on two road lines. can carry 1200 passengers. allows to use the space under it.powered by electrucity or solor power.can reach speeds up to 37mph(60kph)6m wide and 4.5m high.solve the issues of less space. indicate light when any ob stacles are in the path of the vehicle.

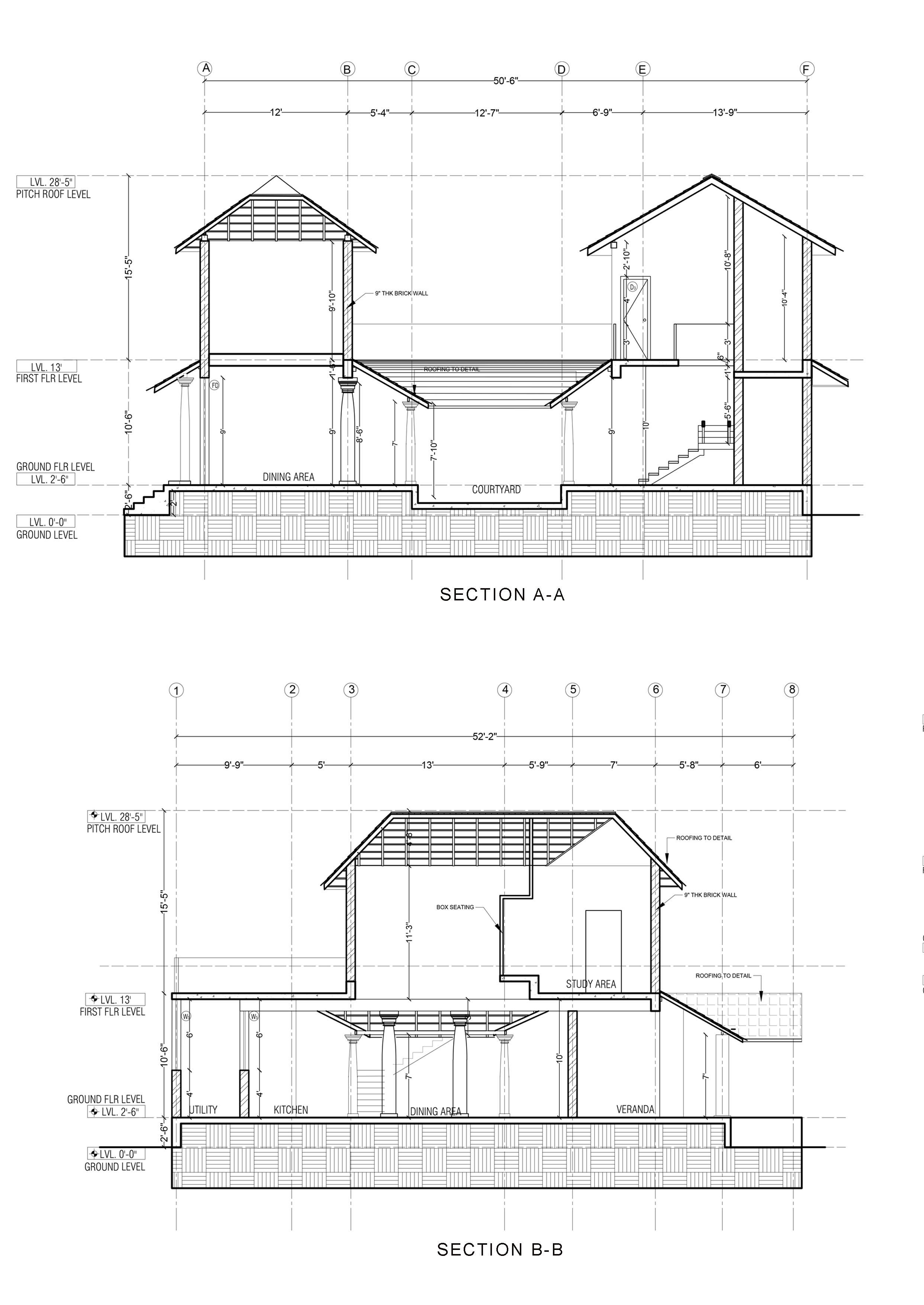

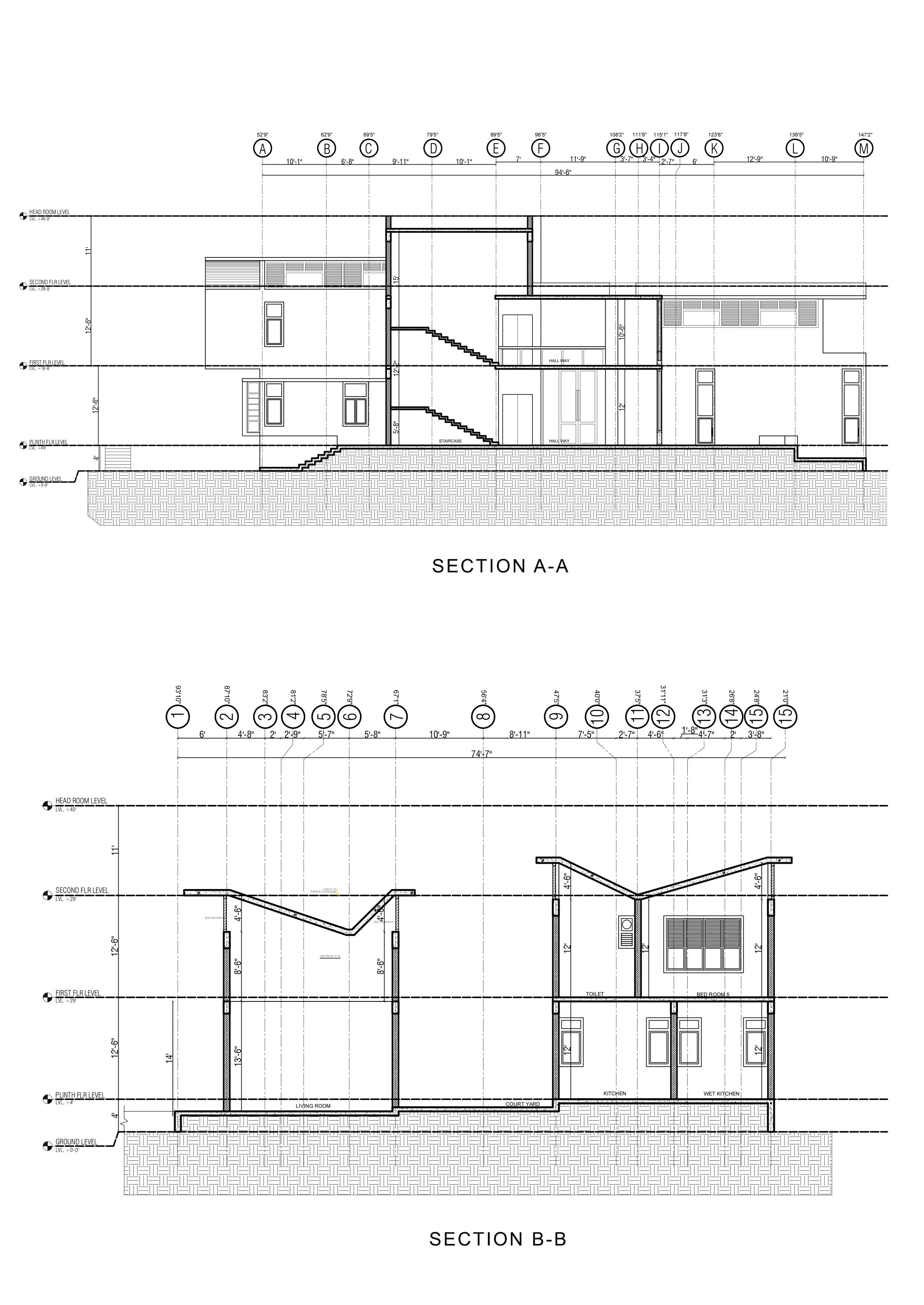

SECTION A SECTION B

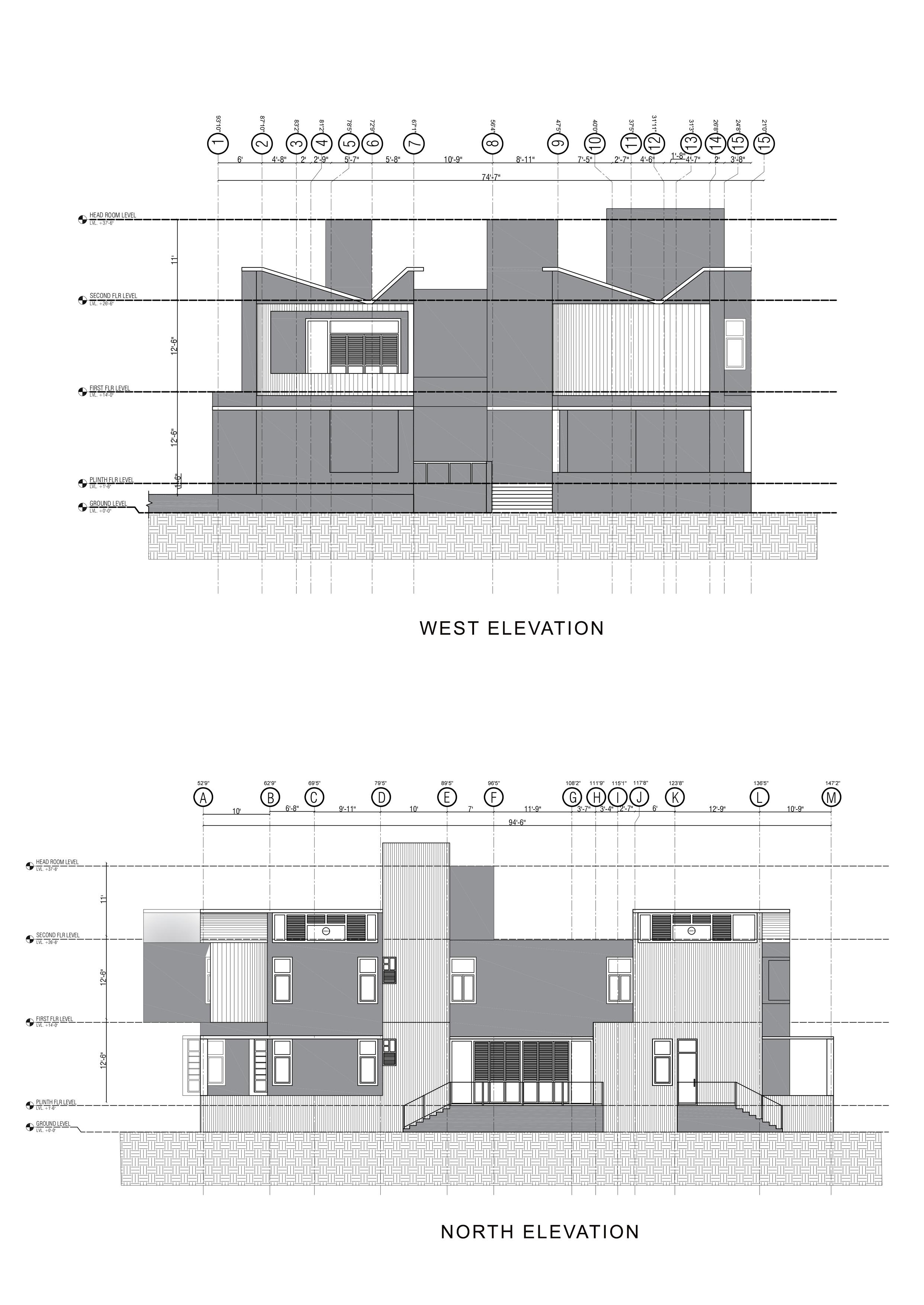

WEST ELEVATION

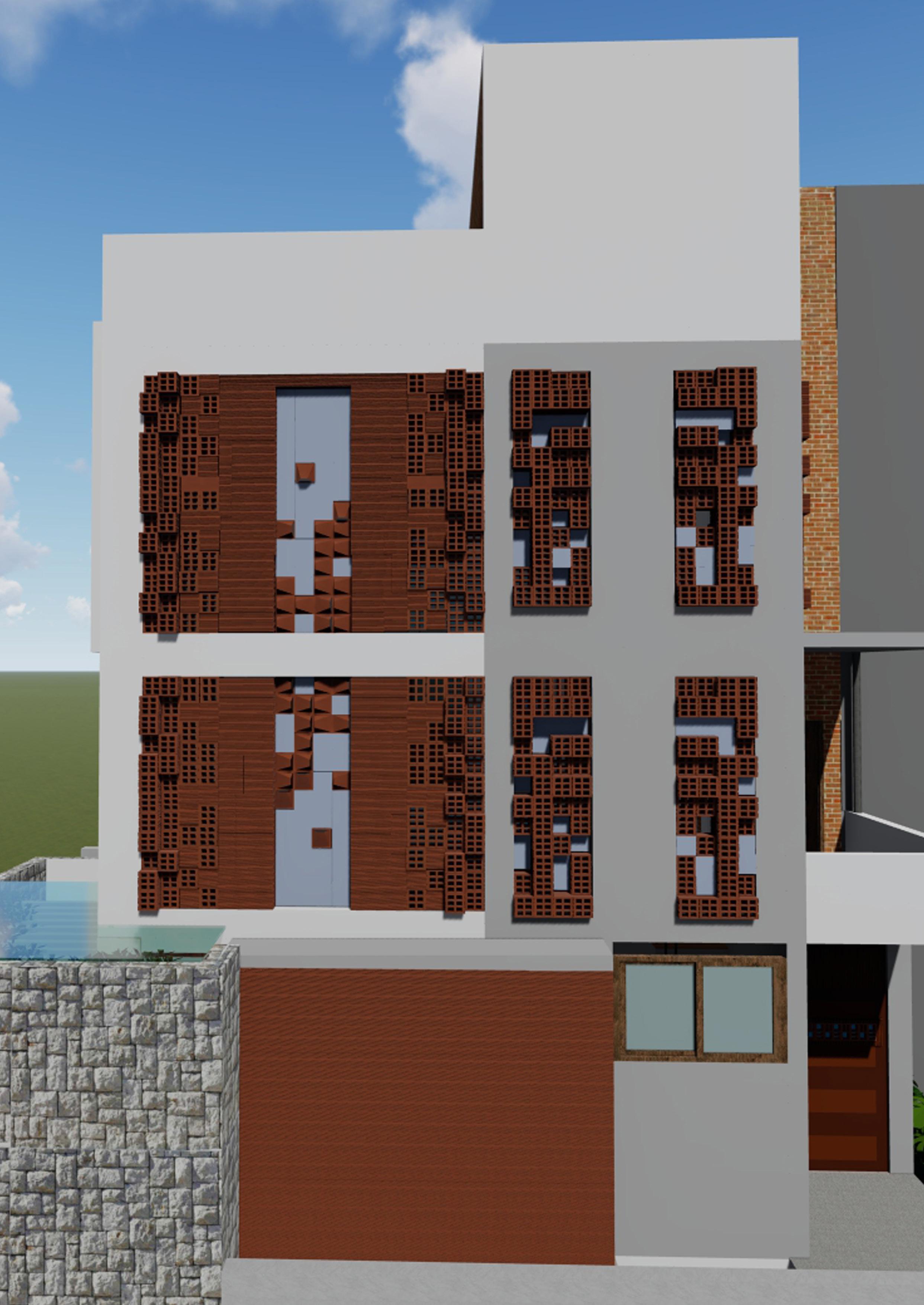

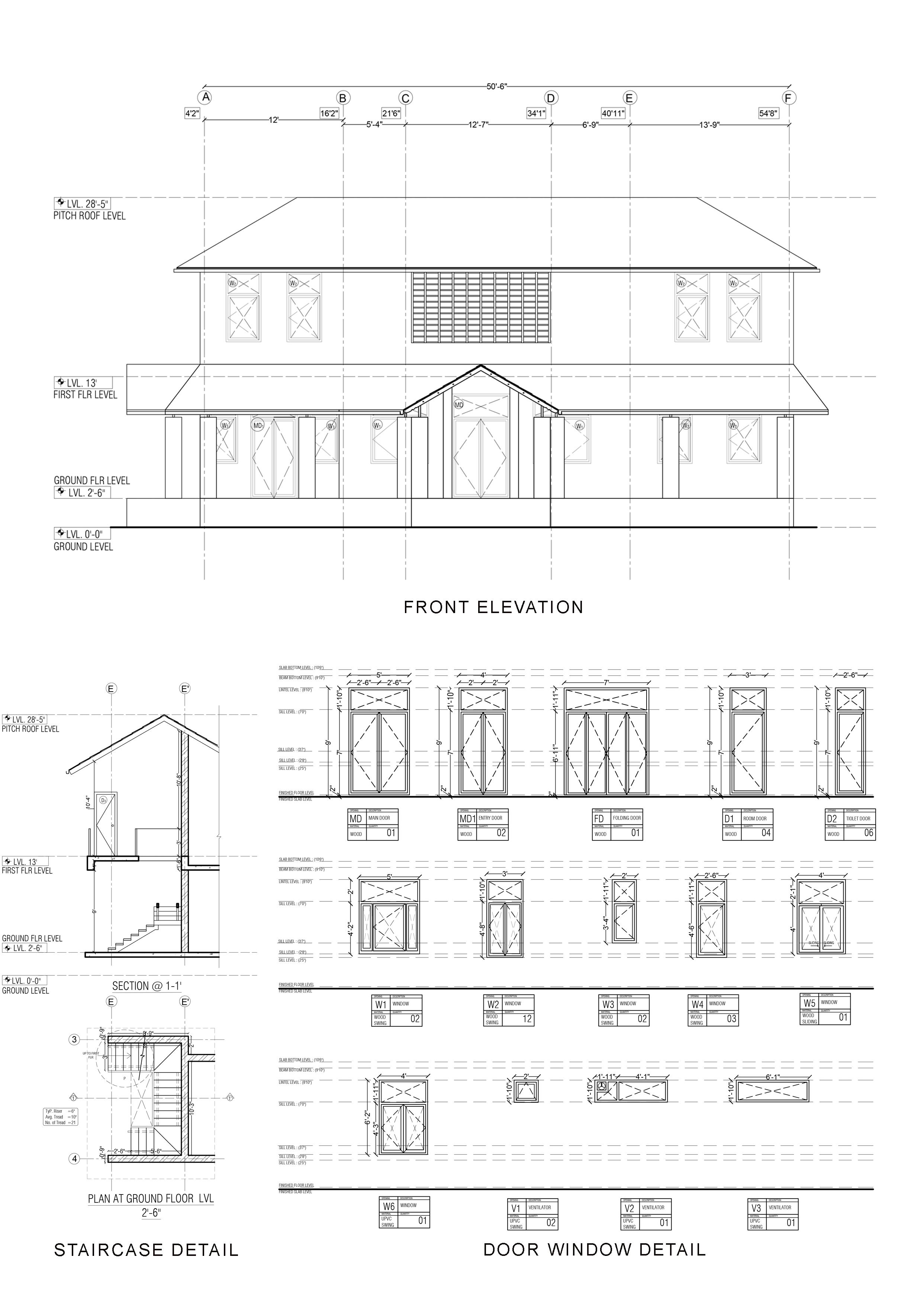

FRONT ELEVATION

HOUSING BOARD

The brief was to redsign housing board into housing apartment which should be affordable for the economi cally weaker section.The site given to us was given in Kotturpuram .

Location: .Surya nagar, Kotturpuram,Chennai.

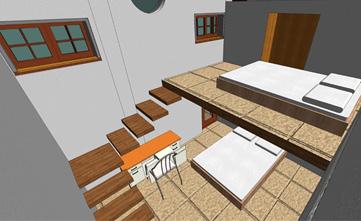

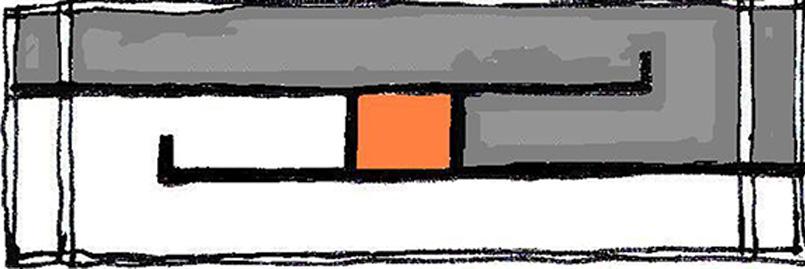

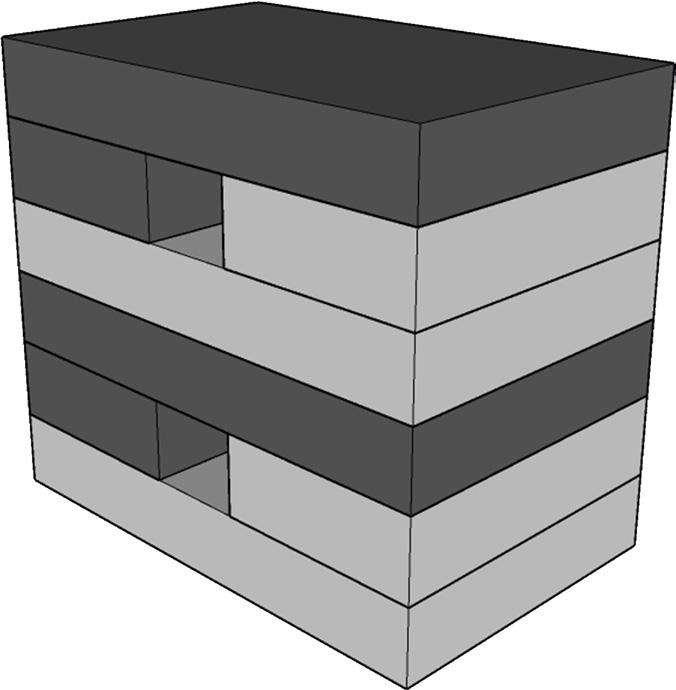

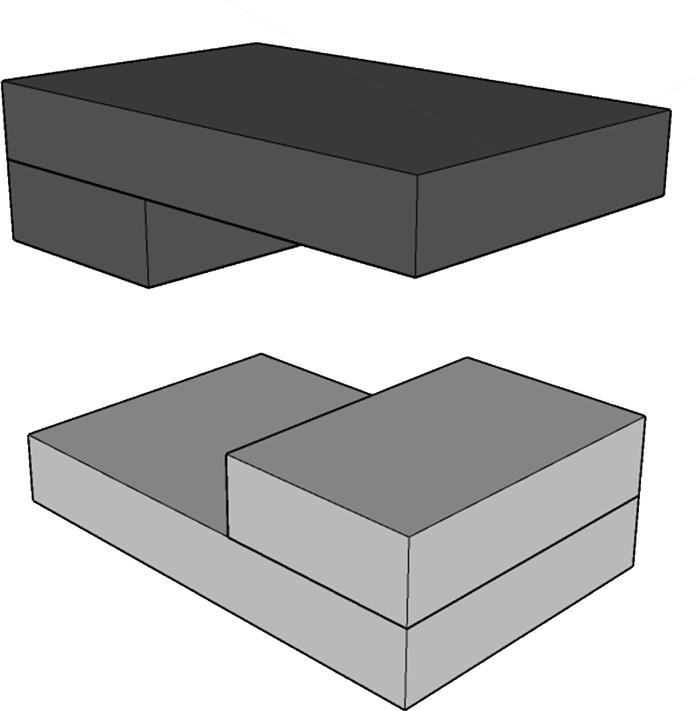

Land use: primary residential . Area: 8.6 acres Soil type: red soil Family present: 597 DESIGN CONCEPT:dividing the two floor and making them into duplex house for space management. the concept for the arrangement is body parts head,body and tail.

STRUCTURE:I designed this house with proper structure detail and column layouts,I used substainable materials like brick,lime,filler slabs and athangudi tiles which is locally avail able.

UPSHOT: to design the large area project like township along with services in substainable way.

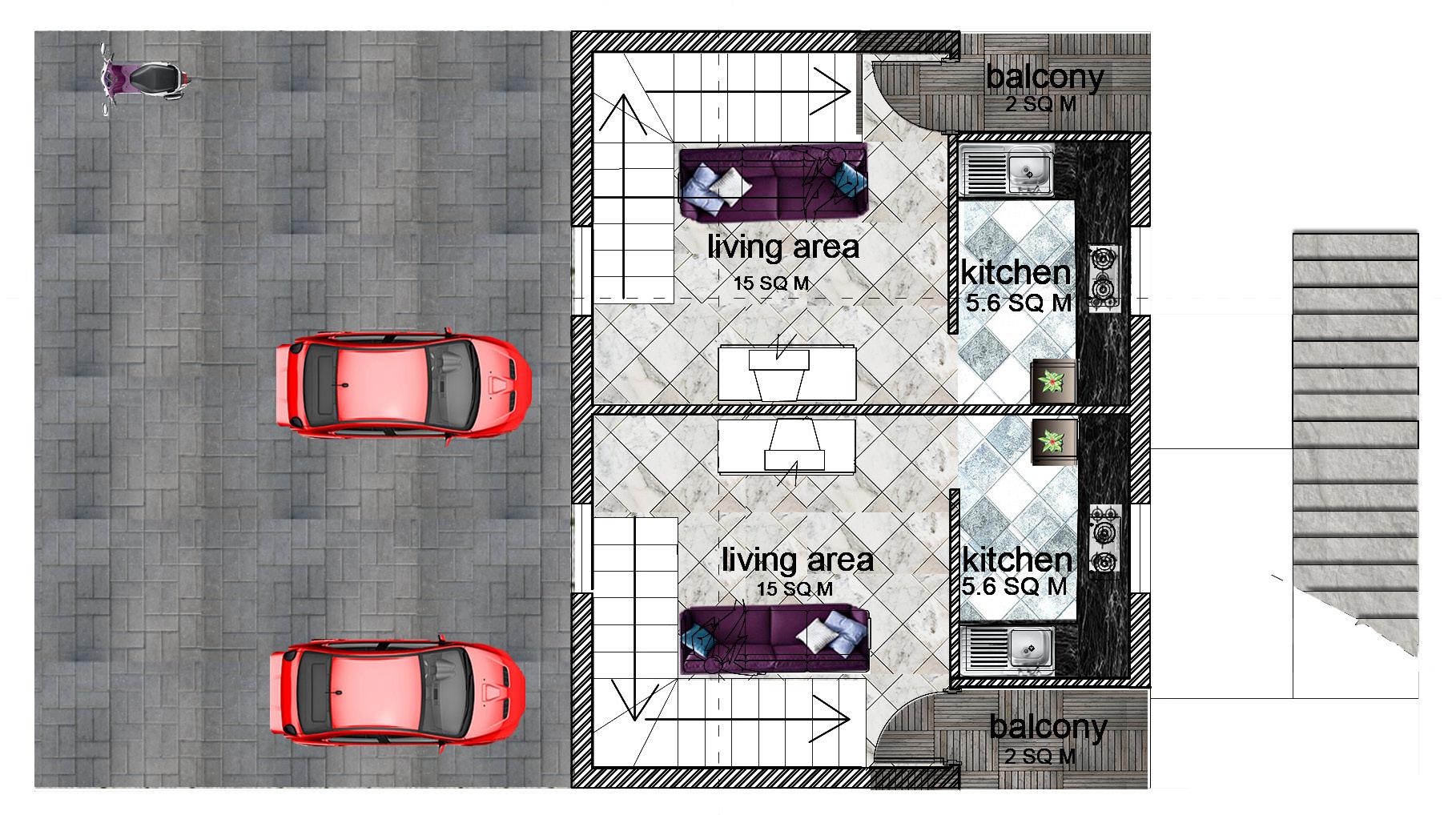

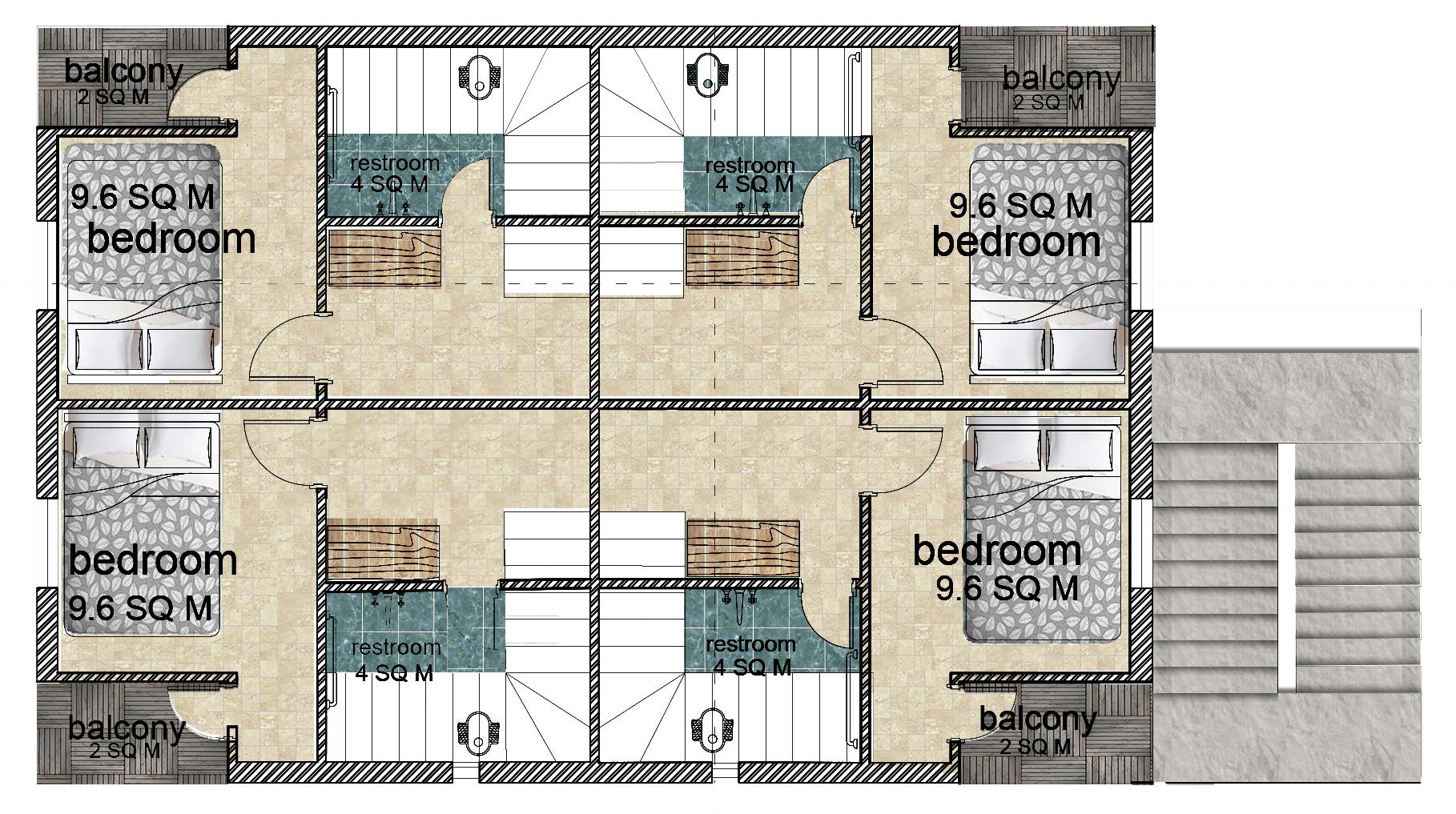

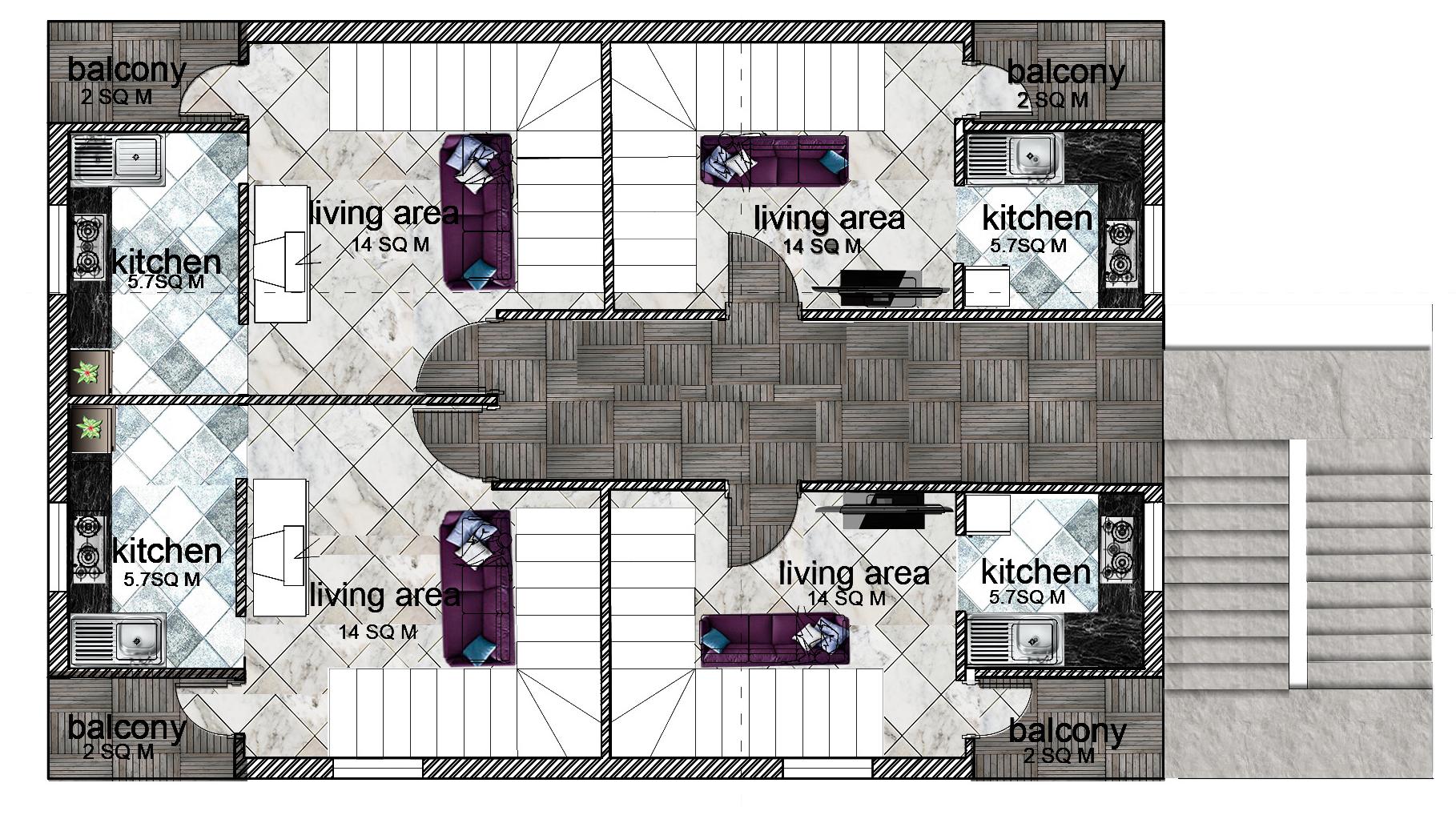

GROUND FLOOR PLAN

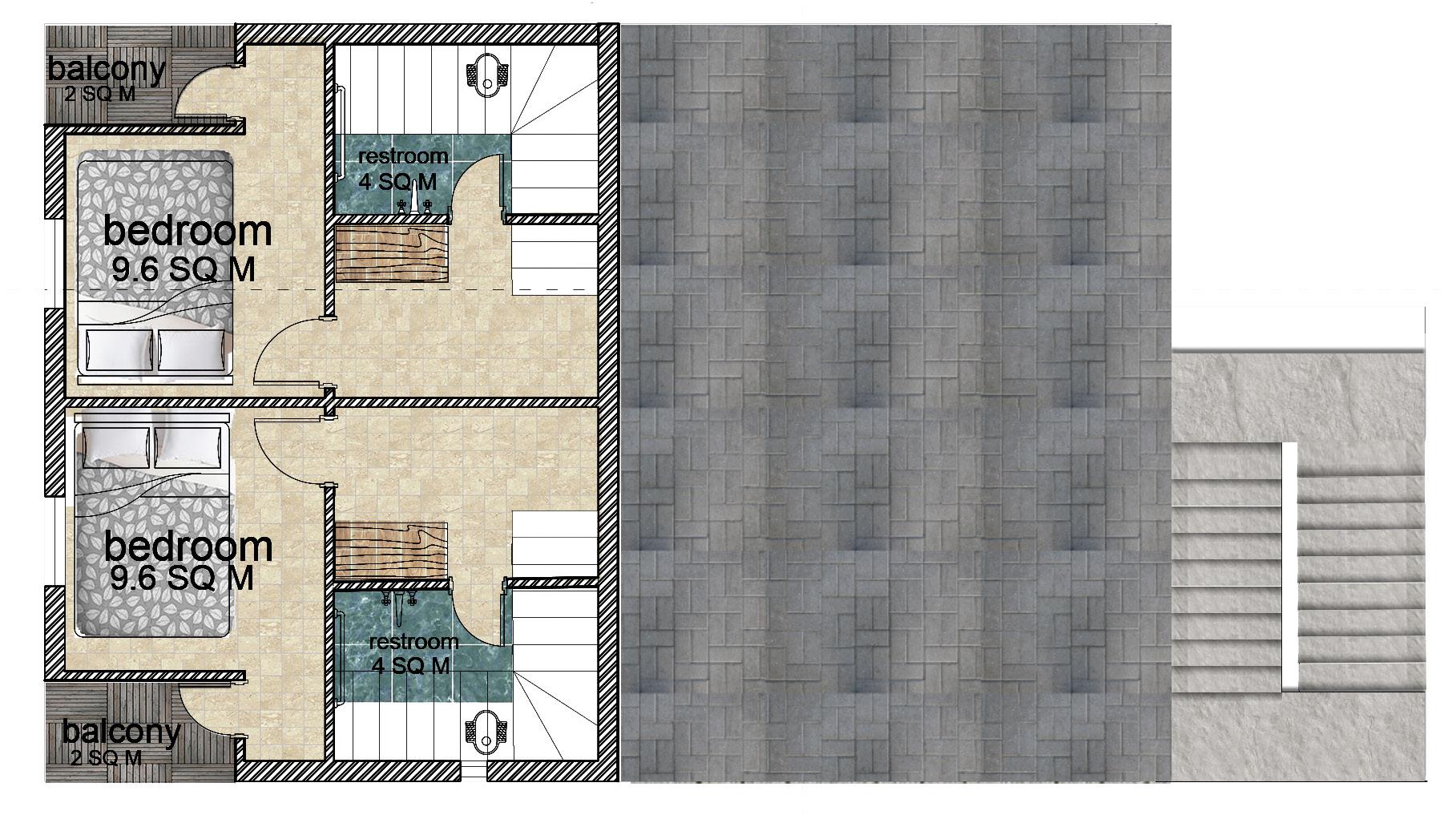

SECOND FLOOR PLAN

FIRST FLOOR PLAN

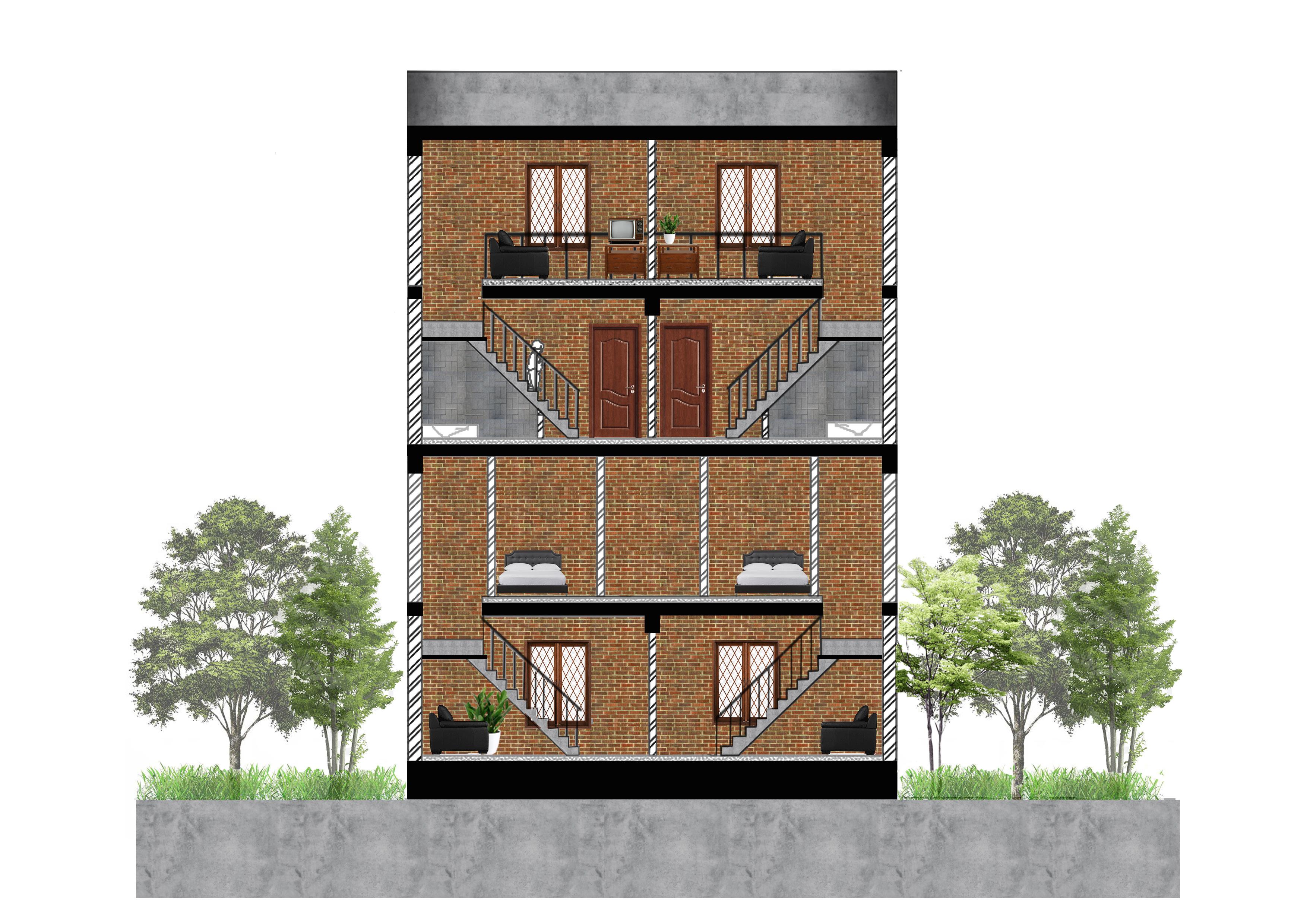

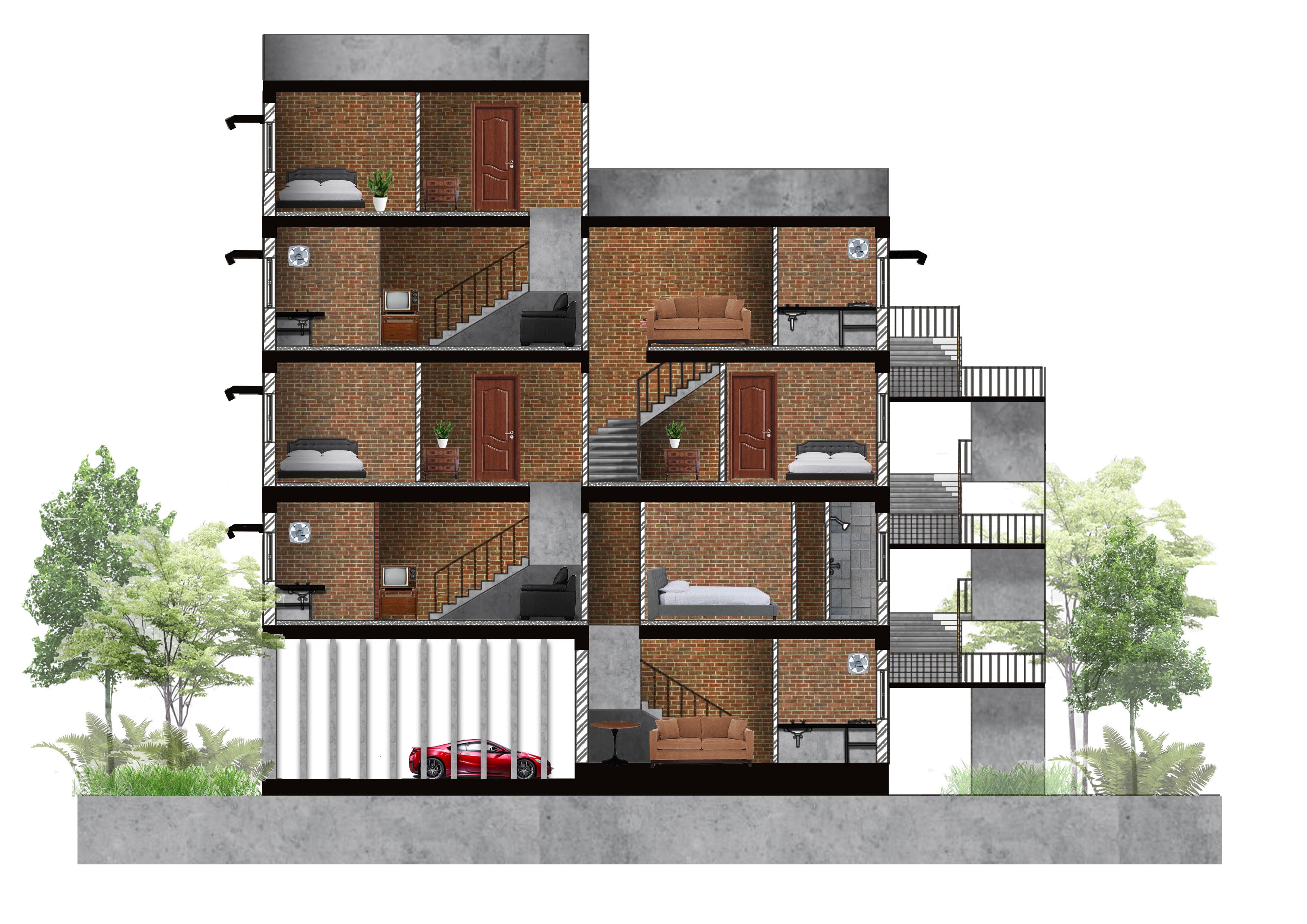

SECTION B-B

WORKSHOPS

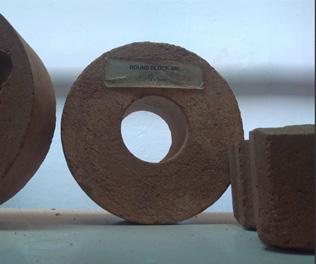

RAMMED EARTH I BANGALORE I 2018

In collaboration with Rvs Chennai and NI VASA we helped the organisation to build a sustainable neighborhoods of Gudibande, Karnataka. A house built with an innate knowledge of climate, and human activities, like the intimate front yard, and socio-eco nomic activities, tends to push the entire settlements towards well-conceived and well-planned rural neighbourhoods.

BAMBOO WORKSHOP I HIMACHAL

I 2019

Bamboo as a primary material for construction in collaboration with RVS Chennai and CIBART (Center for Indian Bamboo Resource and Technology) a non-govern mental organization, taught us the impor tance of bamboo as a building material, techniques to use, possibilities and lim itations of bamboo. Two bamboo artisans employed out of 1024 people on a full-time basis, taught us how to craft bamboo as a sustainable material in construction.

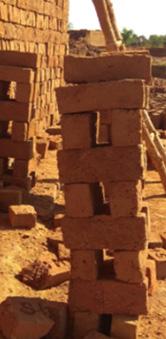

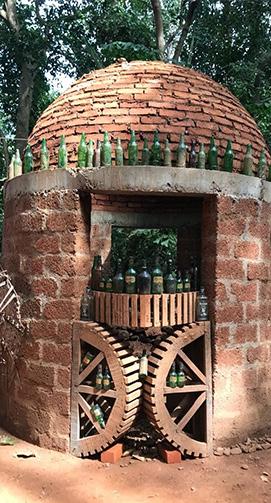

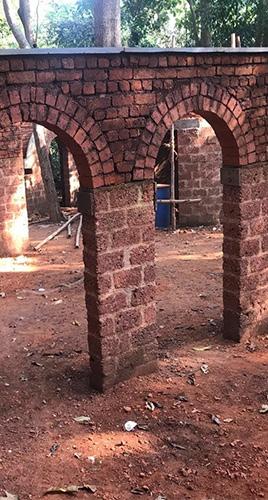

BRICK WORKSHOP I GOA I 2019

The workshop on natural and traditional structuralsystem was associated with the studio architectural autonomous goa. The aim of the workshop is to give practi cal exposure to our interms of instruction of Mansory arches and domes. we had an inter active session with architect gerrad.

WORKSHOPS

CHILD AND CITY I MANGALORE I

2020

Urban Design problem on the topic of Child and the City has been introduced as a Vertical studio project. We worked with NITTE Mangalore, ASADI, Kochi and RVS Chennai, on the same design problem in three different cities of South India at the same time, we worked in a group to solve urban-level problems within a given period. Problems are set to maximize opportuni ties for learning, skill acquisition, and idea dissemination at all levels

2020

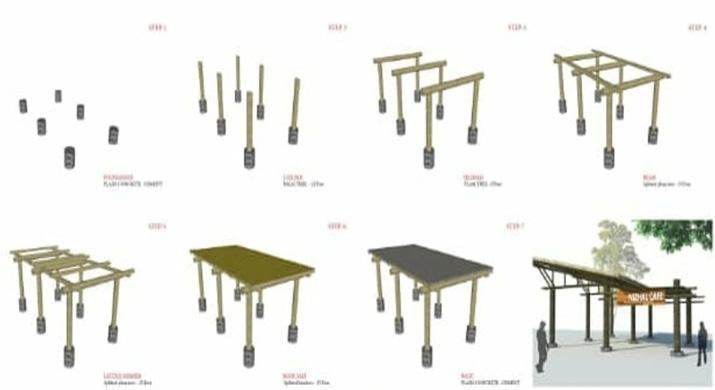

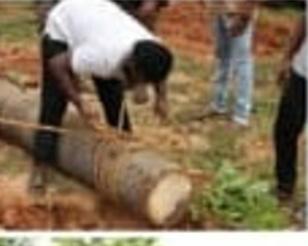

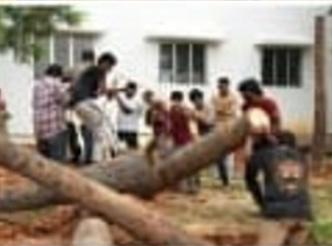

Nizhal cafe the nizhal cafe is a unique proj ect by the students of RVS padhmavathy school of architecture in exploring new Av enues in sustainable construction. we have worked day and night to made this dream project came true and have worked from the foundation of the election of columns using palmyra trees.This project in comple tion would serve as an exciting space for students to discuss idea and design

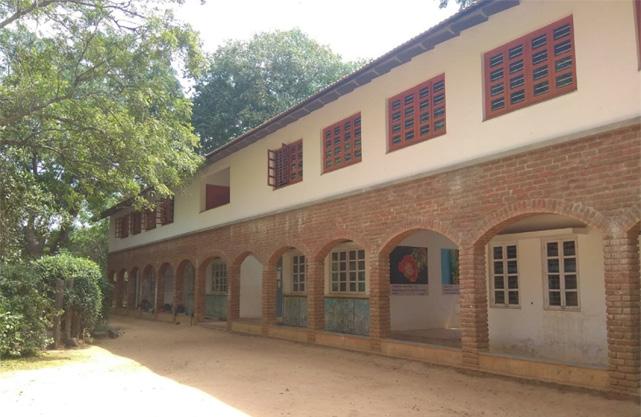

I went to Auroville for substainable visit and

I learnt how to built the building structure by using locally available and eco-friendly material.I learnt how to plan the site with vegetation and landscape.

ARCHITECTURE WALK I AUROVILLE I 2021

PALM WORKSHOP I CHENNAI I
