CONTENTS

ABOUT US

02

VERTICAL BAR

04

Barbican® Barbican Defender® Xtreme Barbican Imperial® Barbican® Extra Barbican® Barbed Top Sentry® Tri-Guard® GRP Fencing

05 07 09 11 13 15 17 19

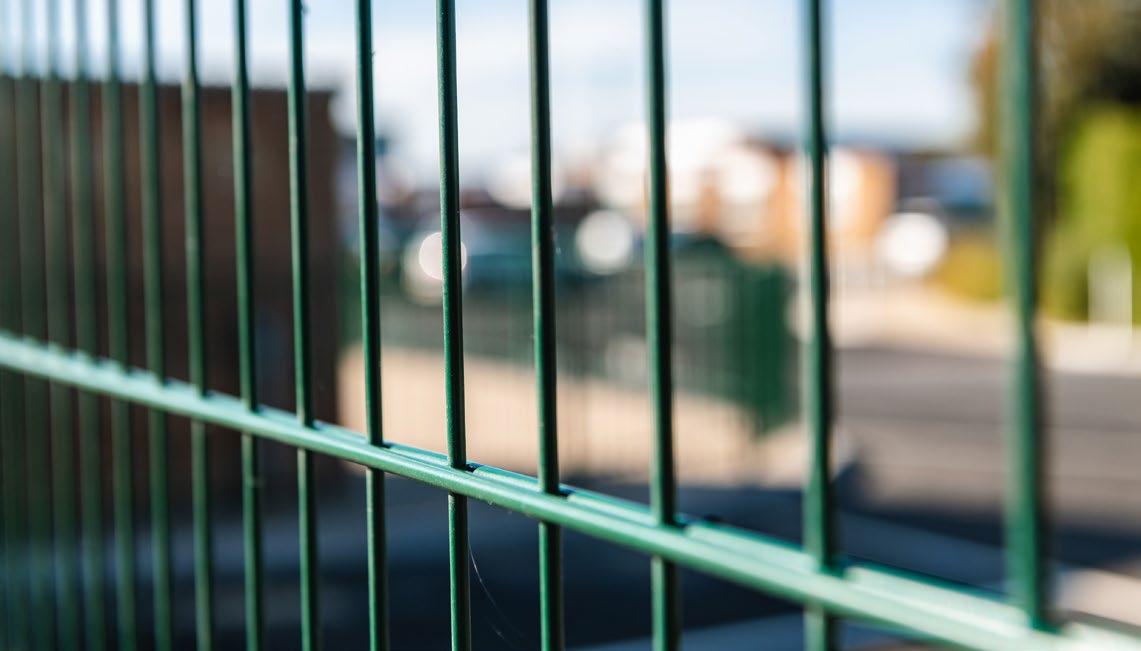

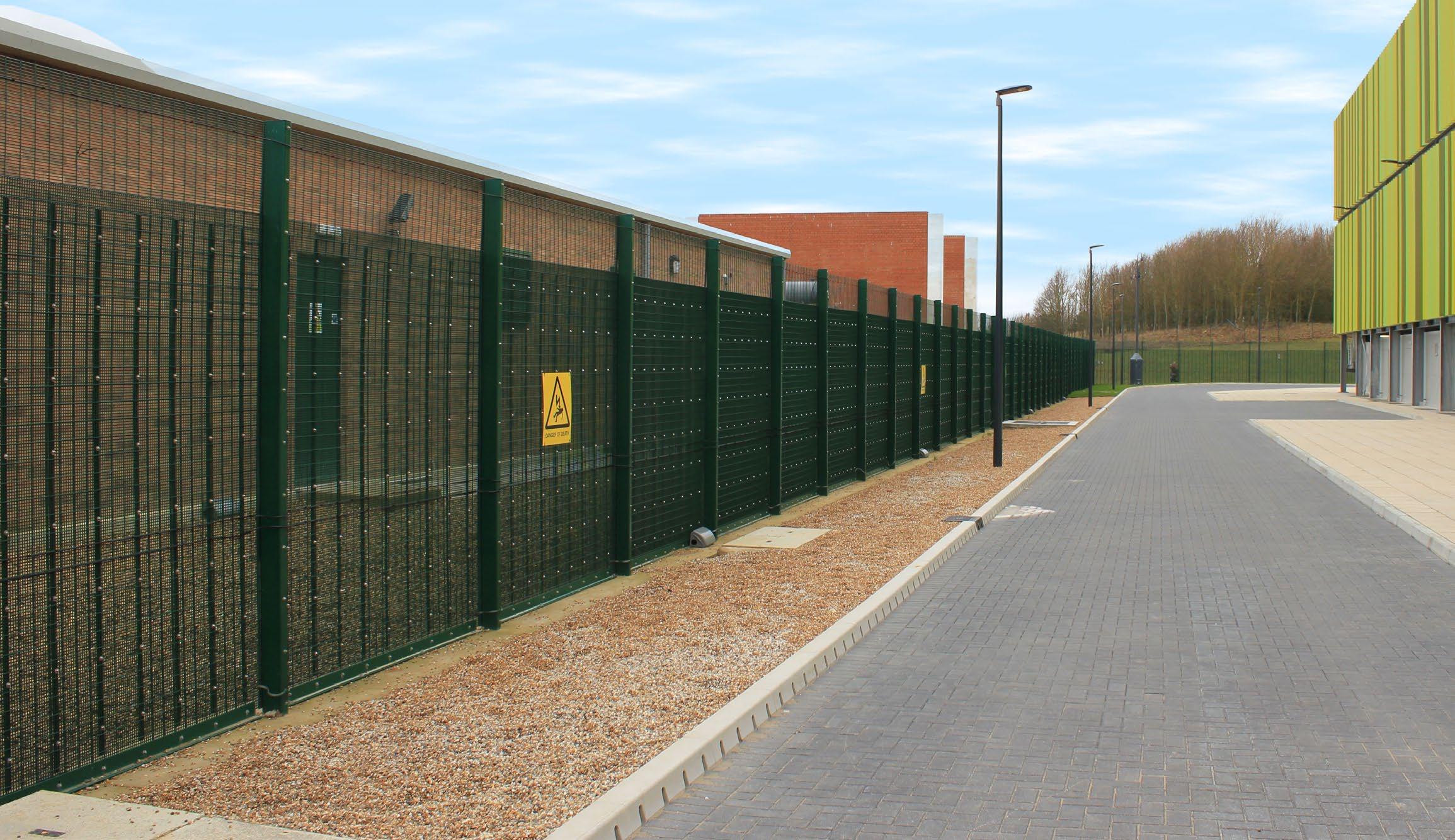

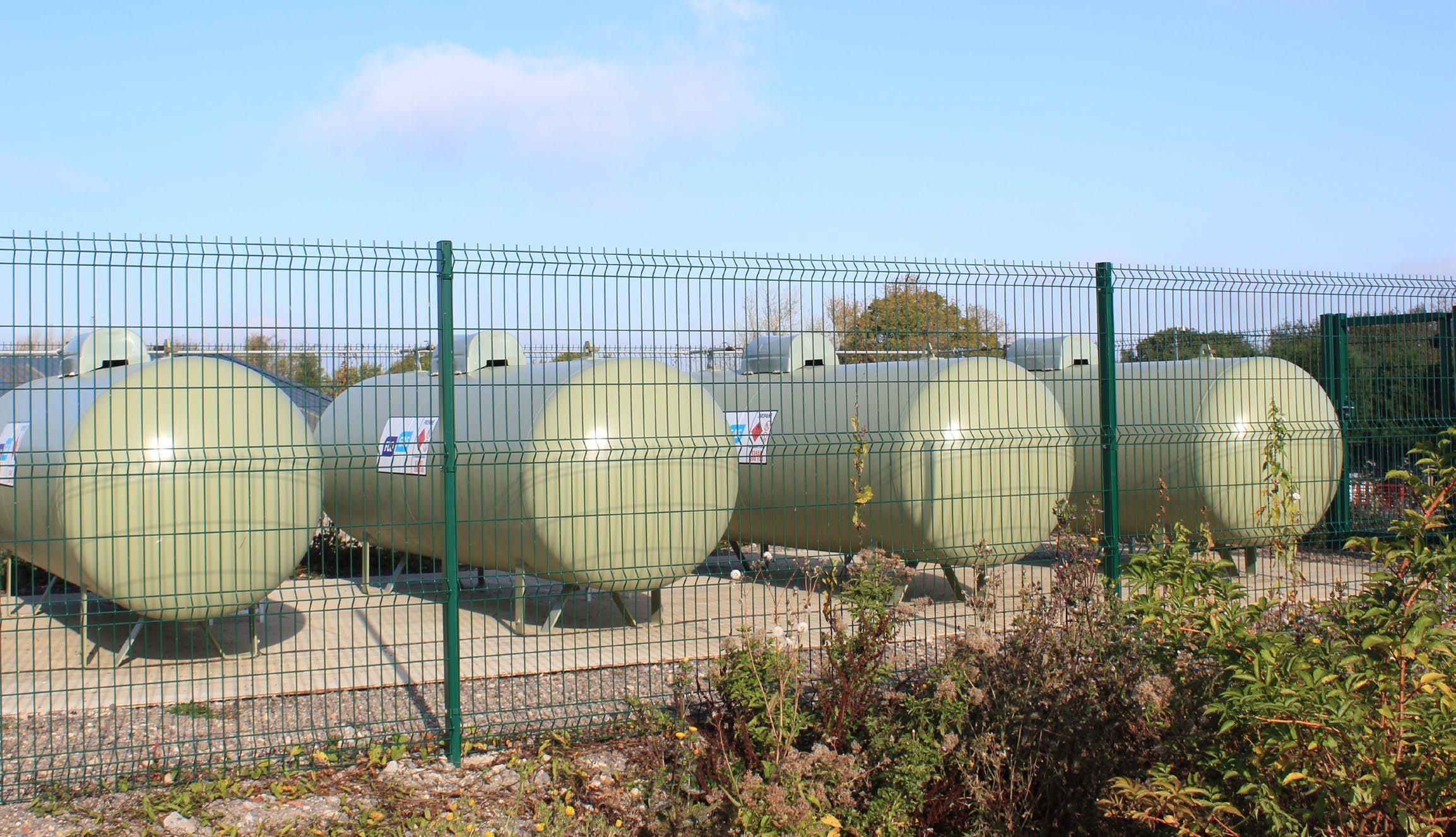

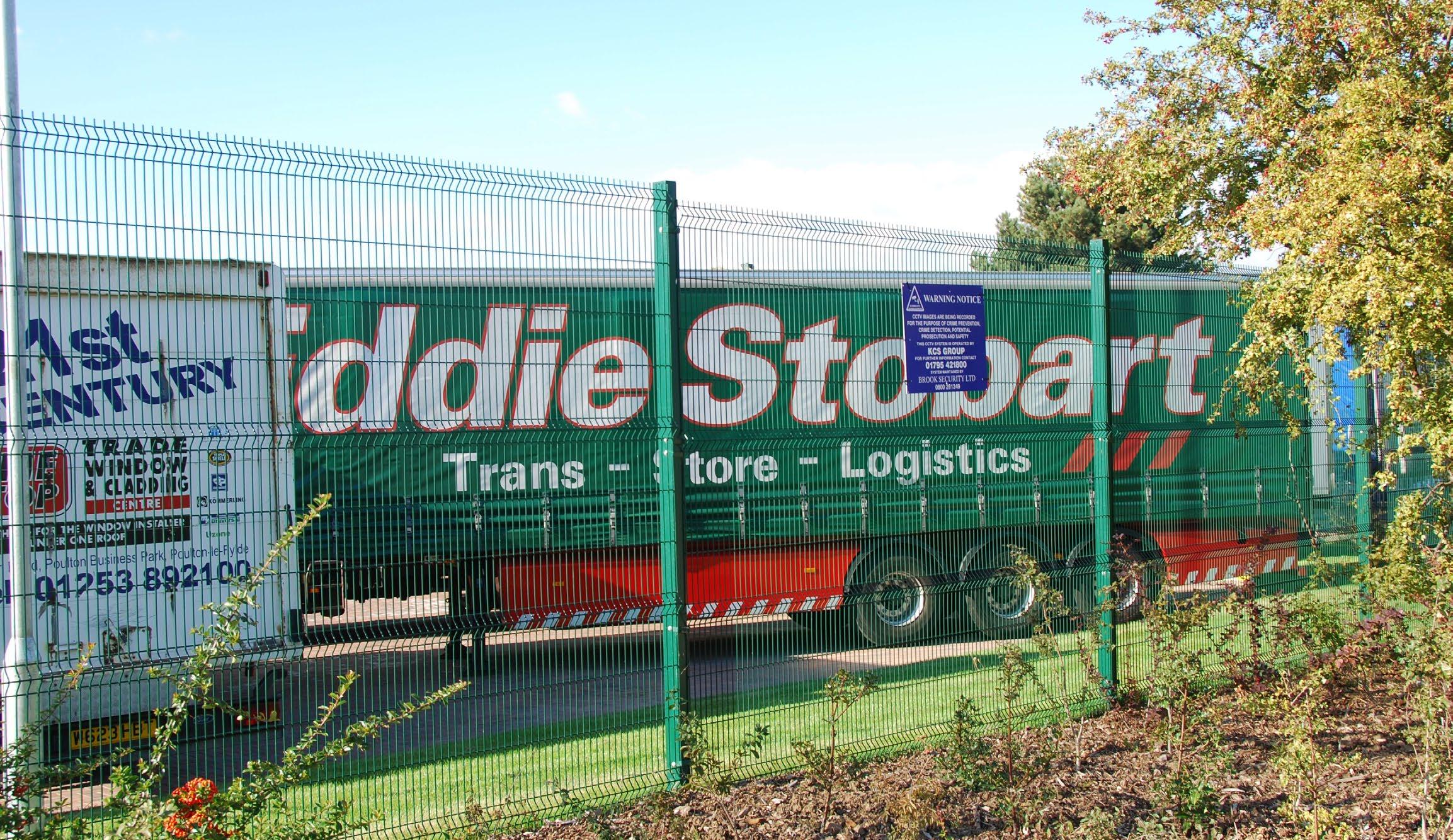

WELDED MESH PANELS

22

®

EuroGuard Regular EuroGuard® Combi EuroGuard® Flatform EuroGuard® Extra Securi-Mesh® Securi-Mesh® Plus Security Compounds

23 25 27 29 31 33 35

LPCB LPS 1175 APPROVED PRODUCTS

38

Barbican® A1 Barbican Imperial® A1 Barbican® Extra A1 Barbican® With Finials A1 Barbican® Barbed Top A1 Barbican Defender® Xtreme A1 Sentry® A1 EuroGuard® Flatform Heavy A1 EuroGuard® Combi A1 Securi-Mesh® A1 Securi-Mesh® Plus B3 Jakoustic® Class 3 C5 UHS Heavy Mesh C5 UHS Extreme Mesh C5 Trident® 4 & Trident® 5 LPS 1175 Gates

39 41 43 45 47 49 51 53 55 57 59 61 63 64 65 67

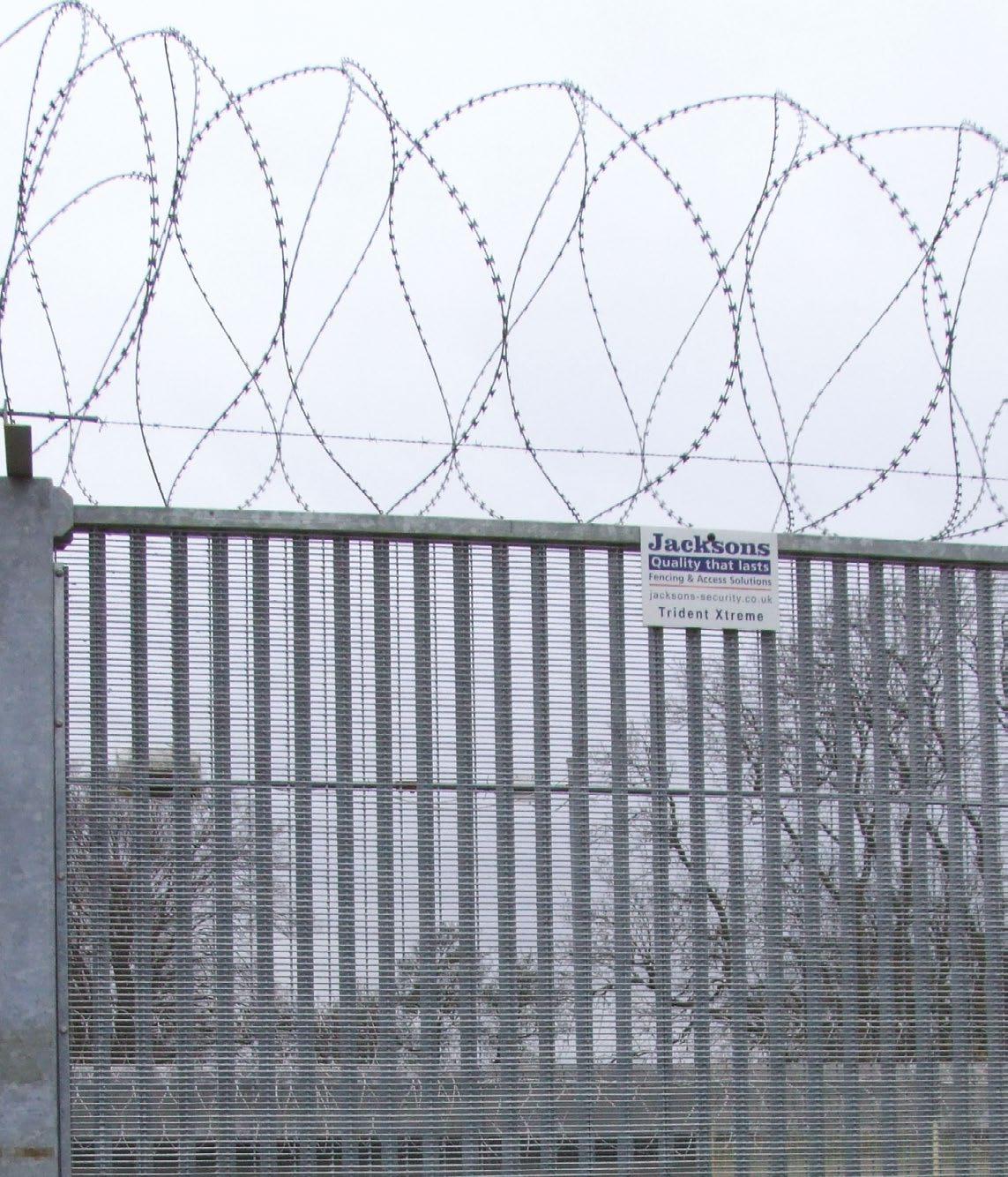

TRIDENT RANGE

76

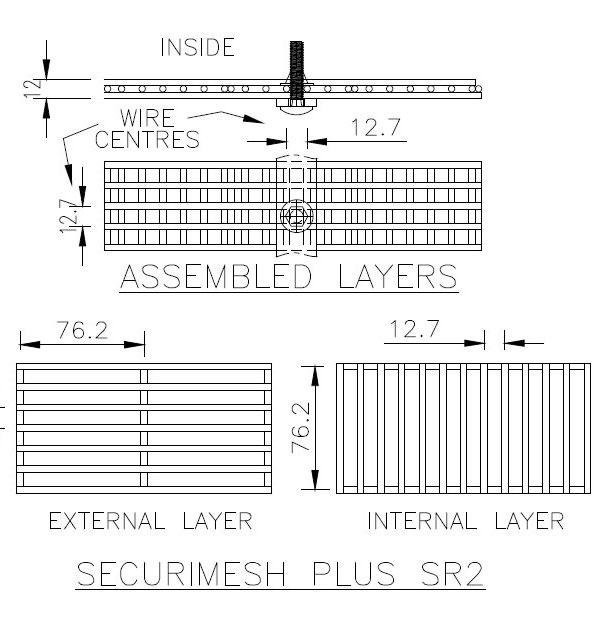

Trident® Securi-Mesh® System Trident® Securi-Mesh® Plus System Trident® Combi 2 System Trident® Mesh 2 System Trident® Jakoustic® 2 System Trident® Jakoustic® 3 System Trident® Xtreme 3 System Trident® Xtreme 3XM Trident® Xtreme 4

77 78 79 80 81 82 83 84 85

METAL RAILINGS

86

Bow Top Ornamental Barbican Imperial® Residential Sentry® Residential Estate Railings Pedestrian Guardrail

87 89 91 92 93 95

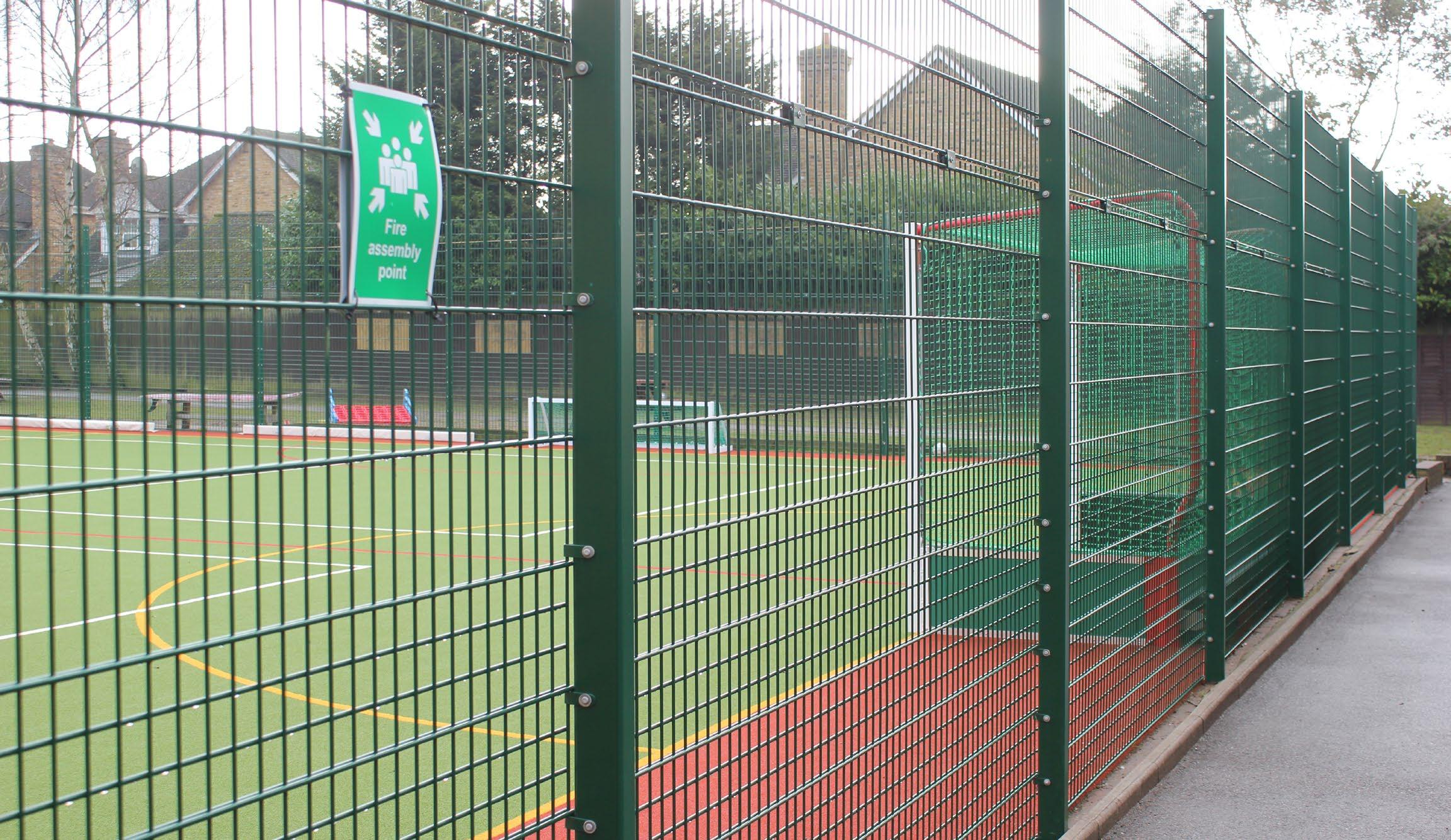

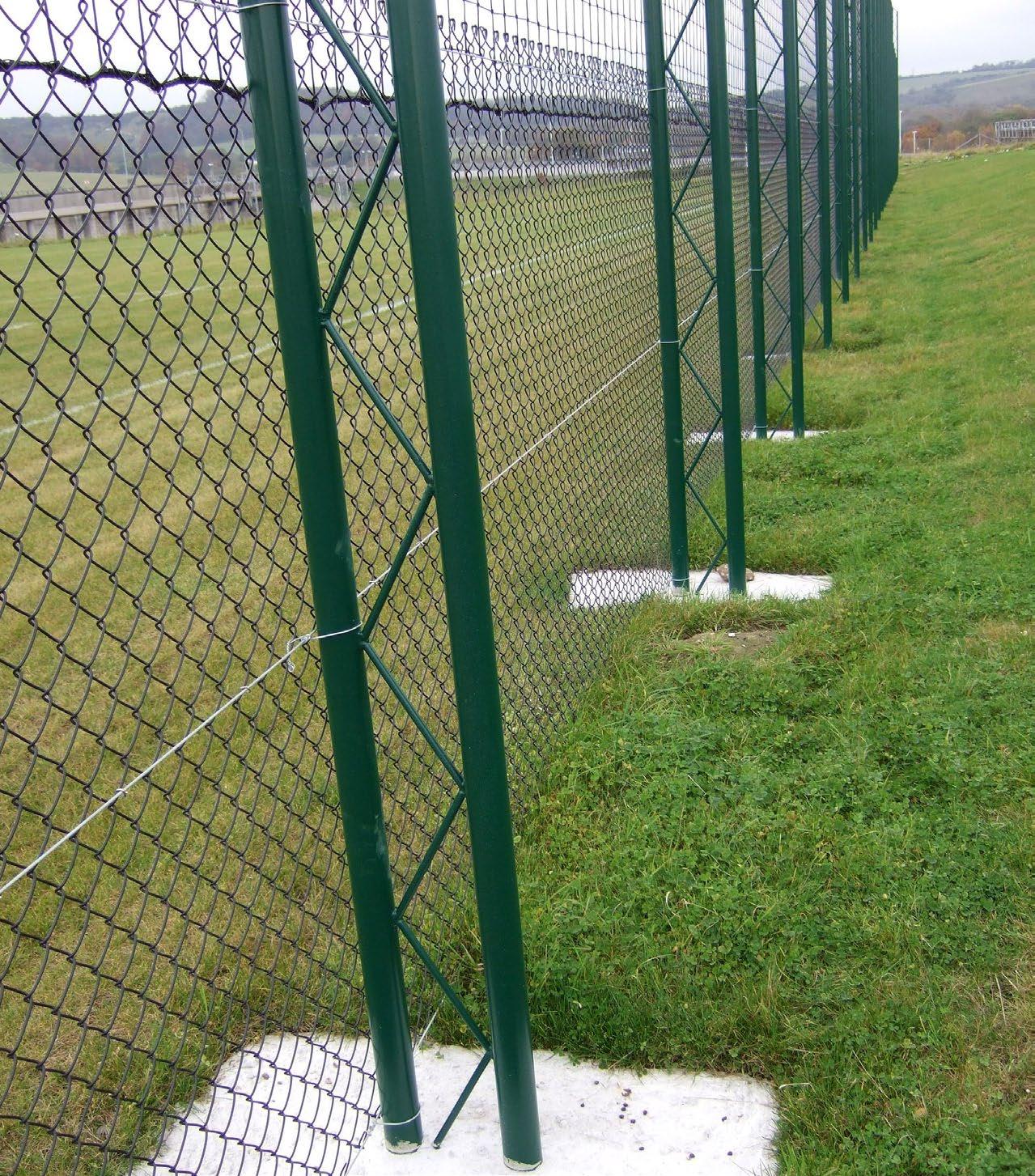

SPORTS FENCING AND TUBULAR SYSTEMS

97

Tubular Systems Ball Stop Fencing Tennis Courts (System 3) EuroGuard® Rebound

98 100 102 104

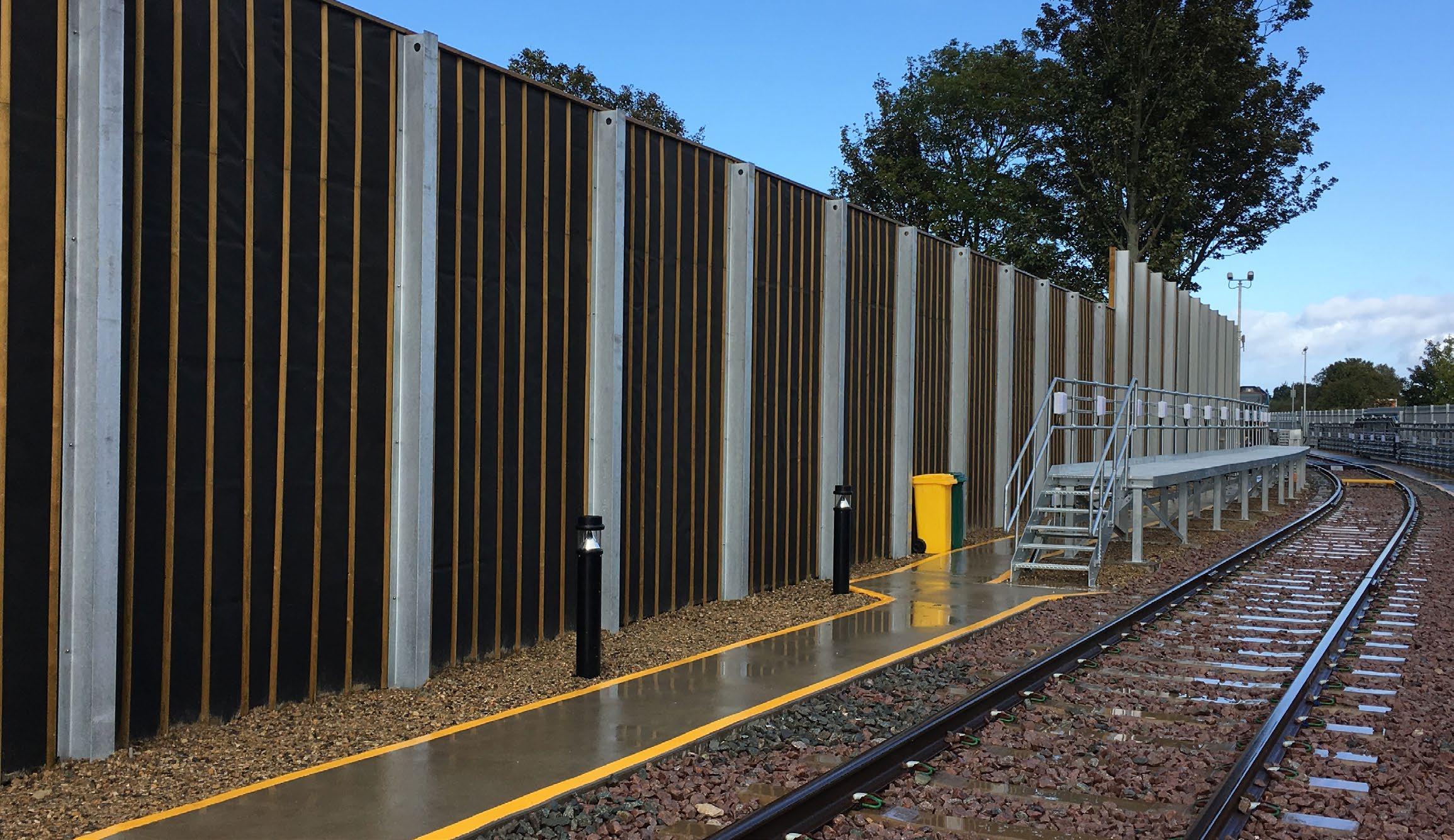

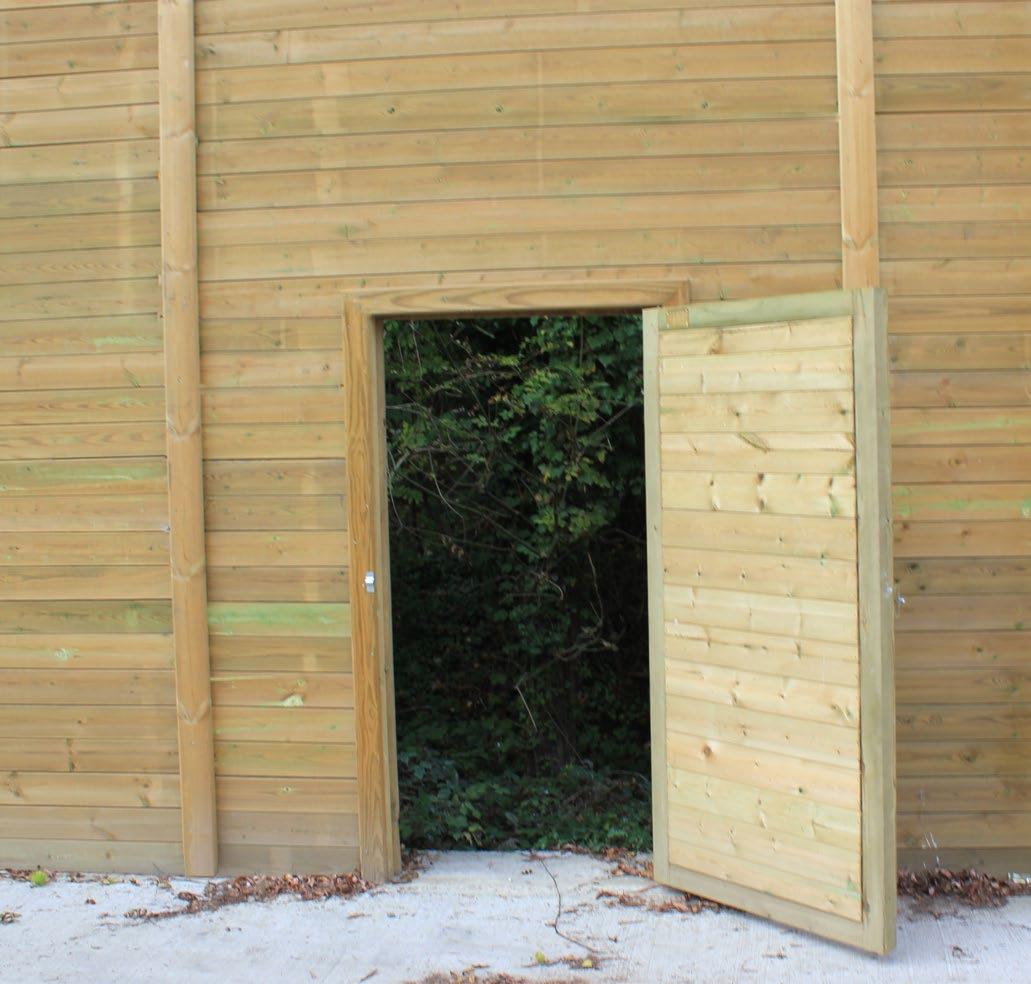

ACOUSTIC FENCING

106

12K Envirofence® Jakoustic® Reflective Jakoustic® Absorptive Jakoustic® Commercial and Highway Acoustic Gates

107 109 111 113 115

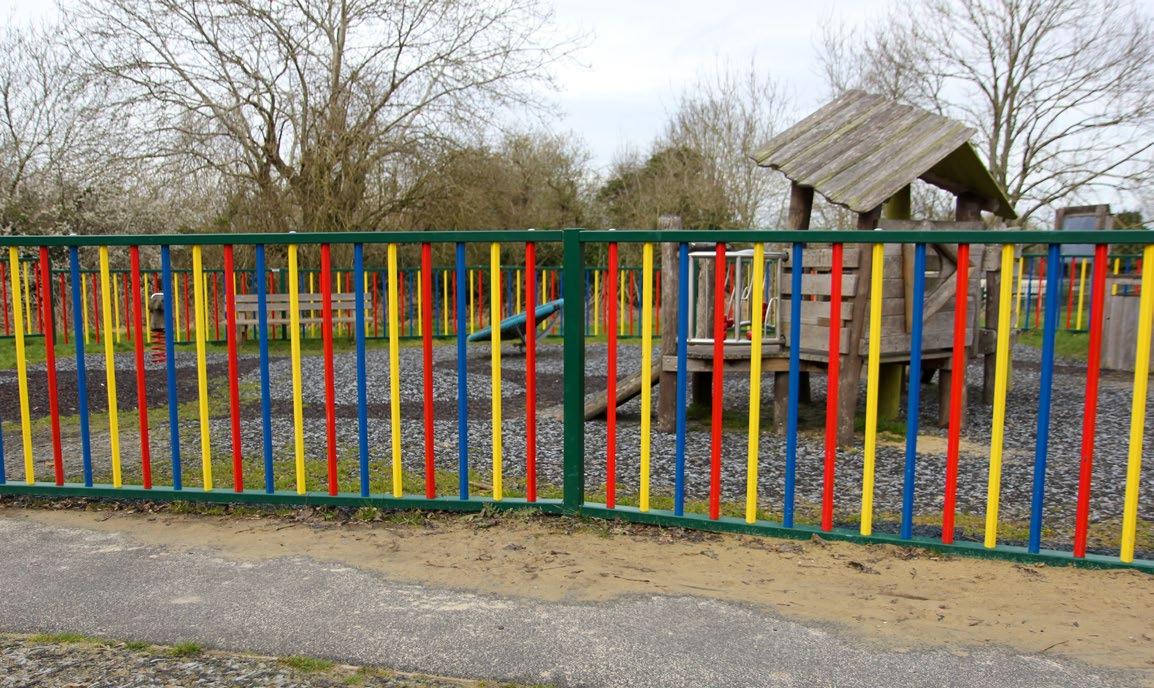

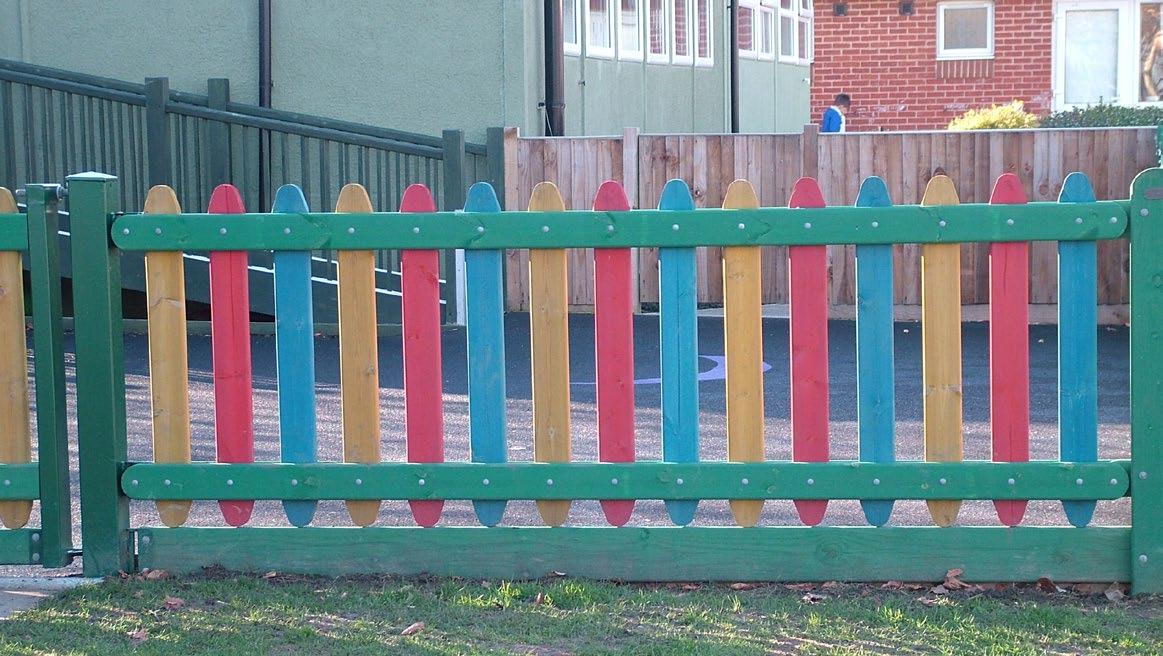

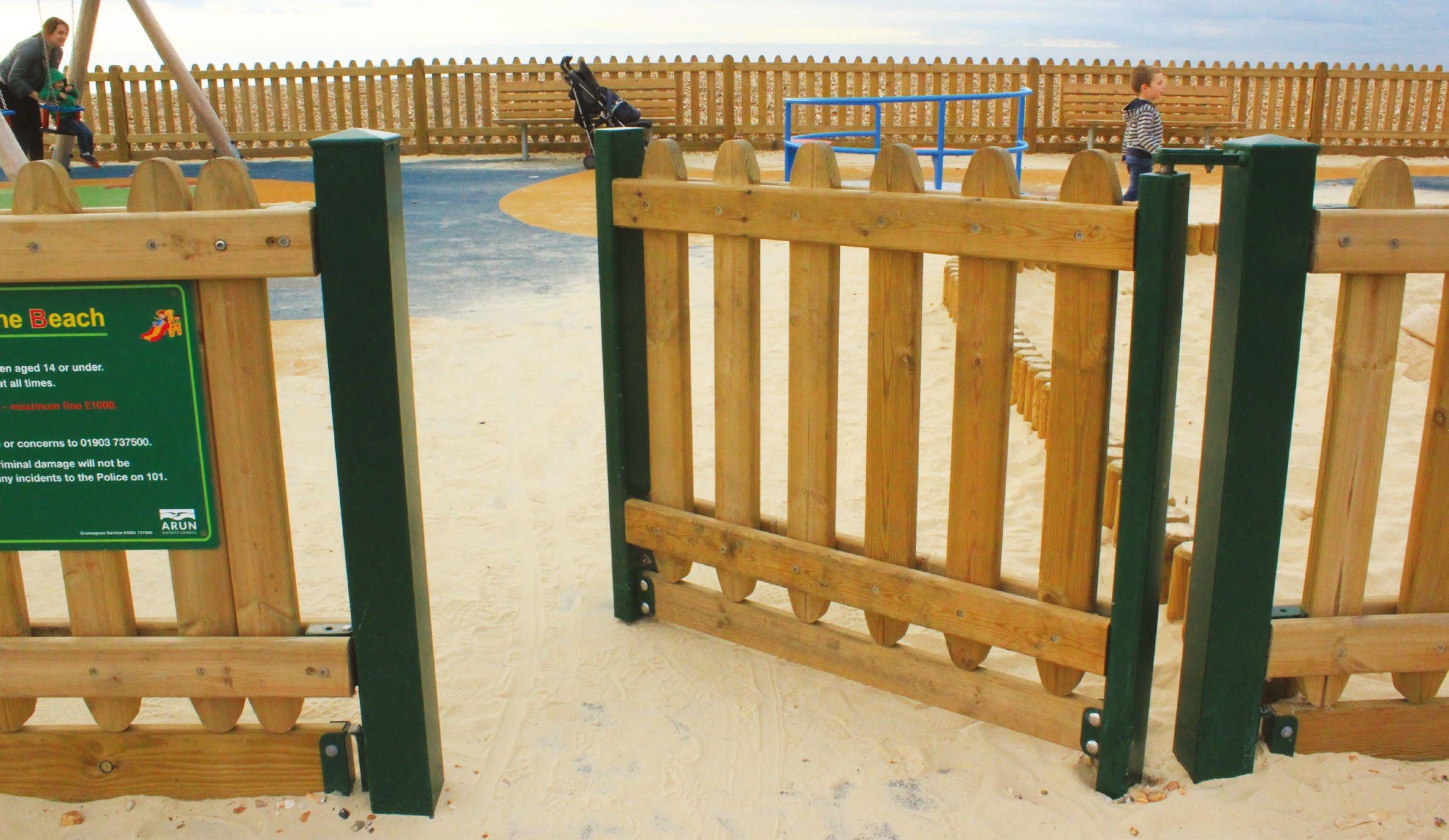

PLAYGROUND FENCING AND GATES

118

Playtime® Fencing Playtime® Gates Anti-Trap Bow Top

119 121 123

FENCE TOPPINGS

126

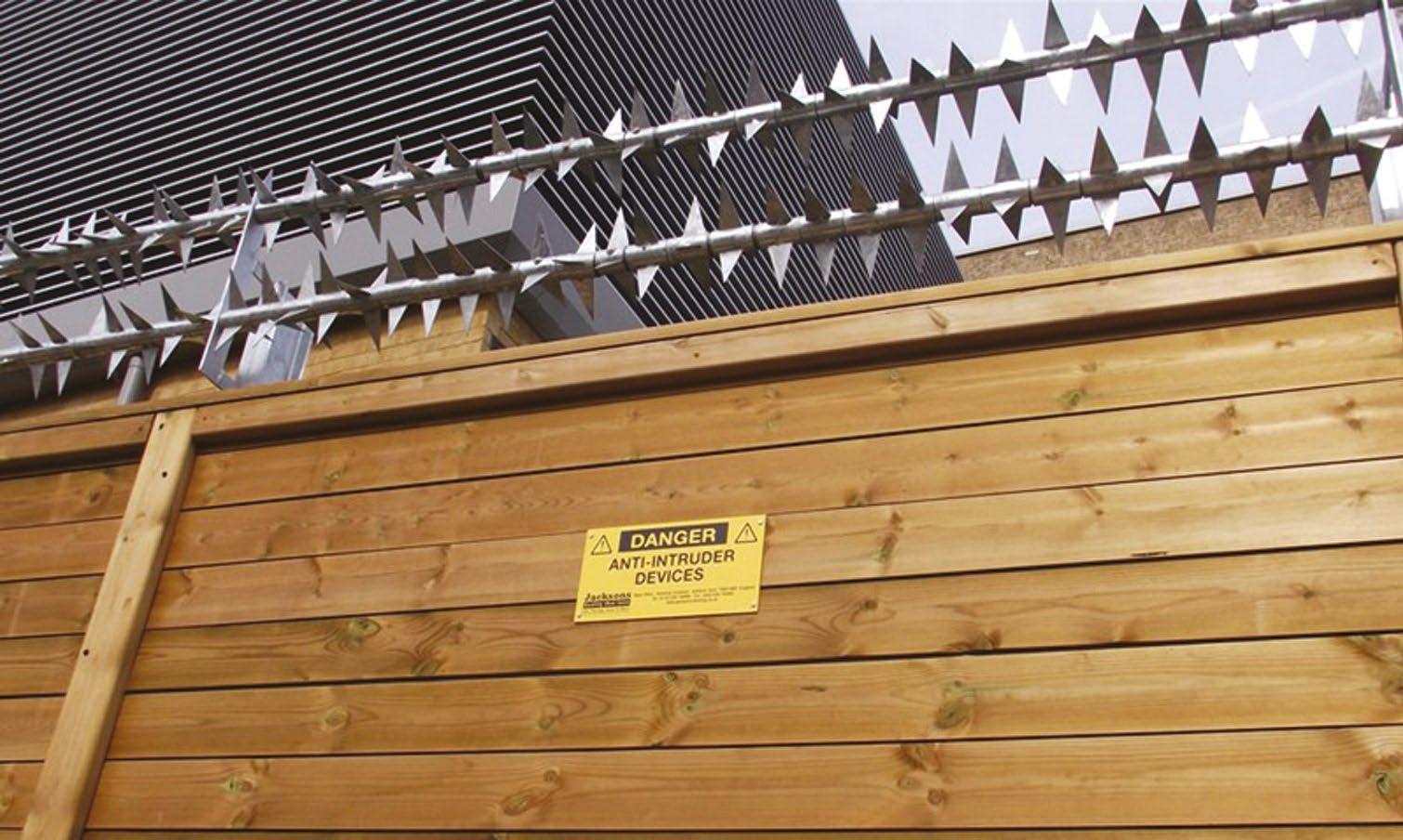

Rota Spike® Viper Spike® Viper Spike® 3 Cobra Spike® Cobra Spike® Rotary Barbed Wire and Tape Razor Wire Concertina Barbed Wire Roll Flat Barbed Tape

127 127 127 127 128 128 128 128 128

VEHICLE AND PEDESTRIAN CONTROL

130

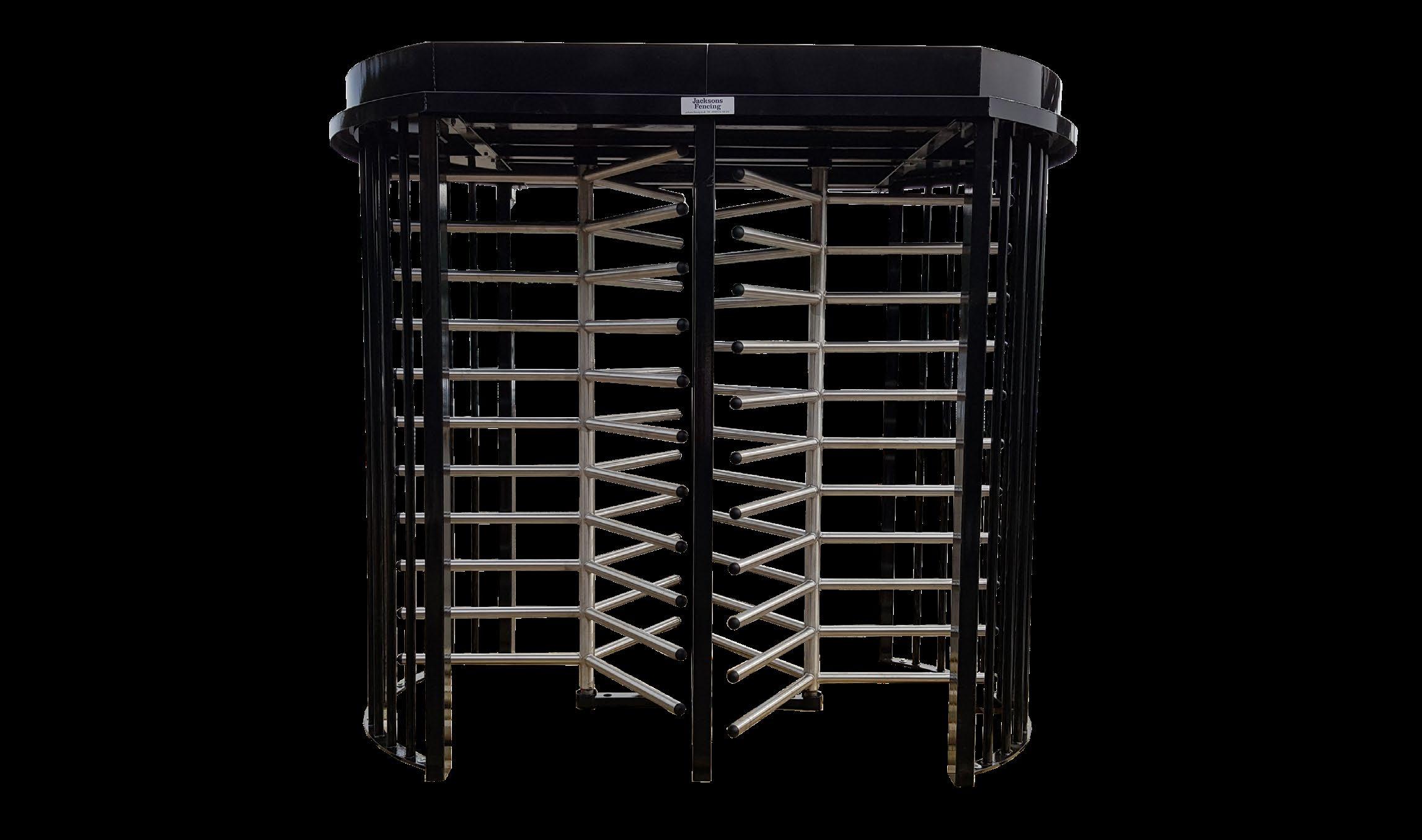

Swing Gates Sliding Gates Bi-Folding Speed Gates Manual Gate Lock Options Automatic Gates Control Options Road Blocker Security Rail Car Bar Crash Barrier Max Height Barrier Keeper Rising Arm Barrier Warden Swing Barrier Automatic Traffic Barriers Pedestrian Full Height Turnstiles

131 132 135 136 137 138 138 138 138 138 139 140 141 143

PERIMETER INTRUSION DETECTION SYSTEMS

146

®

Jaktronic PIDS Alarm-aFence® Electric Fencing Systems

147 148

HOSTILE VEHICLE MITIGATION PRODUCTS

150

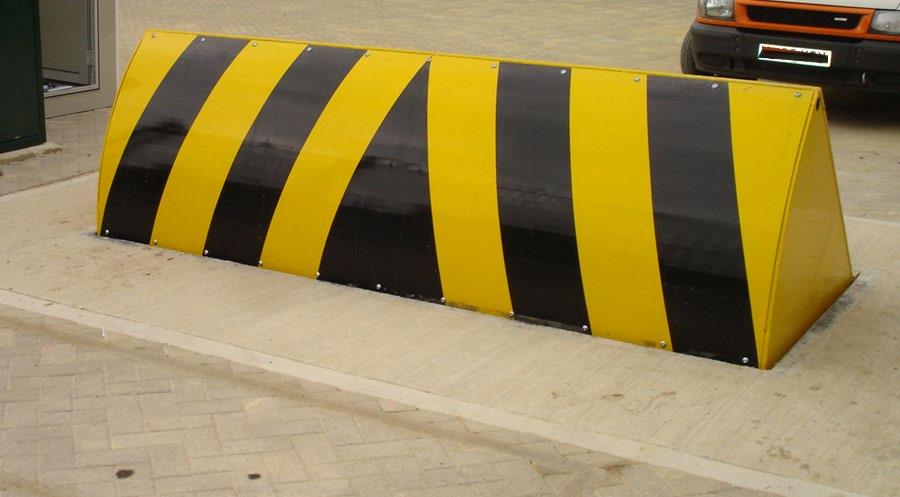

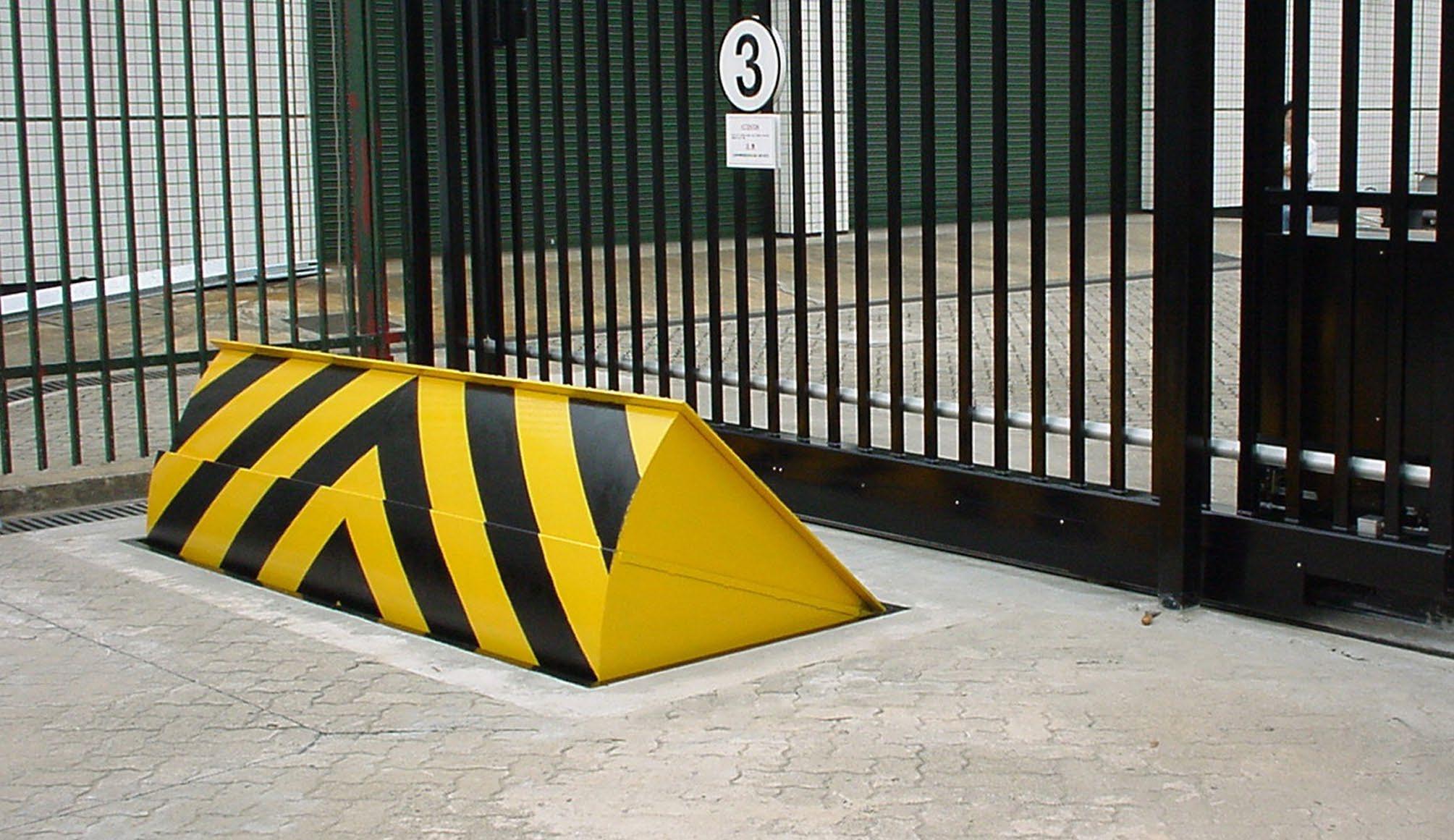

Crash Rated Road Blocker Linebacker® PAS 68 Crash Fence PAS 68 Bi-Folding Speed Gate Crash Rated Manual Arm Barrier

151 152 153 154

BOLLARDS

156

Automatic Bollards Galvanised Steel Static Bollards Harrier PAS 68 Static Bollards Lancaster PAS 68 Automated Bollards

157 158 159 160

CONTACT US

162

4

ABOUT US Our business was founded in 1947, initially in the supply of timber fencing to serve the farming community and public. From the mid 1980s, steel demarcation, security fencing and gates were manufactured and supplied for a diverse range of applications, from residential and commercial, to government departments and industry.

The world may have changed significantly since our inception, but we have remained faithful to our founding principles; to design, manufacture and install the best possible products, backed by the best possible service and to put our customers first in everything we do.

DESIGN With the exception of standard, in-stock products, all other customer requirements are channelled to our experienced design team, to design your fence or gate down to the last detail taking topography of the site, ground conditions and any special design features you require into consideration - from additional security enhancements to one-off finishes, finials or corporate identity.

Only when our technical drawings have been approved will manufacturing begin, to ensure the finished product is delivered right first time.

MANUFACTURING Our manufacturing facility employs both traditional production methods and the latest CNC technology to deliver the highest quality products.

All of our vertical railing steel fencing and gate designs are supplied hot dip galvanised to BS EN 1461 for total protection inside and out to deliver a minimum service life of 25 years.

Products destined for powder coating are hot dip galvanised then hand ‘fettled’ for a quality finish and undergo a pre-treatment process, before being coated to BS EN 13438 in a vast range of RAL and BS colours in our state of the art powder coating plant.

INSTALLATION AND MAINTENANCE You can design the best perimeter security solution, but ultimately, it will only be as strong as its weakest component. For this reason, we operate a nationwide installation service ensuring that the integrity of our product is maintained through to the completion of a project. All of our fence and gate installation teams employ DBS checked professionals with years of experience in following our quality procedures and industry best practice. This allows us to offer competitive pricing, an installation that is of the highest quality and importantly, the ability to get it right first time.

Our installation service extends to include a dedicated team of experts in automation and access control who install and maintain automated and powered equipment which forms part of a secure perimeter boundary; from gates and barriers, crash rated rising road blockers, pedestrian access and control, to the sophisticated Jaktronic® Perimeter Intrusion Detection System.

2

OUR GUARANTEES | QUALITY THAT IS GUARANTEED TO LAST We are so confident in the quality of our products that we are able to offer class leading guarantees to underwrite our assertion.

25 YEAR JAKCURE® GUARANTEE

25 YEAR SERVICE LIFE GUARANTEE

25 MONTH AUTOMATION GUARANTEE

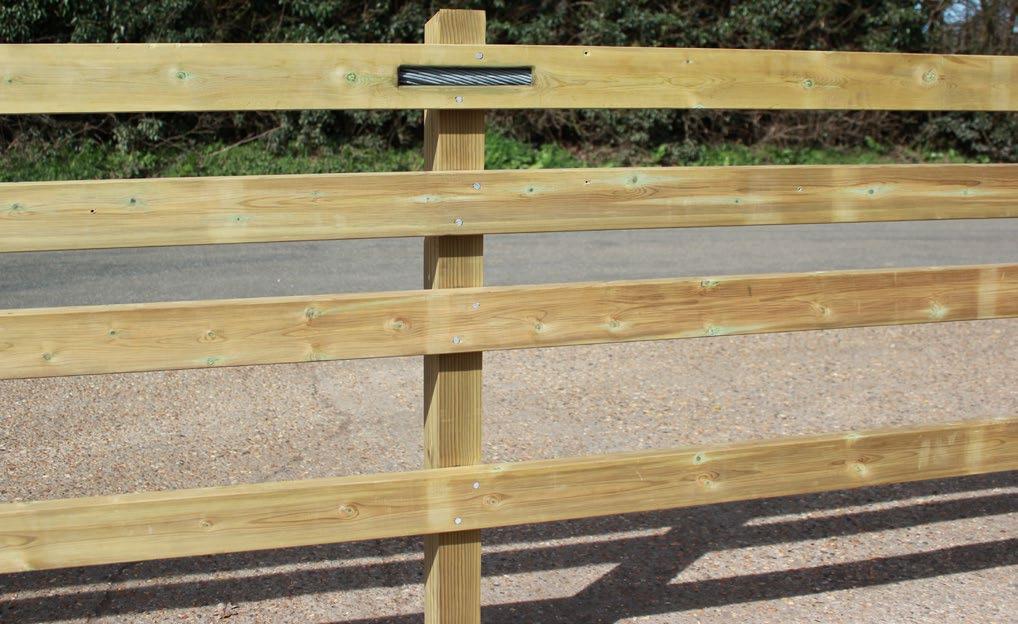

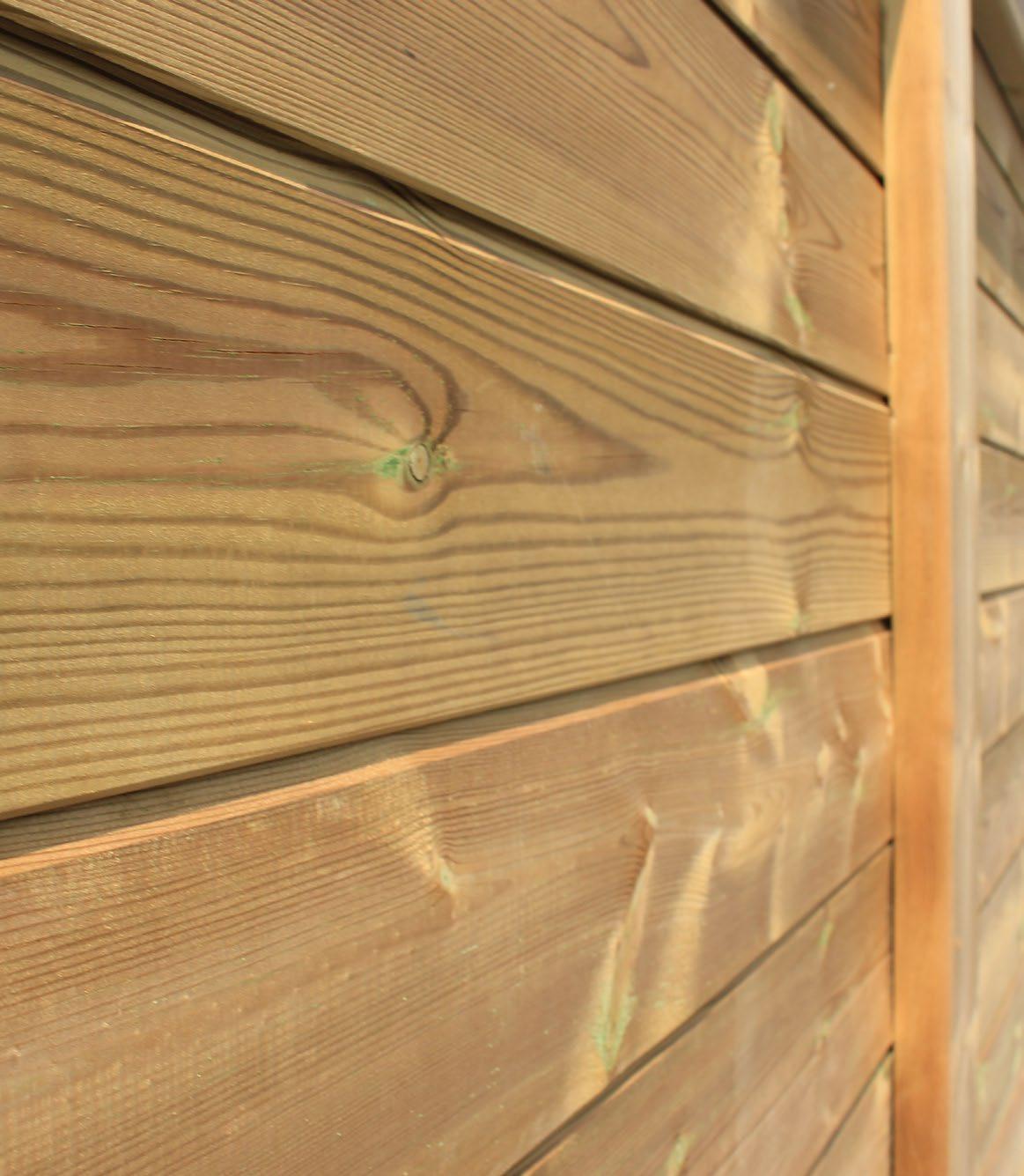

On all of our timber fencing, fence posts, gates, and landscaping products. Our Jakcure® pressure treatment process represents the ultimate in modern softwood preservation. The process conforms to BS 8417 and gives lasting protection - above and below ground - against all wood-boring pests and all forms of wet and dry rot.

On all our steel fencing and gates covering all inherent defects such as design, manufacturing, finish and fitness for purpose. If any problems occur during the lifetime of the guarantee, which are not the result of acts of vandalism, accidental damage, operator misuse or unsuitable operating environments, we will replace the item free of charge (excludes locks, bearings, rollers and other parts subject to wear and tear).

All automation products supplied and installed by Jacksons are covered by a 25 month parts and labour guarantee, subject to a service contract being taken out in the second year. If any problems occur during the lifetime of the guarantee, that are not the result of acts of vandalism, accidental damage, misuse or unsuitable operating environments, we will replace it free of charge including the cost of installation.

OUR ACCREDITATIONS & MEMBERSHIPS

3

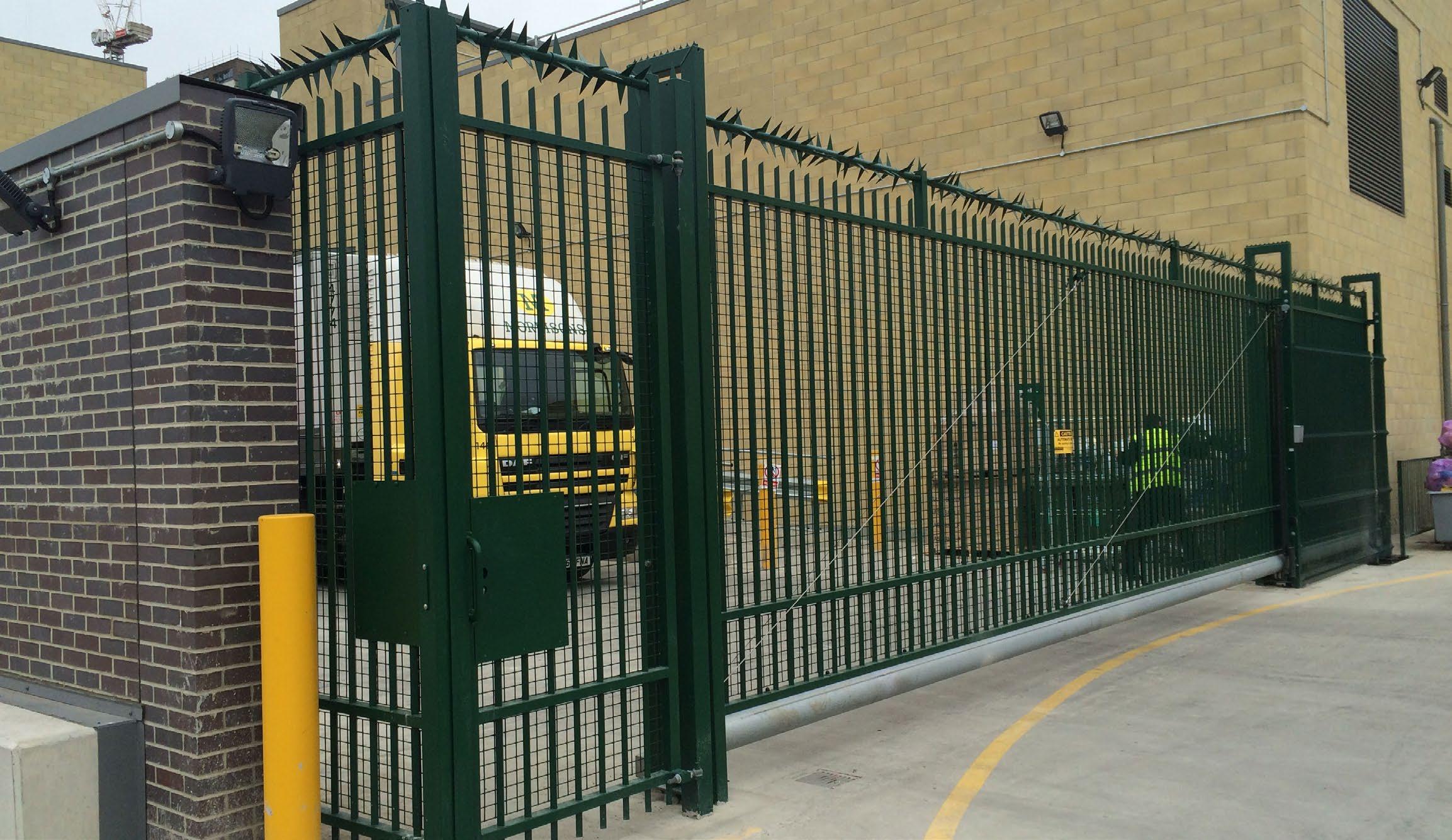

VERTICAL BAR We manufacture vertical bar fencing and access control solutions which deliver effective security from the ‘outside in’.

Our goal is to help our customers create a safe, secure and sustainable environment, whether that’s for domestic homes, schools or government-approved sites.

Our vertical bar range has been designed to work in tandem with surveillance technology to manage the threat of a breach in security.

We know that appearance matters, that’s why our products are manufactured to look good and be secure, helping you to create the right impression.

4

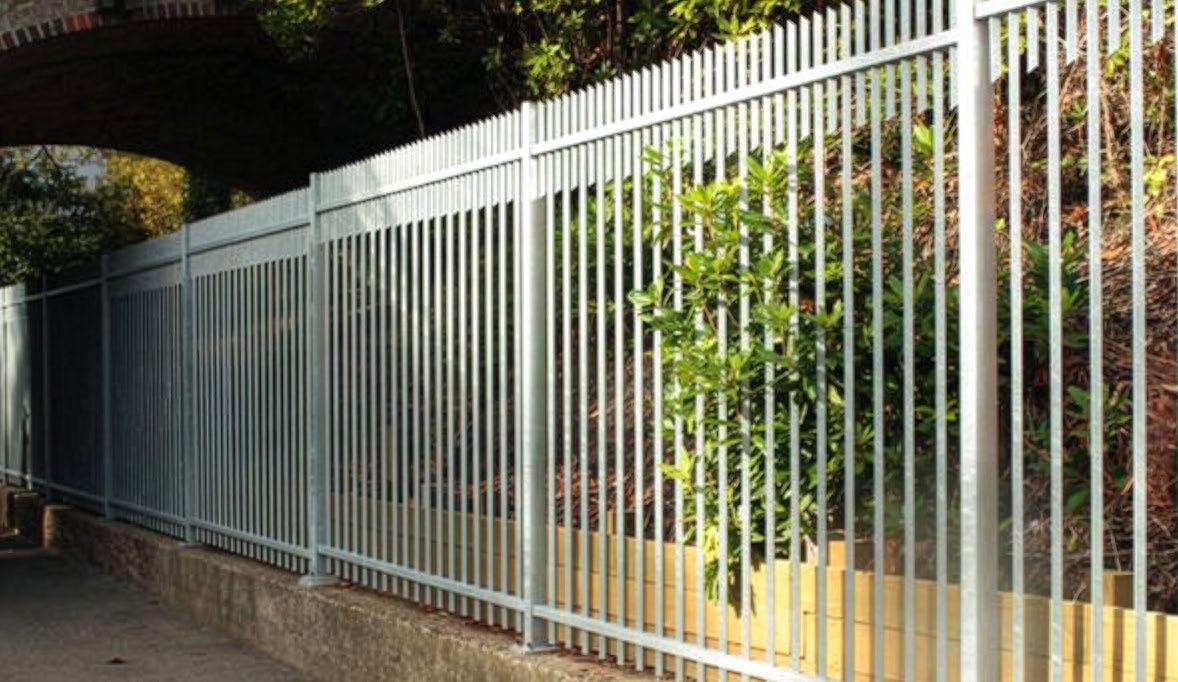

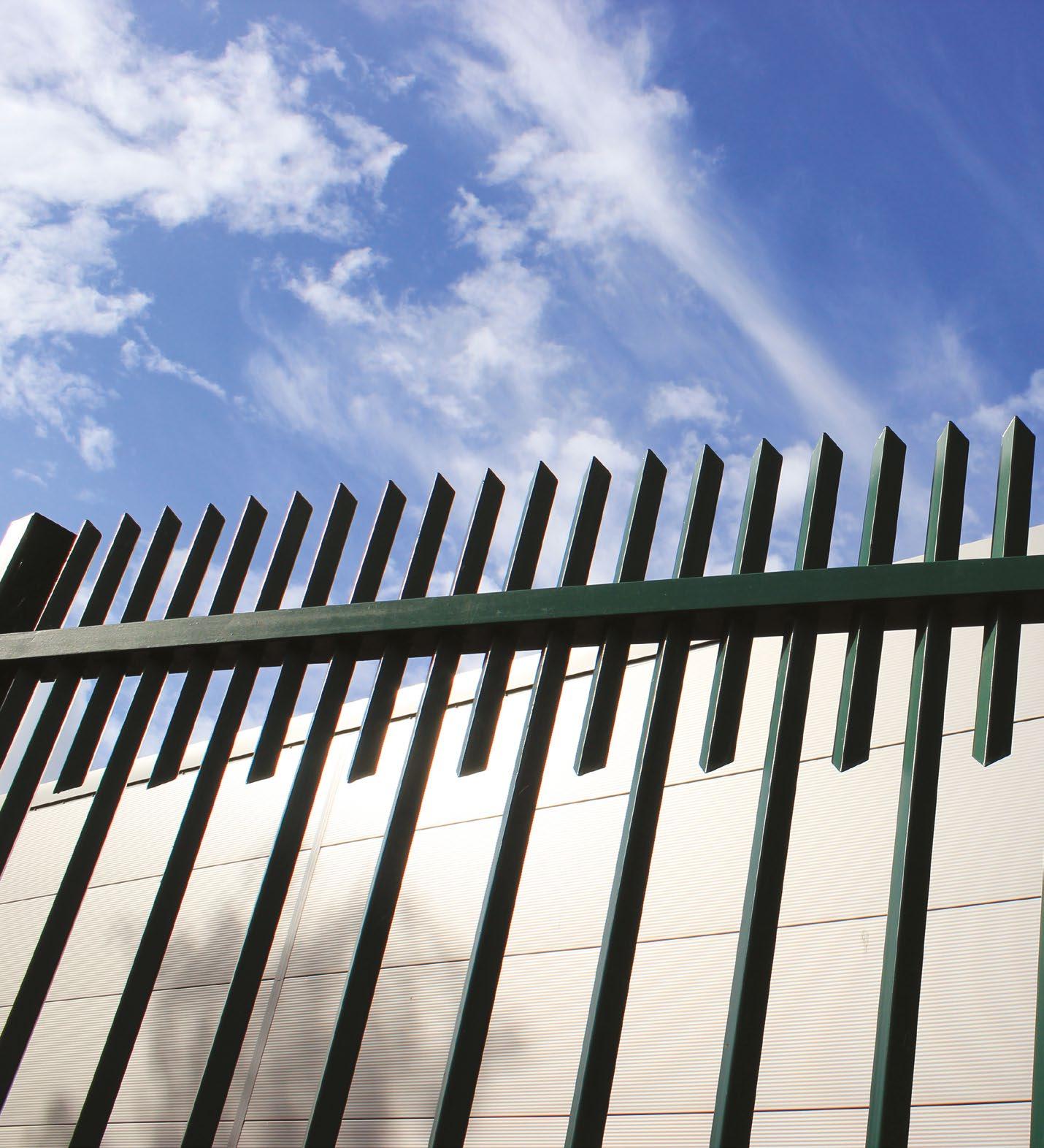

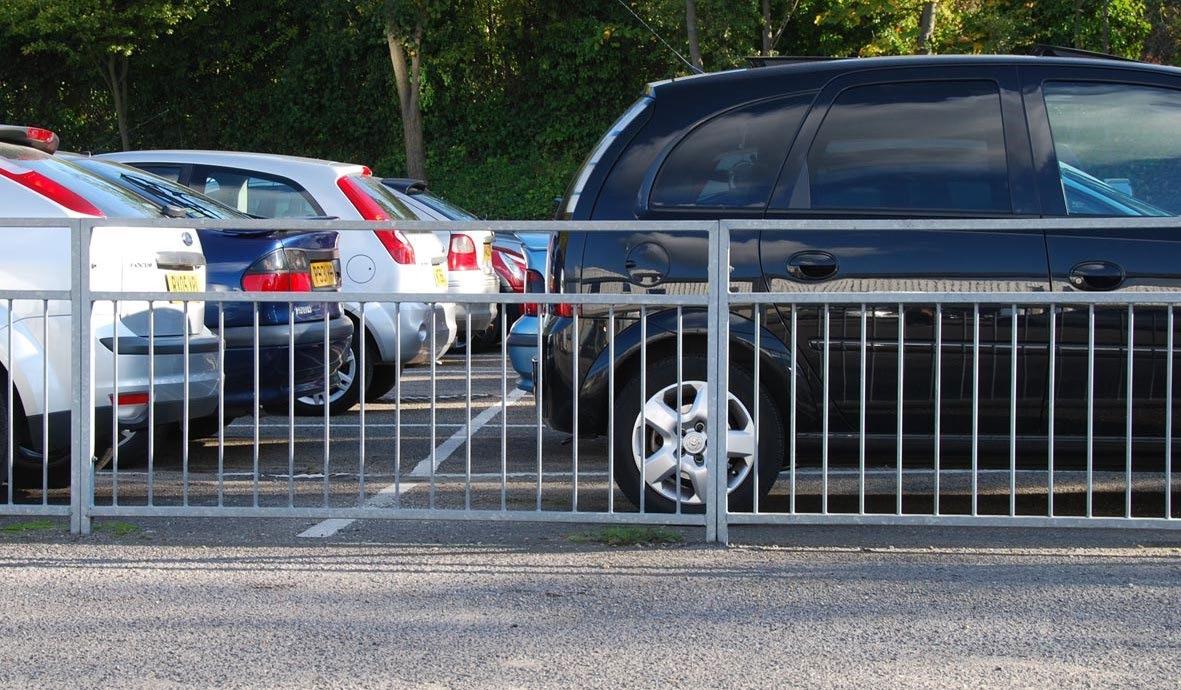

BARBICAN ®

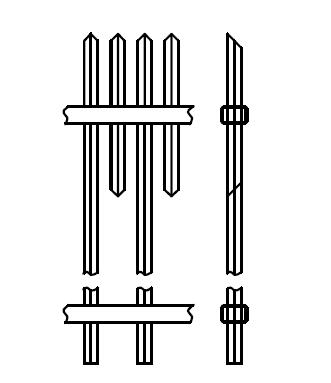

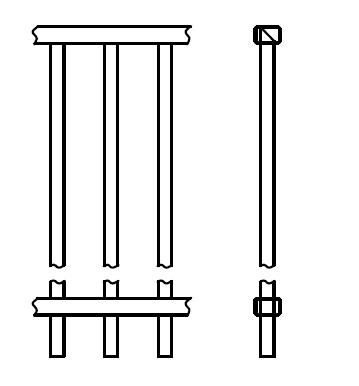

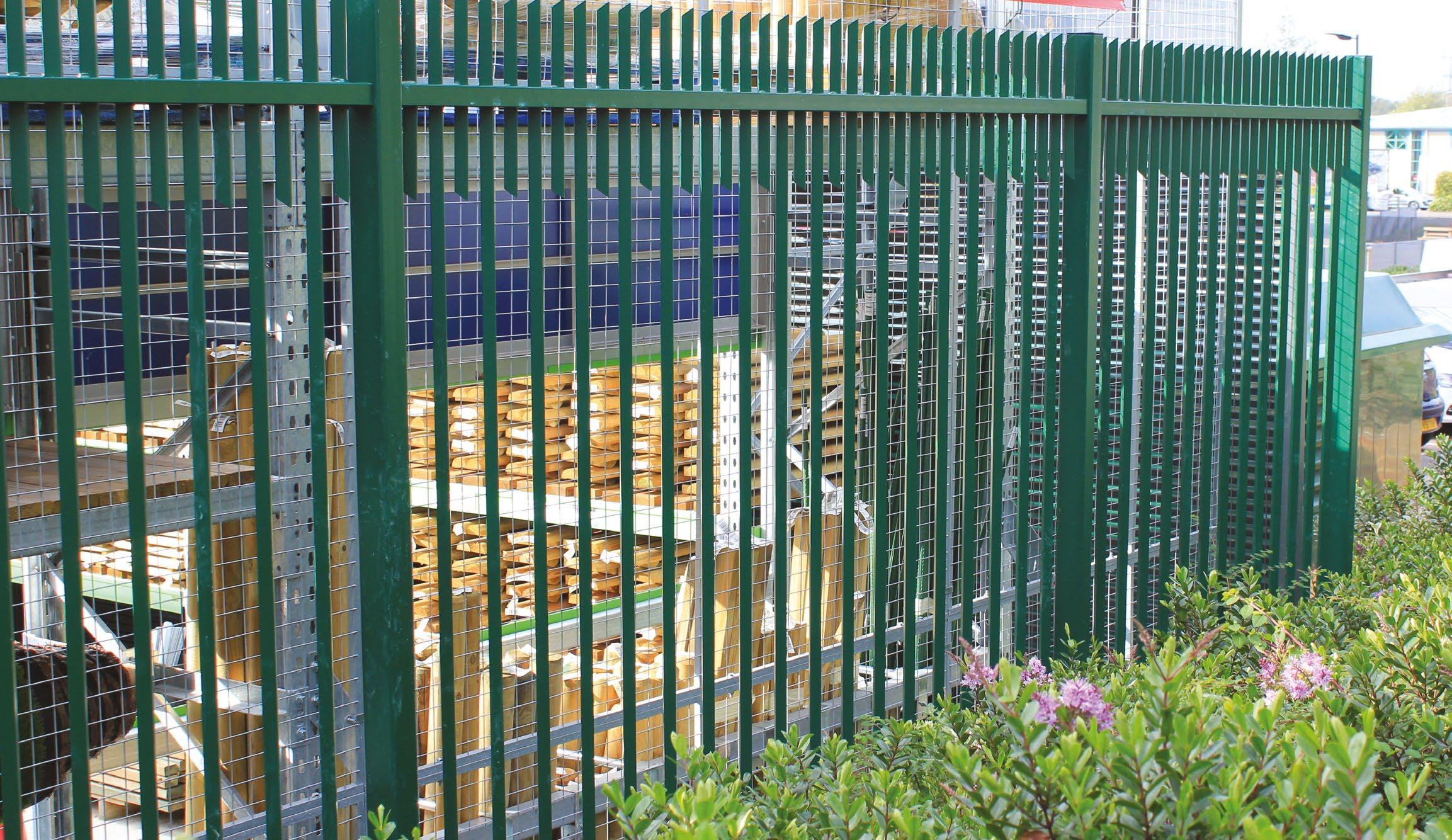

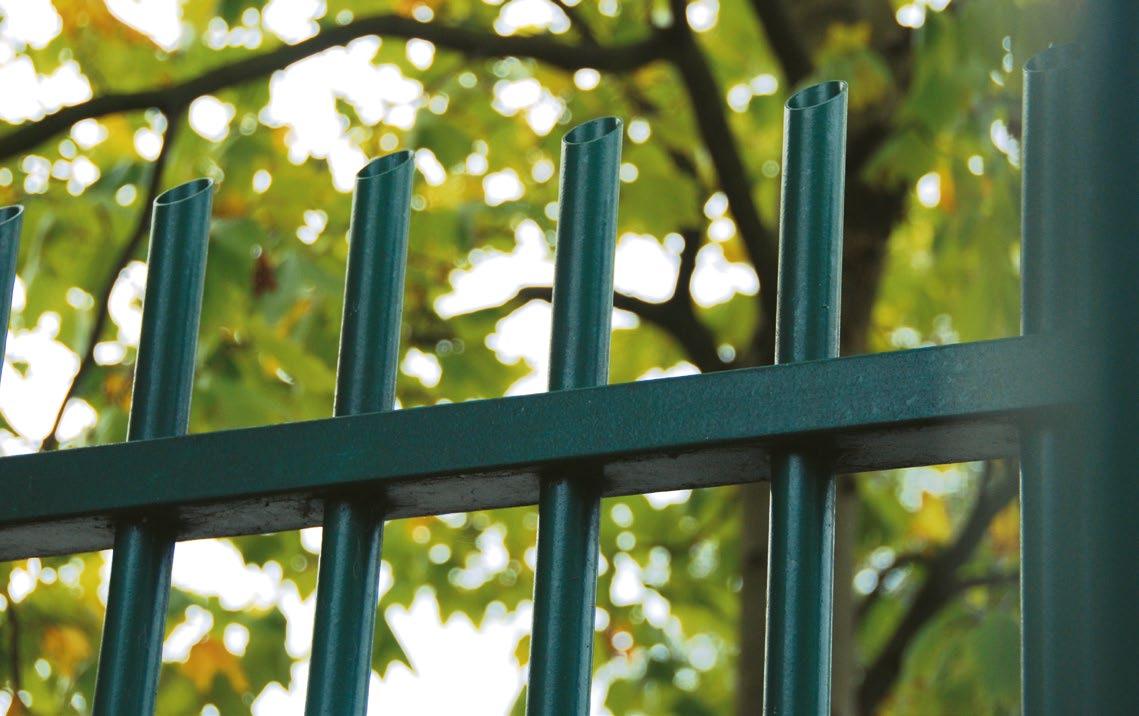

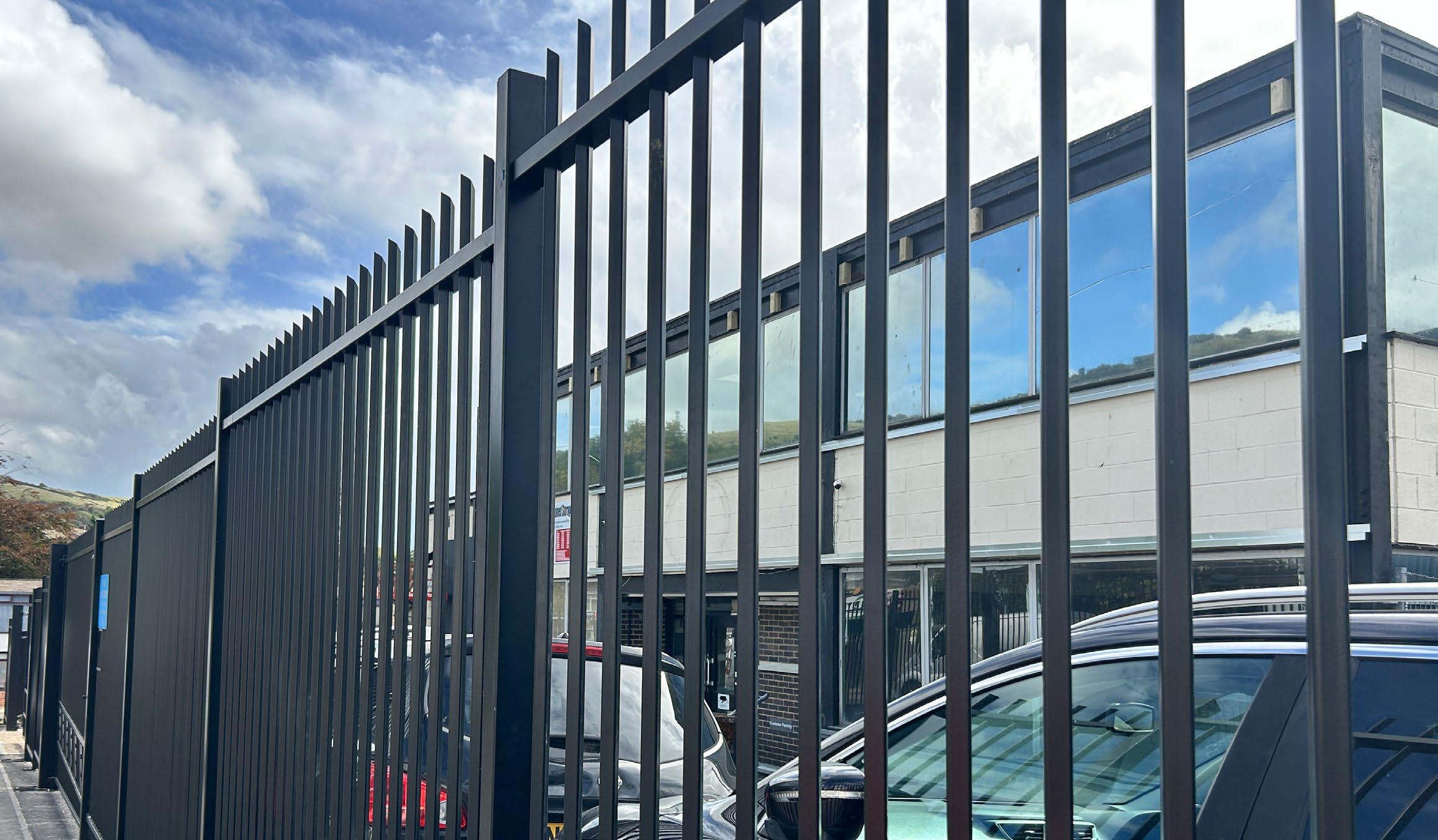

BARBICAN ® Barbican® features our welded pale-through-rail construction which means there are no bolts to be forced or pales to be removed. The horizontal rails are sleeved on to the upright posts to provide a seamless design that is both stylish and incredibly strong.

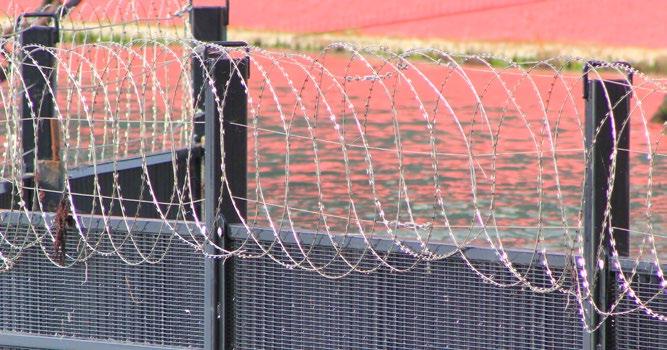

• Posts can be customised for Barbed wire / Razor wire / Rota Spike® / Alarm-aFence® • Vertical pale spacing conforms to building regulations for anti-trap • Unique vandal-proof panel to post connectors • Panels can be manufactured to accommodate sloping ground • Suitable for almost any application from decorative and secure to highly secure • Anti-climb design • 25 year service life guarantee

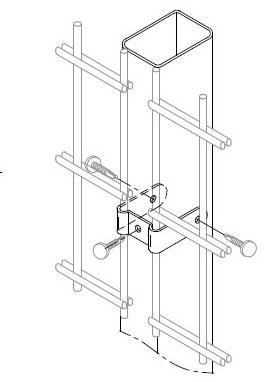

Post to panel fixings

APPLICATIONS

PANELS

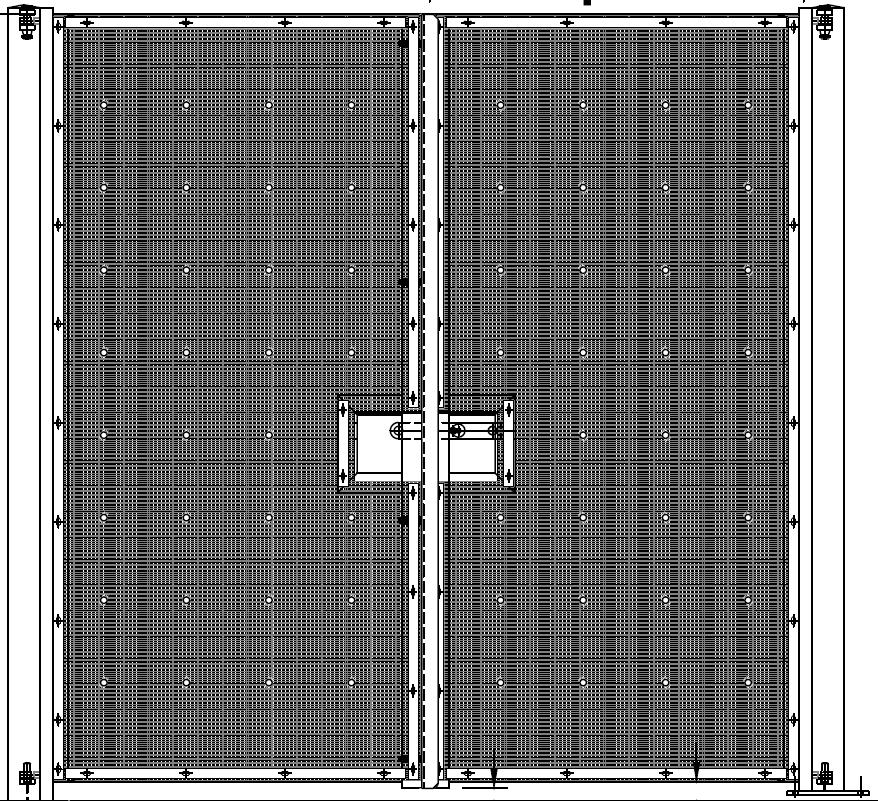

GATES

4Perimeters

Barbican® panels are up to 3000mm high and have two horizontal hollow section rails 60 x 40mm (3 rails if 3000mm high). Vertical rectangular hollow section 25 x 25mm pales are passed through the rails with standard spacing at 129mm centres (96mm gap between pales). The tops of pales are cut at 45 degrees and left open as standard to form a point.

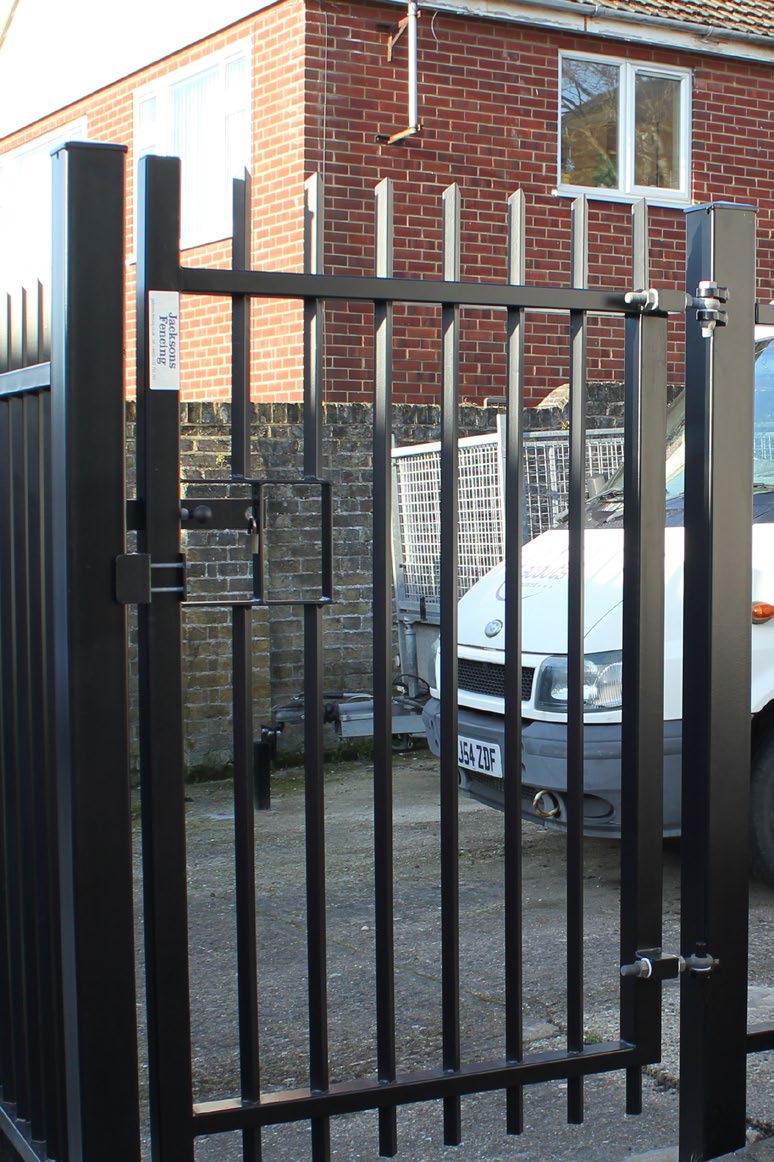

Matching single leaf and double leaf gates available

4Commercial premises

5

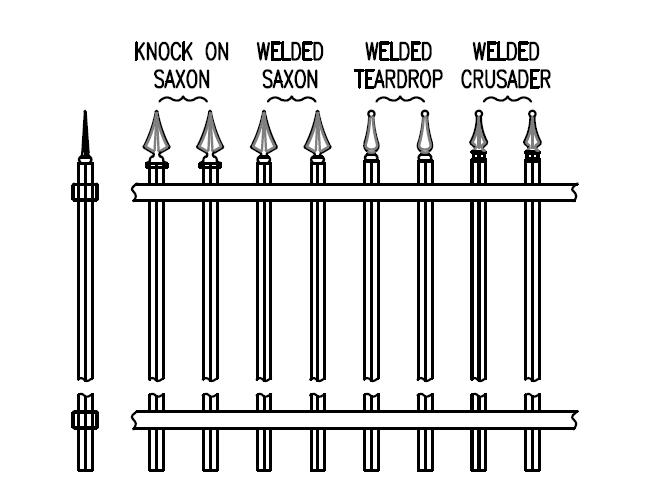

FINIAL OPTIONS 175mm

4Schools

l

top view

100mm

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

1000

3000

60 x 60

1600

1250

3000

60 x 60

1850

1500

3000

60 x 60

2100

1800

3000

60 x 60

2500

2000

3000

60 x 60

2800

2500

3000

80 x 60

3300

2900

2484

80 x 60

3700

3000

2484

80 x 60

3800

Scan to view on our website

POST OPTIONS

FINISHES

STANDARD COLOURS

• Over length set in concrete as standard

• Hot dip galvanised to BS EN 1461 as standard

• Base plated to bolt down onto concrete

• Hot dip galvanised and powder coated to BS EN 13438 in any standard colour

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Cranked to suit wall mounting

• Other colours on request • Marine coat for installations within 500m of salt water or an estuary

• Architectural grade powder coating • Other colours on request

6

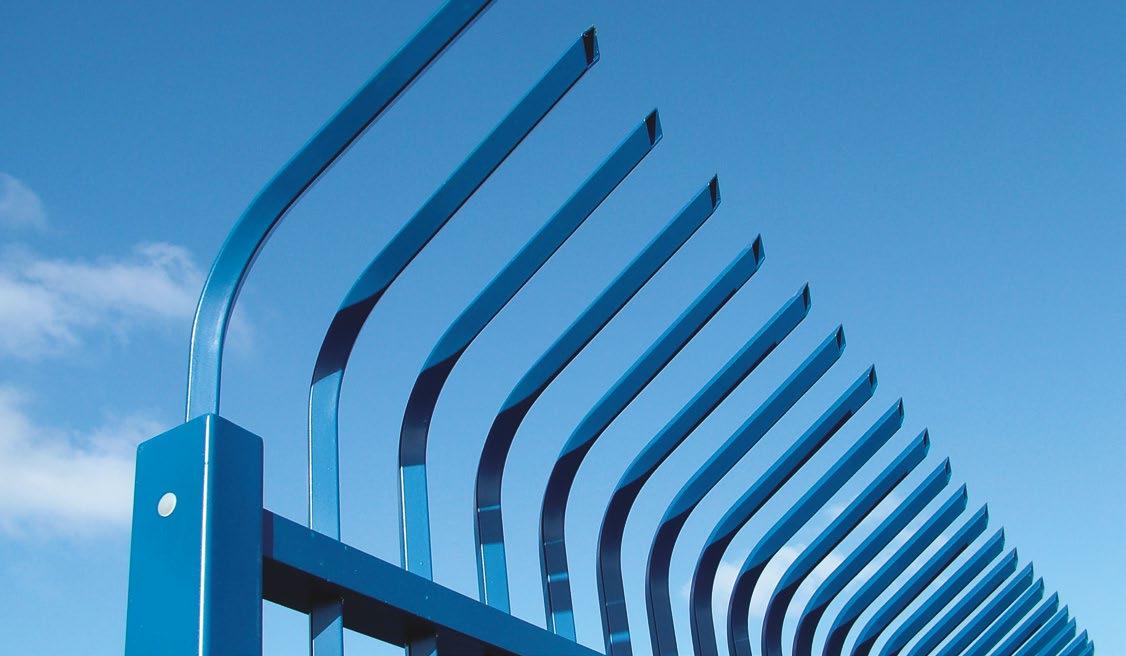

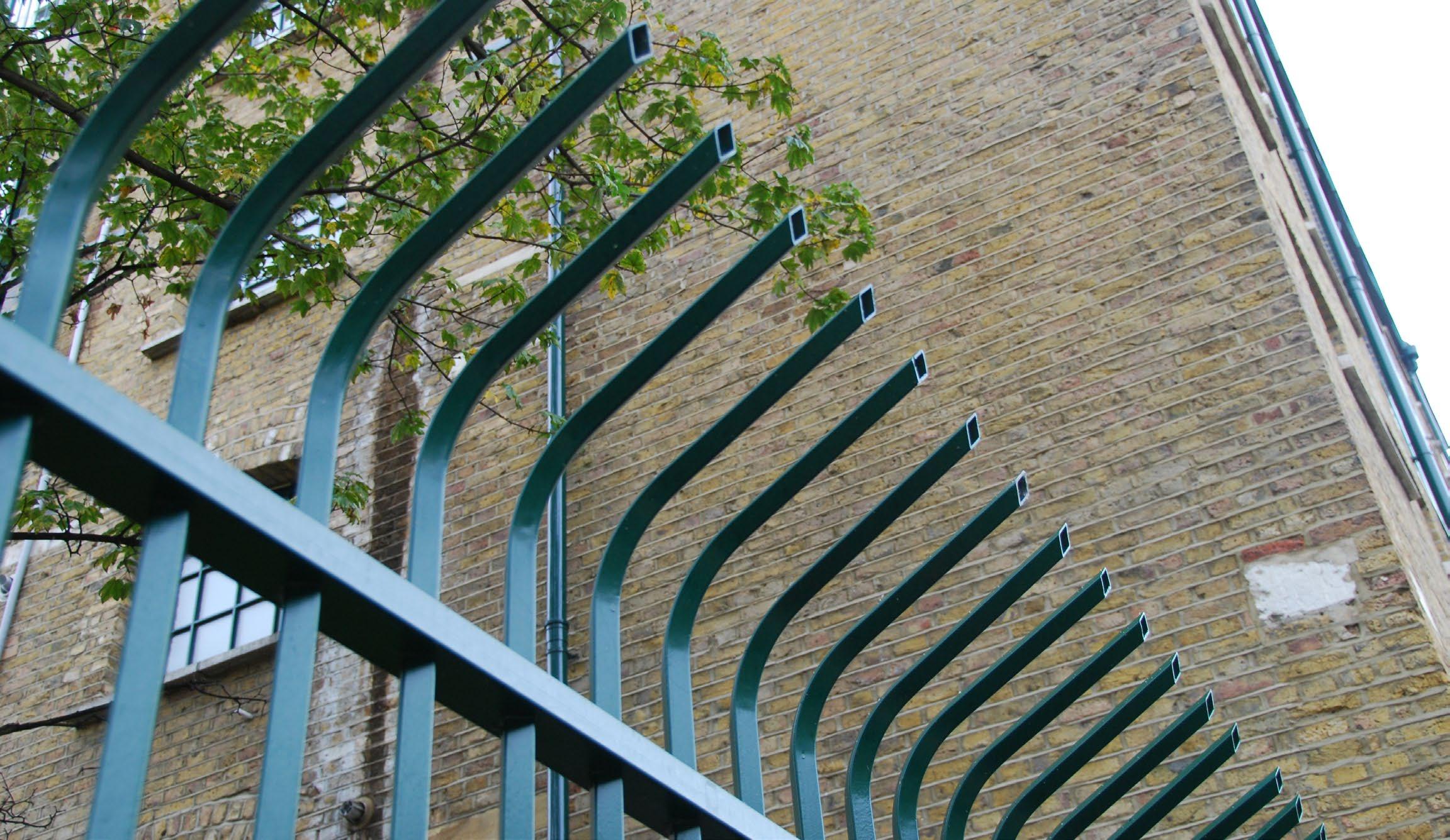

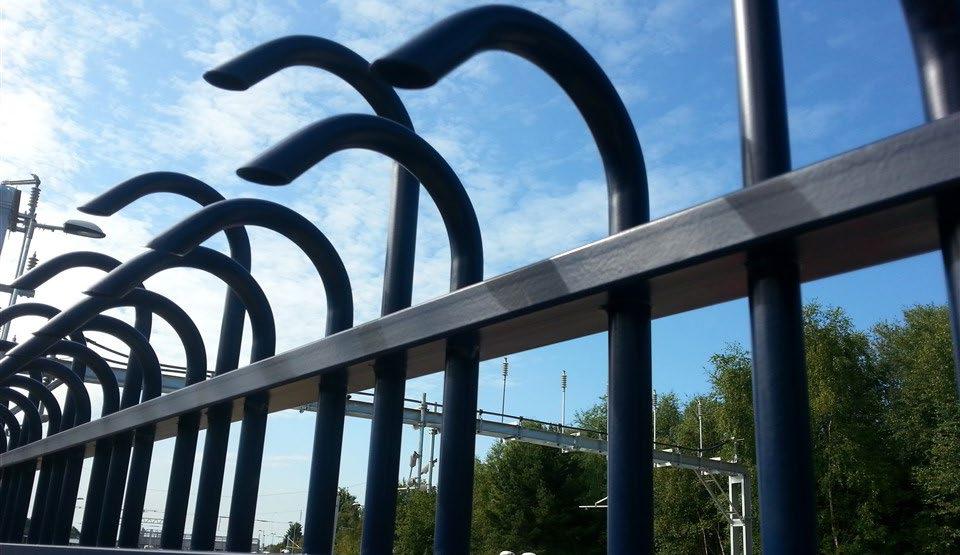

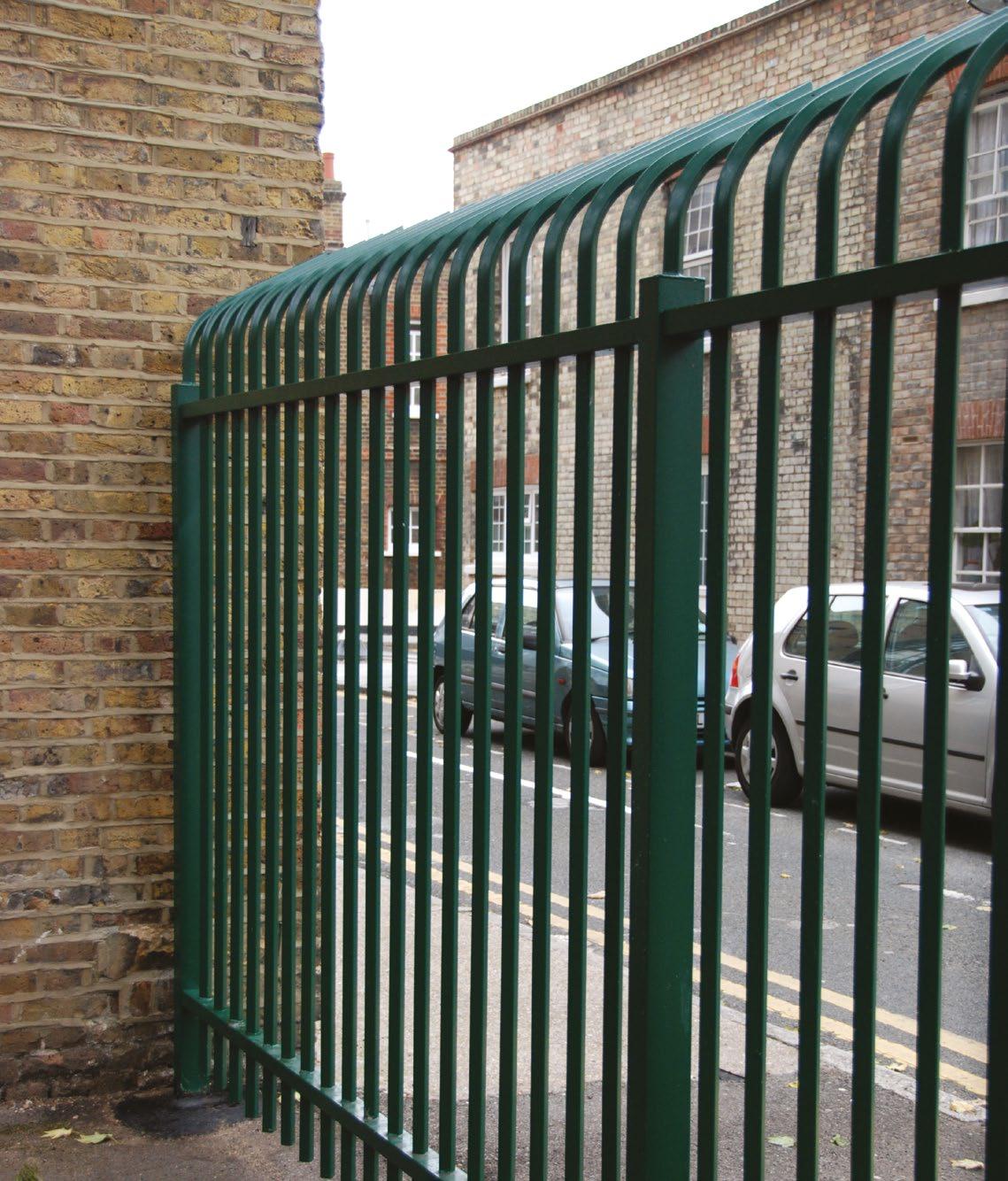

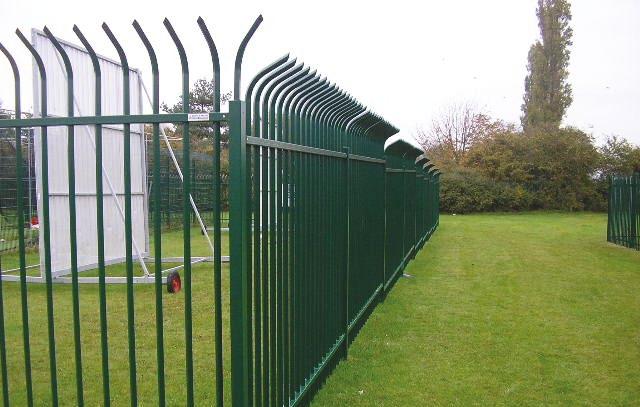

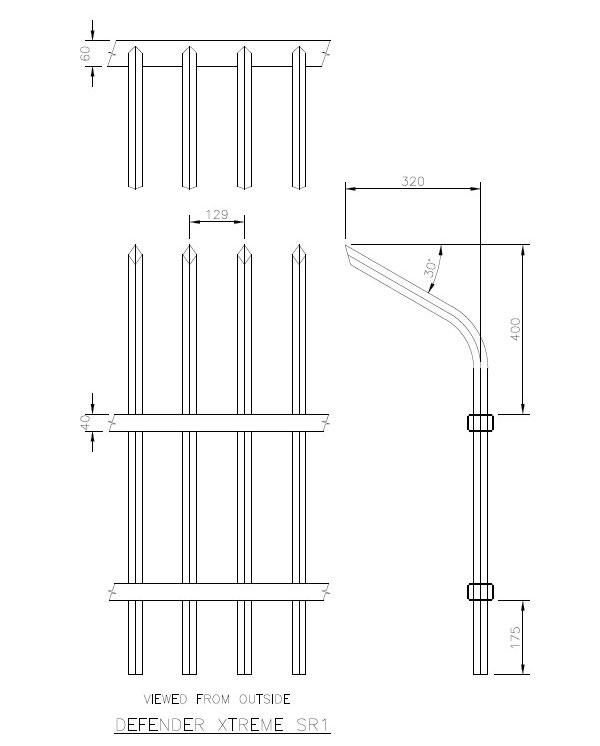

BARBICAN DEFENDER® XTREME

BARBICAN ® Barbican Defender® Xtreme projects a powerful visual representation of superior perimeter protection. The cranked pales are designed to prevent intruders from climbing or scaling the fence. Barbican Defender® Xtreme features curved pale lengths of 320mm and is ideal for higher security applications.

• Vertical pale spacing conforms to building regulations for anti-trap • Unique vandal-proof panel to post connectors • Panels can be manufactured to accommodate sloping ground • Anti-climb design • 25 year service life guarantee

Post to panel fixings

APPLICATIONS

PANELS

GATES

4High risk

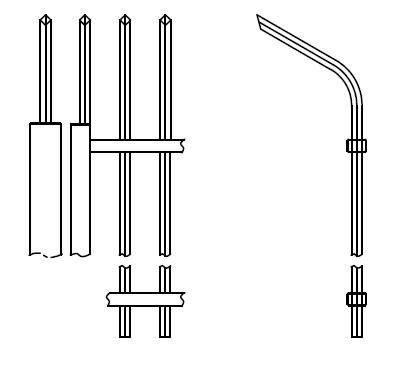

Constructed as per Barbican® panels but pales are extended and cranked 320mm from the top rail, with each one cut at 45 degrees to form a point.

Matching single leaf and double leaf gates available

4Perimeters 4Company premises 4Utilities

7

top view

320mm

100mm

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

2250 2500 3000

2484 2484 2484

80 x 60 80 x 60 80 x 60

3050 3300 3800 Scan to view on our website

POST OPTIONS

FINISHES

STANDARD COLOURS

• Overlength set in concrete as standard

• Hot dip galvanised to BS EN 1461 as standard

• Base plated to bolt down onto concrete

• Hot dip galvanised and powder coated to BS EN 13438 in any standard colour

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Cranked to suit wall mounting

• Other colours on request • Marine coat for installations within 500m of salt water or an estuary

• Architectural grade powder coating • Other colours on request

8

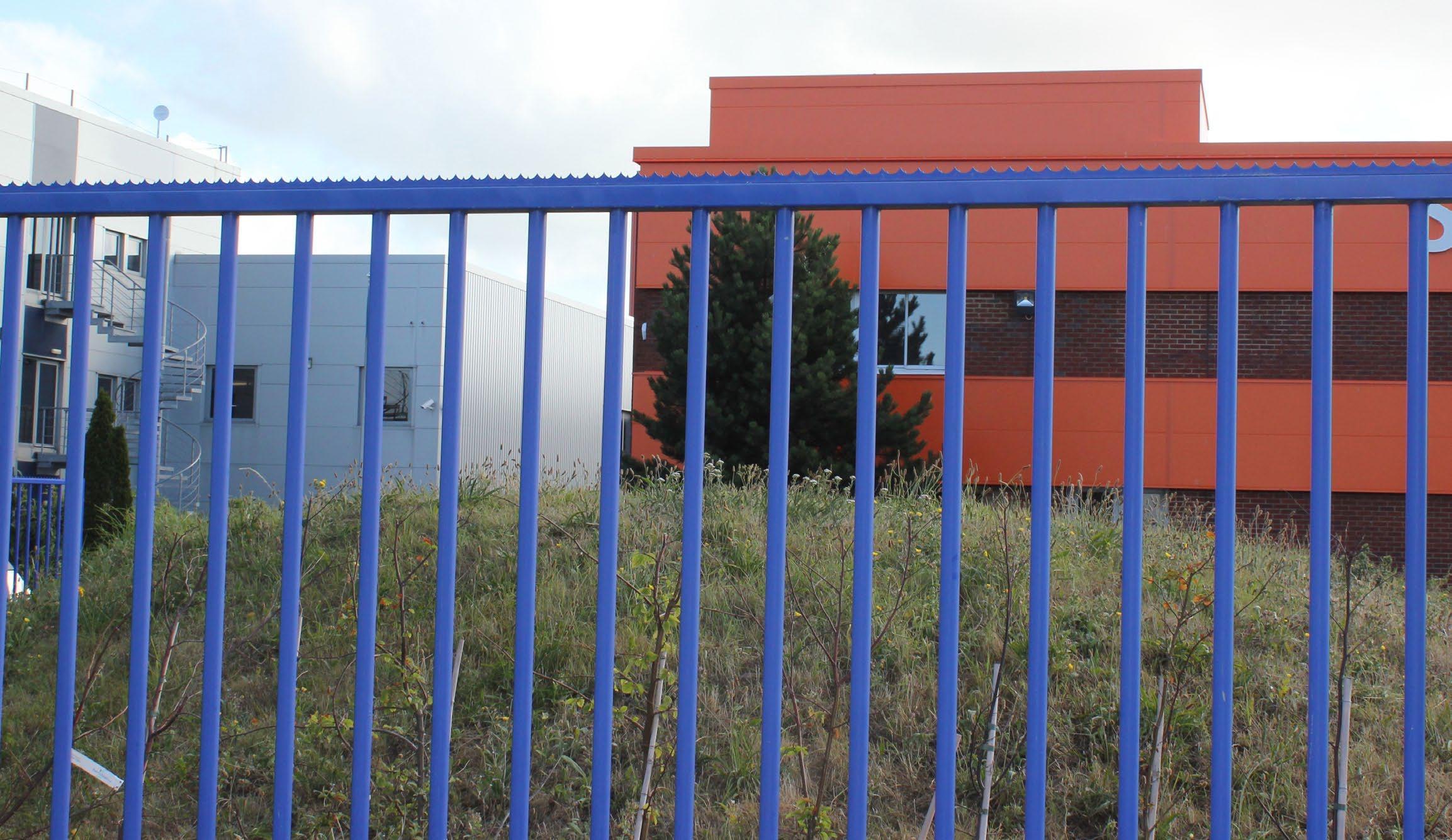

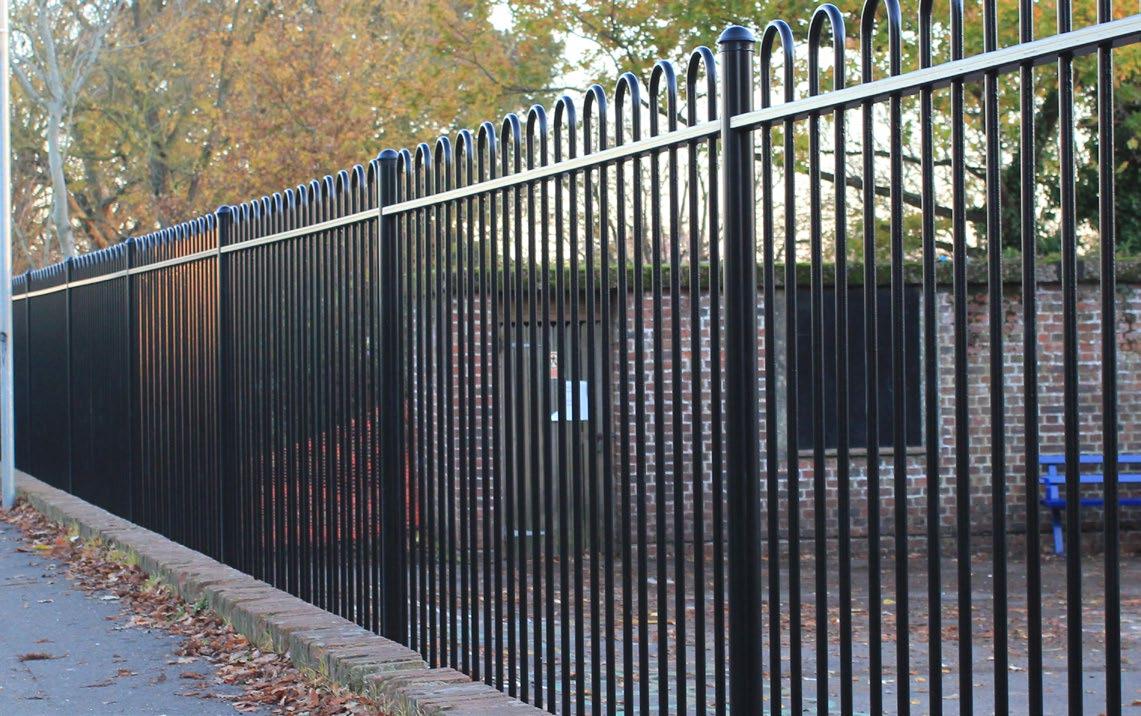

BARBICAN IMPERIAL®

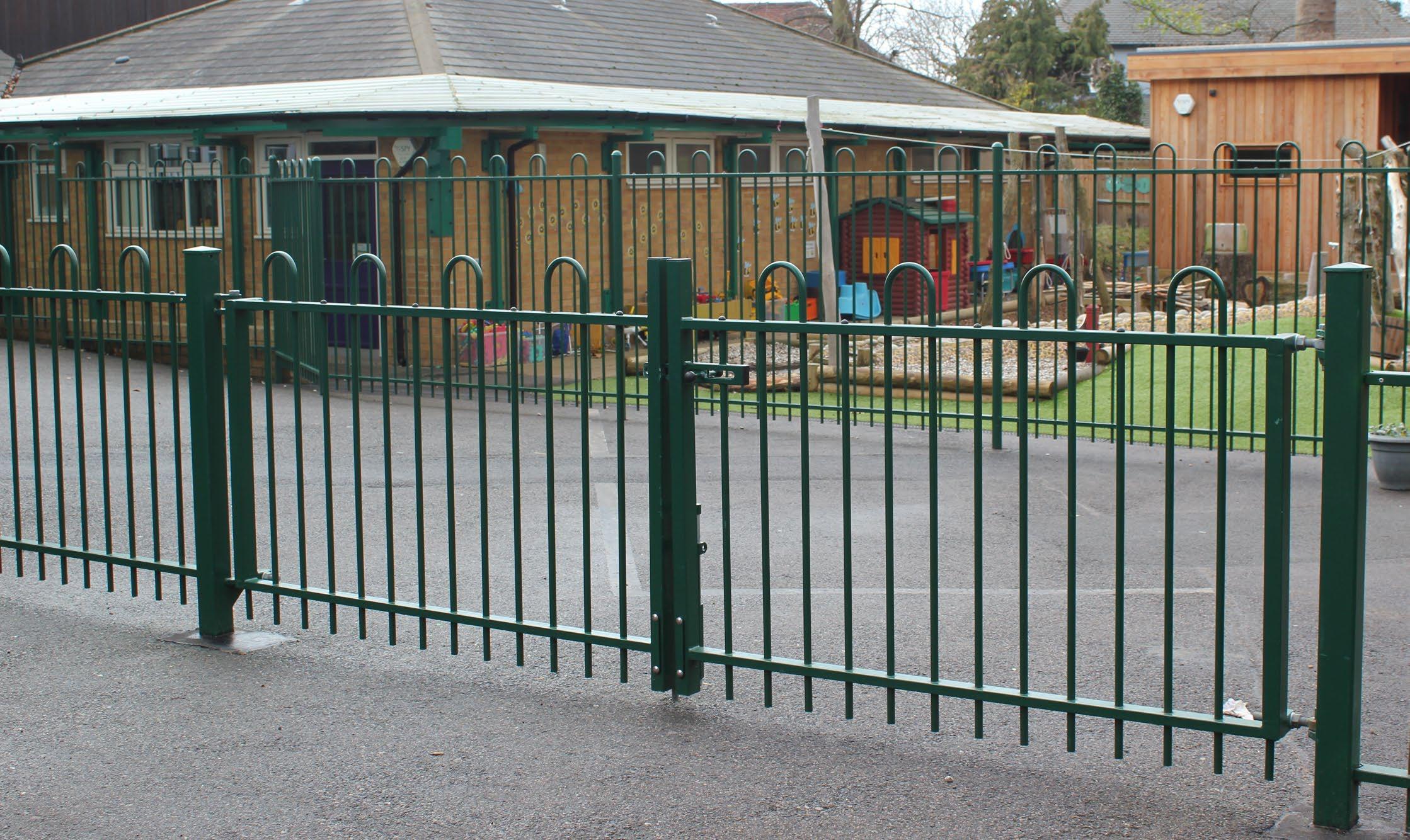

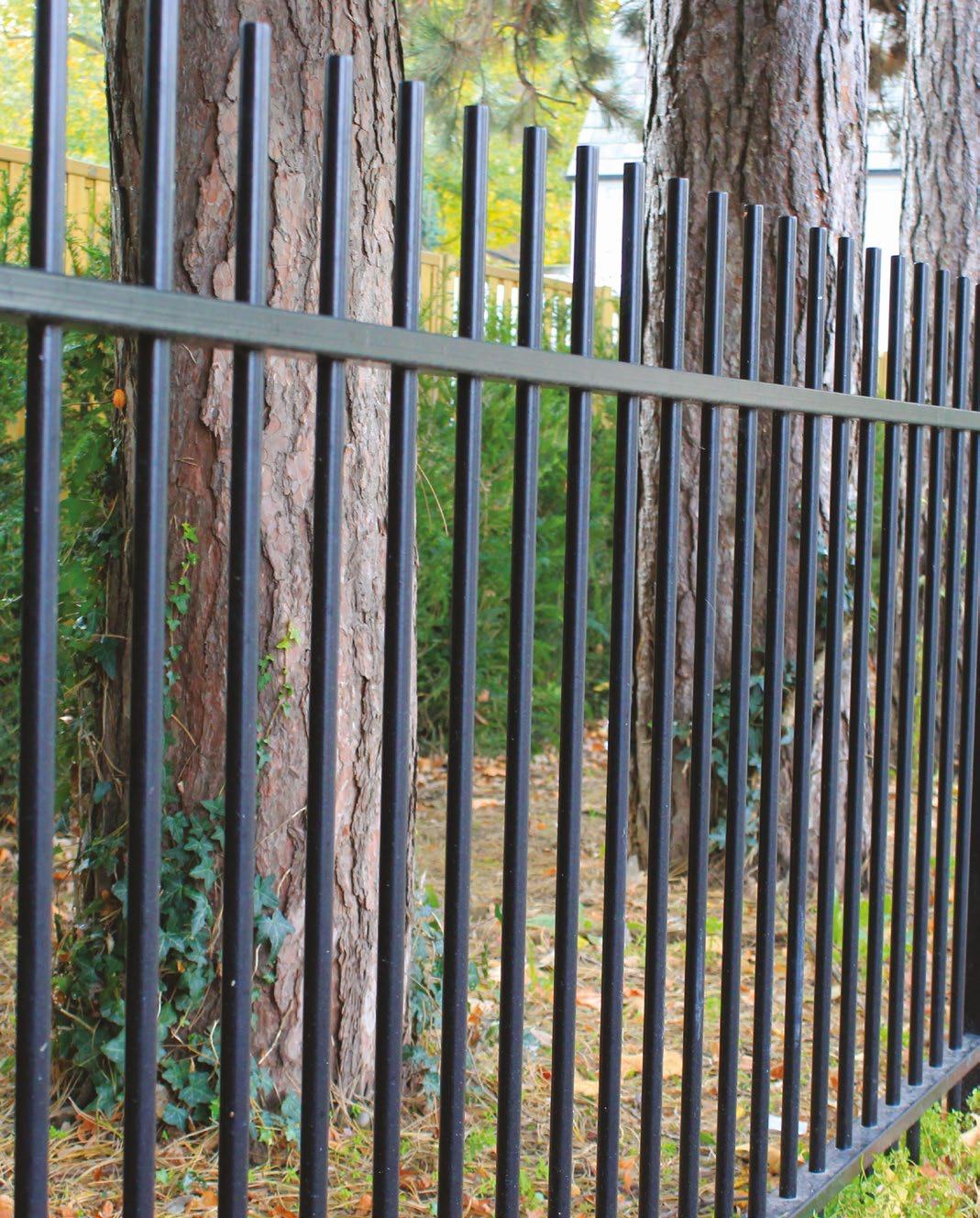

BARBICAN ® Barbican Imperial® with its 25mm or 32mm diameter round pales (dependent on height) delivers all the advantages of the Barbican® range with no reduction in strength or security. Barbican Imperial® is available with a choice of decorative finials and post tops to offer the right solution for even the most prestigious applications.

• Posts can be customised for Barbed wire / Razor wire / Rota Spike® / Alarm-aFence® • Vertical pale spacing conforms to building regulations for anti-trap • Unique vandal-proof panel to post connectors • Panels can be manufactured to accommodate sloping ground • Anti-climb design • 25 year service life guarantee Post to panel fixings

APPLICATIONS

PANELS

GATES

4Perimeters

Barbican Imperial® comprises of vertical round hollow section 25mm diameter pales up to 2000mm high at 124mm centres and 32mm for 2100mm+ with 129mm centres.

Matching single leaf and double leaf gates available

4Medium risk 4Schools

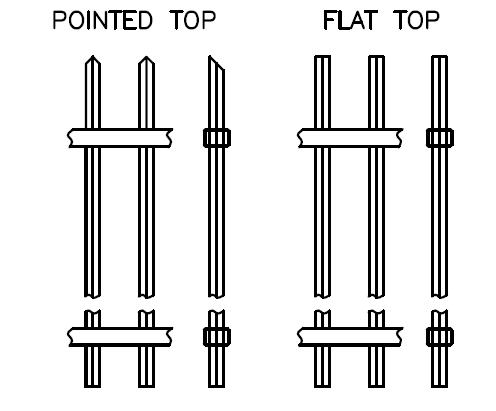

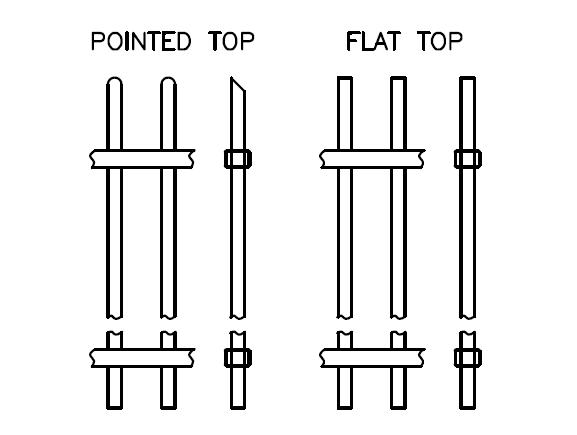

Panels under 1200mm come with flat top pales as standard, with an option of a pointed top. Panels 1500mm and above come with pales cut at 45˚.

9

FINIAL OPTIONS

top view

100mm

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

1000

3000

60 x 60

1600

1250

3000

60 x 60

1850

1500

3000

60 x 60

2100

1800

3000

60 x 60

2500

2000

3000

60 x 60

2800

2500

3000

80 x 60

3300

3000

2484

80 x 60

3800

Scan to view on our website

FINIAL OPTIONS

FINISHES

STANDARD COLOURS

• Option of plastic dome caps

• Hot dip galvanised to BS EN 1461 as standard

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

*Finial ‘G’ only available for panels from 2.1m high

POST OPTIONS • Overlength set in concrete as standard • Base plated to bolt down onto concrete • Cranked to suit wall mounting

• Hot dip galvanised and powder coated to BS EN 13438 in any standard colour • Other colours on request • Marine coat for installations within 500m of salt water or an estuary

• Architectural grade powder coating • Other colours on request

10

BARBICAN® EXTRA

BARBICAN ® Barbican® Extra security panels are identical to standard Barbican® panels, but with an important difference: the additional pales through the top rail that ensure even the smallest hand or foot cannot gain purchase, making it virtually impossible to climb or scale.

• Posts can be customised for Barbed wire / Razor wire / Rota Spike® • Vertical pale spacing conforms to building regulations for anti-trap • Unique vandal-proof panel to post connectors • Panels can be manufactured to accommodate sloping ground • Anti-climb design • 25 year service life guarantee Post to panel fixings

APPLICATIONS

PANELS

GATES

4Perimeters

Barbican® Extra panels are up to 3000mm high and have two horizontal hollow sections rails 60 x 40mm (3 rails if 3000mm high). Vertical rectangular hollow section 25 x 25mm pales are passed through the rails with standard spacing at 129mm centres (96mm gap between pales), with additional pales through top rail and between each full pale (60mm gap between top pales).

Matching single leaf and double leaf gates available

4Company premises 4Commercial premises

11

top view

175mm

390mm

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

2250 2500 3000

2484 2484 2484

80 x 60 80 x 60 80 x 60

3050 3300 3800 Scan to view on our website

POST OPTIONS

FINISHES

STANDARD COLOURS

• Overlength set in concrete as standard

• Hot dip galvanised to BS EN 1461 as standard

• Base plated to bolt down onto concrete

• Hot dip galvanised and powder coated to BS EN 13438 in any standard colour

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Cranked to suit wall mounting

• Other colours on request • Marine coat for installations within 500m of salt water or an estuary

• Architectural grade powder coating • Other colours on request

12

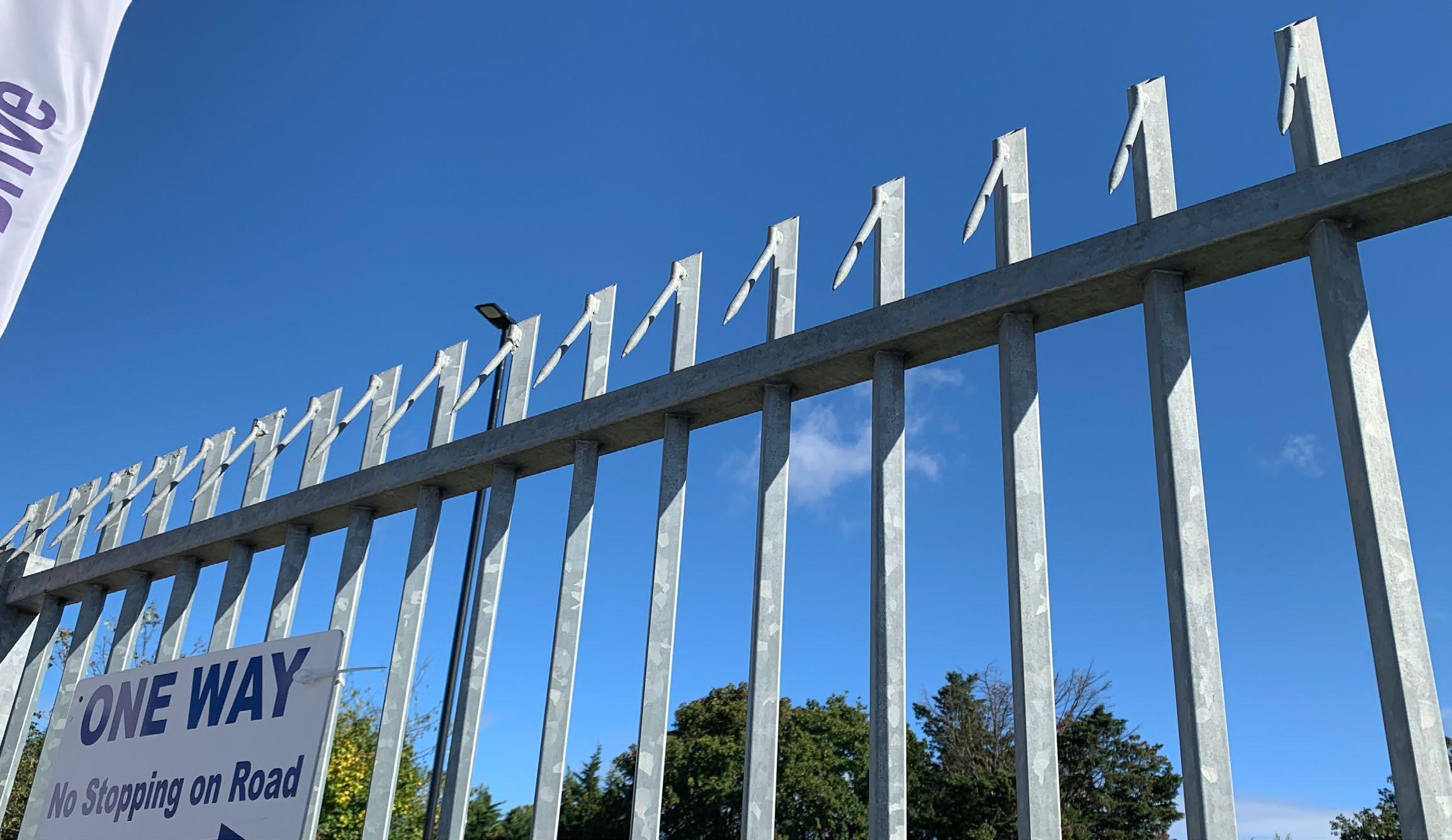

BARBICAN® BARBED TOP

Barbican® Barbed Top panels are up to 3000mm high and have two horizontal hollow section rails 60 x 40mm (3 rails on 3000mm high). A 10mm round point bar is added to each pale downward pointing.

• Posts can be customised for Barbed wire / Razor wire / Rota Spike

®

• Vertical pale spacing conforms to building regulations for anti-trap • Unique vandal-proof panel to post connectors • Panels can be manufactured to accommodate sloping ground • Anti-climb design • 25 year service life guarantee Post to panel fixings

APPLICATIONS

PANELS

GATES

4Perimeters

Barbican® Barbed Top panels are up to 3000mm high and have two horizontal hollow sections rails 60 x 40mm (3 rails if 3000mm high). Vertical rectangular hollow section 25 x 25mm pales are passed through the rails with standard spacing at 129mm centres (96mm gap between pales), which has a 10mm round pointed bar added to each pale.

Matching single leaf and double leaf gates available

4Commercial premises 4Medium risk - high risk

13

top view 88.5mm

100mm

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

2250 2500 2750 3000

3000 3000 2484 2484

80 x 60 80 x 60 80 x 60 80 x 60

3050 3300 3550 3800 Scan to view on our website

POST OPTIONS

FINISHES

STANDARD COLOURS

• Overlength set in concrete as standard

• Hot dip galvanised to BS EN 1461 as standard

• Base plated to bolt down onto concrete

• Hot dip galvanised and powder coated to BS EN 13438 in any standard colour

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Cranked to suit wall mounting

• Other colours on request • Marine coat for installations within 500m of salt water or an estuary

• Architectural grade powder coating • Other colours on request

14

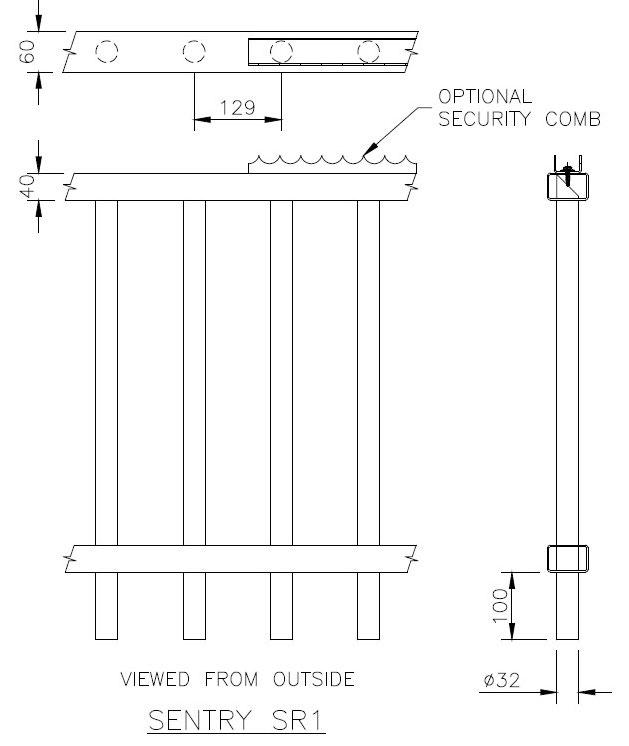

SENTRY®

BARBICAN ® Sentry® fencing and gates feature a welded semi pale-through-rail construction to combine style with performance and is equally appropriate for contemporary or more traditional settings. Like our Barbican® systems, all Sentry® fencing and gate panels incorporate concealed fixings for strength and security.

• Posts can be customised for Barbed wire / Razor wire / Rota Spike® / Alarm-aFence® • Vertical pale spacing conforms to building regulations for anti-trap • Unique vandal-proof panel to post connectors • Panels can be manufactured to accommodate sloping ground • Panels can be topped with Viper Spike® / Cobra Spike® • Anti-climb design Post to panel fixings

• 25 year service life guarantee

APPLICATIONS

PANELS

GATES

4Perimeters

Sentry® panels are up to 3000mm high and have two horizontal rectangular hollow section rails 60 x 40mm (3 rails if 3000mm high); Vertical round hollow section 32mm pales are passed through the rails with standard spacing at 129mm centres. Panels from 1800mm high have a security comb (double row of sharp steel points 23 x 2mm thick).

Matching single leaf and double leaf gates available

4Medium - High risk 4Commercial premises

15

top view

100mm

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

1000 1250

3000

60 x 60

1600

3000

60 x 60

1850

1500

3000

60 x 60

2100

1800

3000

60 x 60

2500

2000

3000

60 x 60

2800

2500

3000

80 x 60

3300

2900

2484

80 x 60

3700

3000

2484

80 x 60

3800

Scan to view on our website

POST OPTIONS

FINISHES

STANDARD COLOURS

• Overlength set in concrete as standard

• Hot dip galvanised to BS EN 1461 as standard

• Base plated to bolt down onto concrete

• Hot dip galvanised and powder coated to BS EN 13438 in any standard colour

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Cranked to suit wall mounting

• Other colours on request • Marine coat for installations within 500m of salt water or an estuary

• Architectural grade powder coating • Other colours on request

16

TRI-GUARD®

BARBICAN ® Tri-Guard® is an innovative style of fencing and gates featuring pales with curved tops, set in clusters of three, joined by feature steel discs to create a decorative appearance, with anti-climb and anti-scale performance.

• Posts can be customised for Barbed wire / Razor wire / Rota Spike® • Pales cut at 45º and curved outwards for anti-climb • Vertical pale spacing conforms to building regulations for anti-trap • Unique vandal-proof panel to post connectors • Panels can be manufactured to accommodate sloping ground • Anti-climb design • 25 year service life guarantee Post to panel fixings

APPLICATIONS

PANELS

4Public buildings

Tri-Guard® panels have three horizontal rectangular hollow section rails 50 x 25mm.

4Medium - High risk 4Schools

17

The vertical round hollow section 19mm pales are grouped in threes with the top curved over. Metal discs are welded between the pales, one row for 2200mm high and two rows for 2500mm high

and have a maximum of 100mm spacing (complies with British standard).

GATES Matching single leaf and double leaf gates available

top view 135mm

140mm

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

2200 2500

3010 3010

80 x 60 80 x 60

3000 3300

Scan to view on our website

POST OPTIONS

FINISHES

STANDARD COLOURS

• Overlength set in concrete as standard

• Hot dip galvanised to BS EN 1461 as standard

• Base plated to bolt down onto concrete

• Hot dip galvanised and powder coated to BS EN 13438 in any standard colour

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Cranked to suit wall mounting

• Other colours on request • Marine coat for installations within 500m of salt water or an estuary

• Architectural grade powder coating • Other colours on request

18

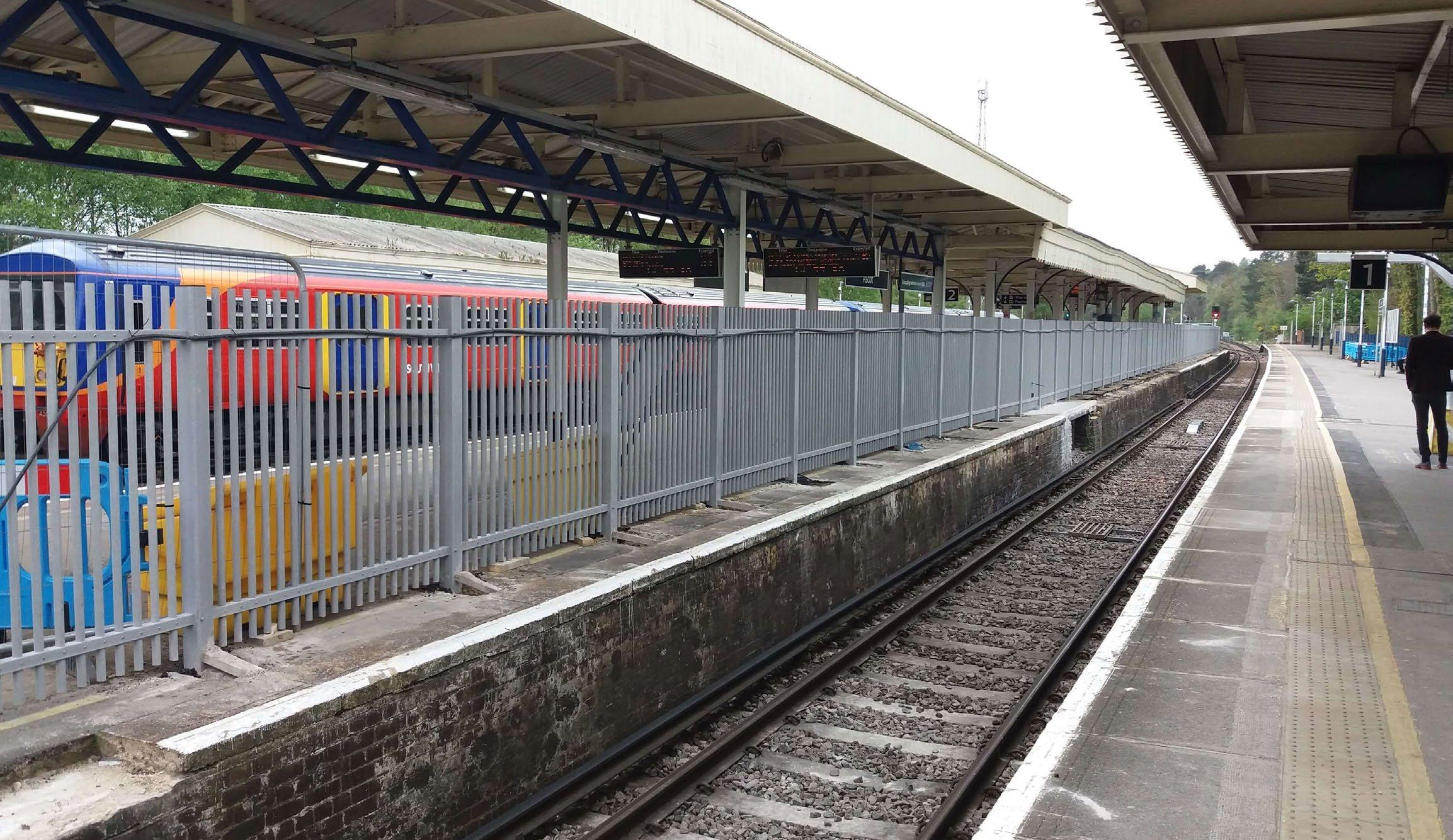

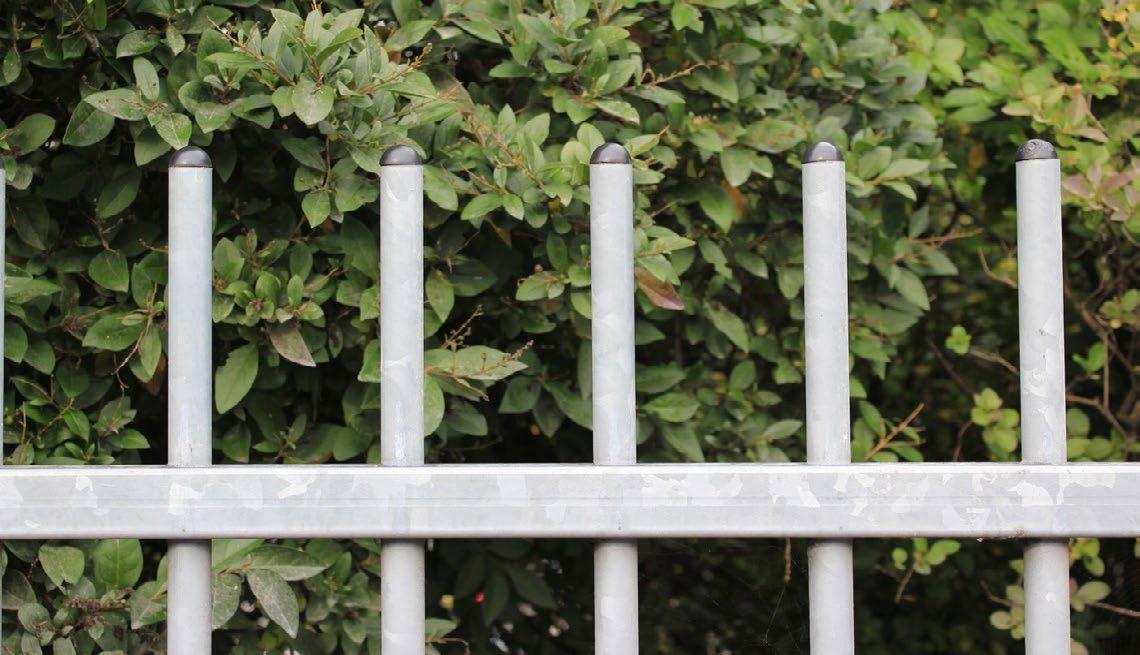

GRP FENCING - VERTICAL BAR

We offer Barbican Imperial® and Sentry® as GRP fencing with non-conductive properties, making it a highly effective alternative to traditional steel fencing when used around railways and electrical enclosures or locations that need to be transparent to radio wave frequencies.

Glass Reinforced Plastic is a non-conductive property made from a polyester resin, it is a very popular composite material due to its strength.

• Barbican Imperial® or Sentry® style available • Heights available: 1000 / 1200 / 1500 / 1800 / 2000 / 2400 / 3000mm • Manufactured from non-conductive materials • Matching gates available - priced upon request • Radio Frequency (FR) and Electromagnetic transparency • Palisade style available upon request • UV resistant

• 31mm diameter x 4mm GRP pales

FINISHES

APPLICATIONS

4Grey RAL 7001 as standard

• Perimeter fencing

4Other colours on request

• Track side fencing • Electrical / Chemical enclosures • Gas enclosures • Hazardous environments

19

Scan to view on our website

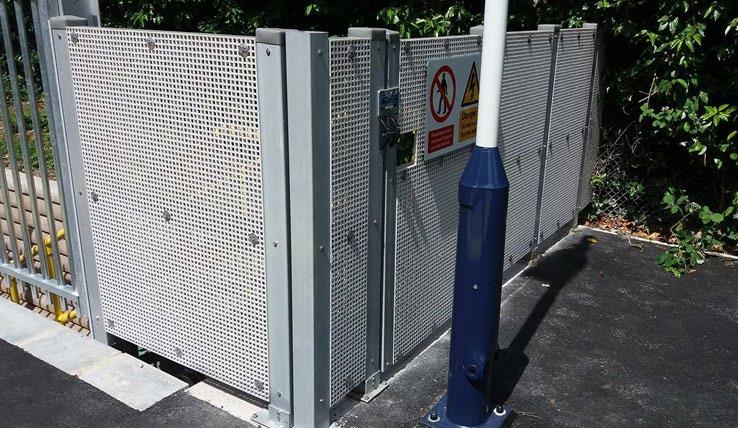

GRP FENCING - MESH

BARBICAN ® We offer GRP mesh fencing with non-conductive properties, making it a highly effective alternative to traditional steel fencing when used around areas such as railways and electrical enclosures or locations that need to be transparent to radio wave frequencies.

GRP mesh fencing has small apertures making it ideal for securing enclosures that may be at high risk to vandalism. It provides a strong visual statement as well as fulfilling many practical functions including ventilation or as a protective barrier. Glass Reinforced Plastic is a non-conductive property made from a polyester resin, it is a very popular composite material due to its strength.

• Radio Frequencies (FR) and Electromagnetic transparency • Heights available: 1000 / 1200 / 1500 / 1800 / 2000 / 2400 / 3000mm • UV resistant • Matching gates available - priced on request • Anti climb design • 20mm x 20mm / 40 x 40mm / 50 x 50mm square mesh • Manufactured from non-conductive materials

FINISHES

APPLICATIONS

4Grey RAL 7001 as standard

• Perimeter fencing

4Other colours on request

Scan to view on our website

• Track side fencing • Electrical / Chemical enclosures • Gas enclosures • Hazardous environments

20

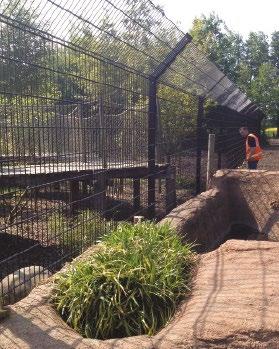

WELDED MESH PANELS Our product portfolio has a variety of mesh systems constructed using zinc alloy coated steel wire for exceptional corrosion resistance and lifetime value.

Suitable for a wide variety of applications, welded mesh panels are a popular way to keep intruders out of a property or boundary, and their flexible design allows them to be deployed almost anywhere.

While some security fencing designs can be overcome with intruders who could climb over them, welded mesh panels are extremely difficult to get a purchase on due to the narrow, close-knit wires, while the design is strong enough to withstand forceful attacks on the fence itself.

Across all our panels, wire gauge is measured prior to coating, to provide an accurate depiction of the strength and quality of the materials used. A smaller diameter wire with a heavier layer of coating will not provide the same structural strength and resistance to cutting as a product made from heavier diameter wire, even though both will be show as being the same diameter.

22

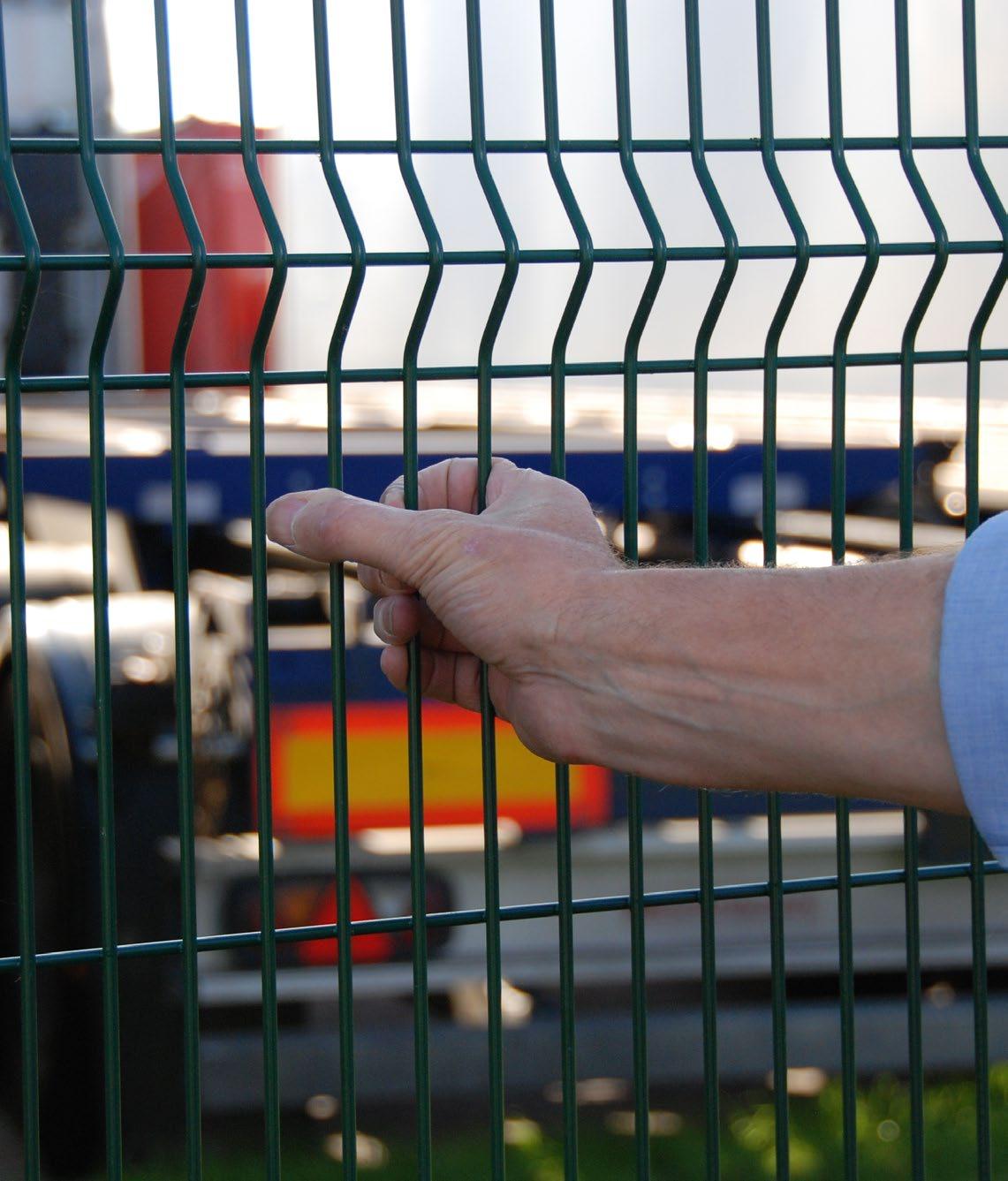

EUROGUARD® REGULAR

BARBICAN ® EuroGuard® Regular, our brand of V mesh fencing, is ideal for residential areas, commercial properties, schools or car parks.

The “V” shaped profile reinforcing folds increase the panels rigidity and strength. Panels can be stacked above one another to deliver a higher fence.

50mm

200mm

• Posts can be customised for Barbed wire / Razor wire / Rota Spike® / Alarm-aFence® • Mesh 200 x 50mm centres with 45mm gap, 5mm wire (wire measured prior to coating) • Unique vandal-proof panel to post connectors with fixings on secure side of fence • Anti-climb design • 3 - 4 reinforcement folds according to height • Can be stepped to accommodate sloping ground • 25 year service life guarantee

Mesh detail

APPLICATIONS

PANELS

GATES

4Perimeters

Panels are 3000m wide with 200 x 45mm mesh, 5mm wires with 3 - 4 reinforcing folds according to height, Vertical wires are at 50mm centres therefore panel has 61 vertical wires.

EuroGuard® Flatform Heavy single leaf and double leaf gates available

4Schools 4Retail - Commercial premises

23

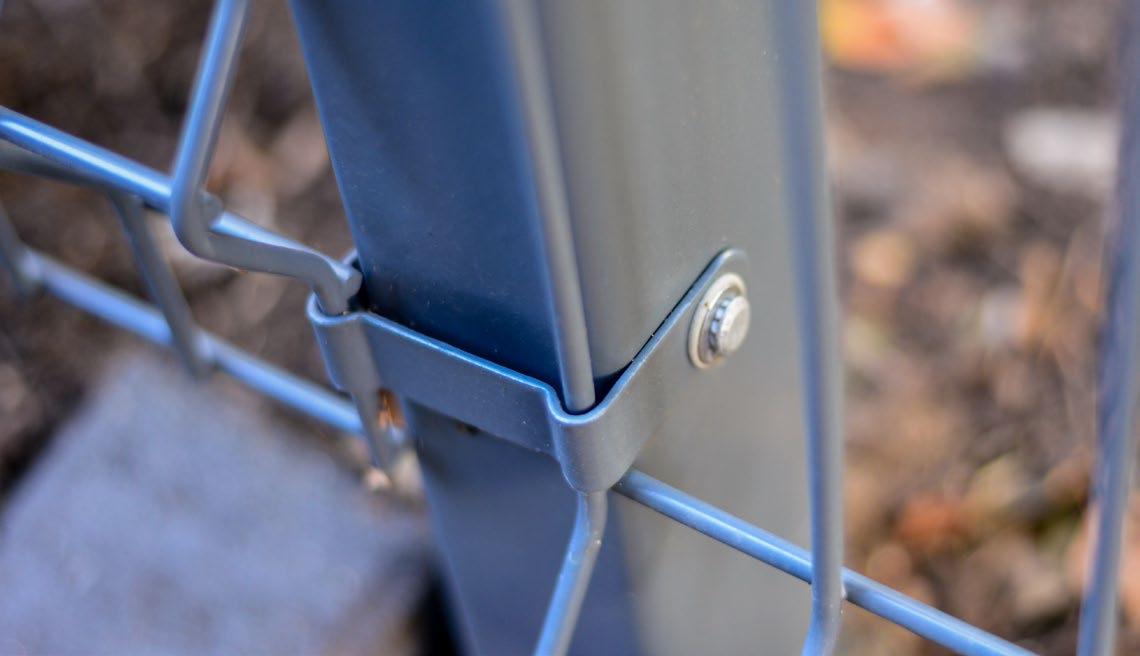

Fixing bracket detail

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

1525

3034

60 x 40

2100

1810

3034

60 x 40

2500

2010

3034

60 x 40

2800

2410

3054

80 x 60

3300 Scan to view on our website

POST OPTIONS

FINISHES

STANDARD COLOURS

• Overlength set in concrete as standard

• Panels are Galfan® zinc alloy coated to BS EN 10244-2:2009 class A

• Base plated to bolt down onto concrete

• Galvanised and powder coated to BS EN 13438

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Cranked to suit wall mounting

• Marine coat for installations within 500m of salt water or an estuary

• Architectural grade powder coating • Other colours on request

24

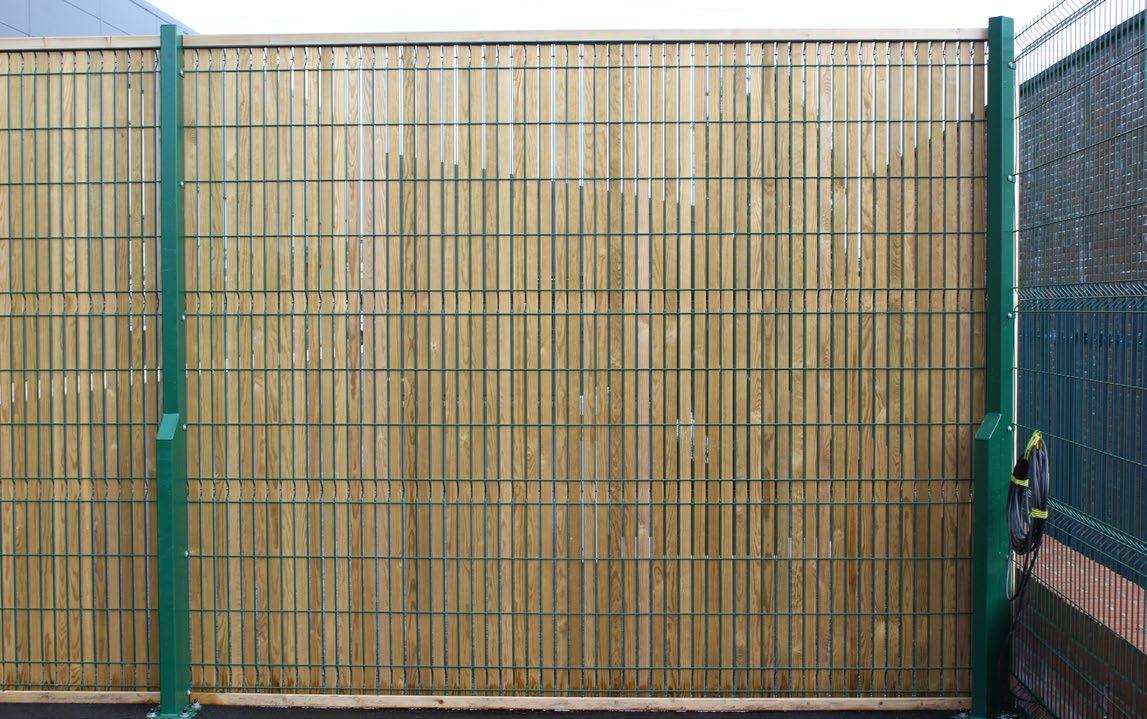

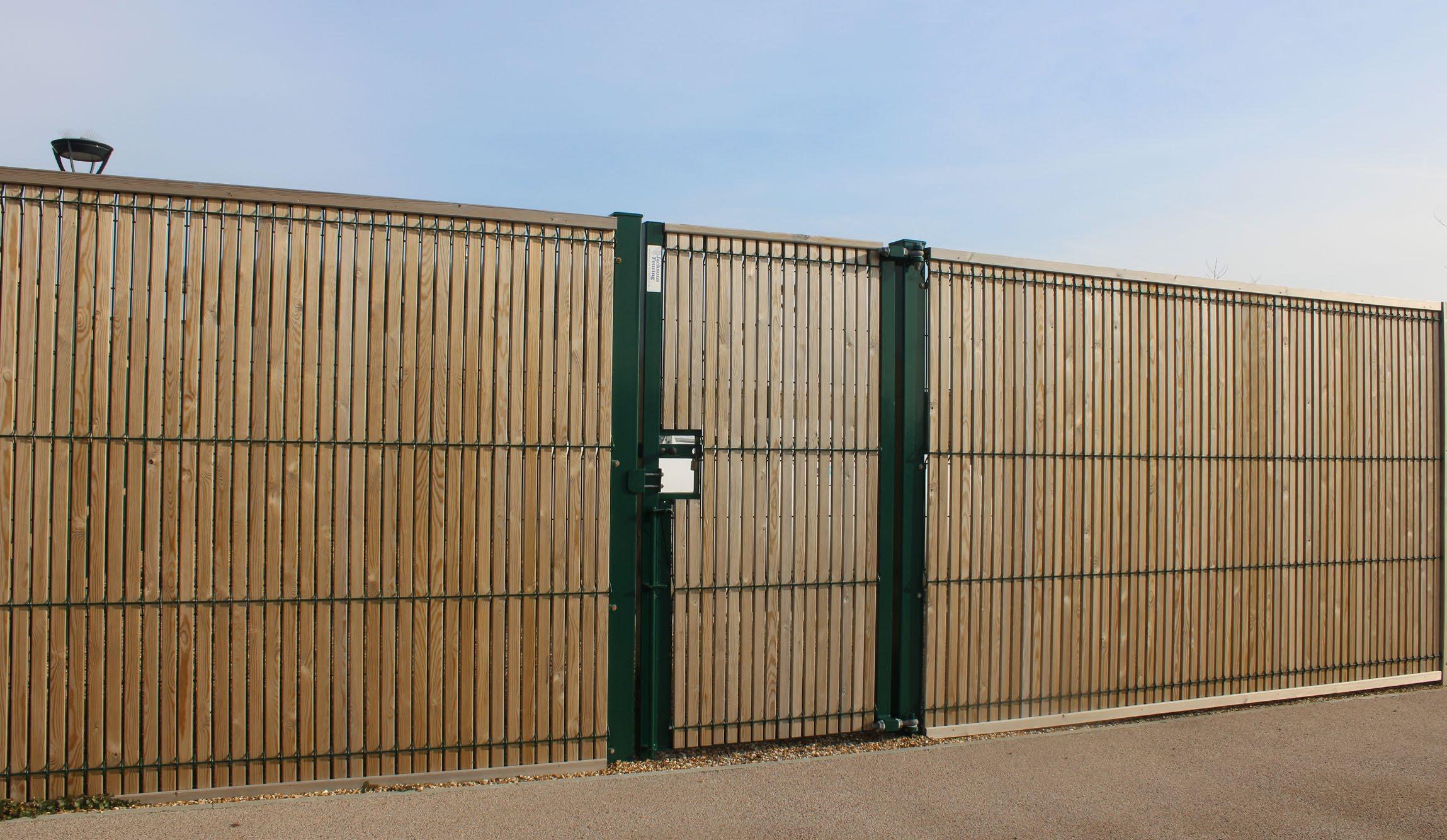

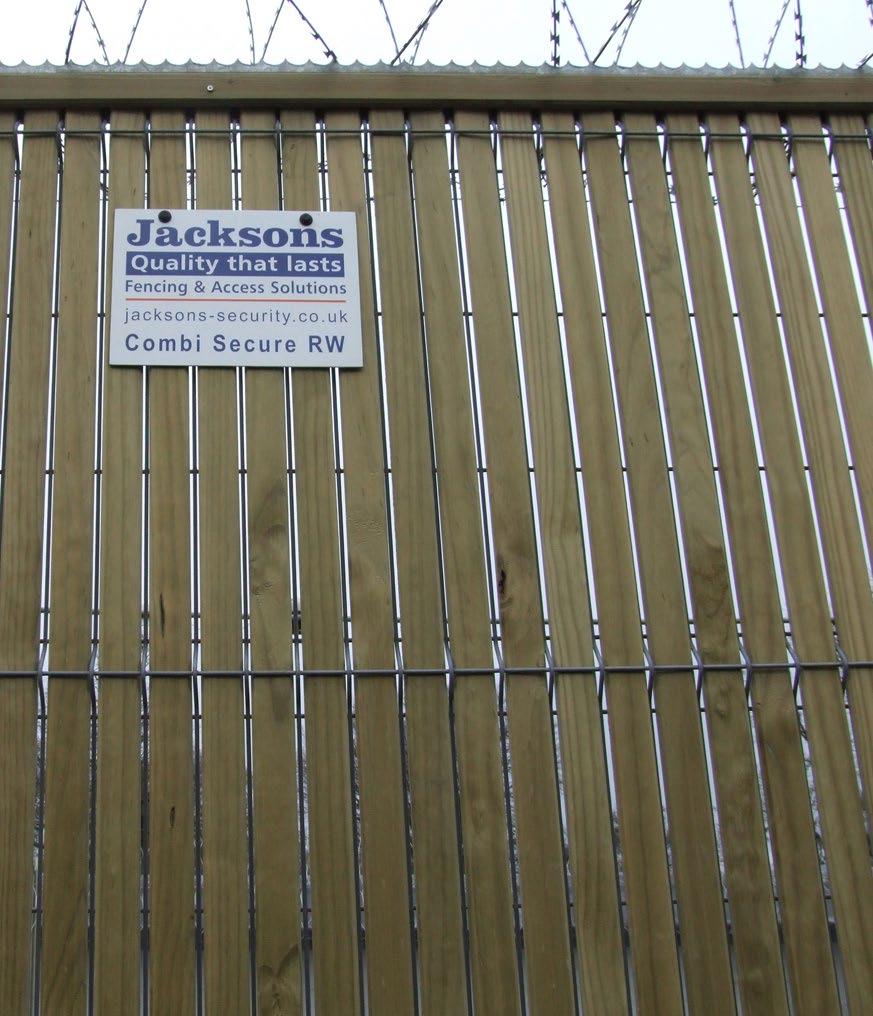

EUROGUARD® COMBI

EuroGuard® Combi brings our experience and reputation in steel and timber fencing and gates together in a design that combines the beauty of natural wood with the strength of steel. The robust fence panels and matching gates provide the additional advantages of a flat facing surface with no hand or foot holds as well as closely spaced slats for added privacy.

50mm

200mm

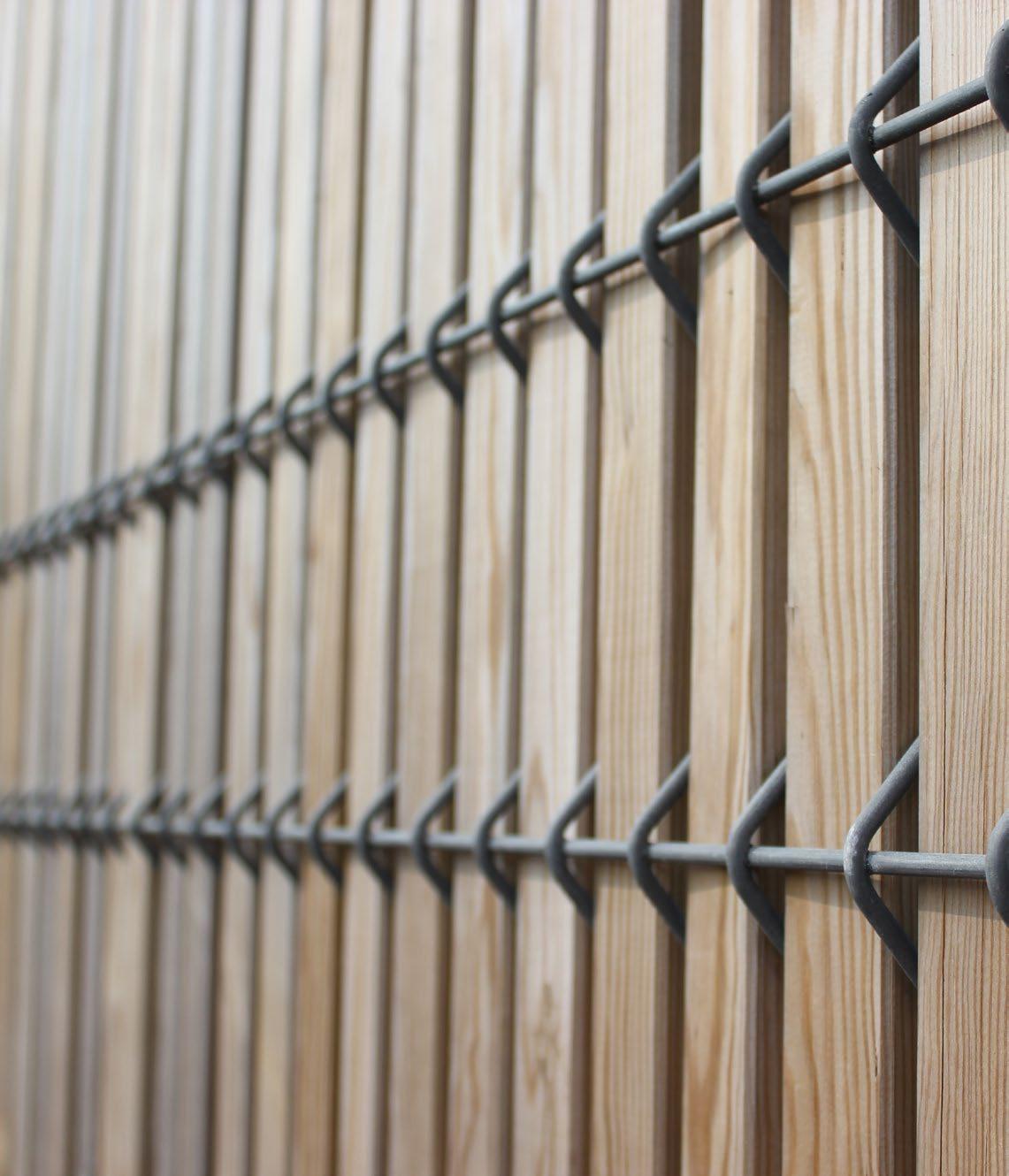

• Welded mesh panels with timber slats • Mesh 200 x 50mm centres with 45mm gap, 5mm wire (wire measured prior to coating) • Unique vandal-proof panel to post connectors with fixings on secure side of fence • Can be stepped to accommodate sloping ground • Posts can be customised for Barbed wire / Razor wire / Rota Spike® / Alarm-aFence® • Panels can be topped with Viper Spike® / Cobra Spike® • 25 year service life and Jakcure® guarantee

Mesh detail

APPLICATIONS 4Schools 4Medium - High risk 4Storage

PANELS

Mesh with ‘V’ profile with 3 - 4 reinforcing folds (subject to height).

Made using 5mm horizontal and vertical wires with 200 x 50mm mesh centres, welded at intersections.

Timber slats are treated using our Jakcure® treatment, guaranteeing the timber for 25 years against rot or insect attack.

25

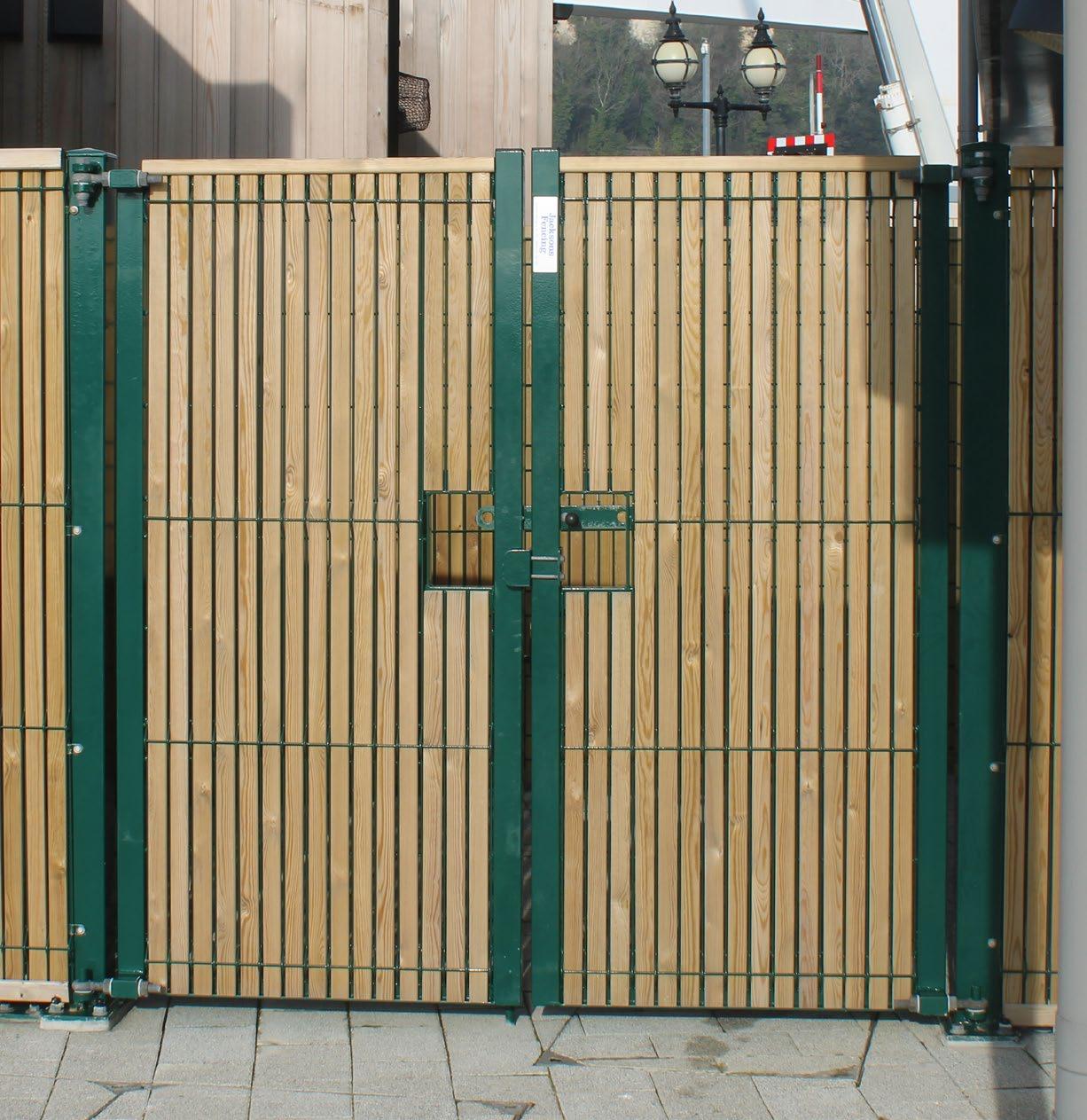

GATES Matching single leaf and double leaf gates available

Fixing bracket detail

Back of EuroGuard Combi® showing spur post height (mm)

post centres (mm)

timber slats (mm)

post dimensions (mm)

overall post length (mm)

1585

3054

40 x 17

60 x 60 (with spur post)

2100

1870

3054

40 x 17

80 x 60 (with spur post)

2500

2070

3054

40 x 17

80 x 60 (with spur post)

2800

2470

3054

40 x 17

80 x 60 (with spur post)

3300

3170

3054

40 x 17

120 x 60 (with spur post)

3900

Scan to view on our website

POST OPTIONS

FINISHES

STANDARD COLOURS

• Overlength set in concrete as standard

• Panels are Galfan® zinc alloy coated to BS EN 10244-2:2009 class A

• Base plated to bolt down onto concrete

• Galvanised and powder coated to BS EN 13438

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Cranked to suit wall mounting

• Timber slats are planed, Jakcure vacuum pressure treated as standard

• Spur post as standard

• Marine coat for installations within 500m of salt water or an estuary

• Architectural grade powder coating • Other colours on request

26

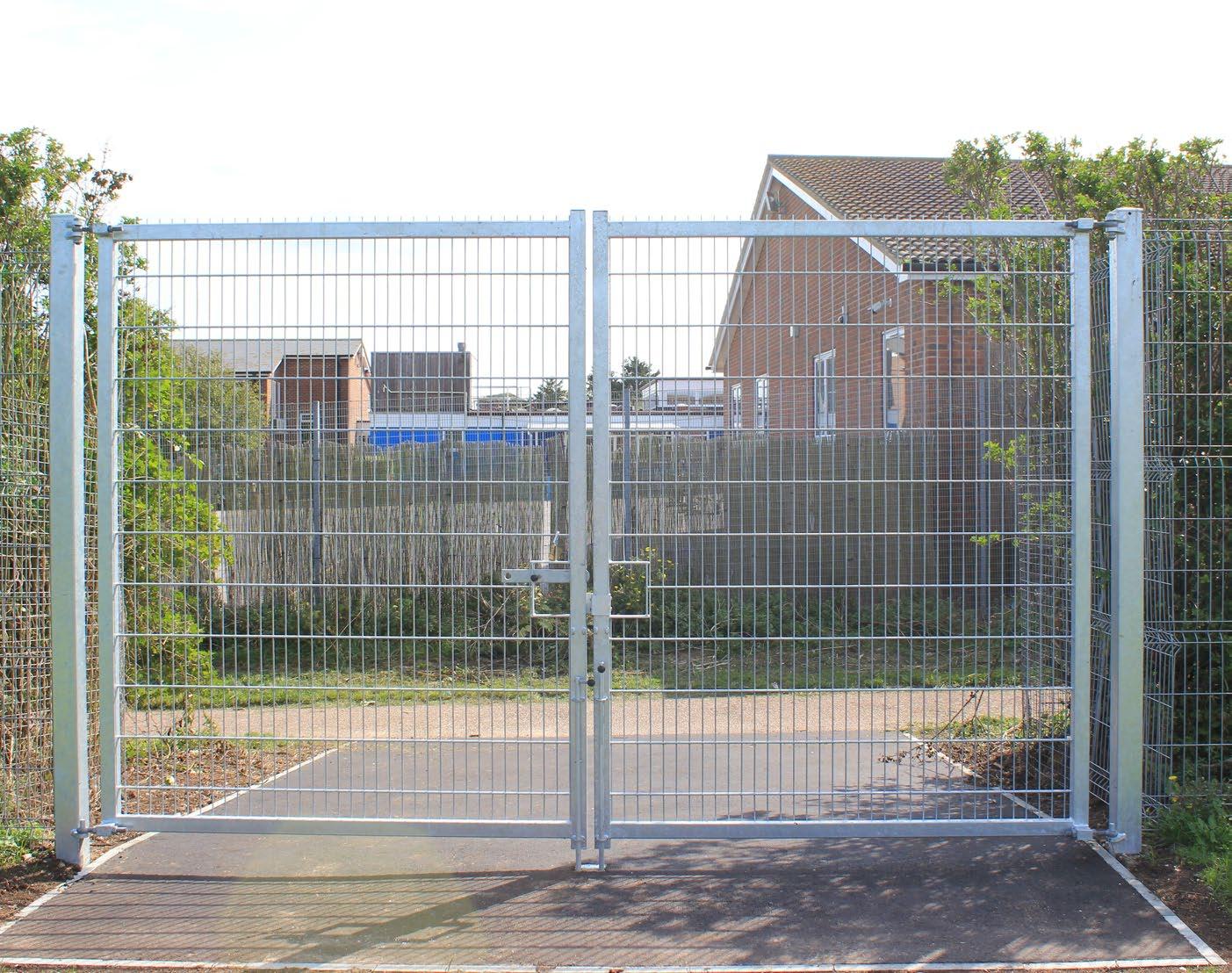

EUROGUARD® FLATFORM

BARBICAN ® EuroGuard® Flatform has a flat profile with double horizontal wires. It is ideal for commercial sites (schools or play areas) or similar installations; anywhere durability and security is important. The panels can be stacked above one another to give a 6000mm high fence.

50mm

• Available in medium 200 x 50mm wire centres with 45mm gap

6mm wire

50mm

8mm wire

• Available in heavy 200 x 50mm wire centres with 45mm gap - double 8mm horizontal wire, 6mm vertical wire

200mm

- double 6mm horizontal wire, 5mm vertical wire

6mm wire

5mm wire

• Unique vandal-proof panel to post connectors with fixings on secure side of fence • Can be stepped to accommodate sloping ground • Posts can be customised for Barbed wire / Razor wire / Rota Spike® / Alarm-aFence® • 25 year service life guarantee Medium Mesh detail

Heavy Mesh detail

APPLICATIONS

PANELS

GATES

4Sports

Mesh panels have a flat profile with double horizontal wires, welded at intersections

EuroGuard® Flatform Heavy single leaf and double leaf gates available

4Industrial sites 4Schools

27

Fixing bracket detail

height (mm)

post centres (mm)

medium

post dimensions (mm)

overall post length (mm)

1030

3034



60 x 40

1600

1230

3034



60 x 40

1800

1830

3034



60 x 40

2500

2030

3034





60 x 40

2800

2430

3054





80 x 60

3300

heavy

Scan to view on our website

POST OPTIONS

FINISHES

STANDARD COLOURS

• Overlength set in concrete as standard

• Panels are Galfan® zinc alloy coated to BS EN 10244-2:2009 class A

• Base plated to bolt down onto concrete

• Galvanised and powder coated to BS EN 13438

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Cranked to suit wall mounting

• Marine coat for installations within 500m of salt water or an estuary

• Architectural grade powder coating • Other colours on request

28

EUROGUARD® EXTRA

BARBICAN ® EuroGuard® Extra panels are unique to Jacksons and feature vertical and horizontal wires and smaller mesh apertures which are perfect for higher risk applications where security is a priority. EuroGuard® Extra has “V” profile reinforcing folds which increase the panels rigidity and strength.

30mm

200mm

• 200 x 30mm wire centres, 25mm gap with a 5mm wire • Unique vandal-proof panel to post connectors with fixings on secure side of fence • Can be stepped to accommodate sloping ground • Posts can be customised for Barbed wire / Razor wire / Rota Spike® / Alarm-aFence® • 25 year service life guarantee

5mm wire

Mesh detail

APPLICATIONS

PANELS

GATES

4Industrial sites

Mesh panels with ‘V’ profile with 4 reinforcing folds are made using 5mm horizontal and vertical wires with 200 x 30mm wire centres, welded at intersections.

Matching single leaf and double leaf gates available

4Medium - High risk 4Commercial premises

29

Fixing bracket detail

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

2010

3054

80 x 60

2800

2410

3054

80 x 60

3300

Scan to view on our website

POST OPTIONS

FINISHES

STANDARD COLOURS

• Overlength set in concrete as standard

• Panels are Galfan® zinc alloy coated to BS EN 10244-2:2009 class A

• Base plated to bolt down onto concrete

• Galvanised and powder coated to BS EN 13438

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Cranked to suit wall mounting

• Marine coat for installations within 500m of salt water or an estuary

• Architectural grade powder coating • Other colours on request

30

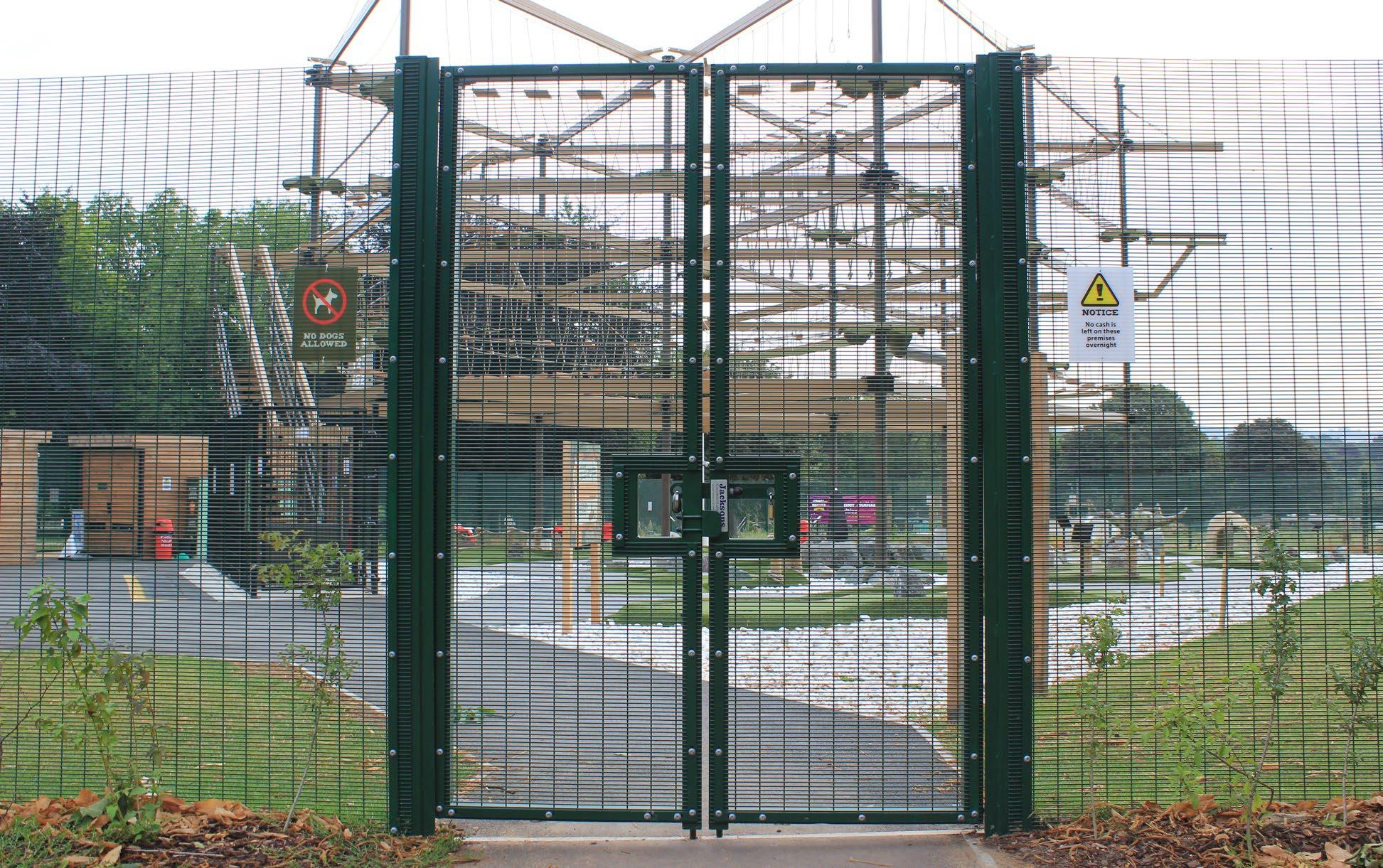

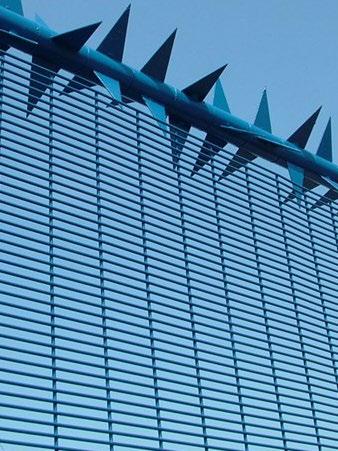

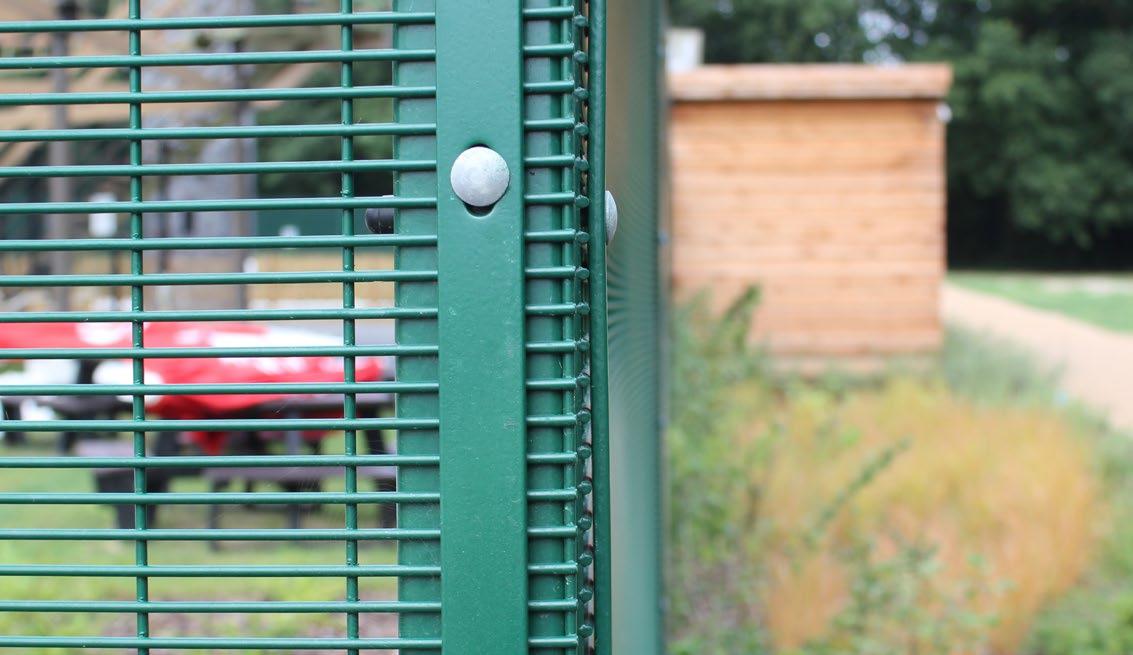

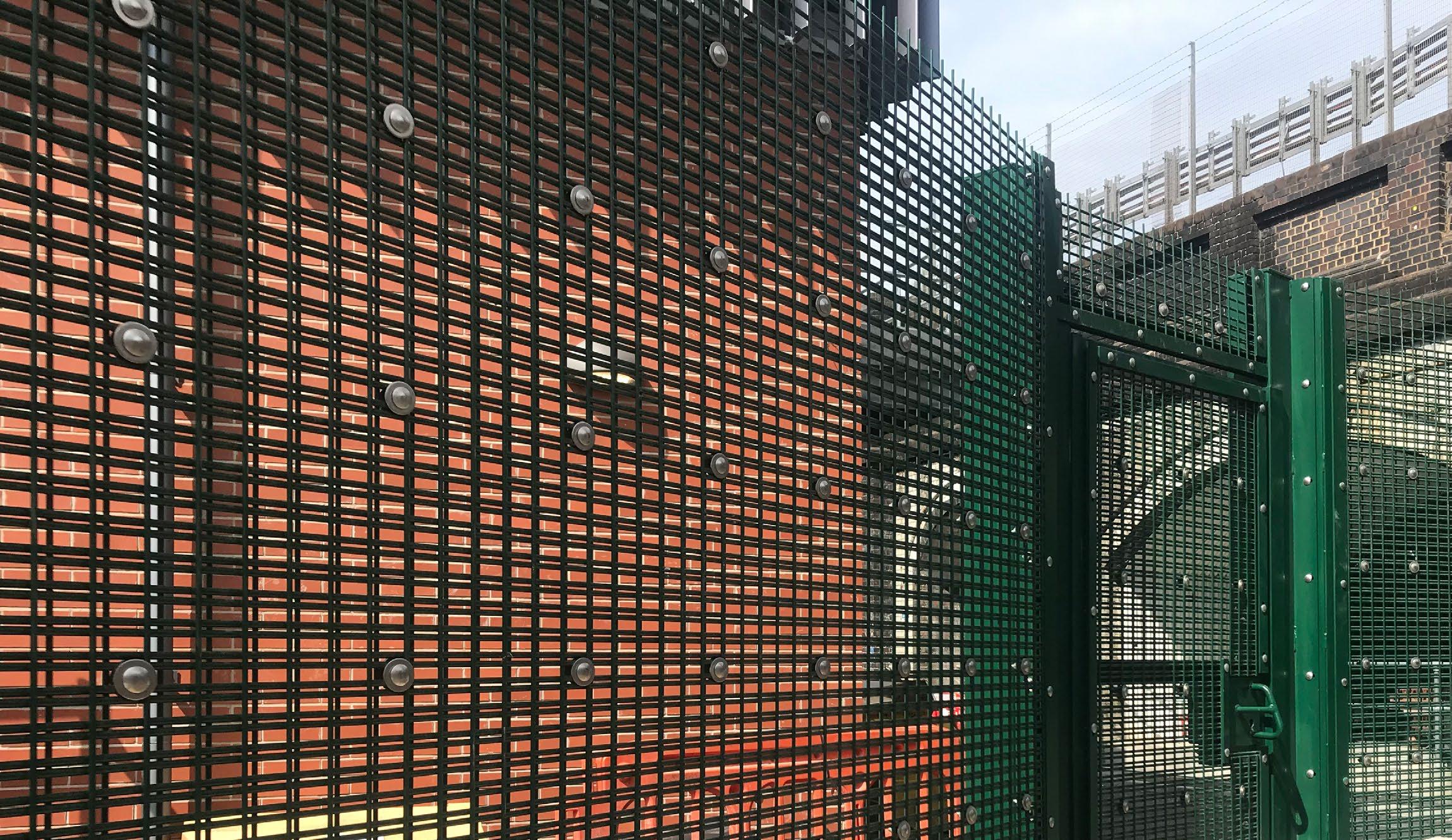

SECURI-MESH®

Securi-Mesh® fencing, also known as 358 or prison mesh, provides an ideal solution for a wide variety of high security perimeter and access control applications. Both the mesh and posts are designed to meet Home Office specifications for use in utilities sites, high risk locations and secure compounds.

• Posts can be customised for Barbed wire / Razor wire / Rota Spike® / Alarm-aFence® • Overlapped by a minimum of 75mm at posts to maintain integrity of protection • Clamp bar fixings • Mesh spacing conforms to building regulations for anti-trap • Anti-climb design • Can be stepped to accommodate sloping ground • Custom designs available Securi-Mesh Panels • 25 year service life guarantee ®

Post to panel fixings

Clamp bar Securi-Mesh® Panels

APPLICATIONS

PANELS

GATES

4Utilities

Securi-Mesh® panels are constructed from 76.2 x 12.7mm mesh (3” x 1/2”) with 4mm wire. Panel widths are 2515mm as standard, with heights up to 5200mm.

Matching single leaf and double leaf gates available

4High risk 4Secure compounds

31

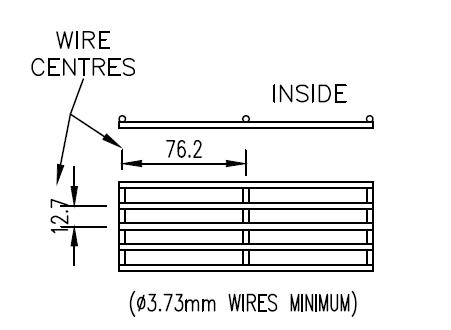

76.2mm

12.7mm

Mesh detail

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

1270

2440

80 x 60

1900

2134

2440

80 x 60

2900

2440

2440

80 x 60

3300

2705

2440

80 x 60

3500

3000

2440

80 x 60

3800

3300

2440

120 x 60

4100

4200

2440

120 x 120

5100

5210

2440

150 x 150

6200

Scan to view on our website

POST OPTIONS

FINISHES

STANDARD COLOURS

• Overlength set in concrete as standard

• Panels are Galfan® zinc alloy coated to BS EN 10244-2:2009 class A

• Base plated to bolt down onto concrete

• Galvanised and powder coated to BS EN 13438

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Cranked to suit wall mounting

• Marine coat for installations within 500m of salt water or an estuary

• Architectural grade powder coating • Other colours on request

32

SECURI-MESH® PLUS

Securi-Mesh® Plus features anti climb double layer mesh panels with small apertures to eliminate foot and finger holds; preventing objects being passed through. The system is particularly effective against the use of conventional hand and portable power cutting tools.

• Posts can be customised for Barbed wire / Razor wire / Rota Spike® / Alarm-aFence® • Staggered double skin mesh panels with wire welded at every intersection • Overlapped by a minimum of 75mm at posts to maintain integrity of protection • Anti-climb design • Can be stepped to accommodate sloping ground • 25 year service life guarantee

Post to panel fixings

Clamp bar Securi-Mesh® Panels

Securi-Mesh® Panels

APPLICATIONS

PANELS

GATES

4Utilities

Staggered double skin of 76.2mm x 12.7mm resistance mesh up to 2400mm only. Second panel is an internal skin only, single skin then from 2400mm upwards.

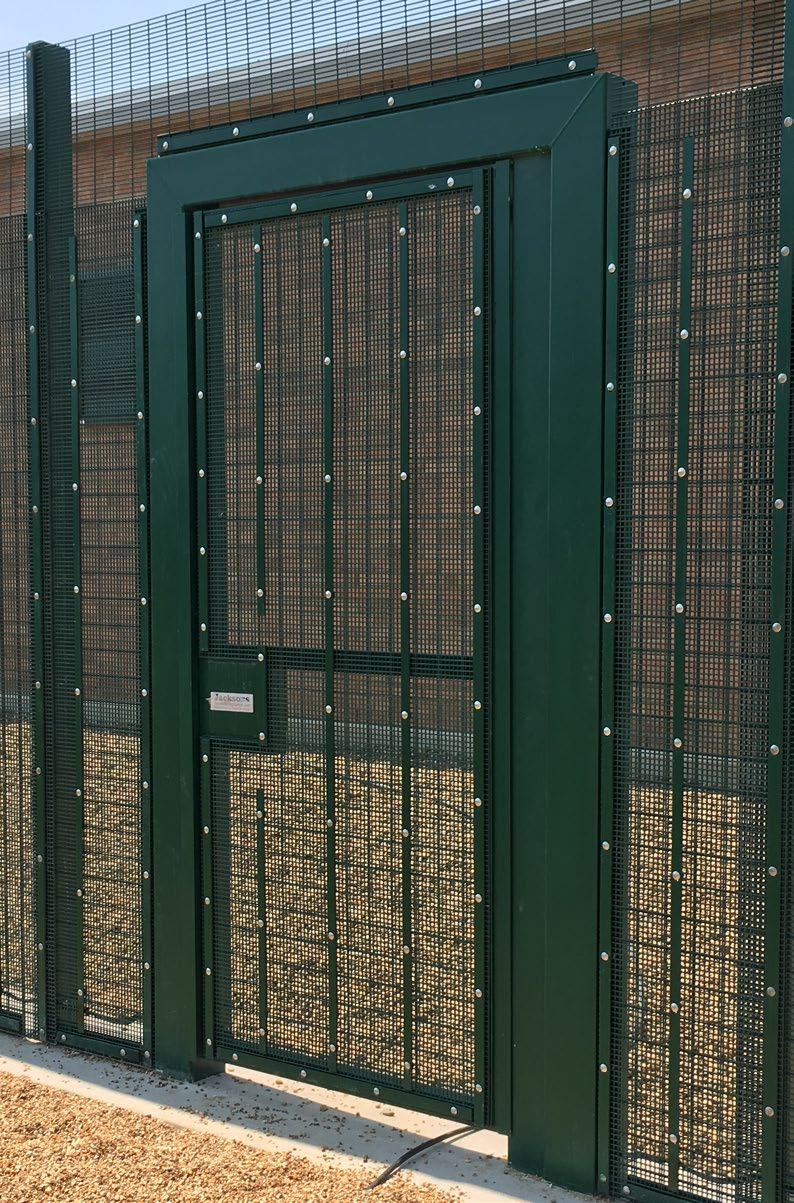

Matching single leaf and double leaf gates available

4High risk 4Secure compounds

33

12.7mm

Mesh detail

height (mm)

post centres (mm)

post dimensions (mm)

mesh

1270 - 5200

2440

Dimensions to suit fence height and location

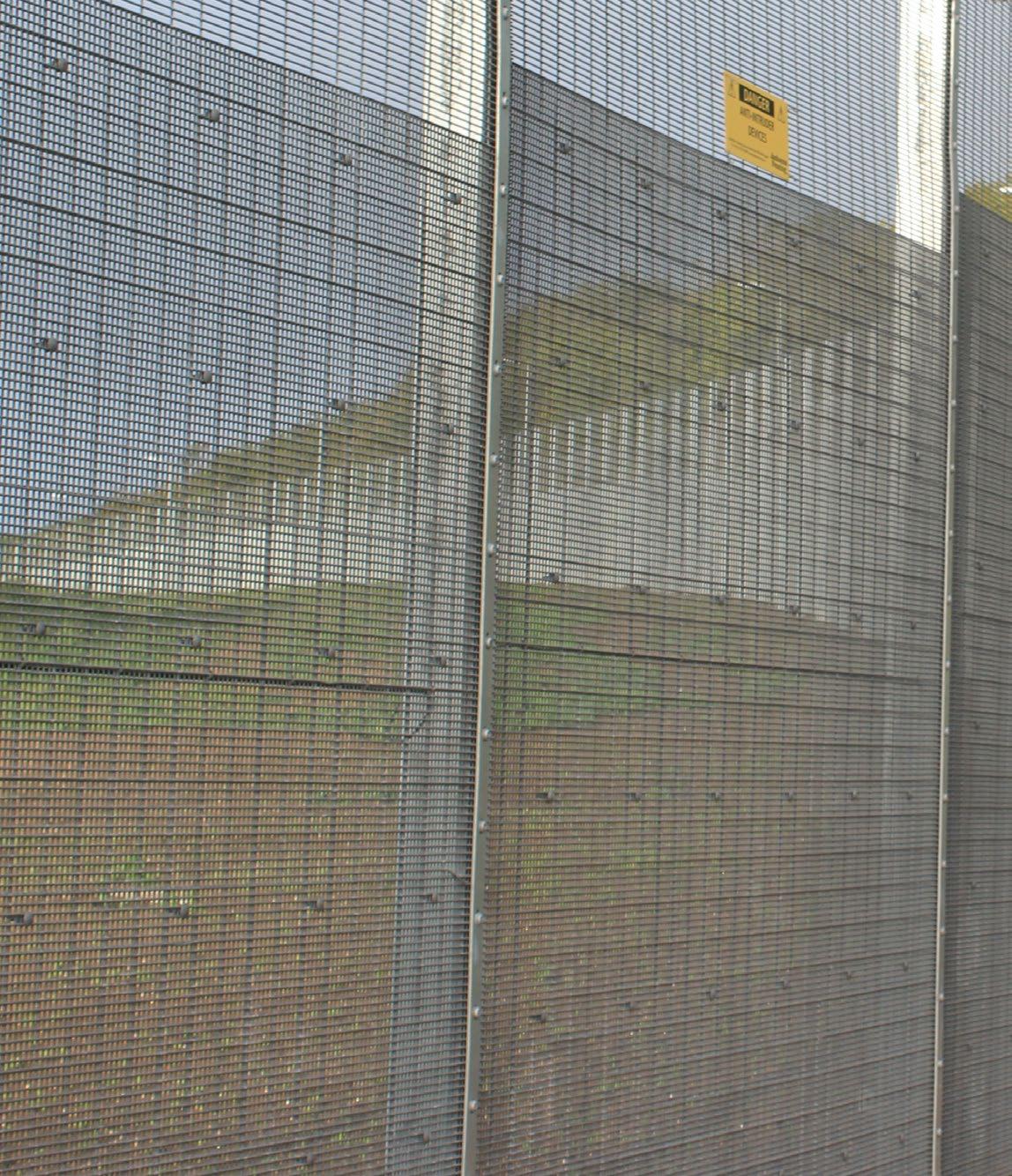

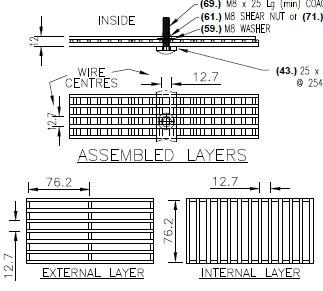

Staggered double skin of 76.2 x 12.7mm resistance mesh welded at each intersection

Double clad only up to 2515mm high, single clad above 2515mm

Scan to view on our website

POST OPTIONS

FINISHES

STANDARD COLOURS

• Overlength set in concrete as standard

• Panels are Galfan® zinc alloy coated to BS EN 10244-2:2009 class A

• Base plated to bolt down onto concrete

• Galvanised and powder coated to BS EN 13438

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Cranked to suit wall mounting

• Marine coat for installations within 500m of salt water or an estuary

• Architectural grade powder coating • Other colours on request

34

SECURITY COMPOUNDS

BARBICAN ® We have developed a range of security compounds designed for use in internal or external environments to provide both protection and managed access control. A number of security compound sizes and specifications are available and we are able to also design and manufacture bespoke solutions made to order.

• Gates include slide latch as standard • Gate options include key lock, digi-pad, magnetic lock or push pad • 25 year service life guarantee

APPLICATIONS

POST OPTIONS

4High risk

• Overlength set in concrete as standard

4Data centres 4Gas bottle storage 4Bike storage

35

• Base plated to bolt down onto concrete

mesh style

mesh size (mm)

features

EuroGuard® Regular

200 x 50

2 - 4 reinforcing folds according to height

EuroGuard® Flatform (medium)

200 x 50

Double 6mm horizontal, 5mm vertical

200 x 50

Double 8mm horizontal, 6mm vertical

200 x 30

2 - 4 pressed beams according to height

200 x 50

Timber slats inserted between the wires

75 x 12.5

Anti-climb design

®

EuroGuard Flatform (heavy) ®

EuroGuard Extra ®

EuroGuard Combi Securi-Mesh

®

FINISHES

STANDARD COLOURS

• Panels are Galfan® zinc alloy coated to BS EN 10244-2:2009 class A

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Galvanised and powder coated to BS EN 13438 • Marine coat for installations within 500m of salt water or an estuary

Scan to view on our website

• Architectural grade powder coating • Other colours on request

36

LPCB LPS 1175 APPROVED PRODUCTS LPCB LPS 1175 covers physical security products and services, and comprises of a number of security ratings from A1 to H20, formerly known as SR1 - SR8.

The ratings are measured in terms of attack tool and time available to the attacker, and enable specifiers to select products according to the risks that the site might face. The LPS 1175 standard can be used in a range of applications from residential through to critical infrastructure projects.

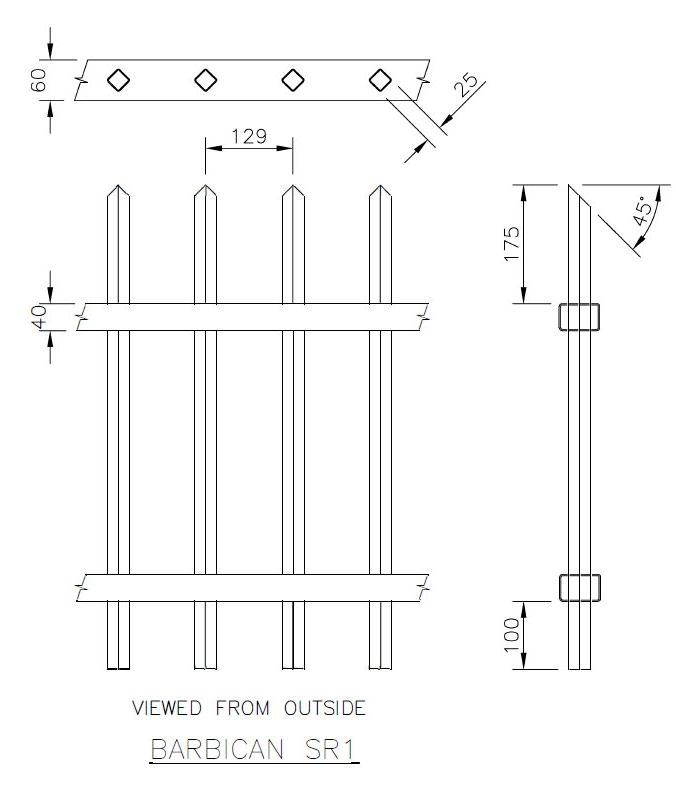

A1 (SR1) & B3 (SR2) Products provide the minimum levels of recognised resistance to opportunist attempts at forced entry using a range of techniques including those that create noise.

C5 (SR3) Products provide moderate resistance to determined attempts of forced entry using a range of techniques, including those that involve creation of noise.

D10 (SR4) & E10 (SR5) Products resist experienced attempts at forced entry using a wide range of tools including battery powered tools lasting up to 10 minutes depending on the security rating sought.

38

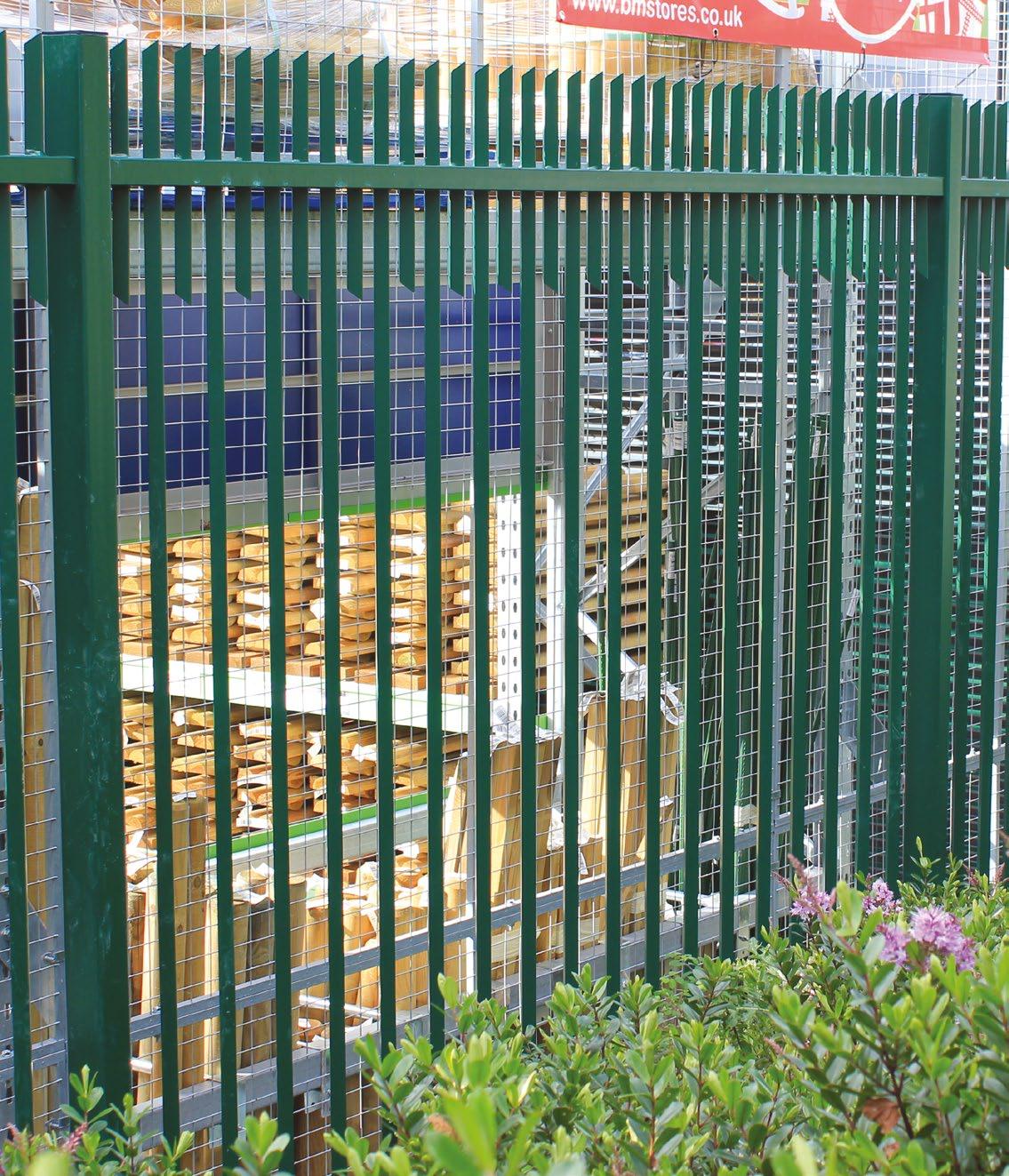

BARBICAN ® A1 (SR1)

BARBICAN ® Our Barbican® A1 (SR1) LPS 1175 systems feature a welded pale-through-rail construction for strength and security integrity.

Barbican® SR1 is an ideal option for commercial properties, city schools, or great for architects who want a minimalist contemporary fence which meets LPS 1175 standard set by the Loss Prevention Certification Board (LPCB).

• Fully welded pale-through-rail construction • Seamless, concealed vandal proof rail to post fixing • Anti-climb and anti-scale design • 25 year service life guarantee

Post to panel fixings

APPLICATIONS

PANELS

GATES

4Schools

Barbican® SR1 panels are up to 3000mm high and have two horizontal hollow section rails 60 x 40mm (3 rails if 3000mm high). Vertical rectangular hollow section 25 x 25mm pales are passed through the rails with standard spacing at 129mm centres. The tops of pales are cut at 45 degrees and left open as standard to form a point.

A1 (SR1) gates available

4Perimeter security 4Commercial premises

39

APPROVALS LPS 1175 A1 (SR1)

LPS 1175: Issue 8 Cert/LPCB ref. 913h

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

1800

3000

60 x 60

2500

2000

3000

60 x 60

2800

2500

3000

80 x 60

3300

3000

2484

80 x 60

3800 Scan to view on our website

FINISHES

POST OPTIONS

STANDARD COLOURS

• Hot dip galvanised to BS EN 1461 as standard

• Overlength set in concrete as standard

• Hot dip galvanised and powder coated to BS EN 13438 in any standard colour

• Baseplated to bolt down onto concrete

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Other colours on request • Marine coat for installations within 500m of salt water or estuary

• Architectural grade powder coating • Other colours on request

40

BARBICAN IMPERIAL® A1 (SR1)

BARBICAN ® Barbican Imperial® LPS 1175 A1 (SR1) system of fencing and gates features a welded pale-through-rail construction for strength and security integrity. The horizontal railed are sleeved on to the upright posts with concealed fixings to provide timeless design suited to commercial properties, schools or applications where a contemporary fence meeting with a recognised security rating is specified.

• Fully welded pale-through-rail construction • Seamless, concealed vandal proof rail to post fixing • Anti-climb and anti-scale • 25 year service life guarantee

Post to panel fixings

APPLICATIONS

PANELS

GATES

4Medium risk

Barbican Imperial® SR1 has vertical round hollow section ø 32mm diameter pales up to 2000mm high at 129mm centres and 32mm for 2100mm+ with 129mm centres.

A1 (SR1) gates available

4Schools 4Retail

APPROVALS LPS 1175 A1 (SR1)

4Public spaces LPS 1175: Issue 8 Cert/LPCB ref. 913h 41

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

1800 2000

3000

80 x 60

2500

3000

80 x 60

2800

2500

3000

80 x 60

3300

3000

2484

80 x 60

3800 Scan to view on our website

FINISHES

POST OPTIONS

STANDARD COLOURS

• Hot dip galvanised to BS EN 1461 as standard

• Overlength set in concrete as standard

• Hot dip galvanised and powder coated to BS EN 13438 in any standard colour

• Baseplated to bolt down onto concrete

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Other colours on request • Marine coat for installations within 500m of salt water or estuary

• Architectural grade powder coating • Other colours on request

42

BARBICAN ® EXTRA A1 (SR1)

Barbican® Extra 1175 A1 (SR1) features a welded pale-through-rail construction for strength and security integrity and additional pales through the top rail, making it difficult to scale over. It is ideally suited to commercial properties, schools or applications where a fence meeting with a recognised security rating with enhanced protection against climbing or scaling is specified.

• Fully welded pale-through-rail construction with additional pales through the top rail • Seamless, concealed vandal proof rail to post fixing • Anti-climb design and anti-scale design • 25 year service life guarantee

Post to panel fixings

APPLICATIONS

PANELS

GATES

4Medium risk

Barbican® Extra A1 panels are up to 3000mm high and have two horizontal hollow section rails 60 x 40mm (3 rails if 3000mm high). Vertical rectangular hollow section 25 x 25mm pales are passed through the rails with standard spacing at 129mm centres, with additional pales through top rail and between each full pale.

A1 gates available.

4Transport 4Public spaces

43

APPROVALS LPS 1175 A1 (SR1)

LPS 1175: Issue 8 Cert/LPCB ref. 913h

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

1800

3000

60 x 60

2500

2000

3000

80 x 60

2800

2500

3000

80 x 60

3300

3000

2484

80 x 60

3800

Scan to view on our website

FINISHES

POST OPTIONS

STANDARD COLOURS

• Hot dip galvanised to BS EN 1461 as standard

• Overlength set in concrete as standard

• Hot dip galvanised and powder coated to BS EN 13438 in any standard colour

• Baseplated to bolt down onto concrete

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Other colours on request • Marine coat for installations within 500m of salt water or estuary

• Architectural grade powder coating • Other colours on request

44

BARBICAN ® WITH FINIALS A1 (SR1)

Barbican® with Finials A1 (SR1) mimics traditional steel railing designs and features a welded-pale-through-rail design which means there are no rivets to be forced or pales that can be easily removed. The horizontal rails are sleeved on to the upright post with concealed fixings to provide a seamless design that is both stylish and strong.

• Fully welded pale-through-rail construction with additional pales through the top rail • Seamless, concealed vandal proof rail to post fixing • Anti-climb design and anti-scale design • 25 year service life guarantee

Post to panel fixings

POST OPTIONS

PANELS

GATES

• Overlength set in concrete as standard

Barbican® with Finials A1 panels are up to 3000mm high and have two horizontal hollow sections rails 60 x 40mm (3 rails if 3000mm high). Vertical rectangular hollow section 25 x 25mm pales are passed through the rails with standard spacing at 129mm centres. The tops of pales are have welded Saxon finials for additional security.

A1 (SR1) gates available

45

FINIAL 175mm

• Baseplated to bolt down onto concrete

Saxon finial (L)

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

1800

3000

60 x 60

2500

2000

3000

60 x 60

2800

2500

3000

80 x 60

3300

3000

2484

80 x 60

3800 Scan to view on our website

FINISHES

STANDARD COLOURS

APPROVALS

• Hot dip galvanised to BS EN 1461 as standard

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

LPS 1175 A1 (SR1)

• Hot dip galvanised and powder coated to BS EN 13438 in any standard colour • Other colours on request • Marine coat for installations within 500m of salt water or estuary

• Architectural grade powder coating

LPS 1175: Issue 8 Cert/LPCB ref. 913h

• Other colours on request

46

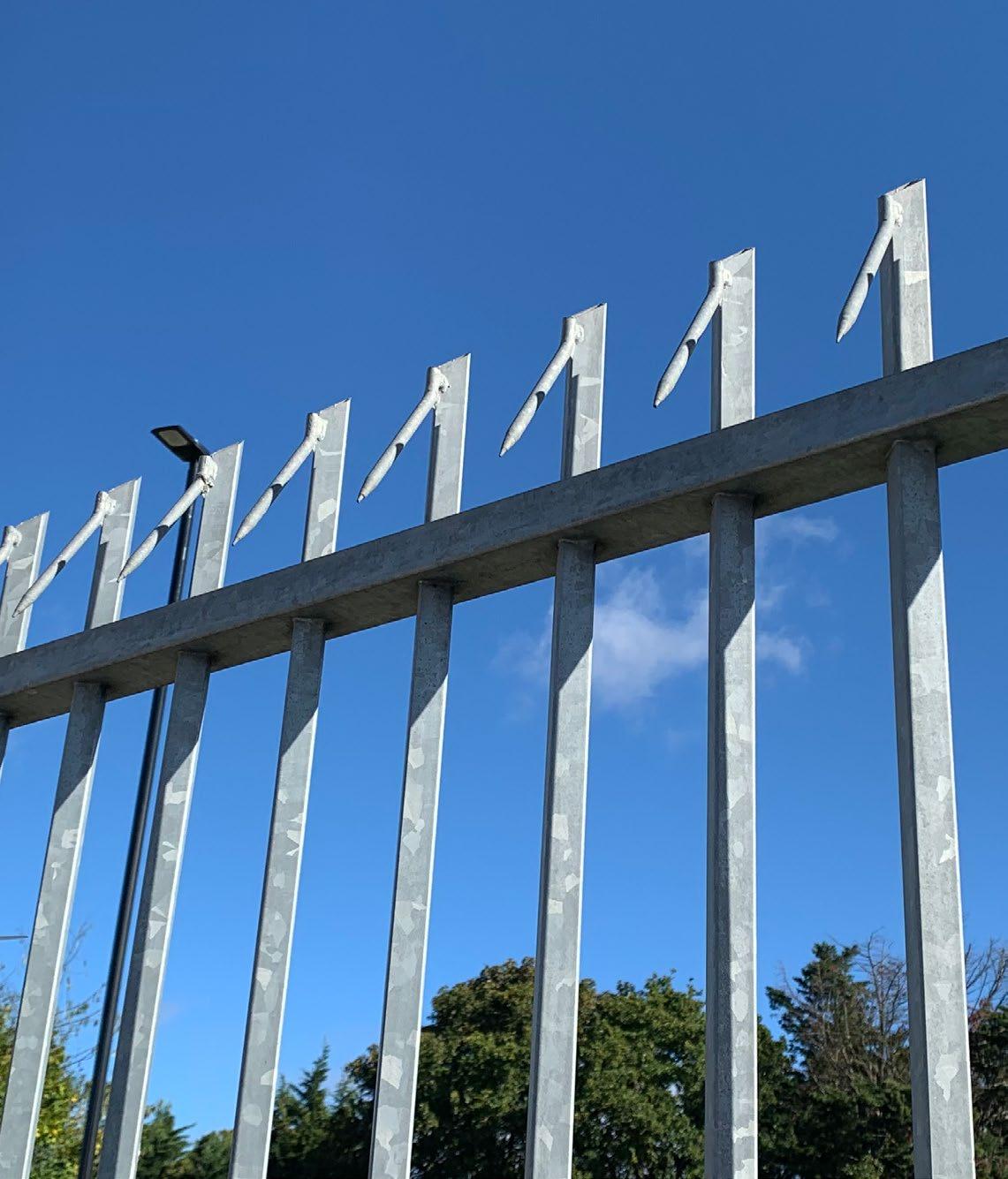

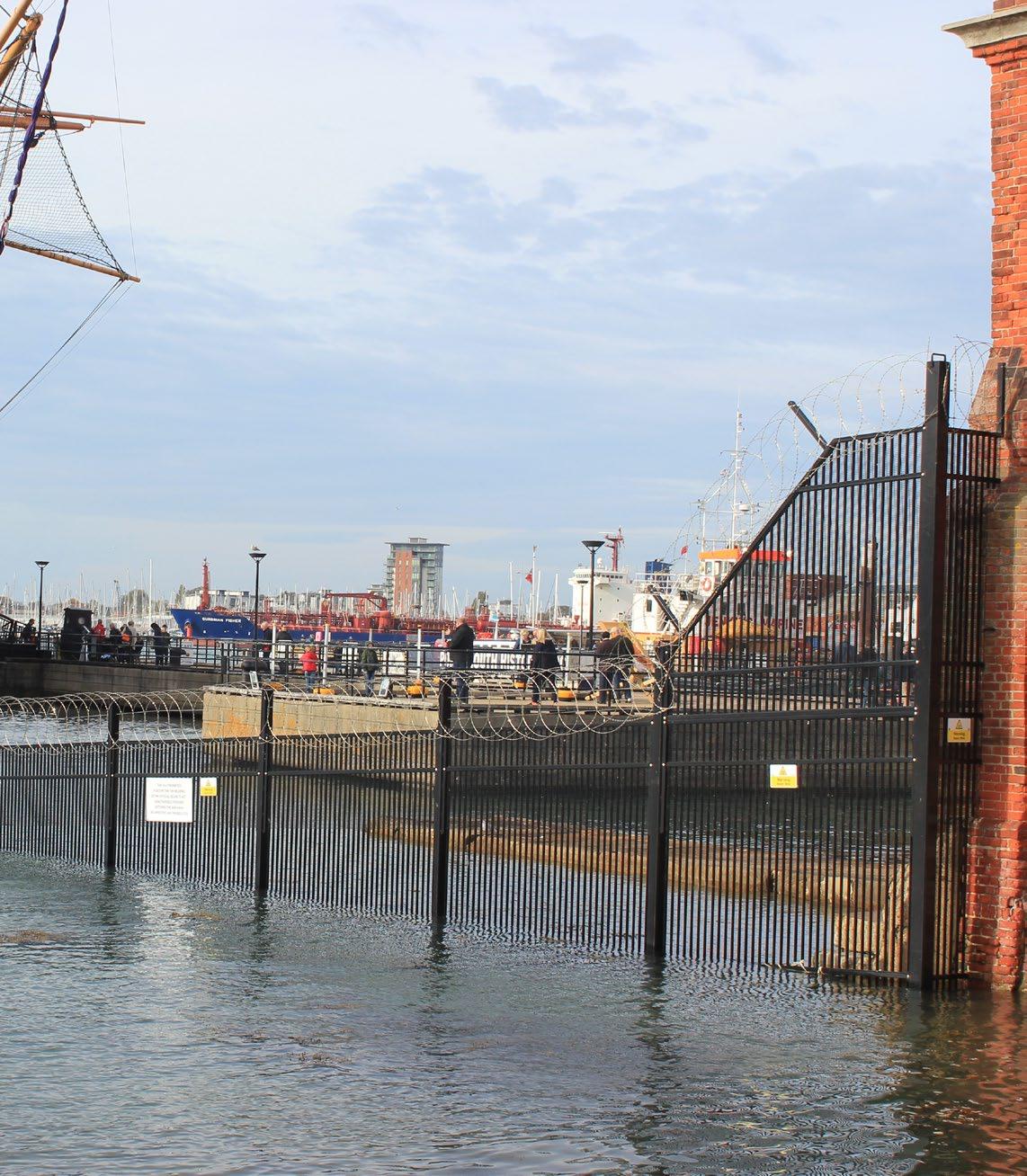

BARBICAN ® BARBED TOP A1 (SR1)

Barbican® Barbed Top SR1 fencing features a welded pale-through-rail construction with barbs/spikes welded to the top of each pale to underline its presence and act as a deterrent to climbing and scaling over.

• Fully welded pale-through-rail construction with additional pales through the top rail • Seamless, concealed vandal proof rail to post fixing • Anti-climb design and anti-scale design • 25 year service life guarantee

Post to panel fixings

APPLICATIONS

PANELS

GATES

4Medium risk

Barbican® Barbed Top A1 panels are up to 3000mm high and have two horizontal hollow section rails 60 x 40mm (3 rails if 3000mm high). Vertical rectangular hollow section 25 x 25mm pales are passed through the rails with standard spacing at 129mm centres, which has a 10mm round pointed bar added to each pale.

A1 (SR1) gates available

4Utilities 4Construction sites

47

APPROVALS LPS 1175 A1 (SR1)

LPS 1175: Issue 8 Cert/LPCB ref. 913h

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

1800

3000

60 x 60

2500

2000

3000

60 x 60

2800

2500

3000

80 x 60

3300

3000

2484

80 x 60

3800 Scan to view on our website

FINISHES

POST OPTIONS

STANDARD COLOURS

• Hot dip galvanised to BS EN 1461 as standard

• Overlength set in concrete as standard

• Hot dip galvanised and powder coated to BS EN 13438 in any standard colour

• Baseplated to bolt down onto concrete

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Other colours on request • Marine coat for installations within 500m of salt water or estuary

• Architectural grade powder coating • Other colours on request

48

BARBICAN ® DEFENDER XTREME A1 (SR1)

BARBICAN ® Barbican Defender® Xtreme SR1 projects a powerful visual statement in perimeter protection with a clear anti climb design.

The security fence has curved square bar pales which are designed to prevent intruders from climbing or scaling the fence, whichever side it is approached.

• Fully welded pale-through-rail construction with additional pales through the top rail • Seamless, concealed vandal proof rail to post fixing • Anti-climb design and anti-scale design • 25 year service life guarantee

Post to panel fixings

APPLICATIONS

PANELS

GATES

4High risk

Constructed as per Barbican® panels but pales are extended and cranked 320mm from the top rail, with each one cut at 45 degrees to form a point.

A1 (SR1) gates available

4Commercial premises 4Utilities sites

APPROVALS LPS 1175 A1 (SR1)

LPS 1175: Issue 8 Cert/LPCB ref. 913h 49

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

2250

2484

60 x 60

3050

2500

2484

80 x 60

3300

3000

2484

80 x 60

3800 Scan to view on our website

FINISHES

POST OPTIONS

STANDARD COLOURS

• Hot dip galvanised to BS EN 1461 as standard

• Overlength set in concrete as standard

• Hot dip galvanised and powder coated to BS EN 13438 in any standard colour

• Baseplated to bolt down onto concrete

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Other colours on request • Marine coat for installations within 500m of salt water or estuary

• Architectural grade powder coating • Other colours on request

50

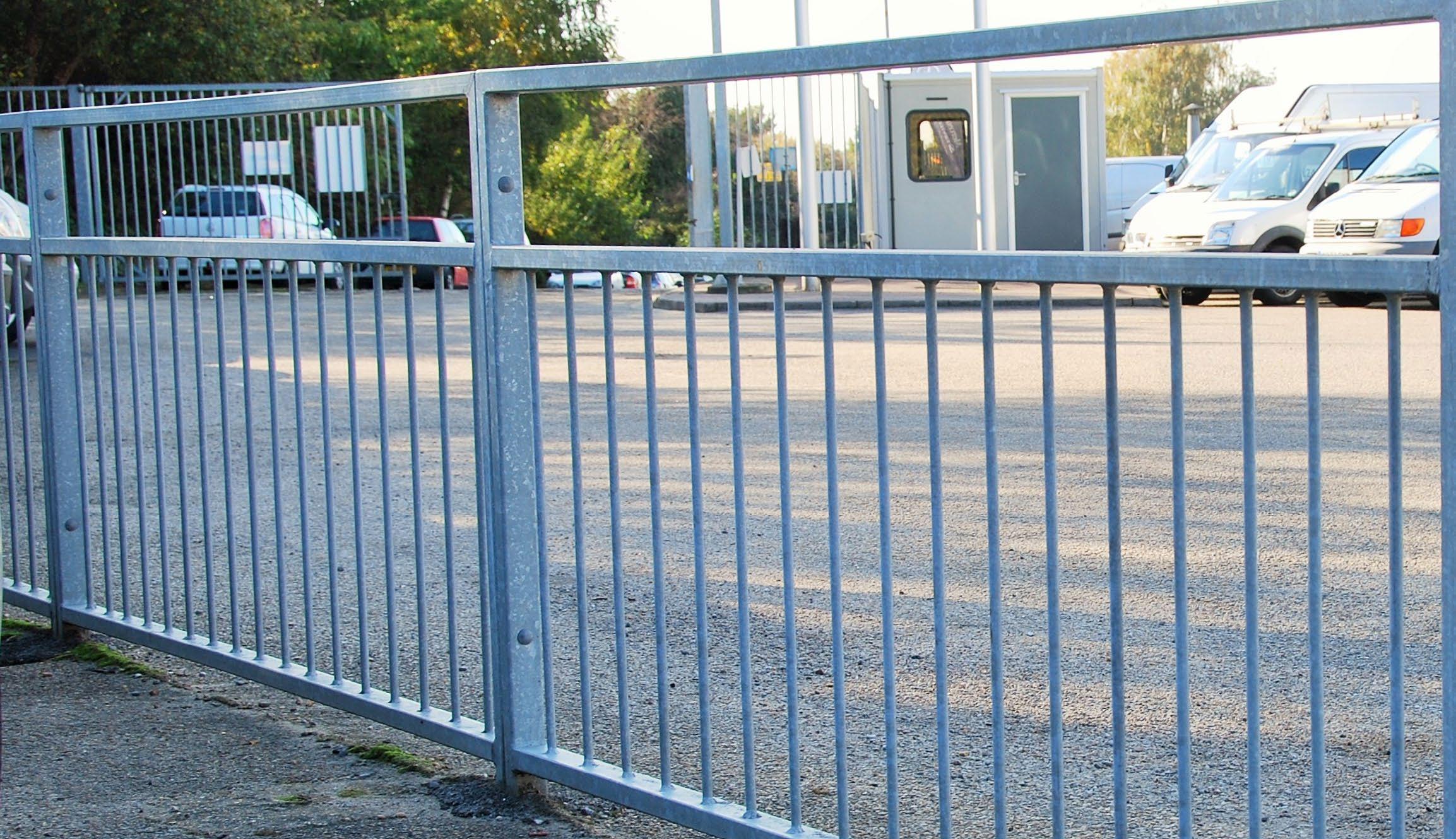

SENTRY® A1 (SR1)

BARBICAN ® Sentry® A1 (SR1) is a security rated vertical bar stopped pale-through-rail solution with a flat top rail, with an option for an integrated 25mm high security comb. Its simple design is equally suited for contemporary and traditional settings.

• Fully welded pale-through-rail construction • Seamless, concealed vandal proof rail to post fixing • Anti-climb design and anti-scale design • Optional double row of 25mm high sharp-pointed steel double comb for additional security • 25 year service life guarantee

Post to panel fixings

APPLICATIONS

PANELS

GATES

4Medium risk

Sentry® A1 panels up to 3000mm high have two horizontal rectangular hollow section rails 60 x 40mm (3 rails if 3000mm high); vertical round hollow section 32mm pales are passed through the rails with standard spacing at 129mm centres. Panels from 1800mm high have a security comb (double row of sharp steel points 23mm x 2mm thick).

A1 (SR1) gates available

4Perimeters 4Commercial premises

51

APPROVALS LPS 1175 A1 (SR1)

LPS 1175: Issue 8 Cert/LPCB ref. 913k

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

1800 2000

3000

60 x 60

2500

3000

60 x 60

2800

2500

3000

80 x 60

3300

3000

2484

80 x 60

3800 Scan to view on our website

FINISHES

POST OPTIONS

• Hot dip galvanised to BS EN 1461 as standard

• Overlength set in concrete as standard

• Hot dip galvanised and powder coated to BS EN 13438 in any standard colour

• Baseplated to bolt down onto concrete

• Other colours on request • Marine coat for installations within 500m of salt water or estuary

STANDARD COLOURS • Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40 • Architectural grade powder coating • Other colours on request

52

EUROGUARD® FLATFORM HEAVY A1 (SR1)

BARBICAN ® EuroGuard® Flatform Heavy A1 (SR1) system provides a welded mesh alternative to vertical railings and features a flat profile with heavy gauge twin horizontal wires for added rigidity and resistance to cutting.

• Wire centres 200 x 50mm • Anti-climb design 26mm top • Unique vandal-proof panel to post connectors with fixings on secure side of fence • 25 year service life guarantee

8mm wire

6mm wire

200mm centres

Mesh detail

APPLICATIONS

PANELS

GATES

4Commercial premises

EuroGuard® Flatform SR1 consists of 200mm x 50mm mesh, double 8mm horizontal wire, 6mm vertical wire.

A1 (SR1) gates available

4Schools 4Low - medium risk sites

APPROVALS LPS 1175 A1 (SR1)

LPS 1175: Issue 8 Cert/LPCB ref. 913j 53

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

2030

3034

60 x 40

2800

2430

3054

80 x 60

3300

Scan to view on our website

FINISHES

POST OPTIONS

STANDARD COLOURS

• Panels are Galfan® zinc alloy coated to BS EN 10244-2:2009 class A

• Overlength set in concrete as standard

• Galvanised and powder coated to BS EN 13438

• Baseplated to bolt down onto concrete

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Other colours on request

• Architectural grade powder coating

• Marine coat for installations within 500m of salt water or estuary

• Other colours on request

54

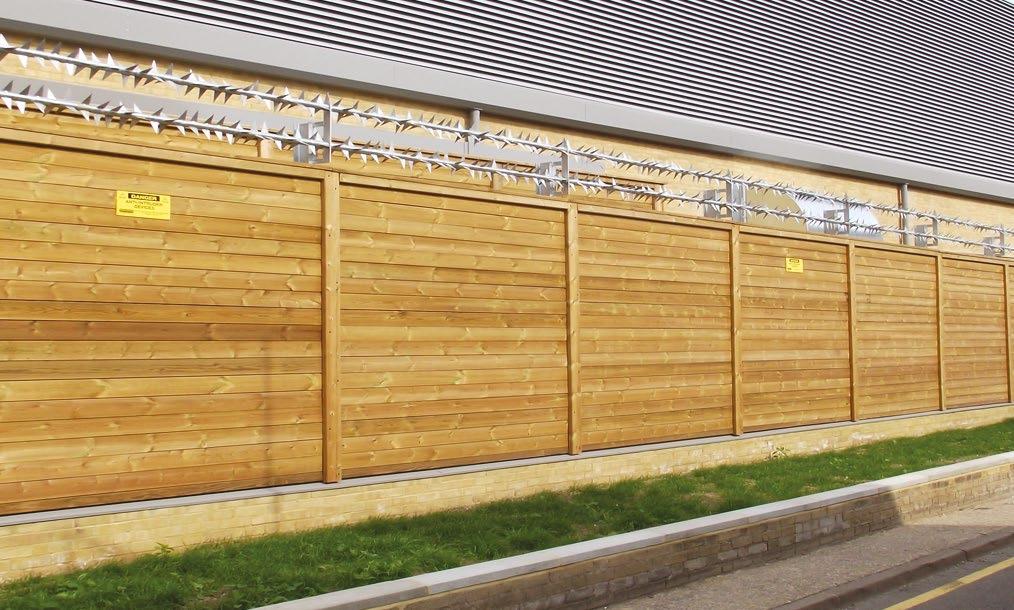

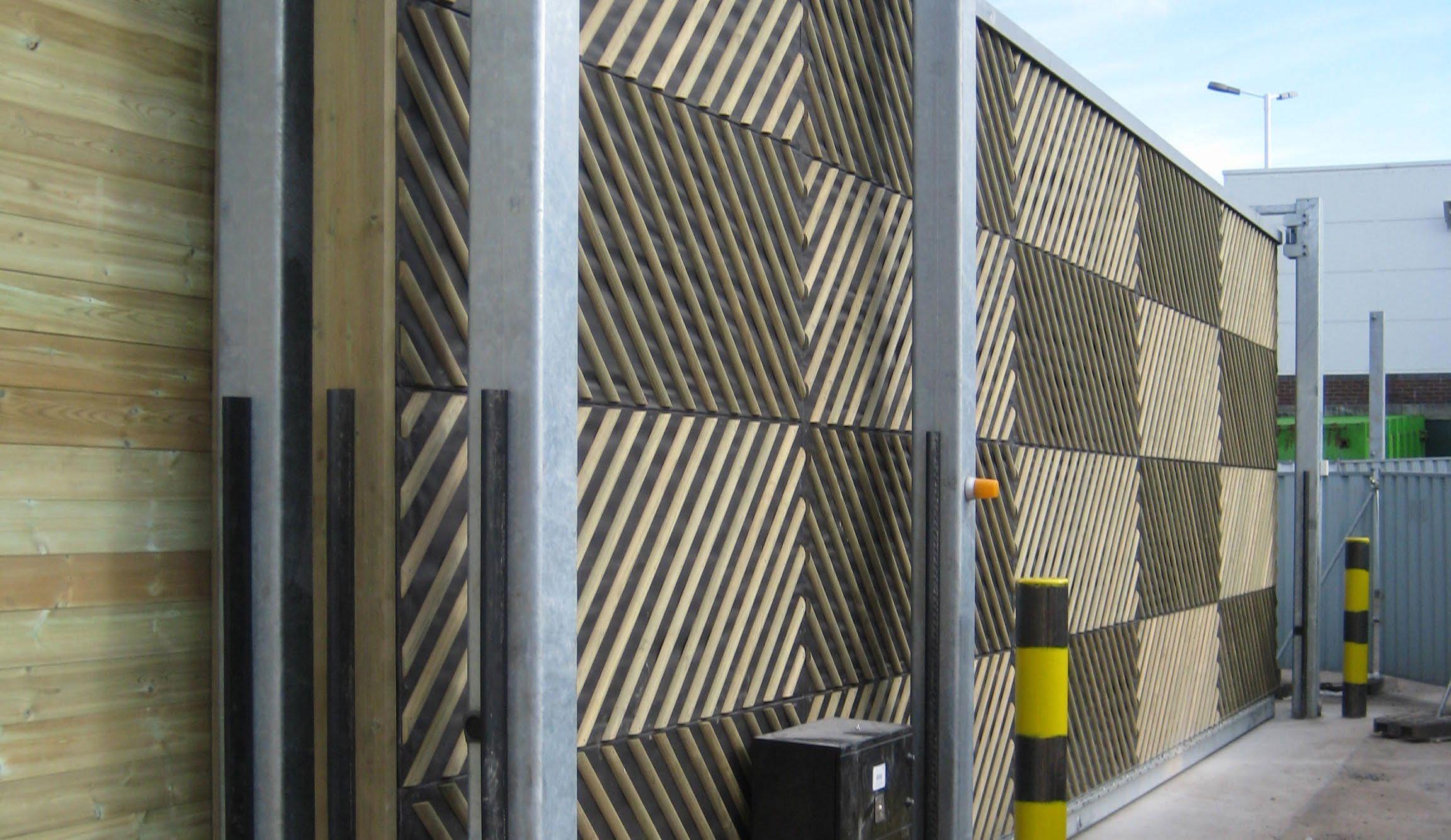

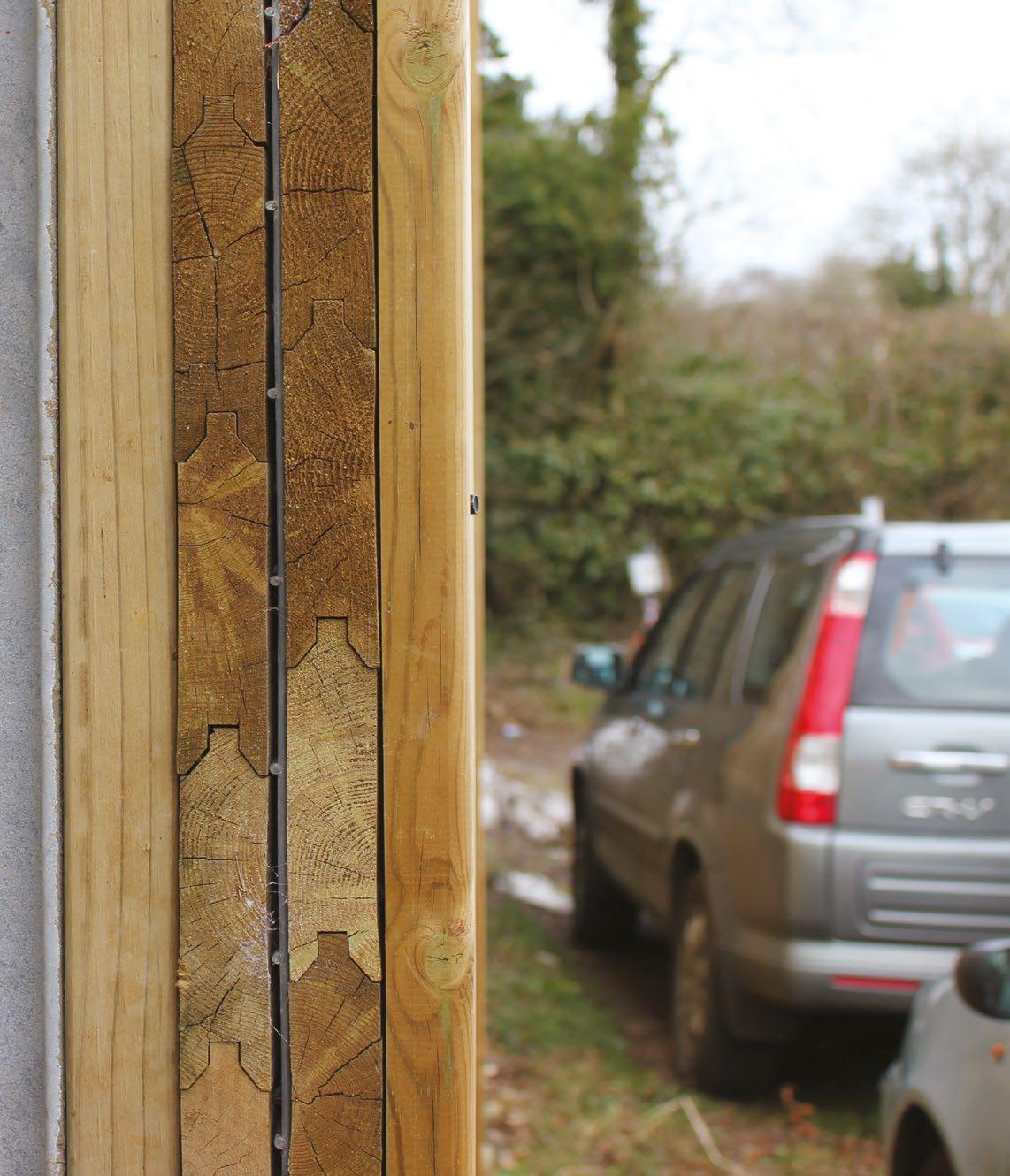

EUROGUARD® COMBI A1 (SR1)

BARBICAN ® EuroGuard® Combi A1 (SR1) fencing brings our unique experience and reputation in steel and timber fencing and gates together in a design that combines natural wooden slats with the strength of steel mesh. The combination of welded mesh panels and closely spaced, substantial timber slats provide a flat facing surface ensuring no foot or hand holds.

• A novel combination of unlike materials that is resistant to cutting • Flat surface free from hand or foot holds • Unique vandal-proof panel to post connectors with fixings on secure side of fence • Jakcure® treated timber slats guaranteed for 25 years • 25 year service guarantee

200mm

50mm

5mm wire

Mesh detail

APPLICATIONS

PANELS

GATES

4Commercial premises

EuroGuard® Combi A1 panels 3m wide with 200mm x 45mm mesh, 5mm wires with 4 - 6 reinforcing folds depending on height.

A1 (SR1) gates available

4Medium risk sites 4Schools

APPROVALS LPS 1175 A1 (SR1)

LPS 1175: Issue 8 Cert/LPCB ref. 913j 55

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

2070

3055

80 x 60

2800

2470

3055

80 x 60

3300

3110

3055

120 x 60 + spur post

4000 Scan to view on our website

FINISHES

POST OPTIONS

STANDARD COLOURS

• Timber slats are planed, Jakcure® vacuum pressure treated as standard

• Overlength set in concrete as standard

• Panels are Galfan® zinc alloy coated to BS EN 10244-2:2009 class A

• Baseplated to bolt down onto concrete

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Galvanised and powder coated to BS EN 13438

• Timber clad to front face to match fence

• Marine coat for installations within 500m of salt water or estuary

• Spur post as standard

• Architectural grade powder coating • Other colours on request

56

SECURI-MESH® A1 (SR1)

Where the application specifically requires a cost effective, heavy duty security mesh design to meet specifications including the use of CCTV, or where a visual deterrent is a primary consideration, our ‘358’ Securi-Mesh® A1 (SR1) system provides an ideal solution.

Securi-Mesh® SR1 has been tested to A1 in LPCB’s LPS1175: Issue 8, delivering a delay to attack using category A tools such as cable cutters, engineers hooks, glass cutters and pliers.

The ‘358’ mesh design features small apertures, eliminating foot and finger holds and preventing objects from being passed through. Panels are fixed to posts using clamp bar fixings and are overlapped by a minimum of 37.5mm at posts to maintain integrity of protection.

APPLICATIONS

STANDARD COLOURS

APPROVALS

4Commercial Premises

LPS 1175 A1 (SR1)

4Industrial Properties

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

4Low - Medium Risk Sites

• Architectural grade powder coating

4Schools

• Other colours on request

57

LPS 1175: Issue 8 Cert/LPCB ref. 913t

• • • • • • •

Overlapped by a minimum of 37.5mm at posts to maintain integrity of protection Anti-climb design 25 year service life guarantee Tested to LPS 1175: Issue 8 A1 Clamp bar fixings Can be stepped to accommodate sloping ground

Scan to view on our website

Secured by Design Police Approved Specification height (mm)

post centres (mm)

1800 - 6000

2440

PANELS Securi-Mesh® A1 (SR1) panels are constructed from 76.2 x 12.7mm mesh (3” x 1/2”) with 4mm nominal wire. Panel widths are 2519mm as standard, with heights between 1800mm 6000mm.

• Galvanised and powder coated to BS EN 13438 • Other colours on request • Marine coat for installations within 500m of salt water or estuary

POST OPTIONS • Overlength set in concrete as standard • Baseplated to bolt down onto concrete • Spur post as standard

FINISHES • Panels are Galfan® zinc alloy coated to BS EN 10244-2:2009 class A

58

SECURI-MESH® PLUS B3 (SR2)

Securi-Mesh® Plus SR2 (B3) provides an ideal solution for higher security perimeter applications with its double layer of “358” mesh and small apertures which eliminate foot and finger holds and prevent objects from being passed through. The vertical steel clamp bars employed in the panel to post fixing and to bond the mesh layers together provide increased rigidity to the design and make the system particularly resistant to cutting through using conventional hand and portable power tools.

• Flat surface free from hand or foot holds • Mesh to be clamped to concrete seal or buried • 25 year service life guarantee

Post to panel fixings

Clamp bar Securi-Mesh® Panels

APPLICATIONS 4High risk sites

GATES

APPROVALS

B3 (SR2) gates available

LPS 1175 B3 (SR2)

4Data centres 4Perimeters 4Utilities sites

59

LPS 1175: Issue 8 Cert/LPCB ref. 913m

Securi-Mesh® Plus B3 Panel Specifications Securi-Mesh® Plus B3 features a double skin of staggered 76.2 x 12.7mm resistance mesh welded at each intersection and bolted together up to 2400mm high and a single layer of mesh above from 2400mm upwards.

height (mm)

post centres (mm)

From 2442 to 5000

2451

Scan to view on our website

FINISHES

POST OPTIONS

STANDARD COLOURS

• Panels are Galfan® zinc alloy coated to BS EN 10244-2:2009 class A

• Post dimensions to suit fence height, site and ground conditions

• Galvanised and powder coated to BS EN 13438

• Overlength set in concrete as standard

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Other colours on request

• Base plated to bolt down onto concrete

• Marine coat for installations within 500m of salt water or estuary

• Architectural grade powder coating • Other colours on request

60

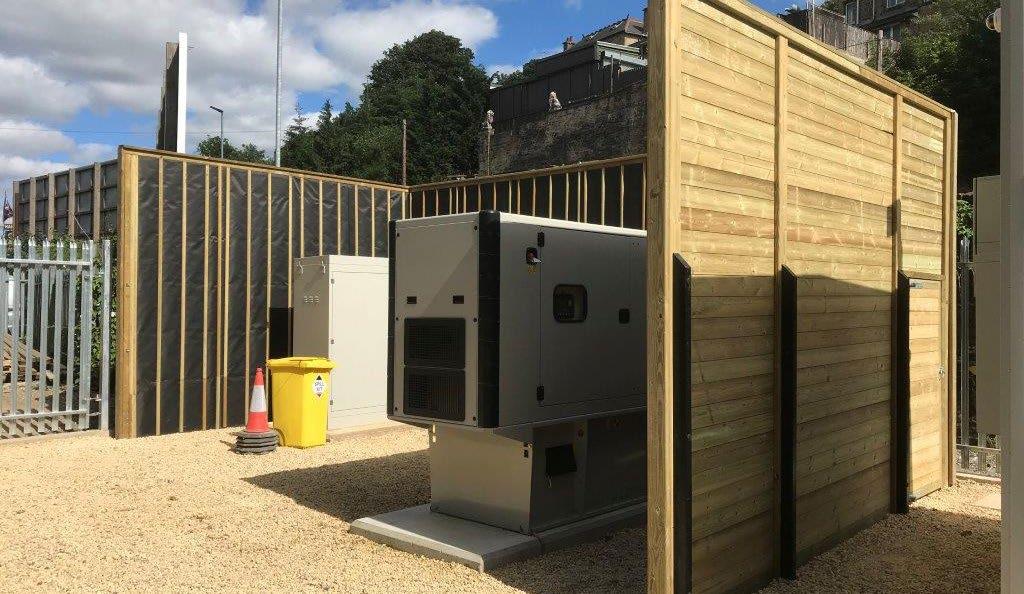

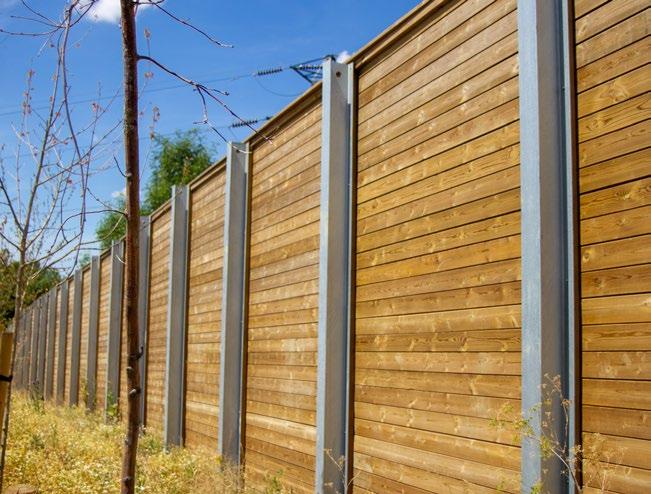

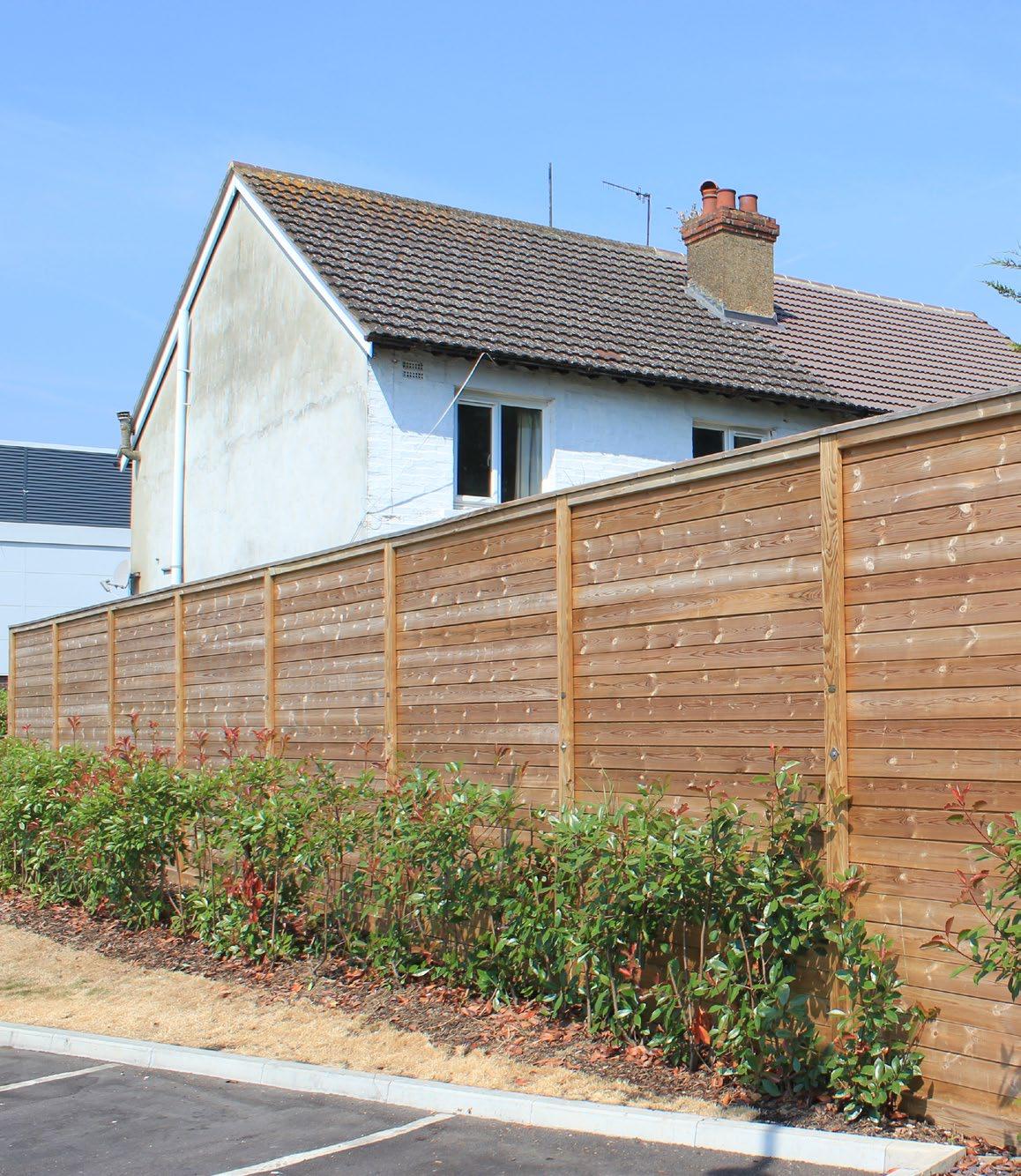

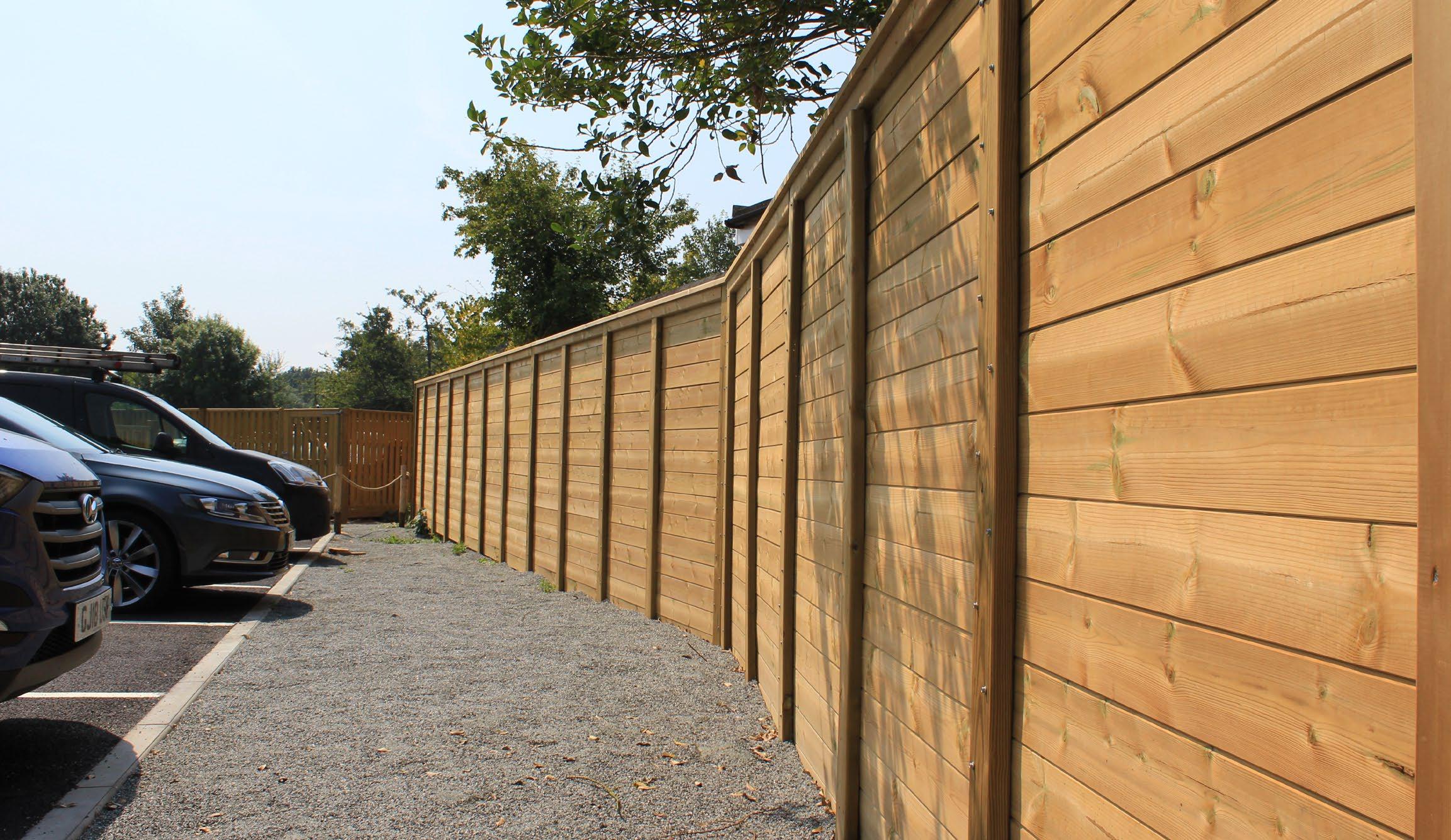

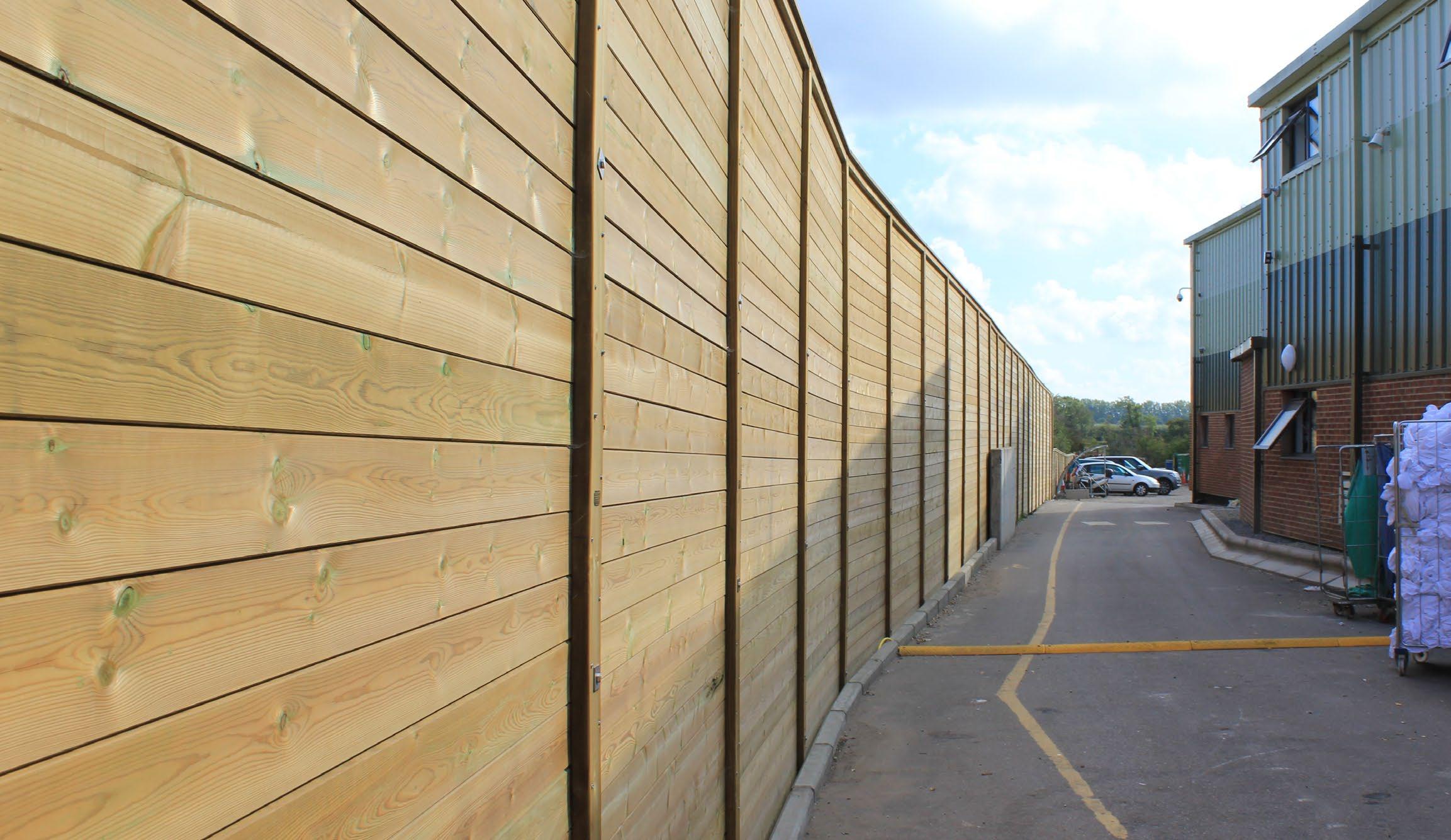

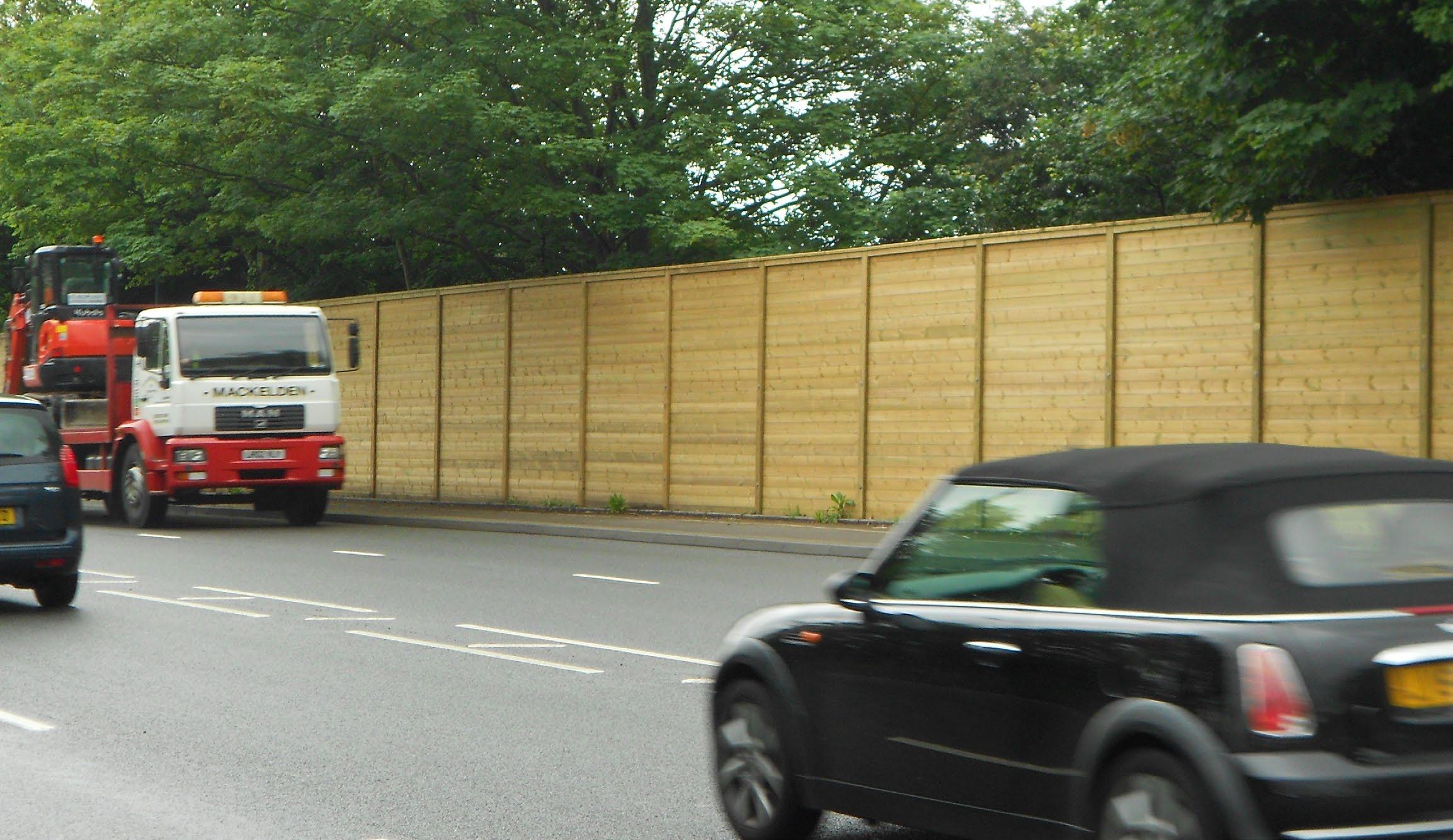

JAKOUSTIC® CLASS 3 (C5)

BARBICAN ® Jakoustic® Class 3 is the only reflective acoustic barrier fence system certified to LPS 1175 SR3 and provides resistance to determined entry using a range of tools including battery power tools. The double layer of timber boards results in a totally flat face making climbing the fence extremely difficult and is ideally suited to applications requiring a natural timber façade, where privacy is important, or for the containment of noise into or out from a site.

• Double layer of 34mm thick timber boards provide a high level of resistance to cutting • Anti-climb design with completely flat face allowing no foot or hand holds • Also available as LPS 1175 F1 or G1 rated system • Reflective acoustic barrier with up to 28dB* reduction in noise • Jakcure® treated timber slats guaranteed for 25 years

*Jakoustic® Class 3 certified acoustic laboratory results: Rating according to BS EN 1793:1998 Category: B3 Laboratory sound reduction: 28db Superficial mass: 25 kg/m

61

2

GATES AND EXTRAS

APPROVALS

Matching non-certified single or double leaf gates available

LPS 1175 C5 (SR3)

Rota® Spike topping seen pictured is optional and does not come as standard. Other toppings available

LPS 1175: Issue 8 Cert/LPCB ref. 913e

Jakoustic® Class 3 (C5) Specification Jakoustic® Class 3 (C5) timber acoustic security barrier system is constructed with a double layer of 34mm thick, Jakcure® treated, interlocking ‘V’ timber boards fixed to galvanised steel posts.

height (mm)

post centres (mm)

post type

overall post length (mm)

2500

2400

universal i beam

2500

2750

2400

universal i beam

2800

3000

2400

universal i beam

3300

3250

2400

universal i beam

3800

FINISHES • Planed interlocking timber boards are Jakcure vacuum pressure treated as standard • Posts are hot dip galvanised to BS EN 1461 as standard • Posts can be powder coated to BS EN 13438 in one of our standard colours

• Marine coat for installations within 500m of salt water or estuary

Scan to view on our website

POST OPTIONS • Post dimensions to suit fence height, site and ground conditions • Overlength set in concrete as standard • Base plated to bolt down onto concrete

• Other colours on request 62

UHS HEAVY MESH SR3

BARBICAN ® UHS Heavy Mesh SR3 has been designed and tested to withstand forced entry using tools which include battery power tools.

The SR3 mesh system is constructed using double skinned mesh with clamp bars added at 250mm centres and anti tamper fixings.

• Double skinned to provide a high level of security • Stainless steel fixings • Anti-climb design double skin 50 x 28mm mesh • Clamp bars fixed at 250mm centres • Heavy gauge wire-welded mesh security fencing system • Matching gates available

height (mm)

post centres (mm)

2431 3031

2505 2505

Scan to view on our website

POST OPTIONS

FINISHES

APPROVALS

• Post dimensions to suit fence height, site and ground conditions

• All steel work galvanised to BS EN 1461:2009

LPS 1175 SR3

• Overlength set in concrete as standard

• Posts are hot dip galvanised to BS EN 1461 as standard

• Base plated to bolt down onto concrete

• Can be powder coated to BS EN 13438 • Marine coat for installations within 500m of salt water or estuary

63

LPS 1175: Issue 7 Cert/LPCB ref. 913c

UHS EXTREME MESH SR3

BARBICAN ® UHS Extreme Mesh SR3 has been designed and tested to withstand forced entry using tools which include battery power tools.

The SR3 mesh system is constructed from double skinned mesh providing a high level of security. The fencing and gate system has been developed to meet with demands to give a robust level of security around high security applications.

• Double 50 x 30mm mesh skin provides a high level of security • Stainless steel fixings • Anti-climb design • Heavy gauge wire-welded mesh security fencing system • Matching gates available

height (mm)

post centres (mm)

2431 3031

2505 2505

Scan to view on our website

POST OPTIONS

FINISHES

APPROVALS

• Post dimensions to suit fence height, site and ground conditions

• All steel work galvanised to BS EN 1461:2009

LPS 1175 SR3

• Overlength set in concrete as standard

• Posts are hot dip galvanised to BS EN 1461 as standard

• Base plated to bolt down onto concrete

• Can be powder coated to BS EN 13438

LPS 1175: Issue 7 Cert/LPCB ref. 913c

• Marine coat for installations within 500m of salt water or estuary 64

TRIDENT® 4 (D10) & TRIDENT® 5 (E10)

BARBICAN ® Vertical bar and welded mesh panel security fencing systems.

Fence panels comprise of reinforced 32mm tubular vertical bars welded within 60mm x 40mm horizontal rails. The panels incorporate ‘358’ mesh and are welded on both faces, with an optional 800mm concertina barbed tape topping.

• Closely spaced pales composed of substantial wall thickness • Incorporating cut-delay technology • Anti-climb design with anti-scaling over deterrent • 25 year service life guarantee

POST OPTIONS

FINISHES

• Post dimensions to suit fence height, site and ground conditions

• Mesh panels are Galfan® zinc alloy coated to BS EN 10244-2:2009

• Overlength set in concrete as standard

• Posts and vertical bars are hot dip galvanised to BS EN 1461 • Galvanised and powder coated to BS EN 13438 • Marine coat for installations within 500m of salt water or estuary

65

Scan to view on our website

Trident® 4 • LPS 1175 D10 (SR4) Approved

• Securi-Mesh® fencing clad on both sides

height (mm)

panel width (mm)

post dimensions (mm)

topping

3600

2450

120 x 120

Concertina barbed wire

Trident® 5 • LPS 1175 E10 (SR5) Approved

• Securi-Mesh® fencing clad on both sides

height (mm)

panel width (mm)

post dimensions (mm)

topping

4200

2450

120 x 120

Concertina barbed wire

STANDARD COLOURS

APPROVALS

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

LPS 1175 D10 (SR4)

• Architectural grade powder coating

LPS 1175 E10 (SR5) LPS 1175: Issue 8 Cert/LPCB ref. 913f

LPS 1175: Issue 8 Cert/LPCB ref. 913g

• Other colours on request

66

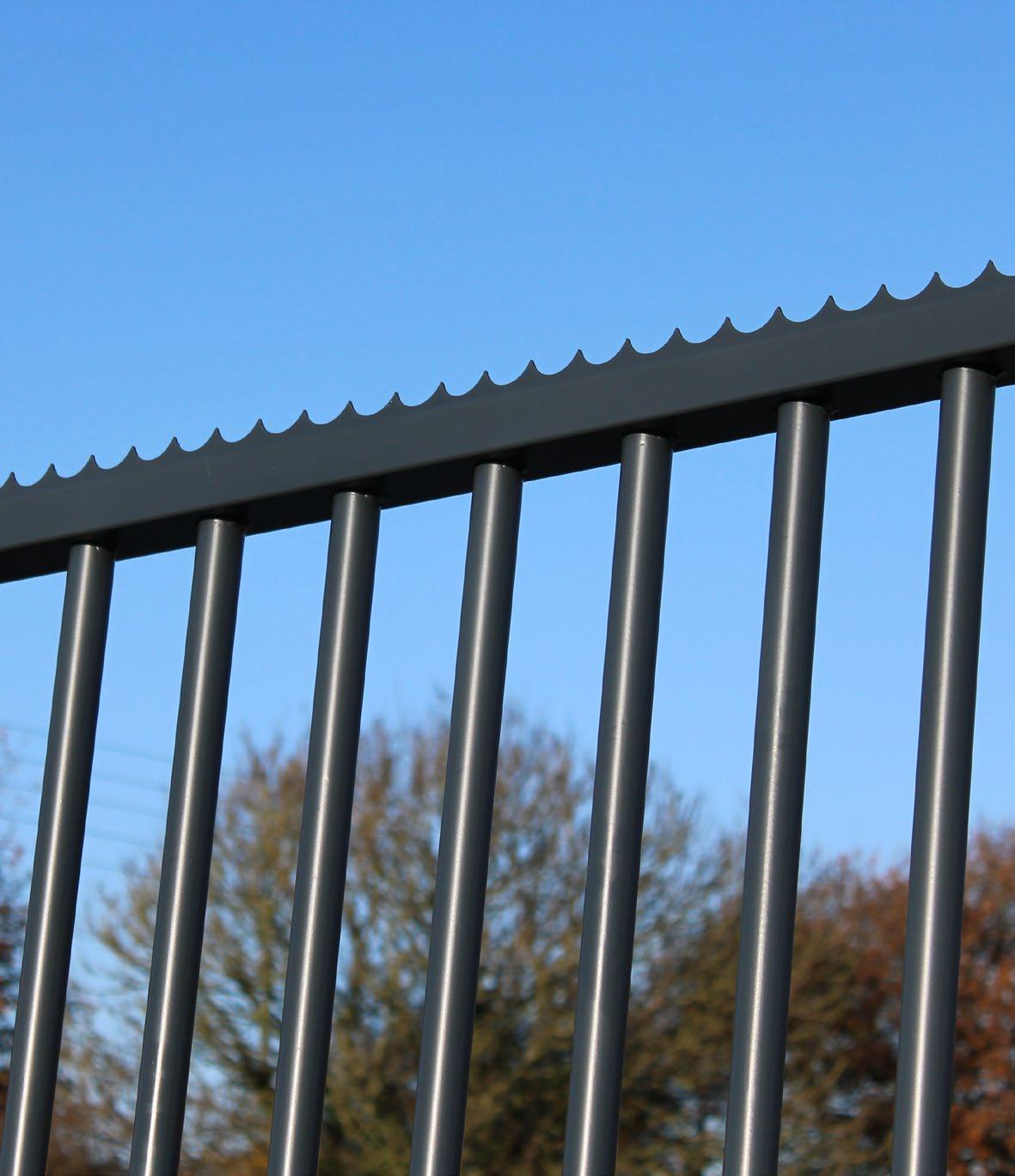

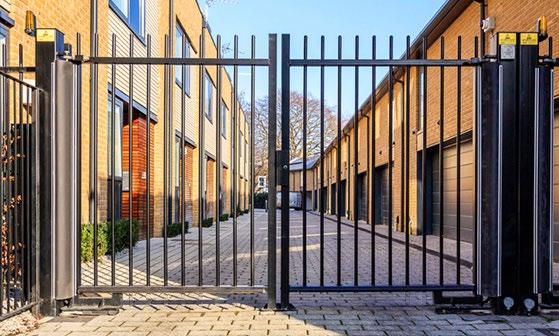

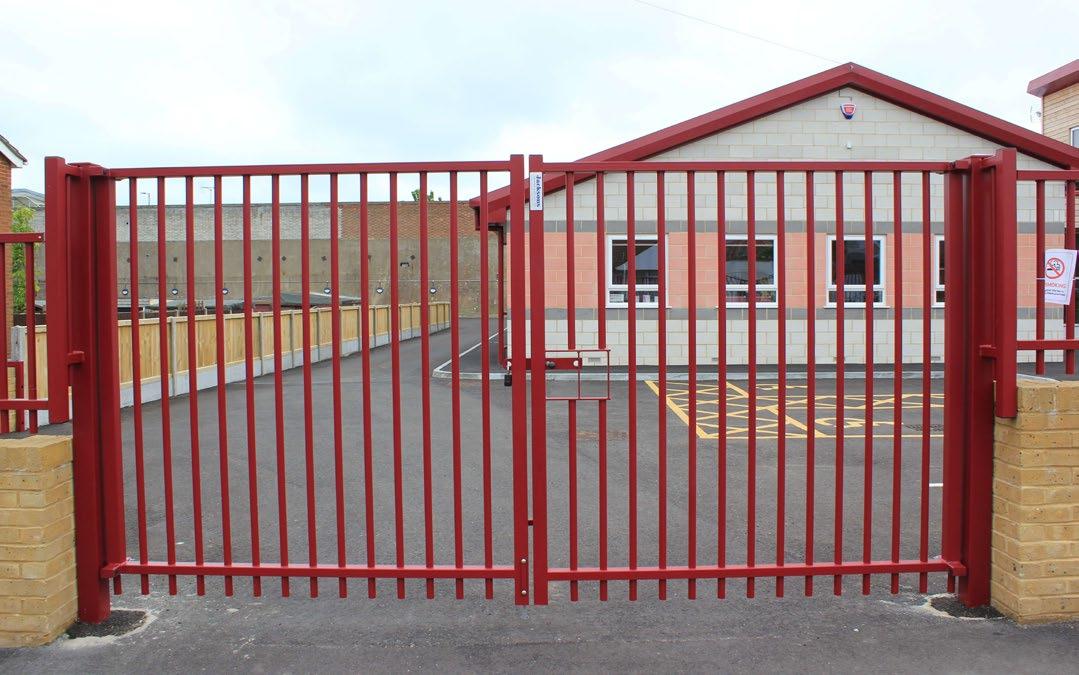

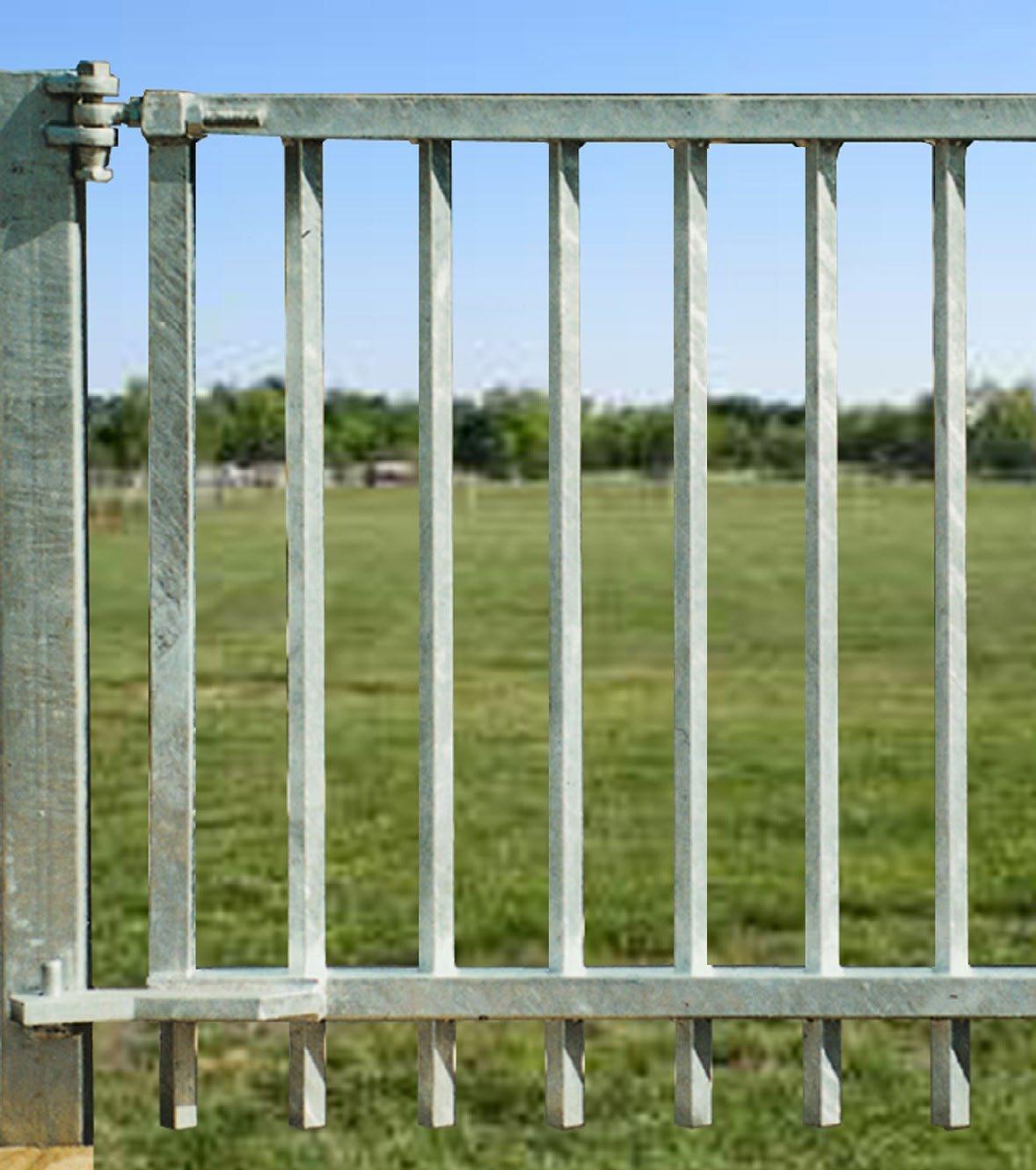

VERTICAL BAR A1 GATES

LPS 1175 A1 CERTIFIED SINGLE AND DOUBLE SWING GATES

Our vertical bar A1 rated single and double leaf swing gates are available to match our Barbican®, Barbican Imperial®, Barbican Defender® Xtreme, Barbican® Extra, Barbican® Barbed Top, Barbican with Finials®, and Sentry® A1 rated fencing. A range of options are available to customise your gate and make it work perfectly for your site specific aesthetic and security requirements.

Single leaf gates: Available in widths from 500mm to 6000mm and heights from 1800mm to 3000mm.

Available as opening out with padlockable slide latch, key lock, or emergency exit push pad.

Available as opening in with padlockable slide latch or key lock.

• • •

Double leaf gates: Available in widths from 1500mm to 10000mm and heights from 1800mm to 3000mm.

Available as opening in or opening out, with padlockable slide latch.

Optional extras include manual drop bolts or padlockable drop bolts, centre stop for ‘opening in’ gates.

• • •

OPTIONS • Posts can be dug in or baseplated • Added security spikes and toppings • Hinge from the front, corner, or rear up to 180° opening • Slam angle for opening in gates, dropbolt, stop post, hold open post

• Flat bottom and top rail or pales out of the bottom or top by up to 200mm • Varied pale pitch as long as gap is no more than 100mm • High security concealed open out hinge for single gates up to 2m wide and double gates up to 4m (90° opening only) • Welded or bolt on lintel bars

67

FINISHES • Hot dip galvanised to BS EN 1461 • Powder coated to BS EN 13438 in one of our standard colours (see page 1) at extra cost • Other colours available on request • Marine coat for installations within 500m of salt water or estuary

INFILL OPTIONS BARBICAN®

BARBICAN® EXTRA

BARBICAN IMPERIAL®

BARBICAN DEFENDER XTREME®

BARBICAN® BARBED TOP

SENTRY®

BARBICAN® WITH FINIALS

68

EUROGUARD® FLATFORM HEAVY A1 GATES

LPS 1175 A1 CERTIFIED SINGLE AND DOUBLE SWING GATES

EuroGuard® Flatform A1 rated single and double leaf swing gates are designed to provide access control to integrate with our EuroGuard® Flatform fencing. Gates carry the same simple, twin wire design for durability and rigidity. A range of options and sizes are available to customise your gate to fit site requirements. Ideal for schools, sports areas and commercial properties.

Single leaf gates: Available in widths from 848mm to 6000mm and heights from 1800mm to 3000mm.

• Available as opening out with padlockable slide latch, key lock, or emergency exit push pad.

• Available as opening in with padlockable slide latch or key lock.

•

Double leaf gates: Available in widths from 1500mm to 10000mm and heights from 1800mm to 3000mm.

• Available as opening in or opening out, with padlockable slide latch.

• Optional extras include manual drop bolts or padlockable drop bolts, centre stop for ‘opening in’ gates.

•

OPTIONS • Posts can be dug in or baseplated • Added security spikes and toppings • High security concealed open out hinge for single gates up to 2m wide and double gates up to 4m (90° opening only) • Welded or bolt on lintel bars 69

• Slam angle for opening in gates, dropbolt, stop post • Hinge from the front, corner, or rear up to 180° opening

FINISHES • Hot dip galvanised to BS EN 1461 as standard

• Powder coated to BS EN 13438 in any of our standard colours (see page 1) at extra cost • Other colours available on request • Marine coat for installations within 500m of salt water or estuary

EUROGUARD® COMBI A1 GATES

LPS 1175 A1 CERTIFIED SINGLE AND DOUBLE SWING GATES

EuroGuard® Combi A1 rated single and double leaf swing gates match our EuroGuard® Combi A1 fencing. Made with a rigid V mesh panel woven with pressure treated timber slats, it provides a solution which provides security, increases concealment, prevents items being passed through, and provides an attractive appearance which blends into most environments. Ideal for schools and storage compounds.

Single leaf gates: Available in widths from 848mm to 6000mm and heights from 1800mm to 3200mm.

Available as opening out with padlockable slide latch, key lock, or emergency exit push pad.

Available as opening in with padlockable slide latch or key lock.

• • •

Double leaf gates: Available in widths from 1500mm to 10000mm and heights from 1800mm to 3200mm.

Available as opening in or opening out, with padlockable slide latch.

Optional extras include manual drop bolts or padlockable drop bolts, centre stop for ‘opening in’ gates.

• • •

OPTIONS • Posts can be dug in or baseplated • Added security spikes and toppings • Hinge from the front, corner, or rear up to 180° opening • Slam angle for opening in gates, dropbolt, stop post

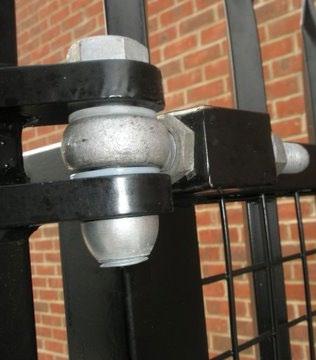

• High security concealed open out hinge for single gates up to 2m wide and double gates up to 4m (90° opening only) • Welded or bolt on lintel bars

FINISHES • Hot dip galvanised to BS EN 1461 as standard

• Powder coated to BS EN 13438 in any of our standard colours (see page 1) at extra cost • Other colours available on request • Marine coat for installations within 500m of salt water or estuary • Timber pales are Jakcure® treated

70

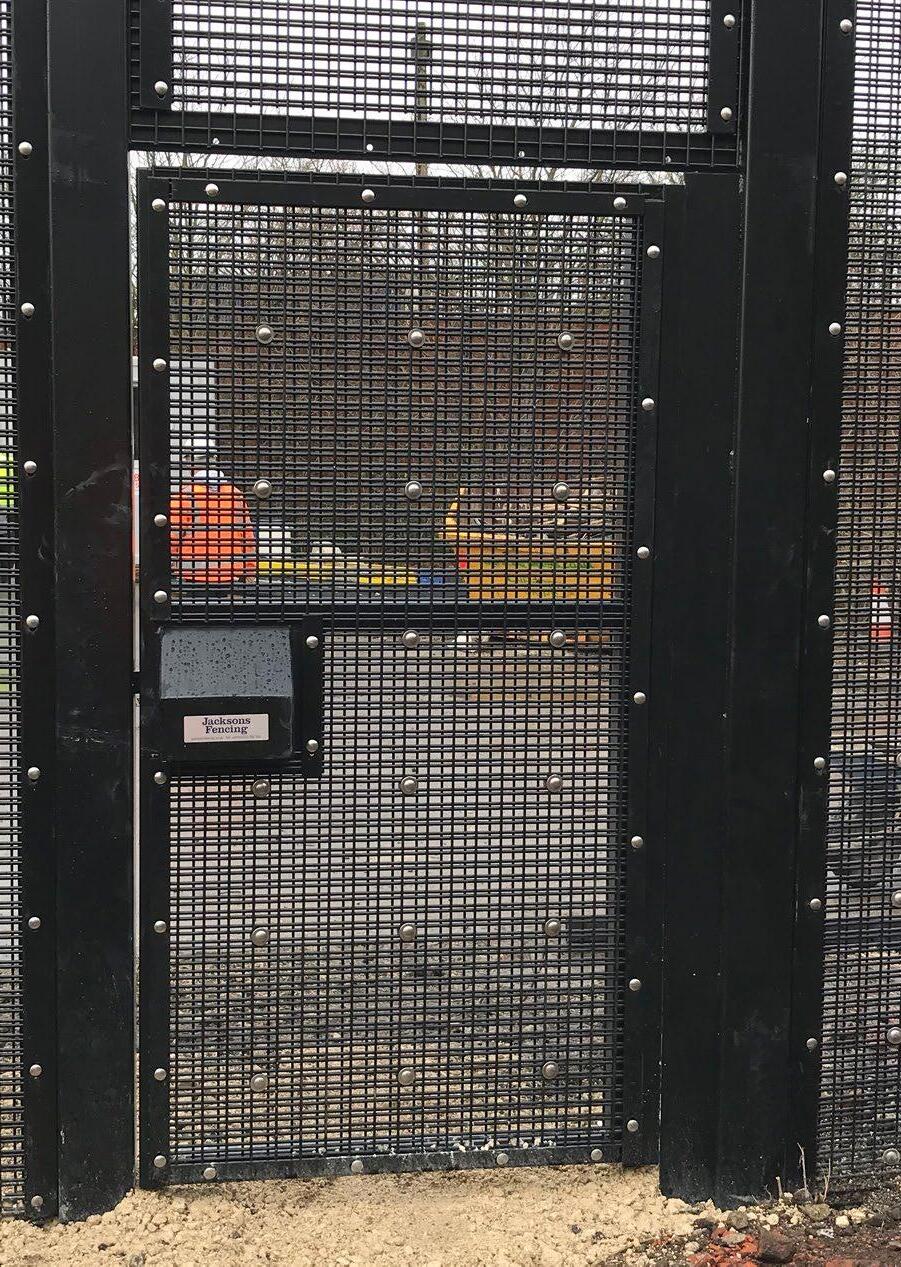

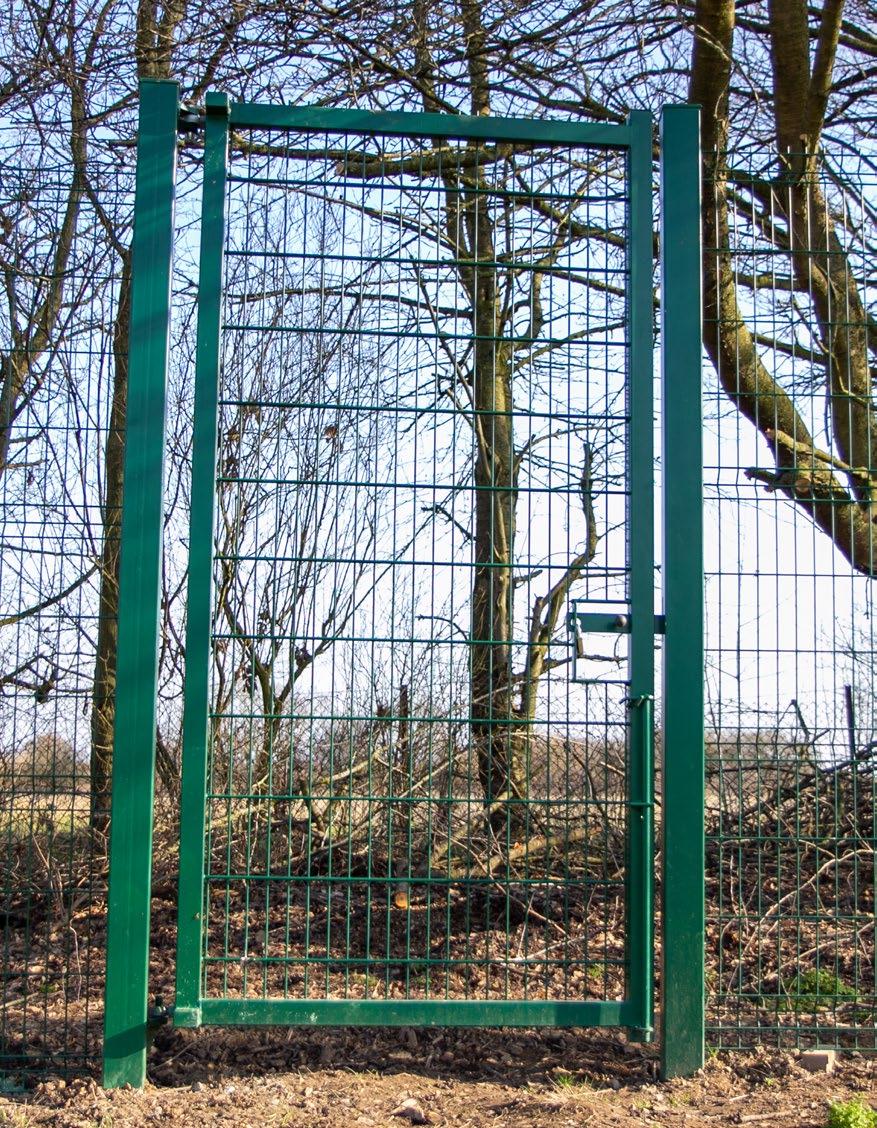

SECURI-MESH® A1 GATES

LPS 1175 A1 CERTIFIED SINGLE AND DOUBLE SWING GATES

Securi-Mesh® single and double leaf A1 rated swing gates are available to match our Securi-Mesh® A1 rated fencing with its close-knit mesh construction. A1 rated gates are suitable for standard risk properties; providing protection against forced entry with category A tools. Ideal for utilities and storage compounds.

Single leaf gates: Available in widths from 500mm to 6000mm and heights from 1800mm to 4000mm.

Available as opening out with padlockable slide latch, key lock, or emergency exit push pad.

• Available as opening in with padlockable slide latch or key lock.

• •

Double leaf gates: Available in widths from 1500mm to 10000mm and heights from 1800mm to 4000mm.

• Available as opening in or opening out, with padlockable slide latch.

• Optional extras include manual drop bolts or padlockable drop bolts, centre stop for ‘opening in’ gates.

•

OPTIONS • Posts can be dug in or baseplated • Added security spikes and toppings

• High security concealed open out hinge for single gates up to 2m wide and double gates up to 4m (90° opening only)

• Hinge from the front, corner, or rear up to 180° opening

• Welded or bolt on lintel bars

• Slam angle for opening in gates, dropbolt, stop post

FINISHES

71

• Hot dip galvanised to BS EN 1461 as standard

• Powder coated to BS EN 13438 in any of our standard colours (see page 1) at extra cost • Other colours available on request • Marine coat for installations within 500m of salt water or estuary

SECURI-MESH PLUS® A1, B1, AND B3 GATES

LPS 1175 CERTIFIED SINGLE AND DOUBLE SWING GATES

Securi-Mesh® Plus single swing gates are available in A1, B1, and B3 ratings to match the look and design principles of Securi-Mesh® Plus fencing with its double layers which are staggered and welded at each intersection. Double leaf swing gates are available in A1 and B1 ratings. A1 rated gates are suitable for standard risk properties; providing protection against forced entry with category A tools. B1 and B3 gates are suitable for standard-medium risk properties; providing protection against forced entry with category B tools. Ideal for data centres or any site that needs secure access control.

Single leaf gates: • Available in widths from 500mm to 6000mm and heights from 1800mm to 4000mm.

• Available as opening in or opening out with padlockable slide latch for A1 or B1 gates, or key lock for A1 gates.

• Also available as a single gate with B3 rating at 2442mm high with clamp bars and slide latch.

Double leaf gates: Available in widths from 1500mm to 10000mm and heights from 1800mm to 4000mm.

Available as opening in or opening out, with padlockable slide latch.

Optional extras include manual drop bolts or padlockable drop bolts, centre stop for ‘opening in’ gates.

• Available in A1 and B1 ratings.

• • •

OPTIONS • Posts can be dug in or baseplated • Added security spikes and toppings • Hinge from the front, corner, or rear up to 180° opening • Slam angle for opening in gates, dropbolt, stop post

• Emergency exit push pad (A1 single opening out gates) • High security concealed open out hinge for single gates up to 2m wide and double gates up to 4m (90° opening only) • Welded or bolt on lintel bars

FINISHES • Hot dip galvanised to BS EN 1461 • Powder coated to BS EN 13438 in any of our standard colours (see page 1) at extra cost • Other colours available on request • Marine coat for installations within 500m of salt water or estuary 72

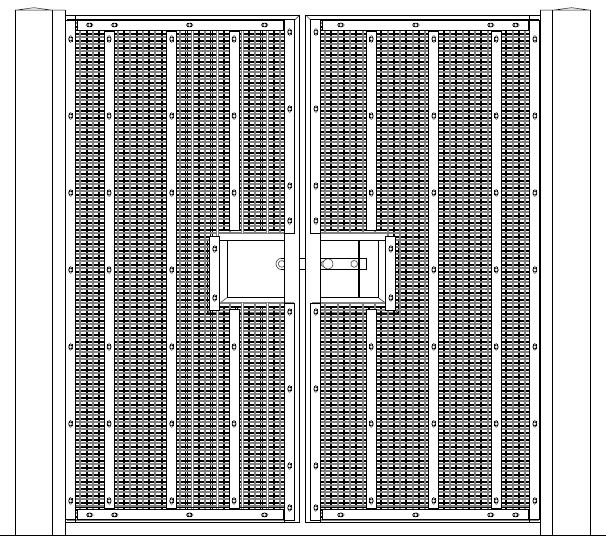

UHS HEAVY A1, B1, AND C5 GATES

LPS 1175 CERTIFIED SINGLE AND DOUBLE SWING GATES

UHS Heavy single swing gates are available in A1, B1, and C5 ratings, and double swing gates are available in A1 and B1 ratings. These gates match the look and design principles of UHS Heavy fencing with its double layers of mesh which are mounted at 90° to eachother and secured with clamp bars, providing excellent protection against cutting and items being passed through. A1 rated gates are suitable for standard risk properties; providing protection against forced entry with category A tools. B1 gates are suitable for standard-medium risk properties; providing protection against forced entry with category B tools. C5 gates are suitable for medium-high risk properties.

Single leaf gates: Available in widths from 500mm to 6000mm and heights from 1800mm to 4000mm.

Available as opening in or opening out with padlockable slide latch for A1 or B1 gates, or key lock for A1 gates.

• Available as C5 gates with key lock and slide latch.

• •

Double leaf gates: Available in widths from 1500mm to 10000mm and heights from 1800mm to 4000mm.

• Available as opening in or opening out, with padlockable slide latch.

• Optional extras include manual drop bolts or padlockable drop bolts, centre stop for ‘opening in’ gates.

• Available in A1 and B1 ratings.

•

OPTIONS • Posts can be dug in or baseplated • Added security spikes and toppings • Hinge from the front, corner, or rear up to 180° opening • Emergency exit push pad (A1 single opening out gates) 73

• High security concealed open out hinge for single gates up to 2m wide and double gates up to 4m (90° opening only) • Welded or bolt on lintel bars • Slam angle for opening in gates, dropbolt, stop post

FINISHES • Hot dip galvanised to BS EN 1461 • Powder coated to BS EN 13438 in one of our standard colours (see page 1) at extra cost • Other colours available on request • Marine coat for installations within 500m of salt water or estuary

UHS EXTREME A1, B1, AND C5 GATES

LPS 1175 CERTIFIED SINGLE AND DOUBLE SWING GATES

UHS Extreme single swing gates are available in A1, B1, and C5 ratings, and double swing gates are available in A1 and B1 ratings. These gates match the look and design principles of UHS Extreme fencing with its double layers of close-knit mesh which are mounted at 90° to eachother and secured with tamper proof bolts, providing excellent protection against cutting and items being passed through. A1 rated gates are suitable for standard risk properties; providing protection against forced entry with category A tools. B1 gates are suitable for standardmedium risk properties; providing protection against forced entry with category B tools. C5 gates are suitable for medium-high risk properties.

Single leaf gates: Available in widths from 500mm to 6000mm and heights from 1800mm to 4000mm.

Available as opening in or opening out with padlockable slide latch for A1 or B1 gates, or key lock for A1 gates.

• Available as C5 gates with key lock and slide latch.

• •

Double leaf gates: Available in widths from 1500mm to 10000mm and heights from 1800mm to 4000mm.

• Available as opening in or opening out, with padlockable slide latch.

• Optional extras include manual drop bolts or padlockable drop bolts, centre stop for ‘opening in’ gates.

• Available in A1 and B1 ratings.

•

OPTIONS • Posts can be dug in or baseplated • Added security spikes and toppings • Hinge from the front, corner, or rear up to 180° opening • Emergency exit push pad (A1 single opening out gates)

• High security concealed open out hinge for single gates up to 2m wide and double gates up to 4m (90° opening only) • Welded or bolt on lintel bars • Slam angle for opening in gates, dropbolt, stop post

FINISHES • Hot dip galvanised to BS EN 1461 • Powder coated to BS EN 13438 in one of our standard colours (see page 1) at extra cost • Other colours available on request • Marine coat for installations within 500m of salt water or estuary 74

TRIDENT RANGE ®

Our Trident® range of fencing was historically our CPNI/NPSA tested and approved fencing range. Since 1st January 2026, all fencing and gates including these products are no longer listed in the Catalogue of Security Equipment. We still manufacture these products but where a rated fencing option is required, we recommend our LPS 1175 certified range.

Our Trident range features unique high security products with specific attributes, allowing you to choose the right style and height security fencing system for you.

Over the years, we have invested heavily in the development of high security fencing systems designed to be employed in the highest security situations, against a range of threats from determined intrusion to the mitigation of collateral damage. This investment was born from a realisation that you cannot simply go on stretching the performance limits of existing products against increasingly sophisticated, determined and audacious attacks and expect them to cope.

76

TRIDENT® SECURI-MESH® SYSTEM Trident® Securi-Mesh® Fencing system provides an ideal solution for a wide variety of high security perimeter and access control applications including prisons and mental health units.

• Mesh overlapped at posts to maintain integrity of protection

• Clamp bar fixings • Can be stepped to accommodate sloping ground • May be set into ground/concrete plinth to provide antiburrowing properties

• Anti-climb design • Jaktronic® PIDS compatible • 25 year service life guarantee Scan to view on our website

overall height (mm)

post centres (mm)

topping (mm)

600 min for 2.4m high mesh 3000 2440 Other heights/specifications are available for this product on request

PANELS

POST OPTIONS

STANDARD COLOURS

Trident® Securi-Mesh® panels are constructed from 76.2 x 12.7mm mesh (3” x 1/2”) with 4mm wire. Panel widths are 2515mm as standard, with heights up to 5200mm.

• Overlength set in concrete as standard

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Base plated to bolt down onto concrete

• Architectural grade powder coating

GATES Matching single leaf and double leaf gates available

FINISHES • Panels are Galfan® zinc alloy coated to BS EN 10244-2:2009 class A • Galvanised and powder coated to BS EN 13438 • Marine coat for installations within 500m of salt water or an estuary

77

• Other colours on request

TRIDENT® SECURI-MESH® PLUS SYSTEM The climb resistant double layer mesh with its small apertures and welds at each intersection eliminate foot and finger holds, prevent objects being passed through and is particularly effective against the use of conventional hand and portable power cutting tools.

• Staggered double skin mesh panels with wire welded at every intersection

• Overlapped by a minimum of 75mm at posts to maintain integrity of protection

• Can be stepped to accommodate sloping ground • Posts can be customised for Barbed wire / Razor wire / ® Alarm-aFence

• Anti-climb design • 25 year service life guarantee Scan to view on our website

height (mm)

post centres (mm)

mesh (mm)

2500-5200

2400

double skin of mesh to 2500mm height

Other heights/specifications are available for this product on request

PANELS

POST OPTIONS

STANDARD COLOURS

Trident® Securi-Mesh® panels are constructed from 76.2 x 12.7mm mesh (3” x 1/2”) with 4mm wire. Panel widths are 2515mm as standard, with heights up to 5200mm.

• Overlength set in concrete as standard

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Base plated to bolt down onto concrete

• Architectural grade powder coating

GATES Matching single leaf and double leaf gates available

FINISHES

• Other colours on request

• Panels are Galfan® zinc alloy coated to BS EN 10244-2:2009 class A • Galvanised and powder coated to BS EN 13438 • Marine coat for installations within 500m of salt water or an estuary

78

TRIDENT® COMBI 2 SYSTEM The Trident® Combi 2 system combines our experience and expertise in both timber and steel fencing to deliver higher levels of inherent security than generic mesh systems within an attractive timber facade.

Trident® Combi 2 meets the recent guidance within ‘Physical Mitigation’ measures issued by the National Counter Terrorism Security Office (NaCTSO) to cover assets from view, making observation into a site more difficult.

Its combination of unlike materials provides the additional advantages of resistance to cutting, a flat facing surface free from hand and foot holds, while the closely faced timber slats ensure privacy without giving the appearance of a solid barrier.

• Welded mesh panel • 3 rows of barbed wire standard topping • Security comb on top rail • Unique vandal proof panel to post fixing • Can be stepped to accommodate sloping ground • May be set into ground/concrete plinth to provide antiburrowing properties

• 25 year service life guarantee Scan to view on our website overall height (mm)

post centres (mm)

topping (mm)

3000

3054

600mm for 2.4m high fence

PANELS

POST OPTIONS

FINISHES

Constructed from 5mm horizontal wire and 40mm x 17mm treated timber slats, with a 3 rows of barbed wire topping or coil of razor wire as standard.

• Over length set in concrete as standard

• Timber slats are planed, Jakcure® vacuum pressure treated as standard

• Base plated to bolt down onto concrete

• Mesh panels are zinc alloy coated as standard

GATES

• Cranked to suit wall mounting

• Posts are hot dip galvanised to BS EN 1461 as standard

Matching single leaf and double leaf gates available

• Timber clad to front face to match fence

STANDARD COLOURS • Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40 • Architectural grade powder coating • Other colours on request

79

TRIDENT® MESH 2 SYSTEM The Trident® Mesh 2 system has been designed to provide the performance of a conventional Class 2, 75mm x 25mm galvanised, welded mesh fence but with two important additional benefits: significantly reduced installation times, significantly reduced costs.

This rapidly deployed fence system employs our unique installation process for all intermediate posts which mechanically drives the posts in place on a cushion of air in a single operation. Only the end and corner posts are set in concrete foundations.

The mesh is fixed to end/corner posts with stretcher bars with tamper proof fittings and tensioned with line wires to ensure the mesh stays taut across its face.

• Rapid deployment security fence • Stretcher bar fixings at end and corner posts for strength and tamper resistance

• Complete with 3 row barbed wire topping • Jaktronic® PIDS compatible • 25 year service life guarantee

overall height (mm)

post centres (mm)

topping (mm)

3000

3000

600

PANELS

Scan to view on our website

POST OPTIONS

75mm x 25mm galvanised welded mesh fence with 3 rows of barbed wire topping or coil of razor wire.

• Overlength set in concrete as standard

GATES

• Cranked to suit wall mounting

• Base plated to bolt down onto concrete

Matching single leaf and double leaf gates available

FINISHES • Over length set in concrete as standard • Cranked to suit wall mounting

80

TRIDENT® JAKOUSTIC® 2 SYSTEM Trident® Jakoustic® 2 system is a combination of a single facing of interlocking ‘V’ timber boards, backed with a layer of steel mesh to 1.70m above ground. The interlocking ‘V’ coupled to a tongue and groove locates the boards in such a way that eliminates gaps even when boards shrink and expand with changes in the weather. The totally flat attack face, steel mesh lining and combination of dissimilar construction materials makes the fence difficult to scale or penetrate.

• Zero visibility or footholds • Up to 28dB* noise reduction • Combination of timber boards and steel mesh • Post extensions as standard to carry 3 rows of barbed wire topping or may be specified to carry razor wire

• Razor wire security toppings • Follows ground profiles • 25 year Jakcure® guarantee *Jakoustic® barrier certified laboratory results: Rating according to BS EN 1793 - 2:1998, Category = B3, Laboratory sound reduction 28 dB, Superficial mass 25kg/m² (single layer)

overall height inc. topping

fence height (mm)

post centres (mm)

topping (mm)

3000

2400

2410

600 - 3 rows barbed wire

(mm)

Scan to view on our website

PANELS

POST OPTIONS

FINISHES

Single facing of interlocking ‘V’ Jakoustic® timber boards, backed with a layer of steel mesh to 1.70m above ground.

• Steel posts

• Planed interlocking timber boards are Jakcure® vacuum pressure treated as standard

GATES Matching single leaf and double leaf gates available

• Post dimensions to suit fence height, site and ground conditions • Over length set in concrete as standard

• Posts are hot dip galvanised to BS EN 1461 as standard • Posts can be hot dip galvanised and powder coated to BS EN 13438 in any standard colour • Marine coat for installations within 500m of salt water or estuary

81

TRIDENT® JAKOUSTIC® 3 SYSTEM Trident® Jakoustic® 3 system is of sandwich construction comprising two layers of interlocking ‘V’ timber boards, interlined with a layer of high security steel mesh 2.28m above ground. The interlocking ‘V’ coupled to a tongue and groove locates the boards in such a way that eliminates gaps even when boards shrink and expand with changes in the weather. The totally flat attack face, high security steel mesh interlining and combination of unlike construction materials makes the fence extremely difficult to scale or penetrate.

• Zero visibility or footholds • Double layer of timber boards reinforced by a layer of high security mesh

• Post extensions as standard to carry 3 rows of barbed wire topping or may be specified to carry razor wire

• Reflective acoustic barrier with 28dB* reduction in noise • High security with an attractive “natural” presentation • 25 year Jakcure® guarantee *Jakoustic® barrier certified laboratory results: Rating according to BS EN 1793 - 2:1998, Category = B3, Laboratory sound reduction 28 dB, Superficial mass 25kg/m² (single layer)

overall height inc. topping

post centres (mm)

topping (mm)

3900

2410

900 - 3 rows barbed wire

(mm)

Scan to view on our website

PANELS

POST OPTIONS

FINISHES

The acoustic barrier comprises of 4.8m acoustic boards, laid brick fashion with joins staggered in each row fixed to galvanised steel ‘I-Beam’ post; creating a chain-effect along the attack face with great structural integrity.

• Steel posts

• Planed interlocking timber boards are Jakcure® vacuum pressure treated as standard

GATES Matching single leaf and double leaf gates available

• Post dimensions to suit fence height, site and ground conditions • Over length set in concrete as standard

• Posts are hot dip galvanised to BS EN 1461 as standard • Posts can be hot dip galvanised and powder coated to BS EN 13438 in any standard colour • Marine coat for installations within 500m of salt water or estuary

82

TRIDENT® XTREME 3 SYSTEM Trident® Xtreme 3 combines a welded pale-through-rail construction with horizontal rails sleeved on upright posts with concealed fixings, it incorporates cut delay technology within its structure and 358 Securi-Mesh® on the attack face. Trident® Xtreme 3 system provides enhanced levels of protection against attempts to penetrate through the fence.

• Fully welded tubular semi pale-through-rail construction • Closely spaced pales of substantial wall thickness • 358 Securi-Mesh® to the attack face • Incorporating cut-delay technology • Anti-climb design • Jaktronic® PIDS compatible • Resistant to aggressive and sustained attack • Panels may be manufactured at reduced widths to suit individual sites

• 25 year service life guarantee

overall height (mm)

post centres (mm)

topping (mm)

3900

2450

900

Scan to view on our website

PANELS

POST OPTIONS

STANDARD COLOURS

Vertical round hollow section pales welded into top and bottom rail with “358” Securi-Mesh® installed on one side.

• Overlength set in concrete as standard • Base plated to bolt down onto concrete

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Cranked to suit wall mounting

• Architectural grade powder coating

GATES Matching single leaf and double leaf gates available

• Other colours on request

FINISHES • Hot dip galvanised to BS EN ISO 1461 as standard • Hot dip galvanised and powder coated to BS EN 13438 • Marine coat for installations within 500m of salt water or an estuary

83

TRIDENT® XTREME 3XM Trident® Xtreme 3XM is a high security vertical bar system featuring a welded semi pale-through-rail construction with horizontal rails sleeved on to the upright posts with concealed fixings, the Trident® Xtreme 3XM system provides an immensely strong and rigid structure. With its closely spaced pales of substantial wall thickness and novel cut-delay technology to frustrate attempts to penetrate through the fence.

• Fully welded tubular semi pale-through-rail construction • Provides good visibility • Incorporating cut-delay technology • Anti-climb design • Panels may be manufactured at reduced widths to suit individual sites

• May be stepped to maintain height over uneven ground and slopes

• Jaktronic® PIDS compatible • 25 year service life guarantee

Bespoke Trident® 3XM with mesh layer above sea level with Flat Barbed Tape

overall height inc. topping

(mm) 3900

post centres (mm)

topping (mm)

2450

900

Scan to view on our website

PANELS

POST OPTIONS

STANDARD COLOURS

Closely spaced square hollow section rails with concealed fixings and concertina razor wire topping.

• Overlength set in concrete as standard • Base plated to bolt down onto concrete

GATES

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Cranked to suit wall mounting

• Architectural grade powder coating

Matching single leaf and double leaf gates available

• Other colours on request

FINISHES • Hot dip galvanised to BS EN ISO 1461 as standard • Hot dip galvanised and powder coated to BS EN 13438 • Marine coat for installations within 500m of salt water or an estuary 84

TRIDENT® XTREME 4 Trident® Xtreme 4 features a welded pale-through-rail design with horizontal rails sleeved into upright posts with concealed fixings and 358 Securi-Mesh® on the attack face.

The structure is immensely strong and rigid with closely spaced pales of substantial wall thickness and novel cut-delay and self-healing technology to frustrate attempts to penetrate through the fence employing hand and portable power tools and non-contact cutting tools.

• Fully welded tubular semi pale-through-rail construction • Closely spaced pales of substantial wall thickness • 358 Securi-Mesh® to the attack face • Incorporating self-healing and cut-delay technology • Anti-climb design • Jaktronic® PIDS compatible • Resistant to aggressive and sustained attack employing hand and portable power tools and non-contact cutting tools

• Panels may be manufactured at reduced widths to suit individual sites

• 25 year service life guarantee

Scan to view on our website overall height (mm)

panel width (mm)

toppings (mm)

3900

2450

900

PANELS

POST OPTIONS

STANDARD COLOURS

Fence panels comprises of reinforced 32mm tubular vertical bars welded within 60mm by 40mm horizontal rails.

The panels in corporate “358” mesh panels welded on attack face, with a 900mm coil of razor wire topping.

• Overlength set in concrete as standard • Base plated to bolt down onto concrete

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Cranked to suit wall mounting

• Architectural grade powder coating • Other colours on request

GATES Matching single leaf and double leaf gates available

FINISHES • Hot dip galvanised to BS EN ISO 1461 as standard • Hot dip galvanised and powder coated to BS EN 13438 • Marine coat for installations within 500m of salt water or an estuary

85

METAL RAILINGS Inherently strong and offering a robust line of defence, metal railings combine aesthetic charm with the ability to deliver an imposing perimeter security solution.

Jacksons metal railings portfolio offers an extensive choice of products, spanning attractive elegantly ornate railings ideal for residential applications, through to railings which meet the discerning standards required to minimise the risk of unauthorised entry on high security sites.

All of our standard railings come complete with tamper proof fittings and a range of matching swing or sliding gates, supplied in either a manual or automated format.

86

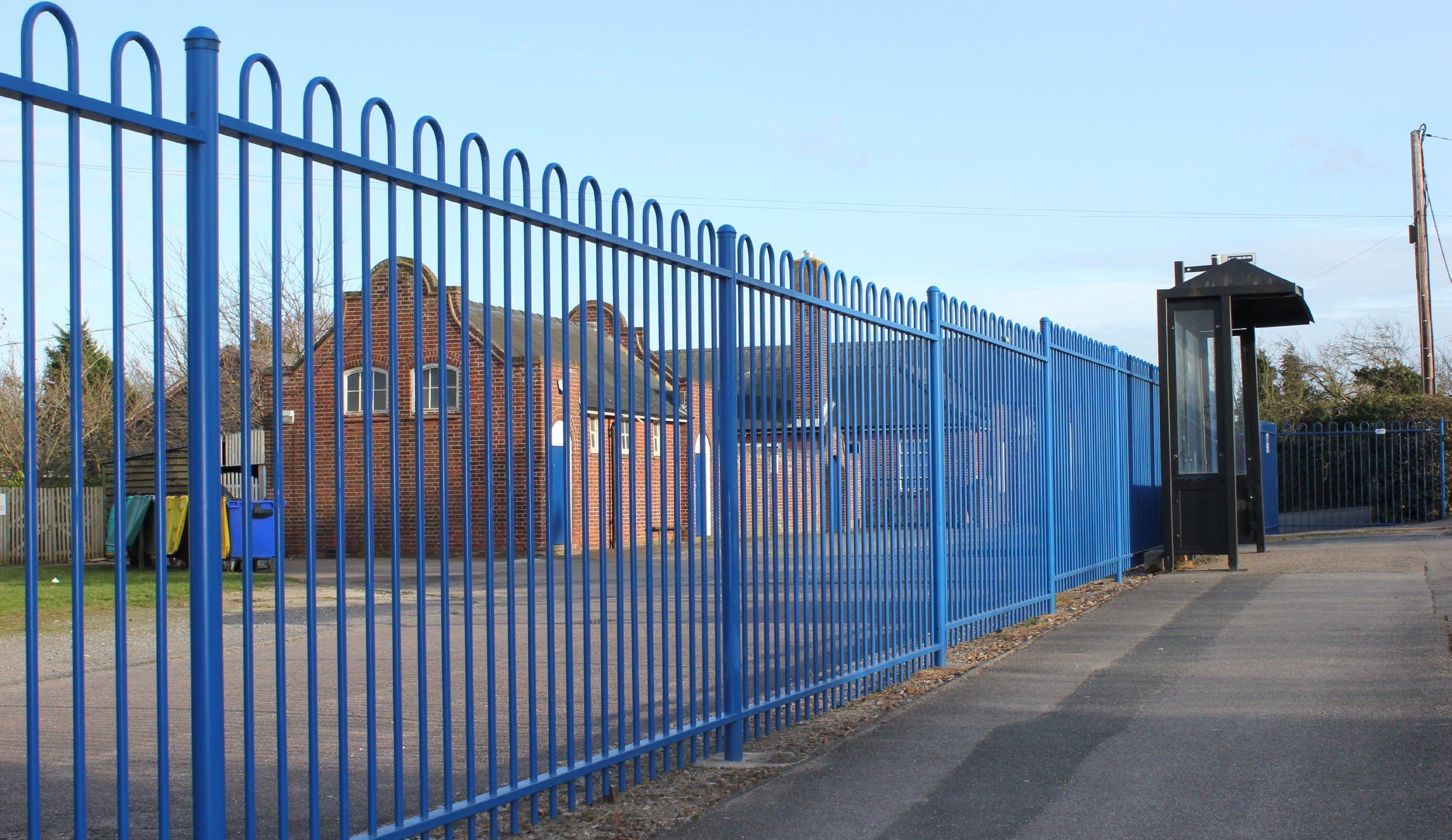

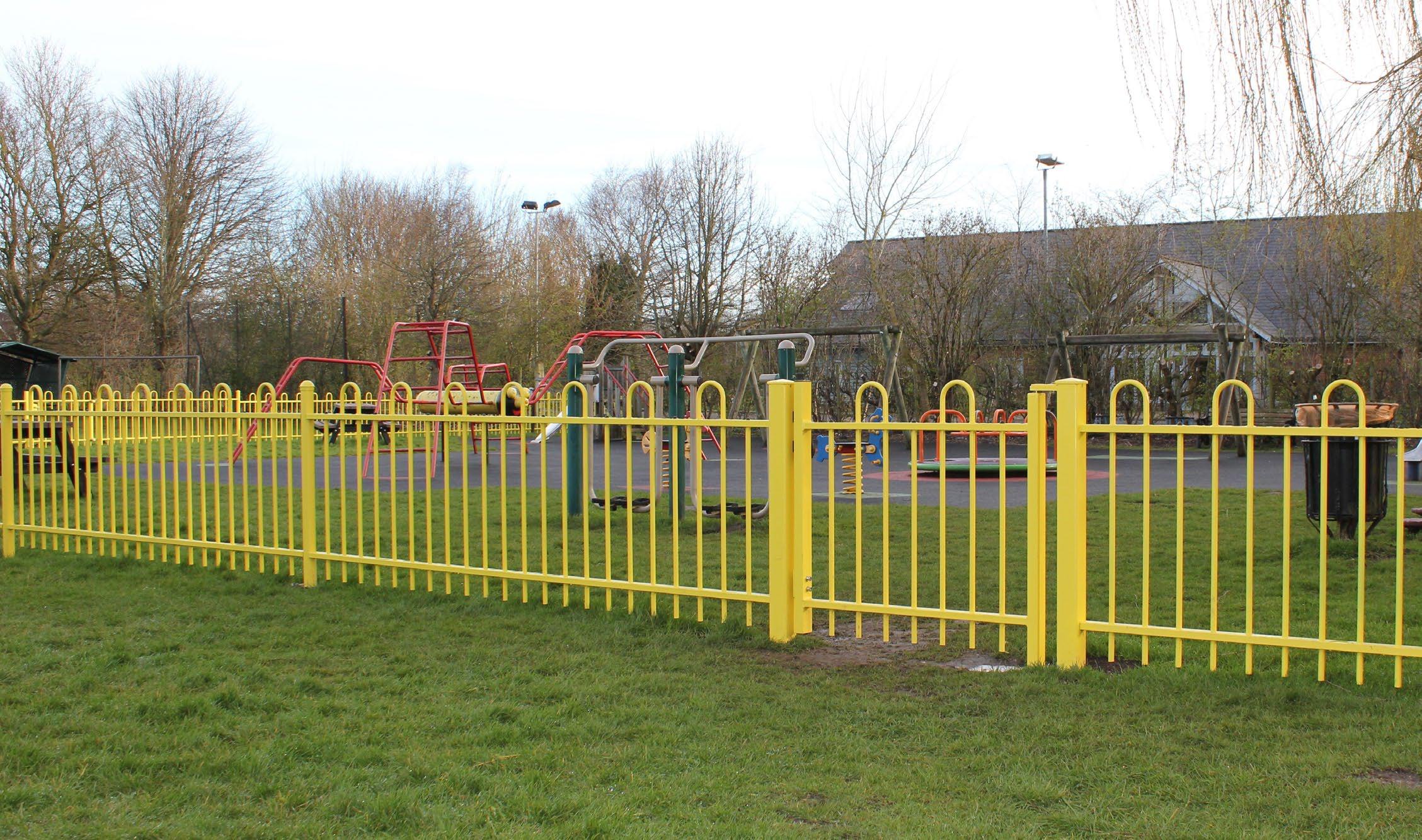

BOW TOP

Perfect for a wide variety of applications, Bow Top fencing and gates provide a versatile and durable demarcation and access solution. The pale-through-rail construction with no visible joins is immensely strong and because of its tubular design it is lighter than traditional solid steel and requires fewer support posts making installation faster and less costly.

• Unique vandal-proof panel to post connectors • Domed post caps • Option to include finials • Panels can be manufactured to accommodate sloping ground • 25 year service life guarantee

Post to panel fixings

APPLICATIONS

PANELS

GATES

4Parks

Bow Top panels have two horizontal rails 50 x 25mm, the vertical round hollow section 19mm pales are passed through the top and bottom rails at 119mm centres and welded into position.

Matching single leaf and double leaf gates available

4Public areas 4Schools

87

FINIAL OPTIONS Decorative options available, contact our sales team for more information.

150mm

100mm Bow top detail

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

1000

3014

60.3 Ø

1500

1200

3014

60.3 Ø

1800

1500

3014

60.3 Ø

2100

1800

3014

60.3 Ø

2500

2000

3014

60.3 Ø

2800

Scan to view on our website

POST OPTIONS

FINISHES

STANDARD COLOURS

• Overlength set in concrete as standard

• Hot dip galvanised to BS EN ISO 1461 as standard

• Base plated to bolt down onto concrete

• Hot dip galvanised and powder coated to BS EN 13438

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Cranked to suit wall mounting

• Marine coat for installations within 500m of salt water or an estuary

• Architectural grade powder coating • Other colours on request

88

ORNAMENTAL FENCING AND GATES

Our Ornamental fencing is designed to provide the aesthetic grace and form of traditional wrought iron railings with the strength and durability of galvanised or galvanised and powder coated steel. Whether in a parkland, corporate HQ or gated community, our Ornamental fencing adds high levels of security to a classical design.

• Three distinct styles available: Standard, Style A, Style B, as welll as custom designs • Pale spacing conforms to Building Regulations for anti-trap • Various mounting options including on wall, inset or free standing • Posts can be customised for Barbed wire / Razor wire / Rota Spike® / Alarm-aFence® • 25 year service life guarantee

Post to panel fixings

APPLICATIONS

GATES

4 Perimeters

Matching single leaf and double leaf gates available

FINIAL OPTIONS

4Residential

89

175mm

4Medium - High risk c

e

f

j

n

Standard

Style A

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

1000

3000

60 x 60

1600

1200

3000

60 x 60

1800

1500

3000

60 x 60

2100

1800

3000

60 x 60

2500

2000

3000

60 x 60

2800

2500

3000

80 x 60

3300

3000

2400

80 x 60

3800

Style B

Scan to view on our website

POST OPTIONS

FINISHES

STANDARD COLOURS

• Overlength set in concrete as standard

• Hot dip galvanised to BS EN ISO 1461 as standard

• Base plated to bolt down onto concrete

• Hot dip galvanised and powder coated to BS EN 13438

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Cranked to suit wall mounting

• Marine coat for installations within 500m of salt water or an estuary

• Post options include flat capped and ball top

• Architectural grade powder coating • Other colours on request

90

BARBICAN IMPERIAL® RESIDENTIAL These striking steel vertical railings deliver an imposing first impression for any garden or housing project. The panel is constructed so the pale goes through the rail, ensuring there are no visible joins and anti-vandal fixings are used to attach the panel to its post, enhancing the fencing’s security credentials.

• Standard heights 1000mm and 1250mm • Rails: 50 x 25mm Rectangular Hollow Section • 19mm diameter pales • 119mm pale pitch • Flat top pales as standard • Panels can be manufactured to accommodate sloping ground • 25 year service life guarantee Scan to view on our website

Post to panel fixings

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

1000

3000

60 x 60

1600

1250

3000

60 x 60

1850

APPLICATIONS

GATES

4Parks

Matching single leaf and double leaf gates available

FINIAL OPTIONS

175mm

4Public areas 4Schools

1

2

3

4

5

6

POST OPTIONS

FINISHES

STANDARD COLOURS

• Overlength set in concrete as standard

• Hot dip galvanised to BS EN ISO 1461 as standard

• Base plated to bolt down onto concrete

• Hot dip galvanised and powder coated to BS EN 13438

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Cranked to suit wall mounting

• Marine coat for installations within 500m of salt water or an estuary

91

• Architectural grade powder coating • Other colours on request

SENTRY® RESIDENTIAL Sentry® Residential is perfect for use in residential applications, with their round 19mm pale giving the railing a contemporary look, an attractive and lighter alternative to our standard Sentry® fencing. The panels are fully welded tubular semi pale-through-rail construction, with concealed, vandal proof rail to post fixings.

• Standard heights 1000mm and 1250mm • Rails: 50 x 25mm Rectangular Hollow Section • 19mm diameter pales • 119mm pale pitch • Panels can be manufactured to accommodate sloping ground • 25 year service life guarantee

Scan to view on our website

Post to panel fixings

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

1000 1250

3000

60 x 60

1600

3000

60 x 60

1850

APPLICATIONS

GATES

STANDARD COLOURS

4Parks

Matching single leaf and double leaf gates available

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

4Public areas 4Schools

• Architectural grade powder coating • Other colours on request

POST OPTIONS

FINISHES

• Overlength set in concrete as standard

• Hot dip galvanised to BS EN ISO 1461 as standard

• Base plated to bolt down onto concrete

• Hot dip galvanised and powder coated to BS EN 13438

• Cranked to suit wall mounting

• Marine coat for installations within 500m of salt water or an estuary 92

ESTATE RAILINGS

Jacksons Estate Railings are a strong, adaptable, and cost effective replacement for traditional flat bar railings. Made from tubular steel which is galvanised inside and out, they offer a lightweight, easy to install demarcation option for large residential properties, country estates, parks, and heritage properties.

• Tubular and Rectangular Hollow Section construction • Pre-fabricated panels • No welding required during installation • All fittings galvanised or stainless steel • Fencing is galvanised, with optional polyester powder coating • Post infills are black as standard, with all colours including galvanised • 25 year service life guarantee

APPLICATIONS

PANELS

GATES

4Parkland

Estate railings are constructed from 50 x 25 x 2 Rectangular Hollow Section posts with Ø19mm circular hollow section rails, with overall panel width at 1980mm.

Matching single leaf and double leaf gates available

4Residential developments

93

Fencing height (mm)

panel width (mm)

post dimensions (mm)

rails (mm)

1200

2000

50 x 25

Ø19

Single Leaf Gates (double leaf also available) • Constructed from 50 x 30mm • Hanging stile is curved at top height (mm)

width (mm)

1215 1215

1200 3000

1215

3600

3250

0.125 - 2400

• Gates can be modified for automation

Scan to view on our website

POST OPTIONS

FINISHES

STANDARD COLOURS

• Overlength set in concrete as standard

• Hot dip galvanised to BS EN ISO 1461 as standard

• Base plated to bolt down onto concrete

• Hot dip galvanised and powder coated to BS EN 13438

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Cranked to suit wall mounting

• Marine coat for installations within 500m of salt water or an estuary

• Heavy duty black plastic post infills

• Architectural grade powder coating • Other colours on request

94

PEDESTRIAN GUARDRAIL

Specifically designed for class 1 highway applications, Jacksons Pedestrian Guardrail provides an effective roadside barrier for pedestrians while maintaining good visibility for motorists. The welded hollow tubular rail and solid pale construction is extremely strong and features a bolt-together design for ease of installation or replacement.

1.

Standard - with inline pales from top to bottom

2.

See-through - with inline pales and clear visibility slot below top rail

3.

Staggered - infill bars are staggered

• Can be manufactured to suit gradients and radius • Custom designs available • 25 year service life guarantee

APPLICATIONS

PANELS

GATES

4 Pedestrian fencing

Pedestrian Guardrail is constructed from 50x30mm vertical and horizontal rails with 12mm solid pales at 112mm centres. Panels are 2000mm or 1830mm wide.

Matching single leaf and double leaf gates available

4 Schools 4Road infrastructure

95

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

1100

1000

50 x 30

1370

1100 1100

1800 2000

50 x 30 50 x 30

1370 1370 Scan to view on our website

LEG OPTIONS

FINISHES

STANDARD COLOURS

• Overlength set in concrete as standard

• Hot dip galvanised to BS EN ISO 1461 as standard

•

• Base plated to bolt down onto concrete

• Hot dip galvanised and powder coated to BS EN 13438

Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

•

Architectural grade powder coating

•

Other colours on request

• Marine coat for installations within 500m of salt water or an estuary

96

SPORTS FENCING AND TUBULAR SYSTEMS Whether in a domestic, school, community or sports facility setting, the priorities for any play-related fencing product are safety and the ability to successfully contain the activity to a designated area. This does not necessarily relate merely to the safe containment of children / people but can also include the prevention of balls breaching the boundary perimeter.

There are a number of important factors to consider when specifying and selecting the right fencing and gate solution for sports enclosures. These include participant and spectators safety, the safety of surrounding properties, the security of the enclosure when not in use and of course the playability of the enclosure.

We design and install a variety of sports fencing systems to suit the requirements of individual sports. Whether in leisure or practice facilities or at elite level, you can be assured that the Jacksons range of sports fencing and enclosures will be fit for purpose, as well as being durable, safe, secure and attractive; they are also backed by our industry leading 25 year guarantees for peace of mind and sustainability.

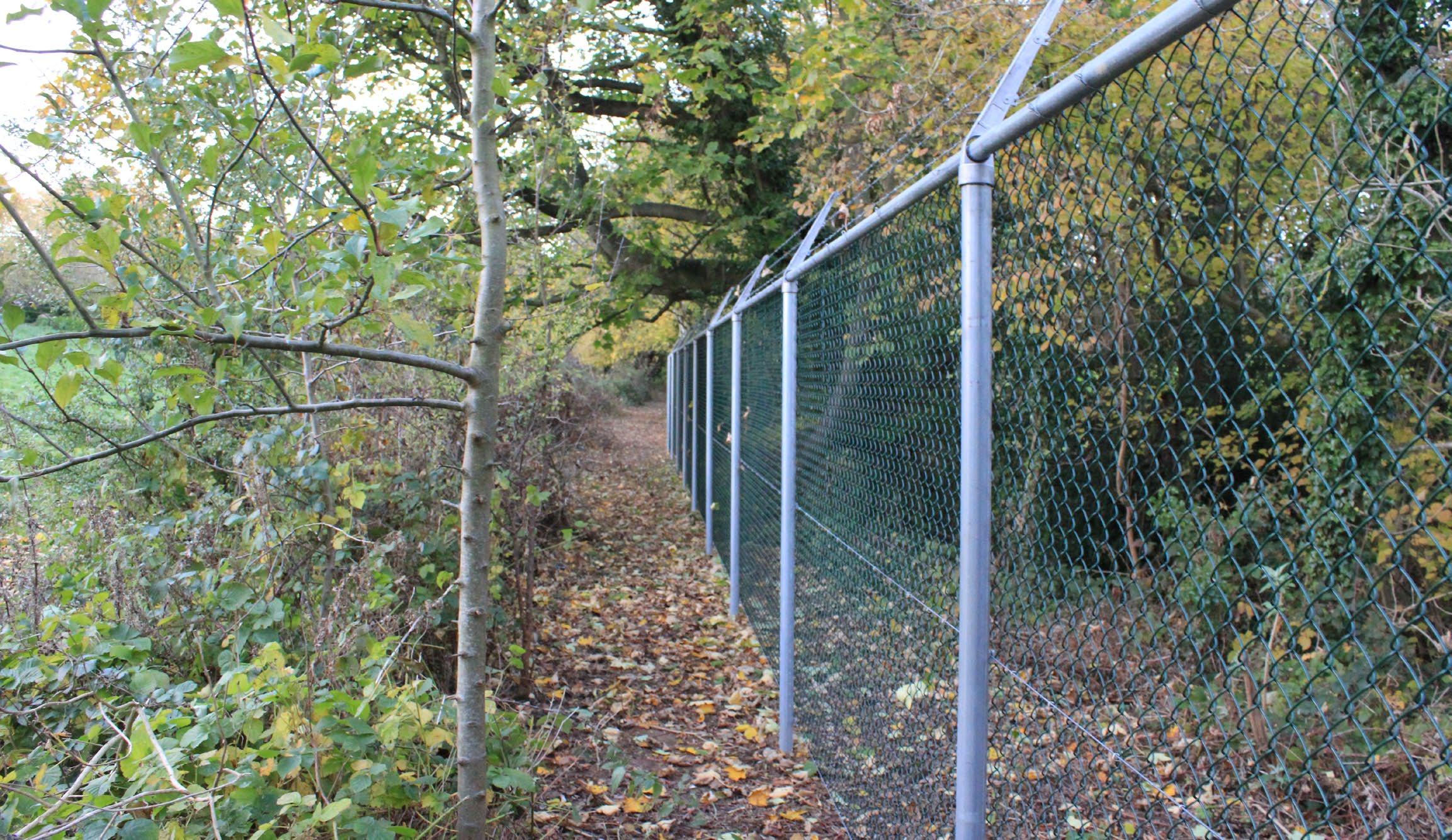

TUBULAR SYSTEMS

Unlike generic systems, Jacksons Tubular Systems for Chain Link and Welded Mesh fencing can feature a top rail for added security and strength. They are made using cast alloy material and steel, galvanised as standard or galvanised and powder coated to BS EN 13438 in one of our standard colours.

• Hollow tubular construction • Top rail as standard on system 3, 4, 5 & 6 to prevent sagging • Tubular construction for rigidity and ease of installation • Suitable for cladding in a variety of Chain Link or Welded Mesh types to suit application • Ideal for numerous applications from ball courts and perimeter demarcation to contemporary residential settings • Anti-climb design

Scan to view on our website

APPLICATIONS

TUBULAR

GATES

4 Sports

Our Tubular System is suitable for both Welded Mesh and Chain Link. For extra security extensions can be fitted on to the posts with the top rail going through them to anchor in place.

The standard chain link gates are made for 980mm opening and are 50mm shorter than the fence height. They are right or left handed and clad with either galvanised or galvanised and green coated chain link. The frame is made from 42mm diameter galvanised tube.

4Low - Medium risk 4Schools

98

system 1

system 2

system 3

system 4

system 5

system 6

(900mm - 3600mm high)

(1800mm - 3600mm high)

(900mm - 3600mm high)

(1800mm - 3600mm high)

(1800mm - 3600mm high)

(1800mm - 3600mm high)

Without a top rail, in medium and heavy duty posts

With 60.3mm vertically extended posts with straining posts and struts

With 60.3mm posts and 41.5mm top rail

With 60.3mm posts and vertical extensions 410mm of 3 rows for barbed wire and 41.5mm top rail

With 60.3mm posts with cranked extensions 360mm of 3 rows for barbed wire and 41.5mm top rail

With 60.3mm posts with “Y” extensions of 6 rows for barbed wire and 41.5mm top rail

Gates are available as either single or double leaf gates with the option of manual or automated, swing or sliding.

MESH OPTIONS

STANDARD COLOURS

• Galvanised Chain Link

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• PVC Chain Link • Welded Mesh • PVC Welded Mesh

• Architectural grade powder coating • Other colours on request

99

BALL STOP FENCING

Jacksons Fencing was the first to develop the double lattice post design for our Ball Stop Fencing in 1994, which provided a structure strong enough to allow sports webbing / mesh to remain in place safely throughout the year. While many have imitated the design, none have bettered it. That’s because we prioritise use of the best materials in our proven design, including our top rail for extra rigidity to ensure durability and safety for both users and the public.

• Extra strength lattice posts • Top rail as standard • Hollow tubular construction • Strong, stable and safe structure even in higher wind loading situations • Wide range of webbing and mesh types available to suit different applications • Universal frame for various applications from a rugby pitch to golf driving range • 25 year service life guarantee

Scan to view on our website

APPLICATIONS

POST OPTIONS

FINISHES

4Sports

• Base plated to bolt down onto concrete

• Hot dip galvanised to BS EN ISO 1461 as standard

4Schools 4Golf courses

• Hot dip galvanised and powder coated to BS EN 13438 • Marine coat for installations within 500m of salt water or an estuary

100

Outside

Inside

height (mm)

post centres (mm)

post dimensions (mm)

*overall post length (mm)

4000

3000

Ø 60.3

4150

5000

3000

Ø 60.3

5150

6000

3000

Ø 60.3

6150

7000

3000

Ø 60.3

7150

8000

3000

Ø 60.3

8150

9000

3000

Ø 60.3

9150

*Posts are base plated 150mm below ground level

STANDARD COLOURS

MESH OPTIONS

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Polyethylene netting

• Architectural grade powder coating • Other colours on request

101

Inter post

Outside

Inside

Strainer / end post

• Chain link - Galvanised / Black or Green PVC coated • Welded mesh - Galvanised / Black or Green PVC coated

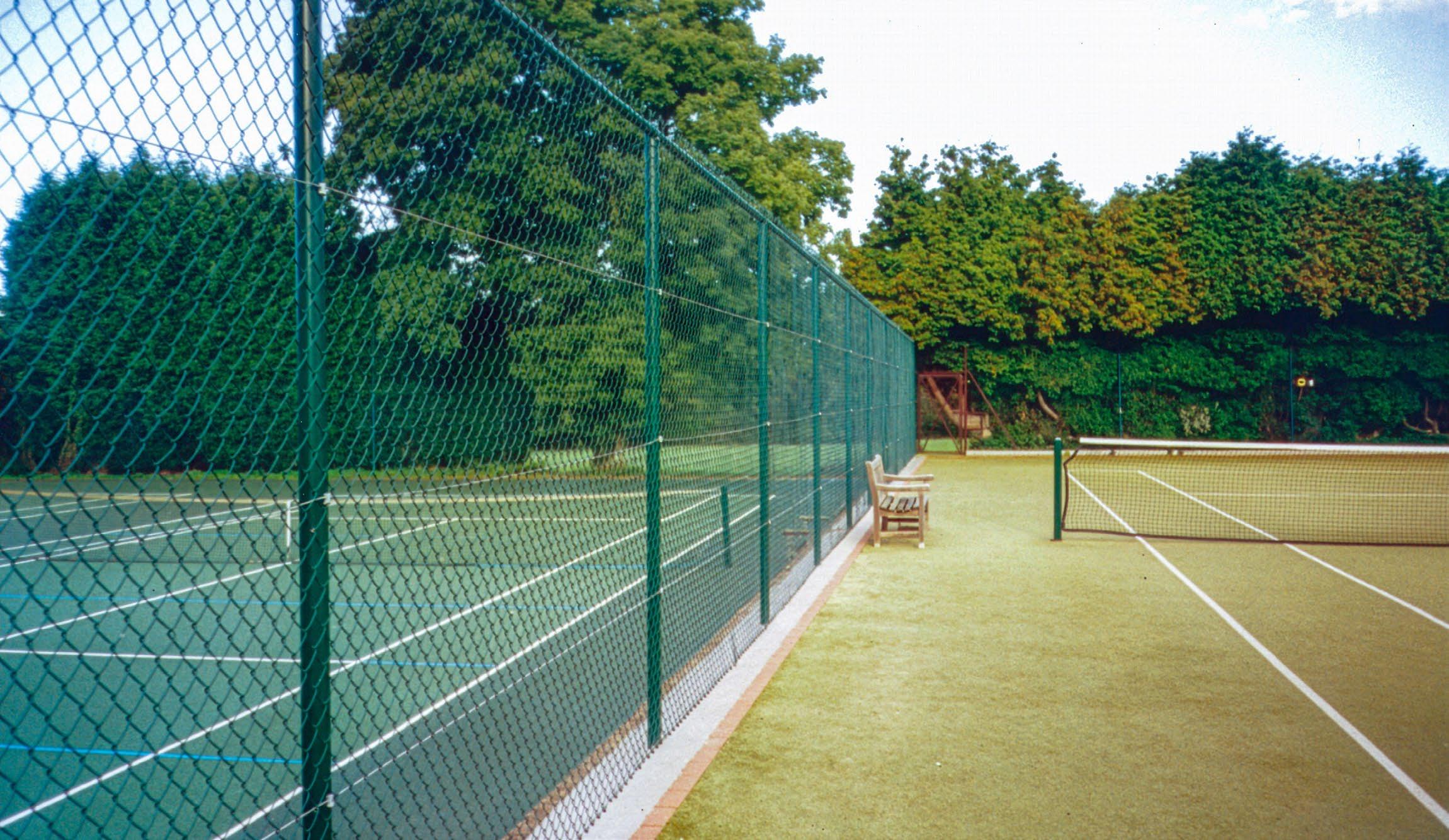

TENNIS COURTS (SYSTEM 3)

Our tennis court system is made from Tubular System 3. Single courts are 18m x 36m with one gate, and double courts are 34m x 36m with two gates. Posts can be supplied in either a galvanised or powder coated finish in our standard colours.

Our tennis court fencing 2.75m high with the option to either have Chain Link (standard) or Welded Mesh as the infill.

• 2.75m high • Can be clad with either Chain Link or Welded Mesh • Single court 18m x 36m • Double court 34m x 36m Tennis court fence is constructed from tubular posts 60.3mm diameter, with top rail and 41.5mm struts on corner posts complete with tubular framed gate 2000mm high 1000mm wide with a key lock as standard.

GATES

POST OPTIONS

Chain Link gates are made for 980mm opening and are 2m nominally. They are right hand clad with either a galvanised finish or a galvanised and PVC green coated finish chain link. The framing is made from 42mm diameter galvanised tube, in a 60mm diameter surround frame.

• Overlength set in concrete as standard • Base plated to bolt down onto concrete

102

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

2750

3000

60.3 Ø

3550

FINISHES • Posts hot dip galvanised to BS EN ISO 1461 as standard

POST AND RAIL STANDARD COLOURS •

Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

•

Architectural grade powder coating

•

Other colours on request

• Posts hot dip galvanised and powder coated to BS EN 13438 • Marine coat for installations within 500m of salt water or an estuary

103

Scan to view on our website

EUROGUARD® REBOUND

BARBICAN ® Jacksons EuroGuard® Rebound Fencing is an alternative to Chain Link Fencing, for high usage courts. The double wire gives Rebound more rigidity and reduces the vibration along the fence line and also capable of withstanding high impact sports i.e hockey or football. The mesh’s aperture is small enough to prevent sports balls from escaping, but still allows the spectator to have an unobstructed view.

• 50 x 66.6mm mesh at the base to 1200mm then reverts to 200 x 50mm above up to 2030mm

• Posts 80 x 60mm subject to height of fence • Can be stepped to accommodate sloping ground • Post can be adapted to mount CCTV cameras or lighting • 25 year service life guarantee

APPLICATIONS

PANELS

GATES

4Sports

EuroGuard® Rebound is constructed from double 8mm horizontal wire, 6mm vertical wire. Mesh 50 x 66.6mm at the base to a height of 1230mm which then reverts to 200 x 50mm

Matching single leaf and double leaf gates available

4Schools 4Recreational areas

104

Fixing bracket detail

height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

2030*

3010

80 x 60

2800

*Mesh panels can be stacked up to 6m with posts designed to suit application Scan to view on our website

POST OPTIONS

FINISHES

STANDARD COLOURS

• Overlength set in concrete as standard

• Panels are Galfan® zinc alloy coated to BS EN 10244-2:2009 class A

• Base plated to bolt down onto concrete

• Galvanised and powder coated to BS EN 13438

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Cranked to suit wall mounting

• Marine coat for installations within 500m of salt water or an estuary

• Architectural grade powder coating • Other colours on request

105

ACOUSTIC FENCING The proven and flexible Jakoustic® timber acoustic barrier system is available in any height up to three metres, and in a number of versions that can reduce noise levels by up to 32 decibels, to provide effective solutions to environmental noise pollution, with low lifetime costs.

The basis of the Jakoustic® system features our unique timber ‘tuning fork’ design posts and boards featuring an interlocking tongue and groove design. The special profile has been carefully developed to locate the boards in such a way that eliminates gaps that sound could travel through, even when boards shrink and expand with changes in the weather. The fence is finished with a capping and counter rail.

Our Commercial & Highways system utilises the same basic structure, incorporating galvanised steel I-beams as opposed to timber tuning fork posts, and is available in heights above three metres. Both reflective and absorptive versions can also be UKCA/CE marked as a whole system for road infrastructure.

106

12K ENVIROFENCE®

12k Envirofence® is ideal for projects where there is a need for a barrier that meets with minimum superficial mass requirements. While it has not been subject to laboratory testing, 12k Envirofence® offers a cost-effective solution for situations where lower level of noise reduction is acceptable in applications subject to low to moderate wind loads. Its timber construction provides an attractive natural appearance that is appropriate for housing developments, retail and leisure facilities, schools, parks, and construction sites.

• Overlength timber tuning fork posts for setting in concrete as standard • 25 year guarantee using Jakcure® vacuum pressure treated timber • Achieves the planning / architects’ minimum acoustic specification of 10 - 12kg per sqm.

• Complete with capping and counter rail • 20mm x 139mm x 4.8m (planed) board with small chamfers which form a V-join between boards • Capping rail 34mm x 145mm x 4.8m (planed) • Counter rail size 34mm x 70mm x 2.4m (planed)

APPLICATIONS

GATES

4 Schools

Matching single leaf and double leaf gates available

4Parks 4Low - Medium risk 4Housing developments 4Demarcation 107

• Barrier heights from 1.8m – 2.0m supplied with timber tuning fork posts (for general applications with low to moderate wind loads)

• Barrier heights of 2.1m - 3.0m include galvanised steel spur posts, powder coated black

height (mm)

post centres (mm)

spur post (mm)

post length (mm)

2000

2410

N/A

2900

2500

2410

2000

3400

3000

2410

2500

3900

Scan to view on our website

9150 9000

3000

0.3

POST OPTIONS

FINISHES

• Timber tuning fork posts for heights up to 3m

• Jakcure® treated timber as standard • Spur posts hot dipped galvanised to BS EN ISO 1461 and/or powder coated • Planed timber finish

108

JAKOUSTIC® REFLECTIVE

BARBICAN ® The Jakoustic® Reflective barrier is particularly effective in reflecting noise away from its face by employing heavy section planed timber boards with deep interlocking ‘v’ tongue and groove joints, coupled to tuning fork posts that clamp the boards together to eliminate gaps that sound can easily travel through.

Offering up to 28dB* reduction in noise, it has been designed for construction on site and can accommodate changes in site levels or profile.

• Unique tuning fork design posts • Approximate superficial mass 25kg/m2 • Attractive timber structure with a planed finish throughout • Anti climb design and scale design • Special fixings clamp the acoustic boards between posts • Can accommodate changes in level or profile • Complete with capping and counter rail • Capping rail 34mm x 145mm x 4.8m (planed) • Counter rail size 34mm x 70mm x 2.4m (planed) • Up to 28dB reduction in noise* • Rating according to BS EN 1793- 2:1998; Category = B3 • 34mm x 143mm x 4.8m (planed) board with unique deep interlocking ‘v’ tongue and groove joint • 25 year guarantee using Jakcure® vacuum pressure treated timber *Jakoustic® barrier certified laboratory results: Rating according to BS EN 1793- 2:1998; category = B3; laboratory sound reduction 28dB. 109

• Overlength timber tuning fork posts for setting in concrete as standard • Heights of 2.1m - 3.0m include timber tuning fork posts and galvanised steel spur posts to tuning fork posts, powder coated black as standard

height (mm)

post centres (mm)

spur post (mm)

post length (mm)

2000

2410

N/A

2900

2500

2410

2000

3400

3000

2410

2500

3900

Scan to view on our website

For additional strength against higher wind loading see Jakoustic® Commercial & Highway Reflective 9000

3000

Ø 60.3

9150

APPLICATIONS

POST OPTIONS

FINISHES

4Commercial properties

• Timber tuning fork posts for heights up to 3m

• Jakcure® treated timber as standard

4Retail 4Housing

GATES

4Sports venues

Matching single leaf and double leaf gates available

4Low / medium wind conditions

• Spur posts hot dipped galvanised to BS EN ISO 1461 and/or powder coated • Planed timber finish

110

JAKOUSTIC® ABSORPTIVE

BARBICAN ® The Jakoustic® Absorptive barrier is designed specifically to keep noise within a contained space and is typically used around continuous power supply generators, air conditioner compressors, waste compactors and goods loading areas.

Jakoustic® Absorptive takes the proven Jakoustic® Reflective design of heavy section planed timber boards with deep interlocking ‘v’ tongue and groove joint, coupled to tuning fork posts and adds an absorptive layer of a mineral Rockwool fibre and protective membrane to one side of the barrier.

Offering up to 32dB* reduction in noise, it has been designed for faster installation times on site and can accommodate changes in site levels or profile.

• Timber construction with planed boards visible on one face • Approximate Superficial Mass 28kg/m² • Up to 32dB reduction in noise* • Unique tuning fork design posts • Special fixings clamp the acoustic boards between posts • Can accommodate changes in level or profile • Complete with capping and counter rail • Capping rail 34mm x 145mm x 4.8m (planed) • Counter rail dimensions: 34mm x 70mm x 2.4m (planed) one side \ 70mm x 54mm x 2.4m (planed) one side • Absorptive layer of a mineral Rockwool fibre and protective membrane to one side • High privacy, anti climb and scale design • 25 year guarantee using Jakcure® vacuum pressure treated timber *Jakoustic® barrier certified laboratory results: Rating according to BS EN 1793- 2:1998; Category = B3. Rating according to BS EN 1793-1:1998; Category=A3. Laboratory sound reduction 32dB. 111

• Overlength timber tuning fork posts for setting in concrete as standard • Heights of 2.1m - 3.0m include timber tuning fork posts and galvanised steel spur posts to tuning fork posts, powder coated black as standard

height (mm)

post centres (mm)

spur post (mm)

overall post length (mm)

2000

2410

N/A

2900

2500

2410

2000

3400

3000

2410

2500

3900

Scan to view on our website

For additional strength against higher wind loading see Jakoustic® Commercial & Highway Absorptive

APPLICATIONS

POST OPTIONS

FINISHES

4Commercial properties

• Timber tuning fork posts for heights up to 3m

• Absorptive face clad in black membrane with vertical timber battens as standard

4Railways

GATES

4Residential

Matching gates available with an absorptive layer

• Spur posts hot dipped galvanised to BS EN ISO 1461 and/or powder coated

4Industrial

4Low / medium wind conditions

• Planed timber finish

112

JAKOUSTIC® COMMERCIAL AND HIGHWAY

BARBICAN ®

Jakoustic® Commercial and Highway Reflective

Jakoustic® Commercial & Highway barrier system has been designed for commercial and highway applications, providing the same level of noise protection as the original Jakoustic® barriers, available in both reflective and absorptive variants.

Jakoustic® interlocking ‘V’ boards are affixed to galvanised steel I-beam posts for additional strength and rigidity, meeting not only stringent standards BS EN1794-1 and 2, but also ideally suited for application in exposed locations subject to high wind loading. The system is available with matching capping and counter rails to further enhance its appearance. The complete acoustic barrier system can be UKCA/CE marked as compliant with the requirements of BS EN 14388:2005 relating to road traffic noise reducing devices. Our in-house design team provides wind loading calculations for posts, free of charge on supply and install jobs.

The timber used in its construction can be treated in compliance with the National Highway Sector Scheme 4 standard.

• Available as Jakoustic® Reflective or Jakoustic® Absorptive • Can be UKCA/CE marked as compliant with the requirements of harmonised standard EN 14388:2005 relating to traffic noise reducing devices

• Timber can be treated to National Highway Sector Scheme 4 and the system can be installed in compliance with National Highway Sector Scheme 2C

• Approximate Superficial Mass 25kg/m2 or 28kg/m2 • Up to 28dB** or 32dB** noise reduction • Overlength galvanised steel I-beam posts for setting in concrete as standard • 34mm x 143mm x 4.8m (planed) boards with unique deep interlocking “V” tongue and groove joint • Can accommodate changes in level or profile • Capping rail 34mm x 145mm x 4.8m (planed) • Counter rail size 34mm x 70mm x 2.4m (planed) • High privacy, anti climb and scale design • 25 year guarantee using Jakcure® vacuum pressure treated timber 113

Jakoustic® Commercial and Highway Absorptive **Jakoustic® Commercial and Highway Reflective barrier certified laboratory results:

Reflective: Rating According to BS EN 1793-2:1998 (Category = B3) Jakoustic ® Highways Reflective Laboratory Sound Reduction 28dB Superficial Mass 25 Kg/m2 BS EN 1794-1:2003, Annex A,B,C & E Designed in Accordance with BS EN 1794-2:2003 (Detailed compliance statements available)

Scan to view on our website

Absorptive: Rating According to BS EN 1793-1:1998 (Category = A3) Jakoustic ® Highways Absorptive Laboratory Sound Absorption 9dB Rating According to BS EN 1793-2:1998 (Category = B3) Jakoustic ® Highways Absorptive Laboratory Sound Reduction 32dB Superficial Mass 28 Kg/m2 BS EN 1794-1:2003, Annex A,B,C & E Designed in Accordance with BS EN 1794-2:2003 (Detailed compliance statements available)

APPLICATIONS

POST OPTIONS

FINISHES

4Industrial

• One face showing Jakcure® treated timber as standard

4Highways

• Base plated galvanised steel I-beam posts to bolt down to concrete base foundations

4Railways

• Overlength steel I-beam posts

• Steel I-beam posts hot dipped galvanised to BS EN ISO 1461 • Planed timber finish

4Logistics 4Commercial properties

GATES

4Sites subject to high wind loading

Matching gates available 114

ACOUSTIC GATES

BARBICAN ® For a totally integrated, acoustic barrier solution we offer matching Jakoustic® timber or galvanised steel framed gates for pedestrian and vehicular access.

Configured as singles or pairs to match the Jakoustic® Reflective or Absorptive barrier systems, gates are available in swing and tracked sliding designs for manual or automated operation.

Swing Gates Available in a range of sizes*.

Swing gates can be hung on timber or galvanised or galvanised and powder coated steel posts, dependent on size, with the addition of optional lintels if required.

115

Bespoke Jakoustic® Absorptive Sliding Gates

Tracked Sliding Gates Available in a range of sizes, please ask for more details.

The largest Jakoustic® tracked sliding gate that we have manufactured and installed to date is 3.5m high x 21m wide single leaf - but we can do larger. *note: we recommend automation on swing gates that exceed 4sqm per leaf Scan to view on our website

APPLICATIONS

OPTIONS

FINISHES

4 Commercial properties

• Swing

• Jakcure® treated timber as standard

4 Industrial

• Sliding

• Posts are hot dip galvanised to BS EN ISO1461 as standard

4Sports venues 4 Railways

• Automated • Manual

4 Residential 116

PLAYGROUND FENCING AND GATES We offer a variety of solutions in timber and steel for school, playground and play area applications where security, safety, durability, and sustainability are key considerations.

Installing the correct line of physical defence in play areas specifically developed for younger children requires an acute focus on providing a safe fencing or gate solution.

This will minimise the risk of puncture wounds or entrapment of limbs to reduce the possibility of public liability claims - an all-important consideration in today’s increasingly litigious society.

118

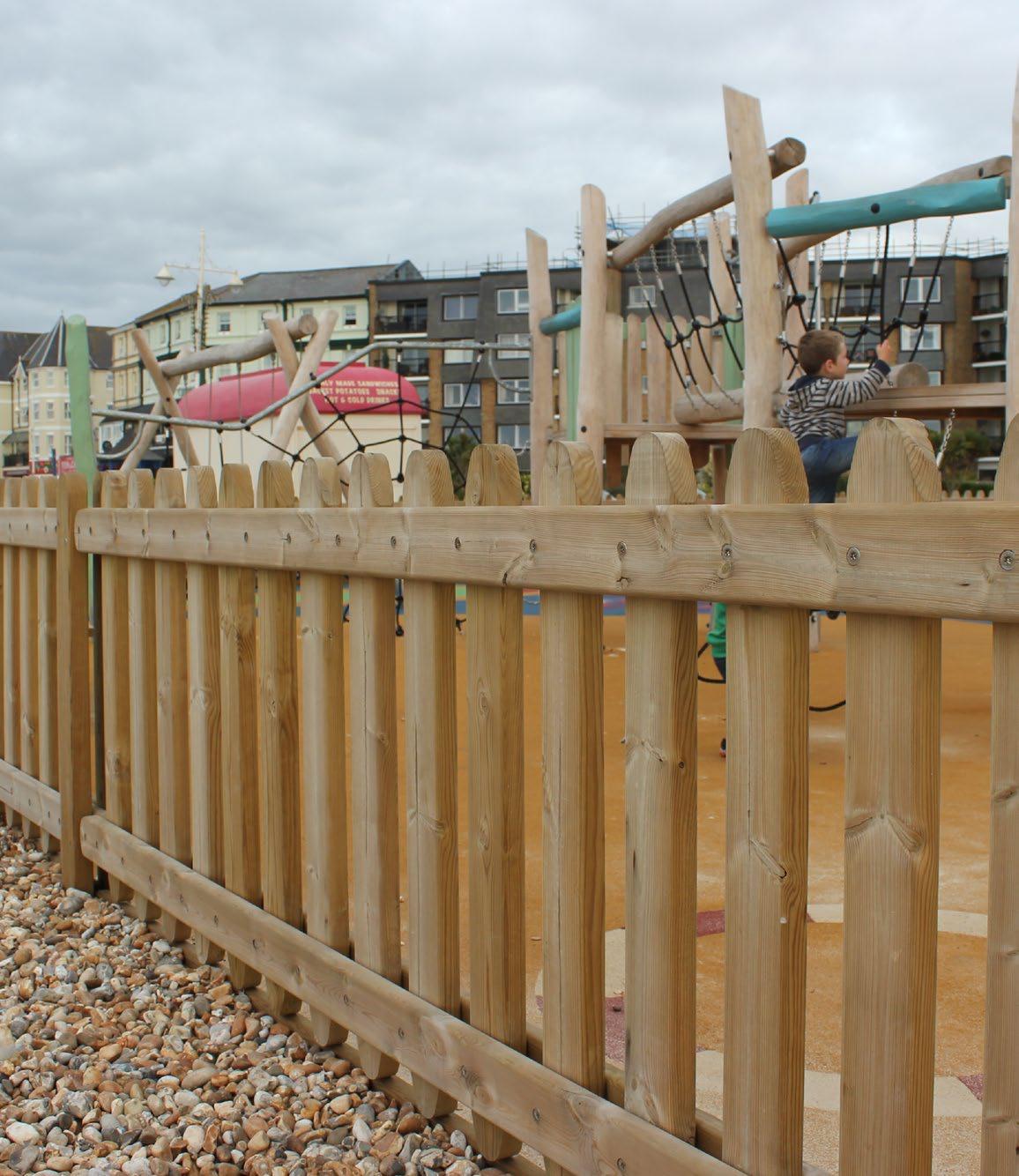

PLAYTIME® FENCING | TIMBER & METAL

BARBICAN ® The Playtime® range is one of our solutions to providing a safe enclosure around play areas, and protection against vandalism, dog-fouling, and unwanted intrusion. Designed to BS EN 1176, both timber and metal options conform to anti-trap regulations for playground fencing. Our timber Playtime® fencing is made from pressure treated, planed timber, reducing the risk of splinters, rot, and insect attack. Panels are constructed using galvanised tamper proof fixings to prevent panels from being vandalised, and hazardous nails being left strewn across the play area. Our metal Playtime® fencing has a welded stopped palethrough-rail construction, providing a strong fence with no visible bolts or fixings to be removed. Panels come galvanised as standard, but can be polyester powder coated at additional cost.

• Timber or steel fencing available • RoSPA Approved • Conforms to BS EN 1176 for play fences • 25 year service life guarantee • 25 year Jakcure® timber guarantee

APPLICATIONS

PANEL OPTIONS

4 Schools

Timber Playtime®: The fencing panels are made up of 95 x 35 x 900mm high pales with 75mm pales spacing sandwiched between two rails at the top and two rails at the bottom.

4Parks 4Play areas

Metal Playtime: 1000mm high (nominal height) panels have two horizontal rectangular hollow section rails

119

60 x 40mm; walls 2mm thick, with 25 x 25mm pales.

GATES Matching single leaf and double leaf gates available

Scan to view on our website

Timber Playtime® Fencing finish

height (mm)

post centres (mm)

post dimensions (mm)

pales (mm)

Natural/unpainted*

1090

3255

120 x 120

95 x 35

finish

height (mm)

post centres (mm)

post dimensions (mm)

pales (mm)

Galvanised*

1000

3000

60 x 60

25 x 25

Metal Playtime® Fencing

*Multicoloured versions seen pictured available at additional cost

POST OPTIONS

TIMBER FINISHES

METAL FINISHES

• Overlength set in concrete as standard

• Natural Jakcure® finish as standard

• Hot dipped galvanised as standard

• Multi coloured pales (yellow, red and blue)

• Hot dip galvanised and powder coated to BS EN 13438

• Base plated to bolt down onto concrete (not available on timber)

120

PLAYTIME® GATES

Designed to complement our Timber Playtime® and Metal Playtime® fencing, Playtime® gates conform to all current play area safety guidelines. Gates come complete with hinges that allow the gate to swing through an angle of 180˚ and 90˚ if a self closer is added. The hinges are fully adjustable with tamper-proof screws and bolts.

• Inherently safe • Quiet operation • RoSPA Approved • Playtime® timber gates feature a steel frame for added strength • 25 year service life guarantee • 25 year Jakcure® life guarantee

Scan to view on our website

APPLICATIONS

GATE OPTIONS

PLAYTIME® TIMBER FINISHES

4Schools

• Self closing operation

• Natural Jakcure® finish as standard

4Parks

• Single or double leaf available

• Multi coloured (yellow, red, and blue) with green posts, rails and gravel boards feature as standard

4Play areas

• Slide latch • Lockable magnetic lock

121

Timber Playtime® Gates height (mm)

width (mm)

post dimensions (mm)

pales (mm)

1090

to suit

100 x 100

95 x 35

height (mm)

width (mm)

post dimensions (mm)

pales (mm)

1000

to suit

80 x 80

25 x 25

Metal Playtime® Gates

PLAYTIME® METAL FINISHES

GATE POST DIMENSIONS

• Galvanised as standard

• Timber 100 x 100mm

• Hot dip galvanised and powder coated to BS EN 13438

• Metal 80 x 80mm

122

ANTI-TRAP BOW TOP FENCING AND GATES

Anti-Trap Bow Top is designed to provide permanent protection for a variety of applications including schools, parks or play areas. It features our welded tubular pale-through-rail design to provide a strong structure without visible joints and vandal proof connectors. A key feature of the design is the wider gap between each hoop above the top rail, which prevents children from getting their heads, necks or limbs stuck between the pales. The design fully conforms to play fence standards in BS EN 1176.

• 19mm pales with domed top caps • RoSPA approved • 2737mm wide panels • Posts 60.3mm • Panels can be manufactured to accommodate sloping ground • 25 year service life guarantee

Post to panel fixings

Post-to-panel fixings

APPLICATIONS

PANELS

POST OPTIONS

4Schools

Two horizontal rails 50 x 25mm with vertical round hollow section 19mm pales are passed through the top and bottom rail welded into position.

• Overlength set in concrete as standard

Every other bow with a pale is replaced with a domed plastic insert, creating a larger gap above the top of the rail, whilst keeping the gap between the paling inside the top and bottom rail under 100m.

• Cranked to suit wall mounting

4Parks 4Play areas

123

• Base plated to bolt down onto concrete

Anti-Trap Bow Top Fencing height (mm)

post centres (mm)

post dimensions (mm)

overall post length (mm)

1000

2775

60.3 Ø

1500

1200

2775

60.3 Ø

1800

1500

2775

60.3 Ø

2100

1800

2775

60.3 Ø

2500

Scan to view on our website

Anti-Trap Bow Top Gates Gates are available as single or double leaf, in heights to suit fencing. They are also RoSPA approved, and feature 19mm diameter pales, 50 x 25 x 2mm horizontal rails, and 60 x 40 x 2mm wall thickness hanging and shutting stiles.

GATE OPTIONS

FINISHES

STANDARD COLOURS

• Self closing operation for gates

• Hot dip galvanised to BS EN ISO 1461 as standard

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Slide latch • Single or double leaf

• Hot dip galvanised and powder coated to BS EN 13438 • Marine coat for installations within 500m of salt water or an estuary

• Architectural grade powder coating • Other colours on request

124

FENCE TOPPINGS Fence spikes can be used on our fencing and gates in and around the perimeter to increase levels of security against intrusion, damage, acts of vandalism, or terrorism. In some cases, the installation of security extras may require planning permission or building regulations approval, if in doubt, please consult your relevant Local Authority department.

126

ROTA SPIKE® The ultimate fence and gate topping deterrent Rota Spike® can also be utilised on buildings, to protect vulnerable points, for example windows and roof parapets.

• Supplied 6m lengths or to suit • Inner tube 41.5mm Ø • 70 Rota Spike® per tube per 6m • Fixed at 3m centres (top of wall) • Fixed at 2m centres (face of wall) • Spikes to rotate making it virtually impossible to climb over

VIPER SPIKE® Viper Spike® represents a new dimension in security - more imposing than barbed wire, it offers a formidable deterrent to the would-be climber. Designed to form a three dimensional barrier, its strong 170mm long 10mm diameter spikes are complete with extremely sharp points.

• 1.1m long • 40 x 6mm flat bar • 9 pairs of spikes 10mm diameter • Width (including spikes) 230mm • Height 170mm

Scan to view all on our website

VIPER SPIKE® 3 Viper Spike® 3 is designed to prevent intruders from climbing drainpipes or other vertical structures. Available at 200m wide x 150mm stand-off as standard or made to measure to suit applications.

• 150mm deep x 200mm wide • 8 pairs of spikes • 40 x 60mm flat bar

COBRA SPIKE® Cobra Spike® security topping is designed for use on the tops of fences, gates or walls.

• 1.5m long with 110mm spikes • Pitch of spikes 80mm and depth of spikes 95mm • Width of base approximately 50mm

127

COBRA SPIKE® ROTARY Cobra Spike® Rotary is made up of two lengths of modified Cobra Spike® affixed to a 3.0m x 41mm galvanised tube.

• 3.0m long x 180mm wide x 270mm high • Easy to install • Virtually impossible to climb over We recommend that spikes should be attached to wall and fences at a minimum height of 2.5m, with warning signs every 10m or change in direction.

SENTRY COMB Sentry Comb is made up of a double row of 25mm high sharp-pointed steel double comb for additional security.

• 25mm high • Double row • Easy to install

BARBED WIRE AND TAPE A range of galvanised barbed tape and wire is available to further enhance the perimeter security in different applications whether as a fence and gate topping or in drop zones.

CONCERTINA RAZOR WIRE coil diameter (mm)

Extended Diameter (mm)

approx coil length (m)

450

400

8

710

620

10

980

820

10

BARBED WIRE ROLL strands

gauge (mm)

approx coil length (mm)

2

1.7

200

FLAT BARBED TAPE coil height (mm)

approx coil length (mm)

500

14

700

14

900

14 128

VEHICLE AND PEDESTRIAN CONTROL Jacksons designs and manufactures a wide range of gates in steel, timber or a combination of both to safeguard the continued security of any installation. Regardless of the type of gate, the material used, or whether or not the gate represents a customised response to a problem, all Jacksons gates are galvanised to BS EN 1461 as standard or pressure treated, and covered by our 25 year guarantee.

As well as designing and manufacturing gates - both manual and automated - we are able to provide access to our team of expert installers to ensure a professional and legally compliant installation.

The Jacksons access control systems work in conjunction with the operation of our automated products and allow enhanced control over the flow of traffic - either on foot or vehicular - at elected points within the site.

130

SWING GATES

BARBICAN ® Swing Gates Supplied as either manual or automated and in a range of sizes with various control options. Our swing gates are available in a choice of different infills in either single or double leaf. Range comprises standard widths up to 10m and heights to 3m for pedestrian and vehicular access (standard ram operators up to 14m double leaf) third rail added if automated.

Gate Automation Safety Jacksons automated gates and barriers meet with the essential health and safety requirements and are properly UKCA/CE marked as required by law. Additionally, the products are designed and engineered to exceed the standards set out in BS EN 12978 and BS EN 12453 in relation to gate safety.

GATE OPTIONS • Single leaf • Double leaf • Pedestrian or vehicle access • Manual • Self closing (soft shut)

131

• Automated 4Underground operator 4Ram operator • Choice of infill

Single Leaf Gate height (mm)

opening (mm)

infill options

1800 / 2000 / 2500 / 3000

Up to 5000

Vertical Bar / Welded Mesh / Tubular / Bow Top / Acoustic

height (mm)

opening (mm)

infill options

1800 / 2000 / 2500 / 3000

Up to 10,000

Vertical Bar / Welded Mesh / Tubular / Bow Top / Acoustic

Double Leaf Gate

FINISHES

STANDARD COLOURS

• Hot dip galvanised to BS EN ISO 1461 as standard

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Hot dip galvanised and powder coated to BS EN 13438 • Marine coat for installations within 500m of salt water or an estuary

Scan to view on our website

• Architectural grade powder coating • Other colours on request

132

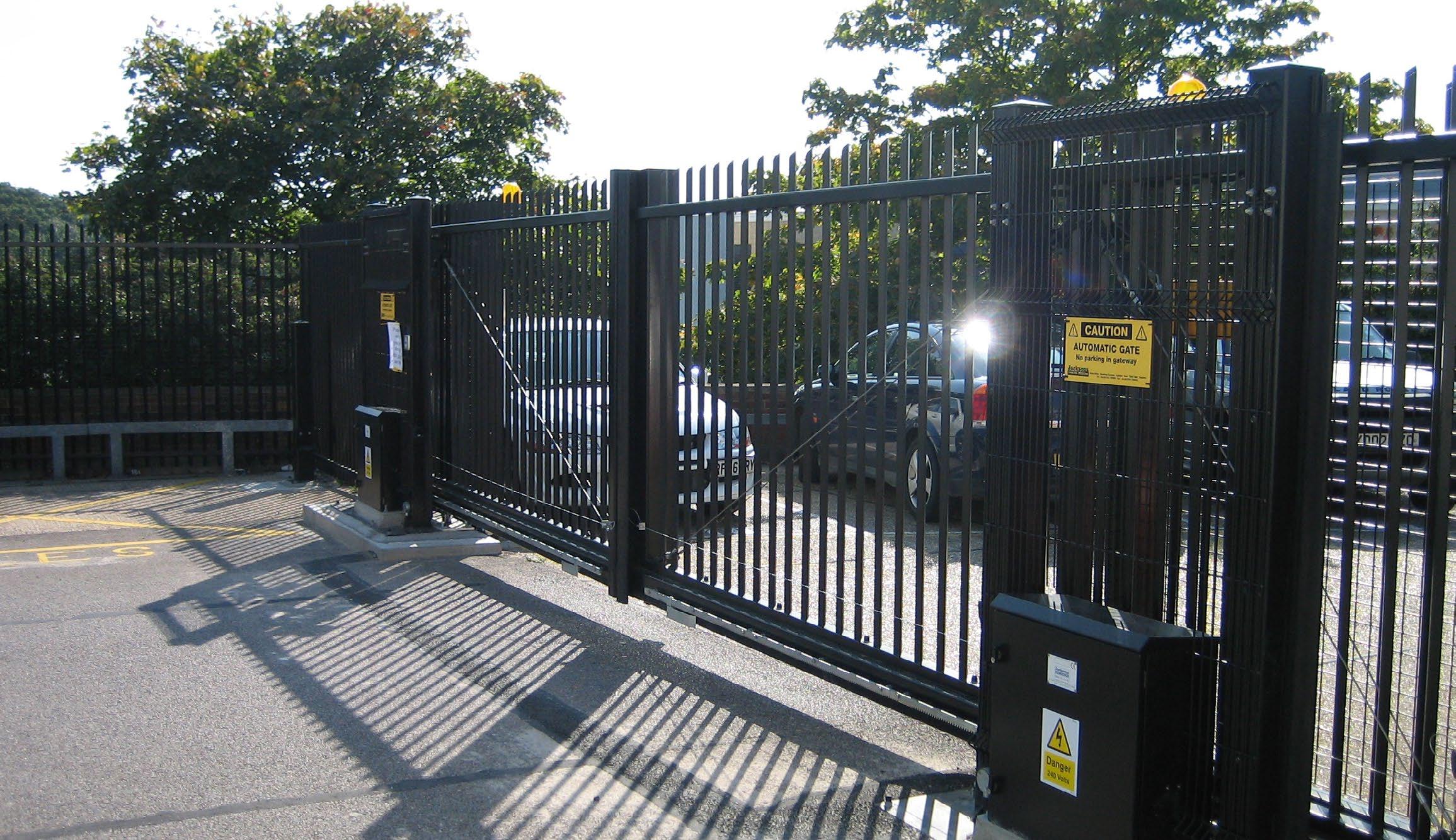

SLIDING GATES

Sliding Gates Sliding gates are ideal for applications where there is insufficient room for swing gates to open into and where higher security is required. Even where the ground is not level, the cantilever sliding gates run smoothly on nylon wheels, making them surprisingly quiet.

An alternative to cantilever sliding gates is tracked sliding gates, the advantage is that they can span larger opening widths and have a lower profile from the ground, with the gate running along a track set in level ground.

Gate Automation Safety Jacksons automated gates and barriers meet with the essential health and safety requirements and are UKCA/CE marked as required by law. Additionally the products are designed and engineered to exceed the standards set out in BS EN 12978 and BS EN 12453 in relation to gate safety.

GATE OPTIONS

PORTAL OPTIONS

• Manual

• Base plated to bolt down onto concrete - as standard

• Automated • Tracked • Cantilever • Telescopic • Choice of infill 133

• Overlength set in concrete - optional

Single Leaf Gate (cantilever) height (mm)

opening (mm)

infill options

1800 / 2000 / 2500 / 3000

Up to 12,000

Vertical Bar / Welded Mesh / Tubular / Bow Top / Acoustic

height (mm)

opening (mm)

infill options

1800 / 2000 / 2500 / 3000

Up to 24,000

Vertical Bar / Welded Mesh / Tubular / Bow Top / Acoustic

Double Leaf Gate (cantilever)

FINISHES

STANDARD COLOURS

• Hot dip galvanised to BS EN ISO 1461 as standard

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Hot dip galvanised and powder coated to BS EN 13438 • Marine coat for installations within 500m of salt water or an estuary

Scan to view on our website

• Architectural grade powder coating • Other colours on request

134

BI FOLDING SPEED GATES

The trackless bi-folding speed gate comprises a unique drive mechanism to control the opening and closing of a bi-folding set of gates. The mechanism controls both leaves, producing a smooth and fast action. The design is ideal solution where the speed of opening and closing is essential for the security of the premises or where space may be a premium.

This unique design allows the gate to operate without the use of a bottom or top track thus eliminating any height restrictions and large tracks on the road.

• Very secure with opening and closing in approximately 1m per second • Hydraulic design, low maintenance with minimal moving parts • Trackless design, no height restrictions and lower maintenance • Heavy duty hydraulic ram with PLC controlled slowdown in both opening and closing movement • Smooth and quiet operation • Galvanised or galvanised and powder coated max width (mm)

posts (mm)

Single leaf

4750

200 x 400 RHS

Double leaf

9500

200 x 400 RHS

Scan to view on our website

APPLICATIONS

GATE OPTIONS

GATE AUTOMATION SAFETY

4High security

• Automated

4Data centres

• Vertical bar

Jacksons automated gates and barriers meet with the essential health and safety requirements and are properly UKCA/CE marked as required by law.

Additionally the products are designed and engineered to exceed the standards set out in BS EN 12978 and BS EN 12453 in relation to gate safety.

4Utilities

• Securi-Mesh® • Sheeted (one side only)

135

MANUAL GATE LOCK OPTIONS 1.

Standard slide latch

• Slide latch within construction of gate frame • Slide latch 340mm long x 50 x 10mm • Light weight option with encapsulated slide latch to prevent finger trapping for light weight or residential application

• Galvanised as standard, can be polyester powder coated to match gate colour 2.

Option: Key lock

• Key operated • Easy left or right changing of the self-latching bolt • Throw of 25mm in one turn of the key • Deadbolt facility 3.

2

Option: Mechanical coded lock for steel gates

• 100% mechanical: No battery or electricity required • Operational code panel on both sides / 1 sided available • Possible to work with different entrance and exit codes • Equipped with aluminium dust and rain covers • Automatic code reset after opening by means of the handle • Anti-code detection with integrated security press plate 4.

1

3

Option: Push pad latch

• For areas not accessed by the public where panic is not foreseen • Suitable for push face outward opening doors • Non-handed for maximum flexibility 5.

4

Option: Electric strike lock

• Extremely strong and user friendly design • Voltage: 12v AC/DC • Consumption 1.5A • Water resistant, weatherproof 5

6.

Magnetic Latch

• Uses magnetic technology • Vertical pull option available • Extended vertical pull option available • Side pull option available 6

136

AUTOMATIC GATES CONTROL OPTIONS Controlling access to areas Our access control systems provide the means to control the operation of our automated products, for example to send a signal to open an automated gate to raise or lower a traffic barrier. In addition we also offer a range of additional safety devices that will allow you to augment standard features or tailor your automation and access control to suit a specific application.

Locks Magnetic locks are available to ensure your gate is safe from unwanted entry.

Intercoms Various designs available - allowing you to hear or see your visitors before they enter. Hardwired or GSM available.

Keypads and timer controls Authorised visitors can have access to and from your property by a dedicated code. Alternatively, a timer can be added to allow your gate or barrier to be left open at certain times of the day.

Other options

• ANPR Cameras available • Card reading systems (Stand alone or on-line) Safety features on our automated gates can include:

• Safety photocells • Safety edges • Manual release • Flashing warning light • Finger guards

• IP rated lockable cabinet - powder coated finish as an option

• Magnetic locking • Safety sensor • Ground loops

ROAD BLOCKER Provides the perfect solution for prevention of unwanted vehicle access in both manned and unmanned vehicle parking areas.

The blocker also provides an excellent deterrent against the most determined intruder.

The Road Blocker is manufactured from welded rectangular hollow section frame and durbar top plate. It also features an advanced hydraulic power pack to raise and lower the unit smoothly.

Scan to view on Height: 340mm / 500mm / 800mm / 1000mm Length: Available in half-width sizes from 2-5 metres Power requirement: Single phase 230v Weight capacity: Maximum 12 tonnes on standard Road Blockers Operation time: 4.0 - 6.0 secs Finish: Galvanised and painted in yellow and black (high visibility) Options for access control:

• Keypad • Proximity cards • Photo cells • Voice / Video intercom access 137

• Token acceptors • Remote control fobs • Key switch • Loop detectors

our website

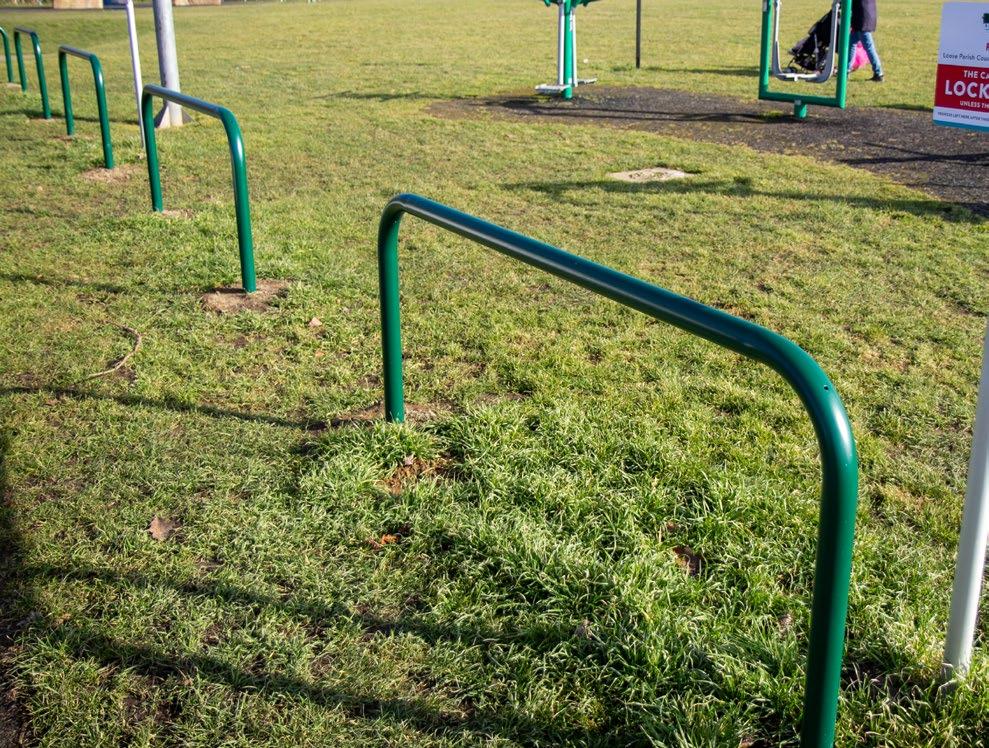

HOOP BARRIER • Ideal for securing parking/garage forecourts and protecting green spaces • 60.3 diameter tube • 2000mm x 850mm above ground (plus 400mm below ground) • Galvanised as standard Scan to view on our website • Optional Polyester Powder Coating

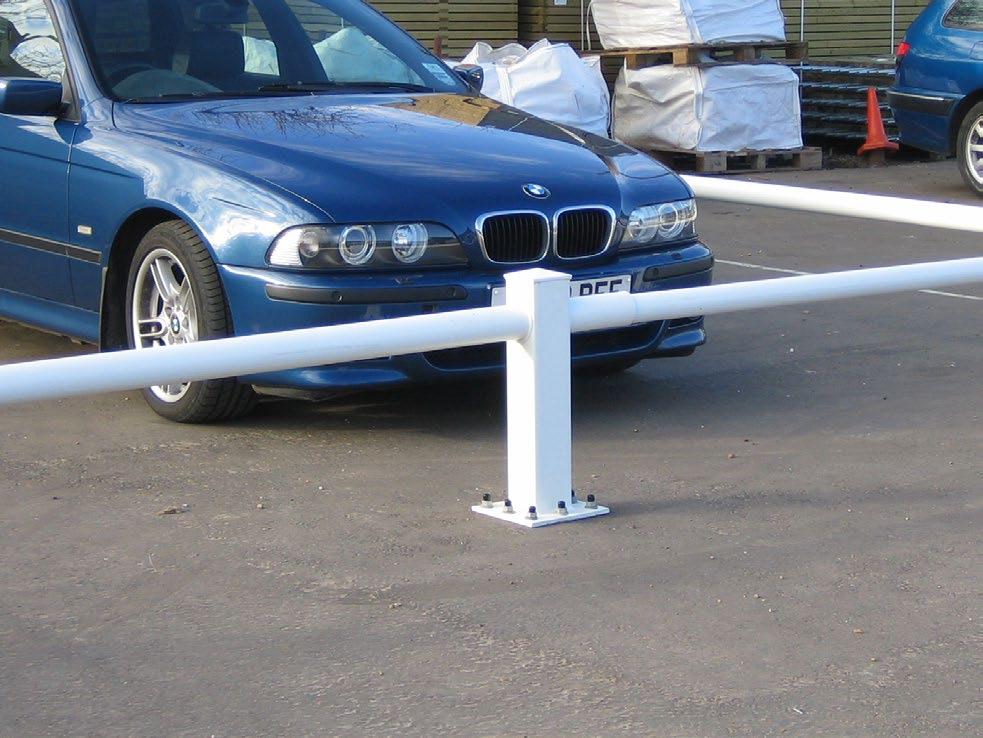

CAR BAR • Designed as a parking and traffic control barrier • Posts can be staggered at intervals to allow pedestrians free access without compromising security

• Internal lockable barrier design to provide security and convenience • Galvanised as standard • Optional Polyester Powder Coating

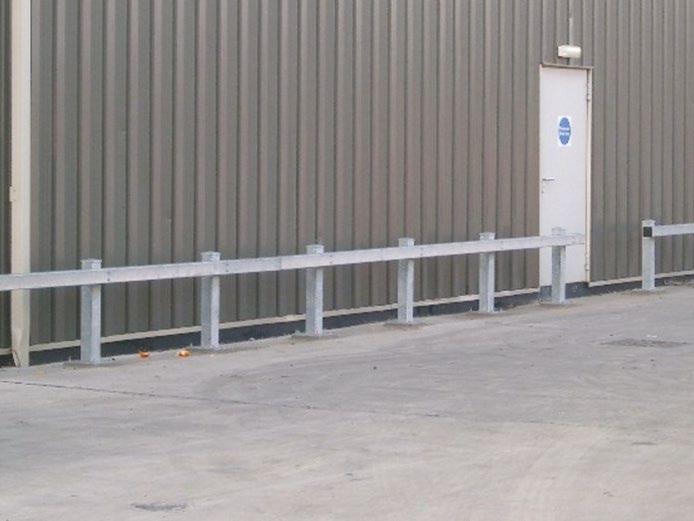

CRASH BARRIER • 100 x 100mm rectangular hollow section posts with 1500mm centres • 1500mm post length (700mm above ground 800mm below ground) • Galvanised as standard

MAX HEIGHT BARRIER • Swing arm height restriction barrier constructed with 150 x 150mm baseplated hanging and slam post

• Can be padlocked when the barrier is either open or closed • Available in either single or double configuration • Single up to 7000mm / double up to 10000mm • Galvanised as standard • Optional Polyester Powder Coating 138

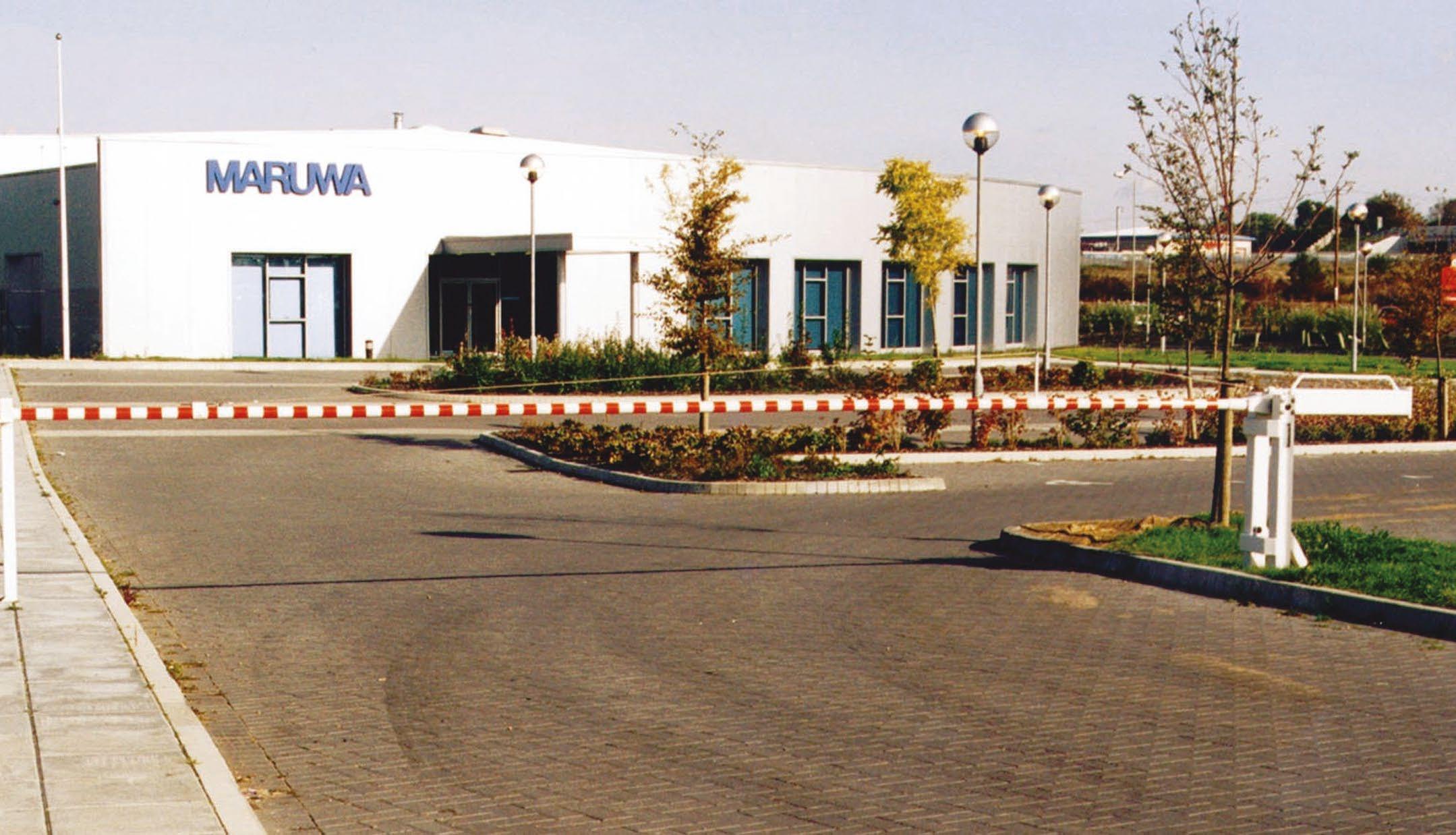

KEEPER RISING ARM BARRIER

• Manual operation • Galvanised to BS EN 1461

• Counterbalanced for ease of operation

• Option of stripes on the barrier arm • Padlockable

Counterbalanced Rising Arm Barrier 6.1m - 7m wide constructed from 60.3mm diameter, 80 x 60mm baseplated slam post and 200 x 200mm baseplated hanging post (100 x 100mm RHS welded together).

FINISHES

STANDARD COLOURS

• Hot dip galvanised to BS EN 1461 as standard

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Hot dip galvanised and powder coated to BS EN 13438 • Marine coat for installations within 500m of salt water or estuary

• Architectural grade powder coating • Other colours on request

139

Scan to view on our website

WARDEN SWING BARRIER

Galvanised Warden Swing Barrier

PPC Heavy Duty Warden Swing Barrier

Our Warden Swing Barriers are constructed using 60 x 60mm square hollow section (SHS) with anti-tamper hinges and are padlockable in the open or closed position. Heavy duty option available on request.

• Able to lock by padlock (open and

• Hold open posts are recommended

closed position)

Single Barrier

Double Barrier

so you can securely lock the barrier in its open position

• Option of stop or no entry signs available

width (mm)

slam post (mm)

hanging post (mm)

3000 - 8000

80 x 60

100 x 100

8100 - 9000

80 x 60

150 x 150

5500 - 12,000

80 x 60

100 x 100

12,200 - 18,000

80 x 60

150 x 150

Scan to view on our website

POST OPTIONS

FINISHES

STANDARD COLOURS

• Overlength set in concrete as standard

• Hot dip galvanised to BS EN 1461 as standard

• Base plated to bolt down onto concrete

• Hot dip galvanised and powder coated to BS EN 13438

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

• Marine coat for installations within 500m of salt water or estuary

• Architectural grade powder coating • Other colours on request

140

SMALL TRAFFIC ARM BARRIER: UP TO 5M

• Arm lengths up to 5 metres • 1-phase 230 Vac ± 10%, 50-60 Hz, 1-phase 115 Vac ± 10%, 50-60 Hz versions available

• Manual override in case of power failure • Aluminium housing

• Bottom hanging skirts up to 4m • 100% duty cycle • LED Lighting • PLC controlled

Barrier size

320 x 280 x 1110mm (h); steel Fe360 (S 235 JR)

Road Passage

1.7-5m

Finishing

Cataphoresis, powder paint RAL 3020 as standard, other colours available at extra cost

Foundation

Concrete, 500 x 500 x 400mm (h)

Motor

Self-cooled oil-bath gear reduction, rod/crank

Opening time

From 0.7 to 3 seconds (adjustable)

Power consumption

44W (50 Hz)

OPTIONS

OPTIONS FOR ACCESS CONTROL

• Bottom skirt (up to 4m)

Keypad

Key switch

• Boom lights (LED: red, green)

Proximity cards

Loop detectors

• Boom locking

Photo cells

• Hold close magnetic locking

Voice / video intercom access

• Articulated arm

Token acceptors Remote control fobs

141

Scan to view on our website

TRAFFIC ARM BARRIER: UP TO 8M

• Arm lengths up to 5 metres • 1-phase 230 Vac ± 10%, 50-60 Hz, 1-phase 115 Vac ± 10%, 50-60 Hz versions available

• Manual override in case of power failure • Aluminium housing

• Bottom hanging skirts up to 8m, top and bottom skirts up to 6m

Scan to view on our website

• 100% duty cycle • LED Lighting • PLC controlled

Barrier size

360 x 400 x 1115mm (h); steel Fe360 (S 235 JR)

Road Passage

4-8m

Finishing

Cataphoresis, powder paint RAL 3020 as standard, other colours available at extra cost

Foundation

Concrete, 600 x 500 x 400mm (h)

Motor

Self-cooled oil-bath gear reduction, rod/crank

Opening time

From 4.5 to 6 seconds (adjustable)

Power consumption

44W (50 Hz)

OPTIONS

OPTIONS FOR ACCESS CONTROL

• Bottom skirt

Keypad

Key switch

• Top and bottom skirts

Proximity cards

Loop detectors

• Boom lights (LED: red/green)

Photo cells

• Boom locking

Voice / video intercom access

• Hold closed magnetic locks

Token acceptors

• Articulated arm

Remote control fobs

142

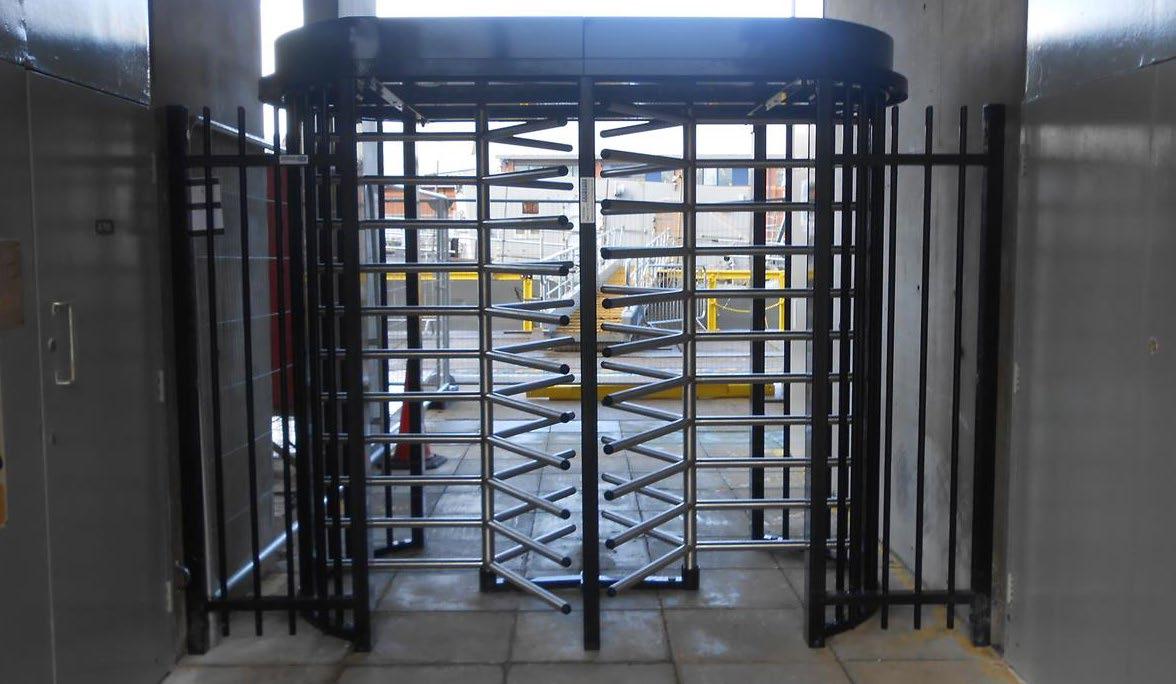

PEDESTRIAN FULL HEIGHT TURNSTILES

Pedestrian Full Height Turnstiles Our range of pedestrian turnstiles are designed for external use and can be used singularly or in pairs for separate entry and exit function.

Turnstile AGFHT Full height turnstile is a sleek, contemporary design, as well as a robust, high specification turnstile engineered to exacting standards. Manufactured to the highest quality our heavy duty turnstile is complete in all respects. Designed to give years of continuous use under tough conditions.

• Can be used for bi-directional pedestrian access • Modular system • Designed to be installed directly on concrete Type

height (mm)

width (mm)

single

2336

1800

double

2677

1603

OPTIONS • LED overhead down lights

• Keypads

• Canopy covers

• Intercoms

• Swipe and proximity card readers

• LED directional flow indicator lights

143

• Enclosure to incorporate access control devices

Turnstile JFFHT The turnstile can be customised with a wide range of access control devices to suit your environment.

The unit has been designed so fencing can be installed at any corner of the turnstile.

• Outside frame constructed from steel hollow tube with section • Frame has been designed to hide cabling - eliminating trunking • 316-Grade stainless steel turnstile rotor option • Easily integrates with any access control • Bi-directional 120 degree stainless steel rotors • Fail secure operation as standard • Frame designed to accommodate access control interface • UKCA/CE marked unit height (mm)

width (mm)

2336

1800

Scan to view on our website

OPTIONS • Access control interface units - audio messaging system / card reader / push button

• Roof lights

• Traffic lights

• Fail secure

• LED directional flow indicator lights

144

PERIMETER INTRUSION DETECTION SYSTEMS We now have a growing portfolio which works in conjunction with our fencing and access control products to deliver high level perimeter protection, designed to minimise and track breaches in site security. All supplied systems are tailored to meet individual site specific requirements.

146

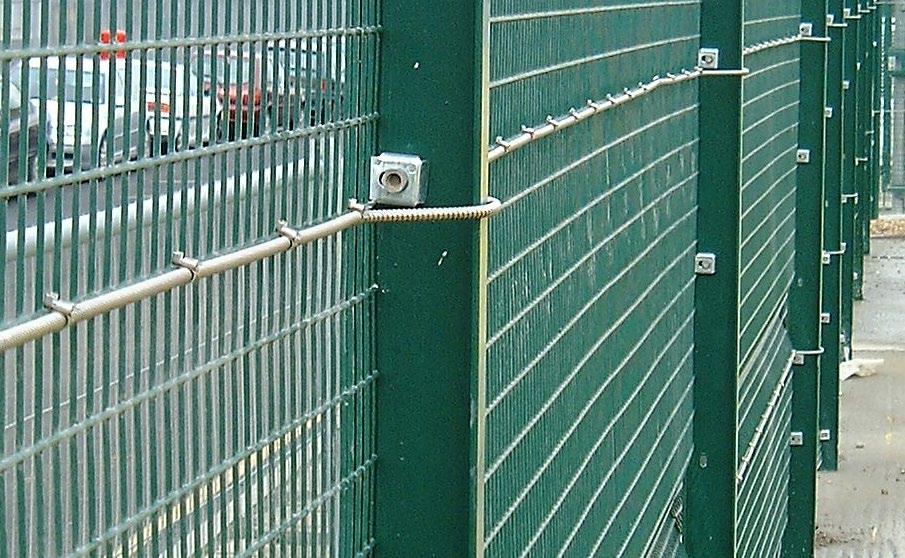

JAKTRONIC® PERIMETER INTRUDER DETECTION SYSTEMS Jaktronic® Fence Sensor Systems (Active Fence Sensor) are multifunctional electronic perimeter security systems. Employing state of the art vibration sensors and magnetic detectors installed on the fence perimeter, the system monitors and displays intrusion attempts with high degrees of accuracy and low false alarm rates. The systems vibration sensors are based on the Time Domain Reflectometer principle (TDR), which displays attempts at penetrating the fence perimeter with an accuracy of ±10 metres.

The system can be installed on welded mesh or chain link fences, razor-wire coils, vehicle gates, personnel gates, and water conduits, providing full protection for the site.

Various models are available to cater for different types of applications and risk.

For further details please email: security@jacksons-fencing.co.uk or call: 01233 750 393

APPLICATIONS 4Critical infrastructure 4Water reservoirs 4Power stations 4Remote communication sites

147

Scan to view on our website

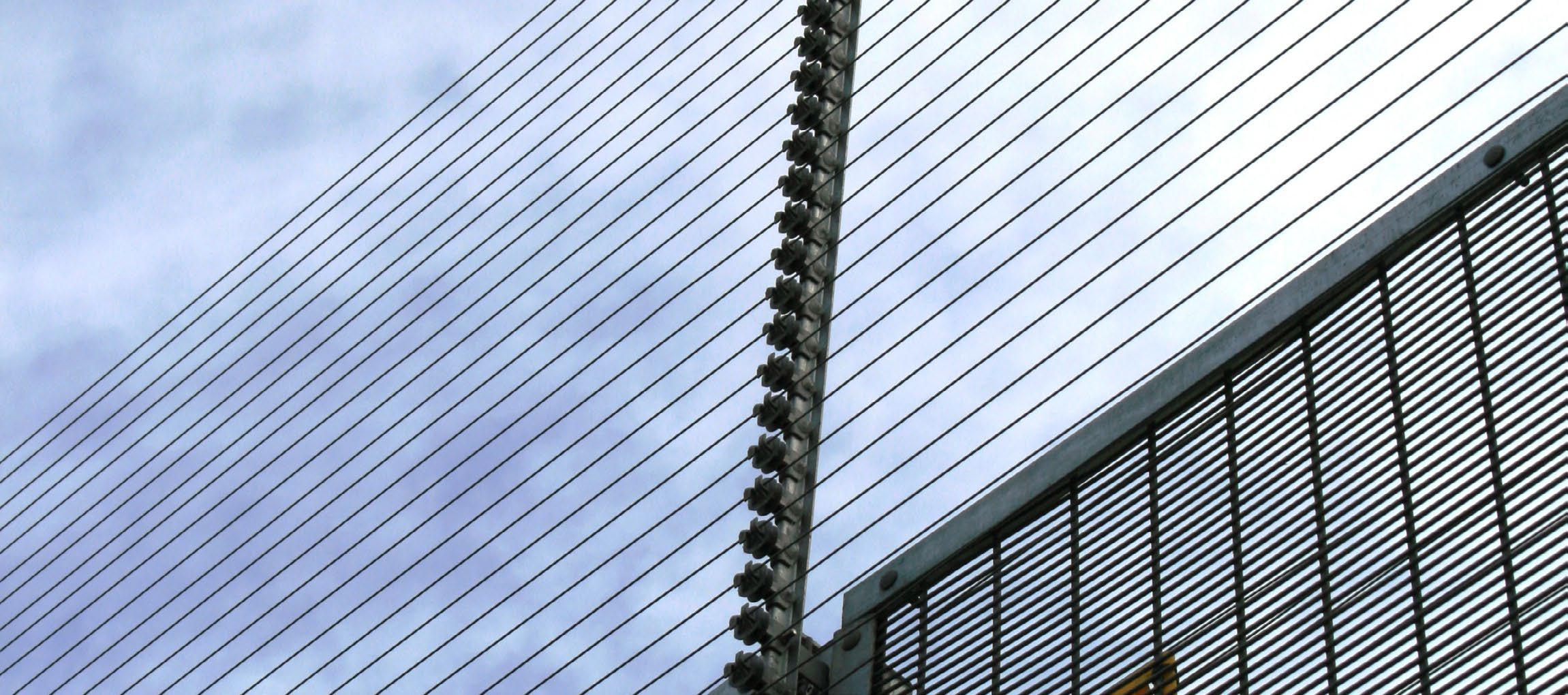

ALARM-AFENCE® ELECTRIC FENCING SYSTEMS Available exclusively through Jacksons, Alarm-aFence® is a cost effective combined alarm and electric fence deterrent designed to provide a physical barrier deters, detects, denies and defends against would be intruders with a short, sharp painful but regulated safe electric shock.

• Can be attached to the top of most existing perimeter fences or walls • Also for use as a standalone fence within an existing perimeter • Alarm signal linked via the controller can be configured to activate sirens, lights, phone diallers etc.

• Delivers non-lethal electric shock • Optional zoning of fence to isolate point of attempted breach • Complies with all current standards • Low maintenance and operating costs • Installation and annual maintenance contracts available • All systems are checked by our in-house technicians to make sure they comply with Jacksons Code of Practice. Subject to a satisfactory check a certificate of compliance is issued.

• Can be installed in almost any situation Note: We recommend ‘Danger Signs’ are used every 8-10m and change in direction along a fence line incorporating security extras capable of causing injury even through misuse.

APPLICATIONS

Scan to view on our website

4Logistics and distribution companies 4Power and water companies 4Oil refineries 4High risk applications

148

HOSTILE VEHICLE MITIGATION PRODUCTS At Jacksons we have a range of crash rated fencing and crash barriers for when a crash rated perimeter is required. They have been designed and engineered to meet the expressed needs of security specialists.

Our crash barriers are specifically designed to protect and prevent intrusion from moving vehicles. We have a range of crash barriers that can be used along road sides, car parks, warehouses and factories.

All available crash barriers have undergone rigorous testing, to the highest crash rate possible and are tailored to suit your individual needs.

150

CRASH RATED SHALLOW MOUNT ROAD BLOCKER

The Crash Rated Shallow Mount Road Blocker offers total protection against hostile vehicle intrusion and is particularly suited to sites where a higher level of security are required. Its shallow foundations allow the blocker to be installed in sites with utility congested substructures and underground services.

Tested with a 7.2 T (N2A) vehicle at 50mph (80kph) as a shallow mount blocker.

• • • • • • • • •

Tested at 3m wide Gaps 10mm max Manufactured from heavy duty steel sections fully welded Shallow mounting substantially reduces installation time Designed for axle weights in excess of 12 tonne

Scan to view on our website

3m foundation 4m x 3.2m x 0.47m Raise speed: approx. 6-8 seconds, 1-2 seconds with optional EFO Supply: TP&N 415v 16amp Performance Classification: IWA14-1:2013 V/7200{N2A}/80/90:0.6

TEST RESULTS

DUTY CYCLE

FINISHES

IWA14-1:2013 - 50mph/80kph

100%

• Galvanised bottom frame • Top section powder coated • Anti-skid paint finish is applied to the top plate

151

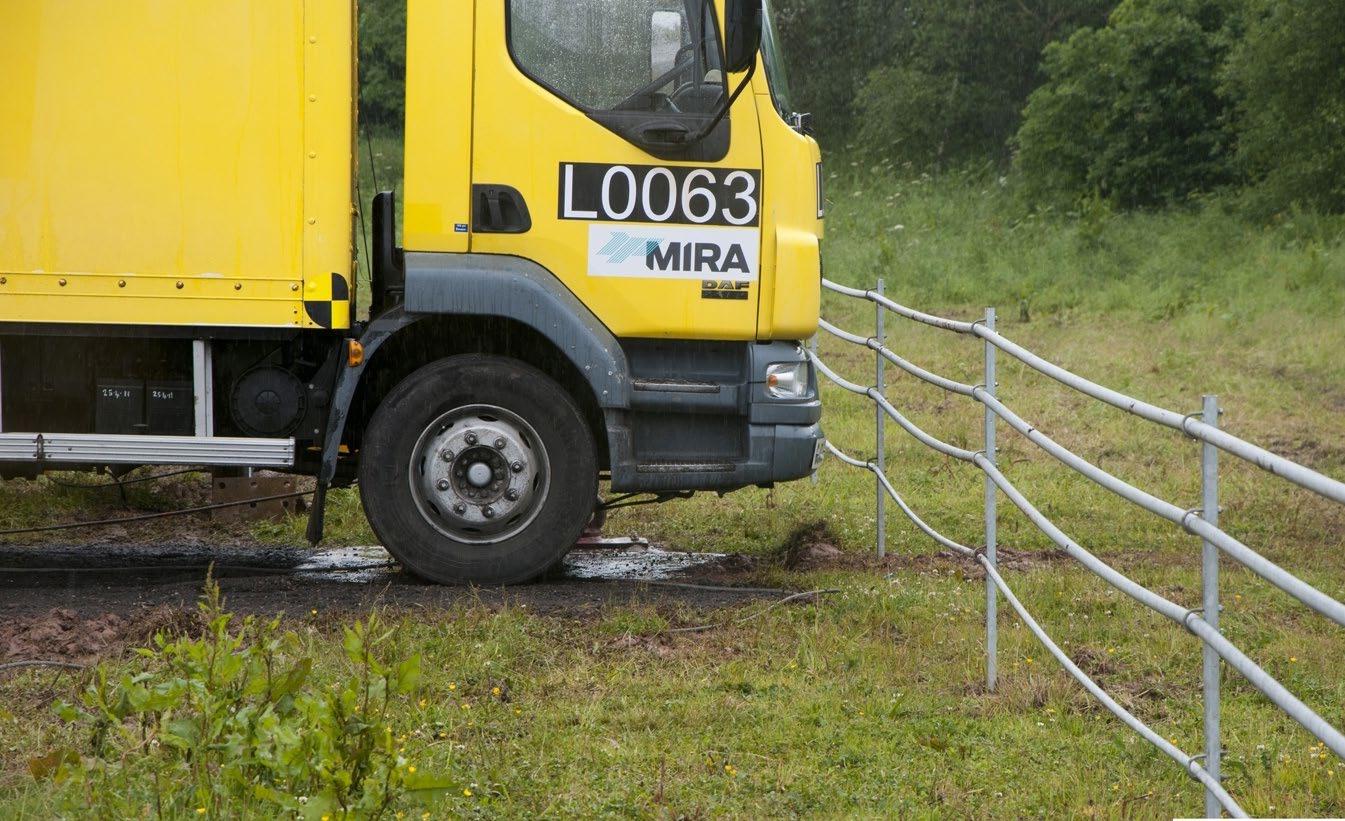

LINEBACKER® PAS 68 CRASH FENCE

Linebacker® PNR

Linebacker®

The Linebacker® PAS 68 Shallow Foundation is a cable type crash fence that has been successfully impact tested in accordance with BSI PAS 68:2010 to stop a 7.5 tonne vehicle travelling at 50 mph (80km/h). Its shallow foundations allow the fence system to be deployed in sites with utility congested substructures and underground services.

It is available in two versions either in all steel or concealed within a novel traditional timber post and rail fence design for covert applications. Linebacker® may be used as a stand-alone system or retrofitted to reinforce an existing security fence.

• • • • • •

PAS 68 Crash Fence certified to stop a vehicle of 7.5 tonne mass travelling at 50mph (80km/h) All steel construction as standard, timber post and rail dressed Linebacker® PNR option available Cables do not require re-tensioning on-site after initial installation Stand-alone system for outer boundary protection or target hardening within a perimeter Maybe retrofitted to reinforce any existing security fence

Scan to view on our website

Shallow foundations

Approvals

• •

NPSA (previously CPNI) Approved for UK Government Use Secured by Design Preferred Specification

LINEBACKER SPECIFICATIONS • Shallow foundations – 500mm foundations for intermediate posts and 750mm foundations for end strainers • Linebacker PAS 68 uses a single

unbroken length cable of galvanised cable • Posts are hot dip galvanised to BS EN ISO14061

BSI PAS 68 CLASSIFICATIONS • BSI PAS 68:2010 V/500(N3)/80/90.7.3/21.4

• Linebacker® PNR timber components are Jakcure® treated 152

PAS 68 BI FOLDING SPEED GATE

BARBICAN ® Our BSI PAS 68 compliant Bi-folding Speed Gate is designed to blend seamlessly with a building or existing site perimeter protection to provide discrete vehicular access control and effective hostile vehicle mitigation.

The gates feature an integrated vehicle arrestor system and are engineered for continuous operation, requiring a minimal foundation depth of 410mm nominal, making them ideally suited to shallow and or/utility congested substructures, and offer an opening/closing cycle of approximately 8 seconds.

Optional enhancements over and above the standard gate specifications are available to continue an existing security fencing specification or to incorporate security toppings.

• Clear opening of up to 4.2m maximum Crash test results: Scan to view on our website

PAS 68:2010 (40 mph) V/ 7500[N2] /64/90:0.8/0.0 PAS 68:2010 (50 mph) V/ 7500[N3] /80/90:0.7/0.0 open cycle time

8 - 10 seconds

duty cycle

100%

main supply

230v 50Hz single phase 16amp

3250

0.125 - 2400

SAFETY

FINISHES

• CAT 3 safety edges and light curtain as standard

• Galvanised to BS EN 1461 as standard

• Additional safety options by laser safety devices to protect risk zones

• Galvanised and Powder coated to BS EN 13438

153

• Marine coat for installations within 500m of salt water or estuary

CRASH RATED MANUAL ARM BARRIER The manually operated lifting barrier is a Hostile Vehicle Mitigation (HVM) solution, ideal for low volumes of traffic flow or where the access point is used infrequently.

The 6m gate has been physically impact tested to IWA 14-1 criteria a number of times with a 7500kg N2 vehicle travelling at 48kph (30mph) by independent testing agency, Horiba MIRA Ltd. The barrier has also successfully undergone IWA 14-1 testing using an 1500kg (M1) saloon car travelling at 48kph (30mph) and passed the NPSA’s (previously known as CPNI) Vehicle Access Delay Standard (VADS) testing which provides assurances that it is capable of withstanding repetitive nudging and ramming to gain access.

Impact tests have included 3 metre, 4.5 metre and 6 metre clear width opening models of the barrier, providing physical protection to sites from extreme Vehicle Borne Improvised Explosive Device (VBIED) attack.

• Physically crash tested to IWA 14-1 criteria • Physically crash tested to PAS 68 criteria • Manufactured from heavy gauge materials • Manually operated • Simple to install • Strength and durability • No power supply required • Locking in raised and lowered position

Classification: IWA 14-1:2013 Gate V/7200(N2A)/48/90:1.2-6m IWA 14-1:2013 Gate V/1500[M1]/48/90:2.0-6m PAS 68: V/7500(N2)/48/90:0.3/0.0 - 6m model V/7500(N2)/48/90:0/0 - 4.5m model

Scan to view on our website

TECHNICAL DETAILS Barrier Hang Post

600mm W x 890mm D x 1230mm H

Barrier Arm

6m max

Slam Post Foundations

1500mm W x 3600mm D x 470mm H

Construction: The universal boom catcher frames are fabricated from heavy steel sections, which are anchored into the foundations: they are designed to support the boom in the lowered position and to take a full impact load.

Available with a range of clear width openings. The arm sits 900mm above the roadway and is supported by 2 side universal support frames. It is counterweighted for ease of operation and comes with a manual locking mechanism to secure the barrier in the lowered/closed position.

154

BOLLARDS Jacksons provides a host of bollards to suit all of your needs.

Each type of bollard has its own unique advantages, from our static security bollards, to automatic security bollards, providing security and peace of mind. If you require high security bollards for your premises then we can also be of assistance.

156

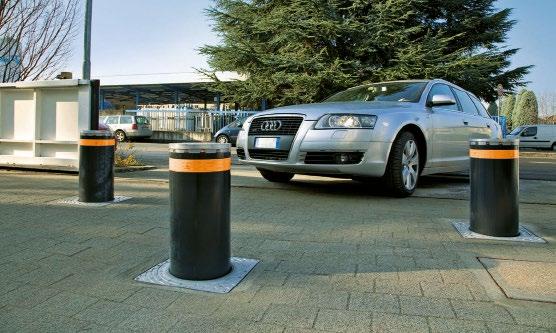

AUTOMATIC BOLLARDS The Beaufort standard automatic bollard represents a new generation access control solution.

Many design innovations make it easy to handle and install but best of all its performance is market leading and low lifetime costs are exceptionally competitive. Activated by any access control system or signalling device, it is an alternative solution to fixed posts and barriers, allowing regulation of traffic into certain zones with high vehicle flow, (e.g. restricted areas, pedestrian areas, parking and industrial sites and many more). Available with a diameter of 275mm, and a height of 600mm or 800mm.

The Beaufort automatic concealed traffic bollard has fully integrated hydraulic technology for heavy duty usage. With a standard descent time of 2.8 seconds, there is an extra setting that activates the emergency release valve and allows a decent time of just 1 second.

APPLICATIONS 4Commercial premises 4Education 4Pedestrian areas 4City centres

157

beaufort 275 / 600

beaufort 275 / 800

Drive

Hydraulic

Hydraulic

Rising time

Circa 5 secs

Circa 7 secs

Descent time

Circa 2.8 secs

Circa 3.5 secs

Power consumption

220 W

220 W

Scan to view on our website

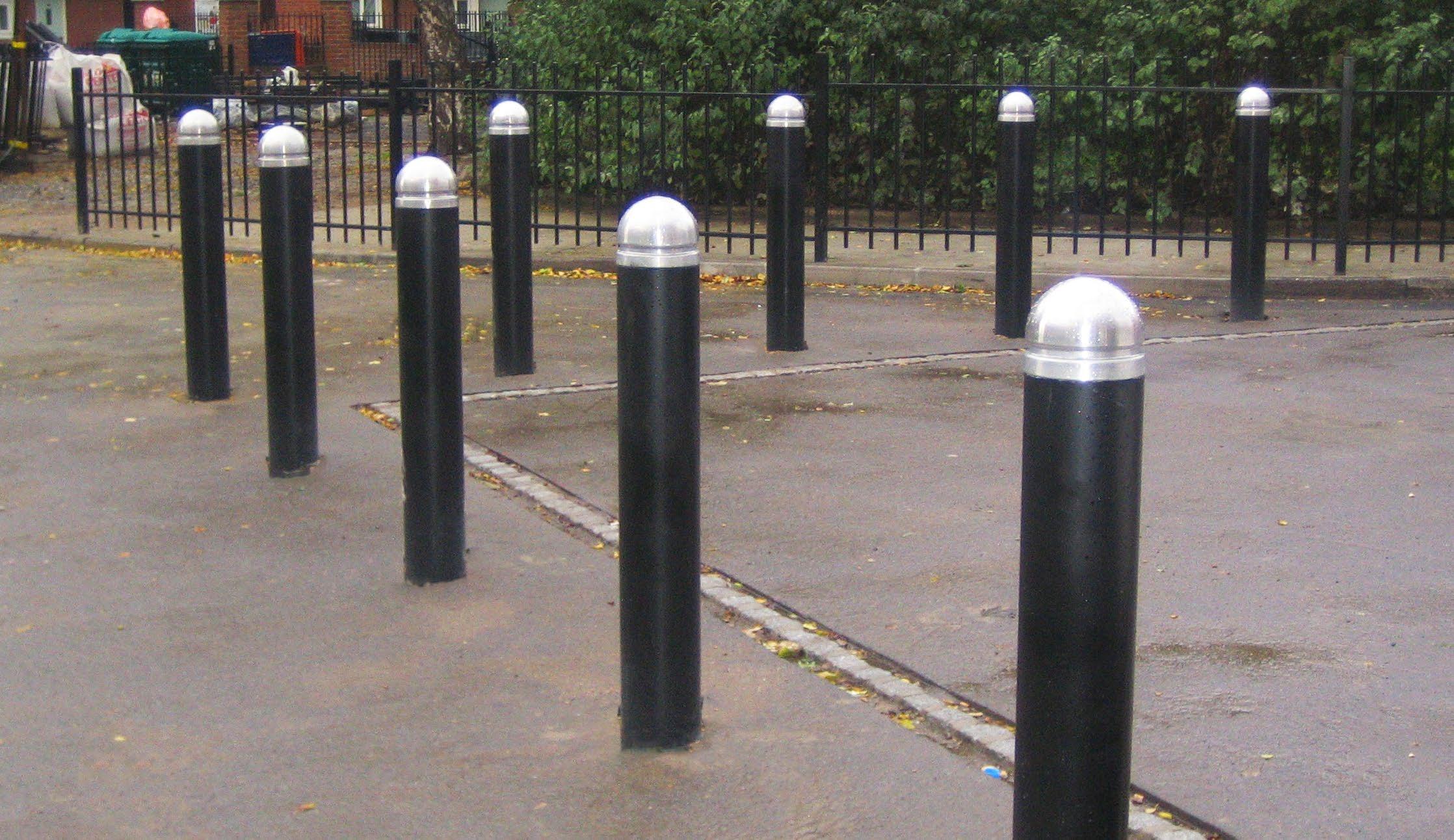

GALVANISED STEEL STATIC BOLLARDS

Ideally suited for demarcation and commercial use to prevent vehicle entry and segregation of pedestrians and vehicles the galvanised bollards can be supplied heavily galvanised to BS EN 1461 or have an additional paint finish either polyester powder coating for normal environments or marine coat for coastal or hazardous situations.

type

section (mm)

overall height (mm)

nominal height out of ground (mm)

E (Round) F (Square) H (Round) J (Round)

Ø 178

1100 or 1500

100 x 100 Ø 178 Ø 178

1100 or 1500 1100 1100

700 800 700 700

APPLICATIONS

FINISHES

4 Commercial premises

• Galvanised as standard

4 Education

• Polyester powder coated

4Pedestrian areas

• Marine coat for installations within 500m of salt water or estuary

cap

finish

Domed

Galvanised

Pyramid

Galvanised

Domed

PPC as standard

Domed

PPC as standard

Scan to view on our website

4 City centres

158

HARRIER PAS 68 STATIC BOLLARDS The Harrier PAS 68 Static Bollard range is designed to protect localised areas within a perimeter with an unobtrusive barrier capable of arresting or completely halting the progress of a hostile vehicle. Used in series, the bollards are equally effective in the protection of buildings and for use in support of traffic calming measures where a reduction in vehicle approach speeds and/or direction is required.

The bollards are manufactured in our workshops using heavy gauge steel which is fully hot-dip galvanised to provide lasting protection and may be additionally colour coated or cloaked with a decorative stainless steel cover.

• Stand-alone system for outer boundary protection or target hardening within a perimeter Scan to view on our website

tube diameter (mm)

approvals

Harrier 2

219 273

7500(N2)/48/90:0/0 7500(N2)/64/90:3.3/0

Harrier 3

219

7500(N3)/64/90:4.0/16.7

Harrier 4

273

7500(N3)/80/90:10.6/11.1

Harrier 1

APPLICATIONS

APPROVALS

STANDARD COLOURS

4Power stations

• Green RAL 6005, Black RAL 9005, Blue RAL 5010, Red RAL 3020, Yellow RAL 1018, White RAL 9010, Grey RAL 7012, Brown RAL 8017, Blue BS 20-C-40

4Oil and Energy

• Architectural grade powder coating

4High risk 4Data centres

4Government

FINISHES • Galvanised to BS EN 1461 as standard • Polyester powder coated • Marine coat for installations within 500m of salt water or estuary

159

• Other colours on request

LANCASTER PAS 68 AUTOMATED BOLLARDS

The Lancaster Automatic Crash Rated Bollards are designed to protect localised areas within a perimeter with an unobtrusive barrier capable of arresting the progress of a hostile vehicle. The high security retractable bollards have been successfully tested to the highest standards for arresting vehicle attacks.

• Reliable and proven hydraulic operation • Stand-alone system for outer boundary protection or target hardening within a perimeter • Maybe retrofitted to reinforce any existing security fence • Easily interfaced with a variety of dedicated access control systems • Option to operate each bollard separately tube (mm)

height (mm)

approval (mm)

Lancaster 2

Ø217

700

K4

Lancaster 4

Ø270

750

K8

Lancaster 5

Ø273

900

PAS 68*

*PAS 68:2010 V/7500(N2)/80/90:7.3/21.4

APPLICATIONS 4 High Risk 4 Data centres 4Power stations

FINISHES

OPTIONS

• Galvanised as standard

• Heating

• Stainless steel optional extra

• LED lighting

Scan to view on our website

4 Oil and Energy 4 Airport 160

FURTHER ADVICE AND GUIDANCE At Jacksons our entire resource is geared around meeting your needs, from sales to design, site visits, manufacturing and transport, so please feel free to contact us to discuss your requirements at the earliest stage of the project.

We have teams located at each of our three fencing centres and fencing managers located throughout the UK ready to respond to your enquiry.

HEAD OFFICE, SECURITY AND EXPORT ENQUIRIES Jacksons Fencing, Stowting Common, Ashford Kent TN25 6BN T: +44 (0) 1233 750 393 E: security@jacksons-fencing.co.uk E: tenders@jacksons-fencing.co.uk E: export@jacksons-fencing.co.uk

GUERNSEY AGENT R H Gaudion & Sons Ltd Camp du Roi Hardware Store Vale Guernsey GY6 8DD T: +44 (0) 1481 257361 E: garden@gaudioncampduroi.com

SOUTH WEST

JERSEY AGENT

Jacksons Fencing New Rock Chilcompton, Bath Somerset, BA3 4GJ T: +44 (0) 1761 232 666

JF(T)U Town & Country La Grande Route de St.Jean Sion Trinity Jersey JE3 5FN

E: sales-bath@jacksons-fencing.co.uk

T: +44 (0)1534 733277

NORTH WEST

E: mikejftu@gmail.com

Jacksons Fencing Dragon Hall Whitchurch Rd Chowley Tattenhall (A41) Chester, CH3 9DU T: +44 (0) 1829 770 776 E: sales-chester@jacksons-fencing.co.uk

161

Other Publications

Registered Trademarks

If you would like a copy of our Good Fencing Guide which covers timber fencing, gates, and garden structures, please call us on: +44 (0) 1233 750 393

Alarm-aFence® Barbican Defender® Barbican Imperial® Barbican® Cobra® EnviroFence® Euro Guard® EuroGuard® Jacksons AUTO-GATES® Jacksons Expert Installer® Jacksons Fencing Systems® Jacksons Fine Fencing® Jacksons® Jakcure® Jakoustic® Jakpost®

To find out more about Jacksons and our latest products, please visit: www.jacksons-security.co.uk

Continuous Improvement We operate a continuous improvement policy throughout the organisation. Products and specifications are subject to change without notification.

Jaksun® Jaktronic® Jakwall® Linebacker® Mi-T® Playtime® Roman® Rota Spike® Securi-Mesh® Sentry® Shadowline® The Good Fencing Guide® Tri-Guard® Trident® Urban® Viper Spike®

© H S Jackson & Son (Fencing) Ltd and Jacksons Fencing Ltd, 2026, all rights reserved.

Jacksons Fencing has a certified Quality Management System that complies with the requirements of LPCB: ISO 9001

164

Designed for life

DISCOVER PREMIUM QUALITY FENCING, GATES, AND ACCESS CONTROL WITH A 25 YEAR GUARANTEE WWW.JACKSONS-SECURITY.CO.UK

JFS | MKT | 0126 | V9 Jacksons Fencing - Head office: Stowting Common, Ashford, Kent, TN25 6BN Phone: 01233 750393 | International: +44 (0) 1233 750393 Locations: Ashford, Bath and Chester security-sales@jacksons-fencing.co.uk | www.jacksons-security.co.uk Registered Office: Stowting Common, Ashford, Kent, TN25 6BN, United Kingdom. Registered in England No. 00910291.

1
