PORTFOLIO 2023-2024 IZZY CHEW | SELECTED WORKS
ARCHITECTURE

ISABELLE CHEW

ARCHITECTURAL DESIGNER

CONTACT

916.622.7673

isabellechew02@gmail.com

linkedin.com/in/isabellechew

PHILOSOPHY

I seek to capture the human condition in the spaces we craft. Architecture has the power to shape our ideas for a just world into a reality where this profession is a continual progression to hone the energy of our environments with care. Design brings me closer to an understanding of our desire for connection across time and generations; it is my passion to study and share a design for people to discover their own passions.

HARD SKILLS

*Software Revit Lumion

Rhinoceros

AutoCAD

Adobe Illustrator

Adobe Photoshop

Adobe InDesign Microsoft Office Google Workspace

*craft hand drawing graphic design modeling poetry

SOFT SKILLS

adaptive problem solving creative collaboration project management presentation communication

HOBBIES

bouldering collecting vinyls and cds drawing in ink and oil pastel mini-scrapbooking

EDUCATION

University of Oregon

Bachelor of Architecture

Minor in Interior Architecture and Creative Writing

WORK EXPERIENCE

University of Oregon Esports Program Oregon Esports Media/News Team Coordinator

Oregon Esports Valorant Team Manager

Lead 10 skilled artists, writers, and video content creators to produce graphic promo for 5 competitive teams

Manage the program website with 60 player biographies and 20 developing stories about video game events

University of Oregon Kultura Pilipinas Co-Director

Public Relations + Media Fusion Coordinator

Lead 9 resilient Event Coordinators to create a strong and safe community of Filipino-Americans across 5 events

Host the NorthWest Filipino American Student Alliance Annual Filipino Olympics in 2024 for 40 universities

University of Oregon American Institute for Architecture Students Event Coordination Committee

Secretary

Produced Introduction Video for WQ Video Roll Call among 120 universities at National AIAS Conference, FORUM Hosted Portfolio and Resume Review nights for 50+ stu dents, College of Design Professors, and Administrative staff

Harley Ellis Devereaux (HED)

Paid Intern

Drew 200+ construction details and plan adjustments on Revit for Livermore High School Athletic Complex 40 weekly hours of mentorship under Chris Ramm, Malou Sanchez, and Thanh Tran

PROJECTS

U.S. Department of Energy Solar Decathlon Design Challenge Student Designer, Group Competition Finalists Design with a group of 4 students towards a net-zero adaptive use K-12 school in Kharkiv, Ukraine Utilize Revit, Rhino, Lumion, and IESVE for 3D model daylight and energy analysis for sustainable strategies Utilize Tally for life cycle analysis and RSMeans for market analysis to source culturally responsive, local materials

The Racks Thrift Co.

Interior Designer

Collaborate with 2 local thrift businesses to design their first storefront at the downtown 5th Street Market Design with a team of 4 cross-disciplinary students towards the register area’s counter and staging

2020-2025

2023-2024

2021-2024

2022-2024

2021-2022

2022-2024

2021-2022

2019-2020

2024

2024

i

pg.1-10

01

SUNFLOWER 46

2024 | Winter Studio ARCH484 Building Hope: A Net-Zero School on Sites of War and Political Conflict

Professor Ihab Elzeyadi

U.S. Department of Energy Solar Decathlon Finalists

Izzy Chew, Ben Michel, Renee Relf, Quincey Dunlap

pg.11-18

E.G.G.

2023 | Fall Studio IARC484 | Academic Incubator at the Romania Building | Professor Merike Mighell

In collaboration with the Lundquist College of Business Center for Entrepreneurship

Izzy Chew

pg.19-26

TIBER ACADEMY

2023 | Rome Study Abroad OROM488 | Strata: Reimagining the Roman House through the Ages

Professor Esther Hagenlocher | University of Oregon and Pantheon Institute

Izzy Chew, Casey Aslan

pg.27-30

PORTLAND ARTS CENTER

2023 | Spring Studio ARCH384 | Performing Arts Hub in Portland

Professor Stephen Duff

Izzy Chew

pg.31-38

LOWELL COMMUNITY HALL AND ROWCENTER

2022 | Fall Studio ARCH384 | Lowell Community Hall and Rowhouse Facility

Professor Megan Haight

Izzy Chew

04 05 ii
02 03
TABLE OF CONTENTS

SUNFLOWER ACADEMY 46

WINTER STUDIO ARCH 484 | PROFESSOR IHAB ELZEYADI

US. DEPARTMENT OF ENERGY SOLAR DECATHLON FINALISTS | BEN MICHEL, RENEE RELF, IZZY CHEW, AND QUINCEY DUNLAP

Sunflower Academy 46 is a net-zero K-12 school in Kharkiv, Ukraine that is dedicated to restoring the community devastated during the war between Ukraine and Russia. Our approach to regenerative design combines the adaptive use of the existing building and new construction of autonomous classrooms to respect traditional building systems and integrate innovative technologies. This built our design principles around the concept of architecture as the third teacher, cultural material recovery, and biophilic healing.1 These strategies manifest in recycling the rubble from the shelling debris and honoring Ukranian resilience.

1 01
1. OWP/P Cannon Design, Inc.`v, VS Furniture, and Bruce Mau Design. The third teacher: 79 ways you can use design to transform teaching & learning. New York, New York: Abrams, 2010.
2024 R U I N S A N D R E S I L I E N C E T H E P L A Y I S T

In response to the destruction of the war, our vision of hope relies on trauma-informed design to build safe spaces for a nation’s children to learn and thrive.1 The partial shelling debris will be recycled into the new concrete floors and the sunlight will be harnessed as energy through a solar atrium, greenhouses, and photovoltaics to promote healing through nature.

2

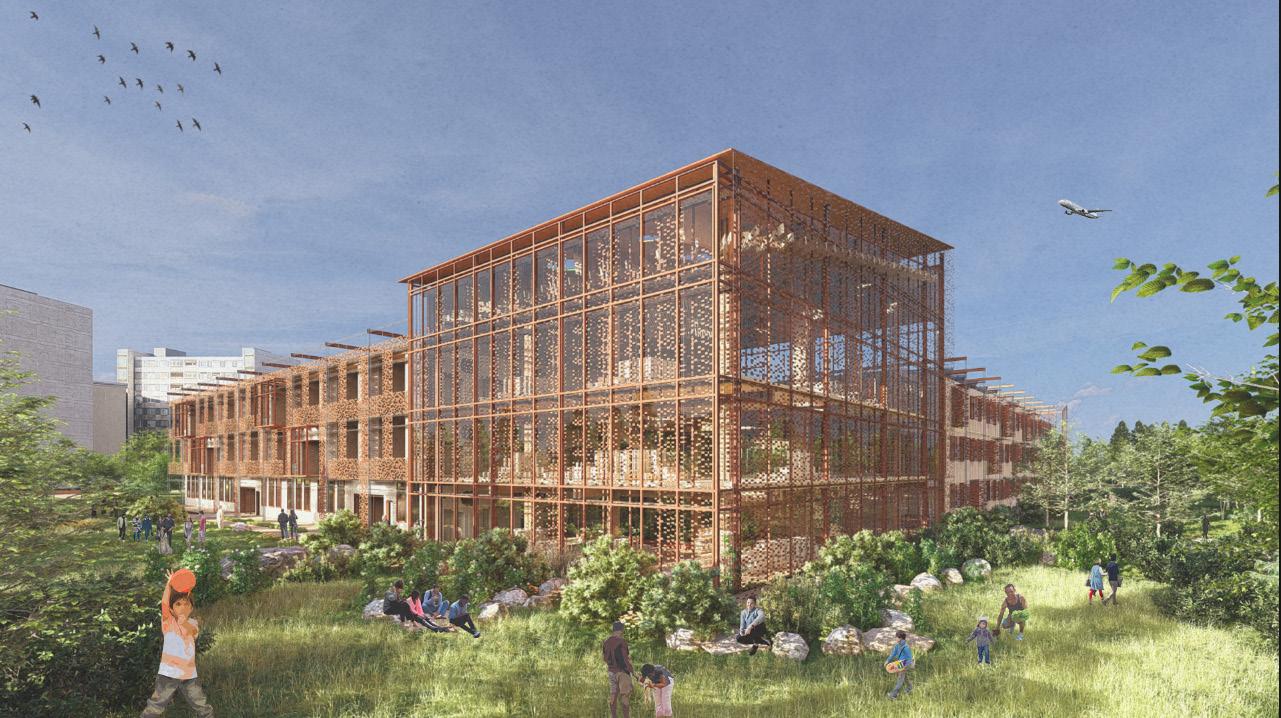

REVIT MODEL AND LUMION RENDER BY RENEE RELF AND IZZY CHEW
IMAGE OF EXISTING SOUTH WING DESTRUCTION
Malyshev, Dmytro. Стадіон школи №46. Google Images. Google, May 2023. https://maps.app.goo.gl/tafkMMGDNac3Ydqy7.
Grabowska, Sam, et al. 2021. Architectural Principles in the Service of Trauma Informed Design. Denver, CO: Shopworks Architecture, Center for Housing and Homelessness Research at University of Denver, and Group 14 Engineering RHINO MODEL UNDERLAY BY QUINCEY DUNLAP ADOBE ILLUSTRATOR DIAGRAMS BY IZZY CHEW
2.
1.
2.
KHARKIV, UKRAINE

APPLICABLE SOLAR DECATHLON CONTESTS 1

Ukraine’s top economic markets are argricultural and technological. Their education system sets students up to follow a vocational or technical path. Using the country’s main products in the new construction wing by sourcing local materials help support the regional economy while the students are given a chance to choose an occupancy based on their passions, which opens the doors for more creative students previously forced to attend polytechnic specialty schools and universities.

3
1. U.S. Department of Energy. “Solar Decathlon 2024 Competition Guide.” U.S Department of Energy, July 2022. 2. Guillaume Gaulier & Soledad Zignago 2010. ”BACI: International Trade Database at the Product-Level. The 1994-2007 Version,” REVIT MODEL BY RENEE RELF AND IZZY CHEW ADOBE ILLUSTRATOR ICONS AND RHINO SECTION PERSPECTIVE BY QUINCEY DUNLAP ADOBE ILLUSTRATOR DIAGRAM BY IZZY CHEW

ACTIVE + PASSIVE SYSTEMS

A passive solar heating and cooling system that consists of an aperture, exposed south facade with moveable louvers, a central pool that serves as thermal mass and mitigate humidity, and a rock thermal storage unit for delayed redistribution. The double skin facade serves as an additional layer to trap heat from high daylight exposure on the south facade.

A fixed-film ecological sewage treatment that combines wastewater technology with the purification process of wetlands to recycle greywater within the facility.

More commonly known as PVs, all panels are fixed at a 30 degree angle towards the south face. The PVs on the covered walkway between the south classroom wing and cafeteria are comprised of bi-facial cells that can capture energy from both sides.

This intensive green roof has 10” of media depth to support barrels of various produce in the 5A climate zone such as carrots and lettuce. Students are encouraged to pick their own crops when they’re in season for their lunch break.

The gutters within the winter gardens and greenhouses all lead towards an underground water tank that assists the geothermal heat pump to power the radiant concrete flooring.

May also be referred to as GeoExchange, this system harnesses heat energy from termperature hot spots (the football field) in the shallow crust of the earth and transfers steam from the water vapor generated by the rainwater collection.

1. . 1981. “Solar Atrium: a hybrid solar heating and cooling system”. United States. https://www.osti.gov/biblio/6465889. https://www.osti.gov/servlets/purl/6465889.

2. Office of Water. “Wastewater Technology Fact Sheet: The Living Machine.” Washington D.C.: U.S. Environmental Protection Agency, October 2002.

3. Breuning, Jorg. “Intensive Green Roof.” Green Roof Technology, October 16, 2021. https://greenrooftechnology.com/green-roof-finder/intensive-green-roof/#:~:text=An%20Intensive%20Green%20Roof%20or,flowers%2C%20shrubs%20 and%20large%20trees.

4
REVIT MODEL BY RENEE RELF AND IZZY CHEW ADOBE ILLUSTRATOR DIAGRAM BY IZZY CHEW 1 2 3

FLOOR 0 + SITE

1:500

1. Solar Atrium

2. Tributary Walkway

3. Admin Offices

4. Elementary Classroom

5. Elementary Breakout Room

6. Restroom

7. Outdoor Classroom

8. Custodial Closet

9. Gymnasium

10. Weight Room

11. Locker Room

12. Music Room

13. Mechanical Room

14. Indoor Effluent Marsh

15. Living Machine Tanks

16. Sensory Garden

17. Playground

18. Basketball Courts

19. Community Garden

20. Outdoor Effluent Marsh

21. Promenaade

22. Northern Garden

23. Track and Field/Football Field

5
REVIT MODEL BY RENEE RELF AND IZZY CHEW ADOBE ILLUSTRATOR LINEWORK BY IZZY CHEW

FLOOR

1.

3. Restroom

6.

7. Lounge

1. Solar Atrium

2. Tributary Walkway

3. Middle School Classroom

4. Lab Breakout Room

5. Breakout Classroom

6. Lounge Area

7.

6
1 FLOOR 2
Solar Atrium
2. High School Classroom
4. Lab Breakout Room
5. Breakout Classroom
Greenhouse Classroom
8. Tributary Walkway
8. Cafeteria 9. Kitchen 10. Green Roof 11. Restroom 12. PV Covered Walkway REVIT MODEL BY RENEE RELF AND IZZY CHEW ADOBE ILLUSTRATOR LINEWORK BY IZZY CHEW
Greenhouse Classroom
1:500
7
ATRIUM LIBRARY
REVIT MODEL BY RENEE RELF AND IZZY CHEW REVIT MODEL BY RENEE RELF AND IZZY CHEW ADOBE ILLUSTRATOR DIAGRAM BY QUINCEY DUNLAP AND IZZY CHEW LUMION RENDER BY RENEE RELF AND IZZY CHEW 1. U.S. Department of Energy. “Solar Decathlon 2024 Competition Guide.” U.S Department of Energy, July 2022.
SOLAR
1
8

FACADE

Our facade comprises of a steel bar and tension cable system that suspends terracotta tiles in a randomized scattered pattern to imitate the stippled light that comes through leaves in a nearby tree. this system is resilient to the 5A climate zone weather of heavy snow and rain present throughout the majority of the school year.

9
RHINO
FACADE GEOMETRY BY BEN MICHEL

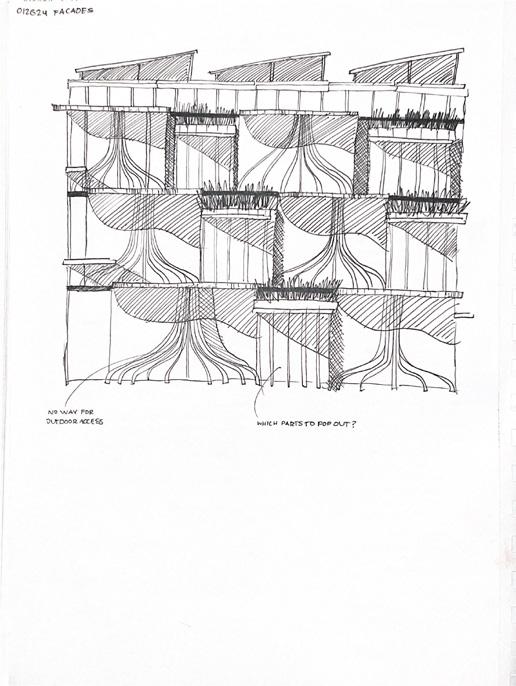

RENDER BY RENEE RELF AND IZZY CHEW 02 MICRON INK SKETCHES BY IZZY CHEW REVIT MODEL BY RENEE RELF AND IZZY CHEW
FACADE ITERATIONS LUMION

A POEM FOR UKRAINE

RUINS AND RESILIENCE

SEEDS IN TOIL

FRIGID SOIL SOLELY PLANTED HERE TO DIE GRASP THE DIRT

IT FALLS OUT LOOSE

YOU DROP YOUR SOUL AND DRY YOUR EYES

YOUR HEART, A PIT

A SHELL OF IT

LIES IN YOUR PLACE INSTEAD IN SILENT DUST

I WISH, I MUST, MOVE FORWARD, LOOK AHEAD

I BREAK THE GROUND

I REACH FOR SKIES

I SEE IT RIGHT AS RAIN

THE FAINTEST RAYS WILL SPELL A SIGN MY PROMISE STANDS THE SAME

I GROW DESPITE

THE DARK I DARE

I FOUND RESPITE

THE WAY I CARE

WILL HELP ME BLOOM BEYOND THIS WEARY HEART, THIS BEATING SONG

I’VE KNOWN THIS TUNE FOR YEARS

I MOURN THE LOST, THE YOUTH

THE SCOPE OF WAR AND PEACE

I CAME TO SEEK

THE COST

THE TRUTH

OUR HOPE

10
POEM BY IZZY CHEW

The Romania Academic Incubator for Entrepreneurial Genesis and Growth

INTERIOR ARCHTIECTURE INDIVIDUAL STUDIO | AN ACADEMIC INCUBATOR AT THE ROMANIA CENTER

Inspired by the anatomy of mammalian and microbial cells, energized by the symbiotic relationship of order and entropy1, the E.G.G. (Romania Academic Incubator 2 for Entrepreneurial Genesis and Growth) is a vessel to generate collective innovation on the pulse of biology and technology. As the heartbeat of Eugene, the mission to make human of the machine is to redefine the collaborative process of work into creation through human trial and error and ultimately, adaption through dynamic spaces. My five guiding principles are adaptive reuse, community engagement, accessibility and inclusivity, future-proofing, and biophilic comfort.

11 02 E.G.G.
FALL STUDIO IARC 484 | PROFESSOR MERIKE MIGHELL
2023 *1. Sai Vinjanampathy & Janet Anders (2016) Quantum thermodynamics, Contemporary Physics, 57:4, 545-579, DOI: 10.1080/00107514.2016.1201896 2. Long, Mark S. “Introduction, Chapter 2, and Chapter 6.” Essay. In Facilities Management For Business Incubators, 1–92. Indepdent Publishing, n.d. LA VA LAMP Flow of ideas AO RT A Circulation Clear Centra Throroughfare Constant Exchange of Ideas Encourages Cross Pollination Activity-based Groups Proximity of Similar Ideas Flexible Physical Boundaries ECOS YS TEMS Zones Bringing Outside In Unique Restoration Space Doubles as Sound Barrier SKYPUNCH Interior Natura Light M A N A N D T H E M A C H I N E T H E P L A Y I S T
12 01 23 5m N IMPO RT ANT SITE S KE Y EUG Eugene Airport New CIty Hal AMTRAK Train Station PeaceHealth Hospita Old City Hall EGG Incubator Site River and Lakes Highways and Roads Protected Green Space Developed Land Driving Radius I-5 105 126 126 126 569 569 25MIN 10 MIN 5 MIN EUGENE, OR
ASSET MAP 0 250 500 750 1500 ft scale: 1/500” = 1’0” IMPO RT ANT SITE S KE Y River and Water Features Roads Paved Walkways Green Space Walking Radius N Holiday Inn 75 Gas Station Starbucks Matthew Knight Arena Project Site Hayward Field UO Police Department Hayward Inn Hiron’s Drug Market of Choice Wild Duck Cafe Black Cultura Center Museum of Natural History Many Nations Longhouse Maude Kerns Ar Center 10MIN 5MIN NTS N Developed Hardscape Block Extents Loading/Delivery Areas Client/Employee Parking Visitor Parking Green Spaces Reserved for Accelerator Local Artist Mural Block Proper Signage Retaining Green Wall Skypunches Flex Space Patio Extension Peppered Live Sidewalk KE Y PROPOSED SITE ELEMENT S FRANKLIN BLVD ORCHARD ST WA LNUT T. W AL NUT ALLE E 15H AV E.
SITE ADOBE ILLUSTRATOR ELEVATION + MAPS
NEIGHBORHOOD MAP CITY
BUILDING

1

DRAWING PROCESS

The “V”s help me make visual connections to other spaces from the point of origin and the arrows are proposed walk paths.

4 2 5 3 6

I imagine room occupancy to account for appropriate public and private gradients and alternate activities within the spaces.

The smaller diagrams help me visualize space adjacencies with similar activities while increasing cross-disciplinary centers.

This is an attempt to arrive at a finished plan, but with little to no markups, there aren’t a lot of ideas born from this scheme.

I start to settle into a design when I can draw any room in my program with multiple furniture layouts

Here, I’m pathing vertical circulation and accessibility through high-security spaces such as the wet labs and machine room.

13
HB MECHANICAL PENCIL, 0.35 MM SKETCH

1/32”= 1’0”

14 A B CLIENT EXHIBIT B ROTATING CLIENT EXHIBIT A CAFE/PUBLIC READING ROOM FRONT CAFE CAFE KITCHEN FORUM STAG FORUM STAIRS PATIO OFFICE OFFICE ST RESTROOMS COWORKING CONFERENCE CONFERENCE COWORKING RESTROOMS CHIN SHOP PROTOTYPING MAKER SPACES CORROSIVE STORAGE EMPLOYEE LOUNGE STANDING BAR AND CAFE CULTURES MICROBIAL CULTURES FLEX SPACE STORAGE ROOM ROOM INVESTOR LOUNGE REVIT MODEL AND ADOBE ILLUSTRATOR LINEWORK
PLANS REVIT MODEL AND ADOBE ILLUSTRATOR PLAN
FLOOR

SECTION ELEV A TION: ROMANIA SHO W ROO M

A.SECTION ELEVATION: ROMANIA SHOWROOM

1/8”=1’0”

1/16”=1’0”

1/8”=1’0”

B. SECTION ELEVATION: COWORKING SPACE

SECTION ELEV A TION: CO-W ORKING S PA CE S

1/16”=1’0”

16
REVIT MODEL AND ADOBE ILLUSTRATOR SECTION ELEVATION
17

1/64” = 1’0”

17
= 1’0” OCCUPANCY LOAD TABLE 1 EGRESS PATHING 2 scale: 1/32”=1’0” Assembly: Exhibit Gallery and Museum Function of Space Space Function Category Total Occupancy Load: 492 People Occupant Load Assembly Stages and Platforms Business Industria 338 19 40 95 Load FactorT otal SFO ccupant Load Color 30 net approx 7 net 18 30 90 19 40 95 5 1 200 71.71 208.56 1342.95 285.26 5842.02 9549.26 1375.62 173.87 5978 15 net 15 net 150 gross 100 gross 300 gross 200 gross Assembly with fixed seats Concentrated Assembly (chairs only-- not fixed) Unconcentrated (tables and chairs-- not fixed) Business Stages and Platforms Industrial Accessory Storage/Mechanical Room Kitchens, commercial scale: 1/32”=1’0” 57.01’ TRAVEL DISTANCE TO EXIT 145.64 TRAVEL DISTANCE TO EXIT 118.84 TRAVEL DISTANCE TO EXIT 69.76 TRAVEL DISTANCE TO EXIT 113.28 TRAVEL DISTANCE TO EXIT DISTANCE 53.53’ DISTANCE 53.53’ DISTANCE 20.24 DISTANCE 15.34 REVIT MODEL AND ADOBE ILLUSTRATOR PLAN 2. OSCC. “Chapter 10_Means of Egress, Oregon Structural Specialty Code (OSSC) 2022.” Portland: UpCodes, 2022. 1. OSCC. “Occupant Load Calcs 2.” Portland: UpCodes, 2022.
1/64”

CEILING PLANS

1/64” = 1’0”

FF&E

Warehouse Light

PLT LED Linear Fixture

Rolled steel painted white 47.6”x2.8”x3.2”

Hallway Light

Meyda Tiffany LED Pendant Bronze painted grey 60”x60”x17”

Office Light

Mary White Oval LED Light

Aluminum painted white 47.6”x2.8”x3.2”

Pendant Light

Letifly Flowerpot Pendant Light

Iron and Aluminum painted red 16”x10”x5”

scale: 1/64”=1’0”

18
N
REVIT MODEL AND ADOBE ILLUSTRATOR PLAN COPIC MARKER SKETCH

THE SITE

SUMMER STUDIO OROM488 | PROFESSOR ESTHER HAGENLOCHER

ARCHITECTURE PARTNER STUDIO | ROME STUDY ABROAD: STRATA | IZZY CHEW, CASEY ASLAN

The site serves as a connection between the bustle of Rome and the serenity of the Tiber Academy. A two-garden approach, inspired by the duality of the hunting grounds and manicured garden at Villa Lante, created a divide between the public and private realms. Our large public garden provides an easy and direct access from the Via della Scala which acts as a public park that connects to the architectural ruins of the Casa della Farnesina. One is expected to explore the space and stumble through the various tree clusters to the fountains providing a visual and audible connection to the neighboring River Tiber. The trivium is the main entrance and connects the Via della Scala to the walking path bridging over the ruins and directly to the walking path leading to the river bridge, providing an easy-to-navigate approach for first-time visitors. The walking path ties the space together through a connection of the private, public garden and bridge to the academy, as well as by providing both an elevated view above the excavated ruins and ramps and stairs allowing one to walk through the ruins.

Tiber Academy respects the past while making space for the future by preserving the Casa Della Farnesina ruins, creating an educational facility that connects across the Tiber River to the Palazzo Farnese and the rest of Rome. Our guiding concepts of exploring the arch embodies unity across time and people; the arch is a connector, the arch is a portal, the arch is a half of a whole. This community around historic preservation and the arts asks guests to witness their own intellectual transformation to listen the wisdom of the past and create with the tools of the future.

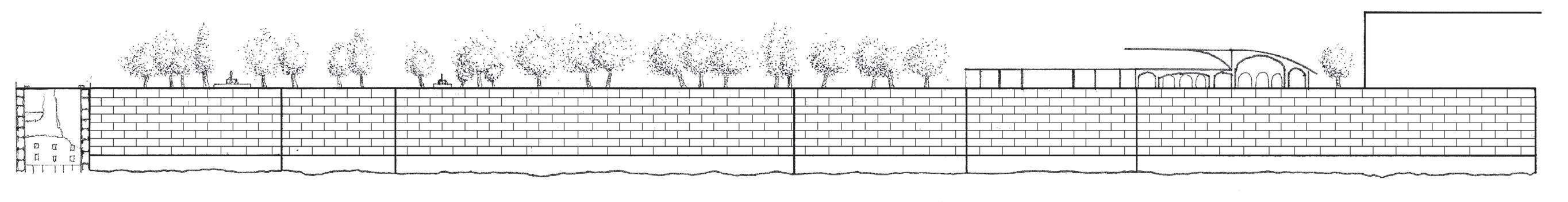

NORTH WEST-FACING ELEVATION LONG SECTION

SITE DIAGRAMS

TIBER ACADEMY COPIC AND INK ELEVATION, AND PROCREATE DIAGRAMS BY CASEY ASLAN
BUILDING ELEVATIONS AND SECTIONS
03
CIRCULATION ELEVATION CHANGE

ROME, ITALY

THE SITE

SITE ANALYSIS

THE SITE

The site serves as a connection between the bustle of Rome and the serenity of the Tiber Academy. A two-garden approach, inspired by the duality of the hunting grounds and manicured garden at Villa Lante, created a divide between the public and private realms. Our large public garden provides an easy and direct access from the Via della Scala which acts as a public park that connects to the architectural ruins of the Casa della Farnesina. One is expected to explore the space and stumble through the various tree clusters to the fountains providing a visual and audible connection to the neighboring River Tiber. The trivium is the main entrance and connects the Via della Scala to the walking path bridging over the ruins and directly to the walking path leading to the river bridge, providing an easy-to-navigate approach for first-time visitors. The walking path ties the space together through a connection of the private, public garden and bridge to the academy, as well as by providing both an elevated view above the excavated ruins and ramps and stairs allowing one to walk through the ruins.

The site serves as a point of connection between the city of Rome and the serenity of Tiber Academy is inspired by the hunting grounds and manicured garden at Villa Lante. Our largest public garden has direct access from Via della Soala. The trivium is the main entrance connecting the road, bridge, and inner courtyard for maximum harmony.

The site serves as a connection between the bustle of Rome and the serenity of the Tiber Academy. A two-garden approach, inspired by the duality of the hunting grounds and manicured garden at Villa Lante, created a divide between the public and private realms. Our large public garden provides an easy and direct access from the Via della Scala which acts as a public park that connects to the architectural ruins of the Casa della Farnesina. One is expected to explore the space and stumble through the various tree clusters to the fountains providing a visual and audible connection to the neighboring River Tiber. The trivium is the main entrance and connects the Via della Scala to the walking path bridging over the ruins and directly to the walking path leading to the river bridge, providing an easy-to-navigate approach for first-time visitors. The walking path ties the space together through a connection of the private, public garden and bridge to the academy, as well as by providing both an elevated view above the excavated ruins and ramps and stairs allowing one to walk through the ruins.

20 PENCIL SKETCH PLANS BY IZZY CHEW DIGITAL FULL SITE PLAN BY CASEY ASLAN AND IZZY CHEW
Casey Aslan, Isabelle Chew Rome Program 2023 University of Oregon SITE SECTION
Casey Aslan, Isabelle Chew Rome Program 2023 University of Oregon SITE SECTION SITE ELEVATION SITE DIAGRAMS CIRCULATION ELEVATION CHANGE SITE PLAN

DRAWING PROCESS

SOLIDIFYING BIG IDEAS

EXPLORING EXPLODED AXONS

CONSIDERING BRIDGE ACCESS

21
PENCIL SKETCH SKETCHES BY IZZY CHEW

COLLECTION OF DRAWINGS

DAVID

IN BALLPOINT PEN

BLIND CHARCOAL SKETCH WORKSHOP

SEVEN-LETTER CITY

In this project, I decided to take on writing a poem for all the stops on one of our walking tours in Florence but drawing with only 7 strokes. I would be limited in drawing, so I’d have to capture the moment with just my words. Here they are below. Enjoy.

NORTH TRIP SKETCHES, PAND PHOTOS SKETCHES, PAND PHOTOS

NORTH TRIP SKETCHES, PAND PHOTOS

outdoor courtyards as indoor rooms with the sky as the roof. It was most interesting to compare furniture types due to their usage inside and outside.

Piazza Benedetto Cairoli 15 Minute “Free” Sketch Blind Sketch with Kir 2 Minute, Right Hand Blind Sketch with Kirstin Arndt 2 Minute, Left Hand PENCIL SKETCH SKETCHES BY IZZY CHEW HB MECHANICAL PENCIL, 0.35MM, SKETCHES

EXPLODED AXONOMETRIC

represents the arch Rome with the inner workings site underneath.

Curved roof represents the arch as well as the hills of Rome with the infrastructure and inner workings of the buildings and site underneath.

creates arches dimensions of space manifesting itself through elements and in the experience within. underground, the history of ourselves. changes represent ages past unearthed advancement, ever everlasting.

The site creates arches across four observable dimensions of space and time, manifesting itself through both a physical and emotional experience..

The physical level change that happens when stepping into a dig site represent our past being unearthed.

site lies the ruins,but also what lies ahead. This underground allows us to stay grounded reminding us to respect the create for the future.

This large access basement beneath the gardens provide shade for excavators and students alike, reminding us to stay grounded with ourselves.

23

AXON
MICRON INK EXPLODED AXON BY IZZY CHEW

create respond to organization more needs of students the utilitzed boundaries weave in organiacross close human.

FLOOR PLANS

1. Dormitory

2. Bathroom

3. Common Area

4. Large Balcony

1. City Garden

2. Half-Moon Pool

3. Semi-Covered Walkway

4. Double Arch Facade

5. Art Gallery

6. Art Studios

7. Classroom

8. Library

9. Commercial Kitchen

10. Restaurant

1. Uncovered Ruins

24 MICRON INK FLOOR PLAN BY IZZY CHEW *FUN FACT! BOTH OF THESE PIECES TOOK ME 30 HOURS EACH TO PRODUCE OVER THE COURSE OF 5 DAYS. Casey Aslan, Isabelle Chew Rome Program 2023 | University of Oregon
1 1 1 1 2 2 2 2 2 2 3 4 1 1 1 1 2 3 4 5 6 7 8 9 10

FACADE STUDY

FROTTAGE COLLAGE

These frottages are from a study using charcoal and fine-pressed paper to take an impression of an interesting texture during our tour through Ostia Antica and other Roman inventions such as the brick roads and travertine capstones. Casey and I traded for each new texture during this trip.

The most precious memory of this trip was seeing a mosaic of the lighthouse of alexandria . It was an understanding across time that someone else had dreamed of its beam and perhaps commissioned an artisan or did it themselves to see if they could share this dream with another person.

NORTH EAST-FACING ELEVATION

FEATURED SKETCH WORK

SKETCH WALK

BUILDING ELEVATIONS AND SECTIONS

These preliminary sketches exemplify our use of arches as our guiding motif and concept throughout this complex. The ones shown here are our progression through di erent arrangements of arches that we’ve considered in our final design: endless and timeless.

These preliminary sketches exemplify our use of arches as our guiding motif and concept throughout this complex. The ones shown here are our progression through different arrangements of arches that we’ve considered in our final design: endless and timeless.

NORTH WEST-FACING ELEVATION

CROSS SECTION

25 CHARCOAL SKETCH AND FROTTAGE BY CASEY ASLAN MEGAGRAPHITE PENCIL, 9B, PARTIAL FROTTAGE AND SKETCHES BY IZZY CHEW
Casey Aslan, Isabelle Chew Rome Program 2023 | University of Oregon
LONG SECTION
FROTTAGE STUDY VILLA LANTE HADRIANS VILLA HADRIANS VILLA PESCETARIUM

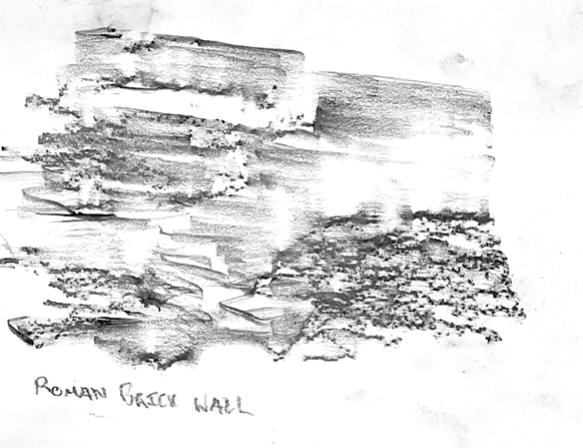

Inspiration from the flat Roman brick, a material we used for our walls.

Inspiration from the flat Roman brick, a material we used for our walls.

LONG SECTION

NORTH-EAST ELEVATION

NORTH EAST-FACING ELEVATION

PORTLAND HUB FOR DRAMATIC ARTS

SPRING STUDIO ARCH 384 | PROFESSOR STEPHEN DUFF

ARCHITECTURE INDIVIDUAL STUDIO | PERFORMANCE ARTS HUB IN PORTLAND

The Portland Hub for Dramatic Arts is a center for all performance arts and occassional visual media such as film and traditional painting. This center boasts a black box theatre, a white box theatre, two beautiful dance studios and a fabrics’ workshop next door, media library for those interested in learning theatre tech, and classrooms for students who attend our summer programs. The Portland Hub is also a great place to catch up with friends over a cup of coffee or a quick tune up for any musician. It’s location in the Pearl district of Portland, OR is sure to enrich the community with performance arts and beauty.

04 27 2D MUSIC BOX: SPOTIFY PLAYLIST REVIT MODEL AND ENSCAPE RENDER
Easy Flow/High Circulation Public/Private Gradient Clear Views/Strong Shading 2023 2 D M U S I C B O X T H E P L A Y I S T

FLOOR BY FLOOR

FABRICS WORKSHOP

CO-WORKING SPACE

CONFERENCE ROOM CAFE

This exploded axonometric allowed me to explore my workflow between Revit and Rhino. I found it easiest to make edits in Revit and export it as a .3ds file to Rhino for quick diagrams. These are also a series of my first renders using both Twinmotion and Enscape.

28
CLT BEAMS GLU-LAM
TIMBER COLUMNS, DOUGLAS FIR
FOUNDATION
CLT FLOOR
PLATES CONCRETE
R-60 ROOF
REVIT MODEL AND ENSCAPE RENDERS RHINO MODEL AND ADOBE ILLUSTRATOR AXON DIAGRAM

FLOOR PLANS

5TH FLOOR

1/64” = 1’0”

4TH FLOOR

1/64” = 1’0”

3RD FLOOR

1/64” = 1’0”

2ND FLOOR

1/32” = 1’0”

1ST FLOOR

1/64” = 1’0”

REVIT MODEL AND ADOBE ILLUSTRATOR LINEWORK 29
N N N WHITE BOX THEATRE BISTRO SCENE SHOP LIGHTING STORAGE RETAIL RETAIL LOBBY RESOURCE LIBRARY OFFICE OFFICE COLLABORATIVE WORK AREA OFFICE EMPLOYEE LOUNGE BLACK BOX THEATRE SET ASSEMBLY DANCE STUDIO 2 DANCE STUDIO 1 COVERED TERRACE COSTUME SHOP RESTROOMS CO-WORKING AREA CONFERENCE ROOM FABRICS COSTUME ARCHIVE AND STORAGE DYE AND WIG ROOM FITTING ROOM COSTUME ADMIN OFFICE LIGHTING STORAGE RESTROOMS RESTROOMS RESTROOMS STAGING PREP AREA SOUND WOMEN’S DRESSING ROOM MEN’S DRESSING ROOM PRE-SHOW LOUNGE MAKEUP ROOM DESIGN STUDIO TECHNOLOGY LAB TECH GRID OVER OPEN AIR TO BELOW ADMIN OFFICE CLASSROOM OFFICE CAFE RESTROOMS

SECTIONS AND ELEVATIONS

CROSS SECTION

LONG SECTION

WEST ELEVATION

SOUTH ELEVATION

REVIT MODEL AND ENSCAPE RENDER REVIT MODEL SECTIONS AND ADOBE ILLUSTRATOR LINEWORK 30
1/64” = 1’0”

LOWELL COMMUNITY HALL AND ROWING CENTER

B 1

B 1

Community Hall Longitudinal Section

Scale: 1/8” = 1’0”

Community Hall Longitudinal Section

Scale: 1/8” = 1’0”

FALL STUDIO ARCH 384 | PROFESSOR MEGAN HAIGHT

ARCHITECTURE INDIVIDUAL STUDIO | LOWELL COMMUNITY CENTER AND ROWHOUSE

The Portland Hub for Dramatic Arts is a center for all performance arts and occassional visual media such as film and traditional painting. This center boasts a black box theatre, a white box theatre, two beautiful dance studios and a fabrics’ workshop next door, media library for those interested in learning theatre tech, and classrooms for students who attend our summer programs. The Portland Hub is also a great place to catch up with friends over a cup of coffee or a quick tune up for any musician. It’s location in the Pearl district of Portland, OR is sure to enrich the community with performance arts and beauty.

05
2022 T H E S H E L L T H E P L A Y I S T SPATIAL ORGANIZATION C OMMUNI TY HALL RADIAL AXIS TARTAN GRID ROWING CENTER PRIMARY AND SECONDARY CIRCULATIONS UNFOLDING MEANDER BRANCHES OFF AXIS OCIOFUGAL TO SOCIOPEDAL SPACE SOCIOPEDAL SOCIOFUGAL s ADOBE ILLUSTRATOR SECTION PERSPECTIVE, 1/32”=1’0” ADOBE ILLUSTRATOR DIAGRAMS 31

SPRINGFIELD, OREGON

DIAGRAMMATIC CONCEPTS

My design embraces the beauty of both organic and geometric lines found in the action of rowing. Like the pin of an oar blade, rowing is central to the Lowell community.1 An equilibrium is achieved after finishing each cycle of rowing.

SITE ANALYSIS

The community hall captures the fludity of the path that an oar takes while rowing. 2 The beams are placed in a fan-shape and the roof follows, reflecting the dynamic nature of space as needed.

The boathouse matches the rhythmic quality of rowing as shown by the recorded angles of oars throughout a series of strokes.3 This represents the power of being in sync with your team, in athletic routine, in practice, and in life.

ADOBE ILLUSTRATOR EXPLODED AXONS HB MECHANICAL PENCIL, 0.35MM SKETCH
32
1. Kleshnev, Dr Valery. “Review on Blade Propulsive Efficiency.” Biorow, 2019. https://biorow.com/index.php?route=information%2Fnews%2Fnews&news_id=53. 2. Sliasas, Andrew & Tullis, S.. (2009). Numerical modelling of rowing blade hydrodynamics. Sports Engineering. 12. 31-40. 10.1007/s12283-009-0026-3. 3. Feigean, Mathieu & R’Kiouak, Mehdi & Bootsma, Reinoud & Bourbousson, Jerome. (2017). Effects of Intensive Crew Training on Individual and Collective Characteristics of Oar Movement in Rowing as a Coxless Pair. Frontiers in Psychology. 8. 1139. 10.3389/fpsyg.2017.01139.

2D TO 3D WORKFLOW

COMMUNITY HALL

I drew these 3d geometries as base figures and estimated the height of the drawn column to the rough scale height of each columnn for each of three tiers. This helped me visualize where the possible beam s and girders could connect in the ceiling plane as I had also inverted it up and away from the columns. This gave me an interesting fanned out result that looked more spread than I expected, but captured the curves.

ROWING CENTER

ROWING CENTER EXPLODED

COMMUNIT Y HALL EXPLODED

STRUCTURAL DIAGRAMS

This drawing is adobe illustrator linework based on top of a screenshot of my model in its default axonometric 3D view in Revit. I found the workflow to break down my revit model by layer in an exploded axonometric only after the fact. I was both frustrated and relieved to learn a more efficient method that cuts my production time in half. I learned about how I process difficulty while maintaining my creative energy and as a result I approach scary and exciting challenges with more confidence in myself.

33
HB MECHANICAL PENCIL, 0.35MM SKETCHES ADOBE ILLUSTRATOR DIAGRAMS REVIT MODEL AND ADOBE ILLUSTRATOR LINEWORK AXON

COMMUNITY HALL MODEL

1’16=1’0”

I love model-making because it’s a tactile approach to design. While I prepared the pieces through a digital medium, punching out the pieces after laser cutting reminded me of the metal 3D models I always saw in the checkout line at the craft store. I could never justify buying them for my own enjoyment, so this was an opportunity to make my own template and build everything from scratch.

This also helped me visualize scale better, from drawing the digital print file to assembling the pieces with tacky glue, I learned how to be patient with myself and trust my own process.

34
MAT BOARD AND BASSWOOD DOWEL SKETCH MODEL
BASSWOOD PLATES AND FAKE MOSS, 1/16” MODEL
WHITE
LASER-CUT

SECOND FLOOR PLAN

35
REVIT PLANS AND ADOBE ILLUSTRATOR LINEWORK
1/16” = 1’0”
N 36

GROUND FLOOR PLANS

1/32” = 1’0”

37 MODEL IMAGES, IPHONE 13 PRO MAX REVIT PLANS AND ADOBE ILLUSTRATOR LINEWORK
N
38 REVIT PLANS AND ADOBE ILLUSTRATOR LINEWORK Community Hall Cross Section Scale: 1/8” = 1’0” B 2 SECTIONS AND ELEVATIONS 1/64” = 1’0”
B2. COMMUNITY HALL CROSS SECTION B3. ROWING CENTER LONGITUDINAL SECTION
Rowing Center Cross Section Scale: 1/16” = 1’0” B 4 Rowing Center Longitudinal Section Scale: 1/16” = 1’0” B 3
B4. ROWING CENTER CROSS SECTION

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
