SITE DESIGN & MODELING | LA 2111L Design III: Spatial Design Lab | FALL 2023

GRADING & MODELING | LA 3611 Construction I: Site Engineering | FALL 2023

REALTIME RENDERING | LA 1581 Intro to Visual Communication for Design | SPRING 2023

FALL 2023

PUENTE HILL LANDFILL PARK FALL 2023 PUENTE HILL LANDFILL PARK

PUENTE HILL LANDFILL PARK PROCESS Before commencing this project, a site analysis of the Puente Hills Land was conducted, providing essential topographic information. This analysis served as the foundation for creating the proposed park designs. Subsequently, this project refined and finalized the chosen design proposals.

PROPOSED DESIGNS

During the design process, the initial grading of the amphitheater proved to be steep. It became necessary to adjust the contour lines to improve the functionality and overall design of the amphitheater.

EXISTING CONTOURS

REGRADED CONTOURS

2

FALL 2023

A Outside Terrain

B

B

*LP 826’

7%

7%

*HP 843’ Outside Terrain

A 0 PLAN Underlying the plan are the regraded contours. The slope is shown pointing towards the amphitheater, with the High-Point and Low-Point of the site.

3

20

40

80’

PUENTE HILL LANDFILL PARK

Sidewalk

Stairs

Lawn Seating

Amphitheater

Lawn Concession Stand

CIRCULATION & ACCESS The park has a concrete sidewalk, connecting any visitors to various activity areas.

4

FALL 2023

it

ph

Am

SECTION A-A This section is cut diagonally across the entire site. It captures the different elevation changes. It capture the entire site as a whole.

SECTION B-B This section is cut horizontally across a portion of the sidewalk.

It capture the transition from soft-scape to hard-scape. It shows an intimate view of the activities.

5

er at e h

wn La

a

Se

PUENTE HILL LANDFILL PARK g

wn La

tin ea

wn La

S

0

10’

SECTION A-A

g

n ati

Bu

sh

es

alk w ide

S te e cr

n

Co

0

5’

SECTION B-B

6

FALL 2023

PERSPECTIVES These perspectives offer insight into the park’s potential appearance when populated by visitors.

7

TOP: Amphitheater Overlook BOTTOM: Lawn Overlook

PUENTE HILL LANDFILL PARK

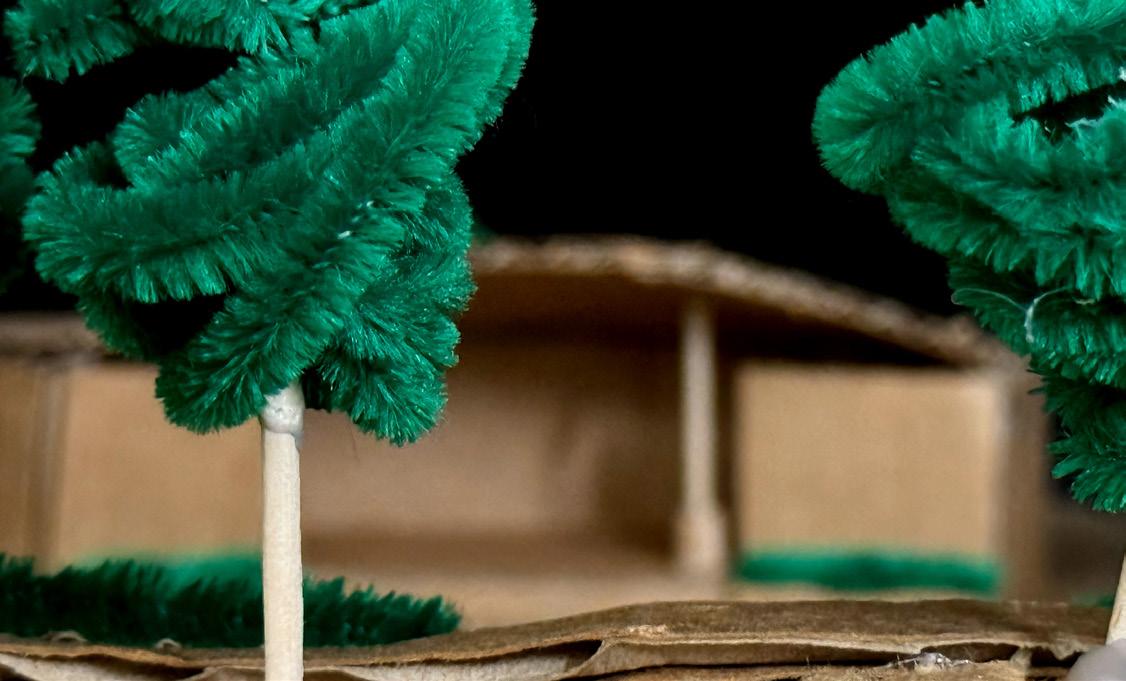

PHYSICAL MODEL The smooth corrugated cardboard represents the finished surfaces. The exposed corrugated cardboard represents the greenery. The pipe cleaners represents the vegetations.

Constructed at 1”=20’ using 1/8” corrugated cardboard

TOP: Amphitheater Overlook BOTTOM: Lawn Seating Overlook

8

FALL 2023

GRADING PLAN FALL 2023

PROCESS Measurement were initially selected in order to begin the grading plan. This allowed the courtyard to be formed. Using these measurements as a guide, the retention basin, stairs, and ramp were made. The contour lines were then regraded to adjust for the new measurements.

9

GRADING PLAN

EARTH

SECTION A-A

CONCRETE

SECTION B-B

GRADING PLAN (TOP) The initial calculation were all done on this drafted grading plan.

SECTION A-A (MIDDLE) This section cuts through the retention basin.

SECTION B-B (BOTTOM) This section cuts through the staircase.

10

FALL 2023

COURTYARD RAIN GUTTER STAIR LANDING

RAMP

CHEEK WALL RETENTION BASIN

BUILDING

This is rendered grading plan with labels. The rendered perspectives are on the right. The top one is showing the retention basin. The bottom is the courtyard overlook.

11

GRADING PLAN

RETENTION BASIN

COURTYAD OVERLOOK 12

TWINMOTION RENDERING SPRING 2023

TWINMOTION RENDERING

Trellis Door

Bench

PROCESS The model was drafted and created in Rhino. It was then uploaded and rendered on Twinmotion. The plan view was imported onto illustrator for call outs.

LEGEND Grass

Wall

Vegetation

Retaining Wall

Sidewalk

Pool

14
