Shih Chien University Industrial Design Guan Jun Chen PORTFOLIO

Chen Guan Jun Hi I’m

km10140701@gmail.com

+886 912810863 jimchen3

2021-present

實踐大學工業產品設計學系 Department of Industrial Design

2018-2021

新竹高級中學

National Education Shih Chien University

Hsinchu Senior Highschool

Workshop

2023 June

仁寶電腦生成式AI工作營

COMPAL X SCID

Generative AI Workshop

2023 Oct.

USR The Interdisciplinary

USR漸凍病友跨領域工作營 Workshop for ALS Patients

2023 June

International Design

服務設計國際工作營 of Interaction&Design Workshop

Experience

2021Dec.-2023 Dec.

學期期末展覽攝影組組長

SCID final Exhibition Leader of Photography Section

2023 July-present

NTU Racing

臺大賽車隊平面設計與攝影 Graphic Design&Photography

About me

I’m Chen Guan Jun, a junior indusrtrial design student. In this portfolio, you will see some of my works from the three years of college time.

Language

Chinese English German Native Tongue Fluent Advanced

Skills

Sketching

Prototyping

3D Modelling

Photographing

Graphic Design

Softwares

Visual Editing

Adobe Illustrator

Adobe Photoshop

Adobe Indesign

3D Software

Rhinoceros 3D

Autodesk Alias

Luxion Keyshot

Photography work

2. INTER 1. Others 3. BreezeSurf

BreezeSurf 4. FíNN 5. Savour 02

6th - 10th Nov 2023 Commissioned by

服務設計工作營 Service Design Workshop

Lecturer: Brian Ling Founder & Design Director at Design Sojourn

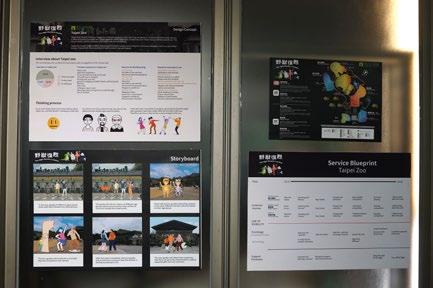

Taipei Zoo Interview about Taipei zoo Thinking process ��.�% ��.�% ��.�% Design Concept Taipei Zoo, located in Muzha, Taipei, is a renowned zoological park spanning �� hectares. Home to over �� animal species, it offers educational exhibits and conservation initiatives. Highlights include the Giant Panda House and the Koala House. The zoo promotes wildlife awareness and environmental stewardship. Taipei Zoo houses diverse wildlife, featuring giant pandas, koalas, Asian elephants, Formosan pangolins, and a myriad of other species. The exhibits showcase the rich biodiversity of Asia and beyond. For our interview, we’ve asked �� interviewees, who are aged from �� to �� years old Zoo should not only a place for kids, but also for the adolescent,the middle-aged,and the elderly In the interview, many think it would be a good idea to have the nighttime operation and some totally different activities at the zoo. Therefore, we have a idea to have a party at night at the zoo. #Very cool #Hot but really like it #Casual stroll and look at animals #Overall hasn't changed #Smelly but very fun, great for hanging out with friends and being silly #Boring #Very hot # Penguin area is cool #Very big, takes a long time to walk through, lots of animals #Too boring #Unable to see animals #Inconvenient transportation #Too boring #Too boring #Very hot #Unable to see animals #Inconvenient transportation #Hygiene conditions #Too boring #Negative news #one-time consumption #Hygiene conditions #Inconvenient mobility Last time in Taipei zoo Previous memories in Taipei zoo Reasons for Not Returning #Nighttime operations #Introduce cool animals #Performances #Food vendors or market #Improved merchandise #Dance combined with the zoo #Costume parties/parades with performances #Reduce the distance between visitors and animals #Night tours of the zoo #Free feeding of animals #Close observation #Gibbon Grand Parade #Animal talent performances Would be interested to see Over one year In one year In half year Some interviewees feel bored when talking about Taipei zoo, and they think it’s belongs to only kids. Time ��:�� :�� Customer Journey 鶴立雞群 Proud to be different Take the metro Take the metro Entering with friends Buy tickets Buy tickets Buy tickets Change into costumes Change into costumes Change into costumes Dance Battle competition DJ music playing 獾勇敢 Badger-Hearted Middle-aged Drive to zoo Entering with Partner Jazz dance competition 老驥伏櫪 Too young to stop Elderly Entering with friends Traditional dance competition Frontstage Employee Action Technology Support Processes Sale the tickets Explain the rule Grade the players LINE OF VISIBULITY Calculate the entering customer Bring the costume from the storehouse Bring the prize to the stage Turn off the light Adolescents Collect prizes after the event Collect prizes after the event Karaoke competition Karaoke competition Collect prizes after the event Welcome the customer Use Big data to analyze customers High-tech billboard Announce the final winner Lead the customers to the exit Help the customer to change costume Service Blueprint Taipei Zoo In the zoo, people of different ages would enter with their friends from the entrance. There will be tour guides instructing customers to wear different animal costumes based on their age group. The tour guides will broadcast a reminder that the competition has started. After the event completed, the tour guides will remind the customers that the activity is ending by playing music. The tour guides will inform the customers that they can go to the ticket booth to collect exquisite gifts and zoo vouchers. The guide will inform visitors of different age groups about the time when they will be announced outside the ticket booth. Storyboard 04

July 2023 - Now

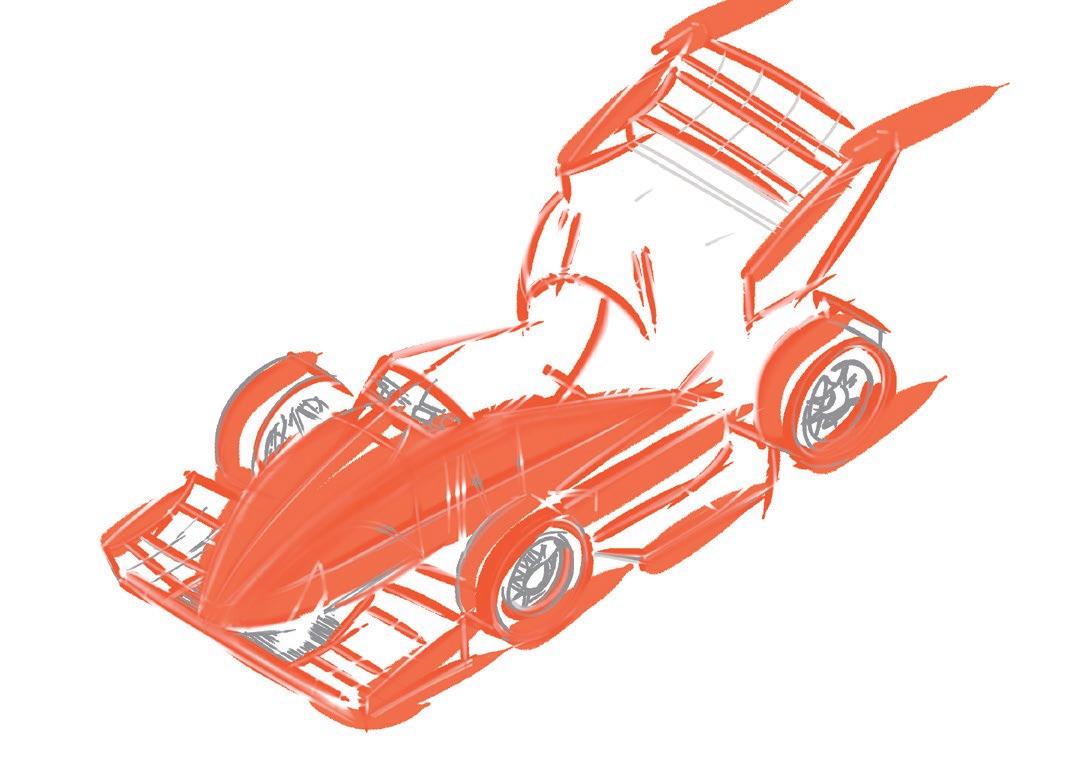

臺大賽車隊 NTU Racing

Graphic Design & Photography

2023 發表會海報

2023 7月份雙月刊

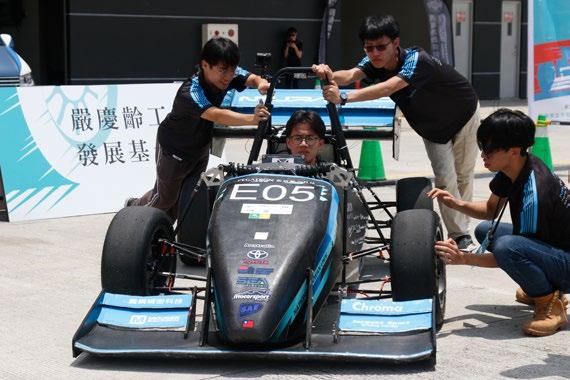

2023 FST臺灣盃學生方程式聯賽攝影

2024 1月份季刊

NTURACING

Sky is the limit® NTSEC EXPO 06

Formula SAE Team of National Taiwan University

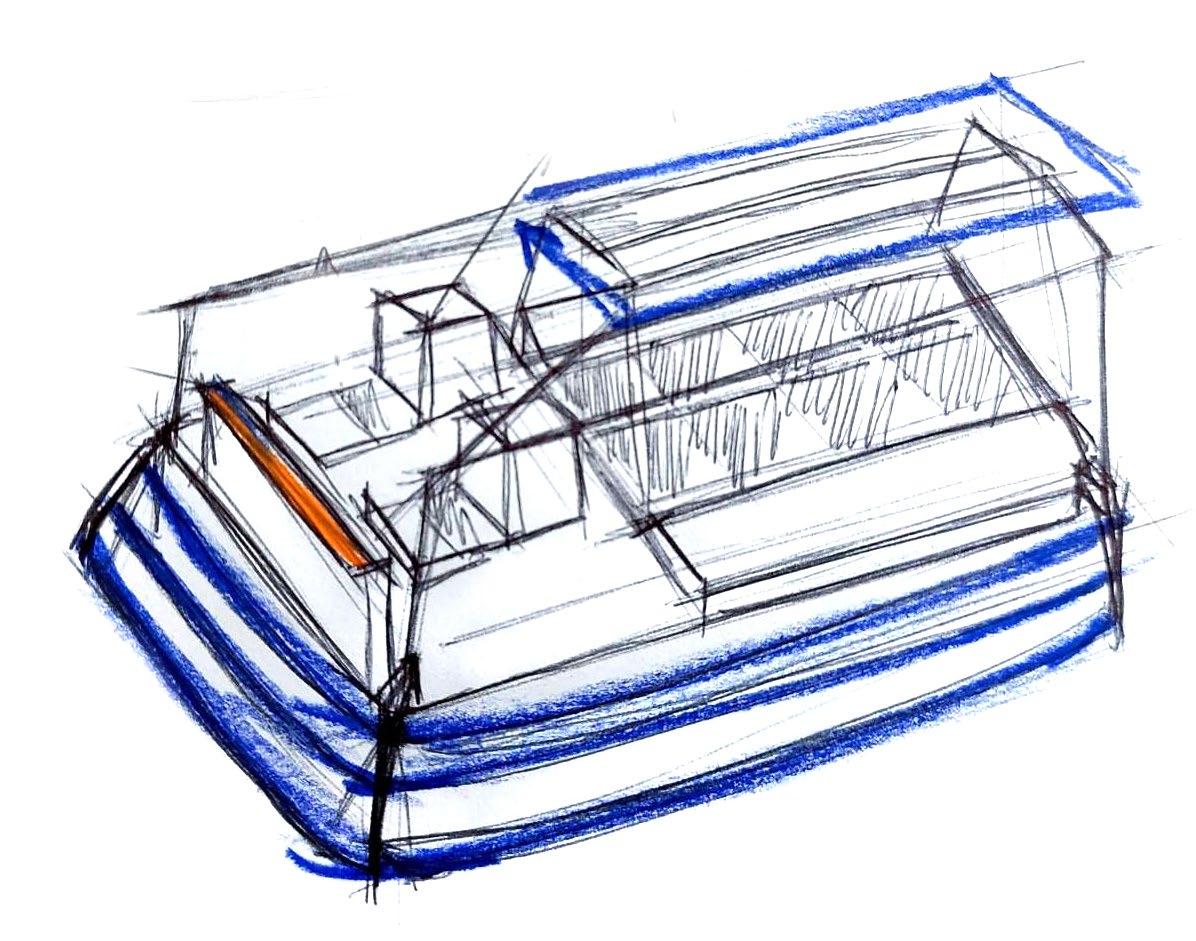

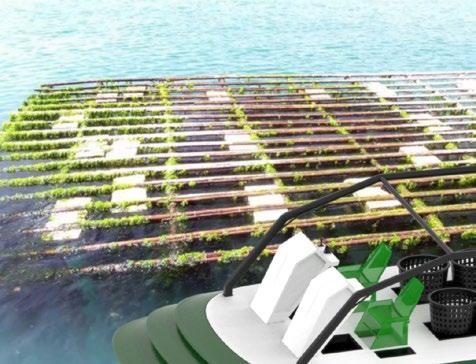

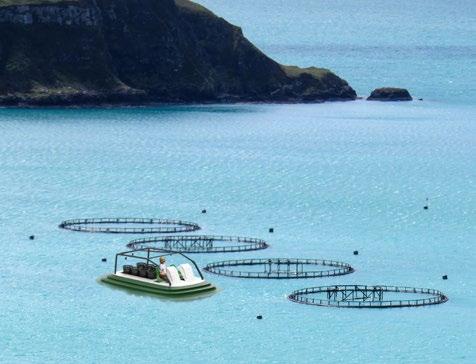

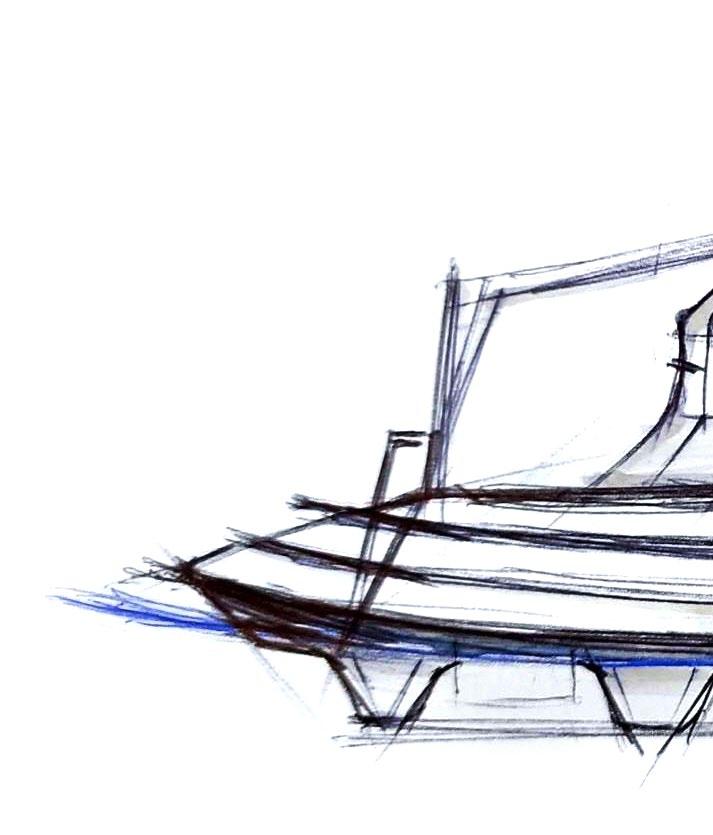

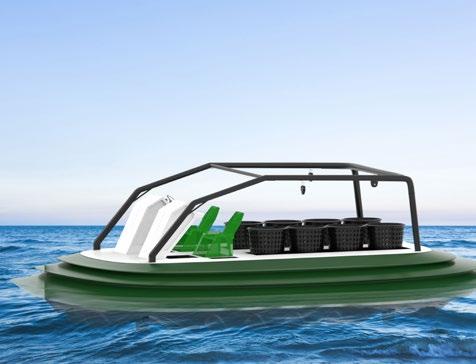

電動潮間帶竹筏 Electric Intertidal Raft

Electric Intertidal Raft

Scale:6555x4063x2399mm

#transportation design

INTER 09

在台灣牡蠣分布在西部的沿岸地區，而牡蠣養殖的工作模式大致分為兩種:需涉水以及站立於棚架上。致力於減少甲板與蚵棚間移動貨物的高度差距，打造一台能夠減少人力搬運消耗的載具，並使用100%的電力能源。

Taiwan’s western coast fosters oysters via submersion or rack suspension farming. Innovations target an electric vehicle to cut manual handling, bridging height gaps between decks and oyster racks. This aims to streamline operations, reducing labor and enhancing efficiency in oyster farming for improved sustainability.

01 設計背景 DESIGN BACKGROUND

Oyster farming involves frequent transitions between rafts and racks, hindered by their height difference. 牡蠣養殖在整個階段需要多次的來回從竹筏到棚架再回來的這個過程，而不方便之處便在於需要跨過竹筏邊緣和棚架的高度差。

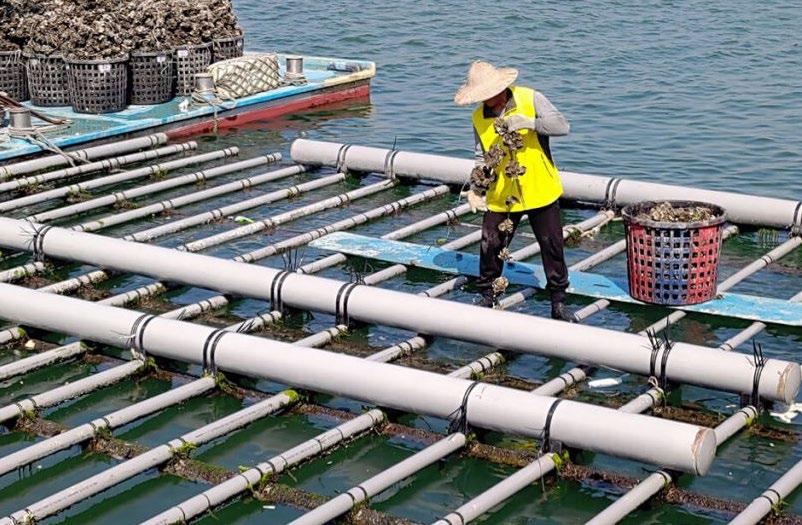

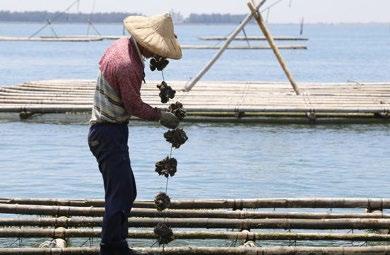

01-1 牡蠣的養殖方式 The cultivation methods of oysters

孵化 Incubation

幼苗 Oyster spat

生長 Growth 收成 Harvesting

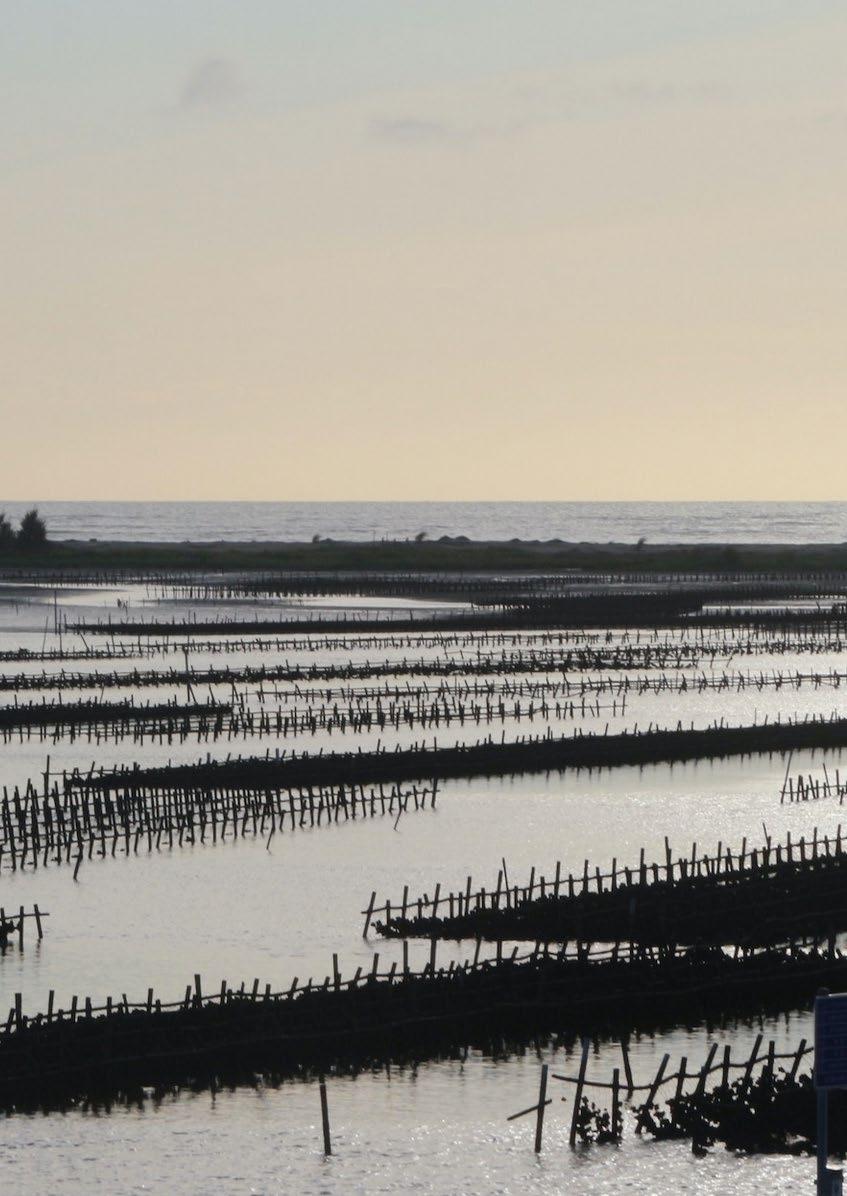

台灣西部的養殖方式分為垂吊式(俗稱站棚仔)、平掛式(俗稱倒棚仔)和浮棚式。前兩者皆是先挑選較大的蚵殼當母殼鑽孔，再用繩子將母殼串成「蚵串」，分別以垂直和水平將蚵串綁在蚵架上。而浮棚式則是讓蚵架長期浮在海上，也造就牡蠣更快的生長速度。

In western Taiwan, oyster farming involves suspended (“hanging racks”), horizontal (“inverted racks”), and floating rack styles. The first two select larger oyster shells as mother shells, drill holes, string them into “oyster strings” using ropes, then bind these strings vertically or horizontally onto oyster racks. The floating rack method fosters faster oyster growth by allowing racks to float long-term in the sea.

船身側邊台階 Side ladder of the hull

船身正視圖 Bow view of the ship

01-2 11

02 設計目標DESIGN OBJECTIVE

減少搬運不方便

Simplify handling

減少人力消耗

Less labor consumption

增加淺水域浮力

Increase buoyancy

三面貨運出口

Three-sided cargo exit

竹筏長久以來一直為從岸邊抵達棚架以及運送牡蠣的交通載具，不過不管是收集牡蠣還是將貨物下載至岸邊，都存在諸多的不方便之處，而我認為的新設計變是消弭這些落差使得更完善。

The bamboo raft, long been used to travel between shore and oyster racks and transport cargo, presents inconveniences during oyster collection and shore unloading. The new design aims to eliminate these gaps for a more seamless operation.

牡蠣農的一天 The daily routine of the oyster farmer

檢查潮汐與天氣

Check Tides and Weather

船身側視圖 Side view of the hull

從居處出發 Set off from home

補撈與播種 Harvesting and Seeding

保養機具 Maintenance and Repairs 返家 Back home

整體空間運用 Overall space utilization

船體底部增加浮力方式 Methods of increasing buoyancy at the bottom of the hull

01-2

03 設計原則 DESIGN PRINCIPLE

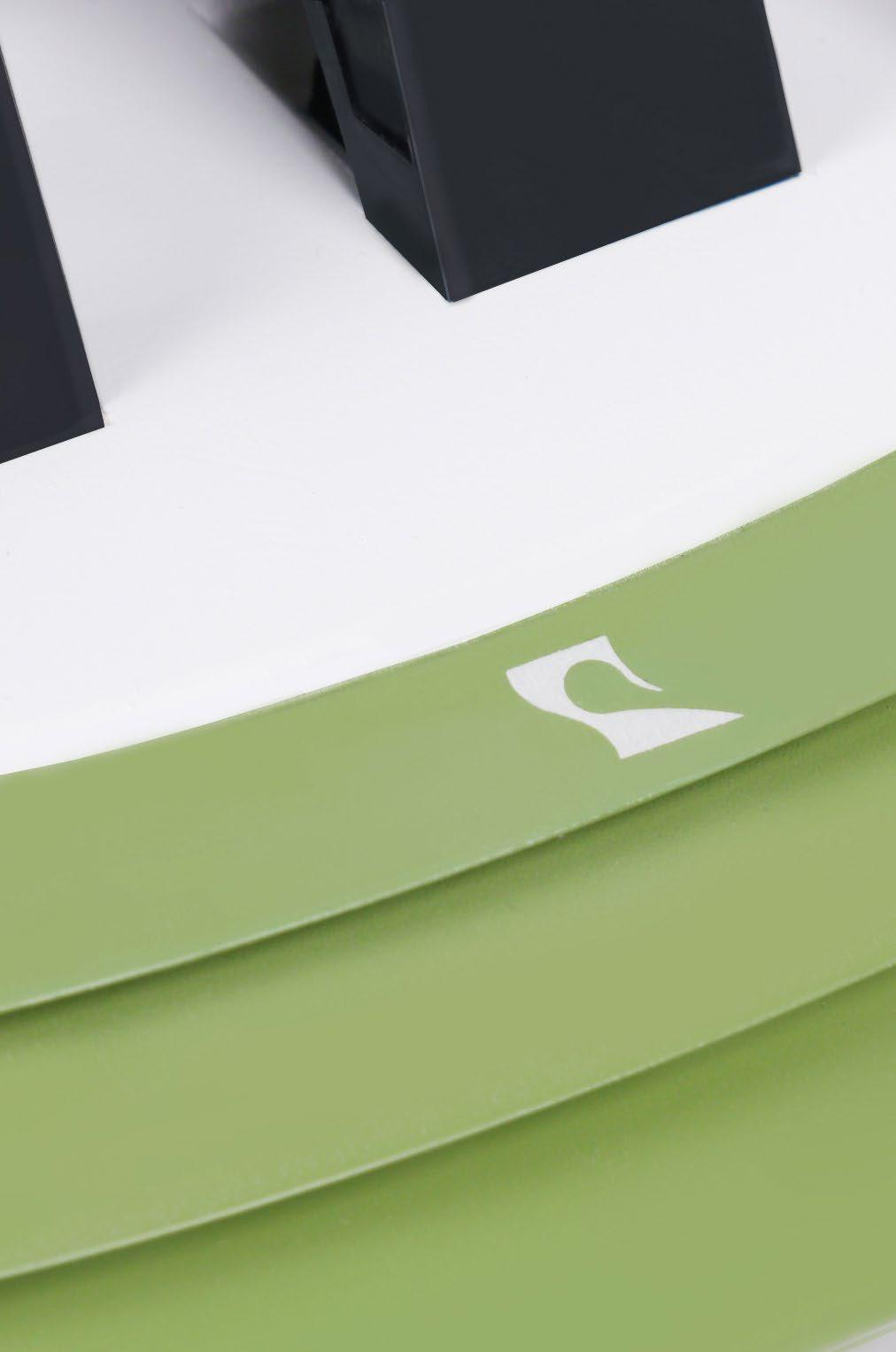

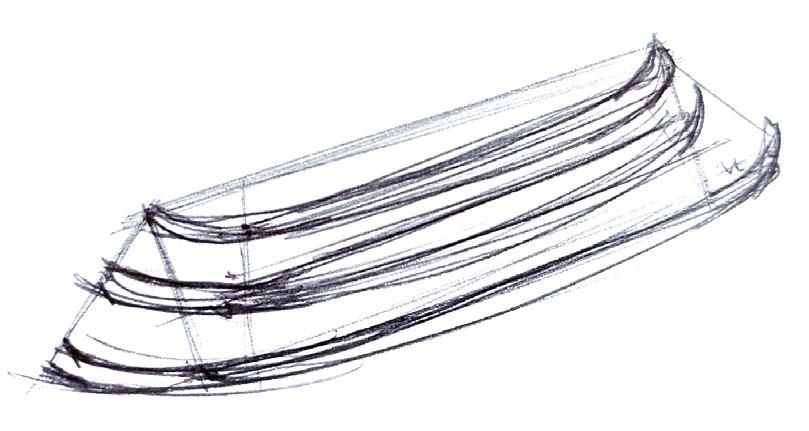

階梯狀船體側緣 Stairs-like boat hull edge.

04 使用流程 PROCESS

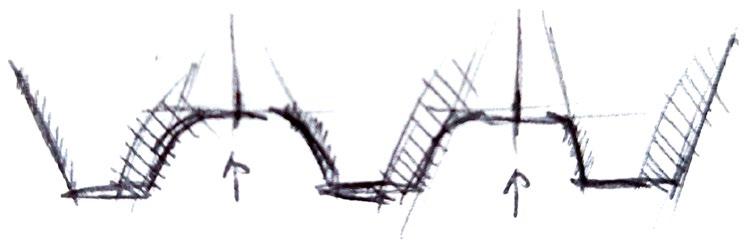

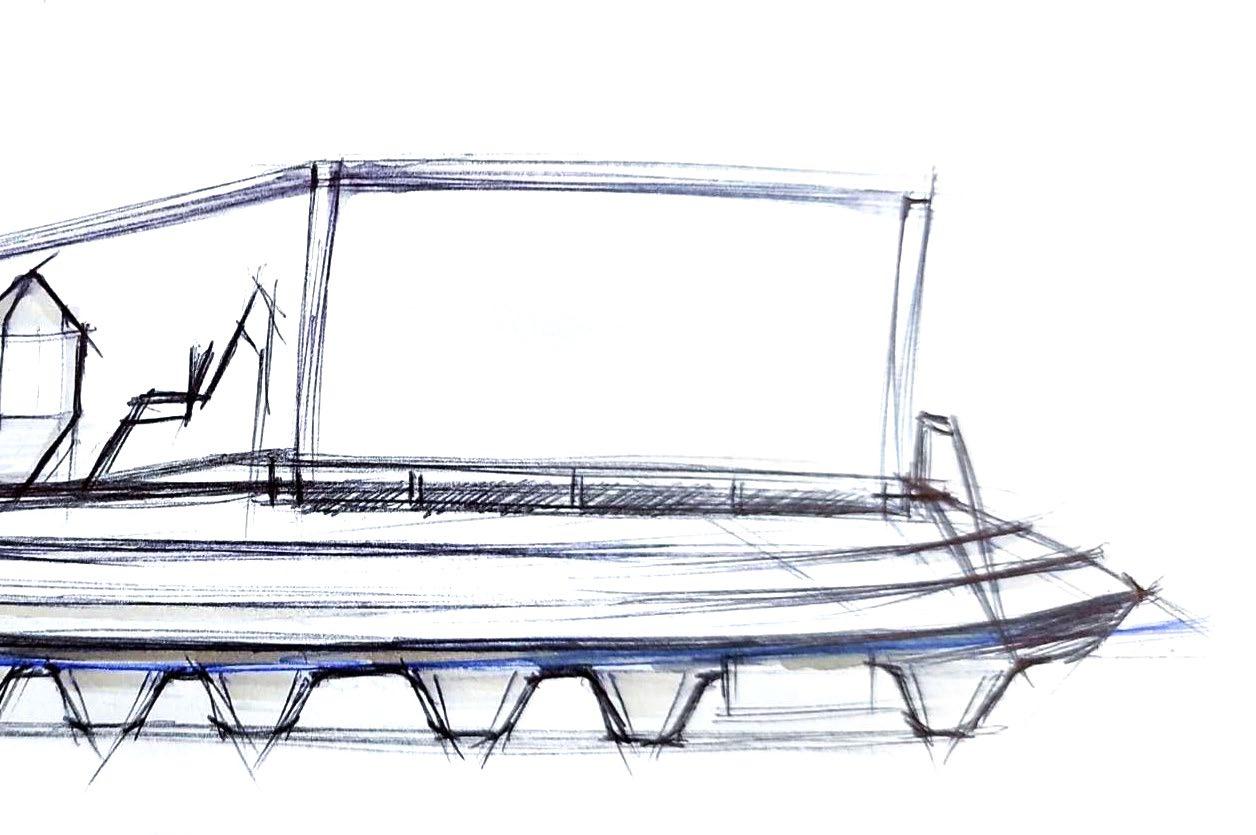

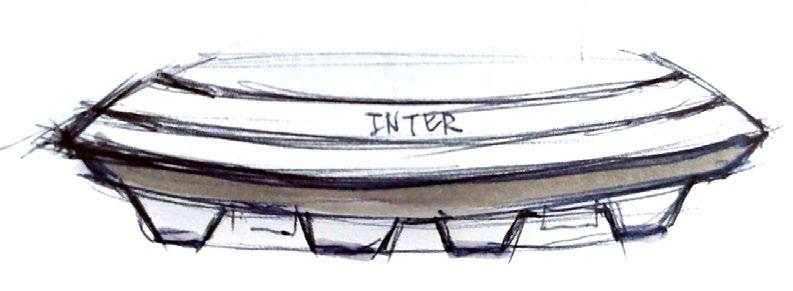

多個 v 形造型的船身 Multiple V-shaped boat hulls

三面上貨區域 Three-sided cargo area.

駛往棚架 Sail to the racks 01

離開甲板 Set off from the racks

03 04 05 06

踏上棚架 Step on the racks

收集牡蠣 Collect the oyster

搬運上船 Load onto boat

駛回岸邊 Sail to the shore

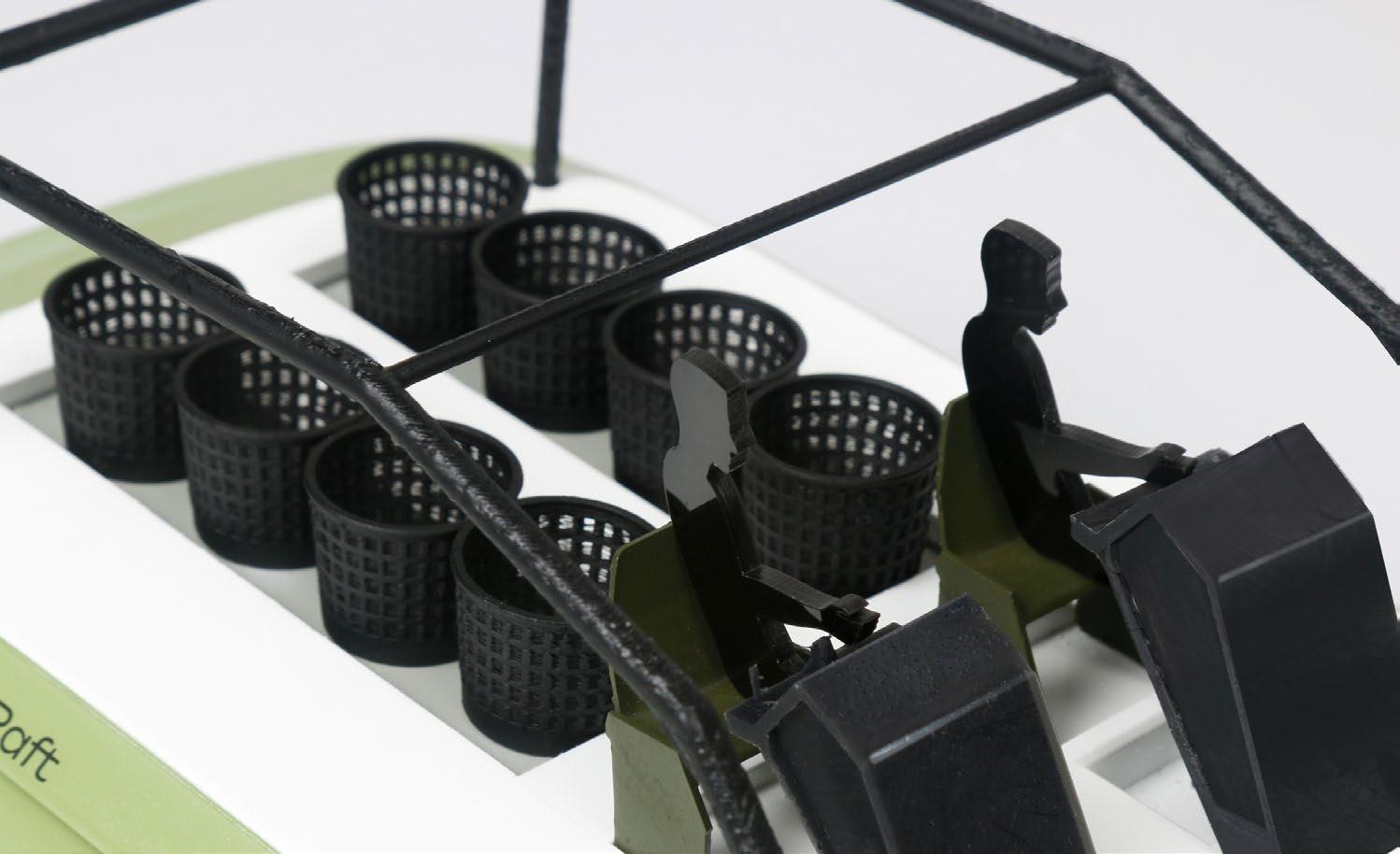

乘載 2 位工作人員以及 8 籃直徑 50 公分籃子的空間

Accommodates 2 personnel and 8 baskets with a diameter of 50 centimeters each.

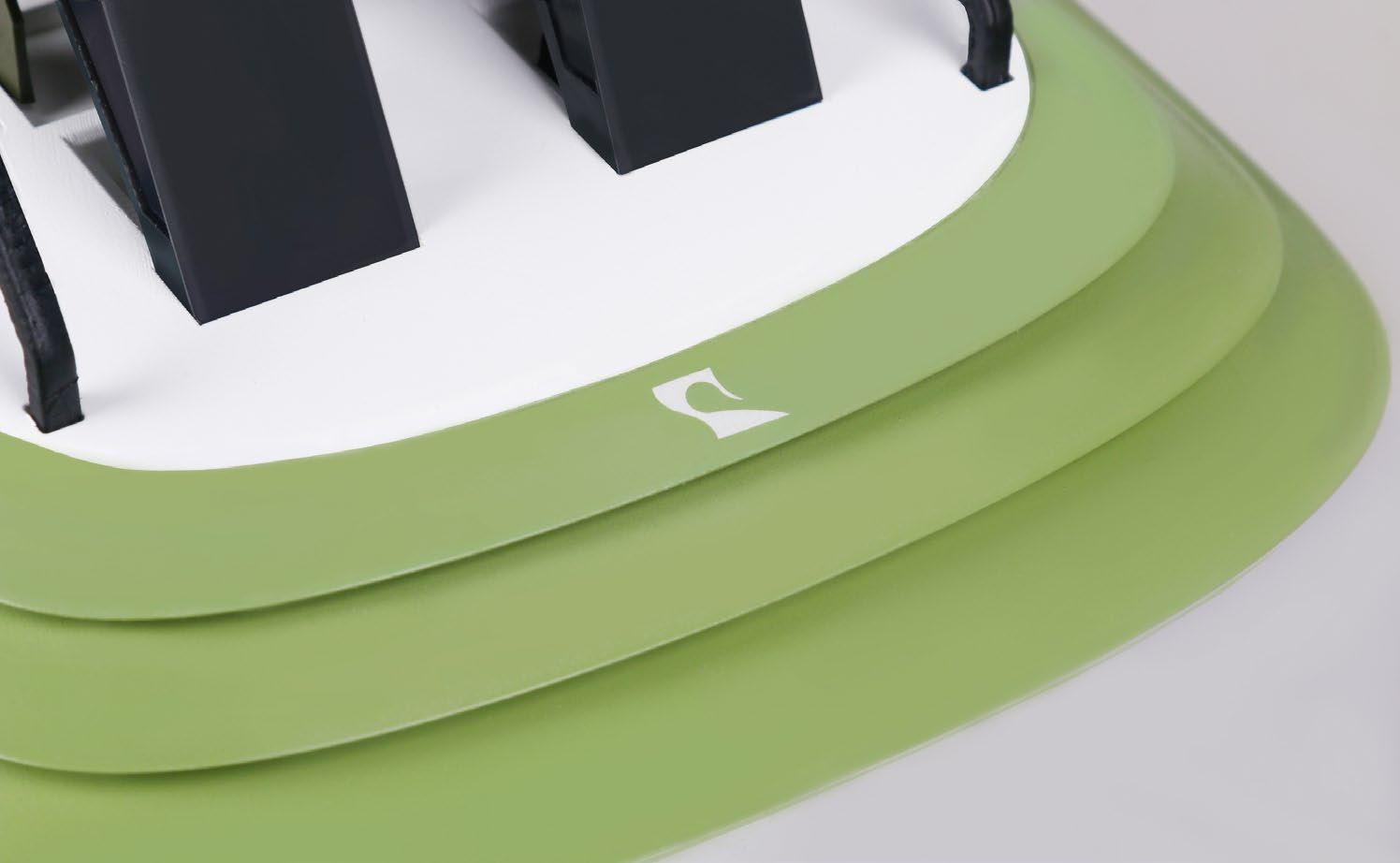

階梯狀側緣方便上下竹筏至棚架

The stepped edge facilitates access from electric rafts to racks.

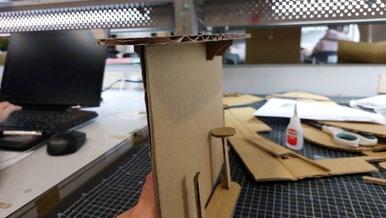

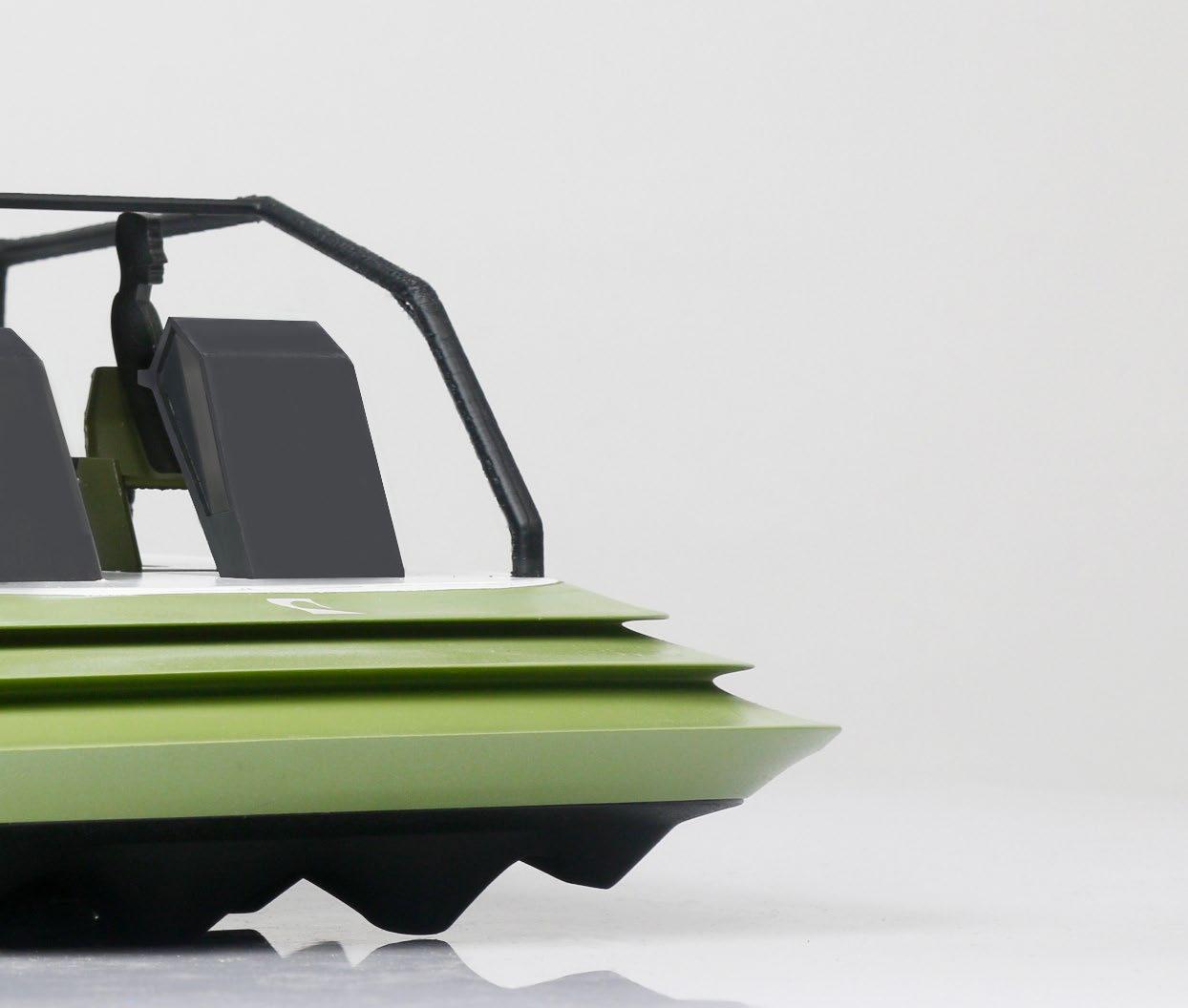

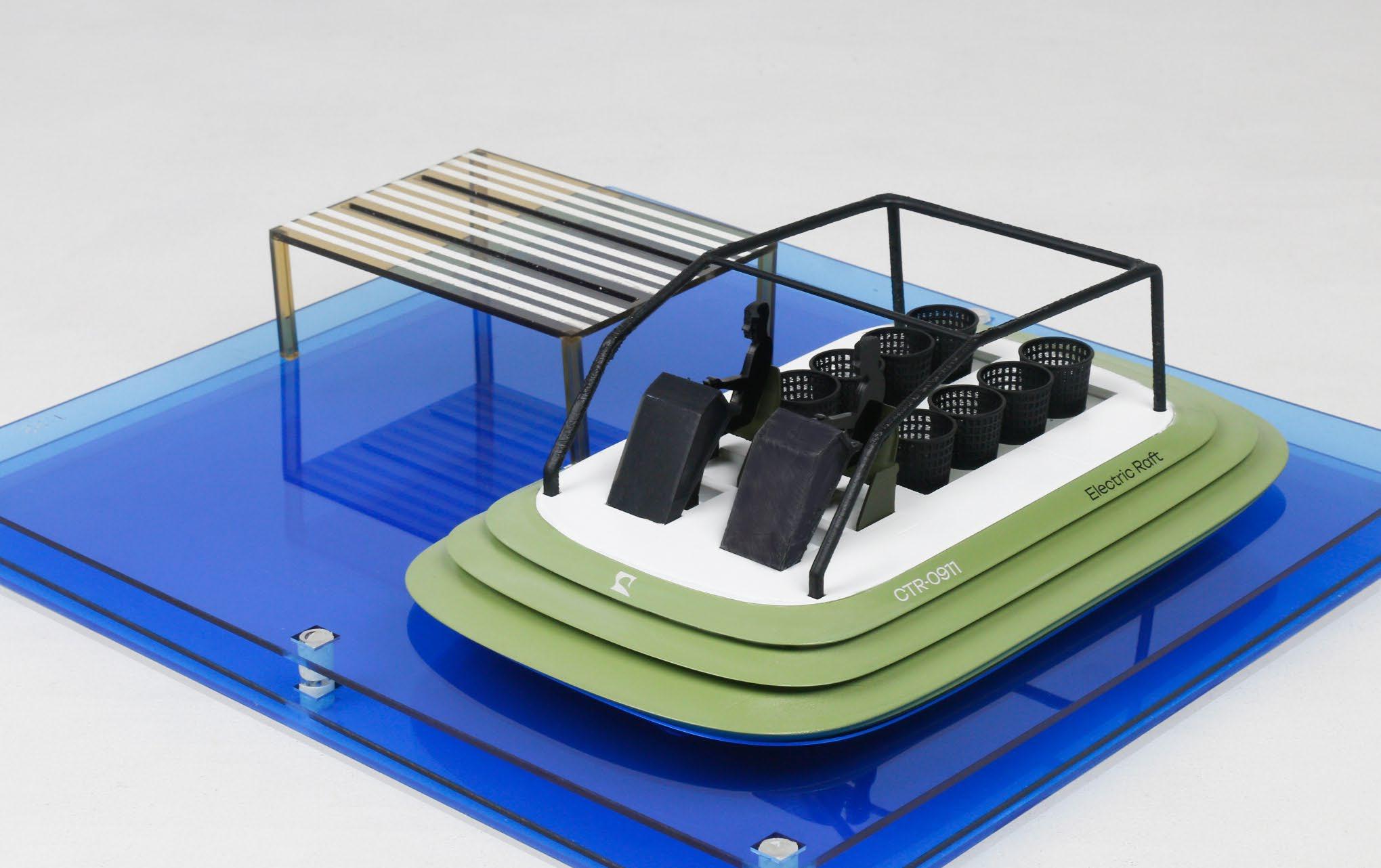

此為 1:22

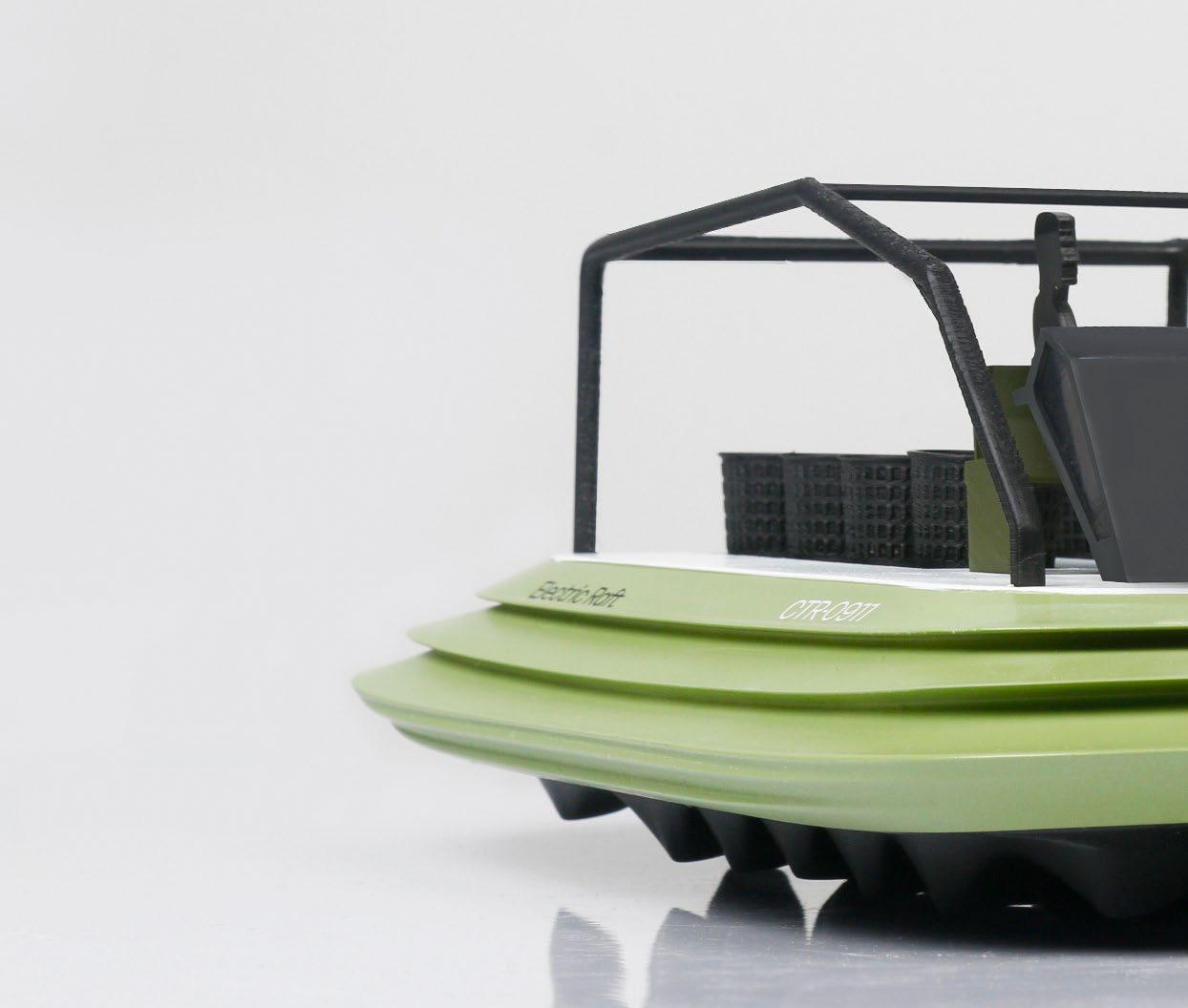

This is a 1:22 scale model showcasing both the electric bamboo raft and the racks.

縮模展示包含電動竹筏以及棚架

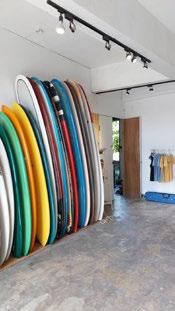

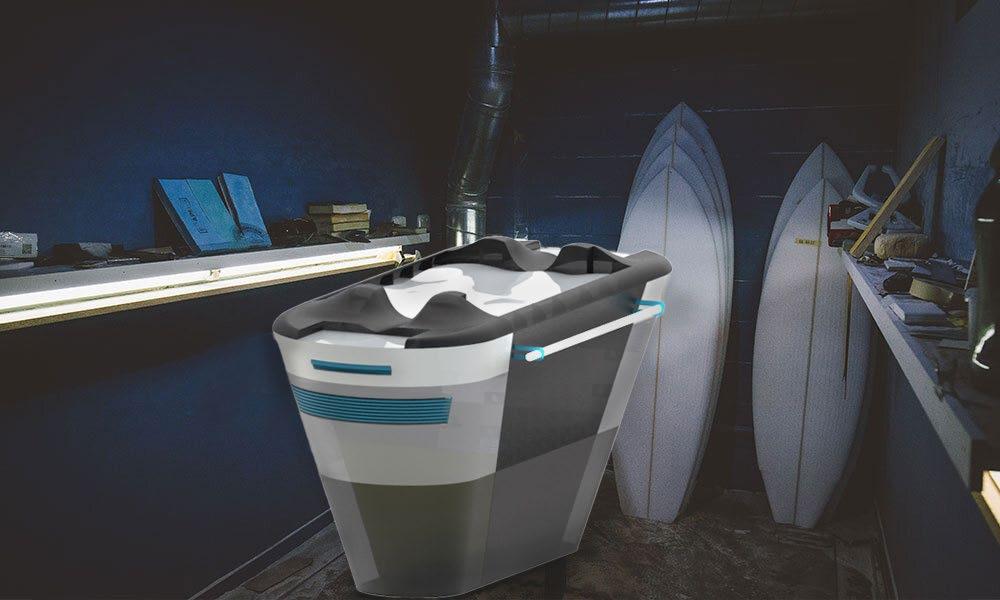

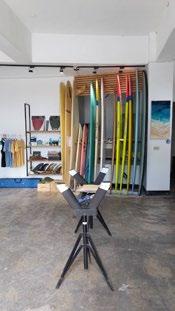

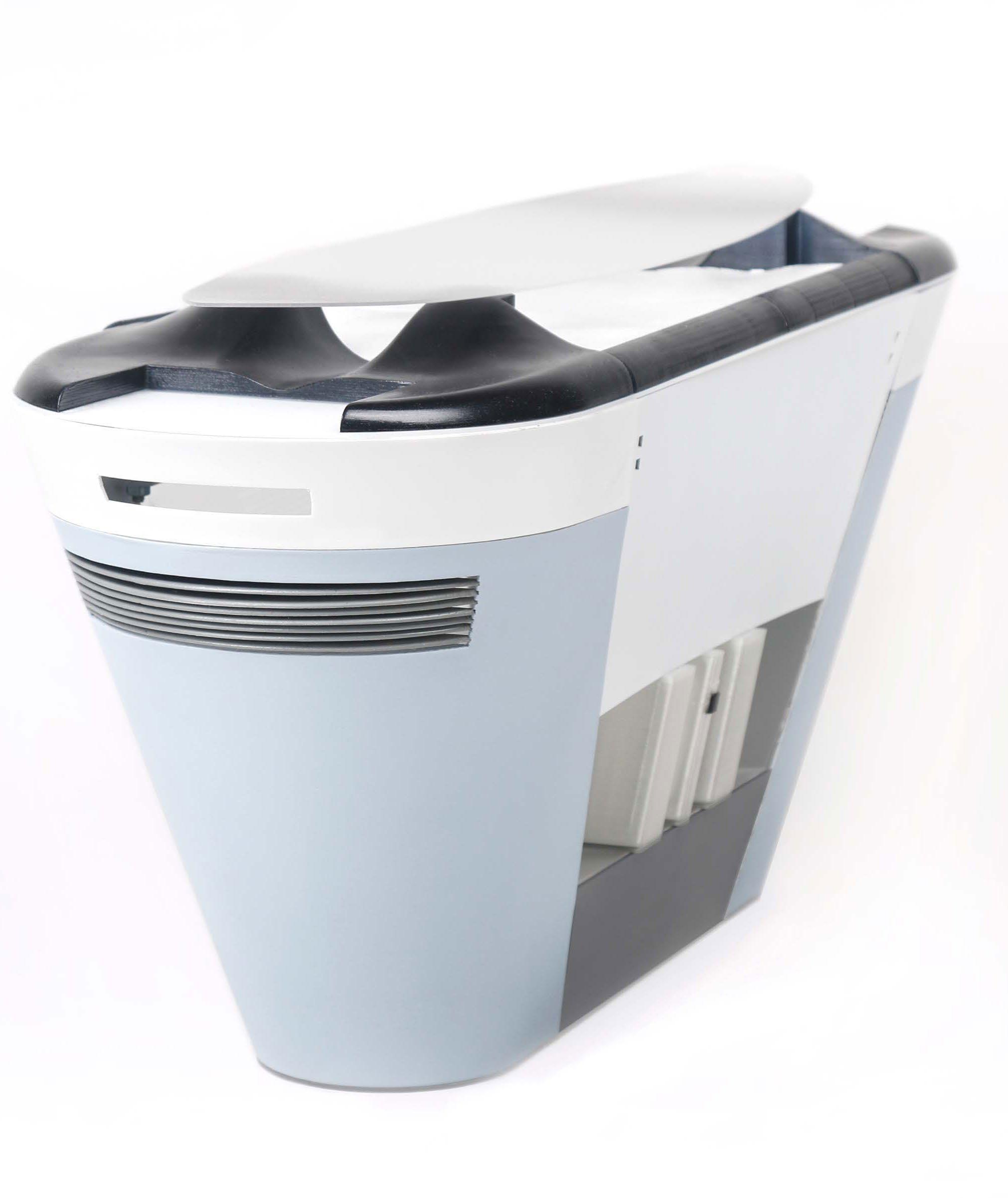

BreezeSurf

吸塵衝浪板製板架

Vacuum-Powered Surfboard

Shaping Rack

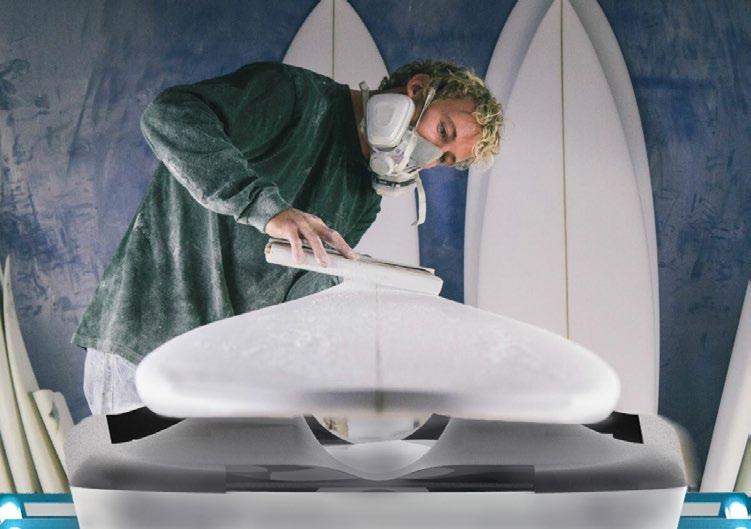

衝浪板在初始製作的過程中需要切割泡棉才來製作板芯以及後續打磨板面，因此會在空間中漫揚著粉塵，對製板師來說屬於一種職業傷害。吸塵衝浪板製板架的設計訴求就是在切削衝浪板支撐板身的同時，立即將粉塵以最快的速度吸除。

The process of creating a surfboard involves cutting foam to shape the board’s core and subsequently sanding the board’s surface, which generates airborne dust particles. This poses a professional hazard for board makers. The design concept of a vacuum-assisted surfboard shaping rack aims to support the surfboard during cutting while immediately extracting dust at the fastest rate possible.

01 設計背景 DESIGN BACKGROUND

製板師工作內容Surfboard Shaper Working Content

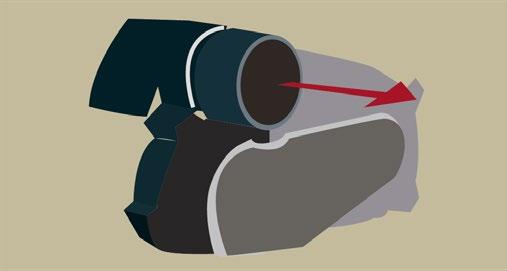

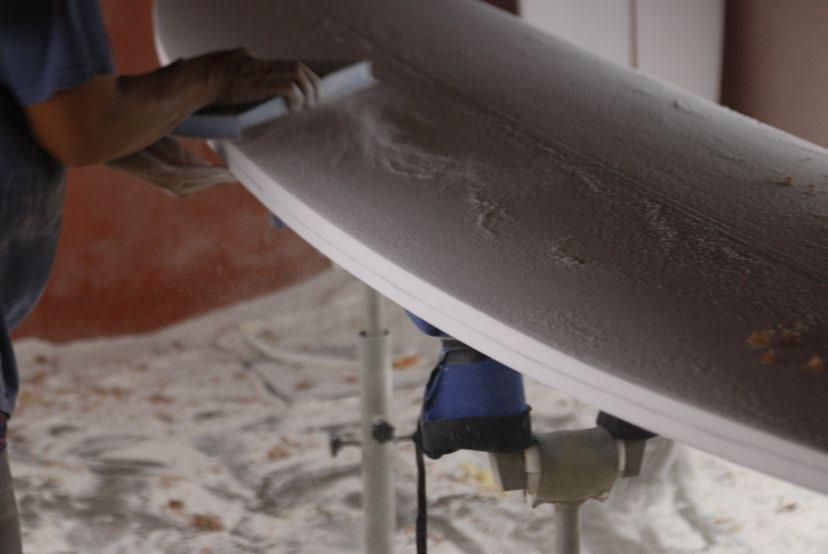

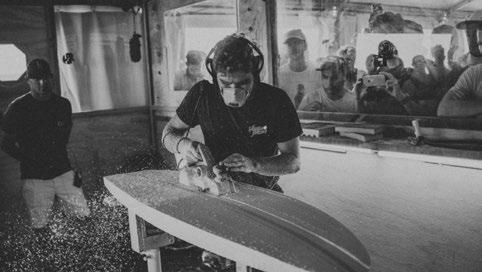

在削板階段需要不斷的使用機器打磨發泡材，此時粉塵會主要從刨機排粉口和底部噴出，充斥在工作室之中。

During shaping, constant machine sanding of foam generates dust mainly from the planer’s exhaust and base, filling the workshop.

衝浪板製板師會根據客戶需求設計板子，負責的部分從選擇材料、切割和塑形板、安裝泡沫芯、加強結構、塗布纖維玻璃布和樹脂...等。會依據不同衝浪風格和波浪情況調整板子的性能，同時也包括檢查和修復現有的板子。

Surfboard shapers customize boards according to client preferences, overseeing tasks ranging from material selection, cutting, shaping, installing foam cores, reinforcing structures, applying fiberglass cloth and resin, among others. They tailor the board’s performance based on diverse surfing styles and wave conditions, also involving inspections and repairs of existing boards.

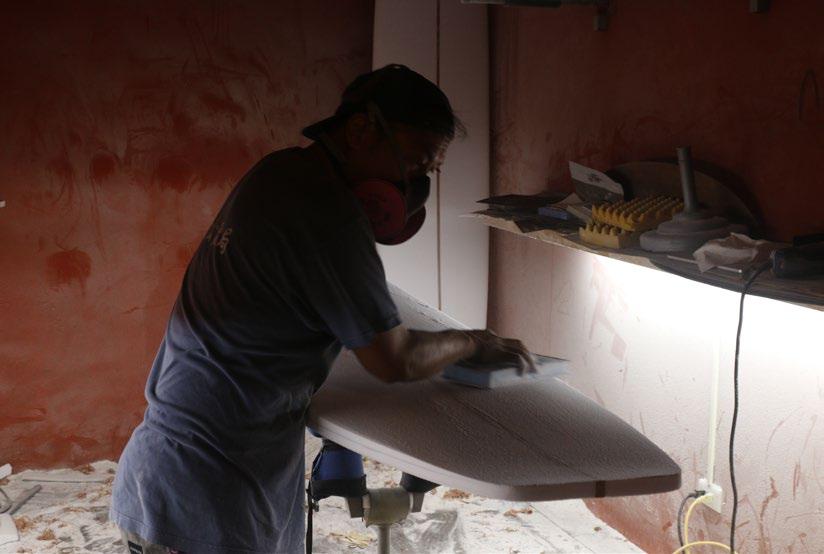

衝浪板製板師阿頭師

Surfboard shaper Atoha

衝浪板的製作流程The Manufacturing Process of a Surfboard

設計和規劃 Shaping

削板 Glassing

依據衝浪者喜好的特點討論板型的尺寸和形狀

將發泡材削成想要的外型跟弧度

最終拋光

除去多餘的材料並進行最後的拋光 Design& Planning

塗上樹酯 Finishing

用玻璃纖維和樹酯包覆板芯

Discussing the dimensions and shapes of board types based on surfers’ preferences

Shape the foam blank into the desired board outline and rocker

Cover the board with fiberglass and resin to add strength

Trim excess materials, add final touches, and create the desired texture

設計和規劃 Design & Planning

選擇發泡粗坯 Selection of Foam Blanks

削板 Shaping

安裝尾舵 Installation of fins

塗上樹酯 Glassing

最終拋光 Finshing

品質檢查和測試 Quality Inspection and Testing

02 設計目標DESIGN OBJECTIVE

減少粉塵漫揚

Reducing airborne dust

為板形調整尺寸

Adjusting dimensions

結合製板架

Shaping racks intergration

輕易清倒粉塵

Easily disposing of dust

目前衝浪板製板工作室所使用的的吸塵用具大多類似具有長條吸塵管的吸塵器，所產生的問題是佔用空間以及妨礙工作，所以我產出了結合製板架的想法，並將粉塵吸至內部儲塵槽。

Surfboard shaping studios commonly use vacuum equipment with long hoses, which occupies space and disrupts work. To address this, I conceived the idea of integrating a dust collection system into the shaping rack to directly gather dust into an internal compartment.

吸塵功能

Vacuuming feature.

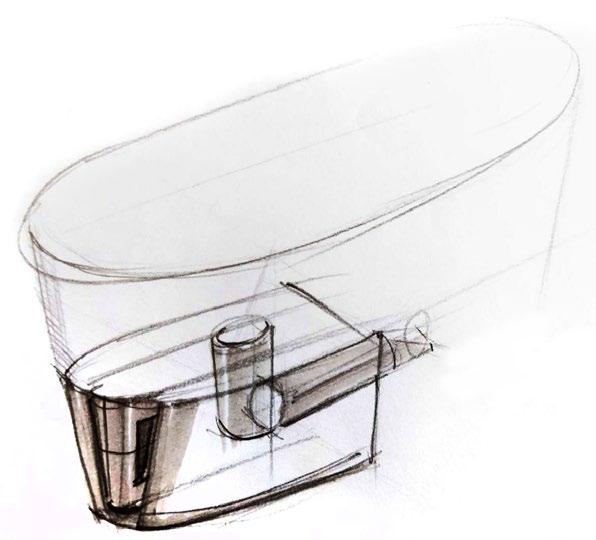

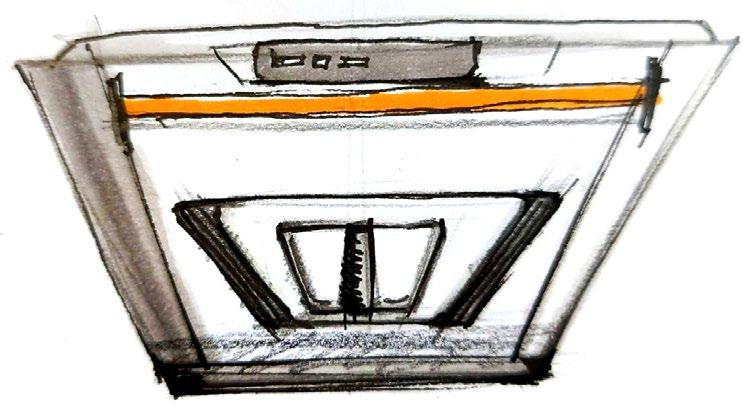

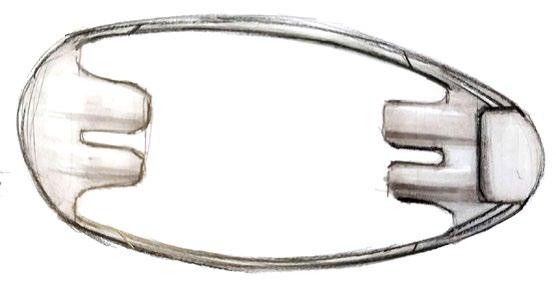

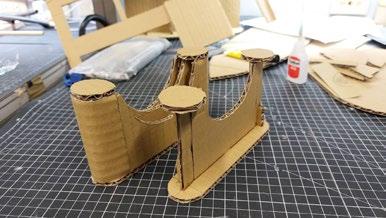

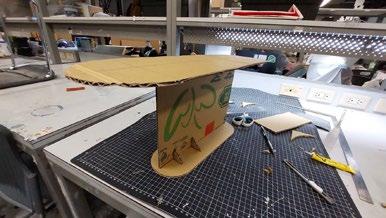

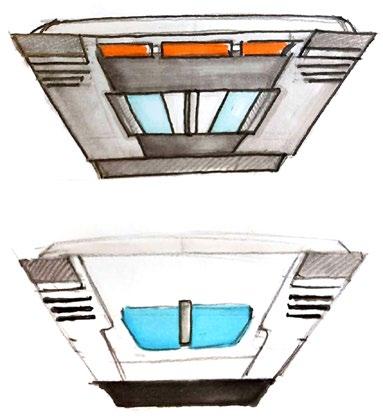

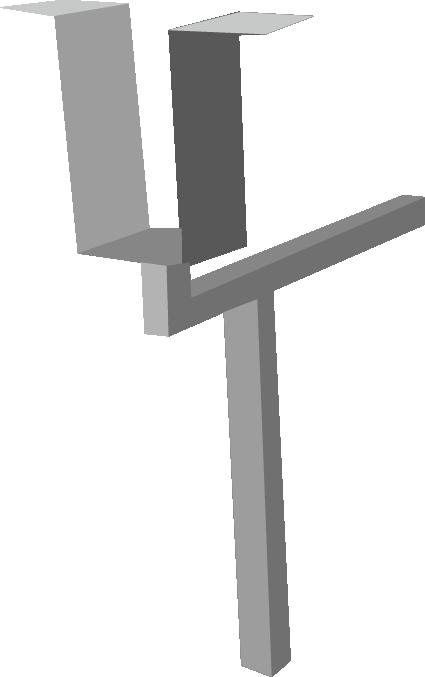

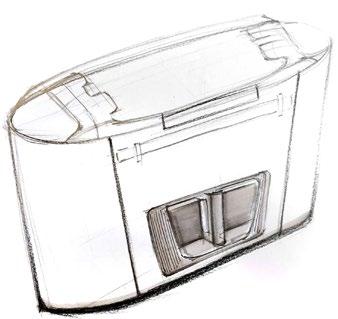

03 造型演變 THE EVOLUTION OF FORM

支撐板身

Board support.

易於傾倒

Ease of emptying.

PROCESS

置放板芯

Place the core

打開電源

Turn on the rack

調整尺寸

Adjust the size

切削板芯

Shape the core

關閉電源

Turn off the rack

傾倒除塵槽

Clean up

向外提拉把手可以延長吸塵區域應對不同尺寸的衝浪板

Extending the handle outward allows for expanding the dust suction area to accommodate various surfboard sizes

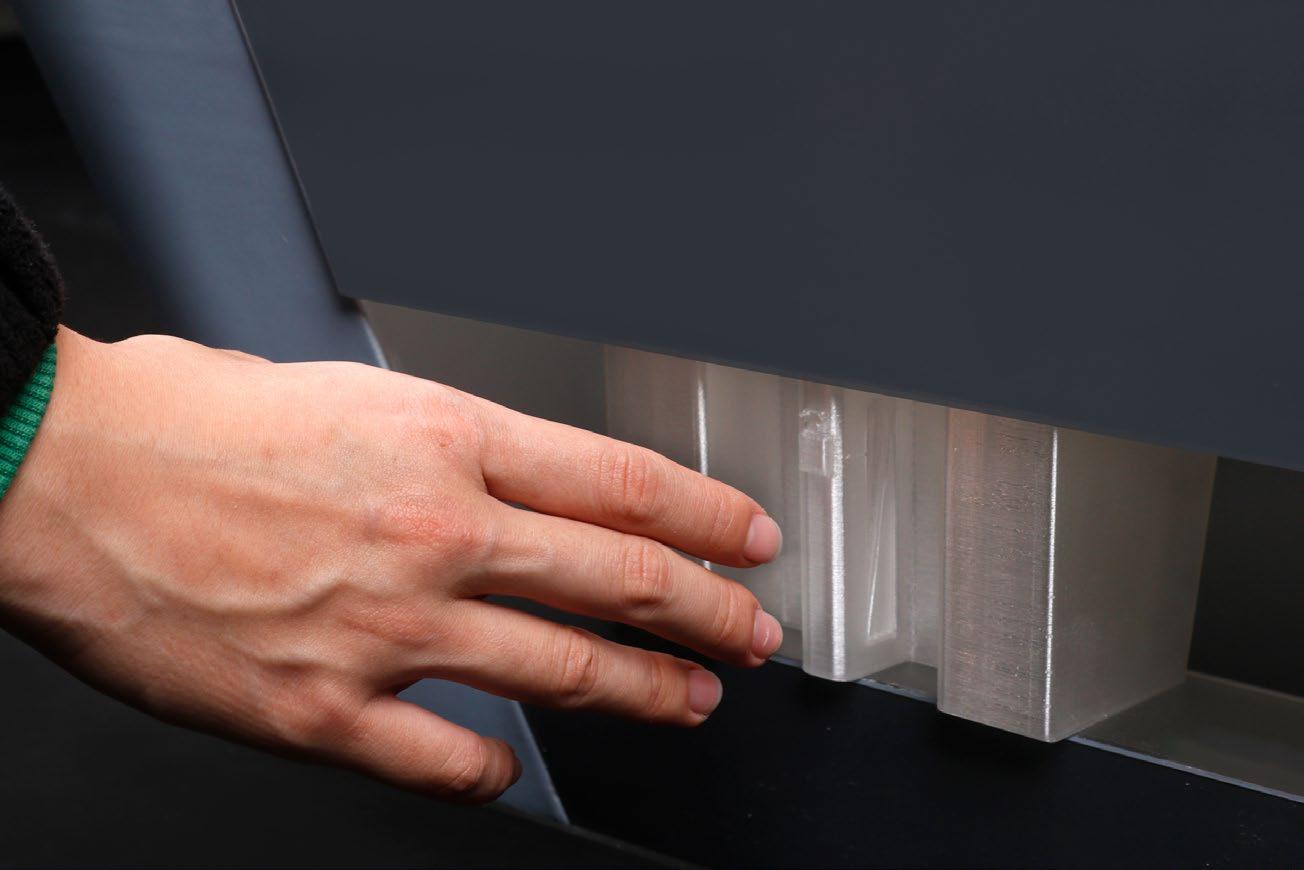

當除塵槽滿了即向外抽出並傾倒至垃圾桶

When the dust collection compartment is full, it can be pulled out and emptied into a trash bin

使用流程

高齡防風背心

Heated Vest For Elderly

#health design #elderly

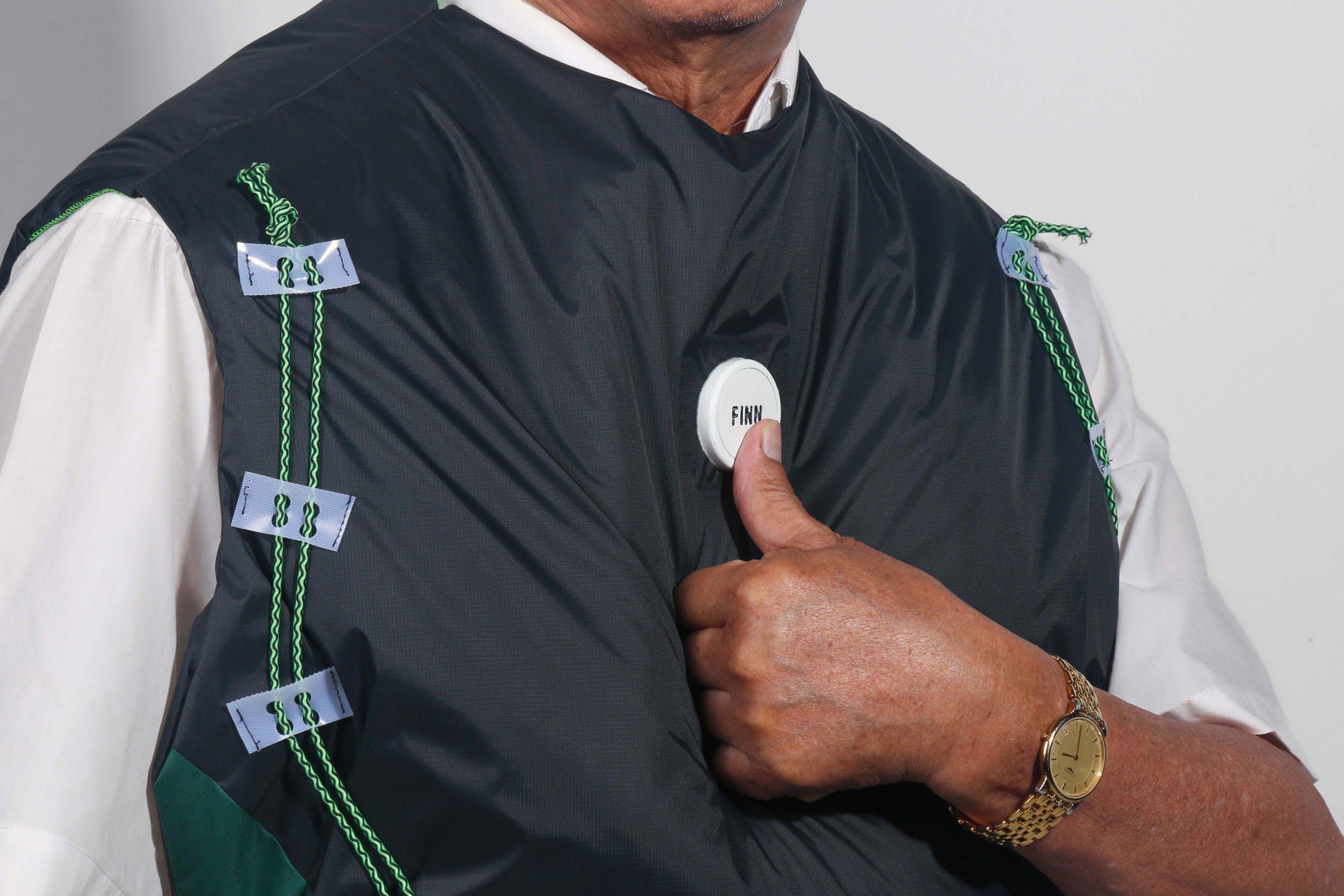

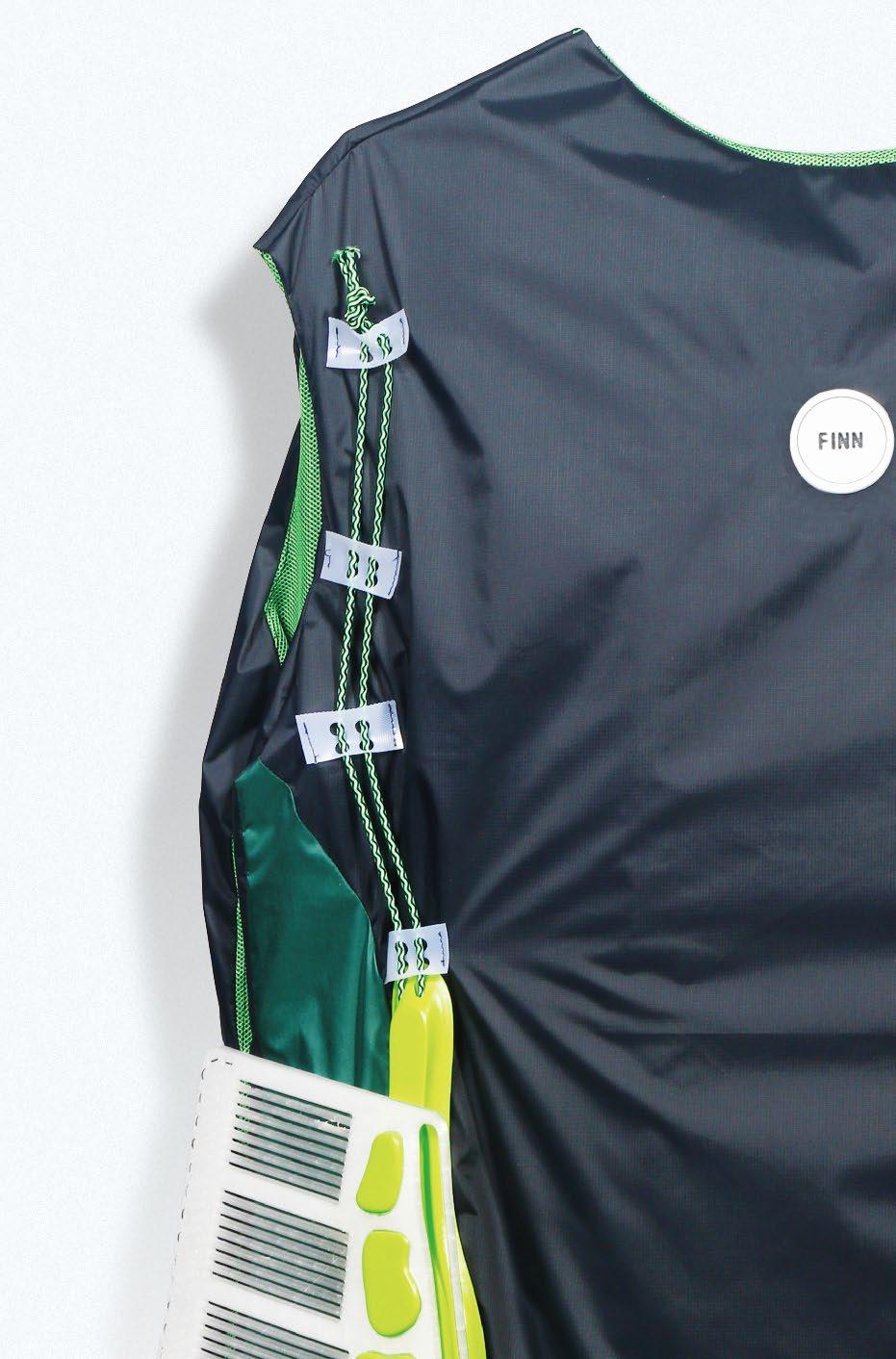

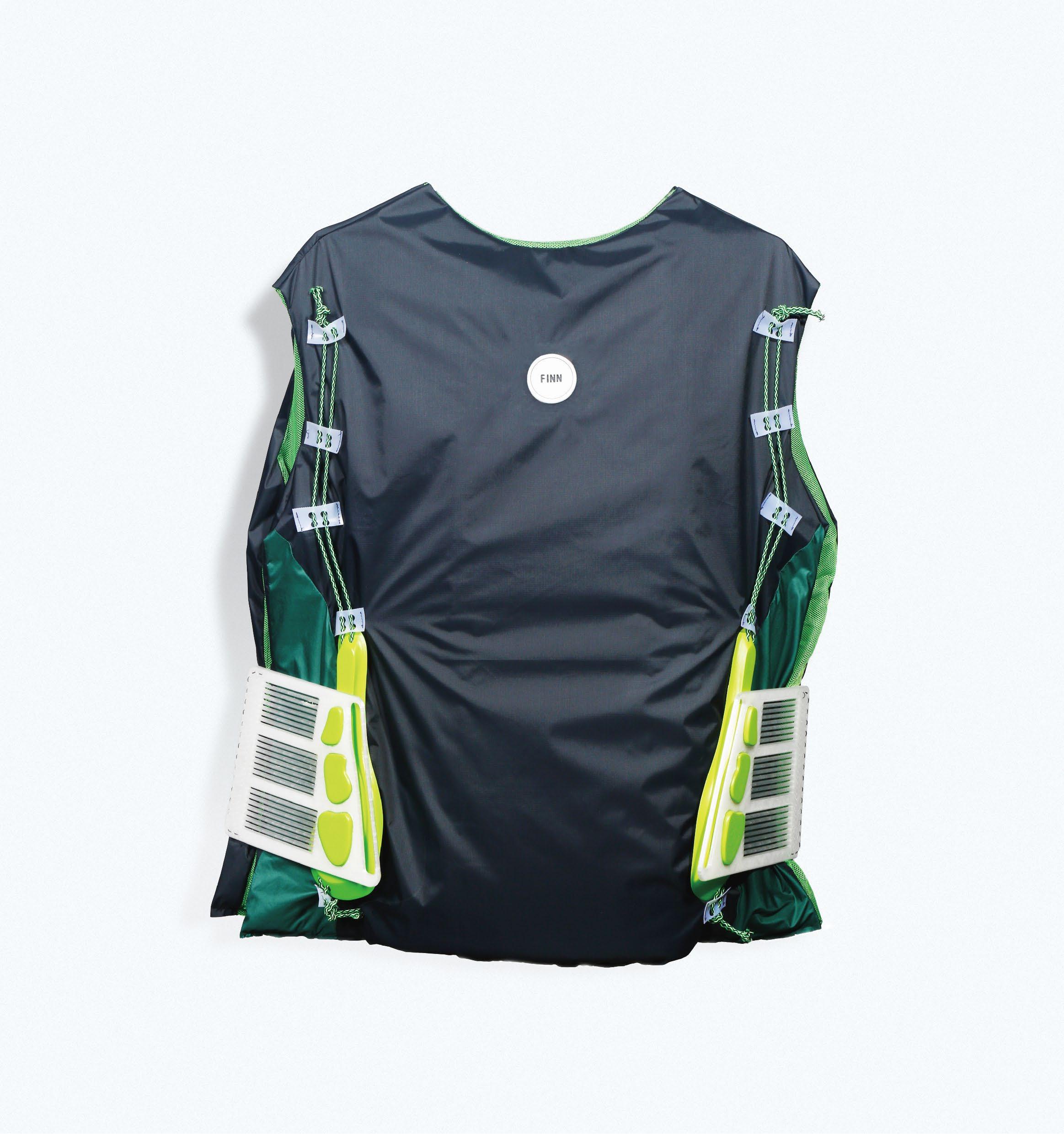

Fínn 是一件專為老年人設計的防風加熱背心，預防在冬天的時候，因為浴室和房間之間的溫度冷熱差引發心血管疾病。

Fínn is a vest designed for the elderly people to cover their body, while they exit the bathroom. It is expected to prevent the possibility of cardiovascular disease caused by the temperature change between the bathroom and the livingroom during the winter may rise.

FíNN

01 設計背景 DESIGN BACKGROUND

溫度差變化 Temperature Difference

當溫度降低時人的血壓自然會升高，也代表有更高的機會得到心血管疾病。透過天氣預報可以了解室外的溫度變化，然而家居的溫度差是人們容易忽略的。

Blood pressure is normally higher in cold season,which is related to the possibilty of the cardiovascular disease . Outdoor temperature changes would be concerned by daily weather forecast, however the indoor temperature changes are in different cases.

穿脫難題 Difficulty of dressing up

在中醫的領域中，氣溫驟降會使得身體產生各類疾病，其中以頸部、肚臍、背部、膝蓋、腳掌為最不能受冷的部位。

Due to the knowledge of traditional chinese medicine, some parts of our body would cause a few symptoms when they being under cold.

當人的年紀漸漸增長後，移動力與靈巧度會同是降低。關節處會變得沒有彈性與更為僵硬，這導致他們的生活增加許多的不方便性，也包刮在穿衣服的時候。

When people get older, the mobility and dexerity would decease at the same time. The joints become less flexible and stiffer, which would cause problem during the daily tasks, including putting on clothing.

02 設計概念 DESIGN CONCEPT

如何保留熱能 How to keep the heat

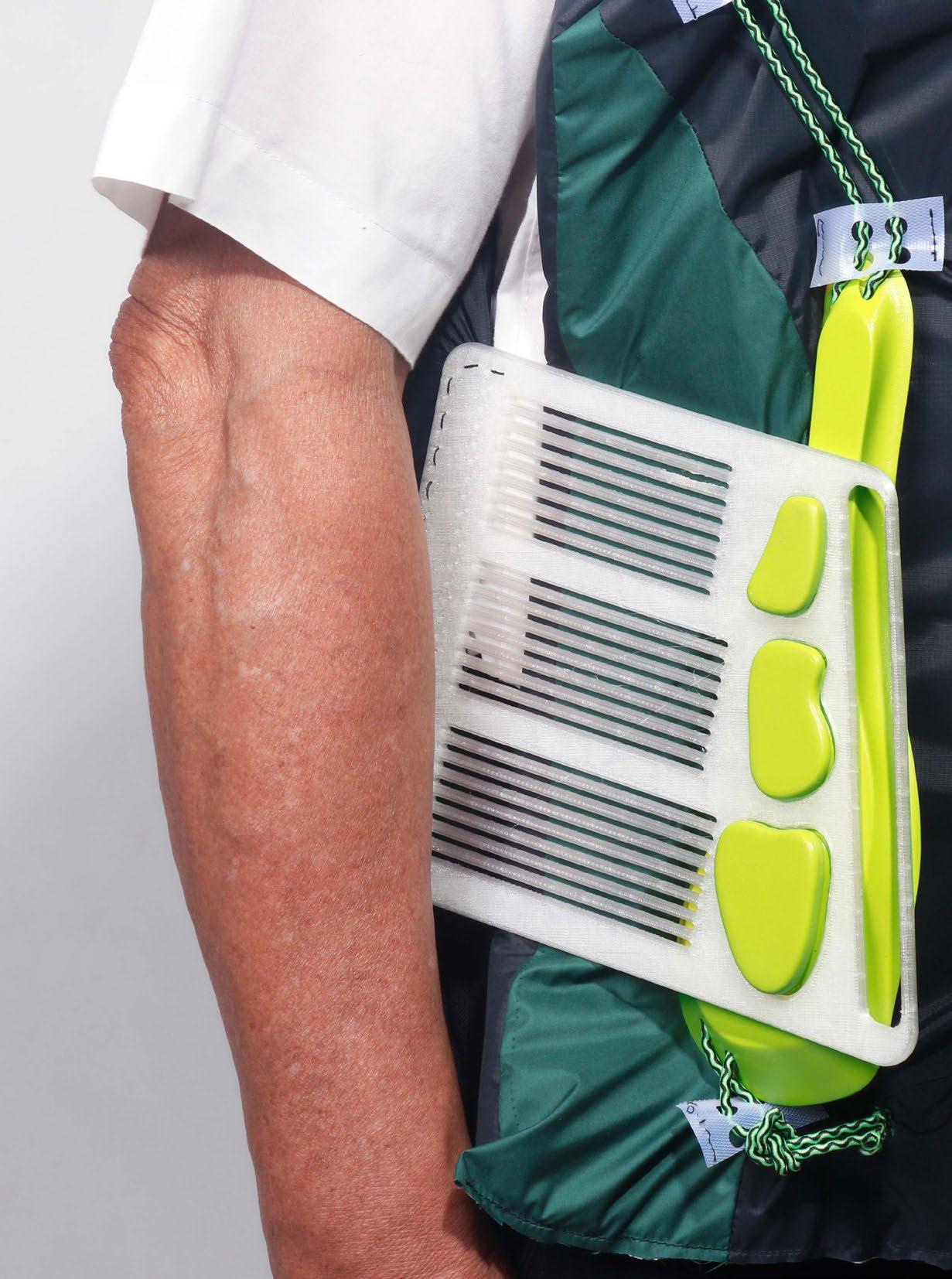

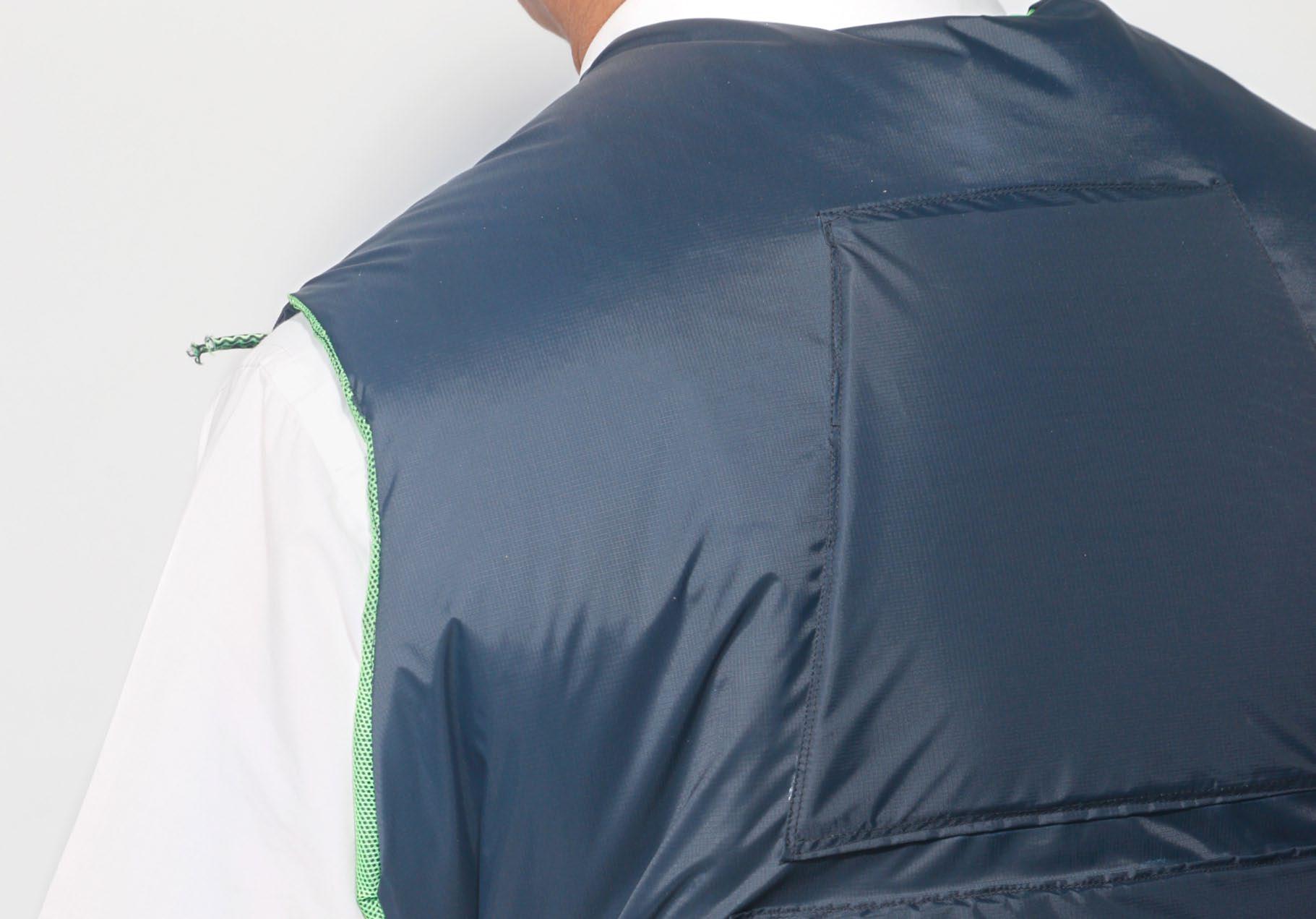

衣服中使用了兩種不同的材質，在外層使用防風材質，內層使用保溫的布料。兩層布料之中再置入了充電式的加熱墊，如此便能達成徹底的保留熱能。

Two kinds of fabric are used, which are trench coat for the outer and thermal underwear beside the skin. Also, a heating pad is inserted between two fabric layers. The purpose is to be windproof and to keep the heat from the body at the same time.

FUNCTION FASHION

取自於復古足球衣Learn from classic football shirt

當我在思考這件背心究竟應該要有什麼樣的外觀時，腦海中閃過各種不同樣式的服飾，然而，最重要的核心就是要讓它有著不同於醫療器材的樣貌，如此老年人便不會對於穿著它感到羞恥。

When I go through the process of thinking how the vest should look like, however, there many different kinds of styles come into my mind. The main idea is to make it look fashionable, so that the elderly wouldn’t be afraid of wearing it because afraid of wearing medical device.

Windproof fabric

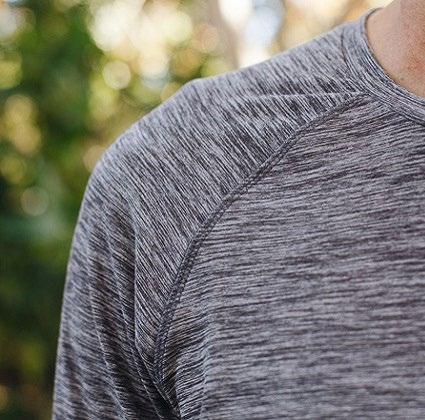

Thermal underwear

研究無障礙服裝 Research of self-adapting clothing

近期越來越多的時尚品牌將注意力放到殘疾人士的需求，推出了一系列的無障礙服裝，其中使用了魔鬼氈或者磁鐵代替在一般款式中的拉鍊，至於外觀則並無差別。

Recently a few brands in the fashion industry have published their new branches for disabilities. Using velcro or magnetic zipper inside of the clothes would make them look same just as we are.

經典款式的足球衣在近期非常的流行，而且我認為蠻適合從它作為外觀的參考。因為它同時具有時尚的元素，同時具有充足的機能性，這也就是我希望能賦予Fínn的核心理念。隊徽置中 Logo in the

Retro football shirts are currently on the trend and I think it is a suitable moodboard for the outlook of vest, because they are both fashion and functional, which perfectly matches my core idea.

兩旁對稱的曲線

middle

Curve line symmetrical aside

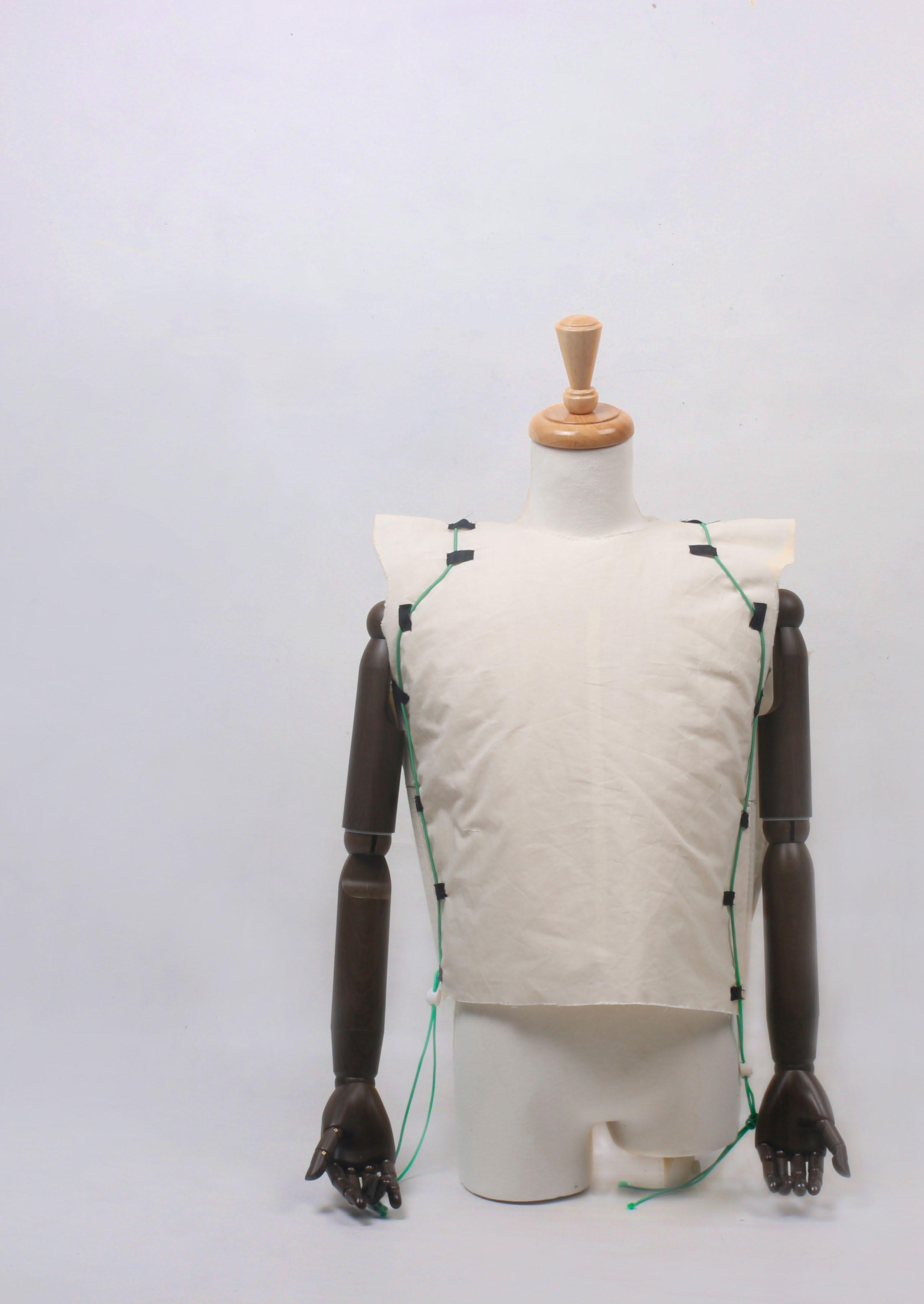

03 概念模型 PROTOTYPE 27

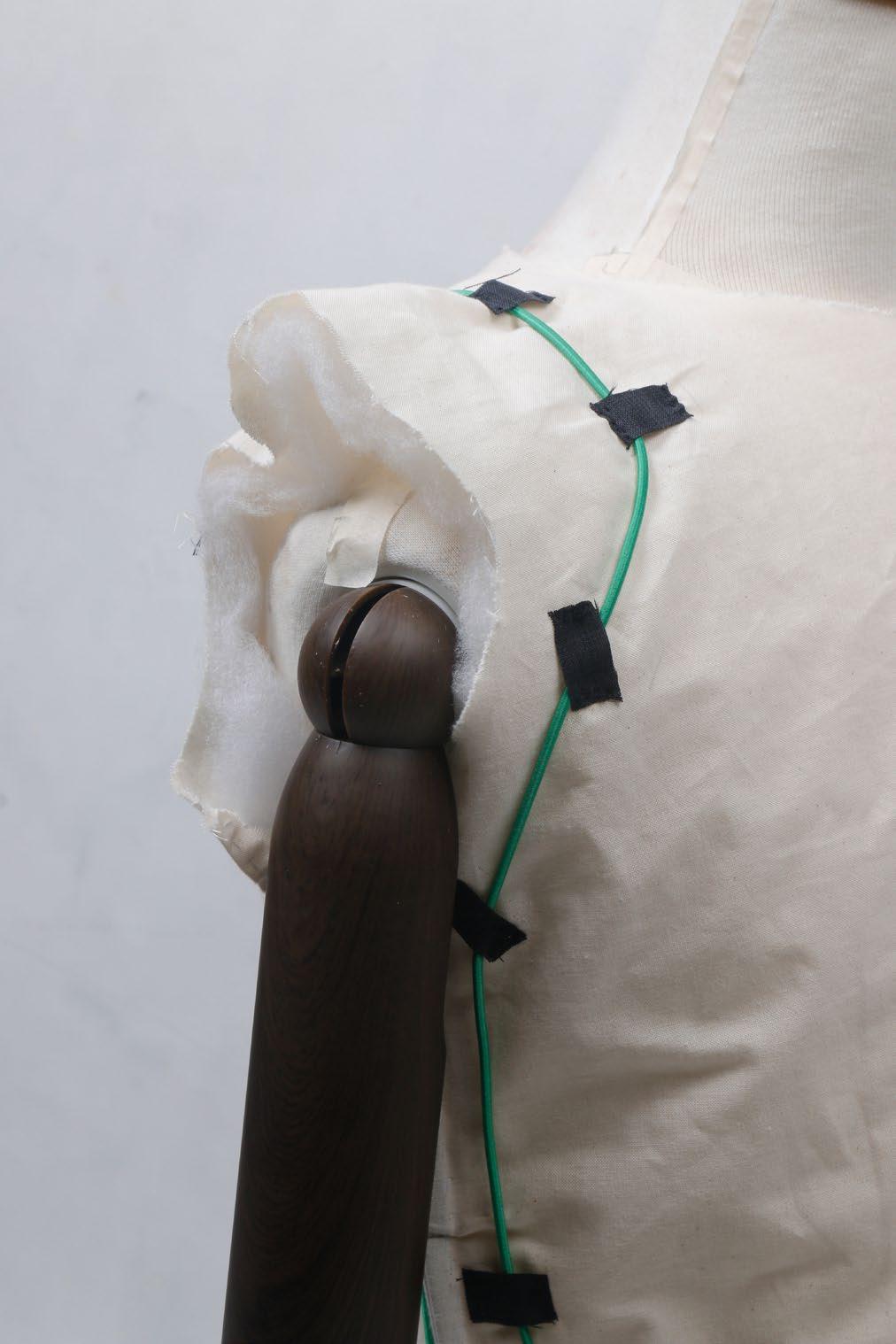

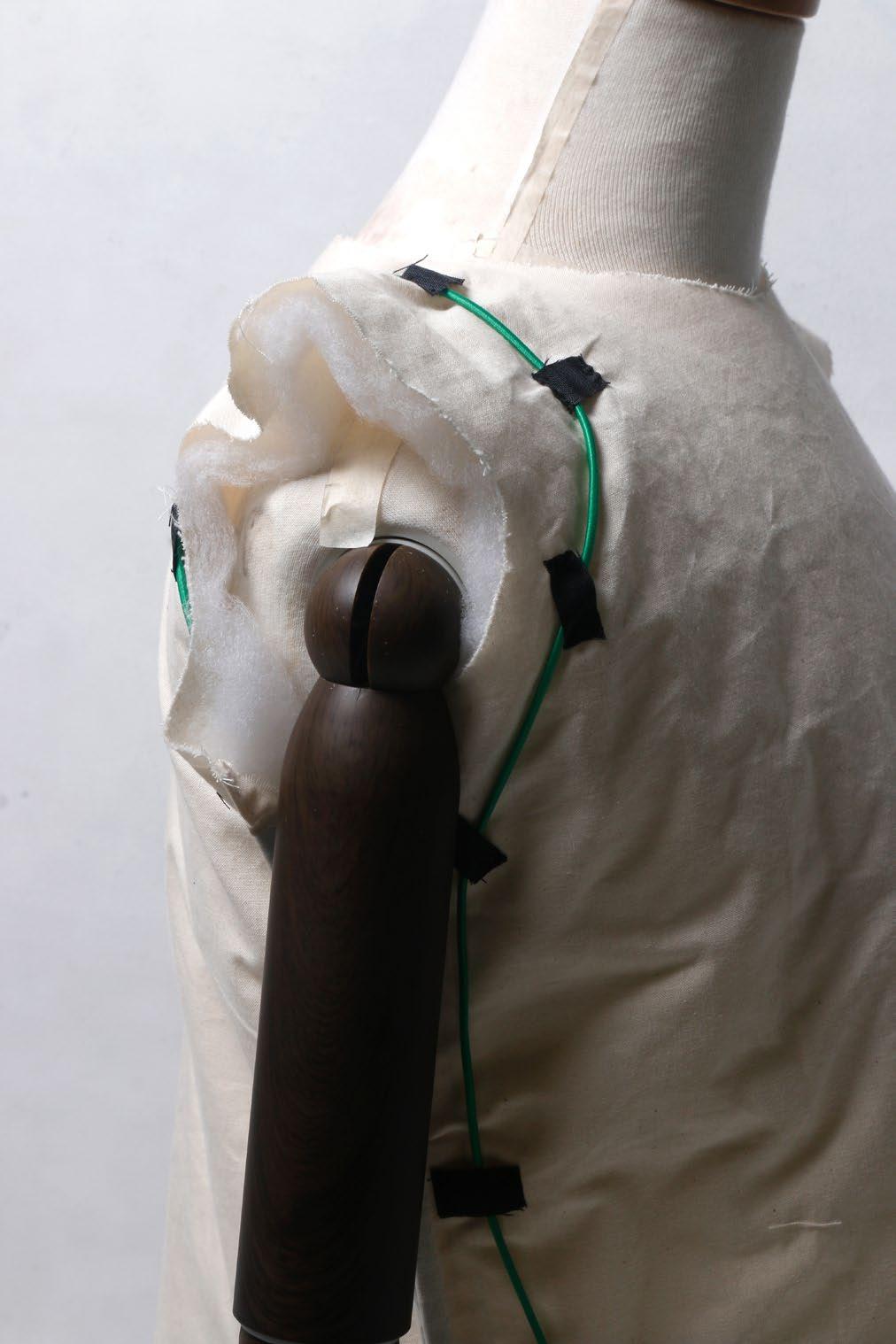

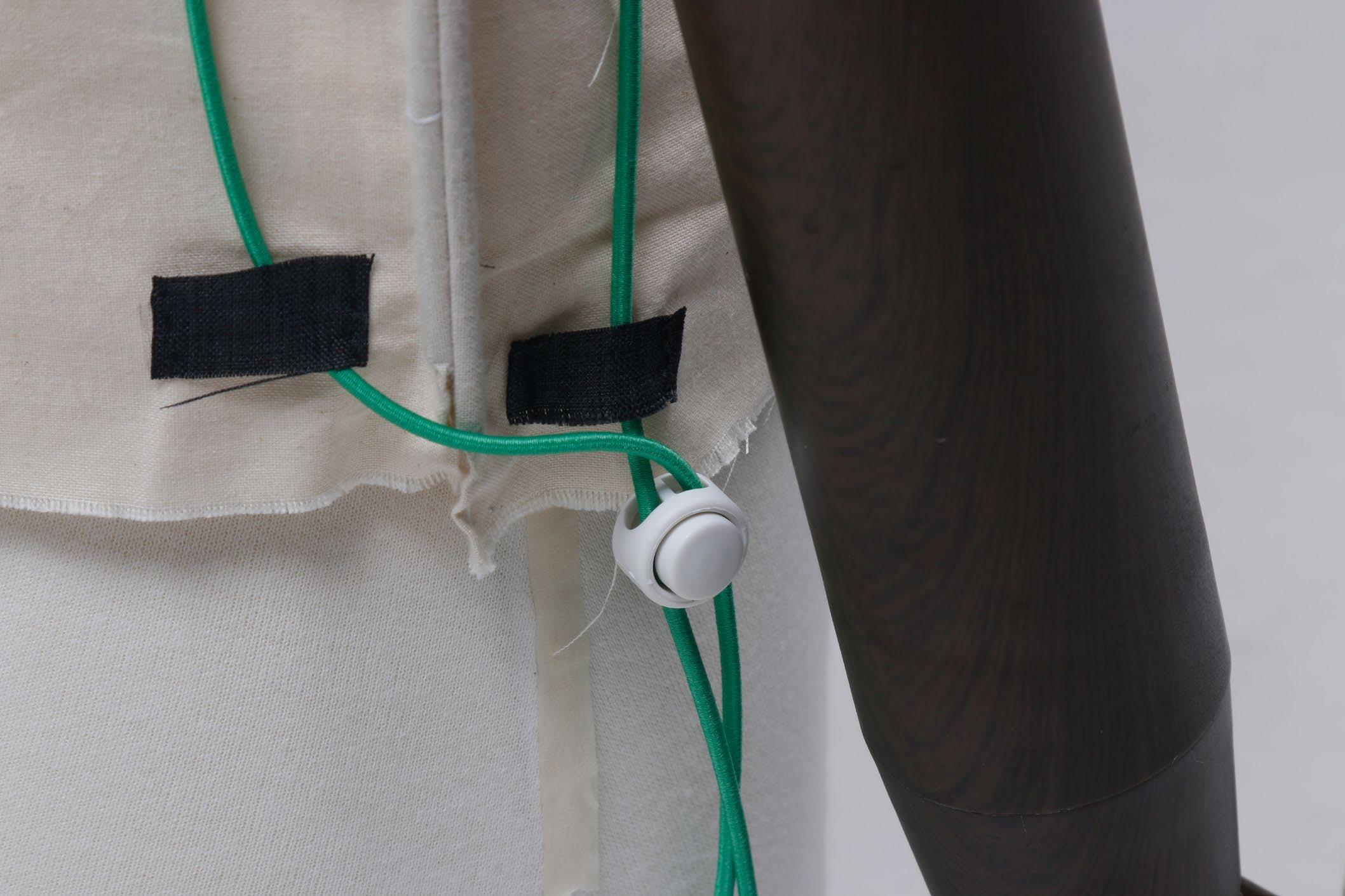

在製作草模的階段，我嘗試許多方法來使得衣物可以束緊在上半身。束扣是其中一個當初的方案，優點在於可以簡單讓布料貼於人身上，不過因為在脫去時會讓年長者不易操作而放棄了這個方向。

At the beginning stage of my prototype ， I've tried different ways to tight up the clothing on the body. Cord lock was a nice option, when we put on the clothing, however it may not be easy enough for the elderly to take off.

04 使用方式 How to use

將頭穿過衣領 Put on the vest

抓住把手處並扣緊 Pull the handle to tightly 01. 02.

將另一邊一樣扣緊

抓住把手拔離軟材 Pull the handle to be loose 05. 04. 03.

Do the next side samely

按壓加熱按鈕 Push the heating button

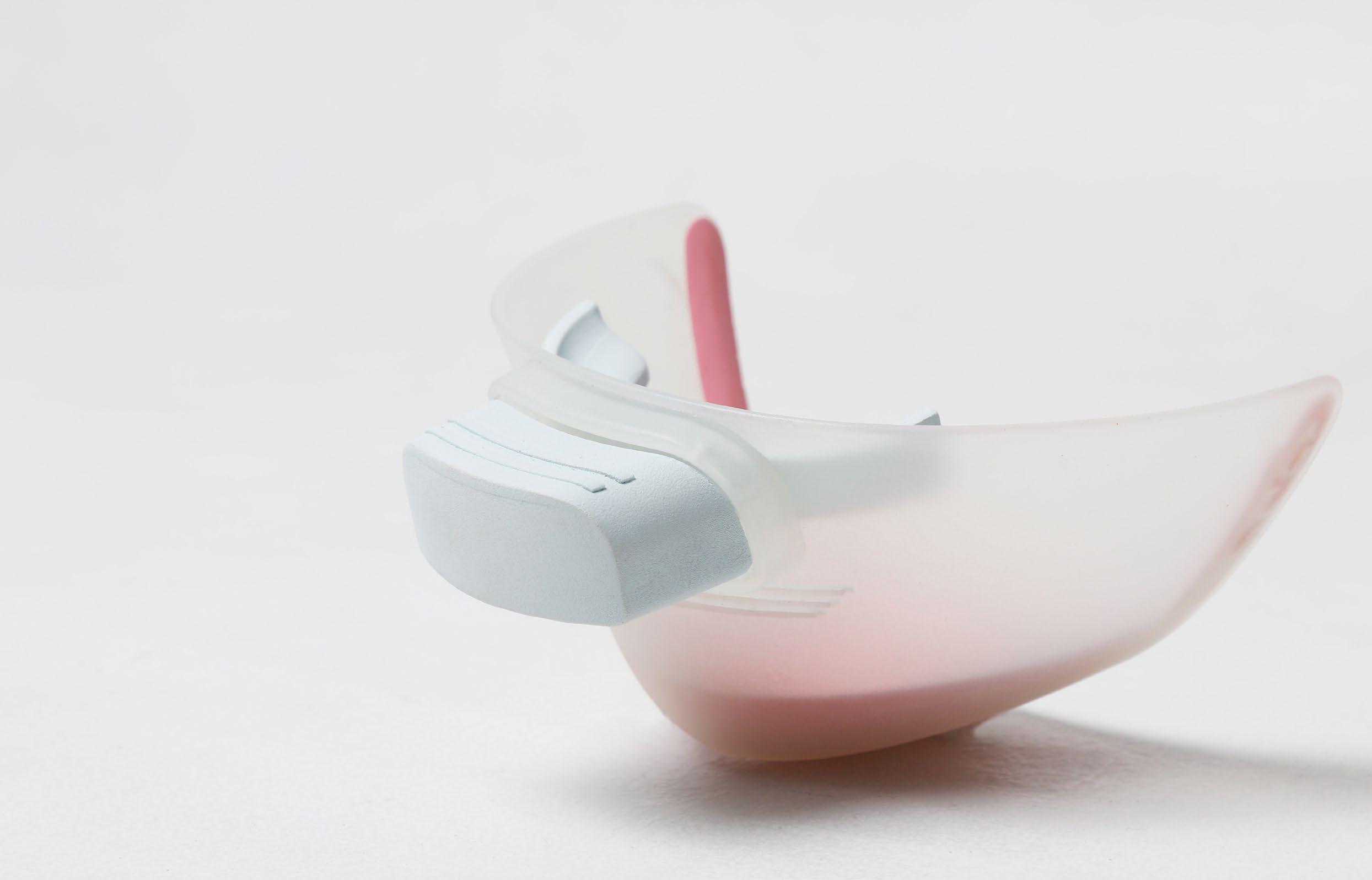

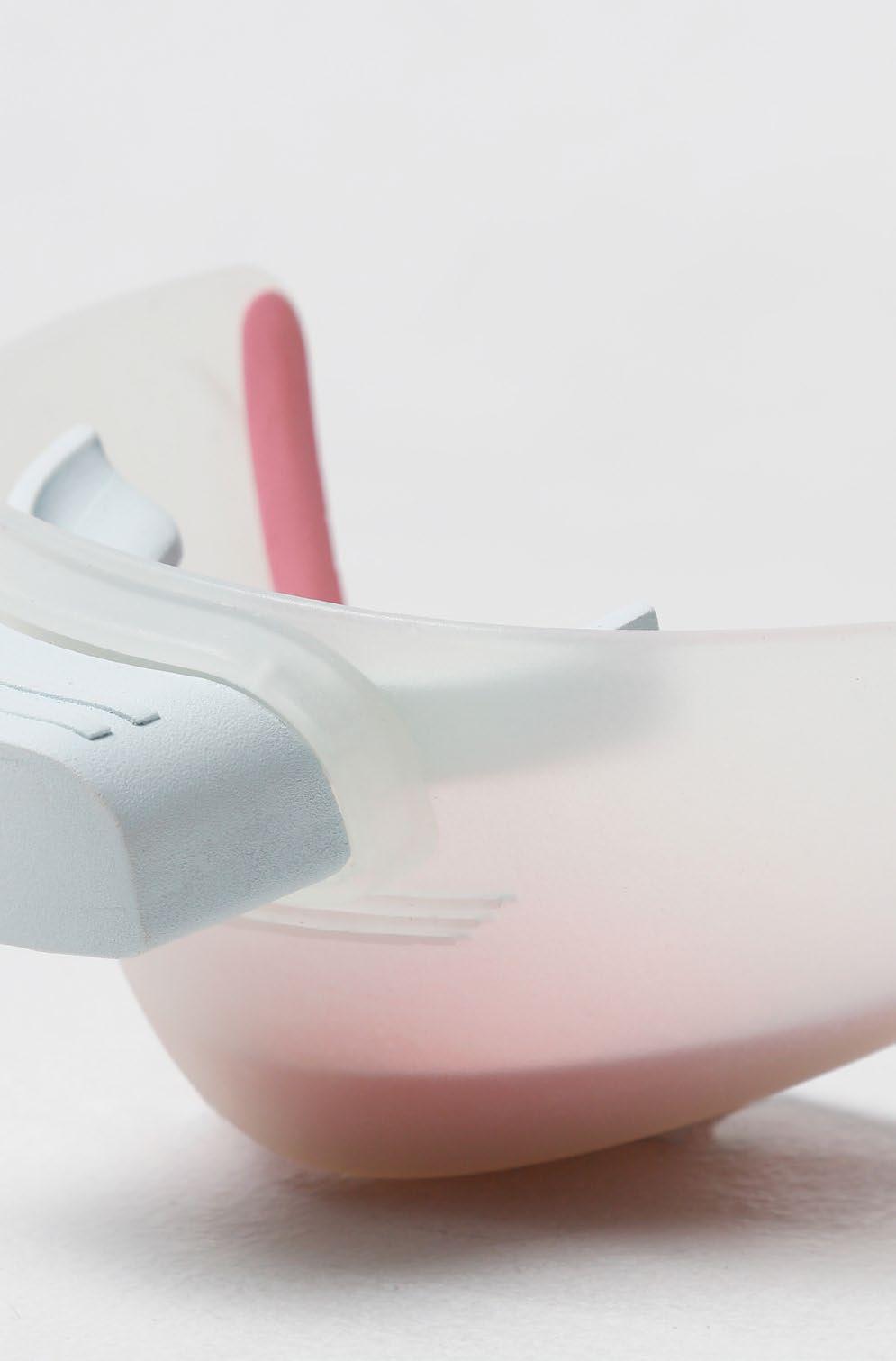

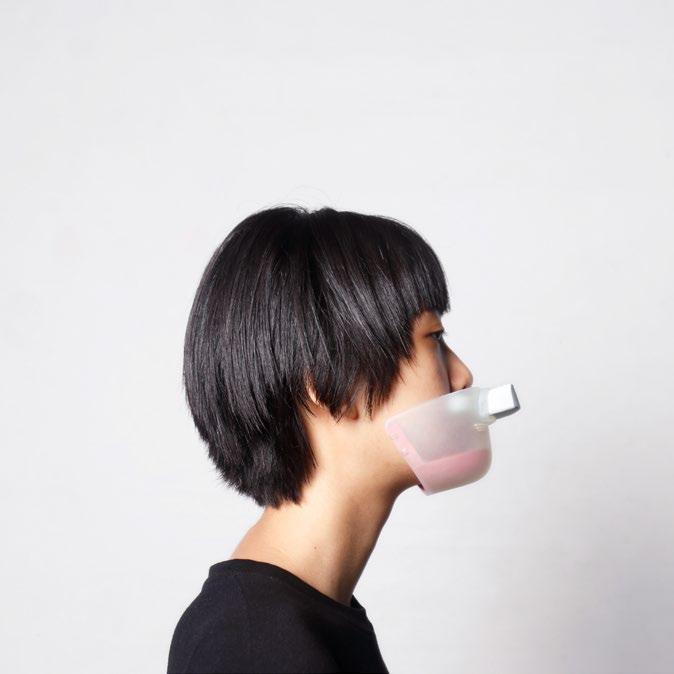

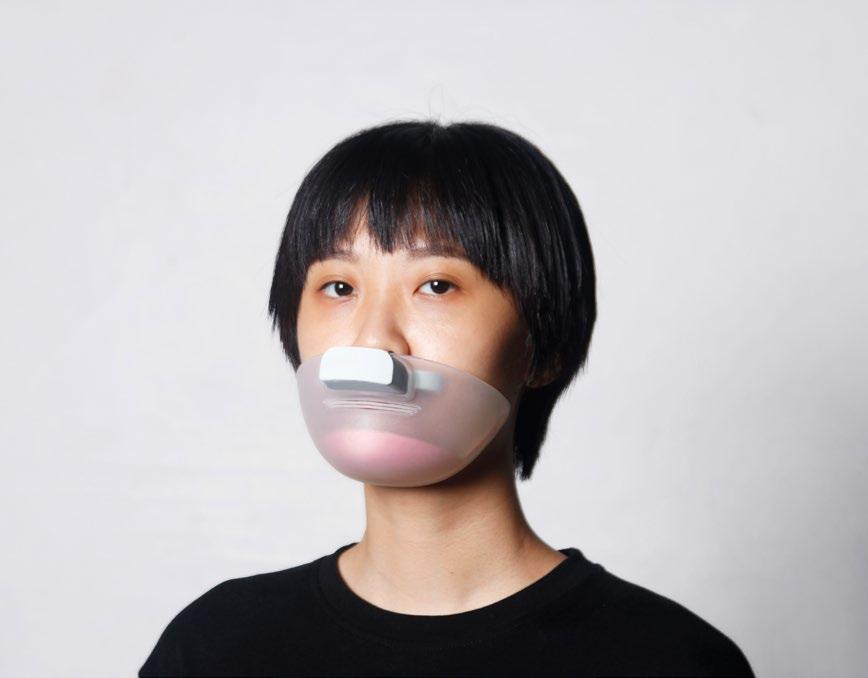

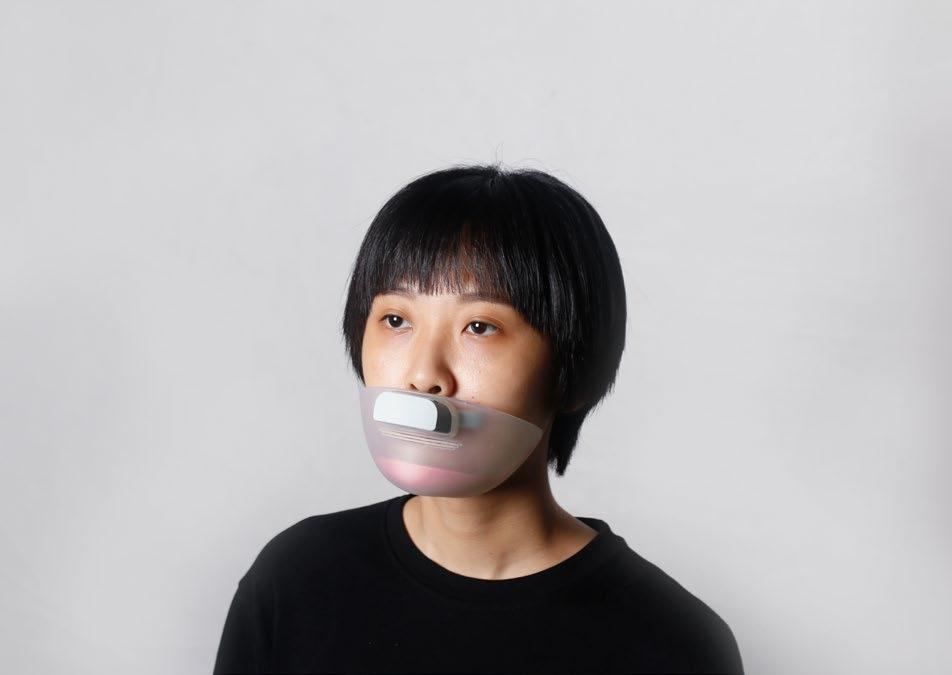

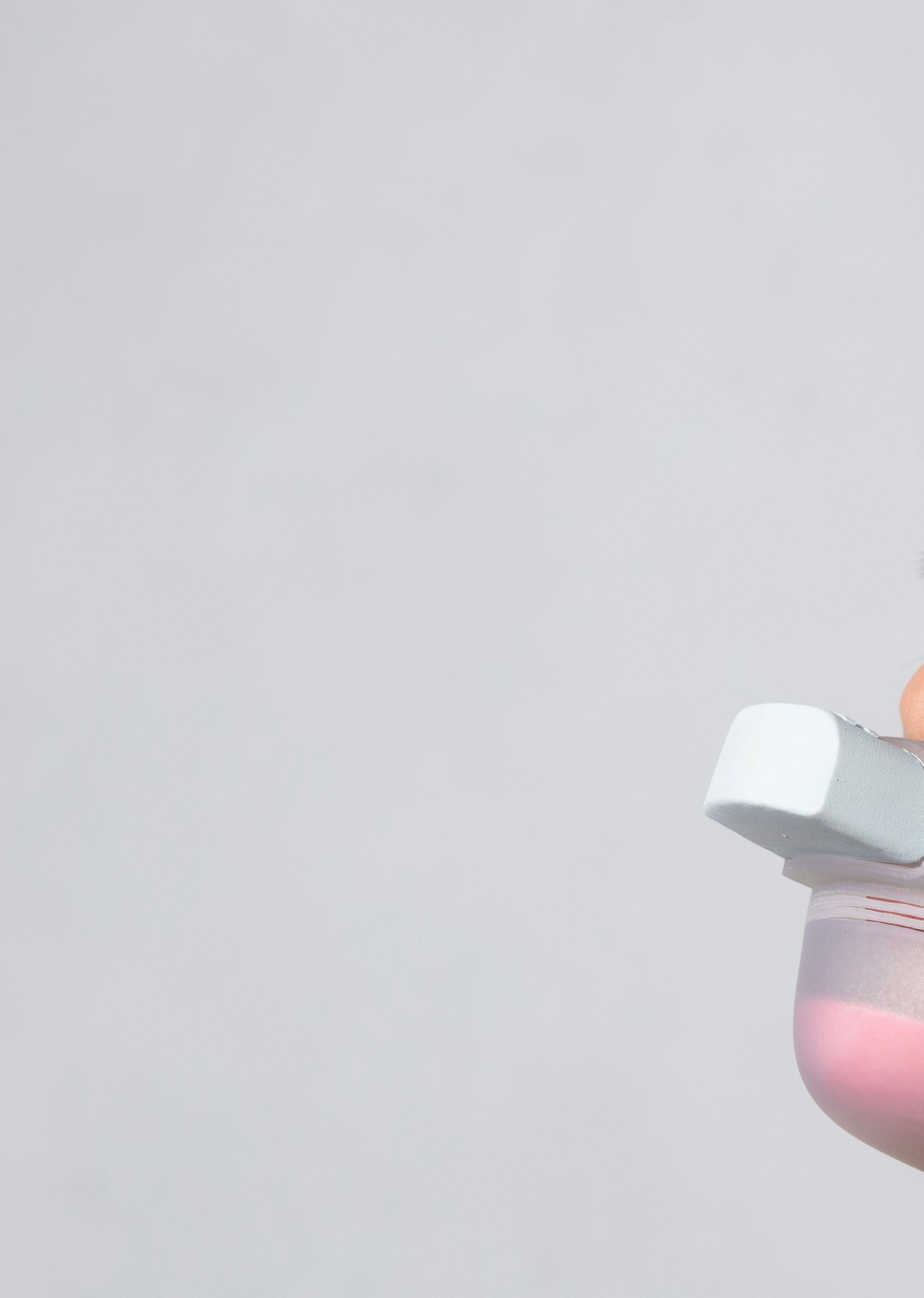

漸凍人品味器 Flavour tester for ALS patient

S avour

#ALS concept design

At the later stage of ALS disease, food can only be delivered mixed through feeding tube. Savour is the product, which aim to help them find the taste of fruit back as before 在漸凍症後期營養只能藉由導管輸入，因此在生活上失去味覺的體驗，藉由漸凍人水果品味器幫助患者重新找回味蕾
