This is a residential project for Mr. Iqbal, located in Padil, Mangalore, India. The requirements of this project is a 5BHK house along with spaces that promote interaction between the residents and strictly adheres to the principles of Vastu design.
Taking byelaws into consideration, the plot has been utilized to the best of its potential, hence achieving all the requirements of the client within the constraints of the zonal regulations.
TNT ARCHITECTS
ROLE IN PROJECT: Project completed while freelancing for TNT Architects, Mangalore.
As a freelancer, I worked alongside the principal architect Lenoy Lobo in finishing this project. I was heavily involved in the design schematic, design development, working drawings and Facade design with 3D model.
SOFTWARE USED
SCHEMATIC DESIGN
The spaces were meticulously zoned out, taking the zonal regulations and vastu into consideration over a plot area of 230 m2. As this plot is a corner site, it has 2 front sides. Both setbacks coming upto 3m on each front side. Hence taking out alot of site area for road widening and set backs. To overcome this weakness, it was found that “ For plots with extent of 250m2 or less, relaxation of setbacks shall be given by the authority subject to a minimum of 1m on each side to construct one residential dwelling unit of G+1 floor.
FLOOR PLANS
GROUND FLOOR
The ground floor features an inviting living space, accessed through a sitout and an entrance foyer. A partition wall delineates the living room from the adjacent dining area. An expansive staircase in the dining room provides access to the first floor. Positioned to the east of the dining space is the kitchen and pantry, while to the west are the bedrooms.
FIRST FLOOR

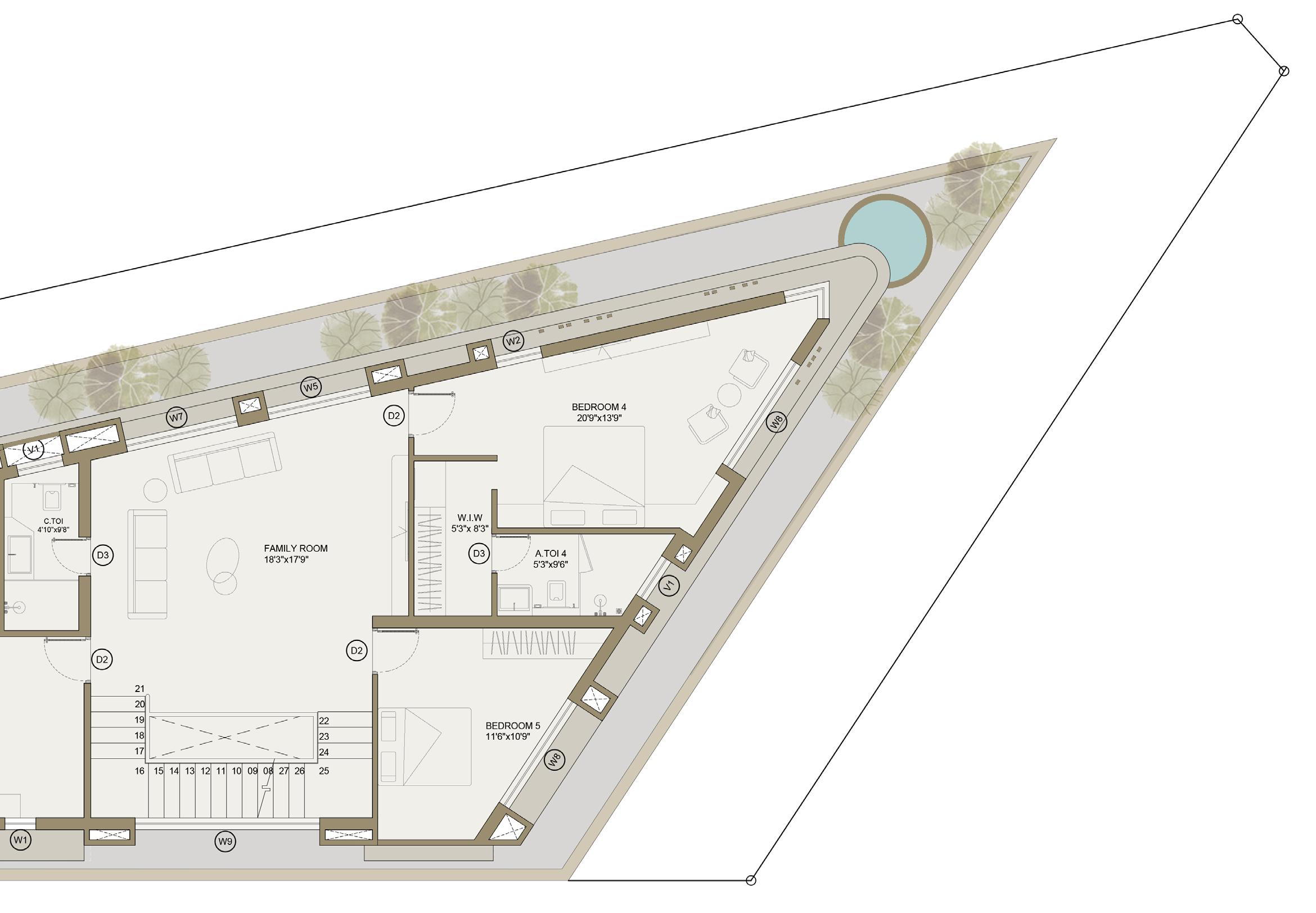

The first floor features a large family room and a common restroom, along with an expansive master bedroom boasting a walk-in closet and ensuite bathroom in the west wing. Meanwhile, the east wing houses two bedrooms.

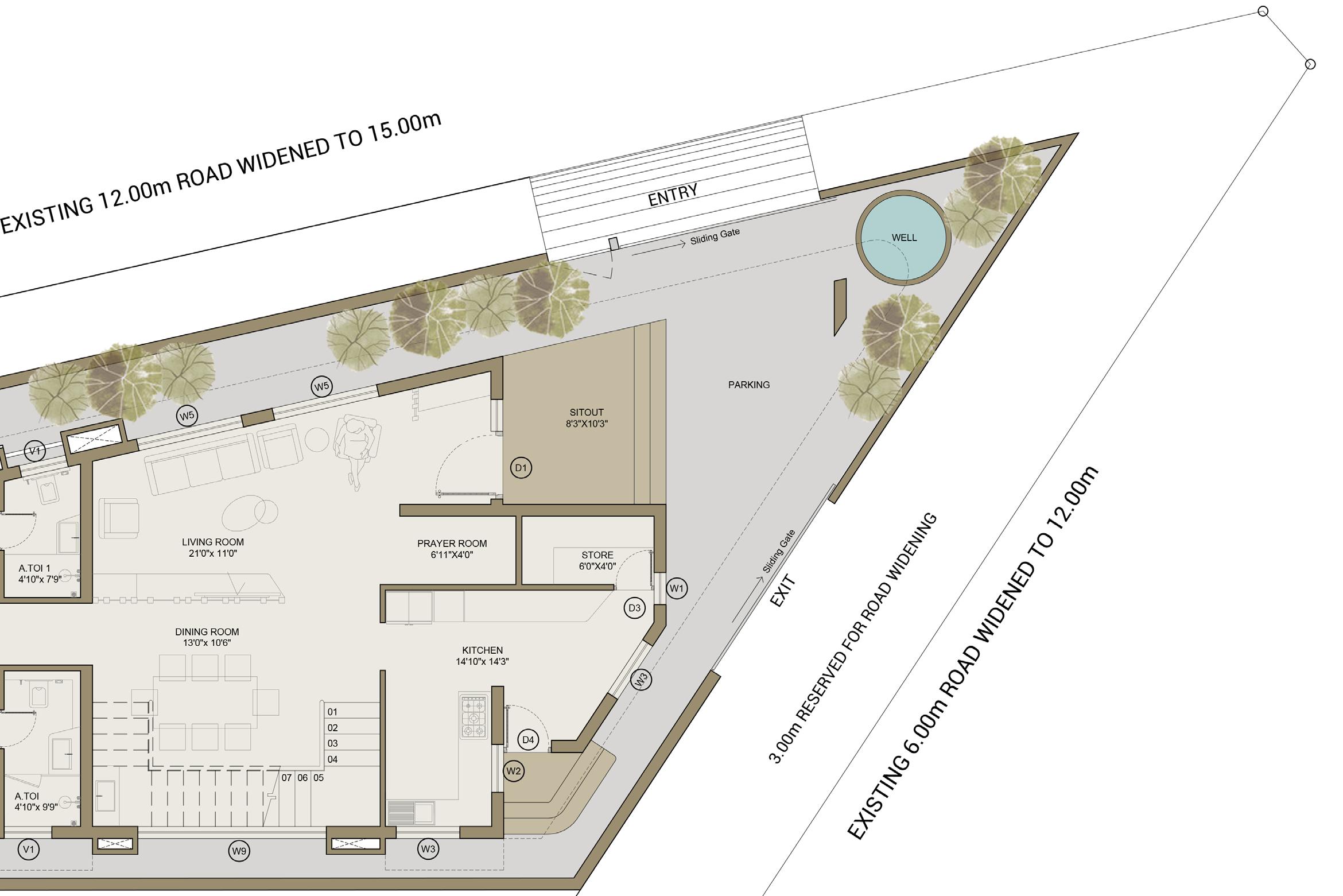

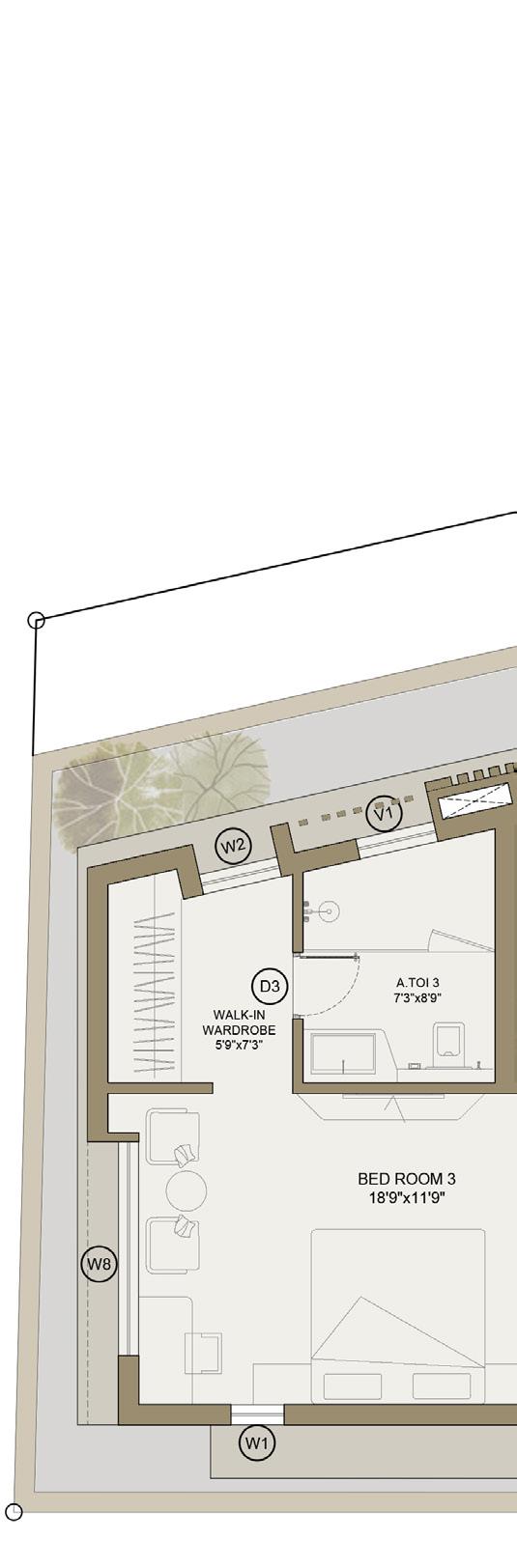

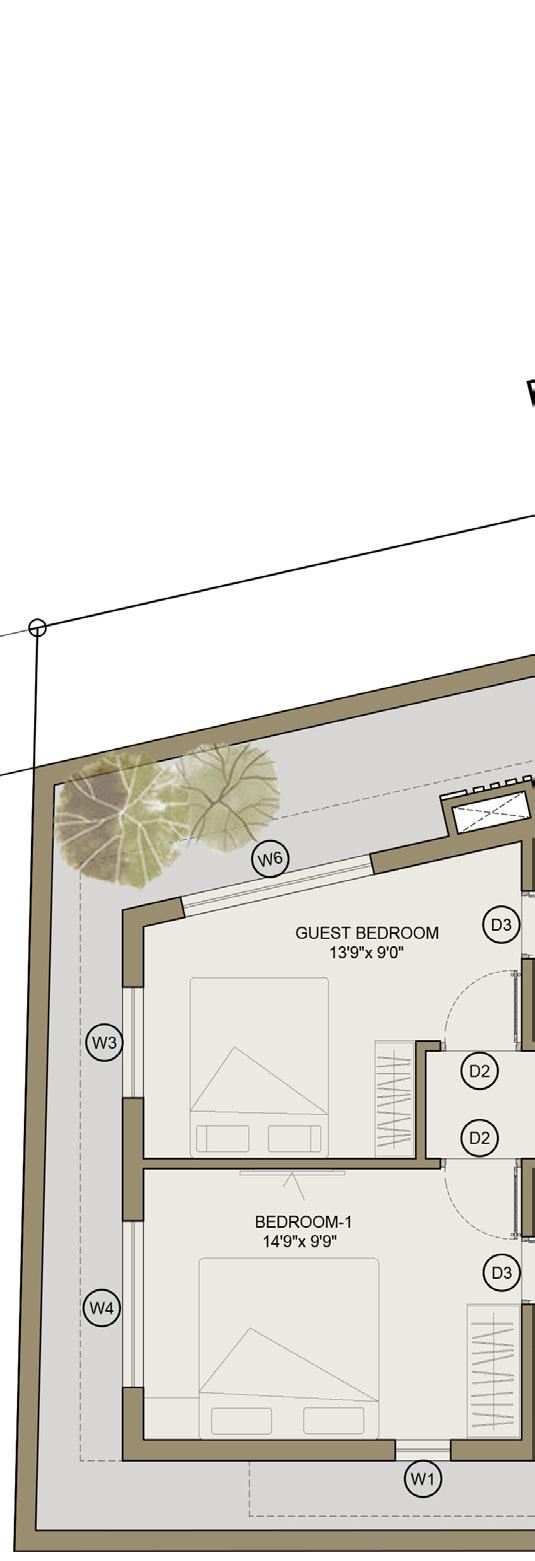

GROUND FLOOR PLAN

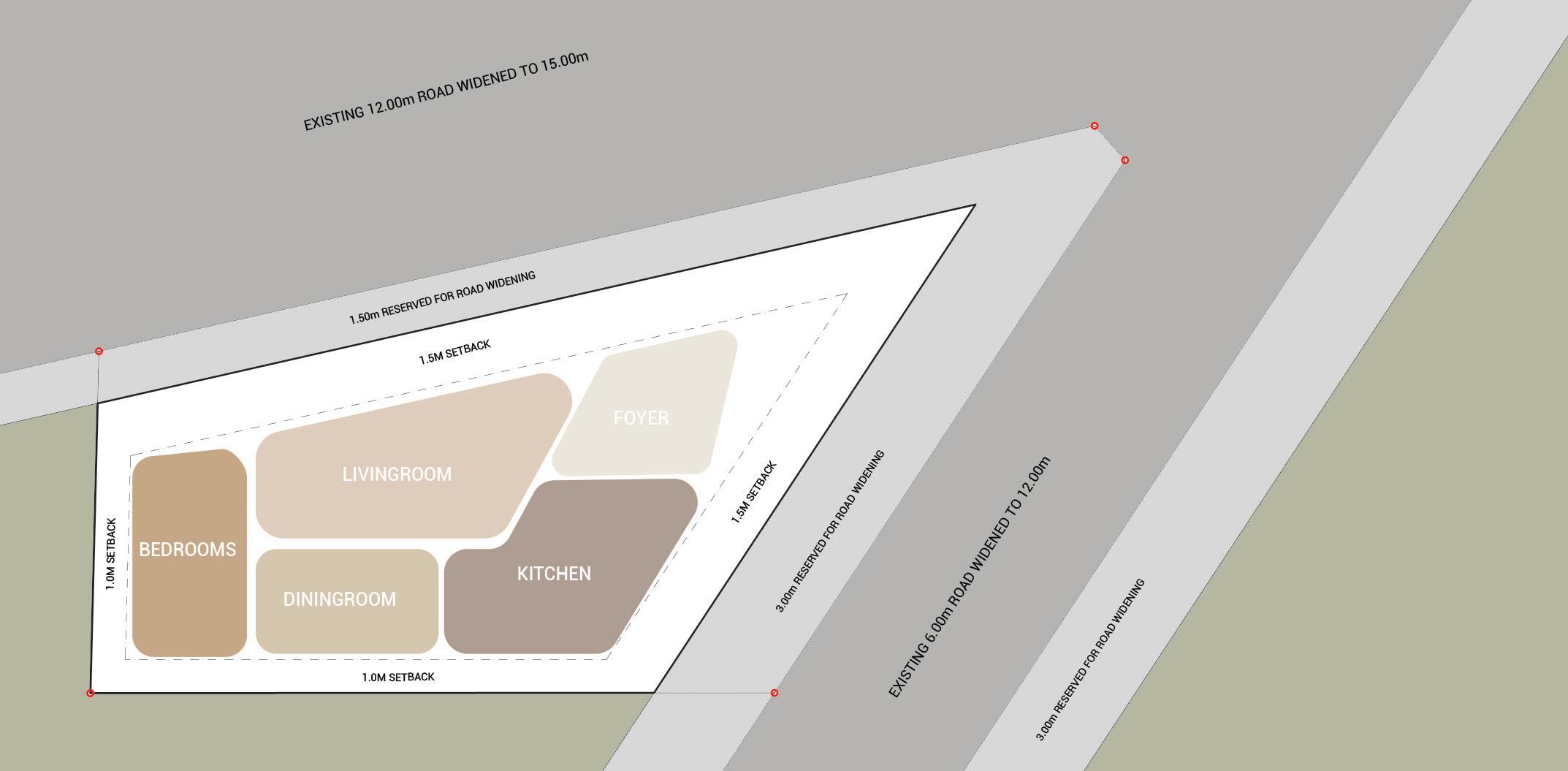

ESTABLISHING SETBACKS
Differentiating the area eligible for construction from the area designated as non-buildable.
CONFIGURING THE GROUND FLOOR
Optimising the ground floor footprint within the permissible buildable area and integrating a void specifically allocated for parking spaces.

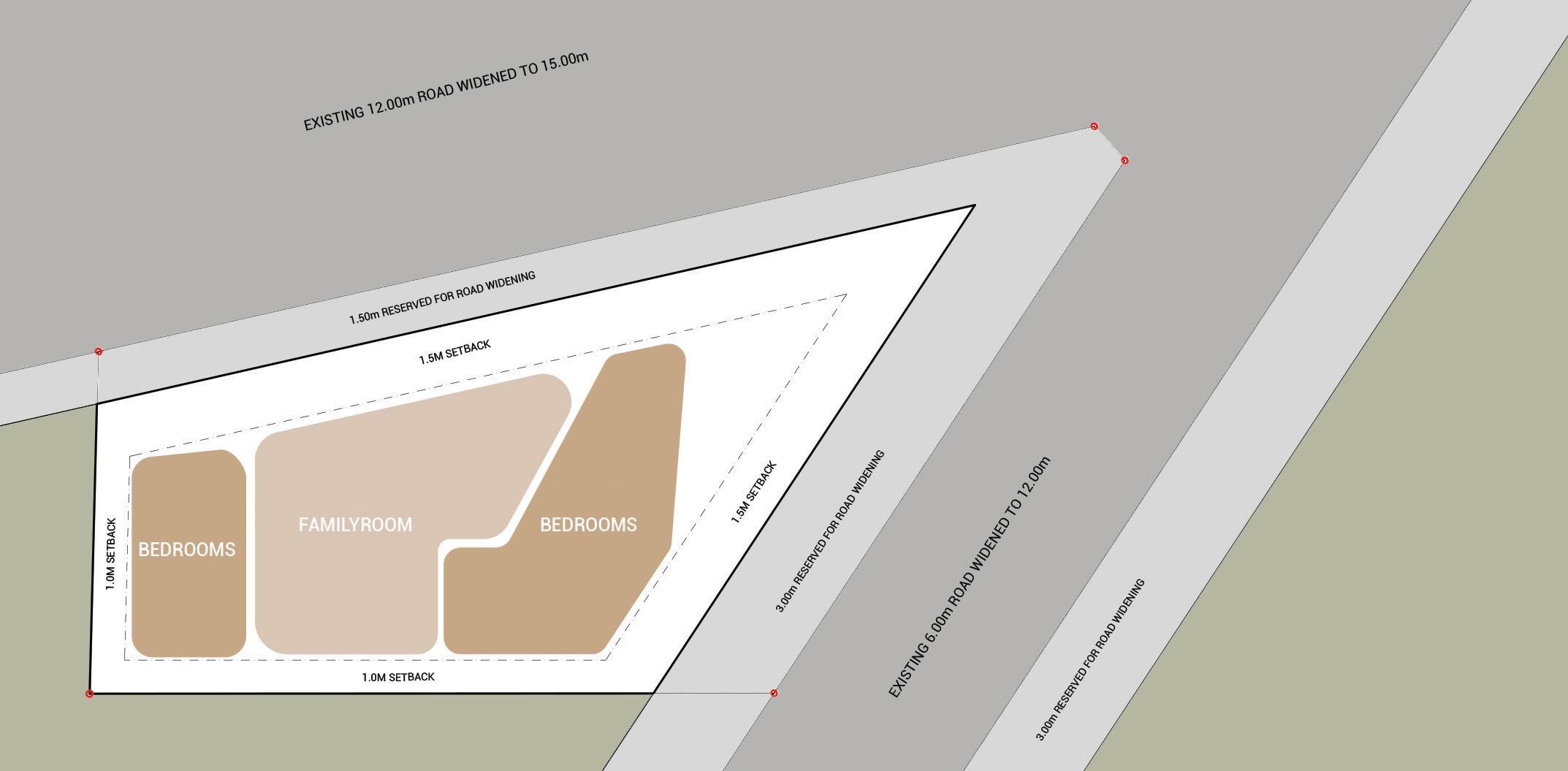

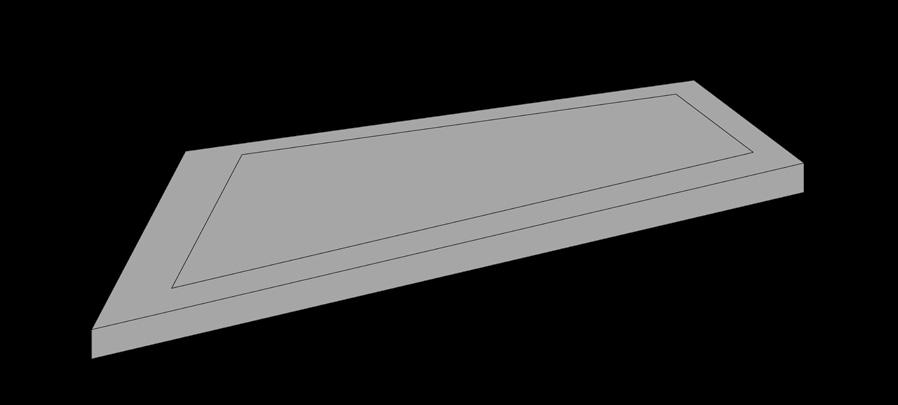

MAXIMISING THE USABLE SPACE.

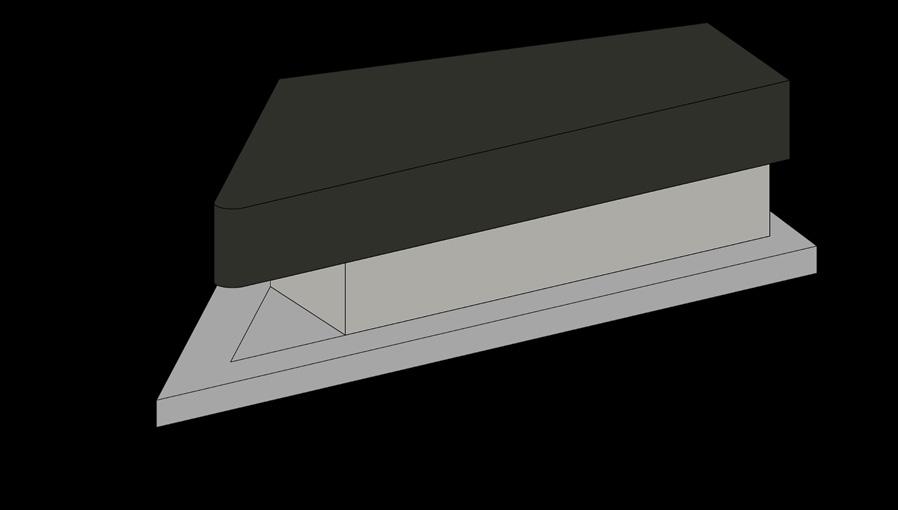

The massing of first floor is achieved by strategically optimising the lower floor plate and utilising the cantilevered spaces to leverage the additional area permitted by zonal regulations.

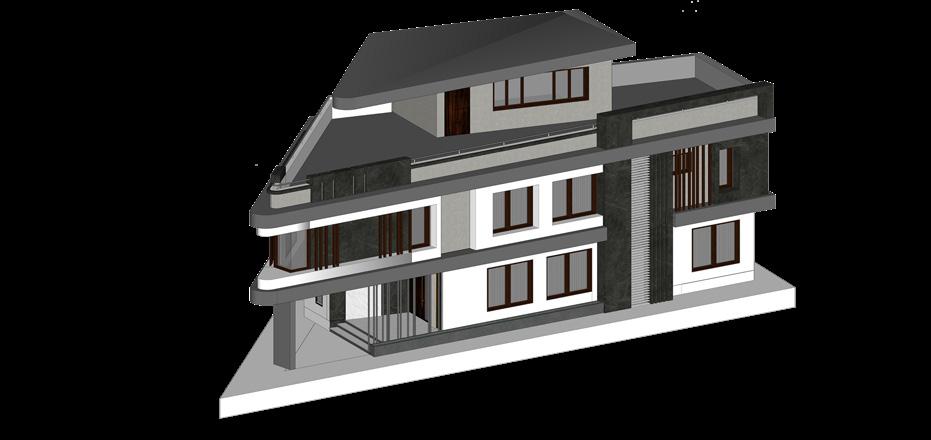

ADDING ELEVATIONAL FEATURES
Incorporating elevational features that not only enhances the building’s aesthetics but also contributes to expanding the usable space within the house.

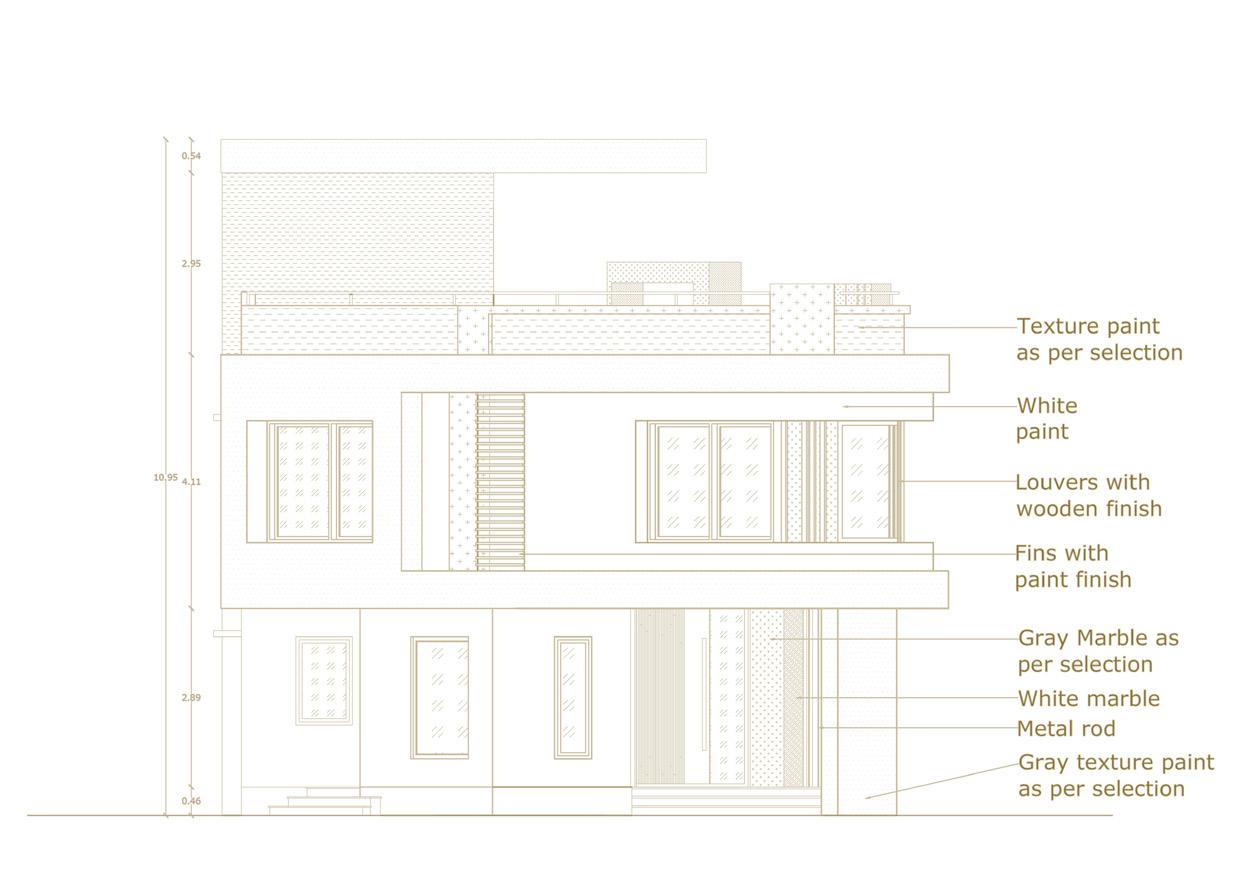

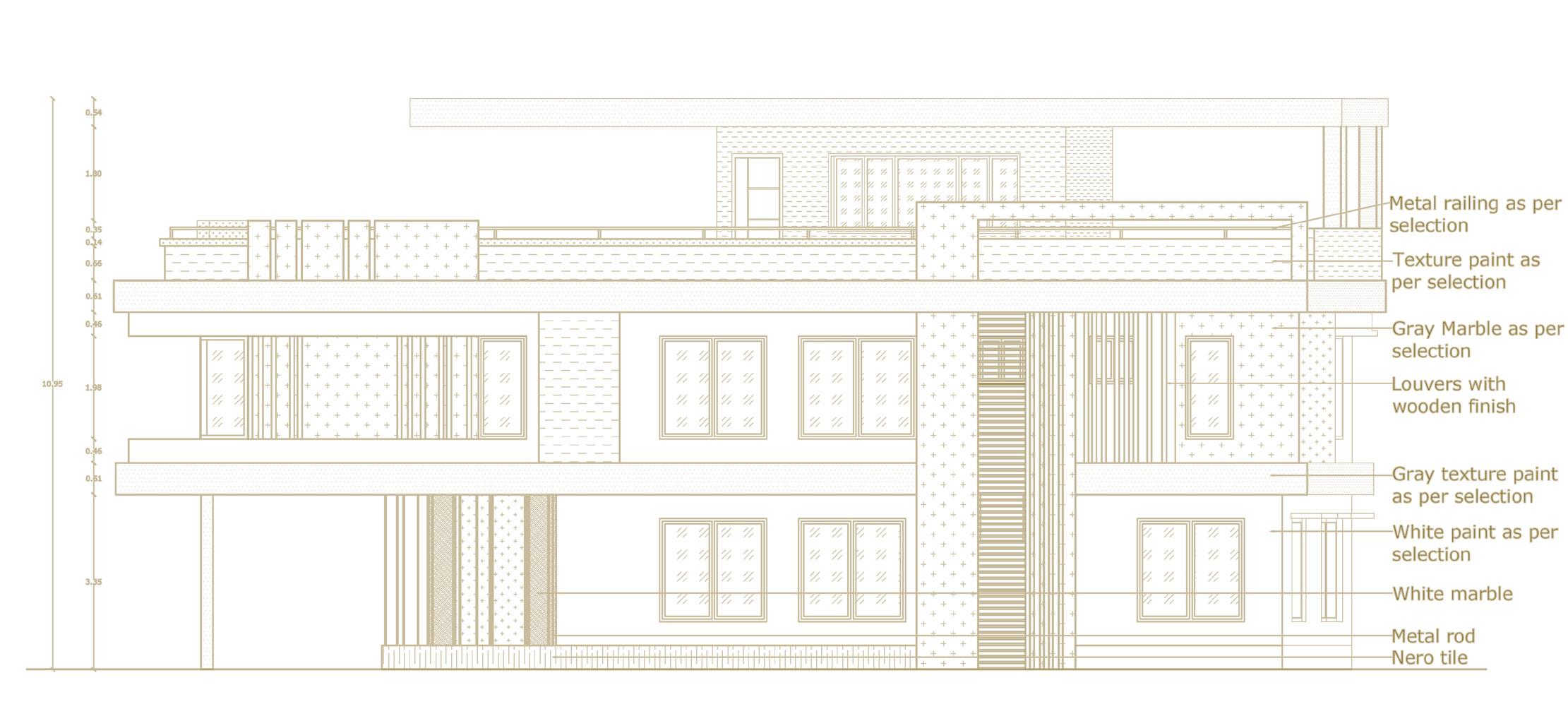

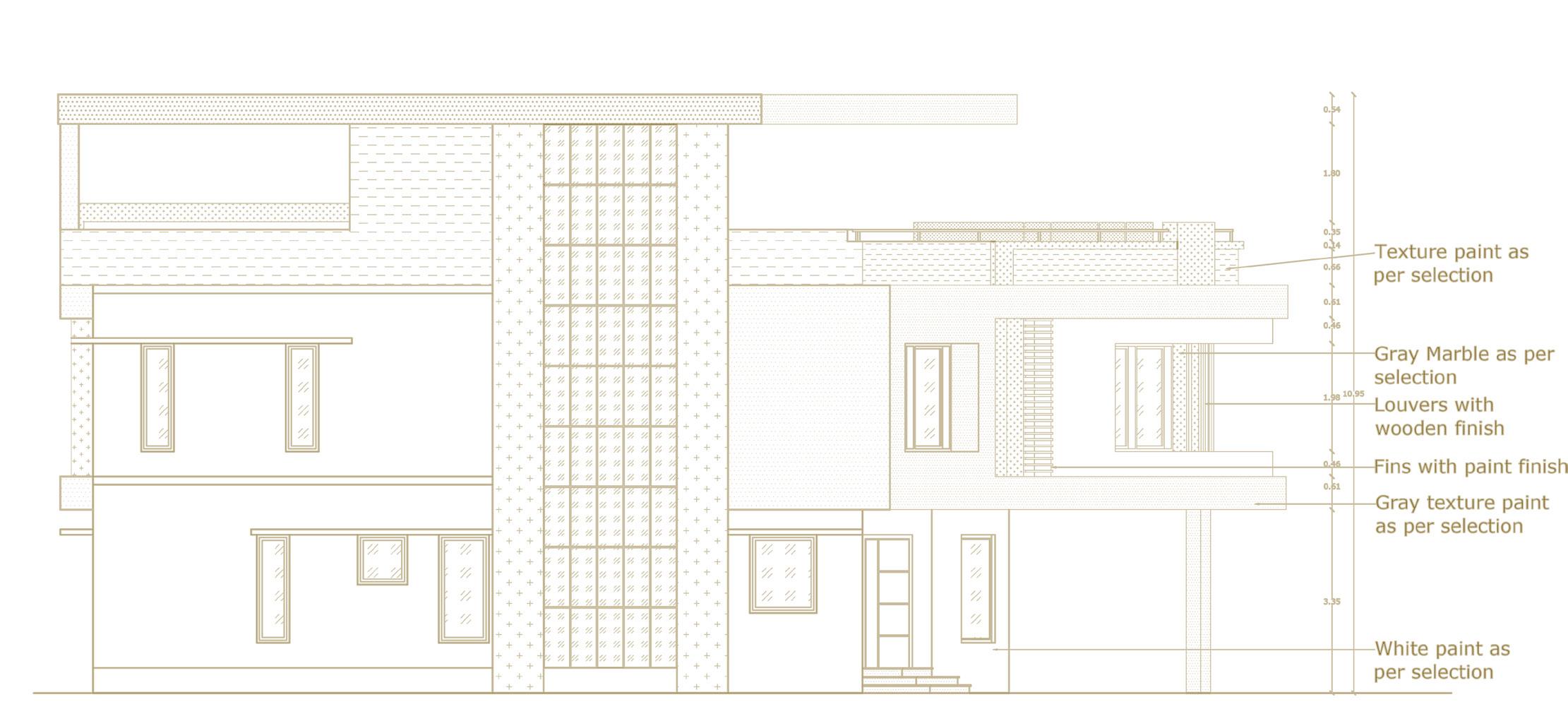

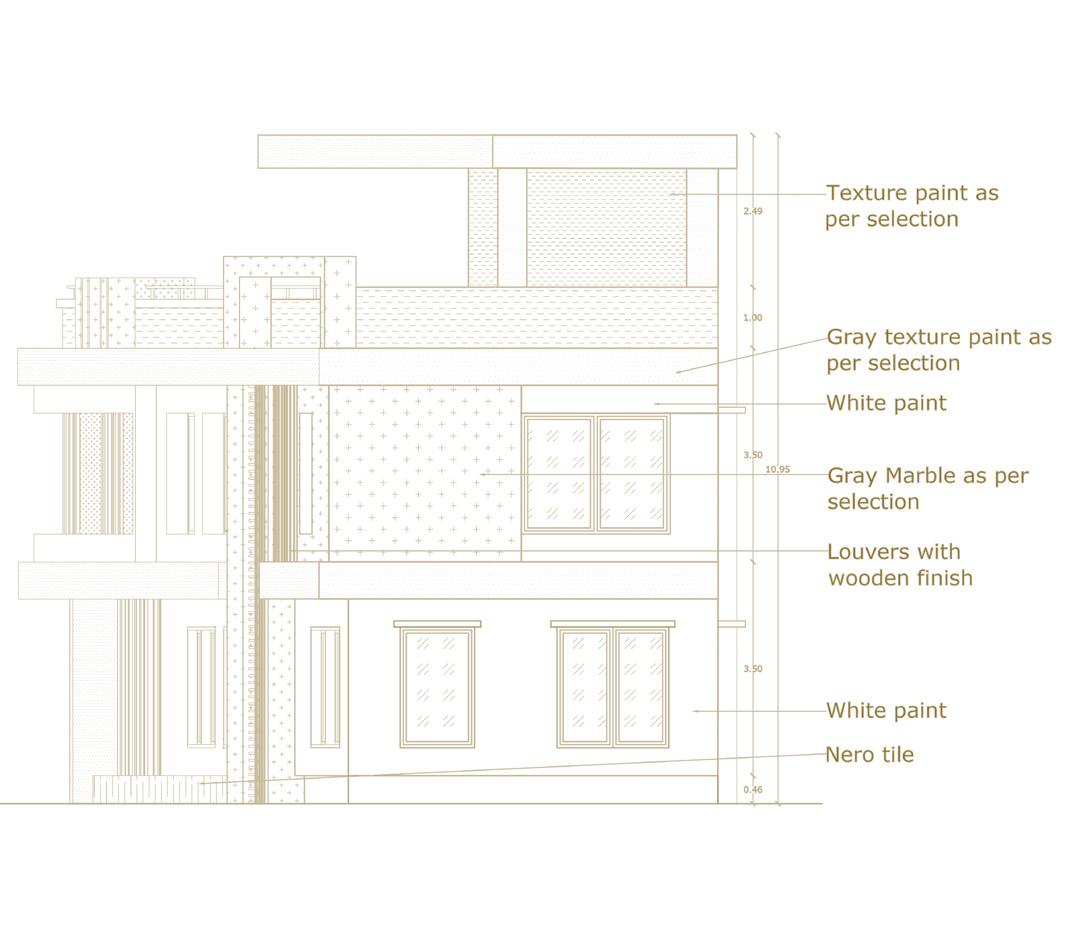

NORTH ELEVATION

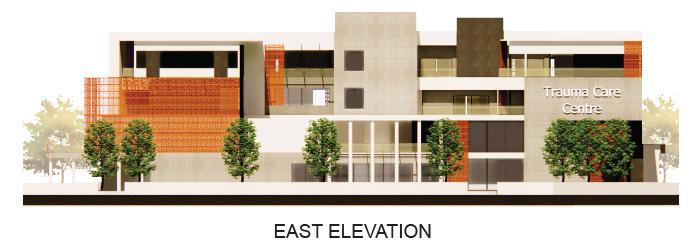

EAST ELEVATION

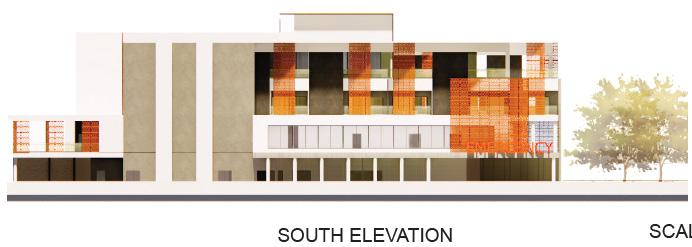

SOUTH ELEVATION

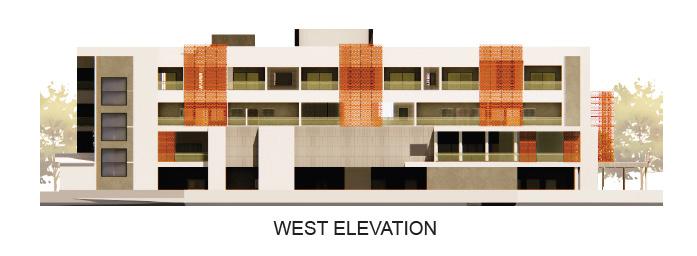

WEST ELEVATION

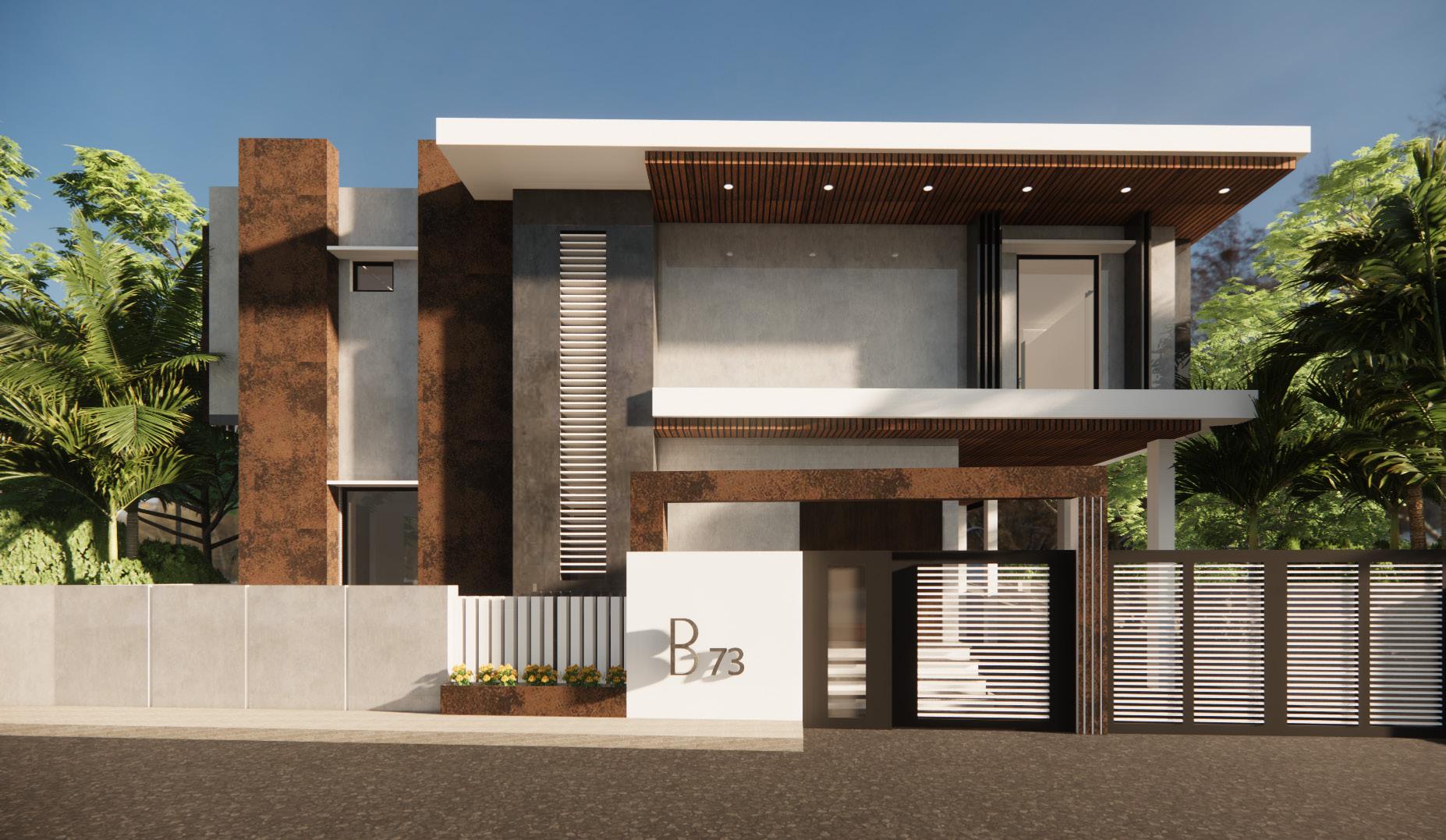

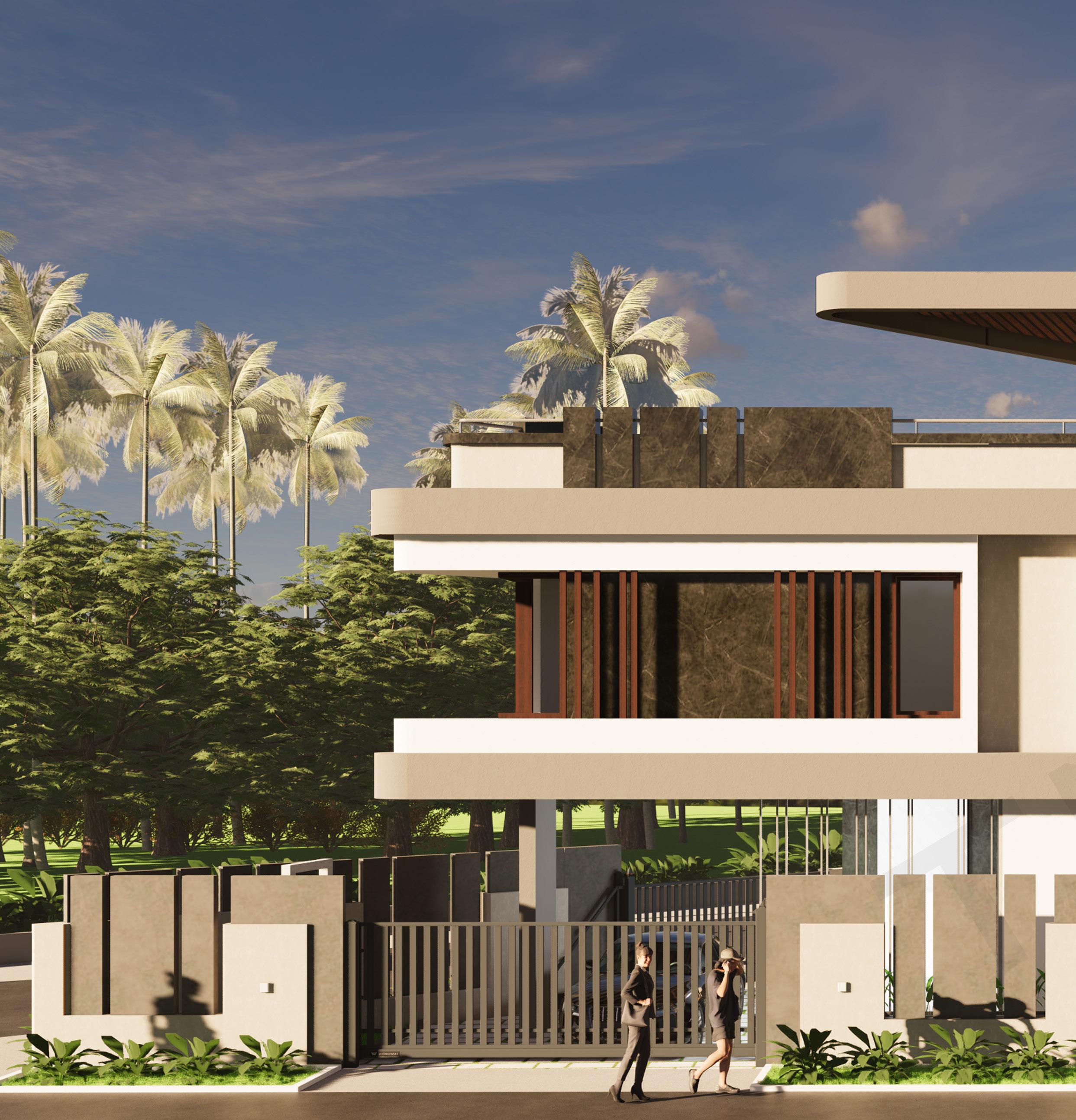

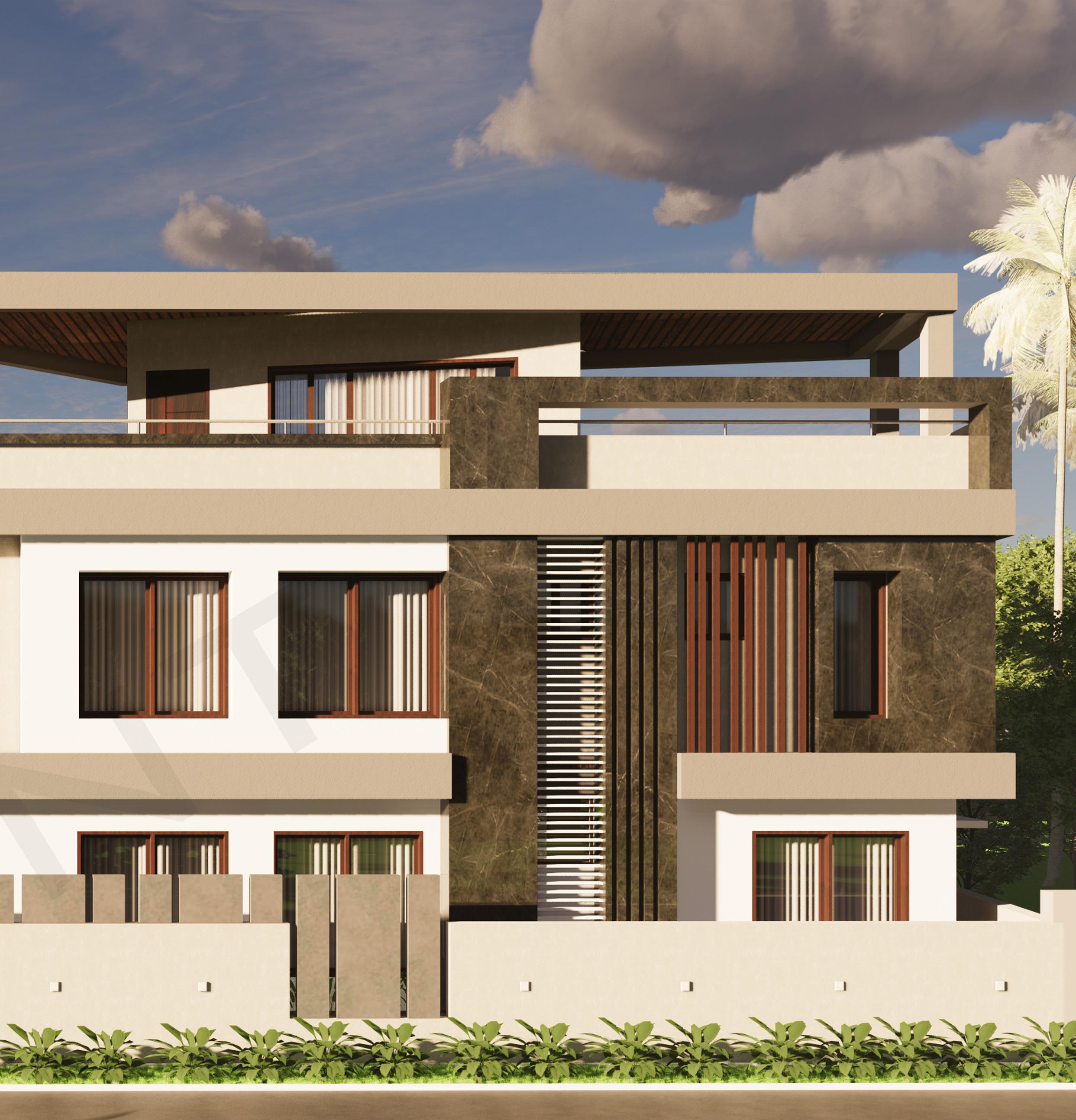

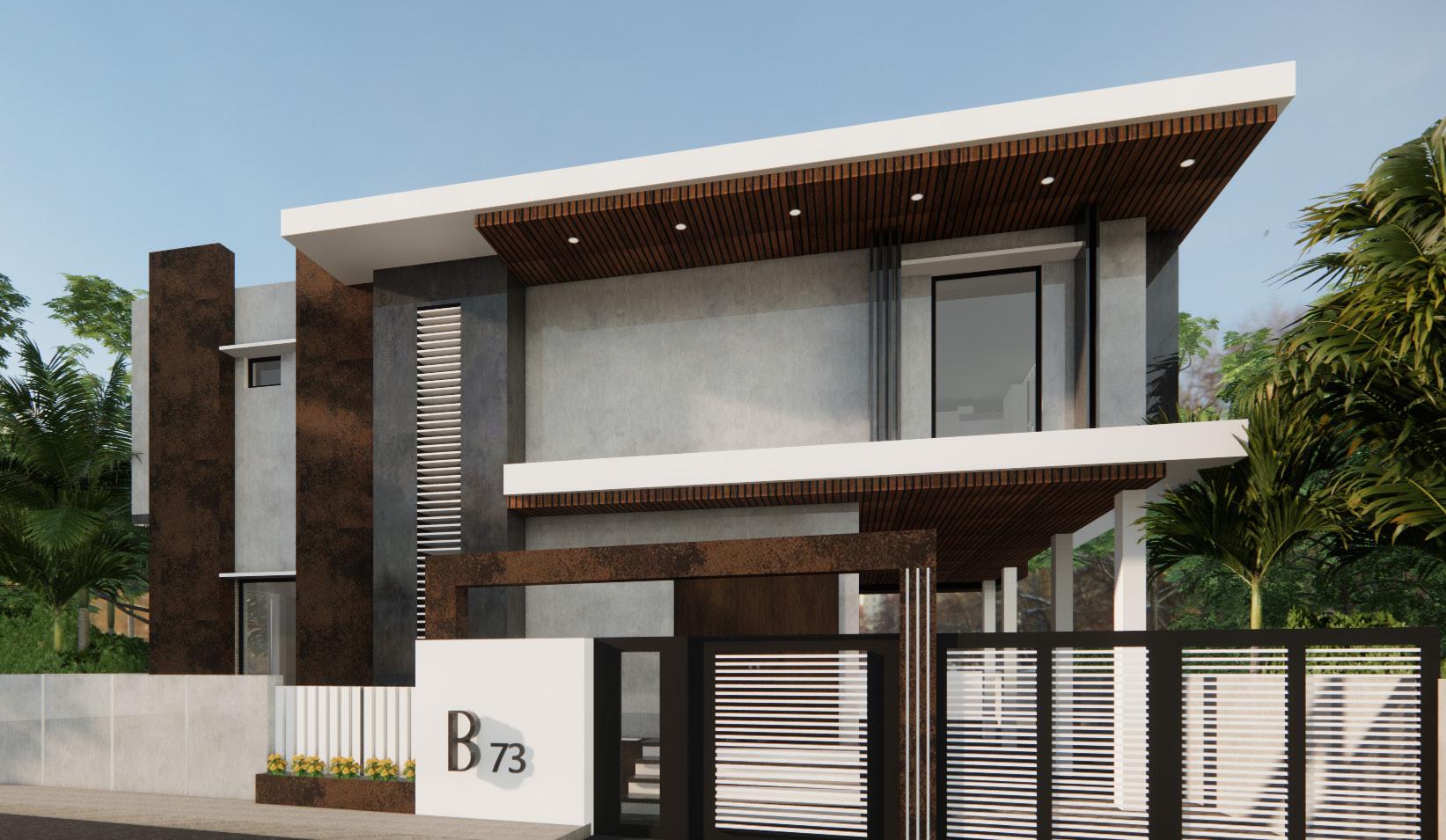

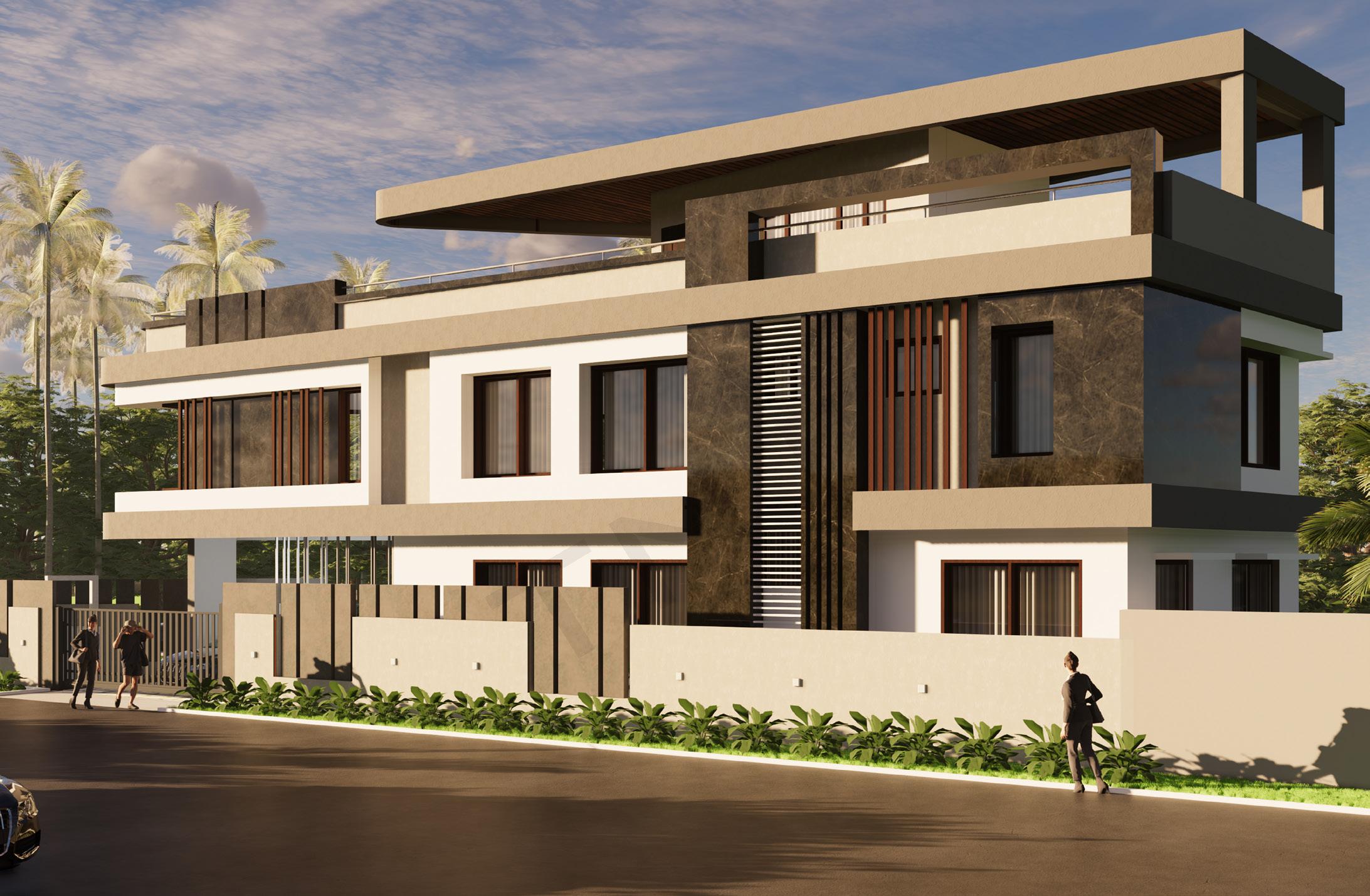

NORTH-WEST VIEW

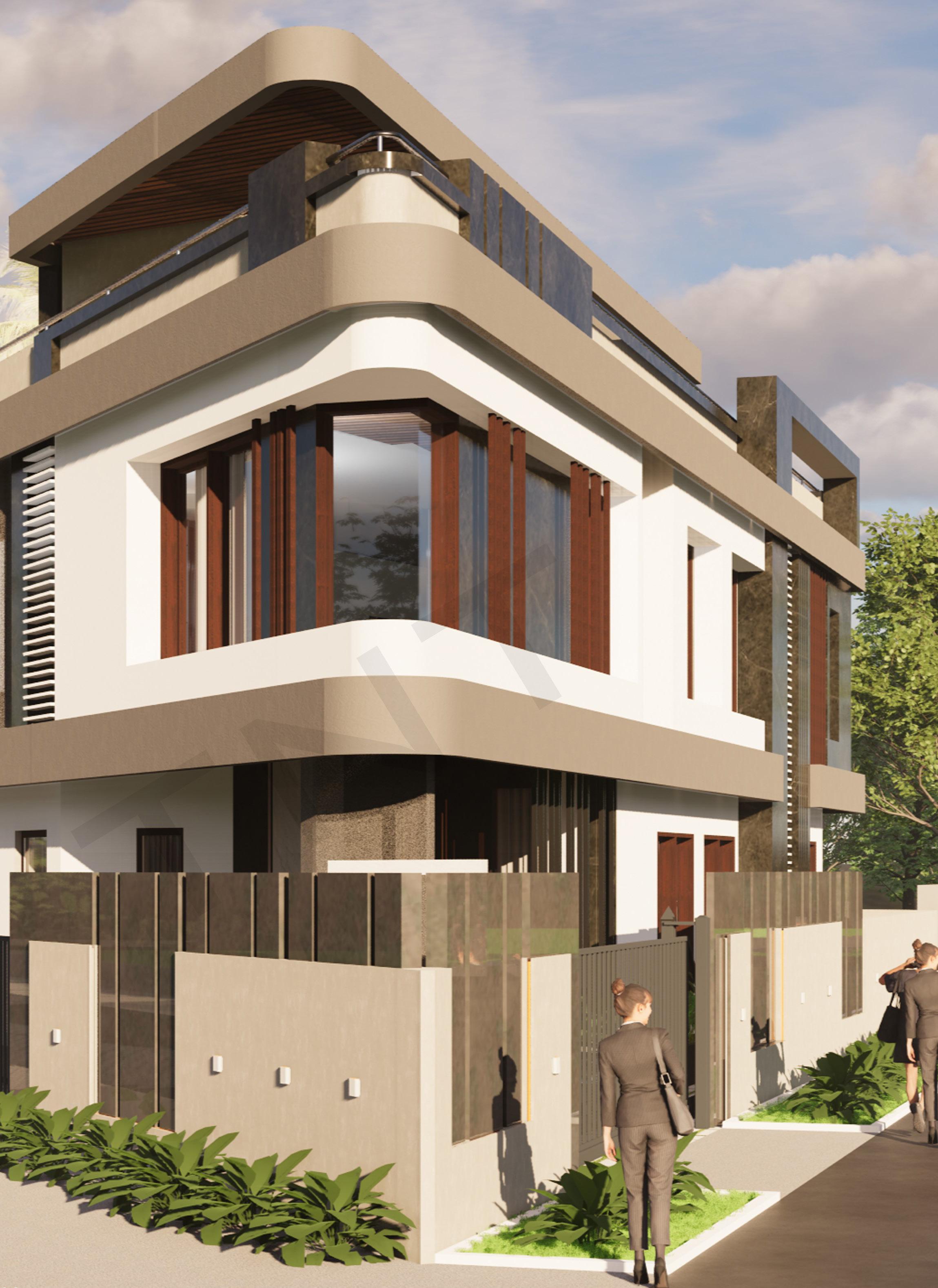

NORTH-EAST VIEW
STRUCTURAL
wooden frame
GROUND FLOOR PLAN

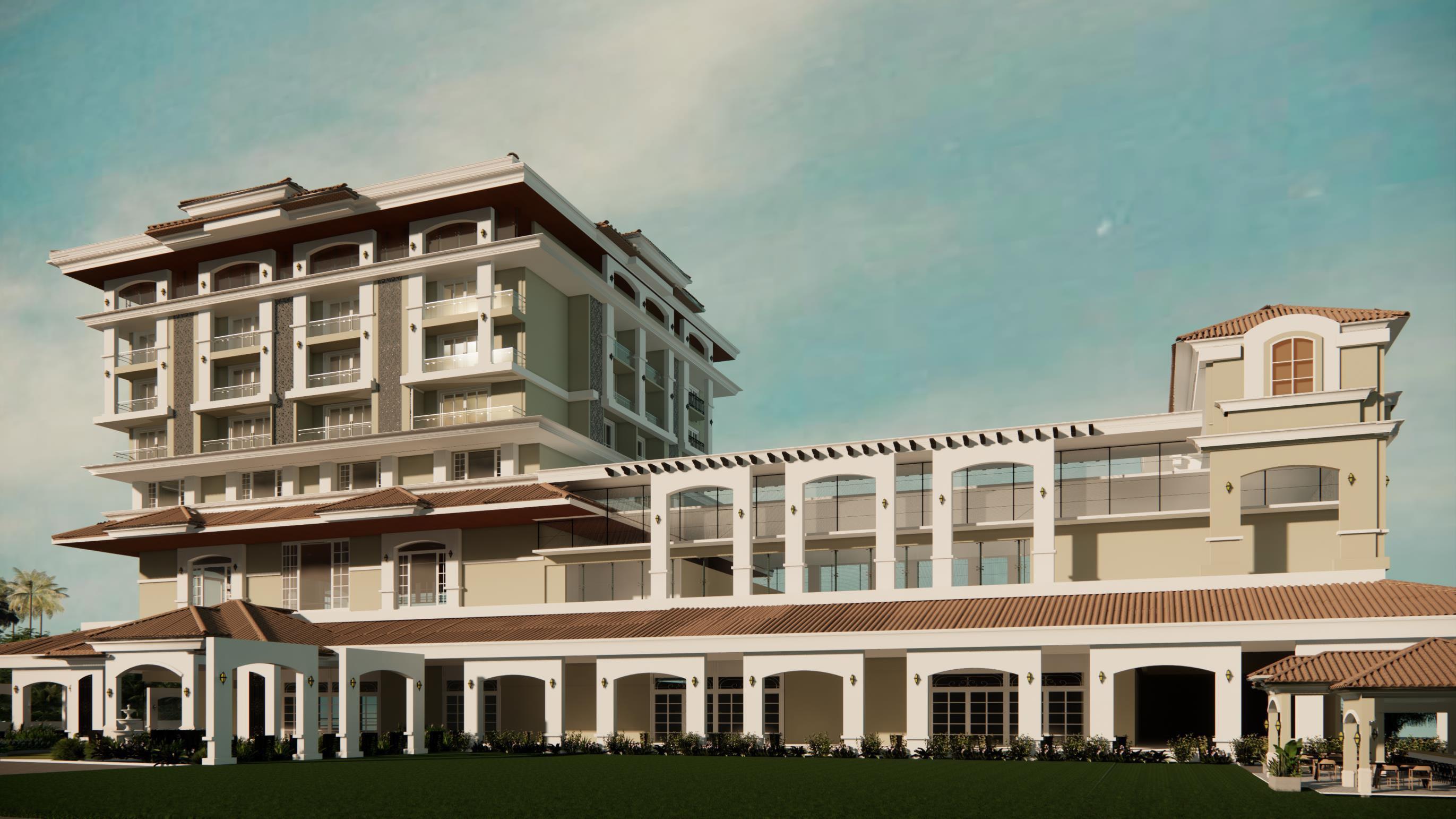

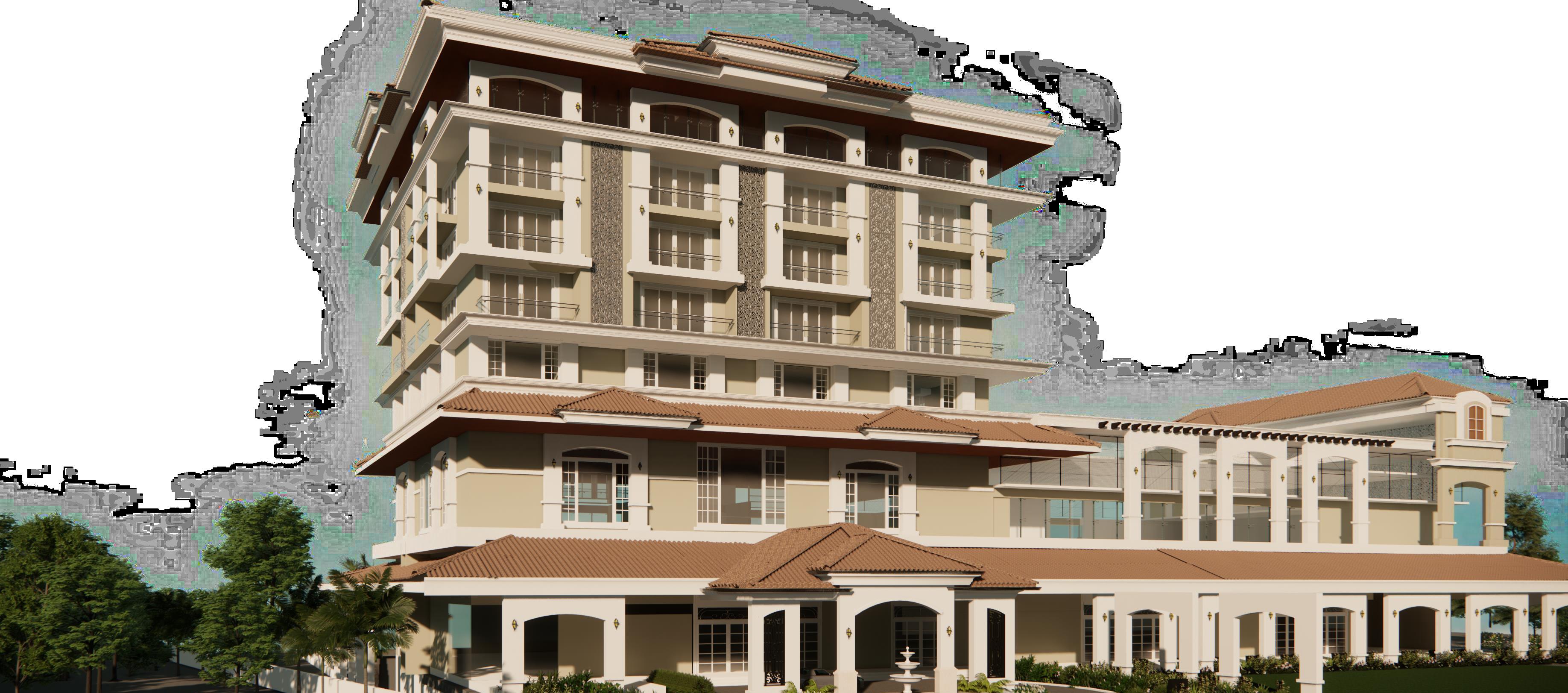

PROPOSED RETREAT FOR MANGALORE CLUB
(EXTENSION)
Established in 1876, the Mangalore Club, situated on the scenic banks of the Nethravati river, seamlessly blends the clubbing traditions of The Raj with modern India. Combining excellent contemporary facilities with Old World charm, it is highly sought after by prominent citizens of Mangalore.
Presently, the club faces challenges in fulfilling baqueting demands due to insufficient banquet space. To address this, the primary focus is ondesigning the required banquetspaces in the podium during phase 1, followed by the development of guestrooms in the tower above the podium in phase 2. This strategic approach aims to enhance the club’s capacity to accommodate banqueting needs while ensuring a phased and well-planned expansion.
ARCHI-TECHNICS (PETER AND PAUL)
ROLE IN PROJECT: As a Junior Architect, I worked alongside the principal architect Peter Mascarenhas in planning and designing this project. I was heavily involved in the design schematic, design development, planning, coordinating with electrical, PHE, structural and fire consultants.
I was also given the opportunity to create a presentation and present it at the EGM to the esteemed members of Mangalore club.
SOFTWARE USED

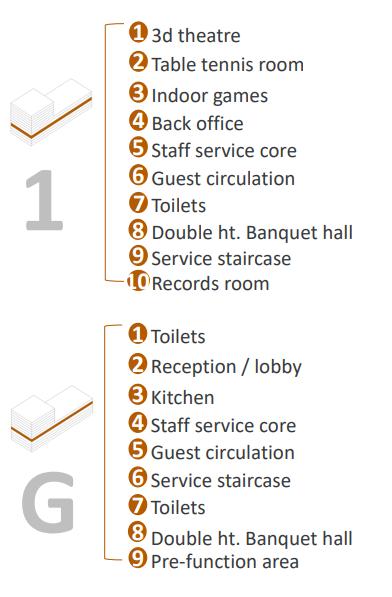

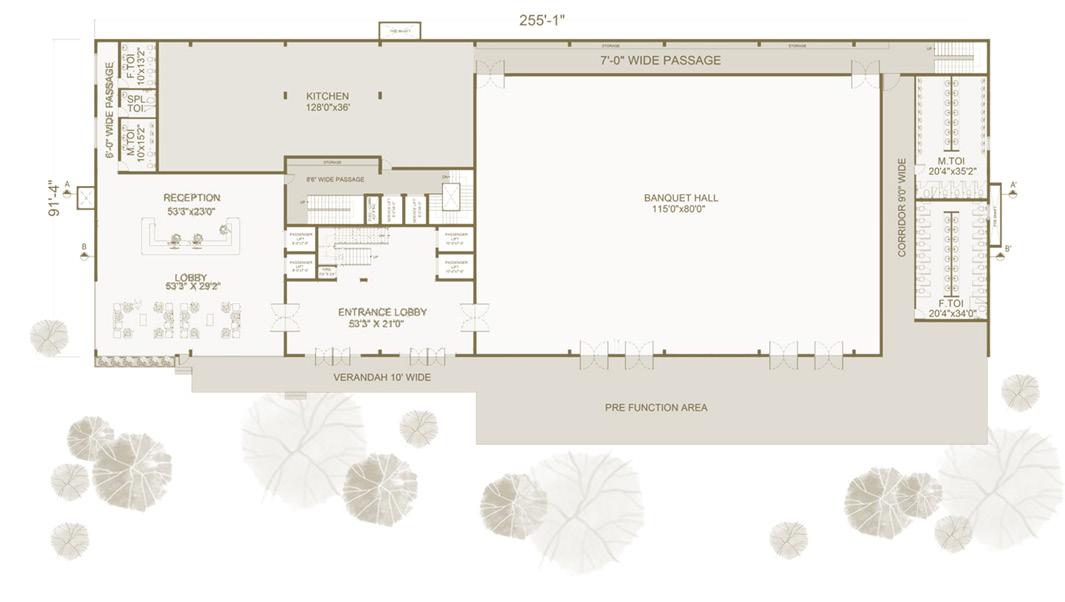

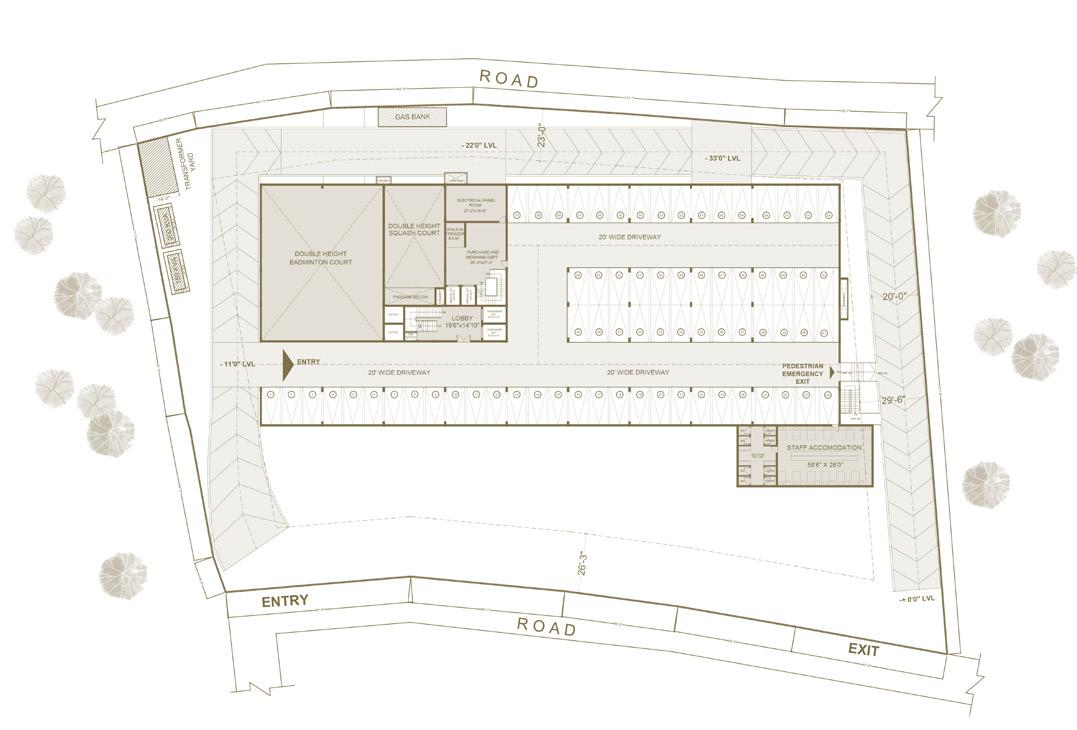

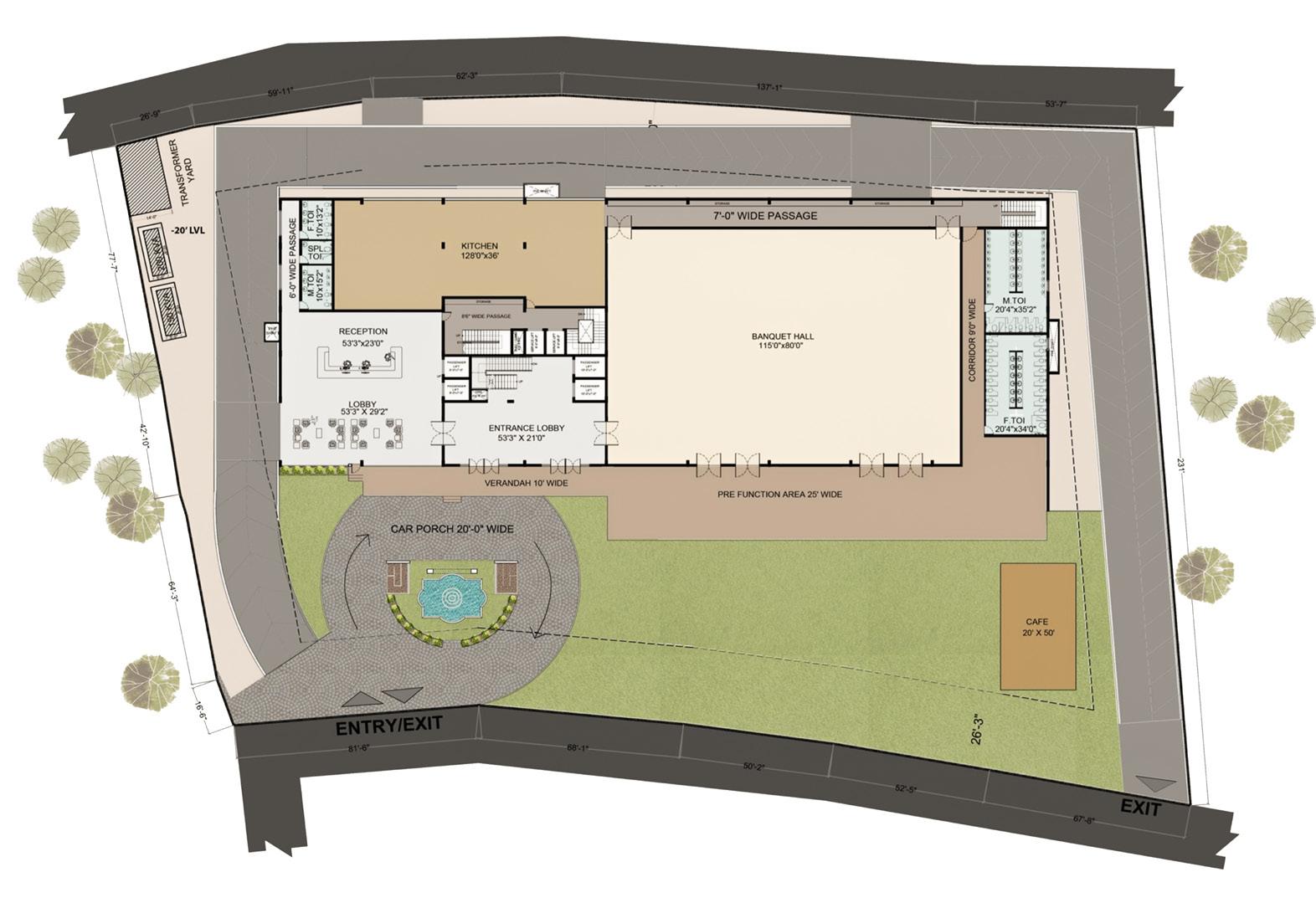

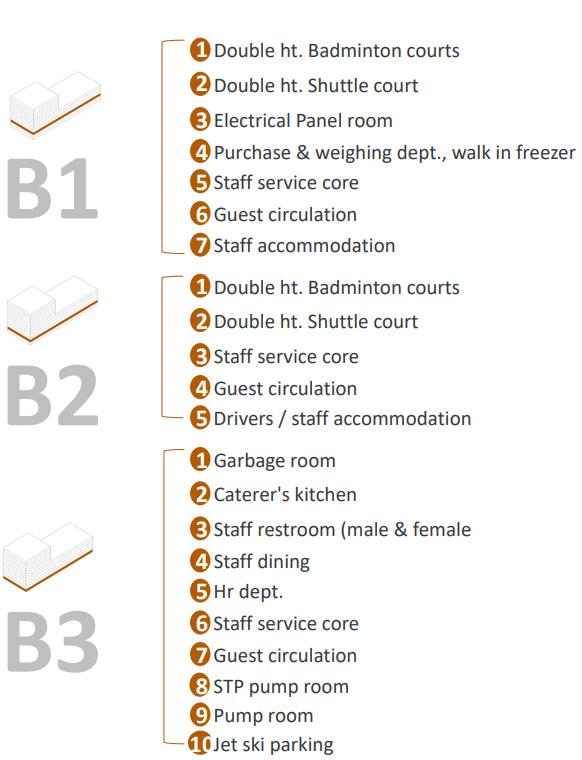

3RD BASEMENT

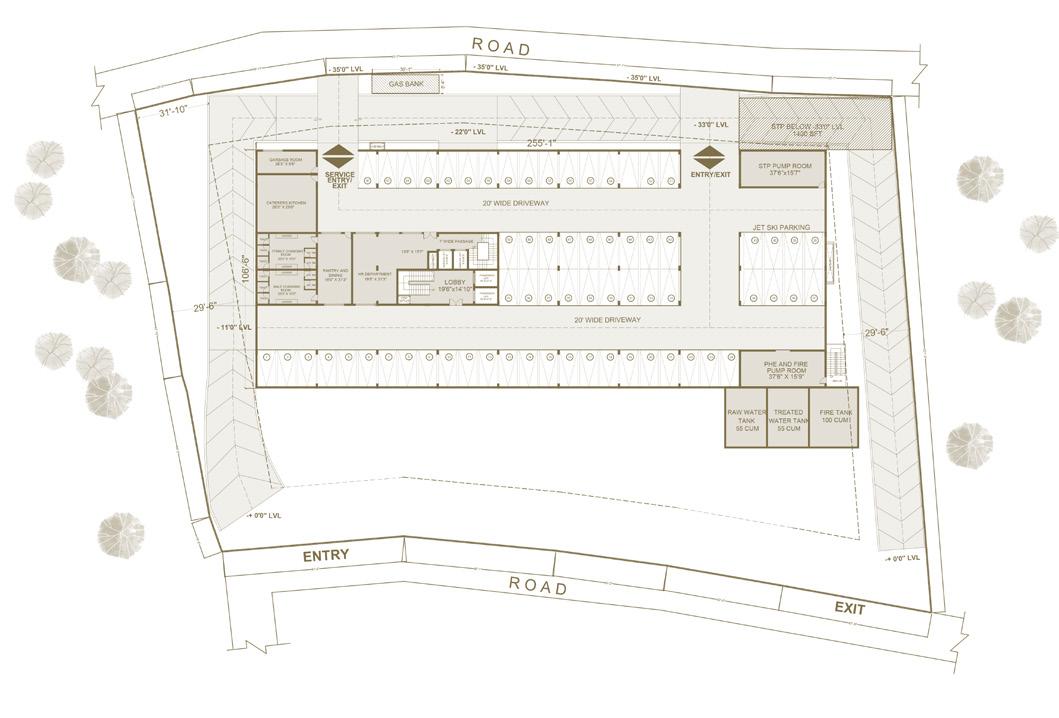

2ND BASEMENT

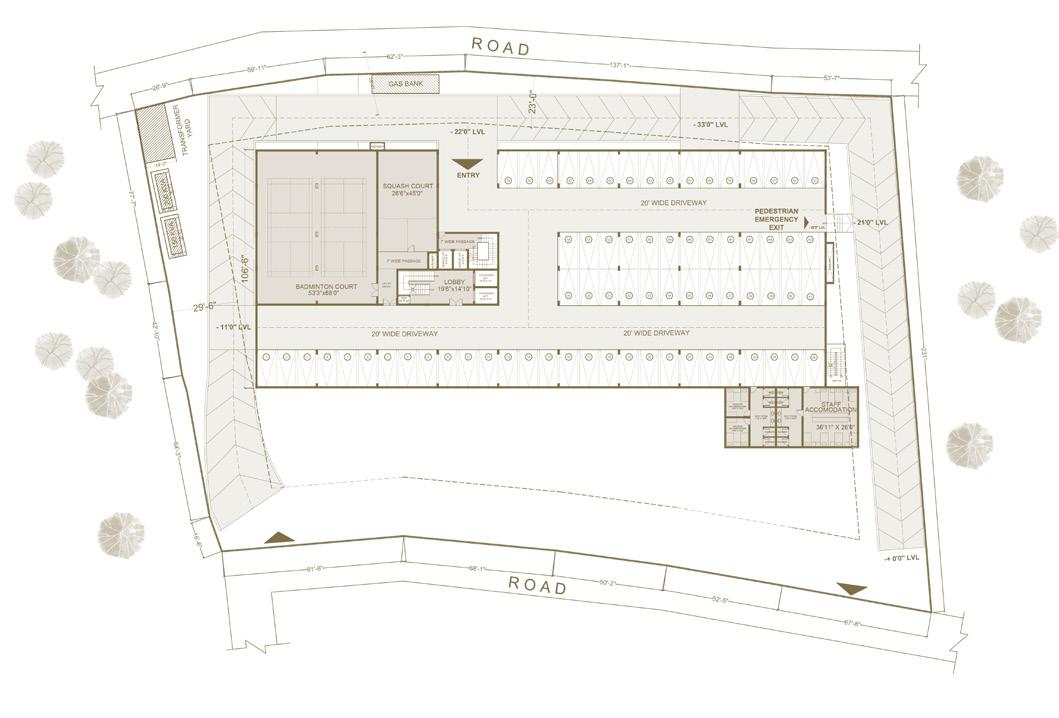

1ST BASEMENT

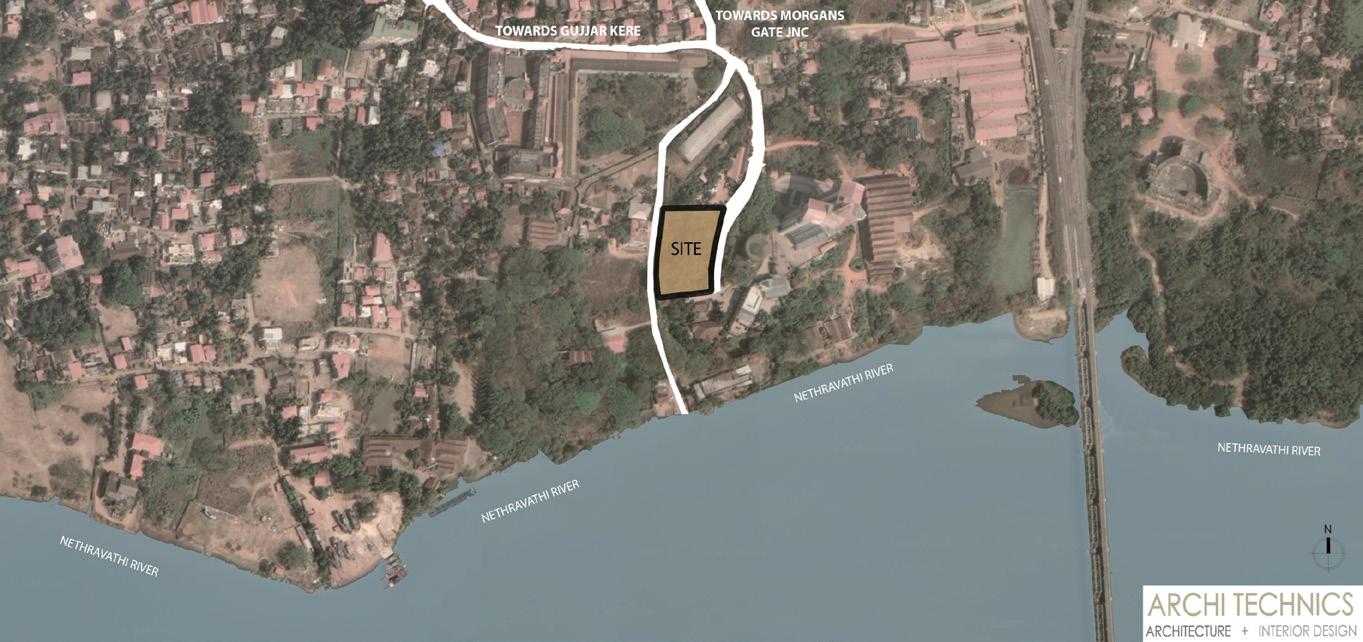

Morgans Gate, Mangalore, Karnataka, India.

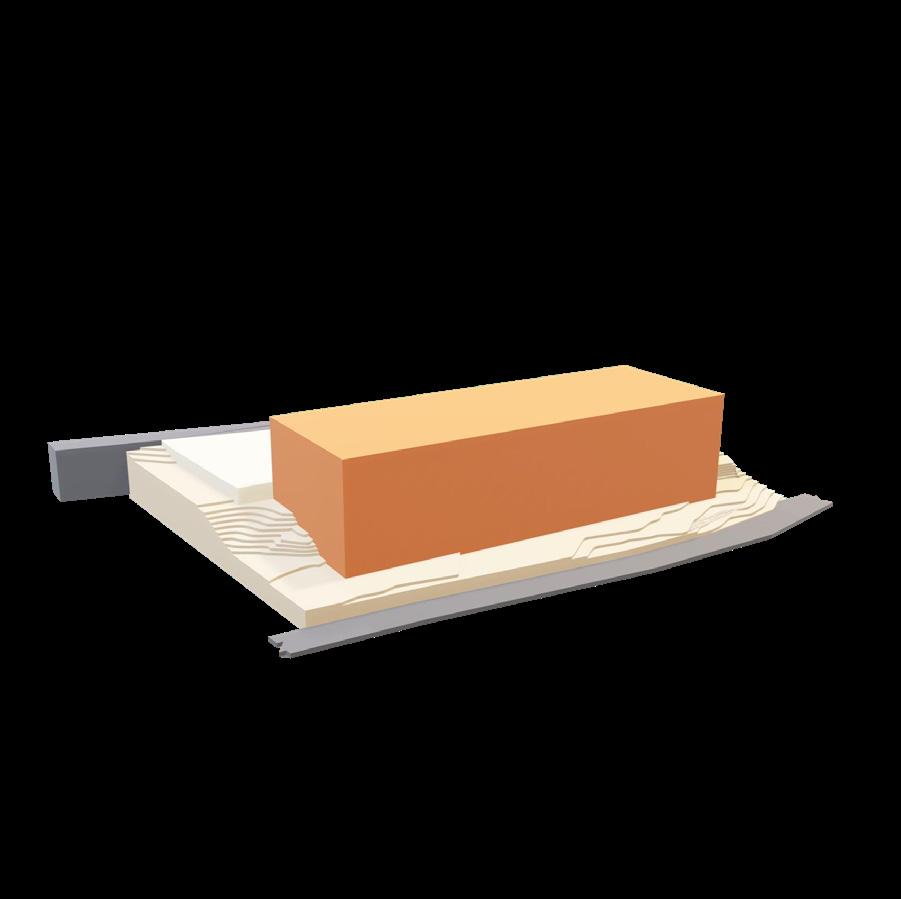

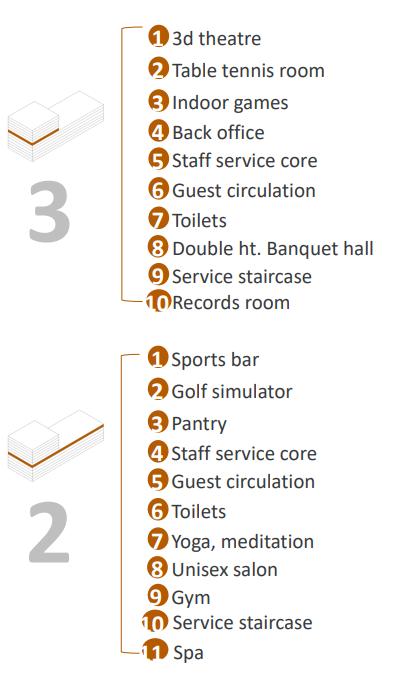

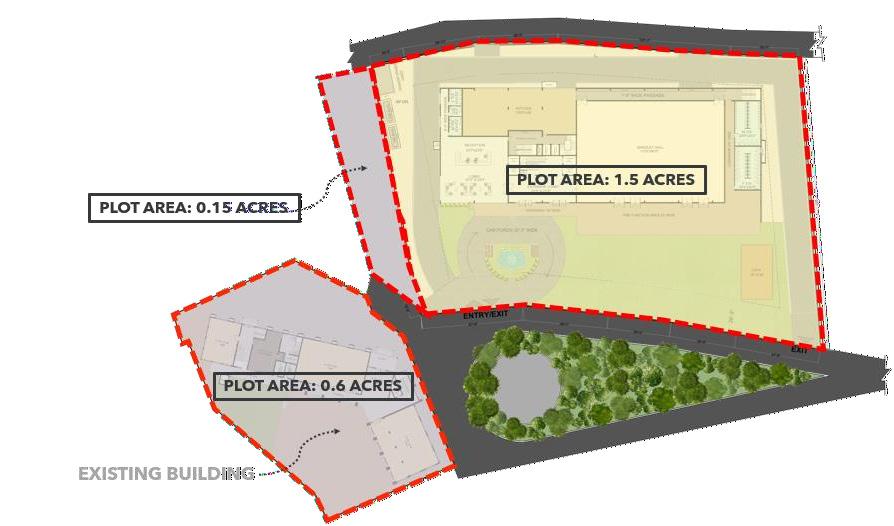

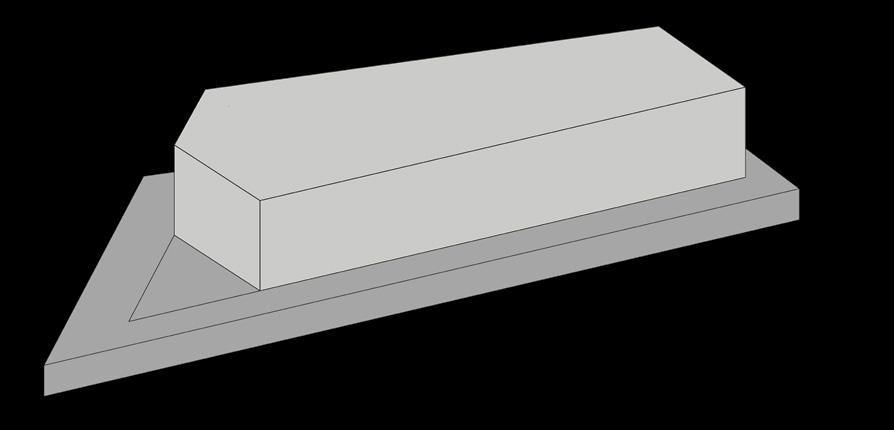

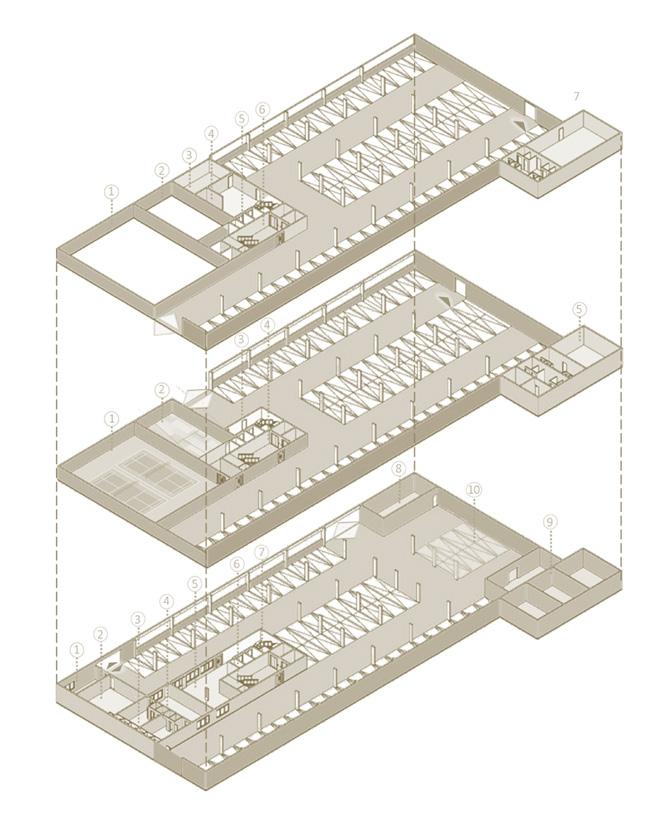

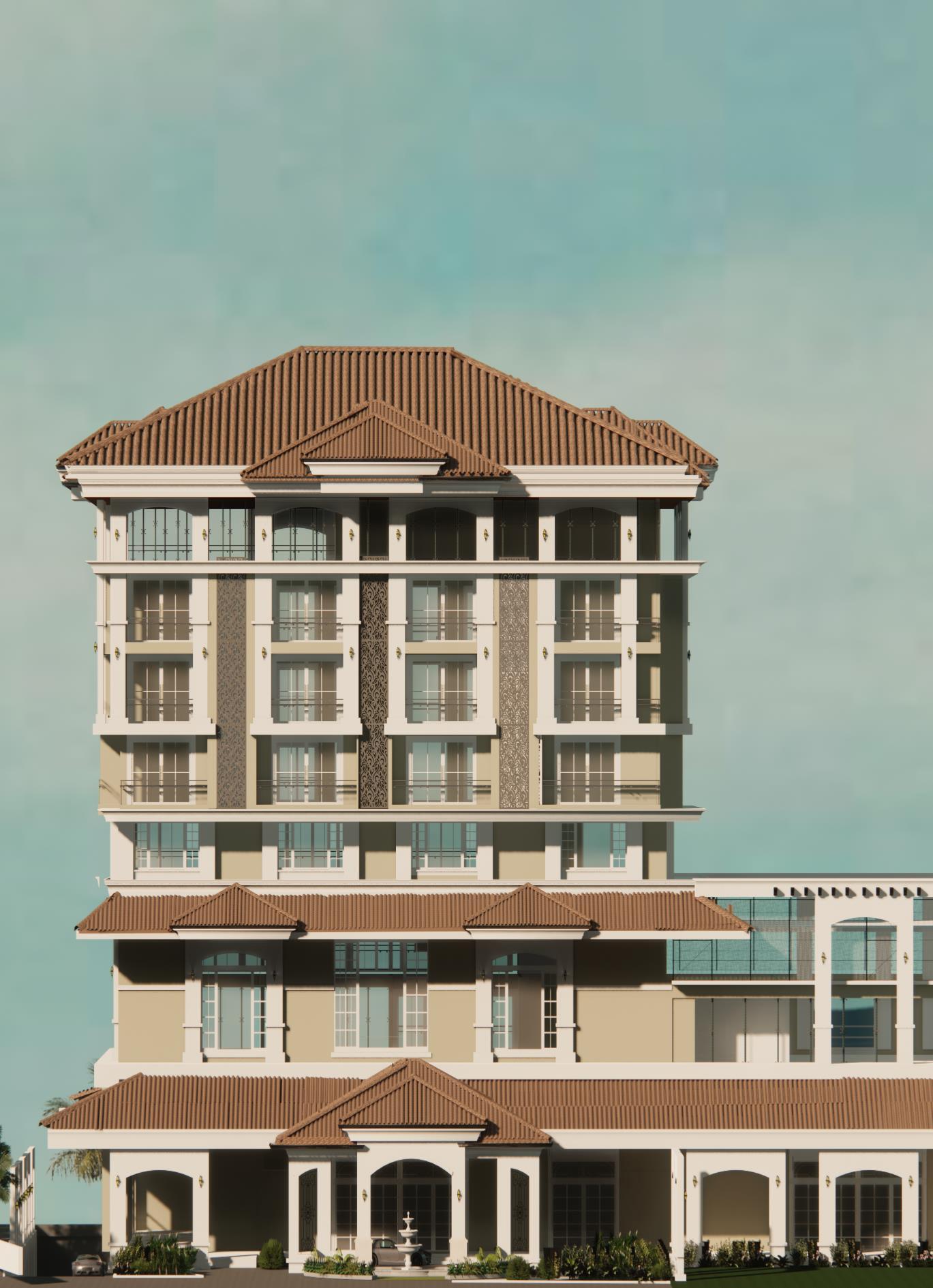

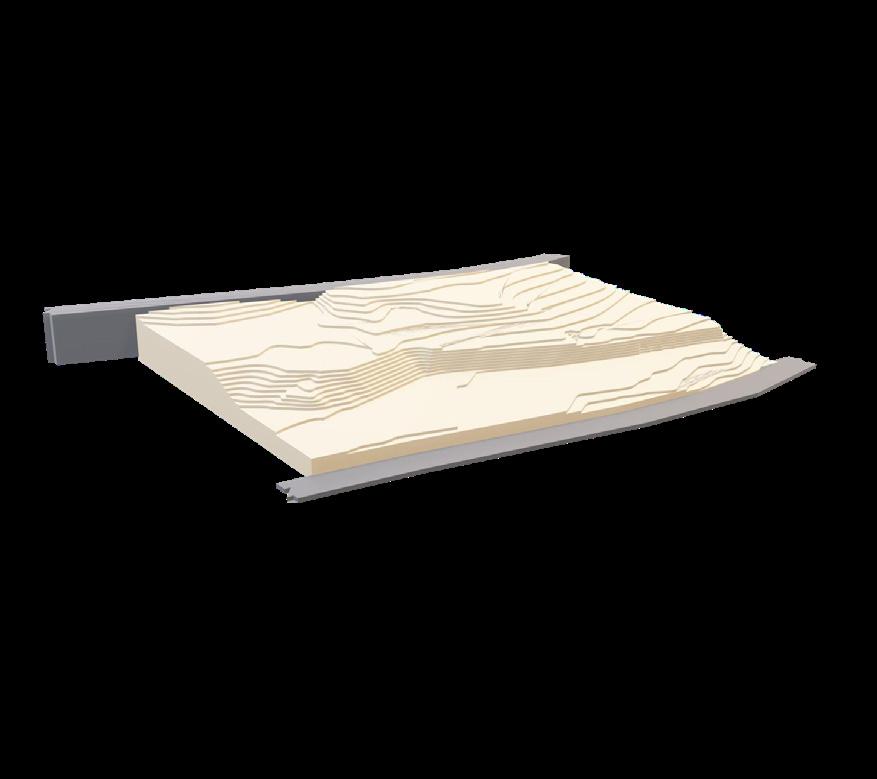

FORM DEVELOPMENT

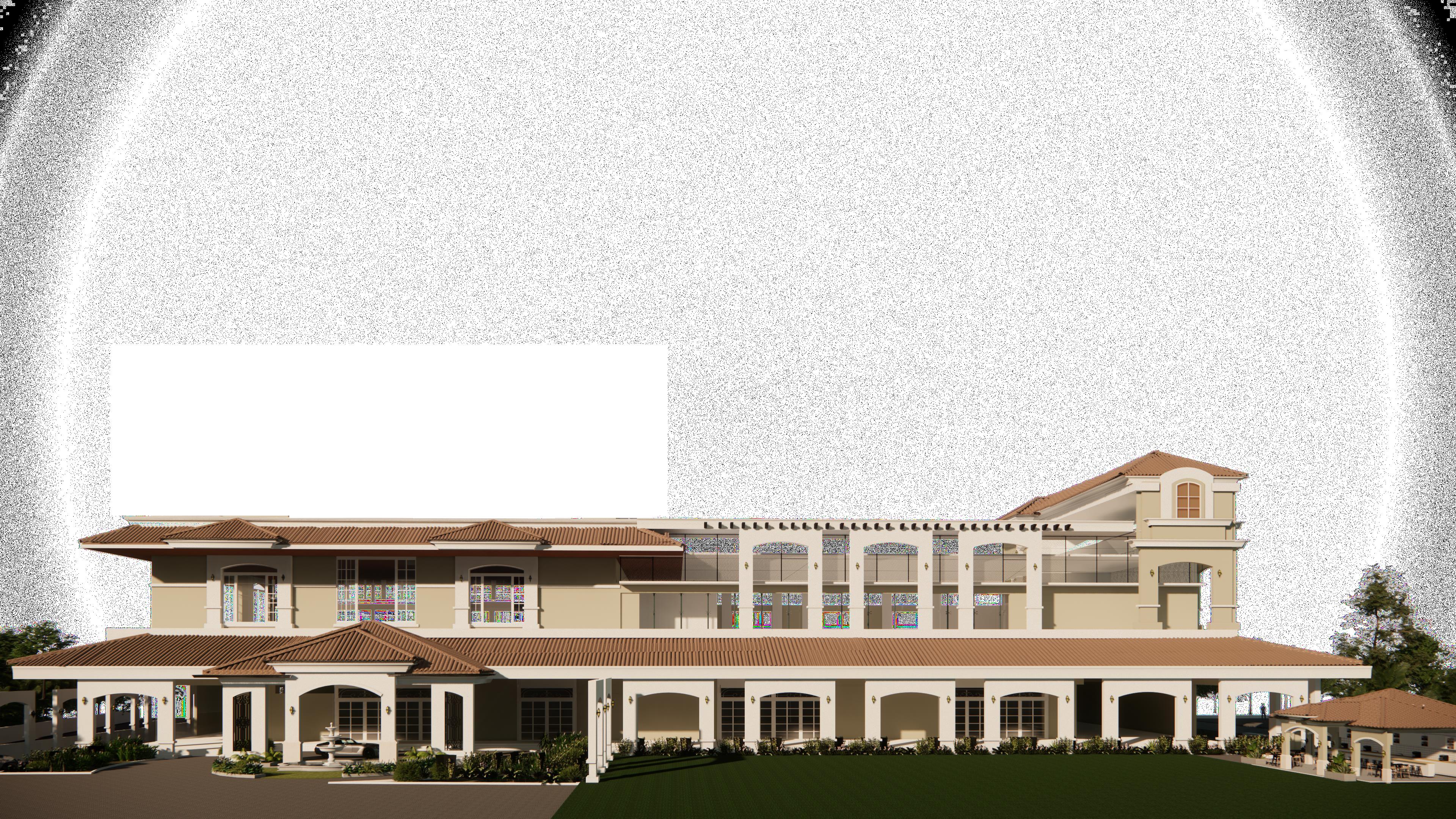

Unveil a sophisticated escape in Mangalore, where Spanish architectural finesse meets meticulous design. This retreat harmoniously combines cozy verandas, expansive living spaces, and a picturesque river view. With a meticulous focus on both aesthetics and functionality, it delivers an elevated living experience.
PHASE 1

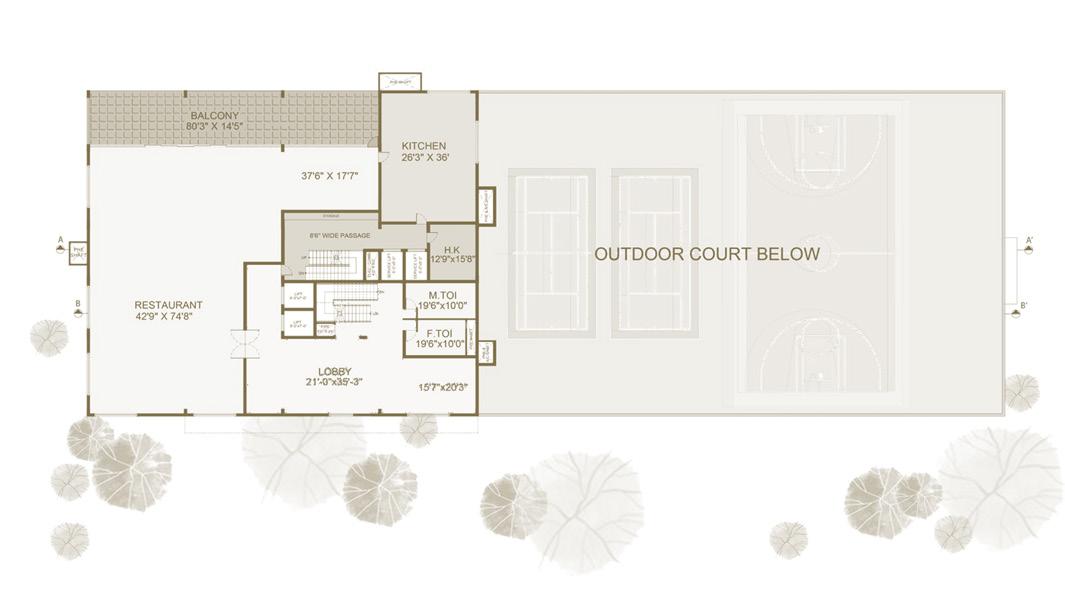

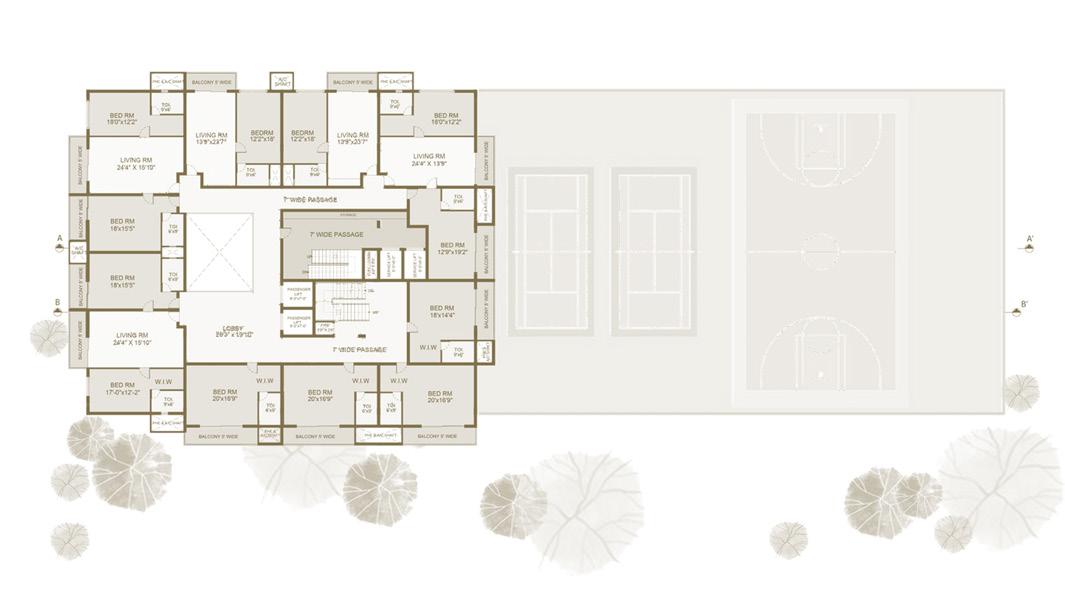

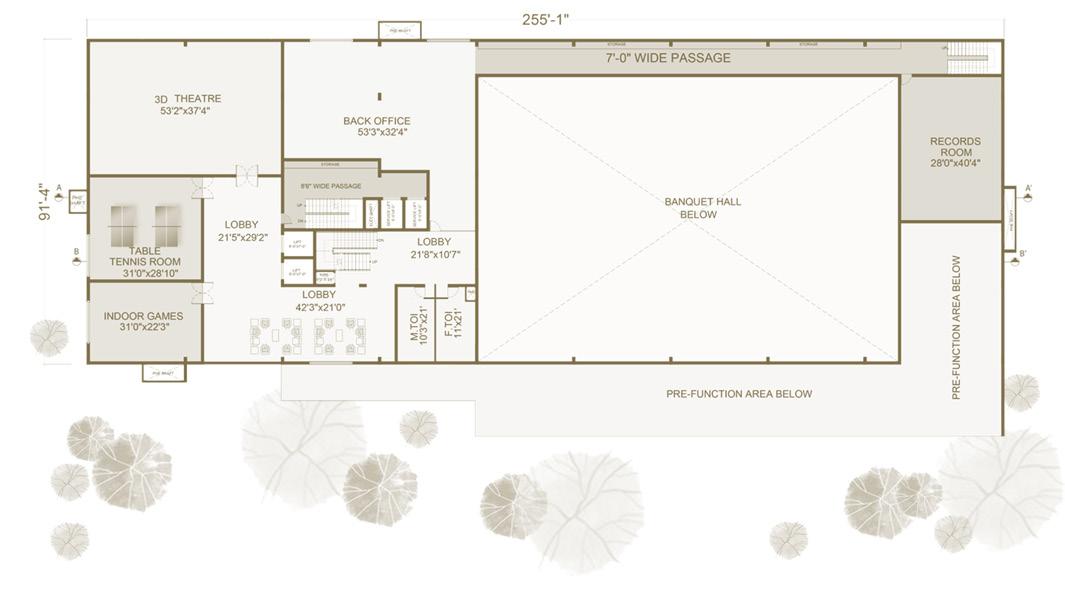

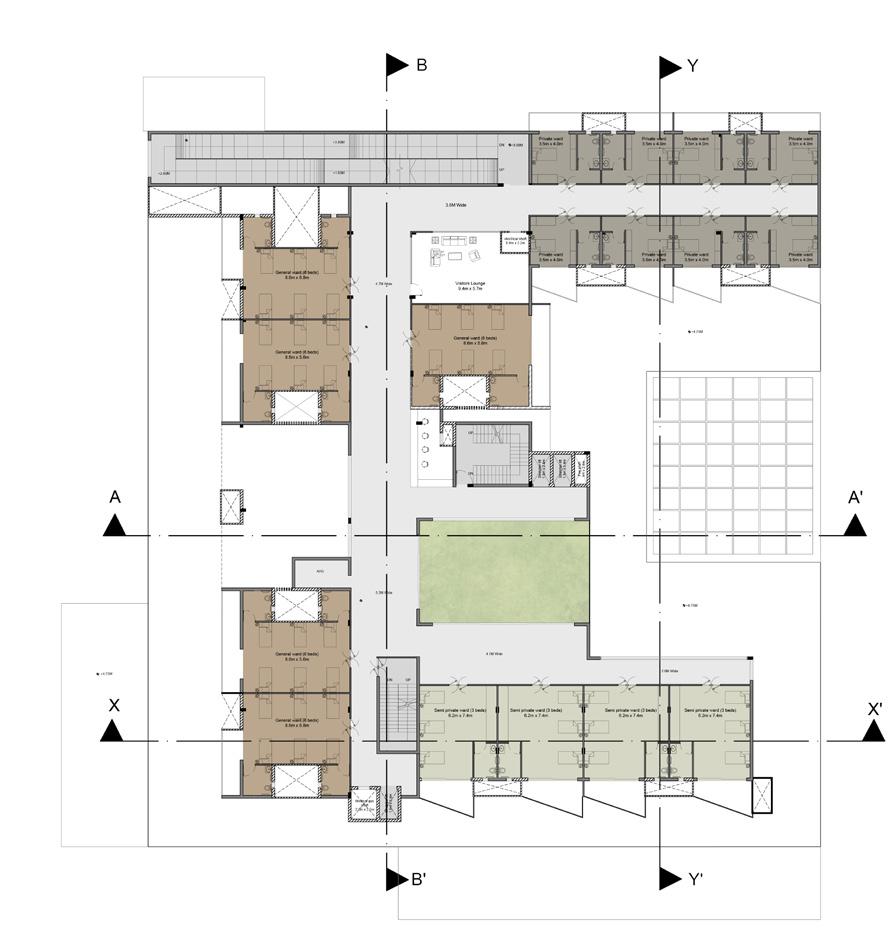

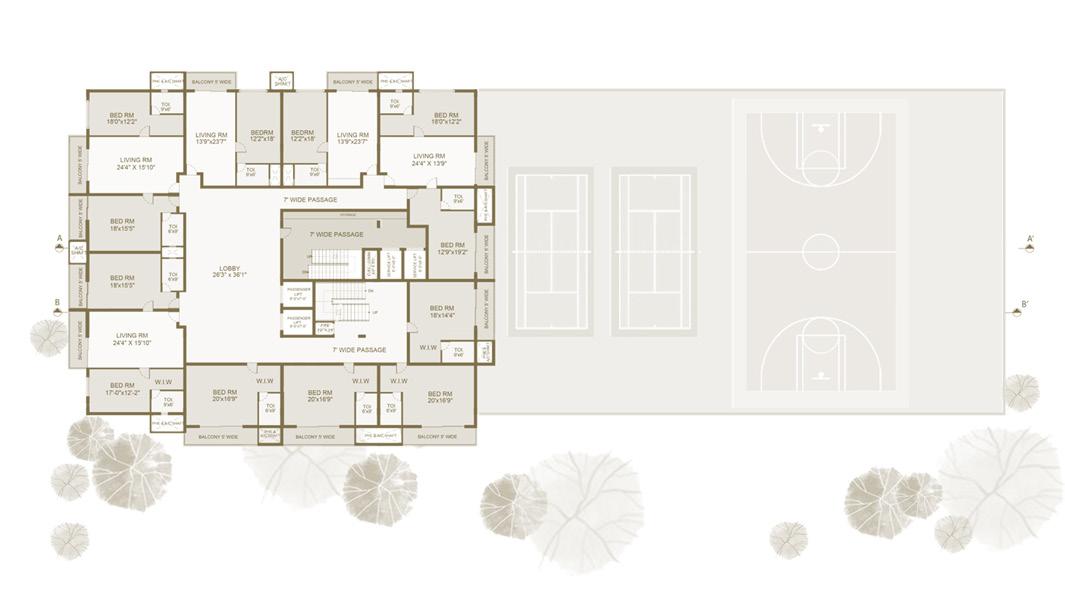

FOURTH FLOOR PLAN

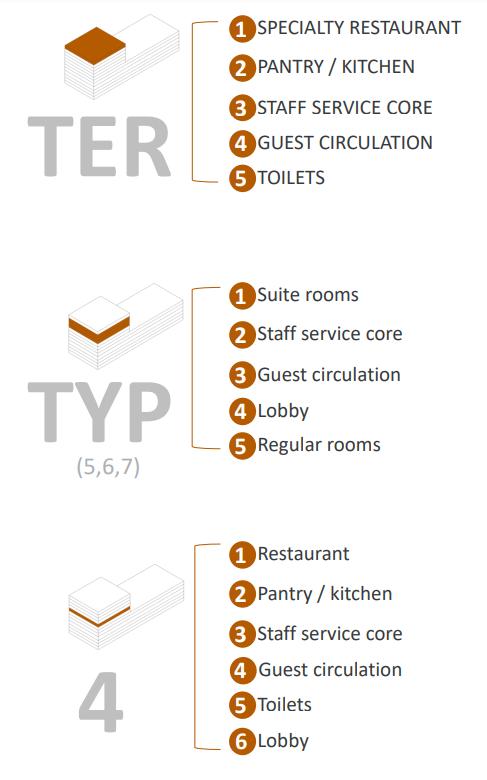

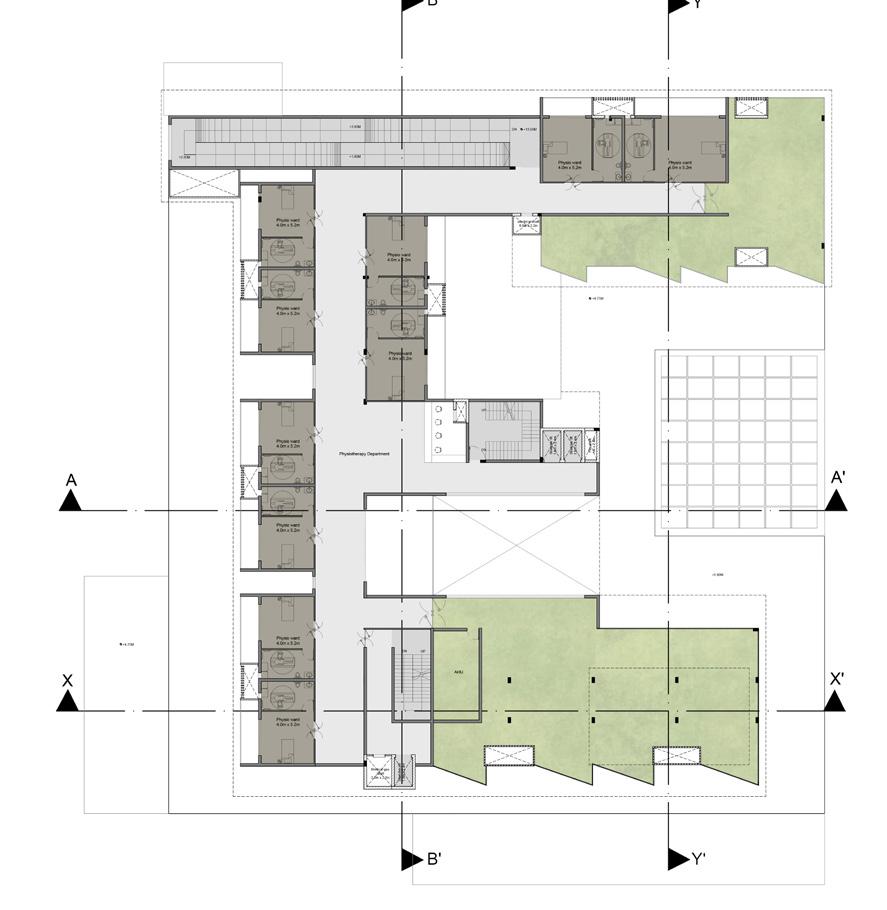

FIFTH & SIXTH FLOOR PLAN
FIFTH FLOOR PLAN

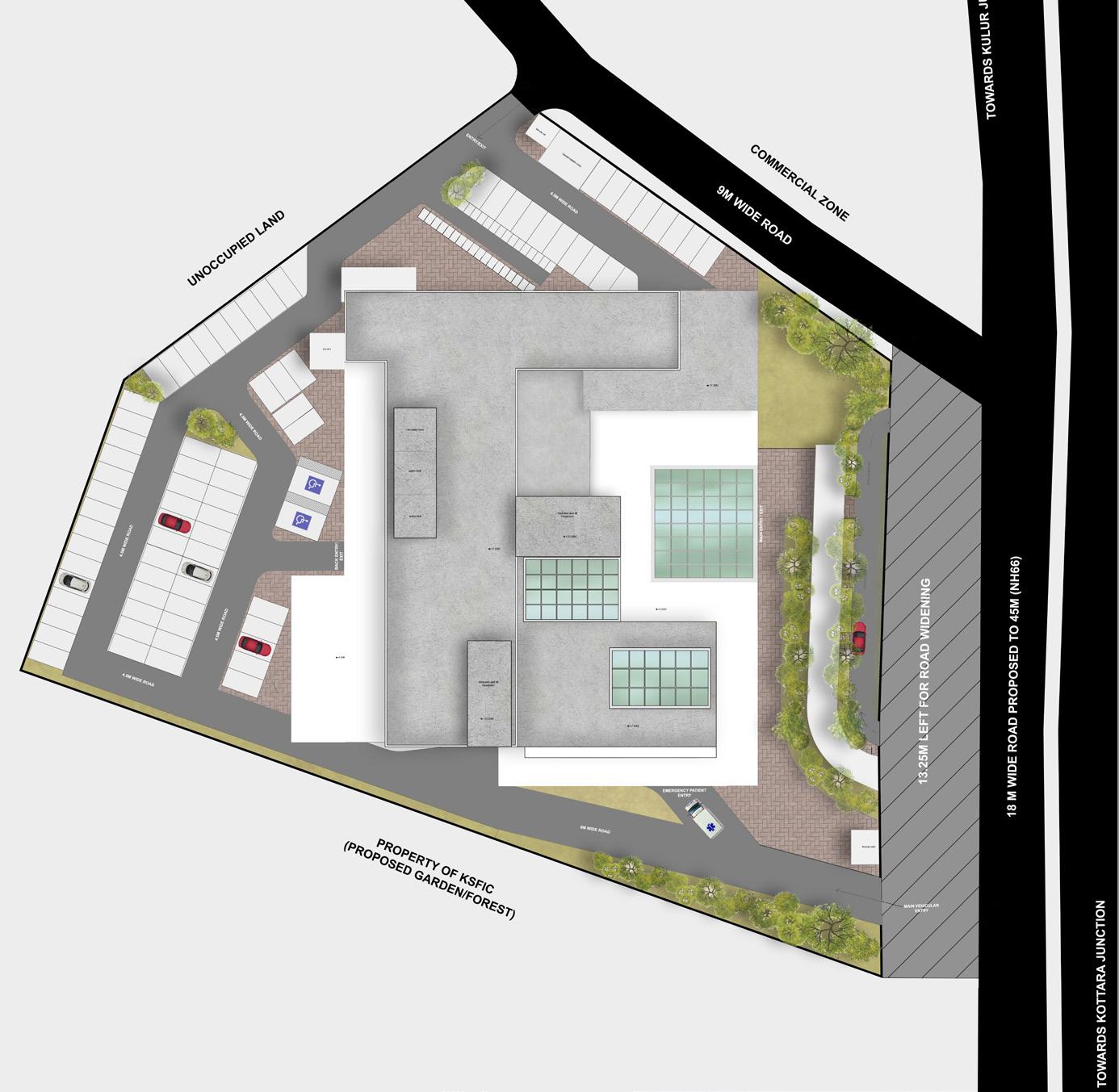

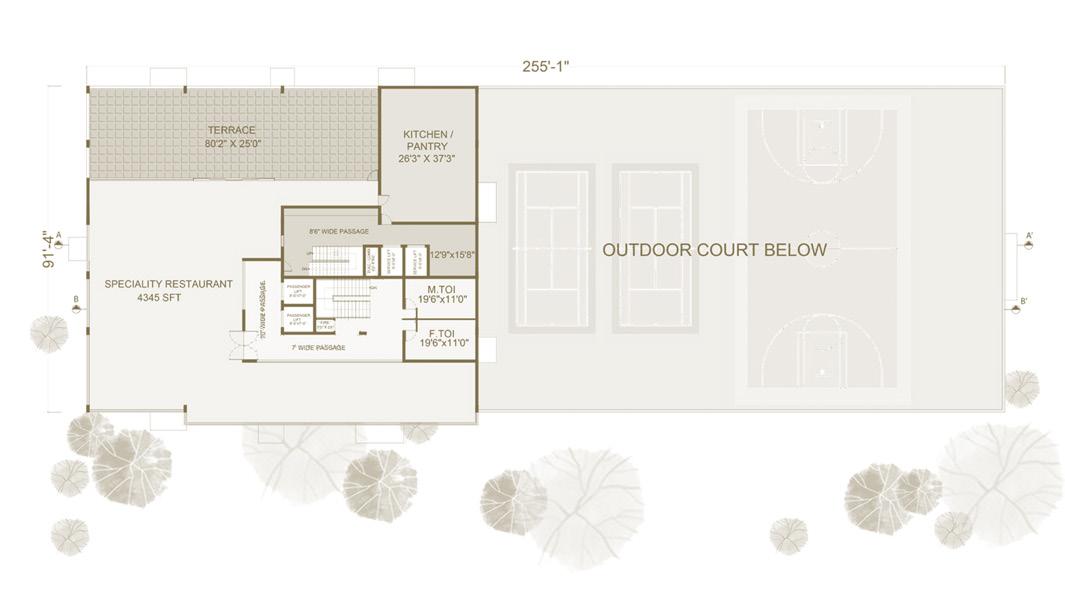

TERRACE FLOOR PLAN

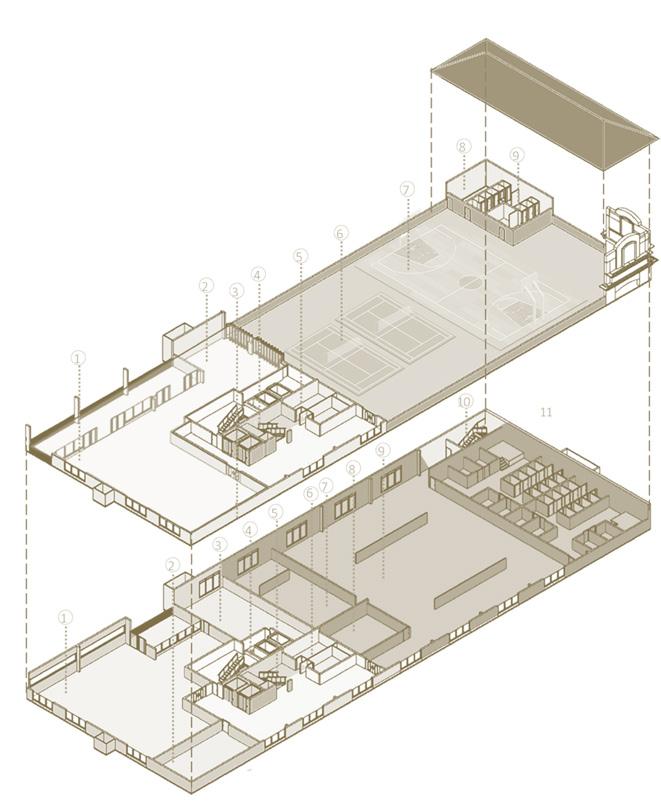

PHASE
PHASE-2
PHASE-1

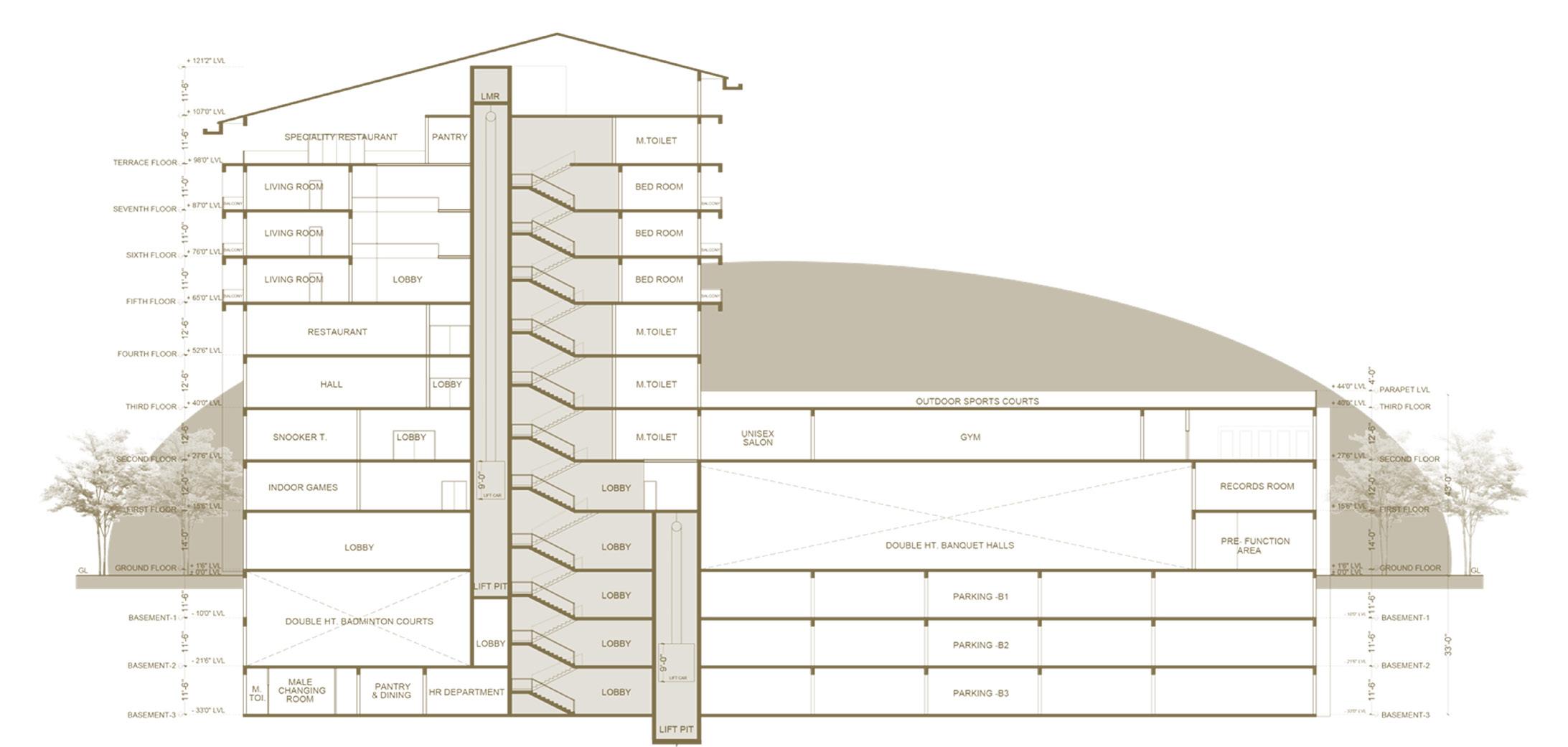

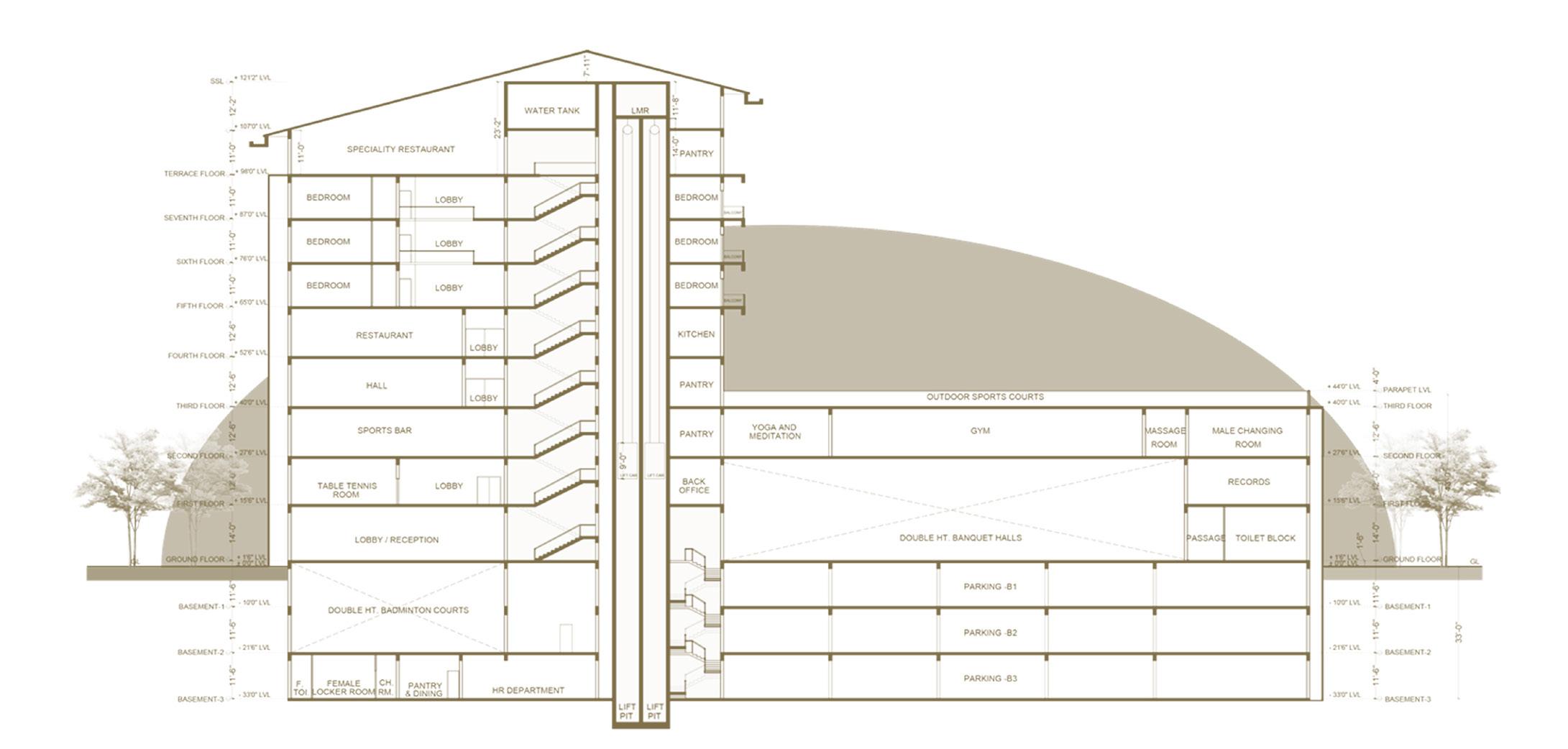

SECTION - A
SECTION - B

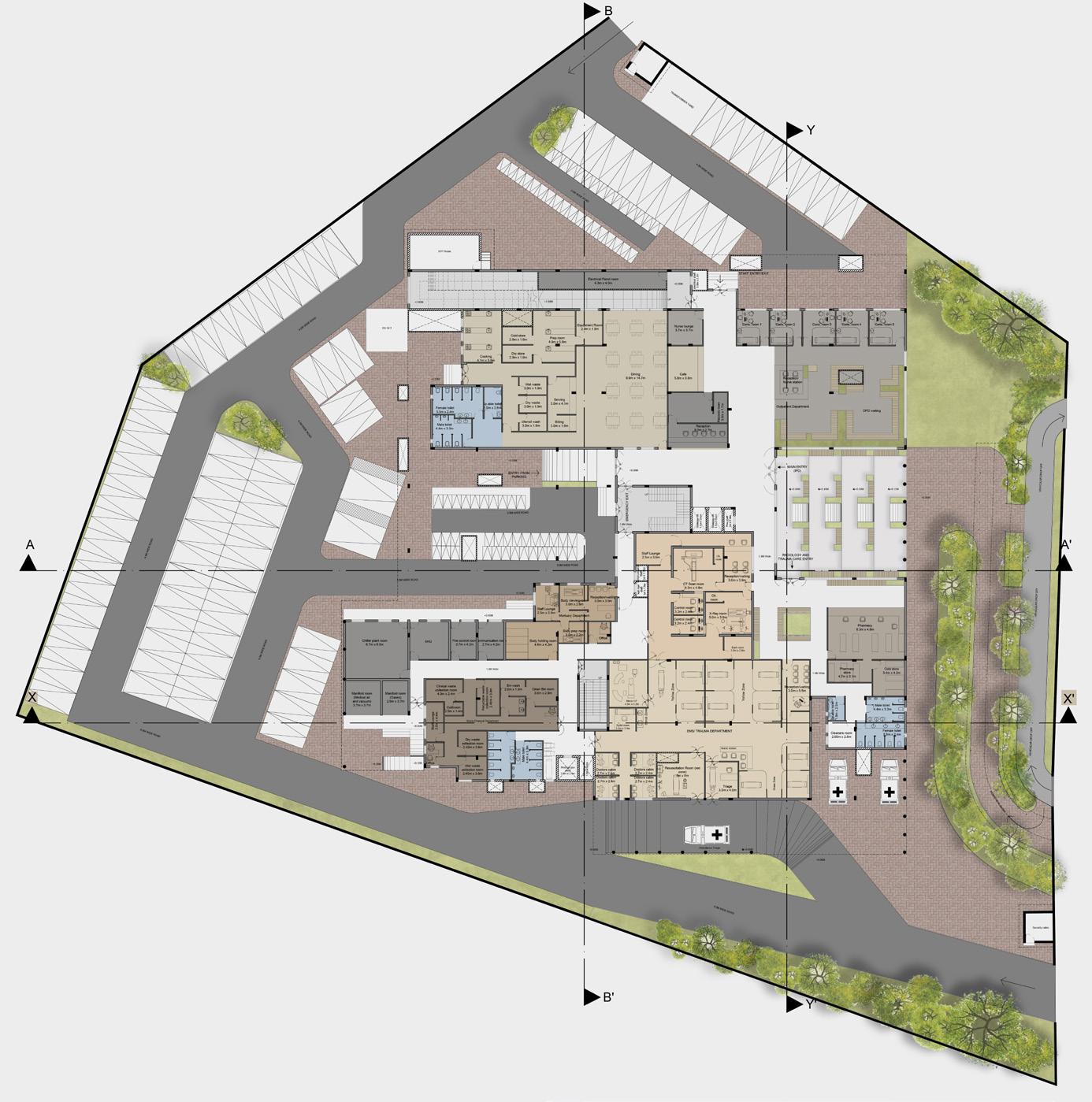

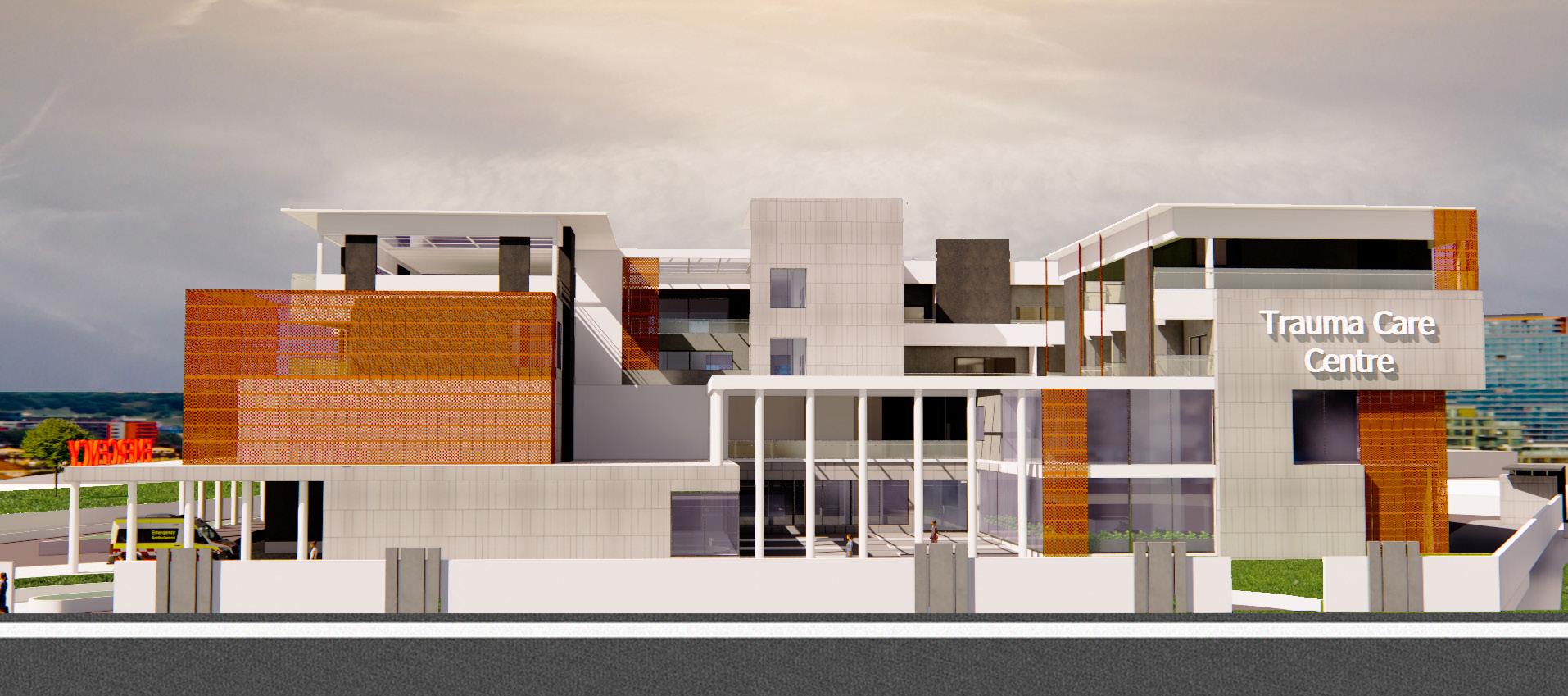

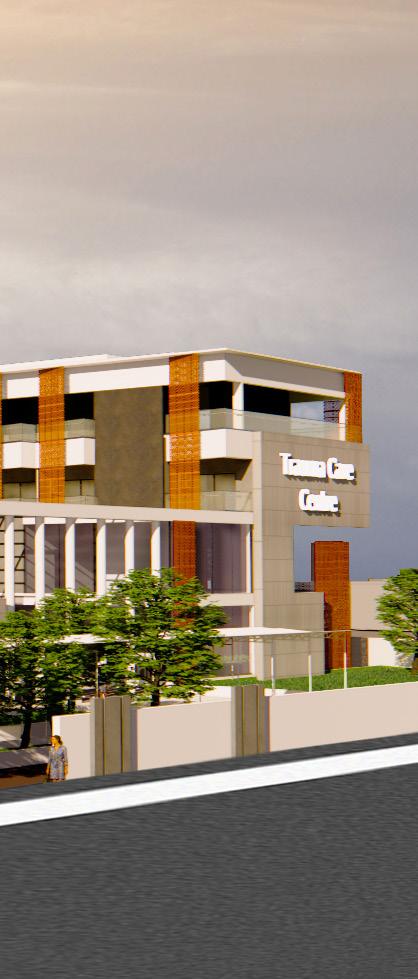

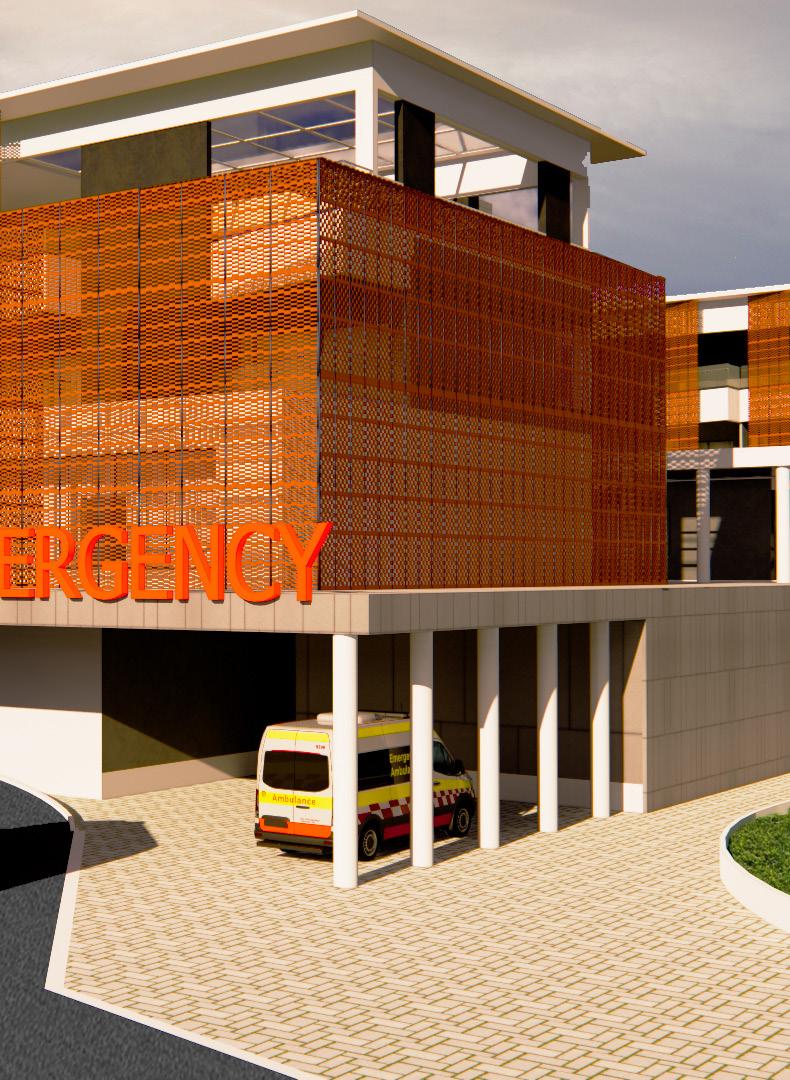

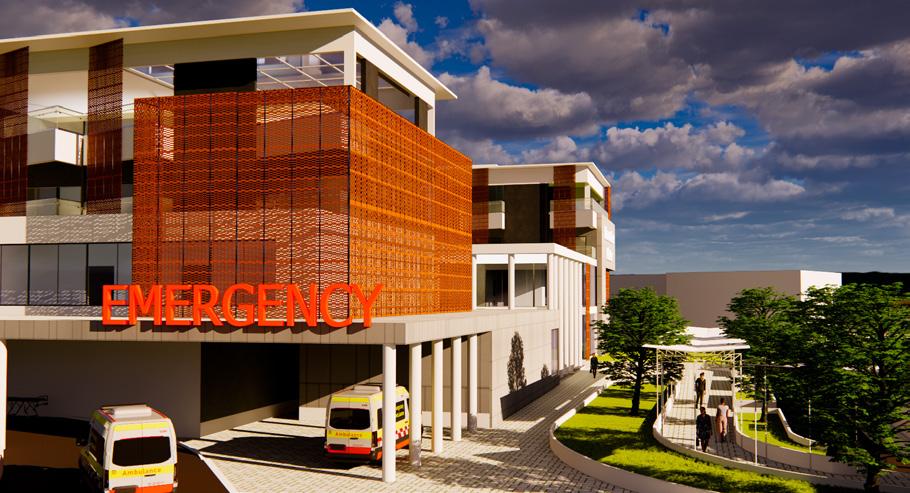

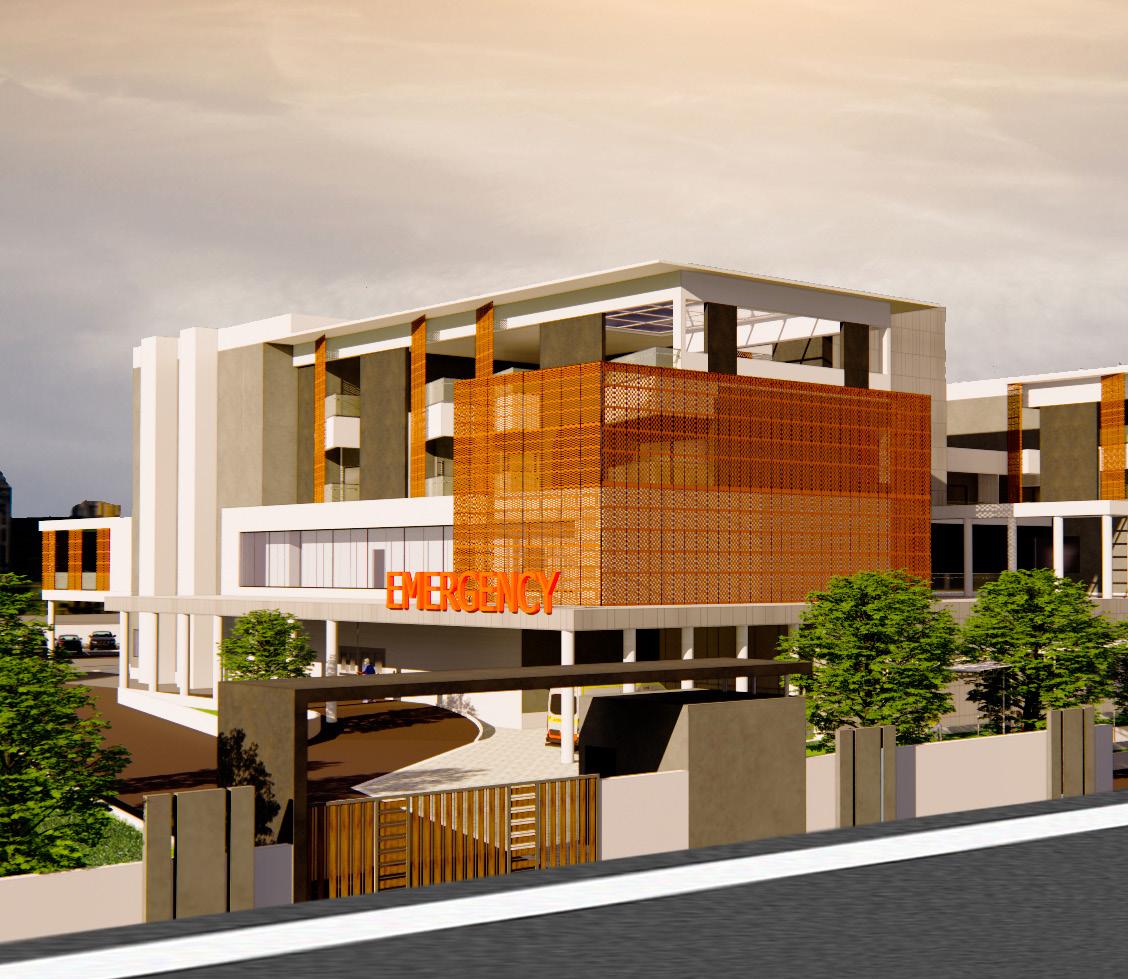

TRAUMA CARE AND REHAB CENTER (THESIS)
•This project consists of Trauma care and rehabilitation centre incorporated with standards given by the governement along with the principles of Architectural design.
•This hospital is a 50 bedded hospital with additional 10 beds for physiotherapy patients
•Total visitor parking is 100 and total staff parking is 50.
•This project aims to create a healing spaces, not just physical but also mental healing.
•Location: Opposite to goldfinch city, Kulur
•Width of adjoining road: 18m proposed to 45(NH66) towards the east and 9m wide road towards the north.
•Site area before widening: 9145 M2
•Site area after widening: 8340 M2
•Permissible FAR: 2.5
•TDR: 0.5
•Permissible built-up area: 3 x 8340 M2 = 25,020 M2
•Minimum front setback (NH): 30m from the center of the road plus 10m setback (after road widening)
SOFTWARE USED
3 4
2
1

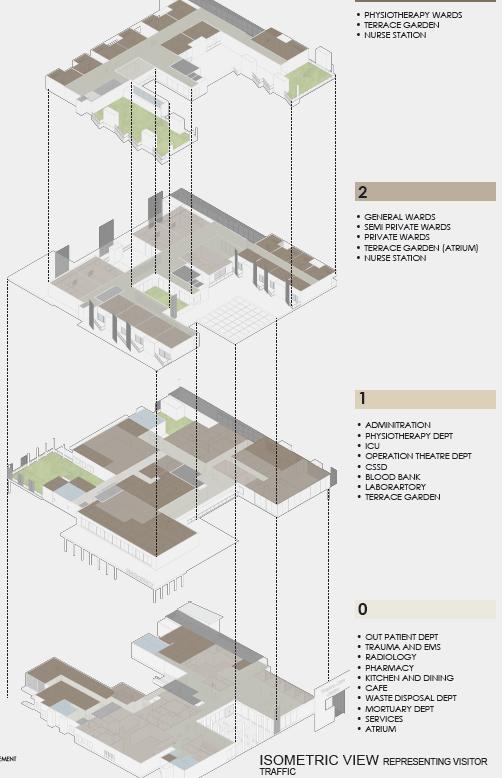

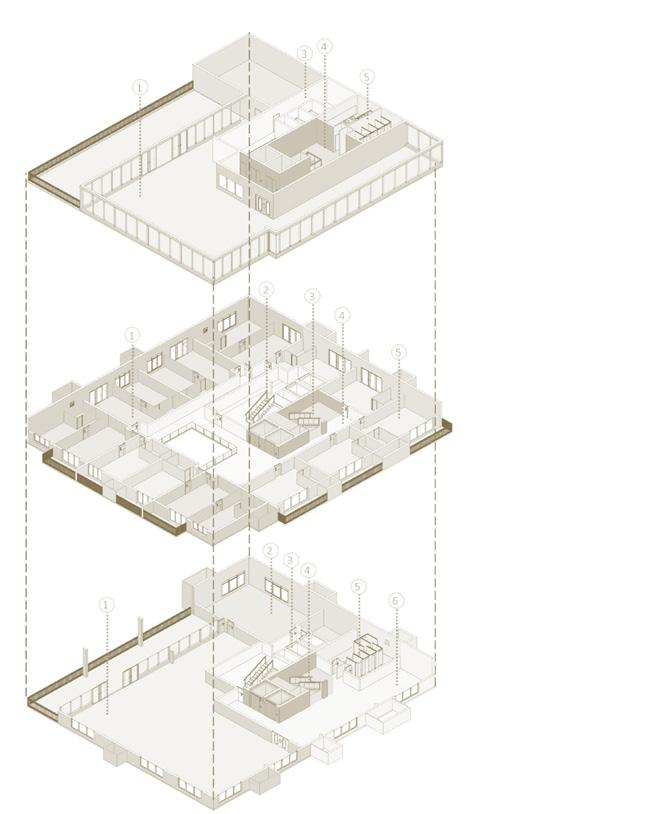

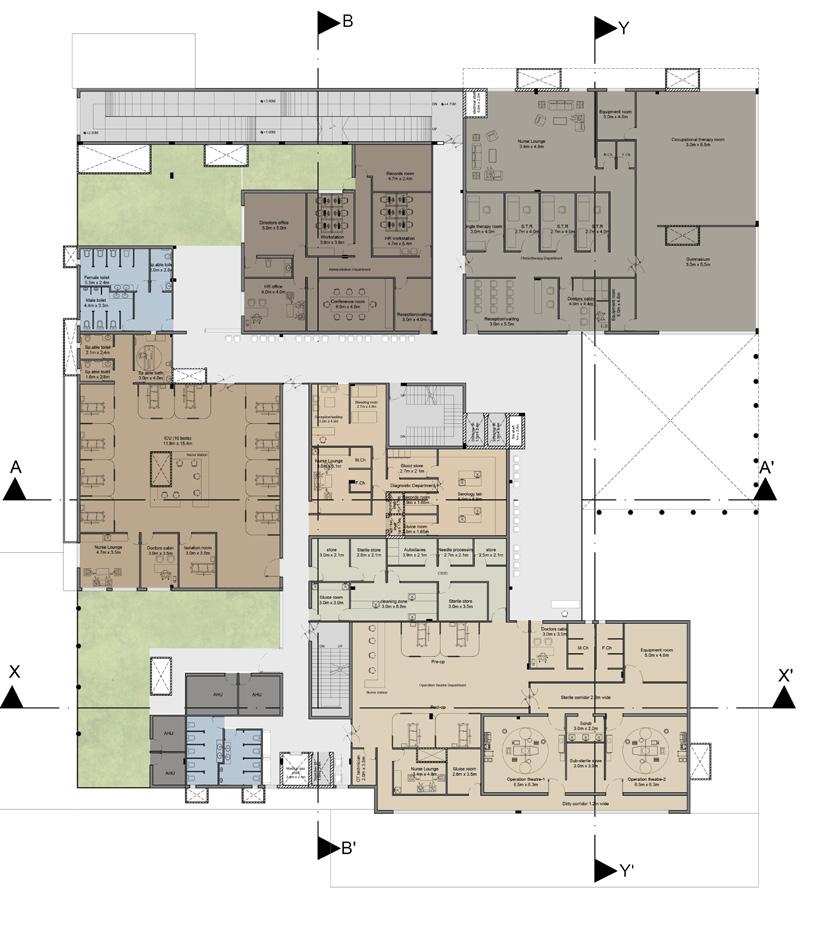

Segregation of public and private zones

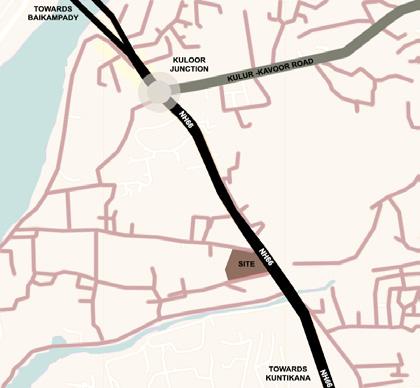

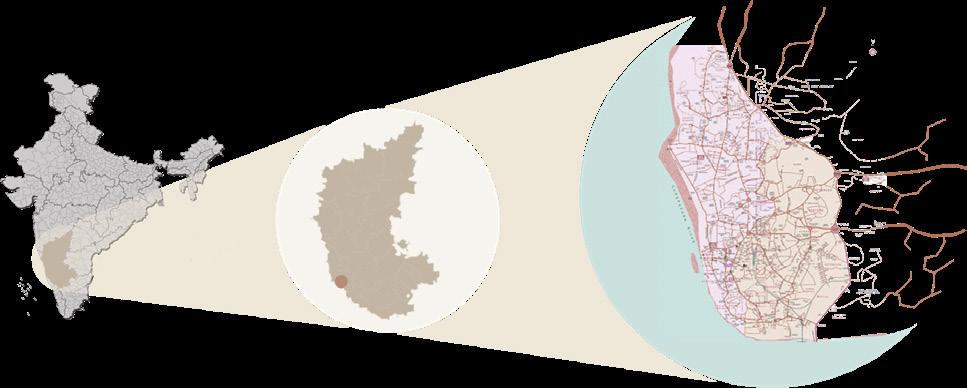

INDIA KARNATAKA MANGALORE KULUR

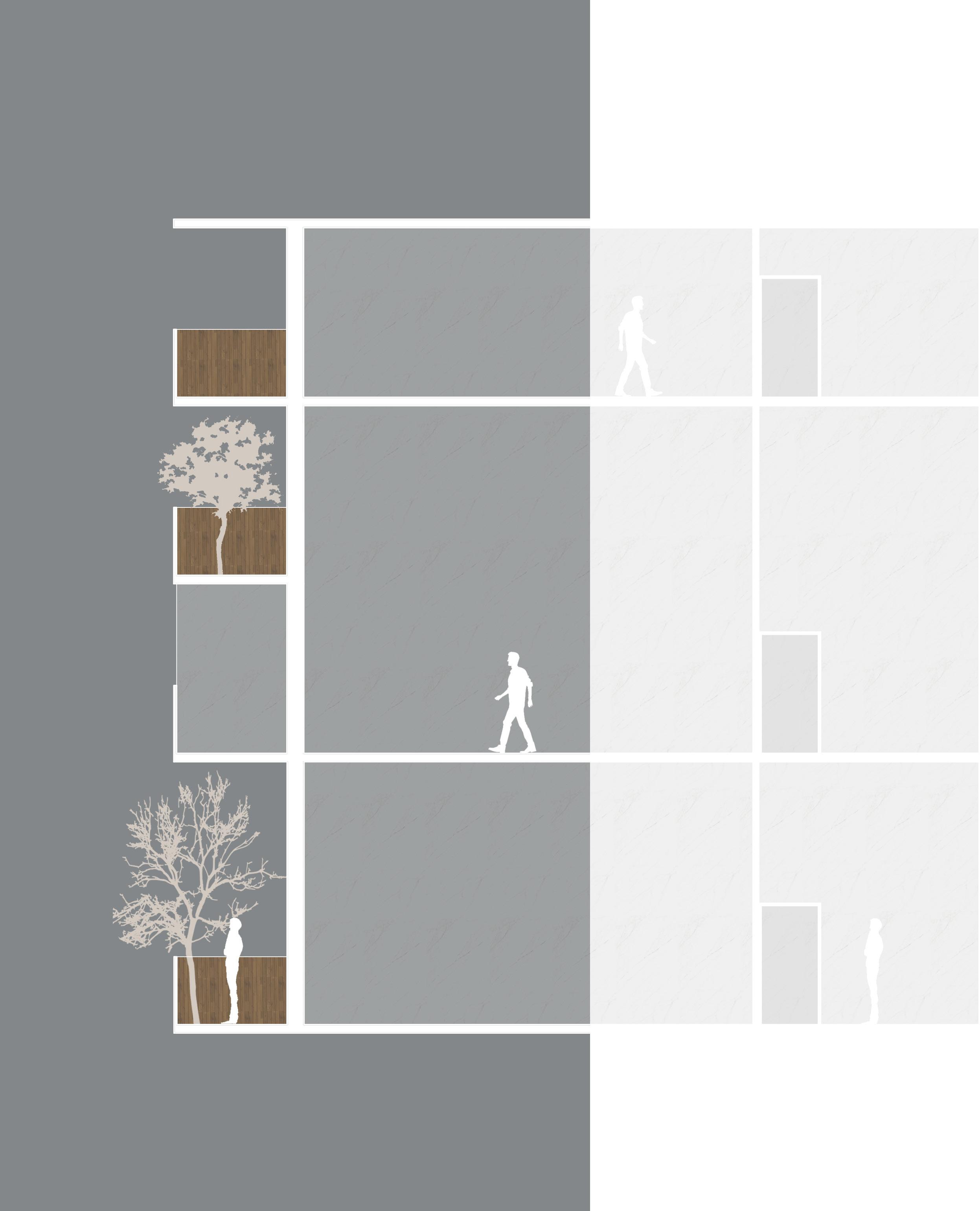

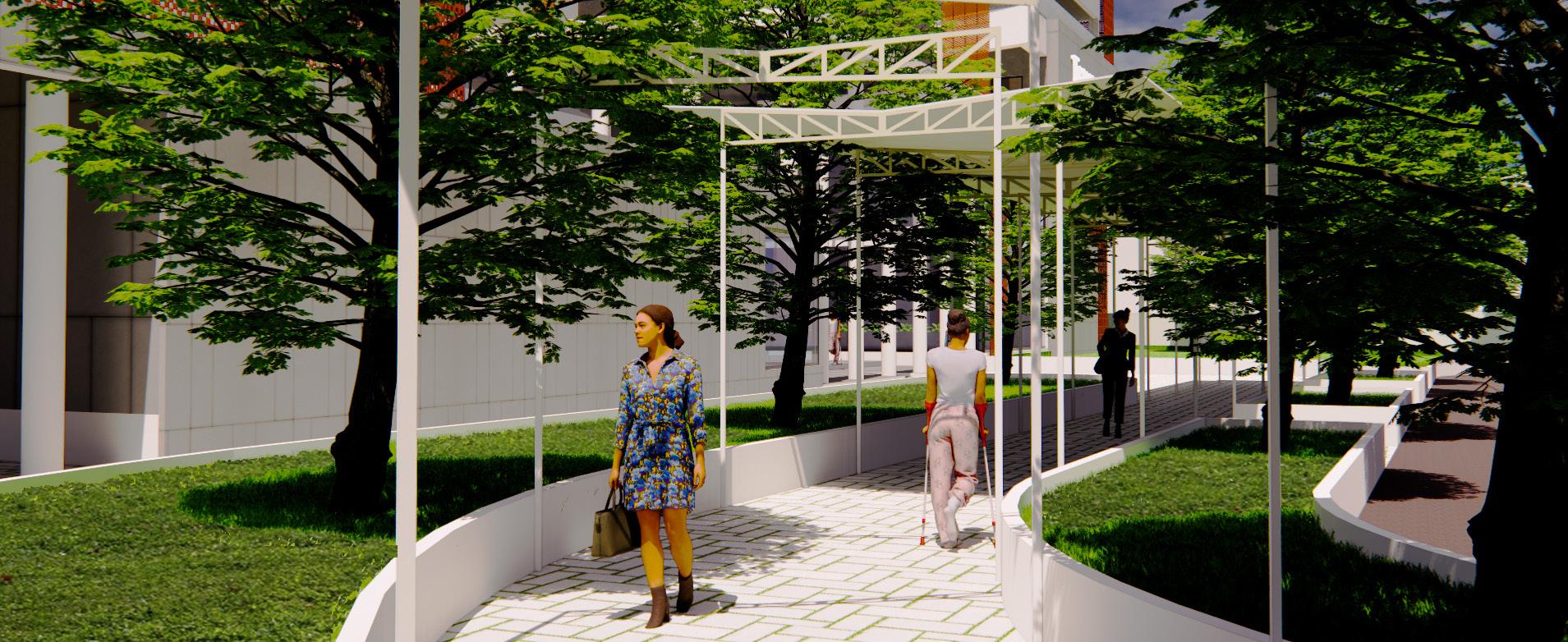

Converting open spaces into terrace gardens.

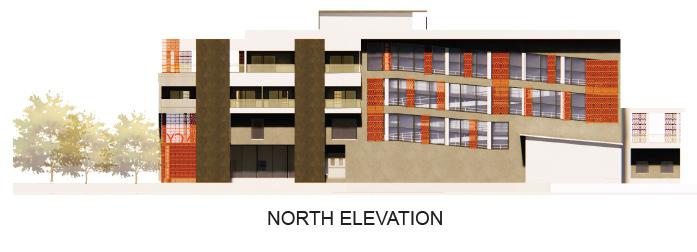

Angled balconies to let east light in and block south light through jaalis.
Creating voids through Atriums and balconies

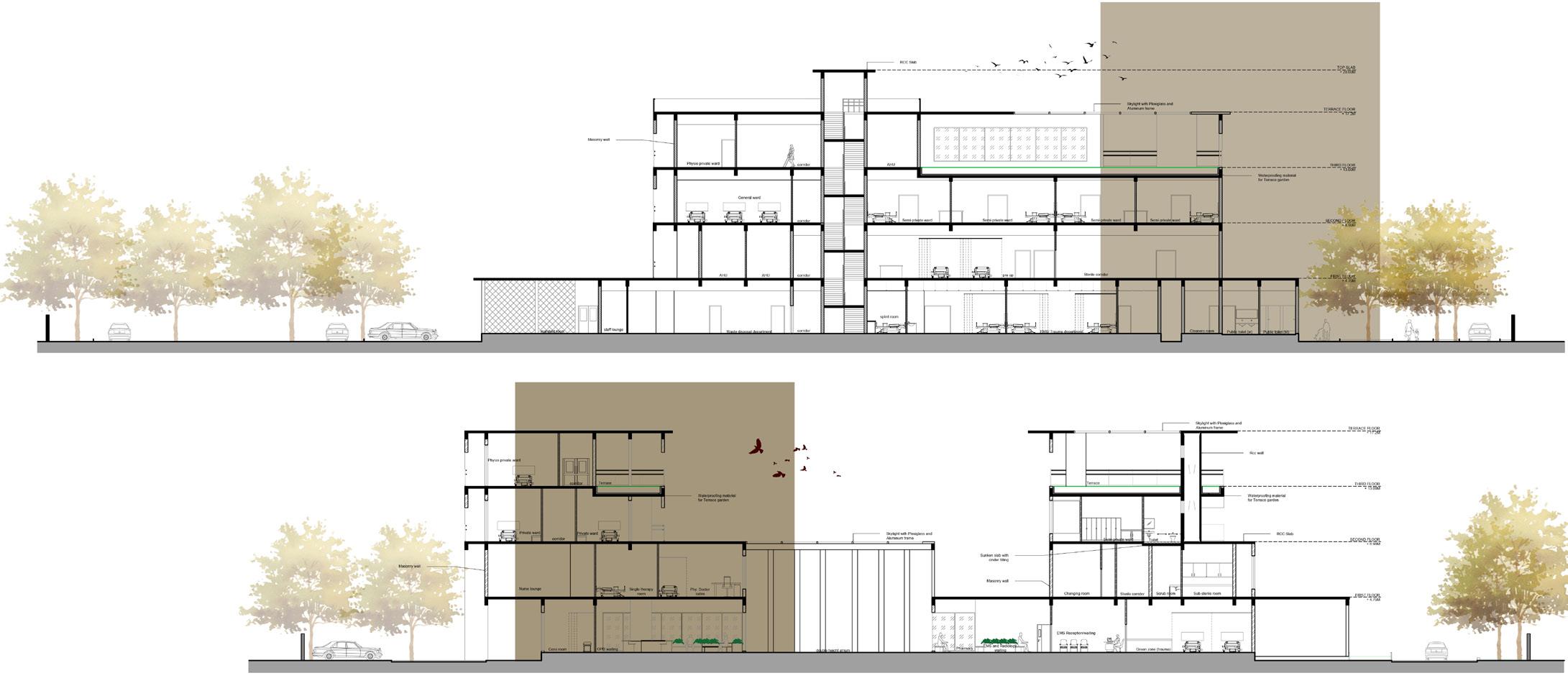

SECTION - AA”
SECTION - BB”

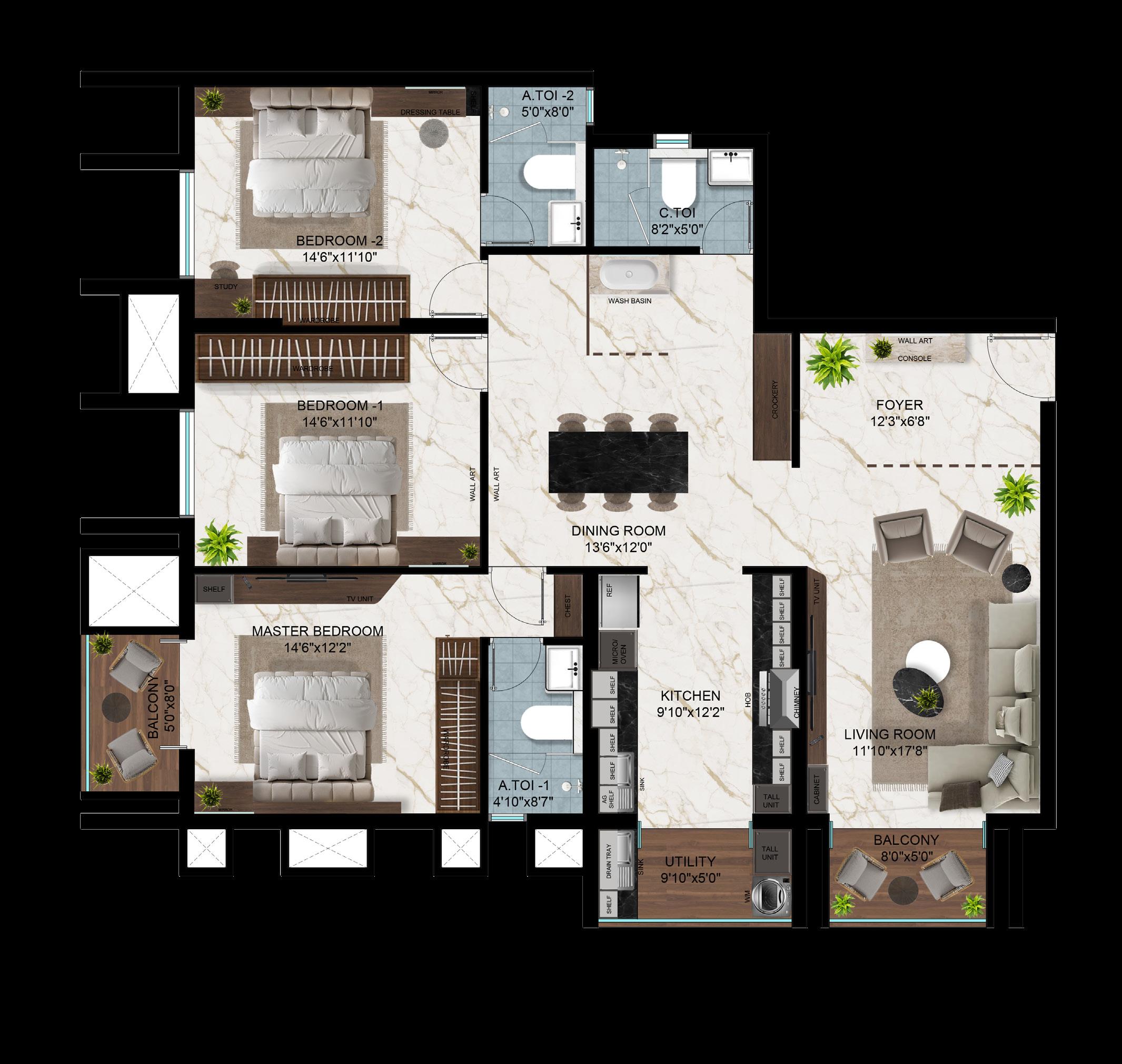

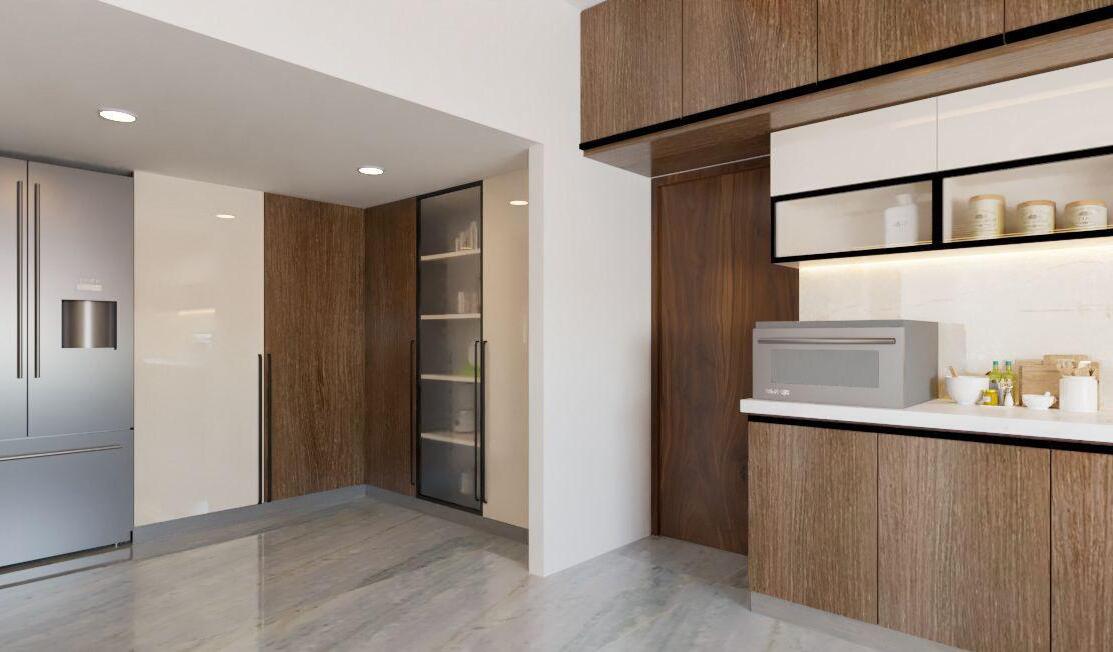

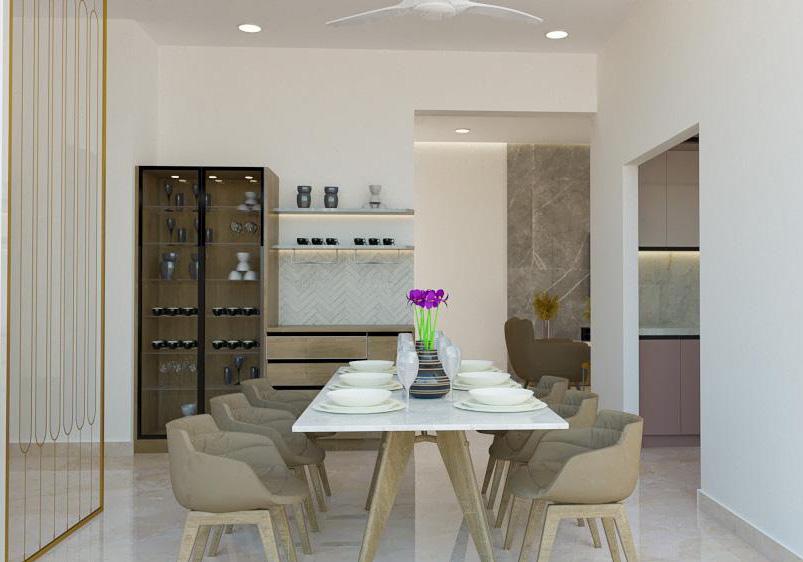

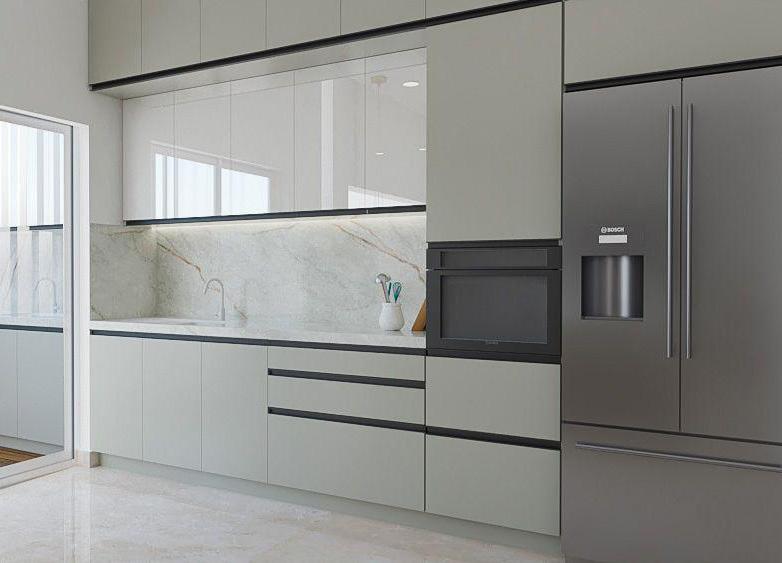

INTERIORS FOR 3BHK APARTMENT

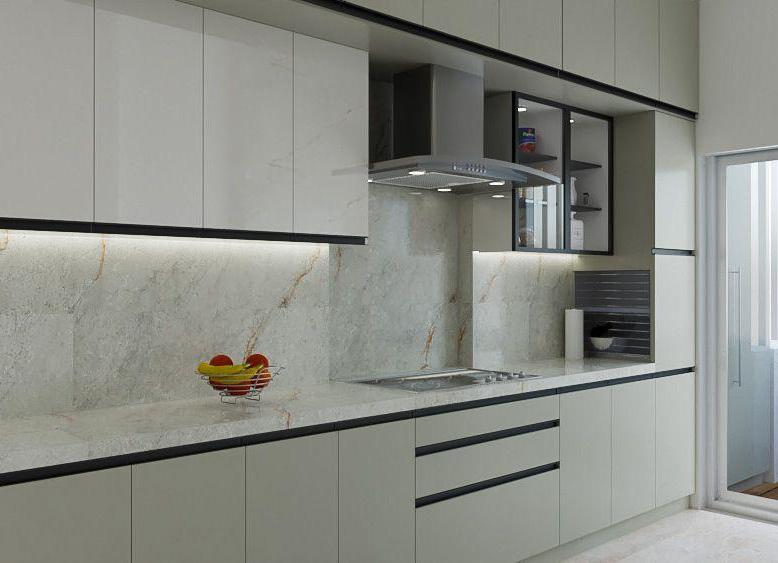

This is an interior design project of a 3BHK apartment in MAK ADDRESS, Mangalore.
TNT ARCHITECTS
Project completed while freelancing for TNT Architects, Mangalore.
As a freelancer, I coordinated with the principal architect Lenoy Lobo in the process of designing the interiors and creating 3D model for the same..
SOFTWARE USED

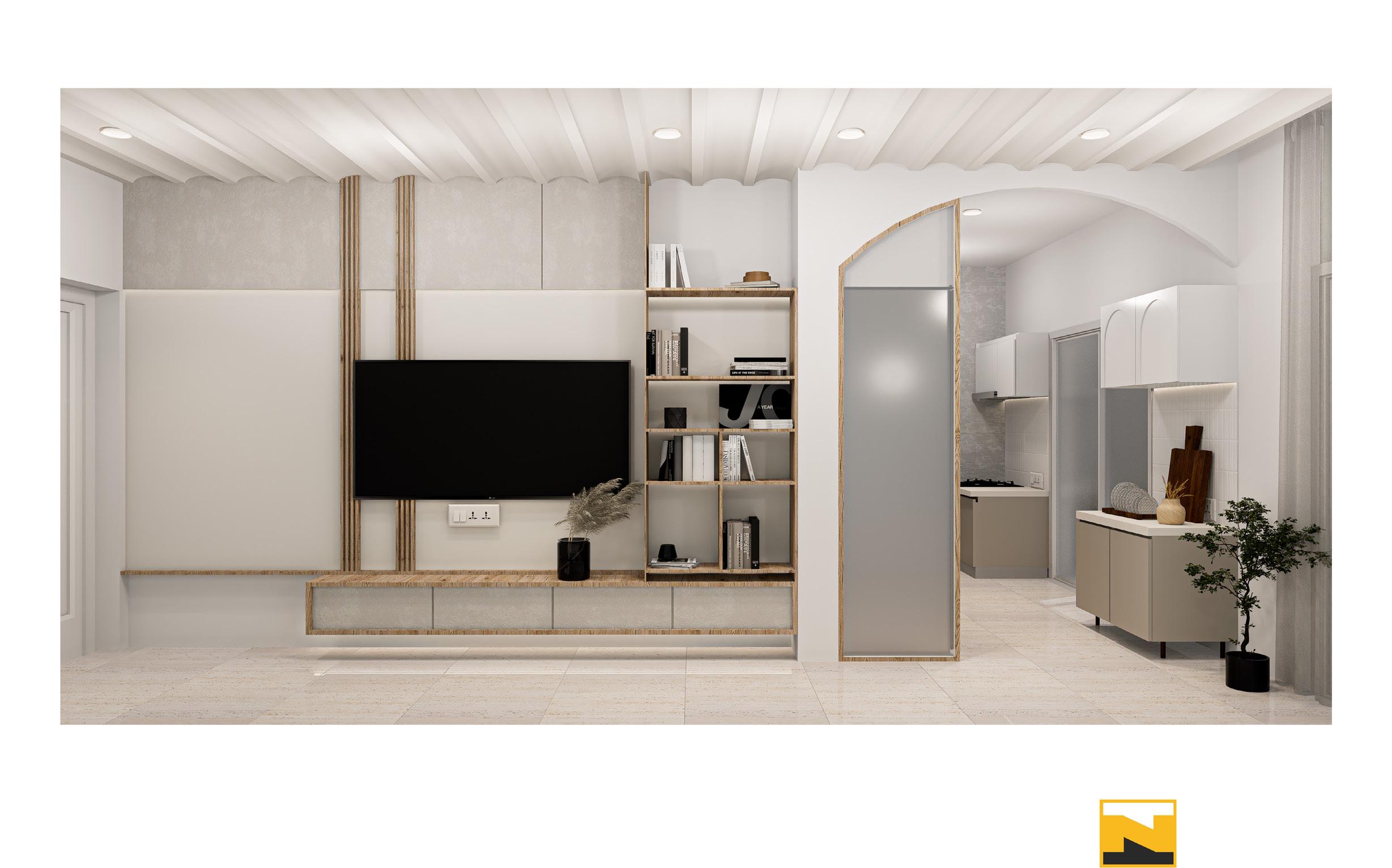

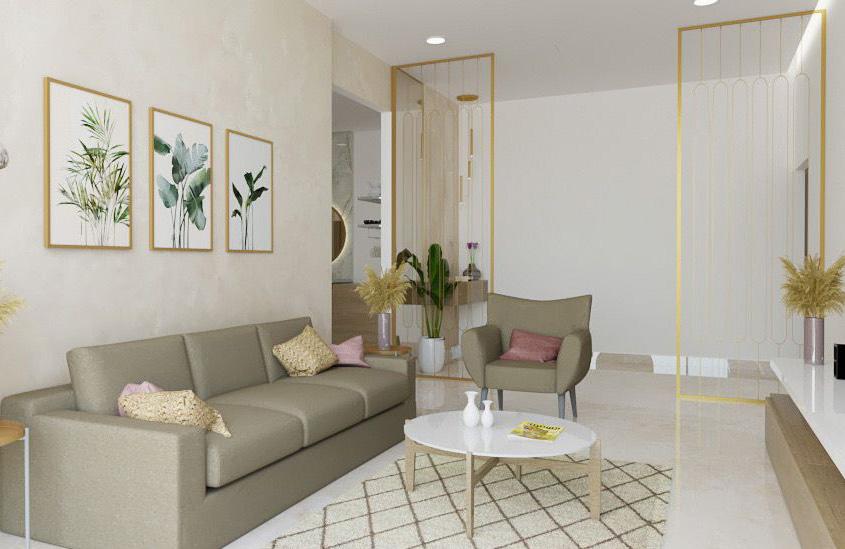

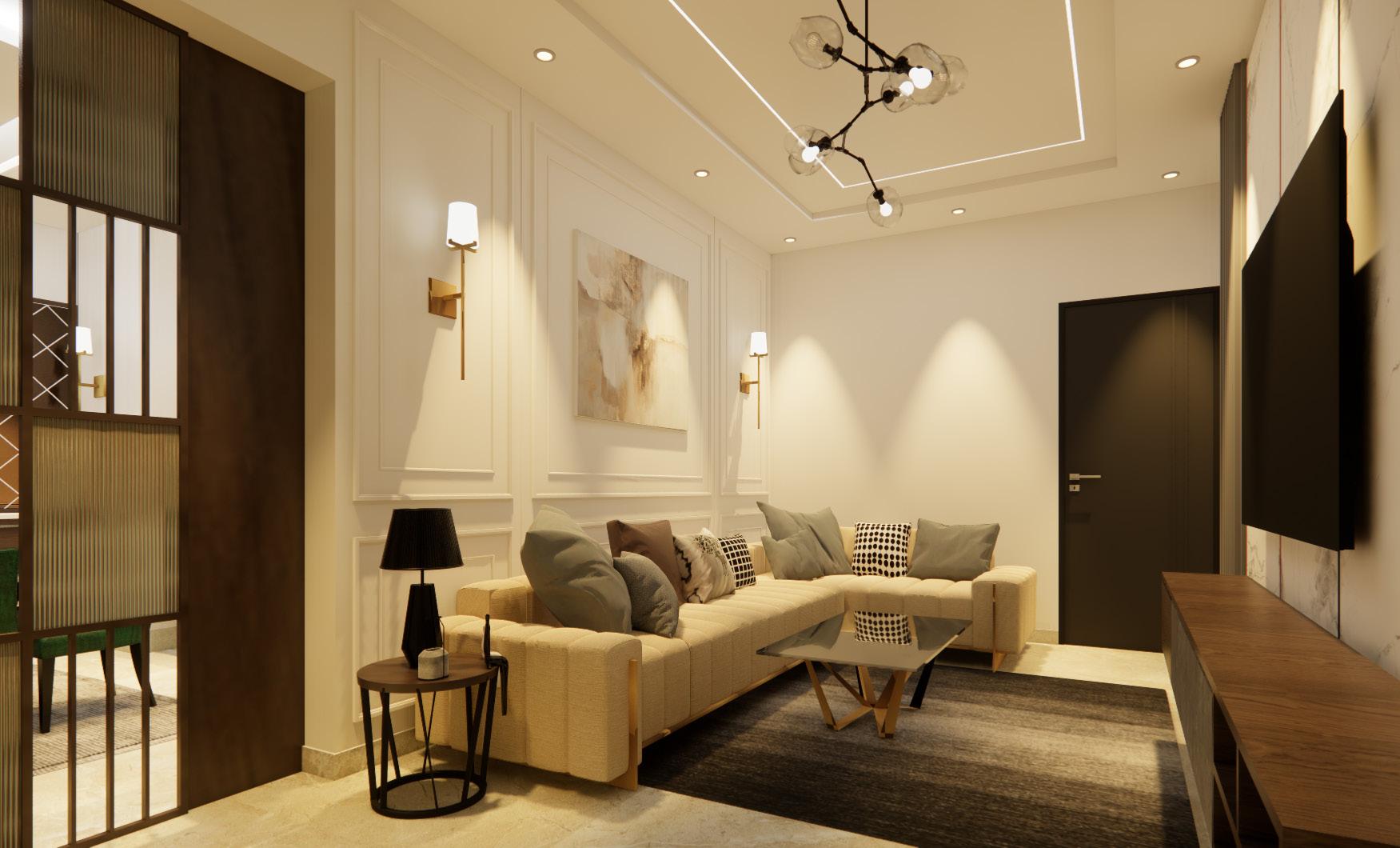

LIVING ROOM VIEW

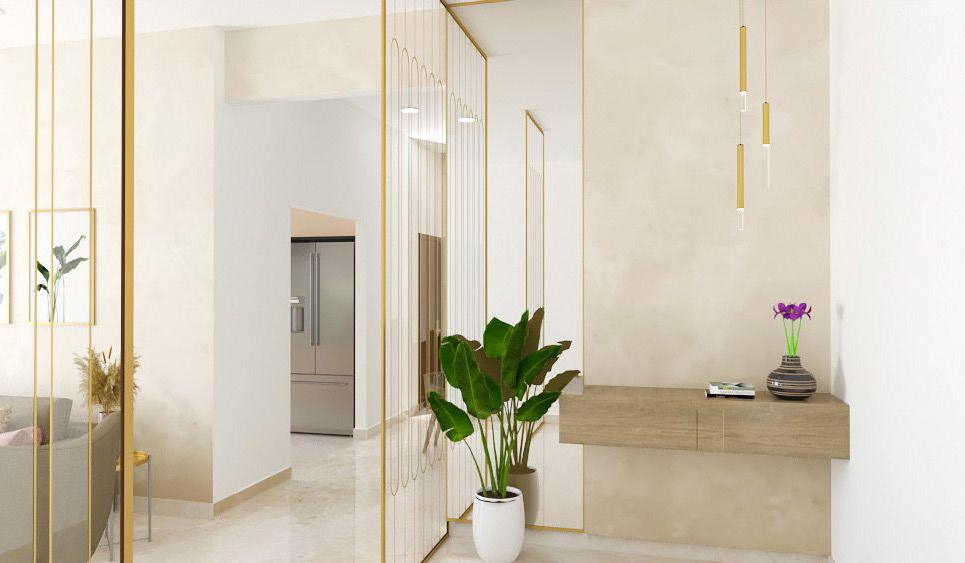

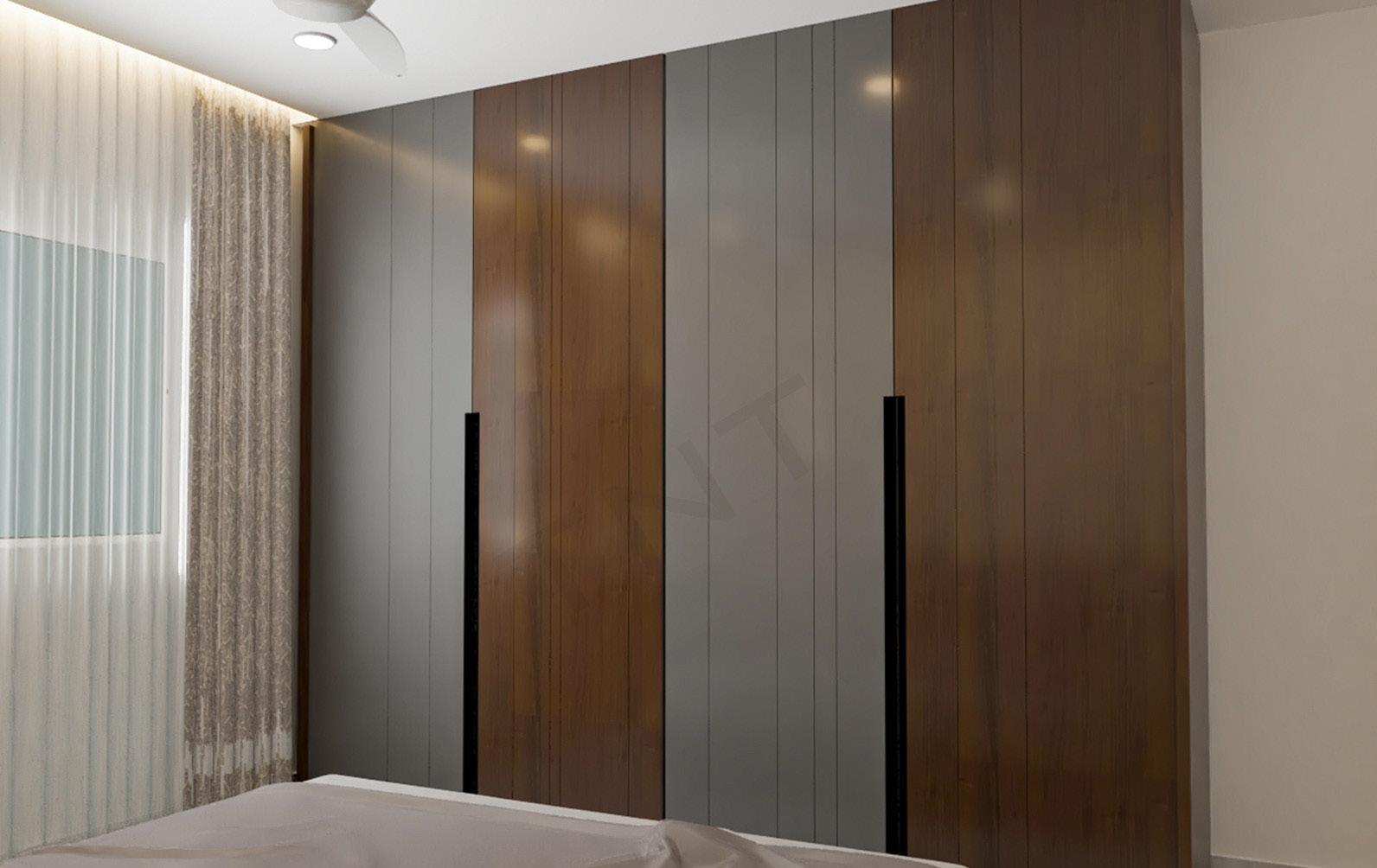

FOYER VIEW

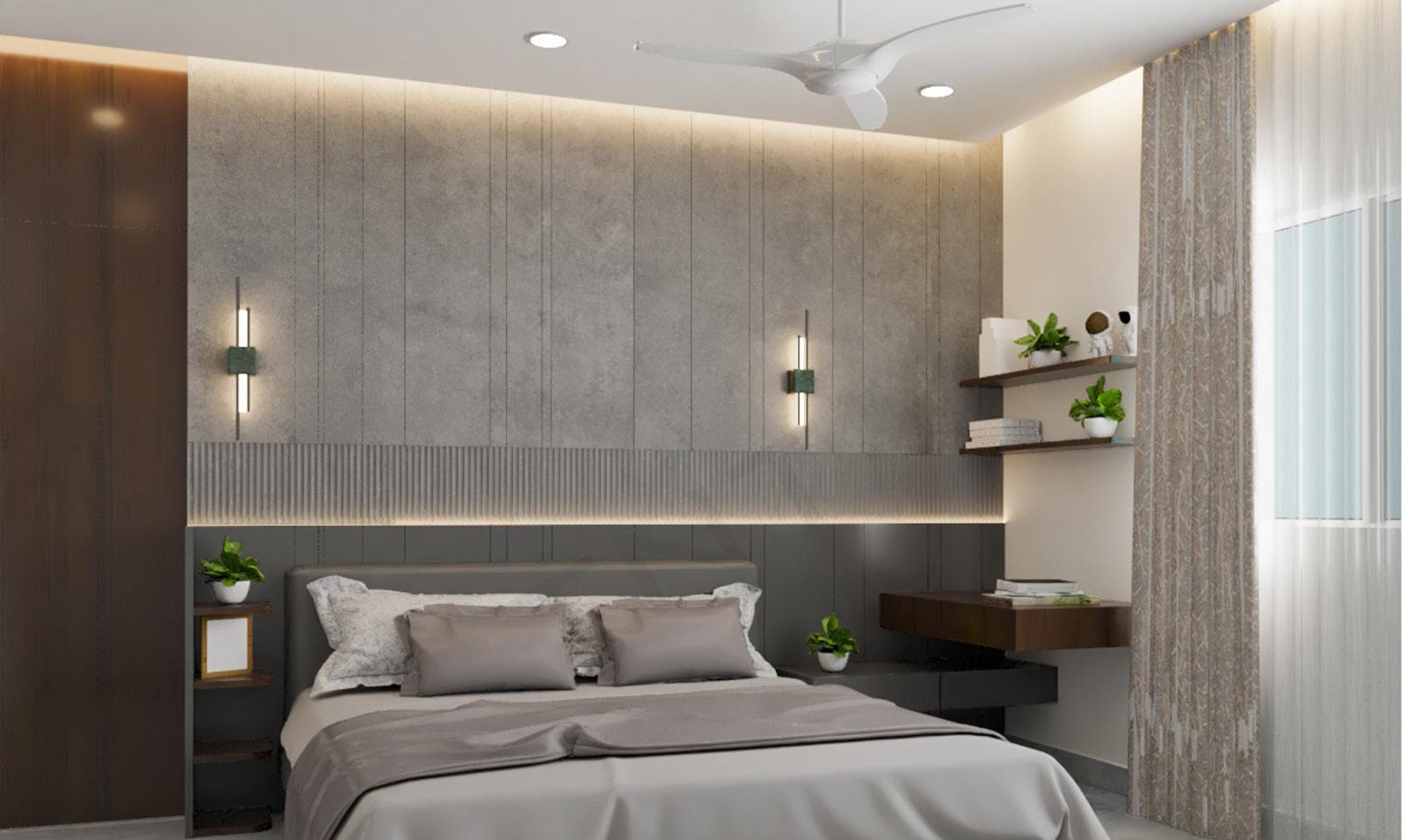

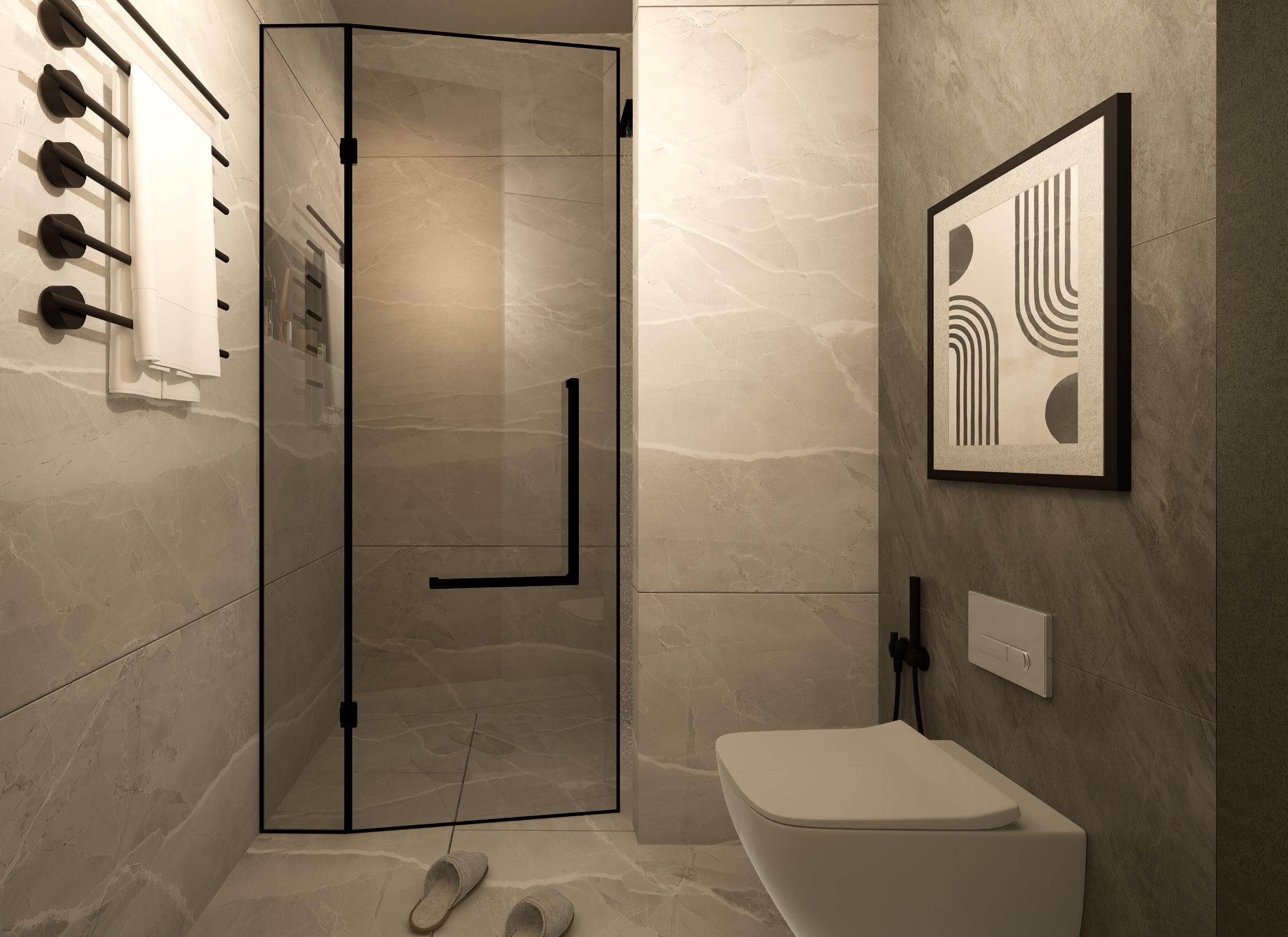

INTERIORS FOR A 3 STAR HOTEL IN BANGALORE.

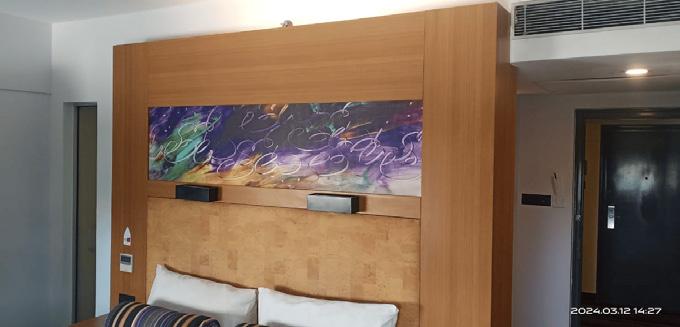

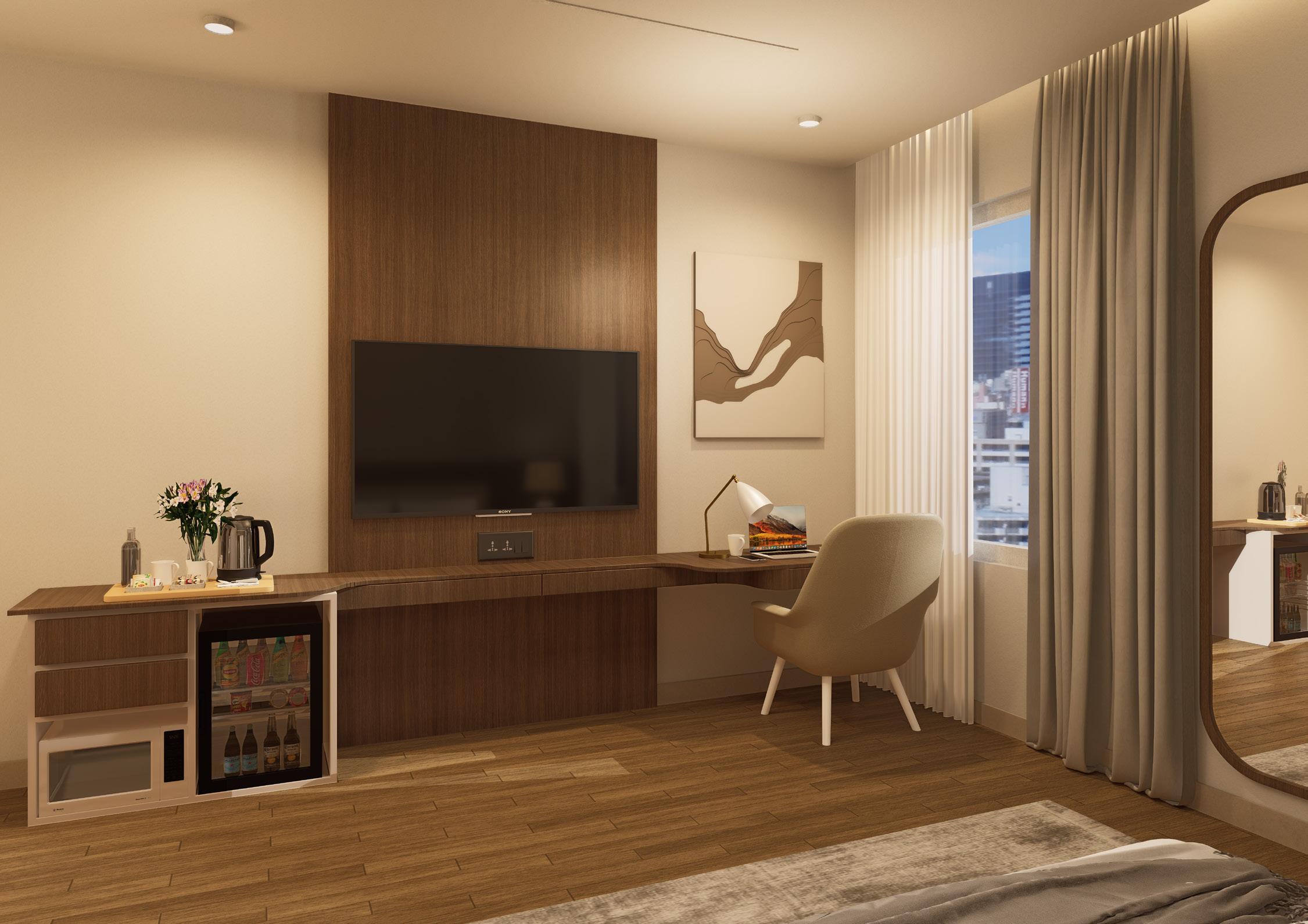

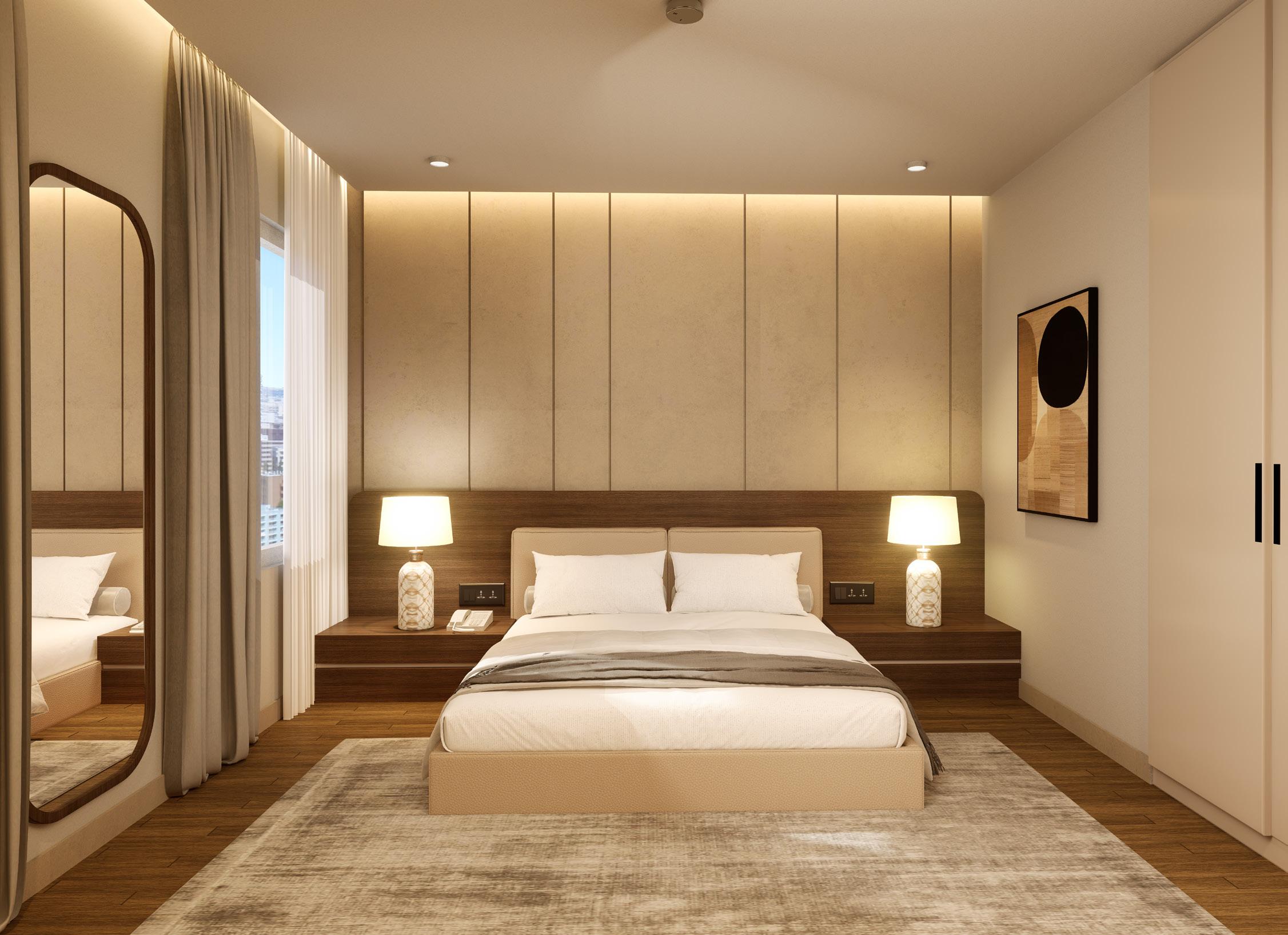

This is a renovation project of a 3-star hotel in Bangalore
TNT ARCHITECTS
Project completed while freelancing for TNT Architects, Mangalore.
As a freelancer, I coordinated with the principal architect Lenoy Lobo in the process of redesigning the interiors and creating 3D model and renders for the same.
SOFTWARE USED

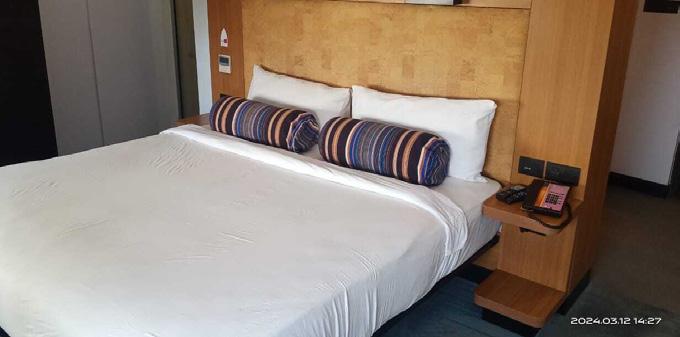

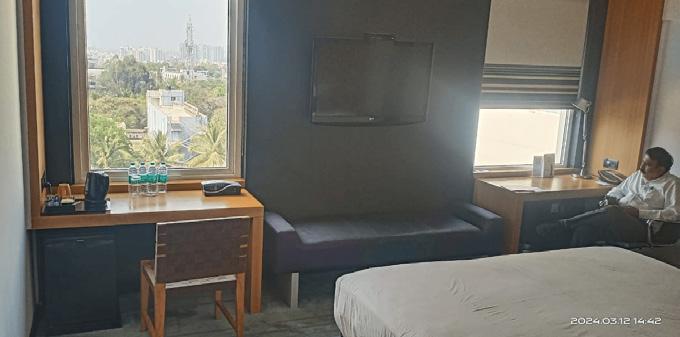

EXISTING FEATURES

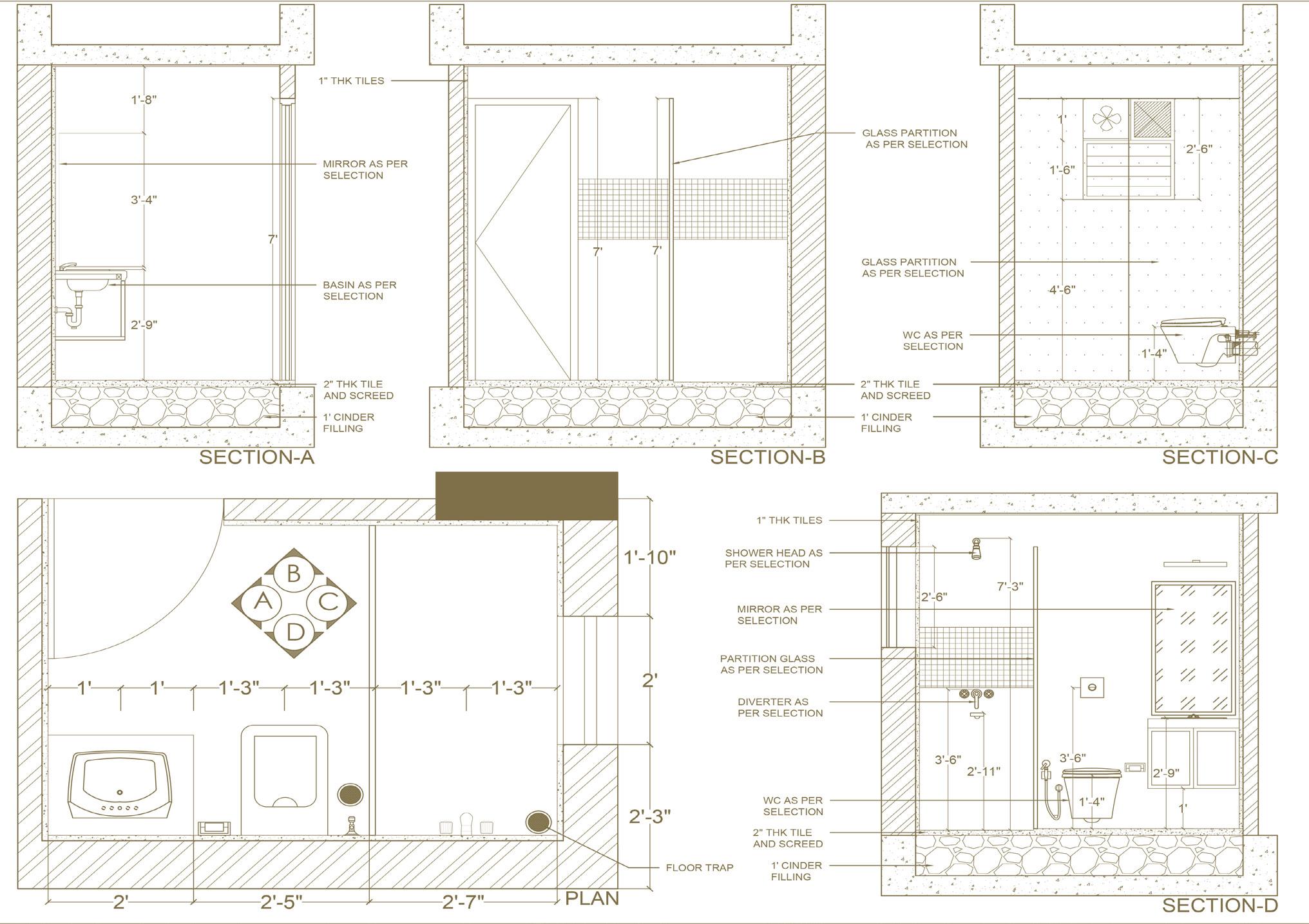

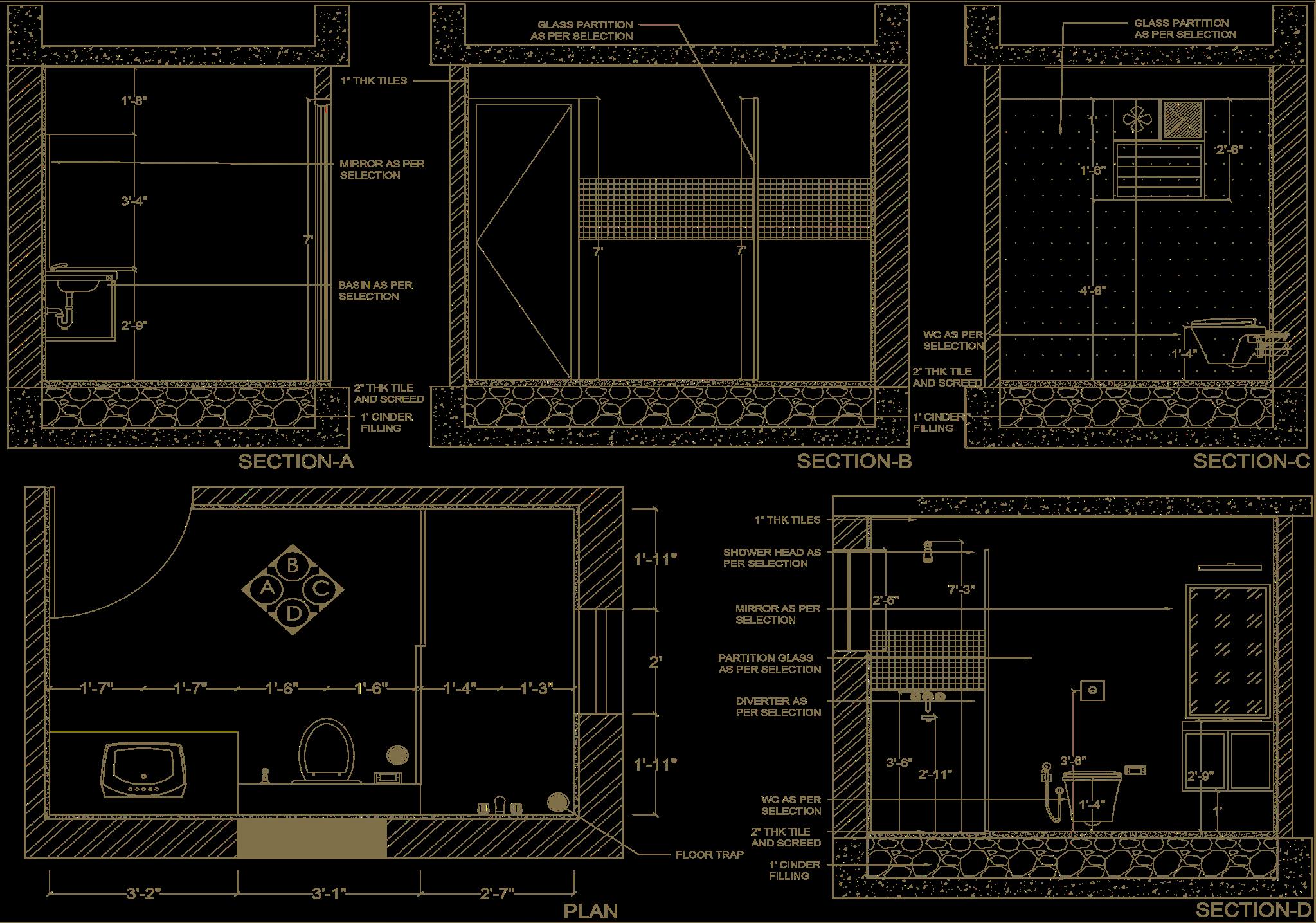

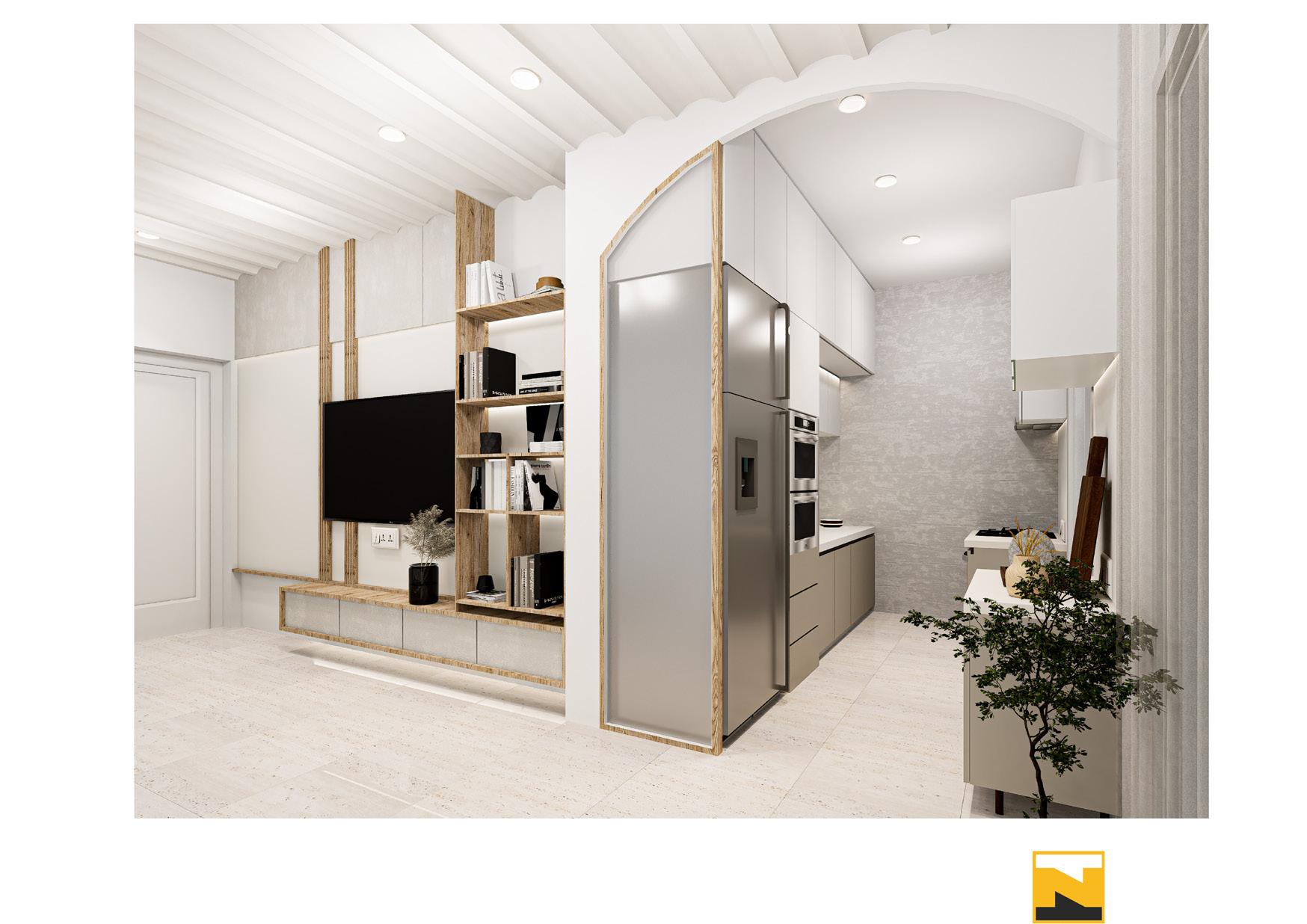

2D INTERIOR DRAWINGS FOR 3BHK APARTMENT
This project involved creating 2D drawings of the designed interiors of the 3bhk apartment by Sobha, Bangalore.
TNT ARCHITECTS
Project completed while freelancing for TNT Architects, Mangalore.
As a freelancer, I drafted 2D drawings for the given 3D renders by the firm.
SOFTWARE USED

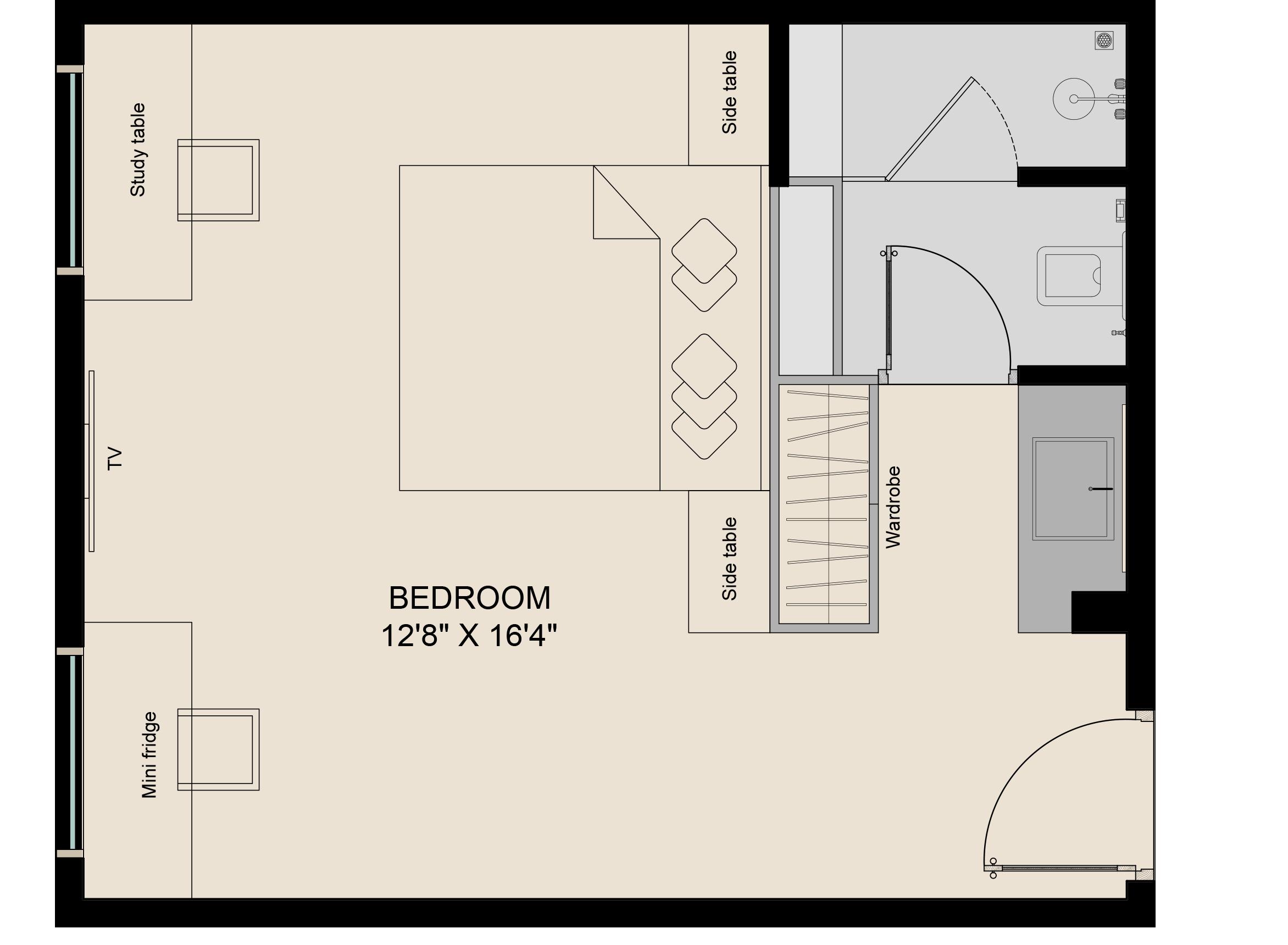

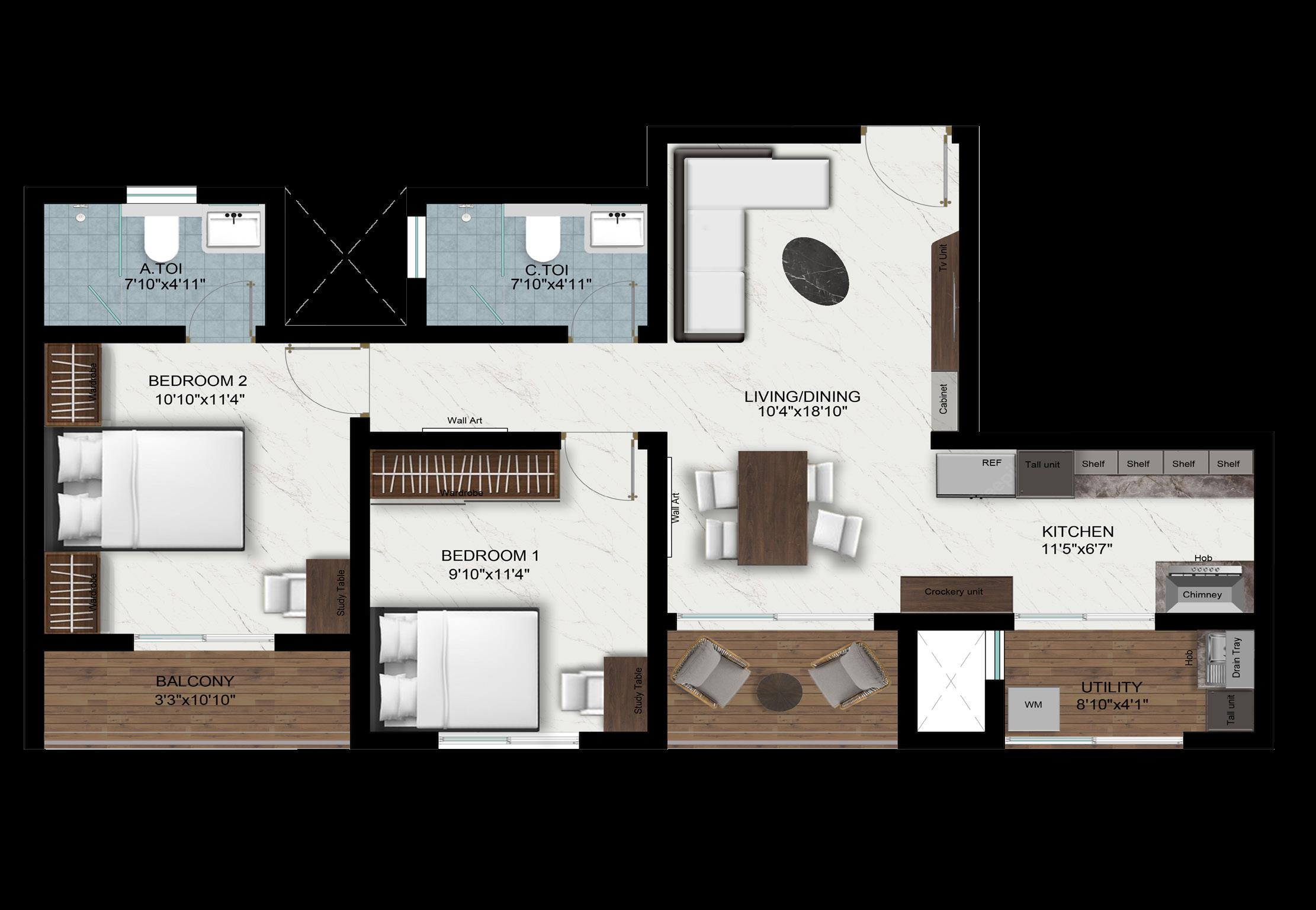

INTERIOR PLAN LAYOUT
Textured laminate
Plywood with matte white laminate Plywood with matte beige laminate
Wood frame with Glass parition
Shelf with ply and laminate
1 2" thk ply strips with laminate
Drawers with ply and textured laminate
LIVING ROOM
SECTION- 8
SECTION- 1
KITCHEN
SECTION- 5
FLOOR PLAN (LIVING ROOM)
Plywood with matte white laminate
Shelf with ply and laminate
Table with ply and laminate
Plywood with matte beige laminate 2" thk white granite
Drawer with ply and laminate
SECTION- 2
Plywood loft and wardrobe with fluted pvc panels
Wallpaper as per selection
Wallpaper selection
art
Plywood bedframe with headboard
SECTION- 4

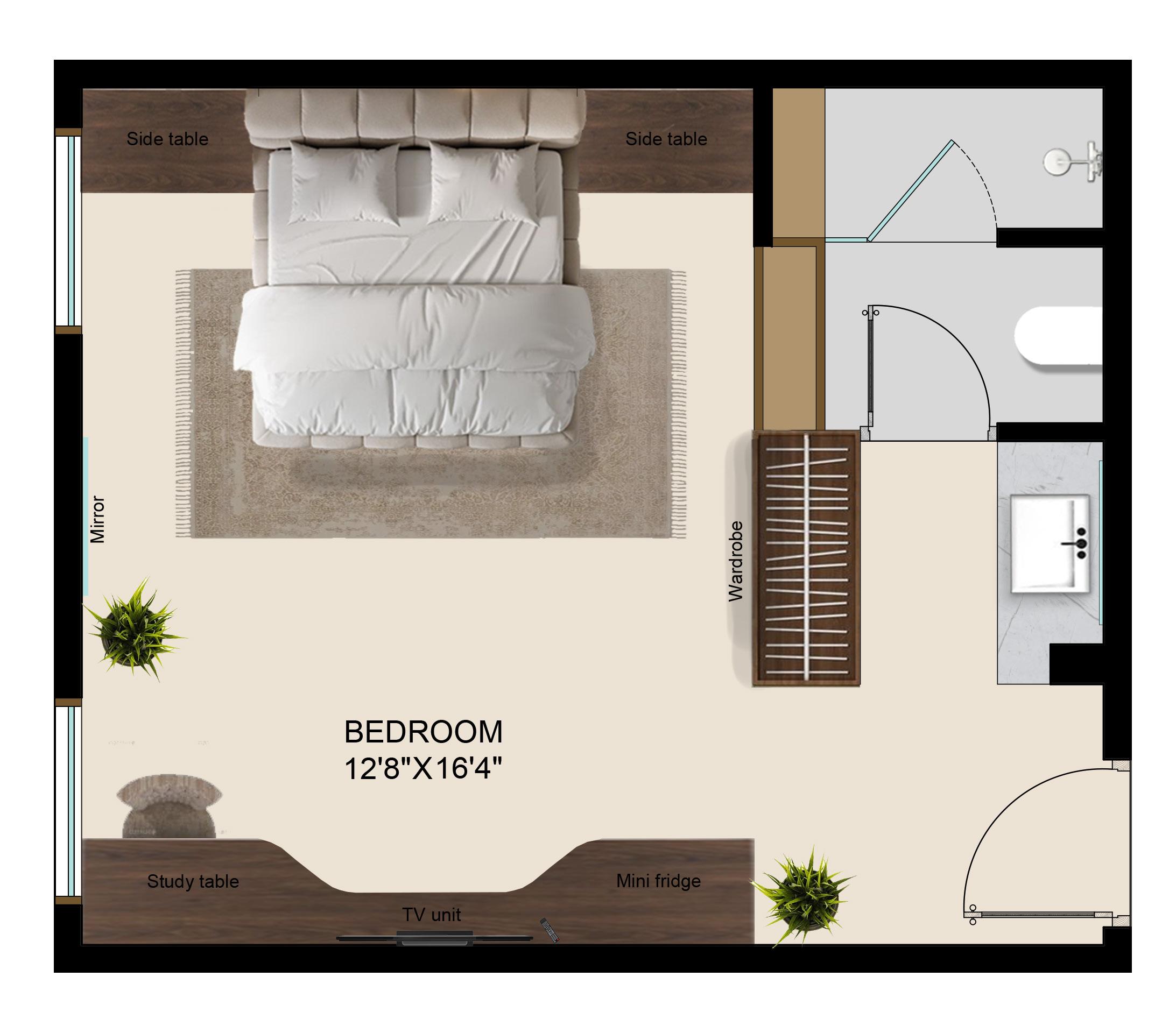

BEDROOM-1
Plywood side table
Plywood
Wallpaper as per selection Plywood bedframe with headboard
