INTERNSHIP PORTFOLIO

Ishika Soni I June-December I 2021

ABOUR FOOTPRINT E.A.R.T.H

“Holistic architecture is experientially engaging environmentally sustaining, socio-culturally responsive and most importantly contextually appropriate. The context in terms of culture, climate, and construction. In the context of India history is alive through lived-in traditions. We are lucky to find a repository of traditional wisdom through its deep long passage of time. We endeavor to create contextually relevant contemporary resolutions that inspire from the rich Indian traditions and yet aspire for its future dreams.”

Research, applied research and dissemination are tri prong activities of the organization. Contextual relevance, socio-cultural appropriateness, affordability, sustainability, and humaneness are the primary concerns for the design at FOOTPRINTS E.A.R.T.H. It deals with diverse scales of projects ranging from eco townships, institutional campuses, mass housing schemes, slum improvement initiatives, residences, exhibitions, interior design as well as graphic and product designs. The practice is research-based and the endeavor is to evolve development norms and standards that are indigenous and stems from socio-cultural realities of our contexts in India.

1 2 3 4 5 6 7 8 9 10 11 12 13 14

CONTENT -

JAINISM KNOWLEDGE CENTER (03-06)

DIYODAR SCHOOL (07-09)

TRIMANDIR(VATSALYA) (10)

SIGMA INSTITUTE OF TECHNOLOGY (11-22)

MAHI WATERGATE RESORT (23-28)

SAURASHTRA PATELWADI (29-34)

MANAV SADHAN (35-38)

GRAMIN VIKAS EVAN CHETNA SANSTHAN (39-42)

HOSTEL, CHARODI OP1 (43-44)

HOSTEL, CHARODI OP1 (45-46)

SHAILISHA FARMSHOUSE (47-48)

DINESH BHAI FARMHOUSE (49)

MANISH RESIDENCE (50)

MINIATURE PAINTINGS (51-52)

I 01 I 02

COMPLETION CERTIFICATE

JAINISM KNOWLEDGE CENTER

Panchasara

ABOUT PROJECT

Jainism Knowledge center in Panchsara was envisioned as a “Center to Propagate knowledge and initiate wisdom as per Jain teachings”.

DESIGN CONCERNS

• Jainism & Its Tenets

• Contextual fit

• Environmental sustainability

• Integration with nature

PROGRAM

• SPIRITUALJain derasar

• INSTITUTIONAL FACILITIESMuseum Administration

Lecture Hall Clinic

• ACADEMIC FACILITIES

Library Training Centre

Research Centre

Computer room

Recording studio

• RESIDENTIAL FACILITIES

Upashray

Dormitory

Staff Residence Kitchen & Dining

MASTER PLAN

I 03 I 04

TRANING CENTER LIBRARY UPASHRAY HOSTEL DIRECTOR’S HOUSE

TRANING

I 05 I 06 READING ROOM 5.9M x 5.9M READING ROOM 5.9M x 5.9M -600 READING ROOM 12.20M x 12.20M BASEMENT 12.20M 12.20M READING ROOM 10.80M 10.80M GROUND LVL. LVL. +4350 SECOND FLOOR TOP HEIGHT +13720 GROUND LVL. LVL. +4350 SECOND FLOOR TOP HEIGHT +13720

CENTER

PLAN

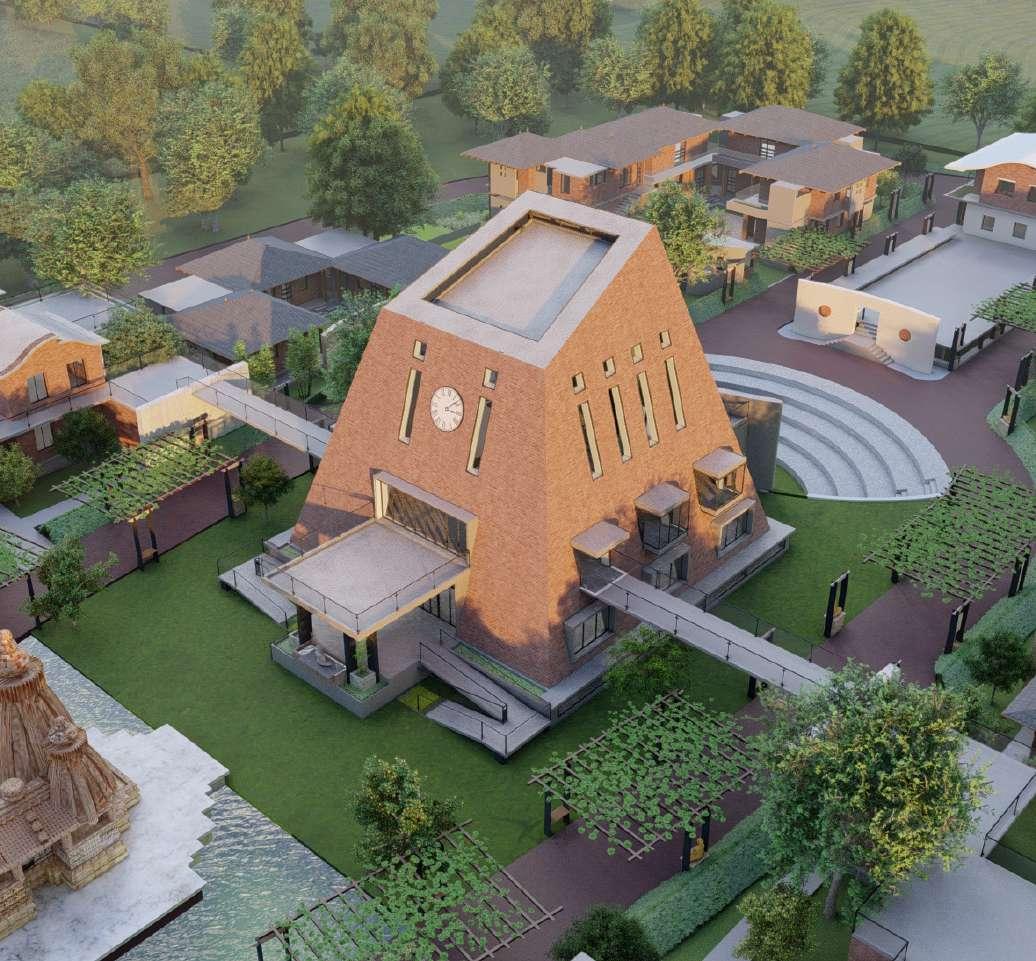

CENTER SECTION BB’ SECTION AA’ VIEW TO LIBRARY LIBRARY

TRANING

BASEMENT

TRANING

DIYODAR SCHOOL Diyodar

ABOUT PROJECT

The educational campus is designed on the tenets of ‘holistic learning’ that fosters natural growth and stimulates young minds. The primary layout bases itself on a courtyard based typology effective in a hot and dry climate while providing an opportunity for every kid to learn from nature. Overlooking corridors, interactive intermediate spaces, terraces and ample natural infill form the hallmarks of the design conceived as a home away from home. It is a juxtaposition of solid and void in plan that brings in natural light and air, view and vistas and continuous renders of light and shade

PROGRAM

• Calssroom for Standard I-XII

• Chemistry Lab

• Physics Lab

• Biology Lab

• Aacharya’s Office

• Fee Section

• Admin

• Management Office

• Founder

• Staff Room

• Library

• Computer Lab

• Language+ Math lab

• Canteen

MASTER PLAN

SECTION A

SECTION B

SECTION C

I 07 I 08

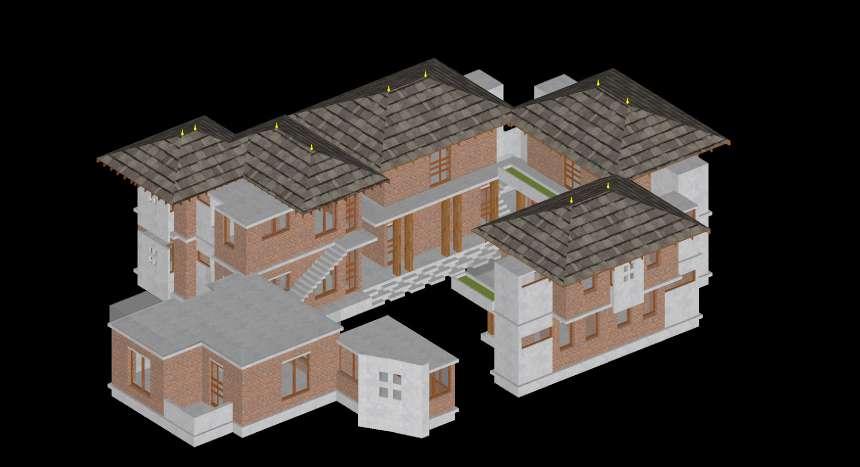

ISOMETRIC VIEW 2 VIEW 1

Drawings

TRIMANDIR (VATSALYA)

Ahmedabad Gujarat

GROUND FLOOR PLAN WITH CENTERLINE

THIRD FLOOR

FIRST FLOOR PLAN

ELEVATIONS

CIVIL PLAN (VATSALYA)

SECOND FLOOR PLAN

SECTIONS

SITE PICTURE (VATSALYA) (OCTOBER)

SITE PICTURE (VATSALYA) (DECEMBER)

I 09 I 10 Faculty room Computer lab Classroom Classroom 7mX7m 7mX7m 7mX7m 9mX9m 7mX7m LVL +8400 LVL +8400 Computer lab Classroom LVL +12150 LVL +12150 1st std 2nd std 3rd std 5th std 4th std 8th std 6th std Faculty room Physics Chemistry lab Bhagini section Principal Library 7th std Biology 7mX7m 7mX7m 7mX7m 7mX7m 7mX7m 7mX7m 7mX7m 7mX7m 7mX7m LVL +900 LVL +900 LVL +900 Temporary Shed Dining 10th std 9th std Faculty room 12th std Language+math Computer lab Room 7mX7m 7mX7m 7mX7m 7mX7m 7mX7m 7mX7m 7mX7m 7mX7m 9mX9m LVL +4650 LVL +4650

SIGMA GROUP OF INSTITUTE

Waghodia, Vadodara, Gujarat

ABOUT PROJECT

The design intervention behind The Sigma group of Institution was Omission, Alteration and Addition right from the Master plan level

The institute consists of a variety of courses being conducted in seperate buildings, the state of some being impossible to be used. Some buildings needed just repair work whereas some buildings was proposed for other usage after altering the design and circulation.

New building for some courses after their relocation was proposed. Upgrading and enhancing the ambiance and achieving aesthetic harmony was a vital task and for clarity of movement and better functionality , the master planned was re-organized

EXISTING CAMPUS ISSUES

• Orientation & Clarity of Movement

• Aesthetic Coherence

• Ambiance

• Quality & Quantity of Infrastructure

• Disjunction of Spaces

• Randomness of Placement

DESIGN INTERVENTIONS

• Re-Organizing Master plan

•

• Concept Design for Components

• Facelifts of existing structures

• Demonstrative re-organization of existing structures

• Suggestive additions of new structures

• Creating coherent & inspiring ambiance

Play ground Degree Engineering Amphitheater Polytechnic Pharmacy Canteen Administration Workshop Hostel Homeopathy institute Nursing institute Guest House Physiotherapy institute Mauryan high school Entry I 11 I 12

EXISTING MASTER PLAN

NEW BUILDINGS PROPOSED VIEW 2 VIEW 1 MASTER PLAN

TRANSFORMATION OF CAMPUS

BEFORE AFTER VIEWS

ROAD SIDES BEFORE ROAD SIDES BEFORE

ROAD SIDES AFTER

CORRIDOR BEFORE CORRIDOR AFTER

ROAD SIDES AFTER

ROAD EDGES BEFORE ROAD EDGES AFTER

DEGREE BUILDING COURTYARD BEFORE

DEGREE BUILDING COURTYARD AFTER

CANTEEN ENTRANCE BEFORE CANTEEN ENTRANCE AFTER

I 13 I 14

RecReational centeR

The Building is placed in the center of the main masterplan adjacent to the exsisting swimming pool. On exsisting site the building part is left unbuilt. The steps on the back of the building provide space for an open air amphitheatre, while the auditorium is placed underground.

The Recreational center consists of various programs such as - Gym, Game Room, Canteen and Guest Rooms.

Beneath the Amphitheater theres common space for student of institute

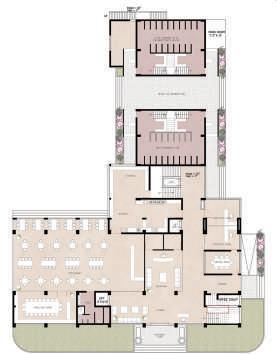

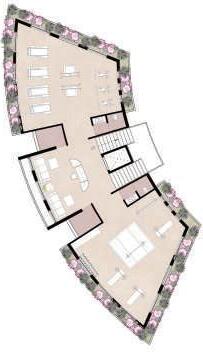

I 15 I 16 Ground Floor Plan First Floor Plan Second Floor Plan Third Floor Plan Fourth Floor Plan

RECREATIONAL BLOCK BENEATH THE AMPHITEATER BELOW THE AMPHITHEATER 1 AMPHITEATER ROAD A view 5 ROAD A view 2 ROAD B view 1 ROAD A view 4 ROAD A view 1 ROAD A view 3 ROAD DEVELOPMENT

SIGMA MAIN GATE SIGMA WATER PLANTER BOX PLANTER BOX PLANTER BOX PLANTER BOX WATER DETAIL A SEATING SEATING SIGMA MS PIPE SECTION DIA 300mm SCHOOL (CBSE&GSER) MASS COMMUNICATION ITI NURSING PHYSIOTHERAPY SCIENCE LAW BUSINESS SCHOOL PHARMACY ENGINEERING POLYTECHNIC VETERINARY SCHOOL (CBSE&GSER) MASS COMMUNICATION ITI NURSING PHYSIOTHERAPY SCIENCE LAW BUSINESS SCHOOL PHARMACY ENGINEERING POLYTECHNIC VETERINARY RECREATIONAL BLOCK SETTING OUT PLAN WORKING DRAWINGS I 17 I 18 ROAD DETAILS GURU PATH PART A PART C PART B

1 2 3 4 5 6 7 2 1 2 3 4 5 6 7 2 R 1 2 3 4 5 6 7 2 R 1 2 3 4 6 7 5 2 3 4 1 2 3 4 6 7 5 2 1 2 3 4 6 7 5 2 1 2 3 4 6 7 5 2 3 4 5 6 7 R 1 2 3 4 6 7 5 2 3 4 R 1 1 2 3 4 5 6 7 2 3 1 2 3 4 5 6 7 2 3 3 R 1 2 3 4 1 R 2 3 4 5 6 7 R 2 3 4 5 6 7 R 1 2 3 4 5 6 7 R 1 2 3 4 5 6 7 R R 1 2 2 3 4 5 6 7 R 1 2 2 3 4 5 6 7 R 1 2 3 4 5 R 2 3 R 1 2 3 4 5 R 2 3 R 1 2 R 2 1 2 3 2 1 2 3 2 1 2 3 2 1 2 3 2 1 2 3 2 1 2 3 2 1 2 1 2 3 2 1 2 3 2 1 2 3 2 3 R 3 R 2 1 2 3 4 6 7 5 2 3 4 R 1 1 2 3 4 5 6 7 2 R 1 2 3 4 6 7 5 2 3 4 5 6 7 R 1 2 3 4 6 7 5 2 3 4 1 2 3 4 5 6 7 2 R 1 2 3 4 5 6 7 2 R 2 3 1 2 3 2 3 R 1 2 R 2 R 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 2 3 2 3 2 3

I 19 I 20

POLYTECHNIC TOILET DETAIL

SLOPE 1:10 SLOPE 1:10 1 2 3 4 6 7 5 2 3 4 R 1 1 2 3 4 5 6 7 2 R 1 2 3 4 5 6 7 2 R 1 2 3 4 5 6 7 2 R 2 3 1 2 3 2 3 1 2 3 4 6 7 5 2 3 4 5 6 7 R 1 2 3 4 6 7 5 2 3 4 I 21 I 22

MAHI WATERGATE RESORT

Vadodara, Gujarat

ABOUT PROJECT

The resort had to be renovated and the lanscape and outdoor activity grounds had to be developed. Along with cottages, the resort had normal rooms which had to be renovated. A ticket counter made out of a shipping container was proposed because of the compact space availabe.

EXISTING CAMPUS ISSUES

• Nature within (integration of Indoors and outdoors)

• Dynamics of Sun, Water, Vegetation

• Nature for everchanging dynamics and freshness

• Flexibility for personalization and activity adaptations

• Multi activity node for consistent footfalls and facility optimization

• Richness of art, craft and cultural artefacts

ACTIVITIES

• Multipurpose Party Plots: 15002000 Capacity

• (Marriages, Shibir/ conventions, Festive Celebrations, Lectures and Exhibitions.

• Outdoor Activities

• Jogging Track

• Swimming Pools

• Outdoor café/ Restaurants

• Amphitheatre/ Interactive spaces

MASTER PLAN

EXISTING MASTER PLAN

I 23 I 24 Zone :1 Adventure Park Zone :2 Water Park Zone :3 Resort Zone :4 Food Court Zone :5 Party Plot MULTI LINE POOL ENTRANCE water tank DRAINAGE SUMP DRAINAGE SUMP panel FLUID LIGHT POL SWIMMING toilet R V E R S D E built up area 12468 sq.ft b.up area 1849 ft2 built up area 8408 ft2 RAIN DANCE b.up area 2320 sq. built up area 4019 ft2 PARKING built up area 13455 sq. GAME ZONE built up area 7854 ft2 BUILT UP AREA 53408 SQ. FT water BOR-03 ticket window 70' 35' annex building room pool view cement sheet wall scrap store prakesh

ZONING VIEW 2 VIEW 1

TRANSFORMATION OF CAMPUS

I 25 I 26 Ground Floor Plan First Floor Plan Second Floor Plan Third Floor Plan

VIEW TO MAIN BUILDING VIEW TO CLUB HOUSE EXISTING BUILDING VIEW 1 BELOW THE AMPHITHEATER 1

MAIN BUILDING

Ground Floor Plan First Floor Plan Third Floor Plan Second Floor Plan BASEMENT PLAN

VIEW 2

CLUB HOUSE

I 27 I 28 Ground Floor Plan Ground Floor Plan Second Floor Plan

DETAILS

VIEW TO KITCHEN/DINING EXPLODED VIEW

EXISTING CANTEEN VIEW 2

KITCHEN DINING EXISTING PHOTOGRAPHS

SAURASTRA PATELWADI

Ahmedabad Gujarat

ABOUT PROJECT

The Campus has been designed for the Saurastra Patel Samaj. The complex includes the exhibition area, Temple, Hostel Block, Community halls, Auditorium, Administrative offices, Multi purpose halls etc. The central open space has been designed as multi porpose space i.e. party plot, community gathering, Sports, Orchard etc. Massing is selectively controlled to provide mutual shade and maximize shadow, breaking up continuous surfaces and thereby reducing reflected glare. The terracing has been created in hostel blocks as the multipurpose spaces for students.

ROOMS

I 29 I 30

BOYS HOSTEL (PHASE 1) ELEVATION I SECTION

CIVIL PLAN

COURTYARD OF BOYS HOSTEL

INDIVIDUAL

MASTER PLAN

DRAWINGS FOR PHASE 2

I 31 I 32 DINING HALL DINING HALL Account Open Exhibtion RECEPTION hostel security DINING ENTRY ENTRY FOR HOSTEL VVIP CONFERENCE Office Office Office Office Office Office BOOKING OFFICE EVENT PARTNER ENTRY FOR HOSTEL hostel security LVL +0.75M Ganpati statue 108 beds EXHIBITION EXHIBITION DINING HALL 2 14.5 12.3 M DINING HALL 1 15.4 12.2 M 98 beds EXHIBITION 98 beds 6th FLOOR GROUND FLOOR 7th FLOOR 1st FLOOR 8th FLOOR 2nd FLOOR 9th FLOOR 3rd FLOOR 10th FLOOR SECTION BB’ SECTION AA’ 4th FLOOR 5th FLOOR

LANDSCAPING DRAWINGS

FLOORING (PHASE 1 BOYS HOSTEL)

1st

A truth cannot be read in scripture. truth has to be lived only in the innermost temple of your being.

Truth is not something outside to be discovered, is something inside to be realized.

The concentration called the right knowledge is that which is followed by reasoning, discrimination bliss, unqualified egoism.

W hen you really laugh for those few moments you are in a deep meditative state. Thinking stops. It is impossible to laugh and think together.

Never worry about numbers. Help one person at a time and always start with the person nearest you.

Be compassionate and friendly to all living beings.

Our ability to reach unity in diversity will be the beauty and the test of our civilization.

नार्जिता विद्या द्वितीये नार्जितं धनम् तृतीये नार्जितं पुण्यं चतुर्थे किं करिष्यसि ॥

In the black, there is some white, in the wrong, there is some right, in the dark, there is some light, in the blind, there is some sight.

May peace prevail on Earth In a

“Earth provides enough to satisfy every man’s needs, but not every man’s greed.”

“We do not need guns and bombs to bring peace, we need love and compassion.” – Mother Teresa

“My religion is based on truth and non-violence. Truth is my God. Non-violence is the means of realizing Him.” – Mahatama Gandhi Quotes

INLAY/ETCHING DESIGN

Our ability to reach unity in diversity will be the beauty and the test of our civilization.

CIVIL PLAN ELEVATION A ELEVATION B DETAIL 1 DETAIL 2 R2450 R1535 3600 450 1160 2725 1455 450 900 3105 1895 1430 1800 1205 2050 365 380 1345 1485 815 950 2185 1370 900 850 1995 1380 1180 1695 815 2025 595 1100 230 1050 2255 1810 4840 1535 900 2405 2890 2100 590 450 1050 450 1250 750 450 1340 450 2865 2405 6345 2715 1800 4800 R450 R1350 R450 R1350 2375 900 5790 9465 8030 4840 255 2675 255 7390 4520 260 2675 255 R20095 7650 6345 7040 900 3915 2405 900 1100 1350 1115 375 585 1800 2715 1200 2865 3790 2405 4680 2100 2890 2580 590 450 1050 450 1250 750 450 2000 450 1220 450 1220 265 1525 300 650 300 1130300 650 1525 265 1220 1130300 505 530 700 300 505 530 700 6185 4600 1220 6185 730 4760 900 6345 3600 2920 395 3315 1500 3015 700 2350 785 2600 585 1300 1185 1015 115 715 450 700 450 565 1235 1785 230 2295 10775 3665 1375 3975 35040 2650 6780 3665 1540 1800 1350 450 450 900 3790 9465 900 1080 1615 1750 1325 1690 1500 710 8545 1500 900 4220 1325 1690 1500 1395 810 1450 3200 2495 1450 450 500 500 900 900 600 900 725 900 1115 2525 885 1255 370 2425 3525 3345 2525 900 600 900 475 925 300 600 300 300 150 600 150 450 150 750 150 150 1100 450 150 150 1050 750 2975 4470 2195 1375 900 1500 900 600 900 600 750 600 450 525 600 1350 1275 275 1565 1200 2305 880890 450 300 590 590 R305115 900 450 900 425 150 450 1125 1425 1425 1050 300 75 600 675 150 150 150 150 150 150 150 300 1125 450 820 600 650 INLAY 1.2 Etching in mirror polished kota stone 1140 1140 “Live as you were die tomorrow. Learn as you were to live forever.” INLAY 1.1 Etching in mirror polished kota stone 1140 1140 rSykn~ j{ksr~ tykn~ j{ksr~ j{ksr~ f'kfFky ca/kukr ew[kZ gLrs nkrO;a onfr iqLrde~ INLAY 1.3 Etching in mirror polished kota stone 1140 "Manpower without Unity not strength unless harmonized and united properly, Mirror Polished green Kota base stone Inlay of Golden Kota stone 1140 1140 truth cannot be read in scripture. truth has to be lived only in the innermost temple of your being. INLAY 1.5 text Etched on base stone INLAY 1.4 Inlay of Golden Kota stone 1140 1140 Truth is not something outside to be discovered, something inside to be realized. Mirror Polished green kota base stone text etched on base stone 1200 1200 83 133 67 83 133 83 133 67 83 133 500 200 eq parts 500 83 133 67 83 133 83 133 67 83 133 500 200 eq parts 500 Jaisalmer Jet black granite Lakha red granite kota stone Kesariyaji Green 5MM groove with epoxy filling INLAY 1.6 10 equal parts 1198 10 equal parts 1198 Kota stone 10MM Etching in epoxy filling 8-10 MM groove with epoxy filling INLAY 1.7 1198 1250 ETCHING STONE KOTA STONE INLAY 1.7 1140 1140 KOTA STONE ETCHING IN STONE REQUIRE SPACE (OP.WT.800kg.APPROX.) LVL +5.4M

प्रथमे नार्जिता विद्या द्वितीये नार्जितं धनम् तृतीये नार्जितं पुण्यं चतुर्थे किं करिष्यसि ॥

प्रथमे

gentle way, you can shake the world Service to people, is service to God Follow your soul, knows the way Our ability to reach unity in diversity will be the beauty and the test of our civilization. Å¡ lg ukoorq lg ukS ÑquDrq lg oh;± djokogS A rstfLo uko/khreLrq ek fon~fo"kkogS Å¡ 'kkfUr% 'kkfUr% 'kkfUr% AA fon~oRoa p u`iRoa p uSo rqY;a dnkpu~ Lons'ks iwT;rs jktk fon~oku loZ= iwT;rs AA Unity to be real must stand the severest strain without breaking प्रथमे नार्जिता विद्या द्वितीये नार्जितं धनम् । तृतीये नार्जितं पुण्यं चतुर्थे किं करिष्यसि ॥ INLAY DETAILS

FLOOR (INLAY LOCATION+FLOORING)

I 33 I 34

MANAV SADHAN JAISALMER, RAJASTHAN

ABOUT PROJECT

Redevelopment of exsiting haveli into a Jain Museum.

It lies right next to a very famous Patwon ki Haveli in Jaisalmer.

DESIGN ISSUES

• Lack of Museum related facilities

• Planer façade as compared to adjacent haveli

• Inadequate toilets

• Dead and Passive external otlas

• Underutilised Space

• Lack of character

DESIGN INTERVENTIONS

• Compete with Adjoining Haveli

• Rejuvenate spaces

• Activate spaces with sympathetic functions

• Potential Use of Spaces

• Inviting Overture Externally (Outside exhibition)

• Customize Spaces according to museum functions (Addition of floor)

• Value addition

• Addition of additional facilities (Storage, toilets, Admin, Souvenir shop, Café, Strong rooms.

• Bringing about traditional character with intricate embellishments

• Attraction for tourist

• Create skyline

• Façade enhancement with Jaisalmeri Elements

• Utilization of Terraces

I 35 I 36

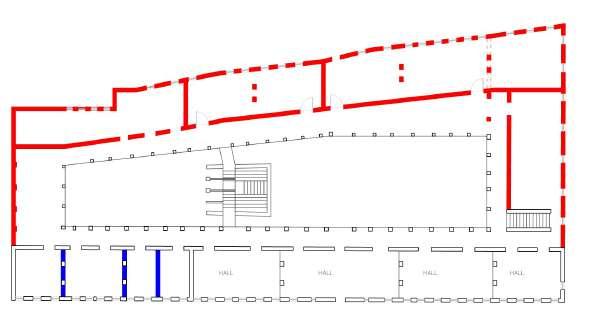

1st FLOOR FIRST FLOOR PROPOSED

PLAN GROUND FLOOR PROPOSED EXHIBITS/CIRCULATION GROUND FLOOR GROUND FLOOR EXISTING GROUND FLOOR PLAN FIRST FLOOR EXISTING FIRST FLOOR PLAN Introductory AudioVisual Room Exhibition Hall 1 –Rajasthani Art and culture Exhibition Hall 2Periodic Room Circulation Display Area Utility Area Administration offices Rajasthani (Furniture, Accessories etc.) Audio Visual Room Jain Restaurant Ticket/sovernir shop 24 sqmt 6x4m 24 sqmt 6x4m 24 sqmt 6x4m 30 sqmt 6.8x4.2m 71 sqmt 14.5x4.2 48 sqmt 10x4.5 24 sqmt 5.8x4.2 16.5 sqmt 3.9x4.2 16.5 sqmt 3.9x4.2 16 sqmt 3.8x4.2 42 sqmt 10x4.2 41 sqmt 9.8x4.2 37 sqmt 4.75x4.25 26 sqmt 8.9x3 15 sqmt 3.5x4.3m GROUND FLOOR PLAN Functions Exhibition path 4 –Famous Personalities Exhibition Hall 1 –Jainism and its tenets Exhibition Hall 2 –All 24 Tirthankaras Exhibition Hall 3Jain Art, Sciences & Rituals Exhibition Hall4Jainism’s Major Centers Major pilgrimage routes Ground floor Built up area : 1210 mtsq Total Built up area : 2295 mtsq

EXHIBITS/CIRCULATION

ZONING

BEFORE-AFTER PHOTOMONTAGES

FACADE TREATMENT (EXISTING)

COURTYARD (EXISTING)

FACADE TREATMENT (PROPOSED)

Face Articulation,

Façade Articulation, Livening up external otlas

ENTRANCE GATE (EXISTING)

ENTRANCE GATE (PROPOSED)

Emphasizing Entrance

COURTYARD (PROPOSED)

Face Articulation, Activation of space

TERRACE (EXISTING)

TERRACE (PROPOSED)

COURTYARD (PROPOSED)

NIGHT VIEW

CORRIDOR

I 37 I 38

Climate and tradition reminder. Addition of traditional Rajasthani Elements – Chatri, Jarokha Façade Articulation, Climate and tradition reminder.

GRAMIN VIKAS EVAN CHETNA SANSTHAN

Ahmedabad Gujarat

ABOUT PROJECT

GVCS, Barmer is a non-governmental, non-profit, non-political and social welfare association which was founded for the upliftment of women, Dalits and marginalised communities in the region.

In the Campus the Massing is selectively controlled to provide mutual shade and maximize shadow, breaking up continuous surfaces by using traditional architectural elements of Rajasthan and thereby reducing reflected glare.

Programme Brief (with no. & capacity):

• Security,

• Entrance Lobby,

• GVCS Shop (can be two stories –ground or first floor),

• Exhibition Space – 50 people

• Awards – 50 people

• Gallery – can be a open gallery – 50 people

• Workshop Space – 50 people

• Event Space – 200-250 people

• Café (Small shop)

• Kitchen – 3 cook

• Canteen – 50 people

• Open Courtyard

• Toilets - 5

Semi-Public areas

• Design Cell – 30 people

• Craft Cell – 30 people

• Stores

• Field Workers room – 10 people

• Principal’s office

• Library and Research

• Conference – 20 people

• Stores

• Accounts – 5 people

Private

• Guest Accommodation – 4 people

• Dining Area – 4 people

• Hall

• Kitchenette

• Services

• Terrace

I 39 I 40

GROUND FLOOR PLAN FIRST FLOOR PLAN SECOND FLOOR PLAN THIRD FLOOR PLAN HAND WEAVING APPLIQUE EMBROIDERY PATCHWORK MIRROR

KANTHA

WORK

AJRAKH PRINTING

TRADITIONAL RAJASTHANI ARCHITECTURAL ELEMENTS LOCAL CRAFT OF BARMER

EXISTING SITE PHOTOGRAPHS

BEFORE AFTER VIEWS

MINIATURE PAINTING FOR ACTIVITIES

SIDE

ELEVATION

ISONOMETRIC VIEW 1

SECTION

FRONT AND BACK ELEVATION ISONOMETRIC VIEW 1

I 41 I 42

HOSTEL OP1

Ahmedabad Gujarat

I 43 I 44

VIEW

7TH FLOOR PLAN 5TH FLOOR PLAN

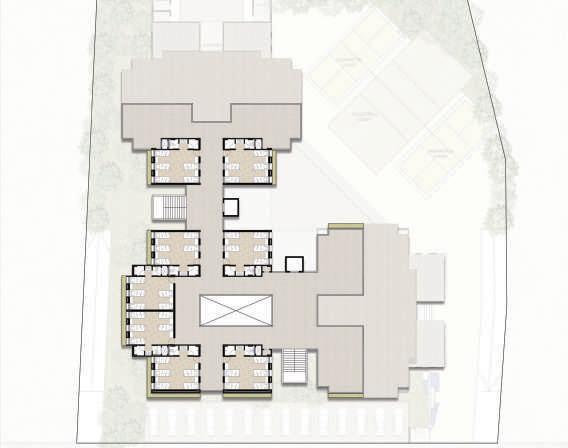

3RD FLOOR PLAN 6TH FLOOR PLAN 4TH FLOOR PLAN 1ST-2ND FLOOR PLAN GROUND FLOOR PLAN

HOSTEL OP2

Ahmedabad Gujarat

I 45 I 46

VIEW

6TH-7TH FLOOR PLAN 4TH FLOOR PLAN

2ND FLOOR PLAN

VIEW

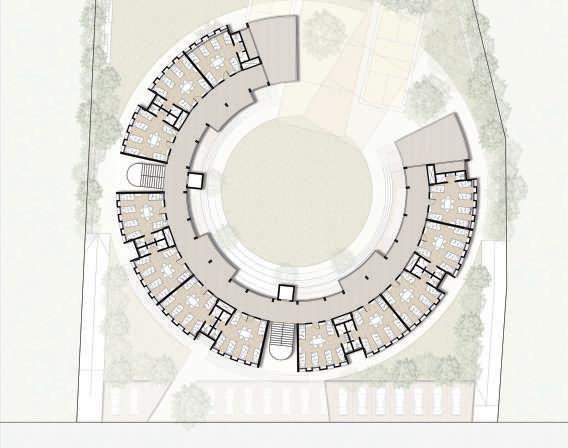

5TH FLOOR PLAN 3RD FLOOR PLAN 1ST FLOOR PLAN GROUND FLOOR PLAN

Ahmedabad Gujarat

I 47 I 48 VIEW 2 VIEW 4

VIEW 1 VIEW 3

FIRST FLOOR PLAN

SECTION

GROUND FLOOR PLAN MASTER PLAN FARMHOUSE

DINESHBHAI FARMHOUSE

Ahmedabad Gujarat

MANISH RESIDENCE

AHMEDABAD, GUJARAT

MASTER BEDROOM (PROPOSED)

FAMILY ROOM (PROPOSED)

MASTER BEDROOM (EXISTING)

FAMILY ROOM (EXISTING)

I 49 I 50

TRANSFORMED FACADE TRANSFORMED FACADE

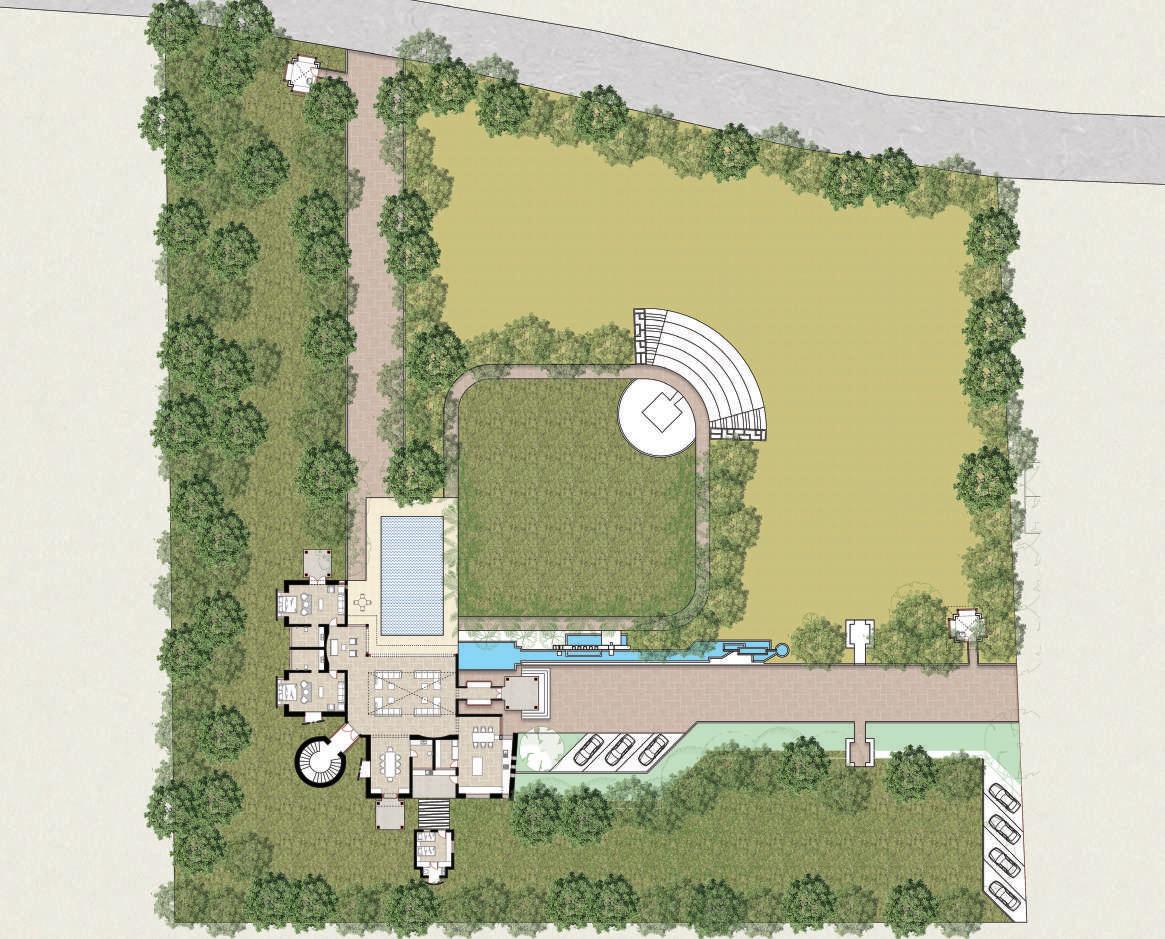

3191 SQ.M. Lawn PARTY PLOT +0.45m +0.30m +0.45m +0.60m 6000 3000 4500 1200 1200 WELL COW GRAZING (Farm) (House)

CENTERLINE FIRST FLOOR PLAN

seating 600mm 300mm 900mm 600mm 300mm

PLAN

MASTER PLAN

CENTERLINE GROUND FLOOR

WALL WORKING DRAWING

FEATURE WALL ON SITE FEATURE

MINIATURE PAINTINGS

Paintings

SHODHAN VILLA, AHMEDABAD ADALEJ, AHMEDABAD ENIVRONMENTAL SANITATION INSTITUTE, AHMEDABAD HATHEESING, AHMEDABAD GVECS, BARMER (UPCOMING PROJECT) IIM, AHMEDABAD

I 51 I 52
