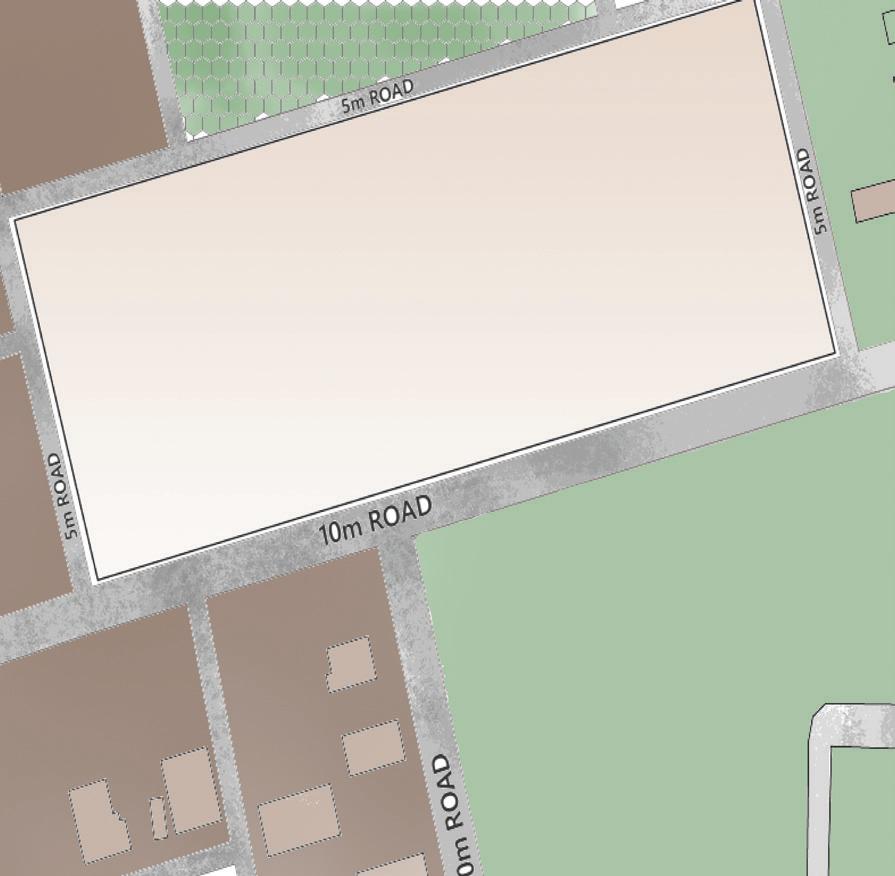

Location
Area of intervention
Typology
Softwares used
CITY SYNERGY

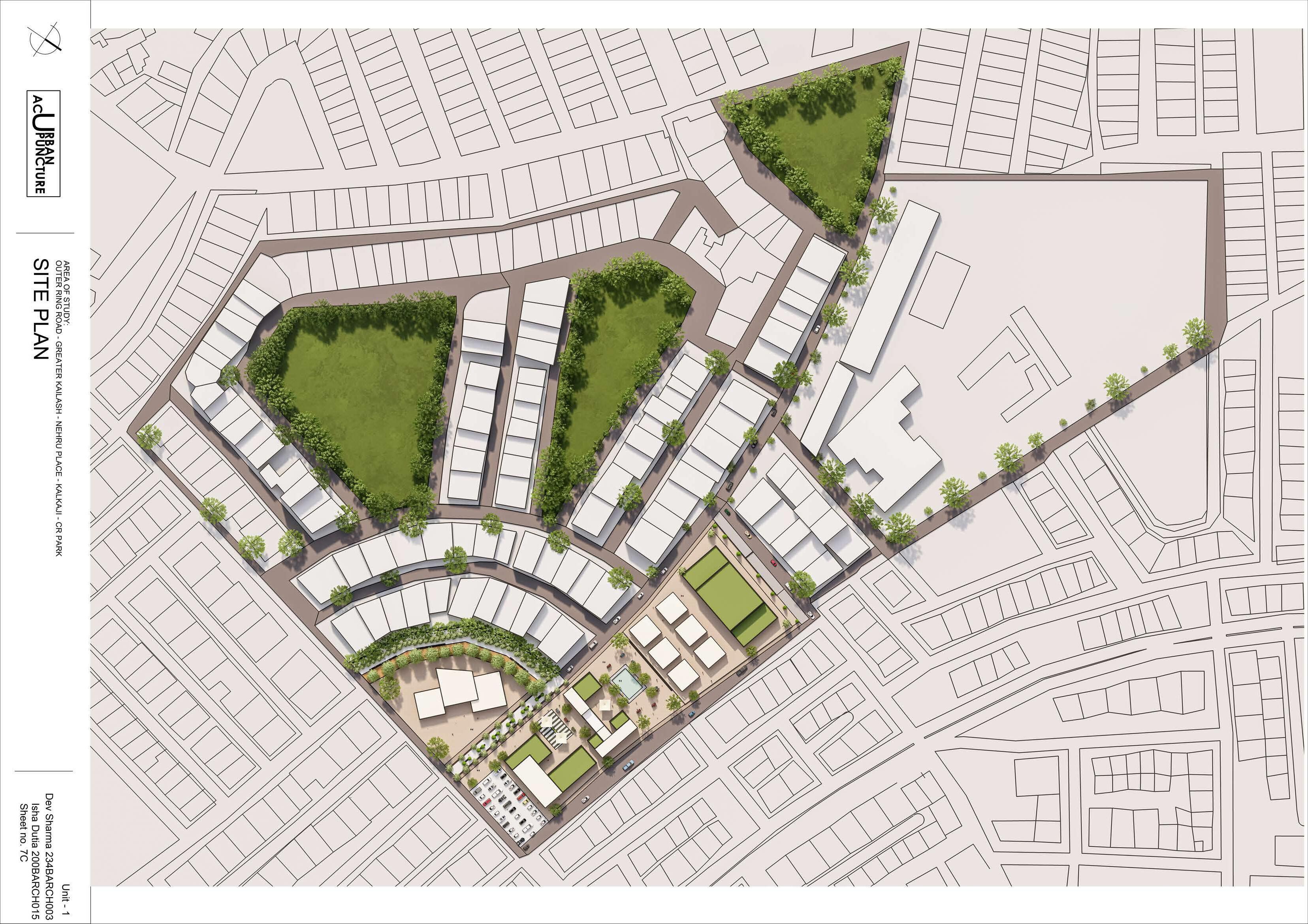

Urban Accupuncture | Urban Design
At present the area of CR park is almost 1 sq.km, which holds more than 50,000 inhabitants, with relatively a medium density residential accommodation. A prominent site for its robust socio-cultural exchanges because of its strong traditional roots to the Bengali traditions.

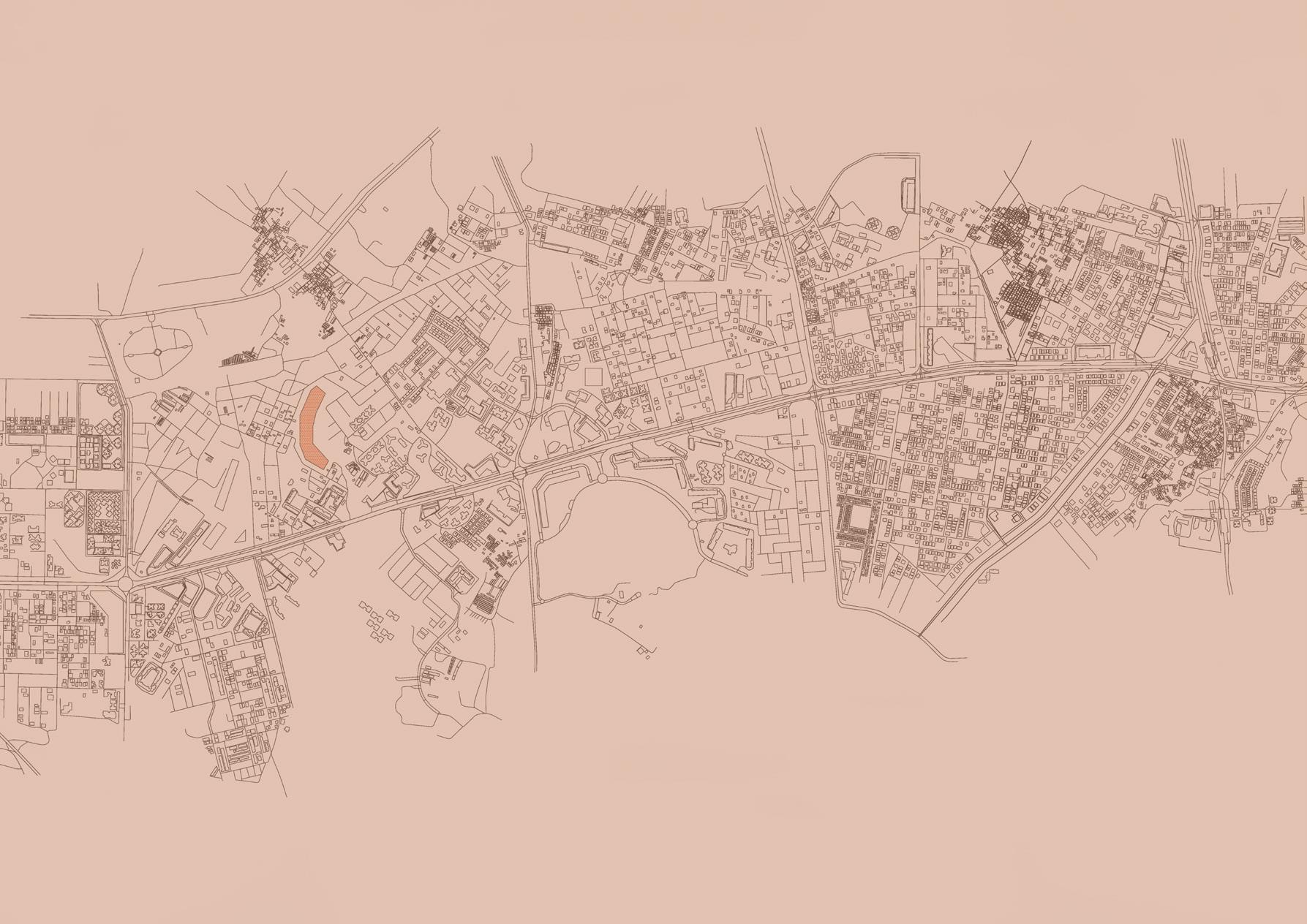

C.R park, New Delhi
25 acres out of total 800
Urban Design
Autocad, Photoshop, SketchUp, Illustrator, Lumion
6 | PORTFOLIO 2020 - 2024
01
VEHICULAR ACCESS
7 01 CITY SYNERGY |

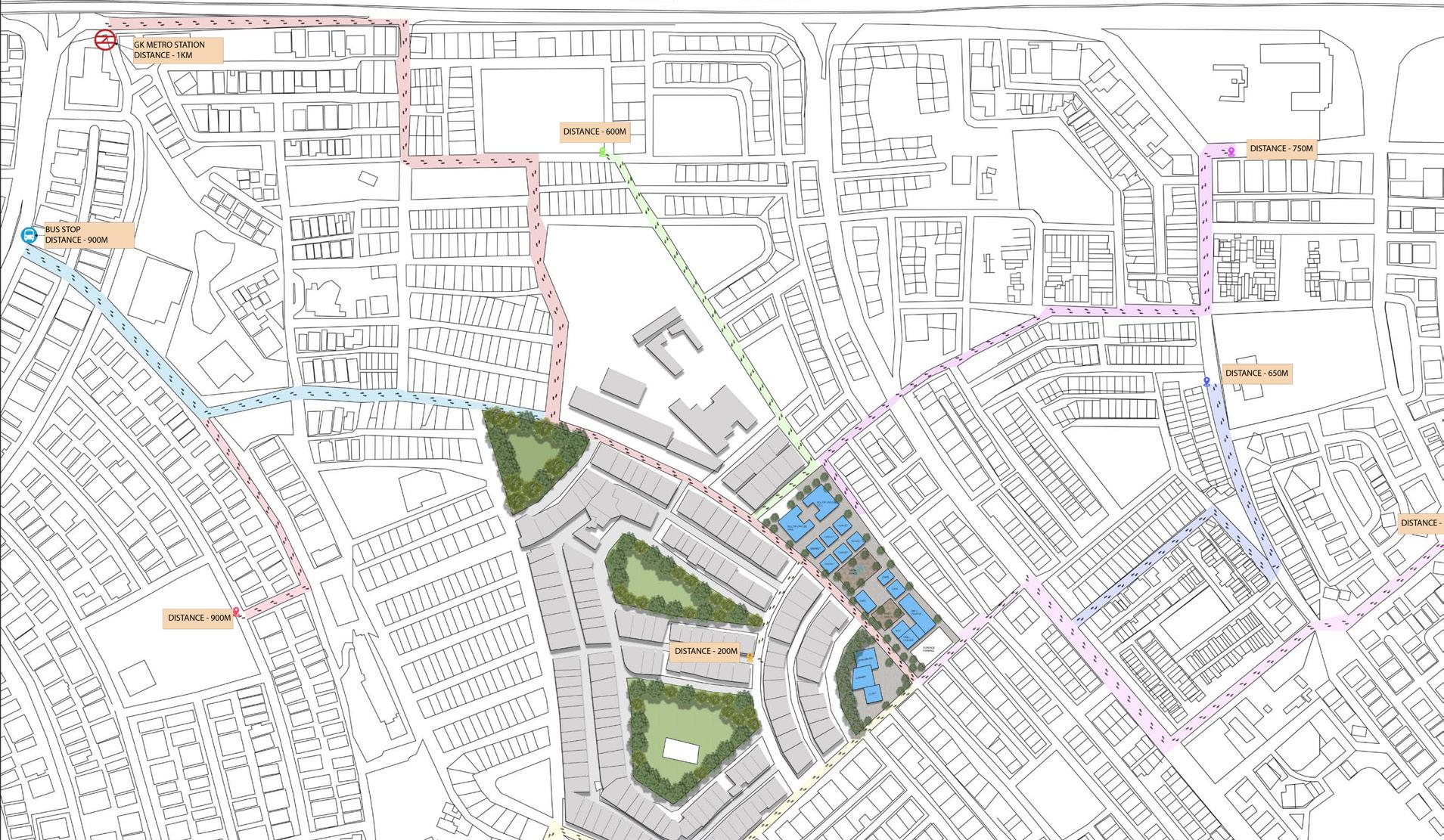

PEDESTRIAN ACCESS

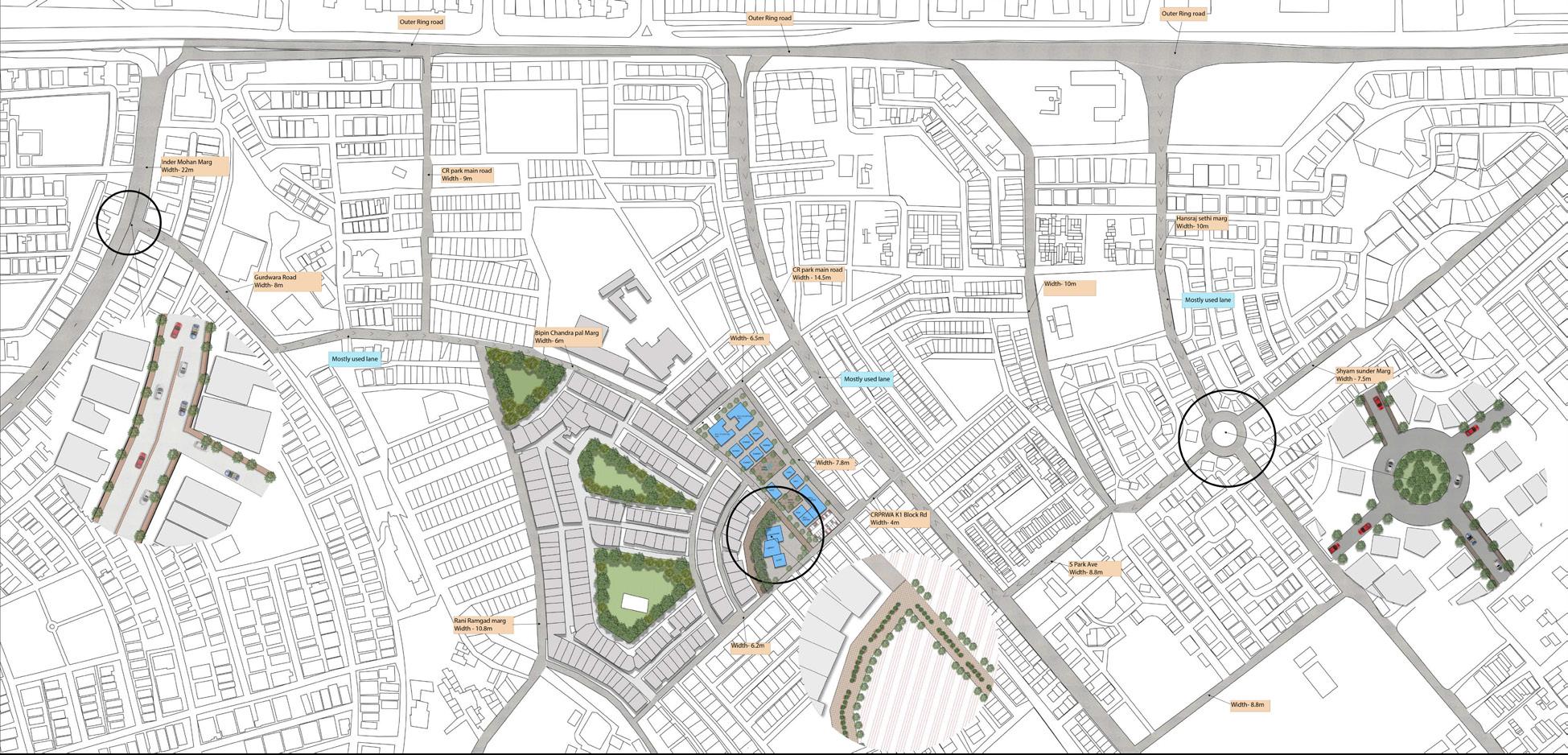

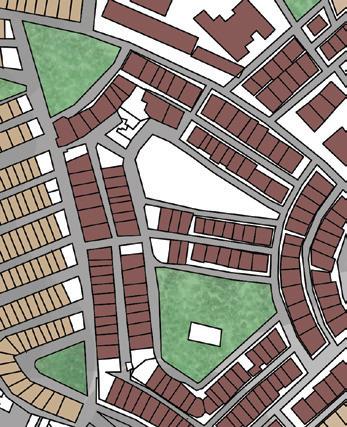

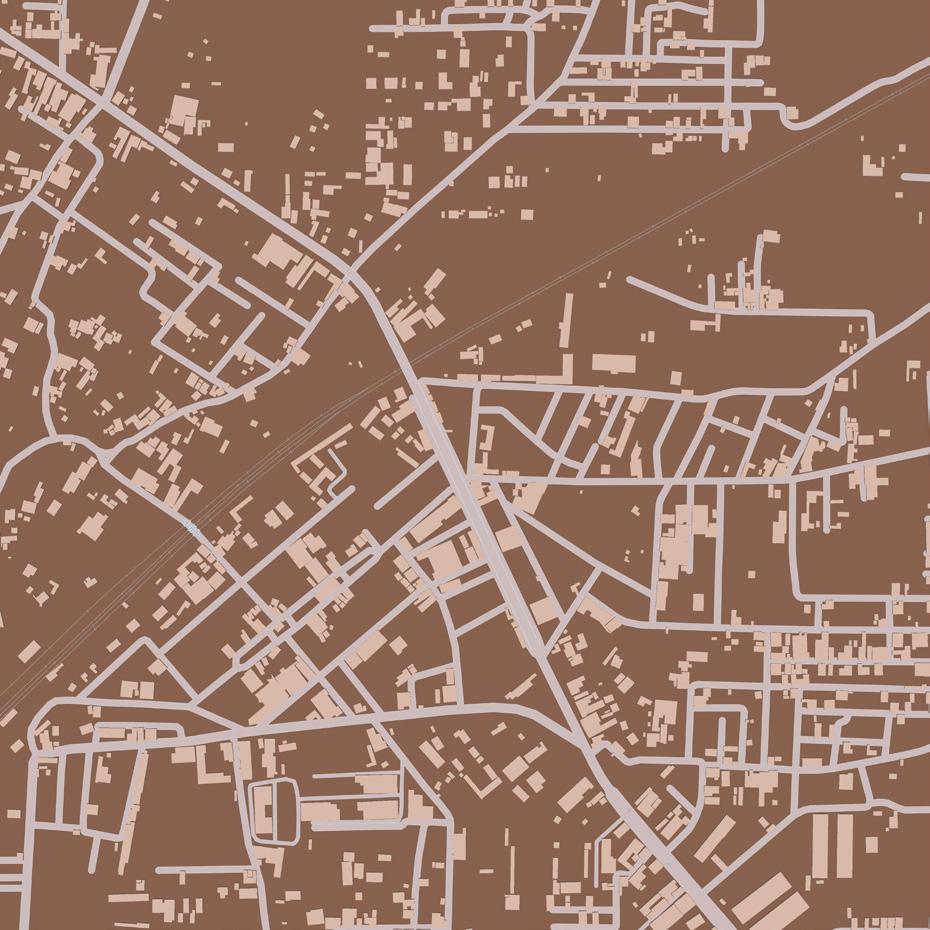

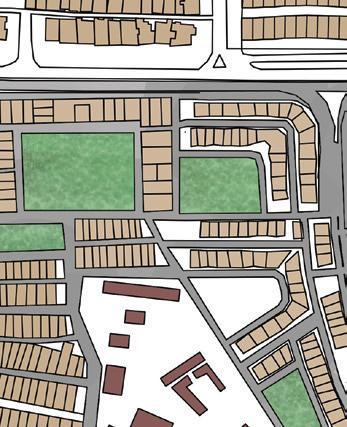

ISSUE MAPPING

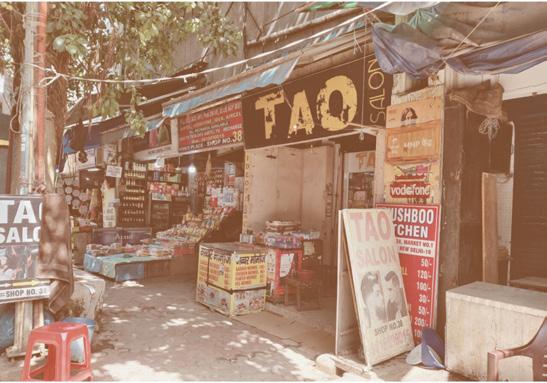

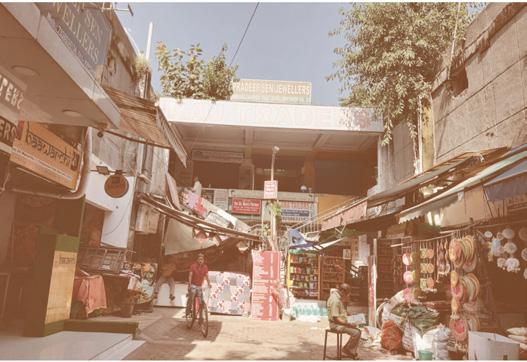

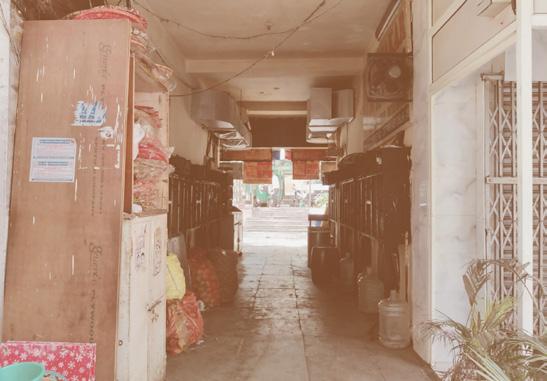

Informal hawkers
Unorganised
Only one access point
Poor infrastructure
Existing
Proposed
Existing
Proposed Multiple levels: forms visual connection, multiple activities at the same time Proper entry / Open entry : Accessible & Inviting
Open shared spaces : Sense of security , Community engagement , Exchange of diverse thoughts
STAKEHOLDER
8

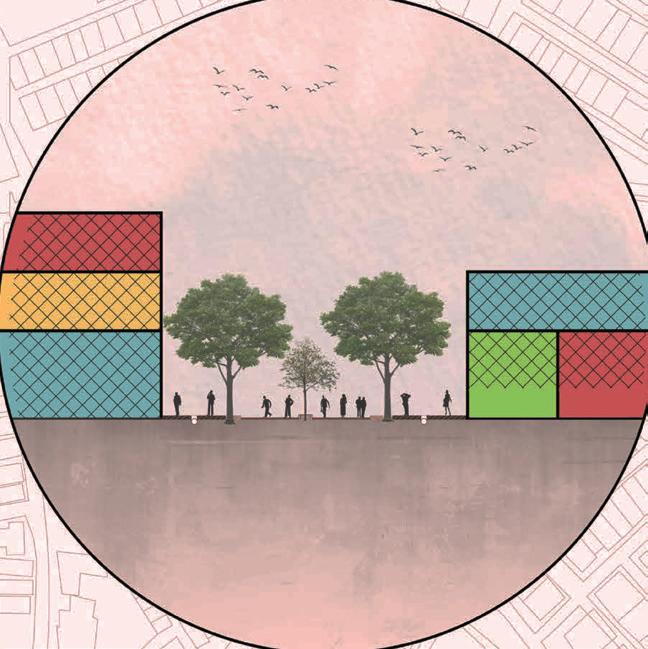

EXISTING SECTION AA' PROPOSED SECTION AA' EXISTING SECTION AA' PROPOSED SECTION AA' RAJ TRADERS SALON SEN TRADERS EYE CART KAWARCHI KENDRIYA STORE KOLKATA BIRYANI REAL ESTATE FURNITURE HOUSE BEHROUZ BIRYANI TAILOR HAN HOUSE RABI SNACK TAO WOW momos CHAWLA BAND FISH WALA RAJ TRADERS
Local residents Visitors Working professional Elderly / Youth | PORTFOLIO 2020 - 2024 Area distribution
01 CITY SYNERGY | |
| PORTFOLIO 2020 - 2024

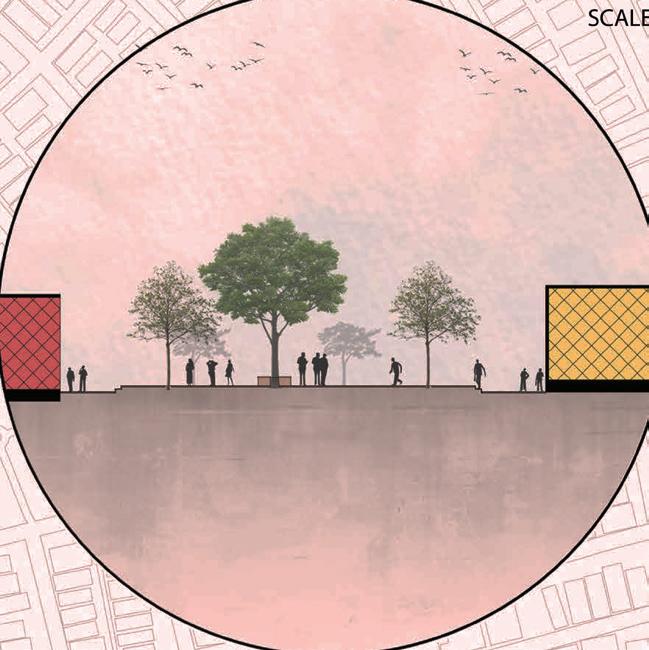

Section 1
Section 2

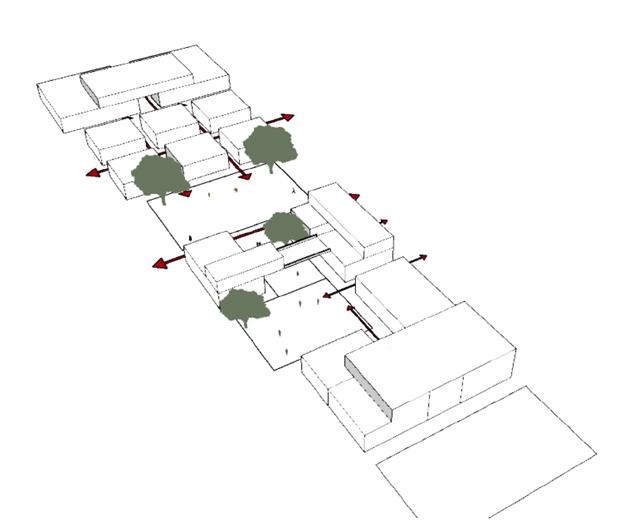

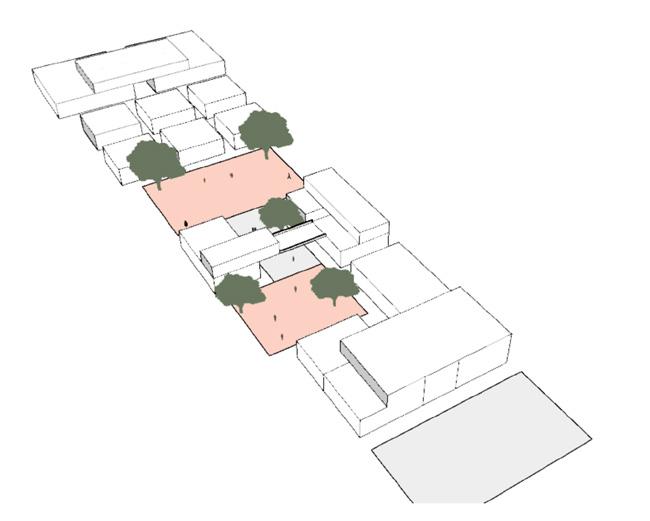

Expansion into public spaces
No boundaries to the built, rather concept of open plazas
Street redevelopment
Site is more welcoming and accessible
Precinct Level Integration
Making neighborhood more pedestrian friendly, so as to accessing the site is easy and also to increase informal form of social engagement.
Visual Connect
A visual connect with surrounding houses
11 01 CITY SYNERGY |

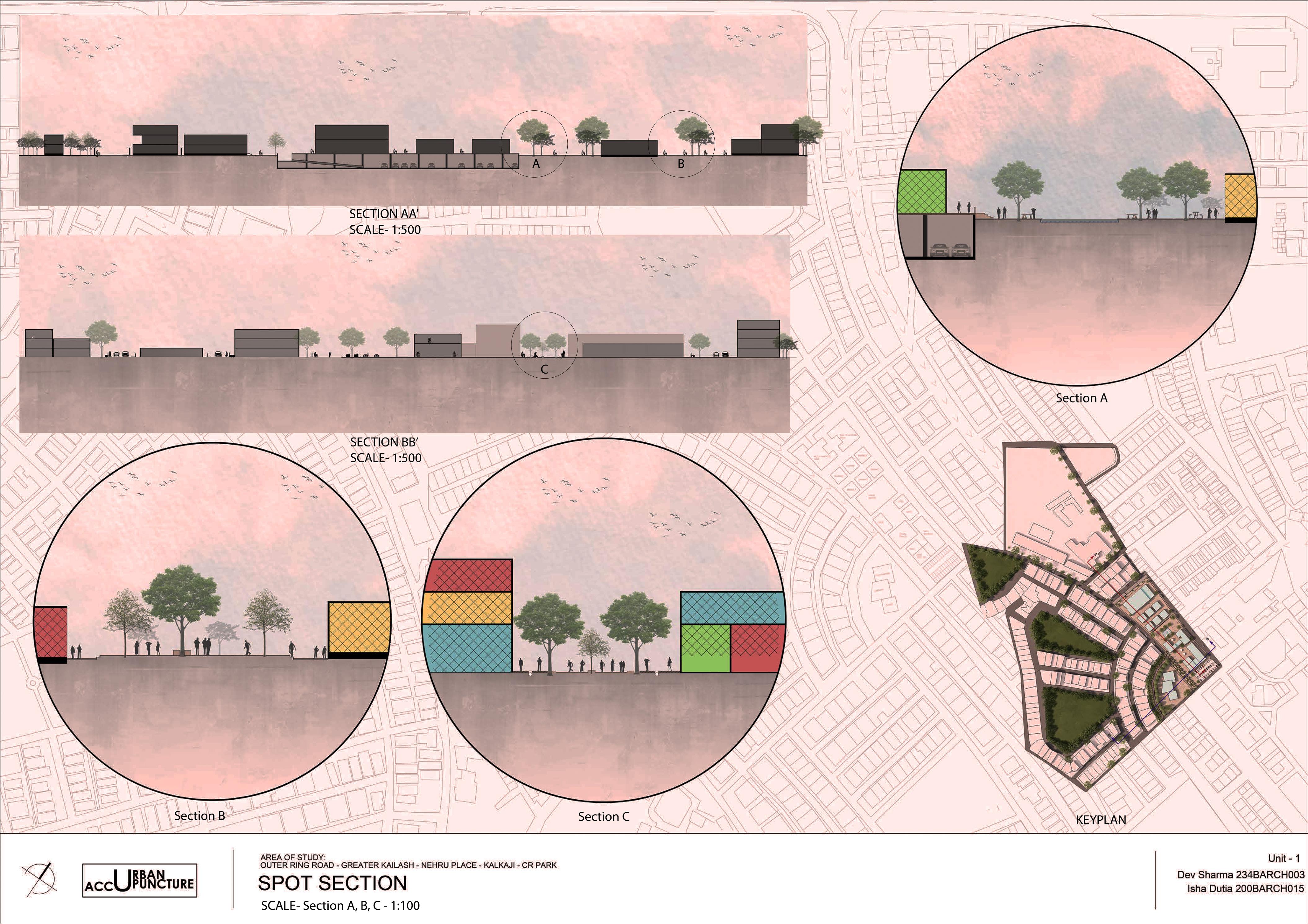

Spot section A
Spot section B
Spot section C

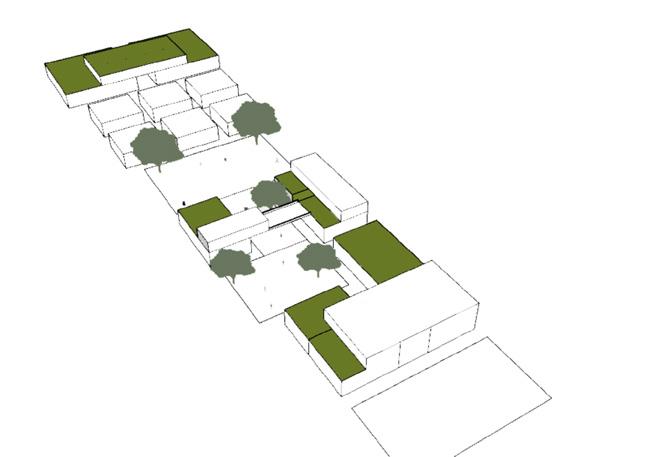

Green
Areas

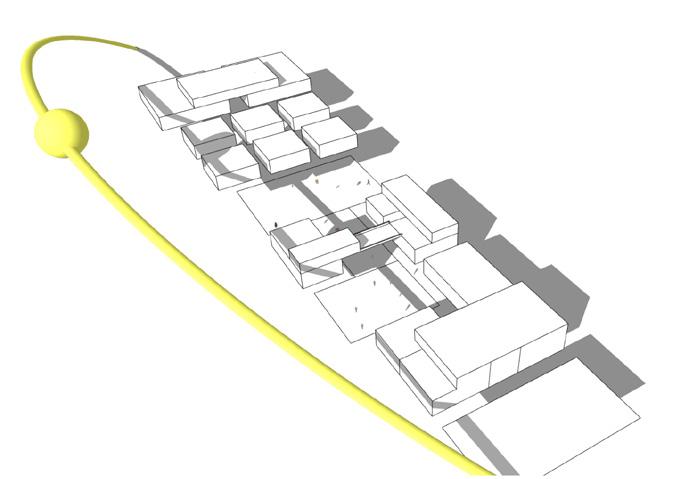

Sunpath
Open Spaces
Movement Pattern
Project Brief
CALEFACTION
R.E.A.L Lab| Parametrics
This is a year-long project which aims to explore the materiality and architectural potential of chitin, a biopolymer abundant in natural ecosystems. Divided into two phases( this is Program of Architecture) the project involves in-depth research on chitin properties and extraction methods, followed by the development of innovative architectural prototypes integrating chitin-based materials. The project seeks to push the boundaries of sustainable design, fostering collaboration and advancing both scientific understanding and architectural innovation.
Typology
Parametrics ; Materiality
Location Golf Course Road , Gurgaon
Softwares used
Rhinoceros, Grasshopper, Autocad, Photoshop, Illustrator
12
| PORTFOLIO 2020 - 2024 02
SYSTEM IN NATURE
MATERIAL SYSTEM

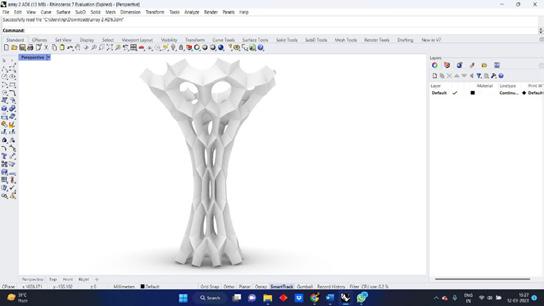

A system that analyses the materiality and structural elements of an architectural construct.
CHITIN FIBRE
A biopolymer which is structurally similar to celluloseOften formed into tiny fibers to generate a hard outer shell or armor in organisms for protection. Exoskeletons of crustaceans, insects, the cell walls of fungi, shrimp and crab shells.

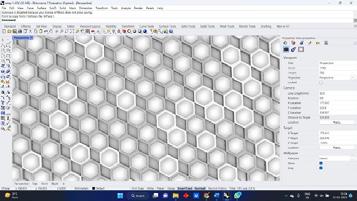

ALGORITHM
DECODING FORM

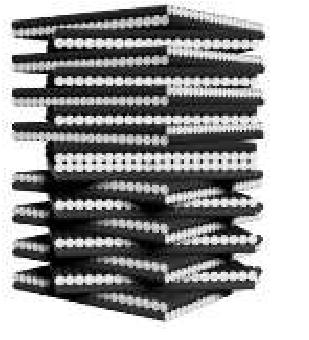

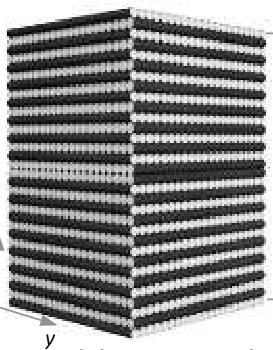

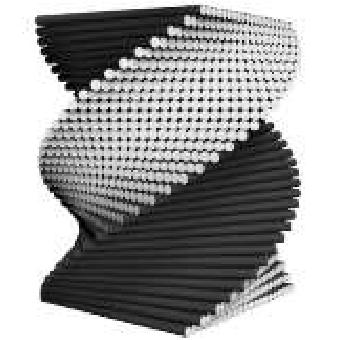

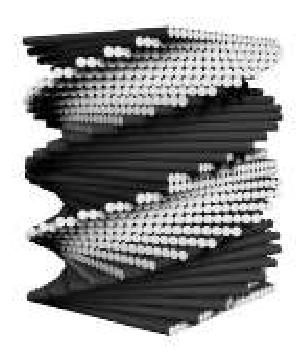

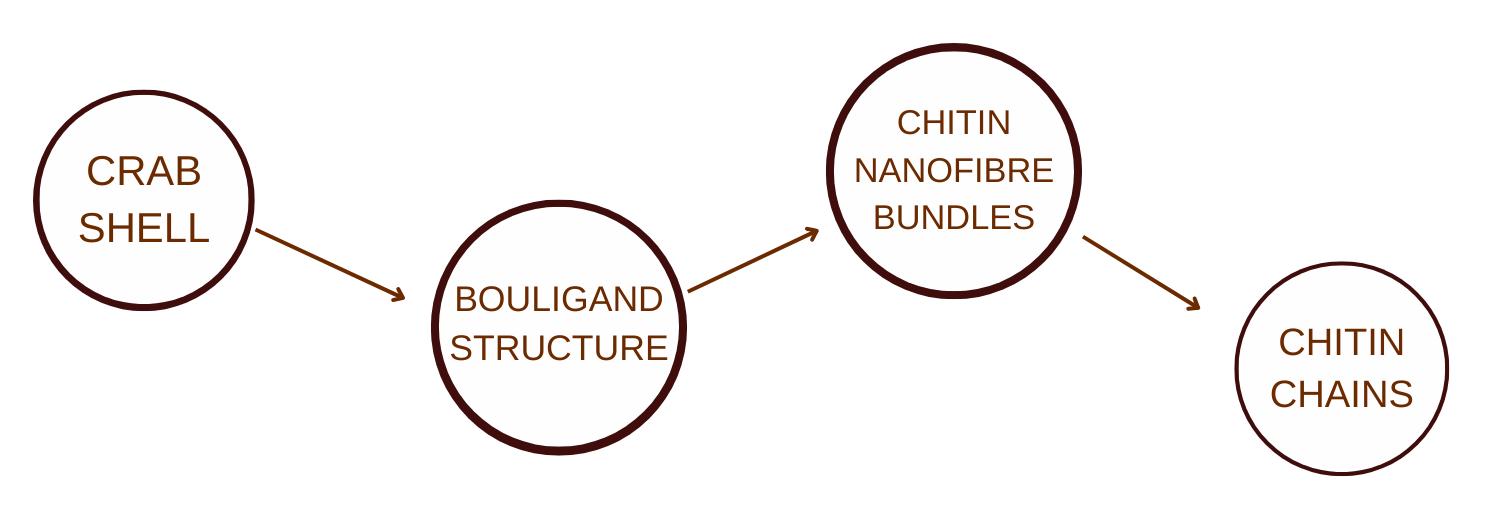

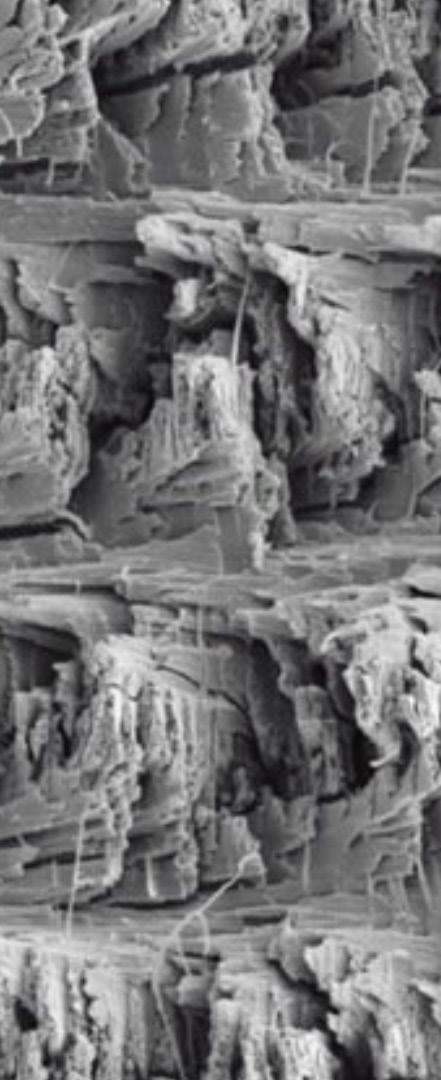

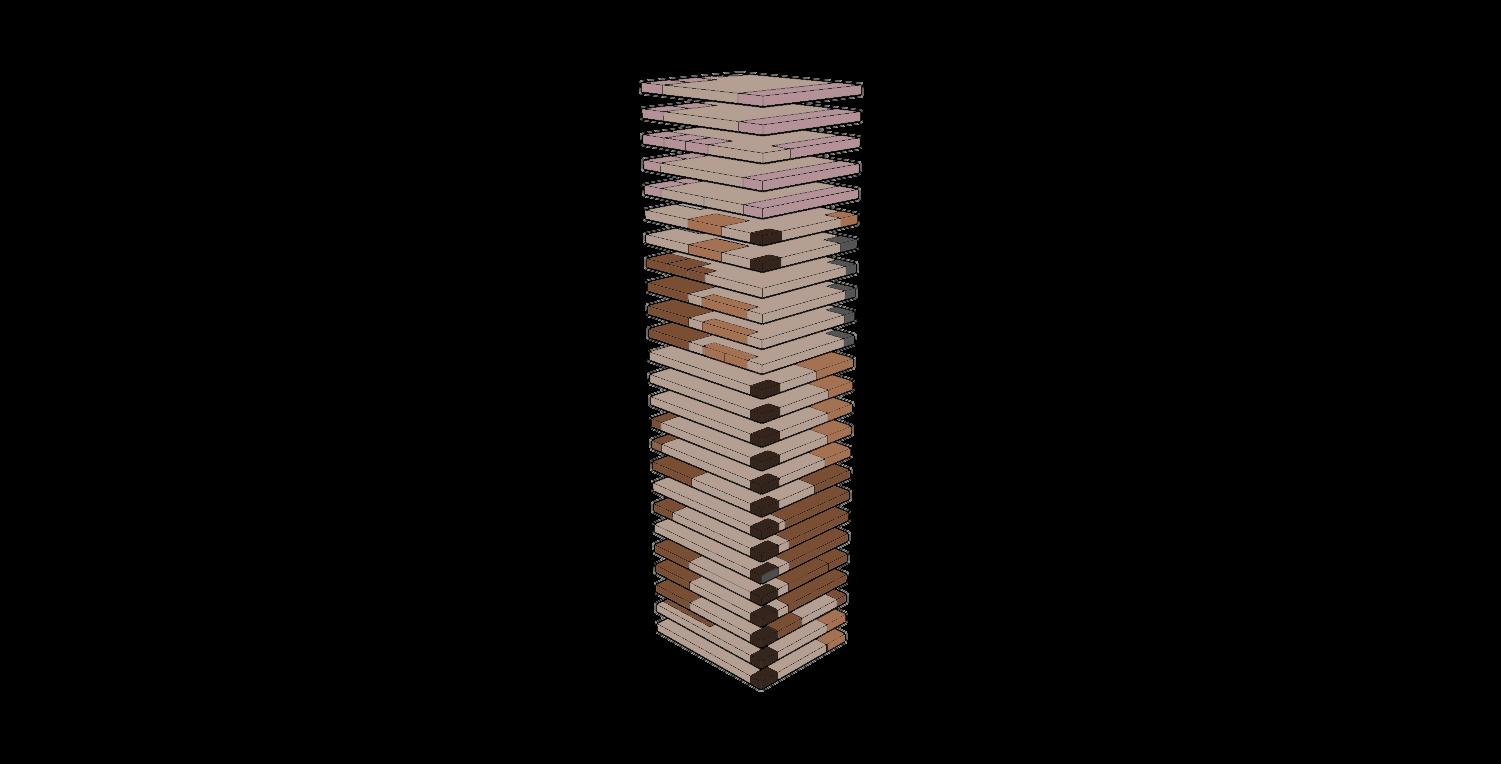

A Bouligand structure is a layered and rotated microstructure resembling plywood. It consists of multiple layers, each one composed of aligned fibers. Adjacent layers are progressively rotated with respect to their neighbors.
13
02 CALEFACTION | |

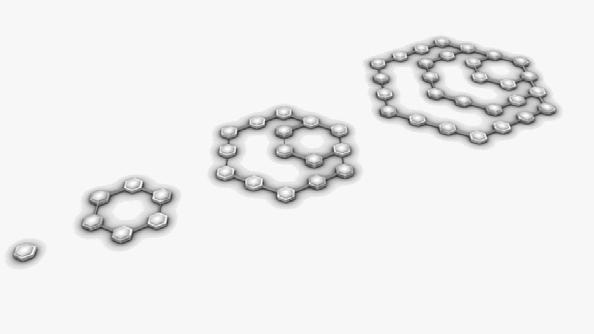

BUILDING UNITS OF CHITIN
Alpha-chitin is the steadiest and strongest form of chitin, with its N-acetyl glucosamine chains arranged in antiparallel directions.

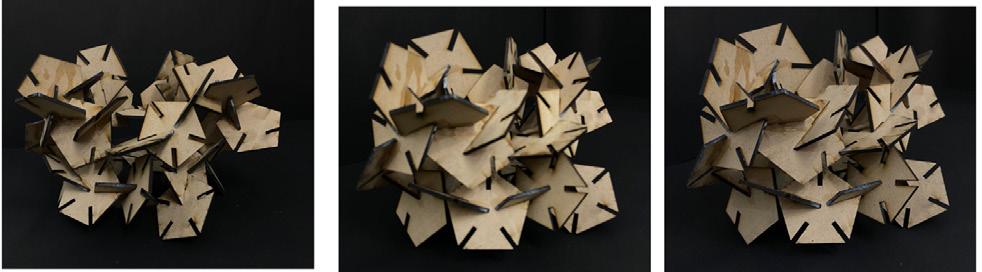

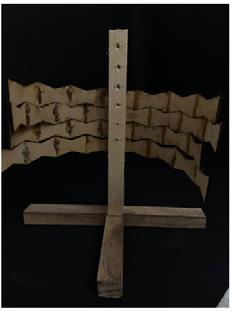

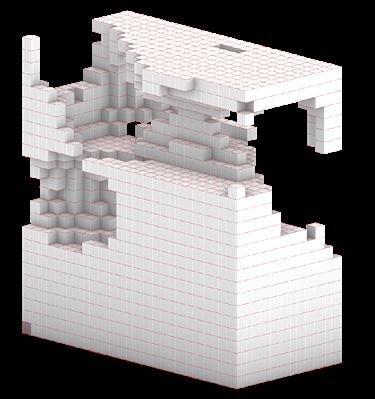

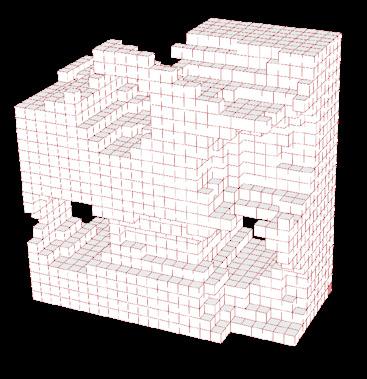

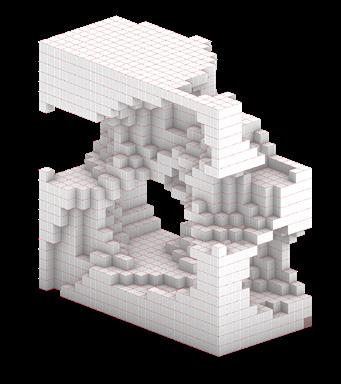

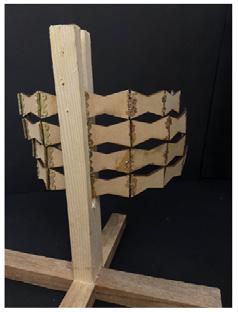

PROTOTYPE EXPLORATION
Beta -chitin has chains arranged in a parallel direction.
Gamma-chitin has two chains that share the same polarity and one arranged in the opposite direction.
14

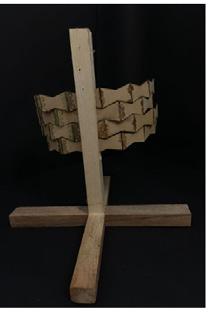

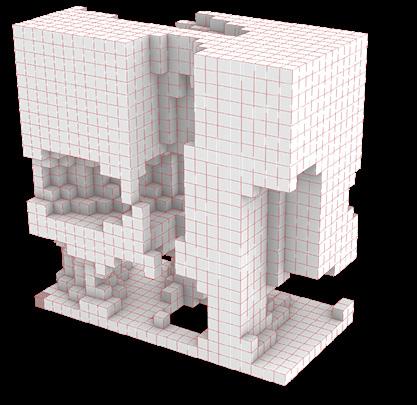

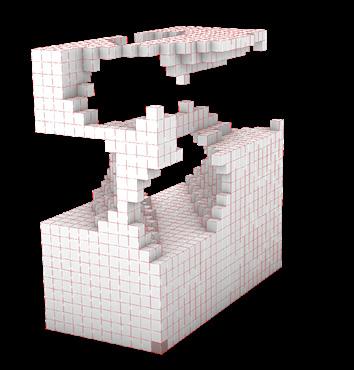

Prototype 1.1
Prototype 1.2
Prototype 1.3
Prototype 2
Prototype 3
Prototype 4
1 directional linear progression 3 directional linear progression 2 directional linear progression
STRUCTURAL INTEGRATION
TENSILITY
TORSIONAL
CHEMICAL LAYERING
Alpha Chitin
| PORTFOLIO 2020 - 2024
Beta Chitin Gamma Chitin

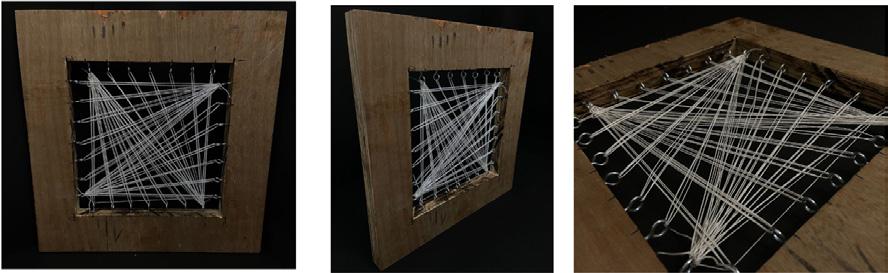

WOODEN FRAME
420 X 290 X 65 MM
WOODEN FRAME
420 X 290 X 65 MM
WOODEN FRAME
420 X 290 X 65 MM
WIRE MESH 2MM
WIRE MESH 2MM
WIRE MESH 2MM
WOODEN FRAME
420 X 290 X 65 MM
WIRE MESH 2MM
WOODEN FRAME
WIRE MESH
CONCRETE-CHITIN MIX
WOODEN FRAME
SINGLE UNIT
WIRE MESH
CONCRETE-CHITIN MIX
WOODEN FRAME
WIRE MESH
WOODEN FRAME
WIRE MESH
SINGLE UNIT
SINGLE UNIT
SINGLE UNIT
Design: Aggregate
Hollow with wire mesh only For preventing cracks and for the case of filteration as well
CONCRETE-CHITIN MIX
CONCRETE-CHITIN MIX
with wire mesh only ; for preventing cracks and for the case of filteration as well
SECTIONAL VIEW
Design: Aggregate
Material created: Concrete - Chitin
Material composition: Chitin Powder , Portland cement, White cement, Sand 5% by wt 5Kg 2Kg 15kg
SECTIONAL VIEW
SECTIONAL VIEW
SECTIONAL VIEW
Scale: 1:1
Design: Aggregate
Design: Aggregate
Concept: Panel, as facade system
Material composition: Chitin Powder , Portland cement, White cement, Sand 5% by wt 5Kg 2Kg 15kg
Material created: Concrete - Chitin
Material created: Concrete - Chitin
Scale: 1:1
Single unit dimensions : 420MM X 290MM X 3MM
Design: Aggregate
Weight of one panel: 6Kg
Material composition: Chitin Powder , Portland cement, White cement, Sand 5% by wt 5Kg 2Kg 15kg
Concept: Panel, as facade system
Material composition: Chitin Powder , Portland cement, White cement, Sand 5% by wt 5Kg 2Kg 15kg
Material created: Concrete - Chitin
Ecological response: Temperature and Air (CO2 Reduction)
Scale: 1:1
15
1650 290 420 340 210 60 Hollow with wire mesh only For preventing cracks and for the case of filteration as well 60 60 65
1650 290 420 340 210 60
183,27 60 65
Hollow
1650 290 420 Hollow with wire mesh only For preventing cracks and for the case of filteration as well
1650 290
02 CALEFACTION | |
NEARBY NOT NEARBY DESIRABLE LEGEND | PORTFOLIO 2020 - 2024

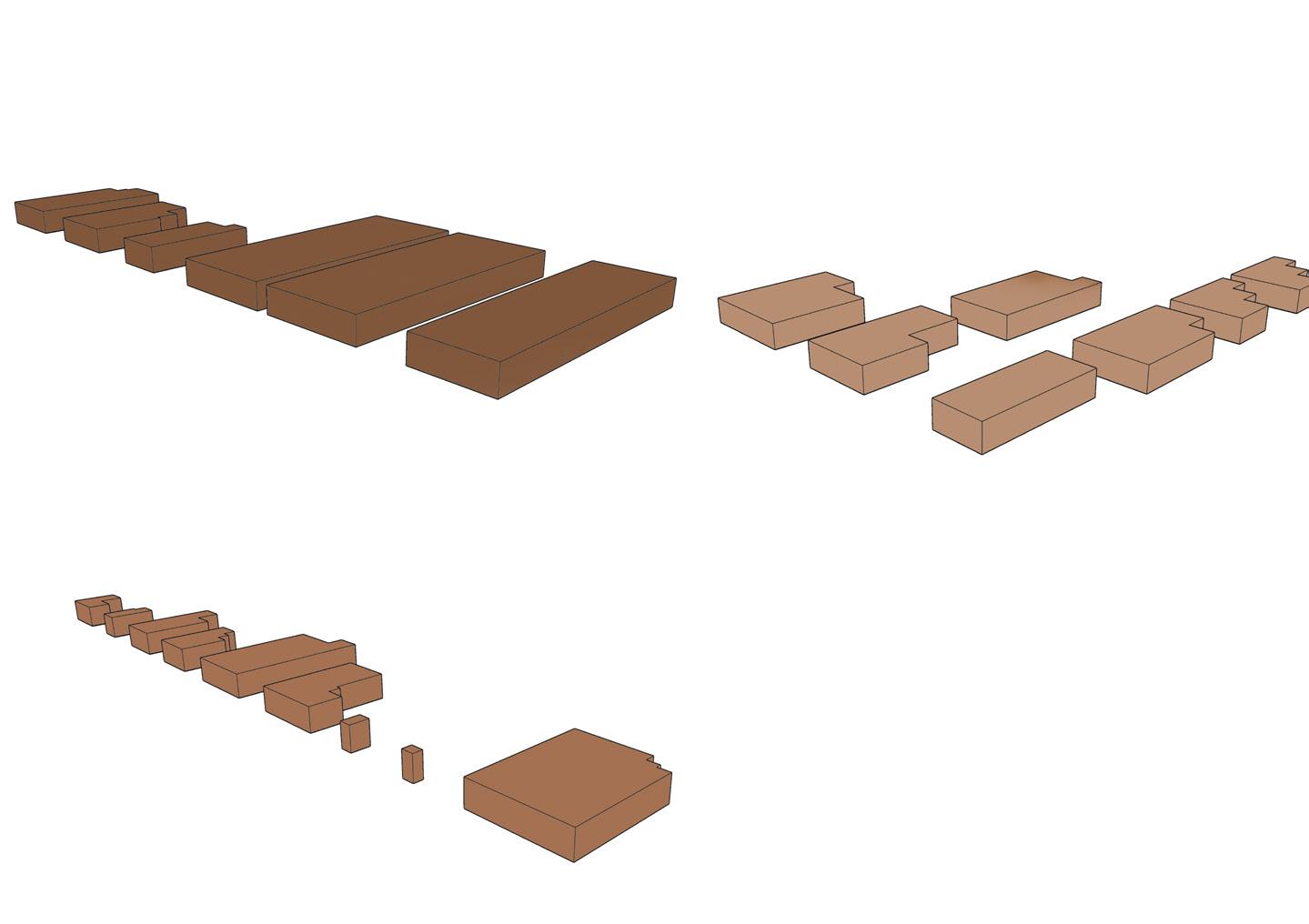

AREA AND VOLUME ANALYSIS STRATIFICATION
LINEAR BRANCHING

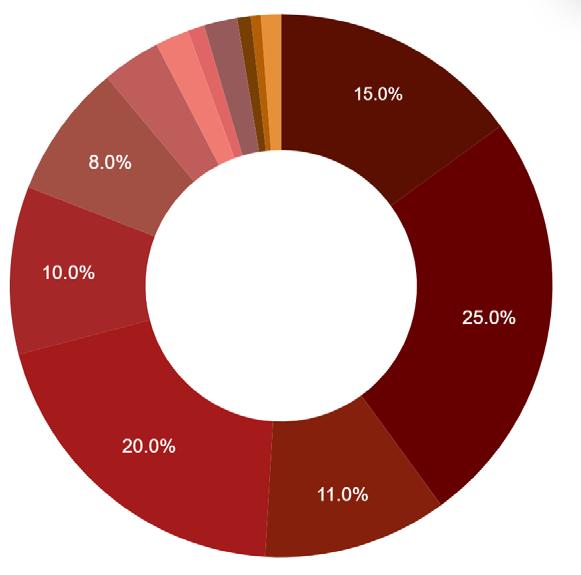

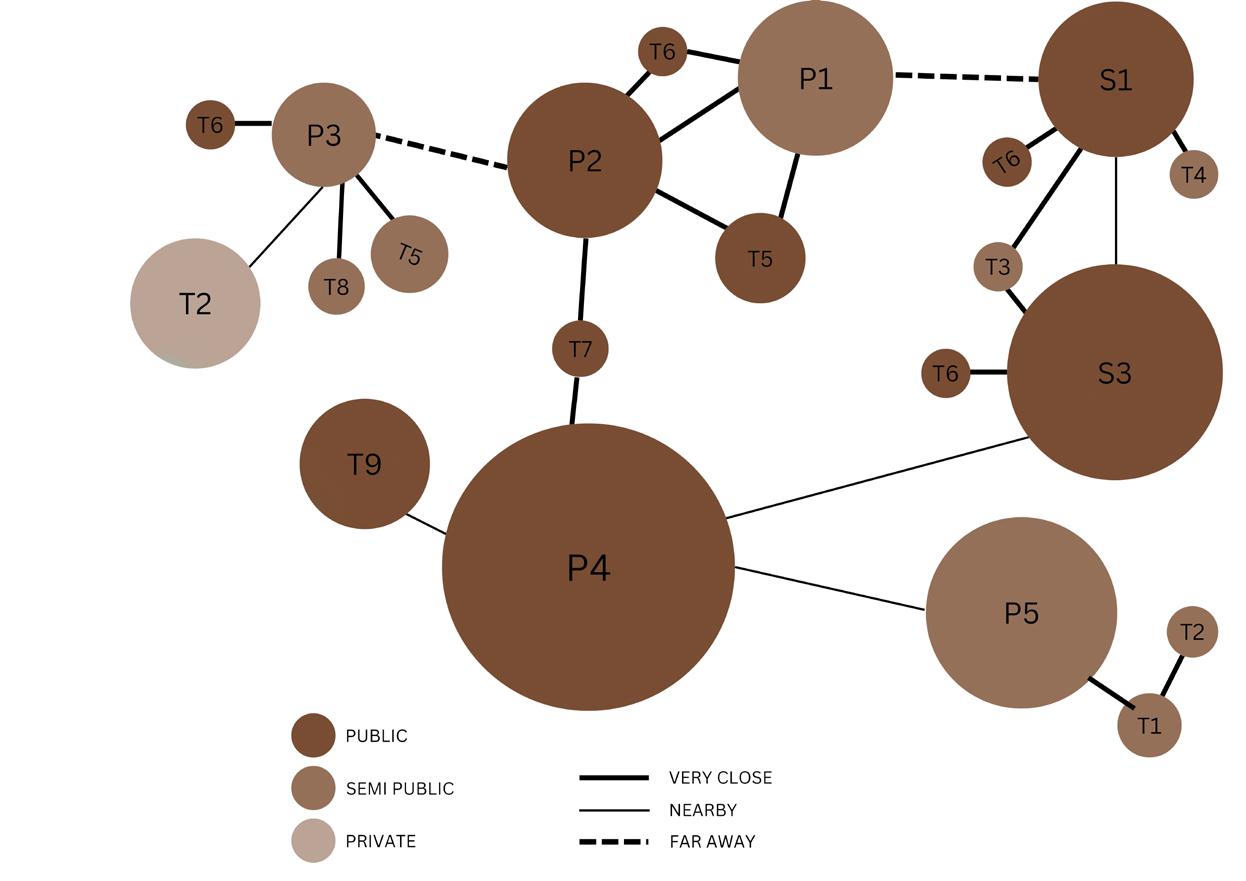

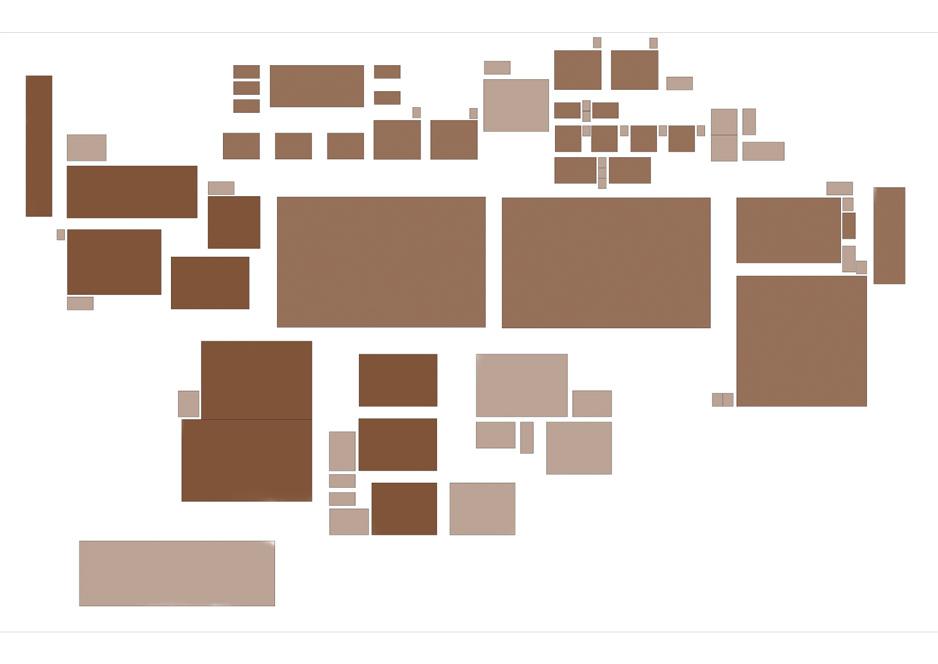

Stratification based on overall area occupied and henceforth understanding the spatial configuration and placement of spaces according to functions.

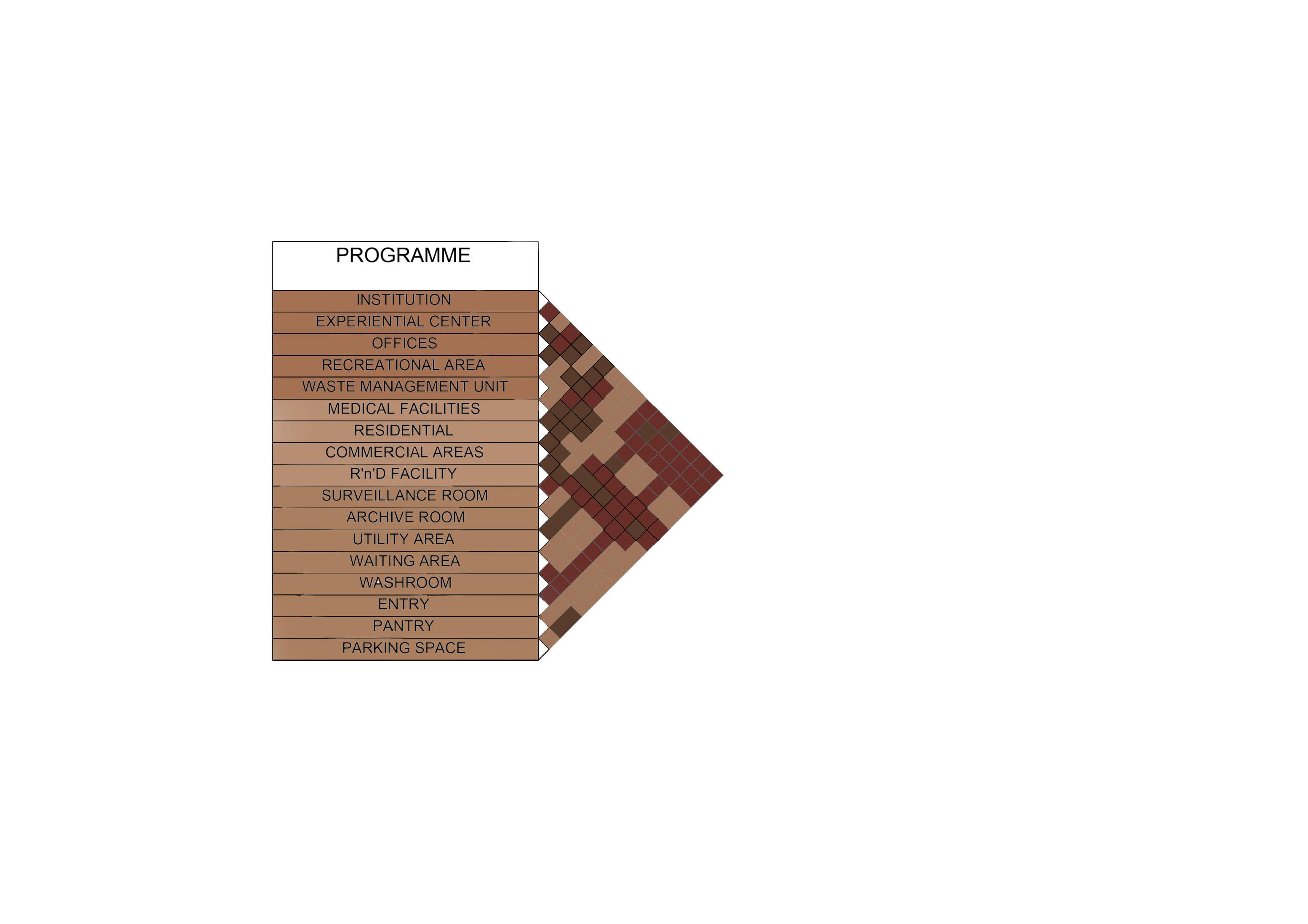

17 Waste Management Recreational Offices Experiential Instituition Commercial Medical Residential RnD Parking Survellience Archive Entrance Reception Washrooms Utility Pantry
Primary Tertiary Secondary
LEGEND Public Private Semi - Public Circulation Core 2 Core 1 LEGEND Primary Secondary Tertiary 02 CALEFACTION | |
18

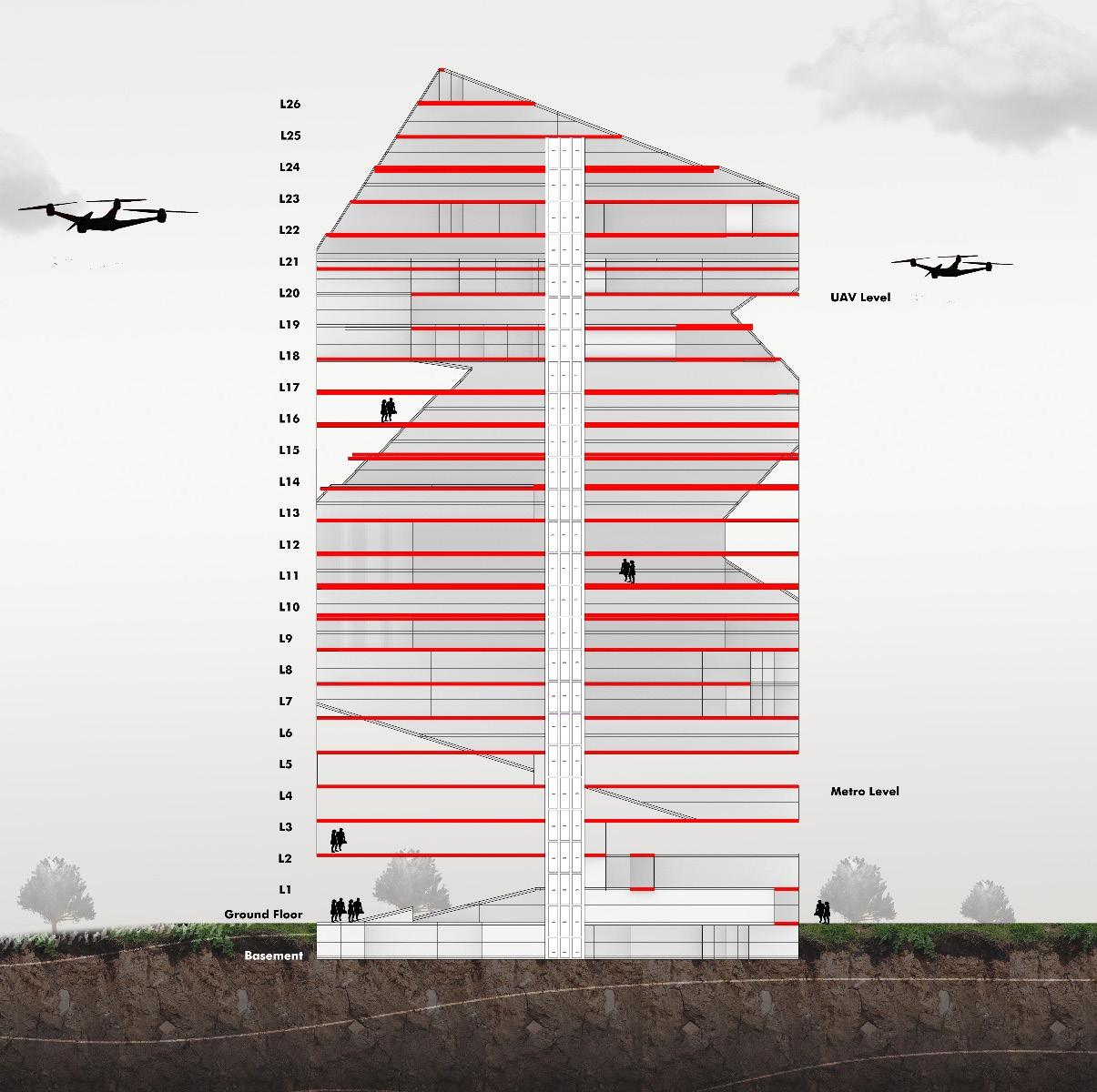

a. Pedestrian e. Sound d. UAV
c. Metro
b. Vehicular f. Sunpath
ab cd cdh abcd fg fgh efg ac abeh eh cdeg efgh | PORTFOLIO 2020 - 2024 abc efh

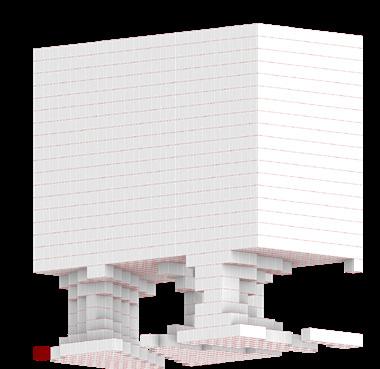

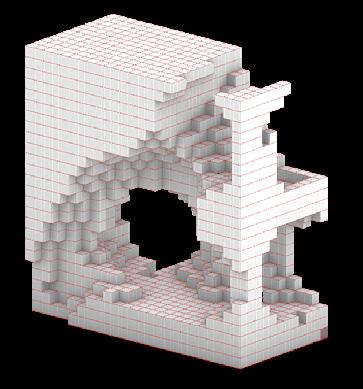

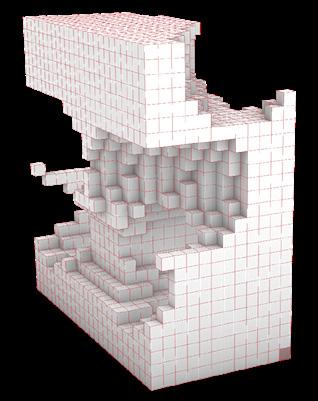

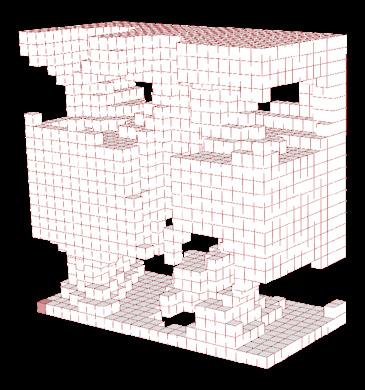

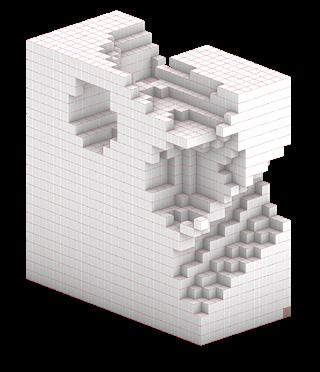

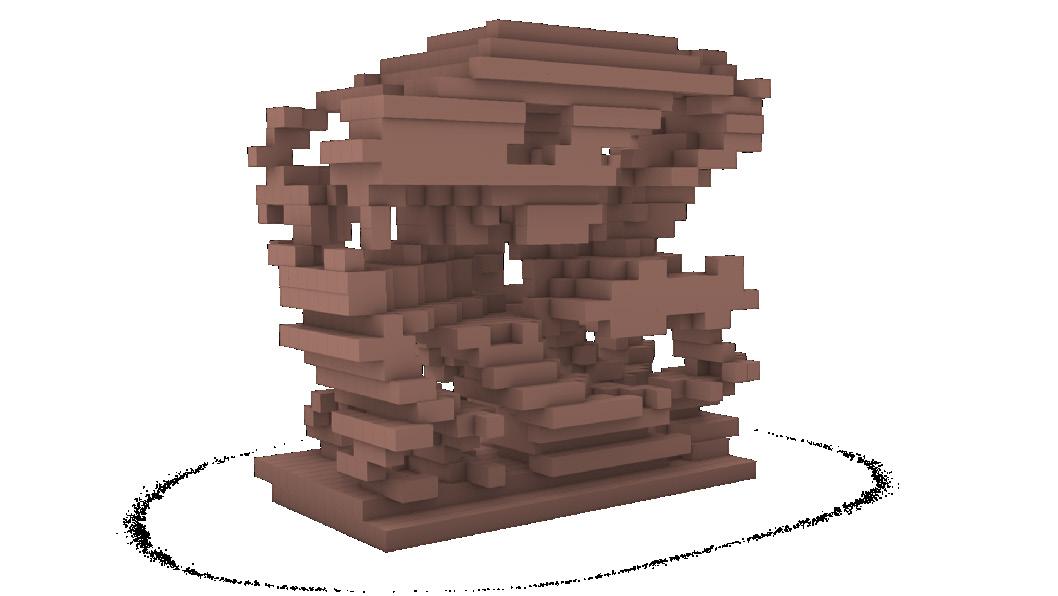

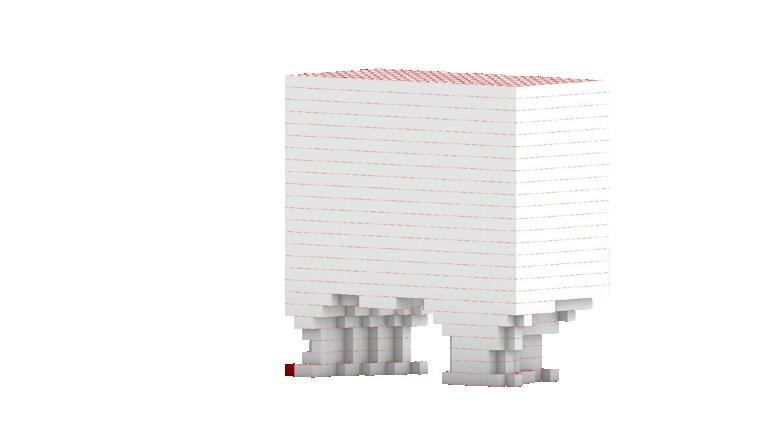

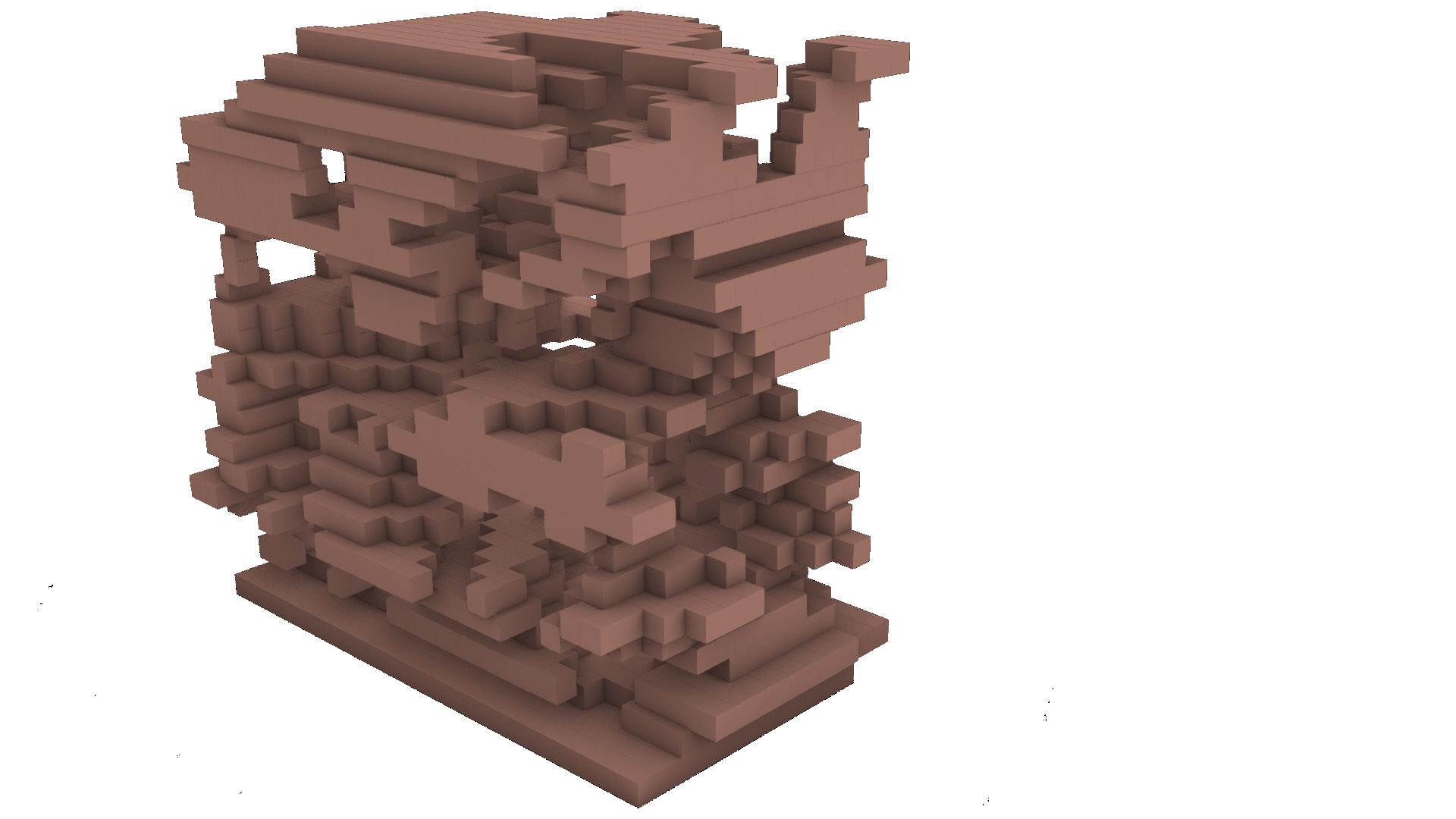

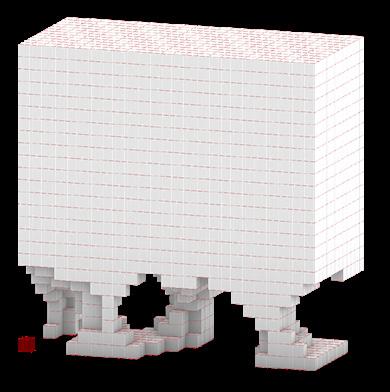

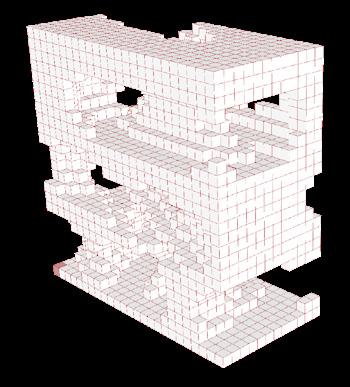

FORM EXPLORATION
19
g. Wind

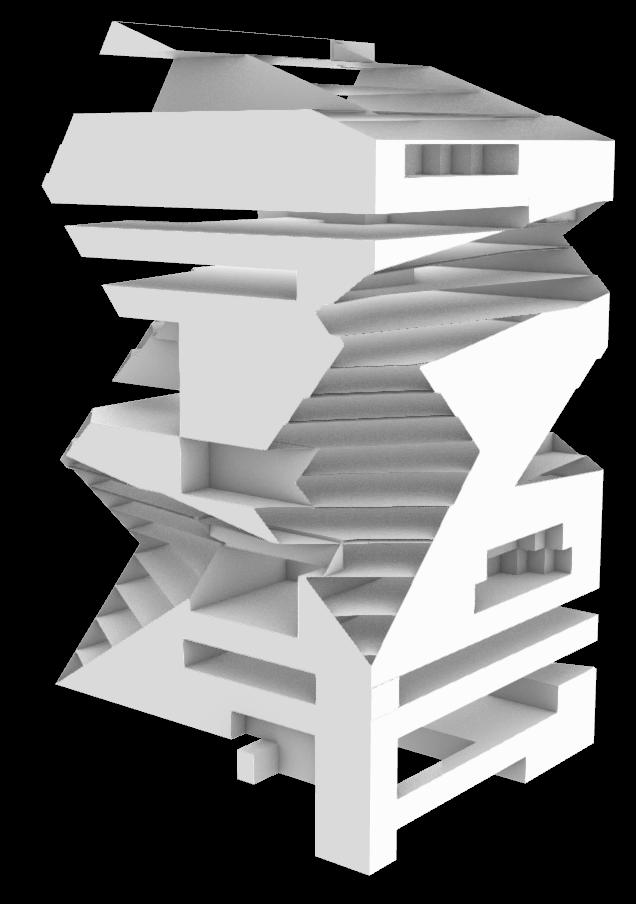

FINAL FORM 02 CALEFACTION | |
h. Visual
gh fh
SANGFROID
R.E.A.L Lab| Parametrics
Project Brief
Typology
Sangfroid is a project designed specifically for activism to assist people in expressing their opinions without causing problems for others. This project considers all of the factors, needs, and requirements of a person participating in any activism or similar activities. For a human being, we consider not only physical or exterior characteristics, but also social and mental factors.
Parametrics ; Materiality
Location Golf Course Road , Gurgaon
Softwares used
Rhinoceros, Grasshopper, Autocad, Photoshop, Illustrator
20
| PORTFOLIO 2020 - 2024 03
03 SANGFROID | |

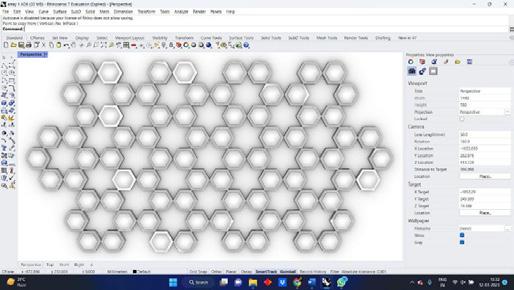

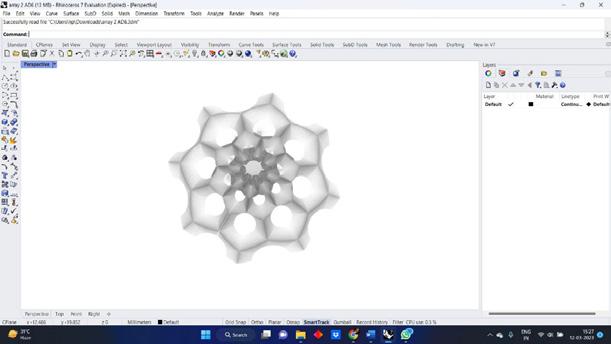

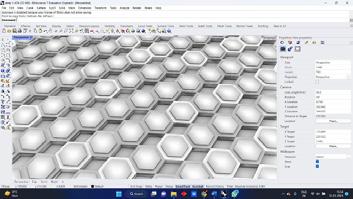

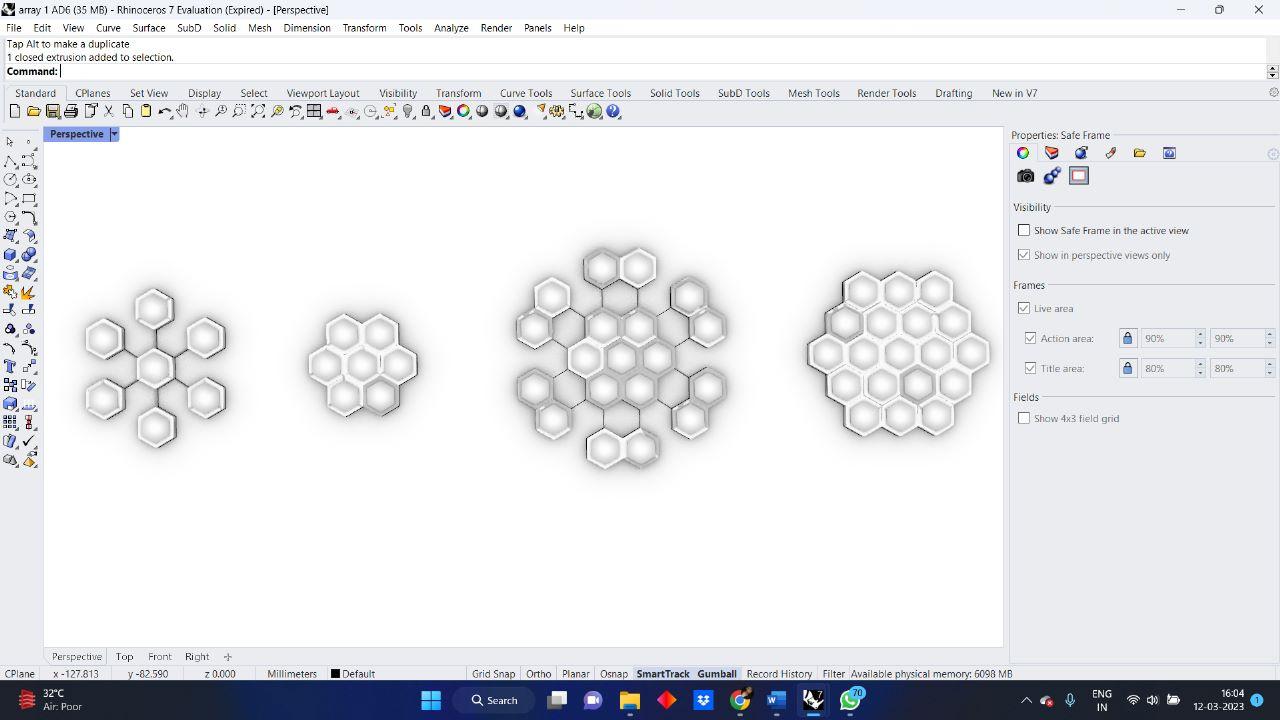

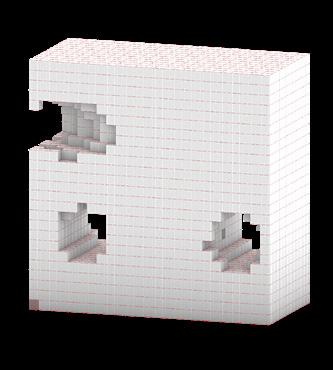

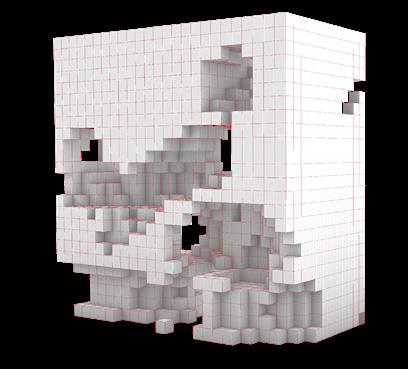

Array 1 Array 2 Array 3
Array 4
Array 6
Array 5

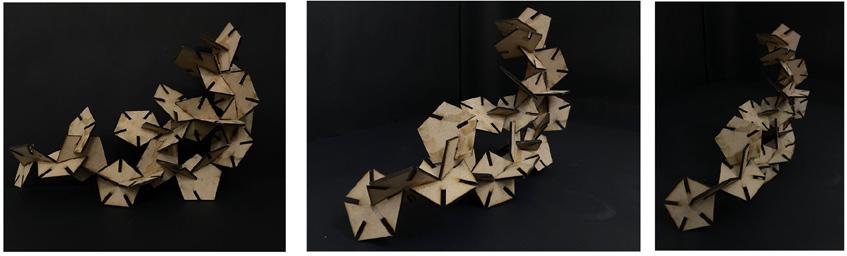

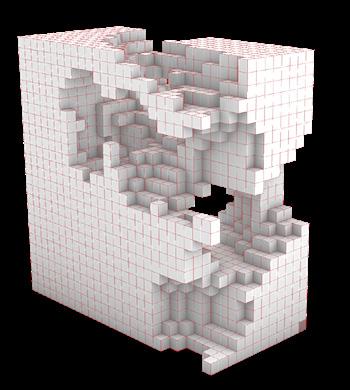

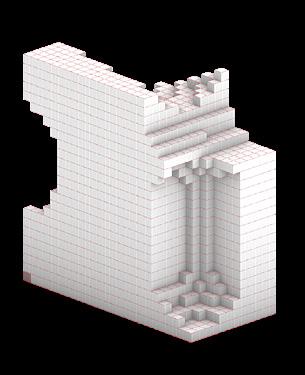

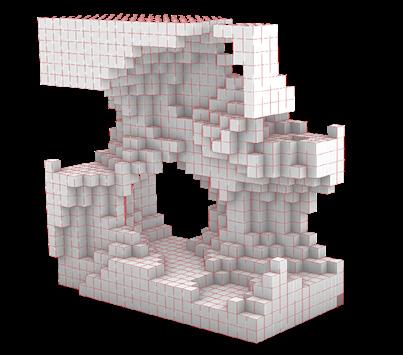

22 Edge Side Sides Extension on sides Rotation Placement Based on Juxtaposition Extension on sides Further confect ons Sides Sides Edge Side S des Extension on sides Rotat on Placement Based on Juxtaposition Edge Side S des Extension on s des Rotation Placement Based on Juxtaposition Extens on on sides Further confections S des Sides Edge Side Sides Extension on sides Rotation Placement Based on Juxtaposition Extension on s des Further confect ons Sides S des Connection on Edges Connection on Sides +Mu tiplicati Sides Connect on on Edges Connect on on S des +Mu p cat on on S de

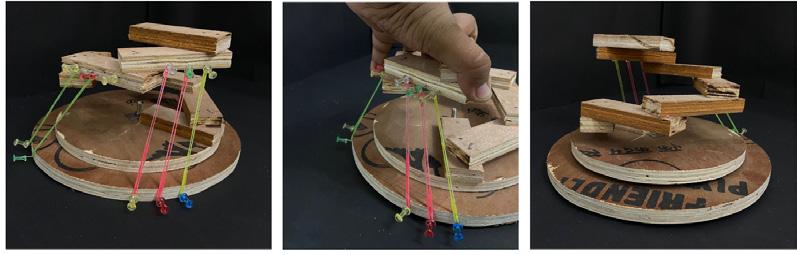

Ecological Assemblies
| PORTFOLIO 2020 - 2024

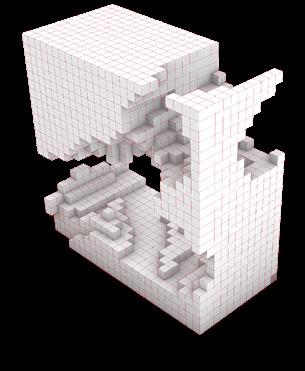

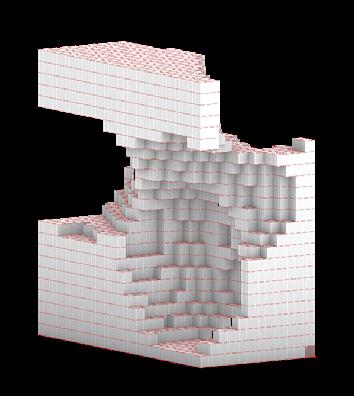

Interbred Model
Representation of activism through form
Visual impact that draws attention to the cause or issue. This can include bold colors, unique shapes, and striking visual features.
Functionality: Incorporating spaces for protests, rallies, or other activism-related activities.
Inclusivity: Prioritize inclusivity and accessibility, diverse range of people and groups. This can include features such as ramps, wide doorways, and gender-neutral bathrooms.
Public engagement: Engage with the public, providing spaces for community gatherings, education, and dialogue around the issue or cause being advocated for.
23
S3 S1 RECEPTION BALCONY MEETING/ADVISORY ROOM CUBICLE OFFICES PANTRY RECEPTION CAFE ADMIN PANTRY S3 S1 RECEPTION LOBBY SINGLE THERAPY ROOMS SCRIBBLE ROOM EMOTION DISSIPATION ROOM GROUP THERAPY ROOM OPEN BALCONY S3 S1 RECEPTION BALCONY MEETING/ADVISORY ROOM CUBICLE OFFICES PANTRY RECEPTION CAFE ADMIN PANTRY S3 S1 RECEPTION IT DEPARTMENT LOBBY CCTV ROOM PANTRY SECURITY CHECK S3 S1 RECEPTION LOBBY SINGLE THERAPY ROOMS SCRIBBLE ROOM EMOTION DISSIPATION ROOM GROUP THERAPY ROOM OPEN BALCONY S3 S1 RECEPTION BALCONY MEETING/ADVISORY ROOM CUBICLE OFFICES PANTRY RECEPTION CAFE ADMIN PANTRY S3 S1 RECEPTION IT DEPARTMENT LOBBY CCTV ROOM PANTRY SECURITY CHECK FLOOR 15 FLOOR 16 FLOOR 17 03 SANGFROID | |
Project Brief
Area of intervention
Typology
Softwares used
SEEVAN
Well Being | Cultural Complex
Farrukhnagar, a town saturated with India’s set of experiences, flourished with its salt exchange. The famous fort of the town , built by Khan around 1761, lodging his castle known as Sheesh Mahal, a diamond of Mughal engineering; our site exists in this memorable territory. The structure configuration is directed by five focal lenses: imageability, culture, well being, materiality, and traces of evolution.
Cultural complex
SketchUp , Autocad, Photoshop
24
| PORTFOLIO 2020 - 2024 04
Farrukhnagar, Haryana

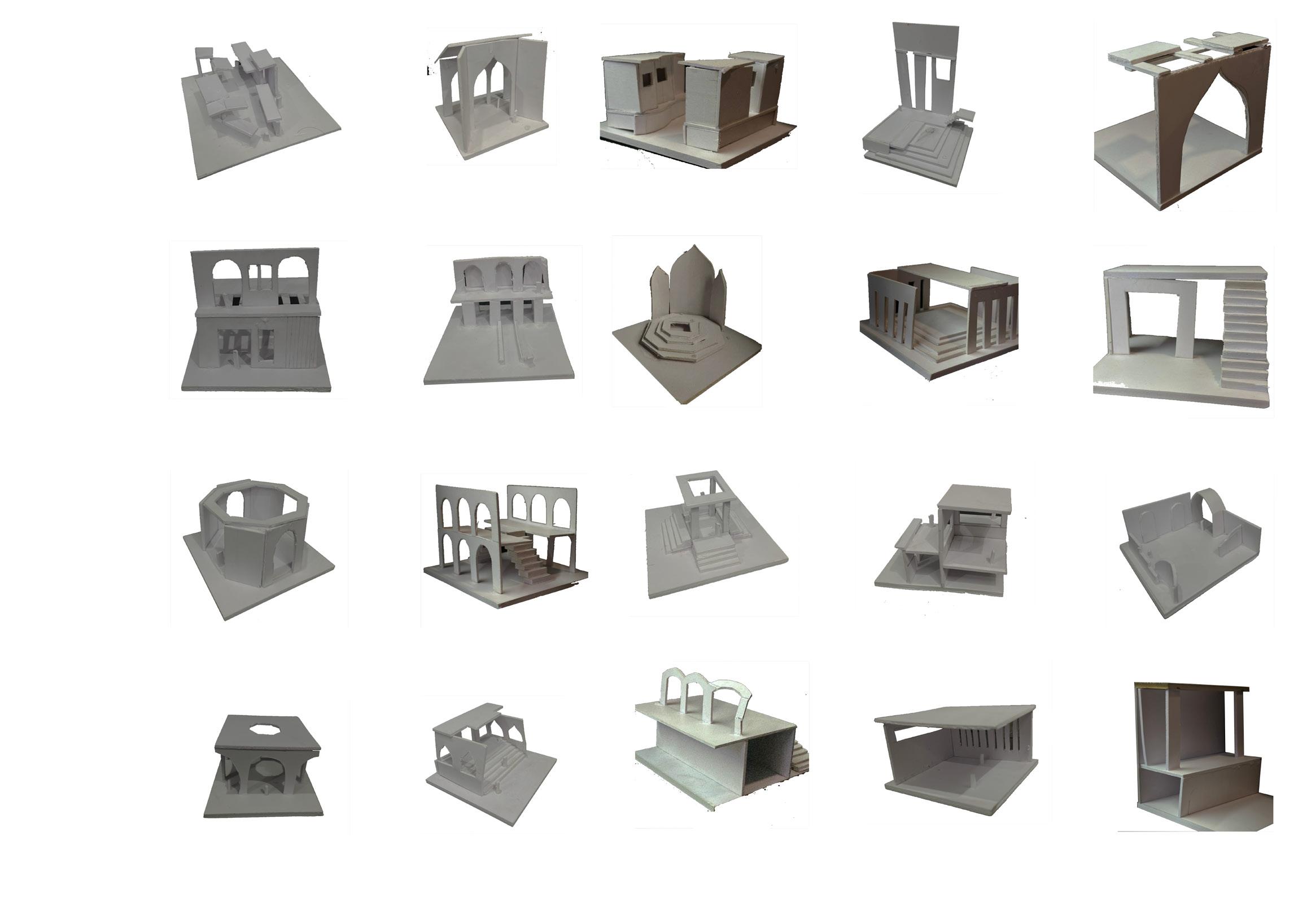

Model Matrix
25
Material
Imageability Culture Well Being Traces
Site Response
04 SEEVAN | |
Programatic Response Spatial Response Climatic Response
Issue Mapping
Hygiene
Little to no social life
Compact housing
Gully system and narrow roads / streets
No such availability of entertainment
No spaces for women gathering
No space for kids

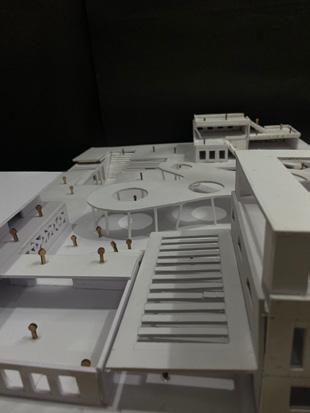

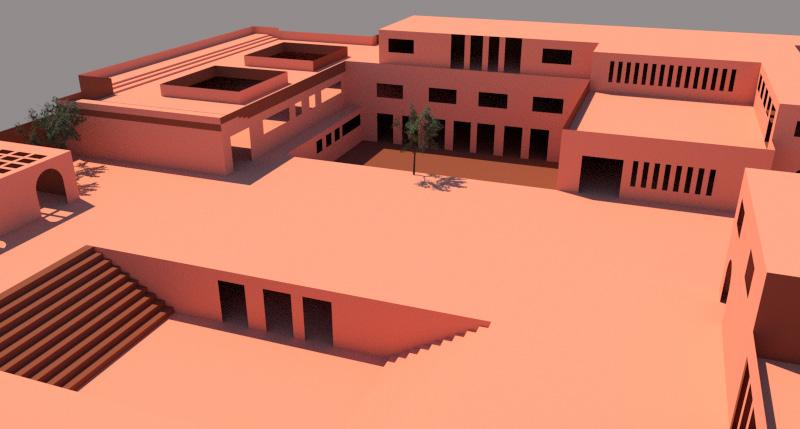

Open stepped sitting, derived from the concept of initial models.
A space for women, in relation to their history of how they would come together to sieve Gehu. It is half open to sky and also has shade.
Design Concept

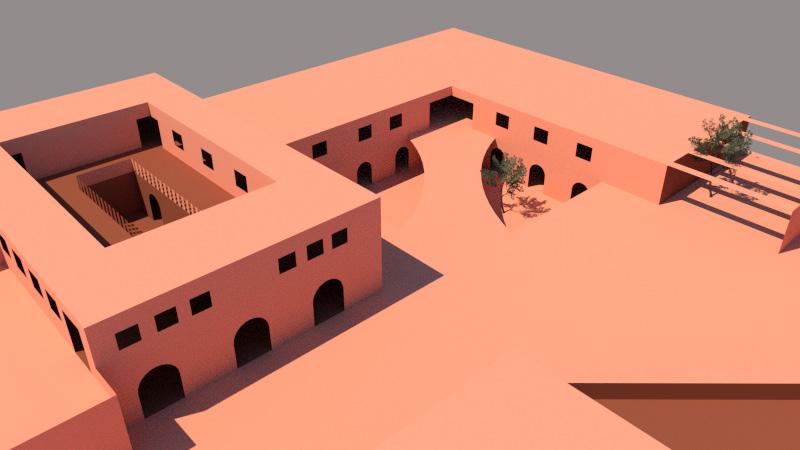

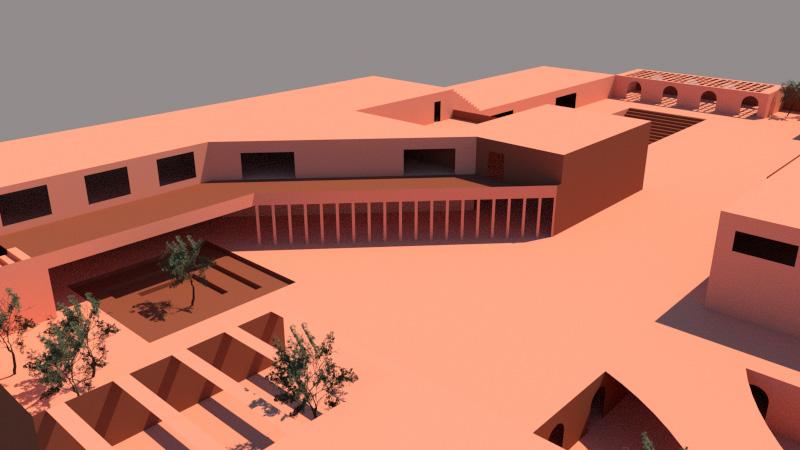

The proposed design architecture project aims to create a vibrant community hub in Farrukhnagar that caters to the diverse needs of its residents while fostering a sense of connection to the natural environment. This multifunctional space will encompass workshops, galleries, amphitheaters, areas for women, family gatherings, a local art bazaar, and an educational institute. By seamlessly blending traditional elements with modern design principles, the project seeks to enhance the overall well-being of the community.
Exhibition and a working area for people of farrukhnagar.
Underground informal market area, for the people and the vendors. To retain existing market culture and to provide a shaded place for the vendors.
Jali work on roofs and walls; acting as slit windowsfor interplay of light and shadow as it is a workshop area, where lighting can play an important role in engagement of people
| PORTFOLIO 2020 - 2024
27

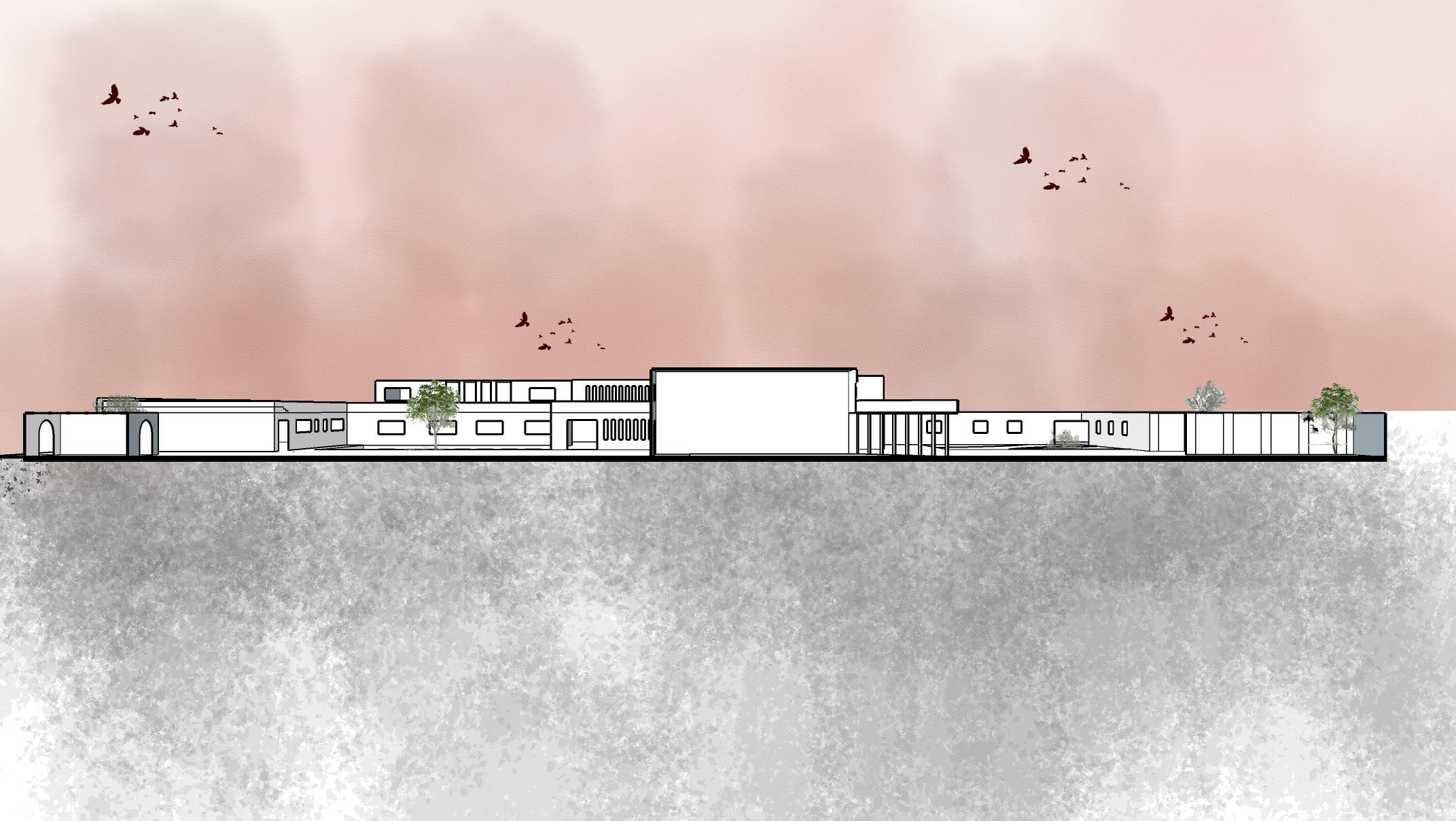

1 Section 2
Section

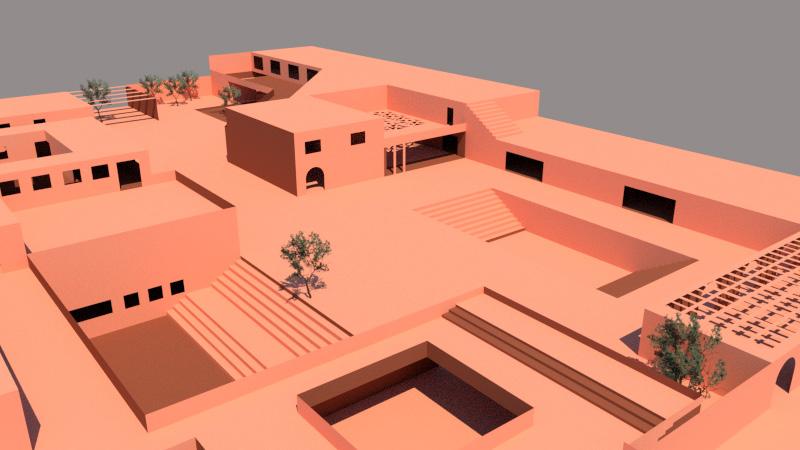

View 1
View 2
04 SEEVAN | |
View 3
Dissertation
Architecture And Domestic Abuse: Dismantling The Relationship Barriers
Aim
This paper aim to provide a framework, design guidelines and provide recommendations to existing laws and policies, which in turn will help in establishing a healing environment for domestic violence survivors.
Objectives
To understand the mental and emotional state of domestic violence survivors and their needs in shelters, focusing on their impact on shelter design.
Explores the relationship between domestic abuse and architecture, identifying triggers and understanding the suitability of shelters for post-traumatic recovery.
Abstract
Domestic violence is a significant issue affecting thousands of women annually, leading to mental health issues such as anxiety, PTSD, depression, and substance abuse. Shelters, which have evolved since the 1970s, provide services to women in crisis, but often neglect those who are no longer in immediate danger or may never seek shelter. Understanding the relationship between architecture and domestic violence is crucial for designing safer and more supportive built environments. This literature review critically examines existing research on how architecture affects domestic violence and the potential for architecture to play a role in prevention and intervention. The study suggests a new design for a domestic violence rehabilitation community, focusing on eliciting emotional responses and restoring dignity through careful use of space, light, and materiality.
Scope & Limitations
The research paper examines the impact of architectural design on domestic violence prevalence and experiences, focusing on spatial configurations, safety features, and emotional well-being. It provides practical insights for architects, designers, and policymakers. However, it faces limitations in obtaining sensitive data, broader applicability, and isolating the exact effect from other.
Way Forward
Architecture plays a crucial role in the long-term recovery of domestic abuse survivors. Architecture has become a weapon within domestic abuse, triggering specific elements that can act as triggers. Careful planning and design can create spaces that prioritize safety and wellbeing. Architects, designers, and policymakers must consider this relationship and create built environments that foster security, empowerment, and positive social dynamics. By understanding the implicit link between architecture and domestic abuse, architects can redesign triggers and implement social support, perceptions of control, positive distraction, and a pacifying material palette.
Architecture should also play an equally considerable role in post-abuse recovery stages. Existing architecture exemplifies empathy, and retrofits to domestic spaces can significantly support mental and physical recovery. Further research is needed to investigate the psychological impacts of architecture and how spatial configuration impacts humans.
28
| PORTFOLIO 2020 - 2024 05
05 DISSERTATION | Source : AI generated
Working Drawings
PROJECT 01
Typology Semester 06
Ground Floor Plan Scale 1:750 Cultural Centre
C D' D E F
Schedule of Columns
Schedule of Openings
30
N DATE : NAME : ISHA ROLL NO . : 200BARCH015 CLASS : 3A SUBJECT : BUILDING CONSTRUCTION ALL DIMENSION ARE D1 00mm Type Dimension Sill D2 SCHEDULE OF OPENINGS SD1 D3 00mm 00mm 2400x1100 2400x900 2400x1700 2400x2000 W1 900mm 2000x1500 00mm UP UP ELECTRICAL SHAFT FIRE SHAFT CAFETERIA ADMIN AND ACCOUNTS LIBRARY EXHIBITION AREA WORKSHOP + GALLERY FOYER W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W2 W2 W3 W3 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W5 W5 W1 W1 W4 W4 A B C D' D E F 1 2 3 4 6 7 8 9 5 5' D1 D1 D1 D1 D2 D1 D1 D1 D1 D1 D1 D1 D1 D3 D1 D1 D1 D1 D1 D1 D1 D1 D1 D1 UP ELECTRICAL SHAFT ENTRY MALE TOILET FEMALE TOILET PLUMBING SHAFT 16000 24000 24000 24000 15500 15000 19000 15000 23500 16500 12500 18000 8700 4200 13484 8602,7 D1 D1 D1 D1 SERVICE CORE MALE TOILET FEMALE TOILET PLUMBING SHAFT PLUMBING SHAFT MALE TOILET FEMALE TOILET +450 drop drop 12mm drop 12mm drop 12mm D1 W2 600mm 8550x1800 W3 900mm 2500x1500 W4 900mm 2200x1500 W5 900mm 4000x1500 C1 450 8-20 Type Dimension Main C2 10-25 SCHEDULE OF 600 +450 T: 300 R: 150 W: 4000 T: 300 R: 150 W: 5000 T: 300 R: 150 W: 3000 T: 300 R: 150 W: 3000 T: 300 R: 150 W: 1500 T: 300 R: 150 W: 1500 T: 300 R: 150 W: 1500 DATE : SEMESTER : NAME : ISHA DUTIA ROLL NO . : 200BARCH015 CLASS : 3A SUBJECT : BUILDING CONSTRUCTION PLAN ALL DIMENSION ARE IN MM D1 00mm Type Dimension Sill Lvl Lintel Lvl 2400mm D2 SCHEDULE OF OPENINGS SD1 Placement D3 00mm 00mm 2400mm 2400mm 2400mm Center Center Center Center 2400x1100 2400x900 2400x1700 2400x2000 W1 900mm 2400mm Center 2000x1500 00mm UP SHAFT CAFETERIA ADMIN AND ACCOUNTS LIBRARY EXHIBITION AREA WORKSHOP + GALLERY FOYER W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W2 W2 W3 W3 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W5 W1 W1 W4 W4 B C D'
E F D1 D1 D1 D1 D2 D1 D1 D1 D1 D1 D1 D1 D1 D3 D1 D1 D1 D1 D1 D1 D1 UP HVAC SHAFT SHAFT ENTRY MALE TOILET FEMALE TOILET PLUMBING SHAFT 16000 24000 24000 24000 15500 15000 19000 15000 16500 12500 18000 8700 4200 13484 8602,7 D1 D1 D1 D1 SERVICE CORE PLUMBING SHAFT MALE TOILET FEMALE TOILET 12mm drop drop drop 12mm drop D1 W2 600mm 2400mm Center 8550x1800 W3 900mm 2400mm Center 2500x1500 W4 900mm 2400mm Center 2200x1500 W5 900mm 2400mm Center 4000x1500 C1 450 8-20 Type Dimension Main Rein. Column Tie 150mm 2-10mm C2 10-25 150mm 3-10mm SCHEDULE OF COLUMNS +450 +450 T: 300 R: 150 W: 5000 T: 300 R: 150 W: 3000 T: 300 R: 150 W: 1500 T: 300 R: 150 W: 1500 T: 300 R: 150 W: 1500 NAME : ISHA DUTIA ROLL NO . : 200BARCH015 CLASS : 3A SUBJECT : TITLE : ALL DIMENSION ARE IN MM D1 00mm Type Dimension Sill Lvl Lintel Lvl 2400mm D2 SCHEDULE OF OPENINGS SD1 Placement D3 00mm 00mm 2400mm 2400mm 2400mm Center Center Center Center 2400x1100 2400x900 2400x1700 2400x2000 W1 900mm 2400mm Center 2000x1500 00mm UP HVAC SHAFT ELECTRICAL ADMIN AND ACCOUNTS EXHIBITION AREA WORKSHOP + GALLERY FOYER W1 W1 W1 W1 W1 W1 W1 W1 W1 W2 W2 W3 W3 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W5 W1 W1 W4 W4
D1 D1 D1 D1 D2 D1 D1 D1 D1 D1 D1 D1 D1 D3 D1 D1 D1 D1 D1 D1 UP ELECTRICAL FIRE SHAFT ENTRY MALE TOILET FEMALE TOILET PLUMBING SHAFT 16000 24000 24000 24000 15500 15000 19000 16500 12500 18000 8700 4200 13484 8602,7 D1 D1 D1 D1 SERVICE CORE MALE TOILET FEMALE TOILET drop 12mm D1 W2 600mm 2400mm Center 8550x1800 W3 900mm 2400mm Center 2500x1500 W4 900mm 2400mm Center 2200x1500 W5 900mm 2400mm Center 4000x1500 C1 450 450 8-20 Type Dimension Main Rein. Column Tie 150mm 2-10mm C2 600 10-25 150mm 3-10mm SCHEDULE OF COLUMNS 600 +450 T: 300 R: 150 W: 5000 T: 300 R: 150 W: 3000 300 150 1500 T: 300 R: 150 W: 1500 T: 300 R: 150 W: 1500
D
B
| PORTFOLIO 2020 - 2024
06
Basement Plan
Scale 1:750
SCALE : DATE : NAME ROLL NO CLASS SUBJECT BUILDING CONSTRUCTION 24.03.2023 1:200 ALL DIMENSION · ALL CIRCULATION · SETBACK 9000 (OTHERS) FAR - 0.7 Total Area = Total Built Up Ground Coverage 12000 x 35% ECS - 1 per ECS - 8400 100 x Surface Parking 84 x 10% = Basement Lvl UP SHAFT SHAFT A B C D' D E F 1 2 3 4 6 7 8 9 5 5' 60000 12000 12000 12000 12000 12000 8908,3 450 1200 300 450 64000 8000 8000 8000 8000 8000 300 8000 8000 8000 SLOPE 1:10 SLOPE 1:10 -2800
06 WORKING DRAWINGS |
Typology Semester 05
Office Building
Typical Floor Plan
Scale 1:200
Typical Floor Plan
Scale 1:200
Retaining wall detail
Retaining wall section
32
GENERAL NOTES KEY PLAN EXCLUSIVE NOTES BUILDING CONSTRUCTION SECTION DATE ROLL NO. CLASS SEM 20/12/22 200BARCH015 3-A 5 NAME: ISHA DUTIA REMARKS SIGN SCALE ALL MEASUREMENTS ARE IN mm INDIAN STANDARD CODES WERE REFERRED FOR ALL THE DRAWINGS AND DETAILS. ALL SETBACKS REFERRED FROM HARYANA BUILDING CODE FRONT SETBACK 12000mm BACK SETBACK 12000mm SIDE SETBACKS = 6000mm TOTAL BUILT UP AREA= 84000 = 30% PLINTH HEIGHT= 450mm SUSHANT SCHOOL OF ART & ARCHITECTURE 1:100 +4050 First Floor Level +450 Plinth Level +7650 Second Floor Level +11250 Third Floor Level +14850 Fourth Floor Level +18450 Fifth Floor Level +22050 Sixth Floor Level +27340 Terrace Floor Level +29800 Mumty LEVEL -5400 Basement 2 Level -2700 Basement 1 Level SCHEDULE OF DOORS DOOR NAME W1 W2 SILL LVL HEIGHT WIDTH 900 900 1200 1200 1800 1500 LINTEL 2100 2100 2100 D1 00 2100 900 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W2 W2 W2 W2 W2 W2 W2 D1 D1 D1 D1 D1 D1 D1 D1 D1 D1 D1 D1 A B C D F G H E E' GENERAL NOTES KEY PLAN EXCLUSIVE NOTES REFERENCES: BUILDING CONSTRUCTION TYPICAL FLOOR PLAN DATE ROLL NO. CLASS SEM 20/12/22 200BARCH015 3-A 5 NAME: ISHA DUTIA REMARKS SIGN SCALE ALL MEASUREMENTS ARE IN mm INDIAN STANDARD CODES WERE REFERRED FOR ALL THE DRAWINGS AND DETAILS. ALL SETBACKS REFERRED FROM HARYANA BUILDING CODE FRONT SETBACK = 12000mm BACK SETBACK = 12000mm SIDE SETBACKS = 6000mm TOTAL BUILT UP AREA= 84000 = 30% PLINTH HEIGHT= 2000mm SUSHANT SCHOOL OF ART & ARCHITECTURE 1:100 A B
F G H E E' 1 2 3 4 SCHEDULE OF DOORS DOOR NAME W1 W2 SILL LVL HEIGHT WIDTH 900 900 1200 1200 1800 1500 LINTEL 2100 2100 2100 D1 00 2100 900
C D
12 mm STEEL BARS 100 CC PCC 20 mm TILES PCC 150 mm 12 mm STEEL BARS 100 CC 20 mm WATERPROOFING BASEMENT FLOOR LVL -2700 GROUND LEVEL LVL +450 GROUND FLOOR FFL LVL + 470 FIRST FLOOR FFL LVL + 5490 RAMMED EARTH NGL LVL 450 BASEMENT FLOOR LVL -2700 PLINTH LVL 00 12 mm PLASTER 230mm BRICK WALL COLUMN RAMMED EARTH | PORTFOLIO 2020 - 2024 PROJECT
02
Beam to Slab Railing Nosing
03 RAILING
DETAIL- 02 BALUSTER
03
DETAIL- 04
BEAM SLAB
AND RISER
DETAIL- 01 MORTAR
10MM THK INTERNAL PLASTER AS/SPECIFICATION
DETAIL- 01
AND RISER
SLAB AS/STR. NOSING
SLAB AS/STR. NOSING
10MM THK INTERNAL PLASTER AS/SPECIFICATION
DETAIL- 02
DETAIL- 02 BALUSTER
RAILING (40x40) WELDED TO BALUSTER
BALUSTER 40x40
RAILING (40x40) WELDED TO BALUSTER BALUSTER 40x40 10mm DIAMETER RAILS (WELDED)
WALL SECTION DETAILS
DIAMETER RAILS (WELDED)
DETAIL- 04
BEAM SLAB
Waterproofing Detail
DETAIL A (1:1)
DETAIL- 02 BALUSTER
Khurra Detail (terrace) Baluster Detail
33
TREAD
DETAIL-
RAILING 20mm
GRANITE STONE FLOORING TREAD AND RISER 20mm MORTOR BEAM AS/STR. 400 10 150 20 20 DETAIL-
STEEL COVER 20mm THICK 20MM THK STEEL PLATE 10mm STEEL FASTENER
NOSING
04 BEAM SLAB
MORTAR TREAD
BALUSTER
20mm
GRANITE STONE FLOORING TREAD AND RISER 20mm MORTOR BEAM AS/STR. 400 10 150 20 20
10mm
DETAIL-
NOSING
STEEL COVER 20mm THICK 20MM THK STEEL PLATE 10mm STEEL FASTENER AND RISER THK INTERNAL PLASTER AS/SPECIFICATION AS/STR.
(40x40) WELDED BALUSTER 40x40 DIAMETER RAILS (WELDED) NOSING GRANITE STONE FLOORING TREAD AND RISER 20mm MORTOR BEAM AS/STR.
STEEL COVER 20mm THICK 20MM THK STEEL PLATE 10mm STEEL FASTENER MORTAR TREAD AND RISER 10MM THK INTERNAL PLASTER AS/SPECIFICATION AS/STR.
NOSING 150 20 STEEL COVER 20mm THICK 20MM THK STEEL PLATE 10mm STEEL FASTENER Wall section Detail N REMARKS SCALE : SHEET DATE SEMESTER NAME : ISHA DUTIA ROLL NO 200BARCH015 CLASS 3A SUBJECT TITLE BUILDING CONSTRUCTION DETAILS 24.03.2023 VI 1:200 12 12mm PLASTER GOLA WALL SECTION DETAILS 150 mm PCC RAMMED EARTH 450mm DEPTH BEAM
12 mm DIA. STEEL BARS 100 CC BRICK TILE 50mm CEMENT MORTAR 25mm BRICK BAT COBA 100mm BITUMEN FELT 10mm R.C.C SLAB 150mm N REMARKS SCALE SHEET DATE SEMESTER NAME : ISHA DUTIA ROLL NO 200BARCH015 CLASS 3A SUBJECT : TITLE BUILDING CONSTRUCTION DETAILS 24.03.2023 VI 1:200 12 12mm PLASTER GOLA
WATERPROOFING
150
RAMMED EARTH 450mm DEPTH BEAM
12 mm DIA. STEEL BARS 100 CC BRICK TILE 50mm CEMENT MORTAR 25mm BRICK BAT COBA 100mm BITUMEN FELT 10mm R.C.C SLAB 150mm LEAD SHEET 300x150x3mm THICK A COPING BRICK WALL REMOVABLE PLUG RAIN WATER PIPE 450 75 75 FINAL FINISH BRICK TILES 12MM THICK MORTAR PCC RCC SLOPE (1:150)
mm PCC
WATERPROOFING
150 3MM THICK LEAD SHEET SOCKET OF PIPE FINISH FLOOR N SCALE : DATE : NAME ISHA ROLL NO : 200BARCH015 CLASS : 3A SUBJECT BUILDING CONSTRUCTION 24.03.2023 1:5
06 WORKING DRAWINGS |

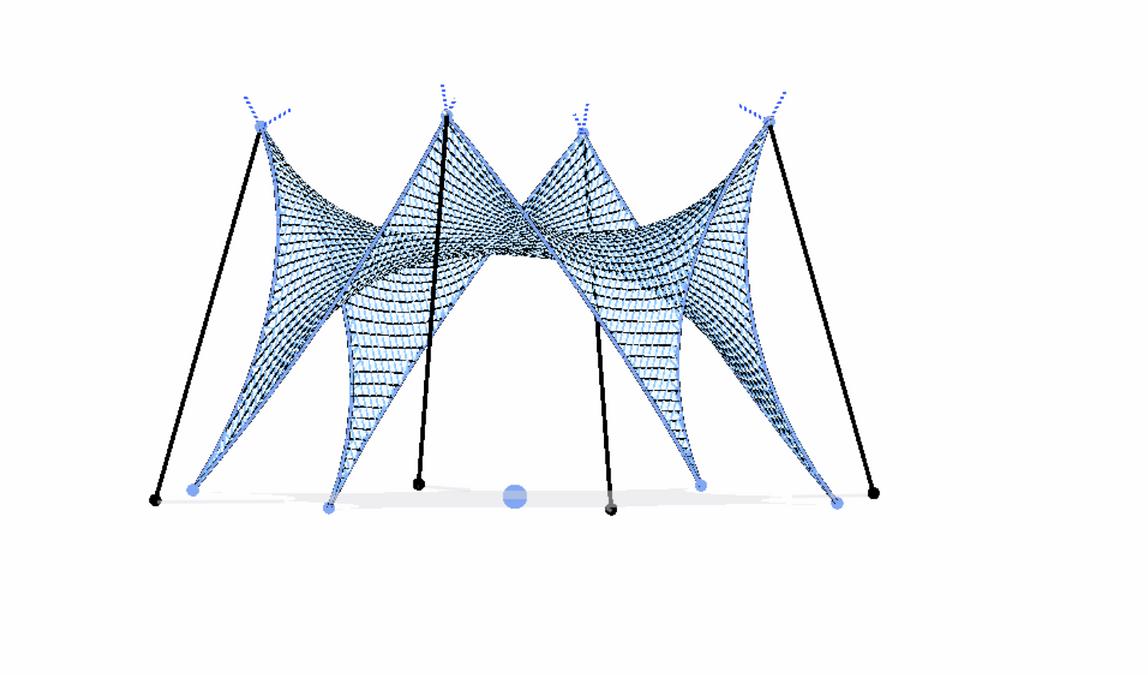

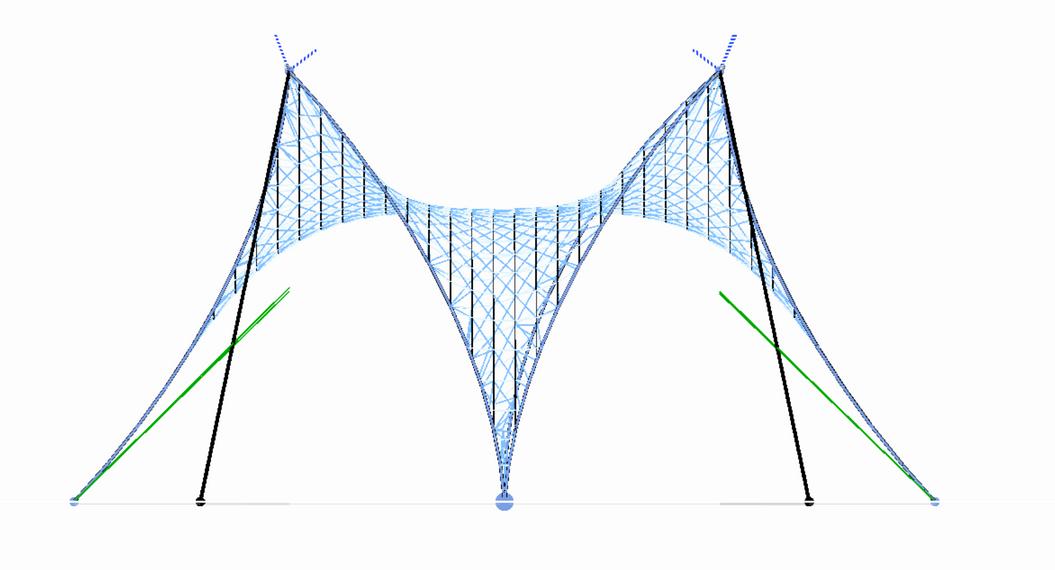

Tensile structure
TENSILE STRUCTURE

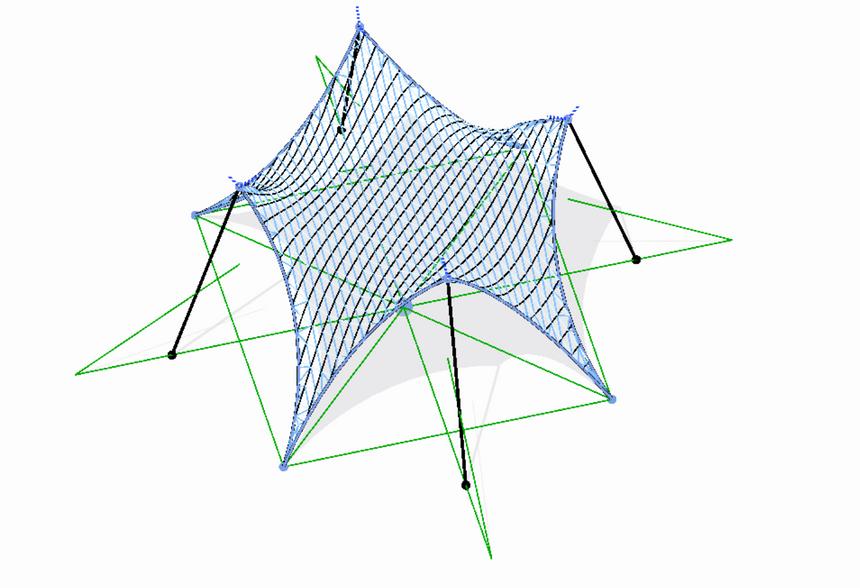

DIGITAL MODEL
TENSILE STRUCTURE
DIGITAL MODEL
34
Advanced Building Construction and Material 1 Isha Dutia | 200BARCH015
NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSIONS ARE TO BE READ NOT SCALED 3. WALLS ARE 230MM THICK UNLESS OTHERWISE SPECIFIED. 4. ANY DISCREPANCIES SHALL BE NOTIFIED TO THE ARCHITECT IMMEDIATELY. 5. ALL DIMENSIONS ARE TO BE CLARIFIED BEFORE COMMENCEMENT OF WORK. NOTES COURSE ADVANCE BUILDING CONSTRUCTION AND MATERIAL 1 TITLE TOP VIEW PLAN A 50000 48000 PIN HINGED JOINT TO SUPPORT THE MEMBRANE JOINERY USED TO KEEP MEMBRANE IN TENSION 20M HIGH MAST 20 MM DIAMETER SCREW 20 MM THICK CABLE CONE FORMED DUE TO TENSION PTFE MEMBRANE(0.8-0.9MM) PEDESTAL (600X600) 20000 10000 10000 20000 B C 1 2 3
| PORTFOLIO 2020 - 2024 PROJECT 03

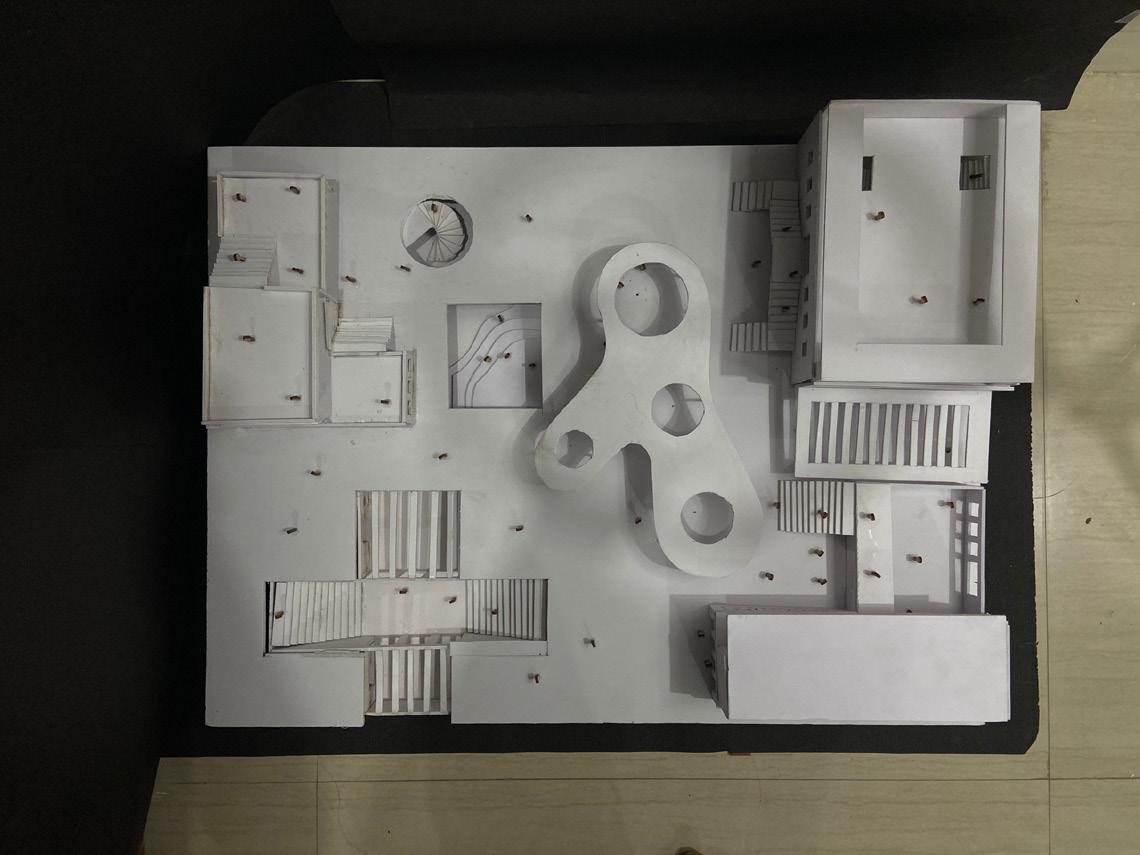

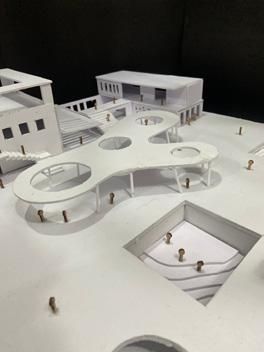

Typology Semester 07 Ground Floor Plan Scale 1:500 Digital Model
PIN HINGED JOINT TO SUPPORT THE MEMBRANE MAST
PEDESTAL
Sectional Elevation
Scale
1:500
TENSILE ROOF
TENSILE ROOF CONE
Fixed end pedestal Pin Hinge Joint (At the mast)
PIN HINGED JOINT TO SUPPORT THE MEMBRANE
PULLEY DETAIL
TENSILE ROOF CONE
Tensile Roof Cone
TENSILE ROOF CONE
Pulley Detail Pin Hinge Joint (At the base)
PEDESTAL ISO
35 SOFT EYE MACHINE SWAGED HSB
FORK SOCKET TURN BUCKLE PULLY SOFT EYE MACHINE SWAGED HSB 12MM DIA
15MM
EYE
MAST ALUMINUM SWAGE OPEN SOCKET SCREW (12MM) WIRE (12MM) MS PLATE PULLEY (100 DIA) WIRE (12MM) MAST
50 40 102 SWAGED HSB
PULLY SOFT
MACHINE
HSB
15MM FORK SOCKET TURN BUCKLE
EYE
SWAGED
12MM DIA
ISO MAST 100 400 PEDESTAL 600
WELDED PLATE 150 200 CABLE (12MM) PULLEY (100 DIA) 600
400 PEDESTAL WELDED PLATE 100 150 EYE BOLT SCREW (12
PIN HINGED JOINT
FIXED END PEDESTAL
ALUMINUM SWAGE OPEN SOCKET (12MM) NOTES 1. ALL DIMENSIONS 2. ALL DIMENSIONS 3. WALLS ARE SPECIFIED. 4. ANY DISCREPANCIES THE ARCHITECT 5. ALL DIMENSIONS COMMENCEMENT NOTES COURSE ADVANCE CONSTRUCTION TITLE DETAILS CLASS SEMESTER SCALE NAME ISHA DUTIA MS PLATE PULLEY (100 DIA) WIRE (12MM) MAST PULLEY DETAIL 50 40 102 SOFT EYE MACHINE SWAGED BUCKLE PULLY TURN HSB 12MM DIA MS PLATE 10MM BASE PLATE 10MM SOFT EYE MACHINE SWAGED HSB 15MM FORK SOCKET TURN BUCKLE PULLY SOFT EYE MACHINE SWAGED HSB 12MM DIA PEDESTAL ISO MAST 100 400 PEDESTAL 600 PIN HINGED
WELDED PLATE 150 200 CABLE (12MM) PULLEY (100 DIA) 600 FIXED END PEDESTAL 400 PEDESTAL WELDED PLATE 100 150 EYE BOLT SCREW (12 MM) CABLE (12MM) STEEL CLAMPS
JOINT
MS PLATE
MAST ALUMINUM SWAGE OPEN SOCKET SCREW (12MM) WIRE (12MM) ROL NO. NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSIONS ARE TO BE READ NOT SCALED 3. WALLS ARE 230MM THICK UNLESS OTHERWISE SPECIFIED. 4. ANY DISCREPANCIES SHALL BE NOTIFIED TO THE ARCHITECT IMMEDIATELY. 5. ALL DIMENSIONS ARE TO BE CLARIFIED BEFORE COMMENCEMENT OF WORK. NOTES COURSE ADVANCE BUILDING CONSTRUCTION AND MATERIAL - 1 TITLE DETAILS CLASS : 4A SEMESTER : VII SCALE SHEET NO. NAME ISHA DUTIA MS PLATE PULLEY (100 DIA) WIRE (12MM) MAST PULLEY DETAIL 50 40 102 SOFT EYE MACHINE SWAGED BUCKLE PULLY TURN HSB 12MM DIA MS PLATE 10MM BASE PLATE 10MM SOFT EYE MACHINE SWAGED HSB
FORK SOCKET TURN BUCKLE PULLY SOFT EYE MACHINE SWAGED HSB 12MM DIA MAST 400 PEDESTAL 600 HINGED JOINT WELDED PLATE 200 EYE BOLT SCREW (12 MM) CABLE (12MM) STEEL CLAMPS
PIN HINGED JOINT TO SUPPORT THE MEMBRANE
15MM
MS PLATE 03 ROL NO. : 200BARCH015 NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSIONS ARE TO BE READ NOT SCALED 3. WALLS ARE 230MM THICK UNLESS OTHERWISE SPECIFIED. 4. ANY DISCREPANCIES SHALL BE NOTIFIED TO THE ARCHITECT IMMEDIATELY. 5. ALL DIMENSIONS ARE TO BE CLARIFIED BEFORE COMMENCEMENT OF WORK. NOTES COURSE ADVANCE BUILDING CONSTRUCTION AND MATERIAL 1 MS PLATE PULLEY (100 DIA) WIRE (12MM) MAST 50 40 102 SOFT EYE MACHINE SWAGED BUCKLE PULLY TURN HSB 12MM DIA MS PLATE 10MM BASE PLATE 10MM SOFT EYE MACHINE SWAGED HSB 15MM FORK SOCKET TURN BUCKLE PULLY SOFT EYE MACHINE SWAGED HSB 12MM DIA PEDESTAL ISO MAST 100 400 PEDESTAL WELDED PLATE 150 200 CABLE (12MM) PULLEY (100 DIA) 400 PEDESTAL WELDED PLATE 100 150 EYE BOLT SCREW (12 MM) CABLE (12MM) STEEL CLAMPS
MS PLATE PIN HINGED JOINT TO SUPPORT THE MEMBRANE MAST ALUMINUM SWAGE OPEN SOCKET SCREW (12MM) WIRE (12MM) NOTES 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSIONS ARE TO BE READ 3. WALLS ARE 230MM THICK UNLESS SPECIFIED. 4. ANY DISCREPANCIES SHALL BE THE ARCHITECT IMMEDIATELY. 5. ALL DIMENSIONS ARE TO BE CLARIFIED COMMENCEMENT OF WORK. NOTES COURSE ADVANCE BUILDING CONSTRUCTION AND MATERIAL TITLE ELEVATIONS CLASS : 4A SEMESTER : VII SCALE 1:100 SHEET NAME ISHA DUTIA PIN JOIN TO SUPPORT THE MAST PEDESTAL(600X600) 12 MM WIRE PEDESTAL 600X600 ROTATED IN 45 DEGREE JOINERY TO KEEP THE CLOTH IN TENSION TO STABALIZE THE STRUCTURE PTFE MEMBRANE 20M HIGH MAST ROLLER JOINT TO CREATE THE TENSION IN THE WIRE PTFE MEMBRANE JOINERY TO KEEP THE CLOTH IN TENSION TO STABALIZE THE STRUCTURE 12 MM WIRE PEDESTAL(600X600) PIN JOIN TO SUPPORT THE MAST +20000MM MAST +10000MM MAST & CONE TOP +20MM CONCRETE FLOOR +20000MM MAST +10000MM MAST & CONE TOP +20MM CONCRETE FLOOR 02 ROL NO. : 200BARCH015
06 WORKING DRAWINGS |
Art and Photography
36 07

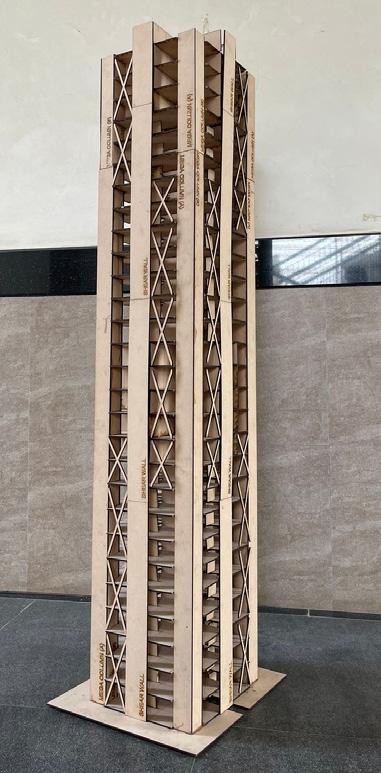

MISCELLANEOUS
| PORTFOLIO 2020 - 2024
37

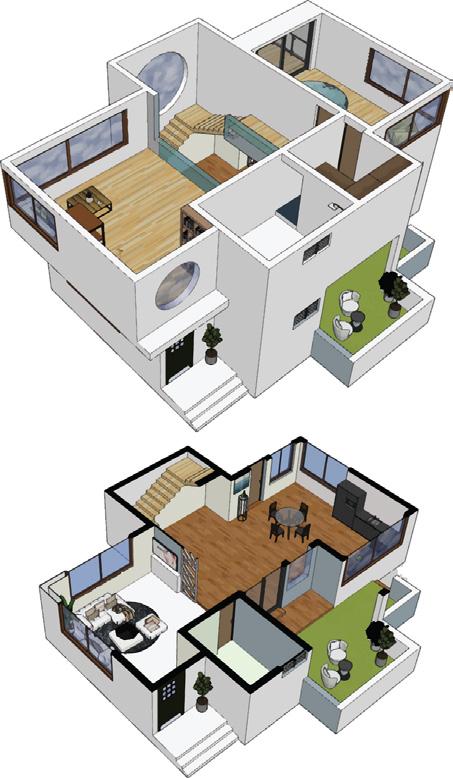

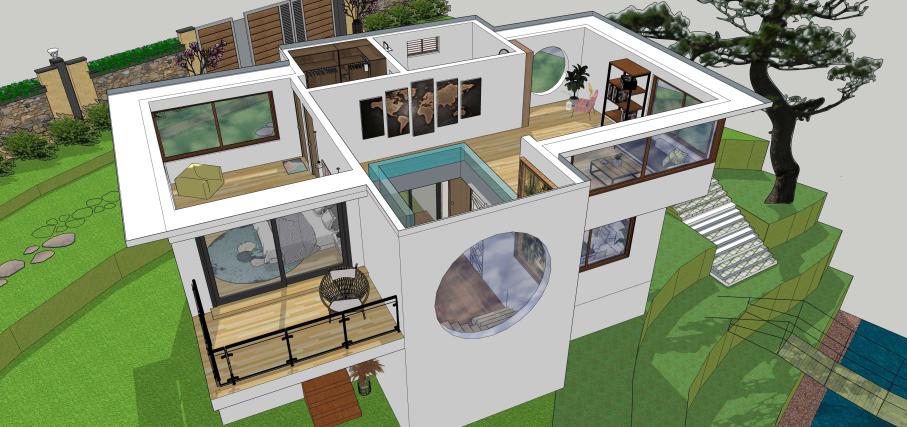

Semester 4
Semester 7
Semester 1 & 2
07 MISCELLANEOUS |
NASA 2022 ; Participated as a fashion designer
ishadutia29@gmail.com +91 9811784149 ishadutia_
