THE SEA OF TREES

spring 2021 - STUDIO II PROJECT

Liberty State Park, Jersey City New Jersey

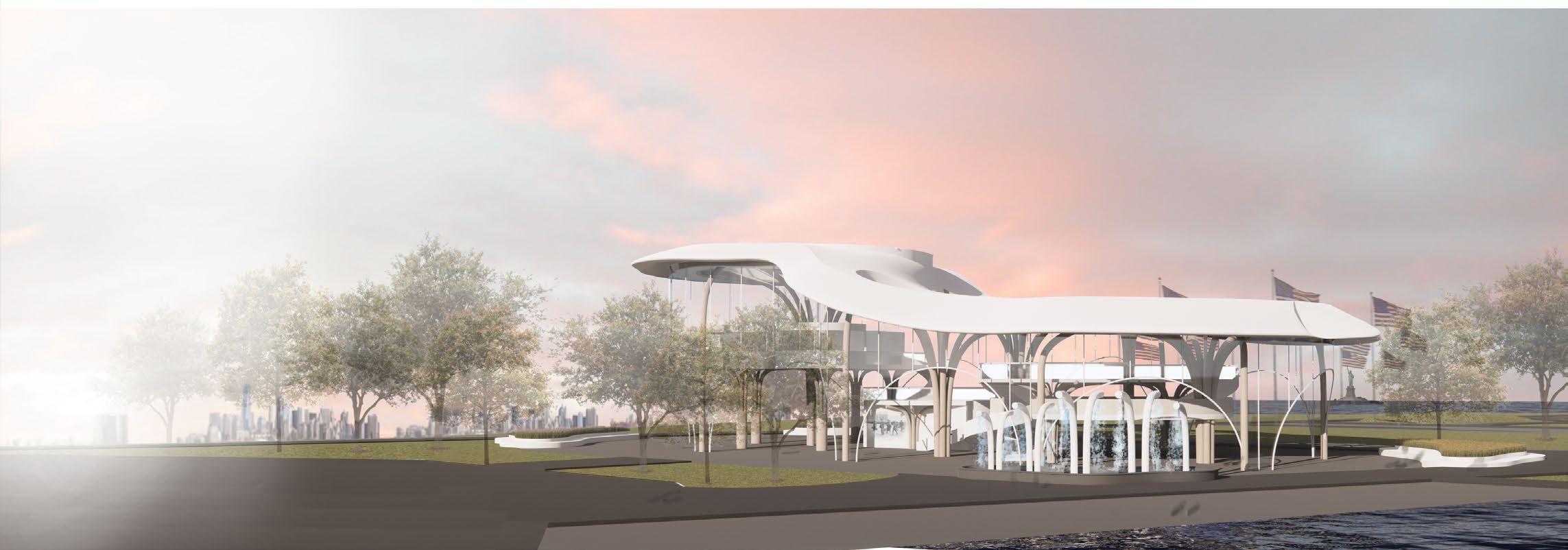

The Sea of Trees is a building that combines workplace, celebration of culture and historical values, all brought together as one. Located in Liberty State Park (LSP) in Jersey City, New Jersey, more than providing the space for the administrative offices of the park, the project aims to leave a footprint on the community and any other guest such as the thousands of tourists which is characteristic of the area. The project promotes the historical importance of LSP and surrounded areas such as the Statue of Liberty by having an open museum display. The historical program of the building on the ground floor with open access have the guests experience a flow of spaces that as they move from one space to the other, each informs about LSP. The project includes a media center with access to a library, computers and printers. Connected to focused studio areas supporting the local fine arts by having spaces to explore different mediums of fine arts.

ORDERING SYSTEM DEVELOPMENT PROCESS

Straws were used to explore the properties of the material and how it can be used.

EXPLODED AXONOMETRIC

The repetition of modules in different orientations explored the notions of performance and affect.

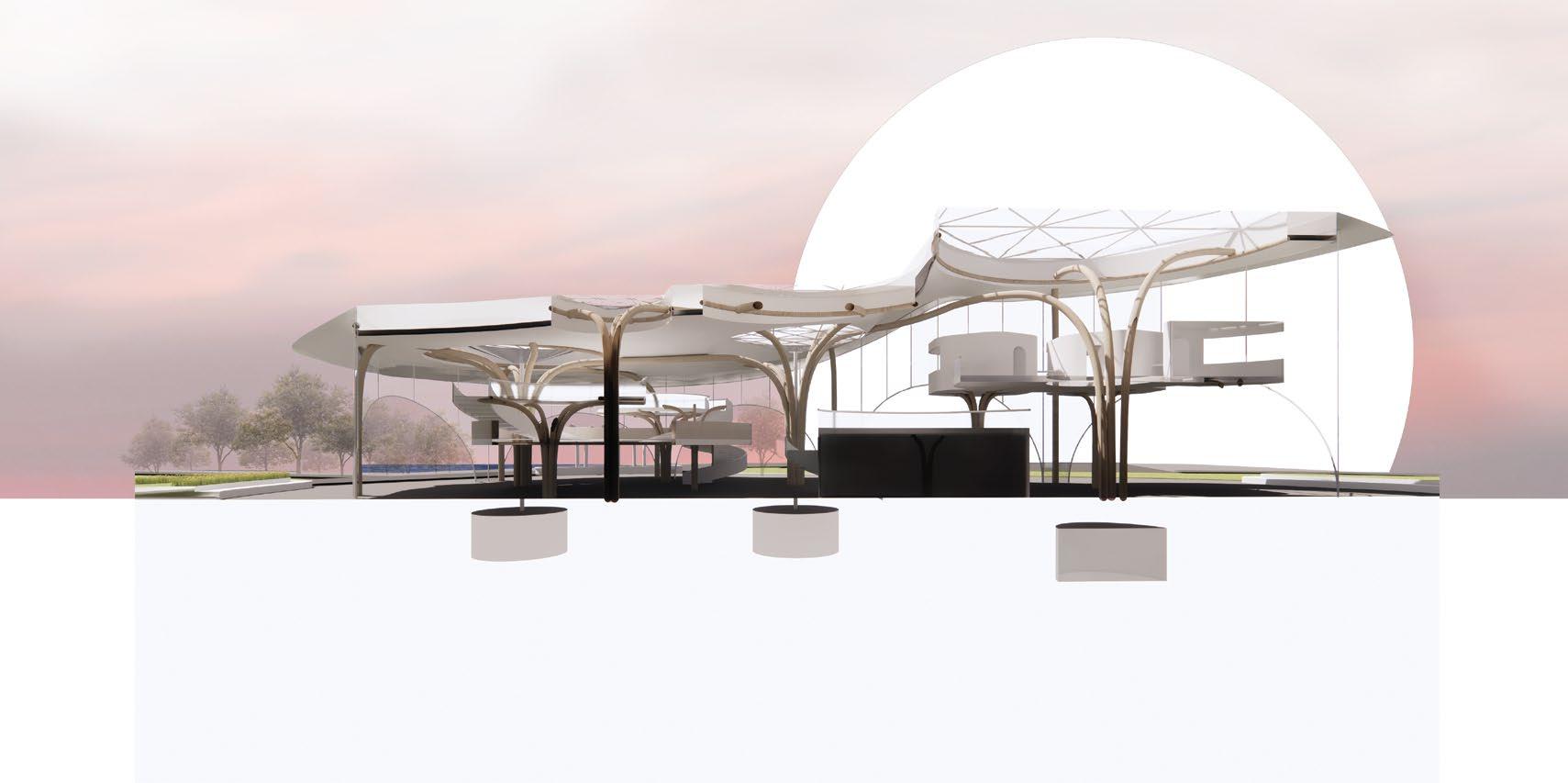

Ordering System composed of a Module of triangular shapes and a Frame that spreads into 4 bent tubes to support the Module.

It uses 6 columns bent on the top arranged radially creating a tree-column.Main structural support of the building.

SOLAR PANELS - Flexible Thin Film Solar Cells Panels are exposed to direct sunlight throughout all year.

ROOF - (roof membrane)

SKYLIGHTS - Paneling + Concave Glass

ROOF RING

ENVELOPE - Glass + Vertical Elements suspended from the Roof Ring

TREE-COLUMNS - Main Vertical Support + Tree Ring Timber Water Collection Pipe

Structural System inside the floor plates

TREE COLUMNS - Secondary Vertical Support

FOUNTAIN

Iteration 1 explored the idea of program above ground and incorporation of program.

Iteration 2 enclosed both sides and pushed them closer so it appears as one complex rather than two.

Iteration 3 played with the heights of the structural supports to emphasize the concept of a tree forest.

Building coverage: 11800 sq ft

Superintendent Office: 585 sq ft

Assistant Offices: 305 sq ft each

Media Center: 1943 sq ft

Studios: 510 sq ft each

The final system incorporates the tree-column with a ring acting as structural support, and a tube that connects the concave glass roof to the water collection system.

Rather than focusing on how the building will change with the passage of time, the project’s desire is to impact on the community across space and time by inspiring new opinions, values and experiences. The historical and cultural values can mean a new way to see the world, new ways to communicate and maybe this can lead eventually to social change. As a resource for the future, the design seeks to create program suitable given the case of another pandemic.

Using the benefit of the roof structure, it was possible to incorporate collection of rain water to serve the complex and also solar panels that transform into energy for the building.

The site where the Sea of Trees is located is subject to change due to sea level rise in a period of 30 years and a rise of about 10 feet by the year 2050. The proposed project responds to these changes by raising above ground with tree columns as structural support the floor plates that support the space for the targeted programs such as the offices and the cultural program.

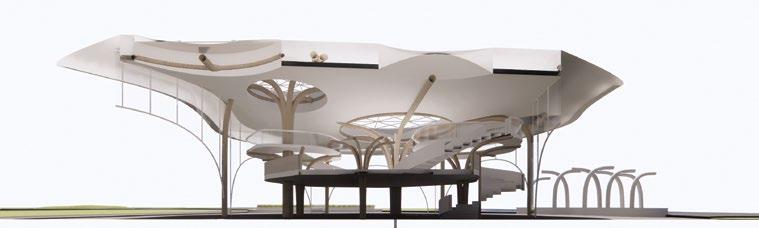

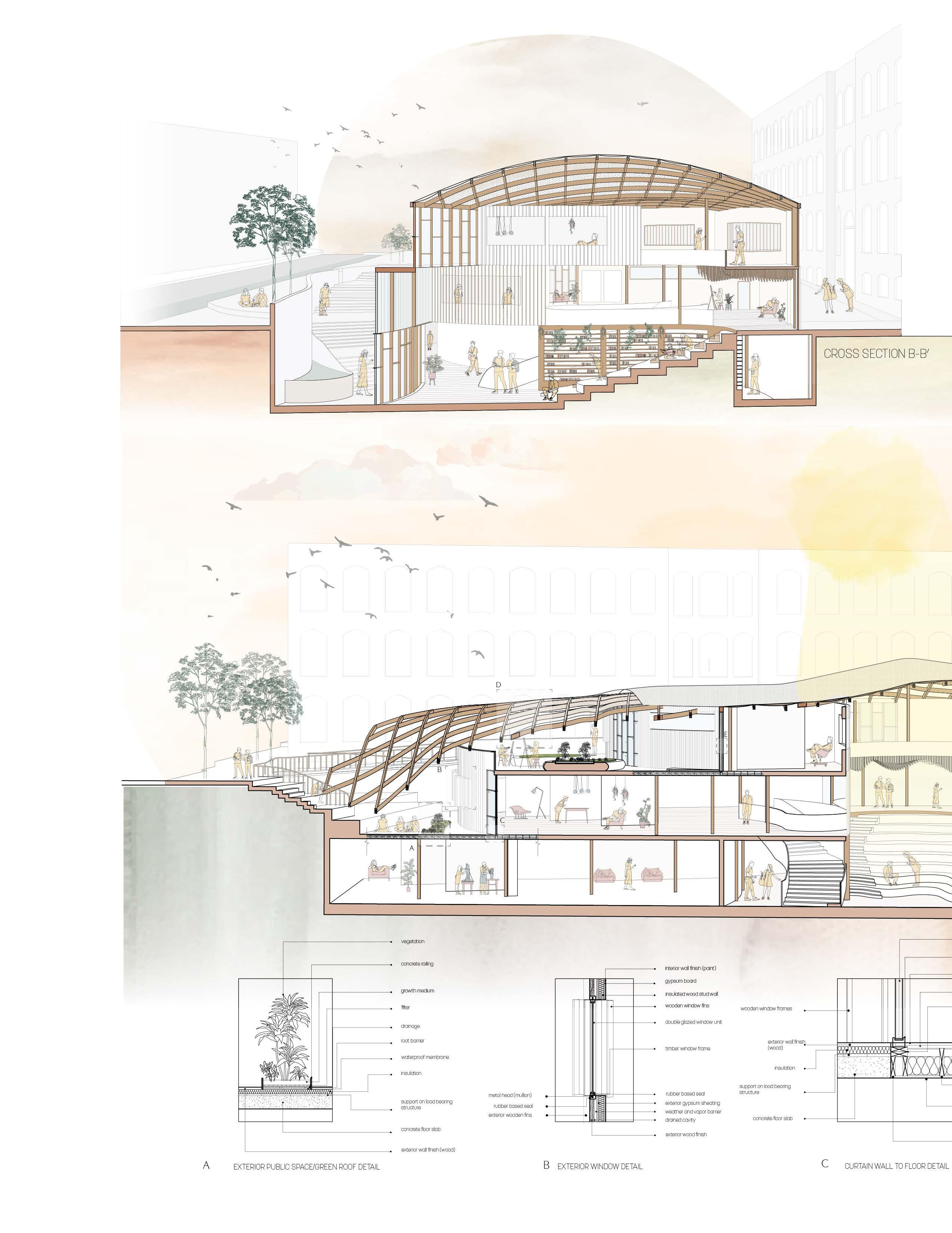

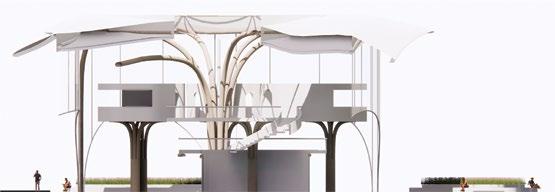

CROSS SECTION BB
