MECHANICAL TESTING OF POLYMER COMPOSITE MATERIAL

Saurav1 , Dr. D.K. Bhalla2

1B.Tech. Mechanical Engineering (Evening) Scholar, School of Mechanical Engineering, Lingaya’s Vidyapeeth, Faridabad, Haryana, India

2Professor and LEET Coordinator B.Tech., M.Tech., PhD, FIE in Lingaya’s Vidyapeeth, Faridabad, Haryana, India

Abstract- Highrigidityandahighstrengthtoweightratio arebenefitsofpolymericmaterialsreinforcedwithsynthetic fiberslikeglass,carbon,andaramidovertraditionalbuilding materials like steel, concrete, and wood. Despite these benefits,syntheticfiber-reinforcedpolymercompositesare becoming lessandlesscommonduetotheirhighstarting prices,inefficientstructuralforms,and mostimportantly disastrousenvironmentaleffects.Ontheotherhand,oneof thekeyreasonstoinvestigatethepossibilityofemploying naturalfibersasreinforcementforpolymersisthegrowing interestinusingthemasreinforcementinplasticstoreplace traditionalsyntheticfibersinseveralstructuralapplications. Dueofthis,scientistshaveconcentratedonstudyingnatural fibercomposites,alsoknownasbio-composites,whichare made of natural or synthetic resins and reinforced with naturalfibers.Becauserenewablerawmaterialsarehealthy anddonotharmtheenvironment,researchersfromallover the globe have been pursuing the production of highperformance engineered materials from renewable resources.

Key words: Composite materials, Polymer composite material,tensiletest,impacttestetc.

1. INTRODUCTION

Acompositeismixtureoftwomaterialsinwhichoneofthe materials, known as the reinforforcing phase, is in the structureoffibers,sheets,orparticles,andisembeddedin the other materials known as the matrix phase. The reinforcing fabric and the matrix material can be meta l, ceramic, or polymer. Composites usually have a fiber or particle segment that is stiffer andmore suitable than the continuous matrix segment andserveas theprimaryload carryingmembers.Thematrixactsasaloadswitchmedium betweenfibers..Thematrixisgreaterductilethanthefibers and thus acts as a source of composite toughness. The matrix additionally serves to guard the fibers from environmentaldamagebefore,forthedurationofandafter composite processing. When designed properly, the new mixed material reveals higher strengthh than would each character material. Composites areused now not only for their structural properties, however additionally for electrical, thermal, tribological, and environmental applications.

1.1. CLASSIFICATION OF COMPOSITES

Composite materials are commonly classified at following twodistinctlevels

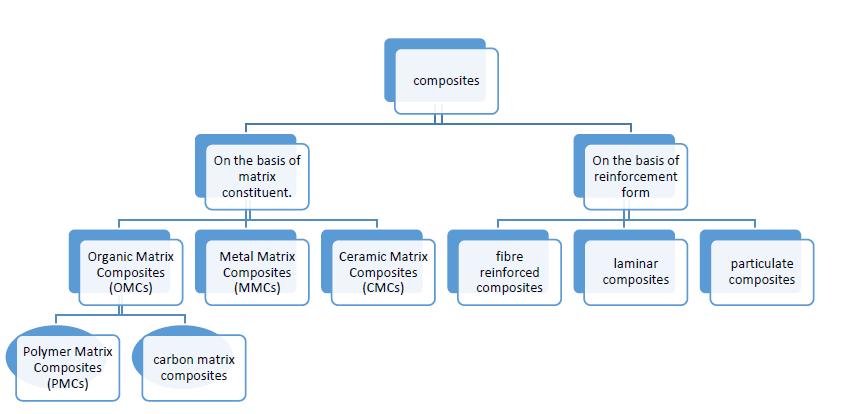

Fig.1.1-Classificationofcompositematerials

1.2.

OBJECTIVE OF THE STUDY

Themainobjectiveistostudyandevaluatethemechanical and physical properties of polycarbonate granules as a reinforcementmaterialintheepoxyresinmatrix.Aseriesof composite material will be developed by varying the weight% of polycarbonate granules that is 2%, 3%, 4% & 5%.Andtestingwill beperformedinordertoanalyzethe mechanical properties of the developed material. The varioustestsincludetensiletest,impacttest&bendingtest,

 Todevelopaseriesofpolymercompositematerial byvaryingpercentageofpolycarbonategranules.

 To evaluate the physical mechanical characterization for the developed composite materials.

 Based on the strength of the composites suitable application will be predicted for automobile applications

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 11 Issue: 04 | Apr 2024 www.irjet.net p-ISSN: 2395-0072

2. METHODOLOGY AND EXPERIMENTATION

2.1. MATERIAL SELECTED

a. Polycarbonate:

Polycarbonates(PC)areacrewofthermoplasticpolymers containingcarbonateagenciesintheirchemicalstructures. Polycarbonatesusedinengineeringarestrong,challenging materials,andsomegradesareopticallytransparent.They arewithoutdifficultyworked,molded,andthermoformed. Becauseoftheseproperties,polycarbonatesdiscovermany applications.

Properties of Polycarbonate:-

Physical properties-

 Density-1.2-1.22g/cc

 Refractiveindex-1.584-1.586

Mechanical properties :

 Young’smodulus- 2.0-2.4Gpa

 Tensilestrength- 55-75Mpa

Thermal properties :

 Meltingtemperature- 155degrees

 Thermalconductivities- 0.19-0.22W/(m-K)

b. Epoxy:

Epoxymaybeatermusedtodenoteeachthefundamental parts and therefore the cured finish products of epoxy resins, further as a conversational name for the epoxide functional group. Epoxy resins, additionally called poly epoxidesareaunitacategoryofreactivepre-polymersand polymersthatcontainepoxideteams.Epoxyresinsarethe foremost ordinarily used resins. they're low relative molecularmassorganicliquidscontainingepoxidegroups. Epoxide has 3 members in its ring: one atomic number 8 and2carbonatoms.Thereactionofepichlorohydrinwith phenolsoraromaticaminesmakesmostepoxiesandfillers are supplemental to provide epoxies with a large vary of propertiesofconsistence,impact,degradation,etc.theroom temperaturepropertiesofatypicalepoxy.thoughepoxyis

costlier than different polymer matrices, it's the foremost common PMC matrix. over two- thirds of the compound matrices utilized in region applications are epoxy based mostly.

Properties of epoxy:

 Betteradhesiveproperties

 Superiormechanicalhomes(strengthandstiffness)

 Improvedresistancetofatigueandmicro-cracking

 Highlywaterresistant

 Increasedresistancetoosmosis

 Nounstableproducts&exothermicresponse

 Duetopolarityofaliphatichydroxylcrewandether grouppromoteselectromagneticbonding

 Highstrength

c. Epoxy hardener(Araldite HY 951):

Hardener is used as solvent .in this project EH-9510 hardenerisused.HardenersareSubstancesthatareadded to polymers for aiding in curing ofcomposites.Hardeners areusedtoenhancethephysicalpropertiesofepoxyresins suchasadhesion,impactstrengthandtoaltertheviscosity of the polymer matrix. It also improves the life, lower exothermicandreduceshrinkage.

Applications of epoxy hardeners –

 Solventfree,highcoatings.

 Pipeline&tankcoatings.

 Adhesives

 Surfacetolerantprimersformetallicsubstrate.

 Marine&industrialcoatings.

d. Filler:

Fillersaretheparticlesaddedtomaterialsto:

 Lower the consumption of expensive binder material.

 Betterthepropertiesofthemixturematerial.

 Fillerhastwotypes:

Natural filler: Sugarcane – Rice husk, wheat husk, coconutcoir.

Synthetic filler: Glass,carbon

Advantages of natural filler over synthetic filler:

 Availabilityofrenewablenaturalresources

 Satisfactoryhighspecificstrengthandlightweight

 Lowcostandbio-degradability

 Eco-friendly

e. Sugar cane waste:

Sugar will used filler material. Sugarcane trash (or cane trash)isawonderfulbiomassresourceinsugar-producing

Fig 2.1-Polycarbonategranules

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 11 Issue: 04 | Apr 2024 www.irjet.net p-ISSN: 2395-0072

countriesworldwide.thenumberofcanetrashmanufacture depends on the plantselection, age ofthe crop at harvest andsoilandweather.Canewastebin doubtless bereborn into heat and electricity. This trash contains twenty eight.6%-organic carbon, 0.35 to 0.42% N, 0.04 to 0.15% phosphorus, 0.50 to 0.42% atomic number 19. The sugarcane trash incorporation within the soil influences physical,chemicalandbiologicalpropertiesofthesoil

2.2. CALCULATIONS

2.2.1. Table of calculation:

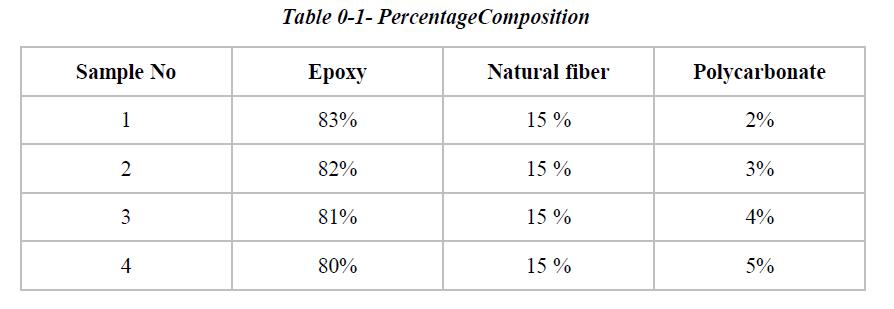

Thefollowingtablerepresentsthepercentagecomposition of material taken for the p reparation of the different samples

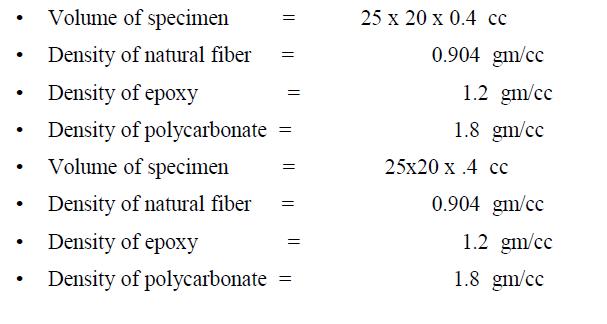

Thefollowingfourtablerepresentsthemassofthedifferent materialtakenforthepreparationofthedifferentspecimen (calculated according to their density and percentage composition)

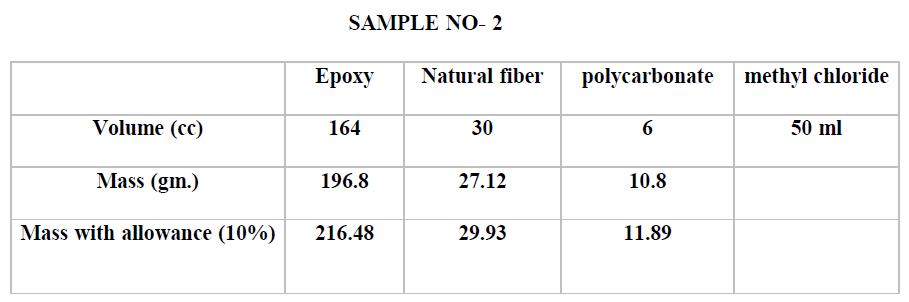

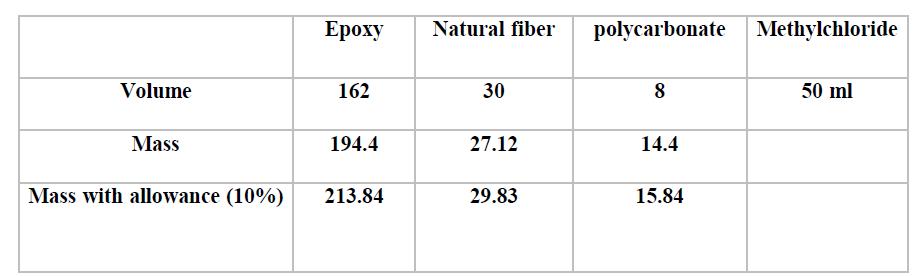

Table2-MassCalculationForDifferentSamples

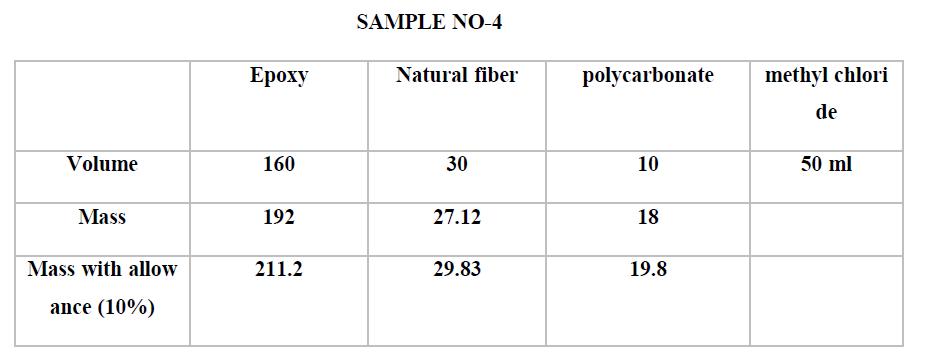

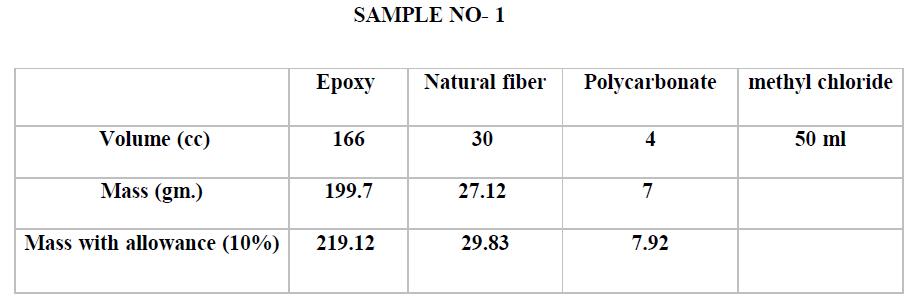

SAMPLE 3

3. FABRICATION OF COMPOSITE

 Compressionmouldingprocess

 Handlay-upmethod

3.1. Compression moulding process

Compressionmoldingisamethodofmouldinginwhichthe mouldingmaterial,usuallypreheated,isfirstpositionedin anopen,heatedmoldcavity.Themoldisclosedwithatop pressure or plug member, pressure is applied to pressure thematerial intocontact withall mouldareas,whileheat and stress are maintained until the molding material has cured.

3.2. Mold Preparation

 Wehavepreparedamoldofi25x20x0.4cc

 WetookasmoothtileandplacedOHPsheetonthat tile and draw a margin ofi25x20on the sheet and used 2mm thick double sided tape to provide thicknessofi4mm

Volume: 11 Issue: 04 | Apr 2024 www.irjet.net p-ISSN: 2395-0072

Sheet Preparation:

 Wetook50mlofmethyl chlorideandaddedmass ofpolycarbonateaccordingtoourcalculations

 Then kept it for 30 minutes so that pc granules coulddissolveinmethylchloride.

 Then we took epoxy natural fiber and previously dissolvedpcgranulesinabeakerandmixedthem withthehelpofblender.

 We put this mixture in mold that we had already preparedwithappropriatedimensionns.

 Withthehelpofroller,wespreadthemixtureinto the mold properly and took care of bubble formation.

3.4. Curing Time:

 After preparing the mold we put it under room temperatureupto48hourswithsomeweightover weightit.

 After 48 hours it becomes flexiblesheet and then we put it under furnace about 3 hours under temperature65degreeCelsius.

3.5. CUTTING OF SAMPLE IN DESIRED DIMENSION:

ARacksawbladewasusedtocuteachlaminateintosmaller pieces,forvariousexperiments

Tensiletestsampledetails:

 Samplewascutintodogboneshape(17x2x2)cm

3.6. Tensile test :

Thetensilestrengthofamaterialisthatthemostquantity oftensilestressthatitwilltakebeforefailure.Theusually usedspecimenfortensilecheckisthatthedog-bonekind. throughoutthecheckauniaxialloadisappliedthrougheach the ends of the specimen. The dimension of specimen is (17x2x2)cm. Typical purposes of interest once testing a materialinclude:finaldurability(UTS)orpeakstress;offset yieldstrength(OYS)thatrepresentsadegreesimplyonthe farsidetheonsetofpermanentdeformation;andtherefore the rrupture (R) orfracture point whereverthespecimen separatesintopieces.Thetensilecheckisperformedwithin the universal testing machine (UTM) Instron 1195 and results are analyzed to calculate the tensile strength of composites

4. RESULTSANDDISCUSSION

4.1. TENSILE TEST RESULTS

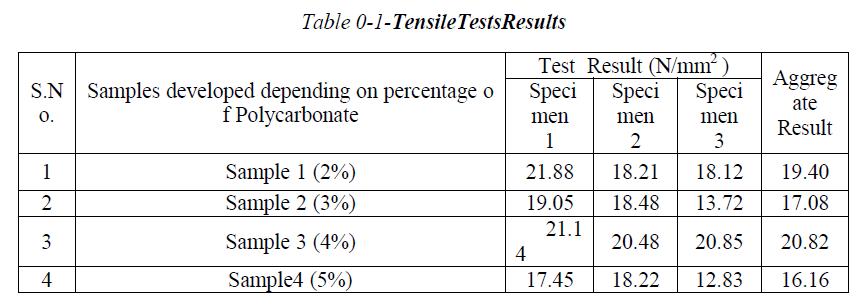

ASTM D638 is one of the most common plastic strength specification and cover the tensile properties of

Figure3.1-Moldpreparation

3.3.

Figure3.2-MixingofEpoxypolycarbonate

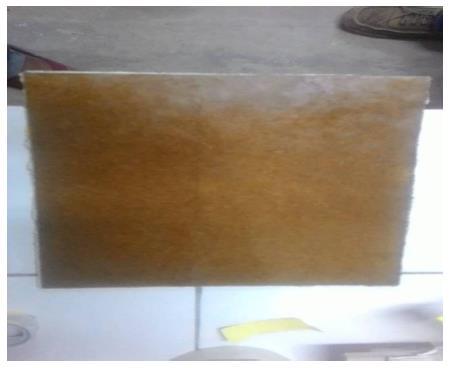

Figure3.3-Samplesheet

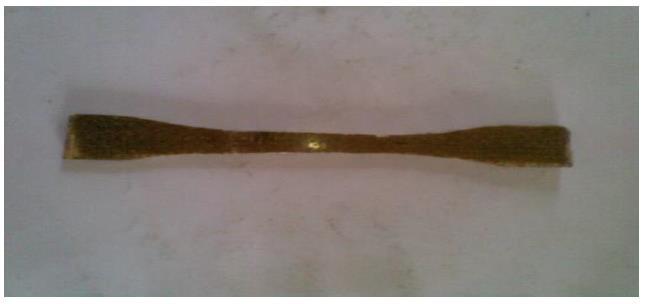

Figure0.5-Dog-boneshape

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

unreinforcedandreinforcedplasticthistestapproachuses wellknown“dumbbell”Or“dgbone”shape.Awidespread checkingoutm/cisneededtoperformthistest.

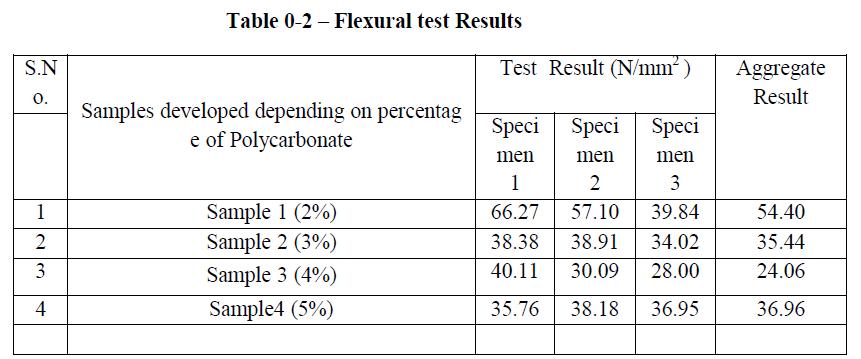

4.2. FLEXURAL STRENGHT TEST RESULT

Bend test (also flex or flexural testing) is commonly performed to measure the flexural strength .this test is performed on universal testing m/c with a 3 point or 4 pointbendfixture.

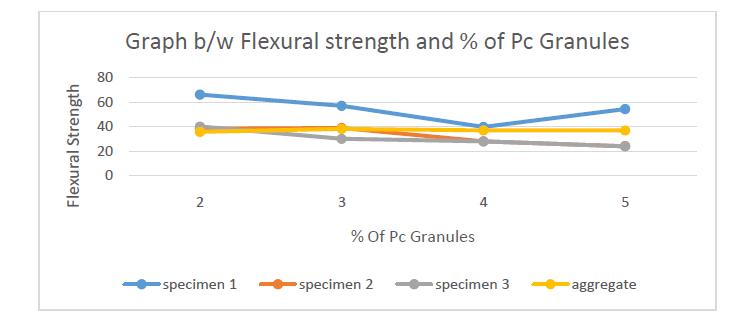

Figure4.2-Graphbetweenflexuralstrengthand%ofpc granules

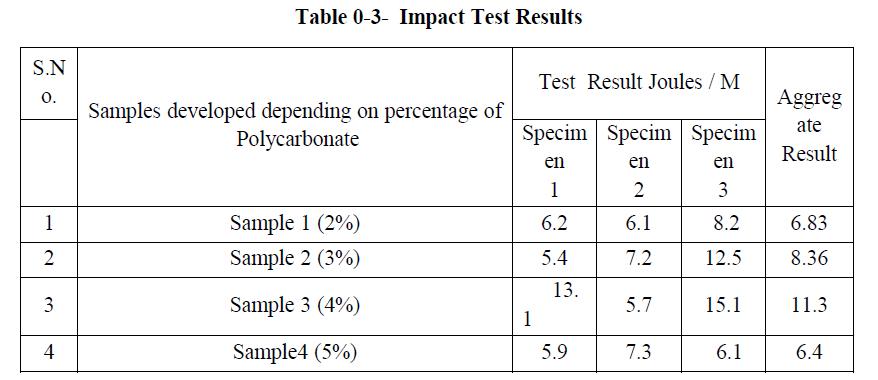

4.3. IMPACT TEST RESULT:

IzodImpactis singlepoint testthatmeasureasubstances resistancetohaveaneffectonfromaswingingpendulum. Izod influence is defined as the kinetic energy needed to initiatefractureandcontinuethefracturetillthespecimen is broken. Izod specimen are notched to pre vent deformationofthespecimenuponimpact.Thischeckcanbe usedasaquickandeasyqualitymanagetesttodetermineif amaterial meets specificimpact residences ortoevaluate materialsforordinarytoughness

Figure-4.3Graphbetween impactstrength&“percentage ofpcgranules”

5. CONCLUSION:

 A series of polymer composites material has been successfullydevelopedbyvarying%ofpolycarbonate.

 Mechanical tests such as tensile, elongation, flexural and impact test were successfullycarried as per the ASTMstandard.

 Physicalcharacterizationsuchasdensityandparticle sizetestwerecarriedoutsuccessfully.

 Developed composite having 4% polycarbonate is showinggoodresultsintensiletestt.

 Developed composite having 2% filler by weight is showinggoodresultsinflexuralstrength.

 It is observed that when percentage polycarbonate increases, tensile strength ofthe specimen increases upto4%andthenitshowsdecline.

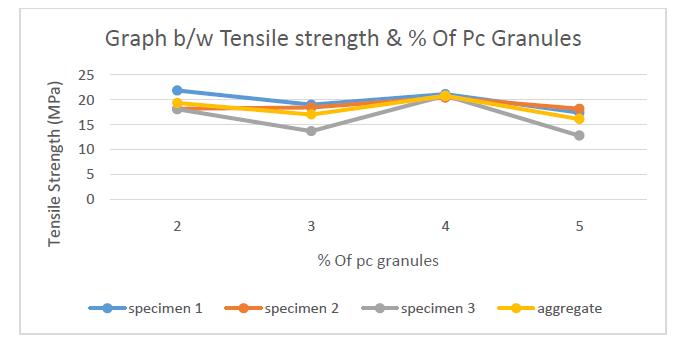

Figure4.1-Graphbetweentensilestrength&“percentage ofpcgranules”

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 11 Issue: 04 | Apr 2024 www.irjet.net p-ISSN: 2395-0072

 Theimpactstrengthcomesouttobemaximumat4% filler content and then it startsdecreasing when the percentageofpolycarbonatecontentincreases

6. FUTURE SCOPE:

 As we all know waste management is one of the biggest challenges of the future. As population is increasing rapidly we have to be ready for an alternativeresourcewhichcanfulfillthe demandof people. Sugarcane trash is an agricultural waste materialwhichcanbeutilizedinthedevelopmentof material.Thiswillminimizethedepositionof waste materialwhichisproducedbyindustriesandhelpin wastemanagement.

 Since the strength ofdeveloped composite material obtained is low, it can be increased by silage treatment offiller material orbyusinghybrid filler. We can add thermoplastic like polycarbonate for increasingthetoughnessofthematerial,theflexural strength increases by adding the pc and now the flexibility of the sheet has increased and it is no longerbrittleandnowcanbearmoreload.
