LED STRIP COLLECTION

OUR NEW PREMIUM

HIGH UNIFORMITY RANGE

Our Premium spotless LED strips provide a consistent and even light output, eliminating dark spots and shadows, ensuring a perfectly illuminated space with excellent colour rendering. Ideal for setups that include reflective surfaces or have clear sightlines of the luminaire.

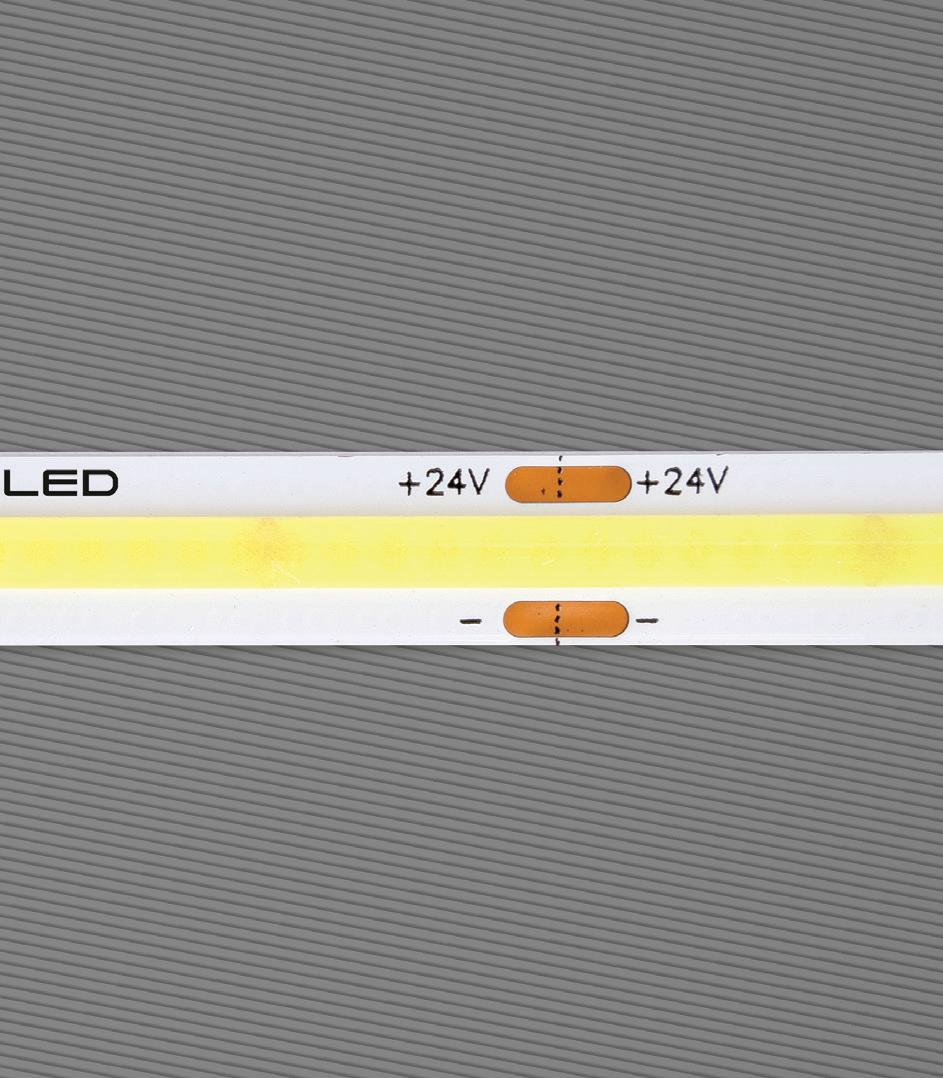

PREMIUM COB

Complete spotless uniformity is non-negotiable for many lighting schemes. The Premium range achieves both peak performance and a truly spotless aesthetic through our COB “Chip-on-Board” technology, with up to 480 LEDs per metre and a uniform phosphor coating to deliver truly seamless lighting.

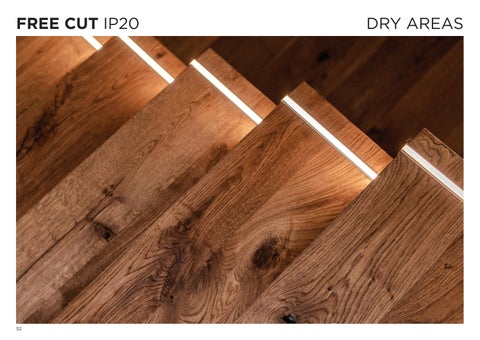

FREE CUT

Our Free Cut range can be cut to any length for edgeto-edge precision with light that runs to the end. Unlike other ranges with short-cut lengths, Free Cut allows you to connect your tail, corner or through connector at any point for seamless installation anywhere you need precise measurements.

THE CORE RANGE

CORE SMD

The Core technology that powers our LED strip features up to 120 SMD LEDs per metre for the best balance of cost and performance. Far exceeding the uniformity of most “typical” LED strip offerings, Core ensures you achieve stunning LED strip lighting to meet even the most constrained lighting budgets.

IP65 NANO TECHNOLOGY

For IP65 applications, our NANO technology utilises a fine silicone coating that achieves the thinnest possible IP65 protection. The coating is so thin you can't tell the difference between IP65 and IP20.

CAN YOU TELL THE DIFFERENCE?

IP20

IP65 NANO TECHNOLOGY

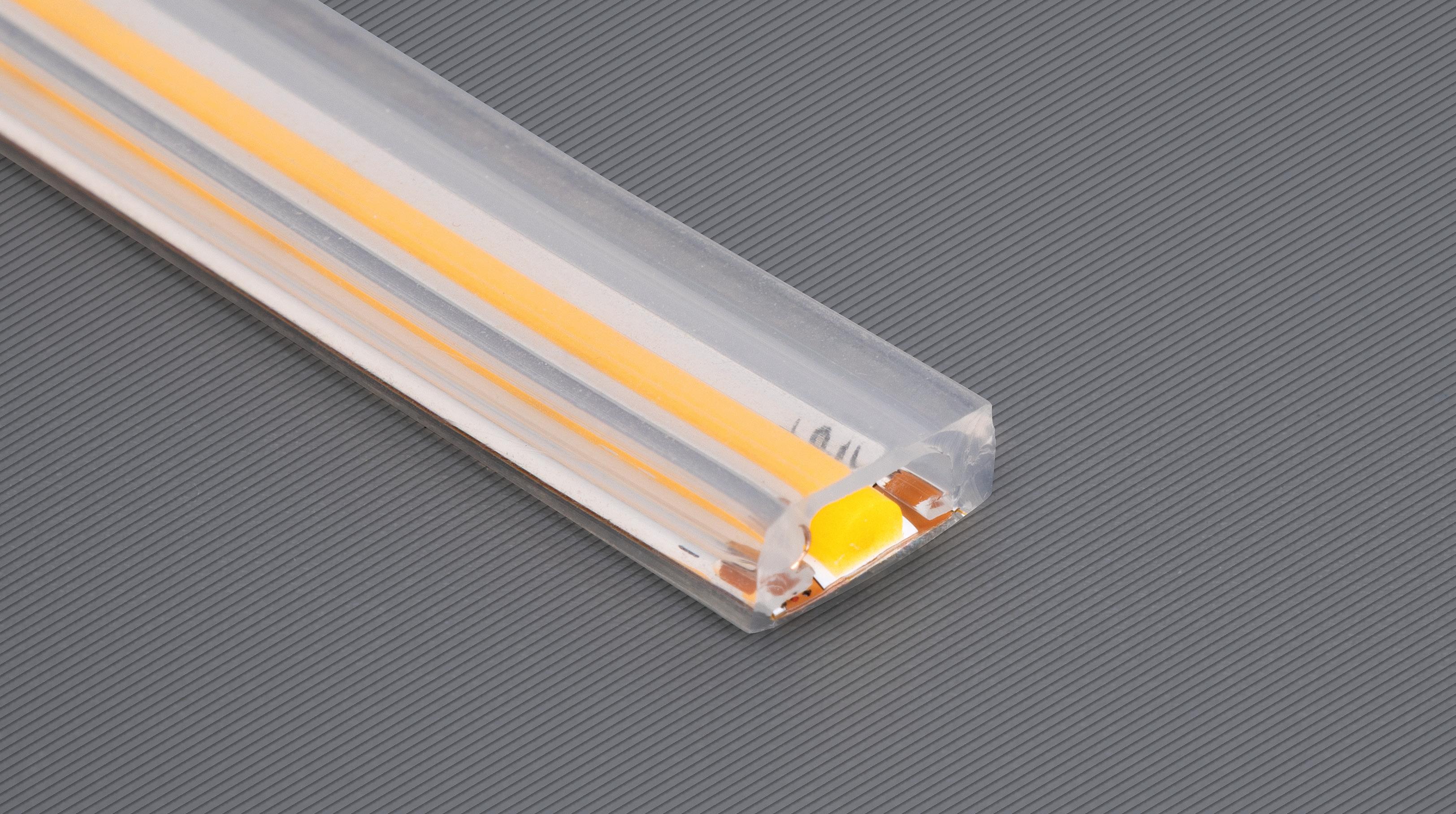

IP67 JACKET

For IP67 applications, the integrated extrusion jacket provides protection against heavy rain, puddles and short-term immersion in water without the need for an additional aluminium profile.

1. WHAT TYPE OF LIGHT?

LED strip has a wide range of applications, offering you the greatest level of flexibility in your lighting scheme. However, that flexibility can also create challenges in selecting the right options. Like all types of lighting, LED strip has ideal uses, and our strip range has been carefully designed to align with these applications.

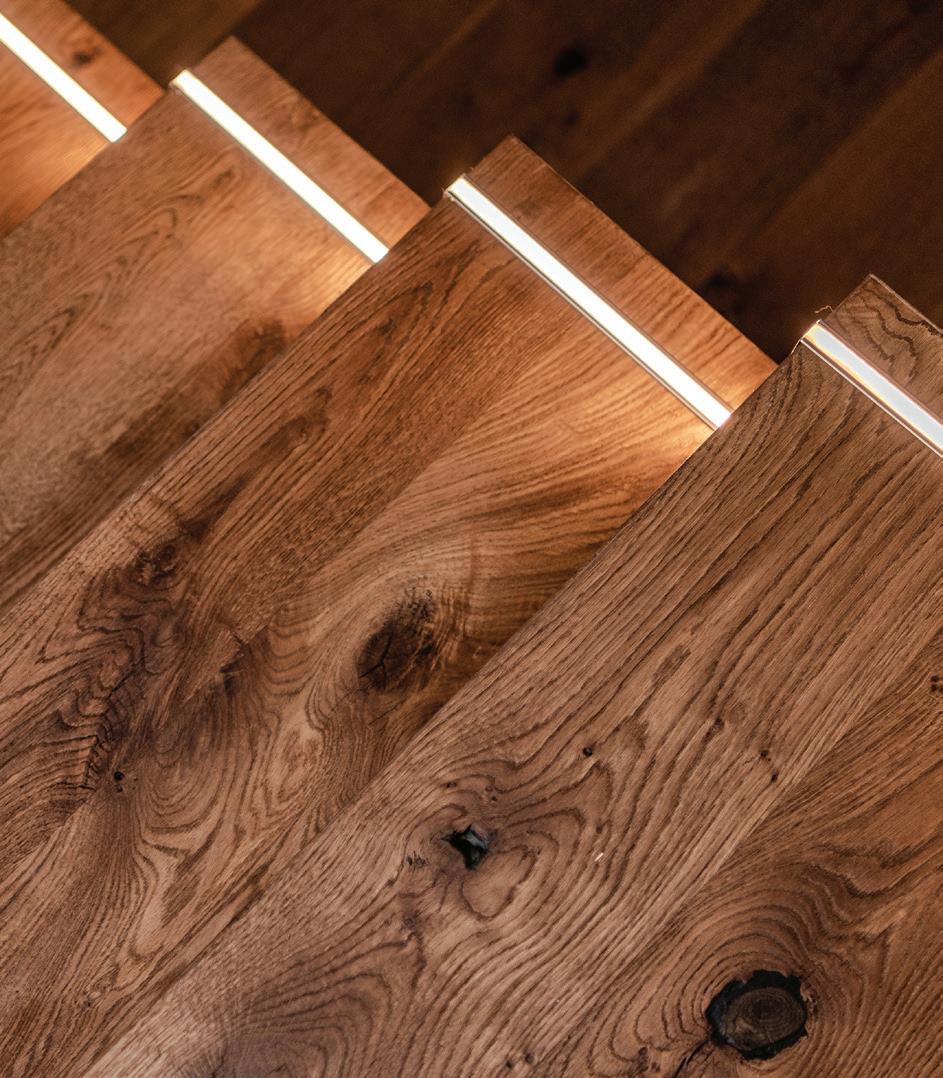

SUBTLE LIGHT

Our softest level of accent lighting. Every small space that needs illumination can be highlighted with Subtle Light for comfortable light levels, available with both Core and Premium options. Best used for shelving accents, kitchens cupboards, and lighting residential architectural details.

AMBIENT LIGHT

For general lighting or brighter accent details, use Ambient Light. Available in both Core and Premium versions, Ambient Light is perfect for where spaces require a stronger wall-grazing effect or indirect illumination. Best used for countertops, bars, wall panels and for indirect room lighting.

FUNCTIONAL LIGHT

Some rooms require brighter lighting, whether for a wash of indirect light or focused task illumination. In larger coves and ceiling coffers, Functional Light minimises contrast to enhance the space with comfortable illumination that maintains brightness without the harshness of direct lighting. Best used for residential task areas, throw lighting in coves and coffers and direct lighting in offices and retail spaces.

BRIGHT LIGHT

In the largest spaces, only volume illumination will do. The Bright range, available using Core technology, works best in double-height spaces and expansive rooms, providing the highest lumen level for both direct and indirect applications. Best used for bright open spaces including shopping centres, airport terminals, train stations and office and hotel lobbies.

SPECIALIST LED STRIP

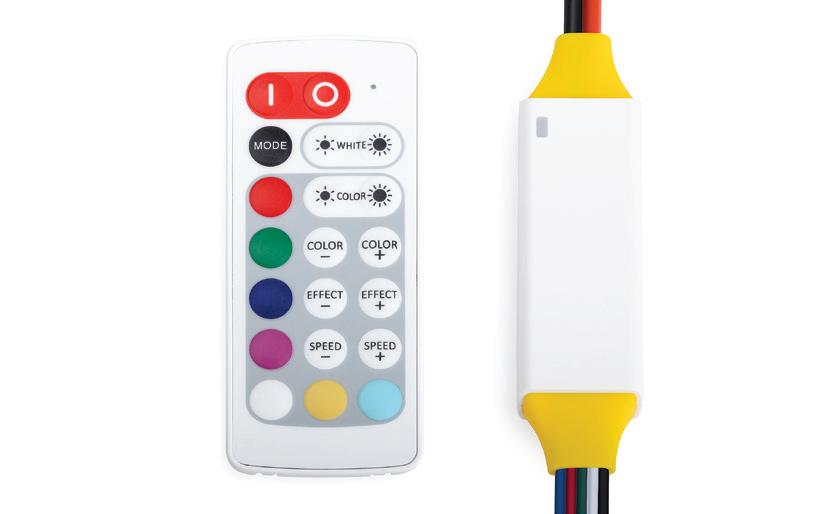

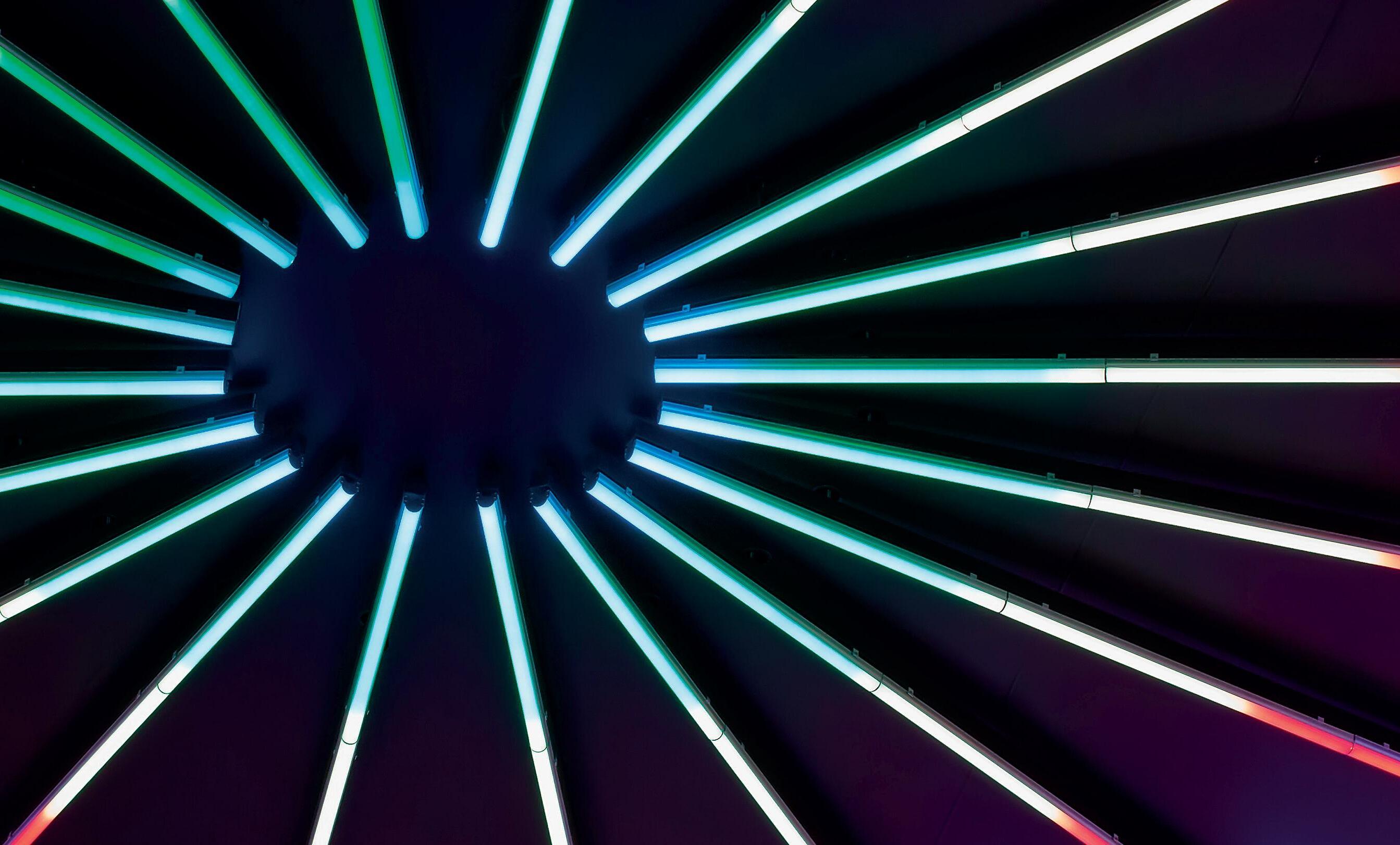

RGBW ULTRALONG

When ambient or accent lighting calls for a splash of colour, RGBW is the ideal solution. Available in both Core and Premium versions, RGBW combines adjustable colour with traditional white light options (2700K, 3000K, or 4000K), giving you full control over mood and atmosphere. All our RGBW strips pair with our range of RGB controllers for effortless remote or appbased control. Best used for interiors needing a balance of vibrant colour and classic white light.

RGB DIGITAL CHASING

RGB Digital Chasing delivers a dynamic experience of animated lighting effects. Available in Core and Premium options, these strips allow for flowing light sequences, patterns and custom animations — ideal for making a statement in hospitality, retail or feature installations. Fully compatible with our digital RGB controllers, these strips are best used where dramatic, programmable lighting is needed to elevate the visual impact.

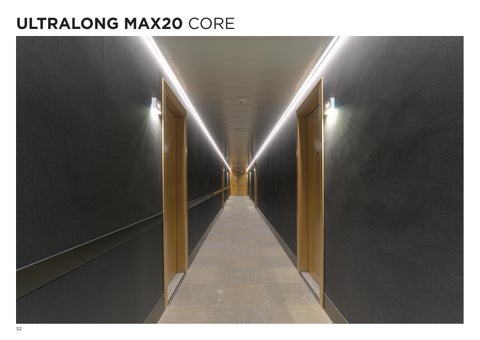

Available in MAX20, MAX30 and MAX50 options, Ultralong is ideal for locations where multiple drivers can’t be used. With Outdoor IP67 Low Extrusion protection available, Ultralong can be installed even in the most challenging environments. Best used where you need extended runs using a single driver.

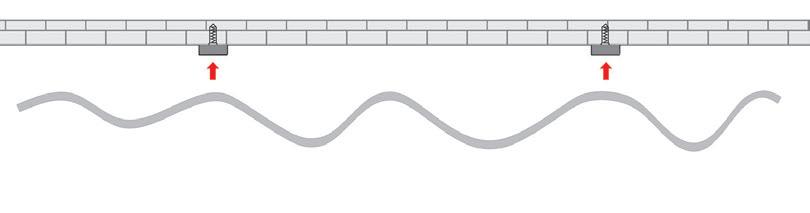

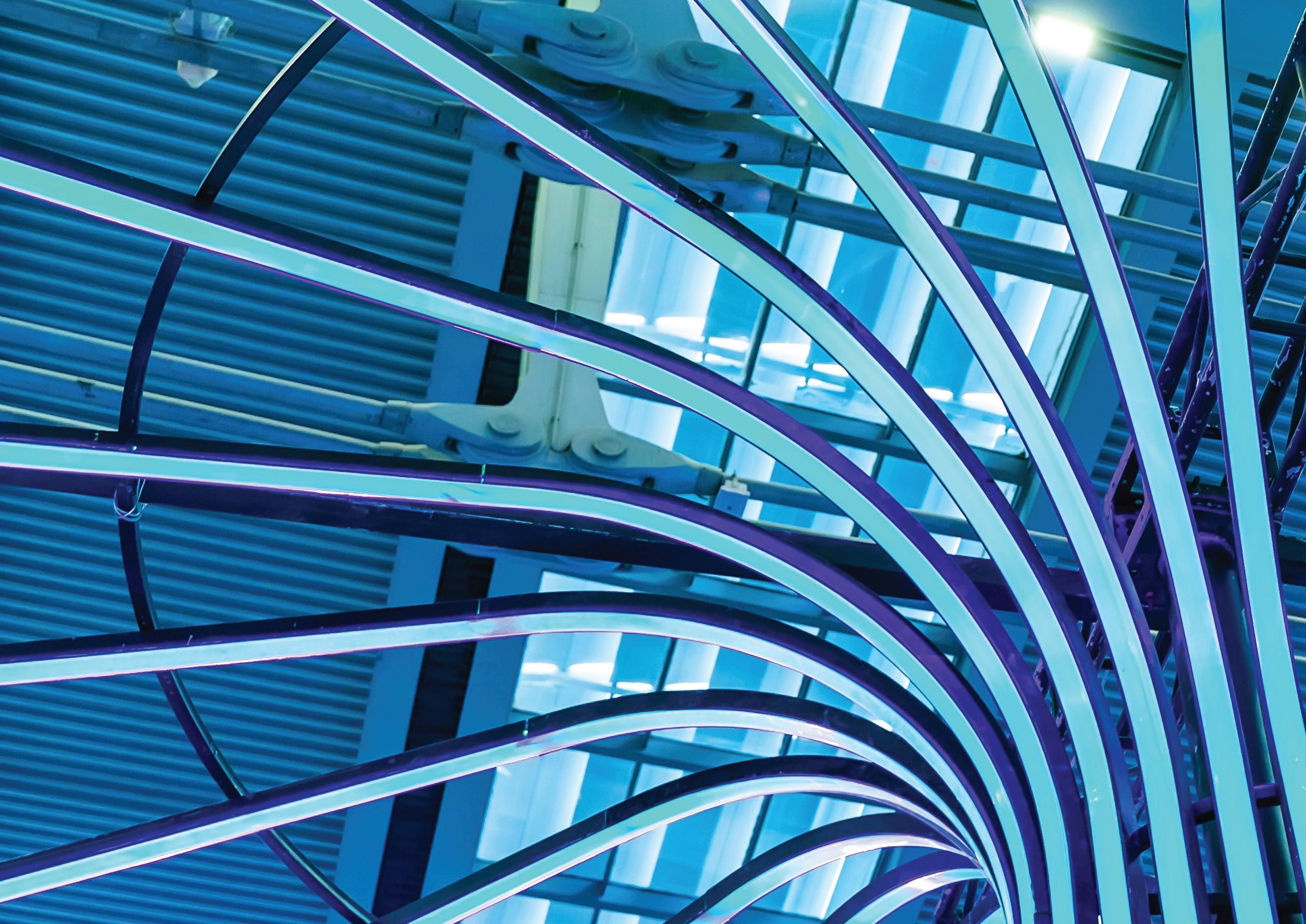

BENDY

Complex designs and intricate shapes require LED strips with maximum adjustability. The Bendy range features a loop-pattern PCB and 6mm width to work in compact spaces and around the tightest angles. Paired with a light output for accent lighting, the Bendy range is best used for joinery, furniture and customised accent installations.

2. WHERE IS IT GOING?

Your installation environment determines the level of dust and water protection required. With a range of protection levels, our strip range provides an ideal solution for every setting.

IP20

For most indoor spaces, dust and moisture protection isn’t necessary. IP20-rated LED strip has better heat dissipation than those with higher IP ratings, allowing them to work more efficiently, making them perfect for areas without water exposure. Best used in bedrooms, lounges, entryways and retail environments.

IP65

Where there is a risk of contact with moisture indoors, IP65 protects LED strips from splashes and water ingress. Its Nano silicone coating ensures the lowest possible profile whilst maintaining moisture resistance. Best used in bathrooms and kitchens where lighting is within 1m of a water outlet (also known as Zone 1).

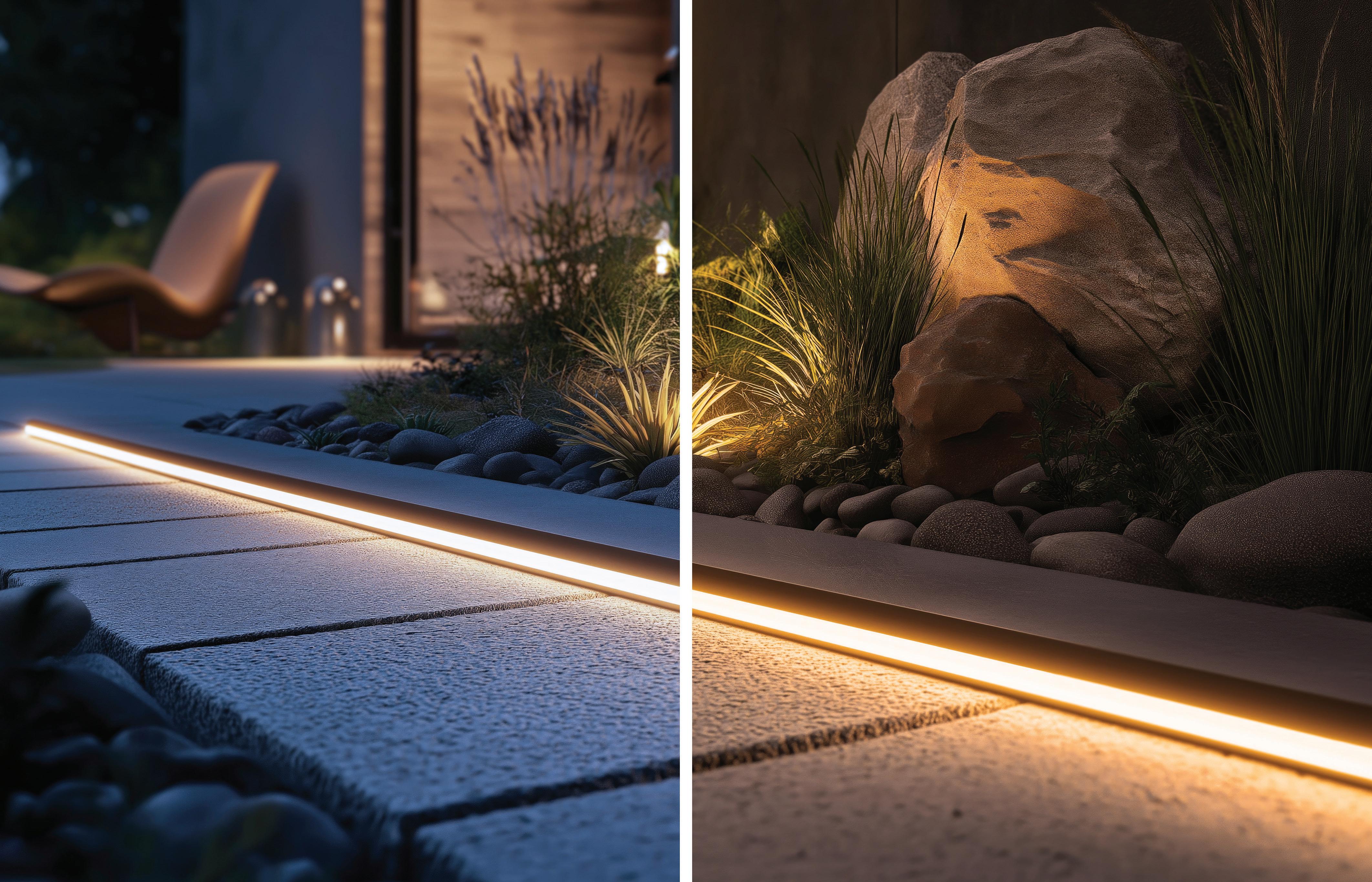

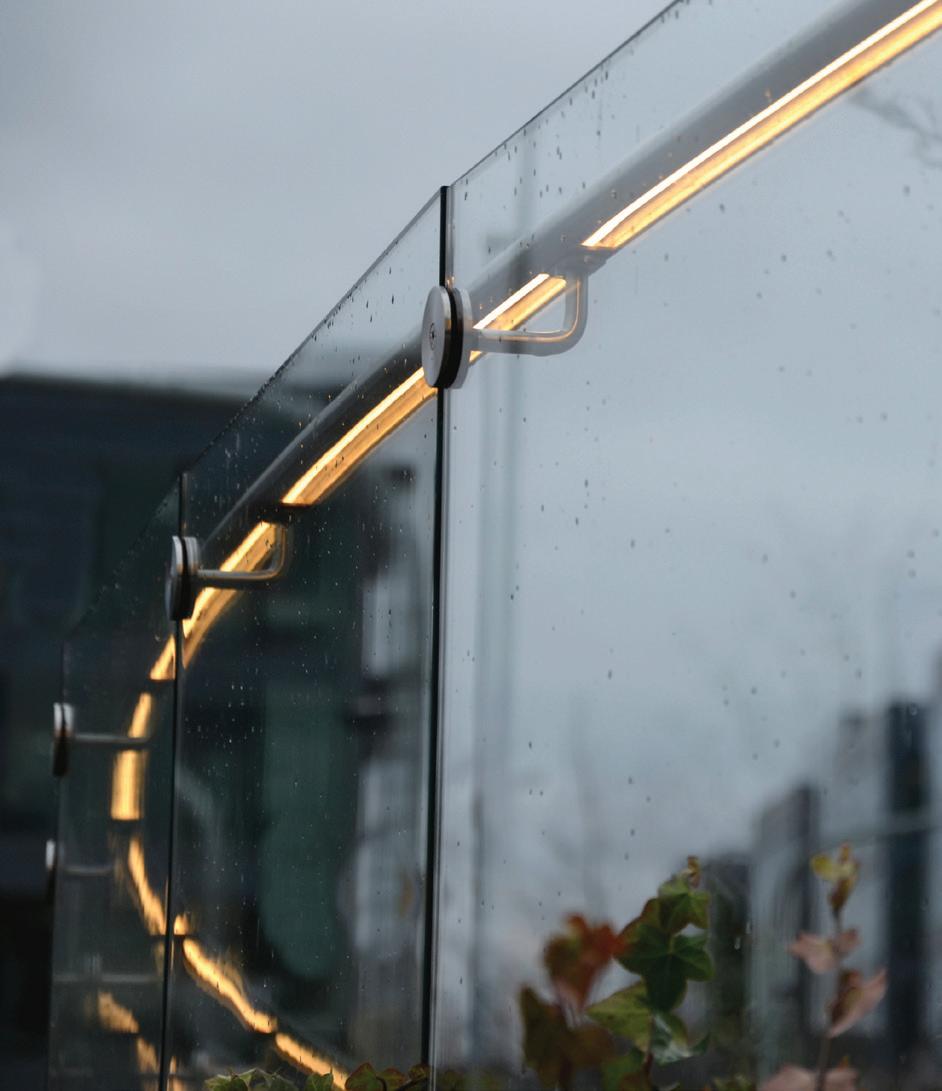

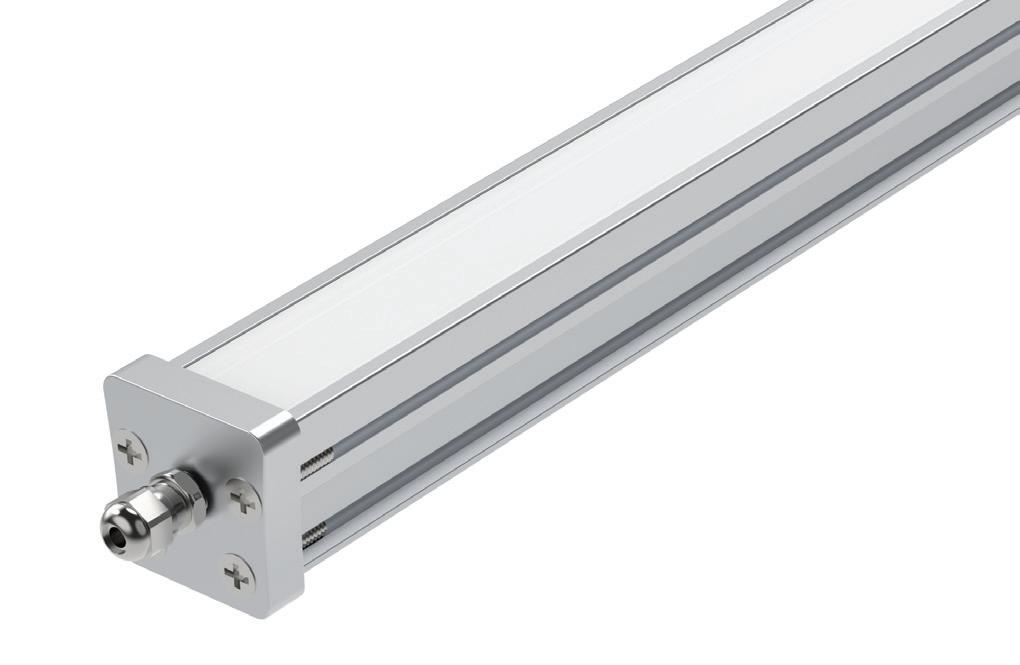

IP67

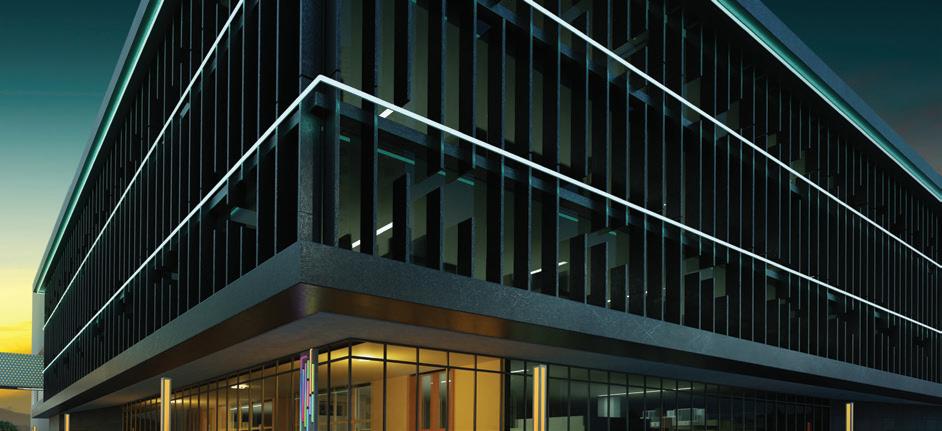

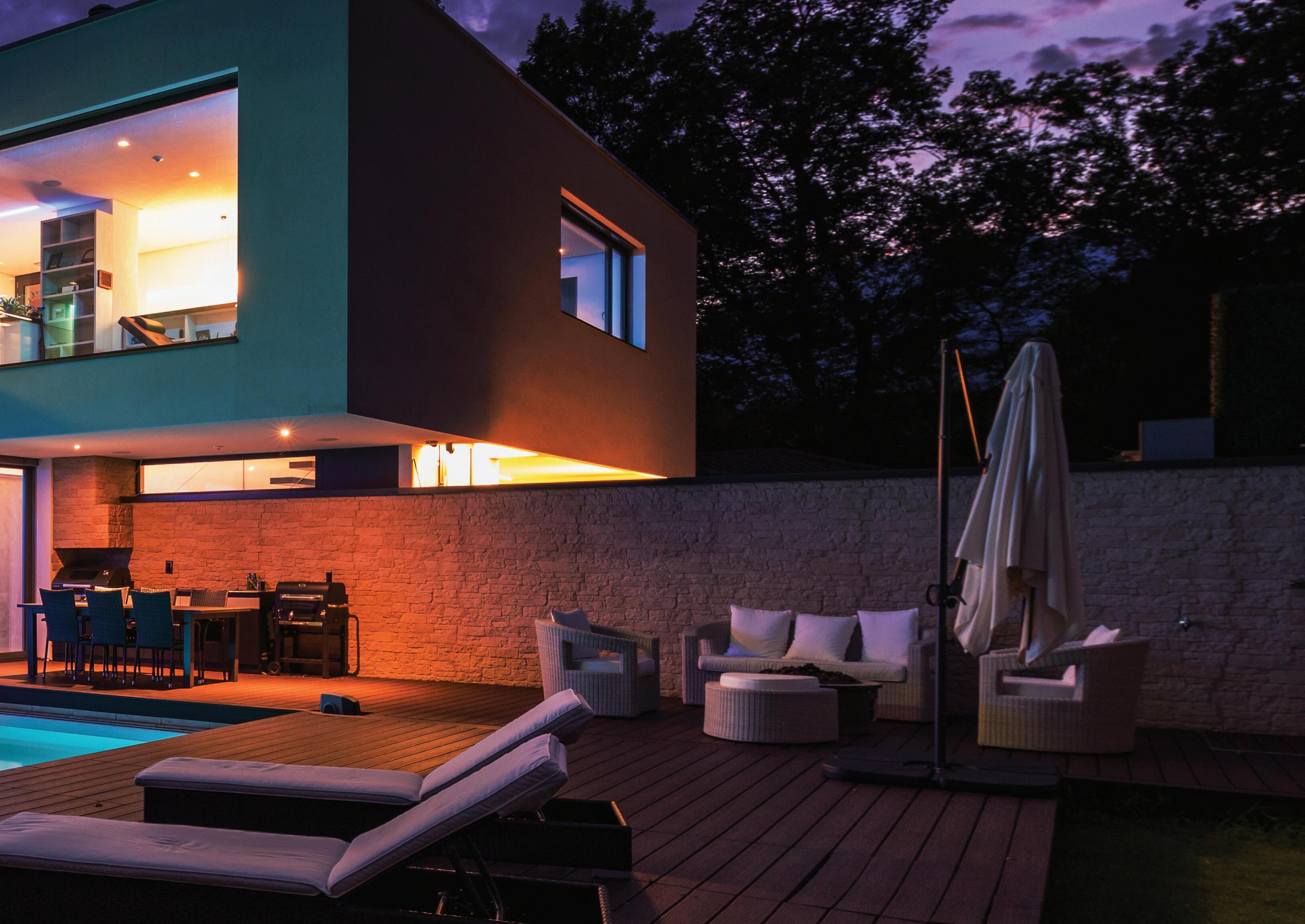

Outdoor installations need extra attention. Enclosing LED strip in an IP67 extrusion “jacket” is the best way to ensure complete protection from morning dew, heavy rain, puddles and short-term immersion in water. Best used for handrails, pergolas, walkways, and any other outdoor setting where linear LED lighting is needed.

3. COLOUR TEMPERATURE

From the warmth of sunset to the cool light of midday, choosing the correct CCT can determine the mood of your space and elevate a design to the highest level.

CCT

The CCT, or “correlated colour temperature”, of your lighting is the warmth it appears, measured in Kelvins. With a range from 2700K to 6500K, our range of LED strip allows you to tailor your light to the setting – from warm and cosy lounges or bars to bright and airy offices and shops.

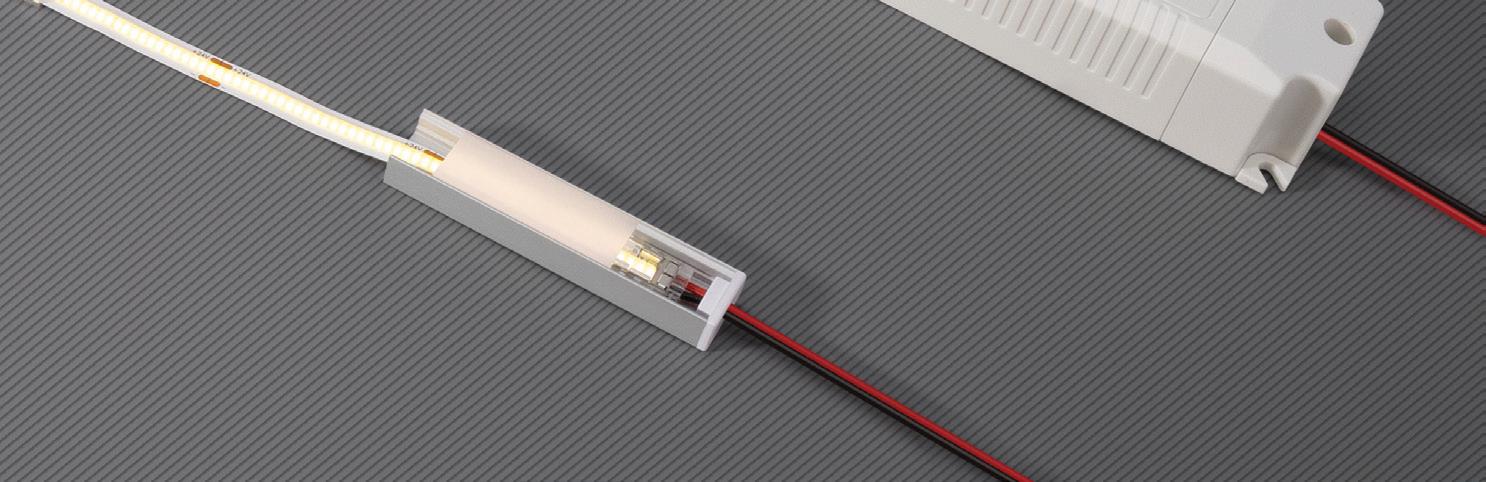

4. HOW TO BUILD YOUR STRIP CONFIGURATION

STRIP + CONNECTOR + PROFILE + DRIVER

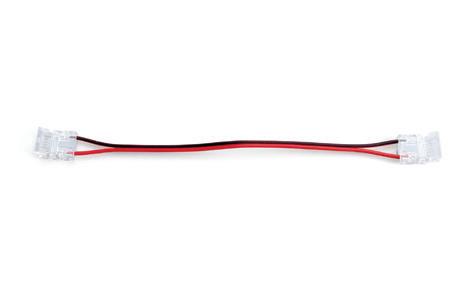

STRIP JOINING CONNECTOR

For end to end connections to join your strip

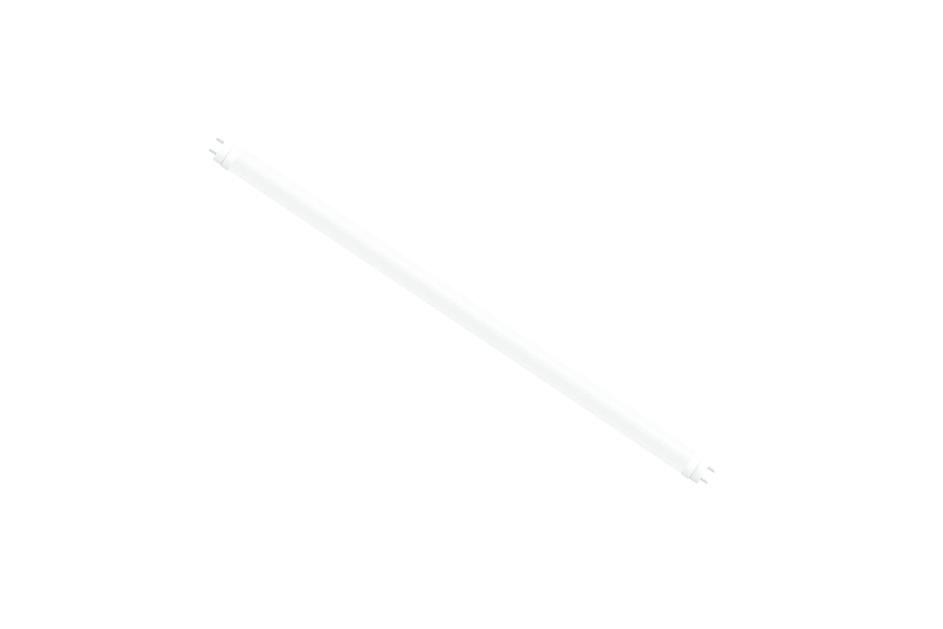

STRIP

Select your ideal strip from our extensive range on pages 17-79

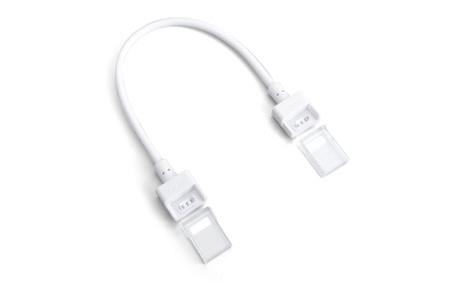

FLEXIBLE CORNER CONNECTOR

Connect 2 pieces of strip around any bend or corner

Connect 2 pieces of strip at right angles

L-CONNECTOR

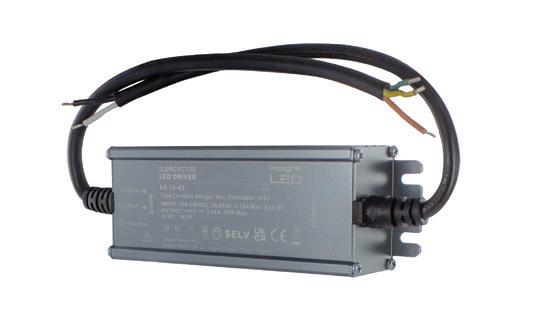

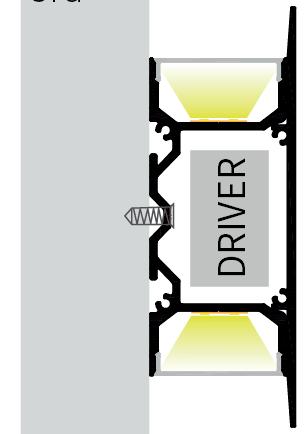

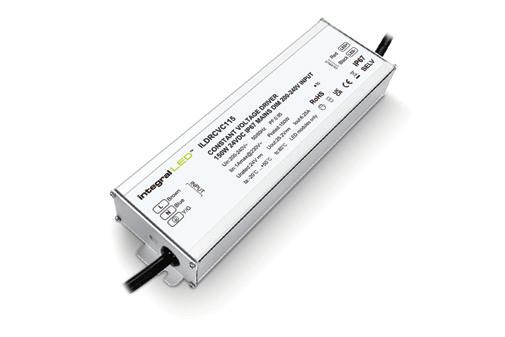

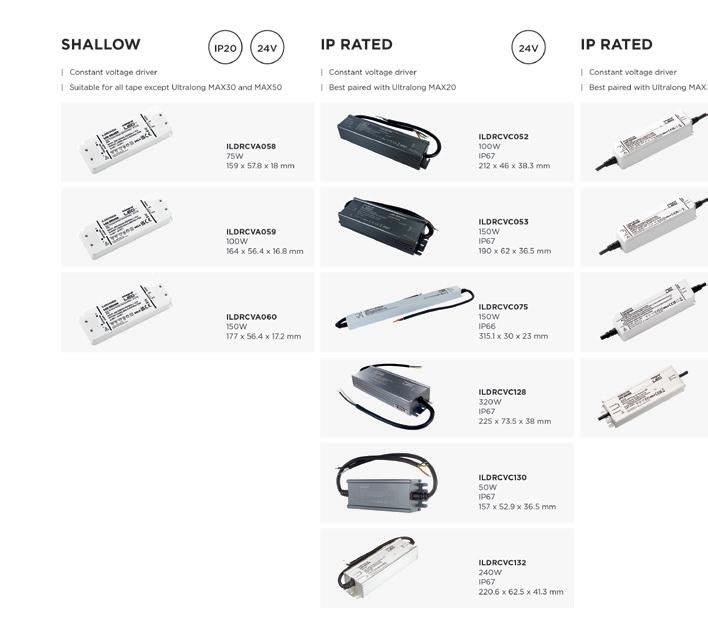

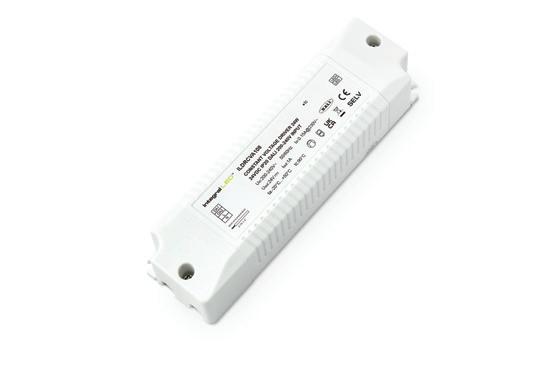

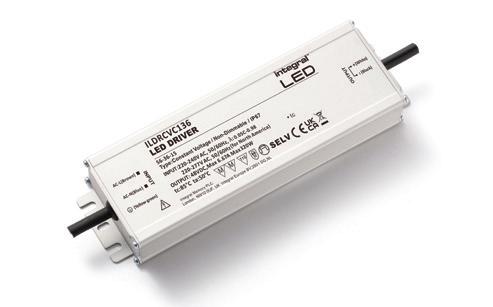

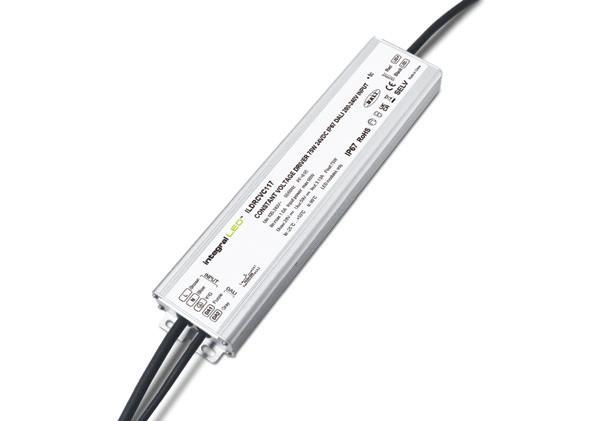

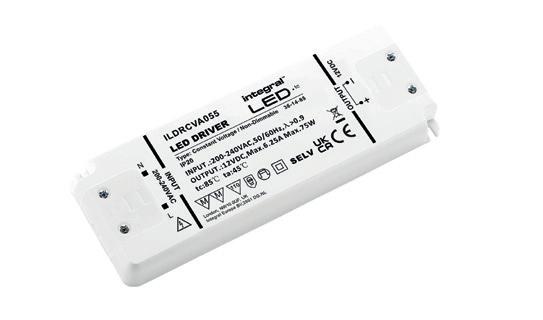

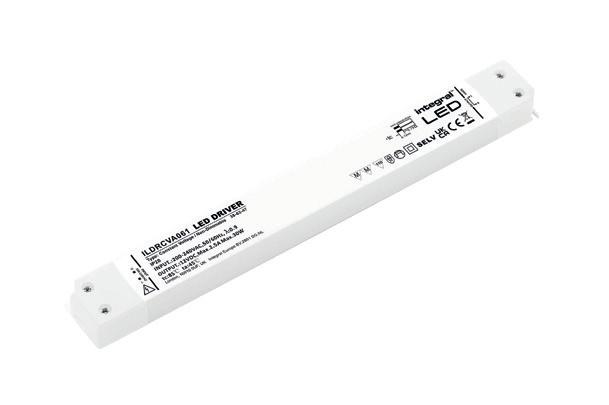

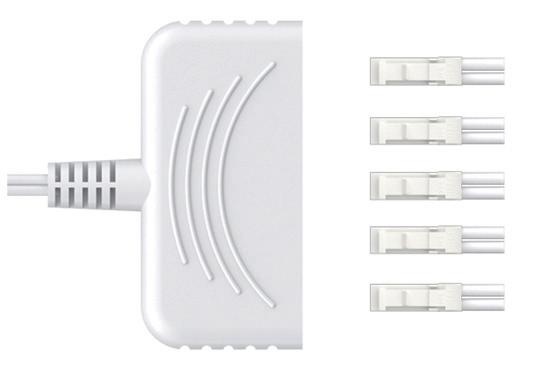

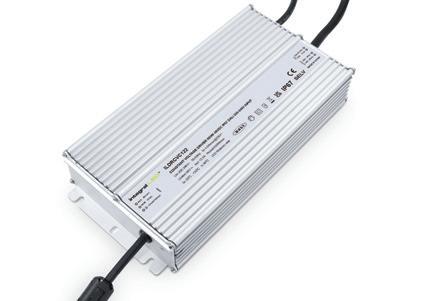

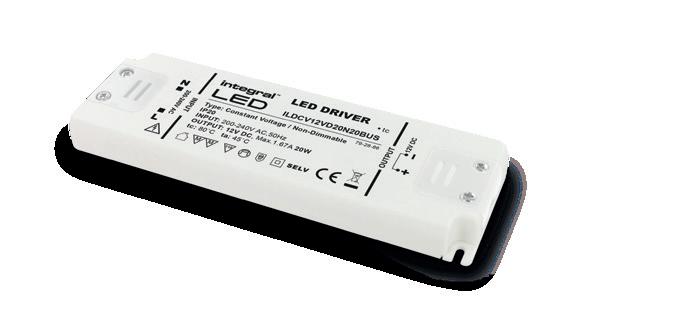

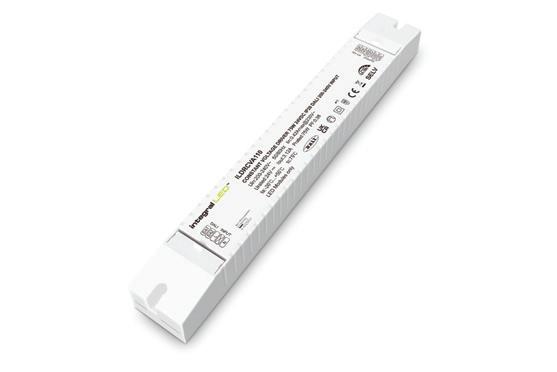

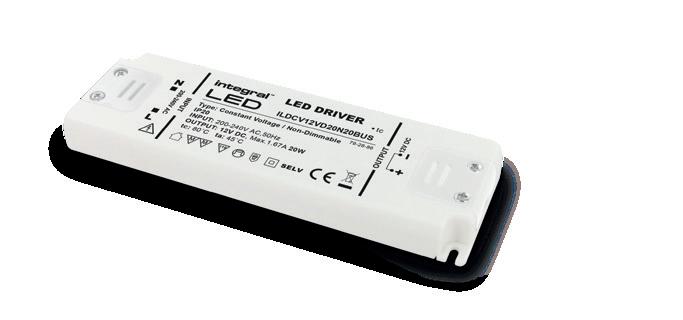

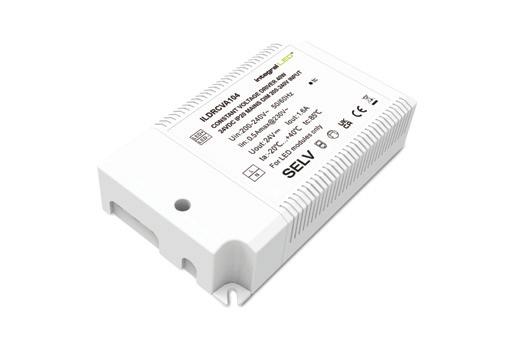

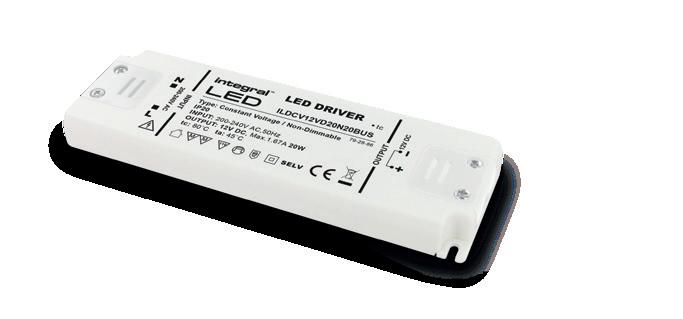

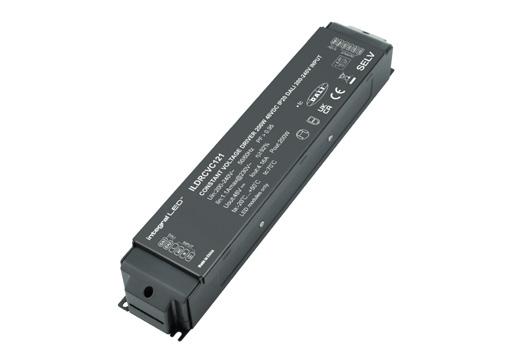

DRIVER

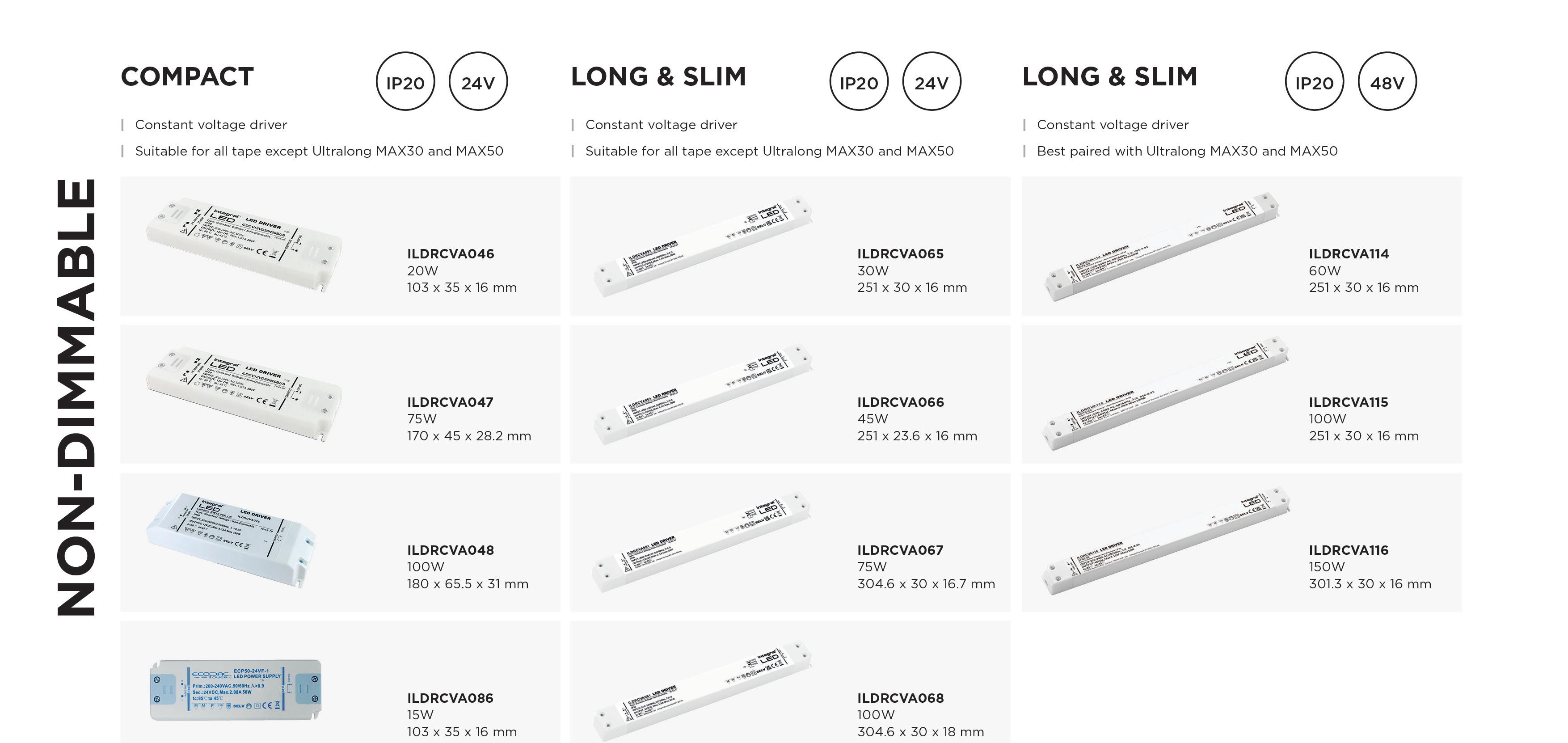

Select your preferred wattage and form factor to complete your LED strip on page 81

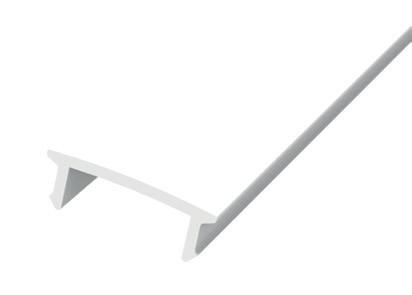

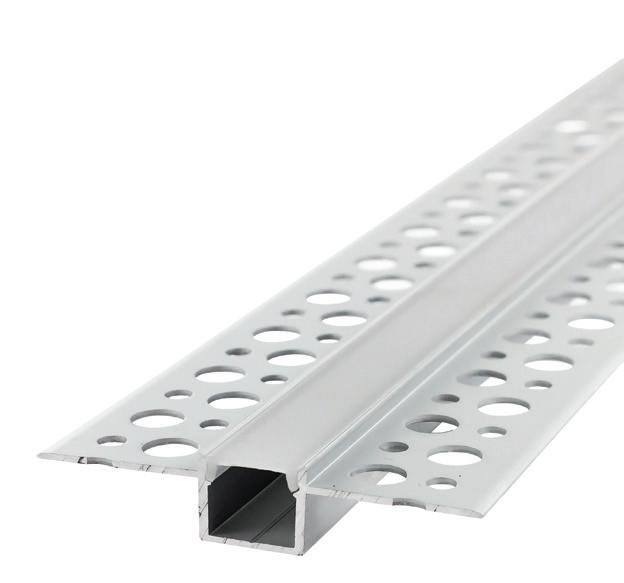

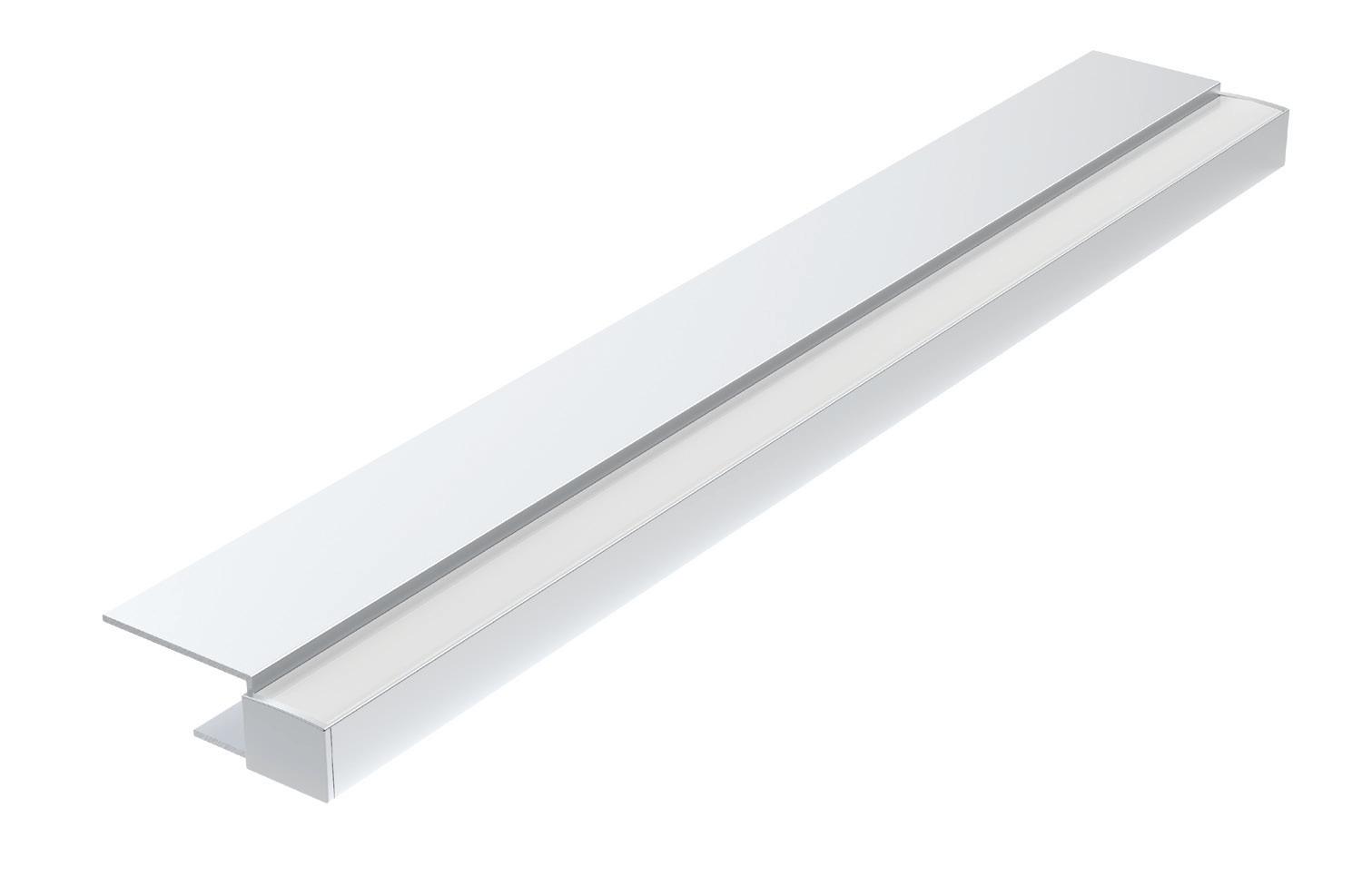

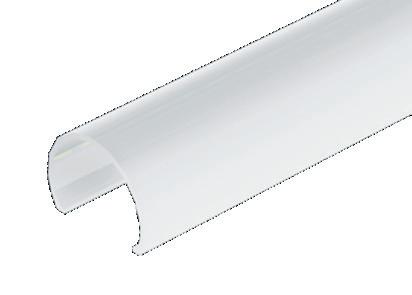

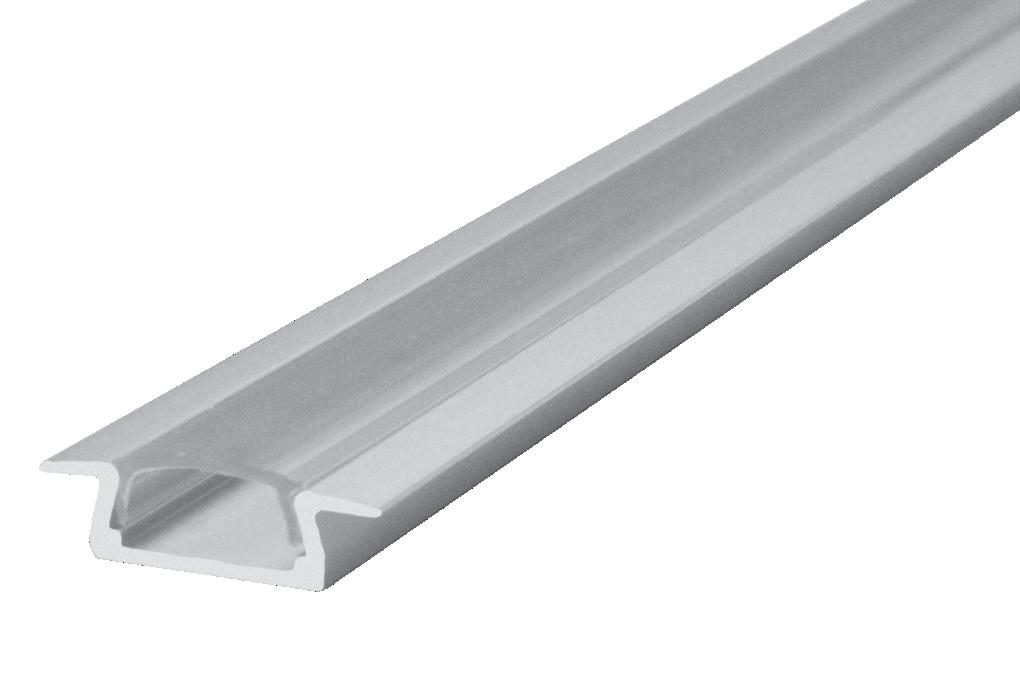

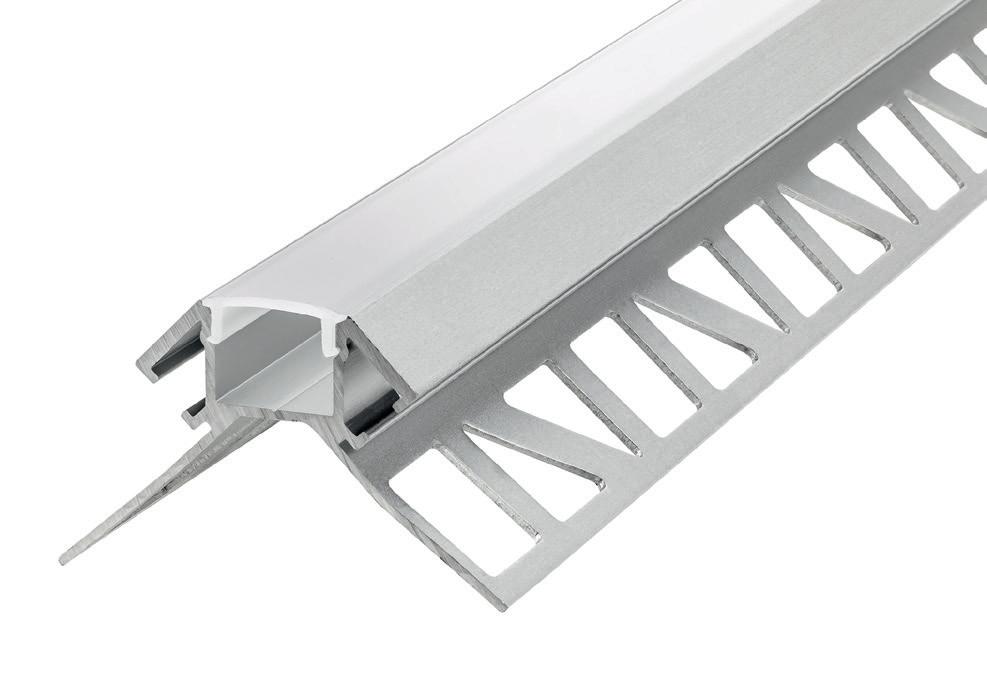

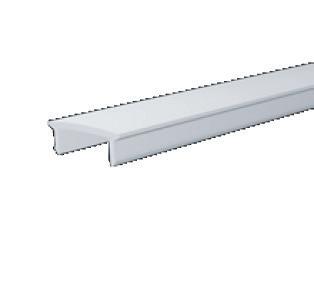

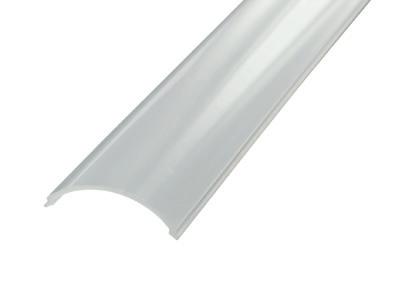

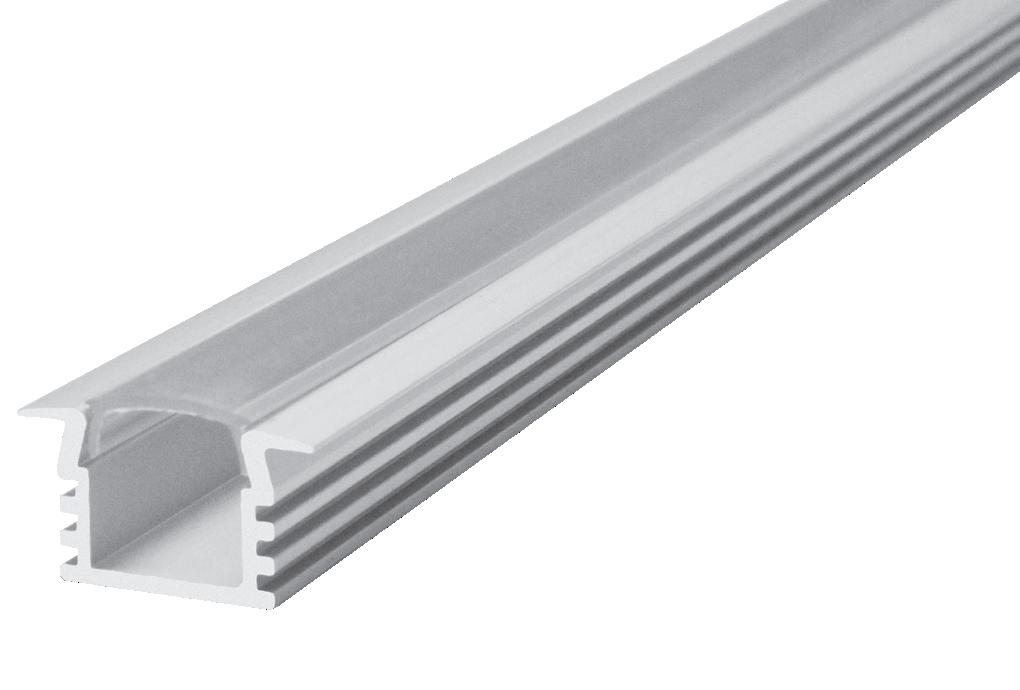

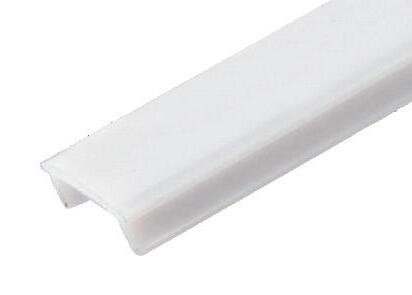

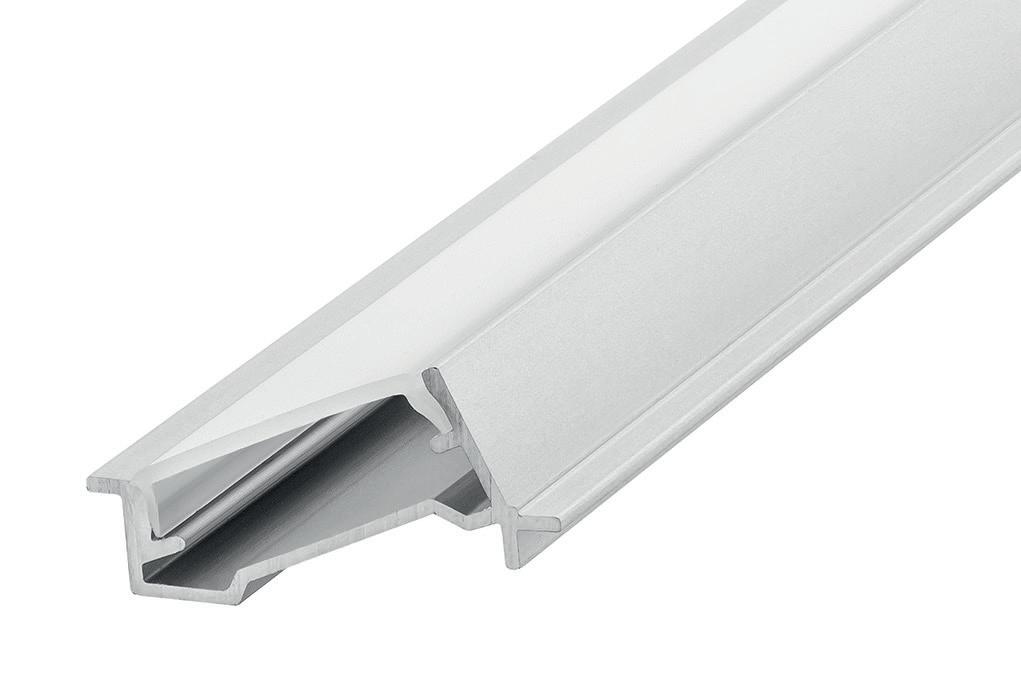

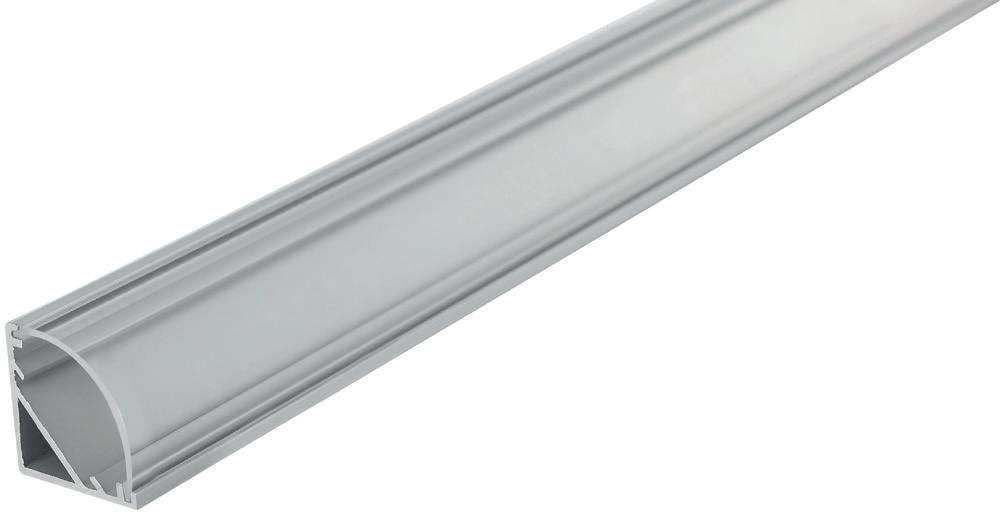

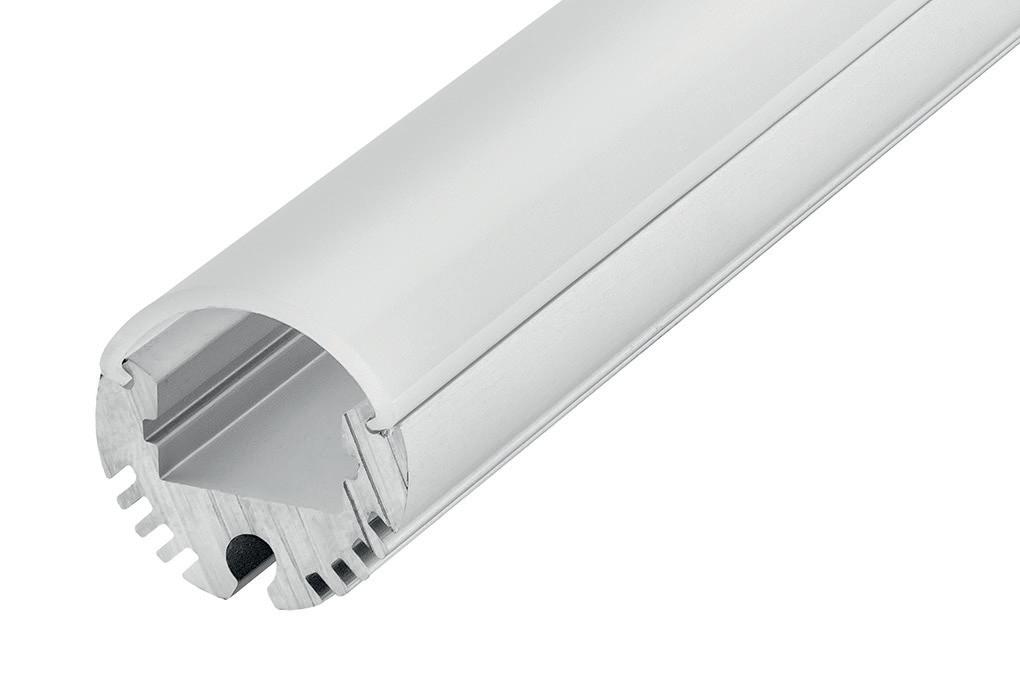

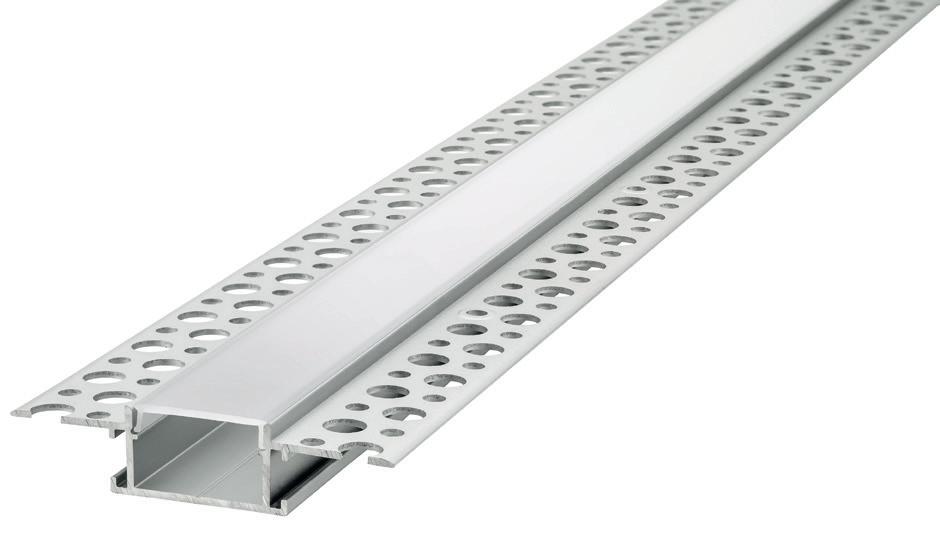

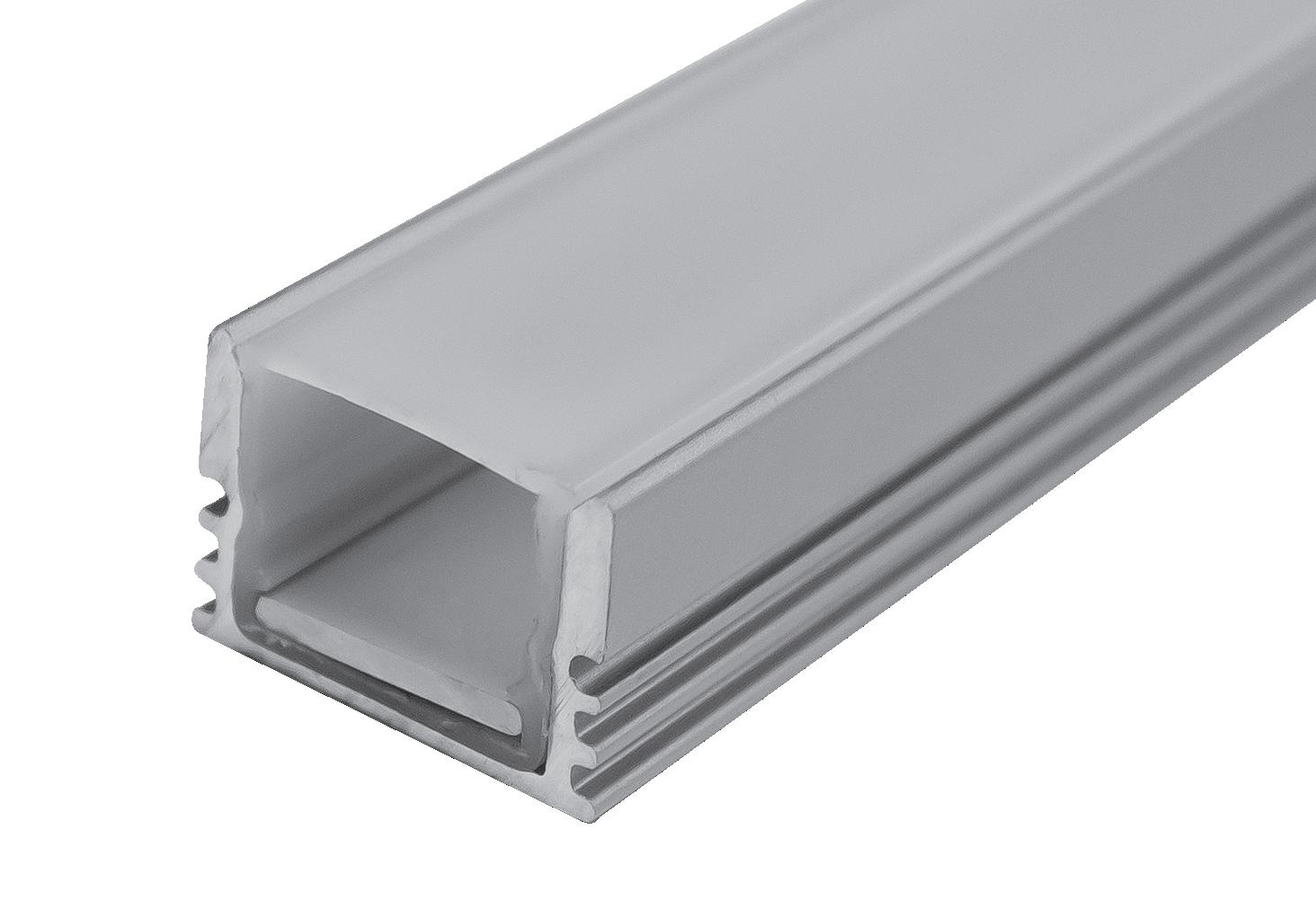

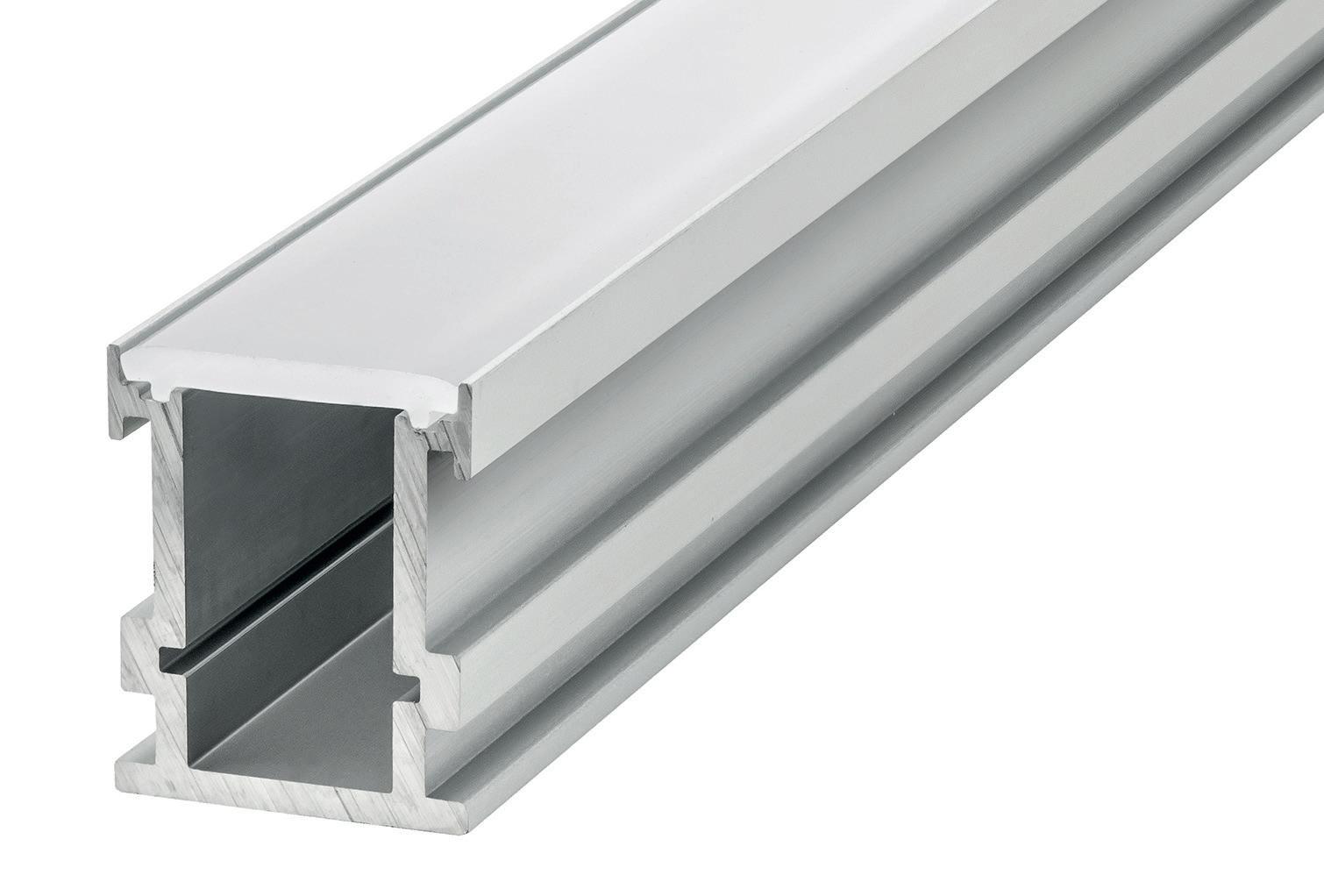

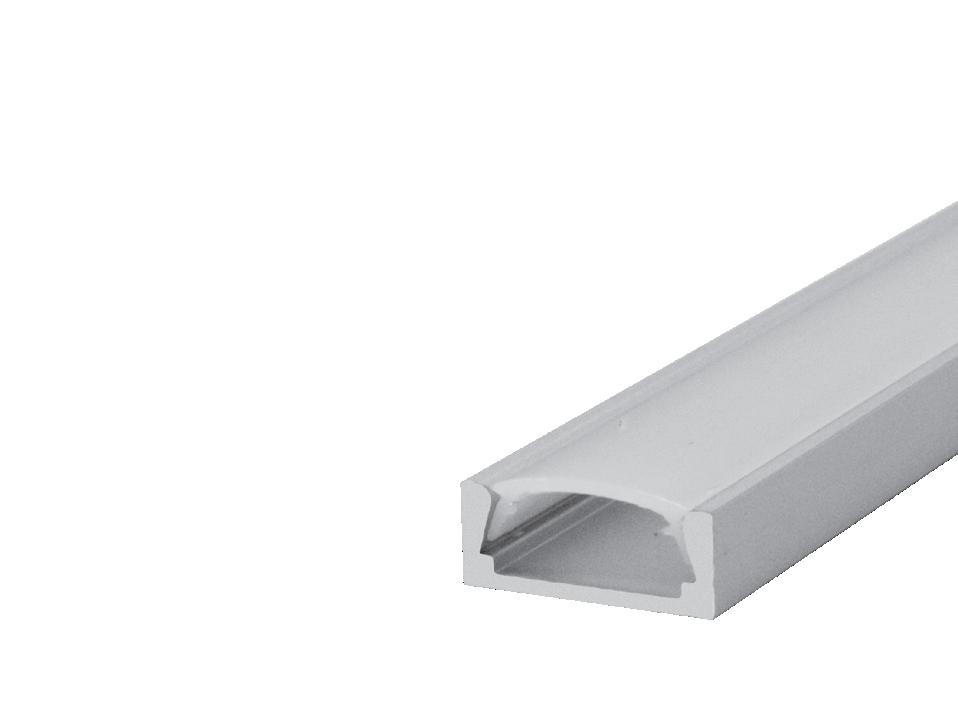

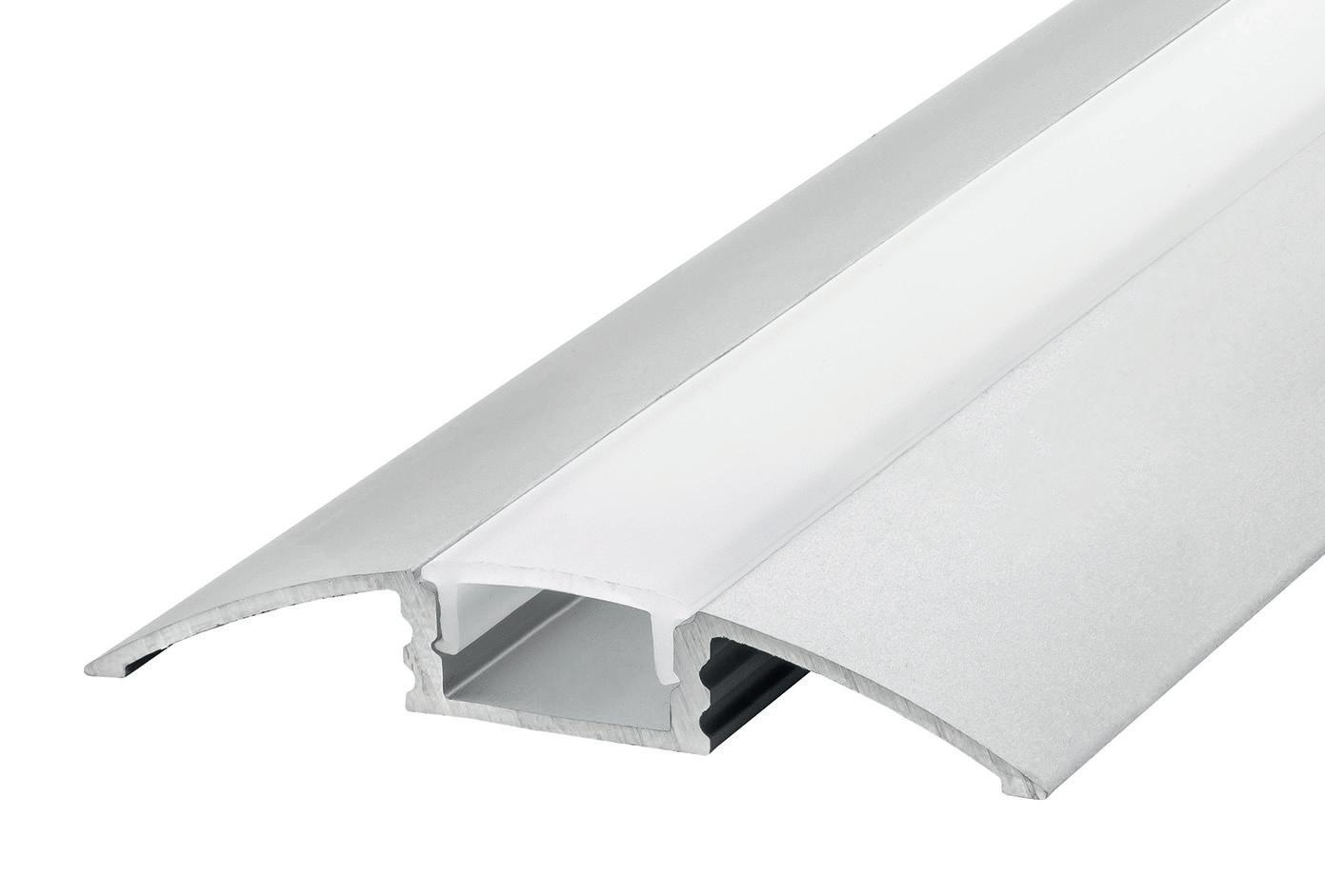

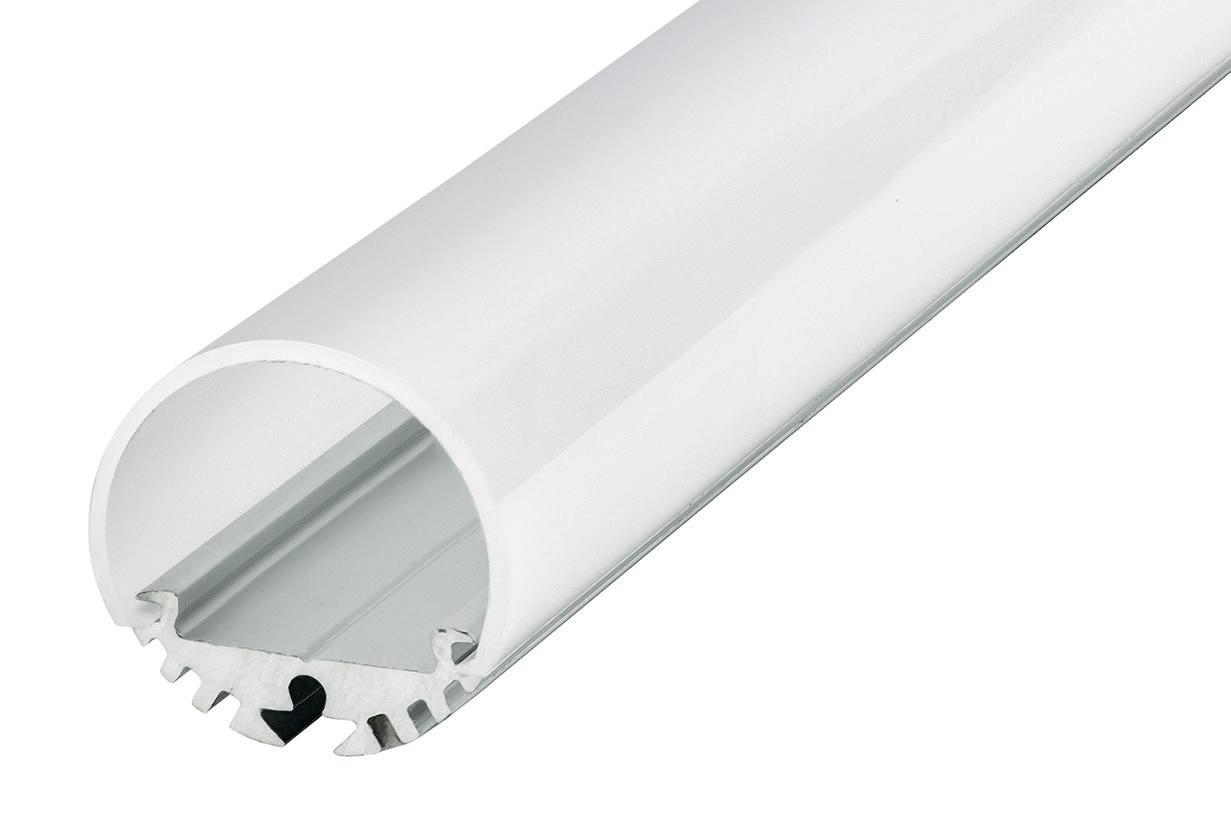

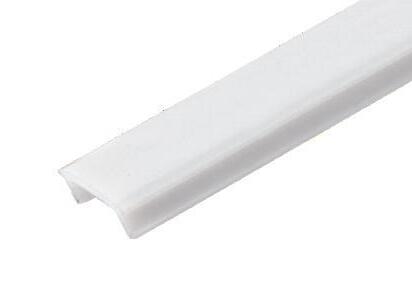

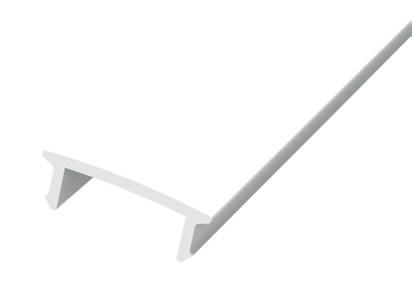

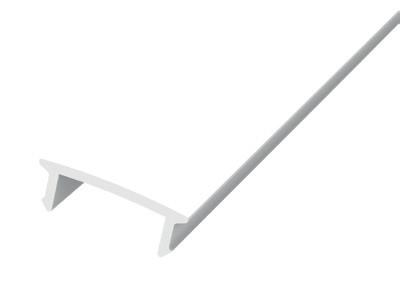

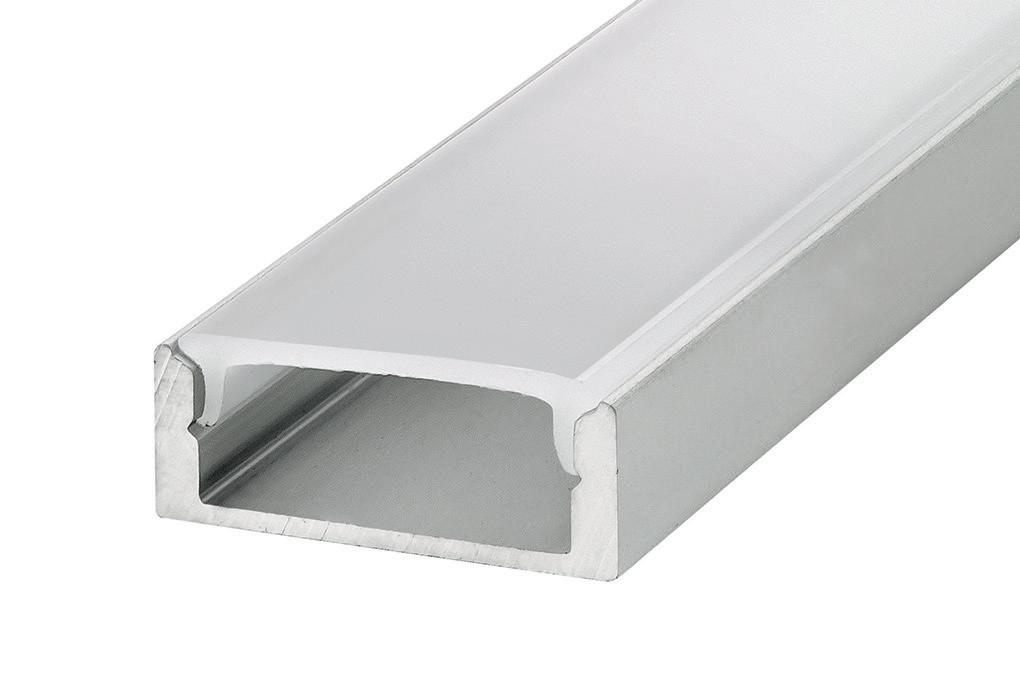

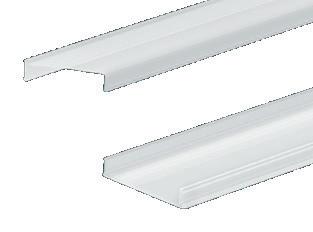

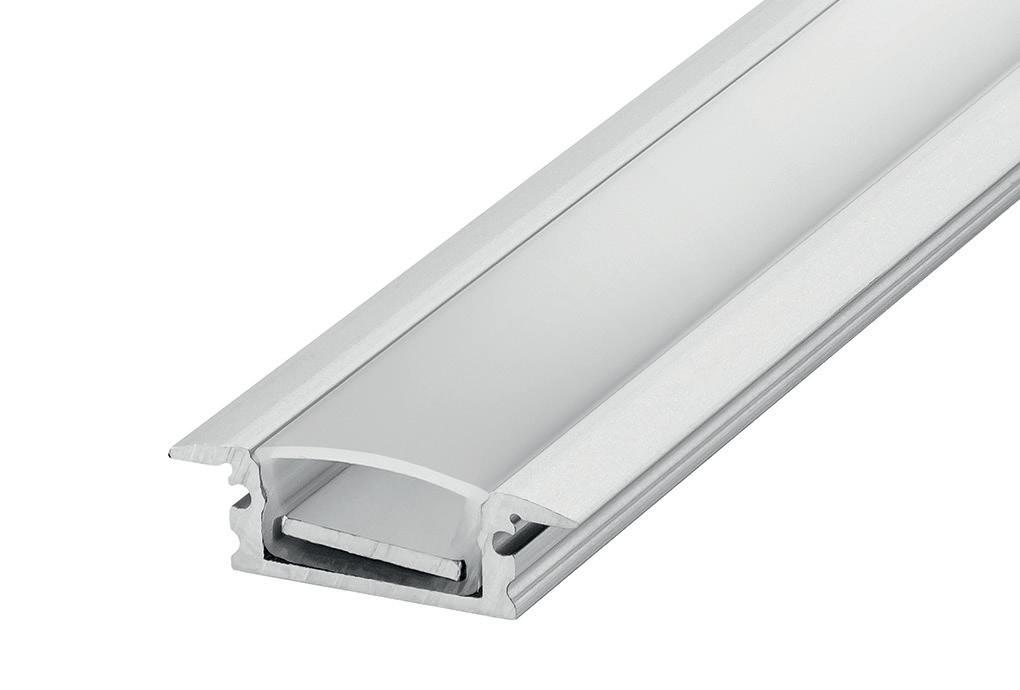

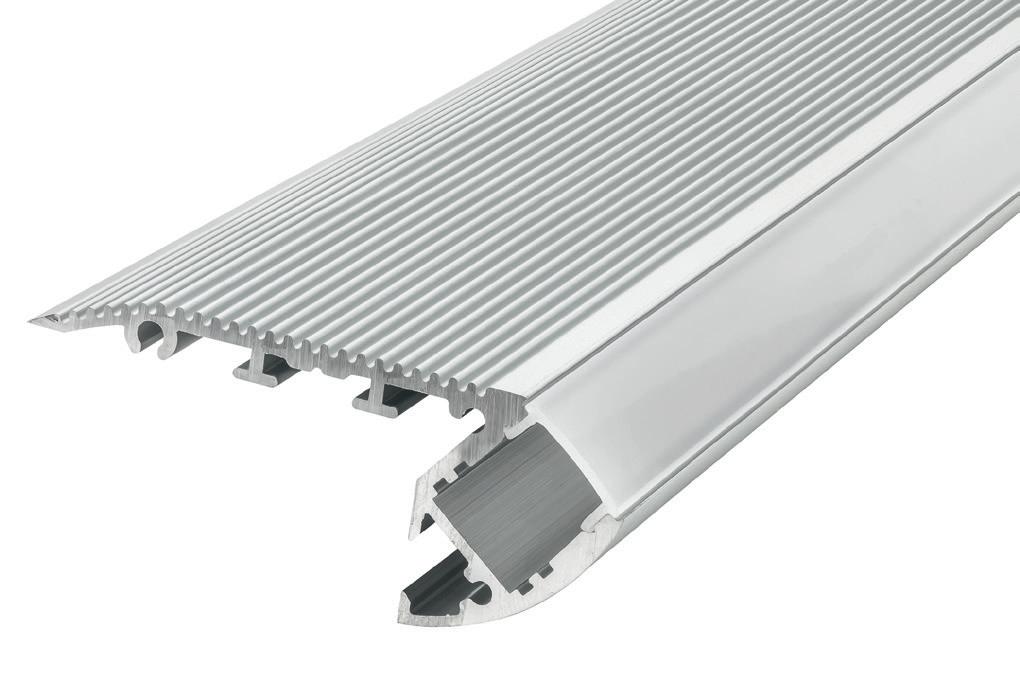

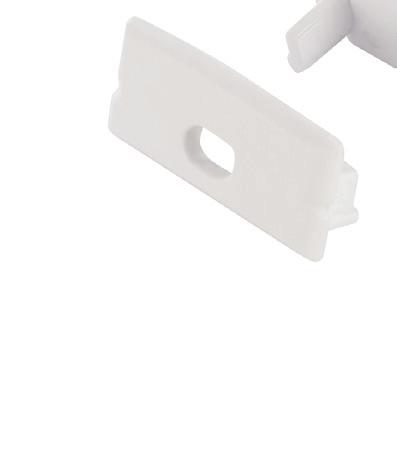

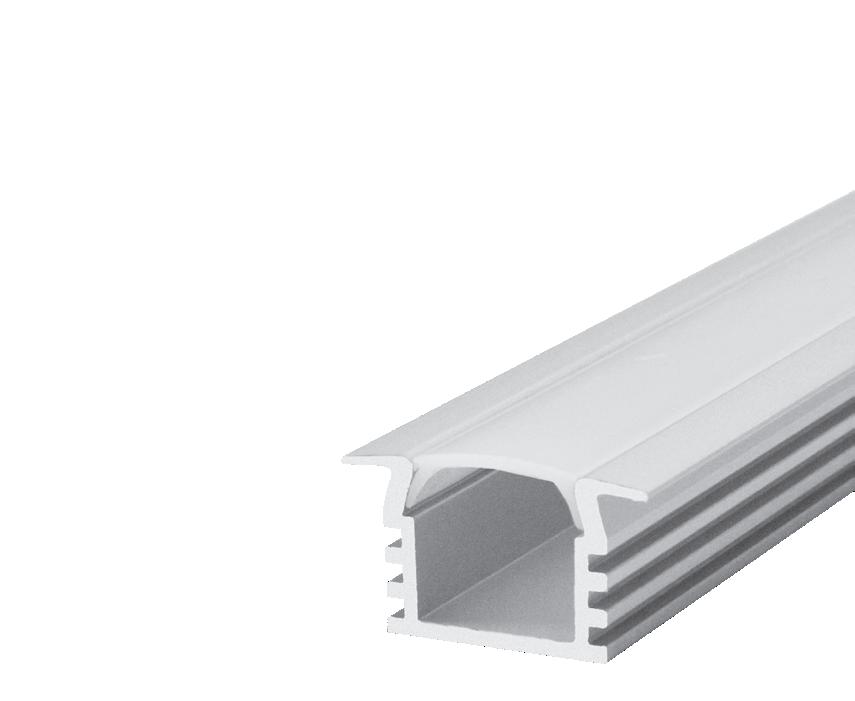

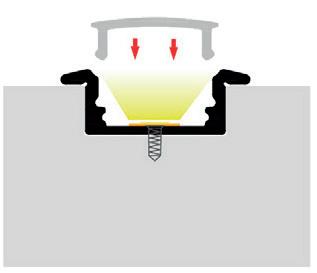

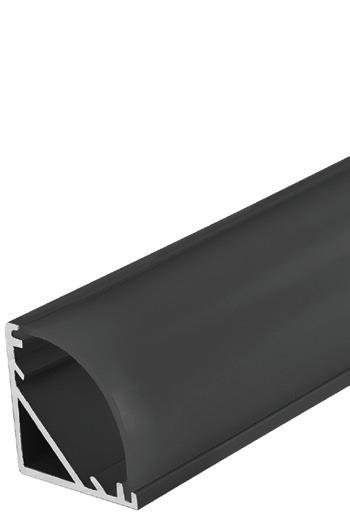

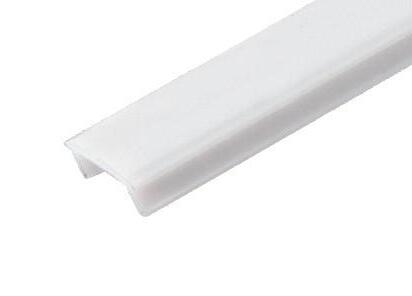

PROFILE

For longer life and added protection, select a profile for your application from pages 95-168 5 6

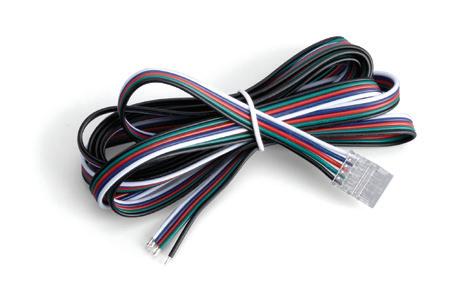

2M CABLE CONNECTOR

For an extended tail to your driver, with a slim connector designed to fit inside the profile

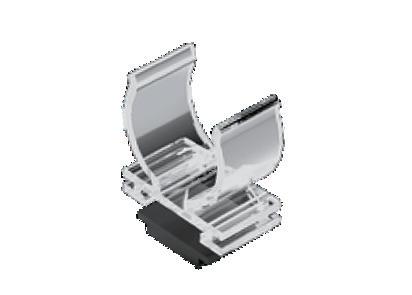

CRIMP CONNECTORS

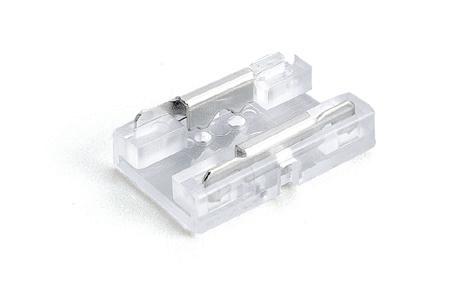

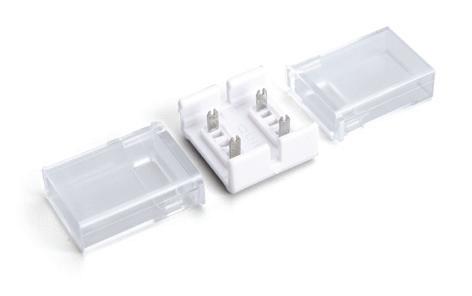

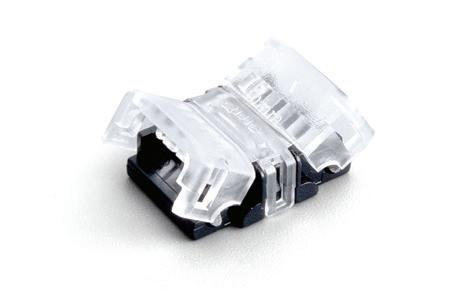

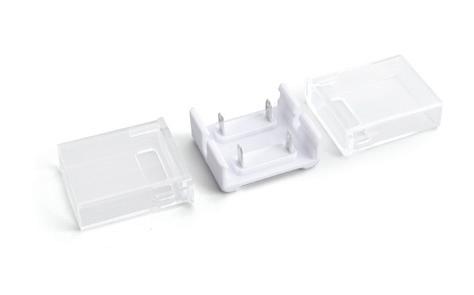

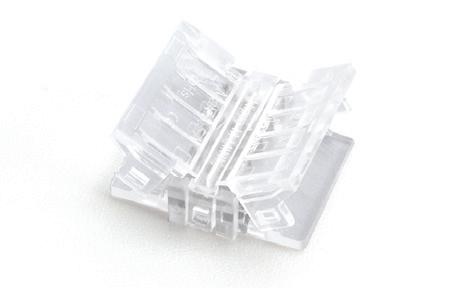

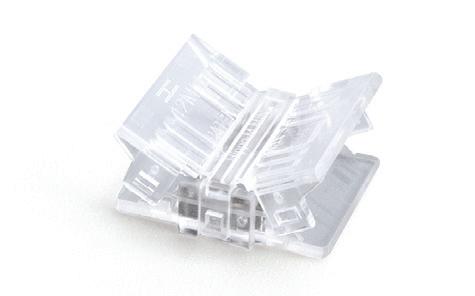

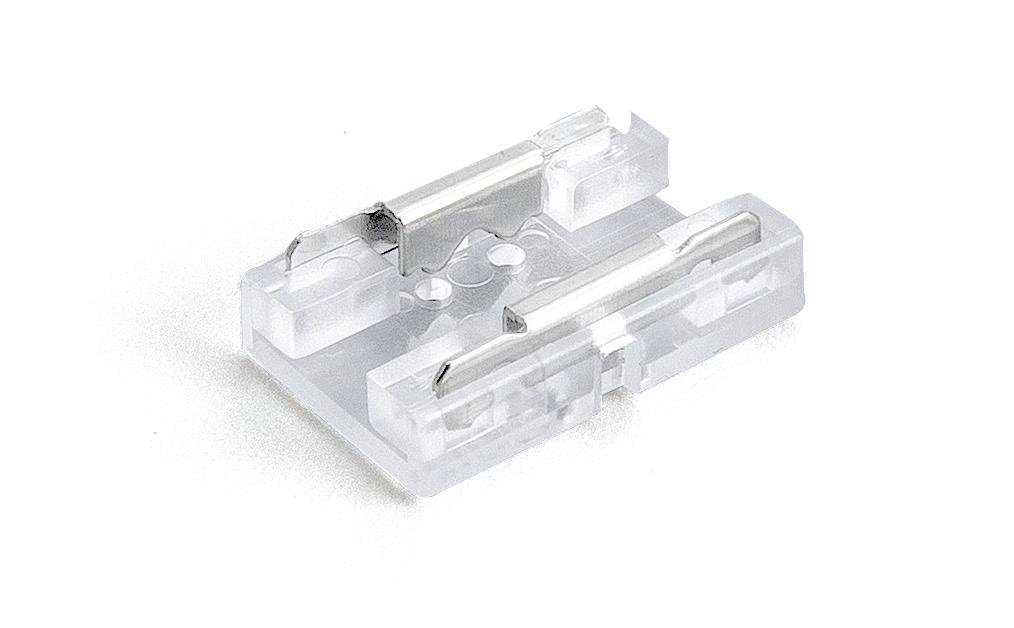

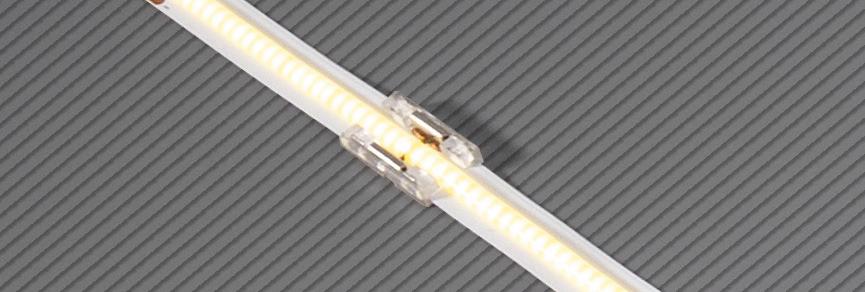

STRIP JOINING CONNECTOR

Join any two pieces of strip with the strip joining connector.

| Crimp closed

| Slim height

| Fits in profile

| IP rated, just add silicone

Other types of connectors are available depending on the range, see each product page for details.

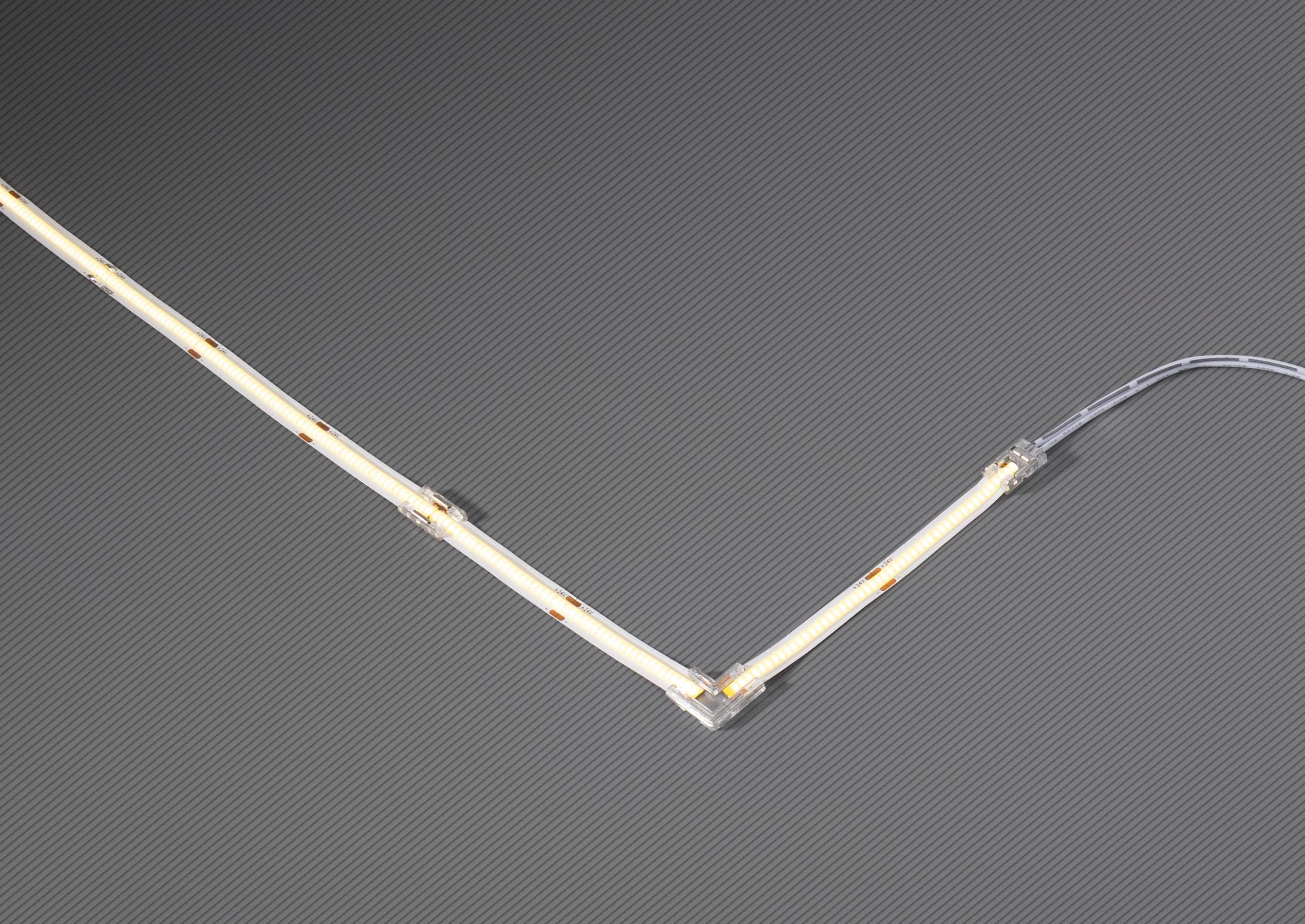

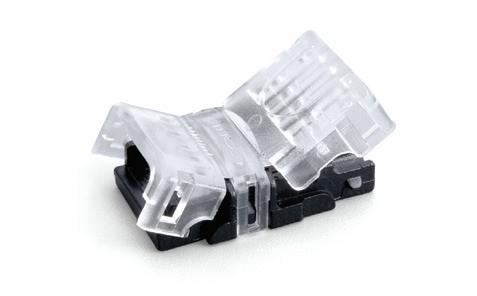

L-CONNECTOR

Join any two pieces of strip at right angles

| Crimp closed

| Slim height

| IP rated, just add silicone

Other types of connectors are available depending on the range, see each product page for details.

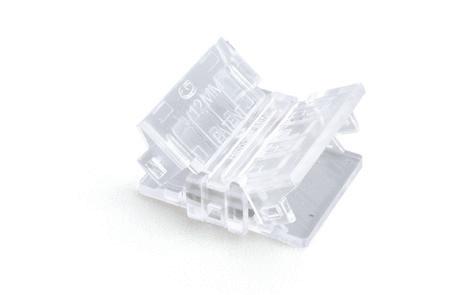

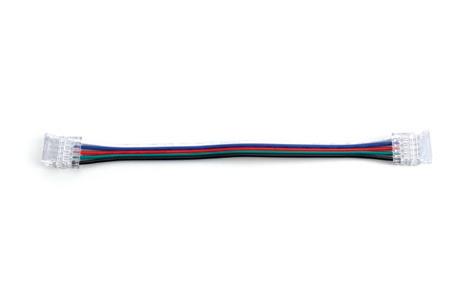

FLEXIBLE CORNER CONNECTOR

Connect 2 pieces of strip around any bend or corner

| Crimp closed

| Slim height

| Fits in profile

| IP rated, just add silicone

Other types of connectors are available depending on the range, see each product page for details.

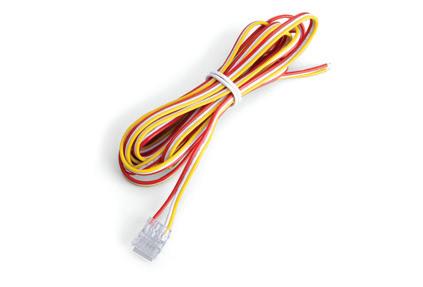

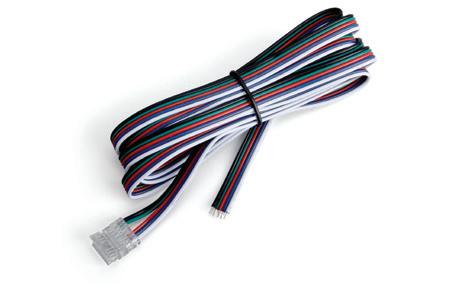

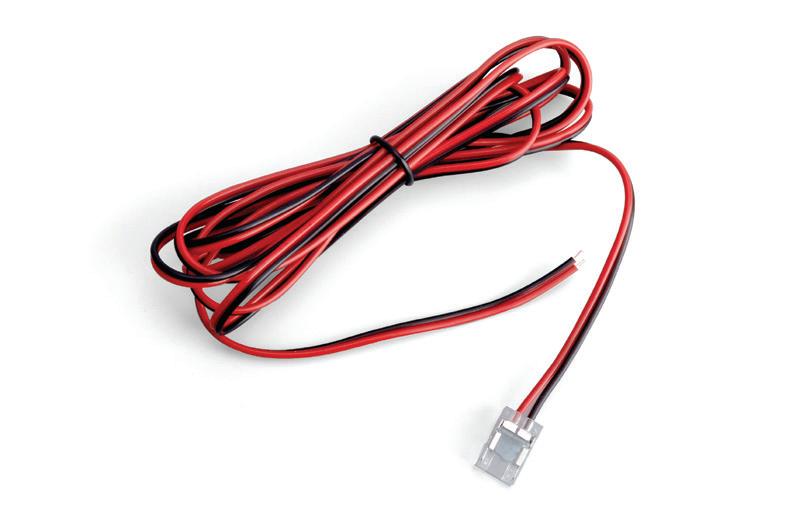

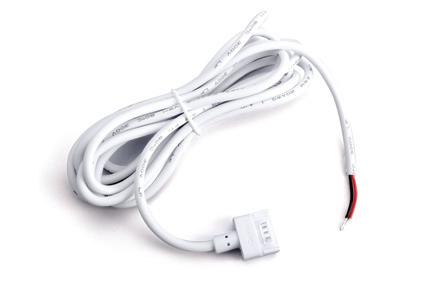

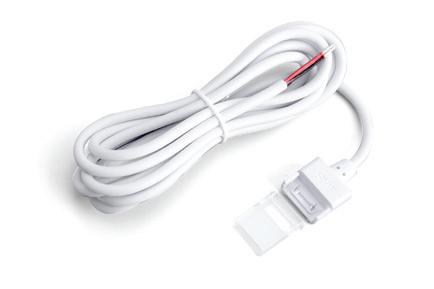

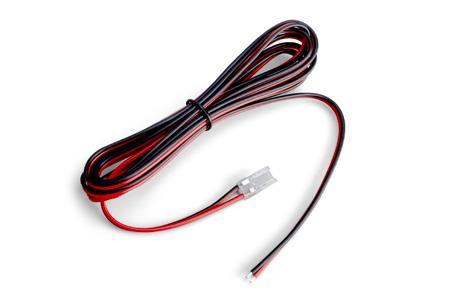

2M CABLE CONNECTOR

For an extended tail to your driver, with a slim connector designed to fit inside the profile

| Crimp closed | Slim height

| Fits in profile

| IP rated, just add silicone

Other types of connectors are available depending on the range, see each product page for details.

SUBTLE LIGHT

UP TO 480 LUMENS

Subtle projects require subtle accent lighting, delivering soft illumination with a low light output.

SUBTLE LIGHT IP20 DRY AREAS

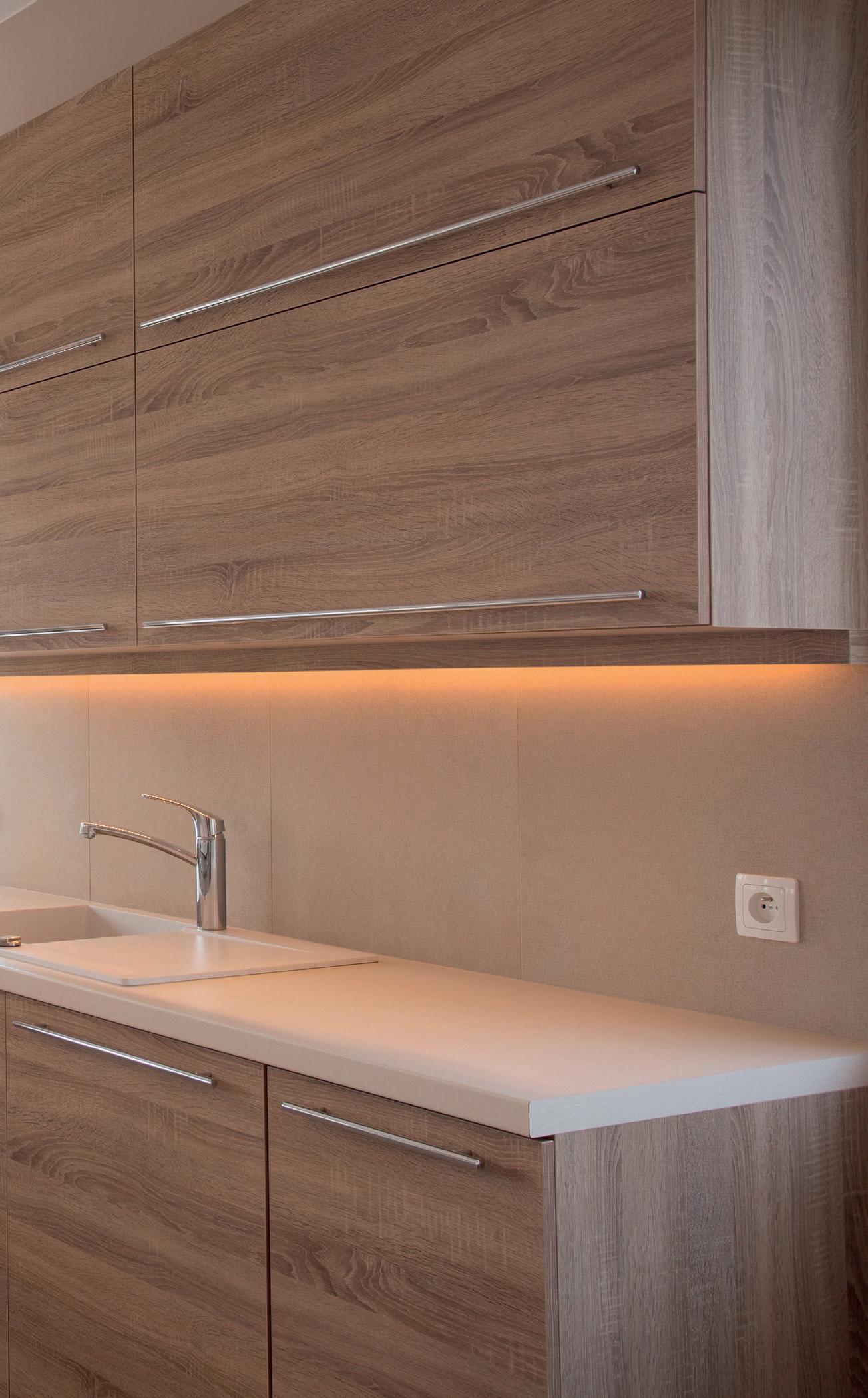

SUBTLE LIGHT IP20

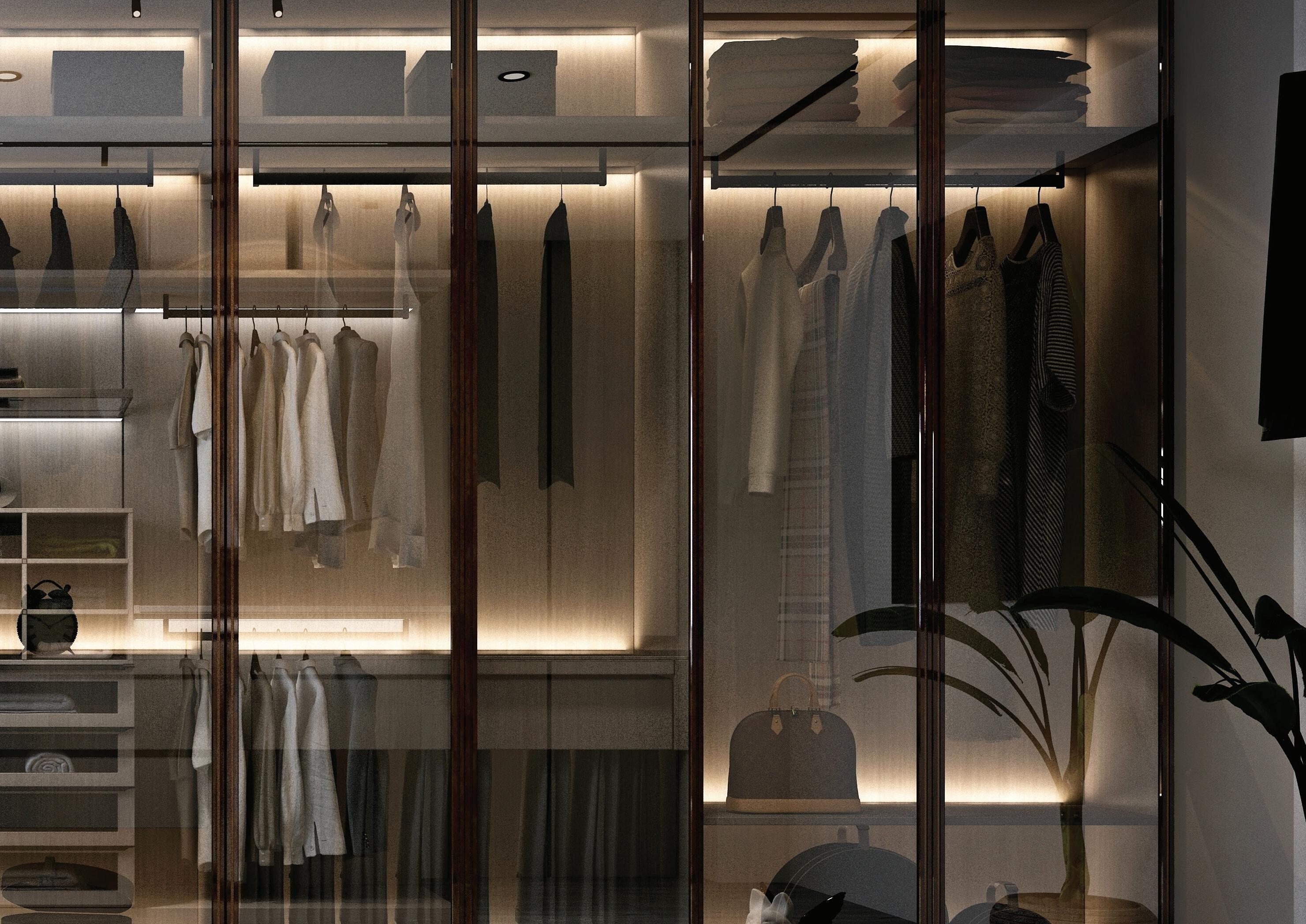

The ideal solution for cabinet and shelf lighting, and for architectural details in bedrooms and living spaces. The soft light level of Subtle will draw your eye to texture and quiet moments in your space, whilst limiting ambient spill to perfectly complement your lighting scheme.

View drivers on page 81, controllers on page 91 and profiles on page 95.

ULTRA-SLIM CRIMP CONNECTORS

ILSTAA500 STRIP JOINING CONNECTOR

ILSTAA502 FLEXIBLE CORNER CONNECTOR

ILSTAA501 2M CABLE CONNECTOR

ILSTAA503 L-CONNECTOR

All 'Per Metre' SKUs are supplied with a cable connector.

PREMIUM

PRODUCT

ILSTWHIA540EM Order length as a quantity per metre

ILSTWHIA541E 5m reel

ILSTWHIA545E 50m reel

ILSTWHIA550EM Order

ILSTWHIA551E 5m reel

ILSTWHIA555E 50m reel

ILSTWHIA560EM Order

ILSTWHIA561E 5m reel

ILSTWHIA565E 50m reel

ILSTWHIA570EM Order

ILSTWHIA571E 5m reel

ILSTWHIA575E 50m reel

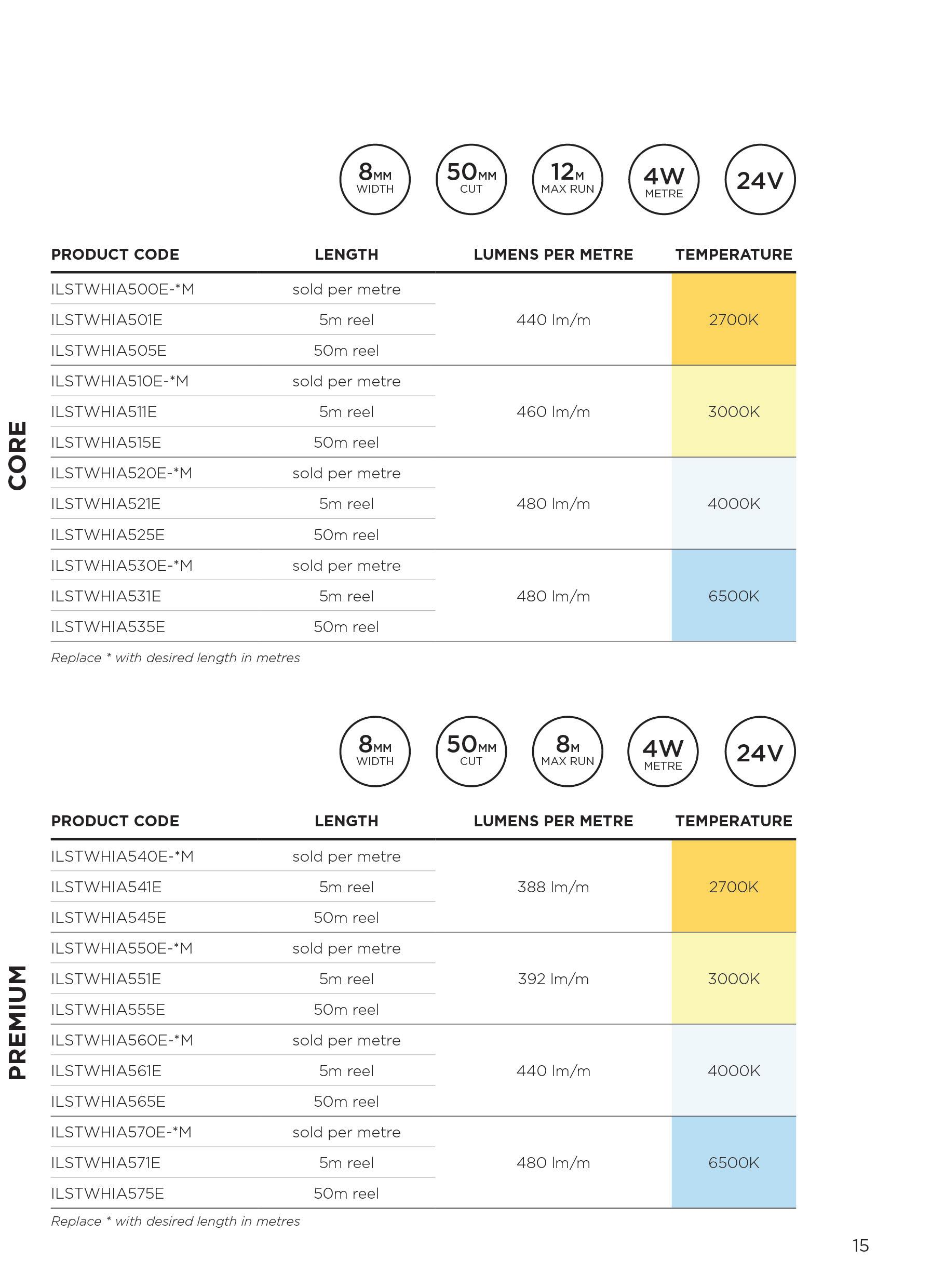

CORE

ILSTWHIA500EM Order length as a quantity per metre

ILSTWHIA501E 5m reel

ILSTWHIA505E 50m reel

ILSTWHIA510EM Order length as a quantity per metre

ILSTWHIA511E 5m reel

ILSTWHIA515E 50m reel

ILSTWHIA520EM Order length as a quantity per metre

ILSTWHIA521E 5m reel

ILSTWHIA525E 50m reel

ILSTWHIA530EM Order length as a quantity per metre

ILSTWHIA531E 5m reel

ILSTWHIA535E 50m reel

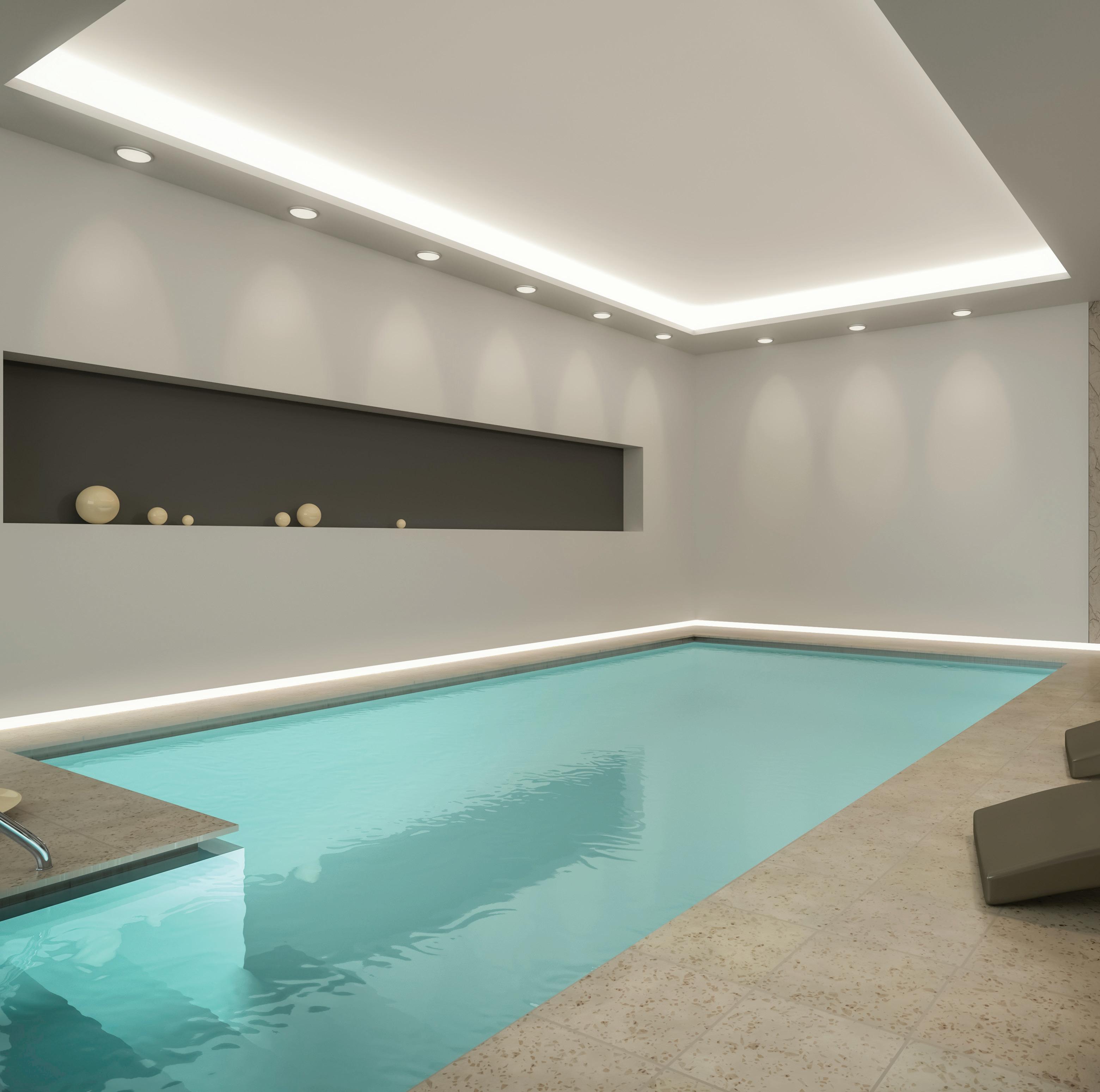

SUBTLE LIGHT IP65 SPLASH PROOF

SUBTLE LIGHT IP65

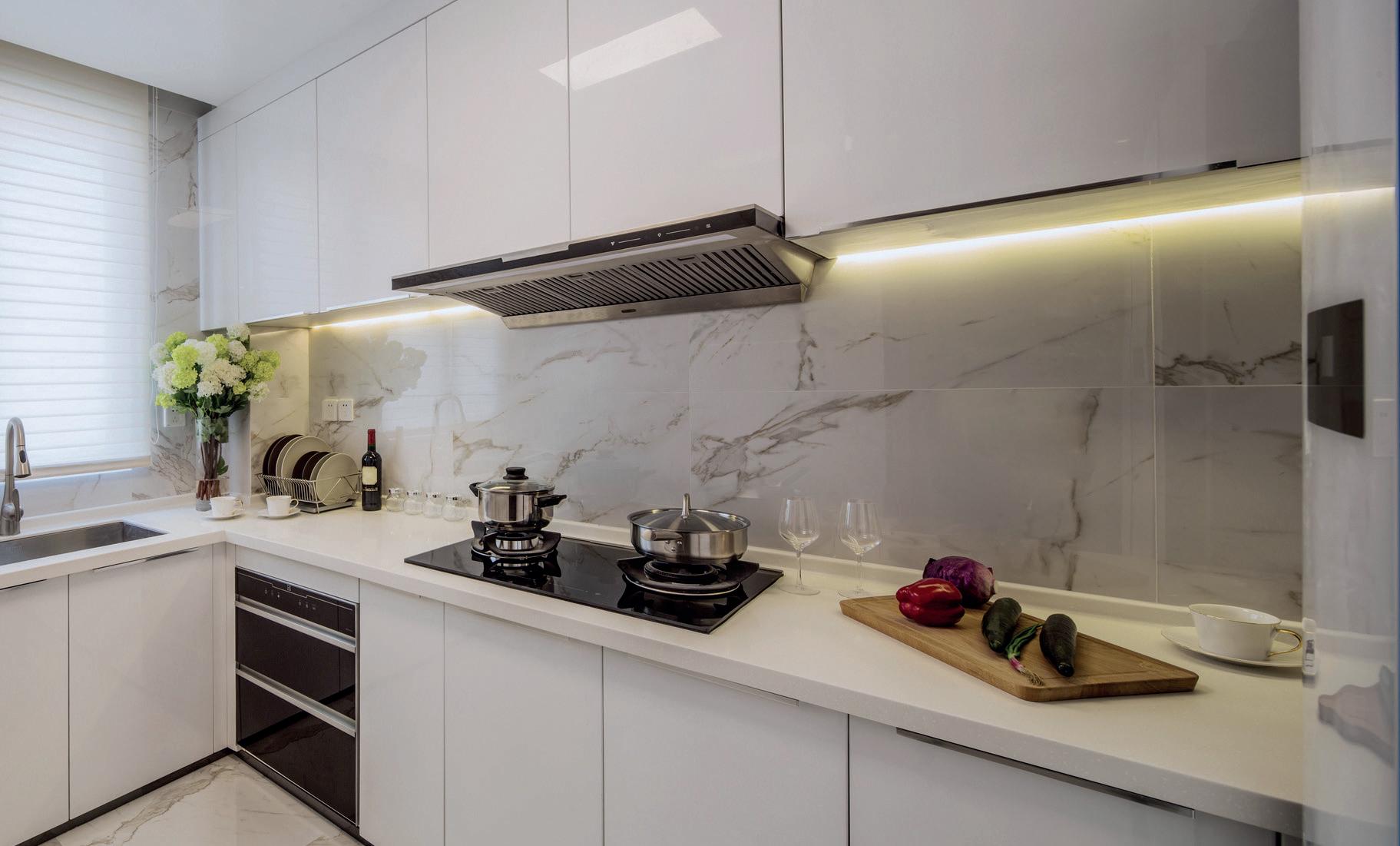

Water protection in bathrooms and kitchens is important, and with the Subtle IP65 range you can continue to enjoy the softest lighting accents and surface lighting without worrying about water splashes and dust.

View drivers on page 81, controllers on page 91 and profiles on page 95.

ULTRA-SLIM CRIMP CONNECTORS

ILSTAA500 STRIP JOINING CONNECTOR

ILSTAA502

FLEXIBLE CORNER CONNECTOR

ILSTAA501 2M CABLE CONNECTOR

ILSTAA503 L-CONNECTOR

All 'Per Metre' SKUs are supplied with a cable connector.

PREMIUM

ILSTWHIC540EM Order

ILSTWHIC541E 5m reel

ILSTWHIC545E 50m reel

ILSTWHIC550EM Order length as a quantity per metre

ILSTWHIC551E 5m reel

ILSTWHIC555E 50m reel

ILSTWHIC560EM Order length as a quantity per metre

ILSTWHIC561E 5m reel

ILSTWHIC565E 50m reel

ILSTWHIC570EM Order length as a quantity per

ILSTWHIC571E 5m reel

ILSTWHIC575E 50m reel

CORE IP65 IP65

ILSTWHIC501E 5m reel

ILSTWHIC505E 50m reel

ILSTWHIC510EM

ILSTWHIC511E 5m reel

ILSTWHIC515E 50m reel

ILSTWHIC520EM Order

ILSTWHIC521E

ILSTWHIC525E

ILSTWHIC530EM Order

ILSTWHIC531E 5m reel

ILSTWHIC535E 50m reel

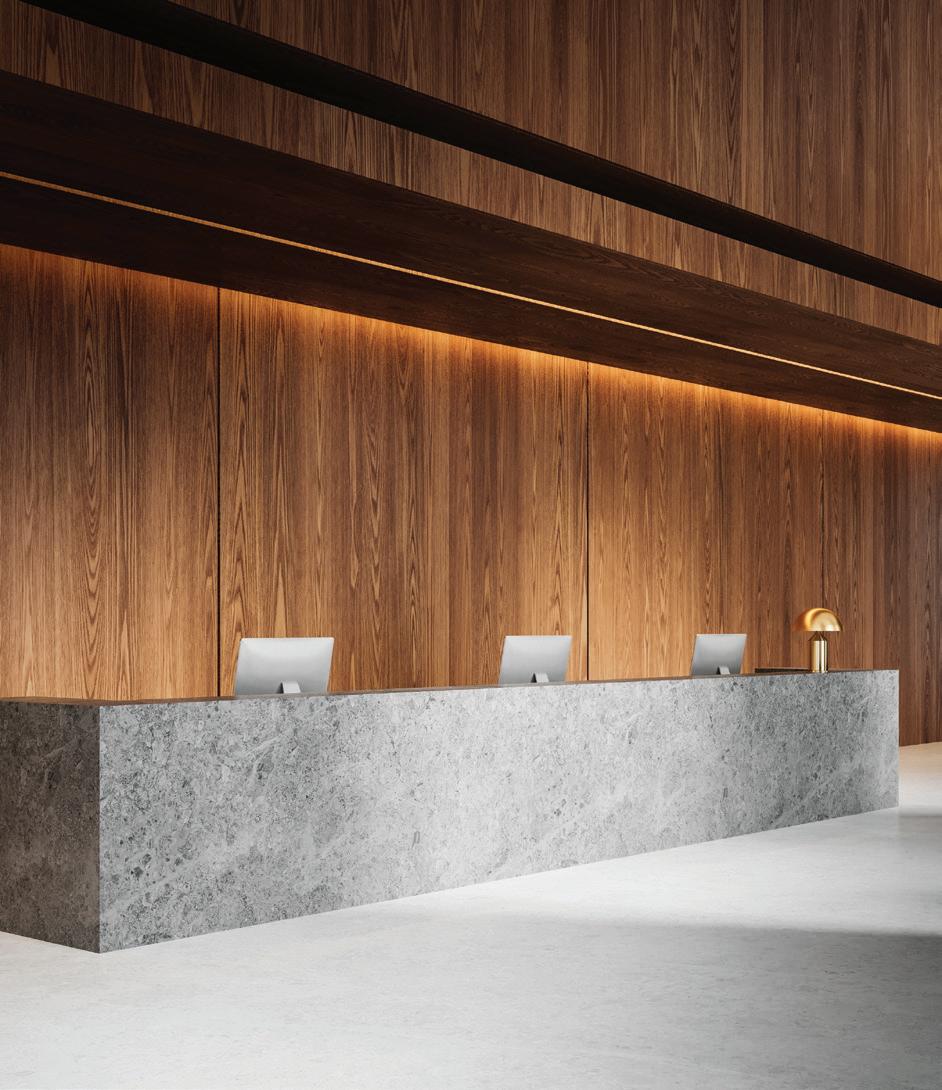

AMBIENT LIGHT

UP TO 720 LUMENS

Ambient lighting opens up spaces providing all the light you need. When combined with other sources of illumination it provides deeper accents throughout interiors.

AMBIENT LIGHT IP20 DRY AREAS

AMBIENT LIGHT IP20

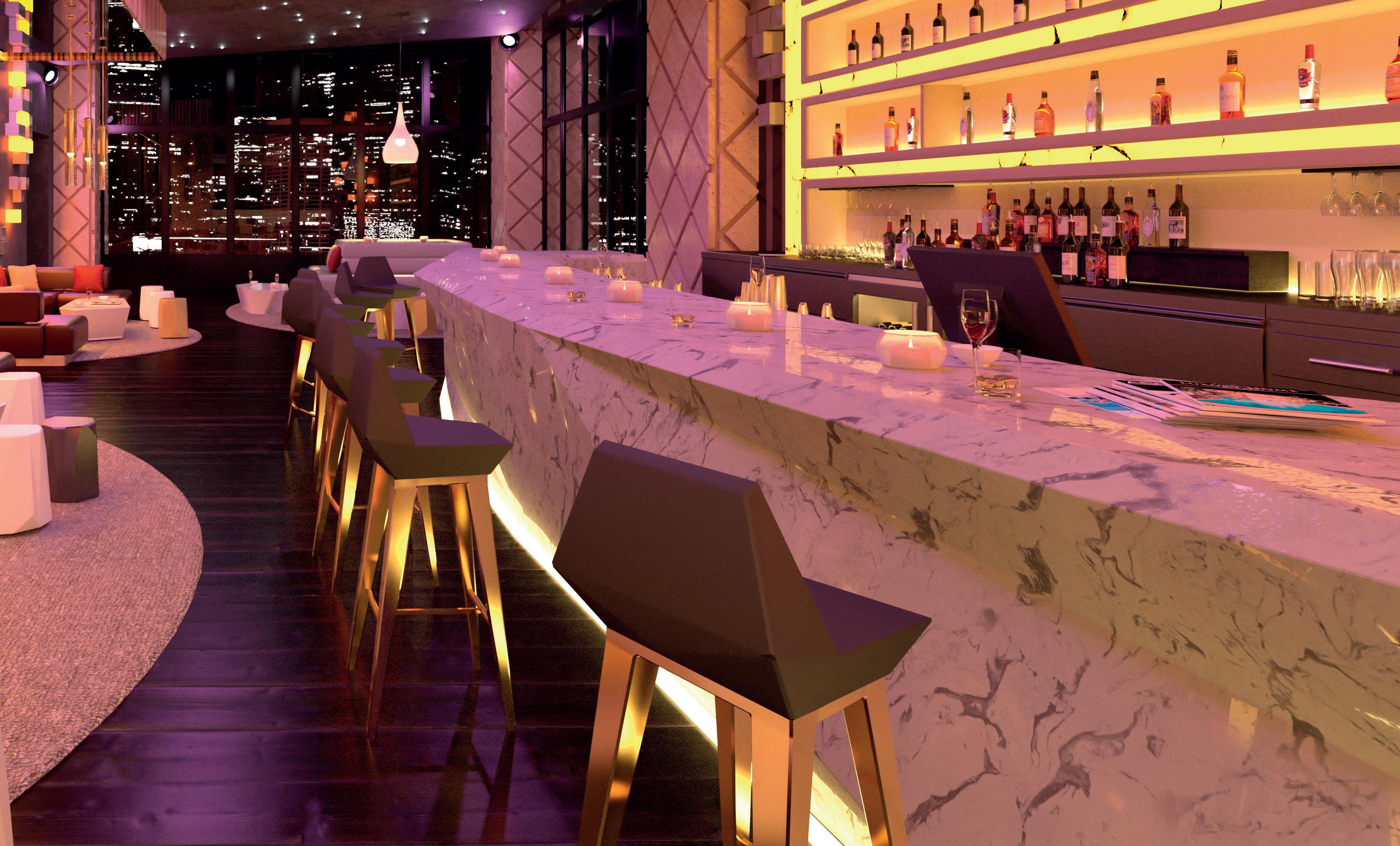

Ambient IP20 is perfect for ambient glows and bright accents under countertops and around interior spaces. Hotels, living rooms, retail spaces and bedrooms can all benefit from Ambient light.

View drivers on page 81, controllers on page 91 and profiles on page 95.

ULTRA-SLIM CRIMP CONNECTORS

ILSTAA500 STRIP JOINING CONNECTOR

ILSTAA502

FLEXIBLE CORNER CONNECTOR

ILSTAA501 2M CABLE CONNECTOR

ILSTAA503 L-CONNECTOR

All 'Per Metre' SKUs are supplied with a cable connector.

PREMIUM

ILSTWHIA640EM Order length as a quantity per metre

ILSTWHIA641E 5m reel

ILSTWHIA645E 50m reel

ILSTWHIA650EM Order length as a quantity per metre

ILSTWHIA651E 5m reel

ILSTWHIA655E 50m reel

ILSTWHIA660EM Order length as a quantity per metre

ILSTWHIA661E 5m reel

ILSTWHIA665E 50m reel

ILSTWHIA670EM Order length as a quantity per metre

ILSTWHIA671E 5m reel

ILSTWHIA675E 50m reel

CORE IP20 IP20

ILSTWHIA600EM Order

ILSTWHIA601E 5m reel

ILSTWHIA605E 50m reel

ILSTWHIA610EM

ILSTWHIA611E 5m reel

ILSTWHIA615E 50m reel

ILSTWHIA620EM Order

ILSTWHIA621E 5m reel

ILSTWHIA625E 50m reel

ILSTWHIA630EM

ILSTWHIA631E 5m reel

ILSTWHIA635E 50m reel

AMBIENT LIGHT IP65 SPLASH PROOF

AMBIENT LIGHT IP65

Gathering around light is an important part of what makes community. Bars and tables, architectural details, and countertops: all can be lit with Ambient IP65 to bring a sense of togetherness to any interior environment.

View drivers on page 81, controllers on page 91 and profiles on page 95.

ULTRA-SLIM CRIMP CONNECTORS

ILSTAA500 STRIP JOINING CONNECTOR

ILSTAA502 FLEXIBLE CORNER CONNECTOR

ILSTAA501 2M CABLE CONNECTOR

ILSTAA503 L-CONNECTOR

All 'Per Metre' SKUs are supplied with a cable connector.

PREMIUM

ILSTWHIC640EM Order length as a quantity per metre

ILSTWHIC641E 5m reel

ILSTWHIC645E 50m reel

ILSTWHIC650EM Order length as a quantity per metre

ILSTWHIC651E 5m reel

ILSTWHIC655E 50m reel

ILSTWHIC660EM Order length as a quantity per metre

ILSTWHIC661E 5m reel

ILSTWHIC665E 50m reel

ILSTWHIC670EM Order length as a quantity per metre

ILSTWHIC671E 5m reel

ILSTWHIC675E 50m reel

CORE IP65 IP65

ILSTWHIC600EM Order

ILSTWHIC601E 5m reel

ILSTWHIC605E 50m reel

ILSTWHIC610EM Order length as a quantity per

ILSTWHIC611E 5m reel

ILSTWHIC615E 50m reel

ILSTWHIC620EM Order

ILSTWHIC621E

ILSTWHIC625E 50m reel

ILSTWHIC630EM Order

ILSTWHIC631E 5m reel

ILSTWHIC635E 50m reel

FUNCTIONAL LIGHT

UP TO 1080 LUMENS

Functional Light brightens task spaces and ceiling coves through stronger illumination, unifying a scheme with linear lighting.

FUNCTIONAL LIGHT IP20 DRY AREAS

FUNCTIONAL LIGHT IP20

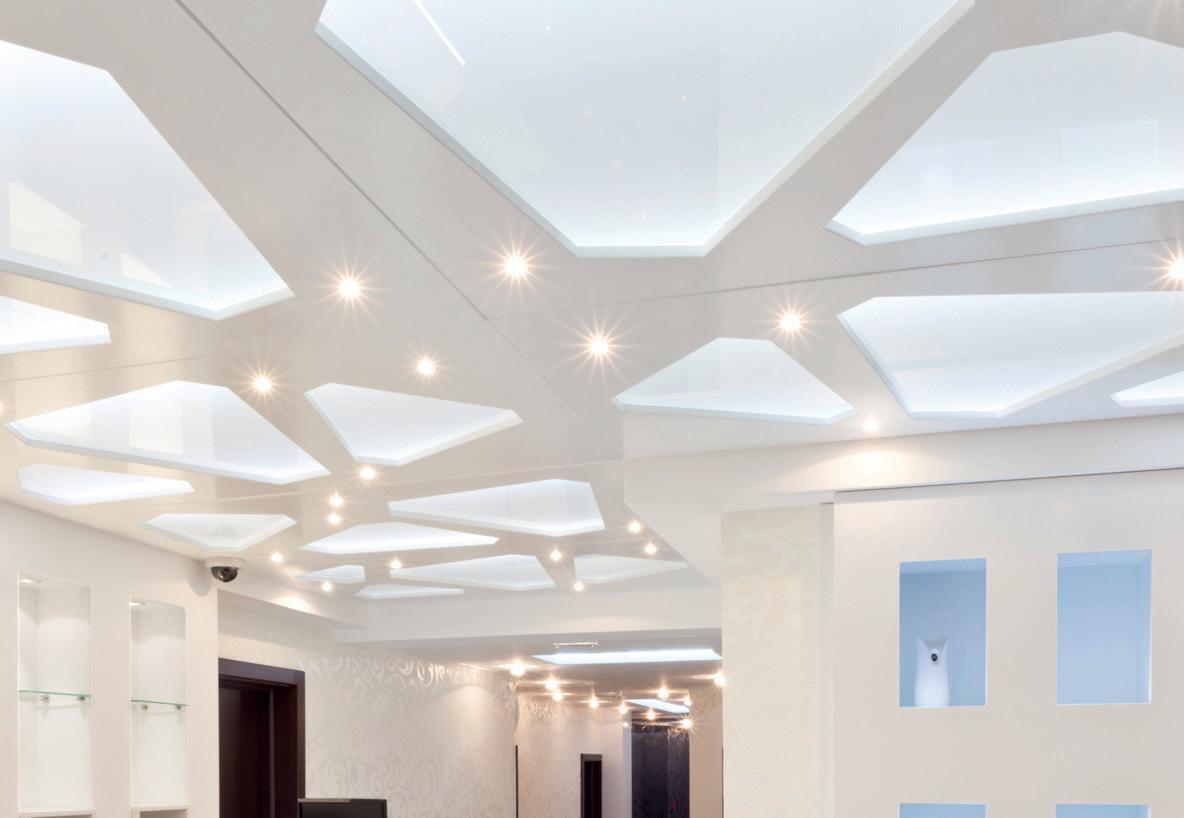

Illuminating drop-ceilings with cove and coffer lighting lifts the atmosphere in lounges, lobbies and libraries. Functional IP20 brings the best to each space, brightening and clarifying details and allowing you to read, prepare food or meet with just the right level of task lighting.

View drivers on page 81, controllers on page 91 and profiles on page 95.

ULTRA-SLIM CRIMP CONNECTORS

ILSTAA500 STRIP JOINING CONNECTOR

ILSTAA502 FLEXIBLE CORNER CONNECTOR

ILSTAA501 2M CABLE CONNECTOR

ILSTAA503 L-CONNECTOR

All 'Per Metre' SKUs are supplied with a cable connector.

PREMIUM

ILSTWHIA740EM Order length as a quantity per metre

ILSTWHIA741E 5m reel

ILSTWHIA745E 50m reel

ILSTWHIA750EM Order length as a quantity per metre

ILSTWHIA751E 5m reel

ILSTWHIA755E 50m reel

ILSTWHIA760EM Order length as a quantity per metre

ILSTWHIA761E 5m reel

ILSTWHIA765E 50m reel

ILSTWHIA770EM Order length as a quantity per metre

ILSTWHIA771E 5m reel

ILSTWHIA775E 50m reel

CORE IP20 IP20

ILSTWHIA700EM Order

ILSTWHIA701E 5m reel

ILSTWHIA705E 50m reel

ILSTWHIA710EM Order

ILSTWHIA711E

ILSTWHIA715E

ILSTWHIA720EM

ILSTWHIA725E 50m reel

ILSTWHIA730EM

ILSTWHIA731E 5 m

ILSTWHIA735E 50m reel

lm/m 6500K

FUNCTIONAL LIGHT IP65 SPLASH PROOF

FUNCTIONAL LIGHT IP65

Where coves, coffers and task spaces land in areas where indoor moisture resistance is need, choose Functional IP65 and protect your linear lighting throughout. Ideal in bathrooms, kitchens and any interior or covered space where water is present.

View drivers on page 81, controllers on page 91 and profiles on page 95.

ULTRA-SLIM CRIMP CONNECTORS

ILSTAA500 STRIP JOINING CONNECTOR

ILSTAA502

FLEXIBLE CORNER CONNECTOR

ILSTAA501 2M CABLE CONNECTOR

ILSTAA503 L-CONNECTOR

All 'Per Metre' SKUs are supplied with a cable connector.

PREMIUM

ILSTWHIC740EM Order

ILSTWHIC741E 5m reel

ILSTWHIC745E 50m reel

ILSTWHIC750EM Order length as a quantity per metre

ILSTWHIC751E 5m reel

ILSTWHIC755E 50m reel

ILSTWHIC760EM Order length as a quantity per metre

ILSTWHIC761E 5m reel

ILSTWHIC765E 50m reel

ILSTWHIC770EM Order length as a quantity per

ILSTWHIC771E 5m reel

ILSTWHIC775E 50m reel

CORE IP65 IP65

ILSTWHIC705E 50m reel

ILSTWHIC710EM

ILSTWHIC711E 5m reel

ILSTWHIC715E 50m reel

ILSTWHIC720EM

ILSTWHIC721E

ILSTWHIC725E

ILSTWHIC730EM

ILSTWHIC731E

ILSTWHIC735E 50m reel

BRIGHT LIGHT

UP TO 1725 LUMENS

Grand spaces require Bright illumination. Benefitting from the highest lumen levels, Bright ensures linear lighting is ideal for every ceiling height.

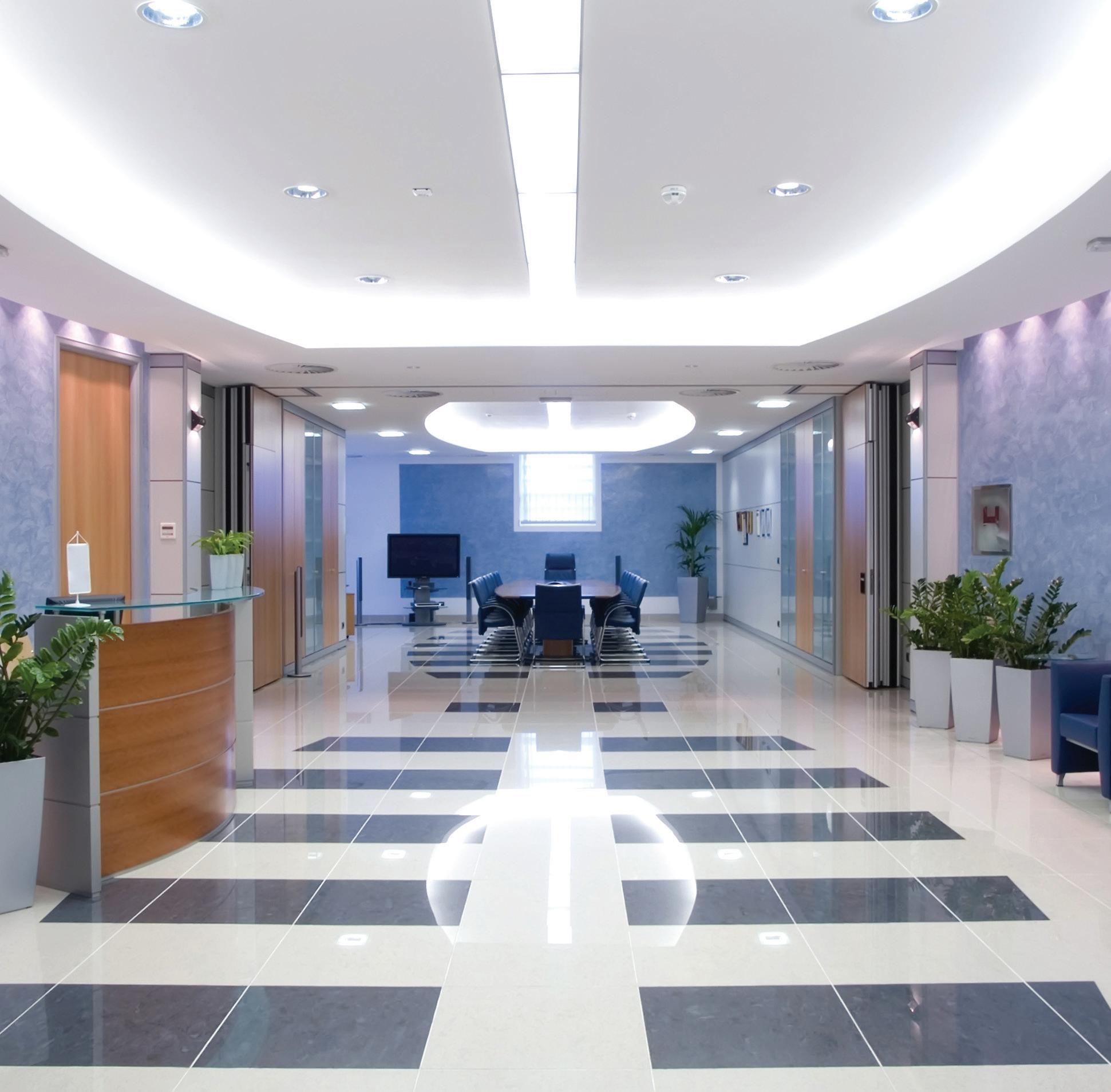

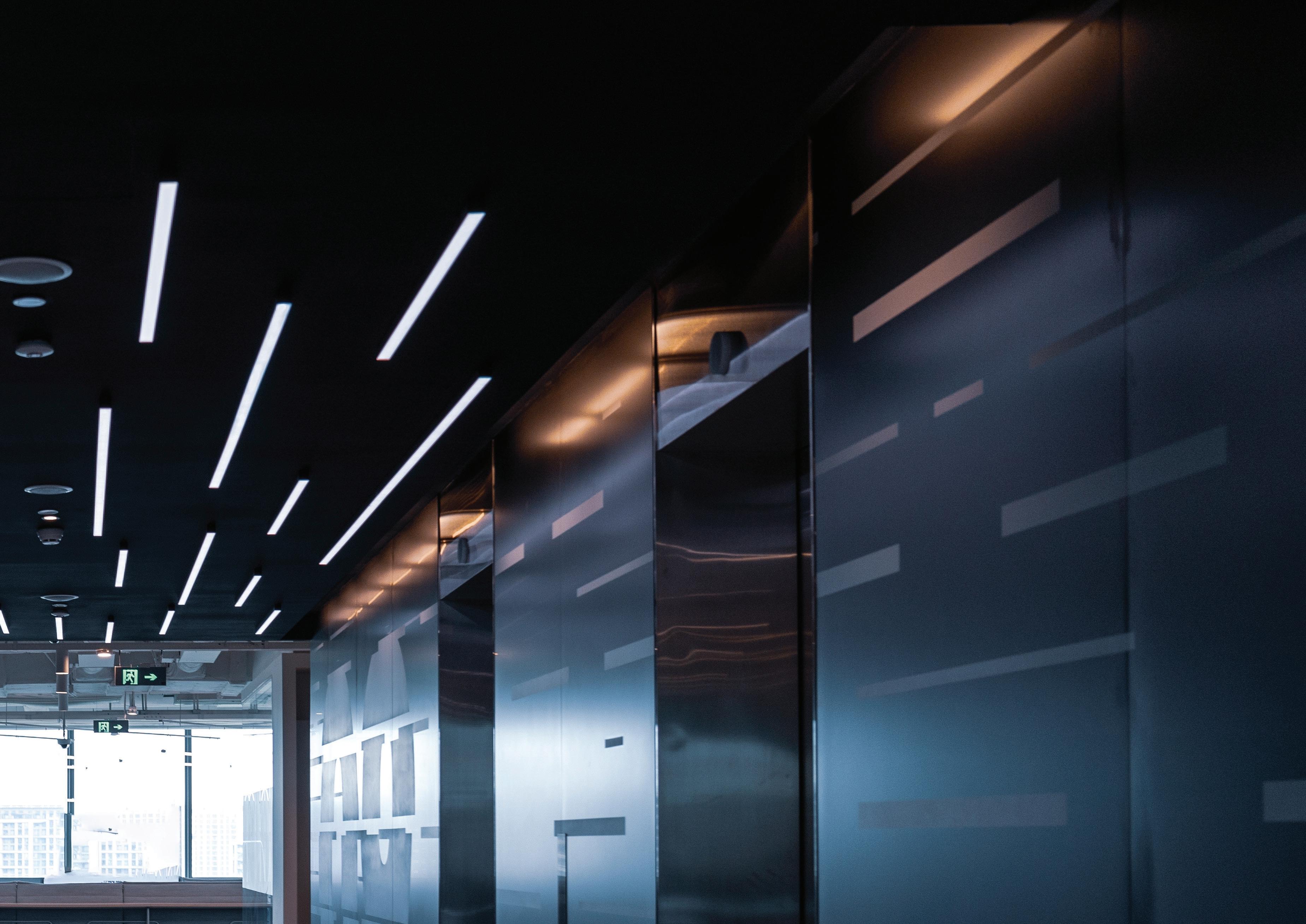

BRIGHT LIGHT IP20 DRY AREAS

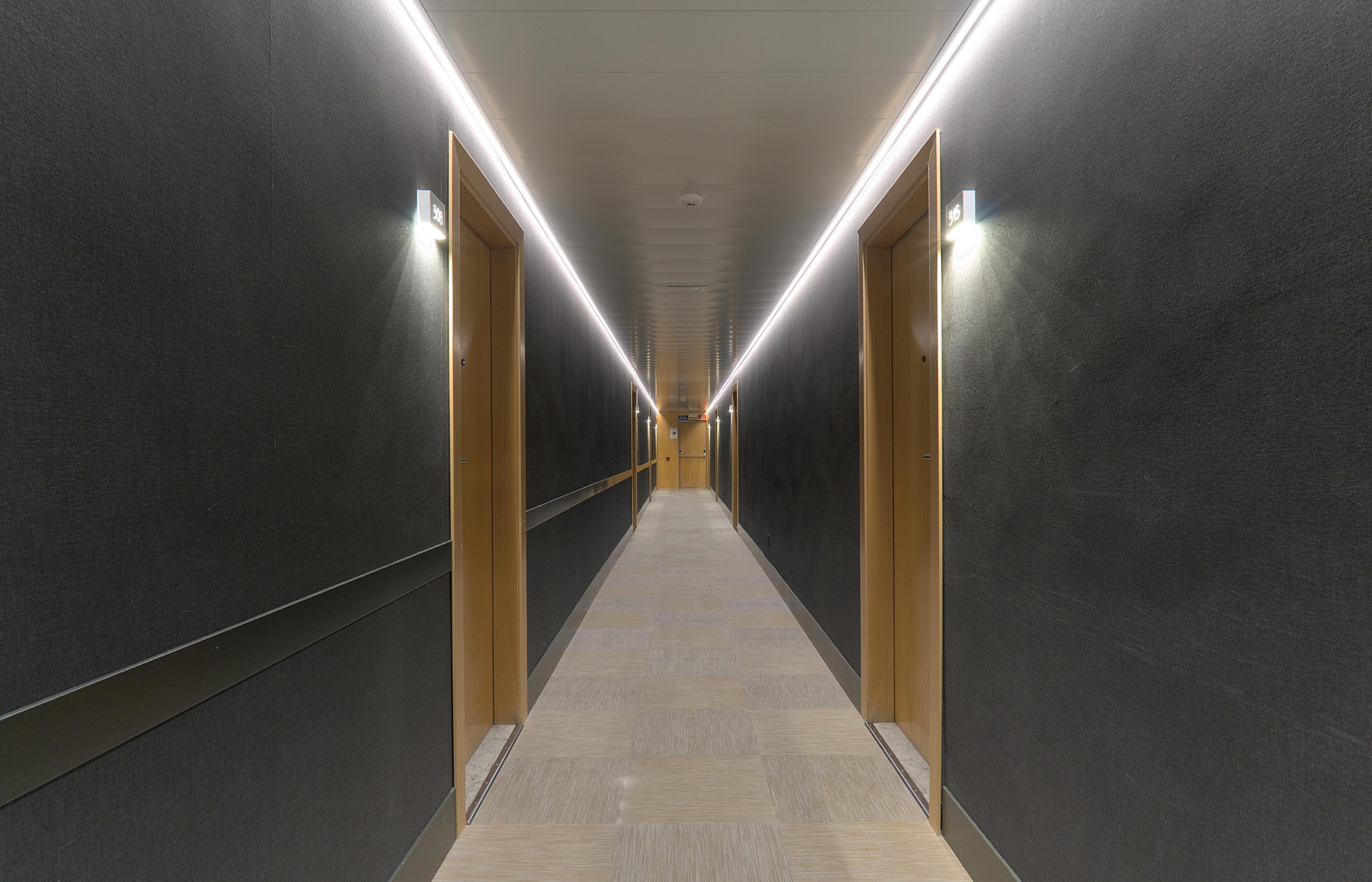

From double-height corridors to expansive lobbies, airport terminals to shopping centres, Bright IP20 offers the strongest illumination to help your space shine. Perfect for the largest spaces and where bright lighting is needed.

View drivers on page 81, controllers on page 91 and profiles on page 95.

CORE PREMIUM

PRODUCT CODE LENGTH

ILSTWHIA800EM Order length as a quantity per metre

ILSTWHIA801E 5m reel

ILSTWHIA805E 50m reel

ILSTWHIA810EM Order

ILSTWHIA811E 5m reel

ILSTWHIA815E 50m reel

ILSTWHIA820EM Order length as a quantity per metre

ILSTWHIA821E 5m reel

ILSTWHIA825E 50m reel

ILSTWHIA830EM Order length as a quantity per metre

ILSTWHIA831E 5m reel

ILSTWHIA835E 50m reel

All 'Per Metre' SKUs are supplied with a cable connector.

ILSTAA500 STRIP JOINING CONNECTOR

ILSTAA502

FLEXIBLE CORNER

CONNECTOR

ILSTAA501 2M CABLE CONNECTOR

ILSTAA503 L-CONNECTOR

lm/m 4000K

ILSTWHIA840EM Order length as a quantity per metre

ILSTWHIA845E 50m reel

ILSTWHIA850EM Order length as a quantity per metre

ILSTWHIA855E 50m reel

ILSTWHIA860EM Order length as a quantity per metre

ILSTWHIA865E 50m reel

ILSTWHIA870EM Order length as a quantity per metre 1512 lm/m 6500K

ILSTWHIA875E 50m reel

All 'Per Metre' SKUs are supplied with a cable connector.

ILSTAA522 STRIP JOINING CONNECTOR

ILSTAA524 FLEXIBLE CORNER CONNECTOR

ILSTAA523 2M CABLE CONNECTOR

ILSTAA525 L-CONNECTOR

BRIGHT LIGHT IP65 SPLASH PROOF

For expansive indoor environments where moisture is a concern, choosing Bright IP65 can lift and enhance any space. Pair with our IP-rated aluminium profile options to use in outdoor canopies and coves for bright general illumination.

View drivers on page 81, controllers on page 91 and profiles on page 95.

CORE PREMIUM

ILSTWHIC800EM Order length as a quantity per metre

ILSTWHIC801E 5m reel

ILSTWHIC805E 50m reel

ILSTWHIC810EM Order length as a quantity per metre

ILSTWHIC811E 5m reel

ILSTWHIC815E 50m reel

ILSTWHIC820EM Order

ILSTWHIC821E 5m reel

ILSTWHIC825E 50m reel

ILSTWHIC830EM Order length as a quantity per metre

ILSTWHIC831E 5m reel

ILSTWHIC835E 50m reel

All 'Per Metre' SKUs are supplied with a cable connector.

ILSTAA500 STRIP JOINING CONNECTOR

ILSTAA502 FLEXIBLE CORNER

CONNECTOR

ILSTAA501 2M CABLE CONNECTOR

ILSTAA503 L-CONNECTOR

ILSTWHIC840EM Order length as a quantity per metre

ILSTWHIC845E 50m reel

ILSTWHIC850EM Order length as a quantity per metre

ILSTWHIC855E 50m reel

ILSTWHIC860EM Order length as a quantity per metre

ILSTWHIC865E 50m reel

ILSTWHIC870EM Order length as a quantity per metre 1512 lm/m 6500K

ILSTWHIC875E 50m reel

All 'Per Metre' SKUs are supplied with a cable connector.

ILSTAA522 STRIP JOINING CONNECTOR

ILSTAA524 FLEXIBLE CORNER CONNECTOR

ILSTAA523 2M CABLE CONNECTOR

ILSTAA525 L-CONNECTOR

WHITE DIGITAL CHASING

UP TO 816 LUMENS

Dynamic lighting effects make spaces feel infused with energy, with movement that lifts and accents architectural features

WHITE DIGITAL CHASING IP20 DRY AREAS

WHITE DIGITAL CHASING IP20

Providing movement of light and chasing effects in a classic white, Digital Chasing is ideal for a broad range of indoor spaces such as living rooms, hotel receptions, and office entrance lobbies.

View drivers on page 81, controllers on page 91 and profiles on page 95.

ULTRA-SLIM CRIMP CONNECTORS

ILSTAA515 STRIP JOINING CONNECTOR

ILSTAA517 FLEXIBLE CORNER CONNECTOR

ILSTAA516 2M CABLE CONNECTOR

ILSTAA518 L-CONNECTOR

All 'Per Metre' SKUs are supplied with a cable connector.

PREMIUM

IP20

ILSTDWHA000EM Order length as a quantity per metre

ILSTDWHA004E 30m reel

ILSTDWHA010EM Order length as a quantity per metre

ILSTDWHA014E 30m reel

ILSTDWHA020EM Order length as a quantity per metre

ILSTDWHA024E 30m reel

CCT TUNEABLE

From morning to noon and through to the evening, tuneable white lighting allows you to follow the natural mood and rhythm of any space UP TO 970 LUMENS

CCT TUNEABLE IP20 DRY AREAS

CCT TUNEABLE IP20

If you want flexibility to adapt your interior lighting scheme to the setting with high uniformity, then CCT Tuneable IP20 is the answer. With a range from 2700K to 6500K, CCT Tuneable allows you to match cool light to midday bright lunches, and warm light for cosy dinners, shifting the colour to suit your needs.

View drivers on page 81, controllers on page 91 and profiles on page 95.

ULTRA-SLIM CRIMP CONNECTORS

ILSTAA533 FLEXIBLE CORNER CONNECTOR

ILSTAA534 2M CABLE CONNECTOR

All 'Per Metre' SKUs are supplied with a cable connector.

PREMIUM

ILSTCCTA100E Order length as a quantity per metre

ILSTCCTA105E 50m reel

ILSTCCTA000E Order length as a quantity per metre

ILSTCCTA005E 50m reel

CCT TUNEABLE IP67

Exterior lighting applications often call for flexibility. The ability to change colour temperature from cool 6500K to warm 2700K allows you to adapt your outdoor space to different occasions or times of day.

View drivers on page 81, controllers on page 91 and profiles on page 95.

PREMIUM IP67

ILSTCCTC105E 50m reel

ILSTCCTC100E Order length as a quantity per metre FUNCTIONAL 11W/m 918 lm/m 2700K - 6500K

ILSTCCTC000E Order length as a quantity per metre AMBIENT 7W/m 615 lm/m

ILSTCCTC005E 50m reel

FREE CUT

UP TO 660 LUMENS

Corner to corner, edge to edge strip that perfectly conforms to the shape of your joinery and architecture, creating seamless, premium installations

FREE CUT IP20 DRY AREAS

FREE CUT IP20

With the flexibility to cut anywhere along the tape, Free Cut IP20 is perfect for joinery or for interior spaces where light needs to reach from corner to corner without breaks. Maintaining the high uniformity of Premium COB, Free Cut offers unmatched quality for exacting interiors.

View drivers on page 81, controllers on page 91 and profiles on page 95.

ULTRA-SLIM CRIMP CONNECTORS

ILSTAA500 STRIP JOINING CONNECTOR

ILSTAA502 FLEXIBLE CORNER CONNECTOR

ILSTAA501 2M CABLE CONNECTOR

ILSTAA503 L-CONNECTOR

All 'Per Metre' SKUs are supplied with a cable connector.

ILSTWHIA210E

ILSTWHIA220E

FREE CUT IP67 OUTDOOR

FREE CUT IP67

Giving true freedom to cut anywhere along the tape whilst maintaining an outdoor IP67 rating through its silicone jacket, Free Cut is perfect for patios or exterior spaces where light needs to reach from corner to corner without breaks. Maintaining the high uniformity of Premium COB, Free Cut offers unmatched quality for water resistance in outdoor environments.

View drivers on page 81, controllers on page 91 and profiles on page 95.

ILSTWHIC200E Order length as a quantity per metre 552 lm/m 2700K

ILSTWHIC205E 50m reel

ILSTWHIC210E Order length as a quantity per metre 594 lm/m 3000K

ILSTWHIC215E 50m reel

ILSTWHIC220E Order length as a quantity per metre 630 lm/m 4000K

ILSTWHIC225E 50m reel

RGB & RGBW

UP TO 566 LUMENS

Inject life into any space with our RGB lighting range – offered in RGBW for a soft colourful glow or RGB Digital Chasing for dramatic, dynamic light patterns.

RGBW IP20 DRY AREAS

Delivering linear washes of light, accenting details and enhancing spaces with colour, RGBW offers the flexibility of traditional CCT options (2700K, 3000K or 4000K) for quiet evenings and seamless colour changing across the spectrum of RGB light for atmosphere in indoor spaces.

View drivers on page 81, controllers on page 91 and profiles on page 95.

RGBW IP20

PREMIUM

CORE

ILSTRGBWA640EM Order

ILSTRGBWA641E 5m reel

ILSTRGBWA645E 30m reel

ILSTRGBWA650EM Order length as a quantity per metre 3000K

ILSTRGBWA651E 5m reel

ILSTRGBWA655E 30m reel

ILSTRGBWA660EM Order length as a quantity per metre

ILSTRGBWA661E 5m reel

ILSTRGBWA665E 30m reel

All 'Per Metre' SKUs are supplied with a cable connector.

ILSTAA504

STRIP JOINING CONNECTOR

ILSTAA506

FLEXIBLE CORNER CONNECTOR

ILSTAA505 2M CABLE CONNECTOR

ILSTRGBWA601E 5m reel

ILSTRGBWA605E 50m reel

ILSTRGBWA600EM Order length as a quantity per metre 2700K

ILSTRGBWA611E 5m reel

ILSTRGBWA615E 50m reel

ILSTRGBWA610EM Order length as a quantity per metre 3000K

ILSTRGBWA621E 5m reel

ILSTRGBWA625E 50m reel

All 'Per Metre' SKUs are supplied with a cable connector.

ILSTAA510 STRIP JOINING CONNECTOR PRODUCT CODE LENGTH CCT

ILSTRGBWA620EM Order length as a quantity per metre 4000K

ILSTAA511 2M CABLE CONNECTOR

ILSTAA512 FLEXIBLE CORNER CONNECTOR

RGBW IP65 SPLASH PROOF

When accenting spaces like bars and countertops where water and dust are concerns, using RGBW IP65 can protect your linear lighting and provide a balance of traditional lighting and RGB colour when needed. Best used for indoor wet spaces where a flexible lighting scheme is key.

View drivers on page 81, controllers on page 91 and profiles on page 95.

RGBW IP65

PREMIUM

ILSTRGBWC640EM Order length as a quantity per metre

ILSTRGBWC641E 5m reel

ILSTRGBWC645E 30m reel

ILSTRGBWC650EM Order length as a quantity per metre

ILSTRGBWC651E 5m reel

ILSTRGBWC655E 30m reel

ILSTRGBWC660EM Order length as a quantity per metre

ILSTRGBWC661E 5m reel

ILSTRGBWC665E 30m reel

All 'Per Metre' SKUs are supplied with a cable connector.

ILSTAA504 STRIP JOINING CONNECTOR

ILSTAA506

FLEXIBLE CORNER

CONNECTOR

ILSTAA505 2M CABLE CONNECTOR

CORE

ILSTRGBWC600EM Order length as a quantity per metre

ILSTRGBWC601E 5m reel

ILSTRGBWC605E 50m reel

ILSTRGBWC610EM Order length as a quantity per metre 3000K

ILSTRGBWC611E 5m reel

ILSTRGBWC615E 50m reel

ILSTRGBWC620EM Order length as a quantity per metre 4000K

ILSTRGBWC621E 5m reel

ILSTRGBWC625E 50m reel

All 'Per Metre' SKUs are supplied with a cable connector.

ILSTAA510 STRIP JOINING CONNECTOR

ILSTAA512

FLEXIBLE CORNER

CONNECTOR

ILSTAA511 2M CABLE CONNECTOR

RGBW IP67 OUTDOOR

Ideal for patios and outdoor spaces where colourchanging options are preferred. RGBW IP67 can be used in the ground to provide both RGB colour and traditional white lighting.

View drivers on page 81, controllers on page 91 and profiles on page 95.

RGBW IP67

PREMIUM

ILSTRGBWC700EM Order length as a quantity per metre 2700K

ILSTRGBWC704E 30m reel

ILSTRGBWC710EM Order length as a quantity per metre 3000K

ILSTRGBWC714E 30m reel

ILSTRGBWC720EM Order length as a quantity per metre 4000K

ILSTRGBWC724E 30m reel

All 'Per Metre' SKUs are supplied with a cable connector.

RGB DIGITAL CHASING IP20 DRY AREAS

The dynamic effect of RGB Digital Chasing adds drama and vibrancy to any space. Whether in hospitality or at home, elevate your interior with premium RGB colour. Best used with bars, countertops, retail spaces, entrance areas and for eye-catching displays.

View drivers on page 81, controllers on page 91 and profiles on page 95.

RGB DIGITAL CHASING IP20

PREMIUM

CORE

PRODUCT CODE LENGTH

ILSTRGBWA670EM Order length as a quantity per metre

ILSTRGBWA671E 5m reel

ILSTRGBWA675E 30m reel

All 'Per Metre' SKUs are supplied with a cable connector.

ILSTAA515

STRIP JOINING CONNECTOR

ILSTAA517 FLEXIBLE CORNER CONNECTOR

ILSTAA516 2M CABLE CONNECTOR

ILSTAA518 L-CONNECTOR

PRODUCT CODE LENGTH

ILSTRGBWA630EM Order length as a quantity per metre

ILSTRGBWA631E 5m reel

ILSTRGBWA635E 30m reel

All 'Per Metre' SKUs are supplied with a cable connector.

ILSTAA513 STRIP JOINING CONNECTOR

ILSTAA514 CABLE CONNECTOR WITHOUT TAIL

RGB DIGITAL CHASING IP65 SPLASH PROOF

RGB IP65 caters for interior spaces that need both fluid RGB lighting effects and protection from water ingress. Best used for ensuites, kitchen cabinets, mirrors, bars and countertops, it combines colourful lighting with reliable water resistance.

View drivers on page 81, controllers on page 91 and profiles on page 95.

RGB DIGITAL CHASING IP65

PREMIUM

CORE

ILSTRGBWC670EM Order

ILSTRGBWC671E

All 'Per Metre' SKUs are supplied with a cable connector.

ILSTAA515 STRIP JOINING CONNECTOR

ILSTAA517 FLEXIBLE CORNER CONNECTOR

ILSTAA516 2M CABLE CONNECTOR

ILSTAA518 L-CONNECTOR

ILSTRGBWC630EM Order length as a quantity per metre

ILSTRGBWC631E 5m reel

ILSTRGBWC635E 30m reel

All 'Per Metre' SKUs are supplied with a cable connector.

ILSTAA513

STRIP JOINING CONNECTOR

ILSTAA514 CABLE CONNECTOR WITHOUT TAIL

ULTRALONG

UP TO 1044 LUMENS

Extending your linear LED strip installations to the full extent of your space, Ultralong MAX achieves the longest run lengths using a single constant voltage driver.

ULTRALONG MAX20 CORE

IP20 DRY AREAS

With Functional illumination levels, MAX20 is the ultimate solution for coves and coffers in drop ceilings, allowing run lengths up to 20m from a single driver, or up to 40m when powered from both ends simultaneously.

OUTDOOR IP67

Extending the features of Ultralong to exterior spaces, MAX20 IP67 offers the protection of a silicone low extrusion to keep water at bay. Ideal for exterior spaces or demanding interior environments where water is a concern. Use MAX20 IP67 in pergolas, under handrails, in public spaces and to illuminate pathways.

ILSTWHIA900EM Order length as a quantity per metre

ILSTWHIA903E

ILSTWHIA910EM Order length as a quantity per metre 990 lm/m 3000K

ILSTWHIA913E

ILSTWHIA920EM Order length as a quantity per metre 1044 lm/m 4000K

ILSTWHIA923E

All 'Per Metre' SKUs are supplied with a cable connector.

ILSTAA522

ILSTAA524

ILSTAA523

ILSTAA525

ILSTWHIC900EM Order length as a quantity per metre

ILSTWHIC903E

ILSTWHIC910EM Order length as a quantity per metre

ILSTWHIC913E

ILSTWHIC923E PRODUCT

ILSTWHIC920EM Order length as a quantity per metre

All 'Per Metre' SKUs are supplied with a cable connector.

ILSTAA526 STRIP JOINING CONNECTOR

ILSTAA528

FLEXIBLE CORNER

CONNECTOR

ILSTAA527 2M CABLE CONNECTOR

ULTRALONG MAX30 PREMIUM

IP20 DRY AREAS OUTDOOR IP67

Harnessing the full extent of 48V technology and pairing it with unparalleled uniformity, MAX30 is a generational leap forward in spotless LED strip lighting. Achieving runs of up to 30m on a single driver, or 60m when powered from both ends, MAX30 is the pinnacle of premium LED strip lighting. Ideal for any interior space where extreme lengths are needed without sacrificing spotless lighting.

ILSTWHIA960EM Order length as a quantity per metre

ILSTWHIA964E

ILSTWHIA970EM Order

ILSTWHIA974E

ILSTWHIA980EM Order length as a quantity per metre

ILSTWHIA984E

All 'Per Metre' SKUs are supplied with a cable connector.

lm/m 2700K

View drivers on page 81, controllers on page 91 and profiles on page 95.

Pairing the latest spotless COB technology with an IP67 silicone extrusion “jacket” for full environmental protection provides an unrivalled LED strip lighting performance. MAX30 IP67 is the true solution for exterior spaces requiring complete uniformity with spotless LED lighting. Use MAX30 IP67 in pergolas, under handrails, in public spaces and to illuminate pathways.

ILSTWHIC960EM Order length as a quantity per metre

ILSTWHIC964E

ILSTWHIC970EM Order length as a quantity per metre

ILSTWHIC974E

ILSTWHIC980EM Order length as a quantity per metre

ILSTWHIC984E

All 'Per Metre' SKUs are supplied with a cable connector.

Pair with IP67 drivers on pages 85 & 87.

ULTRALONG MAX50 CORE

IP20 DRY AREAS OUTDOOR IP67

When lighting installations need extreme run lengths, MAX50 delivers peak performance up to 50m using a single driver, or 100m when powered from both ends. For the largest ceilings, the longest corridors and the most expansive spaces, MAX50 delivers a truly complete lighting solution without compromise.

For truly expansive exterior spaces, MAX50 IP67 delivers run lengths up to 50m using a single driver, or 100m when powered from both ends, without compromising water and dust protection. The IP67 silicone low extrusion “jacket” surrounds your LED strip lighting to keep it safe from torrential rain, puddles and full immersion whilst maintaining light quality.

Order

ILSTWHIA940EM Order length as a quantity per metre

ILSTWHIA945E

ILSTWHIA950EM Order length as a quantity per metre

All 'Per Metre' SKUs are supplied with a cable connector.

ILSTWHIC930EM Order length as a

ILSTWHIC935E

ILSTWHIC940EM Order length as a quantity per metre

ILSTWHIC945E

ILSTWHIC950EM Order length as a quantity per

ILSTWHIA955E ILSTAA531

ILSTWHIC955E

All 'Per Metre' SKUs are supplied with a cable connector.

View drivers on page 81, controllers on page 91 and profiles on page 95.

BENDY

UP TO 792 LUMENS

Whether for furniture, joinery or complex architectural details, Bendy delivers refined linear lighting in tight confines.

BENDY IP20 AMBIENT DRY AREAS

BENDY IP20 AMBIENT

With an intricately detailed 6mm wide layout allowing for tight bends and difficult patterns, Bendy delivers lighting to add warm accents to your interior projects. Install in furniture and joinery, or detailed architectural elements, to truly enhance your interior space.

View drivers on page 81, controllers on page 91 and profiles on page 95.

ULTRA-SLIM CRIMP CONNECTORS

ILSTAA519 STRIP JOINING CONNECTOR

ILSTAA521

FLEXIBLE CORNER CONNECTOR

ILSTAA520 2M CABLE CONNECTOR

CORE

ILSTWHIA680EM Order length as a quantity per metre

ILSTWHIA681E 5m reel

ILSTWHIA685E 10m reel

ILSTWHIA690EM Order length as a quantity per metre

ILSTWHIA691E 5m reel

ILSTWHIA695E 10m reel

All 'Per Metre' SKUs are supplied with a cable connector.

DRIVERS

Designed and built using highly reliable components, Integral LED drivers deliver the best performance and solution for both commercial and residential lighting applications.

CHOOSING THE RIGHT DRIVER

HOW MUCH LED STRIP PER DRIVER?

For example, if your driver is 100W, that means you can use up to 100W of LED strip on your driver

20W + 2W = 22W

Find the watts per metre for the desired strip.

For example, 4 watts per metre.

Multiply this by the number of metres needed, ensuring you don't exceed the maximum length of strip for each product.

For example, 5 metres

4 w/m x 5m = 20W

WILL YOUR DRIVER BE EXPOSED TO MOISTURE?

If your driver can be hidden in an internal wall or ceiling, then use an IP20 driver.

If your driver has to be exposed to moisture, then use a driver rated to IP66 or better.

DO YOU NEED DIMMING?

If not, a non-dimmable driver will do, see page 84.

If you’re using a mains dimmer, then select an option from the Mains Dim category on page 86.

If you are using a DALI control system, then select a DALI driver on page 87.

COMPACT

| Constant voltage driver

| Suitable for all tape except Ultralong MAX30 and MAX50

ILDRCVA046 20W 103 x 35 x 16 mm

ILDRCVA047 75W 170 x 45 x 28.2 mm

LONG & SLIM

| Constant voltage driver | Suitable for all tape except Ultralong MAX30 and MAX50

ILDRCVA048 100W

180 x 65.5 x 31 mm

ILDRCVA086 15W 103 x 35 x 16 mm

ILDRCVA087 50W

160 x 58 x 18 mm

ILDRCVA065 30W 251 x 30 x 16 mm

LONG & SLIM

| Constant voltage driver

ILDRCVA066 45W

x 23.6 x 16 mm

ILDRCVA067 75W

x 30 x 16.7 mm

ILDRCVA068 100W 304.6 x 30 x 18 mm

| Best paired with Ultralong MAX30 and MAX50

ILDRCVA114 60W 251 x 30 x 16 mm

ILDRCVA115 100W 251 x 30 x 16 mm

ILDRCVA116 150W

301.3 x 30 x 16 mm

SHALLOW IP RATED IP RATED

| Constant voltage driver

| Suitable for all tape except Ultralong MAX30 and MAX50 | Constant voltage driver | Best paired with Ultralong MAX20

ILDRCVA058 75W 159 x 57.8 x 18 mm

ILDRCVA059 100W 164 x 56.4 x 16.8 mm

ILDRCVA060 150W 177 x 56.4 x 17.2 mm

ILDRCVC052 100W IP67 212 x 46 x 38.3 mm

Constant voltage driver | Best paired with Ultralong MAX30 and MAX50

ILDRCVC053 150W IP67

x 62 x 36.5 mm

ILDRCVC075 150W

ILDRCVC128 320W

ILDRCVC132 240W IP67

x 62.5 x 41.3 mm

COMPACT COMPACT IP RATED

| Constant voltage driver

| Suitable for all tape except Ultralong MAX30 and MAX50

ILDRCVA103 24W 150 x 43 x 29 mm

ILDRCVA104 40W 137 x 82 x 31 mm

| Constant voltage driver

| Best paired with Ultralong MAX30 and MAX50

ILDRCVA113

x 40 x 32 mm

| Constant voltage driver | Best paired with Ultralong MAX20

ILDRCVA105 75W 295 x 40 x 32 mm

ILDRCVA106 100W 360 x 40 x 32 mm

ILDRCVA107 150W 310 x 60 x 45 mm

x 64 x 33 mm

ILDRCVC116

x 63 x 33 mm

ILDRCVC115

COMPACT IP RATED IP RATED

| Constant voltage driver

| Suitable for all tape except Ultralong MAX30 and MAX50

ILDRCVA108 24W

150 x 43 x 29 mm

| Constant voltage driver

| Best paired with Ultralong MAX20

ILDRCVA109 40W

185 x 42.5 x 28.5 mm

ILDRCVA110 75W

295 x 40 x 32 mm

ILDRCVA111 100W

360 x 40 x 32 mm

ILDRCVC117 75W

290 x 61 x 25 mm

| Constant voltage driver

| Best paired with Ultralong MAX30 and MAX50

ILDRCVC118 100W

290 x 61 x 25 mm

ILDRCVC119 240W

270 x 68 x 30 mm

ILDRCVC120 320W 290 x 90 x 32 mm

MULTIPORT DRIVERS & ACCESSORIES

ACCESSORY DIMMABLE DRIVERS

| Constant voltage multiport driver

| Suitable for all tape except Ultralong MAX 30 and MAX50

IP20 24V

IP20 24V SPLITTERS

ILDRAA125 6 port channel splitter

6 port channel splitter

LEADS

SENSORS

IP20 24V

LEADS

ILDRAA118

ILDRAA119

ILDRAA121

ILDRAA127

SENSORS

ILDRAA104

ILDRAA105

ILDRAA106

ILDRAA107

ILDRAA112

ILDRAA113

ILDRAA114

ILDRAA115

DRIVERS

ILDRCVA092

ILDRCVA093

ILDRCVA094

SPLITTERS

ILDRAA125

ILDRAA126

CONNECTOR

CONTROLLERS

Integral LED provides a wide range of controller options, from simple receiver and remote sets, to separate receivers with your preferred remote. Choose from handheld and wall-mounted remotes which control colour changes and brightness with the touch of a finger.

RECEIVER & REMOTE BUNDLE

RECEIVER

ILRC039 Works with ILRC037 & ILRC038

ILRC051 Works with ILRC037

ILRC044 Works with ILRC037 ILRC049 Works with ILRC048

WALL CONTROLLER

ILRC040 Works with ILRC037 & ILRC038

48V RECEIVER

WORKS WITH ULTRALONG MAX

ILRC053 Works with ILRC037

ILRC045 Works with ILRC037

ILRC050 Works with ILRC048

RECEIVER

&

REMOTE SIMPLE CONTROL BUNDLE

24V ILRC054 24V ILRC055 24V

ILRC046 24V

PROFILES

With endless possibilities for LED strip lighting, Integral offers a comprehensive range of high-quality aluminium profiles to match any application. Designed for versatility, our profiles are perfect for walls, floors, stairs, ceilings and shelving. Each one is expertly engineered for specific installations, including surface-mounted, recessed, plaster-in, and tile-in, whilst our bendable profile lets you create smooth, seamless curves.

To enhance and protect your installation, we offer clear and frosted diffuser options that not only provide a polished finish but also help to optimise and enhance light output to suit your space.

PROFILE CATEGORIES

FIND THE RIGHT PROFILE TO FIT YOUR STRIP

UP TO 8MM STRIP PREMIUM ONLY 8

SUBTLE AMBIENT

FUNCTIONAL

FREE CUT IP20

UP TO 10MM STRIP CORE & PREMIUM

SUBTLE AMBIENT

FUNCTIONAL BRIGHT

FREE CUT IP20

CCT TUNEABLE IP20

WHITE DIGITAL CHASING

RGB DIGITAL CHASING

MAX 20 IP20

MAX 30 IP20

UP TO 12MM STRIP CORE & PREMIUM

SUBTLE AMBIENT

FUNCTIONAL BRIGHT

FREE CUT IP20

CCT TUNEABLE IP20

WHITE DIGITAL CHASING

RGBW IP20

RGBW IP65

RGB DIGITAL CHASING

ULTRALONG IP20

14.5

UP TO 14.5MM STRIP CORE & PREMIUM

SUBTLE AMBIENT

FUNCTIONAL BRIGHT FREE CUT CCT TUNEABLE

WHITE DIGITAL CHASING

RGBW IP20

RGBW IP65

RGB DIGITAL CHASING

ULTRALONG IP20

MAX 20 IP67

MAX 30 IP67

16.5

UP TO 16.5MM STRIP CORE & PREMIUM

ALL STRIP

UP TO 8MM PREMIUM TAPE

RECESSED SUPER-FINE LINEAR

INSTALLATION

This deep recessed aluminium profile is designed to create a superfine linear lighting effect, measuring just 2.5mm wide. It can be seamlessly installed in wooden surfaces such as furniture and wall panels, as well as directly into walls, offering a sleek and modern lighting solution.

ILPFR067

ILPFR068

ILPFA069

1m 2 end caps, 11 screws

2m 2 end caps, 22 screws

UP TO 10MM TAPE

GENERAL APPLICATION

INSTALLATION

* NOTE: Use both sealing plugs and end caps, and apply a suitable silicone sealant to the end caps to maintain the IP65 rating.

This slim surface-mounted aluminium profile is ideal for wooden furniture applications such as shelving and cabinets. By using the accessories provided and sealing to an IP65* level, this profile can be installed in indoor environments where moisture exposure is expected.

IP65

ILPFS184

1m 2 end caps, 2 sealing plugs, 4 screws, 2 mounting brackets

ILPFS185 Frosted 2m 2 end caps, 2 sealing plugs, 4 screws, 4 mounting brackets

UP TO 10MM TAPE

GENERAL APPLICATION

INSTALLATION

* NOTE: Use both sealing plugs and end caps, and apply a suitable silicone sealant to the end caps to maintain the IP65 rating.

This surface-mounted aluminium profile is ideal for wooden furniture applications such as shelving and cabinets. By using the accessories provided and sealing to an IP65* level, this profile can be installed in indoor environments where moisture exposure is expected.

ILPFS188

1m 2 end caps, 2 sealing plugs, 4 screws, 2 mounting brackets

ILPFS189 Frosted 2m 2 end caps, 2 sealing plugs, 4 screws, 4 mounting brackets

/ ILPFS189

UP TO 10MM TAPE

INSTALLATION

This recess mounted aluminium profile is ideal for wooden furniture applications such as shelving and cabinets.

ILPFR023 Clear 2m 2 end caps, 4 mounting brackets

ILPFR024 Frosted 1m 2 end caps, 2 mounting brackets

ILPFR025 Frosted 2m 2 end caps, 4 mounting brackets

UP

TO 10MM TAPE

INSTALLATION

* NOTE:

Use both sealing plugs and end caps, and apply a suitable silicone sealant to the end caps to maintain the IP65 rating.

This recess mounted, slimline, aluminium profile is ideal for wooden furniture applications such as shelving and cabinets. By using the accessories provided and sealing to an IP65* level, this profile can be installed in indoor environments where moisture exposure is expected.

INCLUDED

ILPFR083 Frosted 1m 1m plate, 2 end caps, 2 sealing plugs, 4 screws, 2 mounting brackets

ILPFR084 Frosted 2m 2m plate, 2 end caps, 2 sealing plugs, 4 screws, 4 mounting brackets

PRODUCT CODE DESCRIPTION

ILPFA085

ILPFA086

ILPFA087

Profile end cap with cable entry

Profile end cap without cable entry

Profile silicon sealing plug with cable entry

ILPFA088 Profile silicon sealing plug without cable entry

ILPFA089 Profile mounting bracket

COMPATIBLE WITH INCLUDED?

ILPFR083 / ILPFR084 Included

UP TO 10MM TAPE

GENERAL APPLICATION

INSTALLATION

This versatile general-purpose aluminium profile is designed for indoor use, offering both surface-mounted and recessed installation options. Its slim, minimalist design seamlessly integrates into any space, while the easy-to-install clip-in clear or frosted diffusers provide a optimised lighting. Perfect for walls, furniture, bookcases, stairs and under kitchen cabinets.

UP TO 10MM TAPE

INSTALLATION

* NOTE:

Use both sealing plugs and end caps, and apply a suitable silicone sealant to the end caps to maintain the IP65 rating.

ILPFR076 Frosted 1m 1m plate, 2 end caps, 2 sealing plugs, 4 screws, 2 mounting brackets

ILPFR077 Frosted 2m 2m plate, 2 end caps, 2 sealing plugs, 4 screws, 4 mounting brackets

PRODUCT CODE DESCRIPTION COMPATIBLE WITH INCLUDED?

ILPFA078

Profile end cap with cable entry, includes 2 screws

ILPFA079 Profile end cap without cable entry includes 2 screws

ILPFR076 / ILPFR077 Included

ILPFA080 Profile silicon sealing plug with cable entry ILPFR076 / ILPFR077 Included

ILPFA081 Profile silicon sealing plug without cable entry ILPFR076 / ILPFR077 Included

ILPFA082 Profile mounting bracket ILPFR076 / ILPFR077 Included

UP TO 10MM TAPE

INSTALLATION

This recess mounted, slimline, aluminium profile is ideal for wooden furniture applications such as shelving and cabinets. Comes with a clear or frosted clip-in diffuser.

1m 2 end caps, 2 mounting brackets

ILPFR198 Clear 2m 2 end caps, 4 mounting brackets

ILPFR199 Frosted 1m 2 end caps, 2 mounting brackets

ILPFR200 Frosted 2m 2 end caps, 4 mounting brackets

/ ILPFR198 / ILPFR199 / ILPFR200 Included ILPFA020 Profile end cap with cable entry

/ ILPFR198 / ILPFR199 / ILPFR200 Included ILPFA021 Profile mounting bracket

IP20

UP TO 10MM TAPE

PLASTER-IN COVE UPLIGHTING

PROFILE

The uplighting version of our Cove & Decorative profile is an ideal solution for ceiling coves and floating or recessed walls. It integrates seamlessly into your space to provide indirect accent lighting, with a spacing wing to ensure optimal placement.

UP TO 10MM TAPE

PLASTER-IN COVE SIDE LIGHTING

PROFILE

The side-emitting version of our Cove & Decorative profile is an ideal solution for walls, ceilings and skirting. It integrates seamlessly into your space to provide indirect accent lighting, with a spacing wing to ensure optimal placement.

UP TO 12MM TAPE

BENDABLE

INSTALLATION

NOTE: This profile cannot be bent to a right angle

This bendable surface-mounted aluminium profile is perfect for applications requiring flexibility, effortlessly adapting to various angles and irregular shapes with a minimum bending radius of 10cm.

ILPFB146 Frosted 1m 2 end caps, 2 mounting brackets

ILPFA148* Profile connector ILPFB146 / ILPFB147 Sold separately

ILPFA149 Profile end cap with cable entry ILPFB146 / ILPFB147 Included

ILPFA150 Profile end cap without cable entry ILPFB146 / ILPFB147 Included

ILPFA151 Profile mounting bracket

/ ILPFB147 Included

* ILPFA148 connector is used to extend the length of profile, eg. 1m + 2m

UP TO 12MM TAPE

GENERAL APPLICATION

INSTALLATION

This versatile general-purpose aluminium profile is designed for indoor use, offering both surface-mounted and recessed installation options. Its slim, minimalist design seamlessly integrates into any space, while the easy-to-install clip-in black or white frosted diffusers provide a optimised lighting. Perfect for walls, furniture, bookcases, stairs and under kitchen cabinets.

ILPFS050

UP TO 12MM TAPE

GENERAL APPLICATION

INSTALLATION

This versatile general-purpose aluminium profile is designed for indoor use, offering both surface-mounted and recessed installation options. Perfect for walls, furniture, bookcases, stairs

UP TO 12MM TAPE

TILE-IN

INSTALLATION

This recess mounted profile is designed to be tiled into interior walls and ceilings to create linear lighting effects. The L-shape trim makes it easy to fit into plaster or concrete materials and cover the trim with ceramic tiles for a seamless finish.

UP TO 12MM TAPE

INSTALLATION

This recess mounted, slimline, aluminium profile is ideal for wooden furniture applications such as shelving and cabinets. Comes with a black or white, frosted clip-in diffuser.

ILPFR071

Included

UP TO 12MM TAPE

GENERAL

APPLICATION ROUNDED DIFFUSER

INSTALLATION

This surface-mounted aluminium profile features a round diffuser for a wider beam angle, ensuring even light distribution. Designed for indoor use, it is ideal for walls, furniture, bookcases, under kitchen cabinets and stairs.

UP TO 12MM TAPE

GENERAL APPLICATION TUBE

INSTALLATION

This surface-mounted aluminium profile features a round diffuser, creating a sleek, tube-like lighting effect. Designed for indoor use, it is perfect for walls, furniture, bookcases, under kitchen cabinets and stairs.

ILPFO122 Frosted 1m 2 end caps, 2 screws, 2 mounting brackets

ILPFO123 Frosted 2m 2 end caps, 2 screws, 4 mounting brackets

ILPFA124 Profile end cap with cable entry

/ ILPFS123 Included ILPFA125 Profile end cap without cable entry

/ ILPFS123 Included ILPFA126 Profile mounting bracket

/ ILPFS123 Included

UP TO 12MM TAPE

FLOOR INDOOR

INSTALLATION

This recess mounted aluminium profile is designed for a variety of floor lighting applications, including soft lighting along indoor pathways such as offices and theatres and next to skirting boards. Its slim design also allows for installation in walls and ceilings, creating a continuous linear lighting effect.

ILPFR094

1m 2 end caps ILPFR095

2m 2 end caps

UP TO 12MM TAPE

FLOOR INDOOR

INSTALLATION

This recess mounted, aluminium profile is designed for a wide range of floor lighting applications including soft lighting along indoor pathways such as offices and theatres and along skirting boards. Suitable for indoor use.

ILPFR098

2m 2 end caps

UP TO 12MM TAPE

FLOOR INDOOR

INSTALLATION

NOTE: For decorative use only, not designed for walking over.

This surface-mounted aluminium profile offers a modern solution for floor lighting, eliminating the need for recessed channels. It’s perfect for soft lighting along the edges of indoor pathways in spaces like offices and theatres, as well as along skirting boards. It can also be mounted on ceilings to create an ultra-low-profile luminaire. For decorative use only, not designed for walking over.

UP TO 12MM TAPE

STAIR UPWARD AND FRONT LIGHT

INSTALLATION

This surface-mounted aluminium profile is designed to illuminate staircases and features two diffuser channels:

1. Upward diffuser – Defines each step, providing safety and visibility, especially in low-light environments like cinemas.

2. Front diffuser – Illuminates the next step down, ensuring a smooth, well-lit transition between steps.

Suitable for indoor use.

UP TO 12MM TAPE

STAIR UPWARD LIGHT

INSTALLATION

This surface-mounted aluminium profile is designed to illuminate staircases. Featuring an upward diffuser that defines each step, providing safety and visibility, especially in low-light environments like cinemas.

Suitable for indoor use.

UP TO 12MM TAPE WALL

INSTALLATION

This recess mounted aluminium profile is designed to provide a wash of light across interior walls, including along corridors or running parallel to staircases. The profile can be installed directed either upwards or downwards depending on the feature you wish to highlight.

Suitable for indoor use.

UP TO 12MM TAPE

RECESSED 70 DEGREE ANGLE

INSTALLATION

This recess mounted aluminium profile is designed to direct the light output at a 70° angle, providing targeted illumination. Ideal for wooden furniture applications such as bookcases and wardrobes, it is also perfect for retail clothing displays, enhancing product visibility with stylish, angled lighting.

ILPFR090 Frosted 1m 2 end caps

ILPFR091 Frosted 2m 2 end caps

Included

UP TO 12MM TAPE

SUSPENDED

INSTALLATION

* NOTE: Recommended use of 2 X ILPFA130 for each profile.

This round aluminium and polycarbonate profile can create tubes of light for an impactful effect. Suitable for indoor use, this profile can be mounted on a wall, suspended from the ceiling or installed inside wardrobes or bookcases.

2 mounting brackets

2m 2 end caps, 4 mounting brackets

ILPFA129 Profile end mounting holder

/ ILPFO128 Sold separately

ILPFA130 Profile suspension steel wire ILPFO127 / ILPFO128 Sold separately

ILPFA132 Profile end cap with cable entry ILPFO127 / ILPFO128 Included ILPFA133 Profile end cap without cable entry ILPFO127 / ILPFO128 Included

Profile mounting bracket ILPFO127 / ILPFO128 Included

UP TO 12MM TAPE

TILE-IN INNER CORNER

INSTALLATION

This recess mounted profile is designed to be tiled into inner corners of interior walls and ceilings. The L-shape trim makes it easy to fit into plaster or concrete materials and cover the trim with ceramic tiles for a seamless finish.

1m 2 end caps

2m 2 end caps

UP TO 12MM TAPE

TILE-IN OUTER CORNER

INSTALLATION

This recess mounted profile is designed to be tiled into outer corners of interior walls and ceilings. The L-shape trim makes it easy to fit into plaster or concrete materials and cover the trim with ceramic tiles for a seamless finish.

UP TO 12MM TAPE

DEEP RECESS LOW GLARE

This recess mounted aluminium profile is designed for low glare general lighting and architectural accents, or to replace downlights above media units and shelving.

ILPFR210 Frosted 1m 2 end caps, 2 mounting brackets

ILPFR211 Frosted 2m 2 end caps, 4 mounting brackets

INSTALLATION

UP TO 14.5MM TAPE

CORNER

INSTALLATION

This surface-mounted aluminium corner profile is designed to direct the light output at a 45° angle, providing targeted illumination. Designed for indoor use, it is ideal for corner surfaces, including walls, furniture, deep bookcases, kitchen cabinet undersides, stairs and reception counters. The profile comes with a choice of clear, black frosted or white frosted diffusers, allowing you to customise the lighting effect to suit your space.

UP TO 16.5MM TAPE

FLOOR OUTDOOR WALK OVER

INSTALLATION

An ideal solution for paths and walkways, especially when paired with IP67 tape for exterior spaces. This profile is designed to be integrated in both interior and exterior spaces for seamless illumination.

UP TO 16.5MM TAPE

GENERAL APPLICATION

INSTALLATION

This versatile general-purpose aluminium profile is designed for indoor use, offering both surface-mounted and recessed installation options. The 16mm design can accommodate wider strip or two strips next to each other to provide a higher lumen output. Perfect for walls, furniture, bookcases, stairs and under kitchen cabinets.

mounting brackets

UP TO 16.5MM TAPE

GENERAL APPLICATION

INSTALLATION

ILPFS062

ILPFS063

2 end caps, 2 mounting brackets

2m 2 end caps, 4 mounting brackets

ILPFA064 Profile end cap with cable entry ILPFS062 / ILPFS063 Included

ILPFA065 Profile end cap without cable entry ILPFS062 / ILPFS063 Included

ILPFA066

mounting bracket

/ ILPFS063 Included

IP20

UP TO 16.5MM TAPE

WALL UP AND DOWN LIGHT

INSTALLATION

This surface-mounted, aluminium profile is designed to utilise two lengths of strip to provide two-way illumination, either up and down or left and right, depending on installation. The special design allows for a suitable-size driver to be accommodated within the extrusion and within close proximity to the LED strips.

Suitable for indoor use.

ILPFS117

ILPFS118

1m 2 end caps, 8 screws

2m 2 end caps, 8 screws

UP TO 16.5MM TAPE

SUSPENDED WIDE BEAM

INSTALLATION

This round aluminium and polycarbonate profile creates striking tubes of light for a bold effect. Designed for indoor use, it features a frosted diffuser that provides a wide, even beam of light, perfect for enhancing any space.

ILPFO135 Frosted 1m 2 end caps, 2 screws, 2 suspension kits

ILPFO136 Frosted 2m 2 end caps, 2 screws, 2 suspension kits

ILPFA137

ILPFA138

ILPFA139

Profile end cap with cable entry, includes 1 screw ILPFO135 / ILPFO136 Included

Profile end cap without cable entry, includes 1 screw

Profile suspension steel wire

/ ILPFO136 Included

IP20

UP TO 16.5MM TAPE

PLASTER-IN

This recess mounted aluminium profile is designed to be plastered into interior walls and ceilings to create linear lighting effects. The L-shape trim makes it easy to fit into plasterboard or concrete materials and apply plastering material over the top for a seamless finish.

INSTALLATION

NOTE:

| Using the ILPFA166 connector you can extend the length of the profile e.g. 1M + 2M

ILPFA166 Profile flat connector

/ ILPFR165 Sold separately

ILPFA167 Profile right angle connector ILPFR164 / ILPFR165 Sold separately

ILPFA168

ILPFA169

ILPFA177

Profile end cap with cable entry ILPFR164 / ILPFR165 Included

Profile end cap without cable entry ILPFR164 / ILPFR165 Included

Profile end cap, dual purpose with / without cable entry

| Using the ILPFA167 connector, the profile can be joined together to allow for the light to flow around corners in a seamless fashion. You can also cut the profile at 45º degrees and use the connectors to create squares of light. CONNECTOR ILPFA167

/ ILPFR176 Included

UP

TO 16.5MM TAPE

GENERAL APPLICATION HEAT SINK PLATE

INSTALLATION

This flat, surface-mounted aluminium plate serves as a heat sink for LED strips, offering an efficient and cost-effective solution for heat dissipation. Designed for use on walls and ceilings, it helps extend the lifespan of the LED chipset by ensuring optimal thermal management.

This is especially important for high wattage strips, where power output exceeds 15W/m. In addition, LED strips will adhere better to the plate than to some wooden and plastic surfaces.

PROFILE SCALE DRAWINGS

Unit 6 Iron Bridge Close Iron Bridge Business Park London, NW10 OUF United Kingdom

+44 (0) 208 451 8700 ledsales@integral-led.com www.integral-led.com

FRANCE

Integral Europe SARL 38 Ter Rue de Verdun 92150 Suresnes France

+33 1 41 44 73 00 salesfr@integraleurope.com www.integral-led.com

NETHERLANDS

Integral Europe B.V. Keerkring 33 2801 DG Gouda

The Netherlands

+31 (0) 85 13 03554 netherlands@integraleurope.com www.integral-led.com
