LED STRIP COLLECTION
SUMMER 2025
OUR NEW PREMIUM
HIGH UNIFORMITY RANGE
Our Premium spotless LED strips provide a consistent and even light output, eliminating dark spots and shadows, ensuring a perfectly illuminated space with excellent colour rendering. Ideal for setups that include reflective surfaces or have clear sightlines of the luminaire.
PREMIUM COB
Complete spotless uniformity is non-negotiable for many lighting schemes. The Premium range achieves both peak performance and a truly spotless aesthetic through our COB “Chip-on-Board” technology, with up to 480 LEDs per metre and a uniform phosphor coating to deliver truly seamless lighting.
WHAT IS COB?
Our Premium range of LED strip utilises ultra-small LEDs arranged in a close formation beneath a uniform line of phosphor to eliminate the "dotty" effect of traditional LED strips. This creates a continuous line of light, without the need for installation in a frosted diffuser profile.
THE CORE RANGE
CORE SMD
The Core technology that powers our LED strip features up to 120 SMD LEDs per metre for the best balance of cost and performance. Far exceeding the uniformity of most “typical” LED strip offerings, Core ensures you achieve stunning LED strip lighting to meet even the most constrained lighting budgets.
IP65 NANO TECHNOLOGY
For IP65 applications, our NANO technology utilises a fine silicone coating that achieves the thinnest possible IP65 protection. The coating is so thin you can't tell the difference between IP65 and IP20.
CAN YOU TELL THE DIFFERENCE?
IP20
IP65 NANO TECHNOLOGY
IP67 JACKET
For IP67 applications, the integrated extrusion jacket provides protection against heavy rain, puddles and short-term immersion in water without the need for an additional aluminium profile.
1. WHAT TYPE OF LIGHT?
LED strip has a wide range of applications, offering you the greatest level of flexibility in your lighting scheme. However, that flexibility can also create challenges in selecting the right options. Like all types of lighting, LED strip has ideal uses, and our strip range has been carefully designed to align with these applications.
SUBTLE LIGHT
Our softest level of accent lighting. Every small space that needs illumination can be highlighted with Subtle Light for comfortable light levels, available with both Core and Premium options. Best used for shelving accents, kitchens cupboards, and lighting residential architectural details.
AMBIENT LIGHT
For general lighting or brighter accent details, use Ambient Light. Available in both Core and Premium versions, Ambient Light is perfect for where spaces require a stronger wall-grazing effect or indirect illumination. Best used for countertops, bars, wall panels and for indirect room lighting.
FUNCTIONAL LIGHT
Some rooms require brighter lighting, whether for a wash of indirect light or focused task illumination. In larger coves and ceiling coffers, Functional Light minimises contrast to enhance the space with comfortable illumination that maintains brightness without the harshness of direct lighting. Best used for residential task areas, throw lighting in coves and coffers and direct lighting in offices and retail spaces.
BRIGHT LIGHT
In the largest spaces, only volume illumination will do. The Bright range, available using Core technology, works best in double-height spaces and expansive rooms, providing the highest lumen level for both direct and indirect applications. Best used for bright open spaces including shopping centres, airport terminals, train stations and office and hotel lobbies.
SPECIALIST LED STRIP
RGBW ULTRALONG
When ambient or accent lighting calls for a splash of colour, RGBW is the ideal solution. Available in both Core and Premium versions, RGBW combines adjustable colour with traditional white light options (2700K, 3000K, or 4000K), giving you full control over mood and atmosphere. All our RGBW strips pair with our range of RGB controllers for effortless remote or appbased control. Best used for interiors needing a balance of vibrant colour and classic white light.
RGB DIGITAL CHASING
RGB Digital Chasing delivers a dynamic experience of animated lighting effects. Available in Core and Premium options, these strips allow for flowing light sequences, patterns and custom animations — ideal for making a statement in hospitality, retail or feature installations. Fully compatible with our digital RGB controllers, these strips are best used where dramatic, programmable lighting is needed to elevate the visual impact.
Available in MAX20, MAX30 and MAX50 options, Ultralong is ideal for locations where multiple drivers can’t be used. With Outdoor IP67 Low Extrusion protection available, Ultralong can be installed even in the most challenging environments. Best used where you need extended runs using a single driver.
BENDY
Complex designs and intricate shapes require LED strips with maximum adjustability. The Bendy range features a loop-pattern PCB and 6mm width to work in compact spaces and around the tightest angles. Paired with a light output for accent lighting, the Bendy range is best used for joinery, furniture and customised accent installations.
2. WHERE IS IT GOING?
Your installation environment determines the level of dust and water protection required. With a range of protection levels, our strip range provides an ideal solution for every setting.
IP20
For most indoor spaces, dust and moisture protection isn’t necessary. IP20-rated LED strip has better heat dissipation than those with higher IP ratings, allowing them to work more efficiently, making them perfect for areas without water exposure. Best used in bedrooms, lounges, entryways and retail environments.
IP65
Where there is a risk of contact with moisture indoors, IP65 protects LED strips from splashes and water ingress. Its Nano silicone coating ensures the lowest possible profile whilst maintaining moisture resistance. Best used in bathrooms and kitchens where lighting is within 1m of a water outlet (also known as Zone 1).
IP67
Outdoor installations need extra attention. Enclosing LED strip in an IP67 extrusion “jacket” is the best way to ensure complete protection from morning dew, heavy rain, puddles and short-term immersion in water. Best used for handrails, pergolas, walkways, and any other outdoor setting where linear LED lighting is needed.
3. COLOUR TEMPERATURE
From the warmth of sunset to the cool light of midday, choosing the correct CCT can determine the mood of your space and elevate a design to the highest level.
CCT
The CCT, or “correlated colour temperature”, of your lighting is the warmth it appears, measured in Kelvins. With a range from 2700K to 6500K, our range of LED strip allows you to tailor your light to the setting – from warm and cosy lounges or bars to bright and airy offices and shops.
4. HOW TO BUILD YOUR STRIP CONFIGURATION
STRIP + CONNECTOR + PROFILE + DRIVER
STRIP JOINING CONNECTOR
For end to end connections to join your strip
STRIP
Select your ideal strip from our extensive range on pages 17-57
FLEXIBLE CORNER CONNECTOR
Connect 2 pieces of strip around any bend or corner
Connect 2 pieces of strip at right angles
L-CONNECTOR

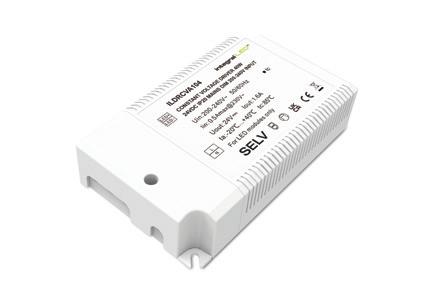

DRIVER
Select your preferred wattage and form factor to complete your LED strip on page 63
PROFILE
For longer life and added protection, select a profile for your application from pages 77-142 5 6
2M CABLE CONNECTOR
For an extended tail to your driver, with a slim connector designed to fit inside the profile
CRIMP CONNECTORS
STRIP JOINING CONNECTOR
Join any two pieces of strip with the strip joining connector.
| Crimp closed
| Slim height
| Fits in profile
| IP rated, just add silicone
Other types of connectors are available depending on the range, see each product page for details.
L-CONNECTOR
Join any two pieces of strip at right angles
| Crimp closed
| Slim height
| IP rated, just add silicone
Other types of connectors are available depending on the range, see each product page for details.
FLEXIBLE CORNER CONNECTOR
Connect 2 pieces of strip around any bend or corner
| Crimp closed
| Slim height
| Fits in profile
| IP rated, just add silicone
Other types of connectors are available depending on the range, see each product page for details.

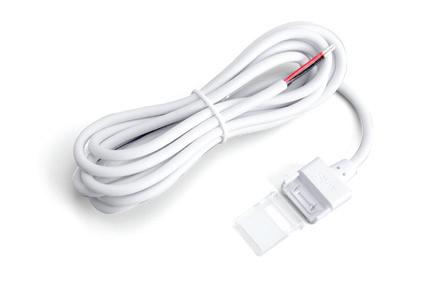

2M CABLE CONNECTOR
For an extended tail to your driver, with a slim connector designed to fit inside the profile
| Crimp closed | Slim height
| Fits in profile
| IP rated, just add silicone
Other types of connectors are available depending on the range, see each product page for details.
SUBTLE LIGHT
Subtle projects require subtle accent lighting, delivering soft illumination with a low light output.
SUBTLE LIGHT IP20 DRY AREAS
SUBTLE LIGHT IP20

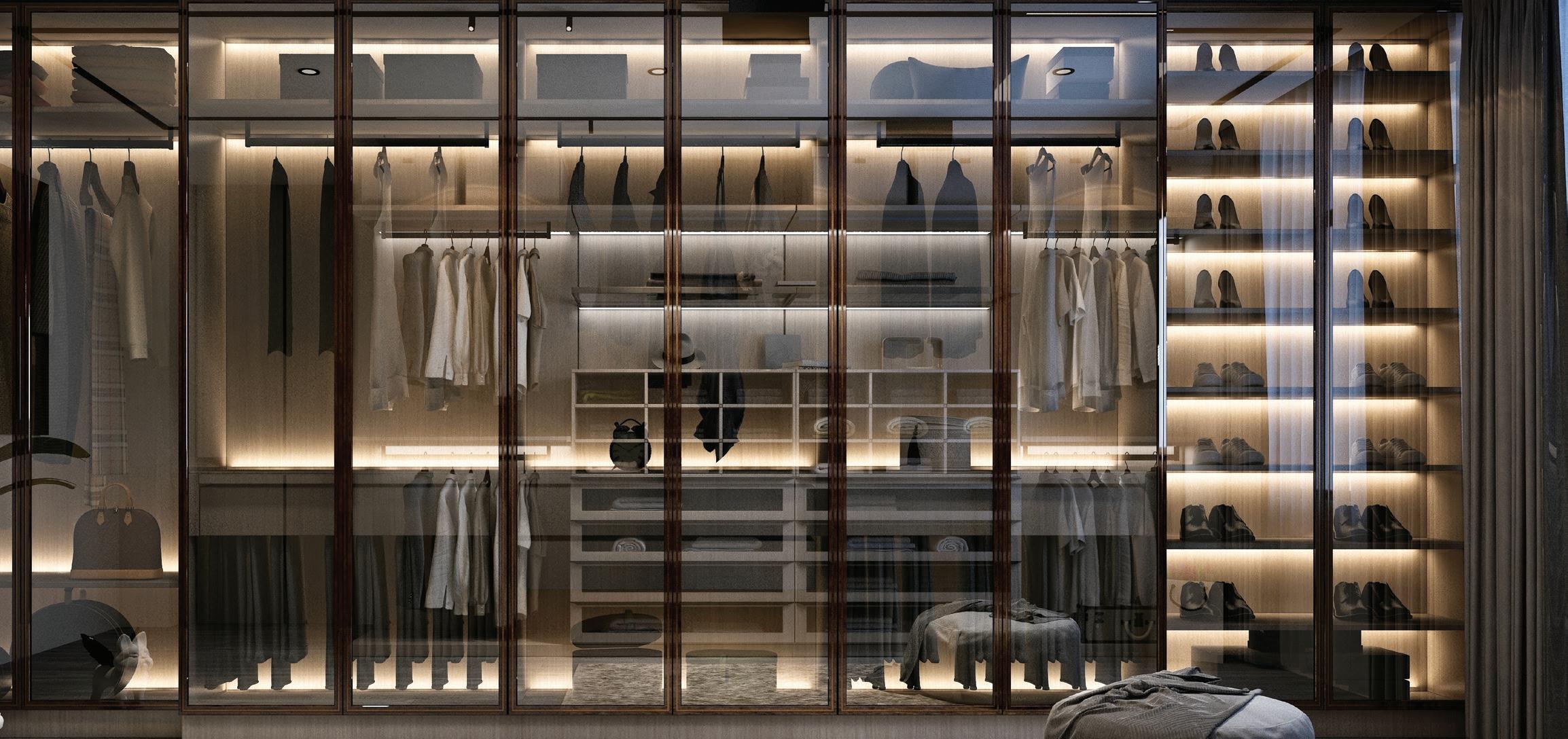

The ideal solution for cabinet and shelf lighting, and for architectural details in bedrooms and living spaces. The soft light level of Subtle will draw your eye to texture and quiet moments in your space, whilst limiting ambient spill to perfectly complement your lighting scheme.
View drivers on page 63, controllers on page 73 and profiles on page 77.
ULTRA-SLIM CRIMP CONNECTORS
ILSTAA500 STRIP JOINING CONNECTOR
ILSTAA502 FLEXIBLE CORNER CONNECTOR
ILSTAA501 2M CABLE CONNECTOR
ILSTAA503 L-CONNECTOR
All 'Per Metre' SKUs are supplied with a cable connector.
PREMIUM
PRODUCT
ILSTWHIA540EM Order length as a quantity per metre
ILSTWHIA541E 5m reel
ILSTWHIA545E 50m reel
ILSTWHIA550EM Order
ILSTWHIA551E 5m reel
ILSTWHIA555E 50m reel
ILSTWHIA560EM Order
ILSTWHIA561E 5m reel
ILSTWHIA565E 50m reel
ILSTWHIA570EM Order
ILSTWHIA571E 5m reel
ILSTWHIA575E 50m reel
CORE
ILSTWHIA500EM Order length as a quantity per metre
ILSTWHIA501E 5m reel
ILSTWHIA505E 50m reel
ILSTWHIA510EM Order length as a quantity per metre
ILSTWHIA511E 5m reel
ILSTWHIA515E 50m reel
ILSTWHIA520EM Order length as a quantity per metre
ILSTWHIA521E 5m reel
ILSTWHIA525E 50m reel
ILSTWHIA530EM Order length as a quantity per metre
ILSTWHIA531E 5m reel
ILSTWHIA535E 50m reel
SUBTLE LIGHT IP65 SPLASH PROOF
SUBTLE LIGHT IP65

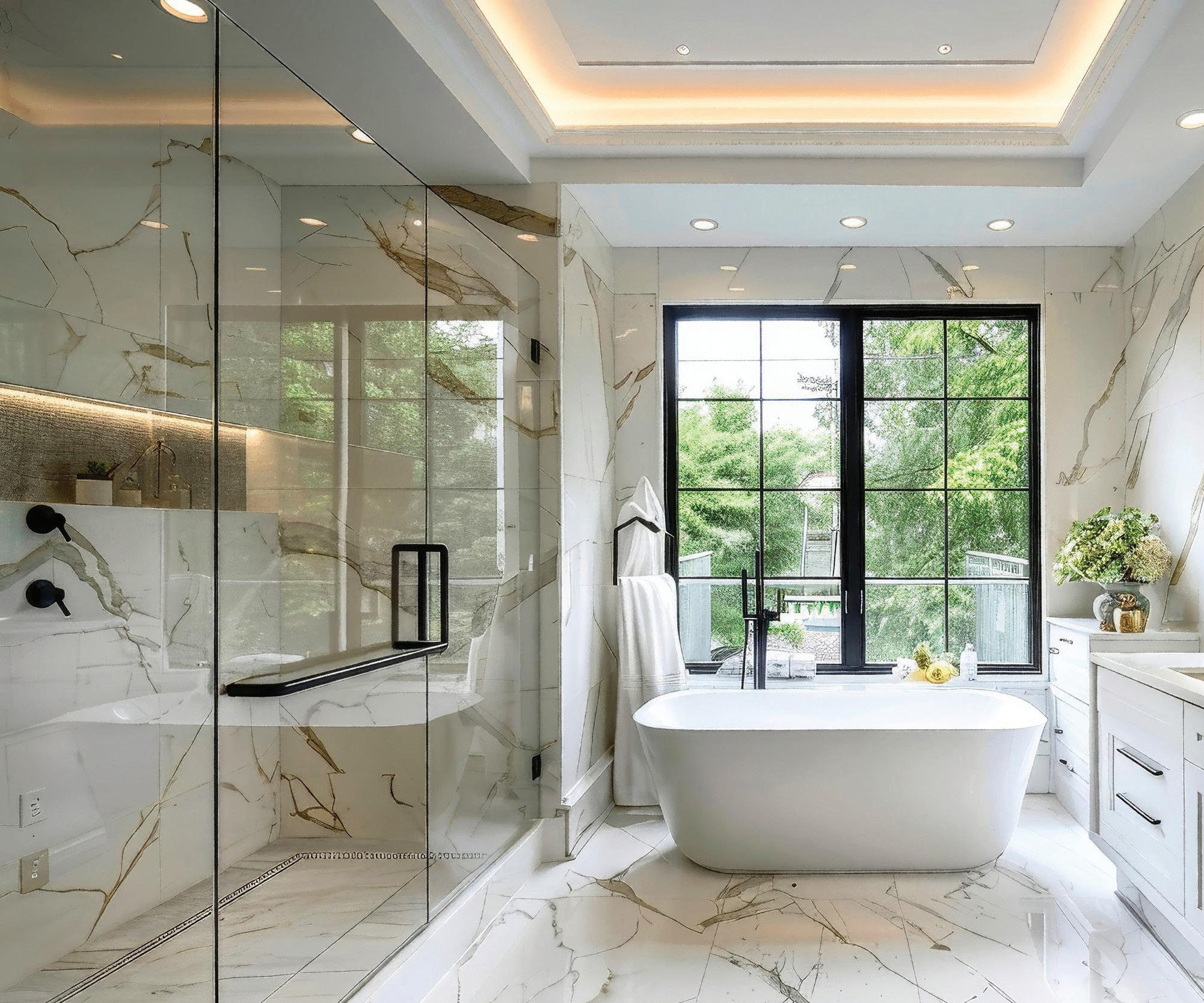

Water protection in bathrooms and kitchens is important, and with the Subtle IP65 range you can continue to enjoy the softest lighting accents and surface lighting without worrying about water splashes and dust.
View drivers on page 63, controllers on page 73 and profiles on page 77.
ULTRA-SLIM CRIMP CONNECTORS
ILSTAA500 STRIP JOINING CONNECTOR
ILSTAA502
FLEXIBLE CORNER CONNECTOR
ILSTAA501 2M CABLE CONNECTOR
ILSTAA503 L-CONNECTOR
All 'Per Metre' SKUs are supplied with a cable connector.
PREMIUM
ILSTWHIC540EM Order
ILSTWHIC541E 5m reel
ILSTWHIC545E 50m reel
ILSTWHIC550EM Order length as a quantity per metre
ILSTWHIC551E 5m reel
ILSTWHIC555E 50m reel
ILSTWHIC560EM Order length as a quantity per metre
ILSTWHIC561E 5m reel
ILSTWHIC565E 50m reel
ILSTWHIC570EM Order length as a quantity per
ILSTWHIC571E 5m reel
ILSTWHIC575E 50m reel
CORE IP65 IP65
ILSTWHIC501E 5m reel
ILSTWHIC505E 50m reel
ILSTWHIC510EM
ILSTWHIC511E 5m reel
ILSTWHIC515E 50m reel
ILSTWHIC520EM Order
ILSTWHIC521E
ILSTWHIC525E
ILSTWHIC530EM Order
ILSTWHIC531E 5m reel
ILSTWHIC535E 50m reel
AMBIENT LIGHT
Ambient lighting opens up spaces providing all the light you need. When combined with other sources of illumination it provides deeper accents throughout interiors.
AMBIENT LIGHT IP20 DRY AREAS
AMBIENT LIGHT IP20
Ambient IP20 is perfect for ambient glows and bright accents under countertops and around interior spaces. Hotels, living rooms, retail spaces and bedrooms can all benefit from Ambient light.
View drivers on page 63, controllers on page 73 and profiles on page 77.
ULTRA-SLIM CRIMP CONNECTORS
ILSTAA500 STRIP JOINING CONNECTOR
ILSTAA502
FLEXIBLE CORNER CONNECTOR
ILSTAA501 2M CABLE CONNECTOR
ILSTAA503 L-CONNECTOR
All 'Per Metre' SKUs are supplied with a cable connector.
PREMIUM
ILSTWHIA640EM Order length as a quantity per metre
ILSTWHIA641E 5m reel
ILSTWHIA645E 50m reel
ILSTWHIA650EM Order length as a quantity per metre
ILSTWHIA651E 5m reel
ILSTWHIA655E 50m reel
ILSTWHIA660EM Order length as a quantity per metre
ILSTWHIA661E 5m reel
ILSTWHIA665E 50m reel
ILSTWHIA670EM Order length as a quantity per metre
ILSTWHIA671E 5m reel
ILSTWHIA675E 50m reel
CORE IP20 IP20
ILSTWHIA600EM Order
ILSTWHIA601E 5m reel
ILSTWHIA605E 50m reel
ILSTWHIA610EM
ILSTWHIA611E 5m reel
ILSTWHIA615E 50m reel
ILSTWHIA620EM Order
ILSTWHIA621E 5m reel
ILSTWHIA625E 50m reel
ILSTWHIA630EM
ILSTWHIA631E 5m reel
ILSTWHIA635E 50m reel
AMBIENT LIGHT IP65 SPLASH PROOF
AMBIENT LIGHT IP65
Gathering around light is an important part of what makes community. Bars and tables, architectural details, and countertops: all can be lit with Ambient IP65 to bring a sense of togetherness to any interior environment.
View drivers on page 63, controllers on page 73 and profiles on page 77.
ULTRA-SLIM CRIMP CONNECTORS
ILSTAA500 STRIP JOINING CONNECTOR
ILSTAA502 FLEXIBLE CORNER CONNECTOR
ILSTAA501 2M CABLE CONNECTOR
ILSTAA503 L-CONNECTOR
All 'Per Metre' SKUs are supplied with a cable connector.
PREMIUM
ILSTWHIC640EM Order length as a quantity per metre
ILSTWHIC641E 5m reel
ILSTWHIC645E 50m reel
ILSTWHIC650EM Order length as a quantity per metre
ILSTWHIC651E 5m reel
ILSTWHIC655E 50m reel
ILSTWHIC660EM Order length as a quantity per metre
ILSTWHIC661E 5m reel
ILSTWHIC665E 50m reel
ILSTWHIC670EM Order length as a quantity per metre
ILSTWHIC671E 5m reel
ILSTWHIC675E 50m reel
CORE IP65 IP65
ILSTWHIC600EM Order
ILSTWHIC601E 5m reel
ILSTWHIC605E 50m reel
ILSTWHIC610EM Order length as a quantity per
ILSTWHIC611E 5m reel
ILSTWHIC615E 50m reel
ILSTWHIC620EM Order
ILSTWHIC621E
ILSTWHIC625E 50m reel
ILSTWHIC630EM Order
ILSTWHIC631E 5m reel
ILSTWHIC635E 50m reel
FUNCTIONAL LIGHT
Functional Light brightens task spaces and ceiling coves through stronger illumination, unifying a scheme with linear lighting.
FUNCTIONAL LIGHT IP20 DRY AREAS
FUNCTIONAL LIGHT IP20
Illuminating drop-ceilings with cove and coffer lighting lifts the atmosphere in lounges, lobbies and libraries. Functional IP20 brings the best to each space, brightening and clarifying details and allowing you to read, prepare food or meet with just the right level of task lighting.
View drivers on page 63, controllers on page 73 and profiles on page 77.
ULTRA-SLIM CRIMP CONNECTORS
ILSTAA500 STRIP JOINING CONNECTOR
ILSTAA502 FLEXIBLE CORNER CONNECTOR
ILSTAA501 2M CABLE CONNECTOR
ILSTAA503 L-CONNECTOR
All 'Per Metre' SKUs are supplied with a cable connector.
PREMIUM
ILSTWHIA740EM Order length as a quantity per metre
ILSTWHIA741E 5m reel
ILSTWHIA745E 50m reel
ILSTWHIA750EM Order length as a quantity per metre
ILSTWHIA751E 5m reel
ILSTWHIA755E 50m reel
ILSTWHIA760EM Order length as a quantity per metre
ILSTWHIA761E 5m reel
ILSTWHIA765E 50m reel
ILSTWHIA770EM Order length as a quantity per metre
ILSTWHIA771E 5m reel
ILSTWHIA775E 50m reel
CORE IP20 IP20
ILSTWHIA700EM Order
ILSTWHIA701E 5m reel
ILSTWHIA705E 50m reel
ILSTWHIA710EM Order
ILSTWHIA711E
ILSTWHIA715E
ILSTWHIA720EM
ILSTWHIA725E 50m reel
ILSTWHIA730EM
ILSTWHIA731E 5 m
ILSTWHIA735E 50m reel
lm/m 6500K
FUNCTIONAL LIGHT IP65 SPLASH PROOF
FUNCTIONAL LIGHT IP65
Where coves, coffers and task spaces land in areas where indoor moisture resistance is need, choose Functional IP65 and protect your linear lighting throughout. Ideal in bathrooms, kitchens and any interior or covered space where water is present.
View drivers on page 63, controllers on page 73 and profiles on page 77.
ULTRA-SLIM CRIMP CONNECTORS
ILSTAA500 STRIP JOINING CONNECTOR
ILSTAA502
FLEXIBLE CORNER CONNECTOR
ILSTAA501 2M CABLE CONNECTOR
ILSTAA503 L-CONNECTOR
All 'Per Metre' SKUs are supplied with a cable connector.
PREMIUM
ILSTWHIC740EM Order
ILSTWHIC741E 5m reel
ILSTWHIC745E 50m reel
ILSTWHIC750EM Order length as a quantity per metre
ILSTWHIC751E 5m reel
ILSTWHIC755E 50m reel
ILSTWHIC760EM Order length as a quantity per metre
ILSTWHIC761E 5m reel
ILSTWHIC765E 50m reel
ILSTWHIC770EM Order length as a quantity per
ILSTWHIC771E 5m reel
ILSTWHIC775E 50m reel
CORE IP65 IP65
ILSTWHIC705E 50m reel
ILSTWHIC711E 5m reel
ILSTWHIC715E 50m reel
ILSTWHIC720EM
ILSTWHIC721E
ILSTWHIC725E
ILSTWHIC730EM
ILSTWHIC731E
ILSTWHIC735E 50m reel
BRIGHT LIGHT
Grand spaces require Bright illumination. Benefitting from the highest lumen levels, Bright ensures linear lighting is ideal for every ceiling height.
BRIGHT LIGHT IP20 DRY AREAS
BRIGHT LIGHT IP20

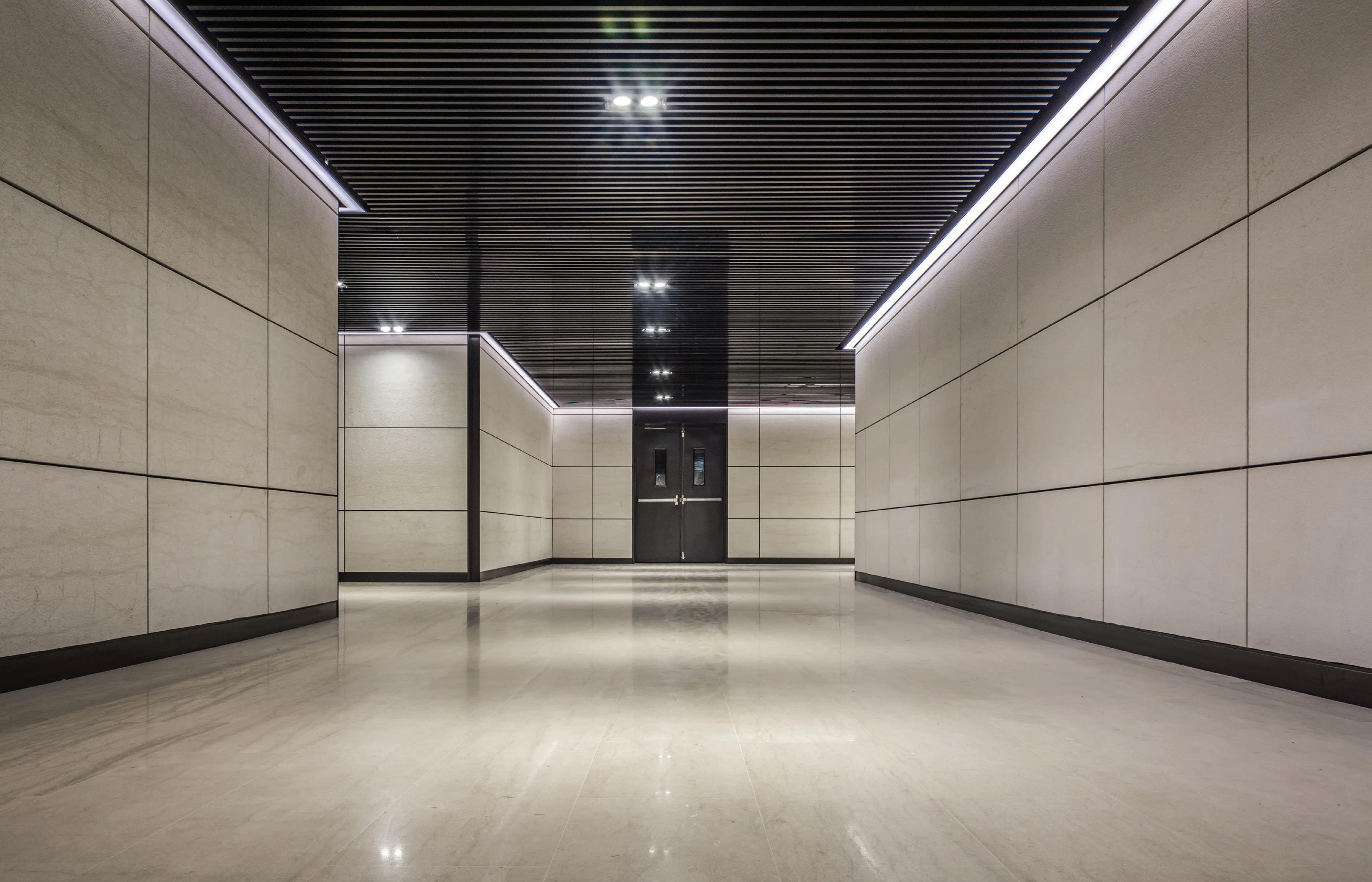

From double-height corridors to expansive lobbies, airport terminals to shopping centres, Bright IP20 offers the strongest illumination to help your space shine. Perfect for the largest spaces and where bright lighting is needed.
View drivers on page 63, controllers on page 73 and profiles on page 77.
ULTRA-SLIM CRIMP CONNECTORS
ILSTAA500 STRIP JOINING CONNECTOR
ILSTAA502 FLEXIBLE CORNER CONNECTOR
ILSTAA501 2M CABLE CONNECTOR
ILSTAA503 L-CONNECTOR
All 'Per Metre' SKUs are supplied with a cable connector.
CORE IP20
ILSTWHIA800EM Order length as a quantity per metre
ILSTWHIA801E 5m reel
ILSTWHIA805E 50m reel
ILSTWHIA810EM Order length as a quantity per metre
ILSTWHIA811E 5m reel
ILSTWHIA815E 50m reel
ILSTWHIA820EM Order length as a quantity per metre
ILSTWHIA821E 5m reel
ILSTWHIA825E 50m reel
ILSTWHIA830EM Order length as a quantity per metre
ILSTWHIA831E 5m reel
ILSTWHIA835E 50m reel
BRIGHT LIGHT IP65 SPLASH PROOF
BRIGHT LIGHT IP65
For expansive indoor environments where moisture is a concern, choosing Bright IP65 can lift and enhance any space. Pair with our IP-rated aluminium profile options to use in outdoor canopies and coves for bright general illumination. PRODUCT CODE
ILSTWHIC800EM Order length as a quantity per metre
ILSTWHIC801E 5m reel
ILSTWHIC805E 50m reel
View drivers on page 63, controllers on page 73 and profiles on page 77.
ULTRA-SLIM CRIMP CONNECTORS
ILSTAA500 STRIP JOINING CONNECTOR
ILSTAA502 FLEXIBLE CORNER CONNECTOR
ILSTAA501 2M CABLE CONNECTOR
ILSTAA503 L-CONNECTOR
All 'Per Metre' SKUs are supplied with a cable connector.
ILSTWHIC810EM Order length as a quantity per metre
ILSTWHIC811E 5m reel
ILSTWHIC815E 50m reel
ILSTWHIC820EM Order length as a quantity per metre
ILSTWHIC821E 5m reel
ILSTWHIC825E 50m reel
ILSTWHIC830EM Order length as a quantity per metre
ILSTWHIC831E 5m reel
ILSTWHIC835E 50m reel
RGB & RGBW
Inject life into any space with our RGB lighting range – offered in RGBW for a soft colourful glow or RGB Digital Chasing for dramatic, dynamic light patterns.
RGBW IP20 DRY AREAS
Delivering linear washes of light, accenting details and enhancing spaces with colour, RGBW offers the flexibility of traditional CCT options (2700K, 3000K or 4000K) for quiet evenings and seamless colour changing across the spectrum of RGB light for atmosphere in indoor spaces.
View drivers on page 63, controllers on page 73 and profiles on page 77.
RGBW IP20
PREMIUM
ILSTRGBWA640EM Order length as a quantity
ILSTRGBWA641E 5m reel
ILSTRGBWA645E 30m reel
ILSTRGBWA650EM Order length as a quantity per metre
ILSTRGBWA651E 5m reel
ILSTRGBWA655E 30m reel
ILSTRGBWA660EM Order length as a quantity per metre
ILSTRGBWA661E 5m reel
ILSTRGBWA665E 30m reel
All 'Per Metre' SKUs are supplied with a cable connector.
ILSTAA504
STRIP JOINING CONNECTOR
ILSTAA506
FLEXIBLE CORNER CONNECTOR
ILSTAA505 2M CABLE CONNECTOR
CORE
CODE LENGTH CCT
ILSTRGBWA600EM Order length as a quantity per metre 2700K
ILSTRGBWA601E 5m reel
ILSTRGBWA605E 50m reel
ILSTRGBWA610EM Order length as a quantity per metre 3000K
ILSTRGBWA611E 5m reel
ILSTRGBWA615E 50m reel
ILSTRGBWA620EM Order length as a quantity per metre 4000K
ILSTRGBWA621E 5m reel
ILSTRGBWA625E 50m reel
All 'Per Metre' SKUs are supplied with a cable connector.
ILSTAA510 STRIP JOINING CONNECTOR
ILSTAA512 FLEXIBLE CORNER CONNECTOR
ILSTAA511 2M CABLE CONNECTOR
RGBW IP65 SPLASH PROOF
When accenting spaces like bars and countertops where water and dust are concerns, using RGBW IP65 can protect your linear lighting and provide a balance of traditional lighting and RGB colour when needed. Best used for indoor wet spaces where a flexible lighting scheme is key.
View drivers on page 63, controllers on page 73 and profiles on page 77.
RGBW IP65
PREMIUM
CORE
PRODUCT CODE LENGTH CCT
ILSTRGBWC640EM Order length as a quantity per metre
ILSTRGBWC641E 5m reel
ILSTRGBWC645E 30m reel
ILSTRGBWC600EM Order length as a quantity per metre
ILSTRGBWC601E 5m reel
ILSTRGBWC605E 50m reel
ILSTRGBWC650EM Order length as a quantity per metre 3000K
ILSTRGBWC651E 5m reel
ILSTRGBWC655E 30m reel
ILSTRGBWC660EM Order length as a quantity per metre
ILSTRGBWC661E 5m reel
ILSTRGBWC665E 30m reel
All 'Per Metre' SKUs are supplied with a cable connector.
ILSTAA504 STRIP JOINING CONNECTOR
ILSTAA506
FLEXIBLE CORNER CONNECTOR
ILSTAA505 2M CABLE CONNECTOR
ILSTRGBWC610EM Order length as a quantity per metre 3000K
ILSTRGBWC611E 5m reel
ILSTRGBWC615E 50m reel
ILSTRGBWC620EM Order length as a quantity per metre 4000K
ILSTRGBWC621E 5m reel
ILSTRGBWC625E 50m reel
All 'Per Metre' SKUs are supplied with a cable connector.
ILSTAA510 STRIP JOINING CONNECTOR
ILSTAA512 FLEXIBLE CORNER CONNECTOR
ILSTAA511 2M CABLE CONNECTOR
RGB DIGITAL CHASING IP20 DRY AREAS
The dynamic effect of RGB Digital Chasing adds drama and vibrancy to any space. Whether in hospitality or at home, elevate your interior with premium RGB colour. Best used with bars, countertops, retail spaces, entrance areas and for eye-catching displays.
View drivers on page 63, controllers on page 73 and profiles on page 77.
RGB DIGITAL CHASING IP20
PREMIUM
CORE
PRODUCT CODE LENGTH
ILSTRGBWA670EM Order length as a quantity per metre
ILSTRGBWA671E 5m reel
ILSTRGBWA675E 30m reel
All 'Per Metre' SKUs are supplied with a cable connector.
ILSTAA515
STRIP JOINING CONNECTOR
ILSTAA517 FLEXIBLE CORNER CONNECTOR
ILSTAA516 2M CABLE CONNECTOR
ILSTAA518 L-CONNECTOR
PRODUCT CODE LENGTH
ILSTRGBWA630EM Order length as a quantity per metre
ILSTRGBWA631E 5m reel
ILSTRGBWA635E 30m reel
All 'Per Metre' SKUs are supplied with a cable connector.
ILSTAA513 STRIP JOINING CONNECTOR
ILSTAA514 CABLE CONNECTOR WITHOUT TAIL
RGB DIGITAL CHASING IP65 SPLASH PROOF
RGB IP65 caters for interior spaces that need both fluid RGB lighting effects and protection from water ingress. Best used for ensuites, kitchen cabinets, mirrors, bars and countertops, it combines colourful lighting with reliable water resistance.
View drivers on page 63, controllers on page 73 and profiles on page 77.
RGB DIGITAL CHASING IP65
PREMIUM
CORE
ILSTRGBWC670EM Order
ILSTRGBWC671E
All 'Per Metre' SKUs are supplied with a cable connector.
ILSTAA515 STRIP JOINING CONNECTOR
ILSTAA517 FLEXIBLE CORNER CONNECTOR
ILSTAA516 2M CABLE CONNECTOR
ILSTAA518 L-CONNECTOR
ILSTRGBWC630EM Order length as a quantity per metre
ILSTRGBWC631E 5m reel
ILSTRGBWC635E 30m reel
All 'Per Metre' SKUs are supplied with a cable connector.
ILSTAA513
STRIP JOINING CONNECTOR
ILSTAA514 CABLE CONNECTOR WITHOUT TAIL
ULTRALONG
Extending your linear LED strip installations to the full extent of your space, Ultralong MAX achieves the longest run lengths using a single constant voltage driver.
ULTRALONG MAX20 CORE
ULTRALONG MAX20 CORE
IP20 DRY AREAS OUTDOOR IP67
With Functional illumination levels, MAX20 is the ultimate solution for coves and coffers in drop ceilings, allowing run lengths up to 20m from a single driver, or up to 40m when powered from both ends simultaneously.
ILSTWHIA900EM Order length as a quantity per metre 960 lm/m 2700K
ILSTWHIA903E
ILSTWHIA910EM Order length as a quantity per metre 990 lm/m 3000K
ILSTWHIA913E
ILSTWHIA920EM Order length as a quantity per metre 1044 lm/m 4000K
ILSTWHIA923E
All 'Per Metre' SKUs are supplied with a cable connector.
ILSTAA522 STRIP JOINING CONNECTOR
ILSTAA524
FLEXIBLE CORNER
CONNECTOR
ILSTAA523 2M CABLE CONNECTOR
ILSTAA525 L-CONNECTOR
View drivers on page 63, controllers on page 73 and profiles on page 77.
Extending the features of Ultralong to exterior spaces, MAX20 IP67 offers the protection of a silicone low extrusion to keep water at bay. Ideal for exterior spaces or demanding interior environments where water is a concern. Use MAX20 IP67 in pergolas, under handrails, in public spaces and to illuminate pathways.
ILSTWHIC900EM Order length as a quantity per metre
ILSTWHIC903E
ILSTWHIC910EM Order length as a quantity per metre
ILSTWHIC913E
ILSTWHIC920EM Order length as a quantity per metre
ILSTWHIC923E
All 'Per Metre' SKUs are supplied with a cable connector.
ILSTAA526
STRIP JOINING CONNECTOR
ILSTAA528
FLEXIBLE CORNER
CONNECTOR
ILSTAA527 2M CABLE CONNECTOR
Pair with IP67 drivers on page 69.
ULTRALONG MAX30 PREMIUM
ULTRALONG MAX30 PREMIUM
IP20 DRY AREAS OUTDOOR IP67
Harnessing the full extent of 48V technology and pairing it with unparalleled uniformity, MAX30 is a generational leap forward in spotless LED strip lighting. Achieving runs of up to 30m on a single driver, or 60m when powered from both ends, MAX30 is the pinnacle of premium LED strip lighting. Ideal for any interior space where extreme lengths are needed without sacrificing spotless lighting.
ILSTWHIA960EM Order length as a quantity per metre
ILSTWHIA964E
ILSTWHIA970EM
ILSTWHIA974E
ILSTWHIA980EM Order length as a quantity per metre
ILSTWHIA984E
All 'Per Metre' SKUs are supplied with a cable connector.
View drivers on page 63, controllers on page 73 and profiles on page 77.
Pairing the latest spotless COB technology with an IP67 silicone extrusion “jacket” for full environmental protection provides an unrivalled LED strip lighting performance. MAX30 IP67 is the true solution for exterior spaces requiring complete uniformity with spotless LED lighting. Use MAX30 IP67 in pergolas, under handrails, in public spaces and to illuminate pathways.
ILSTWHIC960EM Order length as a quantity per metre
ILSTWHIC964E
ILSTWHIC970EM Order length as a quantity per metre
ILSTWHIC974E
ILSTWHIC980EM Order length as a quantity per metre
ILSTWHIC984E
All 'Per Metre' SKUs are supplied with a cable connector.
Pair with IP67 drivers on page 69.
ULTRALONG MAX50 CORE
ULTRALONG MAX50 CORE
IP20 DRY AREAS OUTDOOR IP67
When lighting installations need extreme run lengths, MAX50 delivers peak performance up to 50m using a single driver, or 100m when powered from both ends. For the largest ceilings, the longest corridors and the most expansive spaces, MAX50 delivers a truly complete lighting solution without compromise.
For truly expansive exterior spaces, MAX50 IP67 delivers run lengths up to 50m using a single driver, or 100m when powered from both ends, without compromising water and dust protection. The IP67 silicone low extrusion “jacket” surrounds your LED strip lighting to keep it safe from torrential rain, puddles and full immersion whilst maintaining light quality.
ILSTWHIA930EM Order
ILSTWHIA935E
ILSTWHIA940EM Order length as a quantity per metre
ILSTWHIA945E
ILSTWHIA950EM Order length as a quantity per metre
ILSTWHIA955E
All 'Per Metre' SKUs are supplied with a cable connector.
ILSTAA507
ILSTAA509
FLEXIBLE CORNER
CONNECTOR
lm/m 4000K
View drivers on page 63, controllers on page 73 and profiles on page 77.
ILSTWHIC930EM Order length as a
ILSTWHIC935E
ILSTWHIC940EM Order length as a quantity per metre
ILSTWHIC945E
ILSTWHIC950EM Order length as a quantity per metre
ILSTWHIC955E
All 'Per Metre' SKUs are supplied with a cable connector.
ILSTAA530
ILSTAA531
FLEXIBLE CORNER
CONNECTOR
Pair with IP67 drivers on page 69.
BENDY
Whether for furniture, joinery or complex architectural details, Bendy delivers refined linear lighting in tight confines.
BENDY IP20 AMBIENT DRY AREAS
BENDY IP20 AMBIENT
With an intricately detailed 6mm wide layout allowing for tight bends and difficult patterns, Bendy delivers lighting to add warm accents to your interior projects. Install in furniture and joinery, or detailed architectural elements, to truly enhance your interior space.
View drivers on page 63, controllers on page 73 and profiles on page 77.
ULTRA-SLIM CRIMP CONNECTORS
ILSTAA519 STRIP JOINING CONNECTOR
ILSTAA521
FLEXIBLE CORNER CONNECTOR
ILSTAA520 2M CABLE CONNECTOR
CORE
ILSTWHIA680EM Order length as a quantity per metre
ILSTWHIA681E 5m reel
ILSTWHIA685E 10m reel
ILSTWHIA690EM Order length as a quantity per metre
ILSTWHIA691E 5m reel
ILSTWHIA695E 10m reel
All 'Per Metre' SKUs are supplied with a cable connector.
DRIVERS
Designed and built using highly reliable components, Integral LED drivers deliver the best performance and solution for both commercial and residential lighting applications.
CHOOSING THE RIGHT DRIVER
HOW MUCH LED STRIP PER DRIVER?
For example, if your driver is 100W, that means you can use up to 100W of LED strip on your driver
Find the watts per metre for the desired strip. For example, 4 watts per metre
Multiply this by the number of metres needed. For example, 6 metres
Use a driver of 24 watts or more. 4W
Find the wattage of the driver
4 w/m x 6 m = 24
WILL YOUR DRIVER BE EXPOSED TO MOISTURE?
If your driver can be hidden in an internal wall or ceiling, then use an IP20 driver.
If you driver has to be exposed to moisture, then use a driver rated to IP66 or better.
DO YOU NEED DIMMING?
If not, a non-dimmable driver will do, see page 66.
If you’re using a mains dimmer, then select an option from the Mains Dim category on page 68.
If you are using a DALI control system, then select a DALI driver on page 69.
NON-DIMMABLE
ILDRCVA046 / ILDRCVA047 / ILDRCVA087
ILDRCVA086
ILDRCVA048
COMPACT
| Constant voltage driver
| Suitable for all tape except Ultralong MAX 30 and MAX50
ILDRCVA058 / ILDRCVA059 / ILDRCVA060
/ ILDRCVA067 / ILDRCVA068
SHALLOW
| Constant voltage driver
| Suitable for all tape except Ultralong MAX 30 and MAX50
PRODUCT CODE WATTS DIMENSIONS
ILDRCVA058
LONG & SLIM
| Constant voltage driver
| Suitable for all tape except Ultralong MAX 30 and MAX50
24V PRODUCT CODE WATTS DIMENSIONS ILDRCVA065
ILDRCVC052
ILDRCVC128
ILDRCVC130
ILDRCVC053
ILDRCVC075
ILDRCVC132
HLG-240H-48A / HLG-320H-48A / HLG-480H-48A
| Constant voltage driver
| Best paired with Ultralong MAX 20
| Constant voltage driver
| Best paired with Ultralong MAX 30 and MAX
MAINS DIMMABLE
ILDRCVA103
ILDRCVA105
ILDRCVA107
ILDRCVA104
ILDRCVA106
COMPACT
| Constant voltage driver
| Suitable for all tape except Ultralong MAX 30 and MAX50
PRODUCT
ILDRCVC115 ILDRCVC116
IP20 24V
| Constant voltage driver
| Best paired with Ultralong MAX 20 24V IP67
PRODUCT CODE WATTS DIMENSIONS
ILDRCVC115
COMPACT
| Constant voltage driver
| Suitable for all tape except Ultralong MAX 30 and MAX50 ILDRCVA110
PRODUCT
ILDRCVA108
ILDRCVA111
IP RATED
| Constant voltage driver
| Best paired with Ultralong MAX 20
| Constant voltage driver
| Best paired with Ultralong
MULTIPORT DRIVERS & ACCESSORIES
ACCESSORY DIMMABLE DRIVERS
| Constant voltage multiport driver
| Suitable for all tape except Ultralong MAX 30 and MAX50
IP20 24V
IP20 24V SPLITTERS
ILDRAA125 6 port channel splitter
6 port channel splitter
LEADS
SENSORS
IP20 24V
LEADS
ILDRAA118
ILDRAA119
ILDRAA121
ILDRAA127
SENSORS
ILDRAA104
ILDRAA105
ILDRAA106
ILDRAA107
ILDRAA112
ILDRAA113
ILDRAA114
ILDRAA115
DRIVERS
ILDRCVA092
ILDRCVA093
ILDRCVA094
SPLITTERS
ILDRAA125
ILDRAA126
CONNECTOR
CONTROLLERS
Integral LED provides a wide range of controller options, from simple receiver and remote sets, to separate receivers with your preferred remote. Choose from handheld and wall-mounted remotes which control colour changes and brightness with the touch of a finger.
RECEIVER
RGB DIGITAL CHASING SINGLE CCT
PRODUCT CODE
DESCRIPTION
CONNECTION
CONSTANT VOLTAGE
PRODUCT CODE
DESCRIPTION
CONNECTION FOR USE WITH
PRODUCT CODE
DESCRIPTION
CONNECTION
CONSTANT
ILCTCAS-RM05-M Universal handheld & wall bracket 4 zone, wall-mounted touch
PROFILES
With endless possibilities for LED strip lighting, Integral offers a comprehensive range of high-quality aluminium profiles to match any application. Designed for versatility, our profiles are perfect for walls, floors, stairs, ceilings and shelving. Each one is expertly engineered for specific installations, including surface-mounted, recessed, plaster-in, and tile-in, whilst our bendable profile lets you create smooth, seamless curves.
To enhance and protect your installation, we offer clear and frosted diffuser options that not only provide a polished finish but also help to optimise and enhance light output to suit your space.
PROFILE CATEGORIES
FIND THE RIGHT PROFILE TO FIT YOUR STRIP
UP TO 8MM STRIP
PREMIUM ONLY 8
SUBTLE AMBIENT FUNCTIONAL
UP TO 10MM STRIP
CORE & PREMIUM
SUBTLE
AMBIENT
FUNCTIONAL
BRIGHT
RGB DIGITAL CHASING
MAX 20 IP20
MAX 30 IP20
UP TO 12MM STRIP
CORE & PREMIUM
SUBTLE
AMBIENT FUNCTIONAL BRIGHT RGBW
RGB DIGITAL CHASING
ULTRALONG IP20
14.5
UP TO 14.5MM STRIP CORE & PREMIUM
SUBTLE AMBIENT FUNCTIONAL
BRIGHT
RGBW
RGB DIGITAL CHASING
ULTRALONG IP20
MAX 20 IP67
MAX 30 IP67
16.5
UP TO 16.5MM STRIP CORE & PREMIUM
ALL STRIP
UP TO 8MM PREMIUM TAPE
RECESSED SUPER-FINE LINEAR
INSTALLATION
This deep recessed aluminium profile is designed to create a superfine linear lighting effect, measuring just 2.5mm wide. It can be seamlessly installed in wooden surfaces such as furniture and wall panels, as well as directly into walls, offering a sleek and modern lighting solution.
ILPFR067
ILPFR068
ILPFA069
1m 2 end caps, 11 screws
2m 2 end caps, 22 screws
UP TO 10MM TAPE
GENERAL APPLICATION
INSTALLATION
* NOTE: Use both sealing plugs and end caps, and apply a suitable silicone sealant to the end caps to maintain the IP65 rating.
This slim surface-mounted aluminium profile is ideal for wooden furniture applications such as shelving and cabinets. By using the accessories provided and sealing to an IP65* level, this profile can be installed in indoor environments where moisture exposure is expected.
IP65
ILPFS184
1m 2 end caps, 2 sealing plugs, 4 screws, 2 mounting brackets
ILPFS185 Frosted 2m 2 end caps, 2 sealing plugs, 4 screws, 4 mounting brackets
ILPFA186
/ ILPFS185
/ ILPFS185
UP TO 10MM TAPE
GENERAL APPLICATION
INSTALLATION
* NOTE: Use both sealing plugs and end caps, and apply a suitable silicone sealant to the end caps to maintain the IP65 rating.
This surface-mounted aluminium profile is ideal for wooden furniture applications such as shelving and cabinets. By using the accessories provided and sealing to an IP65* level, this profile can be installed in indoor environments where moisture exposure is expected.
ILPFS188
1m 2 end caps, 2 sealing plugs, 4 screws, 2 mounting brackets
ILPFS189 Frosted 2m 2 end caps, 2 sealing plugs, 4 screws, 4 mounting brackets
/ ILPFS189
UP
TO 10MM TAPE
INSTALLATION
This recess mounted aluminium profile is ideal for wooden furniture applications such as shelving and cabinets.
ILPFR023 Clear 2m 2 end caps, 4 mounting brackets
ILPFR024 Frosted 1m 2 end caps, 2 mounting brackets
ILPFR025 Frosted 2m 2 end caps, 4 mounting brackets
/
/
UP TO 10MM TAPE
INSTALLATION
* NOTE:
Use both sealing plugs and end caps, and apply a suitable silicone sealant to the end caps to maintain the IP65 rating.
This recess mounted, slimline, aluminium profile is ideal for wooden furniture applications such as shelving and cabinets. By using the accessories provided and sealing to an IP65* level, this profile can be installed in indoor environments where moisture exposure is expected.
INCLUDED
ILPFR083 Frosted 1m 1m plate, 2 end caps, 2 sealing plugs, 4 screws, 2 mounting brackets
ILPFR084 Frosted 2m 2m plate, 2 end caps, 2 sealing plugs, 4 screws, 4 mounting brackets
ILPFA085
ILPFA086
ILPFA087
Profile end cap with cable entry
Profile end cap without cable entry
Profile silicon sealing plug with cable entry
ILPFA088 Profile silicon sealing plug without cable entry
ILPFA089 Profile mounting bracket
COMPATIBLE WITH INCLUDED?
ILPFR083 / ILPFR084 Included
ILPFR083 / ILPFR084 Included
ILPFR083 / ILPFR084 Included
ILPFR083 / ILPFR084 Included
ILPFR083 / ILPFR084 Included
UP TO 10MM TAPE
GENERAL APPLICATION
INSTALLATION
This versatile general-purpose aluminium profile is designed for indoor use, offering both surface-mounted and recessed installation options. Its slim, minimalist design seamlessly integrates into any space, while the easy-to-install clip-in clear or frosted diffusers provide a optimised lighting. Perfect for walls,
bookcases, stairs and under kitchen cabinets.
UP
TO 10MM TAPE
INSTALLATION
* NOTE:
Use both sealing plugs and end caps, and apply a suitable silicone sealant to the end caps to maintain the IP65 rating.
This recess mounted, slimline, aluminium profile is ideal for wooden furniture applications such as shelving and cabinets. By using the accessories provided and sealing to an IP65* level, this profile can be installed in indoor environments where moisture exposure is expected.
PRODUCT
ILPFR076 Frosted 1m 1m plate, 2 end caps, 2 sealing plugs, 4 screws, 2 mounting brackets
ILPFR077 Frosted 2m 2m plate, 2 end caps, 2 sealing plugs, 4 screws, 4 mounting brackets
PRODUCT CODE DESCRIPTION COMPATIBLE WITH INCLUDED?
ILPFA078
ILPFA079
ILPFA080
Profile end cap with cable entry, includes 2 screws
Profile end cap without cable entry includes 2 screws
Profile silicon sealing plug with cable entry
ILPFR076 / ILPFR077 Included
ILPFR076 / ILPFR077 Included
ILPFR076 / ILPFR077 Included
ILPFA081 Profile silicon sealing plug without cable entry ILPFR076 / ILPFR077 Included
ILPFA082 Profile mounting bracket
ILPFR076 / ILPFR077 Included
UP TO 10MM TAPE
INSTALLATION
This recess mounted, slimline, aluminium profile is ideal for wooden furniture applications such as shelving and cabinets. Comes with a clear or frosted clip-in diffuser.
1m 2 end caps, 2 mounting brackets
ILPFR198 Clear 2m 2 end caps, 4 mounting brackets
ILPFR199 Frosted 1m 2 end caps, 2 mounting brackets
ILPFR200 Frosted 2m 2 end caps, 4 mounting brackets
/ ILPFR198 / ILPFR199 / ILPFR200 Included ILPFA020 Profile end cap with cable entry
/ ILPFR198 / ILPFR199 / ILPFR200 Included ILPFA021 Profile mounting bracket
/
IP20
UP TO 12MM TAPE
BENDABLE
INSTALLATION
NOTE: This profile cannot be bent to a right angle
This bendable surface-mounted aluminium profile is perfect for applications requiring flexibility, effortlessly adapting to various angles and irregular shapes with a minimum bending radius of 10cm.
ILPFB146 Frosted 1m 2 end caps, 2 mounting brackets ILPFB147 Frosted 2m 2 end caps, 4 mounting brackets
ILPFA148* Profile connector ILPFB146 / ILPFB147 Sold separately
ILPFA149 Profile end cap with cable entry ILPFB146 / ILPFB147 Included
ILPFA150 Profile end cap without cable entry ILPFB146 / ILPFB147 Included
ILPFA151 Profile mounting bracket
/ ILPFB147 Included
* ILPFA148 connector is used to extend the length of profile, eg. 1m + 2m
UP TO 12MM TAPE
GENERAL APPLICATION
INSTALLATION
This versatile general-purpose aluminium profile is designed for indoor use, offering both surface-mounted and recessed installation options. Its slim, minimalist design seamlessly integrates into any space, while the easy-to-install clip-in black or white frosted diffusers provide a optimised lighting. Perfect for walls, furniture, bookcases, stairs and under kitchen cabinets.
ILPFS048B
Included
Included
/ ILPFS049 Included
Included
Included
UP TO 12MM TAPE
GENERAL APPLICATION
INSTALLATION
This versatile general-purpose aluminium profile is designed for indoor use, offering both surface-mounted and recessed installation options. Perfect for walls, furniture, bookcases, stairs and under kitchen cabinets.
UP TO 12MM TAPE
TILE-IN
INSTALLATION
This recess mounted profile is designed to be tiled into interior walls and ceilings to create linear lighting effects. The L-shape trim makes it easy to fit into plaster or concrete materials and cover the trim with ceramic tiles for a seamless finish.
UP TO 12MM TAPE
INSTALLATION
This recess mounted, slimline, aluminium profile is ideal for wooden furniture applications such as shelving and cabinets. Comes with a black or white, frosted clip-in diffuser.
IP20
UP TO 12MM TAPE
GENERAL
APPLICATION ROUNDED DIFFUSER
INSTALLATION
This surface-mounted aluminium profile features a round diffuser for a wider beam angle, ensuring even light distribution. Designed for indoor use, it is ideal for walls, furniture, bookcases, under kitchen cabinets and stairs.
UP TO 12MM TAPE
GENERAL APPLICATION TUBE
INSTALLATION
This surface-mounted aluminium profile features a round diffuser, creating a sleek, tube-like lighting effect. Designed for indoor use, it is perfect for walls, furniture, bookcases, under kitchen cabinets and stairs.
ILPFO122 Frosted 1m 2 end caps, 2 screws, 2 mounting brackets
ILPFO123 Frosted 2m 2 end caps, 2 screws, 4 mounting brackets
ILPFA124 Profile end cap with cable entry
/ ILPFS123 Included ILPFA125 Profile end cap without cable entry
/ ILPFS123 Included ILPFA126 Profile mounting bracket
/ ILPFS123 Included
UP TO 12MM TAPE
FLOOR INDOOR
INSTALLATION
This recess mounted aluminium profile is designed for a variety of floor lighting applications, including soft lighting along indoor pathways such as offices and theatres and next to skirting boards. Its slim design also allows for installation in walls and ceilings, creating a continuous linear lighting effect.
ILPFR094
1m 2 end caps ILPFR095
2m 2 end caps
UP TO 12MM TAPE
FLOOR INDOOR
INSTALLATION
This recess mounted, aluminium profile is designed for a wide range of floor lighting applications including soft lighting along indoor pathways such as offices and theatres and along skirting boards. Suitable for indoor use.
ILPFR098
2m 2 end caps
UP TO 12MM TAPE
FLOOR INDOOR
INSTALLATION
NOTE: For decorative use only, not designed for walking over.
This surface-mounted aluminium profile offers a modern solution for floor lighting, eliminating the need for recessed channels. It’s perfect for soft lighting along the edges of indoor pathways in spaces like offices and theatres, as well as along skirting boards. It can also be mounted on ceilings to create an ultra-low-profile luminaire. For decorative use only, not designed for walking over.
UP TO 12MM TAPE
STAIR UPWARD AND FRONT LIGHT
INSTALLATION
This surface-mounted aluminium profile is designed to illuminate staircases and features two diffuser channels:
1. Upward diffuser – Defines each step, providing safety and visibility, especially in low-light environments like cinemas.
2. Front diffuser – Illuminates the next step down, ensuring a smooth, well-lit transition between steps.
Suitable for indoor use.
UP TO 12MM TAPE
STAIR UPWARD LIGHT
INSTALLATION
This surface-mounted aluminium profile is designed to illuminate staircases. Featuring an upward diffuser that defines each step, providing safety and visibility, especially in low-light environments like cinemas.
Suitable for indoor use.
UP TO 12MM TAPE WALL
INSTALLATION
This recess mounted aluminium profile is designed to provide a wash of light across interior walls, including along corridors or running parallel to staircases. The profile can be installed directed either upwards or downwards depending on the feature you wish to highlight.
Suitable for indoor use.
UP TO 12MM TAPE
RECESSED 70 DEGREE ANGLE
INSTALLATION
This recess mounted aluminium profile is designed to direct the light output at a 70° angle, providing targeted illumination. Ideal for wooden furniture applications such as bookcases and wardrobes, it is also perfect for retail clothing displays, enhancing product visibility with stylish, angled lighting.
ILPFR090 Frosted 1m 2 end caps
ILPFR091 Frosted 2m 2 end caps
Included
UP TO 12MM TAPE
SUSPENDED
INSTALLATION
* NOTE: Recommended use of 2 X ILPFA130 for each profile.
This round aluminium and polycarbonate profile can create tubes of light for an impactful effect. Suitable for indoor use, this profile can be mounted on a wall, suspended from the ceiling or installed inside wardrobes or bookcases.
2 mounting brackets
2m 2 end caps, 4 mounting brackets
ILPFA129 Profile end mounting holder
/ ILPFO128 Sold separately
ILPFA130 Profile suspension steel wire ILPFO127 / ILPFO128 Sold separately
ILPFA132 Profile end cap with cable entry ILPFO127 / ILPFO128 Included ILPFA133 Profile end cap without cable entry ILPFO127 / ILPFO128 Included
Profile mounting bracket ILPFO127 / ILPFO128 Included
UP TO 12MM TAPE
TILE-IN INNER CORNER
INSTALLATION
This recess mounted profile is designed to be tiled into inner corners of interior walls and ceilings. The L-shape trim makes it easy to fit into plaster or concrete materials and cover the trim with ceramic tiles for a seamless finish.
1m 2 end caps
2m 2 end caps
UP TO 12MM TAPE
TILE-IN OUTER CORNER
INSTALLATION
This recess mounted profile is designed to be tiled into outer corners of interior walls and ceilings. The L-shape trim makes it easy to fit into plaster or concrete materials and cover the trim with ceramic tiles for a seamless finish.
UP TO 14.5MM TAPE
CORNER
INSTALLATION
This surface-mounted aluminium corner profile is designed to direct the light output at a 45° angle, providing targeted illumination. Designed for indoor use, it is ideal for corner surfaces, including walls, furniture, deep bookcases, kitchen cabinet undersides, stairs and reception counters. The profile comes with a choice of clear, black frosted or white frosted diffusers, allowing you to customise the lighting effect to suit your space.
UP TO 16.5MM TAPE
GENERAL APPLICATION
INSTALLATION
This versatile general-purpose aluminium profile is designed for indoor use, offering both surface-mounted and recessed installation options. The 16mm design can accommodate wider strip or two strips next to each other to provide a higher lumen output. Perfect for walls, furniture, bookcases, stairs and under kitchen cabinets.
UP TO 16.5MM TAPE
GENERAL APPLICATION
INSTALLATION
This versatile general-purpose aluminium profile is designed for indoor use, offering both surface-mounted and recessed installation options. The 16mm design can accommodate wider strip or two strips next to each other to provide a higher lumen output. Perfect for walls, furniture, bookcases, stairs and under kitchen cabinets.
ILPFS063 Frosted 2m 2 end caps, 4 mounting brackets IP20
ILPFS062 Frosted 1m 2 end caps, 2 mounting brackets
ILPFA064 Profile end cap with cable entry ILPFS062 / ILPFS063 Included
ILPFA065 Profile end cap without cable entry ILPFS062 / ILPFS063 Included
ILPFA066 Profile mounting bracket ILPFS062 / ILPFS063 Included
UP TO 16.5MM TAPE
WALL UP AND DOWN LIGHT
INSTALLATION
This surface-mounted, aluminium profile is designed to utilise two lengths of strip to provide two-way illumination, either up and down or left and right, depending on installation. The special design allows for a suitable-size driver to be accommodated within the extrusion and within close proximity to the LED strips.
Suitable for indoor use.
ILPFS117
ILPFS118
1m 2 end caps, 8 screws
2m 2 end caps, 8 screws
/
UP TO 16.5MM TAPE
SUSPENDED WIDE BEAM
INSTALLATION
This round aluminium and polycarbonate profile creates striking tubes of light for a bold effect. Designed for indoor use, it features a frosted diffuser that provides a wide, even beam of light, perfect for enhancing any space.
ILPFO135 Frosted 1m 2 end caps, 2 screws, 2 suspension kits
ILPFO136 Frosted 2m 2 end caps, 2 screws, 2 suspension kits
ILPFA137
ILPFA138
Profile end cap with cable entry, includes 1 screw ILPFO135 / ILPFO136 Included
Profile end cap without cable entry, includes 1 screw
ILPFA139 Profile suspension steel wire
/ ILPFO136 Included
/ ILPFO136 Included
IP20
UP TO 16.5MM TAPE
PLASTER-IN
ILPFR164 Frosted 1m 2 end caps
ILPFR165 Frosted 2m 2 end caps
ILPFR175* Frosted 1m 2 end caps
ILPFR176* Frosted 2m 2 end caps
INSTALLATION
NOTE:
| Using the ILPFA166 connector you can extend the length of the profile e.g. 1M + 2M
| Using the ILPFA167 connector, the profile can be joined together to allow for the light to flow around corners in a seamless fashion. You can also cut the profile at 45º degrees and use the connectors to create squares of light.
This recess mounted aluminium profile is designed to be plastered into interior walls and ceilings to create linear lighting effects. The L-shape trim makes it easy to fit into plasterboard or concrete materials and apply plastering material over the top for a seamless finish. ILPFR164 / ILPFR165 ILPFR175 / ILPFR176
ILPFA166 Profile flat connector
ILPFA167 Profile right angle connector
ILPFA168
ILPFA169
ILPFA177
Profile end cap with cable entry
Profile end cap without cable entry
Profile end cap, dual purpose with / without cable entry
/ ILPFR165 Sold
/ ILPFR165 Sold separately
/ ILPFR165 Included
/ ILPFR165 Included
/ ILPFR176 Included
CONNECTOR ILPFA167
UP
TO 16.5MM TAPE
GENERAL APPLICATION HEAT SINK PLATE
INSTALLATION
This flat, surface-mounted aluminium plate serves as a heat sink for LED strips, offering an efficient and cost-effective solution for heat dissipation. Designed for use on walls and ceilings, it helps extend the lifespan of the LED chipset by ensuring optimal thermal management.
This is especially important for high wattage strips, where power output exceeds 15W/m. In addition, LED strips will adhere better to the plate than to some wooden and plastic surfaces.
PROFILE SCALE DRAWINGS
PROFILE SCALE DRAWINGS
UK HEAD OFFICE
Unit 6 Iron Bridge Close
Iron Bridge Business Park London, NW10 OUF United Kingdom
+44 (0) 208 451 8700 ledsales@integral-led.com www.integral-led.com
FRANCE
Integral Europe SARL 38 Ter Rue de Verdun 92150 Suresnes France
+33 1 41 44 73 00 salesfr@integraleurope.com www.integral-led.com
NETHERLANDS
Integral Europe B.V. Keerkring 33 2801 DG Gouda The Netherlands
+31 (0) 85 13 03554 netherlands@integraleurope.com www.integral-led.com
