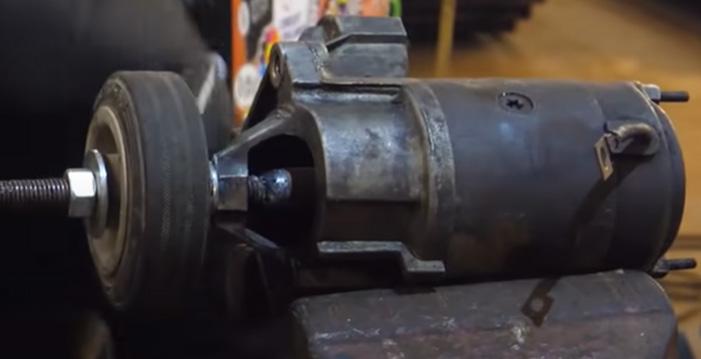

Figure 3: the completed motor

Next up make a bracket on the bicycle to mount your motor on the front wheel, make sure the wheel on the motor is nicely in the middle of the bicycles wheel and pressing firmly on the wheel. The bracket can look something like in the picture below: Now all that’s left to do is some wiring and mounting the battery to the luggage rack of the bicycle. For the wiring, you run two thick wires to the positive and ground of the motor. You wire your push button in such a fashion that it activates the start relay which in turn activates the solenoid on the starter motor. The wiring scheme can be found below:

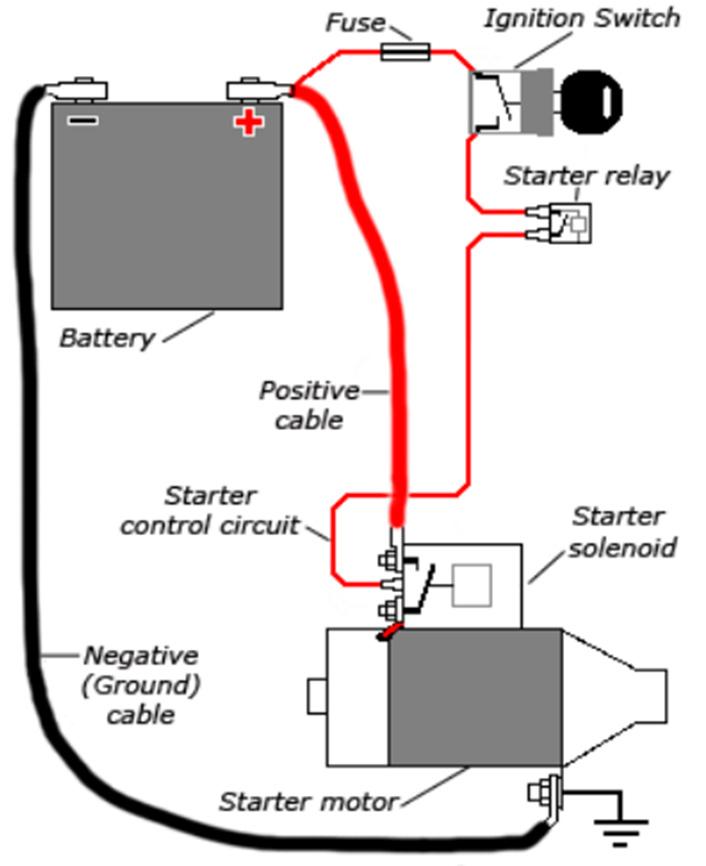

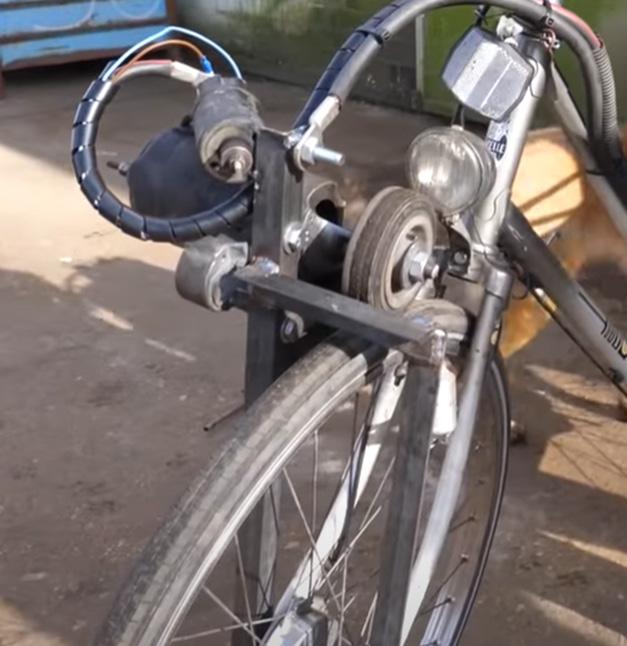

Figure 4: the motor mounted to the front wheel Figure 5: wiring scheme Finally, strap your battery to your luggage rack, attach the battery to the wiring using the battery clamps and mount your push button to your handle bars in a location which can be easily accessed with your thumb (the push button will be the throttle). Once you completed all these steps you can get on your newly “gebeunde” electric bicycle. Press the button and hold on tightly, this setup should allow you to drive without even peddling at speeds up to 40 km/u!

Disclaimer: we (beunmissie/Innovum/the author of this article) do not take any responsibility for trouble you may get with the police because you are driving a bootleg electric scooter. Next to that do we also not guarantee that the bike has a long action radius or that it doesn’t light on fire after.
