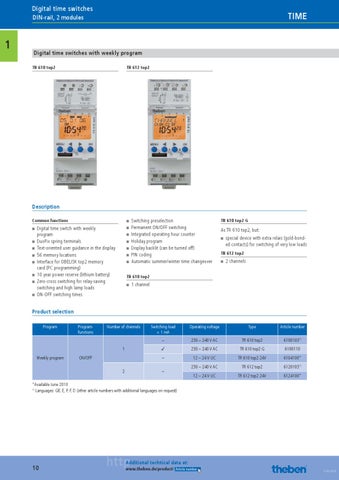

Digital time switches
TIME
DIN-rail, 2 modules
1
Digital time switches with weekly program TR 610 top2
TR 612 top2
Description Common functions ■ ■ ■ ■ ■ ■ ■ ■
■
Digital time switch with weekly program DuoFix spring terminals Text-oriented user guidance in the display 56 memory locations Interface for OBELISK top2 memory card (PC programming) 10 year power reserve (lithium battery) Zero-cross switching for relay-saving switching and high lamp loads ON-OFF switching times
■ ■ ■ ■ ■ ■
Switching preselection Permanent ON/OFF switching Integrated operating hour counter Holiday program Display backlit (can be turned off) PIN coding Automatic summer/winter time changeover
TR 610 top2 G
As TR 610 top2, but: ■
special device with extra relais (gold-bonded contacts) for switching of very low loads
TR 612 top2 ■
2 channels
TR 610 top2 ■
1 channel
Product selection Program
Programfunctions
Number of channels
1 Weekly program
ON/OFF
Switching load < 1 mA
Operating voltage
Type
Article number
–
230 – 240 V AC
TR 610 top2
61001031)
✓
230 – 240 V AC
TR 610 top2 G
6100110
– 2
–
12 – 24 V UC
TR 610 top2 24V
6104100*
230 – 240 V AC
TR 612 top2
61201031)
12 – 24 V UC
TR 612 top2 24V
6124100*
*Available June 2010 1) Languages: GB, E, P, F, D (other article numbers with additional languages on request)
10
Catalogue_EN_2010.indb 10
http
Additional technical data at: www.theben.de/product/ Article number
