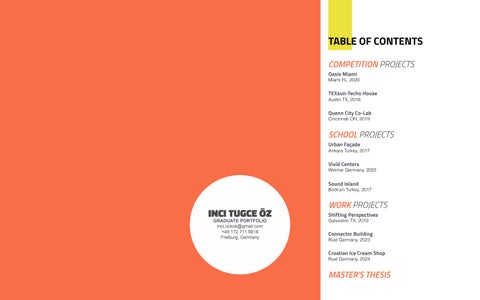

TABLE OF CONTENTS COMPETITION PROJECTS Oasis Miami

Miami FL, 2020

TEXsun-Techo House Austin TX, 2018

Quenn City Co-Lab Cincinnati OH, 2019

SCHOOL PROJECTS Urban Façade

Ankara Turkey, 2017

Vivid Centers

Weimar Germany, 2022

Sound Island

Bodrum Turkey, 2017

INCI TUGCE ÖZ GRADUATE PORTFOLIO inci.uckok@gmail.com +49 172 711 5618 Freiburg, Germany

WORK PROJECTS Shifting Perspectives Galveston TX, 2019

Connector Building Rust Germany, 2023

Croatian Ice Cream Shop Rust Germany, 2024

MASTER’S THESIS

COMPETITION PROJECTS 1

Oasis Miami

Miami FL, 2020

TEXsun-Techo House

2 Austin TX, 2018

Quenn City Co-Lab

3 Cincinnati OH, 2019

OASIS MIAMI

ULI Hines Student Urban Design and Development Competition

Urban Development Project

Miami is a cultural confluence of Latin America, the Caribbean, and southeastern Florida. OASIS preserves this unique convergence and its fruits of labor in a sheltered urban escape.

Four major goals are harnessing and expanding the area’s existing creative economies and cultures; linking previously divided neighborhoods with new modes of transit in a lush harbor setting; creating a community refuge in the form of both climate resilience and anti-displacement measures; and preserving natural, open areas by incorporating

January 2020 - February 2020, Miami FL Instructors: Simon Atkinson Team Members: Ana Cantu, Lucy Hall, Italia Aguilera, Matthew Williams

sustainability features throughout the space. It results in a haven for makers, travelers, explorers.

In the near future, Miami will change rapidly due to climate change. OASIS safeguards the community from this unpredictability. Car parks are converted into impervious shelters, each equipped with provisions to sustain safety-seekers. In addition, the train station features smart modules responsible for producing energy from solar panels and harvesting and storing rainwater in below-platform cisterns.

The surrounding neighborhoods and existing site had several makers’ spaces and cultural centers.

A makers’ corridor sprouts forth and weaves its way along the western and southern edges.

28th Street is no longer accessible by car; it is dedicated to pedestrians and cyclists. A comprehensive bike plan extends through the site. Murals lining the first levels enhance the pedestrian experience.

The floodline, a great threat to the site, will soon encroach upon its eastern border. OASIS has rainwater collectors, and solar panels and gardens to mitigate flood. Green spaces have increased by 400,000 ft2.

Concept Diagram

Art Connection Residential Connection Tech-Office Connection

Master Plan

1. Jackson Health Wellness Clinic 2. Mixed-use Office & Residential 3. Mixed-use Retail & Residential 4. Parking Garage & Energy Hub 5. Hewlett Packard Office 6. Hewlett Packard Courtyard 7. Mixed-use Live-Work-Create 8. Makers Square 9. Mixed-use Office & Retail 10. Mixed-use Office & Retail 11. Mixed-use Office & Retail 12. Office, Retail & Residential - Galleries 13. Office, Retail & Residential - Galleries 14. Telemundo Hall for the Performing Arts 15. Latin American Cultural Center 16. Plaza at Edgewood Station 17. Miami Biennale + Education Center 18. 21c Hotel 19. Mixed-use Retail & Residential 20. Mixed-use Retail & Residential - Galleries 21. Mixed-use Retail & Residential

A

A’ SECTION AA’

INTERIOR SHELTER AND CAR PARK:

As the need for cars declines and the frequency of disasters increases, car park spaces will become interior shelters. Walls are sealed with strengthened concrete to prevent seepage of flood waters. Shelters are equipped with energy storage, non-perishable foods, medicine, and potable water.

RAINWATER HARVESTING PER YEAR: 4,334,212 GALLONS

SMART MODULES:

The train station features smart modules responsible for producing energy through solar panels and harvesting and storing rainwater in below-platform cisterns.

AXON GARAGE ENERGY HUB:

The additional remote parking structure stores the energy produced from the various smart modules for future uses, including the expected rise in electric vehicle owenership.

SOLAR ENERGY PRODUCTION PER YEAR: 1.808.400 KW

7% 2%

17%

28%

16%

10%

20%

Phase 1: 1,309,858 SF

16% 44% 40%

Phase 2: 416,419 SF

Train Station 9% 3%

88%

Phase 3: 660,998 SF

27th Shared Street

Land Use and Phasing Diagrams

Retail

Hotel

Public

Residential

Office

Parking

TEXSUN - TECHO HOUSE Solar Decathlon Finalist

The project is an Accessory Dwelling Unit (ADU), located in the old African-American Blackland Neighborhood of Central East Austin. The house prototype features a 1-story, 2-bedroom, 1 and ½ bath and the L-shaped base plan is made up of two main prefabricated modules 14-feet by 33-feet.

The mild winter climate in Austin allows for indoor-outdoor living from fall through spring. The L-shaped plan configuration creates spaces that blur the lines between inside and out and transforms the traditional “living area” of a small house.

The U.S. Department of Energy Solar Decathlon

August 2018 - April 2019, Austin TX Instructors: Michael Garrison Team Members: Oliver Atkinson, Kate Bomar, Asmita Dahal, Robert Lehr, Roberto Martinez, William Robert, Youssef Shabo

Operable patio doors connect the living area and the hallway to an adjoining outdoor deck. The northwestern facing orientation of the house is heavily shaded by a series of mature trees.

I have been part of the architecture team and worked on the overall design process and the plan configuration, also focused on the sun studies, daylight strategies, windows and shades, the artificial lighting system, and rainwater harvesting system individually. I have drawn the floor plan and sustainability diagrams.

Rain water collected from roof

Rain water stored in bladder

Rain water filtered and pumped into system

Rain Water Collection Solar rays heat water in collector

Cold water from system

PUBLIC | Living/Dining/Kitchen

Solar panel coverage

PRIVATE | Bedrooms/Bathrooms Water heated from roof

Passive Water Heating

10° tilt

Techo and the Rain Gardens

Solar Panel Angles

QUEEN CITY CO-LAB

ULI Hines Student Urban Design and Development Competition

Urban Development Project

This project provides socially and economically disadvantaged populations the chance to become fully integrated with the 21st-century economy. Our site invites all classes, colors, and creeds to move forward in a Co-Laboratory setting that provides an opportunity, amenity, and affordability.

The future-oriented Cincinnati Tech Foundry will focus on future trades, such as solar panel installation and smart grid maintenance. The green jobs will replace the traditional blue-collar jobs.

The site will feature mixed-use spaces with

January 2019 - February 2019, Cincinnati OH Instructors: Simon Atkinson Team Members: YsaBella Licciardi, Cody Lantelme, Christopher Goff, Jeffrey Rivas

residential, hotel, and office. Solar and hydropower will be used to provide efficient energy.

Queen City Co-Lab features a total buildout of over 3.6 million square feet at a cost of $674 million and only 1000 square feet of existing property will be demolished in total.

We designed the Co-Lab project as a team with two architecture, two city and regional planning, and one business administration student. All the architectural planning, drawings, and renders are made by me and YsaBella Licciardi.

Isaiah The Cincinnati Tech Foundry is perfectly located for me. I am in training for solar panel installation and am preparing myself for a future-proof career. #ProudFoundryStudent

Bill and Melinda We opened our growing tech start-up at the Co-Lab because of the proximity to the Cincinnati Tech Foundry which expertly trains its students. The students coming out of their program have been great for us!

Mark and Emily We recently moved to Cincinatti after Mark got a job at GE. The Co-Lab has been a vibrant, bustling place to live. We have enjoyed being so close to our favorite team, The Cincinatti Bengals.

Sophia As a Kroger executive working in downtown Cincy I love having several transportation options from my Southgate home. I love living in a bustling area yet being able to retreat at home in quiet

Louis and Jessica “We love bringing the family out to Sanctuary Park. We can make a day out of it by walking a little south and going out to eat and exploring the Queen City Co-Lab.”

Jack and Rose This past Oktoberfest was our favorite ever. We stayed at the Sideline Suites and were able to walk right out into all the festivities. The parks and open spaces were perfect for

Site Plan

Section

Phase 1 Buildout Square Footage Retail Office Affordable Multifamily 100,000 200,000 300,000 400,000 500,000 600,000

Total Phase 1: 1,188,314 SF

Phase 1

Phase 2 Buildout Square Footage Structured Parking Retail Trade School Office Affordable Multifamily

100,000 200,000 300,000 400,000 500,000 600,000

Total Phase 2: 1,319,087 SF

Phase 2

Phase 3 Buildout Square Footage Hotel Retail Office Condo Luxury Multifamily 100,000 200,000 300,000 400,000 500,000 600,000

Total Phase 3: 1,390,702 SF

Phase 3

Trade School

SCHOOL PROJECTS 1

Urban Façade

Ankara Turkey, 2017

Vivid Centers

2 Weimar Germany, 2022

Sound Island

3 Bodrum Turkey, 2017

URBAN FAÇADE

Geology Research Center

In this studio, we aim to write an architectural program that will help the projection of the beautiful Ankara Citadel. In the first site visit, the view of the mural zone was very impressive with its natural parts and the artificial walls together creating a whole. The hill looked like an “Urban Façade” in the city and I saw a huge potential beneath the Façade.

There have been many civilizations that lived in this area and used the interior of the hill. There are numerous tunnels from the Byzantine period which reused in the Seljuk period and two big shelters from

Arch 401- Architectural Design Studio V

Sep 2016 - Jan 2017, Ankara/Turkey Instructors: Ayşen Savaş, Funda Bütüner Pınar Yazdıç, Arzu Gönenç Sorguç, Onat Öktem

the 1940s, one is at the top and one at the bottom.

I continued my research with the geological structure of the hill. It consists of andesite rock which is a volcanic igneous rock formation that contains different crystals like amethyst. I examined different types to learn their formation.

After the analysis and research, I decided to design a geology research center and benefit from its already existing character. The project consists of geology education facilities and draws attention to the mural terrain’s importance for Ankara.

Amethysts inside andesite blocks

Parametric crystal formation beneath the surface

Rock formation under the surface

Parametric organization

Section

Perspective Section I followed the natural crystal formation principles to form and recreate the mural terrain by the use of digital parametric design tools.

Architectural Program Examination Field of Observation Dimensional Needs; Large and tall space, access to the rocks.

Spatial Needs; Horizontal and Vertical access routes to the rocks.

Location in the Site The bottom of the site, in line with the labs.

Rock Samples Unit Dimensional Needs; Min. 6-7 meters height, the machines have to fit.

Spatial Needs; Elevator, water or rail system to carry the rocks to the storage.

Location in the Site The bottom of the site, in line with the exhibition hall.

Rock Samples Unit

Archive and Storage Dimensional Needs; Multiple story height, connected small and large spaces.

Spatial Needs; Shelves, different storage cells, divisions and elevations.

Location in the Site The center of the site, in line with the field of observation.

Laboratories Dimensional Needs; Different laboratories, close to each other but separated.

Spatial Needs; Daylight, different spatial conditions for different labs.

Location in the Site Eastern side of the site, in line with the field of observation.

Laboratories

Researcher’s Offices Dimensional Needs; Partitioned one large space or multiple smaller units.

Spatial Needs; Connected with the labs.

Location in the Site Top of the site

Field of Observation

Exhibition Hall Dimensional Needs; A major part of it integrated with the rock samples unit.

Spatial Needs; Both the space itself and the different crystals are exhibited.

Location in the Site Middle of the site, in line with the rock samples unit and connected to it.

Archive and Storage

VIVID CENTERS

Parametric Urban Design and Analysis

As part of the Parametric Urben Design & Analysis and Urban Simulation & Modelling courses, we have advanced our knowledge and skills in Rhino, Grasshopper, and coding with C# in Grasshopper to model several Urban settings with parametric tools and run complex simulations and analyses on these numerous models and scenarios.

Vivid Center is a project where I get to experiment with these tools while learning how to use them to model and evaluate the results of the simulations based on changing variables.

PUDA 21.2 - Parametric Urban Design and Analysis

Sep 2021 - Aug 2022, Weimar/Germany Instructors: Sven Schneider, Abdulmalik Abdulmawla

This parametric city planning project started with creating urban forms: the street networks, then plots, and lastly, buildings. At each step, I have produced several urban form variants by changing design factors and variables in my algorithms, knowing that they have the longest-lasting effect on the city’s social, economic, and eco performance.

In the second stage, I got to try spatial analysis methods (density, visibility, and accessibility) to identify different (human-centered) qualities of the generated urban forms.

1. Parametric Streets

2. Parametric Plots

3. Parametric Buildings

Algorithm:

Algorithm:

Algorithm:

Varient 1: vertices=1 , n=3, 2x2 boxes

Varient 1: Plots width: 19m

st

Step 1: Define boundary and vertices

Varient 2: Plots width: 12m

Step 5: Finish by starting from the last middle point to a point on the first road.

Varient 3: vertices= 2nd, n=3, 2x2 boxes

Step 6: Use main roads to create segments in the site. Create secondary roads inside these segments in two main axes by dividing boundary box.

Average densities of all street blocks: GSI: 0.17 FAR: 0.59 OSR: 5.42

Similar Weimar Block Density

Average radiusbased densities for all buildings: GSI: 0.13 FAR: 0.37 OSR: 6.39 Number of Inhabitants (45sq.m per person for 60% of total floor area): 4967

Step 1: Define the buildable area inside the plots Step 2: By using the outer edges, create bounding boxes for plots

Step 3: To have equally distanced plots, street block edges are offseted and divided based on desired distance

Step 3: Then from middle of the first road to the "n"th vertices from the end.

Step 4: Repeat step 3 until a central road and the connections are formed.

Varient 1: Plots=0.6 ratio, < 9 floors

Step 2: Separating one street block from others to leave it empty

Step 2: Create the first main road by starting from a vertices to the "n "th vertice in relation to the starting one.

Varient 2: vertices=1st, n=2, 2x3 boxes

Step 1: Streets gained width by offset

Step 4: Create bounding boxes for each street block to be used as boundary condition for voronoi feature.

Varient 2: Plots=0.8 ratio, < 13 floors

Step 4: Create a row building footprint for the separated public/commercial street blocks

Step 5: Create plot by implementing voronoi cells into already existing street blocks

Varient 3: Another Street configuration

Step 6: Merge the small plots by using the plot cleaner for each of them to be bigger than 100 m2

Step 3: Clean the edges of building footprints for residential buildings

Step 5: Extrude the building footprints to one floor height

Varient 3: Plots=0.4 ratio, < 11 floors

GSI per block

FAR per block

OSR per block

Radius based GSI per building

Radius based FAR per building

Radius based OSR per building

Step 6: Add multiple levels to the buildings based on their distances to the centroids of the street blocks

SOUND ISLAND

Music, Culture, and Research Center

The sound island is designed to give people different experiences about sound and music. The island itself hosts different types of musical sculptures that create harmonic sounds by wind and waves. I determined the placement of these musical instruments to show all sides of the island.

Both Bodrum and Greek Islands have classical music festivals and the island can host these events and international orchestras. The design form comes from the idea of representing five periods of classical music. Each slit takes its sectional form

Arch 402- Architectural Design Studio VI

February 2017 - May 2017, Bodrum/Turkey Instructors: Celal Abdi Güzer, Lale Özgenel, Yeşim Balcıoğlu-Hatırlı, Nihan Büşra Aydın

from one of the important music pieces of each period. Thanks to these underground slits, the silhouette is protected. All of the buildings collect rainwater and perform passive design principles.

The program consists of research facilities, museums, performance halls, and accommodation units. The slits have public and private areas according to their proximity to the pier. Between the facilities, there are open areas for outdoor activities. Sound Island is a well-developed musical complex that serves different functions.

A

A D

Section BB’ B’

B

+20.00 Floor Plan

C

B

C

A

D

B

A’

Section AA’

Elevation 1

Permanent Exhibition

+12.00 Floor Plan

Foyer and open areas

WORK PROJECTS 1

Shifting Perspectives Galveston TX, 2019

Connector Building

2 Rust Germany, 2023

Ice Cream Shop

3 Rust Germany, 2024

SHIFTING PERSPECTIVES

Galveston Bay Teaching Pavilion

We were asked to build the first structure on a waterfront for a NPO dedicated to societal education about the environment and water literacy. The foundation needed an outdoor education pavilion for seventy-five students. They asked that the design be architecturally inspiring and reflect their aspirations of making the bay a better place.

We selected the name Shift because each plane of the project shifts from its accustomed location. In disaster-stricken areas, children get traumatized by water. This pavilion serves as a way for them to shift

ARC 696- Public Interest Design Advanced Studio June 2019 - August 2019, Galveston TX Instructors: Coleman Coker Team Members: S. Almendares, D. Aronson, N. Bell-Eden, G. Bostic, D. Burns, A. Ellwood, C. Kanter, B. Lawry, A. Lucas, H. Marek, L. Page, T.Schuetz, S. Taubenkimel

into a different mindset. Screens slip away from the deck and don’t engage its edges. As one moves throughout the project, views through the screens shift. Finally, the metal screens themselves shift over time as they rust, and their color will change.

We worked on the design, technical drawing, and construction parts as a team. I created concept drawings, early plans, and sections then focused on the sun studies, shading, and orientation. Lastly, in the construction phase, I worked with concrete foundations, slabs, and the framing of the floor.

Construction Phase

Metal Screen

Teaching Area

Placement of the metal screens

Welding process of the metal screens

Wooden floor frame

Placement of the wooden floor boards

The Bay View

Connector Building Rulantica Waterpark

The Connector Building is a planned extention project for the Rulantica Waterpark in Rust. It is a 4-storey building over 5000 m2 featuring a 350 indoor seating restaurant with a large industrial kitchen and service area, more than 1400 m2 resting area with sunbeds, VIP lounges, an indoor playground for kids, and an extensive underground backstage area with changing rooms for the workers, storage, and technical rooms.

It faces the Twist and Splash attraction through openings from multiple levels and terraces.

Europa-Park | Mack Solutions

May 2023 - December 2023, Rust, Germany Supervisor: Tobias Schirmer

The outdoor spaces host additional seats for the restaurant and sunbeds on the terraces for increased resting areas during summer months.

I have developed three design versions for the Connector Building from the beginning of the design phase till the completion of the building permit plans based on German regulations.

I executed preliminary cost calculations and presented different versions to the owners.

The concept design image was developed by Michelle Homburg based on Scandinavian culture.

Basement Plan

1st Floor Plan

Ground Floor Plan

Resting Areas for Customers

Kitchen and Storage Units

Restaurant

Restroom and Circulation

Service Area

Playroom for Kids

Terraces

Backstage / Employee Units

Technical Areas 2nd Floor Plan

Ice Cream Shop

Europa-Park Croatian Theme Area

The 250 m2 Ice-Cream Shop is located in the new Croatia theme area at Europa Park. It is designed to represent the Mediterranean and Croatian culture through its color, form, and material selections. It hosts a two-story restaurant and garden area for the customers to serve ice cream and waffles, a terrace facing the big new attraction Voltron Roller-coaster, and an industrial kitchen in the main block and, technical areas for the machinery and backstage units such as storage, WC, freezers on the other block. A bridge and a stair connect the two blocks.

Europa-Park | Mack Solutions

October 2022 - January 2024, Rust, Germany Supervisor: Christian Schätzle

I have co-led the project from the beginning of the design phase till the end of rough construction phase. I created several versions of the design for the owner’s approval, filled and submitted the building permit documents following German regulations, and produced the entire plan set and detail drawings for the construction.

I executed cost calculations, communicated with the other project actors to navigate offers and their services, and co-led project meetings. The design renders are crafted by Eva-Maria Graf.

24

14

Schnitt 1.3

6,42

1 Ansicht West

+3.25 14

2,62

14

125 31

4,15

4,815

24

64

2,60

50

424

1,26

30

25 1

1,86

DD 50/40

4

2,255

42

5,065

14 24

Schnitt 5

42

40

4,035

30

255 255 255 255 255 255 255 255 255 255 255 255 255 255 255 255 255

2,62

10 24 14 1,01 2,255

T0.01

255 255 255 255 255 255 255 255 255 255 255 255 255 255

1,05

29

3

35 15

701

1,09

5,876

5,28

7,57

BRH 0

F0.01 Typ 1

1,64

1

1 24 14

1,00

1,08

35 3

30 1

15

38

1 24 14 1,08

1,43

30 1

2,255

1,01

7,57

1,93 5,41

BRH 0

F0.02 Typ 1

2,255

1,01

1,20 255 255

934

1,43

ord cht N Ansi 5

14 24 13

12

2,02

+0,00 1,20

24 14

5

17

4 F0-0 2 Typ

Tecknik 5

41

Tecknik

5

82

30

E BD 15/40

14

2,33 m²

38

1,00

5

17

1,80

Schnitt 1.2

24

1,20 1,40

5,48

5,07

3,24 m²

82

cm +162 BRH RFB K üO

12,78

2,02

12,02

6

0 T0.1

10 38

30

14 24

2,81

38

10

14 24

6

cm +92 BRH RFB ü OK

2,84

2,255

2,255

2

1,15

5

5,50

1,01 2,01

30

+0,00

41

1,405

1,20

38

10 12 76 2,01

6

74

12

1,37

48

12,6

+0,35

1,08

5

2,59

1,01 2,255

1,15

13,4

9

8 T0.0

5

1,15

9,64 m²

LS DD 30/15

20 20

2,05

Lageraum

DD 15/15

2,57

1,435

38

1,15

9

1,70 cm +47 BRH RFB ü OK

2,57

6,80

9 T0.0

12

1,70 m²

BRH5,50 0

T0.12

F0.03 Typ 1

5

F0-01 Typ 2

1,01

5

2

12

BRH 0

5

24 14 14

Ice Cream Counter

1,00

Tecknik

+0,54 4,165

Ice Cream Counter

5

701

1,70 75

5

88 5 2,25

16

1,00

1,174

65

912

HS DD 20/70

5

125

65

3,90 m²

12 7

1,60

Cooler

5

2,27 m²

HLSE DD 50/100

6 T0.0

WC

18 Stg. 18,72/ 25,50

1,00

Schnitt 1.1

7 T0.0

L DD 30/80

76 5 2,25

WS 50/120

Schnitt 1.4

88 5 2,25

41,59 m²

S DD 15/15 BA 70 OG

7

Ice Cream Counter

Eisdiele

+0,00

5

WD 60/66

S DD 15/15

15

2,41

82

Preparetion

Preparetion

40,23 m²

Schnitt 1.4

1,08 15

1,53

2,59

Küche

5

3,12

5

12

7,71 m²

10

Preparetion

Schnitt 5

OKWD = +0.96 ü. RFB

12,83 m²

Spülküche

10

14 8 56

6

615

3,90

1,01 5 2,25

14,74 m²

2,71

14 8 56

6,29 m²

S DD 15/15

Korridor

15

5

615

9 12

21 14 8 56

Freezer

1,01 5 2,25

30

Tecknik

5 T0.0

3,28

148 56 105

L | OKWD = -12 u. UKRD WD 90/45

3 T0.0

L | OKWD = -12 u. UKRD WD 90/45

76 5 2,25

10

T0.02 6

Coffee Area

Schnitt 1.7

Cakes

Schnitt 1.1

Drinks

4 T0.0

DD 40/50

7

Schnitt 1.7

18 Stg. 18,72/ 25,50 VK STB Decke

24

38

38

Schnitt 1.2 12,78

24 14

2

1 T0.1

1,50

1,49

Ansicht Ost

0 24

1,11

S DD 30/82,5

90 20

38

Schnitt 1.3

86

24 14 38

14

3,58

14 24

2,64

24

1,10 5 2,25 2,82

86

2,46

24

6,42

14

24

2,84

Ground Floor Interior

Ground Floor Plan 14

24

38

6,42 5

25

5

5

3,95

5

5

5

Schnitt 1.3

5

5

5

25

25

25

25

25

25

25

25

25

25

25

1,52

5

5

25

25

5

5

5

1,61 5 2,28

10

38

25

5

25

5

24

14

25

5

5,66

14

24 14 38

1

Schnitt 1.2

Ansicht West

+3,37

9,92 9,16

2 T1.0

2,008 10 24 14

1 24 14

3,95

S BD 15/15

T1.01

1

2,285

1,20

1,43

3,305

BRH 0

1,01

F1.01 Typ 1

2,285

7,57

18

Pfosten 18/18 cm

6,81

1,93

Firstpfette 18/32 GL28h

13,4

18 344

1,806

L DD 60/60

38

5 90

1,377

24 14 1,00

5

1253,31

BS-Träger 18/44 cm GL28h

BS-Träger 18/44 cm GL28h

BRH 0

427

1,01

2,285

F1.02 Typ 1

70

5

24

25

5,44

14

76 24 14 9

5

58

24

5

24

27

10 35 22

+3,93

65

5

82

5

27

F1-15

5

24

58

1,20 70

1,80

5,86

cm +140 BRH RFB K üO 1,80

Ansicht Ost 2

2,37

5

1,03 1

1,78

95

14 4,356

9,92

5

1,235

1,50

24

72

1,43

5

38

12

1,235

5

1,235

1,256

4 T1.0

24 14

60

8h

955

12

1,25

4,00

1,20

60

8 GL2

1,825

12

25 12

1,20 1,50 9,16

60

76 5 2,13

1,825

1,00 4 F1-1 4 Typ cm +80 BRH RFB K üO

1,20

24

1,20

80

955

1,50

14

F1-05 Typ 2

100 80

38

F1-04 Typ 2

38

80

BD 15/40

14

80

5

82

10

Schnitt 1.2

BD 30/82,5

F1-1

1,79

1,49 5

1,08 14 24

6

cm +110 BRH RFB K üO 65 70

38

3,58

Schnitt 1.3 2,84

24 14 5

1,08

2,82

38

1st Floor Plan

2

18/2

3 F1-1 cm +105 BRH RFB K üO 82

F1-03 Typ 2

3 T1.0

5

F1-08 Typ 3

BD 15/15

72

F1-07 Typ 3

BD 20/20

82

F1-06 Typ 3

1,24 40

HLSE | OKWD = OK RFB WD 95/50

5

BRH +105 cm ü OK RFB

12

Korridor +3,22 3,96 m²

50

BRH +105 cm ü OK RFB

1,20 fette Firstp

BRH +105 cm ü OK RFB 4,171

BD 50/100

OKWD = +3.2 ü. RFB WD 90/40

S BD 20/70

42

F1-11 Typ 3

18

F1-10 Typ 3

38

F1-09 Typ 3

625

Schnitt 1.4

14

B R H + 10 5 c m ü O K R F B

1,235

24

Auflager BSTräger

1,036

60

1,235

24 14

BRH +105 cm ü OK RFB

137

60

1,235

2,65

24

12

60

24

1,00

14 24

4,50

ord cht N Ansi

344 18

5,51

5,71

2

1,806

38

14 24

7,57

L DD 60/60

40,74 m² Pfosten 18/18 cm

80

6,81

6,80

Tecknik

Terrasse

Schnitt 1.1 60

S BD 15/15

6,80

L BD 30/80

59

8h

Sitzbereich

Schnitt 1.4

15

S BD 15/15

0 GL2

14 24

61,44 m²

26,55 m² 22,82 m

18/4

5,66

3,35

Knicklinie +3,37

Schnitt 1.1

+3,22

1,61 5 2,28

10

7,04

24 14

1,41

4,805

fette Firstp

1,08

24 14

Schnitt 1.7

4,355

14 24

15

L BD 40/50

VK STB Decke Schnitt 1.7

DN

L BD 50/40

24

38

2,324

1,75

38

14 24

4,805

14

24 14

24 14

4,355

38

21

14 24

1st Floor Interior

7,57

499

1,889 1,42

+6,40

929

12 Auflager in Stb.-Wand für BSTräger

57

683

3,02

3,02

2,63

12

60

1,565 2,135

25

57

90

40 3,09

24

80

31 12 25

24 14

5,48

24 14

25 80

+6,40

43

31 12 25 12

12

5,86

6,80

1,396

2,57

2,135

14

-0,12

12 25 12

12 25 12

25

25 12 43

25

6,49

7,56

+0,00

8,279

69 315 14318 392

25 15 50

1,40

785

835

375 785 3,37

2,285 25

25 40 24

8,075

30

-0,12

3,37

2,525

+0,00

24 14

2,135

3,02

4,666

12,78

2,469

725

14

2,385

444

30

24

12 3,02

3,02 2,285

8,154 725

125

3,19

Section 1.2

835 30

1,01

12 30

2,57

3,04

125

30 1,535

6,81

10

+0,00

24

2,475

30 15

44 1,914 1,09 735

735

Fußpfette 16/12 cm NH C24

+3,22

+0,00

-0,12

25 12

12 25 12

125

3,85

+3,22

14 24

12 12

1,09

Firstpfette 18/44cm GL28h

12

12

2,135

2,63 30 15

15 30 15 30

2,77

2,62

12 30 0

+3,37 +3,22

8,90

2,615

24

30 20

2,135

2,77

2,89

14

31 12 25 12

25

18 26 4 10

30 635

3,94

20

43

+3,37

30

30

30

30 10

+3,37 +3,07

+3,37

24 14

2,87

9,16

2,135

Fußpfette 16/12 cm NH C24

57

735

BS-Träger 18/44 cm GL28h

2,77

3,37

12

24 20 735

20

12 129

° 35,0 BS-Träger 18/44 cm GL28h

14 24

2,135

+3,37

Firstpfette 18/32 GL28h

30

4 16 4 14

2,15

18

5,51

12 25

4,50

1,20

31 12 25 12

18

10

4,666

2,15

44

14 4 16 4

+8,15

24 14

30 15

9,16

80

14 24

264

2,48

3,02

24

264

1,08

8,279

9,92 20

2,135

2,135

166

Fußpfette 16/12 cm NH C24

Fußpfette 16/12 cm NH C24

BS-Träger 18/44 cm GL28h

735

57

44

12

22,0°

2,522

1,02

Pfosten 18/18 cm

1,919

32

Firstpfette 18/32 GL28h

499

+8,28

+8,15

18

175

2,02

175

825

24 14

2,02

175

825

24

16

25 40

2,97 3,64

24 14

31 12 25 12

68

1,205

264 1,32

Firstpfette 18/44cm GL28h

2,84

28

Fußpfette 16/12 cm NH C24

+5,92 572

316 514

25

25

25

+2,97

61

5,50 835

+0,00

1,10

1,855

1,01

3,93 1,37

1,20

1,15 1,405

1,15

90 5,50

1,15

125

52

12,90

2,135

1,10

2,41

5,66

1,15

2,97

1,10

2,97

1,81

Elevation East

Section 1.4

12

30

0

12 25 12

12 25 12

80

12 25 12

+0,00

5,60

-0,12

24 14

1,30

30 20

+3,22

3,125 1,10

43

1,30

71

5,16

90

+0,54

1,29

3,02

2,135

T0.11 1,50

+0,61

T0.08

2,74

8,154

F0-01 Typ 3

F0-01 Typ 2

T0.12 F0.03 Typ 1

1,40

1,40 1,15

60

1,15

2,36

2,135

90

3,22

1,15

1,525

1,15 1,01

18 3,11

2,74

935

14 5 16 3

635

43

1,235

78

30

UK Stb. Sturz

565

85

18

Fußpfette 16/12 cm NH C24

572

1,12

44

44

264

1,379

1,32

69

1,165

1,05

1,20

F1-16

18

1,375

745

1,00

F1-15

F1-14 Typ 4

1,794

F1-13

F1-08 Typ 3

12

1,20 F1-07 Typ 3

70

60

2,185

12

683

60

166 32

1,311

565 1,825

12

1,235

1,50

F1-05 Typ 2

+8,15

565

714

6,42 2,83

2,135

6,484

12 25

25

2,522

1,795

1,795 4,809 8,279

70

+6,40

+5,92

1,20

10,00

12,90

25,0°

1,20

1,825

80

F1-12

+6,07

14

+0,00

Section 1.3

F1-06 Typ 3

1,375

125

2,59

+8,15

60 F1-04 Typ 2

125

-0,12

14

+8,28

F1-03 Typ 2

1,215

76

80

76

2,129

12 25 12

424

+0,00 5,743

12 25 12

42

10,00 2,129

1,12

2,86

2,135

2,135

3,09

3,09

2,01

435

435

40

25

+3,22

1,74

78

125

7,60

53

14 24

18

+3,93

7,636

Section 1.1

515

11

255

255

255

11

D

16 24

5 1

2

267

267

12

12 14

4

39

85

23

D

Tronsole Typ B

55

uf m nla c pe 50 ep 5, Tr 72/2 2 cm T , F 18 en s b.

St Stg. Flıe 18 lag Be

25

25

18

2

05

60

-0,12

25

12

°

245

1

18

24

36,3

05

7

753

24

13

47

2

30

18

7

Tronsole Typ B

47

187

uf nla cm pe 50 ep 5, Tr 72/2 2 cm T , F 18 en s b.

St Stg. Flıe 18 lag Be +0,00

30

7

43

15

18

9

7

187

115

2

C

5

1

+3,37 2

B

35

1

A 3

255

187

255

H

1,50

1,39

30

30

D’ A

A’

B’

C’

G

C E

Stair - Slab Connection Detail

B F

24

Stair - Slab Connection Detail 4,189 827

8

685

8

685

8

685

8

827

8

8

E

F

G

H

8 1172511725117251172511725117 8 11725117251172511725117 8 11725117251172511725117 8 11725117251172511725117 8 1172511725117251172511725117 8

1,05

55 3

25 105

25 2

90

206

90

13

24

1,382

14 4

685

827

8

8 187

8

6,36

4

187

16

35 25

1,555

187

33

33

187

25

187

8 11725117251172511725117

785

55

187

60

25 75

187

3

10 5

3 91

23

685

8

8 11725117251172511725117

785

685

8

18

827

8

30

187

8

25

15

11725117251172511725117 25

8

65

65

323

187

23

187

187

8 11725117251172511725117

1,555

187

187

187

8 11725117251172511725117

1,475

255

255

255

255

255

255

255

255

255

255

255

255

255

255

725

255

25

255

63

725

30

A’

B’

C’

D’

30

13

2,255

2

267

2,545

187

187

187

8 11725117251172511725117

61

Section - Stair 4,035

30

25

1

18

1,20

255

255

255

255

255

255

255

255

255

255

255

255

255

12

255

1,09

Schnitt 31

15

35 3

18 Stg. 18,72/ 25,50 1

43

1,00

1,08

255

80

Drinks

VK STB Decke 255

25

25

31

12

12

125

4,15

255

95 148 56

615

14 8 56

615

14 8 56

615

14 8 56

1,05

117 25 117 2511725 11725 117 30

Schnitt

14

14

24

24

1

1

14

175

30

Plan - Stair

Elevation Designs

MASTER’S THESIS

MASTER’S THESIS Total Site EUI in June-July-August (kBtu/ft2)

Daylight and Thermal Comfort: Energy Performance Analysis of a Test Room under Different Daylight and Cooling Strategy Scenarios in Austin, Texas, and Geneva, Switzerland

27°C w/daylight 27°C with daylight 25°C w/o daylight 25°C w/daylight 0

May 2020 Supervisor: Michelle Addington, Cosupervisor: Juliana Felkner

Parameters:

Related Publication: Uckok, I. T., Addington, M., & Felkne r, J. (2021). The impact of daylight presence on cooling strategies: energy simulations of a test room in Austin, Texas, and Geneva, Switzerland.

Journal of Physics: Conference Series. 2042 012118 DOI: 10.1088/1742-6596/2042/1/012118

4

6

Electricity Consumption (kWh)

250

8

10

12

14

Font

Case 1

Case 2

Case 3

Case 4

Case 5

Case 6

Case 7

Case 8

Location

Geneva

Geneva

Geneva

Geneva

Austin

Austin

Austin

Austin

Latitude

46.25°N

46.25°N

46.25°N

46.25°N

30.29°N

30.29°N

30.29°N

30.29°N

Daylight

Yes

No

Yes

No

Yes

No

Yes

No

Cooling set-point

25°C

25°C

27°C

27°C

25°C

25°C

27°C

27°C

Date

Electricity Consumption (kWh)

In order to understand how to reduce the energy consumption in buildings, all factors affecting occupant comfort and behavior must be considered. Previous work from EPFL has elucidated the influence of daylight on thermal perception and its resulting potential to reduce cooling loads in a controlled test space in Geneva, Switzerland with three different illumination levels (130 lux, 600 lux, and 1400 lux) and under three different indoor air temperature levels (19°C, 23°C, 27°C).

Occupants perceived the temperature as up to 2°C cooler when exposed to daylight, leading to reduced cooling loads.

This thesis investigates whether daylight use and its effect on thermal comfort (Chinazzo et al., 2019) can help to reduce the total energy consumption of a test room by rearranging the cooling set-point temperature according to the reported 2°C gap, during the warmer half of the year, and if this arrangement would make a bigger impact in a place like Austin with a warmer climate and a higher cooling demand than the original experiment location, Switzerland.

The results show that the impact of daylight use to reduce energy consumption is affected by two main factors: the location and its level of cooling demand and solar characteristic, and the cooling setpoint temperature level arrangement. In other words, if a location has lower cooling demand and mild solar conditions in summer, like Geneva, and the cooling setpoint temperature is arranged to be higher, a bigger impact on energy efficiency due to daylight use can be expected.

2

June-July-August

Independent Variables:

Sky condition outside temp.

*VARIES*

Dependent Variables

Cooling and lighting loads

RESULTS

Constants

Window orientation

N&S

N/A

N&S

N/A

N&S

N/A

N&S

N/A

Building model

1

2

1

2

1

2

1

2

Case 1: 25°C w/daylight

Case 2: 25°C w/o daylight

Case 3: 27°C w/daylight

Case 4: 27°C w/o daylight

Case 5: 25°C w/daylight

Case 6: 25°C w/o daylight

Case 3: 27°C w/daylight

Case 4: 27°C w/o daylight

200 150 100 50 0

400 300 200 100 0

June

July

August

June

July

August

June

July

August

June

July

August
