H U I L I N G

ARCHITECTURAL WORK SAMPLE

ACADEMIC WORK 1

Year: 2019 Location: Liverpool Keywords: Gallery, Preservation, Exhibition, Public, Education, Extension, Orgnization

--An extension project for RIBA London

the project provides an architectural showroom extension to RIBA headquarters in london, in line with RIBA's expansion plans, the showroom in liverpool includes a strong ongoing character, on tracks linking with the railway station, transporting traffic from all over the country architectural fragments, digitally storing them through Liverpool Palace, and providing an interesting exhibition and showing architectural techniques for preserving recreating

Liverpool Palace

S co t la n d St George's Pl

Edin

The Lyceum

h

burg Bold Street

Ma

Bold Street

nc r

ste

he

Comparison of cities selected for site location

Wa

les

th Sou

Bi

LONDON

rm

in

gh

t

Wes

am

Albion House

Port of Liverpool BuildingLiverpool

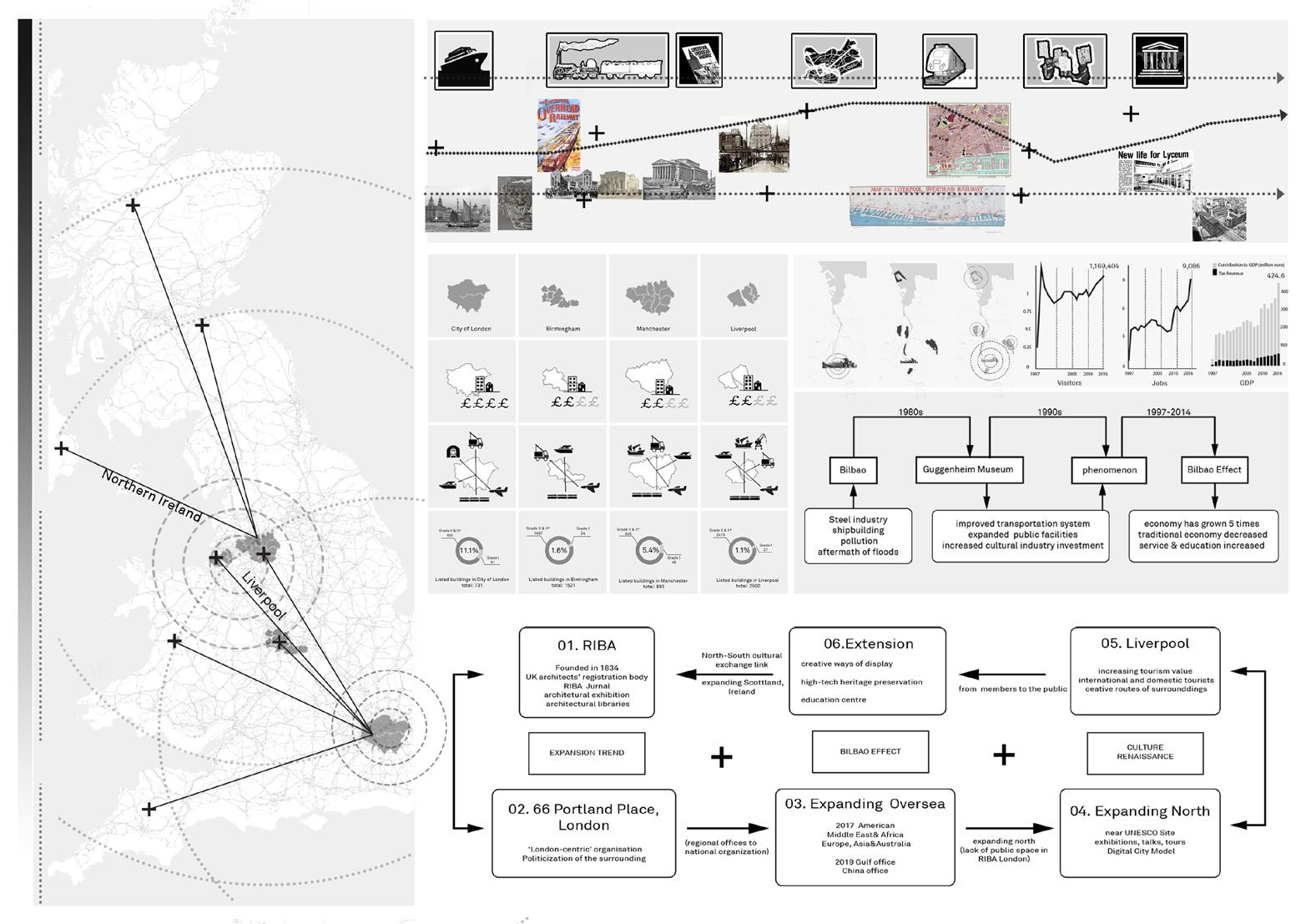

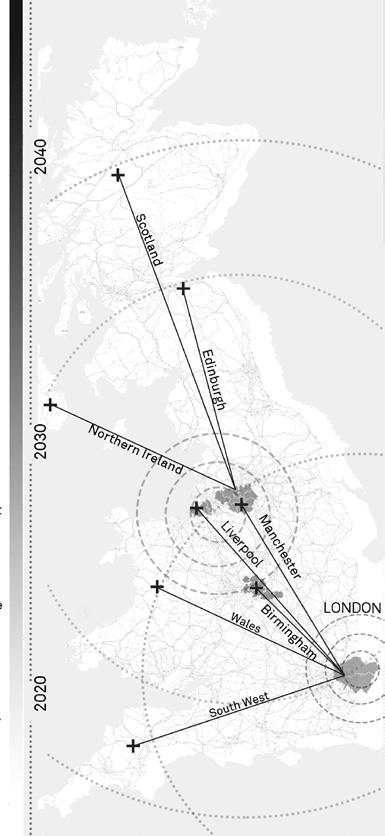

20 Year plan of RIBA: Expanding to the North

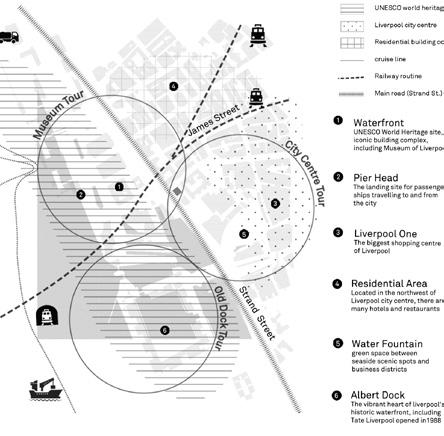

The site: Liverpool Waterfront Digital and Physical Preservation of Heritage building centre

St George's Pl

The Lyceum

Bold Street

Third Floor: Storage Room

Bold Street

Second Floor: Exhibition Cinema Storage Room

Albion House

First Floor: Second Entry Lab Conveyor System

Port of Liverpool BuildingLiverpool

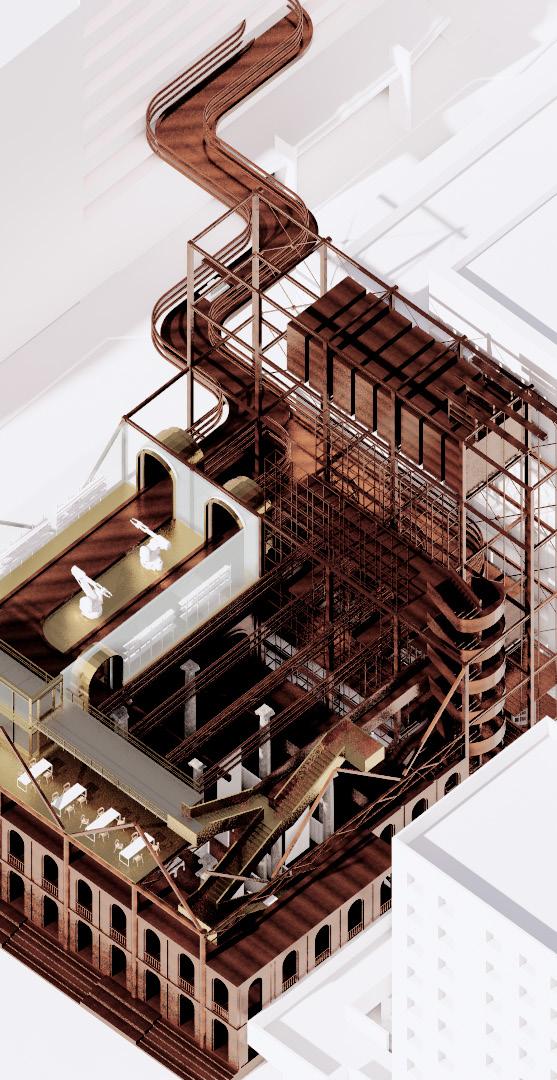

Isometric Section of First Floor Railway station-Conveyor System-Lab-Exhibition Room

Ground Floor: Entry Exhibition Loading bay

ACADEMIC WORK 2

Year: 2020 Location: Liverpool Keywords: Regeneration, Prefabricated CLT, Co-Living, Residential, masterplan

--A community-driven project for SAFE Regeneration Bootle

The purpose of this project was to regenerate the local community with non-profit organizations. In advanced, we visited the Birmingham real estate factory to learn about the new construction method. My design was to attract more young people, set up a central square that could host various activities, and build a co-living house suitable for all ages. All at once, the semi-open space on the ground floor is connected to the canal, creating a recreational space for multiple activities.

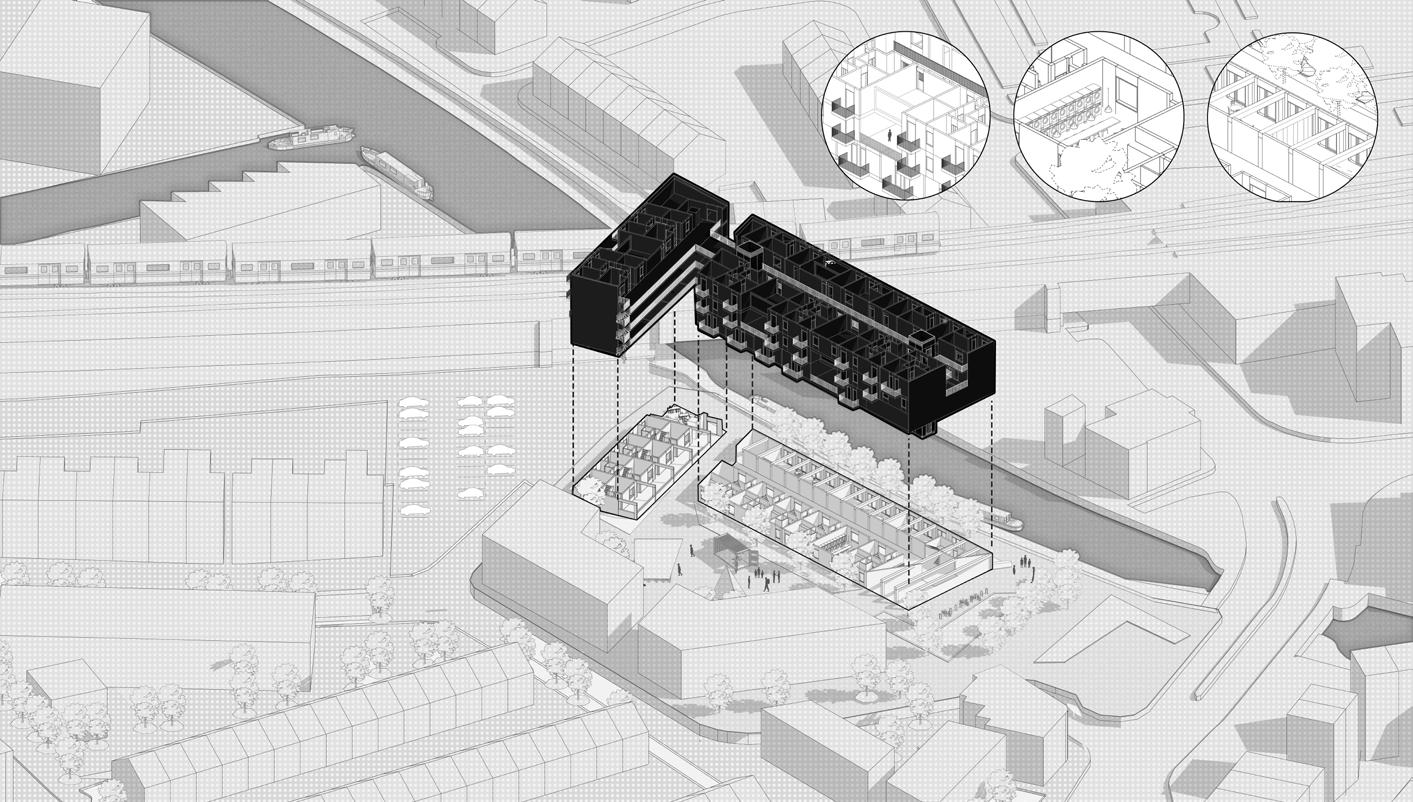

Back to Bootle

The Coutyard

Canal and Homes

Community Centre

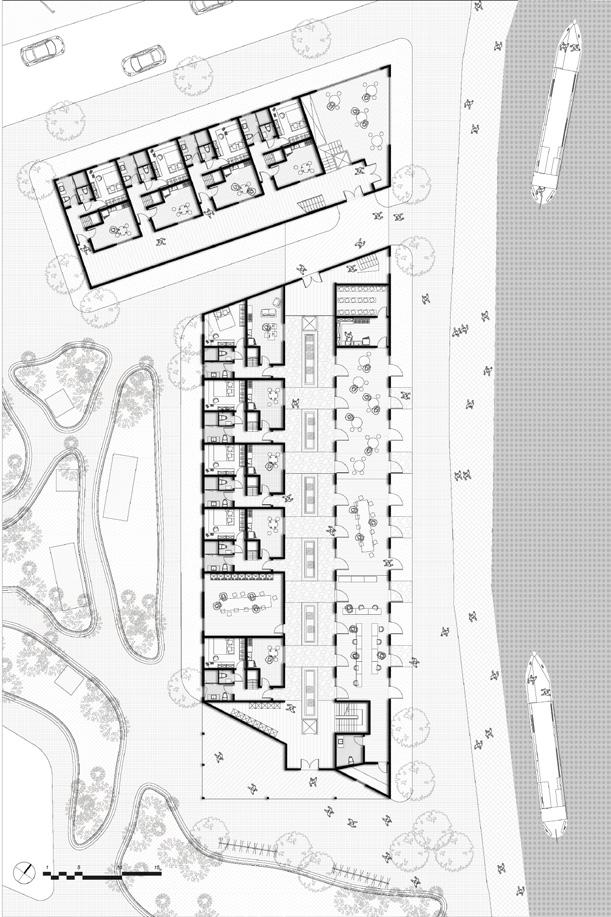

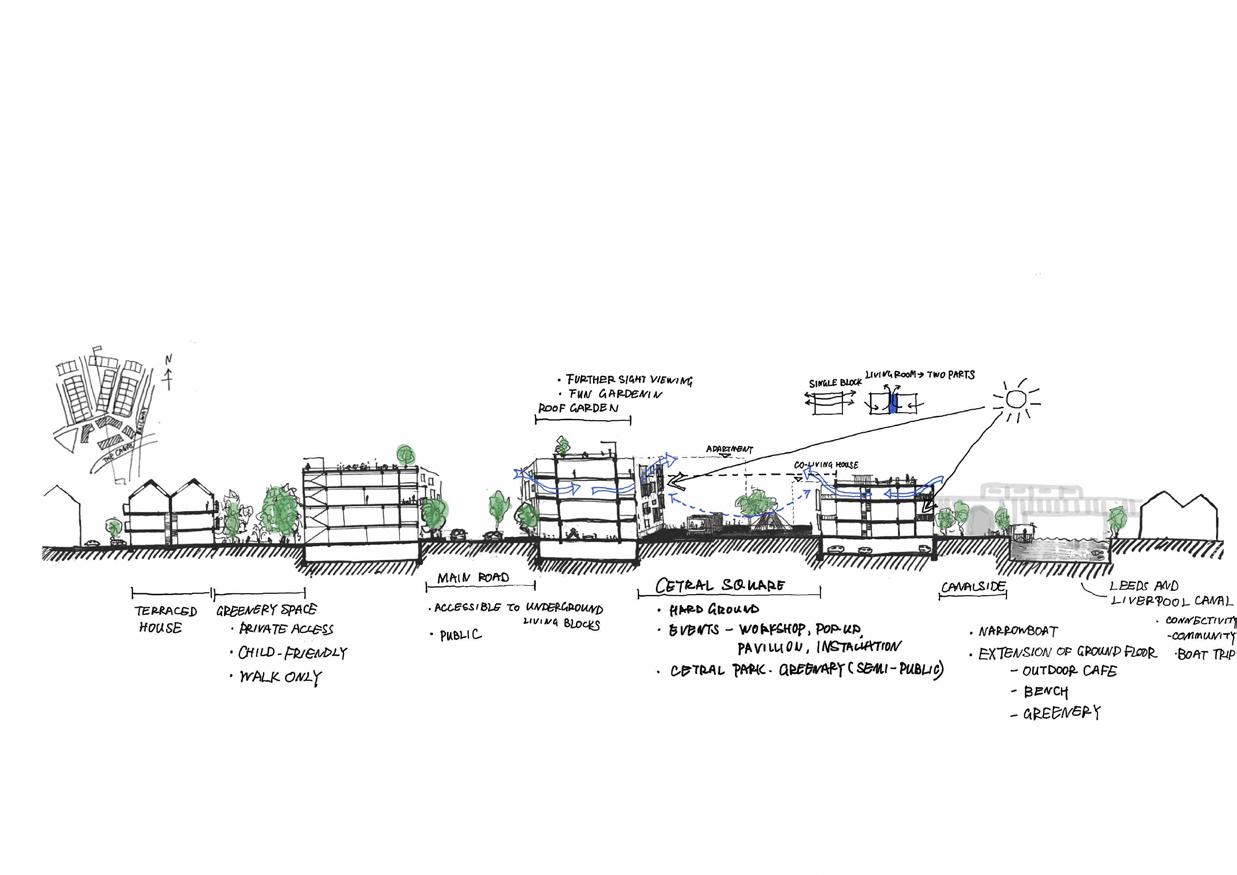

The Canal Neighborhood

ACADEMIC WORK 3

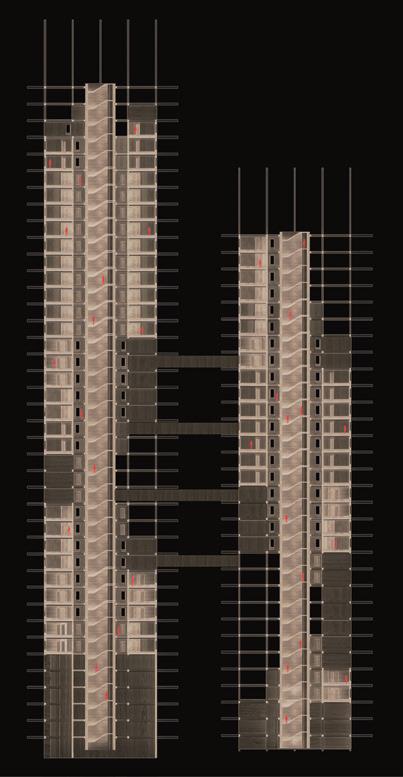

Timber City: A Future Manifesto

--An AI-enhanced high rise building project

Year: 2023 Location: Liverpool Tutors: Asterios Agkathidis Keywords: High-rise, Residencial, Skyscaper, Green building, Glulam Timber， AI-Assisted, Midjourny, Grasshoper This project focuses on designing an eco-friendly timber skyscraper that provides various residential apartments while complementing the historic commercial district in central Liverpool. The development process incorporated AI-assisted design using Midjourney, an AI visual tool, to aid in the form-finding stage, guided by concept keywords such as modularity, porosity, and wood. The project demonstrates how AI can significantly enhance efficiency during the design stage. This innovative approach blends rapidly developing modern technology with sustainable construction practices, offering a visionary model for timber high-rise buildings

Text Prompt: Modularity (Form), Accumulation(Object), Porosity, Cyberpunk (Atmosphere)

Stage 1: Massing Model and Mid-journey (Form Finding)

Stage 2: From 2D to 3D

Rhino+Grasshopper

Foundation and core Columns developed from grids

Prompt: Modularity, Accumulation, Porosity, Timber

Stage 3: AI Rendering（Materiality and Detailing）

AI enhanced form finding process (Concept-AI-Model- Materiality)

Model in GH

Columns and beams

Single to double layer

24th floor plan

22nd Floor Plan

12th Floor Plan

24th Floor Plan

23rd Floor Plan 0

6

12

18m 0

12m

18m

6m

12m

18

Centre, destination

0.7 mm Sheet Metal Ridge Cap 0.7 mm Copper Roof Shingle Brackets Screwfix 0.25 mm Metal Substrate 100 mm Thermal Insulation 150 mm Rafter 25 mm Sarking 100 mm Collar Ties

Foundation for the temporary building

Maintenance room on the ground floor

Boat Railway system connecting the building and river

1

6

5

Lake house with overhanging roof and boat railway system

2

12 mm Connecting Beam 25 mm Decking 40 mm Floor Joist 200 mm Concrete Bearer 500mm Gabion Wall Stones

3

1 Roofing 2 Storage / Maintenance room 3 Timber frame joint 4 Footing 5 Concept: the lake house and Boat railway

The Wandering Wave House

4

Foundation for a temporary building

Elevation of The Wandering Wave House

ACADEMIC WORK 4

Year: 2019 Location: Liverpool Keywords: Temporary building, Portble, Community Centre, destination

-- A portable structure designed for canal

The purpose of this project is to regenerate the local community by collaborating with a non-profit organizations. In advanced, we visited the Birmingham real estate factory to learn about the new way of prefabricated construction method. My design determites to attract more young people, set up a central square that could host various activities, and build a co-living house suitable for all ages(in the next stage). At the same time, the semi-open space of each building on the ground floor is connected to the canal, creating a recreational space for multiple activities for the local community.

Wandering Waves

PROFESSIONAL WORK 1

Lewisham Co-Living House Status: Completed Location: Lewisham, London Year: 2023 Lead Architect: Man LUO Role: Measuring, Drawing, Modelling, Rendering, Photography This project is to transform an unmodernised semi-detached Victorian house into a contemporary 6-bedroom, all ensuite coliving accommodation. The primary goal was to create a vibrant and sustainable living space that fosters community while providing modern amenities and energy-efficient solutions .

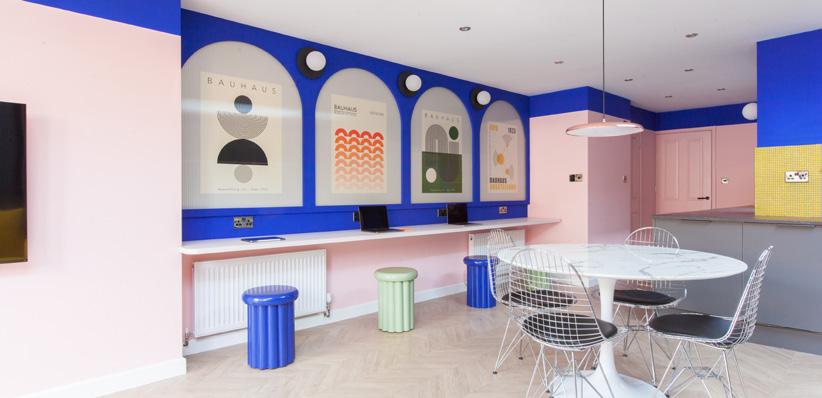

Photography: Living Room

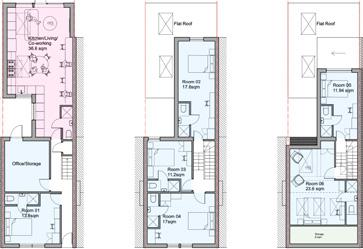

Drawing: Proposed Floor Plan

Rendering: Room 6 Loft

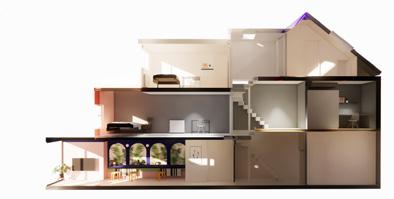

Modelling: Proposed Cross Section

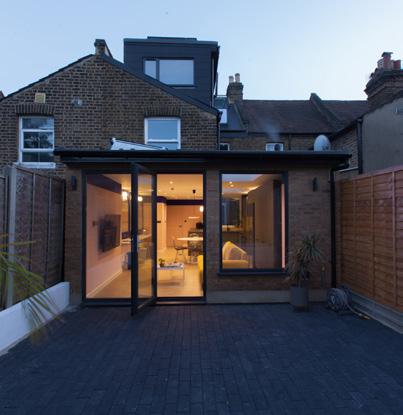

Photography: Finished Back Garden

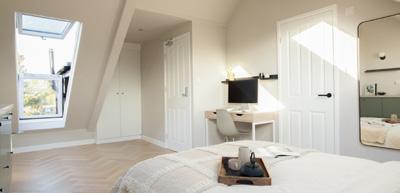

Photography: Room 6 Loft

PROFESSIONAL WORK 2

Shaxi Bai Ethnicity Bookstore Status: Completed Location: Yunnan, China Year: 2022 Lead Architect: Yinwu HUANG Role: Modelling, Rendering, Diagram, Photography Located to the north-east of Shaxi Temple Deng Street is the village of Beilong, a village that is a 20-minute walk from the main tourist attraction and has become an integral part of Shaxi's cultural exchange. Pioneer Bookshop, from Nanjing, has been building village bookshops in rural areas across China for ten years hoping to bring reading to the villages and at the same time bring the Bilbao effect to the area.

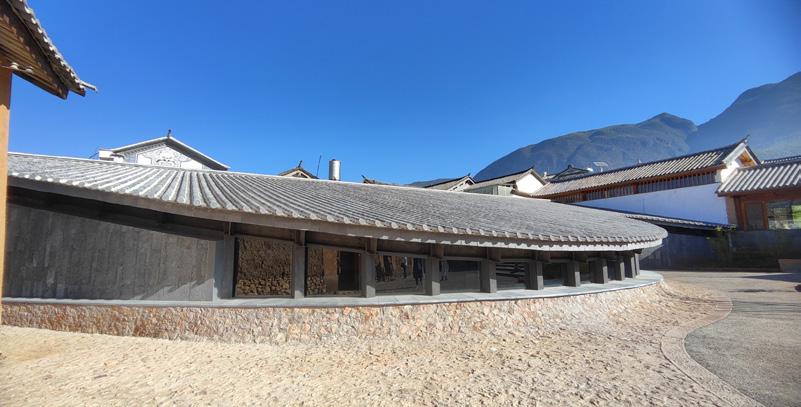

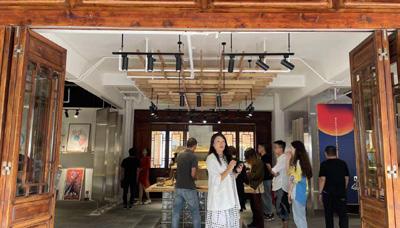

Photography: Finished Interior Drawing and Modelling: West and East Elevations

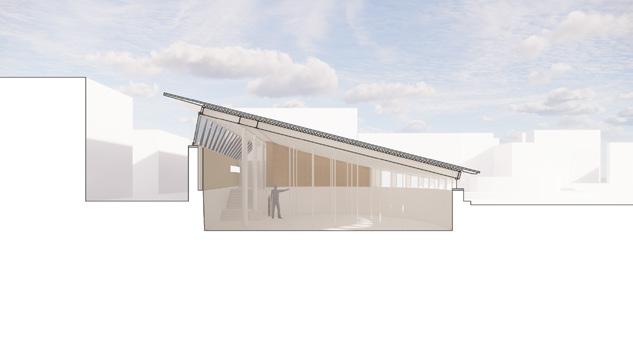

Diagram: Section

Drawing: Site Plan

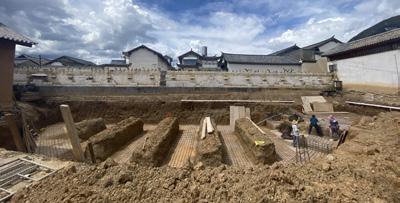

Photography: Site in the early stage

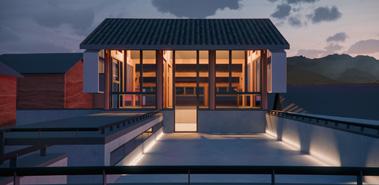

Rendering: Nighttime in the village

PROFESSIONAL WORK 3

Interior renovation: Lijiang Jewllery shop Status: Completed Location: Yunnan, China Year: 2021 Lead Architect: Xiaojie DENG Role: Design, Drawing, Modelling For the original design brand's new shop in Lijiang Old Town, we used lower cost glass bricks, concrete pillars and eco-friendly wood panels at the request of our client. The whole space is bright and smooth, allowing customers to find their favorite accessories among the translucent bricks.

Design and Drawing: Proposal and priciple

Modelling: Layout and Matriality

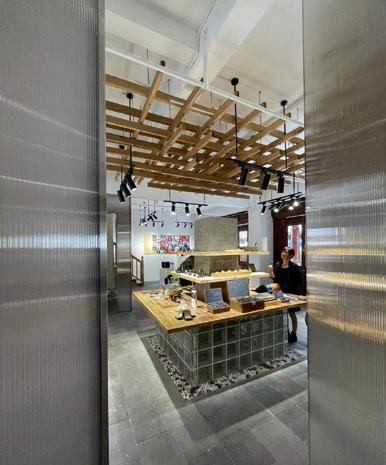

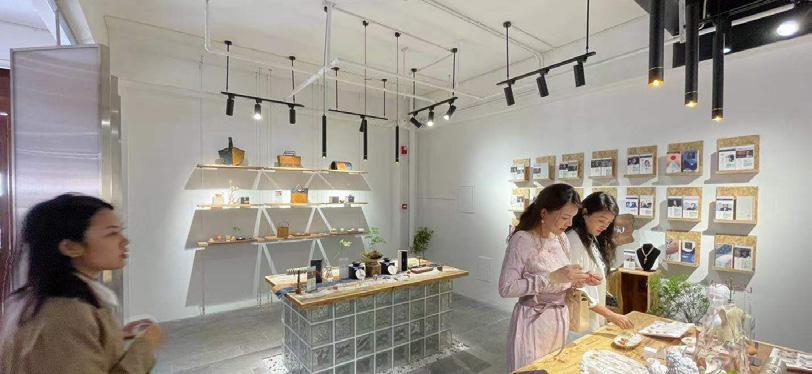

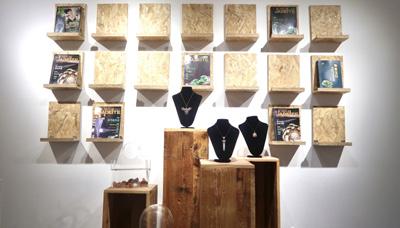

Finished Project
