3 axis CNC Router

1325 Woodworking 4×8 CNC Router With ATC ATC is refer to Automatic Tool Changer. 4 X 8 CNC Router With ATC is a type of CNC machine with automatic tool changer spindle, the spindle usually carries tools magazine of 6 cutters or 8 cutters or 10 cutters or 12 cutters.

The A high quality wood cnc router atc is mainly used for 2D/3D machining of woodworking, cabinet making, door making, mold making, wood arts, wood crafts. Now the best ATC CNC router for sale at cost price.

4 x 8 CNC Router With ATC Features: 1) The 1325 4 x 8 cnc router with atc with 8pcs linear type automatic tool changer system, meet customer’s different working requirements. 10pcs, 12pcs or more magazines are optional

2) The Wood Router Auto Tool Changer Machine with vacuum table and powerful vacuum pump, allows you to hold the work-piece on the surface of the table automatically, increases working efficiency.

3) Low noise during spindle operation, fine working environment.

4) Equipped with High-quality accessories, allows the machine to work 24 hours a day continuously.

5) Easy to learn and operate, we will offer special educational video and other educational materials in English.

4 x 8 CNC Router With ATC Applications Materials 1. Woodworking: Wooden door and furniture, windows, tables and chairs, cabinets and panels, 3D wave plate, MDF, computer desk, Musical instruments, etc 2. Advertising: Billboard, logo, sign, 3D characters cutting, acrylic cutting, LED/neon channel, literal- hole cut, lightbox mold, stamp, mould

Best CNC Wood Router with ATC Tool Changer The ATC CNC machine can complete multiple and complex woodworking processes at one operation. It can realize cutting, carving, engraving, drilling, routing, grooving, and pocketing of wood, MDF, acrylic, PVC, plastic, foam, stone, soft metal and other materials. It is also called ATC CNC wood carving machine, wood engraving machine. Basic type 3 Axis ATC CNC can be upgraded to be 4 Axis, 5 Axis, Routary type, etc.

There are two kinds of tool changing type for the atc cnc router machine.

1. Straight line tool changer, economical and practical. The tool bank is installed in the bottom of gantry, the tools handle is arranged side by side, and all the tools are put out by the tool bank. The tool is selected by the spindle to save a suit of motor and drive device. The system can use threeaxis system.

2. Disc tool changer, the tool bank is installed on the spindle or gantry side, choosing the suit bit by rotating the disc tool bank which is driver by servo motor. The tool bank and its span is small, and more stable. It needs another sets of servo motor and drive. The system needs four axis system.

ATC CNC machinery usually requires 3 axes to complete the engraving work, called X, Y and Z. The X axis is horizontal, the Y axis is vertical, and the Z axis is perpendicular to the other two axes. The spindle holds the tool and moves along the X, Y and Z axes, following the tool path generated by the software.

In addition, there are some ATC CNC Router+4 axis engraving machines with X, Y and Z axis rotation axes (fourth axis). These CNC router engraving machines are mainly used for some cylindrical engraving and cutting work.

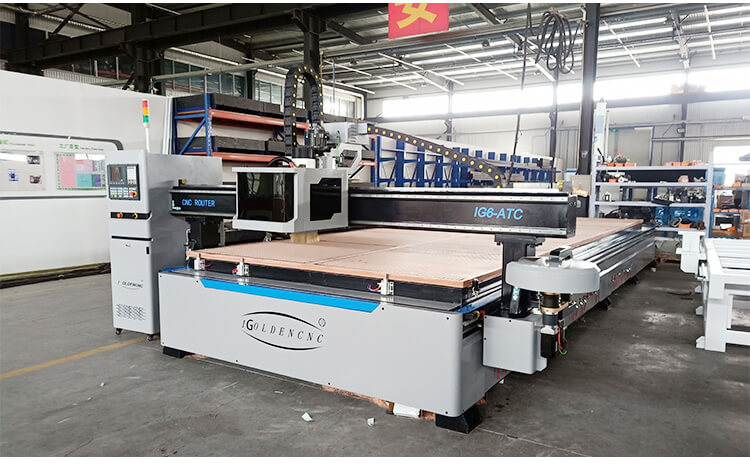

1325 atc cnc router-linear atc cnc router

Linear ATC CNC wood router with LNC control system is designed for cabinet making, door making, furniture making, home decorations, wood crafts, musical instruments, windows, and tables. Now the best linear ATC wood CNC machine for sale at affordable price.

1325 atc cnc router 1530 2030 2130 3d wood cutting machine woodworking machinery with linear or carousel tool changer.

cnc router with atc

An cnc router with atc adopts an electric spindle which automatically loosens or clamps tools by the movement of the internal cylinder. And the electric ATC spindle quickly auto changes the cutting tools without stopping work. An ordinary CNC router only adopts one cutting bit on the spindle. And the operator needs to stop the machine and then manually replaces the tool, which affects the processing efficiency in a negative way. The invention of cnc router with atc represents the most technological CNC router. It changes tools automatically and greatly saves the processing time and manpower.

Linear atc 4 axis cnc router with 8 tools

This ATC 4 Axis CNC router machine has a side carousel tool changer and a movable rotary device. The ATC function saves tool-changing time, and the 4 axis spindle can complete more complex wood carving work. This movable rotary device saves space, and it mainly for cylinder engraving, such as columns, pillars, chair legs, etc.

4 x 8 cnc router with atc 4 axis

4 axis CNC router machine is based on the ordinary 3 axis CNC machine, adding the fourth axis (rotary axis).
