BATTERY RANGE

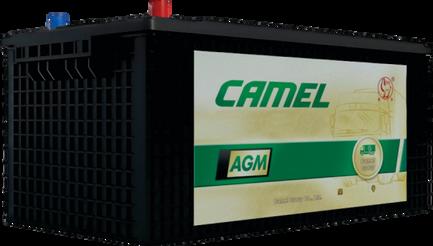

Camel AGM

Truck

and Bus Batteries

Truck/Bus AGM Batteries now available

∙ Truck/Bus AGM batteries for longer life

∙ Last up to 3 times longer than conventional Lead Acid Batteries

∙ Designed for Long Haul Trucks where overnight power is required - buses for auxiliary power and idling

∙ Anti-Vibration design ideal for Quarry Vehicles

∙ 3 Year Warranty

CAMEL batteries the best solution for trucks and buses

Product Speciﬁcations

SPECIFICATION

FEATURES

•Continuous punching technology resulting in dense Lead plates which are more corrosion-resistant.

•High strength shell material, patented shell and buckled design, as a result superior vibration resistance battery.

•Advanced lead paste formula and electrolyte design for long battery cycle life.

•New ultra-ﬁne glass ﬁber technology, tightly assembled inside the battery to prevent active material shedding.

•3 Year Warranty

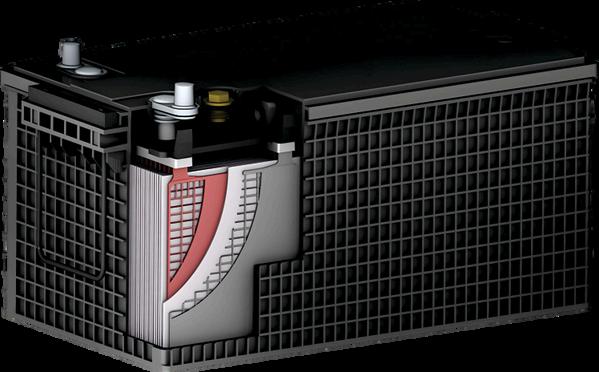

Product Structure

Grid:

Adopting continuous punching process for grid, with special alloy composition to improve the corrosion resistance of the grid.

Separator:

Adopting AGM separator and lean liquid design.

Reliable on-off valve pressure design.

Using a unique formula of power battery lead paste to ensure deep cycle life of the battery.

Plate pack buckle design:

Plate pack buckle design: Exclusive patented structural design, can effectively ﬁx the plate pack and improve the battery's vibration resistance.

Made of high-strength PP material and featuring an exclusive patented lid structure with a honeycomb like design on all sides, to avoid bulging around the walls and to thicken the walls.

Less Dense Lead Plate

Gravity cast

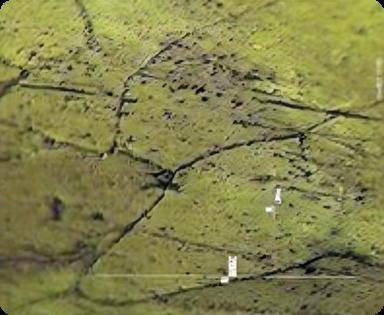

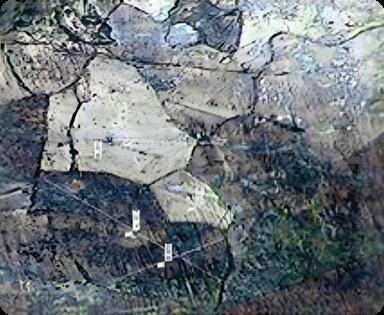

Gravity cast under microscope

Denser Lead Plate better Corrosion resistance

Continuous punching under microscope Continuous punching

Product Design - Separator

Cycle Life Design - New AGM Separator

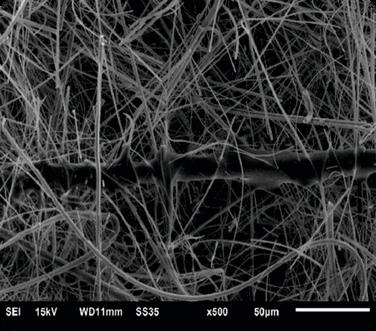

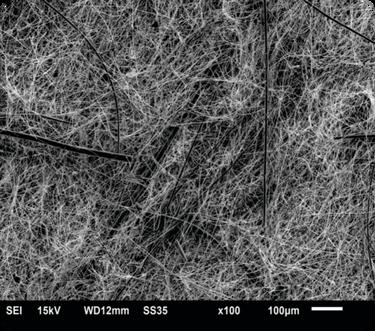

Ultra ﬁne glass ﬁber technology: high liquid absorption capacity, high resilience, and higher battery assembly pressure; Excellent battery cycle durability.

Separator design: With a compression ratio of 20% -25%, the mechanical strength of the separator is increased by 20%, and the performance of the separator is signiﬁcantly improved.

An increase in organic components in the separator enhances its strength

Physical sample of separator

Product Design - Physical Structure

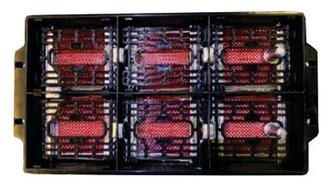

Vibration resistant design Plate group buckle design

The patented plate group buckle ﬁxture is mainly used to ﬁx the plate group and prevent damage to the plate group and strap caused by excessive vibration of the battery during usage, which may lead to premature failure of the battery

Size and installation method of plate group clip: The plate group clip is installed on the upper part of the plate group strap, The four corners of the clip are ﬁxed to the battery box cover by welding.

Drip hot melt adhesive at the junction between the upper part of the group and the partition wall, so that the electrode group can be tightly adhered to the battery slot wall, achieving the function of ﬁxing the electrode group.

Water consumption control design - exhaust plug design

Design of on-off valve pressure for exhaust plug

Through reliable valve pressure design, ensure normal exhaust during the battery life cycle and ensure that battery water loss is within the normal range
