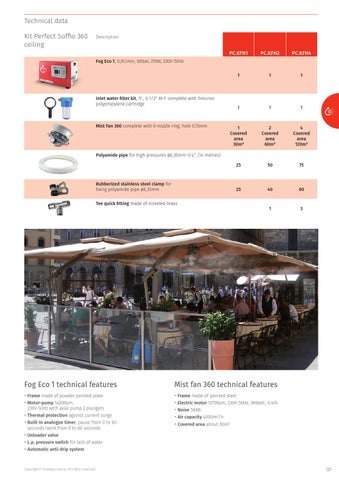

Technical data Kit Perfect Soffio 360 ceiling
Description
PC.KFH1
PC.KFH2
PC.KFH4
1
1
1
1
1
1
1 Covered area 30m²
2 Covered area 60m²
4 Covered area 120m²
25
50
75
25
40
60
1
3
Fog Eco 1, 0,9l/min, 60bar, 210W, 230V-50Hz
Inlet water filter kit, 5", G 1/2" M-F complete with 5micron polypropylene cartridge
Mist Fan 360 complete with 6-nozzle ring, hole 0,15mm
Polyamide pipe for high pressures ø6,35mm-1/4", (in metres)
Rubberized stainless steel clamp for fixing polyamide pipe ø6,35mm Tee quick fitting made of nickeled brass
Fog Eco 1 technical features
Mist fan 360 technical features
• Frame made of powder painted plate
• Frame made of painted steel
• Motor-pump 1420Rpm, 230V-50Hz with axial pump 2 plungers
• Electric motor 1375Rpm, 230V-50Hz, 96Watt, 0,47A
• Thermal protection against current surge
• Air capacity 4000m³/h
• Built-in analogue timer, pause from 0 to 60 seconds/work from 0 to 60 seconds
• Noise 59dB • Covered area about 30m²
• Unloader valve • L.p. pressure switch for lack of water • Automatic anti-drip system
