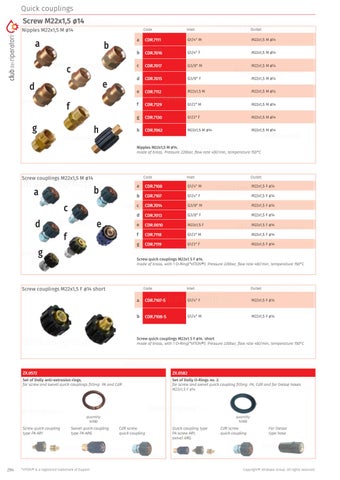

Quick couplings Screw M22x1,5 ø14
Nipples M22x1,5 M ø14
Code
a
b c
e
d f g
h
Inlet
Outlet
a
CDR.7111
G1/4" M
M22x1,5 M ø14
b
CDR.7016
G1/4" F
M22x1,5 M ø14
c
CDR.7017
G3/8" M
M22x1,5 M ø14
d
CDR.7015
G3/8" F
M22x1,5 M ø14
e
CDR.7112
M22x1,5 M
M22x1,5 M ø14
f
CDR.7129
G1/2" M
M22x1,5 M ø14
g
CDR.7130
G1/2" F
M22x1,5 M ø14
h
CDR.7062
M22x1,5 M ø14
M22x1,5 M ø14
Nipples M22x1,5 M ø14, made of brass. Pressure 220bar, flow rate 40l/min, temperature 150°C
Screw couplings M22x1,5 M ø14
Code
b
a c d
e
f
g
Inlet
Outlet
a
CDR.7108
G1/4" M
M22x1,5 F ø14
b
CDR.7107
G1/4" F
M22x1,5 F ø14
c
CDR.7014
G3/8" M
M22x1,5 F ø14
d
CDR.7013
G3/8" F
M22x1,5 F ø14
e
CDR.0010
M22x1,5 F
M22x1,5 F ø14
f
CDR.7118
G1/2" M
M22x1,5 F ø14
g
CDR.7119
G1/2" F
M22x1,5 F ø14
Screw quick couplings M22x1,5 F ø14, made of brass, with 1 O-Ring(*VITON®). Pressure 220bar, flow rate 40l/min, temperature 150°C
Screw couplings M22x1,5 F ø14 short
Code
Inlet
Outlet
a
CDR.7107-S
G1/4" F
M22x1,5 F ø14
b
CDR.7108-S
G1/4" M
M22x1,5 F ø14
Screw quick couplings M22x1,5 F ø14, short made of brass, with 1 O-Ring(*VITON®). Pressure 220bar, flow rate 40l/min, temperature 150°C
ZX.0572
ZX.0582
Set of Dolly anti-extrusion rings, for screw and swivel quick couplings fitting: PA and CdR
Set of Dolly O-Rings no. 2, for screw and swivel quick coupling fitting: PA, CdR and for Diesse hoses M22x1,5 F ø14
quantity 1x100
quantity 1x100
Screw quick coupling type PA AR1
294
Swivel quick coupling type PA ARG
*VITON® is a registered trademark of Dupont
CdR screw quick coupling
Quick coupling type PA screw AR1, swivel ARG
CdR screw quick coupling
For Diesse type hose
