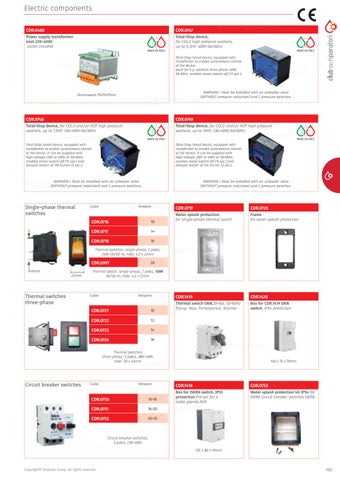

The Catalogue of Solutions 2017/18

Page 193

Electric components Electric components CDR.0747

CDR.0480 Power supply transformer inlet 220-400V, outlet 24V40VA

MADE IN ITALY

Total-Stop device, for COLD high pressure washers, up to 5,5HP, 400V-50/60Hz

MADE IN ITALY

Total-Stop timed device, equipped with transformer to enable autonomous control of the device. Ideal for h.p. washers three-phase 400V, 50-60Hz, enables motor switch-off (15 sec.).

WARNING ! Must be installed with an unloader valve (WITHOUT pressure reduction) and 2 pressure switches.

Dimensions 77x77x77mm

CDR.0748

CDR.0749

Total-Stop device, for COLD and/or HOT high pressure washers, up to 7,5HP, 230-400V-50/60Hz

Total-Stop device, for COLD and/or HOT high pressure washers, up to 10HP, 230-400V-50/60Hz MADE IN ITALY

Total-Stop timed device, equipped with transformer to enable autonomous control of the device. It can be supplied with high voltage 230V or 400V at 50-60Hz, enables motor switch-off (15 sec.) and delayed restart of the burner (3 sec.).

MADE IN ITALY

Total-Stop timed device, equipped with transformer to enable autonomous control of the device. It can be supplied with high voltage 230V or 400V at 50-60Hz, enables motor switch-off (15 sec.) and delayed restart of the burner (3 sec.).

WARNING ! Must be installed with an unloader valve (WITHOUT pressure reduction) and 2 pressure switches.

Single-phase thermal switches

Code

WARNING ! Must be installed with an unloader valve (WITHOUT pressure reduction) and 2 pressure switches.

Ampere

CDR.0716

10

CDR.0717

14

CDR.0718

16

CDR.0719

CDR.0720

Water splash protection for single-phase thermal switch

Frame for water splash protection

Thermal switches, single-phase, 2 poles, 240V 50/60 Hz, hole: 4,5 x 22mm

CDR.0997 45mm

22mm

Thermal switches three-phase

20

Thermal switch, single-phase, 2 poles, 120V 50/60 Hz, hole: 4,5 x 22mm

Code

Ampere

CDR.0721

10

CDR.0722

12

CDR.0723

14

CDR.0724

16

CDR.1419

CDR.1420

Thermal switch OKN,10-16A, 50-60Hz fitting: Wap, Portotecnica, Kärcher

Box for CDR.1419 OKN switch, IP54 protection

Thermal switches three-phase, 3 poles, 380-400V hole: 50 x 45mm

Circuit breaker switches

Code

Ampere

CDR.0750

10-16

CDR.0751

16-20

CDR.0752

20-25

140 x 75 x 70mm

CDR.1418

CDR.0753

Box for ISKRA switch, IP55 protection.Pre-set for 4 cable glands M25

Water splash protection kit IP54 for ISKRA Circuit breaker switches ISKRA

Circuit breaker switches, 3 poles, 230-400V 135 x 80 x 95mm

Copyright© Idrobase Group. All rights reserved.

193
