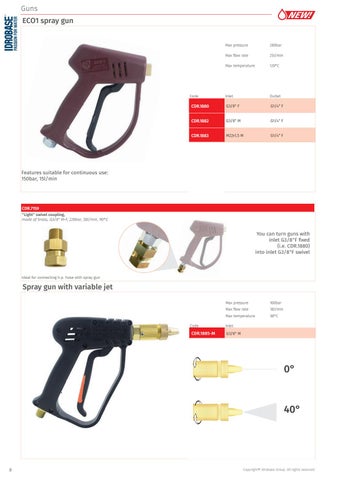

Guns ECO1 spray gun Max pressure
280bar
Max flow rate
25l/min
Max temperature
120°C
Inlet
Outlet
CDR.1880
G3/8" F
G1/4" F
CDR.1882
G3/8" M
G1/4" F
CDR.1883
M22x1,5 M
G1/4" F
Code
Features suitable for continuous use: 150bar, 15l/min
CDR.7159
"Light" swivel coupling, made of brass, G3/8" M-F, 220bar, 30l/min, 90°C
You can turn guns with inlet G3/8"F fixed (i.e. CDR.1880) into inlet G3/8"F swivel
Ideal for connecting h.p. hose with spray gun
Spray gun with variable jet
Code
CDR.1885-M
Max pressure
100bar
Max flow rate
18l/min
Max temperature
30°C
Inlet
G3/8" M
0° 40°
8
