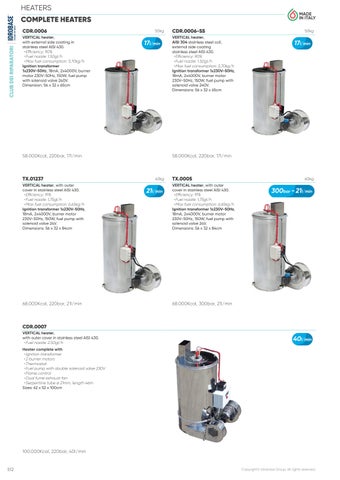

HEATERS COMPLETE HEATERS
CLUB DEI RIPARATORI
CDR.0006 VERTICAL heater, with external side coating in stainless steel AISI 430. • Efficiency: 90% • Fuel nozzle: 1.50gl/h • Max fuel consumption: 5,70kg/h Ignition transformer 1x230V-50Hz, 18mA, 2x4000V, burner motor 230V-50Hz, 150W, fuel pump with solenoid valve 240V. Dimension: 56 x 32 x 65cm
50kg
17l/min
58.000Kcal, 220bar, 17l/min
TX.01237 VERTICAL heater, with outer cover in stainless steel AISI 430. • Efficiency: 91% • Fuel nozzle: 1,75gl/h • Max fuel consumption: 6,65kg/h Ignition transformer 1x230V-50Hz, 18mA, 2x4000V, burner motor 230V-50Hz, 150W, fuel pump with solenoid valve 24V. Dimensions: 56 x 32 x 84cm
68.000Kcal, 220bar, 21l/min
CDR.0006-SS VERTICAL heater, AISI 304 stainless steel coil, external side coating stainless steel AISI 430. • Efficiency: 90% • Fuel nozzle: 1.50gl/h • Max fuel consumption: 5,70kg/h Ignition transformer 1x230V-50Hz, 18mA, 2x4000V, burner motor 230V-50Hz, 150W, fuel pump with solenoid valve 240V. Dimensions: 56 x 32 x 65cm
50kg
17l/min
58.000Kcal, 220bar, 17l/min
63kg
21l/min
TX.0005 VERTICAL heater, with outer cover in stainless steel AISI 430. • Efficiency: 91% • Fuel nozzle: 1,75gl/h • Max fuel consumption: 6,65kg/h Ignition transformer 1x230V-50Hz, 18mA, 2x4000V, burner motor 230V-50Hz, 150W, fuel pump with solenoid valve 24V. Dimensions: 56 x 32 x 84cm
60kg
300bar - 21l/min
68.000Kcal, 300bar, 21l/min
CDR.0007 VERTICAL heater, with outer cover in stainless steel AISI 430. • Fuel nozzle: 2.50gl/h
40l/min
Heater complete with • Ignition transformer • 2 burner motors • Thermostat • Fuel pump with double solenoid valve 230V • Flame control • Dual fume exhaust fan • Serpentine tube ø 21mm, length 46m Sizes: 62 x 52 x 100cm
100.000Kcal, 220bar, 40l/min
512
