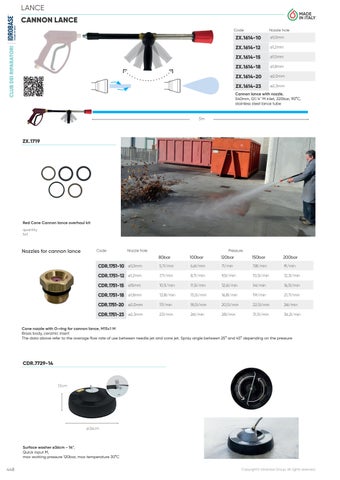

LANCE CANNON LANCE Nozzle hole
ZX.1614-10
ø1,0mm
ZX.1614-12
ø1,2mm
ZX.1614-15
ø1,5mm
ZX.1614-18
ø1,8mm
ZX.1614-20
ø2,0mm
ZX.1614-23
ø2,3mm
CLUB DEI RIPARATORI
Code
Cannon lance with nozzle, 540mm, G1/4" M inlet, 220bar, 90°C, stainless steel lance tube
5m
ZX.1719
Red Cone Cannon lance overhaul kit quantity 5x1
Nozzles for cannon lance
Code
Nozzle hole
Pressure
80bar
100bar
120bar
150bar
200bar
CDR.1751-10
ø1,0mm
5,7l/min
6,6l/min
7l/min
7,8l/min
9l/min
CDR.1751-12
ø1,2mm
7,7l/min
8,7l/min
9,5l/min
10,5l/min
12,3l/min
CDR.1751-15
ø15mm
10,1l/min
11,5l/min
12,6l/min
14l/min
16,5l/min
CDR.1751-18
ø1,8mm
13,8l/min
15,5l/min
16,8l/min
19l/min
21,7l/min
CDR.1751-20
ø2,0mm
17l/min
18,5l/min
20,5l/min
22,5l/min
26l/min
CDR.1751-23
ø2,3mm
23l/min
26l/min
28l/min
31,5l/min
36,2l/min
Cone nozzle with O-ring for cannon lance, M15x1 M Brass body, ceramic insert The data above refer to the average flow rate of use between needle jet and cone jet. Spray angle between 25° and 45° depending on the pressure
CDR.7729-14
13cm
ø36cm
Surface washer ø36cm - 14", Quick input M, max working pressure 120bar, max temperature 30°C
448
