Catalogue_2023-24_EN

Page 166

16 Nozzles 450 Drives/

50L tank

Pressure 60bar

Arch for people sanitization 1

7

OPTIONAL

4

Medical Surgical Device

2

5

CDR.2023-25 Idro Safe - 25L

8

3

Disinfectant bacterial virucidal

6

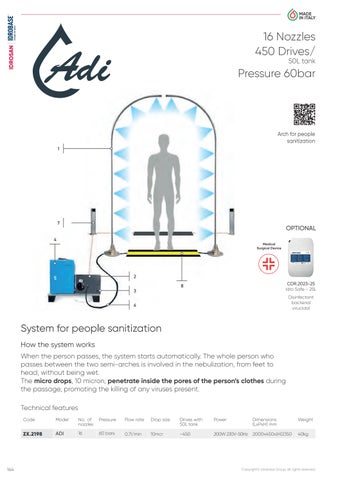

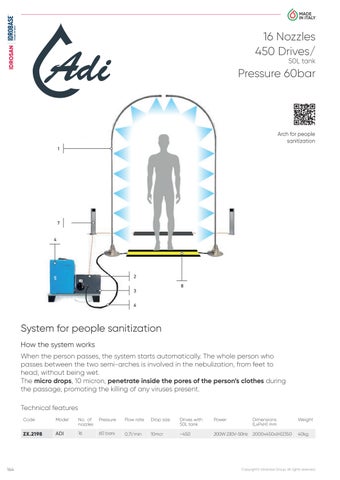

System for people sanitization How the system works When the person passes, the system starts automatically. The whole person who passes between the two semi-arches is involved in the nebulization, from feet to head, without being wet. The micro drops, 10 micron, penetrate inside the pores of the person’s clothes during the passage, promoting the killing of any viruses present. Technical features

164

Code

Model

No. of nozzles

Pressure

Flow rate

Drop size

Drives with 50L tank

Power

Dimensions (LxPxH) mm

Weight

ZX.2198

ADI

16

60 bars

0,7l/min

10mcr

~450

200W 230V-50Hz

2000x450x(H)2350

40kg
