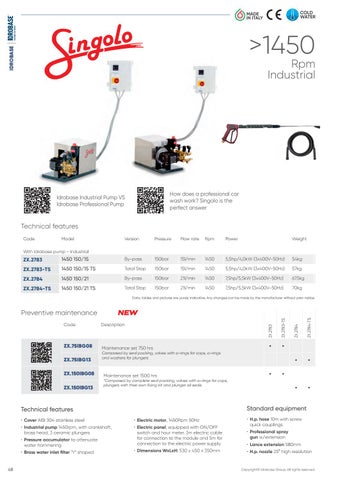

SINGOLO
IDROBASE
>1450 Rpm Industrial
How does a professional car wash work? Singolo is the perfect answer
Idrobase Industrial Pump VS Idrobase Professional Pump
Technical features Code
Model
Version
Pressure
Flow rate
Rpm
Power
Weight
With Idrobase pump - Industrial
ZX.2783
1450 150/15
By-pass
150bar
15l/min
1450
5,5hp/4,0kW (3x400V-50Hz)
54kg
ZX.2783-TS
1450 150/15 TS
Total Stop
150bar
15l/min
1450
5,5hp/4,0kW (3x400V-50Hz)
57kg
ZX.2784
1450 150/21
By-pass
150bar
21l/min
1450
7,5hp/5,5kW (3x400V-50Hz)
67.5kg
ZX.2784-TS
1450 150/21 TS
Total Stop
150bar
21l/min
1450
7,5hp/5,5kW (3x400V-50Hz)
70kg
Data, tables and pictures are purely indicative. Any changes can be made by the manufacturer without prior notice.
ZX.150IBG08 ZX.150IBG13
Maintenance set 1500 hrs
*Composed by complete seal packing, valves with o-rings for caps, plungers with their own fixing kit and plunger oil seals
• Cover AISI 304 stainless steel
• Electric motor, 1450Rpm 50Hz
• Industrial pump 1450rpm, with crankshaft, brass head, 3 ceramic plungers
• Electric panel, equipped with ON/OFF switch and hour meter. 3m electric cable for connection to the module and 5m for connection to the electric power supply
• Brass water inlet filter "Y" shaped
68
•
•
•
•
•
•
•
Standard equipment
Technical features
• Pressure accumulator to attenuate water hammering
•
ZX.2784-TS
ZX.75IBG13
Maintenance set 750 hrs
Composed by seal packing, valves with o-rings for caps, o-rings and washers for plungers
ZX.2784
ZX.75IBG08
Description
ZX.2783-TS
Code
ZX.2783
Preventive maintenance
• Dimensions WxLxH: 530 x 450 x 350mm
• H.p. hose 10m with screw quick couplings • Professional spray gun w/extension • Lance extension 580mm • H.p. nozzle 25° high resolution
